Introduction
Before You Begin
Befor
e using this product, please read these instructions carefully. You will also
need to consult the documentation provided with the camera.
• This lens is intended exclusively for use with mirrorless cameras featuring a
Nikon Z mount.
• Update the camera fir
mware to the latest version. With earlier versions, the
camera may fail to detect the lens correctly and some features may not be
available. The latest version of the camera firmware can be downloaded from
the Nikon Download Center at the URL below.
https://downloadcenter.nikonimglib.com/
No reproduction in any for
m of this document, in whole or in part (except
for brief quotation in critical articles or reviews), may be made without written
authorization from NIKON CORPORATION.
4
Before You Begin
ForYourSafety
To prev
ent damage to property or injury to yourself or to others, read “For Your
Safety” in its entirety before using this product.
After reading these safety instructions, keep them readily accessible for future
reference.
WARNING: Failure t
o observe the precautions marked with this
icon could result in death or severe injury.
CAUTION: Failure t
o observe the precautions marked with this
icon could result in injury or property damage.
WARNING
Do not disassemble or modify this product. Do not touch internal parts
that become exposed as the r
esult of a fall or other accident.
F
ailure to observe these precautions could result in electric shock or other
injury.
Should you notice any abnormalities such as the product producing
smoke, heat, or unusual odors, immediately disconnect the camera power
source.
Continued operation could result in fire, burns or other injury.
Keep dry.Do not handle with wet hands.
Failure to observe these precautions could result in fire or electric shock.
Do not use this product in the presence of flammable dust or gas such as
propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
5
ForYourSafety
WARNING
Do not directly view the sun or other bright light source through the lens.
F
ailure t
o observe this precaution could result in visual impairment.
Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction.
In addition, note that small parts constitute a choking hazard.
Should a child
swallow any part of this product, seek immediate medical attention.
Do not entangle, wrap or twist the straps around your neck.
Failure t
o observe this precaution could result in accidents.
Do not handle with bare hands in locations exposed to extremely high or
low temperatures.
Failure to observe this precaution could result in burns or frostbite.
6
ForYourSafety
CAUTION
Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens could cause fir
e or damage to pr
oduct’s internal parts.
When shooting backlit subjects, keep the sun well out of the frame. Sunlight
focused into the camera when the sun is close to the frame could cause fire.
Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed automobile
or in direct sunlight.
Failure to observe this precaution could result in fire or product malfunction.
Do not transport cameras or lenses with tripods or similar accessories
attached.
Failure to observe this precaution could result in injury or product malfunction.
Keep the product at least 5 cm (2.0 in.) from pacemakers and other
medical devices.
Medical devices in close proximity could be affected by the magnet or magnets
in the product.
7
ForYourSafety
Using the Lens
Partso
ftheLens: NamesandFunctions

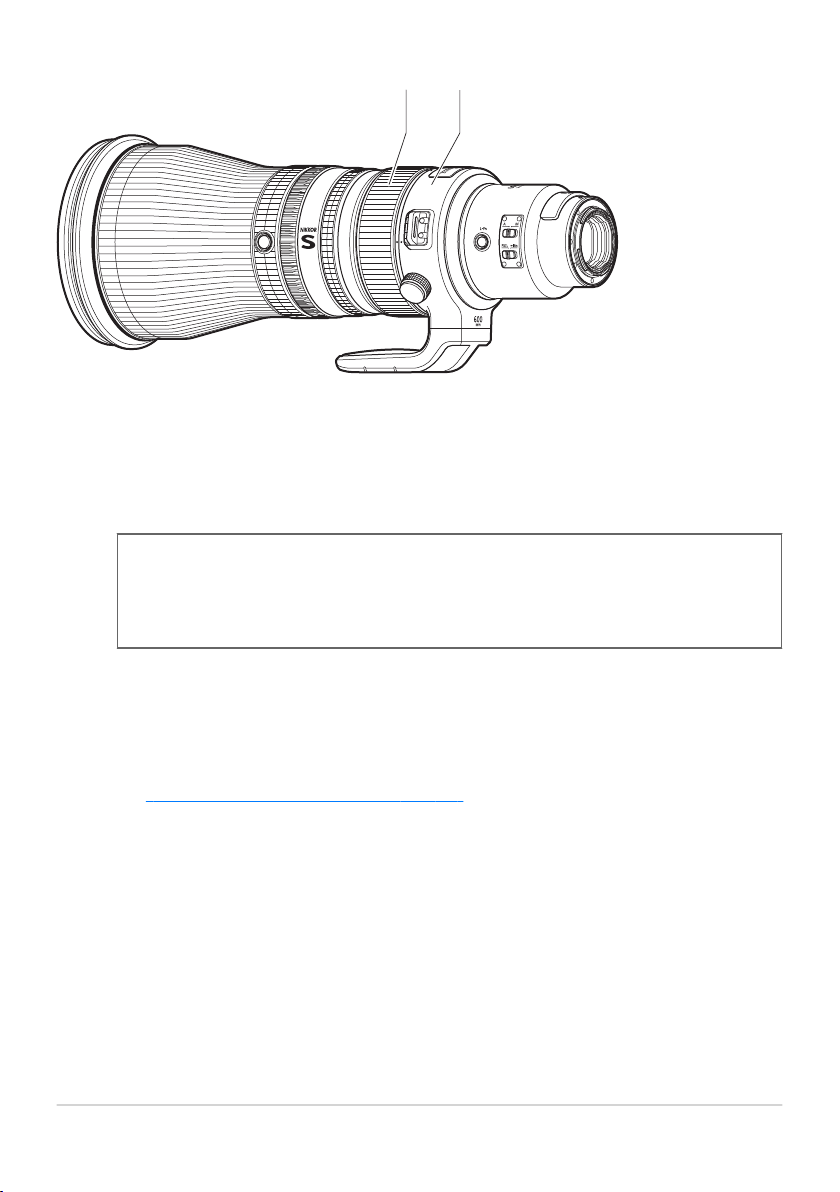

The parts of the lens are listed below.
1 2

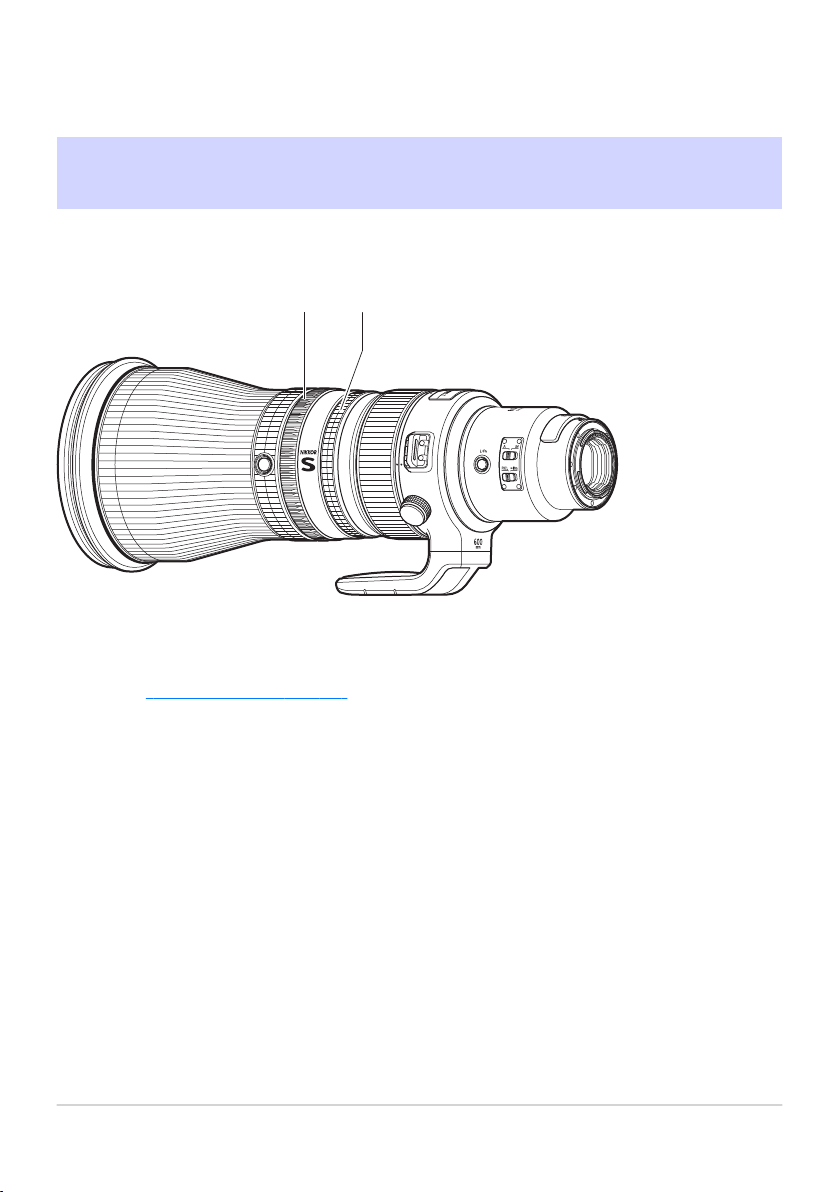

Fn ring
Rotate t
o instantly recall a stored focus position (“memory recall”).
0
“Memory Recall” (p.29)
Control ring
R
otate to adjust a setting such as [Aperture] or [Exposure compensation]
assigned using the camera. For more information, see the description of
[Custom control assignment], [Custom controls], or [Custom controls
(shooting)] in the documentation provided with the camera.
8
PartsoftheLens: NamesandFunctions
1
2
3 4
Focus ring
Use for manual focus.
• When focusing using autofocus, you can adjust focus manually by
rotating the ring while the shutter
-release button is pressed halfway.
DFocus
Due to the design of the focus system, shaking the lens while the camera
is off may cause it to rattle; this does not indicate a malfunction.
Tripod collar ring
The camera can be rotated between “wide” and “tall” orientations when a
tripod is attached to the tripod collar.
0
“Using the Tripod Collar Ring” (p.36)
9
PartsoftheLens: NamesandFunctions
3
4
7 8 9

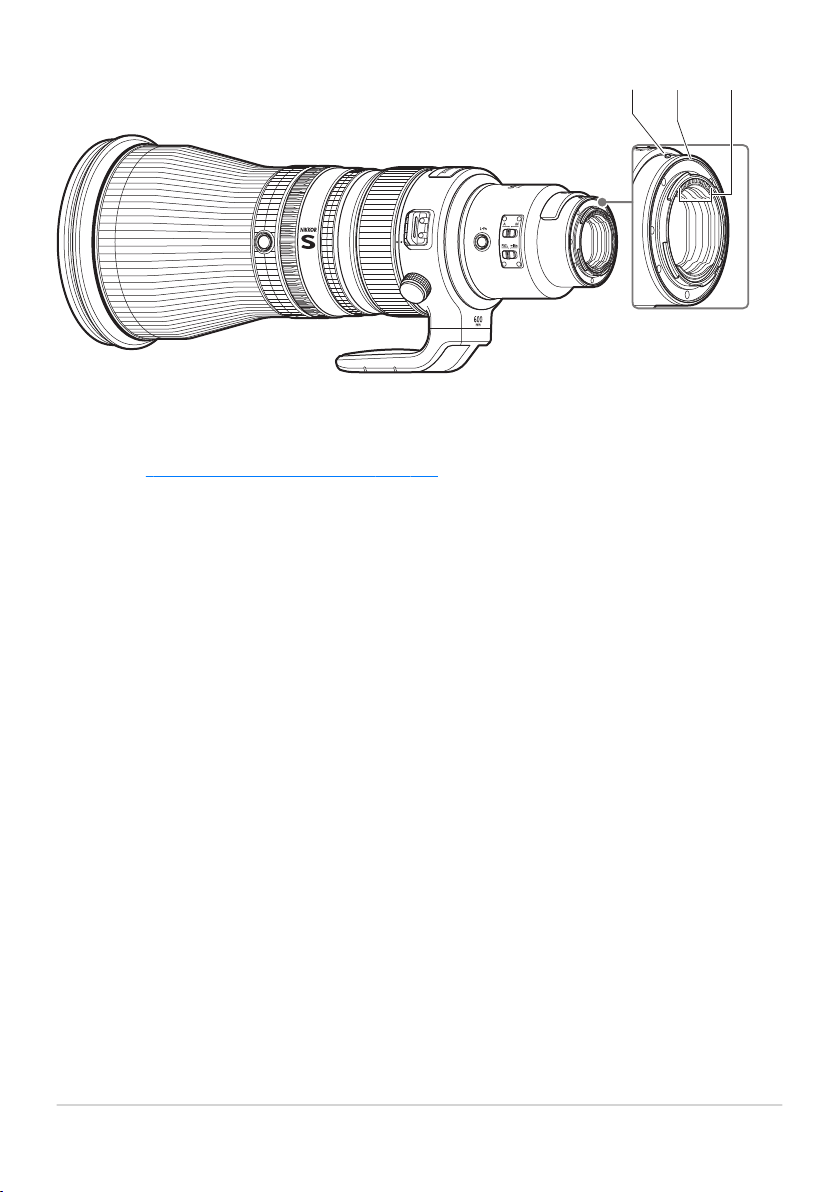

Lens mounting mark
Use when mounting the lens on the camera.
0“Attachment and Removal” (p.20)
Rubber lens-mount gasket
Helps prev
ent the ingress of water droplets or dust along the surfaces
where the lens and camera meet when the lens is mounted on the
camera.
*
There is no guarantee that the gasket is completely proof against the
ingress of water droplets or dust in all circumstances.
CPU contacts
Used to transfer data to and from the camera.
11
PartsoftheLens: NamesandFunctions
7
8
*
9
10 11

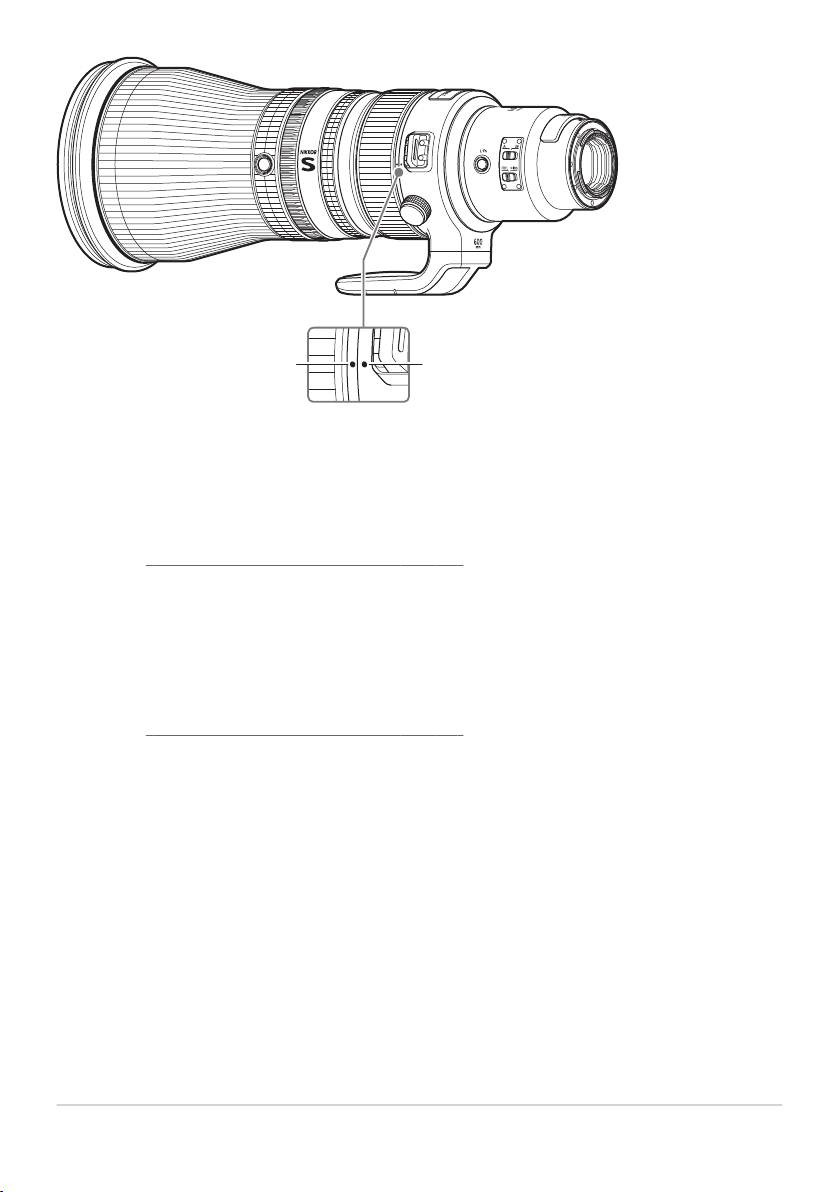

Lens rotation indices
Use when r
otating the camera t
o shoot in landscape (“wide”) or por
trait
(“tall”) orientation. There are four indices positioned around the lens at 90º
intervals.
0
“Using the Tripod Collar Ring” (p.36)
T
r
ipod collar r
ing rotation indices
Use when rotating the camera to shoot in landscape (“wide”) or portrait
(“tall”) orientation. There are three indices positioned around the lens at
90º intervals.
0
“Using the Tripod Collar Ring” (p.36)
12
PartsoftheLens: NamesandFunctions
10
11
12
14
13

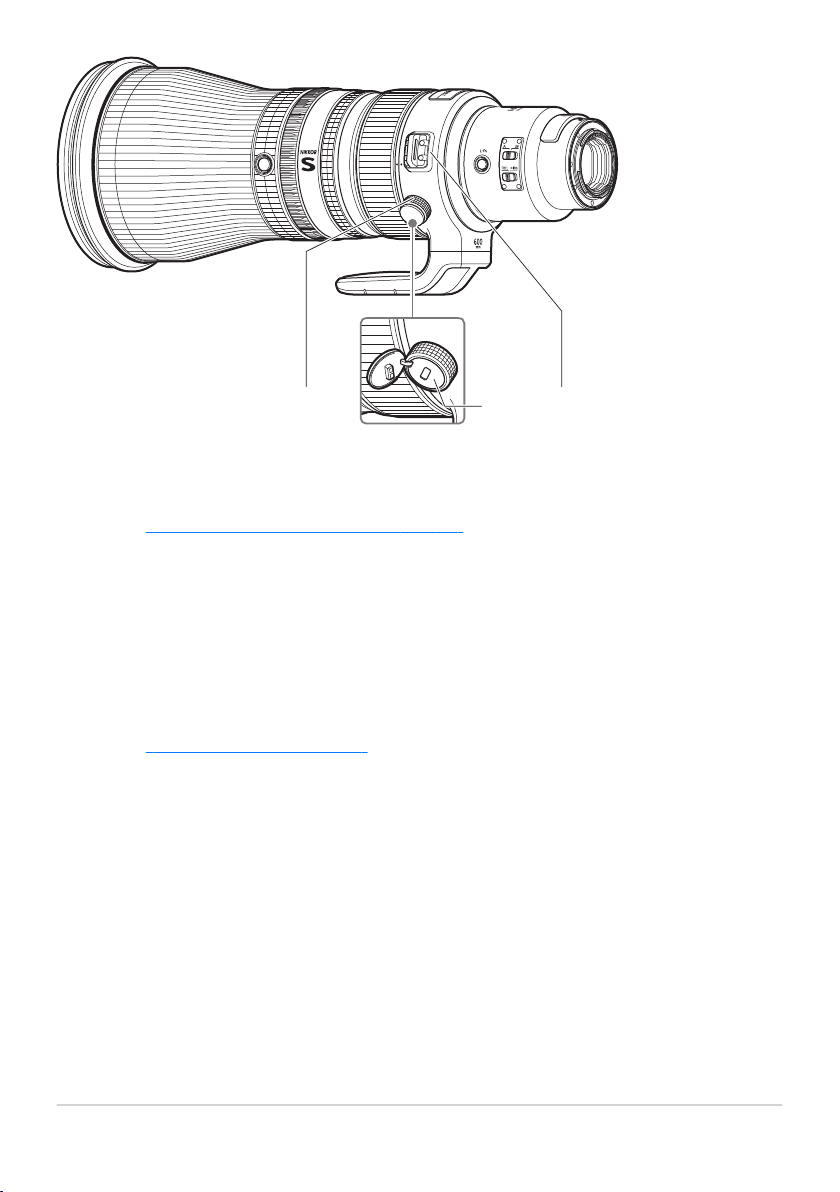

Tripod collar ring attachment screw
Fix the tripod collar ring in place.
0“Using the Tripod Collar Ring” (p.36)
Security slot (for anti-theft cable)
A
ttach a third-party anti-theft cable. For more information, see the
documentation provided with the cable.
Strap eyelet

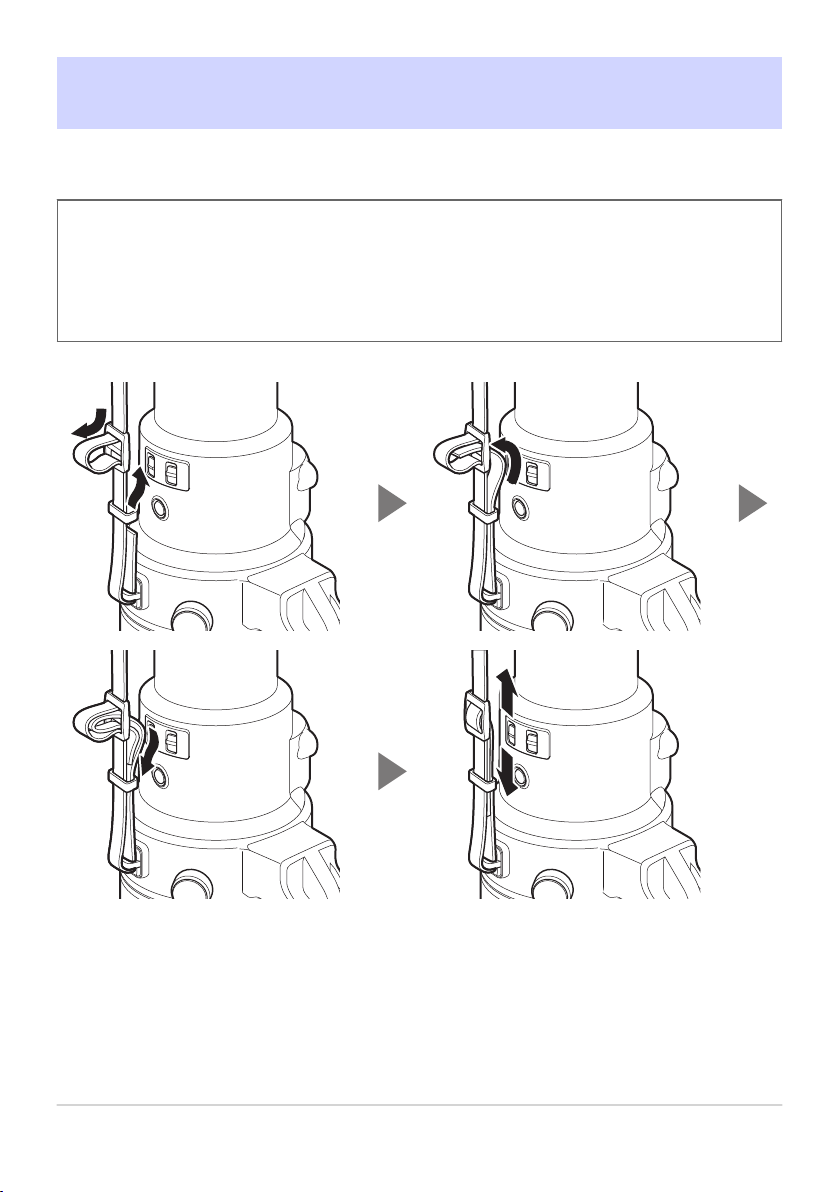

For use when attaching a strap. There are two eyelets, one on each side.
0
“Attaching a Strap” (p.27)
13
PartsoftheLens: NamesandFunctions
12
13
14
1615
L-Fn2 buttons
Press to per
form a function assigned using the camera. For more
information, see the description of [Custom control assignment],
[Custom controls], or [Custom controls (shooting)] in the documentation
provided with the camera. There are four buttons positioned around the
lens at 90º intervals.
• Should you wish to rotate the buttons, contact a Nikon-authorized
service representative.
L-Fn button
Press to perform a function assigned using the camera. For more
information, see the description of [Custom control assignment],
[Custom controls], or [Custom controls (shooting)] in the documentation
provided with the camera.
14
PartsoftheLens: NamesandFunctions
15
16
17 18
Focus limit switch
Choose the aut
o
focus range.
• FULL: Choose t
o focus on subjects at any distance between 4.3m
(14.11ft) and ∞.
• ∞ – 10m: Focus is limited to distances of 10m (32.81ft) and more.
Select this option for faster focusing if your subject will always be at
distance of at least 10m (32.81ft).
Focus-mode switch
Choose a focus mode.
• A: Autofocus
• M: Manual focus
Note that regardless of the setting chosen, focus must be adjusted
manually when manual focus mode is selected using camera controls.
15
PartsoftheLens: NamesandFunctions
17
18
19 20 21
22

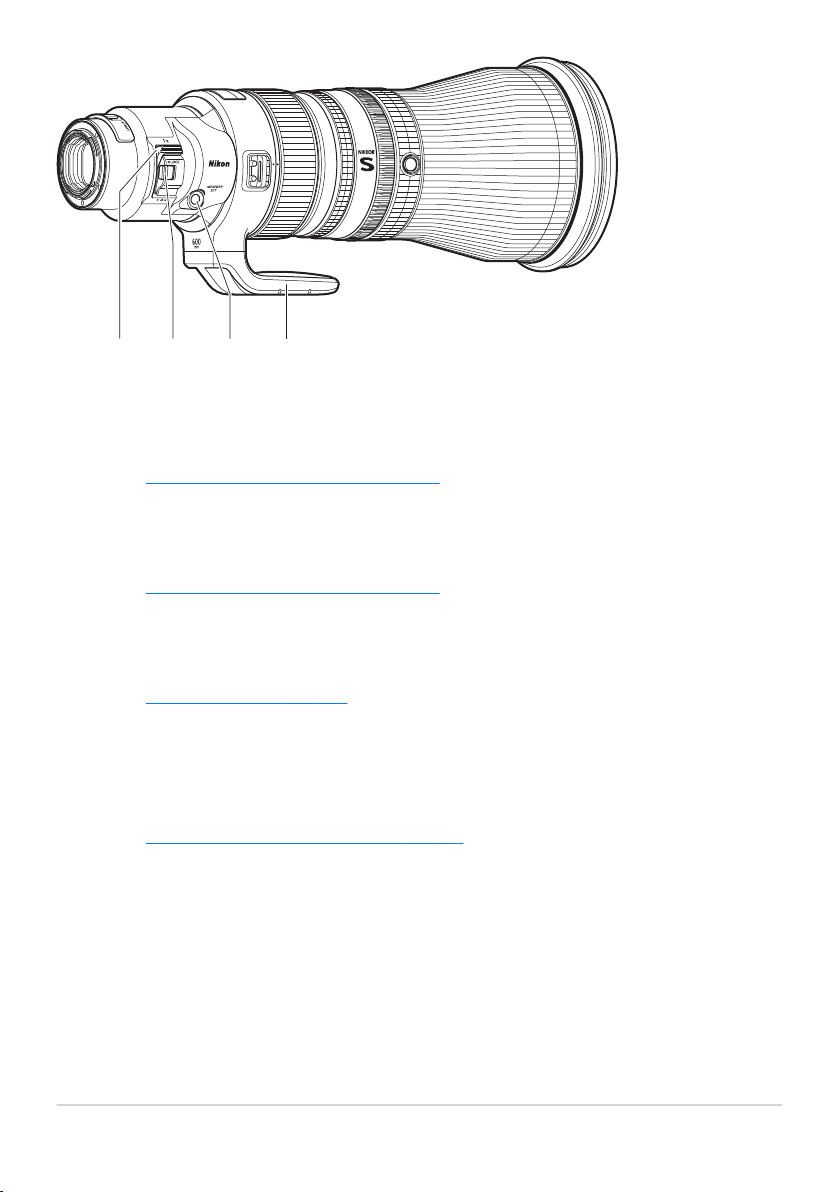

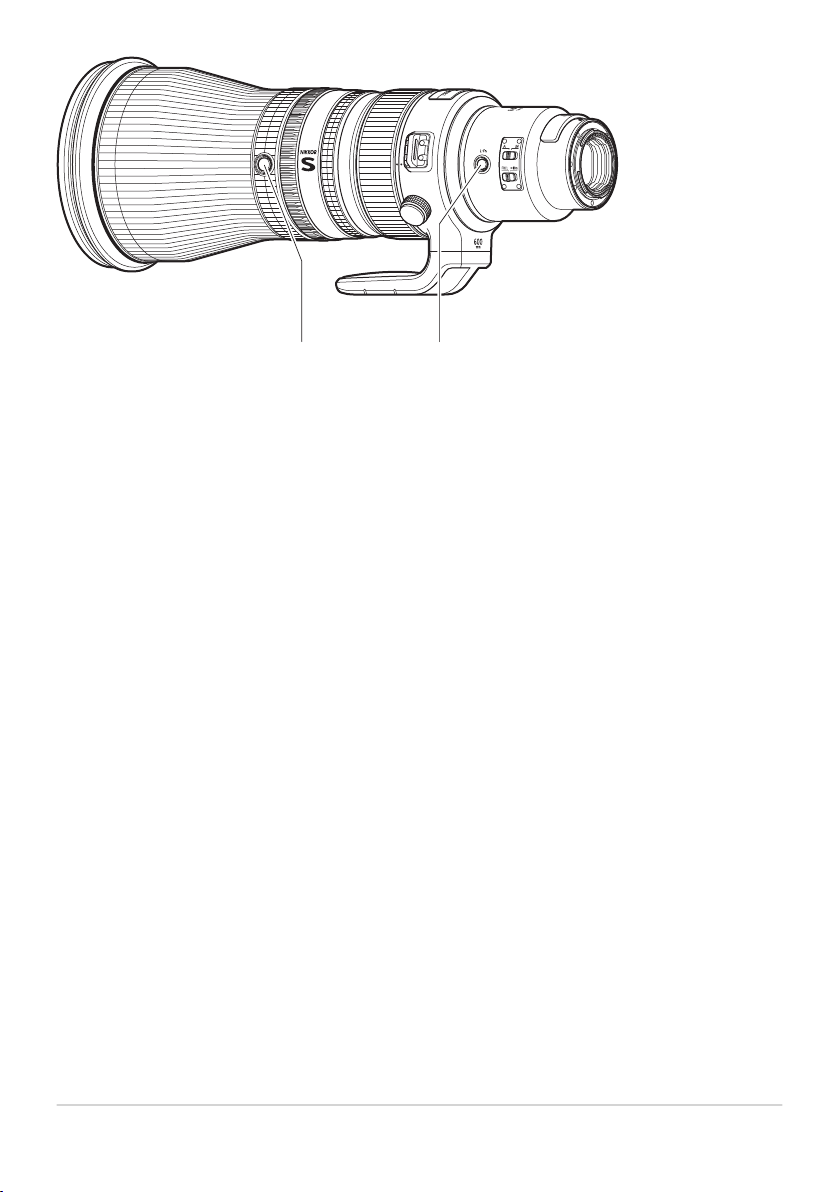

Teleconverter switch
Switch betw
een focal length multipliers of 1× and 1.4×.
0
“The Built-in Teleconverter” (p.31)
Teleconver
ter switch lock
Use to lock the teleconverter switch.
0
“The Built-in Teleconverter” (p.31)
Memory set button
Sav
e the current focus position.
0
“Memory Recall” (p.29)
Tripod collar
A
ttach a tripod. For information on removing the tripod collar, contact a
Nikon-authorized service representative.
0
“Using the Tripod Collar Ring” (p.36)
16
PartsoftheLens: NamesandFunctions
19
20
21
22
23 24

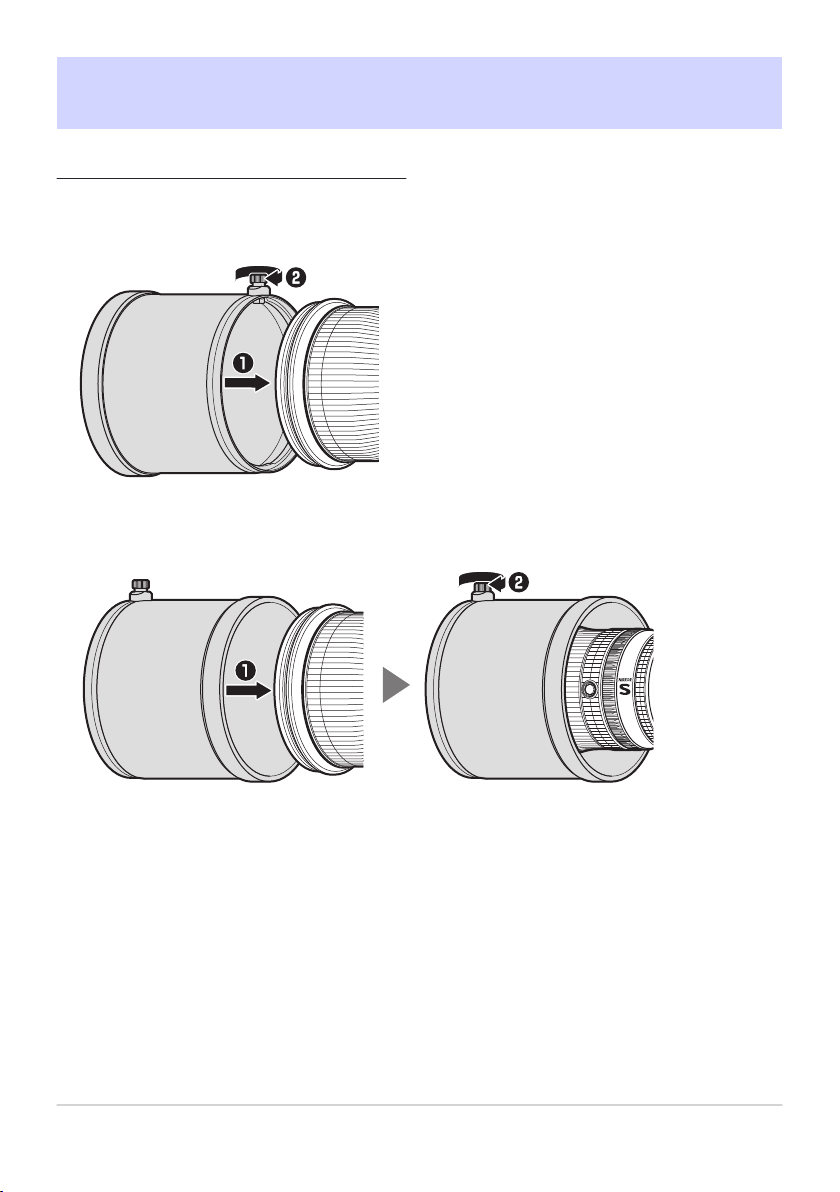

Lens hood
Lens hoods block stray light that would otherwise cause flar
e or ghosting.
They also serve to protect the lens.
0
“Attaching and Removing the Lens Hood” (p.25)
Clamp knob
Use when attaching the lens hood.
0“Attaching and Removing the Lens Hood” (p.25)
17
PartsoftheLens: NamesandFunctions
23
24
26
Lens cap (rear cap)
19
PartsoftheLens: NamesandFunctions
26
Attachment and Removal
Attaching the Lens

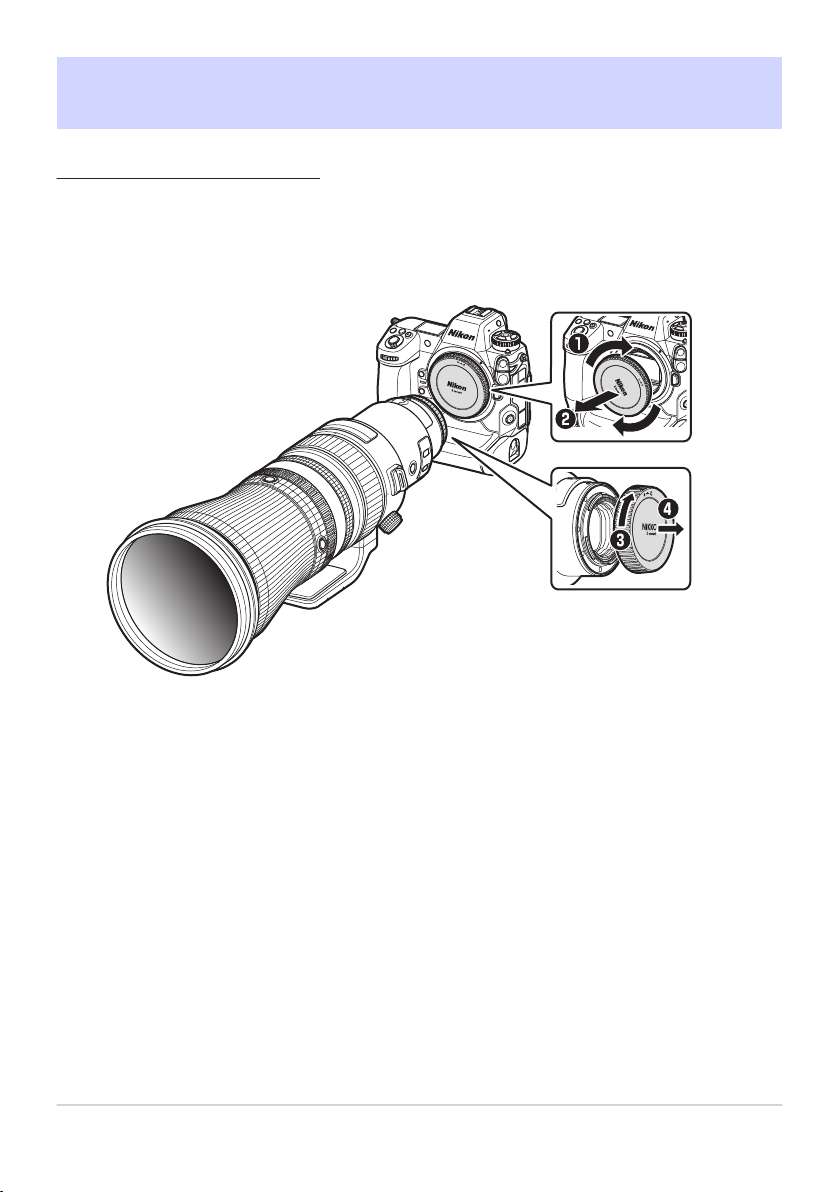

Turn the camera bodyo
ff, remove the camera body cap,
and detach the rear lens cap.
20
Attachment and Removal

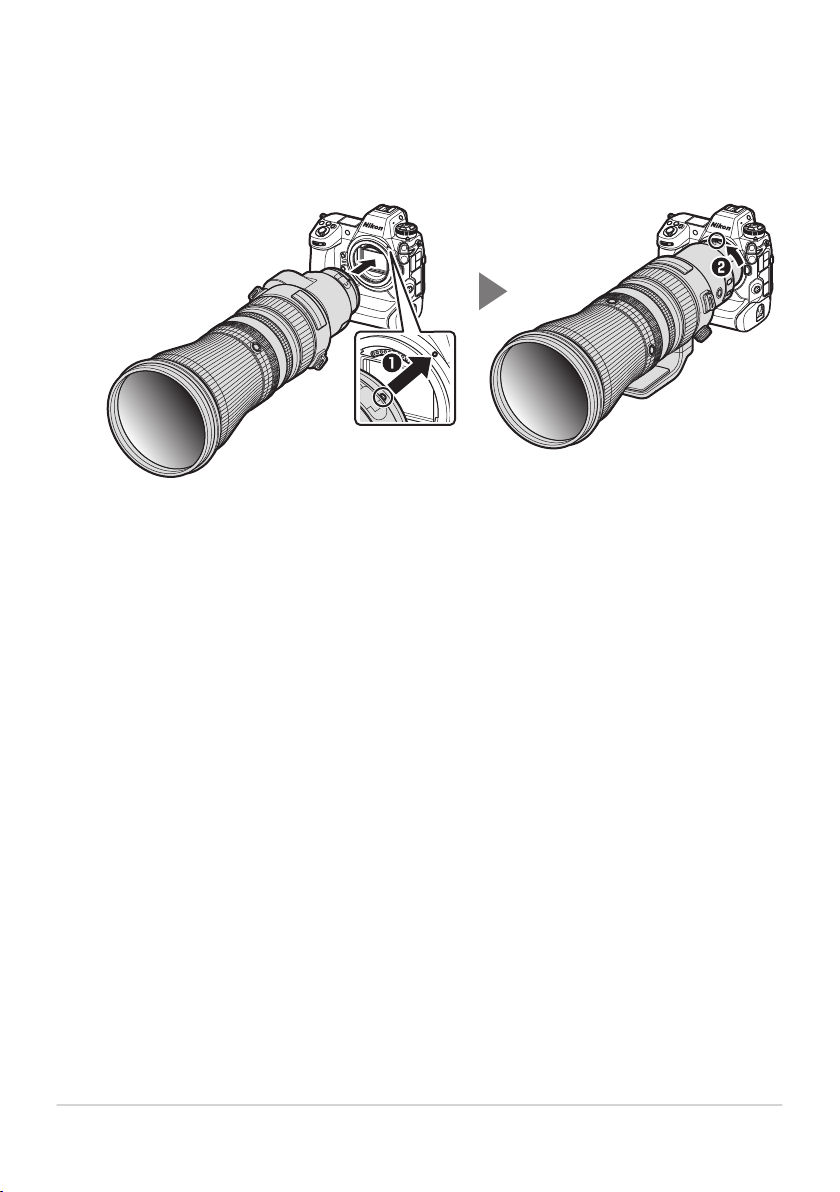

1.
Position the lens on the camera body, keeping the
mounting mark on the lens aligned with the mounting
mark on the camera body (q), and then rotate the lens
in the dir
ection shown (w) until it clicks into place.
21
Attachment and Removal
2.

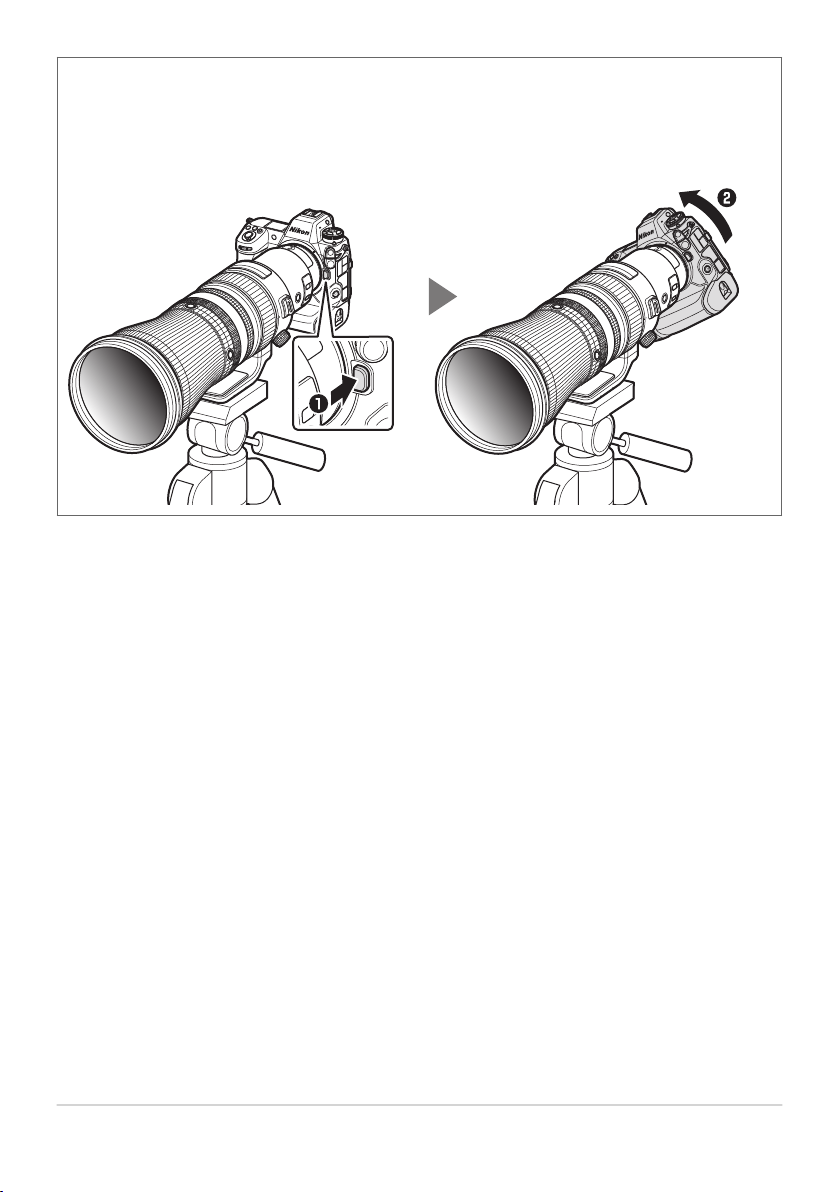

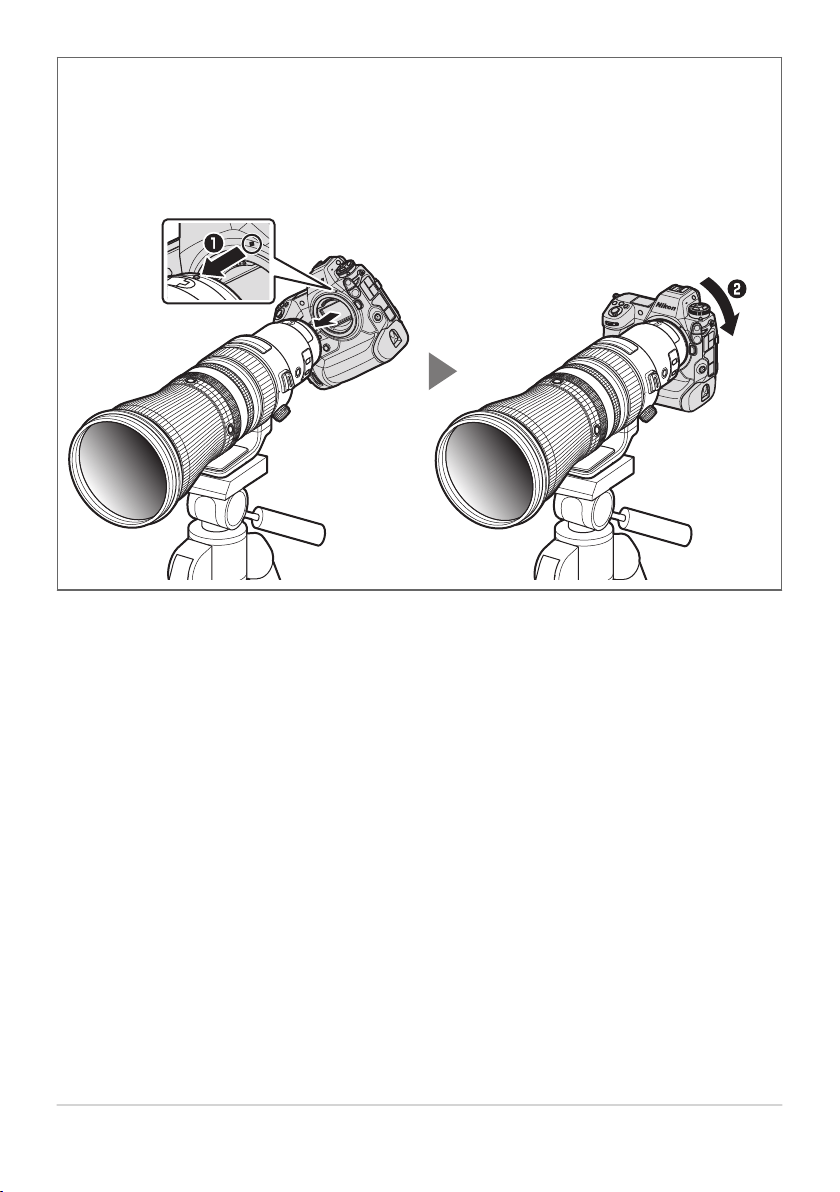

DWhen the Lens Is Mounted on a Tr
ipod: Attaching the Camera Body

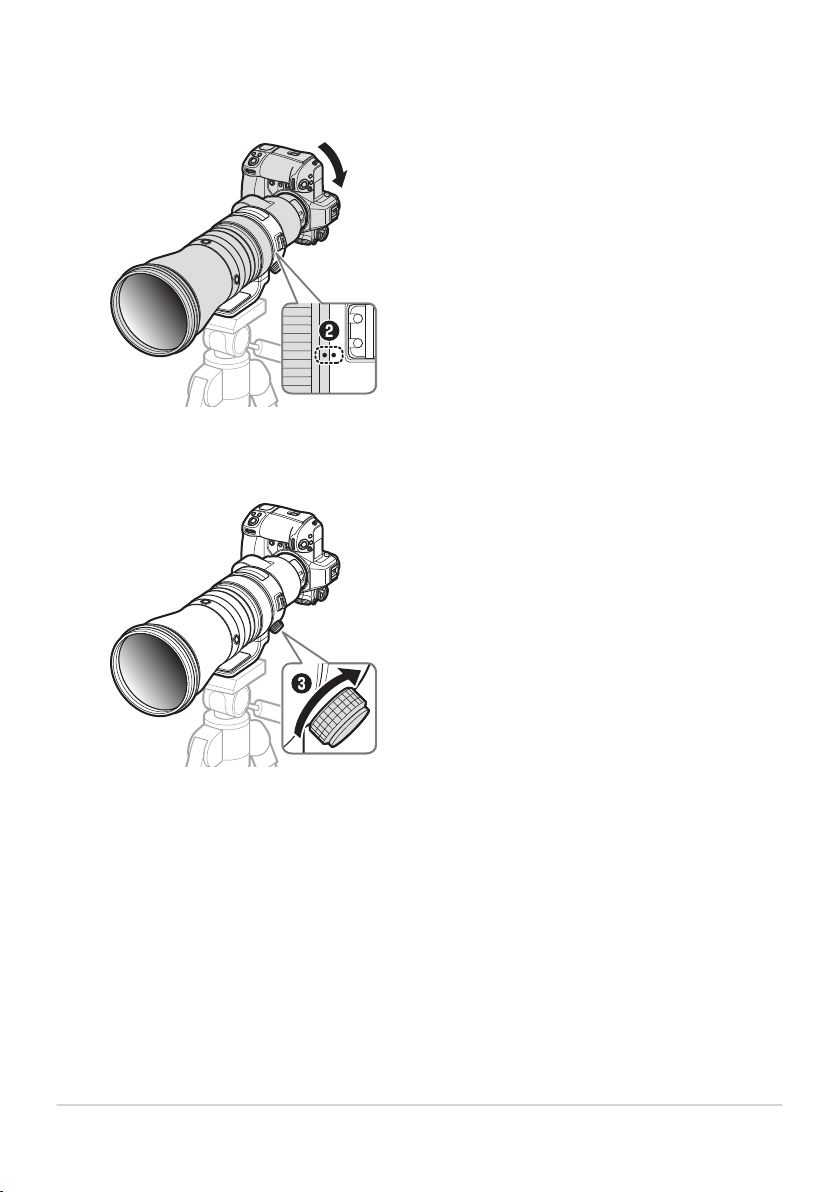

Position the camera body on the lens, keeping the mounting mark on the lens
aligned with the mounting mark on the camera body (q), and then rotate the
camera body in the direction shown (w) until the lens clicks into place.
22
Attachment and Removal
Removing the Lens
Turn the camera body o
ff.
Press and hold the lens release button (q) while turning
the lens in the direction shown (w).
23
Attachment and Removal
1.
2.
DWhen the Lens Is Mounted on a Tr
ipod: Removing the Camera Body
Press and hold the lens release button (q) while turning the camera body in
the direction shown (w).
24
Attachment and Removal
Attaching and Removing the Lens Hood
Attaching the Lens Hood

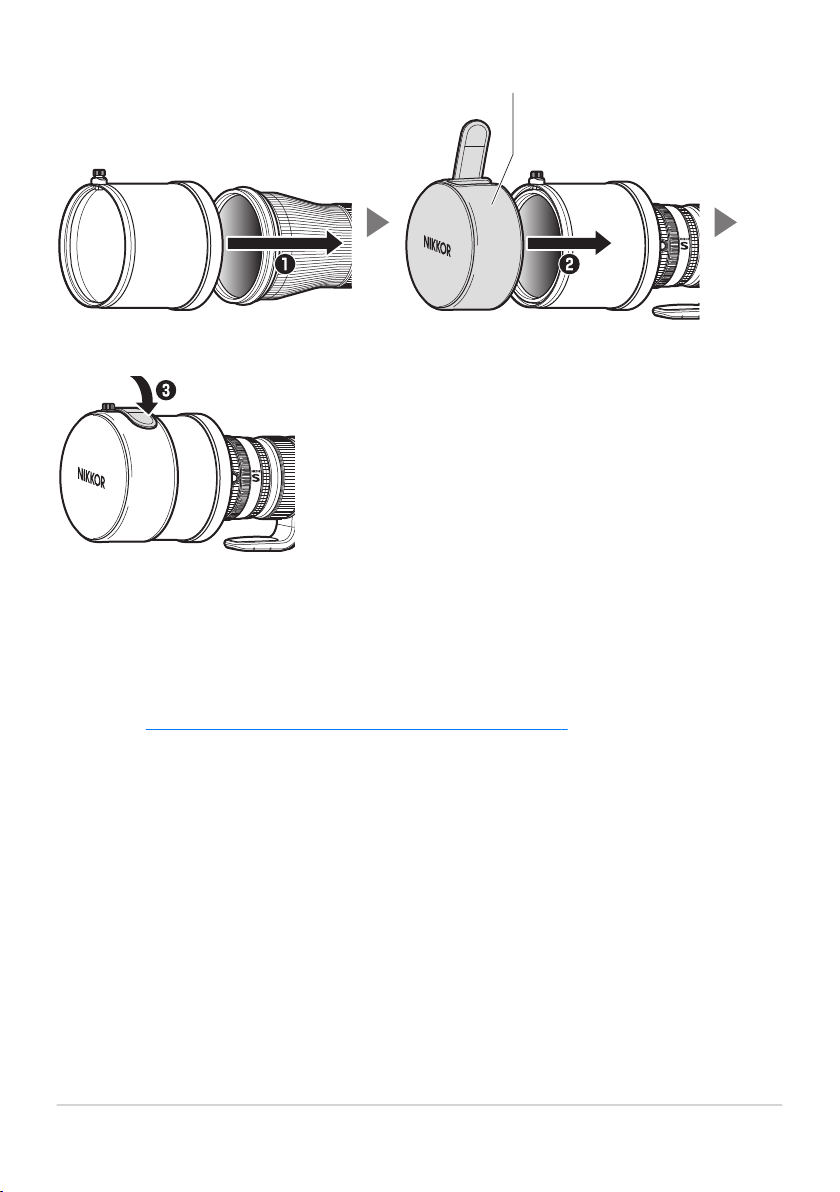

• When attaching the hood to the lens, slide the end of the hood over the end of
the lens as shown (q) and tighten the clamp knob securely (w
).
• Vignetting may occur if the hood is not correctly attached.
• The hood can be reversed and mounted on the lens when not in use.
25
Attaching and Removing the Lens Hood
Removing the Lens Hood
• The hood can be removed by performing the attachment procedure in reverse
order.
• The same procedure can be used when the lens hood is reversed.
26
Attaching and Removing the Lens Hood
Attaching a Strap
To attach a strap, follow the steps below
.
• If the strap is not attached correctly, the lens could fall, causing injury.
• Use a lens strap when carrying the camera with this lens attached. Using a
strap attached t
o the camera alone could damage the strap or the mounts on
the camera andlens, causing the camera or lens to fall.
27
Attaching a Strap
Caution: Returning the Lens to Its Case
After r
eturning the lens to its case, secure it in place using the pads supplied with
the lens case and the hook-and-loop fasteners inside the case. Failure to secure
the lens could result in damage to the lens or lens hood during transport. Follow
the steps below to secure the lens after returning it to its case.

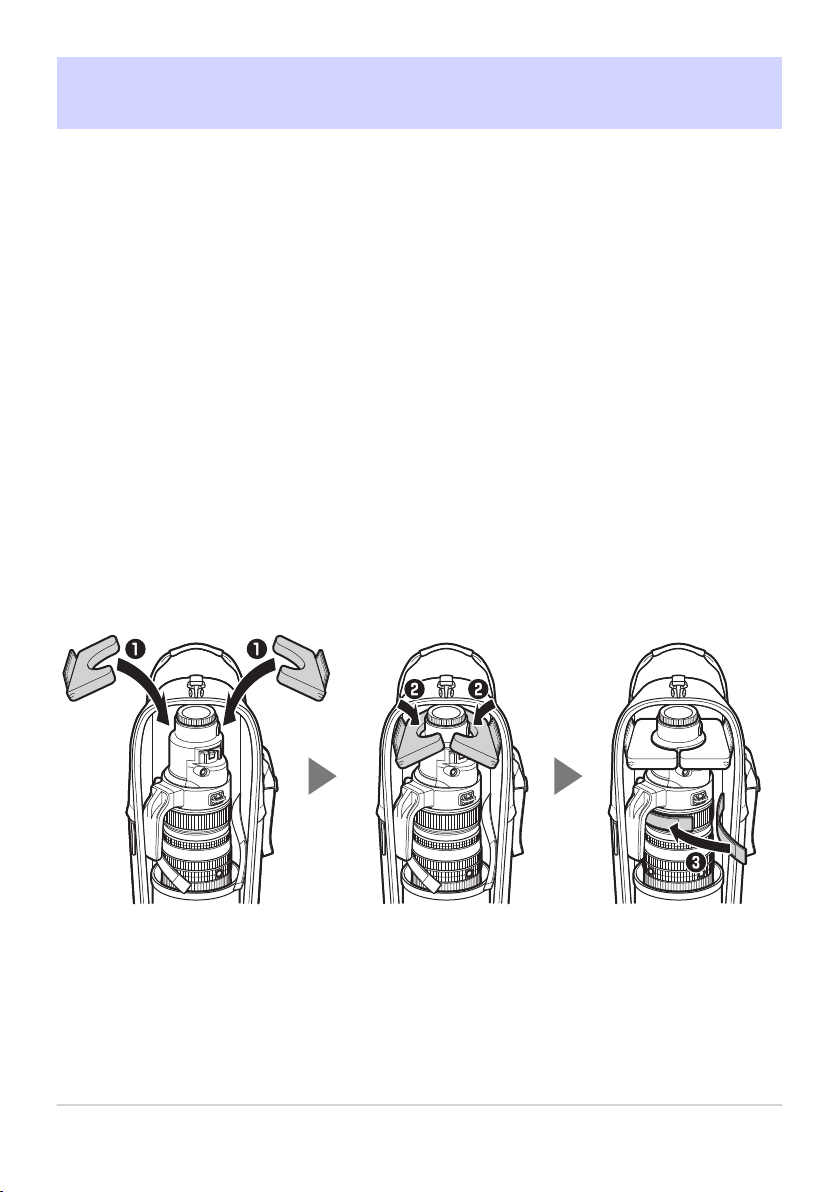

Attach the pads inside the case as shown (q).
Press the pads down so that they fit snugly around the
lens, leaving no gaps (w).
Bring the two hook-and-loop fasteners together so that
they wrap around the lens, securing it in place (e).
28
Caution: Returning the Lens to Its Case
1.
2.
3.
Memory Recall
Save a frequently-used focus position t
o the lens. The saved position can then be
quickly recalled.
Saving Focus Positions
• Focus on a subject at the desired distance and then press and hold the memory
set button. Anicon will be displayed in the camera monit
or if the operation is
successful.
• The operation can be performed in any focus mode.
• The stored distance is not reset when the camera is turned off.
• The stored distance is however reset when the lens is detached.
29
Memory Recall
Using Stored Focus Positions

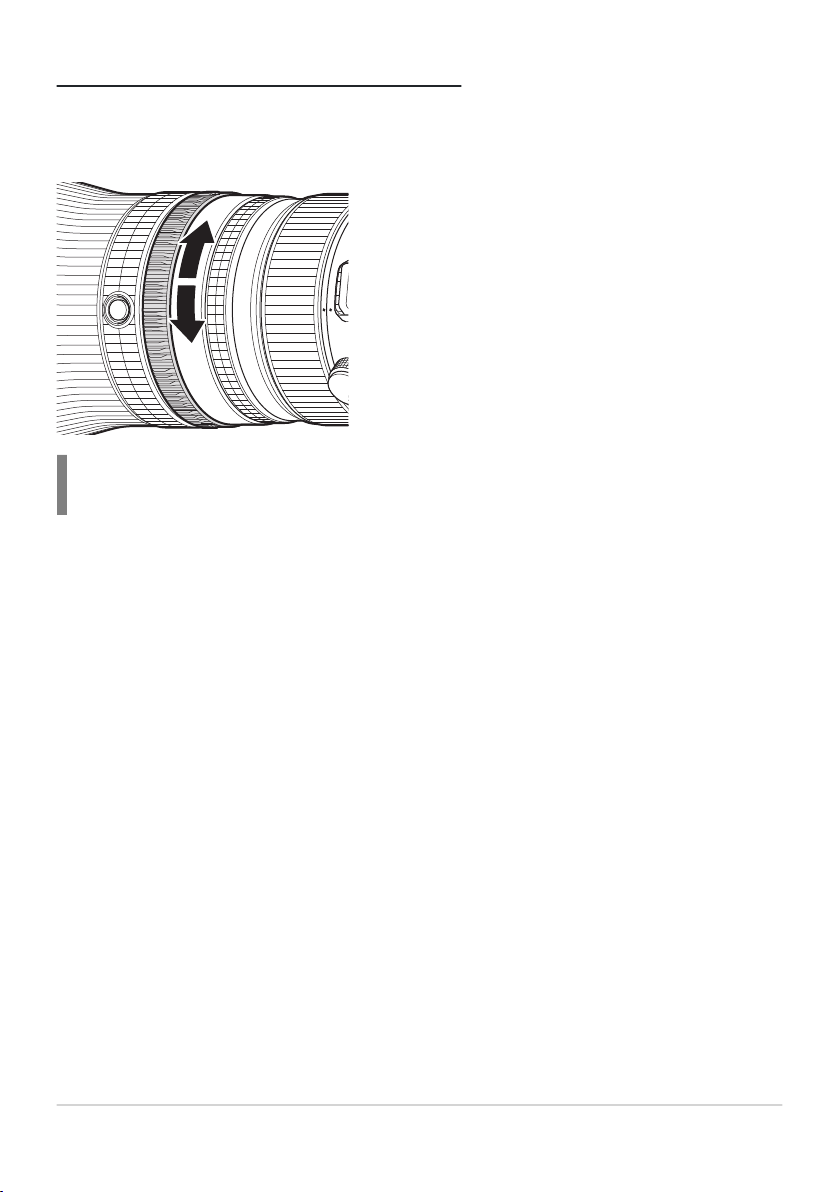

Rotate the Fn ring to r
ecall the last-saved focus position. Normal auto- or manual
focus will be restored when the ring is released.
Pressing the Shutter-Release Button Halfway During
Memory Recall
How focus will respond if the shutt
er-release button is pressed halfway while the
Fn ring is rotated varies with the camera:
• Cameras other than the Z 5, Z fc, and Z 30: The camera will not refocus if the
shutter-release button is pressed halfway while the Fn ring is rotated, regardless
of the focus mode selected.
• Z 5, Z fc, and Z 30 cameras: In autofocus mode, the camera will refocus if
the shutter-release button is pressed halfway during memory recall. This can be
prevented by selecting [AF-ON only] for [AF activation] in the camera menus.
30
Memory Recall
The Built-in Teleconverter
The built-in teleconv
erter increases focal length by 1.4×.
Using the Built-in Teleconverter

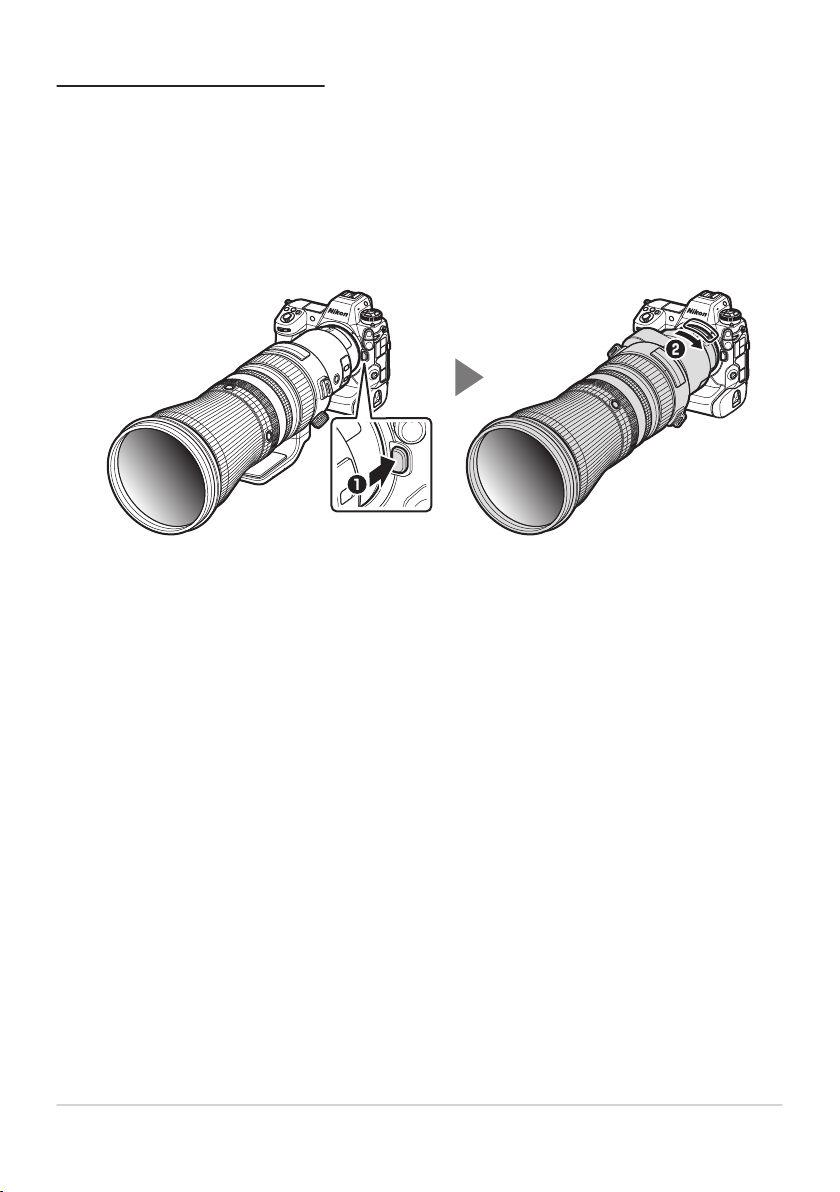

Slide the teleconver
ter switch lock in the direction shown
(q).
The teleconverter switch is now unlocked.
31
The Built-in Teleconverter
1.
Slide the teleconverter switch to 1.4× (w).
32
The Built-in Teleconverter
2.
Slide the teleconverter switch lock in the direction shown
(e).
• The teleconverter switch is now locked.
• Return the teleconverter switch to 1× when the teleconverter is not in use.
DThe T
eleconv
er
ter Switch Lock
After changing focal lengths, be sure to latch the teleconverter switch lock to
prevent unintended operation of the teleconverter switch.
33
The Built-in Teleconverter
3.
Using the Built-in Teleconverter: Notes
To ensure corr
ect exposure and prevent vignetting or other unintended results, do
not use the teleconverter switch while any of the following are in progress:
• Autofocus
• Vibration reduction
• Exposure
• Video recording
• AF fine-tuning
Focus Position
• Using the teleconverter switch after focusing may cause the focus position to
change. When shooting after using the t
eleconverter switch, be sure to refocus
before releasing the shutter.
• The focus position will also change if you use the teleconverter switch after
recalling a stored focus position. Store the focus position after operating the
teleconverter switch.
34
The Built-in Teleconverter
ALens Firmware Updat
es
Before updating the lens firmware, be sure the teleconverter switch is in the 1×
position. Firmware cannot be updated with the switch in the 1.4× position. Do
not operate the switch during firmware updates.
35
The Built-in Teleconverter
Using the Tripod Collar Ring
Attach tr
ipods to the lens tripod collar, not to the camera.
Attaching tripods to the lens tripod collar rather than to the camera allows the
camera to be rotated as described below to take pictures in "tall" or "wide"
orientation while a tripod is attached.
Loosen the tripod collar ring attachment screw (q).
36
Using the Tripod Collar Ring
1.
Rotate the camera, using the rotation indices for
reference (
w).
Tighten the tripod collar ring attachment screw (e).
37
Using the Tripod Collar Ring
2.
3.
Vibration Reduction (VR)
The lens supports vibration reduction. Vibration r
eduction settings can be
adjusted from the camera. See the documentation provided with the camera for
details.
Vibration reduction allows shutter speeds slower than would otherwise be the
case, expanding the range of shutter speeds available.
DVibration Reduction
• Due to the design of the vibration reduction system, the lens may rattle when
shaken. This does not indicate a malfunction.
•
To reduce blur caused by tripod shake, select [Normal] or [Sport] for the
on-camera vibration reduction option when the camera is mounted on a
tripod. Note, however, that depending on the type of tripod and shooting
conditions, there may be cases in which [Off] is the preferred option.
• [Normal] or [Sport] is recommended when the camera is mounted on a
monopod.
38
Vibration Reduction (VR)
Filters
The lens is designed for use without filters, and can be used without a filt
er
inserted under most conditions. In situations in which a filter is required, an
optional 46mm screw-on filter can be inserted in the slip-in filter holder as
described below.

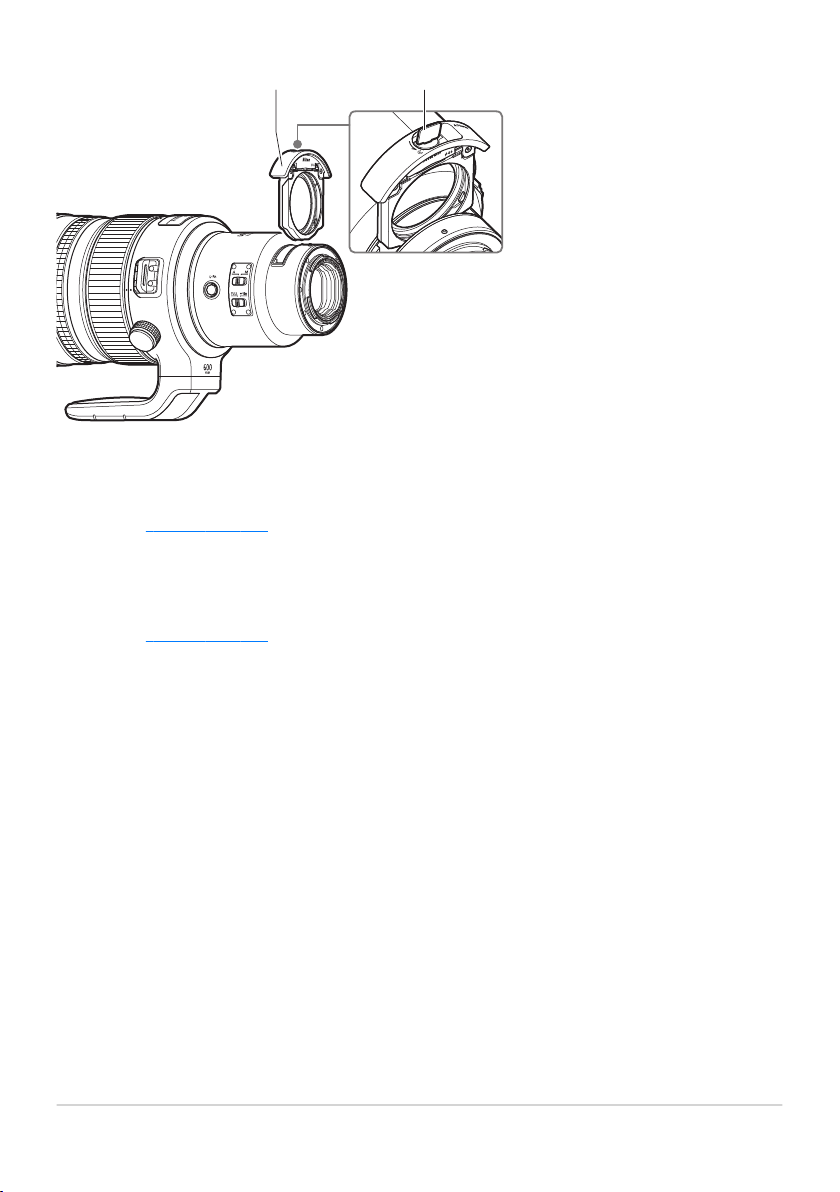

Lift the slip-in filter holder tab, rotate it to
(q), and
remove the slip-in filt
er holder (w).
39
Filters
1.

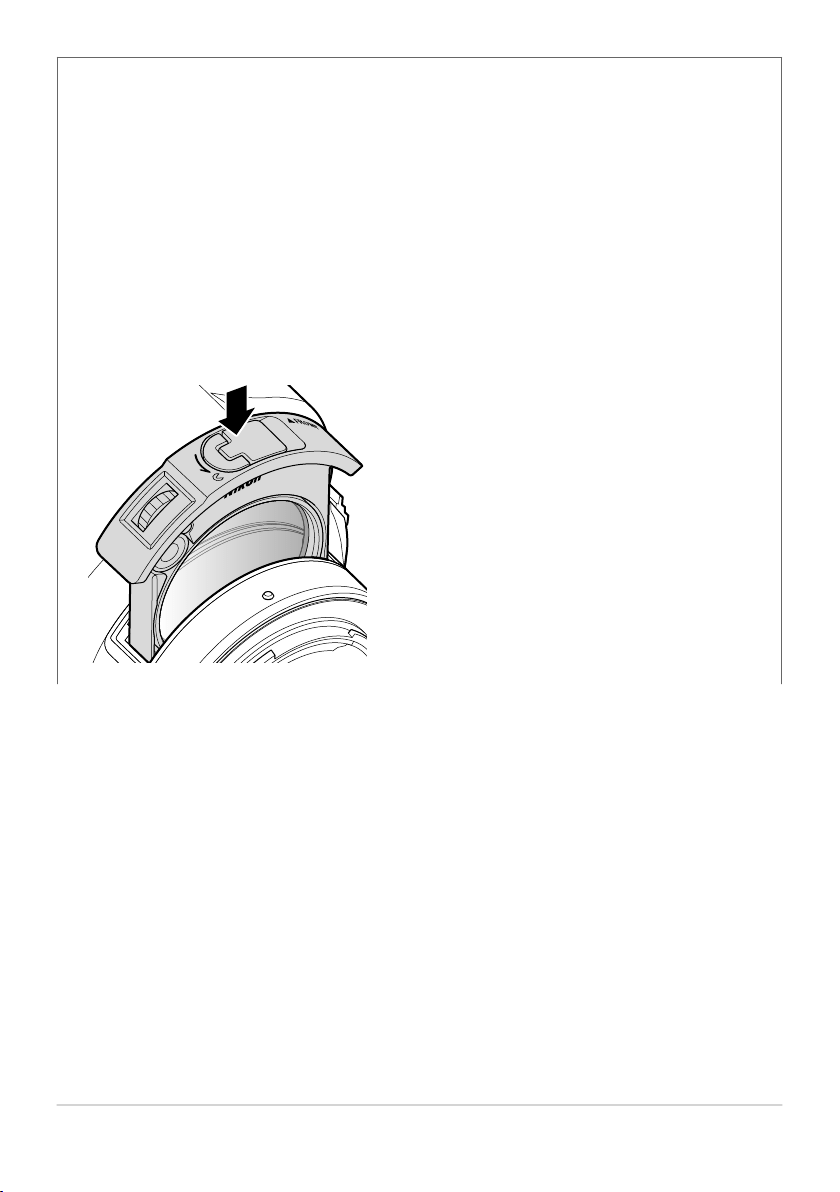

Press the points on either side of the slip-in filter
holder and open the cover.

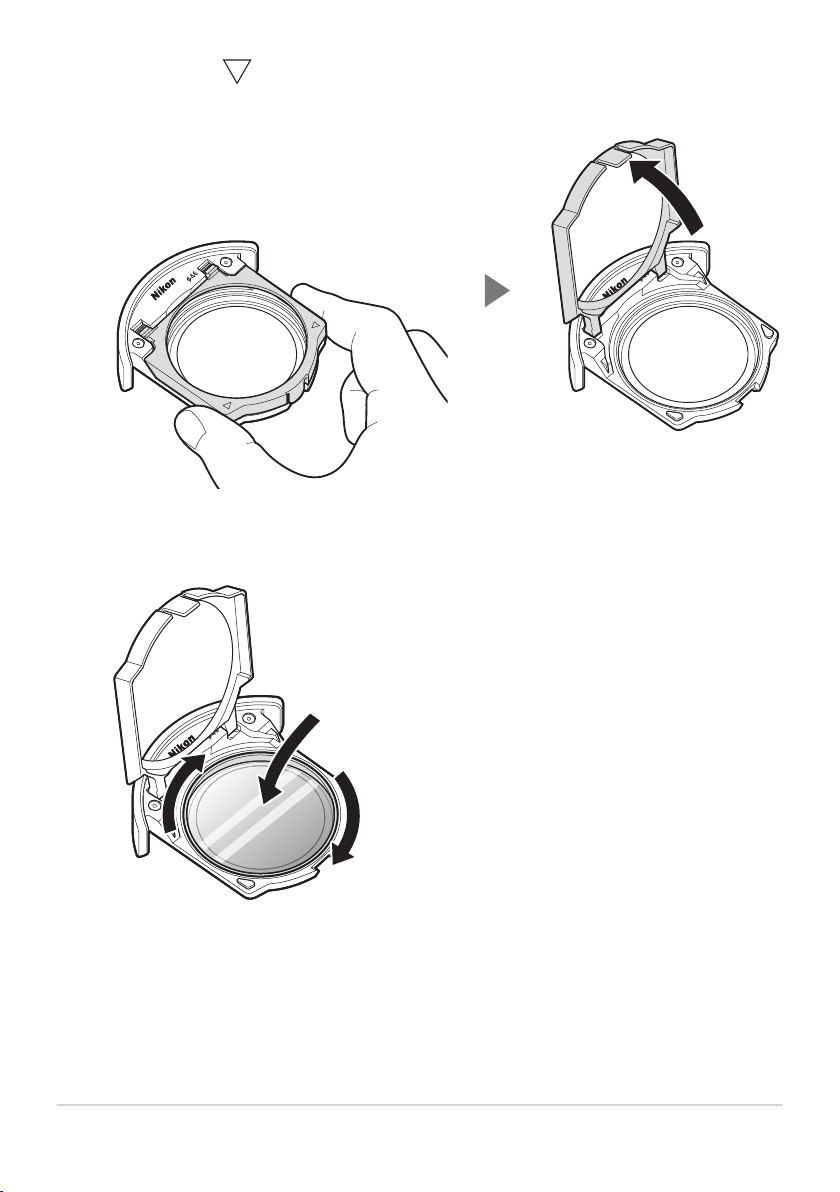

Insert a 46mm screw-on filter.
Depending on their shape, some filters cannot be used with the slip-in filter
holder. Use filter
s that fit the holder.
40
Filters
2.
3.
Close the slip-in filter holder cover.

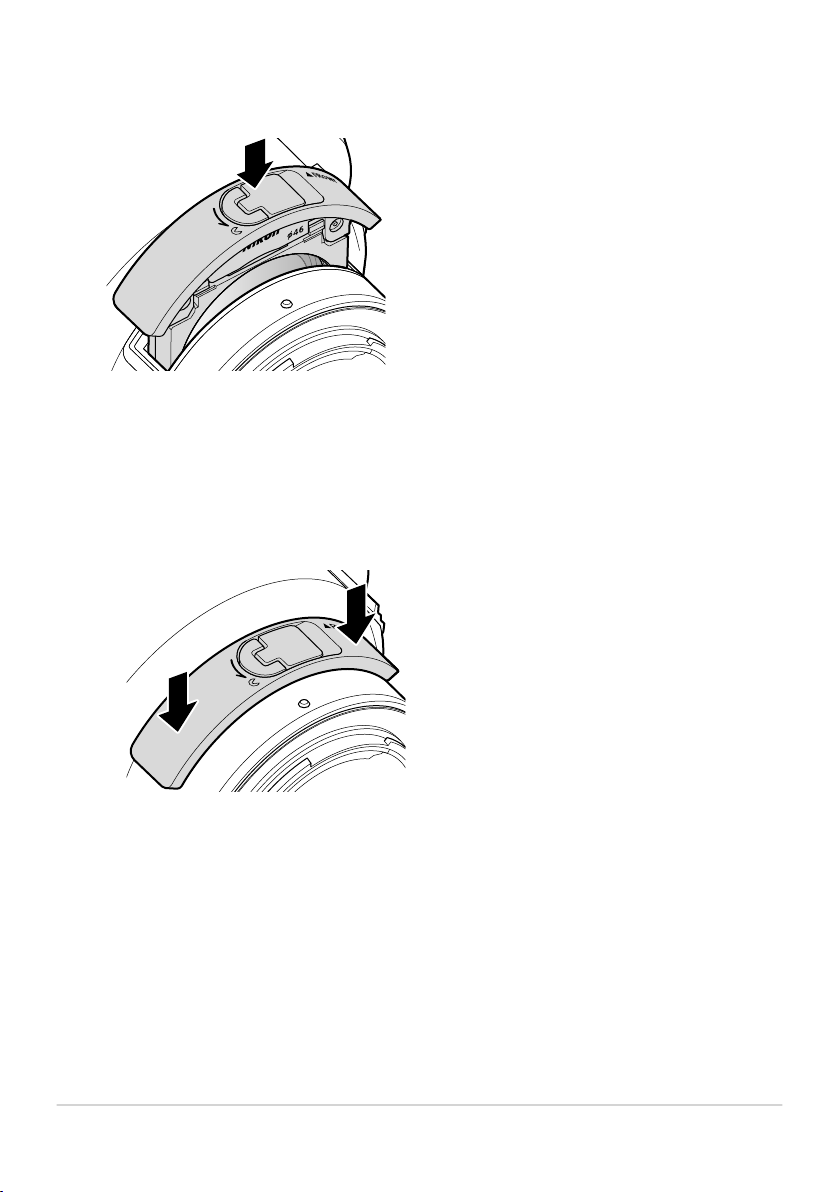

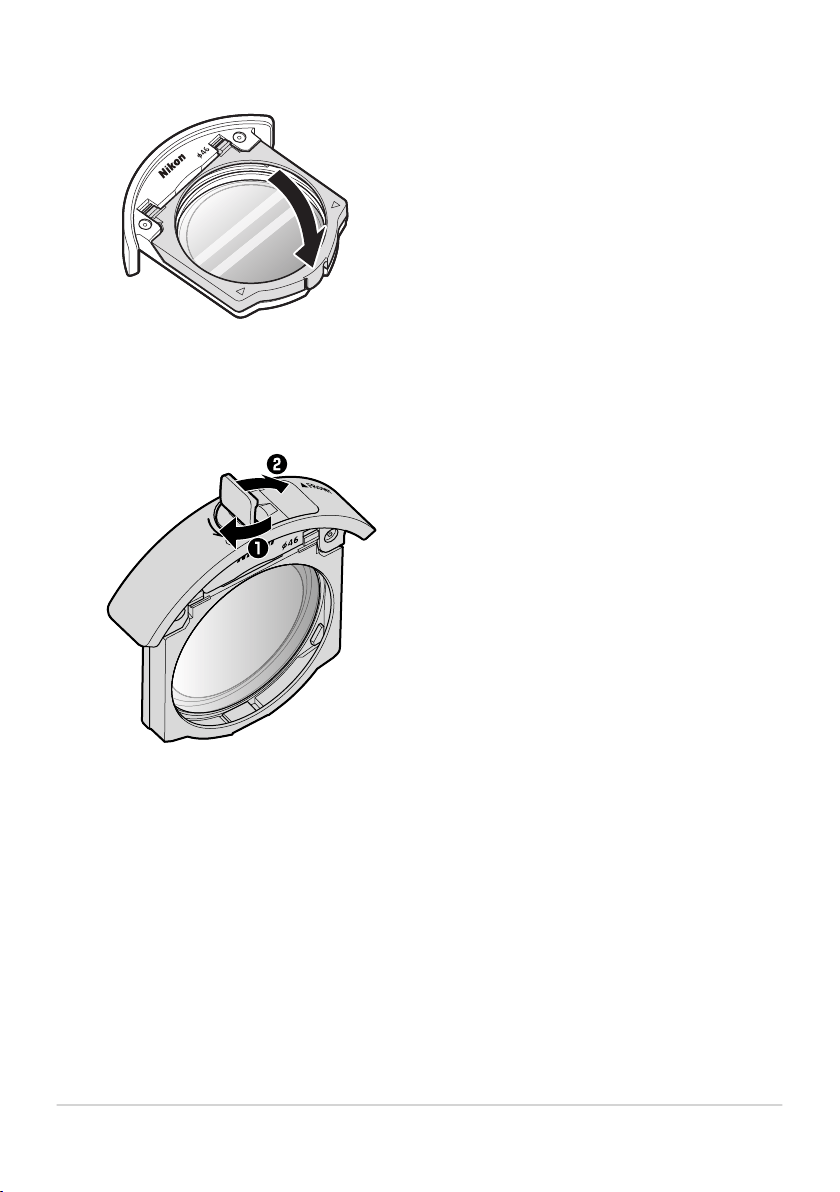

Rotate the slip-in filter holder tab as shown (q) and
lower it back into its starting position (w).
41
Filters
4.
5.
Insert the slip-in filter holder into the slip-in filter holder
slot.
Insert the holder with the side labeled “FRONT” facing forward (toward the
focus ring).
Slide the slip-in filter holder in until it latches.
•
Slide the slip-in filter holder in until it clicks into place.
• Be sure the slip-in filter holder is securely latched.
42
Filters
6.
7.
AUsing Optional Filters
•
Using the lens with optional filters changes the focus position and may
change the indicated focus distance.
• When using memory recall, be sure to attach the filter before storing the
focus position.
AUsing an Optional C-PL460 Slip-in Circular Polarizing Filter
• The C-PL460 reduces unwanted reflections from glass, water, and other non-
metallic surfaces.
• It is used in place of the supplied slip-in filter holder.
43
Filters
• Before taking pictures, rotate the ring to control the reflections visible in the
shooting display.
• Using the lens with the C-PL460 changes the focus position and may change
the indicated focus distance.
• When using memory r
ecall, be sure to attach the filter before storing the
focus position.
• Do not leave the filter for long periods in direct sunlight or in locations that
are exposed to excessive humidity or high temperatures.
44
Filters
Precautions for Use
• Do not pick up or hold the lens or camera using only the lens caps or lens hood.
• Observe the following precautions while the lens is attached to the camera:
Be sure to suppor
t the lens when holding the camera. Failure to observe this
precaution could damage the lens and camera mounts.
Use a lens strap when carrying the camera with the lens attached. Using a
strap attached to the camera alone could damage the strap or the mounts on
the camera or lens, causing the camera or lens to fall.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and
take the lens to a Nikon-authorized service center for repair.
• Reattach the lens caps when the lens is not in use.
• Creases will form if the supplied lens cap (front cap) is folded, but this does not
prevent the cap from being used.
45
Precautions for Use
-
-
• Do not leave the lens in humid locations or in locations in which it may be
exposed to moisture. Rusting o
f the internal mechanism can cause irreparable
damage.
• Do not leave the lens next to open flames or in other extremely hot locations.
Extreme heat could damage or warp the lens.
• Taking the lens from a warm to a cold environment or vice versa may cause
damaging condensation inside and outside the lens. Place the lens in a sealed
bag or plastic case before taking it across a temperature boundary. The lens
can be taken from the bag or case once it has had time to adjust to the new
temperature.
• We recommend that you place the lens in its case to protect it from scratches
during transport.
• Nikon will not be held liable in the event that the lens is stolen or damaged
while a third-party anti-theft cable is attached to the security slot.
• Keep credit cards and other such magnetic storage devices away from the
camera and lens. Data stored on the device could be corrupted.
46
Precautions for Use
Lens Maintenance
• Removing dust is normally sufficient to clean the glass surfaces of the lens.
• When cleaning the fluorine-coated front lens element:
Smudges, fingerprints, and other oily stains can be removed using a so
ft,
clean cotton cloth or third-party lens cleaning tissue; clean from the center
outwards using a circular motion.
To remove stubborn stains, wipe gently using a soft cloth lightly dampened
with a small amount of distilled water, ethanol, or third-party lens cleaner.
Drop-shaped marks may form on fluorine-coated surfaces, which are highly
water- and oil-repellent. Such marks can be removed with a dry cloth.
• When cleaning the rear lens element, which is not fluorine-coated:
Smudges, fingerprints, and other oily stains can be removed using a soft,
clean cotton cloth or third-party lens cleaning tissue lightly dampened with
a small amount of ethanol or third-party lens cleaner; clean from the center
outwards in a circular motion. Be sure to clean evenly and thoroughly without
leaving smears.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Do not store the lens in direct sunlight or with naphtha or camphor moth balls.
If the lens will not be used for an extended period, store it in a cool, dry location
to prevent mold and rust.
47
Lens Maintenance
-
-
-
-
Technical Notes
Cameras with AF-Assist Illuminators
The lens or lens hood may block the light fr
om the camera AF-assist illuminator.
• For the information on using the lens with cameras that have built-in AF-assist
illuminators, visit the sit
e below.
https://downloadcenter.nikonimglib.com/
48
Cameras with AF-Assist Illuminators
UsingtheLensonCameraswithaBuilt-
inFlash
Shadows will be visible in photos where light fr
om the built-in flash is obscured
by the lens or lens hood. Remove the lens hood before shooting. Note, however,
that depending on the distance to the subject and lens focal length, shadows may
appear even when the lens hood is removed.
• For information on the subject distances and focal lengths at which shadows
will not appear in photos taken with a built
-in flash, visit the site below.
https://downloadcenter.nikonimglib.com/
49
UsingtheLensonCameraswithaBuilt-inFlash
Accessories
Supplied Accessories
• LC-K107 Lens Cap (front cap)
• LF-N1 Lens Cap (rear cap)
• HK-43 Lens Hood
• Strap
• CL-L3 Lens Case
Other Compatible Accessories
• 46mm filters (P = 0.5 mm; for use with slip-in filter holder)
• C-PL460 Slip-in Circular Polarizing Filter
• Z TELECONVERTER TC-1.4×/TC-2.0×
DFilters
Use only one filt
er at a time.
DTeleconverters
Depending on the subject, ambient lighting conditions, and the focus point
selected, the camera may be unable to focus using autofocus or the focus
indicator for electronic rangefinding may flicker while a teleconverter is
attached.
50
Accessories
Specifications
Mount Nikon Z mount
Focal length
• Without built-in teleconverter: 600mm
• With built-in teleconverter: 840mm
Maximum aperture
• Without built-in teleconverter: f/4
• With built-in teleconverter: f/5.6
Lens construction
26 elements in 20 groups (including 7 elements in 4
groups in the built-in t
eleconverter, 3 ED elements, 1
super-ED element, 2 fluorite elements, 2 SR elements,
elements with meso-amorphous and Nano Crystal
coats, and a fluorine-coated front lens element)
Angle of view
• FX-format, without built-in teleconverter: 4° 10′
• FX-format, withbuilt-in teleconverter: 3°
• DX-format, without built-in teleconverter: 2° 40′
• DX-format, withbuilt-in teleconverter: 2°
Focusing system Internal focusing system
Vibration reduction Lens shift using voice coil motors (VCMs)
Minimum focus
distance (measured
from focal plane)
• Without built-in teleconverter: 4.3 m (14.11 ft)
• With built-in teleconverter: 4.3 m (14.11 ft)
Maximum
reproduction ratio
• Without built-in teleconverter: 0.14×
• With built-in teleconverter: 0.2×
Diaphragm blades 9 (rounded diaphragm opening)
51
Specifications
Aperture range
• Without built-in teleconverter: f/4 – 32
• With built-in teleconverter: f/5.6 – 45
Focus limit switch Two positions: FULL (∞ – 4.3 m) and ∞ – 10 m
Dimensions
(maximum
diameter×distance
to end o
f lens from
camera lens mount
flange)
Approx. 165 mm × 437 mm (6.5 in. × 17.3 in.)
Weight Approx. 3260 g (7 lb 3 oz)
• Throughout this document, “FX format” and “FX” are used in reference to an
angle of view equivalent to that of a 35 mm format (“full frame”) camera and
“DX format” and “DX” to an angle of view equivalent to that of an APS-C
camera.
• Nikon reserves the right to change the appearance, specifications, and
performance of this product at any time and without prior notice.
52
Specifications
Notices
Notices for Customers in the U.S.A.
This device complies with part 15 o
f the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission (FCC) Radio
Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
53
Notices
This symbol indicates that electrical and electronic
equipment is to be collected sep
arately.
CAUTIONS
●Modifications
The FCC r
equires the user to be notified that any changes or modifications made
to this device that are not expressly approved by Nikon Corporation may void the
user’s authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
Notices for Customers in Canada
CAN ICES-003 (B) / NMB-003 (B)
Notices for Customers in Europe
The following apply only to users in Eur
opean countries:
• This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and prevent
negative consequences for human health and the environment that might result
from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge of
waste management.
54
Notices
