LG LSXS26386S/01 Side By Side Refrigerator User Manual

OWNER’S MANUAL

SIDE BY SIDE

REFRIGERATOR

Please read this owner’s manual thoroughly before

operating and keep it handy for reference at all times.

Model Name(*=color)

LSXS26326*

LSXS26366*

LSXS26466*

LSXS26386*

P/No. MFL67653437-12

ww w.lg.com

ENGLISH

G LSXS26336*S73SGS

GS73SDD

GS73SGG

S74SDS

GS73SDS

GS74SGS

LSXC22386*

LSXC22326*

LSXC22336*

2 TABLE OF CONTENTS

ENGLISH

3 PRODUCT FEATURES

4 IMPORTANT SAFETY

INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

8 Refrigerator Interior

10 INSTALLATION

10 Installation Overview

10 Speciﬁcations

11 Unpacking Your Refrigerator

11 Choosing the Proper Location

11 - Flooring

12 - Ambient Temperature

12 - Measuring the Clearances

12 Removing/Assembling the Refrigerator

Door Handles

13 Removing/Assembling the Refrigerator

Doors

13 - Removing the Left (Freezer) Door

13 - Removing the Right (Refrigerator) Door

14 - Reinstalling the Right (Refrigerator) Door

14 - Reinstalling the Left (Freezer) Door

15 Connecting the Water Line

15 - Before You Begin

15 - Water Pressure

15 - What You Will Need

17 - Water Line Installation Instructions

18 Turning On the Power

19 Leveling

19 Door Alignment

20 HOW TO USE

20 Before Use

21 Control Panel

21 - Airﬂow

22 - Control Panel Features

24 Automatic Icemaker

24 - When You Should Turn the Icemaker O

24 - Normal Sounds You May Hear

24 - Preparing for Vacation

24 - Power Failure

26 Ice and Water Dispenser

27 Storing Food

27 - Food Preservation Location

29 - Food Storage Tips

29 - Storing Frozen Food

30 Detaching and Assembling the Storage Bins

32 Door-In-Door

33 Adjusting the Refrigerator Shelves

34 MAINTENANCE

34 Cleaning

35 Replacing the Water Filter

39 SMART DIAGNOSIS

39 Using Smart Diagnosis

40 TROUBLESHOOTING

40 Common Product Questions

41 Noises You Might Hear

42 Before Calling for Service

51 WARRANTY (USA)

53 WARRANTY (CANADA)

TABLE OF CONTENTS

3PRODUCT FEATURES

ENGLISH

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available.

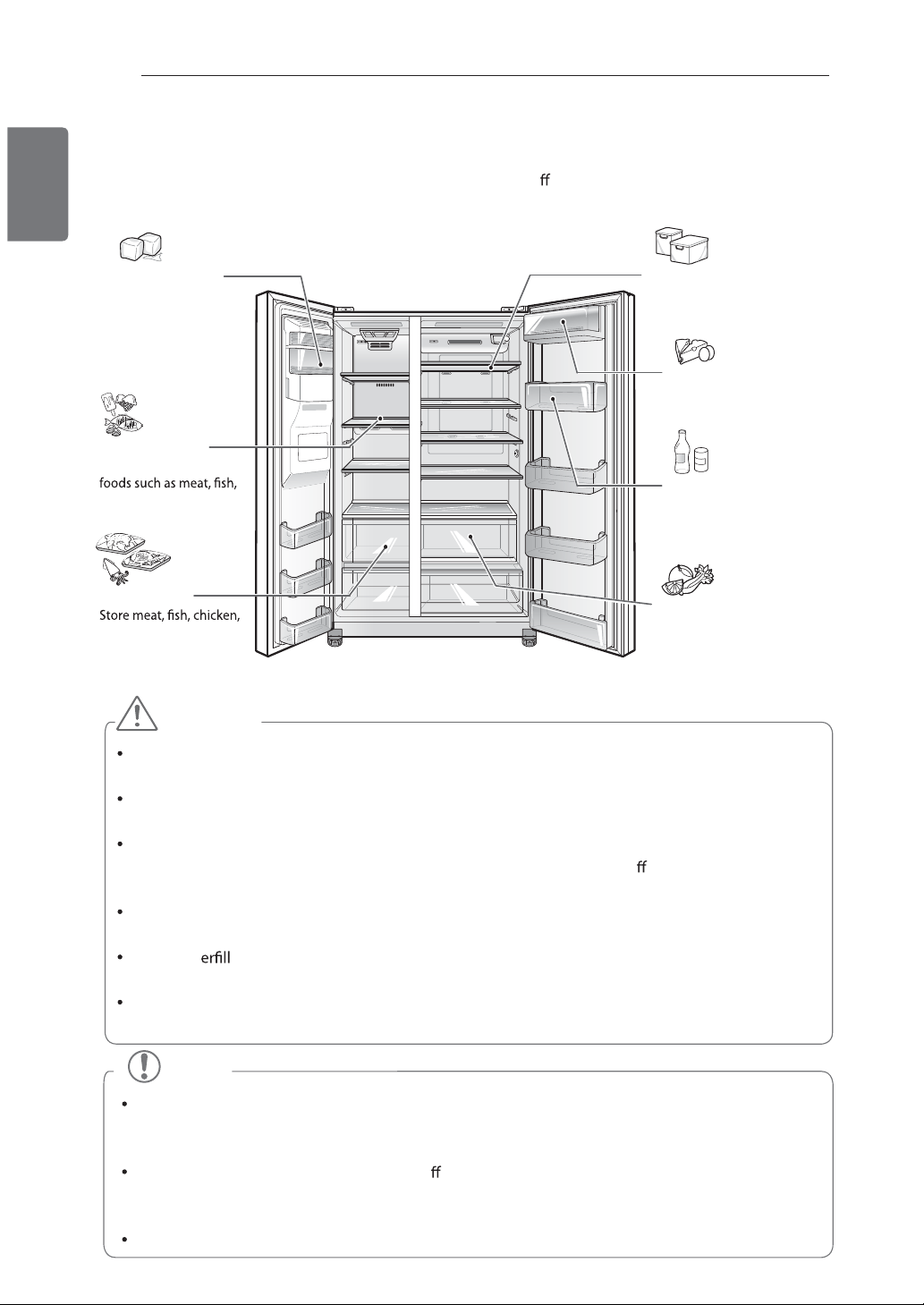

DOOR-IN-DOOR REFRESHMENT CENTER

The Door-in-Door Refreshment Center provides a convenient area for

frequently-used items that require easy access.

FRESH ZONE DRAWERS

The Fresh Zone drawers are designed to help keep your fruits and

vegetables fresh.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning

that could occur if a refrigerator door remains open. If a refrigerator door

is left open for more than 60 seconds, a warning alarm ฀

30 second intervals.

AUTO CLOSING HINGE

The refrigerator doors close automatically with a slight push. (The door

only closes automatically when it is open at an angle less than 30°.)

ICE PLUS

Ice production can be increased by approximately 20 percent when the

freezer section is maintained at the coldest temperature for a 24-hour pe-

riod.

4 IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

WARNING You can be killed or seriously injured if you do not follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in

minor or moderate injury, or product damage.

WARNING

To reduce the risk of re, electric shock, or personal injury when using your product,

basic safety precautions should be followed, including the following:

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards

that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

Power

NEVER unplug your refrigerator by pulling

on the power cord. Always grip the plug

and pull it straight out from the

outlet.

Immediately call a technician to repair or

replace all power cords that have become

frayed or otherwise damaged. Do not use

a cord that shows cracks or abrasion

damage along its length or at either the

plug or connector end.

ower outlet.

Unplug the power plug immediately in the

event of a blackout or thunderstorm.

Plug in the power plug with the power

cord facing downward.

Installation

Contact an authorized service center when

you install or relocate the refrigerator.

When moving your refrigerator away from

the wall, be careful not to roll over or

damage the power cord.

Do not install the refrigerator where there

may be a danger of the unit falling.

Use

DO NOT allow children to climb, stand,

or hang on the refrigerator doors or on

the shelves in the refrigerator. They could

damage the refrigerator and seriously

injure themselves.

Do not hang on to or place heavy objects

on the refrigerator’s dispenser.

Do not place heavy or dangerous objects

(bottles with liquid) on the refrigerator.

Do not put live animals inside the

refrigerator.

Do not allow children to climb into the

product when it is in use.

In the event of a gas leak (propane/

LPG), ensure adequate ventilation and

contact an authorized service center

before resuming use. Do not touch or

disassemble the electrical outlet of the

refrigerator.

In the event of a refrigerant leak, move

objects away from the

refrigerator. Ensure adequate ventilation

and contact an authorized service center.

Do not use or place substances

(chemicals, medicine, cosmetics, etc) near

the refrigerator or store them inside the

refrigerator. Do not place the refrigerator

in the vicinit

Do not ov or pack items too tightly into

door bins. Doing so may cause damage

to the bin or personal injury if items are

removed with excessive force.

Your refrigerator must always be plugged

to its own outlet which is adequately

grounded. The energy current should only

be 115 V ~ 60 Hz, 127 V ~ 60 Hz or 220 V~

50/60 Hz, AC (according to the National

rating type). with a 15 A fuse for voltages

between 115 and 127 V or 10 A to 220 V

independent voltage protection system

from the main supply of your home. (The

electrical installation must be

by a

Do not plug appliance into a damaged wall

outlet.

If the appliance is submerged or partially

appliance immediately from the main circuit

breakers. Contact the nearest service center

5IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

This product is not to be used for special

purposes such as the storage of medicine

or test materials or for use on ships, etc.

Unplug the power plug before cleaning or

repairing the refrigerator.

When a technician replaces the LED lamp

in the refrigerator, unplug the refrigerator or

turn o

ower.

Do not modify or extend the power cord.

Do not use a dryer to dry the interior. Do

not light a candle to remove interior odors.

Do not use an outlet that can be turned

with a switch. Do not use an extension

cord. It is the user’s responsibility to

replace a standard 2-prong wall outlet

with a standard 3-prong wall outlet.

Do not, under any circumstances, cut or

remove the third (ground) prong from the

pow

of your country.).

Do not use an adapter plug and plug the

power plug into a multi-outlet extension

cord.

Disconnect the power cord immediately if

you hear a noise, smell a strange odor or

detect smoke coming from the appliance.

Turn the power o if water or dust

penetrates into the refrigerator. Call a

service agent.

Do not disassemble or modify the

refrigerator.

Do not put hands, feet, or metal objects

below or behind the refrigerator.

Do not operate the refrigerator or touch

the power cord with wet hands.

In refrigerators with automatic icemakers,

avoid contact with the moving parts

of the ejector mechanism or with the

heating element that releases the cubes.

Do not place

or hands on the

automatic ice-making mechanism while

the refrigerator is plugged in.

When dispensing ice from the dispenser,

do not use crystal ceramics.

Do not touch the cold surfaces in the

freezer compartment with wet or damp

hands, when your refrigerator is in

operation.

Do not put glass containers, glass bottles

or soda in the freezer.

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

or lack of experience and knowledge,

unless they have been given supervision

or instruction concerning the use of the

appliance by a person responsible for their

safety.

Do not refreeze frozen food that has

thawed completely. Doing so may result

in a serious health issue.

If you are throwing away y our old

refrigerator, make sure the CFC or HCFC

coolant is removed for proper disposal

by a

servicer. If you release

CFC/HCFC coolant, you may be

imprisoned in accordance with the relevant

environmental law.

Junked or abandoned refrigerators are

dangerous, even if they are sitting for

only a few days. When disposing of the

refrigerator, remove the packing materials

from the door or take o

the doors but

leave the shelves in place so that children

may not easily climb inside.

If the refrigerator is connected to a circuit

protected b

y fuses, use time delay fuses.

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of ﬁre, electric shock, or personal injury when using your product, basic

safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

Children should be supervised to ensure

they do not use the device as a toy

We do not recommend the use of exten-

sion cables. However, if you still choose

to utilize an extension cable, it is

absolutely necessary that it is listed in the

UL (in the United States) or CSA (in

Canada), that it supports three-pronged

plugs and that the electrical current

support a 15 A fuse for voltages between

115 and 127 V or 10 A to 220 V. (Verify the

6 IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

CAUTION

Installation

The refrigerator must be properly

installed in accordance with the Installer

Instructions that were taped to the front

of the refrigerator.

Be careful when you unpack and install

the refrigerator. Immediately dispose of

plastic and other packing materials out of

the reach of children.

The appliance must be positioned for

easy access to a power source.

Use

Close the door carefully when children

are around.

K ch point areas;

clearances between the doors and cabi-

nets are necessarily small. Be careful

closing doors when children are nearby.

If you store food improperly, be aware

that it may fall and cause injury.

Do not use aerosols near the refrigera-

tor.

Do not store articles on the top of the

appliance.

Maintenance

Do not use strong detergents like wax or

thinners for cleaning. Clean with a soft

cloth.

Wipe foreign objects (such as dust and

water) o

the prongs of the power plug

and contact areas regularly.

Do not store, disassemble or repair the

refrigerator by yourself.

Remove any dust or foreign matter from

the power plug pins.

Do not use a wet or damp cloth when

cleaning the plug.

If the refrigerator is disconnected from

the power supply, wait f

minutes before plugging it back in.

If you notice a chemical or burning

plastic smell or see smoke, unplug the

refrigerator immediately and contact

your LG Electronics Service Center.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the r re, electric shock, or personal injury when using your product, basic

safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT : Use only new water hose-sets,

do not reuse old water hose -sets

Caution: This device is meant to be used

in applications domestic and the like, such

and other environments I work; cottages

and customers in hotels, motels and other

environments residential; environments

bed and breakfast rate; hospitality non-

commercial and similar applications.

NOTE

Before a technician installs, cleans or changes

lights, unplug the refrigerator.

and reset the control (of thermostat,

refrigerator or freezer, depending on your

model) to the desired position.

Do not use extension cords or ungrounded

(two prong) adapters.

If the appliance's power cord is damaged,

the cord must be replaced by the manu-

facturer or its service agent or a similarly

hazard. Do not operate the appliance

with a damaged power cord.

Do not store explosive substances such as

in this appliance.

The insulation in this unit contains

cyclopentane or a pentane like blowing

and requires a special elimination

process. Before discontinuing use of this

refrigerator, contact local authorities to

arrange forsafe disposal of the unit.

Refrigerator compartment’s lamps are

interior lighting LED type, so maintenance

7COMPONENTS

ENGLISH

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

tual product may di er depending on the model.

Refrigerator Exterior for Door-In-Door Models

Refrigera

Vertical Horizontal

tor Exterior for Standard Model

Door-in-Door

Refrigerator

Preserves food.

Freezer

Preserves frozen food.

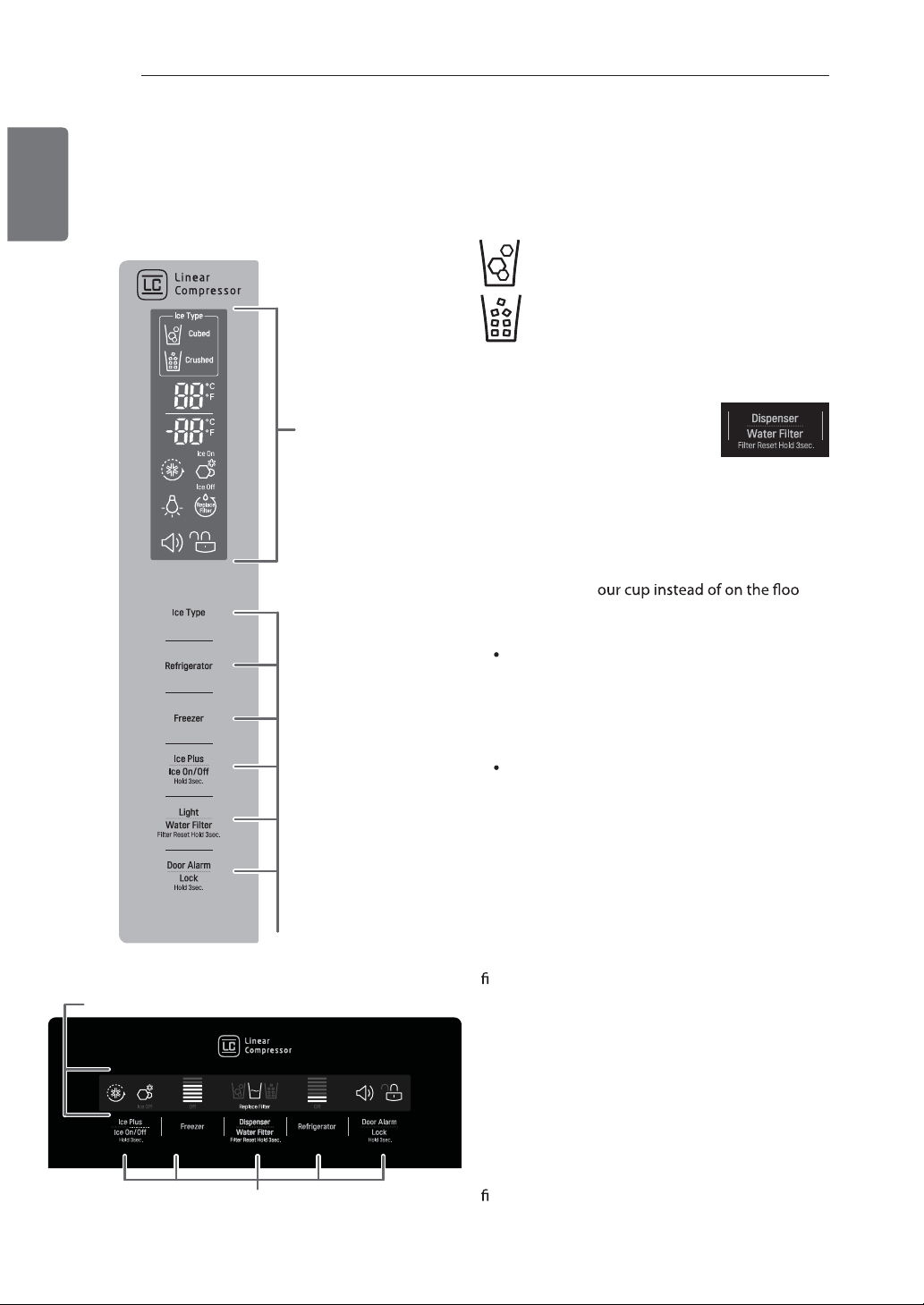

Control Panel

Sets the refrigerator and

freezer temperatures, the

dispenser mode.

Filtered Water

and Ice Dispenser

water and ice.

Refrigerator

Preserves food.

Freezer

Preserves frozen food.

Control Panel

Sets the refrigerator and

freezer temperatures, the

dispenser mode.

Filtered Water

and Ice Dispenser

water and ice.

8 COMPONENTS

ENGLISH

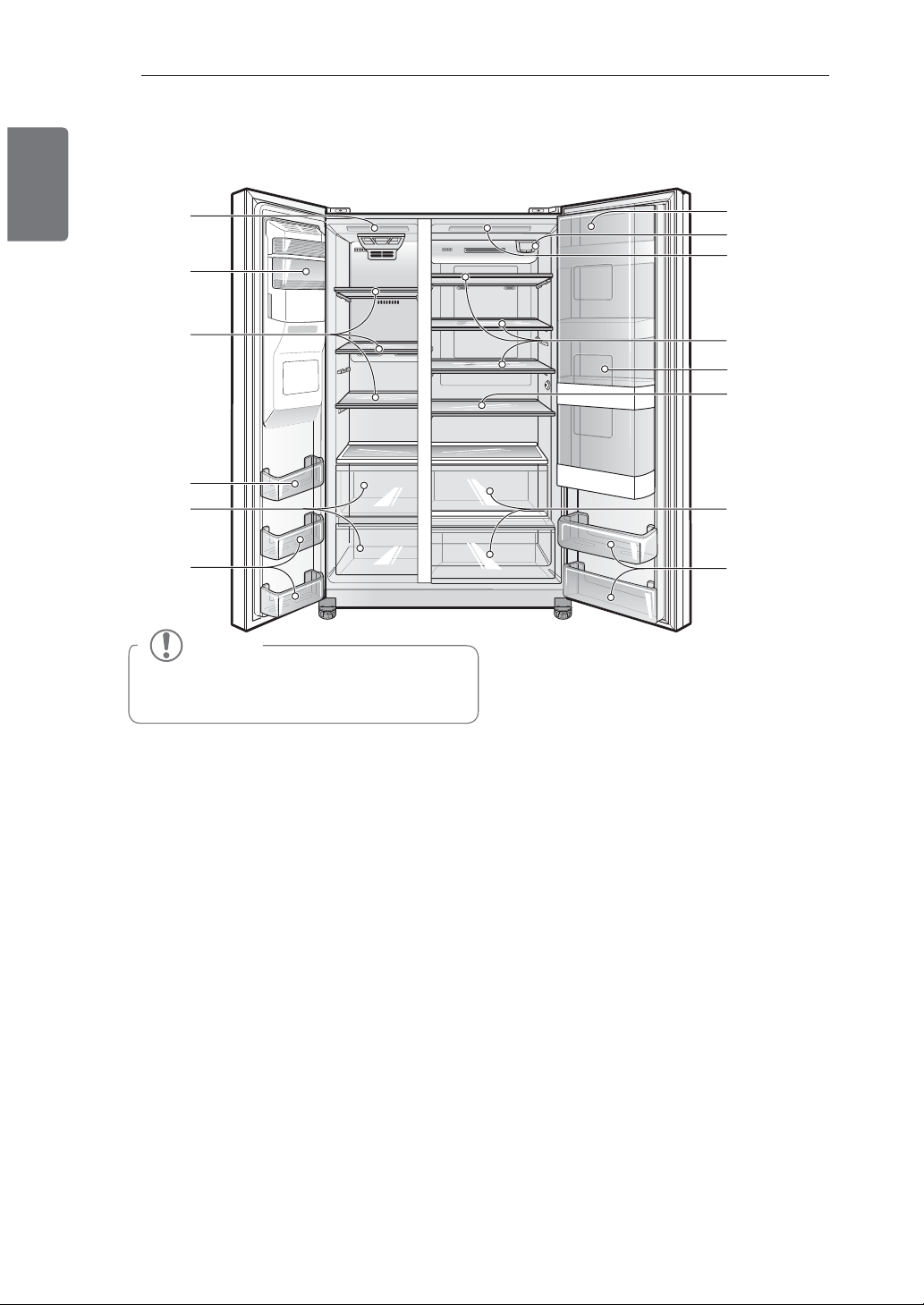

Refrigerator Interior for Door-In-Door Models

Automatic

Icemaker

Shelf

LED Lamp

Door Bin

Freezing Zone

Door Bin

Shelf

Refreshment center

Filter

LED Lamp

Dairy Corner

Door Bin

Fresh zone

Freezer

Compartment

Refrigerator

Compartment

NOTE

Parts, features and options vary by model.

Your model may not include every option.

9COMPONENTS

ENGLISH

Freezer

Compartment

Refrigerator

Compartment

Automatic

Icemaker

Shelf

LED Lamp

Door Bin

Freezing Zone

Door Bin

Shelf

LED Lamp

Filter

Dairy Corner

Door Bin

Fresh zone

Freezer

Compartment

Refrigerator

Compartment

Automatic

Icemaker

Shelf

LED Lamp

Freezing Zone

Door Bin

Shelf

LED Lamp

Filter

Dairy Corner

Door Bin

Fresh zone

NOTE

Parts, features and options vary by model.

Your model may not include every option.

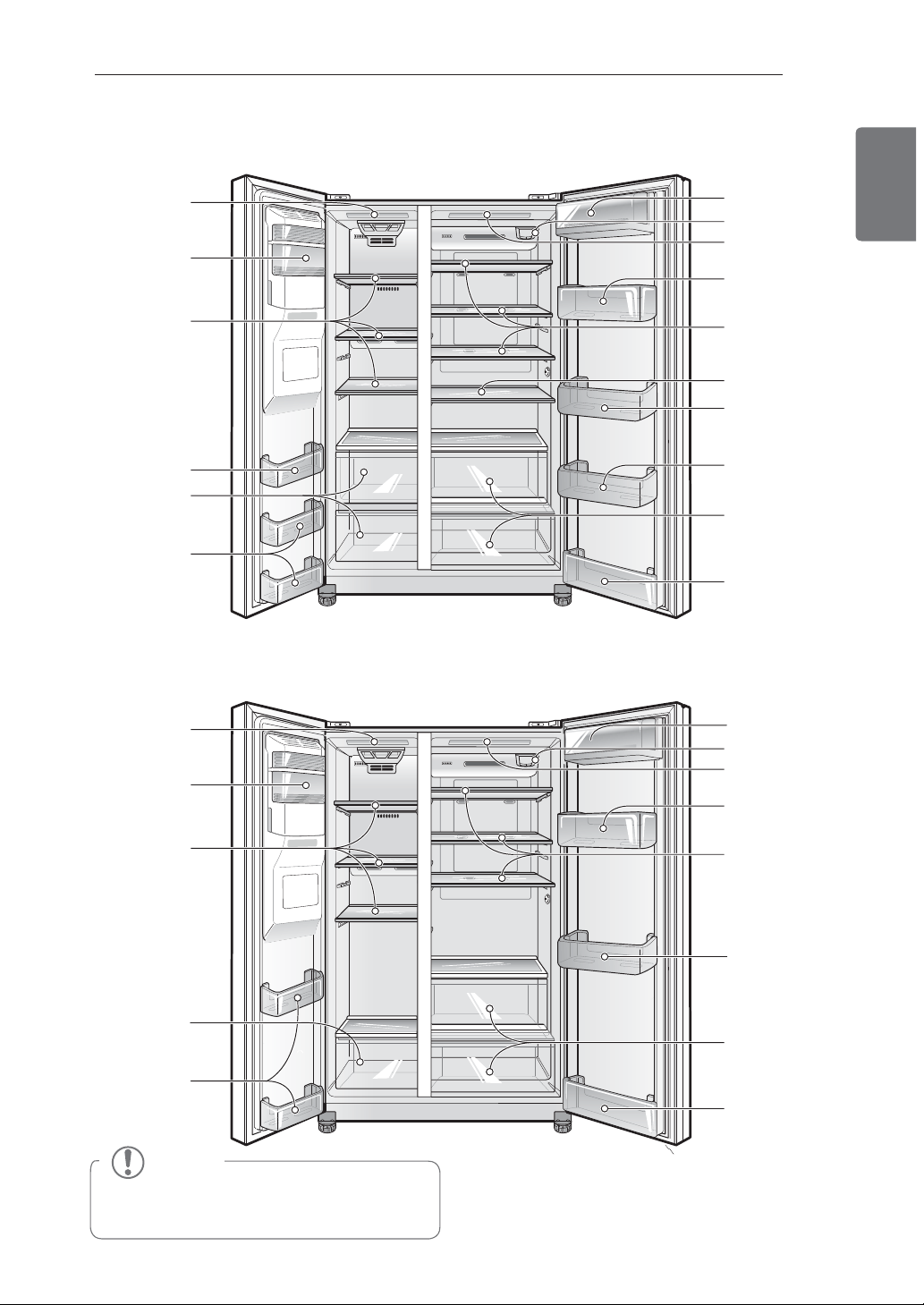

Refrigerator Interior for Standard Model

Horizontal Display

Vertical Display

10 INSTALLATION

ENGLISH

INSTALLATION

Installation Overview

Please read the following installation instr

fter purchasing this product or transporting it

to another location.

2 Choosing the proper

location

3 Disassembling/Assembling

4 Connecting the water

supply and water line

5 Leveling and Door

Alignment

Speciﬁcations

Side by Side refrigerator model

Description

Side by Side refrigerator

Electrical requirements

Min. / Max. Water pressure

20 - 120 psi (138 - 827 kP

Dimensions for Standard Depth Models 35.8 " (W) X 36.3" (D) X 70.3" (H), 51.1 " (D w/ door open)

909 mm (W) X 922 mm (D) X 1785 mm (H), 1298 mm (D w/ door open)

Net weight for Standard Depth Models

1 Unpacking your

refrigerator and remove

vinyl if applicable

Connect to potable water

supply only.

WARNING

DID Model: 304.3 lb (138 kg)

Basic Model Vertical: 277.8 lb (126 kg)

Basic Model Horizontal: 264.6 lb (120 kg)

The appearance and sp

constant product improvements.

115 V ~ 60 Hz and fused at 15 A

127 V ~ 60 Hz and fused at 15 A

220 V~ 50/60 Hz and fused at 10 A

(Refer to rating label inside refrigerator compartment).

35.9" (W) X 31.8" (D) X 70.3" (H), 46.5" (D w/ door open)

912 mm (W) X 807 mm (D) X 1785 mm (H), 1180 mm (D w/ door open)

DID Model: 277.8 lb (126 kg)

Non DID Model: 251.4 lb (114 kg)

After Door Removal: 29.1" (739 mm) (D)

After Door Removal: 24.6" (624 mm) (D)

Dimensions for Counter Depth Models

Net weight for Counter Depth Models

LSXS26****, GS7****

LSXC22****

Net weight for Counter Depth Models

LSXC22336*

Non DID Model: 280 lb (127 kg)

11INSTALLATION

ENGLISH

Unpacking Your Refrigerator

Remove tape and any temporary labels from

Please remove vinyl from doors before

connecting unit to the electrical supply

(on some models).

your refrigerator before using. Do not remove

any warning-type labels, the model and serial

number label

To remove any remaining tape or glue, rub

the area briskly with your thumb. Tape or glue

residue can also be easily removed by rubbing

a small amount of liquid dish soap over the

adhesive with y

Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol,

ve cleaners to re-

move tape or glue. These products can damage

the surface of your refrigerator.

Refrigerator shelves are installed in the ship-

ping position. Please reinstall shelves according

to your individual storage needs.

Choosing the Proper Location

Select a place where a water supply can

be easily connected for the automatic

icemaker.

Flooring

To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed

r. If required, adjust the leveling legs to

compensate for unev

r. The

front should be slightly higher than the rear to

aid in door closing. Leveling legs can be turned

easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to

the right to lower it. (See Leveling and Door

Alignment.)

NOTE

Installing on carpeting, soft tile surfaces, a

platform or weakly supported structure is

not recommended.

WARNING

To reduce the risk of electric shock, do not

install the refrigerator in a wet or damp area.

WARNING

Use two or more people to move and

install the refrigerator. Failure to do so

can result in back or other injury.

Your refrigerator is heavy. When moving

the refrigerator for cleaning or service,

be sure to protect the

r. Always pull

the refrigerator straight out when mov-

ing it. Do not wiggle or walk the refrig-

erator when trying to move it, as

damage could occur.

Keep materials and va-

pors, such as gasoline, away from the

refrigerator. Failure to do so can result

explosion, or death.

The water pressure must be between 20

and 120 psi (138 and 827 kPa) on models

without a water

ter and between 40 and

120 psi (276 and 827 kPa) on models with a

water

lter.

The refrigerator should always be plugged

into its own individual properly grounded

electrical outlet.

This provides the best performance and

also prevents overloading house wiring

from overheated wires. It is recommended

that a separate circuit serving only this

appliance be provided.

12 INSTALLATION

ENGLISH

Ambient Temperature

Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appli-

ance is too low or high, cooling ability may be

adversely aﬀected.

Measuring the Clearances

Too small of a distance from adjacent items

may result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the

refrigerator to open the doors, and at least

2 inches (5.08 cm)

Removing/Assembling the

Refrigerator Door Handles

Removing the Handles

Loosen the set screws with a 3/32 in. Allen

wrench and remove the handle.

2 Loosen the mounting fasteners that connect

to the refrigerator door and handle using a

¼ in. Allen wrench, remove the mounting

fasteners.

Assembling the Handles

Assemble the mounting fasteners at both

ends of the handle using a ¼ in. Allen

wrench.

2 Place the handle on the door by ﬁtting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/32 in. Allen wrench.

NOTE

When it is necessary to move the refrigerator

through a narrow opening, removing the

doors is the recommended procedure. If it

is necessary to remove the handles, follow

the directions below. The appearance of the

handle may vary from what is shown in the

illustrations

Mounting

Fasteners

Set Screw

Allen Wrench

Mounting Fasteners

24” (61 cm)

2” (5.08 cm)

between the back of the refrigerator and the

wall as well as on the sides of the refrigera-

tor and adjacent walls or objects.

Replacement of lamp

The refrigerator compartment lamp is a LED

interior lighting, so maintenance must be

performed by a qualiﬁed technician.

13INSTALLATION

ENGLISH

Removing/Assembling the

Refrigerator Doors

When it is necessary to move the refrigerator

through a narrow opening, removing the doors

is the recommended procedure.

Removing the Left (Freezer) Door

with Water Line Connection

wire

harness

hinge

cover

upper

hinge

WARNING

If your entrance door is too narrow

for the refrigerator to pass through,

remove the refrigerator doors and move

the refrigerator sideways through the

doorway.

Use two or more people to remove and

install the refrigerator doors. Failure to do

so can result in back or other injury.

Disconnect the electrical supply to the

refrigerator before installation. Failure

to do so could result in serious injury or

death.

Do not put hands, feet or other objects

into the air vents or bottom of the

refrigerator. You may be injured or receive

an electrical shock.

Be careful when handling the hinge and

stopper. You may be injured.

Remove food and bins before detaching

the doors and drawers.

hinge lever

upper hinge

CAUTION

Enough for

the water feed tube

to be completely

pulled out

120 mm

Support Block

1. Loosen the hinge cover screws and remove

the hinge cover. Disconnect all wire harnesses.

3. Remove the freezer compartment door by

lifting it upward. This time, the door should be

lifted enough for the water feed tube to be

completely pulled out.

When removing the upper hinge, be careful

that the door does not fall forward.

CAUTION

Before removing freezer door, disconnect

water line connectors (one white tube, one

blue tube).

Electric Shock Hazard

Removing the Right (Refrigerator) Door

1. Open the door. Remove the top hinge cover

screw.

NOTE: Do not remove freezer door if either

the white or blue tube is still connected. To

remove connectors use the support block

that is on the upper shelf in the refrigerator.

2.Use a

at blade screwdriver to pry back the

hooks (not shown) of the hinge cover from

the top of the refrigerator cabinet.

Lif

t up

the cover. Disconnect all wire harnesses.

Disconnect electrical supply to refrigerator

before installing.

Failure to do so could

result in death or serious injury.

2. Rotate the hinge lever counterclockwise ( )

and lift the upper hinge ( ).

Place the door, inside facing up, on a

non-scratching surface. Be careful not to

damage the water feed tube.

wire

harness

14 INSTALLATION

ENGLISH

3. Rotate the hinge lever clockwise (1). Lift the

upper hinge free of the hinge lever latch (2).

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a non-

scratching surface.

Reinstalling the Right (Refrigerator) Door

1. Place the door onto the lower hinge pin.

2. Fit the upper hinge over the hinge lever

latch and into place. Rotate the lever

counterclockwise to secure the hinge.

Reinstalling the Left (Freezer) Door

1. Feed the water tubes through the lower

hinge pin and place the door onto the

lower hinge pin. Water hoses should be

behind the leg to prevent damage.

2. Fit the top hinge over hinge lever latch and

into place. Rotate the lever clockwise to

secure the hinge.

3. Install the grounding screw and connect all

the wire harnesses.

4. Hook the tab on the door switch side of the

cover, under the edge of the wire, opening

in the cabinet top. Position the cover into

place. Insert and tighten the cover screw.

5. Reconnect the water tubes by inserting

the tubes into the connectors. The tube is

inserted correctly when only one guide line

is showing out of two.

Insert Line

Tube

Collet

careful that the door does not

CAUTION

When lifting the hinge free of the latch, be

fall forward.

hinge lever

upper

hinge

lower hinge

NOTE

Do not remove the grease on the sur-

face of the gasket or hinge.

Do not remove the sensor assembly in

the right upper hinge cover.

Open the door and turn the hose toward the inside.

Tube is completely inserted when only one guide line

is showing out of two.

Water hoses should be cut with a clean, straight edge

to avoid leaks.

Water hoses should be behind the leg to prevent

CORRECT

INCORRECT

Not Straight Damaged Stretched

CORRECT

INCORRECT

3. Reconnect all wire harnesses. Hook the tab

on the switch side of the cover under the

edge of the wire opening in the cabinet top.

Position the cover and replace the screw.

damage.

15INSTALLATION

ENGLISH

Connecting the Water Line

Before You Begin

This water line installation is not covered by the

refrigerator warranty. Follow these instructions

carefully to minimize the risk of expensive water

damage.

Water hammer (water banging in the pipes)

in house plumbing can cause damage to

refrigerator parts and can lead to water leakage

or flooding. Call a qualified plumber to correct

water hammer before installing the water

supply line to the refrigerator.

Water Pressure

You will need a cold water supply. The water

pressure must be between 20 and 120 psi ( 138

– 827 kPa ) on

models without a water filter and

between 40 and 120 psi ( 276 – 827 kPa ) on

models with a water filter. If the water pressure

does not reach the minimum required pressure,

a separate booster pump may be required

for normal automatic icemaker and cool water

dispensing operation.

If a reverse osmosis water filtration system is

connected to your cold water supply, this water

line installation is not covered by the refrigerator

warranty. Follow these instructions carefully to

minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (276 - 413 kPa,

or less than 2.0~3.0 sec. to fill a cup of 7 oz

capacity).

If the water pressure from the reverse osmosis

system is less than 21 psi or 1.5 kgf/cm2 (takes

more than 4.0 sec to fill a cup of 7 oz capacity):

y Check to see if the sediment filter in

the reverse osmosis system is blocked.

Replace the filter if necessary.

y Allow the storage tank on the reverse

osmosis system to refill after

heavy usage.

y If the issue concerning water pressure

from reverse osmosis remains, call a

licensed, qualified plumber.

y All installations must be in accordance

with local plumbing code requirements.

What You Will Need

y Copper Tubing, ¼ in. outer diameter,

to connect the refrigerator to the water

supply. Be sure both ends of the tubing

are cut square.

To determine how

much tubing you

need: measure the

distance from the

water valve on the back of the refrigerator

to the water supply pipe. Then, add 8 feet

(2.4 m). Be sure there is sufficient extra

tubing (about 8 feet [2.4 m] coiled into 3

turns of about 10 in. [25 cm] diameter) to

allow the refrigerator to move out from

the wall after installation. Keep the total

length of the feed water pipe tube within

26 ft (8 m). Be careful to avoid getting a

kink in the tube. If the tube is longer than

26 ft (8 m), it may cause the water feed to

malfunction.

y Power drill.

y ½ in. or adjustable

wrench.

y Flat blade and Phillips

head screwdrivers.

y Two ¼ in. outer

diameter compression

nuts and 2 ferrules (sleeves) to connect

the copper tubing to the shutoff valve and

the refrigerator water valve.

CAUTION

To prevent burns and product damage, only

connect the refrigerator water line to a cold

water supply.

CAUTION

Do not install the icemaker tubing in areas

where temperatures fall below freezing.

CAUTION

Wear eye protection during installation to

prevent injury.

16 INSTALLATION

ENGLISH

y If your existing copper water line

has a flared fitting at the end, you

will need an adapter (available at

plumbing supply stores) to connect

the water line

to the

refrigerator OR

you can cut off

the flared fitting with a tube cutter

and then use a compression fitting.

y Shutoff valve to connect to the cold

water line. The shutoff valve should

have a water inlet with a minimum

inside diameter of 5/32 in. at the

point of connection to the COLD

WATER LINE. Saddle-type shutoff

valves are included in many water

supply kits.

Before

purchasing,

make sure

a saddle-

type valve complies with your local

plumbing codes.

NOTE

A self-piercing saddle type water valve

should not be used.

WARNING

Electrical Shock Hazard:

When using any electrical device (such as a

power drill) during installation, be sure the

device is battery powered, double insulated

or grounded in a manner that will prevent the

hazard of electric shock.

17INSTALLATION

ENGLISH

Water Line Installation Instructions

Install the shuto valve on the nearest

frequently used drinking water line.

1 SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the

pressure on the line.

2 CHOOSE THE VALVE LOCATION

Choose a location

for the valve that is

easily accessible. It is

best to connect into

the side of a vertical

water pipe. When it is

necessary to connect

into a horizontal water pipe, make the

connection to the top or side, rather

than at the bottom, to avoid drawing

o any sediment from the water pipe.

3 DRILL THE HOLE FOR THE VALVE

Drill a ¼ in. hole in

the water pipe using

a sharp bit. Remove

any burrs resulting

from drilling the

hole in the pipe. Be

careful not to allow

water to drain into

the drill. Failure to drill a ¼ in. hole may

result in reduced ice production or smaller

cubes.

4 FASTEN THE SHUTOFF VALVE

Fasten the shuto valve to the cold water

pipe with the pipe clamp.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE:

Do not overtighten clamp or

you may crush the tubing.

6 ROUTE THE TUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or oor (behind the refrigerator or

adjacent base cabinet) as close to the wall as

possible.

NOTE

The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only

copper tubing (NDA tubing #49595 or

#49599) or Cross Link Polyethylene (PEX)

tubing.

WARNING

When using any electrical device (such

as a power drill) during installation, be

sure the device is battery powered,

double insulated or grounded in a

manner that will prevent the hazard of

electric shock.

Pipe Clamp

Saddle-Type

Shuto Valve

Vertical Cold

Water Pipe

NOTE

Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle

valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed

plumber.

Pipe Clamp

Clamp Screw

Washer

Inlet End

NOTE

Be sure there is sucient extra tubing (about

8 feet (2,4 m) coiled into 3 turns of about 10 in.

(0,25 m) diameter) to allow the refrigerator to

move out from the wall after installation.

18 INSTALLATION

ENGLISH

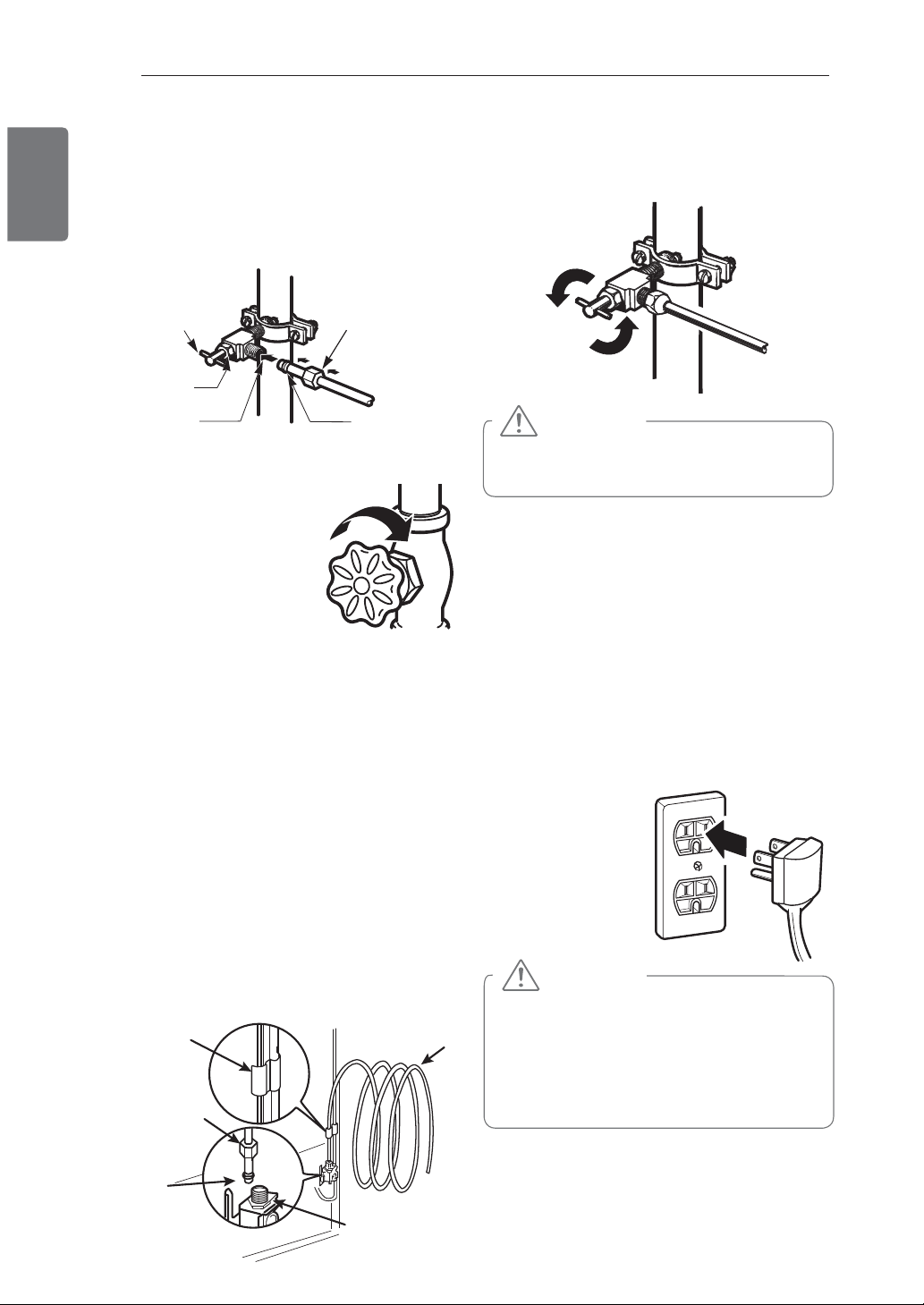

7 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule

(sleeve) for copper tubing onto the end of

the tubing and connect it to the shutoff

valve. Make sure the tubing is fully inserted

into the valve. Tighten the compression nut

securely.

8 FLUSH OUT THE TUBING

Turn the main water

supply on and flush

out the tubing until the

water is clear.

Shut the water off at the

water valve after about

one quart of water has

been flushed through the tubing.

9 CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection to

the refrigerator, be sure that the refrigerator

power cord is not plugged into the wall

outlet.

a. Remove the plastic flexible cap from the water

valve.

b. Place the compression nut and ferrule (sleeve)

onto the end of the tubing as shown.

c. Insert the end of the copper tubing into the

connection as far as possible. While holding

the tubing, tighten the fitting.

10 TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

11 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not

vibrate against the back of the refrigerator

or against the wall. Push the refrigerator

back to the wall.

12 START THE ICEMAKER

The icemaker will not begin to operate until

it reaches its operating temperature of 15°F

(–9°C) or below.

Turning On The Power

Plug in the

refrigerator.

Saddle-Type

Shutoff Valve

Packing Nut

Outlet Valve

Compression

Nut

Ferrule (sleeve)

Tubing Clamp

¼ in. Tubing

¼ in.

Compression

Nut

Refrigerator

Connection

Ferrule (sleeve)

CAUTION

Check to see if leaks occur at the water line

connections.

CAUTION

y Connect to a rated power outlet.

y Have a certified electrician check the wall

outlet and wiring for proper grounding.

y Do not damage or cut off the ground

terminal of the power plug.

19INSTALLATION

ENGLISH

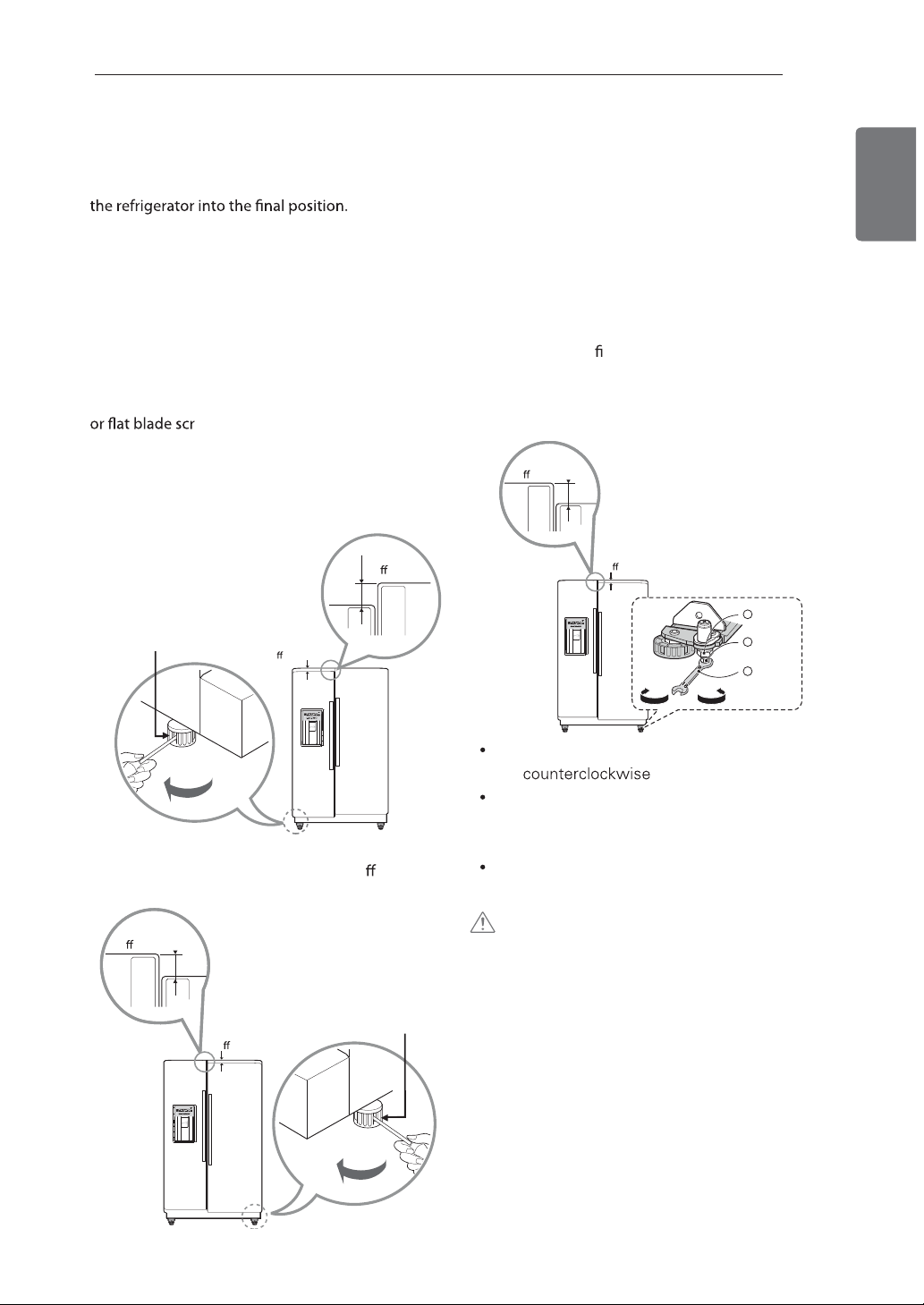

Leveling

After installing, plug the refrigerator’s power

cord into a 3-prong grounded outlet and push

Your refrigerator has two front leveling legs—

one on the right and one on the left. Adjust the

legs to alter the tilt from front-to-back or side-to-

side. If your refrigerator seems unsteady, or you

want the doors to close more easily, adjust the

refrigerator’s tilt using the instructions below:

NOTE: Tools Required: 11/16” (18mm) wrench

ewdriver.

1 Turn the leveling leg counterclockwise

to raise that side of the refrigerator or

clockwise to lower it. It may take several

turns of the leveling leg to adjust the tilt of

the refrigerator.

Left leveling

leg

Height

erence

PRESS & HOLD

CHANGE FILTER

NOTE: Having someone push backward against the

top of the refrigerator takes some weight o

of the

leveling legs. This makes it easier to adjust the legs.

Right leveling leg

Height

erence

Height

erence

PRESS & HOLD

CHANGE FILTER

2 Open both doors again and check to make

sure that they close easily. If the doors do

not close easily, tilt the refrigerator slightly

more to the rear by turning both leveling

legs counterclockwise. It may take several

more turns, and you should turn both

leveling legs the same amount.

Door Alignment

If the doors are still uneven after the refrigerator

has been leveled,

nish adjusting the doors by

following the instructions below:

Adjusting tools: 5/16” (8mm) wrench and 3/4”

(19mm) wrench.

Height

erence

Height

erence

PRESS & HOLD

CHANGE FILTER

Down

keeper nut

Adjustment

hinge pin

Tool for

adjustment

Using a 3/4” (19mm) wrench, turn the keeper

nut

to loosen the keeper nut.

Using a 5/16” (8mm) wrench, turn the

adjustment hinge pin clockwise or coun-

terclockwise to level the refrigerator door.

After leveling the door, turn the keeper

nut clockwise to tighten it.

CAUTION: Do not overtighten the door ad-

justment screw. The hinge pin can be pulled out

(adjustable range of height is a maximum of 2 in.

(5 cm).

20 HOW TO USE

ENGLISH

HOW TO USE

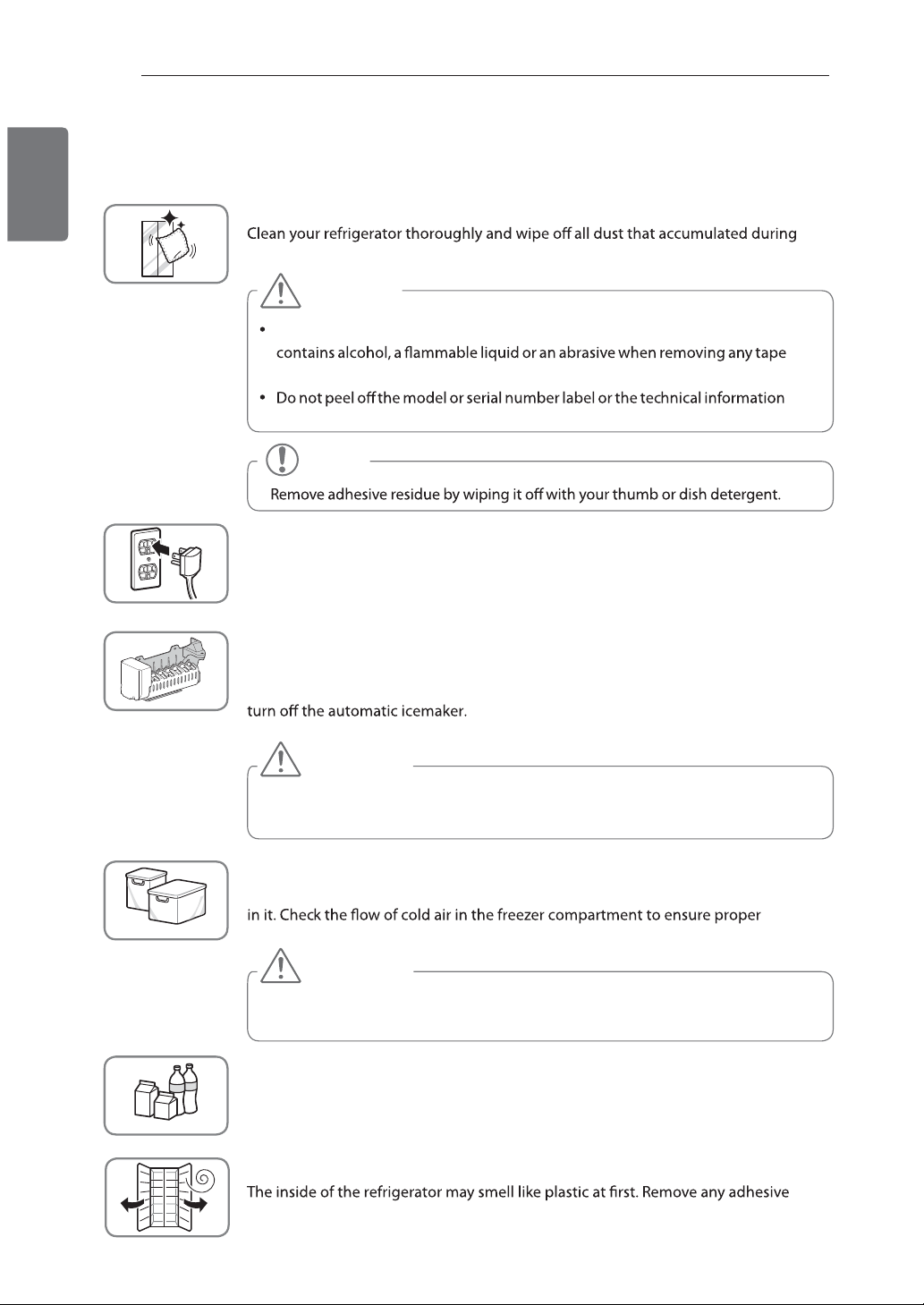

Before Use

OFF

Clean the refrigerator.

shipping.

Connect the power supply.

Check if the power supply is connected before use.

Read the “Turning On The Power” section.

Turn off the icemaker if the refrigerator is not yet connected to

the water supply.

Plug the power plug of the refrigerator into the grounded electric outlet and then

* This is applicable only to certain models.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food

cooling.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature lowers.

Open refrigerator and freezer doors to ventilate the interior.

tape from inside the refrigerator and open the refrigerator and freezer doors for

ventilation.

CAUTION

Running the automatic icemaker before connecting it to the water supply

may cause the refrigerator to malfunction.

CAUTION

Putting food in the refrigerator before it has cooled could cause the food to

spoil, or a bad odor could linger inside the refrigerator.

CAUTION

Do not scratch the refrigerator with a sharp object or use a detergent that

or adhesive from the refrigerator.

on the rear surface of the refrigerator.

NOTE

21HOW TO USE

ENGLISH

Control Panel

The refrigerator control functions as the ther-

mostat for the entire appliance (refrigerator and

freezer sections). The colder the setting, the

longer the compressor will run to keep the tem-

perature colder. The freezer control adjusts the

cold air flow from the freezer to the refrigerator.

Setting the freezer control to a lower tempera-

ture keeps more cold air in the freezer compart-

ment to make it colder.

Airflow

Cold air circulates from the freezer to the fresh

food section and back again through air vents in

the wall dividing the two sections. Be sure not

to block vents while packing your refrigerator.

Doing so will restrict airflow and may cause the

refrigerator temperature to become too warm

or cause interior moisture buildup. (See air flow

diagram below.)

IMPORTANT:

Because air circulates between both sections,

any odors formed in one section will transfer to

the other. You must thoroughly clean both sec-

tions to eliminate odors.

To prevent odor transfer and dried out food,

wrap or cover foods tightly. (See the Food Stor-

age Guide section for details.)

NOTE:

If you close the refrigerator door, you

may see the freezer door open and close again

due to pressure from internal air flow.

22 HOW TO USE

ENGLISH

Ice Type

Horizontal Display

Vertical Display

To dispense water or ice, gently push your cup

against the dispenser pad (see page 26).

NOTE: Hold your cup in place for a couple of

seconds after dispensing ice or water so the last

few drops go in y

Temperature

The Refrigerator Temp. Control ranges

from 33°F to 46°F (1°C to 8°C). Press the

Refrigerator button to cycle through

the available temperature settings one

increment at a time.

The Freezer Temp. Control range is from

-6°F to 8°F (-21°C to -13°C). Press the

Freezer button to cycle through the

available temperature settings one incre-

ment at a time.

NOTE: When changing control settings, wait 24

hours before making additional adjustments. The

controls are set correctly when milk or juice is

as cold as you would like and when ice cream is

rm. If the temperature in either compartment

is too cold or too warm, change the setting

one increment at a time. Wait 24 hours for the

change to stabilize before adjusting again.

Temperature Mode Switch Function

(°F <->°C)

If you want to convert °F to °C or vice versa,

press and hold the Freezer and Refrigerator

buttons at the same time for approximately

ve seconds. (Type 2 is not available)

Control Panel Features

* Depending on the model, some of the

following functions may not be available.

LED Display

Indicator

Control

Button

Control Button

LED Display Indicator

Horizontal Display

Vertical Display

Select Crushed Ice, Cubed Ice or Water

by pressing the Dispenser button

repeatedly to choose the selection

desired. The Icon will light up to

indicate your selection.

Selecting this icon indicates that cubed ice

will be dispensed when the dispenser pad

is activated.

Selecting this icon indicates that crushed

ice will be dispensed when the dispenser

pad is activated.

Select Crushed Ice or Cubed Ice by pressing the Ice

Type button repeatedly to choose the selection

desired. The Crushed Ice or Cubed Ice icon will

light up to indicate your selection.V

23HOW TO USE

ENGLISH

Ice Plus

When you press the Ice Plus button, the

graphic will illuminate in the display and

will continue for 24 hours. The function

will automatically shut o

after 24 hours.

You can stop this function manually by

pressing the button one more time.

This function increases both ice making

and freezing capabilities.

Ice ON/OFF

To turn o the automatic icemaker, press

and hold the Ice ON/OFF button for three

seconds until the

Ice O

xt is illumi-

nated

o t

urn on the automatic ice mak

press and hold until the

Ice On

xt is

illuminated.

Light

This light has two settings: ON and OFF. Press

the Light button to turn the dispenser light on

and o

. (Not available on all models)

Water Filter Reset

When the water indicator turns on, you

need to replace the water

r. After replacing

the water

r, press and hold the Replace Fil-

ter button for three seconds to turn the indicator

light o

. You need to replace the water ap-

proximately every six months.

Door Alarm

When power is connected to the

refrigerator, the door alarm is initially

set to ON. When you press the Door

Alarm button, the display will change

to OFF and the Door Alarm function

will deactivate.

When either the refrigerator or the

freezer door is left open for more

than 60 seconds, the alarm tone will

sound to let you know that the door

is open.

When you close the door, the door

alarm will stop.

Lock

When power is initially connected to

the refrigerator, the Lock function is

If you want to activate the Lock func-

tion to lock other buttons, press and

hold the Door Alarm button for three

seconds or more. The Lock icon will

display and the Lock function is now

enabled.

When the Lock function is activated,

no other buttons will work. The dis-

penser pad is also deactivated.

To disable the Lock function, press

and hold the Door Alarm button for

approximately three seconds.

Display Off Mode

When the refrigerator is in the

Display

Mode, the display will remain o until

a door is opened or a button is pressed.

Once on, the display will remain on for 20

seconds.

Demo Mode (For Store Use Only)

The

Demo Mode

disables all cooling in the

refrigerator and freezer sections to conserve

energy while on display in a retail store. When

activated, OFF will display on the control panel.

To deactivate:

With either refrigerator door opened, press

and hold the

Refrigerator Temp.

and

Ice Plus

buttons at the same time for

ve seconds. The

control panel will beep and the temperature set-

tings will display to

that

Demo Mode

deactivated. Use the same procedure to activate

the

Demo Mode

24 HOW TO USE

ENGLISH

Preparing for Vacation

Set the Ice ON/OFF button to the Ice O mode

and shut o

the water supply to the refrigerator.

NOTE: The ice bin should be emptied any time

the Ice ON/OFF button is set to the Ice O

mode.

If the ambient temperature will drop below

freezing, have a qua

technician drain the

water supply system to prevent serious prop-

erty damage due to

caused by ruptured

water lines or connections.

Power Failure

NOTE: Do not dispense ice continuously for

During a power failure, ice may drop into the

freezer compartment. Remove the ice storage

bin and discard all the ice. Dry the storage bin

and reinstall it. Once power is restored, crushed

ice will be selected by default.

WARNING

Personal Injury Hazard

DO NOT place

ngers or hands on the auto-

matic ice making mechanism while the refrig-

erator is plugged in.

lcemaker

Automatic Shuto

Arm

Automatic Icemaker

Ice is made in the automatic icemaker and sent

to the dispenser. The icemaker will produce 7

cubes per cycle - approximately 70-120 cubes in

a 24-hour period, depending on freezer compart-

ment temperature, room temperature, number

of door openings and other operating conditions.

It takes about 12 to 24 hours for a newly

installed refrigerator to begin making ice.

Wait 72 hours for full ice production to oc-

cur.

Ice making stops when the ice storage

bin is full. When full, the ice bin holds

approximately 6 to 8 (12-16 oz) glasses of

ice.

To turn o the automatic icemaker, set

the Ice ON/OFF button on the display to

Ice O

. To turn on the automatic icemak-

er, set the ON/OFF button on the display

Ice On .

The water pressure must be between 20

and 120 psi ( 138 – 827 kPa ) on models

without a w

tween 40 and

120 psi on ( 276 – 827 kPa ) models with a

and size of ice cubes.

When You Should Turn the Icemaker Off

Set the Ice ON/OFF Button to "Ice O

When the water supply will be shut

for several hours.

When the ice bin is removed for

more than one or two minutes.

When the refrigerator will not be

used for several days.

NOTE: The ice bin should be emptied when the

Ice ON/OFF button is set to the Ice O

mode.

Normal Sounds You May Hear

NOTE: Keeping the Ice ON/OFF button set to

the Ice On mode before the water line is con-

nected can damage the icemaker.

You will hear the sound of cubes drop-

ping into the bin and water running in the

pipes as the icemak

more than 30 sec. Depress and release the

dispenser pad for cycles of 30 seconds ON and

60 seconds OFF.

25HOW TO USE

ENGLISH

Automatic Icemaker (continued)

CAUTION

The first ice and water dispensed may

include particles or odor from the water

supply line or the water tank.

Throw away the first few batches of ice

(about 24 cubes). This is also necessary

if the refrigerator has not been used for a

long time.

Never store beverage cans or other items in

the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

If discolored ice is dispensed, check the

water filter and water supply. If the prob-

lem continues, contact a qualified service

center. Do not use the ice or water until

the problem is corrected.

Keep children away from the dispenser.

Children may play with or damage the

controls.

The ice passage may become blocked with

frost if only crushed ice is used. Remove

the frost that accumulates by removing

the ice bin and clearing the passage with a

rubber spatula. Dispensing cubed ice can

also help prevent frost buildup.

Never use thin crystal glass or crockery to

collect ice. Such containers may chip or

break resulting in glass fragments in the

ice.

Dispense ice into a glass before filling it

with water or other beverages. Splashing

may occur if ice is dispensed into a glass

that already contains liquid.

Never use a glass that is exceptionally

narrow or deep. Ice may jam in the ice

passage and refrigerator performance may

be affected.

Keep the glass at a proper distance from

the ice outlet. A glass held too close to the

outlet may prevent ice from dispensing.

To avoid personal injury, keep hands out of

the ice door and passage.

Never remove the dispenser cover.

26 HOW TO USE

ENGLISH

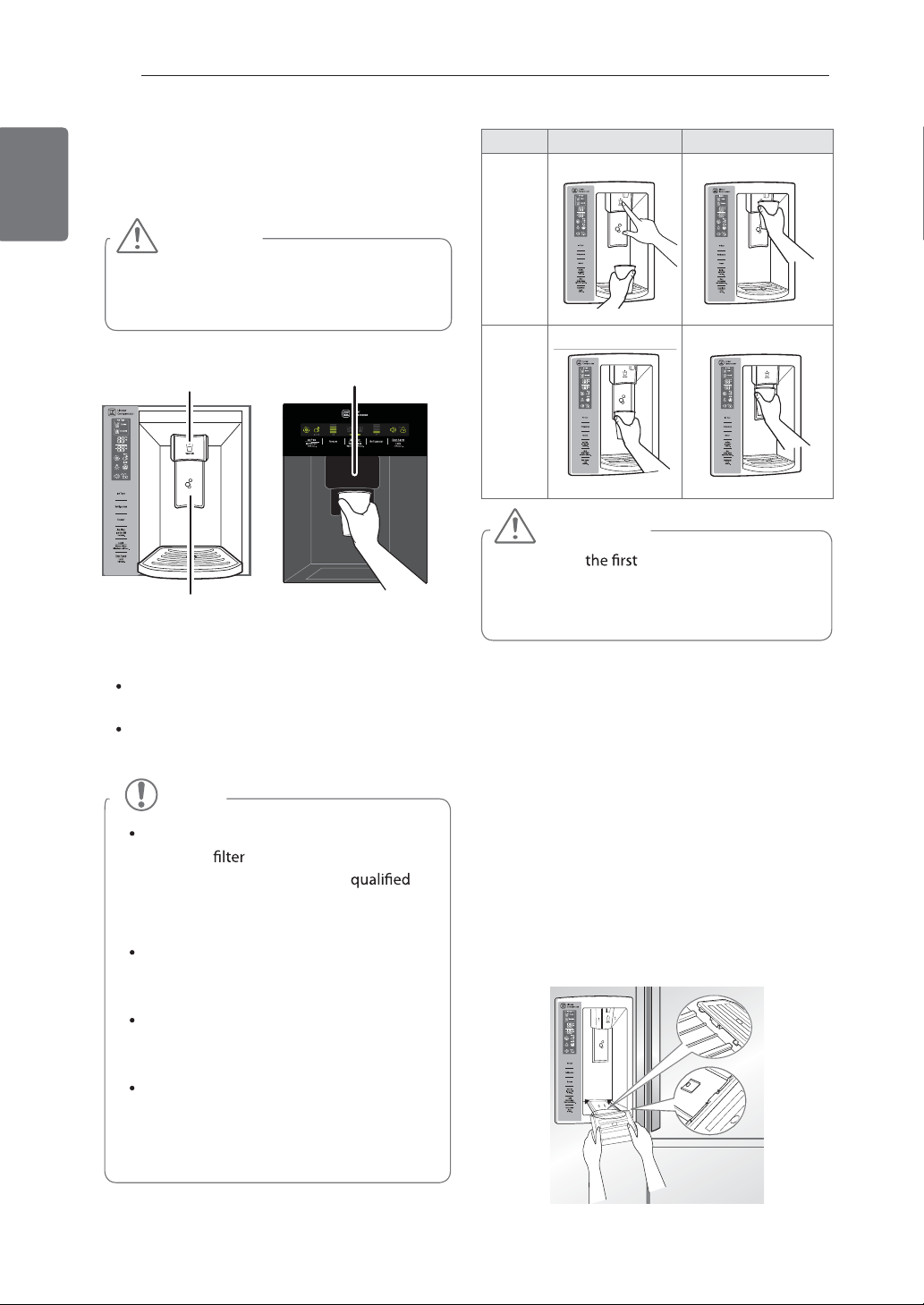

Using the dispenser

Ice and Water Dispenser

* Depending on the model, some of the

following functions may not be available.

Dispenser structure

Water Switch

Ice & Water Switch

Ice Switch

Locking the dispenser

Press and hold the Alarm and Lock button

simultaneously for 3 seconds to lock the

dispenser and all the control panel functions.

Follow the same instructions to unlock.

Cleaning the dispenser stand

The dispenser drip tray has no self-draining function.

It should be cleaned regularly.

(Models with a combined ice and water switch do

not have a drip tray).

1 To remove, grip the tray with both hands

and pull it out. Wipe out dirty areas and dry

with a clean cloth.

2 To reinstall the tray, slightly tilt the front of

the tray and snap the ribs into the holes.

Incorrect Way Correct Way

Water

Ice

CAUTION

Keep children away from the dispenser.

Children may play with or damage the

controls.

To dispense cold water , push on the

water switch with a glass.

To dispense ice , push on the ice switch

with a glass.

If discolored ice is dispensed, check

the water

and water supply. If the

problem continues, contact a

service center. Do not use the ice or

water until the problem is corrected.

The dispenser will not operate when

either of the refrigerator doors are

open.

If dispensing water or ice into a

container with a small opening, place it

as close to the dispenser as possible.

Some dripping may occur after

dispensing. Hold your cup beneath

the dispenser for a few seconds after

dispensing to catch all of the drops.

NOTE

Throw away few batches of ice

(about 24 cubes). This is also necessary if

the refrigerator has not been used for a long

time.

CAUTION

correct way

27HOW TO USE

ENGLISH

Storing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store dierent types of food.

Store your food in the optimal space to enjoy the freshest taste.

CAUTION

Do not store food with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

packaging should be wiped down to prevent adjacent foods from being contaminated.

If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot

of vegetables in the refrigerator may cause condensation to form. Wipe o the condensation

with a clean cloth or a paper towel.

If the refrigerator or freezer door is opened or closed too often, warm air may penetrate the

refrigerator and raise its temperature. This can increase the running costs of the unit.

Do not overll or pack items too tightly into door bins. Doing so may cause damage to the bin

or personal injury if items are removed with excessive force.

Do not store glass containers in the freezer. Contents may expand when frozen, break the container

and cause injury.

NOTE

If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in

the freezer.

If you are leaving the refrigerator turned o for an extended period of time, remove all food

and unplug the power cord. Clean the interior, and leave the doors open to prevent fungi from

growing in the refrigerator.

Freezing Zone

Store meat, sh, chicken,

etc. after wrapping it in

foil.

Fresh Zone

Store vegetables and fruits.

Adjustable refrigerator shelf

Adjustable shelves to meet

your individual storage needs.

Recommended types of

foods to store in Door-In-Door

section are butter, margarine

beverages, cream cheese,

peanut butter, ketchup,

mustard, relish, etc.

Ice storage bin

If a large amount

of ice is needed,

transfer the ice

in the storage bin

to another container.

DOOR-IN-DOOR MODEL

Freezer Shelves

Store various frozen

ice cream, etc.

28 HOW TO USE

ENGLISH

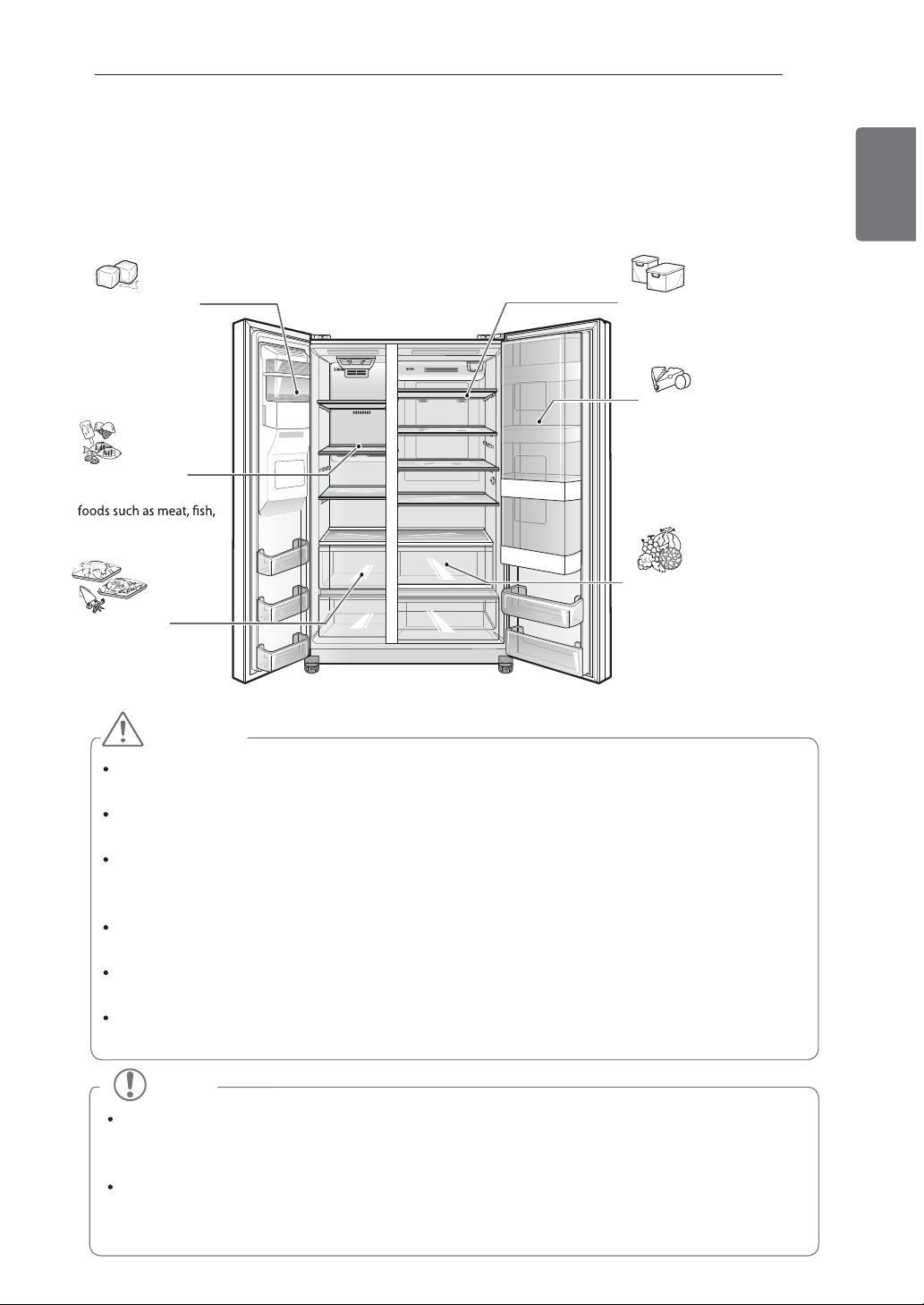

Storing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store di erent types of food.

Parts, features and options vary by model. Your model may not include every option.

Store your food in the optimal space to enjoy the freshest taste.

Freezing Zone

etc. after wrapping it in

foil.

Fresh Zone

Store vegetables and fruits.

Adjustable refrigerator shelf

Adjustable shelves to meet

your individual storage needs.

Dairy Corner

Store dairy products such

as butter, cheese, etc.

Ice storage bin

If a large amount

of ice is needed,

transfer the ice

in the storage bin

to another container.

Freezer Shelves

Store various frozen

ice cream, etc.

Door Bins

Store small food or beverages,

condiments, juice, beer, etc.

ALL STANDARD DOOR MODELS

CAUTION

Do not store food with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

packaging should be wiped down to prevent adjacent foods from being contaminated.

If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot

of vegetables in the refrigerator may cause condensation to form. Wipe o

the condensation

with a clean cloth or a paper towel.

If the refrigerator or freezer door is opened or closed too often, warm air may penetrate the

refrigerator and raise its temperature. This can increase the running costs of the unit.

Do not ov or pack items too tightly into door bins. Doing so may cause damage to the bin

or personal injury if items are removed with excessive force.

Do not store glass containers in the freezer. Contents may expand when frozen, break the container

and cause injury.

NOTE

If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in

the freezer.

If you are leaving the refrigerator turned o for an extended period of time, remove all food

and unplug the power cord. Clean the interior, and leave the doors open to prevent fungi from

growing in the refrigerator.

29HOW TO USE

ENGLISH

Food Storage Tips

* The following tips may not be applicable

depending on the model.

Wrap or store food in the refrigerator in airtight

and moisture-proof material unless otherwise

noted. This prevents food odor and taste

transfer throughout the refrigerator. For dated

products, check date code to ensure freshness.

Food How To

Butter or

Margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply, wrap in

freezer packaging and freeze.

Cheese

Store in the original wrapping

until you are ready to use it.

Once opened, rewrap tightly in

plastic wrap or aluminum foil.

Milk

Wipe milk cartons. For coldest

milk, place containers on an

interior shelf.

Eggs

Store in original carton on interior

shelf, not on door shelf.

Fruit

Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store in a

completely closed paper bag on a

refrigerator shelf.

Leafy

Vegetables

Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

vegetable drawer.

Vegetables

with skins

(carrots,

peppers)

Place in plastic bags or plastic

container and store in vegetable

drawer.

Fish

Store fresh fish and shellfish in the

freezer section if they are not being

consumed the same day of purchase.

It is recommended to consume fresh

fish and shellfish the same day

purchased.

Leftovers

Cover leftovers with plastic wrap

or aluminum foil, or store in plastic

containers with tight lids.

Ice Cream

When storing frozen food like ice

cream for a long period, place it on

the freezer shelf, not in the door bins.

Storing Frozen Food

Freezing

Your freezer will not quick-freeze a large

quantity of food. Do not put more unfrozen

food into the freezer than will freeze within

24 hours (no more than 2 to 3 lbs. of food per

cubic foot of freezer space). Leave enough

space in the freezer for air to circulate around

packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality

and type of food, the type of packaging or wrap

used (how airtight and moisture-proof) and

the storage temperature. Ice crystals inside a

sealed package are normal. This simply means

that moisture in the food and air inside the

package have condensed, creating ice crystals.

NOTE

Check a freezer guide or a reliable cookbook

for further information about preparing food

for freezing or food storage times.

NOTE

Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze.

Cooling hot foods before freezing saves

energy.

30 HOW TO USE

ENGLISH

Storing Frozen Food (continued)

Packaging

Successful freezing depends on correct

packaging. When you close and seal the

package, it must not allow air or moisture in or

out. If it does, you could have food odor and

taste transfer throughout the refrigerator and

could also dry out frozen food.

Packaging recommendations:Packaging recommendations:

y Rigid plastic containers with tight-fitting lids

y Straight-sided canning/freezing jars

y Heavy-duty aluminum foil

y Plastic-coated paper

y Non-permeable plastic wraps

y Specified freezer-grade self-sealing plastic

bags

Follow package or container instructions for

proper freezing methods.

Do not use

y Bread wrappers

y Non-polyethylene plastic containers

y Containers without tight lids

y Wax paper or wax-coated freezer wrap

y Thin, semi-permeable wrap

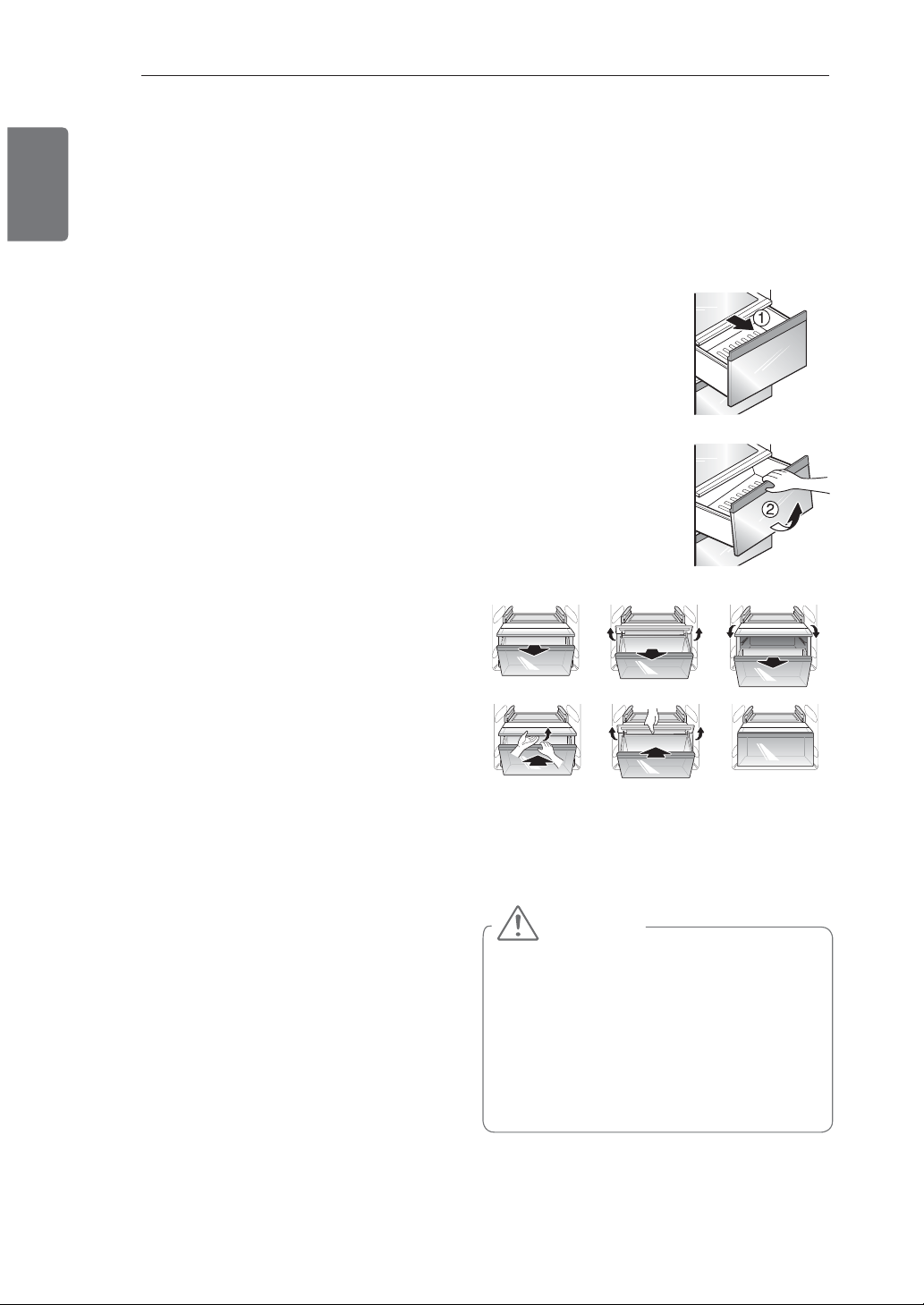

Detaching and Assembling the

Storage Bins

Fresh Zone Drawers

The Fresh Zone drawers provide storage for fruit

and vegetables.

To remove the Fresh Zone

drawers,

pull out the

drawer to full extension

햲, lift the front up 햳,

and pull straight out.

To install, slightly tilt

up the front, insert the

drawer into the frame and

push it back into place.

NOTE: When removing or installing the lower

Fresh Zone drawer, lift the cover to help remove

or insert the drawer.

CAUTION

y Use both hands to assemble and

disassemble the Fresh Zone. The

compartment is heavy when filled with

food and may cause injury if dropped.

y Open the refrigerator door fully when

disassembling or reassembling the

Fresh Zone.

31HOW TO USE

ENGLISH

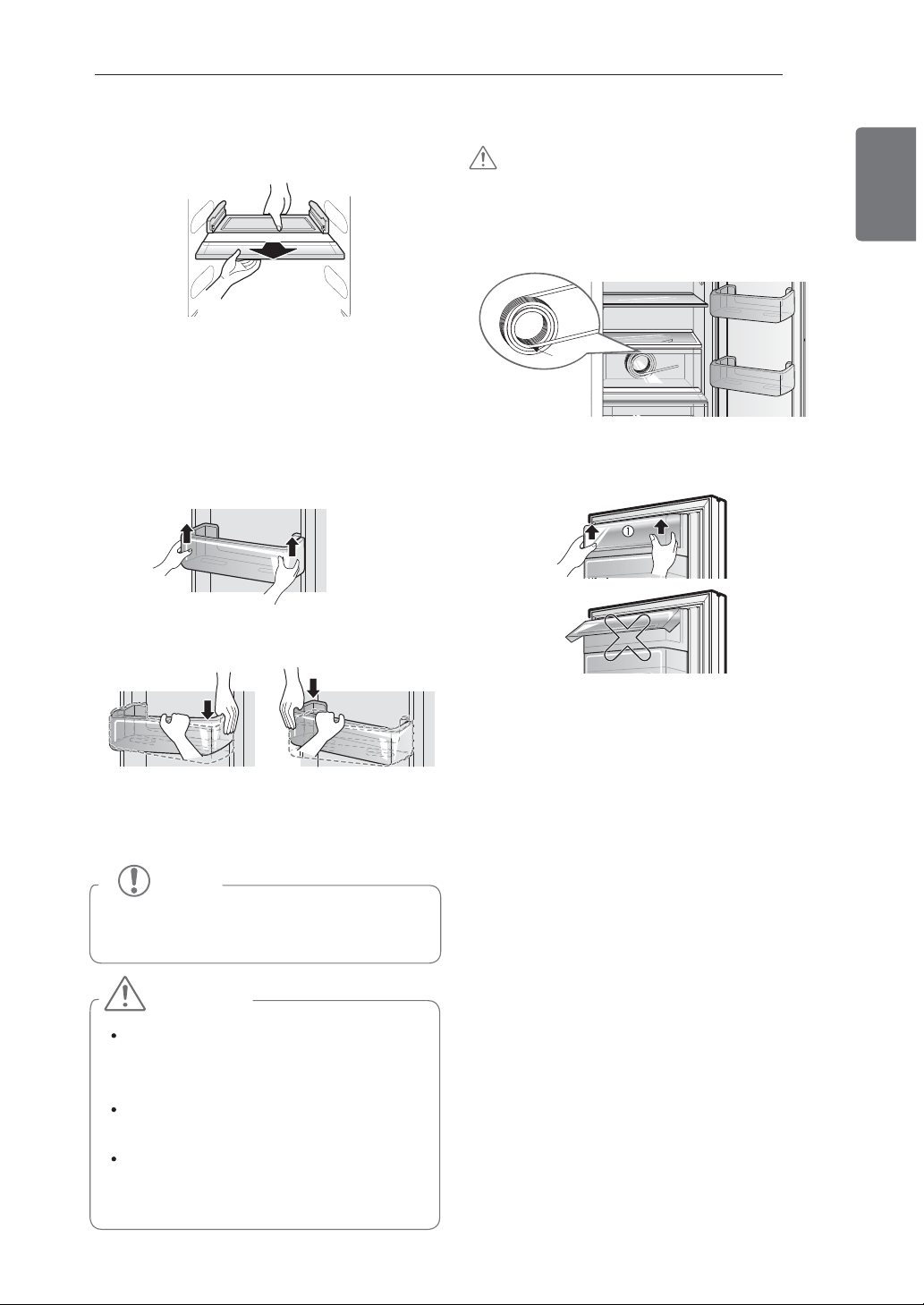

To Remove the Fresh Zone Cover

Hold the cover with both hands and pull it out.

NOTE: Remove the Fresh Zone drawers before

removing the Fresh Zone cover.

Door Bins

The door bins are removable for easy cleaning

and adjustment.

1 To remove the bin, simply lift the bin up and

pull straight out.

2 To replace the bin, slide it in above the

desired support and push down one side at

a time until it snaps into place.

Water Tank

CAUTION: You will see the water tank

while removing the Fresh Zone drawer. Do not

remove the water tank or water leakage may

occur. The water tank is not a removable part.

Dairy Corner ( Basic Model )

To remove the Dairy Corner, simply lift the

bin up and pull straight out.

2 To replace the Dairy Corner, slide it in above

the desired support and push down until it

snaps into place.

NOTE: If you close the refrigerator door with

the Dairy Corner open, the refrigerator door

may not close properly. Make sure to close the

Dairy Corner completely after use.

NOTE

Some bins may vary in appearance and will

only fit in one location.

CAUTION

Do not apply excessive force while

detaching or assembling the storage

bins.

Do not use the dishwasher to clean the

storage bins and shelves.

Regularly detach and wash the storage

bins and shelves; they can become

easily contaminated by the food.

Tank

32 HOW TO USE

ENGLISH

Door-in-Door (Door-in-Door Model)

The Door-in-Door compartment allows for easy

access to commonly used food items. The outer

Door-in-Door door includes three additional door

bins.

Door-in-Door Compartment

To access the Door-in-Door compartment, lightly

press the button on the right refrigerator door

handle until you hear a click to open the door.

Door-in-Door Case

To open the Door-In-Door case,

pull evenly on the marked area.

The Door-In-Door Case is re-

movable for easy cleaning and

adjustment.

CAUTION:

Remove contents from Door-in-

Door case before disassembly.

1 To remove the Door-In-Door case, lift up and

pull out.

2 To replace the Door-In-Door case, line the

tabs on the Door-In-Door Case with the

slots on the door and push down until it

snaps into place.

Door-in-Door Door Bins

The Door-in-Door inner and outer door bins are

removable for easy cleaning.

1 To remove the door bins, lift up and pull out.

2 To replace the door bins, slide the door bin

in above the desired support and push

down until it snaps into place.

Ice storage bin

The ice bin stores the ice cubes made by the icemaker.

If you need to remove the ice storage bin, do so as

follows:

NOTE: Use both hands to remove the ice bin to avoid

dropping it.

Lift the ice storage bin slightly

and pull it out

shown in the gure.

33HOW TO USE

ENGLISH

Adjusting the Refrigerator

Shelves

The shelves in your refrigerator are adjustable

to meet your individual storage needs.

Adjusting the shelv

erent

heights will mak

exact item you

want easier. Doing so will also reduce the

amount of time the refrigerator door is open

which will save energy.

Detaching the Shelf

Remove all items from the shelf. Lift the back

of the shelf slightly to disengage the rail stops.

Holding the shelf with both hands, tilt the shelf

and pull it out.

Assembling the Shelf

CAUTION

Do not clean glass shelves with

warm water while they are cold.

Shelves may break if exposed to

sudden temperature changes or impact.

Glass shelves are heavy. Use special

care when removing them.

CAUTION

Make sure that shelves are level from one

side to the other. Failure to do so may

result in the shelf falling or food spilling.

Front

Down

Shelf holder goes down, under rib.

Back

Tilt the front of the shelf up and guide the shelf

into the slots at a desired height, keeping shelf

holder down. Slide the shelf in, then lower

the front of the shelf.

Suggested Placement of Shelves

NOTE

Parts, features and options vary by model.

Your model may not include every option.

Standard door models with a horizontal

display have three refrigerator shelves.

of the freezer

34 MAINTENANCE

ENGLISH

General Cleaning Tips

y Unplug refrigerator or disconnect power.

y Remove all removable parts, such as

shelves, crispers, etc.

y Use a clean sponge or soft cloth and a

mild detergent in warm water. Do not use

abrasive or harsh cleaners.

y Hand wash, rinse and dry all surfaces

thoroughly.

Exterior

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic

parts. Wax painted metal surfaces at least

twice a year using appliance wax (or auto paste

wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior,

use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft

cloth.

Inside Walls (allow freezer to warm up

so the cloth will not stick)

To help remove odors, you can wash the inside

of the refrigerator with a mixture of baking soda

and warm water. Mix 2 tablespoons of baking

soda to 1 quart of water (26 g soda to 1 liter

water.) Be sure the baking soda is completely

dissolved so it does not scratch the surfaces of

the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use cleaning

waxes, concentrated detergents, bleaches,

or cleaners containing petroleum on plastic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use window

sprays, abrasive cleansers, or flammable fluids.

These can scratch or damage the

material.

Condenser Coils

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

CAUTION

y Do not use a rough cloth or sponge

when cleaning the interior and exterior

of the refrigerator.

y Do not place your hand on the bottom

surface of the refrigerator when opening

and closing.

MAINTENANCE

Cleaning

y Both the refrigerator and freezer sections defrost automatically; however, clean both sections

about once a month to prevent odors.

y Wipe up spills immediately.

y Always unplug the refrigeration before cleaning.

WARNING

Use non-flammable cleaner. Failure to do

so can result in fire, explosion, or death.

35MAINTENANCE

ENGLISH

NOTE

refrigerator.

the ice and water dispensed.

NOTE

To purchase a replacement w

Visit your local dealer or distributor

Web: Find Parts & Accessories from

Support section of lg.com

Call : 1-800-243-0000 (USA)

1-888-542-2623 (Canada)

Part number of the replacement water

ADQ73613401 (LT800P)

ADQ74793501(LT1000P)

Replacing the Water Filter

It is recommended that you replace the water

ﬁ lter:

Approximately every

six months.

When the water ﬁ lter

indicator turns on.

When the water

dispenser output

decreases.

When the ice cubes are smaller than normal.

Rotate the water er up into position and

close the cover. The cover will click when

closed correctly.

3 After the water ﬁlter is replaced, dispense

2.5 gallons of water (ﬂush for approximately

ﬁve minutes) to remove trapped air and

contaminants from the system. Do not

dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and

60 seconds OFF.

1 Remove the old water

er.

Low e r o r r e m o v e

the top left shelf to

allow the water

to rotate all the way

down.

Pinch the sides to open the w

over.

NOTE:

Replacing the water

er causes a

small amount of water (around 1 oz. or 25

cc) to drain. Place a cup under the front end

of the water ﬁ lter cover to collect any leaking

water. Hold the water ﬁ lter upright, once it is

removed, to prevent any remaining water from

spilling out of the water ﬁ lter.

Pull the water

downward and turn

it counterclockwise

to pull it out. Make

sure to rotate the

ter down completely

before pulling it out of

the manifold hole.

2 Replace with a new water ﬁlter.

Take the new water

er out of its packing

and remove the protective cover from the o-

rings. With water

tabs in the horizontal

position, push the new water

into the

manifold hole until it stops.

36 MAINTENANCE

ENGLISH

NOTE

The following information applies only for the next models : LSXS26326*,LSXS26366*,LSXS26466*,LSXS26386*,LSXC22326*,

GS73SGS,GS74SDS,GS73SDS,GS74SGS,GS73SDD,LSXS26336D,LSXS26336V,GS73SGG,LSXC22386*,LSXC22336*.

Performance Data Sheet

Use Replacement Cartridge : ADQ73613401(LT800P)

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or

53 for the reduction of substances listed below.

Capacity 200 Gallons (757 Liters) Contaminant Reduction Determined by NSF testing.

* Based on the use of Cryptosporidium parvum oocysts

Contaminant Reduction

Average

Concentration

Average

Reduction

Average Product

Water Concentration

Max. Permissible

Product Water Concentration

NSF Reduction

Requirements

Chlorine Taste and Odor

Nominal Particulate Class I

>0.5µm to >1µm

Asbestos

Atrazine

Benzene

Carbofuran

Lindane

P-Dichlorobenzene

Toxaphene

2,4-D

Lead pH6.5

Lead pH8.5

Mercury pH6.5

Mercury pH8.5

Cyst*

2.0 mg/L

5,600,000 pts/mL

170 MFL

0.0087 mg/L

0.017 mg/L

0.073 mg/L

0.002 mg/L

0.263 mg/L

0.015 mg/L

0.25 mg/L

0.150 mg/L

0.006 mg/L

0.0062 mg/L

200,000 cysts/L

0.05 mg/L

73.000 pts/mL

< 1 MFL

0.0005 mg/L

< 0.0005 mg/L

0.001 mg/L

0.00002 mg/L

0.001 mg/L

0.0012 mg/L

0.001 mg/L

0.0002 mg/L

0.0081 mg/L

< 1 cysts/L

N/A

0.003 mg/L

0.005 mg/L

0.04 mg/L

0.0002 mg/L

0.075 mg/L

0.003 mg/L

0.07 mg/L

0.010 mg/L

0.002 mg/L

N/A

97.5 %

99.3 %

>99 %

94.2 %

97.0 %

98.8 %

99.6 %

93.5 %

99.5 %

> 99.3 %

96.5 %

86.9 %

> 99.99 %

≥ 50 %

≥ 85 %

≥ 99 %

N/A

≥ 99.95 %

2.0 mg/L ± 10 %

At least 10,000 particles/mL

to 10

MFL; fibers greater

than 10µm in length

0.009 mg/L ± 10 %

0.015 mg/L ± 10 %

0.08 mg/L ± 10 %

0.002 mg/L ± 10 %

0.225 mg/L ± 10 %

0.015 mg/L ± 10 %

0.210 mg/L ± 10 %

0.15 mg/L ± 10 %

0.006 mg/L ± 10 %

Minimum 50,000 cyst/L

Use Replacement Cartridge: ADQ74793501 (LT1000P)

Capacity 200 Gallons (757 Liters) Substance Reduction Determined by NSF testing.

Substance Reduction

Average

Influent Challenge

NSF specified

Challenge Concentration

Avg %

Reduction

Average Product

Water Concentration

Max Permissible

Product Water Concentration

NSF Reduction

Requirement

Chlorine Taste and Odor 2.0 µg/L 2.0 µg/L± 10% >97.5% 0.050 µg/L N/A ≥ 50.00%

Nominal Particulate Class I, ≥ 0.5

to < 1.0 µm

12,000,000 pts/mL At least 10,000 particles/mL 99.80% 24,000 pts/ml N/A ≥ 85.00%

Asbestos 180 MFL

to 10

MFL; fibers greater than

10 µg/L in length

>99.00% < 1 MFL N/A ≥ 99.00%

Atrazine 8.5 µg/L 9.0 µg/L ± 10% >94.10% 0.500 µg/L 3.0 µg/L NA

Benzene 15.0 µg/L 15.0 µg/L ± 10% >96.60% 0.510 µg/L 5.0 µg/L NA

Carbofuran 74.0 µg/L 80.0 µg/L ± 10% 98.30% 1.258 µg/L 40 µg/L NA

Lindane 1.9 µg/L 2.0 µg/L ± 10% >99.00% 0.019 µg/L 0.2 µg/L NA

P-Dichlorobenzene 230.0 µg/L 225.0 µg/L ± 10% >99.80% 0.460 µg/L 75.0 µg/L NA

2,4-D 210.0 µg/L 210.0 µg/L ± 10% >99.90% 0.210 µg/L 70.0 µg/L NA

Lead @ pH 6.5 140.0 µg/L 150.0 µg/L ± 10% 99.60% 0.560 µg/L 10.0 µg/L NA

Lead @ pH 8.5 150.0 µg/L 150.0 µg/L ± 10% >99.70% < 0.500 µg/L 10.0 µg/L NA

Mercury @ pH 6.5 5.9 µg/L 6.0 µg/L ± 10% 91.00% 0.531 µg/L 2.0 µg/L NA

Mercury @ pH 8.5 5.6 µg/L 6.0 µg/L ± 10% 92.50% 0.420 µg/L 2.0 µg/L NA

Cyst* 100,000 cysts/L Minimum 50,000 cysts/L >99.99% 10 cysts/L N/A ≥ 99.95%

Atenolol 240 ng/L 200 ± 40% ng/L > 95.50% 10.80 ng/L 30 ng/L NA

Carbamazepine 1600 ng/L 1400 ± 40% ng/L 98.40% 25.60 ng/L 200 ng/L NA

DEET 1600 ng/L 1400 ± 40% ng/L 97.10% 46.40 ng/L 200 ng/L NA

Trimethoprim 170 ng/L 140 ± 40% ng/L >96.80% 5.44 ng/L 20 ng/L NA

Linuron 160 ng/L 140 ± 40% ng/L >96.60% 5.44 ng/L 20 ng/L NA

Phenytoin 200 ng/L 200 ± 40% ng/L >94.80% 10.40 ng/L 30 ng/L NA

Ibuprofene 400 ng/L 400 ± 40% ng/L >94.50% 22.00 ng/L 60 ng/L NA

Naproxen 140 ng/L 140 ± 40% ng/L >96.10% 5.46 ng/L 20 ng/L NA

Estrone 120 ng/L 140 ± 40% ng/L >96.10% 4.68 ng/L 20 ng/L NA

Bisphenol A 2000 ng/L 2000 ± 40% ng/L >98.90% 22.00 ng/L 300 ng/L NA

Nonyl Phenol 1600 ng/L 1400 ± 40% ng/L >97.10% 46.40 ng/L 200 ng/L NA

* Based on the use of Cryptosporidium parvum oocysts

NOTE

The following information applies only for the next models : LSXS26336S

37MAINTENANCE

ENGLISH

CAUTION

To reduce the risk associated with property

damage due to water leakage:

Read and follow Use Instructions before

installation and use of this system.

Installation and use MUST comply with

all state and local plumbing codes.

Do not install if water pressure exceeds

120 psi (827 kPa). If your water pressure

exceeds 80 psi (552 kPa), you must install

a pressure limiting valve. Contact a plumb-

ing professional if you are uncertain how to

check your water pressure.

Do not install where water hammer

conditions may occur. If water hammer

conditions exist you must install a water

hammer arrester. Contact a plumbing

professional if you are uncertain how to

check for this condition.

Do not install on hot water supply lines.

The maximum operating water tem-

(37.8°C).

when temperatures drop below 40°F

(4.4°C).

replaced every 6 months, at the rated

capacity or if a noticeable reduction in

tridge when temperatures are expected

to drop below 33° F (0.6 ºC).

Do not install systems in areas where

ambient temperatures may go above

prevention device is installed on a water

system, a device for controlling pres-

sure due to thermal expansion must be

installed.

and free of leaks.

NOTE

While the testing was performed under

standard laboratory conditions, actual

performance may vary.

WARNING

To reduce the risk associated with chok-

ing:

Do not allow children under 3 years of

age to have access to small parts dur-

ing the installation of this product.

To reduce the risk associated with the

ingestion of contaminants:

Do not use with water that is microbi-

ologically unsafe or of unknown quality

without adequate disinfection before or

cyst reduction may be used on disin-

cysts. EPA Establishment # 070595-

MEX-001

Replacement Cartridge:

ADQ73613401(LT800P)

ADQ74793501(LT1000P)

It is essential that the manufacturer’s recom-

replacement requirements be carried out for the

product to perform as advertised.

Service Flow

Water Supply

Water Pressure

Water Temperature

0.5 gpm (1.9 lpm)

- Potable Water

20 -120 psi (138 - 827 kPa)

33°F - 100°F (0.6°C - 38°C)

Application Guidelines/

Water Supply Parameters

Manufactured for LG Electronics by MCM Co.,

Ltd. 45-10, Nowon-Ri, Yiwol-Myun, Jinchun-Kun,

Chung-Buk, Korea.

For estimated costs of replacement elements

please call 01 8000 910 683 (24 hours per

day/7 days per week) or visit our website at

www.lge.com

ESPAÑOL

MAINTENANCE

ENGLISH

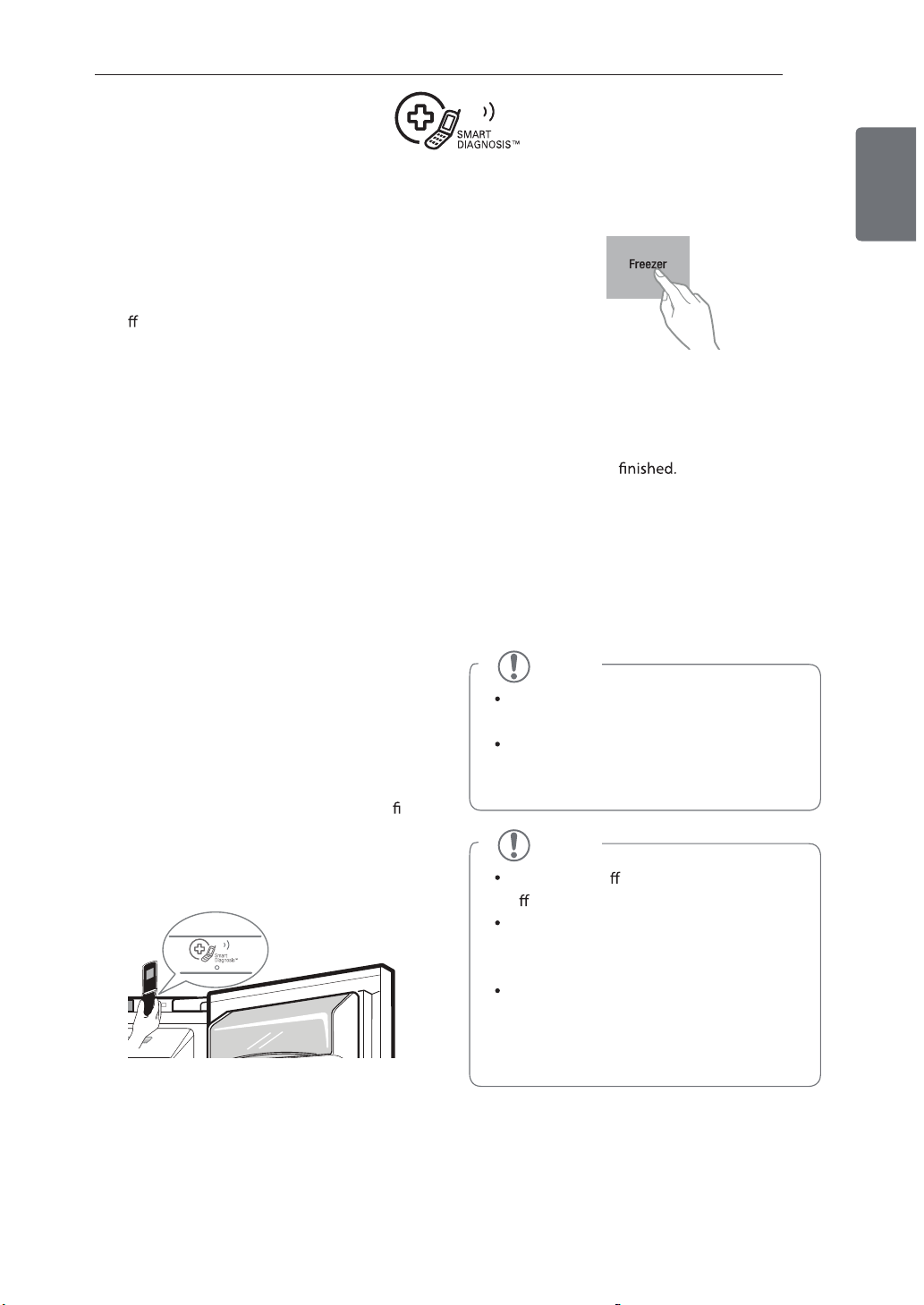

39SMART DIAGNOSIS

ENGLISH

Should you experience any problems with your

refrigerator, it has the capability of transmitting

data via your telephone to the LG service

center. This gives you the capability of speaking

directly to our trained specialists. The specialist

records the data transmitted from your machine

and uses it to analyze the issue, providing a fast

and e

ective diagnosis.

1 Lock the display. To lock the display, press

and hold the Lock button for three seconds.

(If the display has been locked for over

minutes, you must deactivate the lock and

then reactivate it.)

2 Open the refrigerator door.

3 Hold the mouthpiece of your phone in

front of the speaker that is located on the

right hinge of the refrigerator door, when

instructed to do so by the call center.

4 Press and hold the Freezer button for three

seconds while continuing to hold your phone

to the speaker.

5 After you hear three beeps, release the

Freezer button.

6 Keep the phone in place until the tone

transmission has

This takes about

three seconds, and the display will count

down the time. Once the countdown is

over and the tones have stopped, resume

your conversation with the specialist, who

will then be able to assist you in using the

information transmitted for analysis.

NOTE

For best results, do not move the phone

while the tones are being transmitted.

If the call center agent is not able to get

an accurate recording of the data, you

may be asked to try again.

NOTE

Call quality di erences by region may

ect the function.

Use the home telephone for better

communication performance, resulting

in better service.

Bad call quality may result in poor data

transmission from your phone to the

machine, which could cause Smart

Diagnosis

to malfunction.

First, call to the LG service center. Only use the

Smart Diagnosis feature when instructed to

do so by the LG callcenter agent.

USING SMART DIAGNOSIS

SMART DIAGNOSIS

If you experience problems with your refrigerator,

call to the LG service center. Only use the Smart

Diagnosis feature when instructed to do so

by the LG call center agent. The transmission

sounds that you will hear are normal sounds

similar to fax machine.

Smart Diagnosis cannot be activated unless

your refrigerator is connected to power. If your

refrigerator is unable to turn on, then trouble-

shooting must be done without using Smart

Diagnosis.

40 TROUBLESHOOTING

ENGLISH

TROUBLESHOOTING

Common Product Questions

How do I unclog the ice dispenser chute?

Eliminate the frost of ice fragments by re-

moving the ice bin and clearing the chute

with a plastic utensil. Dispensing cubed ice

can also help prevent frost or ice fragment

buildup.

Make sure that the refrigerator doors are

closed before attempting to dispense ice.

Why are ice crystals and frost forming

on my frozen food?

When the doors are opened often or for

long periods of time, warm, humid air

enters the compartment. This raises the

temperature and moisture level within the

compartment. Increased moisture will lead

to frost and condensation. To lessen the

eect, reduce the frequency and duration

of door openings.

How long will it take for my ice bin to

ﬁ ll completely?

Once the ice supply in the bin has been

completely exhausted, it may take up

to 90 minutes before additional ice is

available, and approximately 72 hours to

completely reﬁll the bin.

Why does my ice and water taste

unusual?

It is recommended that you replace the

water ﬁ lter:

t Approximately every 6 months.

t When the water ﬁ lter indicator turns on.

t When the water dispenser output

decreases.

t When the ice cubes are smaller than

normal.

If your refrigerator was recently installed,

dispense 2.5 gallons of water (ﬂ ush for

approximately 5 minutes) to remove

trapped air and contaminants from the

system. Do not dispense the entire 2.5

gallon amount continuously. Depress and

release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

41TROUBLESHOOTING

ENGLISH

Noise Possible Causes Solutions

Clicking The defrost control will click when

the automatic defrost cycle begins

and ends. The thermostat control (or

refrigerator control on some models)

will also click when cycling on and

off.

Normal Operation

Rattling

Rattling noises may come from the

ﬂ ow of refrigerant, the water line on

the back of the unit, or items stored

on top of or around the refrigerator.

Normal Operation

Refrigerator is not resting solidly on

the ﬂ oor.

Floor is weak or uneven or leveling

legs need to be adjusted. See the Door

Alignment section.

Refrigerator with linear compressor

was jarred while running.

Normal Operation

Whooshing Evaporator fan motor is circulating air

through the refrigerator and freezer

compartments.

Normal Operation

Air is being forced over the

condenser by the condenser fan.

Normal Operation

Gurgling Refrigerant ﬂ owing through the

cooling system.

Normal Operation

Popping Contraction and expansion of the

inside walls due to changes in

temperature.

Normal Operation

Sizzling Water dripping on the defrost heater

during a defrost cycle.

Normal Operation

Vibrating If the side or back of the refrigerator

is touching a cabinet or wall, some of

the normal vibrations may make an

audible sound.

To eliminate the noise, make sure that the

sides and back cannot vibrate against any

wall or cabinet.

Dripping Water running into the drain pan

during the defrost cycle.

Normal Operation

Pulsating or

high-pitched

sound

Your refrigerator is designed to run

more efﬁ ciently to keep your food

items at the desired temperature. The

high efﬁ ciency compressor may cause

your new refrigerator to run longer

than your old one, but it is still more

energy efﬁ cient than previous models.

While the refrigerator is running, it

is normal to hear a pulsating or high-

pitched sound.

Normal Operation

Noises You Might HearNoises You Might Hear

42 TROUBLESHOOTING

ENGLISH

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooling

Problem Possible Causes Solutions

Refrigerator

and Freezer

section are

not cooling.

The refrigerator control is set

to OFF (some models).

Turn the control ON. Refer to the Setting the

Controls section for proper temperature set

tings.

Refrigerator is set to Demo

Mode

Demo Mode allows the lights and control display

to work normally while disabling cooling, to save

energy while the refrigerator is on the showroom

ﬂ oor. See the FAQs or the Setting the Controls

section of this manual for instructions on how to

disable Demo Mode.

Refrigerator is in the defrost

cycle.

During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes and

conﬁ rm the proper temperature has been restored

once the defrost cycle has completed.

Refrigerator was recently

installed.

It may take up to 24 hours for each compartment to

reach the desired temperature.

Refrigerator was recently

relocated.

If the refrigerator was stored for a long period of

time or moved on its side, it is necessary for the

refrigerator to stand upright for 24 hours before

connecting it to power.

Cooling

System runs

too much.

Refrigerator is replacing an

older model.

Modern refrigerators require more operating time but

use less energy due to more efﬁ cient technology.

Refrigerator was recently

plugged in or power restored.

The refrigerator will take up to 24 hours to cool

completely.

The door is opened often or

a large amount of food / hot

food was added.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer

in order to cool the refrigerator back down. In order

to conserve energy, try to get everything you need

out of the refrigerator at once, keep food organized

so it is easy to ﬁ nd, and close the door as soon as

the food is removed. (Refer to the

Food Storage

Guide.)

Doors are not closed

completely

Firmly push the doors shut. If they will not shut all

the way, see the Doors will not close completely or

pop open section in Troubleshooting.

Refrigerator is installed in a

hot location.

he compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to 80%

of the time. Under warmer conditions, expect it to

run even more often. The refrigerator should not be

operated above 110°F.

Condenser / back cover is

clogged.

Use a vacuum cleaner with an attachment to clean

the condenser cover and vents. Do not remove the

panel covering the condenser coil area.

43TROUBLESHOOTING

ENGLISH

Cooling

snoituloSsesuaC elbissoPmelborP

Refrigerator or

Freezer section

is too warm.

Refrigerator was recently

installed.

It may take up to 24 hours for each compartment

to reach the desired temperature.

The air vents are blocked.

Cold air circulates from the

freezer to the fresh food

section and back again

through air vents in the wall

dividing the two sections.

Locate air vents by using your hand to sense

airﬂ ow and move all packages that block vents

and restrict airﬂ ow. Rearrange items to allow air

to ﬂ ow throughout the compartment. (Refer to

the Airﬂ ow diagram in the Using Your Refrigerator

section.)

Doors are opened often or for

long periods of time.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the eect, reduce the frequency and duration of

door openings.

A large amount of food or

hot food was added to either

compartment.

Adding food warms the compartment requiring

the cooling system to run. Allowing hot food to

cool to room temperature before putting it in the

refrigerator will reduce this eect.

Doors not closed correctly.

section in Parts & Features Troubleshooting.

Temperature control is not

set correctly.

If the temperature is too warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

Defrost cycle has recently

completed.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes and

conﬁ rm the proper temperature has been restored

once the defrost cycle has completed.

Refrigerator or

Freezer section

is too cold.

Incorrect temperature control

settings.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Sett

ing the

Controls section for more information.

Items in the

Cheese & Butter

and Condiment

bins are not as

cool as other

items in the

refrigerator.

The Cheese & Butter and

Condiment bins will be

slightly warmer than the

refrigerator compartment.

This is normal. Items that you would like to keep

cooler should be stored in the refrigerator section.

See the Doors will not close correctly or pop open

44 TROUBLESHOOTING

ENGLISH

Cooling

Problem Possible Causes Solutions

Interior moisture

buildup.

Doors are opened often or for

long periods of time.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture lev

el within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

Doors not closed correctly. See the Doors will not close correctly section in

the Troubleshooting section.

Weather is humid. Humid weather allows additional moisture to enter

the compartments when the doors are opened

leading to condensation or frost. Maintaining a

reasonable level of humidity in the home will help

to control the amount of moisture that can enter

the compartments.

Defrost cycle recently

completed.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation

may form on the back wall. Wait 30 minutes and

conﬁ rm that the proper temperature has been

restored once the defrost cycle has completed.

Food is not packaged

correctly.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation

within each compartment. Wipe all containers

dry and store food in sealed packaging to prevent

condensation and frost.

Food is

freezing in the

refrigerator

compartment.

Food with high water content

was placed near an air vent.

Rearrange items with high water content away

from air vents.

Refrigerator temperature

control is set incorrectly.

If the temperature is too cold, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

Refrigerator is installed in a

cold location.

When the refrigerator is operated in temperatures

below 41°F (5°C), food can freeze in the refrigerator

compartment. The refrigerator should not be

operated in temperatures below 55°F (13°C).

Frost or ice

crystals form

on frozen food

(outside of

package).

Door is opened frequently or

for long periods of time.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. Increased

moisture will lead to frost and condensation.

To lessen the effect, reduce the frequency and

duration of door openings.

Door is not closing properly. Refer to the Doors will not close correctly or pop

open section in the Troubleshooting section.

45TROUBLESHOOTING

ENGLISH

Cooling/Ice & Water

snoituloSsesuaC elbissoPmelborP

Frost or ice

crystals

on frozen

food (inside

of sealed

package).

Condensation from food

with a high water content

has frozen inside of the

food package.

This is normal for food items with a high water

content.

Food has been left in the

freezer for a long period of

time.

Do not store food items with high water content in

the freezer for a long period of time.

Icemaker is

not making

enough ice.

Demand exceeds ice

storage capacity.

The icemaker will produce approximately 70-120

cubes in a 24 hour period.

House water supply is not

connected, valve is not

turned on fully, or valve is

clogged.

Connect the refrigerator to a cold water supply with

adequate pressure and turn the water shuto valve

fully open.

If the problem persists, it may be necessary to

contact a plumber.

Water ﬁ lter has been

exhausted.

Replacing the water ﬁ lter is recommended:

Approximately every six months.

When the water ﬁ lter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Low house water supply

pressure.

The water pressure must be between 20 and 120 psi

(138 - 827 kPa) on models without a water ﬁ lter and

between 40 and 120 psi (276 – 827 kPa) on models

If the problem persists, it may be necessary to

with a water ﬁ lter.

contact a plumber.

Reverse Osmosis ﬁ ltration

system is used.

Reverse osmosis ﬁ ltration systems can reduce the

water pressure below the minimum amount and result

in icemaker issues. (Refer to Water Pressure section.)

Tubing connecting

refrigerator to house supply

valve is kinked.

The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced

water ﬂ ow. Straighten or repair the water supply line

and arrange it to prevent future kinks.

Doors are opened often or

for long periods of time.

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent the

unit from maintaining the set temperature. Low ering

the refrigerator temperature can help, as well as not

opening the doors as frequently.

Doors are not closed

completely.

If the doors are not properly closed, ice production

will be aected. See the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting for more information.

The temperature setting for

the freezer is too warm.

The recommended temperature for the freezer

compartment for normal ice production is 0°F. If the

freezer temperature is warmer, ice production will be

aected.

46 TROUBLESHOOTING

ENGLISH

Ice & Water

snoituloSsesuaC elbissoPmelborP

Icemaker is not

making enough

ice (continued).

Refrigerator was recently

installed or icemaker recently

connected.

It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker

to begin making ice.

Icemaker not turned on.

and conﬁ rm that it is set to the Ice On mode.

The ice detecting sensor is

obstructed.

Foreign substances or frost on the ice-detecting

sensor can interrupt ice production. Make sure

that the sensor area is clean at all times for proper

operation.

The refrigerator is not

connected to a water supply

or the supply shuto

valve is

not turned on.

Connect the refrigerator to the water supply and

turn the water shuto

valve fully open.

Icemaker shuto

(arm or

sensor) obstructed.

If your icemaker is equipped with an ice shuto

arm, make sure that the arm moves freely. If

your icemaker is equipped with the electronic ice

shuto

sensor, make sure that there is a clear path

between the two sensors.

Ice has bad

taste or odor.

Water supply contains

minerals such as sulfur.

A water ﬁ lter may need to be installed to eliminate

taste and odor problems. NOTE: In some cases, a

ﬁ lter may not help. It may not be possible to remove

all minerals/odor/taste in all water supplies.

Icemaker was recently

installed.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

The food has not been

stored properly in either

compartment.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

The interior of the refrigerator

needs to be cleaned.

See the Care and Cleaning section for more

information.

The ice storage bin needs to

be cleaned.

Empty and wash the bin (discard old cubes).

Make sure that the bin is completely dry before

reinstalling it.

Icemaker is

making too

much ice.

Icemaker shuto

(arm/sensor)

is obstructed

Empty the ice bin. If your icemaker is equipped

with an ice shuto

arm, make sure that the arm

moves freely. If your icemaker is equipped with the

electronic ice shuto

sensor, make sure that there

is a clear path between the two sensors. Reinstall

the ice bin and wait 24 hours to conﬁrm proper

operation.

Locate the icemaker ON/OFF button on the display

47TROUBLESHOOTING

ENGLISH

snoituloSsesuaC elbissoPmelborP

Ice is not

dispensing.

Doors are not closed

completely.

Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the

dispenser.

Infrequent use of the ice dispenser will cause

the cubes to stick together over time, which will

prevent them from properly dispensing. Check the

ice bin for ice cubes clumping/sticking together.

If they are, break up the ice cubes to allow for

proper operation.

The delivery chute is clogged

with frost or ice fragments.

Eliminate the frost or ice fragments by removing

the ice bin and clearing the chute with a plastic

utensil. Dispensing cubed ice can also help

prevent frost or ice fragment buildup.

The dispenser display is

locked.

Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

Ice bin is empty.

to reach the desired temperature and for the

icemaker to begin making ice. Make sure that

the shuto (arm/sensor) is not obstructed. Once

the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24

hours to completely reﬁ ll the bin.

Water is

dispensing

slowly.

Water ﬁ lter has been

exhausted.

Replacing the water ﬁ lter is recommended:

Approximately every six months.

When the water ﬁ lter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Reverse osmosis ﬁ ltration

system is used.

Reverse osmosis ﬁ ltration systems can reduce the

water pressure below the minimum amount and

result in icemaker issues.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

Low house water supply

pressure.

The water pressure must be between 20 and 120

psi (138 - 827 kPa) on models without a water ﬁ lter

and between 40 and 120 psi (276 – 827 kPa) on

models with a water ﬁ lter.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

Ice & Water

It may take up to 24 hours for each compartment

48 TROUBLESHOOTING

ENGLISH

Ice & Water

Problem Possible Causes Solutions

Water is not

dispensing.

New installation or water line

recently connected.

Dispense 2.5 gallons of water (ﬂ ush for

approximately 5 minutes) to remove trapped

air and contaminants from the system. Do

not dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON

and 60 seconds OFF.

The dispenser panel is locked. Press and hold the Lock button for three

seconds to unlock the control panel and

dispenser.

Refrigerator or freezer doors are not

closed properly.

Water will not dispense if any of the

refrigerator doors are left open.

Water ﬁ lter has been recently

removed or replaced.

After the water ﬁ lter is replaced, dispense

2.5 gallons of water (ﬂ ush for approximately

5 minutes) to remove trapped air and

contaminants from the system. Do not

dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON

and 60 seconds OFF.

Tubing connecting refrigerator to

house supply valve is kinked.

The tubing can kink when the refrigerator

is moved during installation or cleaning

resulting in reduced water ﬂ ow. Straighten

or repair the water supply line and arrange it

to prevent future kinks.

The house water supply is not

connected, the valve is not turned on

fully, or the valve is clogged.

Connect the refrigerator to the water supply

and turn the water shutoff valve fully open. If

the problem persists, it may be necessary to

contact a plumber.

Dispensing

warm water.

Refrigerator was recently installed. Allow 24 hours after installation for the

water storage tank to cool completely.

The water dispenser has been used

recently and the storage tank was

exhausted.

Depending on your speciﬁ c model, the

water storage capacity will range from

approximately 20 to 30 oz.

Dispenser has not been used for

several hours.

If the dispenser has not been used for

several hours, the ﬁ rst glass dispensed may

be warm. Discard the ﬁ rst 10 oz.

Refrigerator is connected to the hot

water supply.

Make sure that the refrigerator is connected

to a cold water pipe.

WARNING: Connecting the refrigerator to a

hot water line may damage the icemaker.

49TROUBLESHOOTING

ENGLISH

snoituloSsesuaC elbissoPmelborP

Water has bad

taste or odor.

Water supply contains

minerals such as sulfur.

A water ﬁlter may need to be installed to eliminate

taste and odor problems.

Water ﬁ lter has been

exhausted.

Replacing the water ﬁlter is recommended:

• Approximately every six months.

• When the water ﬁlter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Refrigerator was recently

installed.

Dispense 2.5 gallons of water (ﬂush for

approximately 5 minutes) to remove trapped air and

contaminants from the system. Do not dispense

the entire 2.5 gallon amount continuously. Depress

and release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

Doors will not

close correctly

or pop open.

Food packages are blocking

the door open.

Rearrange food containers to clear the door and

door shelves.

Ice bin, crisper cover, pans,

shelves, door bins, or

baskets are out of position.

Push bins all the way in and put crisper cover,

pans, shelves and baskets into their correct

positions. See the Using Your Refrigerator section

for more information.

The doors were removed

during product installation

and not properly replaced.

Remove and replace the doors according to the

Removing and Replacing Refrigerator Handles and

Doors section.

Refrigerator is not leveled

properly.

See Door Alignment in the Refrigeration

Installation section to level refrigerator.

Doors are

difﬁ cult to open.

The gaskets are dirty or

sticky.

Clean the gaskets and the surfaces that they

touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

Door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create

a vacuum. If the door is hard to open, wait one

minute to allow the air pressure to equalize, then

see if it opens more easily.

Refrigerator

wobbles or

seems unstable.

Leveling legs are not

adjusted properly.

Refer to the Leveling and Door Alignment section.

Floor is not level. It may be necessary to add shims under the

leveling legs or rollers to complete installation.

Lights do not

work.

LED interior lighting failure. The lamps are LED interior lighting, and service

should be performed by a qualiﬁed technician.

Ice & Water/Parts & Features

50 TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

The interior of

the refrigerator

is covered with

dust or soot.

The refrigerator is located

near a ﬁ re source, such as a

ﬁ replace, chimney, or candle.

Make sure that the refrigerator is not located

near a ﬁ re source, such as a ﬁ replace, chimney or

candle.

Parts & Features

LG ELECTRONICS U.S.A., INC.

LG REFRIGERATOR LIMITED WARRANTY - U.S.A.

WARRANTY PERIOD

Refrigerator/Freezer

Sealed System

(Condenser, Dryer, Connecting

Tube and Evaporator)

Compressor

One (1) year from the

date of original retail

purchase

Parts and Labor

(internal/ functional

parts only)

Five (5) years from the date

of original retail purchase

Five (5) years from the

date of original retail

purchase

Linear / Inverter Compressor Only : Parts

Only for years 6-10 from the date of

original retail purchase (Consumer will

be charged for labor)

Parts and Labor

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU

AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT

OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED

“PROCEDURE FOR RESOLVING DISPUTES” BELOW.Should your LG Refrigerator ("Product") fail due to a defect in materi-

als or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its

option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and

applies only when purchased and used within the United States including U.S. Territories.

•Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90)

days, whichever is greater.

•Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.

•Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service

under this limited warranty.

EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE

ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE

LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITH-

OUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER

GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES

WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE

PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an

implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty gives you specﬁc

legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT COVER:

•Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.

•Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.

•Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or

interrupted water supply or inadequate supply of air.

•Damage resulting from operating the product in a corrosive atmosphere or contrary to the product owner’s manual.

•Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, ﬁre, ﬂoods, acts of God, or any

other causes beyond the control of LG.

•Damage or failure caused by unauthorized modiﬁcation or alteration, or if used for other the intended purpose.

•Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use

of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the

Product owner’s manual.

•Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.

•Damage or failure caused by transportation and handling, including scratches, dents, chips, and/or other damage to the

ﬁnish of the product, unless such damage is reported within one (1) week of delivery.

•Damage or missing items to any display, open box, or discounted Product.

•Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.

•Products with original serial numbers that have been removed, altered, or cannot be readily determined.

•Increases in utility costs and additional utility expenses.

•Any noises associated with normal operation.

•Use of accesories (e.g., water ﬁlters, etc.), components, or consumable cleaning products that are not authorized by LG.

•Replacement or light bulbs, ﬁlters, or any consumable parts.

•When Product is used for other than normal and proper household use (e.g. commercial or industrial use, ofﬁces, and

recreational facilities or vehicles)or contrary to the instructions outlined in the Product’s owner’s manual.

•Costs associated with removal and reinstallation of your Product for repairs.

•Shelves, door bins, drawers, handle and accessories, except for internal/functional parts covered under this limited

warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-800-243-0000 and select the appropriate

option from the menu. Or visit our website at http://www.lg.com. Or by mail: LG Electronics Customer Service P.O. Box

240007 Huntsville, AL 35813 ATTN: CIC

LIMITED WARRANTY

ENGLISH

LIMITED WARRANTY

ENGLISH

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY

OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT

OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT

TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Deﬁnitions.

For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries

and afﬁliates, and each of their ofﬁcers, directors, employees, agents, beneﬁciaries, predecessors in interest, successors,

assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind

whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or

equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited

Warranty.

Notice of Dispute. In the event you intend to commerce an arbitration proceeding, you must ﬁrst notify LG in

writing at least 30

days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department-

Arbitration 1000 Sylvan Ave, Englewood Cliffs 07632. You and LG agree to engage in good faith discussions in an

attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the

product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG

are unable to resolve the dispute within 30 days, either party may proceed to ﬁle a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period

after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an

individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or

consolidated with a dispute involving any other person’s or entity’s product or claim. More speciﬁcally, without limitation of

the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or represen-

tative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims

court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for

arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be conducted

before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the arbitration is

initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available

online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to

the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG

Electronics, USA, Inc. Attn: Legal Department- Arbitration 1000 Sylvan Avenue Englewood Cliffs, NJ 07632. If there is a

conﬂict berween the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This

arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any

court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and

enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is

bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us

except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for AAA unless

you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules.

Except as otherwise provided for herein, LG will pay AAA ﬁling, administration and arbitrator fees for any arbitration

initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your

attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the

purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable

attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator ﬁnds

either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as

measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will

be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it

that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it

may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on

the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as

established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by the AAA

Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside

unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to

participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the

date of the ﬁrst consumer purchaser’s purchase of the product by either: (i) sending an e-mail to [email protected], with

the subject line: “Arbitration Opt Out” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide

by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name

or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing

https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial

Number”).

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone);

no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute

resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full

beneﬁts of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of

the arbitration provision described above.

ENGLISH

LIMITED WARRANTY

ENGLISH

LG ELECTRONICS CANADA, INC.

LG REFRIGERATOR LIMITED WARRANTY - Canada

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU

AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR

PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN

ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PRO-

CEDURE FOR RESOLVING DISPUTES” BELOW.

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during

the warranty period set forth below, LG Electronics Canada, Inc. (“LGECI”) will, at its option, repair or replace the Product upon

receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product

and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

•Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days,

whichever is greater.

•Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the

sole discretion of LGECI.

•Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service

under this Limited Warranty..

LGECI’S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY

PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS

RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED

WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESEN-

TATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT

ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT

ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE.

UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE

FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES,

INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST

REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY

CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS.

LGECI’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you speciﬁc legal rights. You may also have other rights that vary from province to province

depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or

warranty under provincial law is severable where ot conﬂicts with such provincial law without affecting the remainder of this

warranty’s terms.

THIS LIMITED WARRANTY DOES NOT COVER:

•Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii)

correct unauthorized repairs or installations of the Product;

•Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

•Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted

water supply or inadequate supply of air;

•Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in

the Product’s owner’s manual;

•Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, ﬁre, ﬂoods, acts of God, or any other

causes beyond the control of LGECI or the manufacturer;

•Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair

includes use of parts not authorized or speciﬁed by LGECI. Improper installation or maintenance includes installation or

maintenance contrary to the Product’s owner’s manual;.

•Damage or failure cused by unauthorized modiﬁcation or alteration of the Product, or if used for other than the intended

household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of

the Product;

•Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

•Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or indus-

trial use, including use in commercial ofﬁces or recreational facilities, or as otherwise outlined in thev Product’s owner’s manual;

•Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water

ﬁlters, that are not approved/authorized by LGECI;

•Replacement of the water ﬁlter cartridge due to water pressure that is outside the speciﬁed operating range or due to exces-

sive sediment in the water supply;

•Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the ﬁnish

of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1)

week of delivery of the Products;

•Damage or missing items to any display, open box, refurbished or discounted Product;

•Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or any similar disclaimer;

•Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of

LGECI;

•Increases in utility costs and additional utility expenses in any way associated with the Product;

(60) days from the date of manufacture)

WARRANTY PERIOD (Note: If the original date of purchase cannot be veriﬁed, the warranty will begin sixty

Refrigerator

Sealed System (Condenser, Dryer, Connecting Tube

and Evaporator)

Linear / Inverter

Compressor

One (1) year from the

date of original retail

purchase

One (1) year from the

date of original retail

purchase

Seven (7) years from

the date of original retail

purchase

Ten (10) years from the

date of original retail

purchase

Parts and Labor (internal/

functional parts only)

Parts and Labor

Parts only (Consumer will

be charged for labor)

Part only (Consumer will

be charged for labor)

54 LIMITED WARRANTY

ENGLISH

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY

WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING

ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND

LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS

ACTION.

Deﬁnitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and

afﬁliates, and each of their ofﬁcers, directors, employees, agents, beneﬁciaries, predecessors in interest, successors, assigns

and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether

based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out

of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must ﬁst notify LG in writing at least

30 days in advance of initiating the arbitration by sending a letter to LG Electronics, Canada, Inc., Attn: Legal Department-

Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. You and LG agree to engage in good faith discussions in an

attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the

product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are

unable to resolve the dispute within 30 days, either day party may proceed to ﬁle a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after

sending written notice to LG, you and LG agree to resolve any claims between you and LG only by binding arbitration on an

individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause

in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree

to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or

consolidated with a dispute involving any other person’s or entity’s product or claim. More speciﬁcally, without limitation of the

foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any

circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual

action in small claims court, but that small claims court action may not be brought on a class or representative basis except to

the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue

between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration.

The arbitration will be private and conﬁdential, and conducted on a simpliﬁed and expedited basis before a single arbitrator

chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your

residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department-

Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial

or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator’s award in any court of competent

jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitra-

tion provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this

provision.

Governing Law. The law of the province or territory of your residence shall govern this Limited Warranty and any disputes

between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or

provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG,

you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of

the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will

promptly pay all arbitration ﬁling fees unless you seek more than $25,000 in damages, in which case the payment of these

fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all ﬁling, adminis-

tration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration

provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by

considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if

applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent

that a court would. If the arbitrator ﬁnds either the substance of your claim or the relief sought in the demand is frivolous or

brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed

by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that

are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any

rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the

basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established

•Any noises associated with normal operation of the Product;

•Replacement of light bulbs, ﬁlters, fuses or any other consumable parts;

•Replacement of any part that was not originally included with the Product;

•Costs associated with removal and/or reinstallation of the Product for repairs; and

•Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this

Limited Warranty.

•Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the

nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from

a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for

in-warranty repair.

All costs and expenses associated with the above excluded

circumstances, listed under the heading, This Limited Warranty

Does Not Cover, shall be borne by the consumer.TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION,

PLEASE CALL OR VISIT OUR WEBSITE:Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropri-

ate option from the menu, or. Visit our website at http://www.lg.com

LIMITED WARRANTY

ENGLISH

by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable

arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location

available within the province or territory in which you reside unless you and LG both agree to another location or agree to a

telephonic arbitration.

Severability and Waiver.

If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the

remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail

to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not

mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to

participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date

of the ﬁrst consumer purchaser’s purchase of the product by either (i) sending an e-mail to [email protected], with the subject

line: “Arbitration Opt Out;” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a)

your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and

(d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing

https://www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on “Find My Model & Serial Number”).

In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and

any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal

or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and

LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the

resolution of the claim, action, dispute or controversy between you and LG.You may only opt out of the dispute resolution

procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out

of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited

Warranty in any way, and you will continue to enjoy the full beneﬁts of the Limited Warranty. If you keep this product and do

not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conﬂict of Terms. In the event of a conﬂict or inconsistency between the terms of this Limited Warranty and the End User

License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the

rights and obligations of the parties and shall take precedence over the EULA.

1-800-243-0000

1-888-865-3026

1-888-542-2623

USA, Consumer User

USA, Commercial User

CANADA

For inquiries or comments,

visit www.lg.com or call:

www.lg.com

LG Customer Information Center

LG LSXS26386S/01 Side By Side Refrigerator

Product's Documents

OWNER’S MANUAL

Specifications

LG Electronics LSXS26386S/01 Questions and Answers
