Beefeater BD93525 5 Burner Rotisserie Kit User Manual

AUSTRALIA / NEW ZEALAND

Assembly and Operating Instructions

ROTISSERIE

FOR OUTDOOR USE ONLY

32 CONGRATULATIONS ASSEMBLING THE ROTISSERIE

TIPS & INFORMATION

IMPORTANT

Important – check for any damages or marks

If you find the appliance is damaged or marked, you must

report it within 7 days if you wish to claim for damage/

marks under the manufacturer’s warranty. This does not

affect your statutory rights.

ENVIRONMENTAL TIPS

ENVIRONMENT

Information on disposal for users

• Most of the packing materials are recyclable.

Please dispose of those materials through your local

recycling depot or by placing them in appropriate

collection containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method

of disposal.

WARNING

CAUTION – ELECTRICAL WARNING

If your barbecue incorporates an electrical component,

such as a rotisserie, then it must be electrically grounded

in accordance with local codes. The electric cord must

be equipped with a three-pin (grounding) plug for your

protection against shock hazard and should be plugged

directly into a properly grounded three-pin receptacle.

Do not cut or remove the grounding pin from this plug.

Keep any electrical supply cord and the fuel supply hose

away from any heated surfaces.

If an external electrical source is utilised, this outdoor

cooking appliance, when installed, must be electrically

grounded in accordance with the local codes or, in the

absence of local codes with the following:

USA: National Electrical Code, ANSI/NFPA 70

CAN: Canadian Electrical Code, CSA C22.1

AUS: Aust Standards Code AS:5601

Dear customer,

Congratulations and thank you for choosing our appliance.

We are sure you will find it a pleasure to use. Before you use

the appliance, we recommend that you read through the

relevant sections of this manual, which provide a description

of your appliance and its functions.

To avoid the risks that are always present when you use

an appliance, it is important that the appliance is installed

correctly and that you read the safety instructions carefully

to avoid misuse and hazards.

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners.

After unpacking the appliance, please check it is not

damaged. If in doubt, do not use the appliance but contact

your local customer care centre.

CAUTION – ELECTRICAL WARNING ASSEMBLING THE ROTISSERIECONGRATULATIONS

The symbols you will see in this booklet have these

meanings:

WARNING

This symbol indicates information concerning your

personal safety.

WARNING

CAUTION

This symbol indicates information on how to avoid

damaging the appliance.

TIPS & INFORMATION

IMPORTANT

This symbol indicates tips and information about use

of the appliance.

ENVIRONMENTAL TIPS

ENVIRONMENT

This symbol indicates tips and information about

economical and ecological use of the appliance.

IMPORTANT INFORMATION THAT MAY

IMPACT YOUR MANUFACTURER’S WARRANTY

Adherence to the directions for use in this manual

is extremely important for health and safety. Failure

to strictly adhere to the requirements in this manual

may result in personal injury, property damage

and affect your ability to make a claim under the

BeefEater manufacturer’s warranty provided with

your product. Products must be used, installed and

operated in accordance with this manual. You may

not be able to claim on the BeefEater manufacturer’s

warranty in the event that your product fault is due to

failure to adhere this manual.

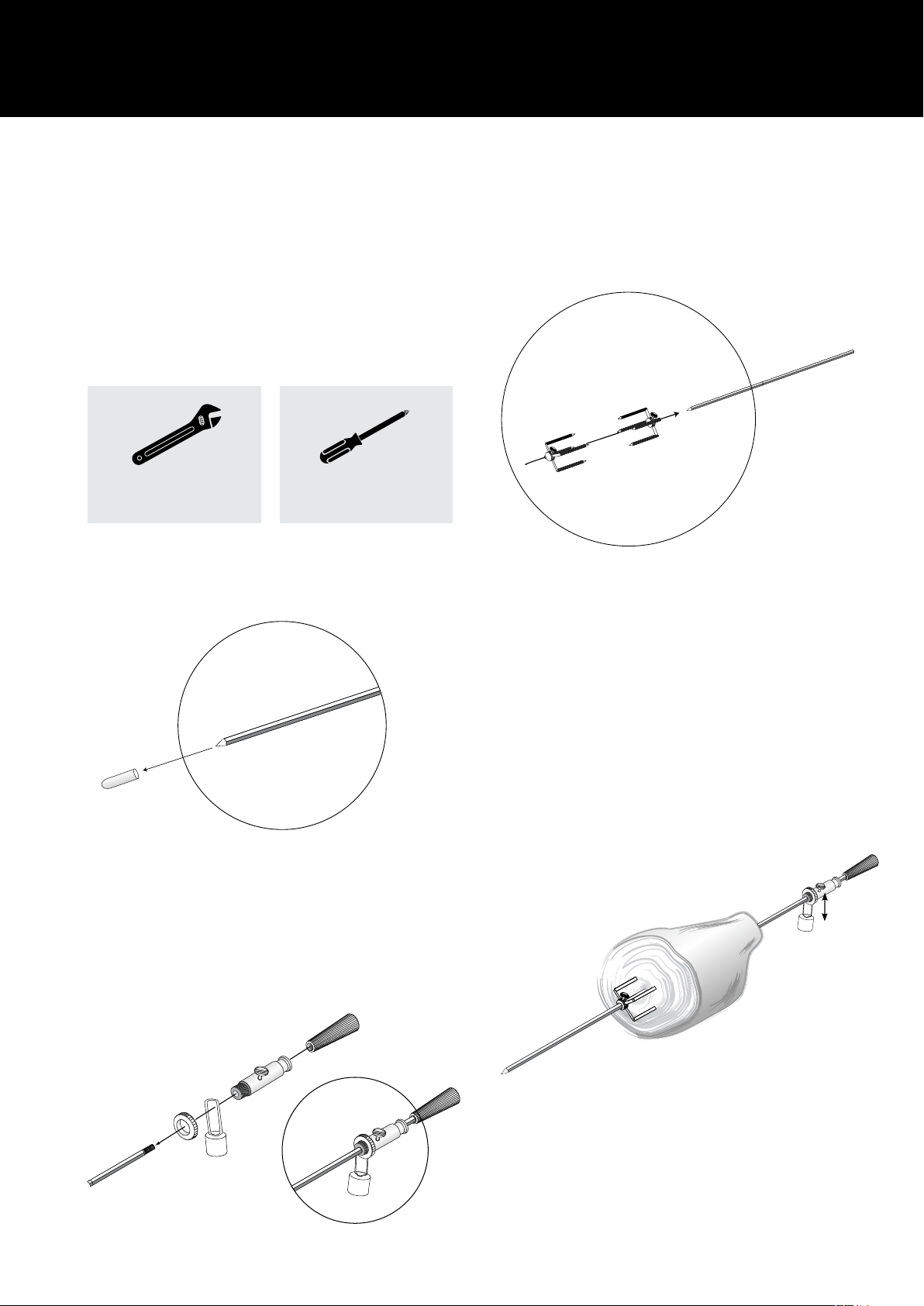

Step 1

Remove the plastic end cap.

Step 2

Assemble the knurled nut, counterweight, collar and handle

onto the threaded end of the shaft. Tighten the wing nut on

the collar once all parts are in place.

Adjustable

spanner/wrench

Phillips head

screwdriver

Before you start

Note the tools you will need before you begin.

Remove any protective plastic from stainless steel

components.

Check for damaged or missing parts, and consult your

retailer if necessary.

Note: To use your optional side burner while you have

a rotisserie attached, unscrew the handle from the

rotisserie shaft.

Step 3

Slide the prongs onto the shaft so they face each other.

Meat is secured between the prongs. Tighten the wing nuts

on the prongs when the meat is in place.

Step 4

Use the counterweight to balance the load, so that the shaft

and meat rotate smoothly.

To balance the load, loosen the knurled nut, then allow the

shaft to rotate freely and come to rest. This can be done

holding the shaft in your hands. The heaviest part of the

meat will naturally rotate to the bottom. Now rotate the

counterweight so that the weight is toward the top.

If the meat is very lopsided, extend the counterweight so

that it is furthest from the shaft. If the meat is close to being

centrally balanced, shift the counterweight so that it is closer

to the shaft.

Retighten the nut once a reasonable balance is achieved.

32 CONGRATULATIONS ASSEMBLING THE ROTISSERIE

TIPS & INFORMATION

IMPORTANT

Important – check for any damages or marks

If you find the appliance is damaged or marked, you must

report it within 7 days if you wish to claim for damage/

marks under the manufacturer’s warranty. This does not

affect your statutory rights.

ENVIRONMENTAL TIPS

ENVIRONMENT

Information on disposal for users

• Most of the packing materials are recyclable.

Please dispose of those materials through your local

recycling depot or by placing them in appropriate

collection containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method

of disposal.

WARNING

CAUTION – ELECTRICAL WARNING

If your barbecue incorporates an electrical component,

such as a rotisserie, then it must be electrically grounded

in accordance with local codes. The electric cord must

be equipped with a three-pin (grounding) plug for your

protection against shock hazard and should be plugged

directly into a properly grounded three-pin receptacle.

Do not cut or remove the grounding pin from this plug.

Keep any electrical supply cord and the fuel supply hose

away from any heated surfaces.

If an external electrical source is utilised, this outdoor

cooking appliance, when installed, must be electrically

grounded in accordance with the local codes or, in the

absence of local codes with the following:

USA: National Electrical Code, ANSI/NFPA 70

CAN: Canadian Electrical Code, CSA C22.1

AUS: Aust Standards Code AS:5601

Dear customer,

Congratulations and thank you for choosing our appliance.

We are sure you will find it a pleasure to use. Before you use

the appliance, we recommend that you read through the

relevant sections of this manual, which provide a description

of your appliance and its functions.

To avoid the risks that are always present when you use

an appliance, it is important that the appliance is installed

correctly and that you read the safety instructions carefully

to avoid misuse and hazards.

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners.

After unpacking the appliance, please check it is not

damaged. If in doubt, do not use the appliance but contact

your local customer care centre.

CAUTION – ELECTRICAL WARNING ASSEMBLING THE ROTISSERIECONGRATULATIONS

The symbols you will see in this booklet have these

meanings:

WARNING

This symbol indicates information concerning your

personal safety.

WARNING

CAUTION

This symbol indicates information on how to avoid

damaging the appliance.

TIPS & INFORMATION

IMPORTANT

This symbol indicates tips and information about use

of the appliance.

ENVIRONMENTAL TIPS

ENVIRONMENT

This symbol indicates tips and information about

economical and ecological use of the appliance.

IMPORTANT INFORMATION THAT MAY

IMPACT YOUR MANUFACTURER’S WARRANTY

Adherence to the directions for use in this manual

is extremely important for health and safety. Failure

to strictly adhere to the requirements in this manual

may result in personal injury, property damage

and affect your ability to make a claim under the

BeefEater manufacturer’s warranty provided with

your product. Products must be used, installed and

operated in accordance with this manual. You may

not be able to claim on the BeefEater manufacturer’s

warranty in the event that your product fault is due to

failure to adhere this manual.

Step 1

Remove the plastic end cap.

Step 2

Assemble the knurled nut, counterweight, collar and handle

onto the threaded end of the shaft. Tighten the wing nut on

the collar once all parts are in place.

Adjustable

spanner/wrench

Phillips head

screwdriver

Before you start

Note the tools you will need before you begin.

Remove any protective plastic from stainless steel

components.

Check for damaged or missing parts, and consult your

retailer if necessary.

Note: To use your optional side burner while you have

a rotisserie attached, unscrew the handle from the

rotisserie shaft.

Step 3

Slide the prongs onto the shaft so they face each other.

Meat is secured between the prongs. Tighten the wing nuts

on the prongs when the meat is in place.

Step 4

Use the counterweight to balance the load, so that the shaft

and meat rotate smoothly.

To balance the load, loosen the knurled nut, then allow the

shaft to rotate freely and come to rest. This can be done

holding the shaft in your hands. The heaviest part of the

meat will naturally rotate to the bottom. Now rotate the

counterweight so that the weight is toward the top.

If the meat is very lopsided, extend the counterweight so

that it is furthest from the shaft. If the meat is close to being

centrally balanced, shift the counterweight so that it is closer

to the shaft.

Retighten the nut once a reasonable balance is achieved.

4 55ATTACHMENT TO BARBECUE (DISCOVERY BARBECUES ONLY)4 ATTACHMENT TO BARBECUE (SIGNATURE BARBECUES ONLY)

ATTACHMENT TO BARBECUE (SIGNATURE BARBECUES ONLY) ATTACHMENT TO BARBECUE (DISCOVERY BARBECUES ONLY)

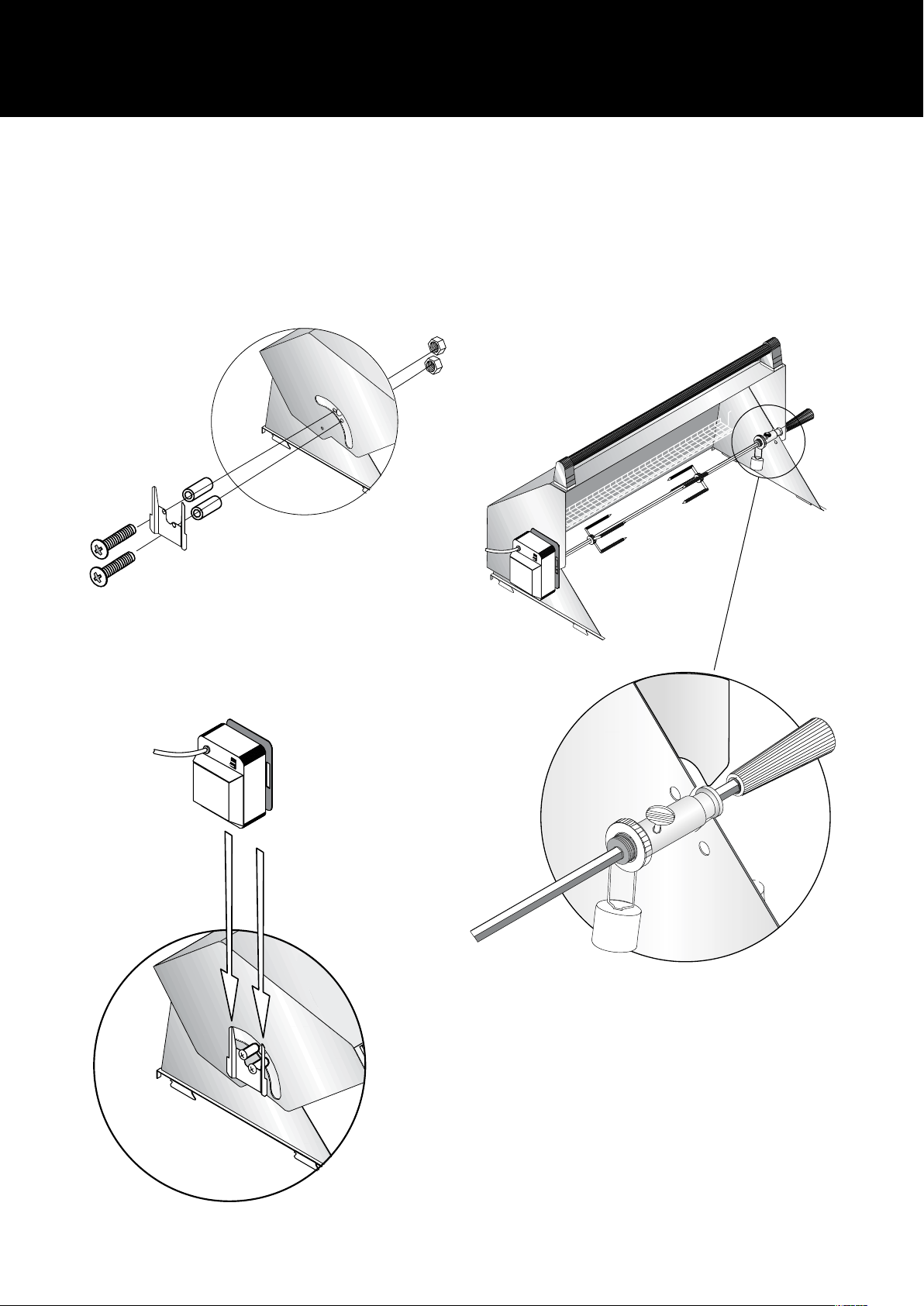

Step 1

First, attach the motor mounting bracket to the left side of

the roasting hood.

Use the bracket which has two holes diagonally apart.

The cylindrical spacers are used to separate the bracket

from the hood.

Step 2

Then, slide the motor onto the bracket.

Note the cable is towards the top.

Step 1

First, attach the motor mounting bracket to the left side of

the roasting hood.

Use the bracket which has one screw hole only. The bracket

is secured to the barbecue with a single nut and screw. The

dome shaped bump in the bracket presses into the barbecue

body and prevents the bracket from rotating.

Step 2

Then slide the motor onto the bracket. Note the cable is

towards the bottom.

Step 3

Attach a bracket to the right side of the barbecue body.

Similarly to the other side, use a single nut and screw.

Step 4

Fit the shaft onto the roasting hood.

First insert the pointed end into the motor.

On the other end of the shaft, the groove of the collar rests

directly onto the mounting bracket. You may need to loosen

the wing nut on the collar to reposition it if necessary.

Step 3

Fit the shaft onto the roasting hood.

First insert the pointed end into the motor.

On the other end of the shaft, the groove of the collar

rests directly onto the lower section of the roasting hood.

You may need to loosen the wing nut on the collar to

reposition it if necessary.

4 55ATTACHMENT TO BARBECUE (DISCOVERY BARBECUES ONLY)4 ATTACHMENT TO BARBECUE (SIGNATURE BARBECUES ONLY)

ATTACHMENT TO BARBECUE (SIGNATURE BARBECUES ONLY) ATTACHMENT TO BARBECUE (DISCOVERY BARBECUES ONLY)

Step 1

First, attach the motor mounting bracket to the left side of

the roasting hood.

Use the bracket which has two holes diagonally apart.

The cylindrical spacers are used to separate the bracket

from the hood.

Step 2

Then, slide the motor onto the bracket.

Note the cable is towards the top.

Step 1

First, attach the motor mounting bracket to the left side of

the roasting hood.

Use the bracket which has one screw hole only. The bracket

is secured to the barbecue with a single nut and screw. The

dome shaped bump in the bracket presses into the barbecue

body and prevents the bracket from rotating.

Step 2

Then slide the motor onto the bracket. Note the cable is

towards the bottom.

Step 3

Attach a bracket to the right side of the barbecue body.

Similarly to the other side, use a single nut and screw.

Step 4

Fit the shaft onto the roasting hood.

First insert the pointed end into the motor.

On the other end of the shaft, the groove of the collar rests

directly onto the mounting bracket. You may need to loosen

the wing nut on the collar to reposition it if necessary.

Step 3

Fit the shaft onto the roasting hood.

First insert the pointed end into the motor.

On the other end of the shaft, the groove of the collar

rests directly onto the lower section of the roasting hood.

You may need to loosen the wing nut on the collar to

reposition it if necessary.

6 7WARRANTYNOTES

WARRANTYNOTES

This document sets out the terms and conditions of the product

warranties for Electrolux Spare Parts and Accessory Products. It is

an important document. Please keep it with your proof of purchase

documents in a safe place for future reference should there be a

manufacturing defect in your Product. This warranty is in addition to

other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the

Competition and Consumer Act 2010;

(b) ‘Product’ means any Electrolux spare part and accessory product

purchased by you and accompanied by this document;

(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty

Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762

341 in respect of Products purchased in Australia and Electrolux (NZ)

Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount

Wellington, in respect of Products purchased in New Zealand;

 (e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis

warranty;

(f) ‘you’ means the purchaser of the Product not having purchased the

Product for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Products, purchased

and used in Australia or New Zealand and is in addition to (and does

not exclude, restrict, or modify in any way) other rights and remedies

under a law to which the Products or services relate, including any non-

excludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this warranty

continues for a period of 12 months in Australia and New Zealand,

following the date of original purchase of the Product.

4. Repair or replace warranty: During the Warranty Period, Electrolux or

its ASPD will, at no extra charge, subject to these terms and conditions,

repair or replace any Product or parts which it considers to be defective.

Electrolux may, in its absolute discretion, choose whether the remedy

oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits

ASPD may use refurbished parts to repair your Product. You agree that

any replaced Products or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will

bear the reasonable cost of transportation, travel and delivery of the

Product to and from Electrolux or its ASPD. Travel and transportation

will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this

warranty.

7. Exclusions: You may not make a claim under this warranty unless

the defect claimed is due to faulty or defective parts or workmanship.

This warranty does not cover:

 (a) lightglobes,batteries,ltersorsimilarperishableparts;

(b) parts and Products not supplied by Electrolux;

 (c) cosmeticdamagewhichdoesnotaecttheoperationofthe

Product;

(d) damage to the Product caused by:

(i) negligence or accident;

(ii) misuse or abuse, including failure to properly maintain or service;

(iii) improper, negligent or faulty servicing or repair works done by

anyone other than an Electrolux authorised repairer or ASPD;

(iv) normal wear and tear;

(v) power surges, electrical storm damage or incorrect power supply;

(vi) incomplete or improper installation;

(vii) incorrect, improper or inappropriate operation;

(viii) insect or vermin infestation;

(ix) failure to comply with any additional instructions supplied with

the Product;

In addition, Electrolux is not liable under this warranty if:

(a) the Product has been, or Electrolux reasonably believes that the

Product has been, used for purposes other than those for which the

Product was intended, including where the Product has been used

for any non-domestic purpose;

 (b) theProductismodiedwithoutauthorityfromElectroluxinwriting;

or defaced.

8. How to claim under this warranty: To enquire about claiming under

this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the

terms of this warranty;

(b) have the model and serial number of the Product available;

(d) telephone the numbers shown below.

9. Australia: For Products and services provided by Electrolux in Australia:

Electrolux goods come with guarantees that cannot be excluded under

the Australian Consumer Law. You are entitled to a replacement or

refund for a major failure and for compensation for any other reasonably

foreseeable loss or damage. You are also entitled to have the Product

repaired or replaced if the Product fails to be of acceptable quality and

the failure does not amount to a major failure. ‘Acceptable quality’ and

‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Products and services provided by Electrolux in New

Zealand, the Products come with a guarantee by Electrolux pursuant

to the provisions of the Consumer Guarantees Act, the Sale of Goods

Act and the Fair Trading Act. Where the Product was purchased in New

Zealand for commercial purposes the Consumer Guarantee Act does

not apply.

11.Condentiality: You accept that if you make a warranty claim, Electrolux

and its agents including ASPD may exchange information in relation to

you to enable Electrolux to meet its obligations under this warranty.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: ELECTROLUX SPARE PARTS & ACCESSORY PRODUCTS

Important Notice

Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICE

ortondtheaddressofyournearest

customer care centre in Australia

PLEASE CALL 1300 363 640

For the cost of a local call (Australia only)

AUSTRALIA

ELECTROLUX HOME PRODUCTS

163 O’Riordan Street, Mascot NSW 2020

electrolux.com.au

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts distributor in Australia

PLEASE 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in New Zealand

PLEASE CALL 0800 10 66 10

(New Zealand only)

NEW ZEALAND

ELECTROLUX (NZ) Limited

3-5 Niall Burgess Road, Mount Wellington

electrolux.co.nz

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in New Zealand

PLEASE 0800 10 66 20

(New Zealand only)

ESP&A_Warr_May17
