To ensure proper use of this appliance and your safety, please read the following
instructions carefully before operating this appliance.
User Manual
AUTOMATIC ICE MAKER
Antarctic Star
HZB-45AB
1
CONTENTS
IMPORTANT SAFETY-------------------------------------------------------------------------------------2
SPECIFICATION--------------------------------------------------------------------------------------------4
DIMENSION/CONNECTION---------------------------------------------------------------------4
RATING------------------------------------------------------------------------------------------------4
GENERAL INFORMATION-------------------------------------------------------------------------------5
MAIN UNIT CONSTRUCTION------------------------------------------------------------------------5
ICE-MAKING AND ITS WATER TANK PARTS----------------------------------------------5
CONTROL PANEL----------------------------------------------------------------------------------6
EXPLOSIVE DRAWING---------------------------------------------------------------------------7
OPERATING PROCEDURE AND MAINTENANCE-----------------------------------------------9
UNPACKING YOUR ICE MAKER-------------------------------------------------------------------------9

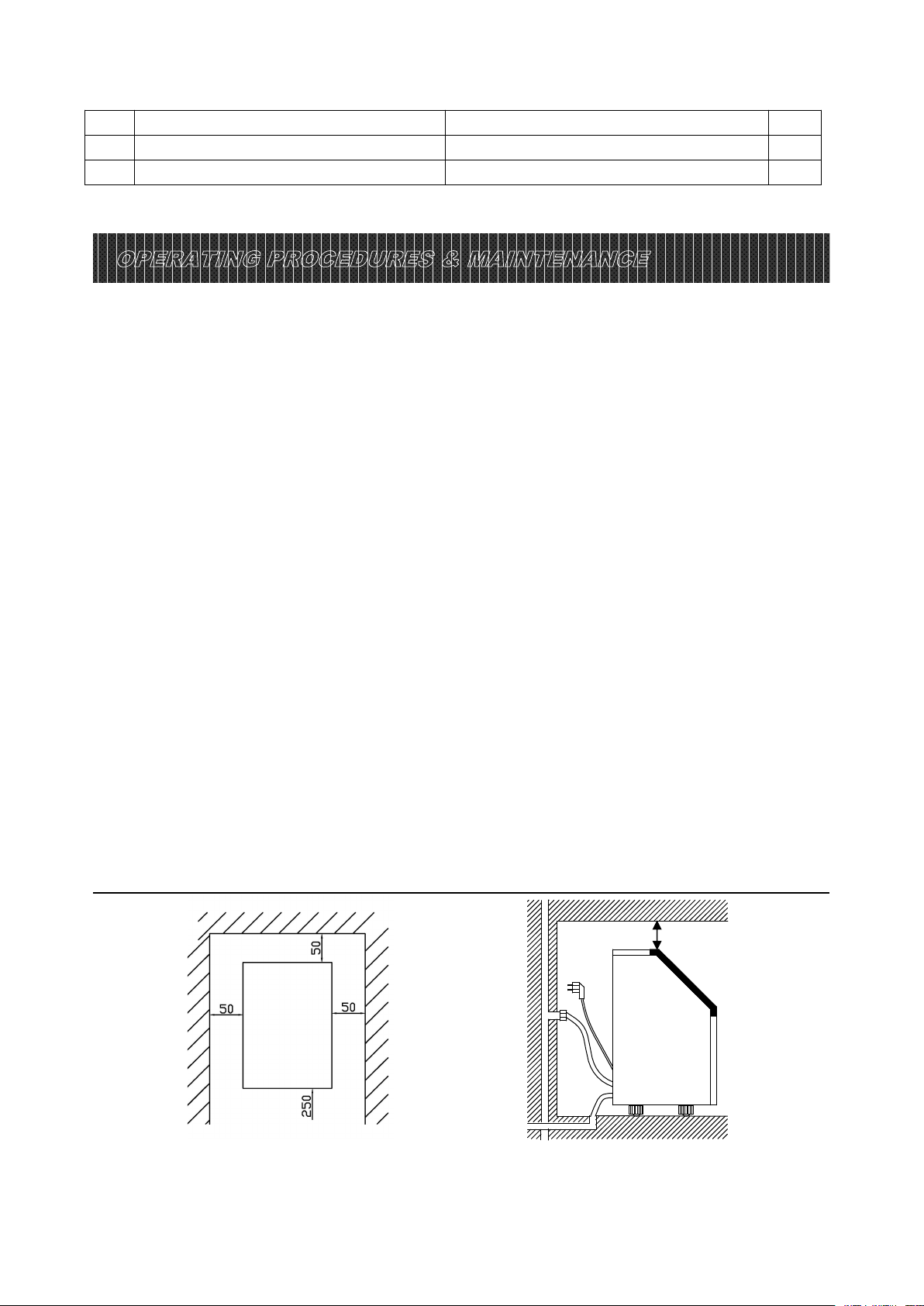

INSTALLATION LOCATION REQUIREMENT------------------------------------------------9
ELECTRICAL REQUIREMENT & CONNECTIONS----------------------------------------10
CLEANING
CLEANING YOUR
YOUR ICE
ICE MAKER
MAKER BEFROE
BEFROE FIRST
FIRST USING
USING--------------------------------11
OPERATION YOUR UNIT--------------------------------------------------------------------------------11

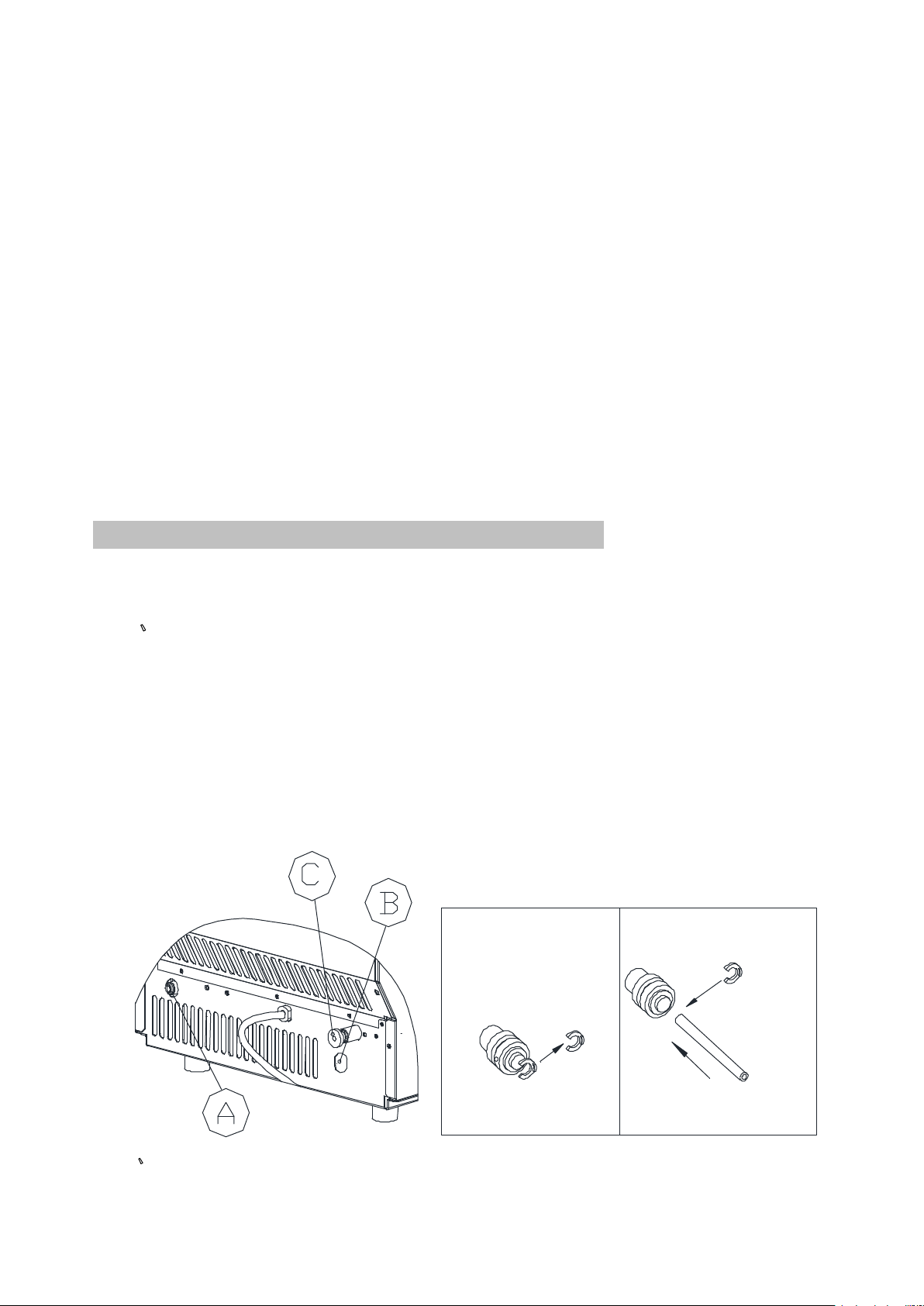

WATER CONNECTIONS FOR YOUR ICE-MAKER-----------------------------------------11
OPERATION THE ICE MAKING PROCESS-------------------------------------------------13
AUTOMATIC SELF-CLEANING PROGRAM-------------------------------------------------15
TIMER SETTING OPERATION------------------------------------------------------------------15
INTERNAL LED LIGHT OPERATION---------------------------------------------------------16
ERROR CODE OF UNIT BREAKDOWN-----------------------------------------------------16
WATER DRAINAGE--------------------------------------------------------------------------------16
NORMAL SOUNDS--------------------------------------------------------------------------------17
PREPARING ICE MAKER FOR LONG STORAGE----------------------------------------17
CLEAND AND MAINENANCE --------------------------------------------------------------------------18
EXTERIOR CLEANING---------------------------------------------------------------------------18
INTERIOR CLEANING----------------------------------------------------------------------------18
ICE MAKING PARTS CLEANING-------------------------------------------------------------------19
ICE MAKING ASSEMBLY SYSTEM CLEANING BY USING
NU-CALGON NICKLE SAFE ICE-MACHINE CLEANER --------------------20
CLEANING SUGGESTION-----------------------------------------------------------------------------------22
WIRING DIAGRAM------------------------------------------------------------------------------------------23
NORMAL TROUBLE SHOOTING----------------------------------------------------------------------------24
PRODUCT WARRANTY-----------------------------------------------------------------------------25
2
IMPORTANT SAFETY
When using electrical appliances, basic safety precautions should be followed to
reduce the risk of fire, electric shock, and injury to persons or property. Read all
instructions before using any appliance.
Use this appliance only for its intended purpose as described in this owner’s manual.
This ice-maker must be properly installed in accordance with the installation instructions
before it is used.
This unit must be positioned so that the plug is accessible. Do not run cord over carpeting
or other heat insulators. Do not cover the cord. Keep cord away from traffic areas, and do
not submerge in water. No other appliance should be plugged into the same outlet, and be
sure that the plug is fully inserted into the receptacle.
We do not recommend the use of extension cord as it may overheat and cause a risk of
fire. If you must use an extension cord, use No.14AWG minimum size and rated no less
than 1875 watts.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
Disconnect the mains plug from the supply socket when not in use for a long term, where
supply connection is via mains plug.
Remove power plug or disconnect from the mains before cleaning or servicing the
appliance. NOTE: If for any reason this product requires service, we strongly recommend
that a certified technician perform the service.
Never unplug you unit by pulling on the power cord. Always grasp the plug firmly and pull
straight out from the outlet.
Do not use your unit outdoors. Keep the unit away from direct sunlight and make sure that
there is at least 6 inches of space between the back of your unit and wall and keep the
front free. Keep ventilation opening in the appliance enclosure or in the built-in structure,
clear of obstruction.
Do not tip over the unit which will cause abnormal noisy and make the ice-cube size
abnormal. And seriously, it may cause water leakage from the unit.
If the unit is brought in from outside in the winter season, give it a few hours to warm up to
room temperature before plugging it in.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or
explosion.
WARNING: This appliance must be earthed. Use the proper power source according
to the nameplate.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
WARNING: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
3
appliance by a person responsible for their safety.
WARNING: Children should be supervised to ensure that they do not play with the
appliance.
WARNING: This appliance must be earthed. And use the 110-120V/60Hz earthed
power supply.
WARNING: Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use
Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All
Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used .
CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;Follow
Handling Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for
Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors
or hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with like components
and that servicing shall be done by factory authorized service personnel, so as to
minimize the risk of possible ignition due to incorrect parts or improper service.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING:This appliance is intended to be used in household and similar
applications such as
Eg.staff kitchen areas in shops, offices and other working environments;
Eg. farm houses and by clients in hotels, motels and other residential type environments;
Eg.bed and breakfast type environments;
Eg.catering and similar non-retail applications.
IMPORTANT:
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip yellow: Grounding
White: Neutral
Black: Live
To avoid a hazard due to instability of the appliance, it must be placed at a even or flat
surface.
4
SPECIFICATIONS
1) DIMENSIONS/CONNECTIONS
2) Rating
MODEL
HZB-45
POWER SUPPLY VOLTAGE 1Phase, 110-120/60Hz
CLAIMATE CLASS 10-40℃
ELECTRICAL PROTECTION CLASS I
ICE MAKING RATING (Amps) 2.2Amp
ICE HARVEST RATING (Amps) 2.5Amp
ICE MAKING CAPACITY (KG/24H) 45kg/24Hour *
REFRIGERANT CHARGE R290 3.35Oz / 95g
NET WEIGHT(lbs)
59 lbs
VESICANT
C
5
H
10
UNIT DIMENSIONS(W X D X H) (mm)
448 x 400 x 798
WATER CONSUMPTION(L/24H) 50L
MAX ICE STORAGE CAPACITY(lbs) 33lbs
ACCESSORIES SHOVEL, INSTALLATION KITS
CONNECTION POWER CORD----18AWG
WATER SUPPLY----6.35mm diamete
DRAIN----Φ16 SYLPHON BELLOWSS(REAR)
RUNNING CONDITIONS ROOM TEMP 50-110 Fahrenheit
WATER SUPPLY TEMP 41-95 Fahrenheit
WATER SUPPLY PRESSURE 0.04-0.6 MPa
NOTE *: TESTED AT 70 Fahrenheit ROOM TEMPERATURE AND 50 Fahrenheit WATER TEMPERATURE.
Water
Drainage Port
Water Inlet
Port
5
GENERAL INFORMATION

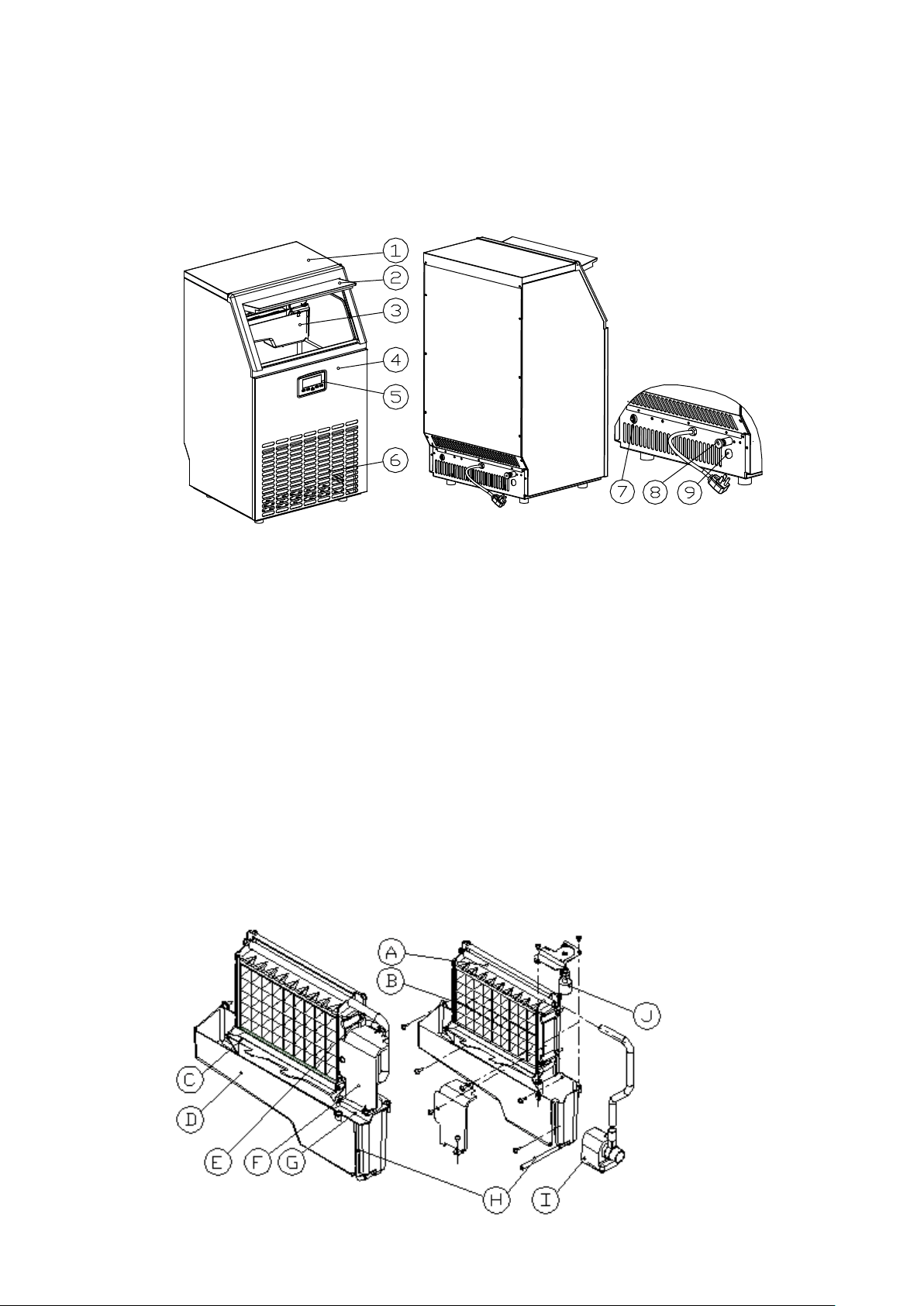

1) Main Unit Construction
1. Top cover
2. Door for ice taking
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump
and some detecting parts
4. Front panel
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7. Water inlet port for water supply: Use to connect the water supply pipe.
8. Water draining port：Normal plugged with the cap. When need to drain the water, unplug the cap.
And connect the drain pipe.
9.Water inlet port for bottle water supply:Use to no supply pipe,but has bottle water.
Accessory: 2 meters long and water drain pipe、
water quick connector of the water faucet,
¢6.35mm diameter and white color water supply pipe(3 meters long）。
2) Ice-making and its water tank parts
6
1234
5
67
8
9
LIGHT TIMER
CLEAN ON/OFF
A. Water dividing pipe ：with nine little holes, water will flow out from these little holes. And if no
water flows out, can be disassembled and cleaned.
B. Evaporator (ice-making module)

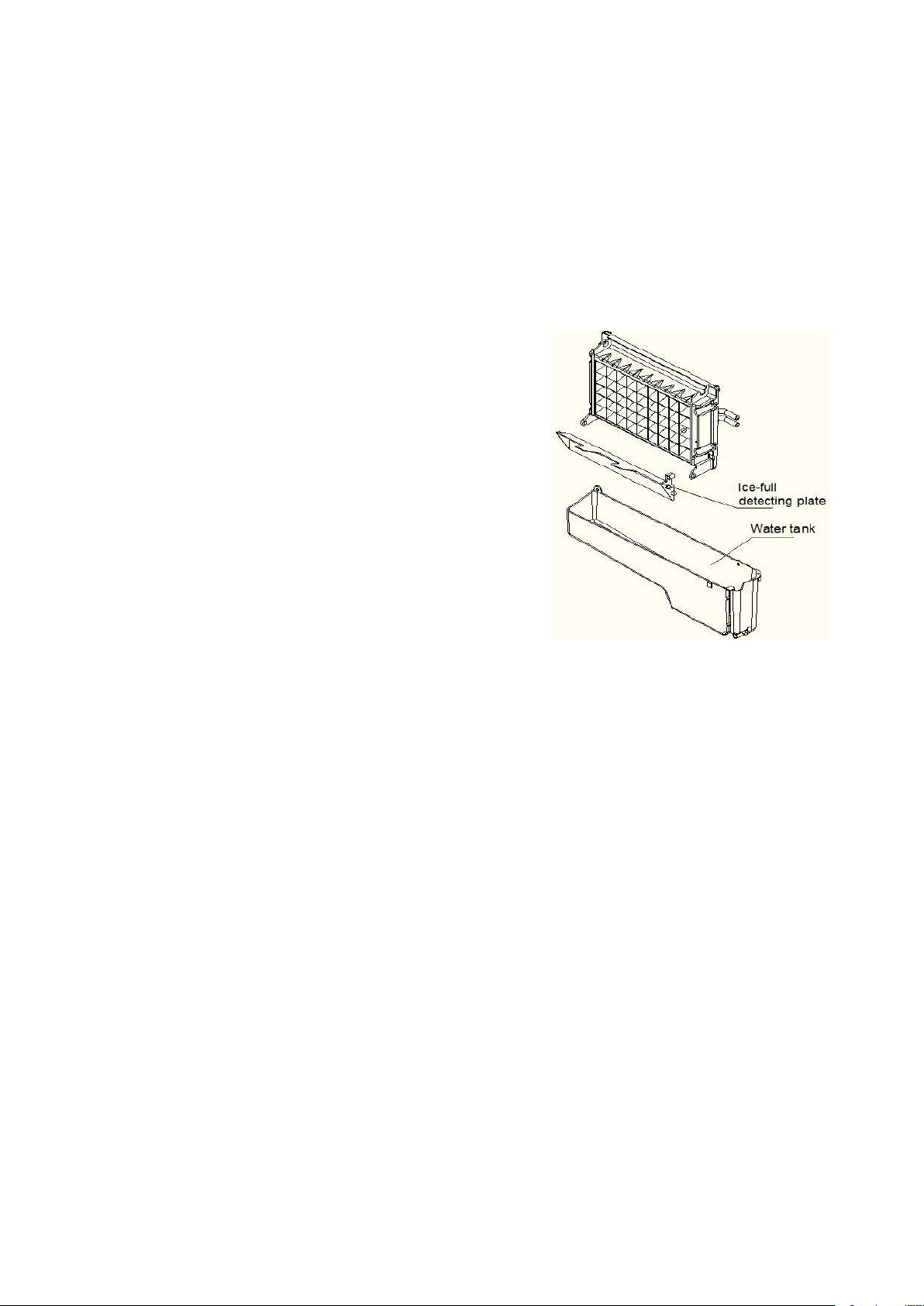

C. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the the
ice-harvest process is over or not.
D．Water tank：
E．Water supplying pipe：
F．Cover board on the right side of the evaporator：
G．Water level switch installing plate：
H．Water drain pipe of the water tank：when ice-making, this pipe should be clamped in the slot of
the water tank wall; And when draining, this pipe should be pulled out.
I．Water pump：
J．Water level detecting switch

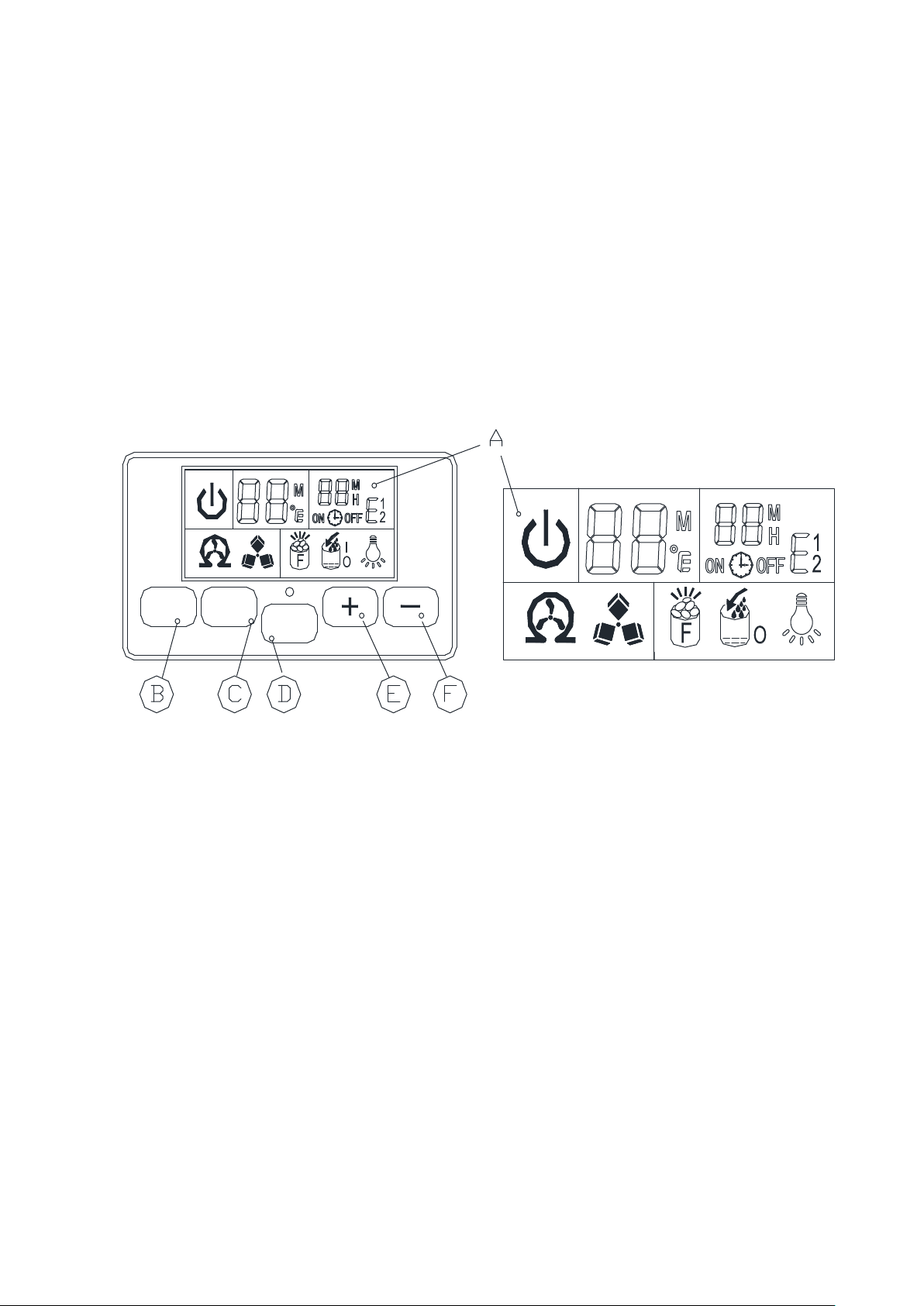

3) Operation panel
A．LCD display window
1、Unit ON or OFF state symbol: When the unit is turned off(standby mode), this symbol
flashes, and when the unit is working, the symbol will keep lighting on.
2、Ambient temperature and ice-making countdown time display
3、Ice-making setting and Timer setting display
4、Error code：E1 means that the ambient temperature sensor is faulted
E2 means that ice-making process is abnormal；
5、Light symbol：When this symbol displays, the LED light inside the cabinet will be on；
6、Water flowing and water absence symbol: If the arrow of this symbol flashes, means the
water is flow in from main water supply; And if the whole symbol keeps on, means there is no
water from main water supply.
7、Ice-full display: When the ice storing cabinet is full of the ice cube, this symbol will display,
and the unit will stop ice-making process.
8、Ice making and harvest display：When the ice cube symbol keep rotation, means the unit
is making the ice; And if the symbol flashes, means the unit is during the ice harvest process.
9、Self-cleaning display.
B．“LED light” button: To turn on or turn off the internal LED light;
Note: Keep pressing this button for more than 5 seconds, it is to change the ambient
temperature unit between Fahrenheit degree and Centigrade degree.
C．“Timer/Clean”button：Quickly press this button once, to enter the Timer setting program; And
press this button for more than 5 seconds, to let the unit enter the Self-Cleaning
program.
7
D．“ON/OFF”button：
When the unit is off, press this button to turn on the unit; And during the automatic-cleaning
program, or normal ice-making state, press this button to turn off the unit at once;
And also if the unit is set with the Timer, press this button to cancel the Timer
setting.
When the unit is making the ice cube, press this button for more than 5 seconds, the unit will
switch to ice harvest process by force.
E/F．“+”、“-”button：
Use to adjust the ice-making process duration period length, the default setting is zero, 1
minute adding or decreasing per each pressing of “+” or “-” button.
Also to adjust the delay time of the timer, the default setting is zero, 1 hour adding or
decreasing per each pressing of “+” or “-” button.
4) EXPLOSIVE DRAWINGS
8
No.
Parts Name
Material
Qty.
1
Front panel
Stainless steel
1
2
Bottom plate
Zinc-plated steel board
1
3
Condenser
Copper tube and aluminum fin
1
4
Operation panel paper
PET
1
5
Operation panel PCB box
ABS
1
6
Operation panel PCB
Electrical and Electronic parts
1
7
Compressor
AC110-120V, 60Hz
1
8
Adjustable foot
ABS and bolts
4
9
Dry filter
Copper
1
10
Capillary
Copper
1
11
DC fan
DC12V, Electrical parts
3
12
Water inlet valve
DC12V Electrical parts
1
13
Water drainage pipe of the water tank
Silicone pipe
1
14
Ice-harvesting Electro-magnetic valve
AC115V/60Hz, Electrical parts
1
15
Water tank
ABS
1
16
Right side plate
430 stainless steel，可选
1
17
Water circulation pump
AC110-120V,60Hz, Electrical parts
1
18
Cover of the water tank
ABS
1
19
Water level detecting switch
DC5V, Electrical parts
1
20
Ice-full detecting plate
ABS
1
21
Magnetic control switch
DC5V, Electrical parts
4
22
Cover board on the right side of the
evaporator
ABS
1
23
Evaporator and its frame
Copper plated with nickle, and ABS frame
1
24
Water supplying pipe
Silicone pipe
1
25
Water dividing pipe, with nine holes
ABS
1
26
Cap of the water dividing pipe
Silicone
1
27
Electrical PCB box
ABS,fire-retardant
1
28
Main control PCB
PCB, Electrical parts
1
29
Cover of the main control PCB
ABS,fire-retardant
1
30
Rear plate
Zinc-pated steel
1
31
Insulation sponge of the top cover
PE
1
32
Top cover
Stainless steel
1
33
Ice shovel
ABS
1
34
Left side plate
430 Stainless steel,(Option)
1
35
Foaming inner cabinet & Ice storing bin
HIPS and Cyclopentane foaming
1
36
Door frame
ABS
1
37
Back strength plate
Zinc-plated steel
1
38
Water outlet pipe of the inner cabinet
Silicone pipe
1
39
Water drainage cap
Rubber
1
40
Water drainage port
ABS
1
41
Door for ice taking
ABS
2
9
42 Power cord Electrical parts 1
43 Clipper of the power cord PP, fire-retardant 1
44 Wiring Electrical parts 1
OPERATING PROCEDURES & MAINTENANCE
UNPACKING YOUR ICE MAKER
1. Remove the exterior and interior packaging. Check if all the accessories, including instruction
manual, ice scoop, white water inlet pipe, 4 ways to 2 ways water quick connector and the water
draining pipe, etc., are inside or not. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing the door and inner cabinet, ice scoop, etc.. Roughly clean the inner
cabinet & ice scoop with wet clothe.
3. Put the ice maker on a level & flat floor, without direct sunlight and other sources of heat (i.e.: stove,
furnace, radiator). Maker sure that there is at least 20cm gap between the air outlet and the
obstacles, and at least 5 cm between Left/Right side and the wall.
4. Allow 4 hours for the refrigerant fluid to settle before plugging the ice maker in if the unit maybe fall
upside down during shipping or transportation.
5. The appliance must be positioned so that the plug is accessible.
WARNING: connect to the potable water supplying only. Only use drinking water.
INSTALLATION LOCATION REQUIREMENT
a) This unit is not for outdoor use. Keep the proper room temperature and inlet water
temperature according to above specification table. Otherwise it will affect the ice making performance.
b) This unit should not be located near any heat resource.
c) The unit should be located on a firm & level foundation at normal counter top height.
d) There must be at least 5CM clearance at rear side for connection and 25 CM clearance in
front to open the door and keep good air circulation.
e) Do not put anything on the top of the ice maker.
Side view (mm)
(mm)
40
40
Installation clearance
top view (1:10) (mm)
10
Electrical Shock Hazard
Plug into a grounding wall outlet.
Never remove the ground prong.
Use separate power supply or receptacle.
Never use an adapter.
Never use an extension cord.
Failure to follow these instructions can result in death, fire, or
electrical shock.
To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed
(at least 20CM free space). Allow at least 50 mm clearance at rear, and 50 mm at top and sides for
proper air circulation. The installation should allow the ice maker to be pulled forward for servicing if
necessary.
When installing the ice maker under a counter, follow the recommended spacing dimensions shown
above. Place electrical and water supplies and drain fixtures in the recommended locations as shown.
Choose a well-ventilated area with temperatures above 50 Fahrenheit and below 90Fahrenheit. This
unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips.
The ice maker requires a continuous water supply with pressure 1-8 Bar as required in above
specification table. The temperature of the water feeding into the ice maker should be between
41Fahrenheit and 77Fahrenheit for proper operation.
ELECTRICAL REQUIREMENT & CONNECTIONS
WARNING: THIS UNIT MUST BE EARTHED.
Before you move your ice maker into its final location, it is important to make sure you have the proper
electrical connection.
It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles
that cannot be turned off by a switch or pull chain. If the supply cord or plug to be replaced, it should be
done by a qualified service engineer.
This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.
Recommended grounding method
For your personal safety, this appliance must be properly grounded. This appliance is equipped with a
power supply cord having a grounding plug. To minimize possible shock hazard, the cord must be
plugged into a mating grounding-type wall receptacle, grounded in accordance with the National
Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the
personal responsibility of the customer to have a properly grounding wall receptacle installed by a
qualified electrician.
11
CLEANING
CLEANING YOUR
YOUR ICE
ICE MAKER
MAKER BEFROE
BEFROE FIRST
FIRST USING
USING
Before using your ice maker, it is strongly recommended to clean it thoroughly.
1. Open the ice getting door.
2. Clean with diluted detergent, warm water and a soft cloth.
3. Repeatedly clean the water contacting inner parts, use the water or the wet clothe to
scrub the relevant parts, then use the dry clothe to dry them.
4. you can pull the Water drain pipe of the water tank indicating “H” in above illustration to drain the
cleaned water in the water tank, then next to clean inner ice-storing cabinet, till all of inner parts are
cleanly, then drain out all of the cleaned water from the water drain port located at unit back
indicating “8”in above illustration. And must to reinstall back the water drain pipe of the water tank
and the cap of the unit water drain port, otherwise, the unit will not make the ice normally. And
suggest that you should discard the ice-cube made by the first ice making cycle after
cleaning.
5. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm
water.
6. Dry the interior and exterior with a clean soft cloth.
WATER CONNECTION FOR YOUR ICE MAKER
Important: Be sure to use the new hose-sets supplied with the appliance to
connect to water mains and that old hose-sets should not be reused.
1、Connect the water supplying hose to the unit
Important: Be sure to use the new hose-sets supplied with the appliance to
connect to water mains and that old hose-sets should not be reused.
Option#1 Connect the water supplying hose to the unit
Step 1: First remove the clipper on the water inlet port for water supply
(indicated in the following illustration “A”) located at unit back,
Step 2: Insert the one end of the white water hose into the water inlet
port, and push inward completely, and install back the clipper,
then water hose connection is completed.
2、Connecting the water drain pipe
Pull out the water drainage cap with black color (indicated C in above illustration), then connect
Take off the C clip
Put back the clip
First insert the short white
tube at least 15mm
STEP1: Peel off the tape STEP2: Inser the short
white tube
PIC.1
12
the white drainage pipe included in accessory, again connect the other end of this drainage to the
main water drainage pipeline.
3. Connect the water hose to the water faucet of the water main supply system
First, install the supplied water quick-connector to the water faucet by screw thread; Second,
remove the clipper from the water quick-connector, insert the another end of the water hose into
this quick-connector port completely, then install back the clipper, also this step is completed.
Note: The water faucet should be supplied by the customer himself.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa .
Option#2:Connect the water tube to use bottle water,use for part B
Connecting the water drain pipe
Pull out the water drainage cap with black color (indicated C in above illustration), then
connect the white drainage pipe included in accessory, again connect the other end of this
drainage to the main water drainage pipeline.
PIC.2
STEP3: Insert the long clear
silicon tube,put the other
end to the water bottle
13

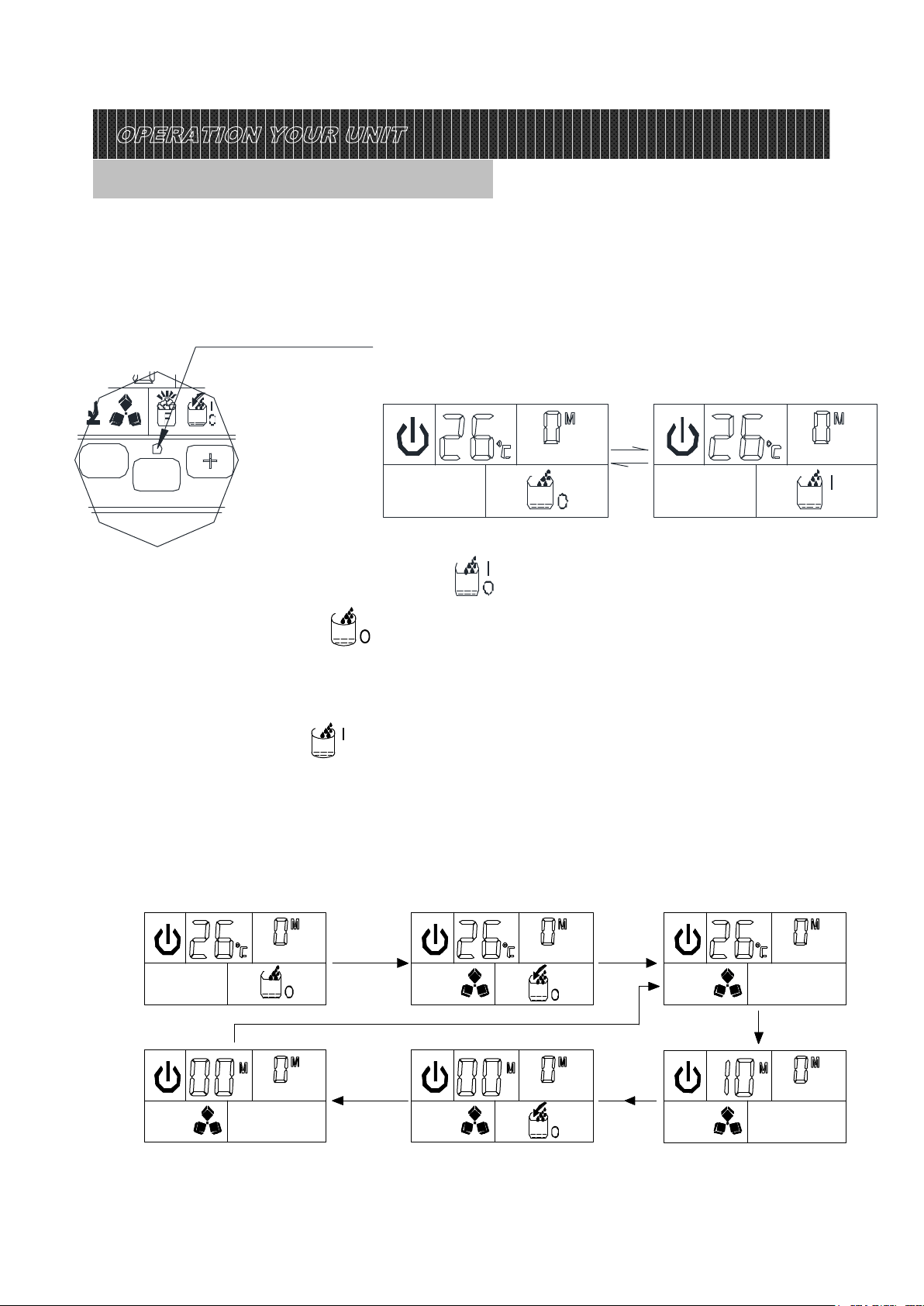

OPERATION YOUR UNIT
Operation the ice-making process
Selecting the water supplying mode
Plug on the unit , press the button in the little hole of the control panel, you can change the
water supplying mode of your unit.
A、If you select to use automatic water supplying mode ，please details of
waterway connection, please refer to the previous chapter "Selecting the water supplying
mode" Option#1.
B、If you select to use Bottled water method supplying mode, please details of
waterway connection, please refer to the previous chapter "Selecting the water supplying
mode" Option#2.
Ice making program is explained in following chart:
Step 1:Standby state
Press
ON/OFF
button to
turn on
the unit
Step 2:The arrow
flashes,water flows
in the unit
Step 3:Start to make
ice,and ice-cube symbol
rotates.
Step 4:Dispay the
countdown time of one
ice-making process
Step 5:Ice-harvest
starts,and ice-cube symbol
flashes;At same time the
arrow flashes and water
flow into the water tank
Step 6:During ice-harvest,
water-flowing process
finished to start to make
ice-cube again.
Default model:Automatic
TIMER
CLEAN
ON/OFF
Water Supplying
Mode Setting Switch
After setting onec:Bottled
Use a thin pole
to press the
switch in this
little hole,to
change the water
supplying mode
between automatic
and bottled. I:Symbol of bottled water supplying
O:Symbol of Automatic water supplying
14
I :Bottled water method supplying symbol; O: Automatic water supplying symbol;
Arrow of this symbol flashes, means the water is flowing into the water tank.
If this whole symbol keeps displaying, means no main water supplying at present.
Ice-cube symbol, when it rotate, means unit is making the ice cube; and it flashes,
means the unit is in ice harvest process.
℃Centigrade(ambient temperature）Hunit of hour（setting the timer）Munit of
minute（ice-making setting and countdown time）
1. Plug on the main power supply plug, then press “ON/OFF” button on the control panel
to begin the ice making cycle. The unit ON/OFF state symbol will keep lighting on, the left
number in the LCD display window displays the present ambient temperature, and the
right number displays the present ice-making setting, and the ice-cube symbol rotates.
When the left number change to flash, then the number means the countdown time to
complete one ice making cycle.
2. Each ice making cycle will last about 11 to 20 minutes, depending on the ambient
temperature and the water temperature. And for the first time, according to the initial water
temperature, ice-making last time will be a little longer.
3. When the ice-making process is over, then switch to ice-harvest process. During the
ice-harvest process, the ICE cube symbol change rotating to flash. At same time, the
arrow on the manual filling water symbol will start to flash, the water will flow into the water
tank again till the floating ball of water level switch rises up to the highest position, then the
water stop flowing and the whole manual filling water symbol will disappear.
When the ice-harvest finish, the Ice-full detecting plate will rotate downward once,
then recover to the original position and enter to the next ice-making process.
If after the rotation of the Ice-full detecting plate, it is pressed by the ice cube and can’t
recover to the original position, means the the ice bin is full of the ice cube and it will
stop making the ice automatically.
4. When the “ICE-FULL ” symbol display is on, the unit stops running. And if you move
away the ice cube, the unit will start to make the ice cube again. But it will restart
only after 3 minutes interval of compressor running.
5. During the ice-making process, press the “+” or “-” button to adjust the ice-making
process duration period length, then to change the thickness of the ice cube. Press
15
the “+” or “-” button, the right digit will flash, the default setting is zero, 1 minute will
add or decrease to each ice making process per each pressing of “+” or “-” button.
After 5 second of setting, the new setting will be remembered by the system.
6. The bad water quality will cause the bad quality of ice cube, and reduce the
transparency of the ice cube.
Automatic self-cleaning program
Start the self-cleaning program: After connecting all of the water pipe, plug on the
main power supply plug, then press “TIMER /CLEAN”
button on control panel for more
than 5 seconds, to enter the Self-Cleaning program. And the “”symbol will always
be on during this period, the left digit will indicate the left time. The total duration time is
20 minutes for one self-cleaning program.
Cancel the self-cleaning program: It takes about 20 minutes to complete one
self-cleaning program. When the program is over, the system will be in
standby mode automatically. And also you can press the “ON/OFF” button on
control panel to cancel the self-cleaning program by force.
Timer setting operation
Delay time range: 1-24 hours, Default time: 1 hour
How to set the ON-Timer: During the unit is in standby mode, press the “TIMER/CLEAN”
button to set the ON-Timer. The “ ”symbol will start to be on, the number “1” above
the symbol will flash to display the set delay time. During the number flashing, press+”、
“-”
button to change the delay time of the timer, 1 hour increasing or decreasing per each
pressing of “+” or “-” button. Five seconds after setting, your desired setting will be
remembered.
How to cancel the ON-Timer: Press the “TIMER/TIMER” button, the number above the
“”symbol will flash to display the present delay time of your ON-Timer, and press
this button once again to cancel the Timer setting, also the “ ” symbol and the
number will disappear. And the second easy way to cancel the ON-Timer is to press the
“ON/OFF” button, it will cancel the ON-TIMER setting by force.
How to set the OFF-Timer：When the unit is working, press the “TIMER/CLEAN” button
to set the OFF-Timer. The “ ” symbol will start to be on, the number
“1” above the symbol will flash to display the setting delay time. During the
number flashing, press+”、“-”
button to change the delay time of the timer,
1 hour increasing or decreasing per each pressing of “+” or “-” button. Five
seconds after setting, your desired setting will be remembered.
How to cancel the OFF-Timer: Press the “TIMER/TIMER” button, the number above the
16
“ ”symbol will flash to display the present delay time of your OFF-Timer, and press
this button once again to cancel the Timer setting, also the “ ” and the above
number will disappear; And also the second easy way to cancel the OFF-Timer is to press
the “ON/OFF” button, it will cancel the ON-TIMER setting by force, also will turn off the
unit.
Internal LED light operation
When the unit is plugged on, press the “LIGHT” button on the operation panel once to
lighten the LED light inside the ice bin and the “ ” symbol on the LCD display
window will also be on. Press this button once again, the LED light and the “ ”
symbol will be off at same time.
NOTE: If you press the “LIGHT” button for more than 5 seconds, the ambient can be
changed between Centigrade degree and Fahrenheit degree（between ℃and ℉）。
ERROR code of unit breakdown
When the unit is breakdown, the error code will display in the left side of LCD display
window.
E1 means the sensor of ambient temperature is malfunction。
E2 means that ice making program is abnormal, including too big ice-cube,no
ice-cube falling down, or not making ice cube, etc.
NOTE: During the ice cube making process, press “ON/OFF” button for more than 5
seconds, the unit will jump into the ice-harvest process . After the ice harvest
process is completed, the uni will recover to ice making process.
Water Drainage
Make sure the water drainage pipe has correctly connected at the unit back first.
A. You can drain the the water in ice storage bin through the white drainage pipe
connected on the back drainage port. Make sure not to set the white drainage pipe too
high.
B. For the water in the water tank,you can pull out the silicone pipe on the right side of
the water tank indicating “H” in above illustration to drain out the cleaned water in the
water tank, till the silicone pipe extend completely, the water can flow out to ice bin. Then
the water can be drained out through the the water drain port at unit back.
Reminding: Clean the water tank frequently, it can improve the ice-cube quality and
the unit and its water circulation pump can work much longer.
C. For the water in water charging tank, pull out the silicone pipe on the right side of the
17
water tank indicating “H” in above illustration, then plug on the unit, let the unit run at
ice-making program or self-cleaning program, the water will flow into the water tank, again
through the silicone pipe flow into the ice bin, at last can be drained out the unit through
the water drain port at unit back.
Normal Sounds
Your new ice maker may make sounds that are not familiar to you. Most of the new
sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds
seem louder than they actually are. The following describes the kinds of sounds that might
be new to you and what may be making them.
You will hear a swooshing sound when the control valve opens to let water flow into the
water tank for each ice-making cycle.
Rattling noises may come from the flow of the refrigerant or the water line. Items
stored on top of the ice maker can also make noises.
The high-efficiency compressor may make a pulsating or high-pitched sound.
Water running from the water tank to the evaporator plate may make a splashing
sound.
Water running from the evaporator to the water tank may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in
your ice maker.
You may hear air being forced over the condenser by the condenser fan. During the
harvest cycle, you may hear the sound of ice cubes falling into the ice storage bin.
When you first start the ice maker, you may hear water running continuously. The ice
maker is programmed to run a rinse cycle before it begins to make ice.
Preparing the Ice Maker for Long Storage
If the ice maker will not be used for a long time, or is to be moved to another place, it will
be necessary to drain out all of the water in the system.
1. Allow all of the ice cubes have been ejected from the evaporator of ice maker.
2. Turn off the unit, and unplug the power cord.
3. Drain out all of the water inside the unit according to section “Water Drainage”. When
all of the water has been drained out, to install back the water drain pipe of the water
tank..
4. Disconnect the water drainage pipe to the main drain pipeline or floor drain, plug on
the drain cap again.
5. Drop the door open to allow for circulation and prevent from molding and mildewing.
6. Leave the power cord disconnected until ready to reuse.
7. Dry the interior & wipe the outside of the unit.
8. Put a plastic bag on the unit to resist out dust & dirty.
18
CLEANING & MAINTENANCE
WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice
maker from the main power supply electricity. (EXCEPTION: Ice maker
self-cleaning program).
Do not use any alcohol or fume for cleaning or sanitizing of the ice maker. It
may cause cracks on the plastic parts.
Ask a trained service person to check and clean the condenser at least
once a year, in order to let the unit work properly.
This appliance must be cleaned by use of a water jet.
Periodic cleaning and proper maintenance will ensure efficiency, top performance,
hygienic, and long life. The maintenance intervals listed are based on normal conditions.
You may want to shorten the intervals if you have pets, or the unit is used outdoors, or
there are other special considerations.
What shouldn't be done
Never keep anything in the ice storage bin that is not ice: objects like wine and beer
bottles are not only unsanitary, but also it’s labels may slip off and obstruct the drain pipe.
Exterior Cleaning
The door and cabinet may be cleaned with a mild detergent and warm water solution such
as 28g of dish washing liquid mixed with 7.5L of warm water. Do not use solvent-based or
abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean
towel to prevent water spotting.
The side steel plate can discolor when exposed to chlorine gas and should be cleaned.
Clean the steel plate with a mild detergent and warm water solution and a damp cloth.
Never use abrasive cleaning agents.
Interior Cleaning
For Ice Storage Bin
The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is
used for the first time and reused after stopping for an extended period of time. It is usually
If the ice maker has been left unused for a long time, before the
next use it must be thoroughly cleaned. Follow carefully any
instructions provided for cleaning or use of sanitizing solution.
Do not leave any solution inside the ice maker after cleaning.
19
convenient to sanitize the bin after the ice making system has been cleaned, and the
storage bin is empty.
1. Disconnect power to the unit.
2. Open the door and with a clean cloth, wipe down the interior with a sanitizing
solution made of 28g of household bleach or chlorine and 7.5L of hot water (95℉to
115℉).
3. Rinse thoroughly with clear water. The waste water will be drained out through the
drain pipe.
4. Reconnect power to the unit.
The ice scoop should be washed regularly. Wash it just like any other food container.
Ice Making Parts Cleaning
During the using, periodically to clean these main system of your ice-maker.
1. Repeat above step to clean the water tank and other inner parts of the unit.
2. Especially, to the water dividing pipe on the evaporator, when the compressor and
the water pump run normally, but if there is no water flowing out from the water dividing
pipe or the water flowing is very small, please discharge this water dividing pipe to clean
carefully. Clean each little holes on the water dividing pipe displayed in the following
illustration, make sure each hole is not clogged by something, then install back to the
original location.
3.The length of cleaning period is related t
o
20
your water quality. And drain the water more frequently, the unit and its water pump can
work much longer.
4.When there are ice cubes on the surface of the evaporator, but can’t fall off easily, do
not use the mechanical substance to remove it by force; Only press the “ON/OFF” button
for more than 5 seconds, the unit will enter the ice melting process, after some while, the
big ice-cubes will fall down, then turn off the unit and unplug the power cord to clean the
surface of the evaporator.
5. For the water tank and ice-full detecting plate
Also the water tank and the ice-full detecting plate is very important to keep your ice cube
hygienic. Put mixture of neutral cleaner & water into a clean water jet, then spray to all
the inner surface of tank & the ice detecting plate. Wipe these surfaces as far as possible
with a clean cloth. And then, spray the surfaces with clean water, wiping with a dry clean
cloth. Then drain out the cleaned water in the water tank by pulling out the Water drain
pipe of the water tank indicating “H” in above illustration. When all of the cleaned water
has been drained out, to install back the water drain pipe of the water tank.
Suggestion: After cleaning the interior parts and install back to its
respective position, and return machine to work, discard first batch of
ice.
Ice Making Assembly System Cleaning by Using Nu-Calgon Nickle Safe
Ice-machine Cleaner (Better using automatic water supplying)
Minerals that are removed from water during the freezing cycle will eventually form a hard
scaly deposit in the water system. Cleaning the system regularly helps remove the mineral
scale buildup. How often you need to clean the system depends upon how hard your
water is. With hard water of 4 to 5 grains/liter, you may need to clean the system as often
as every 6 months.
1. Turn off the ice maker. Keep the ice maker connect to the main water supply and
21
drainpipe. But shut off the water faucet of main water supply.
2. Open the door and scoop out all of the ice cubes. Either discard them or save them in
an ice chest or cooler.
3. Making the cleaning solution. Please mix the Nu-Calgon Nickle Safe Ice Machine
Cleaner with water to make the cleaning solution.
Use a plastic or stainless container with more than 4 liters capacity, mix 300 ml
Nu-Calgon Nickle Safe Ice-machine Cleaner with 2.8 liters warm water about
120℉-140℉,Then divide them for 2 shares equally in 2 cups. It is better to keep the
temperature of each cup of the cleaning solution.
1. Check to be sure that the water drain pipe of the water tank has been installed
properly in the slot of the tank wall. Then Pour one cup of Nickel-Safe Ice Maker
Cleaning Solution into the water tank. Wait about
for 5 minutes.
2. Turn on the power to the ice maker, then press “TIMER/ CLEAN”
button on control
panel for more than 5 seconds, to enter the self-Cleaning program. Same as above
explanation, the water pump runs for 8 minutes and stops for 3 minutes, one cycle,
again one cycle. The total duration time is 20 minutes for one self-cleaning
program.
During this process, the “ ”symbol will always be on during this period, and the
digit window will indicate the left time,
3. After 20 minutes of one self-cleaning program completing, pull out the drain pipe of
the water tank, drain the cleaning solution down to the lower ice storage bin. Shake
the unit slightly to drain out all of the cleaning solution completely. Then install back
the drain pipe to the slot of the water tank.
4. Repeat steps 4--6 to clean the ice making assembly system again.
WARNING
Wear rubber gloves and safety goggles （and/or face
shield）when handing Ice Machine Cleaner or sanitizer.
22
The ice machine cleaner contains acids.
DO NOT use or mix with any other solvent-based cleaner
products.
Use rubber gloves to protect hands. Carefully read the material
safety instructions on the container of the ice machine cleaner.
DISCARD the first batch of ice troduced after cleaning.
5. Then open the water faucet of the main water supply, Let the water flow in the unit.
And press the“TIMER/CLEAN”button on control panel for more than 5 seconds, to
enter the self-Cleaning program. Same as above explanation, the water pump runs
for 8 minutes and stops for 3 minutes, one cycle, again one cycle. The total
duration time is 20 minutes for one self-cleaning program. During this process, the
“”symbol will always be on during this period, and the digit window will
indicate the left time. Through this process, It will rinse the water
dividing pipe, evaporator, water pump, silicone pipe, and water tank, etc..
6. After one self-cleaning program complete, then pull out the drain pipe of the water
tank, drain the cleaning solution down to the lower ice storage bin, also shake the unit
slightly to drain out all of the water completely. Then install back the drain pipe to the
water tank slot tightly.
7. Repeat the step 8-9 again for 2 times.
8. Following the above program to clean the ice storage bin .
9. Then this special cleaning program finish, you can return to the regular ice making
mode. And suggest to discard the first batch of ice cube.
Cleaning Suggestion
1) DAILY CLEANING
The ice shovel, door and the water dividing pipe should be cleaned by yourself per
each day. At the end of every day, rinse the ice shovel and wipe the both sides of the door
with a clean cloth.
2) SEMI-MONTHLY CLEANING
The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the
evaporator are to be cleaned by yourself semi-monthly according to interior cleaning
program.
3) SEMI-ANNUAL CLEANING
23
All the components & surfaces exposed to water or ice cubes, like ice storage bin, water
tank, door, evaporator, water pump, silicone tube, water dividing pipe, etc. should be
cleaned by Using Nu-Calgon Nickle Safe Ice-machine Cleaner per each 6
months. They should be cleaned by the serviceman according to ice making assembly
system cleaning program.
W
IRING DIAGRAM
Relay
PUMP
COMP
AC-L
N
Power
Supply
L
G
AC-N
Solenoid Vale for
Ice-harvest
6C
Main Control PCB
T1
DC Water Inlet Valve
RT
WATER
ICE
AC Water Pump
MCU
T1
VALVE
ELECTRICAL DIAGRAM
DC Fan Motor
Start Relay
COMPRESSOR
SENSOR FOR ICE
FULL DETECTING
SENSOR FOR
AMBIENT TEMP
WATER LEVEL
DETECTING SWITCH
N
L
G
M
~
AW
MW
Overload
Protector
24
Problem Possible Cause Solution
The whole “ ”
symbol is always on.
No water in unit
When automatic water supplying way,
maybe the main water pressure is too low
or the water supplying hose is blocked.
Check them and increasing the water
pressure and clean the supplying hose.
When using manual water supplying way,
maybe there is no water in water charging
tank, fill the water into the water charging
tank to MAX water level.
Floating ball of the water level
detecting switch is blocked,
can’t be raised up
Clean the water tank and the water level
detecting switch。
Water flows out from the side
of the water tank
Place the unit on the level position, not on
the slope。
Water flows out from the water
drain pipe of the water tank.
Pull out the pipe and install back to the
right side slot of the water tank properly.
The unit enter the ice
making process, but
no water flowing in the
unit, and the whole
“” symbol is on.
No water in water charging
tank, or the water supplying
problem , or the silicone pipe
of water tank isn’t on the
correct position.
When automatic water supplying way,
maybe the main water pressure is too low
or the water supplying hose is blocked.
Check them and increasing the water
pressure and clean the supplying hose.
When using manual water supplying way,
maybe there is no water in water charging
tank, fill the water into the water charging
tank to MAX water level.
The silicone pipe of water tank should be
clamped in the slot of the water tank side.
Water pump work, but
no water flow out from
the water dividing pipe
The little holes on the water
dividing pipe is blocked. Clean these little holes.
Water circulation
pump doesn’t work
Some special substance in
water tank block the pump
blade.
Clean the water tank and the water pump
The transparency of
the ice cube is not
very good
Water quality is bad Use the water filter or water purifier to
soften or filter the water.
Ice cube shape is
irregular
Water quality is not good or the
water tank is very dirty
Clean the water tank, and change with
new water.。
The little holes on the water
dividing pipe is some blocked
Clean the water dividing pipe，make sure
all nine holes are unclogged
NORMAL TROUBLE SHOOTING
25
ERROR INDICATOR
a) Ambient temp sensor breakdown----- Display E1 in digital window.
b) The machine not make ice or the gas leak ----Display E2 in digital window
c) Magnetic control switch cut off----
“Full”light will be on when plugging on or just turning
on the unit. And it will delete the breakdown display if this switch is electric shorted.
d) During the ice making process, press the “ON/OFF”button for more than 5 seconds,
the unit
Start to enter the ice harvest program. And after the ice harvest program,it continue to
enter the ice making process.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Ice cube is very thin
Ambient temperature is too
high
Move the unit to low temperature space, or
lengthen the time of each ice making
cycle.
Air circulation around the unit
is not goog
Make sure there is more than 20CM space
between the unit back & front and the
obstacle
Ice cube is too thick
Ambient temperature is too low
Reduce the time of each ice making cycle.
“ICE-FULL” symbol is
on
The ice storage bin is full of the
ice cube.
Take out some ice cube
Ice making cycle is
normal, but there is no
ice cube produced
The temperature of ambient, or
water in water tank is too high
Move to the place with temperature lower
than 90Fahrenheit,, and change to the low
temperature water
Refrigerant leakage, E2 error
code display
Need the technical serviceman to maintain
Cooling system tube is clogged
Need the technical serviceman to maintain
IMPORTANT
Do not return this product to the store.
Simply call our customer service department for any questions or concerns:
213-4467172
(8:30am - 5:30pm P.S.T.)
(8:30am - 5:30pm P.S.T.)
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
AVIS
Ne pas retourner ce produit au magasin.
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
No devuelva este producto a la tienda.
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA.
Add:9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172
Thank you for purchasing this product! If you have questions about assembly or operation of this
product, are missing parts, or if the product is damaged, please contact us via Amazon Message or call
customer serve Phone: 213-4467172.
