MENU
ON/OFF
UP
DOWN
LOCKTIMER
The product is quiet without fan, using high power relay motherboard without heat
output. When the heating temperature reaches the upper limit of the program set value,
the ceramic plate stops working, and starts working again when it is lower than the
lower limit, so as to ensure that the constant temperature on the furnace surface is at
the set temperature, saving energy and high efficiency
1. Power: when connected to the power supply, there is a sound of dripping, and all
the displays shine at the same time.

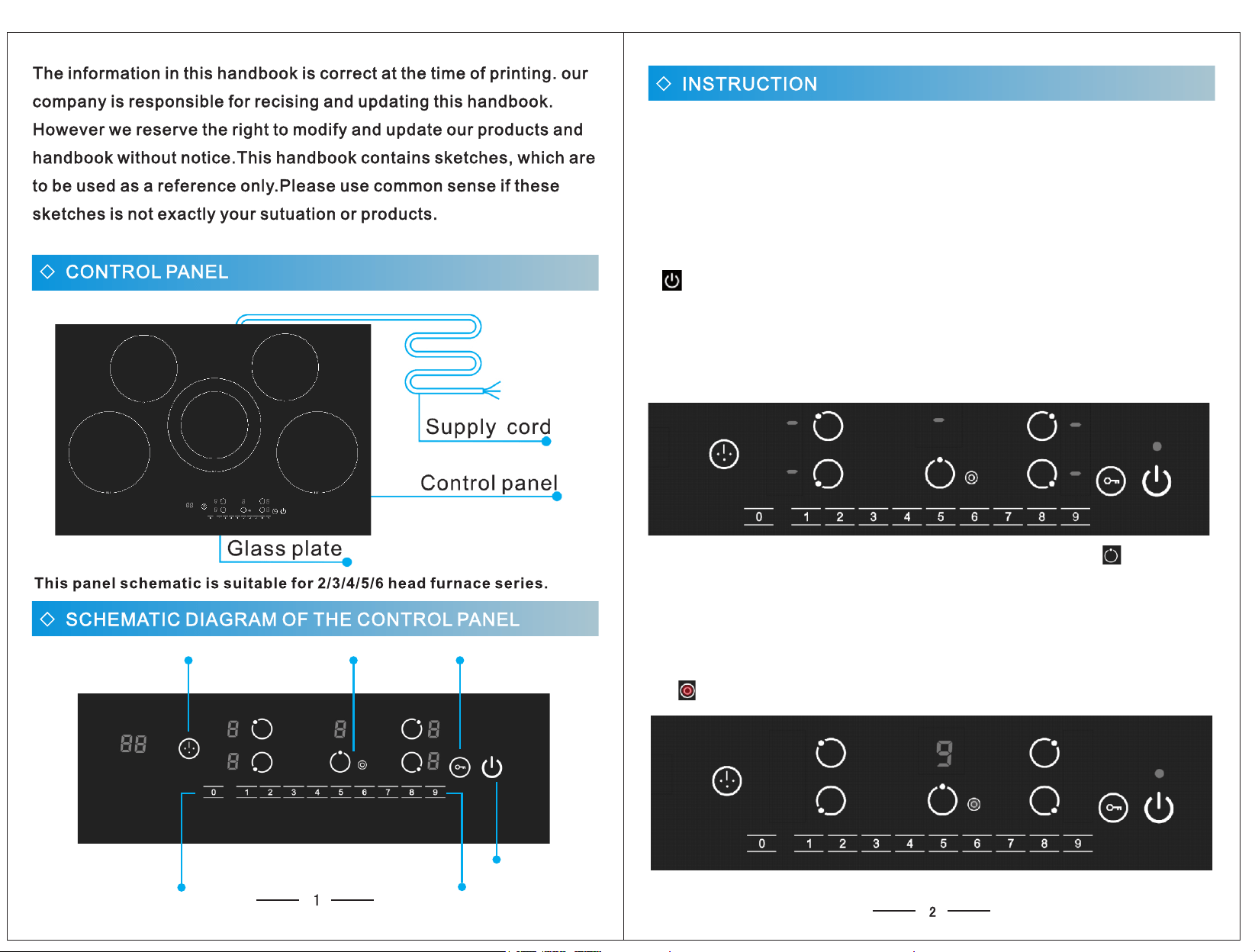

2. Power button: Press the power button for 0.5 seconds and drop a sound to enter
standby. The power indicator lights up and five furnace areas are displayed. (In standby
state, when there is no operation for 10 seconds, five furnace areas - no display. When
there is no operation within 2 minutes, one sound will automatically exit standby and
return to shutdown state.
Standby state is shown as follows:
3. Heating: For example, if you want to use the middle furnace, press.... in standby
state , there is a sound and digital display 0, it indicates that the furnace area is
selected successfully, and then press the sliding area below to adjust the desired
firepower gear, heating opening is completed. This furnace area is double ring
heatingInner ring is turned on by default. When heating, press the button of furnace
area again to switch single/double ring heating. Double ring heating side indicator
light.... , indicating that the simultaneous heating of the double ring is enabled.
3
4
1. ø 165 Heating area of upper left furnace: Single ring Heating, power 240V/
1000W □ / 1600W □
2. ø 200 heating area of lower left furnace: single ring heating, power 240V/
2200W □ / 2000W.
3. ø 230 Heating zone: double ring Heating, power 240V/1000W □ / 2000W □
4. ø 165 Heating area of upper right furnace : Single ring Heating, power 240V
/1000W □ / 1600W□
5. ø 200 Heating area of lower right furnace: single ring Heating, power 240V
/2200W □ / 2000W.
4. Firepower adjustment: select the furnace area, slide or click the number below,
1 to 9 sections can be adjusted. Press 0 to stop heating for the selected burner.
5. Child lock: Long press the child lock key for 2 seconds to make a sound to lock
or unlock the child lock. The child lock indicator lights up and displays Lo when the
lock is successfully locked. Can not operate when locked furnace area with fire
timing adjustment, but can press the power off button.

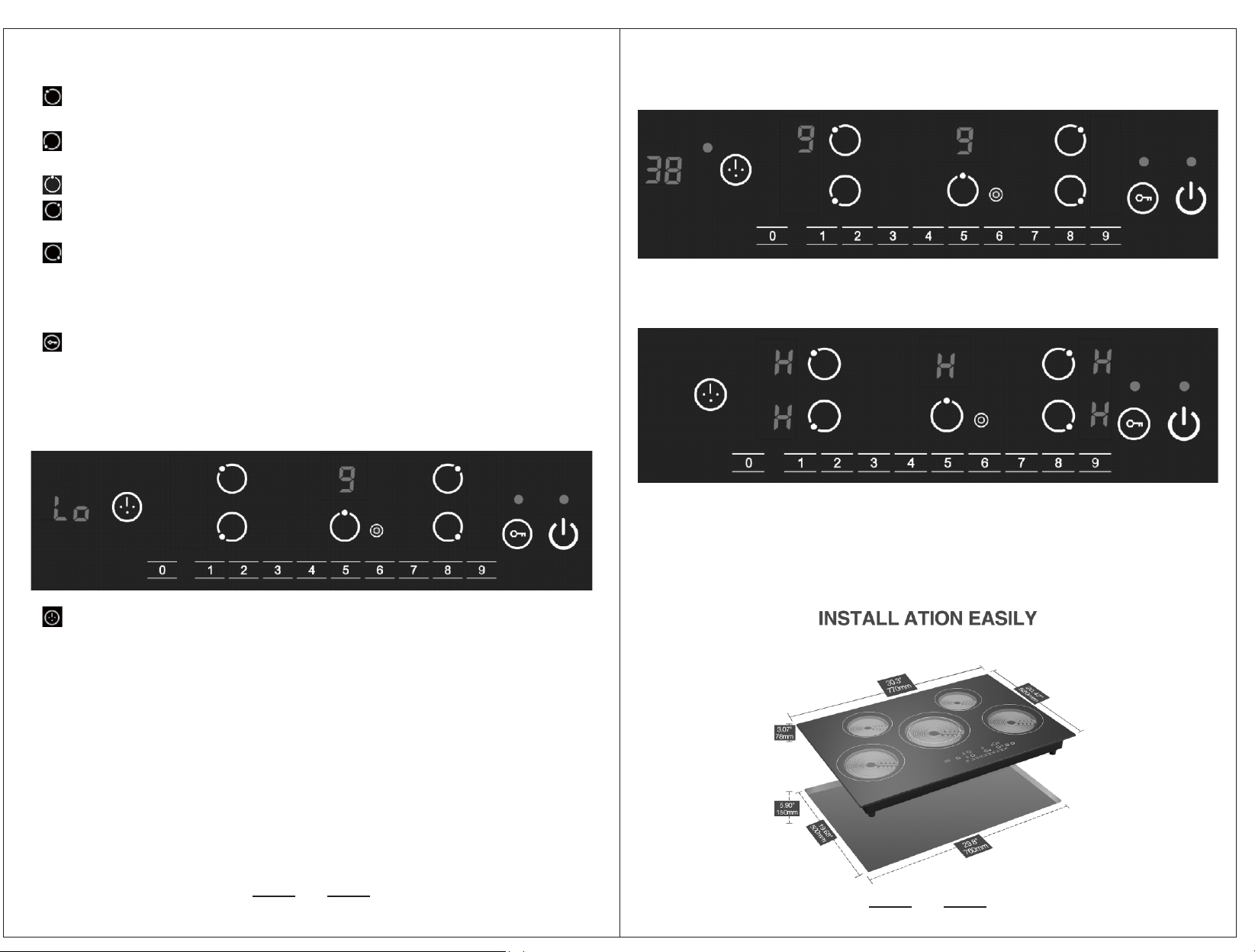

Locked successfully as shown in figure:
6. Timing: This function is to set the shutdown time. In the heating mode, select the
furnace area and press the timing button to enter the timing preset, and the
corresponding timing indicator will be prompted. Then adjust the sliding area to set the
shutdown time, you can also directly press the number, such as: first press the number
3 and then press the number 8 is 38 minutes. Multiple heating furnace areas can set
different shutdown time at the same time.
7. Panel high temperature warning: there is still residual temperature on the furnace
panel after use, warning display H, be careful of scalding hands.
As shown in the figure, timing upper left furnace area:
8. Product dimensions and precautions:
8.1. Product dimensions 770*520*78mm(30.3*20.47*3.07 in.) If not including the foot
of the furnace product thickness is 55mm(2.16 in.).
8.2. Opening roar size 760*500*150mm (29.8*19.68*5.9 inches)

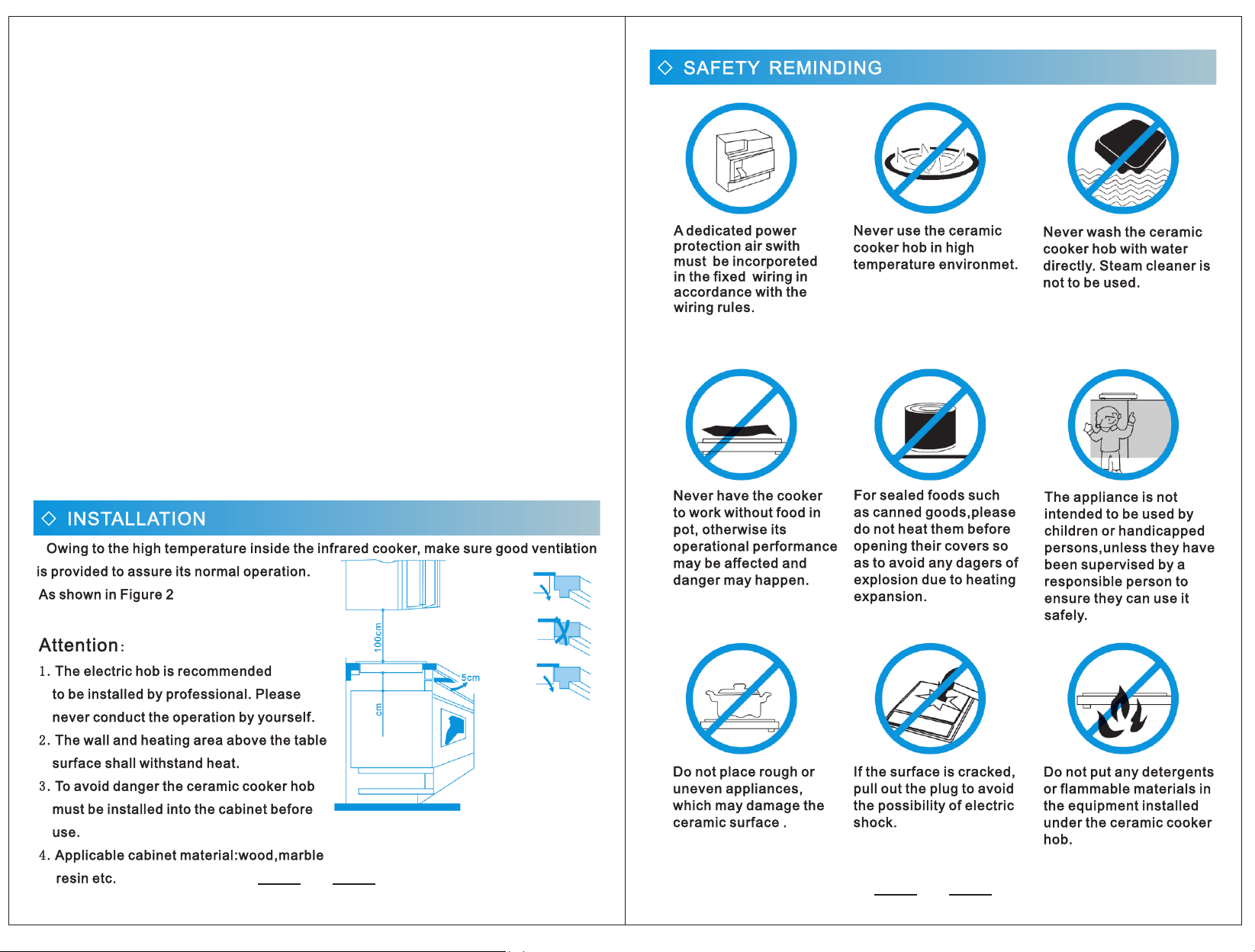

Note: if the product is used on the table, because the bottom of the use process
will produce temperature, please use high temperature resistant flame retardant
material for the table such as marble....... And so on.
5
6
9. Code:
E1------- Open the temperature sensor on the indicator board
E2------- The temperature sensor on the indicator board is short-circuiled or the
temperature around the indicator board is too high
H-------- Panel still has residual temperature warning (which is explained in article
7 of normal warning)
H-------- thermocouple open (standby and shutdown state will always flash and the
corresponding furnace area is not heated)
Lo------- Locked state (explained in article 5)

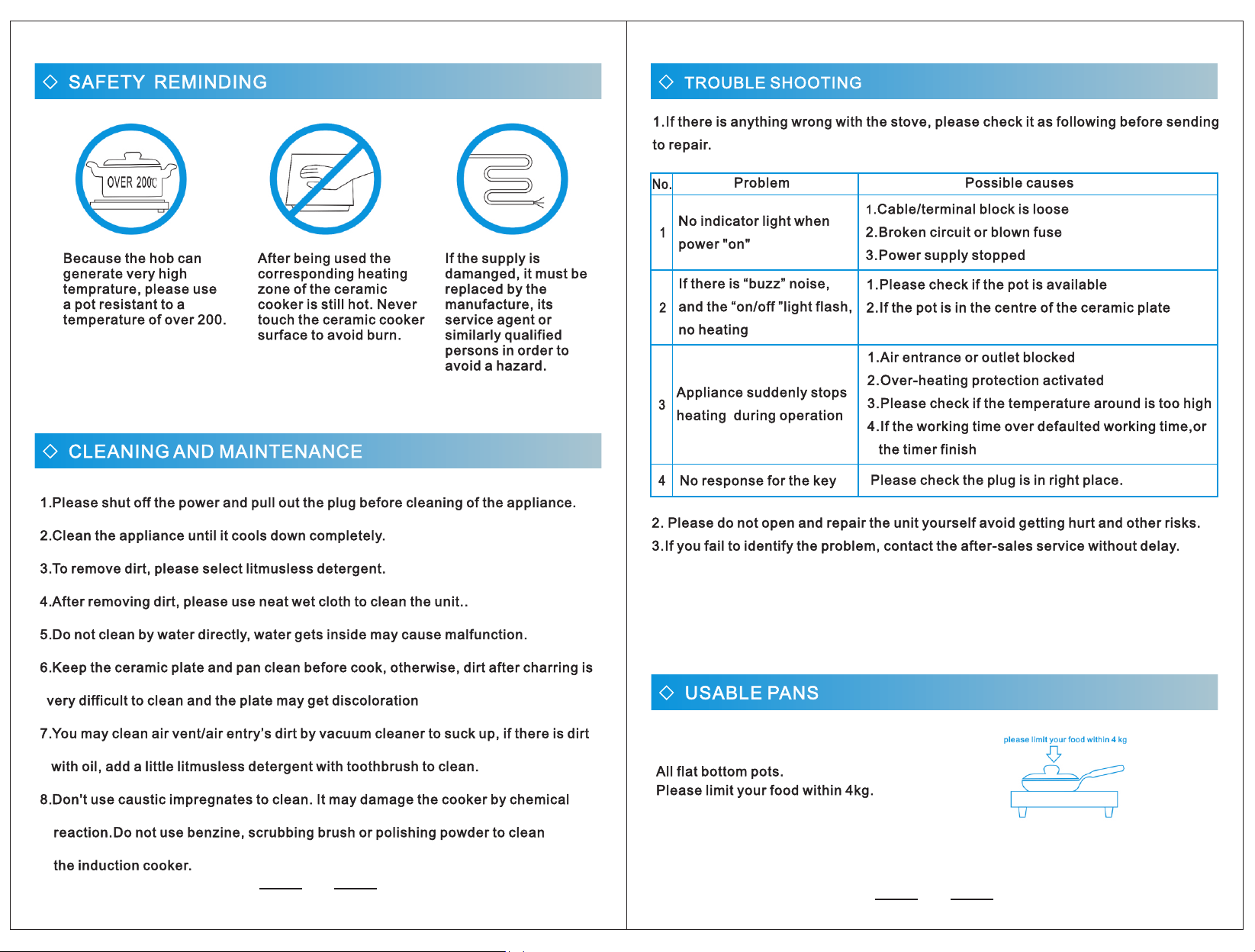

10. Simple faults and troubleshooting: the furnace head is always
heated at any gear, and the relay does not jump (thermocouple short circuit or
motherboard fault)
15
7
8
10
9
POWER SUPPLY INSTALLATION DRAWING
Electrical diagram of the beautiful line (black, white, green E)
This figure is only for three-phase power in the United States, and the voltage
between two live lines is 240VAC
Three core cable machine connection drawing
2 4 0 V 4 0 A
L 1
L 2
E
L2L 1
The leakage switch
Ground wire
Leakage switch of power supply box
Ground wire
L 1
L 2
2 2 0 - 2 4 0 V A C
Electric ceramic oven power cord
black
white
green
black
white
green
10
2 2 0 V 4 0 A
L
N
E
NL
The leakage switch
Ground wire
Leakage switch of power supply box
Ground wire
L
N
2 2 0 V A C
Electric ceramic oven power cord
black
white
green
black
white
green
Electrical diagram of the beautiful line (black, white, green E)
This chart is only applicable to 220 V single-phase power countries in
Europe and China
Three core cable machine connection drawing
