Craftsman 917273241 Lawn Tractor 25.0 HP, 48" Mower User Manual

Owner's Manual

ICRnFTSMnN !

LAWN TRACTOR

25.0 HP, 48" Mower

Electric Start

Automatic Transmission

Model No.

917.273241

[_ This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

IMPORTANT:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

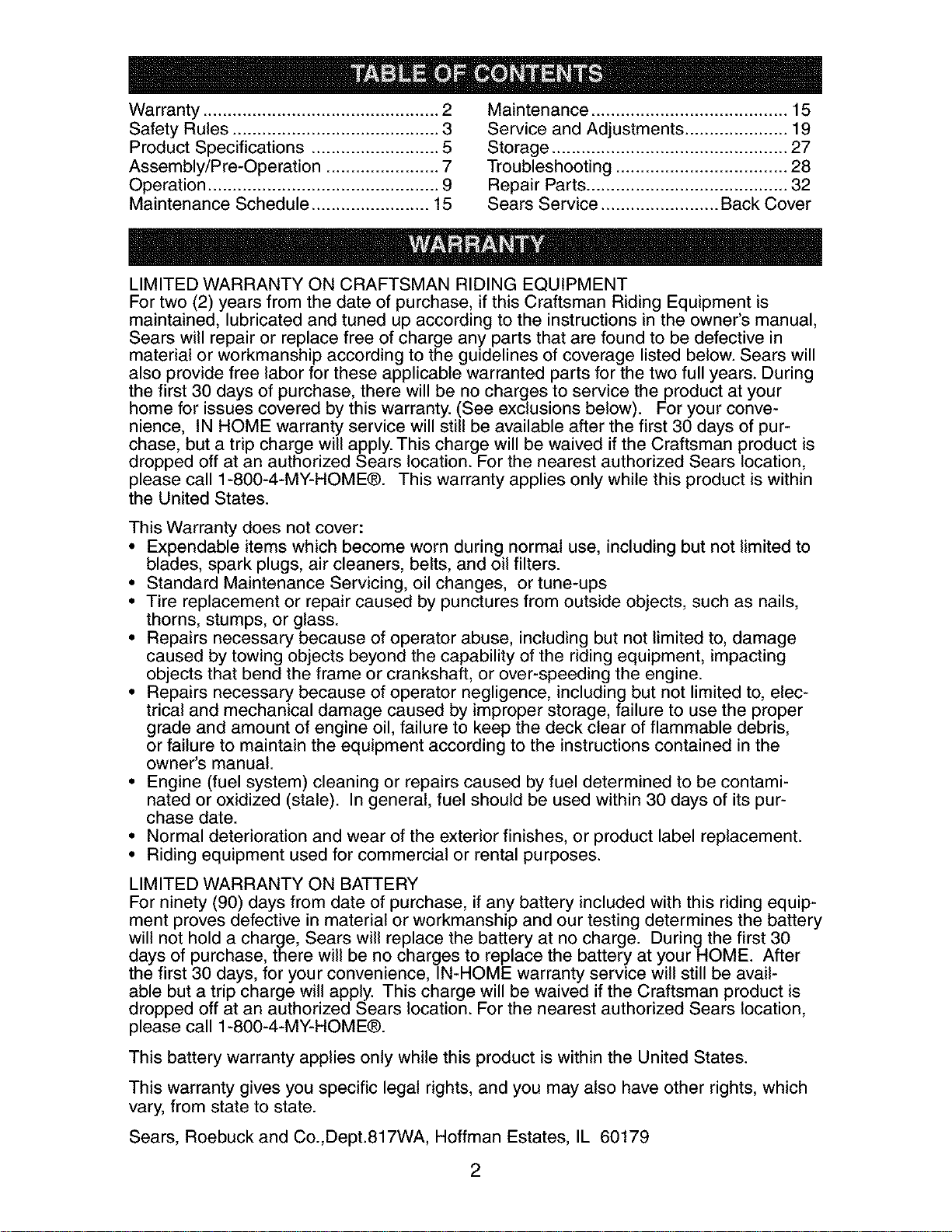

Warranty ................................................ 2 Maintenance ........................................ 15

Safety Rules .......................................... 3 Service and Adjustments ..................... 19

Product Specifications .......................... 5 Storage ................................................ 27

Assembly/P re-Operation ....................... 7 Troubleshooting ................................... 28

Operation ............................................... 9 Repair Parts ......................................... 32

Maintenance Schedule ........................ 15 Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

• I,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

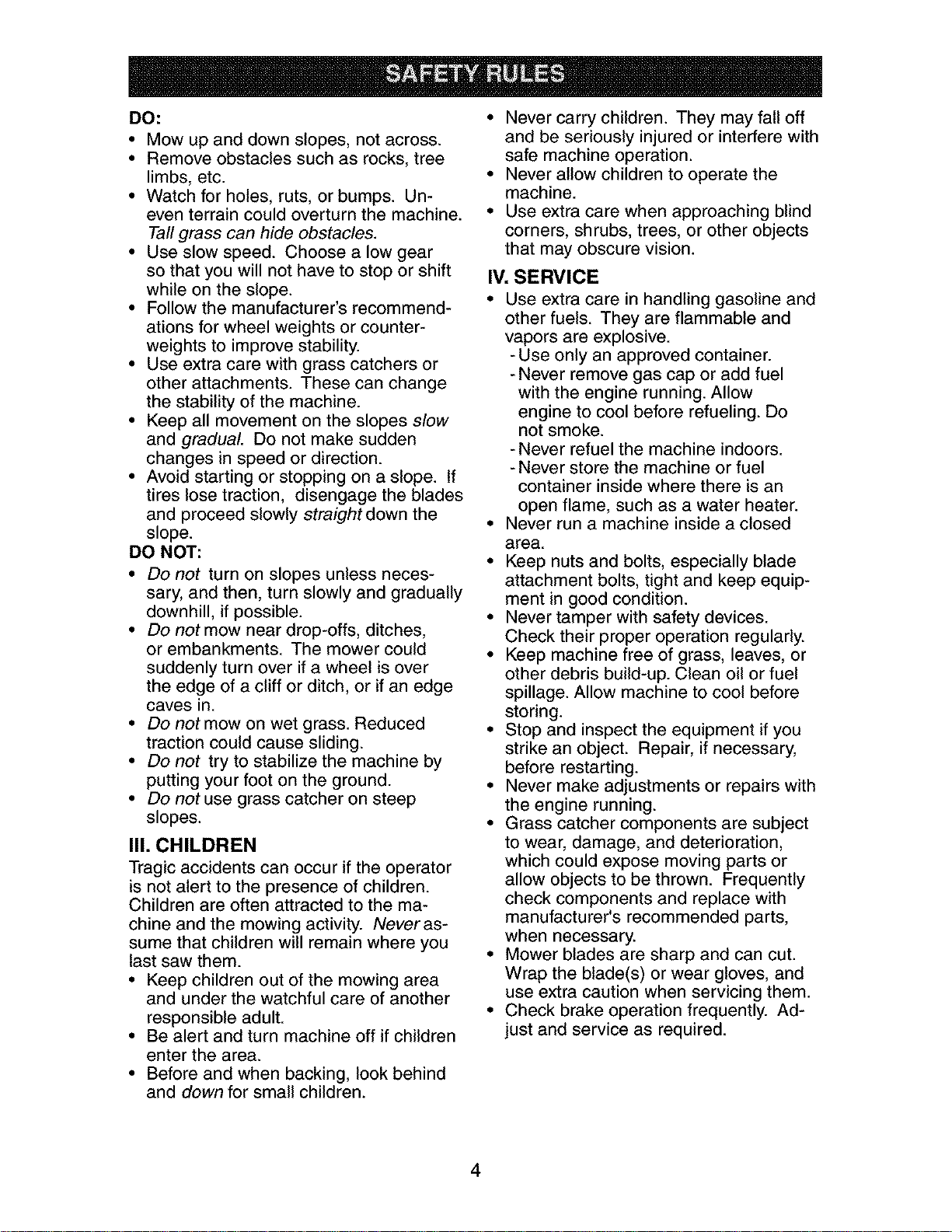

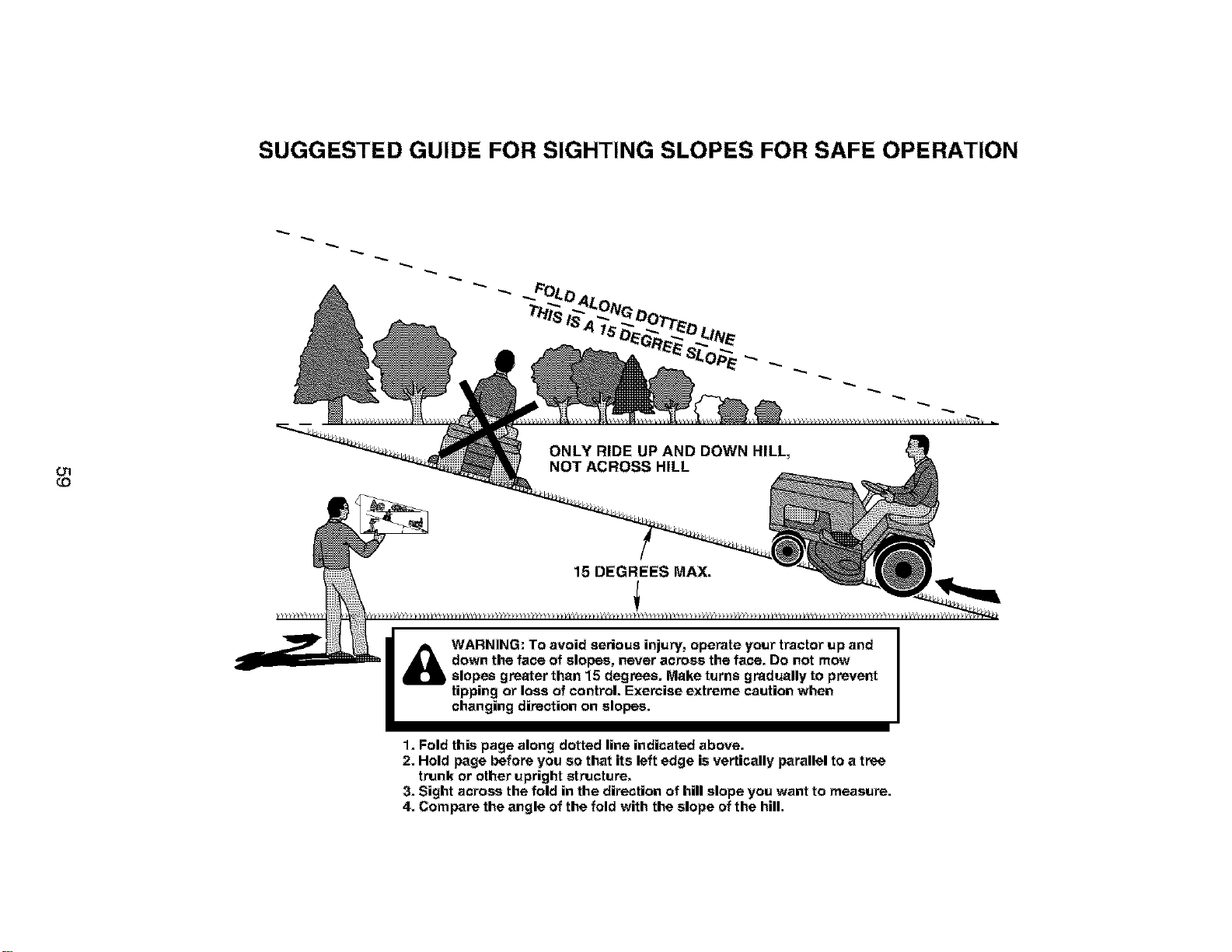

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur ifthe operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run amachine inside aclosed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 4 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

API-SF-SJ): (above 32°F)

SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0 - 5.5

(MPH): Reverse: 0 - 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade BoltTorque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

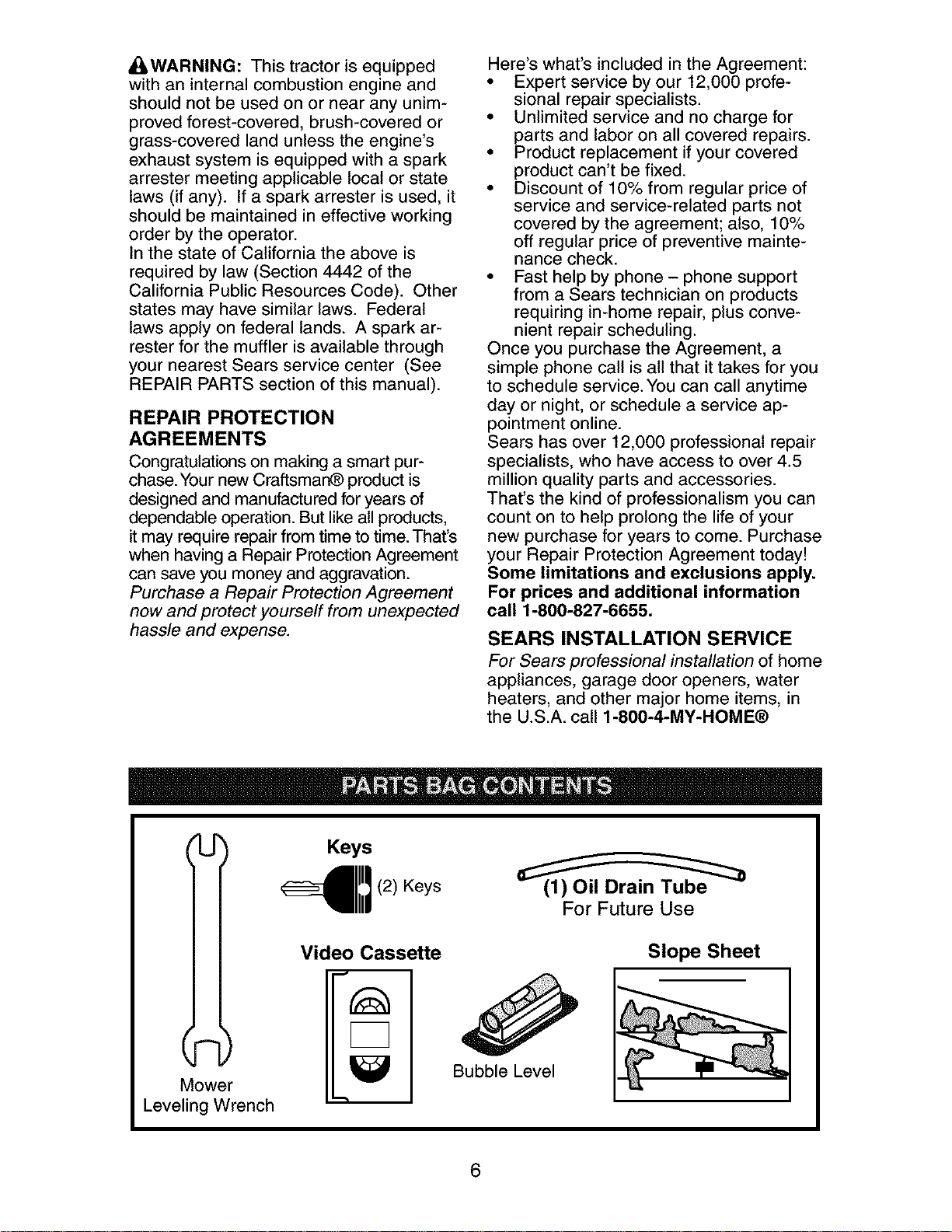

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark ar-

rester for the muffler is available through

your nearest Sears service center (See

REPAIR PARTS section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase.Your new Craftsman_ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Mower

Leveling Wrench

Keys

_I (2) Keys

Video Cassette

For Future Use

Bubble Level

Slope Sheet

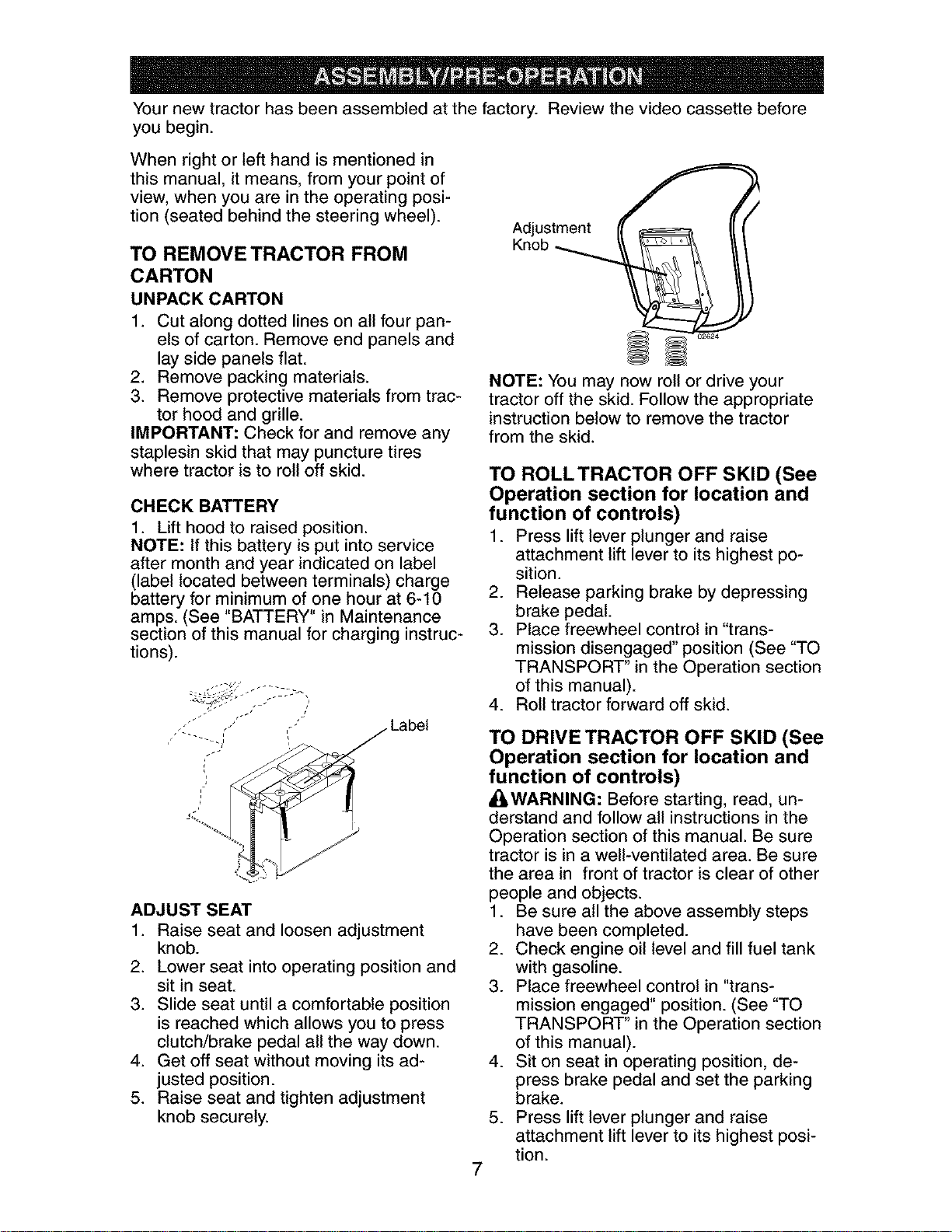

Your new tractor has been assembled at the factory Review the video cassette before

you begin

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staplesin skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob _

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

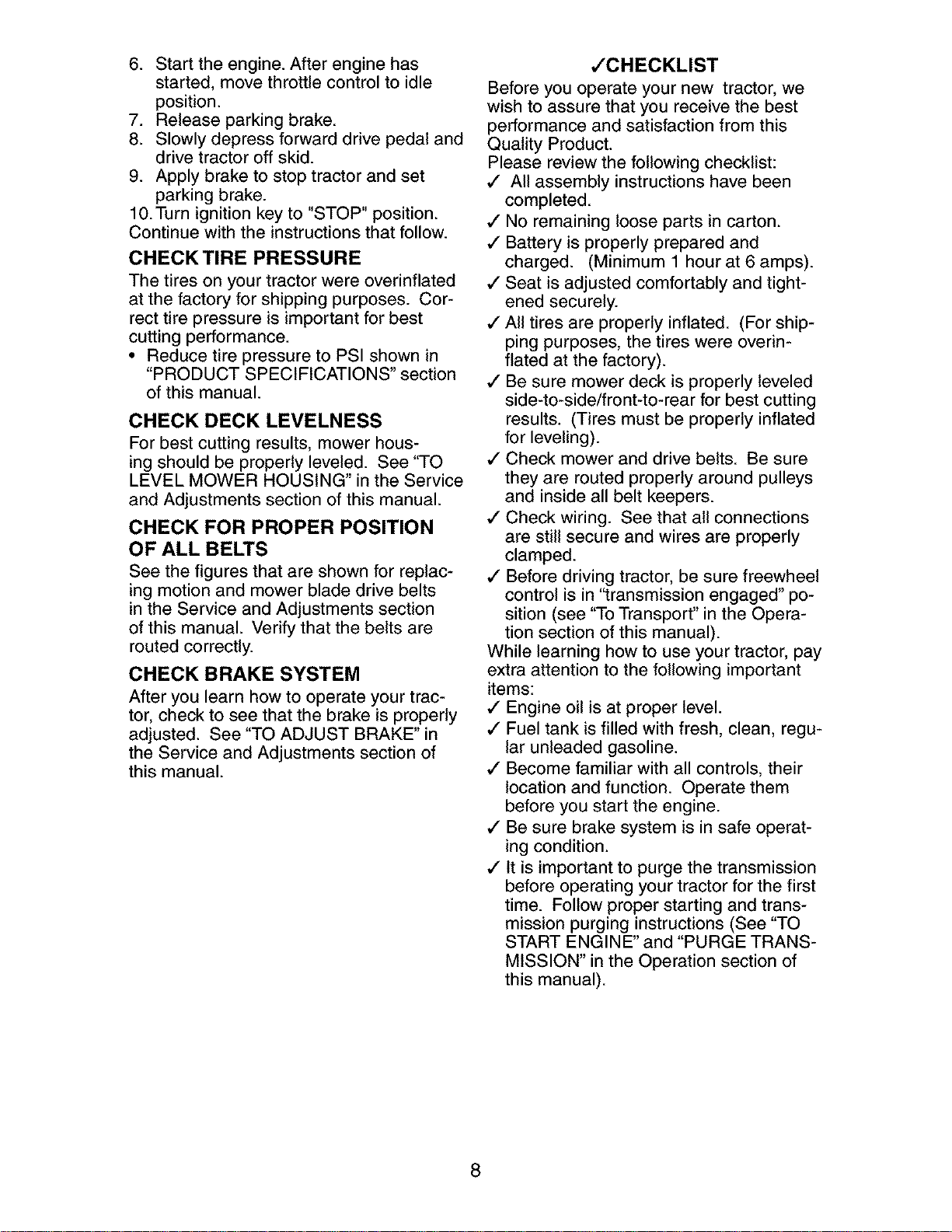

6. Starttheengine.Afterenginehas

started,movethrottlecontrolto idle

position.

7. Releaseparkingbrake.

8. Slowlydepressforwarddrivepedaland

drivetractoroffskid.

9. Applybraketo stoptractorandset

parkingbrake.

10.Turnignitionkeyto "STOP"position.

Continuewiththe instructionsthat follow.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKESYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

JCHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

•/All assembly instructions have been

completed.

•/No remaining loose parts in carton.

•/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

•/Seat is adjusted comfortably and tight-

ened securely.

•/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

•/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

•/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•/Check wiring. See that all connections

are still secure and wires are properly

clamped.

•/Before driving tractor, be sure freewheel

control is in '"transmission engaged" po-

sition (see "To Transport" in the Opera-

tion section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

•/Engine oil is at proper level.

•/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

•/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

•/Be sure brake system is in safe operat-

ing condition.

•/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

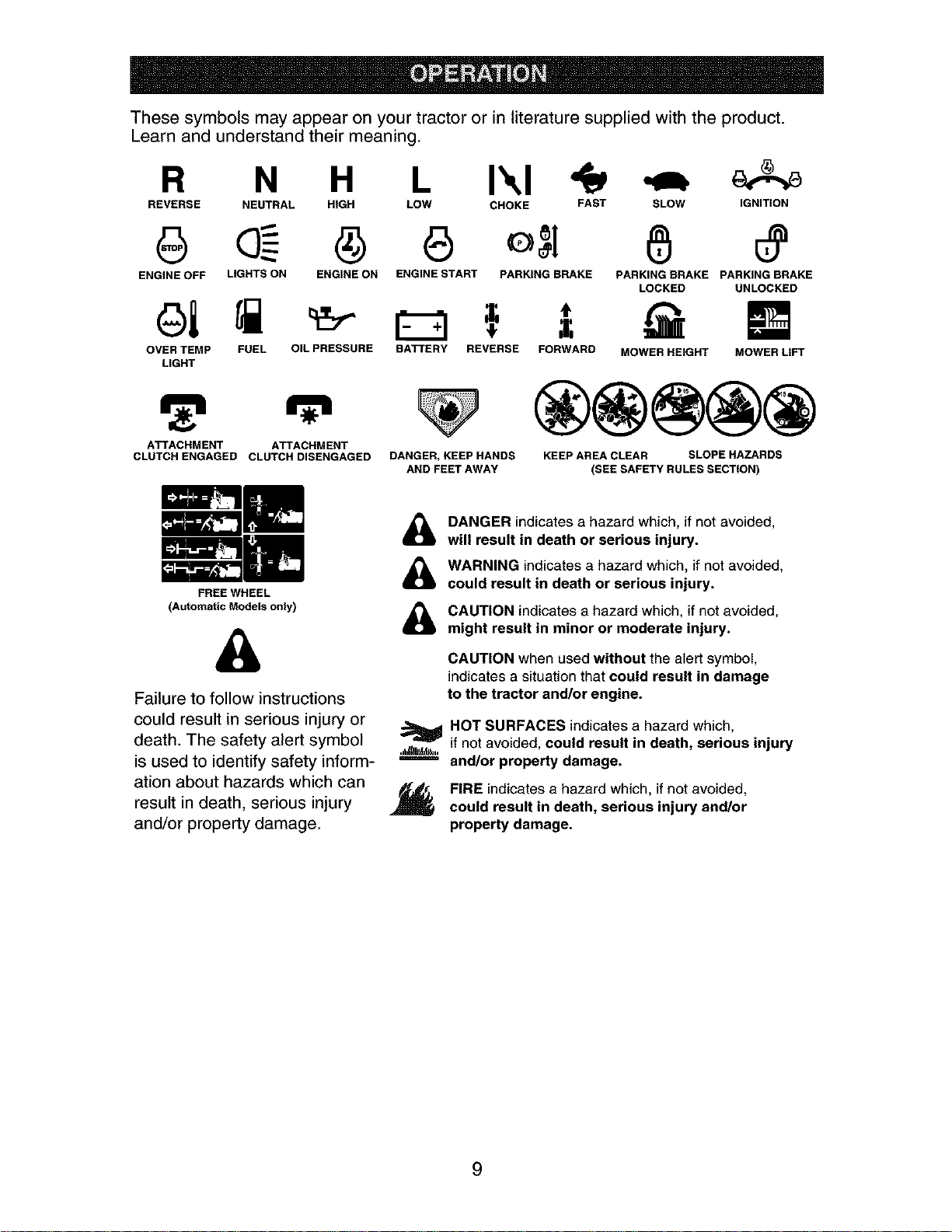

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'.,I

REVERSE NEUTRAL NIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

MOWER HEIGHT MOWER LIFT

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicatesa hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

,_,, if not avoided, could result in death, serious injury

""="" and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

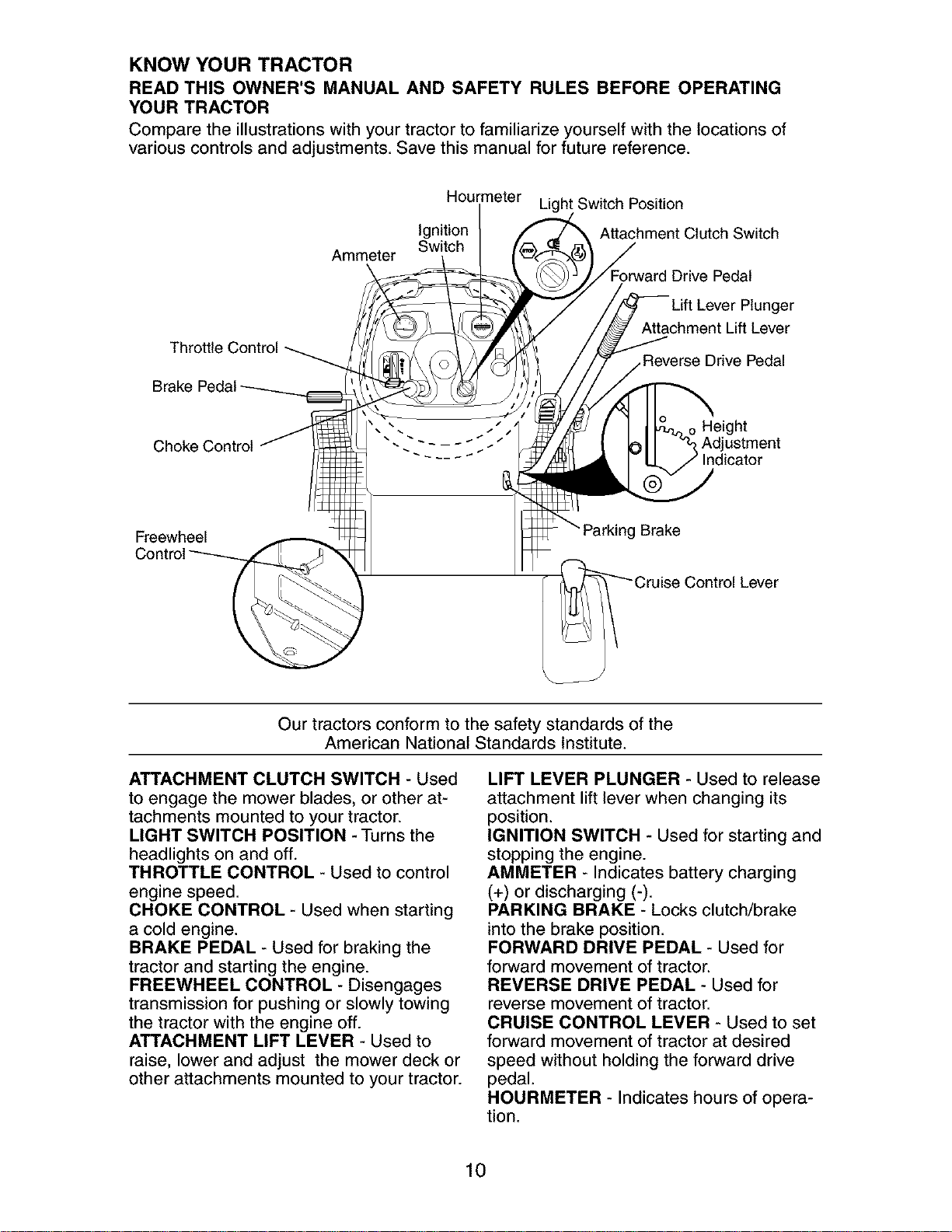

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Throttle Control

Brake

Ammeter

Hourmeter

Ignition

Switch

Li Switch Position

Attachment Clutch Switch

Drive Pedal

Lift Lever Plunger

Attachment Lift Lever

Reverse Drive Pedal

Choke Control o Height

Adjustment

F_ewheel g Brake

"-Cruise Control Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

ATTACHMENT LIFT LEVER - Used to

raise, lower and adjust the mower deck or

other attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

REVERSE DRIVE PEDAL - Used for

reverse movement of tractor.

CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired

speed without holding the forward drive

pedal.

HOURMETER - Indicates hours of opera-

tion.

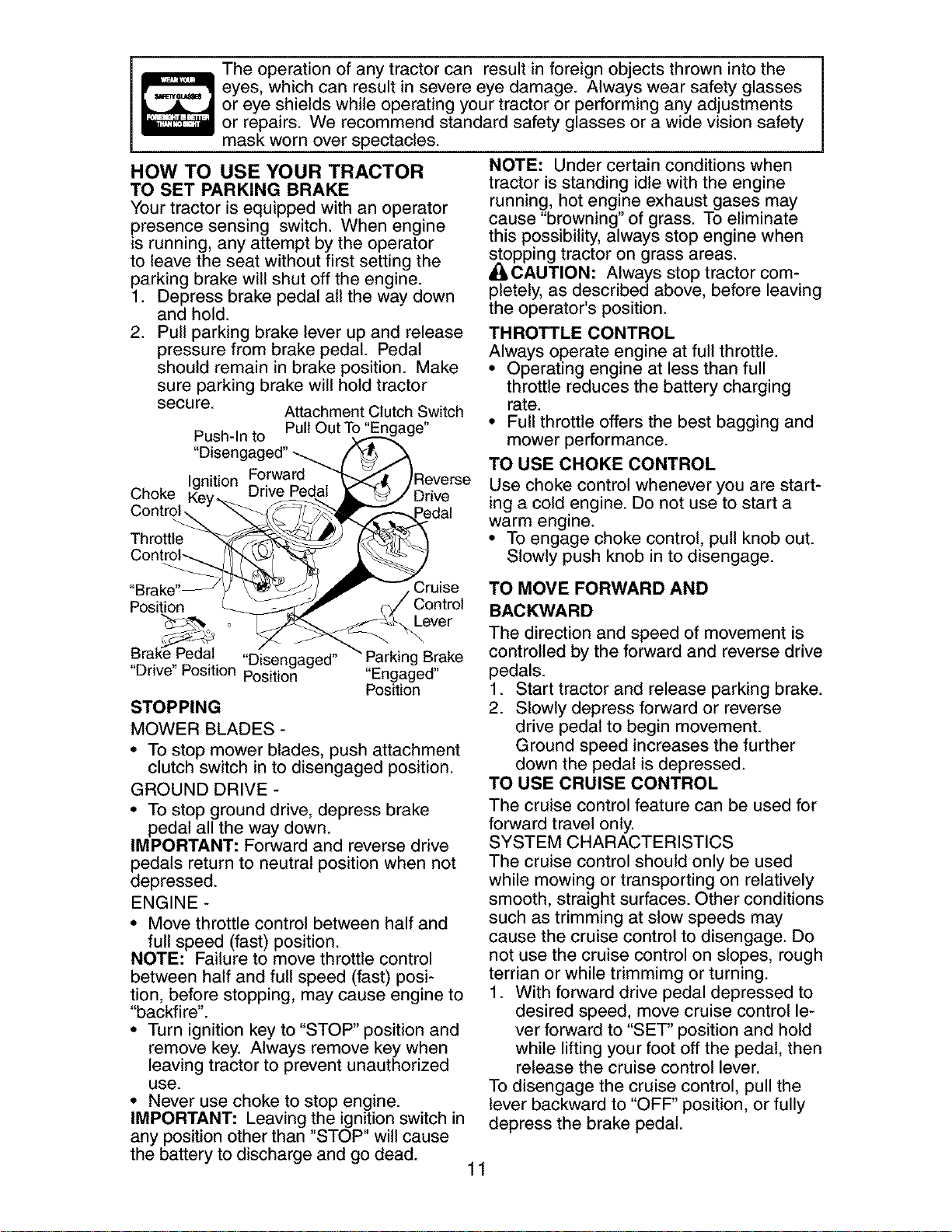

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secure. Attachment Clutch Switch

Push-In to Pull Out To"Engage"

Choke

Control,

Throttle

Ignition Forward

Drive Pedal Reverse

Drive

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION. Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

Position

Bra "Disengaged"

"Drive" Position Position

STOPPING

MOWER BLADES -

3ruise

Control

Lever

Brake

"Engaged"

Position

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: Forward and reverse drive

pedals return to neutral position when not

depressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch in

any position other than "STOP" will cause

the battery to discharge and go dead. 11

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the forward and reverse drive

pedals.

1. Start tractor and release parking brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO USE CRUISE CONTROL

The cruise control feature can be used for

forward travel only.

SYSTEM CHARACTERISTICS

The cruise control should only be used

while mowing or transporting on relatively

smooth, straight surfaces. Other conditions

such as trimming at slow speeds may

cause the cruise control to disengage. Do

not use the cruise control on slopes, rough

terrian or while trimmimg or turning.

1. With forward drive pedal depressed to

desired speed, move cruise control le-

ver forward to "SET" position and hold

while lifting your foot off the pedal, then

release the cruise control lever.

To disengage the cruise control, pull the

lever backward to "OFF" position, or fully

depress the brake pedal.

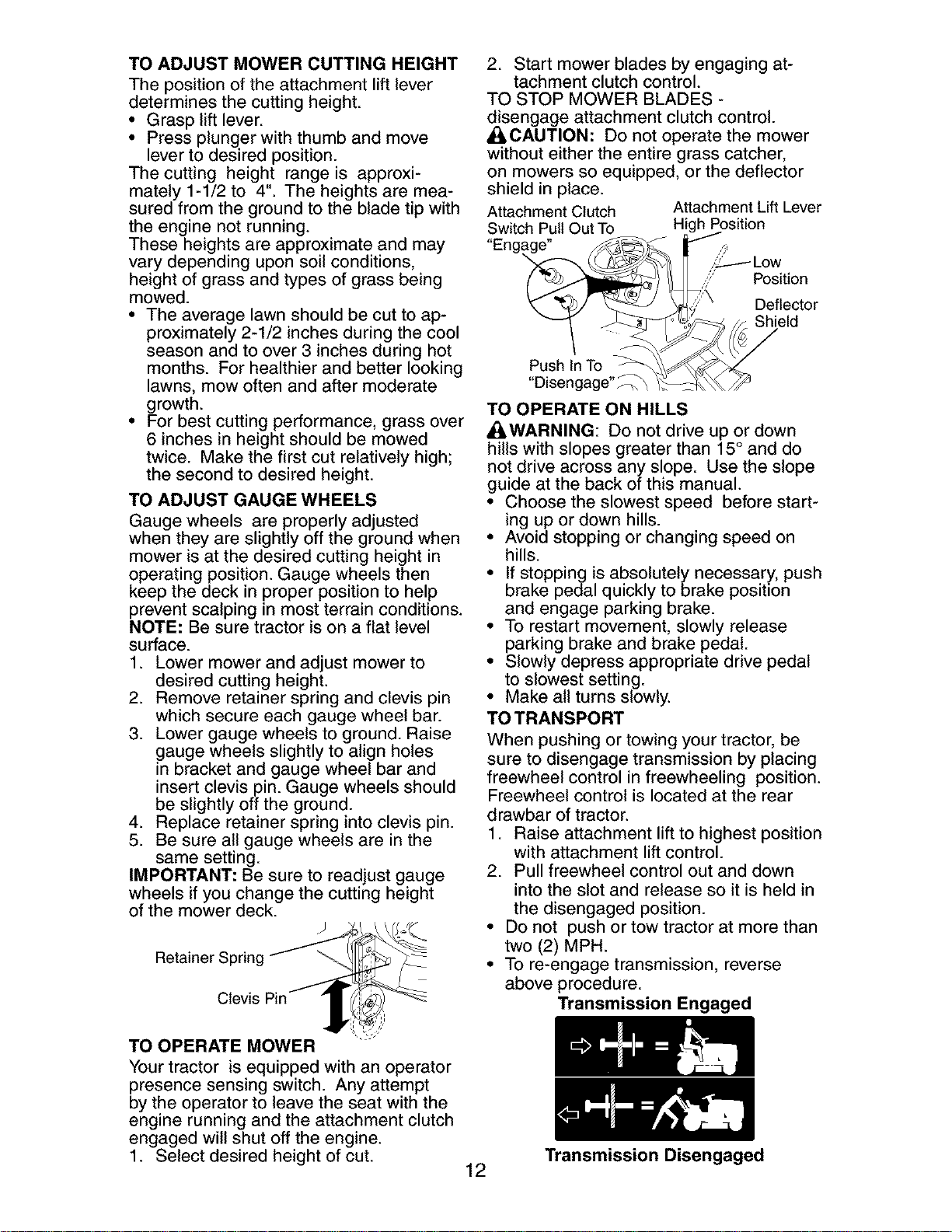

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height.

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck. J

Retainer Spring

Clevis

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch Pull Out To Attachment Lift Lever

High Position

/_---- Low

Position

Deflector

Shield

Push In To

"Disengage"_

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If stopping is absolutely necessary, push

brake pedal quickly to brake position

and engage parking brake.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly depress appropriate drive pedal

to slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment liftcontrol.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut. 12 Transmission Disengaged

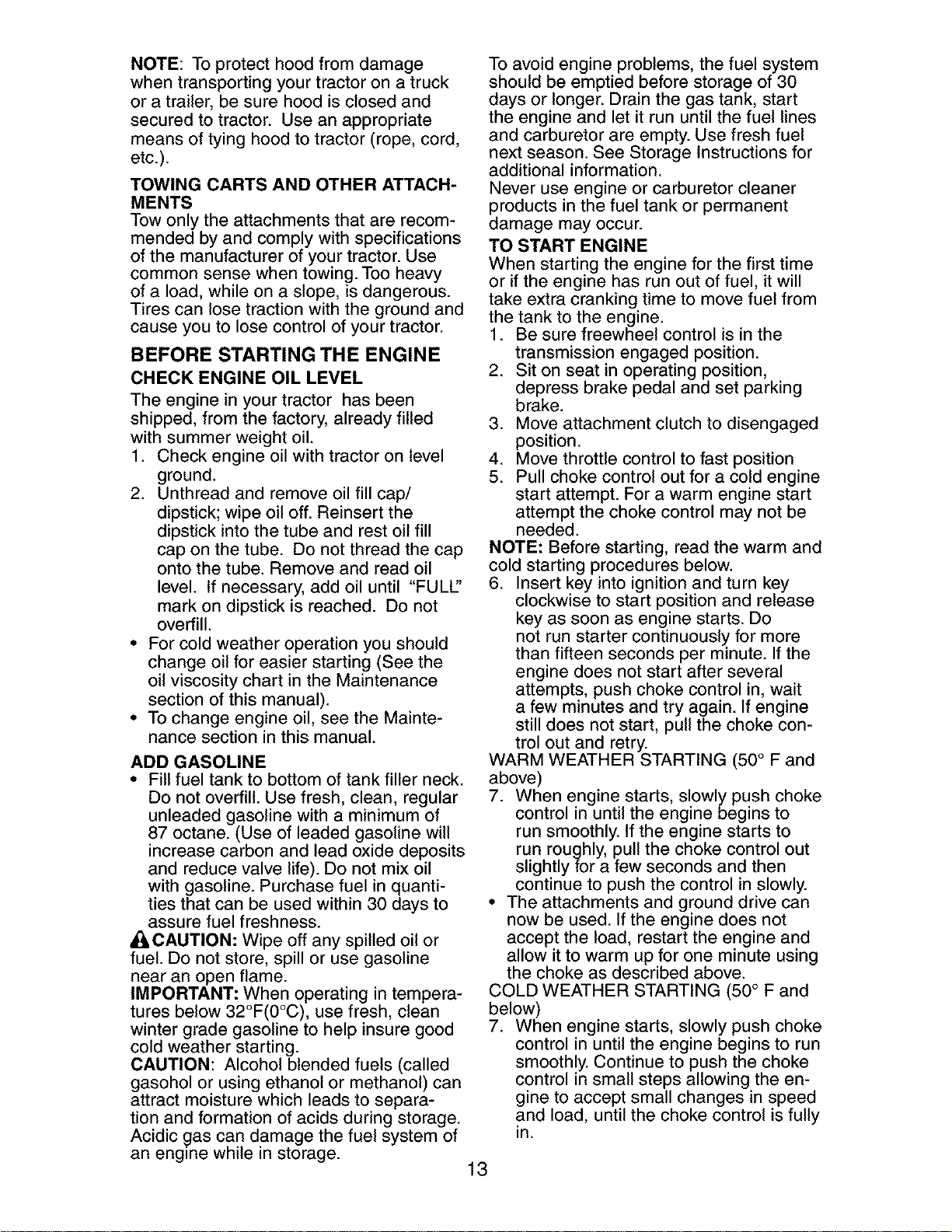

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULL'

mark on dipstick is reached. Do not

overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

A¢_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage. 13

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in.

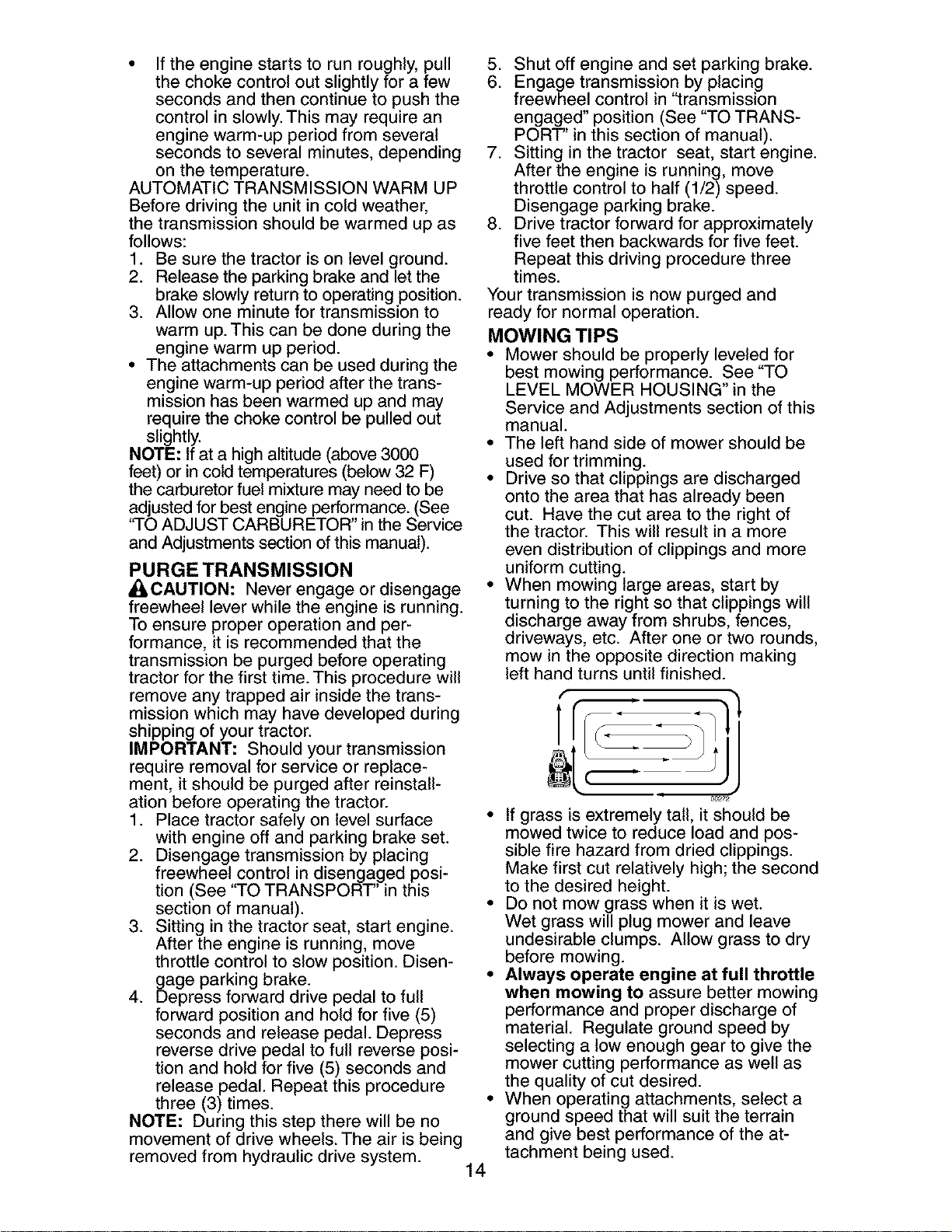

• Iftheenginestarts to run roughly,pull

the chokecontroloutslightlyfora few

secondsandthen continueto pushthe

controlin slowly.This may requirean

enginewarm-upperiodfromseveral

secondsto severalminutes,depending

onthetemperature.

AUTOMATICTRANSMISSIONWARMUP

Beforedrivingthe unitin coldweather,

thetransmissionshouldbe warmedup as

follows:

1. Be surethetractoris on levelground.

2. Releasetheparkingbrakeandletthe

brakeslowlyreturnto operatingposition.

3. Allowoneminutefortransmissionto

warmup.This canbe doneduringthe

enginewarmup period.

• Theattachmentscanbe usedduringthe

enginewarm-upperiodafterthetrans-

missionhasbeenwarmedupandmay

requirethe chokecontrolbe pulledout

slightly.

NOTE:Ifata highaltitude(above3000

feet)orincoldtemperatures(below32F)

thecarburetorfuelmixturemayneedtobe

adjustedforbestengineperformance.(See

"TOADJUSTCARBURETOR"intheService

andAdjustmentssectionofthismanual).

PURGE TRANSMISSION

_CAUTION: Neverengageordisengage

freewheelleverwhiletheengineisrunning.

Toensureproperoperationand per-

formance,it is recommendedthatthe

transmissionbepurgedbeforeoperating

tractorforthefirsttime.Thisprocedurewill

removeanytrappedair insidethetrans-

missionwhichmayhavedevelopedduring

shippingof yourtractor.

IMPORTANT:Shouldyourtransmission

requireremovalforserviceor replace-

ment,it shouldbe purgedafter reinstall-

ationbeforeoperatingthetractor.

1. Placetractorsafelyon levelsurface

withengineoff and parkingbrakeset.

2. Disengagetransmissionbyplacing

freewheelcontrolindisengagedposi-

tion (See"TOTRANSPORT"in this

sectionof manual).

3. Sittinginthe tractorseat,start engine.

Aftertheengineis running,move

throttlecontroltoslowposition.Disen-

gageparkingbrake.

4. Depressforwarddrivepedalto full

forwardpositionand holdforfive (5)

secondsand releasepedal.Depress

reversedrivepedaltofull reverseposi-

tion and holdforfive (5)secondsand

releasepedal.Repeatthis procedure

three (3)times.

NOTE: Duringthisstepthere will be no

movementof drivewheels.Theair isbeing

removedfrom hydraulicdrivesystem.

• Ifgrassis extremelytall, itshouldbe

mowedtwiceto reduceload andpos-

siblefirehazardfrom driedclippings.

Makefirst cut relativelyhigh;thesecond

to thedesiredheight.

• Donotmowgrasswhenit iswet.

Wetgrasswillplugmowerand leave

undesirableclumps. Allowgrassto dry

beforemowing.

• Always operate engine at full throttle

when mowing to assurebettermowing

performanceandproperdischargeof

material. Regulategroundspeedby

selectinga lowenoughgearto givethe

mowercuttingperformanceaswellas

thequalityof cut desired.

• Whenoperatingattachments,selecta

groundspeedthatwillsuittheterrain

and givebestperformanceof theat-

tachmentbeingused.

5. Shutoffengineandset parkingbrake.

6. Engagetransmissionbyplacing

freewheelcontrolin "transmission

engaged"position(See"TOTRANS-

PORT'in this sectionof manual).

7. Sittingin thetractor seat,start engine.

Aftertheengineisrunning,move

throttlecontrolto half(1/2)speed.

Disengageparkingbrake.

8. Drivetractorforwardfor approximately

fivefeetthen backwardsforfivefeet.

Repeatthisdrivingprocedurethree

times.

Yourtransmissionisnowpurgedand

readyfor normaloperation.

MOWING TIPS

• Mowershouldbe properlyleveledfor

bestmowingperformance.See"TO

LEVELMOWERHOUSING"inthe

ServiceandAdjustmentssectionof this

manual.

• Theleft handsideof mowershouldbe

usedfortrimming.

• Driveso thatclippingsare discharged

ontothe areathat hasalreadybeen

cut. Havethecutareatothe rightof

thetractor. Thiswill resultin a more

evendistributionof clippingsandmore

uniformcutting.

• When mowinglargeareas,start by

turningto the rightsothatclippingswill

dischargeawayfromshrubs,fences,

driveways,etc. After oneortworounds,

mowinthe oppositedirectionmaking

lefthandturnsuntilfinished.

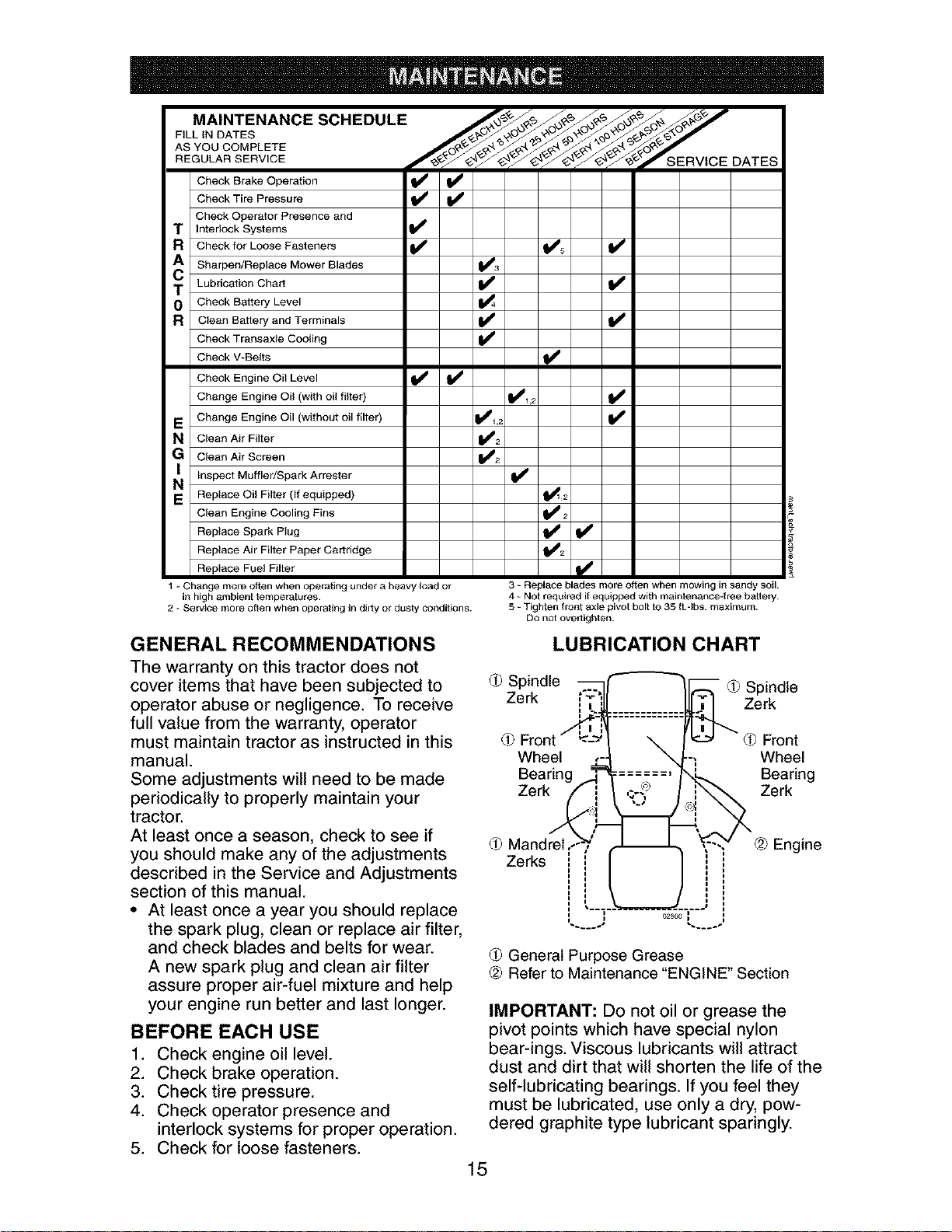

MAINTENANCE SCHEDULE .I_.,_£`_ ,_£`_,_£`__ °"_ ,F_

C:eecC: TB:art; eOperaretiOn _

Check Operator Presence and

TInterlock Systems K

TLubrication Chart

RCheckfor Loose Fasteners

Sharpen/Replace Mower Blades

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

E change Engine Oil (without oil filter)

N Clean Air Filter

GClean Air Screen

_] Inspect Muffler/Spark Attester

E Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 = Change more often when operating under a heavy load or

in high ambient temperatures.

2=Service more often when operating in dirty or dusty conditions.

V'2 v'

3- Replace blades more o_en when mowing in sandy soil.

4- Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.dbs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not

cover items that have been subjected to (9 Spindle

operator abuse or negligence. To receive Zerk

full value from the warranty, operator

must maintain tractor as instructed in this db Front

manual. Wheel

Some adjustments will need to be made Bearing

periodically to properly maintain your Zerk

tractor.

At least once a season, check to see if (9

you should make any of the adjustments Zerks i

described in the Service and Adjustments

section of this manual, i

• At least once a year you should replace =

the spark plug, clean or replace air filter, "......

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

db Spindle

Zerk

Front

Wheel

Bearing

Zerk

O25OO

Engine

General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bear-ings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

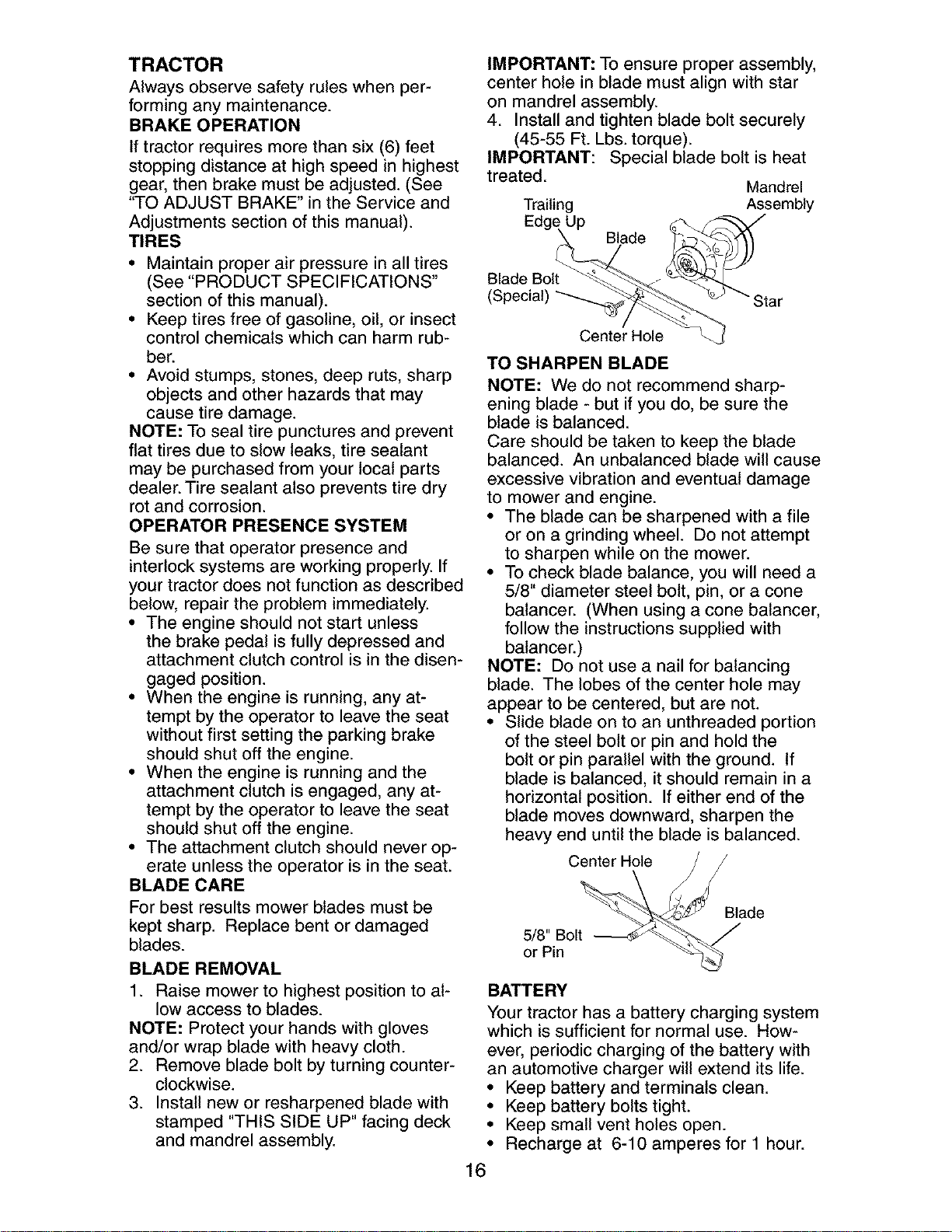

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as described

below, repair the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachment clutch control is in the disen-

gaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated. Mandrel

Trailing Assembly

Edge_ ade __

Blade Bolt _-_<.J

(Special) "__ _ Star

ce:e

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

•The blade can be sharpened with a file

or on agrinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need a

5/8" diameter steel bolt, pin, or acone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. Ifeither end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Center Hole

5/8" Bolt

or Pin

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

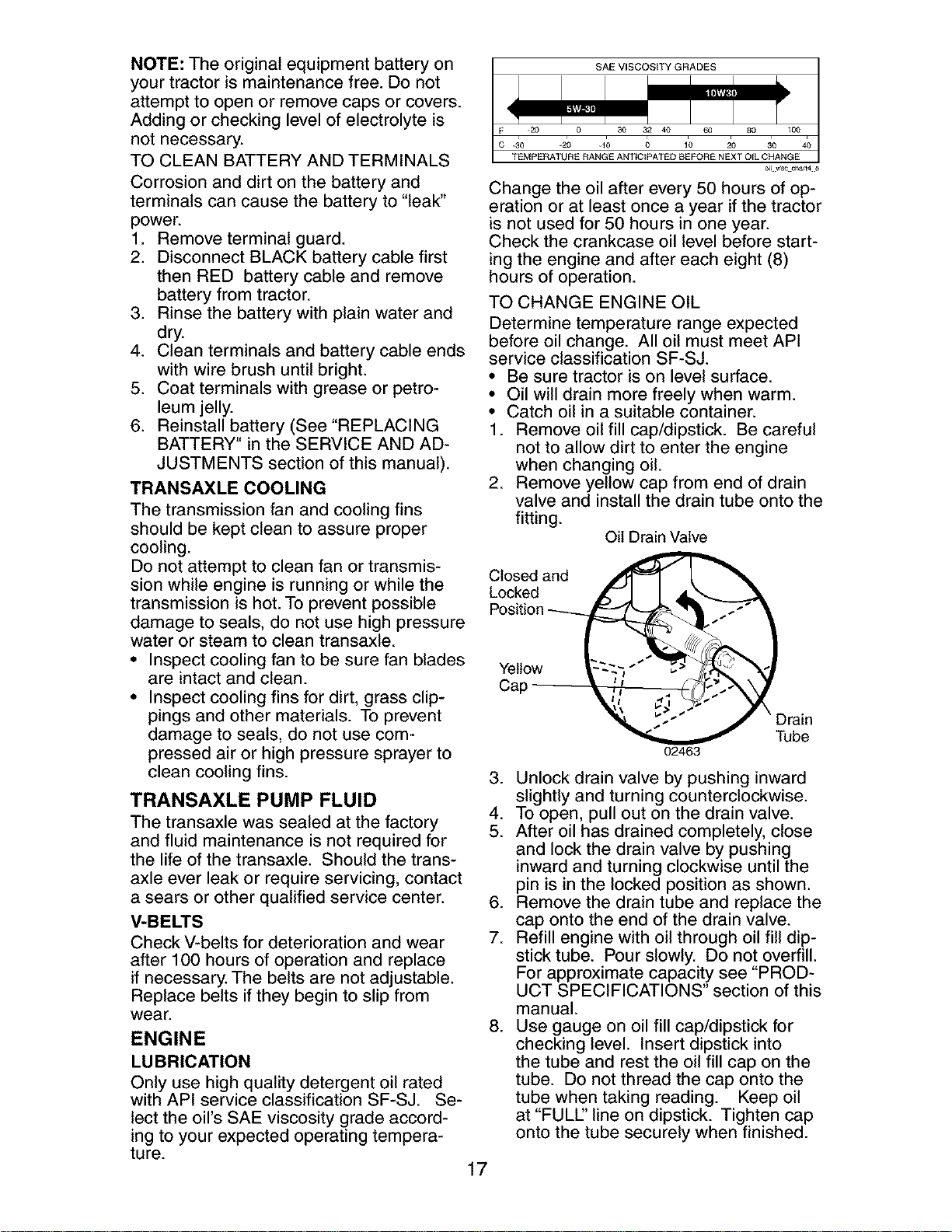

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ. Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE VISCOSITY GRADES

.30 .20 .10 0 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting. Oil DrainValve

Closed and ,_ _,

Locked I

Pos,t,oo j \

Tube

02463

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

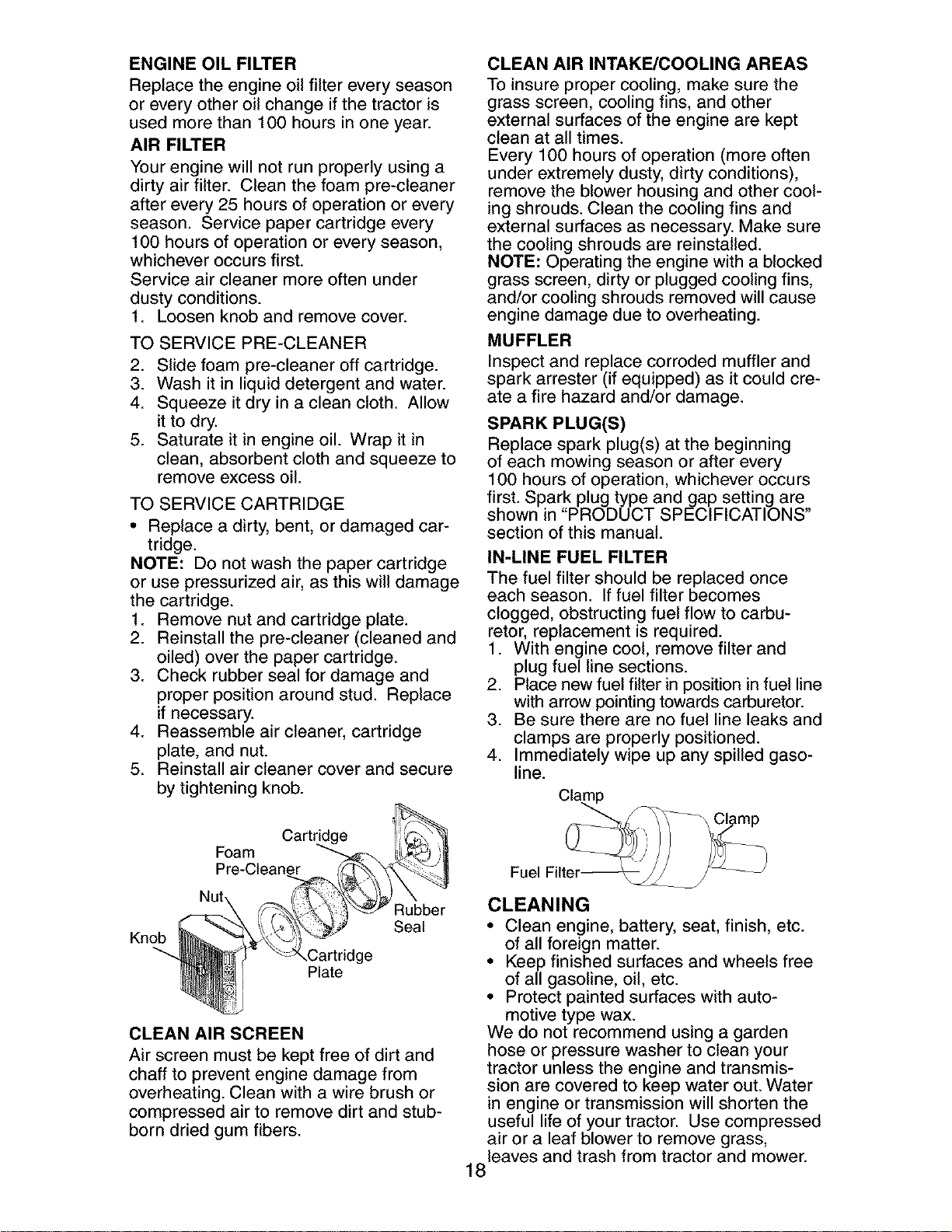

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Knob

Foam

Nut

Cartridge

,Cartridge

Plate

Rubber

Seal

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel line

with arrow pointing towards carburetor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

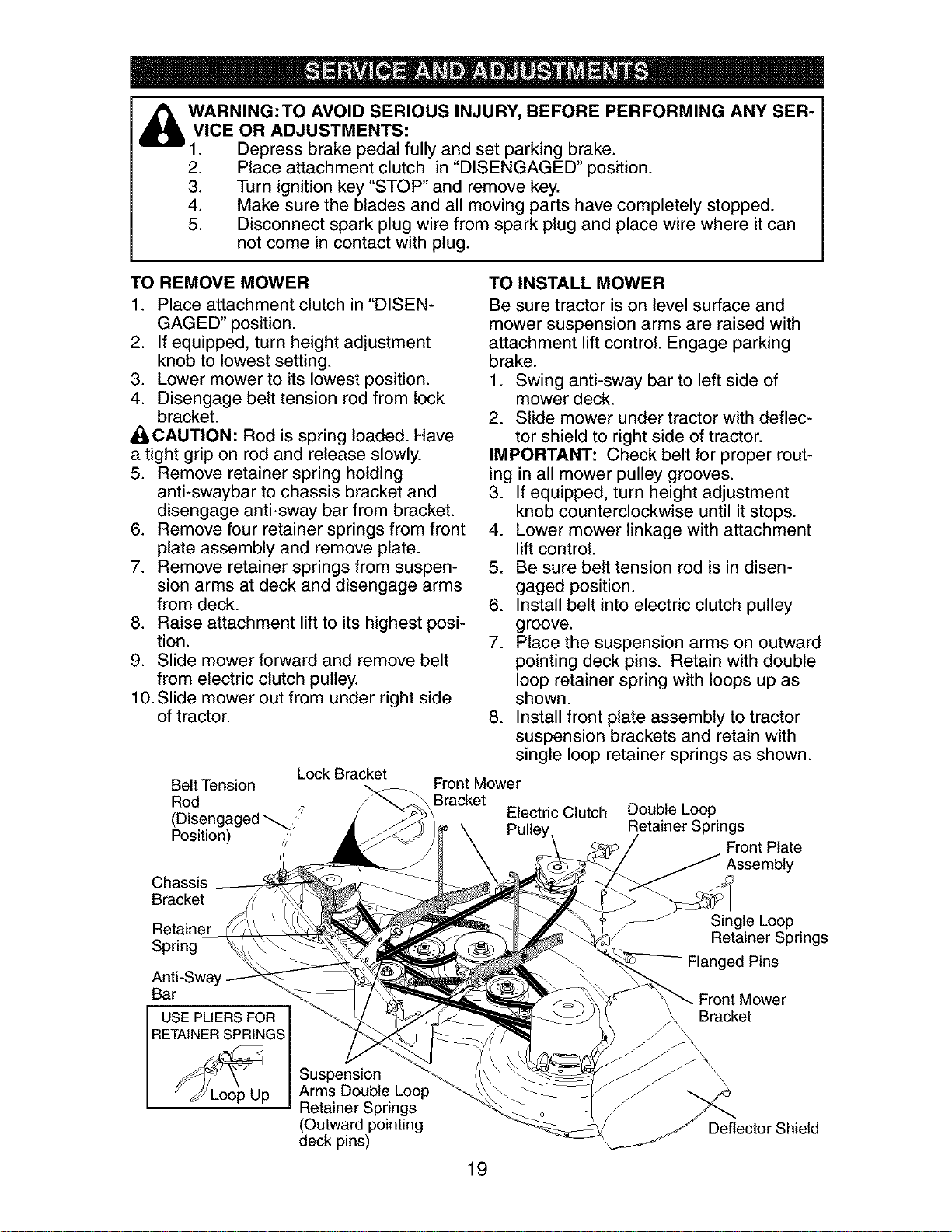

WARNING:TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it can

not come in contact with plug.

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

_iLCAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding

anti-swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from front

plate assembly and remove plate.

7. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

8. Raise attachment lift to its highest posi-

tion.

9. Slide mower forward and remove belt

from electric clutch pulley.

10.Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

greeve.

7. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

Lock Bracket

Belt Tension Front Mower

Rod Bracket

"-,,'"7 Electric Clutch(Disengaged ,, Pulley

Position) _,

Chassis

Bracket

Double Loop

Retainer Springs

Front Plate

Assembly

Retainer

Spring

Anti-Swa'

Bar

USEPLIERS FOR

RET_j Loop u_S Suspension

Arms Double Loop

Retainer Springs

(Outward pointing

deck pins)

f Single Loop

Retainer Springs

anged Pins

Front Mower

Bracket

Deflector Shield

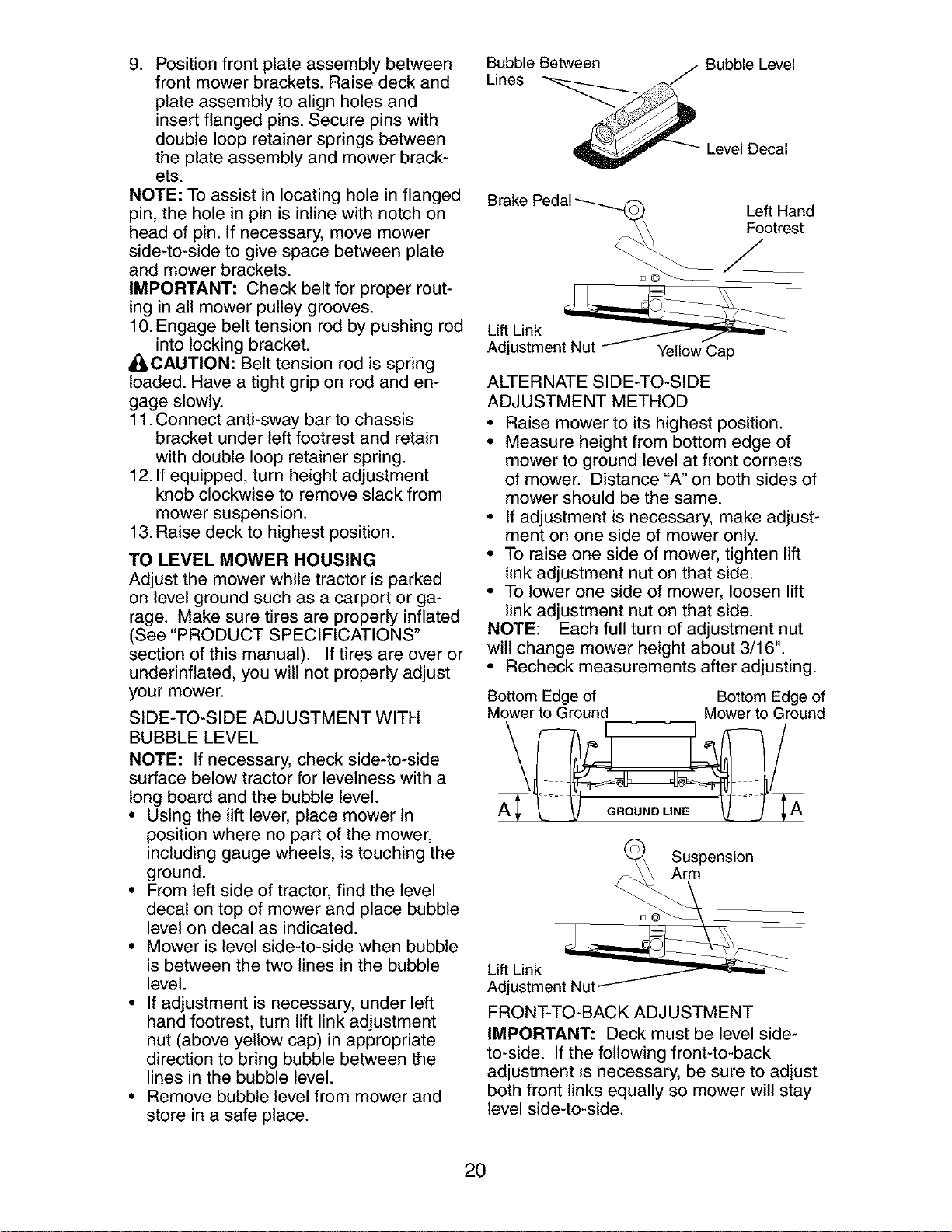

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower brack-

ets.

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

10. Engage belt tension rod by pushing rod

into locking bracket.

A_:_CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

11. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

Bubble Between Bubble Level

Lines

Level Decal

Brake Pedal _ Left Hand

_otrest

DO_

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

Arm

Lift Link

Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

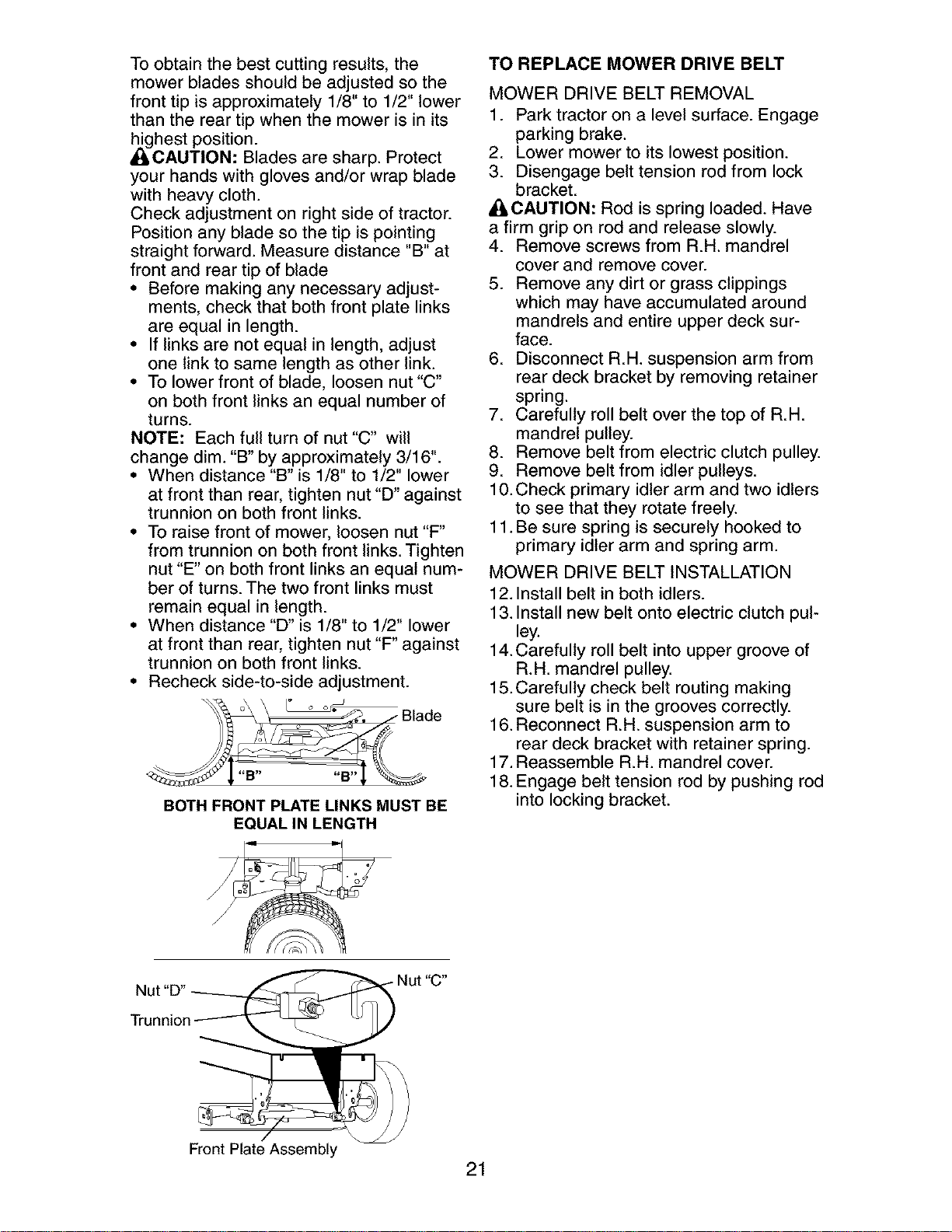

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

"B.... B"

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

_CAUTION: Rod is spring loaded. Have

a firm grip on rod and release slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

8. Remove belt from electric clutch pulley.

9. Remove belt from idler pulleys.

10.Check primary idler arm and two idlers

to see that they rotate freely.

11.Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12. Install belt in both idlers.

13. Install new belt onto electric clutch pul-

ley.

14.Carefully roll belt into upper groove of

R.H. mandrel pulley.

15.Carefully check belt routing making

sure belt is in the grooves correctly.

16.Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17.Reassemble R.H. mandrel cover.

18.Engage belt tension rod by pushing rod

into locking bracket.

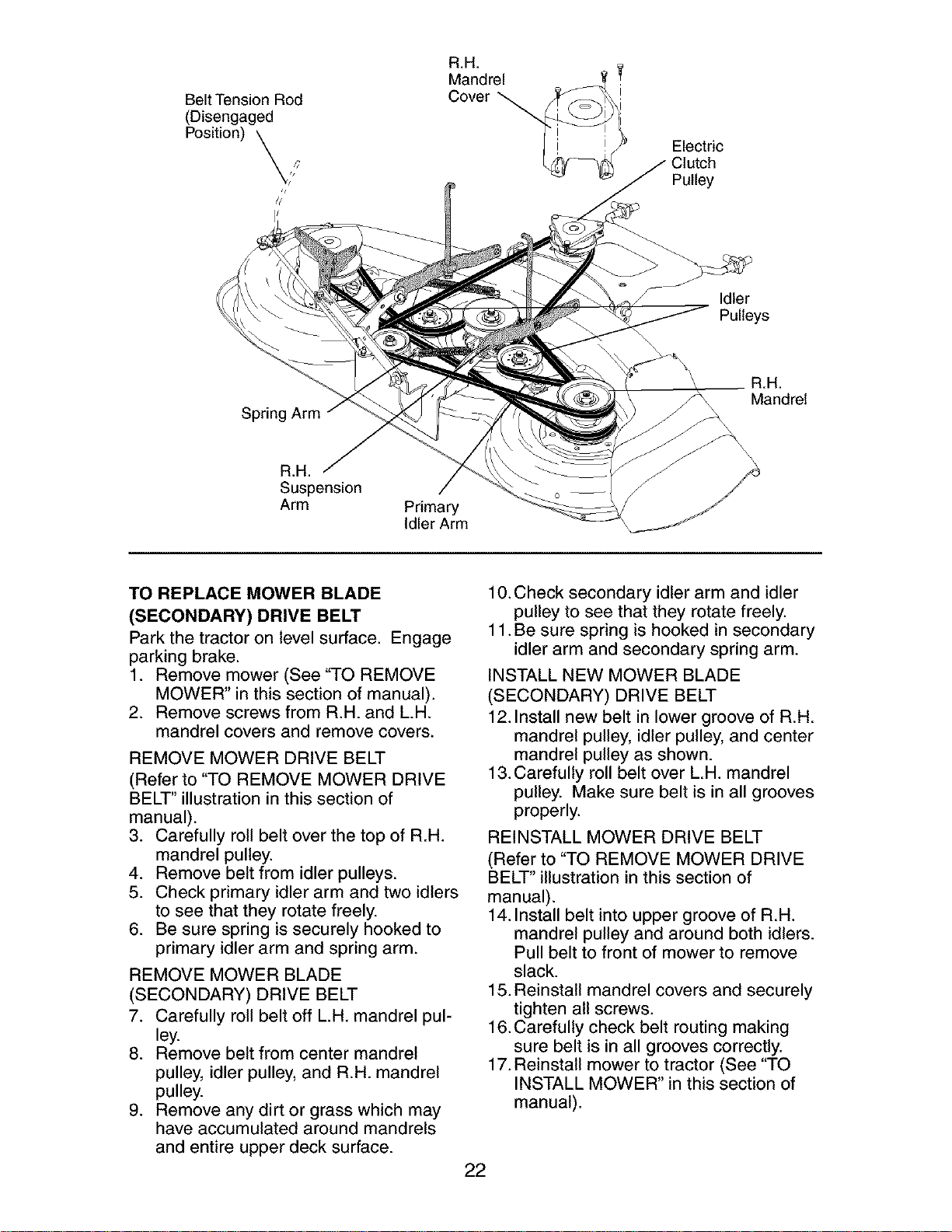

NL Nut "C"

Front Plate Assembly 21

Belt Tension Rod

(Disengaged

Position) _o

R.H.

Mandrel

Cover

Electric

Pulley

Pulleys

Spring Arm

R.H.

Mandrel

R.H.

Suspension

Arm Primary

Idler Arm

TO REPLACE MOWER BLADE

(SECONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off L.H. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10. Check secondary idler arm and idler

pulley to see that they rotate freely.

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

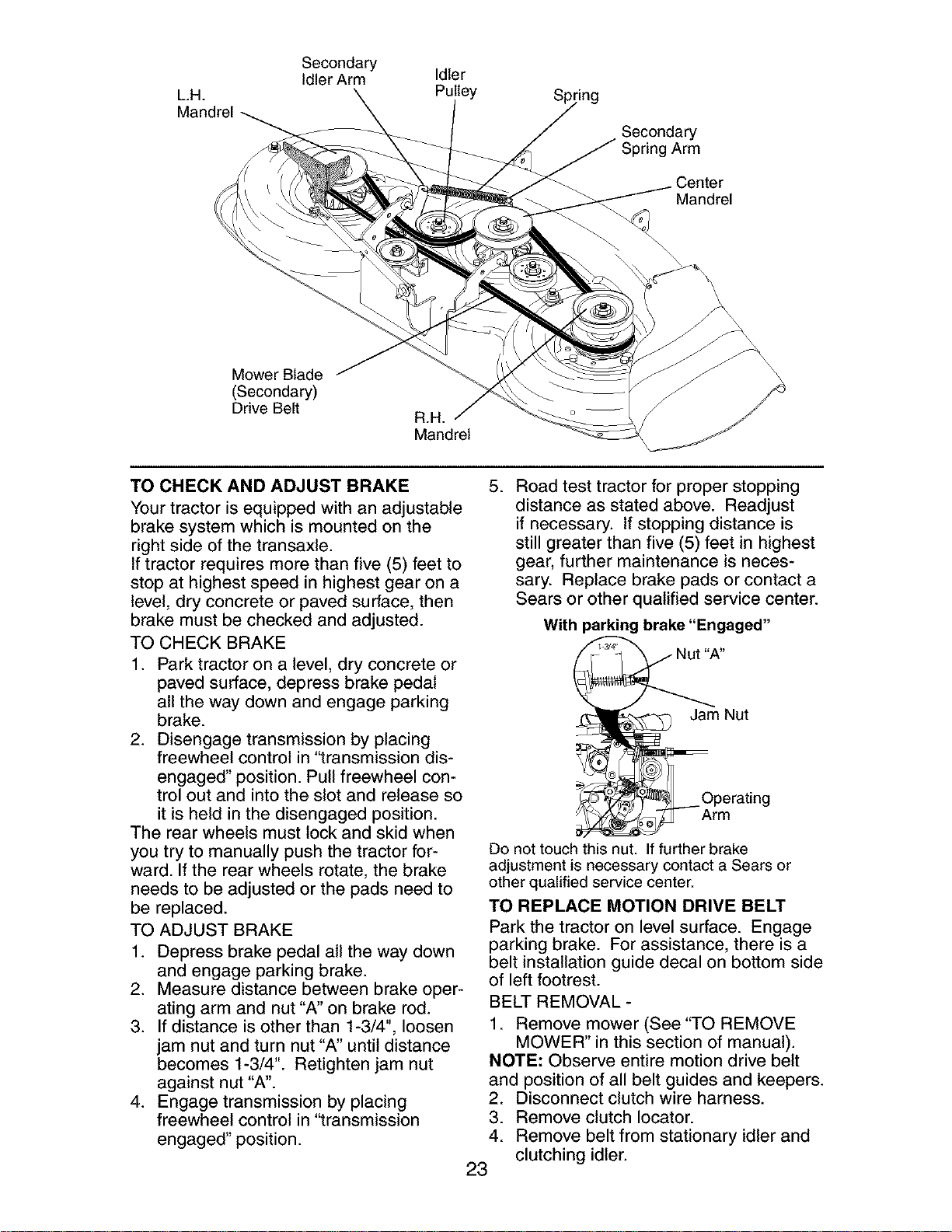

Secondary

Idler Arm Idler

Pulley

L.H.

Mandrel ring

Secondary

Arm

Mandrel

Mower Blade

(Secondary)

Drive Belt R.H.

Mandrel

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress brake pedal

all the way down and engage parking

brake.

2. Disengage transmission by placing

freewheel control in '"transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress brake pedal all the way down

and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in '"transmission

engaged'position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

Jam Nut

Operating

Arm

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

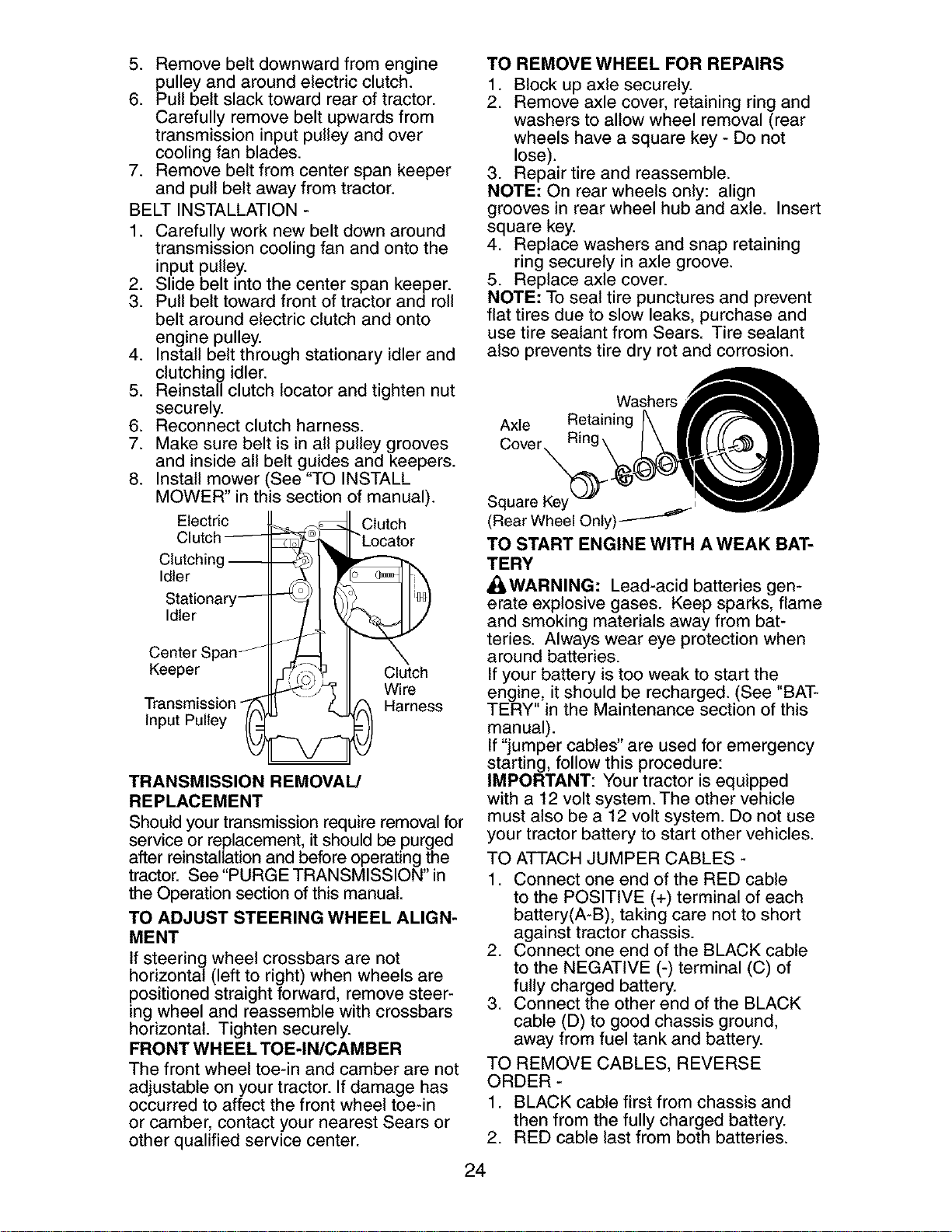

5. Removebeltdownwardfromengine

pulleyandaroundelectricclutch.

6. Pullbeltslacktowardrearof tractor.

Carefullyremovebeltupwardsfrom

transmissioninputpulleyandover

coolingfan blades.

7. Removebeltfromcenterspankeeper

andpullbeltawayfromtractor.

BELTINSTALLATION-

1. Carefullywork newbeltdownaround

transmissioncoolingfan andonto the

inputpulley.

2. Slidebelt intothe centerspankeeper.

3. Pullbelttowardfrontof tractorand roll

beltaroundelectricclutchandonto

enginepulley.

4. Installbeltthroughstationaryidlerand

clutchingidler.

5. Reinstallclutch Iocatorandtightennut

securely.

6. Reconnectclutchharness.

7. Makesure beltis in allpulleygrooves

andinsideallbelt guidesand keepers.

8. Installmower(See"TOINSTALL

MOWER"in thissectionof manual).

Center Span J_

Keeper

Transmission _'_

Input Pulley {_

Electric _ _4o.o.

Clutch _ _

Clutching --

Idler

Stationary_

Idler

Clutch

"Locator

Clutch

Wire

Harness

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in

or camber, contact your nearest Sears or

other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers_

Axle Retaining _ _rr__

C°ver_ R___/_

Square Key __.,

(Rear Wheel Only)------

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the Maintenance section of this

manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_kWARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Keps, Nu!

Access.--"_"/" .i _ L_ _ Y

Door _-/ _

_/ _ HexBolt

Terminal i_ _,_'

Guard _ _"_E_Posi_ve (Red)

|_. _ Cable

'"_ ]_ _ Negative (Black)

._,_/_ Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

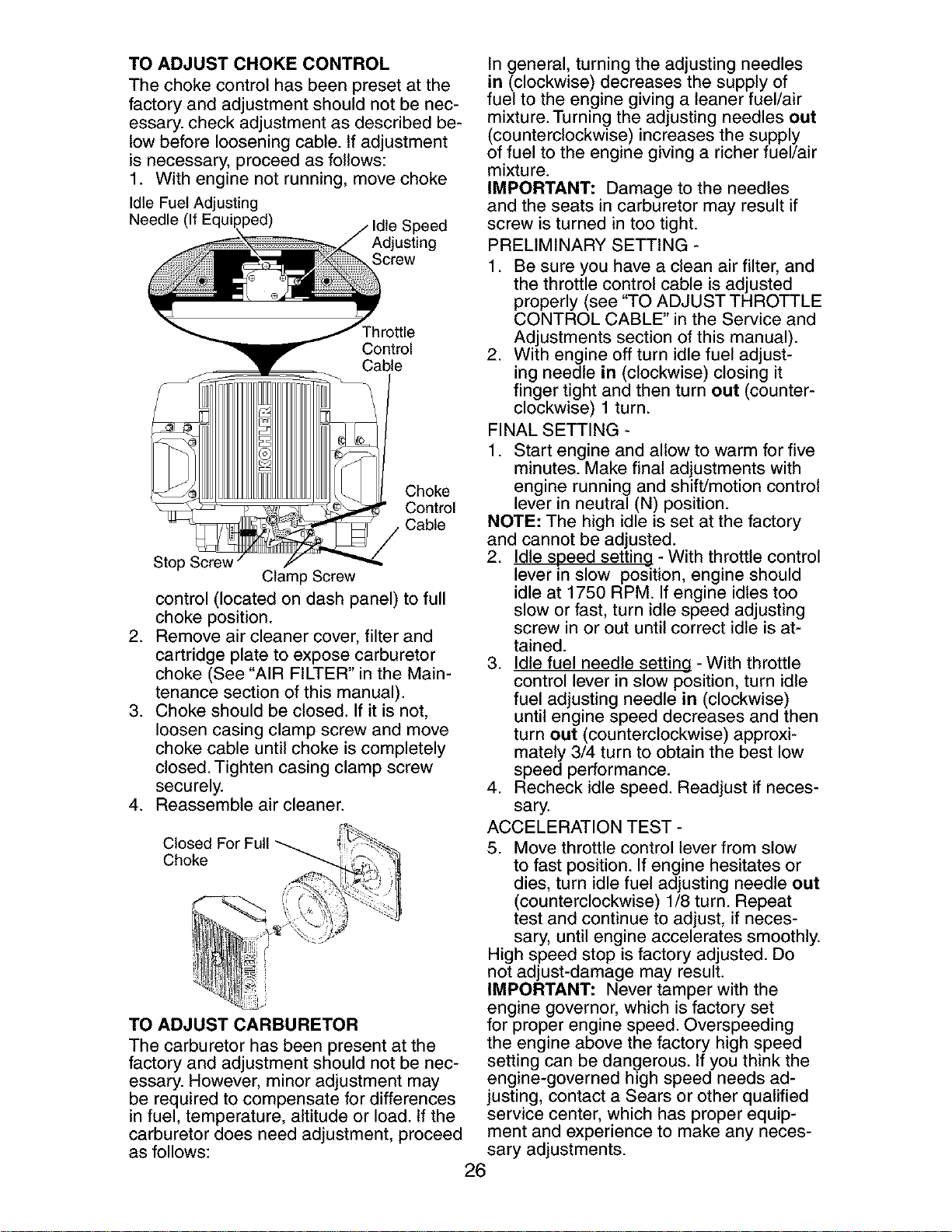

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

Idle Fuel Adjusting

Needle (If Equi Adjusting

Screw

*hrottle

Control

Cable

Choke

Control

Cable

Stop Screw Clamp Screw

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed For Full

Choke

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixtu re.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1750 RPM If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs ad-

justing, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

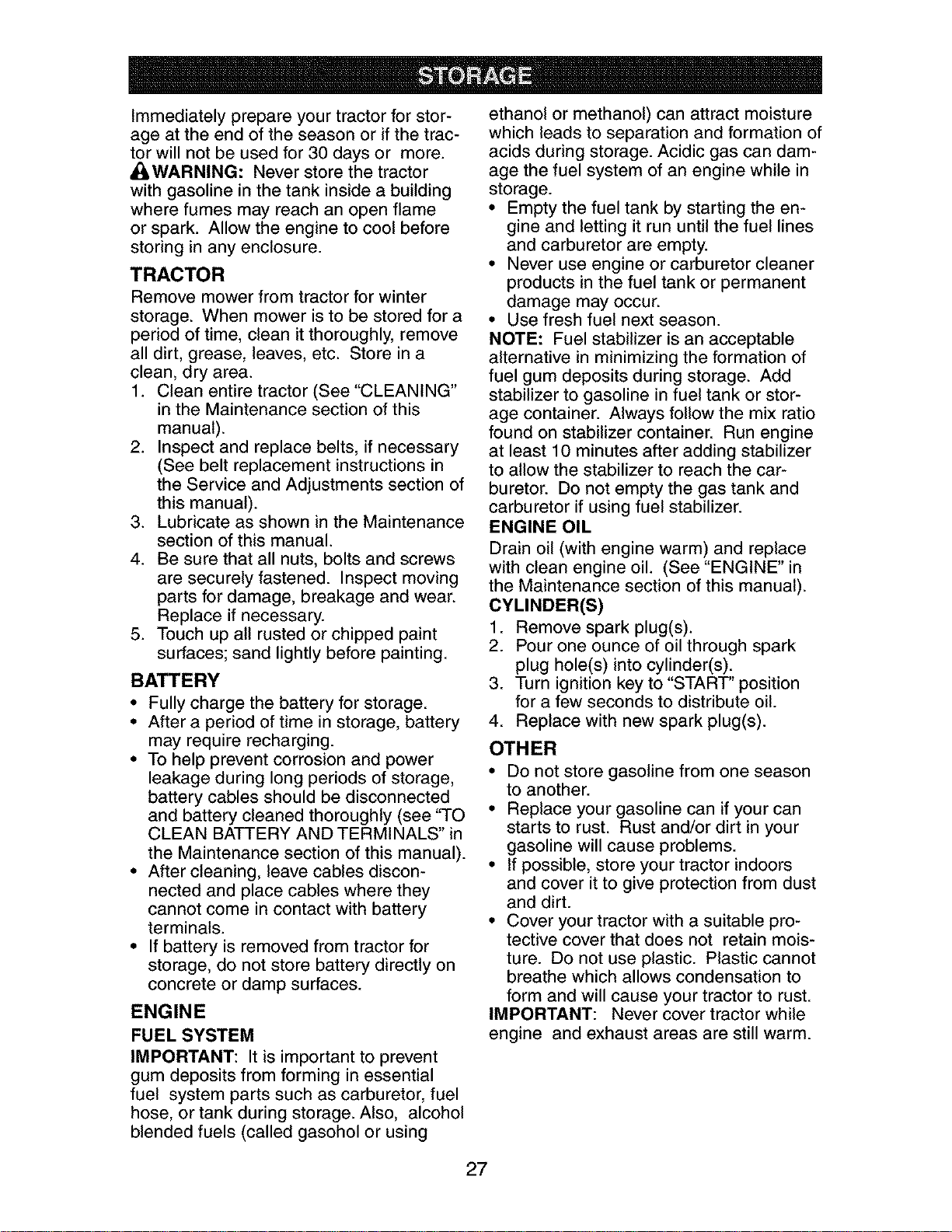

Immediatelyprepareyour tractorforstor-

age attheendof theseasonor ifthetrac-

tor will notbe usedfor 30 daysor more.

A(_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See"CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

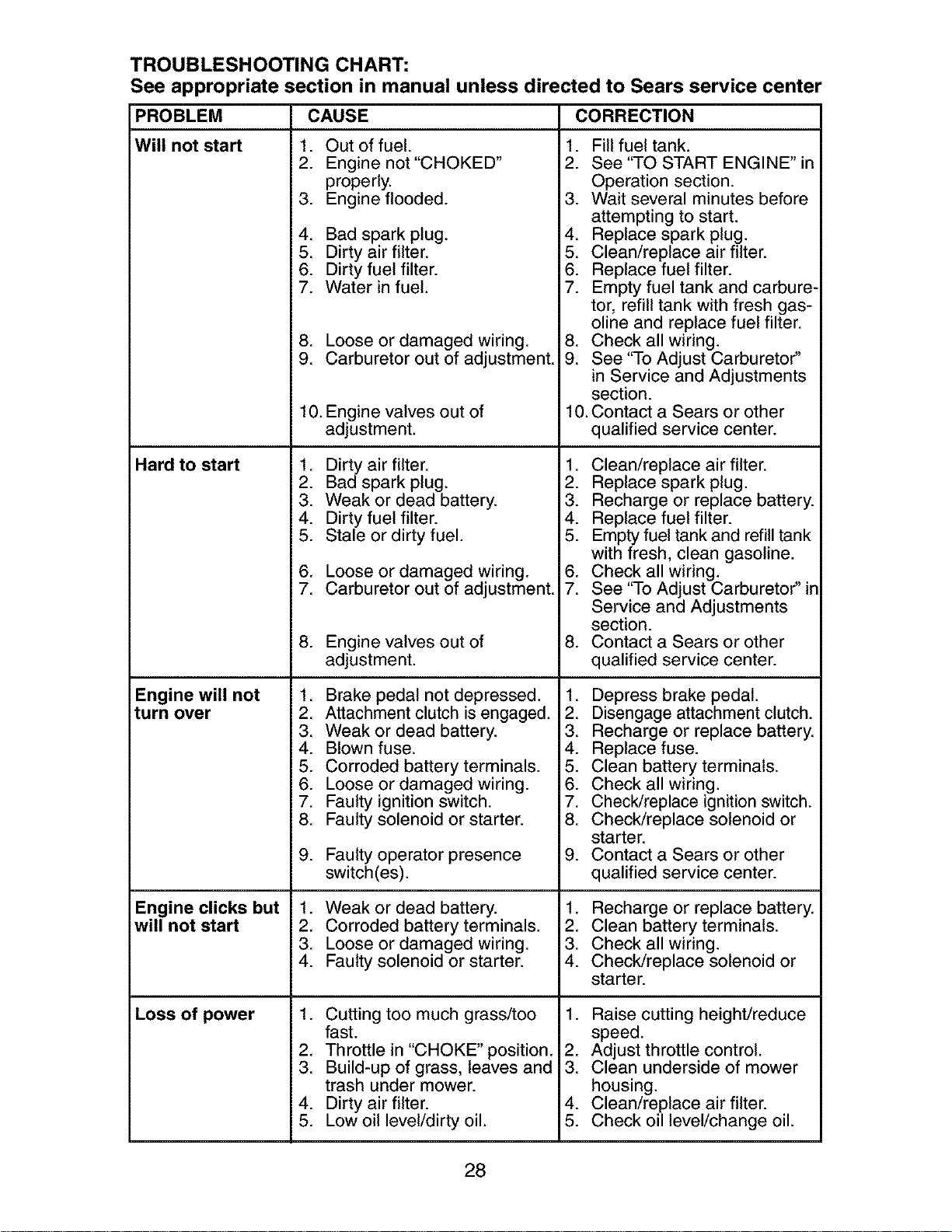

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

iWill not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

CAUSE CORRECTION

1. Out of fuel.

i 2. Engine not"CHOKED"

properly.

i 3. Engine flooded.

i4. Bad spark plug.

i 5. Dirty air filter.

i 6. Dirty fuel filter.

i 7. Water in fuel.

i 8. Loose or damaged wiring.

i 9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

i 2. Bad spark plug.

i 3. Weak or dead battery.

i4. Dirty fuel filter.

i 5. Stale or dirty fuel.

i 6. Loose or damaged wiring.

i 7. Carburetor out of adjustment.

i 8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

i 2. Attachment clutch is engaged.

i 3. Weak or dead battery.

i4. Blown fuse.

i 5. Corroded battery terminals.

i 6. Loose or damaged wiring.

i 7. Faulty ignition switch.

i 8. Faulty solenoid or starter.

i 9. Faulty operator presence

switch(es).

1. Weak or dead battery.

i 2. Corroded battery terminals.

i 3. Loose or damaged wiring.

i4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

i 2. Throttle in "CHOKE" position.

i 3. Build-up of grass, leaves and

trash under mower.

i4. Dirty air filter.

i 5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignitionswitch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

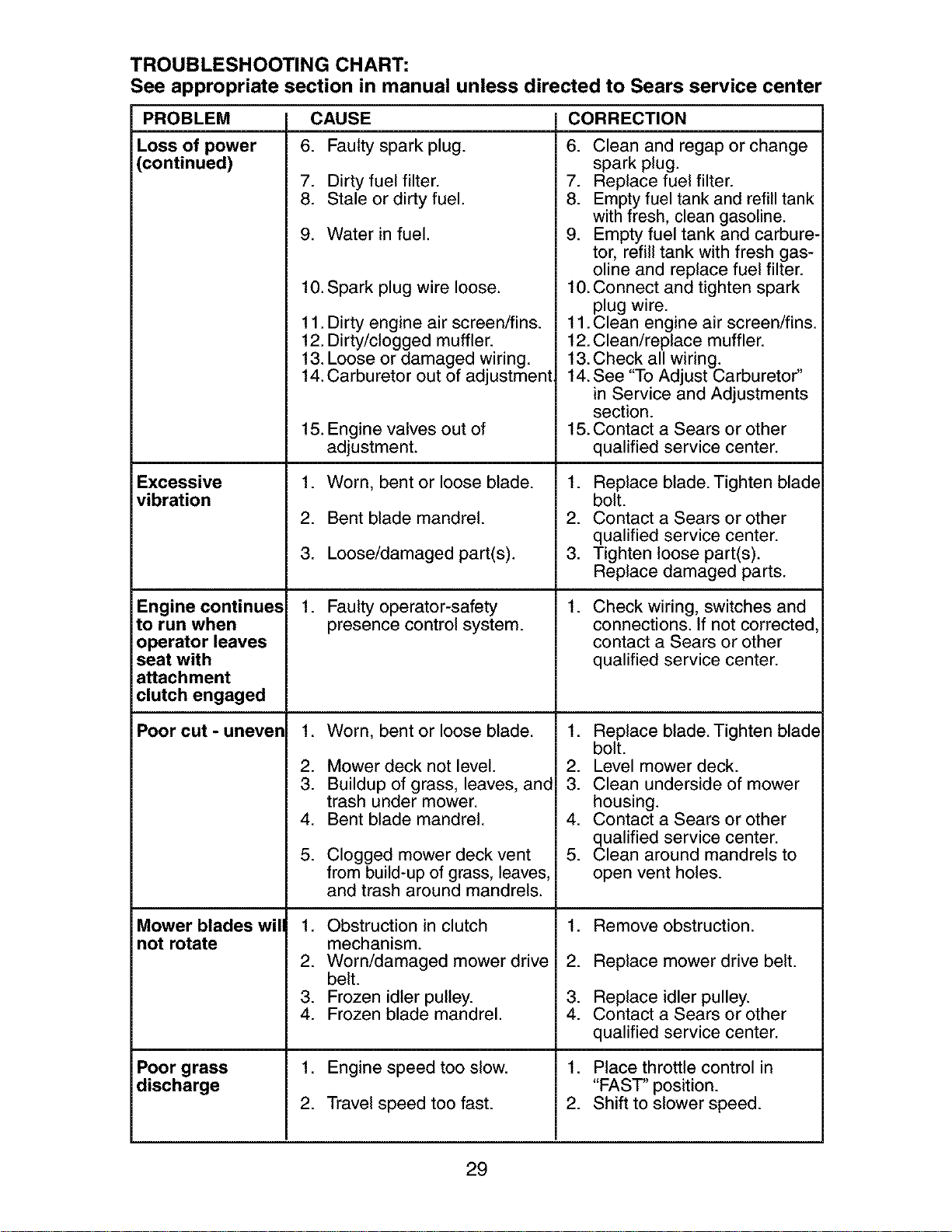

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

I CAUSE

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attach ment

clutch engaged

Poorcut-uneven

Mower blades wil

not rotate

Poorgrass

discharge

10.Spark plug wire loose.

11.Dirty engine air screen/fins.

12.Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of adjustment

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bentorloose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

ICORRECTION

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

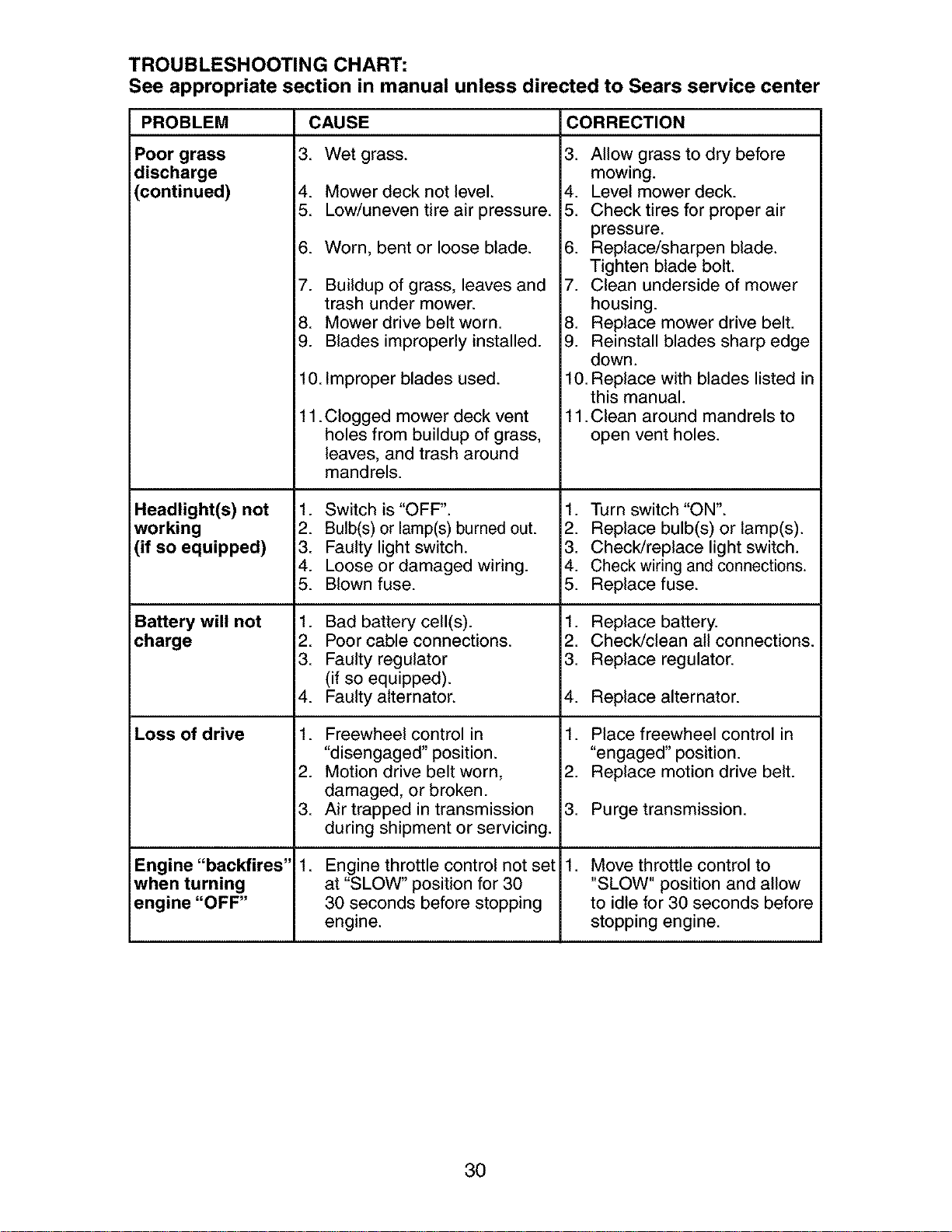

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Poor grass 3.

discharge

i(continued) 4.

iHeadlight(s) not

iworking

(if so equipped)

iBattery will not

icharge

Loss of drive

Engine "backfires"

when turning

iengine "OFF"

Wet grass.

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10. Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

.Engine throttle control not set

at "SLOW" position for 30

30 seconds before stopping

engine.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

TRACTOR - - MODEL NUMBER 917.273241

SCHEMATIC

lilili

BATTERY

RED

AMMETER

(OPTIONAL) W,ITE

RED

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGH*I 8+A1 A2+L

RUN S+A1 NONE

START S+S+A1 NONE

FUSE

CLUTCH/DRAKE

(PEDAL UP)

SEAT SWITCH

(NOT OCCUPIED)

(_) RED

STARTER

SOLENOID

, I

I B I

I i EI

i i I

i A I i

PTOL(DtSE )

i FUEL I

BLUEII__LI_I LINE li I

FUEL SHUT-OFF

SOLE gFPl

(IF SO EQUIPPED)

(OPTIONAL)

IGNITION

UNIT

i I

• J

i 85 86 i

I 87 I 30'

L "_) 87A

OPERATOR PRESENCE

RELAY #1

'_ SPARK

_ PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

i ALTERNATOR

PTO SWITCH

_N" C +_+ G FC

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS H B

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO D A

PROPERLY SECURE YOUR WIRING.

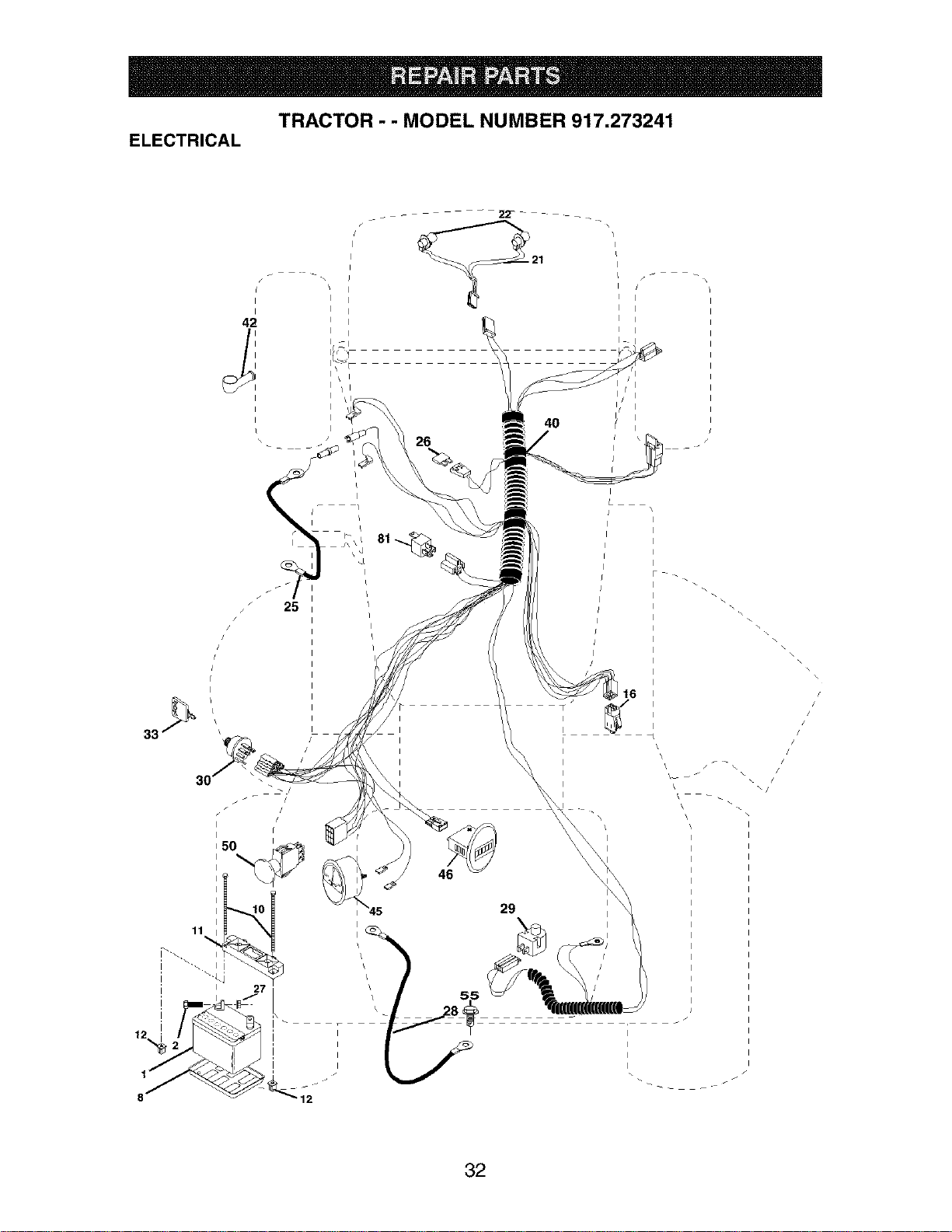

TRACTOR - - MODEL NUMBER 917.273241

ELECTRICAL

IL40

\\\\

i I

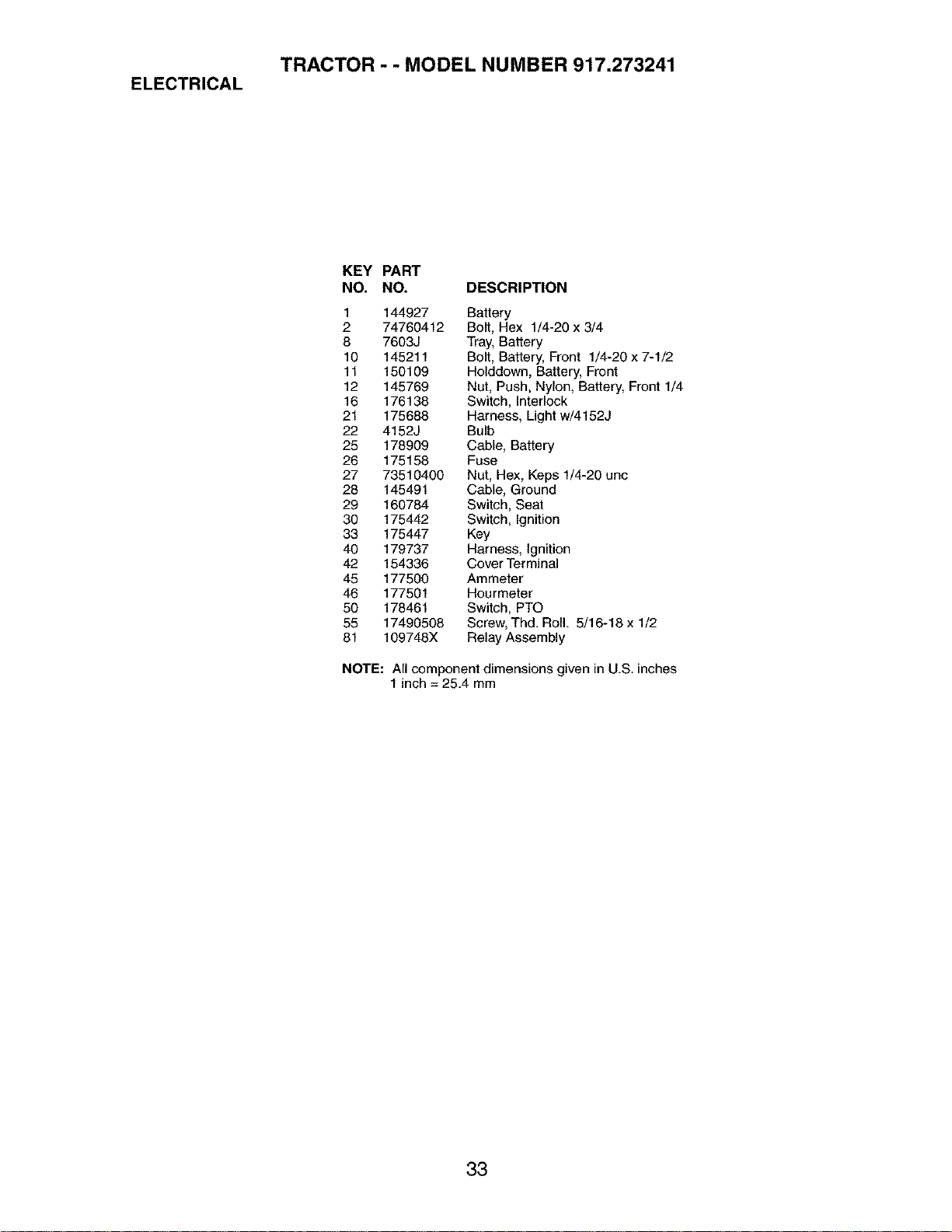

TRACTOR - - MODEL NUMBER 917.273241

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Belt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2

11 150109 Holddewn, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, Interlock

21 175688 Harness, Light w/4152J

22 4152J Bulb

25 178909 Cable, Battery

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 unc

28 145491 Cable, Ground

29 160784 Switch, Seat

30 175442 Switch, Ignition

33 175447 Key

40 179737 Harness, Ignition

42 154336 Cover Terminal

45 177500 Ammeter

46 177501 Hourmeter

50 178461 Switch, PTO

55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2

81 109748X Relay Assembly

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

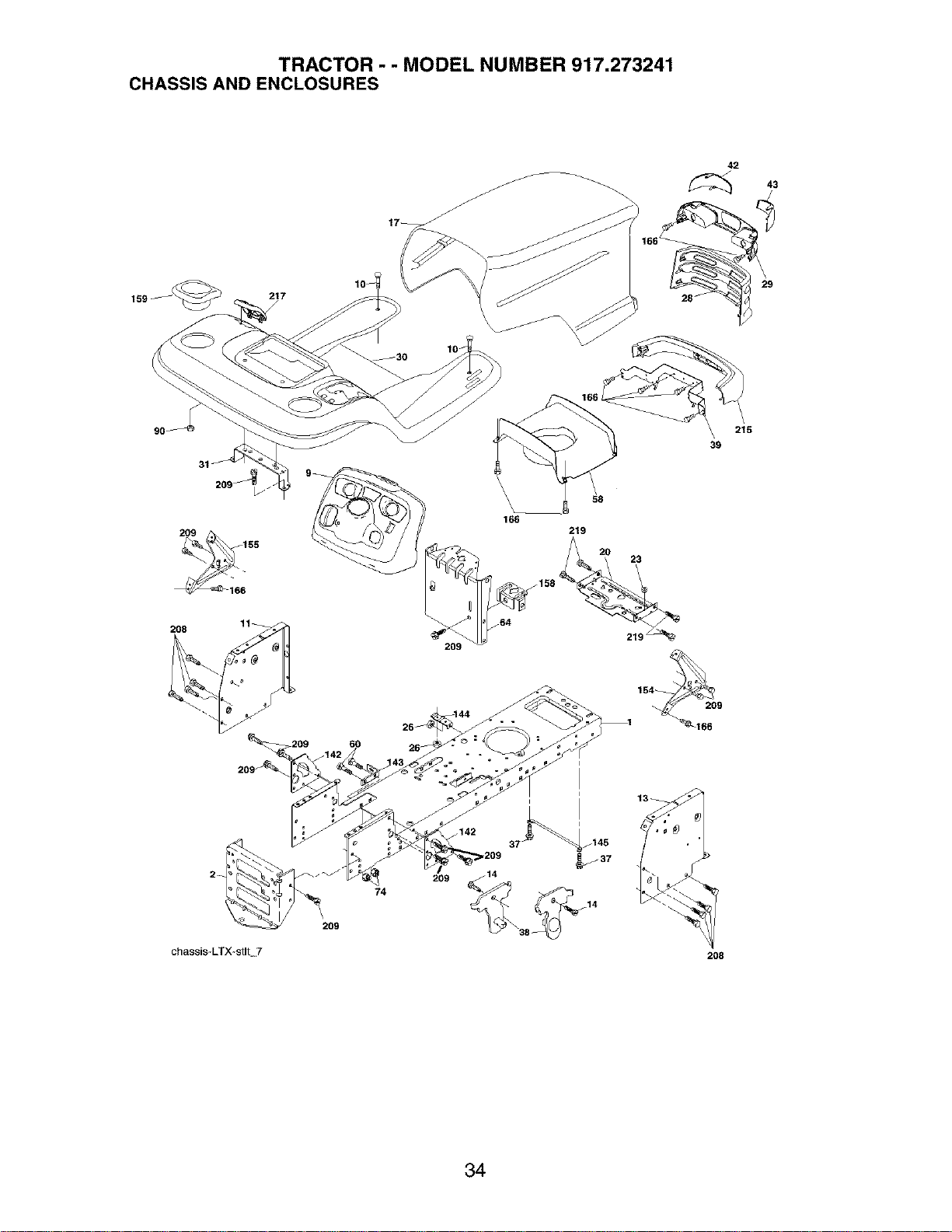

TRACTOR - - MODEL NUMBER 917.273241

CHASSIS AND ENCLOSURES

217

\\\

166

219

2!5

chassis*LTX_stlt 7

209

_142

209

208

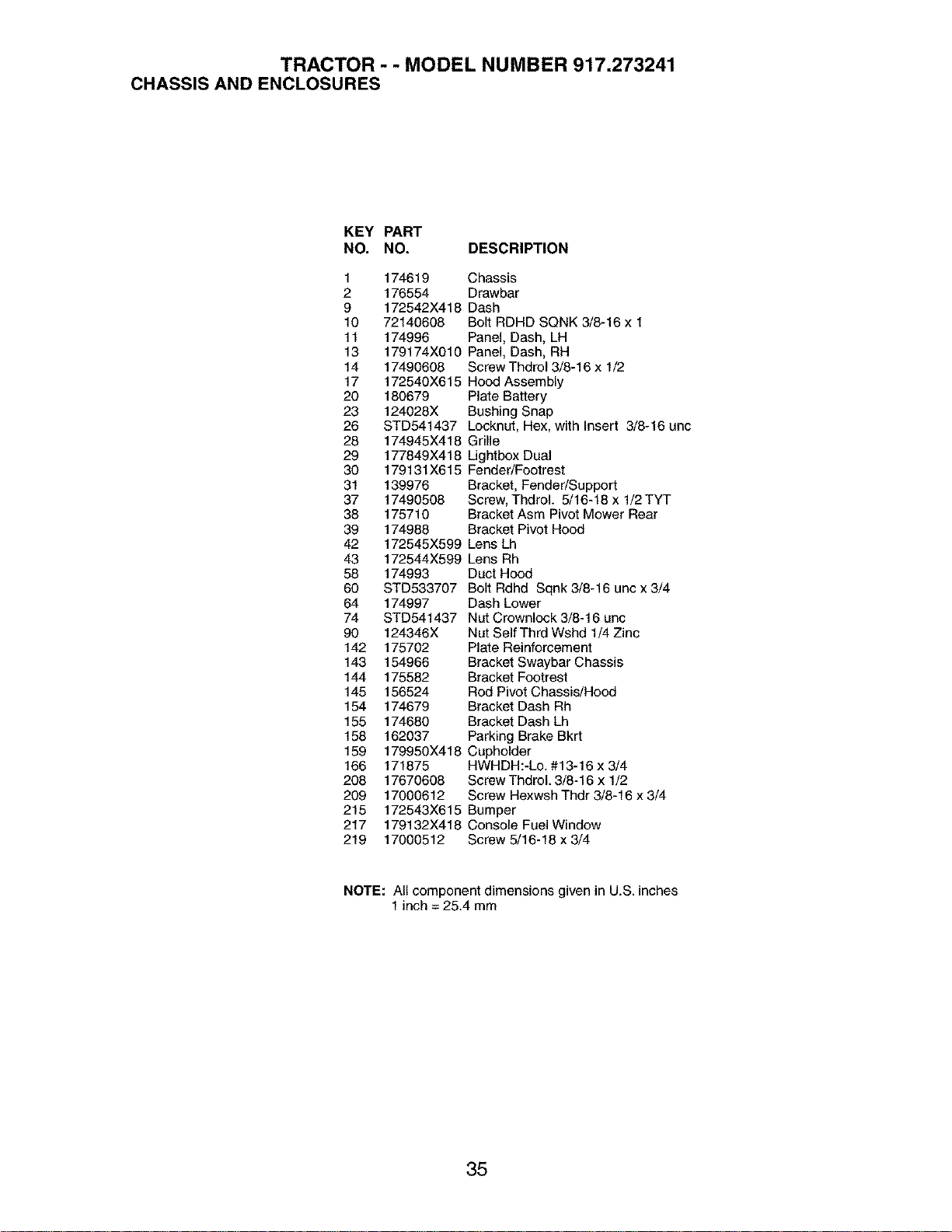

TRACTOR - - MODEL NUMBER 917.273241

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

9 172542X418 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 174996 Panel, Dash, LH

13 179174X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 172540X615 Hoed Assembly

20 180679 Plate Battery

23 124028X Bushing Snap

26 STD541437 Locknut, Hex, with Insert 3/8-16 unc

28 174945X418 Grille

29 177849X418 Lightbox Dual

30 179131X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, ThdroL 5/16-18x1/2TYT

38 175710 Bracket Asm Pivot Mower Rear

39 174988 Bracket Pivot Hood

42 172545X599 Lens Lh

43 172544X599 Lens Rh

58 174993 Duct Hood

60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownleck 3/8-16 unc

90 124346X Nut Self Thrd Wshd 1/4 Zinc

142 175702 Plate Reinforcement

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

154 174679 Bracket Dash Rh

155 174680 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 179950X418 Cupholder

166 171875 HWHDH:-Lo. #13-16 x 3/4

208 17670608 ScrewThdrol. 3/8-16 x 1/2

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

215 172543X615 Bumper

217 179132X418 ConsoleFuelWindow

219 17000512 Screw 5/16-18 x 3/4

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

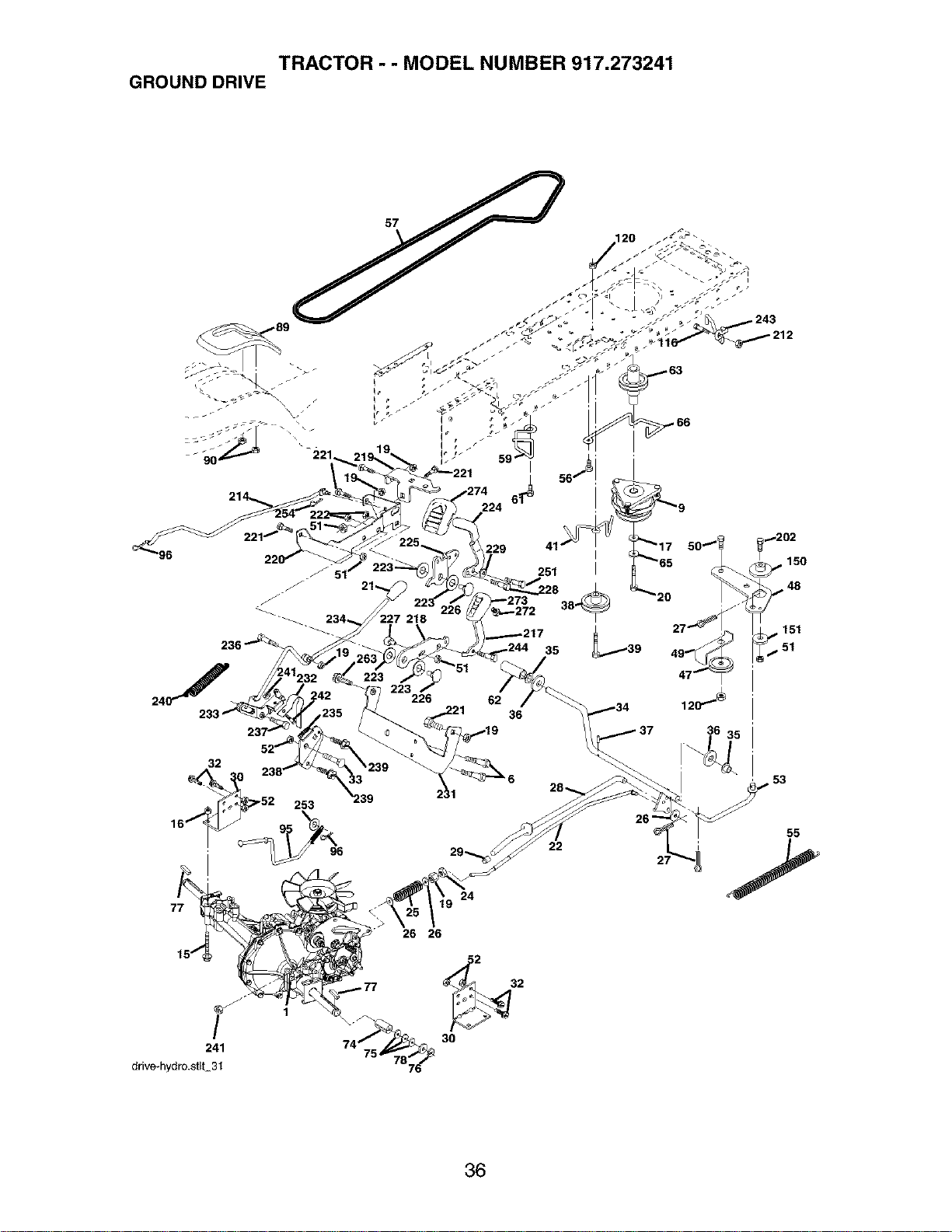

TRACTOR - - MODEL NUMBER 917.273241

GROUND DRIVE

223

16 52 253 "239

,29'_

drive-hydro.stlt..31

y,•53

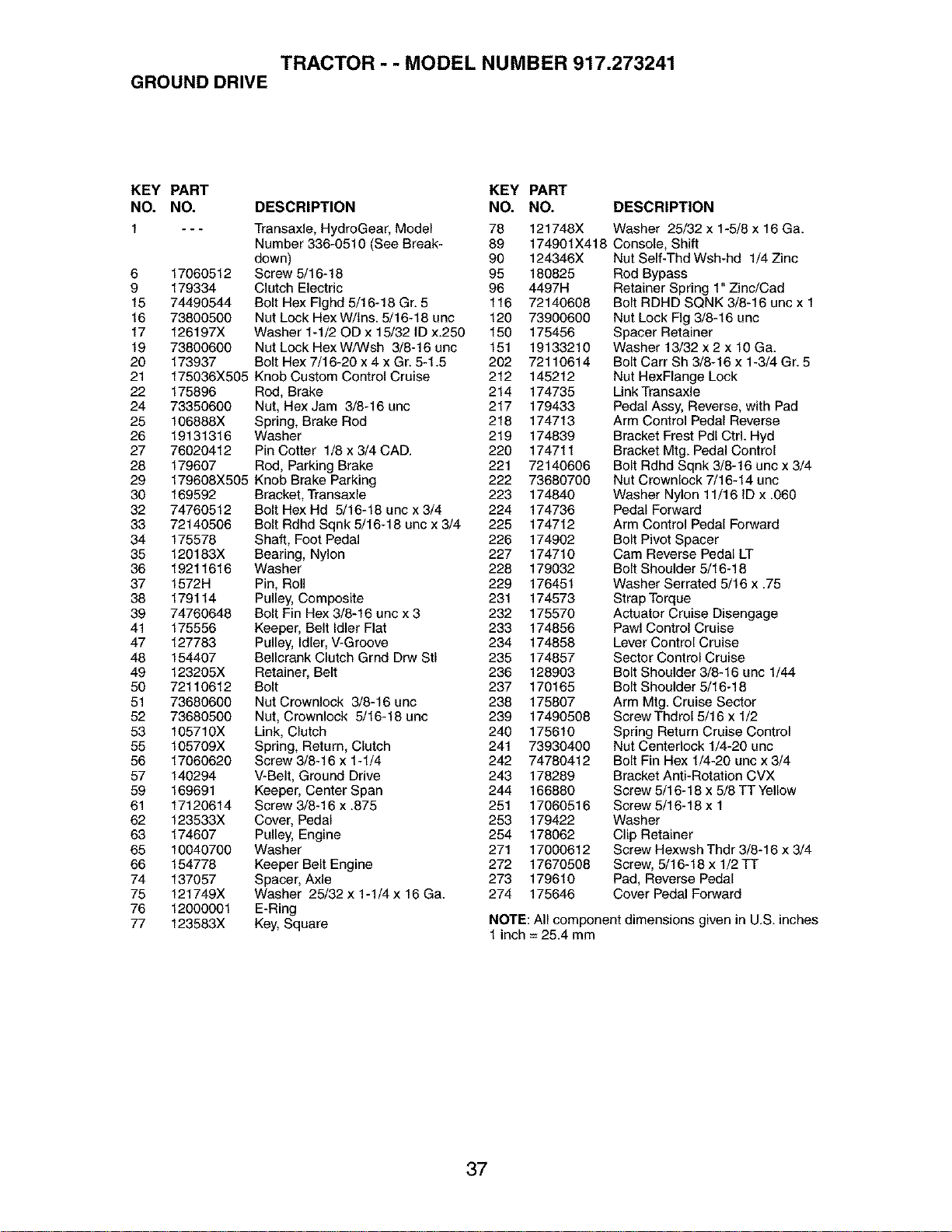

TRACTOR - - MODEL NUMBER 917.273241

GROUND DRIVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 - - - Transaxle, HydroGear, Model 78

Number 336-0510 (See Break- 89

down) 90 124346X

6 17060512 Screw 5/16-18 95 180825

9 179334 Clutch Electric 96 4497H

15 74490544 Bolt Hex FIghd 5/16-18 Gr. 5 116 72140608

16 73800500 Nut Lock Hex W/Ins. 5/16-18 unc 120 73900600

17 126197X Washer 1-1/20D x 15/32 ID x.250 150 175456

19 73800600 Nut Lock Hex W/Wsh 3/8-16 unc 151 19133210

20 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 202 72110614

21 175036X505 Knob Custom Control Cruise 212 145212

22 175896 Rod, Brake 214 174735

24 73350600 Nut, Hex Jam 3/8-16 unc 217 179433

25 106888X Spring, Brake Rod 218 174713

26 19131316 Washer 219 174839

27 76020412 Pin Cotter 1/8 x 3/4 CAD. 220 174711

28 179607 Red, Parking Brake 221 72140606

29 179608X505 Knob Brake Parking 222 73680700

30 169592 Bracket, Transaxle 223 174840

32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4 224 174736

33 72140506 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 225 174712

34 175578 Shaft, Foot Pedal 226 174902

35 120183X Bearing, Nylon 227 174710

36 19211616 Washer 228 179032

37 1572H Pin, Roll 229 176451

38 179114 Pulley, Composite 231 174573

39 74760648 Bolt Pin Hex 3/8-16 unc x 3 232 175570

41 175556 Keeper, Belt Idler Flat 233 174856

47 127783 Pulley, Idler, V-Groove 234 174858

48 154407 Bellcrank Clutch Grnd Drw Stl 235 174857

49 123205X Retainer, Belt 236 128903

50 72110612 Bolt 237 170165

51 73680600 Nut Crownlock 3/8-16 unc 238 175807

52 73680500 Nut, Crewnlock 5/16-18 unc 239 17490508

53 105710X Link, Clutch 240 175610

55 105709X Spring, Return, Clutch 241 73930400

56 17060620 Screw 3/8-16 x 1-1/4 242 74780412

57 140294 V-Belt, Ground Drive 243 178289

59 169691 Keeper, Center Span 244 166880

61 17120614 Screw 3/8-16 x .875 251 17060516

62 123533X Cover, Pedal 253 179422

63 174607 Pulley, Engine 254 178062

65 10040700 Washer 271 17000612

66 154778 Keeper Belt Engine 272 17670508

74 137057 Spacer, Axle 273 179610

75 121749X Washer 25/32 x 1-1/4 x 16 Ga. 274 175646

76 12000001 E-Ring

77 123583X Key, Square

PART

NO. DESCRIPTION

121748X Washer 25/32 x 1-5/8 x 16 Ga.

174901X418 Console, Shift

Nut Self-Thd Wsh-hd 1/4 Zinc

Rod Bypass

Retainer Spring 1" Zinc/Cad

Belt RDHD SQNK 3/8-16 unc x 1

Nut Lock Fig 3/8-16 unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Belt Carr Sh 3/8-16 x 1-3/4 Gr. 5

Nut HexPlange Lock

Link Transaxle

Pedal Assy, Reverse, with Pad

Arm Control Pedal Reverse

Bracket Frest Pdl CtrL Hyd

Bracket Mtg. Pedal Control

Belt Rdhd Sqnk 3/8-16 unc x 3/4

Nut Crownlock 7/16-14 unc

Washer Nylon 11/16 ID x .060

Pedal Forward

Arm Control Pedal Forward

Belt Pivot Spacer

Cam Reverse Pedal LT

Belt Shoulder 5/16-18

Washer Serrated 5/16 x .75

Strap Torque

Actuator Cruise Disengage

Pawl Control Cruise

Lever Control Cruise

Sector Control Cruise

Belt Shoulder 3/8-16 unc 1/44

Belt Shoulder 5/16-18

Arm Mtg. Cruise Sector

Screw Thdrol 5/16 x 1/2

Spring Return Cruise Control

Nut Centerlock 1/4-20 unc

Belt Fin Hex 1/4-20 unc x 3/4

Bracket Anti-Rotation CVX

Screw 5/16-18 x 5/8 TT Yellow

Screw 5/16-18 x 1

Washer

Clip Retainer

Screw Hexwsh Thdr 3/8-16 x 3/4

Screw, 5/16-18 x 1/2TT

Pad, Reverse Pedal

Cover Pedal Forward

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

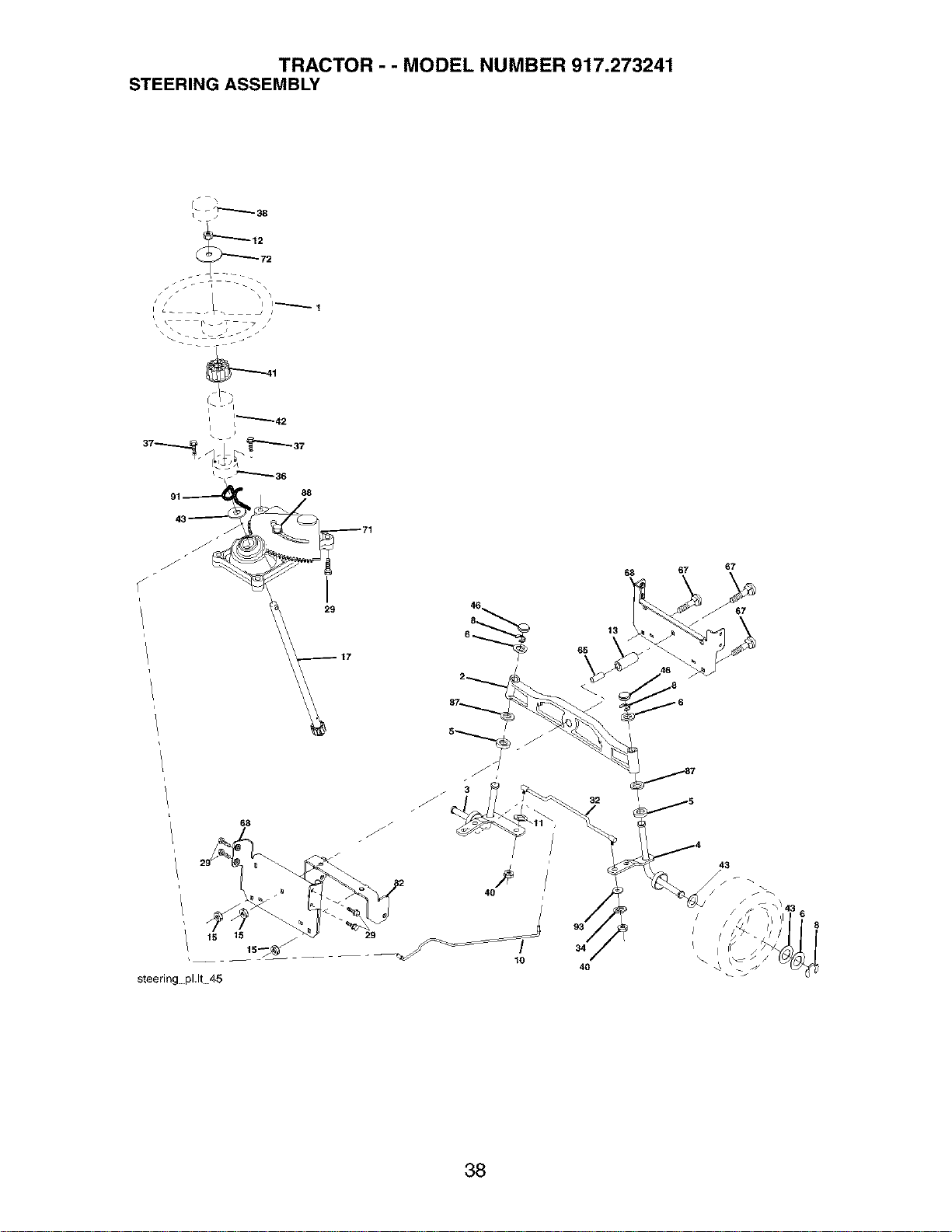

TRACTOR - - MODEL NUMBER 917.273241

STEERING ASSEMBLY

i/i/" x

I It"-"-_-" 42

17 65

67 67

steering_pLIt 45

10 40

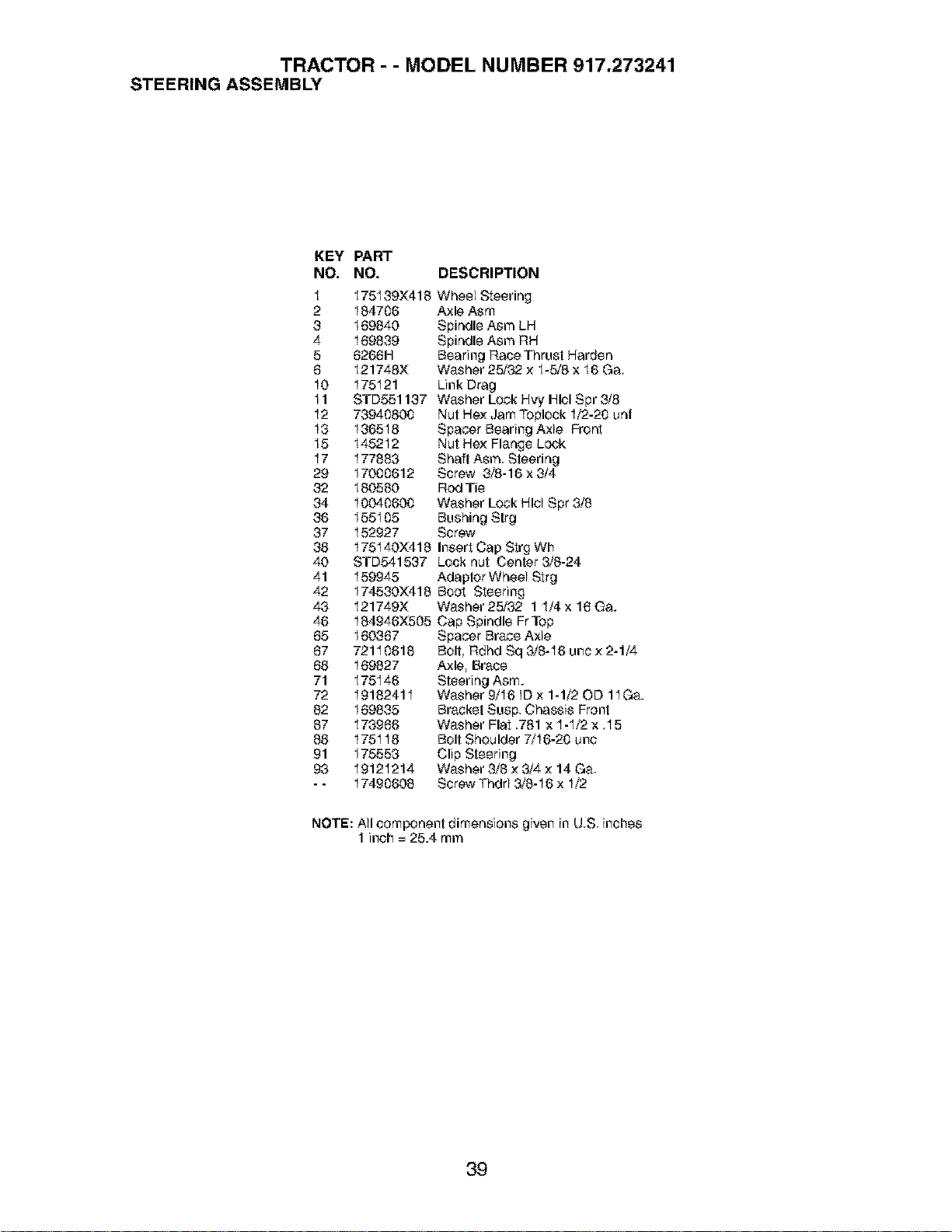

TRACTOR - - MODEL NUMBER 917.273241

STEERINGASSEMBLY

KEY

NO.

PART

NO. DESCRIPTION

184706

169840

169839

6266H

I21748X

175121

STD551137

73940800

136518

145212

177883

17000612

180580

10040600

155105

152927

175139)(418 Wheel Steering

Axle Asm

Spindle Asm LH

Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 × I-5/8 x I6 Ga.

Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Nut He:<Jam Toplock I/2-20 unf

Spacer Bearing Axle Front

Nut Hex Flange Lock

Shaft Asm. Steering

Screw 3/8-16 x 3/4

Rod Tie

Washer Lock Hlcl Spr 3/8

Bushing Strg

Screw

175140)(418 Insert Cap Strg Wh

STD541537 Lock nut Center 3/8-24

159945 Adaptor Wheel Strg

I74530)(418 Boot Steering

I21749X Washer 25/32 1 I/4x 16Ga.

184946)(505 Cap Spindle FrTop

160367

72110618

169827

175146

19182411

169835

173966

175118

175553

19121214

17490608

Spacer Brace Axle

Bolt, Rdod Sq 3/8- I6 unc × 2-1/4

Axle, Brace

Steering Asm.

Washer 9/I6 ID x 1-1/20D 11Ga.

Bracket Susp. Chassis Front

Washer Flat .781 x I-I/2 x .I 5

Bolt Shoulder 7/I6-20 uoc

Clip Steering

Washer 3/8 × 3/4 × 14 Ga.

Screw Todd 3/8- I6 x I/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

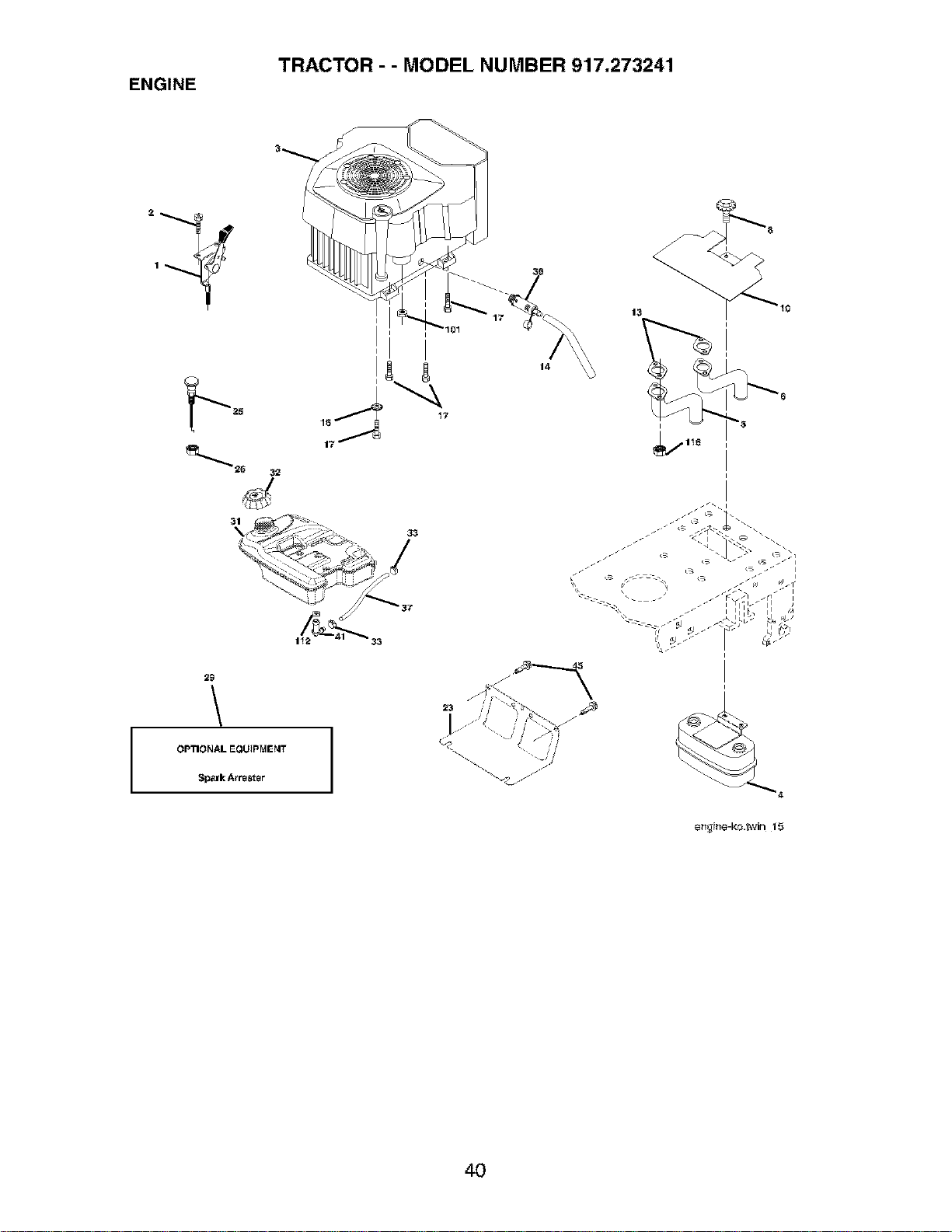

TRACTOR - - MODEL NUMBER 917.273241

ENGINE

OPTIONAL EQUIPMENT

_k Attester I

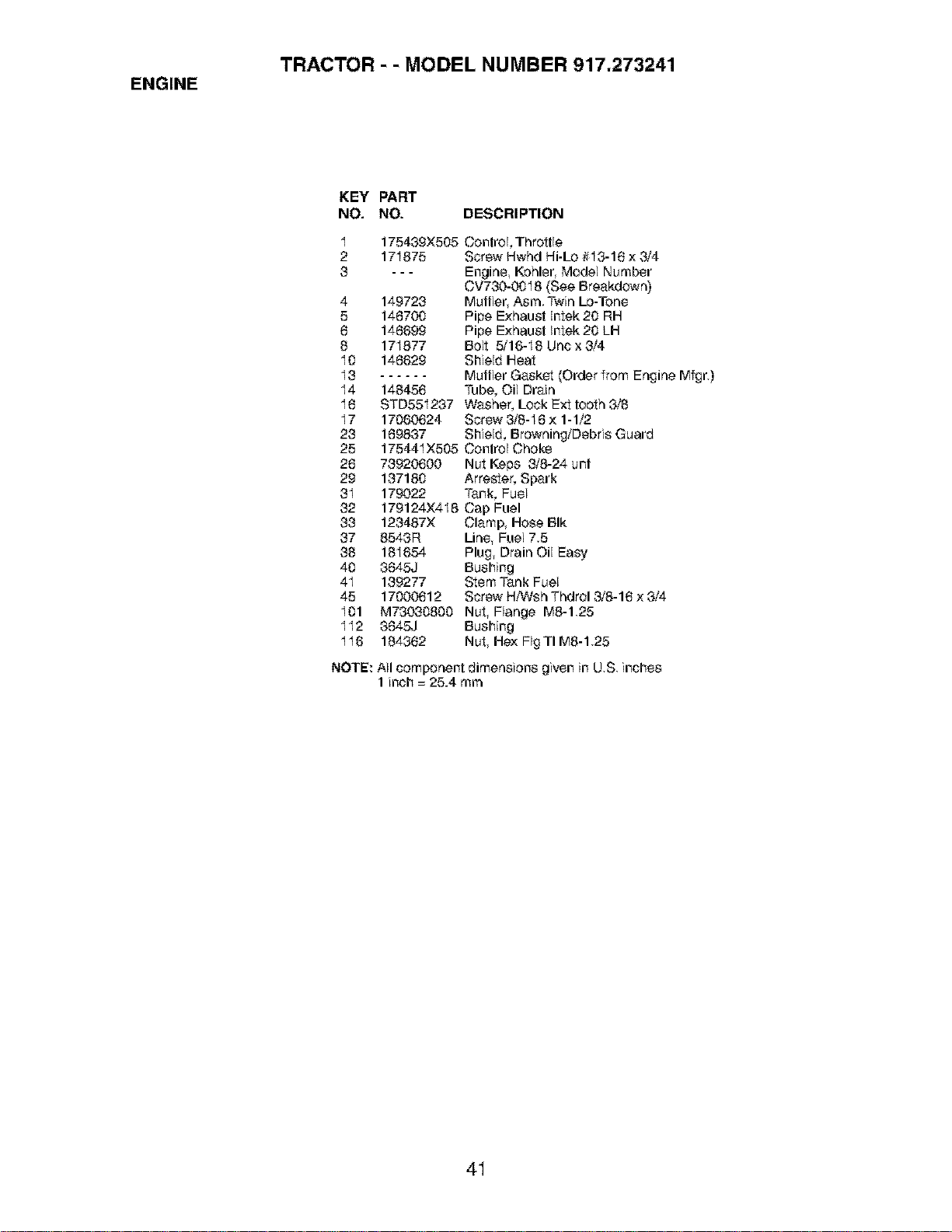

TRACTOR - - MODEL NUMBER 917.273241

ENGINE

KEY PART

NO. NO. DESCRIPTION

I175439X505 Control, Throttle

2171875 Screw Hwhd Hi-Lo #I3-16 ;<3/4

3--- Engine Kohler, Model Number

CV730-0018 (See Breakdown)

4 149723 Muf|ler, Asm. Twin Lo-Tone

5 146700 Pipe E;<haust Intek 20 RH

6 146699 Pipe E;<haust Intek 20 LH

8 171877 Bolt 5/16-18Uncx3/4

I O 146629 Shield Heat

I3 Muf|ler Gasket (Order from Engine Mfgr)

I4 148456 Tube, Oil Drain

16 STD551237 Washer, Lock Ext tooth 3/8

17 17060624 Screw 3/8-I 6 ;<1-1/2

23 169837 Shield, Browning/Debris Guard

25 17544IX505 Control Choke

26 73920600 Nut Keps 3/8-24 unf

29 137180 ArresIer, Spark

3I 179022 Tank, Fuel

32 179124)(418 Cap Fuel

33 123487X Clamp, Hose BIk

37 8543R Line, Fuel 7.5

38 181654 Plug Drain Oil Easy

40 3645J Bushing

4I 139277 Stem Tank Fuel

45 17000612 Screw H/Wsh Thdrol 3/8-16 ;<3/4

I01 M73030800 Nut Flange M8-125

II2 3645J Bushing

II6 184362 Nut, He;<FIgTI M8-1.25

NOTE: All component dimensions given in US inches

1inch = 25.4 mm

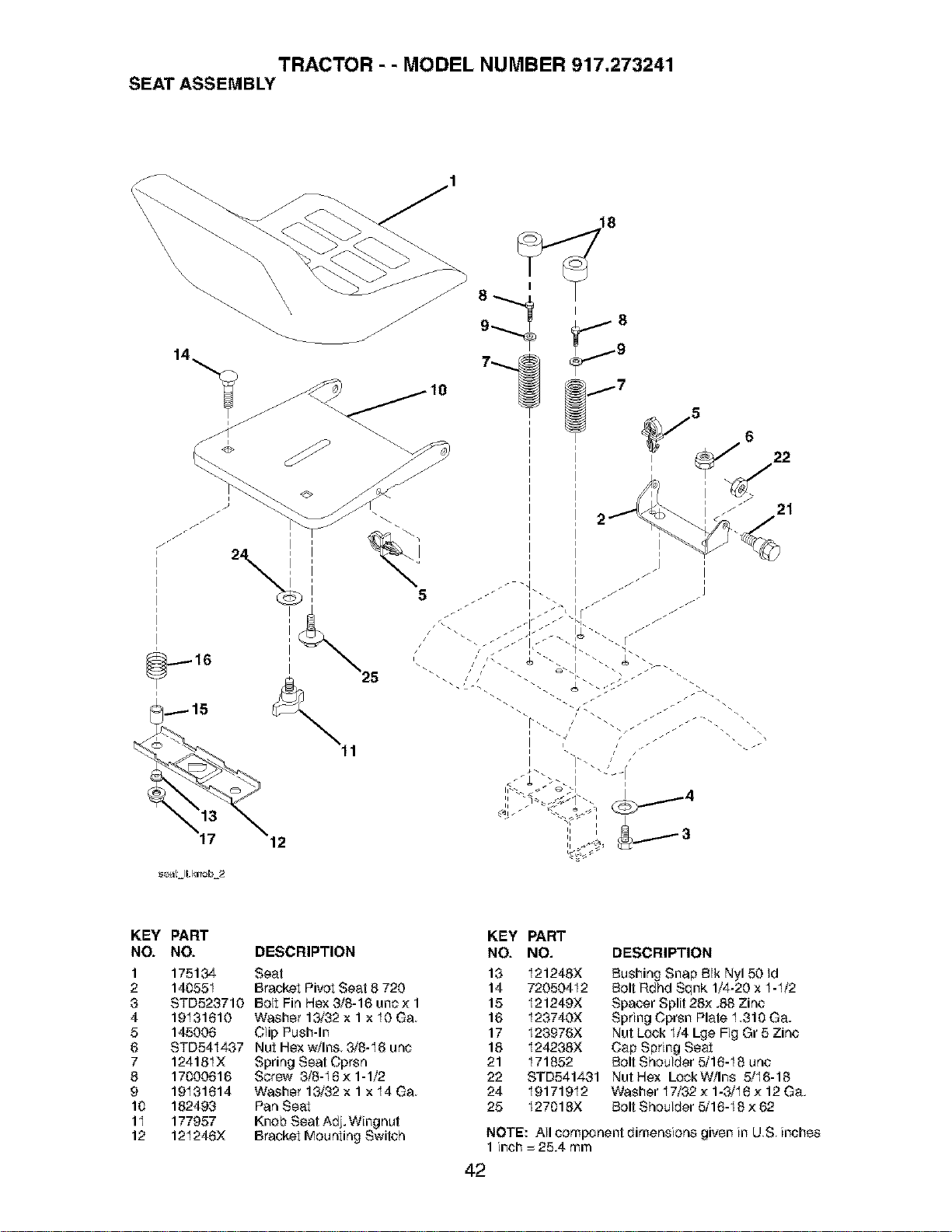

TRACTOR - - MODEL NUMBER 917.273241

SEAT ASSEMBLY

\\\

KEY PART

NO. NO.

1 175134

2 140551

3STD523710

4 19131610

5 145006

6 STD541437

7 12418IX

8 17000616

919131614

10 182493

11 177957

12 121246X

DESCRIPTION

Seat

Bracket Pivot Seat 8 720

Bolt Fin Hex 3/6-16 une × 1

Washer 13/32 x 1 x I0 Ga.

Clip Push-In

Nut Hex w/Ins 3/6-I6 une

Spring Seat Cprsn

Screw 3/8-I6 × 1-1/2

Washer 13/32 x 1 x I4 Ga.

Pan Seat

Knob Seat Adj.Wingnut

Bracket Mounting Switch

KEY

NO.

PART

NO. DESCRIPTION

I21248X

72050412

I21249X

I23740X

I23976X

I24238X

171652

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sqnk 1/4-20 x I-I/2

Spacer Split 28× .86 Zinc

Spring Cprsn Plate 1.810 Ga.

Nut Lock I/4 Lge Fig Gr 5 Zinc

Cap Spring Seat

Bolt Shoulder 5/16-I 8 unc

STD541431 Nut Hex LoekWilns 5/I6-16

19171912 Washer I7/32 × 1-3/I6 × 12 Ga.

I27018X Bolt Shoulder 5/16-I6 × 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

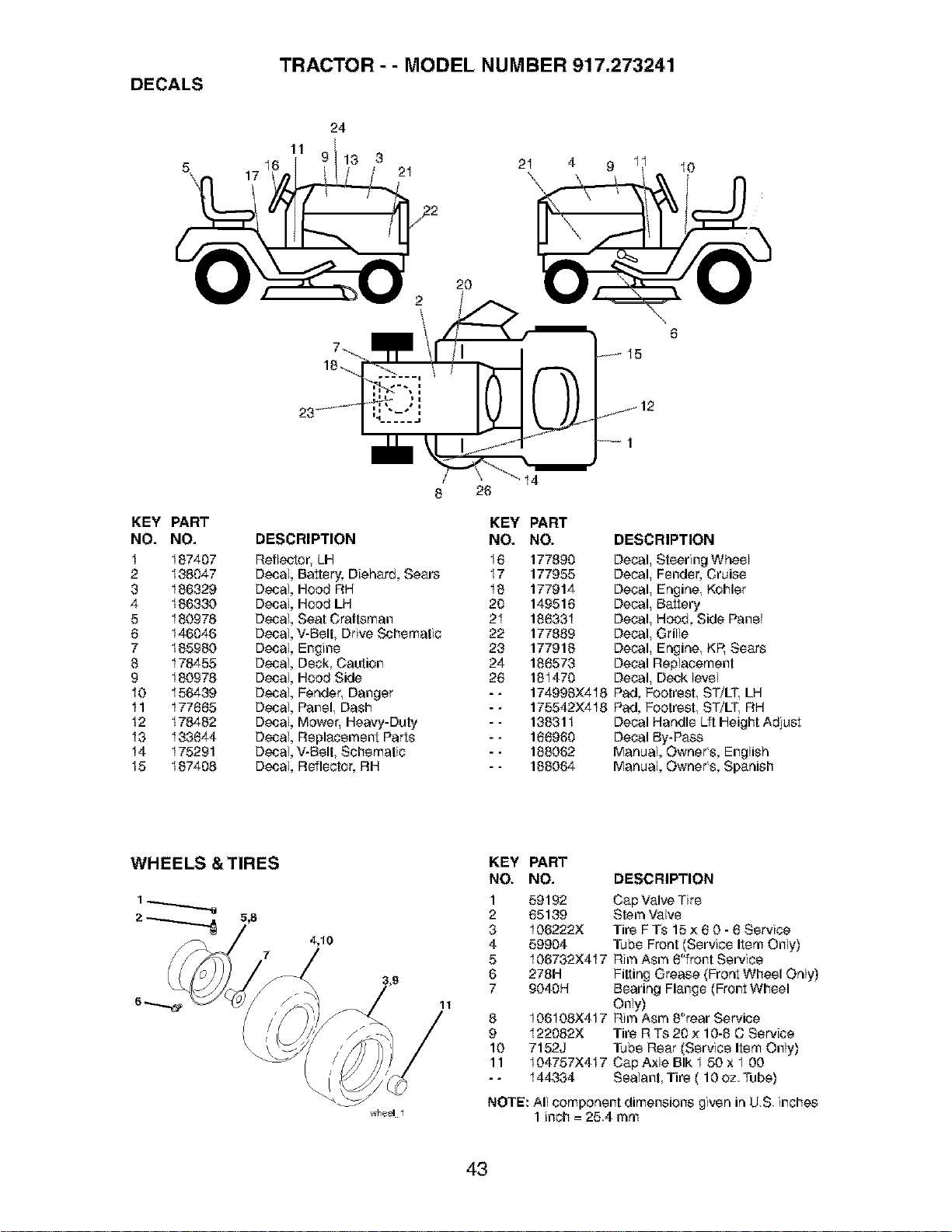

TRACTOR - - MODEL NUMBER 917.273241

DECALS

11 24

32I 2I 4 9 II I0

KEY PART

NO. NO.

I 187407

2 138047

3 186329

4 106330

5 100978

6 146046

7 105900

8 178455

9 180978

I0 156439

I1 177665

I2 178402

I3 133644

I4 175291

I5 107408

8 26

fi5

--1

KEY PART

DESCRIPTION NO. NO.

Reflector, LH 16 177890

Decal, Battery, Diehard, Sears 17 177955

Decal, Hood RH I8 177914

Decal, Hood LH 20 149516

Decal, Seat Craftsman 2I 18633I

Decal, V-Belt Drive Schematic 22 177889

Decal, Engine 23 177918

Decal, Deck, Caution 24 186573

Decal, Hood Side 26 181470

Decal, Fender, Danger - - 174998X418

Decal, Panel, Dash - - 175542)(418

Decal, Mower, Heavy-Duty - - 138311

Decal, Replacement Parts - - 166960

Decal, V-Belt, Schematic - - 188062

Decal, Reflector, RH - - 188064

DESCRIPTION

Decal, Steering Wheel

Decal, Fender, Cruise

Decal, Engine, Kohler

Decal, Battery

Decal, Hood, Side Panel

Decal, Grille

Decal, Engine, KR Sears

Decal Replacement

Decal, Deck level

Pad, Footrest, STiL_ LH

Pad, Footrest, STiLT_ RH

Decal Handle Lft Height Adjust

Decal By-Pass

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS &TIRES

w}_e_ 1

KEY PART

NO. NO. DESCRIPTION

59192 Cap Valve Tire

65139 Stem Valve

I06222X Tire F Ts 15 × 6 0 -6 Service

59904 Tube Front (Service Item Only)

I06732X4I 7 Rim Asm 6"front Service

278H Fitting Grease (Front Wheel Only)

9040H Bearing Flange (Front Wheel

Only)

I06108X417 Rim Asm 8"rear Service

I22082X Tire R Ts 20 × 10-8 C Service

7152J Tube Rear (Service Item Only)

I04757X4I 7 Cap Axle BIk I 50 x I 00

144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

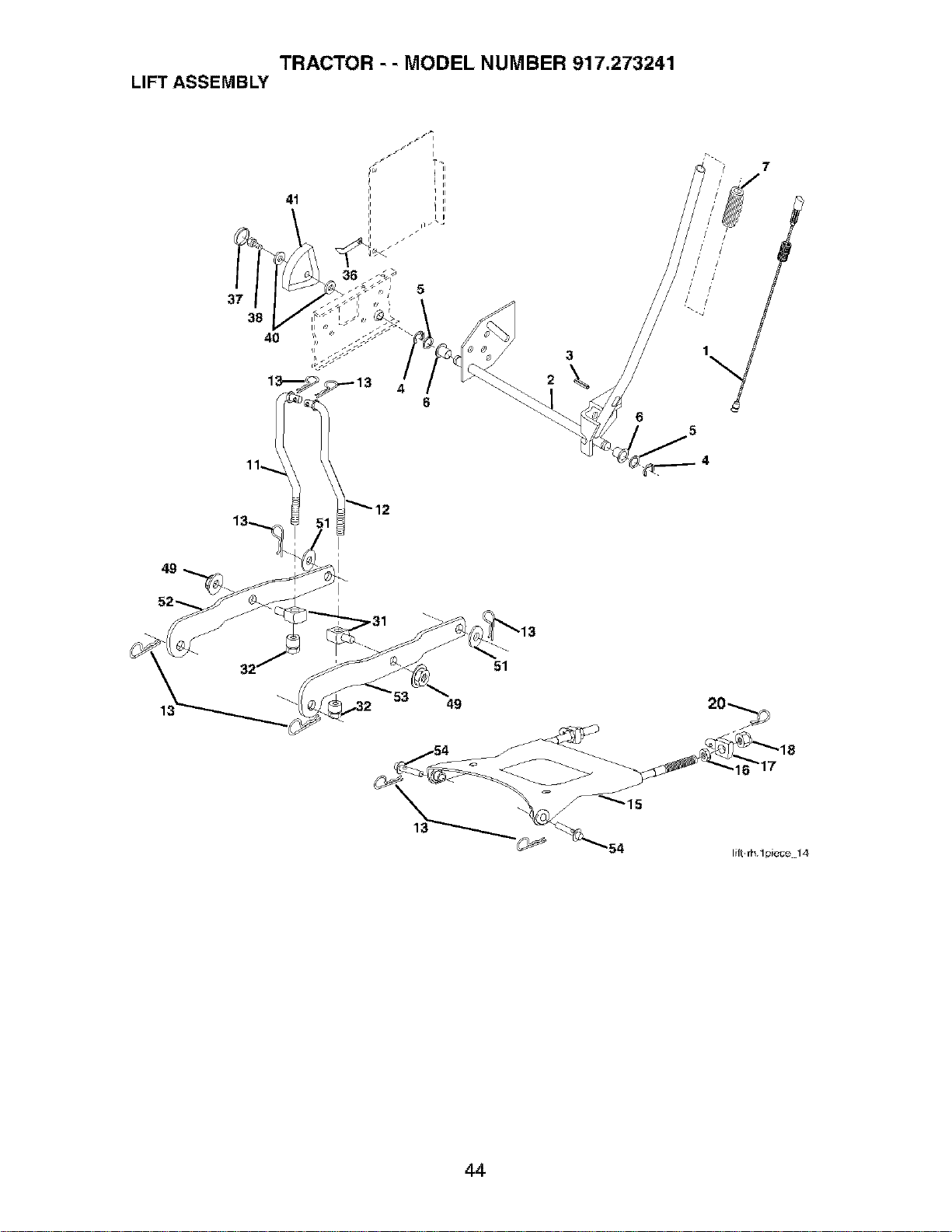

TRACTOR - - MODEL NUMBER 917.273241

LIFT ASSEMBLY

iI I i

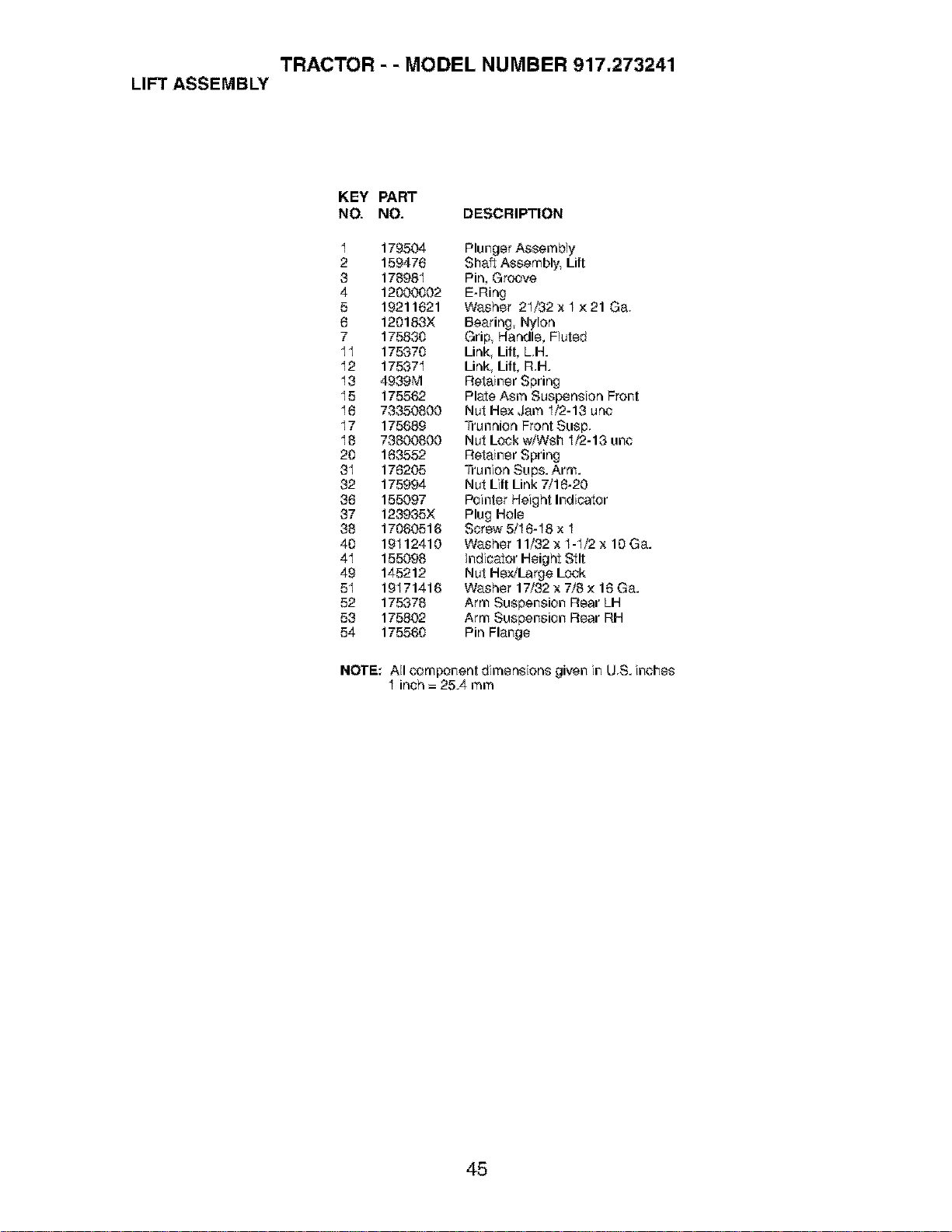

TRACTOR - - MODEL NUMBER 917.273241

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

I 179504 Plunger Assembly

2 159478 Shaft Assembly. Lift

3 178981 Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x I ×21 Ga.

8 1201&3X Bearing Nylon

7 175830 Grip, Handle, Fluted

11 175370 Link, Lift,L.H.

I2 175371 Link, Lift,R.H.

I3 4939M Retainer Spring

15 175562 Plate Asm Suspension Front

I8 73350800 Nut Hex Jam I/2-13 unc

I7 175689 Trunnion Front Susp.

I8 73800800 Nut Lock wiWsh I/2-13 unc

20 163552 Retainer Spring

3I 176205 Trunion Sups. Arm.

32 175994 Nut Lift Link 7/18-20

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17060516 Screw 5/I8-I8 x I

40 19112410 Washer11/32x1-1/2xlOGa.

4I 155098 Indicator Height Stir

49 145212 Nut HexiLarge Look

5I 19171416 Washer17/32 x 7/8 ×18 Ga.

52 175378 Arm Suspension Rear LH

53 175802 Arm Suspension Rear RH

54 175560 Pin Flange

NOTE: All oomponent dimensions given in U,S. inches

I inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273241

MOWER DECK

46 132 95

116

112

21 •

114

121

mower ded_,48prem stir 1

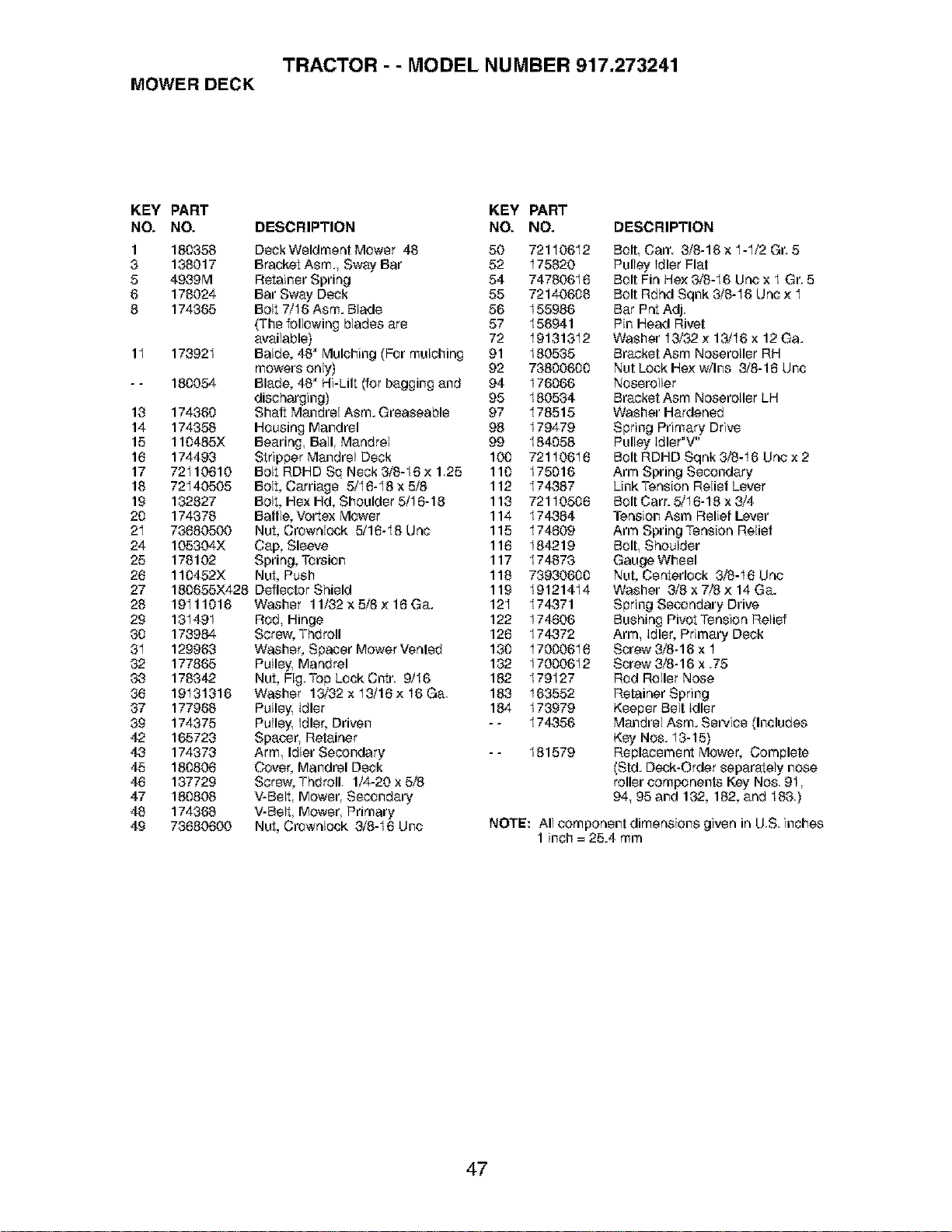

TRACTOR - - MODEL NUMBER 917.273241

MOWER DECK

KEY PART

NO. NO. DESCRIPTION

180358

138017

4939M

178024

174365

173921

180054

13 174360

14 174358

15 110485X

18 174493

17 72110610

18 72140505

19 132827

20 174378

2I 73680500

24 105304X

25 178102

28 110452X

27 180655)(428

28 19111016

29 131491

30 173984

3I 129963

32 177865

3,3 178342

38 19131316

37 177968

39 174375

42 165723

43 174373

45 180806

48 137729

47 180808

48 174368

49 73880800

DeekWeldment Mower 48

Bracket Asm., Sway Bar

Retainer Spring

Bar Sway Deck

Bolt 7/I6 Asm. Blade

{The following blades are

available)

Balde, 48" Mulching (For mulching

mowers onFy)

Blade, 48" Hi-Lift (for bagging and

discharging)

Shaft Mandrel Asm. Greaseable

Housing Mandrel

Bearing Ball Mandrel

Stripper Mandrel Deck

Bolt RDHD Sq Neck 3/8-I8 × 125

Bolt, Carriage 5/I 8-I8 x 5/8

Bolt, Hex Hd, Shoulder 5/I 8-18

Baffle, Vortex Mower

Nut, Crownleck 5/18-I8 Une

Cap, Sleeve

Spring, Torsion

Nut, Push

Deflector Shield

Washer 11/32 x 5/8 × 18 Ga.

Rod Hinge

Screw, Thdroll

Washer, Spacer Mower Vented

Pulley. Mandrel

Nut, Fig.Top Lock Cntr. 9/I6

Washer 13/32 x I3/18 × I6 Ga

Pulley. idler

Pulley. Idler, Driven

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, Thdroll 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt Mower, Primary

Nut, Crownleck 3/8-I8 Unc

KEY PART

NO. NO.

50 72110612

52 175820

54 74780618

55 72140608

56 155986

57 156941

72 19131312

91 180535

92 73800600

94 176066

95 180534

97 178515

98 179479

99 184058

100 72110618

110 175016

112 174387

113 72110508

114 174384

115 174809

118 184219

117 174873

118 73930600

119 19121414

12I 174371

122 174806

128 174372

130 17000618

132 17000612

182 179127

183 163552

184 173979

-- 174356

181579

DESCRIPTION

Bolt, Carr 3/8-16 x I-I/2 Gr 5

Pulley Idler Flat

Bolt Fin He;<3/8-I6 Unc x I Gr. 5

Bolt Rdhd Sqnk 3/8- I6 Uno × I

Bar Pnt Adj.

Pin Head Rivet

Washer I3/32 x 13/I6 x 12 Ga.

Bracket Asm Noseroller RH

Nut Lock Hex w/Ins 3/8-18 Unc

Noseroller

Bracket Asm Noseroller LH

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

Bolt RDHD Sqnk 3/8-I6 Unc x 2

Arm Spring Secondary

Link Tension Relief Lever

Bolt Cam 5/I 8-18 x 3/4

Tension Asm Relief Lever

Arm Spring Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-I8 Unc

Washer 3/8 x 7/8 × 14 Ga.

Spring Se_ndary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x I

Screw 3/8-16 x .75

Rod Roller Nose

Retainer Spring

Keeper Belt Idler

Mandrel Asm. Service (Includes

Key Nos. I3-15)

Replacement Mower, Complete

(Std. Deck-Order separately nose

roller components Key Nos. 9I,

94, 95 and 132, 182, and I83)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

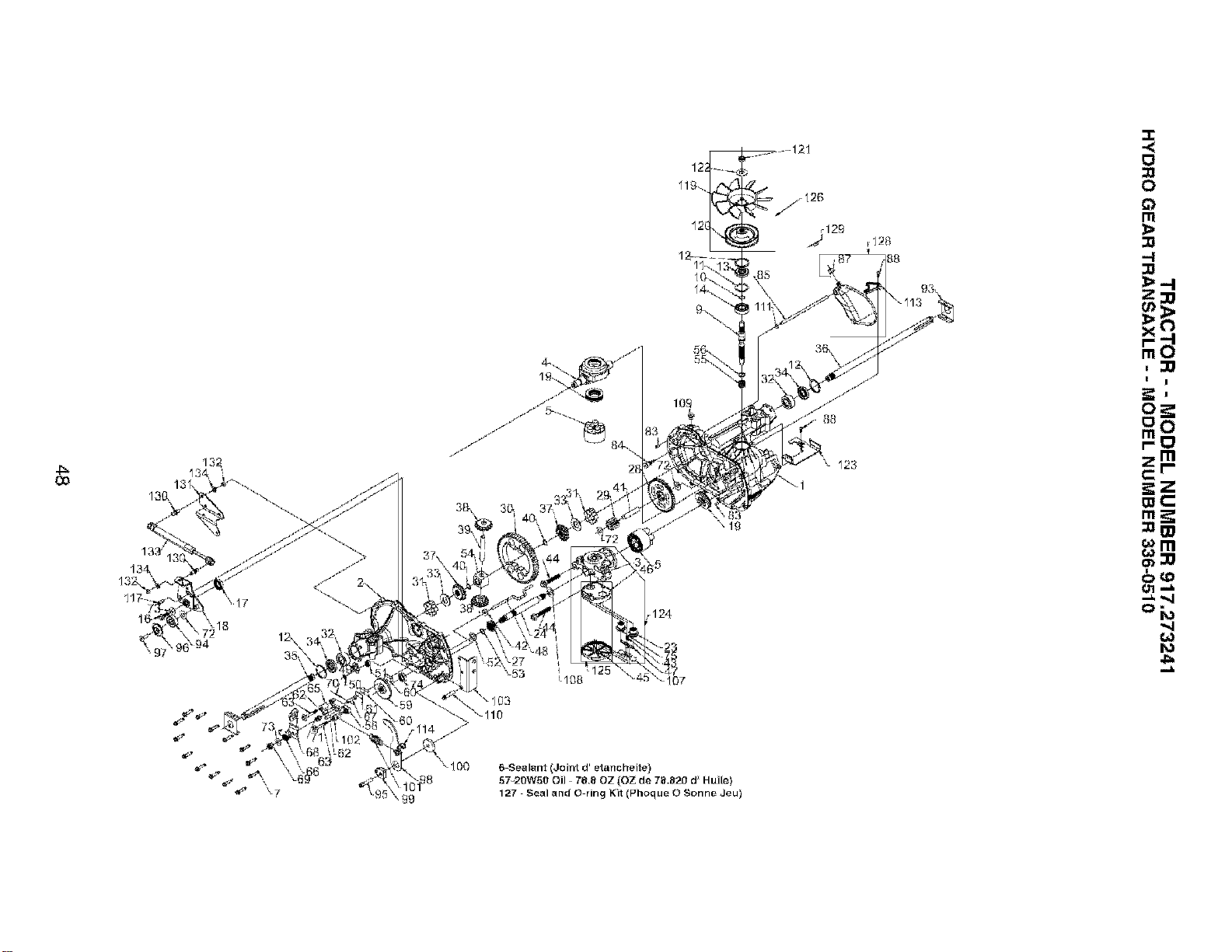

\ 100 5*Sealant (Joint d' etancheite)

57 20W50 Oil 78,80Z (OZ de 78.820 dHuile}

127 - Seal and O-ring Kit (Phoque 0 Sonne Jeu)

123

_128

'-r

,,<

I1'1

,-I

| !

Z m

:o m

-,4

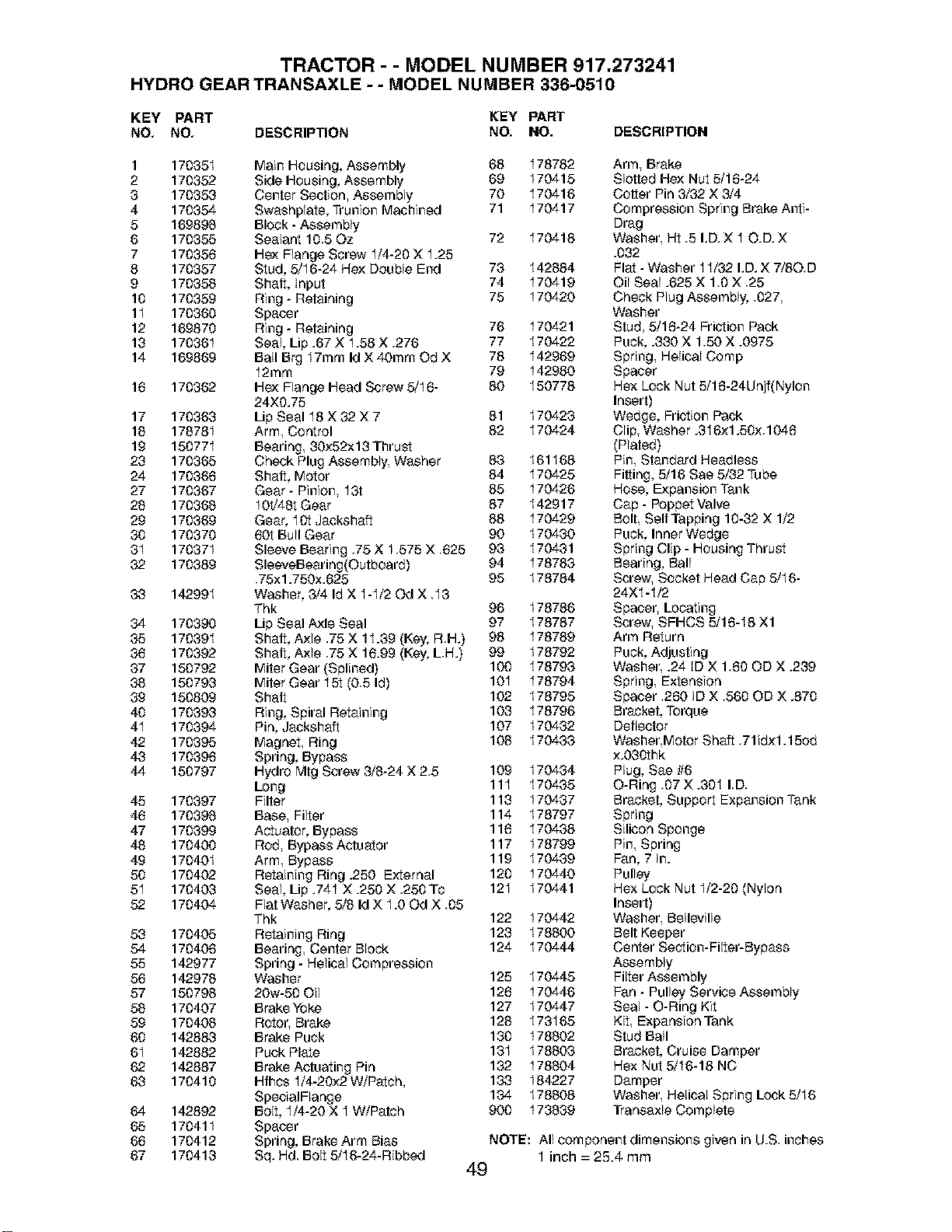

TRACTOR - - MODEL NUMBER 917,273241

HYDRO GEAR TRANSAXLE -- MODEL NUMBER 336-0510

KEY PART KEY PART

NO, NO, DESCRIPTION NO, NO. DESCRIPTION

1 170351 Main Housing, Assembly 68 178782

2170352 Side Housing, Assembly 69 170415

3170353 Center Section, Aasembly 70 170416

4170354 Swashplate, Trunion Machined 71 170417

5 169898 Block - Aasembly

6 170355 Sealant 10.50z 72 170418

7 170358 He;< Flange Screw I/4-20 X 1.25

8 170357 Stud, 5/I6-24 He;<Double End 73 142884

9 170358 Shaft, input 74 170419

10 170359 Ring - Retaining 75 170420

11 170360 Spacer

12 169870 Ring - Retaining 76 170421

13 170361 Seal, Lip .67 X 1.58 X .276 77 170422

14 169869 Ball Brg 17ram Id X 40ram Od X 78 I42969

12ram 79 142980

18 170362 He;< Flange Head Screw 5/I 8- 80 I50778

24X0.75

17 170363 Lip Seal I8 X 32 X 7 81 170423

18 178781 Arm, Control 82 170424

19 150771 Bearing 30;<52x13 ThrusI

23 170365 Chock Plug Aasembly. Washer 83 I61 I68

24 170368 Shaft, Motor 84 170425

27 170367 Gear - Pinion I3t 85 170426

28 170368 10d48t Gear 87 I42917

29 170369 Gear, 10I Jockshaft 88 170429

30 170370 8Ot Bull Gear 90 170430

3I 17037I Sleeve Bearing .75 X 1.575 X 825 93 I70431

32 170389 SleeveBearing(Outboard) 94 178783

.75xl .750x.625 95 178784

33 1899I Washer, 3/4 Id X I-I/20d X I3

Thk 96 178786

34 170390 Lip Seal Axle Seal 97 178787

35 170391 Shaft, A;<le.75 X 11.39 (Key, RH.) 98 178789

38 170392 Shaft, A;<le75 X 16.99 (Key, LH.) 99 178792

37 150792 Miter Gear (Splined) 100 I78793

38 150793 Miter Gear I5t (05 Id) 10I I78794

39 150809 Shaft 102 I78795

40 170393 Ring, Spiral Retaining 103 178796

4I 170394 Pin, Jackshaft 107 I70432

42 170395 Magnet Ring 108 I70433

43 170398 Spring, Bypass

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 109 170434

Long 11I I70435

45 170397 Filter 113 I70437

48 170398 Base Filter 114 I78797

47 170399 Actuator, Bypass 118 I70438

48 170400 Rod Bypass Actuator 117 I78799

49 17040I Arm, Bypass 119 I70439

50 170402 Retaining Ring.250 External 120 170440

5I 170403 Seal, Lip .74I X .250 X .250 Te 12I I70441

52 170404 Flat Washer, 5/8 Id X I .O Od X 05

Thk 122 I70442

53 170405 Retaining Ring 123 178800

54 170408 Bearing Center Block 124 I70444

55 18977 Spring - Helical Compression

56 18978 Washer 125 I70445

57 150798 20w-50 Oil 128 I70446

58 170407 Brake Yoke 127 I70447

59 170408 Rotor, Brake 128 I73165

60 142883 Brake Puck 130 I78802

6I 142882 Puck Plate 13I 178803

62 18887 Brake Actuating Pin 132 I78804

63 170410 Hlhcs 1t4-20;<2W/Pateh, 133 184227

SpocialFlange 134 I78808

64 142892 Bolt, I/4-20 X I W/Patch 900 I73839

65 170411 Spacer

68 170412 Spring, Brake Arm Bias

67 170413 Sq. Hd Bait 5/16-24-Ribbed

Arm, Brake

Slotted He;<Nut 5/18-24

C_tter Pin 3/32 X 3/4

C_mpreasion Spring Brake Anti-

Drag

Washer, Ht 5 I.D. X I O.D. X

.082

Flat - Washer 11/32 I.D.X 7/80.D

Oil Seal .625 X 1.0 X .25

Check Plug Aasembly, .027,

Washer

Stud, 5/18-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical C_mp

Spacer

Hex Lock Nut 5/18-24Unjf(Nylon

Insert)

Wedge, Friction Pack

Clip, Washer .316;<1.50;<1048

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, SelfTapping 10-32 X 1/2

Puck, InnerWedge

Spring Clip - Housing Thrust

Bearing, Ball

Screw, Socket Head Cap 5/I 6-

24XI -I/2

Spacer, Locating

Screw, SFHCS 5/18-I8 X1

Arm Return

Puck, Adjusting

Washer, .24 ID X 180 OD X .239

Spring, Extension

Spacer .280 ID X .560 OD X .870

Bracket, Torque

Deflector

Washer, Motor Shaft .711d;<1.15od

;<.O30thk

Plug, Sae If6

O-Ring .07 X.30I I.D.

Bracket, Support Expansion Tank

Spring

Silicon Sponge

Pin Spring

Fan, 7 In.

Pulley

Hex Lock Nut I/2-20 (Nylon

Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Stud Ball

Bracket, Cruise Damper

Hex Nut 5/I6-18 NC

Damper

Washer, Helical Spring Lock 5/I6

Traasaxle Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

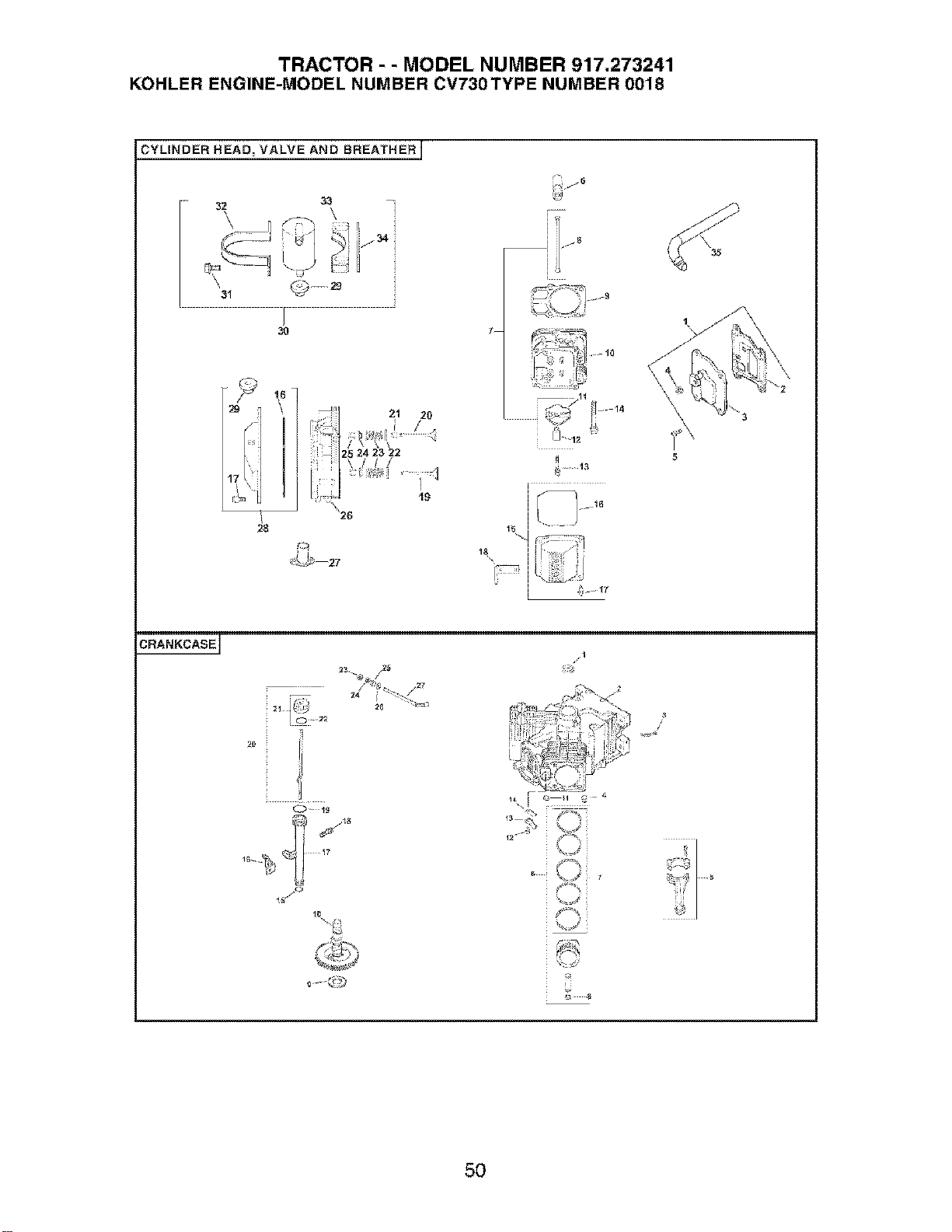

TRACTOR - - MODEL NUMBER 917,273241

KOHLER ENGINE-MODEL NUMBER CV730TYPE NUMBER 0018

CYLINDER HEAD• VALVE AND BREATRERT_

32 33 --

\ _ 7

'31 _ --- 29

[

29 n

17Lril

_26

i !

j*_

0--1= _'

'la

'--l_- 16

CRANKCASEJ jl

O- t_ "_',, 7 F'%

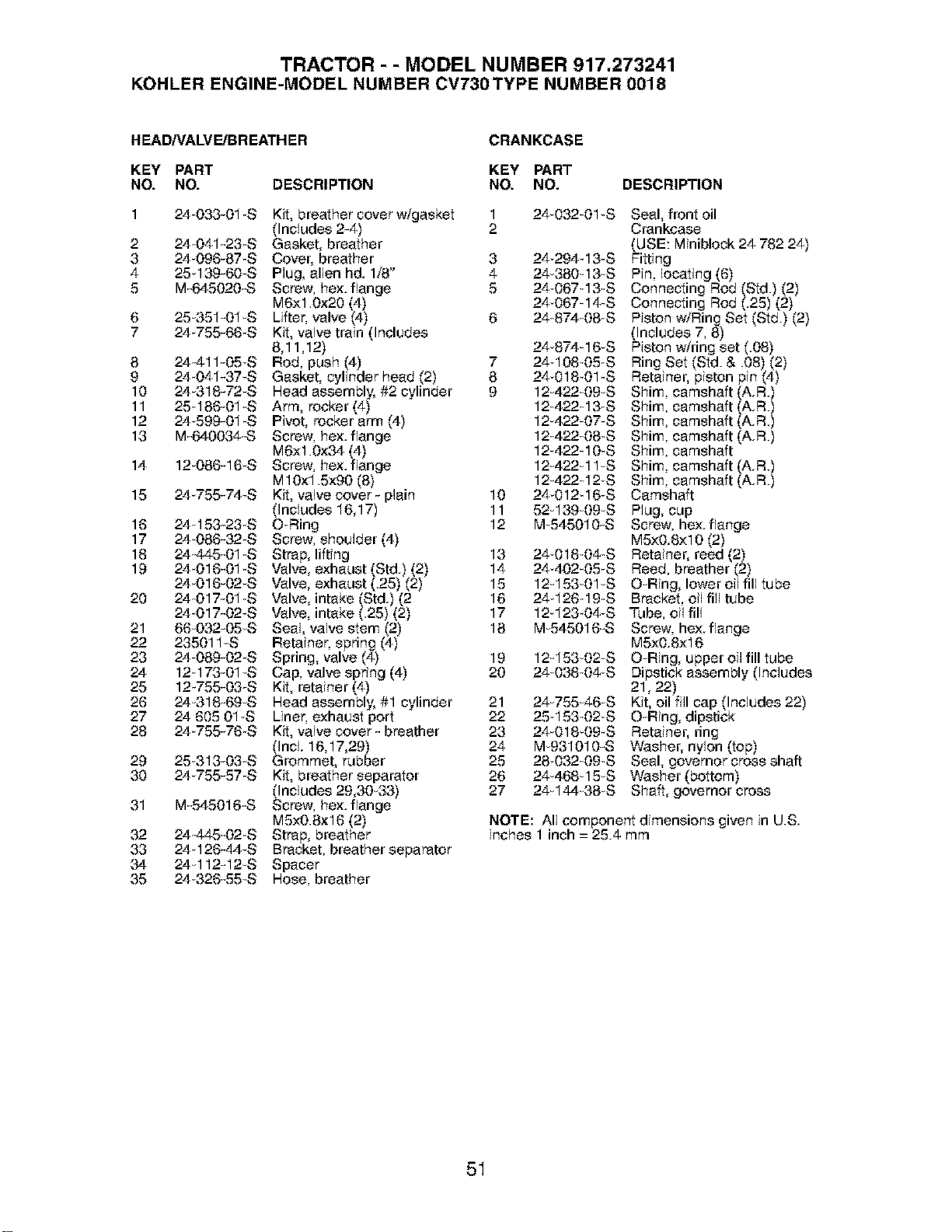

TRACTOR - - MODEL NUMBER 917,273241

KOHLERENGINE-MODELNUMBERCV730TYPENUMBER0018

HEAD/VALVF_JBREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 24u033-01S Kit, breather cover w/gasket 1 24uO32u01uS

(Includes 2-4) 2

2 24041-23S Gasket, breather

3 24-096-87S Cover, breather 3 24294q3-S

4 25 139-60uS Plug, alien hd. 1/8" 4 24380q3-S

5 M-645020-S Screw, hex. flange 5 24 067-13-S

M6x1.0x20 (4) 24 067q 4S

6 25u351-01S Lifter, valve (4) 6 24u874u08 S

7 24u755-66 S Kit, valvetrain (Includes

8,11,12) 24 874q 6uS

8 24_411-05-S Rod, push (4) 7 24 10805 S

9 24 041-37uS Gasket, cylinder head (2) 8 24-018 01-S

10 24u318-72 S Head assembly,#2 cylinder 9 12422u09 S

11 25-180-01 S Arm, rocker (4) 12422 u13S

12 24599-01 S Pivot, rocker arm (4) 12422u07 S

13 M-640034-S Screw. hex. flange 12422u08uS

M6x1.0x34 (4) 12422 u10uS

14 12u086-16S Screw, hex.flange 12-422q1_S

M10xl .5x90 (8) 12-422u12-S

15 24u755-74uS Kit, valve cover- plain 10 24_012 16-S

(Includes 18,17) 11 52u139u09 S

16 24 153-23 S O-Ring 12 Mu545010-S

17 24 086-32 S Screw. shoulder (4)

18 24_445-01S Strap, lifting 13 2401804uS

19 24 016-01 S Valve, exhaust (Std.) (2) 14 24402u05 S

24 016-02 S Valve, exhaust (.25) (2) 15 12-153_01 S

20 24 017-01 S Valve, intake (Std.) (2 16 24_126 19 S

24u017-02-S Valve, intake (.25) (2) 17 12q23 04-S

21 66 032-05uS Seal, valve stem (2) 18 Mu545016-S

22 235011-S Retainer,spring (4)

23 24u089-02S Spring, valve (4) 19 12-15302-S

24 12q73-01uS Cap, valve spring (4) 20 24u038 04-S

25 12_755-03_S Kit, retainer (4)

26 24318-69S Head assembly, #1 cylinder 21 24u755u46-S

27 24 605 01S Liner, exhaust port 22 25 153 02-S

28 24u755-76 S Kit, valve cover- breather 23 24-018_09S

(Incl. 18,17,29) 24 M 931010-S

29 25u313-03S Grommet, rubber 25 28032u09uS

30 24u755-57 S Kit, breather separator 26 24468q5S

(Includes 29,30_33) 27 24q 44u38uS

31 M-545016-S Screw, hex. flange

MSx0.Sx16 (2)

32 24_445-02S Strap, breather

33 24 126-44uS Bracket, breather separator

34 24112-12-S Spacer

35 24u326-55uS Hose, breather

Seal, front oil

Crankcase

(USE: Miniblock 24 782 24)

Fitting

Pin, locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2)

(Includes 7, 8)

Piston w/ring set (.08)

Ring Set (Std. & .08) (2)

Retainer, piston pin (4)

Shim. camshaft (A.R.)

Shim, camshaft (A.R.)

Shim, camshaft

Shim. camshaft (A.R.)

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange

MSx0.Sxl 0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw. hex. flange

M5xO.8xl 6

O-Ring, upper oil fill tube

Dipstick assembly (Includes

21,22)

Kit, oil fill cap (Includes 22)

O-Ring, dipstick

Retainer, ring

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

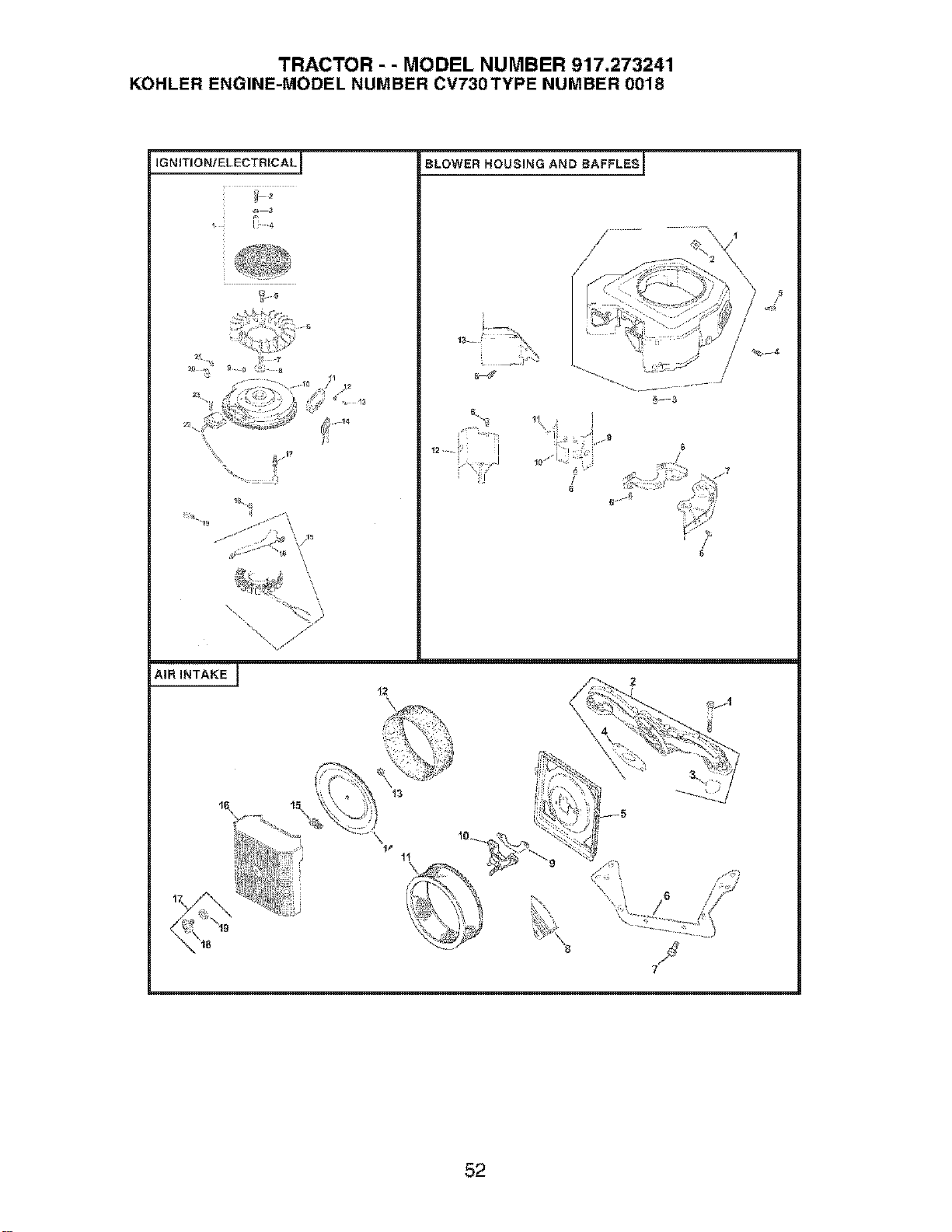

TRACTOR - - MODEL NUMBER 917,273241

KOHLER ENGINE-MODEL NUMBER CV730TYPE NUMBER 0018

IGNITION/ELECTRICALJ

I4,

14 l-

BLOWER HOUSING AND BAFFLESJ

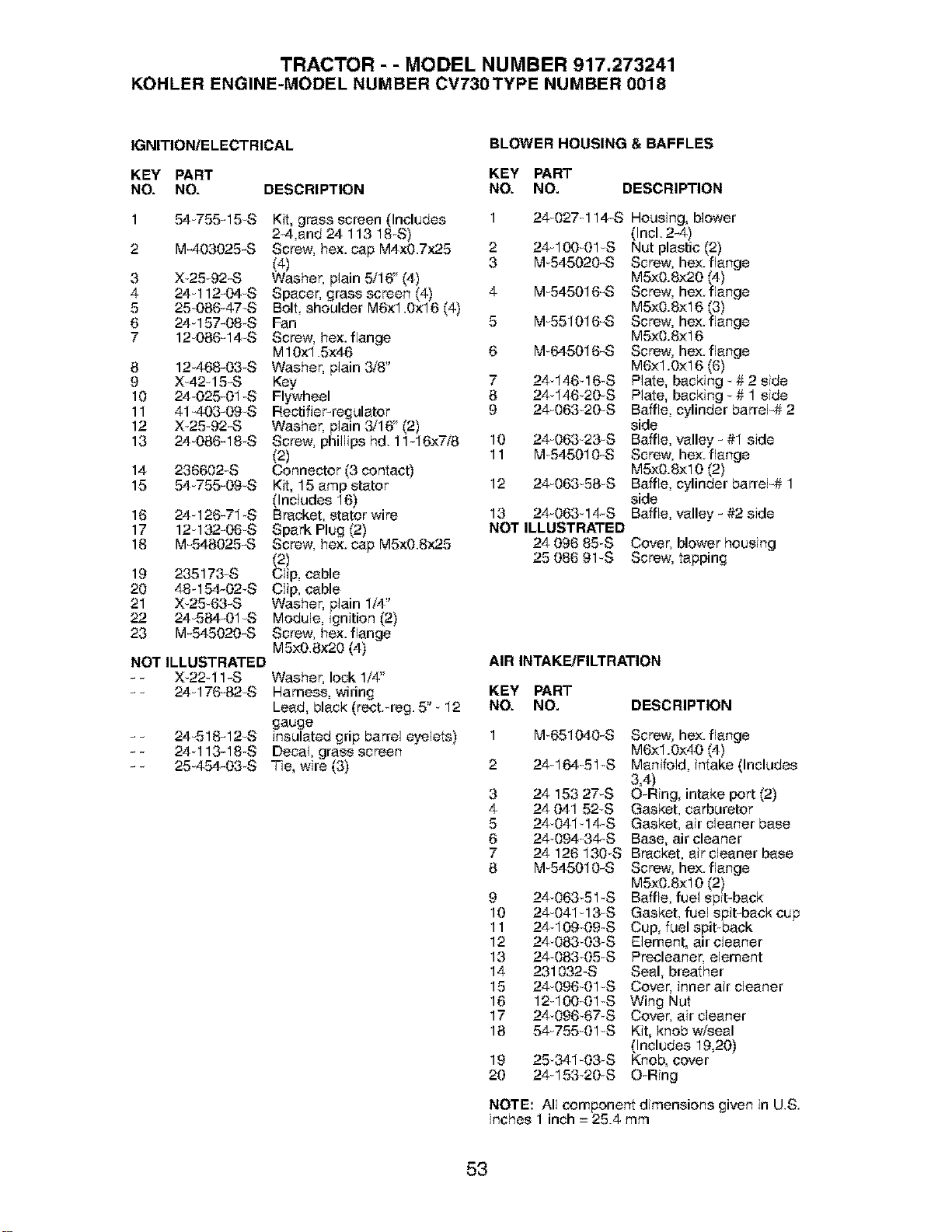

TRACTOR - - MODEL NUMBER 917,273241

KOHLERENGINE-MODELNUMBERCV730TYPENUMBER0018

IGNITION/ELECTRICAL BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

54_755-15uS Kit, grass screen (Includes 1

24,and 24 113 18S)

M-403025-S Screw. hex. cap M4x0.7x25 2

(4) 3

X_25_92-S Washer. plain 5/16" (4)

24-112-04 S Spacer. grass screen (4) 4

25u086-47uS Bolt, shoulder M6x1.0x16 (4)

24q 57-08S Fan 5

12u086-14uS Screw. hex. flange

M10xl .5x46 6

12468-03S Washer. plain 3/8"

X42 u15-S Key 7

24025-01 S Flywheel 8

41_403-09uS Rectifier-regulator 9

X_25 92-S Washer, plain 3/16" (2)

24u086-18 S Screw. phillips hd. 11-16x7/8 10

(2) 11

236602-S Connector (3 contact)

54u755-O9uS Kit, 15 amp stator 12

(Includes 18)

24q 26-71S Bracket, stator wire

12 132-06_S SparkPlug (2)

M-548025-S Screw, hex. cap M5xO.8x25

(2)

235173-S Clip. cable

48q54-02-S C]ip, cable

X_25 63-S Washer, plain 1/4"

24584-01uS Module, ignition (2)

M-545020-S Screw. hex. flange

M5xO.Sx20 (4)

24u027q 14-S

24q00u01_S

Mu545020-S

Mu545016-S

Mu551016-S

Mu645016-S

24 146_16uS

24 146 20 S

24u063_20 S

24u063 23-S

Mu545010-S

24u063_58uS

Housing, blower

(Incl. 2-4)

Nut plastic (2)

Screw. hex. flange

M5x0.Sx20 (4)

Screw, hex. flange

M5x0.Sxl 6 (3)

Screw, hex. flange

M5x0.8xl 6

Screw, hex. flange

M6x1.0xl 6 (6)

Plate, backing u# 2 side

Plate, backing u# 1 side

Baffle, cylinder barrel_ 2

side

Baffle, valley - #1 side

Screw. hex. flange

M5x0.Sxl 0 (2)

Baffle, cylinder barrel_ 1

side

13 24u063 14uS Baffle, valley - #2 side

NOT ILLUSTRATED

24 096 85S Cover. blower housing

25 086 91uS Screw. tapping

NOT ILLUSTRATED AIR INTAKFJFILTRATION

- - X_22u11-S Washer. lock1/4"

-- 24q76-82uS Harness, wiring KEY PART

Lead, black (rect.ureg.5" u12 NO. NO.

gauge

- - 24_518-12uS insulated grip barrel eyelets) 1 Mu651040-S

- - 24q 13-18S Decal, grass screen

-- 25u454-03 S Tie, wire (3) 2 24q64u51uS

DESCRIPTION

24 153 27_S

24 041 52-S

24041 14S

24 094u34 S

24 126 130_S

Mu545010-S

9 2408351 S

10 24 041q3-S

11 2410909S

12 24 083 03 S

13 24 083_05_S

14 231032S

15 24 096_01 uS

16 12-100u01uS

17 24 096_67 S

18 54u755-01 uS

19 25341u03S

20 24q53 20 S

Screw, hex. flange

M6x1.0x40 (4)

Manifold, intake (Includes

3,4)

O-Ring, intake port (2)

Gasket, carburetor

Gasket, air cleaner base

Base, air cleaner

Bracket, air cleaner base

Screw. hex. flange

M5x0.Sxl 0 (2)

Baffle, fuel spit-back

Gasket, fuel spit-back cup

Cup, fuel spit back

Element, air cleaner

Precleaner. element

Seal, breather

Cover_inner air cleaner

Wing Nut

Cover. air cleaner

Kit, knob w/seal

(Includes 19,20)

Knob, cover

O-Ring

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

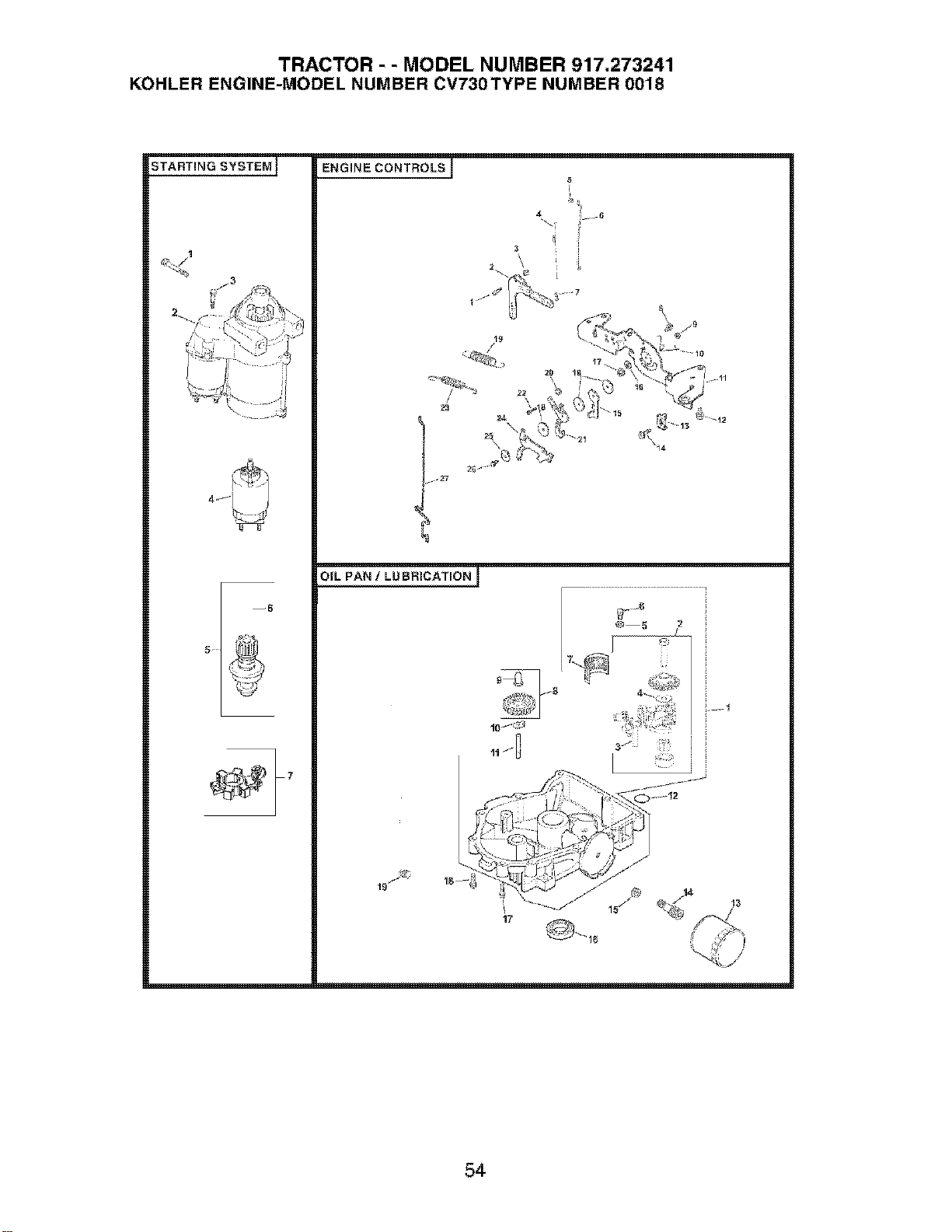

TRACTOR - - MODEL NUMBER 917,273241

KOHLER ENGINE-MODEL NUMBER CV730TYPE NUMBER 0018

STARTING SYSTEMJ ENGIN E CONTROLS J

_.•-27

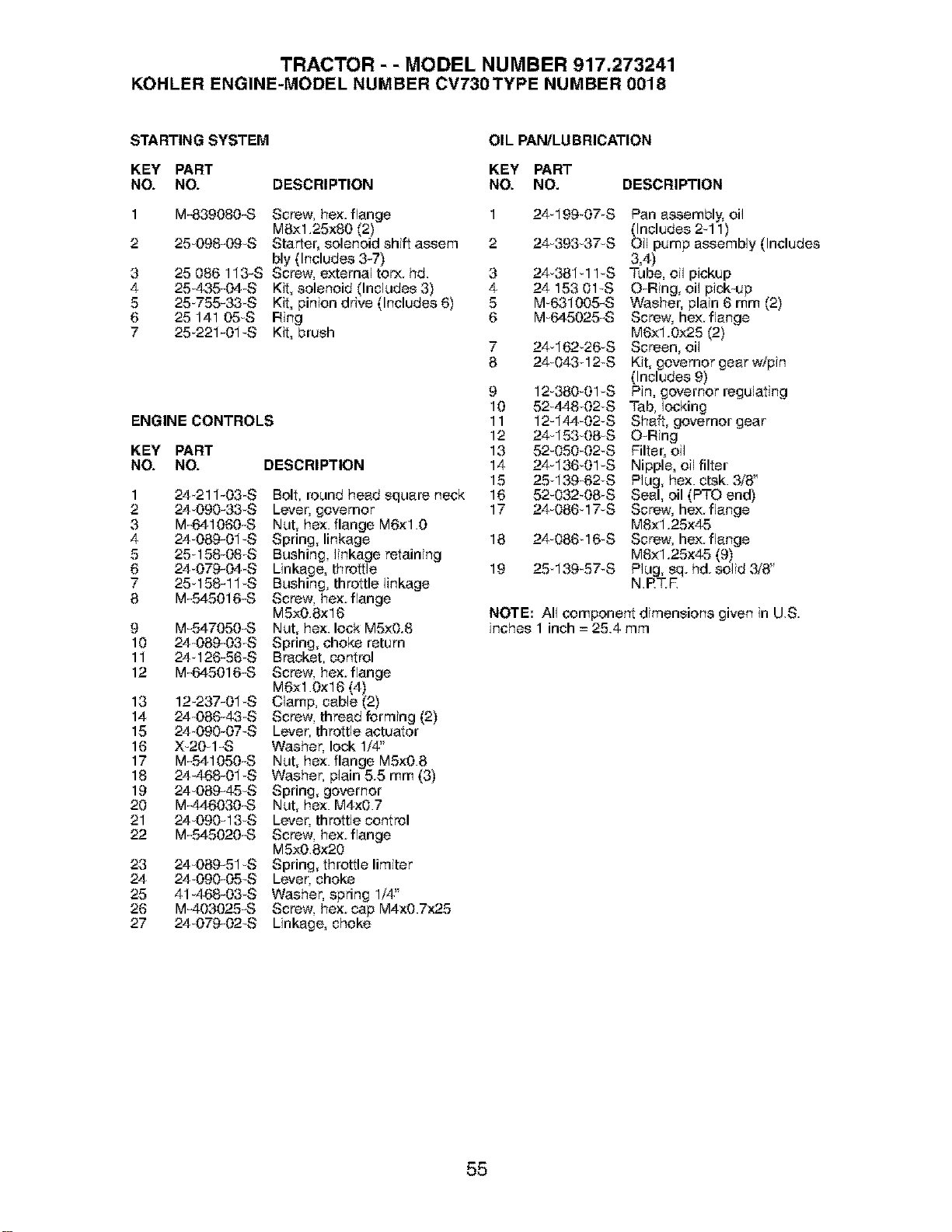

TRACTOR - - MODEL NUMBER 917,273241

KOHLERENGINE-MODELNUMBERCV730TYPENUMBER0018

STARTING SYSTEM OIL PAN/LU BRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

M-839080-S Screw, hex. flange 1

MSx1,25x80 (2)

25_098-09uS Starter, solenoid shift assem 2

bly (Includes 3-7)

25 086 113-S Screw, external torx. hd. 3

25_435-04 S Kit, solenoid (Includes3) 4

25-755-33 S Kit, pinion drive (Includes 6) 5

25 141 05S Ring 6

25u221-01uS Kit, brush

ENGINE CONTROLS

DESCRIPTION

KEY PART

NO. NO.

24211-03S

24 099-33 S

M-641060-S

24u089-01uS

25u158-08_S

24_079-04 S

25 158-11S

M-545016-S

M-547050-S

24 089-03_S

24 126-56 S

M-645016-S

12_237-01S

24 086-43 S

24 099-07uS

X_20_1-S

M-541050-S

24_468-01S

24 089-45uS

M-446030-S

24099-13S

M-545020-S

24089-51 S

24 099-05uS

41_468-03 S

M-493025-S

24u079-02uS

Bolt, round head square neck

Lever_governor

Nut, hex. flange M6x1.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw. hex. flange

M5x0.Sxl 6

Nut, hex. lock MSxg.8

Spring, choke return

Bracket, control

Screw. hex. flange

M6×1.0xl 6 (4)

Clamp. cable (2)

Screw. thread forming (2)

Lever, throttle actuator

Washer. lock 1/4"

Nut, hex. flange M5x0.8

Washer. plain 5.5 mm (3)

Spring, governor

Nut, hex. M4xg.7

Lever. throttle control

Screw. hex. flange

M5x0.Sx29

Spring, throttle limiter

Lever_choke

Waeher_spring 1/4"

Screw. hex. cap M4xg.7x25

Linkage, choke

DESCRIPTION

24u199-07S Pan assembly, oil

(Includes 2ul 1)

24u393-37uS Oil pump assembly (Includes

3,4)

24381 11uS Tube, oil pickup

24 153 91uS O-Ring, oil pick-up

Mu631095-S Washer, plain 6 mm (2)

Mu645025-S Screw, he;(.flange

M6x1.9x29 (2)

2416226-S Screen, oil

24-943_12uS Kit, governor gear w/pin

(Includes 9)

12-389u01_S Pin, governor regulating

52-448_02-S Tab, locking

12-144u02-S Shaft, governor gear

24q 53_08_S O-Ring

52-959u02uS Filter, oil

24q36 01uS Nipple, oil filter

25 139u62-S Plug, hex. ctek. 3/8"

52-932-08 S Seal, oil (PTO end)

24u986 17-S Screw, hex. flange

M8x1.25x45

24u986 16uS Screw, hex. flange

M8x1.25x45 (9)

25 139u57uS Plug, sq. hd. solid 3/8"

N.RT.R

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

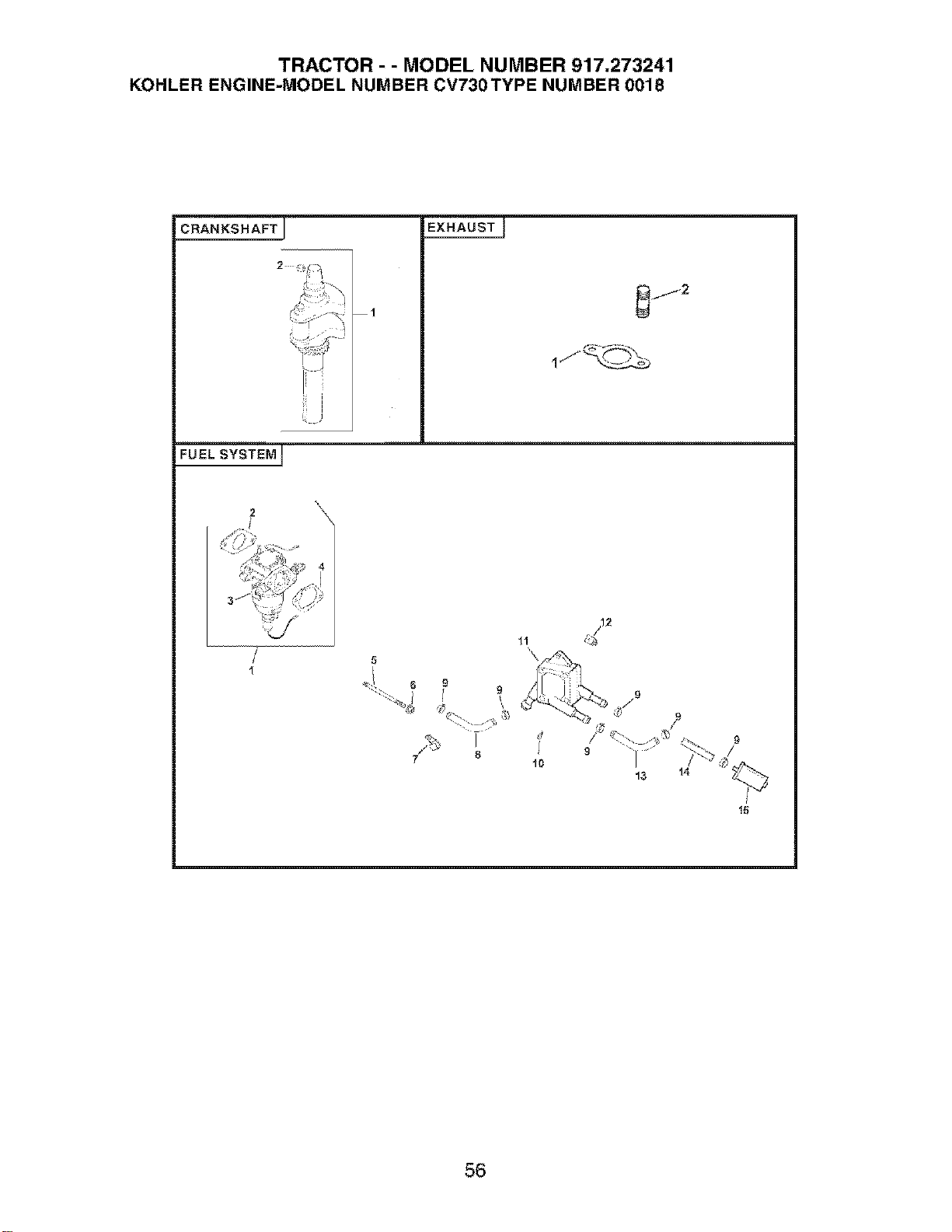

TRACTOR - - MODEL NUMBER 917,273241

KOHLER ENGINE-MODEL NUMBER CV730TYPE NUMBER 0018

CRANKSHAFT

ill

EXHAUST

FUEL SYSTEM

13 _4

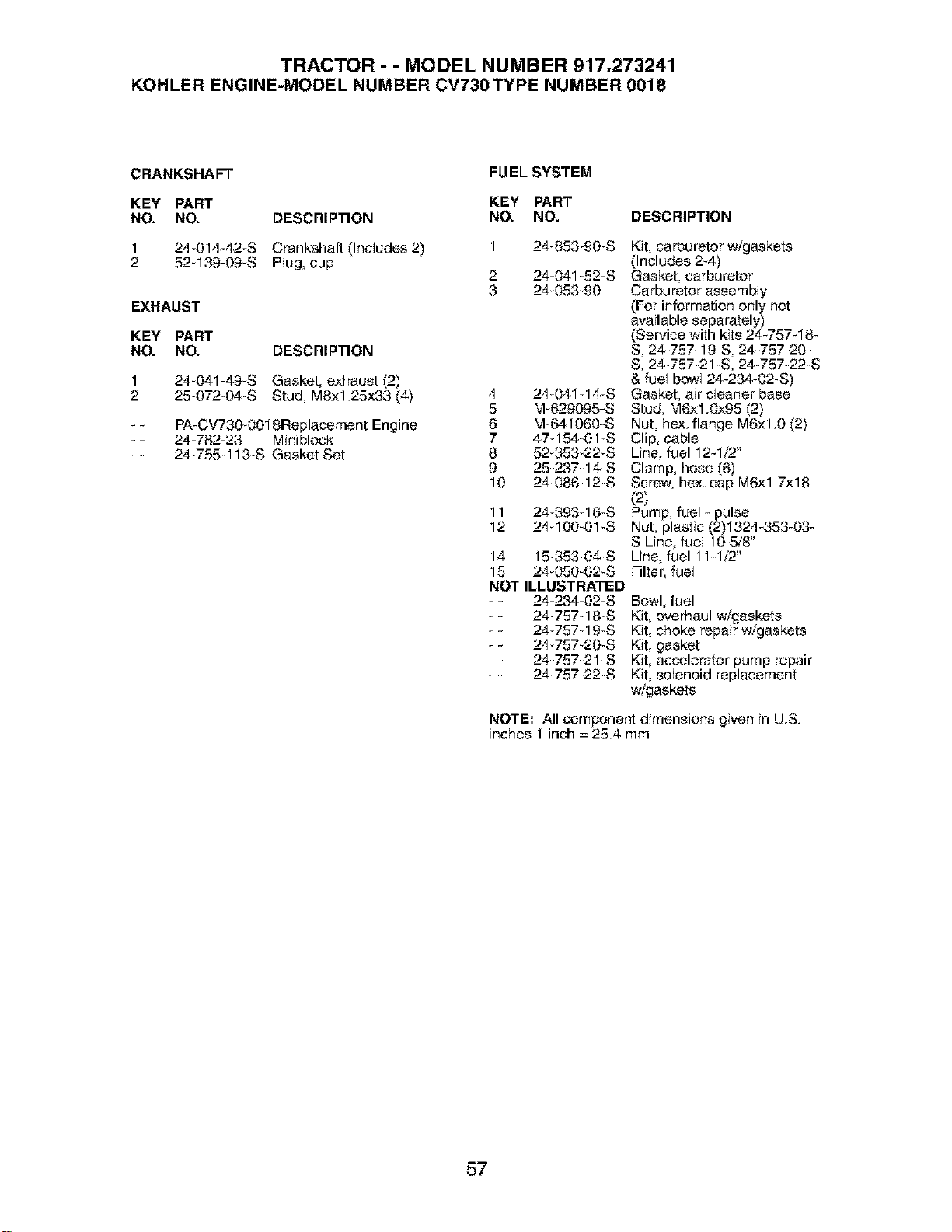

TRACTOR - - MODEL NUMBER 917,273241

KOHLER ENGINE-MODEL NUMBER CV730TYPE NUMBER 0018

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 24_014-42S Crankshaft (Includes 2)

2 52q39-09_S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

24_041-49-S Gasket, exhaust (2)

25_072-04 S Stud, MBx1.25x33 (4)

- - PA-CV730 0018Replacement Engine

- - 24782-23 Miniblock

- - 24_755-113-S Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1 24_853_90 S

2 24041_52_S

3 24_053_90

4 24_041 14-S

5 M_629095-S

6 M_641060-S

7 47_154_01_S

8 52_353 22_S

9 25 237-14_S

10 24_086 12_S

11 24 393_ 16_S

12 24-100_01_S

14 15 353_04_S

15 24_050_02_S

NOT ILLUSTRATED

- - 24 234 02-S

- - 24 757_18_S

- - 24 757_19_S

- - 24 757_20_S

- - 24 757_21uS

- - 24_757_22_S

Kit, carburetor w/gaskets

(Includes 2-4)

Gasket, carburetor

Carburetor assembly

(For information only not

available separately)

(Service with kits 24-757q 8-

S, 24 757q 9S, 24 757-20_

S, 24_757_21uS,24 757-22_S

& fuel bowl 24-234_02_S)

Gasket, air cleaner base

Stud, M6x1.0x95 (2)

Nut, hex. flange M6x1.0 (2)

Clip, cable

Line, fuel 12-1/2"

Clamp, hose (6)

Screw. hex. cap M6x1.7x18

(2)

Pump, fuel - pulse

Nut, plastic (2)1324-353-03-

S Line, fuel 105/8"

Line, fuel 11q/2"

Filter, fuel

Bowl, fuel

Kit, overhaul w/gaskets

Kit, choke repair w/gaskets

Kit, gasket

Kit, accelerator pump repair

Kit, solenoid replacement

w/gaskets

NOTE: All component dimensions given in U.S.

inches 1 inch= 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_ARNING: To avoid serious injury_ operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your' home or ours!'

Your Home

For repair - in your home - of all major brand apphances,

lawn and garden equipment, or heating and coohng systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional _nstallat_on of home apphances

and _tems hke garage door openers and water heaters.

1-800-4-MY-HOME c_ Anytime, day or night

(1-800-469-4663) (U S A and Canada)

www,sears.com www.sears.ca

Our Home

For repair of carry-_n products hke vacuums, lawn equipment,

and electronics, call or go on-hne for the nearest

Sears Parts and Repair Center,

1-800-488-1222 Anytime Oayor regret(U S A only)

www,sears.com

To purchase a protection agreement (U S A )

or maintenance agreement (Canada) on a product serviced by Sears'

1-800-827-6655 (us A) 1-800-361-6665 (Canada)

Para pedlr servlclo de reparacl6n

a domlclho, y para orderer plezas:

1-888-SU-HOGAR s_

(1.888-z84-642z)

Au Canada pour service en franca_s:

1 -_LE-FOYER MC

(1-800-533-6937)

www sears ca

{_3Sea_ Roel:_ck arid C&

_._RegtstereO Tradema,rk /__Tra.demark, s+ Servrce Mark of Sea,rs, Roebuck ard Co

_._Ma,rca,Reg_stra,da, r._Marca. de FaLmca .'_:r._Marca. de Serwcto de Sea,rs, Roebuck a,ndCo

;+Ma,rque de coriqriqerce ,'_L"Ma,rque d_pos_e de Sea,rs, Roebuck a,r_dCo.

188062 Rev. 1 10.15.03 TR Pnnted tn U.S.A.

Craftsman 917273241 Lawn Tractor 25.0 HP, 48" Mower Electric Start Automatic Transmission

Product's Documents

Owner's Manual

Specifications

Craftsman 917273241 Questions and Answers
