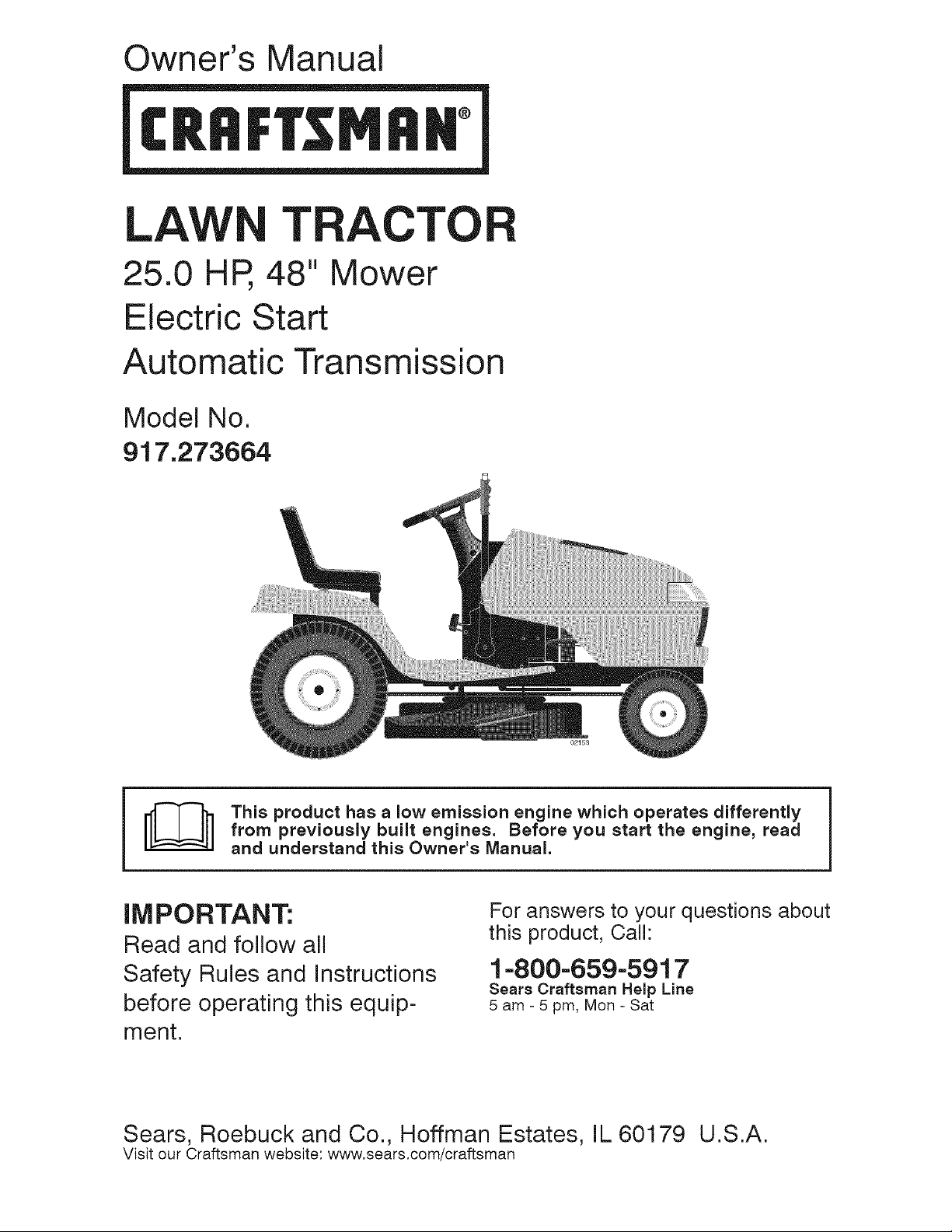

Owner's Manual

CRRFTSMRH°

LAW TRACTOR

25.0 HR 48" Mower

Electric Start

Automatic Transmission

Model No.

917.273664

i[_ This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

IMPORTANT:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions about

this product, Call:

1=800=659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

Warranty................................................2 Maintenance........................................15

Safety Rules..........................................3 Service and Adjustments.....................19

Product Specifications ..........................5 Storage................................................27

Assembly/Pre-Operation.......................7 Troubleshooting...................................28

Operation...............................................9 Repair Parts.........................................32

MaintenanceSchedule........................15 Sears Service........................Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears

will also provide free labor for these applicable warranted parts for the two full years.

During the first 30 days of purchase, there will be no charges to service the product

at your home for issues covered by this warranty. (See exclusions below). For your

convenience, IN HOME warranty service will still be available after the first 30 days

of purchase, but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped off at an authorized Sears location. For the nearest authorized Sears

location, please call 1-800-4-MY-HOME®. This warranty applies only while this product

is within the United States.

This Warranty does not cover:

Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

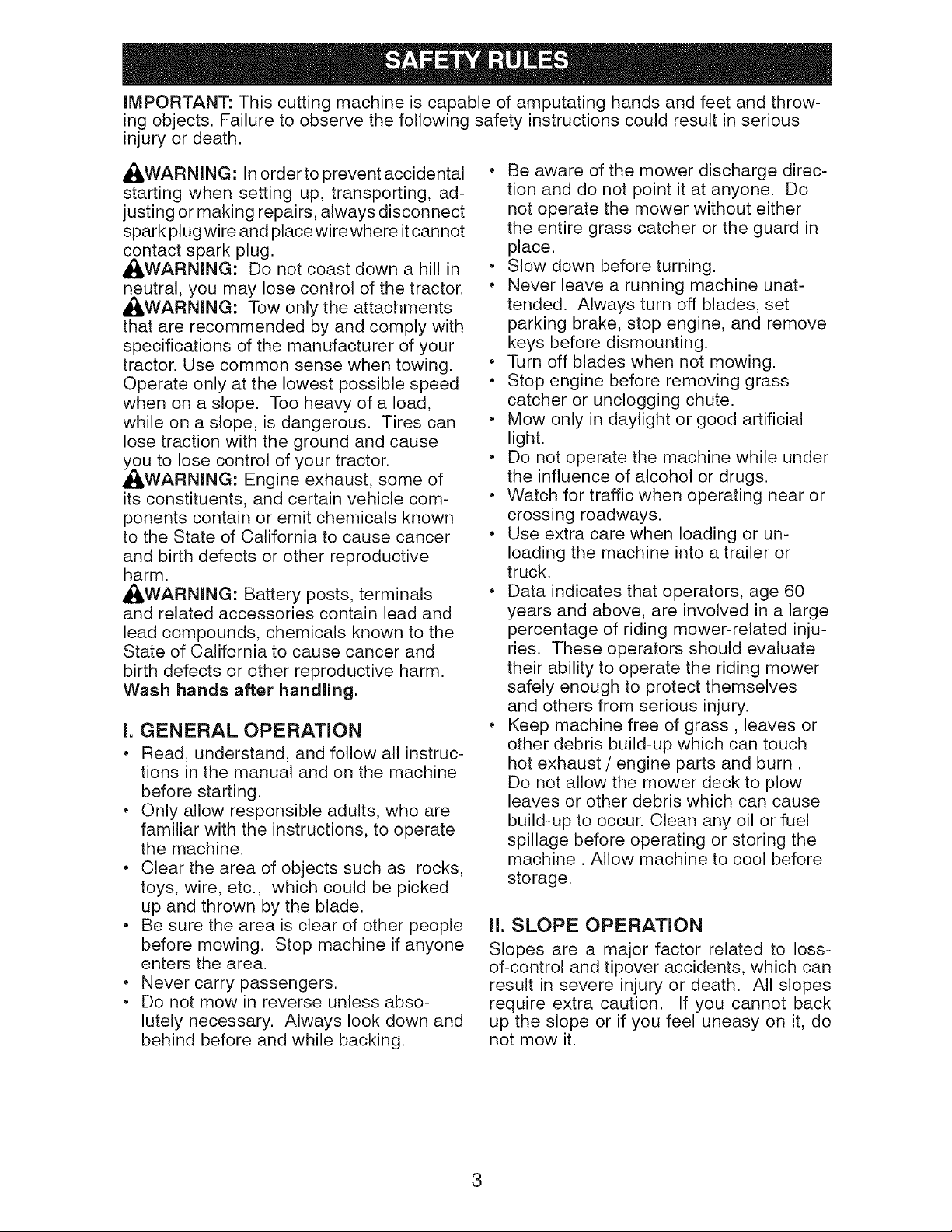

IMPORTANT:This cutting machine is capable of amputating handsand feet and throw-

ing objects. Failureto observe the following safety instructionscould result in serious

injury or death.

_kWARNING: In order to prevent accidental

starting when setting up, transporting, ad-

justing or making repairs, always disconnect

spark plug wire and place wire where itcannot

contact spark plug.

,_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_kWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_u to lose control of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

* Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

* Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

* Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

* Never carry passengers.

, Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

, Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

, Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

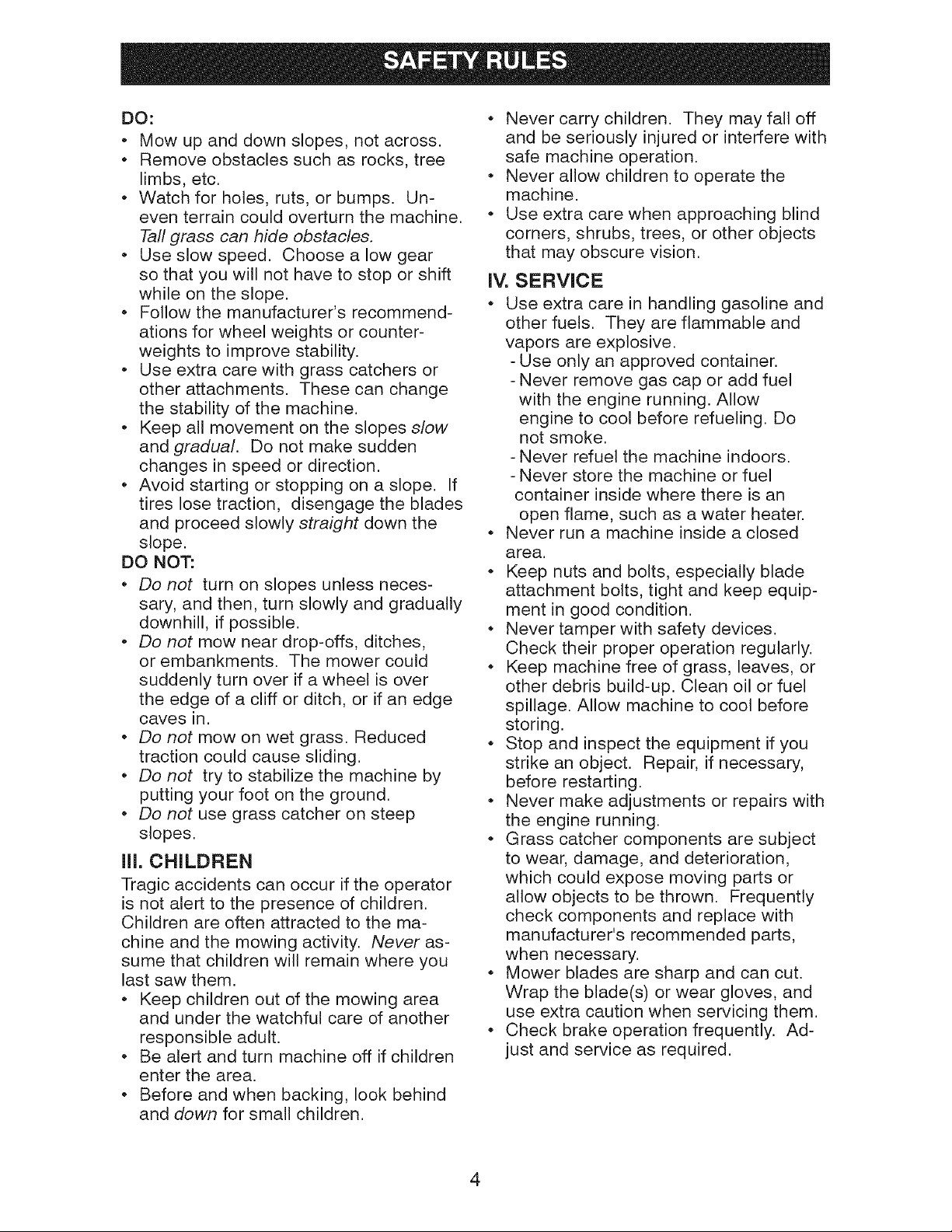

DO:

, Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

, Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

, Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

, Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

, Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

, Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

, Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

, Keep children out of the mowing area

and under the watchful care of another

responsible adult.

, Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

, Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

, Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

, Never run a machine inside a closed

area.

, Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

, Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

, Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

, Before and when backing, look behind

and down for small children.

, Mow up and down slopes (15 ° Max), not

across.

, Remove obstacles such as rocks, tree

limbs, etc.

, Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

, Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

, Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

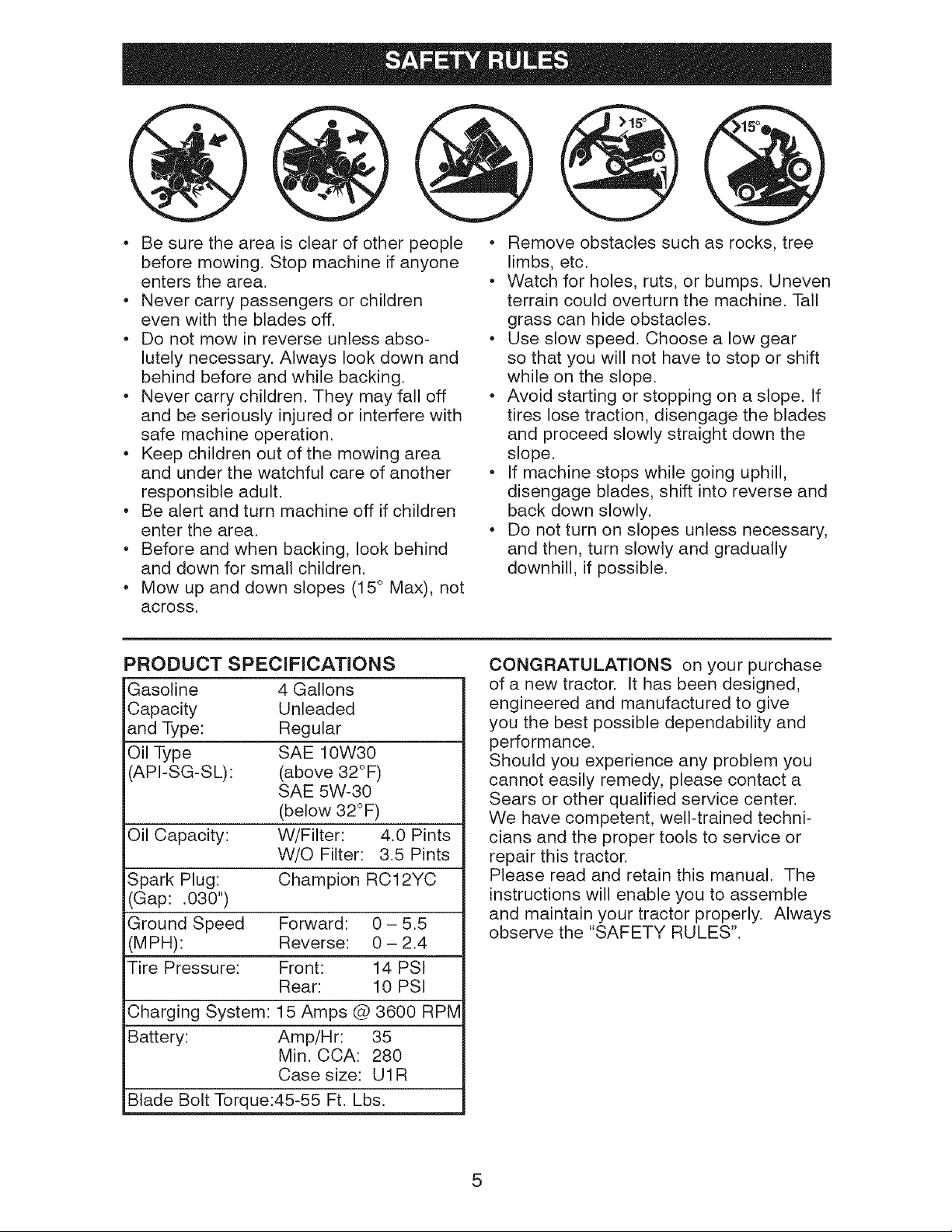

PRODUCT SPECIFICATIONS

Gasoline 4 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

API-SG-SL): (above 32°F)

SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

Gap: .030")

Ground Speed Forward: 0 - 5.5

(MPH): Reverse: 0-2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque:45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSiBiLiTiES

Read and observe the safety rules.

Follow a regular schedule in main-

taining, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark ar-

rester for the muffler is available through

your nearest Sears service center (See

REPAIR PARTS section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Pur-

chase your Repair Protection Agreement

today!

Some limitations and exclusions apply.

For prices and additional information

call 1=800=827=6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of

home appliances, garage door openers,

water heaters, and other major home

items, in the U.S.A. call 1=800=4-MY-

HOME@

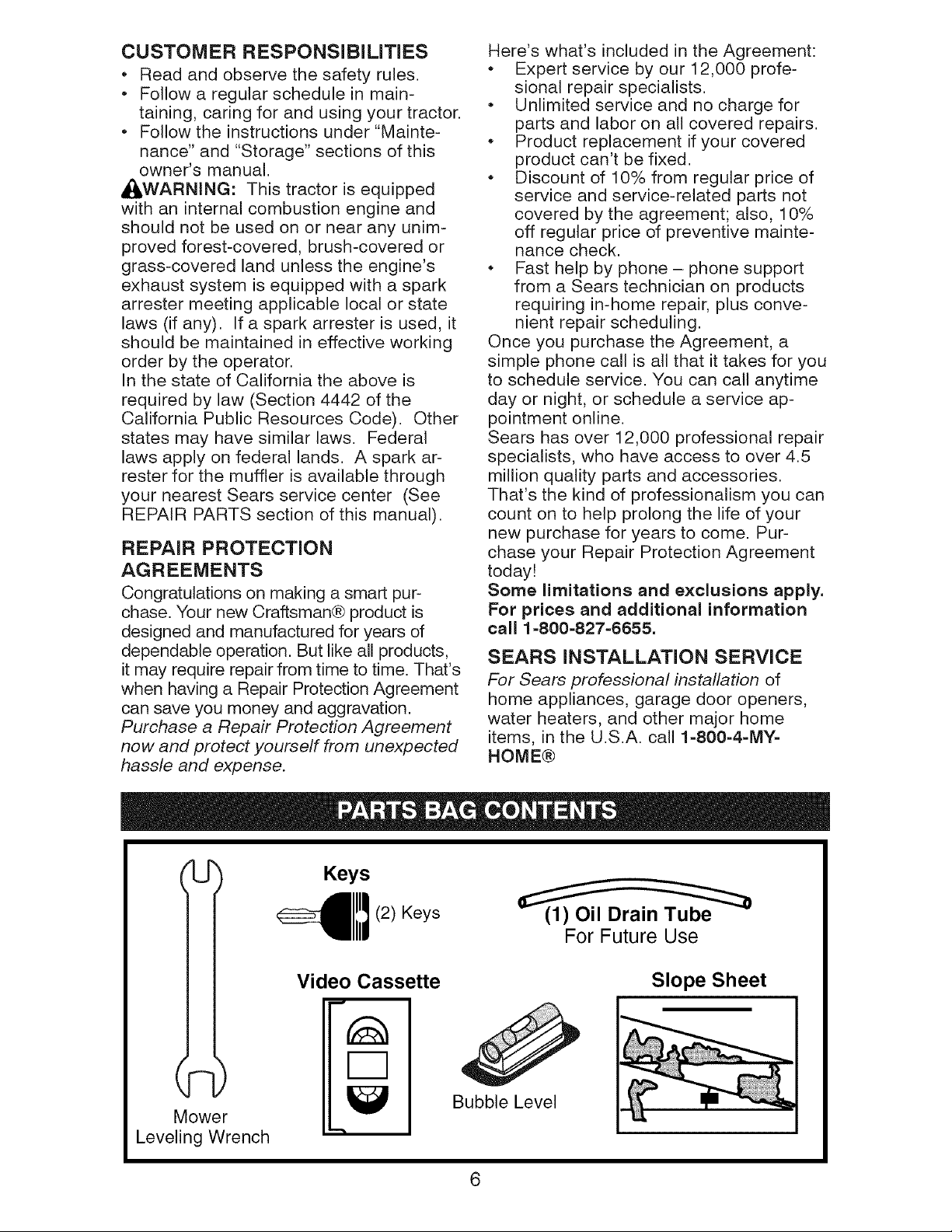

Mower

Leveling Wrench

Keys

(2) Keys

Video Cassette

For Future Use

Slope Sheet

Bubble Level

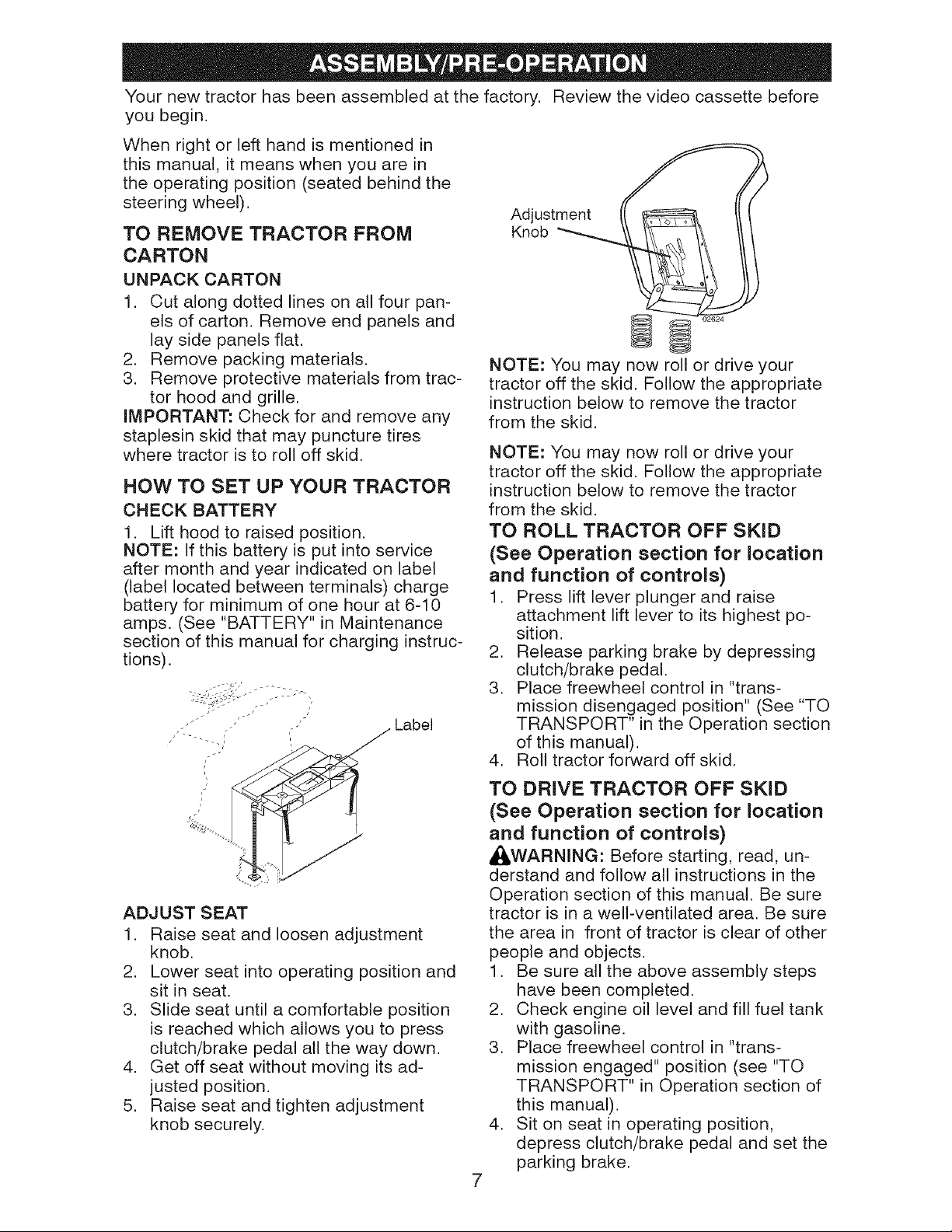

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels fiat.

2. Remove packing materials.

3. Remove protective materials from trac-

tor hood and grille.

IMPORTANT." Check for and remove any

staplesin skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

AdjustmentKnob

02624

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID

(See Operation section for location

and function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged position" (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

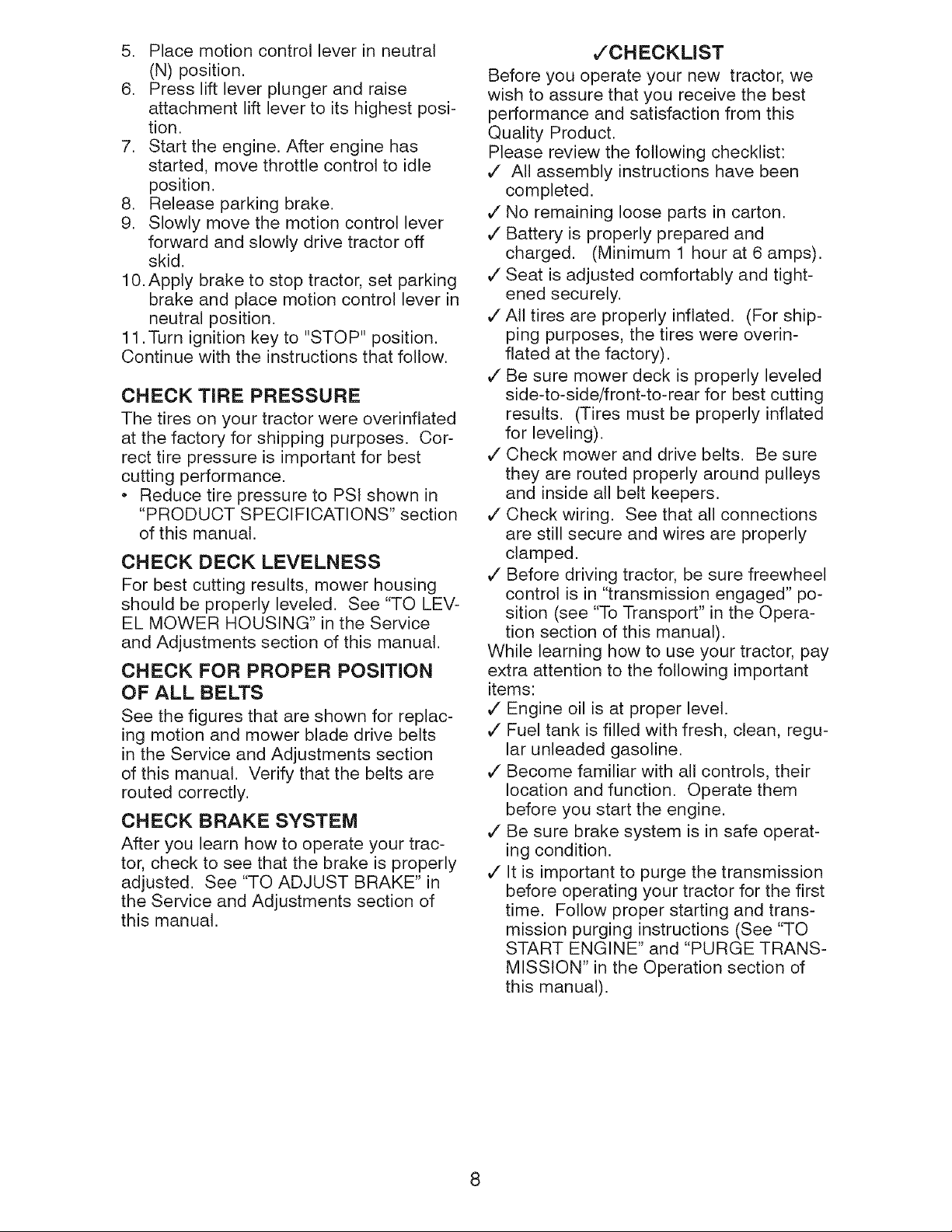

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highestposi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Releaseparking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor,set parking

brake and place motion control lever in

neutralposition.

11.Turn ignition key to "STOP" position.

Continuewith the instructionsthat follow.

CHECK TiRE PRESSURE

The tires on your tractor were overinfiated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEV-

EL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSiTiON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

v" Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

v" Seat is adjusted comfortably and tight-

ened securely.

v" All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

v" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

v" Before driving tractor, be sure freewheel

control is in "transmission engaged" po-

sition (see "To Transport" in the Opera-

tion section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

v" Become familiar with all controls, their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe operat-

ing condition.

¢" It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

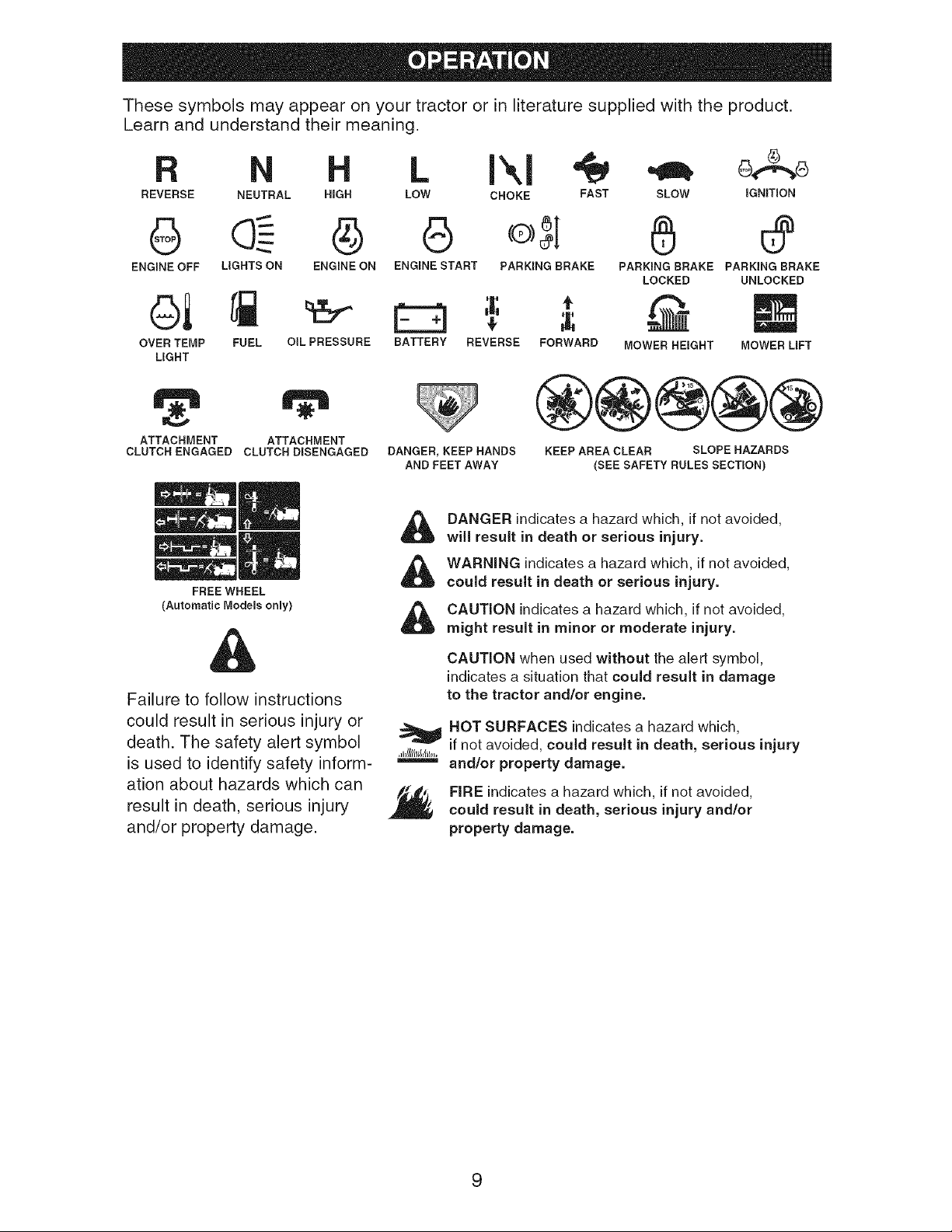

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I",1 '¢' "_ _,ko

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

G G o;I

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

FUEL OIL PRESSURE

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

E::3 'f

BATTERY REVERSE FORWARD

® O

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@®@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

,;I;lllllll_lll,,

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

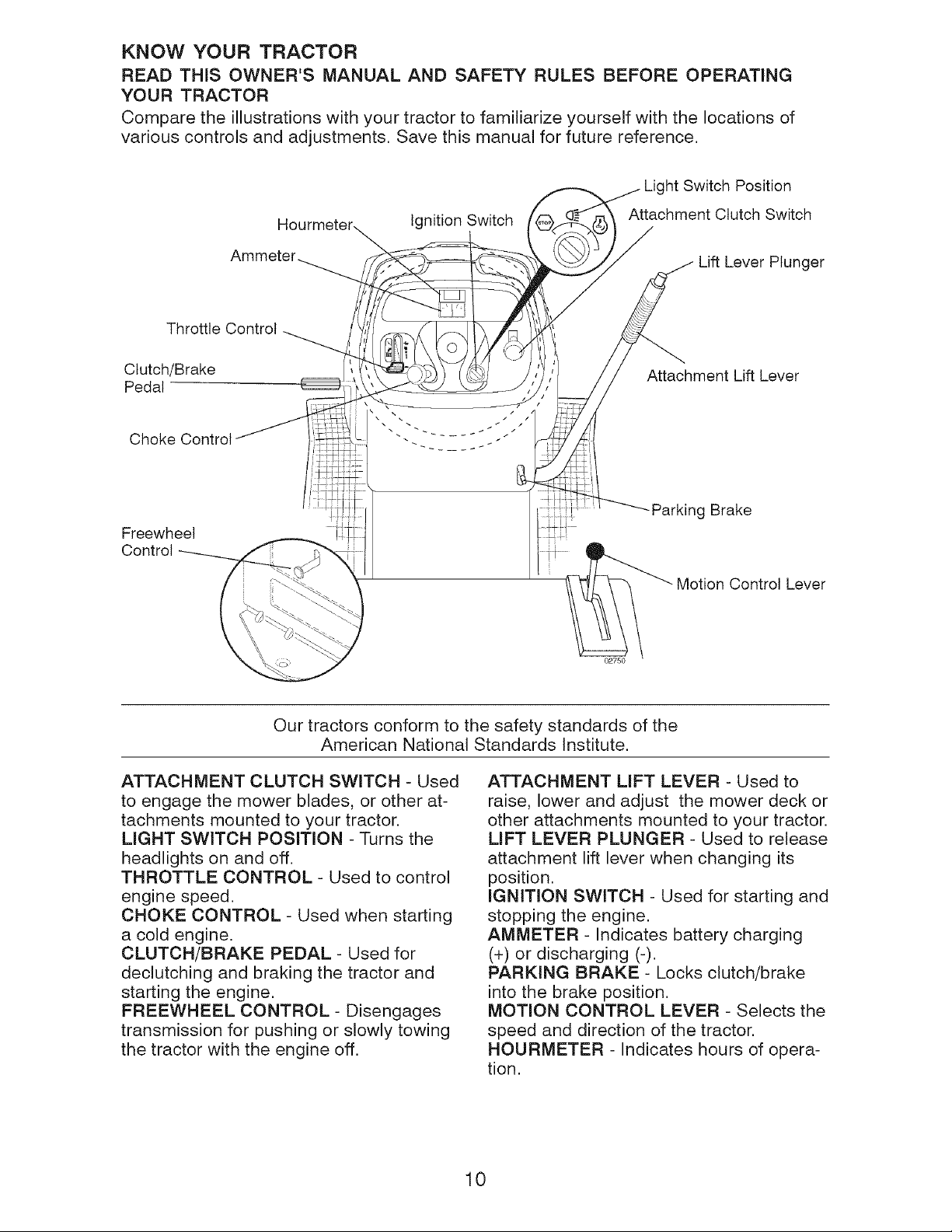

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ignition Switch

ht Switch Position

Attachment Clutch Switch

Lift Lever Plunger

Throttle Control

Clutch/Brake

Pedal

Choke

Attachment Lift Lever

Freewheel

Control

Parking Brake

Motion Control Lever

02750

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL- Used for

declutching and braking the tractor and

starting the engine.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

ATTACHMENT LIFT LEVER - Used to

raise, lower and adjust the mower deck or

other attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of the tractor.

HOURMETER - Indicates hours of opera-

tion.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

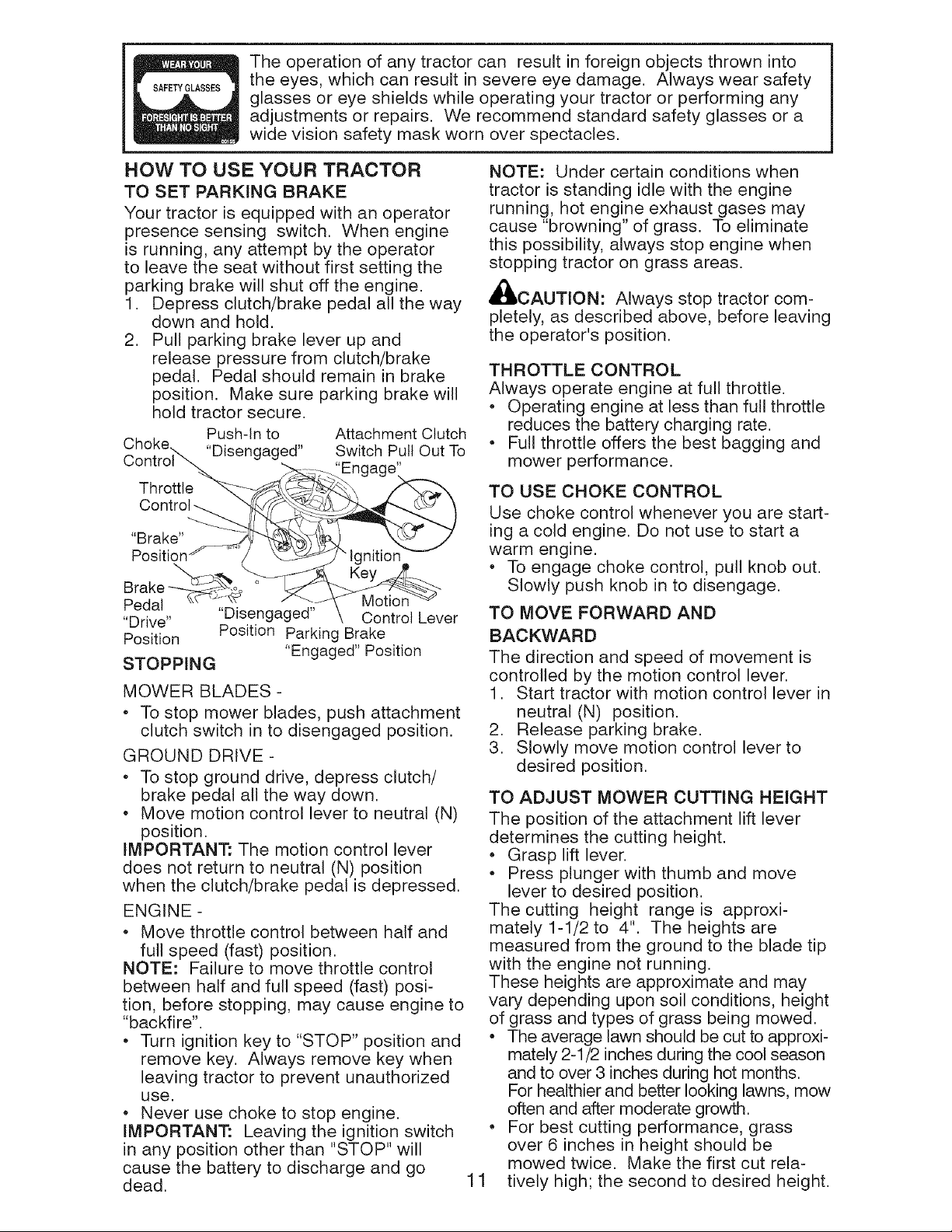

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Push-In to Attachment Clutch

Choke Switch Pull Out To

"Disengaged"

Throttle

Brake _Oo

Pedal _'---\_ Motion

"Drive" "Disengaged" Control Lever

Position Position Parking Brake

"Engaged" Position

STOPPING

MOWER BLADES -

, To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

, To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

, Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

, Never use choke to stop engine.

IMPORTANT." Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

THROTTLE CONTROL

Always operate engine at full throttle.

, Operating engine at less than full throttle

reduces the battery charging rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

, To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

, Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running.

These heights are approximate and may

vary depending upon soil conditions, height

of grass and types of grass being mowed.

• The average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired height.

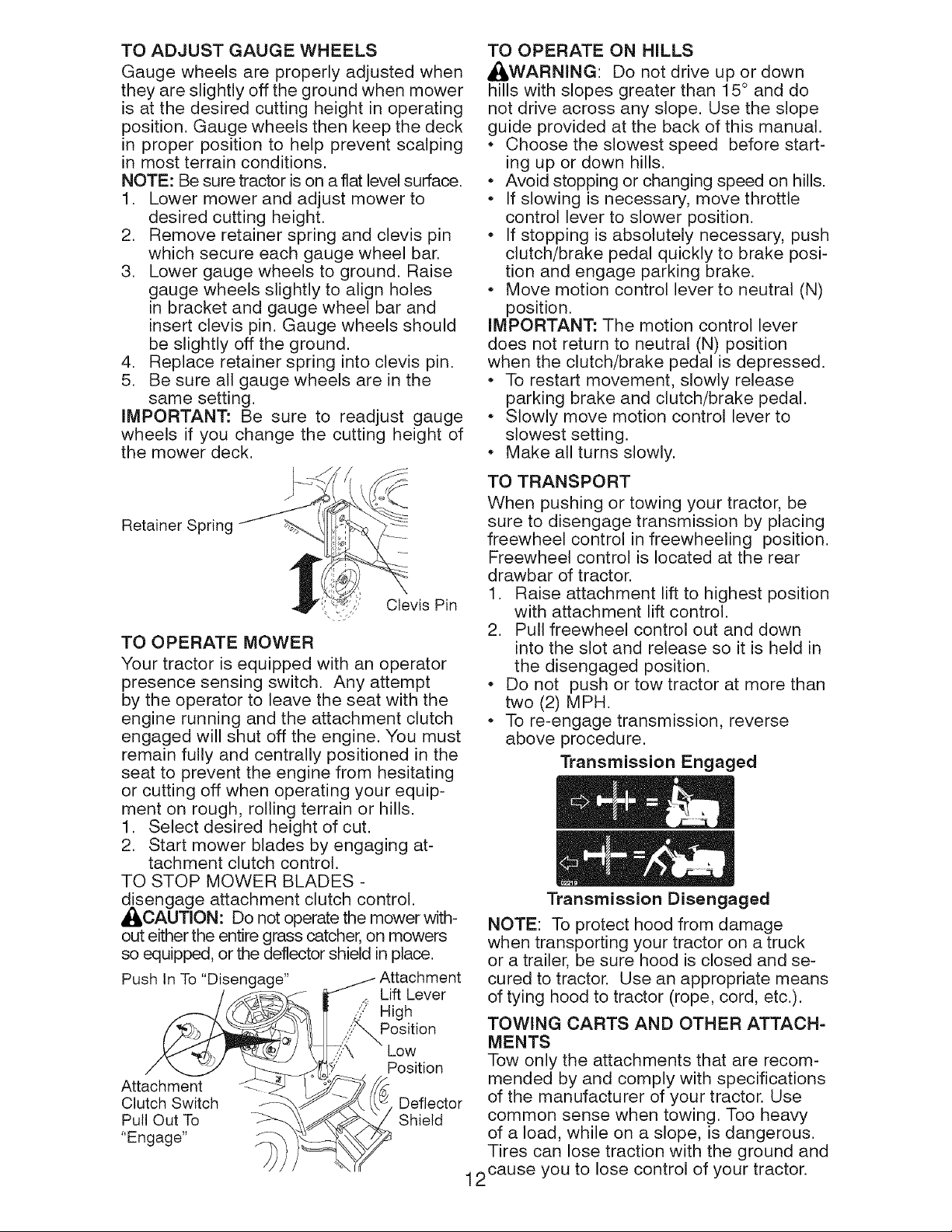

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted when

theyare slightly off the groundwhen mower

is at the desired cutting height in operating

position.Gaugewheels then keep the deck

in proper position to help prevent scalping

in mostterrain conditions.

NOTE:Besuretractorison aflatlevelsurface.

1. Lower mowerand adjust mowerto

desired cutting height.

2. Removeretainerspring and clevis pin

which secure each gauge wheel bar.

3. Lowergauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replaceretainer spring into clevis pin.

5. Besure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height of

the mower deck.

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hillswith slopes greaterthan 15° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

, Avoid stopping or changing speed on hills.

, If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

, Slowly move motion control lever to

slowest setting.

, Make all turns slowly.

Retainer Spring

Clevis Pin

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower with-

out either the entire grass catcher, on mowers

so equipped, or the deflector shield in place.

Push In To "Disengage"

Lift Lever

High

Position

Low

Position

Attachment

Clutch Switch Deflector

Pull Out To _ Shield

"Engage"

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

, To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and se-

cured to tractor. Use an appropriate means

of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

12 cause you to lose control of your tractor.

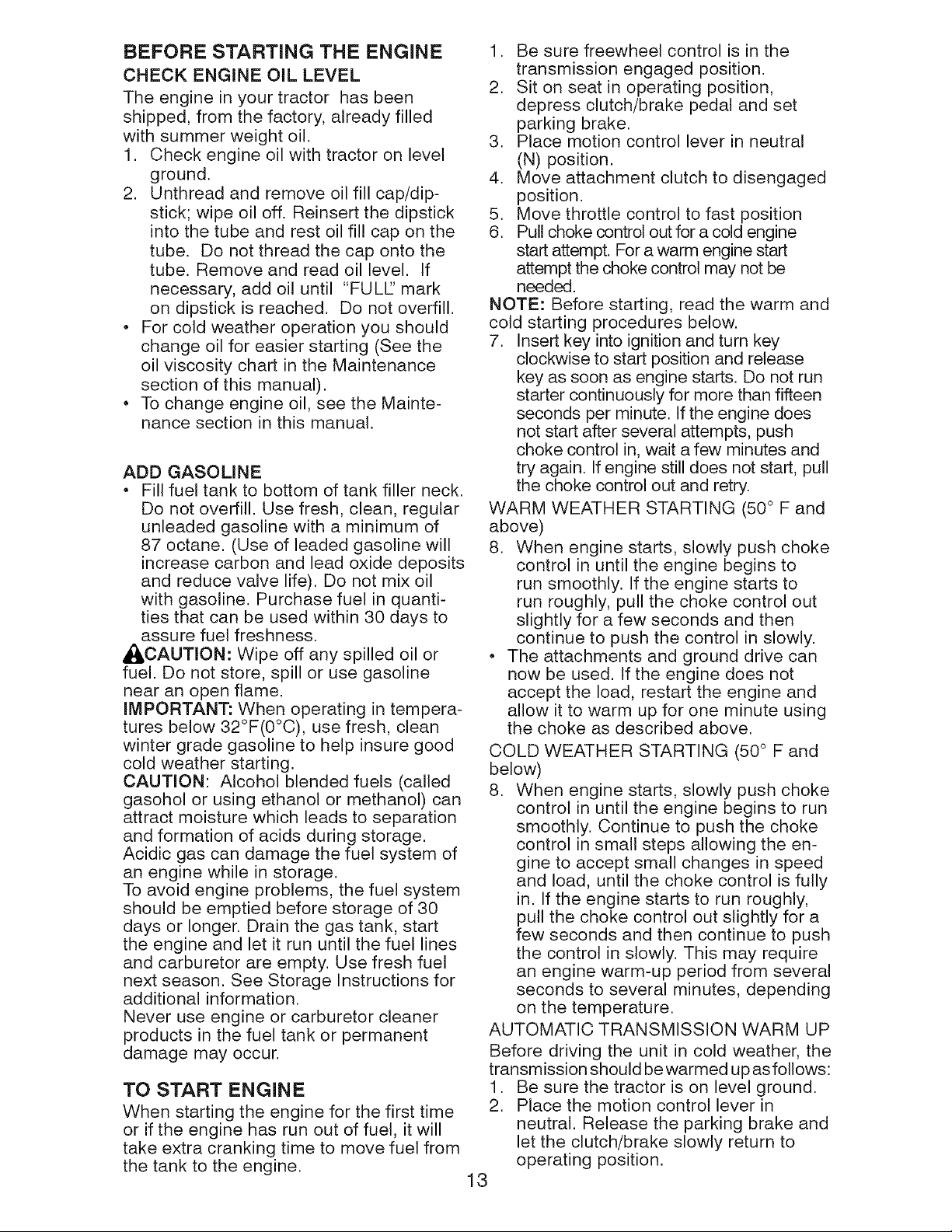

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/dip-

stick; wipe oil off. Reinsert the dipstick

into the tube and rest oil fill cap on the

tube. Do not thread the cap onto the

tube. Remove and read oil level. If

necessary, add oil until "FULl" mark

on dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT." When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to fast position

6. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

7. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not run

starter continuously for more than fifteen

seconds per minute. If the engine does

not start after several attempts, push

choke control in, wait a few minutes and

try again. If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

8. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

, The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

8. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the

transmission should be warmed up as follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake and

let the clutch/brake slowly return to

operating position.

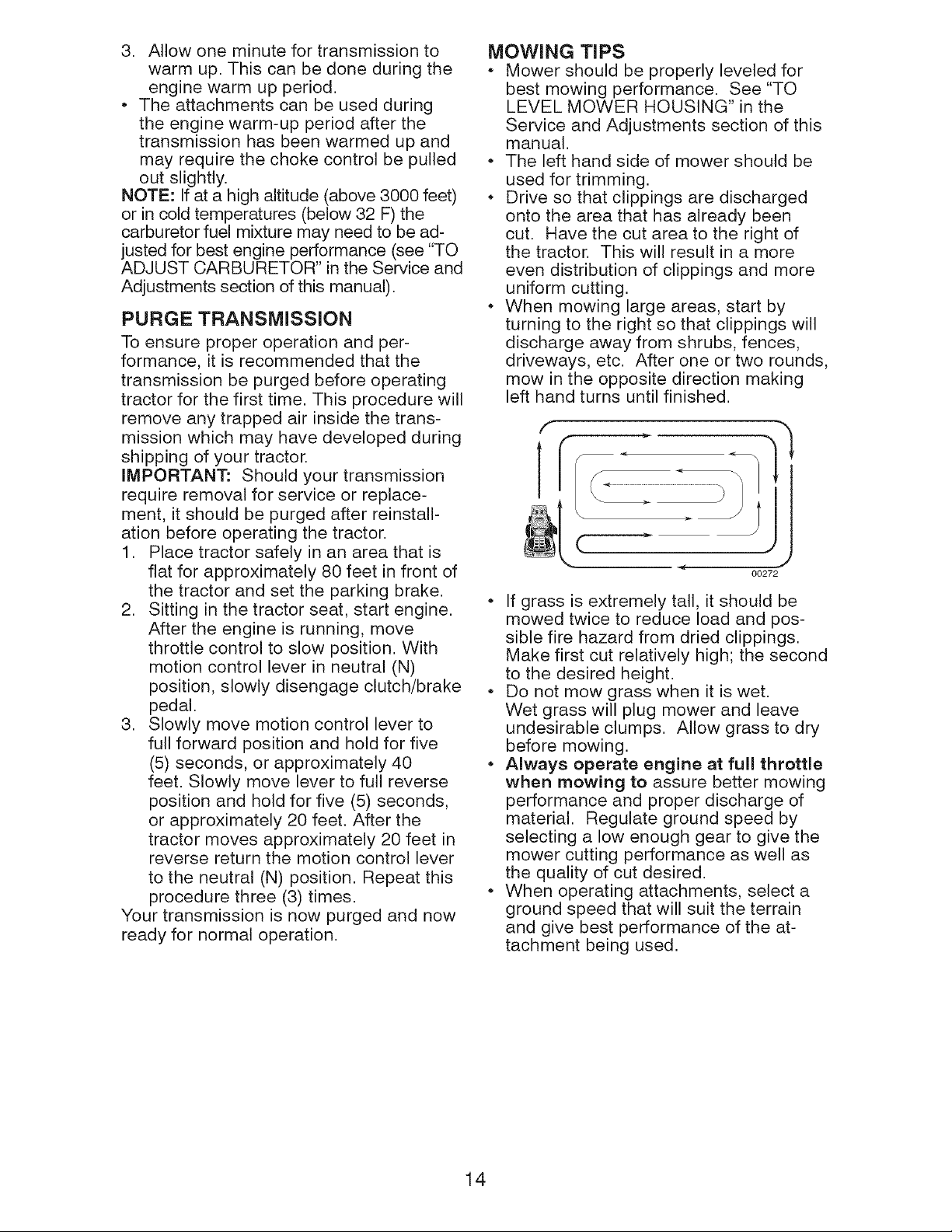

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000 feet)

or in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be ad-

justed for best engine performance (see "TO

ADJUST CARBURETOR" in the Service and

Adjustments section of this manual).

PURGE TRANSMISSION

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

iMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely in an area that is

flat for approximately 80 feet in front of

the tractor and set the parking brake.

2. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

3. Slowly move motion control lever to

full forward position and hold for five

(5) seconds, or approximately 40

feet. Slowly move lever to full reverse

position and hold for five (5) seconds,

or approximately 20 feet. After the

tractor moves approximately 20 feet in

reverse return the motion control lever

to the neutral (N) position. Repeat this

procedure three (3) times.

Your transmission is now purged and now

ready for normal operation.

MOWING TIPS

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

. J

00272

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

, When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

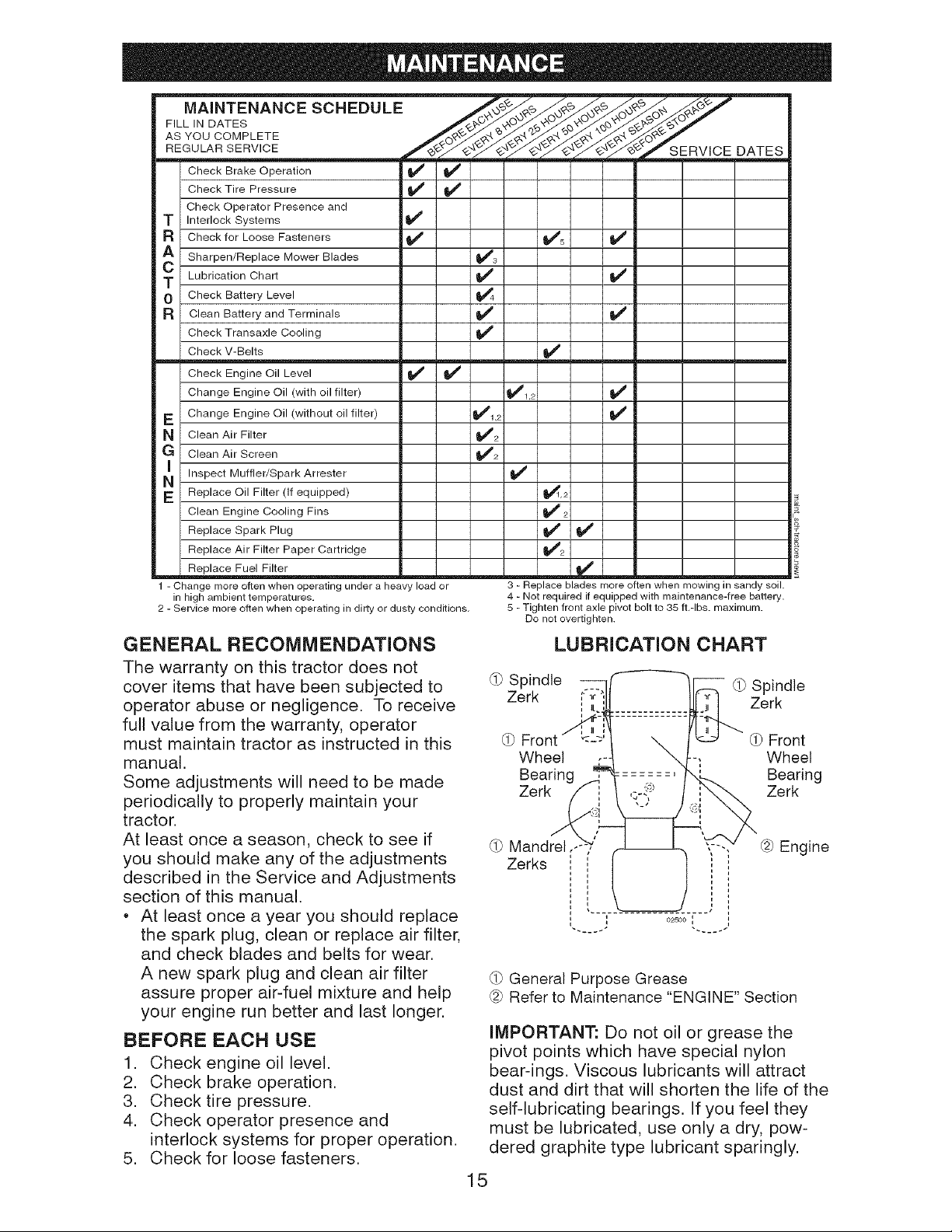

MAINTENANCE SCHEDULE ___ __,_

F,,,,NOATES

AsYouCOMPLETE

RE___SERVICE DATES

Check Brake Operation if

Check Tire Pressure if if'

Check Operator Presence and

T Interlock Systems _4_

R Check for Loose Fasteners _ Ks

A Sharpen/Replace Mower Blades _#s

C Lubrication Chart _

0 Check Battery Level _4

R Clean Battery and Terminals _

Check Transaxle Cooling

Check V-Belts _'

Check Engine Oil Level _

Change Engine Oil (with oil filter) _1,,

E Change Engine Oil (without oil filter) _1,2 _1#

N Clean Air Filter _2

G Clean Air Screen _2

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) _,2

Clean Engine Cooling Fins _4_ 2

Replace Spark Plug _

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter ..... __L __ __ __

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

, At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

Wheel

Bearing

Zerk

(i} Spindle

Zerk

Front

Wheel

Bearing

Zerk

@ Engine

General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bear-ings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

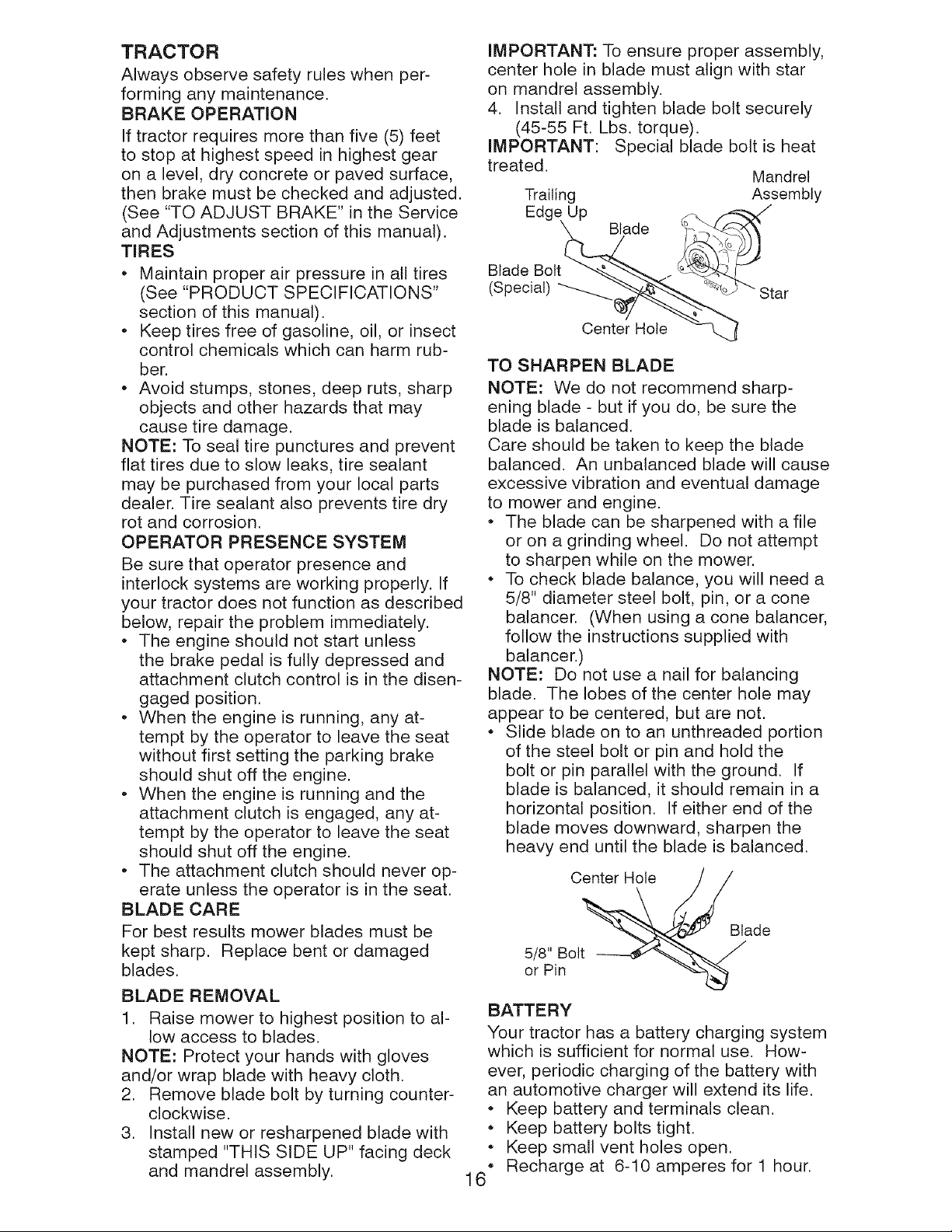

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet

to stop at highest speed in highest gear

on a level, dry concrete or paved surface,

then brake must be checked and adjusted.

(See "TO ADJUST BRAKE" in the Service

and Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as described

below, repair the problem immediately.

, The engine should not start unless

the brake pedal is fully depressed and

attachment clutch control is in the disen-

gaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

, When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SiDE UP" facing deck

and mandrel assembly.

IMPORTANT." To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated.

Mandrel

Trailing Assembly

Edge Up

Blade

Blade Bolt

(Special) Star

Center Hole

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

,, Blade

5/8Bolt

or Pin

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

, Keep battery and terminals clean.

• Keep battery bolts tight.

, Keep small vent holes open.

, Recharge at 6-10 amperes for 1 hour.

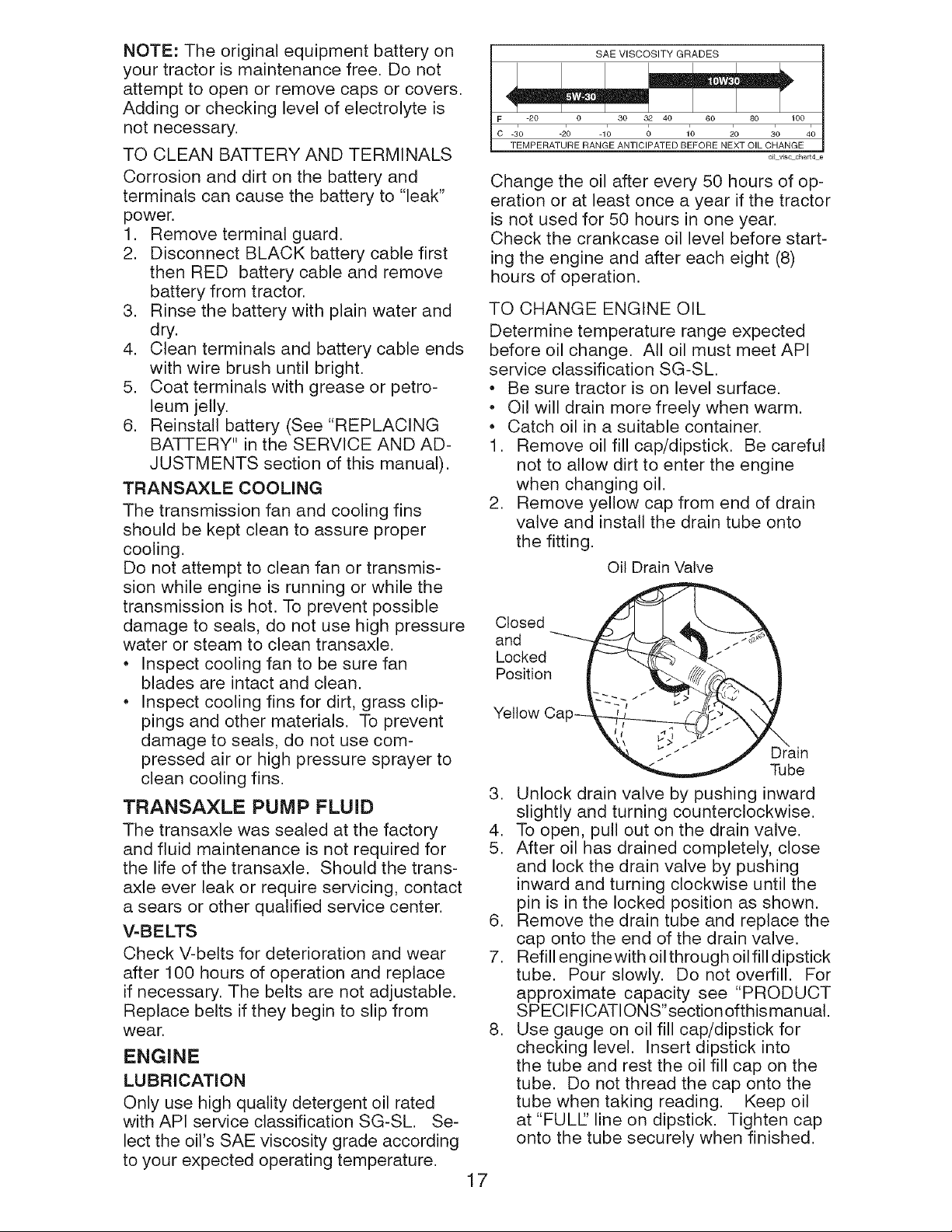

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

Inspect cooling fan to be sure fan

blades are intact and clean.

Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature.

FC-S'0- -2'0 -10 _ 1'0 _0 i0 00.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE 40

oJ_ visc chart4 e

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

, Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed

and

Locked

Position

Yellow Ca

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill enginewith oil through oil fill dipstick

tube. Pour slowly. Do not overfill. For

approximate capacity see "PRODUCT

SPECIFICATIONS"section ofthismanual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULE' line on dipstick. Tighten cap

onto the tube securely when finished.

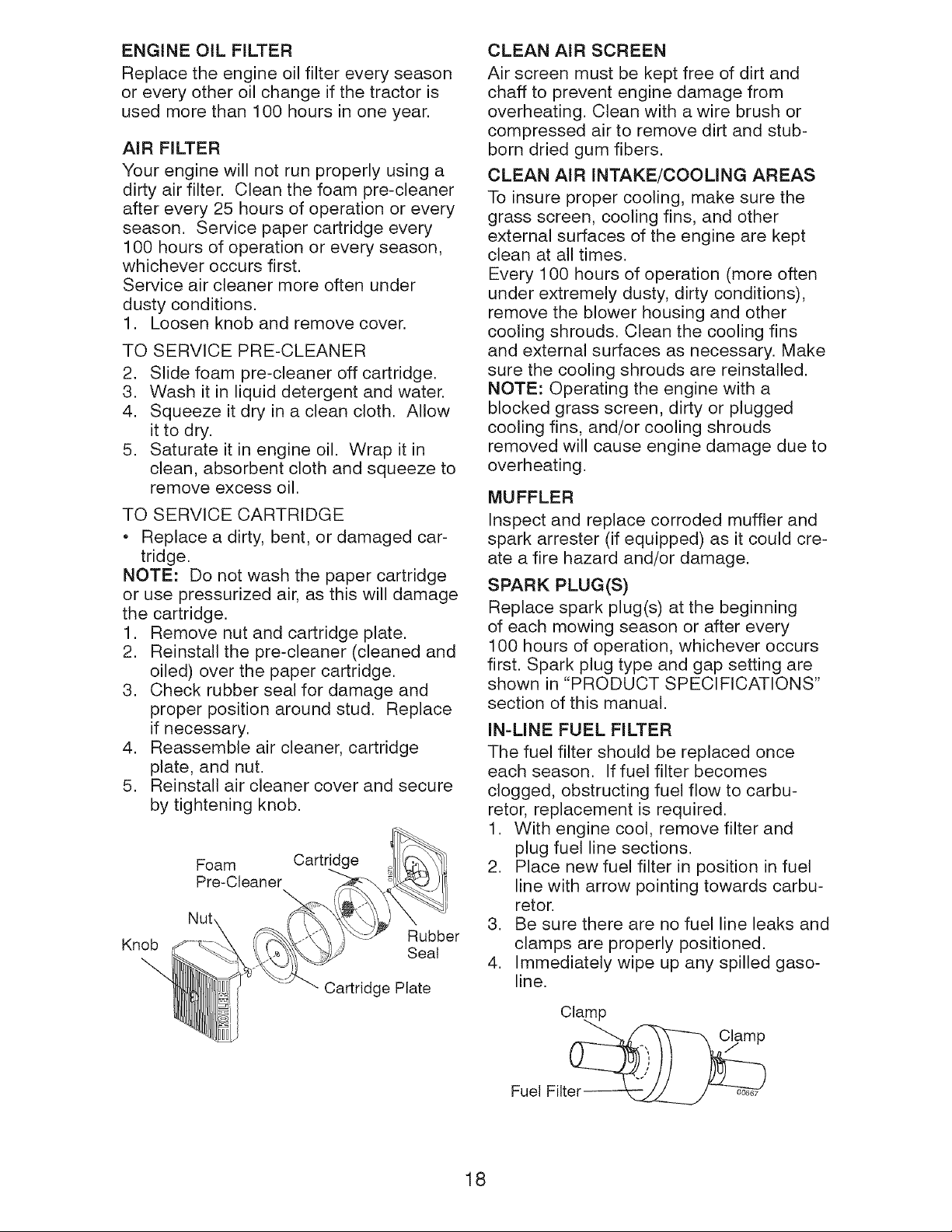

ENGINE OtL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Foam Cartridge

Pre-Cleaner

Rubber

Knob Seal

Cartridge Plate

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOMNG AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

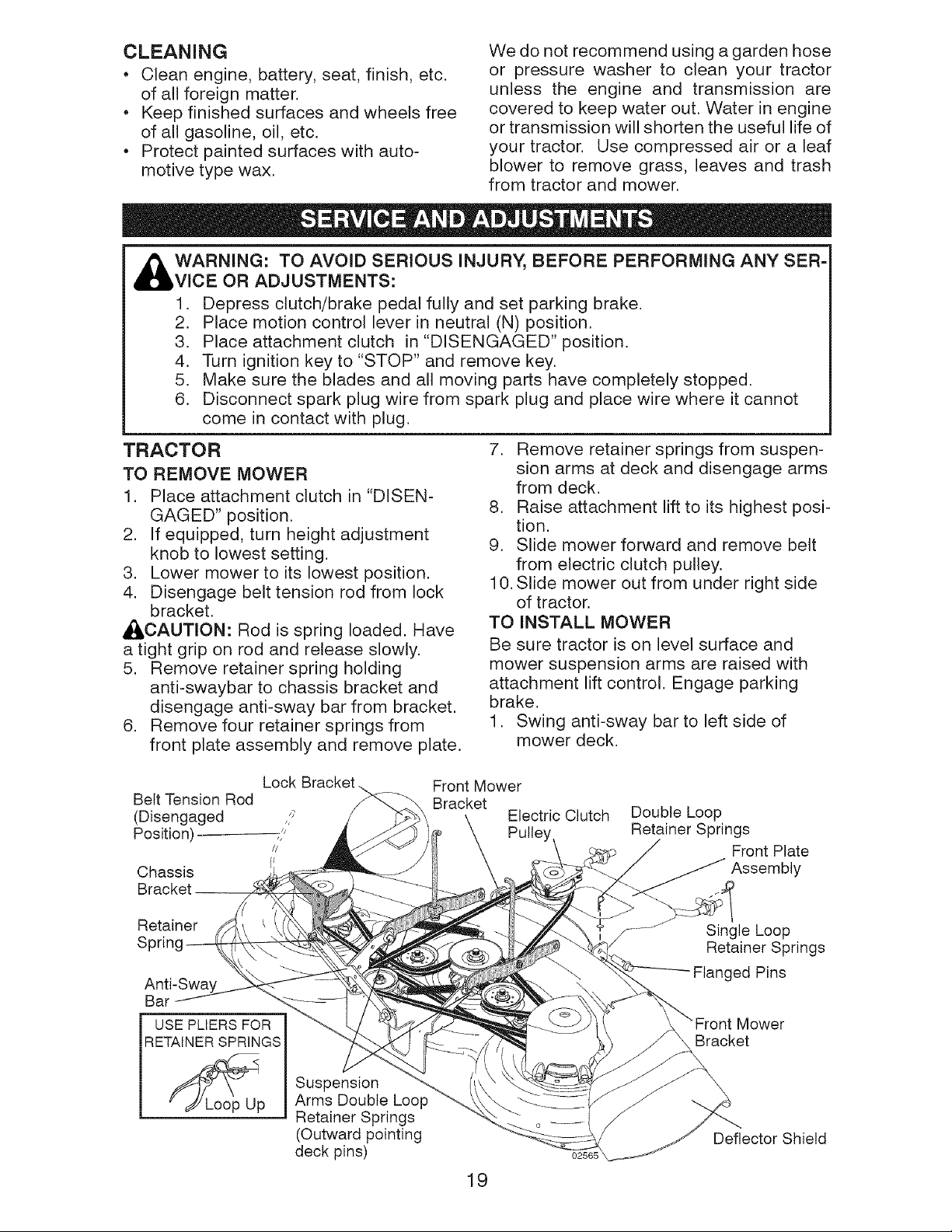

CLEANING

Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden hose

or pressure washer to clean your tractor

unless the engine and transmission are

covered to keep water out. Water in engine

or transmission will shorten the useful life of

your tractor. Use compressed air or a leaf

blower to remove grass, leaves and trash

from tractor and mower.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER=

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

_CAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding

anti-swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from

front plate assembly and remove plate.

7. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

8. Raise attachment lift to its highest posi-

tion.

9. Slide mower forward and remove belt

from electric clutch pulley.

10. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

Lock Bracket

Belt Tension Rod

(Disengaged ,,J7

Position) J/

Chassis

Front Mower

Bracket

Electric Clutch

Pulley

Double Loop

Retainer Springs

Front Plate

Assembly

Retainer

Anti-Swa_

Single Loop

Retainer Springs

Flanged Pins

USE PLIERS FOR

RETAINER SPRINGS

Suspension

Arms Double Loop

Retainer Springs

(Outward pointing

deck pins)

Mower

Bracket

02565 _.__ Deflector Shield

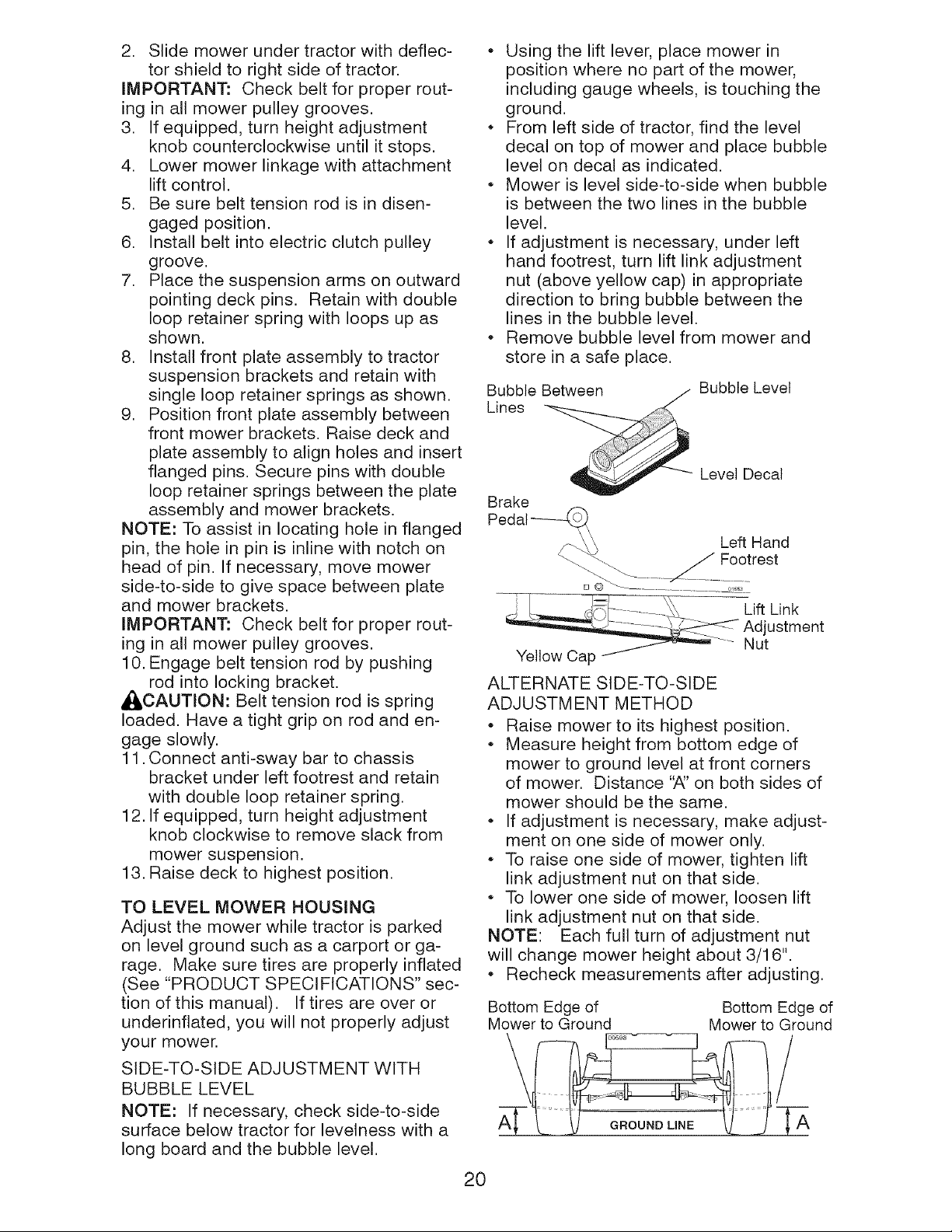

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

groove.

7. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and insert

flanged pins. Secure pins with double

loop retainer springs between the plate

assembly and mower brackets.

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

10. Engage belt tension rod by pushing

rod into locking bracket.

_L, CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

11. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS" sec-

tion of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

, Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

, Remove bubble level from mower and

store in a safe place.

Bubble Between Bubble Level

Lines

Level Decal

Brake

Pedal------_

/ __'_ Footrest

........Le

[O O _ ................................. 015_

Yellow Cap _I

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance '_' on both sides of

mower should be the same.

, If adjustment is necessary, make adjust-

ment on one side of mower only.

, To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

, Recheck measurements after adjusting.

Bottom Edge of

Mower to Ground

Bottom Edge of

Mower to Ground

GROUND LiNE

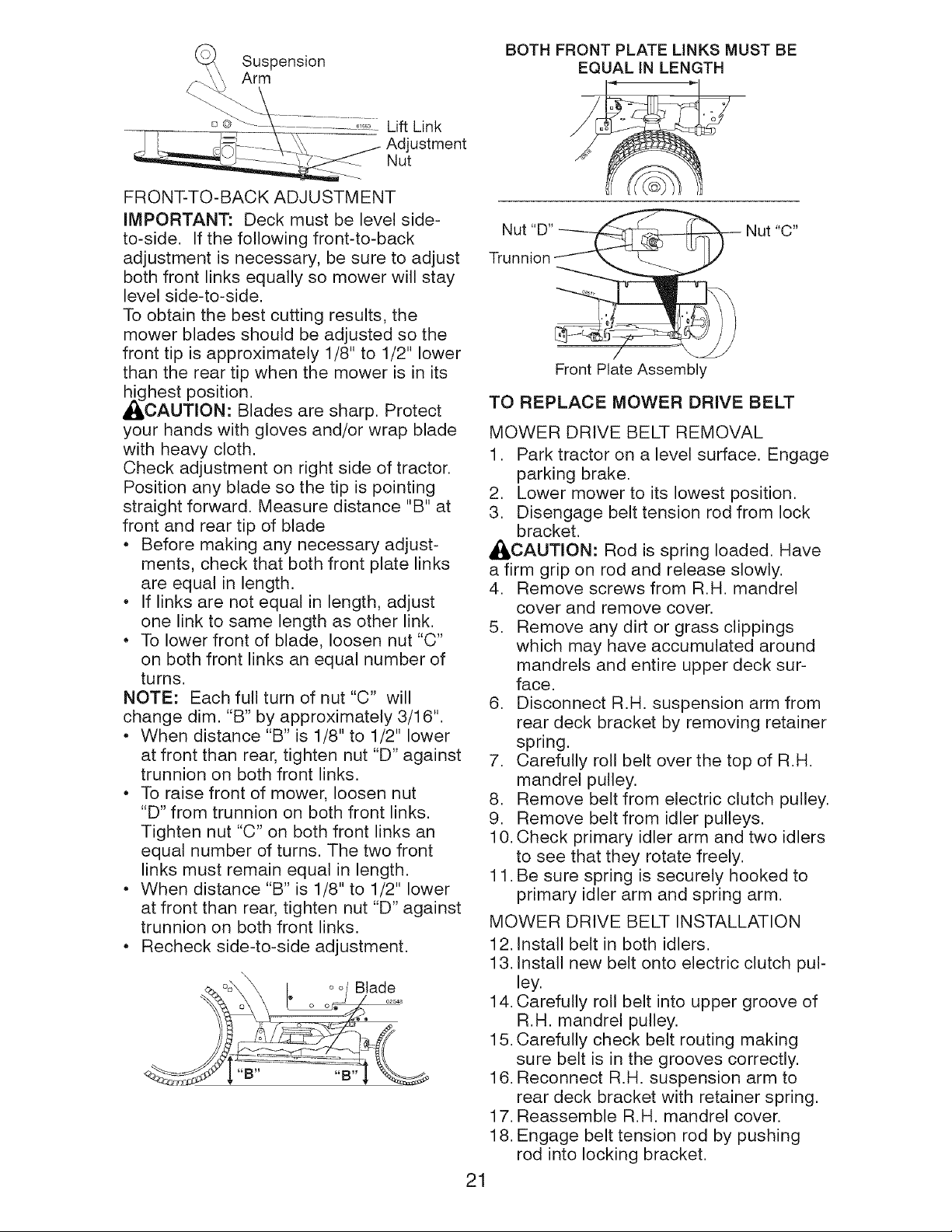

Suspension

Arm

Lift Link

ustment

Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

,_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

, Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

, If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

, When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

, To raise front of mower, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

, When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

, Recheck side-to-side adjustment.

q_.°o\_ I oo/Blade

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

Nut "D"_

Trunnion __

Front Plate Assembly

Nut "C"

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

,4_CAUTION: Rod is spring loaded. Have

a firm grip on rod and release slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

8. Remove belt from electric clutch pulley.

9. Remove belt from idler pulleys.

10. Check primary idler arm and two idlers

to see that they rotate freely.

11. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12. Install belt in both idlers.

13. Install new belt onto electric clutch pul-

ley.

14. Carefully roll belt into upper groove of

R.H. mandrel pulley.

15. Carefully check belt routing making

sure belt is in the grooves correctly.

16. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17. Reassemble R.H. mandrel cover.

18. Engage belt tension rod by pushing

rod into locking bracket.

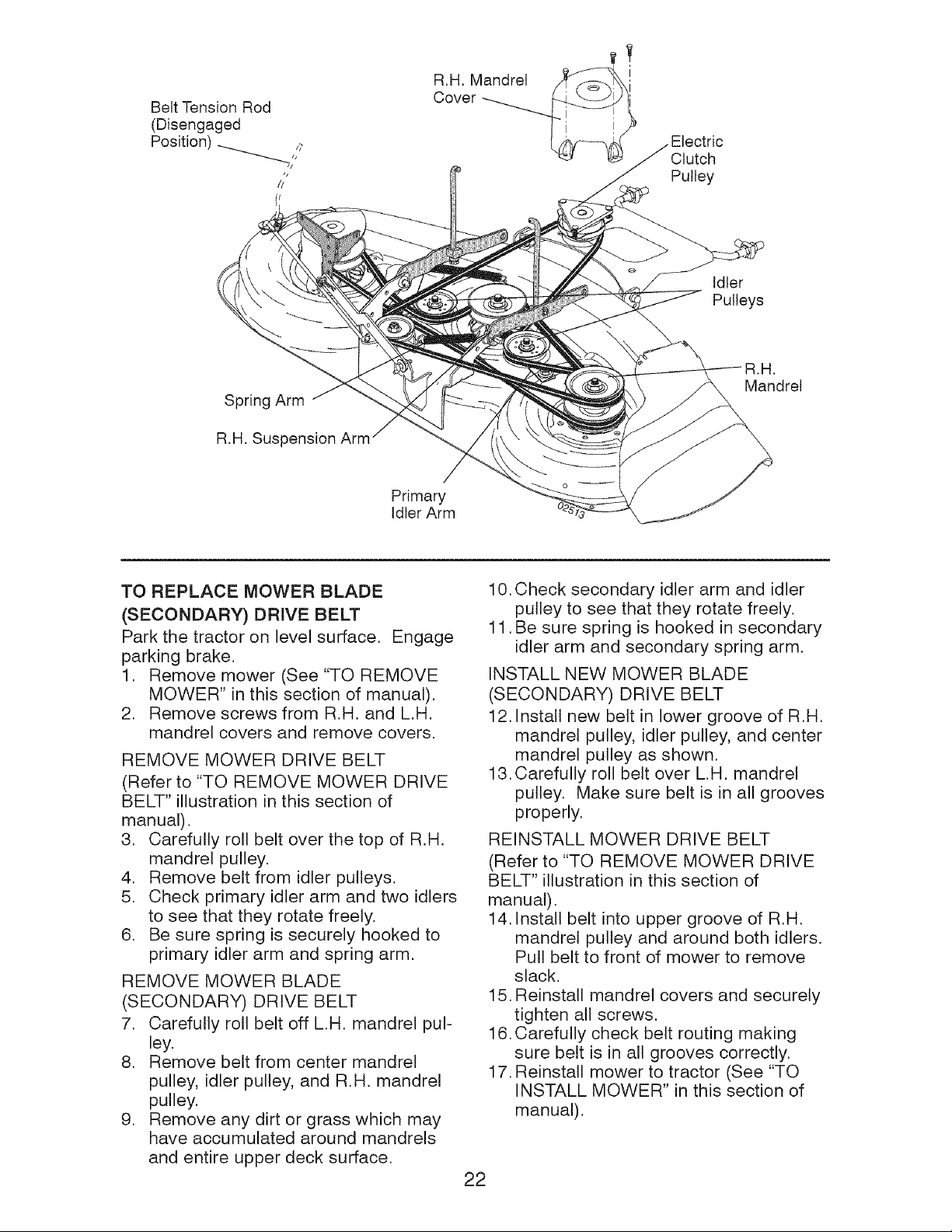

BeltTensionRod

(Disengaged

Position)_,j_

R.H. Mandrel

Cover

Clutch

Pulley

Idler

Pulleys

Spring Arm

R.H. Suspension Arm

R,H,

Mandrel

Primary

Idler Arm

TO REPLACE MOWER BLADE

(SECONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off L.H. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10. Check secondary idler arm and idler

pulley to see that they rotate freely.

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

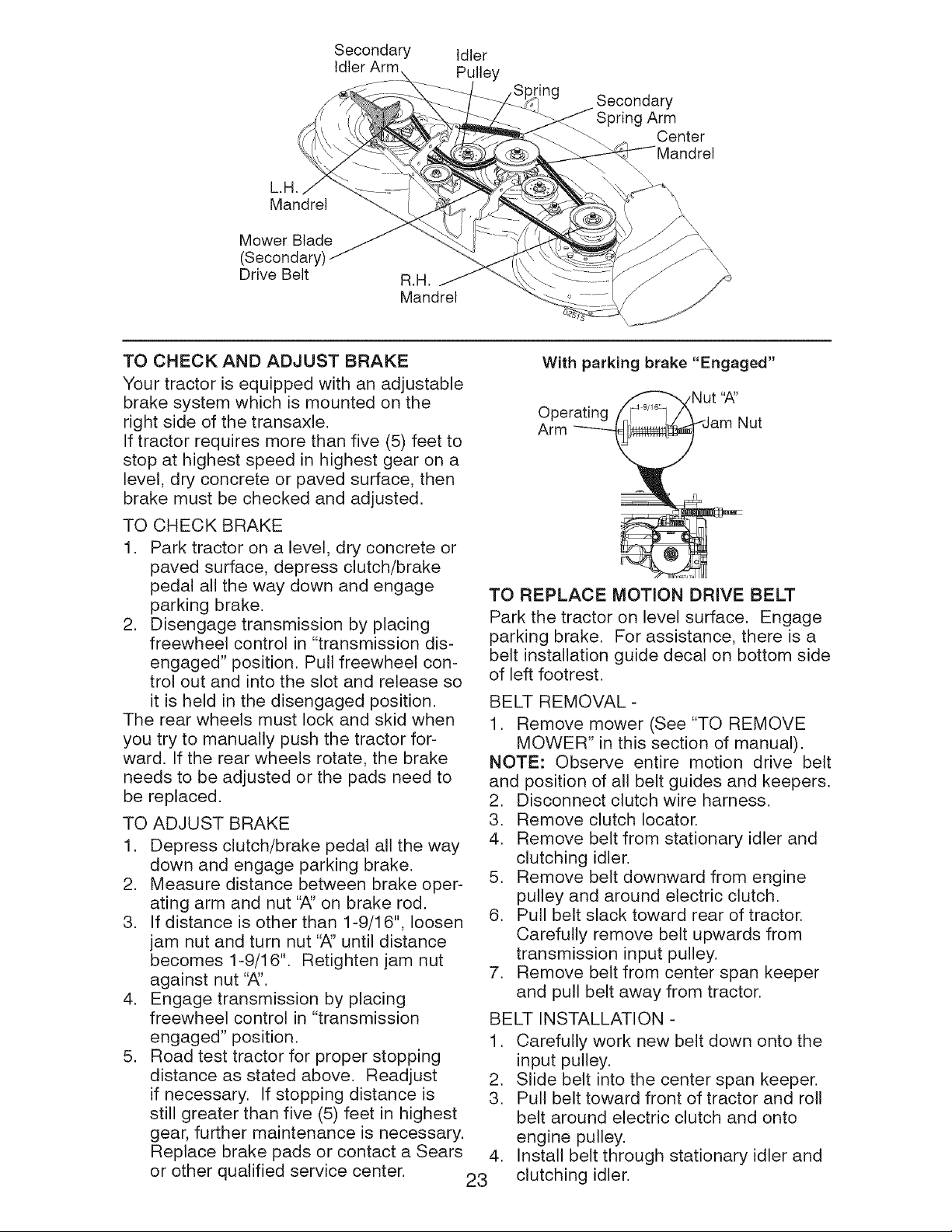

Secondary

Idler Arm

Idler

Pulley

Secondary

Arm

Center

h,m,

Mandrel

Mower Blade

(Secondary)

Drive Belt

R,H,

Mandrel

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper- 5.

ating arm and nut '_' on brake rod.

3. If distance is other than 1-9/16", loosen 6.

jam nut and turn nut '_' until distance

becomes 1-9/16". Retighten jam nut

against nut '_'. 7.

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is 3.

still greater than five (5) feet in highest

gear, further maintenance is necessary.

Replace brake pads or contact a Sears 4.

or other qualified service center.

With parking brake "Engaged"

_N ut '_'

OrPeratlng dam Nut

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

Remove belt downward from engine

pulley and around electric clutch.

Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down onto the

input pulley.

2. Slide belt into the center span keeper.

Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

Install belt through stationary idler and

clutching idler.

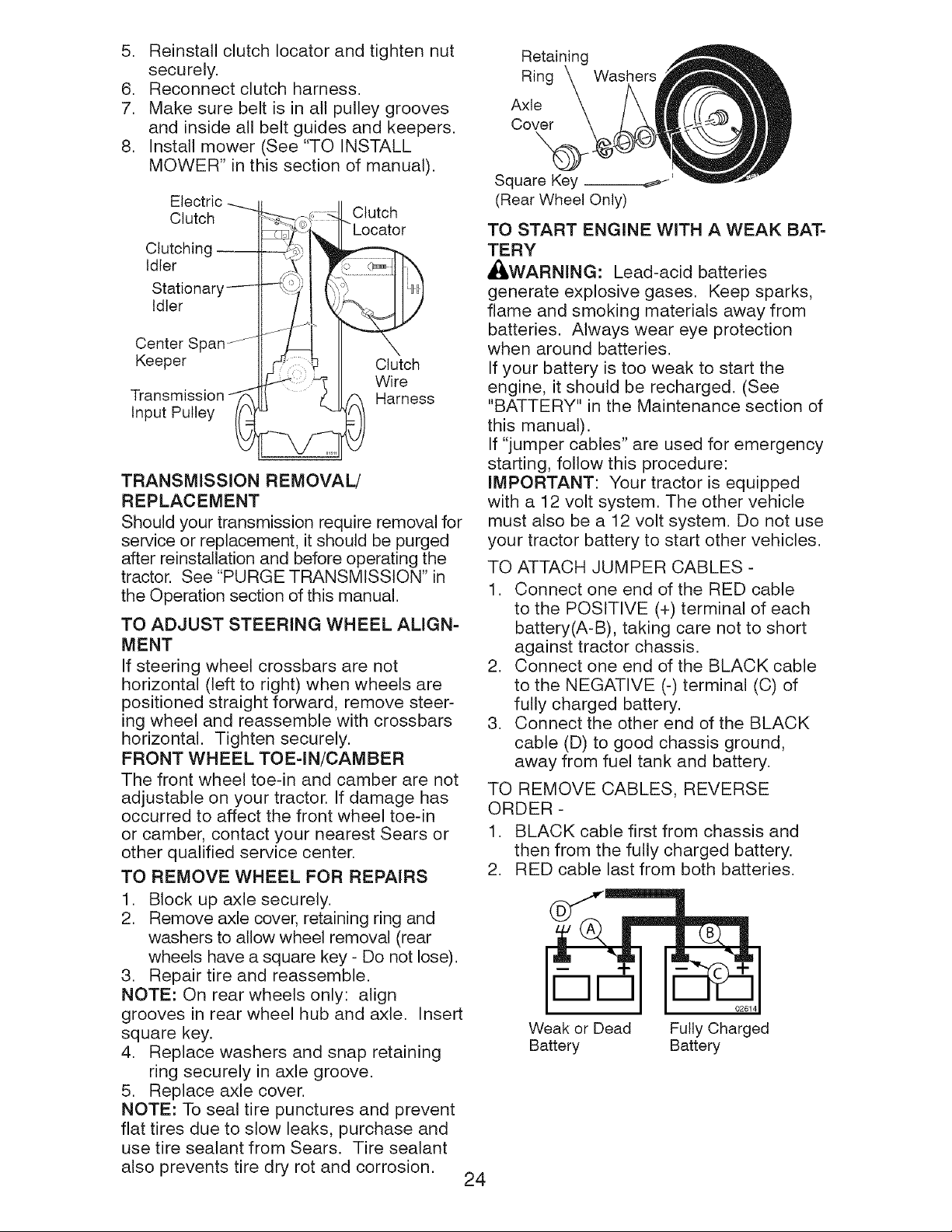

5. Reinstallclutch Iocatorand tighten nut

securely.

6. Reconnectclutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See "TO INSTALL

MOWER"in this section of manual).

Electric

Clutch

Clutching--

Idler

Stationary_

Idler

Center SpanfJ

Keeper

Transmission -_

Input Pulley

_ _Clutch

1,_ II"hOcatOr

II Wirre ss

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in

or camber, contact your nearest Sears or

other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Retaining

Ring Washers

Axle

Cover

Square Key ._'

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_I',WARNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the Maintenance section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

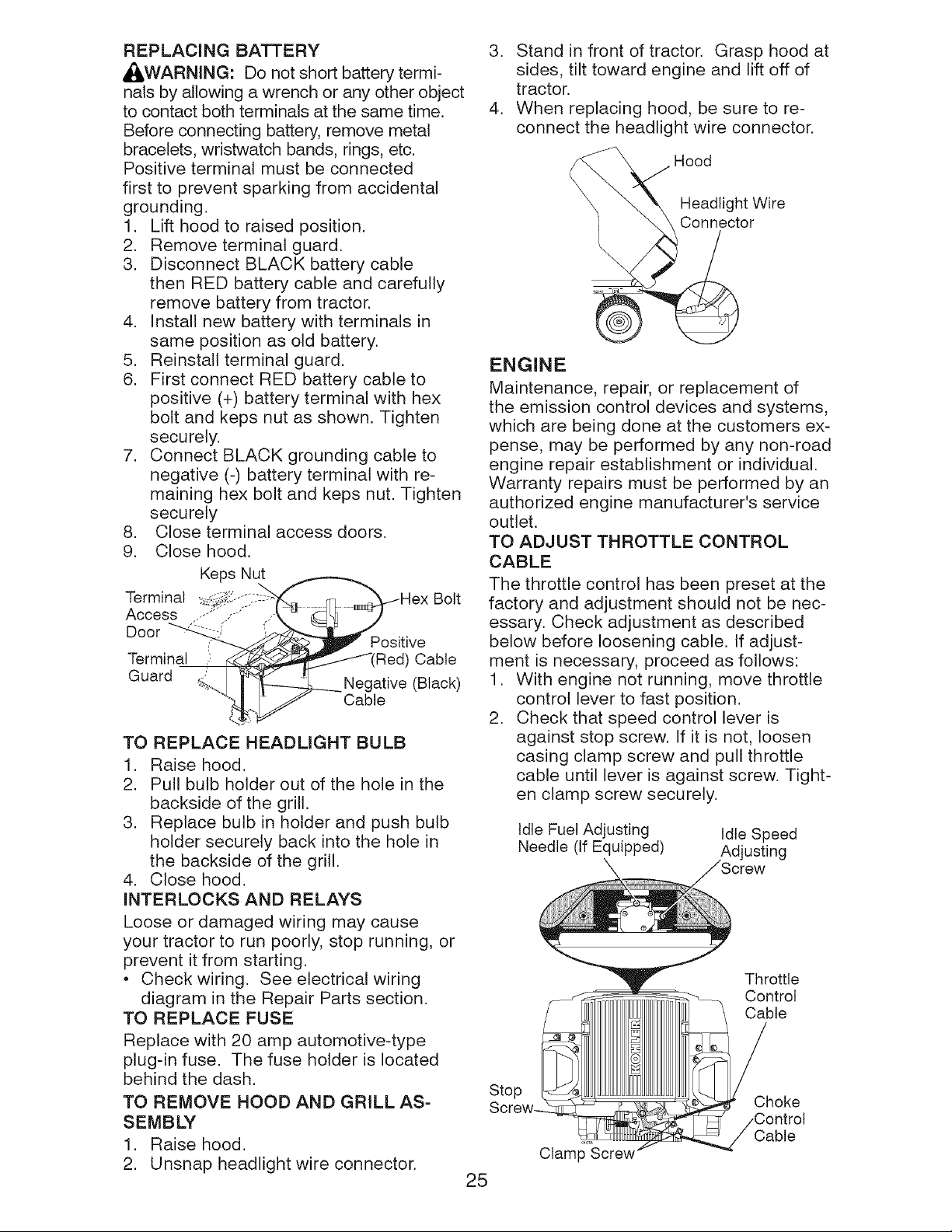

REPLACING BATTERY

_WARNING: Do not short battery termi-

nals by allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Keps Nut

Terminal

Access ......., ....

Door

Terminal ,:

Guard

Bolt

Positive

Cable

Negative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

iNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw. Tight-

en clamp screw securely.

Idle Fuel Adjusting

Needle (If Equipped)

Idle Speed

Adjusting

Throttle

Control

Cable

Stop

Choke

Cable

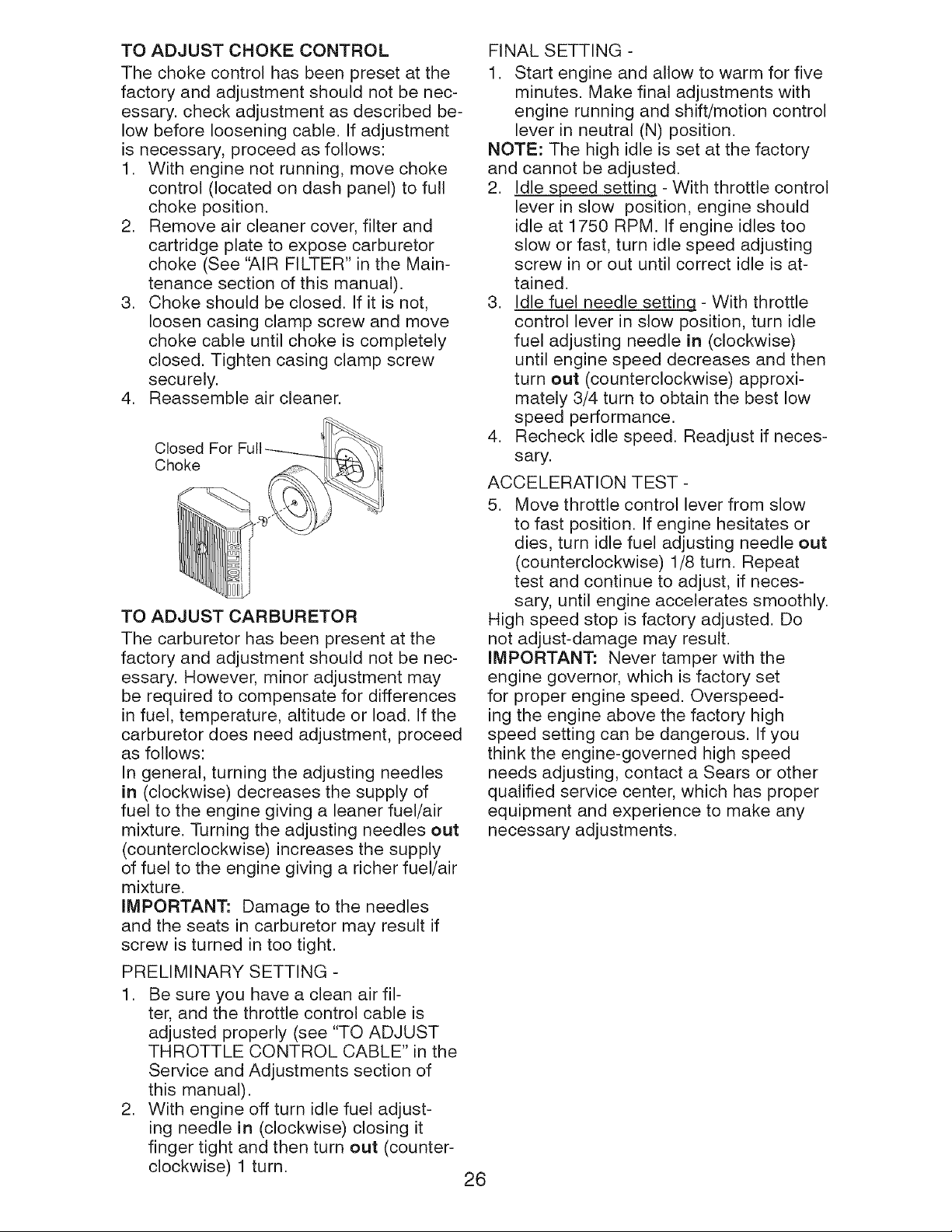

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See 'AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed For

Choke

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air fil-

ter, and the throttle control cable is

adjusted properly (see "TO ADJUST

THROTTLE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1750 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

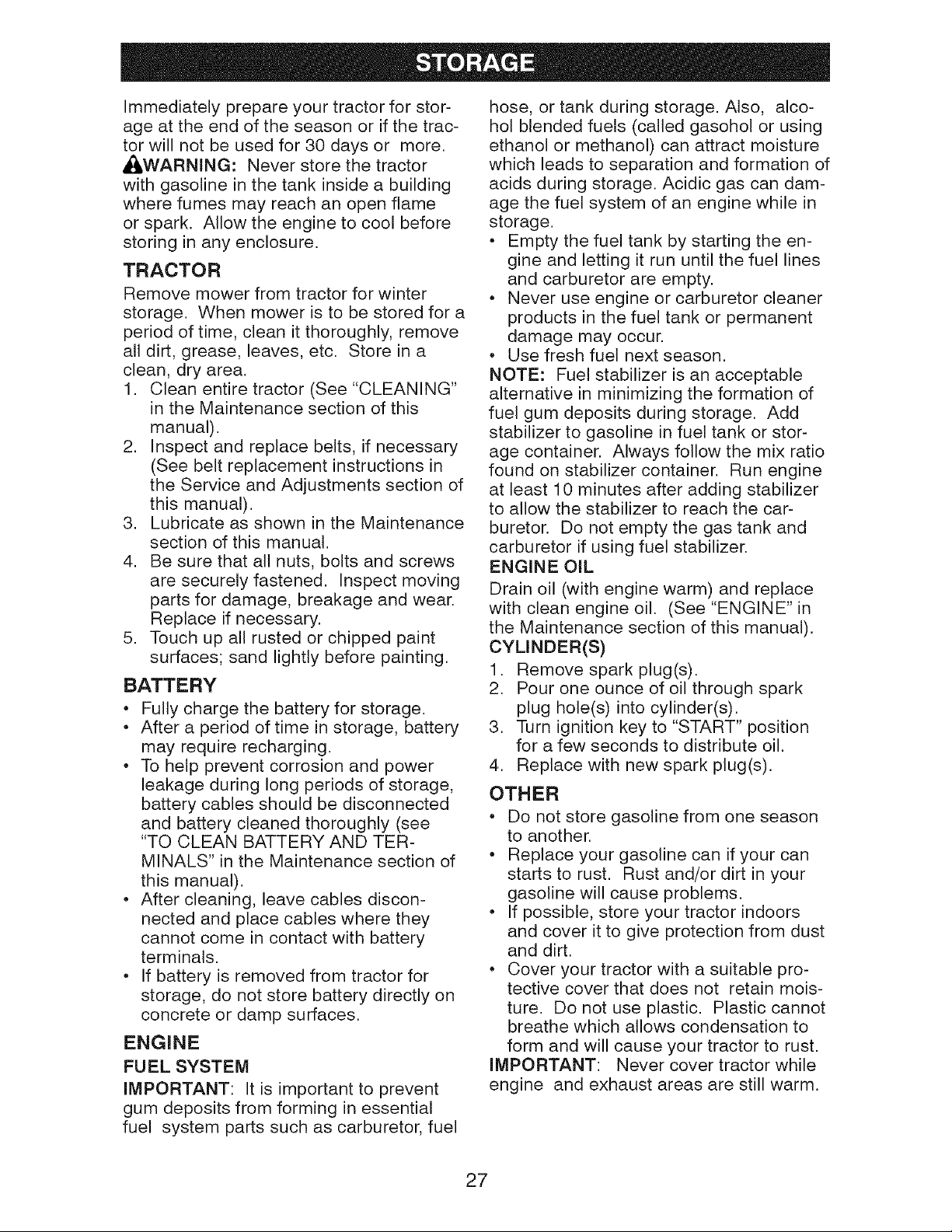

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_I_,WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery

may require recharging.

To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TER-

MINALS" in the Maintenance section of

this manual).

After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

, If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alco-

hol blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

, Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

iMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

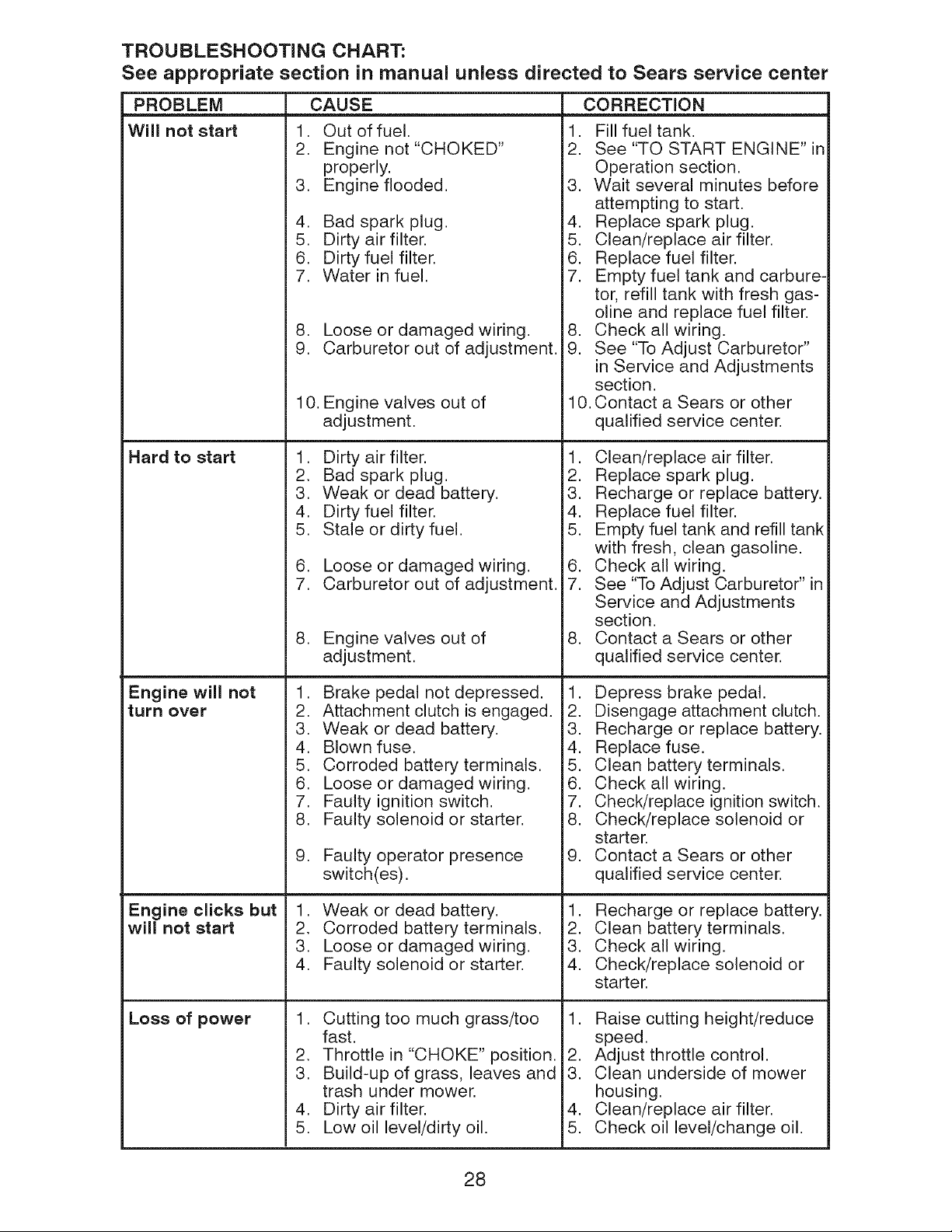

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

il. Fill fuel tank.

12. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

i4. Replace spark plug.

15. Clean/replace air filter.

i6. Replace fuel filter.

i7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

i9. See "To Adjust Carburetor"

in Service and Adjustments

section.

i 10. Contact a Sears or other

qualified service center.

11. Clean/replace air filter.

12. Replace spark plug.

3. Recharge or replace battery.

14. Replace fuel filter.

15. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

i7. See "To Adjust Carburetor" in

Service and Adjustments

section.

18. Contact a Sears or other

qualified service center.

il. Depress brake pedal.

i2. Disengage attachment clutch.

13. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

16. Check all wiring.

17. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

19. Contact a Sears or other

qualified service center.

il. Recharge or replace battery.

i2. Clean battery terminals.

13. Check all wiring.

4. Check/replace solenoid or

starter.

11. Raise cutting height/reduce

speed.

2. Adjust throttle control.

i3. Clean underside of mower

housing.

i4. Clean/replace air filter.

5. Check oil level/change oil.

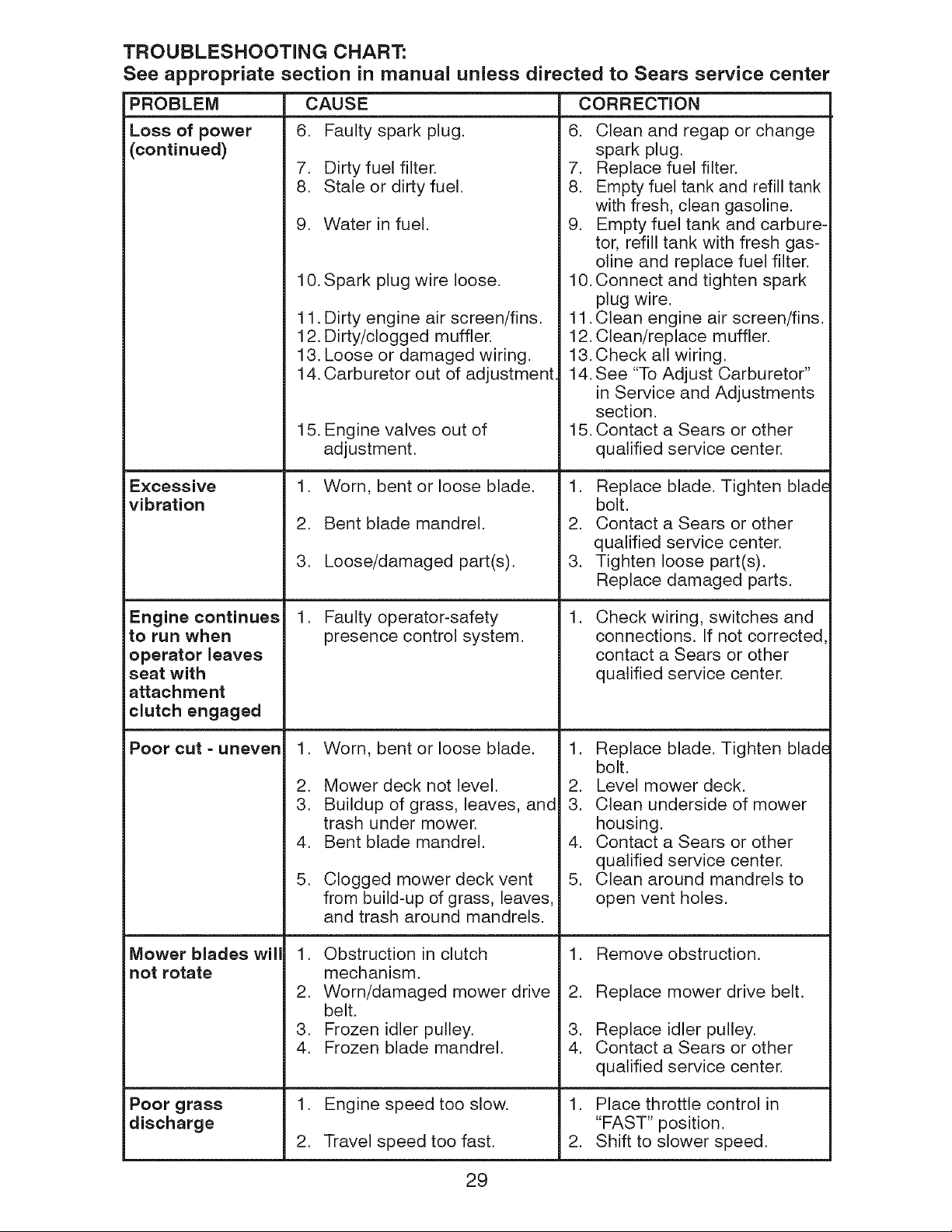

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

Mower blades will

not rotate

Poor grass

discharge

CAUSE

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

CORRECTION

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

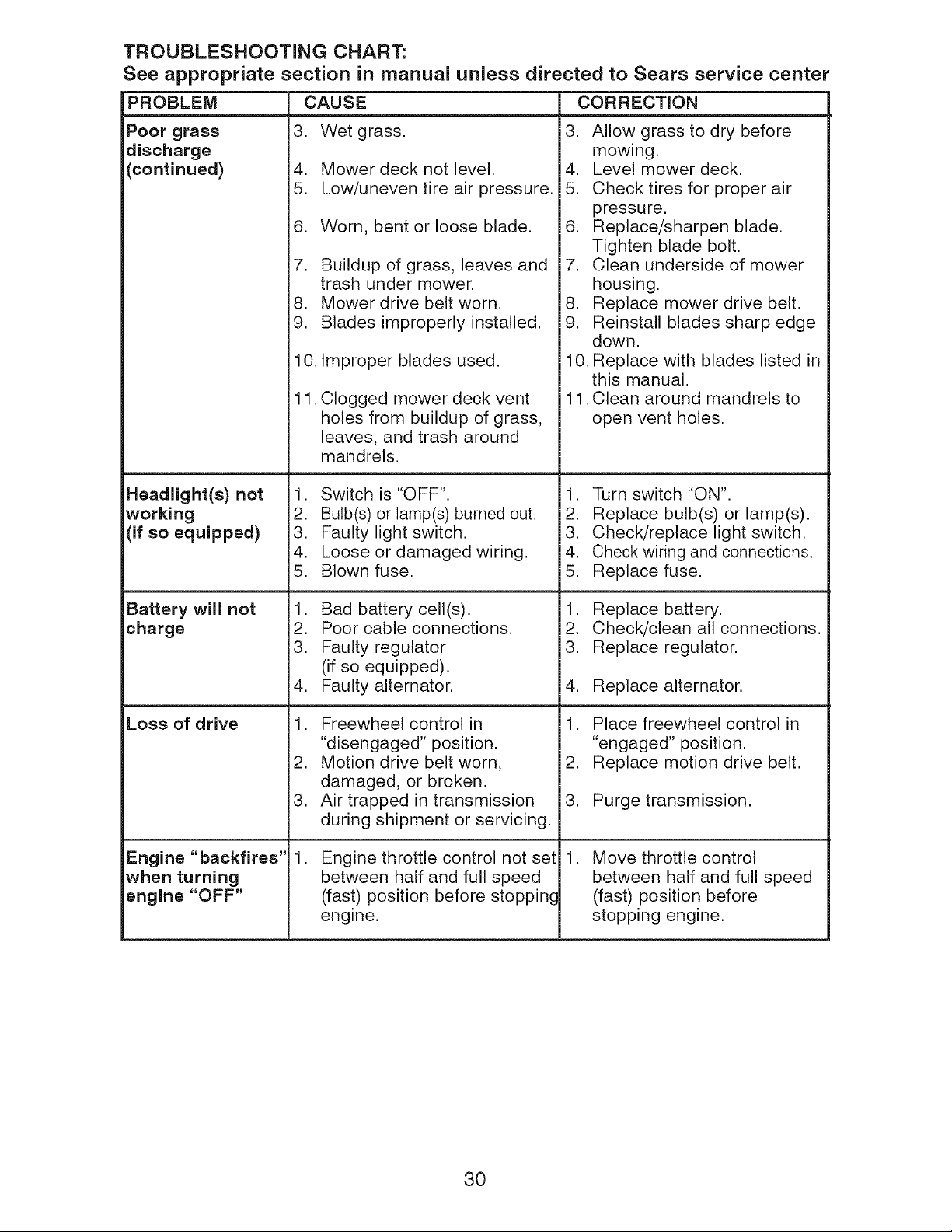

TROUBLESHOOTING CHART:

See appropriate section in manuaJ unJess directed to Sears service center

PROBLEM CORRECTION

Poor grass

discharge

(continued)

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

CAUSE

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

Engine throttle control not set

between half and full speed

(fast) position before stoppinc

engine.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections,

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

, Move throttle control

between half and full speed

(fast) position before

stopping engine.

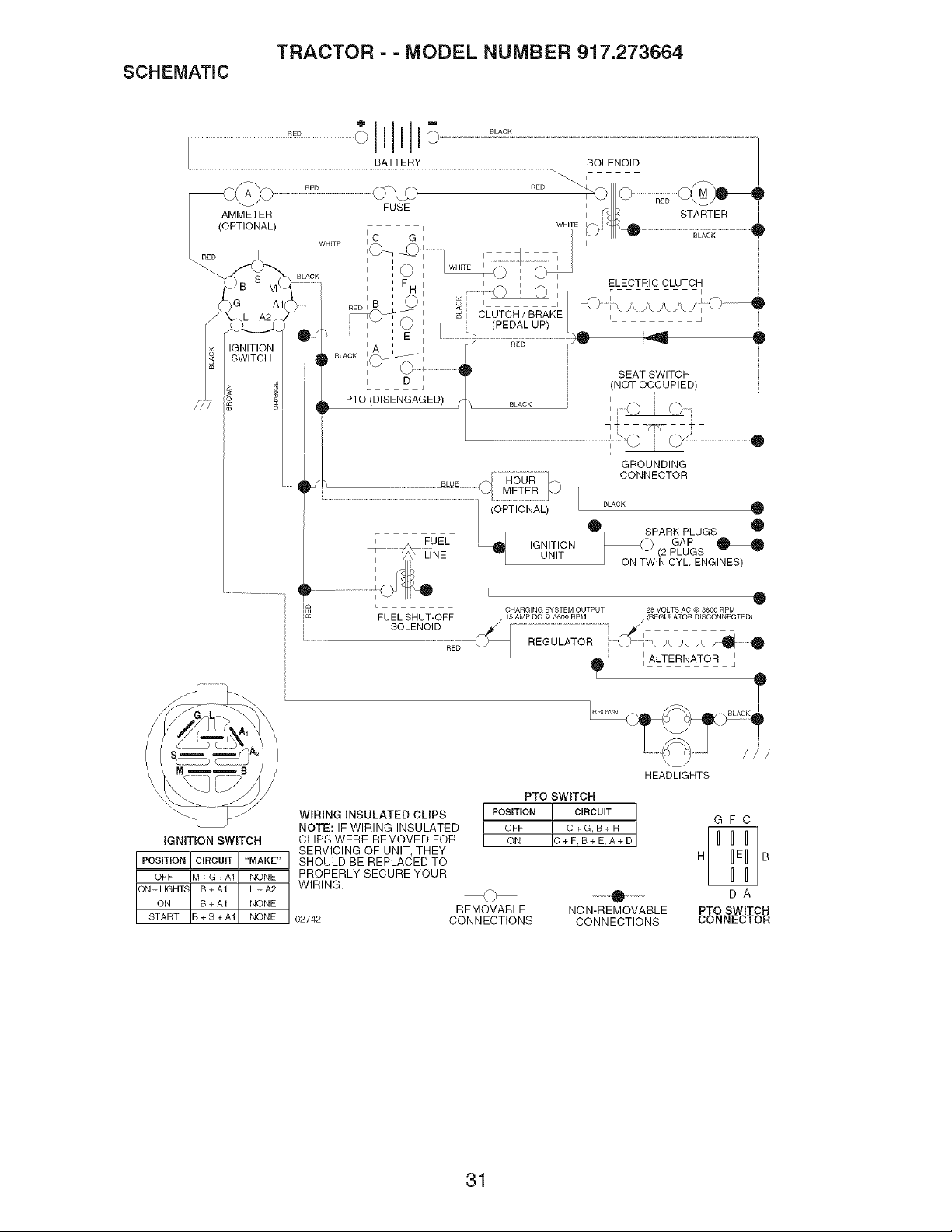

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.273664

AMMETER

(OPTIONAL)

._ED

//7

FUSE

WHITE I J

i i

BLACK I I I

.............. F I i I ELECTRIC CLUTCH

L A2 I / _k Y--F_ g CLUTCH/BRA_= -- i

._L A2(/ / _ ;_J_ (PEDALUP) / / •

3NITION / _ ...... A. , , _ J

_WITCH | _, _-- :_ , J }

_r _ _ ........................._ _ SEAT SWITCH

_! [ u ] [ _ (NOT OCCUPIED)

I ,,_ PTO (DISENGAGED) ftm BLA _ I _[ 1

GROUNDINd

_ _. CONNECTOR

........................................METER

.......................................................

SPARK PLUGS

FLIEL I } _ _'

........., _ IGNITION _ ,_ GAP o _ t

'z_ \ LINE I --_ ON TW'_ _L',_E°NGINES)

c3 I

w CHARGINGSYSTEMOUTPUT 28VOLTSAC @ 36O0RPM

FU EL SHUT-OFF 15AMP DC @3600 RPM (REGULATORDISCONNECTEC

SOLENOID _ .................................................................._)j_/

REGULATOR ......... _J_J\ ;\_ .......... }

RED

/ I I

i ALTERNATOR j

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

IGNITION SWITCH CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

POSITION CIRCUIT "MAKE" SHOULD BE REPLACED TO

OFF VI+G +A1 NONE PROPERLY SECURE YOUR

3N+ UGHTS B+A1 L+A2 WIRING.

ON B + A1 NONE

START B + S + A1 NONE 02742

PTO SWITCH

POSITION J_ CIRCUIT ]

OFF +C C+G.B+H tON +F--_+ E _-+ D

..........O ...........

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

HEADLIGHTS

GFC

PTO SWITCH

CONNECTOR

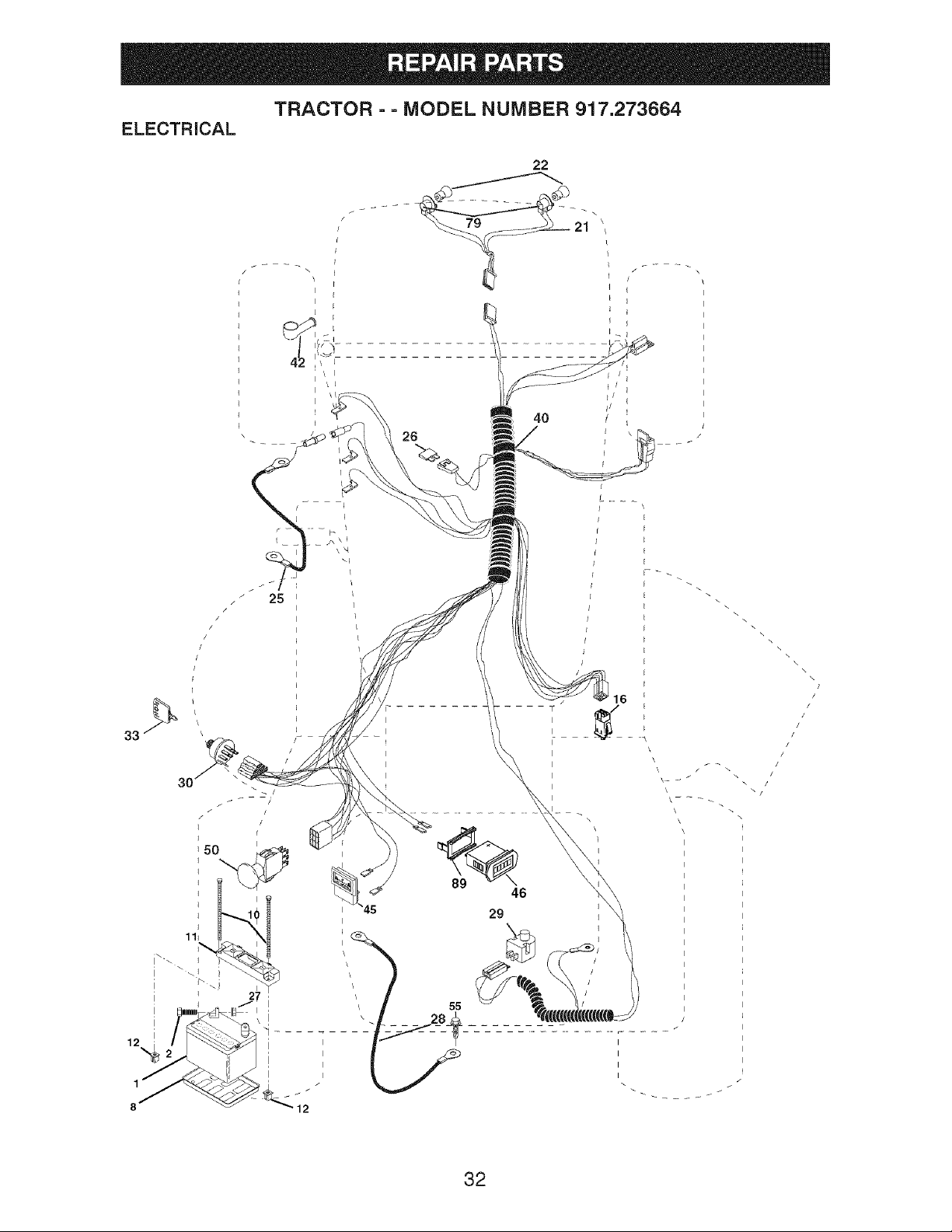

TRACTOR - - MODEL NUMBER 917.273664

ELECTRICAL

i \

\ I

(

33 _ //

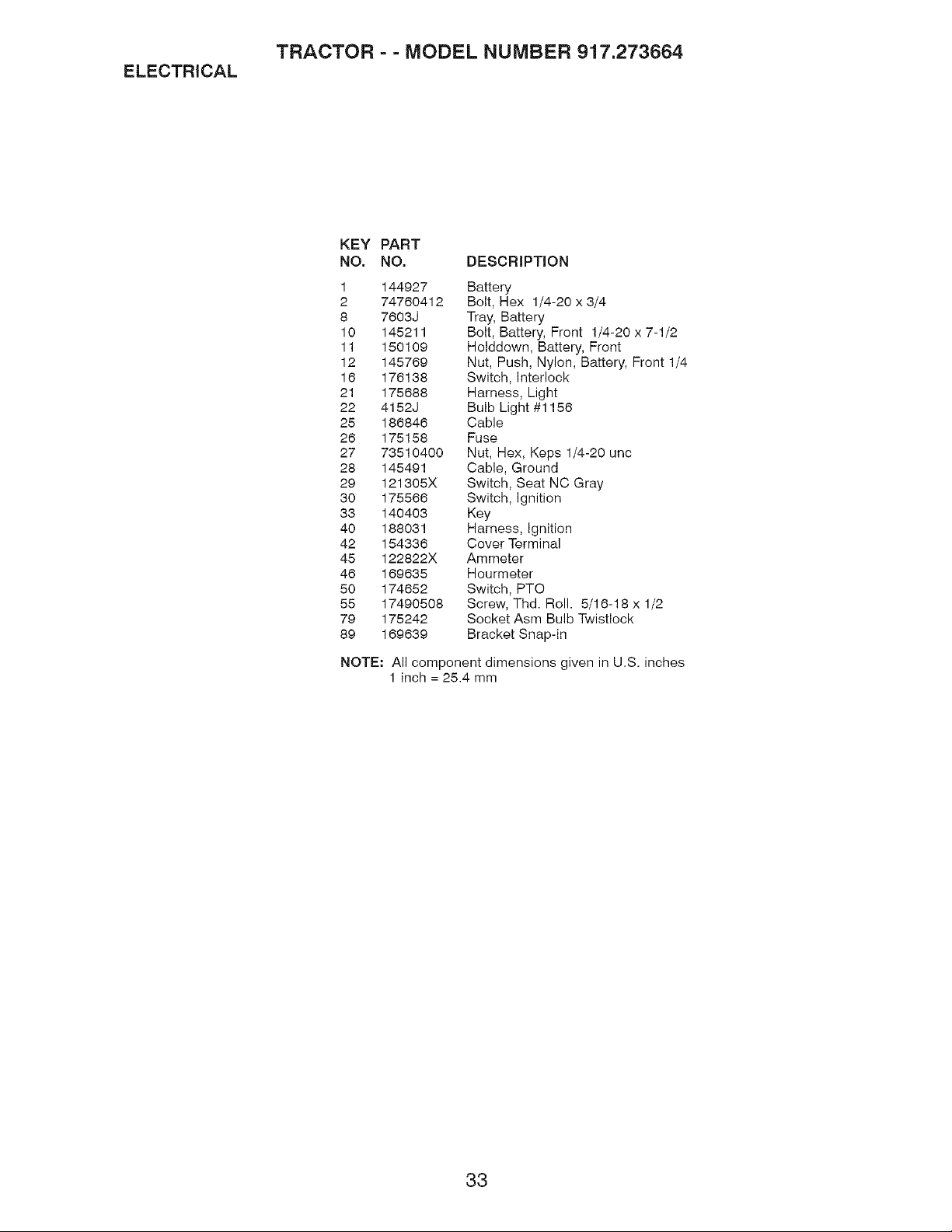

ELECTRICAL

TRACTOR = = MODEL NUMBER 917.273664

KEY PART

NO. NO. DESCRiPTiON

1 144927 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2

11 150109 Holddown, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, Interlock

21 175688 Harness, Light

22 4152J Bulb Light #1156

25 186846 Cable

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 unc

28 145491 Cable, Ground

29 121305X Switch, Seat NC Gray

30 175566 Switch, Ignition

33 140403 Key

40 188031 Harness, Ignition

42 154336 Cover Terminal

45 122822X Am meter

46 169635 Hourmeter

50 174652 Switch, PTO

55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2

79 175242 Socket Asm Bulb Twistlock

89 169639 Bracket Snap-in

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

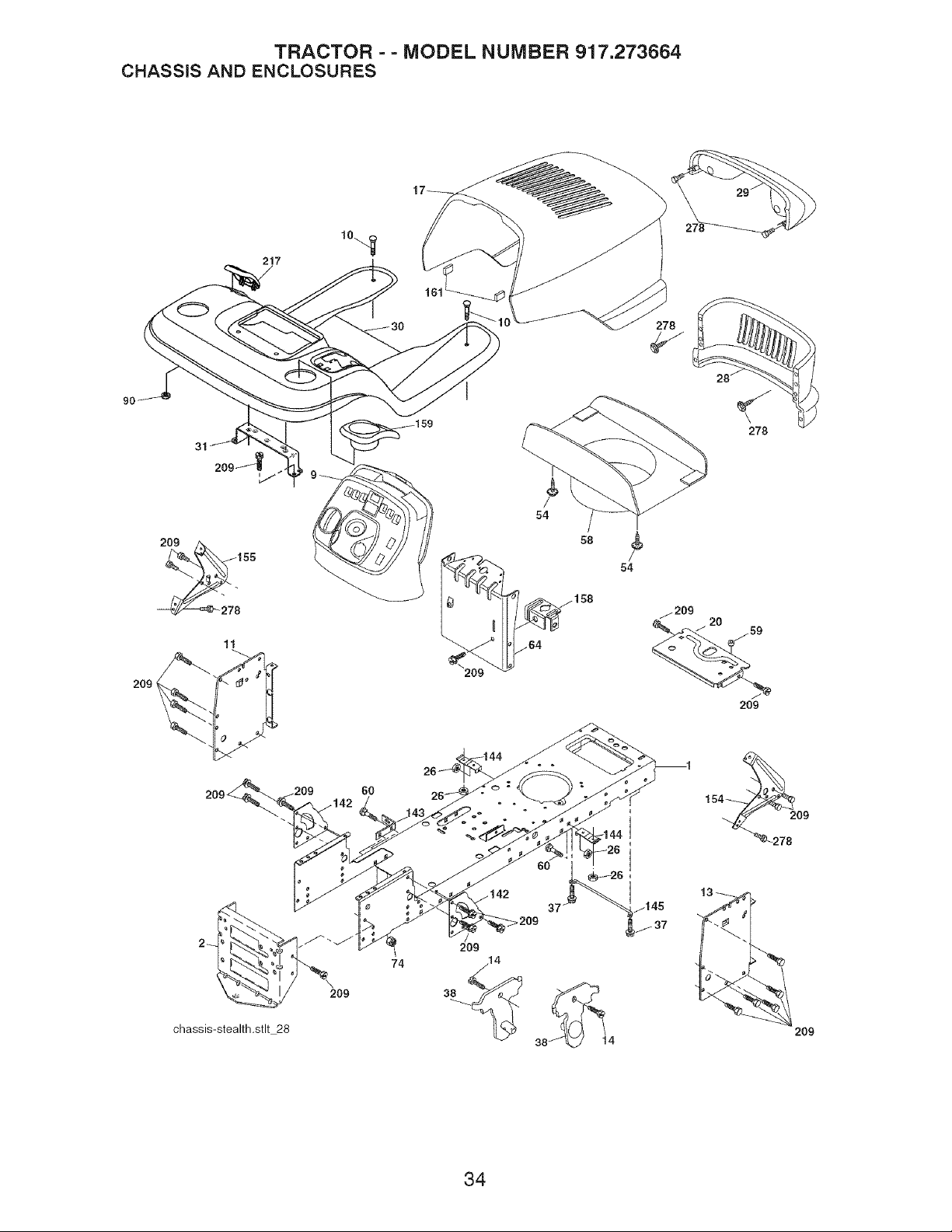

TRACTOR = = MODEL NUMBER 917.273664

CHASSIS AND ENCLOSURES

209_

209 /_

_278

chassis-stealth.stlt 28

209

38 38_14

278

j. 209

J 20 59

209

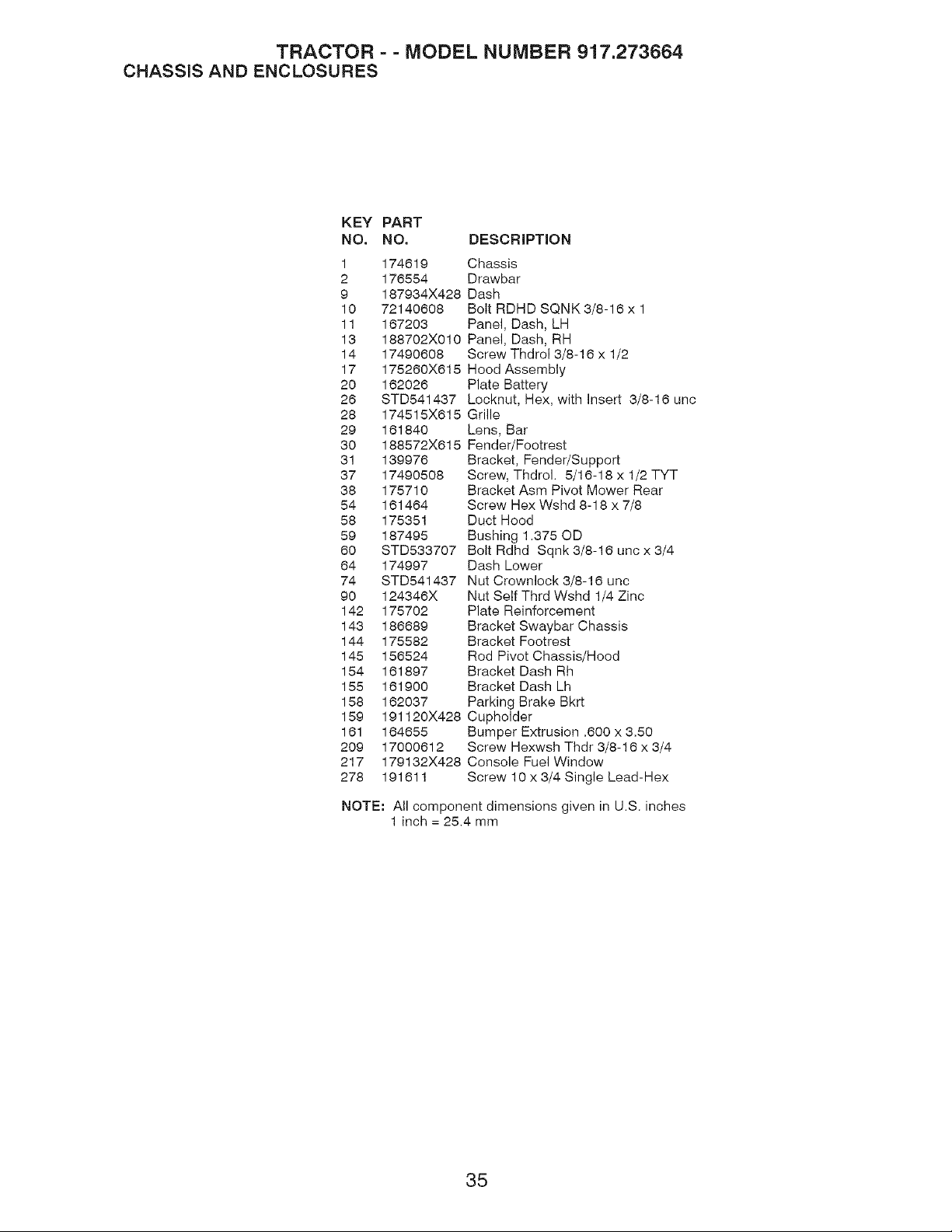

TRACTOR = = MODEL NUMBER 917.273664

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

9 187934X428 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 167203 Panel, Dash, LH

13 188702X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 175260X615 Hood Assembly

20 162026 Plate Battery

26 STD541437 Locknut, Hex, with Insert 3/8-16 unc

28 174515X615 Grille

29 161840 Lens, Bar

30 188572X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

54 161464 Screw Hex Wshd 8-18 x 7/8

58 175351 Duct Hood

59 187495 Bushing 1.375 OD

60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownlock 3/8-16 unc

90 124346X Nut Self Thrd Wshd 1/4 Zinc

142 175702 Plate Reinforcement

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 191120X428 Cupholder

161 164655 Bumper Extrusion .600 x 3.50

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

217 179132X428 Console Fuel Window

278 191611 Screw 10 x 3/4 Single Lead-Hex

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

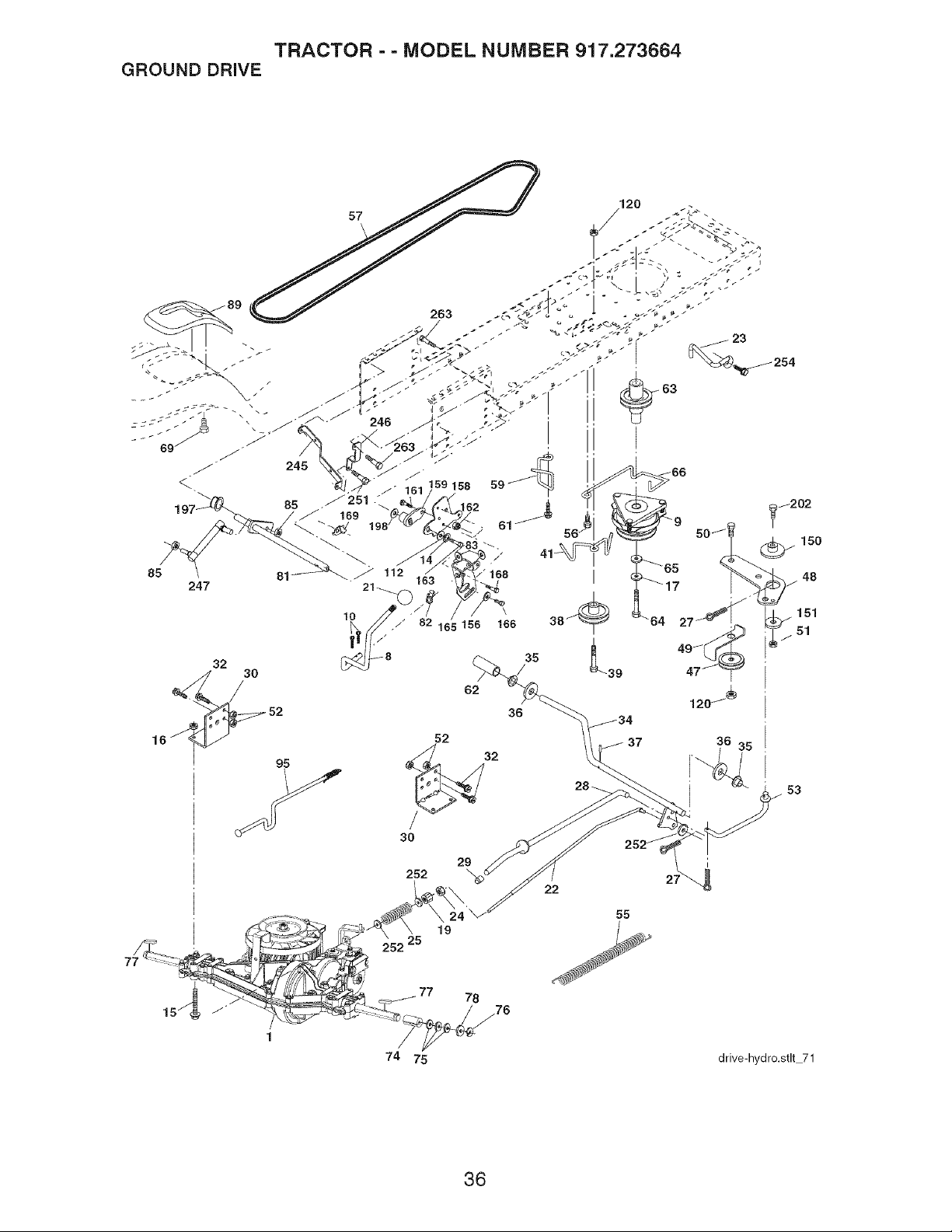

GROUND DRIVE TRACTOR - . MODEL NUMBER 917.273664

252

74 75

176

drive-hydro.stlt 71

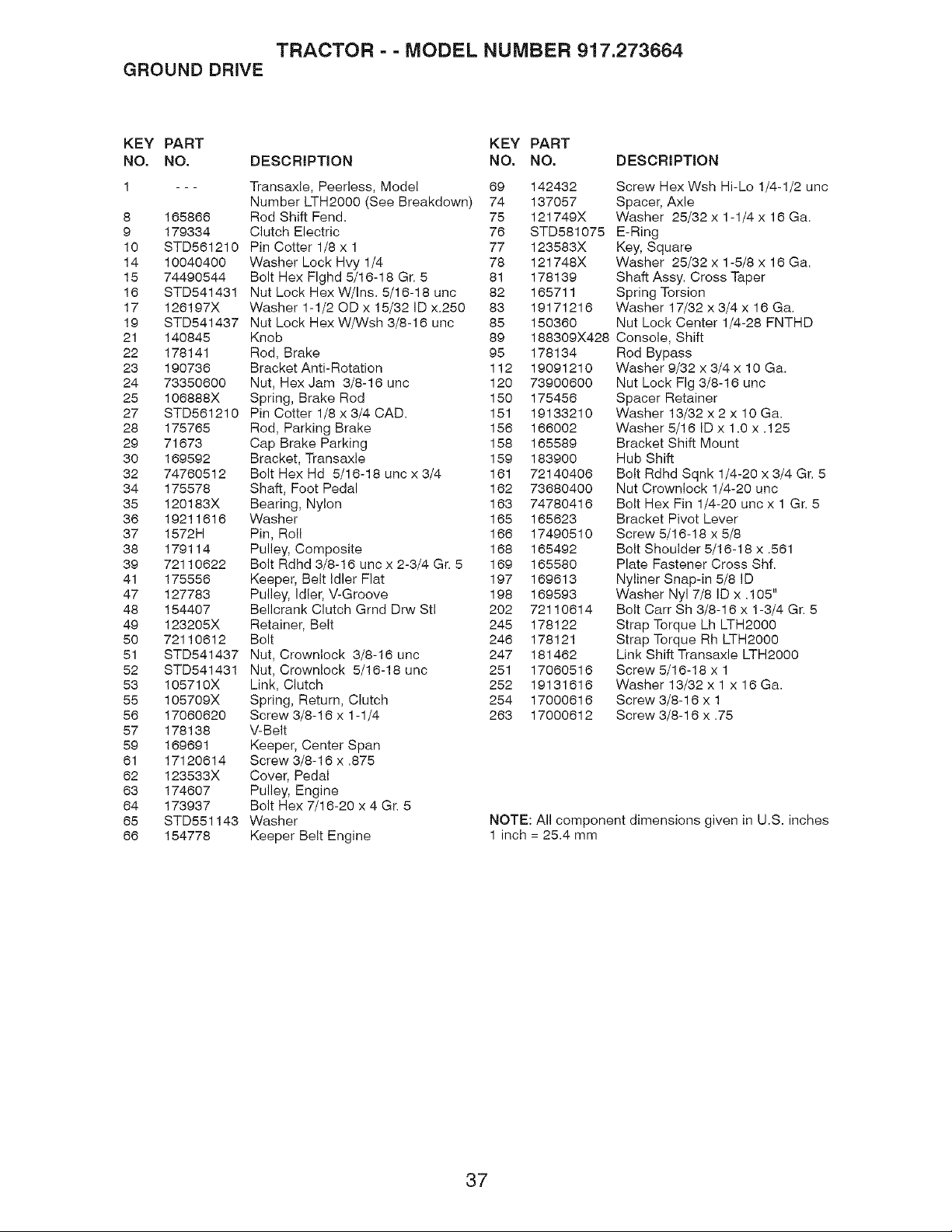

TRACTOR - - MODEL NUMBER 917.273664

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 - - - Transaxle, Peerless, Model 69

Number LTH2000 (See Breakdown) 74

8 165866 Rod Shift Fend. 75

9 179334 Clutch Electric 76

10 STD561210 Pin Cotter 1/8 x 1 77

14 10040400 Washer Lock Hvy 1/4 78

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 81

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 unc 82

17 126197X Washer 1-1/20D x 15/32 ID x.250 83

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 unc 85

21 140845 Knob 89

22 178141 Rod, Brake 95 178134

23 190736 Bracket Anti-Rotation 112 19091210

24 73350600 Nut, Hex Jam 3/8-16 unc 120 73900600

25 106888X Spring, Brake Rod 150 175456

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 151 19133210

28 175765 Rod, Parking Brake 156 166002

29 71673 Cap Brake Parking 158 165589

30 169592 Bracket, Transaxle 159 183900

32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4 161 72140406

34 175578 Shaft, Foot Pedal 162 73680400

35 120183X Bearing, Nylon 163 74780416

36 19211616 Washer 165 165623

37 1572H Pin, Roll 166 17490510

38 179114 Pulley, Composite 168 165492

39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 169 165580

41 175556 Keeper, Belt Idler Flat 197 169613

47 127783 Pulley, Idler, V-Groove 198 169593

48 154407 Bellcrank Clutch Grnd Drw Stl 202 72110614

49 123205X Retainer, Belt 245 178122

50 72110612 Bolt 246 178121

51 STD541437 Nut, Crownlock 3/8-16 unc 247 181462

52 STD541431 Nut, Crownlock 5/16-18 unc 251 17060516

53 105710X Link, Clutch 252 19131616

55 105709X Spring, Return, Clutch 254 17000616

56 17060620 Screw 3/8-16 x 1- 1/4 263 17000612

57 178138 V-Belt

59 169691 Keeper, Center Span

61 17120614 Screw 3/8-16 x .875

62 123533X Cover, Pedal

63 174607 Pulley, Engine

64 173937 Bolt Hex 7/16-20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper Belt Engine

DESCRIPTION

142432 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

137057 Spacer, Axle

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Ga.

178139 Shaft Assy. Cross Taper

165711 Spring Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga.

150360 Nut Lock Center 1/4-28 FNTHD

188309X428 Console, Shift

Rod Bypass

Washer 9/32 x 3/4 x 10 Ga.

Nut Lock Fig 3/8-16 unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer 5/16 ID x 1.0 x ,125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastener Cross Shf.

Nyliner Snap-in 5/8 ID

Washer Nyl 7/8 ID x .105"

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

Strap Torque Lh LTH2000

Strap Torque Rh LTH2000

Link Shift Transaxle LTH2000

Screw 5/16-18 x 1

Washer 13/32 x 1 x 16 Ga.

Screw 3/8-16 x 1

Screw 3/8-16 x .75

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

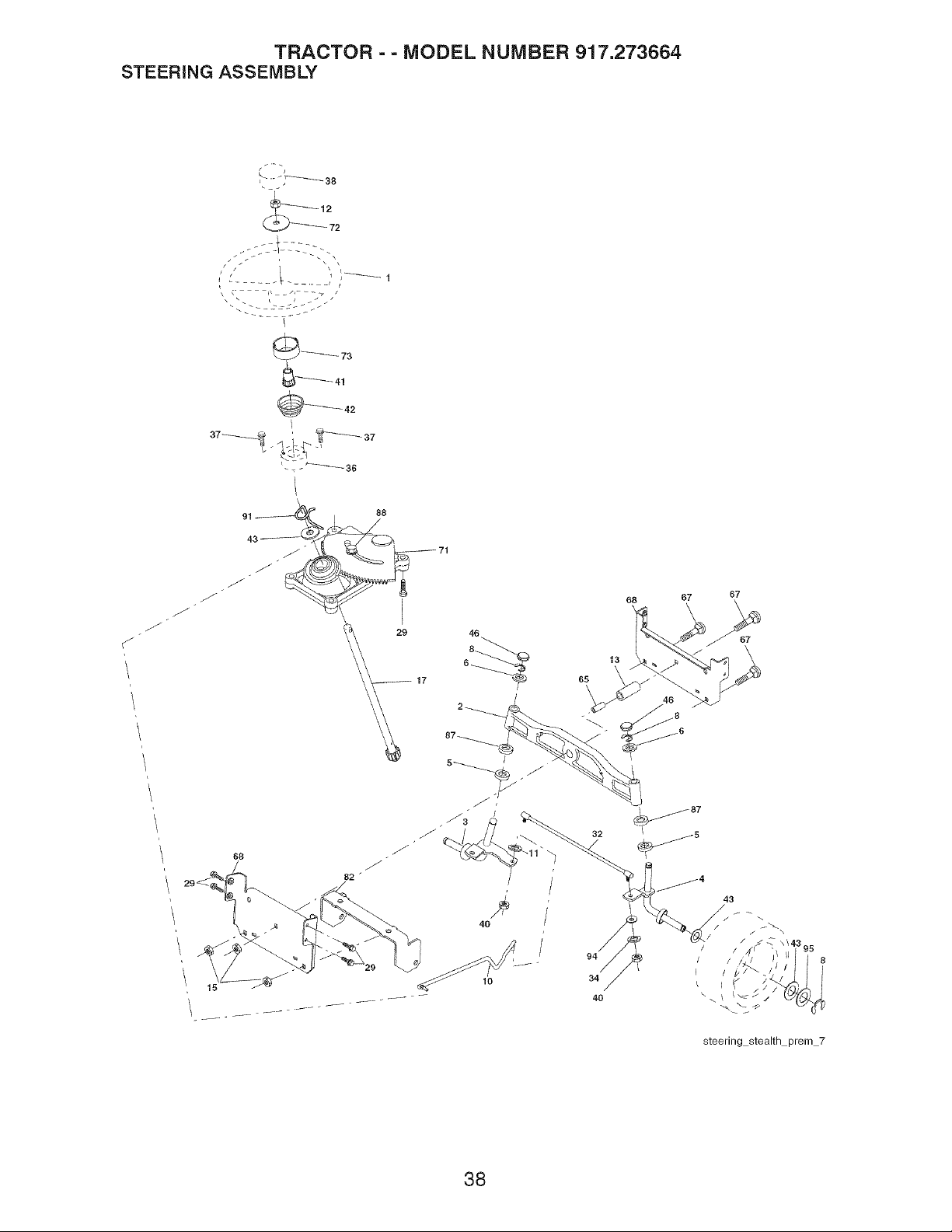

TRACTOR - - MODEL NUMBER 917.273664

STEERING ASSEMBLY

< 1 " I_1

29 46

68 67

/ / 8

I /

steering stealth prem 7

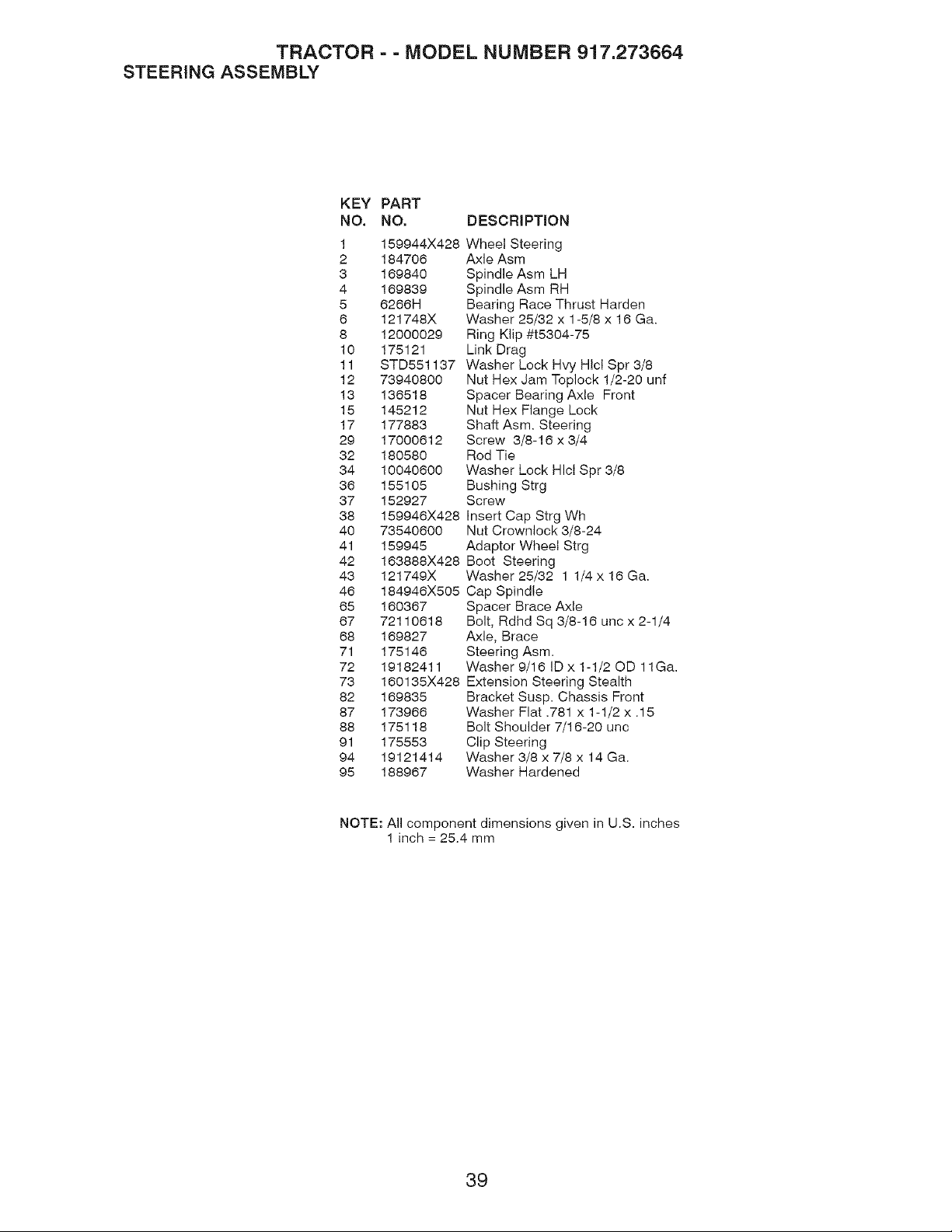

TRACTOR = = MODEL NUMBER 917.273664

STEERING ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 159944X428 Wheel Steering

2 184706 Axle Asm

3 169840 Spindle Asm LH

4 169839 Spindle Asm RH

5 6266H Bearing Race Thrust Harden

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

8 12000029 Ring Klip #t5304-75

10 175121 Link Drag

11 STD551137 Washer Lock Hvy HIcl Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm. Steering

29 17000612 Screw 3/8-16 x 3/4

32 180580 Rod Tie

34 10040600 Washer Lock Hlcl Spr 3/8

36 155105 Bushing Strg

37 152927 Screw

38 159946X428 Insert Cap Strg Wh

40 73540600 Nut Crownlock 3/8-24

41 159945 Adaptor Wheel Strg

42 163888X428 Boot Steering

43 121749X Washer 25/32 1 1/4x16Ga.

46 184946X505 Cap Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt, Rdhd Sq 3/8-16 unc x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

72 19182411 Washer 9/16 ID x 1-1/20D 11Ga.

73 160135X428 Extension Steering Stealth

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .15

88 175118 Bolt Shoulder 7/16-20 unc

91 175553 Clip Steering

94 19121414 Washer 3/8 x 7/8 x 14 Ga.

95 188967 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

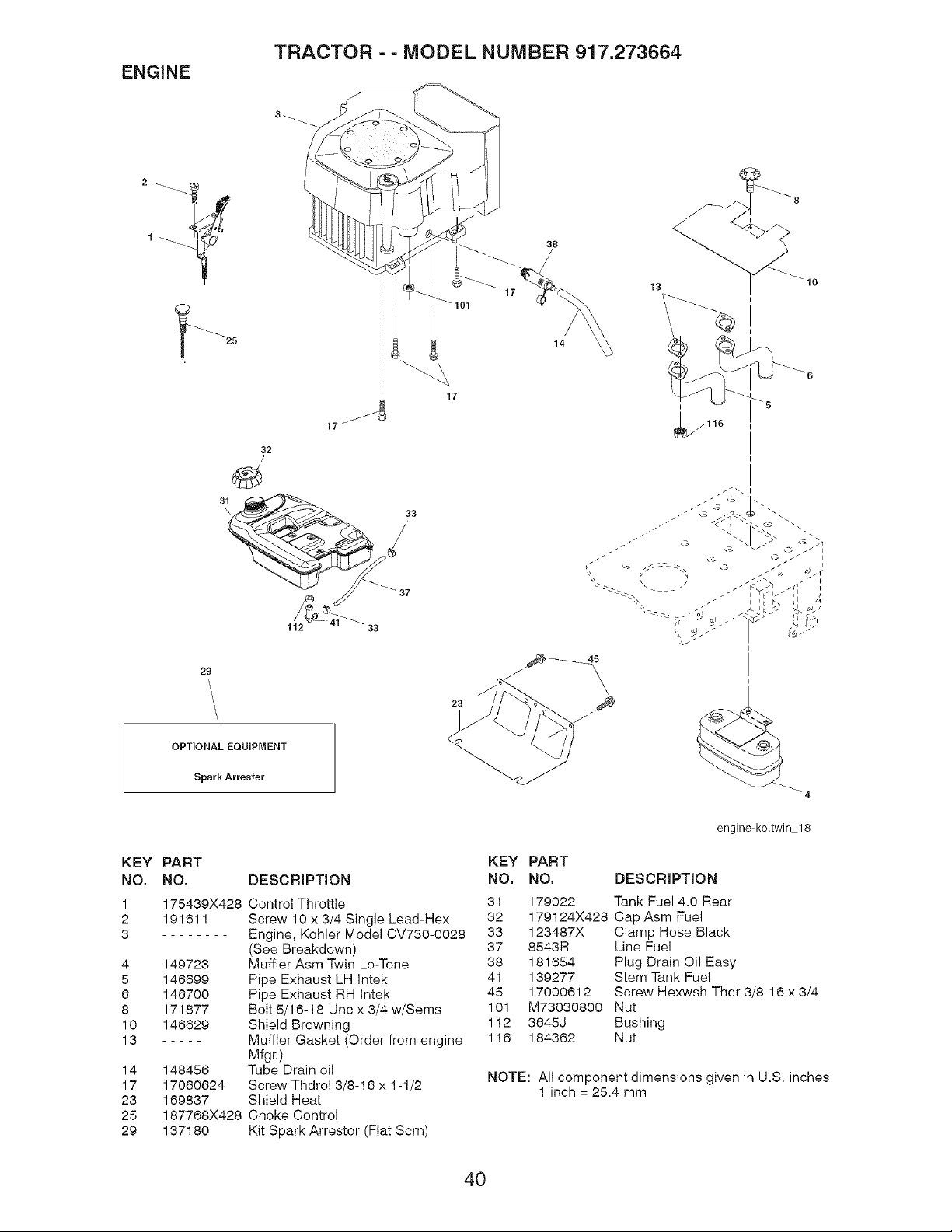

ENGINE

TRACTOR = = MODEL NUMBER 917.273664

101

KEY

NO.

OPTIONAL EQUIPMENT

Spark Arrester

PART

NO.

175439X428

191611

149723

146699

146700

171877

146629

148456

17060624

169837

187768X428

137180

DESCRIPTION

Control Throttle

Screw 10 x 3/4 Single Lead-Hex

Engine, Kohler Model CV730-0028

(See Breakdown)

Muffler Asm Twin Lo-Tone

Pipe Exhaust LH Intek

Pipe Exhaust RH Intek

Bolt 5/16-18 Unc x 3/4 w/Sems

Shield Browning

Muffler Gasket (Order from engine

Mfgr.)

Tube Drain oil

Screw Thdrol 3/8-16 x 1-1/2

Shield Heat

Choke Control

Kit Spark Arrestor (Flat Scrn)

l_j 116

engine-ko.twin 18

KEY PART

NO. NO, DESCRIPTION

31 179022 Tank Fuel 4.0 Rear

32 179124X428 Cap Asm Fuel

33 123487X Clamp Hose Black

37 8543R Line Fuel

38 181654 Plug Drain Oil Easy

41 139277 Stem Tank Fuel

45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

101 M73030800 Nut

112 3645J Bushing

116 184362 Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

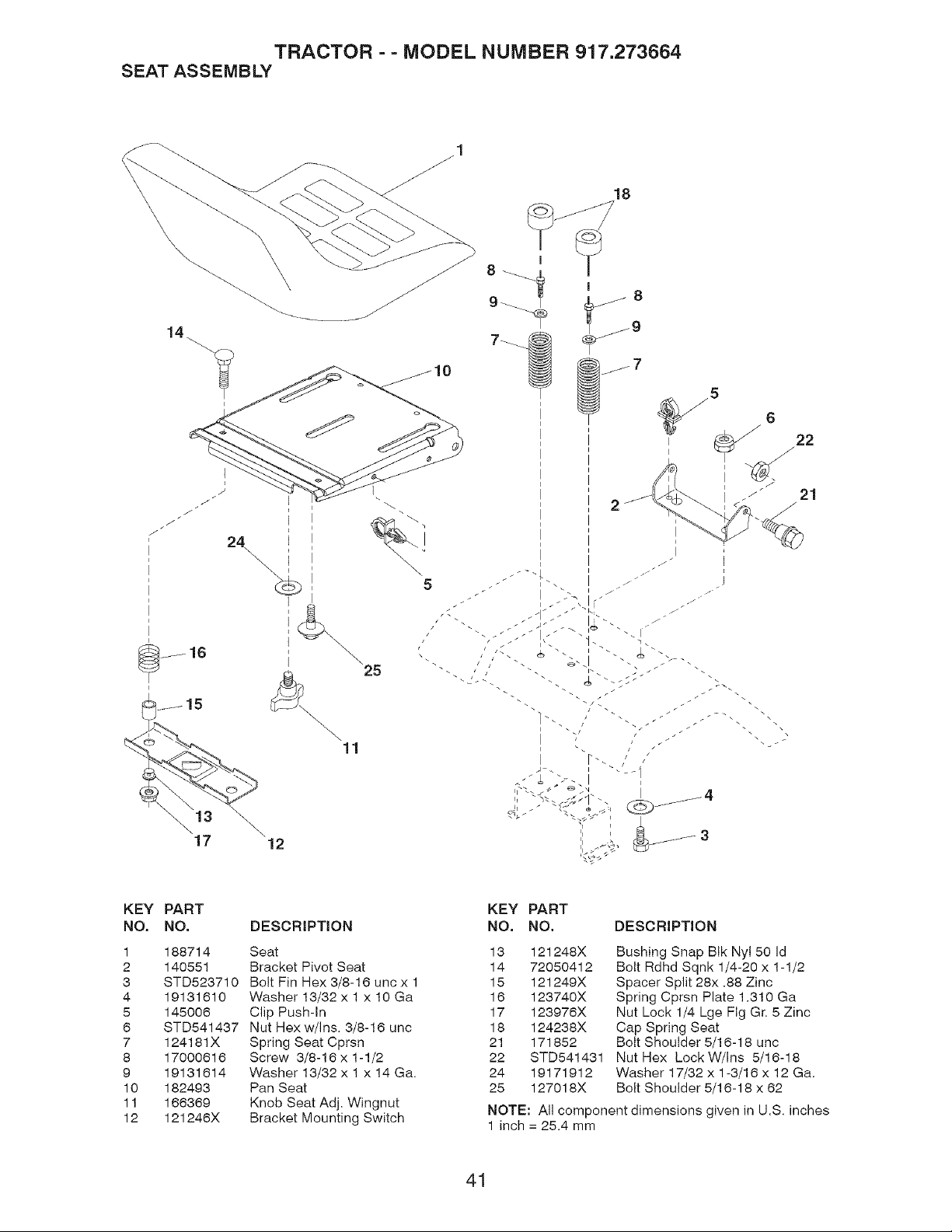

TRACTOR = = MODEL NUMBER 917.273664

SEAT ASSEMBLY

KEY

NO.

PART

NO.

188714

140551

STD523710

19131610

145006

STD541437

124181X

17000616

19131614

182493

166369

121246X

DESCRiPTiON

Seat

Bracket Pivot Seat

Bolt Fin Hex 3/8-16 unc x 1

Washer 13/32 x 1 x 10 Ga

Clip Push-In

Nut Hex w/Ins. 3/8-16 unc

Spring Seat Cprsn

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Ga.

Pan Seat

Knob Seat Adj. Wingnut

Bracket Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 121249X

16 123740X

17 123976X

18 124238X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sqnk 1/4-20 x 1-1/2

Spacer Split 28x .88 Zinc

Spring Cprsn Plate 1.310 Ga

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Cap Spring Seat

Bolt Shoulder 5/16-18 unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

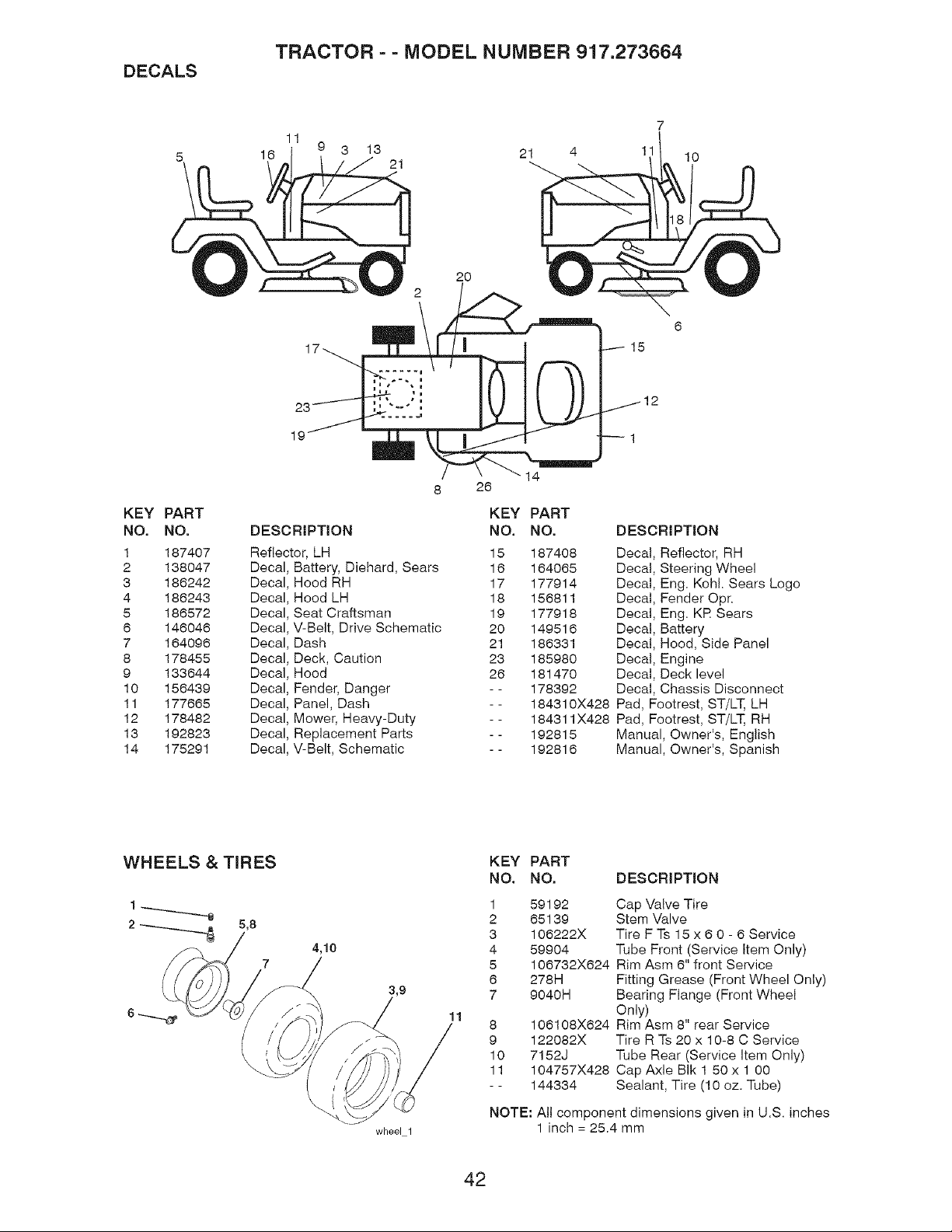

DECALS

TRACTOR = = MODEL NUMBER 917.273664

16 9 3 13 21 4 1

21 _

KEY PART

NO. NO.

1 187407

2 138047

3 186242

4 186243

5 186572

6 146046

7 164096

8 178455

9 133644

10 156439

11 177665

12 178482

13 192823

14 175291

KEY PART

DESCRIPTION NO. NO.

Reflector, LH 15 187408

Decal, Battery, Diehard, Sears 16 164065

Decal, Hood RH 17 177914

Decal, Hood LH 18 156811

Decal, Seat Craftsman 19 177918

Decal, V-Belt, Drive Schematic 20 149516

Decal, Dash 21 186331

Decal, Deck, Caution 23 185980

Decal, Hood 26 181470

Decal, Fender, Danger - - 178392

Decal, Panel, Dash - - 184310X428

Decal, Mower, Heavy-Duty - - 18431 lX428

Decal, Replacement Parts - - 192815

Decal, V-Belt, Schematic - - 192816

DESCRIPTION

Decal

Reflector, RH

Steering Wheel

Eng. Kohl. Sears Logo

Fender Opr.

Eng. KR Sears

Battery

Hood, Side Panel

Engine

Deck level

Decal Chassis Disconnect

Pad, Footrest, ST/LT, LH

Pad, Footrest, ST/LT, RH

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS & TIRES

[

4,10

wheel 1

KEY PART

NO. NO. DESCRIPTION

59192

65139

106222X

59904

106732X624

278H

9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

Cap Valve Tire

Stem Valve

Tire F Ts 15 x 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6" front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel

Only)

Rim Asm 8" rear Service

Tire R Ts 20 x 10-8 C Service

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 x 1 O0

Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

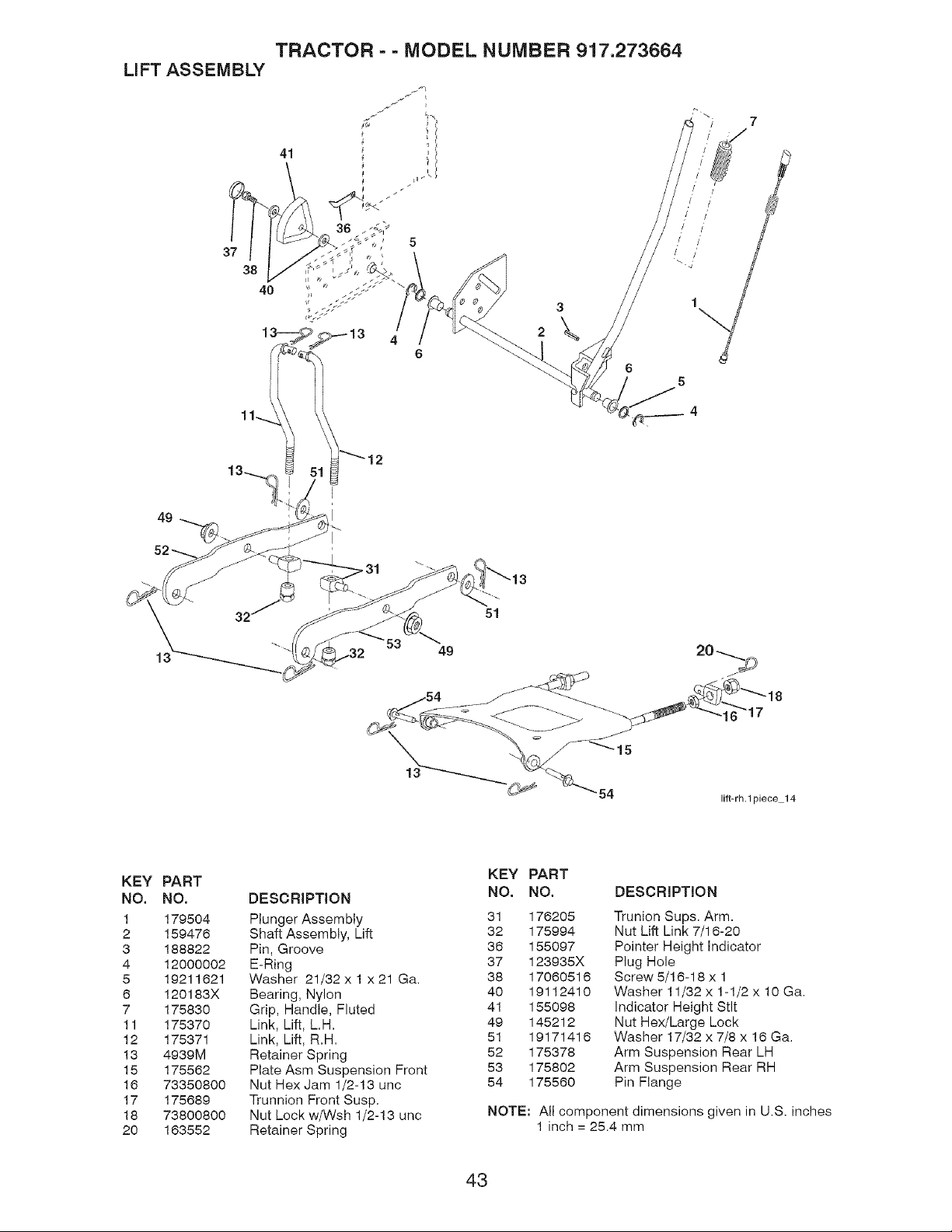

LIFT ASSEMBLY

TRACTOR = = MODEL NUMBER 917.273664

KEY PART

NO. NO.

t 179504

2 159476

3 188822

4 12000002

5 19211621

6 120183X

7 175830

11 175370

12 175371

13 4939M

15 175562

16 73350800

17 175689

18 73800800

20 163552

DESCRiPTiON

Plunger Assembly

Shaft Assembly, Lift

Pin, Groove

E-Ring

Washer 21/32 x 1 x 21 Ga.

Bearing, Nylon

Grip, Handle, Fluted

Link, Lift, LH.

Link, Lift, R.H.

Retainer Spring

Plate Asm Suspension Front

Nut Hex Jam 1/2-13 unc

Trunnion Front Susp.

Nut Lock w/Wsh 1/2-13 unc

Retainer Spring

KEY PART

NO. NO. DESCRiPTiON

31 176205

32 175994

36 155097

37 123935X

38 17060516

40 19112410

41 155098

49 145212

51 19171416

52 175378

53 175802

54 175560

Trunion Sups. Arm.

Nut Lift Link 7/16-20

Pointer Height Indicator

Plug Hole

Screw 5/16-18 x 1

Washer 11/32 x 1-1/2 x 10 Ga.

Indicator Height Stlt

Nut Hex/Large Lock

Washer 17/32 x 7/8 x 16 Ga.

Arm Suspension Rear LH

Arm Suspension Rear RH

Pin Flange

NOTE: All component dimensions given in U.S. inches

t inch = 25.4 mm

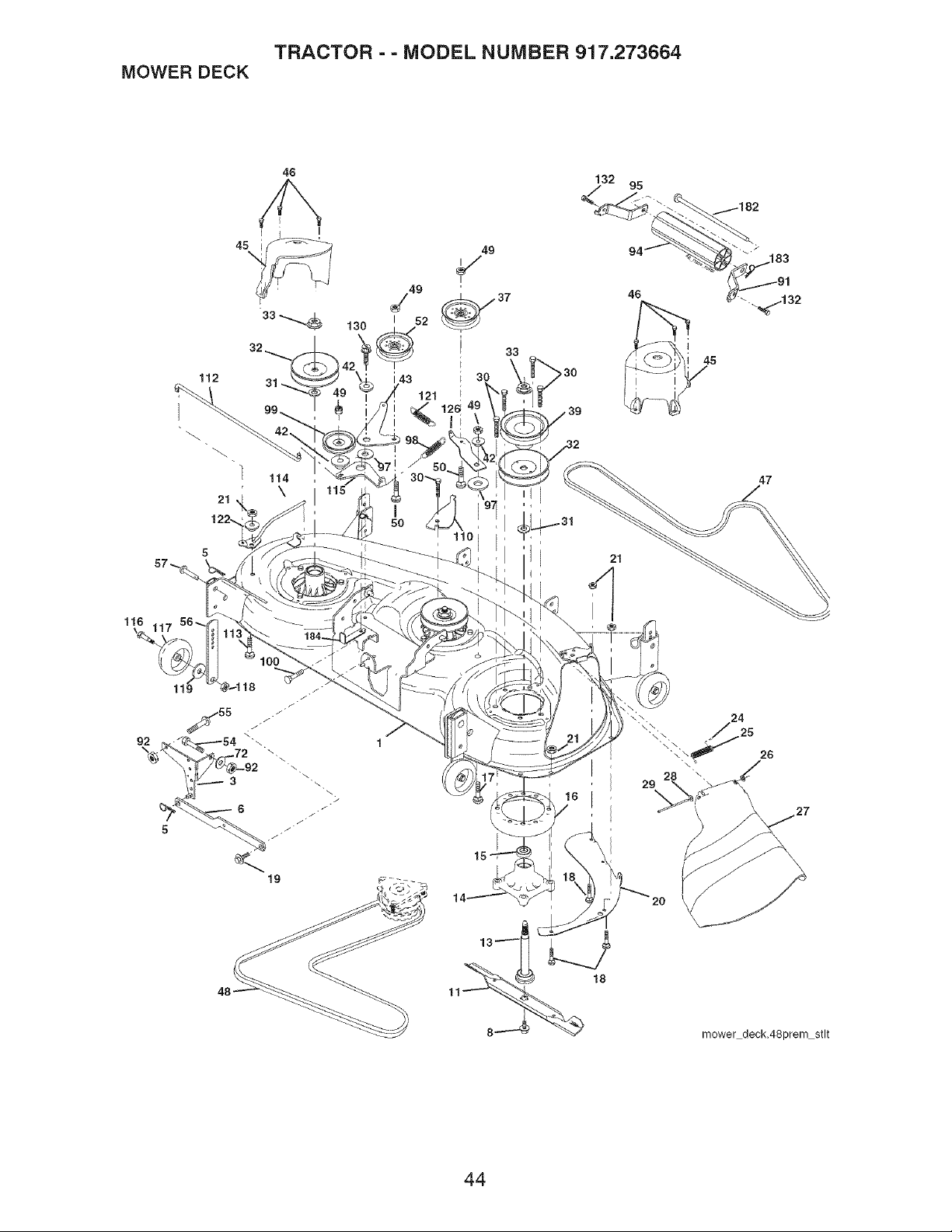

TRACTOR - - MODEL NUMBER 917.273664

MOWER DECK

116

"<\ 24

\\.

'\\

8-'---'_ mower deck,48prem stlt

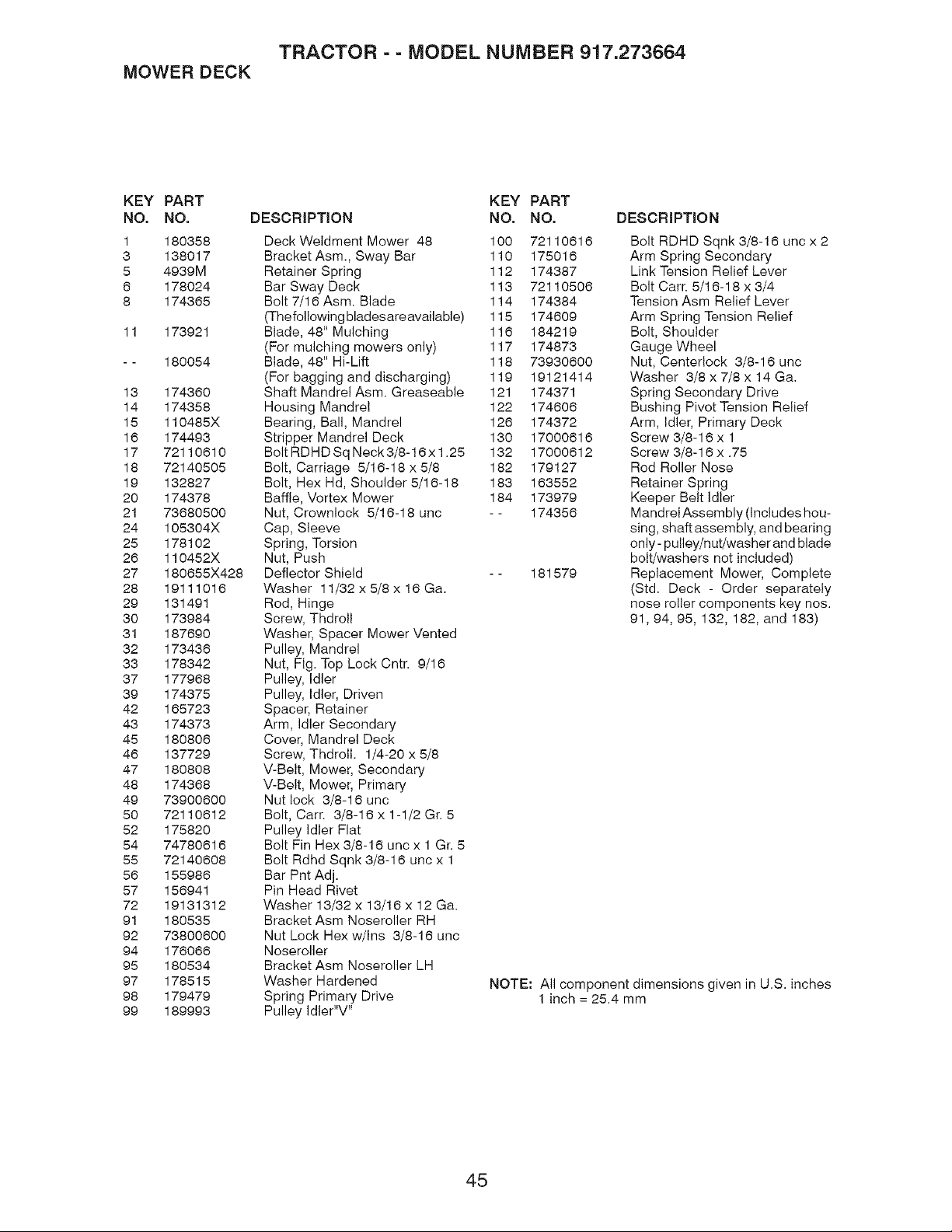

TRACTOR - - MODEL NUMBER 917.273664

MOWER DECK

KEY PART

NO. NO.

1 180358

3 138017

5 4939M

6 178024

8 174365

173921

180054

174360

174358

110485X

174493

72110610

72140505

132827

174378

73680500

105304X

178102

110452X

180655X428

19111016

131491

173984

187690

173436

178342

177968

174375

165723

174373

180806

137729

180808

174368

73900600

72110612

175820

74780616

72140608

155986

156941

19131312

180535

73800600

176066

180534

178515

179479

189993

DESCRiPTiON

Deck Weldment Mower 48

Bracket Asm., Sway Bar

Retainer Spring

Bar Sway Deck

Bolt 7/16 Asm. Blade

(The following bladesareavailable)

Blade, 48" Mulching

(For mulching mowers only)

Blade, 48" Hi-Lift

(For bagging and discharging)

Shaft Mandrel Asm. Greaseable

Housing Mandrel

Bearing, Ball, Mandrel

Stripper Mandrel Deck

Bolt RDHD Sq Neck 3/8-16 x 1.25

Bolt, Carriage 5/16-18 x 5/8

Bolt, Hex Hd, Shoulder 5/16-18

Baffle, Vortex Mower

Nut, Crownlock 5/16-18 unc

Cap, Sleeve

Spring, Torsion

Nut, Push

Deflector Shield

Washer 11/32 x 5/8 x 16 Ga.

Rod, Hinge

Screw, Thdroll

Washer, Spacer Mower Vented

Pulley, Mandrel

Nut, Fig. Top Lock Cntr. 9/16

Pulley, Idler

Pulley, Idler, Driven

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, Thdroll. 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut lock 3/8-16 unc

Bolt, Cam 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

Bolt Fin Hex 3/8-16 uncx 1 Gr. 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

Bar Pnt Adj.

Pin Head Rivet

Washer 13/32 x 13/16 x 12 Ga.

Bracket Asm Noseroller RH

Nut Lock Hex w/Ins 3/8-16 unc

Noseroller

Bracket Asm Noseroller LH

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

KEY PART

NO. NO.

100 72110616

110 175016

112 174387

113 72110506

114 174384

115 174609

116 184219

117 174873

118 73930600

119 19121414

121 174371

122 174606

126 174372

130 17000616

132 17000612

182 179127

183 163552

184 173979

-- 174356

181579

DESCRIPTION

Bolt RDHD Sqnk 3/8-16 unc x 2

Arm Spring Secondary

Link Tension Relief Lever

Bolt Carr. 5/16-18 x 3/4

Tension Asm Relief Lever

Arm Spring Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 unc

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1

Screw 3/8-16 x .75

Rod Roller Nose

Retainer Spring

Keeper Belt Idler

Mandrel Assembly (Includes hou-

sing, shaft assembly, and bearing

only- pulley/nut/washer and blade

bolt/washers not included)

Replacement Mower, Complete

(Std. Deck - Order separately

nose roller components key nos.

91,94, 95, 132, 182, and 183)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

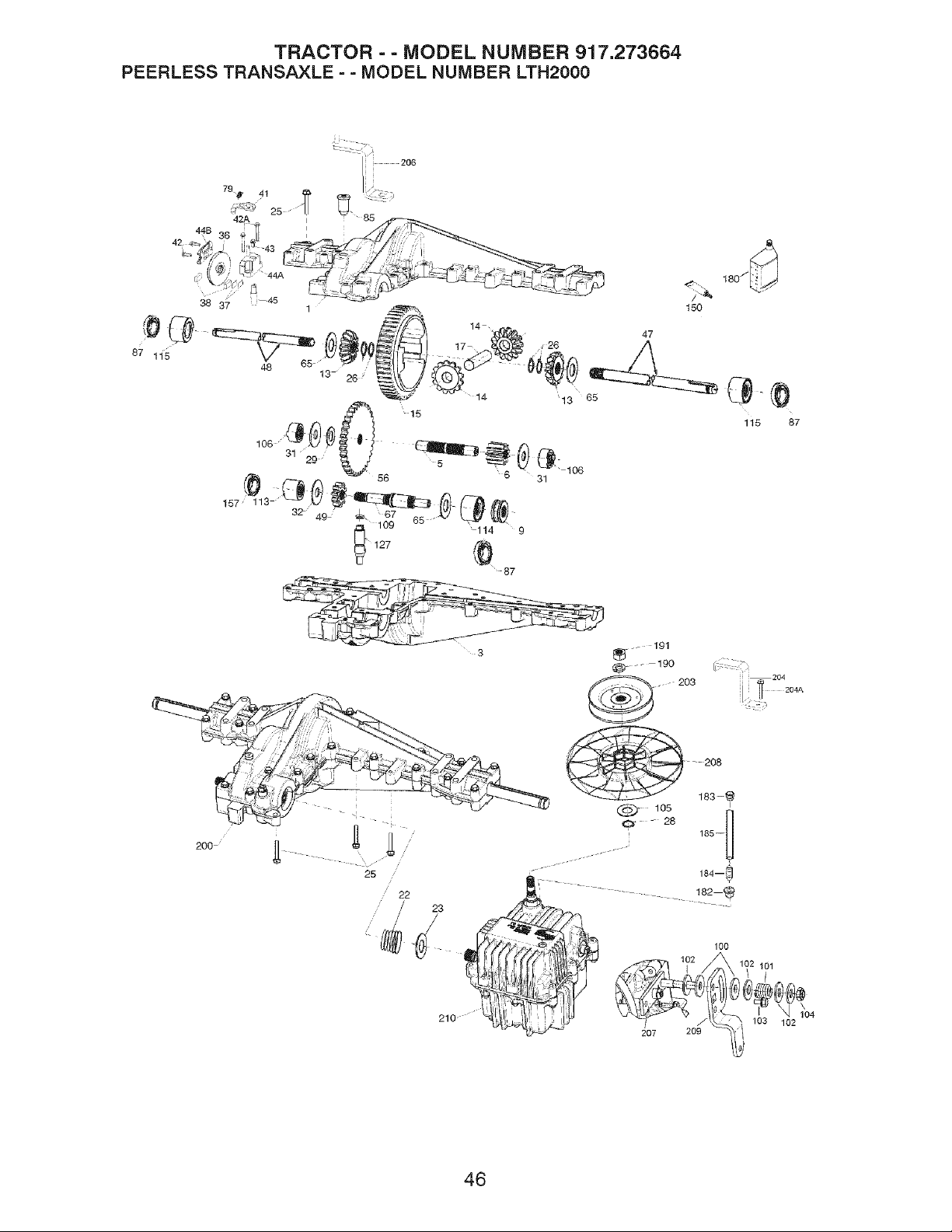

TRACTOR - - MODEL NUMBER 917.273664

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

i¸ i _ _ ._.

_1 25 I I

-114 9

J °___ _ _i,_

200 _ _ . -

210

_ )_.. 203

_ 208

C'_ - 28 II

' 185--

184--_

204

: :":,

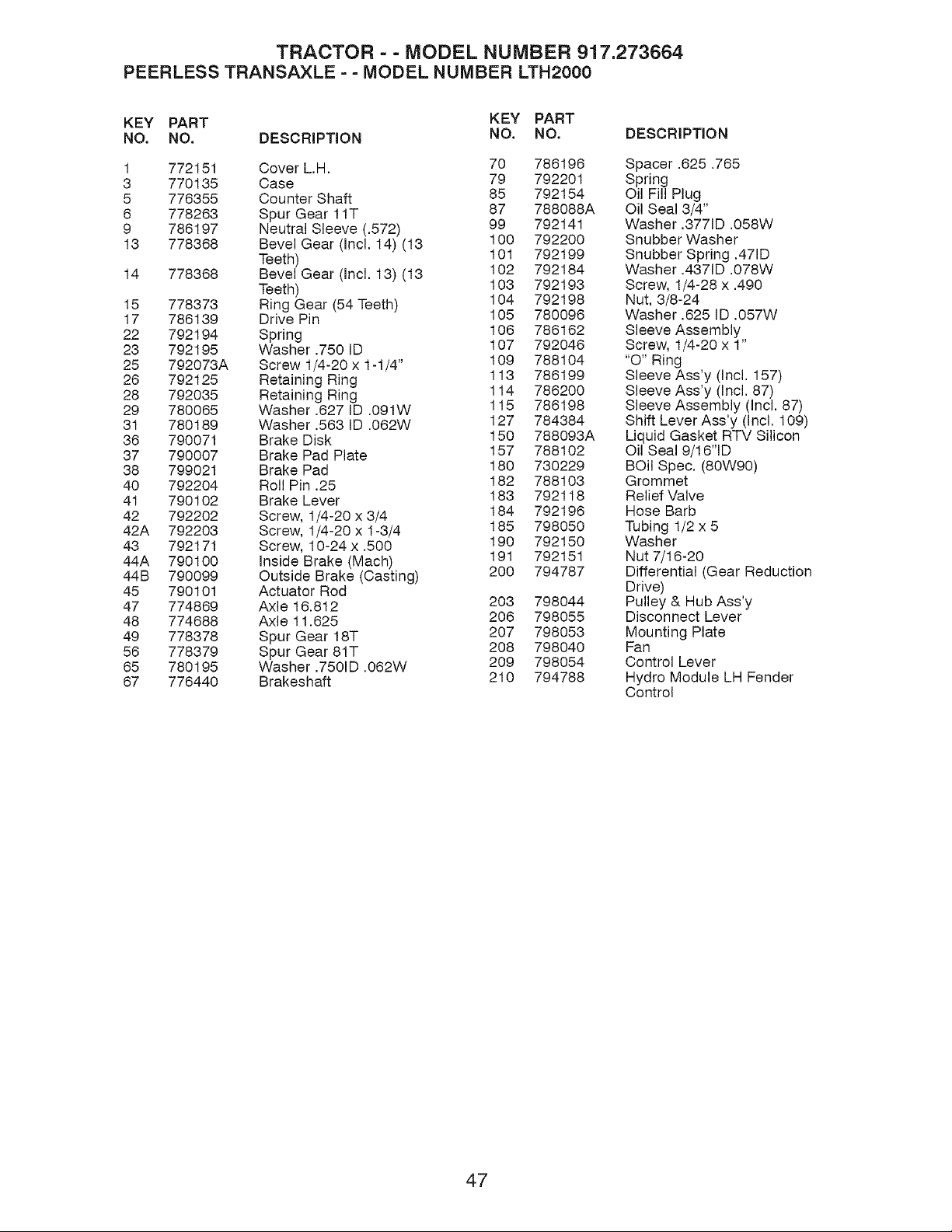

TRACTOR = = MODEL NUMBER 917.273664

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON

1 772151 Cover L.H. 70 786196 Spacer .625.765

3 770135 Case 79 792201 Spring

5 776355 Counter Shaft 85 792154 Oil Fill Plug

6 778263 Spur Gear 1 IT 87 788088A Oil Seal 3/4"

9 786197 Neutral Sleeve (.572) 99 792141 Washer .3771D .058W

13 778368 Bevel Gear (Incl. 14) (13 100 792200 Snubber Washer

Teeth) 101 792199 Snubber Spring .471D

14 778368 Bevel Gear (Incl. 13) (13 102 792184 Washer .4371D .078W

Teeth) 103 792193 Screw, I/4-28 x .490

15 778373 Ring Gear (54 Teeth) 104 792198 Nut, 3/8-24

17 786139 Drive Pin 105 780096 Washer .625 ID .057W

22 792194 Spring 106 786162 Sleeve Assembly

23 792195 Washer .750 ID 107 792046 Screw, 1/4-20 x 1"

25 792073A Screw 1/4-20 x 1-I/4" 109 788104 "O" Ring

26 792125 Retaining Ring 113 786199 Sleeve Ass'y (Incl. 157)

28 792035 Retaining Ring 114 786200 Sleeve Ass'y (Incl. 87)

29 780065 Washer .627 ID .091W 115 786198 Sleeve Assembly (Incl. 87)

31 780189 Washer .563 ID .062W 127 784384 Shift Lever Ass'y (Incl. 109)

36 790071 Brake Disk 150 788093A Liquid Gasket RTV Silicon

37 790007 Brake Pad Plate 157 788102 Oil Seal 9/16"lD

38 799021 Brake Pad 180 730229 BOil Spec. (80W90)

40 792204 Roll Pin .25 182 788103 Grommet

41 790102 Brake Lever 183 792118 Relief Valve

42 792202 Screw, 1/4-20 x 3/4 184 792196 Hose Barb

42A 792203 Screw, 1/4-20 x I-3/4 185 798050 Tubing 1/2 x 5

43 792171 Screw, 10-24 x .500 190 792150 Washer

44A 790100 Inside Brake (Mach) 191 792151 Nut 7/16-20

44B 790099 Outside Brake (Casting) 200 794787 Differential (Gear Reduction

45 790101 Actuator Rod Drive)

47 774869 Axle 16.812 203 798044 Pulley & Hub Ass'y

48 774688 Axle 11.625 206 798055 Disconnect Lever

49 778378 Spur Gear 18T 207 798053 Mounting Plate

56 778379 Spur Gear 81T 208 798040 Fan

65 780195 Washer .7501D .062W 209 798054 Control Lever

67 776440 Brakeshaft 210 794788 Hydro Module LH Fender

Control

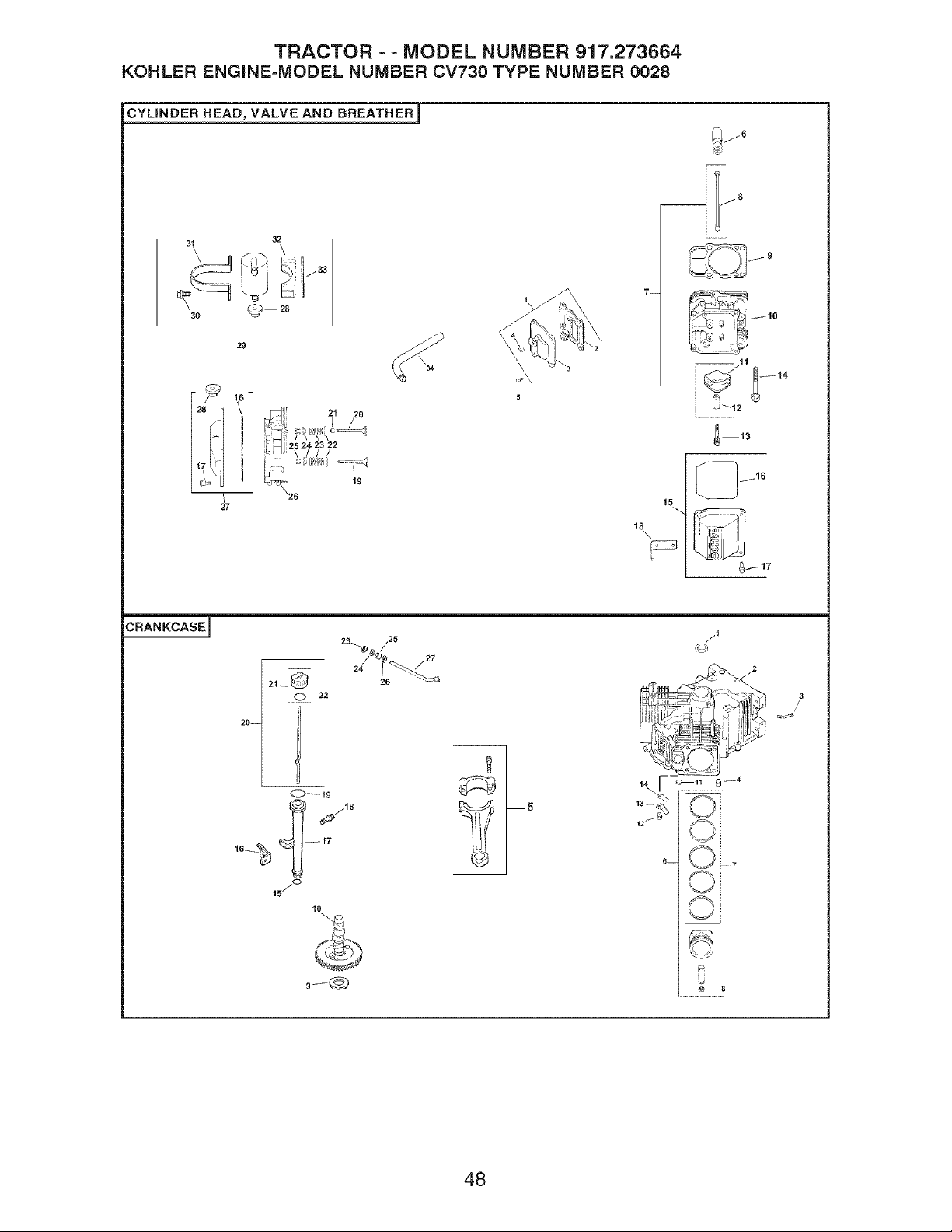

TRACTOR -- MODEL NUMBER 917.273664

KOHLER ENGINE=MODEL NUMBER CV730 TYPE NUMBER 0028

;YLINDER HEAD, VALVE AND BREATHER]

3\ \

30 _-- 28

i2811i li \26

7--

--43

CRANKCASEI /_

23_, /2_

/_ _ 27

LQ 22

20--

15/°

6--

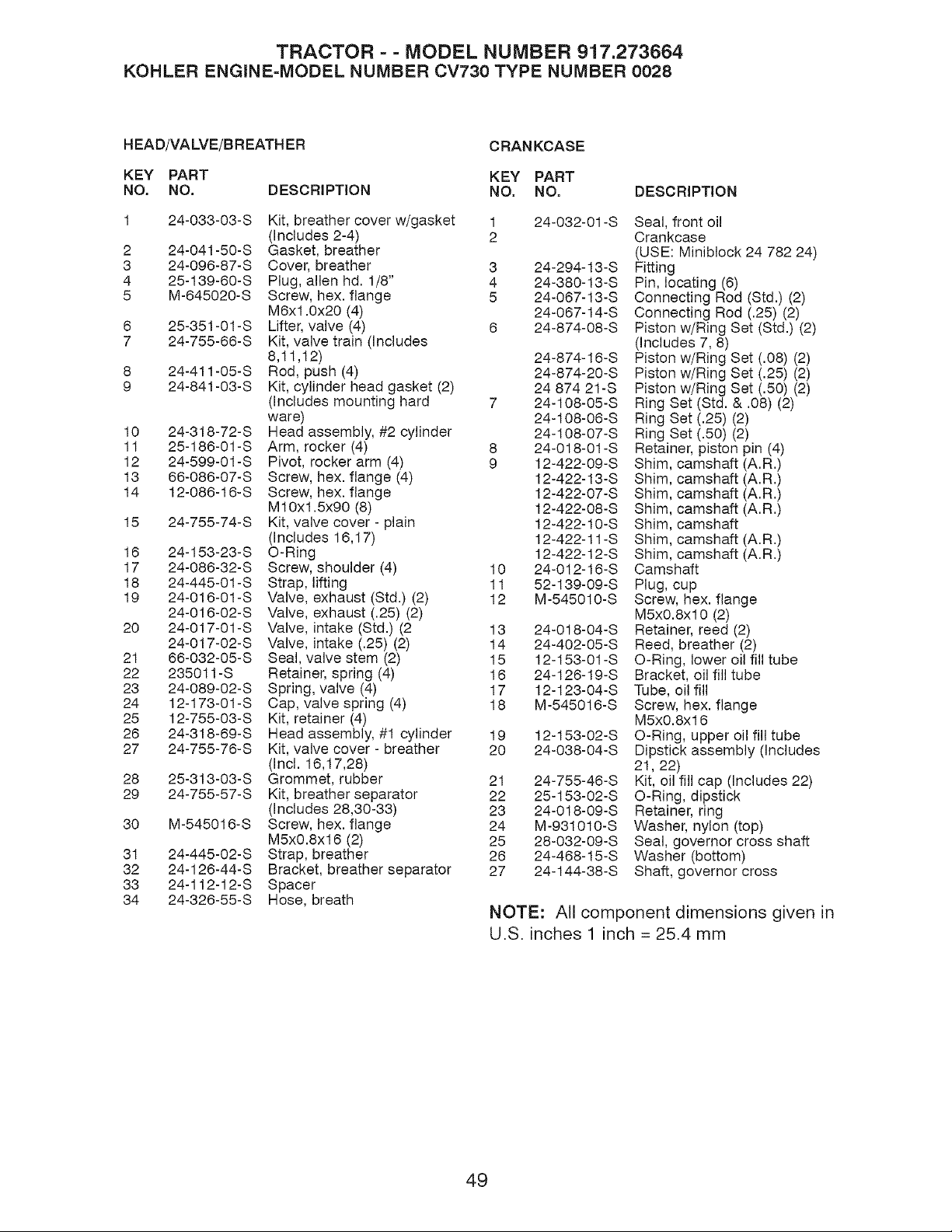

TRACTOR = = MODEL NUMBER 917.273664

KOHLER ENG|NE-MODEL NUMBER CV730 TYPE NUMBER 0028

HEAD/VALVE/BREATH ER

CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

24-033-03-S

24-041-50-S

24-096-87-S

25-139-60-S

M-645020-S

25-351-01 -S

24-755-66-S

24-411-05-S

24-841-03-S

10 24-318-72-S

11 25-186-01-S

12 24-599-01-S

13 66-086-07-S

14 12-086-16-S

15 24-755-74-S

16 24-153-23-S

17 24-086-32-S

18 24-445-01-S

19 24-016-01-S

24-016-02-S

20 24-017-01 -S

24-017-02-S

21 66-032-05-S

22 235011 -S

23 24-089-02-S

24 12-173-01-S

25 12-755-03-S

26 24-318-69-S

27 24-755-76-S

28 25-313-03-S

29 24-755-57-S

30 M-545016-S

31 24-445-02-S

32 24-126-44-S

33 24-112-12-S

34 24-326-55-S

Kit, breather cover w/gasket

(Includes 2-4)

Gasket, breather

Cover, breather

Plug, alien hd. 1/8"

Screw, hex. flange

M6x1.0x20 (4)

Lifter, valve (4)

Kit, valve train (includes

8A1,12)

Rod, push (4)

Kit, cylinder head gasket (2)

(Includes mounting hard

ware)

Head assembly, #2 cylinder

Arm, rocker (4)

Pivot, rocker arm (4)

Screw, hex. flange (4)

Screw, hex. flange

M10x1.5x90 (8)

Kit, valve cover - plain

(includes 16,17)

O-Ring

Screw, shoulder (4)

Strap, lifting

Valve, exhaust (Std.) (2)

Valve, exhaust (.25) (2)

Valve, intake (Std.) (2

Valve, intake (.25) (2)

Seal, valve stem (2)

Retainer, spring (4)

Spring, valve (4)

Oap, valve spring (4)

Kit, retainer (4)

Head assembly, #1 cylinder

Kit, valve cover - breather

(Incl. 16,17,28)

Grommet, rubber

Kit, breather separator

(Includes 28,30-33)

Screw, hex. flange

M5x0.8xl 6 (2)

Strap, breather

Bracket, breather separator

Spacer

Hose, breath

24-032-01 -S

24-294-13-S

24-380-13-S

24-067-13-S

24-067-14-S

24-874-08-S

24-874-16-S

24-874-20-S

24 874 21-S

24-108-05-S

24-I08-06-S

24-I08-07-S

24-018-01-S

12-422-09-S

12-422-13-S

12-422-07-S

12-422-08-S

12-422-10-S

12-422-11-S

12-422-12-S

24-012-16-S

52-139-09-S

M-545010-S

24-018-04-S

24-402-05-S

12-153-01-S

24-126-19-S

12-123-04-S

M-545016-S

12-153-02-S

24-038-04-S

24-755-46-S

25-153-02-S

24-018-09-S

M-931010-S

28-032-09-S

24-468-15-S

24-144-38-S

DESCRIPTION

Seal, front oil

Crankcase

(USE: Miniblock 24 782 24)

Fitting

Pin, locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2)

dncludes 7, 8)

Ibiston w/Ring Set (.08) (2)

Piston w/Ring Set (.25) (2)

Piston w/Ring Set (.50) (2)

Ring Set (Std. & .08) (2)

Ring Set (.25) (2)

Ring Set (.50) (2)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Shim, camshaft (A,R,)

Camshaft

Plug, cup

Screw, hex. flange

M5xO.8x10 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw, hex. flange

M5x0.8xl 6

O-Ring, upper oil fill tube

Dipstick assembly (includes

21, 22)

Kit, oil fill cap (includes 22)

O-Ring, dipstick

Retainer, ring

Washer, nylon (top)

Sea}, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

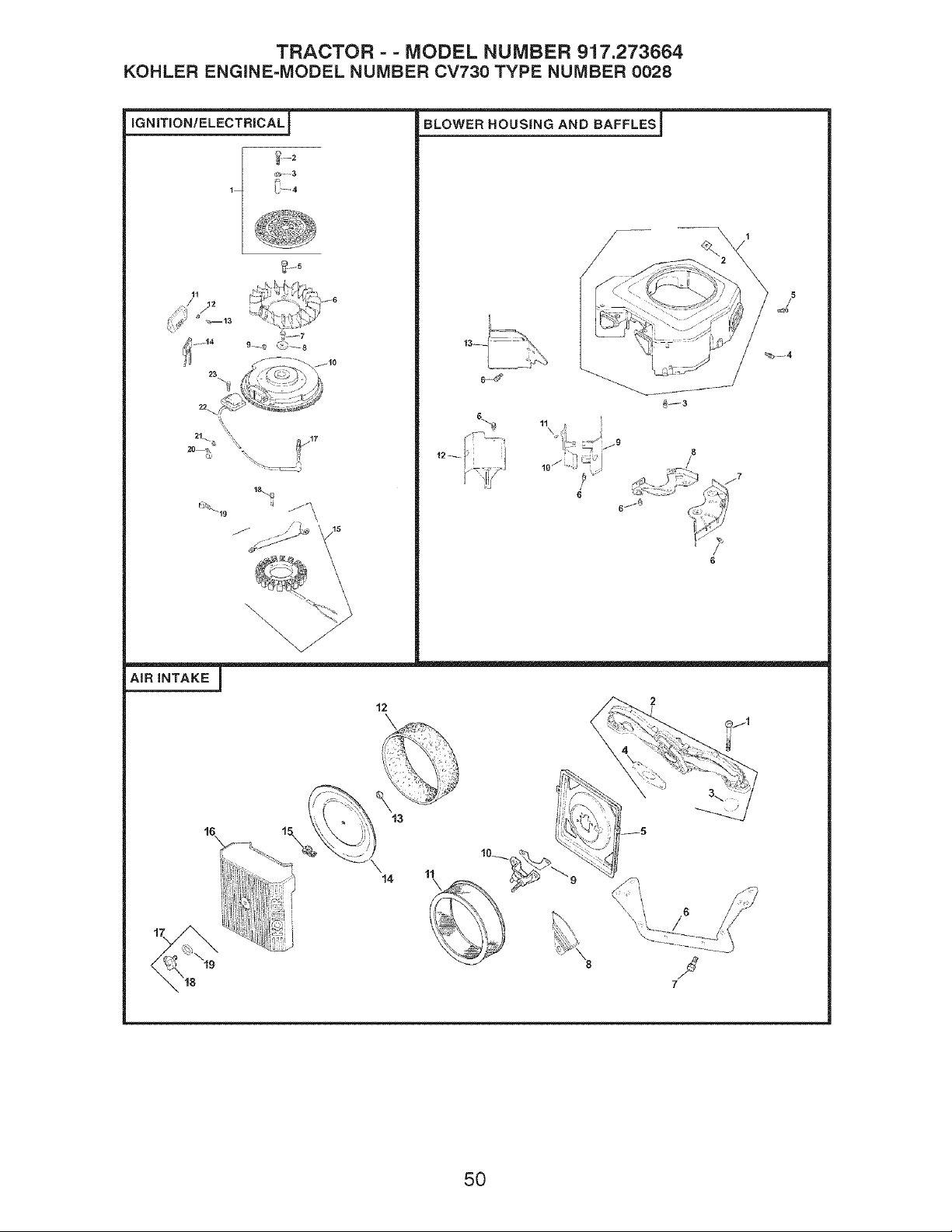

TRACTOR = = MODEL NUMBER 917.273664

KOHLER ENGINE-MODEL NUMBER CV730 TYPE NUMBER 0028

1 "_--4

6_ L4 _j_

BLOWER HOUSING AND BAFFLES I

AIR iNTAKE I

12 2

8 f

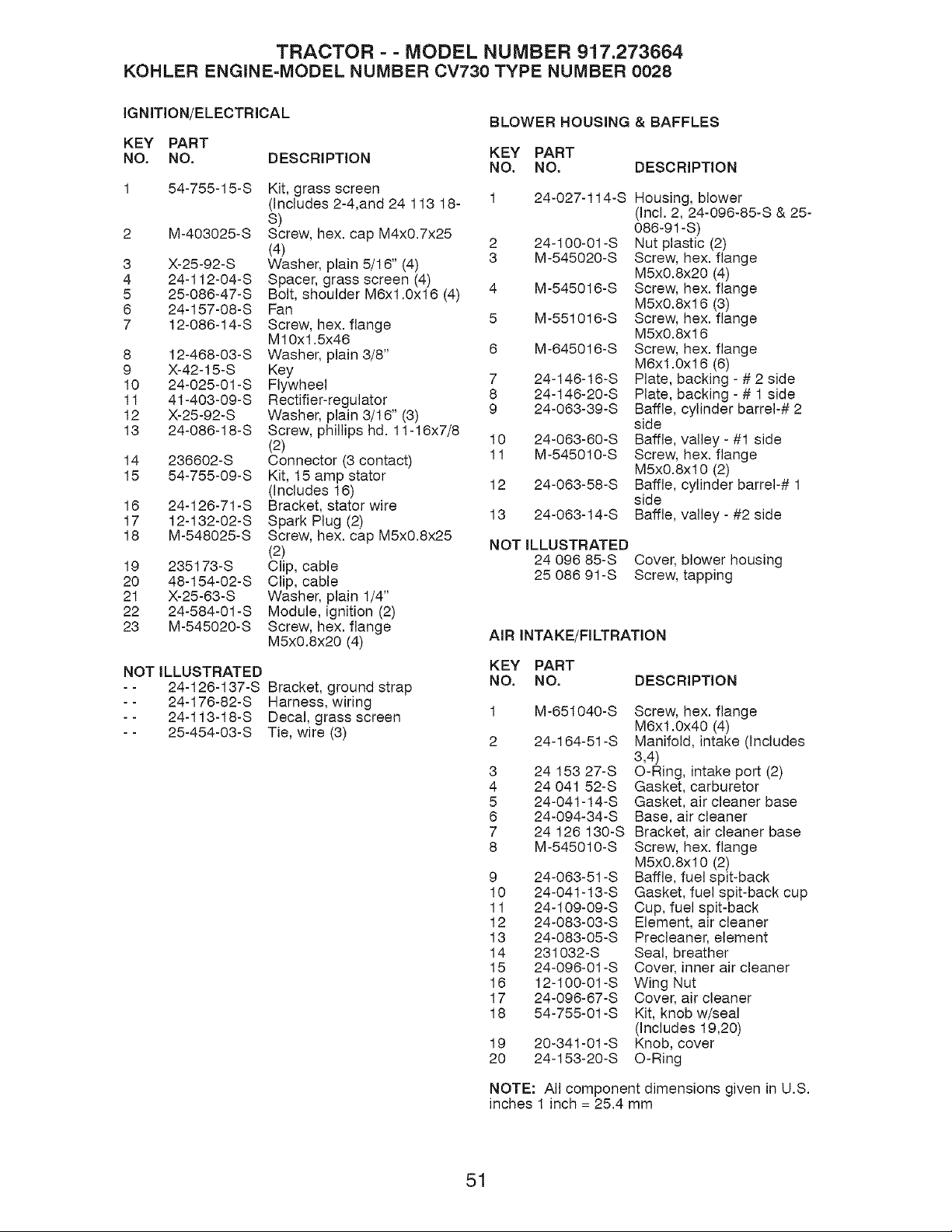

TRACTOR - - MODEL NUMBER 917.273664

KOHLER ENGINE=MODEL NUMBER CV730 TYPE NUMBER 0028

IGNITION/ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

54-755-15-S

M-403025-S

X-25-92-S

24-112-04-S

25-086-47-S

24-157-08-S

12-086-14-S

I2-468-03-S

X-42-15-S

24-025-01 -S

41-403-09-S

X-25-92-S

24-086-18-S

236602-S

54-755-09-S

24-126-71-S

12-132-02-S

M-548025-S

235173-S

48-154-02-S

X-25-63-S

24-584-01 -S

M-545020-S

Kit, grass screen

(Includes 2-4,and 24 113 18-

Screw, hex. cap M4x0.7x25

(4)

Washer, plain 5/16" (4)

Spacer, grass screen (4)

Bolt, shoulder M6x1.0xl 6 (4)

Fan

Screw, hex. flange

M10xl.5x46

Washer, plain 3/8"

Key

Flywheel

Rectifier-regulator

Washer, plain 3/16" (3)

Screw, phillips hd. 11-16x7/8

(2)

Connector (3 contact)

Kit, 15 amp stator

(Includes 16)

Bracket, stator wire

Spark Plug (2)

Screw, hex. cap M5x0.8x25

(2)

Clip, cable

Washer, plain 1/4"

Module, ignition (2)

Screw, hex. flange

M5x0.8x20 (4)

NOT ILLUSTRATED

- - 24-126-137-S

- - 24-176-82-S

- - 24-113-18-S

- - 25-454-03-S

Bracket, ground strap

Harness, wiring

Decal, grass screen

Tie, wire (3)

BLOWER HOUSING & BAFFLES

KEY PART

NO. NO. DESCRIPTION

1 24-027-114-S Housing, blower

(Incl. 2, 24-096-85-S & 25-

086-91 -S)

2 24-I00-01-S Nut plastic (2)

3 M-545020-S Screw, hex. flange

M5x0.8x20 (4)

4 M-545016-S Screw, hex. flange

M5x0.8xl 6 (3)

5 M-551016-S Screw, hex. flange

M5x0.8xl 6

6 M-645016-S Screw, hex. flange

M6x1.0xl 6 (6)

7 24-146-16-S Plate, backing - # 2 side

8 24-146-20-S Plate, backing - # 1 side

9 24-063-39-S Baffle, cylinder barrel-# 2

side

10 24-063-60-S Baffle, valley - #1 side

11 M-545010-S Screw, hex. flange

M5x0.8xl 0 (2)

12 24-063-58-S Baffle, cylinder barrel-# 1

side

13 24-063-14-S Baffle, valley - #2 side

NOT ILLUSTRATED

24 096 85-S Cover, blower housing

25 086 91-S Screw, tapping

AiR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

M-651040-S

24-164-51-S

24 153 27-S

24 041 52-S

24-041-14-S

24-094-34-S

24 126 130-S

M-545010-S

24-063-51 -S

24-041-13-S

24-I09-09-S

24-083-03-S

24-083-05-S

231032-S

24-096-01 -S

12-I00-01-S

24-096-67-S

54-755-01 -S

20-341-01 -S

24-153-20-S

Screw, hex. flange

M6x1.0x40 (4)

Manifold, intake (includes

3,4)

O-Ring, intake port (2)

Gasket, carburetor

Gasket, air cleaner base

Base, air cleaner

Bracket, air cleaner base

Screw, hex. flange

M5x0.8xl 0 (2)

Baffle, fuel spit-back

Gasket, fuel spit-back cup

Cup, fuel spit-back

Element, air cleaner

Precleaner, element

Seal, breather

Cover, inner air cleaner

Wing Nut

Cover, air cleaner

Kit, knob w/seal

(includes 19,20)

Knob, cover

O-Ring

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

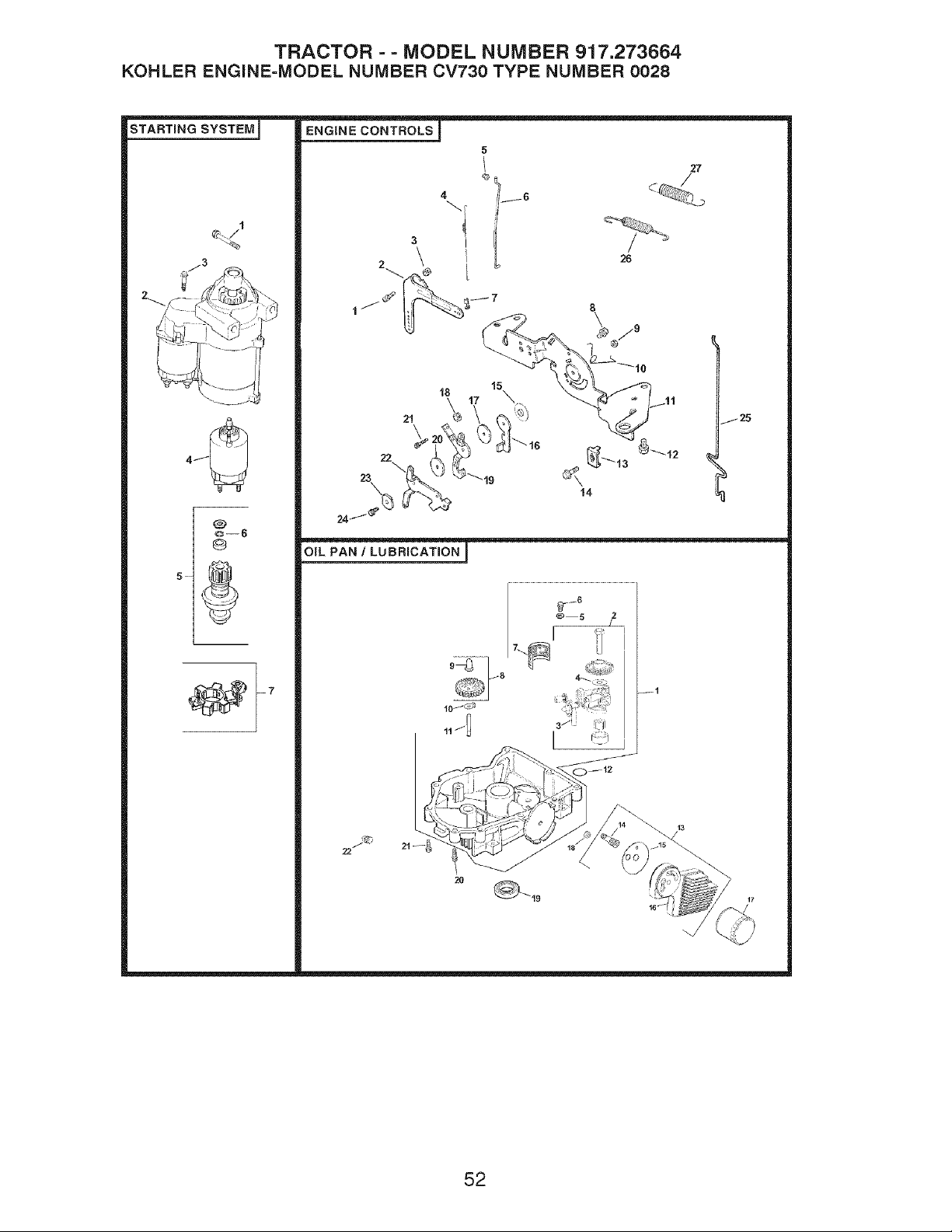

TRACTOR -= MODEL NUMBER 917.273664

KOHLER ENGINE=MODEL NUMBER CV730 TYPE NUMBER 0028

5¸¸¸

ENGINE CONTROLS J

/ 2z

24_._"_

j 25

OiL PAN / LUBRICATION_

5 2

[

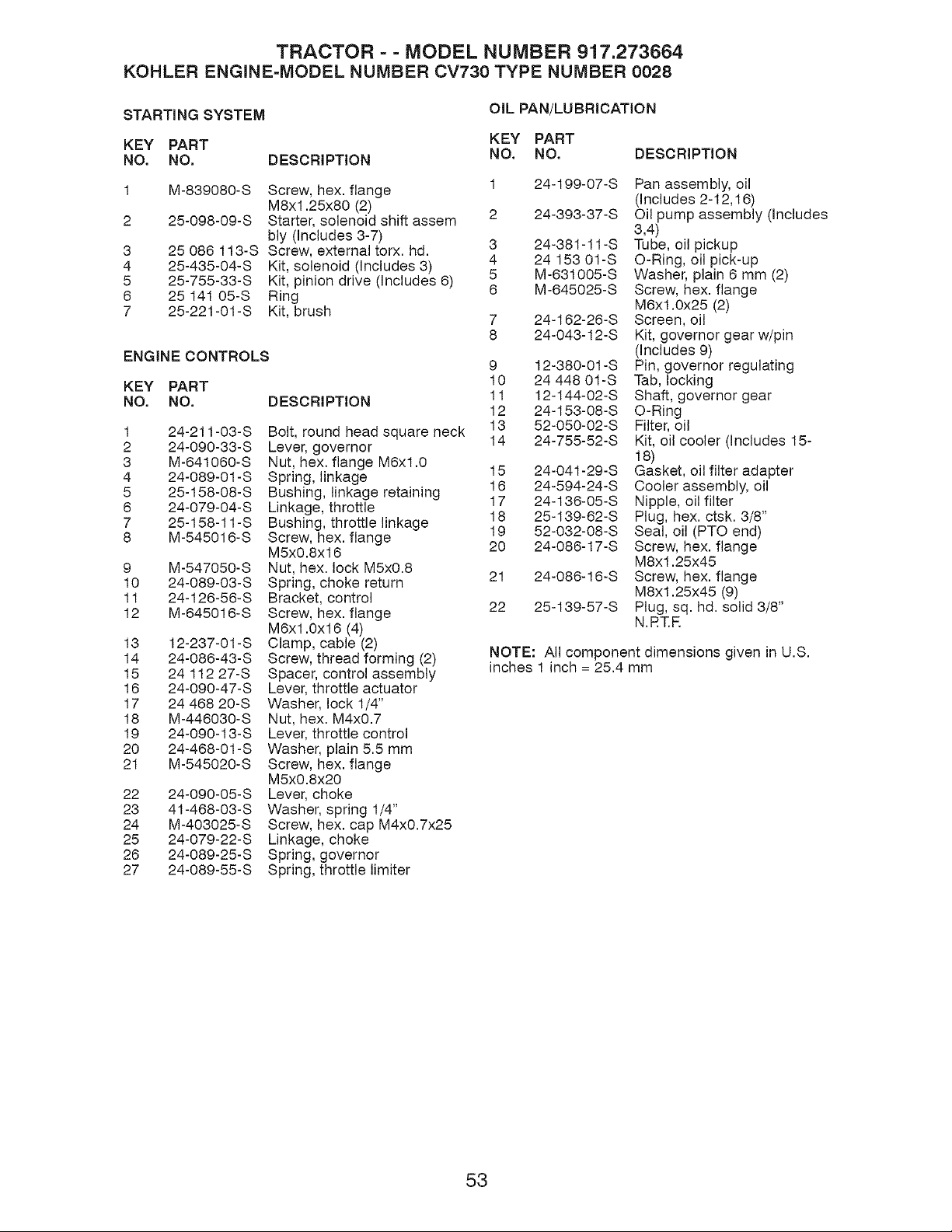

TRACTOR - - MODEL NUMBER 917.273664

KOHLER ENGINE=MODEL NUMBER 0V730 TYPE NUMBER 0028

STARTING SYSTEM

OIL PAN/LU BRICATION

KEY PART KEY PART

NO. NO, DESCRiPTiON NO. NO.

M-839080-S Screw, hex. flange 1

M8x1.25x80 (2) 2

25-098-09-S Starter, solenoid shift assem

bly (Includes 3-7) 3

25 086 113-S Screw, external torx. hd.

25-435-04-S Kit, solenoid (Includes 3) 4

25-755-33-S Kit, pinion drive (Includes 6) 6

25 141 05-S Ring

25-221-01-S Kit, brush

ENGINE CONTROLS

DESCRIPTION

KEY PART

NO. NO.

24-211-03-S

24-090-33-S

M-641060-S

24-089-01 -S

25-158-08-S

24-079-04-S

25-158-11 -S

M-545016-S

M-547050-S

24-089-03-S

24-126-56-S

M-645016-S

12-237-01-S

24-086-43-S

24 112 27-S

24-090-47-S

24 468 20-S

M-446030-S

24-090-13-S

24-468-01 -S

M-545020-S

24-090-05-S

41-468-03-S

M-403025-S

24-079-22-S

24-089-25-S

24-089-55-S

Bolt, round head square neck

Lever, governor

Nut, hex. flange M6x1.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw, hex. flange

M5x0.8xl 6

Nut, hex. lock M5x0.8

Spring, choke return

Bracket, control

Screw, hex. flange

M6x1.0xl 6 (4)

Clamp, cable (2)

Screw, thread forming (2)

Spacer, control assembly

Lever, throttle actuator

Washer, lock 1/4"

Nut, hex. M4x0.7

Lever, throttle control

Washer, plain 5.5 mm

Screw, hex. flange

M5x0.8x20

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

Spring, governor

Spring, throttle limiter

DESCRIPTION

24-199-07-S

24-393-37-S

24-381-11-S

24 153 01-S

M-631005-S

M-645025-S

24-I 62-26-S

24-043-12-S

12-380-01-S

24 448 01-S

12-144-02-S

24-153-08-S

52-050-02-S

24-755-52-S

24-041-29-S

24-594-24-S

24-136-05-S

25-139-62-S

52-032-08-S

24-086-17-S

24-086-16-S

25-139-57-S

Pan assembly, oil

(Includes 2-I 2,16)

Oil pump assembly (Includes

3,4)

Tube, oil pickup

O-Ring, oil pick-up

Washer, plain 6 mm (2)

Screw, hex. flange

M6x1.0x25 (2)

Screen, oil

Kit, governor gear w/pin

(Includes 9)

Pin, governor regulating

Tab, locking

Shaft, governor gear

O-Ring

Filter, oil

Kit, oil cooler (Includes 15-

18)

Gasket, oil filter adapter

Cooler assembly, oil

Nipple, oil filter

Plug, hex. ctsk. 3/8"

Seal, oil (PTO end)

Screw, hex. flange

M8x1.25x45

Screw, hex. flange

M8x1.25x45 (9)

Plug, sq. hd. solid 3/8"

N.RTR

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

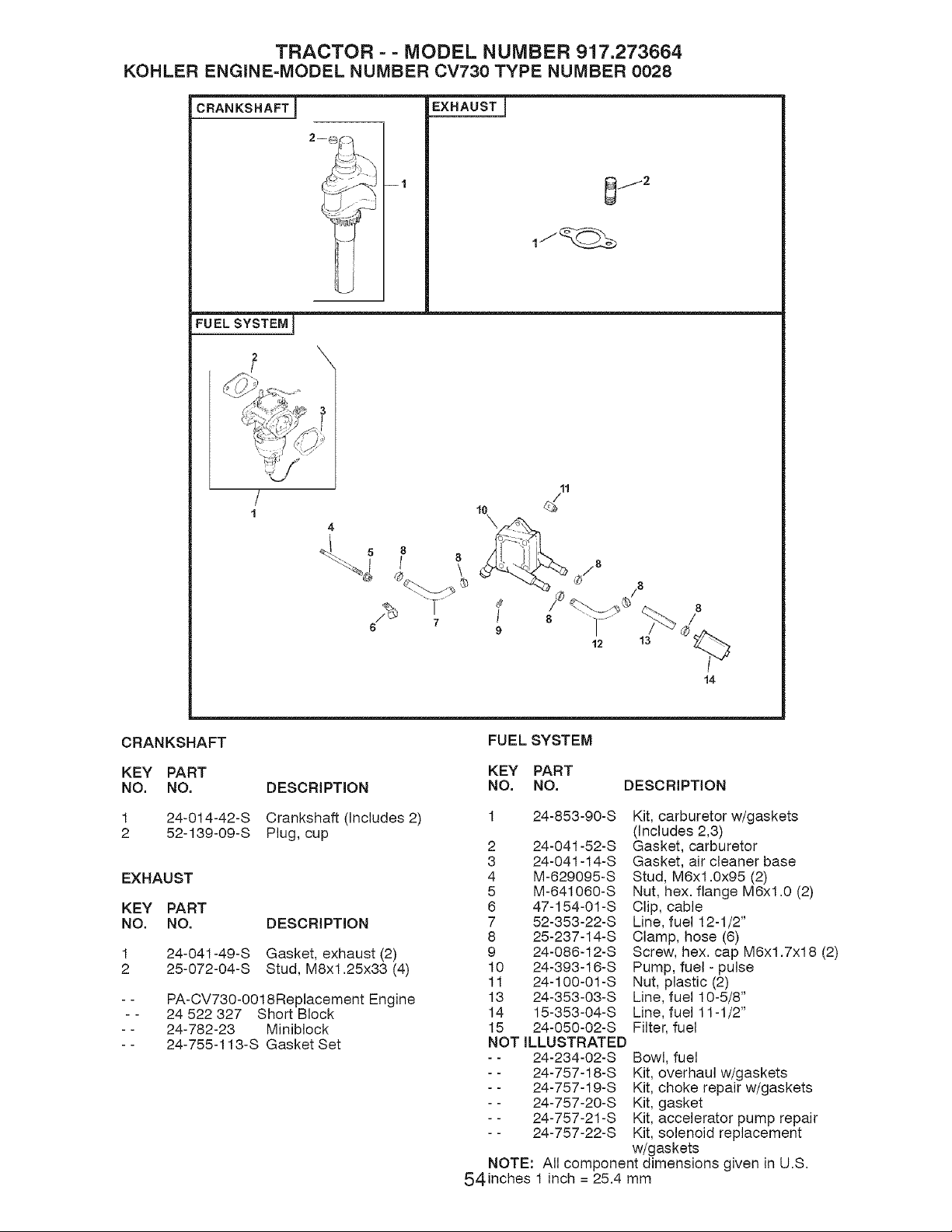

TRACTOR = = MODEL NUMBER 917.273664

KOHLER ENGINE=MODEL NUMBER CV730 TYPE NUMBER 0028

CRANKSHAFT i

EXHAUST T

--1

FUEL SYSTEM

2 X

5 8

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 24-014-42-S Crankshaft (includes 2)

2 52-139-09-S Plug, cup

EXHAUST

KEY

NO.

. .

PART

NO. DESCRiPTiON

24-041-49-S Gasket, exhaust (2)

25-072-04-S Stud, M8x1.25x33 (4)

PA-CV730-0018Replacement Engine

24 522 327 Short Block

24-782-23 Miniblock

24-755-113-S Gasket Set

FUELSYSTEM

KEY PART

NO. NO. DESCRIPTION

1 24-853-90-S Kit, carburetor w/gaskets

(Includes 2,3)

2 24-041-52-S Gasket, carburetor

3 24-041-14-S Gasket, air cleaner base

4 M-629095-S Stud, M6x1.0x95 (2)

5 M-641060-S Nut, hex. flange M6xl.0 (2)

6 47-154-01-S Clip, cable

7 52-353-22-S Line, fuel 12-I/2"

8 25-237-14-S Clamp, hose (6)

9 24-086-12-S Screw, hex. cap M6x1.7x18 (2)

10 24-393-16-S Pump, fuel - pulse

11 24-100-01-S Nut, plastic (2)

13 24-353-03-S Line, fuel 10-5/8"

14 15-353-04-S Line, fuel 11-1/2"

15 24-050-02-S Filter, fuel

NOT iLLUSTRATED

- - 24-234-02-S Bowl, fuel

- - 24-757-18-S Kit, overhaul w/gaskets

- - 24-757-19-S Kit, choke repair w/gaskets

- - 24-757-20-S Kit, gasket

- - 24-757-21-S Kit, accelerator pump repair

- - 24-757-22-3 Kit, solenoid replacement

w/gaskets

NOTE: All component dimensions given in U.S.

54inches 1 inch = 25.4 mm

0 eo

_ E

._ 0 _"

0 _) 0 0

_._ -- __

0 1,. _.= --

,,-:N M4

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800=4=MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800=488=1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1 =800=827=6655 (u.s._) 1 =800=361 =6665 (Canada)

Para pedir servicio de reparaci6n

a domidlio, y para ordenar piezas:

l=888-SU=HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800=LE=FOYER Mc

(14300-533-6937)

;_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiill

iiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiii....

iiiiiiiiiiiiiii

02410

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / Marca de F&brica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque deposee de Sears, Roebuck and Co.

192815 Rev. 3 01.25.08 AP Printed in U.S.A.

Craftsman 917273664 25.0 Hp 48" Mower Electric Start Automatic Transmission Lawn Tractor

Product's Documents

Owner’s Manual

Specifications

Craftsman 917273664 Questions and Answers
