Electrolux E23CS78HPS3 Counter-Depth Refrigerator User Manual

Use & Care Guide

Side-By-Side Refrigerator

Guia de Uso y Cuidado

Refrigerador de dos puertas

Guide d’utilisation et d’entretien

Réfrigérateur à compartiments juxtaposés

241540109 January 2013

EluxICON_black.eps EluxICON_blue_CMYK.eps

EluxICON_negative.eps EluxICON_blue_PMS294.eps

Finding Information

Purchase date

Electrolux model number

Electrolux serial number (see picture for location)

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our

commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use

this page to record important product information.

Keep a record for quick reference

Questions?

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287)

For online support and Internet production information visit http://www.electroluxicon.com

Table of contents

Serial Plate

Finding Information .................................................2

Please Read And Save This Guide ...........................................2

Make A Record For Quick Reference .......................................2

Questions? ..............................................................................2

Table Of Contents ....................................................................2

Safety .................................................................. 3

Important Safety Instructions .................................................3

Electrical Information ..............................................................4

Installation ............................................................5

Location ..................................................................................5

Installing Clearances ...............................................................5

To Level the Cabinet Using the Front Rollers ..........................5

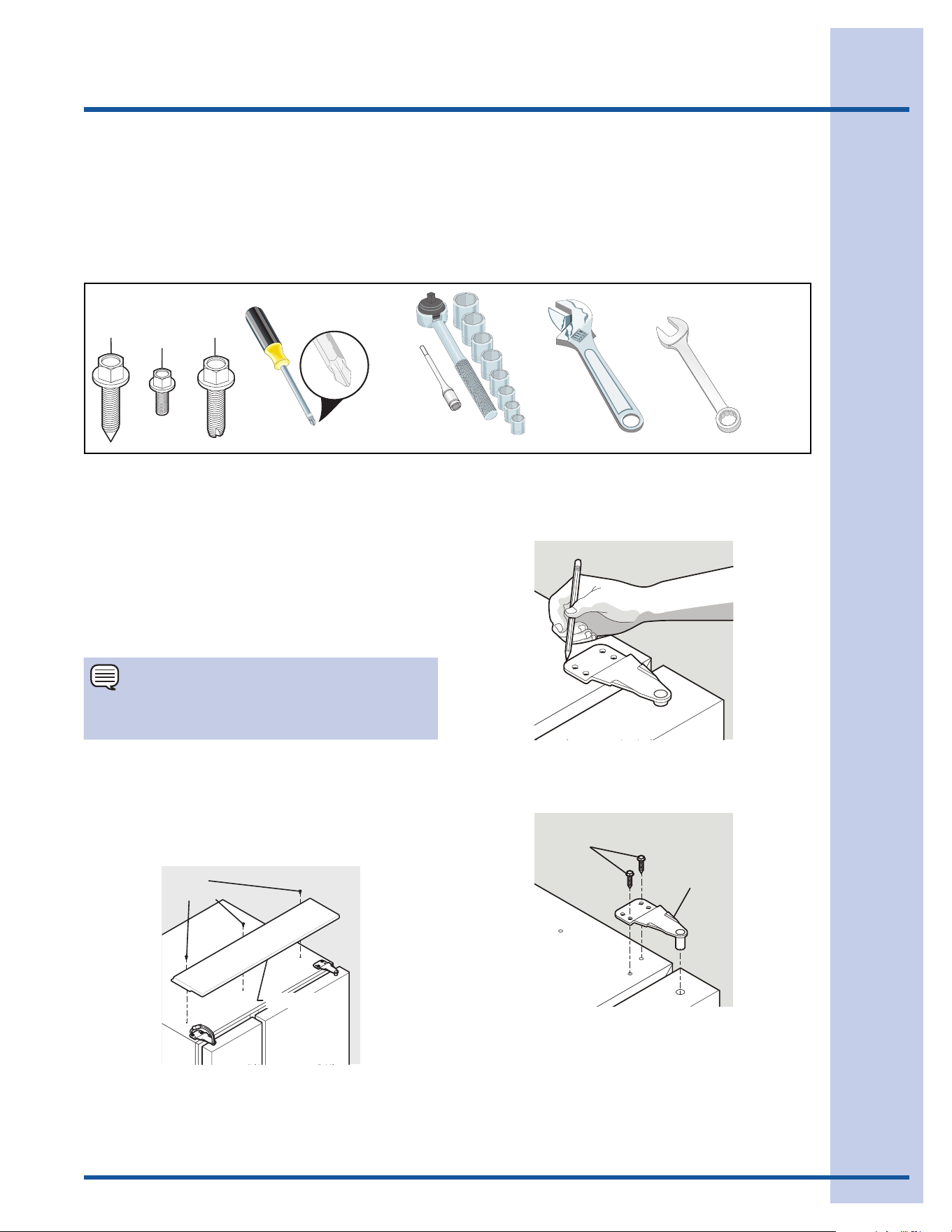

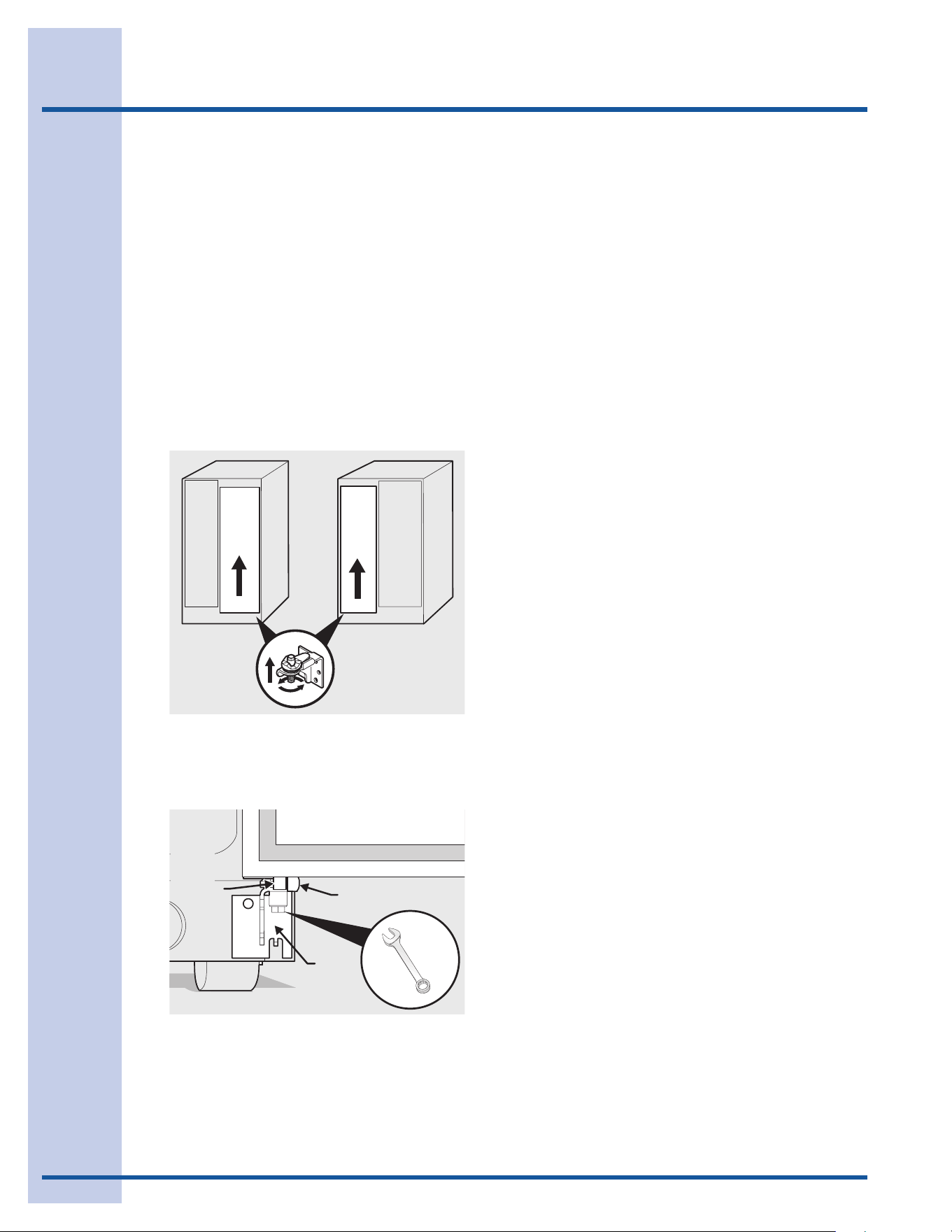

To Level the Doors Using the Lower Hinge .............................6

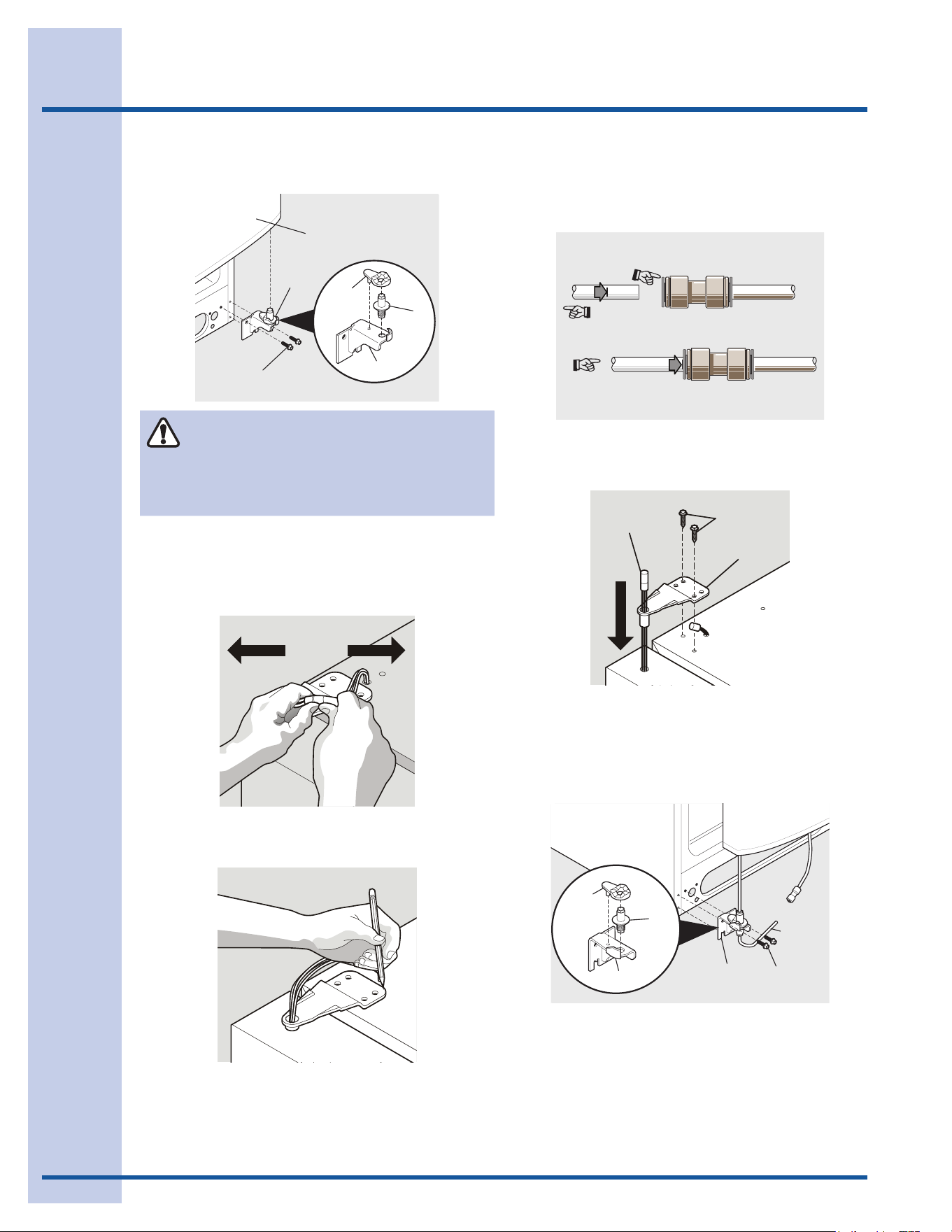

Removing The Doors ................................................7

Getting Through Narrow Spaces ............................................8

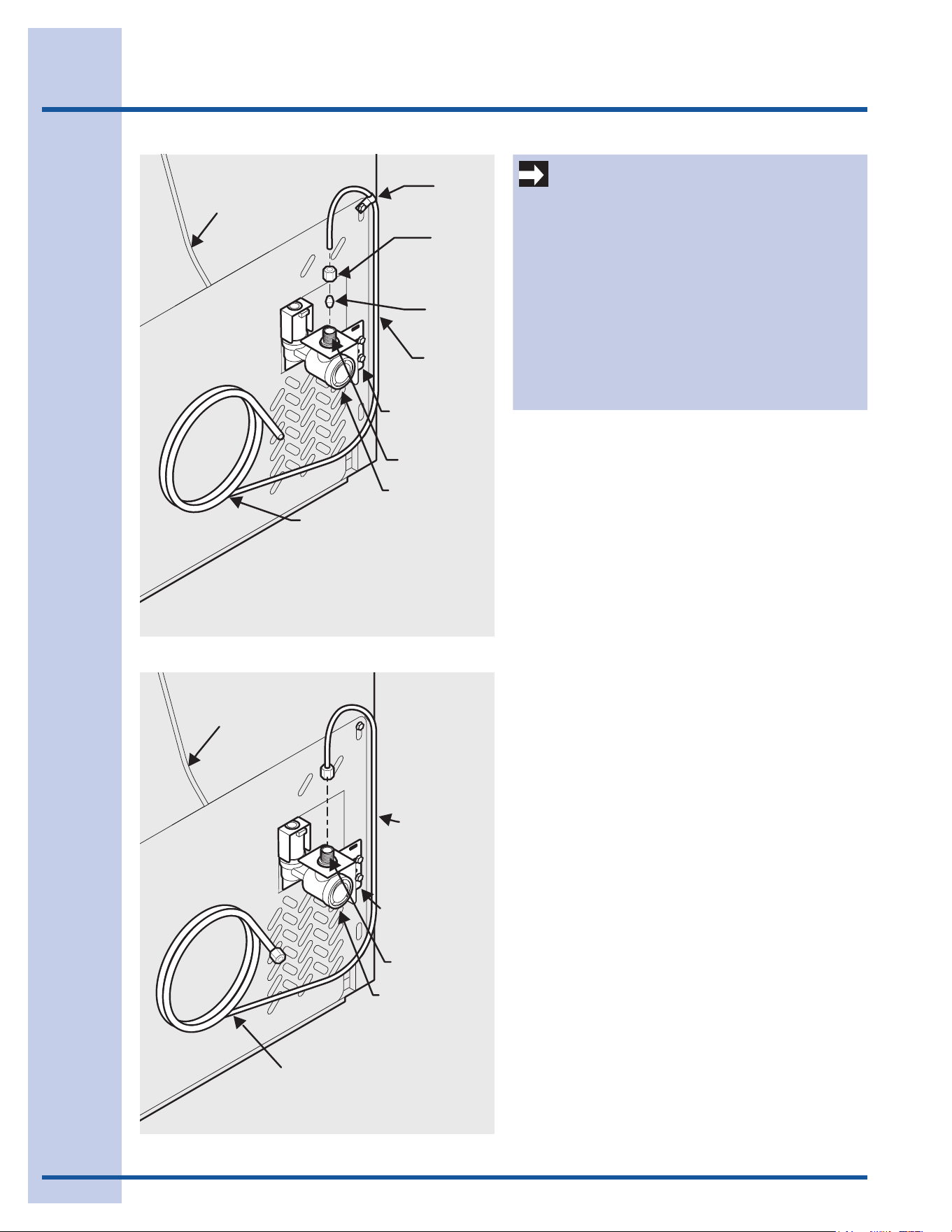

Connecting The Water Supply .....................................9

About Your Refrigerator’s Water Supply ...............................10

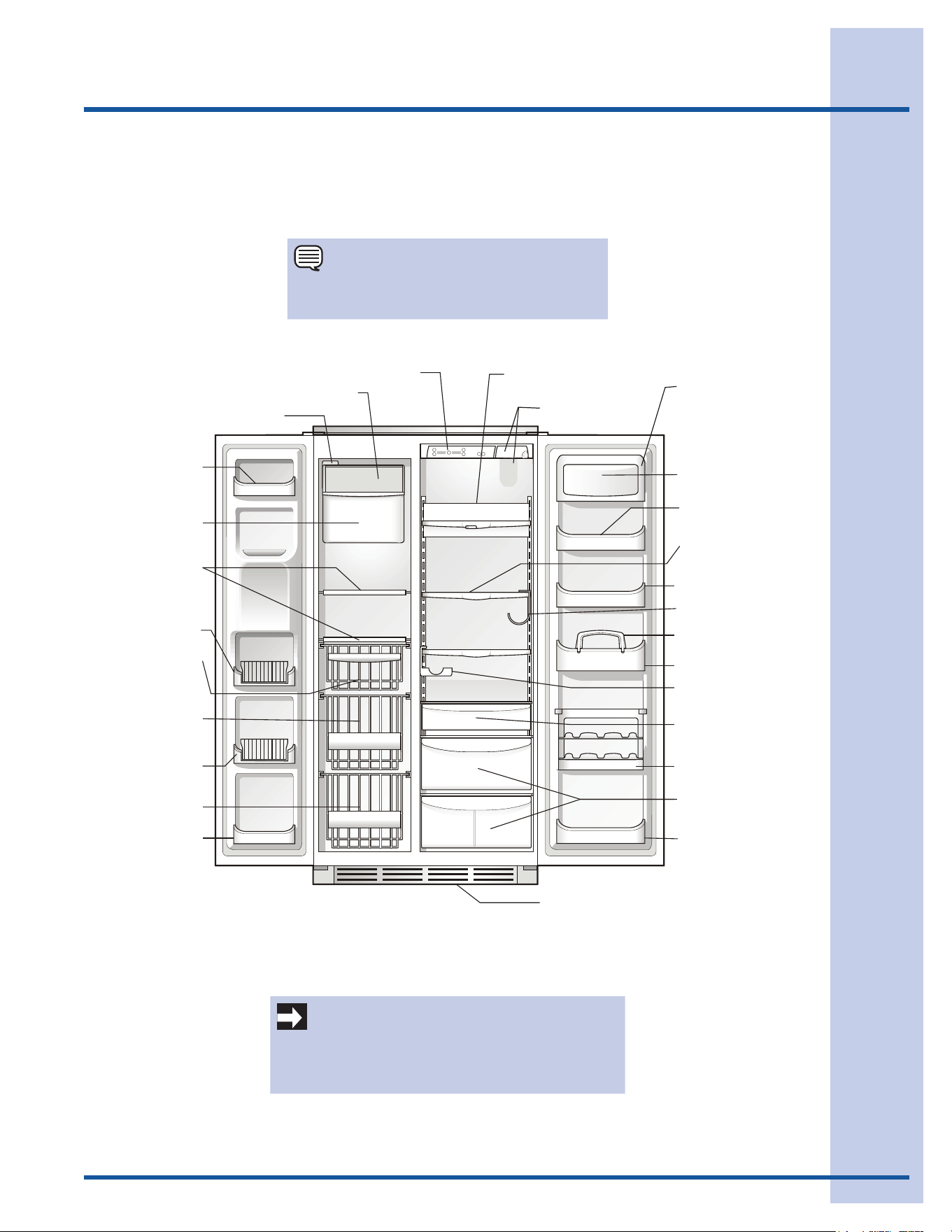

Feature Overview .................................................. 11

Understanding Features And Terms ......................................11

Controls & Settings ................................................ 12

Allowing Cooling Time Before Use ........................................12

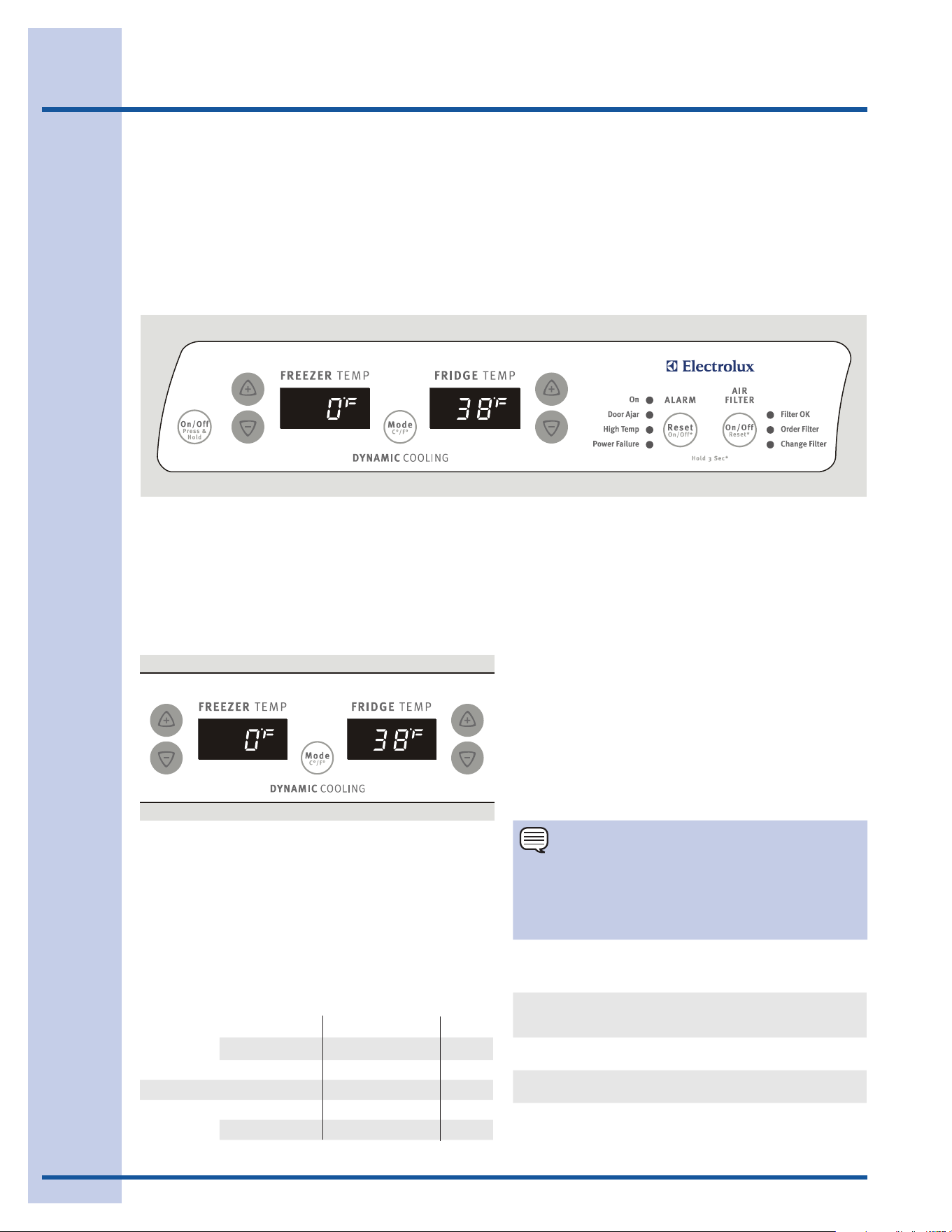

Setting Cooling Temperatures ...............................................12

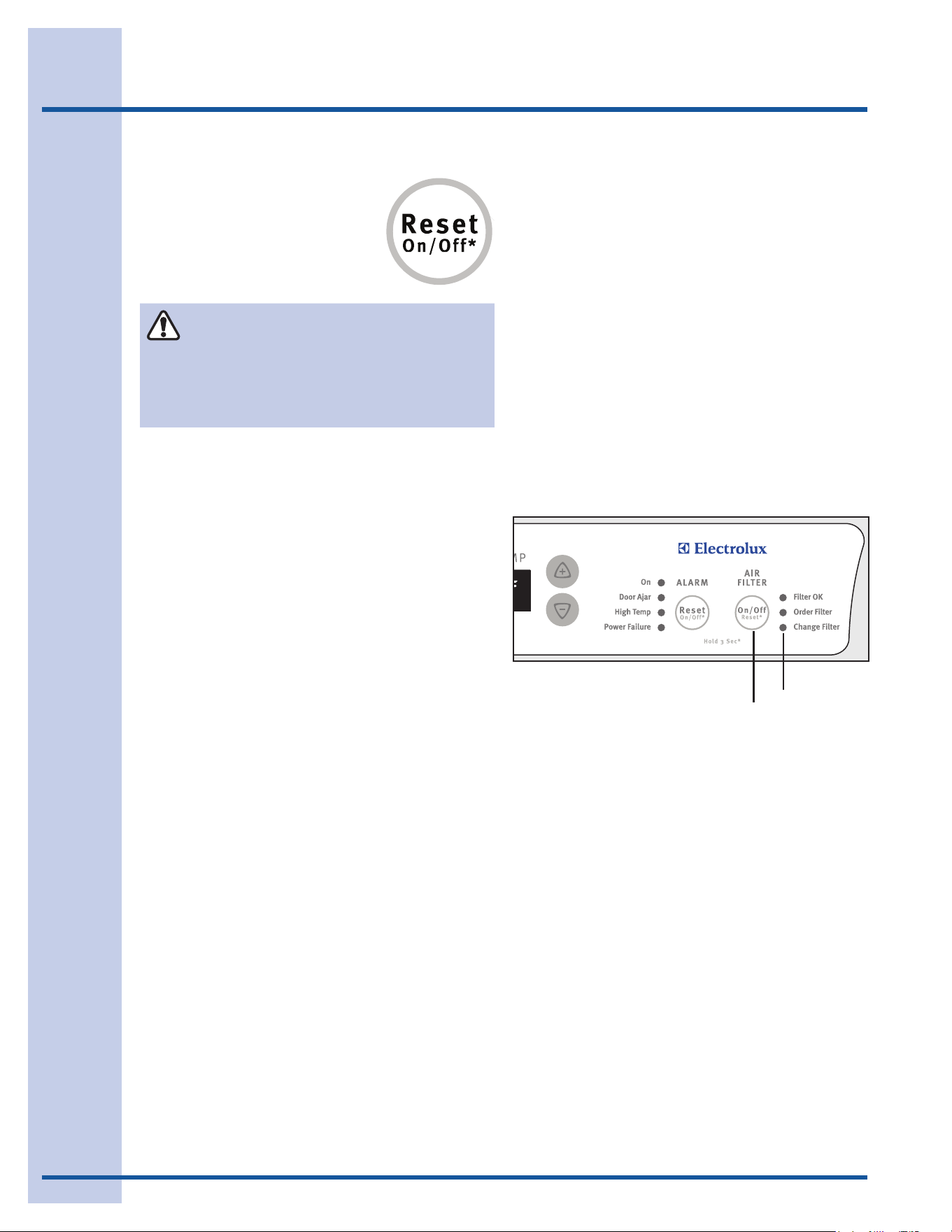

System-Monitoring Alarms ...................................................13

Turning The Cooling System On And Off...............................14

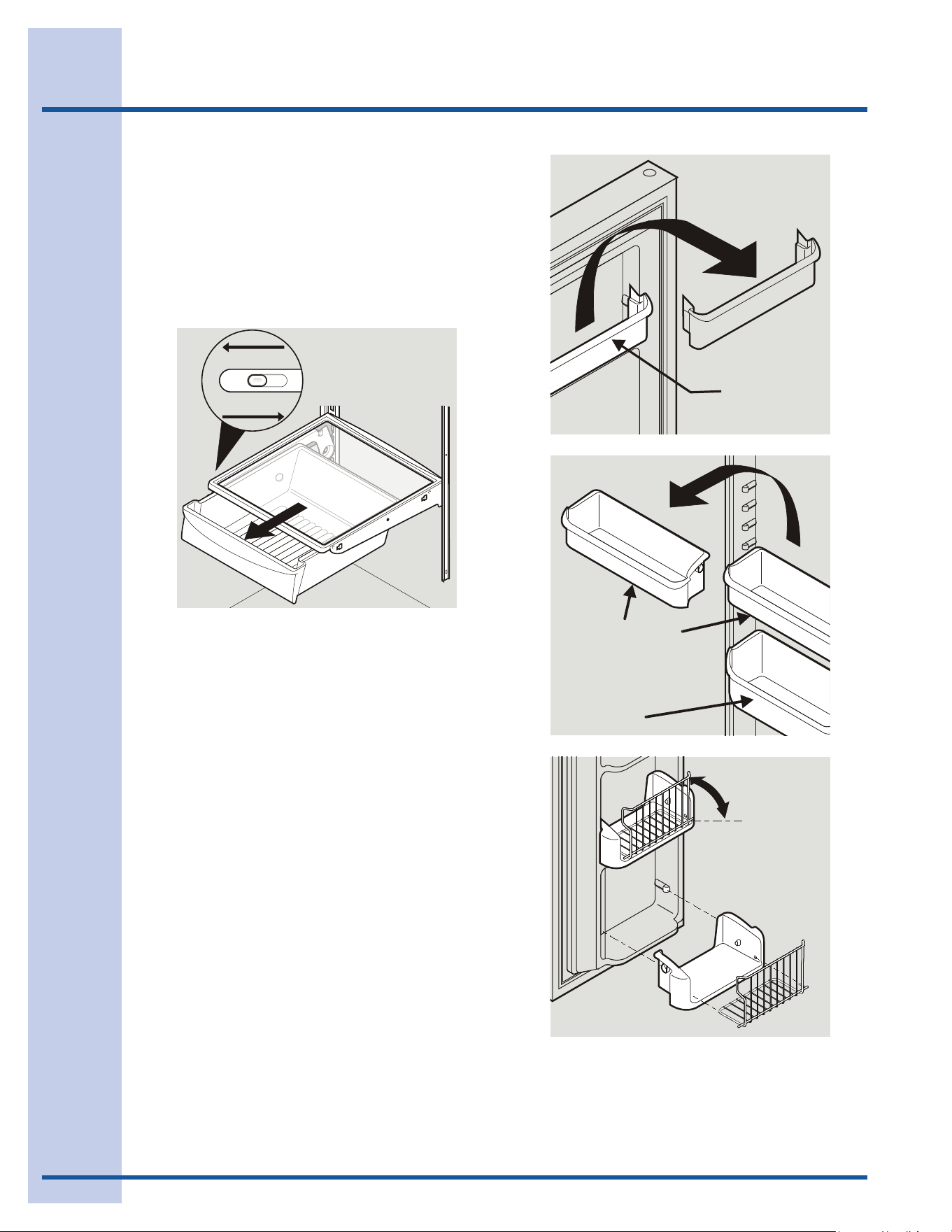

Storage Features ................................................... 15

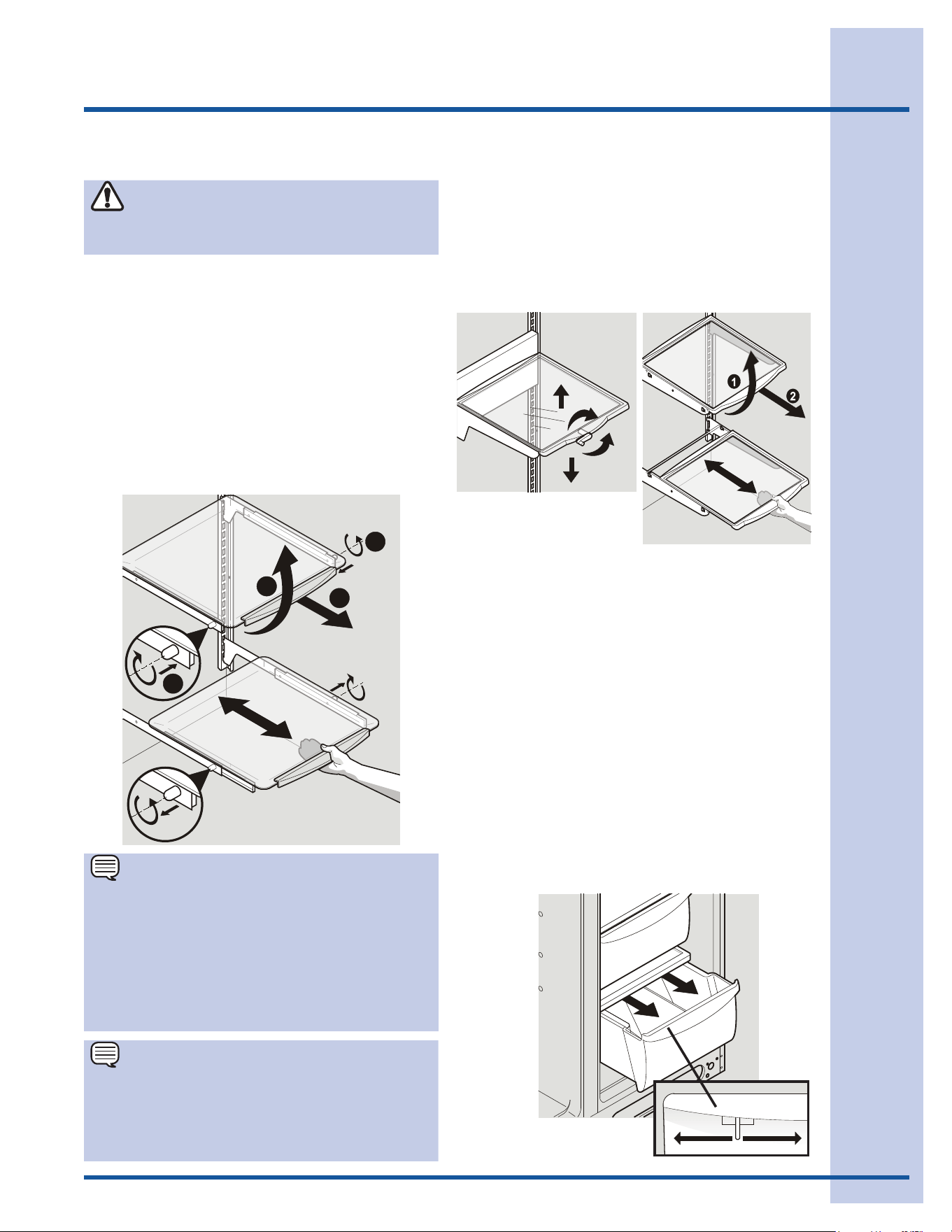

Cantilever Shelves .................................................................15

Drawers ................................................................................15

Doors ....................................................................................16

Accessories ..........................................................................17

Automatic Ice & Water Dispenser ............................... 18

Using The Dispenser .............................................................18

Using The Dispenser Control Panel ......................................19

Priming The Water Supply System .......................................20

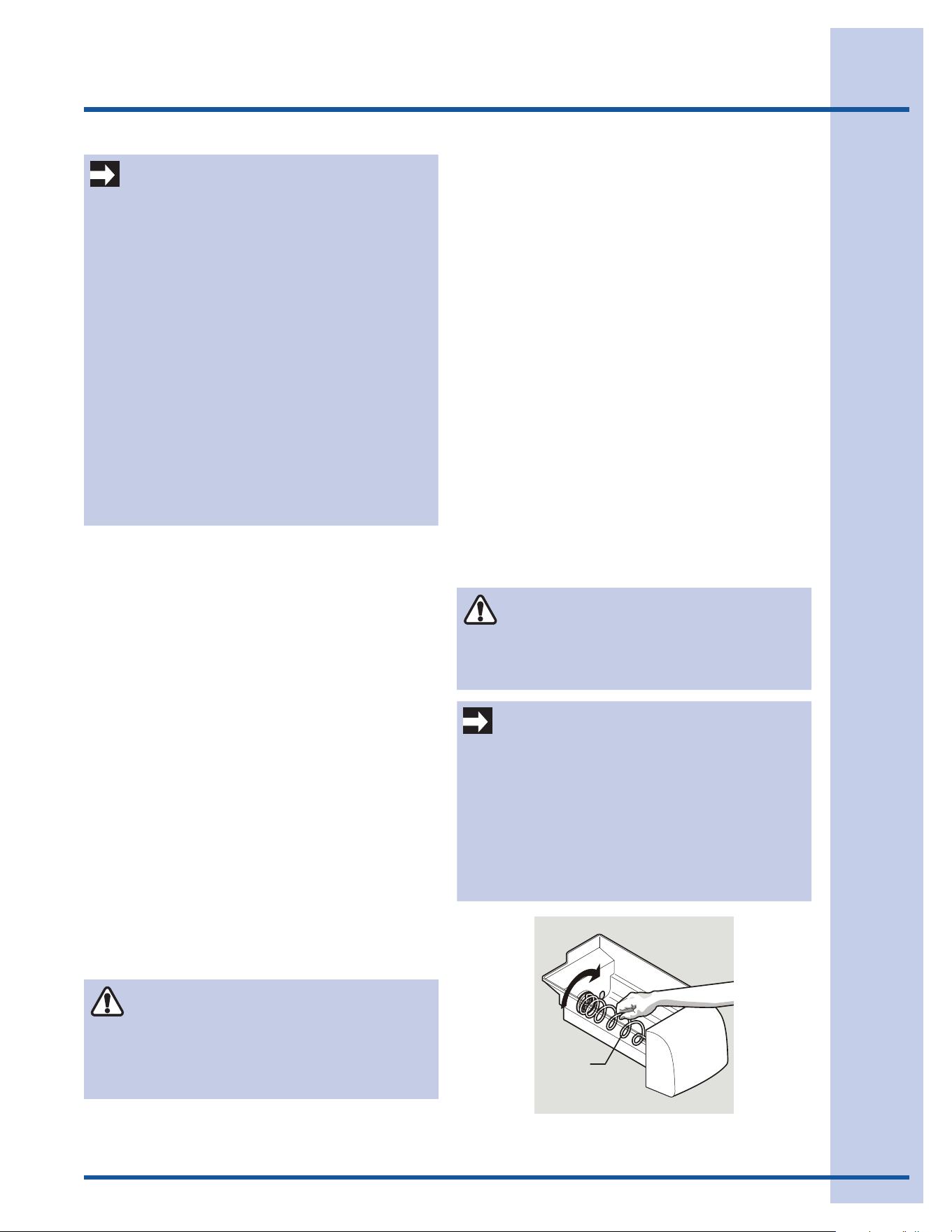

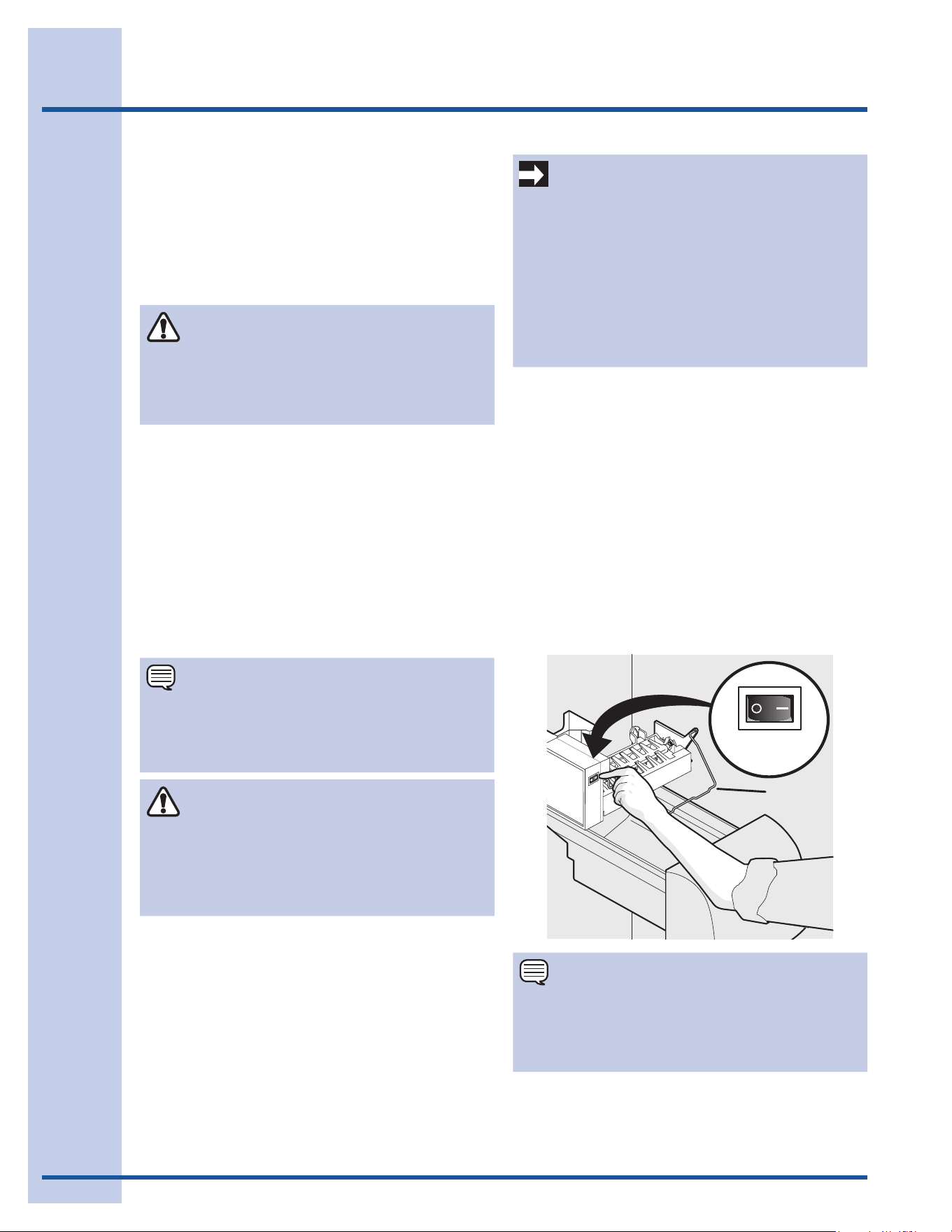

Ice Dispenser Operation & Care ............................................21

Changing The Filter................................................ 22

Locating The Filters ..............................................................22

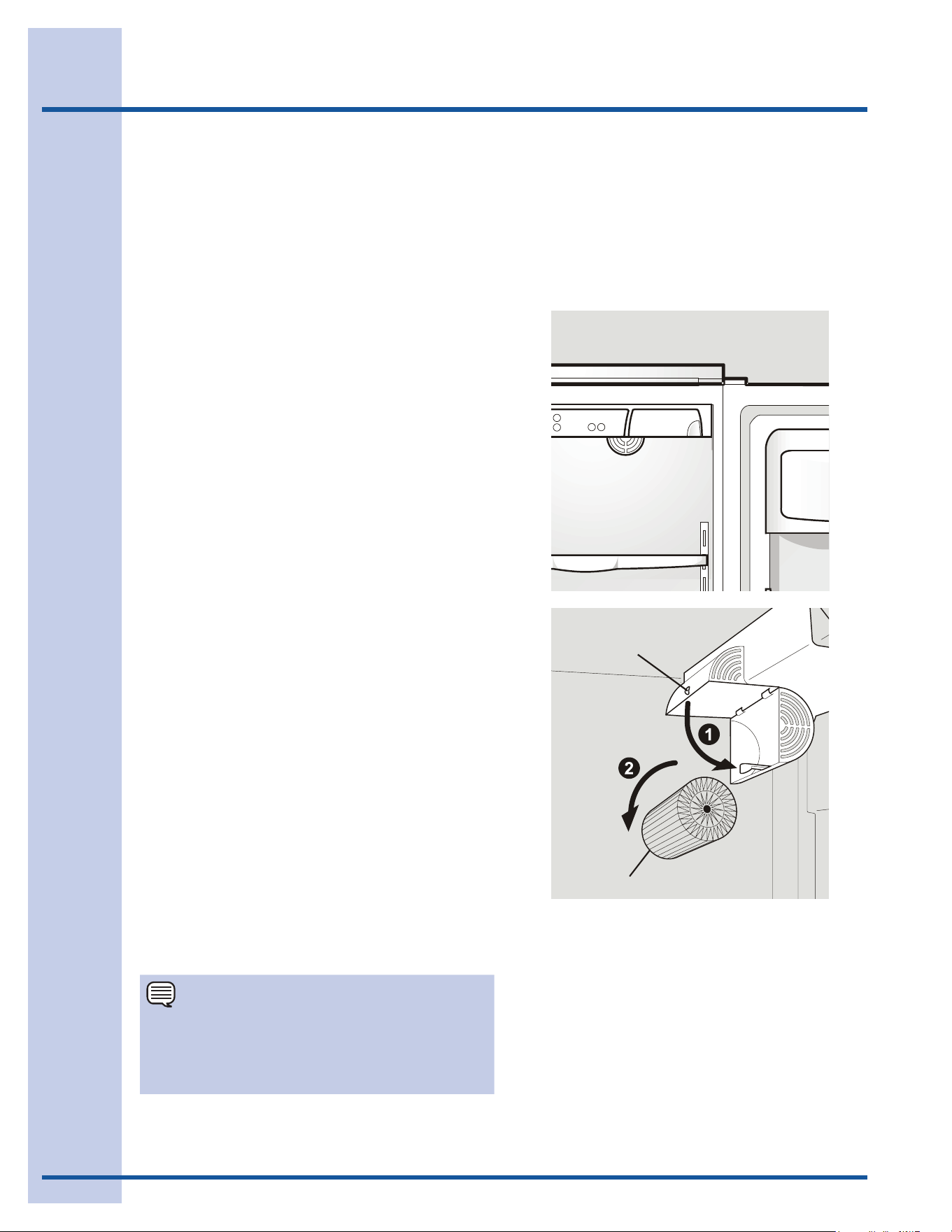

Replacing the Air Filter ..........................................................22

Ordering Replacement Filters ................................................22

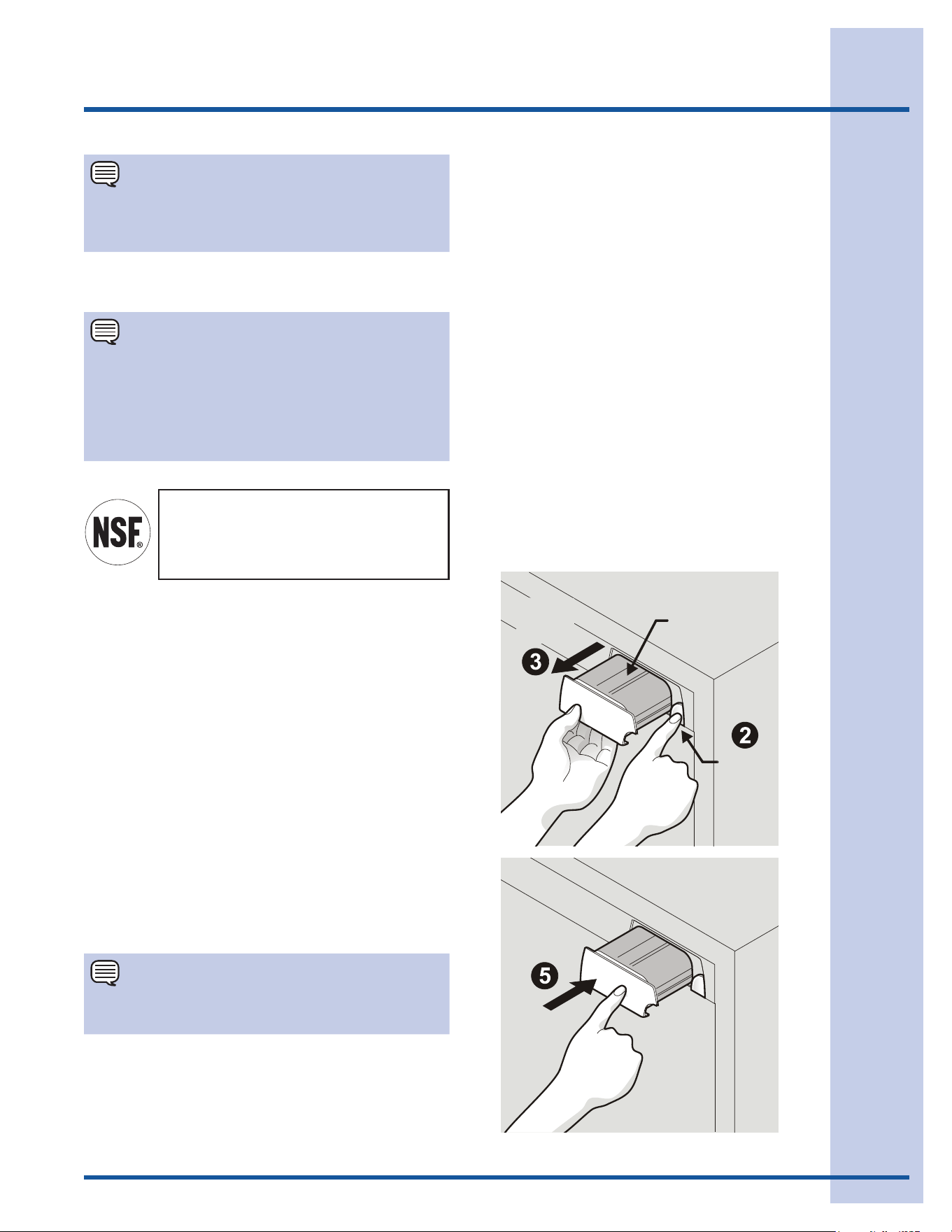

Replacing The Water Filter ....................................................23

Storing Food & Saving Energy ................................... 24

Ideas For Storing Foods ........................................................24

Ideas For Saving Energy .......................................................24

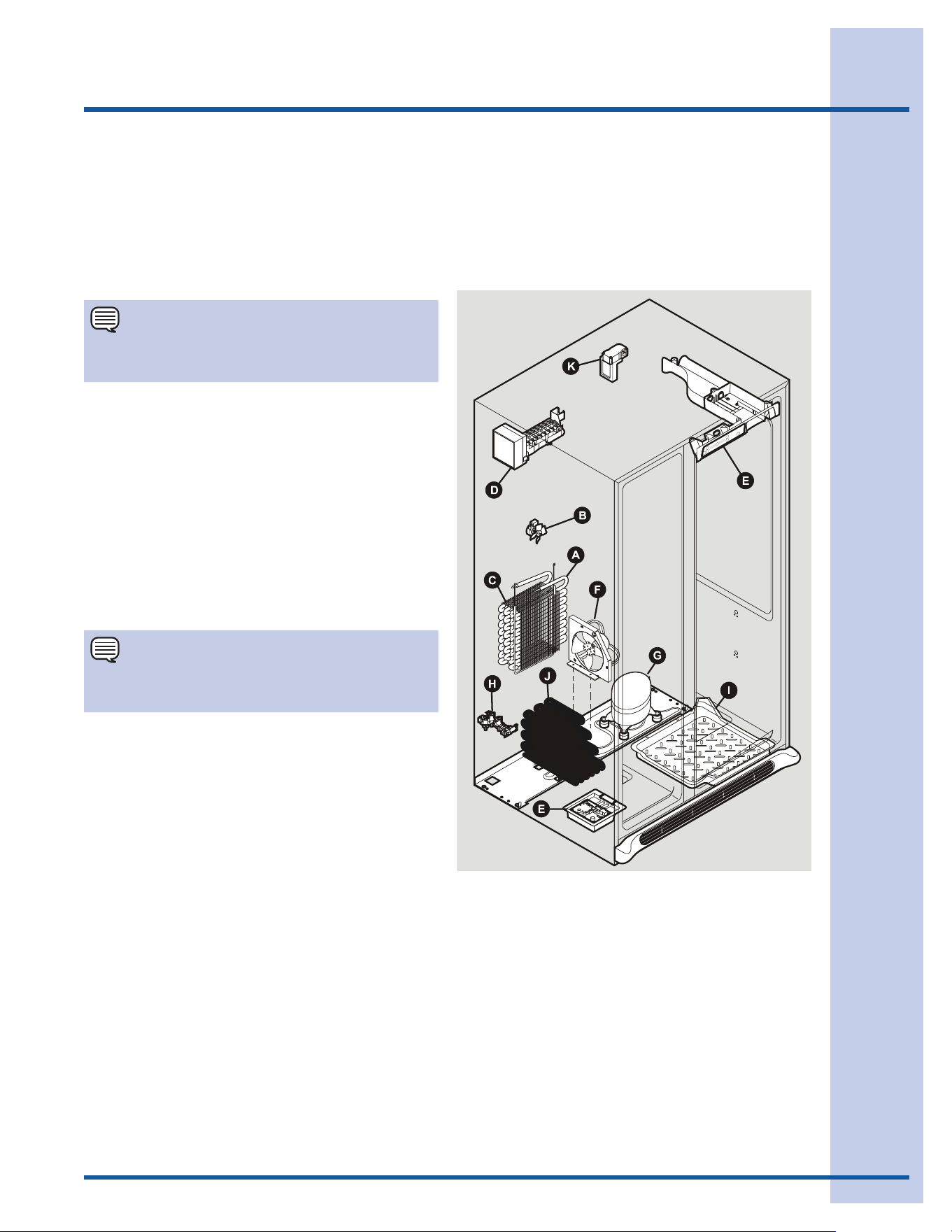

Normal Operating Sounds & Sights ............................. 25

Understanding The Sounds You May Hear ...........................25

Care & Cleaning.................................................... 26

Protecting Your Investment ..................................................26

Vacation & Moving Tips ........................................................27

Care & Cleaning Tips ............................................................27

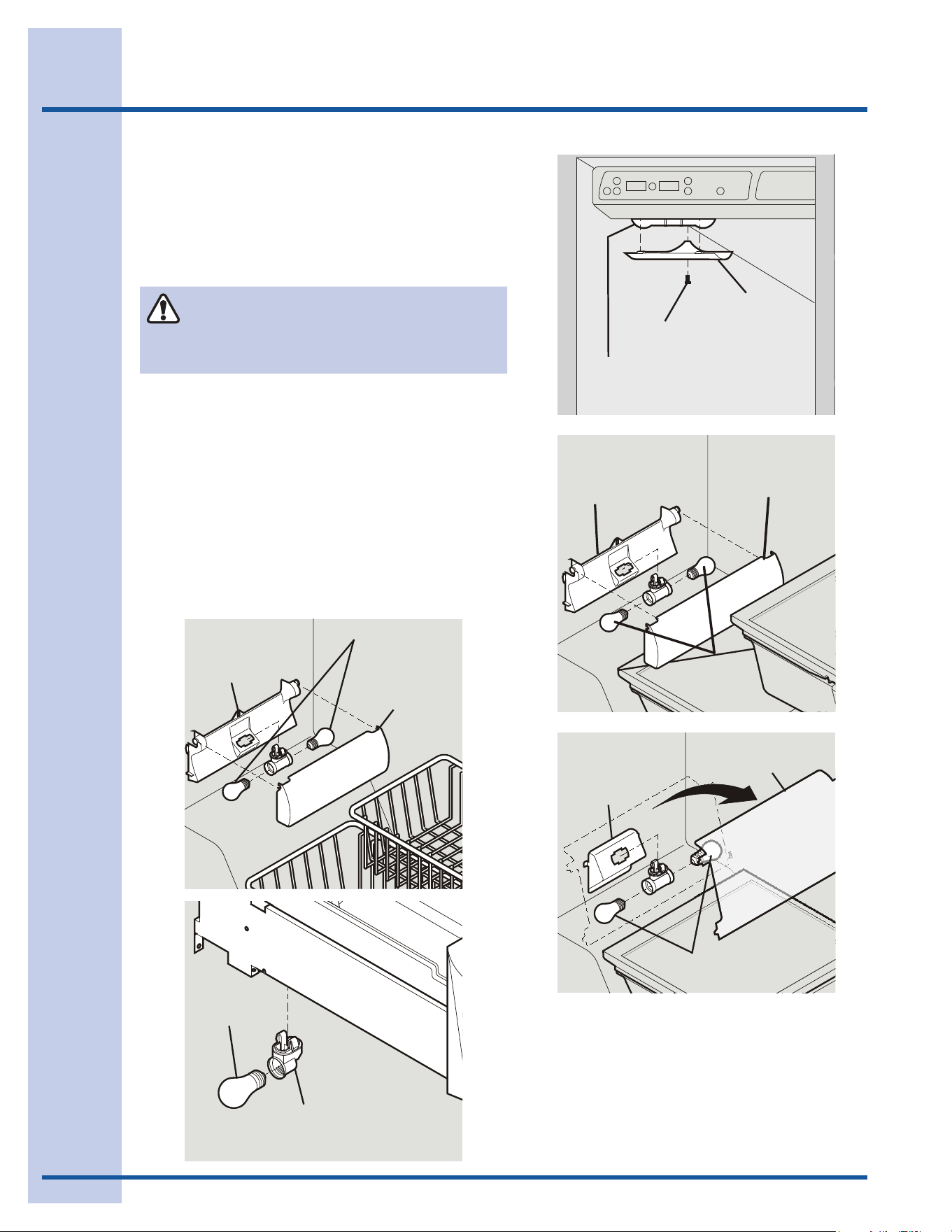

Replacing Light Bulbs ...........................................................28

Warranty Information ............................................. 29

Solutions To Common Problems ................................ 30

NOTE

Registering your product with Electrolux enhances

our ability to serve you. You can register online (at

the Internet address below) or by dropping your

Product Registration Card in the mail.

Safety

Important Safety Instructions

General Safety

 • Donotstoreorusegasoline,orother

ﬂammable liquids, near this or any other

appliance. Read product labels for warnings

regarding ﬂammability and other hazards.

 • Donotoperatetherefrigeratorinthe

presence of explosive fumes.

 • Avoidcontactwithanymovingpartsofthe

automatic ice maker.

 • Removeallstaplesfromthecartonto

avoid cut injuries. Staples can also damage

ﬁnishes if they come in contact with other

appliances or furniture.

Child Safety

Packing Materials:

 • Packingcartonscoveredwithrugs,

bedspreads, plastic sheets or stretch wrap

may become airtight chambers and can

quickly cause suffocation.

 • Destroyorrecycletheproduct’scarton,

plastic bags, and any other exterior wrapping

material immediately after the refrigerator is

unpacked. Children should never play with

these items.

Child Entrapment And Suffocation

 • Theseproblemsarenotlimitedtothepast.

Whether junked, abandoned or temporarily

stored (even for a few hours), unattended

refrigerators and freezers are dangerous.

Please take the precautions listed below.

Proper Disposal Of Refrigerators/ Freezers

Before you throw away your old refrigerator/freezer:

 • Removethedoors.

 • Leavetheshelvesinplacesochildrenmay

not easily climb inside.

 • Haverefrigerantremovedbyaqualied

service technician.

Safety Precautions

Donotattempttoinstalloroperateyourunit

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeledwithaDanger,WarningorCautionbased

on the risk type.

Deﬁnitions

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards. Obey

all safety messages that follow this symbol to avoid

possible injury or death.

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

IMPORTANT

Indicates installation, operation or maintenance

information which is important but not hazard-

related.

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

WARNING

Please read all safety instructions before

using your new refrigerator.

Safety

 • Therefrigeratormustbepluggedintoitsown

dedicated 115 Volt, 60 Hz., AC-only electric

outlet. The power cord of the appliance is

equipped with a three-prong grounding plug

for your protection against electrical shock

hazards. It must be plugged directly into a

properly grounded three-prong receptacle.

The receptacle must be installed in

accordance with local codes and ordinances.

Consultaqualiedelectrician.Donotusean

extension cord or adapter plug.

 • Ifthepowercordisdamaged,itshould

be replaced by the manufacturer, service

technician or a qualiﬁed person to prevent

any risk.

 • Neverunplugtherefrigeratorbypullingon

the power cord. Always grip the plug ﬁrmly,

and pull straight out from the receptacle to

prevent damaging the power cord.

 • Unplugtherefrigeratorbeforecleaning

and before replacing a light bulb to avoid

electrical shock.

 • Performancemaybeaffectedifthevoltage

varies by 10% or more. Operating the

refrigerator with insufﬁcient power can

damage the compressor. Such damage is not

covered under your warranty.

 • Donotplugtheunitintoanoutletcontrolled

by a wall switch or pull cord to prevent the

refrigerator from being turned off accidentally.

 • AvoidconnectingrefrigeratortoaGround

Fault Interrupter (GFI) circuit.

Electrical

WARNING

You must follow these guidelines to ensure

that your refrigerator’s safety mechanisms are

operating correctly.

IMPORTANT

To turn off power to your refrigerator, unplug the

power cord from the wall outlet.

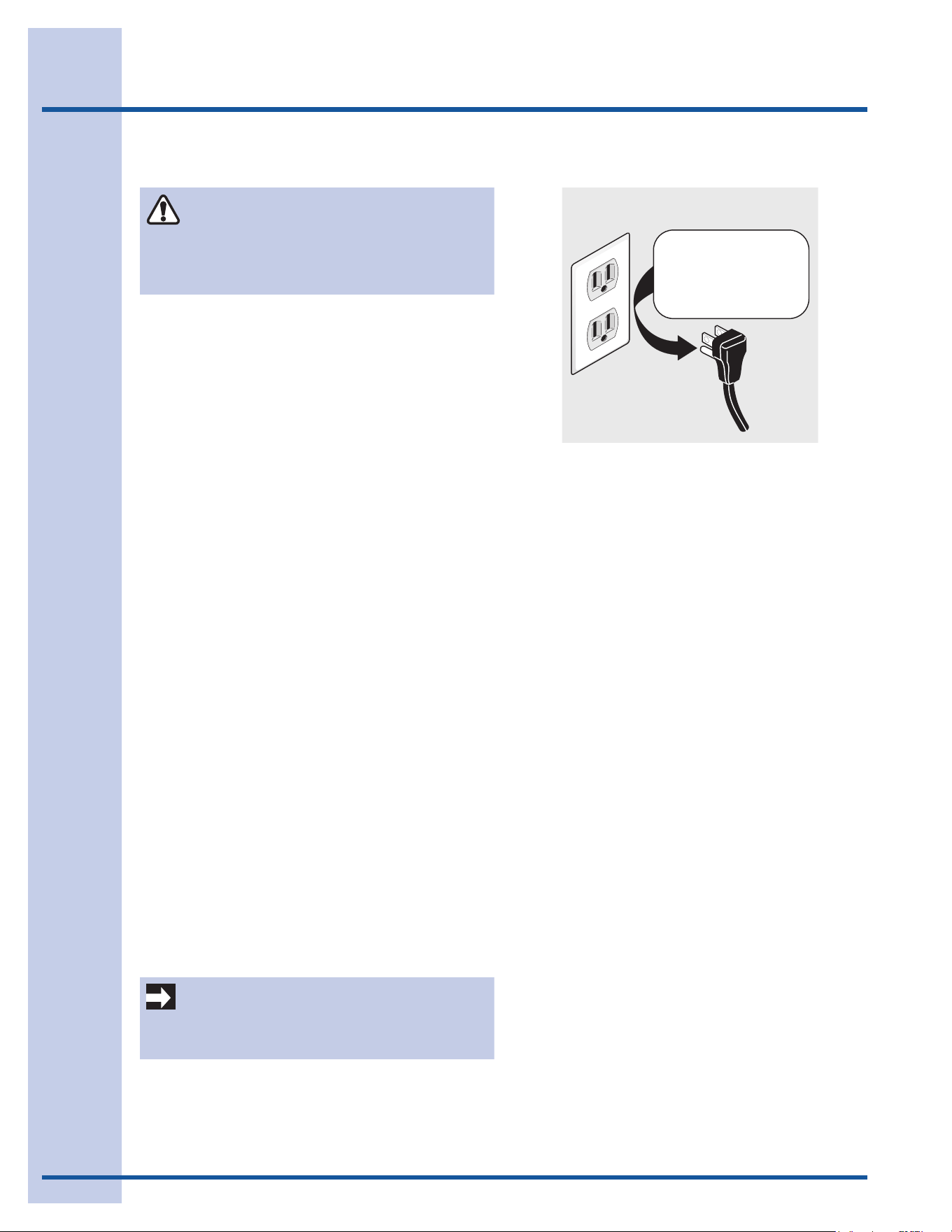

Grounding type wall receptacle

Do not, under

any circunstances,

cut, remove,

or bypass the

grounding prong.

Power cord with

3-prong grounded plug

This Use & Care Guide provides general operating

instructions for your model. Use the refrigerator only as

instructed in this Use & Care Guide. Before starting the

refrigerator, follow these important ﬁrst steps.

Location

 • Chooseaplacethatisnearagrounded

electricaloutlet.DoNotuseanextension

cord or an adapter plug.

 • Ifpossible,placetherefrigeratoroutof

direct sunlight and away from the range,

dishwasher or other heat sources.

 • Therefrigeratormustbeinstalledonaoor

that is level and strong enough to support a

fully loaded refrigerator.

 • Considerwatersupplyavailabilityformodels

equipped with an automatic ice maker.

Installation

Installation Clearances

 • Allowthefollowingclearancesforease

of installation, proper air circulation, and

plumbing and electrical connections:

Sides & Top ⅜”

Back 1”

Door Opening

Installation

Your refrigerator should be positioned to allow easy

access to a counter when removing food. For best

use of drawers and freezer baskets, the refrigerator

should be in a position where both the refrigerator

and freezer doors can be fully opened.

Guidelines for ﬁnal positioning of your

refrigerator:

 • Allfourcornersofthecabinetmustrestrmly

on the ﬂoor.

 • Thecabinetshouldbelevelatthefront

and rear.

 • Thesidesshouldtilt¼-inch(6mm)fromfront

to back (to ensure that doors close and

seal properly).

 • Doorsshouldalignwitheachotherand

be level.

All of these conditions can be met by

raising or lowering the adjustable front

rollers.

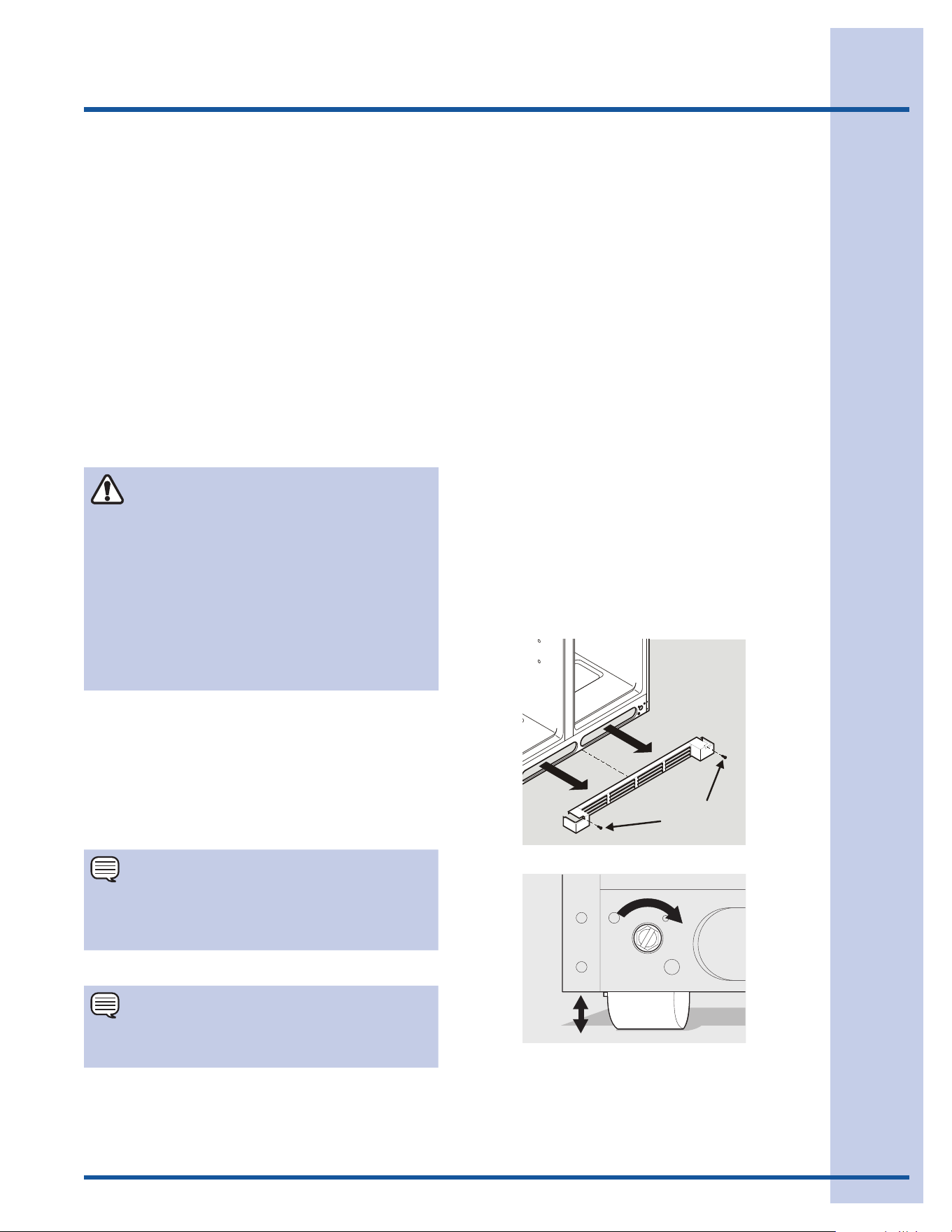

To level the cabinet using the front rollers:

1 Open both doors and remove the toe grille by

gently pulling forward (see illustration).

2 Close the doors and use a ﬂat-blade

screwdriver or ⅜-inch socket wrench to raise

or lower the front rollers.

3 Ensure both doors are bind-free with their

seals touching the cabinet on all four sides.

Mounting

Screws

Raise

CAUTION

DO NOT install the refrigerator where the

temperature will drop below 55° F (13° C) or

rise above 110° F (43° C). The compressor will

not be able to maintain proper temperatures

inside the refrigerator.

DO NOT block the toe grille on the lower front

of your refrigerator. Sufﬁcient air circulation

is essential for the proper operation of your

refrigerator.

NOTE

The refrigerator doors are designed to shut by

themselves within a 20 degree opening.

NOTE

If your refrigerator is placed with the door hinge

side against a wall, you may have to allow

additional space so the door can be opened wider.

Installation

3 After leveling, verify door stop contacts lower

hinge and top of door does not contact upper

hinge through full movement of door (from

fully closed to fully open).

Door

Raise

Door

Raise

Door

Hinge

Flange

Hinge

Door

Stop

Flange

Open Door

7/16"

4 Replace the toe grille by ﬁtting it into place.

NOTE:Leveltheunitwiththeadjustablerollers

before leveling the doors.

To level the doors using the adjustable lower

hinge (some models):

1 If the refrigerator door is lower than

the freezer door, raise the refrigerator

door by turning the adjustment screw

counterclockwise using a ⁷/

inch wrench.

(See illustration.)

2 If the freezer door is lower than the

refrigerator door, raise the freezer

door by turning the adjustment screw

counterclockwise using a ⁷/

inch wrench.

(See illustration.)

Removing The Doors

Getting Through Narrow Spaces

If your refrigerator will not ﬁt through an entrance area, you can reduce its size by removing the doors.

Check ﬁrst by measuring the entrance.

Required Tools

You will need the following tools:

Adjustable

Wrench

Socket

Wrench Set

Phillips

Head

Tools Necessary:

3/8" Fixed

Wrench

AND OR

To prepare for removing the doors:

1 Make sure the electrical power cord is

unplugged from the wall outlet.

2 Open both doors and remove the toe grille

(as explained in the Installation Instructions

that came with your appliance).

3 Remove any food from the door shelves.

4 Close the doors.

To remove the top hinge cover:

1 Remove the three screws from the cover over

the top door hinges.

2 Pull the cover forward about a half-inch and

lift it off.

Top

Hinge

Screw

(4)

Top

Hinge

Cover

Screw

(3)

Bottom

Hinge

Screw

(6)

To remove the refrigerator door:

1 Tracelightlyaroundthedoor’stophingewith

a pencil. This makes reinstallation easier.

2 Remove the two screws from the top hinge.

Lift the door off of the bottom hinge and set it

aside.

Cover

Screws

Hinge Cover

Hinge

Screws

Top

Hinge

3 Remove the two bottom hinge screws and

hinge if necessary.

To reinstall the refrigerator door, reverse the above

steps. Once both doors are in place, also replace

the top hinge cover.

NOTE

For more information on removing the toe grille,

please refer to the Installation Instructions.

Removing The Doors

Door

Screws

Hinge

Assembly

Closer

Hinge

To remove the freezer door:

 1 Detachthemulti-wirecableconnector

located above the top hinge. Grasp both

sides of the connector ﬁrmly and pull apart.

Multi-Wire

Cable

Hinge

Screws

Top

Hinge

Closer

Hinge

Door

Water

Line

Tubing

Screws

Hinge

Assembly

2 Trace lightly around the hinge with a pencil.

This makes reinstallation easier.

 3 Detachthewatertubefromtheconnector

located below the freezer door. The

connector releases when you press its outer

sleeve inward.

4 Remove the screws from the top hinge and

pull the multi-wire cable through it. Lift the

door off of the bottom hinge.

5 Lay the door on its side to avoid damage to

the water tube extending from the bottom

hinge.

6 Remove the plastic closer and pin from the

lower hinge assembly.

7 Remove the two bottom hinge screws and

hinge if necessary.

To reinstall the freezer door, reverse the above steps.

Once both doors are in place, ensure they are

aligned with each other and level (Please see To

level the doors using the lower hinge in Installation

section.), then replace the top hinge cover.

4 Remove the plastic closer and pin from the

lower hinge assembly.

CAUTION

Be sure doors are set aside in a secure

position where they cannot fall and cause

personal injury.

To Disconnect

1. Press outer ring against face of fitting

2. Pull to

remove tube

To Connect

Insert tube and push until mark touches

face of fitting

Connecting The Water Supply

Before Installing The Water Supply Line, You Will

Need:

 • BasicTools:adjustablewrench,at-blade

screwdriver, and Phillips

screwdriver

 • Accesstoahouseholdcoldwaterlinewith

water pressure between 30 and 100 psi.

 • Awatersupplylinemadeof¼inch(6.4mm)

OD,copperorstainlesssteeltubing.To

determine the length of tubing needed,

measure the distance from the ice maker

inlet valve at the back of the refrigerator to

your cold water pipe. Then add approximately

7 feet (2.1 meters), so the refrigerator can be

moved out for cleaning (as shown).

 • Ashutoffvalvetoconnectthewatersupply

linetoyourhouseholdwatersystem.DO

NOTuseaself-piercingtypeshutoffvalve.

 • Acompressionnutandferrule(sleeve)for

connecting a copper water supply line to the

ice maker inlet valve.

To Connect Water Supply Line To Ice Maker Inlet

Valve

 1. Disconnectrefrigeratorfromelectricpower

source.

2. Place end of water supply line into sink or

bucket.TurnONwatersupplyandush

supply line until water is clear. Turn OFF

water supply at shutoff valve.

3. Remove plastic cap from water valve inlet

and discard cap.

4. If you use copper tubing - Slide brass

compression nut, then ferrule (sleeve) onto

water supply line. Push water supply line

into water valve inlet as far as it will go

(¼inch/6.4mm).Slideferrule(sleeve)into

valve inlet and ﬁnger tighten compression nut

onto valve. Tighten another half turn with a

wrench;DONOTovertighten.SeeFigure1.

If you use stainless steel tubing - The nut

and ferrule are already assembled on the

tubing. Slide compression nut onto valve

inlet and ﬁnger tighten compression nut

onto valve. Tighten another half turn with a

wrench;DONOTovertighten.SeeFigure2.

5. With steel clamp and screw, secure water

supply line (copper tubing only) to rear panel

of refrigerator as shown.

6. Coil excess water supply line (copper tubing

only), about 2½ turns, behind refrigerator

as shown and arrange coils so they do not

vibrate or wear against any other surface.

 7. TurnONwatersupplyatshutoffvalveand

tighten any connections that leak.

8. Reconnect refrigerator to electrical power

source.

9. To turn ice maker on, lower wire signal arm

(sidemounted)orsettheicemaker’sOn/Off

power switch to the “I” position (rear mounted).

WARNING

To avoid electric shock, which can cause

death or severe personal injury, disconnect

the refrigerator from electrical power before

connecting a water supply line to the refrigerator.

IMPORTANT

Ensure that your water supply line connections

comply with all local plumbing codes.

CAUTION

To Avoid Property Damage:

• CopperorStainlessSteelbraidedtubing

is recommended for the water supply line.

Water supply tubing made of ¼ inch plastic

is not recommended to be used. Plastic

tubing greatly increases the potential for

water leaks, and the manufacturer will not

be responsible for any damage if plastic

tubing is used for the supply line.

• DONOTinstallwatersupplytubinginareas

where temperatures fall below freezing.

• Chemicalsfromamalfunctioningsoftener

can damage the ice maker. If the ice maker

is connected to soft water, ensure that the

softener is maintained and working properly.

NOTE

Check with your local building authority for

recommendations on water lines and associated

materials prior to installing your new refrigerator.

Dependingonyourlocal/statebuildingcodes,

Electrolux recommends for homes with

existing valves its Smart Choice

water line kit

5305513409 (with a 6 ft. Stainless Steel Water

Line) and for homes without an existing valve,

Electrolux recommends its Smart Choice water

line kit 5305510264 (with a 20 ft. Copper Water

Line with self-tapping saddle valve). Please refer

to www.electroluxicon.com for more information.

Plastic water tubing

to ice maker

fill tube

Stainless

steel

water line

Water valve

bracket

Valve inlet

Water valve

6 ft. stainless steel water line

from household water supply

Figure 2

Figure 1

Plastic water tubing

to ice maker

fill tube

Steel

Clamp

Brass

Compression

Nut

Copper

water Line

Water Valve

Bracket

Valve Inlet

Water Valve

Copper water line from

household water supply

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

Ferrule

(Sleeve)

IMPORTANT

After connecting the water supply, refer to “How

to Prime the Water Supply System” for important

information about priming an empty water supply

system.

Your refrigerator’s water supply system

includes several tubing lines, a water ﬁlter, a

water valve, and a water tank. To ensure that

your water dispenser works properly, this

system must be completely ﬁlled with water

when your refrigerator is ﬁrst connected to

the household water supply line.

Connecting The Water Supply

Feature Overview

Understanding Features And Terms

Your Electrolux refrigerator is designed for optimal convenience and storage ﬂexibility. Use the illustration

below to familiarize yourself with product features and terminology.

Fixed

Door B in

Ice M aker

Ice Cream S helf

Freezer and Refrigerator C ontrols

Dairy

Com partm ent

CAUTIO N :

Do N ot Rem ove

M agnet Behind

Dairy

Com partm ent

Door Bin

Door B in

Fixed

Door B in

Toe G rille

Tall Bottle

Retainer

Can Rack

Special Item

Rack

SpillProof

Sliding Shelf

Crisp er Pan

and C over

Water Filter

(locatio n varies by m odel)

SpillProof

Aspect S helf

Tilt O ut

Door Bin

Tilt Out

Door B in

Large Basket

Large

G lide O ut

Basket

Shelf

Sm all B asket

Ice Container

Door B in

M eat Keeper

and C over

W ine R ack

Door Bin

NOTE

Features may vary according to model.

IMPORTANT

Features not included with your refrigerator can be

purchased at www.electroluxicon.com or by calling

1-877-435-3287.

Controls & Settings

Allowing Cooling Time Before Use

To ensure reliable food storage, allow your refrigerator and freezer to operate with the doors closed for 8

to12hoursbeforeplacingfoodinside.Duringthiscoolingperiod,youdonotneedtoadjustthecontrols,

which are preset at the factory.

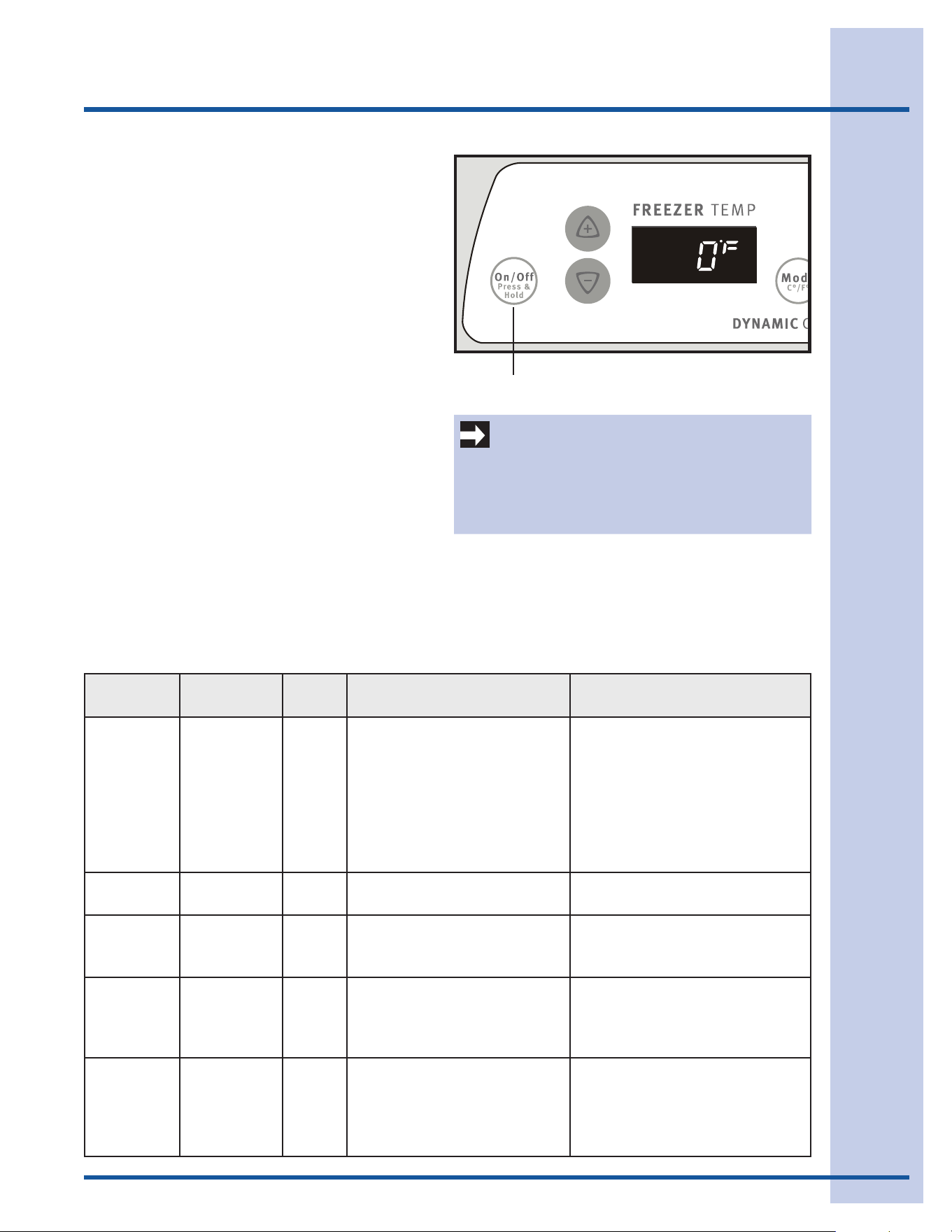

Setting Cooling Temperatures

Yourrefrigeratorcomeswithastate-of-the-artelectronicdigitalcontrolsystem.Thesystem’scontrolpanel

is located at the top of the fresh food compartment.

The two digital displays on the left half of the control panel indicate the current temperatures of your

freezer and fresh food compartments.

Toadjustthetemperaturetoahigherorlowersetting,presstheUporDownArrowbuttonclosesttothe

display. The ﬁrst time you press the button, the display shows the last setting you entered. Each press of

the button after that increments the setting by one degree.

The display shows your new setting momentarily, then changes back to the current temperature.

Choosing Fahrenheit or Centigrade

Dependingonwhichtemperaturestandardyou

prefer to use, you can set your control panel to

display in Fahrenheit or Centigrade. To change

between Fahrenheit and Centigrade, press the

Mode button (located between the two digital

temperature displays).

Making Temperature Adjustments

After running your refrigerator for 24 hours, you

can adjust temperatures as needed. Make your

adjustments small and gradual, allowing time for

temperatures to change and stabilize. Refer to the

following guidelines for temperature settings.

NOTE

The advanced electronic control system in your

refrigerator includes additional display modes that

service professionals can use to rapidly diagnose

performance issues.

Temperature Control Range

Freezer Fresh Food

Fahrenheit Centigrade Fahrenheit Centigrade

Warmest 6º -14º 47º 8º

Warmer

Factory Setting Midpoint 0º -18º 37º 3º

Colder

Coldest -6º -21º 33º 1º

Temperature Adjustment

If Fresh Food compartment is too warm

Adjust Fresh Food control one degree

colder by pressing Down (Colder)

button.

If Fresh Food compartment is too cold

Adjust Fresh Food control one degree

warmer by pressing the Up (Cold) button.

If Freezer compartment is too warm

Adjust Freezer control one degree colder

by pressing Down (Colder) button.

If Freezer compartment is too cold

Adjust Freezer control one degree warmer

by pressing the Up (Cold) button.

Controls & Settings

What To Do If The Temperature Displays

Flash

If ever you see both temperature displays

continuously ﬂashing, it may indicate that the control

system has detected a performance problem. Call

your Electrolux service representative, who can

interpret the ﬂashing message.

Turning The Cooling System On And

Off

You can disable the cooling system in your

refrigerator by pressing the On/Off button located

on the left side of the temperature control panel.

To ensure that you do not accidentally turn off the

cooling system, the button does not work unless

you press and hold it for three seconds.

Once you disable the cooling system, all

refrigeration to the freezer and fresh food

compartments stops.

Cooling System On/Off Button

To turn the cooling system back on, you must again press and hold the On/Off button for three more

seconds.

Responding to Alarms (Audible Tones & Indicator Lights)

Yourrefrigerator’scontrolsystemcanconveythefollowinginformationthroughaudibletonesandthe

alarm indicator lights.

IMPORTANT

TheOn/Offbuttononlycontrolsyourrefrigerator’s

cooling system. Power to lights and other

electrical components continues unless you

unplug the power cord.

Alarm

Name

Indicator

Light

Audible

Tones

Condition How to Respond

On (light is off) Alarm system is not active

while Freezer and Fresh Food

compartments are cooling to-

ward the current temperature

settings.

If Freezer and Fresh Food com-

partments do not match your

temperature settings in three

hours, expect the control system

to signal other conditions.

If cooling down does not stabilize

toward your current settings, call

1-877-435-3267 for assistance.

On Steady

Green

Alarm system is active. Noresponserequired.

DoorAjar Flashing

Green



Freezer or Fresh Food door

has been open for over ﬁve

minutes.

Close door to disable and reset

alarm.

High Temp Flashing

Amber



Freezer or Fresh Food com-

partment has been too warm

(45

F or higher) for over an

hour.

Press Alarm Reset button to turn

off alarm. If temperatures do not

improve call 1-877-435-3267 for

assistance.

Power

Failure

Flashing

Amber

A power outage was detected. Press Alarm Reset button to

turn off alarm and again to reset.

Check if the power failure lasted

long enough to affect stored food

temperatures.

CAUTION

The alarm system does not automatically

reset if you disconnect and reconnect your

refrigerator’s power cord. It can only be

reactivated by pressing the Alarm Reset button.

Controls & Settings

Using The Alarm Reset Button

You can disable or activate the

alarm system by pressing and

holding the Alarm Reset button for

three seconds. Use it, for example,

to turn off audible tones and/or

ﬂashing indicator lights.

Once you disable the alarm system, you must

again press and hold the Alarm Reset button for

three more seconds to reset (activate) the alarm

system. The On indicator light remains off while

the Freezer and Fresh Food compartments cool

toward the current temperature settings. When

temperature settings are reached, the On light

displays green to indicate an active alarm system.

Air Filter

On/Off

Button

Indicator

Lights

Checking the Air Filter Status (some models)

Yourrefrigerator’sfreshfoodairlterneedstobe

replaced from time to time. You can monitor the

need for replacement by pressing and holding the

Air Filter On/Off button for three seconds.

To check the air ﬁlter status:

1 Press the Air Filter On/Off button. This

activates a test cycle, and one of the three

ﬁlter status lights displays, indicating one of

the following:

Filter OK - Air ﬁlter does not need changing.

Order Filter - Air ﬁlter is about 80 percent

used. Please order new one.

Change Filter - Air ﬁlter is 100 percent used.

Please change now.

2 Press the Air Filter On/Off button to turn off

the status light.

Storage Features

Cantilever Shelves

You can easily adjust shelf positions in the freezer

and fresh food compartments to suit your needs.

The shelves have mounting brackets, which attach

to slotted supports at the rear of each compartment.

To change the position of a shelf:

1 Before adjusting a shelf, remove all food.

2 Lift the front edge up.

3 Pull the shelf out.

4 Replace by inserting the mounting bracket

hooks into the desired support slots.

5 Lower the shelf and lock into position.

Shelf Features

Your refrigerator includes SpillSafe

glass shelves,

which are designed to catch and hold accidental

spills. These shelves slide out for easy access to

food and faster cleaning.

Sliding shelves can be pulled forward as far as

their built-in stops allow. Sliding shelves cannot be

separated from their mounting brackets.

Drawers

Your refrigerator includes a variety of storage drawers.

These drawers usually are located in ﬁxed positions

at the bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits,

vegetables, and other fresh produce. Before storing

items in a crisper:

 • Washitemsinclearwaterandremove

excess water.

 • Wrapanyitemsthathavestrongodorsor

high moisture content.

Crisper Humidity Control

Crisper drawers include a sliding control for

adjusting the humidity inside the crisper. This feature

can extend the life of certain fresh vegetables that

keep

longer

in high

humidity.

Down

Cantilever

Aspect

Glass Shelf

CAUTION

To avoid injury from breakage, handle

tempered glass shelves carefully.

NOTE

The Cantilever Sliding Glass Shelf has spacers

(side screws) on the sides of the brackets to

securely hold the shelf in place.

To relocate the shelf to a different location, the

spacers must be turned in (clockwise). To secure

the shelf in a new location, remember to turn the

spacers out (counterclockwise) until they touch

the sides of the compartment.

NOTE

Leafy vegetables keep best when stored with

the Humidity Control set on Higher Humidity,

or in a drawer without a Humidity Control. This

keeps incoming air to a minimum and maintains

maximum moisture content.

Tighten spacers

to remove shelf

Loosen spacers

to stabilize shelf

against the liner.

Crisper

Higher Humidity Lower Humidity

Storage Features

Meat Keeper

Some models are equipped with a meat keeper

drawer for short term storage of bulk meat items.

This drawer includes a sliding control for adjusting

the temperature inside.

Any meat to be kept longer than two days should be

frozen. If you store fruits or vegetables in this drawer,

set it to a warmer temperature to prevent freezing.

Doors

Storage Bins

The doors to your freezer and fresh food

compartments use a system of modular storage

bins. All of these bins are removable for easy

cleaning. Some of them have ﬁxed positions, while

others can be adjusted to your needs.

Doorbinsareidealforstoringjars,bottles,cans,

and large drink containers. They also enable quick

selection of frequently used items.

To change the position of an adjustable

door bin:

1 Before adjusting a bin, remove all food.

2 Grip the bin ﬁrmly with both hands and lift it

upward.

3 Remove the bin.

4 Place the bin just above desired position.

5 Lower the bin onto supports until locked

in place.

Colder

Cold

Fixed

Door Bin

Adjustable

Door Bins

Fixed

Door Bin

Door

Bin with

Tilt Shelf

Tilt Out

Storage Features

Accessories

Tall Bottle Retainer

The tall bottle retainer keeps tall containers in the

bin from falling forward when opening or closing

the refrigerator door. To install, snap the ends of the

retainer over the edge of the retainer wall as shown

in the illustration.

Special Items Rack

The innovative design of the special items rack allows

you to store a six-pack of 12 ounce drink cans, a

bottle of wine, a two-liter soft drink bottle, or a carton

of eggs. To install, slide the special item rack onto the

left side of any shelf as shown in the illustration.

Dairy Compartment

Use the dairy compartment, at the top of the

fresh food compartment door, for short term

storage of cheese, spreads, or butter. The dairy

compartment, which includes a lift-up cover, is

designed to be warmer than the open storage area

to accommodate these types of food.

Can Rack

The can rack allows you to efﬁciently and securely

store up to six twelve-ounce cans of beverage drink.

Ice Cream Shelf

The ice cream shelf attaches to the top of the ice

dispenser container. It allows storage of both round

and rectangular cartons of your favorite ice cream.

Tall Bottle Retainer

Special

Items Rack

Can Rack

Dairy

Compartment

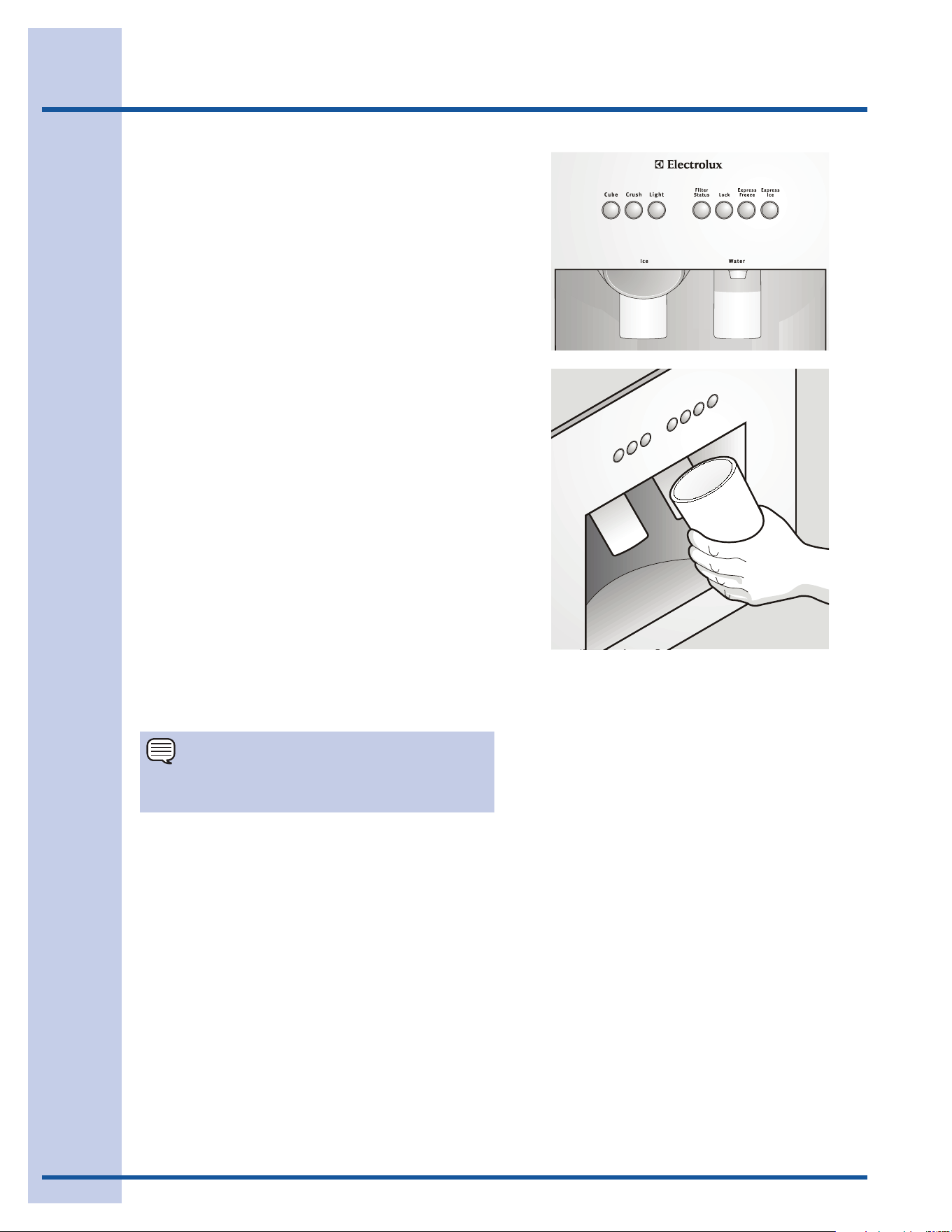

Automatic Ice & Water Dispenser

Using The Dispenser

Your automatic ice & water dispenser includes a

control panel, a drinking glass bay, and two push-

paddles for turning on the ice and water supplies.

Using the dispenser control panel is necessary for

the ice dispenser but not the water dispenser. The

control panel also includes options for lighting, ﬁlter

monitoring, and increasing the rates of ice making

and freezing.

Dispensing Ice

To operate the ice dispenser, press an option for

crushed or cubed ice on the control panel. Press a

drinking glass against the dispensing paddle (as far

up as possible to catch all the ice). To stop, pull the

glass away from the dispensing paddle.

Dispensing Water

To operate the water dispenser, press a drinking

glass against the dispensing paddle. To stop

dispensing water, pull the glass away from the

dispensing paddle.

The dispensed water is not cold. For colder water,

ﬁrst add crushed ice or cubes to your drinking glass.

Drip Tray

A drip tray located at the base of the dispenser bay

catches small spills and allows them to evaporate.

This drip tray is removable for easy cleaning.

NOTE

Please do not pour excess water and ice into the drip

tray. It does not have a drain.

Automatic Ice & Water Dispenser

Using The Dispenser Control Panel

Cube Button & Indicator Light Press button to get cubed ice. Light displays blue. Press glass against

ice dispensing paddle, holding high up to catch all ice.

Crush Button & Indicator Light Press button to get crushed ice. Light displays blue. Press glass

against ice dispensing paddle, holding high up to catch all ice.

Light Button & Indicator Light Press button to turn on dispenser light. Light displays blue. Press

buttonagaintoturnoffdispenserlight.Dispenserlightalsoturnson

automatically when ice and/or water is dispensed.

Filter Status Button & Indica-

tor Light

Light displays in one of three possible colors each time the dispenser

is used to show status of water ﬁlter:

Green Water ﬁlter does not need changing.

Amber Water ﬁlter is about 80 percent used. Please order

new one.

Red Water ﬁlter is 100 percent used. Please change as

soon as possible.

After replacing the water ﬁlter, reset the ﬁlter status by pressing and

holding Filter Status button for 10-15 seconds.

Lock Button & Indicator Light The dispenser can be locked to prevent unwanted use. To lock, press

and hold button for 3-5 seconds. Light displays blue. To unlock, press

and hold button for 3-5 seconds until light goes out.

Express Freeze Button &

Indicator Light

Press and hold button for 3-5 seconds to activate faster rate for freez-

ing food (preserving freshness). Light displays blue. Press and hold

button for 3-5 seconds again to deactivate.

Express Ice Button & Indica-

tor Light

Press and hold button for 3-5 seconds to increase ice production for

special occasions, such as parties. Light displays blue. Press and hold

button for 3-5 seconds again to deactivate.

Express Ice should produce 25 to 50 percent more ice every 24 hours.

Automatic Ice & Water Dispenser

Priming The Water Supply System

Yourrefrigerator’swatersupplysystemincludes

several tubing lines, an advanced water ﬁlter, a

distribution valve bank, and a reserve tank to ensure

ample supply to the ice and water dispenser at all

times. This system needs to be completely ﬁlled with

water when ﬁrst connected to an external supply line.

To prime the water supply system:

1. Begin ﬁlling the tank by pressing and holding a

drinking glass against the water dispenser paddle.

2. Keep the glass in this position until water comes

out of the dispenser. There will be noticeable

spurts and sputters as the system pushes air

out through the system and dispenser nozzle. It

may take about 1½ minutes.

3. Continue dispensing water for about three

minutes to ﬂush the system and plumbing

connections of any impurities (stopping to

empty the glass as necessary).

Ice Dispenser Operation & Care

The ice maker, ice bin, and dispenser feeding

mechanism are located in the top of the freezer

compartment. After the refrigerator is installed

properly and has cooled for several hours, the

ice maker can produce ice within 24 hours. It can

completely ﬁll an ice bin in about two days.

The ice maker produces 4 to 6 pounds of ice every

24 hours depending on usage conditions. Ice is

produced at a rate of 8 cubes every 75 to 90 minutes.

Using The Ice Dispenser After Installation

Before making ice for the ﬁrst time, be sure to

prime the water supply system. Air in new plumbing

lines can result in two or three empty ice maker

cycles. Furthermore, if the system is not ﬂushed,

the ﬁrst ice cubes may be discolored or have an

odd ﬂavor.

Turning The Ice Dispenser On And Off

Iceproductioniscontrolledbytheicemaker’sOn/

Off power switch. To gain access to the ice maker,

pull the ice cream tray out. Press the switch to

the “O” position to turn it Off and press to the “I”

position to turn it On.

Wire

Signal Arm

Off

IMPORTANT

Your ice maker is shipped from the factory with the

wiresignalarmintheONposition(sidemounted)

orwiththeswitchturnedON(rearmounted).To

ensure proper function of your ice maker, hook up

water supply immediately or turn ice maker OFF

by turning the On/Off switch to the Off (O) position.

If the ice maker is not turned off and the water

supply is not connected, the water valve will make

a loud chattering noise.

CAUTION

Pushing the dispensing paddle in for more

than four minutes may cause the dispenser

motor to overload and stop. The overload

protector resets automatically after three to

four minutes.

NOTE

The ice maker also has a built-in wire signal arm,

which automatically stops ice production when the

ice bin is full. This signal arm should not be used to

manually stop the ice maker.

CAUTION

For proper dispenser operation, recommended

water supply pressure should fall between 30

psi and 100 psi. Excessive pressure may cause

water ﬁlter to malfunction.

NOTE

The water dispenser has a built-in device that

shuts off the water ﬂow after three minutes of

continuous use. To reset this shutoff device,

simply release the dispenser paddle.

Automatic Ice & Water Dispenser

Ice Dispenser Tips

 • Icecubesstoredtoolongmaydevelopanodd

ﬂavor. Empty the ice container as explained on

the next page.

 • Occasionallyshaketheicecontainertokeep

ice separated.

 • Ifyourrefrigeratorisnotconnectedtoawater

supply or the water supply is turned off, turn off

the ice maker by pressing the On/Off switch.

 • Ifyouneedalargequantityoficeatonetime,itis

best to get cubes directly from the ice container.

 • Thefollowingsoundsarenormalwhentheice

maker is operating:

  • Motorrunning

  • Icedroppingintoicecontainer

  • Watervalveopeningorclosing

  • Icelooseningfromtray

  • Runningwater

 • Turnofftheicemakerwhencleaningthe

freezer and during vacations.

 • Ifyouturnofftheicemakerforalongperiod

of time, you should also turn off the water

supply valve.

Cleaning The Ice Dispenser

To clean the ice dispenser:

1 Turn off ice production by pressing the ice

maker’sOff/Onswitch.

2 Remove the ice bin by lifting up and out.

3 Empty and carefully clean the ice bin with

milddetergent.Rinsewithclearwater.Donot

use harsh or abrasive cleaners.

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Remove ice chips and clean the ice bin shelf

and the freezer door chute .

 6 Replacetheicebin.Presstheicemaker’s

Off/On switch to resume ice production.

Remove and empty the ice storage bin if:

 • Anextendedpowerfailure(onehouror

longer) causes ice cubes in the ice storage

bin to melt and freeze together, jamming the

dispenser mechanism.

 • Youdonotusetheicedispenserfrequently.

Ice cubes will freeze together in the bin,

jamming the dispenser mechanism.

Remove the ice storage bin and shake to loosen

the cubes or clean as explained above.

Auger

Clean the ice maker and ice bin at regular intervals,

particularly before you take a vacation or move.

IMPORTANT

Whenremovingorreplacingtheicebin,DONOT

rotate the auger in the ice bin. If the auger is

accidentally rotated, you must realign the auger

by turning it in 90° turns until the ice bin ﬁts into

place with the drive mechanism. If the auger is

not properly aligned when replacing the ice bin,

the refrigerator will only dispense Crushed Ice.

The freezer door may also not close properly

causing warm air to leak into the freezer.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could damage

the ice storage bin and dispenser mechanism.

IMPORTANT

Small Ice cubes or ice chips jamming in the ice

maker may be a sign that your water ﬁlter needs

changing. If you have a side mounted ice maker

you may also experience hollow cubes — partially

frozen cubes with water inside. When these cubes

are harvested they break open and spill water over

the other ice cubes in the ice container, forming a

solid mass of ice. As the water ﬁlter nears the end

of its useful life and becomes clogged with particles,

less water is delivered to the ice maker during each

cycle.Theicemakercan’tlleverycubeintheice

maker mold, leading to small cubes or chips that

can get caught between the ice ejector blades

and the stripper. Remember, if your ice maker is

jamming with small ice cubes or it’s been six

months or longer since you last changed your

water ﬁlter – replace the water ﬁlter with a new

one. Poor quality household water may require

the ﬁlter to be changed more frequently.

CAUTION

Chemicals from a malfunctioning water

softener can damage the ice maker. If the water

supply to your refrigerator is softened, be sure

the softener is maintained to work properly.

NOTE

The electronic control panel, located at the top of

the refrigerator compartment, includes controls to

monitor the status of your air ﬁlter. See the previous

section for more information about these controls.

Changing The Filter

Locating The Filters

Your refrigerator is equipped with separate water and

air ﬁltering systems. The water ﬁlter system ﬁlters

all dispensed drinking water, as well as the water

used to produce ice. The air ﬁlter removes odors and

impurities from the refrigerator compartment.

Water Filter

The water ﬁlter is located at the top of the fresh

food compartment, next to the electronic control

system panel.

Air Filter (some models)

The air ﬁlter is located inside the refrigerator

compartment at the top rear corner. See the earlier

section in this manual for more information about

when to replace the ﬁlter.

Replacing The Air Filter

In general, you should change the air ﬁlter every

six months to ensure optimal ﬁltering of refrigerator

odors. You may want to adjust this time period

depending on the types and amounts of food you

typically store in your refrigerator. To replace your

air ﬁlter:

1 Push the plastic bubble tab located on the

side of the air ﬁlter housing. The hinged

bottom half drops open.

2 Remove the old ﬁlter and discard it.

3 Unpackage the new ﬁlter and place it inside

the hinged bottom half of the housing.

4 Push the hinged bottom half upward until the

tab snaps.

5 Press and hold the Filter Reset button on the

electronic control panel for three seconds.

When the Filter OK light comes on, the status

has been reset.

6 Press and hold the Filter Reset button for

three seconds again to turn off the ﬁlter

status system.

Ordering Replacement Filters

Order new ﬁlters through the dealer where you

bought your refrigerator, or contact Electrolux at

1-877-808-4195, or go to our web site at www.

electroluxicon.com. You may want to consider

ordering extra ﬁlters when you ﬁrst install your

refrigerator. Here is the product number to request

when ordering:

Water Filter FC-100 PureAdvantage

replacement cartridge

Air Filter Replacement cartridge, part #

241504902

Replacing The Water Filter

In general, you should change the water ﬁlter every six

to nine months to ensure highest possible water quality.

The Filter Status light on the dispenser control panel

prompts you to replace the ﬁlter after a standard amount

of water (400 gallons for PureAdvantage

) has ﬂowed

through the system.

Air Filter

Push Tab

to Release

Filter Cover

More About Your Advanced Water Filter

The PureAdvantage

ice and water ﬁlter

systemsistestedandcertiedbyNSF

InternationaltoNSF/ANSIStandards42and

53 for the reduction of claims speciﬁed on the

performance data sheet.

This system should not be used on water that is

microbiologically unsafe or with water of unknown

quality unless the water has been adequately

disinfected before or after the ﬁltration system.

Systems certiﬁed for cyst reduction may be used on

disinfected waters that may contain ﬁlterable cysts.

NSFTest&CerticationResults:

 • RatedCapacity-400gallons

 • Ratedserviceow-.5gallonsperminute

 • RatedPressure-Min:30psi,Max:100psi

 • OperatingTemp.-Min:33°F,Max:100°F

Changing The Filter

To replace your PureAdvantage

water ﬁlter:

It is not necessary to turn the water supply off

to change the ﬁlter. Be ready to wipe up any

small amounts of water released during the ﬁlter

replacement. The bottom of the ﬁlter housing

includes two small water drainage holes, so be sure

to remove any stored food from the top shelf.

1 Turn Off the ice maker power switch.

2 Push the ﬁlter release button to the right of the

cartridge to disconnect it.

If your refrigerator has not been used for a period of

time (during moving, for example), change the ﬁlter

before reinstalling the refrigerator.

3 Slide the old ﬁlter cartridge straight out of

the housing and discard it.

4 Unpackage the new ﬁlter cartridge and

slide it gently into the ﬁlter housing until it

stops against the snap-in connector at the

back of the housing.

5 Push ﬁrmly until the cartridge snaps into

place. When fully engaged, the front of the

ﬁlter cartridge should be ﬂush with the ﬁlter

release button.

6 Turn On the ice maker power switch.

7 Press a drinking glass against the water

dispenser while checking for any leaks at

the ﬁlter housing.

8 To prime ﬁlter system and purge air from

water line, continue ﬂushing. There will be

noticeable spurts and sputters as the system

pushes air out through the system and out

the dispenser nozzle. This is normal.

9 Press and hold the Filter Status button on the Ice

&WaterDispensercontrolpanelfor3seconds.

The light ﬂashes red, amber, and green to

indicate the Filter Status has been reset.

NOTE

The o-rings on a new water ﬁlter are lubricated. To

ensure a good seal, please do not remove this lubricant.

NOTE

The PureAdvantage

ice and water system can

operate without ﬁltration if you use a bypass in place of

the water ﬁlter cartridge. Please contact the Electrolux

Customer Care Center at 1-877-435-3287 or visit

our web site at www.electroluxicon.com to order the

bypass(PartNo.240396701).

NOTE

Ice jams in the ice maker and/or hollow ice cubes

(partially frozen cubed with water inside), may also

be a sign that your water ﬁlter needs changing.

Push in

and Click

to Install

Slide

Out to

Remove

Filter

Cartridge

Push

Button

Release

Storing Food & Saving Energy

Ideas For Storing Foods

Fresh Food Storage

 • Keepthefreshfoodcompartment

between34°Fand40°Fwithanoptimum

temperatureof37°F.

 • Avoidovercrowdingtherefrigeratorshelves,

which reduces air circulation and causes

uneven cooling.

Fruits and Vegetables

 • Storefruitsandvegetablesincrisper

drawers, where trapped moisture helps

preserve food quality for longer time periods.

Meat

 • Wraprawmeatandpoultrysecurelyso

leakage and contamination of other foods or

surfaces does not occur.

 • Usethemeatkeeperdrawerforshortterm

storage. Any meat to be kept longer than two

days should be frozen.

Frozen Food Storage

 • Keepthefreezercompartmentat0°F

or lower.

 • Afreezeroperatesmostefcientlywhenitis

at least ⅔ full.

Packaging Foods for Freezing

 • Tominimizefooddehydrationandquality

deterioration, use aluminum foil, freezer

wrap, freezer bags or airtight containers.

Force as much air out of the packages as

possible and seal them tightly. Trapped air

can cause food to dry out, change color, and

develop an off-ﬂavor (freezer burn).

 • Wrapfreshmeatsandpoultrywithsuitable

freezer wrap prior to freezing.

 • Donotrefreezemeatthathascompletelythawed.

Loading the Freezer

 • Avoidaddingtoomuchwarmfoodtothe

freezer at one time. This overloads the

freezer, slows the rate of freezing, and can

raise the temperature of frozen foods.

 • Leaveaspacebetweenpackages,socold

air can circulate freely, allowing food to freeze

as quickly as possible.

 • Avoidstoringhard-to-freezefoods,suchas

ice cream and orange juice, on the freezer

door shelves. These foods are best stored

in the freezer interior where the temperature

varies less.

Ideas For Saving Energy

Installation

 • Locatetherefrigeratorinthecoolestpartof

the room, out of direct sunlight, and away

fromheatingductsorregisters.Donot

place the refrigerator next to heat-producing

appliances such as a range, oven, or

dishwasher. If this is not possible, a section

of cabinetry or an added layer of insulation

between the two appliances will help the

refrigerator operate more efﬁciently.

 • Leveltherefrigeratorsothatthedoors

close tightly.

Temperature Settings

 • RefertoearliersectionsinthisUse&Care

Manual for recommendations on temperature

control settings.

Food Storage

 • Avoidovercrowdingtherefrigeratororblocking

coldairvents.Doingsocausestherefrigerator

to run longer and use more energy.

 • Coverfoodsandwipecontainersdrybefore

placing them in the refrigerator. This cuts

down on moisture build-up inside the unit.

 • Organizetherefrigeratortoreducedoor

openings. Remove as many items as needed at

one time and close the door as soon as possible.

Normal Operating Sounds & Sights

Understanding The Sounds You May Hear

Following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the evaporator

may create a boiling or gurgling sound.

B Evaporator Fan You may hear air being

forced through the refrigerator by the

evaporator fan.

C Defrost HeaterDuringdefrostcycles,water

dripping onto the defrost heater may cause a

hissing or sizzling sound. After defrosting, a

popping sound may occur.

 D Automatic Ice Maker When ice has been

produced, you will hear ice cubes falling into

the ice bin.

E Cold Control & Automatic Defrost Control

These parts can produce a snapping or

clicking sound when turning the cooling

system on and off.

F Condenser Fan You may hear air being

forced through the condenser.

G Compressor Modern, high-efﬁciency

compressors run much faster than in the

past. The compressor may have a high-

pitched hum or pulsating sound.

H Water Valve Makes a buzzing sound each

time it opens to ﬁll the ice maker.

I Drain Pan (not removable) You may hear

water dripping into the drain pan during the

defrost cycle.

NOTE

Energy efﬁcient foam in your refrigerator is not a

sound insulator.

NOTE

Duringautomaticdefrostcycle,aredglowintheback

wall vents of your freezer compartment is normal.

J Condenser May create minimal sounds from

forced air.

K Motorized Damper May produce a light

humming during operation.

Your new high-efﬁciency refrigerator may introduce

unfamiliar sounds. These sounds normally indicate

your refrigerator is operating correctly. Some

surfaces on ﬂoors, walls, and kitchen cabinets may

make these sounds more noticeable.

IMPORTANT

If you store or move your refrigerator in freezing

temperatures, be sure to completely drain the

water supply system. Failure to do so could result

in water leaks when the refrigerator is put back

into service. Contact a service representative to

perform this operation.

CAUTION

• Pulltherefrigeratorstraightouttomoveit.

Shifting it from side to side may damage

ﬂooring. Be careful not to move the refrigerator

beyond the plumbing connections.

• Dampobjectssticktocoldmetalsurfaces.

Do not touch refrigerated surfaces with wet

or damp hands.

NOTE

If you set your temperature controls to turn off

cooling, power to lights and other electrical

components continues until you unplug the power

cord from the wall outlet.

Care and Cleaning

Protecting Your Investment

Keeping your refrigerator clean maintains

appearance and prevents odor build-up. Wipe up

any spills immediately and clean the freezer and

fresh food compartments at least twice a year.

When cleaning, take the following precautions:

 • Neverusemetallicscouringpads,brushes,

abrasive cleaners or strong alkaline solutions

on any surface.

 • NeveruseCHLORIDEtocleanstainlesssteel.

 • Donotwashanyremovablepartsinadishwasher.

 • Alwaysunplugtheelectricalpowercordfrom

the wall outlet before cleaning.

 • Removeadhesivelabelsbyhand.Donot

use razor blades or other sharp instruments

which can scratch the appliance surface.

 • Donotremovetheserialplate.

Refer to the guide on the next page for details

on caring and cleaning speciﬁc areas of your

refrigerator.

Care and Cleaning

Care & cleaning tips

Vacation & moving tips

Part Cleaning Agents Tips and Precautions

Interior & Door

Liners

• Soap and water

• Baking soda and

water

• Use two tablespoons of baking soda in one quart of warm water.

• Be sure to wring excess water out of sponge or cloth before

cleaning around controls, light bulb or any electrical part.

Door Gaskets • Soap and water •Wipe gaskets with a clean soft cloth.

Drawers & Bins • Soap and water •Use a soft cloth to clean drawer runners and tracks.

• Do not wash any removable items (bins, drawers, etc.) in

dishwasher.

Glass Shelves •Soap and water

• Glass cleaner

• Mild liquid

sprays

• Allow glass to warm to room temperature before immersing in

warm water.

Toe Grille • Soap and water

• Mild liquid

sprays

• Vacuum

attachment

• Vacuum dust from front of toe grille.

• Remove toe grille (see Installation Instructions).

• Vacuum backside and wipe with sudsy cloth or sponge. Rinse

and dry.

Exterior &

Handles

• Soap and water

• Non abrasive

glass cleaner

• Do not use commercial household cleaners containing

ammonia, bleach or alcohol to clean handles.

• Use a soft cloth to clean smooth handles.

• Do not use a dry cloth to clean smooth doors.

Exterior &

Handles

(Stainless Steel

Models Only)

• Soap and water

• Stainless steel

cleaners

• Never use CHLORIDE or cleaners with bleach to clean

stainless steel.

• Clean stainless steel front and handles with non-abrasive soapy

water and a dishcloth. Rinse with clean water and a soft cloth.

• Use a non-abrasive stainless steel cleaner. These cleaners can

be purchased at most home improvement or major department

stores. Always follow manufacturer’s instruction. Do not use

household cleaners containing ammonia or bleach.

• NOTE: Always clean, wipe and dry with grain to prevent

scratching.

• Wash the rest of the cabinet with warm water and mild liquid

detergent. Rinse well and wipe dry with a clean soft cloth.

Occasion Tips

Short Vacations • Leave refrigerator operating during vacations of three weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be gone

for a few days.

Long Vacations •Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off (see “Controls” section for location of On/Off button)

and disconnect power cord.

• Turn off automatic ice maker and turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open

if necessary.

Moving • Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

CAUTION

Wear gloves when replacing light bulbs to avoid

getting cut.

Care and Cleaning

Replacing Light Bulbs

Both the freezer and fresh food compartments of your

refrigerator include light bulbs that will need replacing

from time to time. Some lights have covers that you

will need to remove before replacing the bulbs. Always

use bulbs that are designed for appliance lighting.

To replace light bulbs:

1 Unplugyourrefrigerator’spowercord.

2 Wear gloves as protection against possible

broken glass.

3 Remove light cover, if necessary.

4 Unscrew and replace old bulb with an

appliance bulb of the same type and wattage

(normally 40 watts).

5 Replace light cover, if necessary.

6 Plugintherefrigerator’spowercord.

Crisper Light

Cover

Light Bulbs

Light Socket

Located Behind

Rear of

Crispers

Light Bulbs

Freezer

Light

Cover

Light Socket

Located

Behind Rear

of Baskets

Light Socket

Located Behind Right

Rear of Ice Container

Light Bulb

Meat Pan

Light Cover

Light

Bulbs

Light Socket

Located Behind

Rear of

Meat Pan

Screw

Refrigerator Lights

Located Behind

Control Panel

Light

Shield

Warranty

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux

will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such

appliance is installed, used, and maintained in accordance with the provided instructions. In addition, the cabinet liner

and sealed refrigeration system (compressor, condenser, evaporator, dryer or tubing) of your appliance is covered

byatwothroughveyearlimitedwarranty.Duringthe2ndthrough5thyearsfromyouroriginaldateofpurchase,

Electrolux will repair or replace any parts in the cabinet liner and sealed refrigeration system which prove to be

defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the

provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in

ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,

which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁlters, water ﬁlters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Pickup and delivery costs; your appliance is designed to be repaired in the home.

12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

 13. Damagestothenishofapplianceorhomeincurredduringtransportationorinstallation,includingbutnot

limited to ﬂoors, cabinets, walls, etc.

 14. Damagescausedby:servicesperformedbyunauthorizedservicecompanies;useofpartsotherthangenuine

Electrolux parts or parts obtained from persons other than authorized service companies; or external causes

such as abuse, misuse, inadequate power supply, accidents, ﬁres, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’SSOLEANDEXCLUSIVEREMEDYUNDERTHISLIMITEDWARRANTYSHALLBEREPAIROR

REPLACEMENTASPROVIDEDHEREIN.CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE

SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.ELECTROLUXSHALLNOTBE

LIABLEFORCONSEQUENTIALORINCIDENTALDAMAGESSUCHASPROPERTYDAMAGEANDINCIDENTAL

EXPENSESRESULTINGFROMANYBREACHOFTHISWRITTENLIMITEDWARRANTYORANYIMPLIED

WARRANTY.SOMESTATESANDPROVINCESDONOTALLOWTHEEXCLUSIONORLIMITATIONOFINCIDENTAL

ORCONSEQUENTIALDAMAGES,ORLIMITATIONSONTHEDURATIONOFIMPLIEDWARRANTIES,SOTHESE

LIMITATIONSOREXCLUSIONSMAYNOTAPPLYTOYOU.THISWRITTENWARRANTYGIVESYOUSPECIFIC

LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should

service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this

warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted

byElectroluxMajorAppliancesNorthAmerica,adivisionofElectroluxHomeProducts,Inc.InCanada,yourappliance

is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this

warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service

company. Product features or speciﬁcations as described or illustrated are subject to change without notice.

USA

1-877-435-3287

ElectroluxMajorAppliancesNorthAmerica

10200DavidTaylorDrive

Charlotte,NC28262

Canada

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada L5V 3E4

Solutions to Common Problems

Before You Call...

If you experience a problem with your refrigerator or notice a product behavior or condition you do not

understand, you can usually avoid a call to your service representative by referring to this section for

an answer. Beginning with the following table, this information includes common problems, causes, and

Electrolux E23CS78HPS3 Counter-Depth Refrigerator

Product's Documents

Use & Care Guide

Specifications

Electrolux E23CS78HPS3 Questions and Answers
