Finding Information ................................. 2

Safety ..................................................... 3

Feature Overview .................................... 5

Installation .............................................. 6

Removing the Doors ............................. 11

Installing Door Handles ......................... 14

Connecting the Water Supply ............... 15

Controls ................................................ 17

Dispenser Model -

Automatic Ice Maker/Water Dispenser ..... 24

Automatic Ice Maker - Freezer .............. 27

Storage Features .................................. 29

Storing Food and Saving Energy .......... 33

Normal Operating Sounds .................... 34

Changing the Water and Air Filters ........ 35

Care and Cleaning ................................ 37

Solutions to Common Problems ........... 39

Warranty ............................................... 44

Table of contents

Questions?

For toll-free telephone support in the U.S.

and Canada: 1-877-4ELECTROLUX

(1-877-435-3287)

For online support and product information

visit http://www.electroluxappliances.com

Doors

 Handles are secure and tight

 Door seals completely to cabinet on

all sides

Leveling

 Refrigerator is level side-to-side and

slightly elevated in front to assist

with door and drawer closing (front

should be higher than back)

 Toe grille is properly attached to

refrigerator

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on

 Refrigerator plugged in

Ice Maker

 House water supply connected to

refrigerator

 No water leaks present at all

connections - recheck in 24 hours

 Ice maker is turned ON

 Ice & water dispenser operates correctly

Final Checks

 Shipping material removed

 Fresh food and freezer temperatures set

 Crisper humidity controls set

 Registration card sent in

Installation Checklist

NOTE

Registering your product with Electrolux

enhances our ability to serve you. You can

www.electroluxappliances.com or by sending

your Product Registration Card in the mail.

Safety

Important safety instructions

General Safety

Safety Precautions

Do not attempt to install or operate your unit

until you have read the safety precautions

in this manual. Safety items throughout this

manual are labeled with a Danger, Warning,

or Caution based on the risk type.

Deﬁnitions

This is the safety alert symbol. It is

used to alert you to potential personal

injury hazards. Obey all safety messages

that follow this symbol to avoid possible

injury or death.

• Do not store or use gasoline or other

ﬂammable liquids near this or any

other appliance. Read product labels

for warnings regarding ﬂammability

and other hazards.

• Do not operate the refrigerator in the

presence of explosive fumes.

• Avoid contact with any moving parts

of the automatic ice maker.

• Remove all staples from the carton to

avoid injury. Staples can also damage

ﬁnishes if they come in contact with

other appliances or furniture.

Child Safety

Packing Materials:

• Packing cartons covered with rugs,

bedspreads, plastic sheets, or stretch

wrap may become airtight chambers

and can quickly cause suffocation.

• Destroy or recycle the product’s carton,

plastic bags, and any other exterior

wrapping material immediately after

the refrigerator is unpacked. Children

should never play with these items.

Child Entrapment and Suffocation:

• These problems are not limited to the

past. Whether junked, abandoned,

or temporarily stored (even for a few

hours), unattended refrigerators and

freezers are dangerous. Please take

the precautions listed below.

Proper Disposal of Refrigerators/

Freezers

We strongly encourage responsible

appliance recycling/disposal methods.

Check with your utility company or visit

www.energystar.gov/recycle for more

information on recycling your old refrigerator.

Before you recycle or dispose of your

old refrigerator/freezer:

• Remove the doors.

• Leave the shelves and baskets in place

so children may not easily climb inside.

• Have refrigerant and compressor oil

removed by a qualiﬁed service technician.

WARNING

WARNING indicates a potentially

hazardous situation which, if not

avoided, could result in death or serious

injury.

IMPORTANT

Indicates installation, operation, or

maintenance information which is

important but not hazard-related.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

WARNING

Please read all safety instructions before

using your new refrigerator.

• The refrigerator must be plugged into

its own dedicated 115 Volt, 60 Hz,

AC-only non-GFCI electric outlet.

The power cord of the appliance

is equipped with a three-prong

grounding plug for your protection

against electrical shock hazards.

It must be plugged directly into

a properly grounded three-prong

receptacle. The receptacle must be

installed in accordance with local

codes and ordinances. Consult a

qualiﬁed electrician. Do not use an

extension cord or adapter plug.

• If the power cord is damaged,

it should be replaced by the

manufacturer, service technician, or a

qualiﬁed person.

• Never unplug the refrigerator by pulling

on the power cord. Always grip the

plug ﬁrmly and pull straight out from

the receptacle to prevent damaging

the power cord.

• To avoid electrical shock, unplug the

refrigerator before cleaning and before

replacing a LED light.

• Performance may be affected if

the voltage varies by 10% or more.

Operating the refrigerator with

insufﬁcient power can damage the

compressor. Such damage is not

covered under your warranty.

• Do not plug the unit into an outlet

controlled by a wall switch or pull cord

to prevent the refrigerator from being

turned off accidentally.

Electrical information

Grounding type wall receptacle

Power cord with 3-prong

grounded plug

Do not, under any

circumstances,

cut, remove, or

bypass the

grounding prong.

Safety

WARNING

You must follow these guidelines to

ensure that your refrigerator’s safety

mechanisms are operating correctly.

IMPORTANT

To turn off power to your refrigerator,

unplug the power cord from the wall

outlet.

Feature Overview

Understanding features and terms

Your Electrolux refrigerator is designed for optimal convenience and storage ﬂexibility.

The illustration below is provided to assist you with familiarizing yourself with product

features and terminology.

*Wire Shelf

(inside freezer drawer)

NOTE

*Features may vary according to model. Dispenser model shown. Model is shown

without freezer drawer cover.

IMPORTANT

Features not included with your

refrigerator can be purchased at

www.electroluxappliances.com or by

calling 1-877-435-3287.

*Luxury-Design

Glass Shelves

*Wine Rack

(Inside PTD)

*Removable

Ice Bin

*Perfect Temp

Drawer

(PTD)

or Deli Drawer

Freezer Baskets

with organizers

Toe Grille

Tilt

Can Bin

Flipper

Mullion

Air Filter

LED LightFlipper Guide*Ice Maker*Ice Bin

*Freezer Ice

Maker

Water Filter

Luxury-Glide

Crisper Drawers

Luxury-Glide

Crisper Drawers

*Luxury-Design

Glass Shelves

Installation

This Use & Care Guide provides general

installation and operating instructions

for your model. We recommend using a

service or kitchen contracting professional

to install your refrigerator. Use the

refrigerator only as instructed in this Use &

Care Guide. Before starting the refrigerator,

follow these important ﬁrst steps.

Location

• Choose a place that is near a

grounded, non-GFCI, electrical outlet.

Do Not use an extension cord or an

adapter plug.

• If possible, place the refrigerator out

of direct sunlight and away from the

range, dishwasher, or other heat

sources.

• The refrigerator must be installed on a

ﬂoor that is level and strong enough to

support a fully loaded refrigerator.

• Consider water supply availability for

models equipped with an automatic

ice maker.

Installation

• Allow the following clearances for ease

of installation, proper air circulation,

and plumbing and electrical

connections:

Sides & Top 3/8 inch (9.5 mm)

Back 1 inch (25.4 mm)

Door opening

Your refrigerator should be positioned

to allow easy access to a counter when

removing food. For best use of refrigerator

drawers and freezer baskets, the

refrigerator should be in a position where

both can be fully opened.

Top Hinge

Cover Front

Screw

Top Hinge

Cover Rear

Screw

Lower

Hinge

Screw

Top

Hinge

Screw

Components Provided:

Required Tools

You will need the following tools:

CAUTION

DO NOT install the refrigerator where

the temperature will drop below 55°F

(13°C) or rise above 110°F (43°C).

The compressor will not be able to

maintain proper temperatures inside the

refrigerator.

DO NOT block the toe grille on the lower

front of your refrigerator. Sufﬁcient air

circulation is essential for the proper

operation of your refrigerator.

NOTE

If your refrigerator is placed with the

door hinge against a wall, you may have

to allow additional space so the door

can be opened wider.

NOTE

The refrigerator doors are designed to

shut by themselves within a 45 degree

opening.

Tools Necessary:

Phillips Head

Quadrex Head

Screwdriver

(OR)

⅜" and ¼"

Socket

Wrench

Adjustable

Wrench

⅜"

Fixed

Wrench

ANDAND

6mm

Allen Wrench

Installation

Toe Grille Must

Fit in Slot on

Anti-tip Bracket

Screw/Washer

Assembly

(3) Retaining Clips

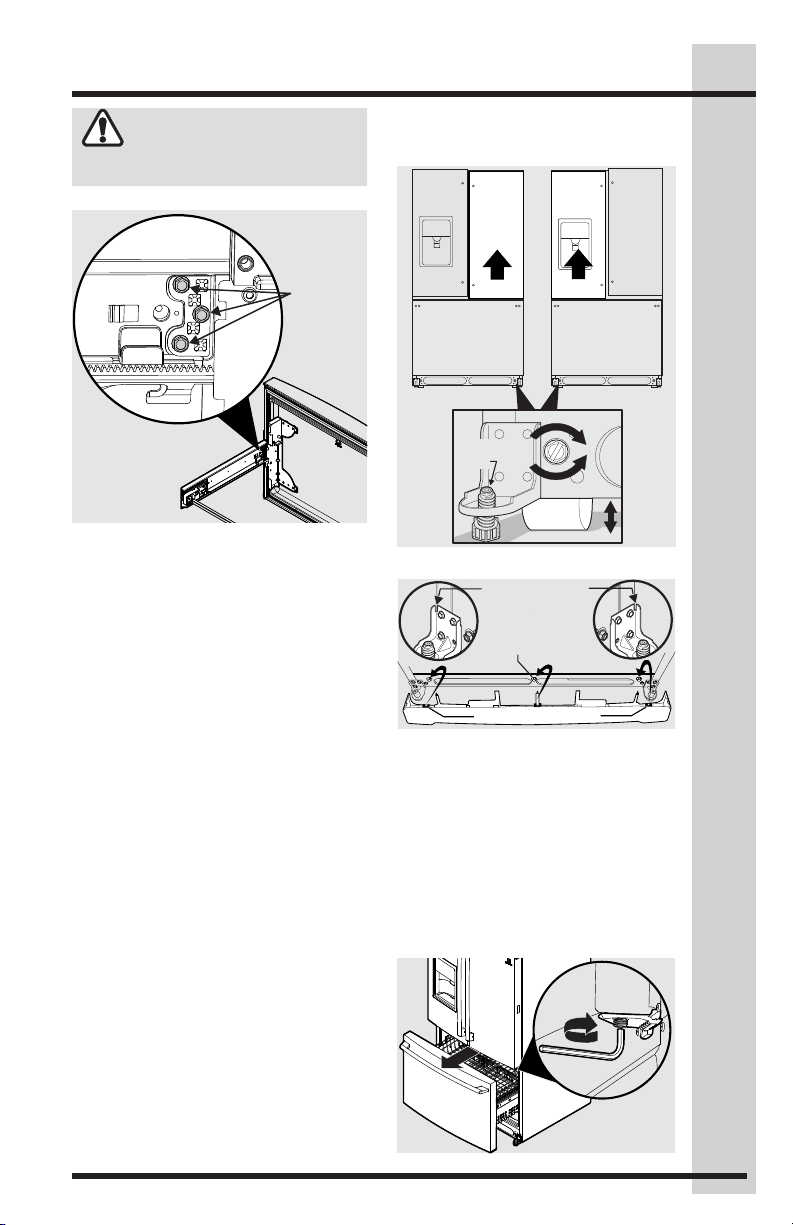

4 After unit is leveled, lower anti-tip leg

using a 3/8 inch socket wrench until

it ﬁrmly contacts the ﬂoor.

Cabinet Leveling & Re-

frigerator Door Alignment

(if necessary)

Guidelines for ﬁnal positioning of your

refrigerator:

• All four corners of the cabinet must

rest ﬁrmly on the ﬂoor.

• The front should be slightly elevated

to ensure that doors close and seal

properly.

• Doors should align with each other

and be level.

Most of these conditions can be met by

raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1 Slightly open freezer drawer if the toe

grill is installed. Lift the toe grille and

gently pull forward.

2 Make initial cabinet adjustments by using

the front roller height adjusting screws.

Use a 3/8 inch socket wrench to turn the

adjustment screws (1 per side).

To raise: turn adjustment screw

clockwise.

To lower: turn adjustment screw

counterclockwise.

3 Ensure both doors are bind-free with

their seals touching the cabinet on all

four sides and that cabinet is stable.

Raise

Lower

Anti-tip

Leg

Door

5 Install the toe grille by ﬁtting into place.

DO NOT

Loosen

Remove

These 3

Hex

Screws

CAUTION

Do Not loosen or remove these 3 hex

screws.

Raise

To make ﬁnal door height adjustments:

1. Open freezer drawer to make lower

hinge visible.

2. Insert 6mm Allen wrench into the

shaft of the lower hinge.

3. Adjust the height by turning clockwise

or counterclockwise. Turning

clockwise will lower the door. Turning

counterclockwise will raise the door.

Default setting is to the lowest height

when you receive your appliance.

Installation

Screw

Flipper

Mullion

Hinge

Flipper

Mullion

Adjusting Flipper Mullion Screw

To adjust the ﬂipper mullion:

1 Loosen the screw located on the

ﬂipper mullion hinge.

2 Adjust ﬂipper mullion height. For

proper connection with the ﬂipper

mullion guide, there should be a

separation about the thickness of

a coin (0.060 inches, or 1.5 mm)

between the guide and ﬂipper

mullion.

3 Re-tighten screw.

Flipper

Mullion

Guide

Thickness

of a Coin

Adjusting Flipper Mullion Height

Installing Shelves (select models)

Your refrigerator was shipped with the

shelf hanger and glass shelves in a

shipping pack. Below are the instructions

to install and remove the shelves in your

desired locations.

1 Place top hooks of the hanger into

the desired slot, and lower straight

down until lower hooks rest on the

ladder.

2 Relock shelf by pushing the slide

mechanism away from you.

3 While holding shelf at a 45-degree angle

with the gray handle facing you, push

the shelf into the back of the hanger.

CAUTION

Shelves must be removed prior to

moving the refrigerator.

4 Gently set the shelf onto the hanger

once the back is secured by the hanger.

Installation

5 Remove shelf from its locked position

by pulling the slide mechanism

toward you.

6 Lift the hanger directly upwards and

pull toward you to remove it from the

ladder.

Reposition the Air Seal

(select models)

1 Remove air seal by pushing seal

straight back.

2 Position the air seal towards the outside

edge of the shelf to avoid the air tower

when shelf is pushed back into place.

3 Install seal by sliding the open

channel end of the seal onto back

edge of shelf until seal sits snug on

back of shelf and ﬂap sits at about a

10 degree angle from shelf surface.

Air Seal

Installation

Reposition the Air Seal (select models)

For slide-out shelves:

1 Remove air seal by pushing down on

the ﬂap with a downward rotation.

2 Position the air seal towards the outside

end of the shelf to avoid the air tower

when shelf is pushed back into place.

3 Install seal by sliding lower tab of seal

up into bottom rear slot of shelf with

seal at a downward angle then pulling

up on seal ﬂap until seal sits snug on

back of shelf and ﬂap sits at about a

10 degree angle from shelf surface.

Your refrigerator includes glass shelves that are

designed to catch and hold accidental spills.

You can easily adjust shelf positions in

the fresh food compartments to suit

your needs. The shelves have mounting

brackets that attach to slotted supports at

the rear of each compartment.

To change the position of a shelf:

1 Before adjusting a shelf, remove all food.

2 Lift the front edge up and pull the shelf out.

3 Replace by inserting the mounting bracket

hooks into the desired support slots.

4 Lower the shelf and lock into position.

CAUTION

To avoid injury from breakage, handle

tempered glass shelves carefully.

NOTE

Features may vary according to model.

Shelf features (select models)

Full Luxury-Design

Shelf (varies by model)

2 Disconnect the harness by grasping

both sides of the connector ﬁrmly,

depress the latch, and pull apart.

Remove the two screws from the top

hinge. Lift the door off of the bottom

hinge and set it aside.

3 Detach the water tube from the

connector located behind the

refrigerator and pull the tube back out

to the front of the unit. The connector

releases when you press inward on

the outer sleeve while pushing the

tube toward the connector then while

continuing to hold in the sleeve, pull

the tube away.

Removing the Doors

Getting through narrow

spaces

If your refrigerator will not ﬁt through an

entrance area, you can remove the doors.

Check ﬁrst by measuring the entrance.

To prepare for removing the doors:

1 Make sure the electrical power cord

is unplugged from the wall outlet.

2 Open the freezer drawer and remove

the toe grille (see Installation section).

3 Remove any food from the door

shelves and close the doors.

To remove the top hinge covers:

1 Remove the two screws from each

cover over the top door hinges.

2 Lift inside edge of hinge cover and tilt back.

Rear

Cover

Screw

Ground

Screw

Top

Hinge

Top Hinge

Cover

Hinge

Screws

Multi-wire

Cables

Leave

Hinge

With

Door

Front

Cover Screw

Water

Line

Rear

Cover

Screw

Top

Hinge

Ground

Screw

Front

Cover Screw

Top Hinge

Cover

Hinge

Screws

Leave

Hinge

With

Door

To remove the refrigerator doors

1 Trace lightly around the door’s top

hinges with a pencil. This makes

reinstallation easier.

NOTE

DO NOT remove the ground screw from hinge.

NOTE

Use care while pulling the water tube from the

unit to be sure that you do not kink the tube.

Removing the Doors

Once both doors are in place, ensure they

are aligned with each other and level (Please

see the Installation section for more

details), and replace the top hinge cover.

Lower Hinge Removal

4 Unscrew the three lower hinge

screws and slide the hinge inwards.

CAUTION

Be sure doors are set aside in a secure

position where they cannot fall and

cause personal injury, or damage to the

doors or handles.

NOTE

You will be pulling approximately ﬁve

feet of water tube from the back of the

refrigerator.

NOTE

When reinserting the water tube and

replacing the top hinge cover, use care

to be sure you do not kink the tube.

Press

Approximately

5 feet

Water

Line

Insert tube

up to the

marking

line

NOTE

Upon replacement, the tube needs to be

fully inserted up to the marking line.

Press

Approximately

5 feet

Water

Line

To reinstall the refrigerator doors:

Reverse the above steps.

Removing the Doors

CAUTION

Drawer is heavy. Use caution when

lifting.

Removing Freezer Drawer

Remove

Hex Head

Drawer Screw

DO NOT

Remove

Other

Screws

DO NOT

Loosen

Remove

These 3

Hex

Screws

Replacing Freezer Drawer

1 Lower drawer back into place.

2 Replace 4 hex head drawer screws

and tighten.

1 Remove 4 hex head drawer screws.

2 Lift up drawer to remove.

Installing Door Handles

Door Handle Mounting Instructions

End

Cap

End

Cap

End

Cap

End

Cap

Mounting

Refrigerator

Handles

End

Cap

End

Cap

Mounting

Freezer

Handle

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

NOTE

An Allen wrench is supplied in the handle packaging. When using the Allen wrench to tighten the

Allen set screws (C), it is imperative that force be applied to the longer arm of the Allen wrench to

ensure that the set screws are completely tightened so that handles are ﬂush with doors/drawer.

1. Remove handles from protective packaging.

2. Position fresh food handle end caps (A) over upper and lower pre-installed shoulder

bolts (B) that are fastened into door, ensuring the holes for the set screws are facing

towards the opposite door.

3. While holding handle ﬁrmly against door, fasten upper and lower Allen set screws

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws

are facing towards the ﬁrst door.

5. Position freezer handle end caps over left and right pre-installed shoulder bolts (B) that

are fastened to the drawer, ensuring the holes for the set screws are facing down.

6. While holding handle ﬁrmly against drawer, fasten left and right Allen set screws (C)

with supplied Allen wrench.

Connecting the Water Supply

WARNING

To avoid electric shock, which can

cause death or severe personal injury,

disconnect the refrigerator from

electrical power before connecting a

water supply line to the refrigerator.

IMPORTANT

Ensure that your water supply line

connections comply with all local

plumbing codes.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided

tubing is recommended for the

water supply line. Water supply

tubing made of ¼ inch plastic is

not recommended to be used.

Plastic tubing greatly increases the

potential for water leaks, and the

manufacturer will not be responsible

for any damage if plastic tubing is

used for the supply line.

• DO NOT install water supply tubing

in areas where temperatures fall

below freezing.

• Chemicals from a malfunctioning

softener can damage the ice maker.

If the ice maker is connected to soft

water, ensure that the softener is

maintained and working properly.

NOTE

Check with your local building authority

for recommendations on water lines and

associated materials prior to installing

your new refrigerator. Depending

on your local/state building codes,

Electrolux recommends for homes

with existing valves its Smart Choice®

water line kit 5305513409 with a 6

ft. (1.8 meters) Stainless Steel Water

Line and for homes without an existing

valve, Electrolux recommends its Smart

Choice® water line kit 5305510264 with

a 20 ft. (6 meters) Copper Water Line

with self-tapping saddle valve). Please

refer to www.electroluxappliances.com

for more information.

Before installing the water supply line,

you will need:

1. Basic Tools: adjustable wrench,

ﬂat-blade screwdriver, and Phillips

screwdriver

2. Access to a household cold water

line with water pressure between 30

and 100 psi.

3. A water supply line made of ¼ inch

(6.4 mm) OD, copper or stainless

steel tubing. To determine the length

of tubing needed, measure the

distance from the ice maker inlet

valve at the back of the refrigerator

to your cold water pipe. Then add

approximately 7 feet (2.1 meters), so

the refrigerator can be moved out for

cleaning.

4. A shutoff valve to connect the water

supply line to your household water

system.

5. Do NOT reuse compression ﬁtting or

use thread seal tape.

6. A compression nut and ferrule

(sleeve) for connecting a copper

water supply line to the ice maker

inlet valve.

To connect water supply line to ice

maker inlet valve:

1. Disconnect refrigerator from electric

power source.

2. Place end of water supply line into

sink or bucket. Turn ON water supply

and ﬂush supply line until water

is clear. Turn OFF water supply at

shutoff valve.

3. Remove plastic cap from water valve

inlet and discard cap.

4. If you use copper tubing - Slide brass

compression nut, then ferrule (sleeve)

onto water supply line. Push water

supply line into water valve inlet as far

as it will go (¼ inch / 6.4 mm). Slide

ferrule (sleeve) into valve inlet and

ﬁnger tighten compression nut onto

valve. Tighten another half turn with

a wrench; DO NOT over tighten. See

Figure 1.

If you use braided ﬂexible stainless

steel tubing - The nut is already

assembled on the tubing. Slide nut

onto valve inlet and ﬁnger tighten nut

onto valve. Tighten another half turn

with a wrench; DO NOT over tighten.

See Figure 2.

5. With steel clamp and screw, secure

water supply line (copper tubing only)

to rear panel of refrigerator as shown.

6. Coil excess water supply line (copper

tubing only), about 2½ turns, behind

refrigerator as shown and arrange

coils so they do not vibrate or wear

against any other surface.

7. Turn ON water supply at shutoff valve

and tighten any connections that

leak.

8. Reconnect refrigerator to electrical

power source.

9. To turn ice maker on, lower wire

signal arm (freezer ice maker) or use

the digital control setting to turn the

ice maker’s On/Off switch to the On

position (fresh food ice maker).

Figure 1

Plastic Water Tubing

to Ice Maker

Fill Tube

Steel

Clamp

Brass

Compression

Nut

Ferrule

(Sleeve)

Copper

water line

Water Valve

Bracket

Valve Inlet

Water Valve

Copper water line

from household

water supply

(Include enough tubing in loop to allow

moving refrigerator out for cleaning)

Figure 2

Steel

Clamp

Braided

Flexible

Stainless

Steel

Water Line

Water Valve

Bracket

Valve Inlet

Water Valve

6 ft (1.8 Meters) Braided flexible

stainless steel water line from

household water supply.

Plastic Water Tubing

to Ice Maker

Fill Tube

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

Connecting the Water Supply

Controls - Dispenser Models

Wave-Touch

IQ-Touch

Controls - Dispenser Models

Wave-Touch

(select

models)

Your refrigerator is equipped with a Wave-

Touch

control panel display. It is only

necessary to gently touch the glass. There

are three levels of display.

1st Level: Sleep Mode

Sleep Mode displays only the water, cubes

and crushed options. Touch an icon to

activate the desired dispenser mode. The

active dispenser mode is more brightly

illuminated.

2nd Level: Awakened Display Mode

3rd Level: User Variable Options

Touching the options icon displays the

following options:

vacation mode Conserves energy by increas-

ing the time between automatic

defrost. This feature is automati-

cally activated during long periods

between door openings. Vacation

mode is manually activated when

the indicator is lit.

water ﬁlter Touch to display ﬁlter condition

status. Press and hold for three

seconds to reset after ﬁlter change.

air ﬁlter Touch to display ﬁlter status. Press

and hold for three seconds to reset

after ﬁlter change.

temp display When active, it allows the display of

the freezer and fridge setting during

Sleep Mode. The setting is displayed

when the indicator is lit.

temp mode Touch to toggle display from

Fahrenheit to Celsius.

mute sounds Tones emitted by each keypress

can be turned off based on user

preference. The sounds are muted

when the indicator is lit. Warning

signals will stay active.

factory default Resets all refrigerator settings such

as temp, temp display, and alarm

tones to their factory default settings.

on off Press and hold for three seconds

to turn off the cooling system to

clean the refrigerator. It also turns

off the Fresh Food ice maker, all

dispenser functions, and the Perfect

Temp

drawer (select models). The

temperature display will read OFF.

The control panel is awakened by touching

anywhere on the glass where there is an

indicator. Black space will not awaken the

display. After 10 seconds of inactivity, the

control panel will return to the Sleep mode.

The following dispenser options are

illuminated:

ice off Press and hold for three seconds

to turn the ice maker ON or OFF.

The ice maker is OFF when the

LED above the Ice Off icon is

illuminated. If there is no indicator,

then the ice maker is ON.

fast freeze Activates a faster rate for freezing food

and increased freezer ice production.

(Fresh Food

Ice Maker)

dispenser light On / Off

control lock Press and hold for three seconds

to activate and deactivate. This

restricts undesired changes to the

refrigerator’s settings and prevents

use of the ice and water dispenser.

NOTE

Refer to Automatic Ice Maker-Freezer

section for freezer ice maker controls.

Controls - Dispenser Models

Setting cooling temperatures

1 Touch

the glass

panel to

illuminate

the 2nd

level of

display.

2 Select the

options

icon. Plus

(+) and

minus (-)

indicators will appear on either side of

the displayed temperatures.

3 Press the + or – indicator to adjust

the temperature to the desired

temperature settings.

The temperature setting display will

begin to blink with the ﬁrst touch. After

ﬁve seconds of inactivity, the display will

beep to accept the new temperature.

After 10 seconds, the display times out

and returns to the basic display.

IMPORTANT

Pressing the system on/off icon does not

turn off power to your refrigerator. You must

unplug the power cord from the wall outlet.

Alarms

Door Ajar If the door has been left open for

an extended period of time, an

alarm will sound and the door ajar

indicator will display on the center of

the display. The alarm is turned off

by closing the door. The alarm off

key will blink to prompt the reset of

any pending alarms. Press this key

to reset any system alarms.

High Temp In the event of a high temperature

condition, the temperature display

will blink and display HI. After 20

minutes, the high temp alert will

be displayed and the alarm off

icon will illuminate until pressed,

acknowledging the alarm, at which

time the highest temperature

reached will be displayed and the

refrigerator will resume normal op-

eration. All other modes are turned

off until the alarm is acknowledged.

Power Fail In the event of a power failure, the

power fail alert will be displayed

and the alarm off key will blink

until the alarm off icon is pressed,

acknowledging the alarm. Other

modes may be turned off until the

alarm is acknowledged. When the

power fail alert is turned off, the

refrigerator will resume normal

operation. The high temp alarm

may also be illuminated until a safe

operating range temperature has

been reached.

NOTE

The recommended settings for a product

installed in a kitchen is 37˚F for the fresh

food compartment and 0˚F for the freezer.

IMPORTANT

If your product has food freezing in the

fresh food compartment, increase the

temperature setting 1 or 2 degrees.

IMPORTANT

If you place food within 1 inch in front of

the air ports, there may be the chance

of freezing food.

Air Port

Sabbath Mode and the Perfect Temp

Drawer

The Perfect Temp

Drawer should be turned

off for the Sabbath/Holidays. Before putting

the refrigerator into the Sabbath mode, turn

the Perfect Temp

Drawer off by pressing

the drawer on/off button. The display will

show OFF and the drawer will turn off. Then

enter the Sabbath mode function on the main

refrigerator display. (See Wave-Touch/IQ-Touch

Sabbath Mode section.) When in Sabbath

mode, the display will not illuminate and the

drawer will remain off. The drawer can still be

used as a non-temp controlled drawer in this

mode. When the refrigerator is taken out of

Sabbath mode, the Perfect Temp

Drawer will

have to be turned back on.

IQ-Touch

(select models)

NOTE

While in Sabbath Mode, neither the

lights, dispenser, nor the control panel will

work until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after

power failure recovery. It must be deactivated

with the buttons on the control panel.

NOTE

During Sabbath Mode, the freezer ice

maker will continue to work and must be

manually turned off to be compliant with

the Sabbath observances.

NOTE

If the Perfect Temp

Drawer is not turned

off prior to putting the unit into Sabbath

Mode, it will continue to adjust itself to

maintain the set point even if the display

does not illuminate to show that it is still on.

Your refrigerator is equipped with a glass touch

control panel. It is only necessary to gently touch

the glass. There are three dispenser modes:

1 Water

2 Ice Cubes

3 Crushed Ice

The Sabbath Mode is a feature that disables

portions of the refrigerator and its controls

for both Wave-Touch

and IQ-Touch

, in

accordance with observance of the weekly

Sabbath and religious holidays within the

Orthodox Jewish community.

Wave-Touch

/ IQ-

Touch

Sabbath Mode

NOTE

While in Sabbath Mode, the Wave-

Touch

model will only illuminate the –/+

keys used to turn the Sabbath Mode Off.

Sabbath Mode is turned on and off by

simultaneously pressing and holding the freezer

temperature – and the refrigerator temperature

+ indicators for ﬁve seconds for both the

Wave-Touch

and IQ-Touch

modes. The

display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm

is active for health reasons. For example,

if the door is left ajar the High Temp alarm

is activated. The refrigerator will function

normally once the door is closed, without

any violation of the Sabbath/Holidays. The

High Temp alarm is permitted when cabinet

temperature is outside the safe zone for 20

minutes. The alarm silences itself after 10

minutes while the High Temp icon stays lit

until the Sabbath mode is exited.

For further assistance, guidelines for

proper usage and a complete list of

models with the Sabbath

feature, please visit the web at

http:\\www.star-k.org.

Controls - Dispenser Models

Setting cooling temperatures

1 Touch the control panel to illuminate

plus (+) and minus (–) indicators on

either side of the digital displays.

2 Press the + or – indicator to adjust the

temperature to the desired setting.

The temperature setting display will

begin to blink with the ﬁrst touch. The

display will time out after a minute

and returns to the basic display.

Alarms

Door Ajar If the door has been left open for an

extended period of time, an alarm will sound

and the door ajar indicator will display on

the right side of the control panel. The alarm

is turned off by closing the door. The mute

sounds key will blink to prompt the reset of

any pending alarms. Press this key to reset

any system alarms.

High Temp In the event of a high temperature

condition, the temperature display will

blink and display HI. After 20 minutes,

the high temp alert will be displayed and

the mute sounds indicator will illuminate

until pressed, acknowledging the alarm,

at which time the highest temperature

reached will be displayed and the refrig-

erator will resume normal operation. All

other modes are turned off until the alarm

is acknowledged.

Power Fail In the event of a power failure, the power fail

alert will be displayed and the digital display will

blink until the mute sounds icon is pressed,

acknowledging the alarm. Other modes may be

turned off until the alarm is acknowledged. The

power fail alert is turned off and the refrigerator

will resume normal operation. The high temp

alarm may also be illuminated until a safe operat-

ing range temperature has been reached.

IMPORTANT

Pressing the system on/off icon does not

turn off power to your refrigerator. You must

unplug the power cord from the wall outlet.

NOTE

Refer to Automatic Ice Maker-Freezer

section for freezer ice maker controls.

dispenser light On / Off

control lock Press and hold for three seconds

to activate and deactivate. This

restricts undesired changes to the

refrigerators settings and prevents

use of the ice and water dispenser.

vacation mode Conserves energy by increasing the

time between automatic defrost.

This feature is automatically activated

during long periods between door

openings. Vacation mode is manually

activated when the indicator is lit.

water ﬁlter Touch to display ﬁlter condition

status. Press and hold for three

seconds to reset after ﬁlter change.

air ﬁlter Touch to display ﬁlter status. Press

and hold for three seconds to reset

after ﬁlter change.

temp display Touch to toggle the freezer and

fridge temp setting on and off.

Touch and hold temp setting to toggle

display from Fahrenheit to Celsius.

mute sounds Tones emitted by each key press can be

turned off based on user preference. The

sounds are muted when the indicator is

lit. Warning signals will stay active.

factory default Resets all refrigerator settings such

as temp, temp display, and ring

tones to their factory default settings.

on off Press and hold for three seconds to

turn off the cooling system to clean

the refrigerator. It also turns off the ice

maker and all dispenser functions. The

temperature display will read OFF.

(Fresh Food

Ice Maker)

An indicator light will be illuminated above

the active feature.

Touch the icon to activate the options below.

ice off Press and hold for three seconds

to turn the ice maker ON or OFF.

The ice maker is OFF when the LED

above the Ice Off icon is illuminated.

If there is no indicator, then the ice

maker is ON.

fast freeze Activates a faster rate for freezing

food and increased freezer ice

production.

Controls - Dispenser Models

Controls - Non-Dispenser Models

IQ-Touch

Setting cooling temperatures

Press the + or – indicator to adjust the temperature to the

desired setting.

The temperature setting will begin to blink with the ﬁrst

touch. The display will time out after 10 seconds and return

to the basic display.

IMPORTANT

Pressing the system on/off icon does not turn off power to your

refrigerator. You must unplug the power cord from the wall outlet.

A red indicator light will be illuminated above most active features.

Touch the icon to activate the options below.

fast freeze Activates a faster rate for freezing food.

fast ice Temporarily increases cooling for freezer to

increase the production of ice

water ﬁlter Press and hold for three seconds to reset

after ﬁlter change.

air ﬁlter Filter condition status is always displayed

when door is open. Press and hold for

three seconds to reset after ﬁlter change.

temp mode Touch to toggle display from Fahrenheit to

Celsius.

mute

sounds

Tones emitted by each key press can be

turned off based on user preference. The

sounds are muted when the red indicator is

lit. Warning signals will stay active.

default

settings

Resets all refrigerator settings such as

temp, temp display and tones to their

factory default settings.

on off Press and hold for three seconds to turn off

the cooling system to clean the refrigerator.

It also turns off the ice maker. The digital

displays will read OFF.

vacation

mode

Conserves energy by increasing the time

between automatic defrost. This feature is

automatically activated during long periods

between door openings. Vacation mode is

manually activated when the red indicator is lit.

water

filter

default

settings

press & hold

good

order

replace

good

order

replace

hold to reset

air

filter

door ajar

high temp

power fail

hold to reset

off

refrigerator temp

freezer temp

temp

mode

NOTE

The recommended settings for a product installed in a

kitchen is 37˚F for the fresh food compartment and 0˚F for

the freezer.

Controls - Non-Dispenser Models

IQ-Touch

“Sabbath Mode”

The Sabbath Mode is a feature that

disables portions of the refrigerator and its

controls for IQ-Touch

, in accordance

with observance of the weekly Sabbath

and religious holidays within the Orthodox

Jewish community.

Sabbath Mode is turned ON and OFF by

simultaneously pressing and holding the

freezer temp “-” and the refrigerator temp

“+” indicators for ﬁve seconds. The display

shows “Sb” while in Sabbath mode.

In the Sabbath Mode, the High Temp

alarm is active for health reasons. For

NOTE

During Sabbath Mode, the freezer ice

maker will continue to work and must be

manually turned off to be compliant with

the Sabbath observances.

NOTE

While in Sabbath Mode, neither the

lights nor the control panel will work until

Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after

power failure recovery. It must be deactivated

with the buttons on the control panel.

NOTE

If the Perfect Temp

Drawer is not turned

off prior to putting the unit into Sabbath

Mode, it will continue to adjust itself to

maintain the set point even if the display

does not illuminate to show that it is still on.

Sabbath Mode and the Perfect Temp

Drawer

The Perfect Temp

Drawer should be

turned off for the Sabbath/Holidays. Before

putting the refrigerator into the Sabbath mode,

turn the Perfect Temp

Drawer off by

pressing the drawer on/off button. The display

will show “OFF” and the drawer will turn off.

Then enter the Sabbath mode function on the

main refrigerator display. See the IQ-Touch

“Sabbath Mode” section. When in Sabbath

mode, the display will not illuminate and the

drawer will remain off. The drawer can still be

used as a non-temp controlled drawer in this

mode. When the refrigerator is taken out of

Sabbath mode, the Perfect Temp

Drawer

will have to be turned back on.

Alarms

Door

Ajar

If the door has been left open for

an extended period of time, an

alarm will sound and the door ajar

indicator will display on the bottom

display of the control panel. The

alarm is turned off by closing the

door. The mute sounds key will

blink to prompt the reset of any

active alarms. Press this key to

reset any system alarms.

High

Temp

In the event of a high temperature

condition, the temperature display

will blink and display “HI”. After

20 minutes, the alarm will sound

and the high temp indicator will

be red on the bottom of the

control panel. The mute sounds

icon will illuminate until pressed,

acknowledging the alarm, at which

time the highest temperature

reached will be displayed and the

refrigerator will resume normal

operation. In case the high temp

alarm is not acknowledged at the

ﬁrst alarm sound time out, when

the door is ﬁrst opened, the alarm

sound will be repeated.

Power

Fail

In the event of a power failure, the

power fail alert will be displayed

and the temperature display will

blink until the mute sounds icon is

pressed, acknowledging the alarm.

Other modes may be turned off

until the alarm is acknowledged.

The power fail alert is turned off

and the refrigerator will resume

normal operation. The high temp

alarm may also be illuminated until

a safe operating range temperature

has been reached.

example, if the door is left ajar the High

Temp alarm is activated. The refrigerator

will function normally once the door

is closed, without any violation of the

Sabbath/Holidays. The High Temp alarm

is permitted when cabinet temperature

is outside the safe zone for 20 minutes.

The alarm silences itself after 10 minutes

while the High Temp icon stays lit until the

Sabbath mode is exited.

For further assistance, guidelines for

proper usage and a complete

list of models with the Sabbath

feature, please visit the web at

http:\\www.star-k.org.

CAUTION

For proper dispenser operation,

recommended water supply pressure

should fall between 30 psi and 100 psi.

Excessive pressure may cause water

ﬁlter to malfunction.

NOTE

The water dispenser has a built-in

device that shuts off the water ﬂow after

two minutes of continuous use. To reset

this shutoff device, simply release the

dispenser paddle.

Dispenser Model

Automatic Ice Maker/Water Dispenser

Priming the water supply

system

Ice maker operation & care

After the refrigerator is installed properly

and has cooled for several hours, the ice

maker can start producing ice within 24

hours. The ice maker will ﬁll the ice bin

from the rear. You must dispense some

ice to force the ice forward in the bin. Full

bin should be expected after 48 to 60

hours with no ice usage. Ice rate is 2.0 to

2.5 pounds per day. In a Standard Depth

model, the ice bin will hold about 6.5

pounds of ice. In a Counter Depth model,

the ice bin will hold about 4 pounds of

ice. For extra capacity you can add an ice

maker kit for the freezer.

Turning the fresh food ice maker

on and off

Ice production is controlled by the ice

maker’s On/Off icon on the control panel.

Press and hold the Ice Off icon for three

seconds to turn the ice maker ON or OFF.

If there is no indicator, then the ice maker

is ON.

1 Begin ﬁlling the ﬁlter by pressing and

holding a drinking glass against the

water dispenser paddle.

2 Keep the

glass in this

position

until water

comes

out of the

dispenser.

It may take

about 1½

minutes.

3 Continue dispensing water for about

three minutes to ﬂush the system

and plumbing connections of any

impurities (stopping to empty the

glass as necessary).

Using the ice maker after installation

Before making ice for the ﬁrst time, be

sure to prime the water supply system.

Air in new plumbing lines can result in

two or three empty ice maker cycles.

Furthermore, if the system is not ﬂushed,

the ﬁrst ice cubes may be discolored or

have an odd ﬂavor.

IMPORTANT

Your ice maker is turned on at the

factory so it can work as soon as you

install your refrigerator. If you cannot

connect a water supply, set the ice

maker’s On/Off icon to Off and turn off

the water supply valve; otherwise, the

ice maker’s ﬁll valve may make a loud

chattering noise when it attempts to

operate without water.

IMPORTANT

Turning off the ice maker stops ice

production only.

NOTE

The ice maker also has a built-in signal

bale arm that automatically stops ice

production when the ice bin is full.

This signal arm should not be used to

manually stop the ice maker.

IMPORTANT

On occasion, unusually small ice cubes

may be noticed in the bucket or in

dispensed ice. This could occur in

normal operation of the ice maker. If

you start seeing these more frequently,

it may be an indication of low water

pressure or the water ﬁlter needs to

be replaced. As the water ﬁlter nears

the end of its useful life and becomes

clogged with particles, less water is

delivered to the ice maker during each

cycle. Remember, if it’s been six months

or longer since you last changed your

water ﬁlter, replace the water ﬁlter with a

new one. Poor quality household water

may require the ﬁlter to be changed

more frequently.

Dispenser Model

Automatic Ice Maker/Water Dispenser

Ice maker/dispenser tips

• If your refrigerator is not connected to

a water supply or the water supply is

turned off, turn off the ice maker by

holding the On/Off soft-touch icon for

three seconds.

• The following sounds are normal when

the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• If you need a large quantity of ice

at one time, it is best to get cubes

directly from the ice bin.

• Ice cubes stored too long may

develop an odd ﬂavor. Empty the ice

bin as explained below.

• When dispensing cubed ice, it is

normal to have a small quantity of little

pieces along with the whole cubes.

Removing Ice Bin

Cleaning the ice maker

Clean the ice maker and ice bin at regular

intervals, especially prior to vacation or

moving.

1 Turn off

the ice

maker.

2 Remove

the ice

bin by

pulling

straight

out.

3 Empty

and

carefully

clean the ice bin with mild detergent.

Do not use harsh or abrasive

cleaners. Rinse with clear water.

4 Allow the ice bin to dry completely

before replacing.

5 Replace the ice bin. Turn the ice

maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour

or longer) causes ice cubes in the

ice bin to melt and freeze together,

jamming the dispenser mechanism.

• You do not use the ice dispenser

frequently. Ice cubes will freeze

together in the bin, jamming the

dispenser mechanism.

Remove the ice bin and shake to loosen

the cubes or clean as explained above.

CAUTION

If the water supply to your refrigerator

is softened, be sure the softener is

properly maintained. Chemicals from

a water softener can damage the ice

maker.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This

could damage the ice bin.

To loosen stuck ice, use warm water.

Before replacing the ice bin, make sure

it is completely dry.

Dispenser Model

Automatic Ice Maker/Water Dispenser

Adjusting Ice Bin Auger

Auger

IMPORTANT

When removing or replacing the ice bin,

DO NOT rotate the auger in the ice bin.

If the auger is accidentally rotated, you

must realign the auger by turning it in 45

degree turns (see below) until the ice bin

ﬁts into place with the drive mechanism.

If the auger is not properly aligned when

replacing the ice bin, the refrigerator will

not dispense ice. The fresh food door

also may not close properly causing

warm air to leak into the fresh food

compartment.

NOTE

Dispenser models allow for an additional

freezer ice maker to be installed. Call

1-877-435-3287 for more information.

Automatic Ice Maker - Freezer

Ice maker operation &

care (select models)

After the refrigerator is installed properly,

the ice maker can produce ice within 24

hours. It can completely ﬁll an ice bin in

about three days.

When using the ice maker for the ﬁrst

time and in order for the ice maker to

work properly, it is necessary to clear air

from water ﬁlter tubing. Once ice maker

begins making ice, allow the bucket to

ﬁll completely, then discard the ﬁrst TWO

FULL buckets of ice. It will take at least

two days to completely ﬁll the bucket on

regular ice making mode or 1½ days on

fast ice mode.

The ice maker produces approximately

2.0 to 2.5 pounds of ice every 24 hours

depending on usage conditions. In a

Standard Depth model, the ice bin will

hold about 12 pounds of ice. In a Counter

Depth model, the ice bin will hold about 7

pounds of ice.

Turning the ice maker on and off

Ice production is controlled by lifting/

lowering the ice maker’s wire signal arm.

To gain access to the ice maker, pull the

freezer drawer out. Lift the wire signal arm

to turn the ice maker OFF and lower the

wire signal arm to turn it ON.

Ice maker tips

• If your refrigerator is not connected to

a water supply or the water supply is

turned off, turn off the ice maker by

lifting wire signal arm.

• The following sounds are normal when

the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• Ice cubes stored too long may

develop an odd ﬂavor. Empty the ice

bin as explained below.

Fast Ice Function

Your refrigerator is equipped with a

“Smart” Fast Ice Function that will, if

activated, allow an increase in freezer ice

production. After time the refrigerator will

return to normal ice production.

Wire

Signal Arm

OFF

IMPORTANT

Your ice maker is turned on at the

factory so it can work as soon as you

install your refrigerator. If you cannot

connect a water supply, lift the ice

maker’s wire signal arm to turn it off.

Otherwise, the ice maker’s ﬁll valve may

make a loud chattering noise when it

attempts to operate without water.

CAUTION

If the water supply to your refrigerator

is softened, be sure the softener is

properly maintained. Chemicals from

a water softener can damage the ice

maker.

NOTE

During the Sabbath Mode, the

automatic ice maker will continue to

work and must be manually turned

off to be compliant with the Sabbath

observance.

Cleaning the ice maker

Clean the ice maker and ice bin at regular

intervals, especially prior to vacation or

moving.

1 Turn off the ice maker.

2 Remove the ice bin.

3 Empty and carefully clean the ice bin

with mild detergent. Do not use harsh

or abrasive cleaners. Rinse with clean

water.

4 Allow the ice bin to dry completely

before replacing in the freezer.

5 Replace the ice bin. Turn the ice

maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour

or longer) causes ice cubes in the ice

bin to melt and freeze together.

Remove the ice bin and shake to loosen

the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This

could damage the ice bin.

To loosen stuck ice, use warm water.

Before replacing the ice bin, make sure

it is completely dry.

Automatic Ice Maker - Freezer

Storage Features

Opening Crisper Drawer

Adjusting Crisper Humidity

(varies by model)

Higher

Humidity

Lower

Humidity

Humidity Control

Drawers

Your refrigerator includes a variety of

storage drawers.

Crispers

Crisper drawers are designed for storing

fruits, vegetables, and other fresh produce.

They feature a smooth-glide, ball-bearing

system and soft-close functionality so as

not to bruise your fruits and vegetables.

Cool Zone Drawer (select models)

Some models are equipped with a drawer

for short-term storage of bulk items.

This drawer includes sliding controls for

adjusting the humidity inside.

Removing Crisper Drawer

To remove the Crisper Drawer for

cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the

drawer.

Crisper humidity control

Crisper drawers include a sliding control

for adjusting the humidity inside the

crisper. Leafy vegetables keep best when

stored with the Humidity Control set on

Higher Humidity. Fresh fruits keep best

when stored with the Humidity Control set

on Lower Humidity.

NOTE

Any meat to be kept longer than two

days should be frozen. If you store fruits

or vegetables in this drawer, set it to a

higher humidity.

Special Items

Rack

Storage Features

The Perfect Temp

Drawer is designed to keep food items at a precise temperature whether

cooler, warmer, or the same as the fresh food section of the refrigerator. This drawer features

a smooth-glide, ball-bearing system and soft-close functionality so as not to bruise your fruits

and vegetables. The thaw setting holds a temperature for thawing frozen foods for 12 hours.

At the end of that time, it then switches to the snacks setting to store the thawed food.

Perfect Temp

Drawer (select models)

To operate:

1 To turn on and off, press the drawer’s

On/Off button. The numeric display will

show a temperature between 28°F

and 38°F when on and OFF when off.

2 Press F/C if you prefer to display

Fahrenheit (F), or Celsius (C).

3 Press either the up

or down v scroll

buttons to illuminate the desired item.

4 Once an option is selected, the

drawer will adjust and maintain the

temperature for the setting selected.

5 When turned off, the Perfect Temp

Drawer functions as a standard meat

pan. The Perfect Temp

Drawer is best

used for packaged food products. Leafy

vegetables and unpackaged fruits are

best kept in one of the crisper drawers.

6 The three favorite selections

provide ﬂexibility to set and store

personal temperature selections.

The temperature is adjusted up

by pressing the + or – buttons.

The drawer will store the selected

temperature setting until it is changed.

7 The control buttons can be locked

to prevent accidental changes by

pressing the control lock button

for three seconds. Deactivate by

pressing for three seconds again.

Opening the Drawer

To remove the Perfect Temp

Drawer

for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the

drawer.

Removing the Drawer

IMPORTANT

DO NOT clean the display area of the Perfect

Temp

Drawer with abrasive or caustic

cleaners. Wipe clean with a moist sponge.

CAUTION

The Perfect Temp

Drawer and cover can

be removed for cleaning but the control

unit, attached to the right side of the fridge,

cannot be removed. Do not immerse the

Perfect Temp

Drawer cover in water or

put it in a dishwasher. Clean with a damp

cloth or sponge.

NOTE

When the refrigerator is turned off by

pressing the main Wave-Touch

IQ-Touch

on/off button, the Perfect

Temp

Drawer will also be turned off.

When the refrigerator is turned back on,

the Perfect Temp

Drawer will resume

operations at the temp setting that was

set before the refrigerator was turned off.

Storage Features

Doors

Storage bins

The doors to your fresh food compartment

use a system of modular storage bins.

All of these bins are removable for easy

cleaning. Some of them have ﬁxed

positions, while others can be adjusted to

your needs.

Door bins are ideal for storing jars, bottles,

cans, and large drink containers. They also

enable quick selection of frequently used

items.

To change the position of an

adjustable door bin:

1 Remove all

food from

bin.

2 Grip the bin

ﬁrmly with

both hands

and lift it

upward.

3 Remove

the bin.

4 Place the

bin just above desired position.

5 Lower the bin onto supports until

locked in place.

Adjustable Door Bin

Accessories (varies by

model)

Tall bottle

retainer

The tall bottle

retainer

keeps tall

containers in

the bin from

falling forward when opening or closing the

refrigerator door. To install, insert the ends

of the retainer into the holes.

Tall

Bottle

Retainer

Tilt can bins

The can

bins allow

you to

efﬁciently

and

securely

store up

to eight

12-ounce

canned beverages.

Tilt Can Bin

Freezer Features (varies

by model)

To Remove Upper Freezer Basket

1 Find the side where the basket frame

is aligned to the clip opening. The

basket frame should be aligned to

both front and rear clips on the same

side (either left or right side).

2 If the basket frame is not aligned to

the left or right side, push the basket

sideways (to either side) until it is aligned.

3 By grabbing the basket wire frame

close to the frontal clip, pull up to

take the basket frame out.

4 Grab the basket frame close to the

rear clip and pull up until it comes out

of the clip.

5 Once one side of the basket is off

the clips or retainers, slide the basket

sideways until the other side of the

frame is aligned with the clip openings

on the opposite side of the freezer.

6 In the same way, pull up the basket

frame from the frontal and rear clips

until it is out of the clips.

7 Remove the basket.

Reverse the steps to reinstall the basket.

Freezer Baskets

Clip

Stabilizer

Bar

NOTE

If basket is not resting on stabilizer bar retainer

clips, the drawer will not close properly.

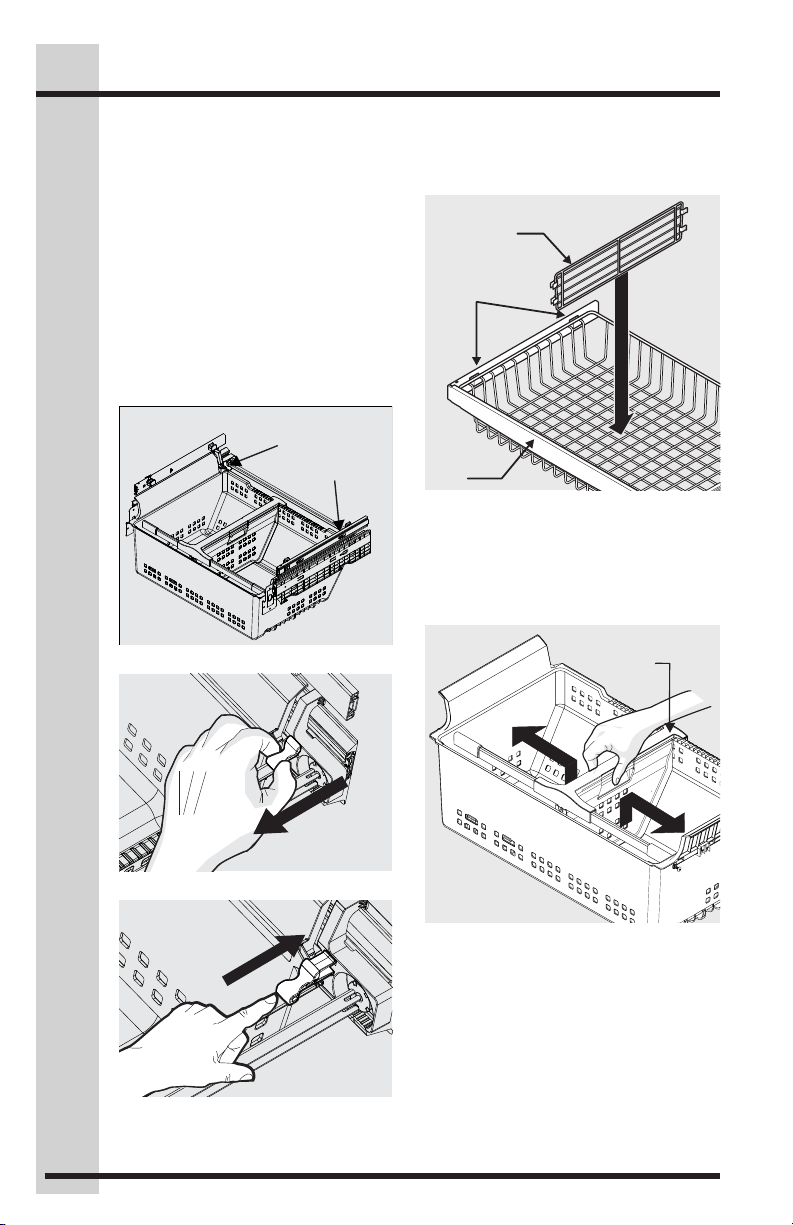

Storage Features

Dividers Removal

Lift up on the front of the upper divider and

pull out.

Squeeze handle and lift up in the center

of the divider to move it side-to-side. (The

divider cannot be removed.)

Upper Basket Divider

Upper Basket

Divider

Retainers

Stabilizer

Bar

Plastic Lower Basket Divider

Lower Basket

Divider

Pull to Remove

Push to Replace

Removing Freezer Basket

Instructions

1 Locate the basket clips in the rear

corners of the basket and pull them

out to remove.

2 Open fresh food doors completely.

3 Lift the basket up and remove.

Replacing Freezer Basket

Instructions

1 Place freezer basket back inside the

freezer drawer.

2 Replace clips by sliding them back

into the slots.

Location of

basket clip.

One each side.

Tilt Wire Shelf

The freezer tilt wire shelf (located on

the inside of the freezer drawer) is not

designed to be removed.

Ideas for storing foods

Fresh food storage

• Keep the fresh food compartment

between 37°F and 40°F with an

optimum temperature of 37°F.

• Avoid overcrowding the refrigerator

shelves, which reduces air circulation

and causes uneven cooling.

• Avoid placing food in front of air ports.

(See Controls Section for illustration.)

Fruits and vegetables

• Store fruits and vegetables in crisper

drawers, where trapped moisture

helps preserve food quality for longer

time periods.

• Wash items and remove excess water.

• Wrap any items that have strong

odors or high moisture content.

Meat

• Wrap raw meat and poultry separately

and securely to prevent leaks and

contamination of other foods or

surfaces.

• Use the Cool Zone drawer or Perfect

Temp

drawer and set to meat/

poultry setting for short-term storage.

Any meat to be kept longer than two

days should be frozen.

Frozen food storage

• Keep the freezer compartment at 0°F

or lower.

• A freezer operates most efﬁciently

when it is at least 2/3 full.

Packaging foods for freezing

• To minimize food dehydration and

quality deterioration, use aluminum foil,

freezer wrap, freezer bags, or airtight

containers. Force as much air out of

the packages as possible and seal

them tightly. Trapped air can cause

food to dry out, change color, and

develop an off-ﬂavor (freezer burn).

• Wrap fresh meats and poultry with

suitable freezer wrap prior to freezing.

• Do not refreeze meat that has

completely thawed.

Loading the freezer

• Prior to grocery shopping, activate

fast freeze so that on your return you

can ensure your newly purchased

Storing Food and Saving Energy

food designated for the freezer will be

preserved as quickly as possible.

• Activating fast freeze also will help

your freezer more efﬁciently maintain

the selected temperature after placing

new purchases with pre-existing

frozen foods.

• Avoid adding too much warm food to

the freezer at one time. This overloads

the freezer, slows the rate of freezing,

and can raise the temperature of

frozen foods.

• Leave a space between packages, so

cold air can circulate freely, allowing

food to freeze as quickly as possible.

Ideas for saving energy

Installation

• Locate the refrigerator in the coolest

part of the room, out of direct sunlight,

and away from heating ducts or

registers.

• Do not place the refrigerator next to

heat-producing appliances such as a

range, oven, or dishwasher. If this is

not possible, a section of cabinetry or

an added layer of insulation between

the two appliances will help the

refrigerator operate more efﬁciently.

• Level the refrigerator so that the doors

close tightly.

Temperature settings

• Refer to the Controls section for

procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator

or blocking cold air vents. Doing so

causes the refrigerator to run longer

using more energy and freezing food.

• Cover foods and wipe containers dry

before placing them in the refrigerator.

This cuts down on moisture build-up

inside the unit.

• Organize the refrigerator to reduce

door openings. Remove as many

items as needed at one time and close

the door as soon as possible.

• Do not place a hot container directly

on a cold shelf. Remember, such an

extreme temperature change may

damage the glass.

Normal Operating Sounds

Understanding the

sounds you may hear

Your new, high-efﬁciency refrigerator

may introduce unfamiliar sounds. These

sounds normally indicate your refrigerator

is operating correctly. Some surfaces on

ﬂoors, walls, and kitchen cabinets may

make these sounds more noticeable.

The following is a list of major components

in your refrigerator and the sounds they

can cause:

A Evaporator Refrigerant through the

evaporator may create a boiling or

gurgling sound.

B Evaporator fan You may hear air

being forced through the refrigerator

by the evaporator fan.

C Defrost heater During defrost

cycles, water dripping onto the

defrost heater may cause a hissing

or sizzling sound. After defrosting, a

popping sound may occur.

D Automatic ice maker When ice

has been produced, you will hear

ice cubes falling into the ice bin. Ice

maker fan, water valve activation,

and refrigerant gas ﬂuid may create

sounds from its operation.

E Electronic control & automatic

defrost control These parts can

produce a snapping or clicking sound

when turning the cooling system on

and off.

F Condenser fan You may hear air

being forced through the condenser.

G Compressor Modern, high-efﬁciency

compressors run much faster than

older models. The compressor may

have a high-pitched hum or pulsating

sound.

H Water valve Makes a buzzing sound

each time it opens to ﬁll the ice

maker.

I Drain pan (not removable) You may

hear water dripping into the drain pan

during the defrost cycle.

J Condenser May create minimal

sounds from forced air.

K Motorized Perfect Temp

drawer

damper May produce a light

humming during operation.

L Ice dispensing paddle When

dispensing ice, you will hear a

snapping, clicking, or popping sound.

M Motorized damper May produce a

light humming during operation.

N Perfect Temp

drawer fan Turns

off when door opens or Perfect

Temp

drawer is turned off.

NOTE

Energy efﬁcient foam in your refrigerator

is not a sound insulator.

NOTE

During automatic defrost cycle, a red

glow in the back wall vents of your

freezer compartment is normal.

Features vary by model

Changing The Water and Air Filters

Locating the Filters

Your refrigerator is equipped with water

ﬁltering system. The water ﬁlter system

ﬁlters all dispensed drinking water, as well

as the water used to produce ice.

Water Filter

The water ﬁlter is located at the top right

side of the fresh food compartment.

Replacing the Water Filter

In general, you should change the water

ﬁlter every six months to ensure the

highest possible water quality. Water Filter

Status on the user interface prompts

you to replace the ﬁlter after a standard

amount of water (125 gallons/473 liters for

PureAdvantage Ultra

) has ﬂowed through

the system.

If your refrigerator has not been used for a

period of time (during moving for example),

change the ﬁlter before reinstalling the

refrigerator.

Do not use with water that is

microbiologically unsafe or of unknown

quality without adequate disinfection

before or after the system. Systems

certiﬁed for cyst reduction may be used

on disinfected waters that may contain

ﬁlterable cysts.

The PureAdvantage Ultra

ice and water ﬁlter system is

tested and certiﬁed to NSF/ANSI

Standards 43, 53 and 401 for

the reduction of claims speciﬁed

on the performance data sheet.

More about your Advanced Water

Filter

Filter Cartridge

NOTE

When ordering your replacement ﬁlter,

please reorder the same ﬁlter type that is

currently in your refrigerator.

Test & certiﬁcation results:

• Rated Capacity - 125 gallons/473

liters for PureAdvantage Ultra

ice

and water ﬁlter

• Rated service ﬂow - .65 gallons per

minute

• Operating Temp: Min. 33°F, Max.

100°F

• Maximum Rated Pressure -

100pounds per square inch

• Recommended Minimum Operating

Pressure: 30pounds per square inch

To replace your PureAdvantage Ultra

water ﬁlter:

It is not necessary to turn the water supply

off to change the ﬁlter. Be ready to wipe

up any small amounts of water released

during the ﬁlter replacement.

1 Turn Off the ice maker power switch.

2 Remove the old ﬁlter by rotating it

counter-clockwise (to the left) 90

degrees to release it.

3 Slide the old ﬁlter cartridge straight

out of the housing and discard it.

4 Unpackage the new ﬁlter cartridge.

Slide it into the ﬁlter housing as far as

it will go with the grip end horizontal.

5 Push lightly inward on the ﬁlter while

rotating it clockwise (to the right). The

ﬁlter will then pull itself inward as it is

rotated. Rotate the ﬁlter 90 degrees

until it stops and the grip end is

vertical. You may be able to feel a

very light click as the ﬁlter locks into

place.

6 Press a drinking glass against the

water dispenser while checking for

any leaks at the ﬁlter housing. Any

spurts and sputters that occur as

the system purges air out of the

dispenser system are normal.

7 Continue dispensing water for 3-4

minutes or until 1.5 gallons of water

has ﬂowed through the system. You

will likely need to empty and reﬁll your

glass several times.

8 Turn On the ice maker.

9 Press and hold the Water Filter reset

button on the control panel for three

seconds. When the display changes

from Red to Green, the status has

been reset.

Changing The Water and Air Filters

Ordering replacement

ﬁlters

To order your replacement ﬁlters, please

visit our online store at

www.electroluxappliances.com, by calling

toll-free at 800-599-7569, or by visiting

the dealer where you purchased your

refrigerator. Electrolux recommends that

you order extra ﬁlters when you ﬁrst install

your refrigerator, and that you replace your

ﬁlters at least once every six months.

Here is the product number to request

when ordering:

Water Filter

PureAdvantage Ultra

Replacement

Cartridge #EWF02

Air Filter

Replacement cartridge, part #EAFCBF

Air ﬁlter

The air ﬁlter is located under the utility bin

and/or on the inside of the left door above

the ice maker chute.

Replacing your PureAdvantage

air ﬁlter

To ensure optimal ﬁltering of refrigerator

odors, you should change the air ﬁlter

every six months (the ﬁlter status light on

the Touch Panel prompts you to replace

the ﬁlter after six months).

1 Open the air ﬁlter door.

2 Remove the old ﬁlter and discard it.

3 Unpack the new ﬁlter and slide it into

the housing.

4 To close the air ﬁlter door, push the

top and bottom to lock the door

closed.

5 Press and hold the Air Filter Reset

button on the control panel for three

seconds. When the display changes

from Replace to Good, the status has

been reset.

Filter located under the utility bin

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain

the water supply system. Failure to do so could result in water leaks when the refrigerator

is put back into service. Contact a service representative to perform this operation.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may

damage ﬂooring. Be careful not to move the refrigerator beyond the plumbing

connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with

wet or damp hands.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, ﬂammable

ﬂuids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing

petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not

use paper towels, scouring pads, or other abrasive cleaning materials.

Care and Cleaning

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up.

Wipe up any spills immediately and clean the freezer and fresh food compartments at

least twice a year.

• Remove adhesive labels by hand. Do not use razor blades or other sharp

instruments which can scratch the appliance surface.

• Do not remove the serial plate. Removal of your serial plate voids your warranty.

• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work

correctly. This will prevent the ﬂoor from being damaged.

Refer to the guide on the next page for details on caring and cleaning speciﬁc areas of

your refrigerator.

• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline

solutions on any surface.

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other

electrical components will continue until you unplug the power cord from the wall outlet.

Care and Cleaning

Care and cleaning tips

Part Cleaning Agents Tips and Precautions

Interior & Door

Liners

• Soap and water

• Baking soda

and water

• Use two tablespoons of baking soda in

one quart of warm water.

• Be sure to wring excess water out of

sponge or cloth before cleaning around

controls, light bulb or any electrical part.

Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.

Drawers & Bins • Soap and water • Use a soft cloth to clean drawer runners

and tracks.

• Do not wash any removable items (bins,

drawers, etc.) in dishwasher.

Glass Shelves • Soap and water

• Glass cleaner

• Mild liquid sprays

• Allow glass to warm to room

temperature before immersing in warm

water.

Toe Grille • Soap and water

• Mild liquid sprays

• Vacuum

• Remove toe grille (see Installation Instructions).

• Vacuum both sides and wipe with sudsy

cloth or sponge. Rinse and dry.

Exterior &

Handles

(Stainless Steel

Models Only)

• Soap and water

• Stainless steel

cleaners

• Never use CHLORIDE or cleaners with

bleach to clean stainless steel.

• Clean stainless steel front and handles with

non-abrasive soapy water and a dishcloth.

Rinse with clean water and a soft cloth.

• Use a non-abrasive stainless steel cleaner.

These cleaners can be purchased at most

home improvement or major department

stores. Always follow manufacturer’s

instruction. Do not use household

cleaners containing ammonia or bleach.

• NOTE: Always clean, wipe and dry with

grain to prevent scratching.

• Wash the rest of the cabinet with warm

water and mild liquid detergent. Rinse

well and wipe dry with a clean soft cloth.

Occasion Tips

Short

Vacations

• Leave refrigerator operating during vacations of three weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will

only be gone a few days.

Long

Vacations

• Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off (see Controls section for location of On/

Off button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block

doors open if necessary.

Moving • Remove all food and ice.

• If using a handcart, load from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

Vacation and moving tips

Solutions to Common Problems

Before you call...

If you experience a problem with your refrigerator or notice a product behavior or

condition that you do not understand, you can usually avoid a call to your service

representative by referring to this section for an answer. Beginning with the following

table, this information includes common concerns, causes, and suggested solutions.

Concern Potential Cause Common Solution

Automatic Ice Maker

Ice maker is

not making

any ice.

• Ice maker is turned off.

• Refrigerator is not

connected to water line or

water valve is not open.

• The water supply line is

kinked.

• The water ﬁlter is not

seated properly.

• The water ﬁlter may be

clogged with foreign

material.

• Freezer ice maker wire

signal arm is being held

up by an item not allowing

it to go in the on or down

position.

• Turn on ice maker. For the fresh food

ice maker, press ice maker on-off

once. For the freezer ice maker,

lower the arm to turn the ice maker

on, or raise it and snap it in its upper

position to turn the ice maker off.

• Connect the unit to the household

water supply and ensure the water

valve is open.

• Ensure that the supply line does not

kink when the refrigerator is pushed

into place against the wall.

• Remove and re-install the water

ﬁlter. Be sure to rotate it fully into the

locked position position.

• If water dispenses slowly or not at

all, or if the ﬁlter is six months old or

older, it should be replaced.

• Move any item or frozen ice cubes

that may block the signal arm from

being in the on or down position.

Additionally, the ice bin itself may be

out of position so that it prevents the

signal arm from dropping all the way

down. Be sure the bin is pushed all

the way to the rear of the shelf. See

Automatic Ice Maker-Freezer section

in manual.

Solutions to Common Problems

Concern Potential Cause Common Solution

Automatic Ice Maker (Cont’d)

Ice maker is

not making

enough ice.

• Ice maker is producing

less ice than you expect.

• The water ﬁlter may be

clogged with foreign

material.

• The water supply line is

kinked.

• Saddle valve on cold

water pipe is clogged

or restricted by foreign

material.

• Heavy trafﬁc, opening

or closing of the doors

excessively.

• Freezer control is set too

warm (freezer ice maker).

• Water pressure is

extremely low. Cut-off and

cut-on pressures are too

low (well systems only).

• Reverse osmosis system

is in regenerative phase.

• The ice maker will produce

approximately 2.0 to 2.5 pounds of

ice every 24 hours depending on

usage conditions.

• If water dispenses slower than

normal, or if the ﬁlter is six months

old or older, it should be replaced.

• Ensure that the supply line does not

kink when the refrigerator is pushed

into place against the wall.

• Turn off household water line

valve. Remove valve. Ensure that

valve is not a self-piercing saddle

valve. Clean valve. Replace valve if

necessary.

• Press Fast Freeze to temporarily

increase ice production rate. (Freezer

ice maker only.)

• Set freezer control to colder setting

to improve performance of the ice

maker (freezer ice maker). Allow 24

hours for temperature to stabilize.

• Have someone turn up the cut-off

and cut-on pressure on the water

pump system (well systems only).

• It is normal for a reverse osmosis

system to be below 20 psi during the

regenerative phase.

Freezer ice

maker will

not stop

making

ice (select

models).

• Ice maker wire signal arm

is being held down by a

package in the freezer

that has fallen against ice

maker.

• Move any item or frozen ice cubes

that may block the signal arm from

being in the off or upward position.

See Automatic Ice Maker-Freezer

section in manual.

Ice cubes

are freezing

together.

• Ice cubes are not being

used frequently enough or

interruption of power for

prolonged time.

• Ice cubes are hollow

(shells of ice with water

inside). The hollow cubes

break open in the bin

and leak their water onto

existing ice, which causes

it to freeze together.

• Remove ice container and discard

ice. The ice maker will produce fresh

supply. Ice should be used at least

twice weekly to keep the cubes

separated.

• This generally occurs when the ice

maker does not get enough water.

This is usually the result of a clogged

water ﬁlter or restricted water supply.

Replace the water ﬁlter and if the

condition still occurs check for a

Saddle Valve, water valve not turned

on all the way or kinked water supply

line.

Solutions to Common Problems

Concern Potential Cause Common Solution

Dispenser (Ice & Water)

Dispenser

will not

dispense

ice.

• There is no ice in the bin to

be dispensed.

• The refrigerator doors are

not completely closed.

• Dispenser paddle has

been pressed too long and

the dispenser motor has

overheated.

• See the “Ice maker is not making any

ice” section above.

• Be sure the refrigerator doors are

completely closed.

• The motor overload protector will

reset in about three minutes and then

ice can be dispensed.

Ice

dispenser is

jammed.

• Ice has melted and

frozen around auger

due to infrequent use,

temperature ﬂuctuations,

and/or power outages.

• Ice cubes are jammed

between ice maker and

back of ice container.

• Remove ice container, thaw, and

empty the contents. Clean container,

wipe dry, and replace in proper

position. When new ice is made,

dispenser should operate.

• Remove ice cubes that are jamming

the dispenser.

Dispenser

will not

dispense

water.

• Water ﬁlter not seated

properly.

• Water ﬁlter is clogged.

• Household water line valve

is not open.

• Remove and reinstall the water ﬁlter.

For PureAdvantage Ultra, be sure to

rotate it to the right until it stops and

the grip end is vertical.

• Replace ﬁlter cartridge. Be sure to

rotate it to the right until it stops and

the grip end is vertical.

• Open household water line valve.

See CONCERN column AUTOMATIC

ICE MAKER.

Water

not cold

enough.

• The water dispensing

system is not designed to

chill water.

• Add ice to cup or container before

dispensing water.

Water has

an odd

taste and/or

odor.

• Water has not been

dispensed for an extended

period of time.

• Unit not properly

connected to cold water

line.

• Draw and discard 10-12 glasses of

water to freshen the supply.

• Connect unit to cold water line that

supplies water to the kitchen faucet.

Solutions to Common Problems

Concern Potential Cause Common Solution

Opening/Closing Of Doors/Drawers

Door(s) will

not close.

• Door was closed too hard,

causing other door to

open slightly.

• Refrigerator is not level. It

rocks on the ﬂoor when

moved slightly.

• Refrigerator is touching a

wall or cabinet.

• Close both doors gently.

• Ensure ﬂoor is level and solid,

and can adequately support the

refrigerator. Contact a carpenter to

correct a sagging or sloping ﬂoor.

• Ensure ﬂoor is level and solid,

and can adequately support the

refrigerator. Contact a carpenter to

correct a sagging or sloping ﬂoor.

Drawers are

difﬁcult to

move.

• Food is touching shelf on

top of drawer.

• Track that drawers slide on

is dirty.

• Remove top layer of items in drawer.

• Ensure drawer is properly installed

on track.

• Clean drawer, rollers, and track. See

Care & Cleaning.

Running of Refrigerator

Compressor

does not

run.

• Freezer control is set to

“OF”.

• Refrigerator is in defrost

cycle.

• Plug at electrical outlet is

disconnected.

• House fuse blown or

tripped circuit breaker.

• Power outage.

• Set freezer control.

• This is normal for a fully automatic

defrost refrigerator. The defrost cycle

occurs periodically, lasting about 30

minutes.

• Ensure plug is tightly pushed into

outlet.

• Check/replace fuse with a 15 amp

time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric

company.

Refrigerator

seems to

run too

much or too

long.

• Your variable speed

compressor is designed

to run 100% of the time

except during the defrost

cycle. At times it will run

faster, such as after a

defrost cycle.

• It is normal for the compressor to run

continuously except during defrost

mode.

Digital Temperature Setting Display

Digital

temperature

displays an

error.

• Electronic control

system has detected a

performance problem.

• Call your Electrolux service

representative, who can interpret any

messages or number codes ﬂashing

on the digital displays.

Solutions to Common Problems

Concern Potential Cause Common Solution

Water/Moisture/Frost Inside Refrigerator

Moisture

collects on

inside of

refrigerator

walls.

• Weather is hot and humid.

• Flipper mullion

• The rate of frost buildup and internal

sweating increases.

• Adjust ﬂipper mullion. (See “To adjust

the ﬂipper mullion” in the Installaion

section.)

Water

collects on

bottom side

of drawer

cover.

• Vegetables contain and

give off moisture.

• It is not unusual to have moisture on

the bottom side of the cover.

• Move humidity control (some models)

to lower setting.

Water

collects in

bottom of

drawer.

• Washed vegetables and

fruit drain while in the

drawer.

• Dry items before putting them in the

drawer. Water collecting in bottom of

drawer is normal.

Water/Moisture/Frost Outside Refrigerator

Moisture

collects on

outside of

refrigerator

or between

doors.

• Weather is humid. • This is normal in humid weather.

When humidity is lower, the moisture

should disappear.

Food in Fresh Food Compartment

Food is

freezing.

• Temperature setting is too

low.

• Temperature sensor is

covered by food (right side

of fresh food area).

• Food is covering the air

ports.

• Move the setting to a higher degree.

• Allow space for air ﬂow to the sensor.

• Allow space between the air ports

and the food.

Warranty

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,

Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or

workmanship when such appliance is installed, used, and maintained in accordance with the provided

instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,

evaporator, dryer or tubing) of your appliance is covered by a two through ﬁve year limited warranty. During

the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in

the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship

when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside

the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁlters, water ﬁlters, other

consumables, or knobs, handles, or other cosmetic parts.

11. Pickup and delivery costs; your appliance is designed to be repaired in the home.

12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry

trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

13. Damages to the ﬁnish of appliance or home incurred during transportation or installation,

including but not limited to ﬂoors, cabinets, walls, etc.

14. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, ﬁres, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE

YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES

SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF

THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES

DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR

EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service

under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,

your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux

Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux

authorizes no person to change or add to any obligations under this warranty. Obligations for service

and parts under this warranty must be performed by Electrolux or an authorized service company.

Product features or speciﬁcations as described or illustrated are subject to change without notice.

USA

1-877-435-3287

Electrolux Major Appliances North America

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario,

Canada L5V 3E4

Electrolux EI23BC37SS Counter-Depth French Door Refrigerator

Product's Documents

User Manual

Specifications

Electrolux EI23BC37SS Questions and Answers

Related Products

Electrolux EI23BC56IS9 Counter-Depth French Door Refrigerator

Electrolux EI23BC82SS2 Counter-Depth French Door Refrigerator

Electrolux EW23BC87SS4 Counter-Depth French Door Refrigerator

Electrolux EI23BC82SS Counter-Depth French Door Refrigerator with IQ-Touch™ Controls

Electrolux EW23BC87SS Counter-Depth French Door Refrigerator with Wave-Touch® Controls
