Thank you for purchasing our appliance. Please be sure to read the entirety of this
user manual carefully prior to use of the product. If you have any questions regarding
the use of this product, please call 1-800-898-3002.
In the event this product malfunctions or customer believes it
is defective, the customer should contact Customer Service at
homelabs.com/chat, 1-(800)-898-3002 or [email protected]
and retain the defective product pending further instructions.
Defective product should be clearly marked or stored where it
cannot be used again by mistake. Failure to retain the product
may impede hOme
™
’s ability to correct any legitimate problem
and may limit the extent to which hOme
™
may provide recourse.
Important Safety Instructions
Installation
Parts Overview
Operating Your Dryer
Cleaning and Maintenance
Specications
Troubleshooting
Warranty
Manufacturing Info
Warning
Contact Us
6-9
9-10
11
12-14
15-16
17
17
18
18
18
18
TABLE OF CONTENTS
5
on bringing home your new product!
Cong ratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration is not
required to activate any warranty.
6
Important Safety Instructions
To reduce the risk of injury and property damage, read this entire guide before assembling, installing,
operating, and maintaining the laundry dryer. Failure to follow the instructions in this manual can
cause personal injury or property damage. Children should always be supervised when around and
using this appliance. Always exercise basic safety precautions, including the following:
Risk of Fire
• The installation must be performed by a qualied installer according to the manufacturers’
instructions and local codes.
• Do not install with exible plastic venting materials. If exible metal (foil type) duct is installed,
it must be made of a specic type identied by the appliance manufacturer as suitable with the
dryer. Otherwise it might collapse, crush and trap lint, which will obstruct airow and increase the
risk of re.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Improper connection of the equipment-grounding conductor can result in possible electric shock.
• Check with a qualied electrician, service representative, or personnel if you have doubts as to
whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If
it does not t the outlet, have a proper outlet installed by a qualied electrician.
• Place the dryer in a dry and well ventilated area away from heat and direct sunlight.
• Do not use spray cleaner to clean the interior. If the drum becomes stained, clean it with a damp cloth.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other ammable or explosive substances, as they give off vapors
that could ignite or explode.
• Do not place items that have been soiled with ammable liquids inside the dryer without washing
them with detergent thoroughly beforehand.
• Remove any residue before drying the next load.
• The dryer must be placed on rm horizontal surface. Do not place the dryer on carpet as this will
block the air intake. Leave at least 4 inch distance between the dryer and the walls.
For Your Safety
• Do not allow children to play with the appliance. Close supervision of children is necessary when
the appliance is used near children.
• Do not reach into the appliance if the drum is moving.
• Before the appliance is discarded, remove the door to the drying compartment.
• Connect the appliance to an individual branch circuit.
• Do not install or store this appliance where it will be exposed to outdoor.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specically
recommended in the user-maintenance instructions or in published user-repair instructions that
you understand and have the skills to carry out.
• Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
• Remove lint before and after each load.
7
• Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt. The interior of the appliance and exhaust duct should be
cleaned periodically by qualied service personnel.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch re. To reduce the risk
of re due to contaminated loads, the nal part of a dryer cycle occurs without heat (cool down
period). Avoid stopping a dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• INDOOR USE ONLY. This appliance is not intended for outdoor use.
• Do not place ame sources, such as candles, on or near the appliance.
• Do not locate the appliance or cord near heat sources such as radiators, heaters, air ducts or
direct sunlight.
• Do not block any of the ventilation openings. Ensure that vents are not covered by newspapers,
tablecloths, curtains, etc.
• Do not run the cord under oor coverings. Instead, arrange the cord away from trafc areas
where it will become a trip hazard.
• To disconnect the appliance, turn the appliance off, switch off the power outlet and remove the
plug from the power outlet.
• Do not misuse the cord. Never carry the appliance by the cord or pull to disconnect it from the
outlet. Instead, grasp the plug and pull to disconnect.
• Do not operate the appliance if it has a damaged cord or plug or has been dropped or damaged
in any way. If the appliance malfunctions, please contact customer service. Do not use the
appliance following any malfunctions.
• Do not attempt to repair, disassemble or modify this appliance. The warranty becomes void if not
serviced or repaired by a qualied person.
• Do not excessively bend, stretch, twist or bind the power cord or place objects on it.
• Do not install in a tight tting cabinet.
• Do not overload the drum. For best results, ll the drum half full for each cycle. For large items, a
maximum of 3/4 of drum capacity is acceptable to ensure good air circulation.
• Ensure that the tub is clean and has no external objects entering into it.
• The door window may be hot after a long drying cycle. Please ensure children are kept away from
the machine.
• If the dryer is not wall mounted, place in a at, rm, and dry place. Use the adjustable front legs
to assist in leveling if needed.
• Do not place the dryer on any soft material such as foam or plastic.
• Do not use ammable or combustible materials such as gas, petrol, alcohol or lacquer in the dryer.
• After turning off the power supply to the dryer, wait at least 2 minutes before turning it back on again.
• If the supply cord is damaged, it must be replaced by the manufacturer or similarly qualied
persons in order to avoid a hazard.
• Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this unit. However, if you must use an extension cord it is absolutely
necessary that it is a UL-Listed, 3-wire grounding type appliance extension cord with a grounding type
plug and outlet. The electrical rating of the cord must be 120 volts and at least 15amperes.
• CAUTION: IF THIS APPLIANCE IS SUPPLIED FROM A CORD EXTENSION SET OR AN ELECTRICAL
PORTABLE OUTLET DEVICE, THE CORD EXTENSION SET OR ELECTRICAL PORTABLE OUTLET
DEVICE MUST BE POSITIONED SO THAT IT IS NOT SUBJECT TO SPLASHING OF MOISTURE.
Important Safety Instructions
8
SAVE THESE INSTRUCTIONS
For Household Use Only
Grounding Instructions
• This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes. The power cord of this
appliance is equipped with a three-prong plug which mates with standard three prong wall outlets
to minimize the possibility of electrical shock.
• This appliance requires a standard 120 Volt/60 Hz three-prong electrical outlet.
• WARNING - Improper connection of the equipment/grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or service representative or personnel if you are in
doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the
appliance: if it will not t the outlet, have a proper outlet installed by a qualied electrician.
Surge Protector
• Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
• If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect
the appliance it is connected to. If you have any questions regarding the type and size of surge
protector needed contact a licensed electrician in your area.
• Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
WARNING - To reduce the risk of re, electrical shock, or injury when using your appliance, follow
these basic precautions:
• DANGER: Risk of child entrapment.
• Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous even if they “just sit in the garage for a few days.”
• Before you throw away your old appliance, take off the door so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean the parts with ammable uids. The fumes can create a re hazard or explosion.
• Do not place the dryer in steamy rooms or where the dryer is directly exposed to rain. Moisture
may destroy the electrical insulation causing an electrical shock hazard.
• Do not store or use gasoline or any other ammable vapors and liquids in the vicinity of this
appliance. The fumes can create a re hazard or explosion.
Important Safety Instructions
9
Installation
Choose the Proper Location
IMPORTANT: Make sure to follow the electric and grounding requirements and warnings in Important
Safety Instructions.
• Place the dryer in a dry and well-ventilated area away from heat or direct sunlight. Do not expose
the dryer to freezing temperatures (under 32°F).
• If the dryer will not be mounted on the wall, it must be placed on rm horizontal ground. Wood
oor may need to be reinforced to minimize vibration and unbalanced load situations. Do not place
the dryer on carpet or soft tile surfaces, as this will block the intake and move slightly during the
spin cycle.
• If the dryer is rack mounted, a secure bracket is required to ensure stability and prevent vibration.
Leave at least 5.1" distance between the dryer and the wall. You need to buy the bracket separately.
Wall Mounting Instructions
It is recommended to complete the following procedure with at least 2 people.
1. Determine the dryer position on the wall. Mark the required bracket position. This dryer is not
suitable to be directly placed on top of a washing machine.
* A minimum of 2 inches is needed between the dryer top and the ceiling for ease of installation.
* If mounting above a washing machine, allow sufcient room to open the lid of the washer.
Tools Required
Tools & parts
required for plaster/
wooden wall
Electric drill
1
Philips head screw driver
1
Wood screws
4
Wall Mounting Kit Includes
Description
Hanging bracket 2
Plastic spacer 2
Exhaust connector 1
M6 × 60 mm long screw
(Suitable for concrete walls,
10 mm drill bit required)
4
10
Installation

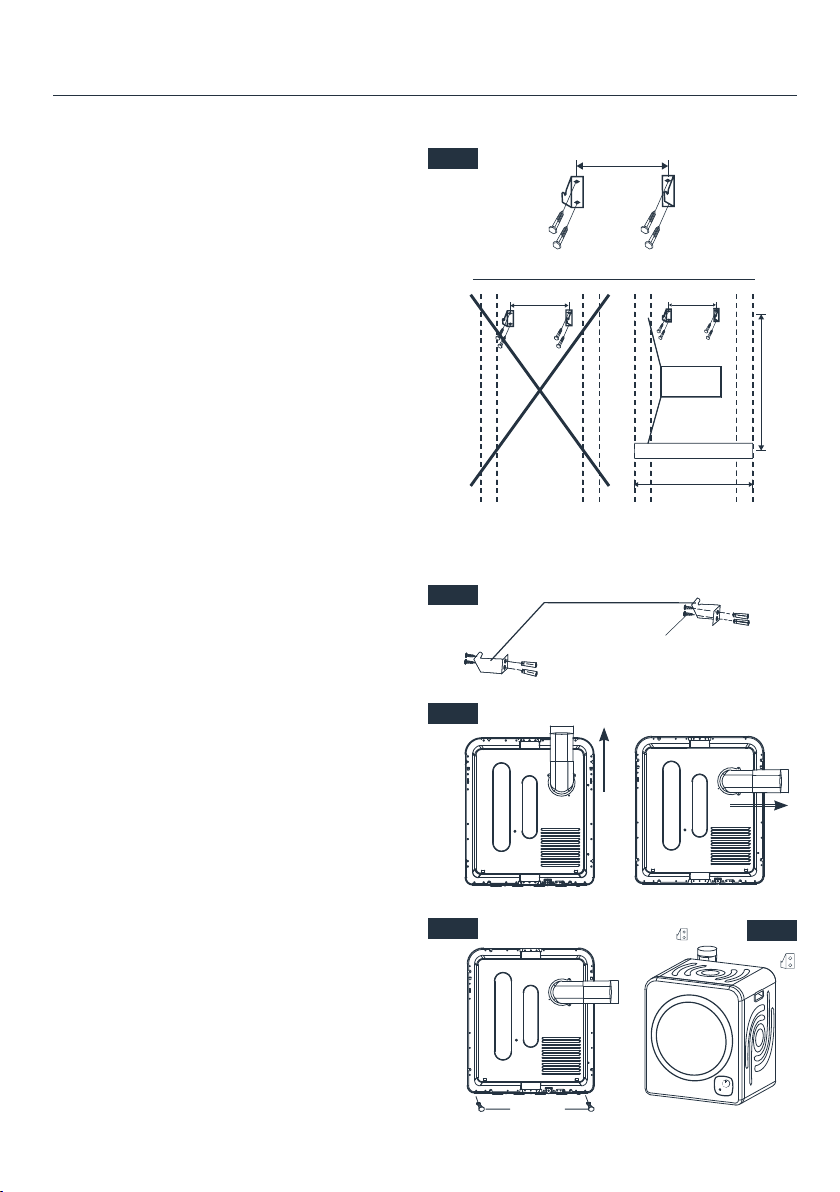

2. Screw the supplied hanging brackets to
the wall rmly (i.e., into the stud). Fit a
timber slat (not included) between the
studs to mount the brackets if the stud
position is too wide (See Fig. 1).
3. Attach the hanging hooks to the wall.
Align and screw them rmly (See Fig. 2).
4. Install the exhaust pipe. Extend its
length and adjust its direction as
needed (See Fig. 3).
5. Fix the spacers as shown in Fig. 4.
6. With the help of another person, mount
the dryer on the wall (See Fig. 5).
21.8"
Ensure brackets are securely fastened.
FitTimber slats if necessary
Ceiling
21.8" 21.8"
22.8"
21.2"
Stud
Stud
Stud
Stud
1 × 3"
Timber
Hanging Hook
M6 × 60 mm long screw
Spacers
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
11
Parts Overview

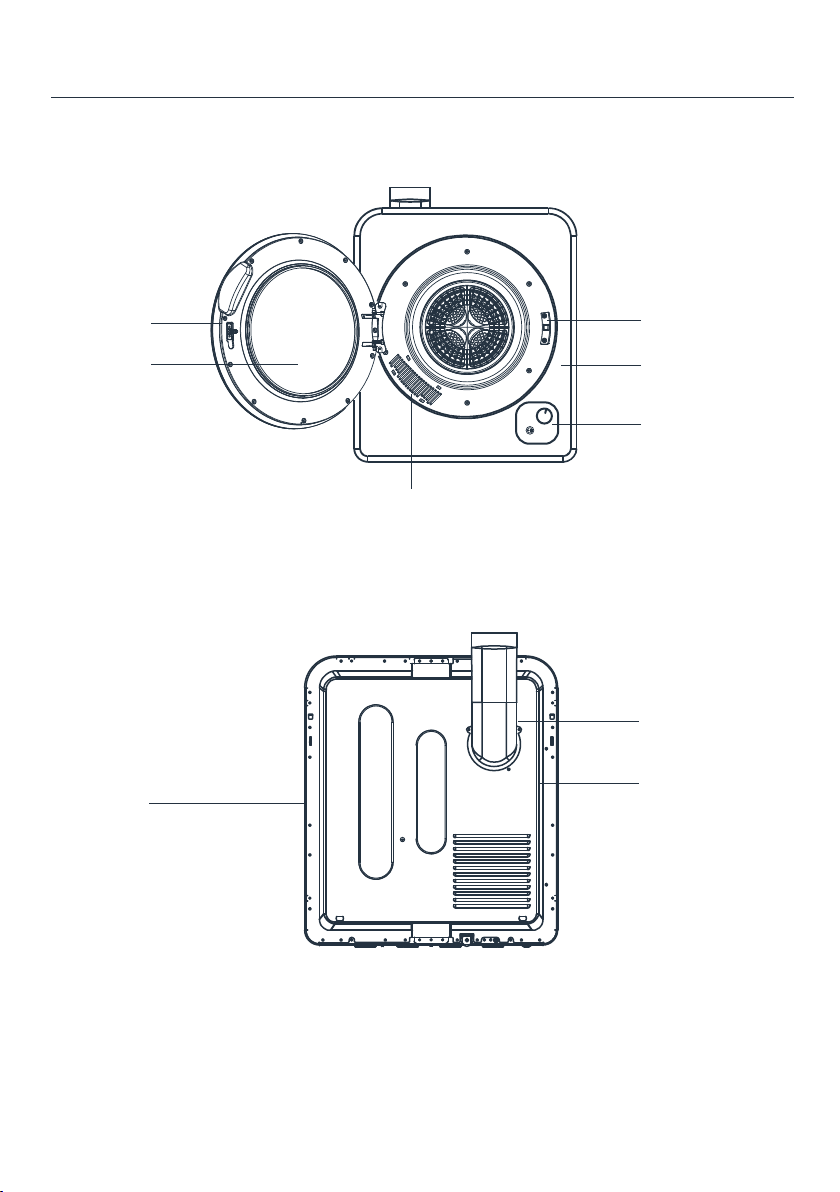

Door
Window
Air Intake Grill
Control Panel
Door Gasket
Drum
Cabinet
Exhaust Vent Tube
Back Cover
12
Electrical Requirements
Loading the Dryer
Operating Your Dryer
The unit is required to be plugged into a
three pin socket that is reliably grounded.
The power supply must be 120V/60Hz.
Prior to loading the dryer, check if your
laundry items are suitable for tumble dry.
If they are not suitable for tumble try, do
not use this dryer for such items.
• Before drying, check all pockets of
your clothes. If nails or pins remain in
pockets, they may damage the dryer or
clothes.
• Turn your laundry inside out if it has
zippers or fasten buckles.
• Dryer heat may permanently set stains.
Ensure you check prior to drying that the
stains are removed.
• Separate dark and light colored items
before drying.
• For best results, load the dryer with
similar fabrics. Place small delicate
items in a mesh bag.
• The maximum load is 13.2 Ib of dry
textile material for the dryer. Do not
overload it.
• The tumble dryer is intended only for
drying textile material washed in water.
• Never splash water on the control panel.
• Delicate items should be placed into a
nylon net prior to drying.
It is recommended that items are placed
into the dryer one at a time. This will
ensure the items don't tangle which could
result in uneven drying. When closing
the dryer door prior to starting the unit,
ensure that the items are not jammed in
the door.
13
Operating Your Dryer
1 2
150
60
30
START PAUSE
PROGRAM
AUTOMATIC
Normal
Perm. Press
Delicates
AIR DRY
Tumble Only
TIMED DRY
Low Heat
30 60 150 min
OFF
Start/Pause
(Normal, Perm.
Press, Delicates,
Tumble only,
2.5hours, 1hour,
30 min)
1. Select the washing program
according to the texture and
capacity of the clothes.
2. To start the drying program, press
START/PAUSE button.
3. To pause to add clothes, press
START/PAUSE button. Be careful
when opening the dryer door, hot
steam can release. To continue the
program, close the door and press
START/PAUSE button.
Note: When the dryer is in pause mode,
you can change or restart the program.
4. The dryer will turn off automatically
when the program is nished.
CAUTION! HOT SURFACE
Do not touch the intake during
the drying cycle due to high
temperatures.
READ THE INSTRUCTIONS
Control Panel Operations
Program
Max Drying
Temperature
Max Volume of
Dry Clothings
Clothing Type
Max Dry
Time
Normal 150°F (65°C) 13.2 Ibs
Cotton weaving clothes,
jeans, and bedsheets
160 min
Perm. Press 137°F (58°C) 8.8 Ibs Cotton clothes, jeans 100 min
Delicates 127°F (53°C) 3.0 Ibs Cotton clothes, synthetic 47 min
Tumble only / 13.2 Ibs Unheated, deodorizing 100 min
150 min 127°F (53°C) 13.2 Ibs Wet clothes, sheets /
60 min 127°F (53°C) 3.2 Ibs Not dry clothes /
30 min 127°F (53°C) 2.0 Ibs Fiber, wool /
14
Operating Your Dryer

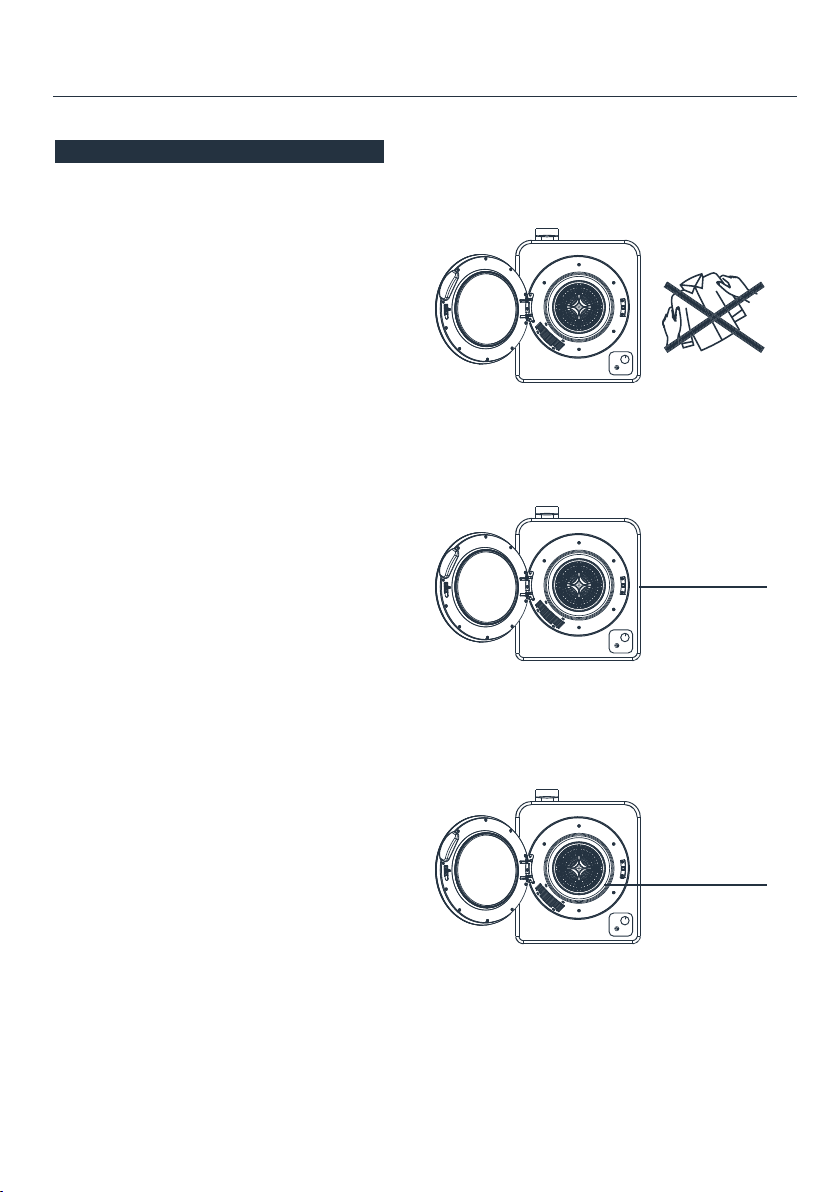

Do not add items into the dryer while it
is in operation.
If drying large items such as a blanket,
it is recommended that from time to
time you open the dryer door, shake
the items, and then put it back into the
dryer. This will ensure even drying.
To reduce wrinkles, remove the dried
items from the dryer immediately when
program is nished and hang on coat
hangers. Iron the items if desired.
Operation Precautions
Flip over clothes
Reduced load
15
Cleaning and Maintenance
Cleaning the Filters
Unplug the power cord prior to any cleaning
or maintenance. The lint lter must be
cleaned before each use.

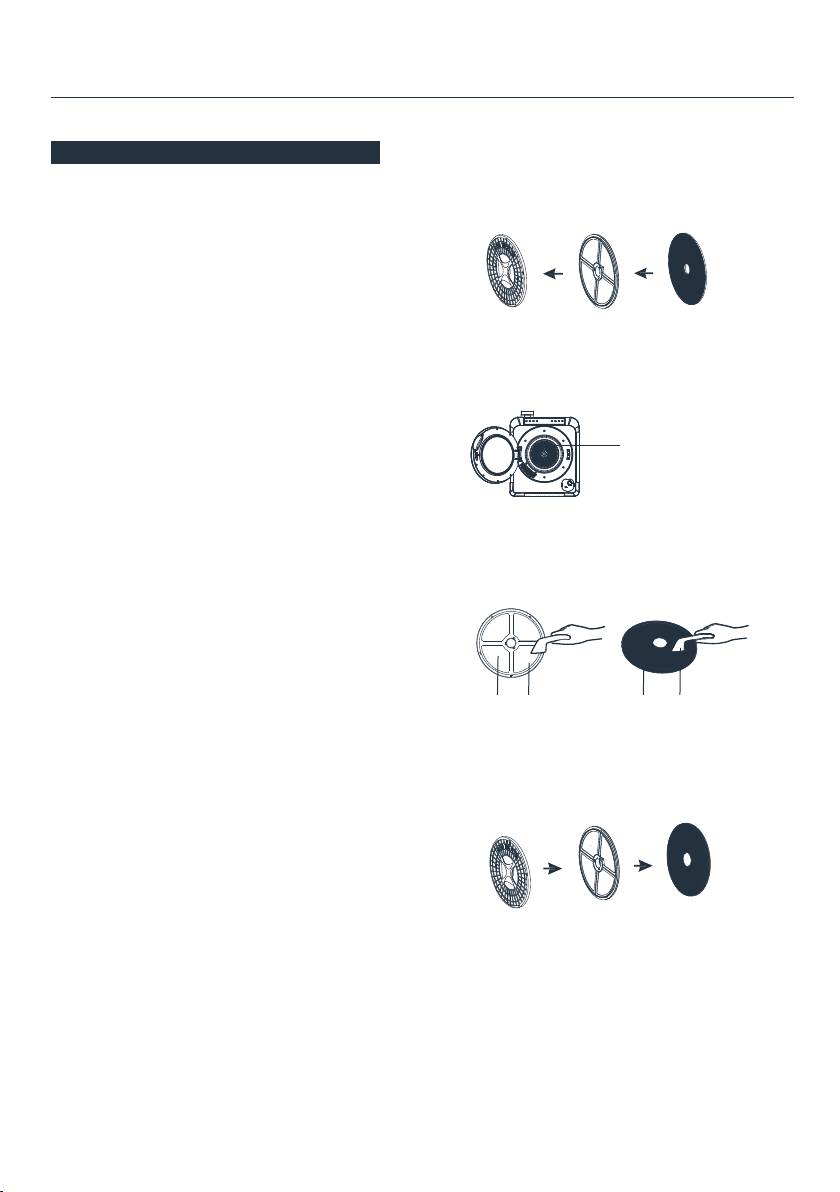

1. Removing the lters
Remove the lters by pulling outward using
the four grip holes in the lter assembly. The
lter assembly consists of three parts (See
illustration).
2. Cleaning the lters
Separate each of the above parts and clean
the individual piece using a SOFT brush or
vacuum cleaner. Do not damage the lters.
3. Re-installing the lter
Reassemble the lter assembly in this order:
Exhaust Filter - Lint Filter - Exhaust Vent Grill.
Align the entire assembly with the recessed
position in the back of the drum and press
rmly until the entire assembly is secure.
Note: The lter xed in the bottom of the drum
should also be cleaned with a soft brush.
a)
Exhaust
Vent Grill
b)
Lint Filter
c)
Exhaust
Filter
Lint
Filter
Exhaust
Filter
Linfs Dust
Cleaner
The lter is xed
in the bottom of
the drum
16
Cleaning and Maintenance
Cleaning the Air Intake Filter
Cleaning the Exterior
The air intake lter should be cleaned once a
month.
• Pull outwards by holding the upper and lower
ends of the air intake grill.
• Remove the lter inside the grill and clean
with a soft brush.
• Replace the lter grill by pushing upwards
with your thumb until the latch is locked in
place.

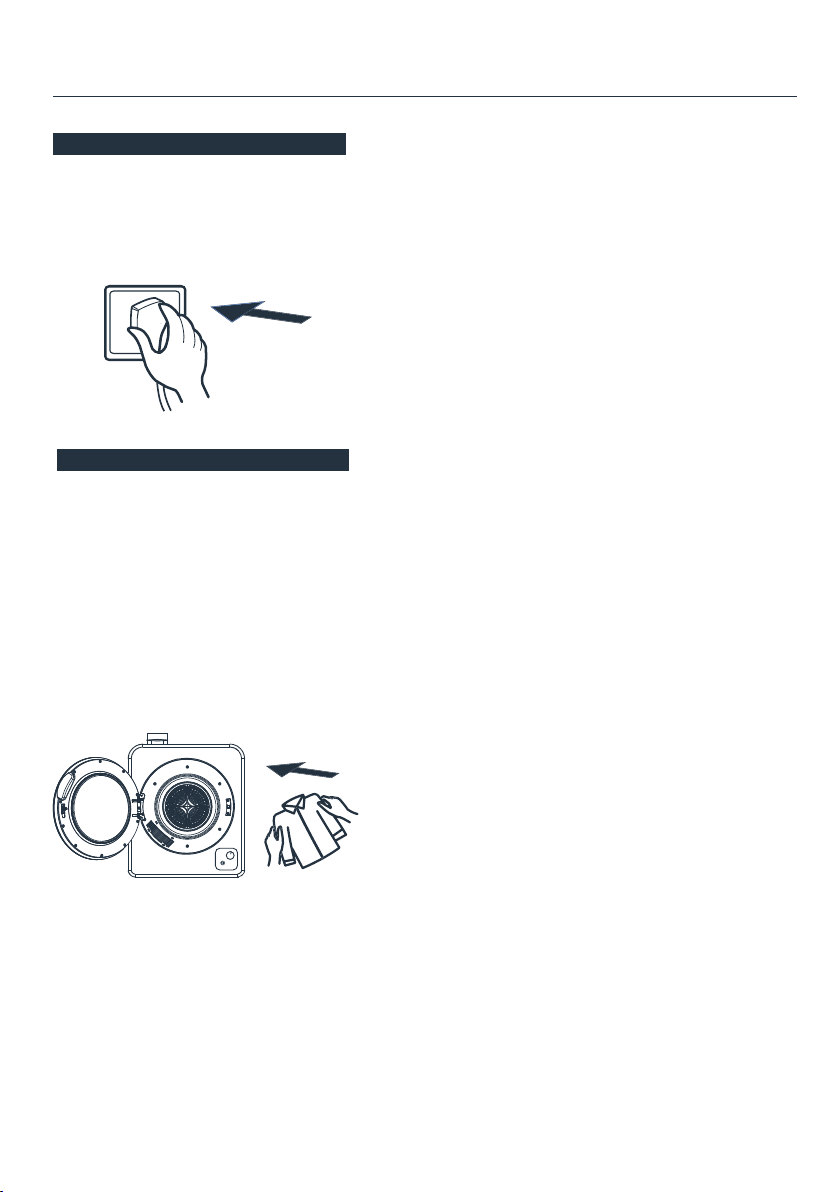

• Wipe the dryer surfaces, including the
control panel, with a soft cloth and non-
abrasive household detergents.
• Use a soft cloth to dry the surfaces.
• Do not pour water on the dryer.
17
Specications
• Drying Capacity: 13.2 Ib
• Voltage/Frequency: 120 V~/60 Hz
• Rated Input: 1300 W
• Net Weight: 59.5 Ib
• Dimensions: 23.4 × 20.1 × 27.0"
Troubleshooting
PROBLEM POSSIBLE CAUSE/SOLUTION
Dryer does not work. • The power plug is not connected rmly. Replug it.
• Close the dryer door properly.
• Set the program correctly.
Drum does not turn. • Check and close the dryer door.
• Check and replug the power plug.
Hot air is not blowing out. • Set to a heat dry program.
Laundry is not thoroughly
dried.
• Clean the front and back lters if they are clogged.
• Reduce the amount of clothing loaded in the dryer.
• Ensure items are not knotted or bulked together.
• Place the dryer at a well ventilated area.
Dryer overheats
(with odor or shuts off
automatically).
• Open the door and take out all clothes. The dryer needs
30–40 min to cool down. Before restarting the dryer, clean
the lter and do not load clothes too full in the drum.
18
hOme
™
offers a limited one-year warranty (“warranty period”) on all of our products purchased
new and unused from hOme Technologies, LLC or an authorized reseller, with an original proof of
purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture,
parts or workmanship during one-year warranty period. The warranty does not apply where damage is
caused by other factors, including without limitation: (a) normal wear and tear; (b) abuse, mishandling,
accident, or failure to follow operating instructions; (c) exposure to liquid or inltration of foreign
particles; (d) servicing or modications of the product other than by hOme
™
; (e) commercial or non-
household use.
The hOme
™
warranty covers all costs related to restoring the proven defective product through
repair or replacement of any defective part and necessary labor so that it conforms to its original
specications. A replacement product may be provided instead of repairing a defective product. hOme
™
’s
exclusive obligation under this warranty is limited to such repair or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe
place. We recommend that you register your product on our website, homelabs.com/reg. Although greatly
appreciated, the product registration is not required to activate any warranty and product registration
does not eliminate the need for the original proof of purchase.
The warranty becomes void if attempts
at repair are made by non-authorized third parties and/or if spare parts, other than those provided by
hOme
™
, are used. You may also arrange for service after the warranty expires at an additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out to
us with any issue, regardless of warranty terms. If you have an issue with a hOme
™
product, please
contact us at 1-800-898-3002, and we will do our best to resolve it for you.
This warranty gives you specic legal rights, and you may have other legal rights which vary from state
to state, country to country or province to province. The customer may assert any such rights at their
sole discretion.
HME030486N
Warranty
Manufacturing Info
This manual is to be used with all items with the model number
SKU#: HME030486N
Keep all plastic bags away from children.
Warning
Contact Us
homelabs.com/chat
1-(800)-898-3002 [email protected]
CHAT W ITH US
CALL U S
EMAIL U S
20
© 2020 hOmeLabs LLC
37 East 18 Street, 7th Floor
New York, NY 10003
For Household
Use Only
1-800-898-3002
homelabs.com/help
All rights reserved, hOme
TM
. Printed in China.
