.... 4-5
)ns ................ 5
=ce Controls ............... 6
Setting Oven Controls ................. 6-7
General Care & Cleaning ............ 7-9
Before You Call
Solutions to Common Problems ........................ 10
Warranty ......................... Back Page
Questions? 1-800-944-9044 (UnitedStates)
1-866-729-5199 (Canada)
Visit the Frigidaire Web Site at:
http://www.frigidaire.com
READ AND SAVE THESE INSTRUCTIONS p/n 316257129 (0503)

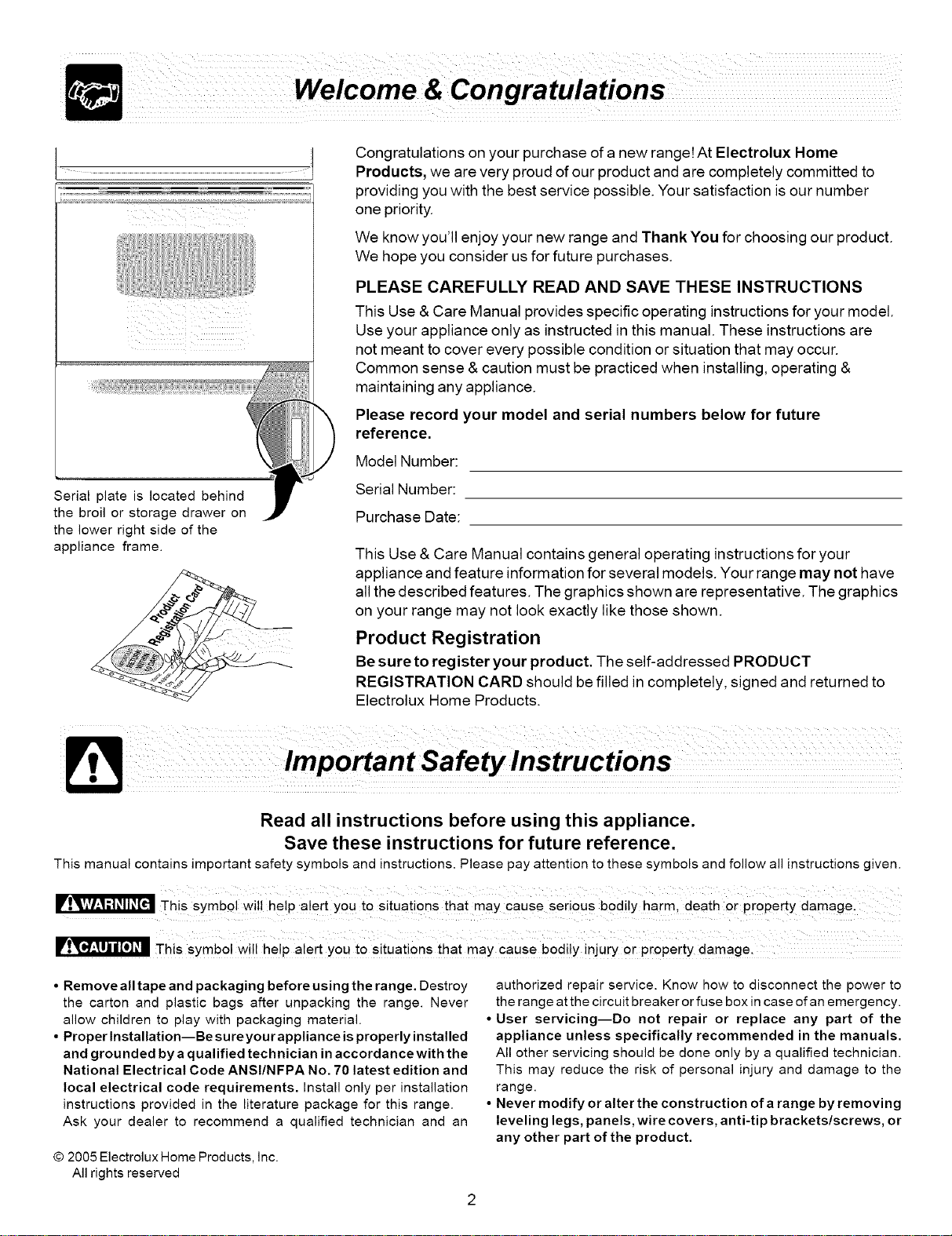

Welcome & Congratulations
Congratulations on your purchase of a new range!At Electrolux Home
Products, we are very proud of our product and are completely committed to
providing you with the best service possible. Your satisfaction is our number
one priority.
We know you'll enjoy your new range and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.
Use your appliance only as instructed in this manual. These instructions are
not meant to cover every possible condition or situation that may occur.
Common sense & caution must be practiced when installing, operating &
maintaining any appliance.
Please record your model and serial numbers below for future
reference.
Model Number:
Serial plate is located behind
the broil or storage drawer on
the lower right side of the
appliance frame.
Serial Number:
Purchase Date:
This Use & Care Manual contains general operating instructions for your
appliance and feature information for several models. Your range may not have
all the described features. The graphics shown are representative. The graphics
on your range may not look exactly like those shown.
Product Registration
Be sure to register your product. The self-addressed PRODUCT
REGISTRATION CARD should be filled in completely, signed and returned to
Electrolux Home Products.

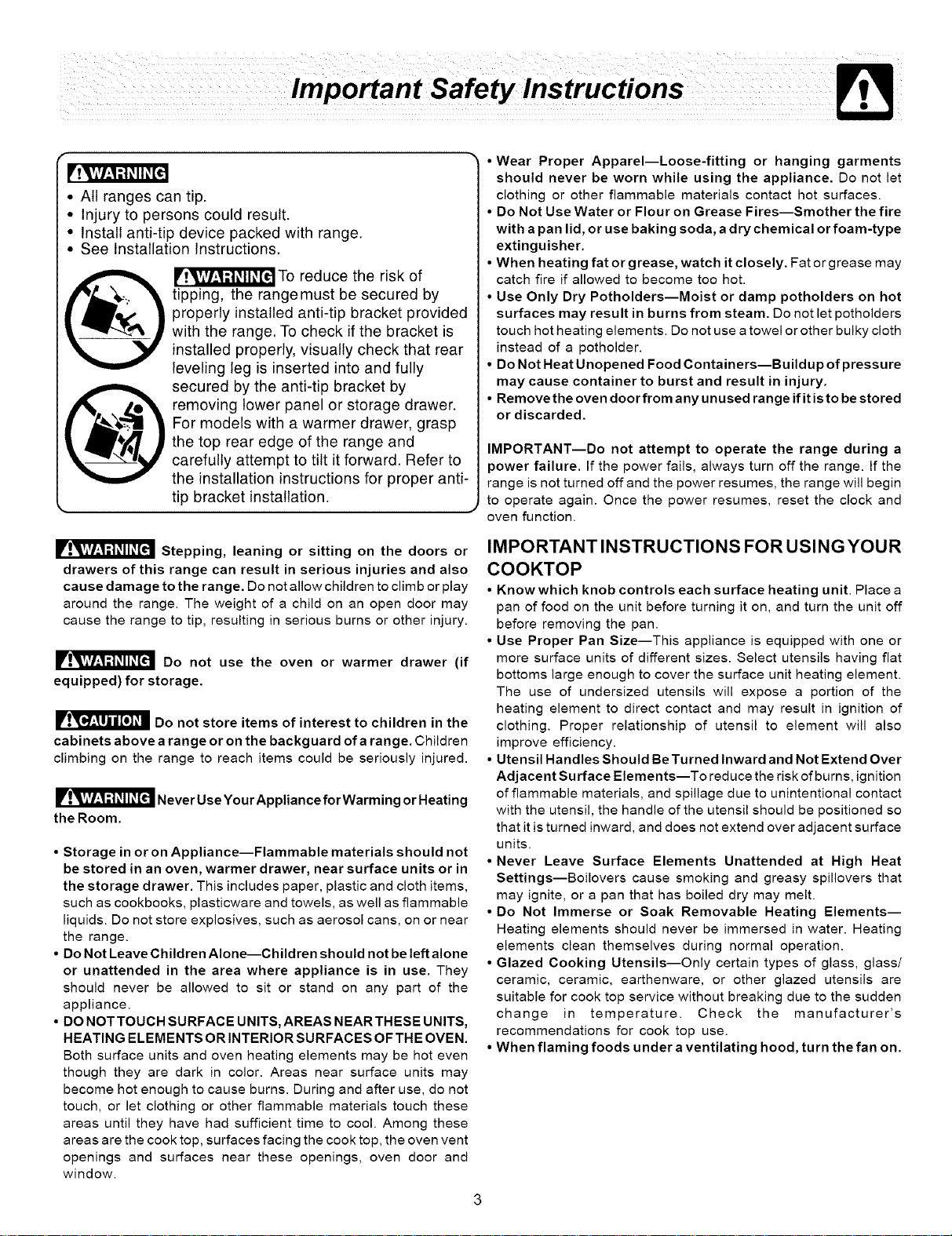

Important Safety lnstructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This symbol will help alert yOu to situations that may cause seriou s bodily har m, death or property damagel
This symbol will help alert you to situations that may Cause bodily injury or p_operty damage.
• Remove all tape and packaging before using the range. Destroy
the carton and plastic bags after unpacking the range. Never
allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly installed
and grounded by a qualified technician in accordance with the
National Electrical Code ANSI/NFPA No. 70 latest edition and
local electrical code requirements. Install only per installation
instructions provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
© 2005 Electrolux Home Products, Inc.
All rights reserved
authorized repair service. Know how to disconnect the power to
the range atthe circuit breaker or fuse box in case of an emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician.
This may reduce the risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws, or
any other part of the product.
f
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See Installation Instructions.
_To reduce the risk of
tipping, the rangemust be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti-
tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or play
around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
_Do not store items of interest to children in the
cabinets above a range or on the backguard of a range. Children
climbing on the range to reach items could be seriously injured.
_ Never Use Your Appliance for Warming or Heating
the Room.
• Storage in or on Appliance--Flammable materials should not
be stored in an oven, warmer drawer, near surface units or in
the storage drawer. This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or near
the range.
• Do Not Leave Children Alone--Children should not be left alone
or unattended in the area where appliance is in use. They
should never be allowed to sit or stand on any part of the
appliance.
• DO NOTTOUCH SURFACE UNITS, AREAS NEARTHESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN,
Both surface units and oven heating elements may be hot even
though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam-type
extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky cloth
instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildup of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be stored
or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will begin
to operate again. Once the power resumes, reset the clock and
oven function.
IMPORTANT INSTRUCTIONS FOR USINGYOUR
COOKTOP
• Knowwhich knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
• Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USINGYOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructions for cleaning.
COIL COOK TOP MODELS
• Make Su re Reflector Pans or Drip Bowls Are in Place--Absence
of these pans or bowls during cooking may subject wiring or
components underneath to damage.
• Protective Liners--Do not use aluminum foil to line surface unit
drip bowls, or reflector pans. Only use aluminum foil as
recommended in this manual. Improper installation of these
liners may result in risk of electric shock, or fire. Improper
installation of these liners may result in risk of electric shock, or
fire.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of substances
known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential
exposure to such substances.
E!eme_t
ii i _ i i
! i! iii O:i i)!iiiiii i I
The Element ON Indicator Light
The Coil Cook Top range is equipped with a surface control light that will glow on your range--
the Element ON indicator light. The Element ON indicator light (all models) located on the
control panel, will glowwhen any surface element isturned ON. A quick glance at this light after
cooking is an easy check to be sure all surface controls are turned OFF.
Oven Vent Location
For models equipped with coil surface elements, the oven vent is located under the left
rear surface element. When the oven is on, warm air flows through the left rear
element. This venting is necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK THE OVEN VENT.
I OVENVENTLOCATED /
UNDTRLEFTREARELEMENT J
f _

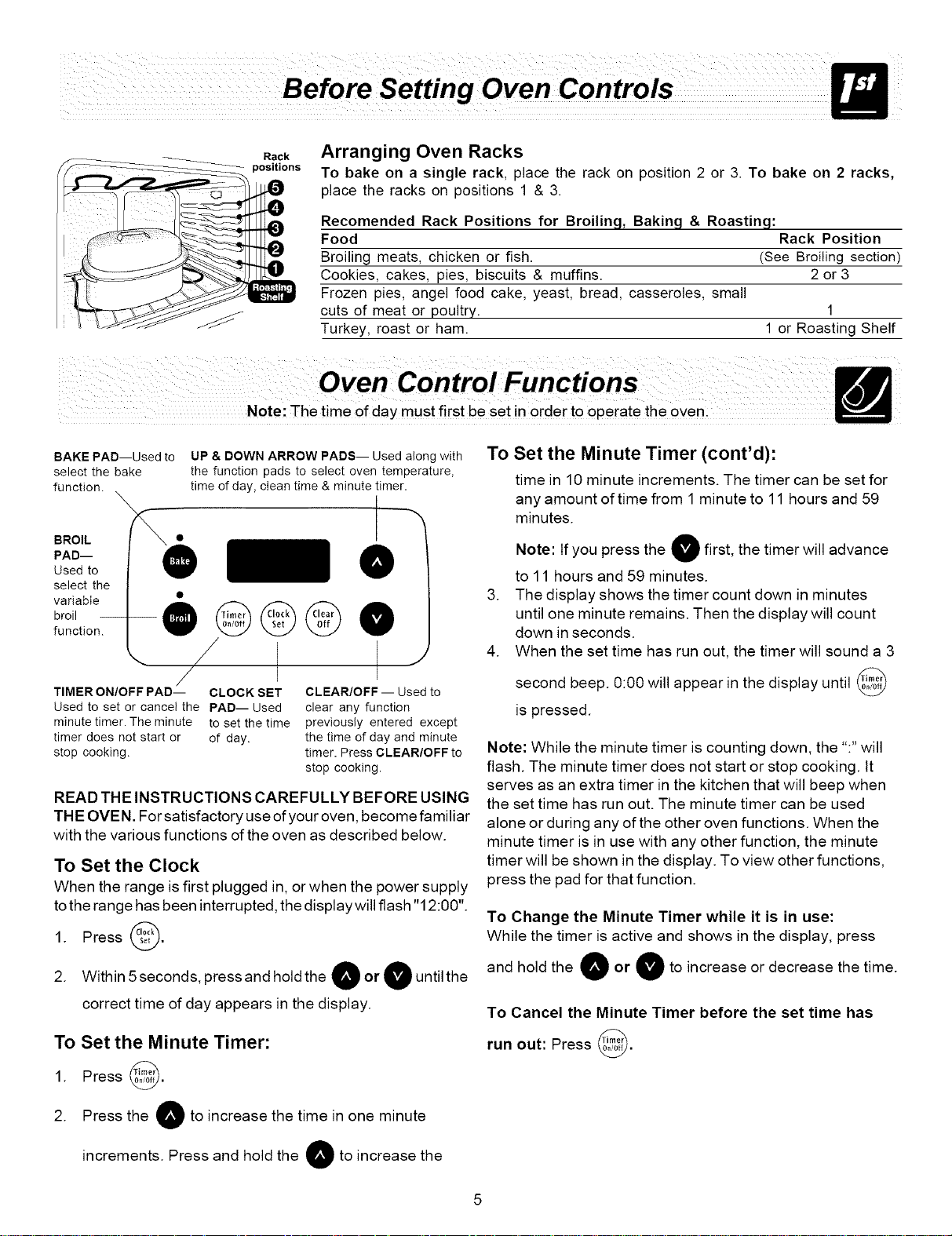

Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERA TING THE OVEN). Always use oven
mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on
the oven walls. Tilt the front of the rack upward and slide the rack back into place.
Arranging Oven Racks
To bake on a single rack, place the rack on position 2 or 3. To bake on 2 racks,
place the racks on positions 1 & 3.
Recomended Rack Positions for Broilinq, Baking & Roastinq:
Food
Broiling meats, chicken or fish.
Cookies, cakes, pies, biscuits & muffins.
Frozen pies, angel food cake, yeast, bread, casseroles, small
cuts of meat or poultry.
Turkey, roast or ham.
Rack Position
(See Broiling section)
2or3
1
1 or Roasting Shelf
Note: The time of day must first be set in order to operate the oven:
BAKE PAD--Used to
select the bake
function.
\
BROIL •
PAD--
Used to
select the
variable •
broil
function.
UP & DOWN ARROW PADS-- Used along with
the function pads to select oven temperature,
time of day, clean time & minute timer.
J
TIMER ON/OFF PAD-- CLOCK SET
Used to set or cancel the PAD-- Used
minute timer. The minute to set the time
timer does not start or of day.
stop cooking.
CLEAR/OFF -- Used to
clear any function
previously entered except
the time of day and minute
timer. Press CLEAR/OFF to
stop cooking.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING
THE OVEN. For satisfactory use of your oven, become familiar
with the various functions of the oven as described below.
To Set the Clock
When the range is first plugged in, or when the power supply
to the range has been interrupted, the displaywill flash "12:00".
1. Press @.
2. Within 5seconds, press and hold the O or O until the
correct time of day appears in the display.
To Set the Minute Timer:
1. Press _.
2. Press the 0 to increase the time in one minute
increments. Press and hold the 0 t to increase the
To Set the Minute Timer (cont'd):
time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.
Note: If you press the Ot first, the timer will advance
to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes
until one minute remains. Then the display will count
down in seconds.
4. When the set time has run out, the timer will sound a 3
second beep. 0:00 will appear in the display until
is pressed.
Note: While the minute timer is counting down, the ":" will
flash. The minute timer does not start or stop cooking. It
serves as an extra timer in the kitchen that will beep when
the set time has run out. The minute timer can be used
alone or during any of the other oven functions. When the
minute timer is in use with any other function, the minute
timer will be shown in the display. To view other functions,
press the pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press
and hold the a or a to increase or decrease the time.
To Cancel the Minute Timer before the set time has
run out: Press _.
sire
Fig. 1
Do not place
plastic items such as salt and
pepper shakers, spoon holders or
plastic wrappings on top of the
range when it is in use. These
items could melt or ignite.
Potholders, towels or wooden
spoons could catch fire if placed
too close to the element.

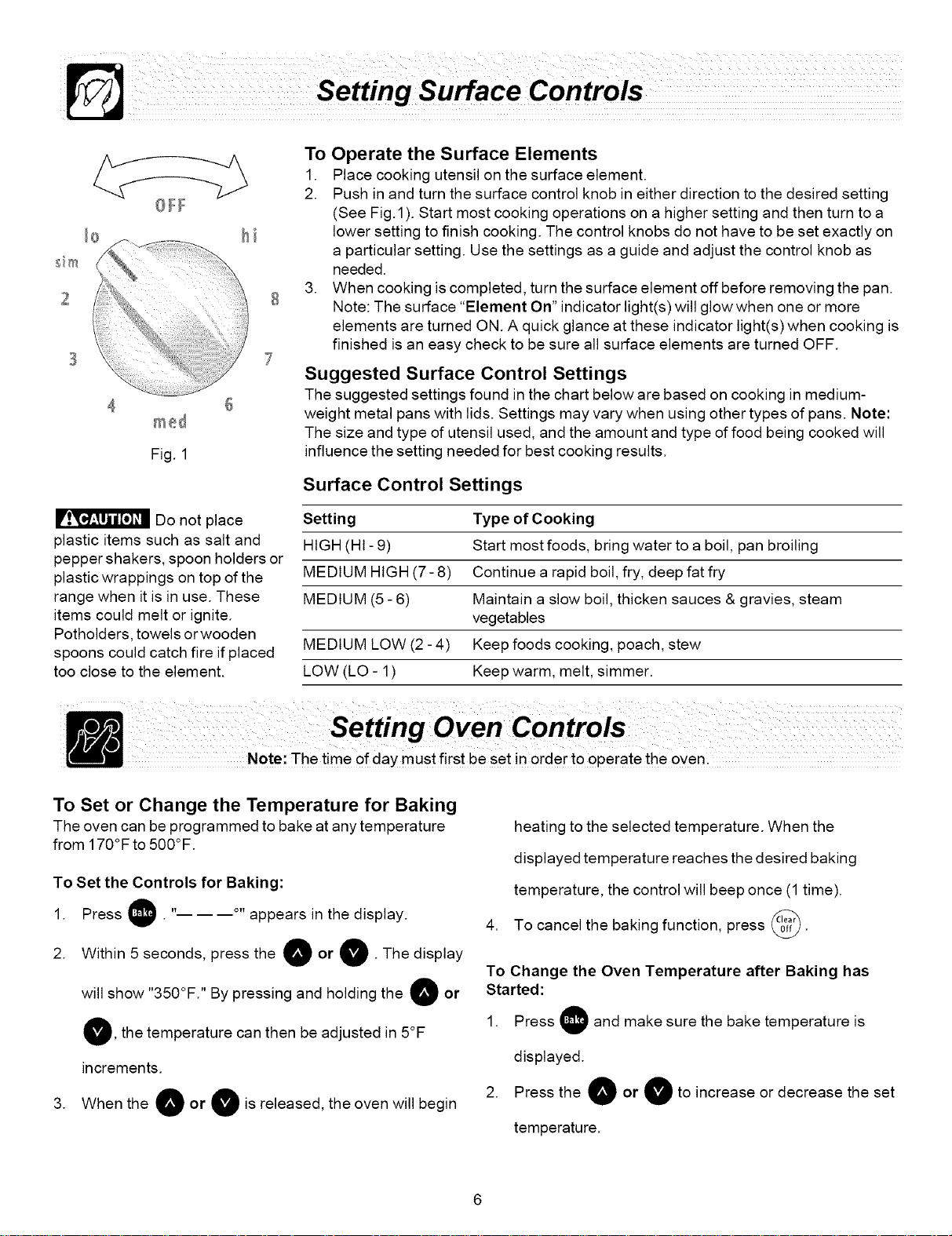

To Operate the Surface Elements
1. Place cooking utensil on the surface element.
2. Push in and turn the surface control knob in either direction to the desired setting
(See Fig.l). Start most cooking operations on a higher setting and then turn to a
lower setting to finish cooking. The control knobs do not have to be set exactly on
a particular setting. Use the settings as a guide and adjust the control knob as
needed.
3. When cooking is completed, turn the surface element off before removing the pan.
Note: The surface "Element On" indicator light(s) will glow when one or more
elements are turned ON. A quick glance at these indicator light(s) when cooking is
finished is an easy check to be sure all surface elements are turned OFF.
Suggested Surface Control Settings
The suggested settings found in the chart below are based on cooking in medium-
weight metal pans with lids. Settings may vary when using other types of pans. Note:
The size and type of utensil used, and the amount and type of food being cooked will
influence the setting needed for best cooking results.
Surface Control Settings
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7- 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5 - 6) Maintain a slow boil, thicken sauces & gravies, steam
vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer.
Setting Oven Controls
Note: The time of day must first be Set in 0rder t0 0perate the oven.
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature
from 170°F to 500°F.
To Set the Controls for Baking:
1. Press O " '.... appears in the display.
2. Within 5 seconds, press the O or O "The display
will show "350°F." By pressing and holding the O' or
O, the temperature can then be adjusted in 5°F
.
.
heating to the selected temperature. When the
displayed temperature reaches the desired baking
temperature, the control will beep once (1 time).
To cancel the baking function, press @.
To Change the Oven Temperature after Baking has
Started:
1. Press t0 and make sure the bake temperature is
increments, displayed.
When the O or O, is released, the oven will begin 2. Press the O or O
temperature.
to increase or decrease the set

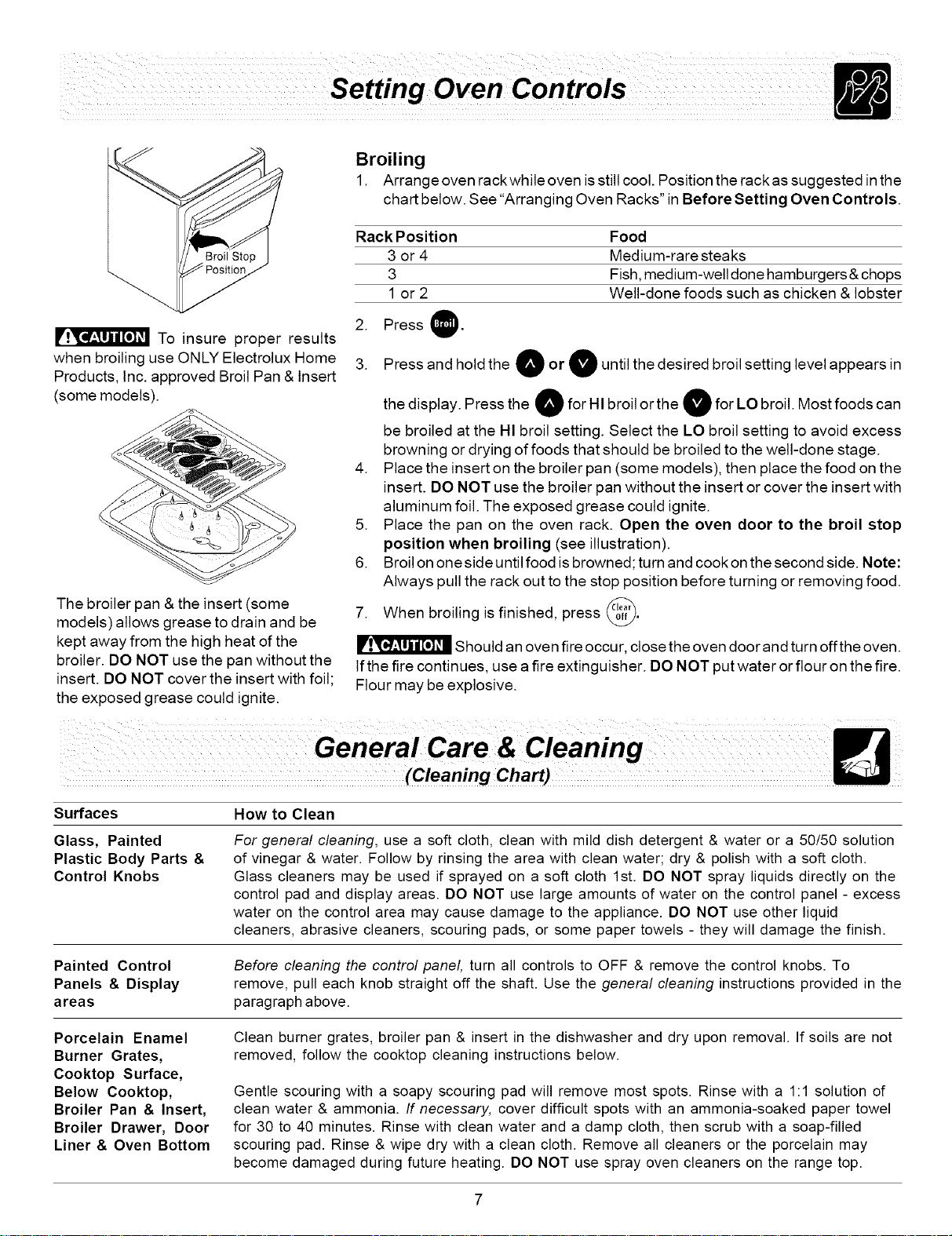

Broiling
1. Arrange oven rackwhile oven isstill cool. Position the rack as suggested in the
chart below. See "Arranging Oven Racks" in Before Setting Oven Controls.
Rack Position Food
3 or 4 Medium-raresteaks
3 Fish, medium-well done hamburgers & chops
1 or 2 Well-done foods such as chicken & lobster
To insure proper results
when broiling use ONLY Electrolux Home
Products, Inc. approved Broil Pan & Insert
(some models).
The broiler pan & the insert (some
models) allows grease to drain and be
kept away from the high heat of the
broiler. DO NOT use the pan without the
insert. DO NOT cover the insert with foil
the exposed grease could ignite.
2. Press
A A
3. Press and hold the _ or _ until the desired broil setting level appears in
the display. Press the O for HI broil or the O for LO broil. Most foods can
be broiled at the HI broil setting. Select the LO broil setting to avoid excess
browning or drying of foods that should be broiled to the well-done stage.
4. Place the insert on the broiler pan (some models), then place the food on the
insert. DO NOT use the broiler pan without the insert or cover the insert with
aluminum foil. The exposed grease could ignite.
5. Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling (see illustration).
6. Broil on oneside until food is browned; turn and cookon the second side. Note:
Always pull the rack out to the stop position before turning or removing food.
7. When broiling is finished, press @.
Should an oven fire occur, close the oven door and turn offthe oven.
If the fire continues, use a fire extinguisher. DO NOT put water or fiour on the fire.
Flour may be explosive.
Surfaces How to Clean
Glass, Painted
Plastic Body Parts &
Control Knobs
Painted Control
Panels & Display
areas
Porcelain Enamel
Burner Grates,
Cooktop Surface,
Below Cooktop,
Broiler Pan & Insert,
Broiler Drawer, Door
Liner & Oven Bottom
For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution
of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth.
Glass cleaners may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the
control pad and display areas. DO NOT use large amounts of water on the control panel - excess
water on the control area may cause damage to the appliance. DO NOT use other liquid
cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish.
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To
remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the
paragraph above.
Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel
for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled
scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on the range top.

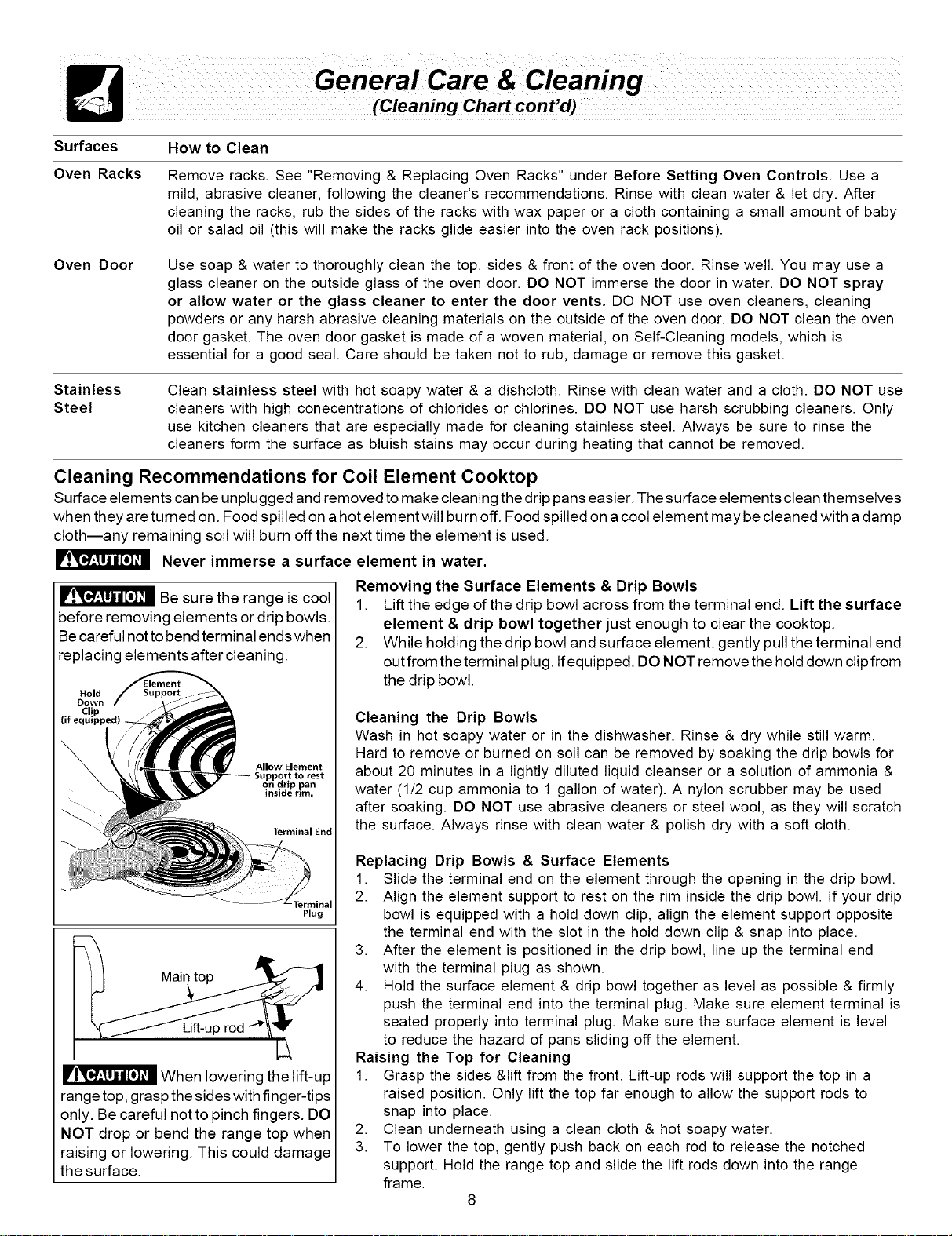

Surfaces How to Clean
Oven Racks Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls. Use a
mild, abrasive cleaner, following the cleaner's recommendations. Rinse with clean water & let dry. After
cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a small amount of baby
oil or salad oil (this will make the racks glide easier into the oven rack positions).
Oven Door Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You may use a
glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray
or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning
powders or any harsh abrasive cleaning materials on the outside of the oven door. DO NOT clean the oven
door gasket. The oven door gasket is made of a woven material, on Self-Cleaning models, which is
essential for a good seal. Care should be taken not to rub, damage or remove this gasket.
Stainless
Steel
Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth. DO NOT use
cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh scrubbing cleaners. Only
use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the
cleaners form the surface as bluish stains may occur during heating that cannot be removed.
Be sure the range is cool
before removing elements or drip bowls.
Be careful notto bend terminal ends when
replacing elements after cleaning.
Cleaning Recommendations for Coil Element Cooktop
Surface elements can be unplugged and removed to make cleaning the drip pans easier. The surface elements clean themselves
when they are turned on. Food spilled on a hot element will burn off. Food spilled on a cool element may be cleaned with a damp
cloth--any remaining soil will burn offthe next time the element is used.
Never immerse a surface element in water.
Removing the Surface Elements & Drip Bowls
1. Lift the edge of the drip bowl across from the terminal end. Lift the surface
element & drip bowl together just enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently pull the terminal end
outfrom the terminal plug. Ifequipped, DO NOT remove the hold down clip from
the drip bowl.
Allow Element
Support to rest
on drip pan
inside rim.
Terminal End
Main top
Hold
Down
Clip
(if equipped)
ninal
Plug
When lowering the lift-up
range top, grasp the sides with finger-ti ps
only. Be careful not to pinch fngers. DO
NOT drop or bend the range top when
raising or lowering. This could damage
the surface.
Cleaning the Drip Bowls
Wash in hot soapy water or in the dishwasher. Rinse & dry while still warm.
Hard to remove or burned on soil can be removed by soaking the drip bowls for
about 20 minutes in a lightly diluted liquid cleanser or a solution of ammonia &
water (1/2 cup ammonia to 1 gallon of water). A nylon scrubber may be used
after soaking. DO NOT use abrasive cleaners or steel wool, as they will scratch
the surface. Always rinse with clean water & polish dry with a soft cloth.
Replacing Drip Bowls & Surface Elements
1. Slide the terminal end on the element through the opening in the drip bowl.
2. Align the element support to rest on the rim inside the drip bowl. If your drip
bowl is equipped with a hold down clip, align the element support opposite
the terminal end with the slot in the hold down clip & snap into place.
3. After the element is positioned in the drip bowl, line up the terminal end
with the terminal plug as shown.
4. Hold the surface element & drip bowl together as level as possible & firmly
push the terminal end into the terminal plug. Make sure element terminal is
seated properly into terminal plug. Make sure the surface element is level
to reduce the hazard of pans sliding off the element.
Raising the Top for Cleaning
1. Grasp the sides &lift from the front. Lift-up rods will support the top in a
raised position. Only lift the top far enough to allow the support rods to
snap into place.
2. Clean underneath using a clean cloth & hot soapy water.
3. To lower the top, gently push back on each rod to release the notched
support. Hold the range top and slide the lift rods down into the range
frame.
8

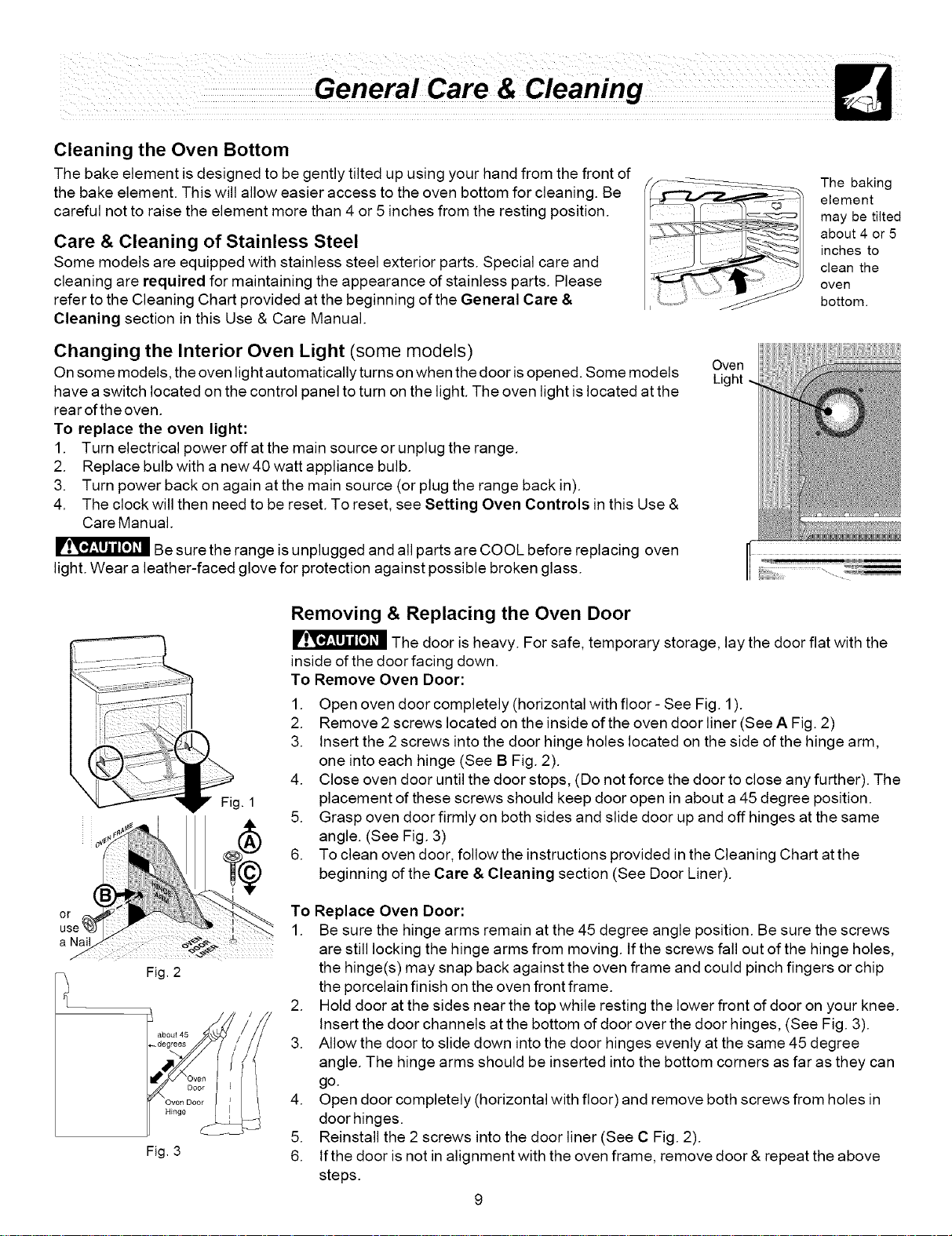

Cleaning the Oven Bottom
The bake element is designed to be gently tilted up using your hand from the front of
the bake element. This will allow easier access to the oven bottom for cleaning. Be
careful not to raise the element more than 4 or 5 inches from the resting position.
Care & Cleaning of Stainless Steel
Some models are equipped with stainless steel exterior parts. Special care and
cleaning are required for maintaining the appearance of stainless parts. Please
refer to the Cleaning Chart provided at the beginning of the General Care &
Cleaning section in this Use & Care Manual.
Changing the Interior Oven Light (some models)
On some models, the oven light automatically turns on when the door isopened. Some models
have a switch located on the control panel to turn on the light. The oven light is located at the
rearoftheoven.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Replace bulb with a new 40 watt appliance bulb.
3. Turn power back on again at the main source (or plug the range back in).
4. The clock will then need to be reset. To reset, see Setting Oven Controls in this Use &
Care Manual.
Be sure the range is unplugged and all parts are COOL before replacing oven
light. Wear a leather-faced glove for protection against possible broken glass.
Overl
The baking
element
may be tilted
about 4 or 5
inches to
clean the
oven
bottom.
or
use
a Nail
Fig. 2
Hinge
Fig. 3
• Fig. 1
Removing & Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with the
inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2)
3. Insert the 2 screws into the door hinge holes located on the side of the hinge arm,
one into each hinge (See B Fig. 2).
4. Close oven door until the door stops, (Do not force the door to close any further). The
placement of these screws should keep door open in about a 45 degree position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the same
angle. (See Fig. 3)
6. To clean oven door, follow the instructions provided in the Cleaning Chart at the
beginning of the Care & Cleaning section (See Door Liner).
To Replace Oven Door:
1. Be sure the hinge arms remain at the 45 degree angle position. Be sure the screws
are still locking the hinge arms from moving. If the screws fall out of the hinge holes,
the hinge(s) may snap back against the oven frame and could pinch fingers or chip
the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on your knee.
Insert the door channels at the bottom of door over the door hinges, (See Fig. 3).
3. Allow the door to slide down into the door hinges evenly at the same 45 degree
angle. The hinge arms should be inserted into the bottom corners as far as they can
go.
4. Open door completely (horizontal with floor) and remove both screws from holes in
door hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. If the door is not in alignment with the oven frame, remove door & repeat the above
steps.
Solutions to Common Problems
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences
(shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these
problems are provided with the problem listed:
Range is not level - (1) Poor installation. Place oven rack in
center of oven. Place a level on the oven rack. Adjust leveling
legs at base of range until the oven rack is level. (2) Be sure
floor is level, strong & stable enough to adequately support
range. (3) If floor is sagging or sloping, contact a carpenter to
correct the situation. (4) Kitchen cabinet alignment may make
range appear not level. Be sure cabinets are square & have
sufficient room for range clearance.
Cannot move appliance easily. Appliance must be accessible
for service - (1) Cabinets not square or are built in too tightly.
Contact builder or installer to make appliance accessible. (2)
Carpet interferes with range. Provide sufficient space so range
can be lifted over carpet.
Surface element too hot or not hot enough - incorrect control
setting. Be sure the correct control is ON for the element to be
used.
Surface element does not heat - (1) Lightweight or warped
pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped
pans. Cookware materials and weight of the material affect
heating. Heavy & medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily. (2) No
power to the appliance. Check steps under "Entire Appliance
Does Not Operate" in this checklist. (3) Incorrect control
setting. Make sure the correct control is ON for the surface
element to be used.
Entire appliance does not operate - (1) The time of day is not
set. The time of day must first be set in order to operate the
oven. See "To Set the Clock" in the Setting Oven Controls
section.(2) Make sure cord/plug is plugged correctly into outlet.
(3) Service wiring is not complete. Contact your dealer,
installing agent or authorized service agent. (4) Electrical
power outage. Check house lights to be sure. Call your local
electric company for service.
Oven does not operate - Be sure the oven controls are set
properly for the desired function. See Setting Oven Controls in
this Use & Care Manual or read the instructions "Entire
appliance does not operate" in this checklist.
Oven light does not work (some models) - Replace or tighten
bulb. See Changing Oven Light section in this Use & Care Manual.
Oven smokes excessively during broiling - (1) Control(s) not
set properly. Follow Broil instructions under Setting Oven
Controls. (2) Make sure oven door is opened to broil stop
position. (3) Meat too close to the broil element. Reposition the
broil rack to provide proper clearance between the meat & the
element. Preheat the broil element for searing. (4) Meat not
properly prepared. Remove excess fat from meat. Cut
remaining fatty edges to prevent curling, but do not cut into lean.
(5) Insert on broiler pan wrong side up & grease not draining.
Always place grid on the broiler pan with ribs up & slots down to
allow grease to drip into pan (some models). (6) Grease has
built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive
smoking.
Poor baking results - Many factors affect baking results. Make
sure the proper oven rack position is used. Center food in the
oven & space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven.
Try adjusting the recipe's recommended temperature or baking
time.
Drip bowls are pitting or rusting (Coil element models) - (1)
Foods with acids, such as tomatoes if allowed to stand in or on
drip bowls will cause corrosion. Remove & wash drip bowls as
soon as possible after a spillover. (2) Normal environment.
Houses along coastal areas are exposed to salt air. Protect
bowls as much as possible from direct exposure to salt air.
Drip bowls turning color or distorted (Coil element models) -
Bottom surface of cookware extends beyond surface elements
and touches cooktop surface. This can cause high enough
temperatures to discolor the drip bowls. DO NOT use cookware
of this type. Pan sizes should be matched to the size of the
element. Replacement drip bowls may be purchased from your
appliance dealer.
Oven control beeps and displays any "F" code error (for
example F3) - Electronic control has detected a fault condition.
Press CLEAR/OFF to clear the display & stop beeping.
Reprogram oven. If fault recurs, record fault number. Press
CLEAR/OFF & contact your authorized service agent.
Flames inside oven or smoking from oven vent - Excessive
spillovers in oven. For example this will happen for pie
spillovers or large amounts of grease left on the oven bottom.
Wipe up excessive spillovers before starting oven. If flames or
excessive smoke are present see "Broiling" in the Setting
Oven Controls section.
10
11
LIMITED WARRANTY
Your range is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED THE CONSUMERWILL BE
PERIOD SERVICERS WE WILL: RESPONSIBLE FOR:
FULLONE-YEAR One year from original Pay all costs for repairing or repIacing any parts of this Costs of service calts that are Iisted under NORMAL
WARRANTY purchase date. appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER.*
workmanship.
LIMITED 2ND - 5TH Secondthrough fifth years Provide a replacement for any defective surface heating Diagnosticcosts andany transportation and labor costs
YEARWARRANTY fromoriginalpurchasedate element,deterioratedrubberized-siticoneseal(upsweptmodels which are required because of service
(Glass Smeothtep, on_y),orglass smoothtopthatcracksdue tothermal breakage
Seal &Elements) (not customer abuse)
LIMITEDWARRANTY Time periodslisted above AII of the provisions of the full and limited warranties above Costsofthetechnician'stravettothehomeandanycosts
(Applicable to the and the exclusionstisted below appty, forpick upanddeliveryoftheappliancerequired because
State of Alaska) of service
In the U.S.A., your appliance iswarranted by Electrolux Home Products, Inc. InCanada, your appliance iswarranted by EIectrolux Canada Corp. We authorize
no person to change or to add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed
by us or an authorized servicer.
*NORMAL
RESPONSIBILITIES
OFTHECONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the app{iance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supp{y of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features),
EXCLUSIONS This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROMANY BREACH OFTHISWRITTEN ORANYIMPLIEDWARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this fimitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls,
3. Damages caused by services performed by servicers other than Electrotux Home Products, Inc., Electrolux Canada
Corp., or their authorized servicers; use of parts other than genuine Electrolux parts; obtained from persons other
than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined,
IFYOU NEED
SERVICE
Keep your bilI of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or iItustrated are
subject to change without notice. All warranties are made by Electrolux Home Products, Inc. or Electrolux Canada Corp. 2004 02
USA
800°944°9044
Electrolux Home Products, Inc.
P.O. Box 212378
Augusta, GA 30917
Canada
866o294o9911 (English or French)
Electrolux Canada Corp.
6150 McLaughlin Road
Mississauga, Ontario, Canada
L5R4C2
