Rover 60A
Version 1.4
Maximum Power Point Tracking Solar Charge Controller
ROVER SERIES
01
General Safety Information
Charge Controller Safety
Important Safety Instructions
Please save these instructions.
This manual contains important safety, installation, and operating instructions for the charge
controller. The following symbols are used throughout the manual to indicate potentially
dangerous conditions or important safety information.
There are no serviceable parts for this controller. Do NOT disassemble or attempt to repair
the controller.
Make sure all connections going into and from the controller are tight.
NEVER connect the solar panel array to the controller without a battery. Battery must be
connected first.
Ensure input voltage does not exceed 150 VDC to prevent permanent damage. Use the
Open Circuit Voltage (Voc) to make sure the voltage does not exceed this value when
connecting panels together.
Read all of the instructions and cautions in the manual before beginning the installation.
Do
NOT
allow water to enter the controller.
NOTE
CAUTION
WARNING
Indicates a potentially dangerous condition. Use extreme caution
when performing this task
Indicates a critical procedure for safe and proper operation of the
controller
Indicates a procedure or function that is important to the safe and
proper operation of the controller
02
Battery Safety
Use only sealed lead-acid, flooded, gel or lithium batteries which
must be deep cycle.
Explosive battery gases may be present while charging. Be certain there is enough
ventilation to release the gases.
Be careful when working with large lead acid batteries. Wear eye protection and have
fresh water available in case there is contact with the battery acid.
Over-charging and excessive gas precipitation may damage the battery plates and
activate material shedding on them. Too high of an equalizing charge or too long of one
may cause damage. Please carefully review the specific requirements of the battery
used in the system.
Equalization is carried out only for non-sealed / vented/ flooded / wet cell lead acid
batteries.
Do
NOT
equalize VRLA type AGM / Gel / Lithium cell batteries UNLESS permitted by
battery manufacturer.
Carefully read battery manuals before operation.
Do
NOT
let the positive (+) and negative (-) terminals of the battery touch each other.
Connect battery terminals to the charge controller BEFORE connecting
the solar panel(s) to the charge controller. NEVER connect solar panels to
charge controller until the battery is connected.
Do NOT connect any inverters or battery charger into the load terminal of
the charge controller.
Once equalization is active in the battery charging, it will not exit this stage
unless there is adequate charging current from the solar panel. There
should be NO load on the batteries when in equalization charging stage.
WARNING
Recycle battery when it is replaced.
Table of Contents
03
General Information

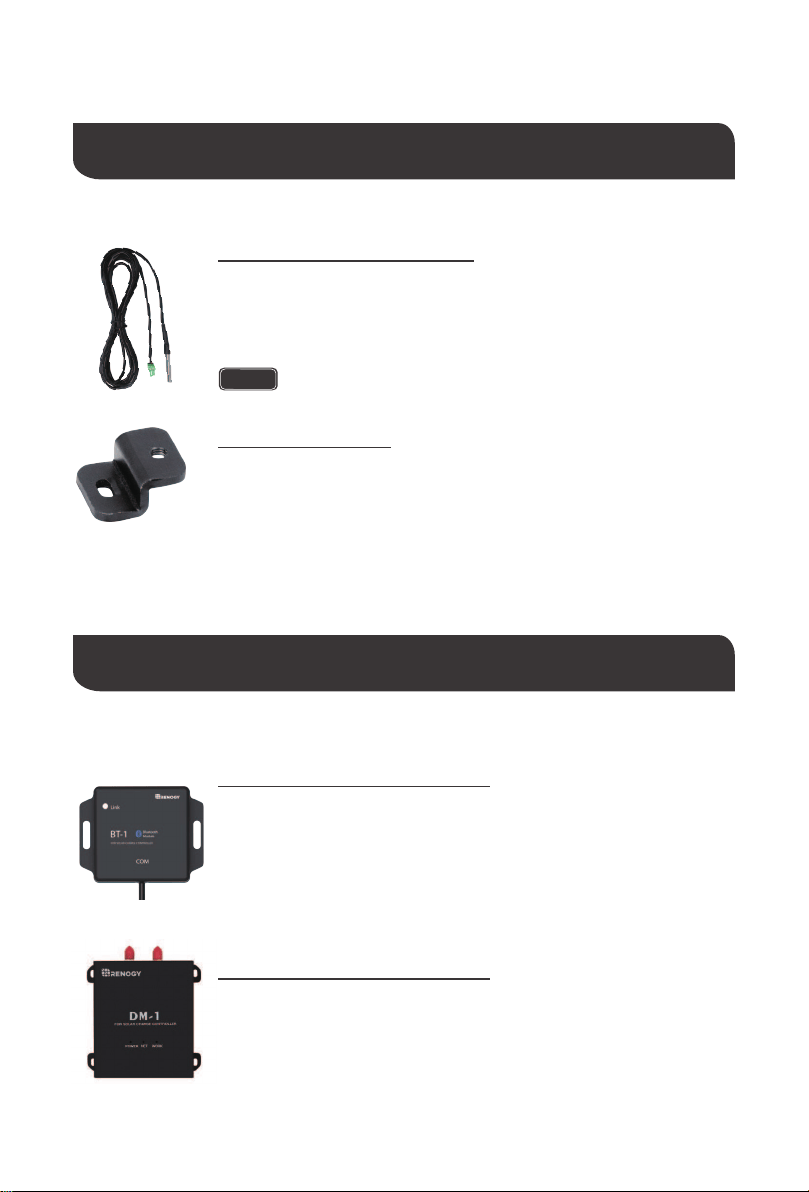

Additional Components
Optional Components

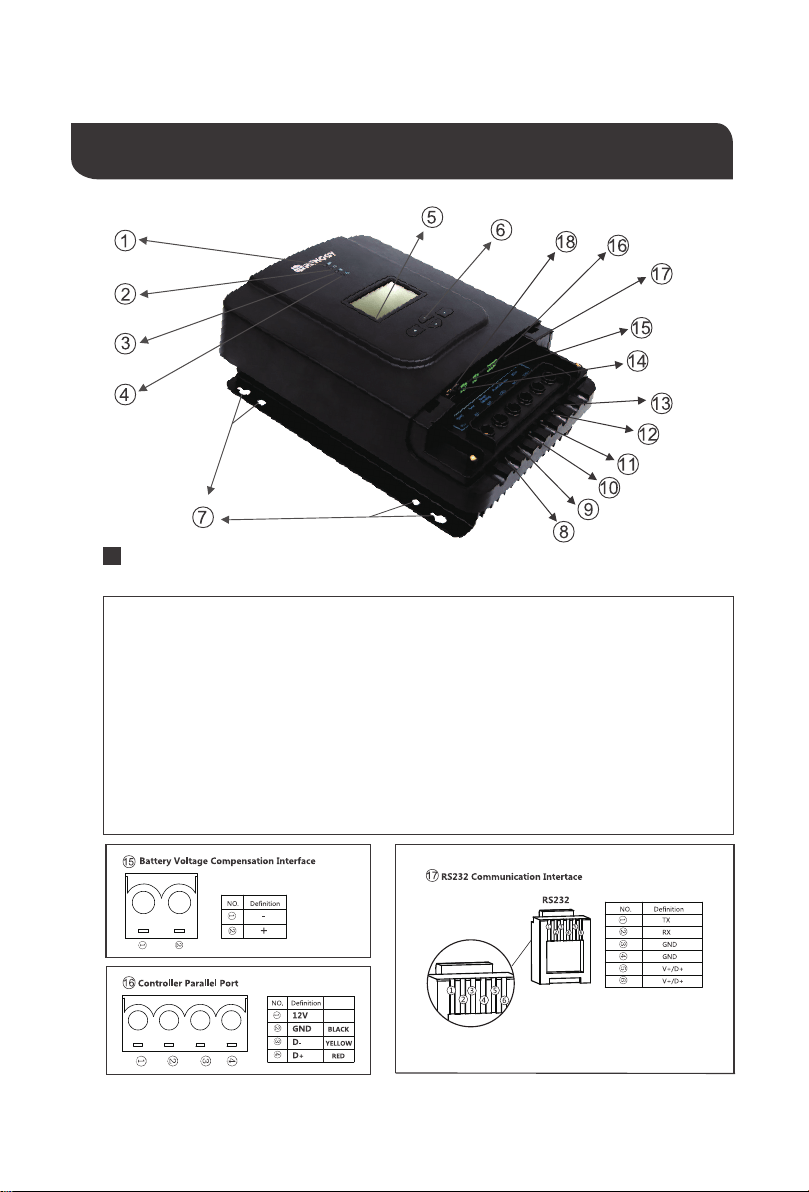

Identification of Parts
Operation
LED Indicators
Rover Protections
System Status Troubleshooting
Maintenance
Fusing
Technical Specifications
Electrical Parameters
Battery Charging Parameters

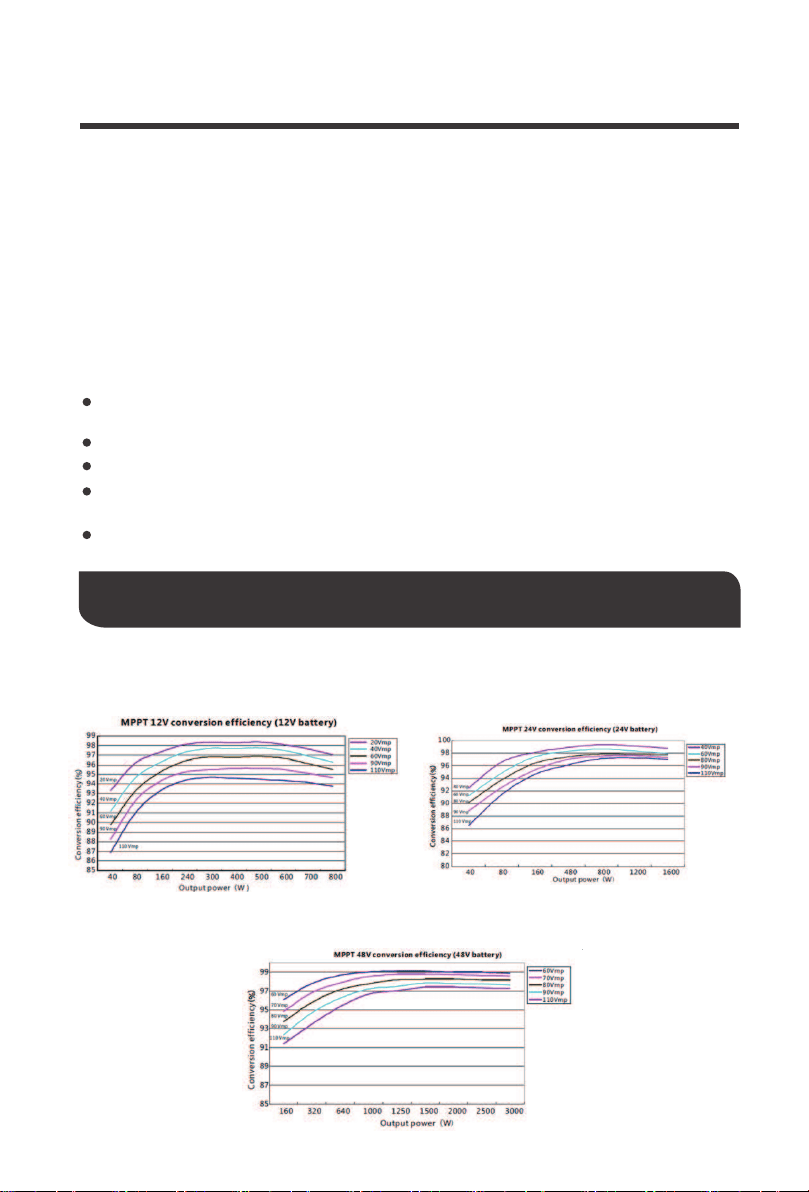

PV Power – Conversion Efficiency Curves

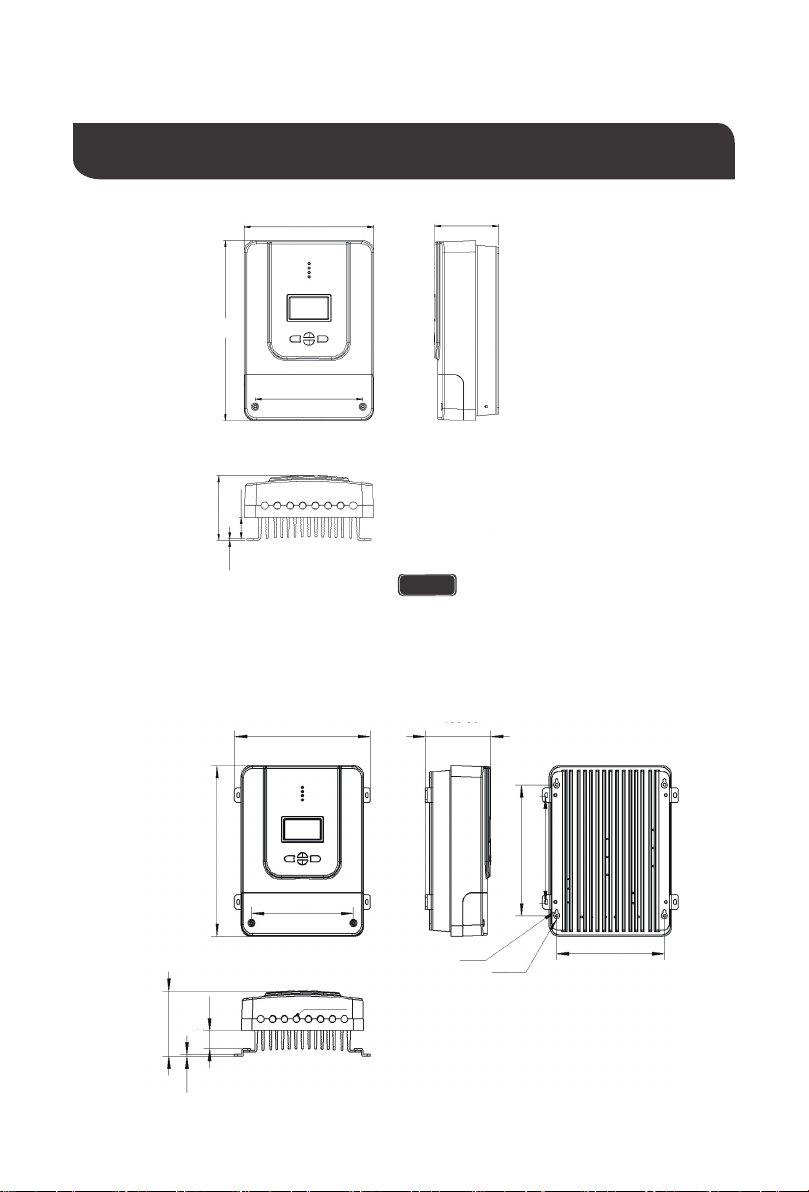

Dimensions
04
08
08
09
19
10
27
29
30
30
31
31
31
32
32
33
34
Installation
General
04
General Information
The MPPT Charge Controller utilizes Maximum Power Point Tracking technology to extract
maximum power from the solar module(s). The tracking algorithm is fully automatic and does
not require user adjustment. MPPT technology will track the array’s maximum power point
voltage (Vmp) as it varies with weather conditions, ensuring that the maximum power is
harvested from the array throughout the course of the day.
The Rover Series charge controllers are intelligent controllers suitable for various off-grid solar
applications. It protects the battery from being over-charged by the solar modules and
over-discharged by the loads. The controller features a smart tracking algorithm that maximizes the
energy from the solar PV module(s) and charge the battery. At the same time, the low voltage
dis
connect function (LVD) will prevent the battery from over discharging.
The Rover's charging process has been optimized for long battery life and improved system
performance. The comprehensive self-diagnostics and electronic protection functions can prevent
damage from installation mistakes or system faults.
In many cases, the MPPT charge controller will “boost” up the current in the solar system. The
current does not come out of thin air. Instead, the power generated in the solar panels is the
same power that is transmitted into the battery bank. Power is the product of Voltage (V) x
Amperage (A).
Automatically detect 12V/24V/36V/48V DC system voltages
Innovative MPPT technology with high tracking efficiency up to 99% and peak
conversion efficiency of 98%
MPPT Technology
Current Boost
Key Features
Customizable charging voltages
Deep cycle Sealed, Gel, Flooded and Lithium battery option ready
Electronic protection: Overcharging, over-discharging, overload, and short circuit
Reverse protection: Any combination of solar module and battery, without causing
damage to any component
RS232 port to communicate with BT-1 Bluetooth Module or DM-1 4G Data Module
Charges over discharged lithium batteries
ETL Listed to UL1741 and CSA C22.2
05
Therefore, assuming 100% efficiency:
Power In = Power Out
Volts In * Amps In = Volts out * Amps out
Although MPPT controllers are not 100% efficient, they are very close at about 92-95% efficient.
Therefore, when the user has a solar system whose Vmp is greater than the battery bank
voltage, then that potential difference is proportional to the current boost. The voltage generated
at the solar module needs to be stepped down to a rate that could charge the battery in a stable
fashion by which the amperage is boosted accordingly to the drop. It is entirely possible to have
a solar module generate 8 amps going into the charge controller and likewise have the charge
controller send 10 amps to the battery bank. This is the essence of the MPPT charge controllers
and their advantage over traditional charge controllers. In traditional charge controllers, that
stepped down voltage amount is wasted because the controller algorithm can only dissipate it
as heat. The following demonstrates a graphical point regarding the output of MPPT technology.
Temperature is a huge enemy of solar modules. As the environmental temperature
increases, the operating voltage (Vmp
) is reduced and limits the power generation of the solar
module. Despite the effectiveness of MPPT technology, the charging algorithm will
possibly
not have much to work with and therefore there is an inevitable decrease in
performance.
In this scenario, it would be preferred to have modules with higher nominal
voltage, so that
despite the drop in performance of the panel, the battery is still receiving
a current boost
because of the proportional drop in module voltage.
Limiting Effectiveness
Maximum
Power Point
Traditional
Controller
Operating
Range
Maximum
Power Point
Current vs. Voltage (12V System) Output Power(12V System)
Typical
Battery
Voltage Range
CURRENT
VOLTAGE
10 15 17
CURRENT
VOLTAGE
10 15 17
06
The Rover
MPPT charge controller has a 4-stage battery charging algorithm for a rapid, efficient,
and safe battery charging. They include: Bulk Charge, Boost Charge, Float Charge, and
Equalization.
Bulk Charge: This algorithm is used for day to day charging. It uses 100% of available solar
power to recharge the battery and is equivalent to constant current. In this stage the battery
voltage has not yet reached constant voltage (Equalize or Boost), the controller operates in
constant current mode, delivering its maximum current to the batteries (MPPT Charging) .
Float Charge: After the constant voltage stage, the controller will reduce the battery voltage
to a float voltage set point. Once the battery is fully charged, there will be no more chemical
reactions and all the charge current would turn into heat or gas. Because of this,
Constant Charging: When the battery reaches the constant voltage set point, the controller
will start to operate in constant charging mode, where it is no longer MPPT charging. The current
will drop gradually. This has two stages, equalize and boost and they are not carried out
constantly in a full charge process to avoid too much gas precipitation or overheating of the
battery.
Boost Charge:
Boost stage maintains a charge for 2 hours by default. The user
can adjust the constant time and preset value of boost per their demand.
Four Charging Stages
Battery
Voltage
Equalize
Boost
Float
Recharge
Bulk Charge
A B C
Constant charging
Cumulative Time:3h
Float Charge
Boost
Time
Battery
Current
Time
Bulk
Max Current
Duration Time:2h
(Range:10-180min)
07
The charge controller will reduce the voltage charge to smaller quantity, while lightly charging
the battery. The purpose for this is to offset the power consumption while maintaining a full
battery storage capacity. In the event that a load drawn from the battery exceeds the charge
current, the controller will no longer be able to maintain the battery to a Float set point and the
controller will end the float charge stage and refer back to bulk charging.
Equalization: Is carried out every 28 days of the month. It is intentional overcharging of
the battery for a controlled period of time. Certain types of batteries benefit from periodic
equalizing charge, which can stir the electrolyte, balance battery voltage and complete
chemical reaction. Equalizing charge increases the battery voltage, higher than the standard
complement voltage, which gasifies the battery electrolyte.
Once equalization is active in the battery charging, it will not exit this stage unless
there is adequate charging current from the solar panel. There should be NO load
on the batteries when in equalization charging stage.
Over-charging and excessive gas precipitation may damage the battery plates
and activate material shedding on them. Too high of equalizing charge or for too
long may cause damage. Please carefully review the specific requirements of the
battery used in the system.
Equalization may increase battery voltage to a level damaging to sensitive DC
loads. Ensure that all load allowable input voltages are greater than the equalizing
charging set point voltage.
WARNING
WARNING
WARNING
The Rover MPPT charge controller has a reactivation feature to awaken a sleeping lithium
battery. The protection circuit of lithium battery will typically turn the battery off and make it
unusable if over-discharged. This can happen when storing a lithium battery pack in a
discharged state for any length of time as self-discharge would gradually deplete the remaining
charge. Without the wake-up feature to reactivate and recharge batteries, these batteries would
become unserviceable and the packs would be discarded. The Rover will apply a small charge
current to activate the protection circuit and if a correct cell voltage can be reached, it starts a
normal charge.
Lithium Battery Activation
08
Additional Components
Optional Components
Additional components included in the package:
Optional components that require a separate purchase:
This sensor measures the temperature at the battery and uses this data for
very accurate temperature compensation.The sensor is supplied with a
9.8ft cable length that connects to the charge controller.Simply connect the
cable and adhere the sensor on top or the side of the battery to record
ambient temperature around the battery.
The BT-1 Bluetooth module is a great addition to any Renogy charge
controllers with a RS232 port and is used to pair charge controllers with the
Renogy BT App. After pairing is done you can monitor your system and
change parameters directly from you cell phone or tablet. No more
wondering how your system is performing, now you can see performance
in real time without the need of checking on the controller’s LCD.

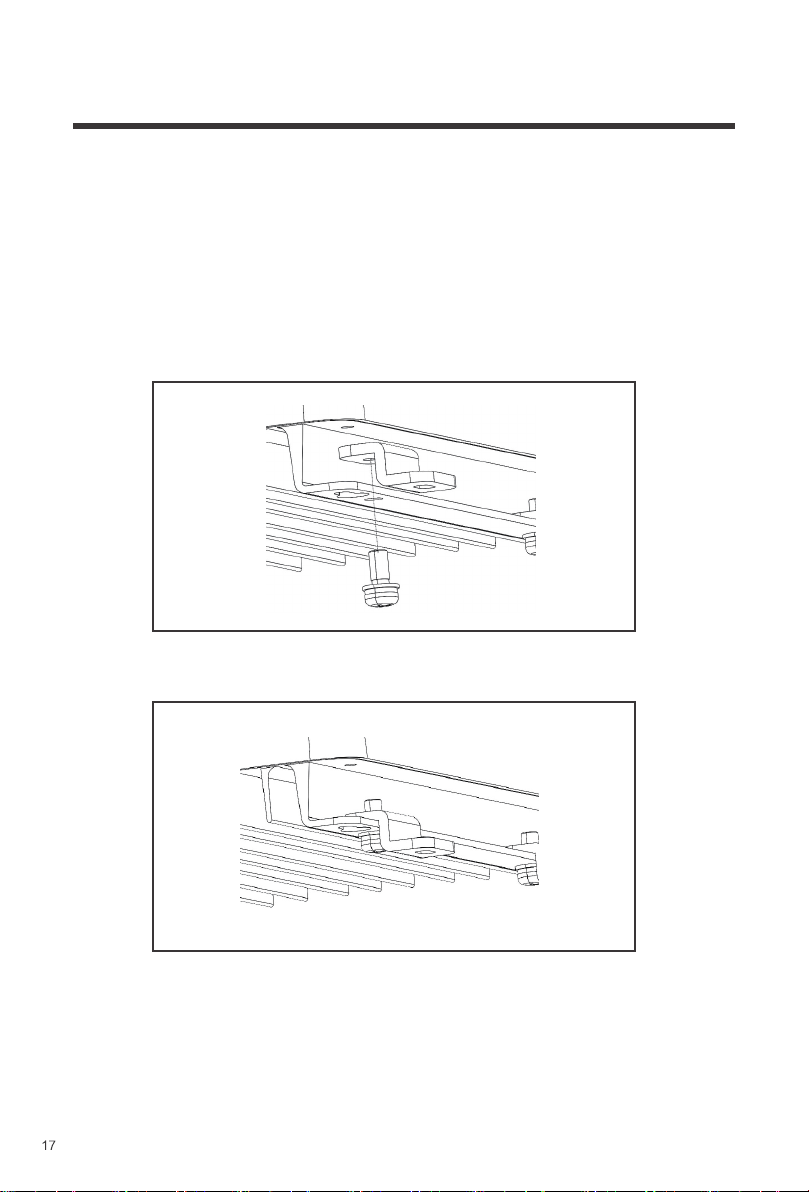

These brackets can be used to mount the Rover charge controller on any
flat surface. The screws to mount the brackets to the charge controller are
included, screws to mount charge controller to surface are not included.
NOTE
Do Not use this sensor when charging lithium battery.
Renogy BT-1 Bluetooth Module:
Remote Temperature Sensor:
Mounting Brackets:
The DM-1 4G Module is capable of connecting to select Renogy charge
controllers through an RS232, and is used to pair charge controllers with
Renogy 4G monitoring app. This app allows you to conveniently monitor
your system and charge system parameters remotely from anywhere 4G
LTE network service is available.
Renogy DM-1 4G Data Module:
Mounting Oval: 7.66 x 4.70mm(0.30 x 0.18in)
Key Parts
09
Identification of Parts
1. Charging Indicator
2. Battery Indicator
3. Load Indicator
4. Abnormality Indicator
5. LCD Screen
6. Operating Keys
7. Installation Hole
8. Solar panel “+” Interface
9. Solar panel “-” Interface
10. Battery “-” Interface
11. Load “-” Interface
12. Battery “+” Interface
13. Load “+” Interface
14. External Temperature Sampling Interface
15. Battery Voltage Compensation Interface
16. Controller Parallel Port
17. RS232 Communication Interface
18. RS485 Communication Interface
Installation
Connect battery terminal wires to the charge controller FIRST then connect
the solar panel(s) to the charge controller. NEVER connect solar panel to
charge controller before the battery.
Do
NOT
connect any inverters or battery chargers into the LOAD
TERMINAL of the charge controller.
Screwdriver
INVERTER
BATTERY
CHARGER
HIGH AMP
DRAWING DEVICE
Do not over tighten the screw terminals. This could potentially break the piece that
holds the wire to the charge controller.
Refer to the technical specifications for max wire sizes on the controller and for the
maximum amperage going through wires.
Multi-Meter
CAUTION
CAUTION
WARNING
WARNING
10

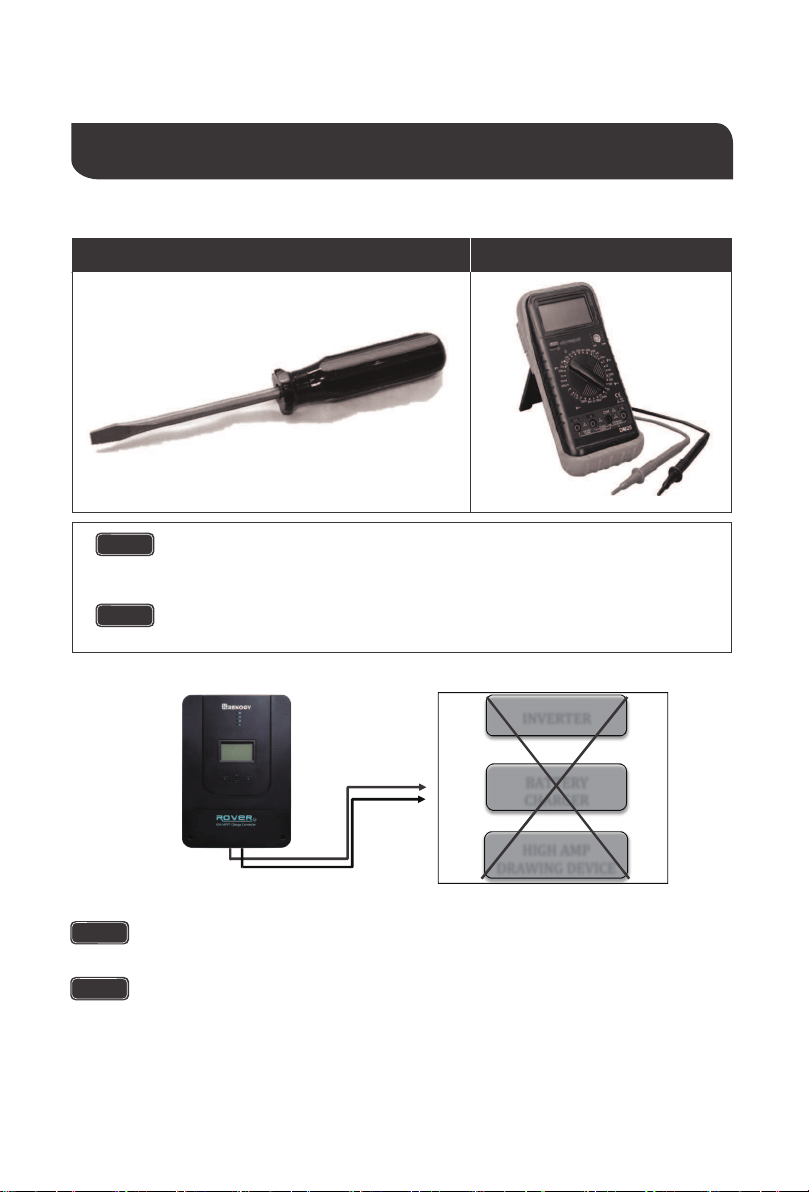

Recommended tools to have before installation:

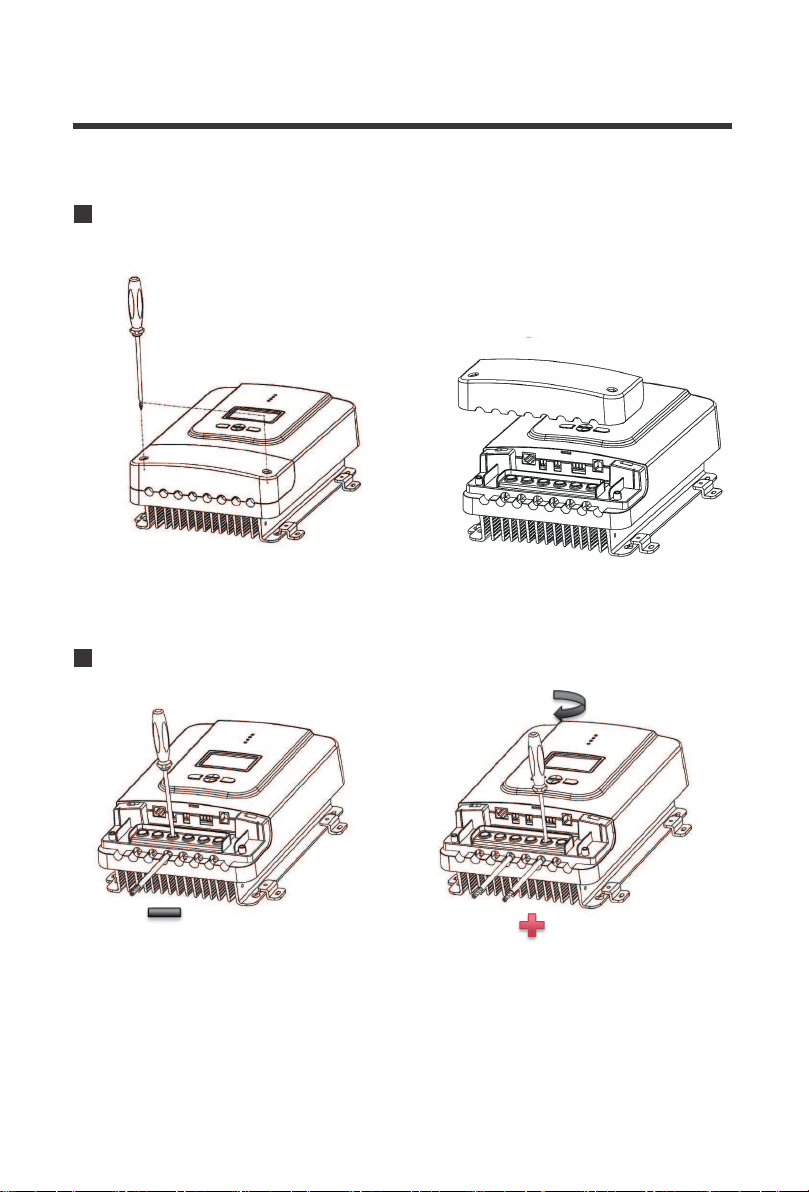

Remove Cover
Battery
11

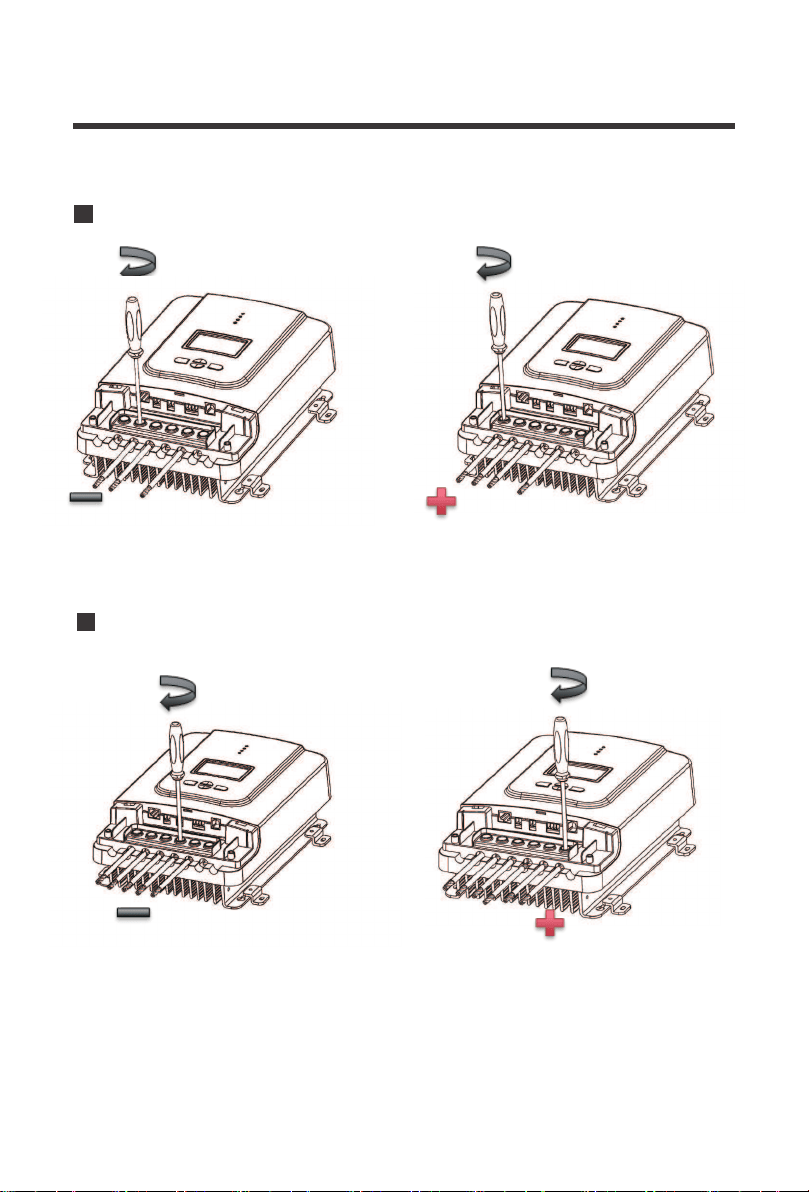

Solar Panels
Load (optional)
12
13

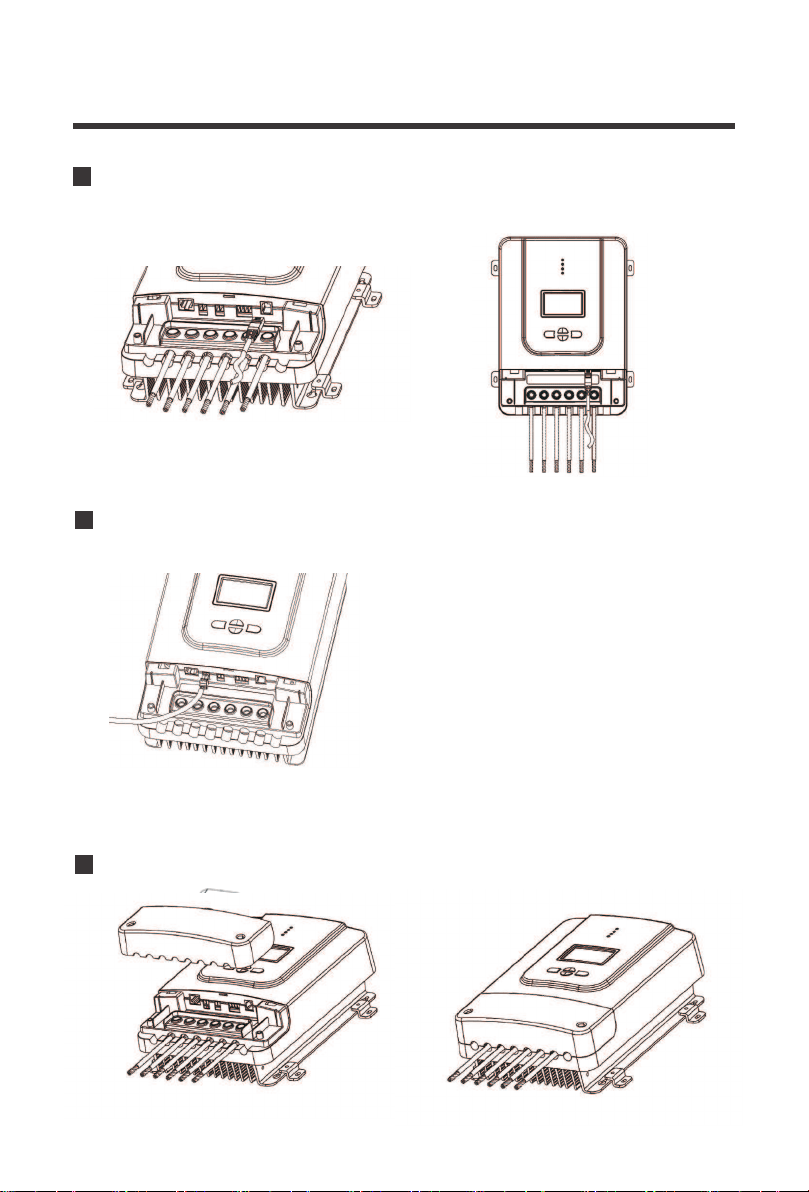

Temperature Sensor (optional, not polarity sensitive)
Install Cover
Bluetooth Module Communication (optional)
Place the sensor close to the battery

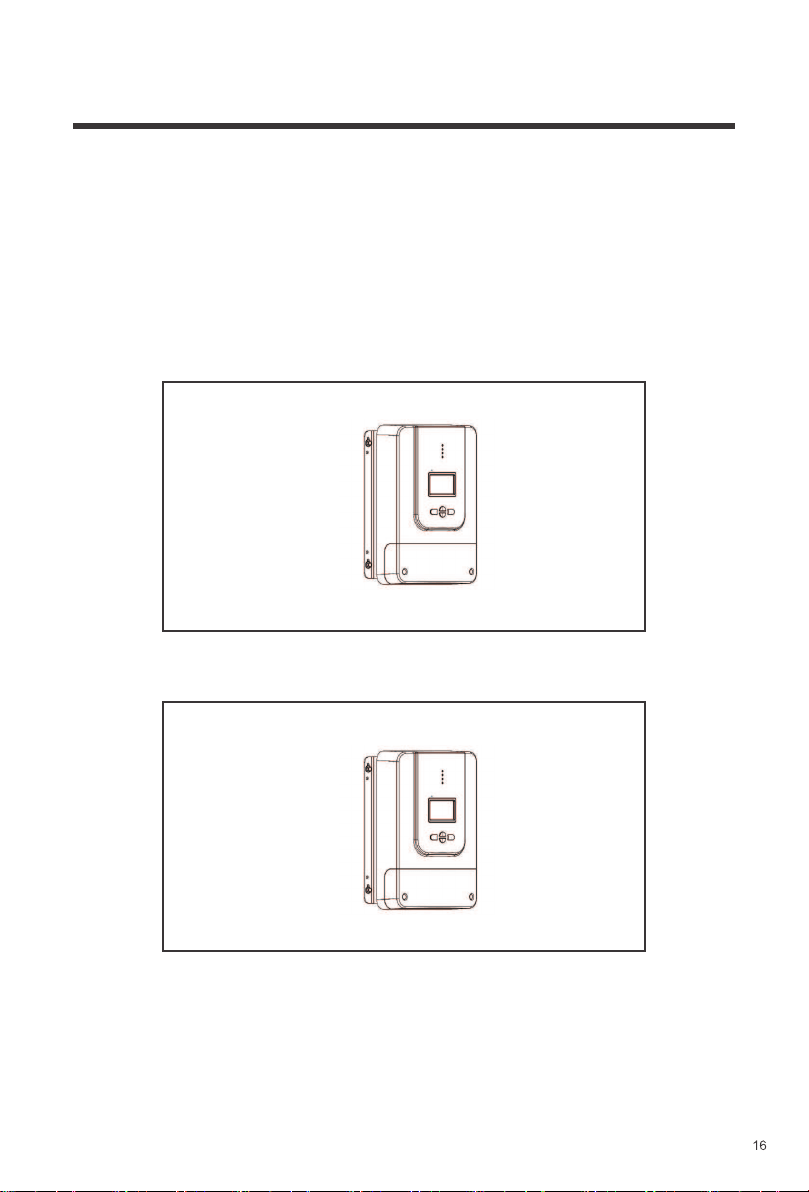

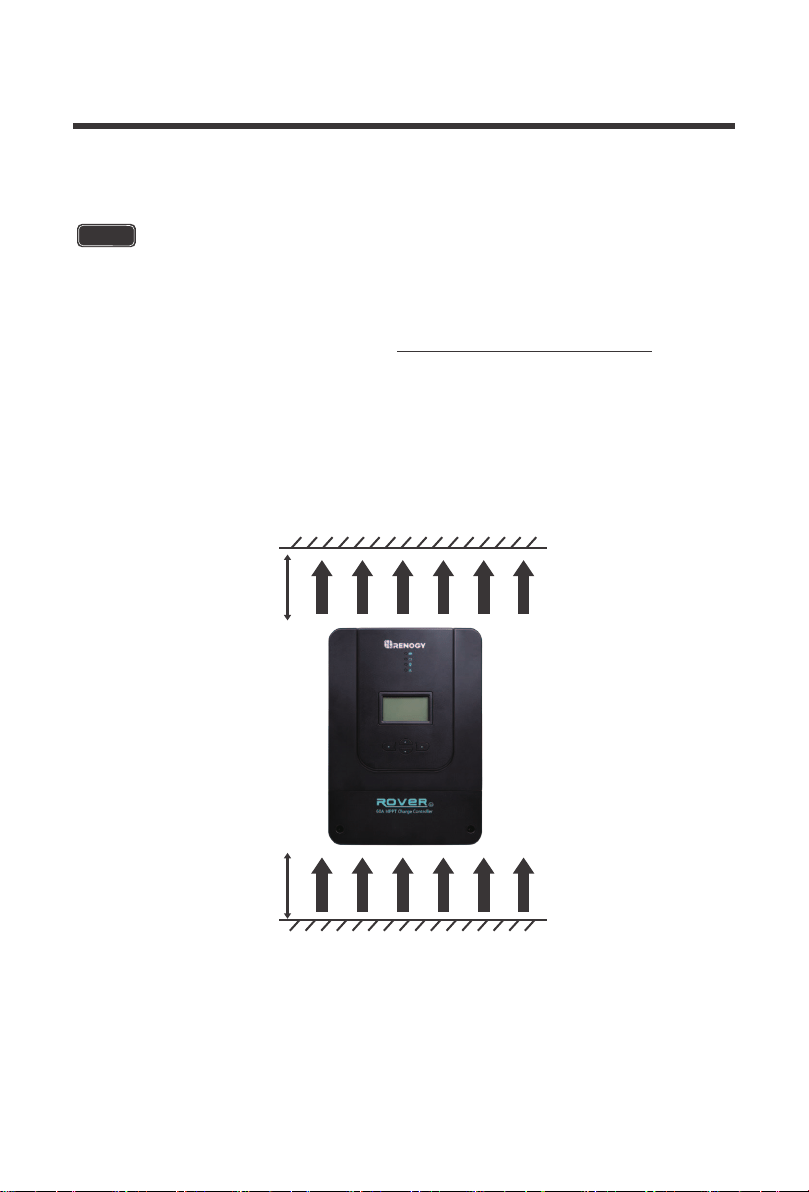

Mounting Recommendations
14
The controller can be mounted using the existing mounting holes or using the included
mounting brackets.
Mounting Recommendations
NEVER
install the controller in a sealed enclosure with flooded batteries. Gas can
accumulate and there is a risk of explosion.
1. Choose Mounting Location—place the controller on a vertical surface protected from
direct sunlight, high temperatures, and water. Make sure there is good ventilation.
2. Check for Clearance—verify that there is sufficient room to run wires, as well as clearance
above and below the controller for ventilation. The clearance should be at least 3 inches (75mm).
3. Mark Holes
4. Drill Holes
5. Secure the charge controller.
WARNING
3 inches
(75mm)
3 inches
(75mm)
warm air
cool air
Measure the distance between each mounting hole on the Rover. Using that distance drill 4 screws
onto desired surface.

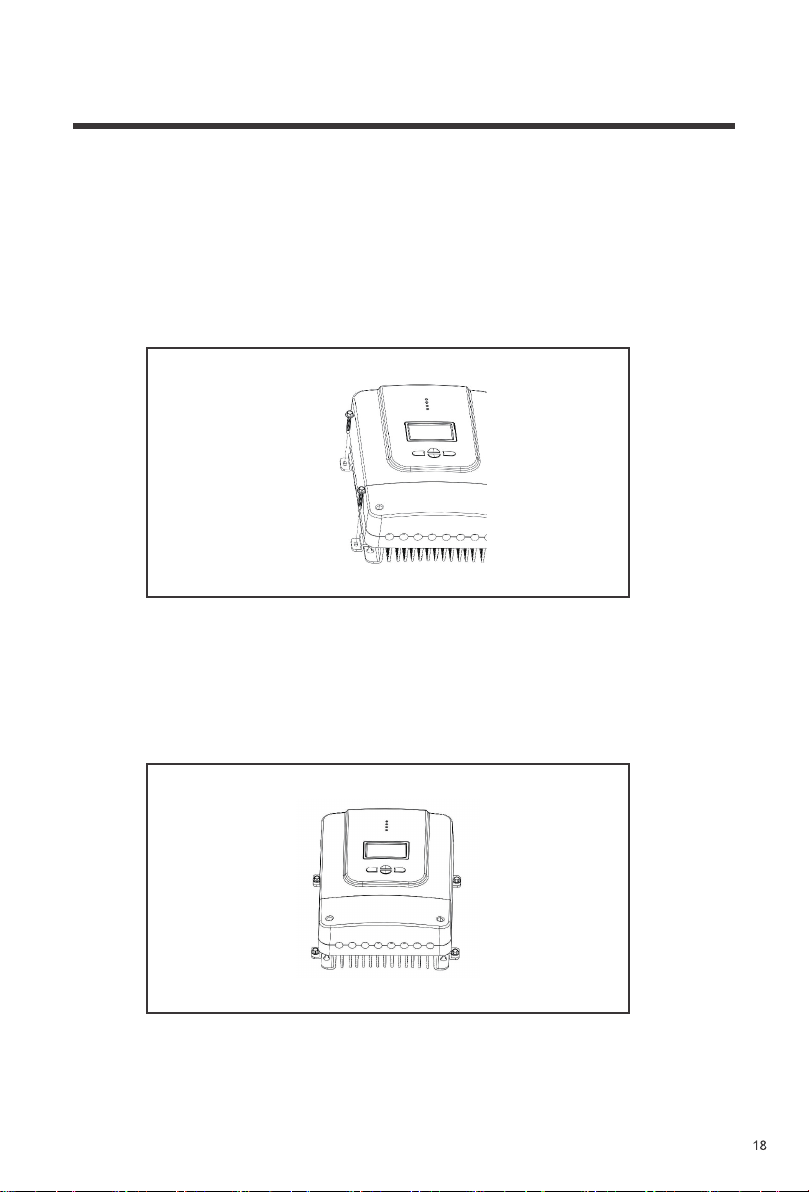

Using Mounting Holes
Step 1.
Align the Rovers mounting holes with the screws
Step 2.
Verify all screw heads are inside the mounting holes. Release controller and check if mounting
feels secure
Step 3.
Install the brackets using the provided components
Using Mounting Brackets
Step 1.
Align the mounting brackets to desired surface and use the appropriate screws to drill into
surface(screws not included)
Step 2.
Verify mounting is secure
Step 3.
19
Operation
Rover is very simple to use. Simply connect the batteries, and the controller will automatically
determine the battery voltage. The controller comes equipped with an LCD screen and 4
buttons to maneuver though the menus.
Main Display
The Battery Capacity (SOC%) is an estimation based on the charging voltage.
NOTE

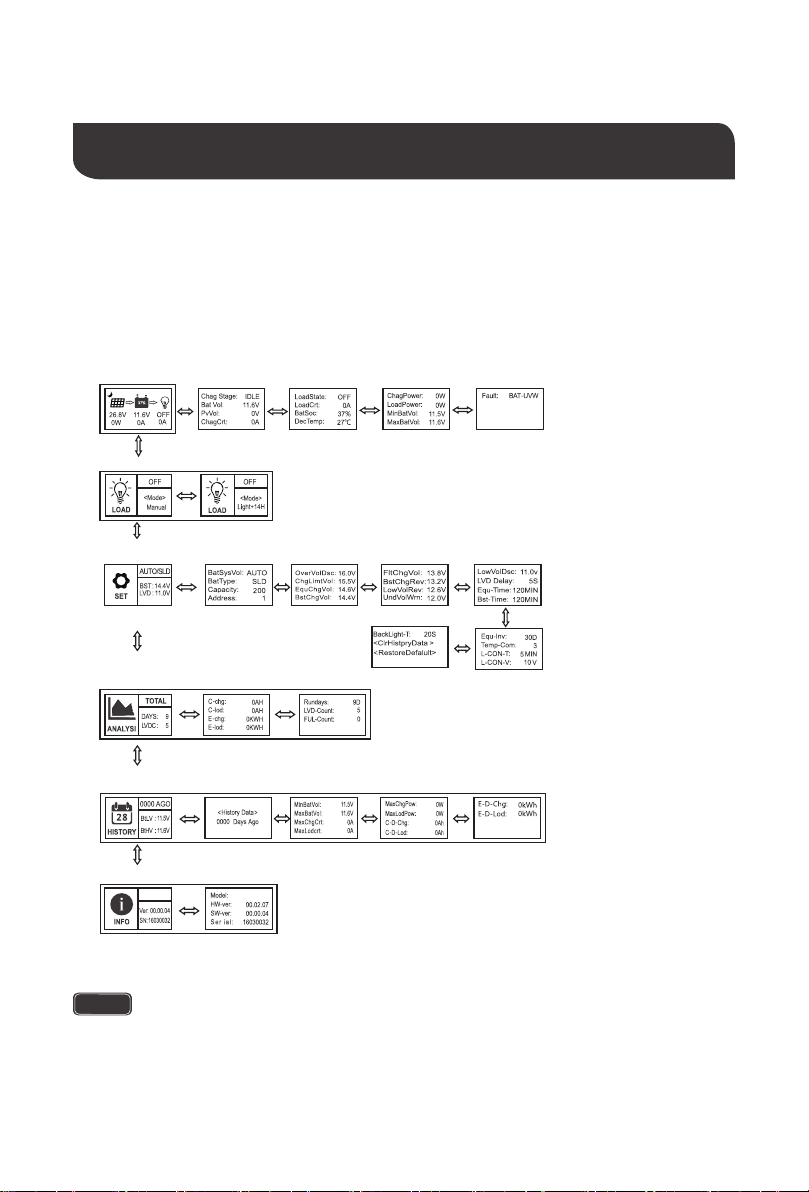

Main menu
Real-time
monitoring
Load mode
Parameters
setting
Statistic data
Historical data of
the current day
Device
information
485：communic ation
ROVER 60
ROVER 60
20
Main Menu
Day or night indicating icon
Charging current icon
Battery icon and SOC
Load current icon
Load icon and state indication
charging power
load current
Battery voltage
37%
26.8V 11.6V
0W 0A
OFF
0A
Solar panel voltage
charging current
Load state
Page Down/ Decrease parameter value
Return to the previous menu
Page Up/ Increase parameter value
/ +
/ -
21
To view this screen in the main menu, tap the Right arrow button. To change between screens,
press the up or down buttons. To return to the main menu screen press the left arrow button.
0-100%
Steady on Nighttime
Daytime
A dynamic arrow indicates
charging is in progress.
Overload or short-circuit
protection
Load Terminal is off
Load Terminal in on
Steady on
Steady on
Fast Flashing
Steady on
Steady on
0% Slow Flashing
100% Flash Flashing
Current battery capacity
Battery over-discharged
Battery over-voltage
Icon or Value State Description
Real-Time Monitoring
22
Screen
Displayed
Item/Parameter
Description
1
Chag State: Idle
Battery Voltage
Solar Panel Voltage
Charging Current
BatVol: 11.6V
PvVol: 0V
ChagCrt
LoadState: OFF Load in “ON” or “OFF”
Load current
Remaining battery capacity
Controller Temperature
LoadCrt: 0A
BatSoc: 100%
Dev Temp: 27°C
ChagPower: 0W Current Wattage
Load Wattage
The current day’s minimum battery voltage
The current day’s maximum battery voltage
LoadPower: 0W
MinBatVol: 12.5V
MaxBatVol: 13.5V
Fault: NULL
2
3
4
Charging State Indicators:
“Idle”, no charging
“MPPT”, MPPT charging
“EQU”, Equalization charging
“BST”, Boost charging
“FLT”, Float charging
“LIMIT”, current-limited charging
Controller Error Codes:
“BAT-LDV” over-discharge
“BAT-OVD” over-voltage
“BAT-UVW” under-voltage warning
“L-SHTCRT” load short-circuit
“L-OVRCRT” load over-current
“DEV-OVRTMP” internal over-temperature
“BAT-OVRTMP” battery over-temperature
“PV-OVP” solar panel over wattage
“PV-OC-OVD” solar panel over-voltage
“PV-REV” solar panel reverse-polarity
“BAT-REV” battery reverse-polarity
23
If the characters displayed on top of "<Mode>" are "ON", it indicates that the load is switched
on
1.
Tap " Right Arrow Button" to enter the load setting mode, and right below the "<Mode>", the
mode characters or digits will begin to flash. Use " Up and Down Arrow Buttons" to select any
one from the load modes listed in the following table and tap " Right Arrow Button" again to
complete the load mode setting.
2.
Press and hold " Right Arrow Button " in any menu but not the setting mode: if the current load
mode is "manual mode", pressing and holding the key will switch on/ off the load; if the current
load mode is not "manual mode", pressing and holding the key will cause the display to skip
to the load mode setting interface and a reminder will pop up telling the user in this mode,
pressing and holding the key will not switch on/ off the load.
3.
Programming Load Terminal
Load Mode Mode Description
The load will turn on at night when the solar
panel is no longer producing any power after
a short time delay. The load will turn off when
the panel starts producing power.
When the panel is no longer producing
power the load will be ON for 1-14 hours or
until the panel starts producing power.
In this mode, the user can turn the Load
On/Off by pressing the Enter button at any
time.
Used to troubleshoot load terminal (No Time
Delay). When voltage is detected load will be
off and when no voltage is detected load will
be on.
The load will be on for 24 hours a day.
Solar Light Control Mode
Time control
Manual Mode
Test
24Hr
Normal On
Debug
Manual
Light+ 01H-14H
Light+ On
Load Mode Options
LOAD
OFF
<Mode>
Manual
Load mode setting icon
Load state
Load mode
24
Parameter Settings
Screen
Parameter
Displayed
Parameter
Description
Battery type
Nominal battery capacity
Device address
“SLD” Sealed lead-acid battery
“FLD” Flooded lead-acid battery
“GEL” Gel battery
“Li” Lithium battery
“USE” user defined
12V/24V/36V/48V, AUTO
1
2
Overvoltage threshold OverVolDsc:
ChgLimitVol:
EquChgVol:
BstChgVol:
FltChgVol:
BstChgRev:
LowVolRev:
UndVolWrn:
LowVolDisc:
LVD Delay：
Equ-Time:
Bst-Time:
Battery system voltage BatSysVol:
BatType:
Capacity:
Address:
0-9999
1-60
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
9.0-17.0V
0-60s
120Min
120Min
Charging limit voltage
Equalization Voltage
Boost charging voltage
3
4
Float charging voltage
Boost charging recovery voltage
Low voltage disconnect
Low voltage disconnect delay
Equalization time
Boost time
Over-discharge recovery voltage
Under-voltage warning level
To enter the following settings, in the parameters setting screen press the Right arrow button.
SET
AUTO/SLD
BST:14.4V
LVD:11.0V
Setting icon
Battery type indication
System voltage indication
Boost charging voltage 14.4V
Over-discharge voltage 11.0V
25

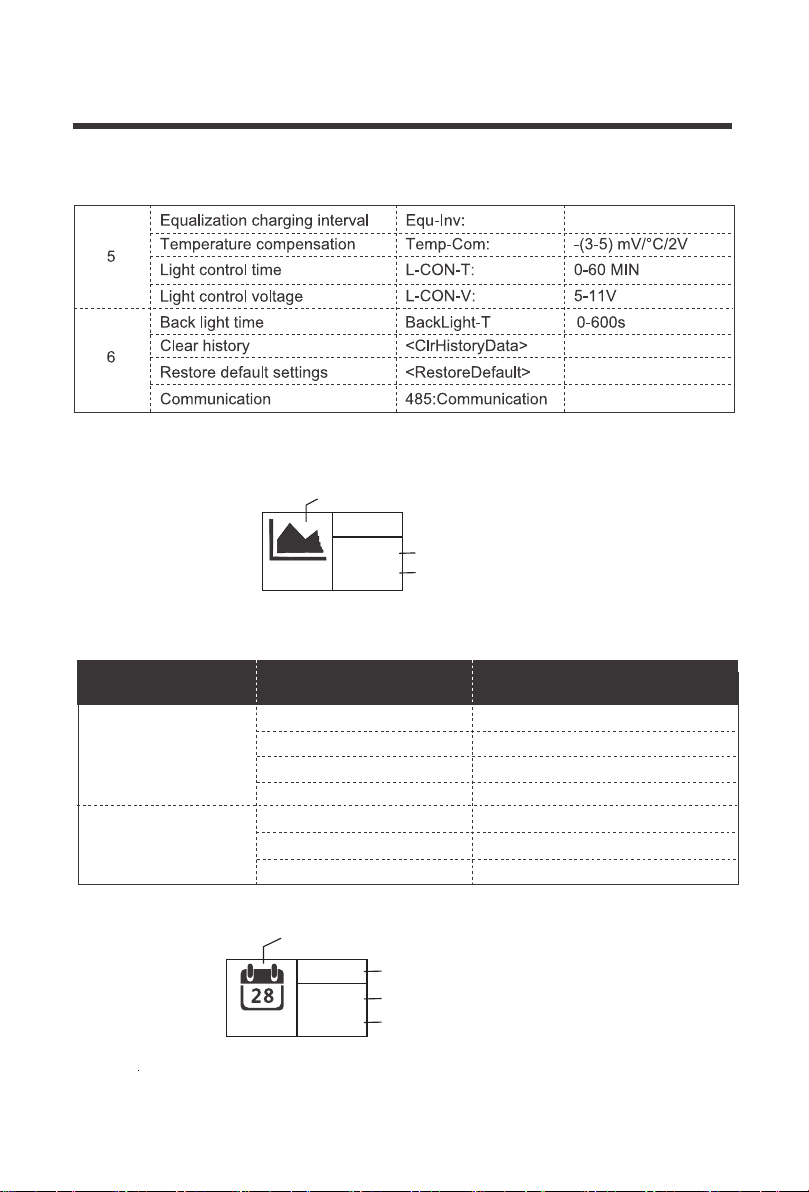

Statistical Data
Battery
Displayed Parameter
Description
C-chg: 0AH Total amp hours produced
Total amp hours consumed
Total power generated
Total power consumed
Total number of operating days
Total number of over-discharges
Total number of full-charges
C-lod: 0AH
1
2
Rundays: 10D
LVD-Count: 0
FUL-Count: 0
E-chg: 0KWH
E-lod: 0KWH
Historical Data
To enter the following settings, in the Statistical Data screen press the Right arrow button.
To enter the following settings, in the Historical Data screen press the Right arrow button.
HISTORY
0000 AGO
BtLV :
BtHV：11.6V
11.5V
Historical data icon
Historical data of day xxxx (counting backwards)
The current day's min. battery voltage is 11.5V
The current day's max. battery voltage is 11.6V
ANALYSI
TOTAL
DAYS: 9
LVDC : 5
Number of operating days: 9
Number of over-discharges:5
Statistics icon
28DAYS
26
Screen
Displayed Parameter
Description
<History Data>
xxxx Days Ago
xxxx: select the historical data of day xxxx
(counting backwards)
0000: current day
0001: yesterday
0002: the day before yesterday
The selected day’s min. battery voltage
1
2
MinBatVol: 11.5V
The selected day’s max. battery voltage
The selected day’s max. charging current
The selected day’s max. discharge current
MaxBatVol: 11.6V
MaxChgCrt: 0A
MaxLodCrt: 0A
The selected day’s max. generated power
3
4
MaxChgPow: 0W
The selected day’s max. discharged power
The selected day’s total charged amp hours
The selected day’s total discharged amp hours
MaxLodPow: 0W
The selected day’s total power generated E-D-Chg: 0KWh
The selected day’s total power consumedE-D-Lod: 0KWh
C-D-Chg: 0AH
C-D-Lod: 0AH
Device Information
To enter the following settings, in the Device Information screen press the Right arrow button.
INFO
Ver:
00.00.04
SN:
16030032
Device information icon
Product model
Software version
Product serial number
ROVER60
27
Model: ROVER60 Controller model
HW-ver: 00.02.07 Hardware version
SW-ver: 00.00.04 Software version
Serial: 123456789 Controller serial number
Screen
Displayed Parameter
Description
1
LED Indicators
①---PV array indicator
Indicating the controller's current
charging mode.
Indicating the battery's current state.
Indicating the loads' On/ Off state.
Indicating whether the controller is
functioning normally.
②---BAT indicator
③---LOAD indicator
④---ERROR indicator
①
②
③
④
28
Status
White
Solid
Off
The Controller is undergoing boost stage
The Controller is undergoing float stage
The Controller is undergoing equalization stage
Status
White Solid
Off
System Error. Please check LCD for Error code
Off
System is operating normally
Status
White Slow Flashing
White Single Flashing
White Fast Flashing
White Double Flashing
White Solid
White Fast Flashing
White Solid
White Fast Flashing
White Slow Flashing
Status
The PV system is charging the battery bank
The oversized PV system is charging the battery
bank at the rated current.
Battery over-voltage
Battery over-discharged
Battery is normal
Load is on
Load is over-loaded or short-circuited
Load is off
LOAD Indicator (3)
BATT Indicator (2)
ERROR Indicator (4)
PV Indicator (1)
The PV system is not charging the battery bank.
PV not detected.
29
Rover Protections
Protection Behavior
When PV short circuit occurs, the controller will stop charging.
Clear it to resume normal operation.
The controller will limit the battery charging current to the
maximum battery current rating. Therefore, an over-sized solar
array will not operate at peak power.
If the current exceeds the maximum load current rating of 21A,
the controller will disconnect the load. Overloading must be
cleared up by reducing the load and restarting the controller.
If the temperature of the controller heat sink exceeds 65℃, the
controller will automatically start reducing the charging current
and shut down when temperature exceeds 80℃.
The controller will not operate if the PV wires are switched. Wire
them correctly to resume normal controller operation.
The controller will not operate if the battery wires are switched. Wire
them correctly to resume normal c
ontroller operation.
Fully protected against the load wiring short-circuit. Once the
load short (more than quadruple rate current), the load short
protection will start automatically. After 5 automatic load
reconnect attempts, the faults must be cleared by restarting the
controller.
Over-Temperature
Battery Reverse Polarity
PV Reverse Polarity
Load Short Circuit
Load Overload
PV Overcurrent
PV Array Short Circuit
30
System Status Troubleshooting
Maintenance
PV indicator Troubleshoot
BATT Indicator Troubleshoot
Load Indicator Troubleshoot
Error Indicator Troubleshoot
Off during daylight
Using a multimeter check the battery voltage and verify it is not
exceeding 32 volts.
Disconnect loads, if any, and let the PV modules charge the battery bank.
Use a multi-meter to frequently check on any change in battery voltage to
see if condition improves. This should ensure a fast charge. Otherwise,
monitor the system and check to see if system improves.
The Load circuit on the controller is being shorted or overloaded. Please
ensure the device is properly connected to the controller and make sure it
does not exceed 20A (DC).
White Slow Flashing
White Fast Flashing
White Fast Flashing
WhiteSolid System Error. Please check LCD for Error code
Ensure that the PV wires are correctly and tightly secured inside the
charge controller PV terminals. Use a multi-meter to make sure the
poles are correctly connected to the charge controller.
1. Check that controller is mounted in a clean, dry, and ventilated area.
2. Check wiring going into the charge controller and make sure there is no wire damage or wear.
3. Tighten all terminals and inspect any loose, broken, or burnt up connections.
4. Make sure LED readings are consistent. Take necessary corrective action.
5. Check to make sure none of the terminals have any corrosion, insulation damage, high
temperature, or any burnt/discoloration marks.
For best controller performance, it is recommended that these tasks be performed from time to time.
Risk of Electric Shock! Make sure that all power is turned off before touching the
terminals on the charge controller.
WARNING
31
Technical Specifications
Electrical Parameters
Model
Nominal system voltage
Rated Load Current
Max. capacitive load capacity
60A
20A
10000µF
Battery Voltage
9V - 70V
Max Solar Input Voltage
140 VDC
Conversion efficiency
≤ 98%
MPPT tracking efficiency > 99%
Temp. Compensation
RVR60
Max. power point voltage range
Max. Solar Input Power
Rated Battery Current
Self-Consumption
12V/24V/36V/48V Auto Recognition
Battery voltage +2V to 120V
800W/12V;1600W/24V;2400W/36V;3200W/48V
0.7W - 1.2W
-3mV/°C/2V (default)
Fusing
AWG 16 14 12 10 8 6 4 2 0
Max.
Current
55A40A30A25A18A
75A
95A
130A
170A
**Utilize 1.56 Sizing Factor (SF)
Different safety factors could be used. The purpose is to oversize.
Series:
Total Amperage= Isc1
= Isc2 * SF
Parallel
Total Amperage= (Isc1 + Isc2) * SF
The NEC code requires the overcurrent protection shall not exceed 15A for
14AWG, 20A for 12 AWG, and 30A for 10AWG copper wire.
NEC Maximum Current for different Copper Wire Sizes
Fuse from Controller to Battery
Fuse from Solar Panel(s) to Controller
Ex. 200W; 2 X 100 W panels
Ex. 20A MPPT CC = 20A fuse from Controller to Battery
Controller to Battery Fuse = Current Rating of Charge Controller
= 5.75A * 1.56
= 8.97 =(5.75A + 5.75A)* 1.56 = 17.94
Fuse = 18A fuse Fuse = 9A fuse
NOTE
Fusing is a recommended in PV systems to provide a safety measure for connections going from
panel to controller and controller to battery. Remember to always use the recommended wire
gauge size based on the PV system and the controller.
NOTE
32
General
Model
Dimensions
4 x Ø10mm
Net Weight
RVR60
Working Temperature
Humidity Range
Enclosure
< 3000m
Communication
Certifications
RS232 RS485
ETL Listed to UL1741
-35°C to +45°C
≤ 95% (NC)
IP32
Altitude
285 x 205 x 102mm (11.2 x 8.1 x 4.0in)
Mounting Holes
Max Terminal Size
4 AWG25mm
2
3.6 kg 7.9 lbs
Battery Charging Parameters
Battery GEL SEALED FLOODED LI (LFP) USER
High Voltage
Disconnect
16 V 16 V 16 V 16 V
Equalization
Voltage
----- -----
14.6 V
Boost Voltage
Float Voltage 13.8 V 13.8 V 13.8 V -----
Boost Return
Voltage
13.2 V 13.2 V 13.2 V 13.2 V
Low Voltage
Reconnect
12.6 V 12.6 V 12.6 V 12.6 V
Under Voltage
Warning
12 V 12 V 12 V 12 V
Low Voltage
Disconnect
Equalization
Duration
2 hours 2 hours
Over-Discharge
Delay Time
Boost Duration
2 hours 2 hours 2 hours -----
----------
9-17 V
9-17
V
9-17 V
0-10 Hrs.
Equalization
Interva
30 Days 30 Days
----------
0-250 Days
1-10 Hrs.
9-17
V
9-17
V
9-17 V
9-17 V
9-17 V14.8V
14.4 V14.6 V 14.4 V 14.2 V
11.0V 11.0V 11.0V 11.0V
1-30 s5 s 5 s 5 s 5 s
33
When selecting User, the battery type is to be self-customized, and in this case, the default
system voltage parameters are consistent with those of the sealed lead-acid battery. When
modifying battery charging and discharging parameters, the following rule must be followed:
PV Power – Conversion Efficiency Curves
Temp 25℃
2. 24 Volt System Conversion Efficiency1.12 Volt System Conversion Efficiency
Illumination Intensity: 1000W/ m
2
3. 48 Volt System Conversion Efficiency
Default charging parameters in LI mode are programmed for 12.8V LFP battery. Before
using Rover to charge other lithium battery, set the charging parameters according to the
suggestions from battery manufacturer.
The above parameters are based on 12V system settings. Parameters are multiplied by 2
for 24V systems, multiplied by 3 for 36V systems, and multiplied by 4 for 48V systems.
For Equalization Interval Setting under USER mode, 0 Day refers to turning off the
equalization function.
1.
2.
3.
Over-voltage cut-off voltage > Charging limit voltage ≥ Equalizing voltage ≥ Boost voltage
≥ Floating charging voltage > Boost recovery voltage;
Over-voltage cut-off voltage > Over-voltage cut-off recovery voltage;
Low-voltage cut-off recovery voltage > Low-voltage cut-off voltage ≥ Discharging limit voltage;
Under-voltage warning recovery voltage > Under-voltage warning voltage ≥ Discharging
limit voltage;
Boost recovery voltage > Low-voltage cut-off recovery voltage
34
Dimensions in millimeters (mm)
NOTE
Dimensions
RVR60
RVR60 with mounting brackets
Ø4.5
4xØ10
8xØ11.8
205 mm
(8.07 in)
170
102mm
(4.01in)
285mm
(11.22 in)
34mm (1.03in)
102mm
(4.01in)
2.5mm
(0.09in)
227mm
(8.93in)
109.2mm
(4.29in)
285mm
(8.55in)
170mm
(6.69in)
218mm (8.58in)
178mm(7.0in)
180mm
(7.08in)
109.2mm
(4.29in)
2.5mm
(0.09in)
30.5mm (1.02in)
Renogy reserves the right to change
the contents of this manual without notice.
RENOGY.COM
US
2775 E Philadelphia St, Ontario, CA 91761, USA
909-287-7111
www.renogy.com
support@renogy.com
https://www.renogy.cn
support@renogy.cn
CN
400-6636-695
苏州高新区科技城培源路1号5号楼-4
CA
https://ca.renogy.com
supportca@renogy.com
https://au.renogy.com
supportau@renogy.com
AU
JP
https://www.renogy.jp
supportjp@renogy.com
https://uk.renogy.com
supportuk@renogy.com
UK
https://de.renogy.com
supportde@renogy.com
DE
