Owner's Manual

This is the main product document for model 26361EH.

The file format is pdf, 19 pages, you can download this manual here .

background
119
PO
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
OWNER’S MANUAL
Rectangular Ultra Frame™ /
Prism Frame™ Pools
157-1/2”x78-3/4”x39-3/8” (400cm x 200cm x 100cm)
118-1/8”x68-3/4”(300cm x 175cm), 15’ x 9’ (457 cm x 274 cm)
16’ x 8’ (488 cm x 244 cm), 18’ x 9’ (549 cm x 274 cm)
24’ x 12’ (732 cm x 366 cm), 32’ x 16’ (975 cm x 488 cm)
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
Don’t forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and
Boats available at fine retailers or visit our website listed below.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
For illustrative purposes only. Accessories may not be provided with pool.
IMPORTANT!
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacific Time
119-*PO-R1-1607
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 2
Warnings
..........................................................................................
3-5

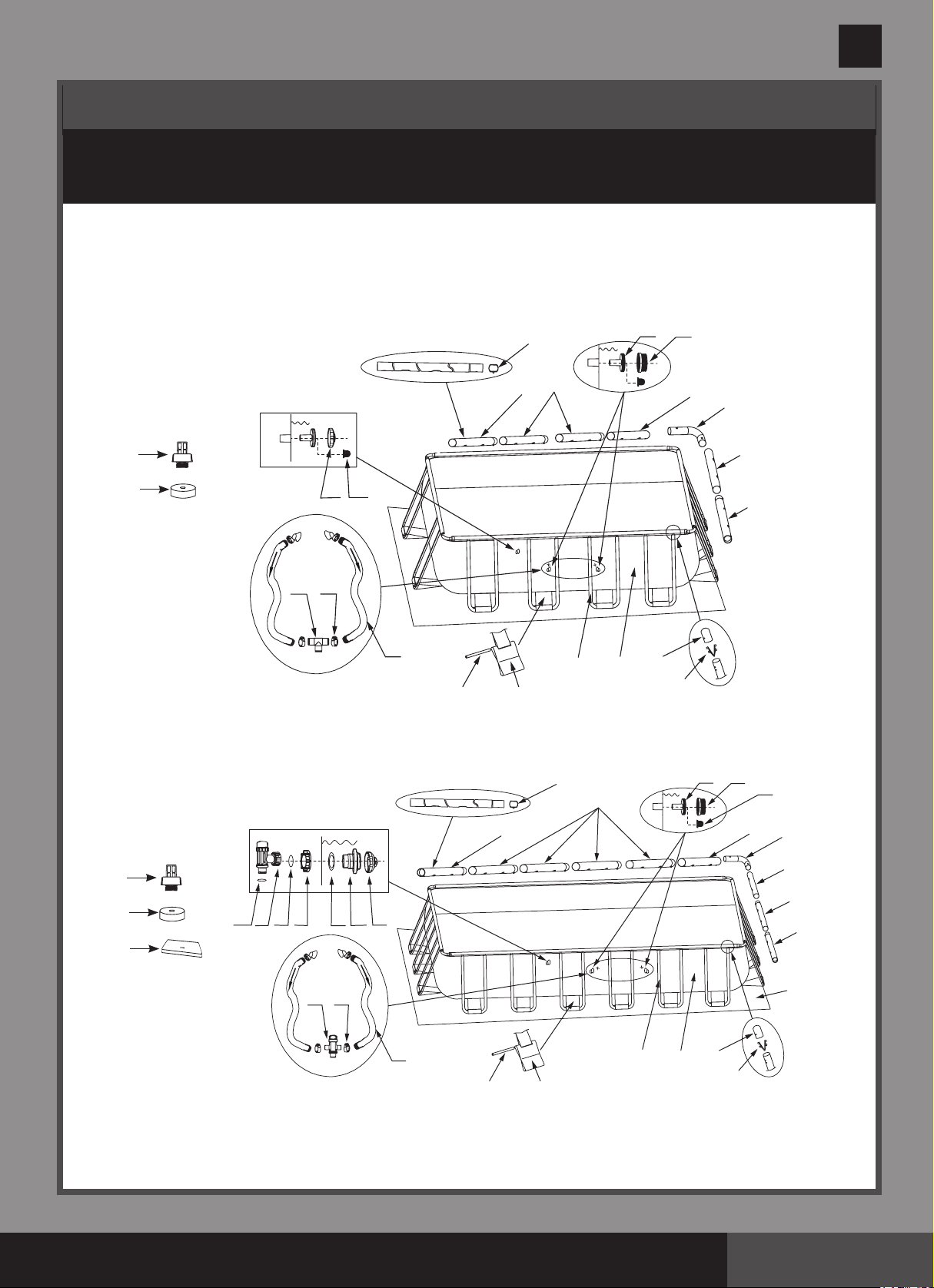

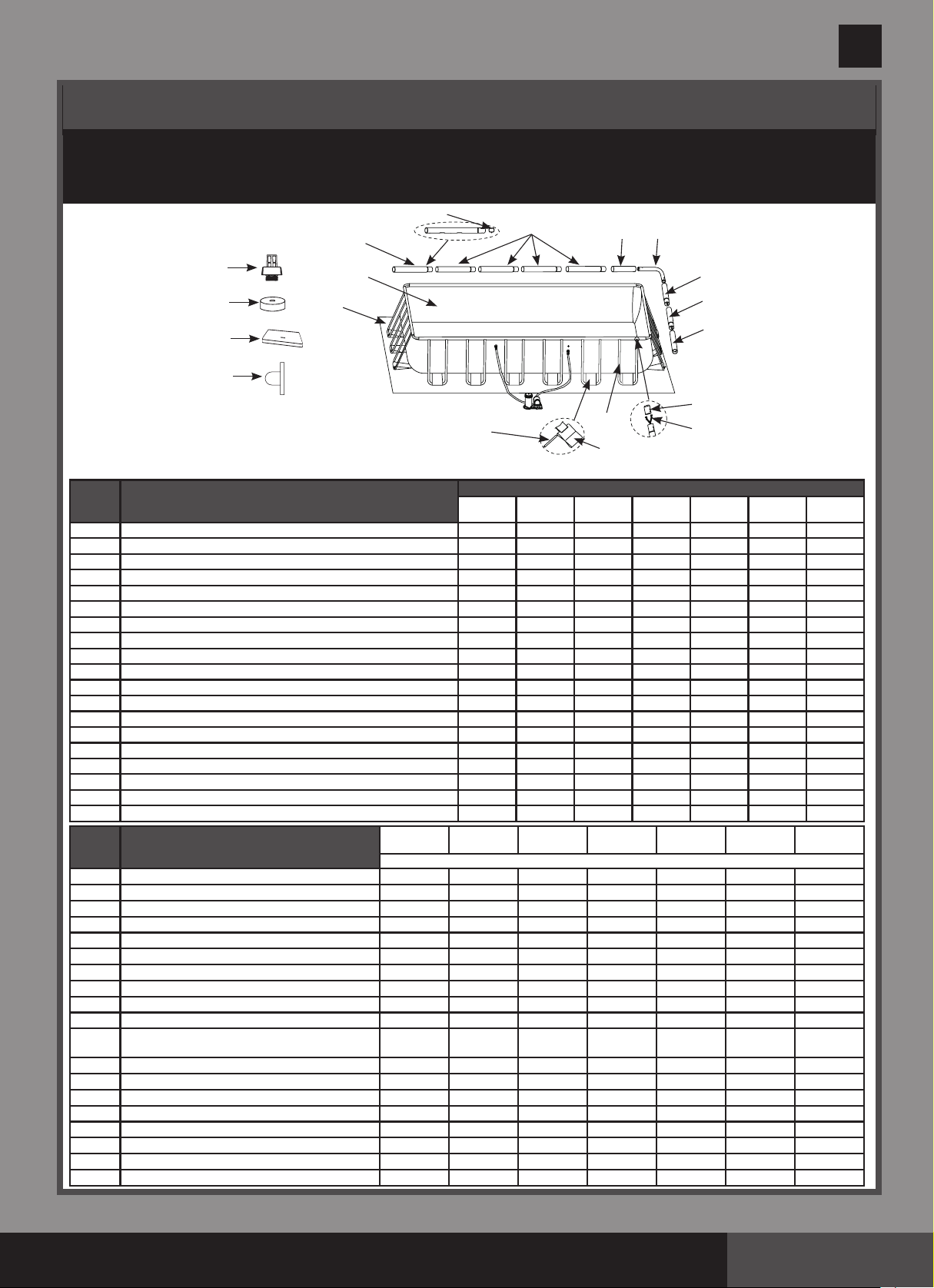

Parts References
............................................................................
6-9

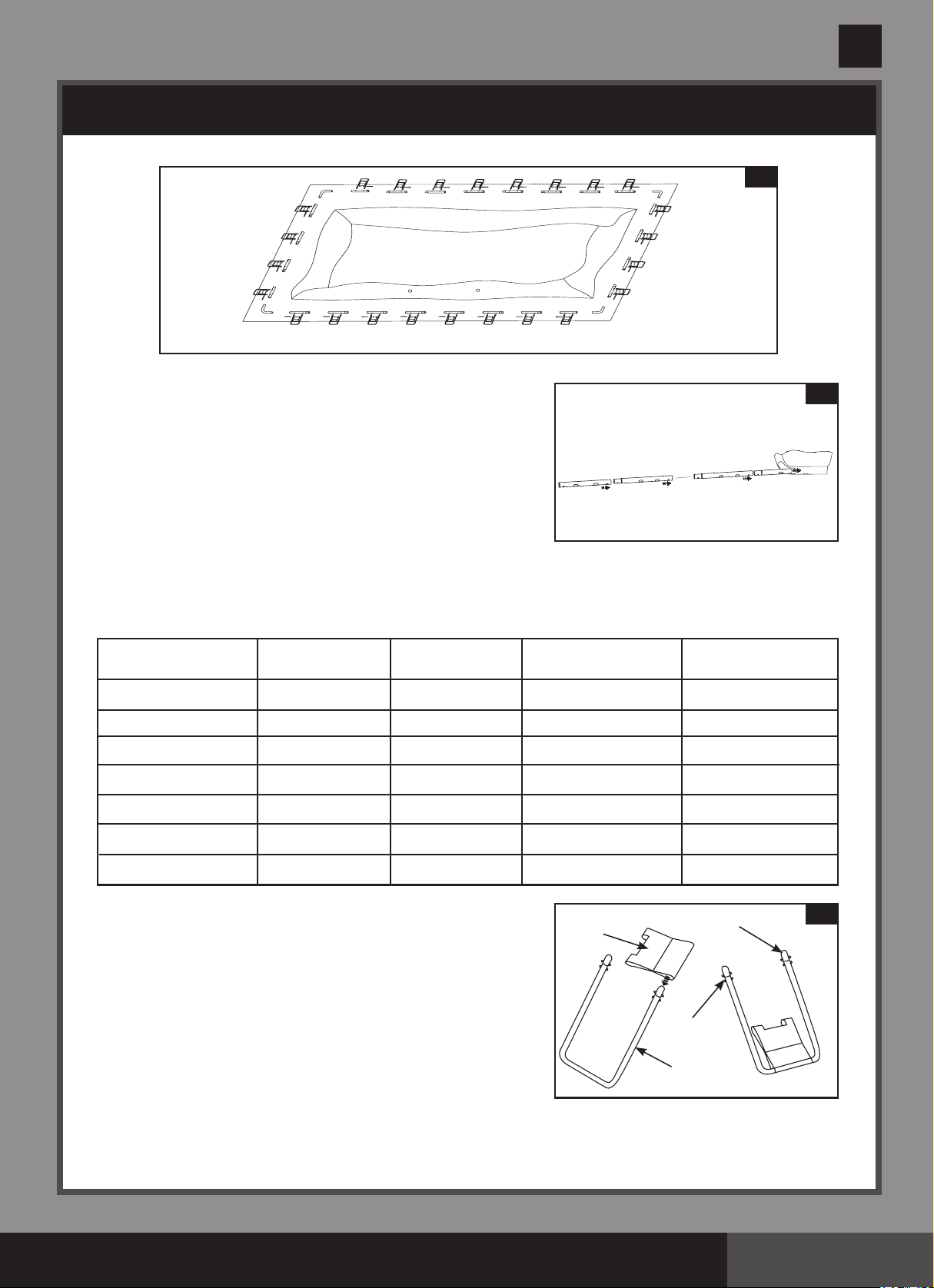

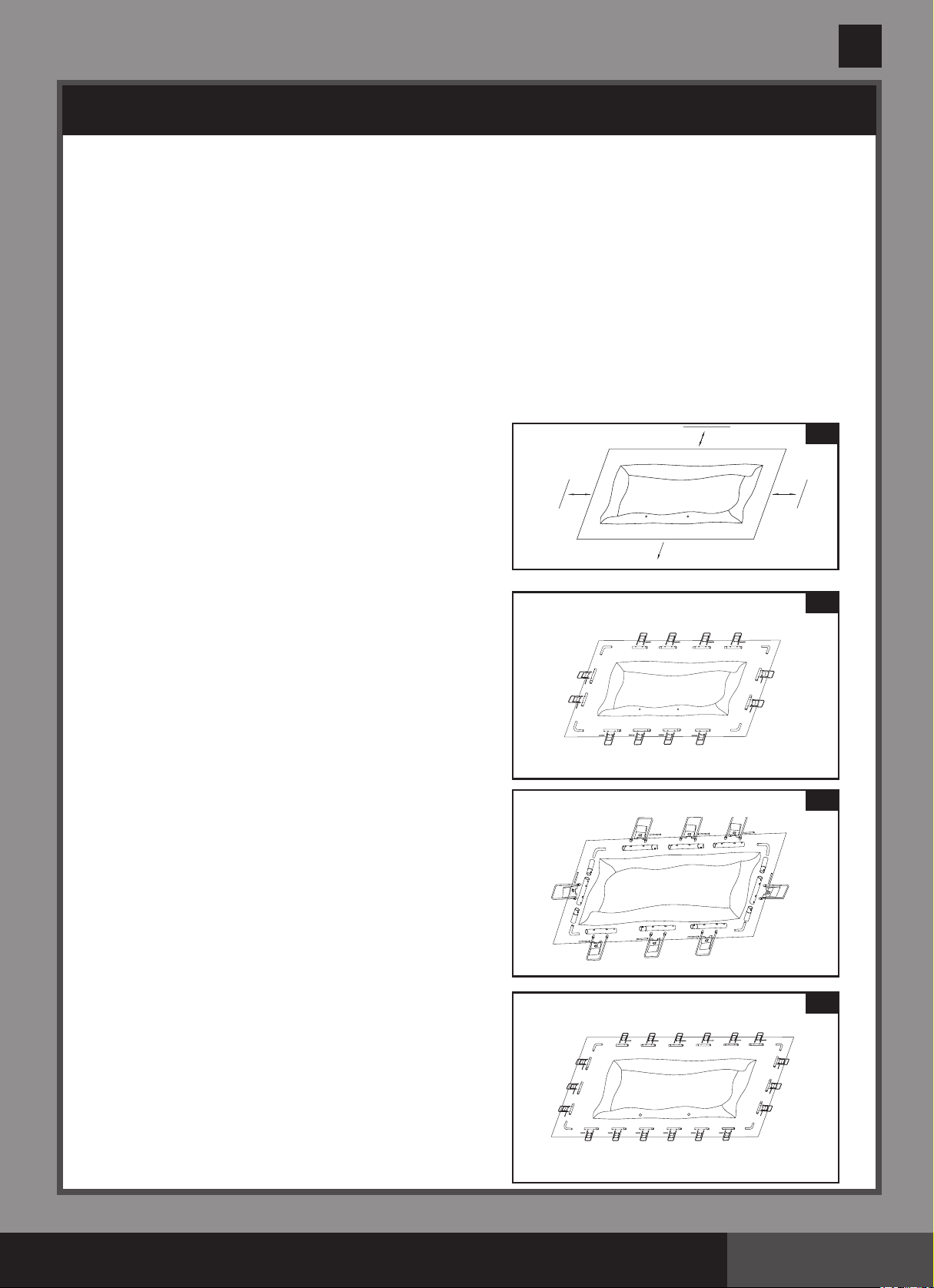

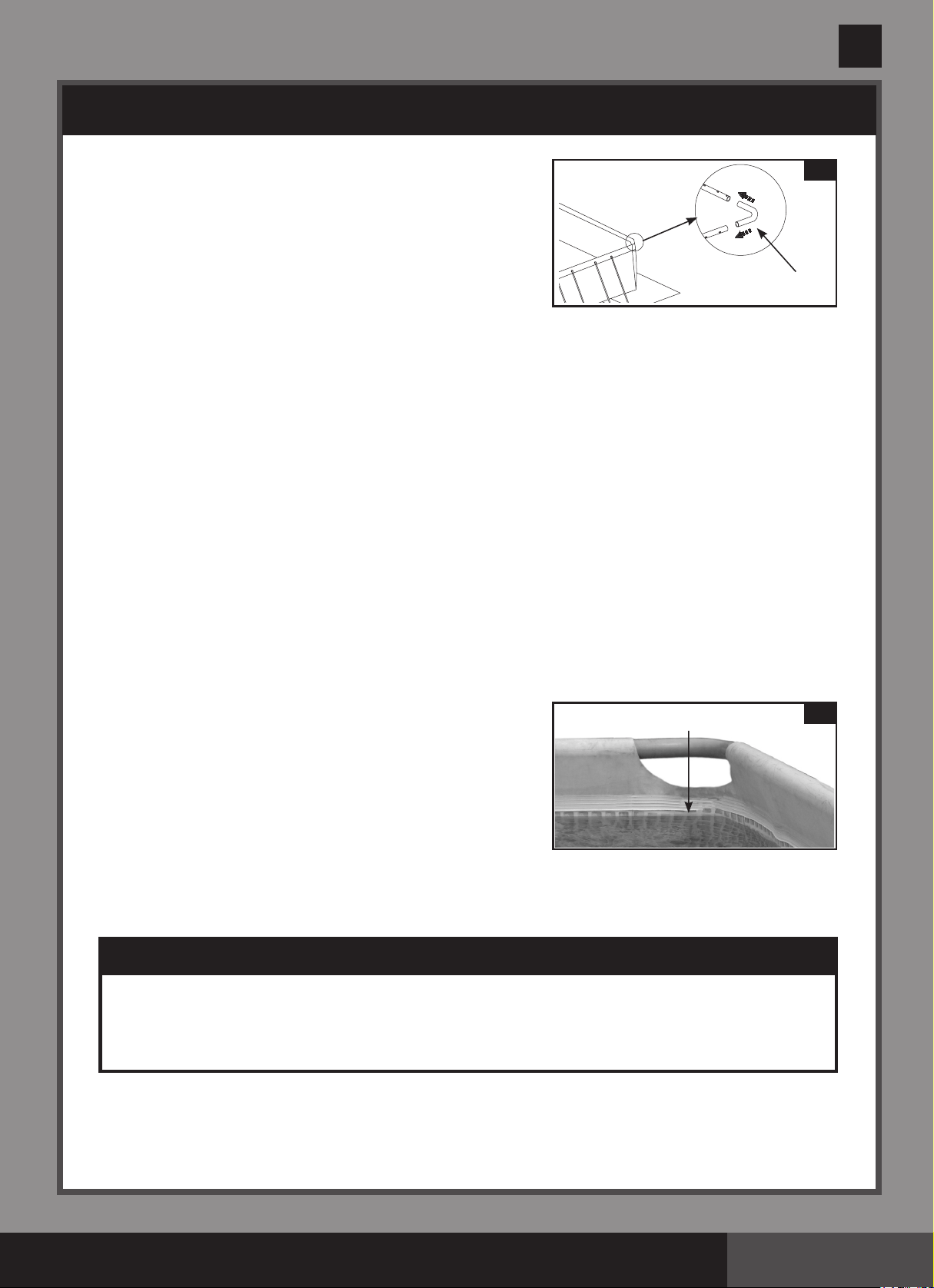

Setup Instructions
..........................................................................
10-14
General Aquatic Safety
...................................................................
15
Pool Maintenance and Chemicals
.................................................
16-17
Common Pool Problems
................................................................
16
Pool Draining
...................................................................................
17
Storage
.............................................................................................
17-18
Limited Warranty
.............................................................................
19
Introduction:
Thanks for buying an Intex pool. Please read this manual before setting up your pool.
This information will help extend the pool life and make the pool safer for your family's
enjoyment. View the video included before installation. A team of 2-4 people is
recommended for pool set up. Additional people will speed up the installation.
TABLE OF CONTENTS
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
•
Continuous and competent adult supervision of children and the disabled is required at all times.
• Securealldoors,windowsandsafetybarrierstopreventunauthorized,unintentionalorunsupervisedpool
entry.
• Installasafetybarrierthatwilleliminateaccesstothepoolforyoungchildrenandpets.
• Poolandpoolaccessoriesaretobeassembledanddisassembledbyadultsonly.
• Neverdive,jumporslideintoanabove-groundpooloranyshallowbodyofwater.
• Failuretosetuppoolonflat,level,compactgroundoroverfillingcouldresultinthepool’scollapseandthe
possibilitythatapersonlounginginthepoolcouldbesweptout/ejected.
• Donotlean,straddle,orexertpressureontheinflatableringortoprimasinjuryorfloodingcouldoccur.Do
notallowanyonetositon,climb,orstraddlethesidesofthepool.
• Removealltoysandflotationdevicesfrom,in,andaroundthepoolwhenitisnotinuse.Objectsinthepool
attract young children.
• Keeptoys,chairs,tables,oranyobjectsthatachildcouldclimbonatleastfourfeet(1.22meters)away
fromthepool.
• Keeprescueequipmentbythepoolandclearlypostemergencynumbersatthephoneclosesttothepool.
Examplesofrescueequipment:coastguardapprovedringbuoywithattachedrope,strongrigidpolenot
lessthantwelvefeet(12')[3.66m]long.
• Neverswimaloneorallowotherstoswimalone.
• Keepyourpoolcleanandclear.Thepoolfloormustbevisibleatalltimesfromtheoutsidebarrierofthe
pool.
• Ifswimmingatnightuseproperlyinstalledartificiallightingtoilluminateallsafetysigns,ladders,poolfloor
and walkways.
• Stayawayfromthepoolwhenusingalcoholordrugs/medication.
• Keepchildrenawayfrompoolcoverstoavoidentanglement,drowning,orotherseriousinjury.
• Poolcoversmustbecompletelyremovedbeforepooluse.Childrenandadultscannotbeseenunderapool
cover.
• Donotcoverthepoolwhileyouoranyoneelseisinthepool.
• Keepthepoolandpoolareacleanandcleartoavoidslipsandfallsandobjectsthatmaycauseinjury.
• Protectallpooloccupantsfromrecreationalwaterillnessesbykeepingthepoolwatersanitized.Don’t
swallowthepoolwater.Practicegoodhygiene.
• Allpoolsaresubjecttowearanddeterioration.Certaintypesofexcessiveoraccelerateddeteriorationcan
leadtoanoperationfailure,andcanultimatelycausethelossoflargequantitiesofwaterfromyourpool.
Therefore,itisveryimportantthatyouproperlymaintainyourpoolonaregularbasis.
• Thispoolisforoutdooruseonly.
• Emptypoolcompletelywhennotinuseforalongerperiodandsafelystoretheemptypoolinsuchaway
thatitdoesnotcollectwaterfromrainoranyothersource.Seestorageinstructions.
• Whiletheswimmingpoolisinuse,youwillneedtooperatethefilterpumptoensurethatthereisatleast
onecompleteturnoverofwateraday.Consultyourpump’smanualtocalculatethenecessary
operatinghours.
POOL BARRIERS AND COVERS ARE NOT SUBSTITUTES FOR CONTINUOUS AND COMPETENT
ADULT SUPERVISION. POOL DOES NOT COME WITH A LIFEGUARD. ADULTS ARE THEREFORE
REQUIRED TO ACT AS LIFEGUARDS OR WATER WATCHERS AND PROTECT THE LIVES OF ALL
POOL USERS, ESPECIALLY CHILDREN, IN AND AROUND THE POOL.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY OR DEATH.
Advisory:
Poolownersmayneedtocomplywithlocalorstatelawsrelatingtochildprooffencing,safetybarriers,lighting,
andothersafetyrequirements.Customersshouldcontacttheirlocalbuildingcodeenforcementofficefor
further details.
WARNING
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 4
Read and follow all safety information and instructions.
Keep for future reference.
Failure to follow these warnings and instructions can result in serious
injury or death to users, especially children.
Prevent Young Children From Drowning:
• Keepunsupervisedchildrenfromaccessingthepoolbyinstallingfencingorapprovedbarrieraroundall
sides of pool.Stateorlocallawsorcodesmayrequirefencingorotherapprovedbarriers.Checkstate
orlocallawsandcodesbeforesettinguppool.Refertothelistofbarrierrecommendationsandguidelines
asdescribedinCPSCPublicationNo.362.“SafetyBarrierGuidelineforHomePools”foundat
www.poolsafely.gov.
• Drowningoccurssilentlyandquickly.Assignanadulttosupervisepoolandwearprovidedwaterwatcher
tag.
• Keepchildreninyourdirectsightwhentheyareinornearpool.Poolpresentsadrowninghazardeven
duringfillinganddrainingofthepool.Maintainconstantsupervisionofchildrenanddonotremoveany
safetybarriersuntilthepooliscompletelyemptyandstowedaway.
• Whensearchingforamissingchild,checkthepoolfirst,evenifyouthinkyourchildisinthehouse.
Prevent Young Children From Gaining Access to Pool:
• Removepoolladdersbeforeleavingthepool.Toddlerscanclimbladderandgetintopool.
• Whenleavingthepool,removefloatsandtoysfromthepoolthatmightattractachild.
• Positionfurniture(forexample,tables,chairs)awayfrompoolsothatchildrencannotclimbonitto
gainaccesstothepool.
• Ifafilterpumpisincludedwiththepool,locatepumpsandfiltersinsuch awaythatchildrencannotclimb
onthemandgainaccesstothepool.
Electrocution Risk:
• Keepallelectricallines,radios,speakersandotherelectricalappliancesawayfromthepool.
• Donotplacepoolnearorunderoverheadelectricallines.
Suction Risk:
• Ifafilterpumpisincludedwiththepool,replacementpumpshallneverexceedthemaximumflowrate
markedonthesuctionfitting.
Be Prepared to Respond to an Emergency:
•
Keepaworkingphoneandalistofemergencynumbersnearthepool.
•
Becomecertifiedincardiopulmonaryresuscitation(CPR)soyoucanrespondtoanemergency.Intheevent
ofanemergency,immediateuseofCPRcanmakealife-savingdifference.
IMPORTANT SAFETY RULES
WARNING
NO DIVING OR JUMPING
SHALLOW WATER
PREVENT DROWNING
Supervise, Supervise, Supervise
STAY AWAY FROM DRAINS
AND SUCTIONS FITTINGS
•
Children,especiallychildrenunderfiveyears,areathighriskofdrowning.
•
Removeladderwhennotinuse
.
•
Closelywatchchildrenwhoareinornearthispool.
•
Divingorjumpingmayresultinbrokenneck,paralysis,permanentinjuryordeath.
•
Ifdrainorsuctionoutletcoverismissingorbroken,yourhair,bodyandjewelrycangetsuckedinto
drain.Youcouldbeheldunderwateranddrown!Donotusethepoolifdrainorsuctionoutletcoveris
missingorbroken.
• Emptypoolorpreventaccesswhennotinuse. Storetheemptypoolinsuchawaythatitdoesnot
collectwaterfromrainoranyothersource.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 5
Barriers for Residential Swimming Pool Guidelines:
Anoutdoorswimmingpool,includinganinground,aboveground,orongroundpool,hottub,orspa,shouldbe
providedwithabarrierwhichcomplieswiththefollowing:
1.
Thetopofthebarriershouldbeatleast48inchesabovegrademeasuredonthesideofthebarrierwhich
facesawayfromtheswimmingpool.Themaximumverticalclearancebetweengradeandthebottomof
thebarriershouldbe4inchesmeasuredonthesideofthebarrierwhichfacesawayfromtheswimming
pool.Wherethetopofthepoolstructureisabovegrade,suchasanabovegroundpool,thebarriermay
beatgroundlevel,suchasthepoolstructure,ormountedontopofthepoolstructure.Wherethebarrieris
mountedontopofthepoolstructure,themaximumverticalclearancebetweenthetopofthepoolstructure
andthebottomofthebarriershouldbe4inches.
2.
Openingsinthebarriershouldnotallowpassageofa4-inchdiametersphere.
3.
Solidbarriers,whichdonothaveopenings,suchasamasonryorstonewall,shouldnotcontain
indentationsorprotrusionsexceptfornormalconstructiontolerancesandtooledmasonryjoints.
4.
Wherethebarrieriscomposedofhorizontalandverticalmembersandthedistancebetweenthetopsofthe
horizontalmembersislessthan45inches,thehorizontalmembersshouldbelocatedontheswimmingpool
sideofthefence.Spacingbetweenverticalmembersshouldnotexceed1-3/4inchesinwidth.Wherethere
aredecorativecutouts,spacingwithinthecutoutsshouldnotexceed1-3/4inchesinwidth.
5.
Wherethebarrieriscomposedofhorizontalandverticalmembersandthedistancebetweenthetopsof
thehorizontalmembersis45inchesormore,spacingbetweenverticalmembersshouldnotexceed4
inches.Wheretherearedecorativecutouts,spacingwithinthecutoutsshouldnotexceed1-3/4inchesin
width.
6.
Maximummeshsizeforchainlinkfencesshouldnotexceed
1-1/4
inchsquareunlessthefenceisprovided
withslatsfastenedatthetoporthebottomwhichreducetheopeningstonomorethan1-3/4inches.
7.
Wherethebarrieriscomposedofdiagonalmembers,suchasalatticefence,themaximumopeningformed
bythediagonalmembersshouldbenomorethan1-3/4inches.
8.
AccessgatestothepoolshouldcomplywithSectionI,Paragraphs1through7,andshouldbeequipped
toaccommodatealockingdevice.Pedestrianaccessgatesshouldopenoutward,awayfromthepool,and
shouldbeself-closingandhaveaselflatchingdevice.Gatesotherthanpedestrianaccessgatesshould
haveaself-latchingdevice.Wherethereleasemechanismoftheself-latchingdeviceislocatedlessthan54
inchesfromthebottomofthegate,(a)thereleasemechanismshouldbelocatedonthepoolsideofthe
gateatleast3inchesbelowthetopofthegateand(b)thegateandbarriershouldhavenoopeninggreater
than1/2inchwithin18inchesofthereleasemechanism.
9.
Whereawallofadwellingservesaspartofthebarrier,oneofthefollowingshouldapply:
(a)
Alldoorswithdirectaccesstothepoolthroughthatwallshouldbeequippedwithanalarmwhich
producesanaudiblewarningwhenthedooranditsscreen,ifpresent,areopened.Thealarmshould
soundcontinuouslyforaminimumof30secondswithin7secondsafterthedoorisopened.Alarms
shouldmeettherequirementsofUL2017General-PurposeSignalingDevicesandSystems,
Section77.Thealarmshouldhaveaminimumsoundpressureratingof85dBAat10feetandthe
soundofthealarmshouldbedistinctivefromotherhouseholdsounds,suchassmokealarms,
telephones,anddoorbells.Thealarmshouldautomaticallyresetunderallconditions.Thealarmshould
beequippedwithmanualmeans,suchastouchpadsorswitches,totemporarilydeactivatethealarmfor
asingleopeningofthedoorfromeitherdirection.Suchdeactivationshouldlastfornomorethan15
seconds.Thedeactivationtouchpadsorswitchesshouldbelocatedatleast54inchesabovethe
threshold of the door.
(b)
ThepoolshouldbeequippedwithapowersafetycoverwhichcomplieswithASTMF1346-91listed
below.
(c)
Othermeansofprotection,suchasself-closingdoorswithself-latchingdevices,areacceptablesolong
asthedegreeofprotectionaffordedisnotlessthantheprotectionaffordedby(a)or(b)described
above.
10.
Whereanabovegroundpoolstructureisusedasabarrierorwherethebarrierismountedontopofthe
poolstructure,andthemeansofaccessisaladderorsteps,then(a)theladdertothepoolorsteps
shouldbecapableofbeingsecured,lockedorremovedtopreventaccess,or(b)theladderorsteps
shouldbesurroundedbyabarrier.Whentheladderorstepsaresecured,locked,orremoved,any
openingcreatedshouldnotallowthepassageofa4-inchdiametersphere.
Barriersshouldbelocatedsoastoprohibitpermanentstructures,equipmentorsimilarobjectsfrombeing
usedtoclimbthebarriers.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 6
PARTS REFERENCE
Beforeassemblingyourproduct,pleasetakeafewminutestocheckthecontents
andbecomefamiliarwithalltheparts.
NOTE:
Drawingsforillustrationpurposeonly.Actualproductmayvary.Nottoscale.
For Pools with Dual Suction Outlets Configuration:
InordertocomplywiththerequirementoftheVirginiaGrahameBakerAct(forUSAandCanada),your
poolisdesignedwithdualsuctionoutletsandoneinletfittings.Overviewofthedualsuctionoutlets
configurationisasfollow:
16
17
1
2
3
4
5
8
9
10
11
15
12
13
7
20
21
22
24 23
25 19
16
17
18
1
2
3
4
5
8
9
10
11
14
15
12
13
6
7
20
21
22
33 23
26 27 28 29 30 31 32
19
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 7
REF.
NO.
DESCRIPTION
POOL SIZE & QUANTITIES
157-1/2”x78-3/4”
(400cmx200cm)
118-1/8”x68-3/4”
(300cm x 175cm)
15’ x 9’
(457cmx274cm)
16’ x 8’
(488cm x 244cm)
18’ x 9’
(549cm x 274cm)
24’ x 12’
(732cm x 366cm)
32’ x 16’
(975cm x 488cm)
1
SINGLEBUTTONSPRING
8 8 8 8 8 14 20
2
HORIZONTALBEAM(A)(SINGLEBUTTONSPRINGINCLUDED)
2 2 2 2 2 2 2
3
HORIZONTALBEAM(B)(SINGLEBUTTONSPRINGINCLUDED)
4 2 4 4 4 8 12
4
HORIZONTALBEAM(C)
2 2 2 2 2 2 2
5
HORIZONTALBEAM(D)(SINGLEBUTTONSPRINGINCLUDED)
2 2 2 2 2 2 2
6
HORIZONTALBEAM(E)(SINGLEBUTTONSPRINGINCLUDED)
2 2 4
7
HORIZONTALBEAM(F)
2 2 2 2 2 2 2
8
CORNERJOINT
4 4 4 4 4 4 4
9
U-SUPPORTENDCAP
24 16 24 24 24 36 48
10
DOUBLEBUTTONSPRINGCLIP
24 16 24 24 24 36 48
11
U-SHAPEDSIDESUPPORT(U-SUPPORTEND
CAP&DOUBLEBUTTONSPRINGCLIPINCLUDED)
12 8 12 12 12 18 24
12
CONNECTINGROD
12 8 12 12 12 18 24
13
RESTRAINERSTRAP
12 8 12 12 12 18 24
14
GROUNDCLOTH
1 1 1 1 1
15
POOLLINER(DRAINVALVECAPINCLUDED)
1 1 1 1 1 1 1
16
DRAINCONNECTOR
1 1 1 1 1 1 1
17
DRAINVALVECAP
2 2 2 2 2 2 2
18
POOLCOVER
1 1 1 1 1
19 STRAINERHOLEPLUG
3 3 2 3 2 2 2
20 STRAINERCONNECTOR
3 3 2 3 2 2 2
21 STRAINERGRID
2 2 2 2 2 2 2
22 HOSE
2 2 2 2 2 2 2
23 HOSECLAMP
8 8 4 8 4 4 4
24 HOSET-JOINT
1 1 1
25 POOLINLETNOZZLE
1 1 1
26 HOSEO-RING
1 1 1 1
27
PLUNGERVALVE(HOSEO-RING&STEPWASHERINCLUDED)
1 1 1 1
28 STEPWASHER
1 1 1 1
29 STRAINERNUT
1 1 1 1
30 FLATSTRAINERRUBBERWASHER
1 1 1 1
31 THREADEDSTRAINERCONNECTOR
1 1 1 1
32 ADJUSTABLEPOOLINLETNOZZLE
1 1 1 1
33 SPLITHOSEPLUNGERVALVE
1 1 1 1
PARTS REFERENCE (continued)
Beforeassemblingyourproduct,pleasetakeafewminutestocheckthecontents
andbecomefamiliarwithalltheparts.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 8
REF.
NO.
DESCRIPTION
157-1/2”x
78-3/4”x39-3/8”
(400cm x 200cm
x 100cm)
118-1/8”x
68-3/4”x31-1/2”
(300cm x 175cm
x 80cm)
15’ x 9’ x 48’’
(457cm x 274cm
x 122cm)
16’ x 8’ x 42’’
(488cm x 244cm
x 107cm)
18’ x 9’ x 52’’
(549cm x 274cm
x 132cm)
24’ x 12’ x 52’’
(732cm x 366cm
x 132cm)
32' x 16' x 52''
(975cm x 488cm
x 132cm)
SPARE PART NO.
1
SINGLEBUTTONSPRING 10381 10381 10381 10381 10381 10381 10381
2
HORIZONTALBEAM(A)(SINGLEBUTTONSPRINGINCLUDED)
12161 12209 11524 12219 10919 10920 10921
3
HORIZONTALBEAM(B)(SINGLEBUTTONSPRINGINCLUDED)
12162 12210 11525 12220 10922 10923 10924
4
HORIZONTALBEAM(C) 12163 12211 11526 12221 10925 10926 10927
5
HORIZONTALBEAM(D)(SINGLEBUTTONSPRINGINCLUDED)
12164 12212 10928 12222 10928 10929 10928
6
HORIZONTALBEAM(E)(SINGLEBUTTONSPRINGINCLUDED)
12281 10930 10931
7
HORIZONTALBEAM(F) 12165 12212 10932 12223 10932 10933 10932
8
CORNERJOINT 12166 12166 10934 12224 10934 10934 10934
9
U-SUPPORTENDCAP 10379 10379 10935 10379 10935 10935 10935
10
DOUBLEBUTTONSPRINGCLIP 10382 10382 10936 10382 10936 10936 10936
11
U-SHAPEDSIDESUPPORT(U-SUPPORTEND
CAP&DOUBLEBUTTONSPRINGCLIPINCLUDED)
12167 12214 11523 12225 10937 10937 10937
12
CONNECTINGROD 10383 10383 10383 10383 10383 10383 10383
13
RESTRAINERSTRAP 12226 12217 10938 12226 10938 10938 10938
14
GROUNDCLOTH 11521 12227 10759 18941 10760
15
POOLLINER(DRAINVALVECAPINCLUDED)
12135EH 12216EH 11520EH 12228EH 10939EH 10940EH 10941EH
16
DRAINCONNECTOR 10184 10184 10184 10184 10184 10184 10184
17
DRAINVALVECAP 11044 11044 11044 11044 11044 11044 11044
18
POOLCOVER 11522 12229 10756 18936 10757
19 STRAINERHOLEPLUG 10127 10127 10127 10127 10127 10127 10127
20 STRAINERCONNECTOR 11070 11070 11070 11070 11070 11070 11070
21 STRAINERGRID 11072 11072 11072 11072 11072 11072 11072
22 HOSE 11873 11873 11873 11873 11873 11873 11873
23 HOSECLAMP 11489 11489 10122 11489 10122 10122 10122
24 HOSET-JOINT 11871 11871 11871
25 POOLINLETNOZZLE 11071 11071 11071
26 HOSEO-RING 10262 10262 10262 10262
27
PLUNGERVALVE(HOSEO-RING&STEPWASHERINCLUDED)
10747 10747 10747 10747
28 STEPWASHER 10745 10745 10745 10745
29 STRAINERNUT 10256 10256 10256 10256
30 FLATSTRAINERRUBBERWASHER 10255 10255 10255 10255
31 THREADEDSTRAINERCONNECTOR 11235 11235 11235 11235
32 ADJUSTABLEPOOLINLETNOZZLE 11074 11074 11074 11074
33 SPLITHOSEPLUNGERVALVE 11872 11872 11872 11872
PARTS REFERENCE (continued)
Beforeassemblingyourproduct,pleasetakeafewminutestocheckthecontents
andbecomefamiliarwithalltheparts.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 9
PARTS REFERENCE (continued)
Beforeassemblingyourproduct,pleasetakeafewminutestocheckthecontents
andbecomefamiliarwithalltheparts.
NOTE:
Drawingsforillustrationpurposeonly.Actualproductmayvary.Nottoscale.
1
2
3
4
5
8
9
10
11
14
15
12
13
6
7
16
17
19
18
Non-USA & Canada:
REF.
NO.
DESCRIPTION
POOL SIZE & QUANTITIES
157-1/2”x78-3/4”
(400cm x 200cm)
118-1/8”x68-3/4”
(300cm x 175cm)
15’ x 9’
(457cmx274cm)
16’ x 8’
(488cm x 244cm)
18’ x 9’
(549cm x 274cm)
24’ x 12’
(732cm x 366cm)
32’ x 16’
(975cm x 488cm)
1 SINGLEBUTTONSPRING 8 8 8 8 8 14 20
2
HORIZONTALBEAM(A)(SINGLEBUTTONSPRINGINCLUDED)
2 2 2 2 2 2 2
3
HORIZONTALBEAM(B)(SINGLEBUTTONSPRINGINCLUDED)
4 2 4 4 4 8 12
4 HORIZONTALBEAM(C) 2 2 2 2 2 2 2
5
HORIZONTALBEAM(D)(SINGLEBUTTONSPRINGINCLUDED)
2 2 2 2 2 2 2
6
HORIZONTALBEAM(E)(SINGLEBUTTONSPRINGINCLUDED)
0 2 0 0 0 2 4
7 HORIZONTALBEAM(F) 2 2 2 2 2 2 2
8 CORNERJOINT 4 4 4 4 4 4 4
9 U-SUPPORTENDCAP 24 16 24 24 24 36 48
10 DOUBLEBUTTONSPRINGCLIP 24 16 24 24 24 36 48
11
U-SHAPEDSIDESUPPORT(U-SUPPORTENDCAP&DOUBLEBUTTONSPRINGCLIPINCLUDED)
12 8 12 12 12 18 24
12 CONNECTINGROD 12 8 12 12 12 18 24
13 RESTRAINERSTRAP 12 8 12 12 12 18 24
14 GROUNDCLOTH 0 0 1 1 1 1 1
15
POOLLINER(DRAINVALVECAPINCLUDED)
1 1 1 1 1 1 1
16 DRAINCONNECTOR 1 1 1 1 1 1 1
17 DRAINVALVECAP 2 2 2 2 2 2 2
18 POOLCOVER 0 0 1 1 1 1 1
19 STRAINERHOLEPLUG 3 3 3
REF.
NO.
DESCRIPTION
157-1/2”x78-3/4”x39-3/8”
(400cm x 200cm x 100cm)
118-1/8”x68-3/4”x31-1/2”
(300cm x 175cm x 80cm)
15’ x 9’ x 48’’ (457cm
x 274cm x 122cm)
16’ x 8’ x 42’’ (488cm
x 244cm x 107cm)
18’ x 9’ x 52’’ (549cm
x 274cm x 132cm)
24’ x 12’ x 52’’ (732cm
x 366cm x 132cm)
32' x 16' x 52'' (975cm
x 488cm x 132cm)
SPARE PART NO.
1 SINGLEBUTTONSPRING 10381 10381 10381 10381 10381 10381 10381
2
HORIZONTALBEAM(A)(SINGLEBUTTONSPRINGINCLUDED)
12161 12209 11524 12219 10919 10920 10921
3
HORIZONTALBEAM(B)(SINGLEBUTTONSPRINGINCLUDED)
12162 12210 11525 12220 10922 10923 10924
4 HORIZONTALBEAM(C) 12163 12211 11526 12221 10925 10926 10927
5
HORIZONTALBEAM(D)(SINGLEBUTTONSPRINGINCLUDED)
12164 12212 10928 12222 10928 10929 10928
6
HORIZONTALBEAM(E)(SINGLEBUTTONSPRINGINCLUDED)
12281 10930 10931
7 HORIZONTALBEAM(F) 12165 12212 10932 12223 10932 10933 10932
8 CORNERJOINT 12166 12166 10934 12224 10934 10934 10934
9 U-SUPPORTENDCAP 10379 10379 10935 10379 10935 10935 10935
10 DOUBLEBUTTONSPRINGCLIP 10382 10382 10936 10382 10936 10936 10936
11
U-SHAPEDSIDESUPPORT(U-SUPPORTENDCAP&DOUBLE
BUTTONSPRINGCLIPINCLUDED)
12167 12214 11523 12225 10937 10937 10937
12 CONNECTINGROD 10383 10383 10383 10383 10383 10383 10383
13 RESTRAINERSTRAP 12226 12217 10938 12226 10938 10938 10938
14 GROUNDCLOTH 11521 12227 10759 18941 10760
15
POOLLINER(DRAINVALVECAPINCLUDED)
12135 12216 11520 12228 10939 10940 10941
16 DRAINCONNECTOR 10184 10184 10184 10184 10184 10184 10184
17 DRAINVALVECAP 11044 11044 11044 11044 11044 11044 11044
18 POOLCOVER 11522 12229 10756 18936 10757
19 STRAINERHOLEPLUG 10127 10127 10127
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 10
Select an outdoor location for the pool with the following requirements in mind:
1.
Theareawherethepoolistobesetupmustbe
absolutely flat and level.
Donotsetupthepoolona
slopeorinclinedsurface.
2.
Thegroundsurfacemustbecompactedandfirmenoughtowithstandthepressureandweightofa
fullysetuppool.
Do Not
setupthepoolonmud,sand,softorloosesoilconditions.
3.
Donotsetupthepoolonadeck,balconyorplatform,whichmaycollapseundertheweightofthefilled
pool.
4.
Thepoolrequiresatleast5-6feet(1.5-2.0m)ofspaceallaroundpoolfromobjectsthatachild
couldclimbontogainaccesstothepool.
5.
Grassunderthepoolwillbedamaged.Splashout chlorinated poolwatercoulddamagethe
surroundingvegetation.
6.
Ifthegroundisnotconcrete(i.e.,ifitisasphalt,lawnorearth)youmustplaceapieceof
pressure-treatedwood,size15”x15”x1.2”(38x38x3cm),undereachU-shapedsupportandflush
withtheground.Alternativelyyoumayusesteelpadsorreinforcedtiles.
Consultyourlocalpoolsupply
retailerforadviceonsupportpads.
7.
Abovegroundstorablepoolsshallbelocatedataminimumdistanceof6ft(1.83meters)fromany
receptacle,andthatall125-volt15-and20-amperereceptacleslocatedwithin20ft(6.0meters)ofthe
poolshallbeprotectedbyagroundfaultcircuitinterrupter(GFCI),wheredistancesarebymeasuring
theshortestpaththesupplycordofanapplianceconnectedtothereceptaclewouldfollowwithout
piercingafloor,wall,ceiling,doorwaywithhingedorslidingdoor,windowopening,orothereffective
permanentbarrier.
8.
Eliminateallaggressivegrassesfirst.CertaintypesofgrasssuchasSt.AugustineandBermuda,may
growthroughtheliner.Grassgrowingthroughthelineritisnotamanufacturedefectandisnot
coveredunderwarranty.
9. Theareashallfacilitatedrainageofthepoolwateraftereachuseand/orforlongtermpoolstorage.
POOL SETUP
WARNING
IMPORTANT SITE SELECTION AND GROUND
PREPARATION INFORMATION
• Thepoollocationmustallowyoutosecurealldoors,windows,andsafetybarrierstoprevent
unauthorized, unintentional or unsupervised pool entry.
• Installasafetybarrierthatwilleliminateaccesstothepoolforyoungchildrenandpets.
• Failuretosetupthepoolonflat,level,compactgroundandtoassembleandfillwithwaterin
accordance with the following instructions could result in the pool’s collapse or the
possibility that a person lounging in the pool could be swept out/ejected, resulting in serious
injury or property damage.
• Riskofelectricshock:connectthefilterpumponlytoagroundingtypereceptacleprotected
by a ground-fault circuit interrupter (GFCI). To reduce the risk of an electrical shock, do not
use extension cords, timers, plug adapters or converter plugs to connect the pump to an
electrical supply. Always provide a properly located outlet. Locate the cord where it cannot
be damaged by lawn mowers, hedge trimmers, and other equipment. See the filter pump
manual for additional warnings and instructions.
• Riskofseriousinjury:donotattempttoassemblepoolinhighwindconditions.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 11
POOL SETUP (continued)
YoumayhavepurchasedthispoolwiththeIntexKrystalClear™filterpump.Thepumphasits
ownseparatesetofinstallationinstructions.Firstassembleyourpoolunitandthensetupthe
filterpump.
Estimatedassemblytime60~90minutes.(Notetheassemblytimeisonlyapproximateand
individualassemblyexperiencemayvary.)
• Findaflat,levellocationthatisfreeandclearofstones,branchesorothersharpobjectsthatmay
puncturethepoollinerorcauseinjury.
• Openthecartoncontainingtheliner,joints,legs,etc.,verycarefullyasthiscartoncanbeusedtostore
thepoolduringthewintermonthsorwhennotinuse.
• Removethegroundcloth
(14)
fromcarton.Spreadit
outcompletelywithitsedgesbeingatleast5-6’
(1.5-2.0m)fromanyobstaclesuchaswalls,fences,
trees,etc.Removetheliner
(15)
fromcartonand
spreaditoutoverthegroundclothwiththedrainvalve
towardsthedrainingarea.Placethedrainvalveaway
fromthehouse.Openituptowarmitinthesun.This
warmingwillmakeinstallationeasier.Makesurethe
lineriscenteredatopthegroundcloth.Besuretoface
theendwiththe2hoseconnectorstowardsthe
electricalpowersource.
IMPORTANT: Do not drag the liner across the
ground as this can cause liner damage and pool
leakage (see drawing 1).
• Duringtheset-upofthispoolliner,pointthehose
connectionsoropeningsinthedirectionoftheelectric
powersource.Theouteredgeoftheassembledpool
istobewithinreachoftheelectricalconnectionfor
theoptionalfilterpump.
2.
Removeallthepartsfromthecarton(s)andplacethem
onthegroundinthelocationwheretheyaretobe
assembled.Checkthepartslistingandbesureallthe
piecestobeassembledareaccountedfor(see
drawings 2.1-2.4).
IMPORTANT: Do not start assembly if any pieces
are missing. For replacement pieces call the
Consumer Service telephone number in your area.
Afterallpiecesareaccountedformovethepiecesaway
fromthelinerforofinstallation.
1
ELECTRICAL SOURCE
5 - 6' (1.5 - 2.0 m)
5 - 6'
(1.5 - 2.0 m)
5 - 6'
(1.5 - 2.0 m)
LINER
2.1
157-1/2”x78-3/4”x39-3/8” /15’ X 9’ /16’ X 8’/ 18’ X 9’
(A)
CORNER JOINT
CORNER JOINT
CORNER JOINT
CORNER JOINT
(F)
(D)
(F)
(D)
(C)
(A)
(C)
LINER
(B)
(B)
(B)
(B)
2.2
118-1/8”x68-3/4”
(A)
CORNER JOINT
CORNER JOINT
CORNER JOINT
CORNER JOINT
(F)
(D)
(F)
(D)
(C)
LINER
(E)
(B)
2.3
(A)
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
(F)
(D)
(E)
(D)
(F)
(E)
(C)
LINER
(B)
(B)
(B)
(B)
(C)
(A)
(B)
(B)
(B)
(B)
24’ X 12’
(E)
(A)
(B)(C)
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 12
POOL SETUP (continued)
2.4
32’ X 16’
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
(A)
(F)
(D)
(E)
(E)
(D)
(F)
(E)
(E)
(C)
LINER
(B)
(B)
(B)
(B)
(B)
(B)
(C)
(A)
(B)
(B)
(B)
(B)
(B)
(B)
3.
Besurethelinerisopenedandspreadouttoitsfullest
extentontopofthegroundcloth.Startingwithoneside,
slidethe“A”beamsfirstintothesleeveopeningslocatedin
eachcorner.Continuewith“B”beamsnappingintothe“A”
beam,andanother“C”beamsnappingintothe“B”beam
(seedrawing3).
Keepthemetalbeamholesalignedwiththewhiteliner
sleeveholes.
Continueinsertingall“A-B-C&D-E-F”beamsintothesleeve
openings.Startthe"D-E-F"combinationforpool'sshortsides
byinsertingthe"D"beamfirstintotheopening.
Thecombinationsforbeamsaredifferentfordifferentsizesofpools,seethechartbelowfordetail.(Be
sureall4sidesendupwiththemetalbeamholesalignedwiththewhitelinersleeveholes.)
4.
Slidetherestrainerstrap
(13)
ontothelargeU-shapedside
support
(11)
.RepeatforallrestrainerstrapsandU-supports.
IMPORTANT: The liner is to remain flat on the ground
during the next step #5. This is why 5 - 6’ of clearance
space around the pool is necessary (see drawing 4).
4
13
9
10
11
3
(C)
(B)
(B)
(A)
SizeofPool
157-1/2”x78-3/4”(400cmx200cm)
118-1/8”x68-3/4”(300cmx175cm)
15’x9’(457cmx274cm)
16’x8’(488cmx244cm)
18’x9’(549cmx274cm)
24’x12’(732cmx366cm)
32’x16’(975cmx488cm)
No.of“U-shape”Leg
on longer side
4
3
4
4
4
6
8
No.of“U-shape”Leg
on shorter side
2
1
2
2
2
3
4
HorizontalBeam
Combinationsonlongerside
A-B-B-C
A-B-C
A-B-B-C
A-B-B-C
A-B-B-C
A-B-B-B-B-C
A-B-B-B-B-B-B-C
HorizontalBeam
Combinationsonshorterside
D-F
D-E-F
D-F
D-F
D-F
D-E-F
D-E-E-F
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 13
POOL SETUP (continued)

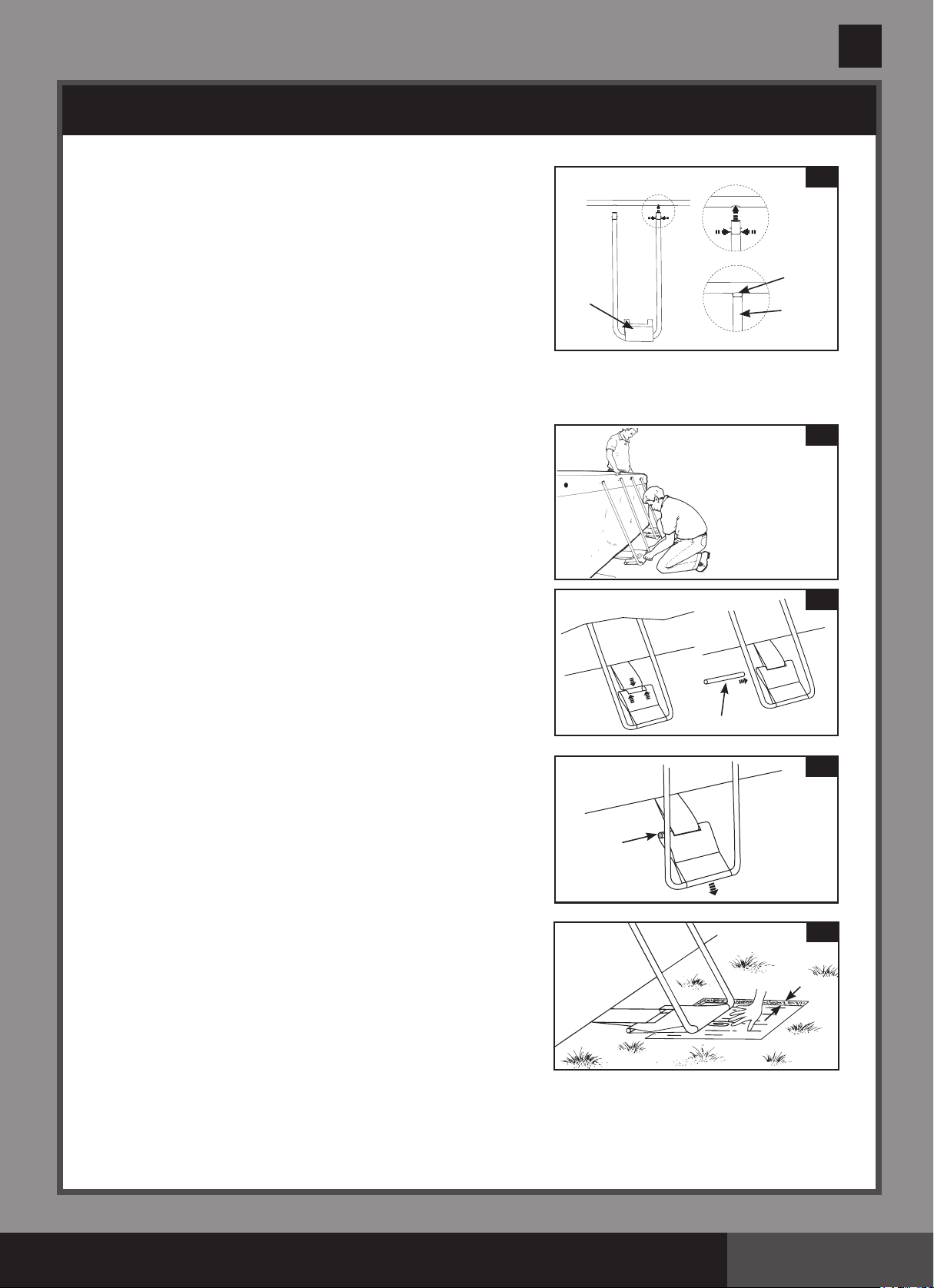

5.
ThetopsoftheU-shapedsidesupportshaveadouble
buttonspringloadedclip
(10)
thatisfactorypre-installed.
Insertthesidesupportsintothe“A-B-C&D-E-F”beam
holesbysqueezingthebottombuttoninwardwithyour
fingers.
Squeezingthisbottombuttonwillallowthesupporttoenter
thebeam.OncetheU-supportisinsidethebeamrelease
thefingerpressureallowingthesupportto“SNAP”into
place.RepeatthisprocedureforallU-shapedsidesupports
(seedrawing5).
6.
Withonepersonstandinginsidethepool,raiseonecorner;
insert the connecting rod
(12)
intotheoverlapping
openings,toconnectthelinerstrapstotherestrainer
straps.Repeattheoperationintheothercornersandthen
onthesides(seedrawings6.1&6.2).
7.
Pullthebottomsofthesidesupportsoutawayfromthe
linertomakethestrapstaut.Repeatforalllocations(see
drawing7).
8.
Ifthegroundisnotconcrete(asphalt,lawnorearth)you
mustplaceapieceofpressure-treatedwood,size
15”x15”x1.2”,undereachlegandflushwiththeground.
TheU-shapedsidesupportsmustbeplacedinthecenter
ofthepressure-treatedwoodandwiththewoodgrain
perpendiculartothesupportleg(seedrawing8).
5
13
11
10
6.1
6.2
LINER
LINER
12
7
12
8
Level
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 14
POOL SETUP (continued)
9.
Positionthelongwalltoprailssotheyareleaningoverthe
shortwalltoprails.Installethecornerjoints
(8)
atthe4
corners(seedrawing9).
IMPORTANT: The four corner joints are designed to be
moveable relative to the horizontal beams and not fixed
to the horizontal beams. This allows the pool side walls
to move inward or outward when the pool is in use.
10.
Assembletheladder.Theladderhasseparateassemblyinstructionsintheladderbox.
11.
Placetheassembledladderoveroneofthesideswithoneofthelinerinstallationteammembers
enteringthepooltosmoothoutallbottomlinerwrinkles.Whileinsidethepoolthisteammember
shouldcheckthe2drainvalves(incorners)tobesuretheinsidedrainplugisinsertedintothevalve.
Thisteammembershouldpusheachinsidecornerinanoutwarddirection.
12.
Beforefillingthepoolwithwater,ensurethatthedrainpluginsidethepoolisclosedandthatthedrain
capontheoutsideisscrewedontightly.Fillthepoolwithnomorethan1inch(2.5cm)ofwater.Check
toseewhetherthewaterislevel.
IMPORTANT: If the water in the pool flows to one side, the pool is not completely level. Setting
up the pool on unleveled ground will cause the pool to tilt resulting in the sidewall material to
bulge. If the pool is not completely level, you must drain the pool, level the area and re-fill the
pool.
Smoothouttheremainingwrinkles(frominsidepool)bypushingoutwherethepoolfloorandpool
sidesmeet.Or(fromoutsidepool)reachunderthesideofthepool,graspthepoolfloorandpullitout.
Ifthegroundclothiscausingthewrinkles,have2peoplepullfromeithersidetoremoveallwrinkles.
13.
Fillthepoolwithwateruptojustbelowthesleeveline.
(seedrawing10).
NOTE:
Thepoolsidewallsandframestructurewilllean
inwardafterhavingbeenfilledwithwatertothe
recommendedlevel.Donotbeconcernedbytheinward
leaningofthesidewalls,thisistoaccommodatethewater
movementandpressurewhenthepoolisinuse.
14.
Posting
aquatic safety signs
SelectahighlyvisibleareanearthepooltoposttheDanger
NoDivingorJumpingsignincludedlaterinthismanual.
9
8
IMPORTANT
Before allowing anyone to use the pool, hold a family meeting. Establish a set of rules that
include, at a minimum, the important safety rules and general aquatic safety information in
this manual. Review these rules on a regular basis and with all users of the pool, including
guests.
WATER LEVEL
10
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 15
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of
injury and death. To reduce your risk of injury, read and follow all product, package
and package insert warnings and instructions. Remember, however, that product
warnings, instructions and safety guidelines cover some common risks of water
recreation, but do not cover all risks and dangers.
Assign an adult to be responsible for watching children in the pool. Give this
person a “water watcher” tag and ask that they wear it the entire time they are in
charge of supervising children in the pool. If they need to leave for any reason, ask
this person to pass the “water watcher” tag and the supervision responsibility to
another adult.
For additional safeguards, also familiarize yourself with the following general
guidelines as well as guidelines provided by nationally recognized Safety
Organizations:
• Demandconstantsupervision.Acompetentadultshouldbeappointedasa“lifeguard”
orwaterwatcher,especiallywhenchildrenareinandaroundthepool.
• Learntoswim.
• TakethetimetolearnCPRandfirstaid.
• Instructanyonewhoissupervisingpoolusersaboutpotentialpoolhazardsandabout
theuseofprotectivedevicessuchaslockeddoors,barriers,etc.
• Instructallpoolusers,includingchildrenwhattodoincaseofanemergency.
• Alwaysusecommonsenseandgoodjudgementwhenenjoyinganywateractivity.
• Supervise,supervise,supervise.
For additional information on safety, please visit
•TheAssociationofPoolandSpaProfessionals:TheSensibleWaytoEnjoyYour
Aboveground/Onground Swimming Pool www.nspi.org
• AmericanAcademyofPediatrics:PoolSafetyforChildrenwww.aap.org
• RedCrosswww.redcross.org
• SafeKidswww.safekids.org
• HomeSafetyCouncil:SafetyGuidewww.homesafetycouncil.org
• ToyIndustryAssociation:ToySafetywww.toy-tia.org
SAFETY IN YOUR POOL
Safe swimming depends on constant attention to the rules. You may also wish to copy and
laminate the sign for protection from the elements. You can also download and print
additional copies of the warning sign and water watcher tags at www.intexcorp.com.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 16
PROBLEM
DESCRIPTION
CAUSE
SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT ON
POOL BOTTOM
SURFACE DEBRIS
• Greenishwater.
• Greenorblackspots
onpoolliner.
• Poollinerisslippery
and/orhasabadodor.
• Waterturnsblue,
brown,orblackwhen
first treated with
chlorine.
• Wateriscloudyor
milky.
• Levelislowerthan
onpreviousday.
• Dirtorsandonpool
floor.
• Leaves,insectsetc.
• ChlorineandpHlevel
needadjustment.
• Copper,ironor
manganeseinwater
beingoxidizedbythe
added chlorine.
• "Hardwater"causedbya
toohighpHlevel.
• Chlorinecontentislow.
• Foreignmatterinwater.
• Riporholeinpoolliner
or hoses.
• Heavyuse,gettingin
andoutofpool.
• Pooltooclosetotrees.
• Superchlorinatewithshock
treatment.CorrectpHtoyour
poolstore'srecommendedlevel.
• Vacuumpoolbottom.
• Maintainproperchlorinelevel.
• AdjustpHtorecommended
level.
• Runfilteruntilwaterisclear.
• Replacecartridgefrequently.
• CorrectthepHlevel.Checkwith
yourpooldealerforadvice.
• Checkforproperchlorinelevel.
• Cleanorreplaceyourfilter
cartridge.
• Repairwithpatchkit.
• Fingertightenallcaps.
• Replacethehoses.
• UseIntexpoolvacuumto
cleanbottomofpool.
• UseIntexpoolskimmer.
Water maintenance
The maintenance of a proper water balance through appropriate use of sanitizers is the single most
important factor in maximizing the life and appearance of the liner as well as ensuring clean, healthy
and safe water. Proper technique is important for water testing and treating the pool water. See your
pool professional for chemical, test kits and testing procedures. Be sure to read and follow the
written instructions from the chemical manufacturer.
1
. Neverletchlorinecomeintocontactwiththelinerifitisnotcompletelydissolved.Dissolvegranularor
tabletchlorinefirstinabucketofwater,thenaddittothepoolwater.Likewisewithliquidchlorine;mixit
immediatelyandthoroughlywiththepoolwater.
2
. Nevermixchemicalstogether.Addthechemicalstothepoolwaterseparately.Thoroughlydissolveeach
chemicalbeforeaddinganotheronetothewater.
3
. AnIntexpoolskimmerandanIntexpoolvacuumareavailabletoassistinmaintainingcleanpoolwater.
Seeyourpooldealerforthesepoolaccessories.
4
.Donotuseapressurewashertocleanthepool.
TROUBLESHOOTING
POOL MAINTENANCE & CHEMICALS
REMEMBER TO
• Protectallpooloccupantsfrompossiblewater-relatedillnessesbykeepingthepoolwater
clean and sanitized. Do not swallow the pool water. Always practice good hygiene.
• Keepyourpoolcleanandclear.Thepoolfloormustbevisibleatalltimesfromtheoutside
barrier of the pool.
• Keepchildrenawayfrompoolcoverstoavoidentanglement,drowning,orotherserious
injury.
WARNING
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 17
EXCESSIVE RAIN: To avoid damage to the pool and over filling, immediately drain rain water that
causes the water level to be higher than the maximum.
How to Drain Your Pool and Long Term Storage
NOTE
:Thispoolhasdrainvalvesinstalledin2corners.Connectthegardenhosetothecornervalvethat
directsthewatertotheappropriatelocation.
1
. Checklocalregulationsforspecificdirectionsregardingdisposalofswimmingpoolwater.
2
. Checktomakesurethatthedrainpluginsidethepoolispluggedinplace.
3
. Removethecapfromthedrainvalveontheoutsidepoolwall.
4
. Attachthefemaleendofthegardenhosetothedrainconnector
(16)
.
5
. Placetheotherendofthehoseinanareawherethewatercanbesafelydrainedawayfromthehouse
andothernearbystructures.
6
. Attachthedrainconnectortothedrainvalve.
NOTE: The drain connector will push the drain plug
open inside the pool and water will start to drain immediately.
7.
Whenthewaterstopsdraining,startliftingthepoolfromthesideoppositethedrain,leadingany
remainingwatertothedrainandemptyingthepoolcompletely.
8
. Disconnecthoseandadapterwhenfinished.
9
. Re-insertdrainplugindrainvalveoninsideofpoolforstorage.
10
.Replacedraincaponoutsideofpool.
11
.Reversetheset-upinstructionstodisassemblethepool,andremoveallconnectingparts.
12
.Besurethatthepoolandallpartsarecompletelydrybeforestorage.Airdrythelinerinthesununtil
completelydrybeforefolding

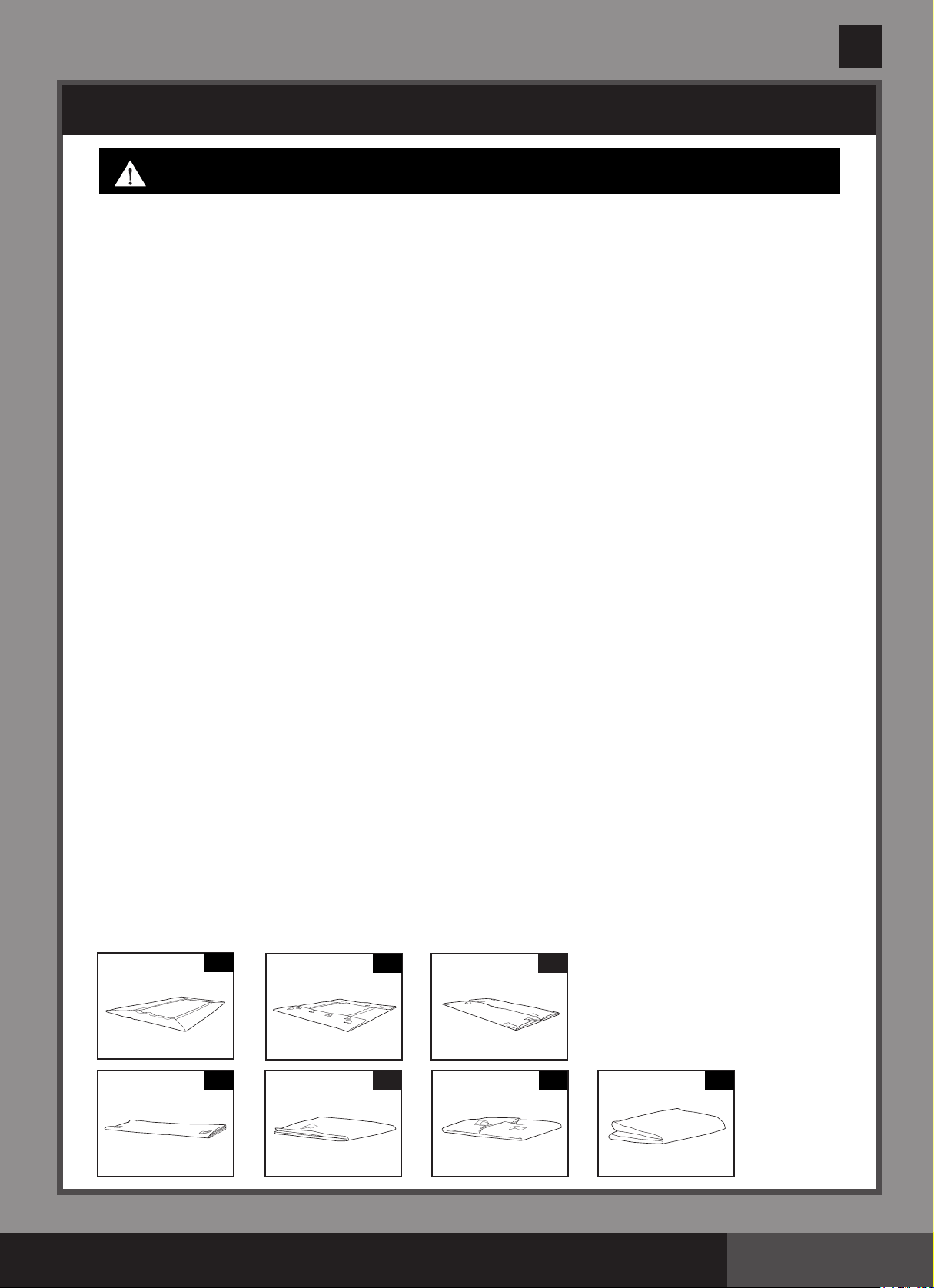

(see drawing 11)
.Sprinklesometalcumpowdertopreventvinylfrom
stickingtogetherandtoabsorbanyresidualmoisture.
13
.Createrectangularshape.Startingatoneside,foldone-sixthoflinerinonitselftwice.Dothesame
ontheoppositeside
(see drawings 12.1 & 12.2)
.
14
.Onceyouhavecreatedtwoopposingfoldedsides,simplyfoldoneovertheotherlikeclosingabook
(see drawings 13.1 & 13.2)
.
15
.Foldthetwolongendstothemiddle
(see drawing 14)
.
16
.Foldoneovertheotherlikeclosingabookandfinallycompacttheliner
(see drawing 15)
.
17
.Storethelinerandaccessoriesinadry,temperaturecontrolled,between32degreesFahrenheit
(0degreesCelsius)and104degreesFahrenheit(40degreesCelsius),storagelocation.
18
.Theoriginalpackingcanbeusedforstorage.
13.1
11
12.1 12.2
13.2
14 15
POOL MAINTENANCE & DRAINAGE
CAUTION
ALWAYSFOLLOWTHECHEMICALMANUFACTURER'S
DIRECTIONS,ANDTHEHEALTHANDHAZARDWARNINGS.
Do not add chemicals if the pool is occupied. This can cause skin or eye irritation.
Concentrated
chlorinesolutionscandamagethepoolliner.InnoeventisIntexRecreationCorp.,IntexDevelopment
Co.Ltd.,theirrelatedcompanies,authorizedagentsandservicecenters,retailersoremployeesliableto
thebuyeroranyotherpartyforcostsassociatedwiththelossofpoolwater,chemicalsorwaterdamage.
Keep spare filter cartridges on hand. Replace cartridges every two weeks.
Werecommendtheuse
ofaKrystalClear™IntexFilterPumpwithallofourabove-ground-pools.
To purchase an Intex Filter
Pump or other accessories see your local retailer, visit our website or call the Intex Consumer
Services Department listed in the separate "Authorized Service Centers" sheet and have your Visa
or Mastercard ready.
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 18
WINTER PREPARATIONS
Winterizing your Above Ground Pool
After usage, you can easily empty and store away your pool in a safe place. You
must drain, disassemble and properly store the pool when the temperature drops
below 41 degrees Fahrenheit (5 degrees Celsius) to prevent ice damage to the pool
and related components. Ice damage can result in sudden liner failure or pool
collapse. Also see the section ‘’How To Drain Your Pool’’.
Should temperatures in your area not drop below 41 degrees Fahrenheit (5 degrees
Celsius), and you choose to leave your pool out, prepare it as follows:
1.
Cleanthepoolwaterthoroughly.IfthetypeisanEasySetPooloranOvalFrame
Pool,makesurethatthetopringisproperlyinflated.
2.
Removetheskimmer(ifapplicable)oranyaccessoriesattachedtothethreaded
strainerconnector.Replacestrainergridifnecessary.Besureallaccessoriespartsare
cleanandcompletelydrybeforestorage.
3.
PlugtheInletandOutletfittingfromtheinsideofthepoolwiththeplugprovided
(sizes16'andbelow).ClosetheInletandOutletPlungerValve(sizes17'andabove).
4.
Removetheladder(ifapplicable)andstoreinasafeplace.Besuretheladderis
completelydrybeforestorage.
5.
Removethehosesthatconnectthepumpandfiltertothepool.
6.
Addtheappropriatechemicalsforthewinterperiod.Consultyourlocalpooldealeras
towhichchemicalsyoushoulduseandhowtousethem.Thiscanvarygreatlyby
region.
7.
CoverpoolwithIntexPoolCover.
IMPORTANT NOTE: INTEX POOL COVER IS NOT
A SAFETY COVER.
8.
Cleananddrainthepump,filterhousingandhoses.Removeanddiscardtheoldfilter
cartridge.Keepasparecartridgeforthenextseason.
9.
Bringpumpandfilterpartsindoorsandstoreinasafeanddryarea,preferably
between32degreesFahrenheit(0degreesCelsius)and104degreesFahrenheit
(40degreesCelsius).
background
119
PO
SAVE THESE INSTRUCTIONS
(119PO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 07/22/2015
English
Page 19
YourIntexPoolhasbeenmanufacturedusingthehighestqualitymaterialsand
workmanship.AllIntexproductshavebeeninspectedandfoundfreeofdefectspriorto
leavingthefactory.ThisLimitedWarrantyappliestotheIntexPoolonly.
TheprovisionsofthisLimitedWarrantyapplyonlytotheoriginalpurchaserandisnot
transferable.ThisLimitedWarrantyisvalidforaperiodof90daysfromthedateofthe
initialretailpurchase.Keepyouroriginalsalesreceiptwiththismanual,asproofof
purchasewillberequiredandmustaccompanywarrantyclaimsortheLimitedWarrantyis
invalid.
Ifamanufacturingdefectisfoundwithinthis90-dayperiod,pleasecontacttheappropriate
IntexServiceCenterlistedintheseparate“AuthorizedServiceCenters”sheet. TheService
Centerwilldeterminethevalidityoftheclaim.IftheServiceCenterdirectsyoutoreturnthe
product,pleasecarefullypackagetheproductandsendwithshippingandinsurance
prepaidtotheServiceCenter.Uponreceiptofthereturnedproduct,theIntexService
Centerwillinspecttheitemanddeterminethevalidityoftheclaim.Iftheprovisionsofthis
warrantycovertheitem,theitemwillberepairedorreplacedatnocharge.
AnyandalldisputesregardingtheprovisionsofthisLimitedWarrantyshallbebrought
beforeaninformaldisputesettlementboardandunlessanduntiltheprovisionsofthese
paragraphsarecarriedforth,nocivilactionmaybeinstituted.Themethodsandprocedures
ofthissettlementboardshallbesubjecttotherulesandregulationssetforthbytheFederal
TradeCommission(F.T.C.).IMPLIEDWARRANTIESARELIMITEDTOTHETERMSOF
THISWARRANTYANDINNOEVENTSHALLINTEX,THEIRAUTHORIZEDAGENTSOR
EMPLOYEESBELIABLETOTHEBUYERORANYOTHERPARTYFORDIRECTOR
CONSEQUENTIALDAMAGESORLIABILITIES.Somestates,orjurisdictionsdonotallow
theexclusionorlimitationofincidentalorconsequentialdamages,sotheabovelimitationor
exclusionmaynotapplytoyou.
ThisLimitedWarrantydoesnotapplyiftheIntexproductissubjecttonegligence,
abnormaluseoroperation,accident,improperoperation,impropermaintenanceorstorage,
ortodamagebycircumstancesbeyondIntex’scontrol,includingbutnotlimitedto,
punctures,tears,abrasions,ordinarywearandtearanddamagecausedbyexposureto
fire,flood,freezing,rain,orotherexternalenvironmentalforces.ThisLimitedWarranty
appliesonlytothosepartsandcomponentssoldbyIntex.TheLimitedWarrantydoesnot
coverunauthorizedalterations,repairsordisassemblybyanyoneotherthanIntexService
Centerpersonnel.
DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN
OR REPLACEMENT. IF YOU ARE MISSING PARTS OR NEED
ASSISTANCE, PLEASE CALL US TOLL-FREE (FOR U.S. AND
CANADIAN RESIDENTS): 1-800-234-6839 OR VISIT OUR WEBSITE:
WWW.INTEXSTORE.COM.
ProofofPurchasemustaccompanyallreturnsorthewarrantyclaimwillbeinvalid.
LIMITED WARRANTY

Specifications

Intex 26361EH Questions and Answers

Find answers or ask new question.
See other models: 28000E 68306NP 56483NP 26643EG 28211EH
Questions and Answers
