en Instruction Manual and Installation Instructions
Washer dryer
Your new washer dryer
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 12
5 Positioning and connecting 13
* Getting to know the appliance 22
Z Laundry 25
P Overview of programmes 27
0 Programme default settings 32
\ Additional programme settings 33
1 Operating the appliance 35
Q Appliance settings 39
H Sensors 41
2 Cleaning and maintenance 41
3 Faults and what to do about them 45
4 After-sales service 51
[ Consumption values 52
J Technical data 53
r Aqua-Stop warranty 53
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of explosions/fire!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
5 Positioning and connecting
Positioning and connecting

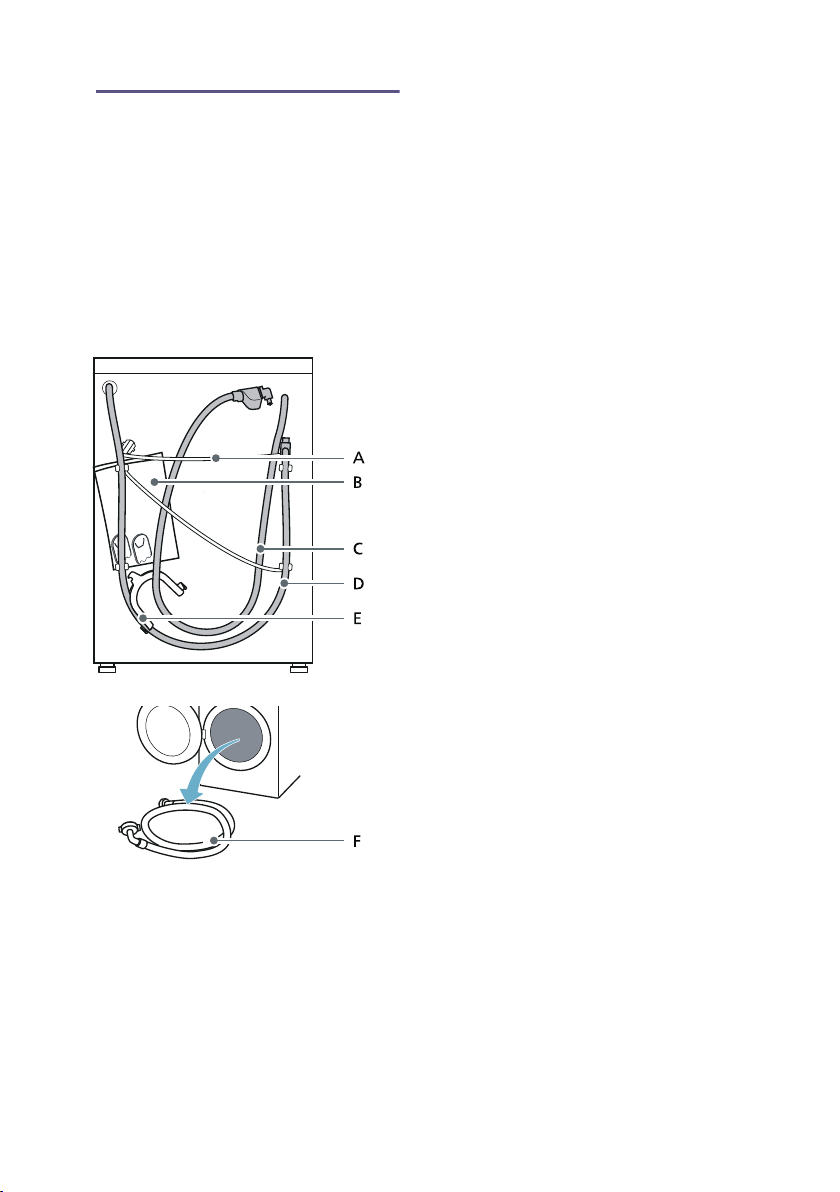

Standard accessories
Note:
– WAF13 for loosening the transport braces and
– WAF17 for aligning the appliance feet
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
Installing the appliance in a kitchenette
: Warning
Risk of death!
Notes

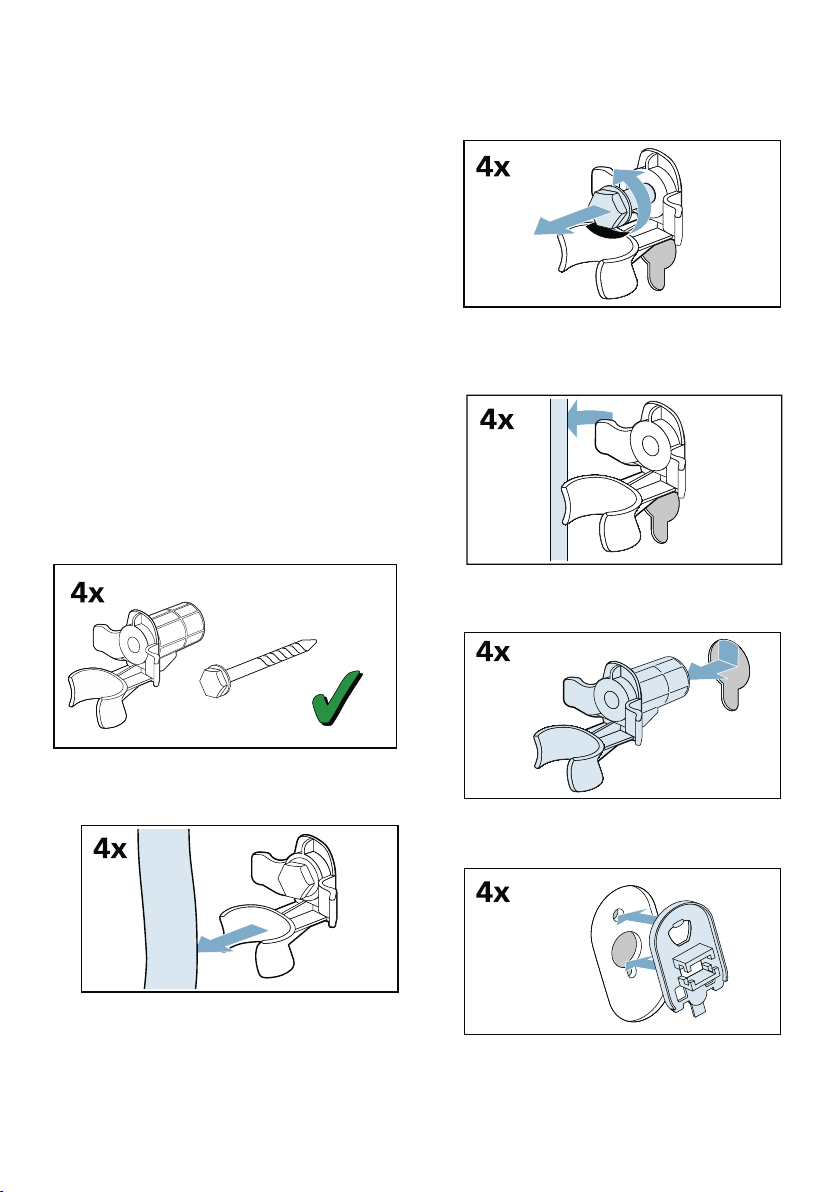

Removing the transport locks
Caution!
Damage to the appliance
Note:
1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
a) Remove the mains cable from the holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
Removing the support struts
1. Unscrew and remove all screws in the vertical transport struts.
2. Remove the transport struts.
3. Undo and remove the screws on the horizontal transport strut.
4. Remove the transport strut.

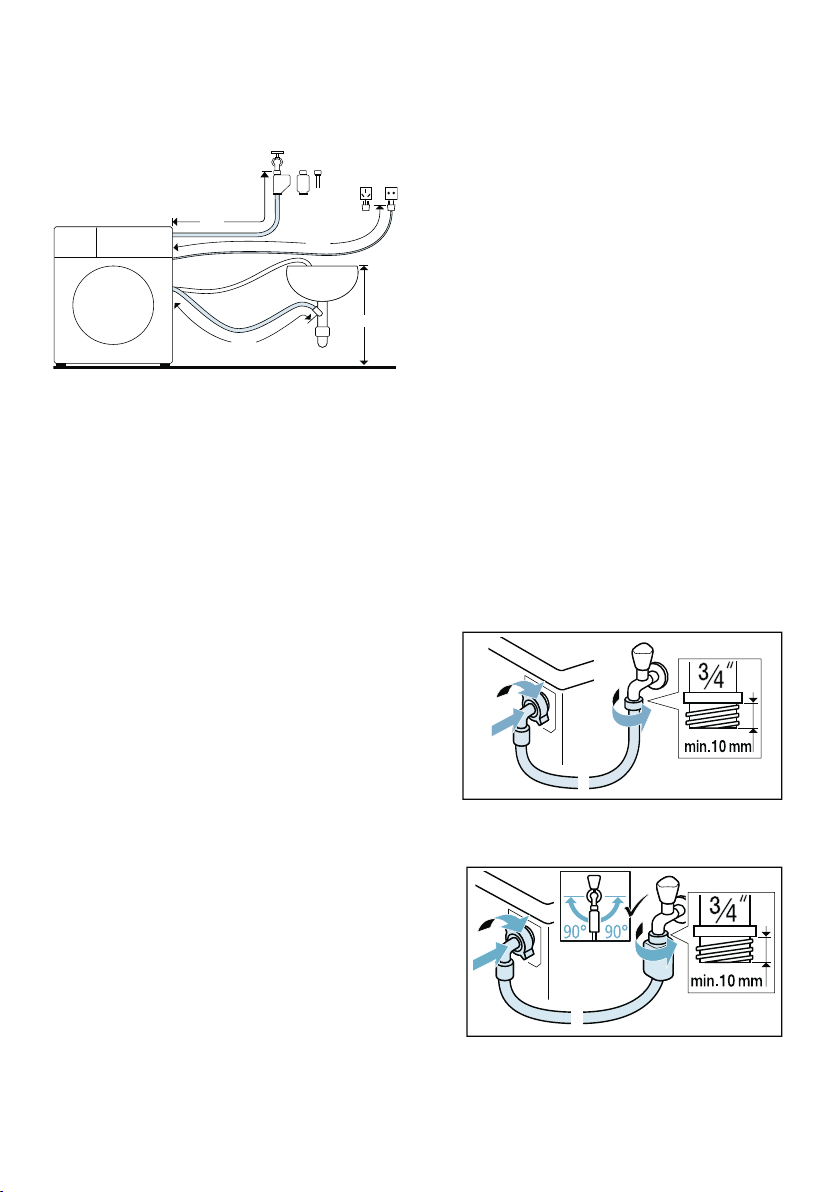

Hose and cable lengths
Note:
Water inlet
: Warning
Risk of death!
Notes

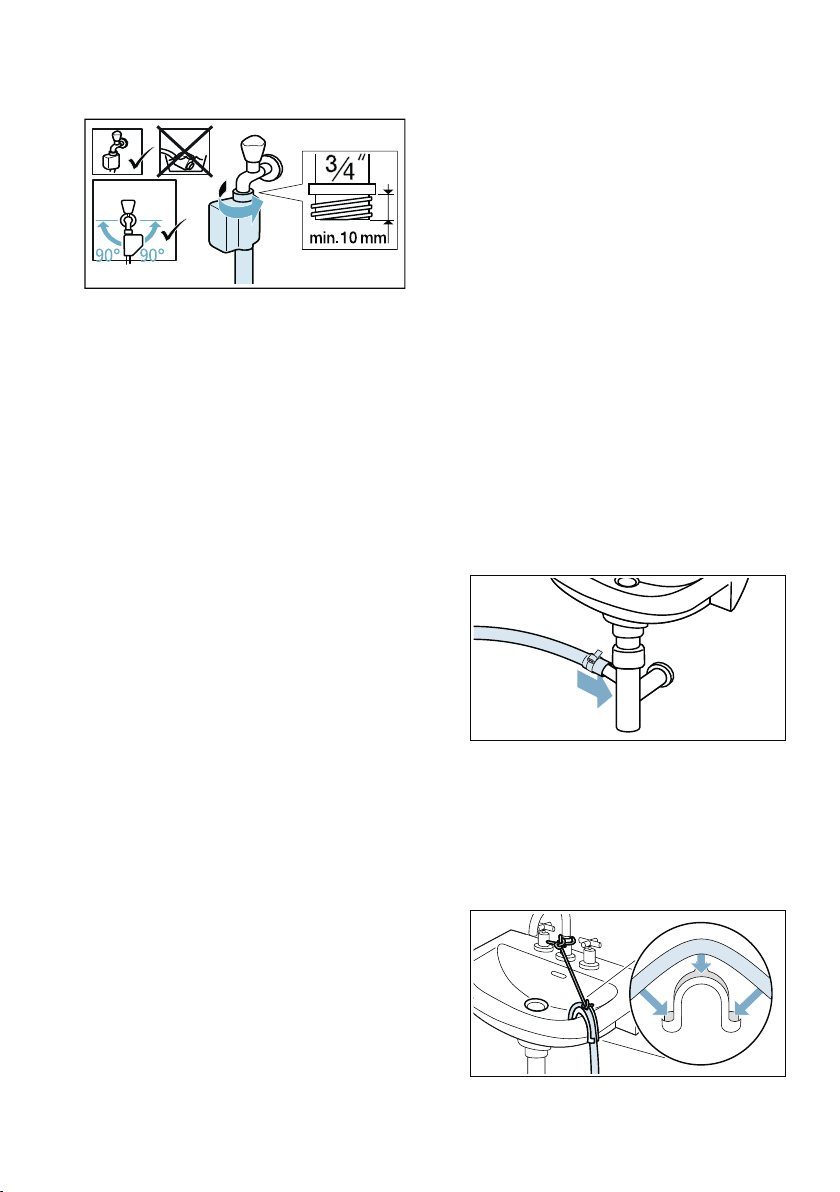

1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip:
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Note:
Note:

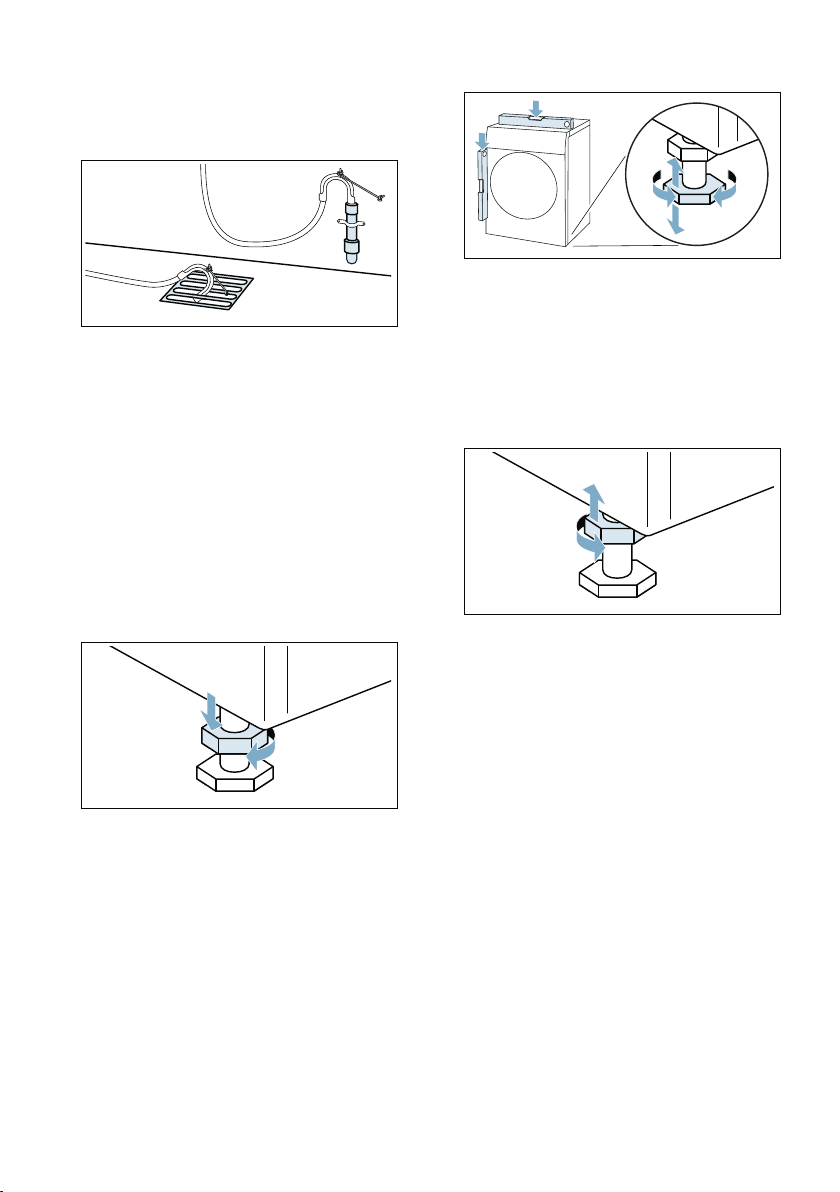

Alignment
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Risk of death!
Notes
Before washing for the first time
Note:
1. Insert mains plug.
2. Turn the water tap on.
3. Press the # button till the indicator lamp lights up, release the button. The appliance is switched on.
4. Close the door. Do not load any laundry.
5. Select the Û Limp. tambor (Drum Clean) 90°C programme.
6. Open the detergent drawer.
7. Pour approx. 1 litre of water into dispenser II.
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
Note:
9. Close the detergent drawer.
10. Select A.
11. When the programme ends, press the # button till the indicator lamp turns off, release the button.
Transportation
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose. ~ Page 44
3. Drain any residual water. ~ Page 42
4. Disconnect the appliance from the mains.
5. Remove the hoses.
6. Empty the dispensers. ~ "Detergent drawer and housing" on page 42

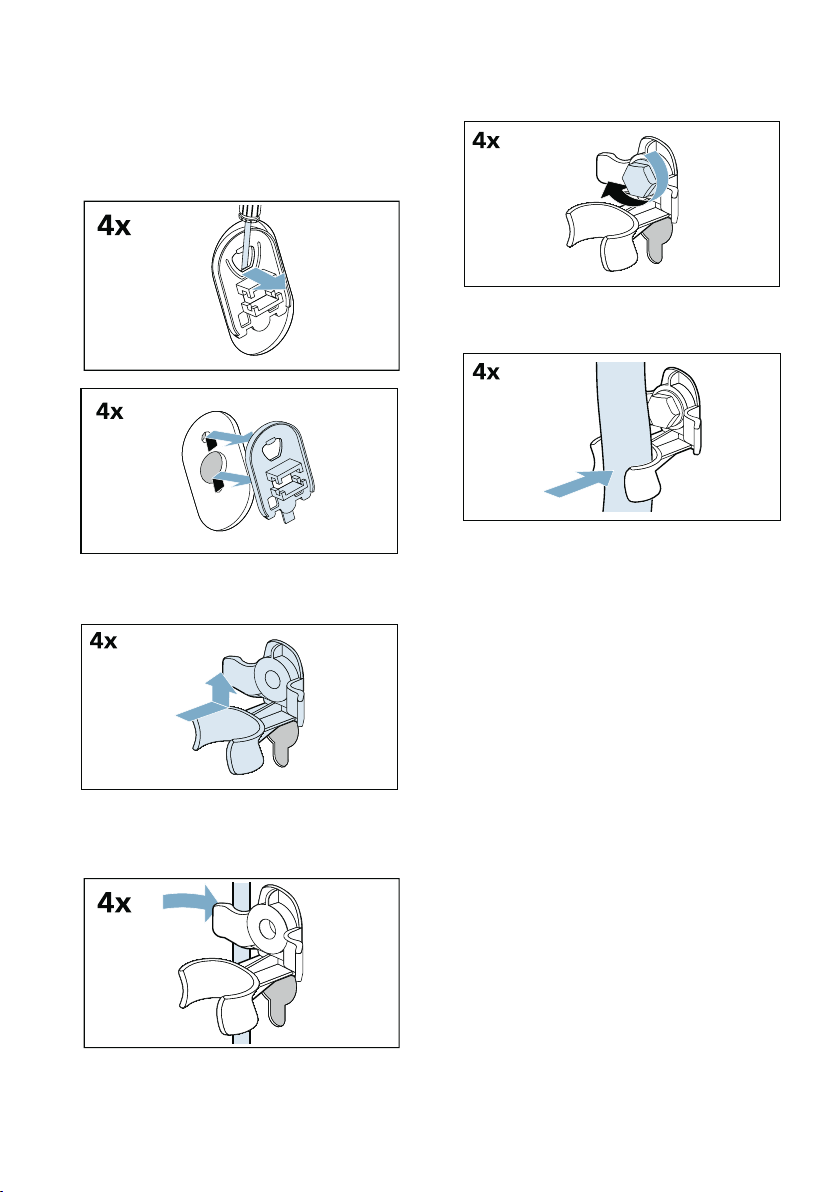

Installing the transport locks:
1. Remove the covers and keep them in a safe place.
Note:
2. Insert all four sleeves.
a) Clip the mains cable securely in the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the holders.
Notes
* Getting to know the appliance
Getting to know the appliance

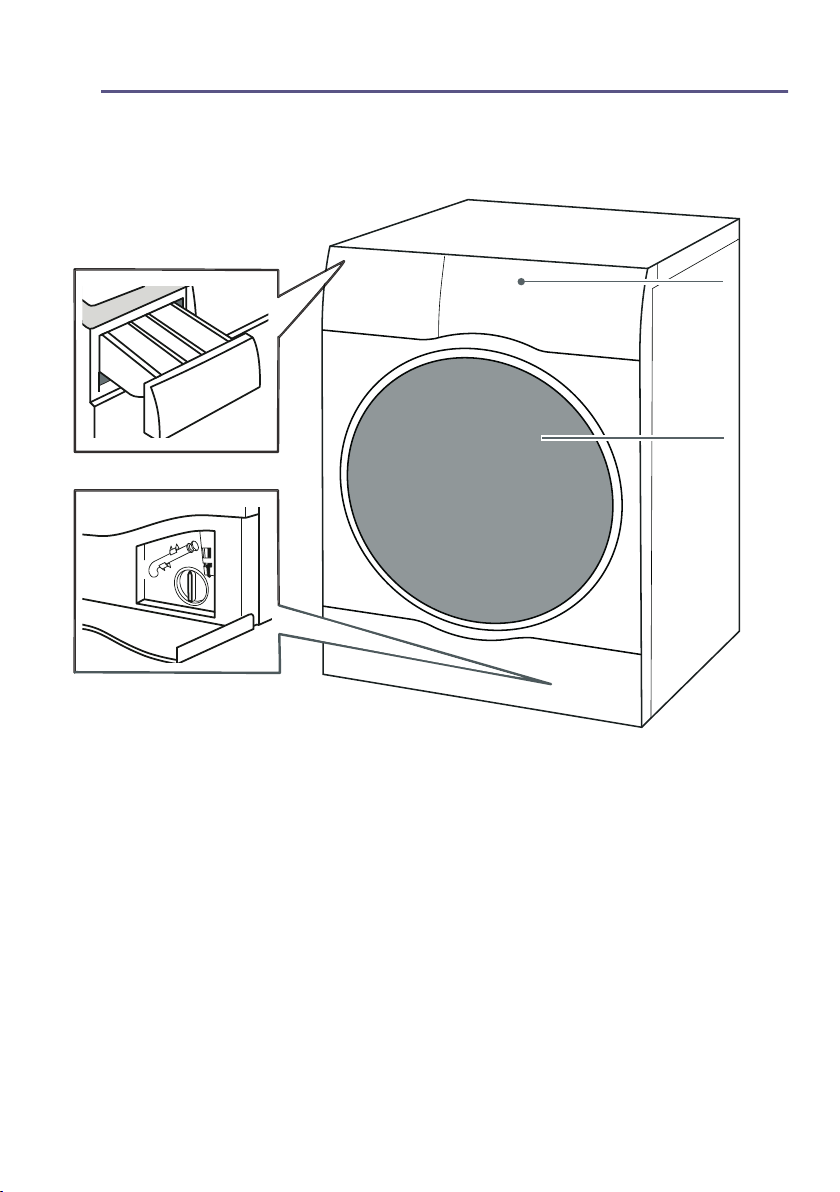

Appliance

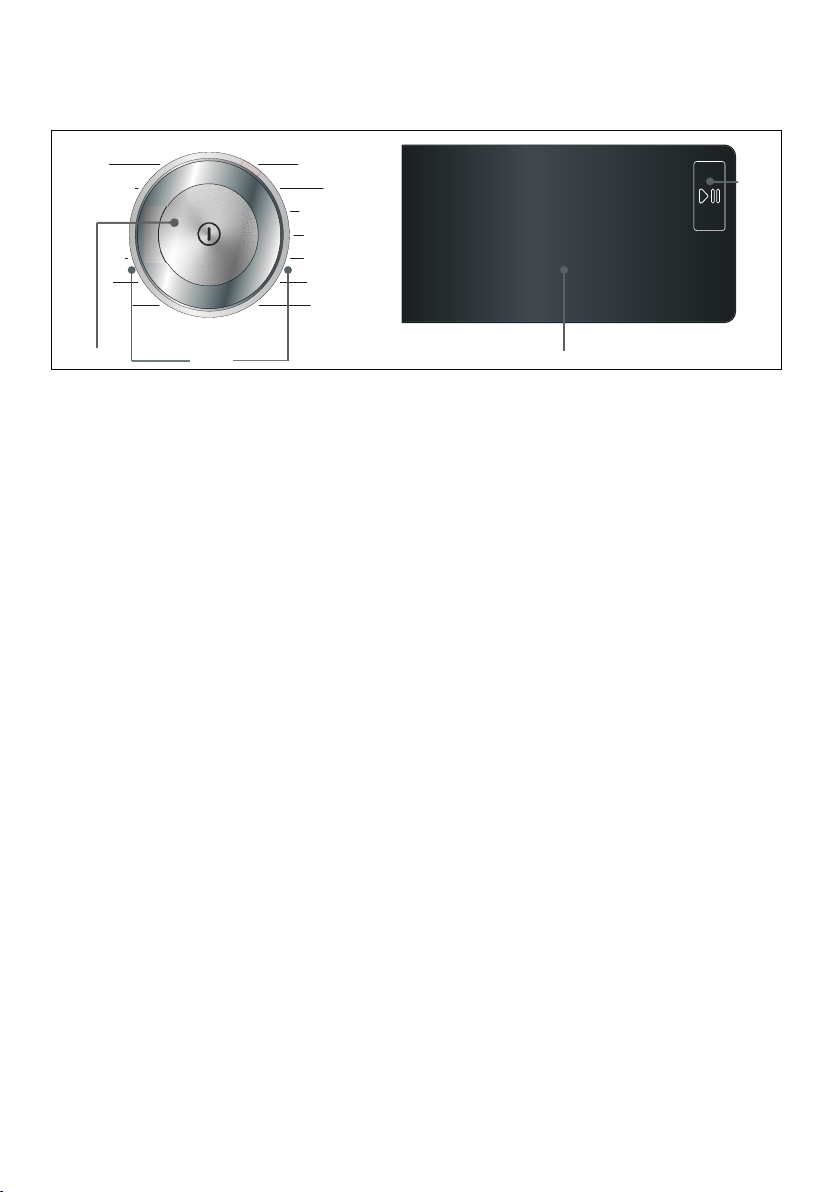

Control panel
Touch-Display
Programme default settings
Display
Setting
Description
Additional programme settings
Display
Setting
Status indicators for the programme progress (programme sequence)
Display
Setting
Z Laundry
Laundry
Preparing laundry for washing
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Sorting laundry
Note:
– Light: Do not need to pretreat, adjust the Speed setting if necessary.
– Normal
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
Preparing laundry for drying
Note:
Notes
P Overview of programmes
Overview of programmes
Selectable programme
Programme/Type of laundry
Options/Information
Note:
Notes
Note:
Notes
Note:
Notes
Note:
Notes
Drying table
Starching
Note:
1. Switch on the appliance.
2. Select the à programme.
3. Measure starch into compartment © in accordance with the manufacturer's instructions (clean first if necessary).
4. Touch the A button.
Dyeing/bleaching
0 Programme default settings
Programme default settings
Temperature
Spin speed
Finish in
To do this:
1. Select a programme (except o MyTime programme).
2. Select the ˜ button repeatedly until the required number of hours is displayed.
Note:
3. Select the A button.
Note:
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
1. Select the A button.
2. Touch the ˜ or ~ button to change the number of hours.
3. Select the A button.
\ Additional programme settings
Additional programme settings
Note:
Wash+Dry
Dry
» (Cupboard dry)
¾ (Cupboard dry+)
ö (Iron dry)
Speed
Note:
Eco
Note:
T (Prewash)
Note:
O (Rinse plus)
2 (Hygiene care)
Note:
p (Easy iron)
Note:
Z (Water plus)
â (Memory)
To store:
1. Switch on the appliance.
2. Select a programme.
3. If required, change the programme default settings and/or select programme additional settings.
4. Touch and hold â (Memory) button for approx. three seconds.
Á (Silent)
Note:
1 Operating the appliance
Operating the appliance

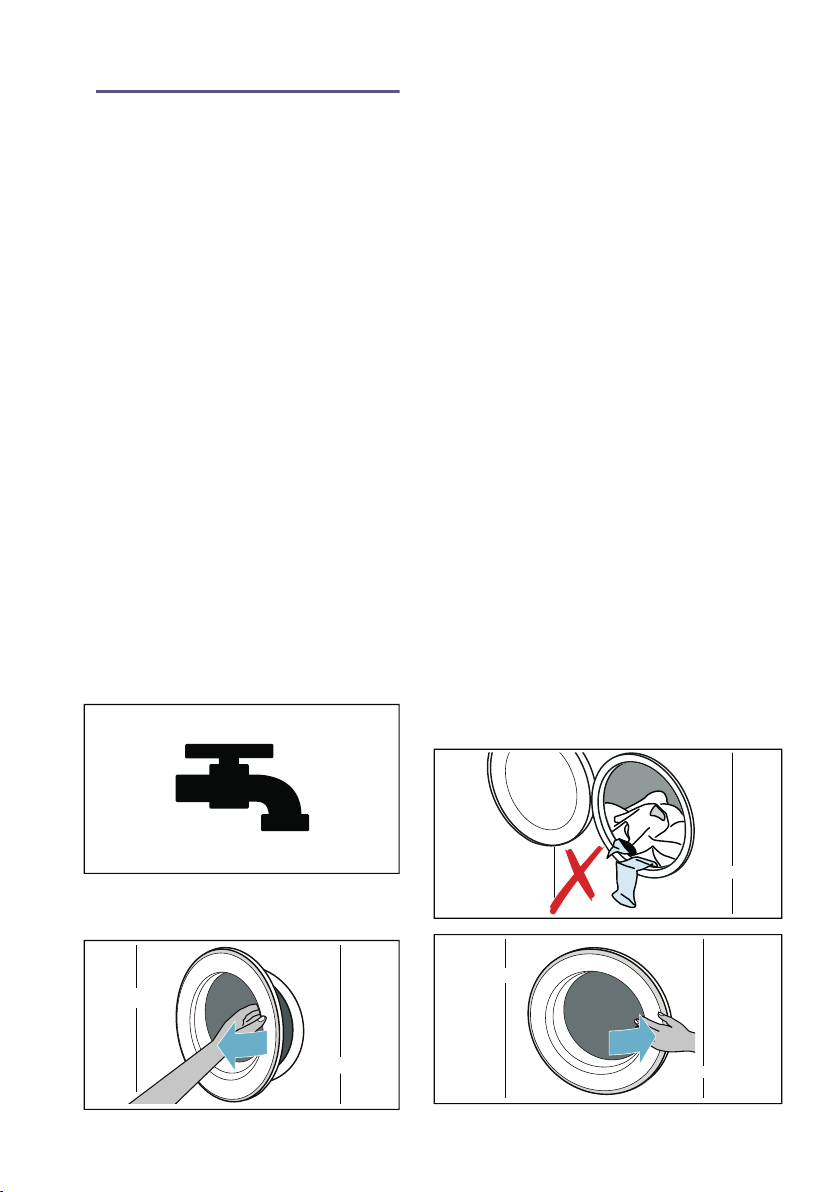

Preparing the appliance
Notes
1. Insert mains plug.
: Warning
Risk of death from electric shock!
2. Turn the water tap on.
3. Open the appliance door.
Switching on the appliance/ selecting a programme
Note:
Placing laundry into the drum
Notes
Dosing and adding detergent and care products
Caution!
Damage to the appliance
1. Pull out the detergent drawer.
: Warning
Eye / skin irritation!
2. Pour in detergent and/or cleaning product.
*depending on the model
Notes

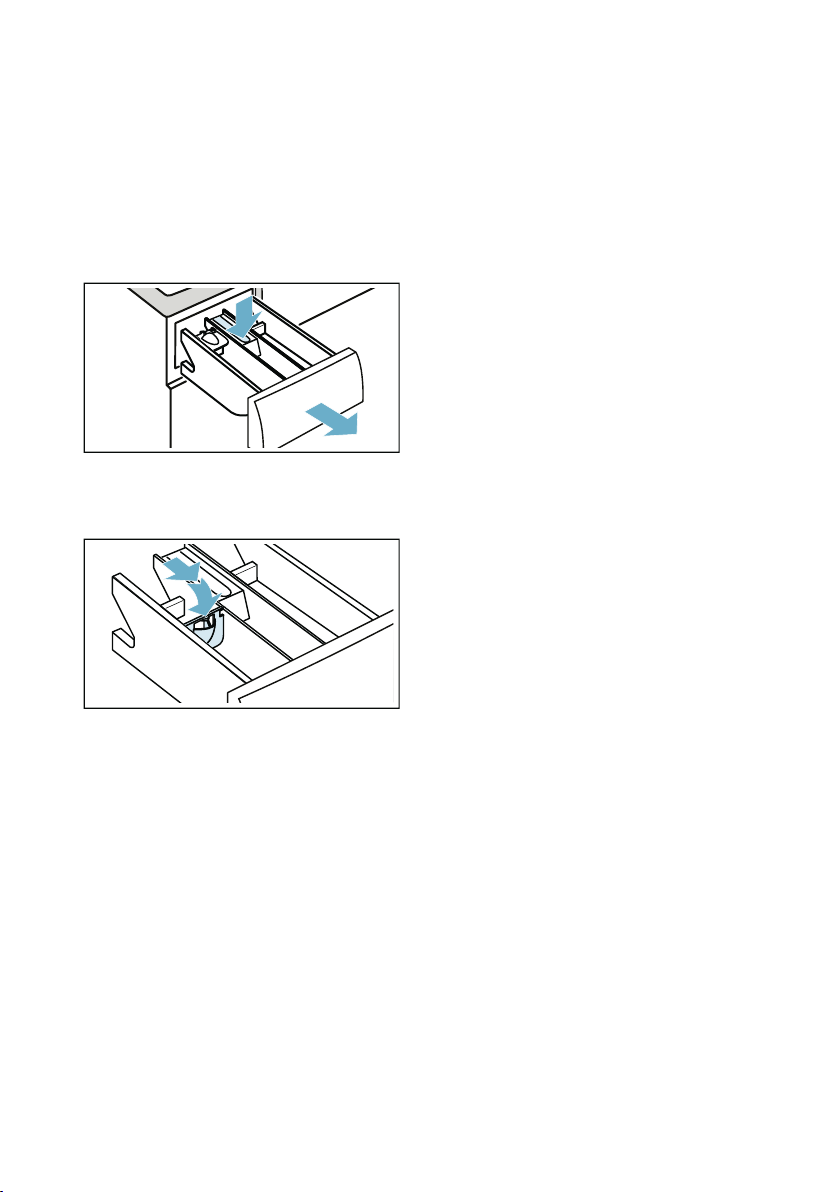

Position the measuring aid A for measuring the correct amount of liquid detergent:
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. Slide the measuring aid forwards, fold it down and click it into place.
3. Reinsert the drawer.
Note:
Starting the programme
Note:
Childproof lock
Note:
Adding/removing laundry
Notes
Changing the programme
If you have started the wrong programme by mistake, you can change the programme as follows:
1. Touch the A button.
2. Select another programme.
3. And touch the A button again. The new programme starts from the beginning.
Note:
Cancel the programme
For programmes washing at high temperatures:
1. Touch the A button.
2. To cool down laundry: Select à.
3. Touch the A button.
For programmes washing at low temperatures:
1. Touch the A button.
2. Select 0.
3. Touch the A button.
For programmes in drying process:
1. Switch the appliance off.
2. Switch the appliance on again.
3. To cool down laundry: Select the o MyTime + Dry.
4. Touch the A button.
Programme end
Notes
Removing laundry/switching off the appliance
1. Press the # button till the indicator lamp turns off, release the button. The appliance is switched off.
2. Open the door and remove the laundry.
3. Turn off the water tap.
Note:
Notes
Q Appliance settings
Appliance settings
Automatic switch-off
Basic settings
End signal
Possible setting values:
Button signal
Possible setting values:
Brightness
Possible setting values:
Switching the drum-care information signal on/off
Possible setting values:
H Sensors
Sensors
Unbalanced load detection system
Note:
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of death!
Caution!
Fire and explosion hazard!
Caution!
The appliance may be damaged!
Appliance housing/control panel
Drum
Descaling

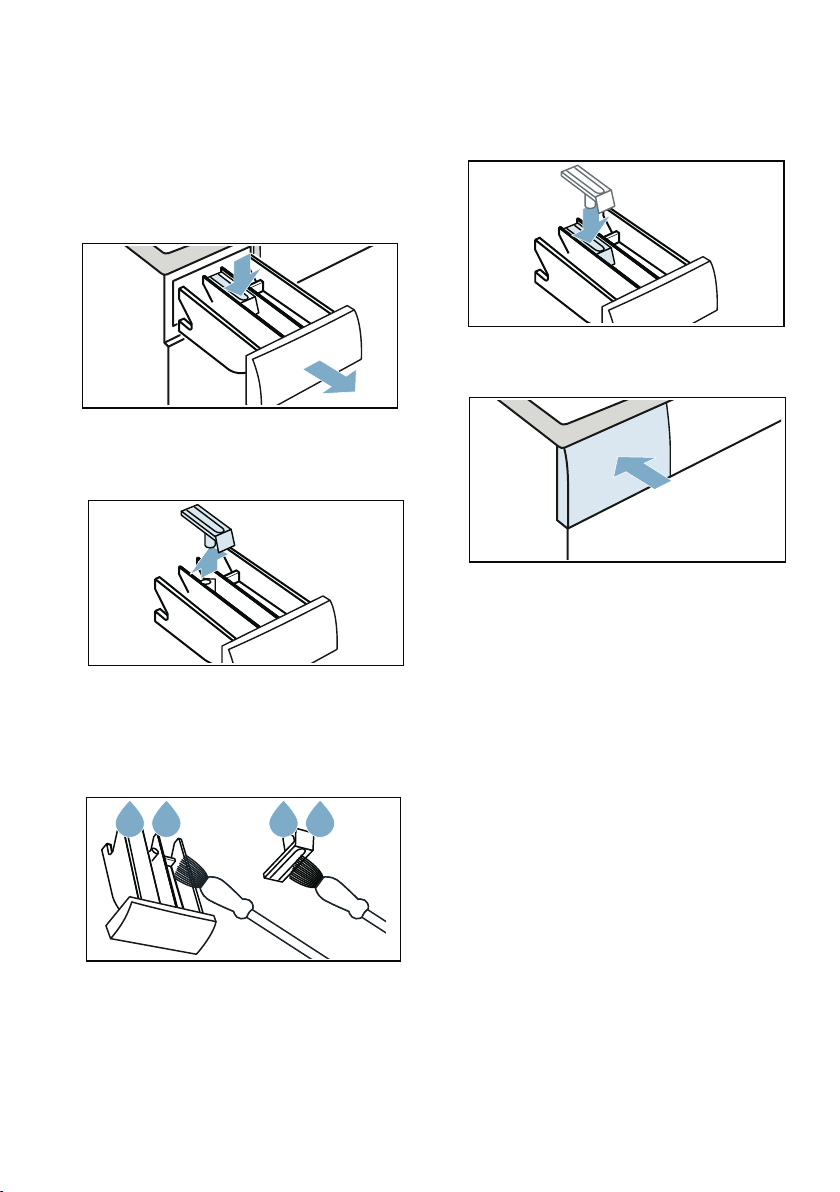

Detergent drawer and housing
If the appliance contains detergent or fabric softener residues:
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:

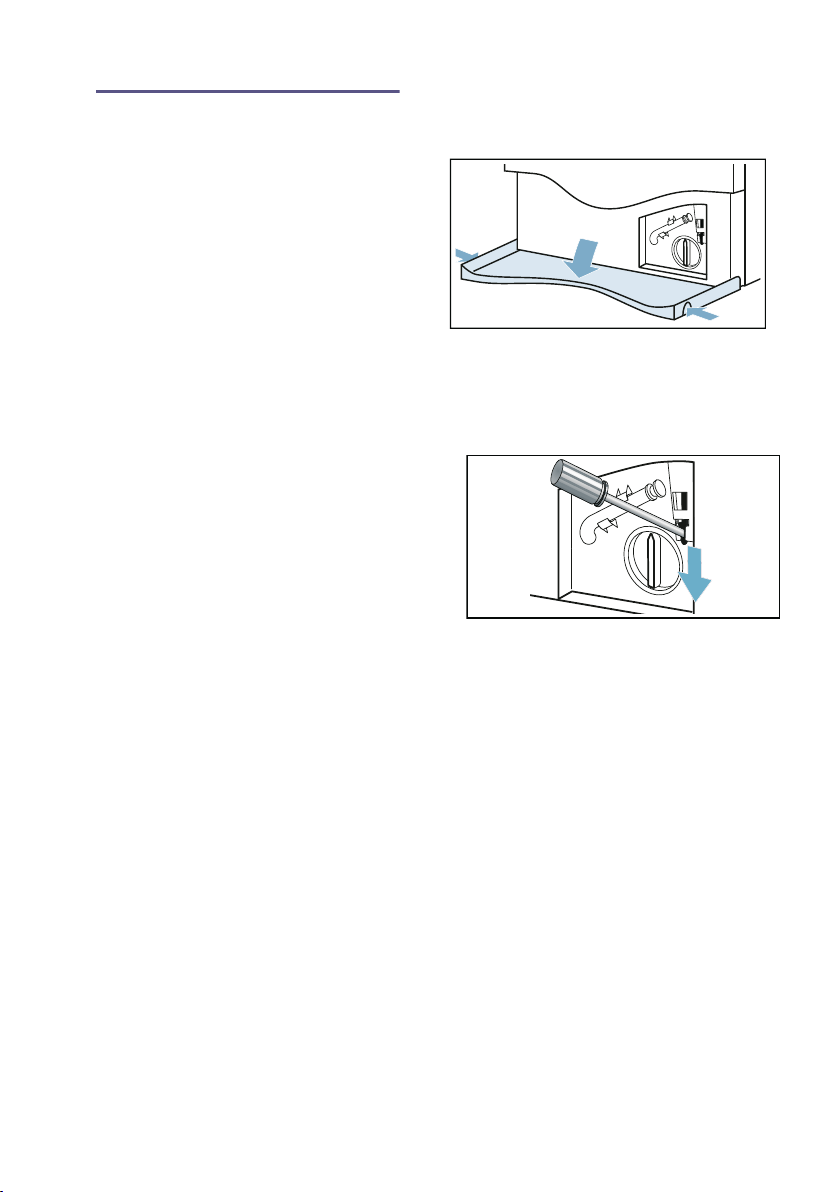

Drain pump is blocked
Note:
: Warning
Risk of scalding!
1. Switch off the appliance. Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the retainer.
4. Carefully unscrew the pump cover; residual water may leak out.
5. Refit and screw on the pump cover. The handle must be in a vertical position.
6. Close the service flap.
Note:
The drain hose at the siphon is blocked
1. Press the # button. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply is blocked
1. Turn off the water tap.
2. Select the i algodón/Algodão (Cottons) (activate Speed setting) programme.
3. Select the A button. Allow the programme to run for approx. 40 seconds.
4. Press the button #.
5. Pull out the mains plug.
1. Disconnect the hose from the rear of the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for leaks.
3 Faults and what to do about them
Faults and what to do about them
Emergency release
However, if the laundry has to be removed, the appliance door can be opened as follows:
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage!
1. Press the # button. Pull out the mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 42
4. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Notes
Faults and what to do about them
Faults
Cause/Remedy
1. Empty and clean.
2. Refill.
1. Switch the appliance off and on again.
2. Wait for the display message àœ©˜ to disappear.
3. Touch and hold A for at least 5 s.
Note:
4 After-sales service
After-sales service
[ Consumption values
Consumption values
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
Programme
Load
Energy consumption*
Water consumption*
Programme duration*
J Technical data
Technical data
r Aqua-Stop warranty
Aqua-Stop warranty
In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty, we will provide compensation under the following conditions:
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
*9001342803*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/56
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
ZPVS
OFXEF
WJDFPO
.Z#PTDIOP
XBOE
HFUGS
FFCFOFGJUT
CPTDIIPNFDPN
XFMDPNF
en
Instruction Manual and Installation Instructions
Washer dryer
WDU28...
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 16897653_wdu28540es-01.pdf
File size: 2.8 MB
File Language: English
Pages: 56
Author: Bosch
File created: 2020-06-04
Published:
2023-11-04
Updated: 2023-11-03
Download File
Other documents for Bosch WDU28540ES/01
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WDU28540ES/01
View in the file:
Full Specifications
See other models:
WUP241600W/01
PKK651E01E/02
HBG237BS0R/16
HEN100120C/01
DLN53AA70B/03
Related Products
Bosch WTA74201AU
Midea MF200D80B/E
Miele WTD 165 WPM
Bosch DBB97AM60-B
Bosch SMV6ZBX03N
Bosch FFL020MS2-B
Bosch WDU28540
Bosch WDU28592
Bosch WDU28512
Bosch WDU28510
Bosch WDU28568GB
Bosch WDU28560GB
Bosch WDU28569GB
Bosch WDU28561GB
Bosch WDU28560SA
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washer dryer
1
Your new washer dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 13
3
* Getting to know the appliance 22
3
Z Laundry 25
3
P Overview of programmes 27
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 35
3
Q Appliance settings 39
3
H Sensors 41
4
2 Cleaning and maintenance 41
4
3 Faults and what to do about them 45
4
4 After-sales service 51
4
[ Consumption values 52
4
J Technical data 53
4
r Aqua-Stop warranty 53
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
7
Material damage/damage to the appliance
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Tips on economical use
12
5 Positioning and connecting
13
Positioning and connecting
13
Standard accessories
13
Note:
13
– WAF13 for loosening the transport braces and
13
– WAF17 for aligning the appliance feet
13
Safety instructions
14
: Warning
14
Risk of injury!
14
Caution!
14
Damage to the appliance
14
Caution!
14
Water damage
14
Notes
14
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14
Removing the transport locks
15
Caution!
15
Damage to the appliance
15
Note:
15
1. Take the hoses out of the holders.
15
2. Unscrew and remove all four transport brace screws.
15
a) Remove the mains cable from the holders.
15
b) Remove the sleeves.
15
3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Removing the support struts
16
1. Unscrew and remove all screws in the vertical transport struts.
16
2. Remove the transport struts.
16
3. Undo and remove the screws on the horizontal transport strut.
16
4. Remove the transport strut.
16
Hose and cable lengths
16
Note:
17
Water inlet
17
: Warning
17
Risk of death!
17
Notes
17
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
17
– Model: Standard
17
– Model: AquaSecure
17
– Model: Aqua-Stop
18
Tip:
18
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
18
Water outlet
18
: Warning
18
Risk of scalding!
18
Caution!
18
Water damage
18
Caution!
18
Damage to the appliance/fabrics
18
Note:
18
Note:
19
Alignment
19
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
19
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
19
3. Tighten the lock nut against the housing.
19
Electrical connection
19
: Warning
19
Risk of death!
19
Notes
19
Before washing for the first time
20
Note:
20
1. Insert mains plug.
20
2. Turn the water tap on.
20
3. Press the # button till the indicator lamp lights up, release the button. The appliance is switched on.
20
4. Close the door. Do not load any laundry.
20
5. Select the Û Limp. tambor (Drum Clean) 90°C programme.
20
6. Open the detergent drawer.
20
7. Pour approx. 1 litre of water into dispenser II.
20
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
20
Note:
20
9. Close the detergent drawer.
20
10. Select A.
20
11. When the programme ends, press the # button till the indicator lamp turns off, release the button.
20
Transportation
20
Preparatory work:
20
1. Turn off the water tap.
20
2. Reduce the water pressure in the supply hose. ~ Page 44
20
3. Drain any residual water. ~ Page 42
20
4. Disconnect the appliance from the mains.
20
5. Remove the hoses.
20
6. Empty the dispensers. ~ "Detergent drawer and housing" on page 42
20
Installing the transport locks:
21
1. Remove the covers and keep them in a safe place.
21
Note:
21
2. Insert all four sleeves.
21
a) Clip the mains cable securely in the holders.
21
b) Insert and tighten the screws.
21
c) Clip the hoses securely in the holders.
21
Notes
21
* Getting to know the appliance
22
Getting to know the appliance
22
Appliance
22
Control panel
23
Touch-Display
24
Programme default settings
24
Display
24
Setting
24
Description
24
Additional programme settings
24
Display
24
Setting
24
Status indicators for the programme progress (programme sequence)
25
Display
25
Setting
25
Z Laundry
25
Laundry
25
Preparing laundry for washing
25
Protecting your laundry and appliance
25
Caution!
25
Damage to the appliance/textiles
25
Sorting laundry
25
Note:
25
– Light: Do not need to pretreat, adjust the Speed setting if necessary.
25
– Normal
25
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
26
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
26
Preparing laundry for drying
26
Note:
26
Notes
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of laundry
27
Options/Information
27
Note:
28
Notes
28
Note:
28
Notes
29
Note:
29
Notes
30
Note:
30
Notes
30
Drying table
31
Starching
31
Note:
31
1. Switch on the appliance.
31
2. Select the à programme.
31
3. Measure starch into compartment © in accordance with the manufacturer's instructions (clean first if necessary).
31
4. Touch the A button.
31
Dyeing/bleaching
31
0 Programme default settings
32
Programme default settings
32
Temperature
32
Spin speed
32
Finish in
32
To do this:
32
1. Select a programme (except o MyTime programme).
32
2. Select the ˜ button repeatedly until the required number of hours is displayed.
32
Note:
32
3. Select the A button.
32
Note:
32
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
32
1. Select the A button.
32
2. Touch the ˜ or ~ button to change the number of hours.
32
3. Select the A button.
32
\ Additional programme settings
33
Additional programme settings
33
Note:
33
Wash+Dry
33
Dry
33
» (Cupboard dry)
33
¾ (Cupboard dry+)
33
ö (Iron dry)
33
Speed
33
Note:
33
Eco
33
Note:
33
T (Prewash)
33
Note:
33
O (Rinse plus)
34
2 (Hygiene care)
34
Note:
34
p (Easy iron)
34
Note:
34
Z (Water plus)
34
â (Memory)
34
To store:
34
1. Switch on the appliance.
34
2. Select a programme.
34
3. If required, change the programme default settings and/or select programme additional settings.
34
4. Touch and hold â (Memory) button for approx. three seconds.
34
Á (Silent)
34
Note:
34
1 Operating the appliance
35
Operating the appliance
35
Preparing the appliance
35
Notes
35
1. Insert mains plug.
35
: Warning
35
Risk of death from electric shock!
35
2. Turn the water tap on.
35
3. Open the appliance door.
35
Switching on the appliance/ selecting a programme
35
Note:
35
Placing laundry into the drum
35
Notes
36
Dosing and adding detergent and care products
36
Caution!
36
Damage to the appliance
36
1. Pull out the detergent drawer.
36
: Warning
36
Eye / skin irritation!
36
2. Pour in detergent and/or cleaning product.
36
*depending on the model
36
Notes
36
Position the measuring aid A for measuring the correct amount of liquid detergent:
37
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
37
2. Slide the measuring aid forwards, fold it down and click it into place.
37
3. Reinsert the drawer.
37
Note:
37
Starting the programme
37
Note:
37
Childproof lock
37
Note:
37
Adding/removing laundry
38
Notes
38
Changing the programme
38
If you have started the wrong programme by mistake, you can change the programme as follows:
38
1. Touch the A button.
38
2. Select another programme.
38
3. And touch the A button again. The new programme starts from the beginning.
38
Note:
38
Cancel the programme
38
For programmes washing at high temperatures:
38
1. Touch the A button.
38
2. To cool down laundry: Select à.
38
3. Touch the A button.
38
For programmes washing at low temperatures:
38
1. Touch the A button.
38
2. Select 0.
38
3. Touch the A button.
38
For programmes in drying process:
38
1. Switch the appliance off.
38
2. Switch the appliance on again.
38
3. To cool down laundry: Select the o MyTime + Dry.
38
4. Touch the A button.
38
Programme end
38
Notes
38
Removing laundry/switching off the appliance
39
1. Press the # button till the indicator lamp turns off, release the button. The appliance is switched off.
39
2. Open the door and remove the laundry.
39
3. Turn off the water tap.
39
Note:
39
Notes
39
Q Appliance settings
39
Appliance settings
39
Automatic switch-off
39
Basic settings
39
End signal
40
Possible setting values:
40
Button signal
40
Possible setting values:
40
Brightness
40
Possible setting values:
40
Switching the drum-care information signal on/off
40
Possible setting values:
40
H Sensors
41
Sensors
41
Unbalanced load detection system
41
Note:
41
2 Cleaning and maintenance
41
Cleaning and maintenance
41
: Warning
41
Risk of death!
41
Caution!
41
Fire and explosion hazard!
41
Caution!
41
The appliance may be damaged!
41
Appliance housing/control panel
41
Drum
41
Descaling
41
Detergent drawer and housing
42
If the appliance contains detergent or fabric softener residues:
42
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
42
2. To remove the insert: Push the insert upwards from below with your finger.
42
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
42
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
42
5. Push in the detergent drawer.
42
Note:
42
Drain pump is blocked
42
Note:
42
: Warning
42
Risk of scalding!
42
1. Switch off the appliance. Pull out the mains plug.
42
2. Open the service flap.
43
3. Take the drain hose out of the retainer.
43
4. Carefully unscrew the pump cover; residual water may leak out.
43
5. Refit and screw on the pump cover. The handle must be in a vertical position.
43
6. Close the service flap.
43
Note:
43
The drain hose at the siphon is blocked
44
1. Press the # button. Pull out the mains plug.
44
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
44
3. Clean the drain hose and siphon connecting piece.
44
4. Re-attach the drain hose and secure the connection point using the hose clamp.
44
Filter in the water supply is blocked
44
1. Turn off the water tap.
44
2. Select the i algodón/Algodão (Cottons) (activate Speed setting) programme.
44
3. Select the A button. Allow the programme to run for approx. 40 seconds.
44
4. Press the button #.
44
5. Pull out the mains plug.
44
1. Disconnect the hose from the rear of the appliance.
44
2. Use pliers to remove the filter.
44
3. Clean the filter with a small brush.
44
4. Connect the hose and check for leaks.
44
3 Faults and what to do about them
45
Faults and what to do about them
45
Emergency release
45
However, if the laundry has to be removed, the appliance door can be opened as follows:
45
: Warning
45
Risk of scalding!
45
: Warning
45
Risk of injury!
45
Caution!
45
Water damage!
45
1. Press the # button. Pull out the mains plug.
45
2. Open the service flap.
45
3. Drain the water. ~ Page 42
45
4. Pull the emergency release downwards with a tool and release.
45
Information on the display panel
46
Display
46
Cause/Remedy
46
Notes
47
Faults and what to do about them
47
Faults
47
Cause/Remedy
47
1. Empty and clean.
47
2. Refill.
47
1. Switch the appliance off and on again.
48
2. Wait for the display message àœ©˜ to disappear.
48
3. Touch and hold A for at least 5 s.
48
Note:
49
4 After-sales service
51
After-sales service
51
[ Consumption values
52
Consumption values
52
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
52
Programme
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
r Aqua-Stop warranty
53
Aqua-Stop warranty
53
In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty, we will provide compensation under the following conditions:
53
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
53
2. The liability guarantee is valid for the service life of the appliance.
53
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
53
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
53
*9001342803*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
Search:
×
Search
