Dear Customer,
You have just acquired a BRANDT product and we would like to thank you.
We have designed and made this product with you, your lifestyle and your requirements
in mind so that it meets your expectations. We have devoted our know-how, our
innovative spirit and the passion that has been guiding us for over 60 years.
In an effort to ensure that our products meet your requirements in the best possible
way, our Customer Relations department is at your disposal, to answer all your
questions and to listen to all your suggestions.
Visit our website www.brandt.com
where you will find our latest innovations, as well
as useful and complementary information.
BRANDT is delighted to assist you every day and hopes you get the most out of your
purchase.
Important: Before using your appliance, read this user guide carefully to
familiarise yourself more quickly with its operation.
1.4
ACCESSORIES (depending on model)
A • Anti-tip safety grid
The grid can be used to hold all dishes and moulds
containing foodstuffs to be cooked or browned. It
can be used for barbecues (to be placed directly on
the grid).
Insert the anti-tip safety grid
towards the back of the
oven.
B • Multi-purpose 45mm drip pan
When inserted in the supports under the grid with
the handle towards the oven door, it collects juice
and fat from grilling, and can be used half-filled with
water as a double-boiler.
C • 20mm pastry dish
When inserted in the supports with the handle
towards the oven door, it is ideal for baking cookies,
shortbread and cupcakes. Its tilted surface makes
it practical and easy to use. Can also be inserted
into the supports under the grid to collect juice and
fat from grilling.
Front
Back
Control panel
Light
Door
Handle
Set clock and cooking time
Set temperature
- button
+ button
This oven has 6 positions for the accessories:
shelf supports 1 to 6.
1.2

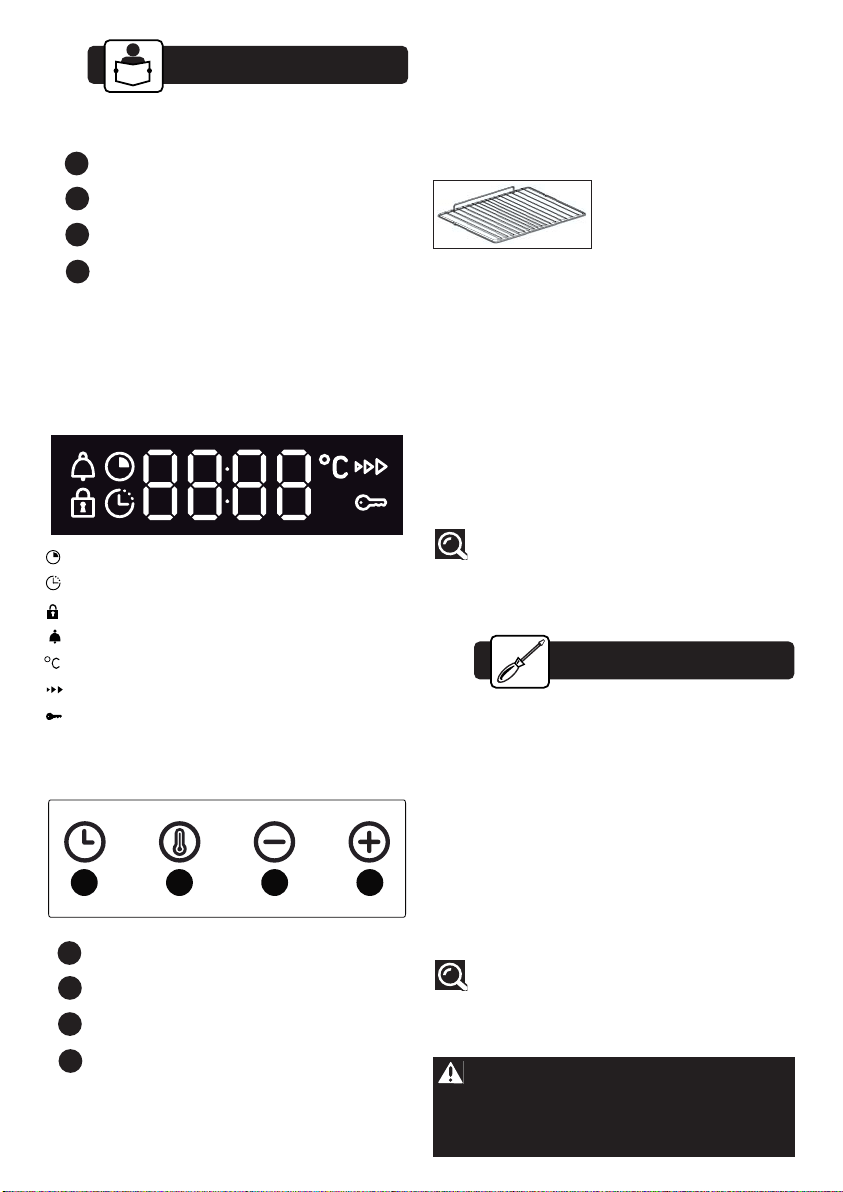

DISPLAY
1.3
BUTTONS
2.1
CHOICE OF LOCATION AND FITTING

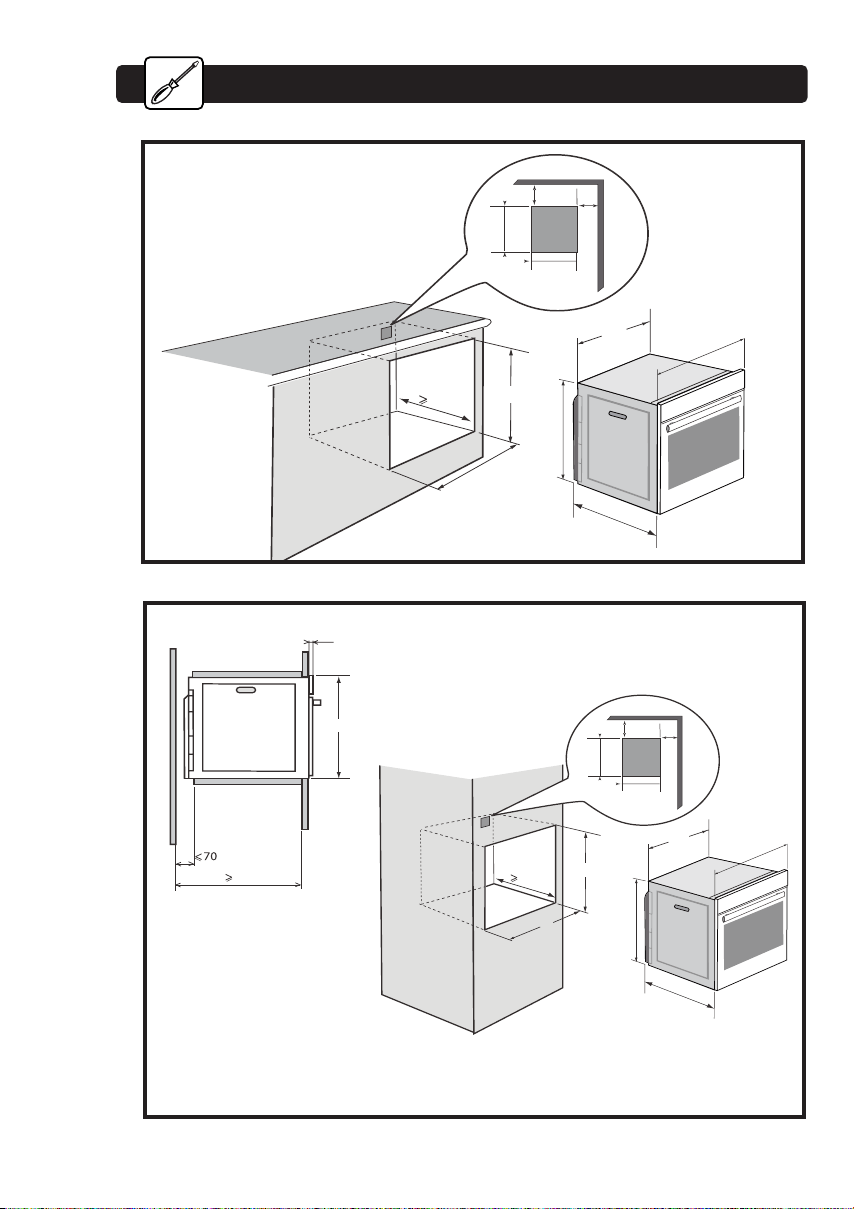

The diagrams show the dimensions of a cabinet
that will be able to hold your oven.
This appliance may be installed either under a
worktop (A) or in a column (B). If the cabinet is
open, its opening at the back must be 70 mm
maximum.
Install the oven in the furniture. To do this,
remove the rubber stops and pre-drill a 2-mm
diameter hole in the wall of the furniture to avoid
splitting the wood. Attach the oven with the two
screws. Re-position the rubber stops.
1.1 PRESENTATION OF THE OVEN

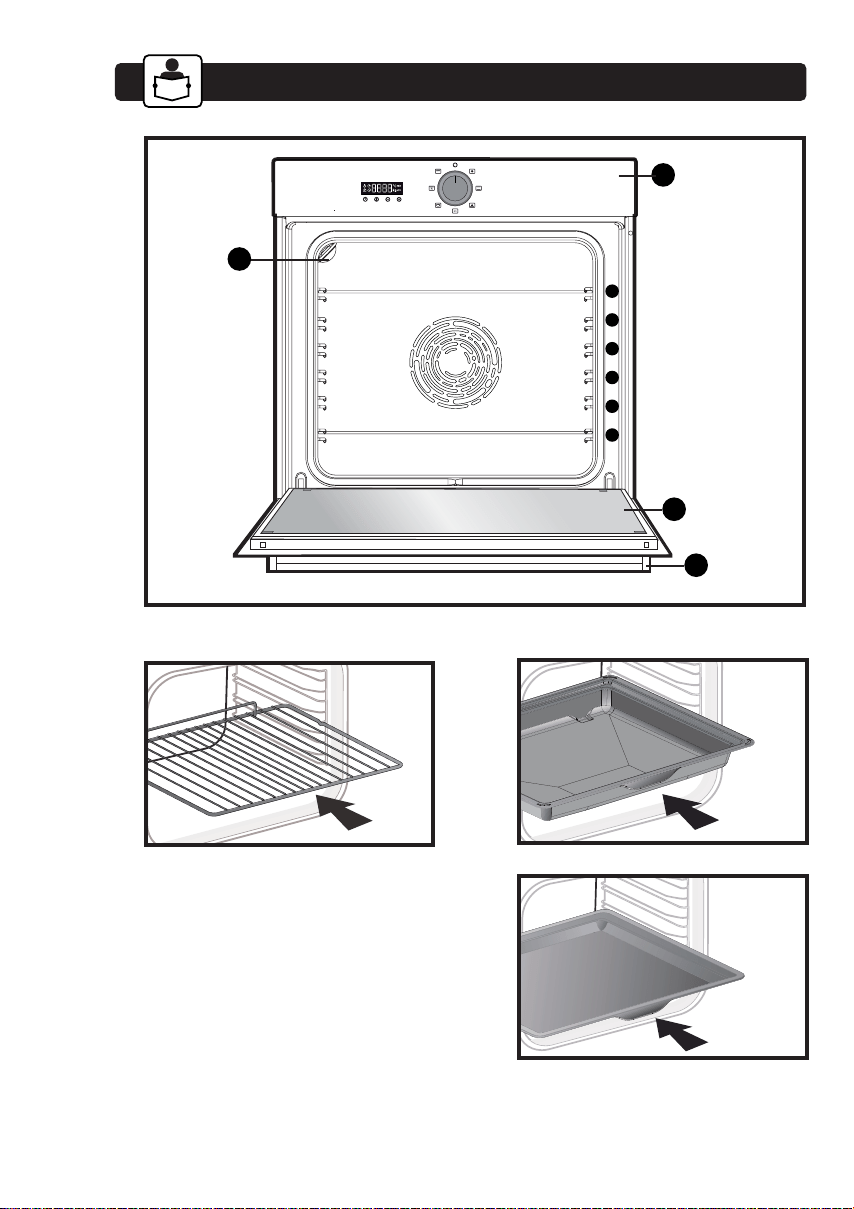

Description of the oven
1
1 2 3 4
Tip
To avoid fumes when cooking fatty
meats, we recommend you add a small
amount of water or oil to the bottom of the
drip pan.
Cooking time
End of cooking
Keypad lock
Timer
Temperature indicator
Pre-heating indicator
Door lock
A
B
C
D
1
2
3
4
Installation
2
Tip
To be certain that you have properly in-
stalled your appliance, do not hesitate to call
on a household appliance specialist.
ENGLISH
Caution
Before using your oven for the first time,
heat it to 200°C empty for around 1 hour.
Ensure that the room is sufficiently aired.
ENGLISH
Cooking
4
3.3 TIMER
This function can only be used when the oven
is off.
Press .
The timer flashes.
Set the timer with + or -.
Press to confirm. The timer will then start.
Once the time has lapsed, there is a sound signal.
To stop it, press any key.

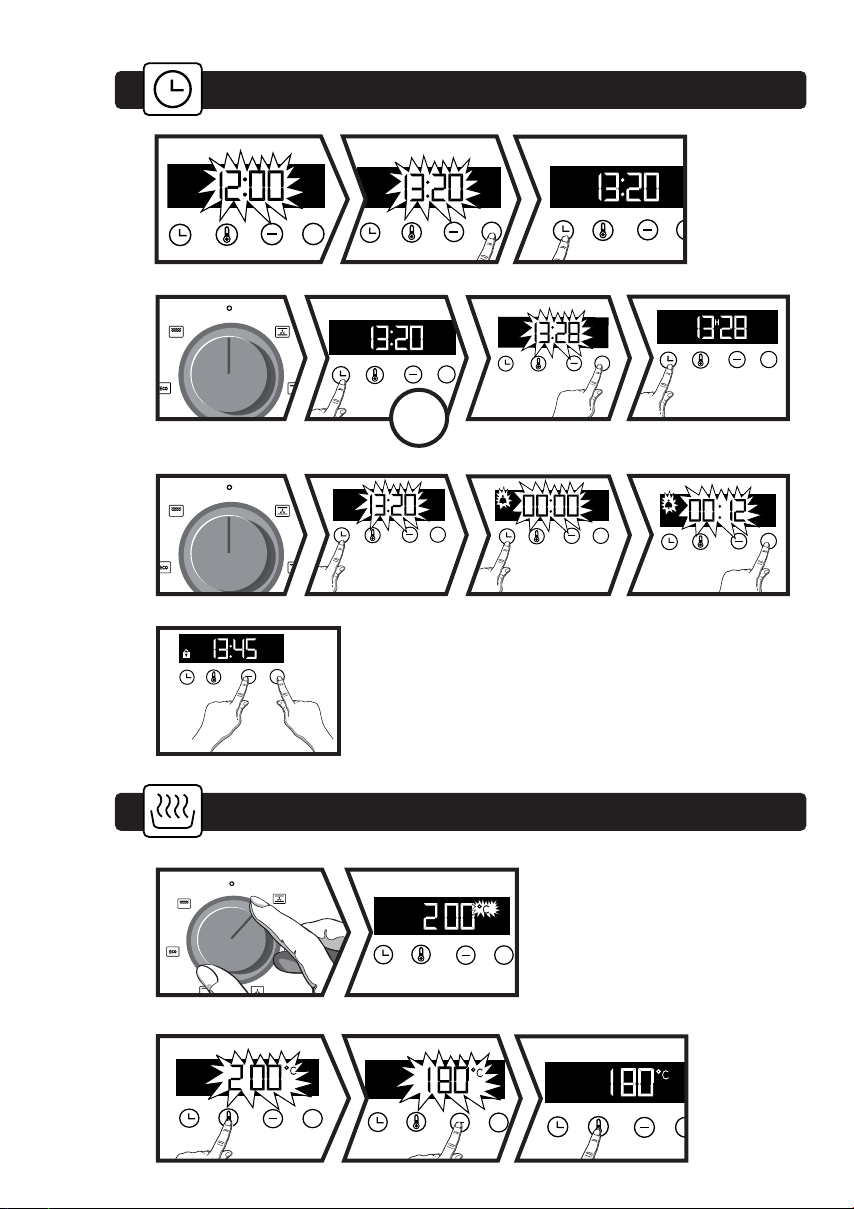

3.1 SETTING THE CLOCK
When switching on the display flashes at 12:00.
Set the clock with + or -.
Confirm with
.
If there is a power cut, the clock flashes at
12:00.
3.2 CHANGING THE CLOCK
The function selector switch must be in the 0
position.
Press . The symbol appears. Press again,
adjust the clock setting with + or - .
Confirm with
.
The cooking end time is automatically saved after
a few seconds.
Setting the clock
3
3.4 KEYPAD LOCKING
Press + and - at the same time until the
symbol appears on the screen. To unlock the
keypad, press + and - together until the
symbol disappears off the screen.
ELECTRICAL CONNECTION
Your oven must be connected with a (standard) power
cable with 3 conductors of 1.5mm
2
(1 live + 1 neutral
+ earth) which must be connected to a 220-240V
~
single-phase grid by means of a 1 live + 1 neutral +
earth CEI 60083 standard power socket or via an all-
poles cut-off device in compliance with the installation
rules.
The safety wire (green-yellow) is connected to the ap-
pliance’s terminal and must be connected to the
earth terminal of the electrical set-up.
The fuse in your set-up must be 16 amperes.
We cannot be held responsible for any accident result-
ing from inexistent, defective or incorrect earthing.
COOKING MODES
(depending on model)
CIRCULATING HEAT*
Min temperature 35°C, max 235°C
Recommended for keeping white meat, fish and
vegetables moist. For cooking multiple items on up to
three levels.
TRADITIONAL PULSE
Min temperature 35°C, max 275°C
Recommended for quiches, pies, tarts with juicy
fruits, preferably in an earthenware dish.
GRILL PULSE
Min temperature 180°C, max 230°C
Roasts and poultry are juicy and crisp all over.
Slide the drip tray on to the bottom shelf support.
Recommended for all spit-roasted poultry or meat,
for sealing and thoroughly cooking a leg or a rib of
beef. To retain the moist texture of fish steaks.
PULSED BOTTOM
Min temperature 75°C, max 250°C
Recommended for moist dishes (quiches, tarts with
juicy fruits, etc.). The pastry will be thoroughly cooked
on the bottom. Recommended for recipes which rise
(cake, brioche, kügelhopf, etc.) and for soufflés which
will not be stopped by a crust on the top.
TRADITIONAL
Min temperature 35°C, max 275°C
Recommended for slow, gentle cooking: rich game,
etc. For retaining the juices in red meat roasts. For
simmering in a covered casserole, dishes that were
begun on the hob (coq au vin, stew).
The time appears again in the display.
NB: You can modify or cancel the timer at any time.
To cancel, go back to the timer menu and set to
00:00. Without having to confirm, the adjustment is
automatically saved after a few seconds.
Warning :
If the electrical installation in your residence
requires any changes in order to hook up
your appliance, contact a professional elec-
trician.If the oven malfunctions in any way,
unplug the appliance or remove the fuse cor-
responding to the sector where the oven is
hooked up
.
ENGLISH
4.4 DELAYED START
Proceed as for programmed cooking. After setting
the cooking time, press ; the cooking end time
4.3 PROGRAMMING THE COOKING TIME
Use the immediate cooking programme, then
press ; the cooking time flashes and it is now
possible to set it. Press + and - to adjust the
cooking time.
Your oven has the “SMART ASSIST” function
which, when programming a cooking time, will
suggest a cooking time which can be modified
depending on the selected cooking mode.
See the table opposite:
4.1 IMMEDIATE COOKING
The programmer must only display the time. It
should not be flashing.
Turn the function selector to any position.
The temperature starts to increase at once. Your
oven suggests a temperature, which can be
modified.
4.2 CHANGING THE TEMPERATURE
Press .
Adjust the temperature with + or -.
Confirm by pressing .
The cooking time is saved automatically after a
few seconds. The time starts to count down as
soon as the cooking temperature is reached.
Sequence(s) used to obtain the results in-
dicated on the energy label in compliance with
European standard EN 50304 and in accor-
dance with European Directive 2002/40/EC:
*
Advice on how to save energy
Keep the oven door closed during cooking.
ECO*
Min temperature 35°C, max 250°C
This setting saves energy while maintaining the
quality of the cooking.
All types of cooking are done without preheating.
MEDIUM GRILL
Min temperature 180°C, max 275°C
Pre-heat the oven for five minutes.
Slide the drip tray into the bottom shelf to
collect the grease.
FULL GRILL
Min temperature 180°C, max 275°C
KEEPING THINGS WARM
Min temperature 35°C, max 100°C
Recommended for letting dough rise for bread,
brioche, kügelhopf.
Put the mould on the bottom, not exceeding 40°C
(plate-warming, defrosting).
PIZZA
Min temperature 35°C, max 275°C
Pre-heat and then put in the oven on the 3rd
shelf support.
BOOST
Min temperature 35°C, max 275°C
To rapidly pre-heat the oven.
The oven heats up and the temperature indicator
flashes. A series of beeps sounds when the oven
has reached the programmed temperature.
COOKING FUNCTION
(depending on model)
COOKING TIME RE-
COMMENDATION
TRADITIONAL
30 min
TRADITIONAL PULSE
30 min
CIRCULATING HEAT
30 min
PULSED BOTTOM
30 min
ECO
30 min
MEDIUM GRILL
10 min
FULL GRILL
7 min
GRILL PULSE
15 min
KEEP WARM
60 min
PIZZA
15 min
BOOST
5 min
ENGLISH
CLEANING THE OUTER SURFACES
Use a window washing product applied to a soft
cloth. Do not use abrasive creams or scouring
sponges.
5
Cleaning
REMOVAL

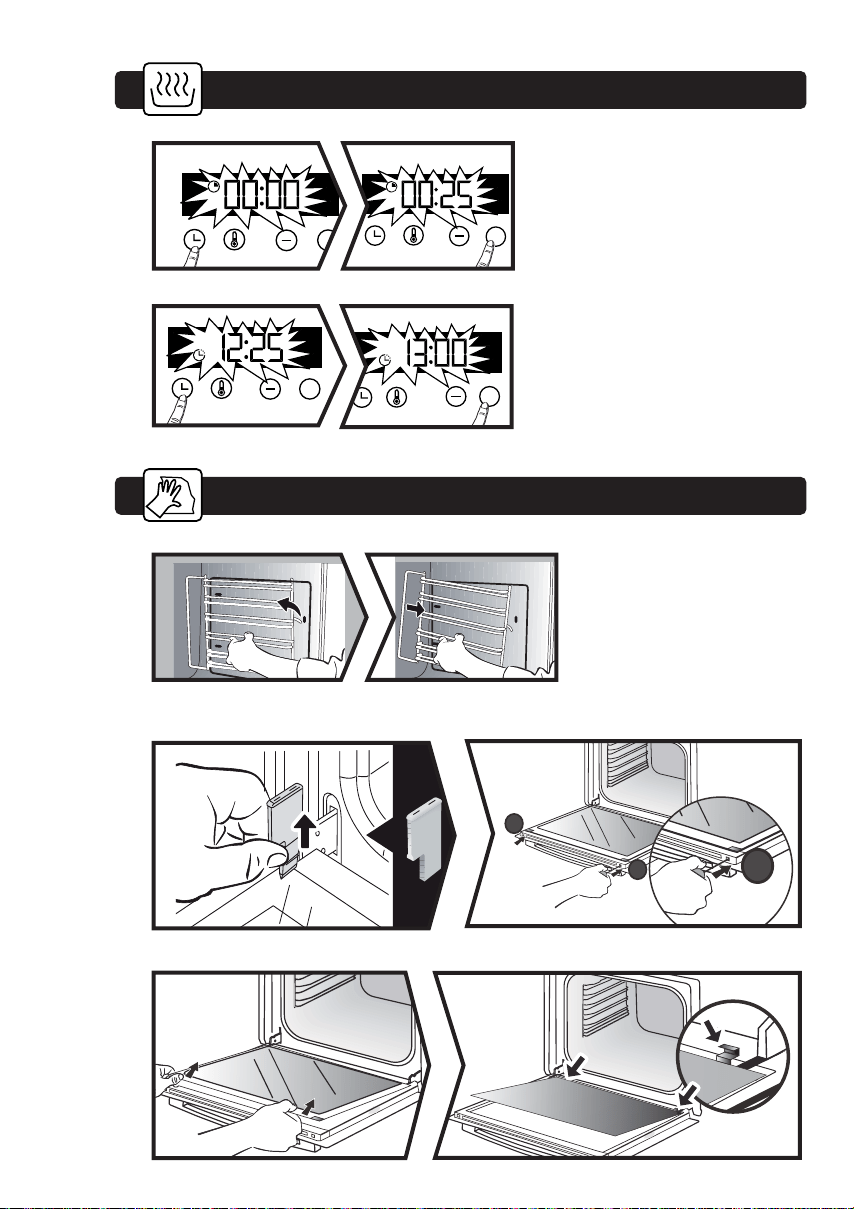

Open the door fully and block it with the plastic
wedge provided in your appliance’s plastic pouch.
Remove the first clipped glass panel:
Use a tool (screwdriver) to press the slots A in order
to unclip the glass panel.
Remove the glass panel.
Depending on the model, the door consists of two
additional glass panels, with a black rubber spacer
at each corner. If necessary, remove them to
clean. Do not soak the glass panels in water.
Rinse with clean water and dry off with a lint-free
cloth.
CLEANING INSIDE THE OVEN
Clean the still-warm oven with a cloth dipped in
hot, soapy water and wipe with a lint-free cloth.

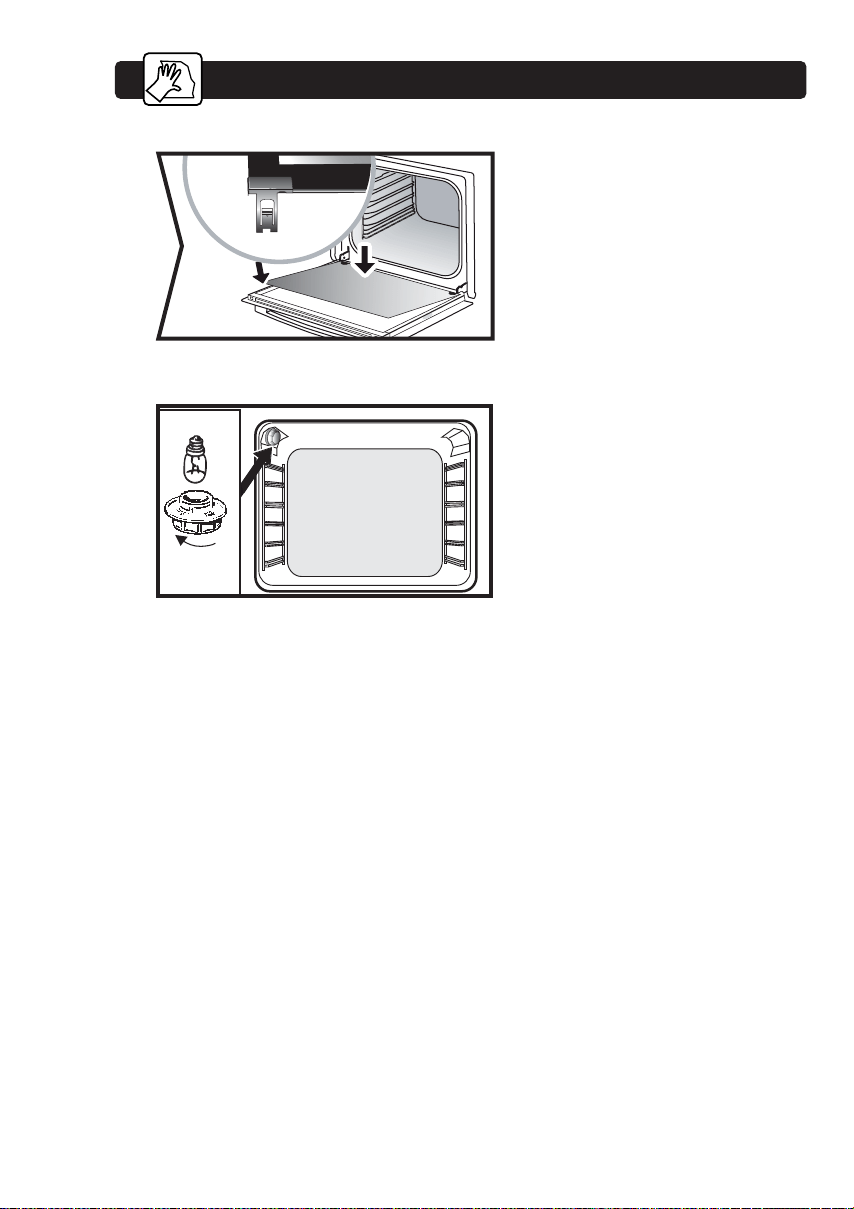

5.2 CLEANING THE INSIDE GLASS
To clean the inside glass, remove the door.
Before doing this, remove any excess grease
with a soft cloth and washing up liquid.
Settings
6
6.1 MENU
You can adjust different
settings on your oven. To
do so:
Press until you get to
the “MENU” display to
access the settings mode.
Press again to scroll through the different set-
tings.
Activate or de-activate the different parameters
with + and -; see table below:
+
Activate/de-activate the
beeping sound of the
buttons
Activate/de-activate
demonstration mode
To exit the “MENU”, press again.
flashes.
The display flashes. Set the cooking end time
with
+ and - .
The cooking end time is automatically saved after
a few seconds. The cooking end time display
stops flashing.
Warning
Do not use scouring cleaning products,
abrasive sponges or metal scrapers to clean
the oven's class door, which may scratch the
surface and lead to the glass breaking.
RE-ASSEMBLING THE DOOR
After cleaning, reposition the four rubber stops
with the arr
ow upwards.
Reposition
all
of the glass
panels.
Slip
the last glass panel into the metal stops,
then clip it in with the shiny side facing outwards.
Remove the plastic wedge.
Your appliance is now ready for use again.
5.3 REPLACING THE OVEN LAMP
Bulb specification:
15 W, 220-240 V~, 300°C, E14 cap.
To unscrew the view port and the light, use
a rubber glove, which will make disassembly
easier.
Warning:
Make sure the appliance is disconnected
from the power before replacing the lamp
in order to avoid the risk of electric
shock. Change the lamp only when the
appliance has cooled down.
ENGLISH
You may resolve certain little problems yourself:
The oven is not heating. Check that the oven is
correctly connected and that your installation’s fuse
is not out of service. Increase the selected
temperature.
The oven light is not working. Replace the bulb
or the fuse. Check that the oven is correctly
connected.
The cooling fan continues to operate after the
oven stops. This is normal; the fan may continue
running until a maximum of 1 hour after cooking to
lower the temperature inside and outside the oven.
If the fan runs for over an hour, contact the After
Sales Department.
Anomalies and solutions
7
SERVICE CALLS
Any repairs made to your appliance must be
carried out by a qualified professional authorised
to work on the brand. When calling, please
provide the complete references of your
appliance (commercial reference, service
reference, serial number), so that we can handle
your call better. This information appears on the
manufacturer’s nameplate attached to your
equipment.
Mod. 5H- 196 N
T
yp. 1
HV11
1C2
Cod.
901015093
Ser
ie: 071212776
23
0V/50HZ
W ma
x 3570 W
M
ade
in
EU
AR4
6
BRANDT APPLIANCES SAS
7 rue Henri Becquerel
92500 RUEIL MALMAISON
230V ~ 50 Hz
MADE IN FRANCE
B: Commercial reference
C: Service reference
H: Serial number
8
Environment
CARE FOR THE ENVIRONMENT
- This appliance’s packing materials are recyclable.
Please recycle them and help protect the environ-
ment by depositing them in municipal containers pro-
vided for this purpose.
- Your appliance also contains many recy-
clable materials. It is therefore marked
with this logo to indicate that used appli-
ances must not be mixed with other waste.
The appliance recycling organised by your manufac-
turer will therefore be conducted in optimum condi-
tions, in accordance with European directive
2002/96/EC on electrical and electronic equipment
waste.
Consult your local authority or your retailer to locate
your nearest used appliance drop-off points.
- We thank you for your help in protecting the envi-
ronment.
GENUINE REPLACEMENT PARTS
During maintenance work, request that only
certified
genuine replacement parts are used.
Service Calls
9
ENGLISH
Meat
Roast pork (1kg)
200
2
180
2
60
Roast veal (1kg)
200 2
180
2
60-70
Roast beef
240
2
30-40
Lamb (leg, shoulder, 2.5kg)
220
1
220 200
2 60
Poultry (1kg)
200
2 220
180
2 210 3
60
Large pieces of poultry
180 1 60-90
Chicken thighs
220 3 210 3
20-30
Pork/veal chops
210 3
20-30
Beef ribs (1kg)
210 3 210 3
20-30
Lamb chops
210 3
20-30
Fish
Grilled fish
275 4
15-20
Cooked fish (bream)
200
3
180
3
30-35
Fish in papillotte
220
3
200
3
15-20
Vegetables
Gratins (cooked foods)
275 2
30
Potato gratin
200
2
180
2
45
Lasagne
200
3
180
3
45
Stuffed tomatoes
170
3
160
2
30
Pastries
Sponge cake
180
2
180 2 35
Swiss roll
220
3
180 2 5-10
Buns
180 1 210 180 2 35-45
Brownies
180
2
175 3 20-25
Cake - Pound cake
180 1 180 1 180 2 45-50
Clafoutis
200
2
180 3 30-35
Baked custards
165
2
150 2 30-40
Cookies - Shortbread
175
3
15-20
Kugelhopf
180 2 180 2 40-45
Meringues
100
2
100 3 60-70
Madeleines
220
3
200 3 5-10
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
min
DISHES
*
*
*
*
**
*
*
Depending on the model
ENGLISH
Pastries
Madeleines
220
3
200
3
5-10
Choux pastry
200
3 180 3 180 3 30-40
Flaky pastry hors d’oeuvres
220 3
200 3
5-10
Savarin cake
180 3
175 3
30-35
Shortcrust tart
200 1
195 1
30-40
Thin flaky crust tart
215 1
200 1
20-25
Tart made with yeast-based
210 1
200 1
10-30
Other
Skewers
220 3 210 4 10-15
Terrine pâté
200 2 190 2 80-100
Shortcrust pizza
200 2 30-40
Dough-based pizza
15-18
Quiches
35-40
Soufflé
180 2 50
Pies
200 2 40-45
Bread
220 200 220 30-40
Bread
180 275 4-5 2-3
Casseroles (stews)
180 2 180 2 90-180
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
LEVEL
min
DISHES
Setting
° Celsius
° Fahrenheit
30
90
60
120
150
180
275
1
3
2
4
5
6
9 maxi
RELATIONSHIP OF SETTINGS TO TEMPERATURE
➜
°F /°C
210
7
240
85
195
140
250
300
355
525
410
465
8
*
Depending on the model
*
*
*
*
**
*
N.B: Before being placed in the oven , all meat must remain at least 1 hour at room temperature.
All T°C and cooking times are given for pre-heated ovens.
