[en] Instruction manual
Ú Table of contents[en] Instruction manual
m Safety precautions
Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.
Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not connect the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will los...
This appliance must be installed in accordance with the installation instructions.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.
This appliance is not intended for operation with an external clock timer or a remote control.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible ...
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
Risk of fire!
■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
Risk of fire!
■ The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of burning!
■ The hotplates and the area around them get very hot. Never touch the hot surfaces. Keep children away.
Risk of burns!
■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of burns!
■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives, forks, spoons and lids) on the hob.
Risk of fire!!
■ After each use, always turn off the hob at the main switch. Do not wait until the hob turns off automatically after the pan is removed.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
Risk of electric shock.!
■ Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
Risk of electric shock!
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Electromagnetic hazards!
This appliance complies with safety and electromagnetic compatibility standards. However, people with pacemakers or insulin pumps must refrain from using this appliance. It is impossible to ensure that all of these devices available on the market com...
Malfunction risk!
The hob is equipped with a fan in the lower section. If there is a drawer under the hob it should not be used to store small objects or paper, since they could damage the fan or interfere with the cooling if they are sucked into it.
There should be a minimum of 2 cm between the contents of the drawer and fan intake.
Risk of injury!
■ When cooking in a bain marie, the hob and cooking container could shatter due to overheating. The cooking container in the bain marie must not directly touch the bottom of the water-filled pot. Only use heat-resistant cookware.
Risk of injury!
■ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.
Elements that may damage the appliance
Caution!

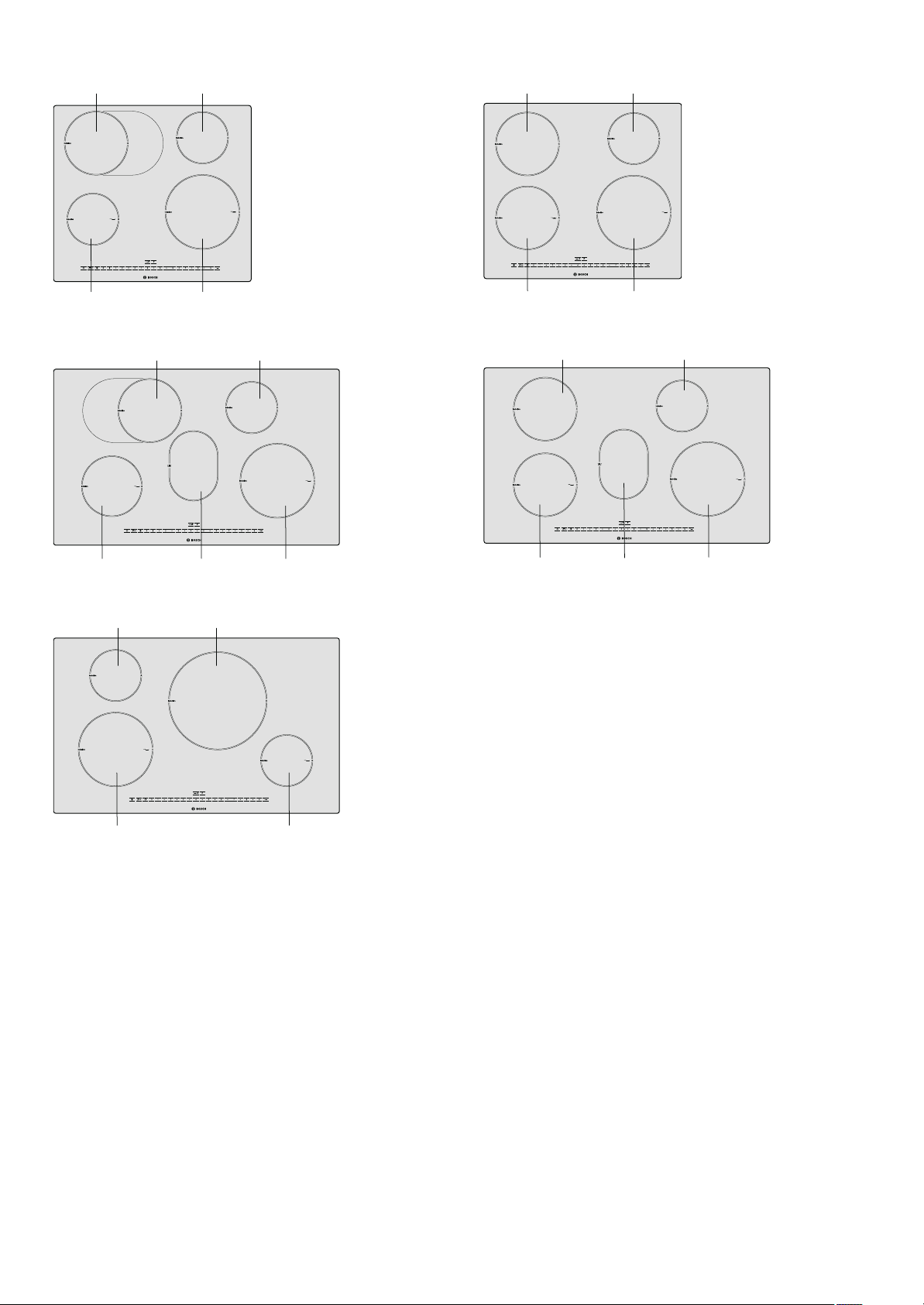

Overview

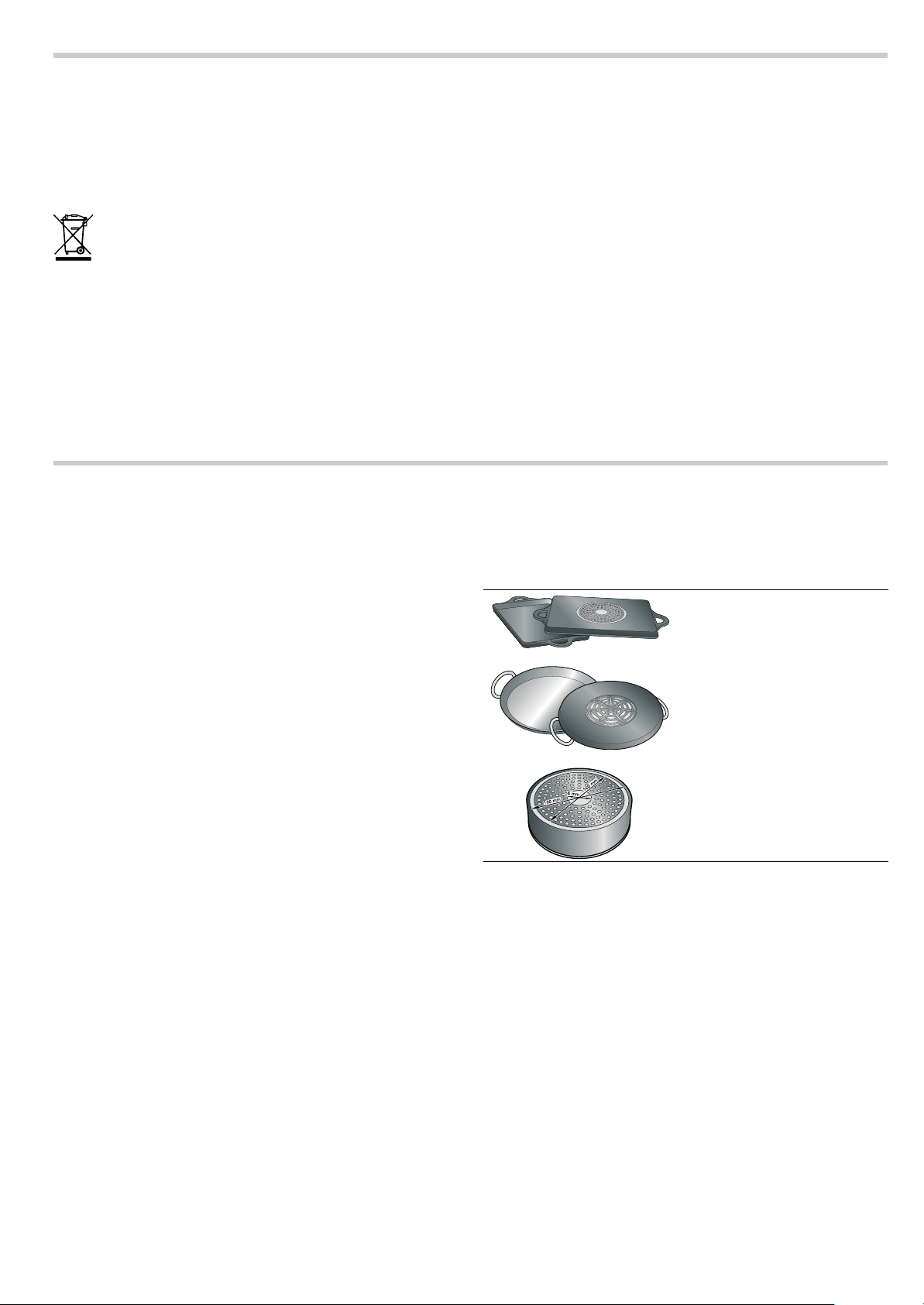

Protecting the environment
Environmentally-friendly disposal of waste products
Energy-saving advice
Induction cooking
Advantages of induction cooking
Suitable pans
Ferromagnetic pans
Other suitable cookware for induction
Unsuitable pans
Characteristics of the pan base
Absence of pan or unsuitable size
Empty pans or those with a thin base
Pan detection
Familiarise yourself with the appliance
The control panel
Control surfaces
Notes
The hotplates
Residual heat indicator
Programming the hob
Switching the hob on and off
Note
Set the hotplate
Selecting the power level
1. Press the $ symbol of the corresponding hotplate.
2. Then press the required power level symbol.
3. To change the power level: select the hotplate and then press the symbol of the required power level. To select an intermediate level, press the Û symbol that is between the power level symbols.
Switch off the hotplate
Note
Cooking guidelines table
Frying function
Notes
Pans to use with the frying function
Note
Temperature settings
How to program
1. Select the hotplate: Press the Ô symbol. The ‘ indicator lights up on the hotplate display.
The possible temperature settings are shown above the power level control panel.
2. In the next 10 seconds, select the required temperature setting using the relevant power level symbol. (see picture). The deep-frying function will have been activated.
3. Add oil to the pan, then add the ingredients.
Turning off the frying function
Table
Frying programs
Select the desired program
1. Press the ˜ symbol. The ˜‹ indicator lights up on the hotplate display.
2. In the next 10 seconds, select the required program using symbols 1 to 9.
Switching off the program
Childproof lock
Turning on and off the childproof lock.
Activating and deactivating the childproof lock
Activating and deactivating
Powerboost function
Restrictions when using
How to activate
1. Select a hotplate.
2. Press the boost G symbol. The function has been turned on.
To deactivate
1. Select a hotplate.
2. Press the Gboost symbol. The Powerboost function has been deactivated.
Note
Time programming function
Turning off a hotplate automatically
How to program
1. Select the required hotplate and power level.
2. Press the 0 symbol twice. ‹‹ y __ light up on the time function program display.
3. In the next 10 seconds, program the required time using symbols 1 to 9.
Once the time has elapsed
Changing or cancelling the time
Automatically switch off a hotplate with the deep-frying function
Notes
Automatic timer
Note
The timer
How to program
1. Press the 0 symbol. The indicator U lights up. ‹‹ lights up in the time program function display.
2. Set the required time using symbols 1 to 9.
Once the time has elapsed
Changing or cancelling the time
Cleaning lock function
Note
Automatic time limitation
Basic settings
Accessing the basic settings
1. Turn on the hob with the main switch.
2. In the next 10 seconds, hold down the 0 symbol for 4 seconds.
3. Press the 0 symbol until the indicator for the required function is displayed.
4. Next select the setting required with symbols 0 to 9.
5. Press the 0 symbol for 4 seconds.
Leaving the basic settings
Care and cleaning
Hob
Cleaning
Glass scraper
1. Release the scraper safety catch
2. Use the blade to clean the hob surface
m Risk of injury!!
Care of the appliance
Hob frame
Fixing malfunctions
Normal noise while the appliance is working
After-sales service
