Poulan Pro PPR2042STA Poulan lawn tractor User Manual

IMPORTANT MANUAL

Do Not Throw Away

Pou/an

OWNER'S MANUAL

MODEL'.

PPR2042STA

LAWN TRACTOR

_:_ WARNING:

Read the Owner's Manual and follow

all Warnings and Safety Instructions.

Failure to do so can result in serious

injury.

Always Wear Eye Protection During Operation

181377 1.18.02 TR

Printed in U.S.A.

I !

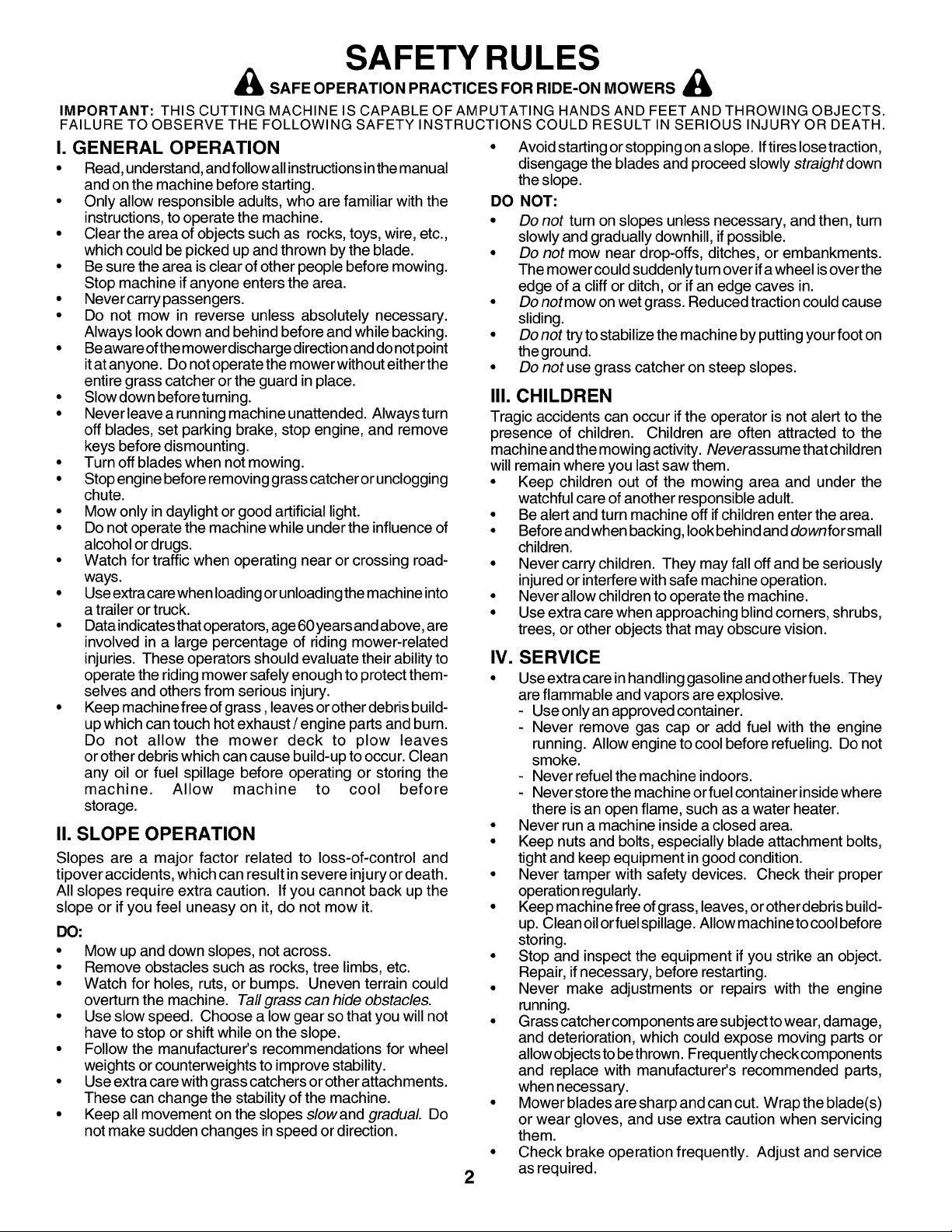

SAFETY RULES

_1_ SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand,andfollow allinstructionsinthemanual

and onthe machine beforestarting.

• Only allow responsibleadults, who are familiar with the

instructions,tooperate the machine.

• Clear the area ofobjectssuch as rocks,toys, wire, etc.,

whichcouldbe pickedup and thrown bythe blade.

• Be surethe area isclear ofotherpeople before mowing.

Stop machine ifanyone enters thearea.

• Never carrypassengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Beawareofthe mowerdischarge direction and do notpoint

itat anyone. Donot operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn

off blades, set parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic when operating near or crossing road-

ways.

• Use extracarewhen loading or unloading themachine into

a trailer ortruck.

• Data indicates that operators, age 60 years and above, are

involved in a large percentage of riding mower-related

injuries. These operators should evaluate their ability to

operate the riding mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves orother debris build-

up which can touch hot exhaust / engine parts and burn.

Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur. Clean

any oil or fuel spillage before operating or storing the

machine. Allow machine to cool before

storage.

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. Ifyou cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO."

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tallgrass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not

have to stop or shift while on the slope.

• Follow the manufacturer's recommendations for wheel

weights orcounterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slowand gradual Do

not make sudden changes in speed or direction.

• Avoid starting or stopping on aslope. Iftires lose traction,

disengage the blades and proceed slowly straight down

the slope.

DO NOT:

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, ifpossible.

• Do not mow near drop-offs, ditches, or embankments.

The mower could suddenly turn over ifa wheel isover the

edge of a cliff or ditch, or if an edge caves in.

• Do notmow on wet grass. Reduced traction could cause

sliding.

• Do not try tostabilize the machine by putting your foot on

theground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Neverassume that children

will remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of another responsible adult.

• Be alert and turn machine off ifchildren enter the area.

• Before and when backing, look behind and downforsmall

children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care inhandling gasoline andother fuels. They

are flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts,

tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free ofgrass, leaves, or other debris build-

up. Clean oil orfuel spillage. Allow machineto cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, ifnecessary, before restarting.

• Never make adjustments or repairs with the engine

running.

• Grass catcher components are subject to wear, damage,

and deterioration, which could expose moving parts or

allow objects tobethrown. Frequentlycheckcomponents

and replace with manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut. Wrap the blade(s)

or wear gloves, and use extra caution when servicing

them.

• Check brake operation frequently. Adjust and service

as required.

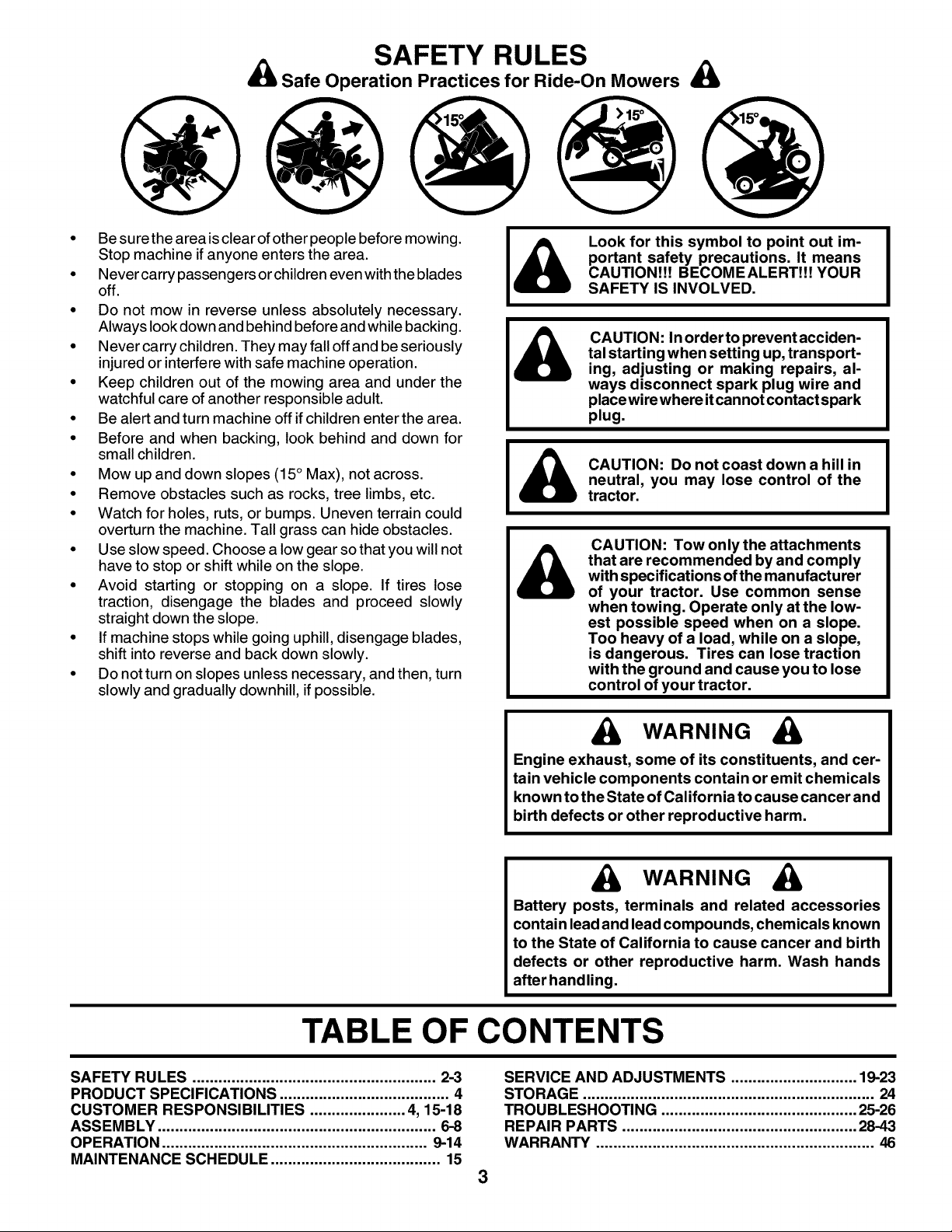

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

• Be sure the area isclear of other people before mowing.

Stop machine if anyone enters the area.

• Never carry passengers orchildren even with the blades

off.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the

watchful care of another responsible adult.

• Be alert and turn machine off ifchildren enter the area.

• Before and when backing, look behind and down for

small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not

have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent acciden-

tal starting when setting up, transport-

ing, adjusting or making repairs, al-

ways disconnect spark plug wire and

place wire where itcannot contact spark

plug.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications ofthe manufacturer

of your tractor. Use common sense

when towing. Operate only at the low-

est possible speed when on a slope.

Too heavy of a load, while on a slope,

is dangerous. Tires can lose traction

with the ground and cause you to lose

control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of Californ iato cause cancer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ...................... 4, 15-18

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-14

MAINTENANCE SCHEDULE ....................................... 15

SERVICE AND ADJUSTMENTS ............................. 19-23

STORAGE ................................................................... 24

TROU BLESHOOTING ............................................. 25-26

REPAIR PARTS ...................................................... 2843

WARRANTY ................................................................ 46

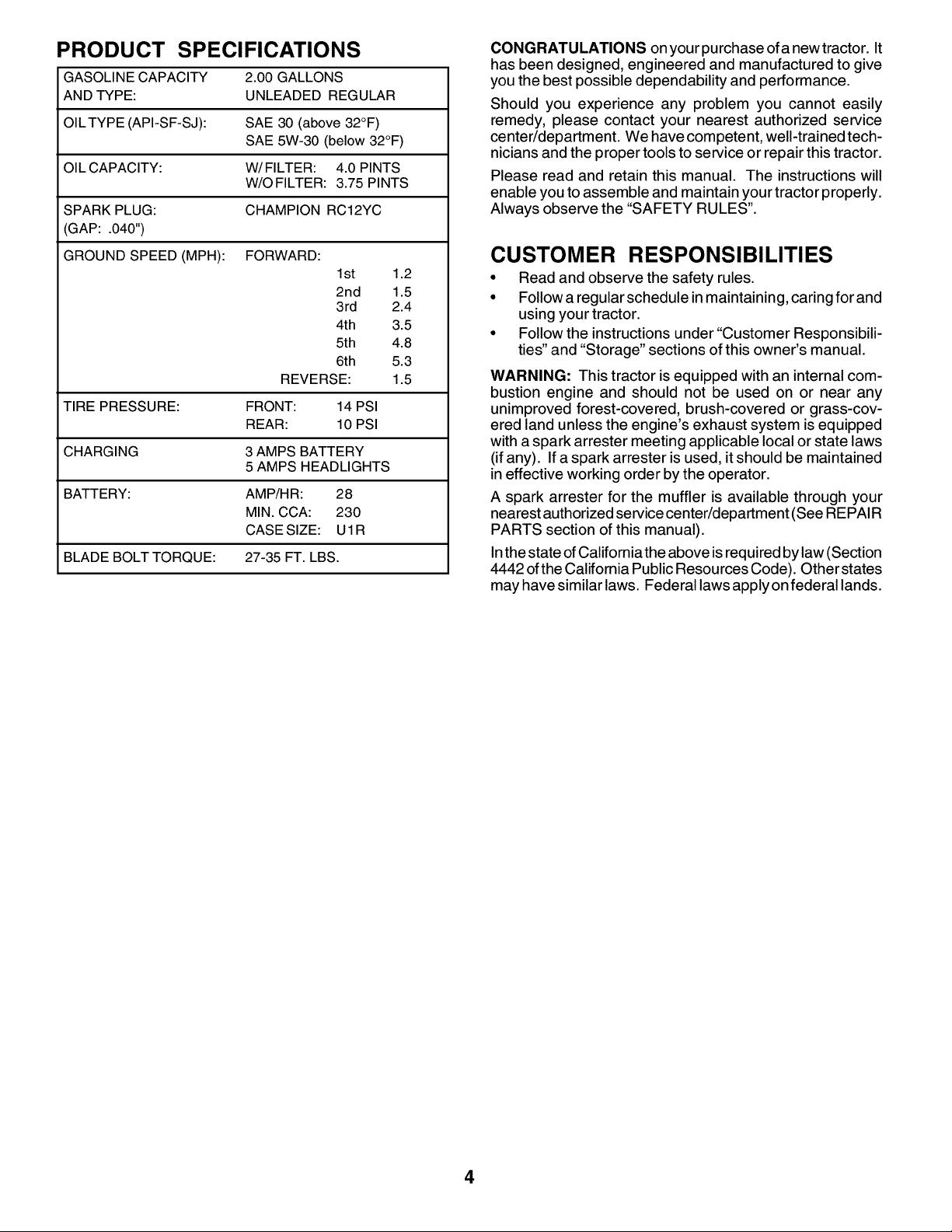

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY 2.00 GALLONS

AND TYPE: UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/OFILTER: 3.75 PINTS

SPARK PLUG: CHAMPION RC12YC

(GAP: .040")

GROUND SPEED (MPH): FORWARD:

I st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 28

MIN. CCA: 230

CASE SIZE: UIR

BLADE BOLT TORQUE: 27-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It

has been designed, engineered and manufactured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center/department. We have competent, well-trained tech-

nicians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and

using your tractor.

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any). Ifa spark arrester is used, it should be maintained

in effective working order by the operator.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See REPAlR

PARTS section of this manual).

Inthe state ofCaliforniathe above is required by law (Section

4442 ofthe California Public Resources Code). Other states

may have similar laws. Federal laws apply on federal lands.

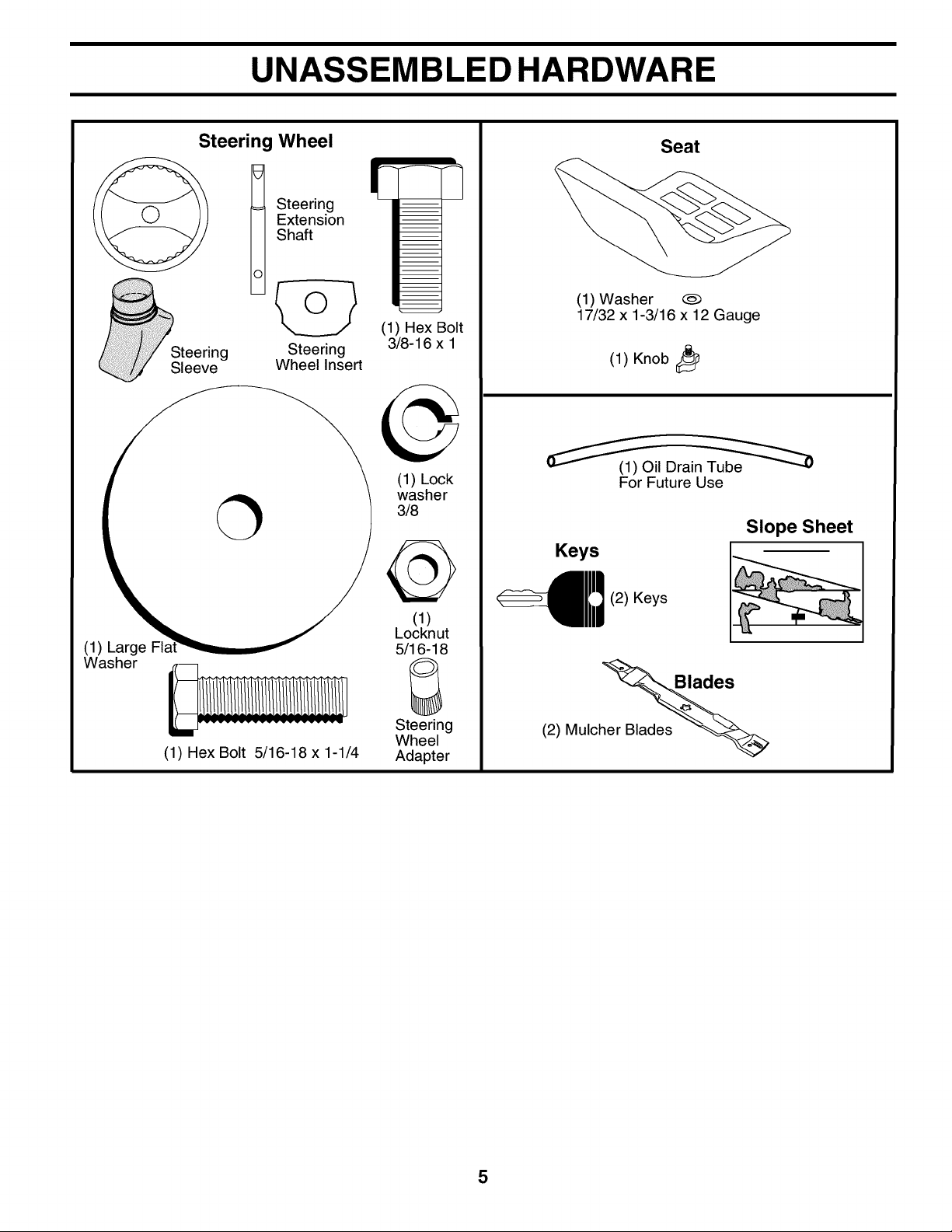

UNASSEMBLED HARDWARE

(1) Large

Washer

Steering Wheel

_- Steering

Extension

Shaft

-LtJ

Steering

Wheel Insert

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Hex Bolt

3/8-16 x 1

(1) Lock

washer

3/8

(1)

Locknut

5/16-18

Steering

Wheel

Adapter

Seat

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob

For Future Use

Keys

(2) Keys

Slope Sheet

(2) Mulcher Blades

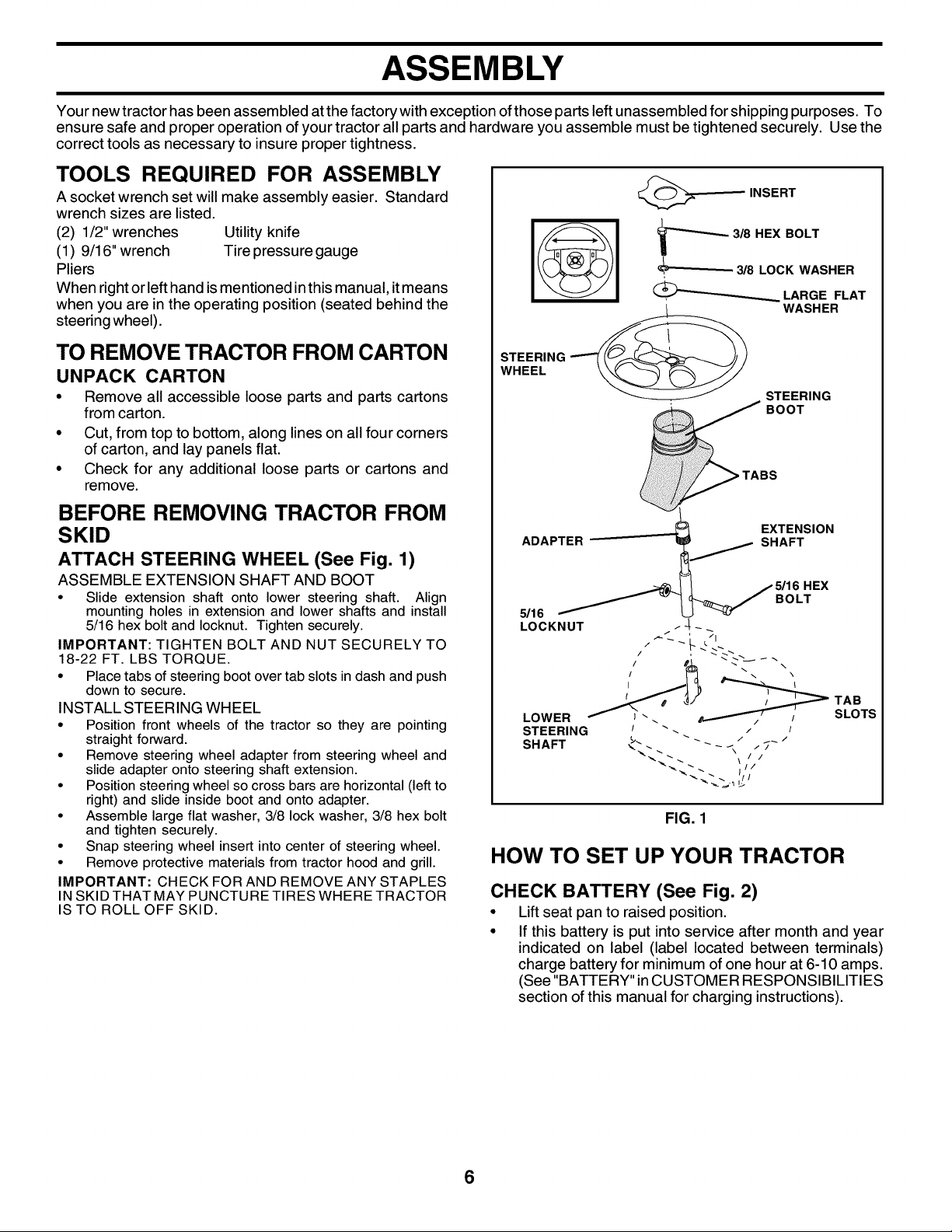

ASSEMBLY

Your new tractor has been assembled atthe factory with exception of those parts left unassembled for shipping purposes. To

ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set willmake assembly easier. Standard

wrench sizes are listed.

(2) 1/2" wrenches Utility knife

(1) 9/16" wrench Tire pressure gauge

Pliers

When rightorlefthandismentioned inthismanual, itmeans

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton.

• Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

• Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and lower shafts and install

5/16 hex bolt and Iocknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT. LBS TORQUE.

• Placetabs of steering bootover tab slots in dash and push

down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing

straight forward.

• Remove steering wheel adapter from steering wheel and

slide adapter onto steering shaft extension.

• Position steering wheel socross barsare horizontal (left to

right) and slide inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock washer, 3/8 hex bolt

and tighten securely.

• Snap steering wheel insert into center of steering wheel.

• Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTU RETIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

-- INSERT

_ 318 HEX BOLT

-- 318 LOCK WASHER

_ LARGE FLAT

STEERING _ WASHER

WHEEL _ STEERING

BOOT

TABS

LOCKNUT / 4 -

_ "1

/ o.L. _--- _..

LOWER SLOTS

STEERING / _ _ / /

SHAFT _ _ _ / _ /

FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

• Lift seat pan to raised position.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum ofone hour at 6-10 amps.

(See "BATTERY" inCUSTOMER RESPONSIBILITIES

section ofthis manual for charging instructions).

ASSEMBLY

SEAT PAN_

FIG. 2

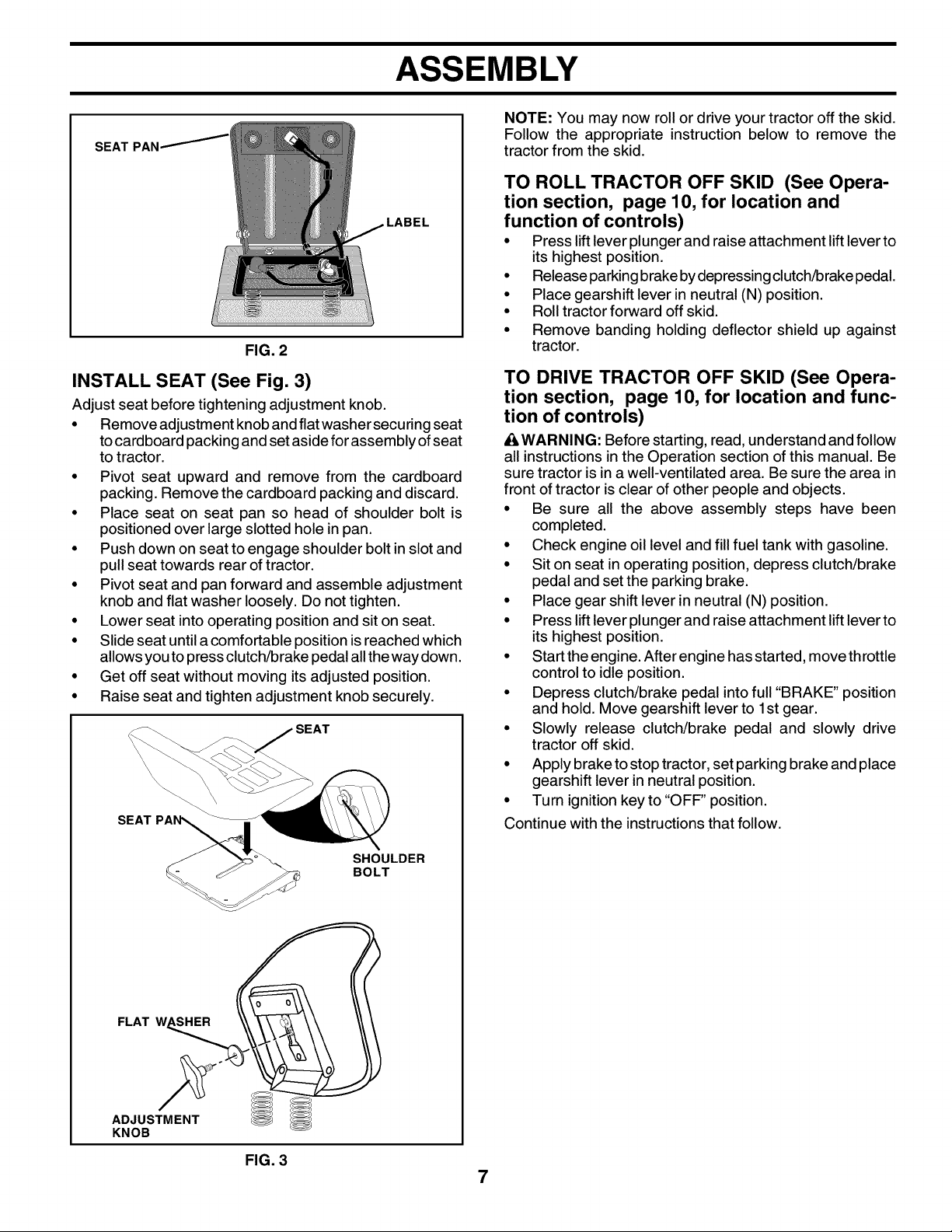

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer securing seat

tocardboard packing and set aside for assembly of seat

to tractor.

• Pivot seat upward and remove from the cardboard

packing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and

pull seat towards rear of tractor.

• Pivot seat and pan forward and assemble adjustment

knob and flat washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SEAT

SEAT P_

SHOULDER

BOLT

FLAT W SHER

ADJUSTMENT

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and

function of controls)

• Press lift lever plunger and raise attachment lift lever to

its highest position.

• Release parking brake bydepressing clutch/brake pedal.

• Place gearshift lever in neutral (N) position.

• Roll tractor forward off skid.

• Remove banding holding deflector shield up against

tractor.

TO DRIVE TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and func-

tion of controls)

A WARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

• Be sure all the above assembly steps have been

completed.

• Check engine oil level and fill fuel tank with gasoline.

• Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

• Place gear shift lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever to

its highest position.

• Start the engine. After engine has started, move throttle

control to idle position.

• Depress clutch/brake pedal into full "BRAKE" position

and hold. Move gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and slowly drive

tractor off skid.

• Apply brake to stop tractor, set parking brake and place

gearshift lever in neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

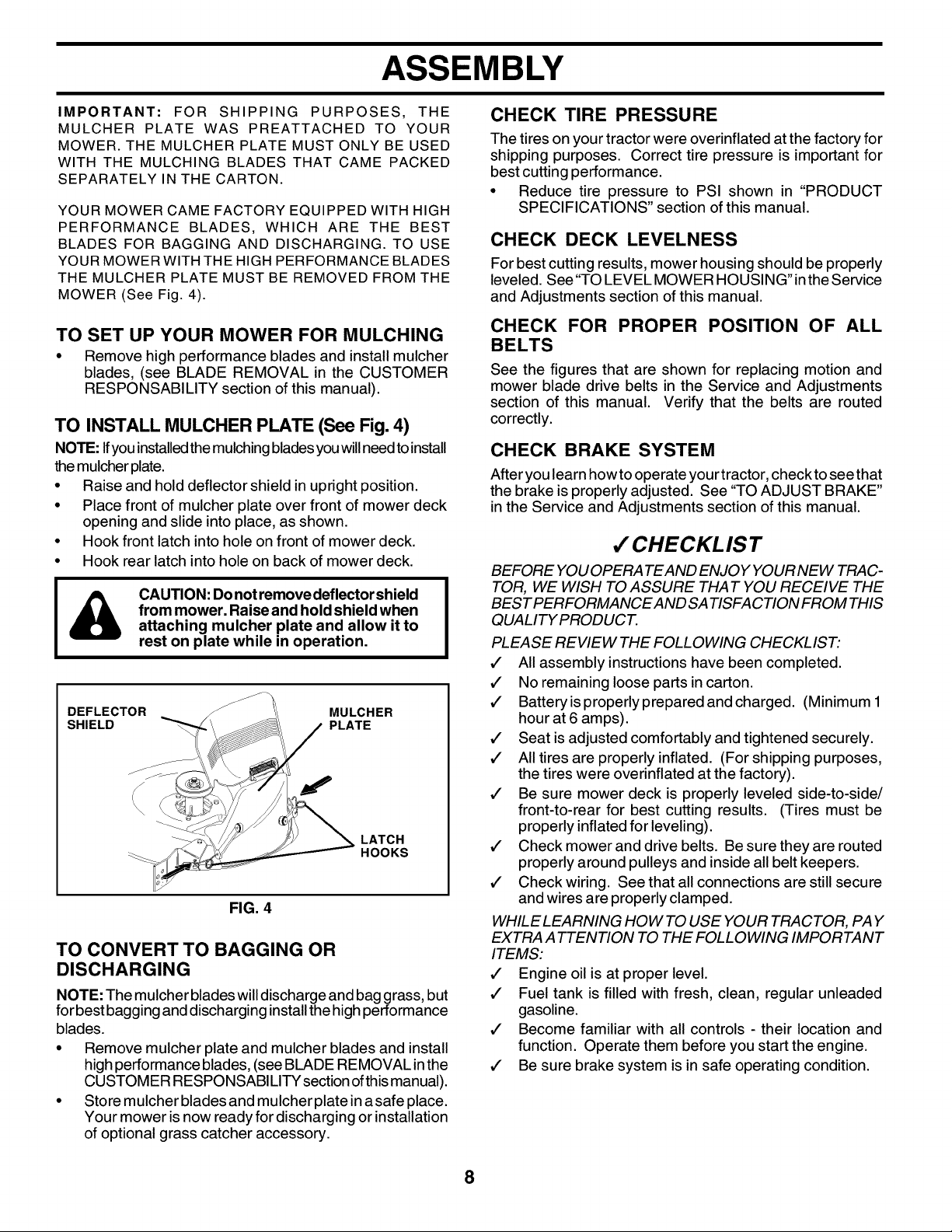

ASSEMBLY

CHECK TIRE PRESSURE

IMPORTANT: FOR SHIPPING PURPOSES, THE

MULCHER PLATE WAS PREATTACHED TO YOUR

MOWER. THE MULCHER PLATE MUST ONLY BE USED

WITH THE MULCHING BLADES THAT CAME PACKED

SEPARATELY IN THE CARTON.

YOUR MOWER CAME FACTORY EQUIPPED WITH HIGH

PERFORMANCE BLADES, WHICH ARE THE BEST

BLADES FOR BAGGING AND DISCHARGING. TO USE

YOUR MOWER WITH THE HIGH PERFORMANCE BLADES

THE MULCHER PLATE MUST BE REMOVED FROM THE

MOWER (See Fig. 4).

TO SET UP YOUR MOWER FOR MULCHING

• Remove high performance blades and install mulcher

blades, (see BLADE REMOVAL in the CUSTOMER

RESPONSABILITY section of this manual).

TO INSTALL MULCHER PLATE (See Fig. 4)

NOTE: Ifyouinstalledthemulchingblades youwillneedtoinstall

themulcher plate.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch intohole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Donot remove deflector shield

from mower. Raise and hold shield when

attaching mulcher plate and allow it to

rest on plate while in operation.

DEFLECTOR MULCHER

SHIELD PLATE

LATCH

HOOKS

FIG. 4

TO CONVERT TO BAGGING OR

DISCHARGING

NOTE: The mulcher blades will discharge and bag grass, but

forbest bagging and discharging install the high performance

blades.

• Remove mulcher plate and mulcher blades and install

high performance blades, (see BLADE REMOVAL in the

CUSTOMER RESPONSABILITY section ofthis manual).

• Store mulcher blades and mulcher plate in a safe place.

Your mower is now ready for discharging or installation

of optional grass catcher accessory.

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housingshould be properly

leveled. See"TO LEVEL MOWER HOUSING"in theService

and Adjustments section ofthis manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, checkto see that

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,/CHECKLIST

BEFORE YOUOPERA TEAND ENJOY YOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND SATISFACTION FROM THIS

QUALITYPRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Batteryis properly prepared and charged. (Minimum 1

hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

OPERATION

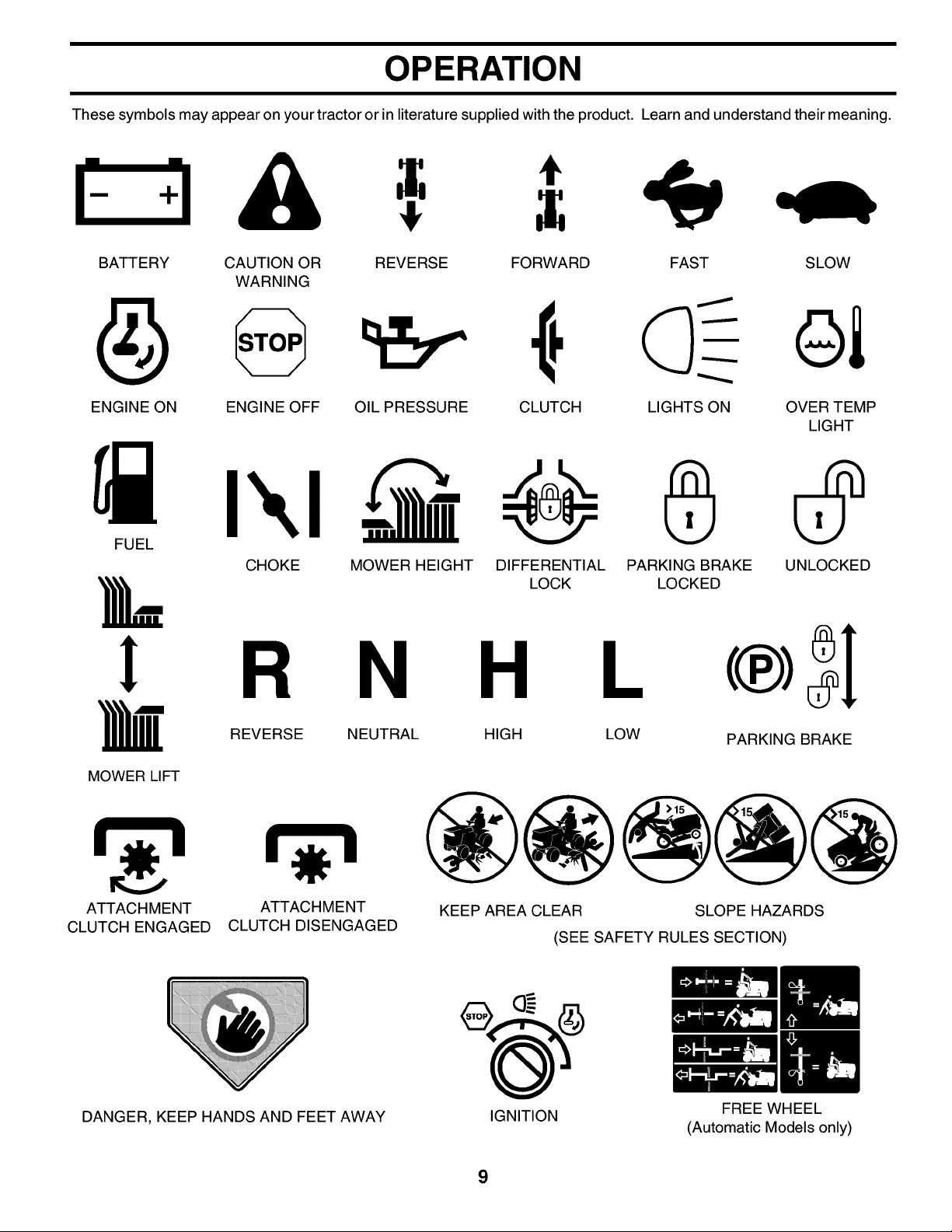

These symbols may appear on yourtractor or in literature supplied withthe product. Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON OVER TEMP

LIGHT

MOWER LIFT

CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

ATTACHMENT

CLUTCH ENGAGED

R N H L

REVERSE NEUTRAL HIGH LOW

PARKING BRAKE

ATTACHMENT

CLUTCH DISENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

IGNITION

FREE WHEEL

(Automatic Models only)

OPERATION

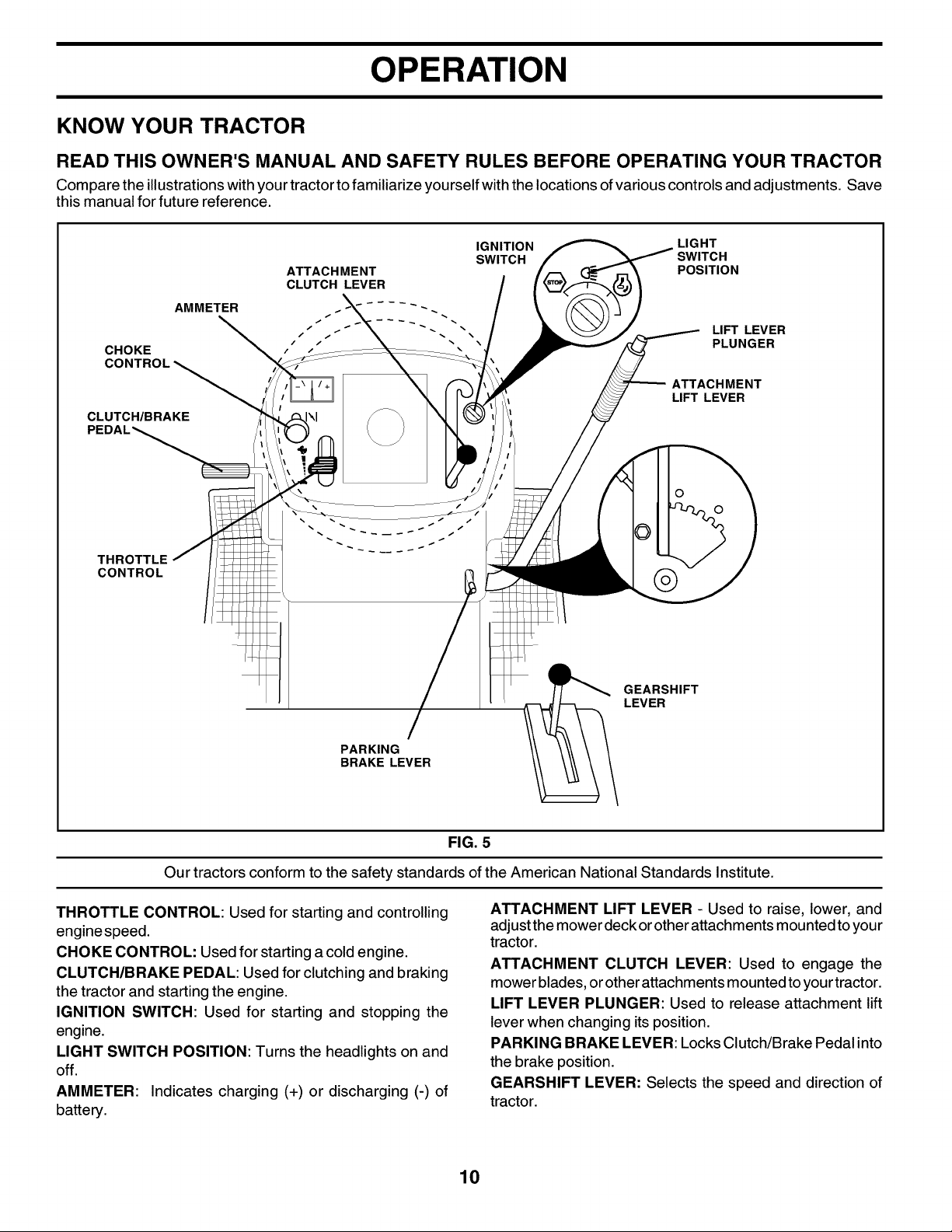

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswith yourtractortofamiliarize yourself with thelocationsofvarious controlsand adjustments. Save

this manual for future reference.

CHOKE

CONTROL

CLUTCH/BRAKE

PEDAL_

AMMETER

ATTACHMENT

CLUTCH LEVER

IGNITION LIGHT

SWITCH

POSITION

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

THROTTLE

CONTROL

GEARSHIFT

LEVER

PARKING

BRAKE LEVER

FIG. 5

Our tractors conform to the safety standards of the American National Standards Institute.

THROTTLE CONTROL: Used for starting and controlling

enginespeed.

CHOKE CONTROL: Used for starting a cold engine.

CLUTCH/BRAKE PEDAL: Used for clutching and braking

the tractor and starting the engine.

IGNITION SWITCH: Used for starting and stopping the

engine.

LIGHT SWITCH POSITION: Turns the headlights on and

off.

AMMETER: Indicates charging (+) or discharging (-) of

battery.

ATTACHMENT LIFT LEVER - Used to raise, lower, and

adjust the mower deck or other attachments mounted to your

tractor.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

PARKING BRAKE LEVER: Locks Clutch/Brake Pedal into

the brake position.

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

OPERATION

The operation of anytractor can result inforeign objectsthrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision

safety mask over spectacles or standard safety glasses.

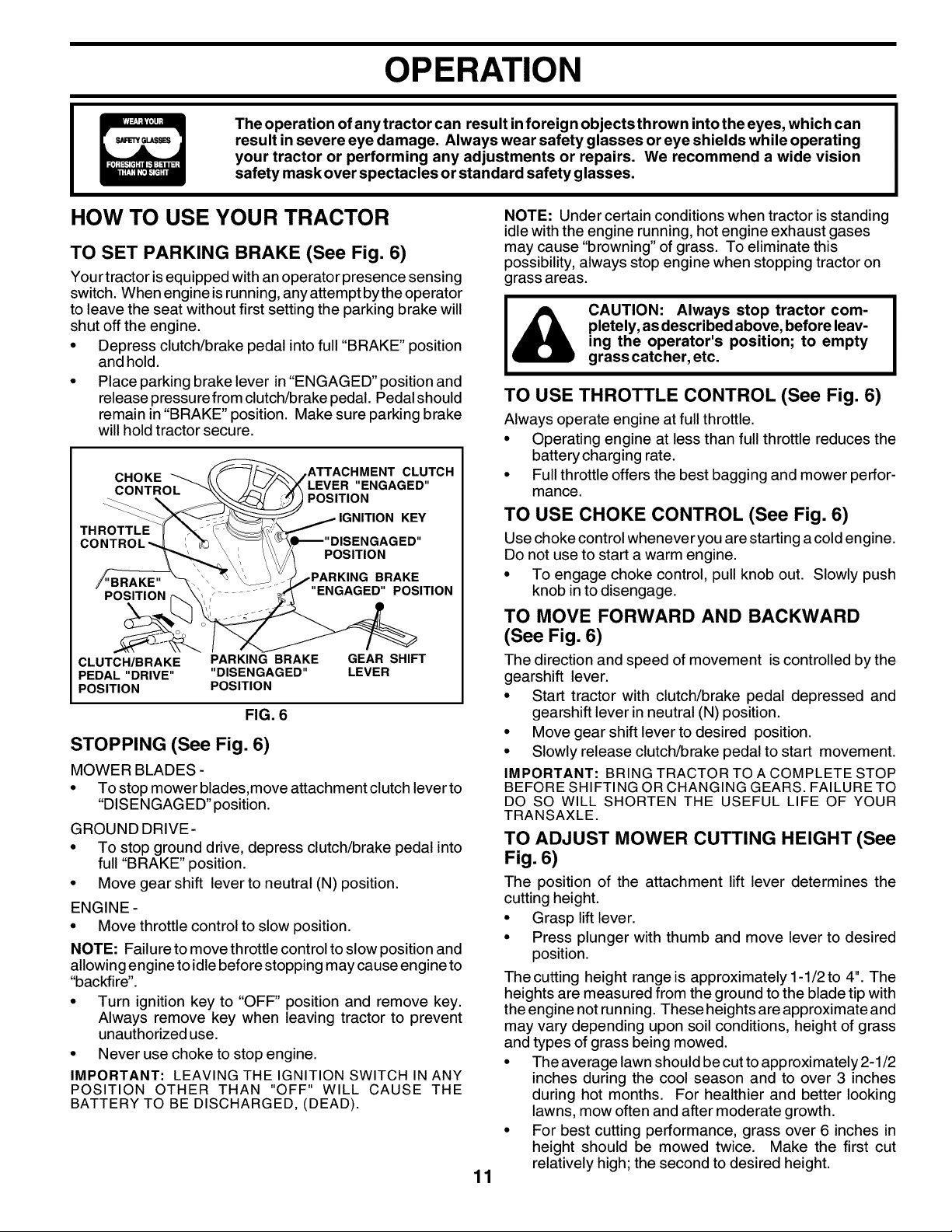

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 6)

Your tractor isequipped withan operator presence sensing

switch. When engine isrunning,any attemptby theoperator

to leave the seat withoutfirst setting the parking brake will

shut offthe engine.

• Depress clutch/brake pedal intofull "BRAKE" position

and hold.

• Place parkingbrake lever in "ENGAGED" positionand

release pressurefrom clutch/brake pedal. Pedal should

remain in"BRAKE" position. Make sure parking brake

willhold tractorsecure.

CHOKE _ CLUTCH

CONTROL LEVER "ENGAGED"

POSITION

KEY

THROTTLE

POSITION

_ED"

POSITION

BRAKE

"ENGAGED" POSITION

CLUTCH/BRAKE PARKING BRAKE GEAR SHIFT

PEDAL "DRIVE" "DISENGAGED" LEVER

POSITION POSITION

FIG. 6

STOPPING (See Fig. 6)

MOWER BLADES -

• To stop mower blades,move attachment clutchlever to

"DISENGAGED" position.

GROUND DRIVE-

• To stop ground drive, depress clutch/brake pedal into

full "BRAKE" position.

• Move gear shift lever to neutral (N) position.

ENGINE -

• Move throttle controlto slow position.

NOTE: Failureto move throttlecontroltoslow positionand

allowingengine toidlebefore stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorizeduse.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF" WILL CAUSE THE

BATTERY TO BE DISCHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases

may cause "browning" of grass. To eliminate this

possibility, always stop engine when stopping tractor on

grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 6)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 6)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push

knob into disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 6)

The direction and speed of movement iscontrolled by the

gearshift lever.

• Start tractor with clutch/brake pedal depressed and

gearshift lever in neutral (N) position.

• Move gear shift lever to desired position.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE TO

DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE.

TO ADJUST MOWER CUTTING HEIGHT (See

Fig. 6)

The position of the attachment lift lever determines the

cuttingheight.

• Grasp liftlever.

• Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2to 4". The

heights are measured from the ground to the blade tip with

theengine notrunning. These heightsare approximate and

may vary depending upon soil conditions, height of grass

and types ofgrass being mowed.

• The average lawnshould be cuttoapproximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high;the second to desired height.

OPERATION

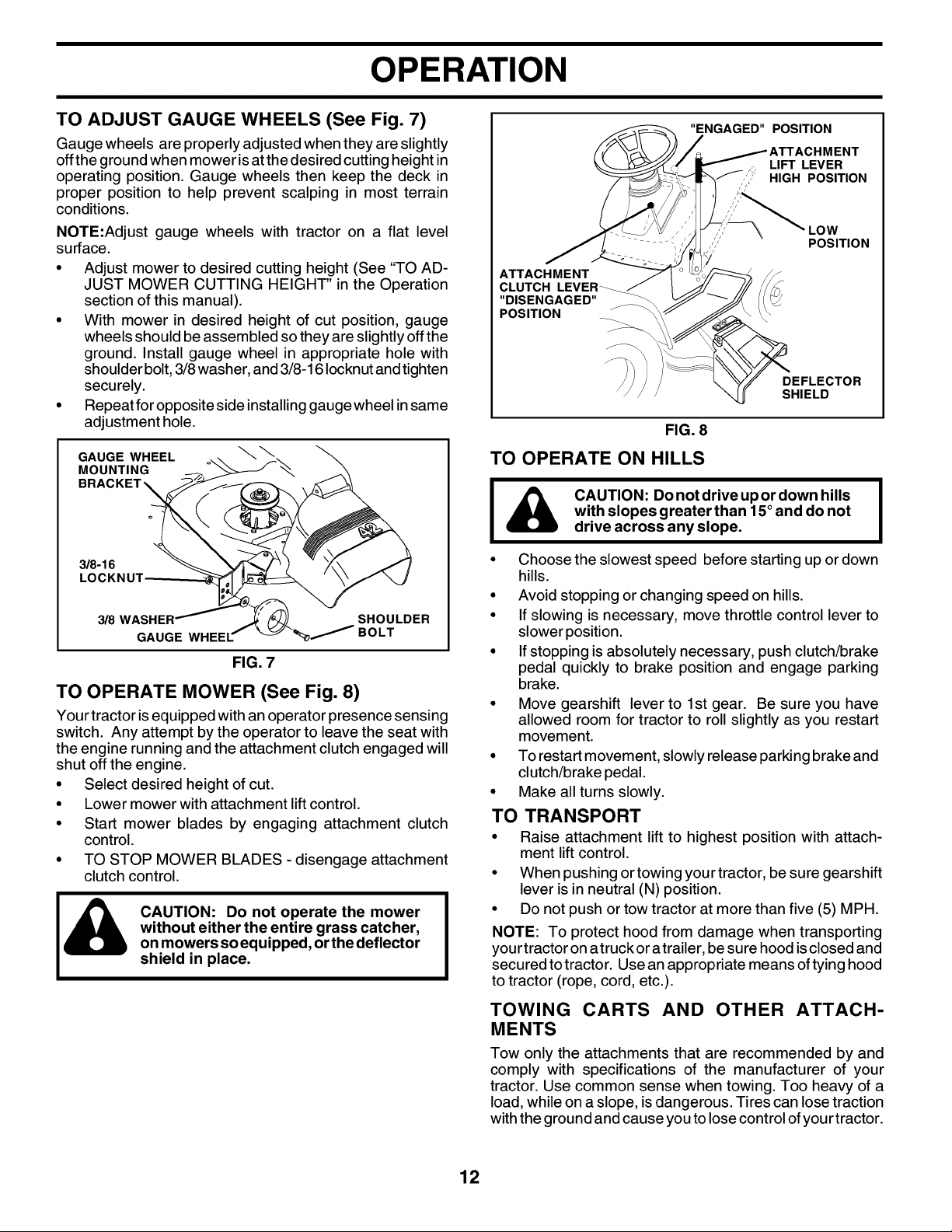

TO ADJUST GAUGE WHEELS (See Fig. 7)

Gauge wheels are properly adjusted when they are slightly

offthe groundwhen mower isat thedesired cuttingheightin

operating position. Gauge wheels then keep the deck in

proper position to help prevent scalping in most terrain

conditions.

NOTE:Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt,3/8 washer, and 3/8-16 Iocknut and tighten

securely.

• Repeat for opposite side installing gauge wheel in same

adjustment hole.

GAUGE WHEEL

MOUNTING

318-16

LOCKNU'I

318WASHER' SHOULDER

GAUGE WHEEL r BOLT

FIG. 7

TO OPERATE MOWER (See Fig. 8)

Your tractor isequipped withan operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine runningand the attachment clutchengaged will

shut offthe engine.

• Select desired height of cut.

• Lower mower with attachment liftcontrol.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutchcontrol.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, orthe deflector

shield in place.

"ENGAGED" POSITION

;HMENT

LIFT LEVER

_ HIGH POSITION

POSITION

ATTACHMENT

CLUTCH LEVER_

"DISENGAGED"

POSITION

DEFLECTOR

SHIELD

FIG. 8

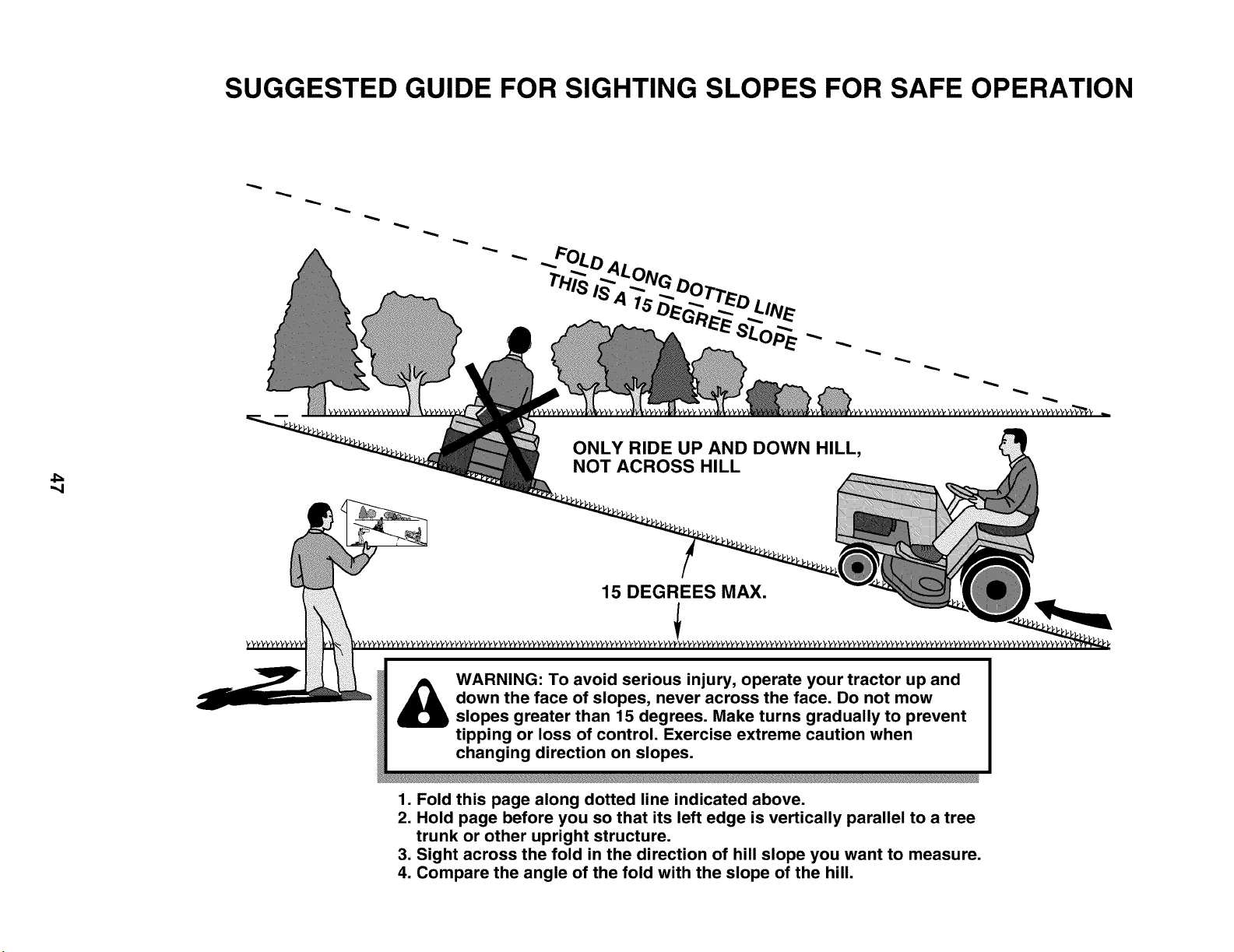

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills

with slopes greater than 15°and do not

drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to roll slightly as you restart

movement.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position with attach-

ment lift control.

• When pushing or towing your tractor, be sure gearshift

lever is in neutral (N) position.

• Do not push or tow tractor at more than five (5) MPH.

NOTE: To protect hood from damage when transporting

your tractor on atruck or atrailer, be sure hood isclosed and

secured totractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your

tractor. Use common sense when towing. Too heavy of a

load, while on a slope, is dangerous. Tires can lose traction

with the ground and cause you to lose control of you rtractor.

OPERATION

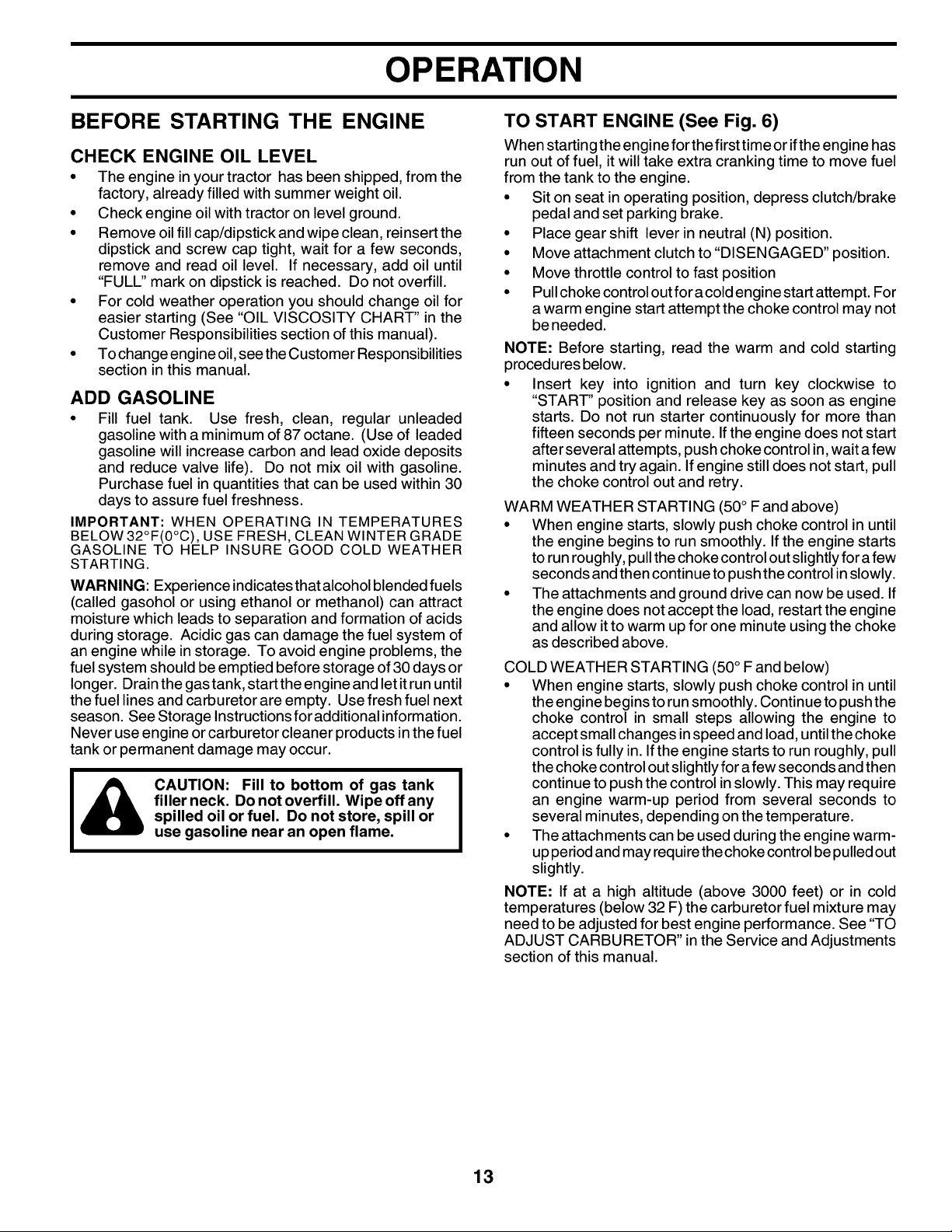

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in yourtractor has been shipped, from the

factory, already filled with summer weight oil.

• Check engine oil withtractor on level ground.

• Remove oilfill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick isreached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section ofthis manual).

• To changeengine oil,see theCustomer Responsibilities

section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experienceindicatesthatalcohol blended fuels

(called gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine problems, the

fuel system should be emptied before storage of 30 days or

longer. Drain the gas tank, start the engine and let itrun until

the fuel lines and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 6)

When starting theengine for thefirst time or iftheengine has

run out of fuel, it will take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

• Place gear shift lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt. For

a warm engine start attempt the choke control may not

be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait afew

minutes and try again. If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a few

seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° Fand below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push the

choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. Ifthe engine starts to run roughly, pull

the choke control out slightly for a few seconds and then

continue to push the control in slowly. This may require

an engine warm-up period from several seconds to

several minutes, depending on the temperature.

• The attachments can be used during the engine warm-

up period and may require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F)the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

OPERATION

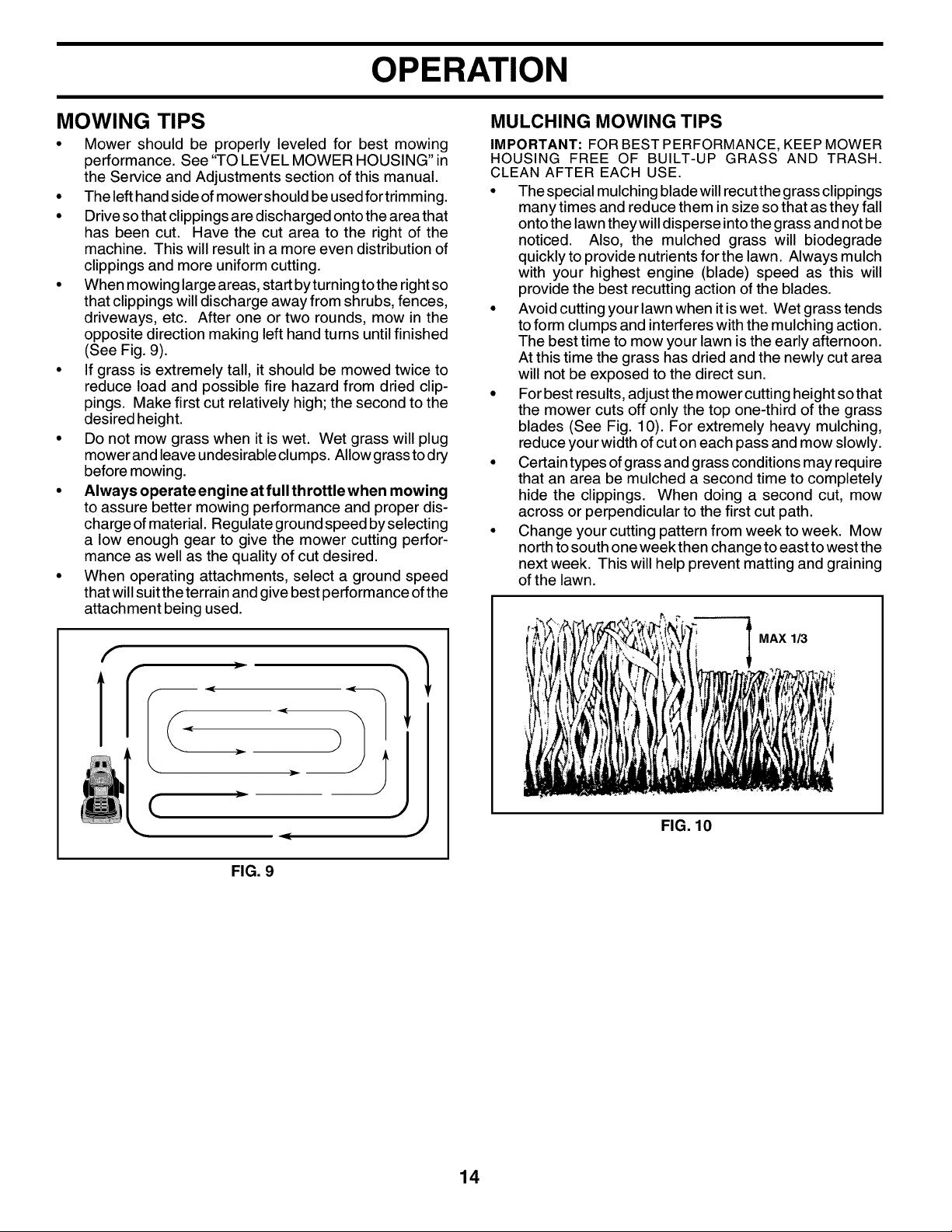

MOWING TIPS

• Mower should be properly leveled for best mowing

performance. See '1-O LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trimming.

• Drive so that clippings are discharged onto the area that

has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

• When mowing large areas, start byturning tothe right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

(See Fig. 9).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. AIIowgrasstodry

before mowing.

• Alwaysoperateengineatfullthrottlewhen mowing

to assure better mowing performance and proper dis-

charge of material. Regulate ground speed by selecting

a low enough gear to give the mower cutting perfor-

mance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of the

attachment being used.

(

•c J

FIG. 9

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH.

CLEAN AFTER EACH USE.

• The special mulching blade will recutthe grass clippings

many times and reduce them in size so that as they fall

onto the lawn they will disperse into the grass and not be

noticed. Also, the mulched grass will biodegrade

quickly to provide nutrients for the lawn. Always mulch

with your highest engine (blade) speed as this will

provide the best recutting action of the blades.

• Avoid cutting you r lawn when itis wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 10). For extremely heavy mulching,

reduce your width of cut on each pass and mow slowly.

• Certain types of grass and grass conditions may require

that an area be mulched a second time to completely

hide the clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

FIG. 10

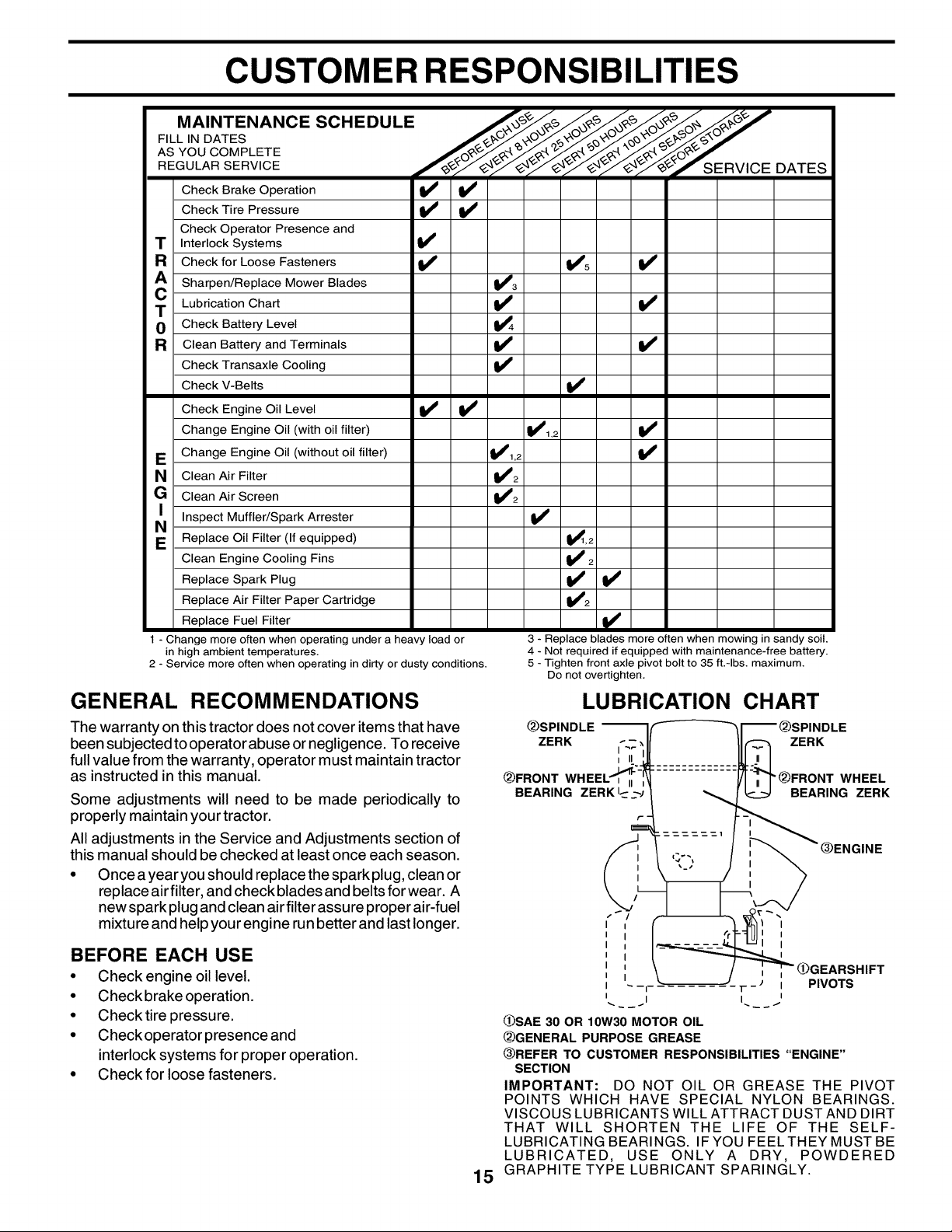

CUSTOMER RESPONSIBILITIES

AS YOU COMPLETE

.EOO...SE.V,CE >'S V,OEO.TES

Check Brake Operation V' V'

Check Tire Pressure V' V p

Check Operator Presence and

T Interlock Systems V _

a Check for Loose Fasteners V' 1##5 I_

Sharpen/Replace Mower Blades I##_

C Lubrication Chart V'

0 Check Battery Level

R Clean Battery and Terminals I_ V'

Check Transaxle Cooling I_

Check V-Belts I_

Check Engine Oil Level V' V'

Change Engine Oil (with oil filter) VI1,2 V I

E Change Engine Oil (without oil filter) 1_1_1,2 V p

N Clean Air Filter 11_2

G Clean Air Screen VJ2

NI Inspect Muffler/Spark Arrester V'

E Replace Oil Filter (If equipped) _1,2

Clean Engine Cooling Fins V' 2

Replace Spark Plug V' I_

Replace Air Filter Paper Cartridge V'2

Replace Fuel Filter I_

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

LUBRICATION CHART

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or

replace airfilter, and check blades and belts for wear. A

new spark plug and clean air filter assure proper air-fuel

mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oillevel.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlocksystems for proper operation.

• Check for loosefasteners.

(_SPINDLE -I/'_-_-----_ I_ (_SPINDLE

ZERK ZERK

BEARING ZERK_ --_ BEARING ZERK

__ @ENGINE

,'f r'

' , I .trT-lU{! '

, , I__-_.___-_-__L._! ,

', , \ / ',_', ®GEARSH,FT

I I- ,._ ..... -J-r-J i PIVOTS

_SAE 30 OR 10W30 MOTOR OIL

(_GENERAL PURPOSE GREASE

(_REFER TO CUSTOMER RESPONSIBILITIES "ENGINE"

SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT

POINTS WHICH HAVE SPECIAL NYLON BEARINGS.

VISCOUS LUBRICANTS WILL ATTRACT DUST AND DIRT

THAT WILL SHORTEN THE LIFE OF THE SELF-

LUBRICATING BEARINGS. IF YOU FEELTHEY MUST BE

LUBRICATED, USE ONLY A DRY, POWDERED

GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety ruleswhen performing any mainte-

nance.

BRAKE OPERATION

Iftractor requires more than six (6) feet stopping distance at

high speed in highest gear, then brake must be adjusted.

(See"TO ADJUST BRAKE" in the Service and Adjustments

section of this manual).

TIRES

• Maintainproperairpressure inalltires (See"PRODUCT

SPECIFICATIONS" section ofthis manual).

• Keep tires free of gasoline, oil, or insect controlchemi-

calswhich can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-

ing properly. If your tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the clutch/brake

pedal isfully depressed and attachement clutch control

is in the disengaged position.

• When the engine is running, any attempt by the operator

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the attachment clutch is

engaged, any attempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never operate unless the

operator is in the seat.

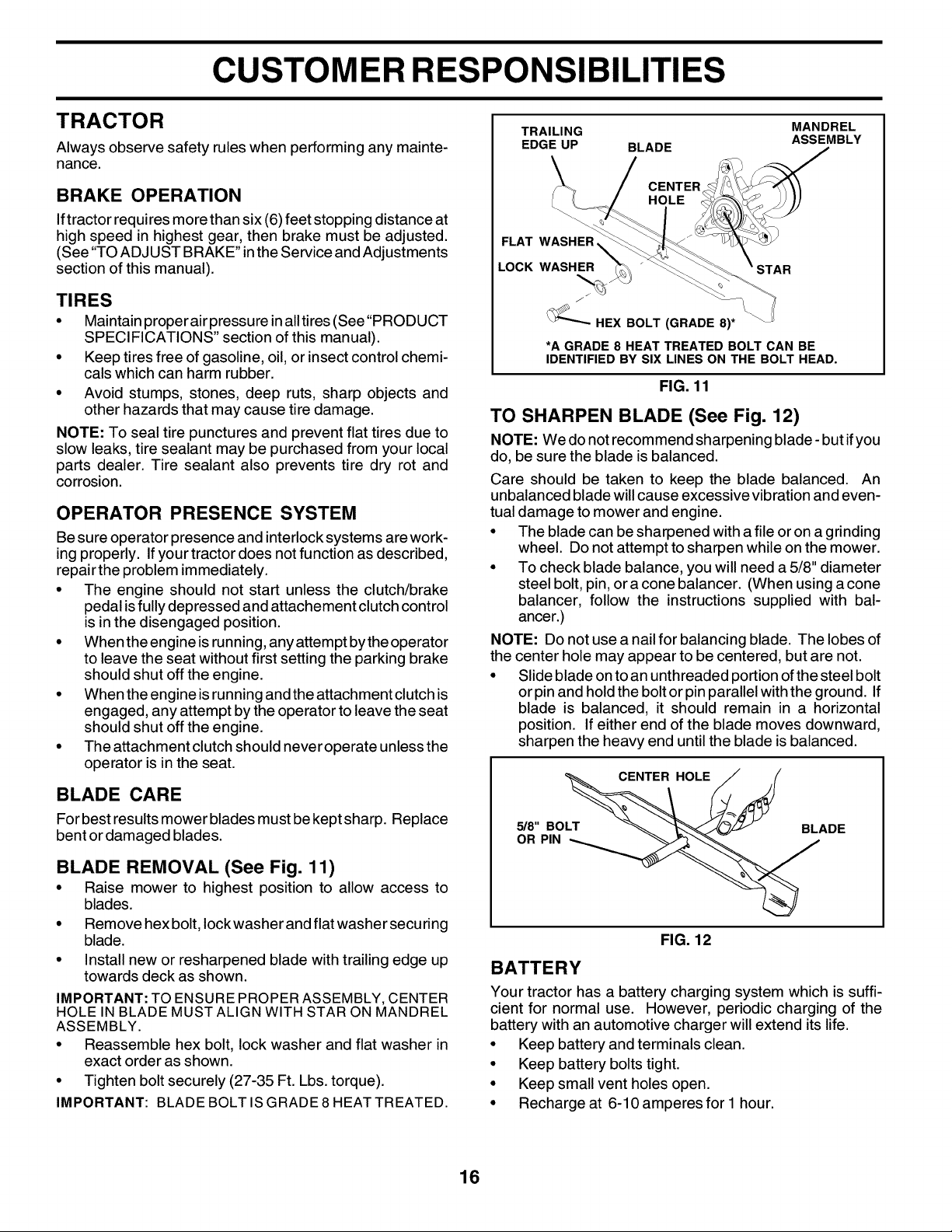

BLADE CARE

For best results mower blades must be kept sharp. Replace

bent or damaged blades.

BLADE REMOVAL (See Fig. 11)

• Raise mower to highest position to allow access to

blades.

• Remove hexbolt, Iockwasher and flat washer secu ring

blade.

• Install new or resharpened blade with trailing edge up

towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.torque).

IMPORTANT: BLADE BOLT ISGRADE 8 HEATTREATED.

TRAILING

EDGE UP BLADE

MANDREL

ASSEMBLY

CENTER

HOLE

FLAT WASHER

LOCK WASHER

HEX BOLT (GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 11

TO SHARPEN BLADE (See Fig. 12)

NOTE: We do notrecommend sharpening blade- but ifyou

do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer.)

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion ofthe steel bolt

or pin and hold the bolt or pin parallel with the ground. If

blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

..o J _..

OR PIN

FIG. 12

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger willextend itslife.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

CUSTOMER RESPONSIBILITIES

NOTE: The original equipment battery on your tractor is

maintenance free. Donot attempt to open or remove caps or

covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause the

battery to "leak" power.

• Disconnect BLACK battery cablefirst then RED battery

cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING BATTERY" in the

SERVICE AND ADJUSTMENTS section ofthis manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hoursof

operation and replace if necessary. The belts are not

adjustable. Replace belts ifthey begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up ofdirt and chaffwhichcan

restrictcooling.

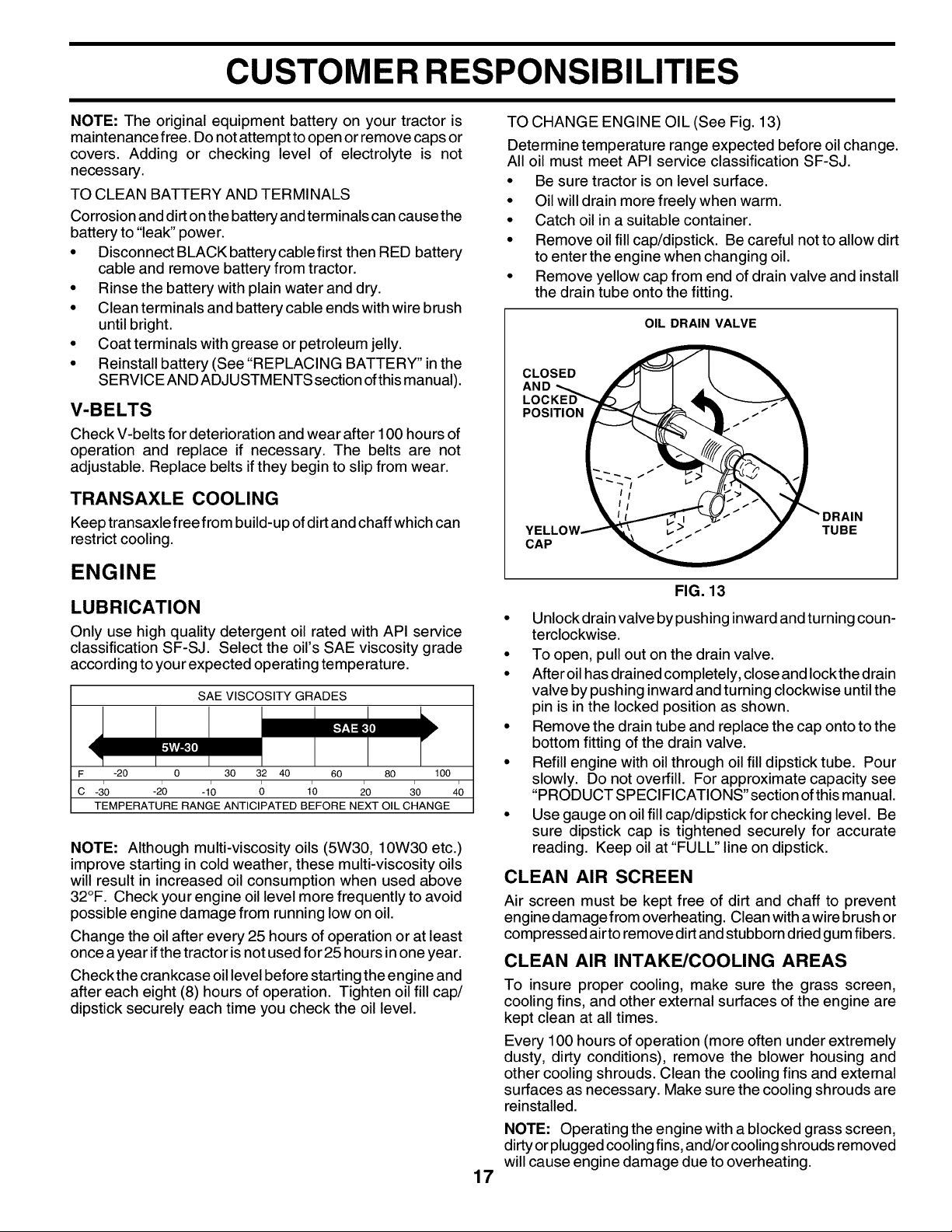

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

F -2o o 3o 324o 6o 8o ,oo

c -3o -2o -,o 6 ;o 2o 3o 4o

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least

once a year ifthe tractor isnot used for 25 hours in one year.

Checkthe crankcase oil level before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Fig. 13)

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

OIL DRAIN VALVE

CLOSED

AND

POSITION

CAP

TUBE

FIG. 13

• Unlock drain valve by pushing inward and turning coun-

terclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and Iockthe drain

valve by pushing inward and turning clockwise until the

pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section ofthis manual.

• Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with awire brush or

compressed airto remove dirt and stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty or plugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

CUSTOMER RESPONSIBILITIES

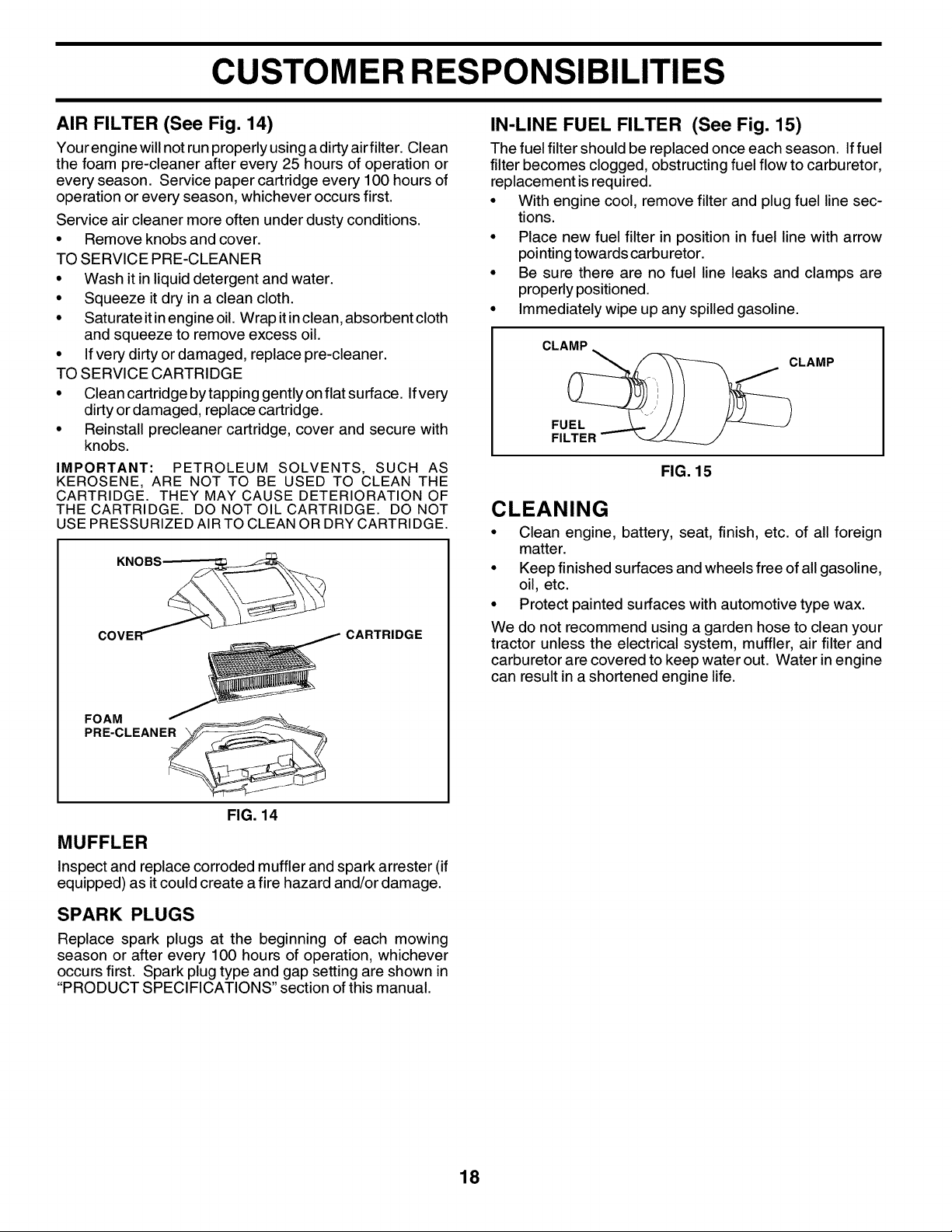

AIR FILTER (See Fig. 14)

Yourengine willnotrunproperlyusinga dirtyairfilter. Clean

the foam pre-cleaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of

operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knobs and cover.

TO SERVICE PRE-CLEANER

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate itin engine oil. Wrap itin clean, absorbent cloth

and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

• Clean cartridge bytapping gently on flat surface. Ifvery

dirty or damaged, replace cartridge.

• Reinstall precleaner cartridge, cover and secure with

knobs.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY CARTRIDGE.

KN(

CC CARTRIDGE

FIG. 14

MUFFLER

Inspect and replace corroded mufflerand spark arrester (if

equipped) as itcould create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 15)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructingfuel flow tocarburetor,

replacement isrequired.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointingtowardscarburetor.

• Be sure there are no fuel line leaks and clamps are

properlypositioned.

• Immediately wipe up any spilled gasoline.

CLAMP

.... _ _ CLAMP

FILTER - "_

FIG. 15

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

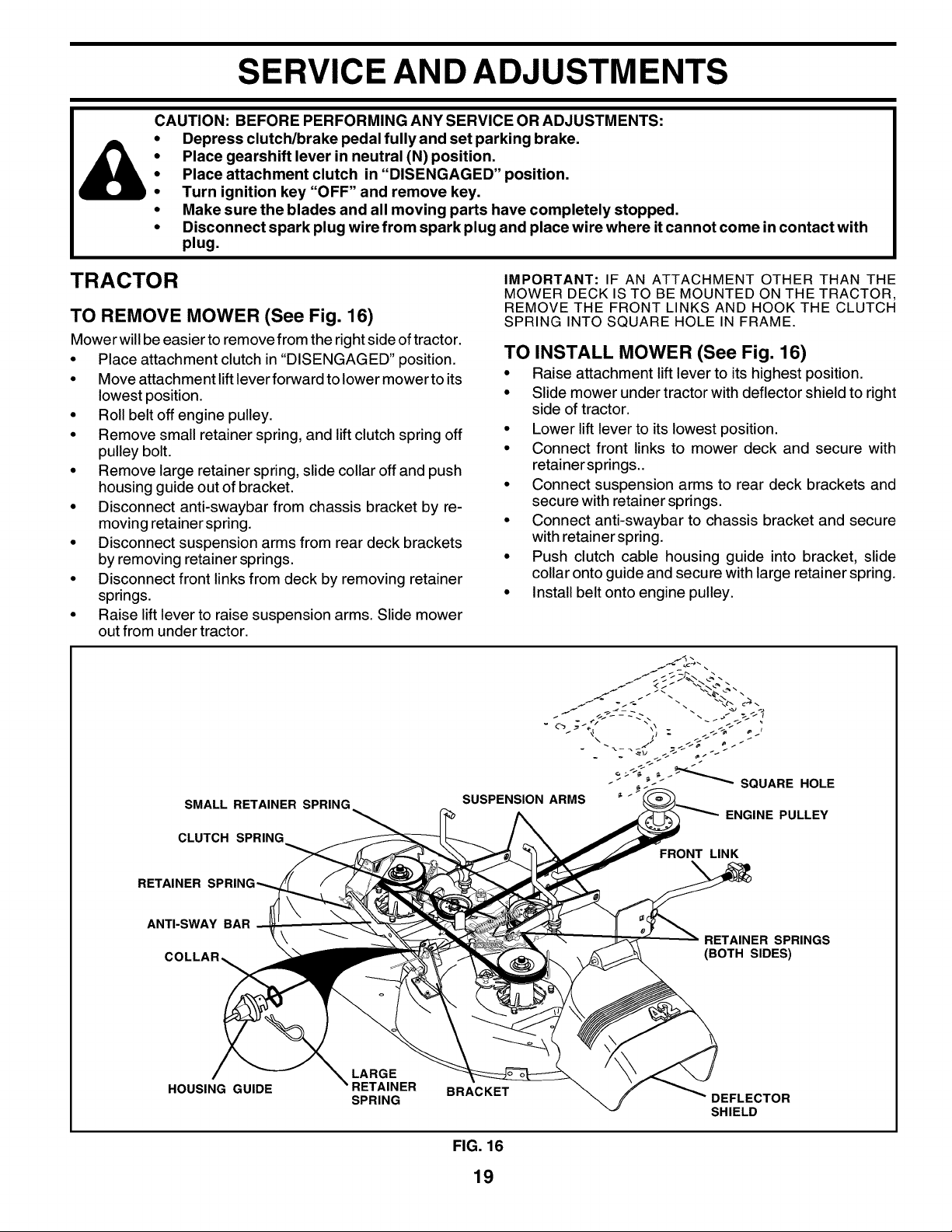

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutch/brake pedal fully and set parking brake.

i Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where itcannot come in contact with

plug.

TRACTOR

TO REMOVE MOWER (See Fig. 16)

Mower willbeeasier to remove from the rightside oftractor.

• Place attachment clutchin "DISENGAGED" position.

• Move attachment liftleverforward tolower mowerto its

lowest position.

• Roll belt offengine pulley.

• Remove small retainer spring, and liftclutchspring off

pulley bolt.

• Remove large retainer spring, slide collar offand push

housing guide out ofbracket.

• Disconnect anti-swaybar from chassis bracket by re-

moving retainer spring.

• Disconnect suspension arms from rear deck brackets

by removing retainer springs.

• Disconnect front linksfrom deck by removing retainer

springs.

• Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS AND HOOK THE CLUTCH

SPRING INTO SQUARE HOLE IN FRAME.

TO INSTALL MOWER (See Fig. 16)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with deflector shield to right

side of tractor.

• Lower lift lever to its lowest position.

• Connect front links to mower deck and secure with

retainersprings..

• Connect suspension arms to rear deck brackets and

secure with retainer springs.

• Connect anti-swaybar to chassis bracket and secure

with retainer spring.

• Push clutch cable housing guide into bracket, slide

collar onto guide and secure with large retainer spring.

• Install belt onto engine pulley.

SMALL RETAINER SPRING

CLUTCH SPRING

_ _-_ _ SQUARE HOLE

SUSPENSION ARMS

ENGINE PULLEY

FRONT LINK

RETAINER

ANTI-SWAY BAR

COLLAR_

RETAINER SPRINGS

(BOTH SIDES)

HOUSING GUIDE

LARGE

RETAINER

SPRING

BRACKET

DEFLECTOR

SHIELD

FIG. 16

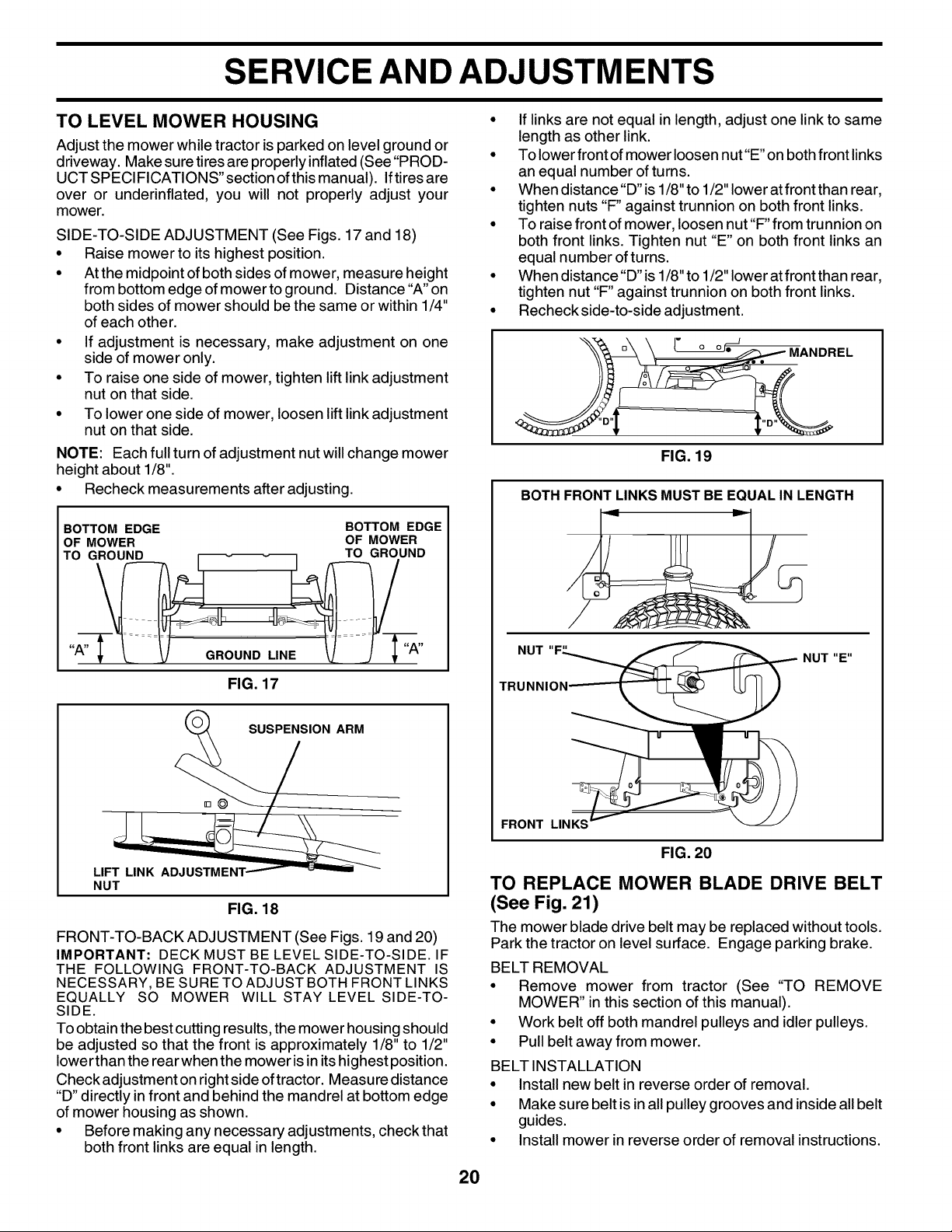

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section ofthis manual). Iftires are

over or underinflated, you will not properly adjust your

mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 17 and 18)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance "A" on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut will change mower

height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER OF MOWER

GROUND

TO GROUND F -1 TO

FIG. 17

SUSPENSION ARM

LIFT LINK

NUT

FIG. 18

FRONT-TO-BACK ADJUSTMENT (See Figs. 19 and 20)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing should

be adjusted so that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in its highest position.

Checkadjustment on right side oftractor. Measure distance

"D" directly in front and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length.

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of mower loosen nut"E" on both front links

an equal number of turns.

• When distance "D" is 1/8" to 1/2" lower atfront than rear,

tighten nuts "F" against trunnion on both front links.

• To raise front of mower, loosen nut"F" from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower atfront than rear,

tighten nut "F" against trunnion on both front links.

• Recheck side-to-side adjustment.

ANDREL

FIG. 19

BOTHFRONT LINKS MUSTBE EQUAL IN LENGTH

NUT

NUT "E"

TRUNNIC

FRONT LINKS

FIG. 20

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 21)

The mower blade drive belt may be replaced without tools.

Park the tractoron level surface. Engage parking brake.

BELT REMOVAL

• Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

• Work belt offboth mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION

• Install new belt in reverse order of removal.

• Make sure belt isinall pulley grooves and inside all belt

guides.

• Install mower in reverse order of removal instructions.

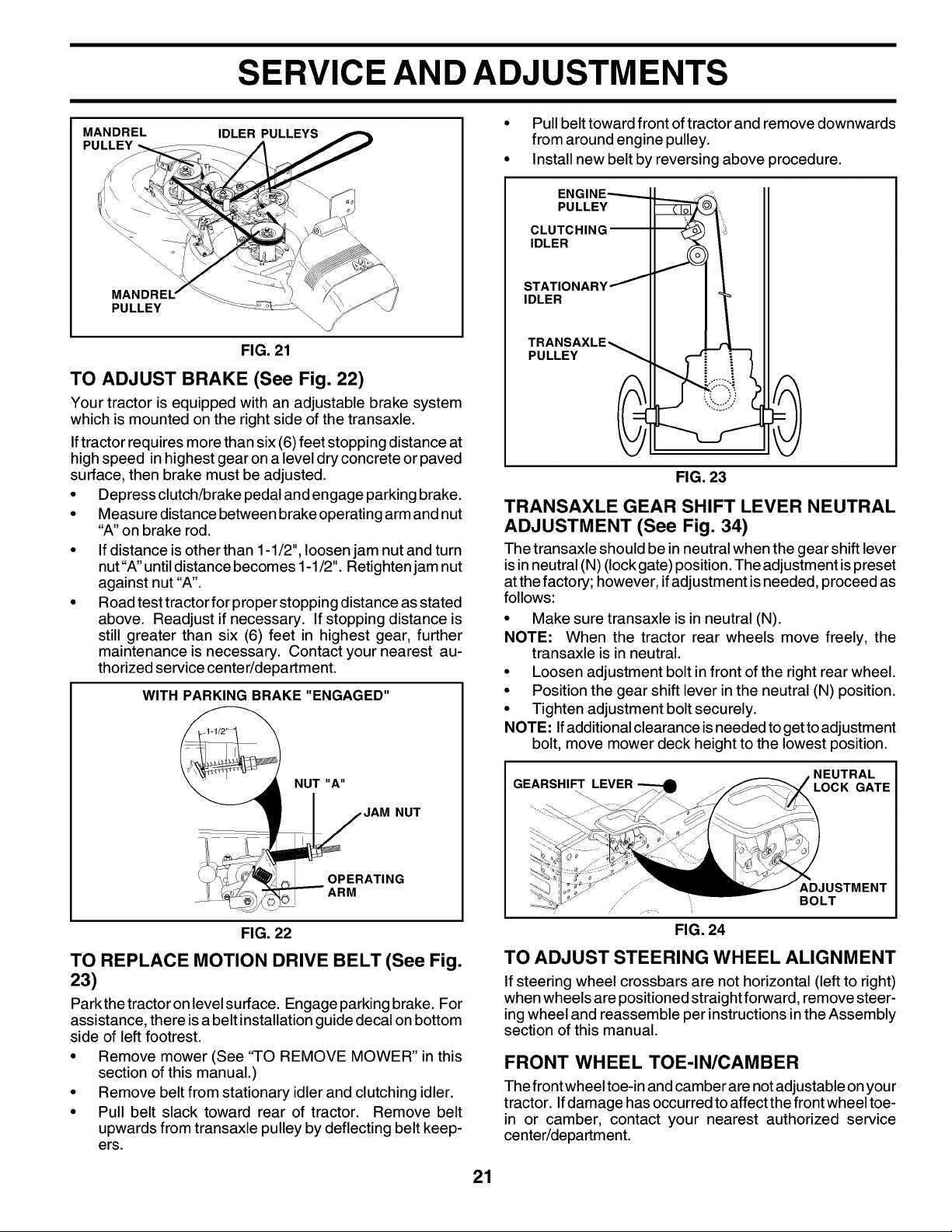

SERVICE AND ADJUSTMENTS

MANDREL IDLER PULLEYS

PULLEY

FIG. 21

TO ADJUST BRAKE (See Fig. 22)

Your tractor is equipped with an adjustable brake system

which is mounted on the rightside of the transaxle.

Iftractorrequires more than six (6) feet stopping distanceat

highspeed in highestgear on a level dry concrete or paved

surface, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and nut

"A" on brake rod.

• If distance is other than 1-1/2", loosen jam nut and turn

nut"A" until distance becomes 1-1/2". Retightenjam nut

against nut "A".

• Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

ATING

FIG. 22

TO REPLACE MOTION DRIVE BELT (See Fig.

23)

Parkthe tractoronlevel surface. Engage parkingbrake. For

assistance, there isa belt installationguide decal onbottom

side of left footrest.

• Remove mower (See '1-O REMOVE MOWER" in this

section of this manual.)

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor. Remove belt

upwards from transaxle pulley by deflecting belt keep-

ers.

• Pull belt towardfront oftractor and remove downwards

from around engine pulley.

• Install new belt by reversing above procedure.

EN_

PULLEY

CLUTCHING

IDLER

STATIC

IDLER

PULLEY

FIG. 23

TRANSAXLE GEAR SHIFT LEVER NEUTRAL

ADJUSTMENT (See Fig. 34)

The transaxle should be in neutral when the gear shift lever

isin neutral(N) (lockgate) position.The adjustment ispreset

atthe factory; however, ifadjustment isneeded, proceed as

follows:

• Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move freely, the

transaxle is in neutral.

• Loosen adjustment bolt in front of the right rear wheel.

• Position the gear shift lever in the neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: Ifadditional clearance is needed to get to adjustment

bolt, move mower deck height to the lowest position.

GEARSHIFT LEVER

NEUTRAL

LOCK GATE

FIG. 24

ADJUSTMENT

BOLT

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are notadjustable on your

tractor. Ifdamage has occurred to affect the front wheel toe-

in or camber, contact your nearest authorized service

center/department.

SERVICE AND ADJUSTMENTS

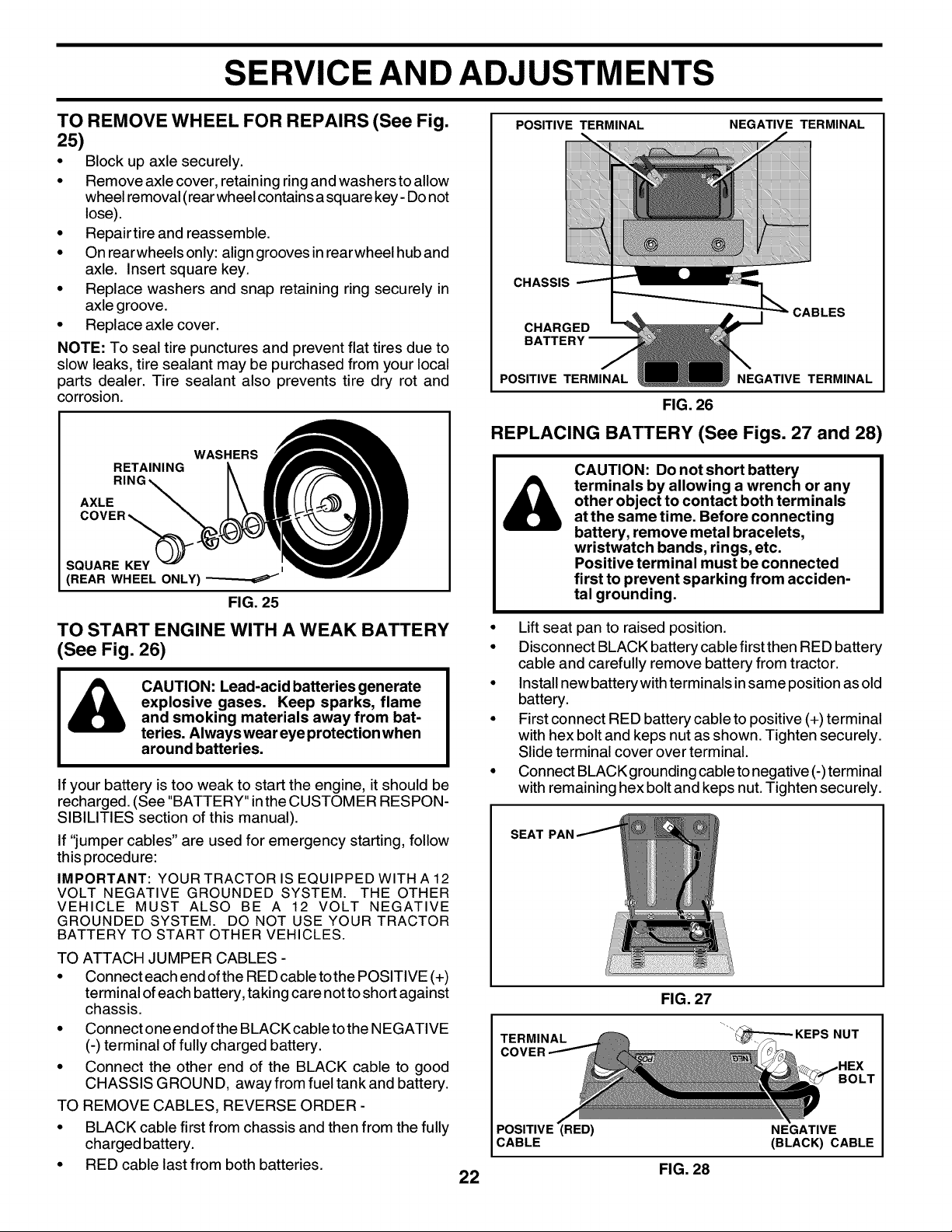

TO REMOVE WHEEL FOR REPAIRS (See Fig.

25)

• Block up axle securely.

• Remove axle cover, retaining ringand washers toallow

wheel removal(rear wheelcontainsasquare key - Donot

lose).

• Repair tire and reassemble.

• On rearwheels only:aligngroovesin rearwheel huband

axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

RETAINING

RIN(

AXLE

WASHERS

SQUARE KEY i

(REAR WHEEL ONLY)

FIG. 25

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 26)

CAUTION: Lead-acid batteries generate

explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" inthe CUSTOMER RESPON-

SIBILITIES section of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end ofthe RED cable to the POSITIVE (+)

terminal of each battery, taking care not to short against

chassis.

• Connect one end ofthe BLACK cable tothe NEGATIVE

(-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUN D, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

POSITIVE TERMINAL NEGATIVE TERMINAL

CHASSIS

CHARGED

BATTERY_

CABLES

POSITIVE TERMINAL NEGATIVE TERMINAL

FIG. 26

REPLACING BATTERY (See Figs. 27 and 28)

CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals

at the same time. Before connecting

battery, remove metal bracelets,

wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

• Lift seat pan to raised position.

• Disconnect BLACK battery cable first then RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals insame position asold

battery.

• First connect RED battery cable to positive (+) terminal

with hex bolt and keps nut as shown. Tighten securely.

Slide terminal cover over terminal.

• Connect BLACK grounding cable to negative (-) terminal

with remaining hex bolt and keps nut. Tighten securely.

SEAT PAN

TERMINAL

FIG. 27

NUT

POSITIVE' NEGATIVE

CABLE (BLACK) CABLE

22 FIG. 28

SERVICE AND ADJUSTMENTS

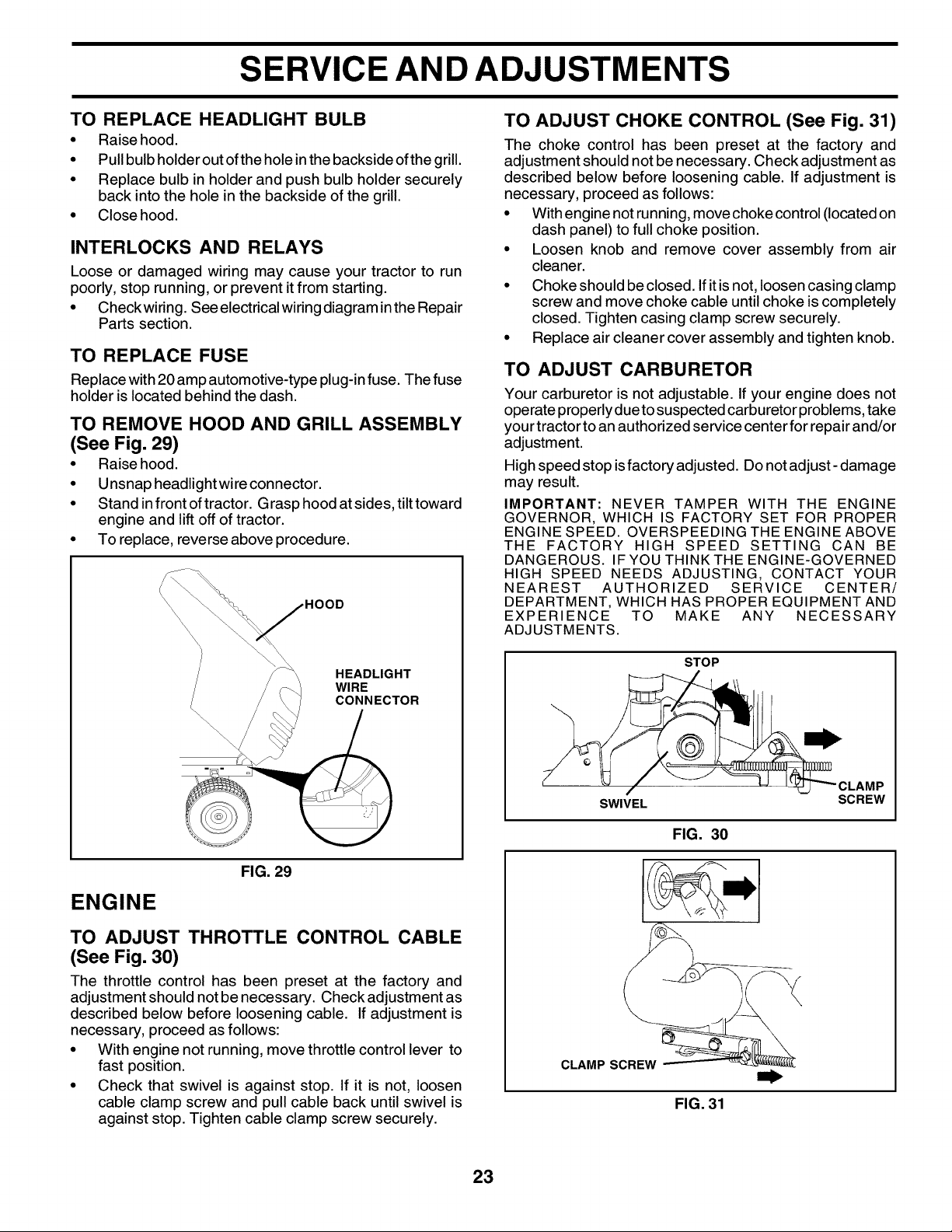

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pullbulbholderoutoftheholeinthebacksideofthegrill.

• Replace bulb in holder and push bulb holder securely

back intothe hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Checkwiring. See electrical wiring diagram in the Repair

Parts section.

TO REPLACE FUSE

Replace with20 amp automotive-typeplug-infuse. The fuse

holder islocated behindthe dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 29)

• Raise hood.

• Unsnap headlightwire connector.

• Stand infront oftractor. Grasp hood at sides, tilttoward

engine and liftoff oftractor.

• To replace, reverse above procedure.

\\\\

HEADLIGHT

WIRE

CONNECTOR

FIG. 29

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 30)

The throttle control has been preset at the factory and

adjustment should not be necessary. Checkadjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move throttlecontrol lever to

fast position.

• Check that swivel is against stop. If it is not, loosen

cable clamp screw and pull cable back until swivel is

against stop. Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 31)

The choke control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move choke control (located on

dash panel) to full choke position.

• Loosen knob and remove cover assembly from air

cleaner.

• Choke should beclosed. If itisnot, loosen casing clamp

screw and move choke cable until choke is completely

closed. Tighten casing clamp screw securely.

• Replace air cleaner cover assembly and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems, take

your tractor to an authorized service center for repair and/or

adjustment.

High speed stop is factory adjusted. Do not adjust- damage

may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

STOP

SWIVEL

FIG. 30

SCREW

CLAMP SCREW

FIG. 31

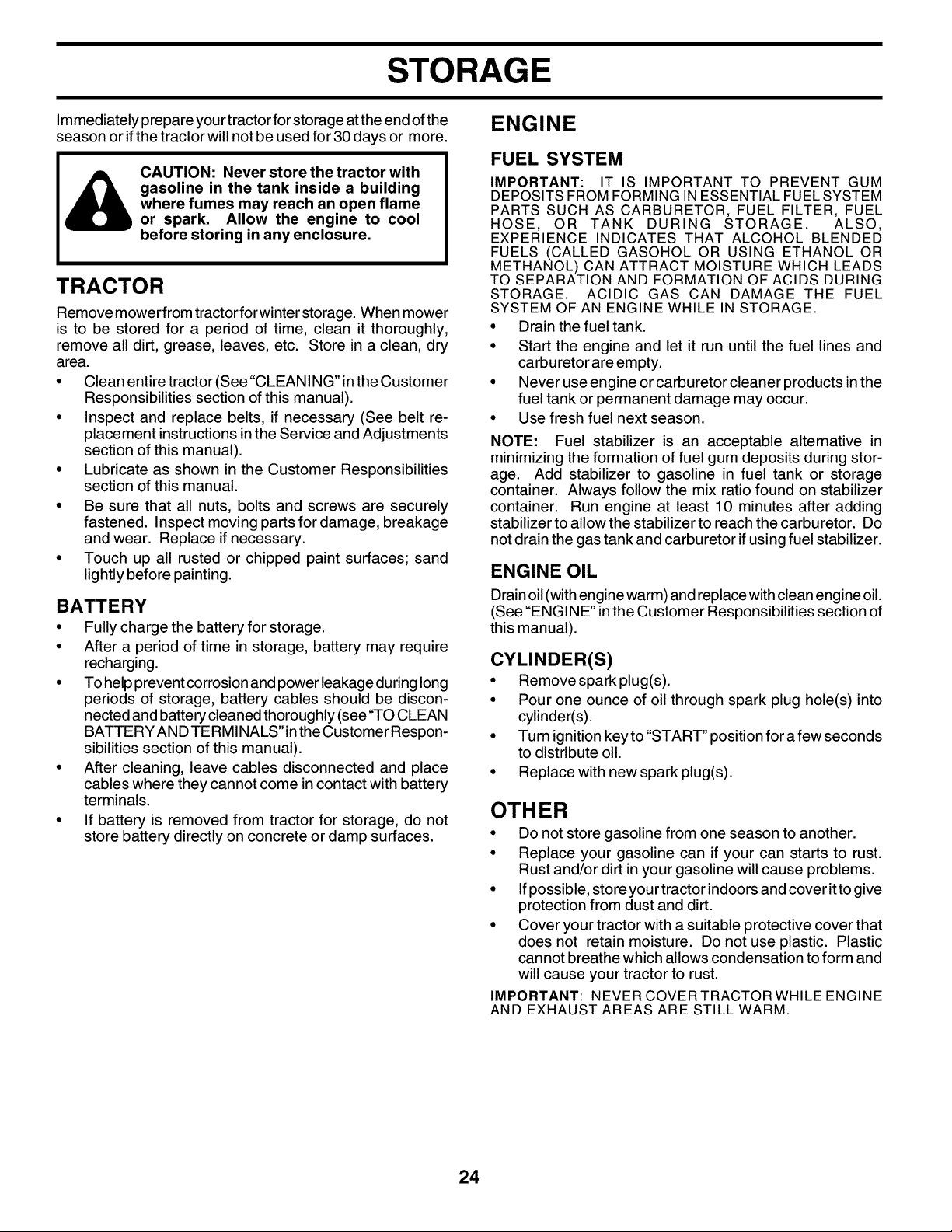

STORAGE

Immediately prepare your tractor for storage atthe end of the

season or ifthe tractor will not be used for 30 days or more.

_ CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mowerfrom tractor forwinter storage. When mower

is to be stored for a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store in a clean, dry

area.

• Clean entire tractor (See"CLEANING" in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during long

periods of storage, battery cables should be discon-

nected and battery cleaned thoroughly (see '30 CLEAN

BATTERY AND TERMINALS"in the Customer Respon-

sibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM

PARTS SUCH AS CARBURETOR, FUEL FILTER, FUEL

HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil.

(See "ENGINE" in the Customer Responsibilities section of

this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover ittogive

protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

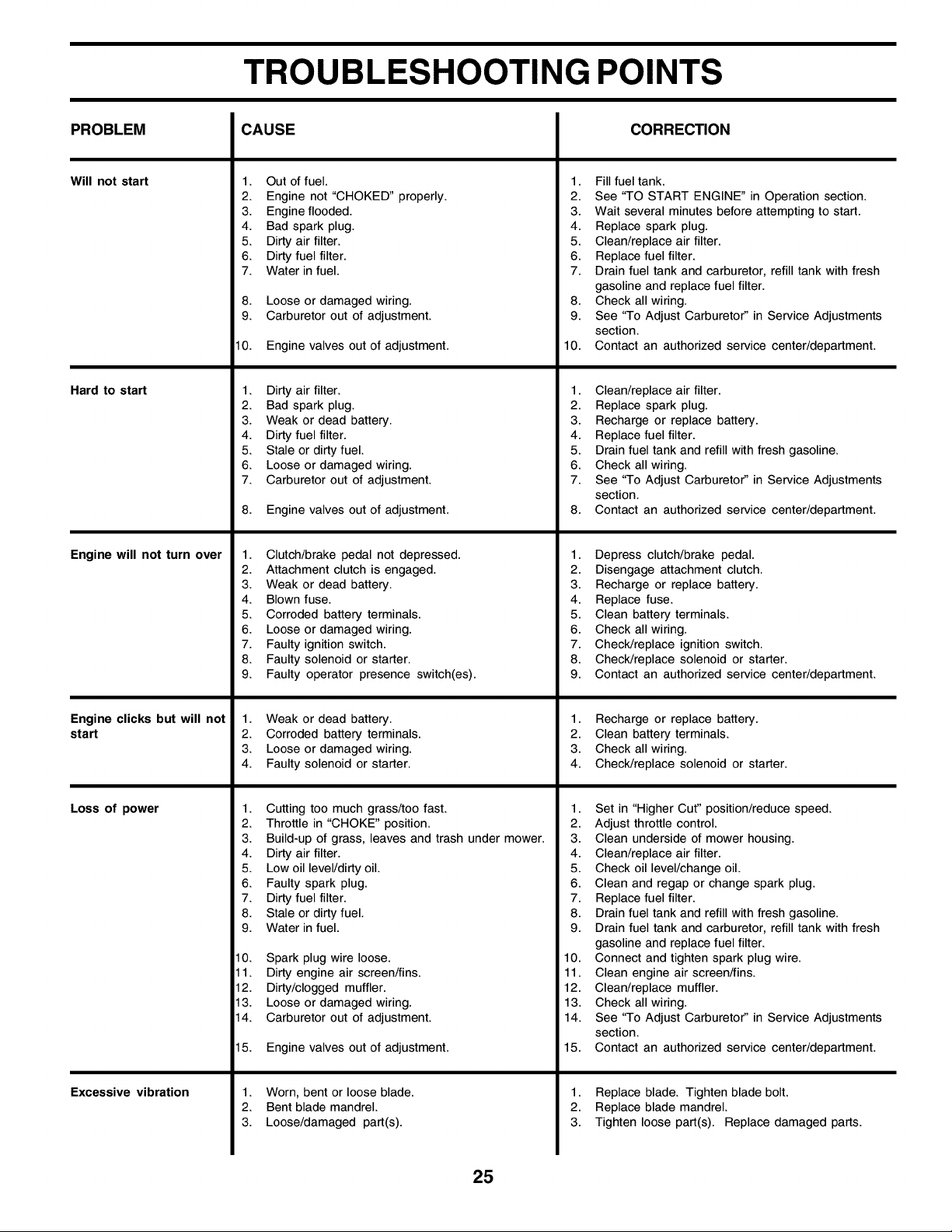

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to stad

Engine will not turn over

Engine clicks but will not

stad

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

0. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

0. Spark plug wire loose.

1. Dirty engine air screen/fins.

2. Dirty/clogged muffler.

3. Loose or damaged wiring.

4. Carburetor out of adjustment.

5. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

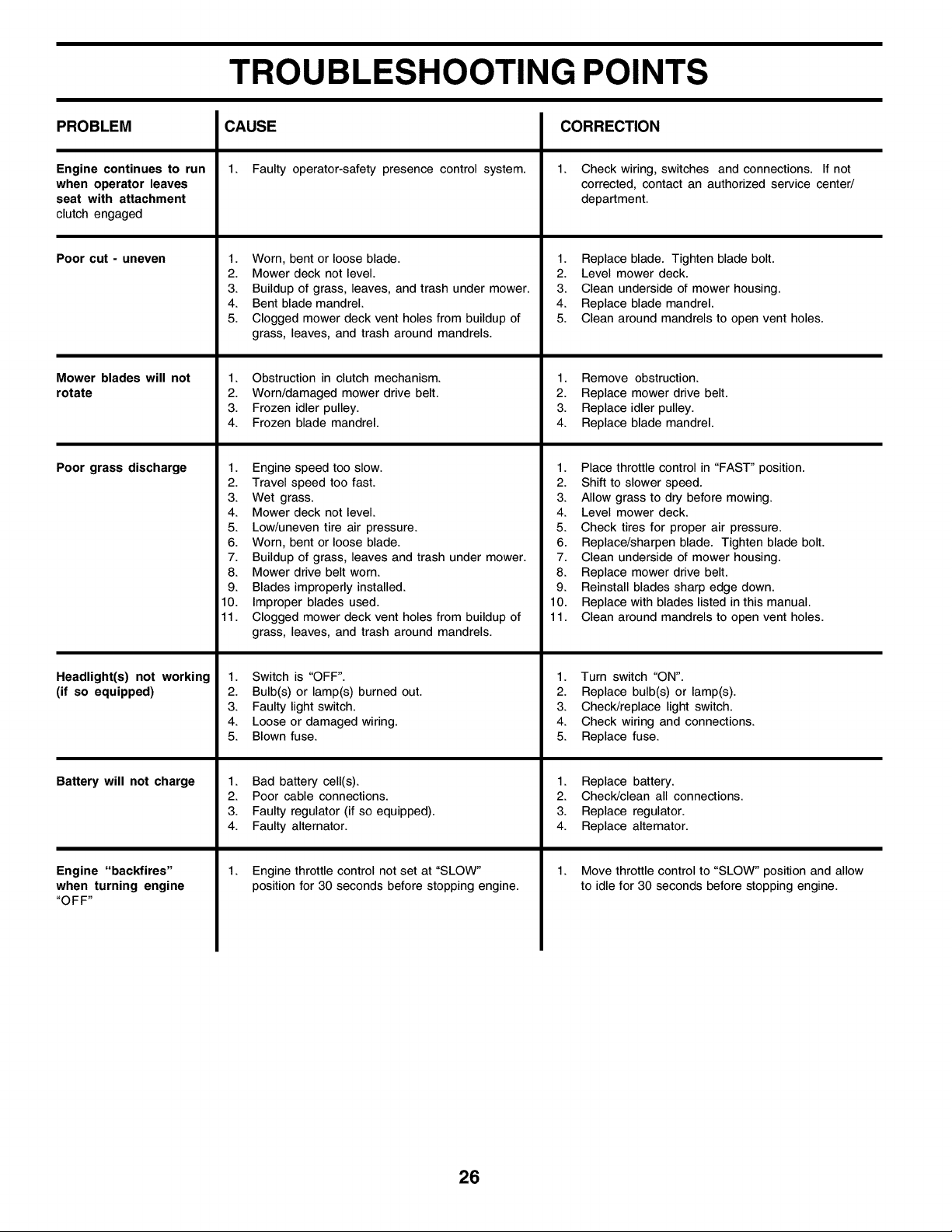

TROUBLESHOOTING POINTS

PROBLEM

Engine continues to run

when operator leaves

seat with attachment

clutch engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

CAUSE

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

CORRECTION

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

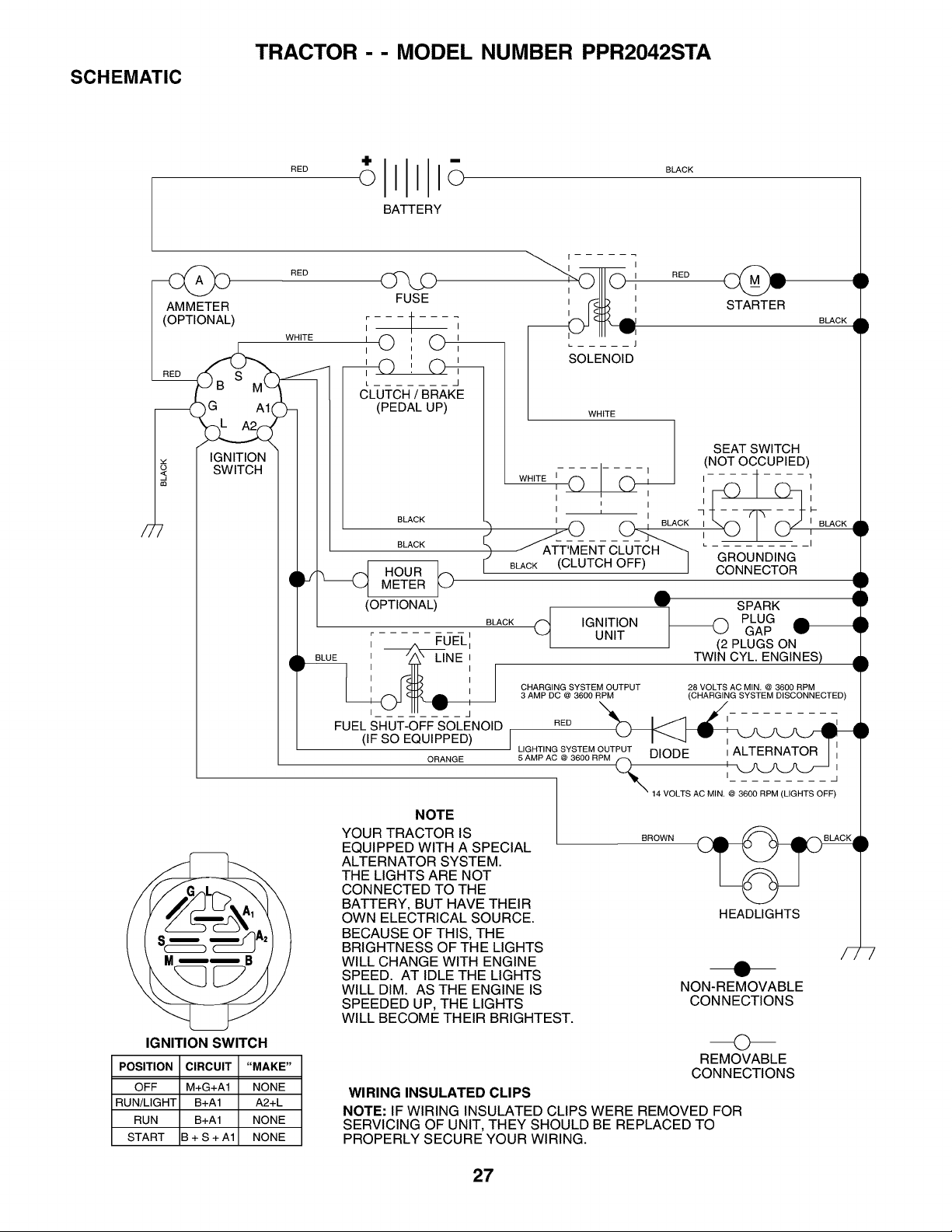

SCHEMATIC

TRACTOR -- MODEL NUMBER PPR2042STA

BATTERY

AMMETER

(OPTIONAL)

RED

STARTER

BLACK •

IGNITION

SWITCH

SEAT SWITCH

-- I

(NOT OCCUPIED)

GROUNDING

CONNECTOR

w SPARK •

BLACK (_ IGNITION _(2 PLUG

UNIT GAP

PLUGS ON

TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC MIN. @ 3600 RPM

3 AMP DC @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)

RE_

LIGHTING SYSTEM OUTPUT _r_- ', AI T_I_IMATt%I_ [ I

-- 14 VOLTS AC MIN @ _00 RP[_(&HTS (_FF)

(OPTIONAL)

r I

I _/,,__U ELi

I "A" LINE I

•

I I

A ',

i _-1 III w i

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

ORANGE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

/77

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

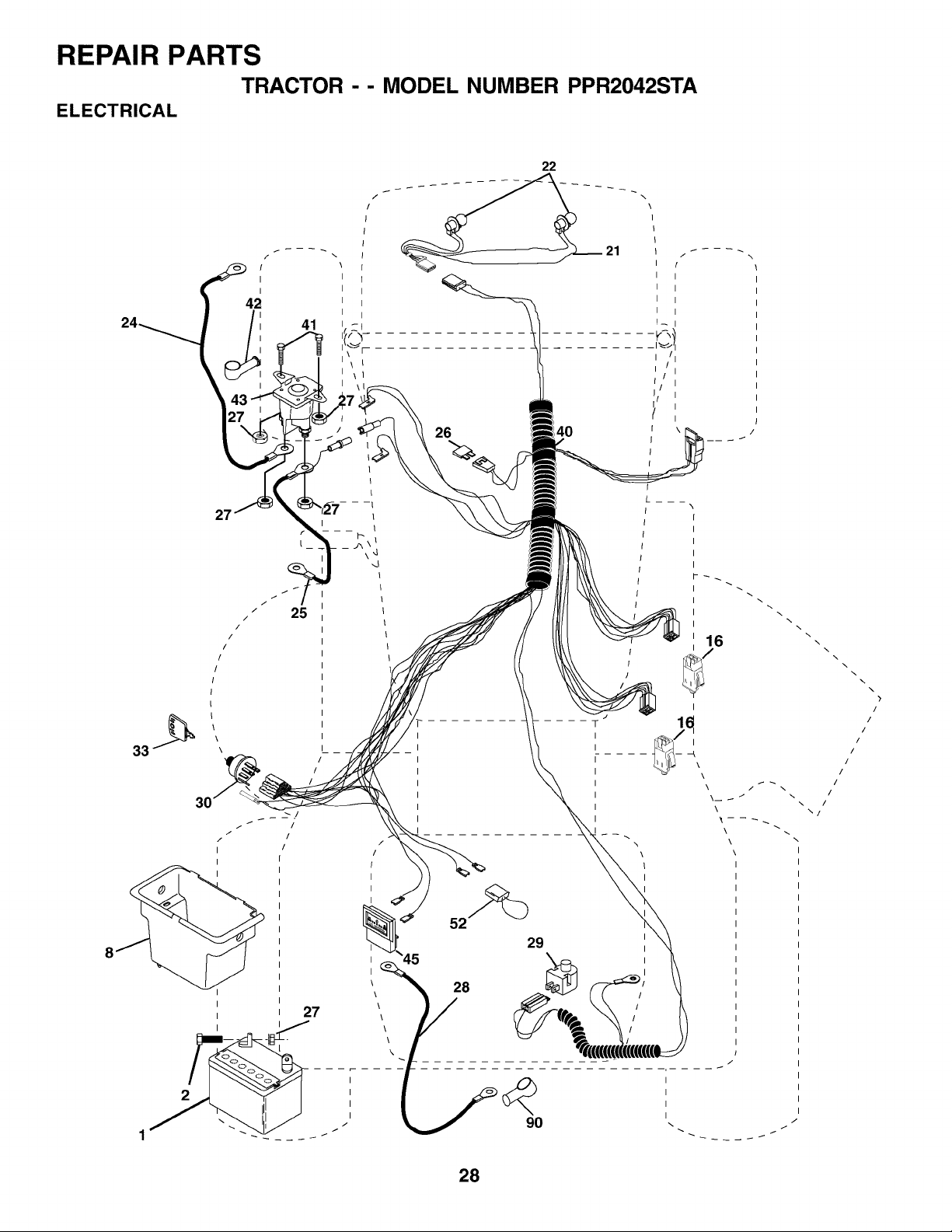

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

ELECTRICAL

26 40

i _'_-,j I

//I

Iii I

F I

16 \

\\ / -../ \

\ /

-x

\ /

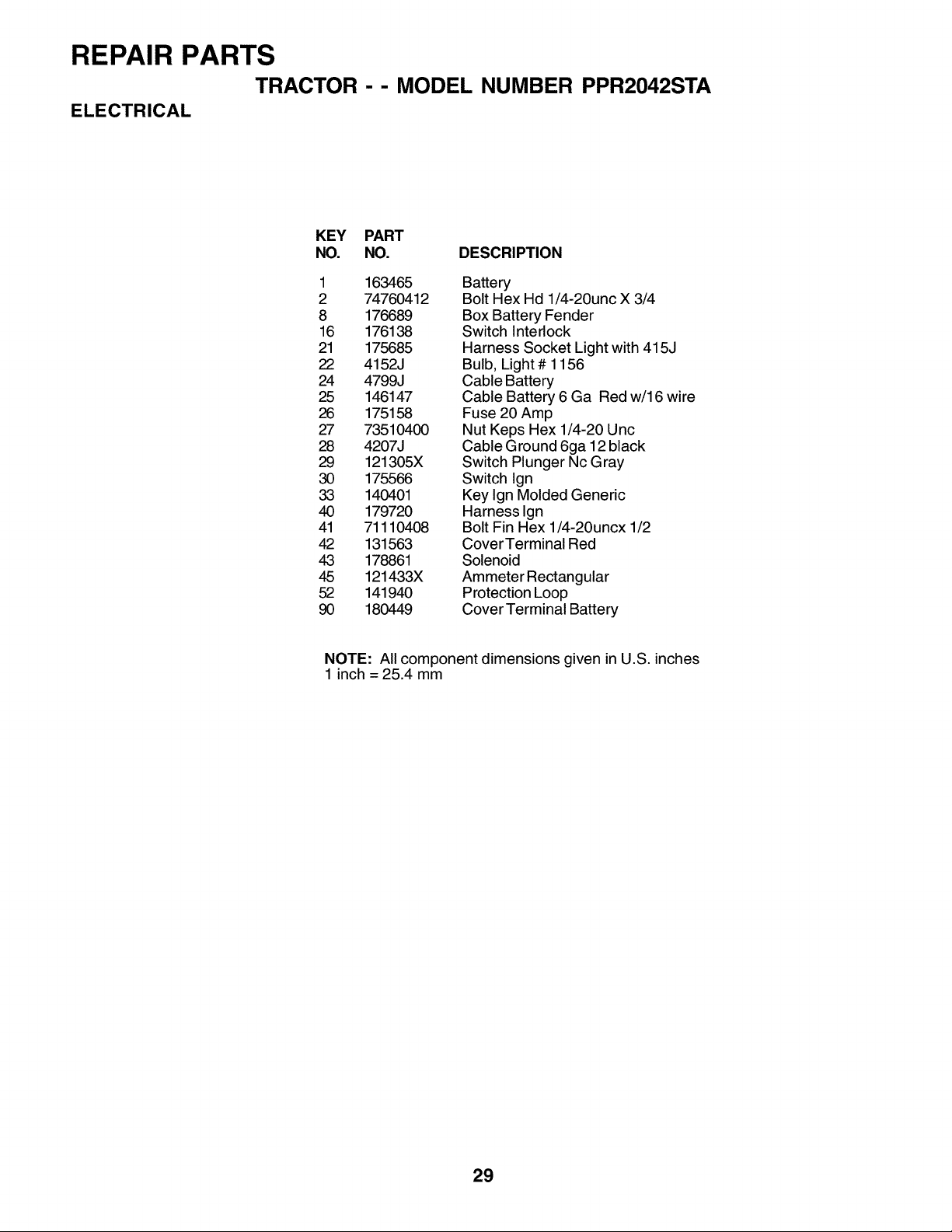

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 176689

16 176138

21 175685

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140401

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

90 180449

Battery

Bolt Hex Hd 1/4-20unc X 3/4

Box Battery Fender

Switch Interlock

Harness Socket Light with 415J

Bulb, Light # 1156

Cable Battery

Cable Battery 6 Ga Red w/16 wire

Fuse 20 Amp

Nut Keps Hex 1/4-20 Unc

Cable Ground 6ga 12 black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Generic

Harness Ign

Bolt Fin Hex 1/4-20uncx 1/2

CoverTerminal Red

Solenoid

Ammeter Rectangular

Protection Loop

Cover Terminal Battery

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

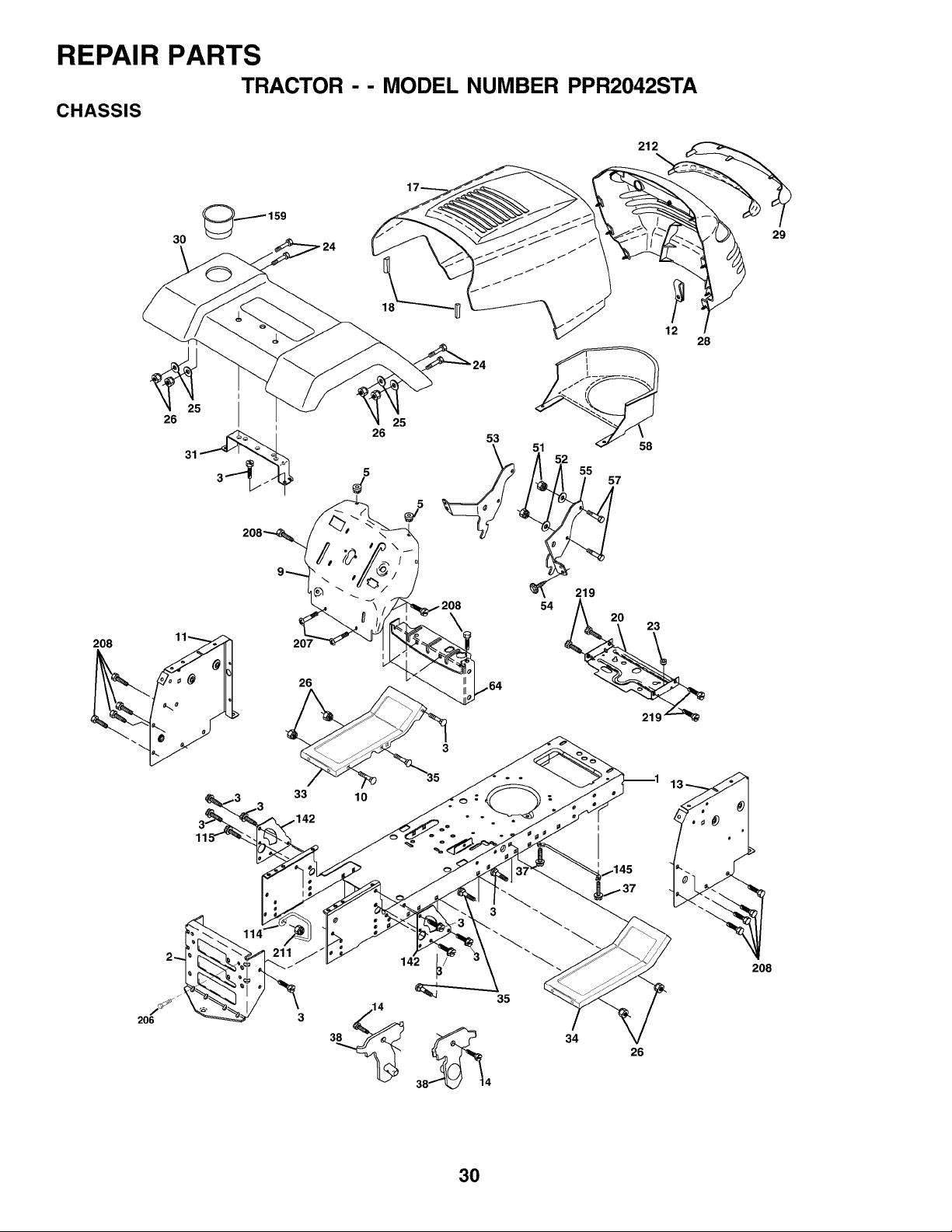

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

CHASSIS

212

30 __159

208 207

219

33 10

3_ 38_ 4

208

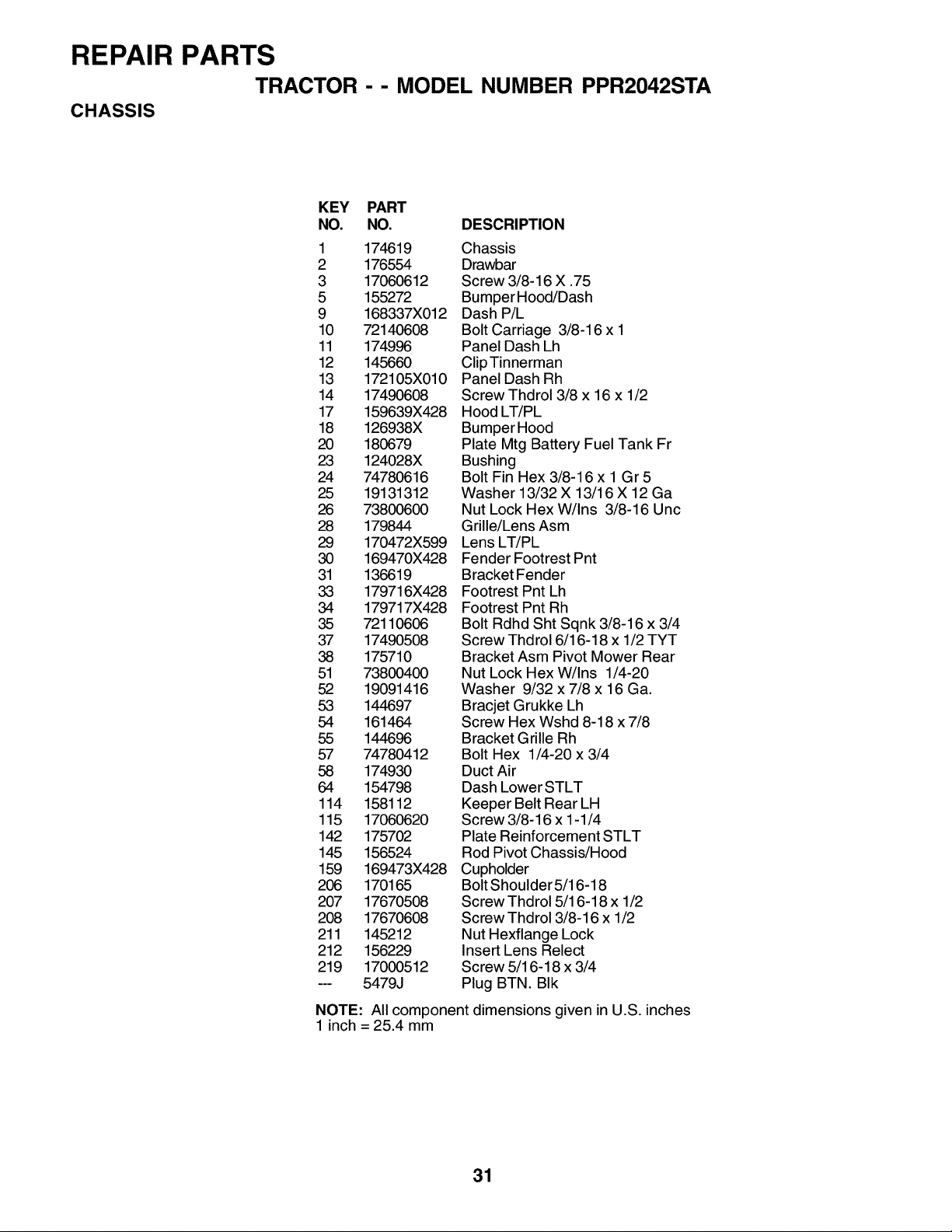

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

CHASSIS

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

3 17060612

5 155272

9 168337X012

10 72140608

11 174996

12 145660

13 172105X010

14 17490608

17 159639X428

18 126938X

20 180679

23 124028X

24 74780616

25 19131312

26 73800600

28 179844

29 170472X599

30 169470X428

31 136619

33 179716X428

34 179717X428

35 72110606

37 17490508

38 175710

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

58 174930

64 154798

114 158112

115 17060620

142 175702

145 156524

159 169473X428

206 170165

207 17670508

208 17670608

211 145212

212 156229

219 17000512

--- 5479J

Chassis

Drawbar

Screw 3/8-16 X .75

Bumper Hood/Dash

Dash P/L

Bolt Carriage 3/8-16 x 1

Panel Dash Lh

ClipTinnerman

Panel Dash Rh

Screw Thdrol 3/8 x 16 x 1/2

Hood LT/PL

Bumper Hood

Plate Mtg Battery Fuel Tank Fr

Bushing

Bolt Fin Hex 3/8-16 x 1 Gr 5

Washer 13/32 X 13/16 X 12 Ga

Nut Lock Hex W/Ins 3/8-16 Unc

Grille/Lens Asm

Lens LT/PL

Fender Footrest Pnt

Bracket Fender

Footrest Pnt Lh

Footrest Pnt Rh

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

Screw Thdrol 6/16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Nut Lock Hex W/Ins 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracjet Grukke Lh

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Rh

Bolt Hex 1/4-20 x 3/4

Duct Air

Dash Lower STLT

Keeper Belt Rear LH

Screw 3/8-16 x 1-1/4

Plate Reinforcement STLT

Rod Pivot Chassis/Hood

Cupholder

Bolt Shoulder 5/16-18

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Nut Hexflange Lock

Insert Lens Relect

Screw 5/16-18 x 3/4

Plug BTN. BIk

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

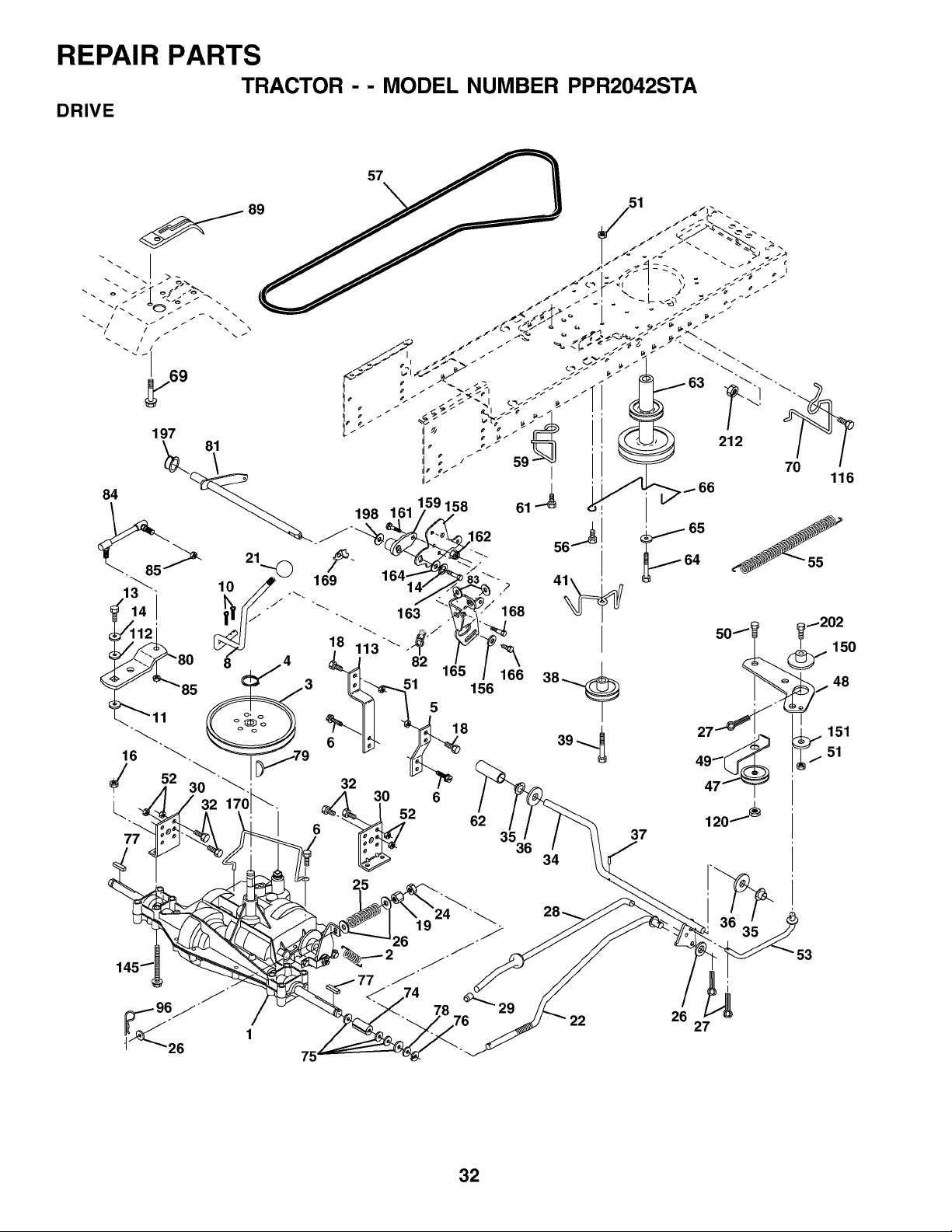

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

DRIVE

116

,..- 66

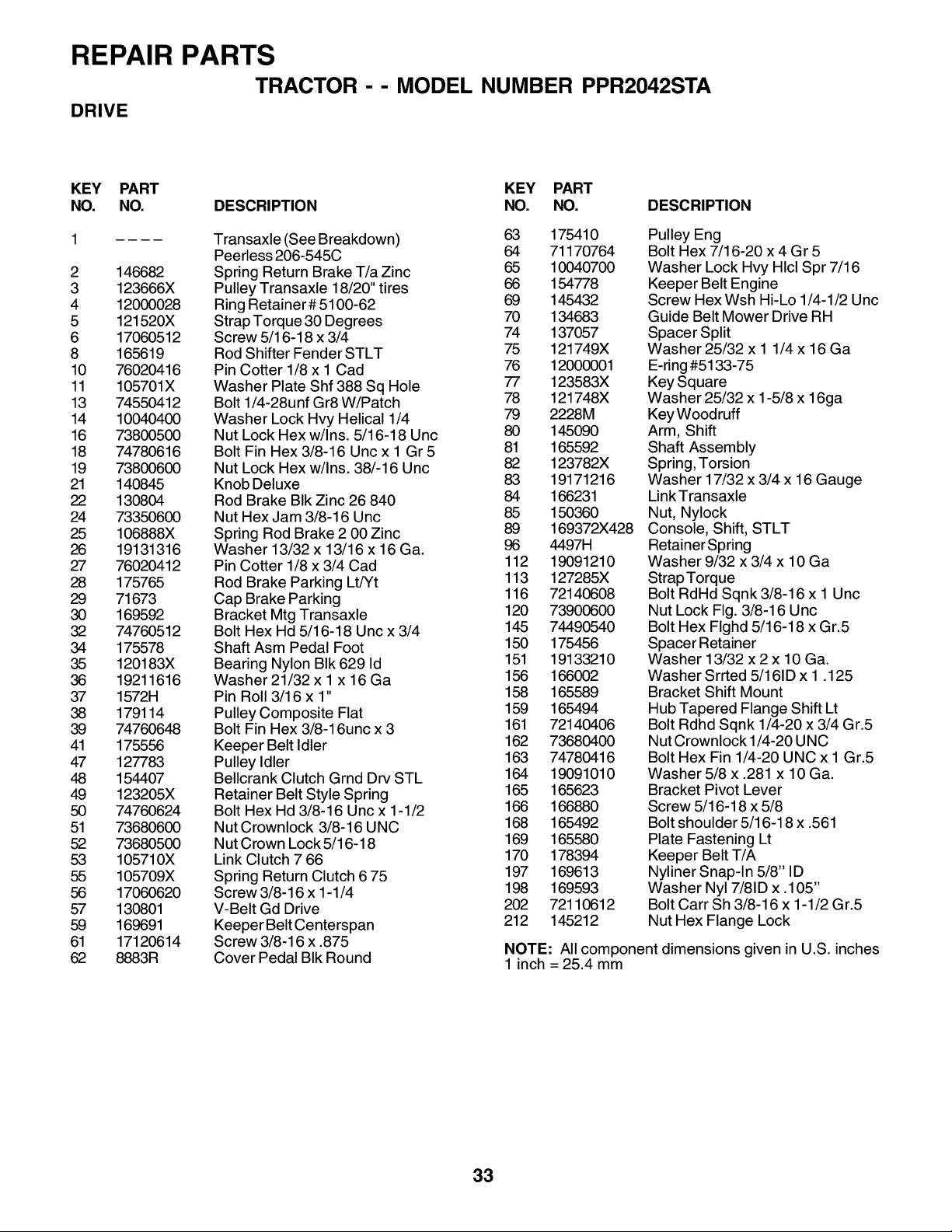

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle (See Breakdown) 63 175410

Peerless 206-545C 64 71170764

2 146682 Spring Return Brake T/a Zinc 65 10040700

3 123666X Pulley Transaxle 18/20" tires 66 154778

4 12000028 Ring Retainer # 5100-62 69 145432

5 121520X Strap Torque 30 Degrees 70 134683

6 17060512 Screw 5/16-18 x 3/4 74 137057

8 165619 Rod Shifter Fender STLT 75 121749X

10 76020416 Pin Cotter 1/8 x 1 Cad 76 12000001

11 105701X Washer Plate Shf 388 Sq Hole 77 123583X

13 74550412 Bolt 1/4-28u nf Gr8 W/Patch 78 121748X

14 10040400 Washer Lock Hvy Helical 1/4 79 2228M

16 73800500 Nut Lock Hex w/Ins. 5/16-18 Unc 80 145090

18 74780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr 5 81 165592

19 73800600 Nut Lock Hex w/Ins. 38/-16 Unc 82 123782X

21 146845 KnobDeluxe 63 19171216

22 136804 Rod Brake BIk Zinc 26 840 84 166231

24 73350600 Nut Hex Jam 3/8-16 Unc 85 150360

25 106888X Spring Rod Brake 2 00 Zinc 89 169372X428

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 96 4497H

27 76020412 Pin Cotter 1/8 x 3/4 Cad 112 19091210

28 175765 Rod Brake Parking Lt/Yt 113 127285X

29 71673 Cap Brake Parking 116 72140608

30 169592 Bracket Mtg Transaxle 120 73900600

32 74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 145 74490540

34 175578 Shaft Asm Pedal Foot 150 175456

35 120183X Bearing Nylon BIk 629 Id 151 19133210

35 19211616 Washer 21/32 x 1 x 16 Ga 156 166002

37 1572H Pin Roll 3/16 x 1" 158 165589

38 179114 Pulley Composite Flat 159 165494

39 74760648 Bolt Fin Hex 3/8-16unc x 3 161 72140406

41 175556 Keeper Belt Idler 162 73580400

47 127783 Pulley Idler 163 74780416

48 154407 Bellcrank Clutch Grnd Drv STL 164 19091010

49 123205X Retainer Belt Style Spring 165 165623

50 74760624 Bolt Hex Hd 3/8-16 Unc x 1-1/2 166 166880

51 73680600 Nut Crownlock 3/8-16 UNC 168 165492

52 73680500 Nut Crown Lock5/16-18 169 165580

53 105710X Link Clutch 7 66 170 178394

55 105709X Spring Return Clutch 6 75 197 169613

56 17060620 Screw 3/8-16 x 1-1/4 198 169593

57 136801 V-Belt Gd Drive 202 72110612

59 169691 Keeper Belt Centerspan 212 145212

61 17120614 Screw 3/8-16 x .875

62 8883R Cover Pedal BIk Round

Pulley Eng

Bolt Hex 7/16-20 x 4 Gr 5

Washer Lock Hvy Hlcl Spr 7/16

Keeper Belt Engine

Screw Hex Wsh Hi-Lo 1/4-1/2 Unc

Guide Belt Mower Drive RH

Spacer Split

Washer 25/32 x 1 1/4 x 16 Ga

E-ring #5133-75

Key Square

Washer 25/32 x 1-5/8 x 16ga

Key Wood ruff

Arm, Shift

Shaft Assembly

Spring, Torsion

Washer 17/32 x 3/4 x 16 Gauge

LinkTransaxle

Nut, Nylock

Console, Shift, STLT

Retainer Spring

Washer 9/32 x 3/4 x 10 Ga

StrapTorque

Bolt RdHd Sqnk 3/8-16 x 1 Unc

Nut Lock Fig. 3/8-16 Unc

Bolt Hex Flghd 5/16-18 x Gr.5

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 UNC

Bolt Hex Fin 1/4-20 UNC x 1 Gr.5

Washer 5/8 x .281 x 10 Ga.

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt T/A

Nyliner Snap-In 5/8" ID

Washer Nyl 7/81D x .105"

Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5

Nut Hex Flange Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

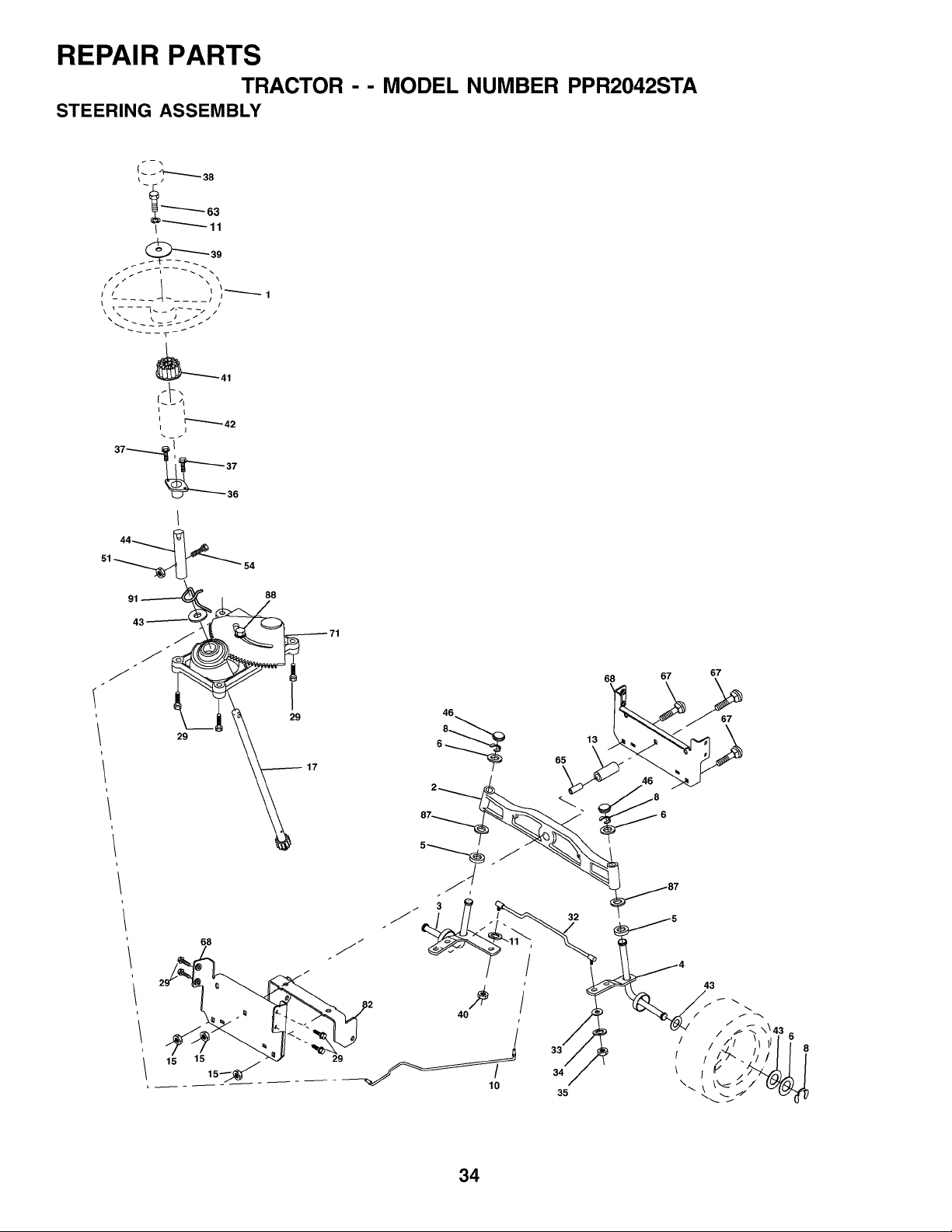

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

STEERING ASSEMBLY

_ 63

_11

__ 39

I\ /

l L

t _42

I l

51 54

68 67 67

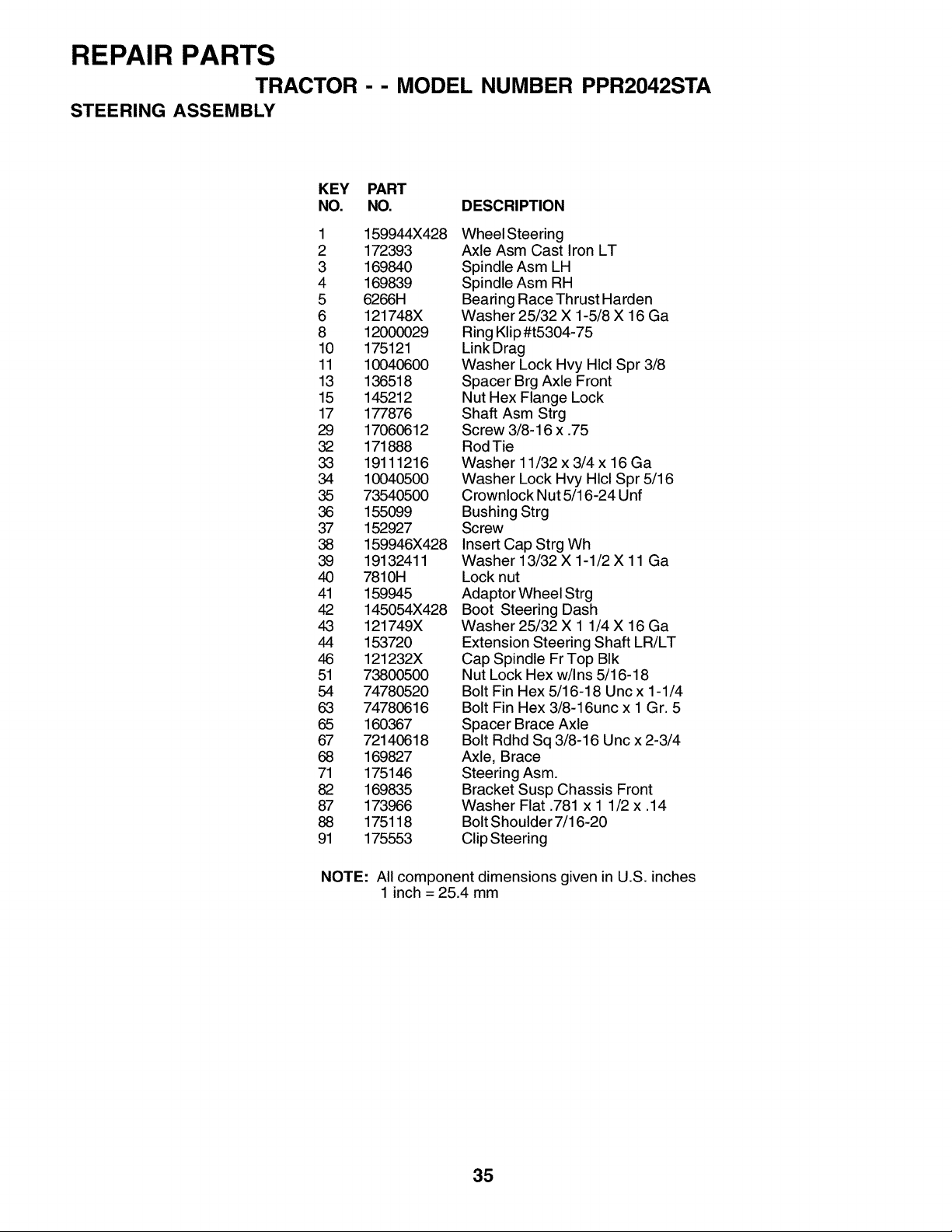

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 172393

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 10040600

13 136518

15 145212

17 177876

29 17060612

32 171888

33 19111216

34 10040500

35 73540500

35 155099

37 152927

38 159946X428

39 19132411

40 7810H

41 159945

42 145054X428

43 121749X

44 153720

46 121232X

51 73800500

54 74780520

63 74780616

65 160367

67 72140618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

Wheel Steering

Axle Asm Cast Iron LT

Spindle Asm LH

Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 X 1-5/8 X 16 Ga

Ring Klip #t5304-75

Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Spacer Brg Axle Front

Nut Hex Flange Lock

Shaft Asm Strg

Screw 3/8-16 x .75

Rod Tie

Washer 11/32 x 3/4 x 16 Ga

Washer Lock Hvy Hlcl Spr 5/16

Crownlock Nut 5/16-24 Unf

Bushing Strg

Screw

Insert Cap Strg Wh

Washer 13/32 X 1-1/2 X 11 Ga

Lock nut

Adaptor Wheel Strg

Boot Steering Dash

Washer 25/32 X 1 1/4 X 16 Ga

Extension Steering Shaft LR/LT

Cap Spindle Fr Top BIk

Nut Lock Hex w/Ins 5/16-18

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Fin Hex 3/8-16unc x 1 Gr. 5

Spacer Brace Axle

Bolt Rdhd Sq 3/8-16 Unc x 2-3/4

Axle, Brace

Steering Asm.

Bracket Susp Chassis Front

Washer Flat .781 x 1 1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

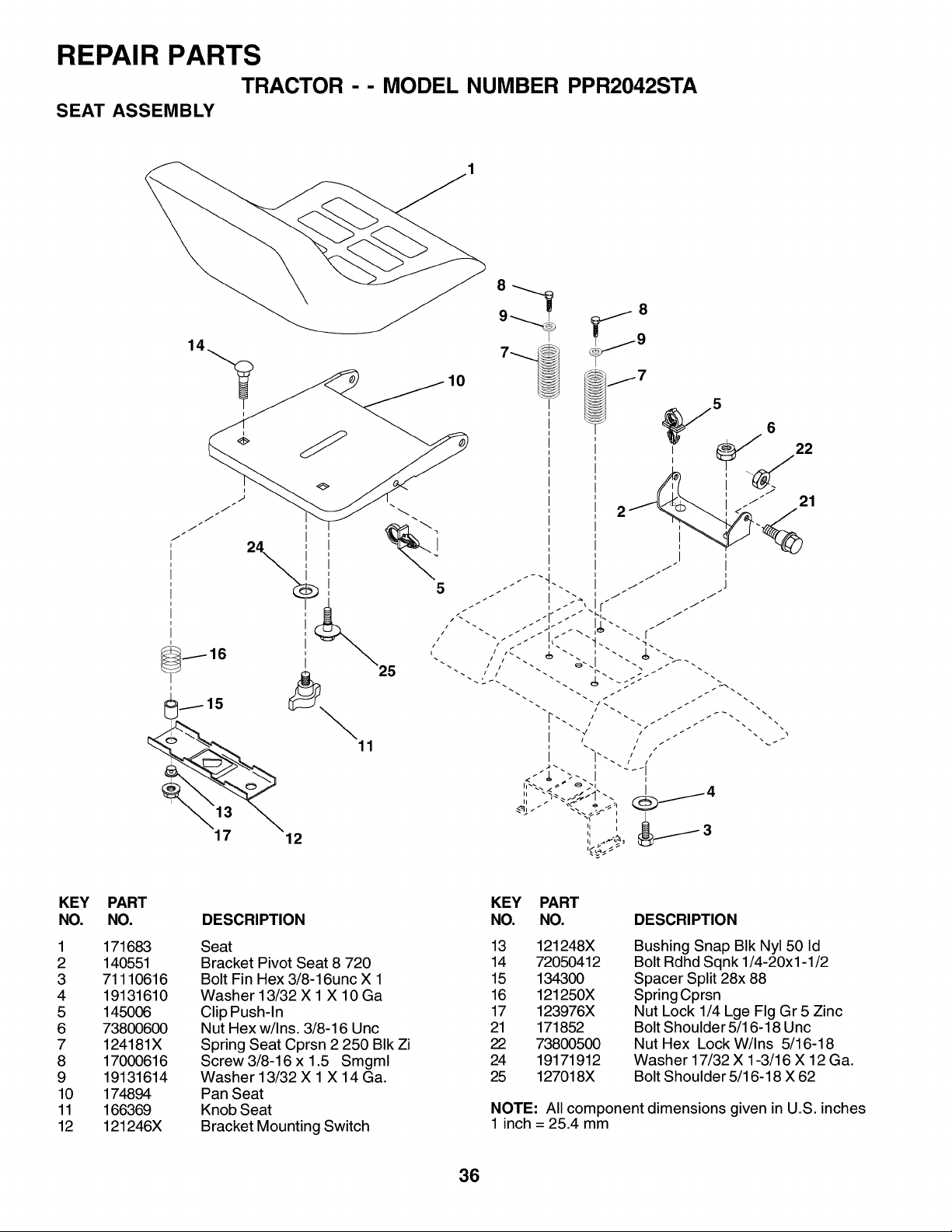

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

SEAT ASSEMBLY

KEY

NO.

PART

NO.

171683

140551

71110616

19131610

145006

73800600

124181X

17000616

19131614

174894

166369

121246X

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Seat 13 121248X

Bracket Pivot Seat 8 720 14 72050412

Bolt Fin Hex 3/8-16unc X 1 15 134300

Washer 13/32 X 1 X 10 Ga 16 121250X

Clip Push-In 17 123976X

Nut Hex w/Ins. 3/8-16 Unc 21 171852

Spring Seat Cprsn 2 250 BIk Zi 22 73800500

Screw 3/8-16 x 1.5 Smgml 24 19171912

Washer 13/32 X 1 X 14 Ga. 25 127018X

Pan Seat

Knob Seat

Bracket Mounting Switch

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split 28x 88

Spring Cprsn

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

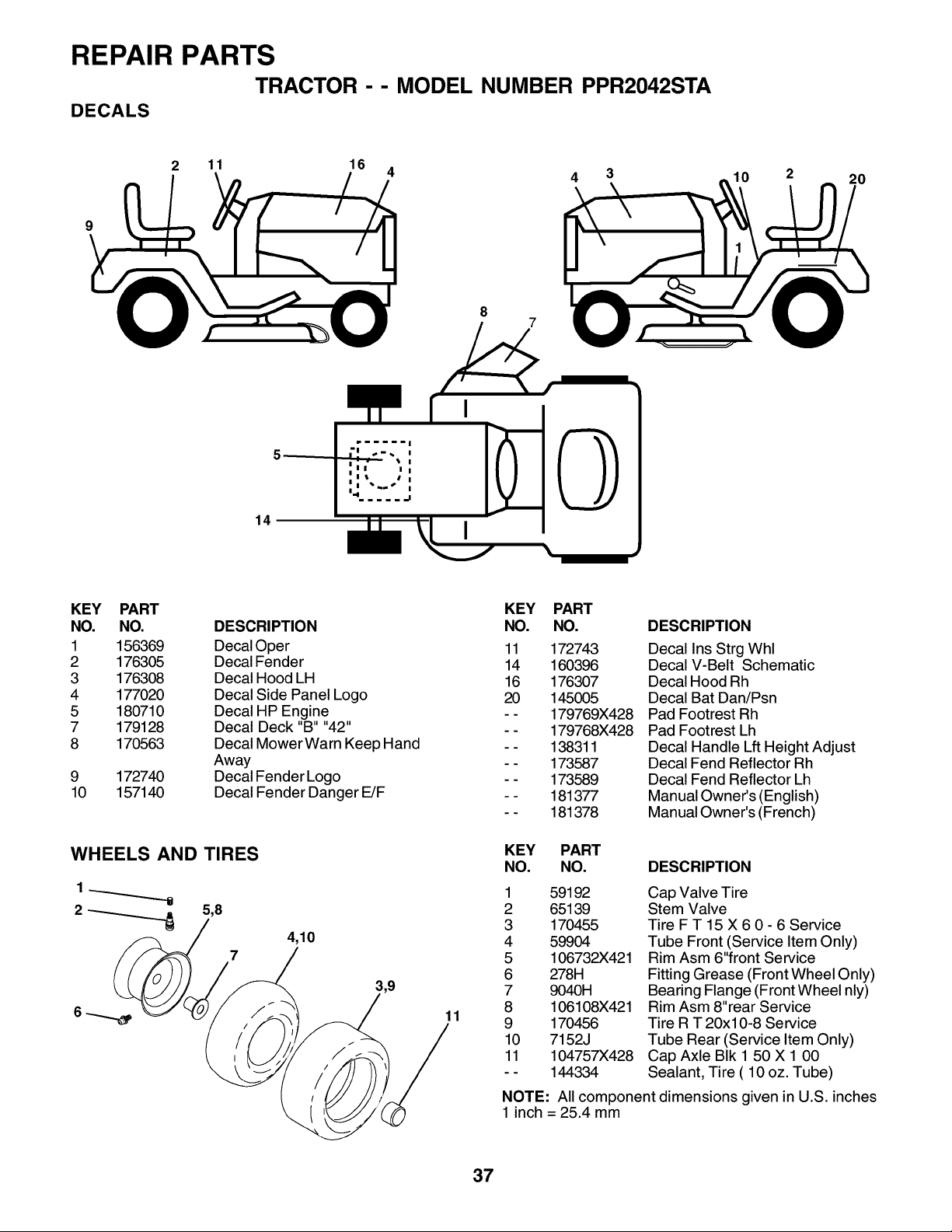

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

DECALS

11 16

10 2 20

I I I

I _ # I

..... ..I

KEY PART

NO. NO.

1 156369

2 176305

3 176308

4 177020

5 180710

7 179128

8 170563

9 172740

10 157140

DESCRIPTION

Decal Oper

Decal Fender

Decal Hood LH

Decal Side Panel Logo

Decal HP Engine

Decal Deck "B" "42"

Decal Mower Warn Keep Hand

Away

Decal Fender Logo

Decal Fender Danger E/F

WHEELS AND TIRES

5,8

4,10

KEY PART

NO. NO.

11 172743

14 160396

16 176307

20 145005

- - 179769X428

- - 179768X428

- - 138311

- - 173587

- - 173589

- - 181377

- - 181378

DESCRIPTION

Decal Ins Strg Whl

Decal V-Belt Schematic

Decal Hood Rh

Decal Bat Dan/Psn

Pad Footrest Rh

Pad Footrest Lh

Decal Handle LftHeight Adjust

Decal Fend Reflector Rh

Decal Fend Reflector Lh

Manual Owner's (English)

Manual Owner's (French)

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 170455

4 59904

5 106732X421

6 278H

7 9040H

8 106108X421

9 170456

10 7152J

11 104757X428

- - 144334

Cap Valve Tire

Stem Valve

Tire F T 15 X 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel nly)

Rim Asm 8"rear Service

Tire R T 20x10-8 Service

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 X 1 00

Sealant, Tire ( 10oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

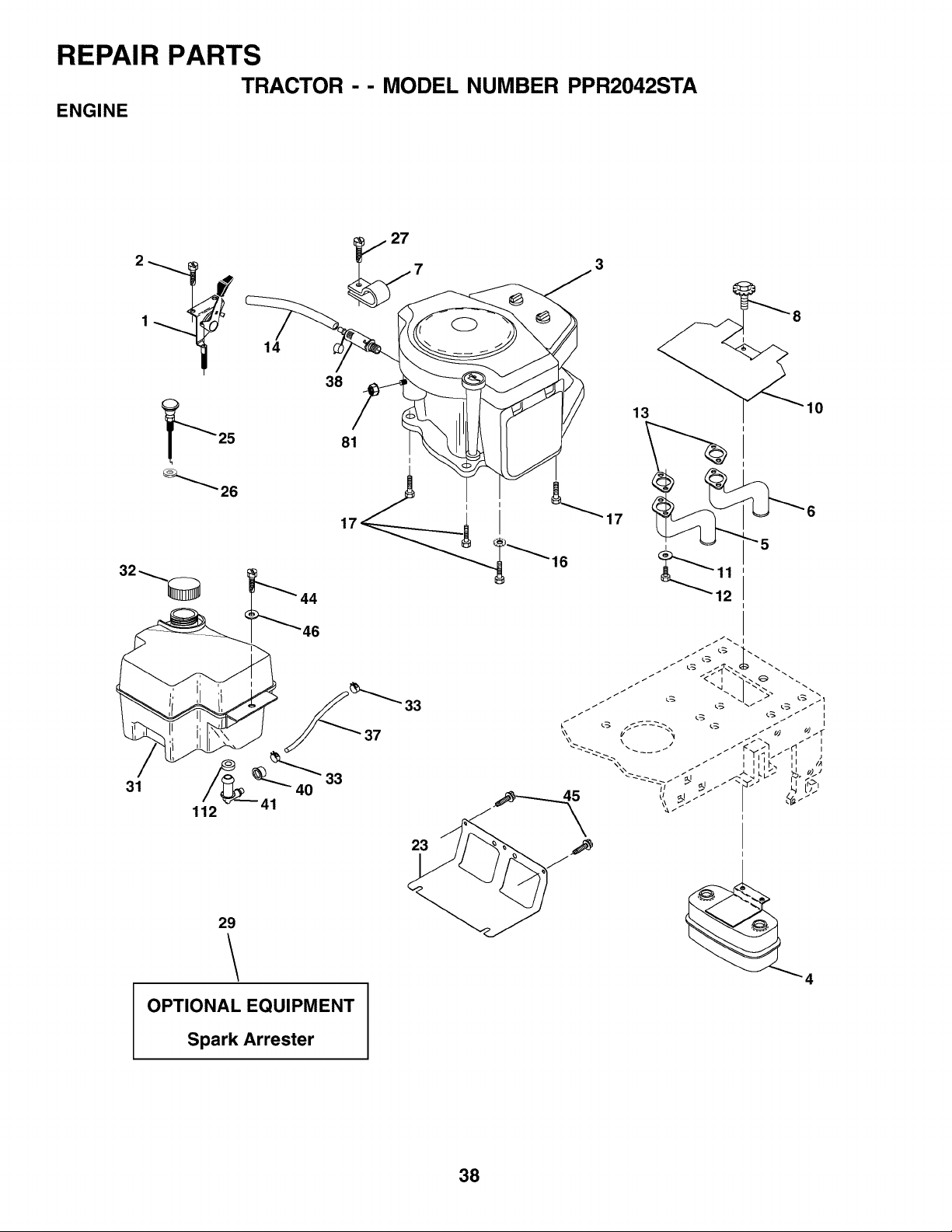

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

ENGINE

112

OPTIONAL EQUIPMENT

Spark Arrester

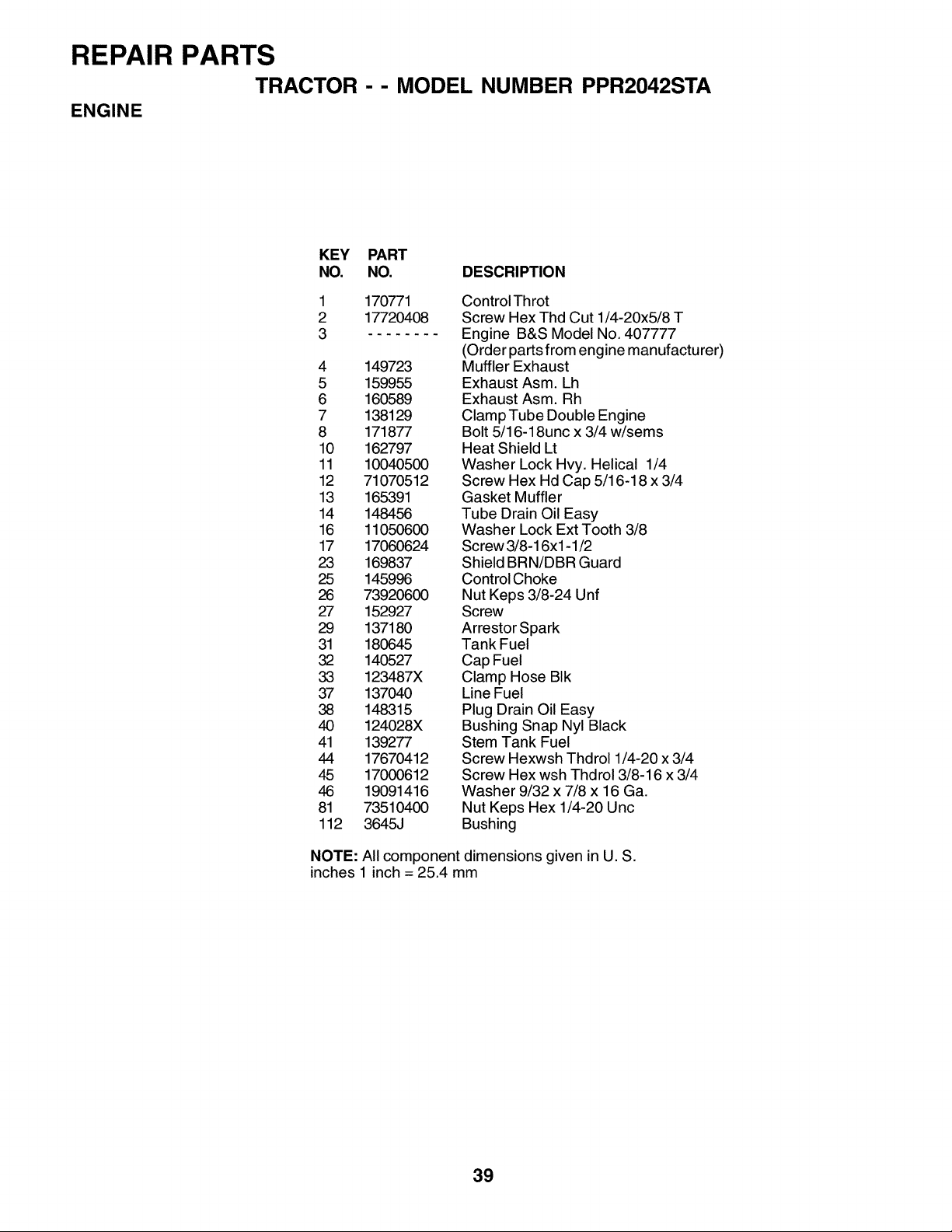

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 170771

2 17720408

4 149723

5 159955

6 160589

7 138129

8 171877

10 162797

11 10040500

12 71070512

13 165391

14 148456

16 11050600

17 17060624

23 169837

25 145996

26 73920600

27 152927

29 137180

31 180645

32 140527

33 123487X

37 137040

38 148315

40 124028X

41 139277

44 17670412

45 17000612

46 19091416

81 73510400

112 3645J

Control Th rot

Screw Hex Thd Cut 1/4-20x5/8 T

Engine B&S Model No. 407777

(Order parts from engine manufacturer)

Muffler Exhaust

Exhaust Asm. Lh

Exhaust Asm. Rh

Clamp Tube Double Engine

Bolt 5/16-18unc x 3/4 w/sems

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Screw Hex Hd Cap 5/16-18 x 3/4

Gasket Muffler

Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw 3/8-16x 1-1/2

Shield BRN/DBR Guard

Control Choke

Nut Keps 3/8-24 Unf

Screw

Arrestor Spark

Tank Fuel

Cap Fuel

Clamp Hose BIk

Line Fuel

Plug Drain Oil Easy

Bushing Snap Nyl Black

Stem Tank Fuel

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex wsh Thdrol 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Nut Keps Hex 1/4-20 Unc

Bushing

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

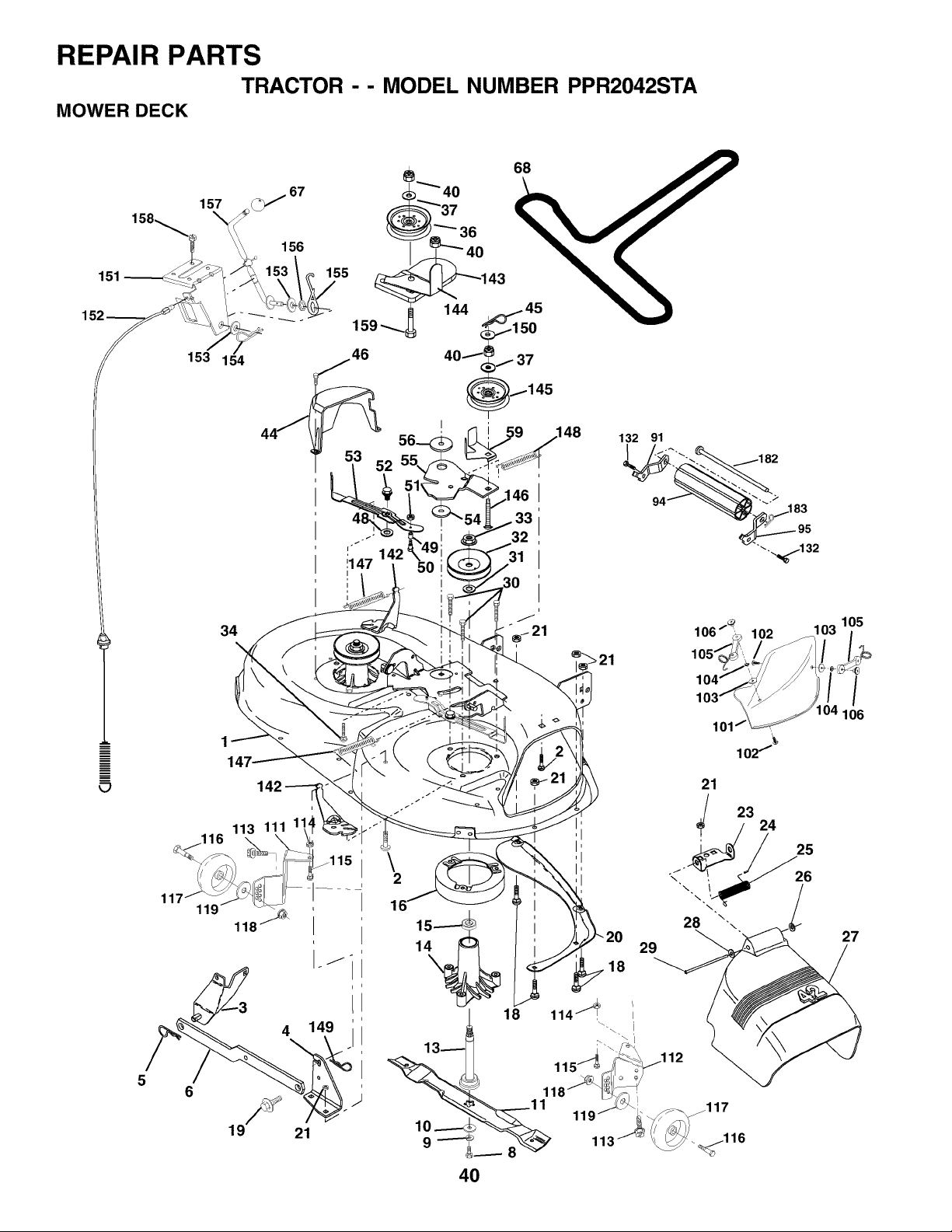

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

MOWER DECK

151

157

153 154

156

146

i147 lZ

132 91

105°

lOl I

_ 23 24

j117

103

105

106

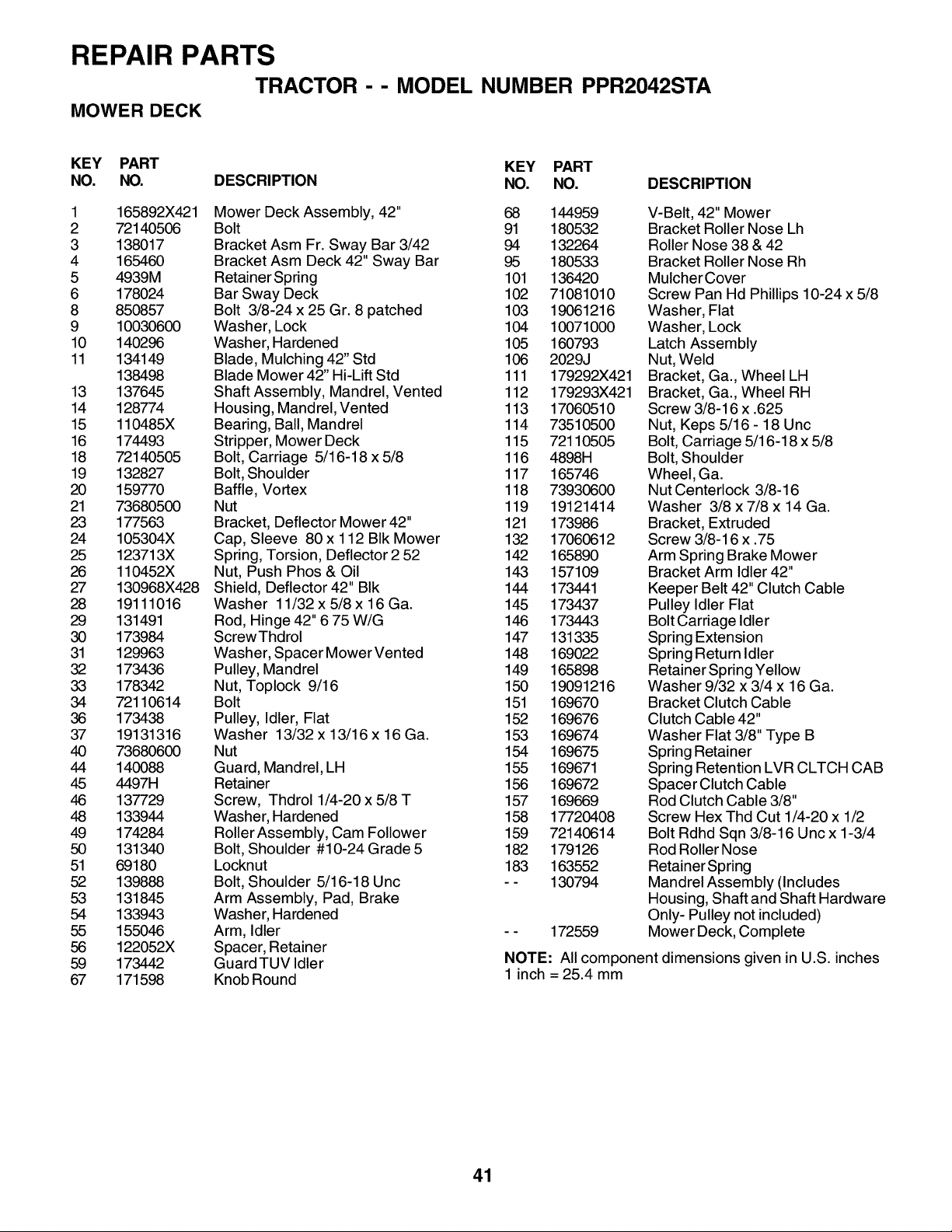

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892X421 Mower Deck Assembly, 42" 68 144959

2 72140506 Bolt 91 180532

3 138017 Bracket Asm Fr. Sway Bar 3/42 94 132264

4 165460 Bracket Asm Deck 42" Sway Bar 95 180533

5 4939M Retainer Spring 101 136420

6 178024 Bar Sway Deck 102 71081010

8 850857 Bolt 3/8-24 x 25 Gr. 8 patched 103 19061216

9 10030600 Washer, Lock 104 10071000

10 140296 Washer, Hardened 105 160793

11 134149 Blade, Mulching 42" Std 106 2029J

138498 Blade Mower 42" Hi-Lift Std 111 179292X421

13 137645 Shaft Assembly, Mandrel, Vented 112 179293X421

14 128774 Housing, Mandrel, Vented 113 17060510

15 110485X Bearing, Ball, Mandrel 114 73510500

16 174493 Stripper, Mower Deck 115 72110505

18 72140505 Bolt, Carriage 5/16-18x5/8 116 4898H

19 132827 Bolt, Shoulder 117 165746

20 159770 Baffle, Vortex 118 73930600

21 73680500 Nut 119 19121414

23 177563 Bracket, Deflector Mower 42" 121 173986

24 105304X Cap, Sleeve 80 x 112 BIk Mower 132 17060612

25 123713X Spring, Torsion, Deflector 2 52 142 165890

26 110452X Nut, Push Phos & Oil 143 157109

27 130968X428 Shield, Deflector 42" BIk 144 173441

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 145 173437

29 131491 Rod, Hinge 42" 6 75 W/G 146 173443

30 173984 Screw Thd rol 147 131335

31 129963 Washer, Spacer Mower Vented 148 169022

32 173436 Pulley, Mandrel 149 165898

33 176342 Nut, Toplock 9/16 150 19091216

34 72110614 Bolt 151 169670

36 173438 Pulley, Idler, Flat 152 169676

37 19131316 Washer 13/32 x 13/16 x 16 Ga. 153 169674

40 73680600 Nut 154 169675

44 140088 Guard, Mandrel, LH 155 169671

45 4497H Retainer 156 169672

46 137729 Screw, Thdrol 1/4-20 x 5/8 T 157 169669

48 133944 Washer, Hardened 158 17720408

49 174284 Roller Assembly, Cam Follower 159 72140614

50 131340 Bolt, Shoulder #10-24 Grade5 182 179126

51 69180 Locknut 163 163552

52 139888 Bolt, Shoulder 5/16-18 Unc - - 130794

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idler -- 172559

56 122052X Spacer, Retainer

59 173442 Guard TUV Idler

67 171598 KnobRound

V-Belt, 42" Mower

Bracket Roller Nose Lh

Roller Nose 38 & 42

Bracket Roller Nose Rh

MulcherCover

Screw Pan Hd Phillips 10-24 x 5/8

Washer, Flat

Washer, Lock

Latch Assembly

Nut, Weld

Bracket, Ga., Wheel LH

Bracket, Ga., Wheel RH

Screw 3/8-16 x .625

Nut, Keps 5/16 - 18 Unc

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder

Wheel, Ga.

Nut Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

Bracket, Extruded

Screw 3/8-16 x .75

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch Cable

Clutch Cable 42"

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention LVR CLTCH CAB

Spacer Clutch Cable

Rod Clutch Cable 3/8"

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

Rod Roller Nose

Retainer Spring

Mandrel Assembly (Includes

Housing, Shaft and Shaft Hardware

Only- Pulley not included)

Mower Deck, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

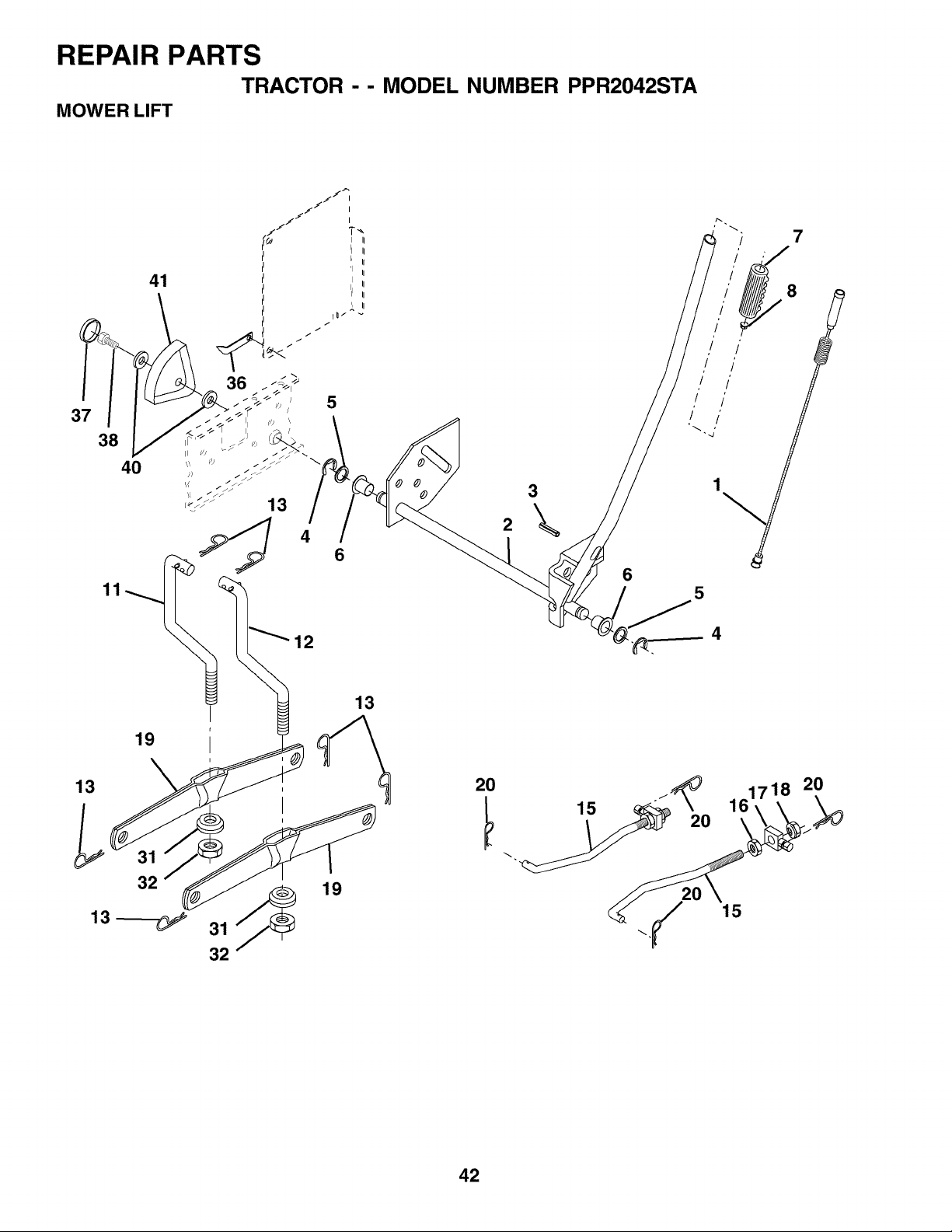

REPAIR PARTS

TRACTOR - - MODEL NUMBER PPR2042STA

MOWER LIFT

.I i'

,I i'

,I /'

I I'

13------_

161718 20

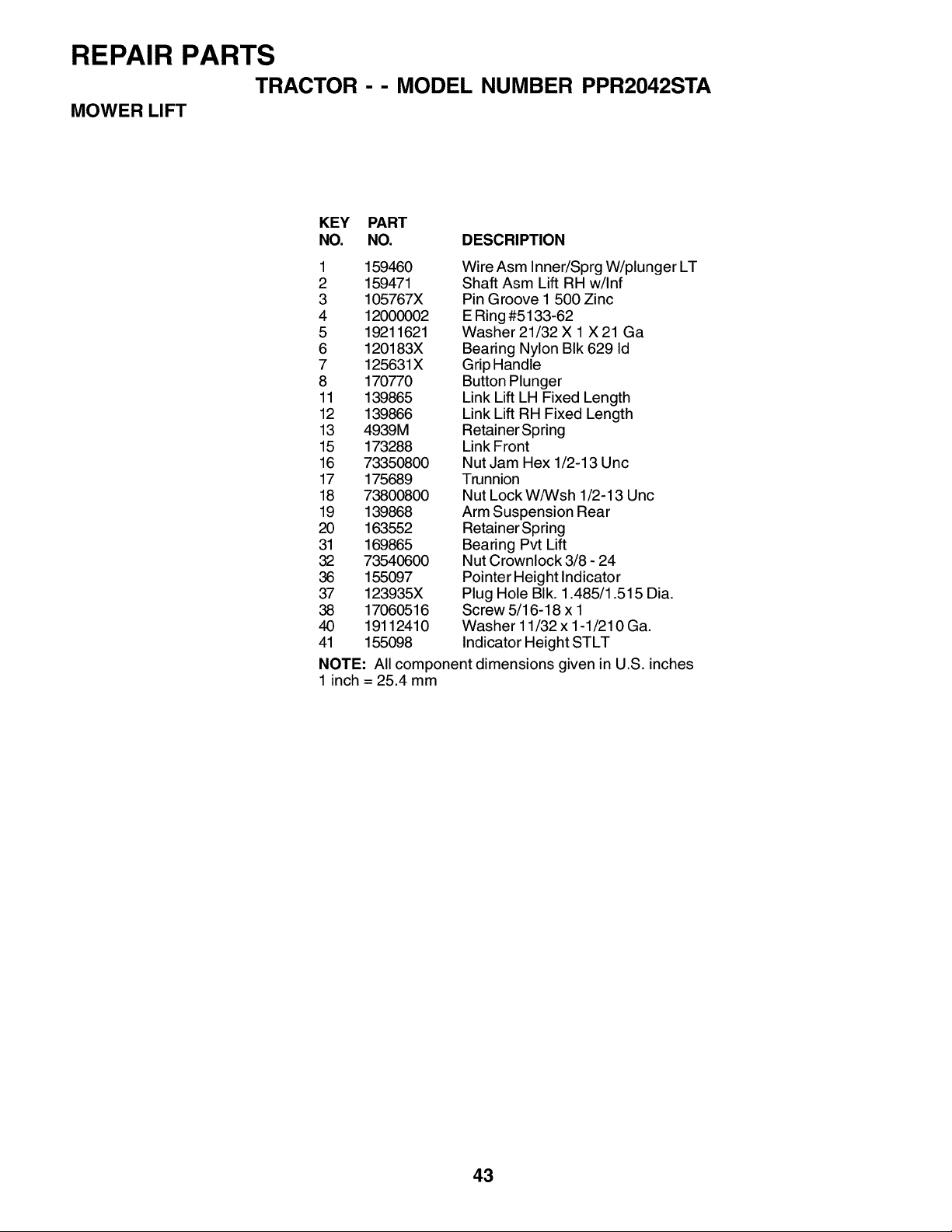

REPAIR PARTS

TRACTOR -- MODEL NUMBER PPR2042STA

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 170770

11 139865

12 139866

13 4939M

15 173288

16 73350800

17 175689

18 73800800

19 139868

20 163552

31 169865

32 73540800

36 155097

37 123935X

38 17060516

40 19112410

41 155098

Wire Asm Inner/Sprg W/plunger LT

Shaft Asm Lift RH w/Inf

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer 21/32 X 1 X 21 Ga

Bearing Nylon BIk 629 Id

Grip Handle

Button Plunger

Link Lift LH Fixed Length

Link Lift RH Fixed Length

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion

Nut Lock W/Wsh 1/2-13 Unc

Arm Suspension Rear

Retainer Spring

Bearing Pvt Lift

Nut Crownlock 3/8 - 24

Pointer Height Indicator

Plug Hole BIk. 1.485/1.515 Dia.

Screw 5/16-18 x 1

Washer 11/32 x 1-1/210 Ga.

Indicator Height STLT

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SERVICE NOTES

p y

TECUMSE_

Issued January 1980

Revised January 1991

TECUMSE_

WARRANTY

LIMITED WARRANTIES

FOR

NEW PEERLESS GEAR POWER TRAIN COMPONENTS

A. Products Warranted

Peerless Gear and Machine Division of Tecumseh Products Company ("Tecumseh"), subject to the limitations

contained below, will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train

Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle

drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment

used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or

by Tecumseh's factory in Grafton, Wisconsin, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP if received by

Tecumseh or a Tecumseh Authorized Service Outlet for such examination within TWO YEARS from the date of sale to the

original consumer purchaser of Peerless Series 820,900,910,915, 920,930 transaxles and Series 1100 angle drive and

ONE YEAR for all other Peerless products. New Power Train Components incorporated in equipment used for commercial

purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted

for NINETY (90) DAYS ONLY, and must be received by Tecumseh or by a Tecumseh Authorized Service Outlet for such

examination within 90 days from the date of sale to the original purchaser. New Power Train Components Incorporated

in equipment used for rental purposes are warranted in the same manner and to the same extent EXCEPT such Power

Train Components are warranted for THIRTY (30) DAYS ONLY, and must be received by Tecumseh or a Tecumseh

Authorized Service Outlet within 30 days from the date of sale to the original purchaser.

B. Products And Items Not Warranted

1. Alterations or Modifications of Power Train Components.

2. Accidents, Normal Maintenance, Failure to follow the Original Equipment Manufacturer's Manual.

This warranty covers only parts of new Power Train Components which are found upon examination to be defective

in material or workmanship as delivered to the original purchaser. This warranty does not cover defects caused by

depreciation or damage caused by normal wear, accidents, improper maintenance, improper use or abuse of the product,

failure to follow the instructions contained in an Instruction Manual for the operation of the Power Train Component and

parts. The cost of normal maintenance and replacement of service items which are not defective shall be paid for by the

original purchaser.

C. Securing Warranty Service

Warranty service can be arranged for by contacting either a Tecumseh Authorized Service Outlet (any Tecumseh

Registered Service Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor) or by

contacting Tecumseh, c/o Service Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton,

Wisconsin 53024. Warranty service can only be performed by a Tecumseh Authorized Service Outlet or by Tecumseh

at its factory in Grafton, Wisconsin. At the time of requesting warranty service, evidence must be presented of the date

of sale to the original purchaser. The purchaser shall pay any charges for making service calls and/or for transporting

the product to and from the place where the inspection and/or warranty work is performed. The purchaser shall be

responsible for any damage or loss incurred in connection with the transportation of Power Train Components and/or

part(s) of the Power Train Components submitted for inspection and/or warranty work.

D. Limitation of Damages and Implied Warranties

The foregoing EXPRESSED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh

nor any of its affiliates makes any warranties, representations or promises, written or oral, as to the quality of the Power

Train Component or any of its parts, other than as set forth herein.

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE

EXTENT THAT EITHER MAY APPLY TO ANY PART(S) OF POWER TRAIN COMPONENTS, SHALL BE LIMITED IN

DURATION TO THE PERIODS OF THE EXPRESSED WARRANTIES DEFINED IN PARAGRAPH A HEREOF. IN NO EVENT

WILL TECUMSEH BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or

consequential damages, so the above limitation(s) or exclusion(s) may not apply to you. This warranty gives you specific

legal rights and you may also have other legal rights which vary from state to state.

E. No Dealer Warranty

Tecumseh neither assumes nor authorizes any other person, natural or corporate, to assume for Tecumseh any

other obligations or liabilities in connection with or with respect to any part(s) of a Power Train Component. The seller

or dealer of part(s) of a Power Train Component has no authority, whatsoever, to make any representations or promises

on behalf of Tecumseh or to modify the terms or limitations of Tecumseh's warranty in any way.

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in

materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will

repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be

defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components,

battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's

warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of

the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be

paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery

which we find to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90)

days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for each full month from the

date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date

of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main-

tained in accordance with the instructions furnished. This Warranty does not apply to any product which has

been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal

wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments,

standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc. In Canada contact:

Outdoor Products Customer Service Dept. Electrolux Canada Corp.

250 Bobby Jones Expressway 7075 Ordan Drive

Augusta, GA 30909 USA Mississauga, Ontario

L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized

dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas

do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above

limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights

which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

PAR?S AND S RVIC

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid

quality standards. As with all mechanical products, some adjustments or part replacement may be

necessary during the life of your unit.

FOR SERVICE OR REPLACEMENT PARTS:

1. Consult your dealer/place of purchase.

2. Consult the yellow pages of your phone directory for the name of the nearest service dealer

(under "saws" for Chain Saws or under "lawn mowers" for Trimmers, Brushcutters, and

Blowers).

3. For replacement parts, have available the following information:

a. Model Number/Manufacturer's I.D. Number.

b. Description of part.

NOTE:

Electrolux Home Products provides parts and service through its authorized distribu-

tors and dealers; therefore, all requests for parts and service should be directed to your

local dealer(s). The philosophy of Electrolux Home Products is to continually improve

all of its products. If the operating characteristics or the appearance of your product

differs from those described in this Manual, please contact your local local dealer for

updated information and assistance.

Poulan Pro PPR2042STA Poulan lawn tractor

Product's Documents

User Manual

Specifications

Poulan Pro PPR2042STA Questions and Answers
