en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
■ / -
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 6
* Familiarising yourself with your appliance 8
Z Laundry 11
C Detergent 12
0 Programme default settings 13
\ Additional programme settings 15
1 Operating the appliance 16
a Intelligent dosing system 20
Q Appliance settings 23
H Sensors 24
2 Cleaning and maintenance 25
3 Faults and what to do about them. 29
4 After-sales service 33
J Technical data 33
5 Positioning and connecting 34
r Aqua-Stop warranty 40
8 Intended use
Intended use
■ For private domestic use only.
■ The washing machine is suitable for washing machine-washable fabrics and hand-washable wool in detergent solution.
■ To be operated with cold mains water and standard detergents and care products which are suitable for use in washing machines.
■ When measuring out the amount of all detergents, additives, care products and cleaning agents, always follow the manufacturer's instructions.
■ The washing machine may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed by a responsi...
■ Keep children under the age of 3 years away from the washing machine.
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
■ Keep pets away from the washing machine.
( Safety instructions
Safety instructions
Electrical safety
: Warning
Danger of death!
Risk of injury
: Warning
Risk of injury!
: Warning
Risk of scalding!
Safety for children
: Warning
Danger of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Eye/skin irritation!
: Warning
Risk of injury!
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
■ Always utilise the maximum amount of washing for the particular programme.
■ Wash normally soiled laundry without prewash.
■ For light and normal soiling in laundry, you can save energy and detergent. ~ Page 13
■ Dosing the detergent using the intelligent dosing system (i-DOS) helps to save both detergent and water.
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
■ Information on energy and water consumption:
■ Energy-saving mode: The touch display lighting goes out after a few minutes, the A button flashes.
■ Automatic switch off (only before the programme starts or after the programme ends) If the appliance is not operated for a prolonged period, it automatically switches off to save energy. Press the main switch again to switch on the appliance.
■ If the washing will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
* Familiarising yourself with your appliance
Familiarising yourself with your appliance

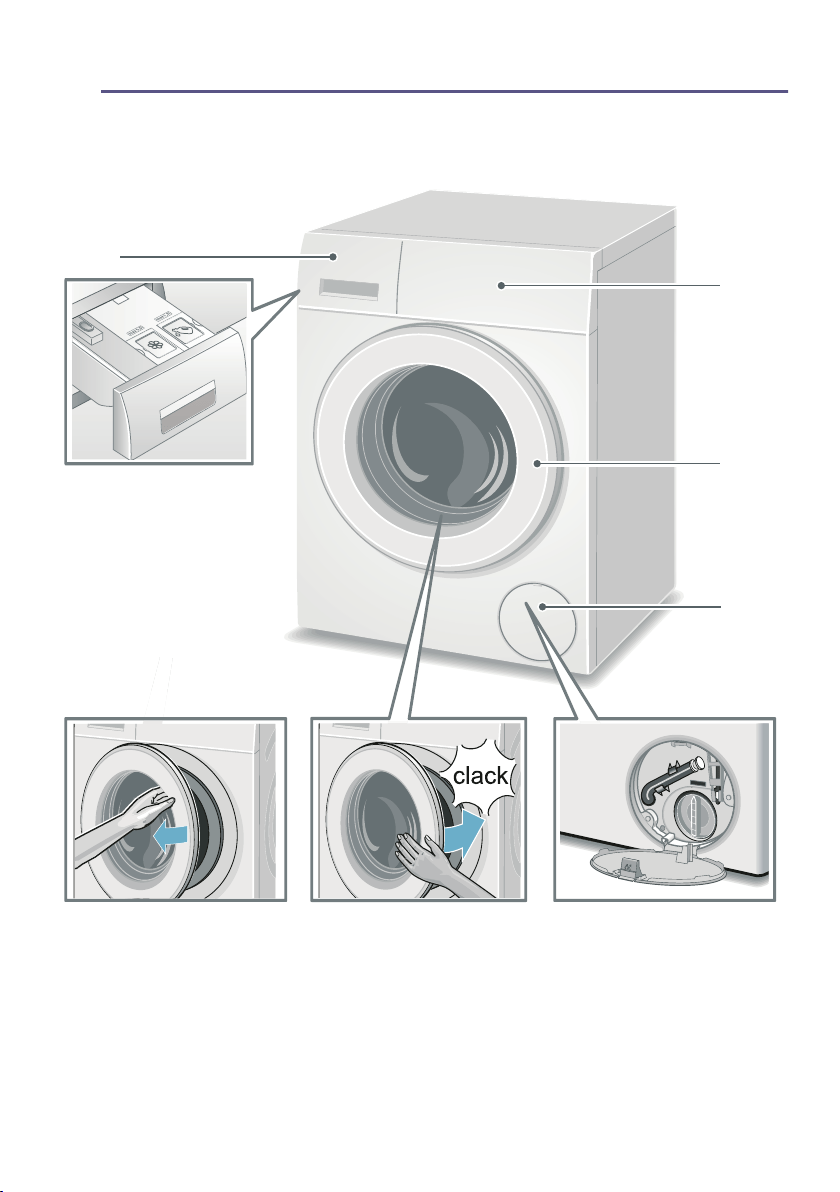

Washing machine

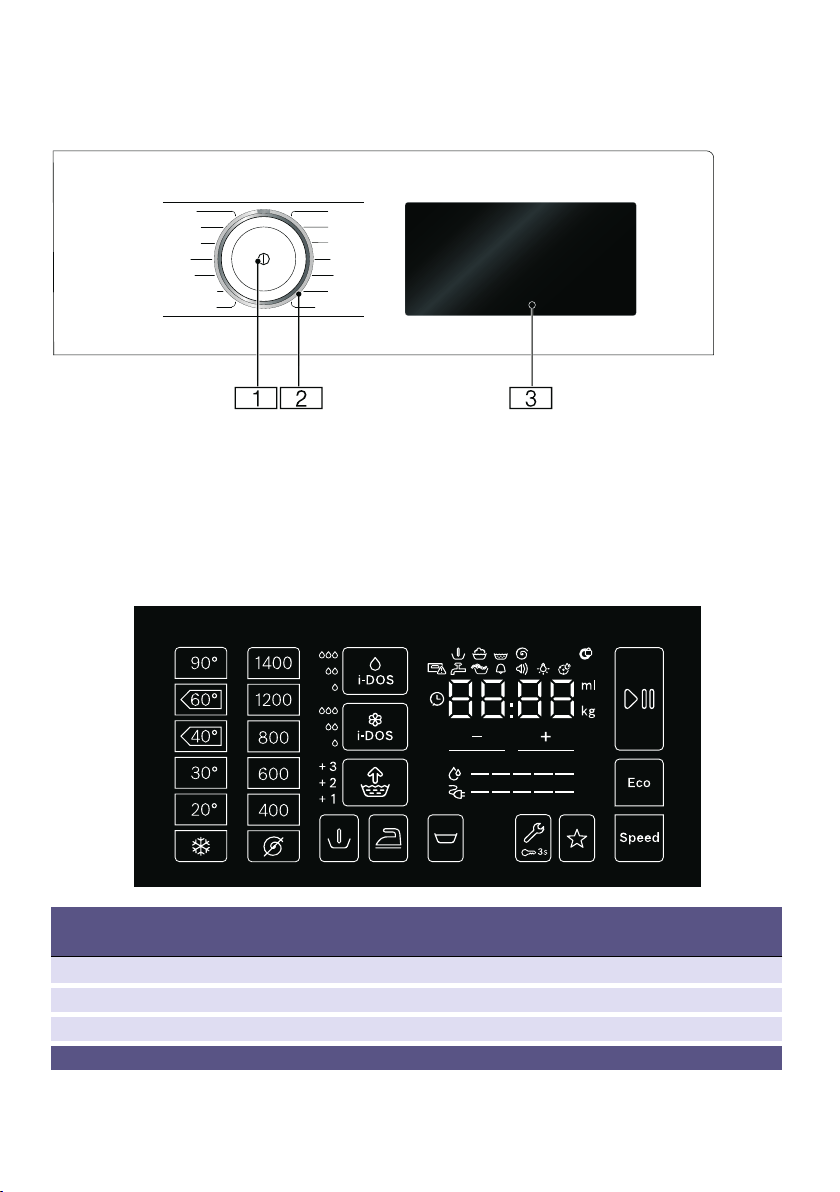

Controls
Content of the touch display
Display and control panels
Display for adjustment values
Setting
Note:
Other displays
Information on
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/fabrics
■ Empty any pockets.
■ Look out for metal items (paperclips, etc.) and remove them.
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
■ Close any zips; button up any cover buttons.
■ Brush sand out of pockets and collars.
■ Remove curtain fittings or place curtains in a laundry bag.
Sorting laundry
■ Type of fabric/fibre
■ Colour
Note:
■ Soiling Wash laundry with the same level of soiling together.
■ Symbols on the care labels
Note:
Starching
Note:
1. Switch on the appliance.
2. Select the Rinse programme.
3. Manually add the dosage of liquid starch into the left-hand dispenser (if required, clean it beforehand) in accordance with the manufacturer’s instructions.
4. Touch the control panel A.
Dyeing/bleaching
Soaking
1. Switch on the appliance.
2. Select the Cottons 30 °C programme.
3. Use i-DOS to dose your detergent or add it to the left-hand compartment in accordance with the manufacturer’s instructions.
4. Touch the control panel A. The program starts.
5. After approx. 10 minutes, press A to pause the programme.
6. Leave the laundry to soak for as long as required, then either touch A again to continue the programme or change the programme.
Notes
C Detergent
Detergent
Correct selection of detergent
■ Standard detergent with optical brighteners
■ Detergent for colours without bleach or optical brighteners
■ Detergent for colours/delicates without optical brighteners
■ Detergent for delicates
■ Detergent for woollens
Saving energy and detergent
Saving
Soiling/note
Note:
0 Programme default settings
Programme default settings
Temperature
Spin speed
Ready in time
Note:
1. Touch the control panel A.
2. Touch N or M to change the time.
3. And touch A again.
i-DOS settings
■ w i-DOS: L
■ i i-DOS: K
i-DOS w for detergent
Adjustment values for the dosage quantity
i-DOS i for fabric softener
Adjustment values for dosage quantities
Memory programme
To store:
1. Switch on the appliance.
2. Select a programme.
3. Change the settings and/or select additional settings.
4. Press and hold â on the control panel for approx. three seconds.
\ Additional programme settings
Additional programme settings
SpeedPerfect
Note:
EcoPerfect
Easy-Iron
Note:
Water&Rinse+
Adjustment values:
Prewash
Notes
1 Operating the appliance
Operating the appliance
Preparing the washing machine
Note:
1. Connect the mains plug.
2. Turn on the water tap.
3. Open the door.
4. Check that the drum is completely drained. Drain if necessary.
Switching on the appliance/ selecting a programme
Notes
You can:
■ Use this programme and load laundry. ~ Page 17
■ Or select another programme.
■ Or change the programme default settings. ~ Page 17
■ And/or select additional programme settings. ~ Page 17
Change the programme default settings
Note:
Select additional programme settings
Placing laundry into the drum
: Warning
Danger of death!
Notes

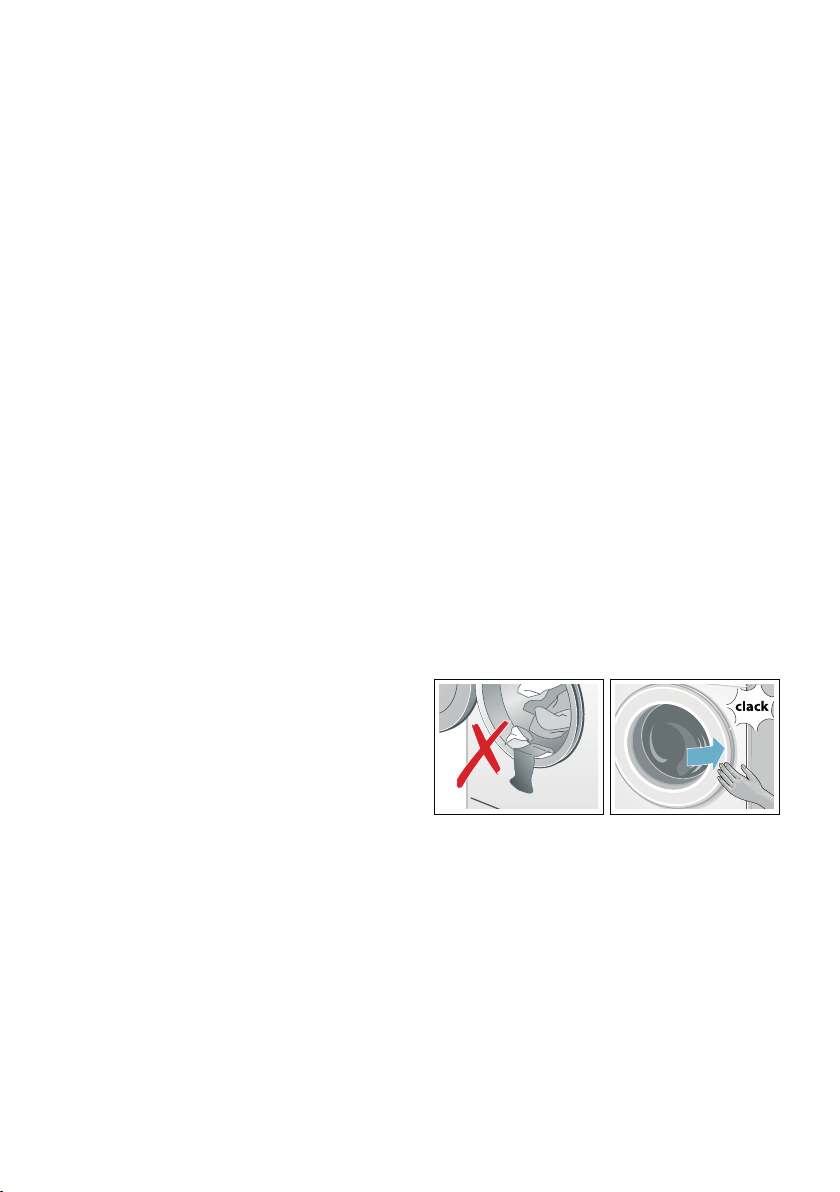

1. Place presorted items of laundry unfolded in the washing drum.
2. Make sure that no items of laundry are trapped between the washing machine door and the rubber seal, and close the door.
Measure and add detergent and care products
Start the programme
During the programme, the current programme information is displayed:
■ Finished in-time or, after the washing programme has started, the programme duration
■ And the displays for the programme's progress light up. ~ Page 9
Note:
Childlock/operation lock
Notes
Adding laundry
Notes
Changing the programme
1. Touch the control panel A.
2. Select another programme.
3. And touch A again.The new program starts from the beginning.
Cancel the programme
1. Touch the control panel A.
2. To cool the laundry: Select Rinse.
3. And touch A again.
1. Touch A.
2. Select Spin or Drain/Empty.
3. And touch A again.
Programme end
Note:
Removing laundry/switching off the appliance
1. Open the loading door and remove the laundry.
2. Switch off the appliance.
3. Turn off the tap.
Note:
Notes
a Intelligent dosing system
Intelligent dosing system

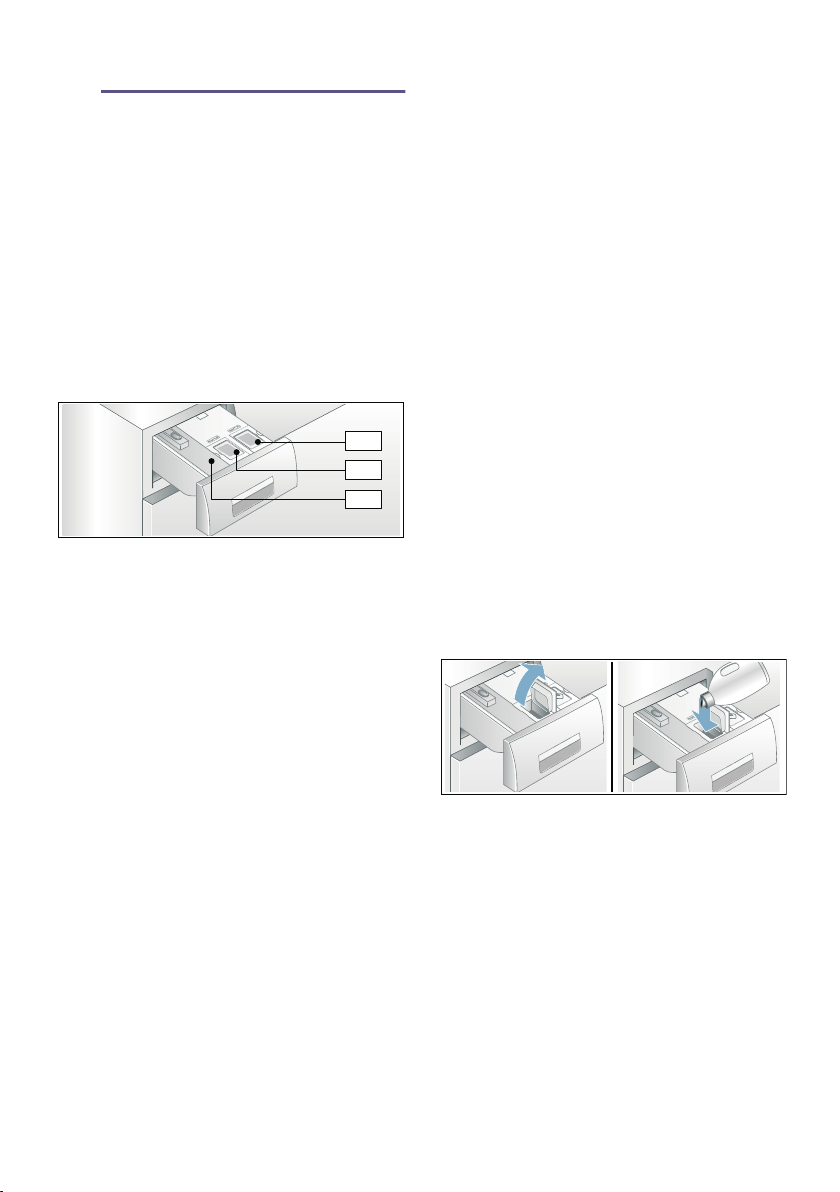

Intelligent dosing system in the detergent drawer
Initial use/filling the dispensers
Notes
Filling the dispensers:
■ ß Standard/universal detergent
■ i Fabric softener
1. Open the detergent drawer.
2. Open the dispenser cover(s).
3. Add detergent/fabric softener. Do not fill above the max. marking.
4. Close the cover(s).
5. Slowly push the detergent drawer in completely.
Everyday use
Displays:
■ The display lights up if intelligent dosage has been selected for the dispenser.
■ The display for the adjustment values, e.g. K flashes if the fill level for the dispenser is below the minimum level when intelligent dosing has been selected.
(De)selecting intelligent dosage and adjusting the dosage strength:
Note:
Topping up the detergent/ fabric softener:
Basic settings
The basic dosages are:
■ For detergents – based on the manufacturer’s recommendation for average soiling and the respective water hardness.
■ F or fabric softeners – based on the manufacturer's recommendation for a medium level of softness.
My water hardness:
Degree of soiling →
Water hardness ↓
light
normal
heavy
very heavy
Notes
Changing the basic dosages:
1. Press and hold the corresponding i- DOS control panel (w or i) for approx. three seconds. The preset base dosing quantity is displayed.
2. Touch N or M to set the required base dosing quantity. The setting is activated without needing to be confirmed.
3. Touch the corresponding i-DOS control panel again to return to the initial status.
Note:
Manual dosage
: Warning
Eye/skin irritation!
Caution!
Damage to the appliance
Notes
Dosing and adding detergent:
1. Pull out the detergent drawer.
2. Add the dosage to the left-hand compartment depending on the following:
3. Close the detergent drawer.
Q Appliance settings
Appliance settings
■ The volume of the information signal (e.g. at the end of the programme),
■ The volume of the operating signals,
■ The brightness of the operating and display field,
■ Select/deselect the memory function for drum care.
Activating the setting mode
1. Switch on the appliance. The settings for the current programme are displayed.
2. Touch the control panel œ.
Changing the signal volume
Adjustment values:
Changing the brightness of the touch display
Adjustment values:
Select/deselect the memory function for drum care
Exiting setting mode
To exit and save the settings:
■ Wait for approx. 15 minutes or
■ Touch œ one last time or
■ Switch off the appliance. The selected settings will take effect the next time the washing machine is switched on.
H Sensors
Sensors
Automatic load sensing
Unbalanced load detection system
Note:
VoltCheck
■ Flashes , if the voltage is currently too low.
■ Pulses, if insufficient voltage was detected during the programme.
Note:
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Danger of death!
: Warning
Risk of poisoning!
Caution!
Damage to the appliance
Notes
Machine housing/control panel
■ Wipe the housing and the control panel with a soft, damp cloth.
■ Remove the detergent residue immediately.
■ Do not clean with a water jet.

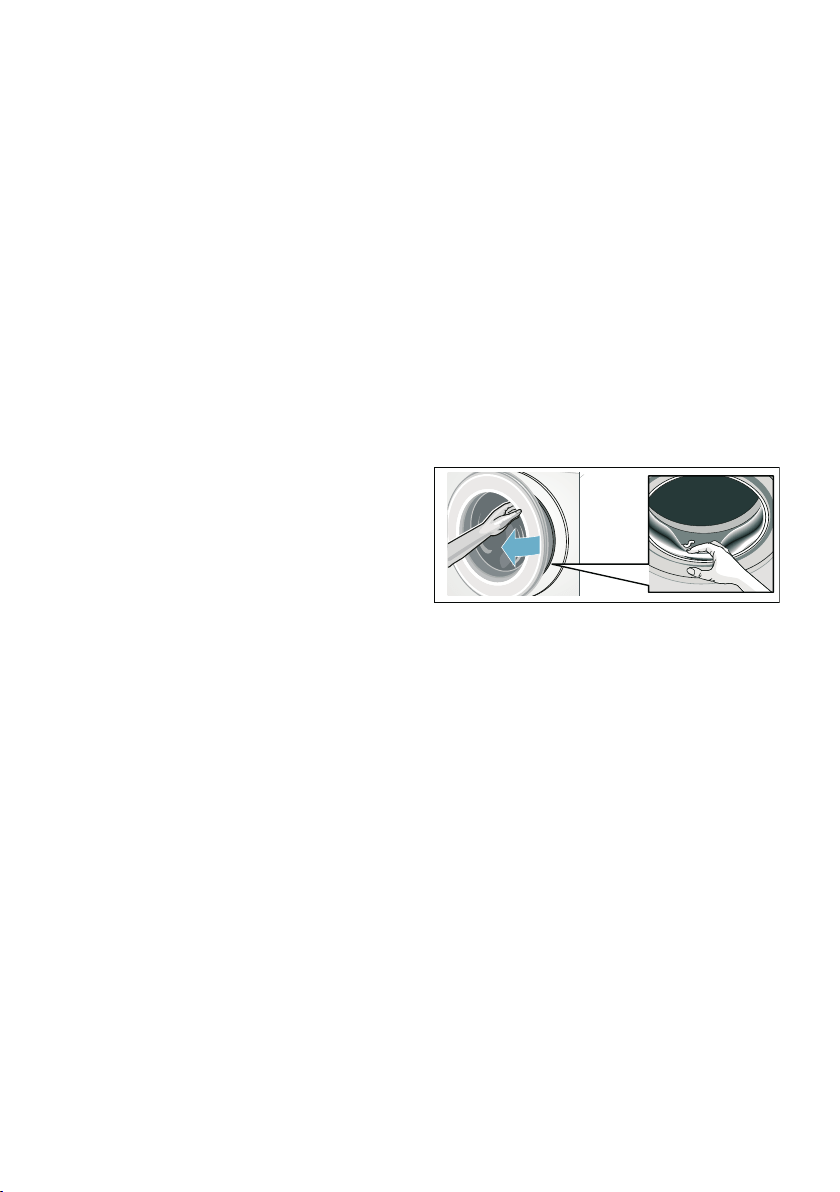

Drum
Descaling

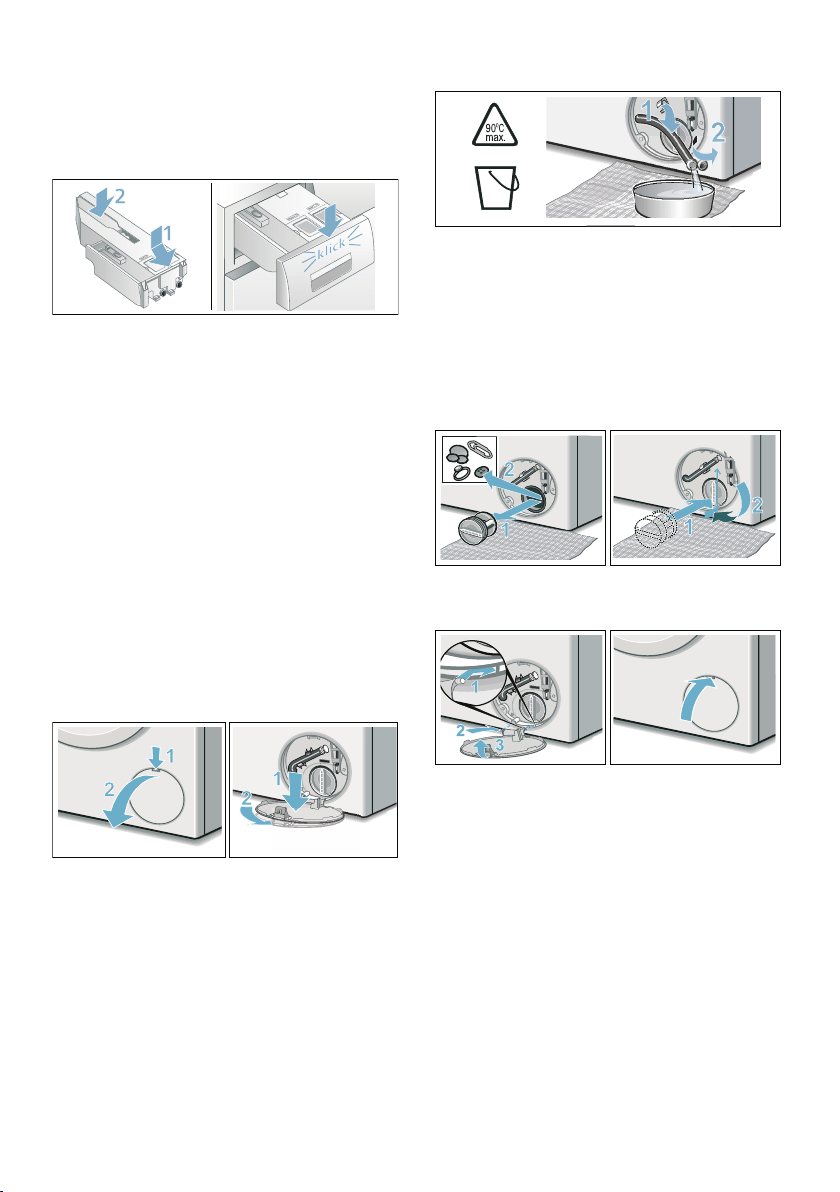

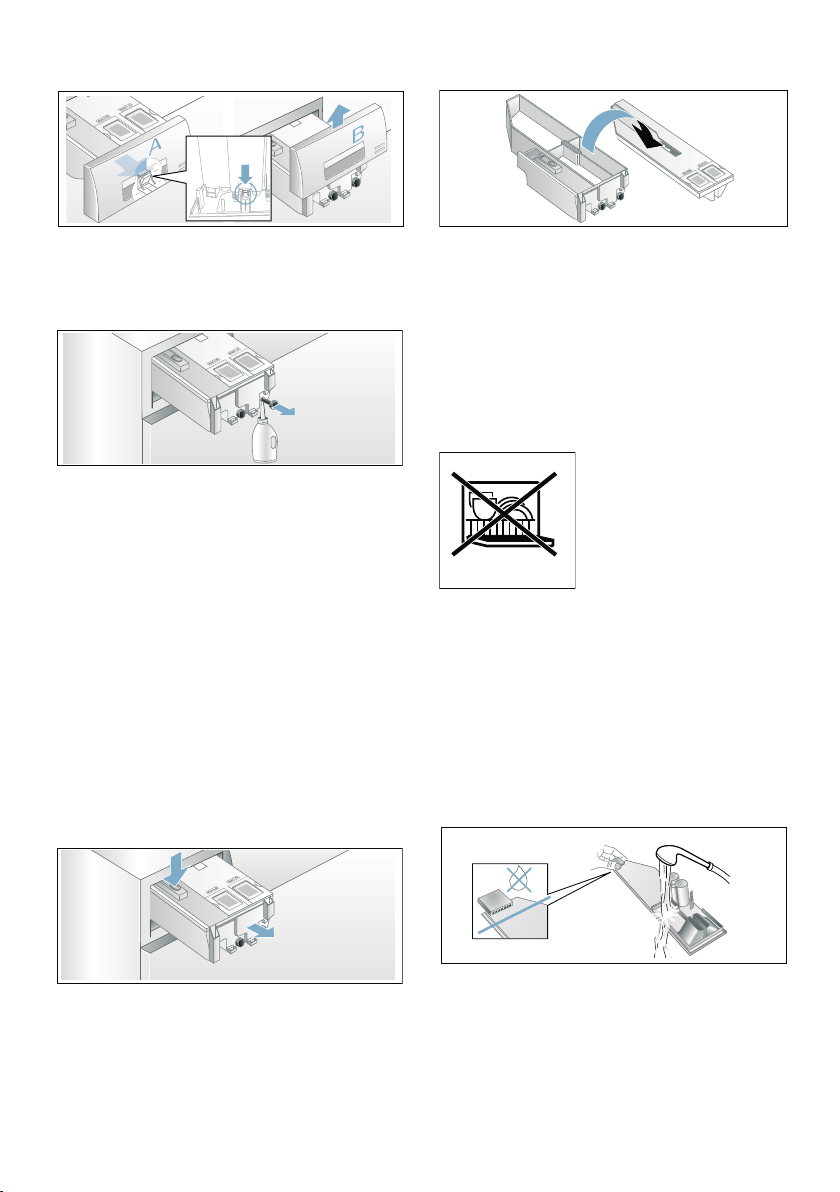

i-DOS detergent draw and its housing
1. Emptying the dispensers:
a) Pull out the detergent drawer.
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
d) Then push the sealing plugs back in completely.
2. Cleaning the dispensers/detergent drawer:
a) Empty the dispensers before removing the drawer.
Note:
b) Pull out the drawer.
c) Press the catch and remove the drawer completely.
d) Carefully remove the drawer cover.
Caution!
e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
f) Dry the drawer and the cover and put them back together.
g) Push the drawer handle back in from above until you feel it click in place.
h) Clean the inside of the detergent- drawer housing.
i) Push the detergent drawer in completely.

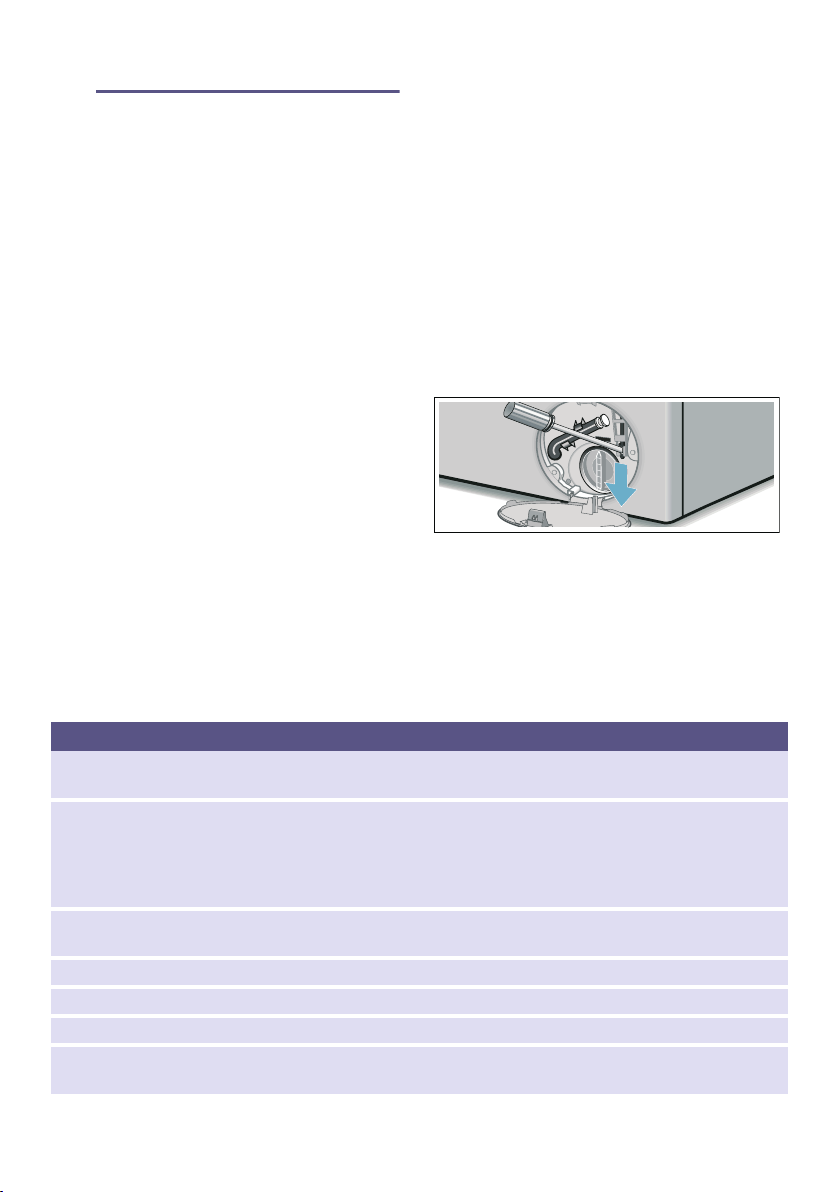

The drain pump is blocked, emergency draining
: Warning
Risk of scalding!
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
2. Switch off the appliance. Pull out the mains plug.
3. Open and remove the service flap.
4. Take the auxilary drain hose out of the holder.
5. Carefully unscrew the pump cover; remaining water may leak out.
6. Put the service flap back on, engage and close it.
Note:

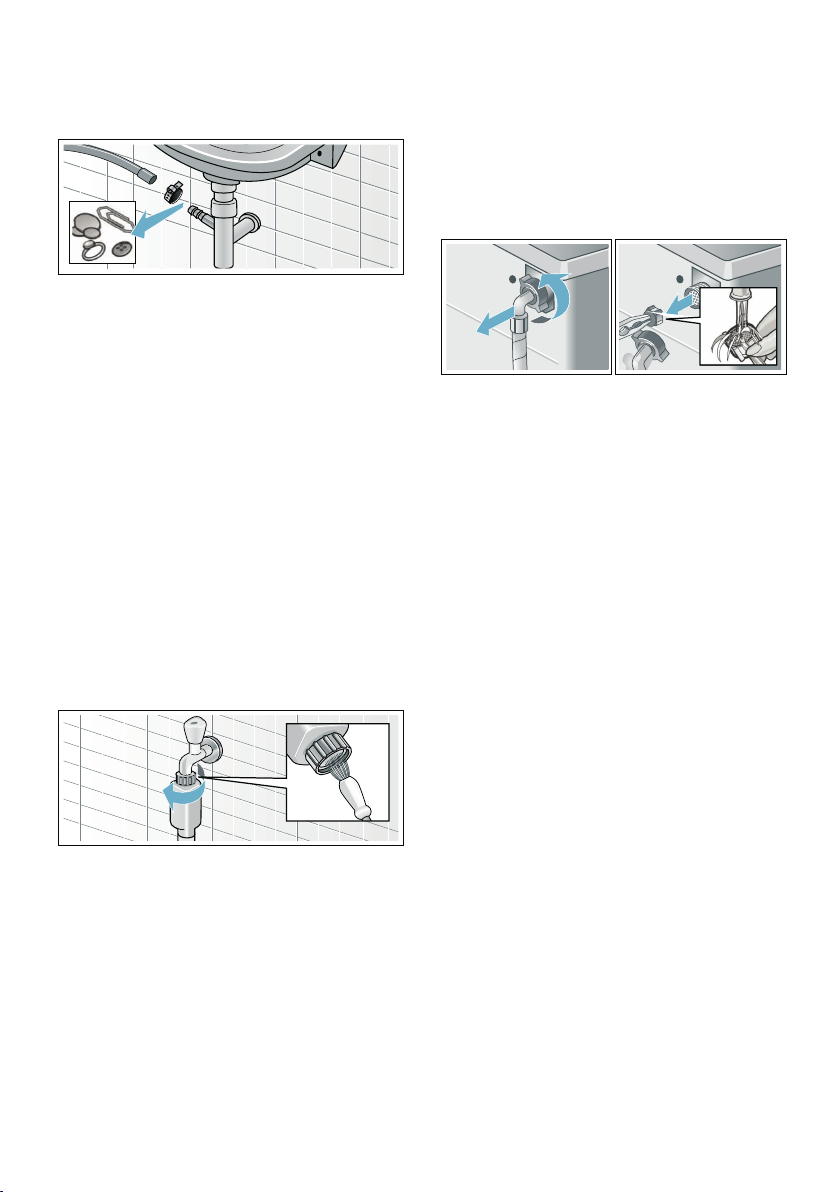

The drain hose at the siphon is blocked
1. Switch off the appliance. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply blocked
1. Release water pressure in the supply hose:
a) Turn off the tap.
b) Select any programme (except Rinse/Spin/Drain/Empty).
c) Start the programme and leave it to run for approx. 40 seconds.
d) Switch off the appliance.
e) Pull out the mains plug.
2. Clean the filters:
a) Disconnect the hose from the tap.
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
c) Connect the hose and check for leaks.
3 Faults and what to do about them.
Faults and what to do about them.
Emergency release
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage
1. Switch off the appliance. Pull out the mains plug.
2. Drain the water. ~ Page 27
3. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/remedy
Notes
Faults and what to do about them.
Faults
Cause/remedy
4. Empty and clean. ~ Page 25
5. Refill.
Note:
4 After-sales service
After-sales service
J Technical data
Technical data
5 Positioning and connecting
Positioning and connecting

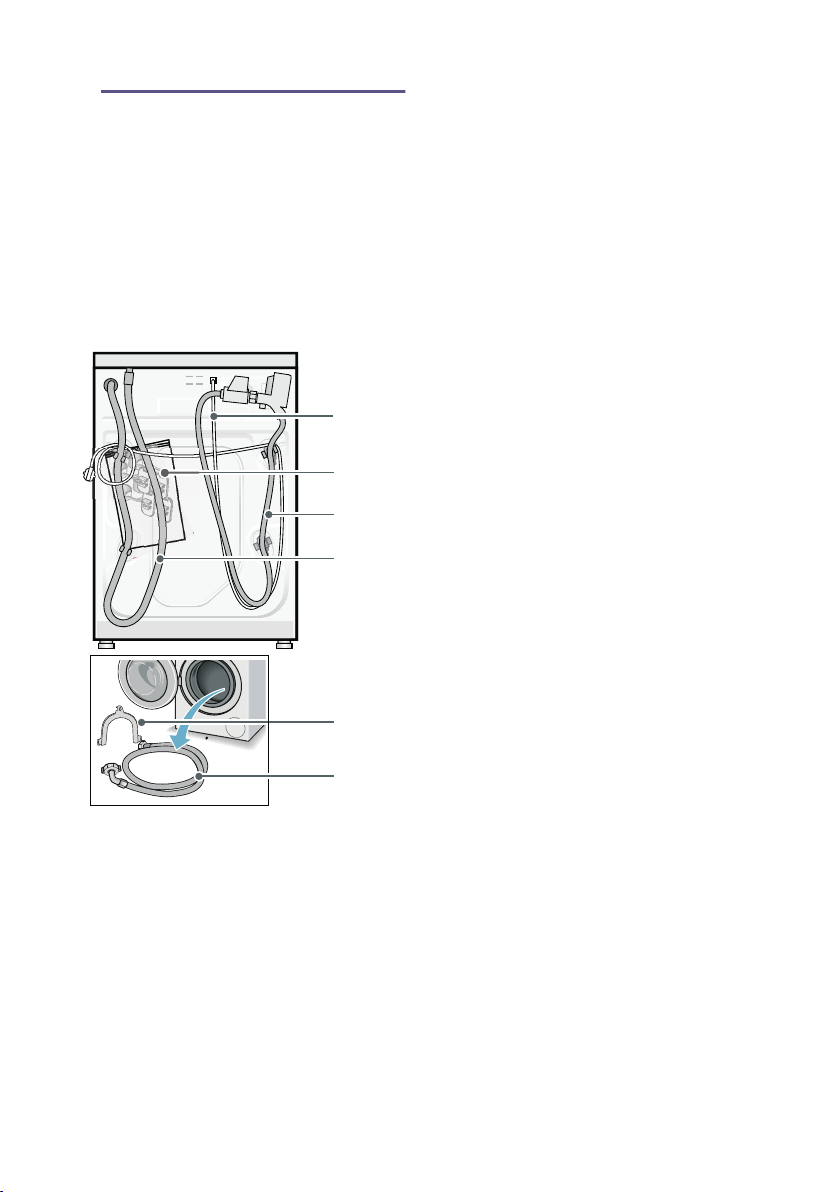

Included with the appliance
Note:
■ Spirit level for levelling
■ Wrench with:
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
Installation on a platform with drawer
Installing the appliance in a kitchenette
: Warning
Danger of death!
Notes

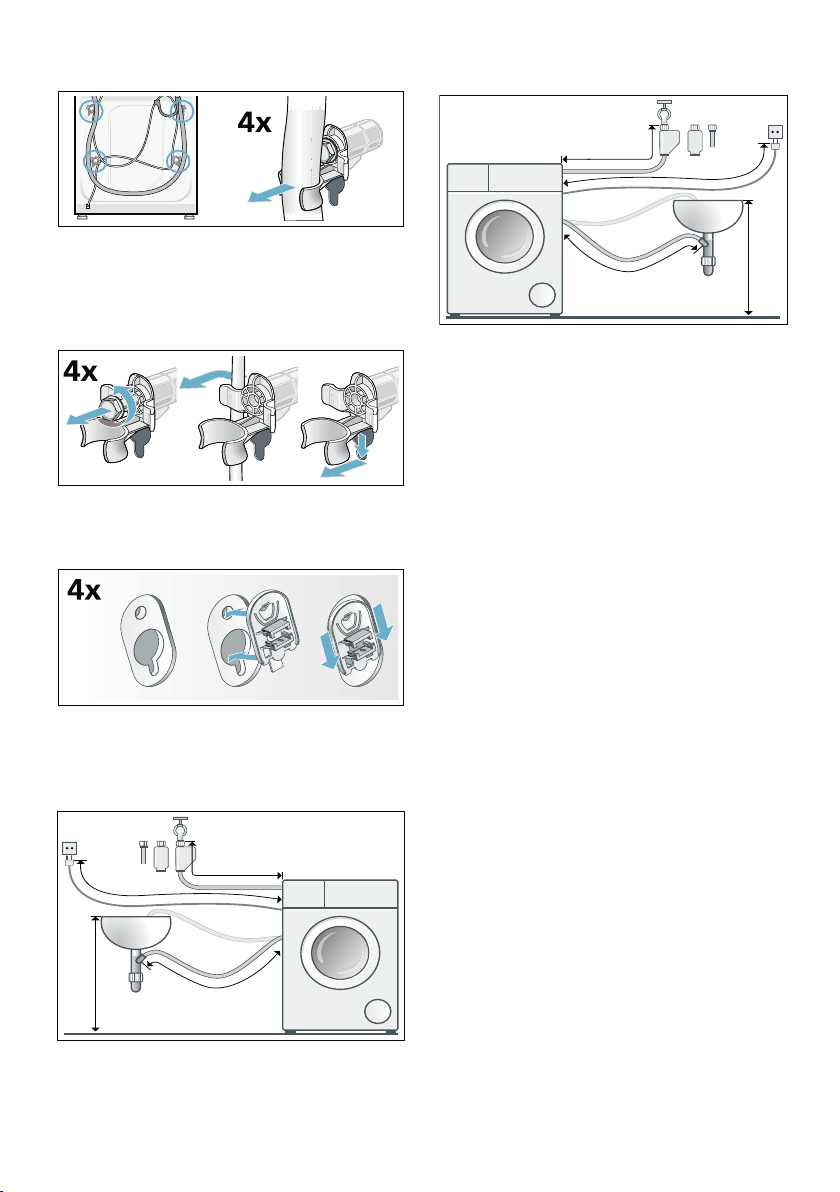

Removing the transport locks
Caution!
Damage to the appliance
Note:
1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
Hose and cable lengths
■ Left-hand connection
■ Right-hand connection
Tip:

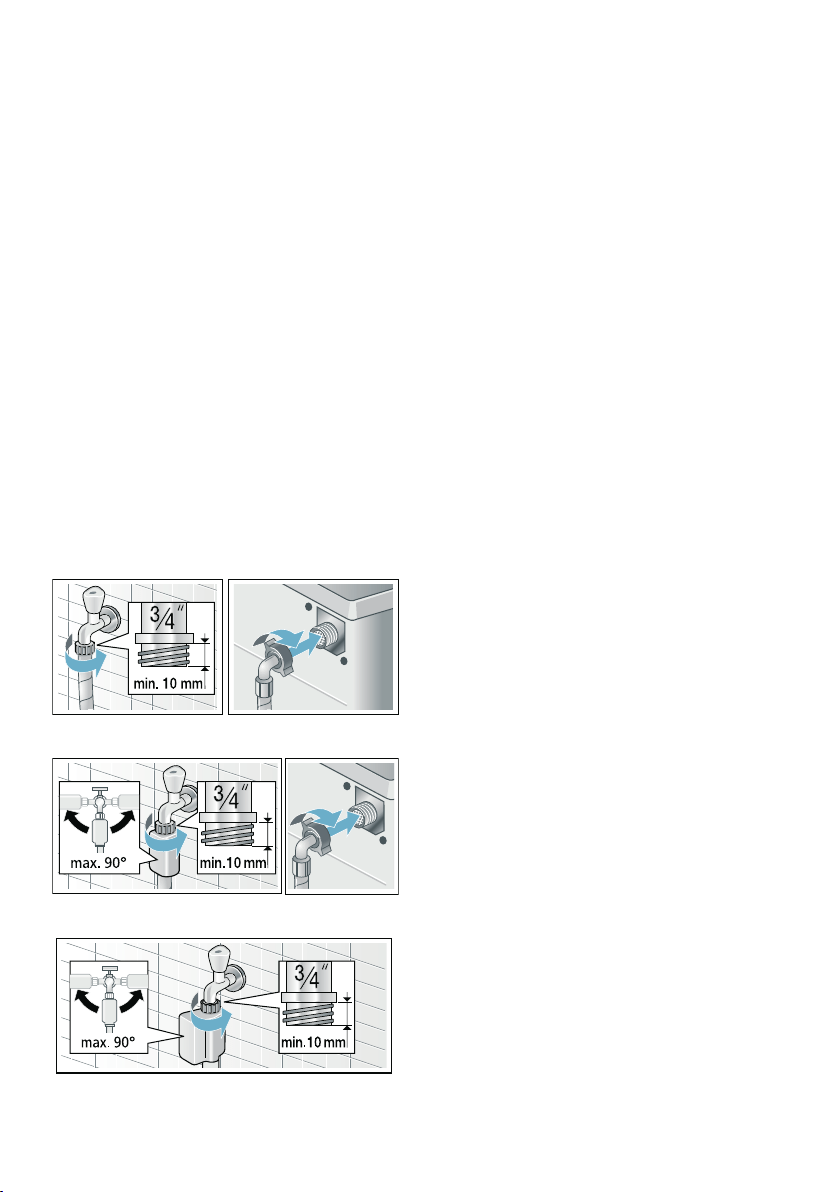

Water inlet
: Warning
Danger of death!
Notes
■ Model: Standard
■ Model: AquaSecure
■ Model: Aqua-Stop
Note:
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Note:

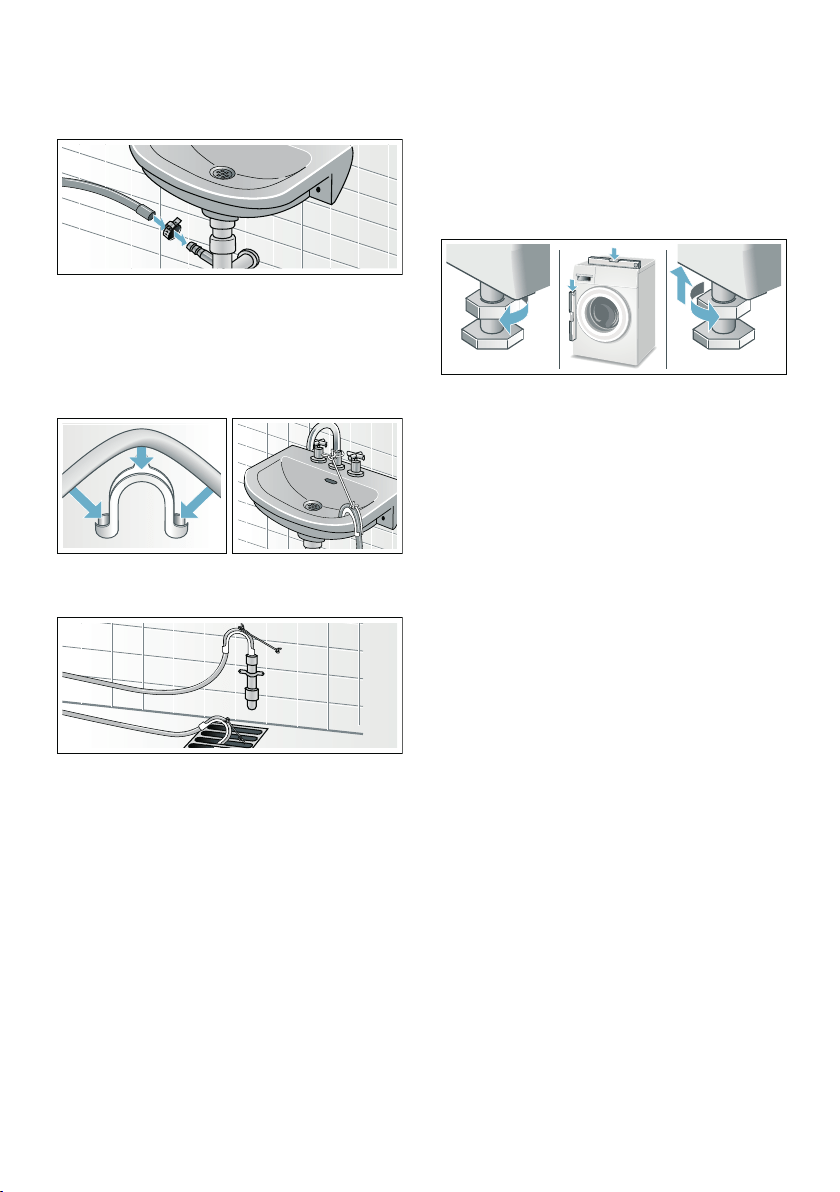

Connection
■ Drainage into a siphon
■ Drainage into a wash basin
■ Drainage into a plastic pipe with rubber sleeve or into a gully
Levelling
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Danger of death!
Notes
Before washing for the first time
Notes
Preparatory work:
1. Check the machine.
2. Fill the dispenser ß and i. ~ Page 20
3. Remove the protective film from the control panel.
4. Plug into the mains.
5. Turn on the tap.
Run the programme without laundry.
1. Switch on the appliance.
2. Close the door (do not load any laundry).
3. Set the Drum Clean 90 °C programme.
4. Open the detergent drawer.
5. Pour approx. 1 litre of water into the left-hand compartment.
6. Pour standard detergent into the left- hand compartment .
Note:
7. Close the detergent drawer.
8. Start the programme.
9. Switch off the appliance at the end of the programme.
Transportation
Caution!
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
1. Turn off the tap.
2. Reduce the water pressure in the supply hose: ~ Page 28; cleaning and maintenance – filter in the water supply clogged
3. Disconnect the washing machine from the mains.
4. Drain any residual water: ~ Page 27; cleaning and maintenance – drain pump blocked, emergency draining
5. Remove the hoses.
6. Empty the dispensers. ~ Page 25

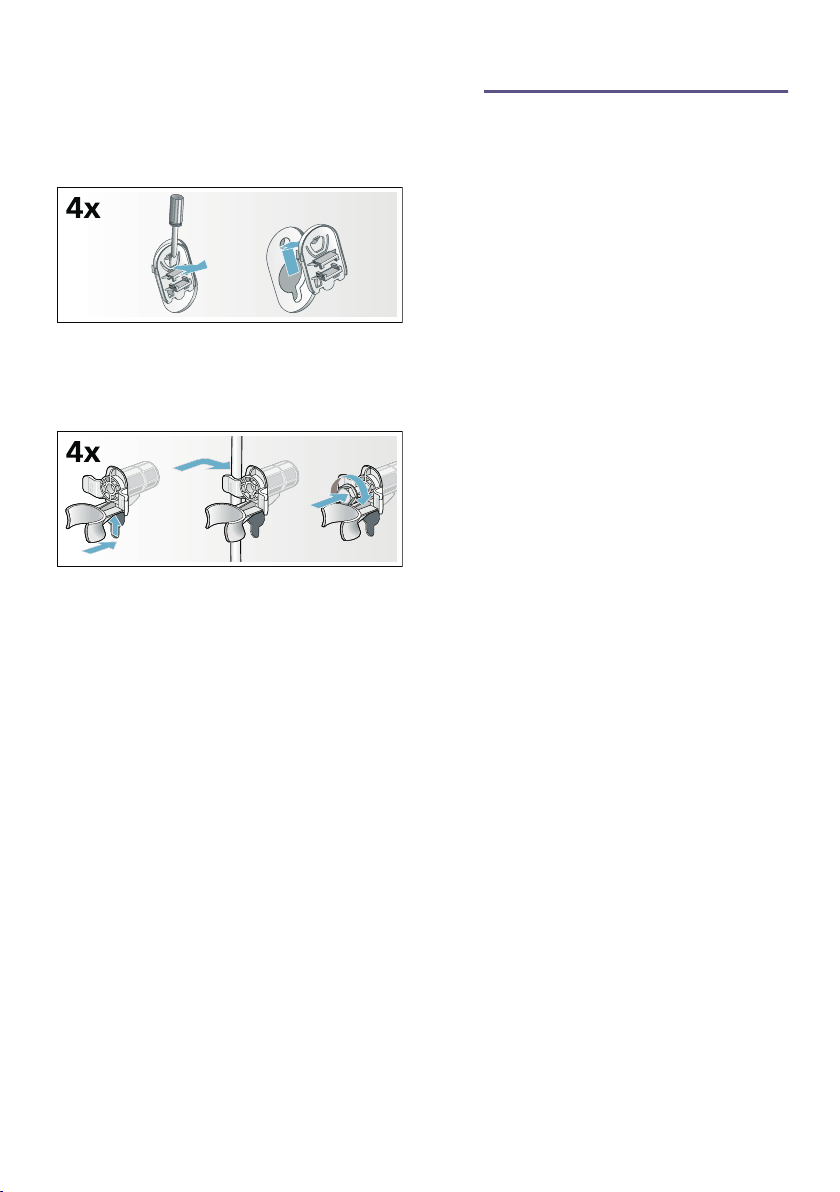

Fitting the transportation securing means:
1. Remove the covers and keep them in a safe place.
2. Insert all four sleeves.
Notes
r Aqua-Stop warranty
Aqua-Stop warranty
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
*9001096259*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/42
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
ZPVS
OFXEF
WJDFPO
.Z#PTDIOP
XBOE
HFUGS
FFCFOFGJUT
CPTDIIPNFDPN
XFMDPNF
en
Instruction Manual and Installation Instructions
Washing machine
WAT ...
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 65420931_wat2869bsn-40.pdf
File size: 4.2 MB
File Language: English
Pages: 42
Author: Bosch
File created: 2023-09-08
Published: 2023-12-15
Updated: 2023-12-15
Download File
Other documents for Bosch WAT2869BSN/40
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WAT2869BSN/40
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
PIY679F17E/01
HKQ38A150M/04
DIV016G50/03
GSE22420GB/01
PIS675A01E/01
Related Products
Indesit F158716
Indesit F158703
Indesit F158705
Indesit F161985
Beko BFL104ADW
Beko BFLB904ADW
Beko BFLB904ADG
LG Electronics FCV310WNE
LG Electronics FCV309WNE
Miele PWM 908 [EL DP]
Bosch WAT286V0
Bosch WAT286F1
Bosch WAT28640
Bosch WAT286H0GB
Bosch WAT28620AU
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 6
3
* Familiarising yourself with your appliance 8
3
Z Laundry 11
3
C Detergent 12
3
0 Programme default settings 13
3
\ Additional programme settings 15
3
1 Operating the appliance 16
3
a Intelligent dosing system 20
3
Q Appliance settings 23
3
H Sensors 24
3
2 Cleaning and maintenance 25
3
3 Faults and what to do about them. 29
4
4 After-sales service 33
4
J Technical data 33
4
5 Positioning and connecting 34
4
r Aqua-Stop warranty 40
4
8 Intended use
4
Intended use
4
■ For private domestic use only.
4
■ The washing machine is suitable for washing machine-washable fabrics and hand-washable wool in detergent solution.
4
■ To be operated with cold mains water and standard detergents and care products which are suitable for use in washing machines.
4
■ When measuring out the amount of all detergents, additives, care products and cleaning agents, always follow the manufacturer's instructions.
4
■ The washing machine may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed by a responsi...
4
■ Keep children under the age of 3 years away from the washing machine.
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
■ Keep pets away from the washing machine.
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
6
Environmental protection
6
Packaging/used appliance
6
Tips on economical use
6
■ Always utilise the maximum amount of washing for the particular programme.
6
■ Wash normally soiled laundry without prewash.
6
■ For light and normal soiling in laundry, you can save energy and detergent. ~ Page 13
6
■ Dosing the detergent using the intelligent dosing system (i-DOS) helps to save both detergent and water.
6
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
6
■ Information on energy and water consumption:
6
■ Energy-saving mode: The touch display lighting goes out after a few minutes, the A button flashes.
7
■ Automatic switch off (only before the programme starts or after the programme ends) If the appliance is not operated for a prolonged period, it automatically switches off to save energy. Press the main switch again to switch on the appliance.
7
■ If the washing will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
7
* Familiarising yourself with your appliance
8
Familiarising yourself with your appliance
8
Washing machine
8
Controls
9
Content of the touch display
9
Display and control panels
9
Display for adjustment values
9
Setting
9
Note:
10
Other displays
10
Information on
10
Z Laundry
11
Laundry
11
Prepare the laundry
11
Caution!
11
Damage to the appliance/fabrics
11
■ Empty any pockets.
11
■ Look out for metal items (paperclips, etc.) and remove them.
11
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
11
■ Close any zips; button up any cover buttons.
11
■ Brush sand out of pockets and collars.
11
■ Remove curtain fittings or place curtains in a laundry bag.
11
Sorting laundry
11
■ Type of fabric/fibre
11
■ Colour
11
Note:
11
■ Soiling Wash laundry with the same level of soiling together.
11
■ Symbols on the care labels
11
Note:
11
Starching
11
Note:
11
1. Switch on the appliance.
11
2. Select the Rinse programme.
11
3. Manually add the dosage of liquid starch into the left-hand dispenser (if required, clean it beforehand) in accordance with the manufacturer’s instructions.
11
4. Touch the control panel A.
11
Dyeing/bleaching
12
Soaking
12
1. Switch on the appliance.
12
2. Select the Cottons 30 °C programme.
12
3. Use i-DOS to dose your detergent or add it to the left-hand compartment in accordance with the manufacturer’s instructions.
12
4. Touch the control panel A. The program starts.
12
5. After approx. 10 minutes, press A to pause the programme.
12
6. Leave the laundry to soak for as long as required, then either touch A again to continue the programme or change the programme.
12
Notes
12
C Detergent
12
Detergent
12
Correct selection of detergent
12
■ Standard detergent with optical brighteners
12
■ Detergent for colours without bleach or optical brighteners
12
■ Detergent for colours/delicates without optical brighteners
12
■ Detergent for delicates
12
■ Detergent for woollens
12
Saving energy and detergent
13
Saving
13
Soiling/note
13
Note:
13
0 Programme default settings
13
Programme default settings
13
Temperature
13
Spin speed
13
Ready in time
13
Note:
14
1. Touch the control panel A.
14
2. Touch N or M to change the time.
14
3. And touch A again.
14
i-DOS settings
14
■ w i-DOS: L
14
■ i i-DOS: K
14
i-DOS w for detergent
14
Adjustment values for the dosage quantity
14
i-DOS i for fabric softener
14
Adjustment values for dosage quantities
14
Memory programme
15
To store:
15
1. Switch on the appliance.
15
2. Select a programme.
15
3. Change the settings and/or select additional settings.
15
4. Press and hold â on the control panel for approx. three seconds.
15
\ Additional programme settings
15
Additional programme settings
15
SpeedPerfect
15
Note:
15
EcoPerfect
15
Easy-Iron
15
Note:
15
Water&Rinse+
16
Adjustment values:
16
Prewash
16
Notes
16
1 Operating the appliance
16
Operating the appliance
16
Preparing the washing machine
16
Note:
16
1. Connect the mains plug.
16
2. Turn on the water tap.
16
3. Open the door.
16
4. Check that the drum is completely drained. Drain if necessary.
16
Switching on the appliance/ selecting a programme
16
Notes
16
You can:
17
■ Use this programme and load laundry. ~ Page 17
17
■ Or select another programme.
17
■ Or change the programme default settings. ~ Page 17
17
■ And/or select additional programme settings. ~ Page 17
17
Change the programme default settings
17
Note:
17
Select additional programme settings
17
Placing laundry into the drum
17
: Warning
17
Danger of death!
17
Notes
17

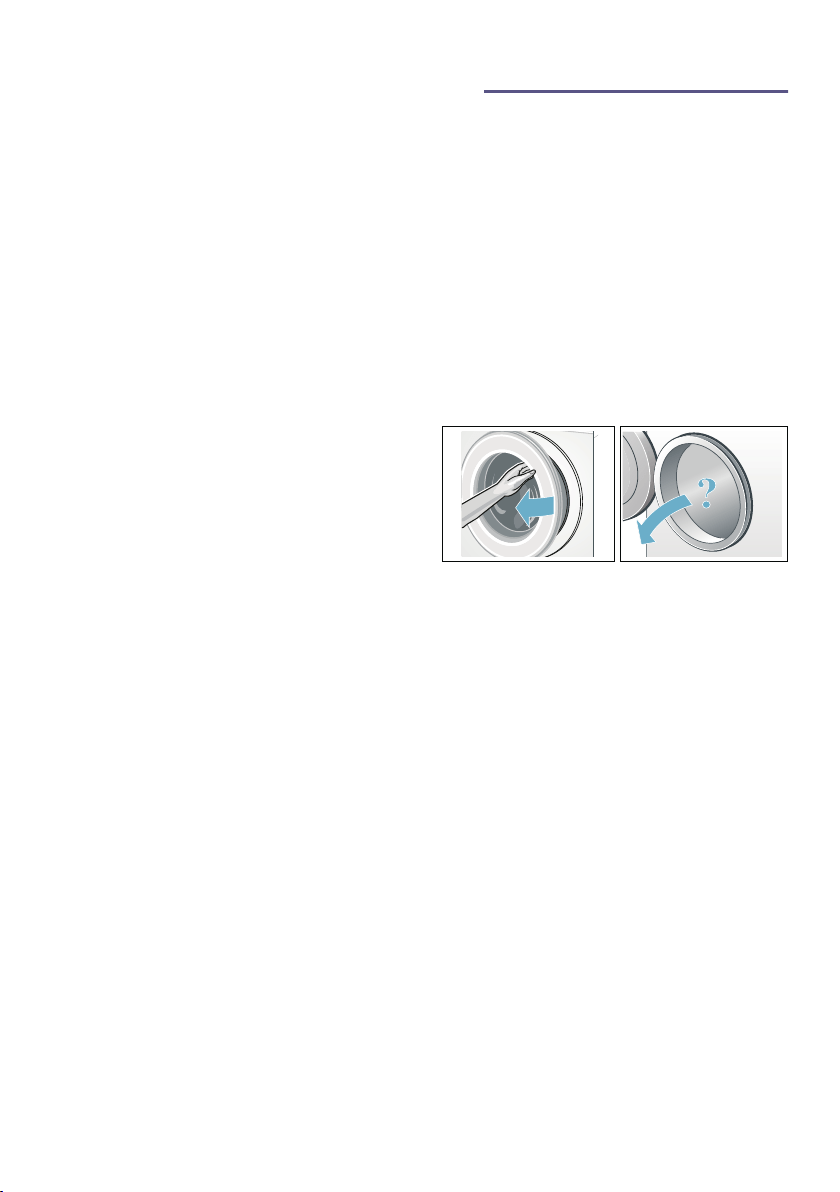

1. Place presorted items of laundry unfolded in the washing drum.
17
2. Make sure that no items of laundry are trapped between the washing machine door and the rubber seal, and close the door.
17
Measure and add detergent and care products
17
Start the programme
18
During the programme, the current programme information is displayed:
18
■ Finished in-time or, after the washing programme has started, the programme duration
18
■ And the displays for the programme's progress light up. ~ Page 9
18
Note:
18
Childlock/operation lock
18
Notes
18
Adding laundry
18
Notes
18
Changing the programme
19
1. Touch the control panel A.
19
2. Select another programme.
19
3. And touch A again.The new program starts from the beginning.
19
Cancel the programme
19
1. Touch the control panel A.
19
2. To cool the laundry: Select Rinse.
19
3. And touch A again.
19
1. Touch A.
19
2. Select Spin or Drain/Empty.
19
3. And touch A again.
19
Programme end
19
Note:
19
Removing laundry/switching off the appliance
19
1. Open the loading door and remove the laundry.
19
2. Switch off the appliance.
19
3. Turn off the tap.
19
Note:
19
Notes
19
a Intelligent dosing system
20
Intelligent dosing system
20
Intelligent dosing system in the detergent drawer
20
Initial use/filling the dispensers
20
Notes
20
Filling the dispensers:
20
■ ß Standard/universal detergent
20
■ i Fabric softener
20
1. Open the detergent drawer.
20
2. Open the dispenser cover(s).
20
3. Add detergent/fabric softener. Do not fill above the max. marking.
20
4. Close the cover(s).
20
5. Slowly push the detergent drawer in completely.
20
Everyday use
21
Displays:
21
■ The display lights up if intelligent dosage has been selected for the dispenser.
21
■ The display for the adjustment values, e.g. K flashes if the fill level for the dispenser is below the minimum level when intelligent dosing has been selected.
21
(De)selecting intelligent dosage and adjusting the dosage strength:
21
Note:
21
Topping up the detergent/ fabric softener:
21
Basic settings
21
The basic dosages are:
21
■ For detergents – based on the manufacturer’s recommendation for average soiling and the respective water hardness.
21
■ F or fabric softeners – based on the manufacturer's recommendation for a medium level of softness.
21
My water hardness:
21
Degree of soiling →
22
Water hardness ↓
22
light
22
normal
22
heavy
22
very heavy
22
Notes
22
Changing the basic dosages:
22
1. Press and hold the corresponding i- DOS control panel (w or i) for approx. three seconds. The preset base dosing quantity is displayed.
22
2. Touch N or M to set the required base dosing quantity. The setting is activated without needing to be confirmed.
22
3. Touch the corresponding i-DOS control panel again to return to the initial status.
22
Note:
22
Manual dosage
22
: Warning
22
Eye/skin irritation!
22
Caution!
22
Damage to the appliance
22
Notes
23
Dosing and adding detergent:
23
1. Pull out the detergent drawer.
23
2. Add the dosage to the left-hand compartment depending on the following:
23
3. Close the detergent drawer.
23
Q Appliance settings
23
Appliance settings
23
■ The volume of the information signal (e.g. at the end of the programme),
23
■ The volume of the operating signals,
23
■ The brightness of the operating and display field,
23
■ Select/deselect the memory function for drum care.
23
Activating the setting mode
23
1. Switch on the appliance. The settings for the current programme are displayed.
23
2. Touch the control panel œ.
23
Changing the signal volume
23
Adjustment values:
23
Changing the brightness of the touch display
24
Adjustment values:
24
Select/deselect the memory function for drum care
24
Exiting setting mode
24
To exit and save the settings:
24
■ Wait for approx. 15 minutes or
24
■ Touch œ one last time or
24
■ Switch off the appliance. The selected settings will take effect the next time the washing machine is switched on.
24
H Sensors
24
Sensors
24
Automatic load sensing
24
Unbalanced load detection system
24
Note:
24
VoltCheck
24
■ Flashes , if the voltage is currently too low.
24
■ Pulses, if insufficient voltage was detected during the programme.
24
Note:
24
2 Cleaning and maintenance
25
Cleaning and maintenance
25
: Warning
25
Danger of death!
25
: Warning
25
Risk of poisoning!
25
Caution!
25
Damage to the appliance
25
Notes
25
Machine housing/control panel
25
■ Wipe the housing and the control panel with a soft, damp cloth.
25
■ Remove the detergent residue immediately.
25
■ Do not clean with a water jet.
25
Drum
25
Descaling
25
i-DOS detergent draw and its housing
25
1. Emptying the dispensers:
25
a) Pull out the detergent drawer.
25
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
25
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
26
d) Then push the sealing plugs back in completely.
26
2. Cleaning the dispensers/detergent drawer:
26
a) Empty the dispensers before removing the drawer.
26
Note:
26
b) Pull out the drawer.
26
c) Press the catch and remove the drawer completely.
26
d) Carefully remove the drawer cover.
26
Caution!
26
e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
26
f) Dry the drawer and the cover and put them back together.
26
g) Push the drawer handle back in from above until you feel it click in place.
26
h) Clean the inside of the detergent- drawer housing.
27
i) Push the detergent drawer in completely.
27
The drain pump is blocked, emergency draining
27
: Warning
27
Risk of scalding!
27
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
27
2. Switch off the appliance. Pull out the mains plug.
27
3. Open and remove the service flap.
27
4. Take the auxilary drain hose out of the holder.
27
5. Carefully unscrew the pump cover; remaining water may leak out.
27
6. Put the service flap back on, engage and close it.
27
Note:
27
The drain hose at the siphon is blocked
27
1. Switch off the appliance. Pull out the mains plug.
27
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
27
3. Clean the drain hose and siphon connecting piece.
28
4. Re-attach the drain hose and secure the connection point using the hose clamp.
28
Filter in the water supply blocked
28
1. Release water pressure in the supply hose:
28
a) Turn off the tap.
28
b) Select any programme (except Rinse/Spin/Drain/Empty).
28
c) Start the programme and leave it to run for approx. 40 seconds.
28
d) Switch off the appliance.
28
e) Pull out the mains plug.
28
2. Clean the filters:
28
a) Disconnect the hose from the tap.
28
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
28
c) Connect the hose and check for leaks.
28
3 Faults and what to do about them.
29
Faults and what to do about them.
29
Emergency release
29
: Warning
29
Risk of scalding!
29
: Warning
29
Risk of injury!
29
Caution!
29
Water damage
29
1. Switch off the appliance. Pull out the mains plug.
29
2. Drain the water. ~ Page 27
29
3. Pull the emergency release downwards with a tool and release.
29
Information on the display panel
29
Display
29
Cause/remedy
29
Notes
30
Faults and what to do about them.
31
Faults
31
Cause/remedy
31
4. Empty and clean. ~ Page 25
31
5. Refill.
31
Note:
32
4 After-sales service
33
After-sales service
33
J Technical data
33
Technical data
33
5 Positioning and connecting
34
Positioning and connecting
34
Included with the appliance
34
Note:
34
■ Spirit level for levelling
34
■ Wrench with:
34
Safety instructions
34
: Warning
34
Risk of injury!
34
Caution!
34
Damage to the appliance
34
Caution!
34
Water damage
34
Notes
35
Installation surface
35
Note:
35
Installation on a base or a wooden joist floor
35
Caution!
35
Damage to the appliance
35
Note:
35
Installation on a platform with drawer
35
Installing the appliance in a kitchenette
35
: Warning
35
Danger of death!
35
Notes
35
Removing the transport locks
35
Caution!
35
Damage to the appliance
35
Note:
35
1. Take the hoses out of the holders.
35
2. Unscrew and remove all four transport brace screws.
36
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
36
Hose and cable lengths
36
■ Left-hand connection
36
■ Right-hand connection
36
Tip:
36
Water inlet
36
: Warning
36
Danger of death!
36
Notes
36
■ Model: Standard
37
■ Model: AquaSecure
37
■ Model: Aqua-Stop
37
Note:
37
Water outlet
37
: Warning
37
Risk of scalding!
37
Caution!
37
Water damage
37
Caution!
37
Damage to the appliance/fabrics
37
Note:
37
Connection
37
■ Drainage into a siphon
37
■ Drainage into a wash basin
38
■ Drainage into a plastic pipe with rubber sleeve or into a gully
38
Levelling
38
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
38
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
38
3. Tighten the lock nut against the housing.
38
Electrical connection
38
: Warning
38
Danger of death!
38
Notes
38
Before washing for the first time
39
Notes
39
Preparatory work:
39
1. Check the machine.
39
2. Fill the dispenser ß and i. ~ Page 20
39
3. Remove the protective film from the control panel.
39
4. Plug into the mains.
39
5. Turn on the tap.
39
Run the programme without laundry.
39
1. Switch on the appliance.
39
2. Close the door (do not load any laundry).
39
3. Set the Drum Clean 90 °C programme.
39
4. Open the detergent drawer.
39
5. Pour approx. 1 litre of water into the left-hand compartment.
39
6. Pour standard detergent into the left- hand compartment .
39
Note:
39
7. Close the detergent drawer.
39
8. Start the programme.
39
9. Switch off the appliance at the end of the programme.
39
Transportation
39
Caution!
39
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
39
1. Turn off the tap.
39
2. Reduce the water pressure in the supply hose: ~ Page 28; cleaning and maintenance – filter in the water supply clogged
39
3. Disconnect the washing machine from the mains.
39
4. Drain any residual water: ~ Page 27; cleaning and maintenance – drain pump blocked, emergency draining
39
5. Remove the hoses.
39
6. Empty the dispensers. ~ Page 25
39
Fitting the transportation securing means:
40
1. Remove the covers and keep them in a safe place.
40
2. Insert all four sleeves.
40
Notes
40
r Aqua-Stop warranty
40
Aqua-Stop warranty
40
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
40
2. The liability guarantee is valid for the service life of the appliance.
40
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
40
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
40
*9001096259*
42
Thank you for buying a Bosch Home Appliance!
42
Looking for help? You´ll find it here.
42
Search:
×
Search
