EN, English
Operator's manual
Husqvarna Automower
®
105
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Introduction
1.1 Support..................................................................3
1.2 Product description............................................... 3
1.3 Product overview ..................................................4
1.4 Symbols on the product........................................ 5
1.5 Symbols on the display......................................... 5
1.6 Symbols on the battery......................................... 6
1.7 General manual instructions................................. 6
1.8 Menu structure overview....................................... 7
1.9 Display.................................................................. 8
1.10 Keypad ............................................................... 8
2 Safety
2.1 Safety information................................................. 9
2.2 Safety definitions.................................................10
2.3 Safety instructions for operation..........................10
3 Installation
3.1 Introduction - Installation..................................... 13
3.2 Main components for installation.........................13
3.3 General preparations.......................................... 13
3.4 Before the installation of the wires...................... 13
3.5 Installation of the product.................................... 18
3.6 To put the wire into position with stakes............. 20
3.7 To bury the boundary wire or the guide wire.......20
3.8 To extend the boundary wire or the guide wire... 20
3.9 After the installation of the product......................20
3.10 To do the product settings.................................21
4 Operation
4.1 Main switch......................................................... 25
4.2 To start the product............................................. 25
4.3 Operating modes.................................................25
4.4 To stop the product............................................. 26
4.5 To switch off the product..................................... 26
4.6 To charge the battery.......................................... 26
4.7 Adjust the cutting height......................................26
5 Maintenance
5.1 Introduction - maintenance..................................27
5.2 Clean the product................................................27
5.3 Replacement of the blades................................. 28
5.4 Battery.................................................................28
5.5 Winter service..................................................... 28
6 Troubleshooting
6.1 Introduction - troubleshooting..............................29
6.2 Fault messages...................................................29
6.3 Information messages.........................................34
6.4 Indicator lamp in the charging station................. 35
6.5 Symptoms........................................................... 36
6.6 Find breaks in the loop wire................................ 37
7 Transportation, storage and disposal
7.1 Transportation..................................................... 40
7.2 Storage................................................................40
7.3 Disposal.............................................................. 40
8 Technical data
8.1 Technical data.....................................................41
9 Warranty
9.1 Warranty terms....................................................43
2 1285 - 009 - 22.02.2022
1 Introduction
Serial number:
Product number:
PIN code:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
1.1 Support
For support about the product, speak to your
Husqvarna
®
servicing dealer.
1.2 Product description
Note: Husqvarna
®
regularly updates the appearance
and function of the products. Refer to
Support on page
3
.
The product is a robotic lawn mower. The product has a
battery power source and cuts the grass automatically. It
continuously alternates between mowing and charging.
The movement pattern is random, which means that the
lawn is mowed evenly and with less wear. The boundary
wire and the guide wire controls the movement of the
product within the work area. Sensors in the product
senses when it is approaching the boundary wire. The
front of the product always passes the boundary wire
by a specific distance before the product turns around.
When the product hits an obstacle or approaches the
boundary wire the product selects a new direction.
The operator selects the operation settings with the keys
on the keypad. The display shows the selected and
possible operation settings, and the operation mode of
the product.
1.2.1 Mowing technique
The product is emission free, easy to use and saves
energy. The frequent cutting technique improves the
grass quality and decreases the use of fertilizers.
Collection of grass is not necessary.
1.2.2 Find the charging station
The product operates until the battery state of charge
is low, then the product starts to go to the charging
station. The guide wire is put from the charging station
to a remote part of the work area or through a narrow
passage. The guide wire is connected with the boundary
wire to make it easier and faster for the product to find
the charging station.
1285 - 009 - 22.02.2022 Introduction - 3

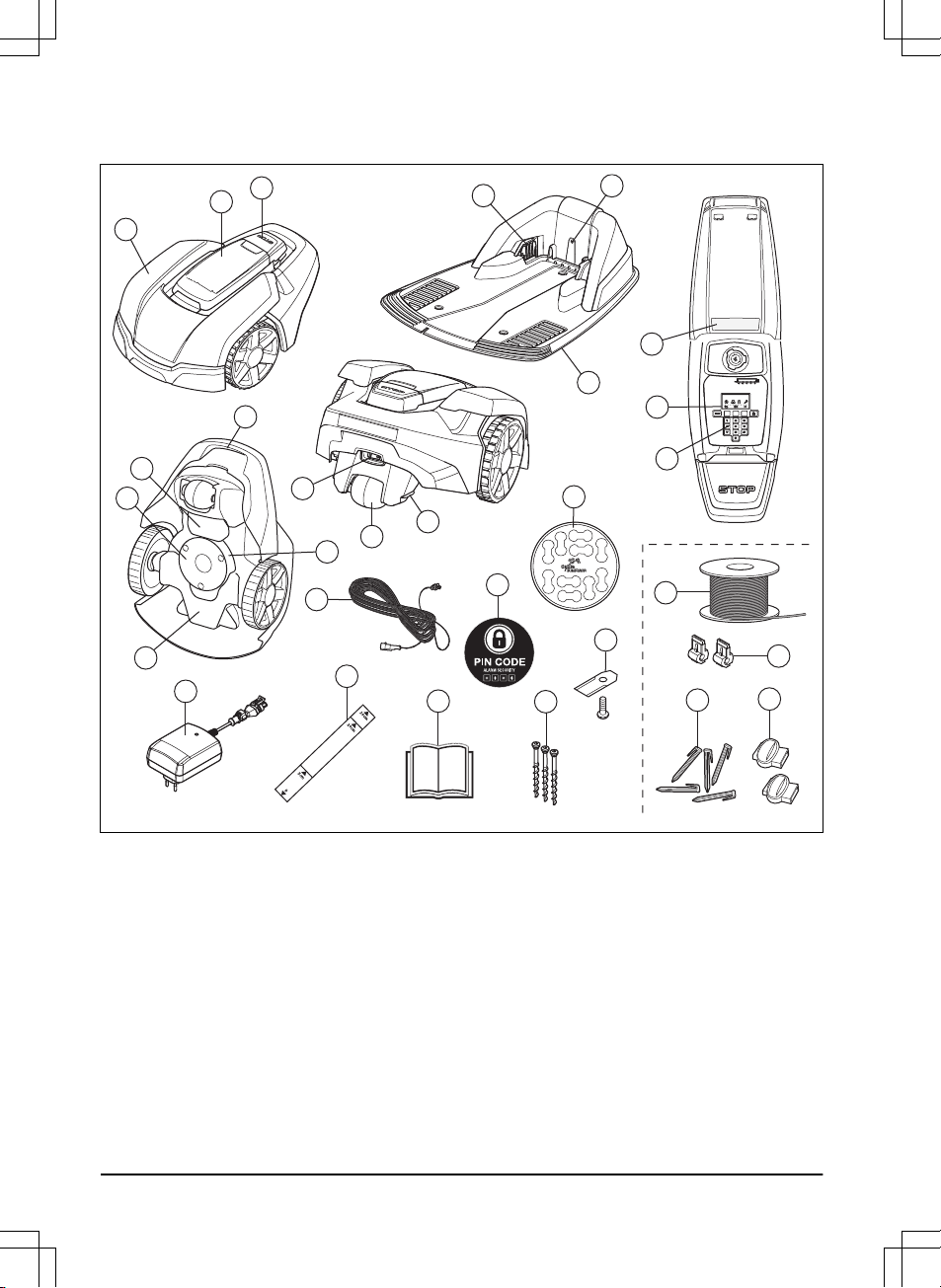

1.3 Product overview
1
3
2
17
26
6
5
4
13
14
12
21
25
19
24
20
23
18
8
10
11
7
22
28
15
29
16
9
27
1. Body
2. Hatch to display, keypad and cutting height
adjustment
3. Stop button
4. Contact strips
5. LED for operation check of the charging station,
boundary wire and guide wire
6. Charging station
7. Carry handle
8. Battery cover
9. Blade disc
10. Skid plate
11. Chassis box with electronics, battery and motors
12. Main switch
13. Rear wheel
14. Charging strip
15. Keypad
16. Display
17. Loop wire for boundary loop and guide wire
18. Connector for connecting the loop wire to the
charging station
19. Stakes
20. Coupler for the loop wire
21. Screws for securing the charging station
22. Extra blades
23. Operator’s Manual and Quick Guide
24. Measurement gauge for help when installing the
boundary wire (the measurement gauge is broken
loose from the box)
4 - Introduction 1285 - 009 - 22.02.2022
25. Power supply
1
26. Low voltage cable
27. Alarm decal
28. Cable markers
29. Rating plate (incl. product identification code)

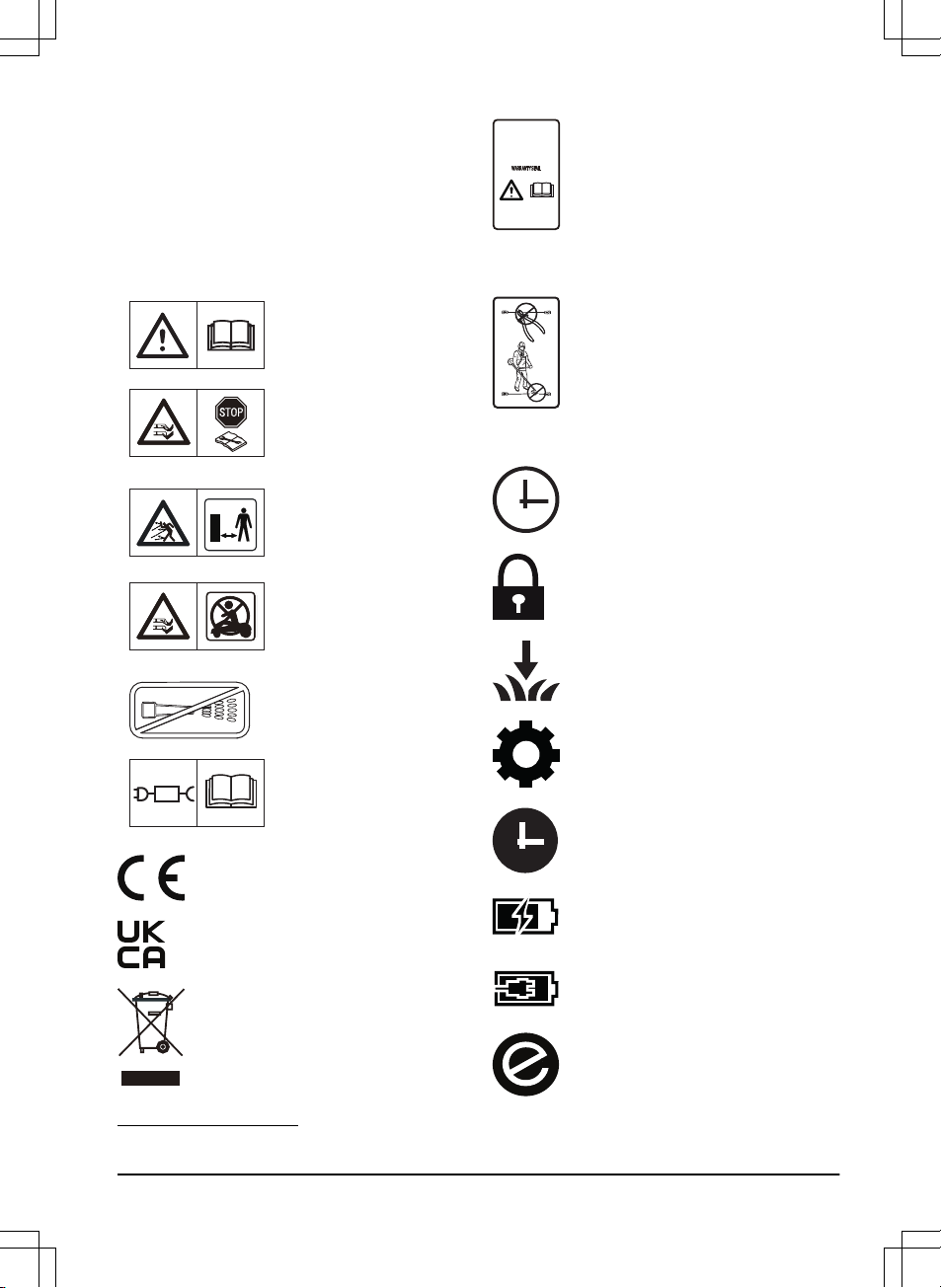

1.4 Symbols on the product
These symbols can be found on the product. Study them
carefully.
WARNING: Read the user
instructions before operating
the product.
WARNING: Disable the prod-
uct before working on or lift-
ing the product.
WARNING: Keep a safe dis-
tance from the product when
operating. Keep your hands
and feet away from the rotat-
ing blades.
WARNING: Do not ride on
the product. Do not put your
hands or feet close to or un-
der the product.
Do not use a high-pressure
washer or even running water
to clean the product.
Use a detachable power sup-
ply as defined on the rating
label next to the symbol.
This product complies with the applicable
EU Directives.
This product complies with the applicable
UK Directives.
It is not permitted to dispose this product
as normal household waste. Ensure that
the product is recycled in accordance with
local legal requirements.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must also be resealed
in a professional manner. For these
reasons the chassis shall only be opened
by authorized service technicians. A
broken seal can result in the entire or
parts of the guarantee no longer being
valid.
The low-voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low-
voltage cable. Be careful when trimming
edges where the cables are placed.
1.5 Symbols on the display
In the
Timer
menu you can set when the
product will cut the lawn.
In the
Security
menu you can select
between 3 security levels.
In the
Installation
menu you can set
manual settings for the installation of the
product.
In the
Settings
menu you can set the
general product settings.
The product will not cut the grass due to
the
Timer
function.
The battery indicator shows the charge
level of the battery. When the product
charges the symbol flashes.
The product is the charging station but do
not charge the battery.
The product is set in
ECO-mode
.
1
The appearance may differ depending on market
1285 - 009 - 22.02.2022 Introduction - 5
1.6 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
1.7 General manual instructions
The following system is used in the Operator’s Manual
to make it easier to use:
• Text written in
italics
is a text that is shown in the
display or is a reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on the
product.
6 - Introduction 1285 - 009 - 22.02.2022
1.8 Menu structure overview
Installation
Guide width Remote start 1
Narrow
Never Rarely Medium
Often
Always
Medium
Wide
Test outTest in
Distance
Remote
start 1
Remote
start 2
Proportion
Remote start 2 Test
settings
Drive past
wire
Settings
ECO
mode
Time & date
Set time
Set date
Time format
Language Country Reset user
settings
About
Date format
Security
Change
PIN code
Low HighMedium
Security level New
loop signal
Timer
Work
hours 1
Work
hours 2
Work
days
Reset
timer
1285 - 009 - 22.02.2022 Introduction - 7
1.9 Display
The display on the product shows information and
settings of the product.
To access the display, push the STOP button.

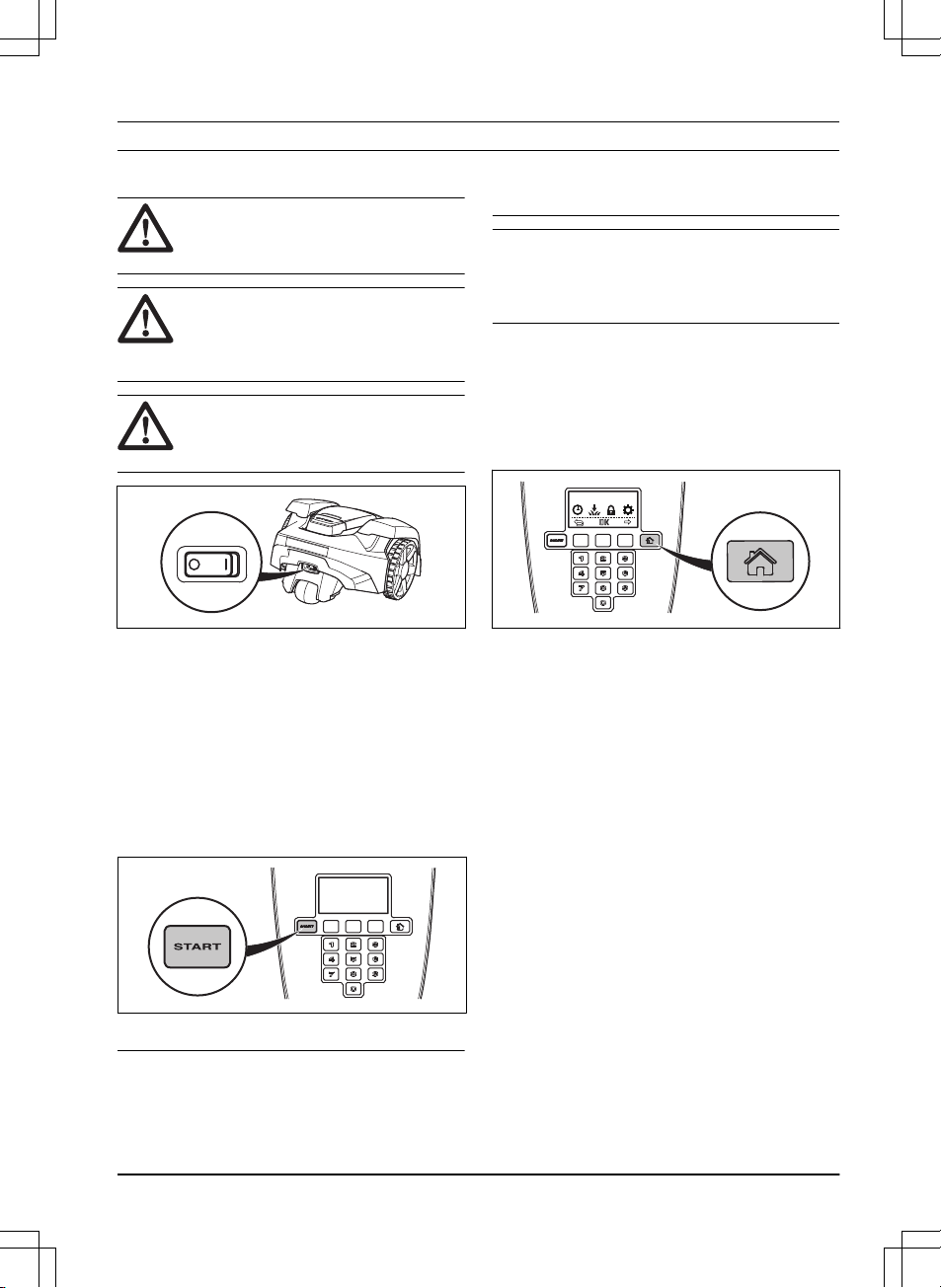

1.10 Keypad
Use the keypad on the product to navigate in the menu.
To access the keypad, push the STOP button.
• Use the START button (A) to start the operation of
the product.
• Use the 3 multi-choice buttons (B) to select the
functions shown in the display above the buttons.
• Use the operation selection button (C) to select the
operation mode of the product.
• Use the number buttons (D) to enter PIN code,
time and date.
A
B
C
D
8 - Introduction 1285 - 009 - 22.02.2022
2 Safety
2.1 Safety information
2.1.1 IMPORTANT. READ CAREFULLY
BEFORE USE. KEEP FOR FUTURE
REFERENCE
The operator is responsible for accidents or hazards occurring to
other people or property.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
(that could affect a safe handling of the product), or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Local regulations
may restrict the age of the operator. Cleaning and maintenance
shall not be made by children without supervision.
Never connect the power supply to an outlet if the plug or cord
is damaged. Worn or damaged cord increase the risk of electric
shock.
Only charge the battery in the included charging station. Incorrect
use may result in electric shock, overheating or leaking of
corrosive liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Seek medical help if
it comes in contact with the eyes.
Use only original batteries recommended by the manufacturer.
Product safety cannot be guaranteed with other than original
batteries. Do not use non-rechargeable batteries.
1285 - 009 - 22.02.2022
Safety - 9
The appliance must be disconnected from the supply mains when
removing the battery.
WARNING: The product
can be dangerous if used
incorrectly.
WARNING: Do not
use the product when
persons, especially
children, or animals are
in the work area.
WARNING: Keep your
hands and feet away
from the rotating blades.
Never put your hands or
feet close to or under
the product when it is
switched on.
WARNING: In the event
of an injury or accident
seek medical help.
2.2 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING:
Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
2.3 Safety instructions for operation
2.3.1 Use
• The product may only be used with the equipment
recommended by the manufacturer. All other
types of use are incorrect. The manufacturer’s
instructions with regard to operation/maintenance
must be followed precisely.
• Warning signs shall be placed around the work
area of the product if it is used in public
areas. The signs shall have the following text:
Warning! Automatic lawnmower! Keep away from
the machine! Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
• Use the HOME function or switch off the main
switch when persons, especially children or
animals, are in the work area. It is recommended
to program the product for use during hours when
the area is free from activity. Refer to
To do the
timer settings on page 21
. Consider that certain
species, e.g. hedgehogs, are active at night. They
can potentially be harmed by the product.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. Do not
install the power supply unit in easly flammable
surroundings. In case of malfunction, heating of
the charging station and the power supply may
occur and create a potential risk of fire.
10
- Safety 1285 - 009 - 22.02.2022
• The product may only be operated, maintained and
repaired by persons that are fully conversant with
its special characteristics and safety regulations.
Please read the Operator’s Manual carefully and
make sure you understand the instructions before
using the product.
• It is not permitted to modify the original design
of the product. All modifications are made at your
own risk.

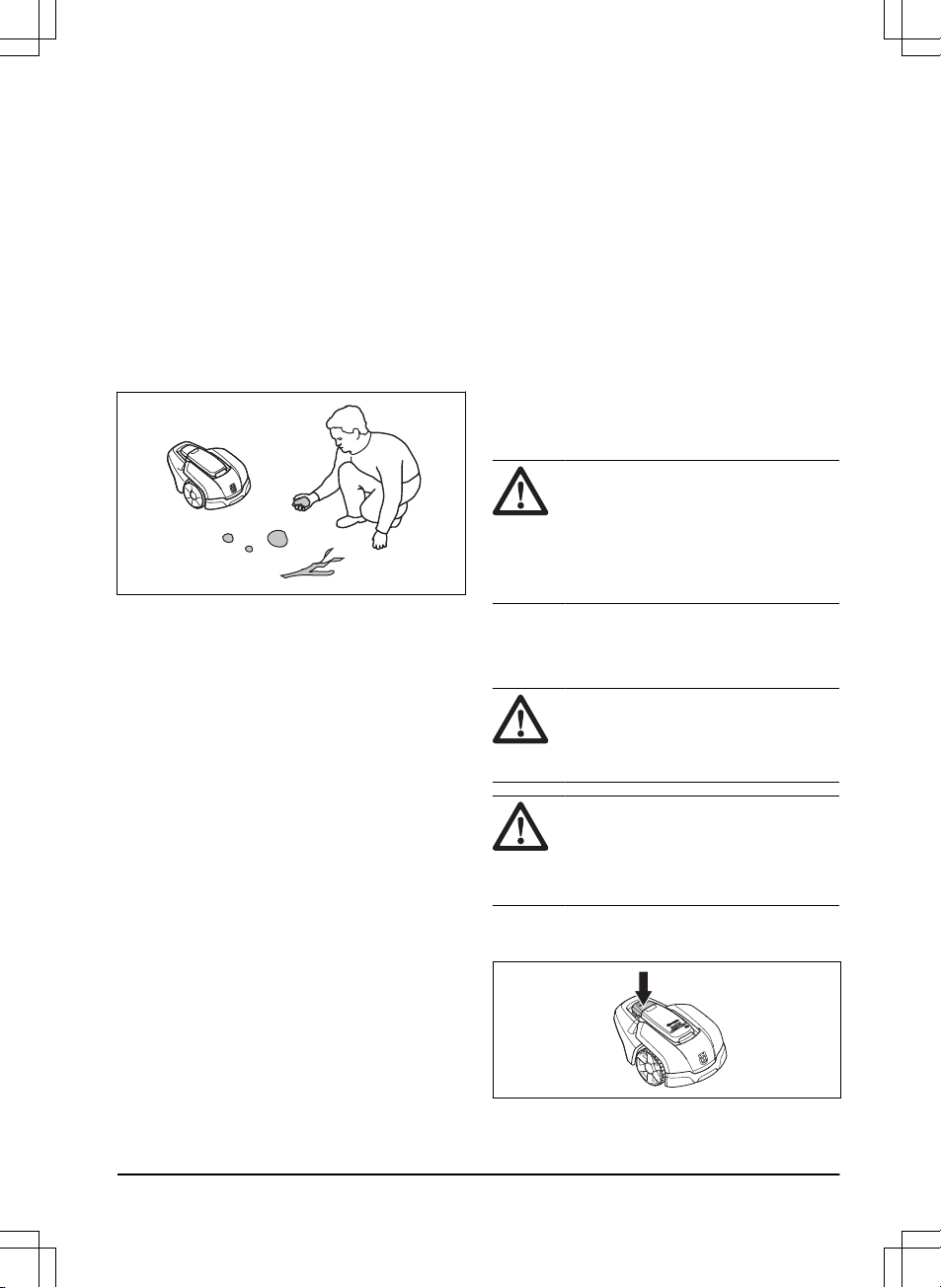

• Check that there are no stones, branches, tools,
toys or other objects on the lawn that can damage
the blades. Objects on the lawn can also lead to
the product getting stuck. Help may be required to
remove the object before the product can continue
mowing. Always set the main switch in position
0
before clearing a blockage.
• Start the product according to the instructions.
When the main switch is set to
1
, make sure to
keep your hands and feet away from the rotating
blades. Never put your hands and feet under the
product.
• Never touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• Never lift up the product or carry it around when
the main switch is in position
1
.
• The product must never be allowed to collide with
persons or other living creatures. If a person or
other living creature comes in the way of the
product, it shall be stopped immediately. Refer to
To stop the product on page 26
.
• Do not put anything on top of the product or its
charging station.
• Do not allow the product to be used with a
defective guard, blade disc or body. Neither should
it be used with defective blades, screws, nuts or
cables. Never connect a damaged cable, or touch
a damaged cable before it is disconnected from
the supply.
• Do not use the product if the main switch does not
work.
• Always switch off the product using the main
switch when the product is not in use. The product
can only start when the main switch is set to
1
and
the correct PIN code has been entered.
• The product must never be used at the same
time as a sprinkler. Use the timer function so the
product and sprinkler never run simultaneously.
Refer to
To do the timer settings on page 21
.
• Husqvarna
®
does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters, hearing loops, underground electric
animal fencing or similar.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Metal objects in the ground (for example
reinforced concrete or anti-mole nets) can result
in a stoppage. The metal objects can cause
interference with the loop signal which then can
lead to a stoppage.
• Operation and storage temperature is 0-50 °C /
32-122 °F. Temperature range for charging is 0-45
°C / 32-113 °F. Too high temperatures might cause
damage to the product.
2.3.2 Battery safety
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited, exposed to water, fire, or
high temperatures. Handle carefully, do not
dismantle, open the battery or use any
type of electrical/mechanical abuse. Avoid
storage in direct sunlight.
For more information about the battery, refer to
Battery
on page 28

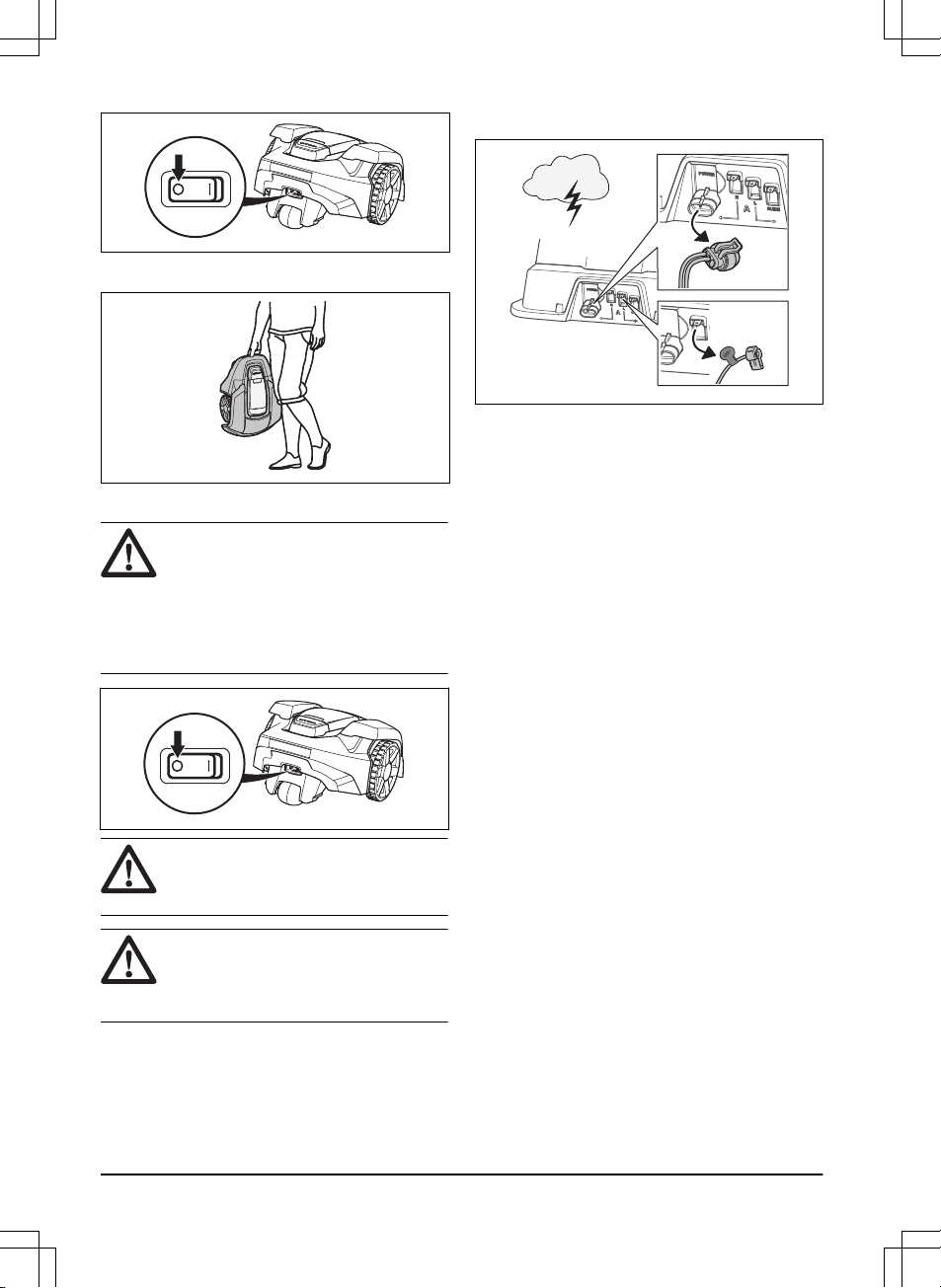

2.3.3 How to lift and move the product
WARNING:
The product must be
switched off before lifting it. The product is
disabled when the Main switch is in position
0
.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
damage the charging station and/or the
product. Push STOP and pull the product
out of the charging station before lifting it.
To safely move from or within the work area:
1. Push the STOP button to stop the product.
2. Set the main switch in position
0
.
1285 - 009 - 22.02.2022
Safety - 11
3. Carry the product by the handle with the blade disc
away from the body.
2.3.4 Maintenance
WARNING: When the product is turned
upside down the main switch must always
be in the
0
position.
The main switch should be set in the
0
position before all work on the chassis of the
product, such as cleaning or replacing the
blades.
CAUTION: Never use a high-pressure
washer or even running water to clean the
product. Never use solvents for cleaning.
CAUTION: Use the plug to disconnect
the charging station before any cleaning or
maintenance of the charging station or the
loop wire.
Inspect the product each week and replace any
damaged or worn parts. Refer to
Maintenance on page
27
.
2.3.5 In the event of a thunderstorm
To reduce the risk of damage to electrical components
in the product and the charging station, we recommend
that all connections to the charging station are
disconnected (power supply, boundary wire and guide
wire) if there is a risk of a thunderstorm.
1. Mark the wires to simplify reconnecting. The
charging station’s connections are marked R, L
and GUIDE.
2. Disconnect all connected wires and the power
supply.
3. Connect all the wires and the power supply if there
is no longer a risk of thunder. It is important that
each wire is connected to the right place.
12
- Safety 1285 - 009 - 22.02.2022
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Main components for installation
The installation involves the following components:
• A robotic lawn mower that mows the lawn
automatically.
• A charging station, which has 3 functions:
• To send control signals along the boundary
wire.
• To send control signals along the guide wire
so that the product can follow the guide wire
to specific remote areas in the garden and
can find its way back to the charging station.
• To charge the product.
• A power supply, which is connected to the
charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area
and around objects and plants that the product
must not run into. The loop wire is used both as
boundary wire and guide wire.
3.3 General preparations
CAUTION: Holes with water in the lawn
can cause damage to the product.
Note: Read through the Installation chapter before
beginning the installation. How the installation is done
affects how the product performs. It is therefore
important to plan the installation carefully.

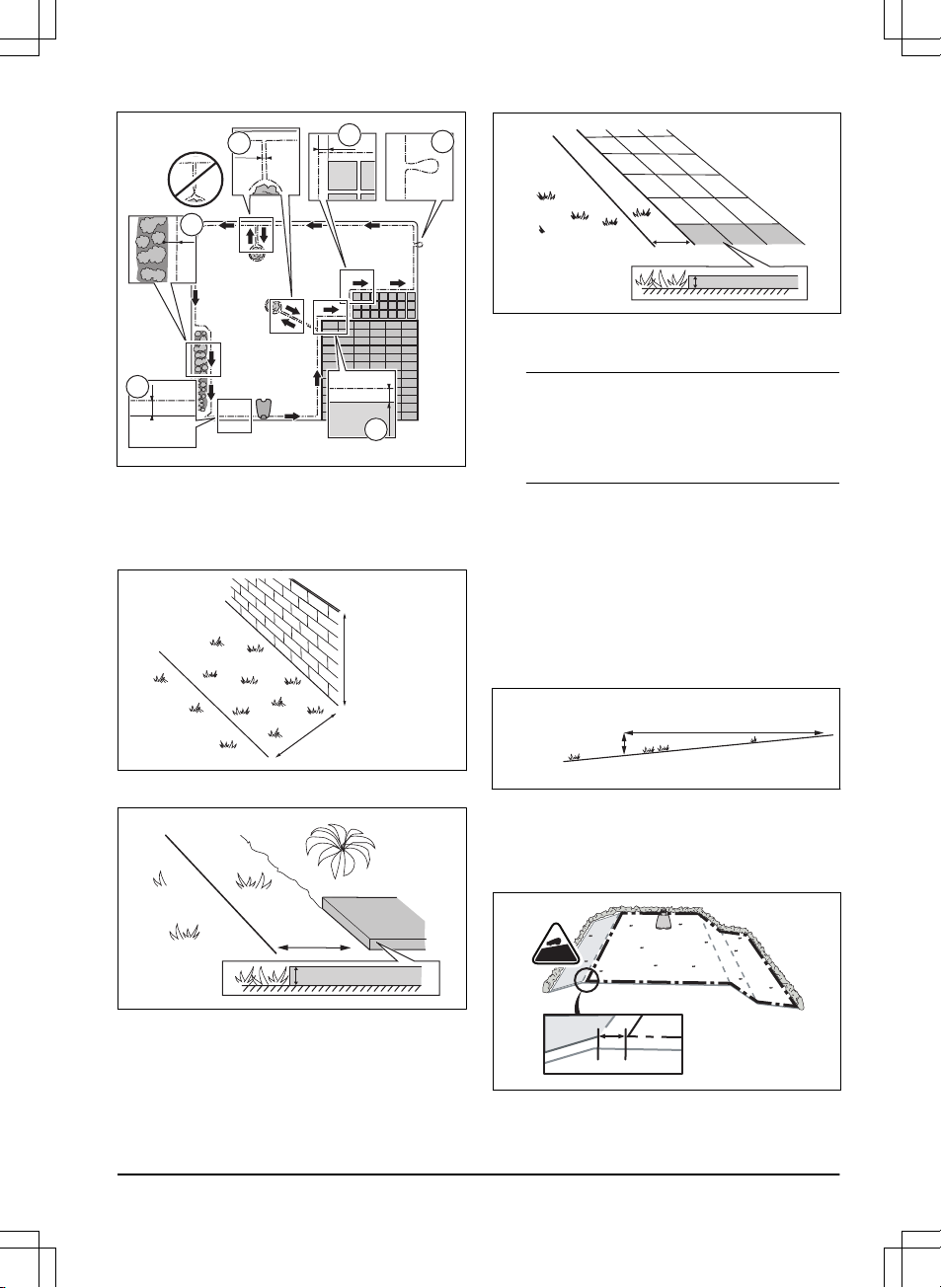

• Make a blueprint of the work area and include all
obstacles. This makes it easier to see the ideal
positions for the charging station, the boundary
wire and the guide wire.
• Make a mark on the blueprint where to put the
charging station, the boundary wire and the guide
wire.
• Make a mark on the blueprint where the guide wire
connects to the boundary wire. Refer to
To install
the guide wire on page 19
.
• Fill in holes in the lawn.
• Cut the grass before you install the product. Make
sure that the grass is maximum 4 cm / 1.6 in.
Note: The first weeks after installation the perceived
sound level when cutting the grass may be higher than
expected. When the product has cut the grass for some
time, the perceived sound level is much lower.
3.4 Before the installation of the wires
You can select to attach the wires with stakes or bury
them. You can use the 2 procedures for the same work
area.
CAUTION: If you use a dethatcher
in the work area, bury the boundary wire
and the guide wire to prevent them from
damage.
3.4.1 To examine where to put the charging
station
• Keep a minimum 3 m / 9.8 ft. of free space in front
of the charging station. Refer to
To examine where
to put the guide wire on page 17
.
• Keep a minimum of 1.5 m / 4.9 ft. of free space
to the right and left of the center of the charging
station.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
Max 3 cm / 1.2
"
• Put the charging station in the lower section of the
work area.
1285 - 009 - 22.02.2022
Installation - 13

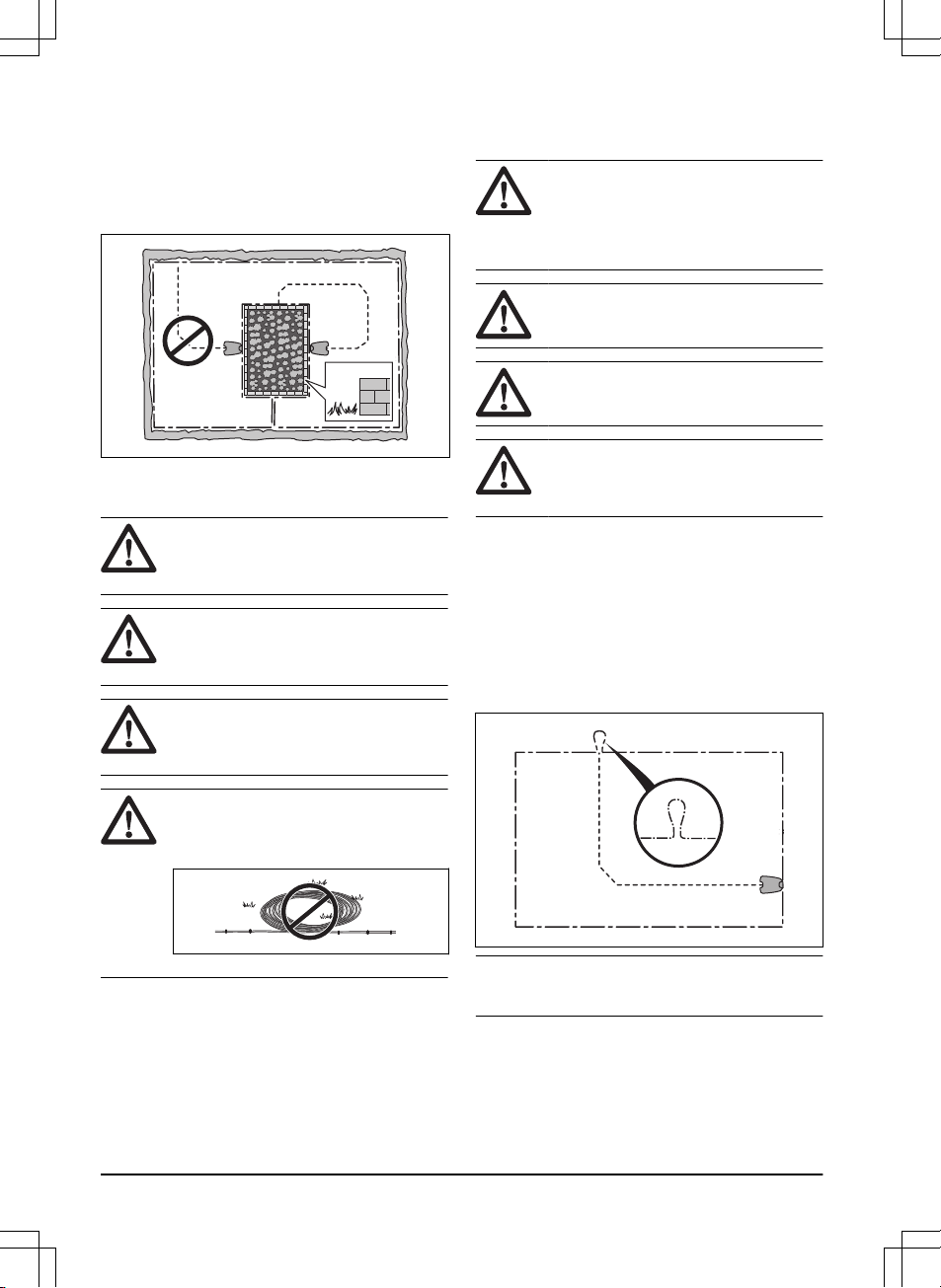

• Put the charging station in an area without an
irrigation system.
• Put the charging station in an area with protection
from the sun.
• If the charging station is installed on an island,
make sure to connect the guide wire to the island.
Refer to
To make an island on page 16
.
3.4.2 To examine where to put the power
supply
WARNING: Do not cut or extend
the low-voltage cable. There is a risk of
electrical shock.
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
WARNING: The power supply cable
and extension cable must be outside the
work area to avoid damage to the cables.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.4.3 To examine where to put the
boundary wire
CAUTION: There must be a barrier of
minimum 15 cm / 6 in. in height between
the boundary wire and water bodies, slopes,
precipices or public roads. This will prevent
damage to the product.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
The boundary wire should be put as a loop around the
work area. Sensors in the product senses when the
product approaches the boundary wire, and the product
selects another direction. All parts of the work area must
be maximum 15 m / 50 ft. from the boundary wire.
To make the connection easier between the guide wire
and the boundary wire, it is recommended to make an
eyelet where the guide wire will be connected. Make the
eyelet with approximately 20 cm / 8 in. of the boundary
wire.
Note:
Make a blueprint of the work area before you
install the boundary wire and guide wire.
14 - Installation 1285 - 009 - 22.02.2022
A
B
C
E
D
F
• Put the boundary wire around all of the work area
(A). Adapt the distance between the boundary wire
and obstacles.
• Put the boundary wire 30 cm / 12 in. (B) from an
obstacle that is more than 5 cm / 2 in. high.
30 cm /12
"
> 5 cm / 2
"
• Put the boundary wire 20 cm / 8 in. (C) from an
obstacle that is 1-5 cm / 0.4-2 in. high.
1-5 cm / 0.4 - 2"
20 cm / 8"
• Put the boundary wire 5 cm / 2 in. (D) from an
obstacle that is less than 1 cm / 0.4 in. high.
5 cm / 2"
max 1 cm / 0.4"
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
Note: If the paving stone is minimum 30 cm / 12
in. wide, use the factory setting for the
Drive Past
Wire
function to cut all the grass adjacent to the
paving stone. Refer to
To set the Drive Past Wire
function on page 23
.
• If you make an island, put the boundary wire that
runs to and from the island near together (E). Put
the wires in the same stake. Refer to
To make an
island on page 16
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 25% slopes. Slopes that are
too steep must be isolated with the boundary wire. The
gradient (%) is calculated as height per m. Example: 10
cm / 100 cm = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes steeper than 25% inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 15% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
A
>15%
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
1285 - 009 - 22.02.2022
Installation - 15
the slope. You can use a wall or a fence as a
barrier.

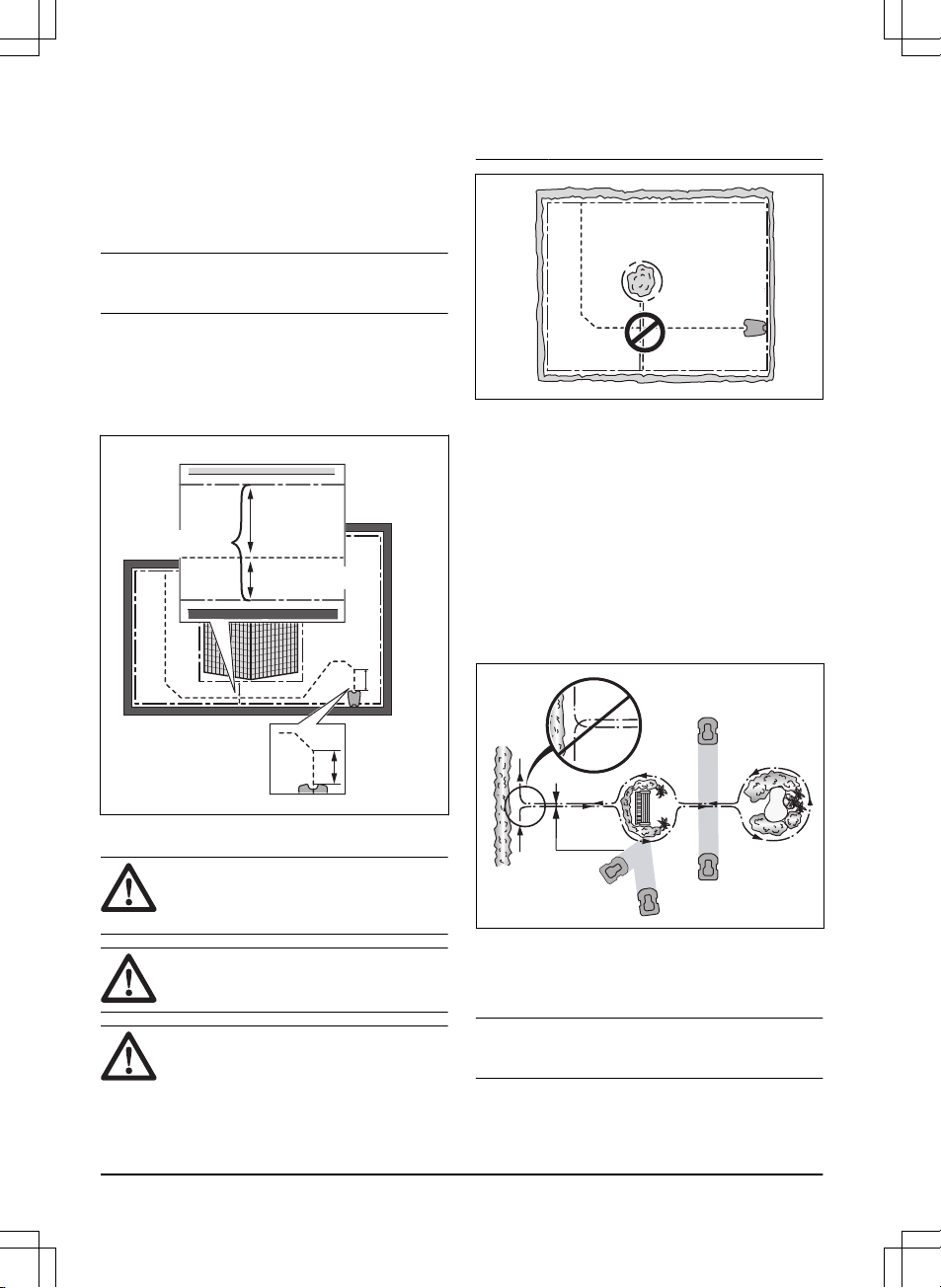

3.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
>2 m / 6.5 ft
A
>30 cm / 12"
>60 cm / 24"
3.4.3.3 To make an island
CAUTION:
Do not put a section
of boundary wire across the other. The
sections of boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 5.9 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of the
product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
Some obstacles are resistant to a collision, for example,
trees or bushes that are more than 15 cm / 5.9 in. in
height. The product will collide with the obstacle and
then select a new direction.
• Put the boundary wire to and around the obstacle
to make an island.
• Put the 2 sections of boundary wire to and from the
island close together. This will make the product
run across the wire.
• Put the 2 sections of boundary wire in the same
stake.
0 cm / 0
"
3.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2 areas
that are not connected with a passage. The work area
with the charging station is the main area (A).
Note:
The product must be manually moved between
the main area and the secondary area.
16 - Installation 1285 - 009 - 22.02.2022
B
A
• Put the boundary wire around the secondary area
(B) to make an island. Refer to
To make an island
on page 16
.
Note: The boundary wire must be put as 1 loop
around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
MAN
mode must be selected.
Refer to
Operating modes on page 25
.

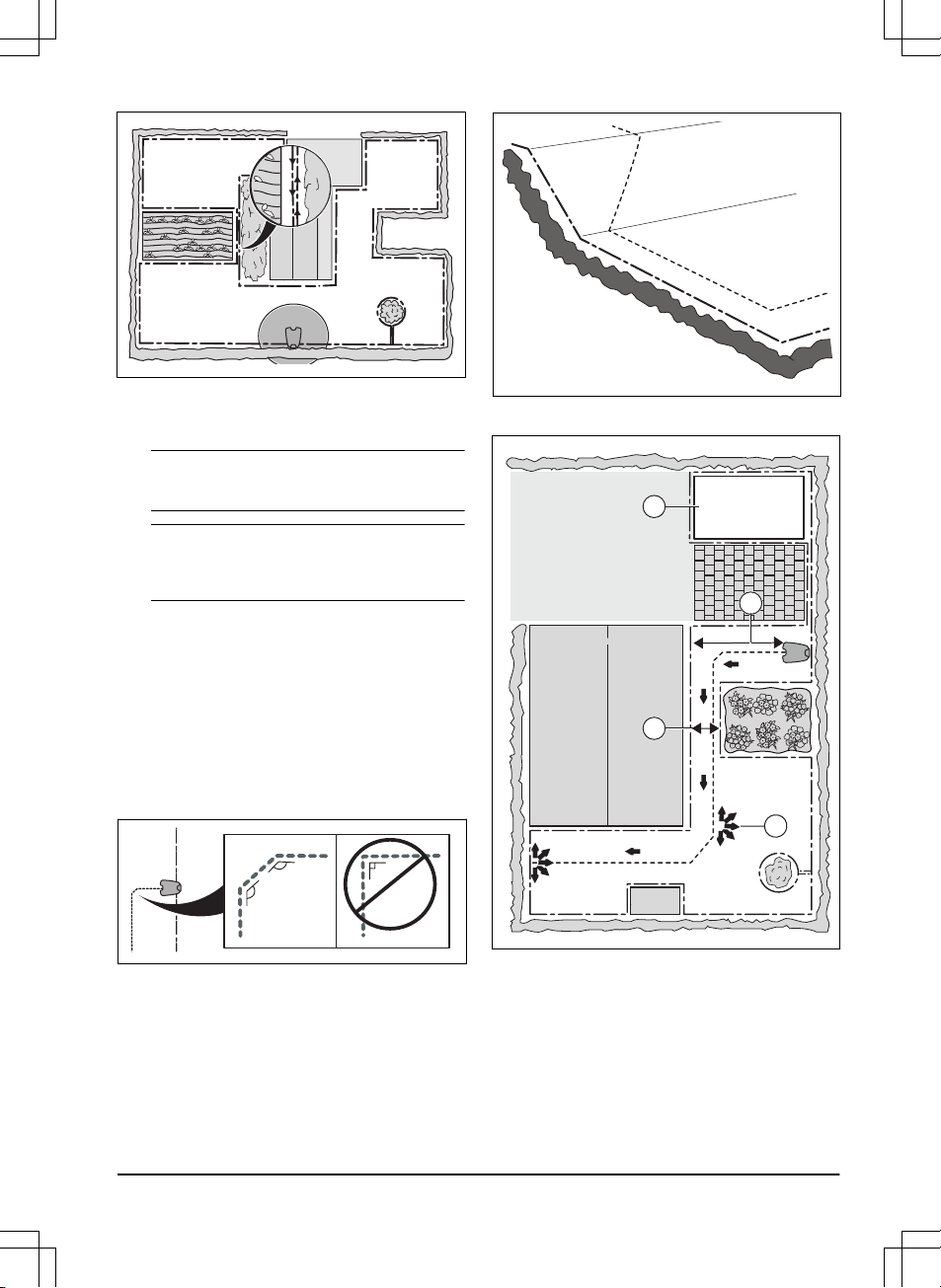

3.4.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of 2 m / 7
ft. in front of the charging station.
• Make as much free area as possible to the left of
the guide wire when facing the charging station.
Refer to
Guide width on page 22
.
• Put the guide wire minimum 30 cm / 12 in. from the
boundary wire.
• Do not make sharp bends when you install the
guide wire.
135º
135º
90º
• If the work area has a slope, put the guide wire
diagonally across the slope.
3.4.5 Work area examples
B
D
C
A
• If the charging station is put in a small area (A),
make sure that the distance to the boundary wire is
at a minimum 3 m / 10 ft.
• If the work area has a passage (B), the minimum
distance between the boundary wires is 2 m /
6.6 ft. if no guide wire is installed. With a guide
wire installed through the passage, the minimum
distance between the boundary wires is 60 cm / 24
in.
1285 - 009 - 22.02.2022
Installation - 17
• If the work area has areas which are connected by
a narrow passage (B), you can set the product to
leave the guide wire after a certain distance (C).
The settings can be changed in
Remote start 1 on
page 22
.
• If the work area includes a secondary area (D),
refer to
To make a secondary area on page 16
.
Put the product in the secondary area and select
operating mode
Man
.
3.5 Installation of the product
3.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting the
stakes into the ground.
• Edge cutter/straight spade: To bury the boundary
wire.
• Combination pliers: For cutting the boundary wire
and pressing the connectors together.
• Adjustable plier: For pressing the couplers
together.
3.5.2 To install the charging station
WARNING: Obey national regulations
about electrical safety.
WARNING: The product is only to be
used with the power supply unit supplied by
Husqvarna
®
.
WARNING: Do not put the power
supply at a height where there is a risk it can
be put in water. Do not put the power supply
on the ground.
WARNING: Do not encapsulate the
power supply. Condensed water can harm
the power supply and increase the risk of
electrical shock.
WARNING: Risk of Electric Shock.
Install only to a residual-current device
(RCD) with a tripping current of maximum
30 mA when connecting the power supply to
the power outlet. Applicable to USA/Canada.
If power supply is installed outdoors: Risk
of Electric Shock. Install only to a covered
Class A GFCI receptacle (RCD) that has
an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: The power supply cable
and extension cable must be outside the
work area to avoid damage to the cables.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When connecting the power supply, only use a power
outlet that is connected to a residual-current device
(RCD).
1. Read and understand the instructions about where
to put the charging station. Refer to
To examine
where to put the charging station on page 13
.
2. Put the charging station in the selected area.
Note: Do not attach the charging station with
the screws to the ground until the guide wire is
installed. Refer to
To install the guide wire on page
19
.
3. Connect the low-voltage cable to the charging
station.
4. Put the power supply at a minimum height of 30
cm / 12 in.
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
Note:
When the charging station is connected, it
is possible to charge the product. Put the product
in the charging station while the boundary and
guide wires are being laid. Switch on the product
to start charging the product. Refer to
Main switch
on page 25
. Do not continue with any product
settings before the installation is complete.
18 - Installation 1285 - 009 - 22.02.2022

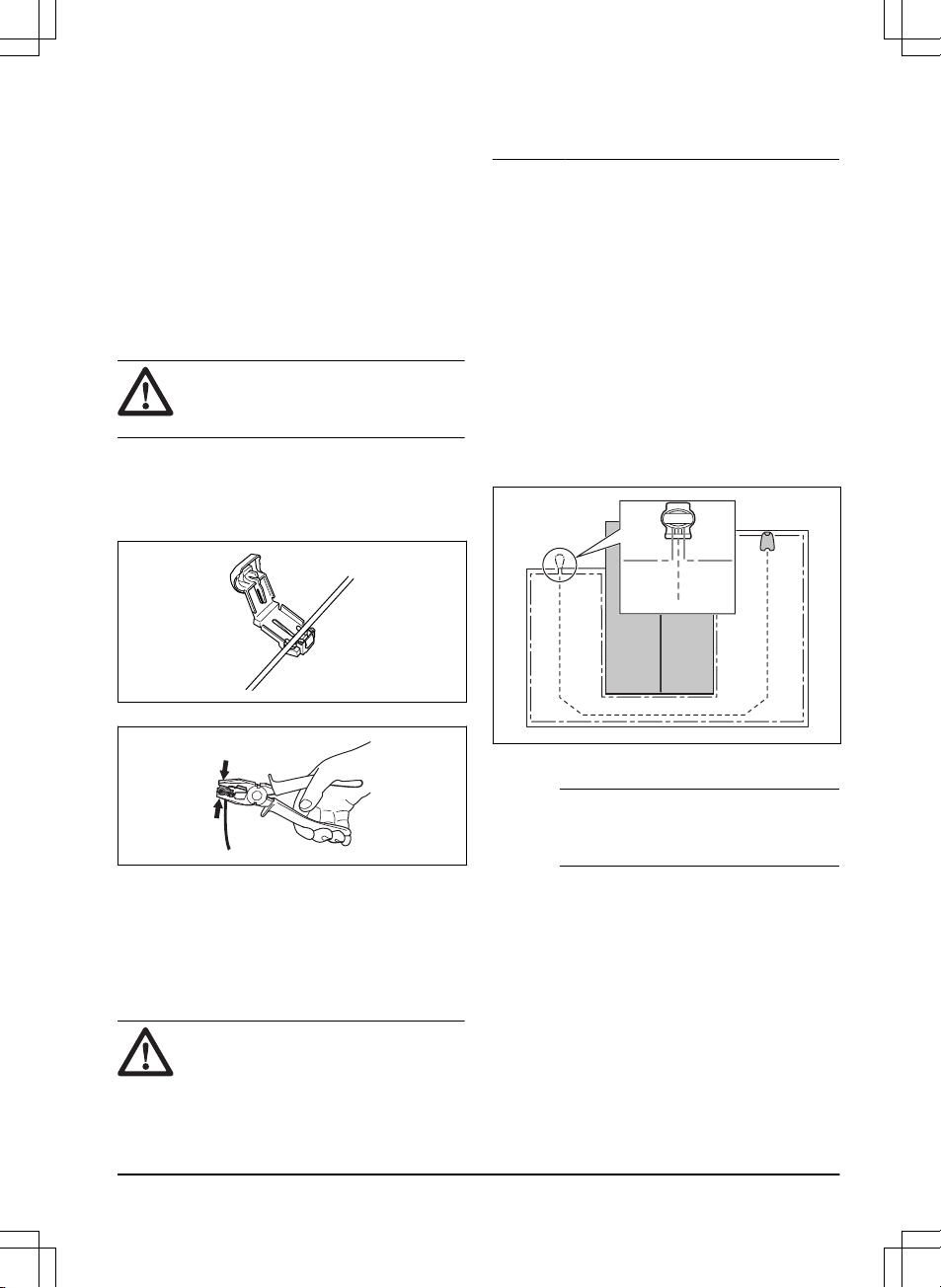

6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire into
position with stakes on page 20
or
To bury the
boundary wire or the guide wire on page 20
.
7. Connect the wires to the charging station after
the installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 19
and
To install the guide wire on page
19
.
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 19
.

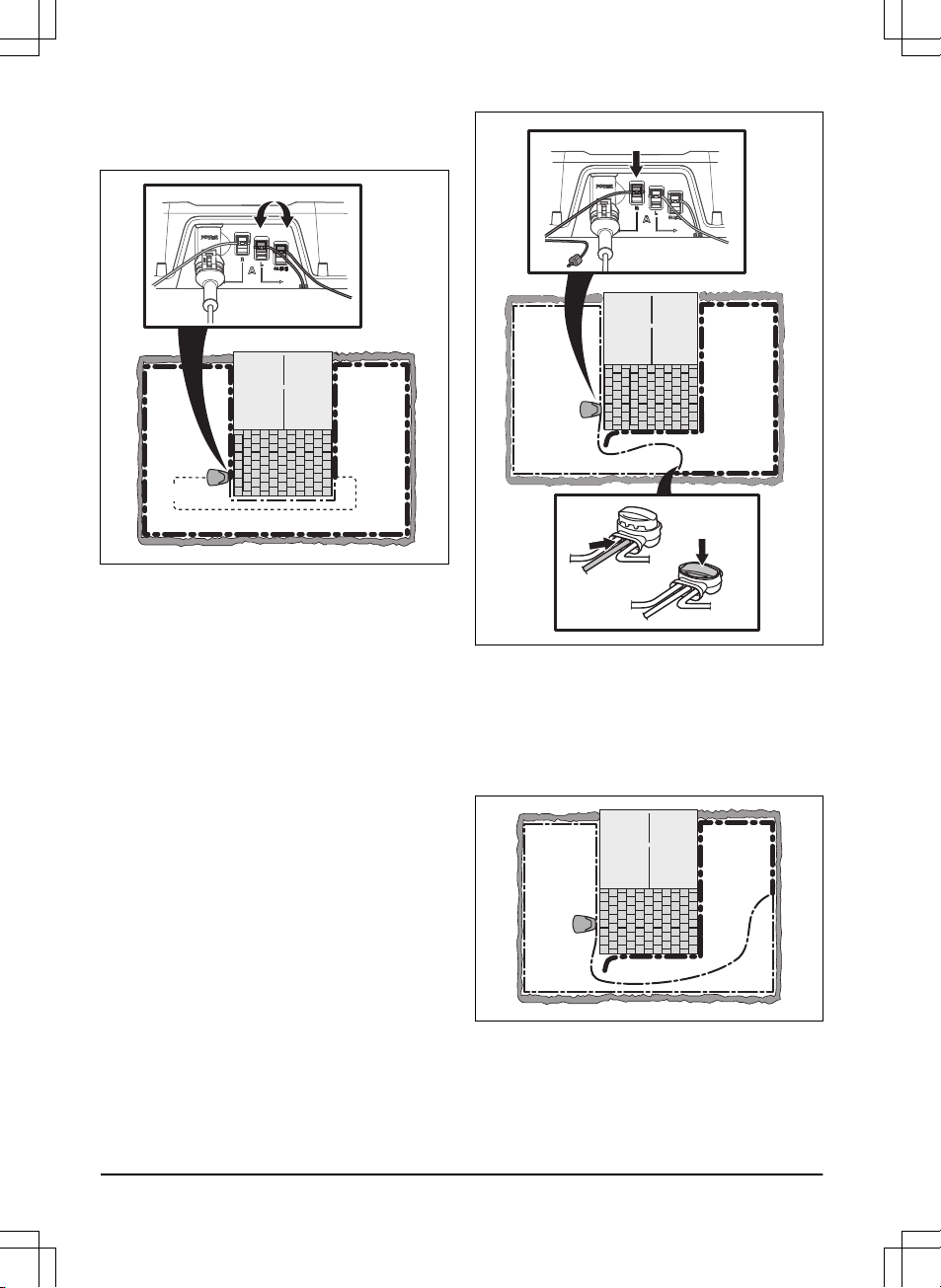

3.5.3 To install the boundary wire
CAUTION: Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work
area. Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "R".
6. Push the left connector onto the metal pin on the
charging station with the mark "L".
3.5.4 To install the guide wire
CAUTION:
Twinned cables, or a
screw terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above each
connector.
4. Push the guide wire through the slot in the
charging station plate.
5. Push the connector onto the metal pin on the
charging station with the mark "GUIDE".
6. Disconnect the charging station from the power
outlet.
7. Put the end of the guide wire at the eyelet on the
boundary wire.
8. Cut the boundary wire with a pair of wire cutters.

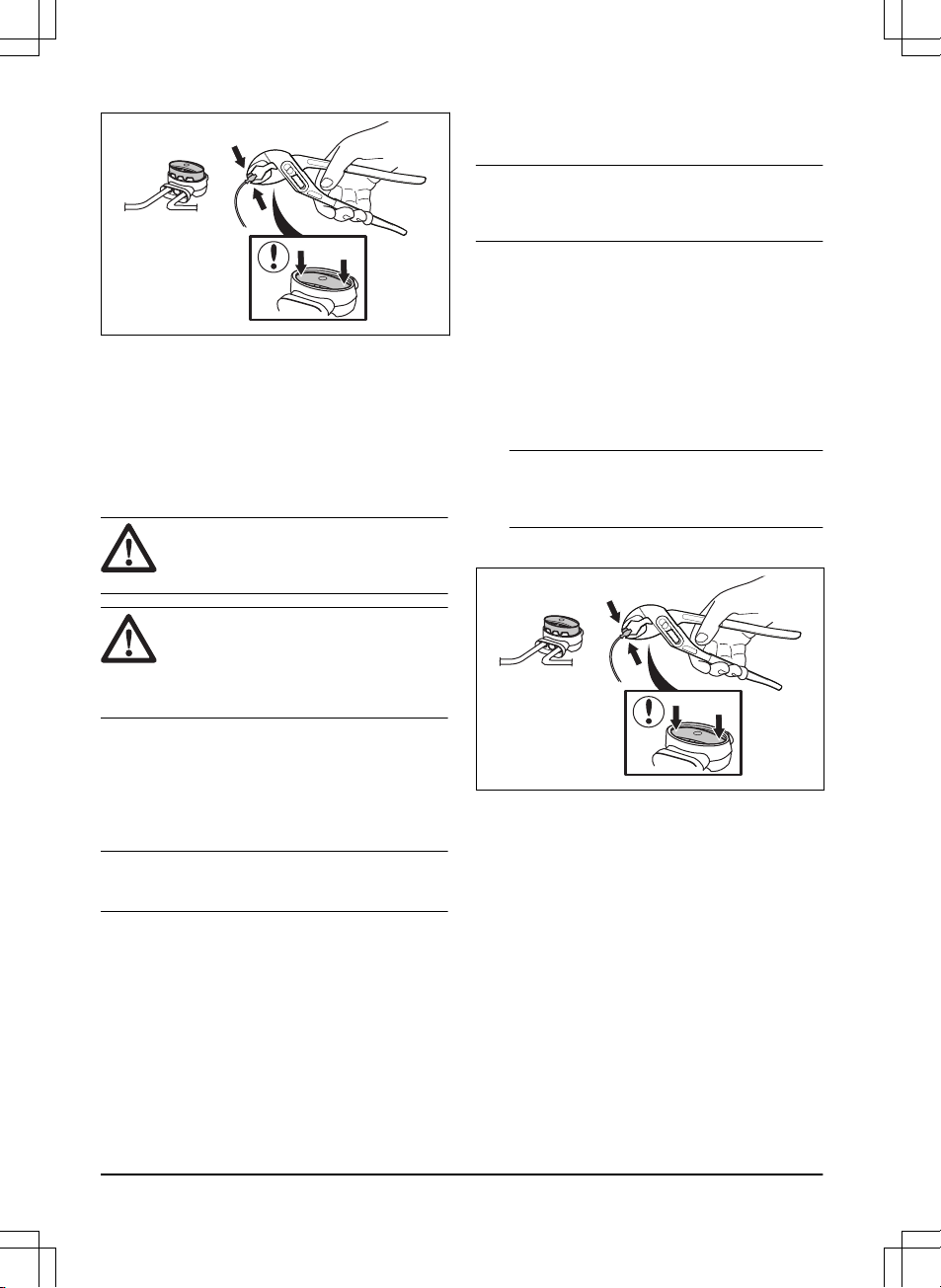

9. Connect the guide wire to the boundary wire with a
coupler.
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note:
Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
1285 - 009 - 22.02.2022
Installation - 19
10. Attach the guide wire to the ground with stakes or
bury the guide wire in the ground. Refer to
To put
the wire into position with stakes on page 20
or
To bury the boundary wire or the guide wire on
page 20
.
11. Connect the charging station to the power outlet.
3.6 To put the wire into position with
stakes
CAUTION: Make sure that the stakes
hold the boundary wire and the guide wire
against the ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
insulation. Damage to the insulation may
not cause disruptions until several weeks or
months later.
1. Put the boundary wire and the guide wire on the
ground.
2. Put the stakes at a maximum of 75 cm / 30 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or a
plastic mallet.
Note:
The wire is overgrown with grass and not visible
after a few weeks.
3.7 To bury the boundary wire or the
guide wire
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the boundary wire or the guide wire 1-20 cm /
0.4-8 in. into the ground.
3.8 To extend the boundary wire or the
guide wire
Note: Extend the boundary wire or the guide wire if it
is too short for the work area. Use original spare parts,
for example couplers.
1. Disconnect the charging station from the power
outlet.
2. Cut the boundary wire or the guide wire with a pair
of wire cutters where it is necessary to install the
extension.
3. Add wire where it is necessary to install the
extension.
4. Put the boundary wire or the guide wire into
position.
5. Put the wire ends into a coupler.
Note: Make sure that you can see the ends of
the boundary wire or the guide wire through the
transparent area of the coupler.
6. Push down the cover on the coupler with
adjustable pliers to attach the wires in the coupler.
7. Put the boundary wire or the guide wire into
position with stakes.
8. Connect the charging station to the power outlet.
3.9 After the installation of the product
3.9.1 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on the
charging station has a green light.
20
- Installation 1285 - 009 - 22.02.2022
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
Indicator lamp in the charging station on page 35
and
To install the charging station on page 18
.
3.9.2 To do the basic settings
Before the product starts to operate for the first time, you
must do the basic settings.
1. Put the product in the charging station.
2. Switch on the product.
3. Push the arrow buttons and the OK button. Select
language, country, date, time and set a PIN code.
Note: For some models, a factory PIN code is
necessary before you select a personal PIN code.
It is not possible to use 0000 as PIN code.
4. Push the Start button and close the hatch to initiate
a calibration process of the product.
Note: If the battery is too low, the product needs
to charge the batteries fully before the calibration
starts. Refer to
Calibration on page 21
.
Note: Make a note of the PIN code. Refer to
Introduction on page 3
.
3.9.3 Calibration
The calibration process is automatic. After the basic
settings are done, the product moves away from the
charging station and stops, while it calibrates some of
the product settings. When the calibration is complete,
the product starts to mow.
3.10 To do the product settings
Use the control panel to set all settings for the product.
The control panel has a display and a keypad, you can
access all functions through the menus. The functions
have factory settings that is applicable for almost all
work areas, but the settings can be adapted to the
conditions for each work area.
3.10.1 Menu structure
The main menu contains:
•
Timer
•
Installation
•
Security
•
Settings
Refer to
Menu structure overview on page 7
.
3.10.2 To get access to the menu
1. Push the STOP button.
2. Enter the PIN code on the keypad.
3. Push the multi-choice button.
3.10.3 To do the timer settings
Note: Set the
Timer
if the work area is less than 600
m
2
/ 0.15 acre to prevent wear on the lawn and wear on
the product.
3.10.3.1 To set the timer
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure to select
Timer
.
3. Use the multi-choice buttons to select
Work hours
1 or Work hours 2
.
4. Enter the time with the number buttons.
5. Push
OK
.
6. Use the multi-choice buttons to select
Work days
.
7. Use the multi-choice buttons to select the days that
the product will operate.
8. Push
OK
.
3.10.3.2 Make an estimate of the necessary operating
time
If the work area is less than maximum product capacity,
the schedule must be set to decrease the wear on the
lawn and the product. The product has a maximum
cutting time each day. You can set the operating time of
the product in the schedule. The operating time includes
cutting, searching and charging. The operating time can
be different because of many reasons, for example the
layout of the work area, the grass growth and age of the
battery. When the product has operated to the maximum
cutting time in a day, the message
Today's mowing
complete
is shown in the display of the app.
The recommended operating times for some work area
examples are shown in the table below. If the result is
not satisfactory, increase the operating time.
1285 - 009 - 22.02.2022
Installation - 21

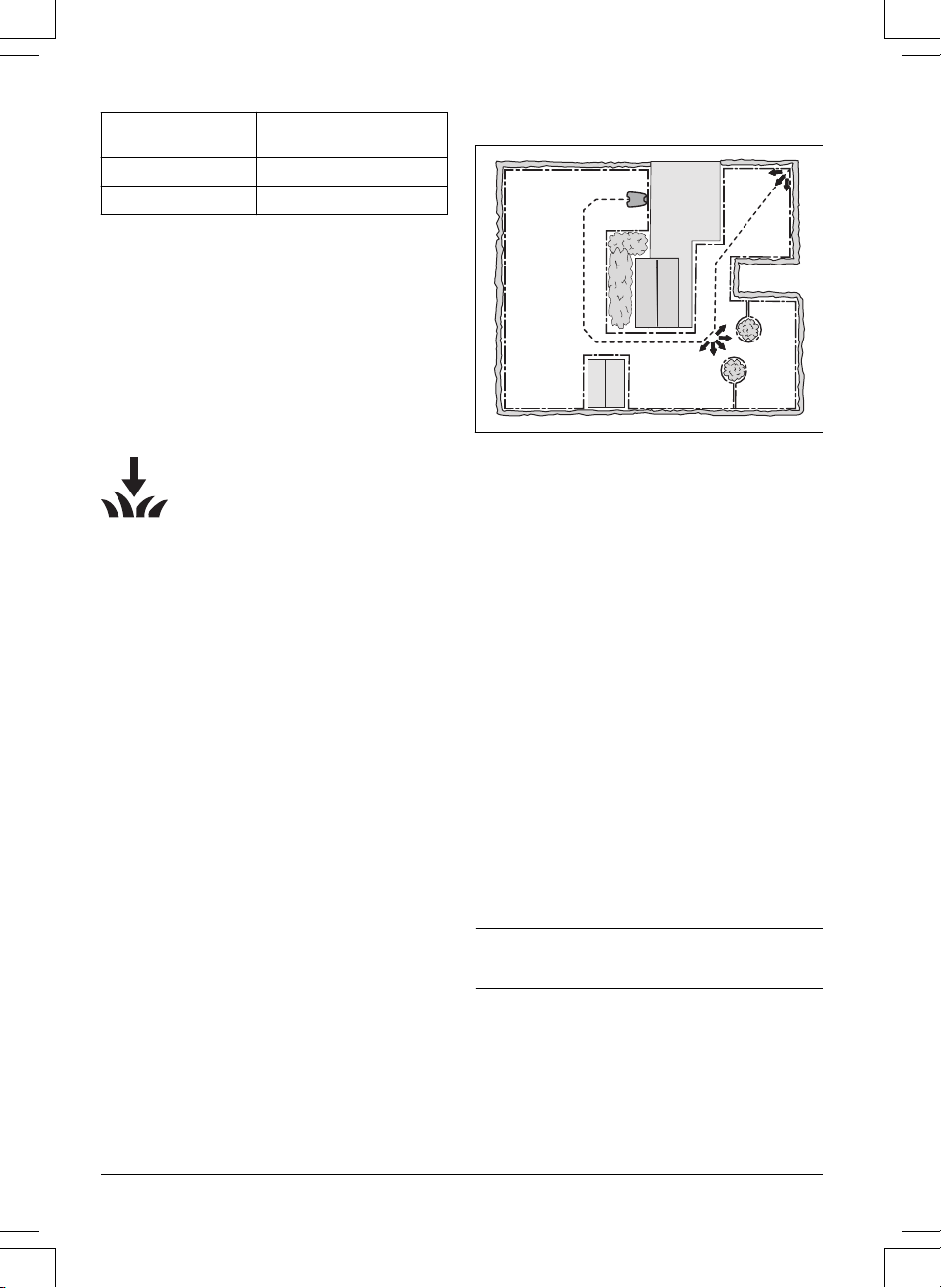

Area, m
2
Recommended operating
time, h
300 6-7
600 12-13
3.10.3.3 To reset the timer setting
You can remove all timer settings and use the factory
setting. The factory timer setting lets the product operate
all hours each day of the week. Refer to
Make an
estimate of the necessary operating time on page 21
.
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Timer > Reset timer
.
3. Push
OK
.
3.10.4 Installation
In the Installation menu it is possible to adapt the
settings of the product for best mowing result.
3.10.4.1 Guide width
The guide width is a measure of how far from the guide
wire the product is allowed to travel when it follows this
to and from the charging station. The area beside the
wire which the product uses is called the Corridor.
The product has a default setting for
Medium
wide
corridors. To further reduce the risk of tracks forming,
it is recommended to select as wide corridor as
possible. The
Narrow
corridor setting is not normally
recommended, but in a garden with one or many narrow
passages, a narrow corridor may be the only option.
The
Narrow
corridor setting increases the risk for tracks
forming along the guide.
To set the guide width
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure to select
Installation > Guide width
.
3. Use the multi-choice buttons to select
Narrow,
Medium
or
Wide
.
4. Push
OK
.
3.10.4.2 Remote start 1
The
Remote start
function is used to guide the
product to remote parts of the work area. If the work
area includes areas that are connected with narrow
passages, the
Remote start
function is useful to be able
to maintain a well-cut lawn in all parts of the yard. The
product begins to mow when it reaches the
Remote start
point. At all other times, the product leaves the charging
station in the standard manner and starts to mow.
To set the Remote start function
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure to select
Installation > Remote start
> Proportion
.
3. Select how often the
Remote start
function shall be
used. There are 5 options:
• Never (0%)
• Rarely (approx. 20%)
• Medium (approx. 50%)
• Often (approx. 80%)
• Always (100%)
4. Select the distance from the charging station to the
Remote start
.
5. Push
OK
.
3.10.4.3 Remote start 2
If the work area contains 2 remote areas, the guide
wire should be installed so that it reaches both areas.
Remote start 1
and
Remote start 2
can then be
combined to steer the product to each area.
The settings for
Proportion
and
Distance
are carried out
in the same way as for
Remote start 1
. The factory
setting is
Never
.
Note:
The sum of
Proportion
for
Remote start 1
and
Remote start 2
cannot exceed 100%.
If you have for instance selected
Often
for
Remote start
1
, then you can only select
Never
or
Rarely
for
Remote
start 2
.
To measure the distance from the charging station
1. Put the product in the charging station.
2. Do steps 1–3 in
To get access to the menu on
page 21
.
22
- Installation 1285 - 009 - 22.02.2022
3. Use the multi-choice buttons to move through the
menu structure
Installation > Remote start 1 or
Remote start 2 > Distance
.
4. Use the number buttons to set 100 m as a
distance.
5. Push
OK
.
6. Use the multi-choice buttons to move through the
menu structure
Installation > Test settings > Test
OUT
.
7. Push
OK
.
8. Push the STOP button when the product is at
the distance you select to measure. The distance
shows in the display.
3.10.4.4 Test settings
In the
Test settings
menu, it is possible to test how the
settings for
Remote start 1
and
Remote start 2
work in
the work area in question.
To do a test of the Remote start function
1. Put the product in the charging station.
2. Do steps 1-3 in
To get access to the menu on
page 21
.
3. Use the multi-choice buttons to move through the
menu structure
Installation > Test settings > Test
OUT > Remote start 1 or Remote start 2
.
4. Push
OK
.
5. Push the START button.
6. Close the hatch.
7. Make sure the product can find the area.
3.10.4.5 To set the Drive Past Wire function
The front of the product always moves past the
boundary wire by a specified distance before the product
moves back into the work area. The factory setting is 25
cm. You can select a distance of 20-30 cm.
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Installation > Drive Past Wire
.
3. Use the number buttons to set the distance in cm.
4. Push the BACK button.
3.10.5 Security level
There are 3 security levels for the product.
Function
Low Medium High
Alarm
X
PIN request
X X
Time lock
X X X
•
Alarm
- An alarm goes off if the PIN-code is not
entered within 10 seconds after the STOP button is
pushed. The alarm also goes off when the product
is lifted. The alarm stops when the PIN-code is
entered.
•
PIN-code
- The correct PIN-code must be entered
to get access to the Menu structure of the product.
If the incorrect PIN-code is entered 5 times, the
product is locked for some time. The lock is
extended for each new incorrect try.
•
Time lock
- The product is locked if the PIN-code
has not been entered in 30 days. Enter the PIN-
code to get access to the product.
3.10.5.1 To change the PIN code
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Security > Change PIN code
.
3. Enter the new PIN code.
4. Push
OK
.
5. Enter the new PIN code again.
6. Push
OK
.
7. Make a note of the new PIN code. Refer to
Introduction on page 3
.
3.10.5.2 To set the security level
Select 1 of 3 security levels for your product.
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Security > Security level
.
3. Use the multi-choice buttons to select the level of
security.
4. Push
OK
.
3.10.5.3 To create a New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if two adjacent installations have a
very similar signal.
1. Place the product in the charging station.
2. Do steps 1–3 in
To get access to the menu on
page 21
.
3. Use the multi-choice buttons to move through the
menu structure
Security > New loop signal
.
1285 - 009 - 22.02.2022
Installation - 23
4. Push
OK
and await confirmation that the loop
signal has been generated. This normally takes
about 10 seconds.
3.10.6 Settings
In settings you can change the general settings to your
product.
3.10.6.1 ECO mode
ECO mode
stops the signal in the boundary loop, the
guide wire and the charging station, when the product is
parked or is charging.
Note: Use
ECO mode
to save energy and avoid
interference with other equipment, for example hearing
loops or garage doors.
Note: Push the STOP button before you remove the
product from the charging station. If not, the product can
not be started in the work area.
To set the ECO mode
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Settings > ECO mode
.
3. Push
OK
.
3.10.6.2 To set the Time & Date
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Settings > Time & Date
.
3. Use the number buttons to set the time and then
push
OK
.
4. Use the number buttons to set the date and then
push
OK
.
5. Use the multi-choice buttons to set the time format
and then push
OK
.
6. Use the multi-choice buttons to set the date format
and then push
OK
.
3.10.6.3 To set the language
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Settings > Language.
3. Use the multi-choice buttons to select language
and then push
OK
.
3.10.6.4 To set the country
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Settings > Country.
3. Use the multi-choice buttons to select country and
then push
OK
.
3.10.6.5 To reset all user settings
1. Do steps 1–3 in
To get access to the menu on
page 21
.
2. Use the multi-choice buttons to move through the
menu structure
Settings > Reset user settings
.
3. Use the multi-choice buttons to select country and
then push
OK
.
4. Enter the PIN code.
5. Push
OK
to reset all the user settings.
Note:
Security level, PIN code, Loop signal,
Messages, Date & Time, Language
and
Country
settings
are not reset.
3.10.6.6 The About menu
The
About
menu displays information about the product,
for example serial number and firmware versions.
24 - Installation 1285 - 009 - 22.02.2022
4 Operation
4.1 Main switch
WARNING: Read the safety
instructions carefully before you start the
product.
WARNING: Keep your hands and feet
away from the rotating blades. Do not put
your hands or feet near to or below the
product when the cutting motor is on.
WARNING: Do not use the product
when persons, especially children, or
animals are in the work area.
• Set the Main switch in the
1
position to start the
product.
• Set the Main switch in the
0
position when the
product is not in use or before you do inspection or
maintenance on the product.
4.2 To start the product
1. Press the STOP button to open the hatch.
2. Set the main switch to position
1
.
3. Enter the PIN code.
4. Push the START button.
5. Close the hatch.
Note:
If the product is parked in the charging station,
the product will only leave the charging station when
the battery is fully charged and if the timer allows the
product to operate.
Note: Press the START button before closing the
hatch to start the product. If the START button is not
pressed, a message beep is heard and the product will
not start.
4.3 Operating modes
Push the Operation selection button to select the
following operating modes:
•
Home
•
Auto
•
Man
4.3.1 Home mode
Operating mode
Home
means that the product remains
in the charging station until a different operating mode
is selected. The
Home
mode is also used to test if the
product can follow the guide wire and dock with the
charging station.
4.3.2 Auto mode
The
Auto
mode is the standard operating mode where
the product mows and charges automatically.
4.3.3 Manual mode
To mow secondary areas the operating mode
Man
must
be chosen. In the
Man
mode, the operator must move
the product manually between the main area and the
secondary area. The product mows until the battery is
empty.
When the battery is empty, the product stops and the
message
Needs manual charging
shows in the product
display. Put the product in the charging station to charge
the battery. When the battery is charged, the product
moves out of the charging station and stops. The
product is now prepared to start operation, but needs
confirmation from the operator first.
1285 - 009 - 22.02.2022
Operation - 25

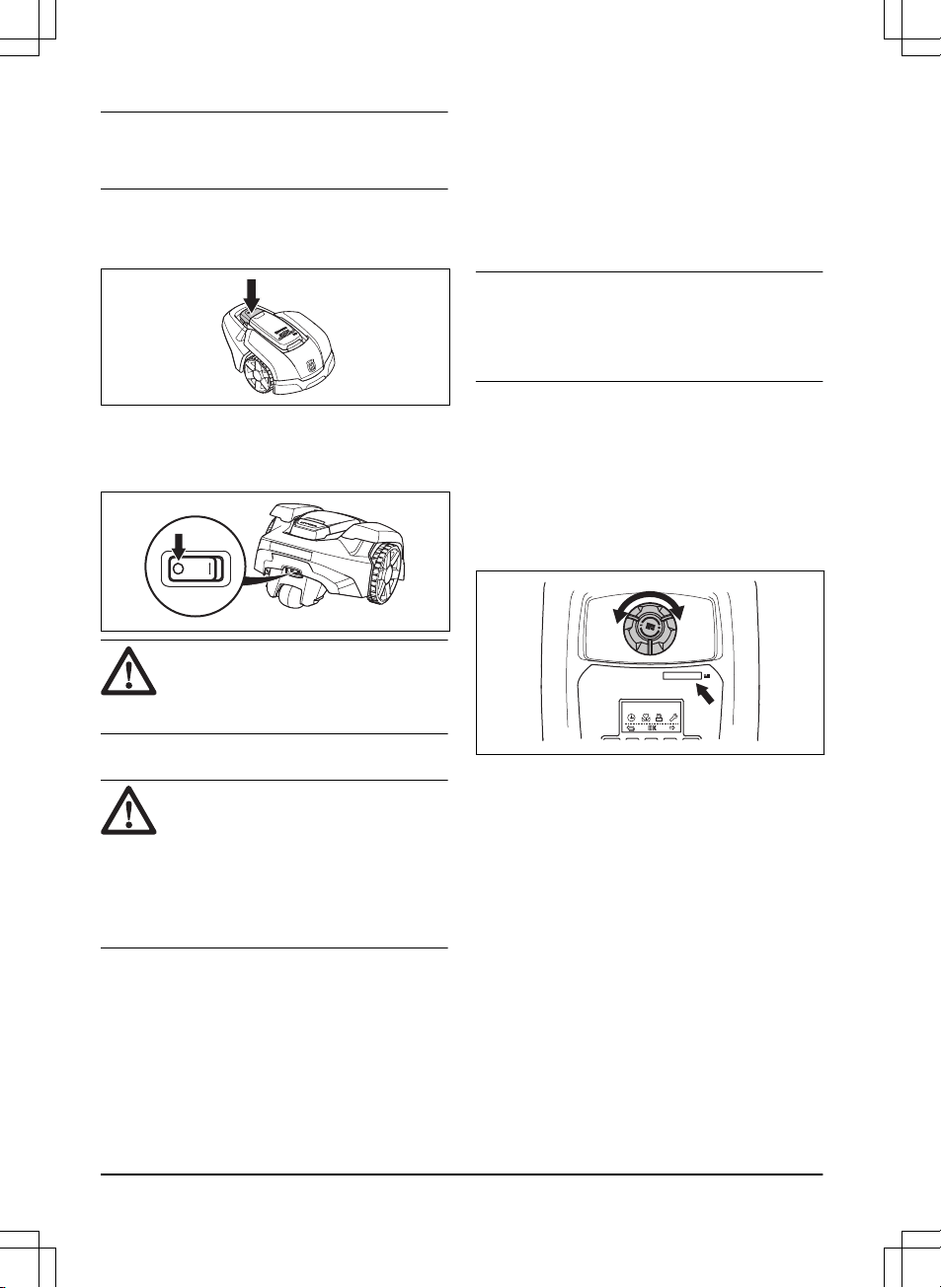

Note: If you want to cut the main area after the battery
is charged, set the product to
Auto
mode before placing
it in the charging station.
4.4 To stop the product
1. Push the STOP button to make the product and
the cutting motor stop.
4.5 To switch off the product
1. Press the STOP button on top of the product.
2. Set the Main switch to position
0
.
WARNING: Always switch off the
product using the main switch if it requires
maintenance, or if the product must be
moved outside the work area.
4.6 To charge the battery
WARNING:
Only charge the product
using a charging station which is intended
for it. Incorrect use may result in electric
shock, overheating or leakage of corrosive
liquid from the battery.
In the event of leakage of electrolyte flush
with water and seek medical help if it comes
in contact with the eyes etc.
When the product is new or has been stored for a
long period, the battery can be empty and needs to
be charged before starting. In the
Main area
mode, the
product automatically alternates between mowing and
charging.
1. Set the Main switch to position
1
.
2. Place the product in the charging station. Slide
the product in as far as possible to ensure proper
contact between the product and the charging
station. Refer to contact and charging plates in
Product overview on page 4
3. The display shows a message that charging is in
progress.
4.7 Adjust the cutting height
The cutting height can be varied from MIN (2 cm / 0.8
in.) to MAX (5 cm / 2 in.).
Note: During the first week after a new installation, the
cutting height must be set to MAX to avoid damaging the
loop wire. After this, the cutting height can be lowered
step by step every second week until the desired cutting
height has been reached.
4.7.1 To adjust the cutting height
1. Press the STOP button to stop the product and
open the hatch.
2. Turn the height adjustment knob to the required
position. The selected position is indicated by the
orange column on the height adjustment indicator.
• Turn counterclockwise to increase the cutting
height.
• Turn clockwise to lower the cutting height.
1 2 3 4 5
3. Close the hatch.
26
- Operation 1285 - 009 - 22.02.2022

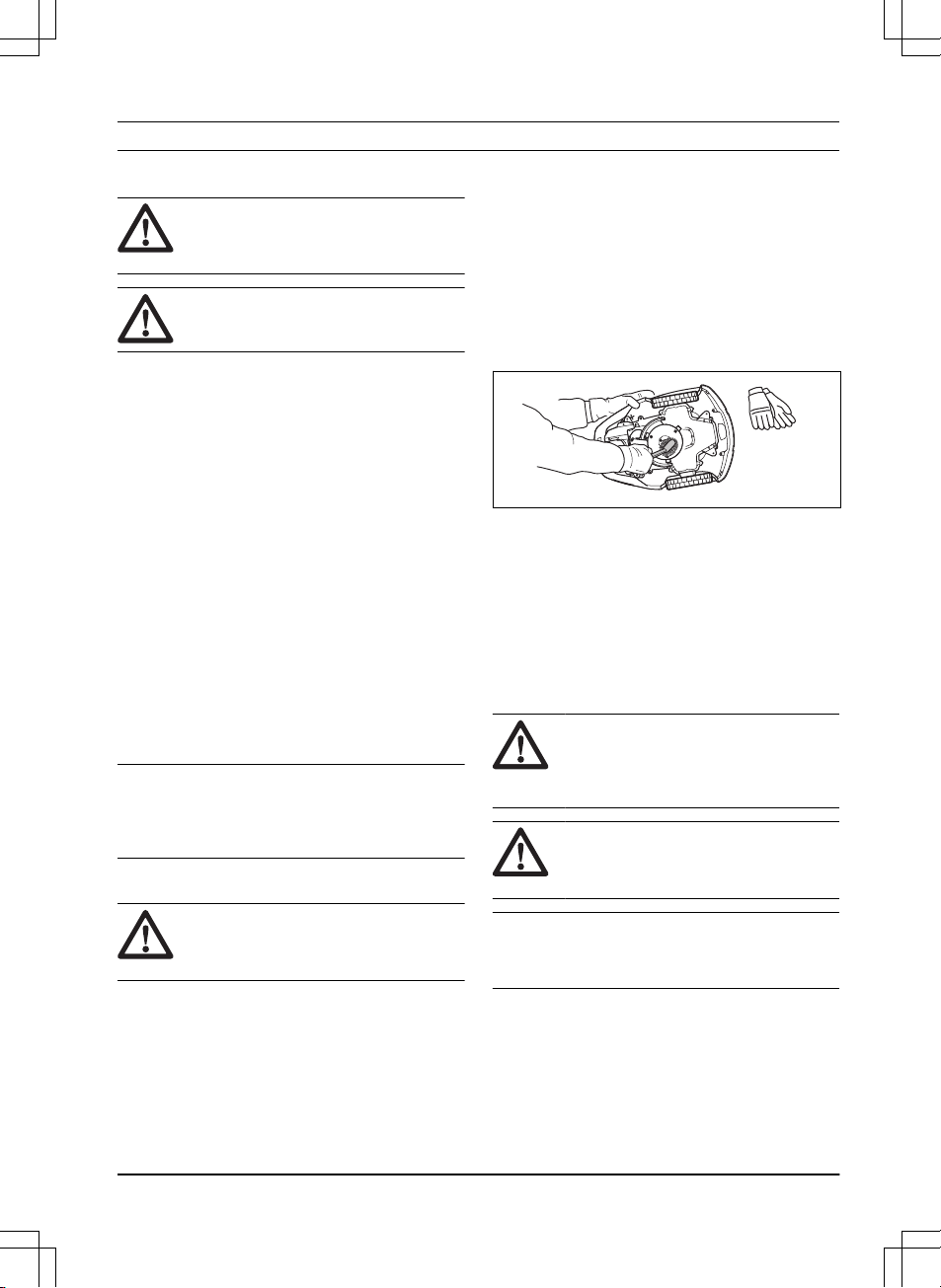

5 Maintenance
5.1 Introduction - maintenance
WARNING: The product must be
switched off before any maintenance is
done.
WARNING: Wear protective gloves.
For better operation and longer service life, make sure
to clean the product regularly and replace worn parts.
All maintenance and servicing must be done according
to Husqvarna
®
's instructions. Refer to
Warranty on page
43
.
When the product is first used, the blade disc and
blades should be inspected once a week. If the amount
of wear during this period has been low, the inspection
interval can be increased.
It is important that the blade disc rotates easily. The
edges of the blades should not be damaged. The
lifetime of the blades varies immensely and depends for
instance on:
• Operating time and size of the work area.
• Type of grass and seasonal growth.
• Soil, sand and use of fertilizers.
• The presence of objects such as cones, windfalls,
toys, tools, stones, roots and the like.
The normal life is 4 to 7 weeks when used under
favorable conditions. Refer to
Replacement of the
blades on page 28
on how to replace the blades.
Note:
Working with blunt blades gives a poorer
mowing result. The grass is not cut cleanly and more
energy is needed resulting in the product not mowing
such a large area.
5.2 Clean the product
CAUTION:
Never use a high-pressure
washer to clean the product. Never use
solvents for cleaning.
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass. Use a soft brush to
clean the product.
Husqvarna
®
recommends to use a special cleaning and
maintenance kit, available as accessory. Speak to your
Husqvarna
®
representative for more information.
5.2.1 Chassis and blade disc
Inspect the blade disc and blades once a week.
1. Push the STOP button.
2. Set the Main switch to position
0
.
3. Lift the product onto its side.
4. Clean the blade disc and chassis using for
example a dish brush. At the same time, check that
the blade disc rotates freely in relation to the foot
guard. Also, check that the blades are intact and
can pivot freely.
5.2.2 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
5.2.3 To clean the body of the product
• Use a moist cloth and a weak soap solution to
clean the body of the product.
5.2.4 To clean the charging station
WARNING:
Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
CAUTION: Do not use a high-pressure
washer or running water to clean the
charging station.
Note: The product cannot enter the charging station
if there are objects in the charging station. Clean the
charging station regularly.
• Remove grass, twigs and other objects from the
charging station.
1285 - 009 - 22.02.2022
Maintenance - 27

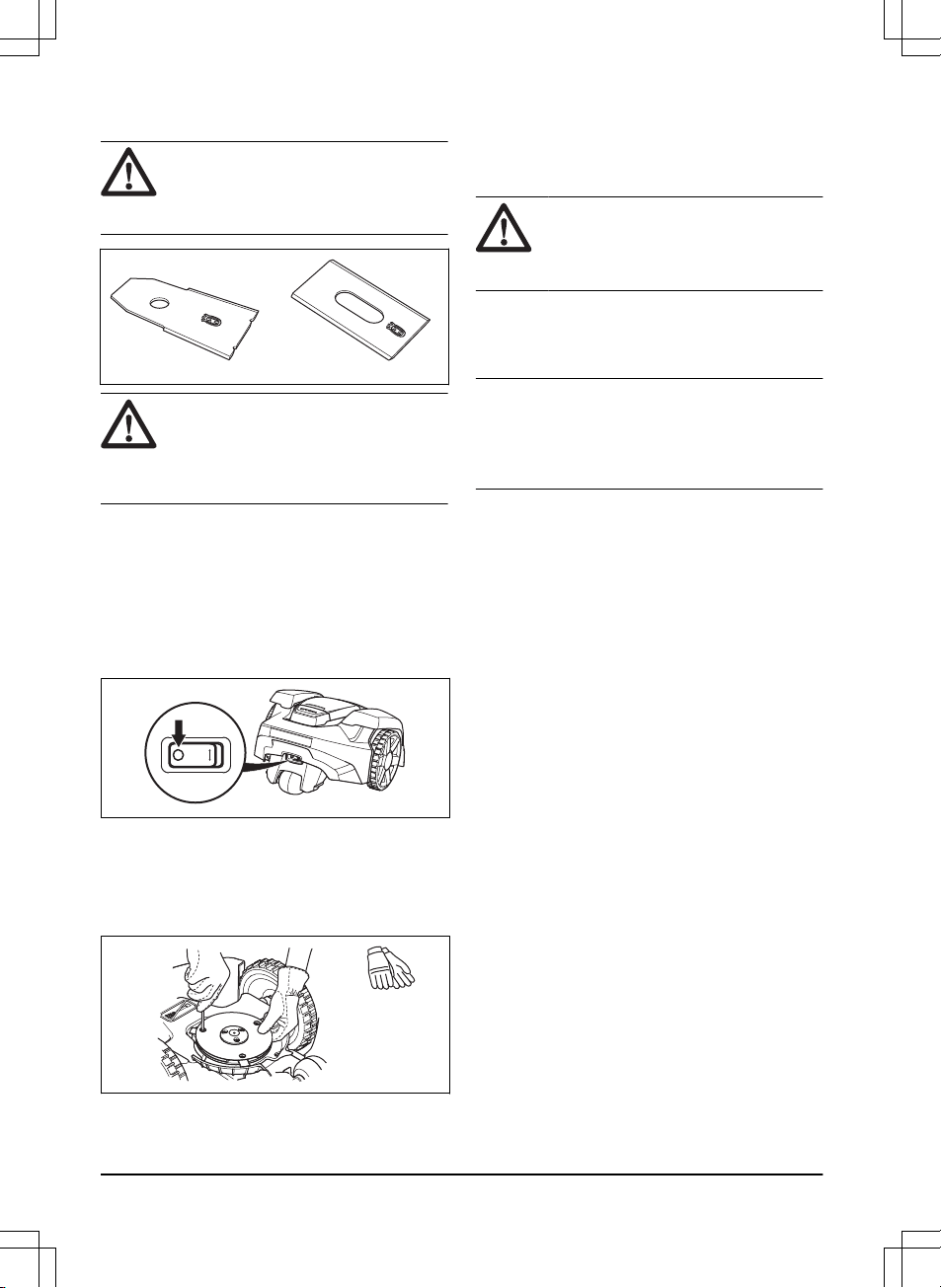

5.3 Replacement of the blades
WARNING: Husqvarna
®
can only
guarantee safety if you use Husqvarna
®
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 3 blades and screws must
be replaced at the same time to get a balanced cutting
system.
5.3.1 To replace the blades
1. Push the STOP button
2. Set the Main switch to position
0
.
3. Turn the product upside down. Put the product on
a soft and clean surface to avoid scratching the
product.
4. Rotate the skid plate so that its holes align with the
screws for the blade.
5. Remove the 3 screws with a screwdriver.
6. Remove the 3 blades.
7. Attach 3 new blades and screws.
8. Make sure that the blades can pivot freely.
5.4 Battery
CAUTION: Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note: The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
5.5 Winter service
Take your product to your Husqvarna
®
central service
for service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
28
- Maintenance 1285 - 009 - 22.02.2022
6 Troubleshooting
6.1 Introduction - troubleshooting
In this chapter you can find information and help about faults and symptoms of the product. You can find more
information and FAQ (Frequently Asked Questions) on www.husqvarna.com.
6.2 Fault messages
The fault messages in the table below are shown in the display of the product. Speak to your Husqvarna
®
representative if the same message shows frequently.
Message Cause Action
Wheel motor
blocked, left/right
Grass or other object has wrapped around
the drive wheel.
Check the drive wheel and remove the grass
or other object.
Cutting system
blocked
Grass or other object has wrapped around
the blade disc.
Check the blade disc and remove the grass
or other object.
The blade disc lies in a pool of water. Move the product and prevent the collection
of water in the work area.
The grass is too high. Cut the grass before you install the product.
Make sure that the grass is maximum 4 cm /
1.6 in.
Trapped
The product is stuck in a small area behind a
number of obstacles.
Check if there are any obstacles which make
it hard for the product to move on from this
location. Remove the obstacles or create
an island around the obstacles. Refer to
To
make an island on page 16
.
Outside working area
The boundary wire connections to the charg-
ing station are crossed.
Check that the boundary wire is connected
correctly.
The boundary wire is too close to the edge of
the work area.
Check that the boundary wire has been laid
according to the instructions. Refer to
To in-
stall the boundary wire on page 19
.
The work area slopes too much by the boun-
dary loop.
The boundary wire is laid in the wrong direc-
tion around an island.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try moving the boundary wire.
The product finds it hard to distinguish the
signal from another product installation close
by.
Put the product in the charging station and
generate a new loop signal.
1285 - 009 - 22.02.2022 Troubleshooting - 29
Message Cause Action
Empty battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 19
.
The battery is spent. Replace the battery. Refer to
Battery on
page 28
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
Indicator lamp in
the charging station on page 35
.
The charging plates on the product or con-
tact plates on the charging station are corro-
ded.
Clean the charging and contact plates using
a fine grade emery cloth. If the problem stays
speak to your authorized service technician.
Wrong PIN code
Wrong PIN code has been entered. Five at-
tempts are permitted, and the keypad is then
blocked for a period of time.
Enter the correct PIN code. Contact Husq-
varna
®
customer service if you forget the PIN
code.
No drive
The product has got caught in something and
has been slipping.
Free the product and rectify the reason for
the lack of drive. If it is due to wet grass,
wait until the lawn has dried before using the
product.
The work area includes a steep slope. Steep slopes should be isolated. Refer to
To
examine where to put the boundary wire on
page 14
.
The guide wire is not laid diagonally in the
slope.
Make sure that the guide wire is installed di-
agonally across the slope. Refer to
To exam-
ine where to put the guide wire on page 17
.
Wheel motor overloa-
ded, left/right
Grass or other object is wrapped around the
drive wheel.
Check the drive wheel and remove grass or
object.
Collision sensor
problem, rear
The product body can not move freely
around its chassis.
Check that the product body can move free-
ly around its chassis. If the problem stays
speak to your authorized service technician.
Alarm! Mower switch-
ed off
The alarm is activated because the product
had been switched off.
Adjust the security level in the
Security
menu. Refer to
Security level on page 23
.
Alarm! Mower stop-
ped
The alarm is activated because the product
has been stopped.
Alarm! Mower lifted
The alarm is activated because the product
has been lifted.
Alarm! Mower tilted
The alarm is activated because the product
has been tilted.
30 - Troubleshooting 1285 - 009 - 22.02.2022
Message Cause Action
Charging station
blocked
The contact between the charging plates on
the product on the and contact plates on
the charging station may be poor and the
product has made a number of attempts to
charge.
Put the product in the charging station and
check that the charging plates and contact
plates make good contact.
An object is in the way of the product that
prevents it to enter the charging station.
Remove the object.
The charging station is tilted or bent. Put the baseplate on level ground.
The guide wire is not installed correctly. Check if the guide wire is installed accord-
ing to the instructions. Refer to
To install the
guide wire on page 19
.
Stuck in charging sta-
tion
There is an object in the way of the product
preventing it from leaving the charging sta-
tion.
Remove the object.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Needs manual charg-
ing
The product is set to the
MAN
operating
mode.
Put the product in the charging station.
Next start hh:mm
The timer setting prevents the product from
operating.
Change the timer settings. Refer to
To do the
timer settings on page 21
.
The rest period is in progress. The product
has an inbuilt standby period according to
the Standby time table.
This behavior is normal and no action is re-
quired.
The clock or date in the product is not cor-
rect.
Set the time. Refer to
To set the Time & Date
on page 24
.
Today's mowing
completed
The product has an inbuilt standby period ac-
cording to the Standby time table.
This behavior is normal and no action is re-
quired. Refer to
Make an estimate of the nec-
essary operating time on page 21
.
Lifted
The lift sensor has been activated as the
product has been lifted.
Check that the product body can move freely
around its chassis. Remove or create an is-
land around objects that can cause the chas-
sis to be lifted. If the problem stays speak to
your authorized service technician.
Wheel drive problem,
right/left
Grass or other object is wrapped around the
drive wheel.
Clean the wheels and around the wheels.
Electronic problem
Temporary electronic or firmware related is-
sue in the product.
Restart the product. If the problem stays
speak to your authorized service technician.
Loop sensor prob-
lem, front/rear
Tilt sensor problem
Temporary problem
Invalid sub-device
combination
Temporary battery
problem
1285 - 009 - 22.02.2022 Troubleshooting - 31
Message Cause Action
Charging system
problem
Incorrect type of battery. Use original batteries recommended by the
manufacturer.
Battery problem
Temporary battery or firmware related issue
in the product.
Restart the product. If the problem stays
speak to your authorized service technician.
Incorrect type of battery. Use original batteries recommended by the
manufacturer.
Battery temperature
outside limits
The temperature in the battery is too high or
too low to start operation.
No action. The product will start to operate
when the temperature is in limits.
Charging current too
high
Wrong or faulty power supply unit. Restart the product. If the problem stays
speak to your authorized service technician.
Connectivity problem
Potential problem on the connectivity circuit
board in the product.
Restart the product. If the problem stays
speak to your authorized service technician.
Connectivity settings
restored
The connectivity settings was restored due to
a fault.
Check and change the settings if needed.
Poor signal quality
The connectivity circuit board in the product
is assembled upside down, or the product
itself is tilted or upside down.
Make sure that the product is not upside
down or tilted. If the problem stays speak to
your authorized service technician.
32 - Troubleshooting 1285 - 009 - 22.02.2022
Message Cause Action
No loop signal
The power supply or low-voltage cable is not
connected.
If the LED status indicator on the charging
station is not lit, it shows that there is no
power. Examine the power outlet connection
and the residual-current device. Make sure
that the low-voltage cable is connected to the
charging station.
The power supply or low-voltage cable is
damaged or not connected.
Replace the power supply or low-voltage ca-
ble.
The boundary wire is not connected to the
charging station.
Check that the boundary wire connectors
are fitted properly to the charging station.
Replace connectors if damaged. Refer to
To
install the boundary wire on page 19
.
The boundary is wire broken. Do a check of the LED status indicator on
the charging station. If it shows break in the
boundary wire, replace the damaged section
with a new loop wire and splice using an
original coupler.
ECO mode
is activated and the product has
attempted to start outside the charging sta-
tion.
Put the product in the charging station, start
the product and close the hatch.
The boundary wire is crossed on its way to
and from an island.
Check that the boundary wire is laid accord-
ing to instructions, e.g. in the right direction
around the island. Refer to
To install the
boundary wire on page 19
.
The pairing between the product and the
charging station is lost.
Put the product in the charging station and
generate a new loop signal. Refer to
To cre-
ate a New loop signal on page 23
.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
islands in the work area to increase the sig-
nal strength.
The product is too far from the boundary
wire.
Redo the installation of the boundary wire so
that all parts of the work area is maximum 15
m / 50 ft. from the boundary wire.
Mower tilted
The product is tilted more than the maximum
angle.
Move the product to a flat area.
Connection NOT
changed
Failed to change loop signal. Try to create a
New loop signal
several
times. Refer to
To create a New loop signal
on page 23
. If the problem stays speak to
your authorized service technician.
1285 - 009 - 22.02.2022 Troubleshooting - 33
6.3 Information messages
The information messages in the table below are shown in the display of the product. Speak to your Husqvarna
®
representative if the same message shows frequently.
Message Cause Action
Low battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 19
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 28
.
The antenna of the charging station is defec-
tive.
Do a check if the indicator lamp in the charg-
ing station flashes red. Refer to
Indicator
lamp in the charging station on page 35
.
The charging plates on the product or con-
tact plates on the charging station are defec-
tive because of corrosion.
Clean the charging plates and contact plates.
If the problem stays speak to your Husqvar-
na
®
service.
Settings restored
A
Reset all user settings
has been done. Usual operation of the product.
Guide 1 not found
The guide wire is not connected to the charg-
ing station.
Connect the guide wire to the charging sta-
tion. Refer to
To install the guide wire on
page 19
.
Damage in the guide wire. Replace the damaged section with new
guide wire.
The guide wire is not connected to the boun-
dary loop.
Connect the guide wire correctly to the boun-
dary loop. Refer to
To install the boundary
wire on page 19
.
Guide calibration
failed
The product has not calibrated the guide wire
because of an error.
Install the guide wire correctly. Refer to
To
install the guide wire on page 19
.
Guide calibration
done
The product has calibrated the guide wire. Usual operation of the product.
Connection changed
New loop signal changed. Usual operation of the product.
34 - Troubleshooting 1285 - 009 - 22.02.2022
6.4 Indicator lamp in the charging station
The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not,
follow the instructions in the troubleshooting guide below.
You can also find information on www.husqvarna.com. Speak to your Husqvarna
®
customer service for more
information.
Light Cause Action
Green solid light
Good signals. No action required.
Green flashing light
The signals are good and
ECO mode
is
activated.
No action required. For more information on
ECO mode
, Refer to
ECO mode on page 24
.
Blue flashing light
The boundary loop is not connected to
the charging station.
Check that the boundary wire connector is
fitted properly to the charging station. Refer
to
To install the boundary wire on page 19
.
Break in the boundary loop. Find out where the break is. Replace the
damaged section of the boundary wire with
a new loop wire and splice using an original
coupler. Refer to
Find breaks in the loop wire
on page 37
.
Yellow flashing light
The guide wire is not connected to the
charging station.
Check that the guide wire connector is prop-
erly connected to the charging station. Refer
to
To install the guide wire on page 19
.
Break in the guide wire. Find out where the break is. Replace the
damaged section of the guide wire with a new
loop wire and splice using an original coupler.
Red flashing light
Interruption in the charging station’s an-
tenna.
Contact your local Husqvarna
®
representa-
tive.
Red solid light
Fault in the circuit board or incorrect
power supply in the charging station.
The fault should be rectified by an au-
thorized service technician.
Contact your local Husqvarna
®
representa-
tive.
1285 - 009 - 22.02.2022 Troubleshooting - 35
6.5 Symptoms
If your product does not work as expected, follow the symptoms guide below.
There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed answers to a
number of standard questions. Contact Husqvarna
®
customer service if you still cannot find the reason for the fault.
Symptoms Cause Action
The product has diffi-
culty docking.
The guide wire is not laid in a long straight
line that is far enough out from the charging
station.
Check that the charging station has been
installed according to the instructions in
To
examine where to put the guide wire on page
17
The guide wire is not inserted in the slot un-
der the charging station.
It is absolutely critical for operation that the
guide wire is perfectly straight and is in the
correct position under the charging station.
Therefore make sure that the guide wire is
always in its slot in the charging station. Re-
fer to
To install the guide wire on page 19
.
The charging station is on a slope. Place the charging station on a surface that
is entirely level. Refer to
To examine where
to put the charging station on page 13
.
The product runs at
the wrong time
The product clock needs to be set. Set the clock. Refer to
To set the Time &
Date on page 24
.
The start and stop times for mowing are in-
correct.
Reset the start time and stop time settings
for mowing. Refer to
To reset the timer set-
ting on page 22
.
The product vibrates. Damaged blades lead to imbalance in the
cutting system.
Inspect the blades and screws and replace
them if necessary. Refer to
Replacement of
the blades on page 28
.
Too many blades in the same position lead
to imbalance in the cutting system.
Check that only one blade is fitted at each
screw.
Different versions (thickness) of Husqvarna
®
blades are used.
Check if the blades are of different versions.
The product runs, but
the blade disc does
not rotate.
The product searches for the charging sta-
tion, or is driving to the starting point.
No action. The blade disc does not rotate
when the product is searching for the charg-
ing station.
The product mows
for shorter periods
than usual between
charges.
Grass or other foreign object blocks the
blade disc.
Remove and clean the blade disc. Refer to
Chassis and blade disc on page 27
.
The battery is spent. Replace the battery. Refer to
To remove the
battery on page 40
.
Both the mowing and
charging times are
shorter than usual.
The battery is spent. Replace the battery. Refer to
To remove the
battery on page 40
.
The product is
parked for hours in
the charging station.
The product has an inbuilt standby period ac-
cording to the Standby time table. Refer to
Make an estimate of the necessary operating
time on page 21
.
No action.
The STOP button has been activated. Open the hatch, enter the PIN code and con-
firm with the OK button. Press the Start but-
ton and then close the hatch.
36 - Troubleshooting 1285 - 009 - 22.02.2022

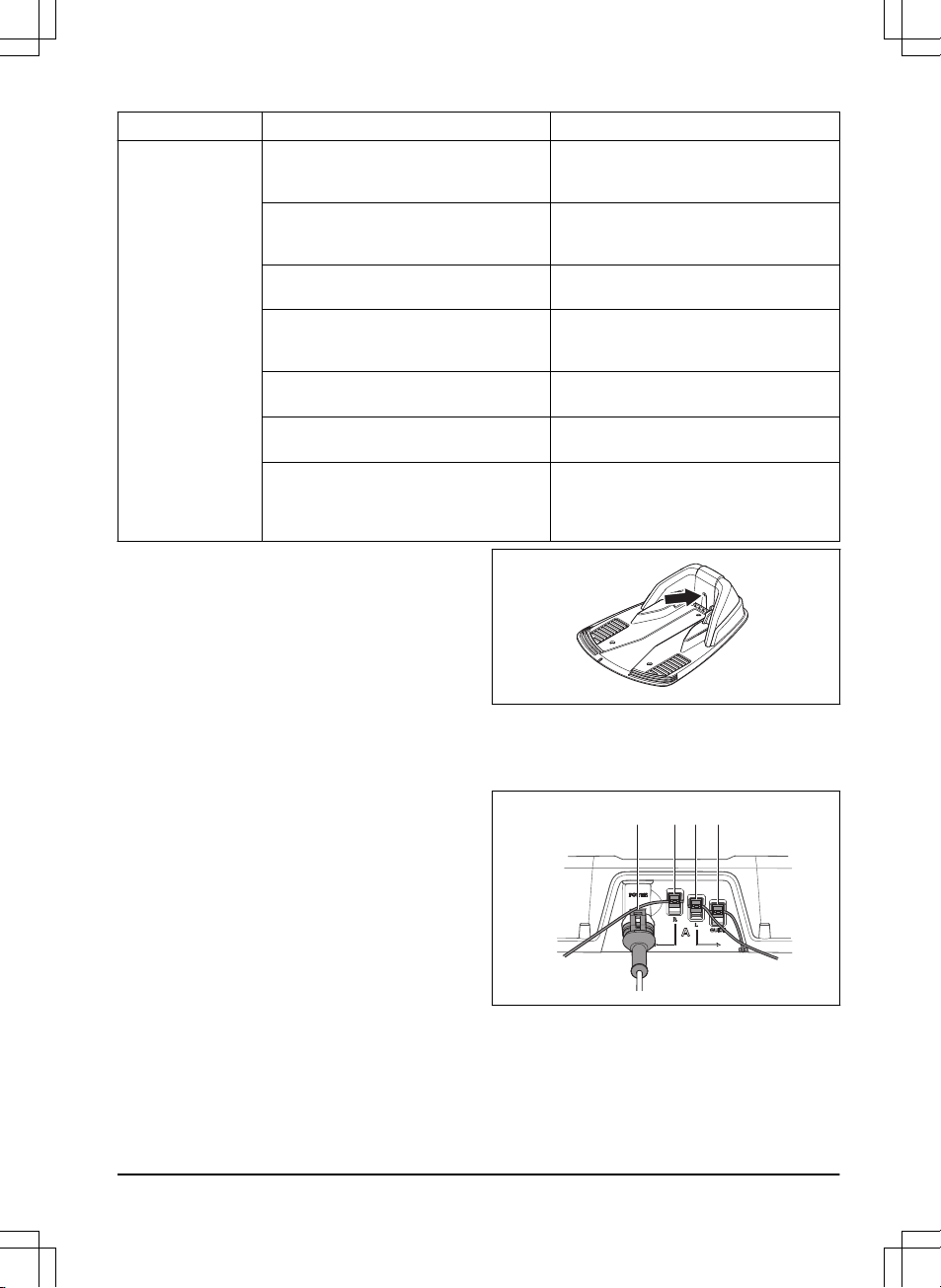

Symptoms Cause Action
Uneven mowing re-
sults.
The product works too few hours per day. Increase the mowing time. Refer to
Make an
estimate of the necessary operating time on
page 21
.
The shape of the work area requires the use
of the
Remote start
function for the product
to find its way to all remote areas.
Steer the product to a remote area. Refer to
Remote start 2 on page 22
.
The
Proportion
setting is incorrect in relation
to the layout of the work area.
Check that the correct
Proportion
value is se-
lected.
Work area too large. Try limiting the work area or extending the
work time. Refer to
To do the timer settings
on page 21
.
Dull blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 28
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then succes-
sively lower it.
Accumulation of grass by the blade disc or
around the motor shaft.
Check that the blade disc rotates freely and
easily. If not, screw off the blade disc and
remove grass and foreign objects. Refer to
Chassis and blade disc on page 27
.
6.6 Find breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such as when
gardening with a shovel. In countries with ground frost,
also sharp stones that move in the ground can damage
the wire. Breaks can also occur due to the wire being
stretched excessively during installation.
Mowing the grass too low right after the installation can
damage wire insulation. Damage to the insulation may
not cause disruptions until several weeks or months
later. To avoid this, always select the maximum cutting
height the first weeks after installation and then lower
the height one step at a time every second week until
the desired cutting height has been reached.
A defective splicing of the loop wire can also lead to
disruptions several weeks after the splice was done.
A faulty splice can, for example, be the result of the
coupler not being pressed together hard enough with a
pair of pliers, or that a coupler of lower quality than the
original coupler has been used. Please first check all
known splices before further troubleshooting is done.
A wire break can be located by gradually halving the
distance of the loop where the break may have occurred
until there is only a very short section of the wire left.
The following method does not work if
ECO mode
is
activated. Make sure first that
ECO mode
is switched
off. Refer to
ECO mode on page 24
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break in
the boundary loop. Refer to
Indicator lamp in the
charging station on page 35
.
2. Check that the boundary wire connections to the
charging station are properly connected and not
damaged. Check that the indicator lamp in the
charging station is still flashing blue.
POWER R L GUIDE
3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection L and GUIDE.
If the indicator lamp is flashing yellow, then the
break is somewhere on the boundary wire between
1285 - 009 - 22.02.2022
Troubleshooting - 37
L and the point where the guide wire is connected
to the boundary wire (thick black line in the
illustration).
Guide
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then the
easiest way is to exchange all of the boundary wire
between L and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put L and GUIDE
back to their original positions. Then disconnect
R. Connect a new loop wire to R. Connect the
other end of this new loop wire at the middle of the
suspected wire section.
If the indicator lamp now is flashing yellow, then
the break is somewhere in the wire between the
disconnected end to the point where the new wire
is connected (thick black line below). In that case,
move the connection for the new wire closer to
the disconnected end (roughly at the middle of
the suspected wire section) and check again if the
indicator lamp is green.
Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
38
- Troubleshooting 1285 - 009 - 22.02.2022
4. If indicator lamp still flashes blue in step 3
above: Put L and GUIDE back in their original
positions. Then switch R and GUIDE. If indicator
lamp now is lit with a solid green light then
disconnect L and connect a new boundary wire to
L. Connect the other end of this new wire at the
middle of the suspected wire section. Follow the
same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
1285 - 009 - 22.02.2022 Troubleshooting - 39
7 Transportation, storage and disposal
7.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
7.2 Storage
• Fully charge the product. Refer to
To charge the
battery on page 26
.
• Switch off the product. Refer to
To switch off the
product on page 26
.
• Clean the product. Refer to
Clean the product on
page 27
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground
during storage, or use an original wall hanger if
available.
• If you keep the charging station indoors,
disconnect and remove the power supply and all
the connectors from the charging station. Put the
end of each connector wire in a container with
grease.
Note: If you keep the charging station outdoors, do
not disconnect the power supply and the connectors.
7.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 40
.
7.3.1 To remove the battery
Follow these steps for removal of the battery from the
product.
1. Set the Main switch in position
0
.
2. Set the cutting height to its lowest position.
3. Turn the product upside down.
4. Clean around the battery cover.
5. Remove the 4 screws to the battery cover (Torx
20) and remove the battery cover.
6. Remove the screw of the battery retaining bracket
and remove the bracket.
7. Pull out the battery by pulling on the strap.
40 - Transportation, storage and disposal 1285 - 009 - 22.02.2022
8 Technical data
8.1 Technical data
Dimensions Automower
®
105
Length, cm / in 55 / 21.7
Width, cm / in 39 / 15.4
Height, cm / in 25 / 9.8
Weight, kg / lbs 6.9 / 15
Electrical system Automower
®
105
Battery, Lithium-Ion 18.5 V/2.1 Ah Art. No. 586 57 62-02
Battery, Lithium-Ion 18 V/2.0 Ah Art. No. 586 57 62-03, 586 57 62-05
Battery, Lithium-Ion 18.25 V/2.0 Ah Art. No. 586 57 62-04
Power supply (28V DC), V AC 100-240
Low-voltage cable length, m / ft 5 / 16.4
Mean energy consumption at maximum use 5 kWh/month in a 600 m
2
/ 0.15 acre work
area
Charge current, A DC 1.3
Type of Power Supply Unit ADP-40BR XX, ADP 40EW
XX, FW7313/28/D/XX/Y/1.3/PI,
FW7313/28/D/XX/Y/1.3
Average mowing time, min 65
Average charging time, min 50
Boundary wire antenna Automower
®
105
Operating Frequency Band, Hz 100-80000
Maximum magnetic field
2
, dBuA/m 82
Maximum Radio-frequency power
3
, mW @60m <25
2
Measured according to EN 303 447.
3
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
1285 - 009 - 22.02.2022 Technical data - 41
Sound data
4
Automower
®
105
Sound level, perceived dB (A) 65
Measured sound power noise level, dB (A) 58
Noise emissions uncertainties, KWA dB (A) 3
Guaranteed sound power noise level, dB (A) 61
Sound pressure noise level at the operator’s ear
5
, dB (A) 47
Mowing Automower
®
105
Cutting system 3 pivoted cutting blades
Cutting motor speed, rpm 2900
Power consumption during cutting, W +/- 20 % 20
Cutting height, cm / in. 2-5 / 0.8-2
Cutting width, cm / in. 17 / 6.7
Narrowest possible passage, cm / in. 60 / 24
Maximum angle for work area, % 25
Maximum angle for boundary wire, % 15
Maximum length boundary wire, m / ft. 400 / 1300
Maximum length guide loop
6
, m / ft. 200 / 650
Maximum distance to boundary wire m / ft. 15 / 50
Working capacity, m
2
/ acre +/- 20% 600 / 0.15
IP-classification Automower
®
105
Robotic lawn mower IPX4
Charging station IPX1
Power supply IPX4/IP44
Full compatibility cannot be guaranteed between the robotic lawnmower and other types of wireless systems such as
remote controls, radio transmitters, hearing loops, buried electric animal fencing or similar.
4
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
5
Sound pressure noise uncertainties K
pA
, 2-4 dB (A)
6
The guide loop is the loop that if formed by the guide wire and the part of the boundary wire from the junction
with the guide wire to the right connection in the charging station.
42 - Technical data 1285 - 009 - 22.02.2022
9 Warranty
9.1 Warranty terms
Husqvarna
®
warranty covers this product's functionality
for a period of 2 years from date of purchase. The
warranty covers serious faults relating to materials or
manufacturing faults. Within the warranty period, we
will replace the product or repair it at no charge if the
following terms are met:
• The product and the charging station may only be
used in compliance with the instructions in this
Operator’s Manual. This manufacturer's warranty
does not affect warranty entitlements against the
dealer/retailer.
• End-users or non-authorized third parties must not
attempt to repair the product.
Examples of faults which are not included in the
warranty:
• Damage caused by water seepage from using a
high-pressure washer, or from being submerged
under water, for example when heavy rain forms
pools of water.
• Damage caused by lightning.
• Damage caused by improper battery storage or
battery handling.
• Damage caused by using a battery that is not a
Husqvarna
®
original battery.
• Damage caused by not using Husqvarna
®
original
spare parts and accessories, such as blades and
installation material.
• Damage to the loop wire.
• Damage caused by non-authorized changing or
tampering with the product or its power supply.
The blades and wheels are seen as disposable and are
not covered by the warranty.
If an error occurs with your Husqvarna
®
product,
please contact Husqvarna
®
customer service for further
instructions. Please have the receipt and the product’s
serial number at hand when contacting Husqvarna
®
customer service.
1285 - 009 - 22.02.2022
Warranty - 43
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2022 HUSQVARNA. All rights reserved.
Original instructions
1142743-26
2022-03-08
