INSTALLATION GUIDE
for the
SB-TE-YG1-10TW1
SKU# 94715
2020-Up Tesla Model Y (5 Seat Model)
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICU LT Y:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10T W1-2
Nominal Impedance: 2 ohms
Continuous Power Handling: 300 watts (RMS method)
Continued on Next Page
2
5
OUT
OF
SB-TE-YG1-10TW1 INSTR_SKU# 011587
INCLUDED HARDWARE
Continued on Next Page
Page 2 • JL Audio, Inc., 2023
SB-TE-YG1-10TW1 INSTR_SKU# 011587
2
1
1
2
2
2
3
3
4
5

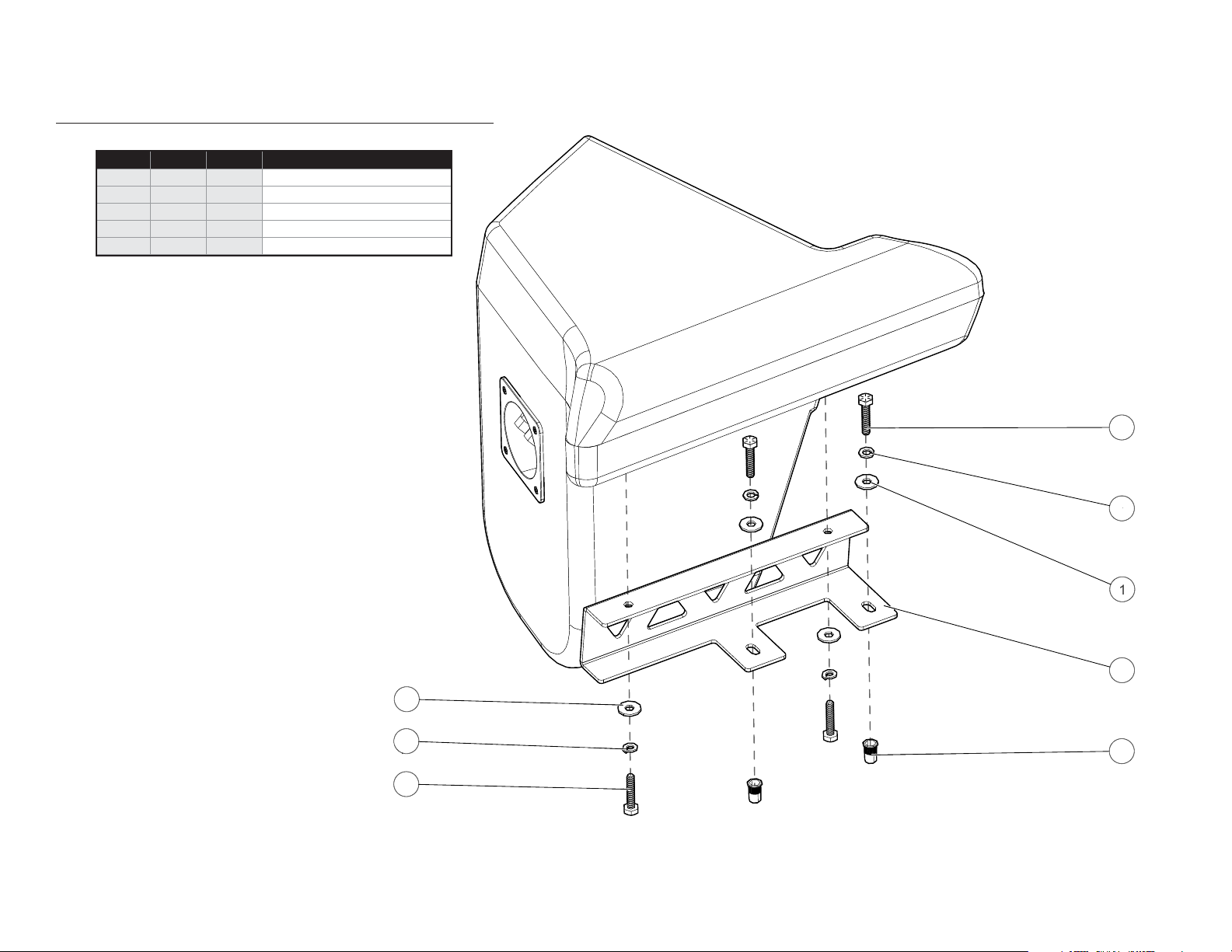

BOM ID Qty SKU Description
14151746 1/4” Flat Washer
24151098 1/4” Split Lock Washer
34150042 1/4 - 20 x 1” Hex Head Screw
41154543 Bracket
54150994 1/4 - 20 Heavy Duty Rivet Nut
POWER RECOMMENDATION

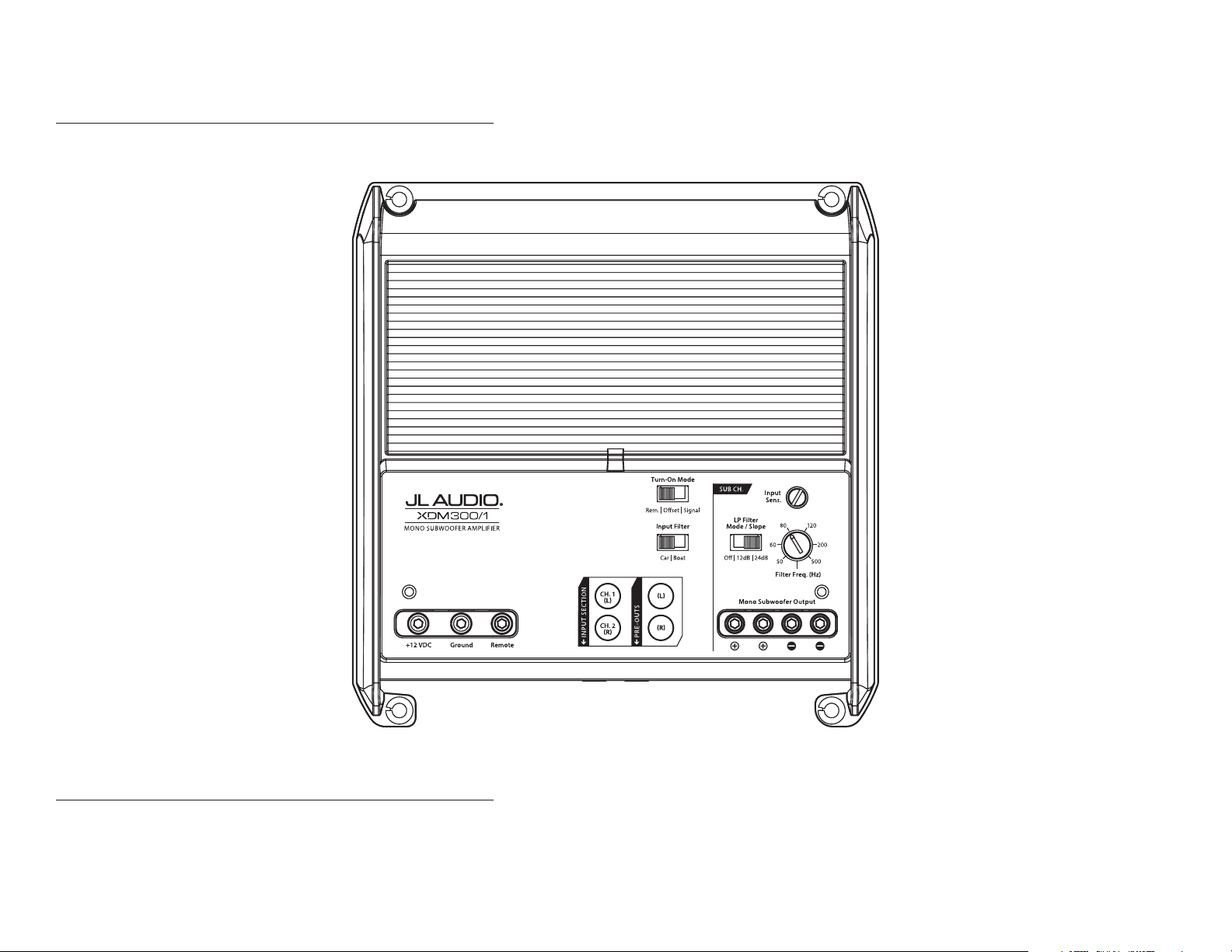

JL Audio recommends high quality ampliers such as the JL Audio XDM300/1. The diagram below shows the recommended crossover settings for the XDM300/1. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2023
SB-TE-YG1-10TW1 INSTR_SKU# 011587
Page 4 • JL Audio, Inc., 2023 Continued on Next Page

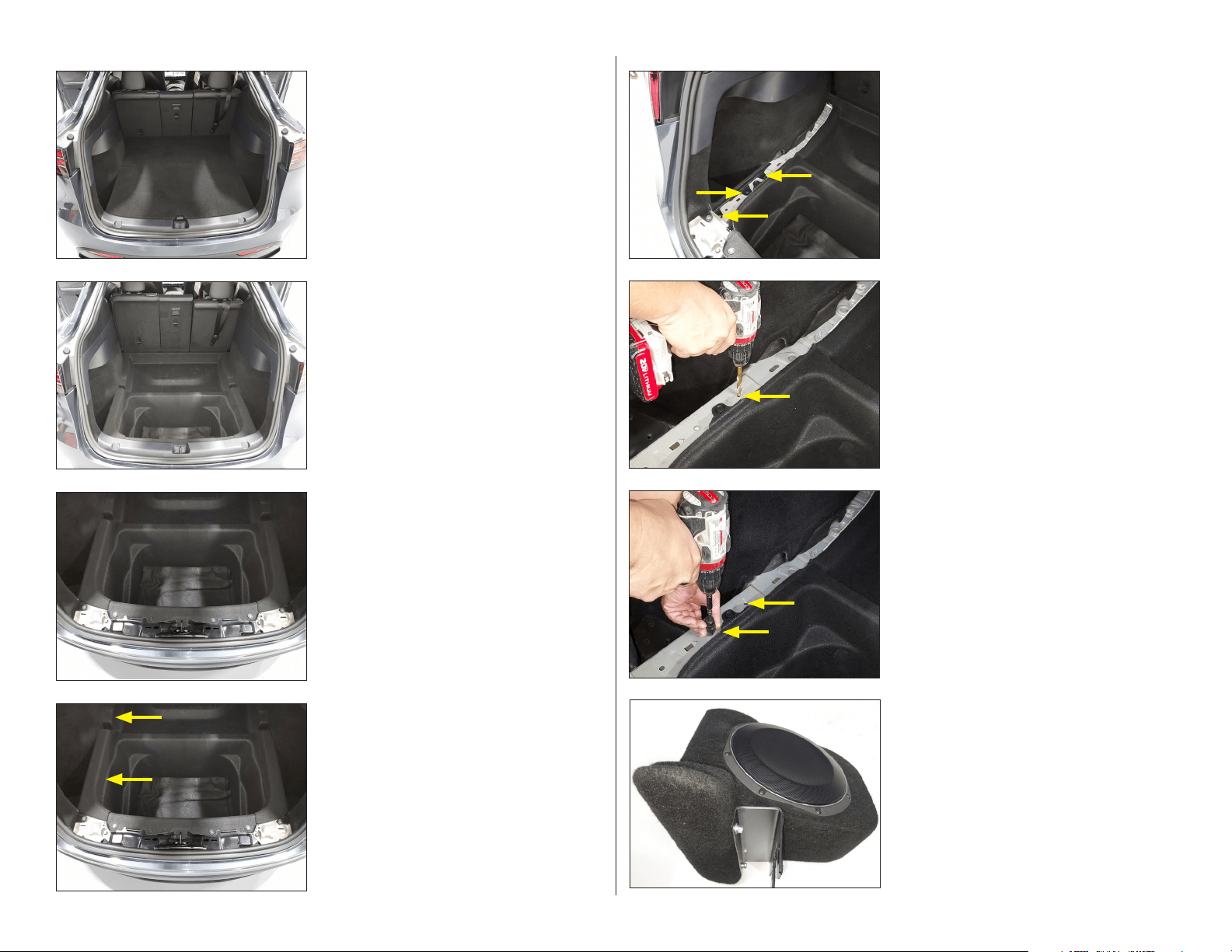

STEP 7
Use a rivet nut installation tool to install a
supplied 1/4 - 20 Heavy Duty Rivet Nut into
each of the two indicated holes.
STEP 6
Use a 3/8” drill bit to enlarge the single
indicated factory cargo pocket mounting
clip hole.
STEP 5
Carefully pry the indicated plastic clips from
the floor to remove the cargo pocket.
STEP 4
Carefully pry the indicated driver side carpeted
floor panel up from the floor and remove.
STEP 3
Carefully pry the hatch sill trim up from the
floor and remove.
STEP 2
Tilt the driver side rear seat forward. Lift and
remove both factory cargo floor covers.
STEP 1
Empty the cargo area.
SB-TE-YG1-10TW1 INSTR_SKU# 011587
STEP 7
Slide a 1/4” Split Lock Washer and a 1/4” Flat
Washer each onto a 1/4 - 20 x 1” Hex Head
Screw to create a screw assembly.
Referring to Page 2 as a guide, use two
assemblies to attach the Bracket to
the Stealthbox® enclosure’s threaded inserts.
Fully tighten the screws.
Page 5 • JL Audio, Inc., 2023
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
SB-TE-YG1-10TW1 INSTR_SKU# 011587
STEP 10
Reinstall the factory panels, including the
driver side floor panel removed in STEP 4.
STEP 9
Slide a 1/4” Split Lock Washer and a 1/4” Flat
Washer each onto a 1/4 - 20 x 1” Hex Head
Screw to create a screw assembly.
Use two assemblies to secure the Bracket to the
two 1/4 - 20 Heavy Duty Rivet Nuts installed in
STEP 7. Fully tighten the screws.
STEP 8
Route speaker cable to the Stealthbox® and
connect to the terminal cup.
Place the Stealthbox® into the driver side cargo
pocket opening with the Bracket oriented
as shown.
