EVU Series User Manual
CHAPTER 1 Introduction
Introduction
TABLE 1. Horn Pattern EVU Models
Electro-Voice Model Number Notation
TABLE 2. Model Number Notation Description

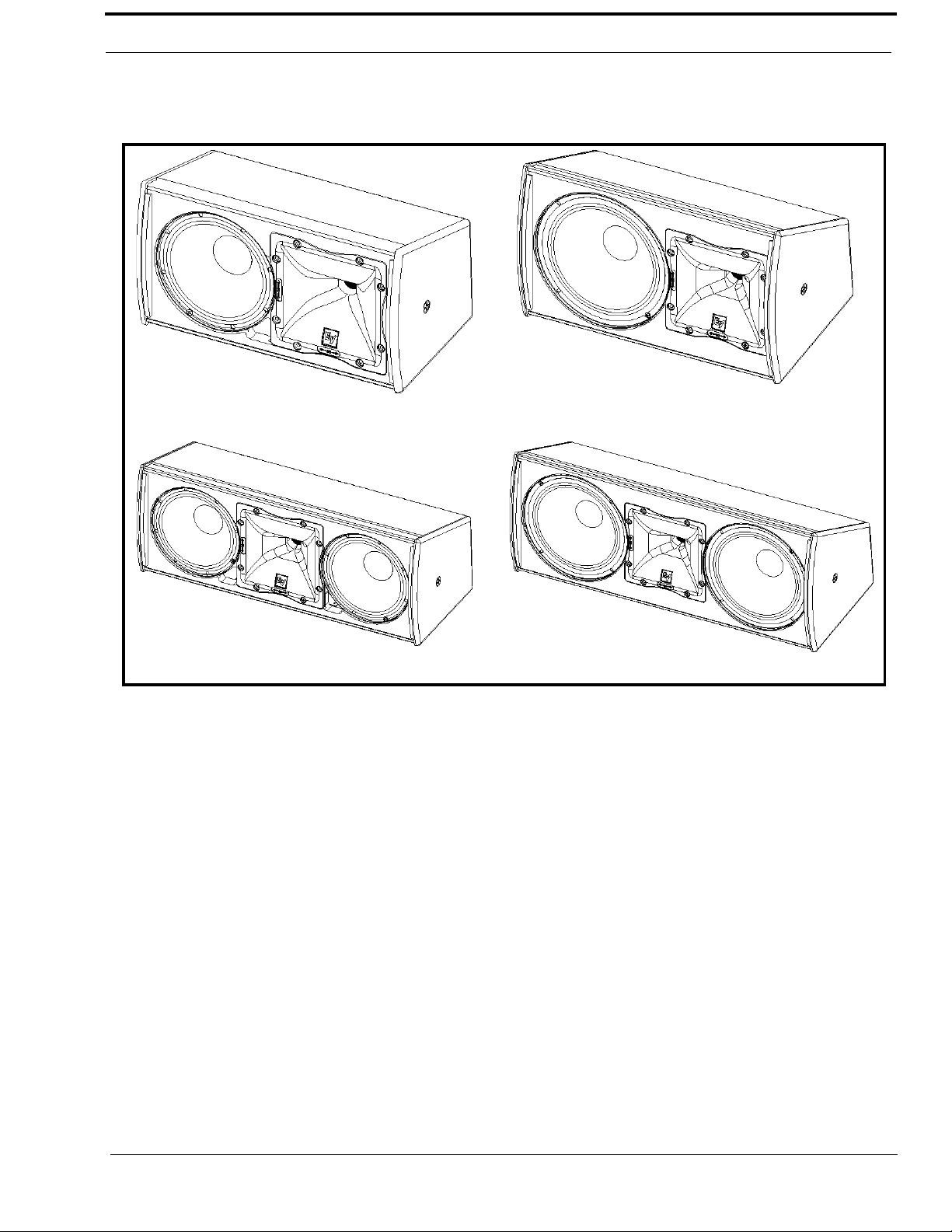

FIGURE 18. Available EVU Systems
Optional Accessories
Dimensions
FIGURE 19. Dimensions and Center of Gravity for the EVU-1062
FIGURE 20. EVU-1062 Block Diagram

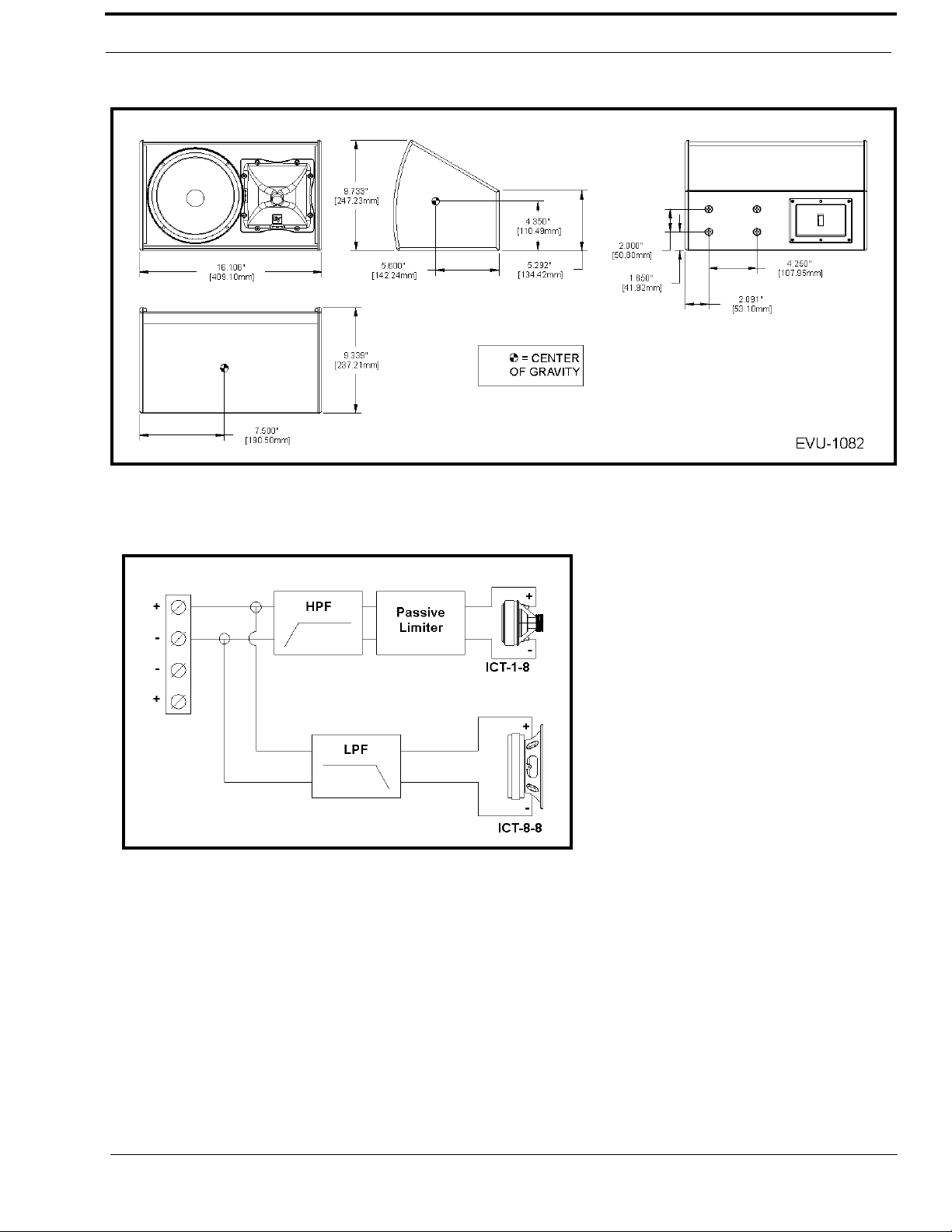

FIGURE 21. Dimensions and Center of Gravity for the EVU-1082
FIGURE 22. EVU-1082 Block Diagram

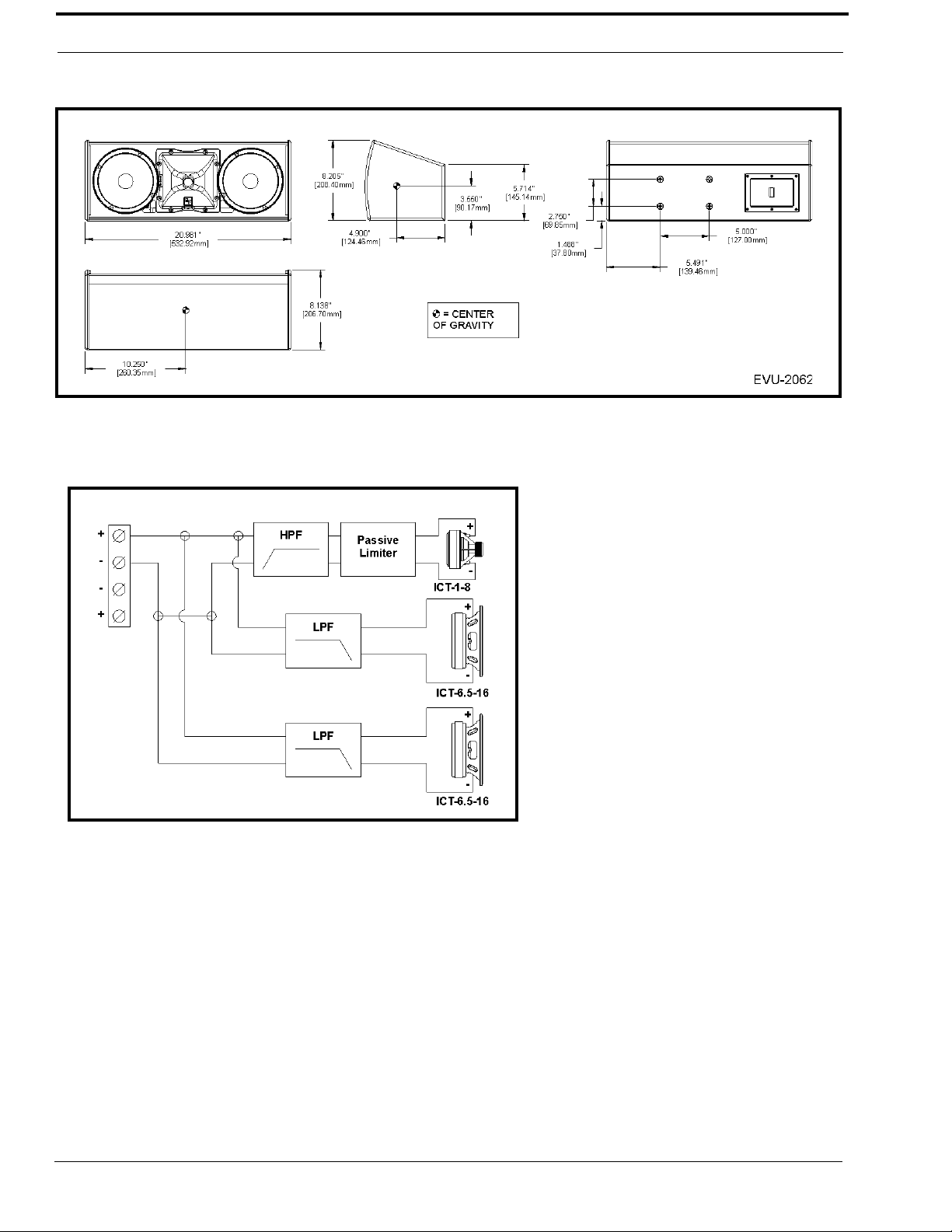

FIGURE 23. Dimensions and Center of Gravity for the EVU-2062
FIGURE 24. EVU-2062 Bock Diagram

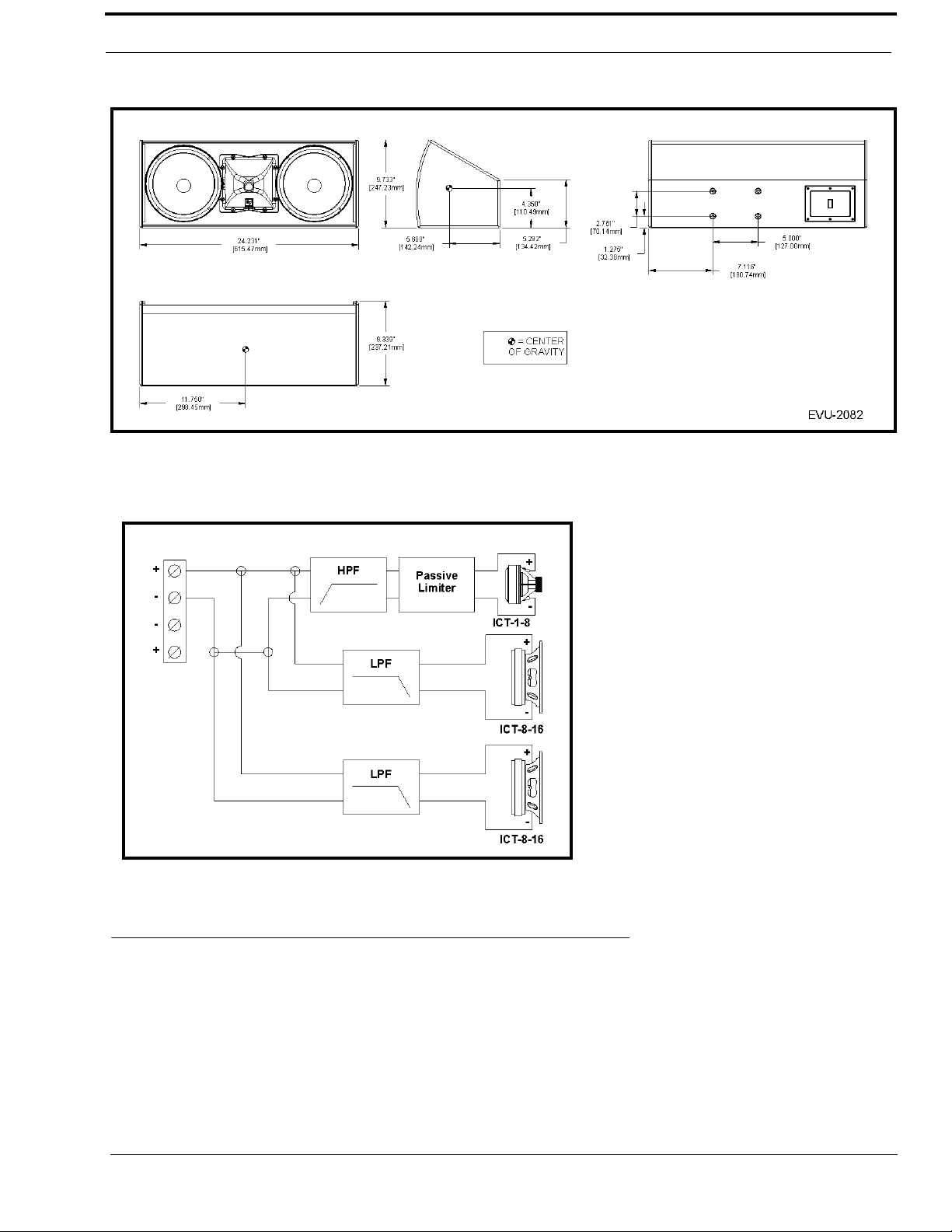

FIGURE 25. Dimensions and Center of Gravity for the EVU-2082
FIGURE 26. EVU-2082 Block Diagram
Tool List
Parts List
FIGURE 27. EVU Series Part List
CHAPTER 2 Installation
Digital Signal Processing
TABLE 3. Recommended High-Pass Filter Frequencies
Preparing the EVU for Installation
FIGURE 28. High-Frequency Waveguide Sub Assembly Orientation
1. Remove the eight (8) screws (A) from the top and bottom of the grille.
2. Remove the grille (B).
3. Remove the eight (8) screws (C) holding the high-frequency waveguide sub assembly.
4. Rotate the high-frequency waveguide sub assembly 90° (D) until the desired pattern (90° or 50°) marking is located along the long axis of the enclosure.
5. Reinstall the high-frequency waveguide sub assembly (D) with eight (8) screws (C).
6. Reattach the grille (B) to the front of the loudspeaker (E).
Connecting the Loudspeaker to the Signal Wires
1. Loosen the + and - screws.
2. Attach the signal wires to the appropriate + and - terminal positions on the connector.
3. Tighten the + and - screws until the signal wire is secure.
Troubleshooting
EVU Rigging
1. Orient the two (2) bracket rails (A) for assembly.
2. Using the diagram appropriate to your installation, insert four (4) M5 pan head screws (B) through the first and second bracket rails. See Figure 29.
3. Securely fasten the four (4) nuts (C).

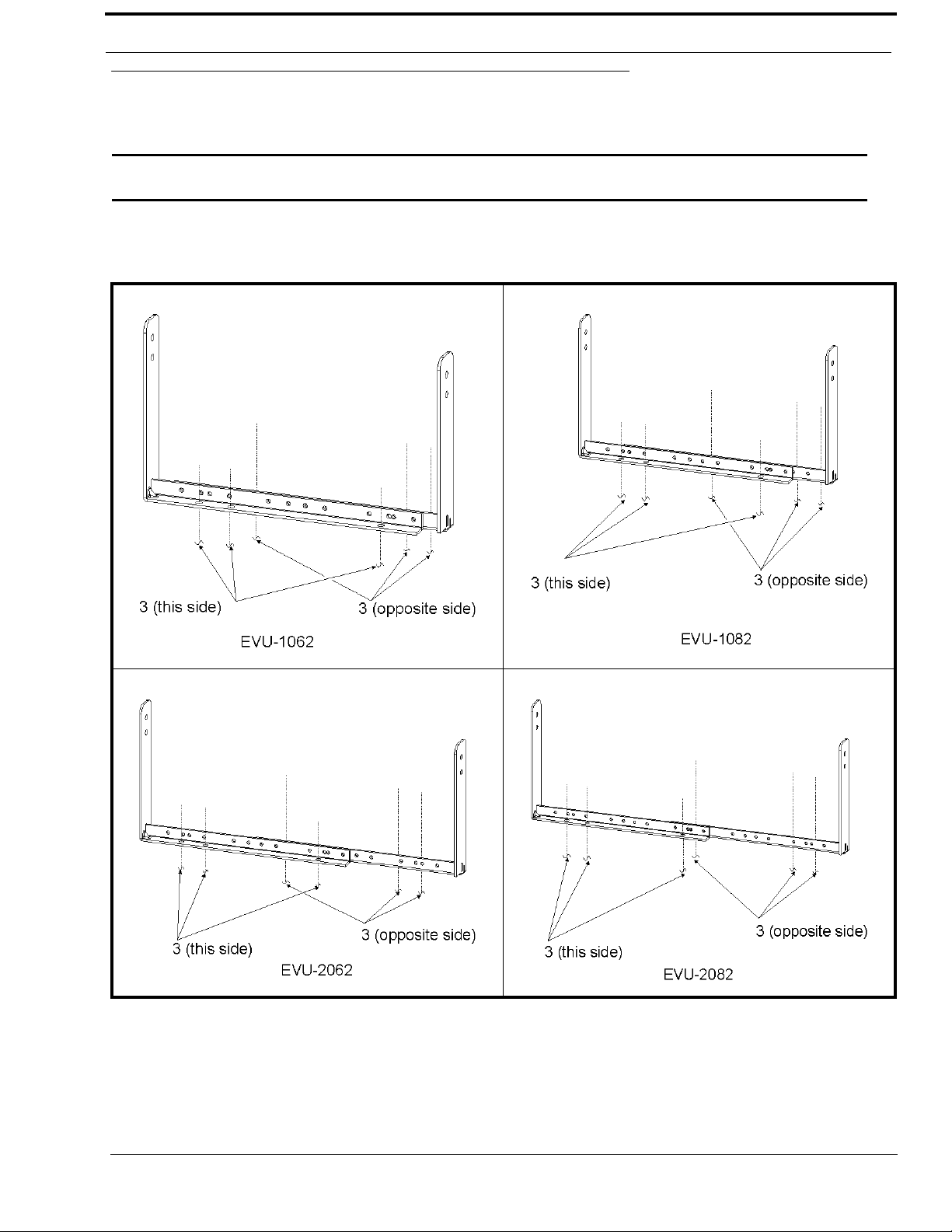

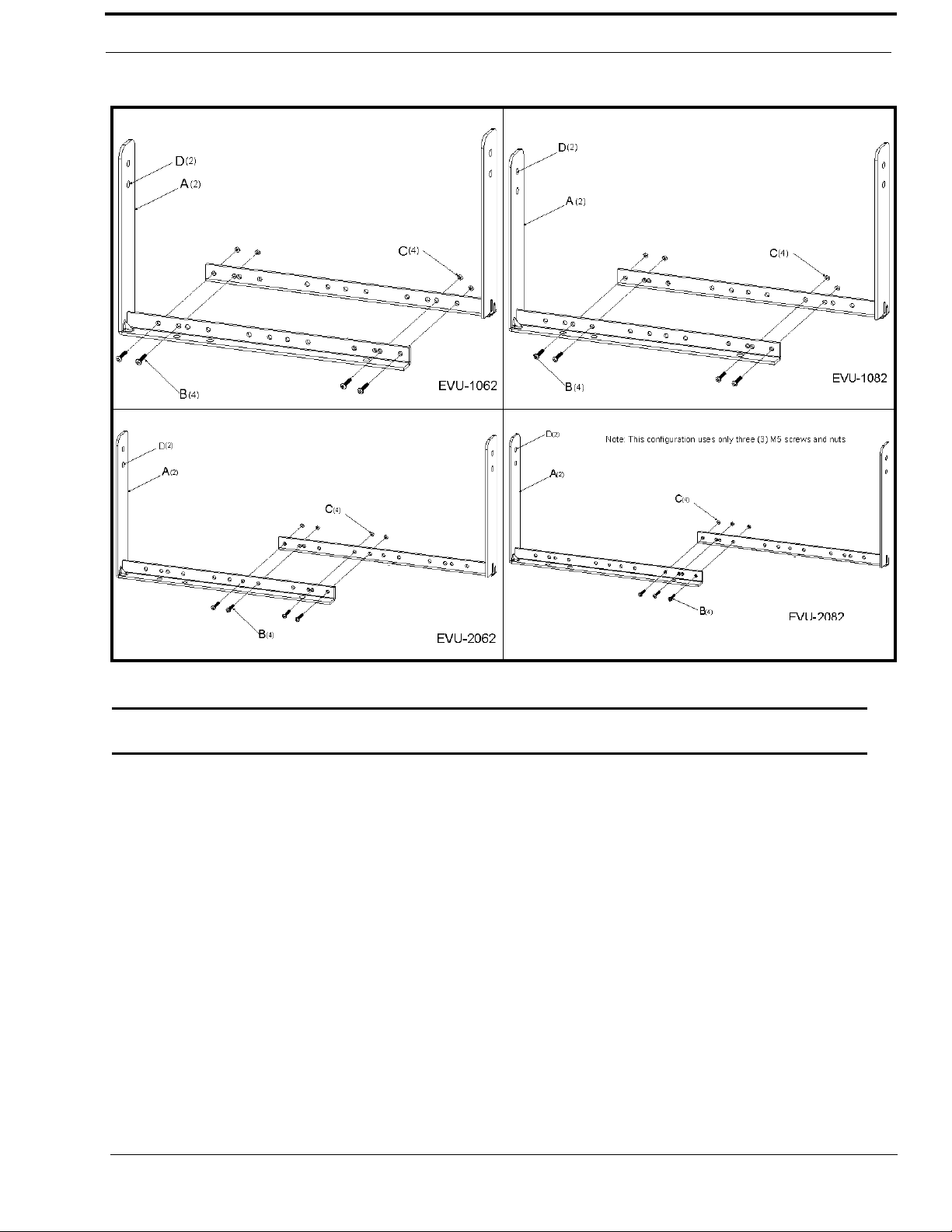

FIGURE 29. Universal U-Bracket Assembly
1. Remove two (2) M8 flat head screws (C) from each end of the loudspeaker enclosure (A).
2. Position the loudspeaker enclosure inside the universal U-Bracket (B).
3. Place one (1) M8 rubber washer (D) between the enclosureâs screw hole and the universal U-Bracket on each side of the enclosure.
4. Securely fasten one (1) M8 panhead screw through the bracket, washer, and enclosure on each side of the assembly.
5. Position the loudspeaker at the desired angle.
6. Securely tighten the M8 flat head screw.
FIGURE 30. EVU-1062 AssemblyâExample
Mounting the Universal U-Bracket to the Wall
FIGURE 31. Universal U-Bracket Mounting Holes
Compatible Omnimount Models
FIGURE 32. Bolt Pattern for 30 Series Single Cabinet
FIGURE 33. Bolt Pattern for 60 Series Double Cabinet
1. Remove four (4) M8 flat head screws from the back of the loudspeaker enclosure.
2. Position the optional Omnimount bracket over the bolt holes on the back of the enclosure.
3. Apply thread locker (not included) to the four (4) M8 Pan head screws.
4. Securely fasten the four (4) M8 pan head screws to the back of the enclosure and bracket.
5. Set the desired angle.
1. Remove any M8 flat head screws from positions you intend to install an M8 forged, shoulder-style closed eyebolt.
2. Position the M8 fender washer(s) over the desired mounting point(s).
3. Apply threadlocker to the threads of the M8 forged, shoulder-style closed eyebolt(s), as recommended by the manufacturer.
4. Install the M8 forged shoulder-style closed eyebolt(s) to the case, ensuring the eyebolt is fully seated.
FIGURE 34. Eyebolt Orientation
CHAPTER 3 Working Load Limits and Safety Notices
Working Load Limit and Safety-Factor Definitions
