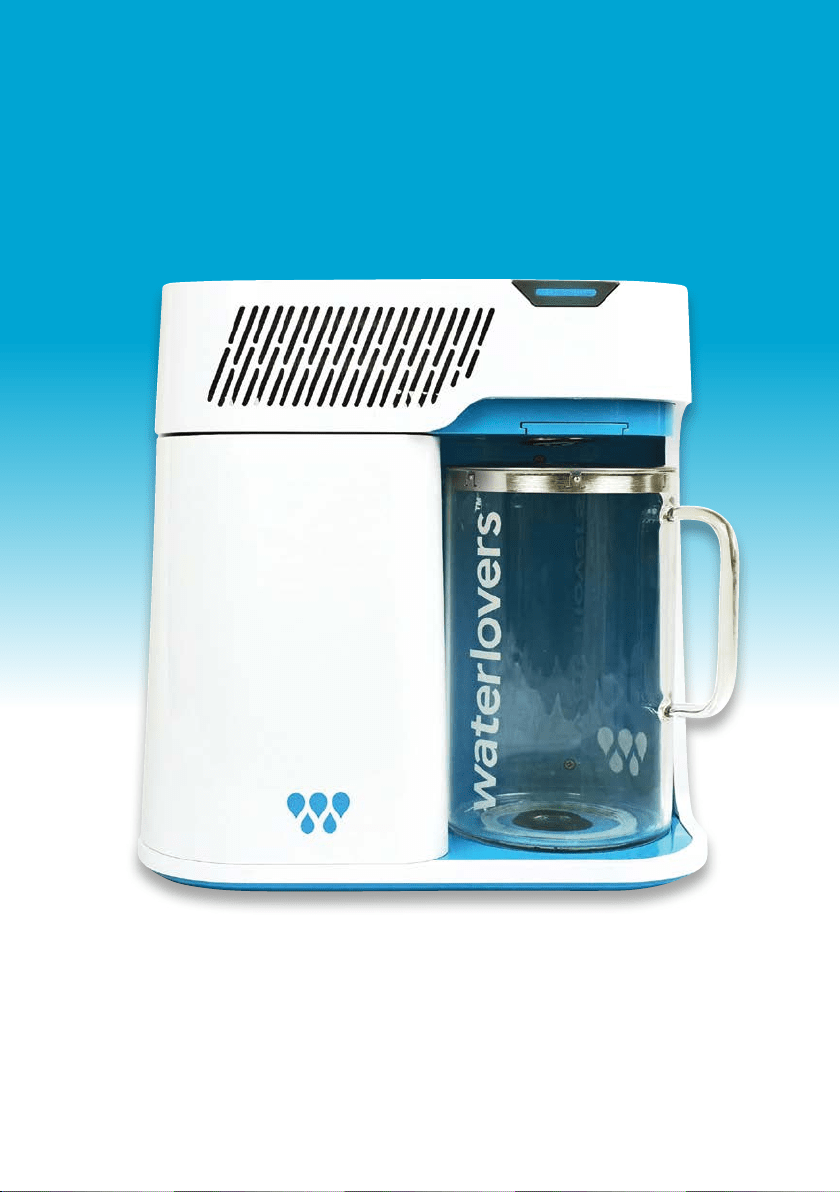

2800 WATER DISTILLER
OPERATION MANUAL
Congratulations on purchasing the 2800 Water Distiller.
You can now produce pure water in the comfort of your
own home.
The 2800 Water Distiller has been designed for everyday
household use but is also ideal for hospital and dental
applications where the purest water is required. It’s
also great for travelling to areas where water may be
contaminated.
We hope you enjoy you new Water Distiller. We believe
it will bring you improved health benefits and a reliable
method of water purification for many years.
A NEW LIFE OF HEALTH BEGINS
Specifications
Model DW 2800
Operation Manual refill – Automatic Shutdown
Materials
Outer Shell Polycarbonate
Internal Reservoir 304 Grade Stainless Steel
Reservoir Lid Underside 304 Grade Stainless Steel
Internal Condenser Pipe 04 Grade Stainless Steel
Filter Tray Stainless Steel Filter Tray
Heating Element High Grade Aluminium
(no water contact)
Collection Jug Borosilicate glass 3 litres
Efficiency 98%
Dimensions of unit 348(L) x 247(W) x 354(H) mm
Net Weight 6.8kg
Distillation Capacity Approx 3 litres in 210 minutes
Voltage 240V – 50Hz/110V – 60Hz
Watts 2500w Rapid boil ~ 500w - 750w
Variable
Boil-Dry Protection
Our advanced Smart technology prevents burning and over
calcification of the reservoir bottom by shutting down before
dry point and leaving approximately 5-10ml of water. This helps
prolong the life of the reservoir and reduces cleaning frequency
and time.
Energy Saving Technology
The smart technology sensor detects room temperature and
conservatively adjusts power requirements between 500-700w
thus saving energy.
The machine utilizes our Smart Rapid Boil technology to bring
water to boiling point. After this time the power consumption
dramatically reduces to a consistent low rand of 500-750w for the
remaining time.
Advanced Sensor Protection
There are smart sensors on the machine to prevent possible
dangers including one under the reservoir lid that prevents the
distiller from starting if the lid is not attached to the reservoir.
We also have a sensor to protect overheating of the condenser
in the event if excessive heat from steam due to lack of room
ventilation.
Another sensor automatically shuts down the machine if any of
the vents (above and side) are accidently covered to prevent over
heating and fire.

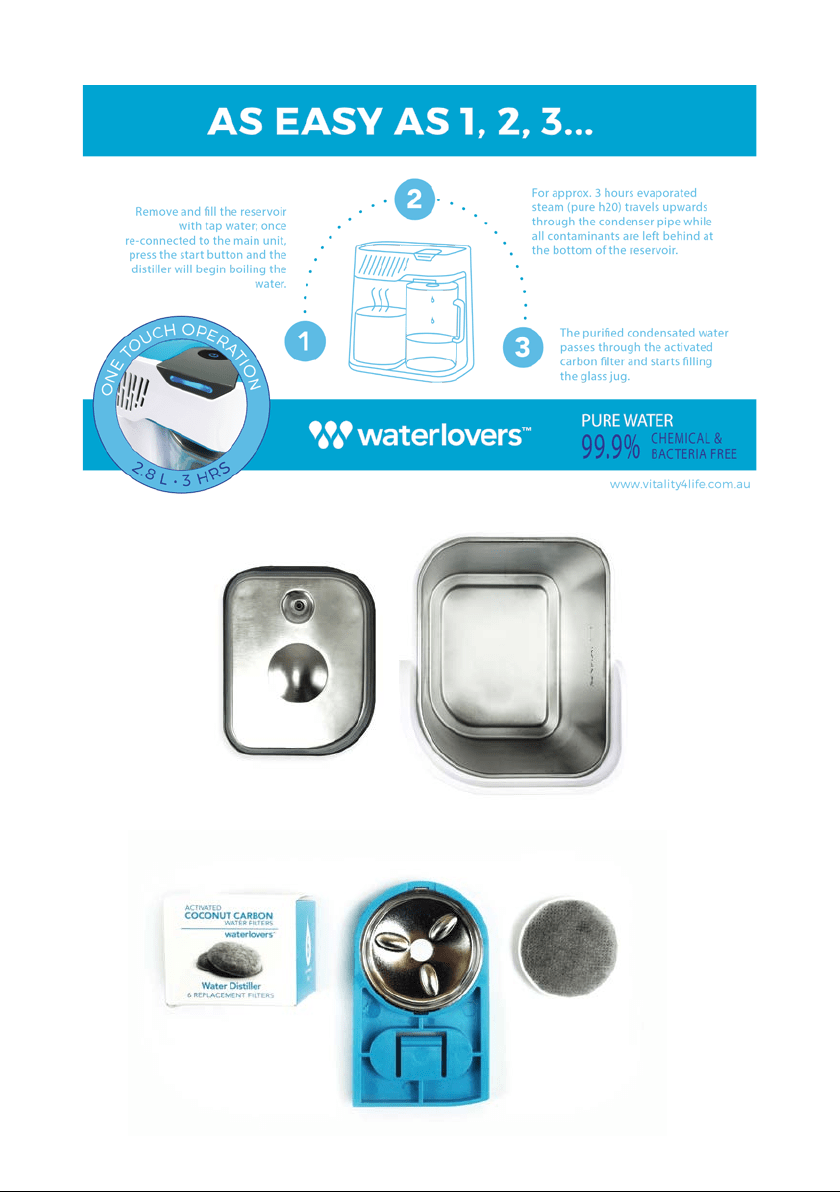

Food grade 304 Stainless Steel reservoir and cover
Slide in filter tray with
304 Stainless Steel housing
Premium quality activated
coconut carbon filters
Operation
It takes 3.5 hours to purify approximately 3 litres of 99.9% chemical
and bacteria free distilled water.
1. Remove the reservoir and fill with water to the maximum line,
then slide and connect the reservoir into the main unit.
2. Place glass collection jug into the main unit making sure the
opening on top of the lid sits directly below the stainless steel
spout under the filter tray.
Remove the filter tray and check that the activated coconut
carbon filter is placed into position.
3. Press the start button once and you will hear a beep and
machine will begin to rapid boil the water.
4. Water reaches boiling point and will start to drip into the
collection jug, from this point the machine will drop to 500-750w
for the remainder of the cycle.
5. A full cycle will be completed after approximately 210 minutes
and the machine will automatically shut down leaving 5-10ml of
water in the reservoir for easy cleaning.
6. Once finished water can be consumed right away or chilled in
the refrigerator.
NOTE: Run the distiller through for 1-2 cycles before drinking the distilled water
to ensure it is thoroughly clean.
Remove the
reservoir and fill
with contaminated
water to the max
line, then slide
and connect the
reservoir into the
main unit. Pres the
start button and
begin to produce
pure distilled water
A few minutes later
the purified water
passes through the
activated coconut
carbon filter and
starts to collect into
the glass jug
With our smart technology the distiller rapidly
brings the water to boiling point.
Steam then travels through the
condenser pipe and into the
glass collection jug. All
contaminants are left
behind in the reservoir.
SIMPLE ONE TOUCH
OPERATION
Cleaning
Rinse and wipe out boiling reservoir after every cycle.
Calcification and scale will slowly build up on the bottom of the
reservoir. Usage frequency will determine how fast this occurs. We
suggest using Waterlovers Distiller Cleaner every few weeks for a
complete clean
Instruction for a full scale clean
1. Pour hot clean water into the reservoir to cover the scale areas.
Sometimes cleaning is only required around the base or you
may want to fill to max line for a complete clean.
2. Add 2-4 teaspoons (amount depends on how much water and
scale is built up) of distiller cleaner into reservoir and mix until
powder dissolves.
3. Let the solution sit for 1-4 hours and pour out water to rinse
the inside. You may need to repeat this process if build up has
developed thick layers of scale.

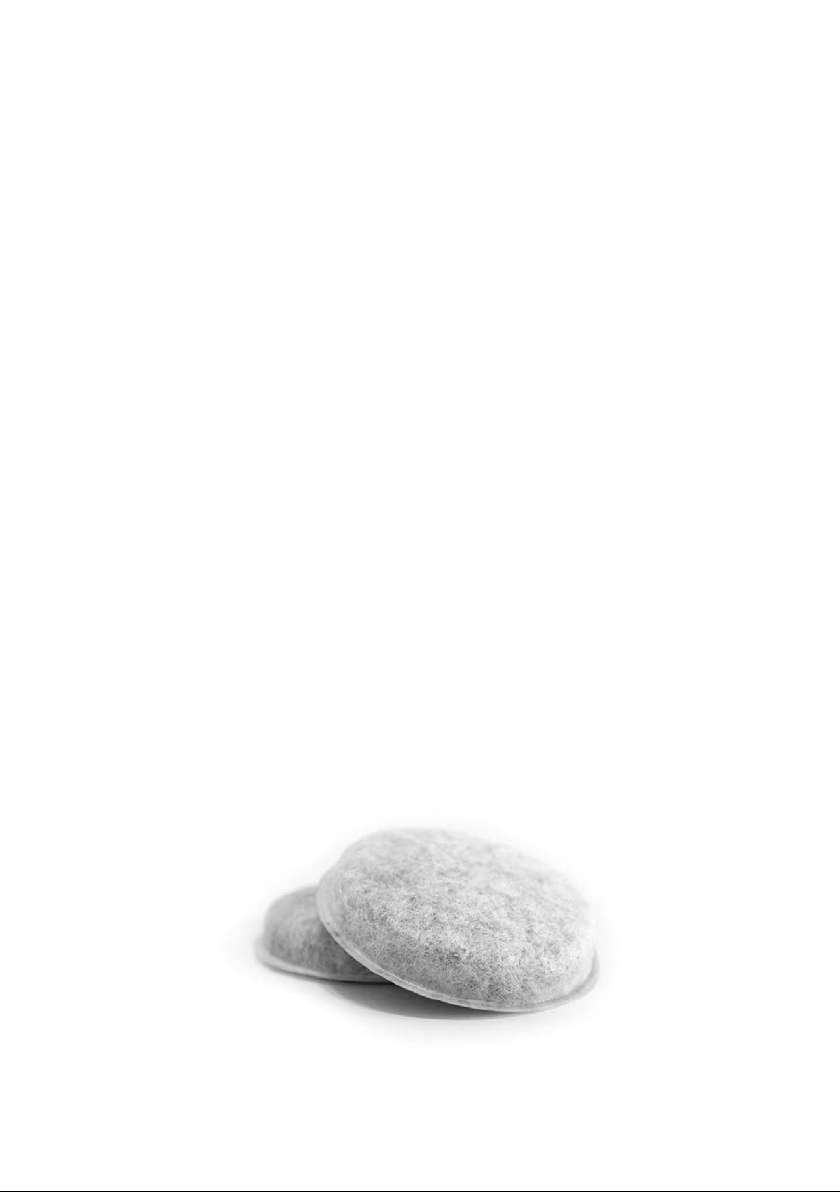

Activated Coconut Carbon Filters
We recommend replacing the filters monthly (or 2-3 weeks in
higher usage).
Safety Instructions
• Do not allow children to operate the unit when switched on or
when it is still hot.
• Best to use distiller in a well-ventilated area to reduce moisture
in the environment.
• Do not connect multiple electric appliances with a single point
to avoid over loading.
• Unplug the main power cable when you are adding water,
cleaning or when the machine is not in service.
• Do not soak any part of the distiller in water except the glass jug.
• Do not remove the lid while the water is boiling; only remove it
5-10 minutes after distillation process has been completely to
avoid burns and scalding.
• After distilling, position the reservoir lid so that steam is
directed away from your body.
• Do not wipe or scratch the Stainless Steel reservoir with abrasive
materials to avoid damage. A gently rinse and wipe is sufficient.
Use the Distiller Cleaner solution for a thorough clean on the
inside.
• Keep unit away from other heat generating appliances.
• If the supply cord is damaged, it must be replaced by the
manufacturer or their service agents.
• After distillation, we recommend letting the distilled water cool
down before placing into the fridge.
• Leave space (min 30cm) above the unit for adequate airflow.
Consumption
Drinking – Distilled water is great tasting
and healthy for you, the more you limit
your chemical intake the faster your body
will heal itself.
Baby Formula – Doctors highly
recommend using purified water to make
up baby formula; distilled water is most
ideal for this.
Mixing Drinks – Using distilled water
enhances the flavours of your tea, coffee or
fresh juices.
Making Ice – Tap water produces cloudy
ice cubes, with distilled your ice cubes are
clean and crystal clear.
Brewing – Great for your homemade
brews and elixirs.
Cooking – Bring out the natural flavours
from foods by using distilled water,
especially in soups and broths. It is also
excellent for fermenting veggies and
cooking noodles and pasta.
Household
Cleaning – Mix your cleaning solutions
with distilled water for better results and
prevent unwanted residue.
Steam Irons – Distilled water prevents
scale build up normally seen when tap
water is used, this affects the appliances
life.
Humidifiers – Tap water contains minerals
that promote bacteria growth which can
cause illness if inhaled, distilled water
ensures healthy uncontaminated mist is
released into the air.
Evaporative Coolers – Mineral deposits
from tap water can build up inside your
cooler over time, using distilled water will
prevent this.
Houseplants – Enjoy longer blooms and
healthier foliage when watering your plants
with distilled water, just as nature intended.
Medical
Dental – Used to prevent bacteria
and biofilm growth on equipment and
operation of autoclaves, which are sensitive
to damage from impure water.
Clinical – Distilled water is used to clean
medical equipment during surgery and to
maintain a bacteria free environment
Homeopathic – When making
homeopathic medicines, distilled water is
used to ensure no other elements can alter
the effect of the treatment.
Traditional Medicines – Distilled water is
used when making traditional medicines
where sensitivity to chemicals can create
imbalance in treatment.
Detoxification – Many people support
the use of distilled water during a detox
cleanse or fasting period, distilled water
aids in eliminating toxins and heavy metals.
Other Applications
Skin Care – Those sensitive to allergies
would benefit from using distilled water for
their cleansing without impurities clogging
up their pores.
Mechanical – Extend the life of any
equipment that requires a water source,
minerals found in tap water can be
corrosive in many industrial applications.
Computer cooling systems – Distilled
water’s low conductivity leads to reduce
risk of electrical damage and your system
stays clean and bacteria free.
Scientific – Science laboratories only
use distilled water when the purest and
cleanest water source is required
Feeding Pets – your pets will also enjoy
the taste of pure water.
Warranty Card
WARRANTY PERIOD
1 year motor and parts warranty.
Warranty registration and claims are
handled by your local Vitality 4 Life
Support Centre, details on the back
cover.
Do not return the product to the store.
LODGING A WARRANTY CLAIM
Should you experience any issues with
your product, please follow these steps
to lodge a warranty claim:
1. Contact your local Vitality 4 Life Service
Centre with the following details:
• Your warranty details including
name, email and phone number
• Product name and model number
• Product serial number, found on the
rating label of the product
• Explanation of how the damage
occurred
• Photos of the damage or issue is
highly beneficial to expediting your
claim
• Vitality 4 Life will assess your claim
and respond within 24-48 hours.
2. In the event the product is required
to be sent to the Service Centre, the
customer is liable for all packing,
freight and insurance costs for transit
of the product to Vitality 4 Life. Subject
to the applicable consumer laws in
your jurisdiction.
3. If the product, or one of its parts,
qualifies for replacement or service
within the 30-Day period after date of
purchase, Vitality 4 Life will arrange the
shipping at no cost to you.
4. Any product sent to a Vitality 4 Life
Service Centre must include a Return
Authorization Form. Failure to include
this form may result in the product
being rejected from our warehouse or
a delayed service time.
5. Vitality 4 Life will contact you with a
quote prior to undertaking any service
work outside of the warranty coverage.
6. Typical turn-around times to address
warranty claims can be between
10-14 business days, plus shipping,
depending on location and type of
damage or warranty claim.
TERMS OF PRODUCT WARRANTY
COVERAGE
Vitality 4 Life provides the Product
Warranty coverage as further described
below and limited to the terms and
conditions hereof:
1. If the Airfree Blender exhibits a defect
while in normal domestic use, within
the warranty period; we will, at our
option, either repair or replace the
Nova Blender or defective part free of
charge. The product must be delivered
by insured mail, in proper packaging
to your Service Centre as indicated on
the back of the manual as a condition
to any warranty service obligation.
Please register your warranty online at warranty.vitality4life.com
within 30 days of purchase.
1. In the event that the warranty period
for a product has expired, or if a
product does not qualify for warranty
service, repair or replacement,
consumers may still buy replacement
parts or have products repaired by
one of Vitality 4 Life’s Service Centres.
Please contact Vitality 4 Life for further
information.
2. Do not send the product back to
the Service Centre without a Return
Authorization Form.
3. In no event shall our liability exceed
the retail value of the product. We
make no warranty with respect to
parts, from a source other than Vitality
4 Life.
4. In the event that warranty parts or
products are provided, the customer
must cover the related shipping costs
to receive goods.
5. All exchanged or substitute parts and
products replaced under warranty
service will become the property of
Vitality 4 Life. Repaired or replaced
products or parts thereof will be
warranted by Vitality 4 Life for the
balance of the original warranty
period.
6. (Australia only) Our goods come
with guarantees that cannot be
excluded under the Australian
Consumer Law. You are entitled to
a replacement or refund for a major
failure and compensation for any
other reasonably foreseeable loss or
damage. You are also entitled to have
the goods repaired or replaced if the
goods fail to be of acceptable quality
and the failure does not amount to a
major failure.
WARRANTY DOES NOT COVER
1. Damage, accidental or otherwise,
to the Product, not caused by direct
defect in factory workmanship or
materials.
2. Damage due to abuse, mishandling,
alteration, misuse, commercial
service, tampering, accident, failure to
follow care, operating and handling
provisions indicated in the instructions.
3. Damage caused by parts or service not
authorized or performed by Vitality 4
Life.
4. ‘Normal’ wear and tear that naturally
and inevitably occurs as a result of
normal use or aging.
5. Some states do not allow the
exclusion or limitation of incidental or
consequential damages. Therefore, the
above limitations may not apply to you
in the case of damage in shipment.
If your product was damaged in
shipment: Immediately report this
type of damage to the parcel carrier
and have them file an inspection
report to contact the distributor from
whom you purchased the New Name
Blender for further instructions.
6. You have rights and benefits under
the consumer laws in your jurisdiction.
Without detracting from these rights
or benefits, Vitality 4 Life excludes all
liability in respect of this product for
any other loss which is not reasonably
foreseeable from a failure of this
product, which may include liabilityfor
negligence, loss of expenditure
associated with the product and loss
of enjoyment.
VITALITY 4 LIFE SUPPORT & SERVICE CENTRES
Vitality 4 Life – Australia & New Zealand
Email: [email protected]om
Website: www.vitality4life.com.au
Vitality 4 Life – United Kingdom
Email: [email protected]o.uk
Website: www.vitality4life.co.uk
Vitality 4 Life - United States
Email: [email protected]om
Website: www.vitality4life.com
Vitality 4 Life – France
Email: [email protected]
Website: www.vitality4life.fr
Vitality 4 Life – Deutschland
Email: [email protected]
Website: www.vitality4life.de
Vitality 4 Life – Italiano
Email: [email protected]
Website: www.vitality4life.it
Vitality 4 Life – España
Email: [email protected]
Website: www.vitality4life.es
Vitality 4 Life – Netherlands
Email: [email protected]o.nl
Website: www.vitality4life.co.nl
