Congratulations
on your purchase!
This WindTunnel TM vacuum cleaner
takes HOOVER® Type "Y" Allergen
Filtration filter bags
This product was designed for
easy assembly (see page 3)
Fill in and retain
The model and serial number are located on the bottom of the cleaner as shown.
For your personal records, please enter the COMPLETE model and serial number
in the spaces provided and retain this information.
Your cleaner is model
and has serial number
It is suggested that you attach your sales receipt to this owner's manual. Verifica-
tion of date of purchase may be required for warranty service of your HOOVER
product.
Be sure to fill out and return the product registration card included with
your cleaner,
Example
Index
Assembling Cleaner ......................... 3-5
Carton Contents ................................... 3
Cleaner Descriptions ........................... 5
How To Use ....................................... 5-8
Embedded Dirt FINDER TM Feature ..... 6
Cleaning Tools ............................. 7-8
If You Have a Problem ........................ 12
Important Safeguards .......................... 2
Lubrication .......................................... 11
Maintenance
Authorized Service ....................... 11
Cleaning Filters ............................... 9
Clearing Blockages ...................... 12
Replacing Agitator Brush Ro11.....11
Replacing Belt ............................... 10
Replacing Edge Groomers ........... 11
Replacing Headlight ..................... 10
Replacing Filter Bag ....................... 9
Thermal Protector .............................. 11
Warranty .............................................. 12
®
(_)2001 The Hoover Company
www, hoover, com
Important Safeguards!
When using an electrical appliance, always follow basic precautions, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
VV a r n i n g. Toreducetheriskof fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Close supervision is necessary when any appliance is used by or near children.
Do not allow vacuum cleaner to be used as a toy or to run unattended at any
time.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openings,
rotating agitator and other moving parts. Do not operate cleaner in bare feet or
when wearing open toe shoes or sandals.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use to pick up flammable or combustible materials such as gasoline or
fine wood sandings or use in areas where they may be present.
• Avoid picking up hard, sharp objects with the cleaner. They may damage the
cleaner and the bag.
• Always turn off this appliance before connecting or disconnecting hose.
• Do not use without dust bag or filters in place. Change bag frequently when
picking up very fine materials such as powder.
• Use extra care when cleaning on stairs.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, or anything that may reduce air flow.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep cord
away from heated surfaces.
• Always disconnect cord from electrical outlet before servicing the cleaner.
• Unplug cleaner when not in use. Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord. Never handle plug or appliance with wet hands.
• The use of an extension cord is not recommended.
1-330-499-9499 to speak with a representative in our Consumer Response Center
OR
Visit us on-line at www,hoover, c0m to find the service outlet nearest you (click
on the "Service" button).
Carton contents
A
8 }
D ;
D
Remove all parts from carton and
identify each item shown. Make
sure all parts are located before
disposing of packing.
A. Handle section
B. Cleaner body
C. Hose rack
D. Hose, cleaning tools and wands
E. Handle bolts and nuts packet
(in bag with owner's manual)
Note: The white switch lock above the ON/OFF switch aids
in the assembly of your cleaner. Assembly can be continued
if the switch lock is missing. However, do not remove the
switch lock until assembly is completed.
Open tool cover on handle section
(A).
m
Attach hose rack to handle section
by fitting hooks (B) on rack over
slots (C) on handle section.
i
Align hole on rack with circular tab
on handle.
Removebagdooroncleanerbody
bypushingdownat topofdoorand
pullingdooroutward.
Switch (A) above bag door should
be in OFF position.
While holding rack in place, slide
handle onto cleaner body.
Make sure tab is inserted fully into
slot.
I
Push bolts into holes on back of
handle.
Place nuts in recessed areas on front
of handle, Hold each nut in place
while tightening each bolt securely
with a Phillips screw driver.
Reposition bag door by fitting tabs
on bottom of door into opening,
Press top of door to snap securely
shut.
Press cord into the 3 notches and
the clip as shown,
NOTE Hose must be connected as shown for all
operations.
Align end of hose with projections (A)
over slots (B) in dirt duct.
Slide hose into (B) and twist hose to
lock it into place.
Lift hose tube cover (C)
Position hose over rack and into hose
tube (D) or (E) (depending on your
model).
Placesmallerunridgedendofwand,
intobottomof rack.Snapwandinto
clip. Repeatwithotherwand.
Opentoolcover.
Cleaner description
Insert ends of dusting brush (A),
crevice tool (B) into storage areas.
Secure furniture nozzle (C) in clip.
Close tool cover.
ii
Remove switch lock (A) above ON/
OFF switch (B) by pulling it straight
out. Dispose of switch lock.
If switch lock has come off during
assembly, make sure switch is in
OFF position (down) before plug-
ging cord into electrical outlet.
1 / 2
12\
1. Handle
2. ON/OFF switch
3. Cord hooks: wrap cord
around hooks for storage.
The top hook can be
rotated right or left
for easy cord release.
4. Hose
5. Tool cover
6. Dusting brush
7. Furniture nozzle
8. Crevice tool
9. Carrying handle
10. Wands
11. Final filter door
12. Handle release lever:
step on lever to lower
handle to operating or low
positions.
13. Edge groomers
14. Furniture guard: helps
prevent cleaner frorrl
marking furniture.
15. Nozzle control knob: slide
knob to correct setting for
height of carpet being
cleaned.
16. Headlight*
17. Embedded Dirt FINDER TM
sensitivity switch*
18. 'Dirt FINDER' display*
19. Check bag indicator
20. Stair cleaning handle:
located below lower edge of
door.
21. Bag door
22. Cord clip
23. Hose rack
*some models only
The assembled cleaner will look
like the drawing.
Operate cleaner only at
voltage specified on data
plate on bottom of
cleaner.
This cleaner is intended for
household use.
Polarized plug
Toreduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install
the proper outlet. Do not change the
ON-OFF Switch
Plug cord into electrical outlet.
To turn cleaner ON, push switch up.
To turn cleaner OFF, push switch down.
m
\
Transporting cleaner
To move your cleeJner from room to
room, put handle in upright position, tilt
Gleaner back on rear wheels and push
forward.
I
Carrying cleaner
The cleaner can also be moved by using
the carrying handle.
I
Handle positions
The handle of your Gleaner has three
positions; upright for storage and when
using cleaning tools; operating position
for general operation on carpet and
floors; low for reaching under low
Furniture. Step on handle release lever to
lower handle.
Embedded Dirt FINDER TM
fe ature (some models only)
With red and green lights (A), the 'Dirt
FINDER' system alerts the user to areas
of carpet that may need more cleaning
attention. It is able to sense when larger
amounts of dirt particles, especially
embedded dirt, are removed.
To let you know that the "Dirt FINDER'
feature is ready the red light will come on
when the cleaner is first turned on. After
a few seconds, the red light will go oft
and the green light will come on.
Cleaning may then begin.
The green light will remain on through-
out Gleaning except when the detector
senses that a larger amount of dirt is
being picked up; then the red light will
come on.
When the red light is on, you should take
additional cleaning strokes in the area
until it changes to green.
•The red light may seldom oonQe on
during cleaning. This means that your
cleaner is picking up primarily fine
surface dust and lint which the system
may not detect, or that the carpet is
generally Glean. To increase the
feature's sensitivity to dirt, set the
switch (B) to the "Hi" position.
"At other times, the red light may stay
on for a considerable amount of time.
This means that the carpet contains a
high level of dirt which is being removed
by the cleaner. To decrease the
feature's sensitivity to dirt, set the
switch to the "Reg." (Regular) position.
I
Carpet height
adjustment
P,llS]
P,E=]
C
D
_J
Handle position
For ease in sliding knob, the handle
should be in the upriqht position It}.
._._1IIIIiliad,,,,,,,.
BARE
HIGH FLOOR
Setti n g s
For maximum cleaning performance,
the following carpet height settings are
I
Cleaning lightweight
flexible rugs
Stand on one end of rug and move
Gleaner toward other end or edge. Before
reaching edge, push down on handle.
This will lift up the nozzle (front of cleaner)
as shown and will prevent rug from
clinging to Gleaner. Continue to lift up
nozzle so that when you have reached
the edge, it is oorrlpletely off the rug.
Move Gleaner back to start again, lower
nozzle, and use only forward strokes.
Edge cleaning
Special edge groomers are provided on
both sides of the nozzle to remove dirt in
carpet near baseboards and furniture.
Guide either side of nozzle parallel to
edge of carpet or furniture.
I
Stair cleaning
A stair Gleaning handle has been de-
signed for ease in using your Gleaner on
stairs. With handle in operating position,
place fingers under edge of stair Gleaning
handle and guide cleaner with other hand
on upper handle.
As an alternative, you may use the hose
and furniture nozzle for stair cleaning.
Clean from bottom to top.
When using cleaning tools, the agitator
will continue to rotate.
CAUTION: To avoid personal injury or
unnecessary wear to carpet, and to
prevent the cleaner from falling, always
place it at bottom of stairs.
m
How to attach tool
cover
The tool cover is designed with a "break-
away" feature which allows it to snap
free if it is pushed open too far.
To reattaoh, align hinges of cover with
slots on sides of tool storage area.
Push cover down to secure in place.
Cleaning tools
Tools allow for cleaning surfaces above
the floor and for reaching hard to clean
areas.
The Gleaner is ready for tool use when
handle is in upright position.

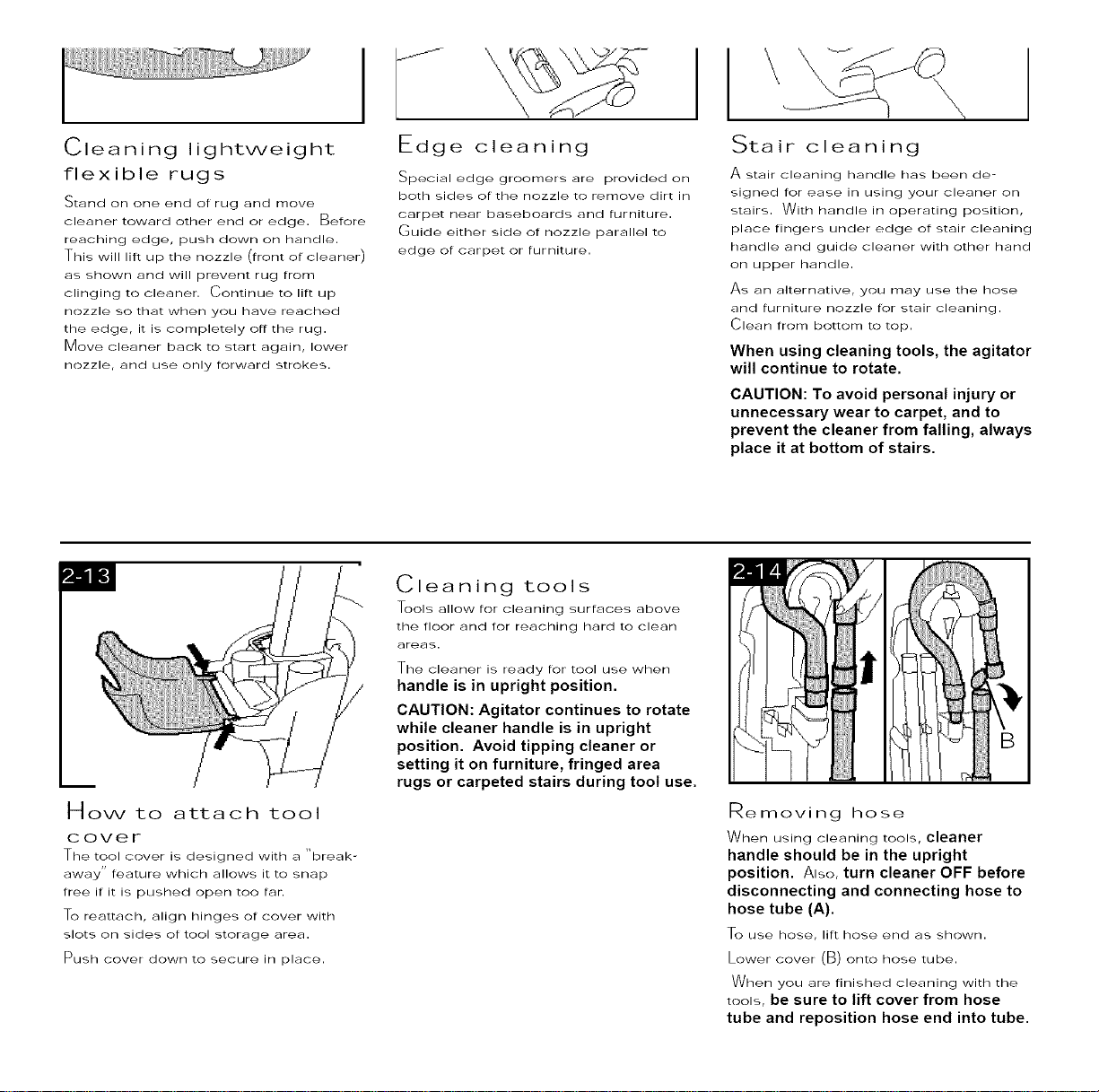

CAUTION: Agitator continues to rotate
while cleaner handle is in upright
position. Avoid tipping cleaner or
setting it on furniture, fringed area
rugs or carpeted stairs during tool use.
B
Removing hose
When using cleaning tools, cleaner
handle should be in the upright
position. Also, turn cleaner OFF before
disconnecting and connecting hose to
hose tube (A).
To use hose, lift hose end as shown.
Lower cover (B) onto hose tube.
When you are finished Gleaning with the
tools, be sure to lift cover from hose
tube and rep0siti0n hose end into tube.
D
I c
Attach wand and tools
Attach tool or wand to the hose (C)
Attach second wand or tool to wand (U)
by pushing it firmly onto the wand.
Twist wand or tool slightly to tighten or
loosen the connection.
How to clean tools
To clean the hose, wipe off dirt with a
cloth dampened in a mild detergent.
Rinse with a damp cloth.
Cleaning tools rnay be washed in warm
water with a detergent. Rinse and air dry
before using.
I
Select proper tool
E. Dusting brush may be used for
carved furniture, table tops, books,
lamps, lighting fixtures, venetian blinds,
baseboards, shutters, and registers.
F. Furniture nozzle may be used for
upholstered furniture, draperies,
mattresses, clothing, automobile
interiors, and carpeted stairs.
G. Crevice t001 may be used in tight
spaces, corners and along edges in
such places as dresser drawers,
upholstered furniture, stairs and base=
boards.
H, Wands are used to give extra length
to your hose. Use them with any of the
above tools.
Check bag indicator
The indicator (I) will begin to show red as
filter bag fills with dirt.
There are three conditions that will cause
the indicator to become completely red:
1. The bag is full; change the bag.
2. Very fine materials have been picked
up, clogging the bag pores; change the
bag.
3. There is a blockage in the nozzle,
hose, tools or at the bag opening; remove
the blockage (see "Clearing blockages"
section).
Familiarize yourself with these home
maintenance tasks as proper use and
care of your cleaner will ensure contin-
ued cleaning effectiveness.
Filter bag
When to replace
Check filter bag from time to time. It is
recommended that you change the filter
bag when dirt reaches the dotted line. If
more dirt than this accumulates, your
cleaner will not operate effectively.
NOTE: All new carpet has loose fibers
which can fill the bag quickly while
vacuuming.
If you are using the cleaner on new
carpet, be sure to change the filter bag
often.
CAUTION: Very fine materials, such as
face powder, cornstarch, fireplace
ashes or fireplace soot, may seal the
filter bag and may cause it to burst
even though it is only partially full of
dirt. When cleaner is used to remove
material of this nature, change filter
Where to buy
Filter bags may be purchased from your
Authorized Hoover Dealer (Depot),
Leading Retailers, Hoover Factory
Service Centers or through The Hoover
Company on-line at www.hoover.com
What to buy
To assure cleaning effectiveness, use
only Genuine HOOVER@ Allergen
Filtration TypeY disposable filter bags.
It is irnperative that you use only genuine
HOOVER filter bags made by The Hoover
Company to assure that your Gleaner
operates at peak performance. HOOVER
bags can be identified by these trade-

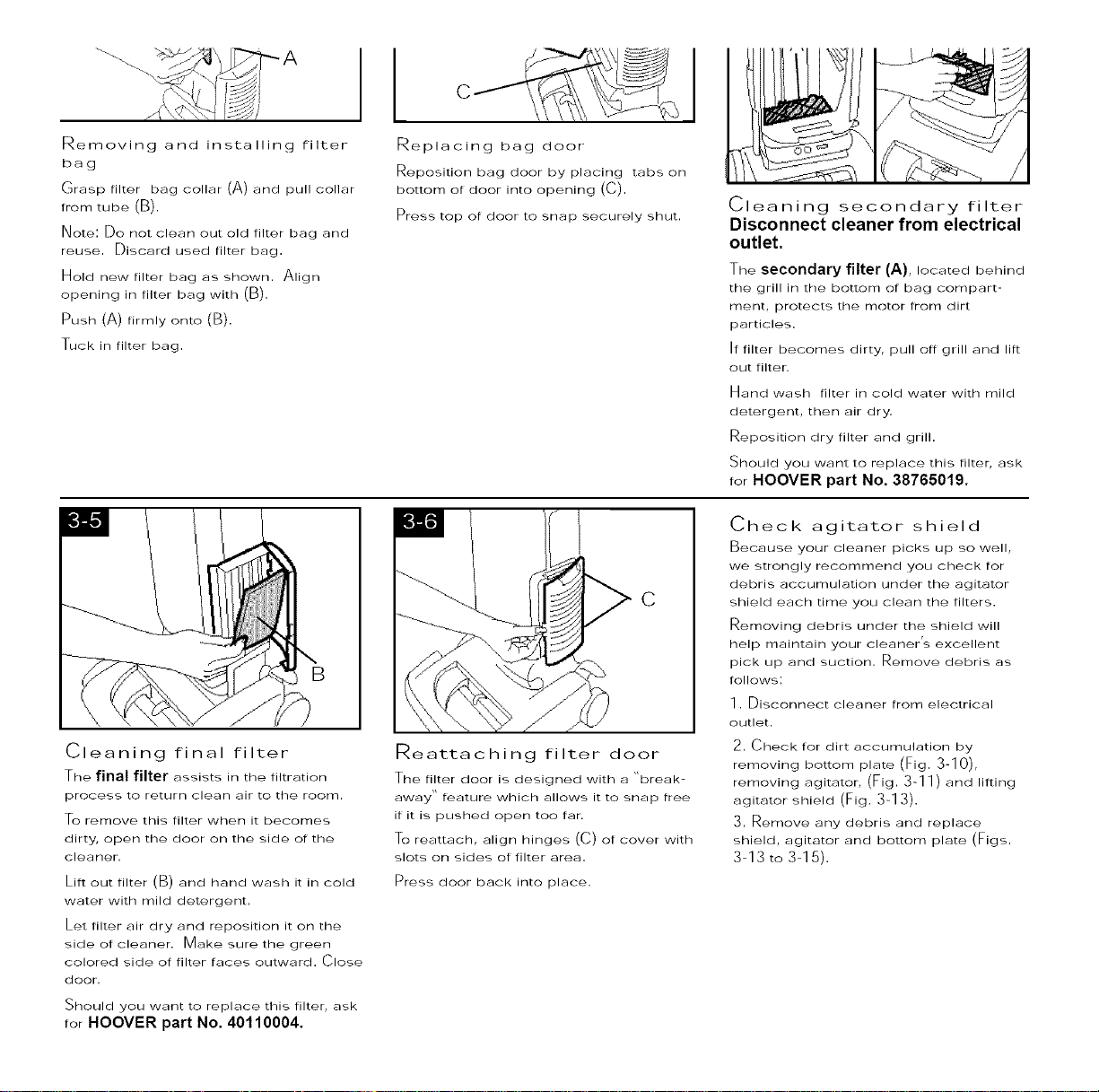

Changing filter bag
Disconnect cleaner from electrical
outlet.
Removing bag door
To change filter bag, press down at top
of bag door and pull door forward.
Remove door.
C
Removing and installing filter
bag
Grasp filter bag collar (A) and pull collar
from tube (B).
Note: Do not Glean out old filter bag and
reuse. Discard used filter bag.
Hold new filter bag as shown. Align
opening in filter bag with (B).
Push (A) firmly onto (B).
Tuck in filter bag.
Replacing bag door
Reposition bag door by placing tabs on
bottom of door into opening (C).
Press top of door to snap securely shut.
Cleaning secondary filter
Disconnect cleaner from electrical
outlet.
The secondary filter (A), located behind
the grill in the bottom of bag compart-
ment, protects the motor from dirt
particles.
If filter becomes dirty, pull off grill and lift
out filter.
Hand wash filter in Gold water with mild
detergent, then air dry.
Reposition dry filter and grill.
Should you want to replace this filter, ask
for HOOVER part No. 38765019.
Cleaning final filter
The final filter assists in the filtration
process to return clean _:]ir to the room.
To remove this filter when it becomes
dirty, open the door on the side of the
cleaner,
Lift out filter (B) and hand wash it in cold
water with mild detergent.
Let filter air dry and reposition it on the
side of Gleaner. Make sure the green
colored side of filter faces outward. Close
door.
Should you want to replace this filter, ask
for HOOVER part No. 40110004.
C
Reattaching filter door
The filter door is designed with a "break-
away" feature which allows it to snap free
if it is pushed open too far.
To reattach, align hinges (C) of cover with
slots on sides of filter area.
Press door back into place.
Check agitator shield
Because your cleaner picks up so well,
we strongly recommend you check for
debris accumulation under the agitator
shield each time you clean the filters.
Removing debris under the shield will
help maintain your cleaner's excellent
pick up and suction. Remove debris as
follows:
1. Disconnect cleaner from electrical
outlet.
2. Check for dirt accumulation by
removing bottom plate (Fig. 3-10),
removing agitator, (Fig. 3-11) and lifting
agitator shield (Fig. 3-13).
3. Remove any debris and replace
shield, agitator and bottom plate (Figs.
3-13 to 3-15).
Removing lens
Disconnect cleaner from electrical
outlet.
Using a screwdriver, remove the two
screws as shown and lip off lens.
Installing bulb
Pull old bulb straight out of socket. Push
new bulb straight into socket until locked
in place.
Excessive force is not required.
Replacing lens
Reposition lens and secure with the two
screws.
Belt replacement
The belt on your Hoover cleaner causes
the agitator to rotate and is important for
the effective operation of the cleaner,
The belt is located under the bottom
plate of the cleaner and should be
checked from time to time to be sure it is
in good condition,
When to replace
Disconnect cleaner from electrical
outlet.
To check belt, remove bottom plate as
shown in "How to replace." Replace belt
if it is stretched, cut or broken.
What to buy
To assure effective operation, use only
genuine HOOVER belts with your cleaner.
When purchasing a new belt, ask for
HOOVER part No. 38528033.
How to replace
Disconnect cleaner from electrical
outlet.
Removing bottom plate
Place handle in low position and turn
cleaner over so bottom side is up,
Remove the 4 screws as shown with a
Phillips screw driver,
Lift off bottom plate (A).
Removing belt
Remove agitator brush roll and used belt.
Discard used belt
Installing new belt
With letterino on outside of belt and
Replacing agitator- brush roll
In_rt _lNit_lt_r thr_tJ_h h_lt _1n¢] nla_ h_lt
Securing agitator
Clr_¢r_ _l_it_lt_r fir_l\l _nrl fit it imt_
I
Replacing bottom plate
Reposition bottom plate and 4 Phillips
head screws. Tighten screws securely.
while turning agitator. To maintain
cleaning effectiveness, replace agitator if
brushes do not touch card.
What to buy
Your cleaner requires either a 13" or 15"
agitator. When purchasing a new
agitator, ask for one of the following:
13" - HOOVER part No. 48414110
15" - HOOVER part No. 48414115
I
How to replace
Disconnect cleaner from electrical
outlet.
Remove bottom plate, belt and agitator
following directions in "The belt" section
beginning with Fig. 3-10.
Discard old agitator.
Continue following the directions in "The
belt" section to reposition belt, new
agitator and bottom plate.

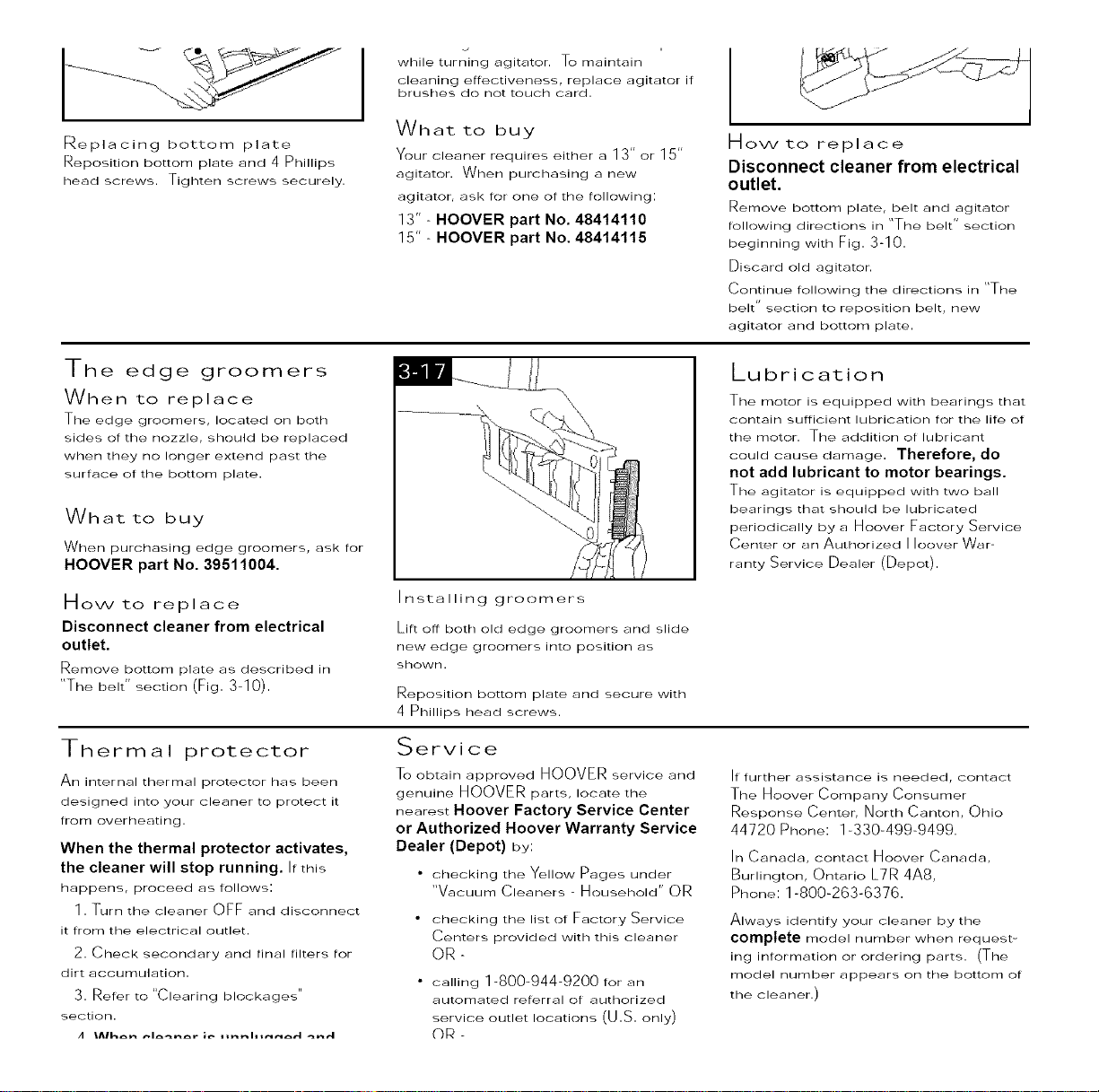

The edge groomers
When to replace
The edge groomers, located on both
sides of the nozzle, should be replaced
when they no longer extend past the
surface of the bottom plate.
What to buy
When purchasing edge groomers, ask for
HOOVER part No. 39511004.
Lubrication
The motor is equipped with bearings that
contain sufficient lubrication for the life of
the motor. The addition of lubricant
could cause damage. Therefore, do
not add lubricant to motor bearings.
The agitator is equipped with two ball
bearings that should be lubricated
periodically by a Hoover Factory Service
Cerlter or arl Authorized I Ioover Walr-
ranty Service Dealer (Depot).
How to replace
Disconnect cleaner from electrical
outlet.
Remove bottom plate P_s described in
"The belt" section (Fig. 3-10).
Installing groomers
Lift off both old edge groomers and slide
new edge groomers into position as
shown.
Reposition bottom plate and secure with
4 Phillips Plead screws.
Thermal protector
An internal thermal protector has been
designed into your cleaner to protect it
from overheating.
When the thermal protector activates,
the cleaner will stop running. Ir this
happens, proceed as follows:
1. Turn the cleaner OFF and disconnect
it from the electrical outlet.
2. Check secondary and final filters for
dirt accumulation.
3. Refer to "Clearing blockages"
section.
Service
To obtain approved HOOVER service and
genuine HOOVER parts, locate the
nearest Hoover Factory Service Center
or Authorized Hoover Warranty Service
Dealer (Depot) by:
• checking the Yellow Pages under
"Vacuum Cleaners - Household" OR
• checking the list of Factory Service
Centers provided with this Gleaner
OR-
" calling 1-800-944-9200 for an
automated referral of authorized
service outlet locations (U.S. only)
(bR-
If further assistance is needed, contact
The Hoover Company Consumer
Response Center, North Canton, Ohio
44720 Phone: 1-330-499-9499.
In Canada, contact Hoover Canada,
Burlington, Ontario L7R 4A8,
Phone: 1-800-263-6376.
Always identity your cleaner by the
complete model number when request-
ing information or ordering parts. (The
model number appears on the bottom of
the cleaner.)
ratingisbaseduponthe/_merican
Society for Testing and Materials (ASTM)
Carpet Cleaning Effectiveness Testing
(ASTM Test F608). Other performance
factors include Hose Power (ASTM Test
F558), Surface Litter Cleaning, Hard Floor
Cleaning, Edge Cleaning, Air Filtration
and Cleaning Width.
If a minor problem occurs, it usually can be
solved quite easily when the cause is found
by using the checklist below.
Possible Cause
Possible Solution
• Not firmly plugged in
• Plug unit in firmly
• No voltage in wall plug
• Check fuse or breaker
• Blown fuse or tripped breaker
• Replace fuse or reset breaker
• Thermal protector activated
• Allow cleaner to cool for 30 rclinutes
(this will reset the thermal protector)
Possible Cause
Possible Solution
• Broken or worn belt
• Replace belt
• Agitator brush r011worn
• Replace brush roll
• Filter bag full
• Change filter bag
• Incorrect carpet height setting
• Move nozzle control knob to lower
setting
• Blockage in air flow passage
• Clear blockage
Possible Cause
BlOCKage IS Touno:
1. Check fullness of filter bag; change if
needed.
//
Checking airflow path
2. Plug cleaner in and turn ON. Check
for suction at end of hose (A).
a, If there is suction, continue with
step 3.
b. If there is rl0 suction, check for
blockage in hose and dirt tube as
follows:
1) Disconnect hose from dirt duct (C)
by reversing procedure for "Attach
hose" on p. 4, Fig. 1-11 and 1-12.
2) Clear out hose.
3) Look into (C) and remove blockage.
3. Check connection at hose tube (B);
remove any blockage.
D
Checking under bottom plate
4. Turn cleaner OFF and unplug.
5. Remove bottom plate, belt and agitator
(see "The belt" section).
Look into opening (U) for blockages and
defects in material and workmanship for
a period of one full year from date of
purchase. This warranty provides, at no
cost to you, all labor and parts to place
this appliance in correct operating
condition during the warranted period.
This warranty applies when the appli-
ance is purchased in the United States
including its territories and possessions,
or in Canada or from a U. S. Military
Exchange. Appliances purchased
elsewhere are covered by a limited one
year warranty which covers the cost of
parts only. This warranty does not apply
if the appliance is used in a commercial
or rental application.
Warranty service can only be obtained
by presenting the appliance to one of the
following authorized warranty service
outlets. Proof of purchase will be
required before service is rendered.
1. Hoover Factory Service Centers.
2. Hoover Authorized Warranty
Service Dealers (Depots).
For an automated referral of autho-
rized service outlets in the U.S.A.,
phone 1-800-944-9200 OR
visitThe Hoover company on-line at
www.hoover.com
This warranty does not cover pick up,
delivery, or house Galls; however, if you
mail your appliance to a Hoover Factory
Service Center for warranty service,
transportation will be paid one way.
While this warranty gives you specific
legal rights, you may also have other
rights which vary from state to state.
If further assistance is needed, or if there
are questions concerning this warranty or
the availability of warranty service
outlets, write or phone the Consumer
Response Center, The Hoover Company,
101 East Maple St., North Canton, Ohio
44720. Phone 1-330-499-9499.
In Canada, contact Hoover Canada,
Burlington, Ontario LTR 4A8,
1-800-263-6376.
