SEWING MACHINE
SEARS, ROEBUCK AND CO.
Dear Customer:
You have just invested in a very fine zigzag sewing machine. Before using your new Kenmore machine,
please pause for a moment and carefully read this booklet which contains instructions on how to operate
and care for your machine.
Specific instructions are given on threading, tension adjustments, cleaning, oiling, etc. This will help you
obtain the best sewing results and avoid unnecessary service expense for conditions beyond our control.
Advice on the operation and care of your machine is always available at your nearest Sears Retail Store.
Please remember, if you have questions about your machine or need parts and service, always mention
the model number and serial number when you inquire.
Kenmore Sewing Machine
Record in space provided below the model number and serial
numbe_ of _his appHerrce;The mode! number and ser_! number ....
are located on the nomenclature plate, as identified on Page 3 of
this booklet.
Model No. 385. Serial No.
Retain these numbers for future reference.
THIS MODEL IS A CENTER NEEDLE, LOW BAR SEWING MACHINE.
IMPORTANT SAFETY
INSTRUCTIONS
Your sewingmachine isdesignedand constructed only for HOUSEHOLD use.
Read all instruction before using this sewingmachine.
DANGER- To reduce the risk of electric shock:
1.
2.
3.
4.
An appliance should never be left unattended when plugged in. Always
unplug this appliance from the electric outlet immediately after using
and before cleaning.
Always unplug before relamping. Replace bulb with same type rated
15 Watts.
Do not reach for the appliance that has fallen into water. Unplug
immediately.
Do not place or store appliance where it can fall or be pulled into a tub
or sink. Do not place in or drop into water or other liquid.
WAR NING- Toreduce the risk of burns, fire, electric shock,
or injury to persons.
1. Do not allow to be used as a toy. Close attention is necessary when this
appliance isusedby or near children.
2. Use this appliance only for its intended use as described in this manual.
Use only attachments recommended by the manufacturer ascontained in
this manual.
3.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into
water. Return the appliance to the nearest authorized dealer or service
center for examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air opening blocked. Keep
ventilation openings of the sewing machine and foot controller free from
accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where
oxigen is being administered.
8. To disconnect, turn all controls to the off ("0") position, then remove
plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
10. Keept fingers away from all moving parts. Special care is required
around the sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the
needle to break.
12.
13.
14.
15.
Do not use bent needles.
Do not pull or push fabric while stitching.
It may deflect the needle causing it to break.
Switch the sewing machine off ("O") when making any adjustment in
the needle area, such as threading needle, changing needle, threading
bobbin, or changingpresserfoot, and the like.
Always unplug the sewing machine from the electrical outlet when
removing covers, lubricating, or when marking any other user servicing
adjustments mentioned in the instruction manual.
SAVE THESE INSTRUCTIONS
OPERATING INSTRUCTIONS
"For appliances with a polarized plug (one blade wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it stilldoes not fit, contact a qualified electrician to install
the proper outlet. Do not modify the plug in any way."
"Foot Controller Model YC-482P for use with Sewing Machine Models
385.1148x x x, 385.1158x x x, 385.1168x x x, 385.1258x x x, 385.1268x x x,
385.12612x xx , 385.1278x x x, 385.11607x x x, 385.12710x x x, 385.12714x x x,
385,!2712x×x, 385.17'622xx×, 385.t_)8×xx, 385,12814xx x and 385,12014xxx.
(For U.S.A. market only)
TABLE OF CONTENTS
SECTION
SECTION
SECTION
1. KNOW YOUR MACHINE
A Portable Caseor Cabinet isAvailable .............. 2
Locate and Identify the Parts .................. 2_3
Identify the Accessories........................ 3
2.
PREPARE YOUR MACHINE FOR SEWING
Set Up the Machine ......................... 4_6
• Plug in the Machine and Switch on the Power ....... 4
• Foot Control Use .......................... 4
• Setting Spool Pin .......................... 5
• Adjust the Presser Foot Lever .................. 5
• Thread Cutter ............................ 5
• Free Arm Sewing: the Removable Extension Table .... 6
• Accessory Storage Box ...................... 6
• Change the Presser Foot ...................... 6
Choose Your Needle and Thread ................ 6_7
• To Change Your Needle ...................... 6
• Check Your Needle ......................... 7
• Fabric, Needle, Thread and Stitch Length Chart ...... 7
Prepare the Bobbin ......................... 8_9
= To Remove the Bobbin Case from the Machine ...... 8
• Wind the Bobbin ........................ 8_9
• Insert the Bobbin into the Bobbin Case ............ 9
Prepare Your Top Thread .................... 10_11
• Thread Your Needle ....................... 10
• Pick Up Your Bobbin Thread ................. 11
Adjust the Top Thread Tension ................ 12_13
Stitch Selector ............................. 14
Stitch Length Control ........................ 14

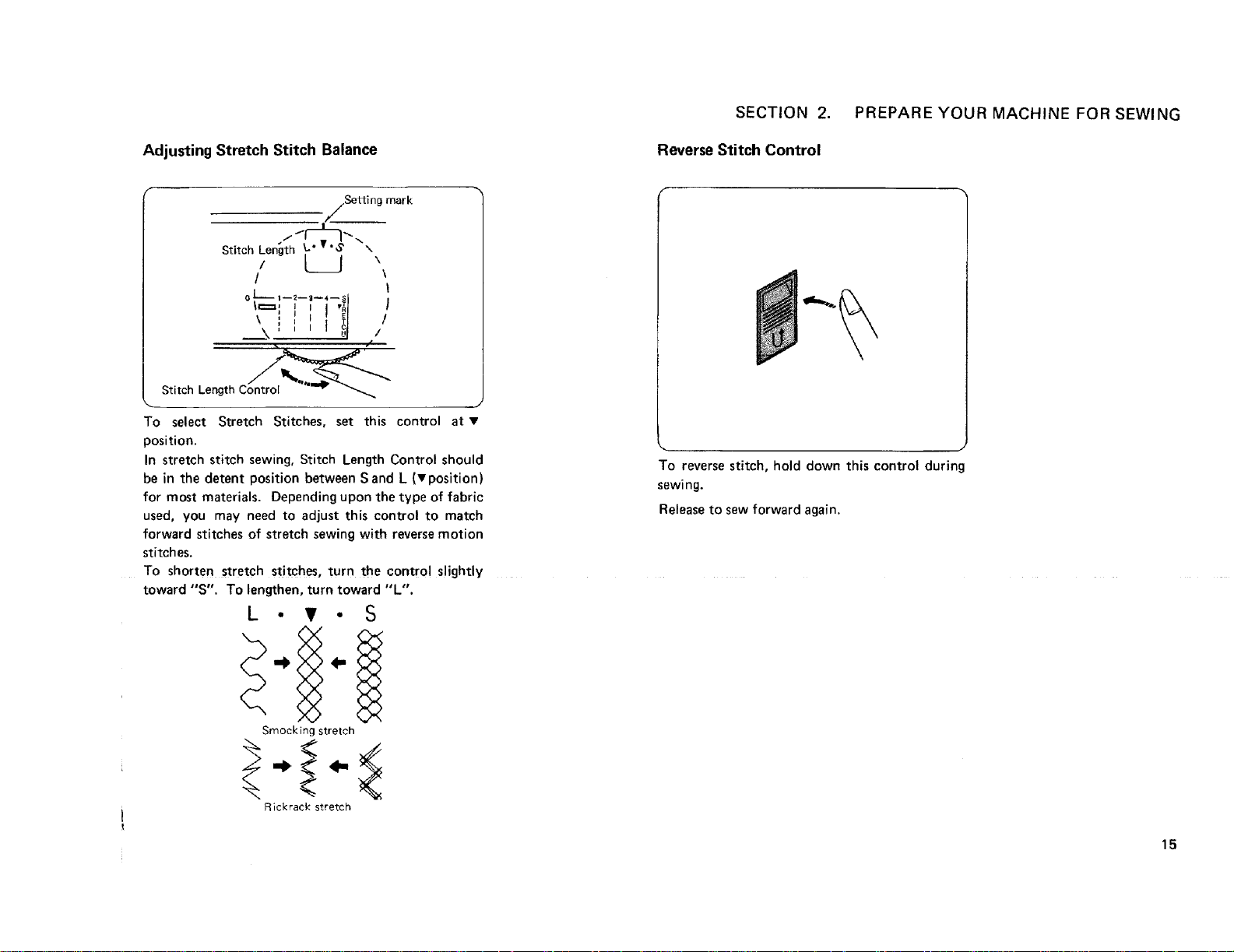

Adjusting Stretch Stitch Balance ................. 15
Reverse Stitch Control ........................ 15
Starting To Sew ............................ 16
3. LEARN THE STITCHES
Straight Stitches .......................... 17_18
• Straight Stitch ........................... 17
• Use the Seam Guides ....................... 17
• Turn a Square Corner ...................... 17
• Use the Darning Plate ...................... 18
• Topstitching ............................ 18
• Left Needle Position ....................... 18
Darning ................................. 19
Straight Stretch ............................ 19
Zigzag Stitches ........................... 20_26
• Basic Zigzag ............................. 20
• Satin Stitch ............................. 21
• Applique ............................... 22
• Bar Tacking ............................. 22

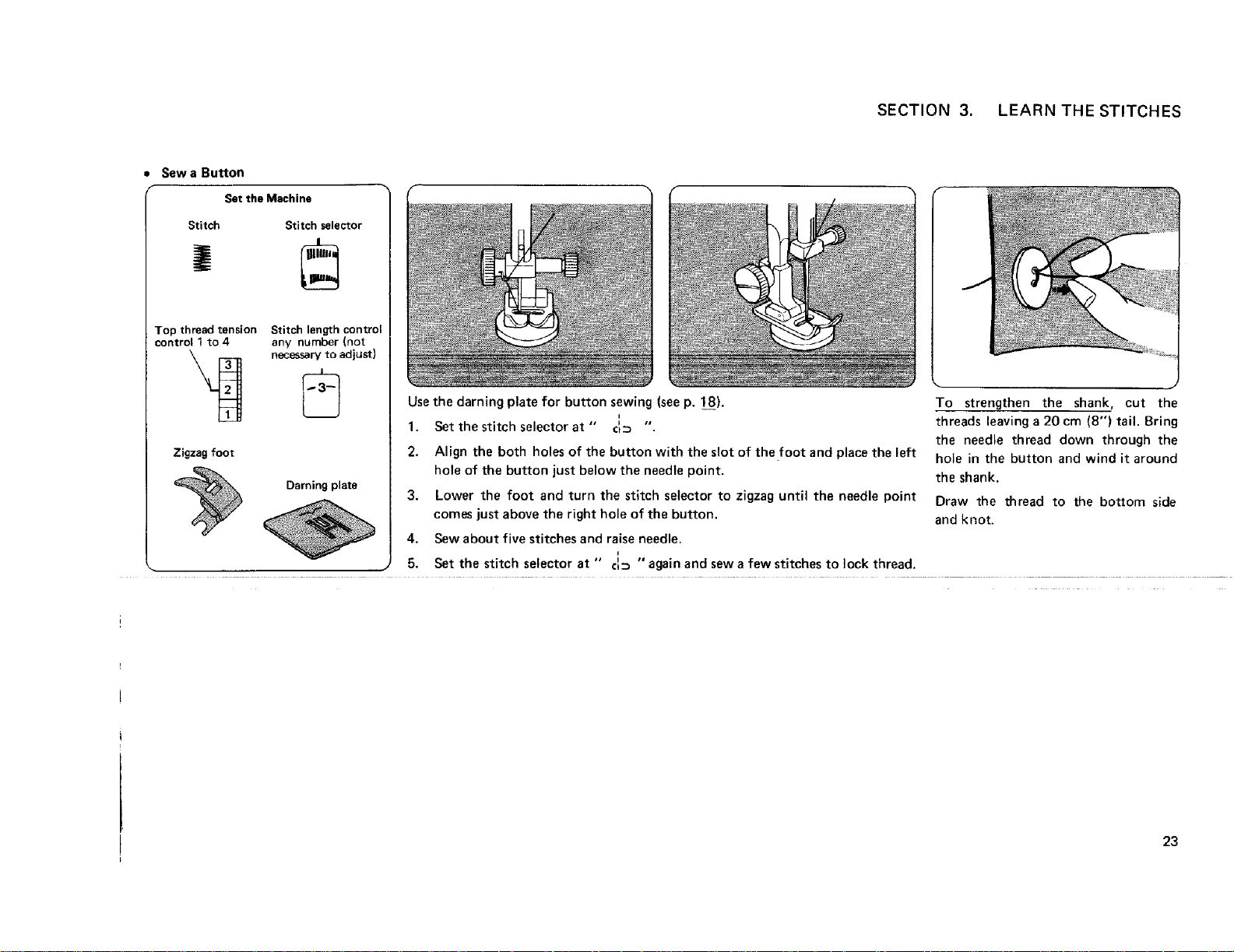

• Sew a Button ............................ 23
• Overcasting Stitch ......................... 24
• Rick-Rack Stretch ........................ 24
• Overcast Stretch Stitching
(Models 12781, 12681 and 12581) ............. 25
• Serging or Pine Leaf Stretch Stitching
(Model 12781 and 12681 ) ................... 25
• Three-Step Zigzag ......................... 26
Lace Work (Models 12781,12681 and 12581) ........ 26
Blind Hemming (Models 12781, 12681 and 12581 ) ..... 27
Buttonholes ............................. 28_29
Sew in a Zipper .......................... 30_31
Shell Stitching (Model 12781 and 12681 ) ........... 32
Smocking ................................ 32
Elastic Stretch Stitch (Model 12781 only) ........... 33
Box Stitching (Model 12781 only) ................ 33
SECTION 4. PERFORMANCE PROBLEMS CHART
What to Do When ......................... 34_35
SECTION 5. CARE FOR YOUR MACHINE
Replacing the Light Bulb ...................... 36
Cleaning the Machine ...................... 36_37
• Clean the Feed Dogs ....................... 36
• Clean the Shuttle Race ..................... 37
Oiling the Machine .......................... 38
• Oil behind the Face Cover Plate and under the
Arm Cover Plate .......................... 38
• Oil the Underside ......................... 38
PARTS LIST ........................................ 39
INDEX ............................................ 40
SECTION 1. KNOW YOUR MACHINE
A Portable Caseor Cabinet isAvailable
A full line of sewing cabinets are available at your
nearest Sears retail store or through our general
catalog.
Another option . . . buy a Carrying Case . . . then
your Kenmore goes anywhere, can be stored any-
where.
Locate and Identify the Parts
Take-up Lever
Bobbin Winding Tension Disc
\
Top Thread Tension Control
Face Cover Plate
Thread Cutter
Needle Plate
Upper Thread Guide
Shuttle Cover
Extension Table
(Accessory storage box)
Thread Spool Pin
Bobbin Winding Spindle
Stitch Length Control
Reverse Stitch Control
_Selector
Arm Cover Plate Carrying Handle
SECTION 1. KNOWYOURMACHINE
Identify the Accessories
Hand Wheel
Auto Clutch Knob
Light and
Power Switch
Plug Connector
Presser Foot
Foot Control
Needle Clamp Screw
Presser Foot Lever
Free Arm
Nomenclature Plate
Bobbin
Lint brush
Needle set
Large screw driver
Darning plate
all screw driver
Straight
stitch foot
Satin stitch /_
foot
Sliding
buttonhole foot
Zipper foot
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Set Up the Machine
• Plug in the Machine and Switch on the Power
Power
switch
\
Power supply plug
supply
Plug
connectol
Machine
plug
light
4. Push the light and power switch to turn
on the power and sewing light.
NOTE: Before inserting the plug into your
machine, be sure the power switch is
OFF.
t; ,Ct_,,ek your outer _besufeit is a tlOto 120 €_hffdreni
Volt AC outlet,
2. Insert the machine plug into the three-prong
plug connector, as shown. It will only fit one
way.
SAFETY FEATURE:
Your machine will not operate unless the
light/power switch is turned on. If you are
interrupted or stop sewing, turn off the
light/power switch to prevent injury to
3. Insert the power supply plug into the outlet.
• Foot Control Use
Foot control
The foot control regulates the speed at
which you sew.
To increase speed, gently press down with
the ball of your foot.
To decrease speed, release your foot pres-
sure slightly.
NOTE: The foot control is sensitive and
w41| _ or _ your
sewing speed imrfiediately.
Practice on a scrap of fabric to
regulate your sewing speed to
your taste and needs.
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
• Setting Spool Pin
The spool pin is used for holding the spool
of thread in order to feed thread to the
machine.
To use, pull up the spool pin. Push down
for storage.
Adjust the Presser Foot Lever
Normal up
position
High
position
positior
Jp
position
Presser foot
lever
/
The Presser Foot Lever raises and lowers your
presser foot.
You can raise it about 1/4" higher than the normal
up position for easy removal of the presser foot or
to help you place heavy fabrics under the presser
foot.
• Thread Cutter
cutter
J
You don't need a pair of scissors to cut the
thread after you finish sewing. Just use the
handy thread cutter.
Pull the threads to lengthen several inches
before starting the next seam.
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Set Up the Machine (Continued)

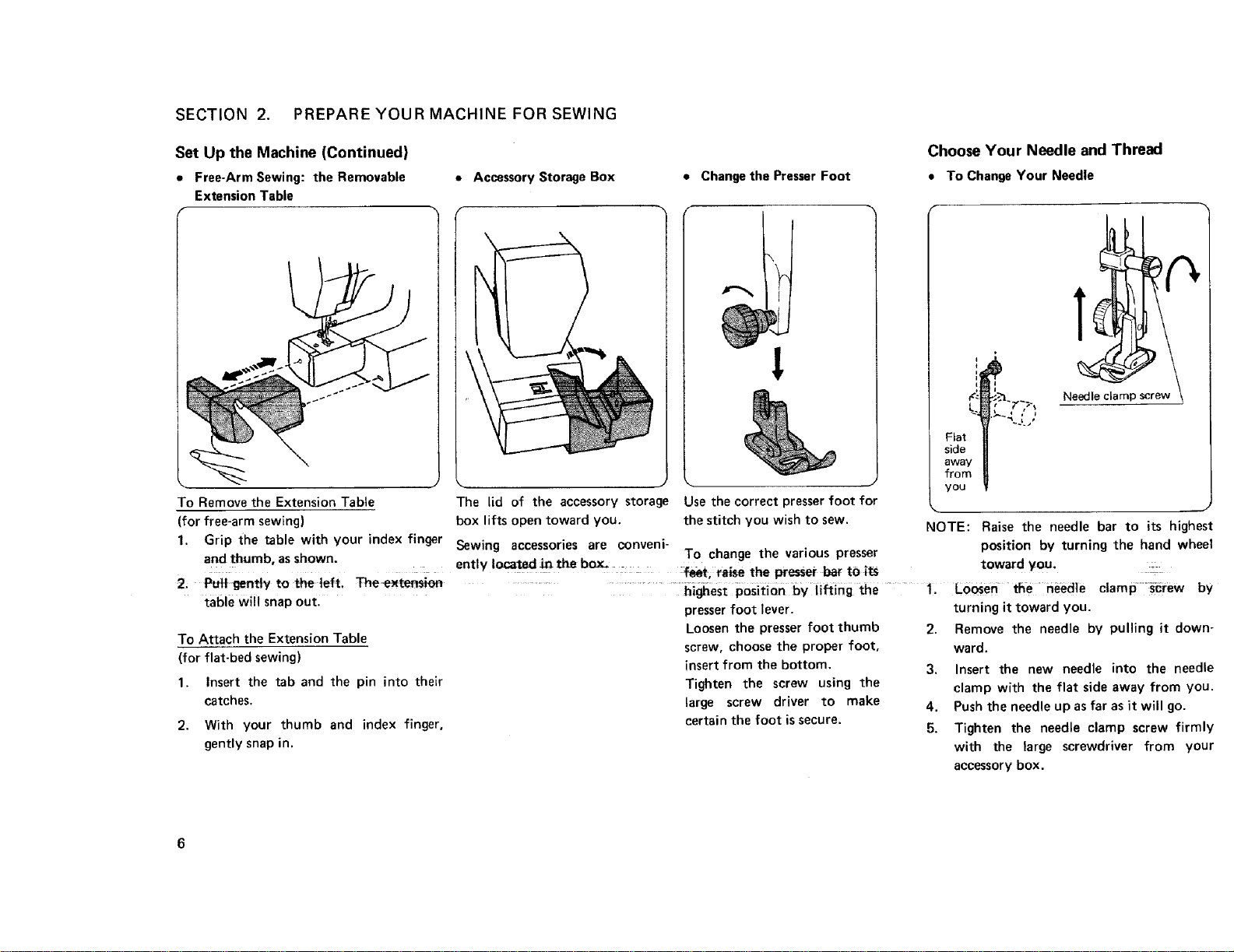

• Free-Arm Sewing: the Removable
Extension Table
To Remove the Extension Table
(for free-arm sewing)
• Accessory Storage Box • Change the Presser Foot
The lid of the accessory storage Use the correct presser foot for
box lifts open toward you. the stitch you wish to sew.
1. Grip the table with your index finger Sewing accessories are conveni-
To change the various presser
and thumb, asshown, ently located in the box. :_t, raise the presser bar to its
2. Puttgently to theleft. The_e_ ...........
table Will snap outl
To Attach the Extension Table
(for flat-bed sewing)
1. Insert the tab and the pin into their
catches.
2. With your thumb and index finger,
gently snap in.
Choose Your Needle and Thread
• To Change Your Needle
Flat
side
away
from
you
Ne_'_e clamp screw \
NOTE: Raise the needle bar to its highest
position by turning the hand wheel
toward you.
........................hi_est posi{t6n b¥li_Jng the .... 1. Loosen the needle clamp===_ew by
presser foot lever.
Loosen the presser foot thumb
screw, choose the proper foot,
insert from the bottom.
Tighten the screw using the
large screw driver to make
certain the foot issecure.
turning it toward you.
2. Remove the needle by pulling it down-
ward.
3. Insert the new needle into the needle
clamp with the flat side away from you.
4. Pushthe needle up asfar as it will go.
5. Tighten the needle clamp screw firmly
with the large screwdriver from your
accessorybox.
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
S
Your choice of needle and thread depends on the fabric you are
sewing.
In your needle envelope, you will find the following color-coded
needles:
Blue (11 ) ......... for stretch fabrics.
Orange (11 ) ........ for lightweight fabrics.
Red (14) .......... for medium or medium-heavy
weight fabrics.
Purple (16) ........ for medium-heavy weight fabrics
and decorative topstitching on these
fabrics. (This needle has a larger
thread hole for thicker topstitching
thread.)
Green (18) ........ for heavy weight fabrics and
decorative top-stitching on these
fabrics.
Replacement Kenmore needles are avialable at your nearest Sears
stores.
= Check Your Needle
1. Look for barbed or blunt point.
2. A damaged needle can cause permanent snags or runs in
knits, fine silksand silk-like fabrics.
Fabric, Needle, Thread and Stitch Length Chart
FABRIC
Lightweight:
Batiste, Dimity, Chiffon,
Silks, Fine Lace, Organza,
Crepe, Taffeta, Voire,
Organdy
Medium Weight:
Cotton, Cotton Blends,
Percale, Gingham,
Shantung, Pique,
Seersucker, Satin, K nits,
Vinyl Suitlngs, Linen,
Wool Crepe, Leather
Medium Heavy Weight:
Corduroy, Denim, Wool,
Sailcloth, Wool Flannel,
Gabardine, Velvets,
Leather
Heavy Weight:
Coatings, Upholstery
Cotton Duck, Heavy
Twills, Canvas
Decorative top-stitching
on al! types of fabric
Stretch Fabric:
Polyester Double Knits,
Nylon Tricot, Jersey,
Stretch Terry, Spandex,
Cire Tricot
NEEDLE
SIZE AND
COLOR
11-ORANGE
14-RED
14-RED
or
16-PURPLE
18-GREEN
16-PURPLE
18-GREEN
11-BLUE
(STRETCH
FABRIC
NEEDLE)
THREAD SIZE
Polyester Core!Cotton
Wrap
Fine Mercerized Cotton
Silk A
50 Mercerized Cotton
Polyester Core]Cotton
Wrap
Silk A
50 Mercerized Cotton
Mercerized Heavy-Duty
Polyester Core/Cotton
Wrap
Silk A
Heavy Duty Mercerized
Cotton
Polyester Core/Cotton
Wrap
Silk A
Buttonhole Twist
(Use as top thread only)
Polyester Core/Cotton
Wrap
50 Mercerized Cotton
RECOMMENDED
STITCH LENGTH
SETTING
2
(12 stitches per
inch)
2--2.5
(10-12 stitches
per inch)
2--3
(8-10 stitches
per inch}
3
(8 stitches per
inch)
3--4
(6-8 stitches
per inch)
2--2,5
(10-12 stitches
per inch)
Always buy a good quality thread. It should resist tangling and
I be strong, smooth and consistent in thickness.
7
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Prepare the Bobbin
• To Remove the Bobbin Case from the Machine
• Wind the Bobbin
Remove the extension table from To remove bobbin case from shut-
the machine by pulling it to the tie, pull open latch of bobbin case.
left. Open the shuttle cover by Pull bobbin case straight out of
pulling down the embossed part on shuttle.
the left side of the cover.
Raise needle to its highest position
_ta_imghand wheel toward you.
Release clutch by turning the
clutch knob inside the hand wheel
toward you to stop the needle from
moving while you winding the
bobbin.
7: ¸
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
• Wind the Bobbin (Continued)
Draw thread from spool through
bobbin winding tension disc asshown.
Pull end of thread through hole in
bobbin as shown.
7
Place bobbin onto bobbin winding
spindle with end of thread coming
from the top of the bobbin. Push
bobbin winding spindle to the right
until it clicks. Holding onto end of
thread, start machine. When bobbin is
slightly filled, snip off end of thread.
Wind thread until winder stops.
Push bobbin winding spindle to the
left and clip thread. Remove bobbin.
Turn clutch knob away from you
while holding hand wheel for normal
sewing operation.
• Insert the Bobbin into the Bobbin Case
)
Place bobbin in bobbin case Pull thread through slot of case
making sure thread feeds clock- as shown.
wise and is coming from
bobbin as shown.
Pull thread under tension
K
Holding latch open, position
spring and through the opening case into shuttle and release
as shown above. Pull 3 to 4 latch.
inches of thread from bobbin.
Case should lock into place
when latch is released.
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Prepare Your Top Thread
• Thread Your Needle
:_mbered steps above follow the numbers
0{1 theJflustrations. ......
Dotted lines show places where the thread
loops and then is pulled tight.
Raise take-up lever to its highest position by turning hand wheel toward you.
Raise presser foot lever.
Place spool on spool pin as shown, with thread coming from the back of the spool.
1. Draw thread into thread guide using both hands.
2. While holding thread near spool, draw thread down into the tension area and then around the
check spring holder.
.... .--;=;.....
4. Draw thread down and slip it into needle bar thread guide.
5. Thread needle from front to back.
NOTE:
You may want to cut the end of thread with sharp scissors for easier needle threading.
10
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Pick Up Your Bobbin Thread
Raise presser foot lever. Hold top
thread loosely in left hand and rotate
handwheel toward you one complete
turn.
2. Bring bobbin thread up by pulling
top thread.
3,
Pull both threads under and to the
back of the presser foot, leaving 4
to 6 inches of thread clear.
If you cannot pick up bobbin thread by following steps given above, then check:
1. Is needle threaded from front to back?
2. Isthreadtang!ed around needle?
3. Are 3 to 4 inches of thread coming from the shuttle?
4. Isthread from shuttle tangled?
5. Isbobbin properly installed in the bobbin case?
6. Isthe machine threaded according to the instructions?
11
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Adjust the Top Thread Tension
Top side of fabric
Top
thread
thread
Setting mark
Loosen
f
Tighten
For Straight Stitch
The ideal straight stitch will have threads locked between the two layers of
fabric, as shown above, magnified to show detail.
If you look at the stitch, front and back, you will notice that there are no
gaps, that each stitch is smooth and even.
_i_hen adjusting top thread tension, the higher the number, the tighter the top
Choose the Correct Tension:
The best tension will depend on;
the stiffness and thickness of the fabric
the number of fabric layers
the type of stitch
The top thread
is too loose.
Top side
of fabric
The top thread
appears on the
underside of the
fabric.
Tension is too loose:
Top side
of fabric
The top thread
is too tight
The bobbin thread
appears on the
upper surface of the
fabric.
Tension is too tight:
The top thread shows through the The bobbin thread will come through
bottom of the fabric. The bottom side the top of the fabric. The top side of
of the stitch will feel bumpy, the stitch will feel bumpy.
12
SECTION2. PREPAREYOURMACHINEFORSEWING
For Zigzag Stitch
In the correct zigzag stitch, the bobbin threads will not show on the top side
of fabric and the top threads will show slightly on the bottom side. See
below for the correct appearance. To match this appearance, adjust your top
tension.
Top tension
Too Tight
J
Top side of Fabric
Bottom side of Fabric
Too Tight:
Top tension
Too Loose
Top side of Fabric
Bottom side of Fabric
Too Loose:
-- The top thread
will loop through
bottom side of
fabric and will be
pulled almost
together.
Just Right
Top side of Fabric
-- Corner of each
zigzag will pull
together on the
top side of fabrics.
Bottom side of Fabric
Just Right:
Minimize the amount
of top thread visible on
the bottom side of
fabric without causing
excessive puckering or
causing the bobbin
thread to show on the
top side. Results vary
with fabric, thread and
sewing conditions.
13
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Stitch Selector Stitch Length Control
f
Model 12781
Setting mark
""'1+1"'"
Stitch Selector \\
\
t
Stitch Selector /
J
The stitch selector control not only determines the
stitch you select, but also regulates the stitch width for
regular zigzag and rick rack stretch stitches.
The different types of stitches ere designated by color.
Straight, Zigzag and Utility Stitches are orange.
Stretch Stitches are yellow.
Buttonhole Settingsare blue.
NOTE: To avoid needle or fabric damage, be sure
your needle is up and out of fabric when
adjusting this control.
Model 12681 Model 12581 Model 11682
I l,=°lo=°llqlMlI lI
/ Setting mark 0 4
/
t
-- I
I
Stitch Lerlgth \\\
/ _tting mark
I \
0 +I-- I--2--3--4.--+s I
' I v_ a
Stitch Length Control
The stitch length control regulates the length of stitch, and also has a stretch
stitches setting.
The higher the number, the longer the stitch.
"0" means no feed,
upon your _ or your own _e +nbuttonholes, _ alter
the bu_Qnh0J_iS_h d_[!;_JtYwithin the 51_ _0rl_oTe range on the_length
control.
14
Adjusting Stretch Stitch Balance
fSetting mark
Stitch Length ,_° "'_" \
L J
0L..._1_2_____ sL
J I I E
\ ', _ TI /
.___'' ' I _I /
t
Stitch Length Control -'-_
To select Stretch Stitches, set this control at •
position.
In stretch stitch sewing, Stitch Length Control should
be in the detent position between Sand L (vposition)
for most materials. Depending upon the type of fabric
used, you may need to adjust this control to match
forward stitches of stretch sewing with reversemotion
stitches.
To shorten stretch stitches, turn the control slightly
toward "S". To lengthen, turn toward "L".
L • • • S
Smocking stretch
Rickrack stretch
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Reverse Stitch Control
To reverse stitch, hold down this control during
sewing.
Release to sew forward again.
15
SECTION 2. PREPARE YOUR MACHINE FOR SEWING
Starting To Sew
Now that you are familiar with the controls on your machine and with the accessoriesprovided for the machine, you are ready to start to sew with your new
Kenmore sewing machine, Below are somegood habits to follow each time you sit down to sew:
1. Inspect the needle. It should be straight, properly set and sharp on the point. It should be the correct size for the fabric and thread being used. Do not be
afraid to change your needle frequently. Many of the new fabrics made of synthetic blends tend to dull the needles more easily than fabrics made of natural
fibers.
2. Before placing the material on the machine, see that the ends of the threads have been drawn about 4 inches to the rear of the machine. Hold on to threads
during the sewing of the first 3 or 4 stitches of the seam.
3. Test the machine stitch on a scrap of fabric you plan to use. The fabric should be double thickness. Adjust the machine for the length of stitch and tension
suitable to your fabric.
4. Fabric should be placed under the presser foot with the bulk of the material to the left of the needle and the right edge of the material placed on the 5/8"
seam marking on the needle plate when making a simple seam.
5. Run the machine at a slow even speed. The more pressure you put on the foot control, the faster the machine will sew.
6. Fasten each seam by back tacking at the beginning and end of the seam.
7. Always finish sewing each seam with the needle at its highest point.
8. Guide the fabric gently with your hand in front of the needle. Never pull or hold the fabric in such a way that the normal feeding is altered.
9. When turning the hand wheel manually, always turn it toward you.
16
SECTION 3. LEARN THE STITCHES
Straight Stitches
• Straight Stitch
Set the Machine
Stitch Stitch selector
,
1
Top thread tension Stitch length
control 2 to 6 control orange
Straight foot Zigzag foot
1,
2.
3.
4.
5.
6.
!
Raise the presser foot. 7.
Raise the needle to its highest
position. 8.
Place the edge of the fabric next
to a stitching guide line on the 9.
needle plate (5/8" is most
common).
Draw the threads towards the
back and lower the presser foot.
Press the foot control;
At the end of the seam, you may
want to reverse to lock the stitch.
Raise the presser foot and remove
the fabric.
Cut the threads.
Hold the fabric loosely and gently
guide it along the guide line, so
that it feeds naturally.
Do not force the fabric or try to
pull it tight.
• Use the Seam Guides
Cornering Guide
The seam guides on the needle plate
are there to help you measure seam
width. The lines are 1/8" apart, with
the 5/8" and 7/8" lines marked.
• Turn a Square Corner
To turn a square corner 5/8" from the
fabric edge:
1. Stop stitching and lower the
needle by turning hand wheel
toward you when the fabric edge
facing you lines up with the
cornering guide, as shown.
2. Raise the presser foot and turn
the fabric to line the edge with
the 5/8" seam guide.
3. Lower the presser foot and begin
stitching in the new direction.
17
SECTION 3. LEARN THE STITCHES
Straight Stitches (Continued)
• Usethe Darning Plate
Sometimes when you sew, you want
to control the fabric youself.
The Darning Plate covers the feed dogs
so that they do not touch the fabric.
To put on the Darning Plate:
NOTE: The rectangular holes in the
Darning Plate match the
holes in the needle plate. In
the darning plate, these
holes are slightly to the left
of center.
1. Position the darning plate with
the 3 pins on the bottom.
2. Fit the darning plate pins into the
needle plate holes. The feed dogs
will show through the darning
plate holes.
Use the darning plate in the following
ways: Darning (P. 19)
Button Sewing {P. 23)
• "ropstitching
Set the Machine
Stitch Stitch selector
I
Top thread tension
control 2 to 6
Stitch length
control orange
zone
Straight foot Zigzag foot
or
The Stitch and Its Uses
Topstitching emphasizes the lines of
your garment and keeps seams and
edges flat and crisp.
Accent suits or blouses with one or
two rows of topstitching around the
outer edges of cuffs, lapels or collars.
Here's How
1,
2.
Lower the presser foot.
Keep the edge of the fabric next
to the right edge of the presser
foot.
3. Evenly guide the fabric along this
edge to produce an even row of
topstitching 3/8" from the edge.
Left Needle Position
Stitch selector
©
J
Use Left Needle Position for more
control while topstitching or edge
stitching difficult fabrics.
NOTE: Use only zigzag presser
foot for Left Needle
Sewing.
18
Darning
Straight Stretch
SECTION 3. LEARN THE STITCHES
Set the Machine
Stitch Stitch selector
t
Top thread tension Stitch length
control 1 to 4 control any number
adjust)
No presser
foot
Darning plate
Here's How
1. Put the darning plate on the needle plate
(seep. 18).
2. Remove presser foot and stretch fabric
between embroidery hoops with hole
centered.
3. Draw the bobbin thread up through the
fabric by holding the top thread and taking
Set the Machine
Stitch
III
Ul
III
Top threadtension
control2 to6
Straight foot
Stitch selector
Stitch length
control yellow
stretch stitch
position
Zigzag foot
This stitch is the stretch variation of
the straight stitch, especially develop-
ed for knits and stretch fabrics.
This stitch can also be used for
topstitching on all fabrics.
start darning.
4. Lower the presser bar and sew at a slow
speed.
5. Move the fabric back and forth slowly until
you have covered the darning area.
6. Turn the fabric half turn and sew another
layer of stitching over the first layer.
NOTE: If your fabric is thin or badly
damaged, use a separate piece of fabric
under the hole to reinforce it.
7. When you finish darning, remove the darning
plate.
Stretch stitching was developed
to be used on stretch fabrics and
l_rli_ It can be used on other
fabrics as well, It works well on
curved seams and on any
garments that will receive a great
deal of strain (ie. children's
clothes).
The stretch stitch does not
actually stretch as it is being
sewn, but is stitched in a
forward and back motion
(sometimes called a "reverse-
action" stitch), so that it will
give when the fabric stretches
instead of breaking.
19
SECTION 3. LEARN THE STITCHES
Zigzag Stitches
Basic Zigzag
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 2 to 5 control orange
Zigzag foot
TJ_e_d ItsUses
The zigzag stitch is one of the most
common and most versatile stitches on
your machine. It can be a utility stitch
for sewing buttons, buttonholes, hem-
ming, overcasting, mending and darn-
ing. It can also be used to decorate
with trims, appliques and cut-out work
or as adecorative stitch.
2O
Here's How
There are many ways to sew a zigzag stitch.
Consult the specific variations for detailed directions.
Satin Stitch p. 21
Applique Work p. 22
Bar Tacking p. 22
Button Sewing p, 23
Overcasting p. 24
Rick-rack stretch p, 24
Overcast stretch p. 25
Serging p. 25
Three-step zigzag p. 26
• Satin Stitch
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control 0.5 to 1
Satin stitch foot
The Stitch and Its Uses
The Satin stitch is a versatile and often
used decorative stitch, but it can also
be used to overcast a raw edge (for ex-
ample, blankets, linens, tablecloths
and napkins).
The Satin stitch is especially attractive
in applique.
SECTION 3. LEARN THE STITCHES
Zigzag w dth:
Stitch
length : 1
2
3
4
Close to 0
Here's How
Once your machine is set up to stitch, you may want to experiment on a fragment
of the fabric you are planning to use. Too tight a satin stitch may pucker some light
weight fabrics.
21
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
• Applique
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control 0.5 to 1
Satin stitch foot
Baste (or fuse with iron-on fabric
joiner) applique pieces on the fabric.
Stitch around the applique making
sure the needle falls along the outer
edgeof the applique.
When sewing corners, lower the needle
down into the fabric. Raisethe presser
foot and pivot the fabric to the right
or left.
Bar Tacking
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control 0.5 to t
Zigzagfoot
This stitch is similar to a very short
satin stitch and is used to reinforce
points of strain such as corners or
pockets and straps on lingerie.
Sew 4 to 6 zigzag stitches.
22
SECTION 3. LEARN THE STITCHES
Sew a Button
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length control
control 1 to 4 any number (not
Zigzag foot
Darning plate
Usethe darning plate for button sewing (seep. 18).
1. Set the stitch selector at" ¢i_ ".
2. Align the both holesof the button with the slot of the foot and placethe left
hole of the button just below the needle point.
3. Lower the foot and turn the stitch selector to zigzag until the needle point
comes just above the right hole of the button.
4. Sew about five stitches and raise needle.
To strengthen the shank, cut the
threads leaving a 20 cm (8"') tail. Bring
the needle thread down through the
hole in the button and wind it around
the shank.
Draw the thread to the bottom side
and knot.
" " "a "
5. Set the stitch selector at €_= gain and sew a few stitches to lock thread.
23
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
OvercastingStitch
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control 1 to 2
Zigzag foot
Helpful Hints
Start overcasting about 1/8" inside the
raw corner of your seam. If you start
right at the edge, the fabric will bunch
up and the stitches will become
tangled.
Rick-Rack Stretch
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control yellow
stretch stitch
position
Zigzag foot
The Stitch and Its Uses
Sew on stretch fabrics in any area that
you might use a zigzag stitch.
This stitch can be used asa decorative
top stitch aswell.
The Stitch and Its Uses
This zigzag variation is very useful in
garment construction and in finishing
raw edgesof any sewingproject.
24
SECTION 3. LEARN THE STITCHES
• Overcast Stretch Stitching (Models 12781, 12681 and 12581)
F
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control yellow
stretch stitch
__ position
t___J
Zigzag foot
Here's How
Place the raw edge of the fabric to
the LEFT of the needle as shown.
Stitch so the needle pierces the fabric
just short of the outside edge.
Or, place your fabric to allow a 5/8"
seam, then trim seam allowance
after.
The Stite,hand4t_ can be overcast to prevent further
This stitch can be used for sewing a raveling.
seamwith an overcast finish. NOTE: Use a blue stretch fabric
The seam is formed and finished in needle, which effectively
one operation. It can be used when prevents skipped stitches.
you are making swimwear, ski pant_
and other garments that require
stretch.
Serging or Pine Leaf Stretch Stitchinc (Models 12781 and 12681)
Stitch
Top thread tension
control 1 to 4
Set the Machine
Stitch selector
Stitch length
control yellow
stretch stitch
position
Zigzagfoot
NOTE:
Here's How
Place the fabric under the presser
foot so that the stitches are made
over the edge.
Or, place your fabric to allow a 5/8"
seam, then trim seam allowance
after.
Raw or worn e_ o_armen_ _ .............
TheStitch and ttsUses
Use this stitch when you want a
narrow seam that you do not need to
press open flat. It is ideal for 1/4"
seams on knits or on medium to
heavyweight woven fabrics where you
want a narrow seam. It is also great
for making elastic swim wear.
When using stretch knit
fabric, use a blue_Ltch
fabric_= needle which
effectively prevents
skipped stitches.
25
SECTION 3. LEARN THE STITCHES
Zigzag Stitches (Continued)
Three-Step Zigzag
Set the Machine
Stitch Stitch selector
Topthreadtension Stitchlength
control1to 4 control0.5 to 1
\
Zigzag foot
Seam Finishing
Place the fabric under the presser foot
so that the edge will be slightly inside
the right hand side of the presserfoot.
Guide the work so the right hand
stitches fall at the edgeof the fabric.
The Stitch and Its Uses
"l'bethree.step Zigzag is a Combination
zigzagand straight stitch. You may use
the three-step zigzag everywhere you
would use the basic zigzag stitch. It
has more strength, elasticity, and is
'flatter than a regular zigzag.
The three-step zigzag stitch isespecial.
ly useful for:
- mending
- sewing patches smoothly and
securely.
- repairing straight tears.
- finishing seams.
26
Mending
Position the tear under the needle so
that the stitching will catch both sides.
Lace Work (Models 12781, 12681 and 12581)
Set the Machine
Stitch Stitch selector
Top thread tension
control 1 to 4
Stitch length
control 1
Zigzag foot
Lace adds a fanciful, feminine touch
to blouses and lingerie. Table linens
and pillows become more elegant
w-hen -trimrrmd with lace.
Turn raw edge of fabric under at least
1/2". Place lace underneath and top-
stitch usingstretch blind hem stitch.
Trim excessfabric close to stitching.
Blind Hemming (Models 12781, 12681 and 12581)
SECTION 3. LEARN THE STITCHES
Set the Machine
Stitch Stitch selector
(Regular)
Top thread tension Stitch length
control 1 to 4 control 1 to 3
Zigzag foot
Set the Machine
Stitch Stitch selector
(Stretch)
Top thread tension Stitch length
control 1 to 4 control 1 to 3
_Zigzagfoot
Light
Weight
Fabric
1/4"
114"
Heavy
Weight
Fabric
_., - )
There are two blind hem stitches on your machine. The regular blind hem isused for woven fabrics. The stretch blind hem is
wider and will "give" and is usedfor knit and stretch fabrics.
1. Finish the raw edge of your hem any way you desired. (See Overcasting, p. 2__4)
2. Measure, turn up your hem and pin.
NOTE: For light weight fabrics, you may need a double fold.
3. Fold the material (wrong side out) on the edgeto be stitched, as shown, leaving 1/4" of the finished hem edgeshowing.
4. Place garment under presserfoot in such a manner that straight stitches will be sewn on extended edge. The zigzag stitch,
....... should just catch the fold of the garment .....
5. After hemming, pressboth Sidesof the finished hem: The top Sideof the garment will show only the blind Stitches__
NOTE: The stretch blind hem stitch also can be usedfor Lace Work. (See p. 2.66)
27
SECTION 3. LEARN THE STITCHES
Buttonholes
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length contro
control 1 to 5
Sliding buttonhole foot
1. a. Carefully mark the buttonhole
length on your garment.
b. Change to the sliding buttonhole
foot.
c. Insert the garment under the
foot with the buttonhole mark-
ing running toward you.
2. a. Move the slider (A) toward you
so that the top mark (C) on the
slider meets the start mark (B).
b. Line up the markings on the
foot with the top mark on your
garment.
c. Lower the presser foot.
NOTE: The markings on the slider
are engraved in centimeters.
Adjusting the Stitch D_nsJty
Depending upon your fabric or your
own preference in buttonholes, you
may alter the buttonhole stitch
density within the blue buttonhole
range on the stitch length dial.
(_ For more density, turn the dial
toward "0".
(_ For less density, turn the dial
toward "1 ".
NOTE: Always make a practice but-
tonhole on a scrap of fabric
you plan to use to find the
more suitable stitch length.
28
Fine
stitches
for light
faorics
Q
Coarse
stitches
for heavy
fabrics
3. a. Set the stitch selector at I'I
b. Sew forward until you reach the
front marking of your button-
hole.
c. Stop sewing at the left stitch.
4. a. Set the stitch selector at
I
b. Sew 4 to 6 stitches.
SECTION 3. LEARN THE STITCHES
c. Stop sewing at the right stitch.
F1
5. a. Set the stitch selector at !31
l
b. Sew until you reach the back
marking of the buttonhole.
c. Stop sewing at the right stitch.
6. a. Set the stitch selector at l:l
b. Sew 4 to 6 stitches.
c. Stop sewing at the left stitch.
NOTE:
Wllen sewin
sliding buttonhole foot as illustrated
and sew in reverse( _-_r_l-_r"_ ).
Li _J u _
7. Remove the fabric and cut the hole
open with the buttonhole opener,
29
SECTION 3. LEARN THE STITCHES
Sew in a Zipper
Fabric Preparation :
Put the right sides of the fabric to-
gether and sew to the end of the zip-
per opening. Use the reverse to lock
the stitches.
Sew the zipper opening with stitch
length at "4" and top thread tension
at "3",
of opening
Right side
of fabric
Top edge of fabric
Set the Machine
Stitch Stitch selector
t
Top thread tension Stitch length
control 3 to 6 control 2
Zipper foot
\
1/8")
To Sew:
1.
2.
3.
Zipper teeth
Zipper tape
Fold back the left seam allowance
asshown.
Turn under the right seam allow-
ance to form a I/8" fold.
Place the zipper teeth next to the
1/8"fold and pin in place.
4. To sew the left side of the zipper,
set the zipper foot on the left side
of the needle.
5. Lower the zipper foot on the right
side at the bottom of the zipper
so that the needle pierces the fold
and the zipper tape.
6. Sew through the fold and the zip-
per tape to the point where the
slider begins.
7. Lower the needle to hold the fab-
ric and raise the presser foot.
30
SECTION 3. LEARN THE STITCHES
8. Open thezipper. 10. Close the zipper and turn the
9, Lower the presser foot and stitch fabric right side up,
the rest of the seam.
INVISIBLE ZIPPER AND CORDING
INVISIBLE ZIPPER
Adjust the foo_ so the needle is sewing through
the _e_ter ho!=_of the foot er_d __r_e_roe,._ ef
. .L -
shown. Follow the zipper manufacturer's inst-
ructions. After zipper has been inserted, finish
sewing seam by shifting foot to side position
sewingthrough side notch.
CORDING
Foot can also be used to make cording for slip-
covers etc. Cover a cord with a strip of bias
fabric and sew as shown,
NOTE:
Use "Low Bar Sewing Machine ZIPPER FOOT"
(6757) for "invisible zipper" and "cording",
which can be obtained at any Sears retail store.
12.
13.
To sew the right side of the zip-
per, set the zipper foot on the
right side of the needle.
Stitch across and below the bot-
tom of the zipper.
Turn the corner and continue to
guide the foot along the zipper
teeth, as shown.
Stitch through the fabric and
Ltppttr [_lpft.
i4. Stop about 2" from the top of the
zipper.
15. Lower the needle into the fabric
and raise the presser foot.
16. Remove the basting stitches and
open the zipper.
17. Lower the foot and stitch the rest
of the seam. Make sure the fold is
even.
31
SECTION 3. LEARN THE STITCHES
Shell Stitching (Models 12781 and 12681) Smocking
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 3 to 9 control 1to 2
Zigzag foot
The Stitch and Its Uses
The Shell Stitch is formed by sewing a
blind hem over folded fabric. Several
rows of shell stitching are called shell
tucks.
Shell stitching can be used to finish
hems, sleeve and neck openings.
Shell tucking can be used to create
scalloped tucks on blouses and
lingerie.
Here's How
I. For best effect:
- set the stitch length as you
desire.
- you may need to tighten the
top thread tension slightly.
- allow the needle to just
clear the folded edge of the
fabric when it zigzags.
2. If you sew rows of shell stitches,
space the rows 1/2" apart.
You can sew Shell Stitch on knits or
soft silky wovens in any direction.
Set the Machine
Stitch Stitch selector
Top thread tension
control 1 to 4
Stitch length control
yellow stretch stitch
position
L__J
Zigzag foot
With the stitch length at "4", sew
straight stitching lines 3/8" apart
across the area to be smocked.
Knot the threads along one edge. Pull
the bobbin threads and distribute the
gathers evenly. Secure the threads at
the other end. Sew the decorative
stitch between the gathering stitches.
Pull out the gathering stitches.
NOTE: Loosen the top thread
tension to make gathering
easier.
32
Elastic Stretch Stitch (Model 12781 only)
SECTION 3, LEARN THE STITCHES
Box Stitching (Model 12781 only)
Set the Machine
Stitch Stitch selector
Top thread tension Stitch length
control 1 to 4 control yellow
\_ stretch stitch
position
k__J
Zigzag foot
Choose this stitch to attach elastic to
garments.
1. Mark the elastic into quarters and
match these to the center front,
center back and side seams.
2, Place the middle of the elastic
under the center of the presser
foot and stitch into place, making
sure the fabric is evenly distri-
buted.
Set tha Machine
Stitch Stitch selector
Top thread tension
_tro! I to 4
Stitch length
control I
Zigzag foot
Use this stitch to join heavy weight
interlining.
Overlap two raw edgestogether and
use this stitch to join them.
33
SECTION 4. PERFORMANCE PROBLEMS CHART
What to Do When
PROBLEM PROBABLE CAUSE CORRECTION
Irregular Stitches
Breaking Needle
Bunching of Thread
Puckering
Incorrect size needle.
Improper threading.
Loose upper thread tension.
Pulling fabric.
Loose presser foot.
Unevenly wound bobbin,
Nicks or burrs at hole of needle plate.
Pulling fabric.
Incorrect size needle.
Incorrect setting of needle.
Loose presser foot.
Upper and lower threads not drawn back
under presser foot before starting seam.
Incorrect thread tension(s).
Using two different sizes or kinds of thread.
Bent or blunt needle.
Loose presser foot.
Fabric very sheer or very soft,
Choose correct size needle for thread and fabric.
Rethread machine,
Tighten upper thread tension,
Do not pull fabric; guide it gently.
Reset presser foot.
Rewind bobbin.
Replace needle plate, or polish off burrs completely.
Do not pull fabric; guide it gently.
Choose correct size needle for thread and fabric.
Reset needle.
Reset presser foot.
When starting a seam be sure to draw both threads under and
back of presser foot about 4" and hold until a few stitchs are
formed.
Reset thread tension(s).
Upper thread and bobbin thread should be same size and kind.
Insert new needle.
Reset presser foot.
Use underlay of tissue paper.
34
What to Do When (Continued)
SECTION 4. PERFORMANCE PROBLEMS CHART
PROBLEM PROBABLE CAUSE CORRECTION
Incorrect size needle. Choose correct size needle for thread and fabric.
Bent or blunt needle. Insert new needle.
Skipping Stitches Incorrect setting of needle. Reset needle.
Tight upper thread tension. Loosen upper thread tension.
Breaking Upper Thread
Starting to stitch too fast.
Improper threading,
Tight upper thread tension:
Incorrect size needle.
Sharp eye in needle.
Nicks or burrs on shuttle.
Nicks or burrs at hole of needle plate.
Start to stitch at a medium speed.
Rethread machine.
Loosen upper thread tension_
Choose correct size needle for thread and fabric.
Insert new needle.
Replace shuttle, or polish off burrs completely.
Replace needle plate, or polish off burrs completely.
Breaking Bobbin Thread Improper bobbin case threading. Check bobbin case threading.
Lint in bobbin case or shuttle. Clean bobbin case and shuttle.
Darning plate in place. Remove darning plate.
Fabric not Moving Stitch Length set at 0. Adjust Stitch Length Control.
Thread knotted under fabric. Place both threads back under presser foot before beginning
to stitch.
"I'L .. - -- J ..... L = =,_ _L=_._I-- r_ • , I _1 s J •.,
_lL.un_n_Tnbobbin case or shuttie_ Ciean bobbin case ands_
35
SECTION 5. CARE FOR YOUR MACHINE
Replacing the Light Bulb Cleaning the Machine
i i
p I
I. Unplug the machine and open the
face cover.
CAUTION!
The light bulb will be
HOT. Protect your
fingers when you
handle it.
2.
3,
Push the bulb up and turn the
bulb counter-clockwise to remove
it.
Put the new bulb in by pushing it
up and turning it clockwise.
To insure that your machine operates at its best, you need to keep the essential parts clean at atl times.
The feed dogs and shuttle race areas can attract dust and lint. Your machine can become sluggish or knock loudly if a thread
is caught.
Check and clean those areas about every three months under normal use.
If you sew frequently, clean more often.
• Clean the Feed Dogs
f
I
%
Follow these directions:
1. Unplug the machine. Remove 2. Usea lint brush and clean the feed 3. Replace needle plate intoposition.
presserfoot and needle, dogs.
Using a screw driver, remove
needle plate.
36
SECTION5. CAREFORYOURMACHINE
• Cleanthe Shuttle Race
This area must be kept free of dust, lint and occasional tangled thread, Clean the shuttle race area
about every three months.
Center pin of
the shuttle
Lever Bob_ _
case
Shuttle driver
Shuttle Race L
(Oil hare)
Lever
Shuttle Race
Cover
To Clean the Shuttle Area: To Replace Shuttle Assembly:
1. Raise the needle bar to its highest 1. Position shuttle race as illustrated so that shuttle
point and remove the bobbin case. driver is forming half moon on the left side of the
2; Prush:shui&_e _a,l_ tevers aside; Lift machine.
shuttle ra_ cover and take Shu_ie out.
3. Clean the shuttle race with a lint
brush.
4. Put a drop of oil on the center pin of
the shuttle and shuttle race. Do not
over-oil.
2. Hn!d _huttl_- hy P_ntpr pin _nd P_r_itJtm Chu_tl_ SO_lS
tO form a half moon on the right side. Pointed hook
will be on the bottom.
3. Place shuttle race cover into place over shuttle
assembly.
4. Snap the levers back into the original position.
37
SECTION 5. CARE FOR YOUR MACHINE
Oiling the Machine
Oil the machine in all areas shown on this page at least once a year; otherwise the machine can become sluggish or will knock loudly. If you use the machine
frequently, oil the machine under the top cover about every three months. In case machine is not used for an extended time, oil it before sewing. Use good quality
sewing machine oil. One or two drops of oil is sufficient. Remove excess oil, otherwise it may stain fabric.
Kenmore sewing machine oil is available at your nearest Sears retail store.
NOTE: Unplug the machine before oiling. Remove needle and put needle bar in full down position.
• Oil behind the Face Cover Plate and under the Arm Cover Plate • Oil the Underside
Face cover plate
///Arm
I
cover plate
Open face cover plate and/or remove arm cover plate by loosening up top screw to oil points
in illustration.
Use only a drop of oil; do not over-oil.
Shuttle cover
Open the shuttle cover by pulling down the embossed part on
the left side of the cover. Tilt the machine head back and
remove bottom cover. Oil points in illustration.
38
PARTS LIST
All parts listed herein may be ordered from any Searsstore or service center.
1 2 3 4 5 6
7 8 9 10 11 12
13 14 15 16
17 18 19 20
21
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
1. PART NUMBER 2. PART DESCRIPTION
3. MODEL NUMBER 4. NAME OF ITEM
If the parts you need are not stocked locally, your order will be electronically
transmitted to a Sears Repair Parts Distribution Center for expedited handling.
Ref. No. Part No.
t 47
2
3
4
5
6
7
8
9
10
13
14
15
16
17
18
19
2O
21
6510
*6862
1939
813404013
6551
6552
6553
6554
652508002
648801108
650802003
735503007
6870
"675_
135
*6864
6797
6830
802424004
820832005
41669
*6889
735801008
Description
Shuttle
Bobbin case
Bobbin box with 10 bobbins
Bobbin winder rubber ring
No. 11 Stretch fabric needles (BLU)
No. 11 Single needles (ORG)
No. 14 Single needles (RED)
No. 16 Single needles (PUR)
No. 18 Single needles (GRN)
Needle clamp with screw
Sliding buttonhole foot
Straight stitch foot
Standard zigzag foot
Satin stitch fo_t
-Jr: ____ L_
Thumb screw
Needle threader
Light bulb
Buttonhole opener
Lint brush
Large screw driver
Small screw driver
Oil and lint brush
Darning plate
*These items are not furnished with the machine, but may be ordered per
instructions above.
39
INDEX
A
Accessory storage box ............... 2, 6
Adjusting stretch stitch balance ......... 15
Applique ........................ 22
Arm cover plate .................. 3, 38
B
Bar tacking ...................... 22
Basic zigzag ...................... 20
Blind hemming .................... 27
Bobbin ................... 3, 8 _ 9, 39
Bobbin case ................ 8_9, 37, 39
Bobbin thread .................. 11_12
Bobbin winding .................. 8_'9
Bobbin winding tension disc ........... 2, 9
Bobbin winding spindle .............. 2, 9
Box stitching ..................... 33
Buttonhole .................... 28_29
Buttonhole opener ............. 3, 29, 39
Button sewing .................... 23
C
Cabinet .......................... 2
Carrying handle .................... 3
Changing needle .................... 6
Changing presser foot ................ 6
Cleaning feed dogs and shuttle race .... 36_37
Clutch knob ................... 3, 8, 9
Cording ........................ 3t
Cornering guide ................... 17
D
Darning ........................ 19
Darning plate ........... 3, 18 ~ 19, 23, 39
E
Elastic stretch stitch ................ 33
Extension table ................... 2, 6
F
Fabric, needle, thread and stitch
length chart ....................... 7
Face cover plate .................. 2, 38
4O
Feed dogs ....................... 36
Foot control .................... 3_4
Free arm sewing .................... 6
H
Hand wheel ..................... 3, 16
I
Invisible zipper .................... 31
L
Lace work ....................... 26
Large screw driver ................. 3, 39
Light and power switch ............. 3_4
Light bulb ................... 4, 36, 39
Lint brush ................... 3, 36, 39
N
Needle ................... 3, 6 _ 7, 39
Needle clamp screw .............. 3, 6, 39
Needle plate .................... 2, 36
Needle, thread and fabric chart .......... 7
O
Oiling .......................... 38
Overcasting stitch .................. 24
Overcast stretch stitching ............. 25
P
Parts list ........................ 39
Performance problems chart ........ 34_35
Pine leaf stretch stitching ............. 25
Plug connector ................... 3"-4
Portable case ...................... 2
Power switch ...................... 4
Presser foot ....................... 3
Presser foot lever .................. 3, 5
R
Replacing bobbin case .............. 8"9
Reversestitch control .............. 2, 15
Rick rack stretch .................. 24
S
Satin stitch foot ........... 3, 21 _ 22, 39
Satin stitch ...................... 21
Seam guides ...................... 17
Serging ......................... 25
Sewing light ....................... 4
Shell stitching .................... 32
Shuttle ....................... 37, 39
Shuttle cover ..................... 2, 8
Shuttle race ...................... 37
Sliding buttonhole foot ...... 3, 28 _ 29, 39
Small screwdriver ................. 3, 39
Smocking ....................... 32
Spool pin ....................... 2, 5
Stitch length control ............... 2, 14
Stitch selector ................... 2, 14
Straight stitch .................. 17_18
Straight stitch foot .......... 3, 17_19, 39
Straight stretch .................... 19
T
Thread cutter ..................... 2, 5
Thread guide ....................... 2
Thread take-up lever ............... 2, 10
Thread tensions ................. 12_13
Three-step zigzag .................. 26
Topstitching ..................... 18
Top thread .................... 10_13
Top thread tension ............... 12_13
Top thread tension control ............. 2
Turn a square corner ................ 17
z
Zigzag foot ...... i7_20, 22_27, 32_33, 39
Zigzag stitches .................. 20_26
Zipper application ............... 30_31
Zipper foot ............... 3, 30_31, 39
MEMO
MEMO
WARRANTY
FULL 25-YEAR WARRANTY ON SEWING MACHINE HEAD
For 25 years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which appear
t in the mechanical components of the sewing machine head.
#
# FULL TWO YEAR WARRANTY ON ELECTRICAL EQUIPMENT OF SEWING MACHINE
For two years from the date of purchase, Sears will, free of charge, repair defects in material or workmanship which --=
appear in the electrical equipment of the sewing machine, including electronic components, motor, wiring, switch and l)
# speed control. "_
P
#
# FULL 90-DAY WARRANTY ON ALL PARTS AND MECHANICAL ADJUSTMENTS
$ For 90 days from the date of purchase, Sears will, free of charge, replace any parts and provide mechanical service I)
_t necessary for proper operation of the sewing machine, except for normal maintenance.
WARRANTY SERVICE !$ AVAILABLE BY RETURNING THE SEWtNG MACHINE TO THE NEAREST SEARS SERVICE -=
d) CENTER/DEPARTMENT IN THE UNITED STATES.
#
_1 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state•
SEARS, ROEBUCK AND CO., O/817 WA, Hoffman Estates, IL 60179
p
