Basic operations
Things to know before shooting
Selecting the right mode for
shooting conditions
Various shooting functions
Focusing functions
Exposure, image and color
Playback
Customizing the settings/functions
of your camera

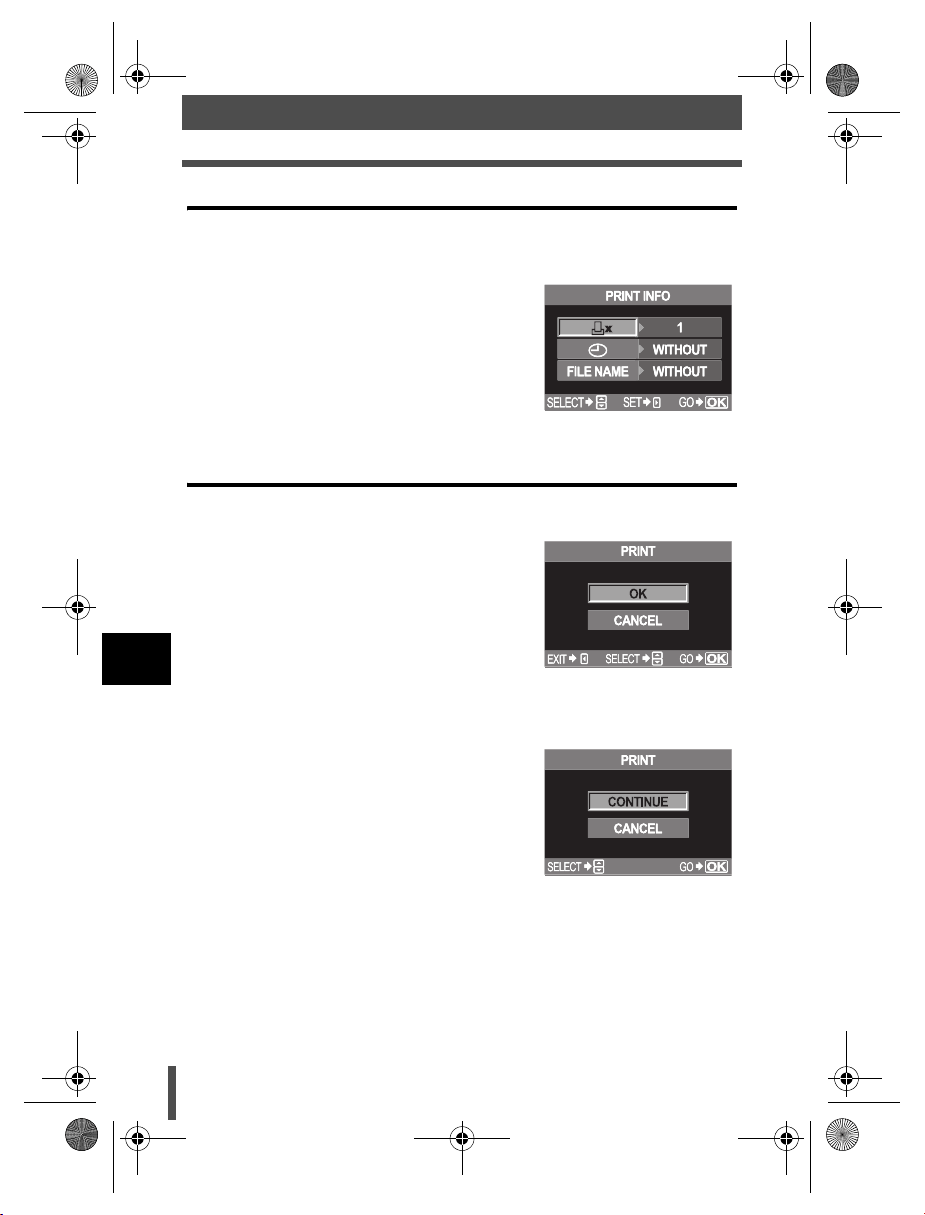

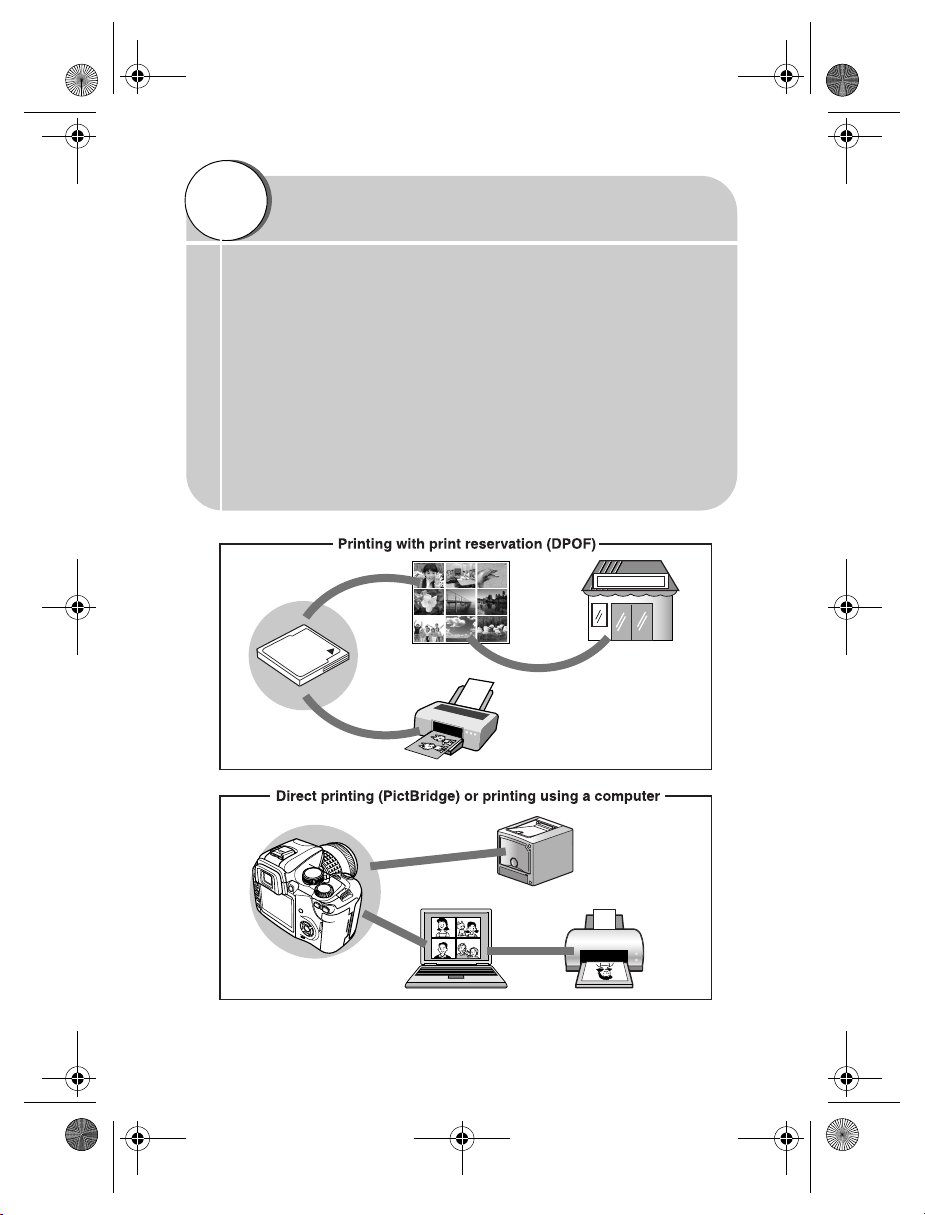

Printing
Transferring images to a computer
Appendix
Information
Accessories
z Thank you for purchasing an Olympus digital camera. Before you start to use your new
camera, please read these instructions carefully to enjoy optimum performance and a
longer service life.
z This manual explains advanced techniques such as shooting and playback functions,
customizing functions or settings and transferring recorded images to a computer, etc.
z We recommend that you take test shots to get accustomed to your camera before
taking important photographs.
z The screen and camera illustrations shown in this manual were produced during the
development stages and may differ from the actual product.
s0004_e_Advanced.book Page 1 Tuesday, September 27, 2005 4:15 PM
2
How to use this manual
This manual includes a table of contents, index and menu list to help you
easily locate the information you need.
Searching the table of contents g P. 4
All section titles and chapter headings are listed in the table of contents so that you
can quickly find the information you need. There is a chapter containing information
you need to know before using your camera for the first time, a chapter that
describes basic shooting procedures, etc.
Searching the index g P. 214
Terms used in this manual (such as the names of functions) are listed in
alphabetical order. When you come across a term that you are not familiar with or
about which you want to learn more, you can search the index to find the relevant

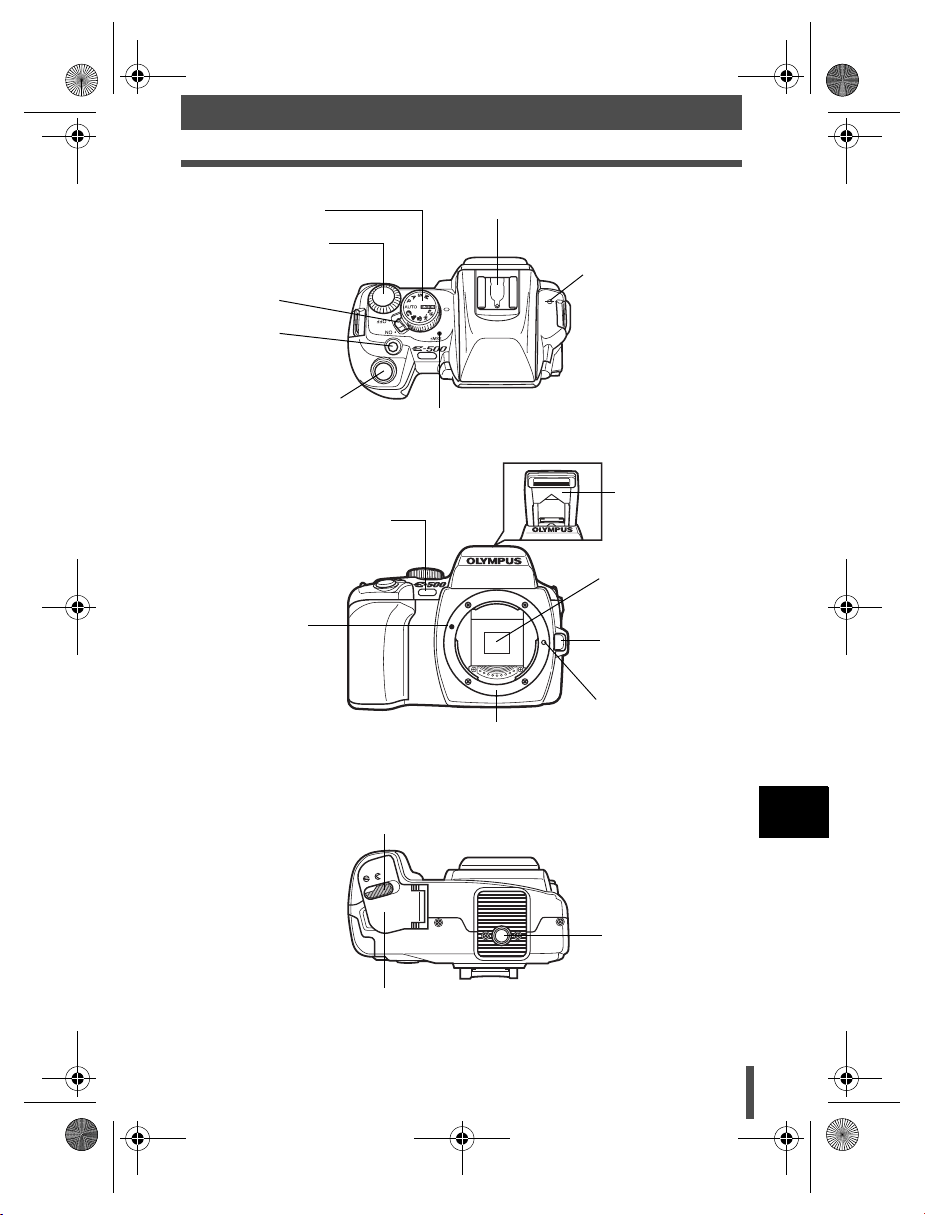

page. Camera part names and monitor indications are listed at the end of the
manual.
Searching the list of menus g P. 183
The camera's menus are listed in a tree structure. When you come across a menu
whose name is unfamiliar on the menu screen, you can find the relevant pages for
this menu function in the menu list.
For information on how to read the instructions in this manual, refer to "How to read the
instruction pages" (P. 3).
For example
When you want to play back the images you
have just taken.
J Go to Chapter 7 Playback and look for the page
titled "Single-frame playback........98".
For example
If you want to know more about the term "HQ"
J Go to the index at the end of this manual and
look under H for "HQ.......29".
For example
When you want to know how to make settings
for WB in the menu screen
J Go through the menus until you find WB and
look for the reference page number.
s0004_e_Advanced.book Page 2 Tuesday, September 27, 2005 4:15 PM
3
How to read the instruction pages
This sample page is only for your reference. It may differ from the actual page in this
manual.
Indications used in this manual
Important information on factors which may lead to a malfunction or
operational problems. Also warns of operations that should be
absolutely avoided.
TIPS
Useful information and hints that will help you get the most out of your
camera.
g Reference pages describing details or related information.
This represents the arrow
pad.
This represents the
control dial.
Step through the menus in
the order of (g P. 23).
Shows alternative setting
procedures.
s0004_e_Advanced.book Page 3 Tuesday, September 27, 2005 4:15 PM
4
Table of Contents
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How to read the instruction pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1 Basic operations

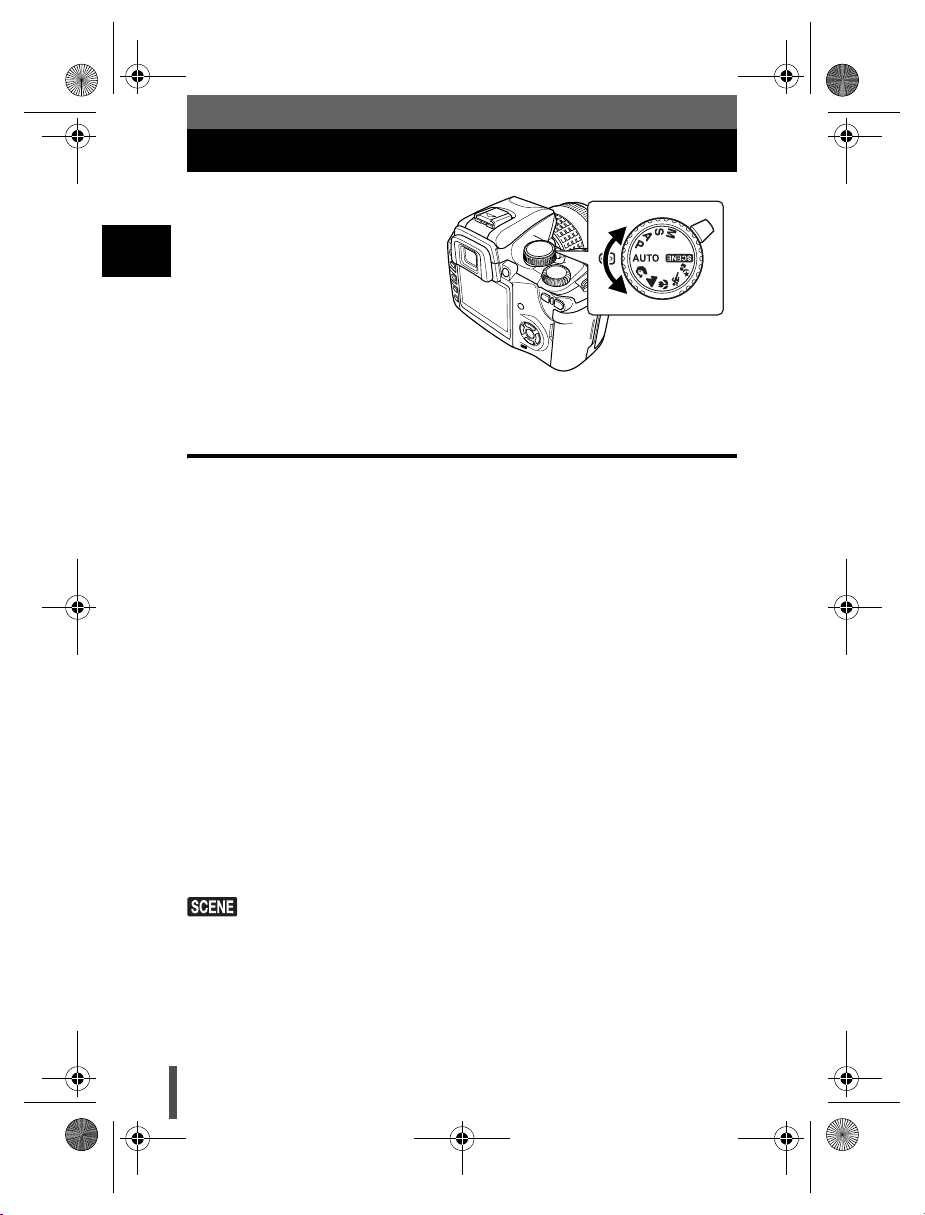

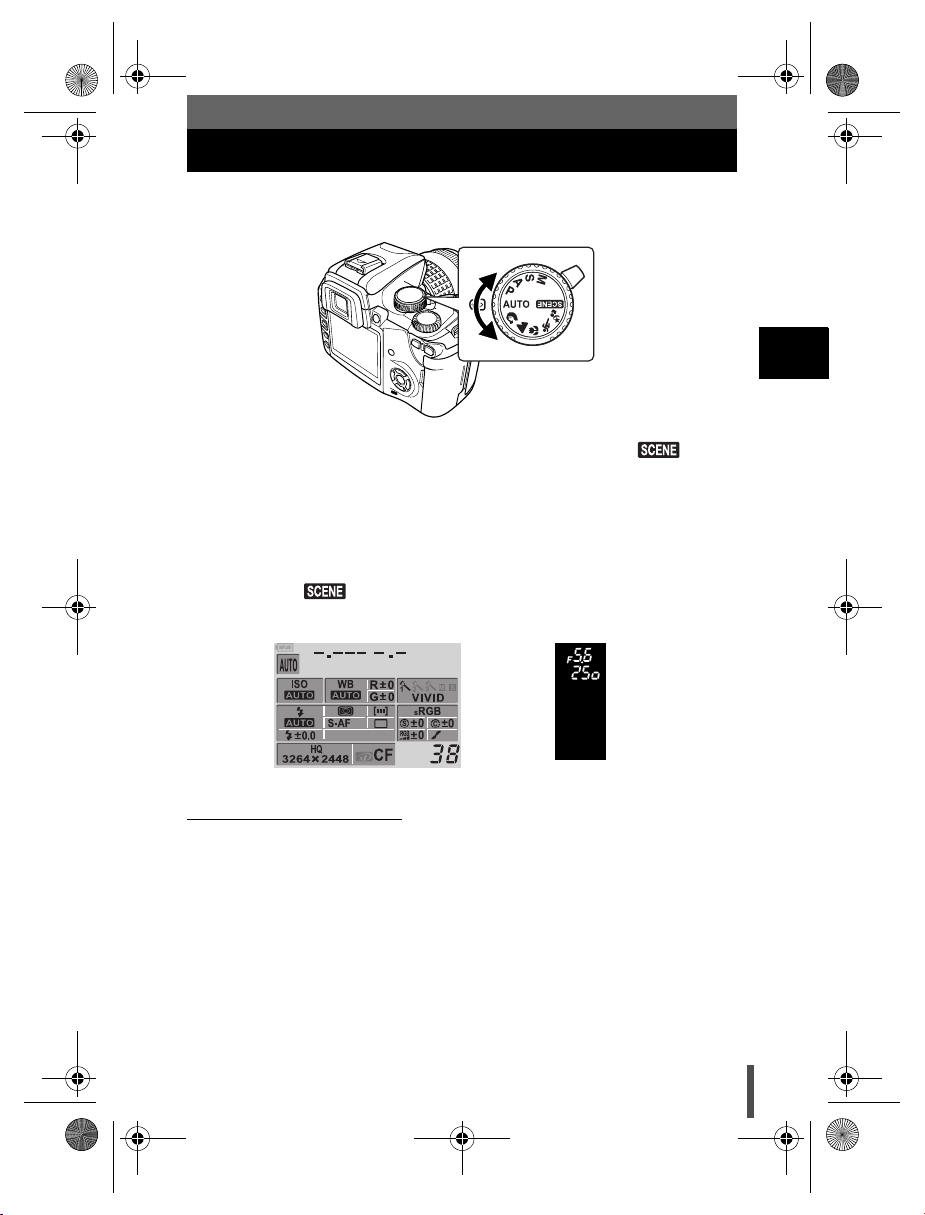

How to use the mode dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Easy shooting modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Advanced shooting modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

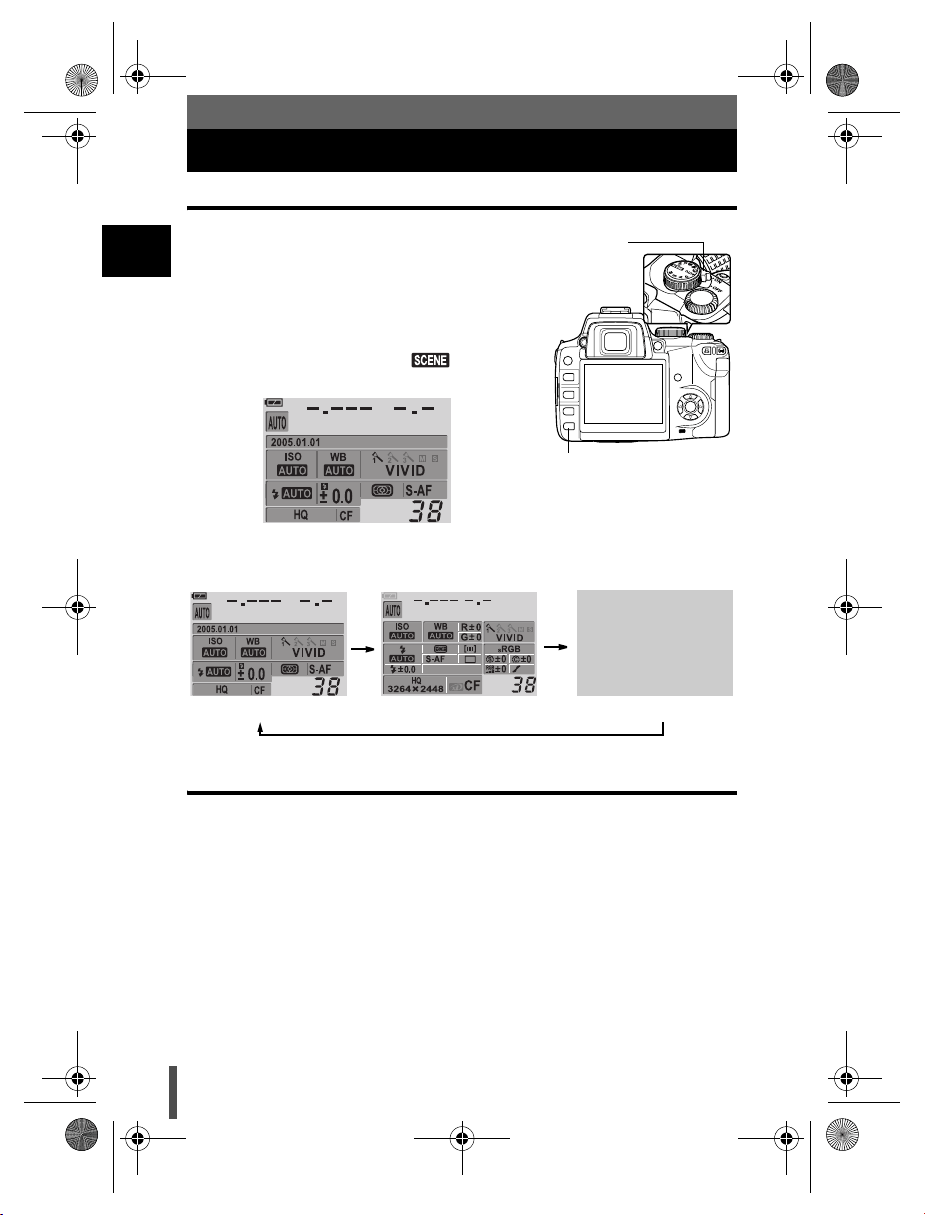

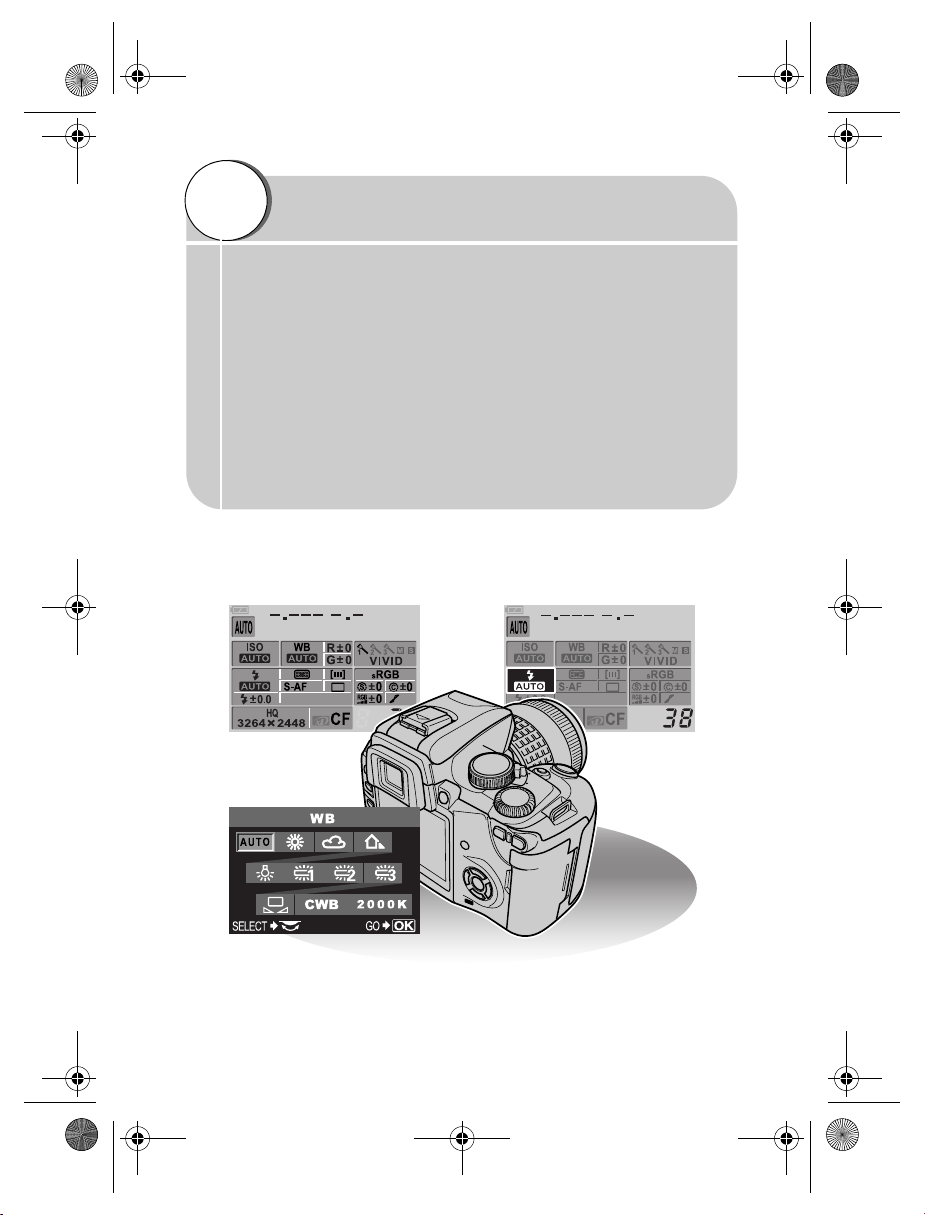

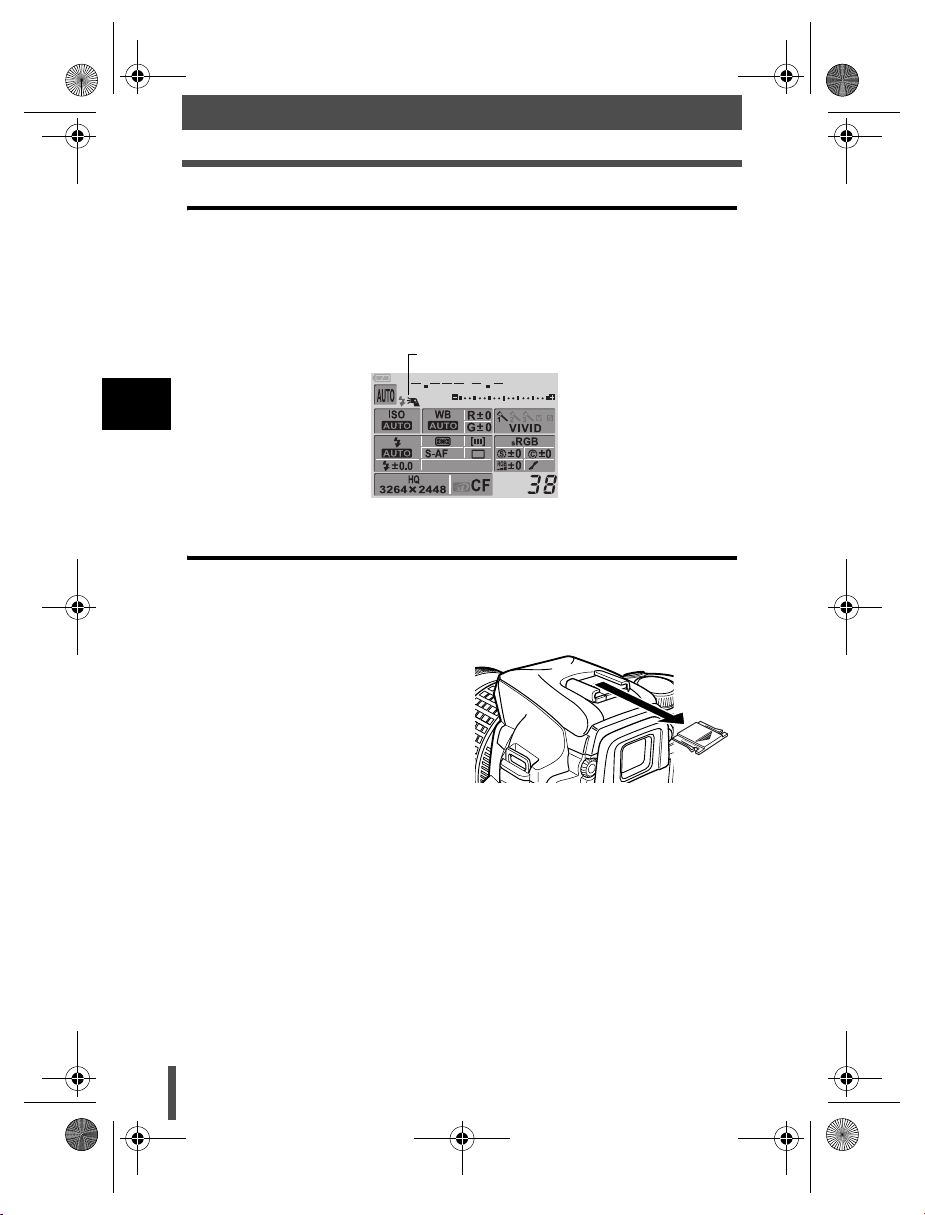

Control panel screen and function settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Control panel screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
How to make function settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Things to know before shooting
How to use card media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting the card type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Formatting the card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
If correct focus cannot be obtained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
How to use focus lock
(if the subject is not positioned in the center of the frame) . . . . . . . . . . . . . . 27
Selecting the record mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Types of record modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
How to select the record mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

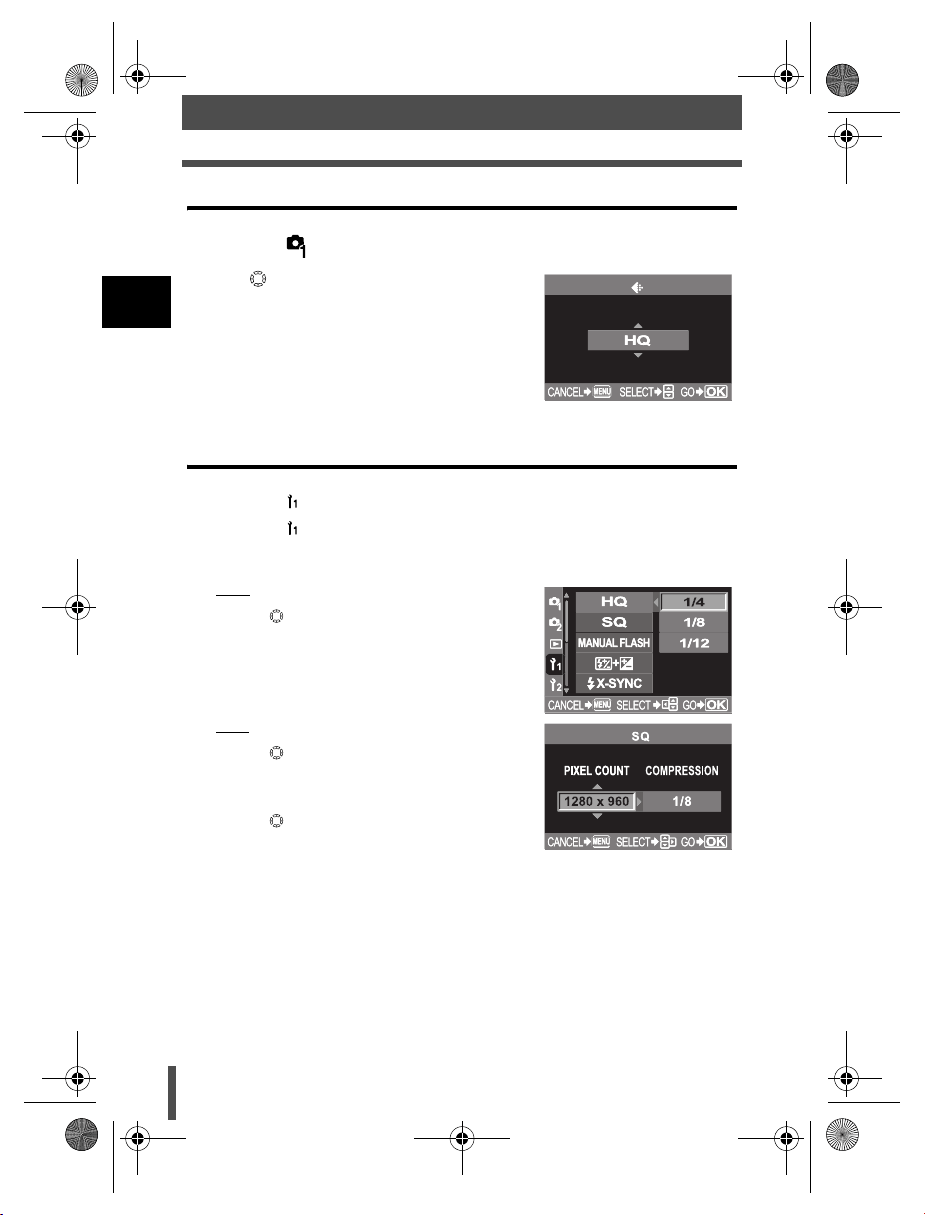

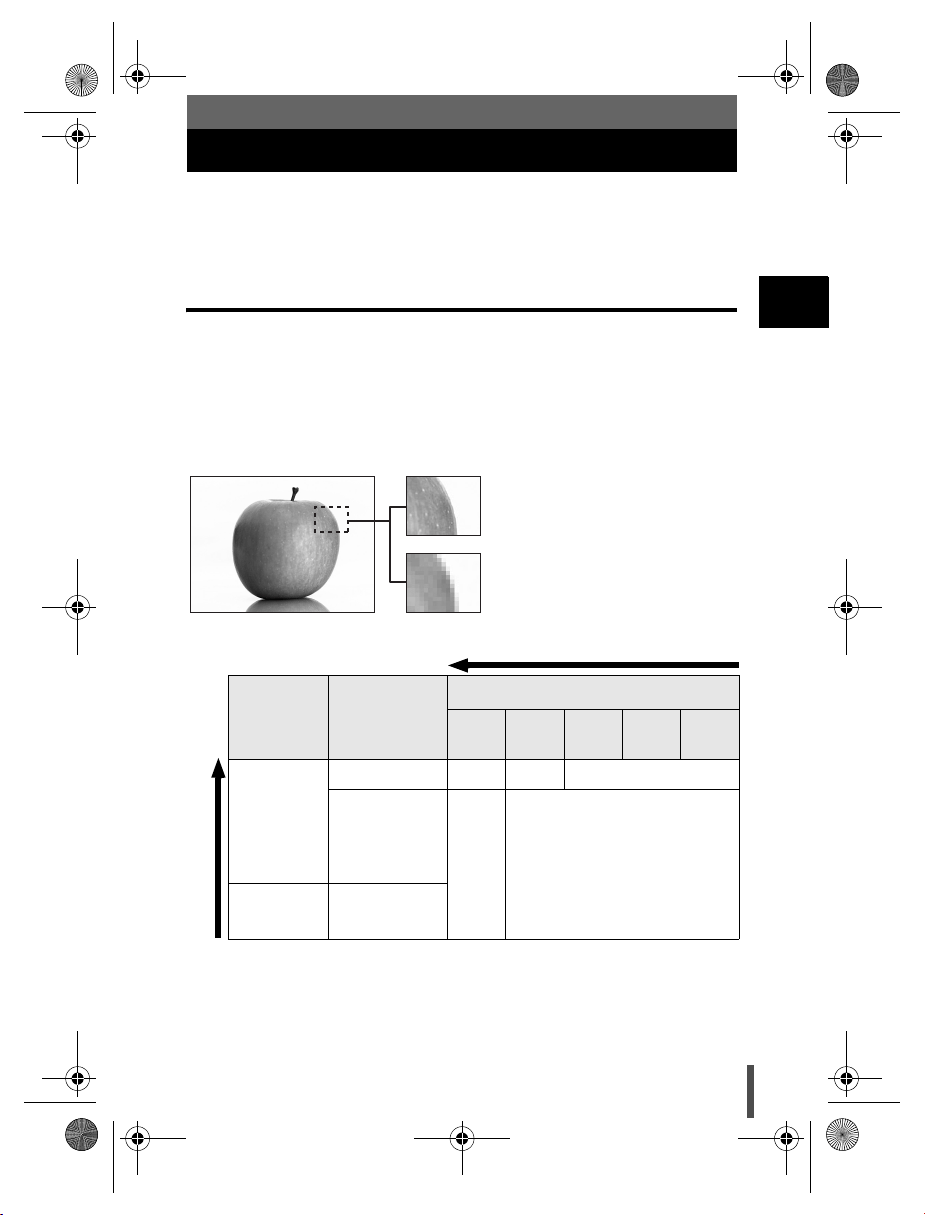

Setting the number of pixels and compression rate . . . . . . . . . . . . . . . . . . . 30
3 Selecting the right mode for shooting conditions
Shooting modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Easy shooting modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Advanced shooting modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
P : Program shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

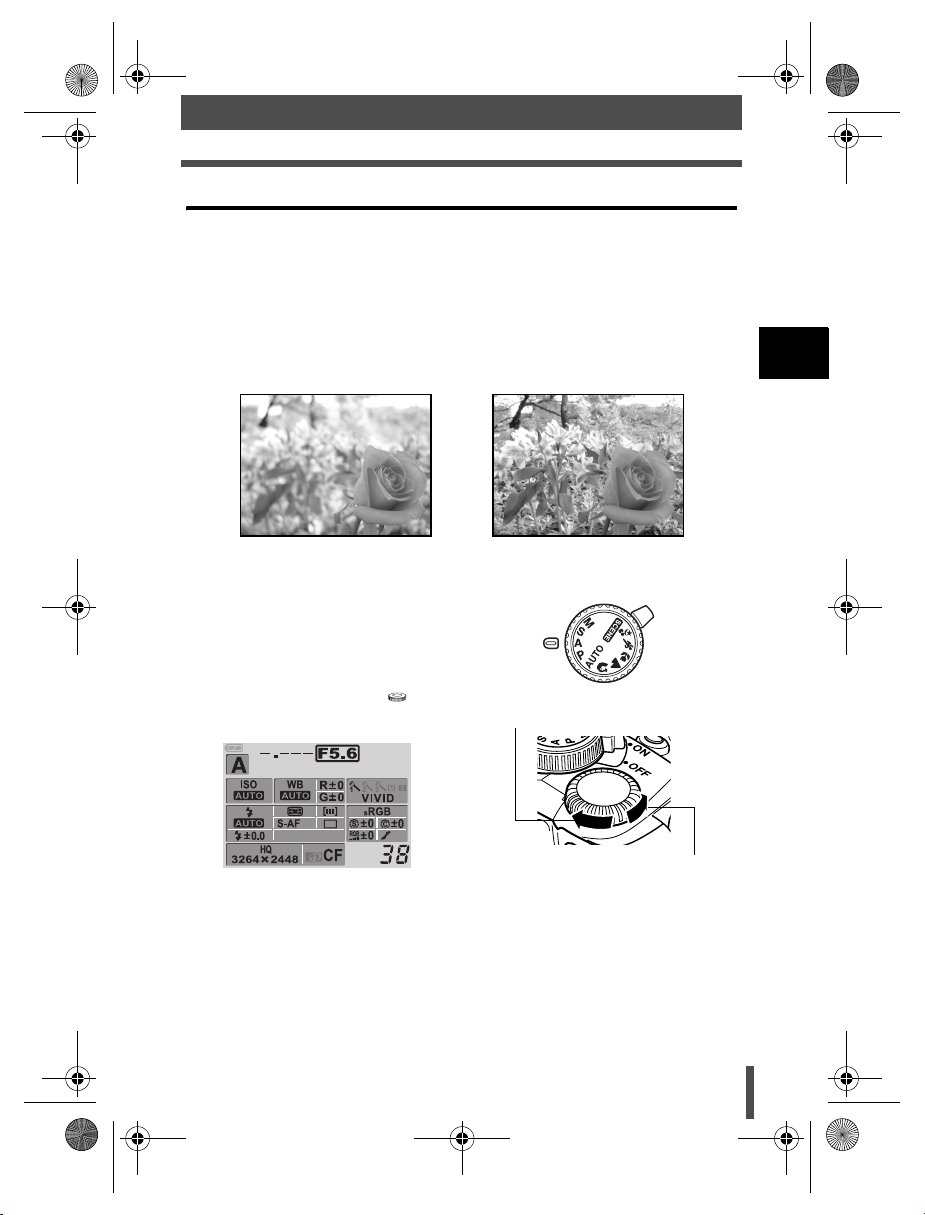

A : Aperture priority shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
S : Shutter priority shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
M : Manual shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Preview function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4 Various shooting functions
Auto bracketing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Flash shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Manual flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Setting the flash mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

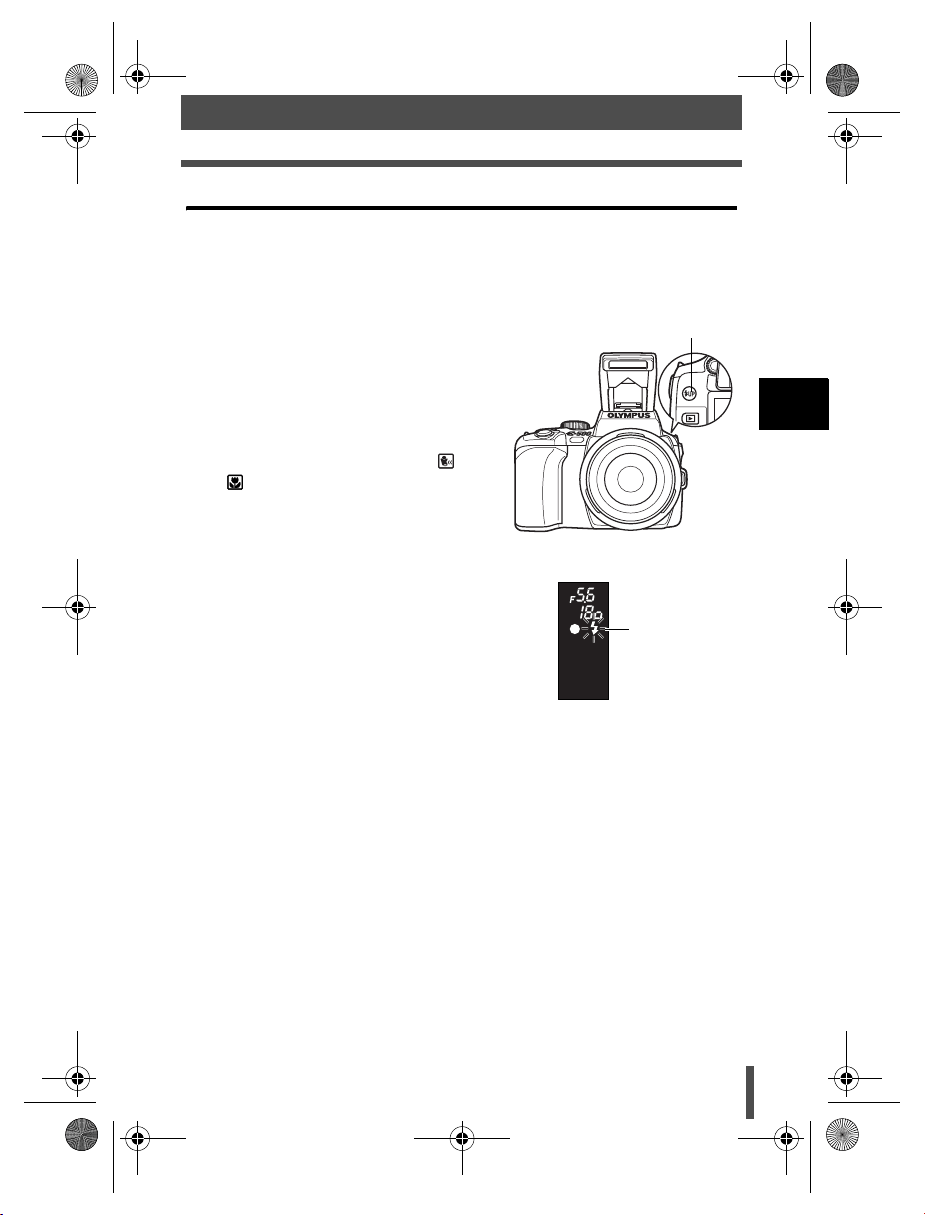

Using the built-in flash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Flash intensity control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

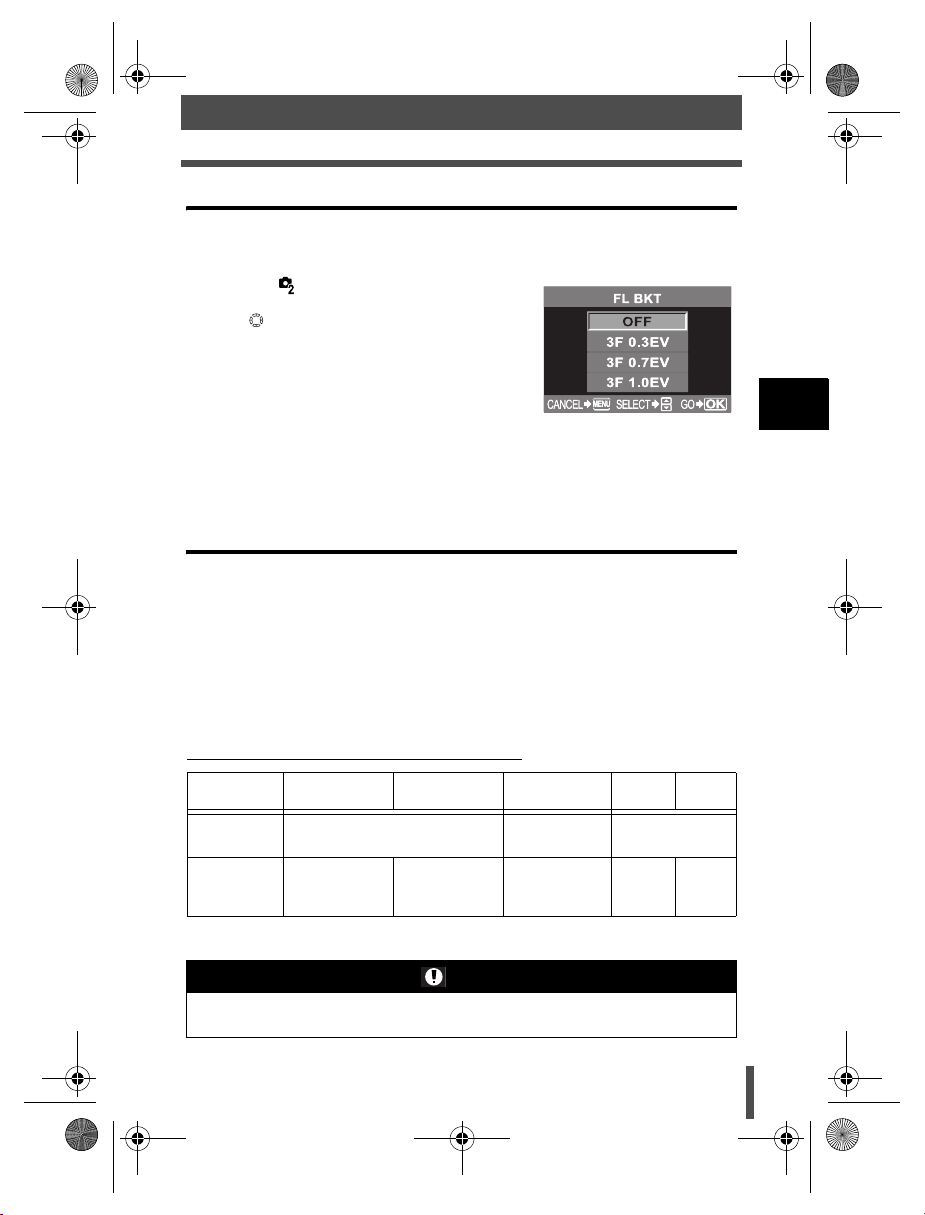

Flash bracketing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
External electronic flashes (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

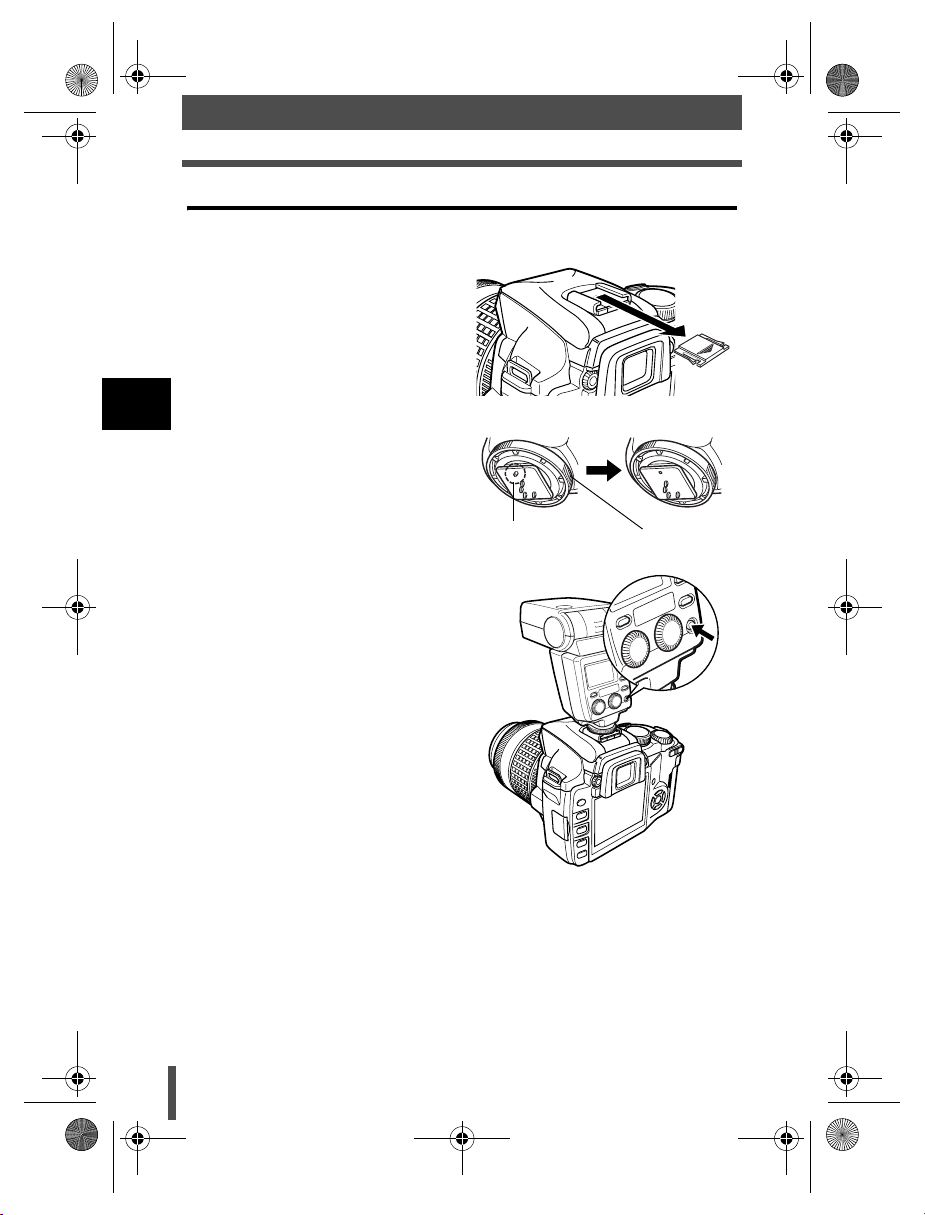

Using the external electronic flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Super FP flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Using commercially available flashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Non-specified commercial flashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

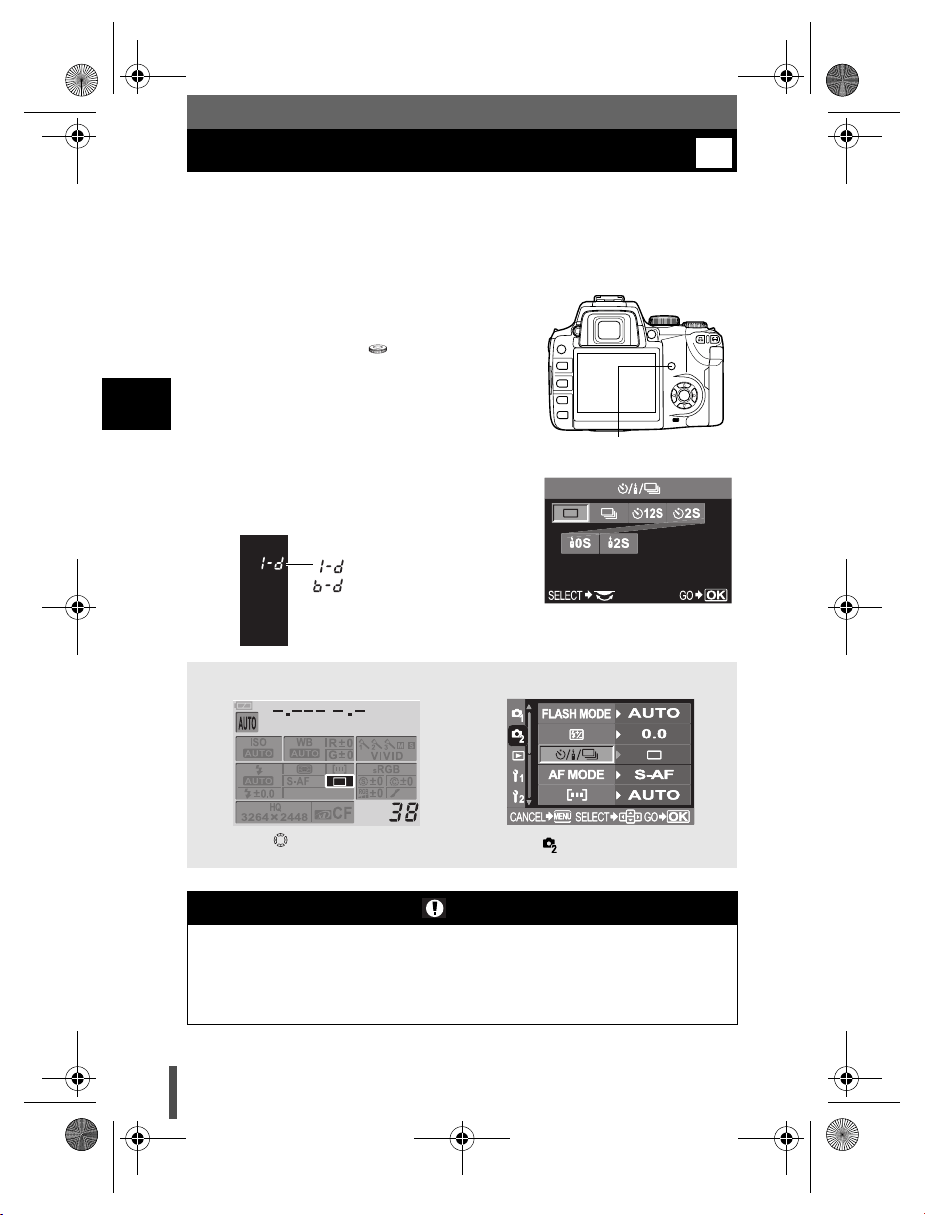

Single-frame shooting/sequential shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Self-timer shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

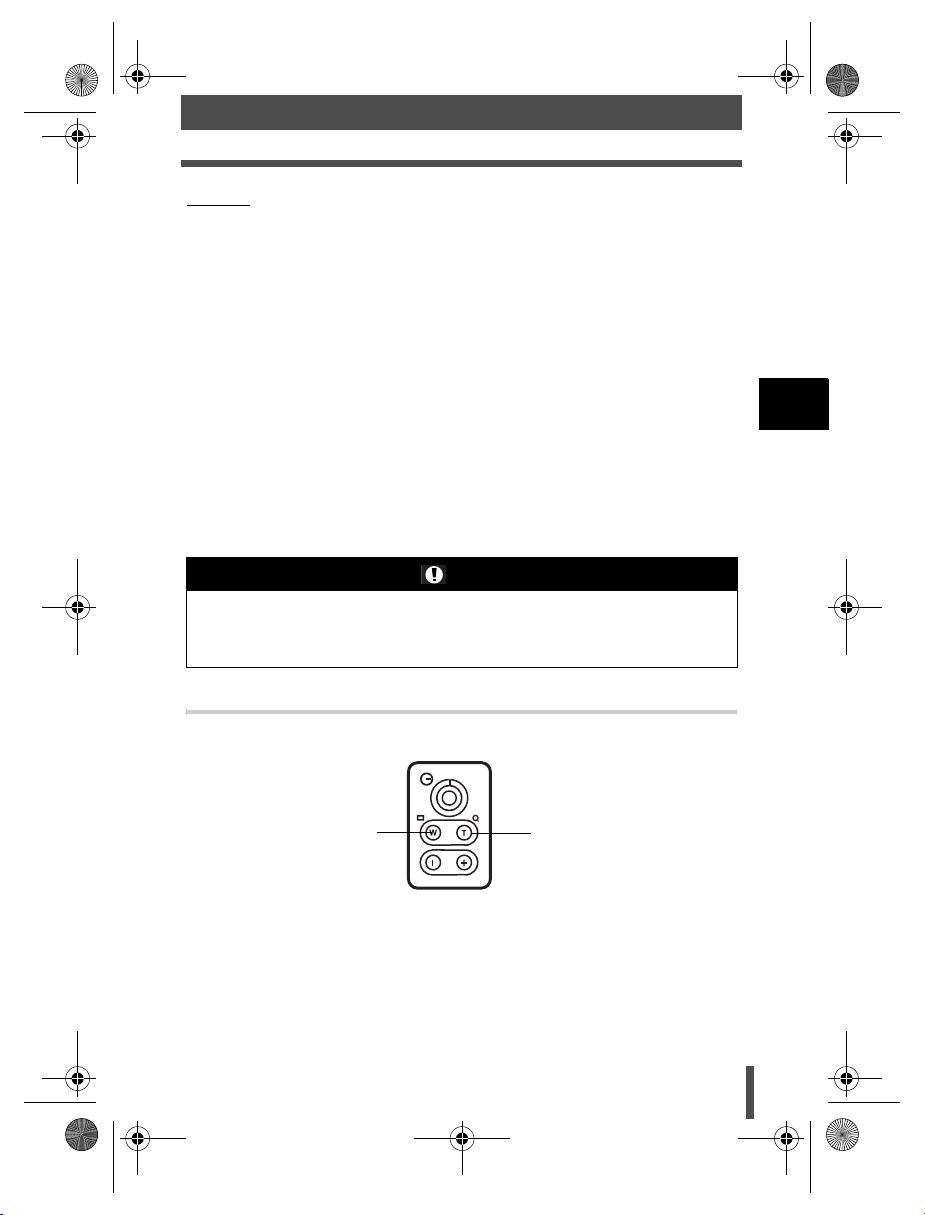

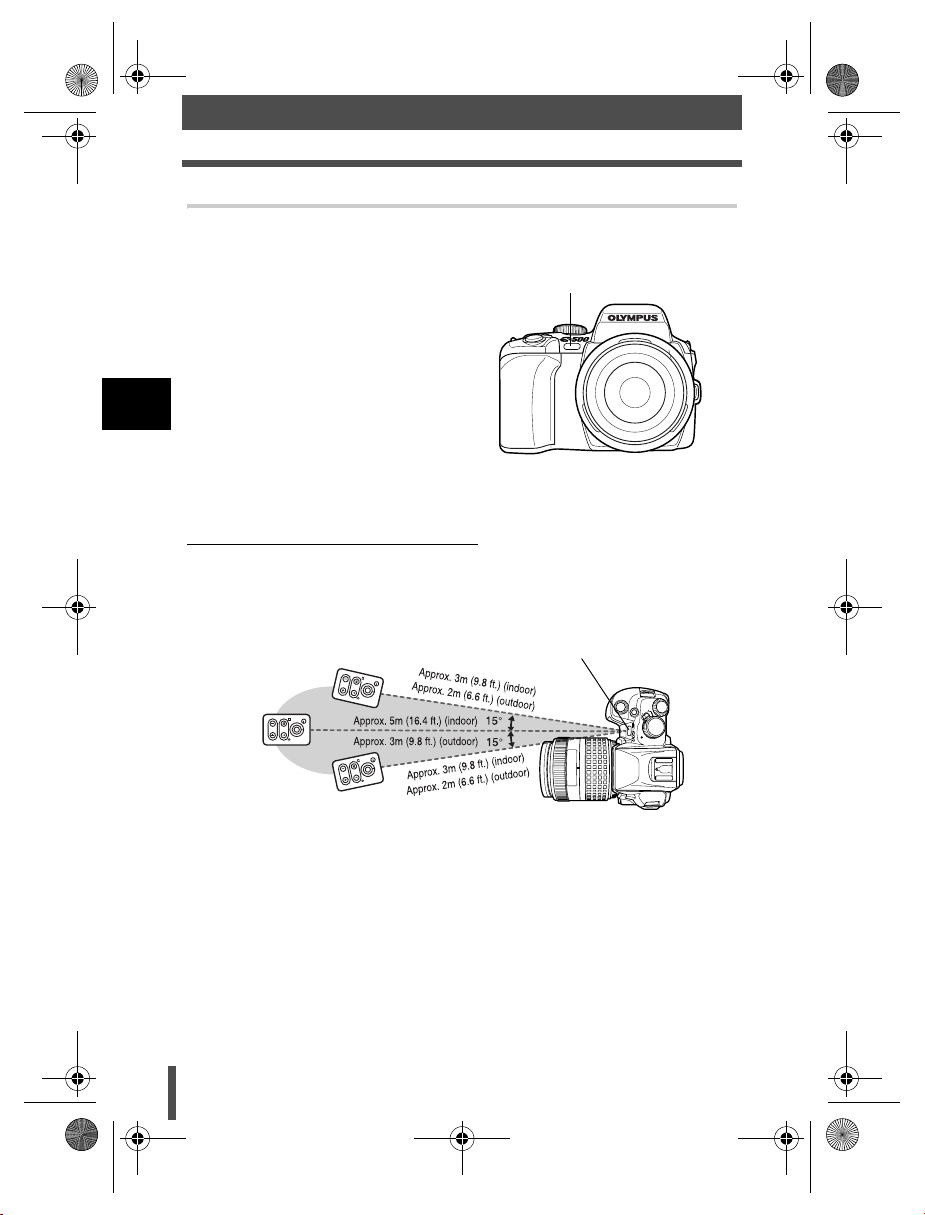

Remote control shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
s0004_e_Advanced.book Page 4 Tuesday, September 27, 2005 4:15 PM
5
Table of Contents
5 Focusing functions

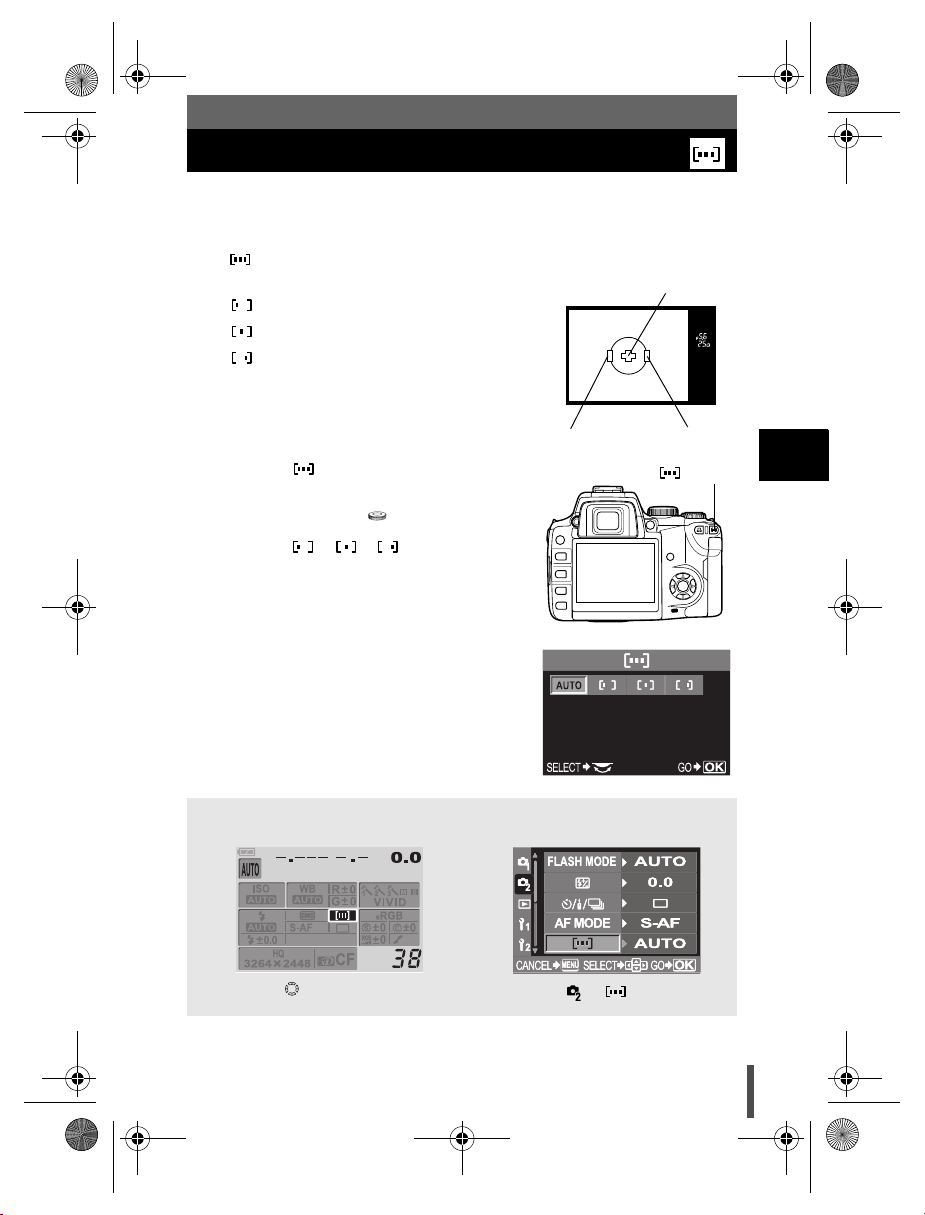

AF frame selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

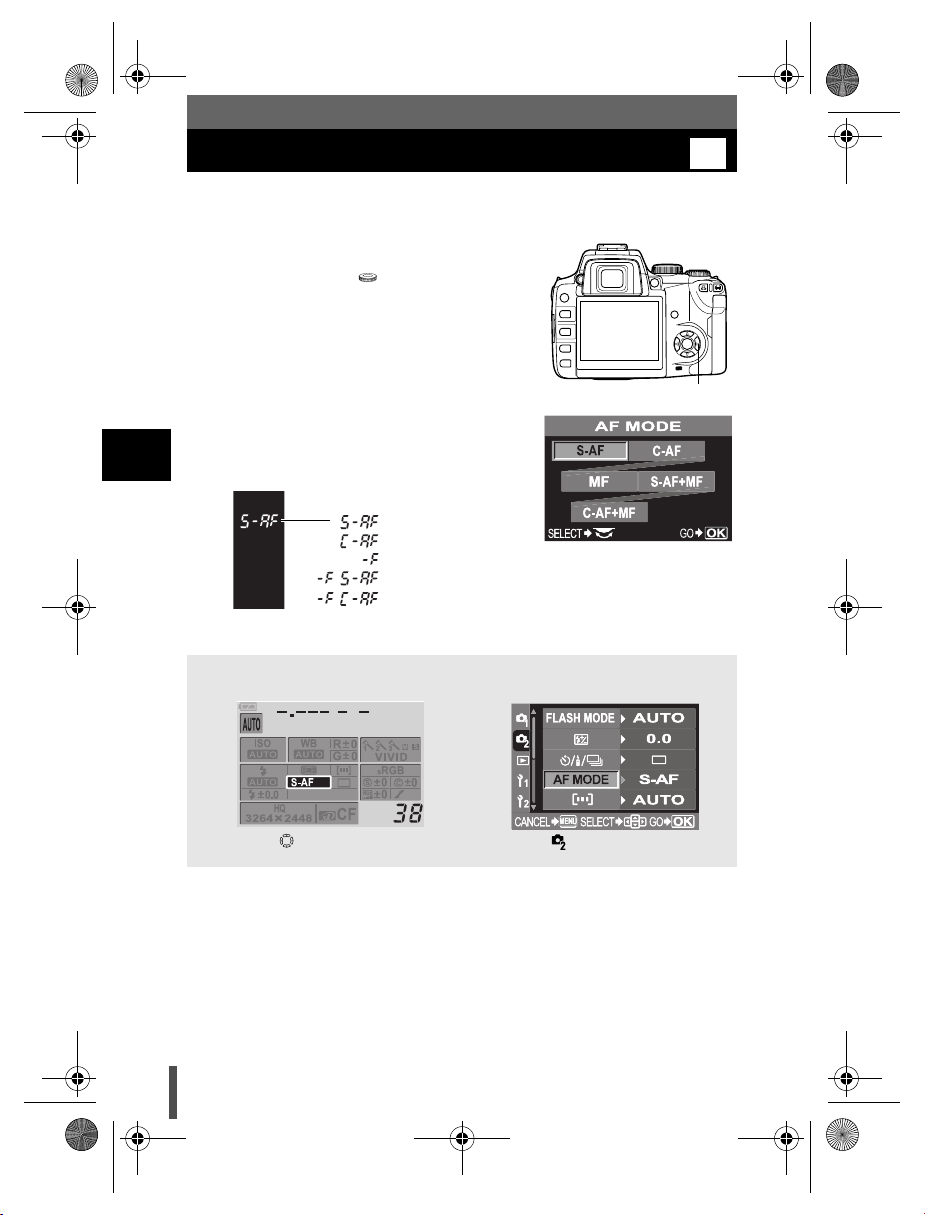

Focus mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
S-AF (single AF) shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Simultaneous use of S-AF mode and MF mode (S-AF+MF) . . . . . . . . . . . . 71
C-AF (continuous AF) shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Simultaneous use of C-AF mode and MF mode (C-AF+MF) . . . . . . . . . . . . 72
Manual focus (MF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

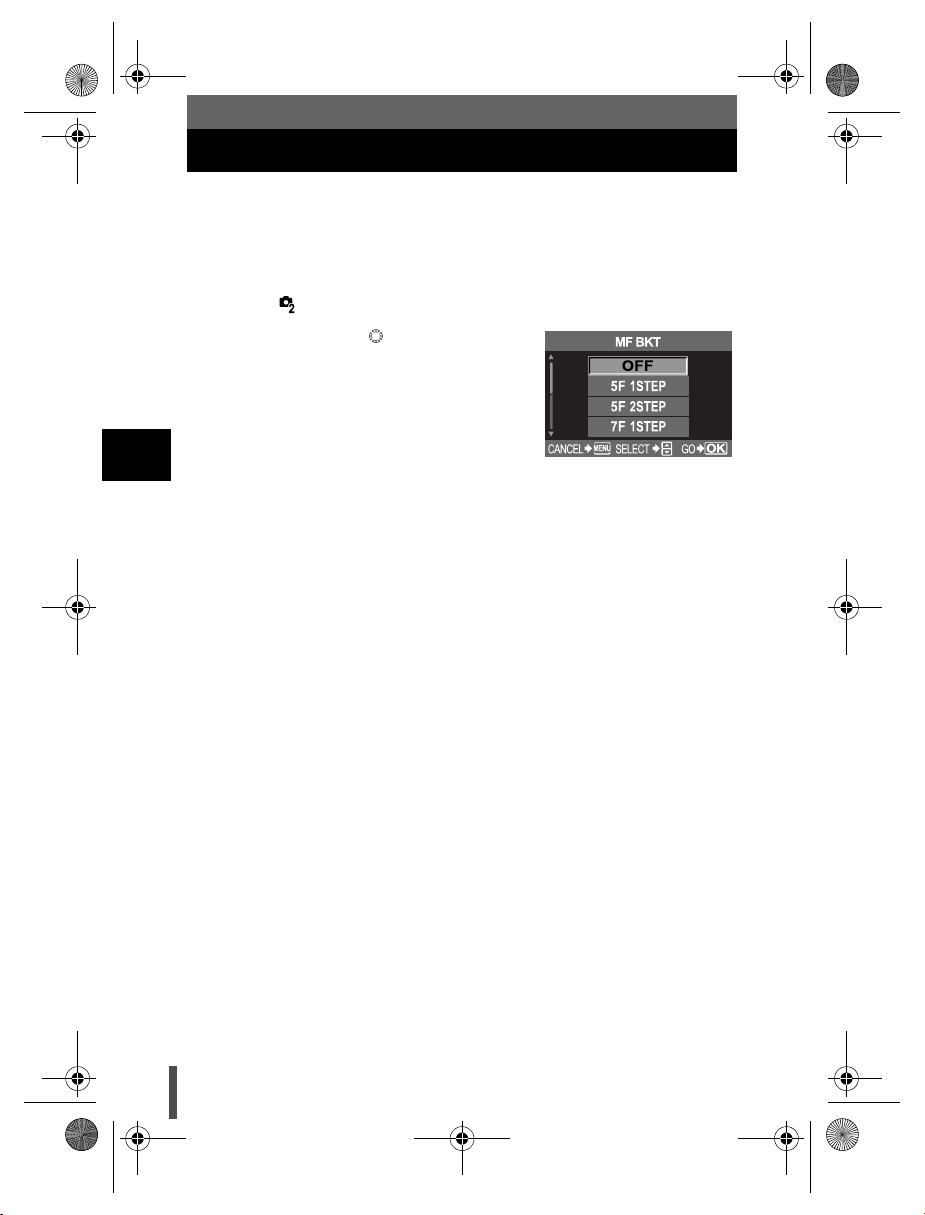

MF bracketing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

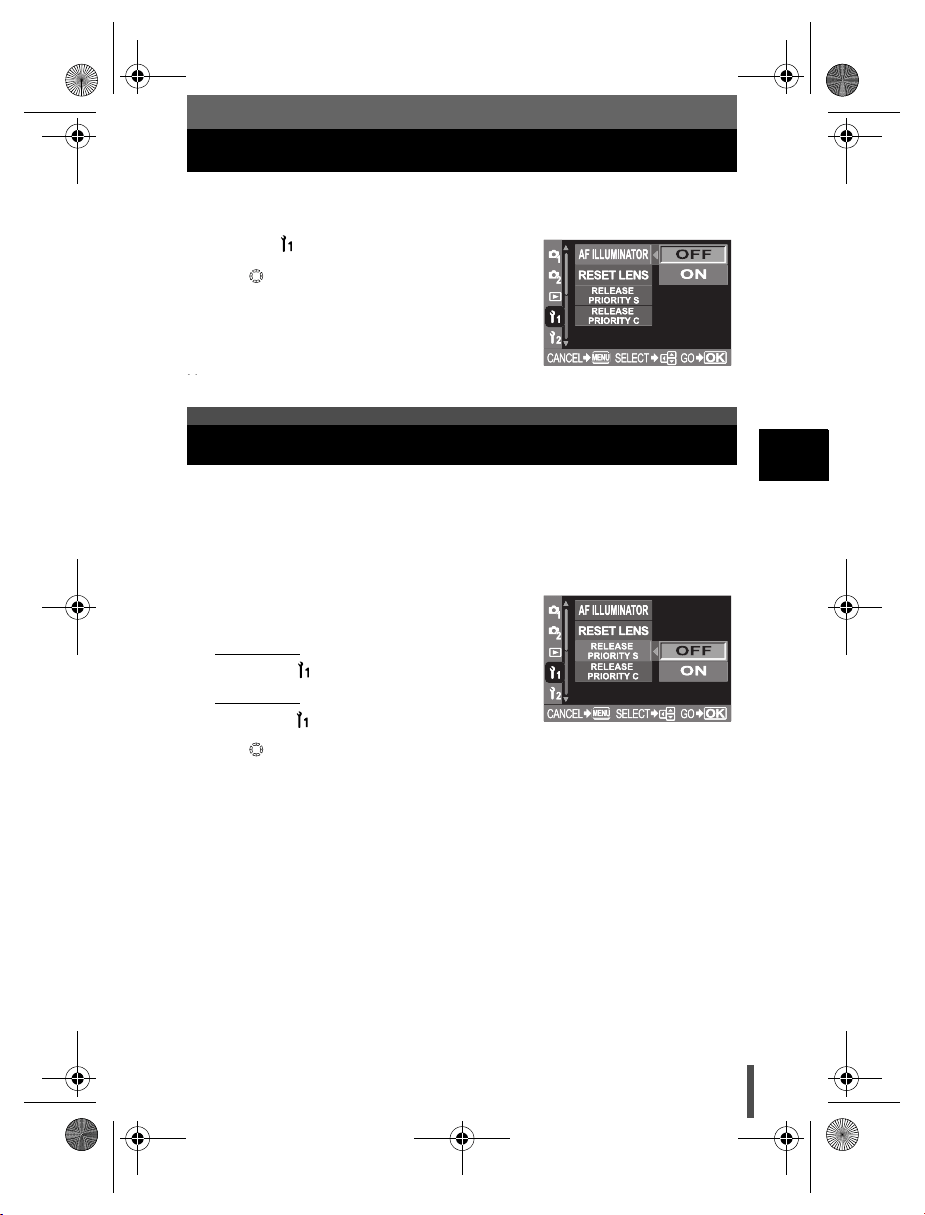

AF illuminator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Shutter release priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
6 Exposure, image and color

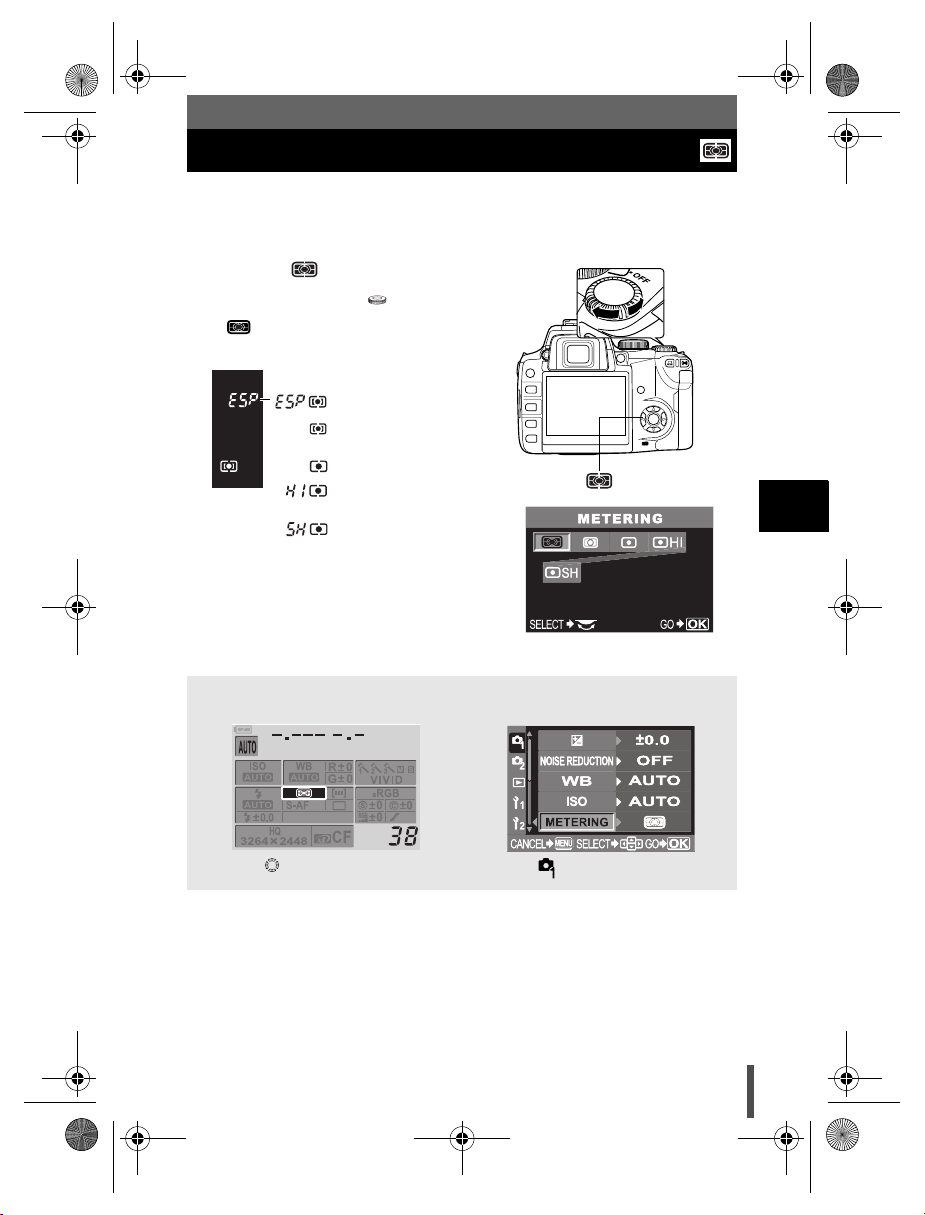

Metering mode — Changing the metering system . . . . . . . . . . . . . . . . . . . . . . . . 77

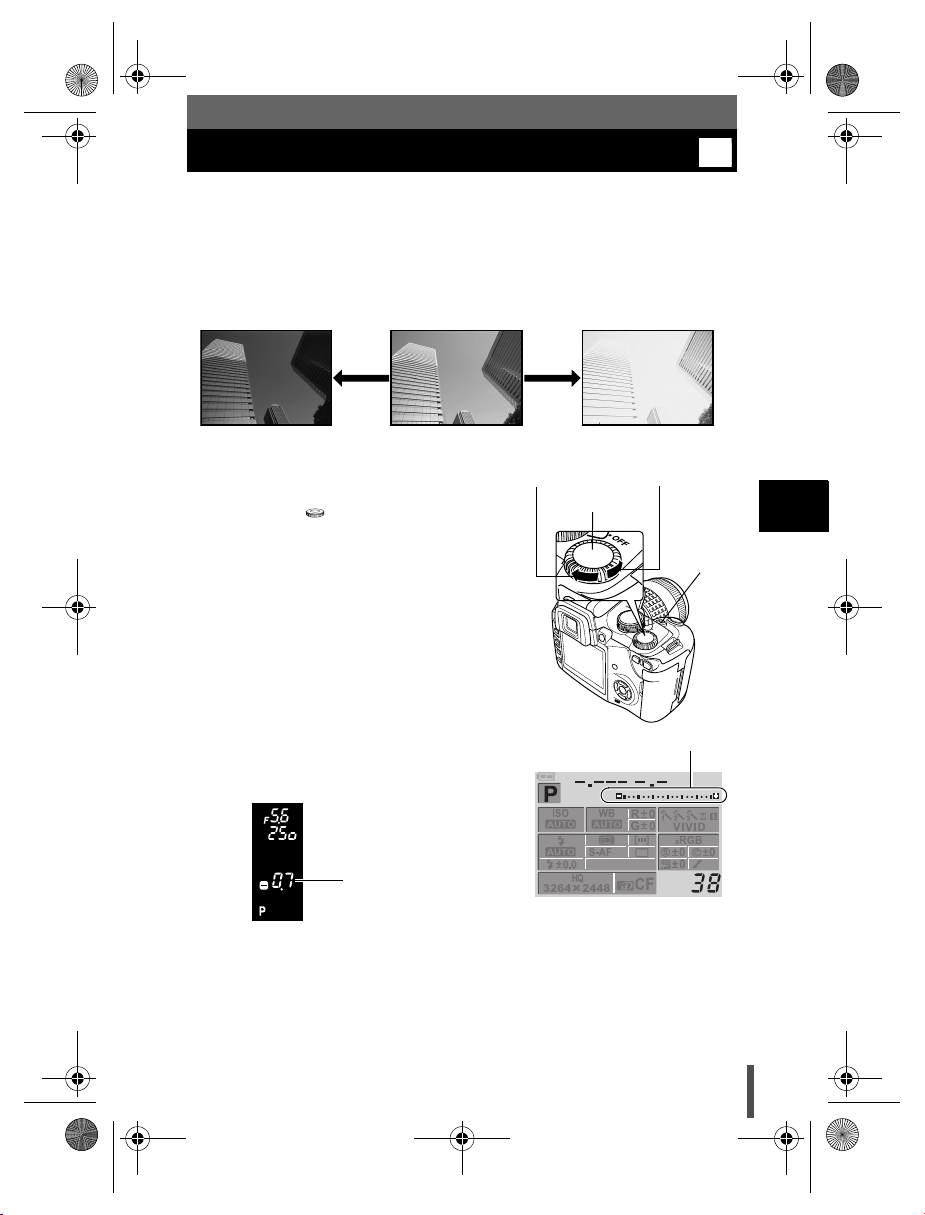

Exposure compensation — Varying the image brightness. . . . . . . . . . . . . . . . . . 79
AE lock — Locking the exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
ISO — Setting the desired sensitivity to light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
AE bracketing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

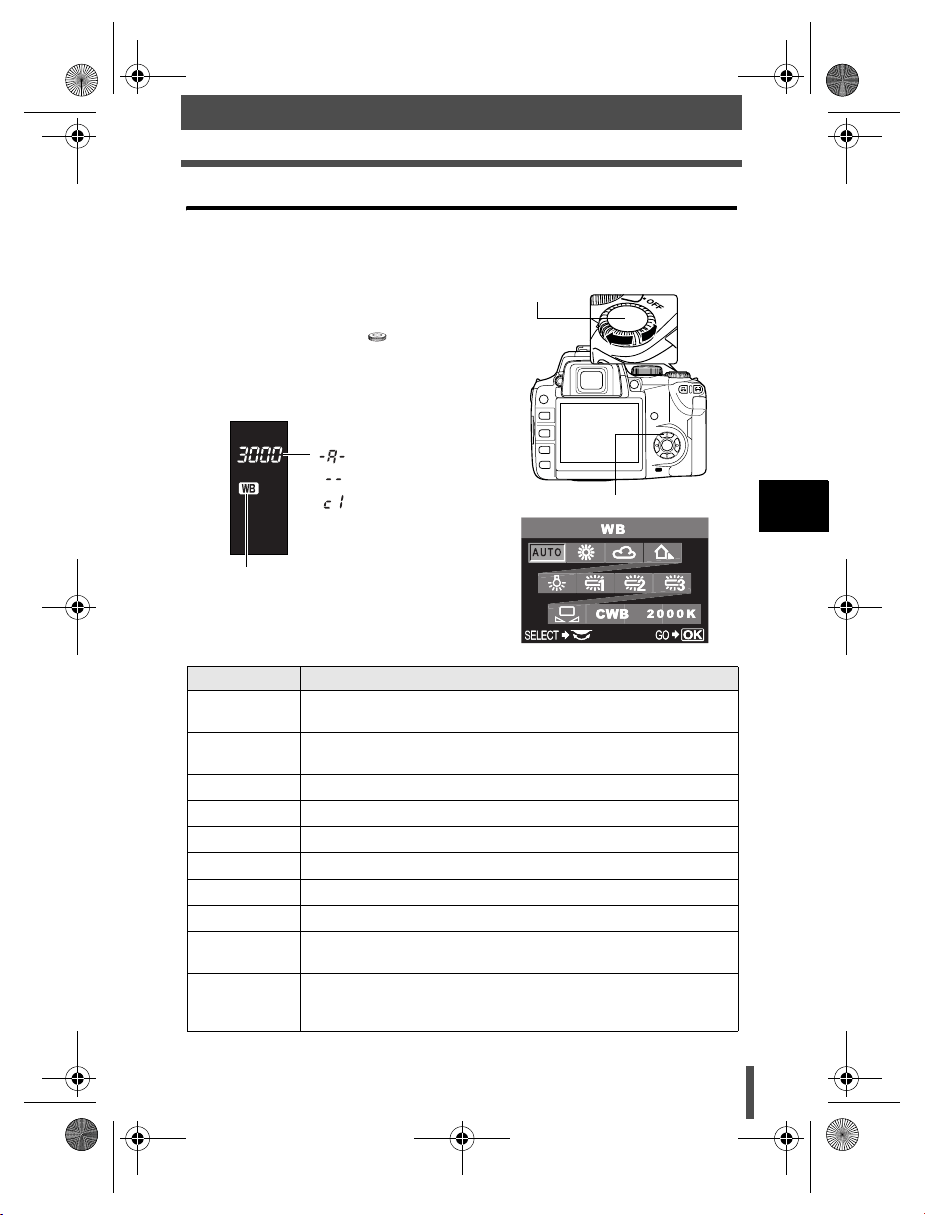

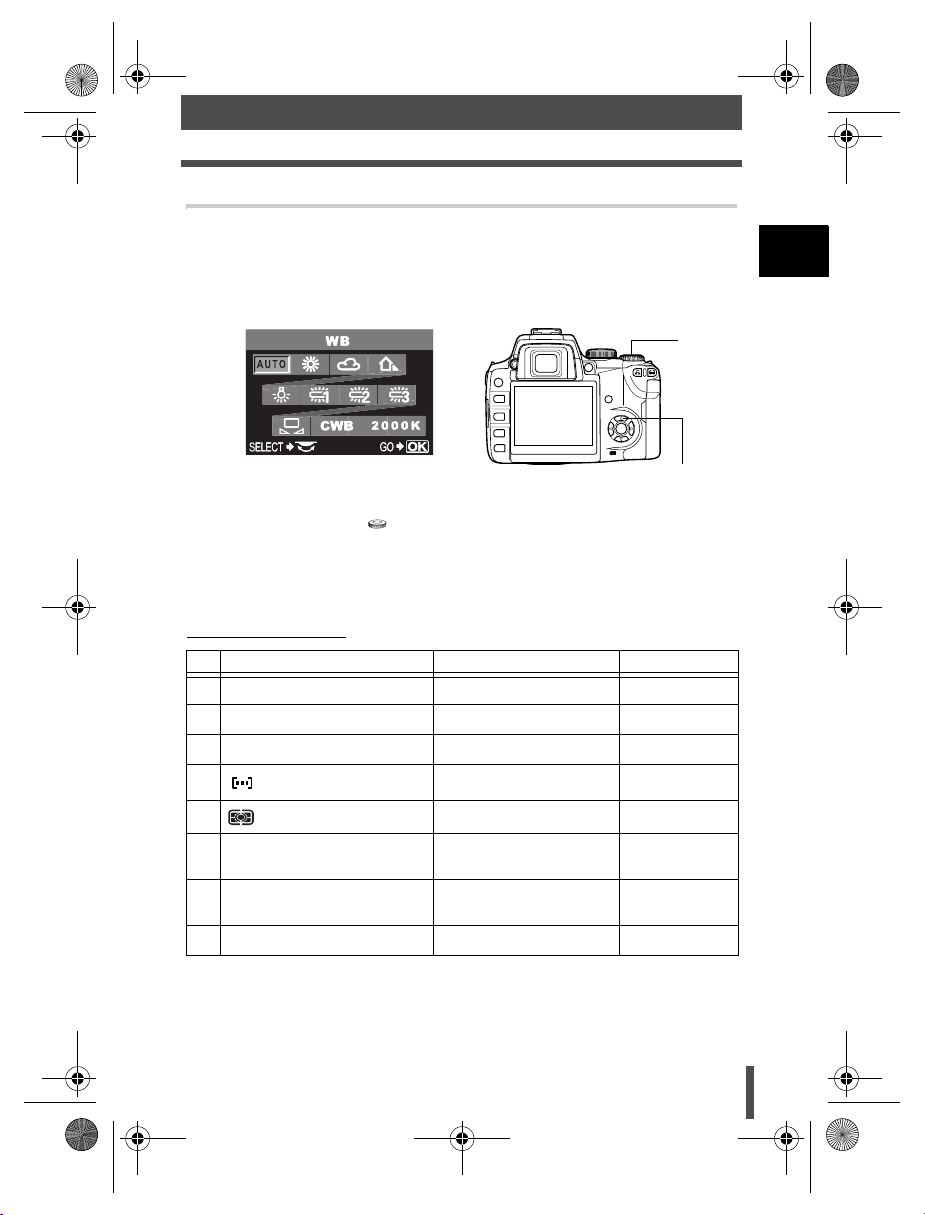

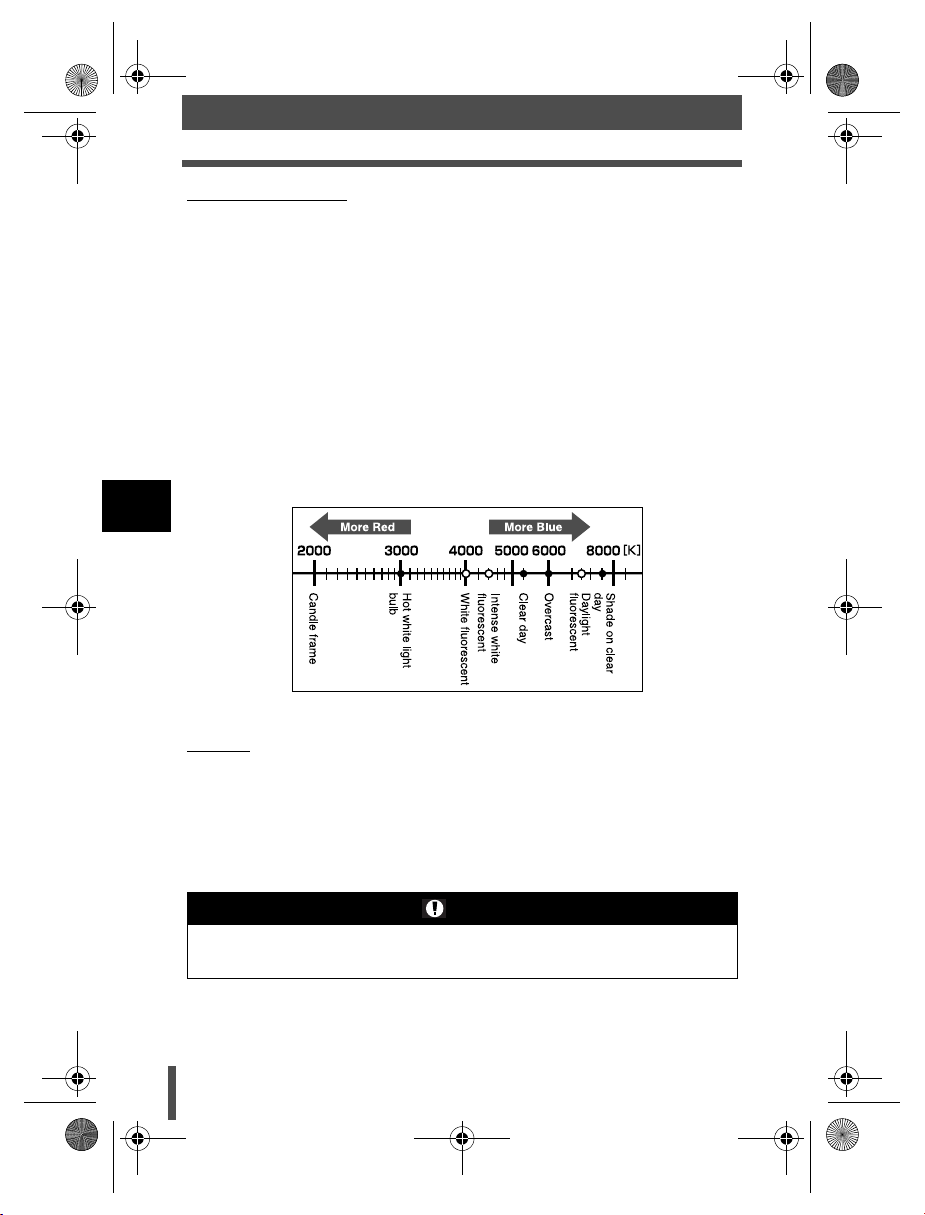

White balance — Adjusting the color tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Setting the auto/preset white balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

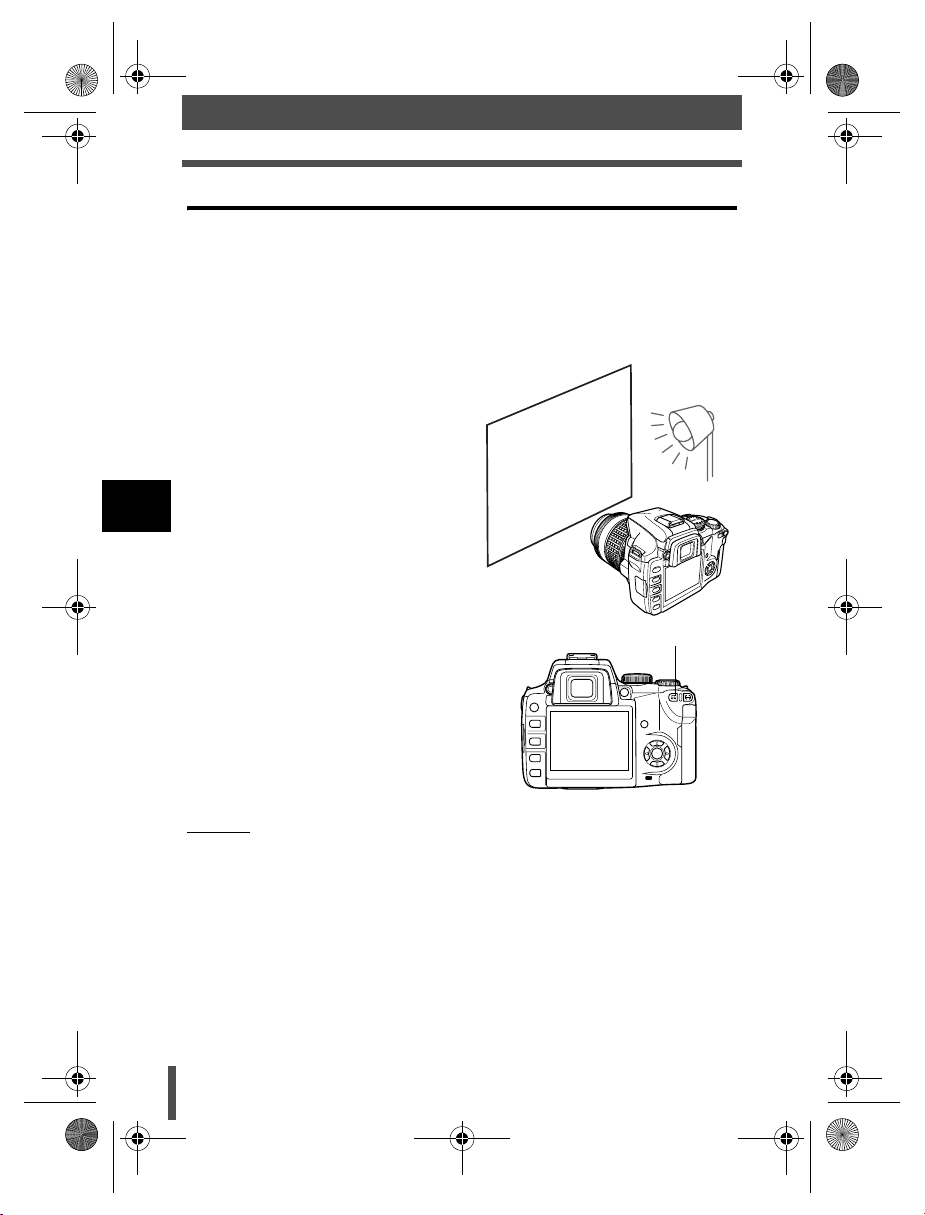

Setting the custom white balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Setting the one-touch white balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
WB Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
WB bracketing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Picture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Gradation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Shading compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

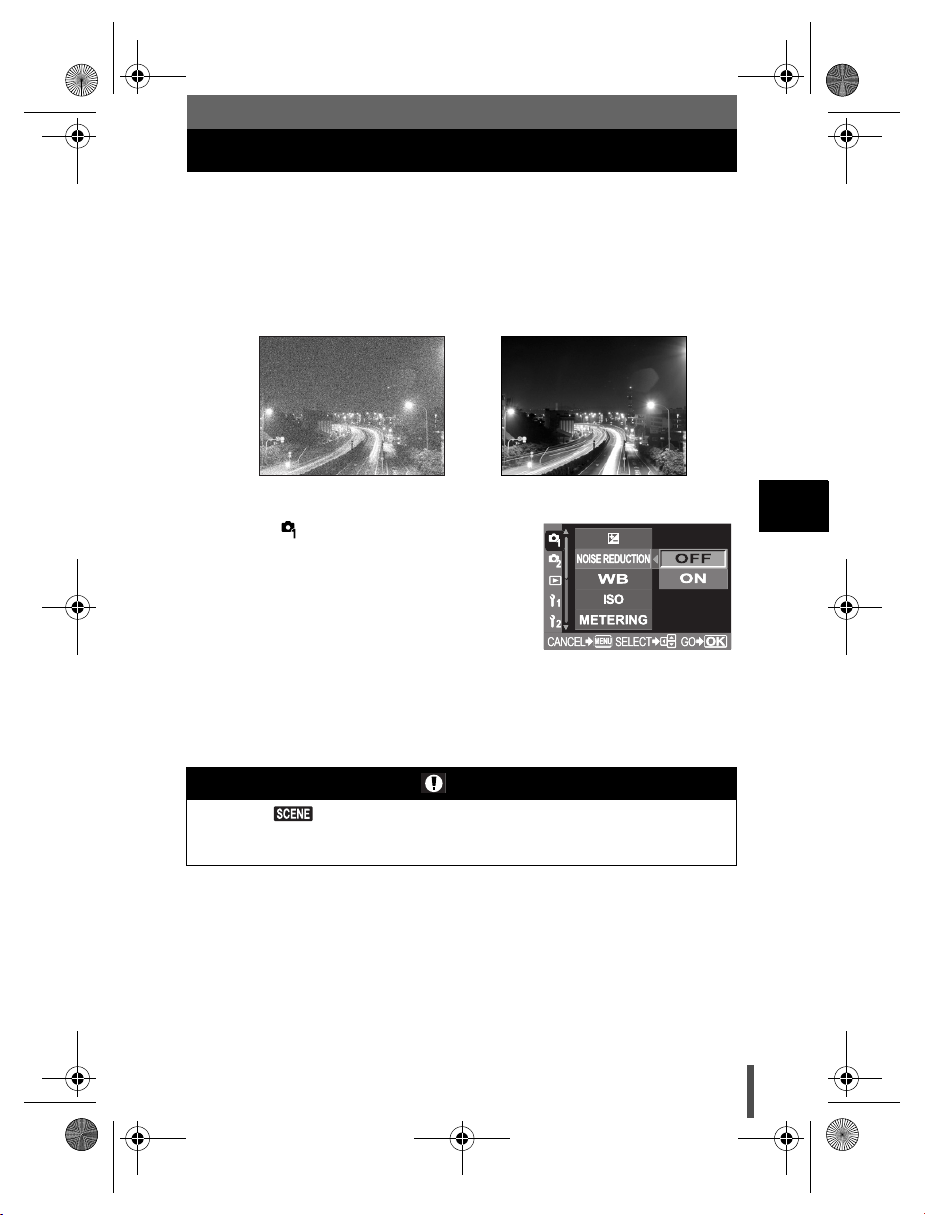

Noise reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

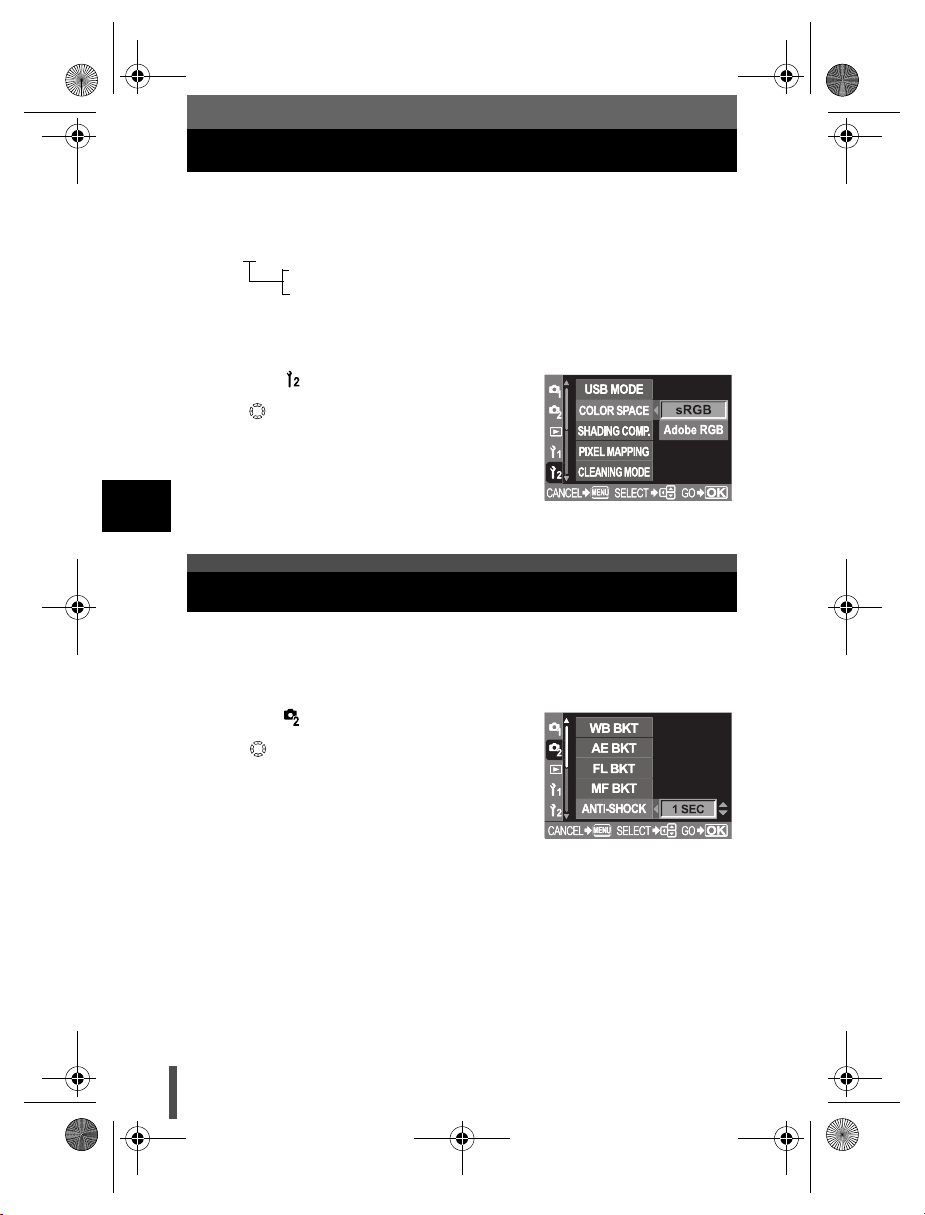

Color space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Anti-shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
7 Playback

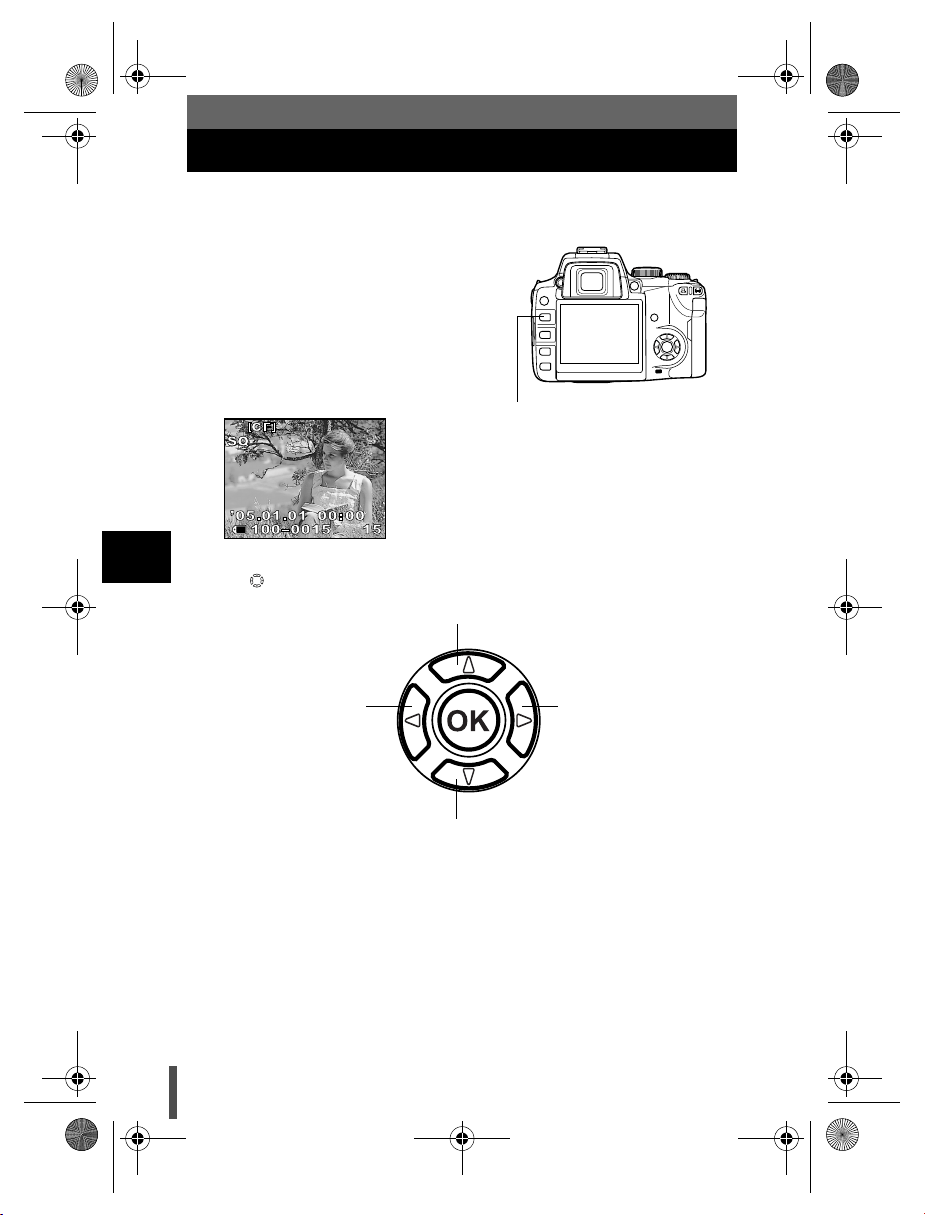

Single-frame playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Close-up playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Light box display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Index display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

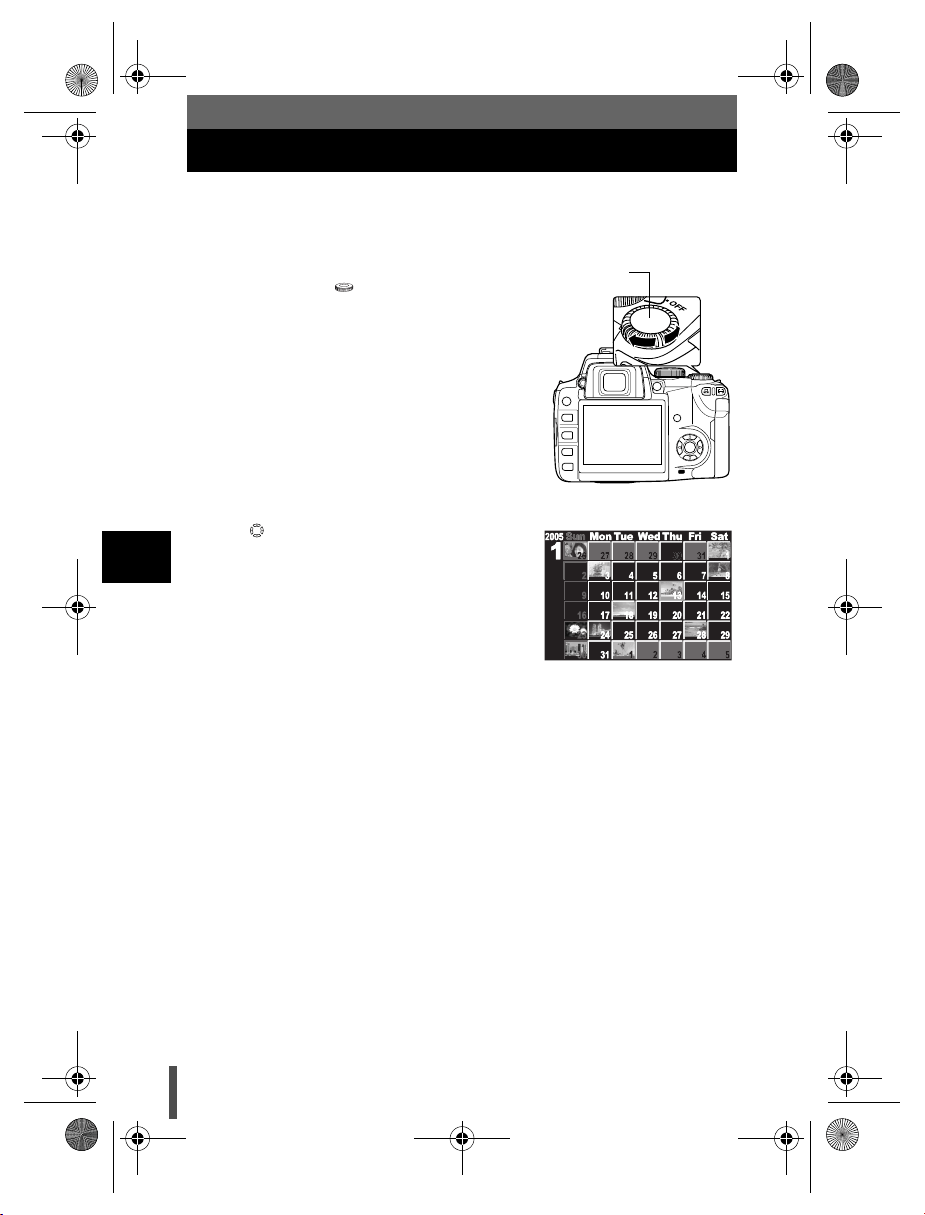

Calendar display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

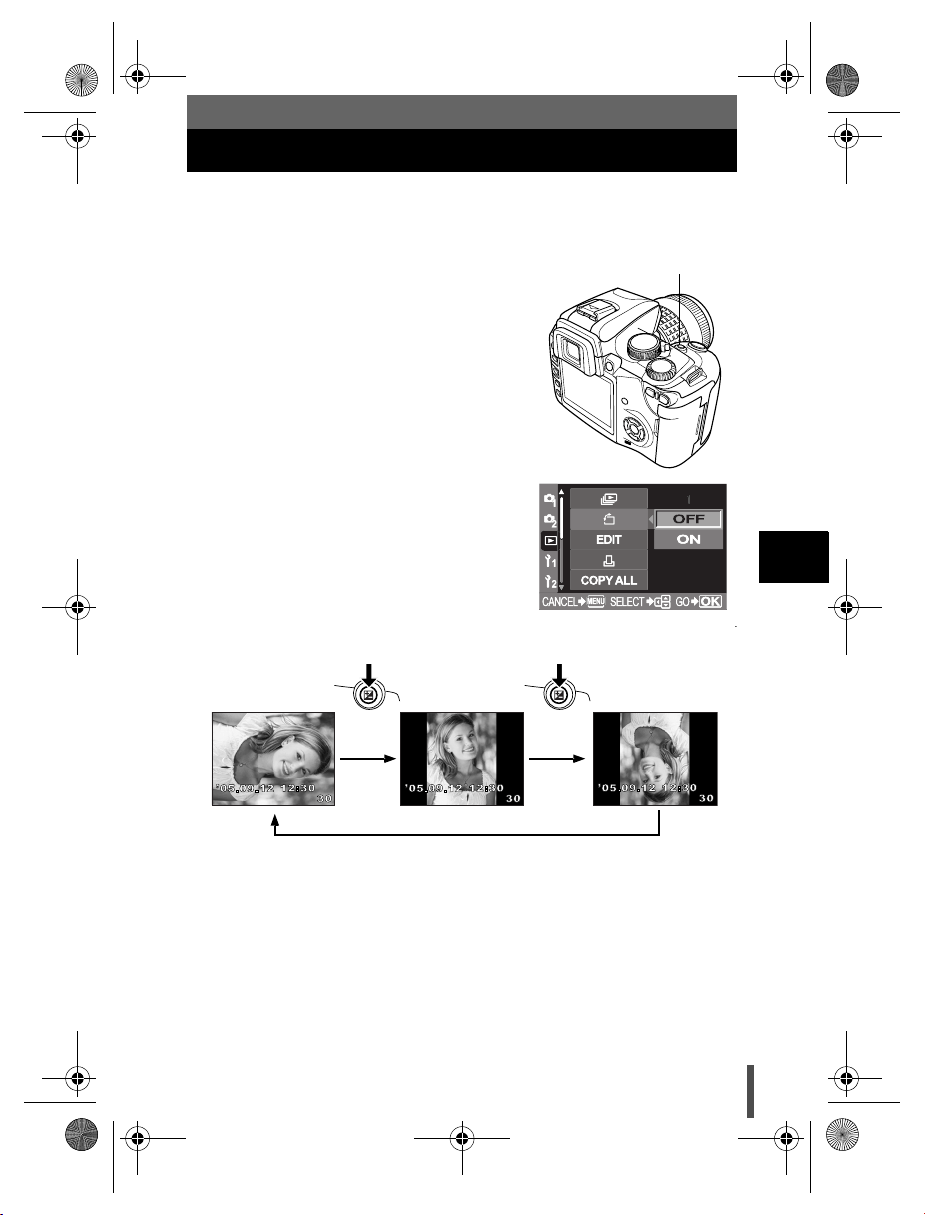

Rotating images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Playback on TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

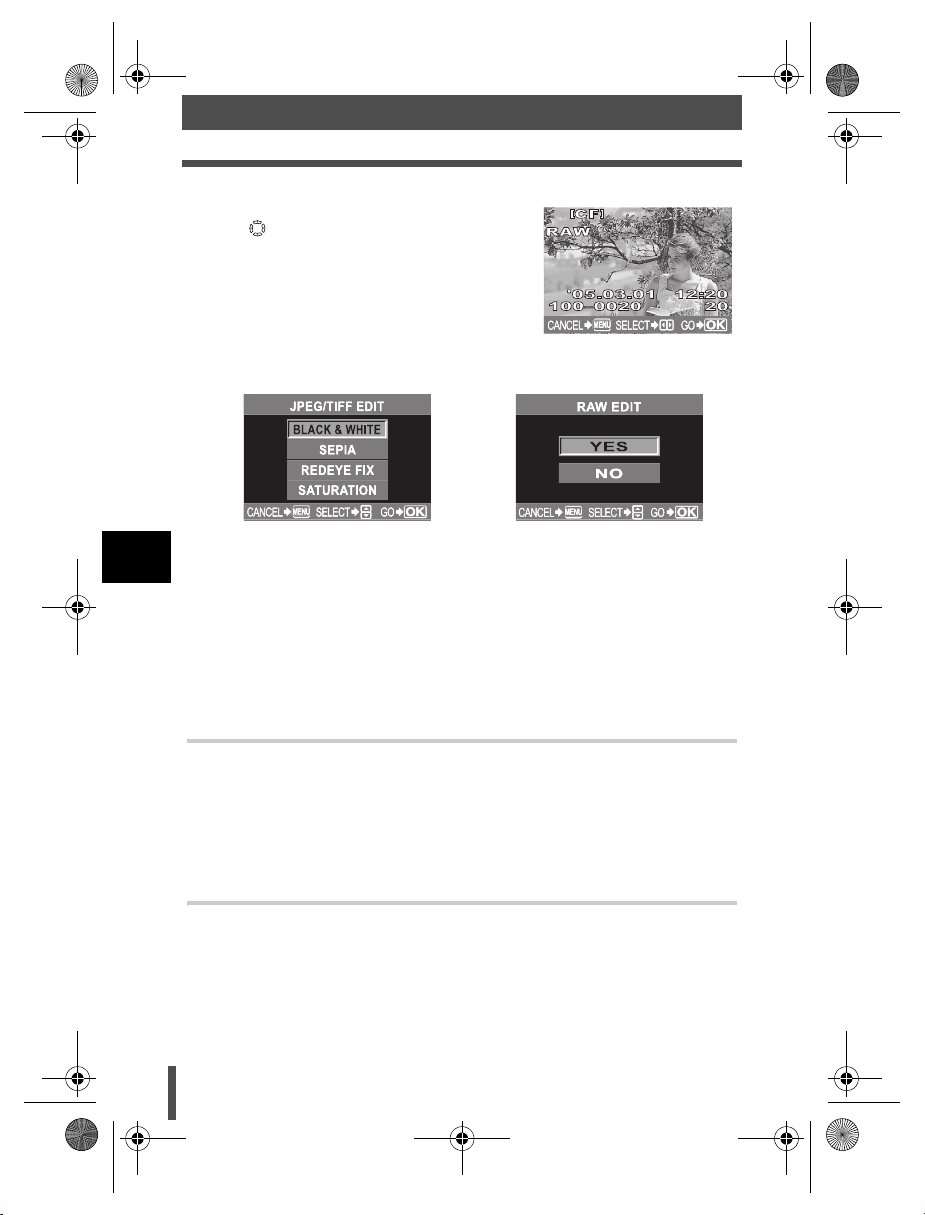

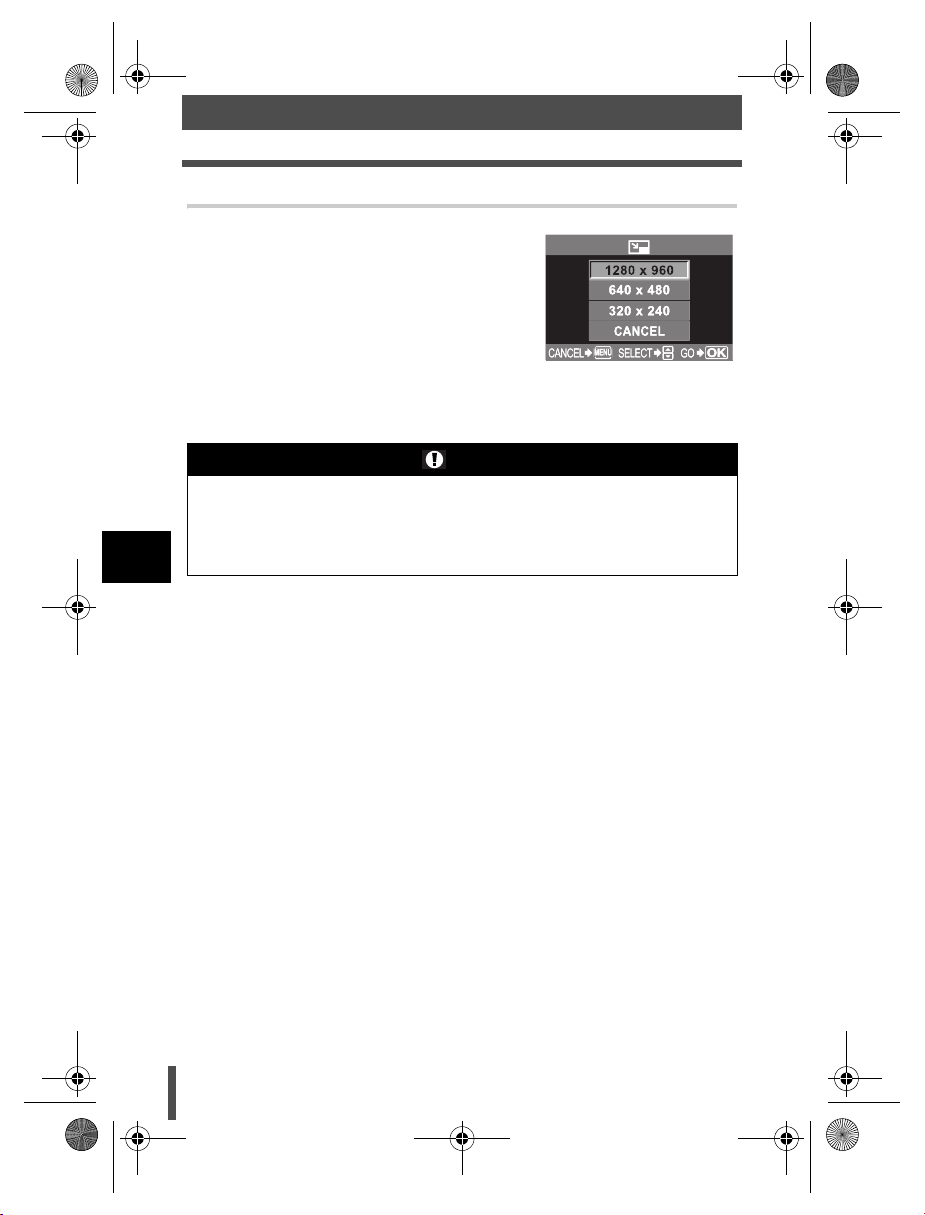

Editing still images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Copying images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Protecting images — Preventing accidental erasure . . . . . . . . . . . . . . . . . . . . . 114
Erasing images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Single-frame erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

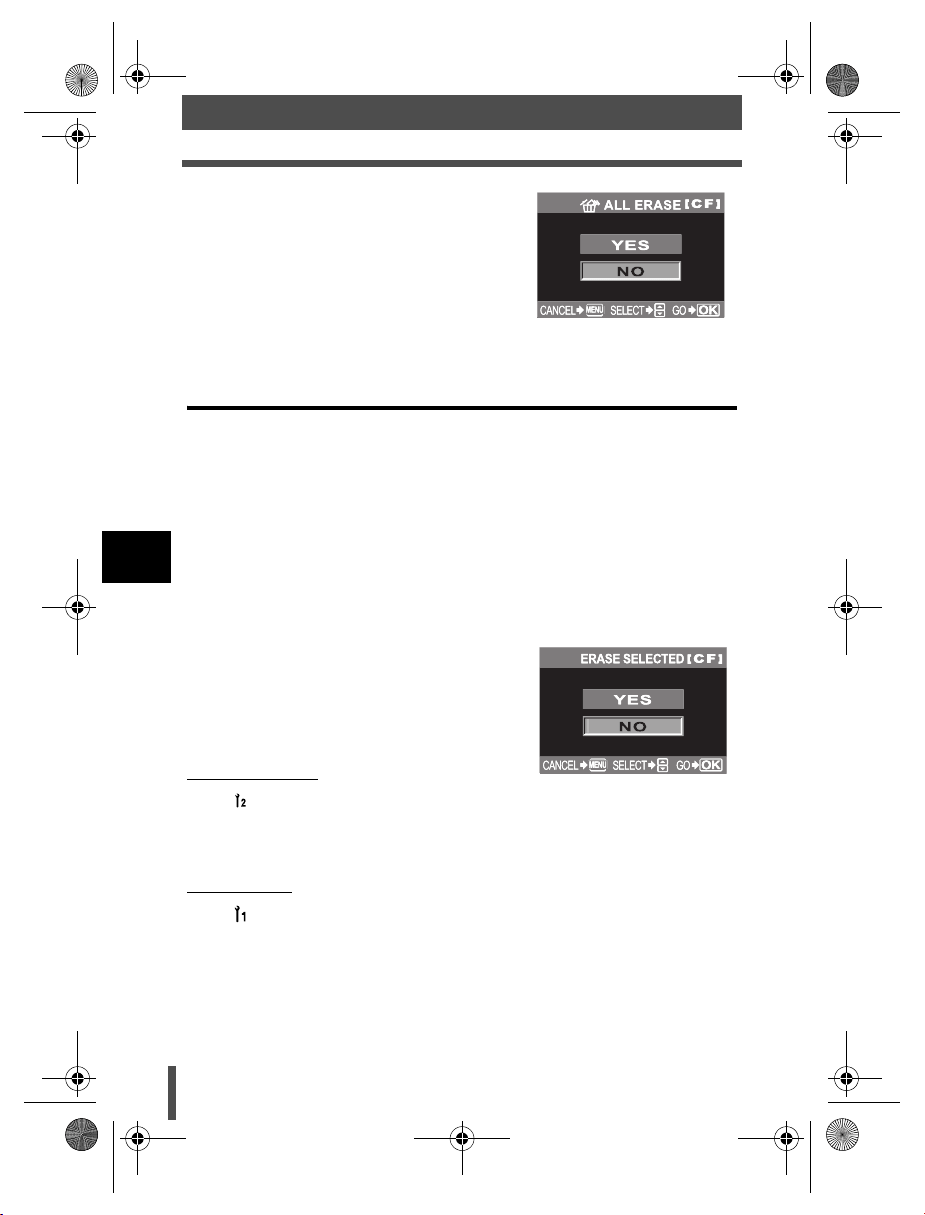

All-frame erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Erasing selected frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
s0004_e_Advanced.book Page 5 Tuesday, September 27, 2005 4:15 PM
6
Table of Contents
8 Customizing the settings/functions of your camera
Custom reset setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

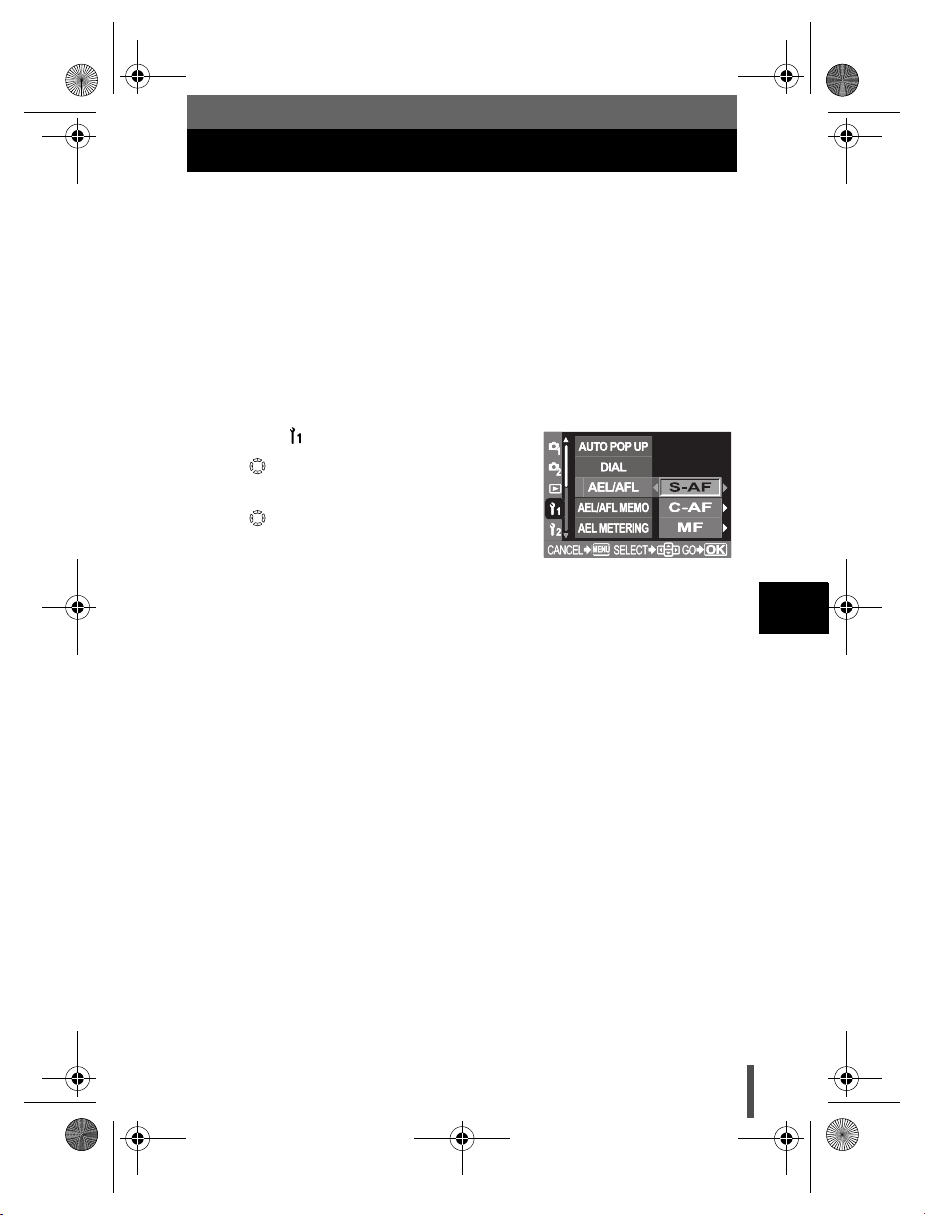

AEL/AFL mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
AEL/AFL memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
AEL metering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
EV step. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
ISO step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
ISO boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
ISO limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Compensating all WB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Manual flash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

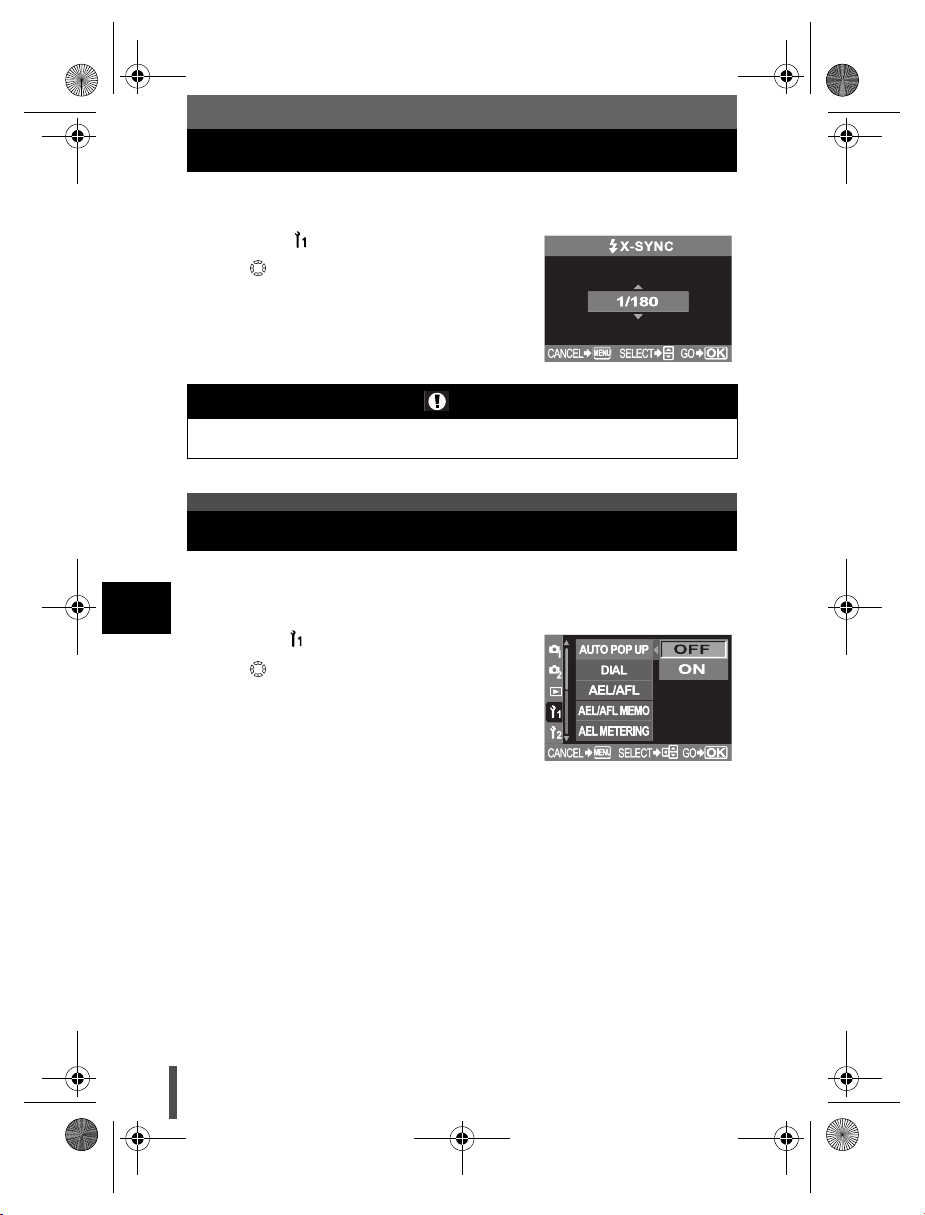

Speed synchronization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Auto flash popup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Customizing the control dial’s function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
V button function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
My Mode setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

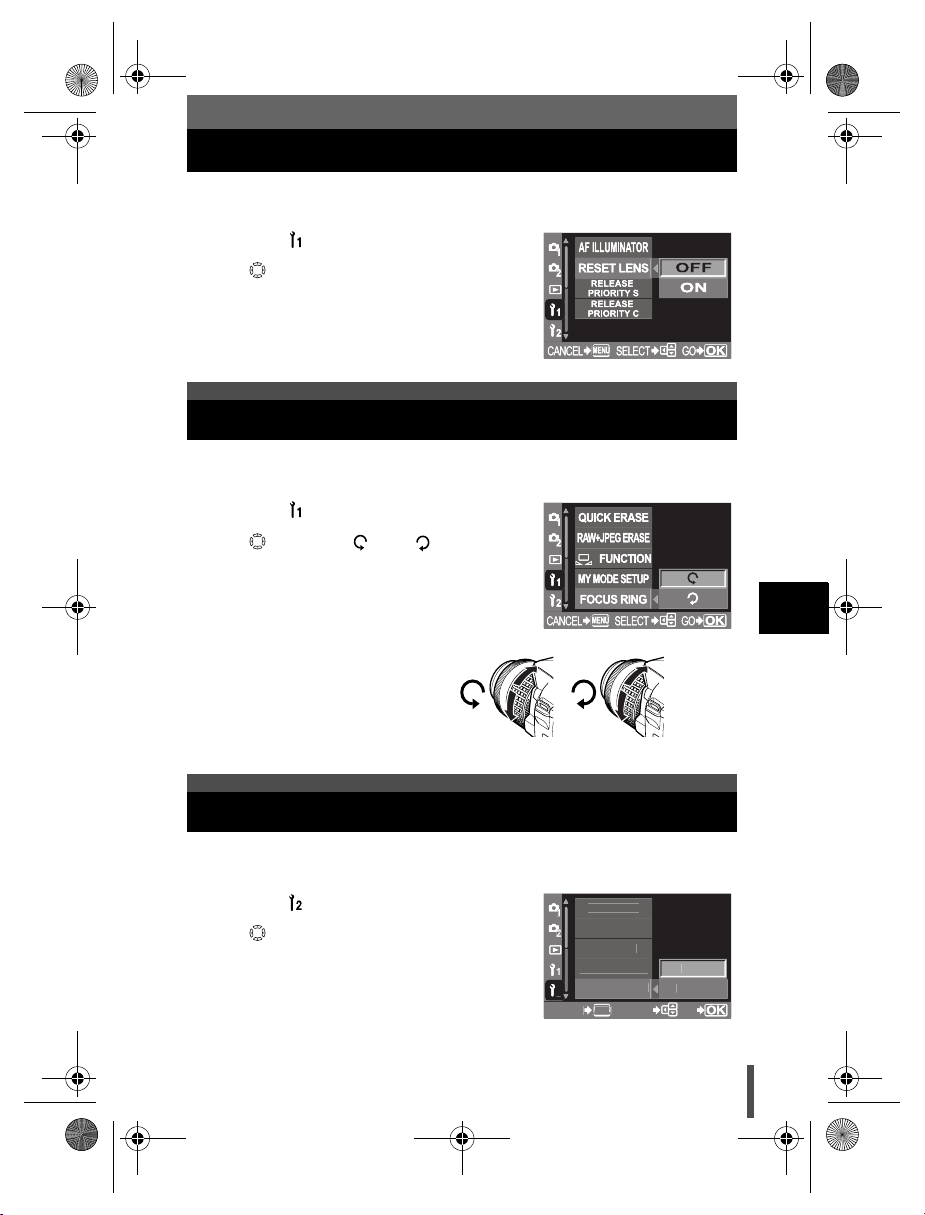

Reset lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

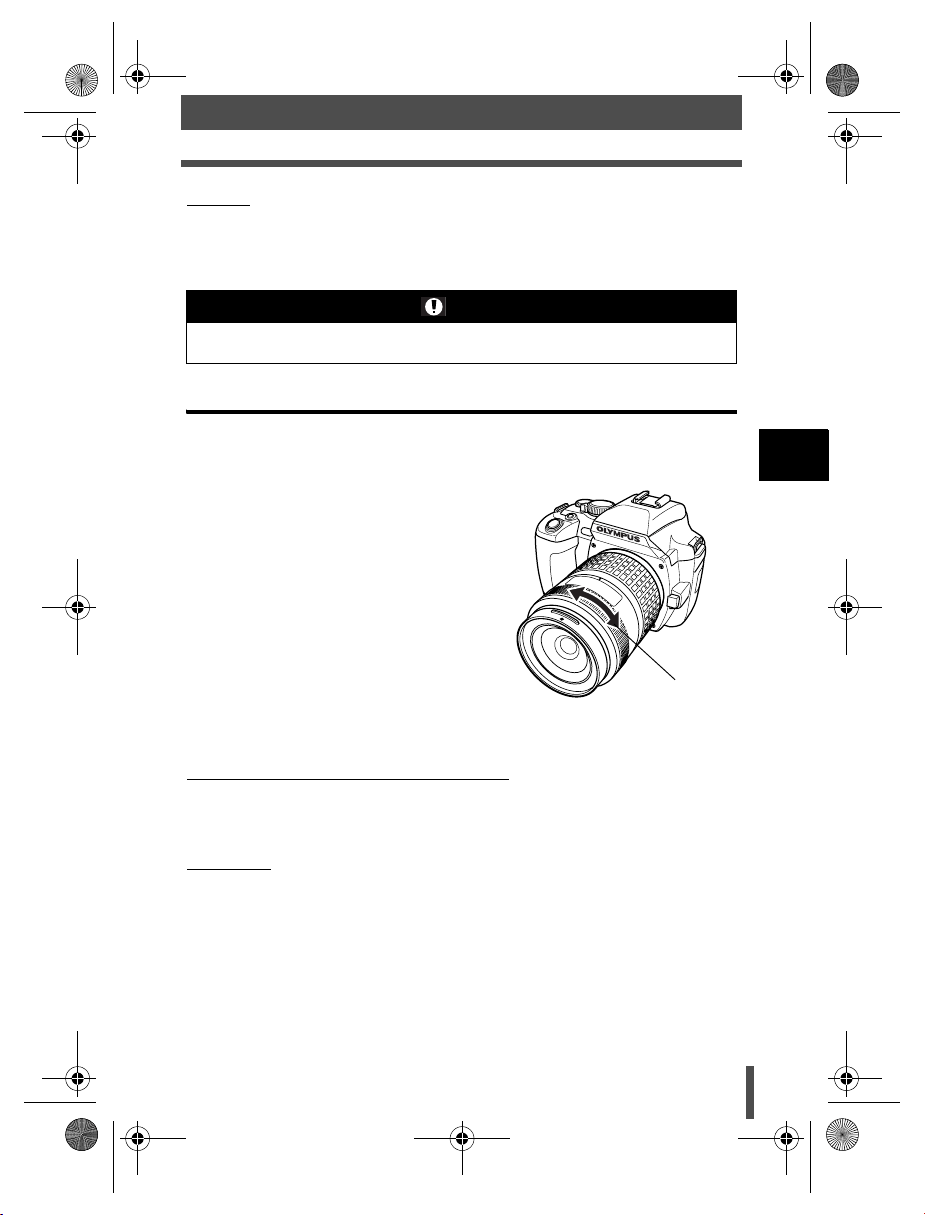

Focus ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Priority setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Quick erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Erasing RAW and JPEG files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

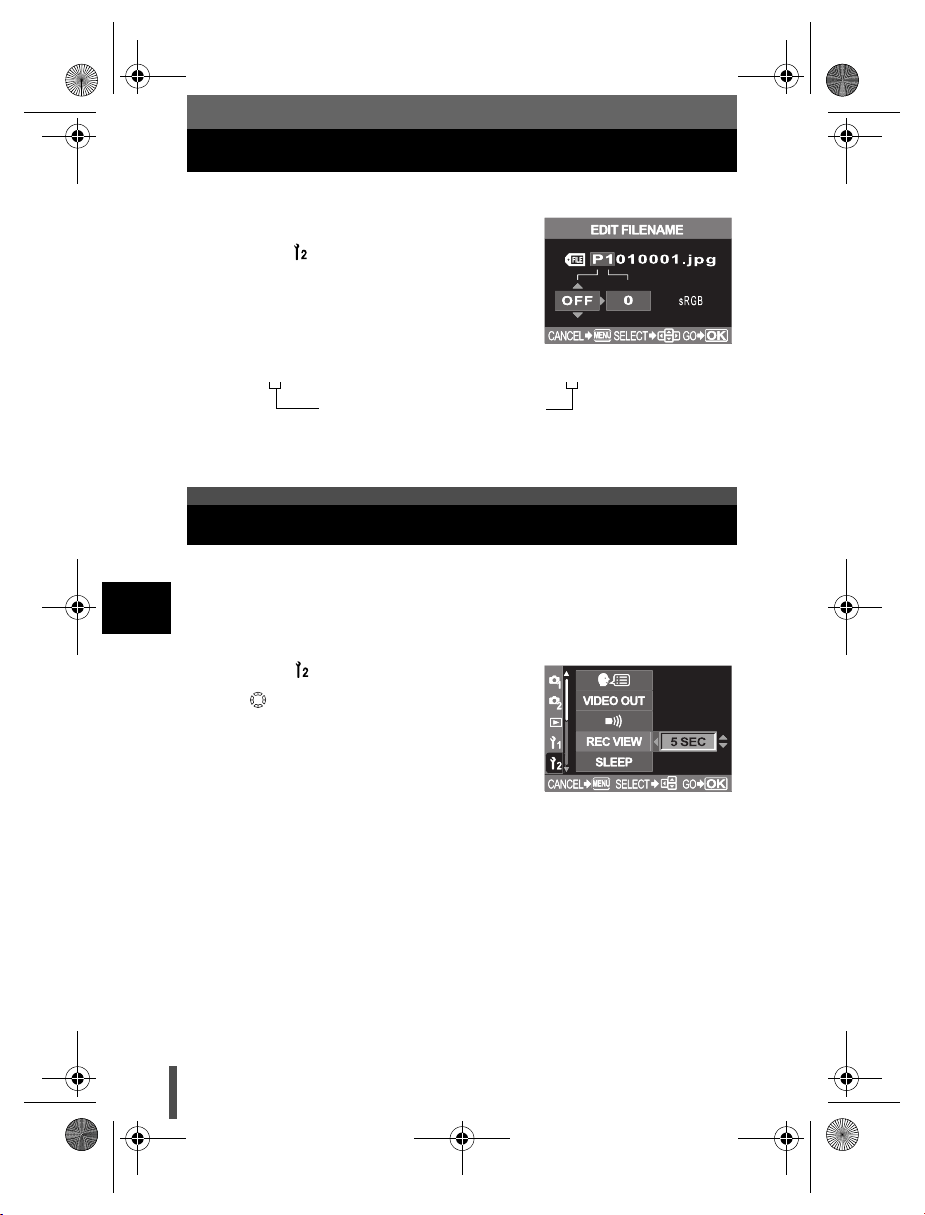

File name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rename file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Rec view - Checking the picture immediately after shooting . . . . . . . . . . . . . . . 132
Setting the warning tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Monitor brightness adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
USB mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Selecting the video signal type before TV connection . . . . . . . . . . . . . . . . . . . . 135

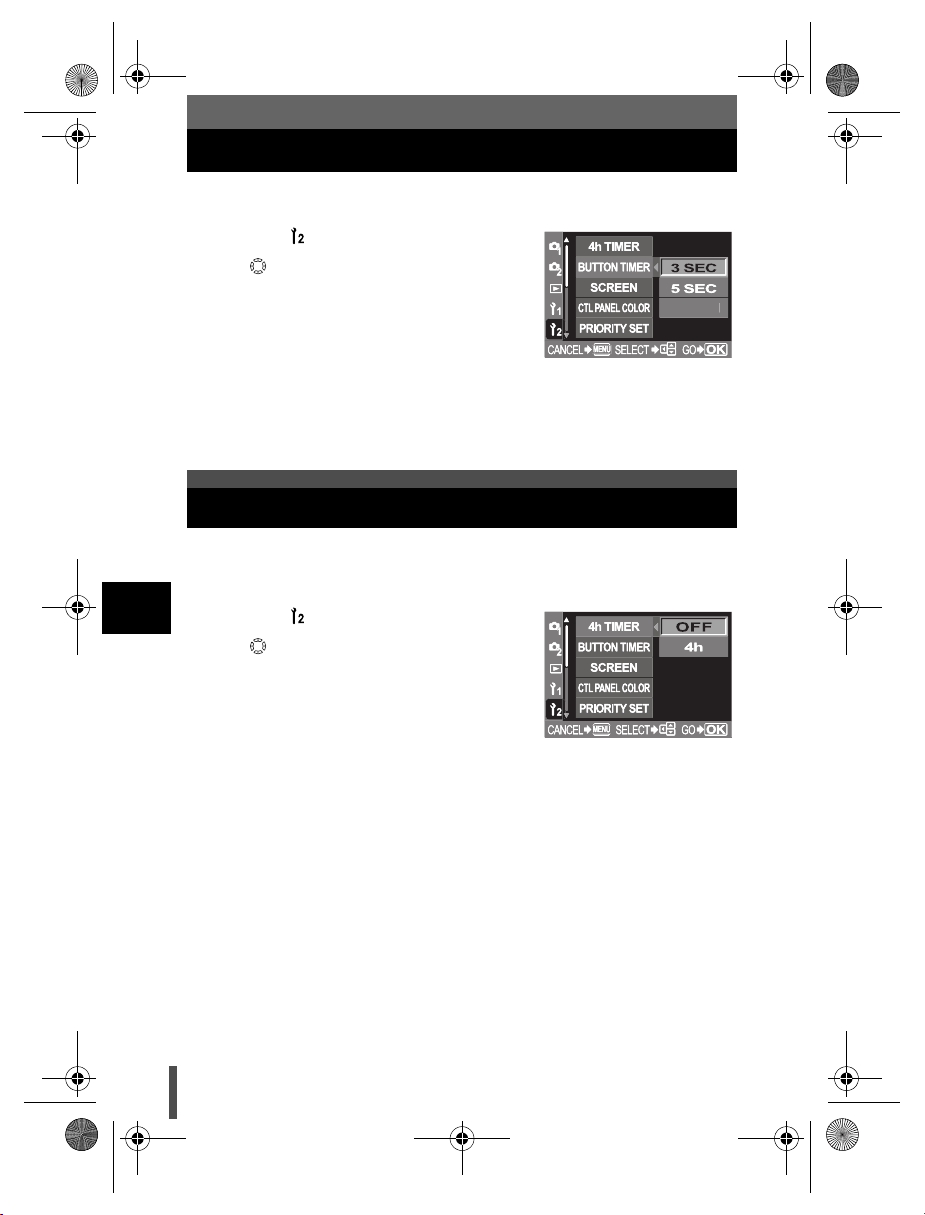

Button timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Auto power off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Start-up screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Changing monitor color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Setting the date/time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
9Printing

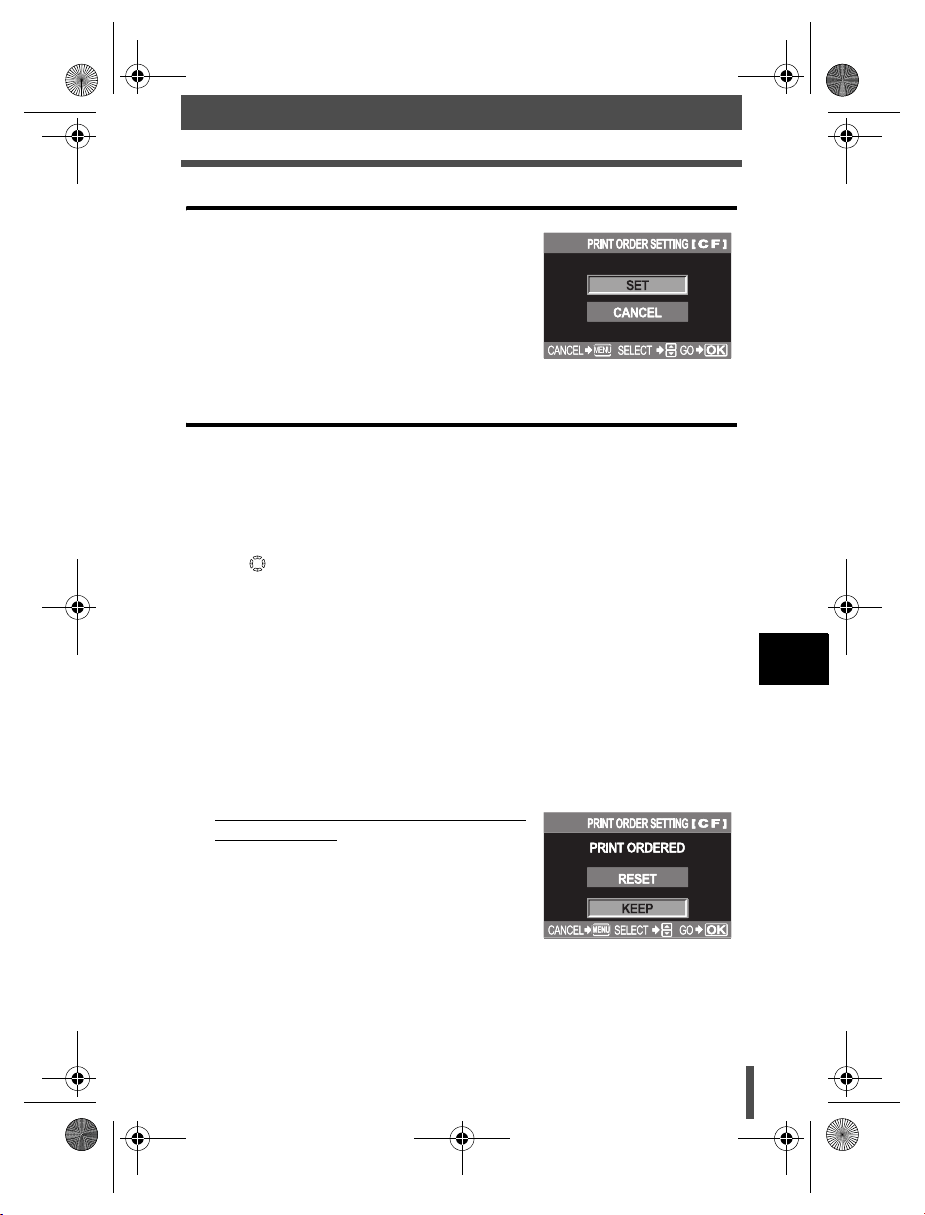

Print reservation (DPOF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Flowchart for print reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Selecting the print reservation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Selecting pictures you want to print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Setting printing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Confirming your print setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Resetting print reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
s0004_e_Advanced.book Page 6 Tuesday, September 27, 2005 4:15 PM
7
Table of Contents
Direct printing (PictBridge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Connecting the camera to a printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Easy printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

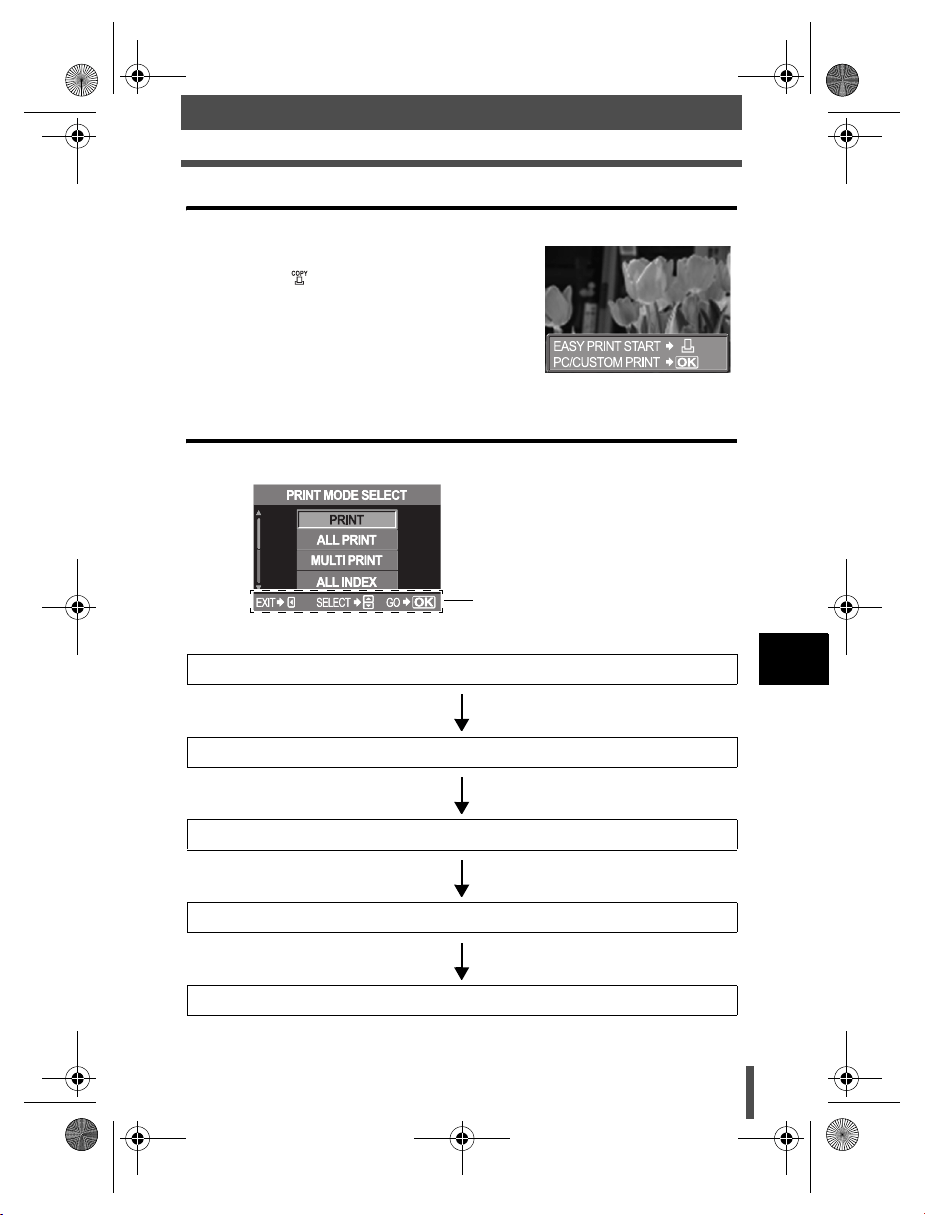

Flowchart for custom printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Selecting the print mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

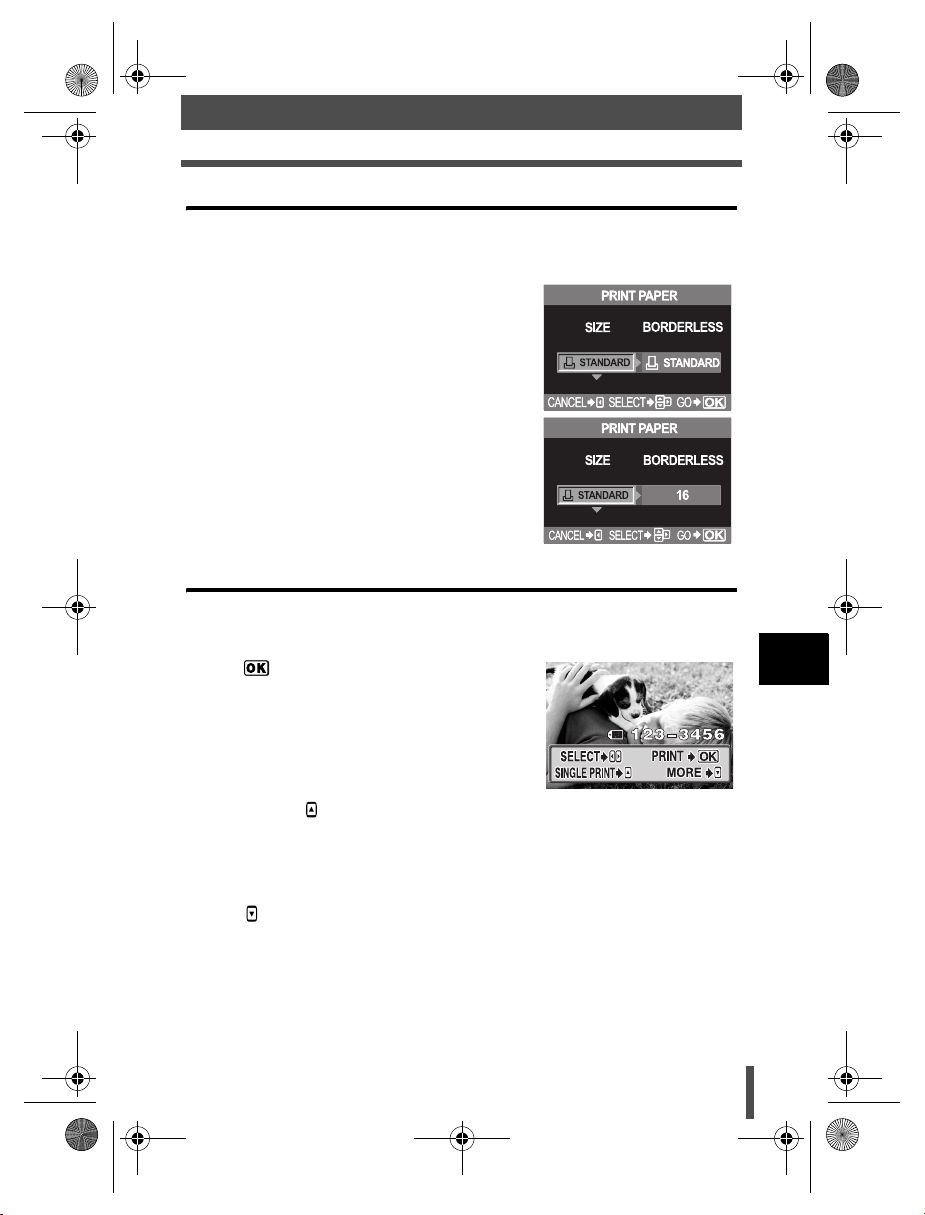

Setting the print paper items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Selecting pictures you want to print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Setting printing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
If an error code is displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
10 Transferring images to a computer
Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Using the provided OLYMPUS Master software . . . . . . . . . . . . . . . . . . . . . . . . 154
What is OLYMPUS Master? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Installing OLYMPUS Master . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

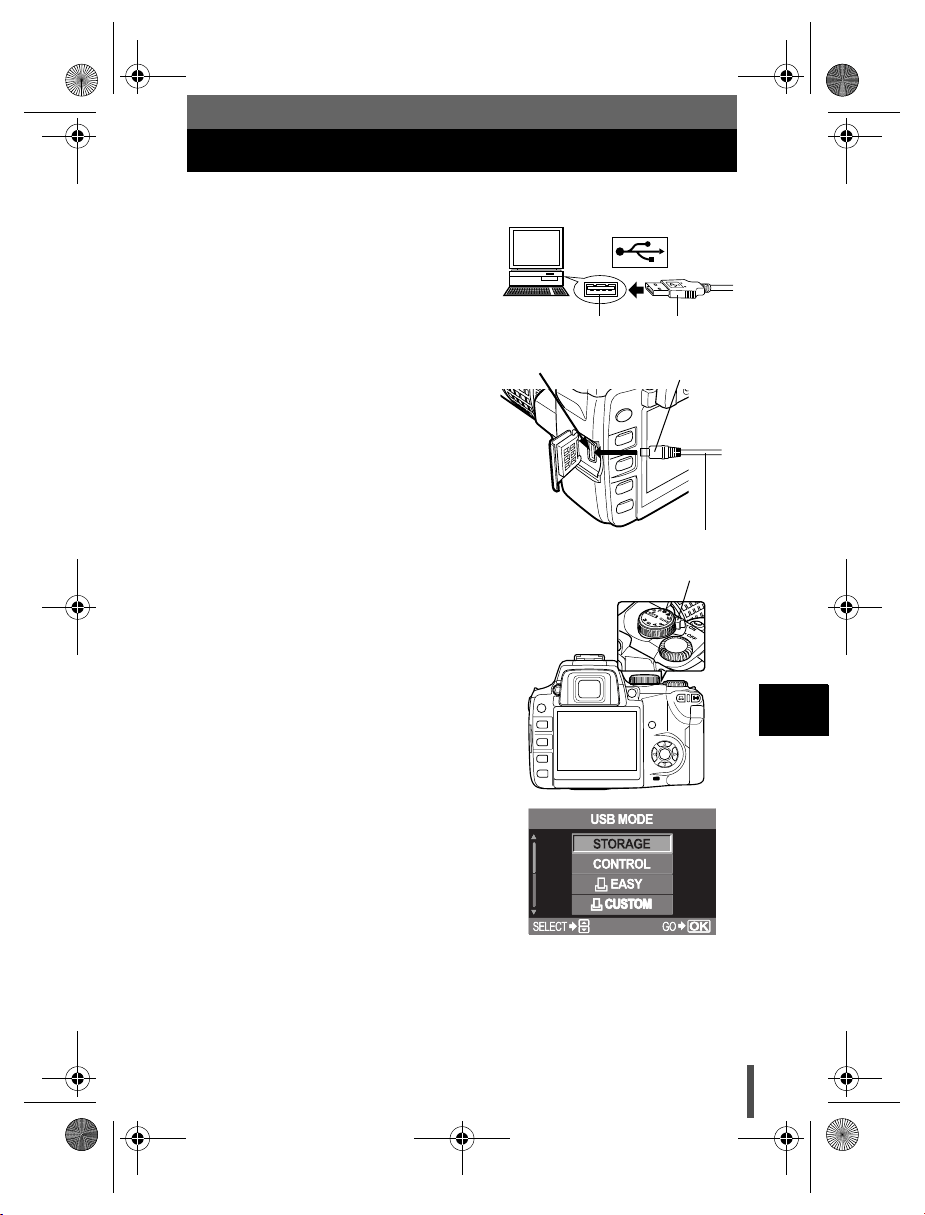

Connecting the camera to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Starting OLYMPUS Master . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Displaying the camera’s images on your computer . . . . . . . . . . . . . . . . . . . . . . 162
Downloading images to save on your computer . . . . . . . . . . . . . . . . . . . . . 162
Disconnecting the camera from your computer . . . . . . . . . . . . . . . . . . . . . 163
Viewing still images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Printing images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Transferring images to your computer without using OLYMPUS Master. . . . . . 166
11 Appendix
If you encounter problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Camera maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Cleaning and storing the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

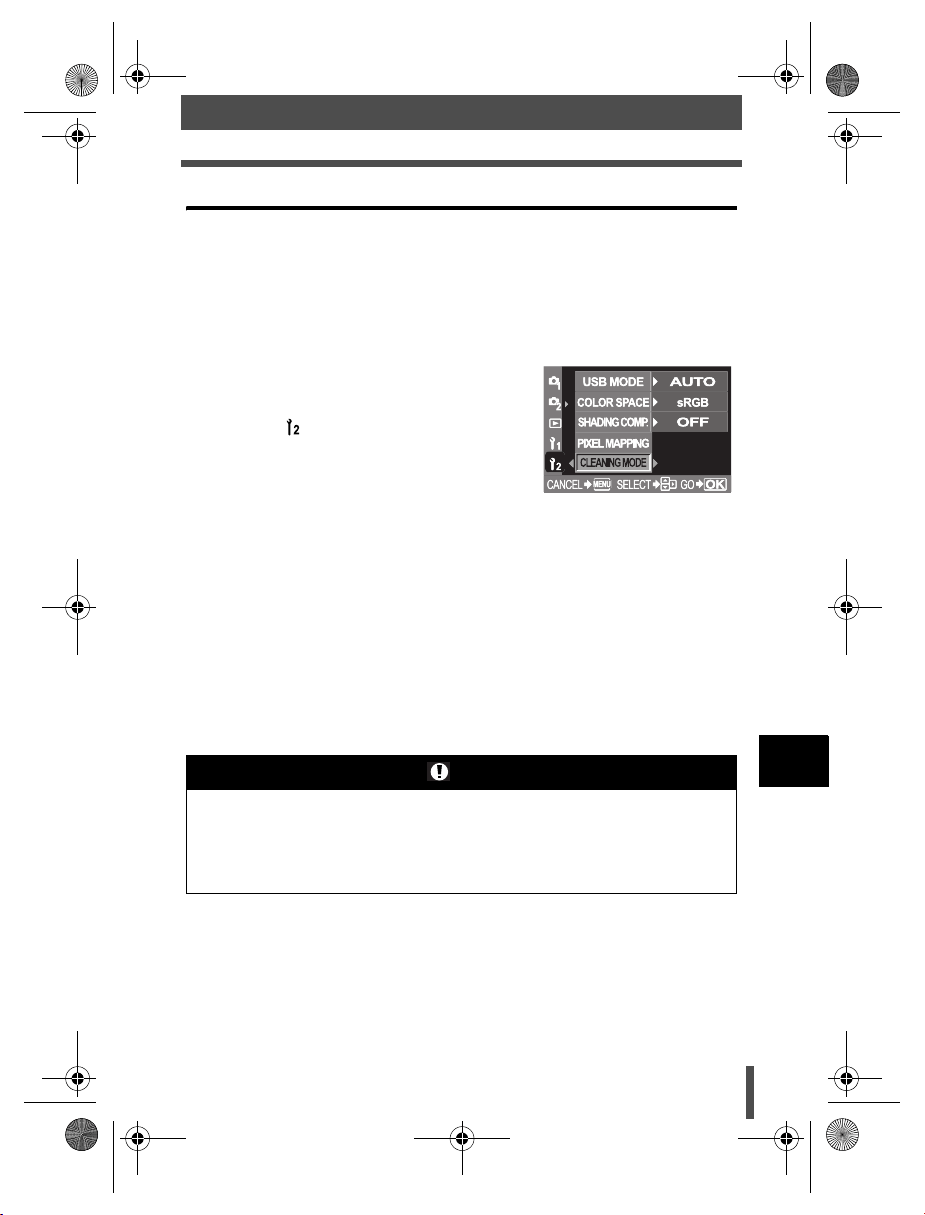

Cleaning mode — Removing dust on the CCD. . . . . . . . . . . . . . . . . . . . . . 175
Pixel mapping — Checking the image processing functions . . . . . . . . . . . 176
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
12 Information
Menu directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Available functions by shooting mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Names of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Viewfinder indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

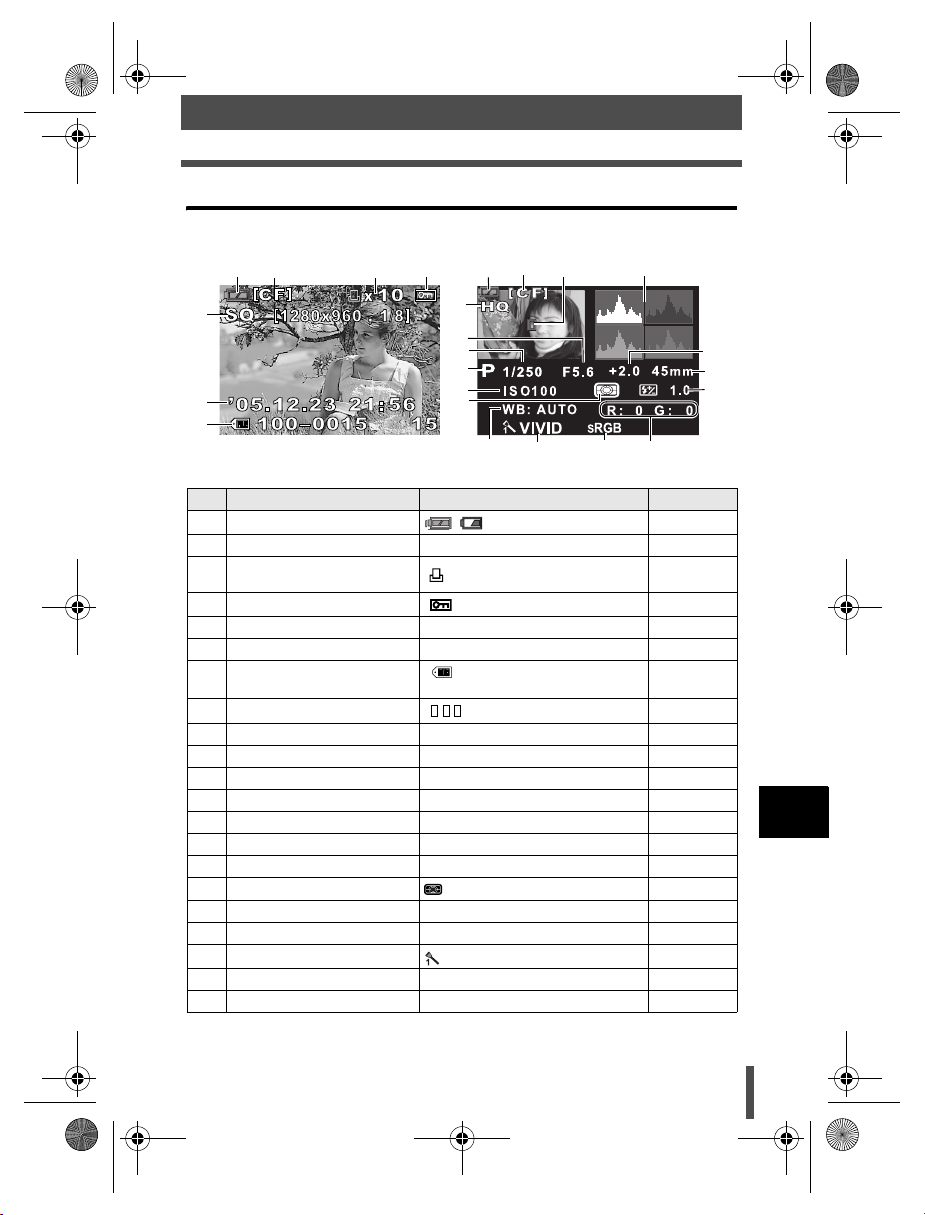

Monitor indications (only for playback) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

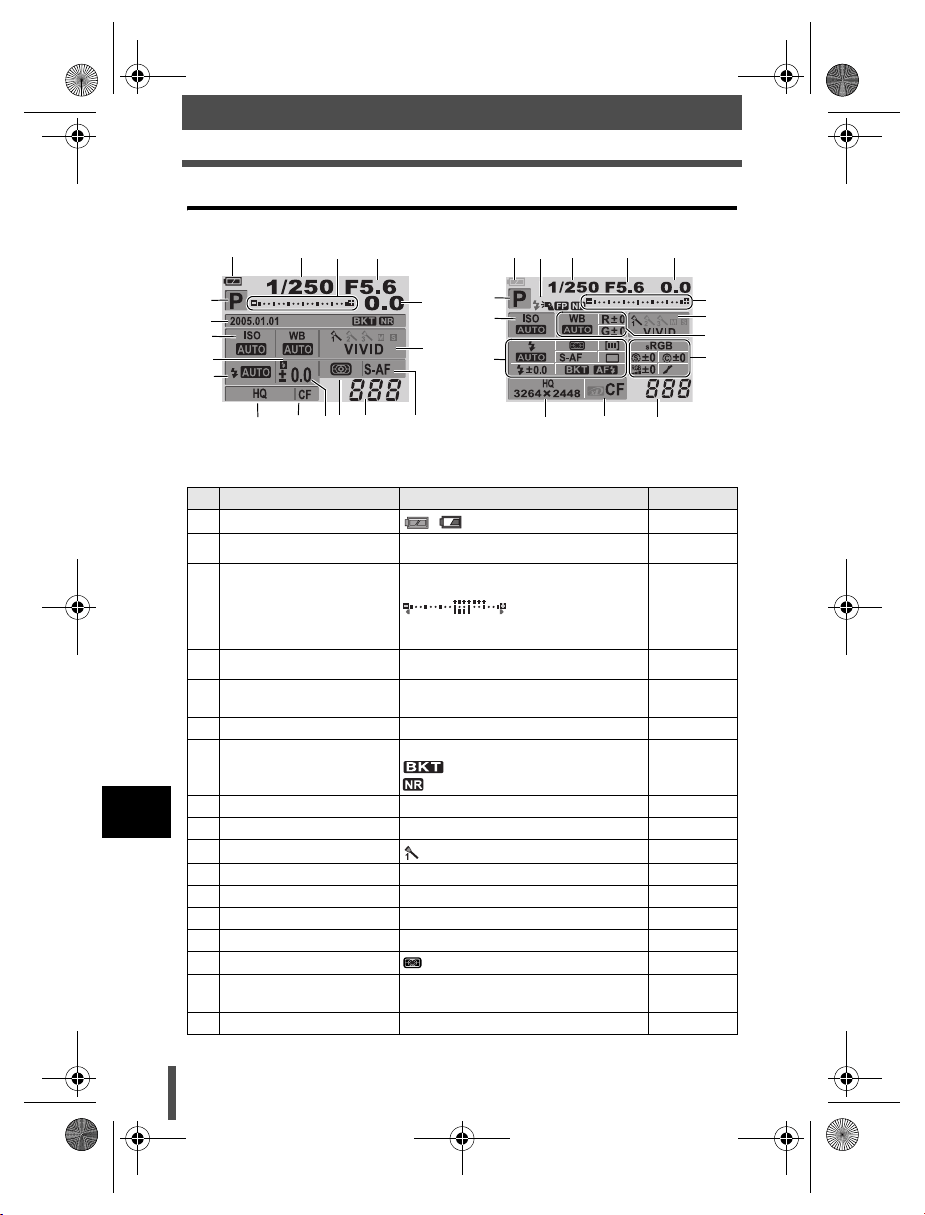

Control panel screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
s0004_e_Advanced.book Page 7 Tuesday, September 27, 2005 4:15 PM
8
Table of Contents
13 Accessories

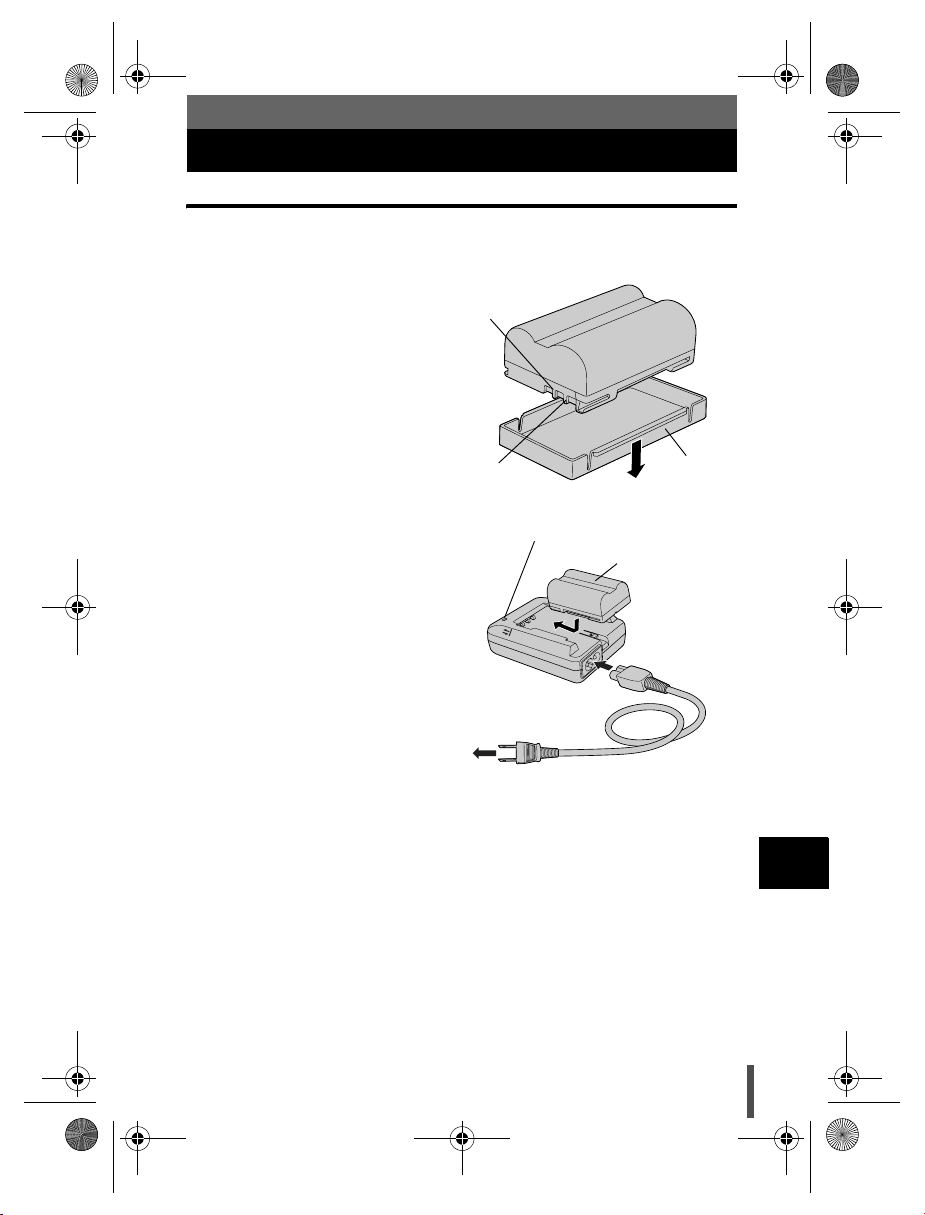

BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger . . . . . . . . . . . . . . . . . . . . 199

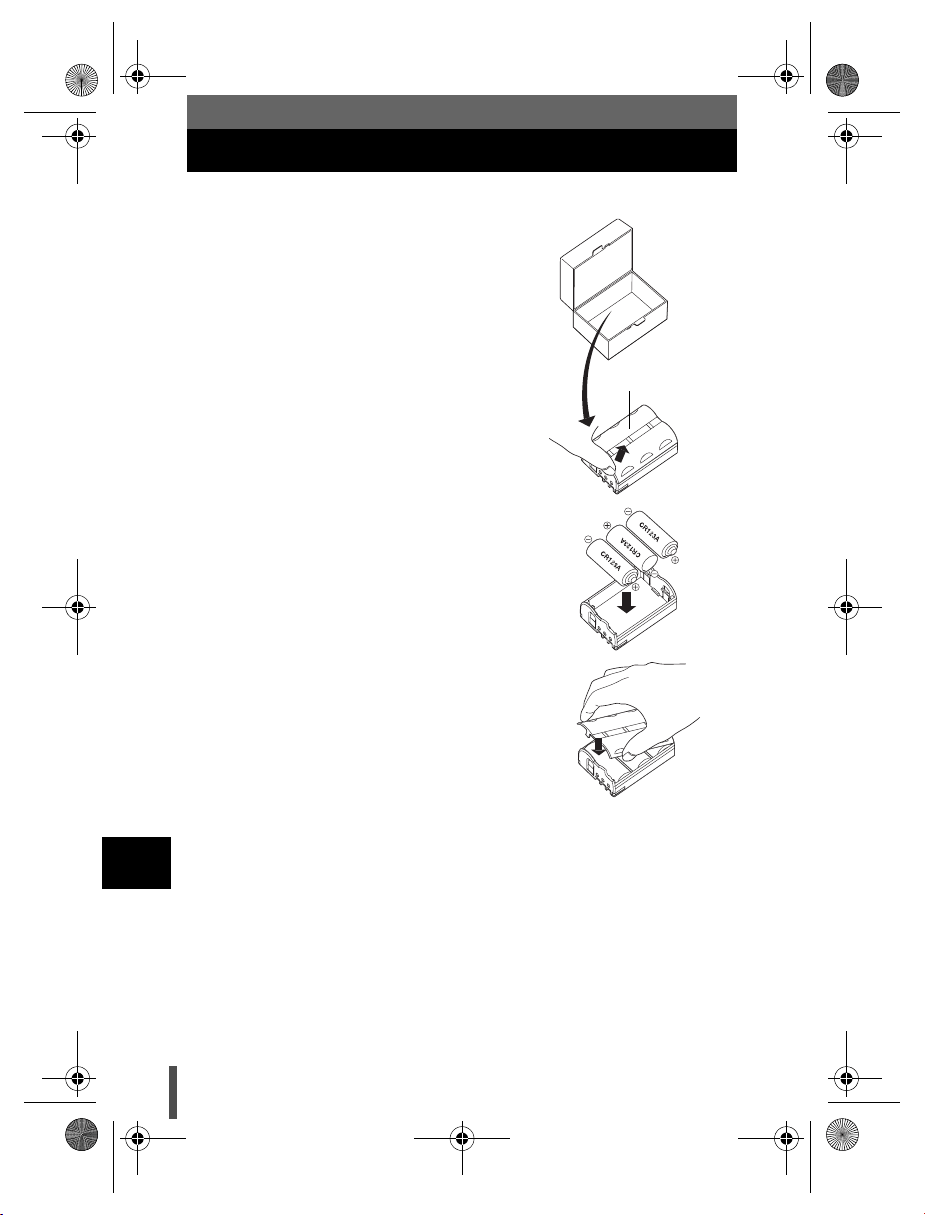

How to use the LBH-1 Lithium Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . 206

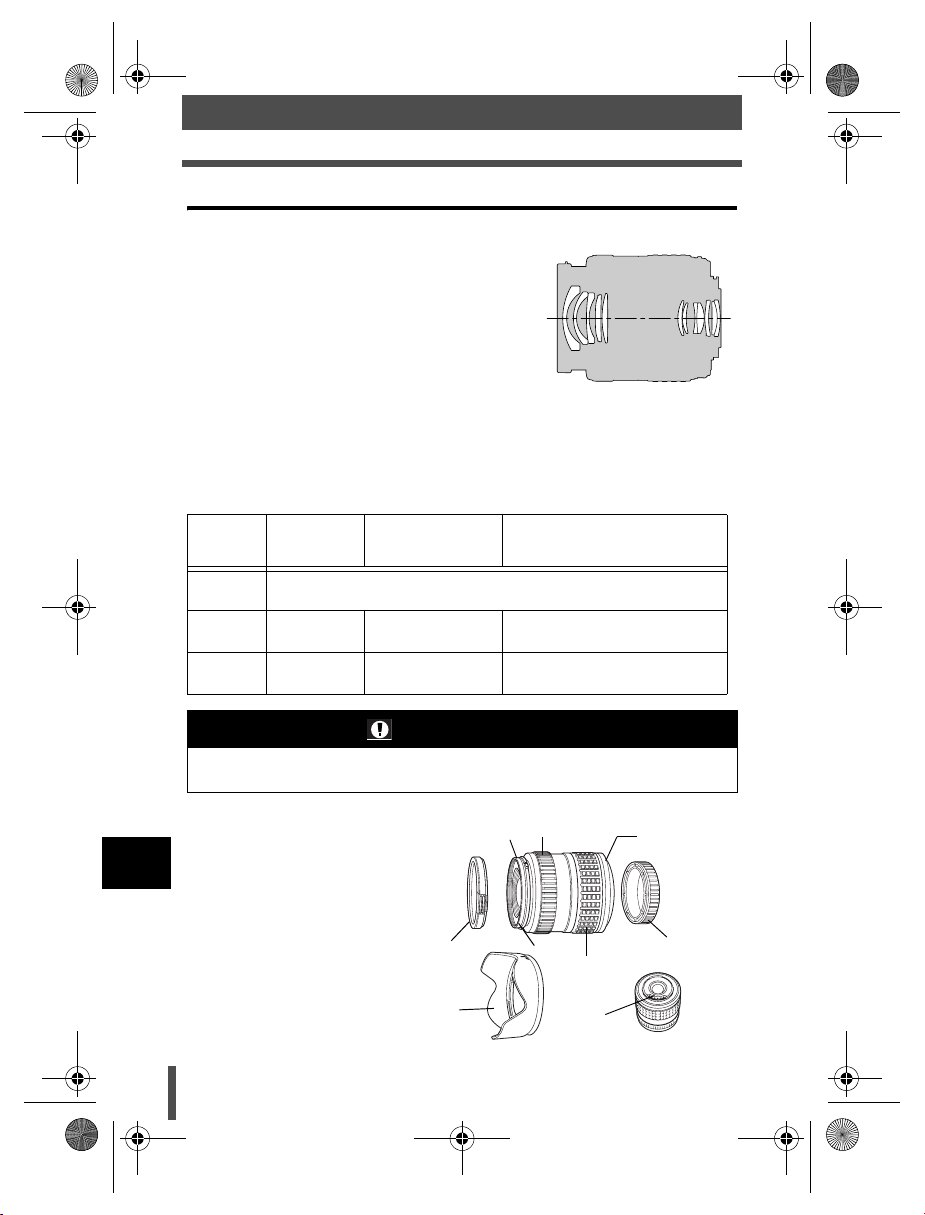

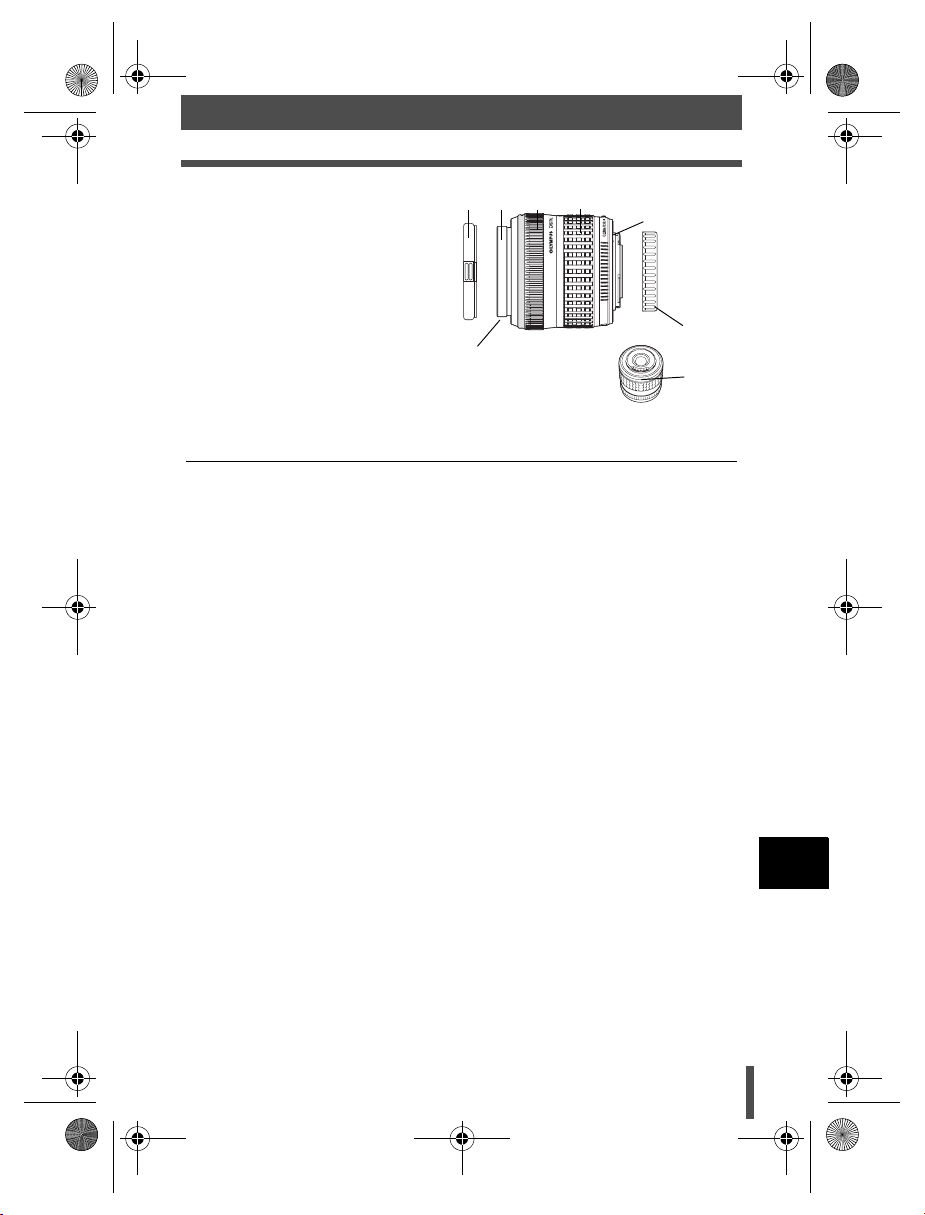

ZUIKO DIGITAL interchangeable lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
ZUIKO DIGITAL 14-45mm f3.5-5.6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
ZUIKO DIGITAL 17.5-45mm f3.5-5.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
s0004_e_Advanced.book Page 8 Tuesday, September 27, 2005 4:15 PM
9
For customers in North and South America
For customers in Europe
Trademarks
• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer, Inc.
• xD-Picture Card™ is a trademark.
• All other company and product names are registered trademarks and/or trademarks of
their respective owners.
• The standards for camera file systems referred to in this manual are the “Design Rule
for Camera File System/DCF” standards stipulated by the Japan Electronics and
Information Technology Industries Association (JEITA).
“CE” mark indicates that this product complies with the European
requirements for safety, health, environment and customer protection.
“CE” mark cameras are intended for sales in Europe.
This symbol [crossed-out wheeled bin WEEE Annex IV] indicates
separate collection of waste electrical and electronic equipment in the
EU countries.
Please do not throw the equipment into the domestic refuse.
Please use the return and collection systems available in your country
for the disposal of this product.
This product and bundled accessories conform to WEEE standards.
For customers in USA
Declaration of Conformity
Model Number : E-500
Trade Name : OLYMPUS
Responsible Party :
Address : Two Corporate Center Drive, P.O. Box 9058, Melville, NY
11747-9058 U.S.A.
Telephone Number : 1-631-844-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
For customers in Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
s0004_e_Advanced.book Page 9 Tuesday, September 27, 2005 4:15 PM
10
Safety precautions
Read All Instructions — Before you use the product, read all operating
instructions.
Save These Instructions — Save all safety and operating instructions for
future reference.
Heed Warnings — Read carefully and follow all warning labels on the product
and those described in the instructions.
Follow Instructions — Follow all instructions provided with this product.
Cleaning — Use only a damp cloth for cleaning. Never use any type of liquid
or aerosol cleaner, or any type of organic solvent to clean this product.
Attachments — For your safety, and to avoid damaging the product, use only
accessories recommended by Olympus.
Water and Moisture — Never use this product around water (near a bathtub,
kitchen sink, laundry tub, wet basement, swimming pool or in the rain).
Location — To avoid damage to the product and prevent personal injury,
never place this product on an unstable stand, tripod, bracket, table or cart.
Mount only on a stable tripod, stand, or bracket. Follow the instructions that
describe how to safely mount the product, and use only the mounting
devices recommended by the manufacturer.
Power Sources — Connect this product only to the power source described
on the product label. If you are not sure about the type of power supply in
your home, consult your local power company. Refer to your operating
instructions for information on using the product with a battery.
Foreign Objects, Liquid Spillage — To avoid personal injury caused by fire
or electrical shock from contact with internal high voltage points, never insert
a metal object into the product. Avoid using the product where there is a
danger of spillage.
General Precautions
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.
Lightning flash with an arrowhead, enclosed in a triangle, alerts you to the presence of uninsulated voltage
points inside the product which could cause a serious electrical shock.
An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions
in the documentation provided with the product.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER EXPOSE THIS PRODUCT TO WATER
OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
s0004_e_Advanced.book Page 10 Tuesday, September 27, 2005 4:15 PM
11
Safety precautions
Heat — Never use or store this product near any heat source such as a
radiator, heat register, stove, or any type of equipment or appliance that
generates heat, including stereo amplifiers.
Servicing — Refer all servicing to qualified personnel. Attempting to remove
the covers or disassemble the product, could expose you to dangerous high
voltage points.
Damage Requiring Service — If you notice any of the conditions described
below, refer servicing to qualified service personnel:
a) Liquid has been spilled onto the product or some other object has fallen
into the product.
b) The product has been exposed to water.
c) The product does not operate normally despite following operating
instructions. Adjust only the controls described in the operating
instructions as improper adjustment of other controls could damage the
product and require extensive repair work by a qualified technician.
d) The product has been dropped or damaged in any way.
e) The product exhibits a distinct change in performance.
Replacement Parts — When replacement parts are required, make sure that
the service center uses only parts with the same characteristics as the
originals, as recommended by the manufacturer. Unauthorized substitution
of parts could result in fire, electrical shock, or create other hazards.
Safety Check — Upon completion of servicing or repairs, ask the service
technician to perform safety checks to determine that the product is in good
working order.
WARNING
z Do not use the camera in areas exposed to flammable or explosive
gases.
A fire or explosion may result.
z Do not use the flash on people (infants, small children, etc.) at close
range.
When you fire the flash, you must be at least 1 m (3 ft) away from the faces of
your subjects. Firing the flash too close to the subject’s eyes could cause a
momentary loss of vision.
Handling the Camera
DANGER
If the product is used without observing the information given
under this symbol, serious injury or death may result.
WARNING
If the product is used without observing the information given
under this symbol, injury or death may result.
CAUTION
If the product is used without observing the information given
under this symbol, minor personal injury, damage to the
equipment, or the loss of valuable data may result.
s0004_e_Advanced.book Page 11 Tuesday, September 27, 2005 4:15 PM
12
Safety precautions
z Keep young children and infants away from the camera.
If not, the following dangerous situations may occur:
• Becoming entangled in the camera strap or power cords, causing strangulation. If
this happens, follow the doctor’s instructions.
• Accidentally swallowing the battery or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.
• Accidentally being injured by the moving parts of the camera.
z Do not use or store the camera in dusty or humid places.
Using or storing the camera in dusty or humid places may result in a fire or
electric shock.
z Do not cover the flash with a hand while firing.
Do not cover the flash or touch it after it has just been fired sequentially. It may
be hot and cause minor burns.
z Do not take apart or modify the camera.
Never attempt to disassemble the camera. The internal circuits contain high
voltage points which could cause serious burns or electrical shock.
z Do not let water or foreign objects inside the camera.
A fire or electric shock may result. If the camera is accidentally dropped in water,
or if liquid is spilled into the camera, stop using it, allow it to dry, and then remove
the battery. Contact the nearest authorized Olympus service center.
z Do not touch the battery or the battery charger while battery charging
is in progress.
Wait until charging is complete and the battery has cooled.
The battery and battery charger become hot while charging. At these times, they
may cause minor burns.
z Do not use a non-specified battery and/or charger.
Use of a non-designated battery and/or re-charger may lead to camera or battery
failure as well as other unexpected accidents. Any accidents resulting from use
of non-designated equipment will not be compensated.
CAUTION
z Stop using the camera immediately if you notice any unusual odors,
noise, or smoke around it.
If you notice any unusual odors, noise, or smoke around the camera during
operation, switch it off immediately — and remove the battery. Allow the camera
to sit idle for a few minutes to cool. Take the camera outdoors, away from
flammable objects, and carefully remove the battery. Never remove the battery
with bare hands. Contact the nearest Olympus service center immediately.
z Do not use the camera with wet hands.
Damage or electric shock may result. Also, do not connect or disconnect the
power plug with wet hands.
z Be careful with the strap when you carry the camera.
It could easily catch on stray objects — and cause serious damage.
z Do not leave the camera in areas subject to extremely high
temperature.
Doing so may cause parts to deteriorate and, in some circumstances, cause the
camera to catch fire.
s0004_e_Advanced.book Page 12 Tuesday, September 27, 2005 4:15 PM
13
Safety precautions
z When the camera contains metal parts, overheating can result in a
low-temperature burn. Pay attention to the following:
• When used for a long period, the camera will get hot. If you hold on to the camera in
this state, a low-temperature burn may be caused.
• In places subject to extremely cold temperatures, the temperature of the camera’s
body may be lower than the environmental temperature. If possible, wear gloves
when handling the camera in cold temperatures.
z Do not damage the power cable.
Do not pull on the charger’s cable or add another cable to it. Be sure to connect
or disconnect the charger’s cable while holding the power plug. If the following
cases occur, stop using and contact an Olympus dealer or authorized customer
support center.
• The power plug or cable produces heat, burning smell, or smoke.
• The power plug or cable is cracked or broken. The contact is bad on the power plug.
Battery handling precautions
Follow these important guidelines to prevent the battery from leaking,
overheating, burning, exploding, or causing electrical shocks or burns.
DANGER
z Never heat or incinerate the battery.
z Do not connect the (+) and (-) terminals to each other using metal
objects.
z Do not carry or store the battery where it may come into contact with
metal objects such as jewelry, pins, fasteners, etc.
z Never store the battery where it will be exposed to direct sunlight, or
subjected to high temperatures in a hot vehicle, near a heat source,
etc.
z Never attempt to disassemble the battery or modify it in any way, such
as by soldering.
Doing so may break the terminals or cause battery fluid to splash, resulting in
potential fire, explosion, battery leakage, overheating or other damage.
z If battery fluid gets in your eyes, loss of eyesight may result.
If battery fluid gets in your eyes, do not rub them. Flush them immediately with
clear, cold running water and seek medical attention straight away.
WARNING
z Keep the battery dry at all times. Never allow it to come into contact
with fresh or salt water.
z Do not touch or hold the battery with wet hands.
z If the rechargeable battery does not recharge within the specified
time, stop charging it and do not use it.
If you do not, fire, explosion, ignition or overheating may result.
z Do not use the battery if it is cracked or broken.
Doing so may cause explosion or overheating.
z Never subject the battery to strong shocks or continuous vibration.
Doing so may cause explosion or overheating.
s0004_e_Advanced.book Page 13 Tuesday, September 27, 2005 4:15 PM
14
Safety precautions
z Never attempt to modify the battery compartment on the camera,
never insert anything (other than the specified battery) into the
compartment.
z If the battery leaks, becomes discolored or deformed, or appears
abnormal in any way during operation, stop using the camera
immediately.
Contact your dealer or an authorized Olympus service center. Continued use
may result in fire or electric shock.
z
If the battery leaks fluid onto your clothing or skin, remove the clothing and
flush the affected area with clean, running cold water immediately. If the fluid
burns your skin, seek medical attention immediately.
CAUTION
z Do not remove the battery from the camera immediately after
operating the camera on battery power for a long time.
Doing so may cause burns.
z Remove the battery from the camera if it is not going to be used for a
long time.
Otherwise, battery leakage or overheating may cause a fire or injury.
Camera
z To protect the high-precision technology contained in this product, never
leave the camera in the places listed below, no matter if in use or storage:
• Places where temperatures and/or humidity are high or go through
extreme changes. Direct sunlight, beaches, locked cars, or near other
heat sources (stove, radiator, etc.) or humidifiers.
• In sandy or dusty environments.
• Near flammable items or explosives.
• In wet places, such as bathrooms or in the rain.
• In places subject to strong vibrations.
z Never drop the camera or subject it to severe shocks or vibrations.
z Do not leave the camera pointed directly at the sun. This may cause lens
damage, color failure, ghosting on the CCD, or may possibly start a fire.
z Condensation may form inside the camera when there is a sudden extreme
change in temperature (such as when moving from indoors to outdoors).
Acclimatize the camera to the temperature (e.g. by putting the camera into
a plastic bag) before use.
z If the camera has not been used for a long time, mold may form or the
camera may malfunction. Before using the camera, check that the camera
works properly.
z Do not touch electric contacts on cameras and interchangeable lenses.
Remember to attach the cap when removing the lens.
Handling and storage precautions
s0004_e_Advanced.book Page 14 Tuesday, September 27, 2005 4:15 PM
15
Safety precautions
z Do not place the camera near anything that could be affected by magnetism
(e.g. credit card, floppy disk, etc.). Doing so may destroy the data on these
items.
LCD monitor
z Do not push the monitor forcibly; otherwise the image may become fuzzy,
resulting in a playback mode failure or damage to the monitor. If the monitor
is damaged, be careful not to get any of the liquid crystals from the monitor
in your mouth. If liquid crystals get on your limbs or clothes, wash them off.
z A strip of light may appear on the top/bottom of the monitor. This is not a
malfunction.
z When a subject is viewed diagonally in the camera, the edges may appear
to zigzag on the monitor. This is not a malfunction; It will be less noticeable
in playback mode.
z In places subject to low temperatures, the LCD monitor may take a long
time to turn on or its color may change temporarily. When using the camera
in extremely cold places, it is a good idea to occasionally place it in a warm
place. A LCD monitor exhibiting poor performance due to low temperatures
will recover in normal temperatures.
z The LCD monitor is made with high-precision technology. However, black
spots or bright spots of light may appear on the LCD monitor. These spots
may not be uniform in color and brightness depending on their
characteristics or the angle at which you are viewing the monitor. This is not
a malfunction.
FCC Notice
z Radio and Television Interference
Change or modifications not expressly approved by the manufacturer may void
the user's authority to operate this equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Adjust or relocate the receiving antenna.
• Increase the distance between the camera and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
Only the OLYMPUS-supplied USB cables should be used to connect the camera to
USB-enabled personal computers (PC).
Any unauthorized changes or modifications to this equipment would void the
user's authority to operate.
s0004_e_Advanced.book Page 15 Tuesday, September 27, 2005 4:15 PM
16
Safety precautions
Legal and other notices
z Olympus makes no representations or warranties regarding any
damages, or benefit expected by using this unit lawfully, or any
request from a third person, which are caused by the inappropriate
use of this product.
z Olympus makes no representations or warranties regarding any
damages or any benefit expected by using this unit lawfully which are
caused by erasing picture data.
Disclaimer of Warranty
z Olympus makes no representations or warranties, either expressed or
implied, by or concerning any content of these written materials or
software, and in no event shall be liable for any implied warranty of
merchantability or fitness for any particular purpose or for any
consequential, incidental or indirect damages (including but not
limited to damages for loss of business profits, business interruption
and loss of business information) arising from the use or inability to
use these written materials or software or equipment. Some countries
do not allow the exclusion or limitation of liability for consequential or
incidental damages, so the above limitations may not apply to you.
z Olympus reserves all rights to this manual.
Warning
z Unauthorized photographing or use of copyrighted material may
violate applicable copyright laws. Olympus assumes no responsibility
for unauthorized photographing, use or other acts that infringe upon
the rights of copyright owners.
s0004_e_Advanced.book Page 16 Tuesday, September 27, 2005 4:15 PM
1
Basic operations
This camera is equipped with a variety of easy shooting
modes that automatically adjust focus and exposure as
required, as well as automatically popping up the built-in flash
when required.
A variety of advanced shooting modes are available, enabling
you to take advantage of professional shooting techniques.
Many functions can be set or adjusted with easy button
operations while referring to the menus displayed on the large-
size LCD monitor.
Now, let's take a closer look at how to use the functions and
menus.
s0004_e_Advanced.book Page 17 Tuesday, September 27, 2005 4:15 PM
18
Basic operations
1
How to use the mode dial
This camera has the following
shooting modes, which can be
switched using the mode dial.
Easy shooting modes
This camera features 6 creative modes and 15 scene modes that
automatically optimize the exposure for the subject.
AUTO
Full-auto shooting
Allows you to shoot using a lens aperture (f value) and shutter speed set by
the camera. In low-light conditions, the flash automatically pops up and fires.
This mode is recommended for normal shooting conditions.
i Portrait shooting
Suitable for shooting a portrait-style image of a person.g P. 34
l Landscape shooting
Suitable for shooting landscapes and other outdoor scenes.g P. 3 4
& Macro shooting
Suitable for taking close-up pictures (macro shooting). g P. 34
j Sport shooting
Suitable for capturing fast-moving action without blurring. g P. 3 4
/ Night scene and portrait shooting
Suitable for shooting both the main subject and background at night.
g P. 34
Scene mode
15 different scene modes are available to suit a wide range of shooting
situations. When the mode dial is set to this mode, the scene menu is
displayed. g P. 35
s0004_e_Advanced.book Page 18 Tuesday, September 27, 2005 4:15 PM
19
How to use the mode dial
1
Basic operations
Advanced shooting modes
The 4 shooting modes below will help you take advantage of a variety of
advanced shooting techniques.
P Program shooting
Allows you to shoot using an aperture and shutter speed that the camera sets.
g P. 39
A Aperture priority shooting
Allows you to set the aperture manually. The camera sets the shutter speed
automatically. g P. 4 1
S Shutter priority shooting
Allows you to set the shutter speed manually. The camera sets the aperture
automatically. g P. 4 3
M Manual shooting
Allows you to set the aperture and shutter speed manually. g P. 45
Automatic flash pop-up
When you use any of the shooting modes listed below in a low-light
environment, the flash will automatically pop up.
•
AUTO
i & /
• Any of the following scene modes: B U g
s0004_e_Advanced.book Page 19 Tuesday, September 27, 2005 4:15 PM
20
Basic operations
1
Control panel screen and function settings
Control panel screen display
1 When the power switch is set to ON, the
control panel screen (shooting
information) is displayed on the monitor.
• If the control panel screen does not appear,
press the INFO button.
• When the mode dial is set to , the scene
menu is displayed. g P. 35
2 Each time the INFO button is pressed, the display changes as follows:
How to make function settings
This camera features a wide variety of shooting functions designed to suit a
variety of different shooting conditions. You can also customize settings to
make the camera easier for you to use.
There are three basic ways to make function settings with this camera.
c Setting using direct buttons
d Setting on the control panel screen
e Setting on the menu
By mastering these operating methods, you’ll be able to make good use of the
camera’s versatile functions. Available functions differ depending on the
shooting mode.
Power switch
INFO button
Normal
Normal
Detailed
Off
s0004_e_Advanced.book Page 20 Tuesday, September 27, 2005 4:15 PM
21
Control panel screen and function settings
1
Basic operations
Setting using direct buttons
1 Press the button for the function you want to set (direct button).
• The direct menu is displayed.
Ex.) When setting white balance
2 Use the control dial to set.
• If you do not operate the control dial within a few seconds ("Button timer" g
P. 136), the control panel screen will be restored and your setting will be
confirmed. Your setting can also be confirmed by pressing the i button.
List of direct buttons
Direct buttons Function Ref. Page
1 WB (White balance) button Sets white balance P. 85
2 AF (Focus mode) button Sets focus mode P. 70
3 ISO button Sets ISO sensitivity P. 82
4
(AF frame selection) button
Selects AF frame P. 69
5
(Metering) button
Sets metering mode P. 77
6
</Y/j (Remote control/
Selftimer/Drive) button
Sets Remote control /
Selftimer / Drive
P. 62, P. 63
P. 6 5
7
F (Exposure compensation)
button
Sets exposure
compensation value
P. 7 9
8 # (Flash) switch Sets flash mode P. 53
Direct menu
2
1
s0004_e_Advanced.book Page 21 Tuesday, September 27, 2005 4:15 PM
22
Control panel screen and function settings
1
Basic operations
Setting on the control panel screen
1 Press the
i button.
• The cursor on the control panel screen lights.
2 Use the arrow pad to move the cursor to
the function you want to set.
Ex.) When setting white balance
3 Press the
i button.
• The direct menu is displayed.
4 Use the control dial to set.
• You can also use the control dial to make settings on the control panel screen
display after completing step 2.
• If you do not operate the control dial within a few seconds ("Button timer" g
P. 136), the control panel screen will be restored and your setting will be
confirmed. Your setting can also be confirmed by pressing the i button.
Cursor
Control panel screen
4
1, 3
2
Direct menu
This manual shows the control panel
operation procedures (until the direct menu
is displayed) as below.
Ex.) When setting white balance
i WBi
Control panel operation procedures
s0004_e_Advanced.book Page 22 Tuesday, September 27, 2005 4:15 PM
23
Control panel screen and function settings
1
Basic operations

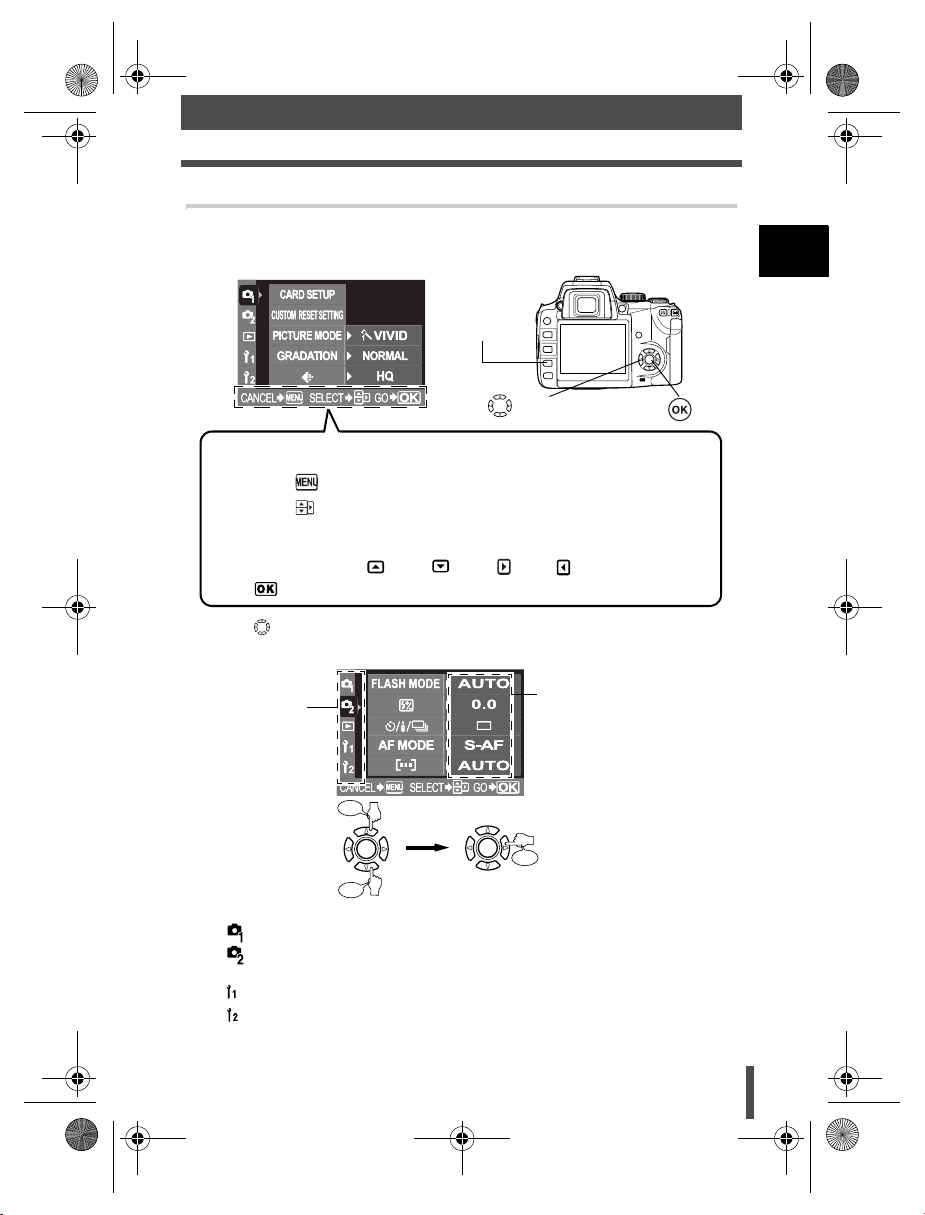

Setting on the menu
1 Press the MENU button.
• The menu is displayed on the monitor.
2 Use to select a tab.
• The functions are categorized under tabs.
Types of tabs
Sets shooting functions.
Sets shooting functions.
q Sets playback functions.
Customizes shooting functions.
Sets functions that allow you to use the camera efficiently.
Operation guide is displayed at the bottom of the screen.
CANCEL
J :Press MENU to cancel the setting.
SELECT
J :Press dac to select the item.
The illustration displayed corresponds to the arrow
pad shown below.
: a : c : d : b
GO
J :Press i to confirm your settings.
Arrow pad
MENU button
Tab
Press
Press
Press
Moves to the functions
under the tab you have
selected.
The current setting is
displayed.
s0004_e_Advanced.book Page 23 Tuesday, September 27, 2005 4:15 PM
24
Control panel screen and function settings
1
Basic operations
3 Select a function.
4 Select a setting.
5 Press i repeatedly until the menu disappears.
• Normal shooting screen is restored.
Press
Press
Press
Goes to the selected function’s
setting screen. (Some
functions can be set on the
menu.)
Function
Press
Press
Setting
Press Press
Setting screen
This manual shows the menu operation procedures as below.
Ex.) When setting white balance
Menu
[] [WB]Setting
Menu operation procedures
For the menu lists, refer to the menu directory (g P. 183).
s0004_e_Advanced.book Page 24 Tuesday, September 27, 2005 4:15 PM

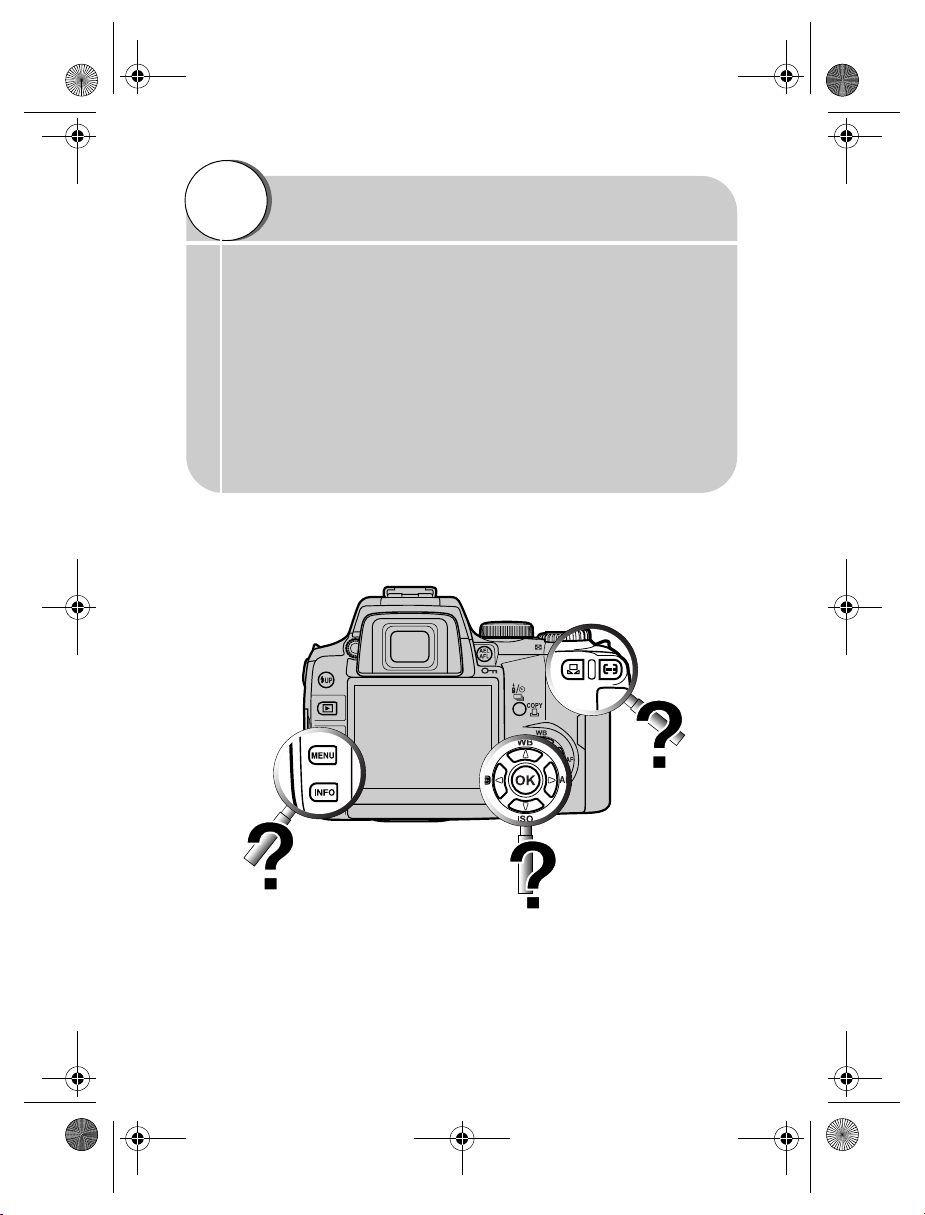

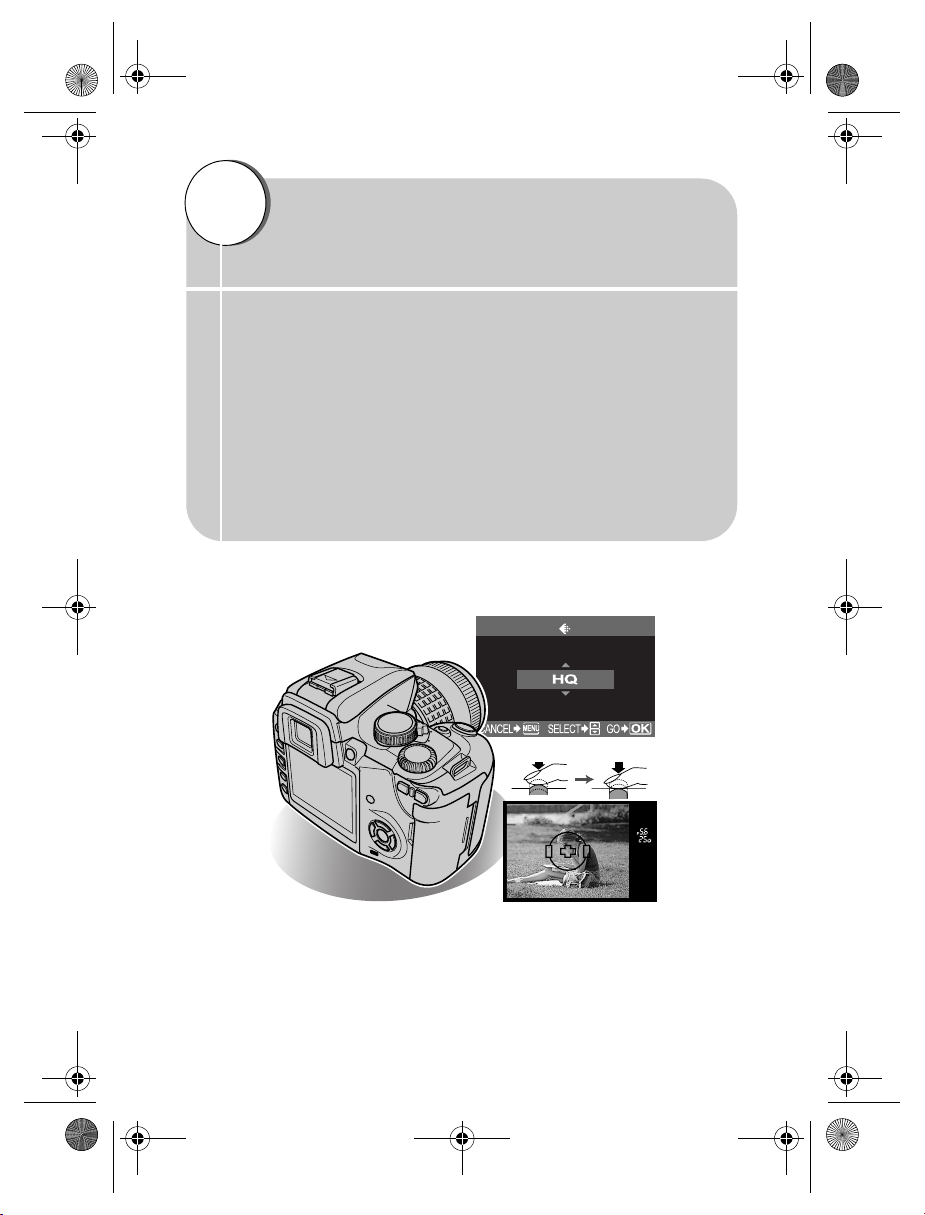

2
Things to know before
shooting
The camera focuses automatically if you simply press the
shutter button in the
AUTO
mode. However, sometimes you
may come across a subject that is difficult to focus on. This
chapter explains how to deal with those hard-to-focus
subjects. Another important thing is to select the appropriate
record mode before you start shooting. Remember that
depending on what you are going to do with your shots later,
you may find that the image looks grainy in large prints, the file
size is too big for e-mail, etc. To avoid this kind of problem,
always check the record mode before shooting.
s0004_e_Advanced.book Page 25 Tuesday, September 27, 2005 4:15 PM
26
Things to know before shooting
2
How to use card media
The camera is equipped with two card slots; you can use CompactFlash or
Microdrive simultaneously with the xD-Picture Card.
Selecting the card type
Select the type of card you want to use (xD-Picture Card or CompactFlash).
1 Menu
[] [CF/xD]
2 Use to set.
[CF] CompactFlash
[xD] xD-Picture Card
3 Press the
i button.
Formatting the card
Formatting prepares cards to receive data. Non-Olympus cards or cards
formatted on a computer must be formatted with the camera before they can
be used.
All data stored on the card, including protected images, is erased when the
card is formatted. When formatting a used card, confirm there are no images
that you still want to keep on the card.
1 Menu
[ ] [CARD SETUP]
2 Use to select [FORMAT]. Press the
i
button.
3 Press ac to select [YES]. Press the
i button.
• Formatting is performed.
s0004_e_Advanced.book Page 26 Tuesday, September 27, 2005 4:15 PM
27
2
Things to know before shooting
If correct focus cannot be obtained
The camera's auto-focus may not able to focus on the subject in the cases
shown below (e.g. when the subject is not in the center of the frame, when the
subject has lower contrast than its surroundings, etc.). If this happens, the
easiest solution is to use focus lock.
Subjects that are difficult to focus on
How to use focus lock
(if the subject is not positioned in the center of the frame)
1 Position the AF frame on the
subject you want to focus on.
The AF confirmation mark blinks.
The subject cannot be brought into focus.
Subject with low contrast
Excessively bright light
in center of frame
Subject with repeated
patterns
The AF mark stays lit, but the subject cannot be brought into focus.
Subjects at different
distances
Fast-moving subject
Subject not inside AF frame
Shutter button
Card access lamp
AF frame
s0004_e_Advanced.book Page 27 Tuesday, September 27, 2005 4:15 PM
28
If correct focus cannot be obtained
2
Things to know before shooting

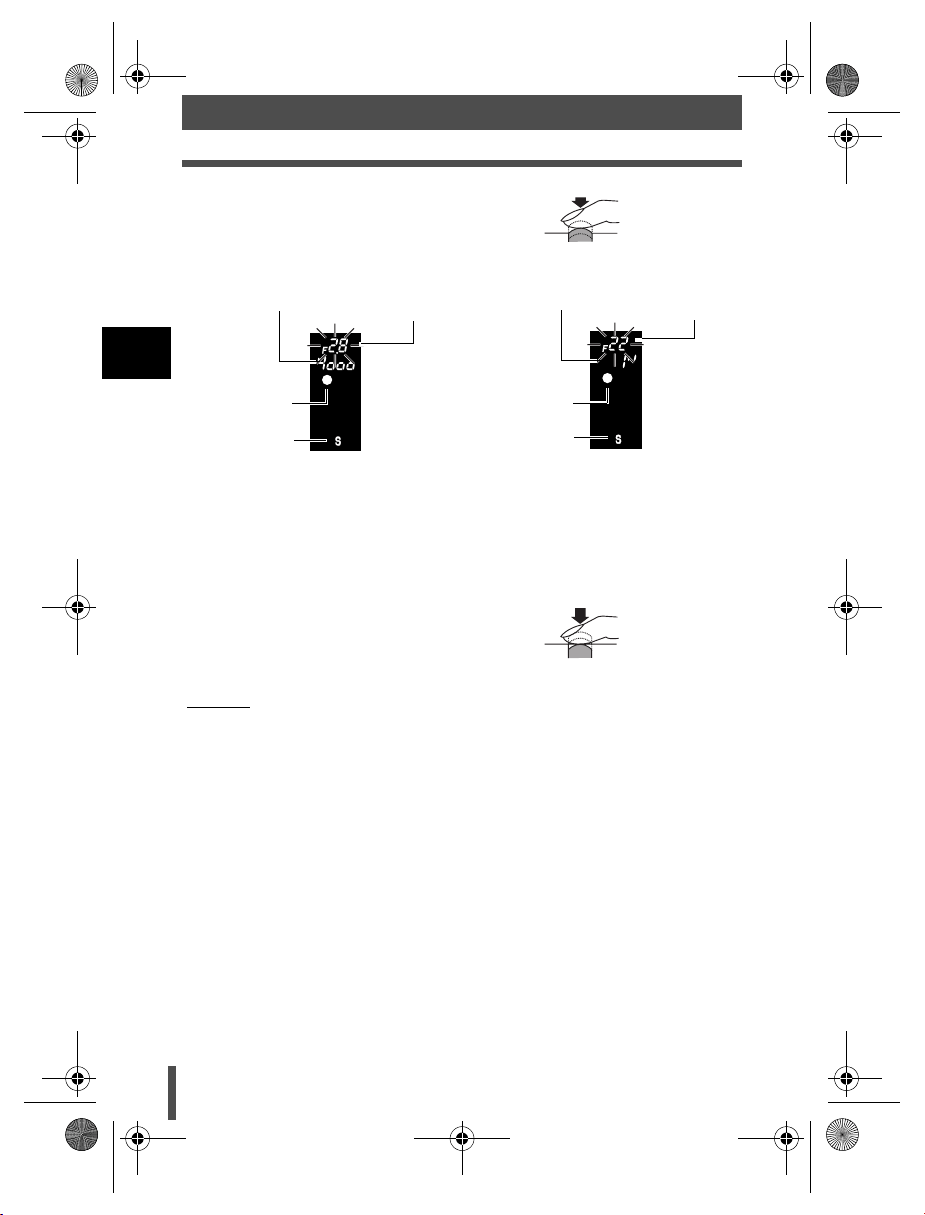

2 Press the shutter button halfway until
the AF confirmation mark lights.
• The focus is locked. The AF confirmation
mark and the AF focusing frame light up in
the viewfinder.
• If the AF comfirmation mark blinks, press the
shutter button halfway again.
• The control panel screen disappears.
3 While keeping the shutter button
pressed halfway, re-compose your shot.
4 Press the shutter button all the way.
• The card access lamp blinks while the picture
is being stored on the card.
If the subject has lower contrast than its surroundings
Focus (focus lock) on a high-contrast object the same distance away as the
intended subject, recompose your shot and then take the picture. If the subject
has no vertical lines, hold the camera vertically and adjust the focus using the
focus lock function, then return the camera to the horizontal position to take
the picture.
Halfway down
AF confirmation mark
All the way down
s0004_e_Advanced.book Page 28 Tuesday, September 27, 2005 4:15 PM
29
2
Things to know before shooting
Selecting the record mode
You can select a record mode in which to take pictures. Choose the record
mode that’s best for your purpose (printing, editing on a PC, website editing,
etc.). For details about record modes and number of pixels, refer to the table
on P. 31.
Types of record modes
Record mode allows you to select a combination of pixel count and
compression rate for the images you record. An image consists of pixels
(dots). When you enlarge an image with a low pixel count, it will be displayed
as a mosaic. If an image has a high pixel count, the file size (amount of data)
will be larger and the number of storable still pictures will be lower. The higher
the compression, the smaller the file size. However, the image will have less
clarity when played back.
Application
Number of pixels
Quality (Compression)
Non-
compression
1/1
Low
compression
1/2.7
High
compression
1/4
High
compression
1/8
High
compression
1/12
Select for the
print size
3264x2448 TIFF SHQ HQ
3200x2400
2560x1920
1600x1200
1280x960
1024x768
–SQ
For small-sized
print and
website
640x480
Image with a high pixel count
Image with a low pixel count
Number of pixels increases
Image becomes clearer
s0004_e_Advanced.book Page 29 Tuesday, September 27, 2005 4:15 PM
30
Selecting the record mode
2
Things to know before shooting
How to select the record mode
1 Menu
[][D]
2 Use to set.
[RAW] / [TIFF] / [SHQ] / [HQ] / [SQ] /
[RAW+SHQ] / [RAW+HQ] / [RAW+SQ]
3 Press the i button.
Setting the number of pixels and compression rate
1 Menu [] [HQ]
Menu
[] [SQ]
2 Follow the steps depending on the record mode you have selected.
[HQ]
1) Use to set the compression rate.
[1/4] / [1/8] / [1/12]
[SQ]
1) Use to set the number of pixels.
[3200x2400] / [2560x1920] / [1600x1200] /
[1280x960] / [1024x768] / [640x480]
2) Use to set the compression rate.
[1/2.7] / [1/4] / [1/8] / [1/12]
3 Press the
i button.
s0004_e_Advanced.book Page 30 Tuesday, September 27, 2005 4:15 PM
31
Selecting the record mode
2
Things to know before shooting
Record mode
The file size in the table is approximate.
Record mode
Number of pixels
(PIXEL COUNT)
Compression File format File size (MB)
RAW
3264x2448
Uncompressed ORF 13.6
TIFF Uncompressed TIFF 24.5
SHQ 1/2.7
JPEG
6.4
HQ
1/4 4.5
1/8 2.5
1/12 1.8
SQ
3200x2400
1/2.7 6.2
1/4 4.4
1/8 2.4
1/12 1.8
2560x1920
1/2.7 3.7
1/4 2.5
1/8 1.3
1/12 0.8
1600x1200
1/2.7 1.5
1/4 1.0
1/8 0.5
1/12 0.4
1280x960
1/2.7 0.9
1/4 0.6
1/8 0.3
1/12 0.2
1024x768
1/2.7 0.6
1/4 0.4
1/8 0.2
1/12 0.2
640x480
1/2.7 0.3
1/4 0.2
1/8 0.1
1/12 0.1
Notes
• The number of remaining pictures may change according to the subject or factors
like whether print reservations have been made or not. In certain instances, the
number of remaining pictures displayed on the viewfinder or the monitor does not
change even when you take pictures or stored images are erased.
• The actual file size varies depending on the subject.
s0004_e_Advanced.book Page 31 Tuesday, September 27, 2005 4:15 PM
3
Selecting the right mode
for shooting conditions
Close-ups of small objects like flowers or jewelry, capturing a
fast-moving subject like a child running around, shooting with
a natural-looking illuminated background at night — did you
ever wonder how to achieve the results you want without
complicated and time-consuming camera settings?
With this camera, you will find a new way of capturing all those
special moments and effects in an instant. All you have to do
is to select the appropriate scene mode from the “Easy
shooting modes” and concentrate on your composition; no
complicated settings as with other cameras.
You can also set the aperture value and shutter speed in the
“Advanced shooting modes”. The more you shoot, the more
possibilities you will discover.
s0004_e_Advanced.book Page 32 Tuesday, September 27, 2005 4:15 PM
33
3
Selecting the right mode for shooting conditions
Shooting modes
This camera has different shooting modes, which can be switched using the
mode dial.
Easy shooting modes...................
AUTO
, i, l, &, j, /,
Advanced shooting modes ..........
P, A, S, M
AUTO
is recommended for normal shooting conditions.
The shutter speed and aperture value that have been set automatically by the
camera are displayed on the viewfinder and control panel screen. When the
camera is set to , the scene menu is displayed.
Shutter speed indication
If the selected shutter speed is less than 1 second, only its denominator will be
displayed such as 250 for 1/250 sec., and if more than 1 second, a double-
quote mark " will be displayed such as 2" for 2 sec.
Control panel screen Viewfinder
s0004_e_Advanced.book Page 33 Tuesday, September 27, 2005 4:15 PM
34
Selecting the right mode for shooting conditions
3
Easy shooting modes
When you select a mode to suit the shooting situation, the camera optimizes
the settings for the shooting situations.
Creative modes
1 Set the mode dial to the mode you want
to use.
AUTO Full-auto shooting
The camera sets the optimum aperture value and shutter speed
automatically according to the subject brightness. In low-light
conditions, the flash automatically pops up and fires. AUTO is
recommended for normal shooting conditions.
i Portrait
l Landscape
& Macro
j Sport
/ Night scene + Portrait
15 different scene modes are available. g "Scene modes" (P. 35)
2 Press the shutter button halfway.
• Focusing is performed and the AF
confirmation mark lights on the viewfinder.
• The shutter speed and aperture value that
have been set automatically by the camera
are displayed on the viewfinder.
3 Press the shutter button all the way.
• The image is recorded on the card.
Halfway down
Shutter speed
Viewfinder
Aperture value
AF confirmation
mark
All the way down
s0004_e_Advanced.book Page 34 Tuesday, September 27, 2005 4:15 PM
35
Easy shooting modes
3
Selecting the right mode for shooting conditions
Scene modes
1 Set the mode dial to .
• The scene menu appears.
2 Use
ac to select the scene mode.
• A sample image of the selected mode is displayed.
3 Press the
i button.
• The camera enters the shooting stand-by mode.
•
To change the setting, press the
i
button again. The
scene
menu appears.
I 1 PORTRAIT
Suitable for shooting a portrait-style image of a
person. Only the subject is brought into focus with
a blurred background.
L 2 LANDSCAPE
Suitable for shooting landscapes and other
outdoor scenes. Vivid reproduction of blues and
greens.
K 3 LANDSCAPE+PORTRAIT
Suitable for shooting both main subject and
background.
The camera brings both of them into focus.
s0004_e_Advanced.book Page 35 Tuesday, September 27, 2005 4:15 PM
36
Easy shooting modes
3
Selecting the right mode for shooting conditions

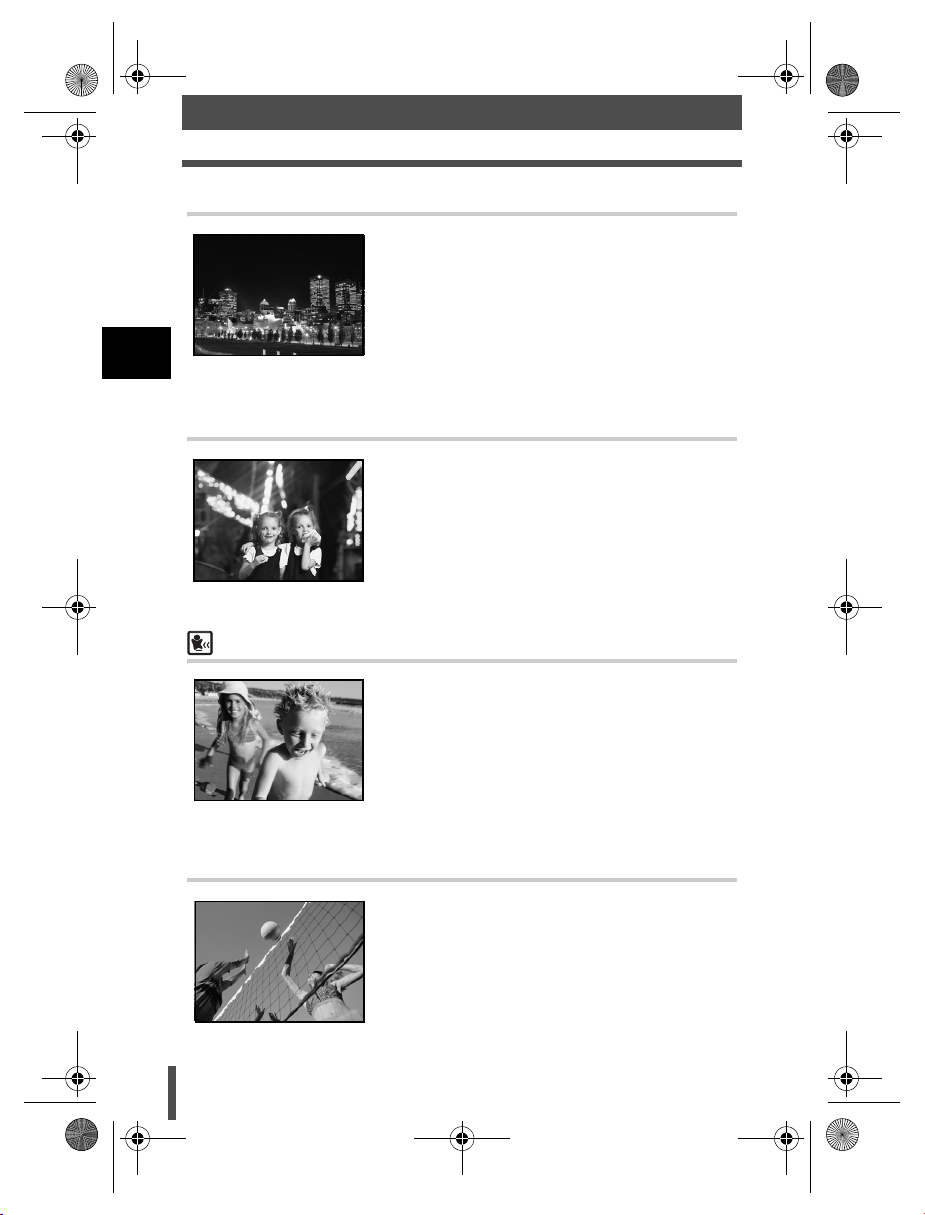

G 4 NIGHT SCENE
Suitable for shooting images of outdoor scenes in
the evening or at night.
Usually a street at night makes a dark image with
only the sparkle of lights such as street lamps due
to the lack of brightness.This mode allows you to
capture the true appearance of the street.
• Since the shutter speed is slow, be sure to stabilize
the camera.
? 5 NIGHT+PORTRAIT
Suitable for shooting both the main subject and
background at night.
Since the shutter speed is slow, be sure to
stabilize the camera.
• The flash fires in the red-eye reduction mode.
g "Flash shooting" (P. 50)
6 CHILDLEN
Since AF is performed continuously, you can take
pictures of children at play without blurring.
J 7 SPORT
Suitable for capturing fast-moving action without
blurring.
s0004_e_Advanced.book Page 36 Tuesday, September 27, 2005 4:15 PM
37
Easy shooting modes
3
Selecting the right mode for shooting conditions
8 HIGH KEY
Optimized for bright scenes. Subject brightness is
correctly reproduced, producing an image with
impact.
9 LOW KEY
Optimized for dark scenes. Subject darkness is
correctly reproduced, without producing dark
shadows.
10 MACRO
The camera closes the aperture and focuses
across a wider range in the forward and backward
directions (more depth of field) to enable you to
shoot close-up pictures (macro shooting).
• If you use the flash, shadows may be noticeable
and the correct exposure may not be achieved.
& 11 CANDLE
Suitable for shooting under candlelight. Warm
colors are reproduced.
• The flash cannot be used.
s0004_e_Advanced.book Page 37 Tuesday, September 27, 2005 4:15 PM
38
Easy shooting modes
3
Selecting the right mode for shooting conditions
* 12 SUNSET
Suitable for taking sunset pictures.
Vivid red and yellow color reproduction.
• The flash cannot be used.
• Since the shutter speed is slow, be sure to stabilize
the camera.
( 13 FIREWORKS
Suitable for shooting fireworks.
• Since the shutter speed is slow, be sure to stabilize
the camera.
• The flash cannot be used.
• AF is not possible. Use manual focus (MF).
@ 14 DOCUMENTS
Suitable for shooting documents, etc. Increases
contrast between letters and background.
• The flash cannot be used.
g 15 BEACH & SNOW
Suitable for shooting snow-capped mountain
landscapes, white sand beaches, seascapes, etc.
s0004_e_Advanced.book Page 38 Tuesday, September 27, 2005 4:15 PM
39
3
Selecting the right mode for shooting conditions
Advanced shooting modes
For more advanced shooting and greater creative control, you can set the
aperture value and shutter speed.
P : Program shooting
The camera sets the optimum aperture value and shutter speed automatically
according to the subject brightness. This mode is useful if you do not
necessarily want to use the flash.
You can also perform program shift as needed to change the combination of
aperture and shutter speed while keeping the correct EV (exposure value).
1 Set the mode dial to
P.
2 Press the shutter button halfway.
• Focusing is performed and the AF
confirmation mark lights on the viewfinder.
• The shutter speed and aperture value that
have been set automatically by the camera
are displayed on the viewfinder.
3 Press the shutter button all the way.
• The image is recorded on the card.
Aperture value
Halfway down
Viewfinder
AF
confirmation
mark
Exposure mode
Shutter speed
All the way down
s0004_e_Advanced_03_scene.fm Page 39 Wednesday, September 28, 2005 10:52 AM
40
Advanced shooting modes
3
Selecting the right mode for shooting conditions
Aperture values and shutter speeds in the
P
mode
In the P mode, the camera is programed so that the aperture value and
shutter speed are selected automatically according to the subject brightness
as shown below.
Program shift (
%
)
By rotating the control dial in the P mode, you
can change the combination of aperture and
shutter speed while keeping the optimum
exposure.
The program shift setting will not be canceled
after shooting. To cancel program shift setting,
rotate the control dial so that the viewfinder
indication
% changes to
P or turn off the
power. Program shift is not available when you
are using a flash.
When using the
ED 50mm f2
MACRO lens
(e.g. when EV is 7, the
aperture value is set to F2
and the shutter speed to
1/30.)
When using the
14mm-54mm
f2.8-3.5 zoom
lens (focal
length : 54mm)
When using the
14mm-54mm
f2.8-3.5 zoom
lens (focal
length : 14mm)
Aperture value
Viewfinder
AF
confirmation
mark
Exposure mode
Shutter
speed
s0004_e_Advanced.book Page 40 Tuesday, September 27, 2005 4:15 PM
41
Advanced shooting modes
3
Selecting the right mode for shooting conditions
A : Aperture priority shooting
The camera sets the optimum shutter speed automatically for the aperture
value you have selected. When you open the aperture (decrease the aperture
value), the camera will focus within a shorter range (shallow depth of field) and
produce a picture with a blurred background. Conversely, when you close the
aperture (increase the aperture value), the camera will focus over a wider
range in the forward and backward directions (more depth of field), producing
a picture with clear focus throughout the image area. Before shooting, you can
use the preview function to check how the background will look in your picture.
1 Set the mode dial to
A.
2 Rotate the control dial
to
set the aperture value.
When the aperture value
(f-number) is decreased
When the aperture value
(f-number) is increased
Large aperture (f-number is decreased)
Small aperture (f-number is increased)
s0004_e_Advanced.book Page 41 Tuesday, September 27, 2005 4:15 PM
42
Advanced shooting modes
3
Selecting the right mode for shooting conditions
3 Press the shutter button halfway.
• Focusing is performed and the AF
confirmation mark lights on the viewfinder.
• The shutter speed that has been set
automatically by the camera is displayed on the viewfinder.
4 Press the shutter button all the way.
TIPS
The shutter speed indication does not stop blinking after the aperture value is
changed.
J If the shutter speed indication is blinking when set to a high speed, set the
ISO sensitivity to a lower value or use a commercially-available ND filter (for
adjusting the amount of light).g "ISO — Setting the desired sensitivity to
light" (P. 82)
J If the shutter speed indication is blinking when set to a lower speed, set the
ISO sensitivity to a higher value.g "ISO — Setting the desired sensitivity
to light" (P. 82)
To change the EV step interval:
J In the menu, set the EV step interval to 1/3EV, 1/2EV or 1EV. g "EV step"
(P. 123)
To check the depth of field with the selected aperture value:
J Refer to "Preview function" (P. 47)
Halfway down
Underexposed when the
shutter speed indication is
blinking. Decrease the
aperture value (f-number).
Overexposed when the
shutter speed indication is
blinking. Increase the
aperture value (f-number).
Viewfinder
Shutter speed
Aperture value
Exposure mode
AF confirmation
mark
Viewfinder
Shutter speed
Aperture value
Exposure mode
AF confirmation
mark
All the way down
s0004_e_Advanced.book Page 42 Tuesday, September 27, 2005 4:15 PM
43
Advanced shooting modes
3
Selecting the right mode for shooting conditions

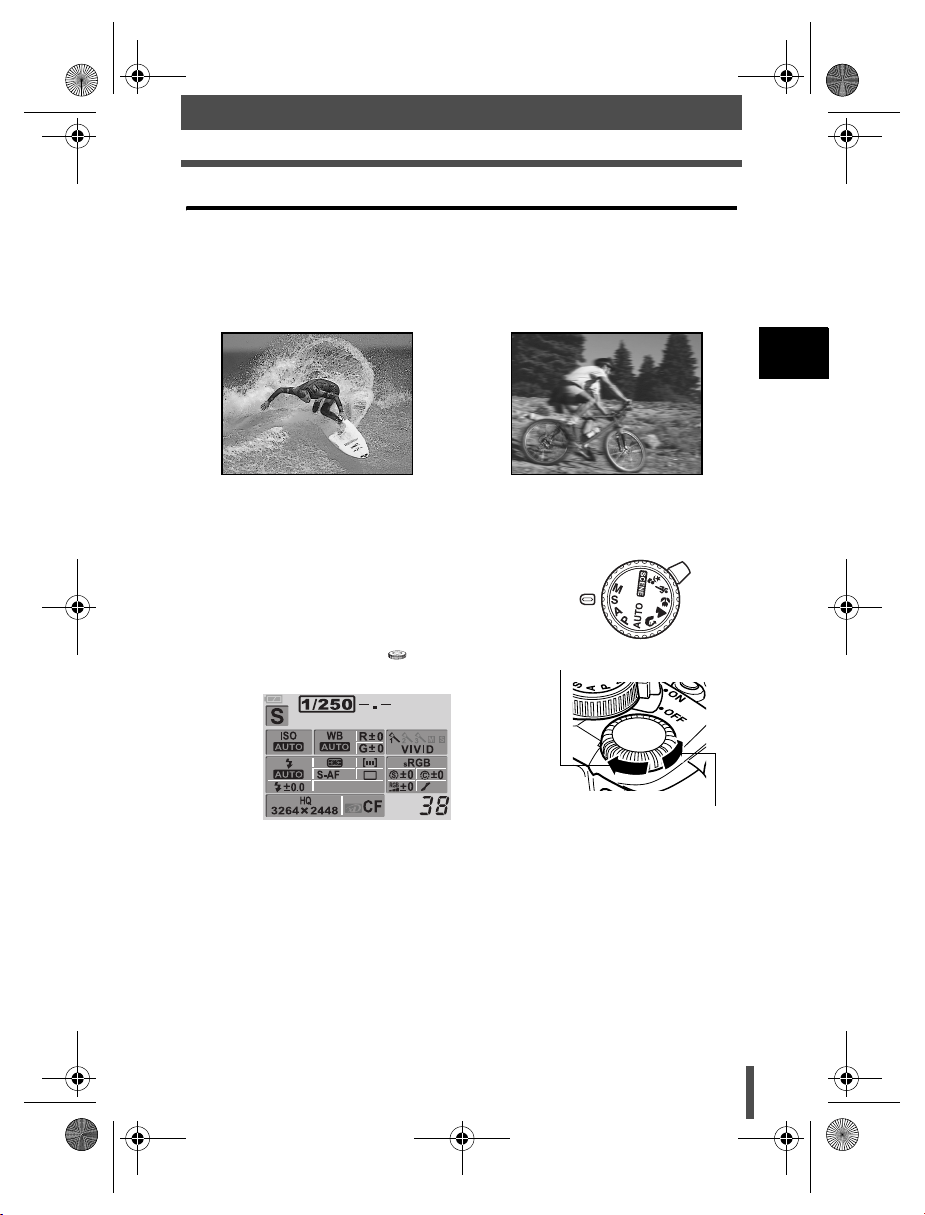

S : Shutter priority shooting
The camera sets the optimum aperture value automatically for the shutter
speed you have selected. Set the shutter speed depending on the type of
effect you want: a higher speed shutter allows you to capture a fast-moving
subject without blur, and a slower shutter speed blurs a moving subject,
creating a feeling of speed or motion.
1 Set the mode dial to
S.
2 Rotate the control dial
to set the
shutter speed.
A fast shutter speed can freeze a
fast action scene without any blur.
A slow shutter speed blurs a moving
subject, generating a sense of movement
to create a more powerful visual impact.
Slower shutter speed
Faster shutter speed
s0004_e_Advanced.book Page 43 Tuesday, September 27, 2005 4:15 PM
44
Advanced shooting modes
3
Selecting the right mode for shooting conditions
3 Press the shutter button halfway.
• Focusing is performed and the AF
confirmation mark lights on the viewfinder.
• The aperture value that has been set
automatically by the camera is displayed on the viewfinder.
4 Press the shutter button all the way.
TIPS
The picture looks blurred.
J The possibility of camera shake spoiling your picture increases greatly
during macro or ultra-telephoto shooting. Set the shutter speed higher or use
a monopod or tripod to stabilize the camera.
The aperture value indication does not stop blinking after the shutter speed is
changed.
J If the aperture value indication at the maximum value is blinking, set the ISO
sensitivity to a lower value or use a commercially-available ND filter (for
adjusting the amount of light). g "ISO — Setting the desired sensitivity to
light" (P. 82)
J If the aperture value indication at the minimum value is blinking, set the ISO
sensitivity to a higher value. g "ISO — Setting the desired sensitivity to
light" (P. 82)
To change the EV step interval:
J In the menu, set the EV step interval to 1/3EV, 1/2EV or 1EV. g "EV step"
(P. 123)
Halfway down
Viewfinder
Shutter speed
Aperture value
Exposure mode
AF confirmation
mark
Viewfinder
Shutter speed
Aperture value
Exposure mode
AF confirmation
mark
If the aperture value indication at the
minimum value is blinking*, the
correct exposure has not been
attained (underexposed). Set the
shutter speed slower.
If the aperture value indication at the
maximum value is blinking*, the correct
exposure has not been attained
(overexposed). Set the shutter speed
higher.
* The aperture value at the moment when its indication blinks varies depending on the
lens type and focal length of the lens.
All the way down
s0004_e_Advanced.book Page 44 Tuesday, September 27, 2005 4:15 PM
45
Advanced shooting modes
3
Selecting the right mode for shooting conditions

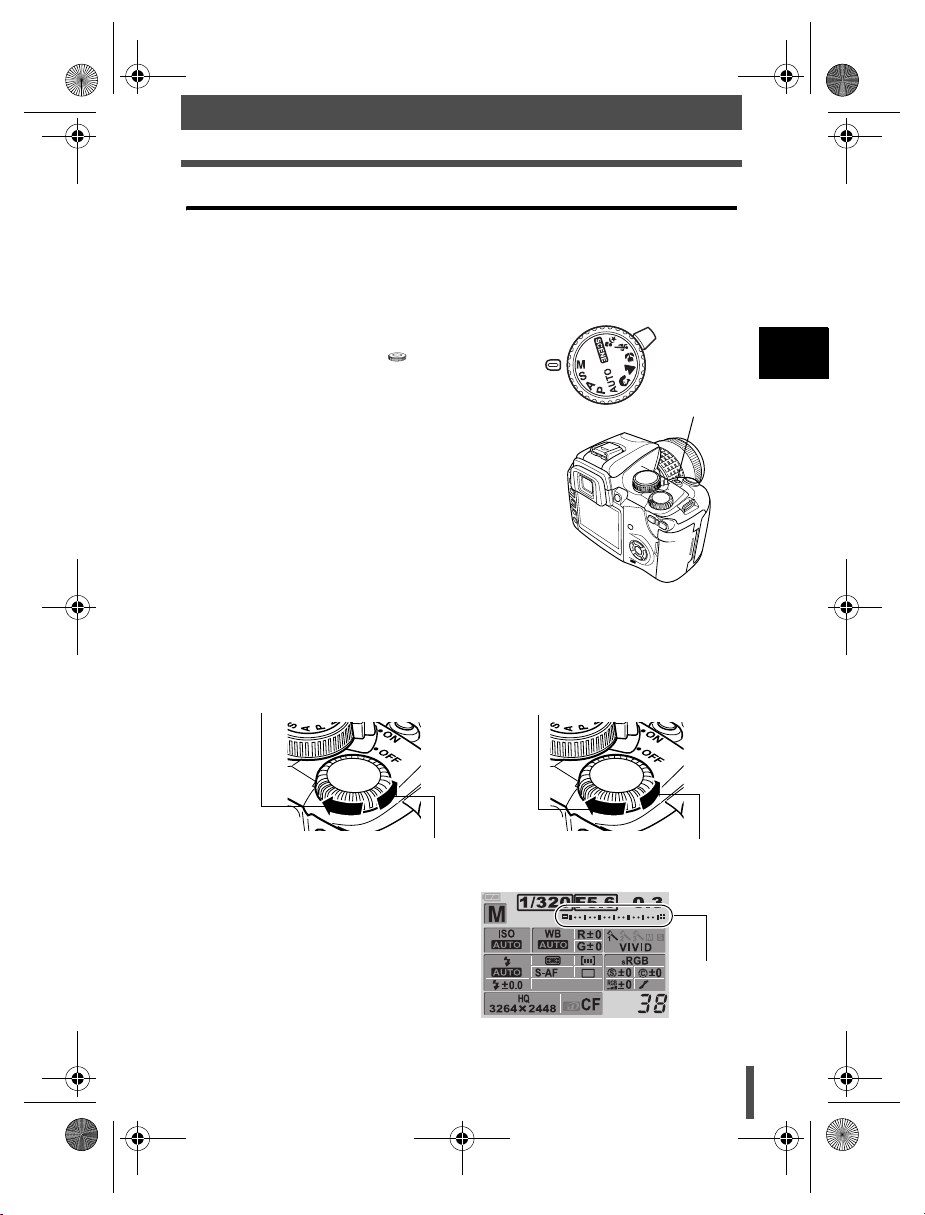

M : Manual shooting
You can set both aperture value and shutter speed manually, while referring to
the exposure level indicator. This mode gives you more creative control,
allowing you to make whatever settings you like, regardless of the correct
exposure. Bulb shooting is also possible, allowing you to take astronomical or
fireworks pictures.
1 Set the mode dial to
M.
2 Rotate the control dial to set the
value.
• Control dial factory default settings:
To set the shutter speed: Rotate the control
dial.
To set the aperture value: Rotate the control
dial while holding down the F (exposure
compensation) button.
Setting [DIAL] changes the control dial
function so that aperture value can be set by
simply rotating the control dial.
• The range of aperture values available
depends on the lens type.
• The shutter speed can be set to 1/4000 -
60"(sec.) or [bulb].
• The aperture value and shutter speed
change in 1/3 EV increments as the dial is
rotated.
• The exposure level indicator
appears on the control panel
screen, showing the difference
(ranging from -3 EV to +3 EV)
between the exposure value
calculated by the currently selected
aperture and shutter speed
compared to the exposure value
considered optimum by the camera.
F button
Small aperture value (f-number is increased)
Faster shutter speed
Slower shutter speedLarge aperture (f-number is decreased)
Exposure
level
indicator
s0004_e_Advanced.book Page 45 Tuesday, September 27, 2005 4:15 PM
46
Advanced shooting modes
3
Selecting the right mode for shooting conditions
If the difference between the currently set exposure and the optimum
exposure is outside the range of available indicator levels, “ ” or “ ” will
blink on the left or right end of the exposure level indicator.
3 Take the picture.
Noise in images
During shooting at slow shutter speeds of 30 or more
seconds, noise may appear on-screen or the image
may be overly bright in the top left part of the screen.
These phenomena are caused when current is
generated in those sections of the CCD that are not
normally exposed to light, resulting in a rise in
temperature in the CCD or CCD drive circuit. This can
also occur when shooting with a high ISO setting in an
environment exposed to heat. The NOISE
REDUCTION function helps reduce this noise. g "Noise reduction" (P. 95)
Bulb shooting
You can take a picture with a bulb exposure time in which the shutter stays open as
long as you hold down the shutter button (up to 8 minutes). Set the shutter speed to
[bulb] in the M mode. Bulb shooting can also be done using the optional remote
control (RM-1). g "Bulb shooting on the remote control" (P. 67)
TIPS
The picture looks blurred.
J The possibility of camera shake spoiling your picture increases greatly when
you take a picture at slow shutter speed. Use a monopod or tripod to
stabilize the camera.
To change the EV step interval:
J In the menu, set the EV step interval to 1/3EV, 1/2EV or 1EV. g "EV step"
(P. 123)
Underexposure
Overexposure
Optimum exposure
All the way down
s0004_e_Advanced.book Page 46 Tuesday, September 27, 2005 4:15 PM
47
3
Selecting the right mode for shooting conditions

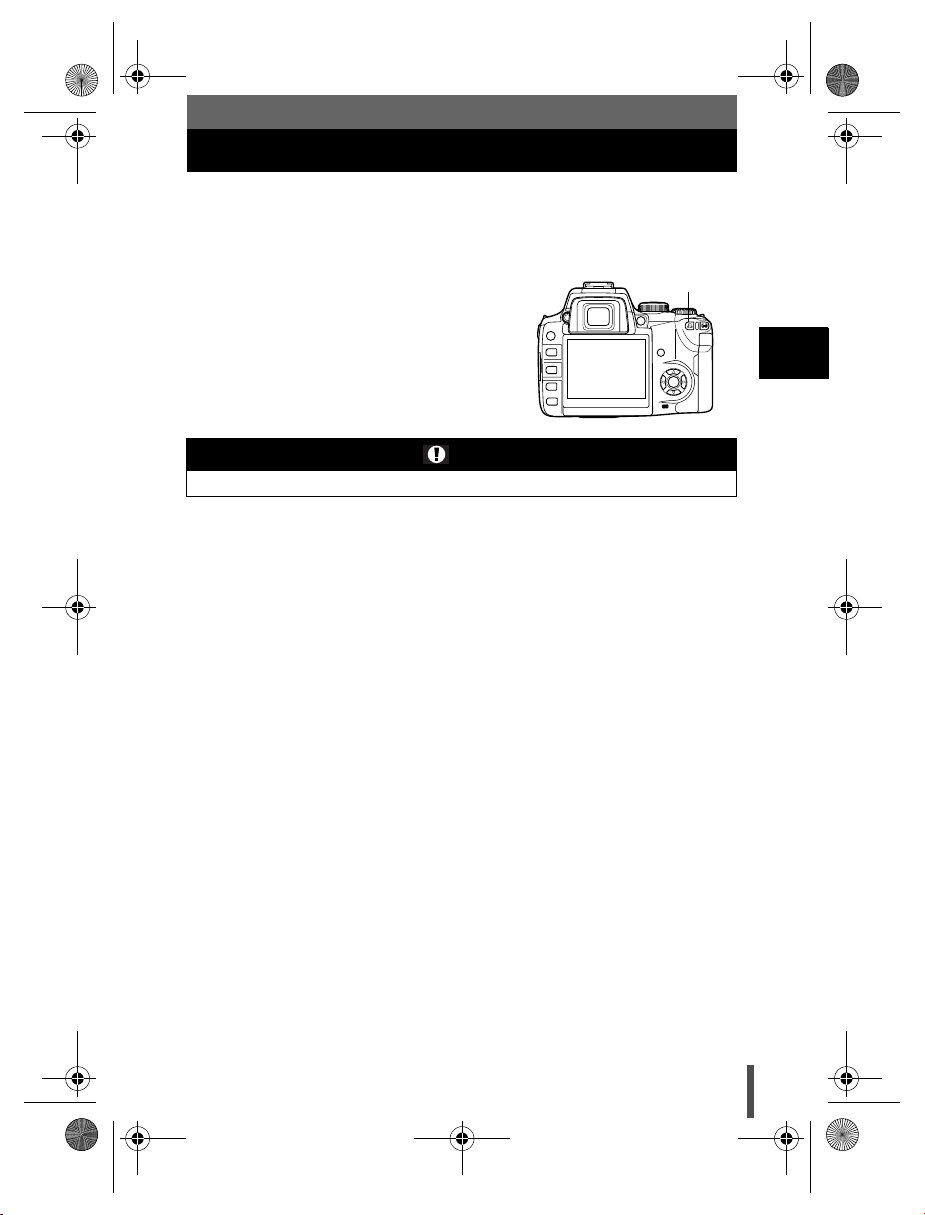

Preview function
If you press the V (One-touch WB) button, the viewfinder shows the actual
depth of field (the distance from the nearest to the furthest point of perceived
“sharp” focus) in a picture, with the selected aperture value. Assign preview
function to the V button beforehand. g "V button function" (P. 128)
1 Press the
V button.
Notes
• The metering values cannot be changed in the preview mode.
V button
s0004_e_Advanced.book Page 47 Tuesday, September 27, 2005 4:15 PM
4
Various shooting functions
The flash and drive modes (sequential shooting) are the keys to
advanced shooting techniques. Selecting a flash mode to suit a
specific shooting situation or adjusting the amount of light
emitted by the flash will produce an image that is different from
what would be obtained when less precise settings are used.
In shooting modes such as AUTO, PORTRAIT, and
NIGHT+PORTRAIT, the built-in flash will automatically pop up
in low light or backlight conditions.
With Drive mode, you can take several pictures of the same
scene in sequence with different exposure or white balance
settings (Auto bracketing). There is no need to change the
settings before taking each picture.
s0004_e_Advanced.book Page 48 Tuesday, September 27, 2005 4:15 PM
49
4
Various shooting functions
Auto bracketing
You can shoot with compensated values such as exposure and white balance.
This is useful for obtaining the optimum value.
This camera is capable of the following types of auto bracketing:
* The WB bracketing function can be used at the same time as any of the
other bracketing functions.
Auto bracketing Comparison Ref. Page
AE bracketing
Shoots multiple frames at different exposure
values.
P. 8 3

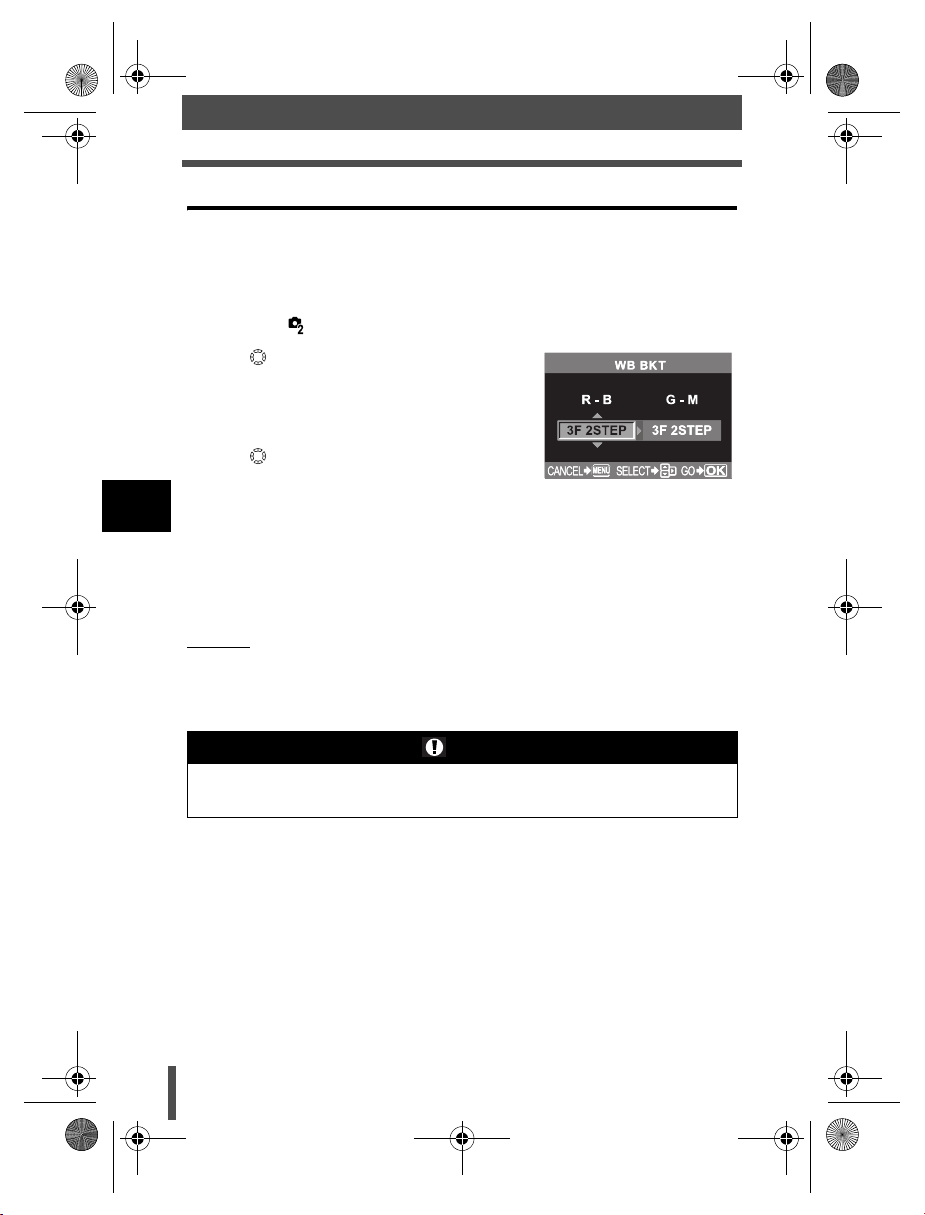

WB bracketing*
Creates frames with different white balances
from one shot.
P. 9 2
MF bracketing
Shoots multiple frames at different focusing
points.
P. 7 4
Flash bracketing
Shoots multiple frames, changing the amount of
light emitted by the flash for each shot.
P. 5 7
s0004_e_Advanced.book Page 49 Tuesday, September 27, 2005 4:15 PM
50
Various shooting functions
4
Flash shooting
Flash mode
The camera sets the flash mode according to various factors such as firing
pattern and flash timing. Available flash modes depend on the exposure
mode. The flash modes are available to optional external flashes.
When the mode dial is set to AUTO, the built-in flash will pop up automatically
in low light conditions.
Auto-flash AUTO
The flash fires automatically in low light or backlight conditions.
To shoot a subject with backlighting, position the AF frame over the subject.
Red-eye reduction flash !
In the red-eye reduction flash mode,
a series of pre-flashes are emitted
just before the regular flash fires.
This helps accustom the subject’s
eyes to the bright light and minimizes
the red-eye phenomenon.
Slow synchronization/Red-eye reduction flash HSLOW
The slow synchronization flash is designed for slow shutter speeds. Normally,
when shooting with a flash, shutter speeds cannot go below a certain level to
prevent camera movement. But when shooting a subject against a night scene,
fast shutter speeds can make the background too dark. Slow synchronization
allows you to capture both the background and the subject. Red-eye reduction
is also available. Since the shutter speed is slow, be sure to stabilize the camera
by using a tripod so as not to cause the picture to be blurred.
Notes
• After the pre-flashes, it takes about 1 second before the shutter is released. Hold
the camera firmly to avoid camera movement.
• Effectiveness may be limited if the subject is not looking directly at pre-flashes, or if
the shooting range is too far. Individual physical characteristics may also limit
effectiveness.
The subject’s eyes appear red.
s0004_e_Advanced.book Page 50 Tuesday, September 27, 2005 4:15 PM
51
Flash shooting
4
Various shooting functions
1st curtain
Usually, the flash fires right after the shutter fully opens. This is called 1st curtain.
Unless you change it, this is how the flash always fires.
Slow synchronization/Red-eye reduction flash HSLOW2
2nd curtain flash fires just before the shutter closes. Changing the flash timing
can create interesting effects in your picture, such as expressing the
movement of a car by showing the tail-lights streaming backwards. The slower
the shutter speed, the better the effects turn out. The slowest possible shutter
speed depends on the shooting mode.
When the shutter speed is set to 2 sec.
Fill-in flash #
Å@
The flash fires regardless of the light
conditions. This mode is useful for
eliminating shadows on the subject’s
face (such as shadows from tree
leaves), in a backlight situation, or for
correcting the color shift produced by
artificial lighting (especially fluorescent light).
Notes
• When the flash fires, the shutter speed is set to 1/180 sec. or less. When shooting a
subject against a bright background with the fill-in flash, the background may be
overexposed. In this case, use the optional FL-50/FL-36 external flash and shoot in
the Super FP flash mode.
2nd curtain
Shutter closes
1st curtain flash fires
Shutter fully opens
2nd curtain flash fires
1st curtain
1
2 sec 0
2 sec
s0004_e_Advanced.book Page 51 Tuesday, September 27, 2005 4:15 PM
52
Flash shooting
4
Various shooting functions
Flash off $
The flash does not fire.
In this mode, the flash can be used as an AF illuminator when it is raised.
g "AF illuminator" (P. 75)
Flash synchronization speed
Shutter speed can be changed when the built-in flash fires.
g "Speed synchronization" (P. 126)
Manual flash
This allows the built-in flash to output a fixed amount of light. With [MANUAL
FLASH] set to [ON] (g P. 125), the amount of light can be selected in the
flash mode setting.
To shoot with manual flash, set the f value on the lens based on the distance
to the subject.
Calculate the f value on the lens using the following formula.
Aperture (f value) =
ISO sensitivity
Ratio of amount of light
GN: Guide number
Built-in flash
F-36 external flash
(optional)
FULL (1/1) 13 36
1/4 6 18
1/16 3 9
1/64 1.5 4.5
ISO value 100 200 400 800 1600
Correction coefficient 1.0 1.4 2.0 2.8 4.0
GN x ISO sensitivity
Distance to the subject (m)
s0004_e_Advanced.book Page 52 Tuesday, September 27, 2005 4:15 PM
53
Flash shooting
4
Various shooting functions
Flash modes available in different exposure mode
*1 When the flash is set to the Super FP mode, it detects backlight before
emitting light. g "Super FP flash" (P. 60)
*2 In / mode, AUTO, !,#and $ are not available.
Exposure
mode
Control panel
screen/menu
display
Flash mode
Conditions
to timing
Conditions to
fire the flash
Shutter
speed
restrictions
P
A
i
&
l
/*
2
j
AUTO
Auto-flash
1st curtain
Fires
automatically in
dark/backlit *
1
conditions
1/30 sec. -
1/180 sec.
!
Auto-flash
(red-eye reduction)
# Fill-in flash Always fires
60 sec. -
1/180 sec.
$ Flash off – – –
!SLOW
Slow synchronization
(red-eye reduction)
1st curtain
Fires
automatically in
dark/backlit *
1
conditions
60 sec. -
1/180 sec.
#SLOW
Slow synchronization
(1st curtain)
#SLOW2
Slow synchronization
(2nd curtain)
2nd curtain
#FULL Manual flash (FULL)
1st curtain
#1/4 Manual flash (1/4)
#1/16 Manual flash (1/16)
#1/64 Manual flash (1/64)
S
M
# Fill-in flash
Always fires
H
Fill-in flash
(red-eye reduction)
$ Flash off –– –
# SLOW2
Fill-in flash/
Slow synchronization/
(2nd curtain)
2nd curtain
Always fires
60 sec. -
1/180 sec.
#FULL Manual flash (FULL)
1st curtain
#1/4 Manual flash (1/4)
#1/16 Manual flash (1/16)
#1/64 Manual flash (1/64)
s0004_e_Advanced.book Page 53 Tuesday, September 27, 2005 4:15 PM
54
Flash shooting
4
Various shooting functions

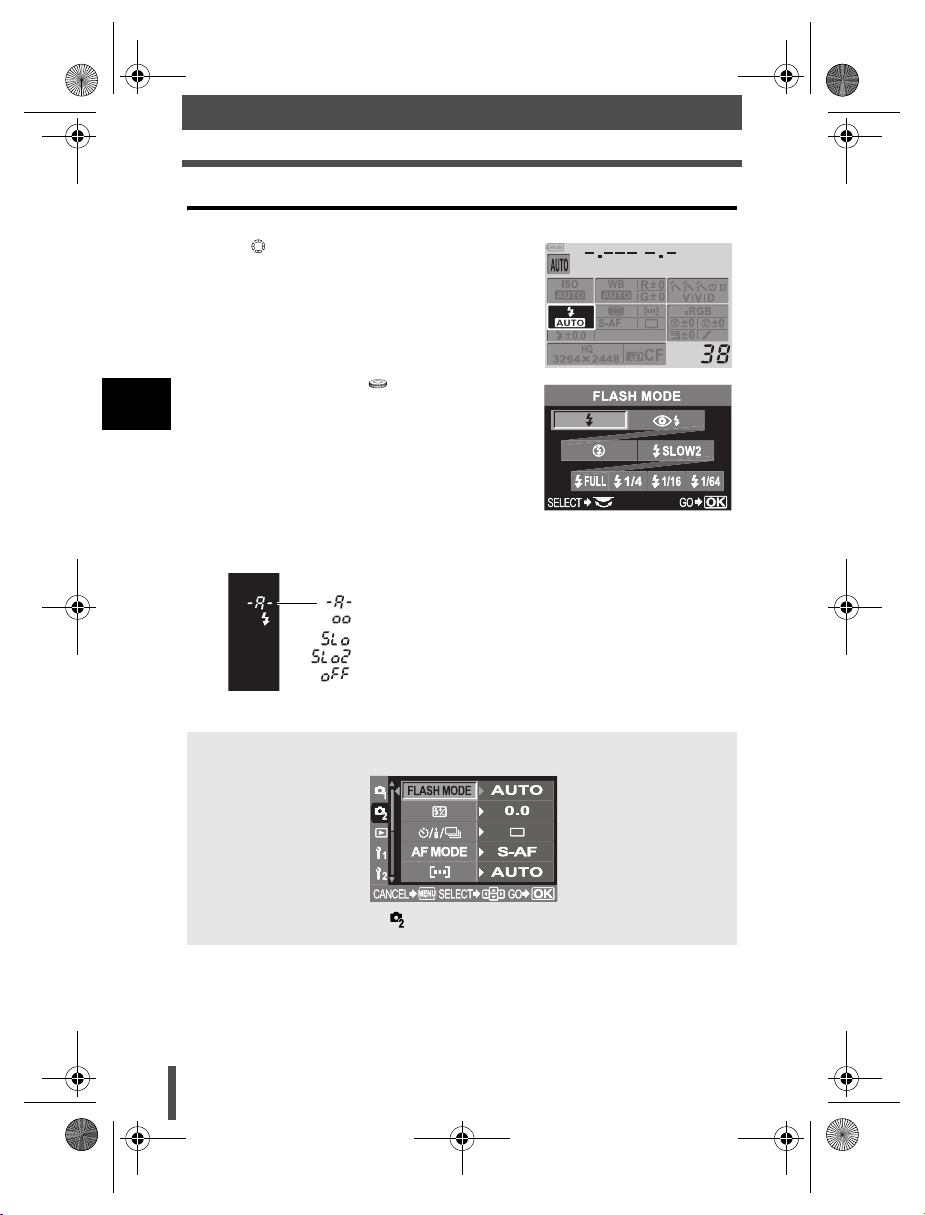

Setting the flash mode
1 i Flash mode i
2 Use the control dial to set.
When set to
P / A / i / & / l / j / /:
AUTO / ! / !SLOW / #SLOW /
#SLOW2 / # / $
When set to
S / M:
# / H / #SLOW2 / $
3 Press the i button.
Menu setting procedure
: Auto-flash
: Red-eye reduction flash
: Slow synchronization (1st curtain)
: Slow synchronization (2nd curtain)
: Flash off
Viewfinder
Menu [ ] [FLASH MODE] Setting
s0004_e_Advanced.book Page 54 Tuesday, September 27, 2005 4:15 PM
55
Flash shooting
4
Various shooting functions
Using the built-in flash
If you shoot a subject using a lens that is wider than 14 mm (equivalent to 28
mm on a 35 mm film camera), the light emitted by the flash may produce a
vignette effect. Whether or not this occurs depends on lens type and shooting
conditions (such as distance to the subject).
1 Set the power switch to ON. Press
the
# (flash) switch to raise the
flash.
• When you use any of the shooting
modes listed below, the built-in flash will
pop up and fire automatically in low light
or backlight conditions.
AUTO
/ i / & / / / B / U / /
/
g
2 Press the shutter button halfway.
• The #(flash stand-by) mark lights when the
flash is ready to fire. If the mark is blinking,
the flash is charging. Wait until charging is
complete.
3 Press the shutter button all the way.
#(flash) switch
Viewfinder
Flash stand-by
mark
s0004_e_Advanced.book Page 55 Tuesday, September 27, 2005 4:15 PM
56
Flash shooting
4
Various shooting functions
Flash intensity control
This adjusts the amount of light emitted by the flash.
In some situations (e.g., when shooting small subjects, distant backgrounds,
etc.), you may get better results by adjusting light emission. It is useful when
you intend to increase the contrast (distinction between light and dark) of
images to make the images more vivid.
1 Menu
[] [w]
2 Use to set the compensation value.
3 Press the i button.
TIPS
To call up the w setting screen quickly:
J If you press the # (flash) switch and the F (exposure compensation) button
simultaneously, the
w screen will appear. Use the control dial to set the
value.
Notes
• This does not work when the flash control mode on the electronic flash is set to
MANUAL.
• If light emission is adjusted on the electronic flash, it will be combined with the
camera’s light emission setting.
• Exposure compensation is applied to flash intensity control. When [w+F] is set to
[ON], the exposure compensation value is applied to the light emission
compensation value.
s0004_e_Advanced.book Page 56 Tuesday, September 27, 2005 4:15 PM
57
Flash shooting
4
Various shooting functions
Flash bracketing
The camera shoots multiple frames, changing the amount of light emitted by
the flash for each shot.
1 Menu
[][FL BKT]
2 Use to set.
[OFF] / [3F 0.3EV] / [3F 0.7EV] / [3F 1.0EV]
• You can change the EV step interval in the
custom menu.
g "EV step" (P. 123)
3 Press the
i button.
• When the shutter button is pressed, the camera shoots 3 frames at a time in
the following order; Frame with optimum amount of light emission, frame
adjusted in - direction and frame adjusted in + direction.
External electronic flashes (optional)
In addition to the camera’s built-in flash capabilities, you can use any of the
external flash units specified for use with this camera. This enables you to
take advantage of a wider variety of flash shooting techniques to suit different
shooting conditions.
The external flashes communicate with the camera, allowing you to control the
camera's flash modes with various available flash control modes, such as
TTL, AUTO and Super FP flash. The flash can be mounted on the camera by
attaching it to the camera’s hot shoe. For details, refer to the external flash’s
manual.
Functions available with external flash units
Optional
flash
FL-50 FL-36 FL-20 RF-11 TF-22
Flash control
mode
TTL AUTO, AUTO, MANUAL,
FP TTL AUTO, FP MANUAL
TTL AUTO,
AUTO, MANUAL
TTL AUTO,
MANUAL
GN (Guide
number)
(ISO100)
GN 50 (85 mm*)
GN 28 (24 mm*)
GN 36 (85 mm*)
GN 26 (24 mm*)
GN20
(35 mm*)
GN11 GN22
* Calculated based on 35mm film camera.
Notes
• The optional external flashes cannot be used with the built-in flash.
• The FL-40 optional flash cannot be used.
s0004_e_Advanced.book Page 57 Tuesday, September 27, 2005 4:15 PM
58
Flash shooting
4
Various shooting functions
Using the external electronic flash
Be sure to attach the flash to the camera before turning on the flash’s power.
1 Remove the hot shoe cover by
sliding it in the direction
indicated by the arrow in the
illustration.
• Keep the shoe cover in a safe
place to avoid losing it, and put it
back on the camera after flash
shooting.
2 Attach the electronic flash to
the hot shoe on the camera.
• If the lock pin is protruding, turn
the shoe lock ring as far as it will
go in the direction opposite to
LOCK. This will pull the lock pin
back inside.
3 Turn on the flash.
• When the charge lamp on the
flash lights up, charging is
complete.
• The flash will be synchronized
with the camera at a speed of
1/180 sec. or less.
4 Select a flash mode.
Lock pin
Lock ring
s0004_e_Advanced.book Page 58 Tuesday, September 27, 2005 4:15 PM
59
Flash shooting
4
Various shooting functions
5 Select the flash control mode.
• TTL-AUTO is recommended for normal use.
6 Press the shutter button halfway.
• Shooting information such as ISO sensitivity,
aperture value, and shutter speed is
communicated between the camera and
flash.
•
# lights up in the viewfinder.
7 Press the shutter button all the way.
Notes
• When shooting with the flash control mode set to TTL-AUTO, pre-flashes are emitted
before firing the regular flash.
• When the flash control mode is set to TTL-AUTO, or when shooting a subject at a
distance with ISO set to 400 or higher, flash control accuracy will decrease.
Viewfinder
# lights up:
Charging is
complete.
# blinks:
Flash
charging.
s0004_e_Advanced.book Page 59 Tuesday, September 27, 2005 4:15 PM
60
Flash shooting
4
Various shooting functions
Super FP flash
Super FP flash is available with the FL-50/FL-36. Super FP flash timing is
longer than standard flash timing. This means that pictures can be taken at a
higher shutter speed than is possible with normal flashes.
Fill-in flash shooting with the aperture open (such as in outdoor portrait
shooting) is also possible with Super FP flash. For details, refer to the external
flash’s manual.
Using commercially available flashes
Use the M exposure mode on the camera when using any commercially
available flash (except optional electronic flashes specified for this camera).
For details on non-specified commercial flashes, refer to P. 61.
1 Remove the hot shoe cover to
connect the flash unit to the
camera.
2 Set the exposure mode to
M
mode, then set the aperture
value and shutter speed.
• Set the shutter speed to 1/180
sec. or slower. If the shutter speed
is faster than this, commercially
available flashes cannot be used.
• A slower shutter speed may produce blurred images.
3 Turn on the flash.
• Be sure to turn on the flash after attaching the flash unit to the camera.
4 Set the ISO value and aperture value on the camera to match the
flash control mode on the flash.
• Refer to the flash's manual for instructions on how to set its flash control
mode.
Super FP flash
s0004_e_Advanced.book Page 60 Tuesday, September 27, 2005 4:15 PM
61
Flash shooting
4
Various shooting functions
Non-specified commercial flashes
Before selecting a non-specified commercial flash, be sure to read the
following information carefully to determine whether or not it can be used with
this camera.
1) Exposures when using a flash require that adjustments be made on the
flash. If a flash is used in the auto mode, match it with the f value and ISO
sensitivity settings on the camera.
2) Even if the flash auto f value and ISO sensitivity are set the same as on
the camera, the correct exposure may not be obtained depending on the
shooting conditions. In such a case, adjust the auto F value or ISO on the
flash or calculate the distance in the manual mode.
3) Use a flash with an illumination angle that matches the focal length of the
lens. The focal length of the lens for 35 mm film is approximately twice as
long as the focal length of the lenses designed for this camera.
4) Do not use a flash unit or other accessory TTL flash that has additional
communications functions other than the specified flashes, since it may
not only fail to function normally, but may also cause damage to the
camera’s circuitry.
Notes
• The flash fires each time the shutter is released. When you do not need to use the
flash, turn off the flash’s power.
• Check beforehand that the flash you are using is synchrorized with the camera.
• Depending on the camera's shooting mode, the built-in flash may pop up
automatically and strike the external flash.
• You can prevent the flash from automatically popping up by setting the auto flash
pop up function to Off. g "Auto flash popup" (P. 126)
s0004_e_Advanced.book Page 61 Tuesday, September 27, 2005 4:15 PM
62
Various shooting functions
4
Single-frame shooting/sequential shooting
Single-frame shooting o Shoots 1 frame at a time when the shutter button is
pressed. (normal shooting mode)
Sequential shooting
j Shoots 4 frames or more at 2.5 frames/sec. (in SHQ,
HQ or SQ) for as long as the shutter button pressed.
Focus and exposure are locked at the first frame.
1 Press the </
Y/j (Remote control/
Self-timer/Drive) button.
2 Use the control dial to set.
o Single-frame shooting
j Sequential shooting
3 Press the shutter button all the way to
take the picture.
• Press the shutter button fully and keep it
pressed. The camera will take pictures in
sequence until you release the button.
Control panel setting procedure Menu setting procedure
Notes
• Sequential shooting is not possible when [NOISE REDUCTION] (g P. 95) is set
to [ON].
• During sequential shooting, if the battery check blinks due to low battery, the
camera stops shooting and starts saving the pictures you have taken on the card.
The camera may not save all of the pictures depending on how much battery power
remains.
j
</Y/j button
: Single-frame shooting
: Sequential shooting
Viewfinder
i Drive mode i
Menu [][Y/</j]Setting
s0004_e_Advanced.book Page 62 Tuesday, September 27, 2005 4:15 PM
63
4
Various shooting functions
Self-timer shooting
This function lets you take pictures using the self-timer. You can set the
camera to trigger the shutter after either 12 or 2 seconds. Fix the camera
securely on a tripod for self-timer shooting.
Setting self-timer
1 Press the </
Y/j (Remote control/
Self-timer/Drive) button.
2 Use the control dial to set.
Y12S 12-second self-timer
Y2S 2-second self-timer
Control panel setting procedure Menu setting procedure
Y
</Y/j button
: 12-second self-time
r
: 2-second self-timer
Viewfinder
i Drive mode i
Menu [] [Y/</j] Setting
s0004_e_Advanced.book Page 63 Tuesday, September 27, 2005 4:15 PM
64
Self-timer shooting
4
Various shooting functions
Using the self-timer
1 Press the shutter button all the way.
• A picture is taken.
• The focus and exposure are locked when
the shutter button is pressed halfway.
•When
Y12S is selected: First, the self-
timer lamp lights up for approximately 10
seconds, then it blinks for approximately 2
seconds and the picture is taken.
When
Y2S is selected: The self-timer lamp
lights up for approximately 2 seconds, then
the picture is taken.
• To cancel the activated self-timer, press the
</
Y/j button.
Eyepiece cover
When shooting without looking through the viewfinder, such as when using the
self-timer, attach the eyepiece cover to the viewfinder so that the light does not
enter the viewfinder. To attach the eyepiece cover, remove the eyecup from
the camera as illustrated. To attach the optional eyecup, follow the same
procedure.
Notes
• Do not press the shutter button while standing in front of the camera; this could
result in the subject being out of focus since focusing is performed when the shutter
button is pressed halfway.
Self-timer lamp
Eyepiece coverEyecup
s0004_e_Advanced.book Page 64 Tuesday, September 27, 2005 4:15 PM
65
4
Various shooting functions
Remote control shooting
By using the optional remote control (RM-1), you can take a picture with
yourself in it or a night scene without touching the camera. The camera can be
set to trigger the shutter either right away or 2 seconds after the shutter button
on the remote control is pressed. Bulb shooting is also possible when using
the optional remote control.
Setting the remote control
1 Press the </Y/j (Remote
control/Self-timer/Drive) button.
2 Use the control dial to set.
<0S Triggers the shutter right
away.
<2S Triggers the shutter 2 seconds
after.
Control panel setting procedure Menu setting procedure
<
</Y/j button
: 0 second
: 2 seconds
Viewfinder
i Drive mode i
Menu [][Y/</j]Setting
s0004_e_Advanced.book Page 65 Tuesday, September 27, 2005 4:15 PM
66
Remote control shooting
4
Various shooting functions
Using the remote control
1 Mount the camera on a tripod or place it on a stable, flat surface.
2 Point the remote control at the
remote control receiver on the
camera and press the shutter
button on the remote control.
• When
<0S is selected:
The focus and exposure are
locked, the remote control lamp
blinks and the picture is taken.
When
<2S
is selected:
The self-timer lamp lights up for
approximately 2 seconds, then
the picture is taken.
Transmitted signal effective area
Point the remote control at the remote control receiver of the camera within
the effective area as shown below.
Powerful lighting such as direct sunlight, fluorescent light or devices emitting
electrical or radio waves could narrow the effective area.
Remote control lamp
Remote control receiver
Remote control receiver
Remote control
s0004_e_Advanced.book Page 66 Tuesday, September 27, 2005 4:15 PM
67
Remote control shooting
4
Various shooting functions
TIPS
The remote control lamp does not blink after the shutter button on the remote
control is pressed.
J The transmitted signal may not be effective if the remote control receiver is
exposed to powerful lighting. Move the remote control closer to the camera
and press the shutter button on the remote control again.
J The transmitted signal may not be effective if the remote control is too far
from the camera. Move the remote control closer to the camera and press
the shutter button on the remote control again.
J There is signal interference. Change the channel as described in the remote
control's instruction manual.
To cancel the remote control shooting mode:
J The remote control shooting mode will not be canceled after shooting. Set to
one of the other drive modes.
To use the shutter button on the camera in the remote control shooting mode:
J The shutter button on the camera still works even in the remote control
shooting mode.
Bulb shooting on the remote control
Set the mode dial to M, then set the shutter speed to [bulb].
Notes
• The shutter will not be released if the subject is not in focus.
• Under bright light conditions, the remote control lamp may be difficult to see, making
it hard to determine whether or not the picture has been taken.
• Zoom is not available on the remote control.
Press the W button on the
remote control to open the
shutter.
If 8 minutes elapse after
pressing the W button, the
shutter closes
automatically.
Press the T button to
close the shutter.
s0004_e_Advanced.book Page 67 Tuesday, September 27, 2005 4:15 PM
5
Focusing functions
This camera is equipped with an auto focus function that lets
you focus quickly, easily, and automatically. You can also
choose from a variety of other focus modes — including AF
frame selection and C-AF — to suit different subjects and
shooting conditions. Naturally, manual focusing is also
available. Focusing is the key to great photography, so be
sure to learn how to take advantage of these functions.
s0004_e_Advanced.book Page 68 Tuesday, September 27, 2005 4:15 PM
69
5
Focusing functions
AF frame selection
Normally, the camera measures the distance to the subject using the 3 AF
frames in the viewfinder and selects the most appropriate point. This function
allows you to select only one AF frame.
(AUTO)
Focuses using the 3 AF frames.
Focuses using the left AF frame.
Focuses using the center AF frame.
Focuses using the right AF frame.
1 Press the (AF frame selection)
button.
2 Use the control dial to set.
AUTO / / /
3 Press the shutter button all the way to
take the picture.
Control panel setting procedure Menu setting procedure
Viewfinder
Center AF frame
Left AF frame
Right AF frame
button
i AF frame i
Menu []Setting
s0004_e_Advanced.book Page 69 Tuesday, September 27, 2005 4:15 PM
70
Focusing functions
5
Focus mode
Three focus modes are available with this camera: S-AF (single AF), C-AF
(continuous AF) and MF (manual focus).
1 Press the
AF (focus mode) button.
2 Use the control dial to set.
S-AF / C-AF / MF / S-AF+MF / C-AF+MF
g
"S-AF (single AF) shooting" (P. 71)
"Simultaneous use of S-AF mode and MF
mode (S-AF+MF)" (P. 71)
"C-AF (continuous AF) shooting" (P. 72)
"Simultaneous use of C-AF mode and MF
mode (C-AF+MF)" (P. 72)
"Manual focus (MF)" (P. 73)
Control panel setting procedure Menu setting procedure
AF
AF button
: S-AF
: C-AF
: MF
: S-AF+MF
Viewfinder
: C-AF+MF
i Focus mode i
Menu [][AF MODE]Setting
s0004_e_Advanced.book Page 70 Tuesday, September 27, 2005 4:15 PM
71
Focus mode
5
Focusing functions
S-AF (single AF) shooting
Focusing is performed once when the shutter
button is pressed halfway.
If focusing fails, release your finger from the
shutter button and press it halfway again. This
mode is suitable for taking pictures of non-
moving subjects or subjects with limited
movement.
1 Press the shutter button halfway.
• When the focus is locked, the AF
confirmation mark lights up.
• A beep sound is output when the subject is in
focus.
2 Press the shutter button all the way.
Simultaneous use of S-AF mode and MF mode (S-AF+MF)
This function allows you to fine-adjust focus manually by turning the focus ring
after AF is performed in the S-AF mode.
1 Press the shutter button halfway to
use AF.
• When the focus is locked, the AF
confirmation mark lights up.
2 Fine-adjust the focus using the
focus ring, while keeping the
shutter button pressed halfway.
3 Press the shutter button all the
way to take the picture.
Notes
• If the shutter button is pressed again after fine-adjusting focus with the focus ring,
the AF is activated and your adjustments are canceled.
AF
confirmation
mark
Viewfinder
Focus ring
s0004_e_Advanced.book Page 71 Tuesday, September 27, 2005 4:15 PM
72
Focus mode
5
Focusing functions
C-AF (continuous AF) shooting
The camera repeats focusing. When the subject is in motion, the camera
focuses on the subject in anticipation of its movement (Predictive AF). Even if
the subject moves or you change the composition of the picture, the camera
continues trying to focus.
1 Press the shutter button halfway and
keep it in this position.
• When the subject is in focus and locked, the
AF confirmation mark lights up.
• The AF frame does not light up, even when
the subject is in focus.
• The camera repeats focusing. Even if the
subject moves or even if you change the
composition of the picture, focusing is tried
continuously.
• A beep sound is output when the subject is in
focus. The beep sound is not output after the
second continuous AF operation, even when
the subject is in focus.
2 Press the shutter button all the way.
Simultaneous use of C-AF mode and MF mode (C-AF+MF)
This function allows you to fine-adjust focus manually by turning the focus ring
after AF is performed in the C-AF mode.
1 Press the shutter button halfway to use AF.
2 Fine-adjust the focus using the focus ring.
3 Press the shutter button all the way to take the picture.
AF
confirmation
mark
Viewfinder
s0004_e_Advanced.book Page 72 Tuesday, September 27, 2005 4:15 PM
73
Focus mode
5
Focusing functions
TIPS
Another way to adjust focus manually using the C-AF mode:
J Set the C-AF mode to mode 3 or mode 4 on the AEL/AFL mode setting in
the custom menu. g "AEL/AFL mode" (P. 121)
Manual focus (MF)
This function allows you to manually focus on any subject while looking
through the viewfinder.
1 Adjust the focus using the focus
ring.
2 Press the shutter button all the
way to take the picture.
Rotational direction of the focus ring
You can select the rotational direction of the focus ring to suit your preference
for how the lens adjusts to the focusing point. g "Focus ring" (P. 129)
Focus aid
When you focus the lens on a subject manually (by turning the focus ring), the
AF confirmation mark lights. When 3 AF frames are selected, the camera
performs focusing in the center AF frame.
Notes
• If the shutter button is pressed again after fine-adjusting focus with the focus ring,
the AF is activated and your adjustments are canceled.
Focus ring
s0004_e_Advanced.book Page 73 Tuesday, September 27, 2005 4:15 PM
74
Focusing functions
5
MF bracketing
The camera shoots multiple frames, changing the focal point slightly for each
frame.
The frames are saved on the card in the following order: the frame with the
manually set focal point, the frame with the focal point shifted backward, and
the frame with the focal point shifted forward.
1 Menu
[][MF BKT]
2 Use the control dial to set.
[OFF] / [5F 1STEP] / [5F 2STEP] /
[7F 1STEP] / [7F 2 STEP]
EV step :1STEP, 2STEP
Number of frames
2 frames taken with the focal point
shifted forward from the one you
set manually and 2 frames with
the focal point shifted backward:
Total 5 frames.
3 frames taken with the focal point
shifted forward from the one you
set manually and 3 frames with
the focal point shifted backward:
Total 7 frames.
3 Press the
i button.
4 Use MF to adjust the focus, then press the shutter button to take the
picture.
• When the shutter button is pressed all the way, the camera shoots frames
sequentially; the frame with the manually set focal point, the frame with the
focal point shifted backward, and the frame with the focal point shifted
forward.
• The number of frames with the focal point shifted back or forward from the
manually set focal point may differ depending on the lens and shooting
conditions.
• If the subject is not in the center of the frame or has lower contrast than its
surroundings, an excessive number of frames may be shot with the focal
point shifted backward or forward.
• To use MF BKT, stabilize the camera on a tripod or similar device, etc.
s0004_e_Advanced.book Page 74 Tuesday, September 27, 2005 4:15 PM
75
5
Focusing functions
AF illuminator
The built-in flash can function as an AF illuminator. This helps with focusing in
low-light conditions in the AF mode.
1 Menu
[][AF ILLUMINATOR]
2 Use to select [ON] or [OFF].
3 Press the i button.
N
Normally, this camera does not release the shutter while the AF is operating or
the flash is charging. If you want to release the shutter without waiting until
these operations have completed, use the setting below. You can set release
priority in S-AF (g P. 71) and C-AF (g P. 72) respectively. When
[RELEASE PRIORITY C] is set to [ON], Predictive AF is not available.
1 Follow the steps depending on the focus
mode you selected.
S-AF mode
Menu [] [RELEASE PRIORITY S]
C-AF mode
Menu [] [RELEASE PRIORITY C]
2 Use to select [ON] or [OFF].
3 Press the
i button.
Shutter release priority
s0004_e_Advanced.book Page 75 Tuesday, September 27, 2005 4:15 PM
6
Exposure, image and color
If you wish to go beyond simple shooting using only the
shutter button, you will find various functions that can be used
to modify image/brightness/exposure parameters to achieve
remarkably better results. For instance, if you want to shoot
atmospheric pictures indoors, or if your subject would strongly
reflect the flash light, shooting without the flash would typically
result in a blurred or dark picture. To overcome this problem,
try adjusting the ISO setting; use a lower ISO value with
normal light, and a higher ISO value with dark subjects.
With exposure compensation you can adjust the image
brightness and make a significant difference to how the picture
turns out. Try adjusting toward minus when you want to
capture images with a dark background such as green leaves
in shadow or crimson foliage on a mountainside. The red,
green, and yellow of autumn leaves will be beautifully
reproduced, standing out against the background.
s0004_e_Advanced.book Page 76 Tuesday, September 27, 2005 4:15 PM
77
6
Exposure, image and color
Metering
mode
—
Changing
the
metering
system
There are 5 ways to measure the subject brightness: Digital ESP metering,
Center weighted averaging metering, and three types of spot metering. Select
the most suitable mode for the shooting conditions.
1 Press the (metering) button.
2 Use the control dial to set.
/
4 / n / n HI / n SH
Control panel setting procedure Menu setting procedure
button
Viewfinder
: Spot metering -
shadow control
: Digital ESP metering
: Center weighted aver-
aging metering
: Spot metering
: Spot metering -
highlight control
i Metering mode i
Menu [][METERING] Setting
s0004_e_Advanced.book Page 77 Tuesday, September 27, 2005 4:15 PM
78
Metering mode — Changing the metering system
6
Exposure, image and color
Digital ESP metering
The camera measures the light levels and calculates the light level differences in 49
separate areas of the image. This precision ensures accurate metering even when
there is a lot of contrast between the center of the screen and the area around it,
such as when shooting backlit subjects or shooting under very bright light. This
mode is recommended for general use.
4 Center weighted averaging metering
This metering mode provides the average metering
between the subject and the background lighting,
placing more weight on the subject at the center.
Use this mode when you do not want the light level
of the background to affect the exposure value.
n Spot metering
The camera meters a very small area around the
center of the subject, defined by the spot metering
area mark in the viewfinder. Use this mode when
there is very strong backlight.
n HI
Spot metering - highlight control
When the overall background is bright, white areas
of the image will come out gray if you use the
camera’s automatic exposure. Using this mode
enables the camera to shift to over-exposure,
allowing accurate white reproduction.
Metering area is the same as spot metering.
n SH
Spot metering - shadow control
When the overall background is dark, black areas
of the image will come out gray if you use the
camera’s automatic exposure. Using this mode
enables the camera to shift to under-exposure,
allowing accurate black reproduction.
Metering area is the same as spot metering.
Metering area
Metering area
s0004_e_Advanced.book Page 78 Tuesday, September 27, 2005 4:15 PM
79
6
Exposure, image and color
Exposure compensation — Varying the image brightness
In some situations, you may get better results if you manually compensate
(adjust) the exposure value set automatically by the camera. In many cases,
bright subjects (such as snow) will turn out darker than their natural colors.
Adjusting toward + makes these subjects closer to their real shades. For the
same reason, adjust toward - when shooting dark subjects. The exposure can
be adjusted in range of ±5.0 EV. Center weighted averaging metering (
4 ) or
spot metering (5) is recommended for exposure compensation.
1 While holding down the
F (exposure
compensation) button, rotate the
control dial to set compensation
value.
• Adjust toward +: up to +5.0 EV
Adjust toward –: up to –5.0 EV
• The EV step interval can be selected from
1/3EV, 1/2EV or 1EV. g "EV step" (P.
123)
• You can the change control dial's
functionality so that exposure
compensation can be set using the
control dial only without pressing the
F
button. g "Customizing the control
dial’s function" (P. 127)
F
-2.0EV ±0
+2.0EV
Control dial
F button
Adjust toward +Adjust toward -
Exposure compensation
indicator
Viewfinder
Exposure
compensation
value
s0004_e_Advanced.book Page 79 Tuesday, September 27, 2005 4:15 PM
80
Exposure compensation — Varying the image brightness
6
Exposure, image and color
How to read the exposure compensation indicator
• If the exposure compensation value exceeds the scale of the exposure
compensation indicator, - or + turns red.
• The exposure compensation indicator disappears if the exposure is
compensated by 0.
Menu setting procedure
Notes
• Exposure compensation is only possible in the P, A and S modes.
Control panel screen
Exposure compensation indicator
Exposure compensation indicator with
1/3EV selected
Exposure compensation indicator with
1/2EV selected
1/3EV
Menu [ ] [ F ] Exposure compensation indicator
1/2EV
s0004_e_Advanced.book Page 80 Tuesday, September 27, 2005 4:15 PM
81
6
Exposure, image and color
AE lock — Locking the exposure
The metered exposure value can be locked with the [ button (AE lock).
Use AE lock when you want a different exposure setting from the one that
would normally apply under the current shooting conditions.
Normally, pressing the shutter button halfway locks both AF (auto focus) and
AE (automatic exposure), but you can lock the exposure alone by pressing the
[ button. When you lock the exposure, the metering mode (digital ESP
metering, center weighted averaging metering or spot metering) selected in
the menu is automatically applied. g "AEL metering" (P. 123)
1 Aim the camera toward the subject.
2 Hold down the
[ (AE lock)
button.
• The exposure is locked.
•
B is displayed in the viewfinder.
3 Compose your shot. While holding
down the [ button, hold down the
shutter button halfway.
• The focus is locked.
4 Press the shutter button all the way.
• Releasing the [ button cancels AE
lock.
• Using the custom menu, you can set AE
lock so that it is not canceled when the
AEL button is released. g "AEL/AFL
mode" (P. 121)
[
[ button
Viewfinder
AE lock
Halfway down
All the way
down
s0004_e_Advanced.book Page 81 Tuesday, September 27, 2005 4:15 PM
82
Exposure, image and color
6
ISO — Setting the desired sensitivity to light
The higher the ISO value, the greater the camera’s light sensitivity and the
better its ability to shoot in low light conditions. However, higher values may
give pictures a grainy appearance.
1 Press the ISO button.
2 Use the control dial to set the
ISO value.
Control panel setting procedure Menu setting procedure
Notes
• The ISO sensitivity when it is set to auto is usually ISO 100. If the subject is too far
away for the flash illumination, the sensitivity is automatically increased.
Control dial
ISO button
i ISOi
Menu [] [ISO] Setting
s0004_e_Advanced.book Page 82 Tuesday, September 27, 2005 4:15 PM
83
6
Exposure, image and color
AE bracketing
The camera automatically shoots a number of pictures at different exposure
values for each frame. Even in conditions where correct exposure is difficult to
obtain (such as a backlit subject or a scene at dusk), you can pick the picture
you prefer from a selected number of frames with a variety of different
exposure settings (exposure and compensation values). The pictures are
taken in the following order: Picture with optimum exposure, picture adjusted
in - direction, and picture adjusted in + direction.
Compensation value: 0.3, 0.7 or 1.0
The exposure compensation values depend on the EV step interval setting that
can be changed in the menu. Exposure compensation value can be adjusted
within a range of ±1.0. g "EV step" (P. 123)
Number of frames : 3
1 Menu
[][AE BKT]
2 Use the control dial to set.
[OFF] / [3F 0.3EV] /[3F 0.7EV] / [3F 1.0EV]
3 Press the
i button.
4 Start shooting.
Single-frame shooting
Each time the shutter button is pressed
fully, a picture is taken at a different
exposure.
• The setting for the next shot is displayed in
the viewfinder.
Sequential shooting
Hold down the shutter button until the
selected number of frames are taken. The
camera shoots each frame at a different
exposure.
• Releasing the shutter button stops auto
bracketing shooting.
Example
:
When BKT
is set to [3F
1.0EV]
-1.0EV ±0 +1.0EV
AE BKT
OFF
3
F 0.3EV
3
F 0.7EV
3
F 1.0EV
C
AN
C
E
L
GO
S
ELE
CT
MENU
MENU
Viewfinder
EV step
s0004_e_Advanced.book Page 83 Tuesday, September 27, 2005 4:15 PM
84
AE bracketing
6
Exposure, image and color
How AE bracketing compensates exposure in each exposure mode
Depending on the selected exposure mode, exposure is compensated in the
following way:
AUTO
mode : Aperture value and shutter speed
P mode : Aperture value and shutter speed
A mode : Shutter speed
S mode : Aperture value
M mode : Shutter speed
TIPS
To apply AE bracketing to the exposure value you have compensated:
J Compensate the exposure value, then use the AE bracketing feature. AE
bracketing is applied to the exposure value you have compensated.
Notes
• During sequential shooting, if the battery check blinks due to low battery, the
camera stops shooting and starts saving the pictures you have taken on the card.
The camera may not save all of the pictures depending on how much battery power
remains.
Exposure compensation value
you have adjusted
Exposure compensation
value you have adjusted
s0004_e_Advanced.book Page 84 Tuesday, September 27, 2005 4:15 PM
85
6
Exposure, image and color
White balance — Adjusting the color tone
Color reproduction differs depending on the light conditions. For instance,
when daylight or tungsten lighting is reflected on white paper, the shade of
white produced will be slightly different for each.
With a digital camera, white color can be adjusted to reproduce more natural
white with a digital processor. This mechanism is called white balance. There
are 4 options for setting the WB with this camera.
Auto white balance
This function enables the camera to automatically detect white in images and
adjust the color balance accordingly.
Use this mode for any scene. If there is no near white color in the picture, the
white balance of the image may not be correct. In such a case, use preset WB
or one-touch WB to achieve the correct white balance.
Preset white balance
Seven different color temperatures are programmed on this camera covering
a variety of indoor and outdoor lighting including fluorescent lights and light
bulbs. For example, use preset WB when you want to reproduce more red in
the picture of a sunset, or capture a warmer artistic effect under artificial
lighting. You can enjoy creating different color tones by trying the different
preset WB settings.
Custom white balance
You can change the color temperature of one of the preset WB settings to your
liking.
g "Setting the custom white balance" (P. 89)
One-touch white balance
You can set the optimum white balance for the shooting conditions by pointing
the camera at a white object like a sheet of white paper. The white balance
achieved with this setting is saved as one of the preset WB settings.
g "Setting the one-touch white balance" (P. 90)
s0004_e_Advanced.book Page 85 Tuesday, September 27, 2005 4:15 PM
86
White balance — Adjusting the color tone
6
Exposure, image and color
Color temperature
The spectral balance of different white light sources is rated numerically by
color temperature — concept of physics, expressed using the Kelvin (K)
temperature scale. The higher the color temperature, the richer the light in
bluish tones and the poorer in reddish; the lower the color temperature, the
richer the light in reddish tones and the poorer in bluish.
It follows, then, that the color temperatures of fluorescent lights make them
unsuitable as artificial light sources. There are gaps in the hues from the color
temperatures of fluorescent light. If these differences in hue are small, they
can be calculated with color temperature and this is called correlated color
temperature.
The 4000K, 4500K and 6600K preset settings in this camera are correlated
color temperatures, and should not be considered strictly as color
temperatures. Use these settings for shooting conditions under fluorescent
lights.
TIPS
White balance with a flash:
J Auto WB is recommended when taking pictures with the flash.
If you intend to use preset WB, select the color temperature 6000K. When
shooting with the flash, be sure to play back your pictures and check the
color on the screen. Various conditions affect color temperature and how
color is reproduced on the screen.
Notes
• The color temperatures for each light source indicated in the above scale are
approximate. They are not an accurate indication of color. For example, the actual
sunlight is not exactly 5300K, nor fluorescent lights 4000K.
s0004_e_Advanced.book Page 86 Tuesday, September 27, 2005 4:15 PM
87
White balance — Adjusting the color tone
6
Exposure, image and color
Setting the auto/preset white balance WB
You can adjust the white balance by selecting the appropriate color
temperature for the light conditions.
1 Press the WB (white balance)
button.
2 Use the control dial to set.
AUTO /
5 / 3 / 2 / 1 / w /
x / y / V / CWB
WB mode Light conditions
AUTO
Used for most light conditions (when there is a white portion framed
in the viewfinder). Use this mode for general use.
5 5300K
For shooting outdoors on a clear day, or to capture the reds in a
sunset or the colors in a fireworks display
3 6000K For shooting outdoors on a cloudy day (when using the flash)
2 7500K For shooting outdoors in the shadows on a clear day
1 3000K For shooting under a tungsten light
w 4000K
For shooting under white fluorescent lighting
x 4500K For shooting under a neutral white fluorescent lamp
y 6600K For shooting under a daylight fluorescent lamp
V
Color temperature set by one-touch WB.
g "Setting the one-touch white balance" (P. 90)
CWB
Color temperature set in custom white balance menu. When the
value has not been set, it is set to 3000K. The color temperature
display changes according to your CWB setting.
Control dial
WB button
Viewfinder
Not displayed when
WB is set to AUTO.
: AUTO
: Preset WB
: Custom WB
s0004_e_Advanced.book Page 87 Tuesday, September 27, 2005 4:15 PM
88
White balance — Adjusting the color tone
6
Exposure, image and color
TIPS
When subjects with no white appear white in the image:
J In the auto WB setting, if there is no near-white color in the image framed in
the screen, the white balance will not be correctly determined. In such a
case, try preset WB or one-touch WB settings.
Control panel setting procedure Menu setting procedure
i WB i
Menu [ ] [WB] Setting
s0004_e_Advanced.book Page 88 Tuesday, September 27, 2005 4:15 PM
89
White balance — Adjusting the color tone
6
Exposure, image and color
Setting the custom white balance
1 Press the WB (white balance) button.
2 Use the control dial to select the
custom white balance.
3 While holding down the
F (exposure
compensation) button, rotate the
control dial until the desired setting
is displayed.
• The custom white balance can be set from
2000K to 14000K.
Control panel setting procedure Menu setting procedure
WB button
i CWB i
Menu [ ] [WB] CWB
s0004_e_Advanced.book Page 89 Tuesday, September 27, 2005 4:15 PM
90
White balance — Adjusting the color tone
6
Exposure, image and color
Setting the one-touch white balance
This function is useful when you need a more precise white balance than
preset WB can provide. Point the camera at a sheet of white paper under the
light source you want to use to determine the white balance. The optimum
white balance for the current shooting conditions can be saved in the camera.
This is useful when shooting a subject under natural light, as well as under
various light sources with different color temperatures.
1 Point the camera at a sheet of
white paper.
• Position the paper so that it fills the
viewfinder. Make sure there are no
shadows.
2 While holding down the
V
(one-touch WB) button, press
the shutter button.
• The
V screen appears.
3 Press the
i button.
• The white balance is registered.
• The registered white balance will be
stored in the camera as a preset
WB setting. Turning the power off
does not erase the data.
TIPS
After pressing the shutter button, [WB NG RETRY] is displayed.
J When there is not enough white in the image, or when the image is too
bright, too dark or the colors look unnatural, you cannot register the white
balance.
Change the aperture and shutter speed settings, then repeat the procedure
from Step 1.
Lighting used
for shooting
V button
s0004_e_Advanced.book Page 90 Tuesday, September 27, 2005 4:15 PM
91
White balance — Adjusting the color tone
6
Exposure, image and color
WB Compensation
This function lets you make fine changes to the auto WB and preset WB
settings.
1 Menu
[] [WB]
2 Use to select the white balance to
adjust.
3 Use to select the color direction.
R-B Red - Blue
G-M Green - Magenta
• You can set both color directions.
Adjusting the white balance in the R-B direction
Depending on the original WB conditions,
the image will become redder each time
you press
a, and bluer each time you
press
c.
Adjusting the white balance in the G-M direction
Depending on the original WB conditions,
the image will become greener each time
you press
a, and purpler each time you
press
c.
• The white balance can be adjusted in 7
increments in each direction (R, B, G and
M).
4 Press the
i button.
• Your adjustment is saved.
TIPS
Checking the white balance you have adjusted:
J After performing step 3, point the camera at the subject to take test shots.
When the [ button is pressed, sample images that have been taken with
the current WB settings are displayed.
Adjusting all WB mode settings at once:
J "Compensating all WB" (P. 125)
s0004_e_Advanced.book Page 91 Tuesday, September 27, 2005 4:15 PM
92
White balance — Adjusting the color tone
6
Exposure, image and color
WB bracketing
Three images with different white balances (adjusted in specified color
directions) are automatically created from one shot. One image has the
specified white balance, while the other two are the same image adjusted in
different color directions. All three images are saved on the card.
1 Menu
[] [WB BKT]
2 Use to select the color direction.
R-B Red - Blue
G-M Green - Magenta
• You can set both color directions.
3 Use to set compensation values.
[OFF] / [3F 2STEP] / [3F 4STEP] /
[3F 6STEP]
4 Take the picture.
• When the shutter button is pressed down all
the way, images adjusted in specified color
directions are automatically created.
TIPS
To apply WB bracketing to white balance you have adjusted:
J Adjust white balance manually, then use the WB bracketing feature. WB
bracketing is applied to your white balance adjustment.
Notes
• During WB bracketing, the camera cannot shoot in sequence if there is not enough
memory in the camera and card for storing more than the selected number of
frames.
s0004_e_Advanced.book Page 92 Tuesday, September 27, 2005 4:15 PM
93
6
Exposure, image and color
Picture mode
You can select image tone to create unique image effects. You can also fine-
adjust image parameters such as contrast and sharpness for each mode.
1 Menu
[] [PICTURE MODE]
2 Use to select the picture effect mode.
[VIVID] Produces vivid colors.
[NATURAL] Produces natural colors.
[MUTED] Produces flat tone.
[MONOTONE] Produces black and white
tone.
[SEPIA] Produces sepia tone.
3 Use to adjust the item below.
Available adjustment parameters vary
depending on the selected mode.
When selecting [VIVID] / [NATURAL] / [MUTED]
[CONTRAST] Distinction between light and
dark.
[
SHARPNESS
] Sharpness of the image.
[SATURATION]
Color depth of images.
When selecting [SEPIA] / [MONOTONE]
[CONTRAST] Distinction between light and
dark.
[
SHARPNESS
] Sharpness of the image.
[B&W FILTER]
Creates a black and white
image. The filter color is brightened and the complementary
color is darkened.
[N: NEUTRAL]
Creates a normal black and white image.
[Ye: YELLOW]
Reproduces clearly defined white cloud with natural blue sky.
[Or: ORANGE]
Slightly emphasizes colors in blue skies and sunsets.
[R: RED]
Strongly emphasizes colors in blue skies and brightness
of crimson foliage.
[G: GREEN]
Strongly emphasizes colors in red lips and green leaves.
[PICT. TONE] Colors the black and white image.
[N: NEUTRAL]
Creates a normal black and white image.
[S: SEPIA]
Sepia
[B: BLUE]
Blue
[P: PURPLE]
Purple
[G: GREEN]
Green
4 Press the
i button.
• Your adjustment is saved.
s0004_e_Advanced.book Page 93 Tuesday, September 27, 2005 4:15 PM
94
Exposure, image and color
6

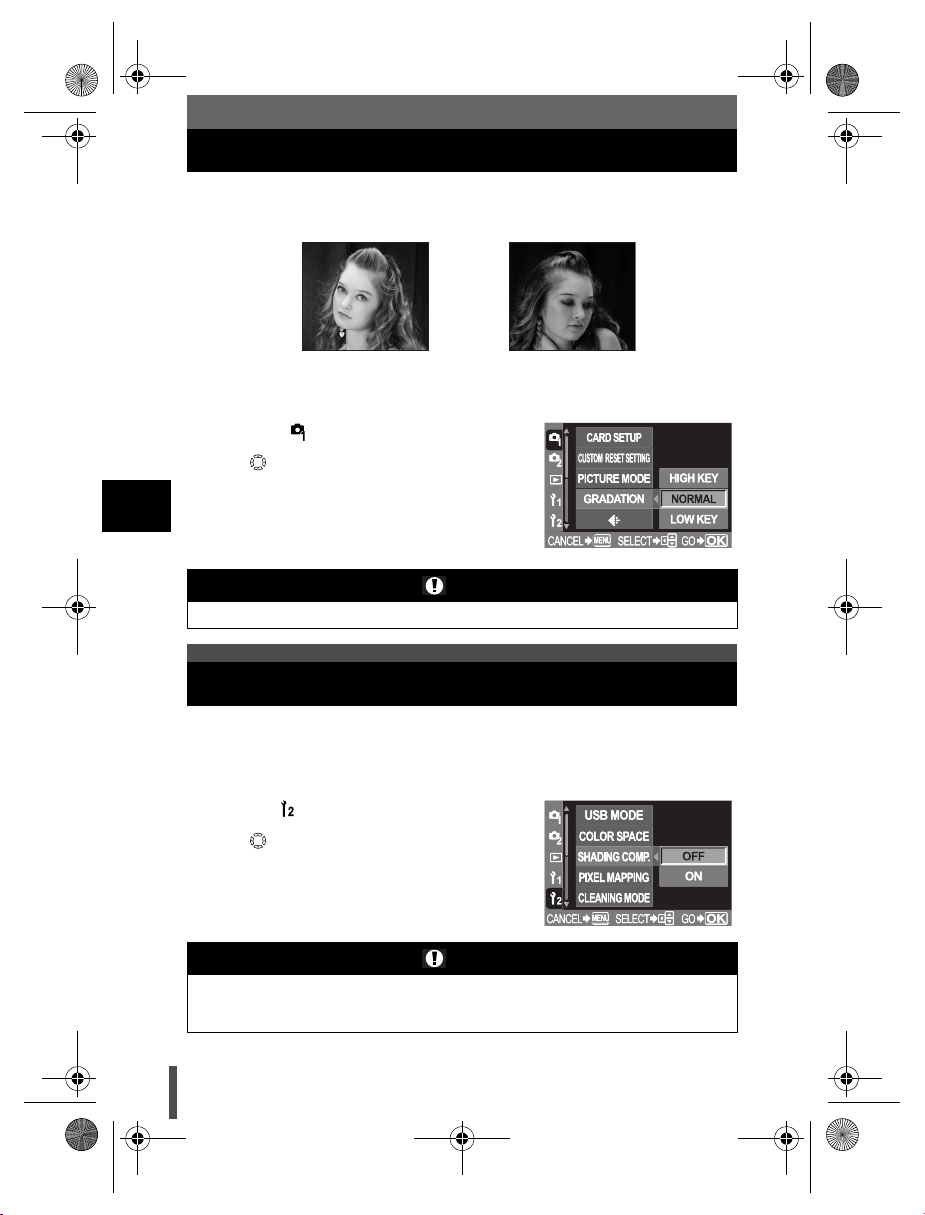

Gradation
Two types of gradation are available.
HIGH KEY: Extended bright gradations.
LOW KEY : Extended dark gradations.
1 Menu
[] [GRADATION]
2 Use to set.
[HIGH KEY] / [NORMAL] / [LOW KEY]
• Use [NORMAL] mode for general uses.
3 Press the i button.
In some cases, the edges of the image may be shadowed due to the
properties of the lens. The shading compensation function compensates by
increasing brightness at the dark edge of the image. This function is especially
useful when a wide-angle lens is used.
1 Menu
[][SHADING COMP.]
2 Use to select [OFF] or [ON].
3 Press the
i button.
ÅB
Notes
• Contrast adjustment does not work when set to HIGH KEY or LOW KEY.
Shading compensation
Notes
• This function is not available when a tele converter or inner tube extension is
attached to the camera.
• At higher ISO settings, noise in image edges may be conspicuous.
HIGH KEY
Suitable for a subject that is
mostly highlighted.
LOW KEY
Suitable for a subject that is
mostly shadowed.
s0004_e_Advanced.book Page 94 Tuesday, September 27, 2005 4:15 PM
95
6
Exposure, image and color
Noise reduction
This function reduces the noise that is generated during long exposures.
When shooting night scenes, shutter speeds are slower and noise tends to
appear in images. When [NOISE REDUCTION] is set to [ON], the camera
automatically reduces noise to produce clearer images. However, shooting
time is approximately twice as long as usual.
For more information about noise generated in images during long exposures,
refer to P. 46.
1 Menu
[][NOISE REDUCTION]
[ON]
2 Press the
i button.
3 Take the picture.
• The noise-reduction process is activated after
shooting.
• The card access lamp blinks during the noise-
reduction process. You cannot take more
pictures until the card access lamp goes out.
• [busy] is displayed on the viewfinder while noise
reduction is operating.
Notes
• When the mode is set to (, [NOISE REDUCTION] is fixed to [ON].
• When [NOISE REDUCTION] is set to [ON], sequential shooting is not available.
• This function may not work effectively with some shooting conditions or subjects.
OFF
ON
s0004_e_Advanced.book Page 95 Tuesday, September 27, 2005 4:15 PM
96
Exposure, image and color
6
Color space
This function lets you select how colors are reproduced on the monitor or
printer. The first character in image file names indicates the current color
space. g "File name" (P. 131)
[sRGB] Standardized color space for Windows
[Adobe RGB] Color space that can be set by Adobe Photoshop
1 Menu
[][COLOR SPACE]
2 Use to select [sRGB] or [Adobe RGB].
3 Press the
i button.
This diminishes camera shake caused by vibrations when the mirror moves.
You can select the interval from the time the mirror is raised until the shutter is
released.
1 Menu
[][ANTI-SHOCK]
2 Use to select [OFF] or [1SEC] -
[30SEC].
3 Press the
i button.
Anti-shock
P: sRGB
_ : Adobe RGB
s0004_e_Advanced.book Page 96 Tuesday, September 27, 2005 4:15 PM
7
Playback
One of the big advantages of a digital camera is that as soon
as you take a picture, you can see how it looks right away.
That means that if the picture is out of focus or just hasn’t
turned out the way you want, you can erase it and try again.
With a film camera, on the other hand, you won’t know if there
is a problem with the picture until you get the film developed.
Because a digital camera lets you erase those unwanted
images, you can keep more memory free to store images and
take more shots. You can also protect images that you do not
want to erase.
Another benefit is that you can edit recorded images: change
colors to black and white or sepia, change the resolution,
attach to e-mail, etc. So take advantage of your digital
camera’s benefits and have fun taking great pictures.
s0004_e_Advanced.book Page 97 Tuesday, September 27, 2005 4:15 PM
98
Playback
7
Single-frame playback
There are several different ways to view and edit images. However, before
using any of these functions, follow step 1 below.
1 Press the
q (playback) button.
• The monitor turns off after about 1
minute if no operations are
performed. After about 1 hour without
being used, the camera will turn off
automatically. Turn on the camera
again.
2 Use to select images you want to view.
• To exit the playback mode, press the q button.
• Pressing the shutter button halfway resumes the shooting mode.
q button
The last recorded image appears.
a Displays the frame that is stored 10 frames back.
c Displays the frame that is stored 10 frames ahead.
d Displays the next
frame.
b Displays the previous
frame.
s0004_e_Advanced.book Page 98 Tuesday, September 27, 2005 4:15 PM
99
7
Playback

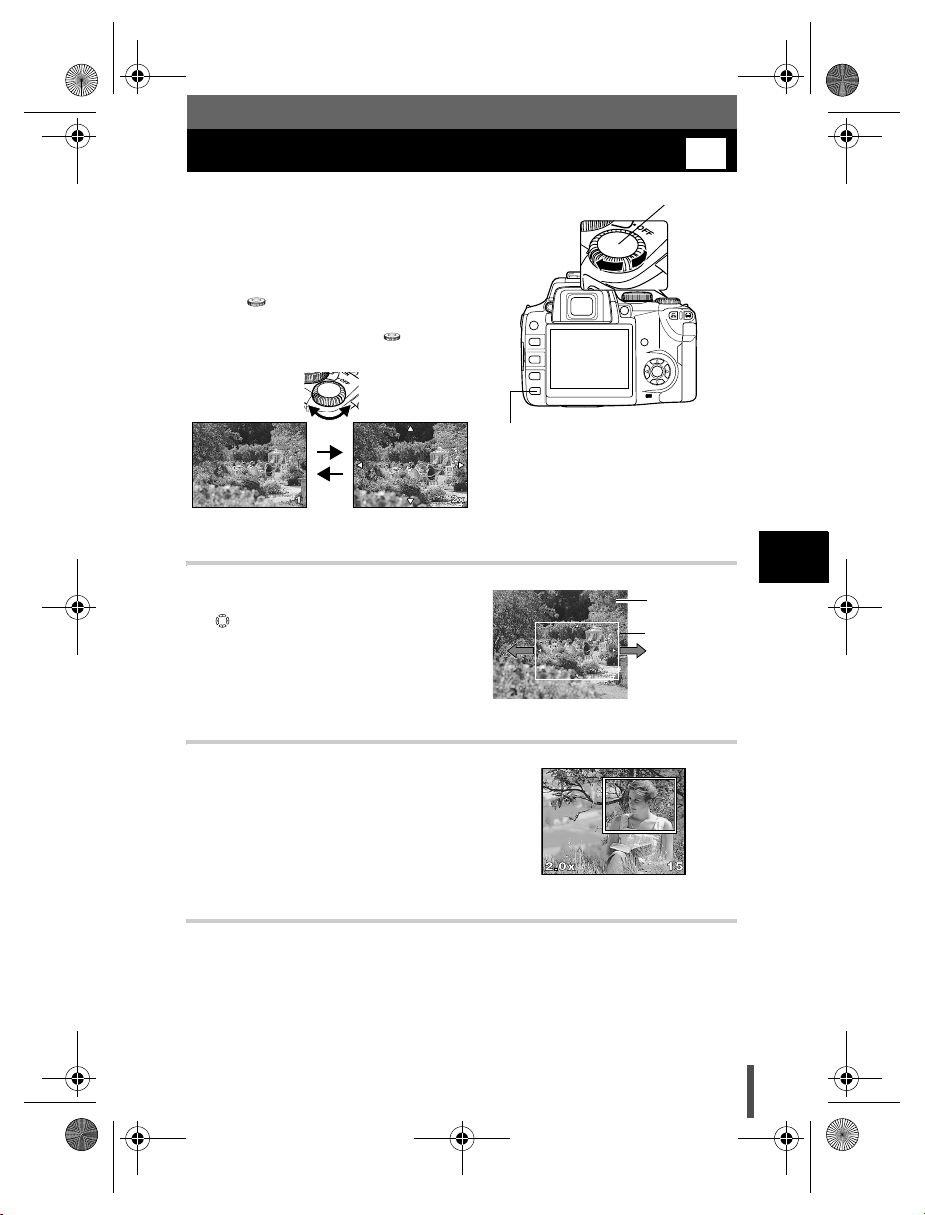

Close-up playback
This function lets you enlarge images
displayed on the monitor.
This is useful when you want to check the
details in an image.
1 Each time you rotate the control
dial toward
U, the image is
enlarged in steps of 2x - 14x.
• Rotating the control dial toward G
restores the previous image size.
Changing close-up position
1 During close-up playback, use
in the direction you want to
move.
• If the image reaches the end,
[\]^ disappears.
Displaying close-up position
1 Press the INFO button during
close-up playback.
• The part you have enlarged is
displayed with a frame.
Frame-by-frame playback during close-up
1 Press the INFO button.
2 Use
bd to select images you want to view.
3 To apply close-up to the image or return to the original size, press
the INFO button.
U
Control dial
INFO button
Entire image
Display area
s0004_e_Advanced.book Page 99 Tuesday, September 27, 2005 4:15 PM
100
Playback
7
Light box display
You can view multiple images simultaneously during close-up (g P. 99).
This is useful if you want to check images you recorded using bracketing.
1 Press the
V (one-touch WB)
button during single-frame
playback. The image is enlarged by
10 times and displayed within a
frame.
• Use to select the part of the picture
you want to enlarge and press the V
button again. Close-up playback is
possible.
2 Press the (AF frame selection)
button.
• The frame that you enlarge first will be
displayed in the left half of the screen,
and the next frame will be enlarged
with the same magnification in the right
half of the screen.
3 Use
bd to select an image.
• You can protect, erase or copy the
image.
4 Press the button to return to close-up single-frame playback.
Notes
• It is not possible to change the magnification during light box display.
button
V button
s0004_e_Advanced.book Page 100 Tuesday, September 27, 2005 4:15 PM
101
7
Playback
Index display
This function lets you show several images on the monitor at the same time.
This is useful when you want to quickly search a number of pictures to find a
particular image.
1 Each time you rotate the control dial
toward
G , the number of images
shown changes from 4 to 9 to 16 to
25.
b: Moves to the previous frame.
d: Moves to the next frame.
a: Displays the index previous to the
top-left image in the currently
displayed index.
c: Displays the index proceeding the
lower-right image in the currently
displayed index.
G
Control dial
Calendar display (g P. 102)
s0004_e_Advanced.book Page 101 Tuesday, September 27, 2005 4:15 PM
102
Playback
7
Calendar display
With the calendar, you can display images recorded on the card by date. If
more than one image was taken on a single date, the image shot first on that
date is displayed.
1 During index display (
g P. 101), rotate
the control dial toward
G until the
calendar screen is displayed.
2 Use to select images you want to
view.
Control dial
s0004_e_Advanced.book Page 102 Tuesday, September 27, 2005 4:15 PM
103
7
Playback
Information display
This allows you to display detailed
information about the image.
Luminance information can also be
displayed with histogram and highlight
graphs.
1 Press the INFO button repeatedly until the desired information is
displayed.
• This setting is stored and will be shown the next time the information display
is called up.
INFO
INFO button
Histogram
Information 2
Shooting information
Only image Information 1
Histogram
Overal information
Highlight display
Highlight displayShadow display
s0004_e_Advanced.book Page 103 Tuesday, September 27, 2005 4:15 PM
104
Information display
7
Playback

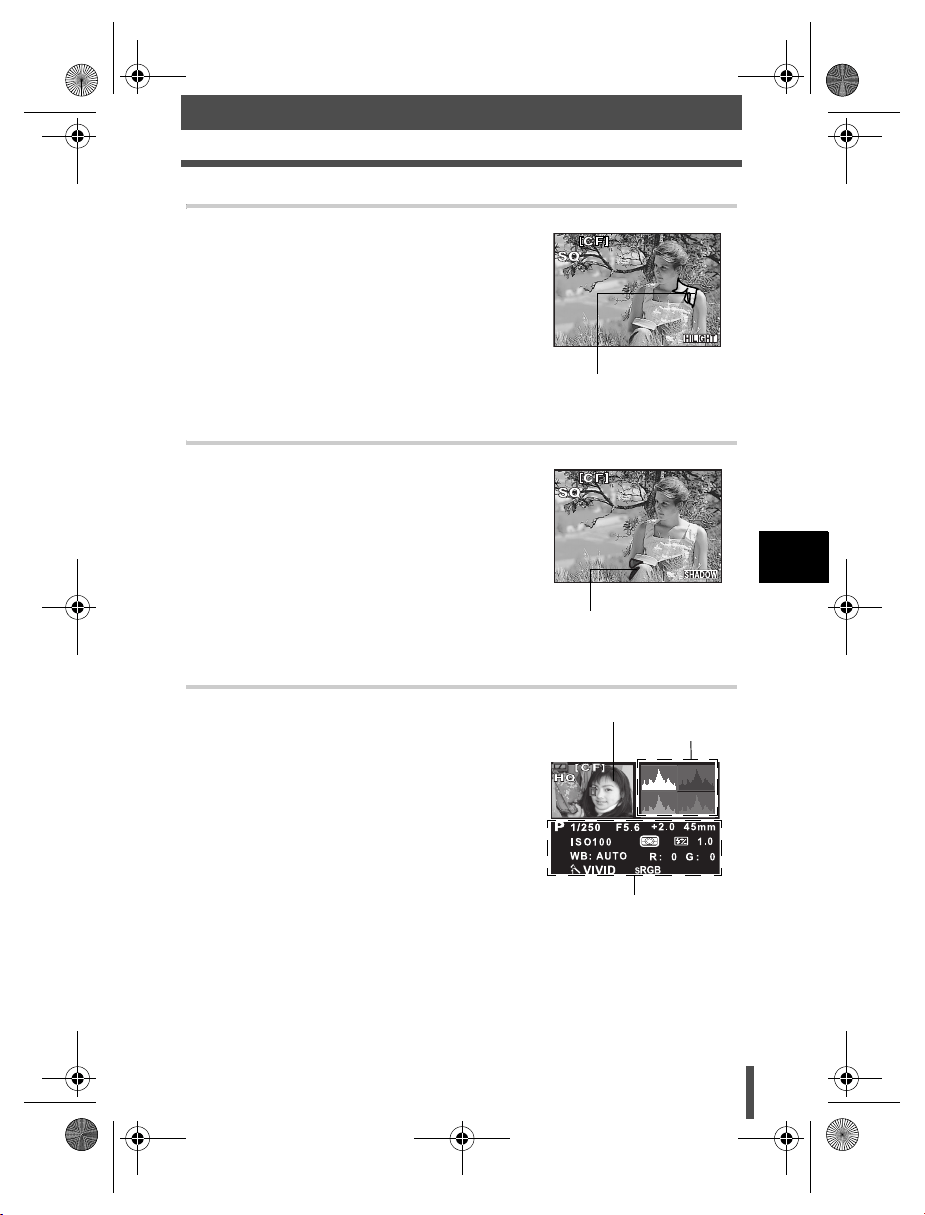

Information 1
Frame number, print reservation, protect, record
mode, number of pixels and file number.
Information 2
Frame number, print reservation, protect, record
mode, compression, date and time and file
number.
Histogram
Shows you the distribution of brightness in recorded images. Checking the
histogram will enable more precise exposure control for subsequent shots.
Record mode is also displayed.
How to use the histogram display
The histogram display enables you to check the
brightest highlights and darkest shadows which
may result in a poor image. If the bars in the
histogram are higher towards the right, the image
may be too bright. If the bars are higher on the
left, the image may be too dark. Compensate the
exposure or shoot again.
Histogram
Dark
Bright
Distribution of
brightness
s0004_e_Advanced.book Page 104 Tuesday, September 27, 2005 4:15 PM
105
Information display
7
Playback
Highlight display
The overexposed (highlighted) parts of the
recorded image blink. Record mode is also
displayed.
Shadow display
The underexposed (shadowed) parts of the
recorded image blink. Record mode is also
displayed.
Overall information
Displays shooting information, histogram
and highlight simultaneously.
Overexposure
Underexposure
Shooting information
Histogram
Highlight display
s0004_e_Advanced.book Page 105 Tuesday, September 27, 2005 4:15 PM
106
Playback
7
Slideshow
This function displays images stored on the card one after another. Images
are displayed one by one for about 5 seconds starting from the currently
displayed image. Slideshow can be performed using index display. You can
select the number of images displayed during slideshow from 1, 4, 9, 16 or 25.
1 Menu
[q] [m]
2 Use to set.
[]Single-frame playback
[]Playback of 4 frames
[]Playback of 9 frames
[]Playback of 16 frames
[]Playback of 25 frames
3 Press the
i button to start the
slideshow.
4 Press the i button to stop the
slideshow.
Notes
• If the slideshow is left running for about 30 minutes, the camera will turn off
automatically.
When selecting
s0004_e_Advanced.book Page 106 Tuesday, September 27, 2005 4:15 PM
107
7
Playback

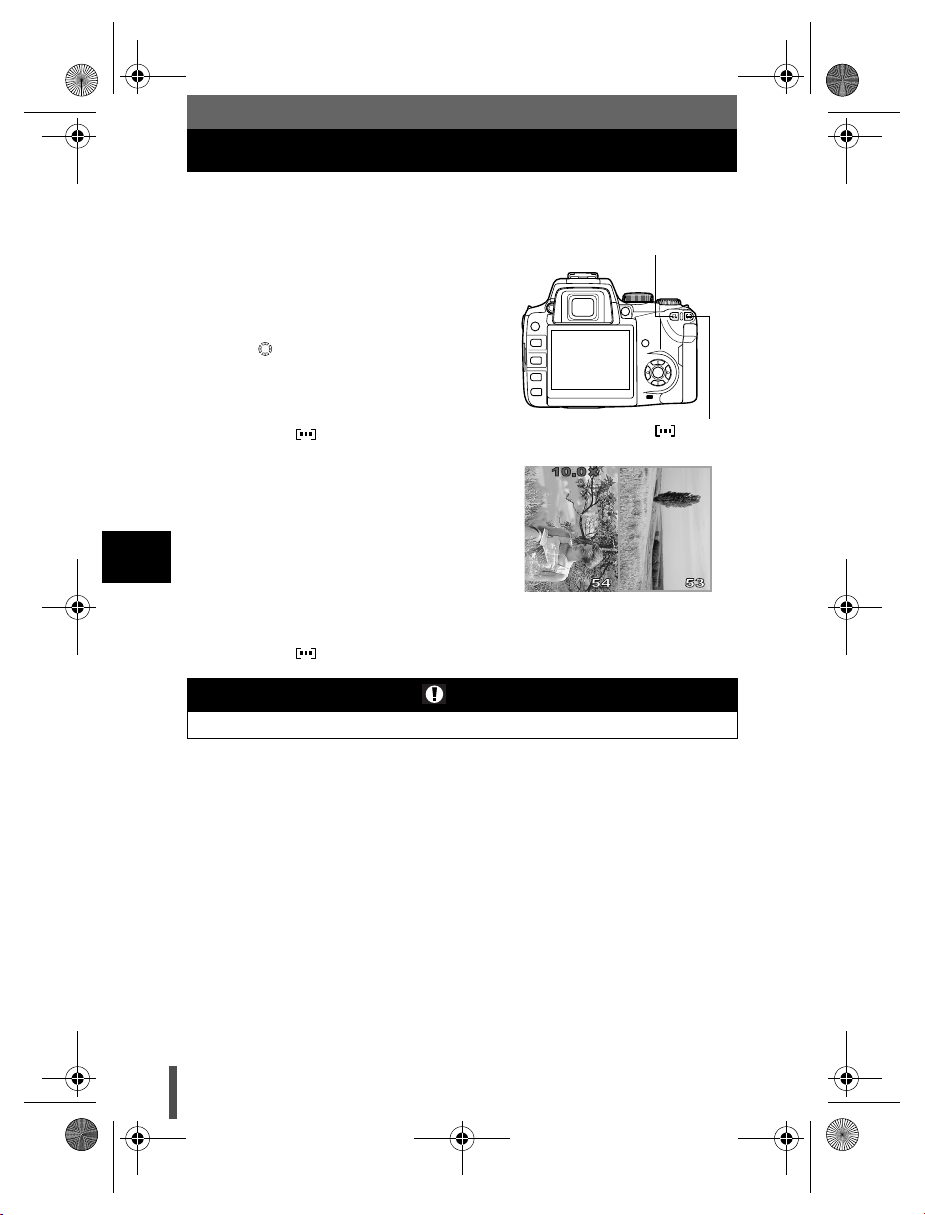

Rotating images
This function lets you rotate images and display them vertically on the monitor.
This is useful for viewing pictures that were taken with the camera held
vertically.
1 Menu
[q] [y] [ON]
2 Press the
i button.
3 Each time the F (exposure
compensation) button is pressed, the
image is rotated.
• The rotated image will be recorded on the
card.
9E9
F button
Original image
before rotating
s0004_e_Advanced.book Page 107 Tuesday, September 27, 2005 4:15 PM
108
Playback
7
Playback on TV
Use the video cable provided with the camera to play back recorded images
on your TV.
1 Turn the camera and TV off,
and connect the video cable as
illustrated.
2 Turn on the TV and set it to the
video input mode. For details
on switching to the video input
mode, refer to the TV’s
instruction manual.
3 Turn the camera on and press
the
q (playback) button.
Notes
• To connect the camera to a TV, use the provided video cable.
• Make sure that the camera’s video output signal type is the same as the TV’s video
signal type. g "Selecting the video signal type before TV connection" (P. 135)
• The camera’s monitor turns off automatically when the video cable is connected to
the camera.
• The image may appear off-center depending on the TV screen.
q button
Multi-connector
Video input terminal
Video cable
s0004_e_Advanced.book Page 108 Tuesday, September 27, 2005 4:15 PM
109
7
Playback

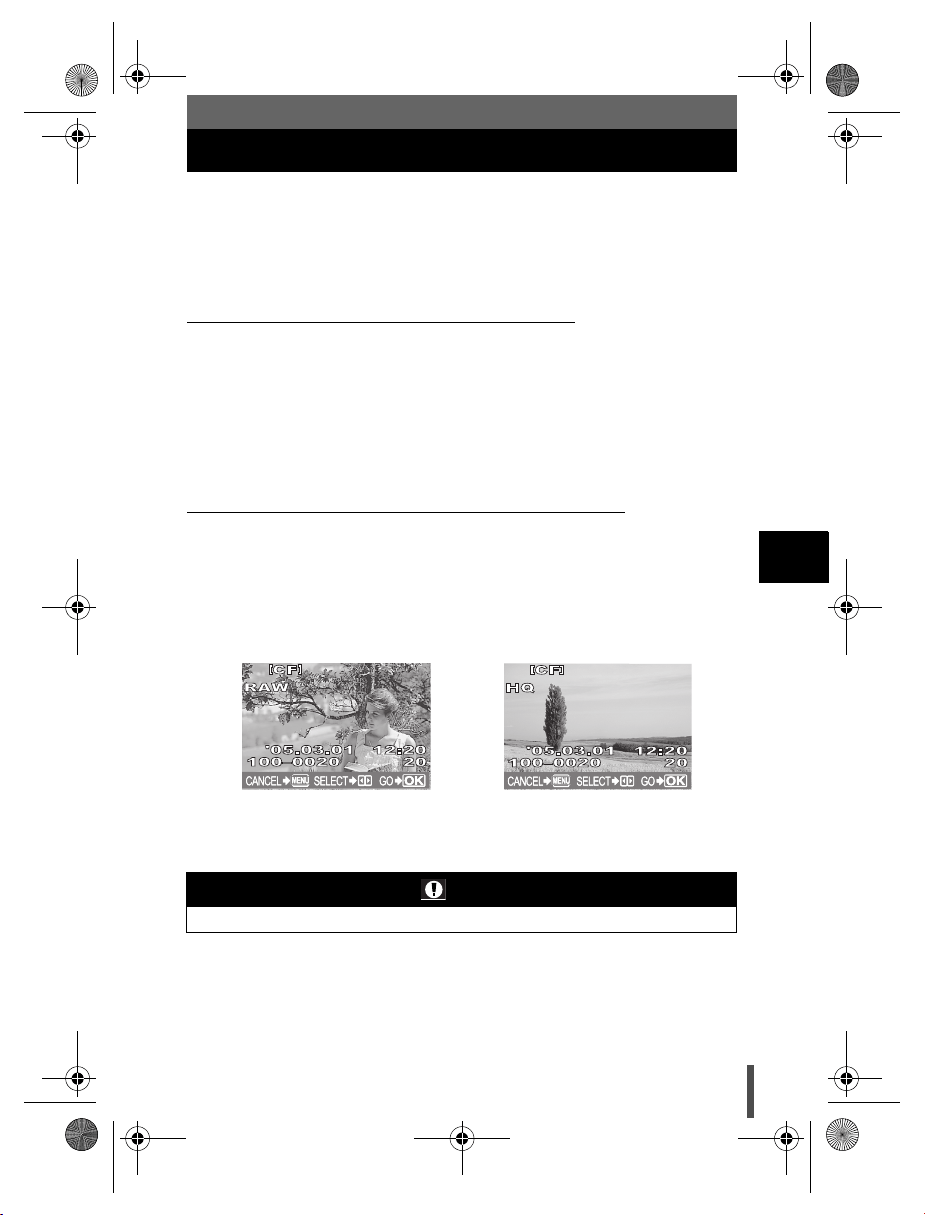

Editing still images
Recorded images can be edited and saved as new images. Available editing
functions depend on the image format (image record mode). A JPEG or TIFF
file can be printed as is without modification. A RAW file, on the other hand
cannot be printed as is. To print a RAW file, use the RAW edit function to
convert the RAW data format to JPEG.
Editing images recorded in RAW data format
The camera performs image processing (such as white balance and
sharpness adjustment) on images in the RAW data format, then saves the
data to a new file in the TIFF or JPEG format. While checking recorded
images, you can edit them to your liking.
Image processing is performed based on the current camera settings. If
you want to use different settings when editing, change the current
camera settings beforehand.
Editing images recorded in JPEG/TIFF data format
[BLACK & WHITE] Creates black and white images.
[SEPIA] Creates sepia-toned images.
[REDEYE FIX] Reduces red-eye phenomenon during flash shooting.
[SATURATION] Sets the color depth.
[Q]
Converts the image file size to 1280 x 960, 640 x 480 or 320 x
240.
Notes
• The image recorded in TIFF is saved as an SHQ image.
Image in RAW data format Image in JPEG/TIFF data format
s0004_e_Advanced.book Page 109 Tuesday, September 27, 2005 4:15 PM
110
Editing still images
7
Playback
1 Menu [q] [EDIT]
2 Use to select images you want to view.
Press the
i button.
• The camera recognizes the image data
format.
3 The setting screen varies depending on
the image data format. Select the data you
want to edit and do the following steps
depending on the image data format.
SEPIA g P. 111
REDEYE FIX g P. 111
SATURATION g P. 111
Q g P. 11 2
RAW data edit
1 Use
ac to select [YES].
2 Press the
i button.
• To edit another image, use bd to select the desired image.
• To complete editing, press the MENU button.
BLACK & WHITE
1 Use
ac to select [BLACK & WHITE]. Press the i button.
2 Use
ac to select [YES]. Press the i button.
• To edit another image, use bd to select the desired image.
• To complete editing, press the MENU button.
When editing RAW image
RAW editing is based on the
camera’s current settings. Set the
camera to suit your preferences
before shooting.
When editing JPEG/TIFF image
[BLACK & WHITE] / [SEPIA]/
[REDEYE FIX] /[SATURATION]/
[Q]
s0004_e_Advanced.book Page 110 Tuesday, September 27, 2005 4:15 PM
111
Editing still images
7
Playback
SEPIA
1 Use
ac to select [SEPIA]. Press the i button.
2 Use
ac to select [YES]. Press the i button.
• To edit another image, use bd to select the desired image.
• To complete editing, press the MENU button.
REDEYE FIX
1 Use
ac to select [REDEYE FIX]. Press the i button.
• After the [BUSY] bar is displayed, the areas targeted for correction are
framed in blue.
2 Use
ac to select [YES]. Press the i button.
• To edit another image, use bd to select the desired image.
• To complete editing, press the MENU button.
SATURATION
1 Use ac to select [SATURATION]. Press the i button.
2 Use
ac to adjust the brightness.
Press the
i button.
3 Use ac to select [YES]. Press the i
button.
• To edit another image, use bd to select the
desired image.
• To complete editing, press the MENU button.
Notes
• Red-eye correction does not work on images recorded in RAW or TIFF.
• Red-eye correction may not work depending on the mage. Red-eye correction may
affect other parts of the image, as well as the eyes.
s0004_e_Advanced.book Page 111 Tuesday, September 27, 2005 4:15 PM
112
Editing still images
7
Playback
Resizing Q
1 Use
ac to select [Q]. Press the i
button.
2 Use
ac to select the number of pixels,
then press the
i button.
• The [BUSY] bar is displayed when editing is
in progress.
• The resized image is saved as a new image.
• To edit another image, use bd to select the desired image.
• To complete editing, press the MENU button.
Notes
• Resizing is not possible in the following cases:
When an image is recorded in RAW, when an image is processed on a PC, when
there is not enough space in the card memory, when an image is recorded on
another camera.
• When resizing an image, you cannot select a larger number of pixels than were
originally recorded.
s0004_e_Advanced.book Page 112 Tuesday, September 27, 2005 4:15 PM
113
7
Playback
Copying images
This function lets you copy images to and from the xD-Picture Card and
CompactFlash or Microdrive. This menu can be selected if both cards are
inserted. The selected card is the copying source.
Copying all the frames
1 Menu
[q] [COPY ALL]
2 Press the d button.
3 Use ac to select [YES].
4 Press the i button.
Copying selected frames
1 Press the i button during playback.
2 When the image selection screen is
displayed, use
bd to select the images
you want to copy and press the i
button.
• The selected images will be shown with red
frames.
• To cancel your selection, press the i button
again.
3 After you have selected the images to
copy, press the (copy) button.
4 Use ac to select [YES]. Press the i
button.
• To finish copying, press the MENU button.
• It is possible to copy selected frames during
index display.
Single-frame copy
1 Select the desired frame and press the button.
2 Use
ac to select [YES]. Press the i button.
button
s0004_e_Advanced.book Page 113 Tuesday, September 27, 2005 4:15 PM
114
Playback
7
Protecting images — Preventing accidental erasure
Protect images you do not want to erase. Protected images cannot be erased
by the selected frame/all-frame erase function.
1 Play back the image you want to
protect.
g P. 9 8
2 Press the AEL/AFL/
0 (protect)
button.
• 9 is displayed on the screen.
To cancel the protection
Display the images that are protected and press the AEL/AFL/0 button.
Notes
• Formatting the card erases all images even if they have been protected.
g P. 26
• Protected images cannot be rotated.
0
Protect mark
AEL/AFL/0 button
s0004_e_Advanced.book Page 114 Tuesday, September 27, 2005 4:15 PM
115
7
Playback
Erasing images
Lets you erase recorded images. You can select either single-frame erase,
which erases only the currently displayed image, or all-frame erase, which
erases all the images stored on the card.
Single-frame erase S
1 Play back the image you want to
erase.
2 Press the
S (erase) button.
3 Use ac to select [YES]. Press the
i button.
TIPS
To erase immediately:
J If you have set [QUICK ERASE] (g
P. 130) to ON, pressing the S button
will erase an image immediately.
All-frame erase R
1
Menu
[]
[CARD SETUP]
2 Use to select [ALL ERASE]. Press
the
i button.
Notes
• Protected images cannot be erased. Cancel protected images, then erase them.
• Once erased, images cannot be restored. g "Protecting images — Preventing
accidental erasure" (P. 114)
S button
s0004_e_Advanced.book Page 115 Tuesday, September 27, 2005 4:15 PM
116
Erasing images
7
Playback
3 Use ac to select [YES]. Press the
i button.
• All frames will be erased.
Erasing selected frames
This function lets you erase selected pictures at one time during index display.
You can select multiple images to erase during single-frame playback.
1 Bring up the index display.
g P. 101
2 Use
bd to select the images you want
to erase, and press the
i button.
• The selected images will be shown with
red frames.
• Press the i button to cancel your
selection.
3 After you have selected the frame to
erase, press the
S (erase) button.
4 Use
ac to select [YES].
5 Press the i button.
Priority setting
In tne menu, [PRIORITY SET] (g P.
129) allows you to set the screen cursor
setting to [YES].
Quick erase
In the menu, [QUICK ERASE] (g P. 130) allows you to erase an image
immediately using the S button.
s0004_e_Advanced.book Page 116 Tuesday, September 27, 2005 4:15 PM
8
Customizing the settings/
functions of your camera
Thanks to digital technology you can effortlessly customize
many of your cameraís functions. For example, you can call
up your favorite functions at the touch of a button, adjust EV
step values, or easily call up the functions you customized.
This chapter introduces all the functions that can be
customized to suit preferences.Try these functions to find
ways to use your camera even more effectively.
s0004_e_Advanced.book Page 117 Tuesday, September 27, 2005 4:15 PM
118
Customizing the settings/functions of your camera
8
Custom reset setting
Normally, current camera settings (including any changes you have made) are
retained when the power is turned off. This camera allows you to restore the
factory default settings using [RESET] and register 2 different reset settings in
[RESET1] and [RESET2] for later use.
Registering reset settings
1 Menu
[ ]
[CUSTOM RESET SETTING]
2 Use to set.
[RESET1] / [RESET2]
• If menu settings have already been
registered, [SET] is displayed next to the
corresponding reset option.
3 Use to select [SET].
• The current setting is displayed on the monitor.
Clearing already registered settings
Use to select [RESET].
• Registered settings are canceled.
4 Press the
i button.
Using reset settings
When the power is turned on, you can reset the camera to [RESET 1] or
[RESET 2] setting or restore the factory default settings.
1 Menu
[]
[CUSTOM RESET SETTING]
2 Use to set.
[RESET] Resets to the factory default
settings.
[RESET 1]/[RESET 2]
Resets to the registered
settings.
3 Press the
i button.
4 Use
ac to select [YES].
5 Press the i button.
s0004_e_Advanced.book Page 118 Tuesday, September 27, 2005 4:15 PM
119
Custom reset setting
8
Customizing the settings/functions of your camera
Functions that can be registered in CUSTOM RESET SETTING &
functions that reset to factory default settings
Function Factory default setting
Custom reset
setting
registration
My Mode
registration
MODE VIVID
GRADATION NORMAL
D HQ
F ±0
NOISE REDUCTION OFF
WB AUTO
ISO AUTO
METERING ESP
FLASH MODE
Auto-flash*
1
B/j o
AF S-AF
AUTO
AE BKT OFF
WB BKT OFF
FL BKT OFF
MF BKT OFF
ANTI-SHOCK OFF –
Playback mode
Single-frame playback
(with no information)
––
ISO STEP 1/3EV –
ISO BOOST OFF –
ISO LIMIT OFF –
EV STEP 1/3EV –
ALL> ±0 – –
HQ 1/8 –
SQ 1280 × 960, 1/8 –
MANUAL FLASH OFF –
w+F OFF –
#X-SYNC 1/180
AUTO POP UP ON –
DIAL
Ps*
1
–
AEL/AFL
mode1*
2
–
AEL/AFL MEMO OFF –
s0004_e_Advanced.book Page 119 Tuesday, September 27, 2005 4:15 PM
120
Custom reset setting
8
Customizing the settings/functions of your camera
: Can be registered.
— : Cannot be registered. When the [RESET1] /[RESET2] settings are used, functions indicated
by “—” will retain their current settings. The factory default settings are not restored.
*1 : Depending on the selected exposure mode, the factory default setting changes.
*2 : Depending on the selected focus mode, the factory default setting changes.
*3 : The factory default setting varies depending on the area where you purchased this camera.
AEL METERING
Synchoronized with
metering mode.
–
QUICK ERASE OFF –
RAW+JPEG ERASE RAW+JPEG –
V FUNCTION V –
MY MODE SETUP – –
FOCUS RING –
AF ILLUMINATOR ON
RESET LENS ON – –
RELEASE PRIORITY S OFF
RELEASE PRIORITY C ON
X 2005.01.01 00:00 – –
CF/xD CF –
FILE NAME AUTO – –
EDIT FILENAME OFF – –
s 0––
W ENGLISH –
VIDEO OUT *3 – –
8 ON –
REC VIEW OFF –
SLEEP 1 MIN –
4h TIMER 4h – –
BUTTON TIMER 3 SEC – –
SCREEN OFF – –
CTL PANEL COLOR COLOR1 – –
PRIORITY SET NO –
USB MODE AUTO – –
COLOR SPACE sRGB –
SHADING COMP. OFF
PIXEL MAPPING – – –
CLEANING MODE – – –
FIRMWARE – – –
Function Factory default setting
Custom reset
setting
registration
My Mode
registration
s0004_e_Advanced.book Page 120 Tuesday, September 27, 2005 4:15 PM
121
8
Customizing the settings/functions of your camera
AEL/AFL mode
Functions performed when the shutter button is pressed halfway
• AF start
• Focus lock
• AE lock
can be assigned to the AEL button.
Examples:
• After locking focus, you lock exposure value to take a picture.
• After locking exposure value, you lock focus to take a picture.
• After locking exposure value and focus, you take a picture whenever the
opportunity arises.
You can select modes in S-AF, C-AF and MF (g P. 70).
1 Menu
[] [AEL/AFL]
2 Use to select the focus mode.
[S-AF] / [C-AF] / [MF]
3 Use to select the AEL/AFL mode.
[S-AF] Selects from mode 1- mode 3.
[C-AF] Selects from mode 1- mode 4.
[MF] Selects from mode 1- mode 3.
4 Press the i button.
s0004_e_Advanced.book Page 121 Tuesday, September 27, 2005 4:15 PM
122
AEL/AFL mode
8
Customizing the settings/functions of your camera
Modes available in the S-AF mode
Modes available in the C-AF mode
Modes available in the MF mode
Mode
Shutter button function AEL button function
Half-press Full press When holding down AEL
Focus Exposure Focus Exposure Focus Exposure
mode 1 Locked Locked – – – Locked
mode 2 Locked – – Locked – Locked
mode 3 – Locked – – Locked –
Mode
Shutter button function AEL button function
Half-press Full press When holding down AEL
Focus Exposure Focus Exposure Focus Exposure
mode 1 Focusing
starts.
Locked Locked – – Locked
mode 2 Focusing
starts.
– Locked Locked – Locked
mode 3 – Locked Locked – Focusing
starts.
–
mode 4 – – Locked Locked Focusing
starts.
–
Mode
Shutter button function AEL button function
Half-press Full press When holding down AEL
Focus Exposure Focus Exposure Focus Exposure
mode 1 – Locked – – – Locked
mode 2 – – – Locked – Locked
mode 3 – Locked – – S-AF –
s0004_e_Advanced.book Page 122 Tuesday, September 27, 2005 4:15 PM
123
8
Customizing the settings/functions of your camera
AEL/AFL memo
Pressing the [ button toggles the AE lock between on and off.
1 Menu
[] [AEL/AFL MEMO]
2 Use to select [ON] or [OFF].
3 Press the i button.
Set the metering mode before using the [ button to lock the exposure.
This allows the camera to automatically apply the selected metering mode
when the AE lock function is used (g P. 81).
1 Menu
[] [AEL METERING]
2 Use to set.
[AUTO] / [
4] / [5] / [5 HI] / [5 SH]
3 Press the
i button.
This allows you to change the EV step for exposure parameter setting, such
as shutter speed, aperture value or exposure compensation value, etc.
1 Menu
[] [EV STEP]
2 Use to set.
[1/3EV] / [1/2EV] / [1EV]
3 Press the
i button.
AEL metering
EV step
s0004_e_Advanced.book Page 123 Tuesday, September 27, 2005 4:15 PM
124
Customizing the settings/functions of your camera
8
ISO step
This allows you to change the compensation steps for ISO value setting.
1 Menu
[] [ISO STEP]
2 Use to set.
[1/3EV] / [1EV]
3 Press the
i button.
T
This allows you to make ISO 800 - 1600 available for ISO setting in addition to
ISO 100 - 400. [ON+NF] reduces noise at higher ISO values to produce
clearer images.
1 Menu
[] [ISO BOOST]
2 Use to set.
[OFF] / [ON+NF] / [ON]
3 Press the
i button.
This allows you to set the maximum ISO to avoid image blur in bright
environments.
1 Menu
[] [ISO LIMIT]
2 Use to set.
[OFF] / [100] / [200] / [400] / [800]
3 Press the
i button.
ISO boost
Notes
• When [ISO BOOST] is set to [ON+NF], shooting time will be longer than usual.
ISO limit
s0004_e_Advanced.book Page 124 Tuesday, September 27, 2005 4:15 PM
125
8
Customizing the settings/functions of your camera
Compensating all WB
This lets you apply the same compensation value to all the white balance
modes at once.
1 Menu
[] [ALL >]
2 Use to set.
[ALL SET] The same compensation value
applies to all WB modes.
[ALL RESET] The WB compensation value
settings applied to each WB
mode are all cleared at once.
3 Press the
i button.
4 Do the following steps depending on the setting you want.
If you select [ALL SET]
1) Use bd to select the color direction.
R-B Red-Blue
G-M Green-Magenta
2) Use ac to set compensate value.
g "WB Compensation" (P. 91)
• You can check the white balance you have adjusted.
If you select [ALL RESET]
1) Use ac to select [YES].
5 Press the i button.
This allows the built-in flash to output a fixed amount of light. With [MANUAL
FLASH] set to [ON], you can set the amount of light (FULL, 1/4, 1/16, or 1/64)
in the flash mode setting.
1 Menu
[] [MANUAL FLASH]
2 Use to select [ON] or [OFF].
3 Press the
i button.
Manual flash
s0004_e_Advanced.book Page 125 Tuesday, September 27, 2005 4:15 PM
126
Customizing the settings/functions of your camera
8
Speed synchronization
You can set the shutter speed that will be used when the built-in flash fires.
The speed can be set from 1/60 to 1/180 in 1/3 EV increments.
1 Menu
[ ] [#X-SYNC]
2 Use to select the desired speed.
3 Press the
i button.
When you take pictures in
AUTO
, i, & or / mode, the built-in flash will
automatically pop up in low-light or backlit conditions. If you want to control the
flash pop-up, set this function to OFF.
1 Menu
[] [AUTO POP UP]
2 Use to select [ON] or [OFF].
3 Press the i button.
Notes
• For details on the synchronization speed of commercially available flashes, refer to
their manuals.
Auto flash popup
s0004_e_Advanced.book Page 126 Tuesday, September 27, 2005 4:15 PM
127
8
Customizing the settings/functions of your camera
Customizing the control dial’s function
The control dial factory default settings are as follows:
P Program shooting
M Manual shooting
Setting [DIAL] enables the following:
P You can set exposure compensation simply by rotating the control
dial.
M You can set aperture value simply by rotating the control dial.
1 Menu
[] [DIAL]
2 Use to select [P] or [M].
If you select [P]
1) Use ac to set.
[Ps] Program shift
[F] Exposure compensation
If you select [M]
1) Use ac to set.
[Fno.] Aperture setting
[SHUTTER] Shutter speed setting
3 Press the i button.
Rotating the control dial : Program shift (Ps) setting
Rotating the control dial while
holding down the F (exposure
compensation) button : Exposure compensation setting
Rotating the control dial : Shutter speed setting
Rotating the control dial while
holding down the F (exposure
compensation) button : Aperture value (f-number) setting
s0004_e_Advanced.book Page 127 Tuesday, September 27, 2005 4:15 PM
128
Customizing the settings/functions of your camera
8
V button function
This lets you replace the function assigned to the V (one-touch WB) button
by registering another function.
1 Menu
[] [V FUNCTION]
2 Use to set.
[
V] One-touch white balance button
(factory-default setting)
[TEST PICTURE]
This enables you to check the picture
you have just taken on the monitor
(REC VIEW feature) without having to
record the picture to the card. This is
useful when you want to see how a
picture turned out before saving it.
[MY MODE]
While holding down the V button, you can take pictures using the
camera settings registered in the [MY MODE SETUP]
(g See below).
[PREVIEW]
While holding down the V button, you can use the preview function.
(g P. 47 )
3 Press the
i button.
You can register 2 different combinations of camera settings and temporarily call
up one of the registered settings while taking pictures. The registered setting can
be used while the
V
(one-touch WB) button is being pressed.
1 Menu [] [MY MODE SETUP]
2 Use to set.
[MY MODE1] / [MY MODE2]
• If menu settings have already been
registered, [SET] is displayed next to the
corresponding reset option.
3 Use to select [SET].
• The current setting is displayed on the monitor.
Clearing already registered settings
Use to select [RESET].
• Registered settings are canceled.
4 Press the
i button.
My Mode setting
s0004_e_Advanced.book Page 128 Tuesday, September 27, 2005 4:15 PM
129
8
Customizing the settings/functions of your camera
Reset lens
This allows you to reset the focus of the lens (infinity) when the power is
turned off.
1 Menu
[] [RESET LENS]
2 Use to select [ON] or [OFF].
3 Press the i button.
This allows you to customize how the lens adjusts to the focal point by
selecting the rotational direction of the focus ring.
1 Menu [] [FOCUS RING]
2 Use to select [ ] or [ ].
3 Press the
i button.
This allows you to customize the cursor position (YES or NO) as the initial
position on the [ALL ERASE], [ERASE] or [FORMAT] screen.
1 Menu
[] [PRIORITY SET]
2 Use to select [YES] or [NO].
P
Focus ring
Priority setting
NEAR
NEAR
FAR (∞)
FAR (∞)
1
1
11
1
1
2
2
2
2
2
2
MENU
MENU
C
AN
C
E
L
GO
S
ELE
CT
4h TIMER
BUTTON TIMER
N
O
YE
S
SCREE
N
CTL PANEL COLOR
P
RIORITY
S
E
T
s0004_e_Advanced.book Page 129 Tuesday, September 27, 2005 4:15 PM
130
Customizing the settings/functions of your camera
8
Quick erase
This lets you erase the picture you have just taken immediately using the S
(erase) button.
1 Menu
[] [QUICK ERASE]
2 Use to set.
[OFF] When the S button is pressed, the
confirmation screen appears, asking
you if you want to erase the picture.
[ON] Pressing the S button erases the
picture immediately.
3 Press the
i button.
This lets you select which type of file to erase when erasing a single frame on the
card.
1 Menu
[] [RAW+JPEG ERASE]
2 Use to set.
[JPEG] Erases all JPEG image
files.
[RAW] Erases all RAW image files.
[RAW+JPEG] Erases all RAW and JPEG
image files at the same
time.
3 Press the
i button.
Erasing RAW and JPEG files
s0004_e_Advanced.book Page 130 Tuesday, September 27, 2005 4:15 PM
131
8
Customizing the settings/functions of your camera
File name
When you take a picture, the camera assigns it a unique file name and saves
it in a folder. The folder and file name can later be used for file handling on a
computer.
File names are assigned as shown in the illustration below.
1 Menu
[ ] [FILE NAME]
2 Use to set.
[AUTO] Even when a new card is inserted,
the folder numbers are retained
from the previous card. If the new
card contains an image file whose
file number coincides with one
saved on the previous card, the new card’s file numbers start at
the number following the highest number on the previous card.
[RESET] When a new card is inserted, folder numbers start at 100 and file
numbers start at 0001. If a card containing images is inserted, the
file numbers start at the number following the highest file number
on the card.
3 Press the
i button.
Notes
• When both the Folder and File No. reach their respective maximum number (999/
9999), it is not possible to store additional pictures even if the card is not full. No
more pictures can be taken. Replace the card with a new one.
s0004_e_Advanced.book Page 131 Tuesday, September 27, 2005 4:15 PM
132
Customizing the settings/functions of your camera
8
Rename file
You can rename image files to make them easier to identify and organize.
1 Select [sRGB] or [Adobe RGB].
g P. 9 6
2 Menu [ ] [EDIT FILENAME]
3 Use ac to enter the first character.
Press
d to move to the next setting, then
use
ac to enter the second character.
4 Press the
i button.
This allows you to display the picture you have just taken on the monitor while
it is being recorded to the card, and to select how long the picture is displayed.
This is useful for making a brief check of the picture you have just taken.
Pressing the shutter button halfway during REC VIEW lets you resume
shooting immediately.
1 Menu
[ ] [REC VIEW]
2 Use to set.
[OFF] The picture being recorded to the
card is not displayed.
[1 SEC] - [20 SEC]
Selects the number of seconds to
display each picture. Can be set
in units of 1 second.
3 Press the
i button.
Rec view - Checking the picture immediately after shooting
sRGB:Pmdd0000.jpg AdobeRGB:_mdd0000.jpg
You can change the first character
to OFF, A - Z or 0 - 9.
s0004_e_Advanced.book Page 132 Tuesday, September 27, 2005 4:15 PM
133
8
Customizing the settings/functions of your camera
Setting the warning tone
The camera beeps when buttons are pressed. It also beeps to alert you to
warnings. You can turn the beep sound on or off with this function.
1 Menu
[] [8]
2 Use to select [ON] or [OFF].
3 Press the i button.
This allows you to adjust the brightness of the monitor for optimal viewing.
1 Menu
[] [s]
2 Use to adjust the brightness.
3 Press the i button.
After a specified period of time elapses with no operations being performed,
the camera enters the sleep mode (stand-by) to save battery power. SLEEP
lets you select sleep timer. [OFF] cancels the sleep mode.
The camera activates again as soon as you touch any button (the shutter
button, arrow pad etc.)
1 Menu
[] [SLEEP]
2 Use to set.
[OFF] / [1 MIN] / [3 MIN] / [5 MIN] / [10 MIN]
3 Press the
i button.
Monitor brightness adjustment
Sleep timer
s0004_e_Advanced.book Page 133 Tuesday, September 27, 2005 4:15 PM
134
Customizing the settings/functions of your camera
8
USB mode
You can connect the camera directly to a computer or printer with the provided
USB cable. If you specify the device you are connecting to beforehand, you
can skip the USB connection setting procedure normally required every time
you connect the cable to the camera. For details on how to connect the
camera to either device, refer to Chapter 9 "Printing" (P. 139) and Chapter 10
"Transferring images to a computer" (P. 152).
1 Menu
[ ] [USB MODE]
2 Use to set.
[AUTO] The selection screen for the
USB connection will be
displayed every time you
connect the cable to a
computer or printer.
[STORAGE] Allows USB connection to a PC and transfer of data to the
PC. Also, select to use the OLYMPUS master software via PC
connection.
[CONTROL] Allows you to control the camera from a PC using the optional
OLYMPUS Studio.
[
< EASY] Can be set when connecting the camera to a PictBridge-
compatible printer. Pictures can be printed directly without
using a PC.
g "Connecting the camera to a printer" (P. 146)
[< CUSTOM] Can be set when connecting the camera to a PictBridge-
compatible printer. You can print out pictures with set number
of prints, print paper and other settings.
g "Connecting the camera to a printer" (P. 146)
s0004_e_Advanced.book Page 134 Tuesday, September 27, 2005 4:15 PM
135
8
Customizing the settings/functions of your camera
Changing the display language
You can change the language used for the on-screen display and error
messages from ENGLISH to another language.
1 Menu
[ ] [W]
2 Use to select the language you want
to use.
3 Press the i button.
• You can add another language to your
camera with the provided OLYMPUS Master
software.
For details, refer to Help.
This lets you select NTSC or PAL according to your TV's video signal type.
You'll need to set this when you want to connect the camera to a TV and play
back images in a foreign country. Make sure the correct video signal type is
selected before connecting the video cable. If you use the wrong video signal
type, recorded pictures will not play back properly on your TV.
1 Menu
[] [VIDEO OUT]
2 Use to select [NTSC] or [PAL].
3 Press the i button.
TV video signal types & main regions
Check the video signal type before connecting
the camera to your TV.
Selecting the video signal type before TV connection
NTSC North America, Japan, Taiwan, Korea
PAL European countries, China
W
MENU
MENU
C
AN
C
E
L
GO
S
ELE
CT
s0004_e_Advanced.book Page 135 Tuesday, September 27, 2005 4:15 PM
136
Customizing the settings/functions of your camera
8
Button timer
You can specify the operable time for function settings on the current setting
screen from the time you take your finger away from any operation button.
1 Menu
[] [BUTTON TIMER]
2 Use to set.
[3 SEC] You will have 3 seconds to
complete function setting on the
current setting screen.
[5 SEC] You will have 5 seconds to
complete function setting on the
current setting screen.
[HOLD] You can take as long as you like to complete function setting. The
current screen will remain until you press the button again.
3 Press the i button.
This camera automatically turns off to reduce battery consumption if it is not
operated for 4 hours. When you need to use the camera for a long time, you
can reset this battery-saving function.
1 Menu
[] [4h TIMER]
2 Use to select [OFF] or [4h].
3 Press the i button.
Auto power off
HOL
D
s0004_e_Advanced.book Page 136 Tuesday, September 27, 2005 4:15 PM
137
8
Customizing the settings/functions of your camera
Start-up screen
When the camera is turned on, the control panel is displayed on the monitor
right after the start-up screen. If you do not want the start-up screen to appear,
set this function to [OFF].
1 Menu
[] [SCREEN]
2 Use to select [ON] or [OFF].
3 Press the i button.
You can change the background color of the monitor.
1 Menu
[] [CTL PANEL COLOR]
2 Use to select [COLOR1] or [COLOR2].
3 Press the i button.
When you make inquiries about your camera or accessories or when you want
to download software, you will need to inform which version of each the
products you are using.
1 Menu
[] [FIRMWARE]
2 Press d. Your product’s firmware
version will be displayed.
3 Press the i button to return to the
previous screen.
Changing monitor color
Firmware
s0004_e_Advanced.book Page 137 Tuesday, September 27, 2005 4:15 PM
138
Customizing the settings/functions of your camera
8
Setting the date/time
Date and time information is recorded on the card together with the images.
The file No. is also included with the date and time information. Be sure to set
the correct date and time before using the camera.
1 Menu
[] [X]
2 Use to select one of the following date
formats: Y-M-D (Year/Month/Day), M-D-Y
(Month/Day/Year), D-M-Y (Day/Month/
Year). Then press
d.
• The following steps show the procedure used
when the date and time settings are set to Y-
M-D.
3 Use
ac to set the year, then press d to
move to the month setting.
• To return to the previous setting, press b.
• The first two digits of the year are fixed.
4 Repeat this procedure until the date and
time are completely set.
• The time is displayed in the 24-hour format.
For example, 2 p.m. will be displayed as
14:00.
5 Press the
i button.
• For a more accurate setting, press
i when the time signal hits 00 seconds.
The clock starts when you press the button.
Notes
• The date and time settings will be returned to the factory default settings if the
camera is left without the battery for approximately 1 day. The settings will be
canceled more quickly if the battery was only loaded in the camera for a short time
before being removed. Before taking important pictures, check that the date and
time settings are correct.
s0004_e_Advanced.book Page 138 Tuesday, September 27, 2005 4:15 PM
9
Printing
Let’s print your shots!
You can print your images at photo labs or on your own printer.
If you print at photo labs, you'll find the print reservation
function helpful. Print reservation allows you to save the
number of prints and the date and time information on the
card.
If you print on a printer, there are a number of different ways to
do it. One method is to connect your digital camera to an
exclusive printer and print out recorded pictures directly from
the camera. The other is to transfer images to a computer and
print them on a printer connected to the computer.
Printing at a photo lab
that supports DPOF
Printing on a DPOF-
compatible printer
Printing on a
printer connected
to the camera
s0004_e_Advanced.book Page 139 Tuesday, September 27, 2005 4:15 PM
140
Printing
9
Print reservation (DPOF)
Print reservation allows you to save printing data (the number of prints and the
date/time information) with the pictures stored on the card.
DPOF is a standard format used to record automatic print information from
digital cameras. You can print out pictures automatically, at home or in a photo
lab, by storing such data as which pictures you wish to print and the number of
prints on a card.
Pictures set with print reservation can be printed using the following
procedures.
Printing using a DPOF-compatible photo lab
You can print the pictures using the print reservation data.
Printing using a DPOF-compatible printer
Printing is possible directly from a card containing print reservation data
without using a PC. For more details, refer to the printer's instruction manual.
A PC card adapter may also be necessary depending on the printer.
Picture size and printing
The resolution of a computer/printer is generally based on the number of dots
(pixels) per square inch. This is called dpi (dots per inch). The higher the dpi
value, the better the printed results. Keep in mind, however, that the dpi of the
picture does not change. This means that when you print an image with a
higher resolution, the size of the printed picture will be smaller. Although you
can print magnified images, picture quality will decrease.
If you want to print large, high-quality pictures, set the record mode as high as
possible when taking the pictures. g "Selecting the record mode" (P. 29)
Notes
• DPOF reservations set by another device cannot be changed by this camera. Make
changes using the original device.
• If a card contains DPOF reservations set by another device, entering reservations
using this camera will erase the previous reservations.
• If there is not enough space in the card memory, CARD FULL will be displayed and
you may not be able to enter the reservation data.
• You can make DPOF print reservations for up to 999 images per card.
• Not all functions may be available on all printers or at all photo labs.
• Print reservation may take considerable time when saving printing data to a card.
<
s0004_e_Advanced.book Page 140 Tuesday, September 27, 2005 4:15 PM
141
Print reservation (DPOF)
9
Printing
Flowchart for print reservation
There are two print reservation modes available: single-frame reservation <
or all-frame reservation U.
Set the camera to playback mode(g P. 98), then set the following.
Menu
[q] [<]
Select the print reservation mode. g P. 142
Select frames you want to print
(only for when you have selected
<). g P. 142
Set the printing data.
g P. 142
Confirm the print reservation you have set. g P. 143
Follow the operation guide
displayed here.
s0004_e_Advanced.book Page 141 Tuesday, September 27, 2005 4:15 PM
142
Print reservation (DPOF)
9
Printing

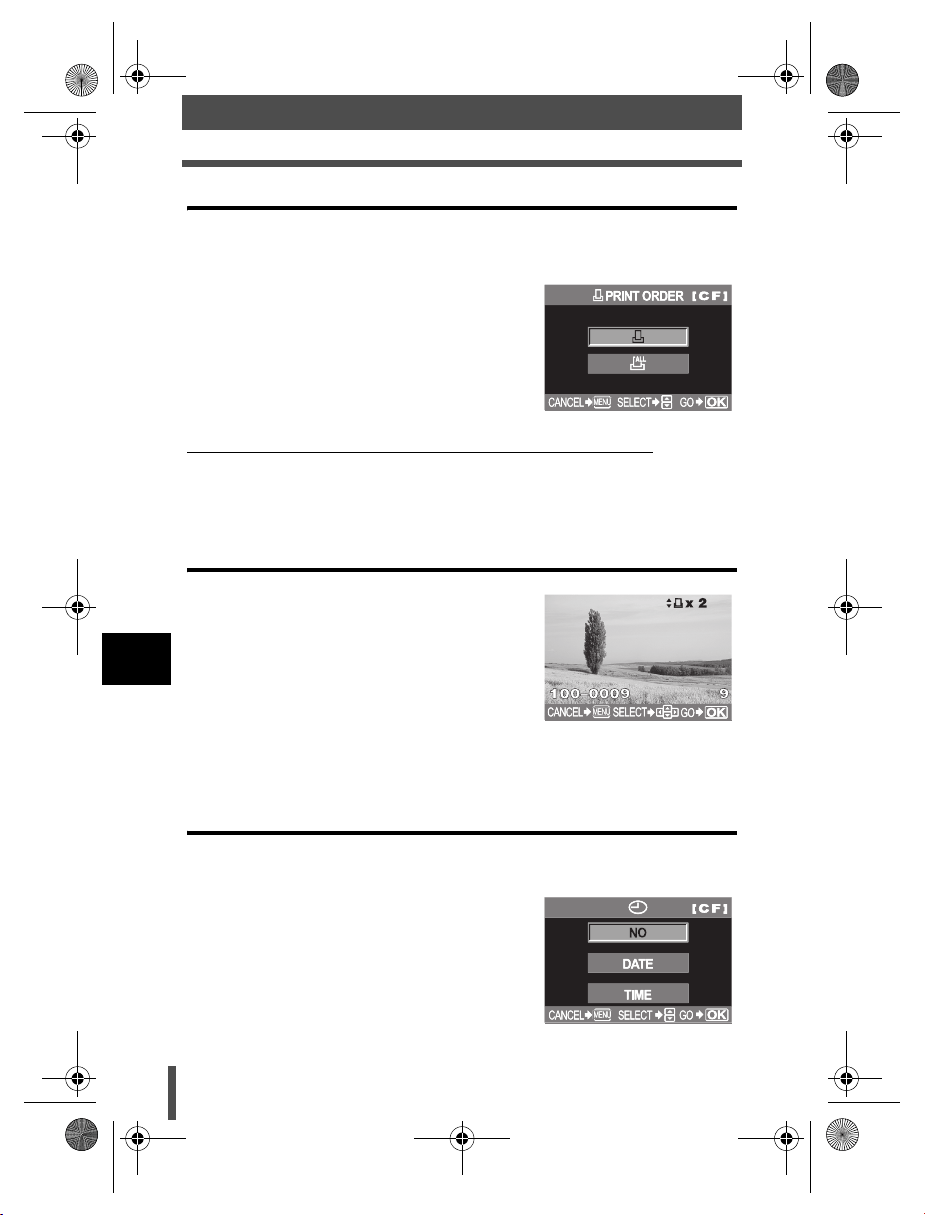

Selecting the print reservation mode <
Select whether to apply print reservation to selected pictures or apply print
reservation to all the pictures stored on the card.
[
<] Applies print reservation to selected
pictures.
[
U] Applies print reservation to all the pictures
stored in the card.
Pictures shot after performing all-frame
reservation and stored on the same card
will not be printed.
If print reservation data is already stored on the card
The RESET/KEEP selection screen appears, giving you the choice of
resetting the data or keeping it.
g "Resetting print reservation" (P. 143)
Selecting pictures you want to print
Lets you apply print reservation to selected
pictures. Display the picture to be printed and
select the desired number of prints. The number
of prints can be set up to 10. If the number of
prints is set to 0, print reservation will not be
applied.
If all-frame reservation is used after single-
frame reservation, specifications for the number
of prints will be overwritten and only one copy of
each frame will be printed.
Setting printing data
You can print the shooting date and time on all the pictures selected for
printing.
[NO] The pictures are printed without the
date and time.
[DATE] All the selected pictures are printed
with the shooting date.
[TIME] All the selected pictures are printed
with the shooting time.
s0004_e_Advanced.book Page 142 Tuesday, September 27, 2005 4:15 PM
143
Print reservation (DPOF)
9
Printing
Confirming your print setting
[SET] Confirms the print reservation you have
made.
[CANCEL] Cancels the print reservation and the
q menu is restored.
Resetting print reservation
Lets you reset print reservation data. You can reset all print reservation data or
just the data for selected pictures.
1 Set the camera to playback mode. (g P. 98)
2 Menu
[q] [<]
3 Use to select [<] or [U].
[<] Select this when you want to reset the print reservation data for a
selected picture.
[
U] Select this when you want to reset the print reservation data for all
pictures.
4 Press the
i button.
• If print reservation data is already stored on the card, the RESET/KEEP
selection screen appears, giving you the choice of resetting the data or
keeping it.
5 Do the following steps depending on the print reservation mode you
have selected:
Resetting the print reservation data for a
selected picture
1) Use ac to select [KEEP], then
press
i.
s0004_e_Advanced.book Page 143 Tuesday, September 27, 2005 4:15 PM

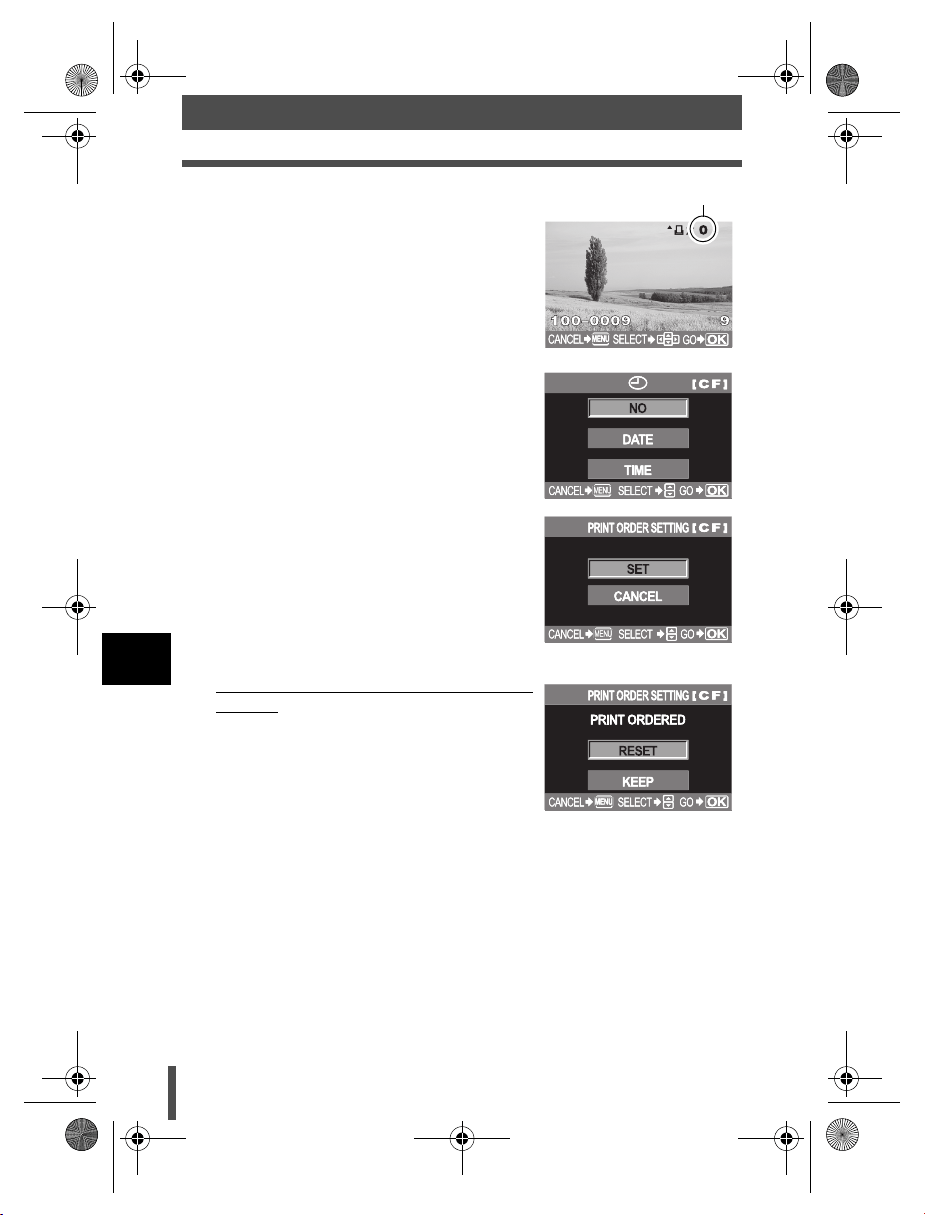

144
Print reservation (DPOF)
9
Printing
2) Use bd to select the frame with print
reservation data you want to reset,
then press
c to set the number of
prints to 0.
• To reset print reservation data of other
frames, repeat this step.
3) Press
i when you are finished.
• The X screen is displayed.
4) Use
ac to select [NO], [DATE] or
[TIME]. Press
i.
• This setting is applied to all frames with
print reservation data.
5) Use
ac to select [SET], then press
i.
• The setting is saved.
• The
q menu is restored.
Resetting the print reservation data for all
pictures
1) Use ac to select [RESET], then
press
i.
2) Press the MENU button.
• The
q menu is restored.
Set to 0.
s0004_e_Advanced.book Page 144 Tuesday, September 27, 2005 4:15 PM
145
9
Printing
Direct printing (PictBridge)
By connecting the camera to a PictBridge-compatible printer with the USB
cable, you can print out recorded pictures directly. With the camera connected
to the printer, select the pictures you want to print and the number of prints on
the camera's monitor. It is also possible to print out pictures using the print
reservation data (g P. 140).
To find out if your printer is compatible with PictBridge, refer to the printer's
instruction manual.
PictBridge
The standard that enables digital cameras and printers made by different
manufacturers to be connected, and also allows pictures to be printed directly
from the camera.
<
STANDARD
All printers that support PictBridge have standard print settings. By selecting
[< STANDARD] on the settings screens (g P. 149), you can print pictures
according to these settings. For details on your printer's standard settings,
refer to the printer's instruction manual or contact the printer manufacturer.
Printer accessories
For details on printing paper types, ink cassettes, etc., refer to the printer's
instruction manual.
Notes
• Keep an eye on the battery remaining power. If you use the battery, make sure that
it is fully charged. If the camera stops operating while communicating with the
printer, the printer may malfunction or image data may be lost.
• Images recorded in RAW data cannot be printed.
• The camera will not enter sleep mode while it is connected to the USB cable.
s0004_e_Advanced.book Page 145 Tuesday, September 27, 2005 4:15 PM
146
Direct printing (PictBridge)
9
Printing
Connecting the camera to a printer
Use the USB cable provided to connect the camera to a PictBridge-compatible
printer.
1 Turn the printer on and plug the
printer end of the USB cable into
the printer's USB port.
• For details on how to turn the printer
on and the position of the USB port,
refer to the printer's instruction
manual.
2 Plug the USB cable into the
camera's multi-connector and
turn the camera on.
• The selection screen for the USB
connection is displayed.
3 Use to select [
< EASY] or
[
< CUSTOM].
If you select [
< EASY]
Go to "Easy printing" (P. 147).
If you select [
< CUSTOM]
ONE MOMENT is displayed and
the camera and printer are
connected. The PRINT MODE
SELECT screen is displayed on
the monitor. Go to "Flowchart for
custom printing" (P. 147).
Notes
• If the screen is not displayed after a few minutes, turn off the camera and start again
from Step 2.
Multi-connector
s0004_e_Advanced.book Page 146 Tuesday, September 27, 2005 4:15 PM
147
Direct printing (PictBridge)
9
Printing
Easy printing
1 Display the image you want to print.
2 Press the (print) button.
Flowchart for custom printing
Select the print mode. g P. 148
Select the print paper setting. g P. 149
Select frames you want to print. g P. 149
Set the printing data. g P. 150
Print pictures. g P. 150
Follow the operation guide
displayed here.
s0004_e_Advanced.book Page 147 Tuesday, September 27, 2005 4:15 PM
148
Direct printing (PictBridge)
9
Printing
Selecting the print mode
Select the type of printing (print mode). You can print pictures one by one or
multiple pictures on a single sheet of paper.
[PRINT] Prints selected pictures.
[ALL PRINT] Prints all the pictures stored
in the card and makes one
print for each picture.
[MULTI PRINT] Prints multiple copies of one
image in separate frames on
a single sheet.
[ALL INDEX] Prints an index of all the
pictures stored in the card.
[PRINT ORDER] Prints according to the print
reservation you made. If there
is no picture with print
reservation, this is not
available.
Print modes and settings
The available print modes and settings such as paper size vary depending on
the type of printer. For details, refer to the printer's instructions.
s0004_e_Advanced.book Page 148 Tuesday, September 27, 2005 4:15 PM
149
Direct printing (PictBridge)
9
Printing
Setting the print paper items
This setting varies depending on the type of printer. If only the printer's [<
STANDARD] setting is available, you cannot change the setting.
[SIZE] Sets the paper size that the
printer supports.
[BORDERLESS] Selects whether the picture is
printed on the entire page or
inside a blank frame.
[PICS/SHEET] Selects the number of
pictures per sheet. Displayed
when you have selected
[MULTI PRINT].
Selecting pictures you want to print
Select pictures you want to print. The selected pictures can be printed later (single-
frame reservation) or the picture you are displaying can be printed right away.
PRINT ( ) Prints the currently displayed
picture. If there is a picture
that SINGLE PRINT
reservation has already been
applied to, only the picture
with SINGLE PRINT
reservation will be printed.
SINGLE PRINT ( )Applies print reservation to
the currently displayed
picture. If you want to apply
reservation to other pictures,
press bd to select them.
MORE ( ) Sets the number of prints and
other items for the currently
displayed picture, and
whether or not to print it.
g "Setting printing data" (P.
150)
s0004_e_Advanced.book Page 149 Tuesday, September 27, 2005 4:15 PM
150
Direct printing (PictBridge)
9
Printing
Setting printing data
Select whether to print printing data such as the date and time or file name on
the picture when printing.
[
<x] Sets the number of prints.
[X] Prints the date and time recorded
on the picture.
[FILE NAME] Prints the file name recorded on
the picture.
Printing
Print when you have set the pictures for printing and printing data.
[OK] Transfers images you print to the
printer.
[CANCEL] Resets the settings. All print
reservation data will be lost. If you
want to keep the print reservation
data and make other settings,
press b. This returns you to the
previous setting.
To stop and cancel printing, press the i button.
[CONTINUE] Continues printing.
[CANCEL] Cancels printing. All print
reservation data will be lost.
s0004_e_Advanced.book Page 150 Tuesday, September 27, 2005 4:15 PM
151
Direct printing (PictBridge)
9
Printing
If an error code is displayed
If an error code is displayed during direct printing setting or printing, see the
following table.
For more details on solutions, refer to the printer's instruction manual.
If other codes are displayed, refer to “Error codes” (P. 168).
Monitor indication Possible cause Corrective action
NO CONNECTION
The camera is not
connected to the printer
correctly.
Disconnect the camera
and connect it again
correctly.
NO PAPER
There is no paper in the
printer.
Load some paper in the
printer.
NO INK
The printer has run out
of ink.
Replace the ink cartridge
in the printer.
JAMMED
The paper is jammed. Remove the jammed
paper.
SETTINGS CHANGED
The printer's paper
cassette has been
removed or the printer
has been manipulated
while making settings
on the camera.
Do not manipulate the
printer while making
settings on the camera.
PRINT ERROR
There is a problem with
the printer and/or
camera.
Turn off camera and
printer. Check the printer
and remedy any problems
before turning the power
on again.
CANNOT PRINT
Pictures recorded on
other cameras may not
be printed on this
camera.
Use a personal computer
to print.
s0004_e_Advanced.book Page 151 Tuesday, September 27, 2005 4:15 PM
10
Transferring images to a
computer
Transferring images to your computer is a great way to make
the most of the potential of digital imaging. Not only can you
print the images of your choice, you can also use image
processing software to organize, edit, and manipulate images.
There are so many things you can do. Sort images by date/
time or other criteria. Trim, crop, colorize, or add special
effects. And much more.
Once you've transferred images to your computer, you can
email them to friends, post them on your website, create
slideshows or HTML albums, you can even use them as
wallpaper for your desktop.
s0004_e_Advanced.book Page 152 Tuesday, September 27, 2005 4:15 PM
153
10
Transferring images to a computer
Flowchart
Just connect the camera to a computer with the USB cable and you can easily
transfer images stored on the card to the computer with the provided
OLYMPUS Master software.
Installing OLYMPUS Master g P. 155
Connecting the camera to the computer using the provided USB cable
g P. 159
Starting OLYMPUS Master g P. 161
Saving images in the computer g P. 162
Disconnecting the camera from the computer g P. 163
Notes
• Keep an eye on the battery remaining power. If battery power runs low, the camera
may stop operating while connected to the computer. This could cause the
computer to malfunction, and any image data (file) being transmitted may be lost.
• Never open the camera's battery/card compartment cover while the card access
lamp is blinking. Doing so may destroy the image files.
• If the camera is connected to the computer via a USB hub, operation may not be
stable if there are any compatibility problems between the computer and the hub. In
such cases, do not use the hub and connect the camera directly to the computer
instead.
• If you want to process images using graphics applications, be sure to download
them to your computer first. Depending on the software, image files may be
destroyed if the images are processed (rotated, etc.) while they are on the card.
• If your computer cannot read the camera's image data via the USB connection, you
can use an optional PC card adapter or other media adapter to transfer images from
a CompactFlash or xD-Picture Card to the computer.
For details, see the Olympus web site.
s0004_e_Advanced.book Page 153 Tuesday, September 27, 2005 4:15 PM
154
Transferring images to a computer
10
Using the provided OLYMPUS Master software
Install the OLYMPUS Master software from the provided CD-ROM to edit and
manage images on your computer.
What is OLYMPUS Master?
OLYMPUS Master is an image management program with viewing and editing
features for pictures taken with your digital camera. Once installed on your
computer, you can take advantage of the following.
For information about OLYMPUS Master’s other features, as well as for details
on how to use the software, refer to OLYMPUS Master Help or the OLYMPUS
Master software user’s guide.
Viewing images and movies
You can also enjoy slideshows and
sound playback.
Grouping and organizing images
You can organize images by displaying
them in a calendar format. Using shooting
date or key words, you can quickly find the
particular images you want.
Correcting images using filter and
correction functions
A variety of printing formats
You can print in a variety of formats
including index prints, calendars,
postcards, and more.
Creating panorama images
You can make a panorama from the
photos you have taken using the
panorama function.
Editing images
You can rotate, trim or change the image
size.
Transferring images from the camera
or removable media to your computer
s0004_e_Advanced.book Page 154 Tuesday, September 27, 2005 4:15 PM
155
Using the provided OLYMPUS Master software
10
Transferring images to a computer
Installing OLYMPUS Master
Identify the OS on your computer before installing the software.
For the latest information on compatible operating systems, visit the
OLYMPUS web site (http://www.olympus.com).
System requirements
Windows
OS Windows 98SE/Me/2000 Professional/XP
CPU Pentium III 500 MHz or higher
RAM 128 MB or more (256 MB or more recommended)
HD space 300 MB or more
Interface USB port
Monitor 1024 x 768 pixel or more, minimum 65,536 colors
Macintosh
OS Mac OS X 10.2 or later
CPU Power PC G3 500 MHz or higher
RAM 128 MB or more (256 MB or more recommended)
HD space 300 MB or more
Interface USB port
Monitor 1024 x 768 pixel or more, minimum 32,000 colors
Notes
• Only pre-installed operating systems are supported.
• To install OLYMPUS Master on a computer running Windows 2000 Professional or
Windows XP, login as a user with administrator privileges.
• QuickTime 6 and Internet Explorer or later must be installed on the computer
beforehand.
• For Windows XP, Windows XP Professional/Home Edition is supported.
• For Windows 2000, only Windows 2000 Professional is supported.
• For Windows 98SE, a USB driver will be automatically installed.
Notes
• If your Macintosh has no built-in USB port, its functionality may not be guaranteed
when the camera is connected to the computer via USB.
• QuickTime 6 or later and Safari 1.0 or later must be installed on your computer.
• Be sure to remove the card (drag and drop it onto the Trash icon) first before
performing the following procedures. If you skip these procedures, the computer
may not function properly, requiring you to restart it.
• Unplug the cable connected between the camera and computer.
• Turn off the camera.
• Open the camera’s card compartment cover.
s0004_e_Advanced.book Page 155 Tuesday, September 27, 2005 4:15 PM
156
Using the provided OLYMPUS Master software
10
Transferring images to a computer
How to install
Windows
1 Boot your computer and insert the
OLYMPUS Master CD into your CD-ROM
drive.
• The OLYMPUS Master Setup Menu will
automatically launch.
• If the menu window does not appear, double-
click the [My Computer] icon, and click the
CD-ROM icon.
2 Click the [OLYMPUS Master] button.
• The QuickTime Setup program will
automatically run.
• QuickTime is required to run OLYMPUS
Master. If QuickTime 6 or later is preinstalled on
your computer, the setup program will not run.
In this case, go to step 4.
3 Click the [Next] button, then follow the
on-screen prompts to continue installing
the program.
• When the software license agreement
window appears, read the license agreement
text, then click [Agree].
• The OLYMPUS Master installation window
appears.
4 Follow the on-screen prompts to
continue installing the program.
• When the software license agreement
window appears, read the license agreement
test, then click [Yes].
s0004_e_Advanced.book Page 156 Tuesday, September 27, 2005 4:15 PM
157
Using the provided OLYMPUS Master software
10
Transferring images to a computer
• When a dialog box prompting you for User
Information appears, enter your name and
the OLYMPUS Master serial number that is
printed on the label on the CD-ROM
package. Select your region, then click
[Next].
Installation starts. When the DirectX license
agreement window appears, read the
message, then click [Yes] to continue
installation.
• A confirmation window appears, asking you if
you want to install Adobe Reader. To view the
OLYMPUS Master software user's guide,
Adobe Reader must be installed.
If Acrobat Reader is preinstalled on your
computer, the confirmation window will not
appear.
5 If you want to install Adobe Reader, click
[OK].
• If you do not want to install the program, click
[Cancel]. Go to step 7.
• The Adobe Reader installation window
appears.
6 Follow the on-screen prompts to
continue installing the program.
• A window appears to inform you when
installation is complete.
7 Click [Finish].
• The screen returns to the Olympus Software
Setup Menu.
8 Select the option to restart immediately
when the screen asking you if you wish
to restart the computer is displayed and
click [OK].
• The computer restarts.
s0004_e_Advanced.book Page 157 Tuesday, September 27, 2005 4:15 PM
158
Using the provided OLYMPUS Master software
10
Transferring images to a computer
Macintosh
1 Insert the OLYMPUS Master software CD
into your CD-ROM drive.
• The CD-ROM window automatically appears.
• If the screen does not appear, double-click
the CD-ROM icon on your desktop.
2 Double-click on the desired language
folder.
3 Double-click the [Installer] icon.
• Follow the on-screen prompts to continue
installing the program. OLYMPUS Master
Installer will automatically launch.
• When the software license agreement
window appears, read the license agreement
text, then click [Continue] and [Agree].
• A window appears to inform you when
installation is complete.
4 Click the [Quit] button.
5 Remove the CD, then click [Restart].
s0004_e_Advanced.book Page 158 Tuesday, September 27, 2005 4:15 PM
159
10
Transferring images to a computer
Connecting the camera to a computer
Connect the camera to your computer with the provided USB cable.
1 Insert the marked end of the
provided USB cable into the USB
port on your computer.
• The location of the USB port varies
depending on the computer. For details,
refer to your computer's manual.
2 Insert the provided USB cable into
the multi-connector.
3 Set the camera's power switch to
ON.
• The selection screen for the USB
connection is displayed.
4 Use ac to select [STORAGE].
Press the
i button.
Look for this mark.
USB port
Terminal
USB cable
Multi-connector
Smaller
terminal
Power switch
s0004_e_Advanced.book Page 159 Tuesday, September 27, 2005 4:15 PM
160
Connecting the camera to a computer
10
Transferring images to a computer

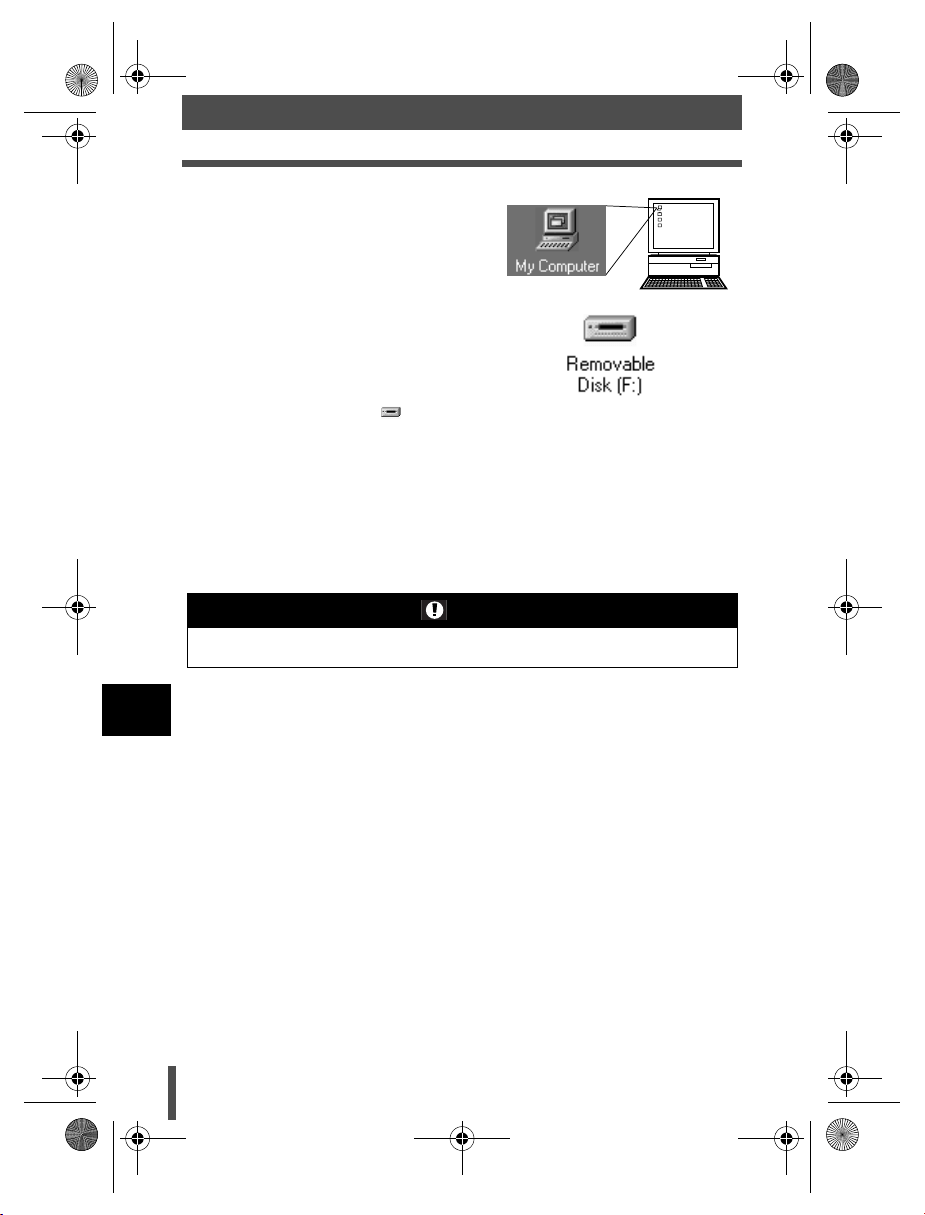

5 The computer recognizes the
camera as a new device.
•Windows
When you connect the camera to the
computer for the first time, the
computer automatically recognizes the
camera.
Click [OK] when the message saying
that the installation is completed
appears.
The computer recognizes the camera
as a [Removable Disk ].
•Macintosh
iPhoto is the default image
management application for Mac OS.
When you connect your Olympus
digital camera for the first time, iPhoto
will start up automatically. Close
iPhoto and start OLYMPUS Master.
Notes
• When the camera is connected to the computer, none of the camera buttons are
functional.
s0004_e_Advanced.book Page 160 Tuesday, September 27, 2005 4:15 PM
161
10
Transferring images to a computer
Starting OLYMPUS Master
Windows
1 Double-click (OLYMPUS Master) on the desktop.
• The OLYMPUS Master main menu appears.
Macintosh
1 Double-click (OLYMPUS Master) in the [OLYMPUS Master] folder.
• The OLYMPUS Master main menu appears.
• The first time you start the program, a dialog box appears, prompting you for
User Information. Enter your name and the OLYMPUS Master serial number
that is printed on the affixed label, then select your region.
Closing OLYMPUS Master
1 Click (Exit) in the main menu.
• The OLYMPUS Master program is closed.
1 [Transfer Images] button
Transfers images from the
camera or removable media.
2 [Browse imaged] button
Displays the Browse window.
3 [Online Print] button
Display the online print
window.
4 [Print Images at Home]
button
Displays the print menu.
5 [Create and Share] button
Displays menus to enjoy
images.
6 [Backup Images] button
Backs up images onto
removable media.
7 [Upgrade] button
Displays the dialog box that
allows upgrade to
OLYMPUS Master Plus.
s0004_e_Advanced.book Page 161 Tuesday, September 27, 2005 4:15 PM
162
Transferring images to a computer
10
Displaying
the
camera’s
images on your computer
Downloading images to save on your computer
Save images downloaded from the camera on your computer.
1 Click (Transfer Images) in the
OLYMPUS Master main menu.
• The selection menu for the folders containing
the files to be copied appears.
2 Click (From Camera).
• The window containing the files to be copied
appears. The thumbnails of all the images in
the camera appear.
3 Select the image file you want to save on
the computer, then click the [Transfer
Images] button.
• A confirmation message appears.
4 Click the [Browse images now.] button.
• The images downloaded to the Browse
window appear.
• Clicking [Menu] in the Browse window returns
to the main menu.
• Never open the camera's battery/card
compartment cover while the card access
lamp is blinking. Doing so may destroy the
image files.
s0004_e_Advanced.book Page 162 Tuesday, September 27, 2005 4:15 PM
163
Displaying the camera’s images on your computer
10
Transferring images to a computer
Disconnecting the camera from your computer
After downloading images from the camera to your computer, you can
disconnect the camera from your computer.
1 Make sure that the card access lamp has
stopped blinking.
2 Do the following steps depending on
your computer's operating system.
Windows 98SE
1) Double-click the [My Computer] icon
and right-click the [Removable Disk] to
display the menu.
2) Click [Eject] on the menu.
Windows Me/2000/XP
1) In the System Tray, click the Remove
Hardware icon .
2) Click on the pop-up message.
3) Click [OK] on the [Safe to Remove
Hardware] window.
Card access lamp
s0004_e_Advanced.book Page 163 Tuesday, September 27, 2005 4:15 PM
164
Viewing still images
10
Transferring images to a computer
Macintosh
1) The frash icon changes to the eject
icon when the “Untitled” or
“NO_NAME” icon on the desktop is
dragged. Drag and drop it on the
eject icon.
3 Unplug the USB cable from the camera.
1 Click (Browse Images) in the OLYMPUS main menu.
• The Browse window appears.
2 Double-click the thumbnail of the image
you want to view.
• The screen switches to the View mode,
enlarging the image.
• Clicking the [Menu] in the Browse window
returns to the main menu.
Notes
• For Windows Me/2000/XP users:
When you click [Unplug or Eject Hardware], a warning message may be displayed.
In such case, make sure that no image data is being downloaded from the camera,
and that there are no applications open that were accessing the camera image files.
Close any such applications and click [Unplug or Eject Hardware] again and then
remove the cable.
Viewing still images
Thumbnail
s0004_e_Advanced.book Page 164 Tuesday, September 27, 2005 4:15 PM
165
10
Transferring images to a computer
Printing images
The print menus include menus such as [Photo], [Index], [Postcard],
[Calendar] etc. The examples in the instructions below are taken from the
[Photo] menu.
1 Click (Print Images at Home) in the
OLYMPUS Master main menu.
• The print menu appears.
2 Click (Photo).
• The photo print window appears.
3 Click (Settings) on the photo print
window.
• The printer setting dialog box appears. Make
printer settings as required.
4 Select the layout and size of the image to
print.
• To print images with the date or date and
time, check off [Print Date], then select [Date]
or [Date & Time].
5 Select the thumbnail of the image you
want to print, then click the [Add] button.
• The selected image is previewed on the
layout.
6 Set the number of images to print.
7 Click the [Print] button.
• Clicking [Menu] in the photo print window
returns to the main menu.
s0004_e_Advanced.book Page 165 Tuesday, September 27, 2005 4:15 PM
166
Transferring images to a computer
10
Transferring images to your computer without using OLYMPUS Master
Your camera supports the USB Mass Storage Class. You can transfer images
to a computer by connecting the camera to the computer with the provided
USB cable.
This can be done even without using OLYMPUS Master.
The following operating systems are compatible with the USB connection:
Windows : Windows 98SE/Me/2000 Professional/XP
Macintosh : Mac OS 9.0-9.2/X
Notes
• Users running Windows 98SE need to install the USB driver. Before connecting the
camera to your computer with the USB cable, double-click the file included in the
following folder on the provided OLYMPUS Master CD-ROM. When you install
OLYMPUS Master, the USB driver will be installed at the same time.
Your computer's drive name: \USB\INSTALL.EXE
• Even if your computer has a USB connector, data transfer may not function
correctly if you are using one of the operating systems listed below or if you have an
add-on USB connector (extension card, etc.).
• Windows 95/98/NT 4.0
• Windows 98SE upgrade from Windows 95/98
• Mac OS 8.6 or lower
• Data transfer is not guaranteed on a home-built PC system or PCs with no factory
installed OS.
s0004_e_Advanced.book Page 166 Tuesday, September 27, 2005 4:15 PM
11
Appendix
The appendix will assist in solving most problems you may
encounter.
Solutions to error messages, operational problems, blurry
pictures, camera storage, basic terminology and more can
easily be found in this section.
s0004_e_Advanced.book Page 167 Tuesday, September 27, 2005 4:15 PM
168
Appendix
11
If you encounter problems
Error codes
Viewfinder
indications
Monitor
indications
Possible cause Corrective action
Normal
indication
NO CARD
The card is not inserted, or it
cannot be recognized.
Insert a card or insert a
different card.
CARD
ERROR
There is a problem with the
card.
Insert the card again. If the
problem persists, format the
card. If the card cannot be
formatted, it cannot be used.
WRITE
PROTECT
Writing to the card is
prohibited.
The card has been set to
read-only setting with the
computer. Reset the card with
the computer.
No
indication
CARD FULL
The card is full. No more
pictures can be taken or no
more information such as
print reservation can be
recorded.
Replace the card or erase
unwanted pictures. Before
erasing, download important
images to a PC.
No
indication
NO
There are no pictures on the
card.
The card contains no pictures.
Record pictures.
No
indication
ERROR
The selected picture cannot
be displayed for playback
due to a problem with this
picture. Or the picture cannot
be used for playback on this
camera.
Use image processing
software to view the picture on
a PC. If that cannot be done,
the image file is damaged.
CARD-
COVER
OPEN
The card cover is open. Close the card cover.
s0004_e_Advanced.book Page 168 Tuesday, September 27, 2005 4:15 PM
169
If you encounter problems
11
Appendix
Troubleshooting
CARD
ERROR
The card is not formatted. Format the card.
No
indication
BATTERY
EMPTY
The battery is drained. Charge the battery.
Possible cause Corrective action
Ref. Page
The camera does not turn on or function buttons do not respond.
The power is off. The camera automatically turns off if it is not
operated for a certain period of time. Set the
power switch to ON.
–
The camera enters the
sleep mode.
Press the shutter button halfway. P. 133
The battery is drained. Charge the rechargeable battery. When you use
lithium batteries, replace with new ones.
–
The battery is temporarily
unable to function
because of the cold.
Warm the battery by putting it in your pocket for a
while.
–
The camera is connected
to a PC.
The camera will not operate while it is connected
to a PC. The optional OLYMPUS Studio software
is required in the [CONTROL] mode.
P. 1 34
Viewfinder
indications
Monitor
indications
Possible cause Corrective action
s0004_e_Advanced.book Page 169 Tuesday, September 27, 2005 4:15 PM
170
If you encounter problems
11
Appendix
No picture is taken when the shutter button is pressed.
The battery is drained. Charge the rechargeable battery. When you use
lithium batteries, replace with new ones.
–
Subjects are difficult to
focus on (AF does not
work properly).
Use manual focus or focus lock to focus on the
subject and then shoot.
P. 2 7
P. 7 3
Pictures are being
recorded to the card.
During sequential shooting, no pictures can be
taken when the camera's memory is full.
–
The flash has not finished
charging.
Remove your finger from the shutter button, and
wait until the # mark stops blinking. Press the
shutter button again.
P. 5 5
The card is full. Erase unwanted images or insert a new card. Before
erasing, download important images to a PC.
P. 115
P. 162
The battery ran out of
power during shooting or
while the images were
being written to the card.
(The monitor turns off after
“BATTERY EMPTY” is
displayed.)
Charge the battery. (Wait until the card access
lamp stops blinking.)
–
There is a problem with
the card.
Refer to the error messages. P. 168
The viewfinder display is not clear.
The diopter is not
adjusted.
Adjust the diopter so that the AF frame is clearly
visible.
–
There is condensation* in
the lens or viewfinder.
Turn off the camera's power and wait until the
camera is dry. The camera will dry out as it gets
accustomed to the environmental temperature.
–
The date recorded with the image data is wrong.
The date/time is not set. Set the date/time. The clock adjustment is not
factory-preset.
P. 138
The camera was left for a
long period with the
battery removed.
If the camera is left for a long period with the
battery removed, the stored date/time setting will
be canceled. Set the date/time again.
P. 138
* Condensation: When it is cold outside, the water vapor in the air is rapidly cooled
and turns to droplets of water. Condensation occurs when the
camera is suddenly taken from a cold place into a warm room.
Possible cause Corrective action
Ref. Page
s0004_e_Advanced.book Page 170 Tuesday, September 27, 2005 4:15 PM
171
If you encounter problems
11
Appendix
Turning the camera's power off does not reset the stored settings.
This camera retains the
saved settings after the
camera's power is turned off.
Turning the camera's power off does not reset
the saved settings.
Set [CUSTOM RESET SETTING] to [RESET],
then turn off the camera.
P. 11 8
The picture is out of focus.
The subject is too close. Move back to the closest focusing distance for
the lens and take the picture.
–
Subjects are difficult to
focus on (AF does not
work properly).
Use manual focus or focus lock to focus on the
subject and then shoot.
P. 27
P. 73
The subject is dark. Set [AF ILLUMINATOR] to [ON] in the menu and
raise the flash.
P. 75
There is condensation* in
the lens or viewfinder.
Turn off the camera's power and wait until the
camera is dry.
–
The picture is blurred.
A subject unsuited to AF
was taken.
Use manual focus or focus lock to focus on the
subject and then shoot.
P. 27
P. 73
The camera moved when
the shutter button was
pressed.
Camera vibrations will result in a blurred picture.
Hold the camera correctly and press the shutter
button gently. When a telephoto lens is used,
special care is needed.
–
ISO is set to auto in a dark
environment.
The camera is more likely to move with slower
shutter speeds. Use the flash or set a higher ISO
sensitivity. The use of a tripod is also
recommended.
P. 50
P. 82
[RELEASE PRIORITY S]
or [RELEASE PRIORITY
C] is set to [ON].
The [RELEASE PRIORITY S] & [RELEASE
PRIORITY C] functions on this camera allow you
to release the shutter at exactly the right
moment.
However, when [RELEASE PRIORITY S] or
[RELEASE PRIORITY C] is set to [ON], the
shutter will be released even if the subject is not
in focus.
Make sure that [RELEASE PRIORITY S] or
[RELEASE PRIORITY C] is set to [OFF] or the
AF confirmation mark lights on the viewfinder
before pressing the button all the way.
P. 75
The lens was dirty. Clean the lens. Use a commercially available
blower blush and then wipe with a lens cleaner to
remove dust. Mold may form on the lens surface
if the lens is left dirty.
P. 1 74
Possible cause Corrective action
Ref. Page
s0004_e_Advanced.book Page 171 Tuesday, September 27, 2005 4:15 PM
172
If you encounter problems
11
Appendix
The picture is too bright.
There was something dark
in the center of the image.
When there is something dark in the center of the
image, the edges of the image will be brighter
regardless of the metering system. Adjust the
exposure toward minus (-).
P. 7 9
The ISO setting is high. Set ISO to auto or 100. If there is no
improvement, use a commercially available ND
filter compatible with the lens.
P. 8 2
A low aperture value is set
in the A (M) mode.
Increase the aperture value. P. 41,
P. 4 5
A slow shutter speed is
set in the S (M) mode.
Increase the shutter speed. P. 43,
P. 4 5
The picture is too dark.
The subject was too small
and was backlit.
Set the metering system to spot metering. Or use
the flash.
P. 5 0
P. 7 7
There was something
bright in the center of the
image.
When there is something bright in the center of
the image, the whole image will be darker
regardless of the metering system. Adjust the
exposure toward plus (+).
P. 7 9
A high aperture value is
set in the A (M) mode.
Decrease the aperture value. P. 41,
P. 4 5
A fast shutter speed is set
in the S (M) mode.
Reduce the shutter speed. P. 43,
P. 4 5
The colors of pictures taken indoors look unnatural.
Indoor lighting affected the
picture's colors.
Set the appropriate white balance for the lighting.
More natural-looking colors can be reproduced
with the one-touch white balance.
P. 9 0
The white balance setting
is wrong.
Set the appropriate white balance for the lighting
again.
P. 8 7
Halation produces unnatural colors in the picture.
This may be caused by
excessively bright
ultraviolet light on the
subject, such as sunlight
shining through the leaves
of trees, brightly lit
windows at night,
reflections off metal in
direct sunlight, etc.
• Use a commercially available UV filter. As this
may upset the overall color balance, it should
only be used under the conditions described on
the left.
• Process the picture using a graphics application
that supports JPEG (Paint Shop Pro,
Photoshop, etc.). For example, after picking up
unnatural colors with an eyedropper tool, etc.,
you can select color areas, and try color
conversion or saturation adjustment. For
details, refer to the manual for the graphics
application you are using.
–
Possible cause Corrective action
Ref. Page
s0004_e_Advanced.book Page 172 Tuesday, September 27, 2005 4:15 PM
173
If you encounter problems
11
Appendix
The top left part of the picture appears too bright.
When shooting at slow
shutter speeds, noise may
be generated due to a rise
in temperature in the CCD
drive circuit.
Set [NOISE REDUCTION] to [ON] before taking
pictures.
P. 95
Pictures cannot be played back on the monitor.
Pictures are not stored on
the card.
“NO PICTURE” appears on the monitor. Record
pictures.
–
The card error occurs. Refer to the error messages. P. 168
No picture is displayed on the TV when connected to the camera.
The video cable is not
connected correctly.
Connect the cable properly according to the
instructions.
P. 1 08
The camera's video output
signal is incorrect.
Set the video signal according to the region
where used.
P. 1 35
The TV 's video signal is
incorrect.
Set the TV to the video input mode. –
The monitor is hard to see.
The brightness is not
adjusted properly.
Adjust the brightness of the monitor using the
menu.
P. 1 33
The monitor is exposed to
direct sunlight.
Block the sunlight with your hand. –
The computer does not recognize the camera correctly.
The camera's power is
turned off.
Set the power switch to ON. –
The USB driver was not
successfully installed.
Install the OLYMPUS Master. P. 155
The camera is in the
[CONTROL] mode.
Set [USB MODE] to [AUTO] or [STORAGE].
When [AUTO] is set, the selection screen for
USB connection is displayed every time you
connect the USB cable to the camera.
P. 1 34
Possible cause Corrective action
Ref. Page
s0004_e_Advanced.book Page 173 Tuesday, September 27, 2005 4:15 PM
174
Appendix
11
Camera maintenance
Cleaning and storing the camera
Cleaning the camera
Turn off the camera and remove the battery before cleaning the camera.
Exterior:
J Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild
soapy water and wring well. Wipe the camera with the damp cloth and then
dry it with a dry cloth. If you have used the camera at the beach, use a cloth
soaked in clean water and well wrung.
Monitor and viewfinder:
J Wipe gently with a soft cloth.
Lens, mirror and focusing screen:
J Blow dust off the lens, mirror and focusing screen with a commercially
available blower. For the lens, wipe gently with a lens cleaning paper. Do not
use a high-pressure bottled blower. If high-pressure gas is sprayed onto the
lens, mirror, or focusing screen by non-authorized service persons, the
camera will be damaged.
Storage
• When storing the camera for extended periods, remove the battery and card.
Store the camera in a cool, dry place that is well ventilated.
• Replace the battery periodically and test camera functions.
Cleaning and Checking the CCD
This camera incorporates a dust reduction function to keep dust from getting on
the CCD and to remove any dust or dirt from the CCD surface with ultrasonic
vibrations. Dust reduction works when the power switch is set to ON.
Since dust reduction is activated every time the camera's power is turned on,
the camera should be held upright for the dust reduction function to be
effective. The SSWF indicator blinks while dust reduction is working. g
"Names of parts" (P. 190)
Notes
• Do not use strong solvents such as benzene or alcohol, or chemically treated cloth.
• Avoid storing the camera in places where chemicals are treated, in order to protect
the camera from corrosion.
• Mold may form on the lens surface if the lens is left dirty.
• Check each part of the camera before use if it has not been used for a long time.
Before taking important pictures, be sure to take a test shot and check that the
camera works properly.
s0004_e_Advanced.book Page 174 Tuesday, September 27, 2005 4:15 PM
175
Camera maintenance
11
Appendix
Cleaning mode — Removing dust on the CCD
If dust or dirt gets on tshe CCD, black dots may appear in the picture. If this
happens, contact your Olympus Authorized Service Center to have the CCD
physically cleaned. The CCD is a precision device and is easily damaged.
When cleaning the CCD yourself, be sure to follow the instructions below.
If a battery is used and power runs out during cleaning, the shutter will close,
which may cause the shutter curtain and mirror to break.
1 Remove the lens from the camera.
2 Set the power switch to ON.
3 Menu
[] [CLEANING MODE]
4 Press d, then press the i button.
• The camera enters the cleaning mode.
5 Press the shutter button fully.
• The mirror goes up and the shutter curtain
opens.
6 Clean the CCD.
• Carefully blow off any dust on the surface of
the CCD by using a mechanical blower
(commercially available).
7 Be careful not to catch the mechanical
blower in the shutter curtain when
turning the power off to finish cleaning.
• If the camera turns off, the shutter curtain closes, causing the mirror to fall.
Notes
• Be careful to not let the mechanical blower (commercially available) touch the CCD.
If the blower touches the CCD, the CCD will be damaged.
• Never put the mechanical blower behind the lens mount. If the power turns off, the
shutter closes, breaking the shutter curtain.
• Do not use anything other than the mechanical blower. If high-pressure gas is
sprayed onto the CCD, it will freeze on the CCD's surface, damaging the CCD.
s0004_e_Advanced.book Page 175 Tuesday, September 27, 2005 4:15 PM
176
Camera maintenance
11
Appendix
Pixel mapping — Checking the image processing functions
The pixel mapping feature allows the camera to check and adjust the CCD
and image processing functions. It is not necessary to operate this function
frequently.
Approximately once a year is recommended. After using the monitor or taking
continuous shots, wait for at least one minute before using the pixel mapping
function to ensure that it operates correctly.
1 Menu
[] [PIXEL MAPPING]
2 Press
d, then press the i button.
• The [BUSY] bar is displayed when pixel mapping is in progress. When
pixel mapping is finished, the menu is restored.
Notes
• If you accidentally turn the camera off during pixel mapping, start again from Step 1.
s0004_e_Advanced.book Page 176 Tuesday, September 27, 2005 4:15 PM
177
11
Appendix
Glossary
A (Aperture Priority) Mode
You set the aperture yourself and the camera automatically varies the shutter
speed so that the picture is taken with the correct exposure.
AE (Automatic Exposure)
The camera's built-in exposure meter automatically sets the exposure. The 3
AE modes available on this camera are P mode, in which the camera selects
both the aperture and shutter speed, A mode, in which the user selects the
aperture and the camera sets the shutter speed, and S mode, in which the
user selects the shutter speed and the camera sets the aperture.
In M mode, the user selects both the aperture and the shutter speed.
Aperture
The adjustable lens opening which controls the amount of light that enters the
camera. The larger the aperture, the shorter the depth of field and the fuzzier
the background. The smaller the aperture, the greater the depth of field and
the sharper the background. Aperture is measured in f/stops. Larger aperture
values indicate smaller apertures, and smaller aperture values indicate larger
apertures.
AUTO mode
Program AE mode (see “P (Program) Mode”). In addition, this mode features
automatic flash pop up when shooting in low-light conditions.
CCD (Charge-Coupled Device)
This converts light passing through the lens into electrical signals. On this
camera, light is picked up and converted into RGB signals to build a single
image.
Center weighted averaging metering
A light metering mode or technique that uses an average of the center and
periphery of the image area but is biased toward the information at the center
of the image area. This method is best used when the brightness of the center
and periphery of the image area does not vary greatly. See also digital ESP
metering and spot metering.
Color space
A model that describes colors using more than three coordinates. Color
spaces such as sRGB, Adobe RGB are occasionally used for encoding/
reproducing colors.
s0004_e_Advanced.book Page 177 Tuesday, September 27, 2005 4:15 PM
178
Glossary
11
Appendix
Color temperature
The spectral balance of different white light sources is rated numerically by
color temperature — a concept of theoretical physics that, with incandescent
lighting, corresponds roughly to the absolute lamp filament temperature,
expressed on the Kelvin (K) temperature scale. The higher the color
temperature, the richer the light in bluish tones and the poorer in reddish; the
lower the color temperature, the richer the light in reddish tones and the
poorer in bluish. You may encounter difficulties with color reproduction when
shooting indoors under fluorescent lighting, or where sunlight and fluorescent
lighting are both present. Your camera is provided with a white balance
adjustment feature that you can use to compensate for the odd effects of
combinations of color you may occasionally see in your pictures.
Compression rate
Compression is a method of reducing file size by abbreviating some contents
of data, and compression rate denotes the amount of compression. The actual
effect of the selected compression rate could vary with the content of the
image. The numbers for the compression rate selected with this camera
provide only a general scale for reference and are not precise measurements.
Conventional Photograph
This refers to recording images using silver halide (the method for recording
images in conventional, non-digital photography). This system is in contrast to
still video and digital photography.
DCF (Design rule for Camera File system)
A standard for image files by the Japan Electronics and Information
Technology Industries Association (JEITA).
Depth of Field
Depth of Field refers to the distance from the nearest to the furthest point of
perceived "sharp" focus in a picture.
Digital ESP (Electro-Selective Pattern) Light Metering
This determines the exposure by metering and calculating the light levels in
the center and other areas of the image separately.
DPOF (Digital Print Order Format)
This is for saving desired print settings on digital cameras. By entering which
images to print and the number of copies of each, the user can easily have the
desired images printed by a printer or print lab that supports the DPOF format.
s0004_e_Advanced.book Page 178 Tuesday, September 27, 2005 4:15 PM
179
Glossary
11
Appendix
Eclipsing (Vignetting)
This refers to when an object obscures part of the field of view so that the
whole subject is not photographed. Vignetting also refers to when the image
seen through the viewfinder does not exactly match the image shot through
the objective lens, so the photographed image includes objects not seen
through the viewfinder. In addition, vignetting can occur when an incorrect lens
hood is used, causing shadowing to appear in the corners of the image.
EV (Exposure Value)
A system for measuring exposure. EV0 is when the aperture is at F1 and the
shutter speed is 1 second. The EV then increases by 1 each time the aperture
increases by one F stop or the shutter speed increases by one increment. EV
can also be used to indicate brightness and ISO settings.
Exposure
The amount of light used to capture an image. The exposure is determined by
the length of time the shutter is open (shutter speed) and the amount of light
that passes through the lens (aperture).
ISO
A method for indicating film speed by the International Organization for
Standardization (ISO) (e.g. "ISO100"). Higher ISO values indicate greater
sensitivity to light, so images can be exposed even in low-light conditions.
JPEG (Joint Photographic Experts Group)
A compression format for color still images. Photographs (images) shot using
this camera are recorded onto the card in JPEG format when the Record
mode is set to SHQ, HQ, SQ. By downloading these images to a personal
computer, users can edit them using graphics application software or view the
images using an Internet web browser.
M (Manual) Mode
The user sets both the aperture and shutter speed.
NTSC (National Television Systems Committee) / PAL (Phase Alternating
Line)
Television formats. NTSC is mainly used in Japan, North America and Korea.
PAL is mainly used in Europe and China.
Number of Pixels (PIXEL COUNT)
The number of dots (pixels) used to create an image denotes the image size.
For instance, an image in 640 x 480 resolution is the same size as the
computer screen if the monitor setting is also 640 x 480. If the monitor setting
is 1024 x 768, the image only takes up part of the screen.
s0004_e_Advanced.book Page 179 Tuesday, September 27, 2005 4:15 PM
180
Glossary
11
Appendix
P (Program) Mode
Also called Program AE mode. The camera automatically sets the best shutter
speed and aperture for the shot.
PictBridge
A standard that enables digital cameras and printers made by different
manufacturers to be connected, and also allows pictures to be printed directly
from the camera.
Pixels
A pixel is the smallest unit (dot) used to make up an image. Clear large-sized
printed images require millions of pixels.
RAW
Refers to raw data, data which has not been enhanced with a camera option
like white balance, sharpness, contrast, etc. This file format is for viewing and
processing with our own software. You may not be able to open or process
these files with other graphics software applications, and these files cannot be
selected for DPOF printing. RAW files are assigned an orf file extension (*.orf).
S (Shutter Priority) Mode
Also called Shutter Priority AE mode. The user selects the shutter speed and
the camera automatically varies the aperture so that the picture is taken with
the best exposure.
Single-lens reflex camera
A camera with a shooting lens working also as the viewfinder lens. The image
of the subject enters through the lens, reflects off of the mirror and into the
pentaprism, where focus is adjusted, then through the viewfinder lens.
Pictures are taken by framing the composition and adjusting the focus in the
viewfinder lens.
Sleep Mode
A mode designed to save battery life. The camera automatically enters the
sleep mode if you do not operate it for a certain time. To get out of the sleep
mode, use any button on the camera (shutter button, menu button, etc.)
s0004_e_Advanced.book Page 180 Tuesday, September 27, 2005 4:15 PM
181
Glossary
11
Appendix
Spot metering
The meter reading is taken from a very small area around the center of the
subject, defined by the spot metering area mark in the viewfinder. Spot
metering is ideal for use in difficult light conditions, or when the important
element of the picture (subject's face) is small. Use spot metering for backlit
subjects, or sports and stage performers. See also digital ESP metering and
center weighted averaging metering.
TIFF (Tagged Image File Format)
A format used for saving highly detailed black and white or color image data.
TIFF image files can be handled by software programs for scanners and
graphics applications. Non-compressed image data are stored in this format
with this camera.
TFT (Thin-Film Transistor) Color Monitor
A color monitor constructed using thin-film technology.
TTL phase-contrast detection system
This is used to measure the distance to the subject. The camera determines if
the image is focused by the detected phase contrast.
TTL (Through-The-Lens) System
To help adjust exposure, a light receptor built into the camera directly
measures the light passing through the lens.
s0004_e_Advanced.book Page 181 Tuesday, September 27, 2005 4:15 PM
12
Information
This chapter covers all the camera's functions already
described in Chapters 1 through 11.
You can refer to the names of the camera's buttons and parts,
the names and meanings of the icons displayed on the
monitor, and the menu lists as necessary.
Use the index when you want to find the pages describing the
functions and items if these are not included in the table of
contents. You can also use the "Names of parts" and "Menu
directory" to search for the relevant pages.
s0004_e_Advanced.book Page 182 Tuesday, September 27, 2005 4:15 PM
183
12
Information
Menu directory
Shooting Menu
Tab Function Setting
Ref.
Page
CARD SETUP ALL ERASE / FORMAT
P. 26
P. 11 5
CUSTOM RESET
SETTING
RESET
P. 11 8RESET1 SET / RESET
RESET2 SET / RESET
PICTURE MODE
VIVID
/ NATURAL / MUTED /
MONOTONE / SEPIA
P. 93
GRADATION
HIGH KEY / NORMAL
/ LOW KEY
P. 94
D
HQ
/ SQ / RAW+SHQ / RAW+HQ / RAW+SQ /
RAW / TIFF / SHQ
P. 30
F
-5.0 - 0.0
- +5.0
P. 79
NOISE REDUCTION
OFF
/ ON
P. 95
WB
AUTO
B7 - ±0 - R7
P. 87
G7 - ±0 - M7
5 5300K
B7 - ±0 - R7
G7 - ±0 - M7
3 6000K
B7 - ±0 - R7
G7 - ±0 - M7
2 7500K
B7 - ±0 - R7
G7 - ±0 - M7
1 3000K
B7 - ±0 - R7
G7 - ±0 - M7
w 4000K
B7 - ±0 - R7
G7 - ±0 - M7
x 4500K
B7 - ±0 - R7
G7 - ±0 - M7
y 6600K
B7 - ±0 - R7
G7 - ±0 - M7
V
B7 - ±0 - R7
G7 - ±0 - M7
CWB 2000K - 14000K
ISO
AUTO
/ 100 - 1600
P. 82
METERING
ESP+AF / ESP
P. 77
4
5
5 HI
5 SH
Factory default setting
s0004_e_Advanced.book Page 183 Tuesday, September 27, 2005 4:15 PM
184
Menu directory
12
Information
Playback menu
FLASH MODE
P / A / i / & / l / j / /:
AUTO
/ ! / # / $ / !SLOW / #SLOW /
#SLOW2 / #FULL / #1/4 / #1/16 / #1/64
P. 5 4
S / M :
#
/ H / $ / #SLOW2 / #FULL /
#1/4 / #1/16 / #1/64
w
-2.0 - 0.0
- +2.0
P. 5 6
Y/</j
o
/ j
P. 6 2
Y12S / Y2S P. 63
<0S / <2S P. 65
AF MODE
S-AF
/ C-AF / MF / S-AF+MF / C-AF+MF
P. 7 0
AUTO
/ / /
P. 6 9
AE BKT
OFF
/ 3F 0.3EV / 3F 0.7EV / 3F 1.0EV
P. 8 3
WB BKT
R-B
OFF
/ 3F 2STEP / 3F 4STEP /
3F 6STEP
P. 9 2
G-M
FL BKT
OFF
/ 3F 0.3EV / 3F 0.7EV / 3F 1.0EV
P. 5 7
MF BKT
OFF
/ 5F 1STEP / 5F 2STEP / 7F 1STEP /
7F 2STEP
P. 7 4
ANTI-SHOCK
OFF
/ 1 - 30 SEC
P. 9 6
Factory default setting
Tab Function Setting
Ref.
Page
q
m
/ / / /
P. 106
y
OFF / ON
P. 107
EDIT
RAW DATA EDIT
P. 109
JPEG/TIFF EDIT
BLACK & WHITE / SEPIA /
REDEYE FIX / SATURATION /
Q
<< / U P. 142
COPY ALL YES / NO P. 113
Factory default setting
Tab Function Setting
Ref.
Page
s0004_e_Advanced.book Page 184 Tuesday, September 27, 2005 4:15 PM
185
Menu directory
12
Information
Custom menu
Tab Function Setting
Ref.
Page
ISO STEP
1/3EV
/ 1EV
P. 124
ISO BOOST
OFF
/ ON+NF / ON
P. 124
ISO LIMIT
OFF
/ 100 / 200 / 400 / 800
P. 124
EV STEP
1/3EV
/ 1/2EV / 1EV
P. 123
ALL >
ALL SET
B7 - ±0
- R7
P. 125
G7 - ±0
- M7
ALL RESET YES / NO
HQ
1/4 / 1/8
/ 1/12
P. 3 0
SQ
PIXEL COUNT
3200×2400 / 2560×1920 /
1600×1200 / 1280×960
/
1024×768 / 640×480
P. 3 0
COMPRESSION
1/2.7 / 1/4 / 1/8
/ 1/12
MANUAL FLASH
OFF
/ ON
P. 125
w+F
OFF
/ ON
P. 5 6
# X-SYNC 1/60 - 1/180 P. 126
AUTO POPUP
OFF / ON
P. 126
DIAL
P
Ps
/ F
P. 127
M
SHUTTER
/ FNo.
AEL/AFL
S-AF
mode1
- mode3
P. 121C-AF
mode1
- mode4
MF
mode1
- mode3
AEL/AFL MEMO
ON / OFF
P. 123
AEL METERING
AUTO
/ 4 / 5 / 5 HI / 5 SH
P. 123
QUICK ERASE
OFF
/ ON
P. 130
RAW+JPEG ERASE
JPEG / RAW / RAW+JPEG
P. 130
VFUNCTION V / TEST PICTURE / MY MODE / PREVIEW P. 128
MY MODE SETUP NO DATA / MY MODE1 / MY MODE2 P. 128
FOCUS RING
/
P. 129
AF ILLUMINATOR
OFF / ON
P. 7 5
RESET LENS
OFF / ON
P. 129
RELEASE PRIORITY S
OFF
/ ON
P. 7 5
RELEASE PRIORITY C
OFF / ON
P. 7 5
Factory default setting
s0004_e_Advanced.book Page 185 Tuesday, September 27, 2005 4:15 PM
186
Menu directory
12
Information
Setup menu
Tab Function Setting
Ref.
Page
X P. 1 38
CF/xD
CF / xD
P. 26
FILE NAME
AUTO
/ RESET
P. 1 31
EDIT FILENAME
sRGB
OFF
/ A-Z / 0-9
P. 1 32
AdobeRGB
s
Lo -7 - 0
- Hi +7
P. 1 33
W
*1
P. 1 35
VIDEO OUT
NTSC / PAL*1
P. 1 35
8
OFF / ON
P. 1 33
REC VIEW
OFF
/ 1 SEC - 20 SEC
P. 1 32
SLEEP
OFF / 1 MIN
/ 3 MIN / 5 MIN / 10 MIN
P. 1 33
4h TIMER
OFF / 4h
P. 1 36
BUTTON TIMER
HOLD / 3 SEC
/ 5 SEC
P. 1 36
SCREEN
OFF
/ ON
P. 1 37
CTL PANEL COLOR
COLOR1
/ COLOR2
P. 1 37
PRIORITY SET
YES / NO
P. 1 29
USB MODE
AUTO
/ STORAGE / CONTROL / < EASY /
< CUSTOM
P. 1 34
COLOR SPACE
sRGB
/ AdobeRGB
P. 96
SHADING COMP.
OFF
/ ON
P. 94
PIXEL MAPPING P. 176
CLEANING MODE P. 175
FIRMWARE P. 137
Factory default setting
*1 Settings differ depending on the region where the camera is purchased.
s0004_e_Advanced.book Page 186 Tuesday, September 27, 2005 4:15 PM
187
12
Information
Available functions by shooting mode
Function
AUTO
P A S M
i l &
j /
Aperture value – – –
Shutter speed – – –
Bulb shooting – – –
F – – –
K
(Cannot be selected in
W mode)
Flash shooting –
Flash mode
AUTO – –
! – –
!SLOW – –
#SLOW – – –
H – ––
#SLOW2 – –
# –
$ –
CUSTOM RESET
SETTING
–
PICTURE MODE –
GRADATION –
NOISE REDUCTION –
>
w –
METERING –
j –
Y
<
AF mode –
AF target mark –
AE BKT –
WB BKT –
FL BKT –
MF BKT –
ANTI-SHOCK –
ISO STEP –
ISO BOOST –
: Available – : Not available
s0004_e_Advanced.book Page 187 Tuesday, September 27, 2005 4:15 PM
188
Available functions by shooting mode
12
Information
ISO LIMIT –
EV STEP
(Cannot be selected in
W mode)
ALL >
(Cannot be selected in
W mode)
HQ –
SQ –
MANUAL FLASH –
w+F –
#X-SYNC –
AUTO POP UP –
DIAL –
AEL/AFL –
AEL/AFL MEMO –
AEL METERING
QUICK ERASE
RAW+JPEG ERASE
V FUNCTION
MY MODE SETUP
FOCOUS RING
AF ILLUMINATOR
RELEASE PRIORITY S
RELEASE PRIORITY C
X
CF / xD
FILE NAME
EDIT FILENAME
s
W
VIDEO OUT
8
REC VIEW
SLEEP
4h TIMER
BUTTON TIMER
SCREEN
Function
AUTO
P A S M
i l &
j /
: Available – : Not available
s0004_e_Advanced.book Page 188 Tuesday, September 27, 2005 4:15 PM
189
Available functions by shooting mode
12
Information
CTL PANEL COLOR
PRIORITY SET
USB MODE
COLOR SPACE
SHADING COMP.
PIXEL MAPPING
CLEANING MODE
Function
AUTO
P A S M
i l &
j /
: Available – : Not available
s0004_e_Advanced.book Page 189 Tuesday, September 27, 2005 4:15 PM
190
Information
12
Names of parts
Camera
Monitor
g P. 20, P. 193, P. 194
Viewfinder
S(Erase) button
g P. 115
INFO (Information
display) button
g P. 103
MENU button
g P. 23
q (Playback) button
g P. 98
WB (White balance)
button g P. 87
#(Flash) switch g P. 55
AEL/AFL
b
utton
g
P
.
81
0 (Protect) button g P. 114
</Y/j (Remote control/Self-timer/
Drive) button
g P. 62, P. 63, P. 65
(Copy/Print) button
P. 113, P. 147
(AF frame
selection) button
g P. 69
Card access lamp g P. 28
Arrow pad g P. 23
i button g P. 23
ISO button g P. 82
(Metering) button
g P. 77
AF (Focus mode)
button g P. 70
Diopter adjustment dial
V (One-touch WB) button
g P. 47, P. 90, P. 128
Multi-connector
g P. 146, P. 159
Connector cover
Card cover
xD card slot
Eject button
CF card slot
s0004_e_Advanced.book Page 190 Tuesday, September 27, 2005 4:15 PM
191
Names of parts
12
Information
Control dial
g P. 21, P. 127
Hot shoe g P. 58
Power switch
Shutter button g P. 27
Mode dial g P. 18
SSWF indicator g P. 174
Flash g P. 55
Self-timer/Remote control lamp/
Remote control receiver
g P. 66
Mirror
Lens lock pin
Lens release button
Lens attachment
mark
Mount
(Attach the lens after removing the body
cap from the camera to prevent dust and
dirt from entering the camera body.)
Battery compartment lock
Battery compartment cover
Tripod socket
F (Exposure
compensation) button
g P. 79
CCD mark
(When focusing,
measure from this
point if you know the
distance to the
subject.)
s0004_e_Advanced.book Page 191 Tuesday, September 27, 2005 4:15 PM
192
Names of parts
12
Information
Viewfinder indications
Items Indication examples Ref. page
1
AF frame P. 69
2
Aperture value P. 41 - 45
3
Shutter speed
Record mode
P. 42 - 45
4
AF confirmation mark ( P. 28
5
Flash P. 55
6
White balance P. 87
7
AE lock P. 81
8
Number of storable still pictures
(appears during record mode setting)
Exposure compensation value indication
(appears during exposure compensation)
–
P. 7 9
9
Metering mode
, 4, 5
P. 7 7
10
Battery check
(blinks)
–
11
Exposure mode P, %, A, S, M P. 39 - 45
s0004_e_Advanced.book Page 192 Tuesday, September 27, 2005 4:15 PM
193
Names of parts
12
Information
Monitor indications (only for playback)
You can switch the monitor display using the INFO (information display)
button g "Information display" (P. 103).
.
* The focal length is displayed in 1 mm units.
Items Indication examples Ref. page
1 Battery check
,
–
2 Card xD, CF P. 26
3
Print reservation
Number of prints
×10
P. 1 4 2
4Protect P. 114
5 Record mode RAW, TIFF, SHQ, HQ, SQ P. 31
6 Date and time 05.12. 23, 21:56 P. 138
7
File number
Frame number
100-0030
30
P. 1 0 3
8 AF frame P. 69
9 Histogram P. 104
10 Aperture value F2.8 P. 41 - 45
11 Shutter speed 1/4000 P. 42 - 45
12 Exposure mode P, A, S, M, i, l, &, j, / P. 3 4
13 Exposure compensation 0.7 P. 79
14 Focal length * 117mm P. 210, 212
15 ISO AUTO, ISO 100, ISO 200, ISO 400 P. 82
16 Metering mode
, 4, 5, 5HI, 5SH
P. 7 7
17 Flash intensity control 0.5 P. 56
18 White balance WB : AUTO P. 87
19 Picture mode
VIVID
P. 9 3
20 Color space sRGB, Adobe RGB P. 96
21 White balance compensation R: +3, G: -2 P. 91
Single-frame playback information
Overall information
12 3 4
12 8 9
5
6
7
5
10
11
12
15
16
13
14
17
18
19
20 21
s0004_e_Advanced_12_others.fm Page 193 Wednesday, September 28, 2005 10:53 AM
194
Names of parts
12
Information
Control panel screen
Items Indication examples Ref. page
1 Battery check
,
–
2 Shutter speed 1/2000
P. 42 - P. 45
3
Exposure compensation
indicator
Exposure level indicator
Flash intensity level
indicator
P. 8 0
P. 4 5
P. 5 6
4 Aperture value F2.8
P. 41 - P. 45
5 Exposure mode
AUTO, P, A, S, M, i, l, &, j,
/
P. 3 4
6 Exposure compensation +2.0 P. 79
7
Date/Time
Auto bracketing
Noise reduction
’05.12.23, 21:56
P. 138
P. 4 9
P. 9 5
8 ISO AUTO, 100, 200, 400 P. 82
9 White balance 1, 5 P. 87
10 Picture mode
VIVID
P. 9 3
11 Flash mode H, # P. 5 3
12 Record mode RAW+SHQ P. 31
13 Card xD, CF P. 26
14 Flash intensity control #+2.0 P. 56
15 Metering mode
, 4, 5, 5HI, 5SH
P. 7 7
16
Number of storable still
pictures
135 –
17 Focus mode S-AF P. 70
Normal Detailed
1234 1246
5
7
8
9
11
6
10
17
12 13 14 16
22 13 16
5
8
20
3
10
19
21
15
18
s0004_e_Advanced.book Page 194 Tuesday, September 27, 2005 4:15 PM
195
Names of parts
12
Information
18
Super FP flash
Noise reduction
P. 6 0
P. 9 5
19
White balance
White balance
compensation
1, 5
R+3, G-2
P. 8 7
P. 9 1
20
Flash mode
Flash intensity control
Metering mode
Focus mode
AF frame
Self-timer/Remote control/
Drive
Auto bracketing
AF illuminator
H
#+2.0
, 4, 5
S-AF
<, Y, j
P. 5 3
P. 5 6
P. 7 7
P. 7 0
P. 6 9
P. 62 - 65
P. 4 9
P. 7 5
21
Color space
Sharpness
Contrast
Saturation
Gradation
sRGB, Adobe RGB
N+2
J+2
T+2
, H, L
P. 9 6
P. 9 3
P. 9 3
P. 9 3
P. 9 4
22
Record mode
Resolution
RAW+SHQ
1280×960
P. 3 1
Items Indication examples Ref. page
s0004_e_Advanced.book Page 195 Tuesday, September 27, 2005 4:15 PM
196
Information
12
Information
Specifications
Product type
Product type : Single-lens reflex digital camera with interchangeable lens
system
Lens : Zuiko Digital, Four Thirds System Lens
Lens mount : Four Thirds mount
Equivalent focal length
on a 35 mm film camera : Approx. twice the focal length of the lens
Image pickup element
Product type : 4/3 type full frame transfer primary color CCD
Total no. of pixels : Approx. 8,880,000 pixels
No. of effective pixels : Approx. 8,000,000 pixels
Screen size : 17.3 mm (H) x 13.0 mm (V) (0.9" x 0.5")
Aspect ratio : 1.33 (4 : 3)
Viewfinder
Product type : Eye-level single-lens reflex viewfinder
Field of view : Approx. 95% (for field of view on recorded images)
Viewfinder magnification : Approx. 0.9x (-1 m
-1
, 50mm lens, infinity)
Eye point : 10 mm (0.8") (-1 m
-1
)
Diopter adjustment range : -3.0 - +1.0 m -1 m
-1
Optical path fraction : Quick return half mirror
Depth of field : Can be checked with the V (one-touch WB) button (when
PREVIEW registered)
Focusing screen : Fixed
Eyecup : Interchangeable
Monitor
Product type : 2.5" TFT color LCD (Hyper crystal LCD)
Total no. of pixels : Approx. 215,000 pixels
Shutter
Product type : Computerized focal-plane shutter
Shutter : 1/4000 - 60 sec
Manual mode: Bulb (Limit: 8 min.)
Auto focus
Product type : TTL phase-contrast detection system
Focusing point : 3-point multiple AF (left, center, right)
AF luminance range : EV 0 - EV 19
Selection of : Auto, Optional
focusing point
AF illuminator : The built-in flash provides light. (light can also be provided by
an external electronic flash.)
Exposure control
Metering system : TTL full-aperture metering system
(1) Digital ESP metering (49-segment multi pattern
metering)
(2) Center weighted average metering (49-segment
multi pattern metering)
(3) Spot metering (approx. 2% for the viewfinder screen)
Metering range : (1) EV 1 - 20 (Digital ESP metering, Center weighted
average metering)
(2) EV 3 - 17 (Spot metering)
(At normal temperature, 50 mm F2, ISO 100)
s0004_e_Advanced.book Page 196 Tuesday, September 27, 2005 4:15 PM
197
Information
12
Information
Exposure mode : (1) AUTO: Full auto
(2) P: Program AE(Program shift can be performed)
(3) A: Aperture priority AE
(4) S: Shutter priority AE
(5) M: Manual
ISO sensitivity : 100 - 400 (High ISO values (800 - 1600) are available)
Exposure compensation : Exposure can be adjusted in 1/3, 1/2 or 1 EV step within a
range of ± 5 EV.
White balance
Product type : CCD
Mode setting : Auto, Preset WB (7 settings), Customized WB ,
One-touch WB
Recording
Memory : CF card (Compatible with Type I and II)
Microdrive (Compatible with FAT 32)
xD-Picture Card
Recording system : Digital recording, TIFF (non-compression), JPEG (in
accordance with Design rule for Camera File system (DCF)),
RAW Data
Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image
Matching
III
, PictBridge
Playback
Playback mode : Single-frame playback, Close-up playback, Index display,
Image rotation, Slideshow, Light box display, Calendar display
Information display : Information display, Histogram display
Drive
Drive mode : Single-frame shooting, Sequential shooting, Self-timer,
Remote control
Sequential shooting : 2.5 frames/sec. (Max. no. of storable sequential pictures:
4 frames in RAW/TIFF)
Self-timer : Operation time: 12 sec., 2 sec.
Optical remote control : Operation time: 2 sec., 0 sec. (instantaneous shooting) (RM-1
Remote Control (optional))
Flash
Synchronization : Synchronized with the camera at 1/180 sec. or less
Flash control mode : TTL-AUTO (TTL pre-flash mode), AUTO, MANUAL
External flash attachment: Hot shoe
External connector
USB connector/Multi-connector
Power supply
Battery : BLM-1 Li-ion Battery x1/CR123A lithium battery x3 (for use
with LBH-1 Lithium Battery Holder)
Dimensions/weight
Dimensions : 129.5 mm (W) x 94.5 mm (H) x 66 mm (D) (5.1" x 3.7" x 2.6")
(excluding protrusions)
Weight : Approx.435 g (1.0 Ib.) (without battery)
Operating environment
Temperature : 0 - 40°C (32°F - 104°F) (operation)/
-20 - 60°C (-4°F - 140°F) (storage)
Humidity : 30 - 90 % (operation)/10 - 90 % (storage)
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE
OR OBLIGATION ON THE PART OF THE MANUFACTURER.
s0004_e_Advanced.book Page 197 Tuesday, September 27, 2005 4:15 PM
13
Accessories
This chapter describes how to use the accessories provided
with your digital camera.
Provided accessories may differ depending on the camera kit.
Although most accessories are optionally available, not all
accessories are available in some areas.
• BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
• LBH-1 Lithium Battery Holder
• ZUIKO DIGITAL interchangeable lenses
ZUIKO DIGITAL 14-45mm f3.5-5.6
ZUIKO DIGITAL 17.5-45mm f3.5-5.6
s0004_e_Advanced.book Page 198 Tuesday, September 27, 2005 4:15 PM
199
13
Accessories
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
Charging the battery
1 Connect the power cord firmly to the battery charger.
2 Remove the protection cap and
slide the battery into the
charger as illustrated.
3 Connect the other end of the
power cord firmly to a power
outlet.
–Terminal
+Terminal
Protection cap
Power plug
Charging indicator
1
2
3
Li-ion battery
s0004_e_Advanced.book Page 199 Tuesday, September 27, 2005 4:15 PM
200
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
4 The charging indicator lights up and charging starts. Charging is
completed when the indicator turns green. When charging is
completed, unplug the power cord from the power outlet and then
remove the battery from the battery charger.
* In any of the following cases, unplug the power cord from the wall outlet and
contact Olympus.
• Charging has not finished after 10 hours.
• The indicator blinks red even though the battery is inserted properly.
Safety precautions
This instruction manual uses a variety of common symbols and icons to assist
you in proper handling and usage of this product properly, and to warn you of
potential hazards to yourself and others as well as to property. These symbols
and their significance are described below.
DANGER
z The BCM-2 Li-ion Battery Charger (hereinafter referred to as the “charger”)
is designed for use with the BLM-1 Li-ion Battery (hereinafter referred to as
the “battery”). Do not attempt to charge dry cell batteries and any other type
of rechargeable battery. Doing so may cause fire, overheating, explosion or
fluid leak.
Charging indicator
status
Charging status
Off Battery is not connected.
Red lighting Charging.
Green lighting Charging completed.
Red blinking Charging error (time-out, temperature error). *
Red lighting Stand by for temperature protection.
DANGER
Failure to observe the precautions indicated by this symbol may
result in serious injury or death.
WARNING
Failure to observe the precautions indicated by this symbol may
result in injury or death.
CAUTION
Failure to observe the precautions indicated by this symbol may
result in injury or property damage.
s0004_e_Advanced.book Page 200 Tuesday, September 27, 2005 4:15 PM
201
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
z Do not short-circuit the battery terminals with a metallic object.
When transporting or storing the battery, cover the battery terminals with the provided
protection cap. It is dangerous to carry an uncapped battery in a bag, pocket, etc.
z Do not attempt to charge a battery that is damaged, leaking, or wet.
z If battery fluid gets in your eyes, blindness may result. Rinse your eyes with
clean water without rubbing them and see a doctor immediately.
z Do not load a battery into the charger with the +/- terminals upside down. If
the battery does not fit properly into the charger, do not force fit the battery.
Doing so could cause a fire, overheating, explosion, fluid leak or other
damage.
z Never solder the battery/charger, or attempt to repair, deform, modify or
disassemble it.
z Never expose the battery/charger to water or moisture including rain,
seawater and animal urine. Do not handle the battery/charger when it is wet
or when your hands are wet. Do not use the battery/charger in damp or
humid conditions (such as in a bathroom).
z Do not charge the battery or store the battery and charger in locations
where they may be exposed to high temperatures. For example, do not
leave it on the dashboard of a car under direct sunlight or place it near
heating equipment.
z Keep the battery/charger out of reach of children. Swallowing a battery can
be extremely dangerous. Should a child swallow a battery, see a doctor
immediately.
z Do not use the battery/charger in a place where heat may build up, such as
under a cushion.
z Never use the battery/charger around flammable gas. Otherwise, explosion
or fire may result.
z Do not use the charger for any purpose other than to charge the specified
batteries. For example, do not use as a DC power source.
z To avoid fire, overheating or electric shock, do not insert a metallic object
such as a wire into the charger.
z Always power the charger with the voltage specified in the instruction
manual.
z Do not use a power cord other than the one provided or one that is
designated for use with this charger.
z Always insert the power plug completely and firmly into the outlet socket.
Do not use the charger when the power plug is not fully inserted.
s0004_e_Advanced.book Page 201 Tuesday, September 27, 2005 4:15 PM
202
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
WARNING
z To avoid fire, overheating, explosion or leakage, do not subject the battery
to excessive shock, throw it, or otherwise damage it.
z Never put the battery in a microwave oven or high-pressure container. This
could cause a fire, leakage, overheating or an explosion.
z If the battery leaks or emits a burning odor, keep it away from heat sources.
Leaked fluid may catch fire, causing the battery to smoke, burn or explode.
z If fluid from inside the battery sticks to your skin or clothes, it may cause
injury. Wash it off immediately with clean water and see a doctor.
z If charging does not complete in the specified charge time, stop charging to
prevent fire, overheating or explosion.
z When recycling or disposing of the battery, cover the battery with the
provided cap (use tape to secure it) or use plastic tape to insulate all
terminals. Otherwise, the batteries could be short-circuited and cause a fire,
overheating or explosion.
z Do not touch the battery/charger during charging. Extended contact could
result in minor burns.
z Do not use the charger if the charger, the power cord or the battery is
damaged. To avoid electric shock or injury, never touch any internal parts
that may have been exposed. If the charger or power cord is damaged,
unplug the power cord and contact your nearest Olympus service center for
repairs.
z If you notice any abnormalities such as leakage, discoloration, deformation,
overheating, or odor, unplug the power cord immediately and stop using the
charger. Continuing to use the charger under these conditions could result
in fire, overheating or explosion. Contact your nearest Olympus Service
Center for repairs.
z Keep the battery out of reach of children. To avoid electric shock or injury,
children should not use the charger unless they are carefully supervised by
a parent or guardian.
CAUTION
z Do not use the battery/charger with non-specified equipment.
z Do not continue charging for more than 24 hours. Fire, overheating,
explosion or leakage may result.
s0004_e_Advanced.book Page 202 Tuesday, September 27, 2005 4:15 PM
203
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
z If charging does not complete although 10 hours have elapsed after the
specified charge time, stop charging to avoid fire, overheating or explosion.
In this case, contact Olympus Service Center.
z The battery gets hot after extended use in a camera. To prevent burns, do
not remove the battery from the camera immediately after use.
z Do not place the battery on an unstable surface such as a tilted or unsteady
table. If the battery falls off, it may be damaged or cause injury.
z Do not shake the charger with a battery in. The battery could fly out of the
charger and cause injury or damage.
z Do not place a heavy object on the charger or power cord. Also do not use
or store the charger or power cord in a location from which they might easily
fall, such as on top of a TV.
z Do not store or use the charger where it may be exposed to moisture or
excessive dust. Be sure to remove dust from the power plug before
plugging it into a power outlet.
z Do not charge a battery in an extremely cold or hot environment. The
optimum environmental temperature range when charging battery is
between 10
°C and 30°C (50°F and 86°F). Outside this range, a decrease in
battery performance may result.
z Keep the power cord unplugged from a power outlet unless when using the
charger.
z Do not pull on the cord when unplugging the power cord from a power
outlet. Grasp the plug to remove it. Also do not bend or pull the cord
excessively or place a heavy object on it. Damage to the power cord may
result in fire, overheating or electric shock.
Operating precautions
At time of purchase
• The battery is not charged at the factory. Charge it before use. Also,
whenever the battery has not been used for a long period, recharge it
before use.
• Check that the battery terminals are clean before use. If they are dirty,
contact failure may cause problems with charging or shorten the battery's
operation time after charging.
Care
• Clean the battery/charger and terminals by wiping them with a soft, dry
cloth. Never use a wet cloth, alcohol, lacquer thinner, benzene or
detergent.
s0004_e_Advanced.book Page 203 Tuesday, September 27, 2005 4:15 PM
204
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
Operating temperatures
• Use the battery within the operating temperature range specified for the
camera.
• Even within the specified operating temperature range, battery operation
time decreases as the temperature drops. When the temperature is low, it
is recommended to carry a spare charged battery and keep it warm in a
pocket, bag, etc. When carrying a battery in your pocket, be sure to cover
the battery terminals with the provided protection cap to prevent short-
circuiting. Do not put anything else in the pocket with the battery.
• The optimum ambient temperature for charging is between 10
°C and
30°C (50°F and 86°F).
• When a battery is warm or hot, as is the case when it has recently been
used, recharging may not be performed properly. For best results, wait
until the battery temperature cools down before recharging it.
Transport and storage
• Do not leave the battery in the charger or camera. Even when the power
switch is set to off, a small amount of current continues to flow and may
lead to a decrease in battery performance. When not using the battery,
attach the provided protection cap and store it in a cool, dry place with a
temperature between 15
°C and 25°C (59°F and 77°F).
• When transporting or storing the battery, attach the provided protection
cap to prevent short-circuiting of the +/- terminals. Do not put any metallic
objects including personal ornaments in a bag or drawer with the battery.
This could cause a fire, overheating, explosion or leakage.
Service life
• Battery performance degrades gradually after repeated charging and
discharging. When operation time has decreased significantly, you may
need to replace the battery. Battery capacity is usually reduced by half
after about 500 charge/discharge cycles (though this varies depending on
the operating conditions).
Recycling the battery
• Please recycle batteries to help save our planet’s resources. When you
throw away dead batteries, be sure to cover their + and – terminals and
always observe local laws and regulations.
Notes on charging
• The charger and the battery heat up during charging. This is not a
malfunction.
• TV or radio reception may be interfered with during charging. This is not a
malfunction. To avoid interference, move the battery charger further away
from the TV or radio.
s0004_e_Advanced.book Page 204 Tuesday, September 27, 2005 4:15 PM
205
BLM-1 Li-ion Battery / BCM-2 Li-ion Battery Charger
13
Accessories
Overseas use
• To use the charger in another country, you may need a conversion plug
that matches the design of the power outlets in that country. To find out
what type of conversion plug or adapter is required, please consult a
travel agent. Do not use an electronic transformer (travel converter) as
this will cause malfunction.
Main specifications
BLM-1 Li-ion Battery
Model Number :PS-BLM1
Type : Rechargeable lithium ion battery
Nominal output voltage :7.2 V DC
Nominal capacity : 1500mAh
Charging/discharging
count
: Approx. 500 cycles. (Variable depending on the
operating conditions.)
Ambient temperatures :0°C to 40°C (32°F to 104°F) for recharging,
-10°C to 60°C (14°F to 140°F) for operation,
-20°C to 35°C (-4°F to 95°F) for storage.
Dimension : Approx. 39 (W) × 55 (D) × 21.5 (H) mm
(1.5 × 2.2 × 0.8in)
Weight : Approx. 75 g. (2.6 oz) (excluding the cap)
BCM-2 Li-ion Battery Charger
Model Number :PS-BCM2
Rated power input : 100 to 240 V AC (50/60 Hz)
Rated power output : 8.35 V DC, 400 mA
Charging time : Approx. 300 min. (Room temperature: with the
BLM-1 battery)
Ambient temperatures :0°C to 40°C (32°F to 104°F) for operation,
-20°C to 60°C (-4°F to 140°F) for storage.
Dimensions : Approx. 62 (W) × 83 (D) × 26 (H) mm
(2.4 × 3.3 × 1.0 in)
Weight : Approx. 72 g (2 oz) (excluding the power cord)
Design and specifications are subject to change without notice.
s0004_e_Advanced.book Page 205 Tuesday, September 27, 2005 4:15 PM
206
Accessories
13
How to use the LBH-1 Lithium Battery Holder
You will need three CR123A Lithium batteries (commercially available).
1 Remove the battery holder from its case.
2 Remove the holder cover while holding
down the section indicated by the arrow
in the illustration.
3 Insert the batteries into the battery
holder in the direction shown in the
illustration.
4 Attach the holder cover to the battery
holder as illustrated.
Available devices
• E-500, E-1, E-300 Digital cameras
• HLD-3 Power Battery Holder
Safety precautions
• Do not use the battery holder with non-specified equipment.
• When using the LBH-1 Lithium Battery Holder with a device in which more
than one battery holder or battery can be loaded such as the HLD Power
Battery Holder, do not use the BLM-1 Li-ion Battery at the same time.
• The CR123A Lithium Battery is not a rechargeable battery. Do not place the
battery in a battery charger. Also, do not insert the battery into the battery
holder with the +/- terminals upside down. Doing so could cause a fire or
explosion.
Holder cover
Case
(provided)
s0004_e_Advanced.book Page 206 Tuesday, September 27, 2005 4:15 PM
207
How to use the LBH-1 Lithium Battery Holder
13
Accessories
• When carrying the battery holder with batteries loaded, be sure to put the
battery holder in the provided case to prevent possible contact with other
metallic objects that could cause short-circuiting. Also, make sure that no
metal gets in between the batteries in the holder.
• Never heat the battery holder, put it in fire, or expose it to water or moisture.
Doing so may cause fire or explosion.
Operating precautions
• When carrying or storing the battery holder with batteries loaded, be sure to
put it in the provided case.
• Do not store the battery holder in places subject to high temperature (e.g. on
a car dashboard, near heating equipment, etc.).
• When replacing the batteries, replace all batteries at the same time.
• Do not mix old batteries with new ones.
• Do not mix different brands or types of batteries.
Battery Precautions
• Use the batteries correctly. Incorrect usage of batteries could cause leakage,
over-heating or other damage. When replacing batteries, make sure battery
polarity ( (+) and (-) terminals) is correct.
• Never short-circuit, disassemble, recharge or throw the batteries into the fire.
This may cause fire or explosion.
• Keep the batteries out of the reach of children. If a battery is swallowed by a
child, contact a doctor immediately.
• Battery performance may drop temporarily in low temperatures. When using
batteries outside in cold weather, keep the batteries warm by carrying them
inside your clothes or in a bag or pocket. Even if performance has
deteriorated in the cold, the batteries will recover once they have been
returned to the normal temperature.
• If grease or sweat gets on the (+) or (-) terminal, a contact failure may result.
Be sure to clean the terminals with a dry cloth before use.
• It is recommended to have fresh spare batteries available when going on an
extended trip, especially when traveling abroad. Batteries may not be easily
available in some areas.
• Pay attention to cautions printed on the battery.
• When disposing of dead batteries, always observe the laws and regulations
regarding the disposable of such items.
• When not using the camera for an extended period of time, be sure to remove
the batteries from the camera to avoid leakage. Store the batteries in a cool,
dry location (around 20°C with low humidity).
Main specifications
Model Number :PS-LBH1
Dimensions : Approx. 39 mm (W) x 55 mm (D) x 21.5 mm (H)
Weight : Approx. 20 g (excluding case)
* For the applicability of Olympus digital cameras, etc. to be released in the future, visit
the Olympus website or contact Olympus customer support center.
s0004_e_Advanced.book Page 207 Tuesday, September 27, 2005 4:15 PM
208
Accessories
13
ZUIKO DIGITAL interchangeable lenses
Safety precautions
Handling Precautions
Do not view the sun
through the lens.
Do not point the camera
lens at the sun. Sunlight
will converge in the lens
and focus inside the
camera, possibly causing
a malfunction or fire.
Do not leave the lens
without the cap. If solar
light is converged through
the lens, a fire may result.
Working temperature
range
Abrupt temperature
changes
Do not put the lens with its
contacts facing down.
Too much pressure Do not touch the lens. Submergence
s0004_e_Advanced.book Page 208 Tuesday, September 27, 2005 4:15 PM
209
ZUIKO DIGITAL interchangeable lenses
13
Accessories
Storage Precautions
Do not touch the contacts. Do not drop Organic solvents
Excessive moisture Magnetism Do not hold the camera by
the section of the lens
extruded by the focusing
operation.
Cap the lens when it is
not used.
Lens cleaning Moth repellents
If you experience any
problems, contact your
nearest Olympus
Service Center.
Lens cleaning
tissue or soft cloth
Mothballs
s0004_e_Advanced.book Page 209 Tuesday, September 27, 2005 4:15 PM
210
ZUIKO DIGITAL interchangeable lenses
13
Accessories
ZUIKO DIGITAL 14-45mm f3.5-5.6
Main features
• The 14-45mm is a lens with high imaging
capability, designed exclusively for use with
Olympus FOUR THIRDS single-lens-reflex
digital cameras.
• Standard zoom lens equivalent to a 28-90
mm zoom lens on a 35 mm film camera.
• Zoom lens with 12 elements in 10 groups
including two aspherical elements.
• Can be used with the optional EC-14
teleconverter in manual focusing (MF)
mode.
• Can be used with the optional EX-25 extension tube under the following
conditions:
Nomenclature
1 Hood mount section
2 Filter mount thread
3 Zoom ring
4 Focus ring
5 Mount index
6 Electrical contacts
7 Front cap
8 Rear cap
9 Lens hood
Focal
length
Focus
adjustment
Working distance
Magnification
( ): Calculated based on 35 mm
film camera
14mm
Shooting is not possible since subjects cannot be brought into focus at
this focal length.
25mm MF
15.3cm - 15.7cm
(6.0in - 6.2in)
0.99X - 1.14X (1.98X - 2.28X)
45mm MF
20.8cm - 23.5cm
(8.2in - 9.3in)
0.57X - 0.78X (1.14X - 1.56X)
Notes on Shooting
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is
used.
Lens configuration
1
2
3
4
5
6
7
8
9
s0004_e_Advanced.book Page 210 Tuesday, September 27, 2005 4:15 PM
211
ZUIKO DIGITAL interchangeable lenses
13
Accessories
Attaching the hood
Storing the hood
Main Specifications
Mount : Four Thirds Mount
Focal distance :14 - 45mm
Max. aperture : f3.5 - 5.6
Image angle :75° - 27°
Lens configuration : 10 groups, 12 lenses
Multilayer film coating (partially single layered)
Iris control :f3.5 - f22
Shooting range : 0.38m (1.2ft) - ∞ (infinite)
Focus adjustment : AF/MF switching
Weight : 285g (10.1oz) (excluding hood and cap)
Dimensions : Max. dia. φ 71 x Overall length 86.5mm (3.4in)
Lens hood mount : Bayonet
Filter mount thread diameter
:58mm
Use the hood when shooting a backlit subject.
s0004_e_Advanced.book Page 211 Tuesday, September 27, 2005 4:15 PM
212
ZUIKO DIGITAL interchangeable lenses
13
Accessories
ZUIKO DIGITAL 17.5-45mm f3.5-5.6
Main features
• The 17.5-45mm is a lens with high
imaging capability, designed exclusively
for use with Olympus FOUR THIRDS
single-lens-reflex digital cameras.
• Standard zoom lens equivalent to a 35 -
90 mm zoom lens on a 35 mm film
camera.
• Zoom lens with 7 elements in 7 groups
including two aspherical elements.
• Can be used with the optional EC-14
teleconverter in manual focusing (MF)
mode.
• Can be used with the optional EX-25
extension tube under the following
conditions:
Focal
distance
Focus
adjustment
Working distance
Magnification
( ): Calculated based on 35 mm
film camera
17.5mm
Shooting is not possible since subjects cannot be brought into focus at
this focal length.
28mm MF
15.1cm - 15.9cm
(5.9in - 6.3in)
0.89X - 1.16X (1.78X - 2.32X)
45mm MF
18.4cm - 22.4cm
(7.2in - 8.9in)
0.57X - 0.91X (1.14X - 1.82X)
Notes on Shooting
• When shooting with the forcal length at 17.5 mm, “17 mm” is displayed on the
monitor.
s0004_e_Advanced.book Page 212 Tuesday, September 27, 2005 4:15 PM
213
ZUIKO DIGITAL interchangeable lenses
13
Accessories
Nomenclature
1 Rear cap
2 Filter mount thread
3 Zoom ring
4 Focus ring
5 Mount index
6 Electrical contacts
7 Front cap
Main Specifications
Mount : Four Thirds Mount
Focal distance : 17.5 - 45mm
Max. aperture : f3.5 - 5.6
Image angle :63° - 27°
Lens configuration : 7 groups, 7 lenses
Iris control :f3.5 - f22
Shooting range : 0.28m (1.2ft) - ∞ (infinite)
Focus adjustment : AF/MF switching
Weight : 210g (7.4oz) (excluding cap)
Dimensions : Max. dia. φ 71 x Overall length 70.0 mm (2.8in)
Filter mount thread diameter
:52mm
1
234
5
6
7
Hold down the exterior part
of the filter mount thread
when mounting the filter on
the lens.
s0004_e_Advanced.book Page 213 Tuesday, September 27, 2005 4:15 PM
214
w+F ............................................................ 56
(AF frame selection) ................................. 69
8 (Beep sound) ......................................... 133
4 (Center weighted averaging metering) .... 78
< CUSTOM....................................... 134, 146
(Custom menu)........................................ 185
X (Date/time setting) ................................ 138
(Digital ESP metering)............................. 78
< EASY............................................. 134, 146
F (Exposure compensation) ........................ 79
w (Flash intensity control) ........................... 56
V FUNCTION ........................................... 128
y (Image rotation) ...................................... 107
W (Language selection) ......................... 135
s (Monitor brightness adjustment) ........... 133
q (Playback menu) .................................... 184
< (Print reservation).................................... 140
D (Record mode) ......................................... 29
Q (Resizing) ............................................. 112
Y/</j (Self-timer/Remote control/
Drive) ......................................... 62, 63, 65
(Setup menu)........................................... 186
m (Slideshow) ........................................... 106
/ (Shooting Menu) ....................... 183, 184
n (Spot metering) ....................................... 78
# X-SYNC .................................................. 126
4h TIMER ..................................................... 136
A
Adobe RGB .................................................... 96
AE BKT........................................................... 83
AE lock ........................................................... 81
AEL METERING........................................... 123
AEL/AFL....................................................... 121
AEL/AFL MEMO........................................... 123
AF ILLUMINATOR.......................................... 75
AF MODE ....................................................... 70
ALL > (All WB compensation) ................ 125
ANTI-SHOCK ................................................. 96
Aperture priority shooting A........................... 41
Auto bracketing .............................................. 49
AUTO POP UP............................................. 126
Auto white balance......................................... 85
Auto-flash ....................................................... 50
Auto-focus ...................................................... 27
B
Battery.......................................................... 199
Battery Charger............................................ 199
Battery Holder .............................................. 206
BEACH & SNOW ........................................... 38
BLACK & WHITE.......................................... 110
Bulb shooting........................................... 46, 67
BUTTON TIMER .......................................... 136
C
C-AF ............................................................... 70
C-AF+MF........................................................ 70
CANDLE......................................................... 37
CARD SETUP ................................................ 26
CF/xD ............................................................. 26
CHILDLEN...................................................... 36
CLEANING MODE ....................................... 175
Close-up playback.......................................... 99
COLOR SPACE.............................................. 96
Color temperature........................................... 86
CompactFlash ................................................ 26
Compression rate ........................................... 30
COPY ALL.................................................... 113
CTL PANEL COLOR .................................... 137
CUSTOM RESET SETTING ........................ 118
Custom white balance .................................... 89
D
DIAL.............................................................. 127
Direct printing ............................................... 145
DOCUMENTS ................................................ 38
DPOF............................................................ 140
E
EDIT ............................................................. 110
EDIT FILENAME .......................................... 132
EV STEP ...................................................... 123
Eyepiece cover............................................... 64
F
FILE NAME................................................... 131
FIREWORKS.................................................. 38
FIRMWARE.................................................. 137
FL BKT ........................................................... 57
FLASH MODE ................................................ 50
Flash off.......................................................... 52
Focus aid........................................................ 73
Focus lock ...................................................... 27
Focus mode.................................................... 70
FOCUS RING............................................... 129
FORMAT ........................................................ 26
Full-auto shooting AUTO................................ 34
G
GRADATION .................................................. 94
H
HIGH KEY ...................................................... 37
Histogram ..................................................... 104
HQ .................................................................. 29
Index
s0004_e_Advanced.book Page 214 Tuesday, September 27, 2005 4:15 PM
215
Index
I
Index display................................................. 101
ISO ................................................................. 82
ISO BOOST.................................................. 124
ISO LIMIT ..................................................... 124
ISO STEP..................................................... 124
J
JPEG/TIFF EDIT .......................................... 109
L
LANDSCAPE.................................................. 35
LANDSCAPE+PORTRAIT ............................. 35
LOW KEY ....................................................... 37
M
MACRO .......................................................... 37
MANUAL FLASH ............................................ 52
MF .................................................................. 70
Manual shooting M......................................... 45
METERING..................................................... 77
MF BKT .......................................................... 74
MY MODE SETUP ....................................... 128
N
NIGHT SCENE ............................................... 36
NIGHT+PORTRAIT ........................................ 36
NOISE REDUCTION...................................... 95
NTSC............................................................ 135
Number of pixels............................................. 29
O
OLYMPUS Master........................................ 154
One-touch white balance................................ 90
P
PAL............................................................... 135
PictBridge ..................................................... 145
PICTURE MODE ............................................ 93
PIXEL MAPPING.......................................... 176
PORTRAIT ..................................................... 35
Preset white balance ...................................... 85
Preview........................................................... 47
PRIORITY SET............................................. 129
Program shift .................................................. 40
Program shooting P ....................................... 39
Protecting images......................................... 114
Q
QUICK ERASE............................................. 130
R
RAW EDIT ....................................................110
RAW+JPEG ERASE.....................................130
REC VIEW....................................................132
REDEYE FIX ................................................111
Red-eye reduction flash..................................50
RELEASE PRIORITY C.................................. 75
RELEASE PRIORITY S.................................. 75
RESET LENS ...............................................129
S
S-AF................................................................ 70
S-AF+MF ........................................................70
SATURATION............................................... 111
Scene modes ....................................... 35
SCREEN.......................................................137
SEPIA ...........................................................111
Sequential shooting ........................................ 62
SHADING COMP............................................ 94
SHQ................................................................ 29
Shutter priority shooting S.............................. 43
Shutter speed ................................................. 40
Single-frame erase .......................................115
Single-frame playback .................................... 98
Single-frame shooting..................................... 62
SLEEP ..........................................................133
Slow synchronization...................................... 50
SPORT ........................................................... 36
SQ .................................................................. 29
sRGB .............................................................. 96
STORAGE ........................................... 134, 159
SUNSET ......................................................... 38
T
TIFF ....................................................... 29, 109
U
USB MODE...................................................134
V
VIDEO OUT..................................................135
Viewfinder.....................................................192
W
WB.................................................................. 91
WB BKT.......................................................... 92
WB compensation...........................................91
White balance.................................................85
X
xD-Picture Card .............................................. 26
Z
ZUIKO DIGITAL............................................208
