Document Scanner
User’s Manual
Regulatory model: DL-2011B
Avision Inc.
User’s Manual
ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows 7, Windows 8, and Windows 10 are either registered
trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
Energy Star
®
is a registered trademark of the U.S. government.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without the prior written
permission of Avision Inc.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright
laws, the customer is solely responsible for complying with all
such laws and regulations.
Warranty
The information contained in this document is subject to
change without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties
of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
User’s Manual
iii
Federal Communications Commission (FCC) compliance
information statement
Part 15
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
User’s Manual
iv
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU
Directives:
Low Voltage Directive 2014/35/EC
EMC Directive 2014/30/EC
Restriction of the use of certain hazardous substances (RoHS)
Directive 2011/65/EU
RED (Radio Equipment Directive) (2014/53/EC)
CE compliance of this product is valid if powered with the correct
CE-marked AC adapter provide by Avision.
This product satisfies the Class B limits of EN55032, EN55035,
and safety requirements of EN62368-1.
*This machine is certified as Class 1 LED product.
User’s Manual
v
Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that the
product can not be disposed of with your other household waste.
Instead it should be sent to appropriate facilities for recovery
and recycling in an effort to protect human health and the
environment. Fore more information about where you can drop
off your waste equipment for recycling, please contact your local
city office, your household waste disposal service or the shop
where you purchased the product.
As an ENERGY STAR
®
Partner, Avision Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
System Requirements
CPU:
Intel
®
Core™ 2 Duo or higher
Memory:
32 bit: 2 GB
64 bit: 4 GB
Optical Drive:
DVD-ROM Drive
USB Port:
USB 3.2 Gen 1x1 (compatible with USB 2.0/3.0)
Compatible
Operating
System:
Microsoft Windows 7, Windows 8 (32 bits/64
bits), Windows 10 (32 bits/64 bits)
User’s Manual
vi
Product Safety Guide
Please clearly read all these instructions, and follow all instructions
and warnings before installing and using the device.
The following indications are used in this document to obviate any
chance of accident or damage to you and/or the device.
WARNING
Indicates potentially hazardous situations, which
if instructions are not followed, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if instructions are not followed, may
result in minor or moderate injury or damage to
property.
WARNING
Use only the AC power adapter that came with your device.
Using any other AC power adapter could cause fire, electrical
shock, or injury.
Use only the AC power cord and USB cable that came with your
device and avoid abrasions, cuts, fraying, crimping, and kinking.
Using any other AC power cord and USB cable could cause fire,
electrical shock, or injury.
Do not place objects on top of the AC power cord, and do not
allow the AC power adapter or the AC power cord to be stepped
on or run over.
Place the device and its AC power adapter near an electrical
outlet where the AC power adapter can easily be unplugged.
If you use an extension cord with the device, make sure that
the total ampere rating of the devices plugged into the
extension cord does not exceed the cord's ampere rating.
Place the device close enough to the computer so that the
interface cable can easily reach between the device and the
computer.
User’s Manual
vii
Do not place or store the device or its AC power adapter:
Outdoors
Near excessive dirt or dust, water, or heat sources
In locations subject to shocks, vibrations, high
temperature or humidity, direct sunlight, strong light
sources, or rapid changes in temperature or humidity
Do not use the device with wet hands.
Never disassemble, modify, or attempt to repair the AC power
adapter, device, or device option by yourself, except as
specifically explained in the device's documentation. This could
cause fire, electrical shock, or injury.
Do not insert objects into any opening, as they may touch
dangerous voltage points or short-out components. Beware of
electrical shock hazards.
Unplug the device and the AC power adapter, and refer
servicing to qualified service personnel under the following
conditions:
The AC power adapter or plug is damaged.
Liquid has entered the device or the AC power adapter.
Object has entered the device or the AC power adapter.
The device or the AC power adapter has been dropped,
or the case has been damaged.
The device or the AC power adapter does not operate
normally (i.e. appearance of smoke, strange smell, odd
noise, etc.), or exhibits a distinct change in performance
Unplug the device and the AC power adapter before cleaning.
User’s Manual
viii
CAUTION:
Do not attempt to operate the battery in temperature
outside the range of -20°~60° C. If so, this may cause
cracking, rupturing, bursting, emission of flame or expulsion
of molten metal to the outside of the equipment enclosure.
Note the the operating temperature for the battery is from -
20° to 60° C and the operating temperature for the product
is from 10° to 35° C.
Do not locate the device on rackety or aslope tables. Do not
locate the device on unstable surface. The device may fall down
and this may result in injury.
Do not place heavy objects on the unit. It may cause unbalance
and the device may fall down. This may result in injury.
Store the AC Power cord/USB cable bundled out of the reach of
children to avoid the risk of injury.
Keep plastic bags bundled out of the reach of children or throw
them away to avoid the danger of suffocation.
If you are not going to use the device for a long period, unplug
the AC power adapter from the electrical outlet.
FCC Caution:
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate this equipment.
This device is intended only for OEM integrators under the
following conditions:
1) The antenna must be installed such that 20 cm is maintained
between the antenna and users.
2) The transmitter module may not be co-located with any other
transmitter or antenna.
User’s Manual
ix
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between
the radiator & your body. To maintain compliance with FCC RF
exposure compliance requirements, please avoid direct contact
to the transmitting antenna during transmitting.
IC Notice:
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including
interference that may cause undesired operation of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set
forth for an uncontrolled environment. End users must follow the
specific operating instructions for satisfying RF exposure
compliance. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Règlementd’ Industry Canada
Les conditions de fonctionnement sont sujettes à deux
conditions:
(1) Ce périphérique ne doit pas causer d’interférence et.
(2) Ce périphérique doit accepter toute interférence, y compris
les interférences pouvant perturber le bon fonctionnement de ce
périphérique.
User’s Manual
1-1
1. Introduction
Congratulations on your purchase of the high speed document
image scanner. With this scanner, you can you scan your
multi-page documents from the auto document feeder at a
rated speed to increase your efficiency.
Before you install and operate the new scanner, please take a
few minutes to read through this manual. It provides proper
instructions for you to unpack, install, operate and maintain
the scanner.
1.1 Package Items
The following figure indicates the package contents. Please
check all the items against your checklist. If you do not
receive all the items, please contact your authorized local
dealer immediately.
User’s Manual
1-2
1. Scanner Main Unit
2. Quick Guide/CD
3. Ethernet Cable
4. USB Cable
5. Power Adapter & Power Cord
6. Calibration Sheet
NOTE:
Only use the WA-36A24R/DA-48M24 (APD)/ADS-
65LSI-24-3 24048E (Honor) included in the machine.
Using other AC adapters may damage the machine
and void the warranty.

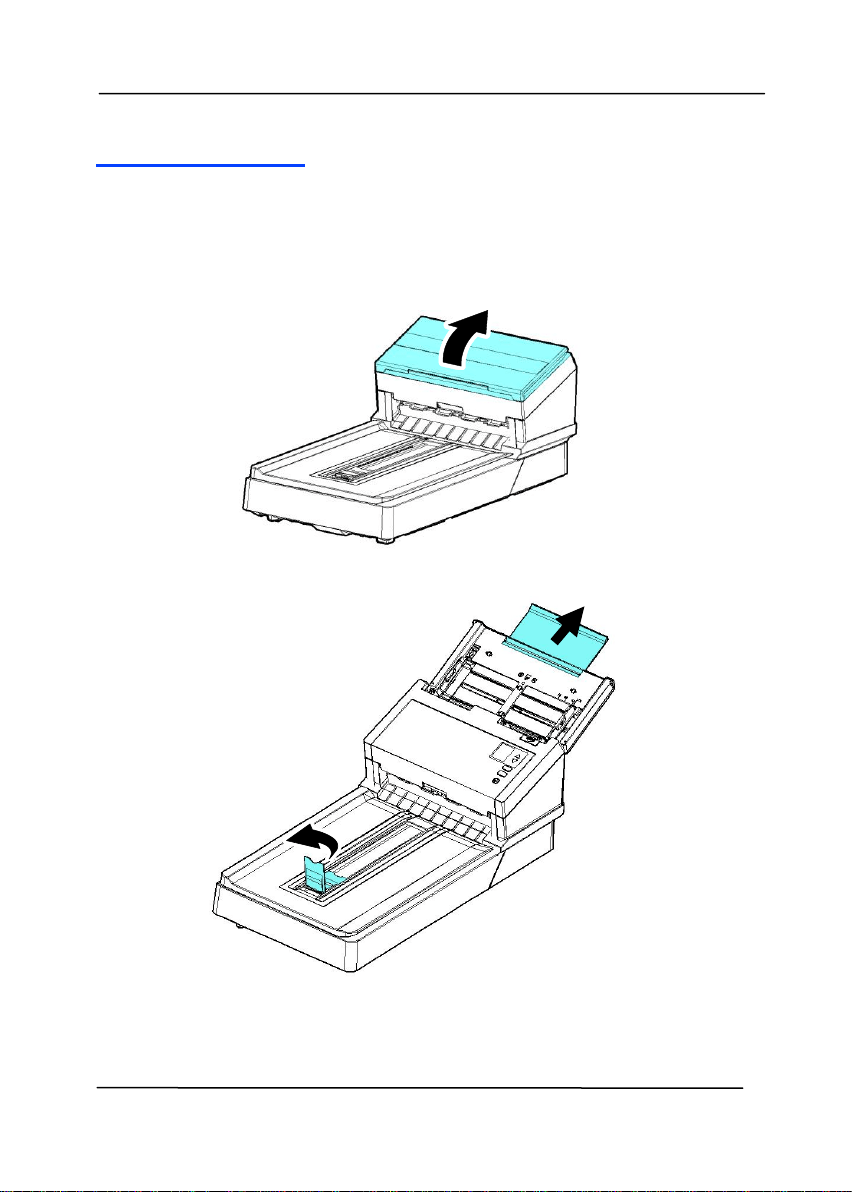

Please unpack the packing carefully, and check the
contents against the checklist. If any items are
missing or damaged, please contact your dealer
immediately.
To access more service supports, visit
www.avision.com to register your Avision’s product.
2
4
1
5
6
3
User’s Manual
1-3
1.2 Front View
Part Name
Description
Extension
Can be pulled out and adjusted to the
size of the document being scanned.
Paper Width
Switch
Slide it up or down to fit your paper
size.
ADF Paper
Tray
Load the document onto this part
when scanning document.
Paper Guides
Adjusts to the width of the documents
to prevent skewing of the scanned
pages.
Operation
Panel
LCD screen:
Shows a number indicating a scan-to
destination via the Up/Down buttons.
The Power Button:
Press to turn on the power.
The Scan Button:
Press to start a scan.
The Cancel Button:
Press to cancel a scanning job during
operation.
Extension
Paper Guide
Paper Stopper
Power Button
Paper Guide
Document Cover
ADF
Paper Tray
LCD Screen with
Up/Down Buttons
Scan Button
Cancel Button
Paper Width Switch
User’s Manual
1-4
Document
Cover
Open it to place the document on the
glass platen.
Paper Stopper
Adjust to the length of the documents
to prevent them from falling apart.
1.3 Rear View
Item
Description
LAN Port
Used to connect to network.
Power Jack
Connect the AC adapter to the scanner.
USB Port
Connect to your computer.
Kensington
Security Slot
Attach to a lock to secure the scanner.
LAN Port
Power Jack
USB Port
Security
Slot
User’s Manual
1-5

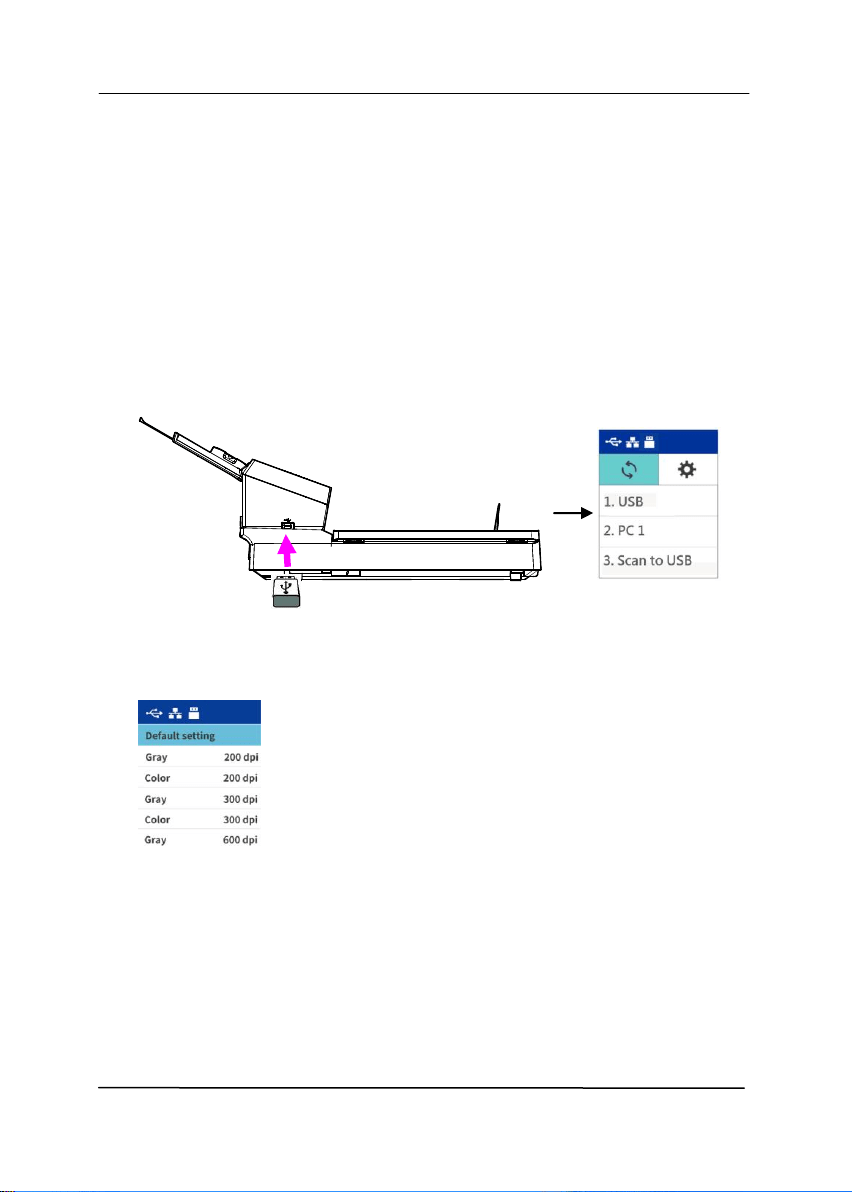

1.4 Side View
Item
Description
USB Flash
Drive Port
Used to insert an USB flash drive to
store the scanned image.
USB Flash Drive Port
User’s Manual
1-6

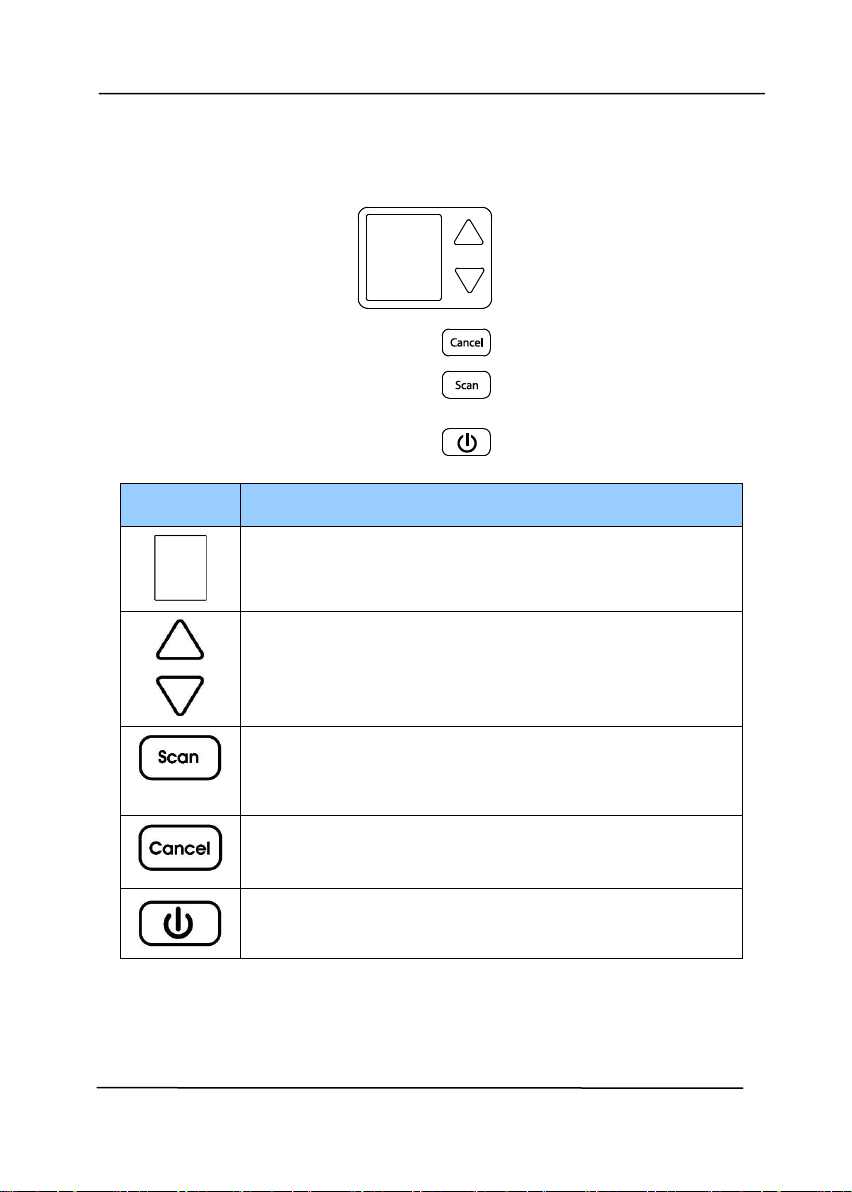

1.5 Control Panel
Item
Description
Display the scanning and error status.
Display using TWAIN or Button Manager V2 and
its function.
Used to scroll up and down to select your function
button via the software application - Button
Manager V2.
Press to start a scan via the software application
- Button Manager V2.
Press to confirm a selection.
Press to cancel a scanning job during operation.
Press to return to the home screen.
Press to turn on the power.
Long press to turn off the power.
User’s Manual
1-7
1.6 LCD Display
App Scanning
After installing the scanner driver and connecting the scanner to
your computer via an USB cable or ethernet cable, the following
LCD display will be prompted:
You may use a TWAIN-compliant application such as Avision
Capture Tool to start a scan. Refer to chapter 4 – Using Avision
Properties Dialog Box for more details on how to start a scan.
Button Scanning
1. After installing the scanner driver, Button Manager,
connecting the scanner with an ethernet cable or an USB
cable, and opening the Button Manager, the following LCD
display will be prompted:
2. Select your computer.
Indicates
successful USB
connection
Indicates the login
name of your
computer
Indicates
successful LAN
connection
User’s Manual
1-8
3. Press (OK), the following Button Manager panel will
be displayed. Use the Arrow key to select your desired
button no. or destination. Up to 9 destinations can be
selected.
4. Press (Scan button), the paper starts feeding into the
scanner and the scanned image will be sent to your
specified destination.
Refer to chapter 6 – Using the Buttons on how to press the
button to complete a scan.
NOTE:
Please note the USB mode and LAN mode can not be
used at the same time.
The following error will be prompted if Button Manager
has not been opened.
Indicates
Button # and
Button Name
Error!
Please open
Button
Manager V2!
User’s Manual
1-9
Status Bar/Options
Icon/Option
Status Indication
Successful USB connection between PC and
scanner
Successful Wi-Fi AP (Access Point) Connection
Turn on Wi-Fi connection.
Successful ethernet cable connection.
Select to refresh the connection status.
Select to access more settings.
WPS
Select to use WPS (Wi-Fi Protected Setup) to
connect to a wireless access point which
supports WPS.
Information
Select to view the scanner’s information
including scanner, ethernet and Wi-Fi.
Reset
Select to return to factory default settings
includng DHCP enable, turning off Wi-Fi,
default device name, host name, and SSID.
Wired (Ethernet) and Wireless (Wi-Fi) Networks:
The availability of these features varies according to your
product model.
User’s Manual
2-1
2. Scanner Installation
2.1 Precautions
Keep the scanner out of direct sunlight. Direct exposure
to the sun or excessive heat may cause damage to the
unit.
Do not install the scanner in a humid or dusty place.
Be sure to use the proper AC power source.
Place the scanner securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.
Retain the scanner box and packing materials for
shipping purposes.
User’s Manual
2-2
2.2 Unlocking Your Scanner
The scan unit is locked during transport to protect the scanning
mechanism from being damaged. Be sure to unlock the scan
unit before using the machine.
Turn over the machine to
locate the lock switch.
Move the lock switch to the
"unlocked position".
If you need to transport the
machine, please move the
lock switch to the “Locked”
position. Before doing this,
make sure the scan unit at
the end of the glass as
indicated. (If not, please turn
on the machine. When the
scan unit moves to the end,
turn off the machine.)
The scan unit
must be at
this position
before being
locked.
“Locked Position”
“Unlocked Position”
“Unlock Position”
User’s Manual
2-3

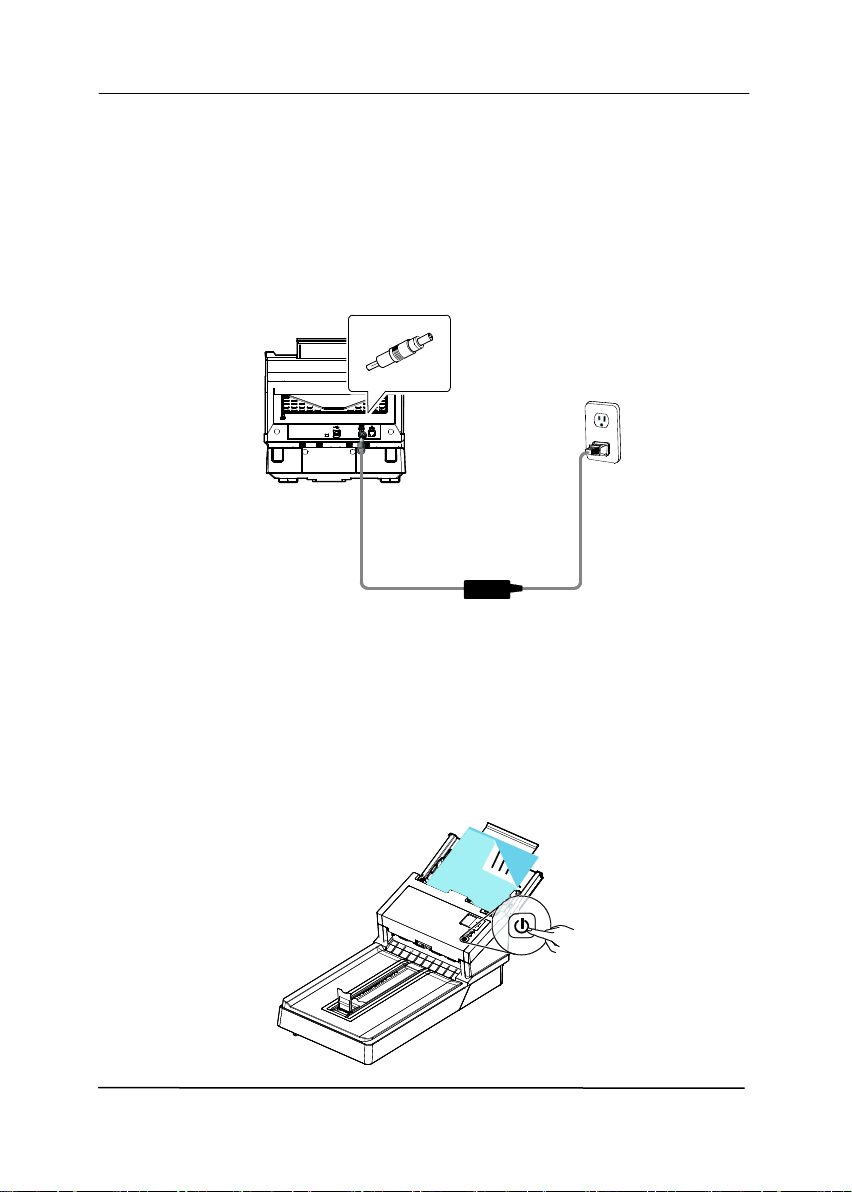

2.3 Connecting to Power
Before connecting, make sure the power switch is off.
Plug the small end of the power adaptor into the power jack of
your scanner. Insert the other end to an appropriate power
outlet.
2.4 Turning on the Power
Press the Power Switch button on the front panel, the Power
LED will flash. When it is finished and ready to scan, the LED
indicator will stop flashing and become steadily on. To turn
off the scanner, press the Power Switch button for about 3
seconds, the Power LED will be off.
User’s Manual
2-4
2.5 Installing the Scanner Driver
NOTE:
1. To ensure your computer can identify the USB
scanner, please install scanner driver first before
connecting the scanner to your computer.
2. The scanner driver contains TWAIN, ISIS and WIA
driver. After the installation of scanner driver is
completed, this scanner allows you to scan via a
TWAIN, ISIS, or a WIA interface. Start your TWAIN-
compliant image editing software application to
select a TWAIN or WIA user interface or your ISIS
software to select an ISIS user interface. You may
also launch Microsoft’s Scanner and Camera Wizard
to scan via a WIA user interface.
1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run
“setup.exe”.
User’s Manual
2-5
Contents on the installation graphic:
Install Scanner Driver: To communicate with your
scanner, you need to install the scanner driver.
Install Button Manager V2: To use the buttons on
the scanner, you need to install Button Manager V2.
To ensure Button Manager V2 works properly, please
FIRST install scanner driver before installing Button
Manager V2.
Install Virtual Scanner Link: To connect your
computer to the scanner in the network, you need to
install the Network Setup Tool.
Install AVScan X: To scan and organize your multi-
page document(s), you can install the software
application to manage them easily and effectively.
View Manual: Click “View Manual” to view or
print the detailed user manual for the scanner and
Button Manager V2 respectively.
3. Click Install Scanner Driver to install the scanner driver
and then click Install Button Manager V2 to install the
Button Manager V2 unto your computer.
User’s Manual
2-6
2.6 Connecting to Computer
1. Connect the square end of the USB cable to the USB port of
your scanner. Connect the rectangle end to the USB port at
the rear side of your computer.
NOTE:
The scanner is designed with a USB 3.2 Gen 1x1 interface
to ensure the optimal speed. If your computer comes
with a USB 3.2 Gen 1x1 port, make sure to connect the
scanner to your computer to the USB 3.2 Gen 1x1 port
which is distinguished in blue color at the back of your
computer. The USB 3.2 Gen 1x1 port enhances your
scanning speed and is also compatible with USB 2.0 and
USB 1.1.
2. The computer should detect a new USB device and prompt a
“New Hardware Found” message.
3. By following the on-screen instructions, click the Next
button to continue. When the certification screen appears,
click Continue Anyway to complete the installation.
4. When the Finish dialog is prompted, click the Finish button.
User’s Manual
2-7
2.7 Connecting a Network Cable
1. Connect one end of your network cable to an available port
of the switching hub of your LAN.
2. Connect the other end to the LAN port marked at the
back of the product as shown.
User’s Manual
2-8
2.8 Using the Network Scanner for the First Time
Before connecting to the network scanner, make sure that
Virtual Scanner Link (Network Setup Tool) has been installed
onto your computer. The Network Setup Tool is included in the
supplied software CD.
1. Start [Virtual Scanner Link] by choosing Start>All
Programs>Avision Virtual Scanner>Virtual Scanner
Link. The main window will be displayed and the scanners
in your network will be searched automatically. In a few
seconds, the result including the scanner model and
scanner’s IP address will be displayed as shown.
2. Choose the scanner you wish to connect and then press
[Connect]. If connection is successful, a connection mark
will be displayed as shown.
User’s Manual
2-9
3. After the scanner has been connected successfully,
launch your TWAIN-compliant image-editing software
application to start a scan (Figure A).
Or simply press the [Scan] button on the scanner
to start a scan (Figure B).
Figure A
Figure B
User’s Manual
2-10
NOTE:
The VSL program allows multiple users to connect to the
network scanner at anytime. Yet, the scanner operation
can be used by one user at a time. If the network
scanner is being used by other user, you will be
prompted with a message to connect the scanner later.
When the scanner is available, you will also be prompted
with a message to connect the scanner and start
scanning your document.
If the network scanner has not been found, it is probably
the scanner and your computer are not in the same LAN.
In this case, you can assign a specific IP address of the
scanner to let [Virtual Scanner Link] automatically search
the scanner. Click the [Option] button, type your IP
address on the [Searching Address] field (1), then click
the [+] button (2) and finally click [OK] (3) to complete.
Searching Time: When the program is launched, it
automatically searches the scanner in the network in 5
seconds (default). The searching time can be changed
from a range of 5 to 20 seconds.
If the [Virtual Scanner Link] program has been closed
and then launched again, [Virtual Scanner Link] will
automatically search and connect the network scanner it
has previously connected to.
(1)
(3)
(2)
User’s Manual
2-11
The connection is always enabled, whether the scanner
enters into the sleeping mode or turns off and on again.
VSL will automatically detect the previously connected
scanner and connect again.
[Automatically searching and connecting device]:
Check this option and enter your time (1~5 min.) to
allow the VSL to reconnect to the device every
specified minute(s) if the device has been woken up
during sleep mode or the device has been turned off
and on again.
[Connecting the device with a specified name
instead of a login name]: Check this option and
enter your desired name for the computer. Yet you
need to reconnect the device again to refresh the
status.
User’s Manual
2-12
2.9 How to Switch to Another Computer on the Network
Scanner
Please follow these steps to connect the network scanner to
other computer in the network:
1. Turn on the scanner.
2. Make sure that a LAN (Ethernet) cable has been connected
to the scanner and that the Virtual Scanner Link (VSL) has
been installed to your computer. (Refer to the preceding
section 2.3~2.7)
3. On your computer, start [Virtual Scanner Link] by
choosing Start>All Programs>Avision Virtual
Scanner>Virtual Scanner Link. The main window will be
displayed and the scanners in your network will be searched
automatically.
4. In VSL main window, connect the scanner.
5. Open Button Manager 2 by choosing Start>All
Programs>Avision Button Manager.
6. A list of computers (login names) connecting to the scanner
will be displayed.
7. Use the Arrow key to select the computer you want to
connect and then press (OK). The Button Panel will be
displayed.
1. PC 1
2. PC 2
3. PC 3
4. PC 4
User’s Manual
2-13
8. Use the Arrow key to select your desired Button No. or
destination and then press (OK).
9. The scanner starts feeding your paper and the scanned
image will be sent to your specified application or
destination.
User’s Manual
2-14
2.10 How to Block Other Users from Using the Network
Scanner
Please follow these steps to temporarily prevent other users from
using the network scanner:
1. Make sure that a LAN (Ethernet) cable has been connected
to the scanner and that the Virtual Scanner Link (VSL) has
been installed to your computer. (Refer to the preceding
section 2.3~2.7)
2. On your computer, start [Virtual Scanner Link] by
choosing Start>All Programs>Avision Virtual
Scanner>Virtual Scanner Link. The main window will be
displayed and the scanners in your network will be searched
automatically.
3. In VSL main window, connect the scanner.
4. Open Avision Capture Tool by choosing Start>All
Programs>Avision XXX Scanner>Capture Tool. Select
the scanner model and then the main window will be
displayed.
5. Click the Scan button ( ) or choose Scan from the File
menu. The following screen will be displayed on the scanner
panel. This screen indicates the scanner is temporarily
locked by a specific user.
User’s Manual
2-15
6. Press (Scan button), the paper starts feeding into the
scanner and the scanned image will be displayed.
NOTE:
The timeout for the lock status is 60 seconds.
If you wish to cancel the lock status within timeout,
press the Cancel button on the scanner.
User’s Manual
2-16
2.11 How to View Scanner’s Detailed Information
1. On the scanner, press (Down arrow) to select [More
Settings] and then press (OK) to confirm. The screen
including [Wi-Fi], and [Information] option will be displayed.
2. Select [Information], and press (OK), and then choose
your desired option. The information about the option will be
displayed as indicated.
Scanner Information:
Wi-Fi Information:
Scanner
Wi-Fi
Ethernet
Counters
Model Name:
AD3XXXXWN
FW Version:
5.xxxxxxx
S/N:
Axxxxxxxx
Wi-Fi Address:
192.168.1.1
SSID:
ADXXXWN-
1a2b3c1
Scanner
Wi-Fi
Ethernet
Counters
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
User’s Manual
2-17
Ethernet Information:
Counter Information :
Counter : The scan count of ADF roller, Reverse Roller, and
Pickup Roller
IP Address
10.1.23.45
MAC Address:
000232-
1a2b3c
DHCP:
Enable
Scanner
Wi-Fi
Ethernet
Counters
Scanner
Wi-Fi
Ethernet
Counters
Total:
10
ADF:
10
Reverse:
10
Pickup:
10
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
User’s Manual
2-18
2.12 How to Change the Scanner’s IP Address and Device
Name
1. Start [Virtual Scanner Link] by choosing Start>All
Programs>Avision Virtual Scanner>Virtual Scanner
Link. The main window will be displayed and the scanners
in your network will be searched automatically.
2. Click the scanner’s IP address as indicated. The scanner’s
web page will be displayed.
3. Please login first with the default user name and password –
[admin]. Click [Network] and then [Wired]>[Next] to enter
your specific IP address or change the device’s host name.
Finally click [Next]>[Export] to complete.
User’s Manual
2-19
NOTE:
You may also use the webpage to change your connection
type, authentication method, or connect to other access
point or router which supports the WPS connection.
User’s Manual
3-1
3. Completing Your First
Scan
3.1 Placing Your Document on the Flatbed
Open document cover. Place your document FACE DOWN on the
document glass and align the document to the reference mark as
indicated. Close document cover.
User’s Manual
3-2
3.2 Loading Your Document in the ADF Paper Tray
3.2.1 Notice on Using the ADF
Before using the ADF, please make sure that your paper meets
the following specifications:
Document (s) can range in size from 50 x 50 mm (2 x 2 in.)
to 242 x 356 mm (9.5 x 14 in.).
Document (s) can range in weight from 27 ~ 413 g/m
2
(7
~ 110 lb.)
ID cards up to 1.25 mm thick
Plastic cards compliant with the ISO7810 ID-1 type
Document(s) should be square or rectangular and in good
condition (not fragile or worn).
Document(s) should be free of curl, wrinkle, tears, wet ink,
or punch holes.
Document(s) should be free of staples, paper clips, paper
sticky notes.
User’s Manual
3-3
Fanning Your Document
NOTE:
To avoid occasional multi-feeds or paper jams, please fan
your documents and align the top edges before feeding
them into the scanner.
1. Hold both ends of the documents and fan them a few
times.
2. Rotate the documents by 90 degrees and fan them in the
same manner.
3. Align the edges of the documents in a step-like pattern
(see picture below).
Step-like
Scanning
Direction
User’s Manual
3-4

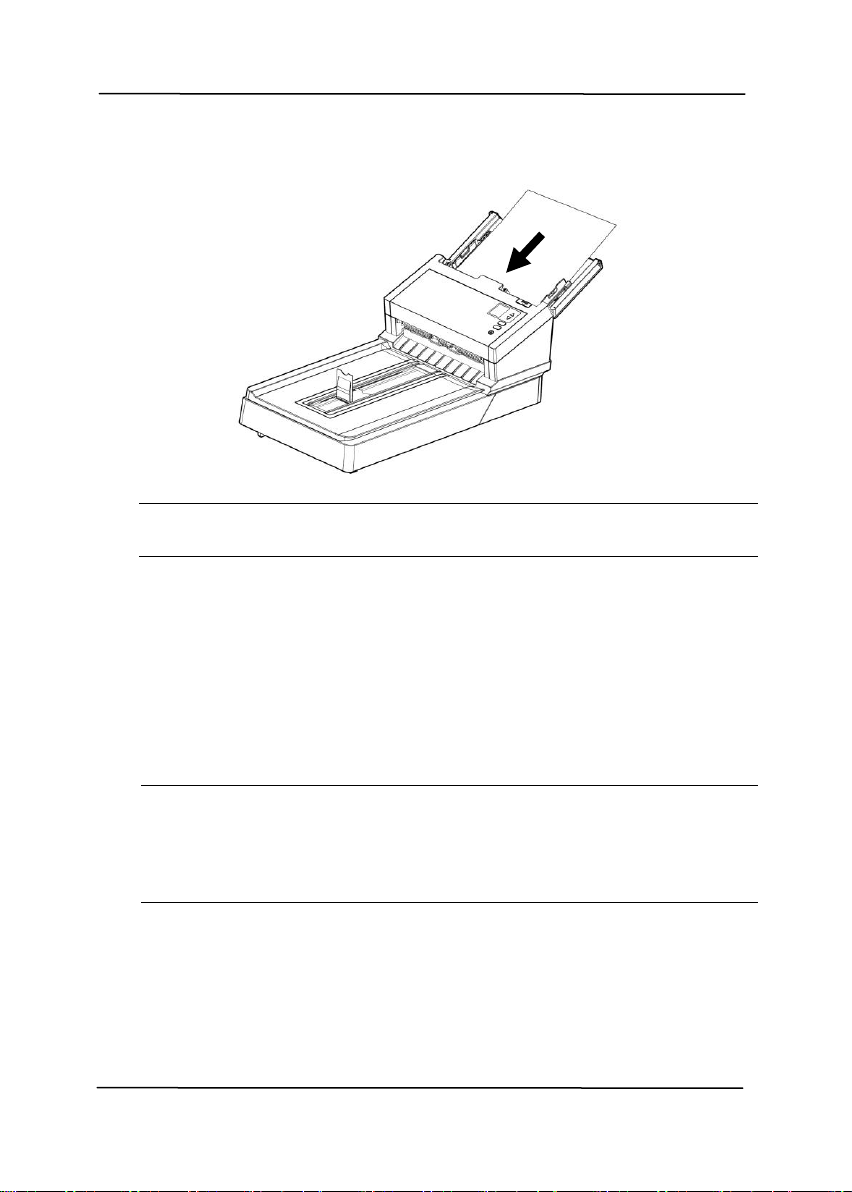

Document Feeding
1. Unfold the document feeder and its extension.
2. Raise the paper stopper.
User’s Manual
3-5
3. Raise the paper guide to hold your multi-page document.
4. Load the stack of document face down with the top of the
pages pointing into the feeder.
5. Verify that the paper guides are aligned with the edges of
the stack.
User’s Manual
3-6
Note: The [Paper Width] switch:
If your document width is 216 mm (8.5 in.):
Slide the [Paper Width] switch DOWN to fix your paper
guide to conveniently load the letter-size document.
If your document width is larger than 216 mm (8.5 in.):
If your document width is larger than 216 mm (8.5 in.)
such as invoices with punch holes, slide the [Paper
Width] switch UP and move the paper guide to the right
end to load your documents.
Slide DOWN the [Paper
Width] switch to set
your paper width to 216
mm (8.5 in.)
Slide UP the [Paper Width]
switch to set your paper
width larger than 216 mm
(8.5 in.)
User’s Manual
3-7
3.2.2 Scanning a Stack of Document with Various sizes
and Weights
When scanning a batch of documents with different sizes and
weights, be sure to follow these guidelines to avoid a skewed
image or a paper jam:
1. Align the documents TOP EDGE first in the sequence of
paper size from large to small.
2. If two pages are of the same size yet with different weight,
arrange these pages in the sequence of paper weight from
heavyweight to lightweight.
User’s Manual
3-8
3. Align the edges of the documents by tapping the bottom of
the stack against the table top.
4. Center these pages in the document feeder and make sure
that the edges of page of the largest size slightly touch the
Paper Guide.
User’s Manual
3-9

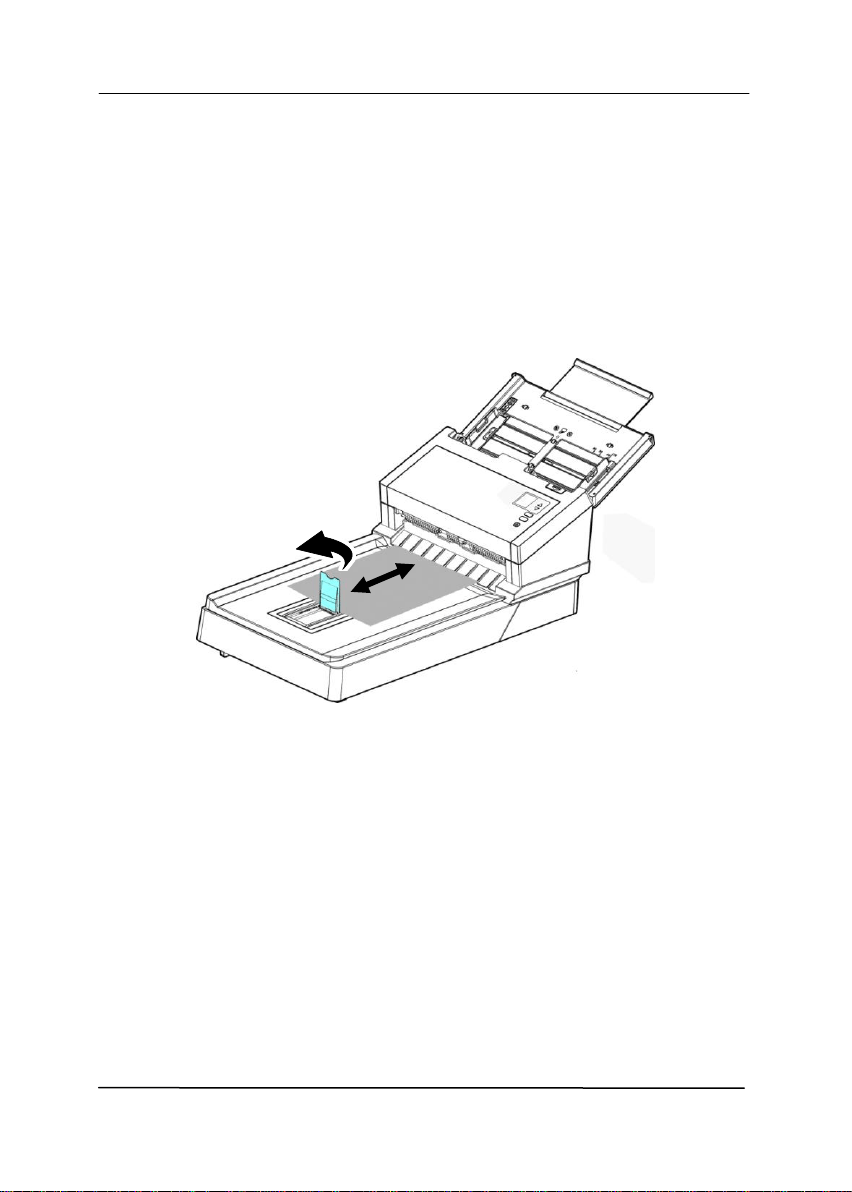

3.3 Using the Paper Stopper
Raise the Paper Stopper and slide it to the right or to the left
according to the paper size you are loading from the auto
document feeder. The paper stopper is used to arrange your
document so the paper can be neatly collected after scan.
User’s Manual
3-10
3.4 Verifying Your Scanner Installation
To verify if your scanner installation is correct, Avision provides
you a useful test program called Avision Capture Tool. With this
tool, you can perform simple scans and view the captured
images. In addition, it helps you complete your scan at a rated
speed.
The following procedure describes how to verify your scanner
installation. If the installation is not correct, please review the
preceding section to check if the cable connection and scanner
driver have been successfully installed.
Before you begin, be sure the scanner is on.
1. Select Start>Programs>Avision xxx Scanner>Avision
Capture Tool. The Select Scanner Model dialog box will be
displayed.
2. Select your driver type and scanner model and click OK. The
following Avision Capture Tool dialog box will be displayed.
User’s Manual
3-11
3. Choose your desired file format from the File Format drop
down list box. (Default is JPEG, other choice includes TIFF,
MTIFF, PDF, MPDF, GIF, and BMP.) The supported file
formats vary depending on your scanner model.
4. Type your desired folder name and file name in the File Path
box. (Default is C:\Documents and Settings\User Name\My
Documents\My Scan\Image.)
NOTE:
If you do not wish to save the scanned image, deselect
the Save button since default is Save Enable. In this case,
the thumbnail view will be disabled. And therefore, after
viewing all the scanned images, only the last one will
remain on the screen.
5. Click the Setup button ( ) or choose Setup from the
File menu to prompt the Scanner Properties dialog box.
Setup
Actual
Size
Fit
Page
Scan
File Format
Save File Path
User’s Manual
3-12

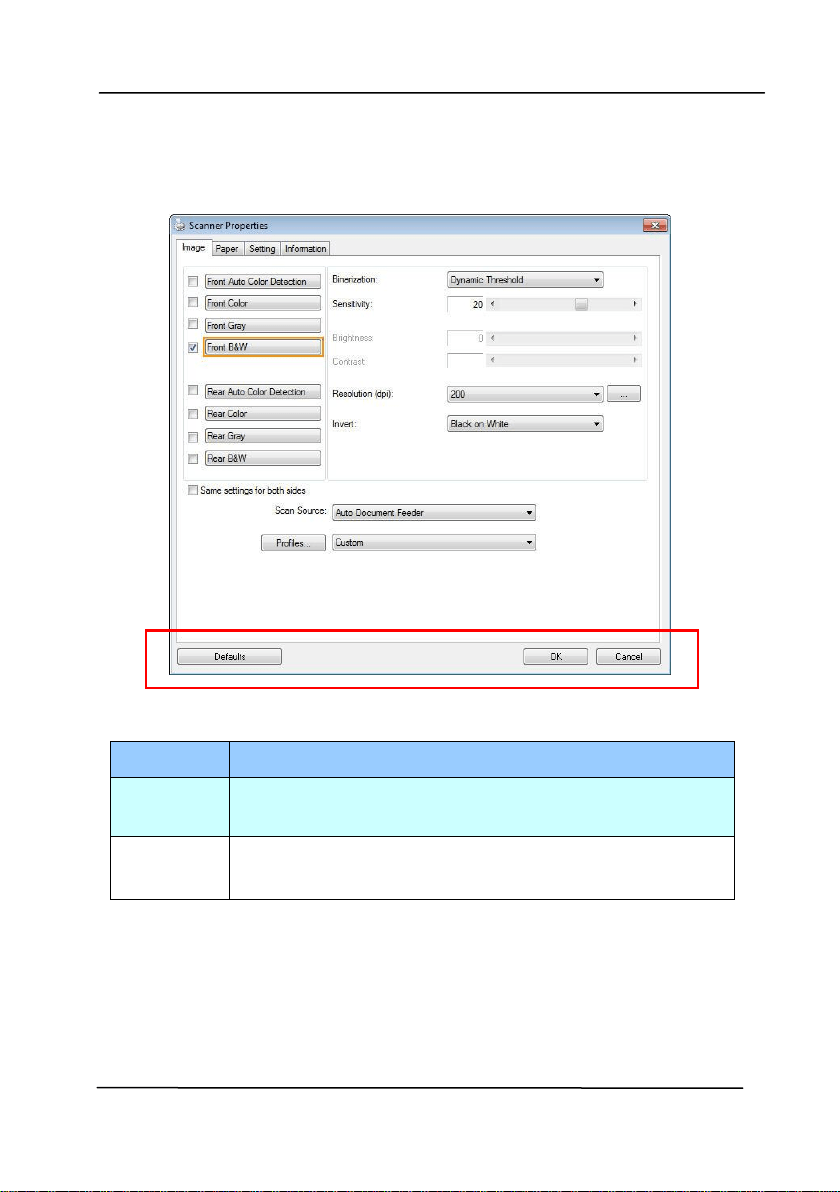

6. From the Image Selection Box, choose your desired image
type for your scanned image. (Default is Front B&W) If you
have a duplex scanner, choose Front and Rear to scan both
sides of your document.
7. Click OK to quit the Scanner Properties dialog box. (To learn
more details about the Scanner Properties dialog box, please
see the subsequent chapter, Using the Scanner Properties
Dialog Box.)
8. Place your document face down on the document glass or
face up in the auto document feeder.
9. In the Scan Validation dialog box, click the Scan button
( ) or choose Scan from the File menu.
10. The document will be scanned and displayed in the Scan
Validation screen. After the scanned images have been
displayed, your scanner installation verification is completed.
Selection
Box
User’s Manual
3-13
11. You can view the scanned image in Fit Page ( ) or Actual
Size (100%) button ( ) from the Viewing toolbars at the
right side.
12. Click the Close box or Quit from the File menu to exit the
Scan Validation Tool.
Display View
Thumbnail View
User’s Manual
3-14
3.5 A Glance of the Scanner Properties Dialog Box
1. Tab Options
Choice: Image, Compression, Color Dropout,
Paper, Multi-Feed Detection, Preview, Options,
Settings, Information.
2. Image
Selection Box
Choose your image type and the side of
document you wish to scan. Options vary
based on type of scanner.
3. Brightness
Adjust the brightness level from –100 to +100.
4. Contrast
Adjust the contrast level from –100 to +100.
5. Resolution
Determine the quality of the scanned image.
The industry standard is 200 dpi.
6. Invert
Reverse the color of your scanned image.
7. Scan Source
Choice: Auto Document Feeder, Flatbed,
Flatbed (Book), Automatic (varies due to
different scanner model)
8. Defaults
Reset all values on the tabs to the factory
default settings.
3
4
5
6
7
1
2
8
User’s Manual
3-15
3.6 How to Scan and Save Your Image to a USB Flash
Drive
To start a scan and send the scanned image to an inserted USB
flash drive,
1. Load your document in the ADF with the 1
st
page facing
down and the top of the pages pointing to the feeder.
2. Insert a USB flash drive to the flash drive port. The following
[Scan to USB] option will be displayed.
3. Use the arrow key to choose [Scan to USB] and then press
the [Scan] button (OK). The following default setting screen
appears.
4. Use the arrow key to choose your desired color mode and
resolution (Choice: Gray 200 dpi, Color 200 dpi, Gray 300
dpi, Color 300 dpi, Gray 600 dpi, Color 600 dpi) and then
press the Scan button (OK). The following [File format]
screen will be displayed.
User’s Manual
3-16
5. Use the arrow key to choose your desired file format
(choice: JPEG, PDF, TIFF) and then press the [Scan] button
(OK). The scanner starts scanning your document and
storing the image to your USB flash drive.
User’s Manual
4-1
4. Using the Scanner
Properties Dialog Box
The Scanner Properties dialog box allows you to configure the
scanner’s settings. It consists of several tabbed windows each
of which will be described in this chapter.
NOTE:
In this chapter, all options are available based on a
duplex (double-side) scanner. If you have purchased a
simplex (single-side) scanner, all options are available for
single sided only.
The Scanner Properties dialog box
User’s Manual
4-2
4.1 Buttons on the Scanner Properties Dialog Box
The buttons on the Scanner Properties dialog box
Buttons
Description
Defaults
Click the Defaults button, the factory default
settings will be shown on each tab.
Cancel
Click the Cancel button to leave the Scanner
Properties dialog box.
User’s Manual
4-3
The following table shows the default settings：
Tab name
Default settings
Image：Front B&W
Binarization：Dynamic Threshold
Resolution：200 dpi
Invert：Blank on White
Scan Source：Auto Document Feeder
Threshold：None
Brightness：None
Contrast：None
Compression
None
Color Dropout
None
Paper
Cropping：Automatic
Deskew：Yes
Orientation：Portrait
OverScan：0.00
Note: The availability of this option
varies due to scanner model.
Unit：Inch
Multi-Feed
Detection
None
Preview
None
Options
Rotation Degrees：None
Blank Page Removal：None
Edge Fill：White，0 mm
Image Control Option：None
Setting
Enable Energy Saver：Enable, 15
minutes after last scan action
Show Scanning Progress：Yes
Show Warning Message：Yes
Save Settings after Closing：Yes
Imprinter
Digital Imprinter
User’s Manual
4-4
4.2 Showing or Hiding Tabs
The [Scanner Properties] dialog box is displayed in default
with three basic tabs - Image, Paper, and Information. To
show more tabs, click the [Scanner Properties] icon to access
more scan settings.
To show more tabs,
1. Click the [Scanner Properties] icon ( ) on the upper
left corner, and choose [Tab] to show available tab names.
The available tabs include Compression, Color Drop out,
Preview, Rotation, Separation, Multi-Feed, Options,
Settings, and Imprinter. (Note: the options vary based on
scanner model.)
2. Choose the tab you want to display. The selected tab will
be shown with a check mark and then displayed in the
[Scanner Properties] dialog box.
3. To access the settings, click the selected tab on the top of
the [Scanner Properties] dialog box. The page of the
selected tab will be displayed.
To hide a tab window,
1. Click the [Scanner Properties] icon ( ) on the upper
left corner, and choose [Tabs] to show available tab
names.
2. Choose the tab you want to hide. Then, the selected tab
will be hided in the [Scanner Properties] dialog box.
Note: The [Image], [Paper], and [Information] tab can
not be hided since they preprogrammed to be displayed by
default.
User’s Manual
4-5
User’s Manual
4-6
4.3 The Image Tab
The Image tab allows you to choose the front side and (or) the
rear side of your document, the type of image, and to set
several basic scan settings. Note that except for the resolution,
you can set individual scan settings for the front side and the
rear side. For example, all settings in the Image tab,
Compression tab, Color Dropout tab can be set individually for
the front and the rear side. However, the settings in the Paper
tab, the Option tab, and the Setting tab have to be set the
same for the front and rear side.
The Image tab dialog box
User’s Manual
4-7
4.3.1 The Image Selection Box
The Image Selection box includes the
image type and document side option. If
you wish to scan both the front side and
the rear side of your color document, you
can check both Front Color and Rear Color
at the same time. Note the options vary
based on type of scanner.
Example 1：Scanning a two-sided color document, both
sides in color
Side/Image
Selection
Front
Rear
User’s Manual
4-8
Example 2：Scanning a two-sided color document, one in
B&W, the other in color
Side/Image
Selection
Front
Rear
Image Type
Description
Color
Choose Color if you wish to scan a color
image for your original in color.
Gray
Choose Gray image if your original contains
actual shades of gray.
B&W
Choose B&W if your original contains only
text, pencil or ink sketch.
B&W
Gray
Color
User’s Manual
4-9
Front/Rear Auto Color Detection:
Click to automatically detect and scan the front or the rear page
of your color document in color image mode. If your document
is in colors, the scanner will automatically scan the document
into a color image. If your document is non-color, you can
choose the output to be either B&W or Gray from the Non-Color
Selection option. This option is useful when you have a mixture
of color and non-color document.
Note: If you choose Front Rear Auto Color Detection, you can
not specify the image mode of your rear page and vice versas.
Modes of Auto Color Detection:
If [Front/Rear Auto Color Detection] is selected, its modes
will be displayed. Choice includes Normal, Ignore Paper
Color. For paper with background color such as invoices,
choosing [Ignore Paper Color] will automatically remove the
background color and enhance the detection accuracy.
Normal
Ignore single background
color
User’s Manual
4-10
Sensitivity of Auto Color Detection
If your documents contain primarily B&W text and small
amount of light or pale colors and you do not wish them to be
recognized as color image to save the file size, you can increase
the sensitivity value by moving the bar to the right to let these
images to be detected as B&W. The value ranges from 1 to 100.
The default is 37.
Original
Sensitivity: 1
(The image is recognized
as a color one)
Sensitivity: 100
(The image is recognized
as a black and white one)
User’s Manual
4-11
Same settings on both sides:
Click to apply same scan settings for both sides of your
documents. After checking this option, any settings you have
changed will automatically applied to both the front side and
the rear side. For example, if you choose your ideal resolution
to be 300 dpi, this will be applied both to the front side and
rear side of your document.
User’s Manual
4-12
4.3.2 Other Image Options
Binarization
This is the process of converting a
grayscale or color image to a bi-tonal
image. There are several different
methods of performing this conversion.
Options: Dynamic Threshold,
Dynamic Threshold (AD), Fixed
Processing, Halftone 1~5, Error
Diffusion.
Dynamic Threshold: Selecting
Dynamic Threshold allows the scanner
to dynamically evaluate each document
to determine the optimal threshold value
to produce the highest quality image.
This is used to scan mixed document
containing faint text, shaded background,
or color background with a single setting.
If Dynamic Threshold is selected,
Threshold, Brightness, and Contrast are
not available.
Dynamic Threshold (AD): Selecting
Dynamic Threshold (AD) to perform
the enhanced mode of the Dynamic
Threshold feature. However, using this
mode may slow down your scanning
speed.
Sensitivity of Dynamic Threshold
Occasionally your scanned image may
contain small dots or speckles. To remove
these spots, increase the sensitivity value
by moving the bar to the right. The value
ranges from 1 to 30. The default is 20.
User’s Manual
4-13
Fixed Processing: Used for black-and-
white and other high contrast documents. A
single level is set to determine the black-
and-white transition. The threshold is
programmable over the entire density
range. Fixed Processing sets Contrast to
0. If Fixed Processing is selected,
Contrast is not available.
Halftone: In addition to the black and
white display, Halftone can present a
somehow gray shade of image by using
different size of dots. Halftone image looks
like the picture we have seen in the
newspaper. Options include Halftone 1,
Halftone 2, Halftone 3, Halftone 4,
Halftone 5.
Error Diffusion: Error Diffusion is a type of
Halftone. Error Diffusion gives good image
texture and makes text in images more
readable than Halftone.
Halftone Image
User’s Manual
4-14
Error Diffusion Image
Dynamic Threshold
Dynamic Threshold (AD)
User’s Manual
4-15
Threshold
Used to convert a grayscale image to a
bi-tonal image. The value ranges from 0 to
255. A low threshold value produces a lighter
image, and can be used to subdue
backgrounds and subtle, unneeded
information. A high threshold value produces
a darker image, and can be used to help pick
up faint images.
Adjust the threshold setting by dragging the
Threshold sliding bar to the left or right to
achieve the desired threshold setting.
200 dpi,
Threshold:50,
Brightness: 0
200 dpi,
Threshold:100,
Brightness: 0
User’s Manual
4-16
Gray
Document Type: Choice: Normal, Photo, Document
Three options of document type are provided when you choose
Gray as the image type for your scanned document. Choice:
Normal, Photo, Document.
Document: Choose Document if your original contains
pure text or a mixture of text and graphic since it is an
optimal setting for regular business document. When
using Document, only Threshold can be adjusted.
Photo: Choose Photo if your original contains photo to
reproduce your photo in vivid grayscale image. When
using Photo, no Threshold and Contrast can be adjusted.
Normal: When using Normal, Threshold, Brightness, and
Contrast can be adjusted.
Threshold: The value ranges from 0 to 255. The default is
230. A low threshold value produces a lighter image, and can
be used to subdue backgrounds and subtle, unneeded
information. A high threshold value produces a darker image,
and can be used to help pick up faint images. Adjust the
threshold setting by dragging the Threshold sliding bar to the
left or right to achieve the desired threshold setting.
User’s Manual
4-17
Normal
Document
(Threshold: 230)
Normal
Document
(Threshold: 230)
User’s Manual
4-18

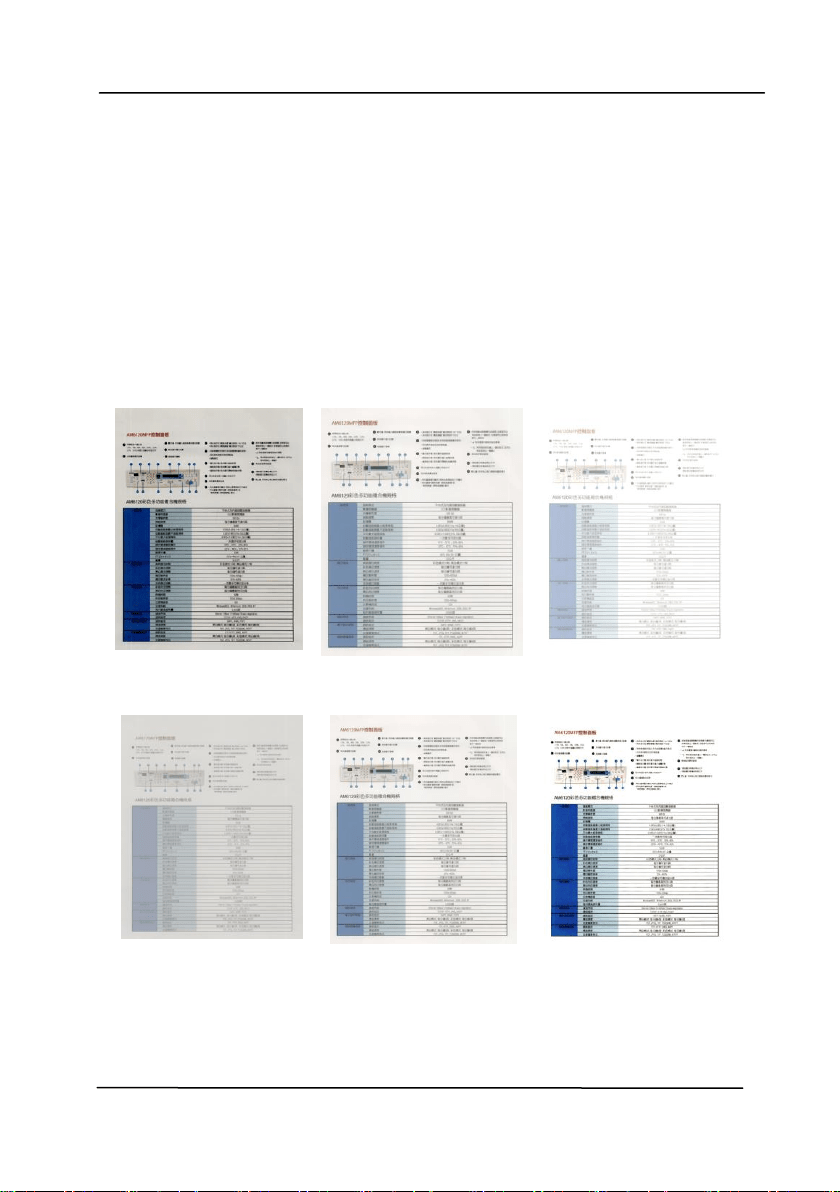

Brightness
Adjusts the lightness or darkness of an
image. The higher the value, the brighter
the image. Drag the slider to the right or
left to increase or decrease the brightness.
The range is from –100 to +100.
Contrast
Adjusts the range between the darkest and
the lightest shades in the image. The
higher the contrast, the bigger the different
grayscale. Drag the slider to the right or left
to increase or decrease the contrast. The
range is from –100 to +100.

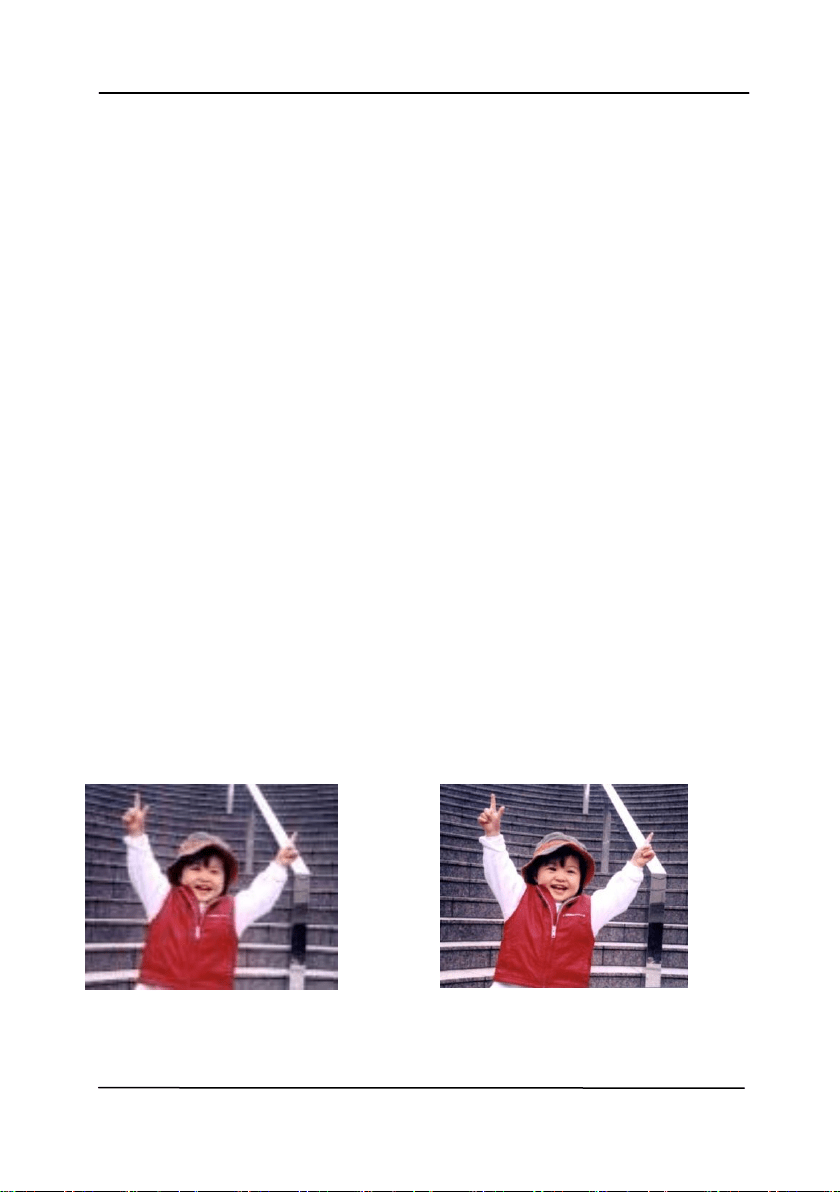

Brightness: -50
Brightness: 0
(Normal)
Brightness: +50
Contrast: -50
Contrast: 0
(Normal)
Contrast: +50
User’s Manual
4-19
Resolution
A good control of the resolution results a
good detail of an image that scans. The
resolution is measured by dots per inch
(dpi). Normally, the greater the dpi number,
the higher the resolution and the image file
size. Be aware that greater resolution takes
more time to scan, and more disk space for
the scanning image. For your information,
an A4 size color image scanned at 300 dpi at
True Color mode consumes approximately 25
MB of disk space. A higher resolution
(usually means over 600 dpi) is only
recommended when you need to scan a
small area at True Color mode.
Choose a resolution value from the drop
down list. The default value is 200 dpi.
Available resolutions are 75, 100, 150, 200,
300, 400 and 600. Or you may choose your
desired value by clicking the box in the right
side of the drop down list and press the
arrow key to select your desired value and
then click the Add button to include it in the
drop down list. Note: The resolution is up to
300 dpi if an imprinter or a MICR reader is
installed or connected to the scanner.
Resolution: 75 dpi
Resolution: 150 dpi
User’s Manual
4-20
Invert
Reverses the brightness and the colors in the
image. The default setting is Black on a White
background. Reverse mode is White on a Black
background. For color images, each pixel will be
changed into its complementary color at the
command of Invert.
Black on White
White on Black
User’s Manual
4-21
Scan
Source
Choice:
Auto Document Feeder: Used to scan
multiple pages.
Flatbed: Used to scan a single page. For
example, pages from newspaper clipping,
paper with wrinkles or curls.
Flatbed (book): Used to scan several
inside pages from book.
Automatic: Allow the scanner automatically
set its scan source. If Automatic is selected
and there is document in both the auto
document feeder (ADF) and the flatbed, then
the scan source will be automatically set to
ADF. If Automatic is selected and there is
document only in flatbed, then the scan
source will be set to flatbed.
Merge Two Sides into One Image:
If you have a sheet-fed duplex scanner with
front input tray, you can scan an A3 size
document with an innovative method. Thus,
fold your A3 size document into A4, and then
load the paper in the front tray. Choose
Merge Two Sides from the Scan Source
option and then the scanner is able to scan
both sides of your document and merge two
A4 images into one A3 image.
When you select Merge Two Sides into One
Image, the Cropping or Multi-feed function
will be disabled.
Note: This feature must be used with a
carrier sheet. Regarding how to load a
document with a Carrier Sheet, refer to
Section 4.6.2, Other Paper Selection.
Note the options vary based on type of
scanner.
User’s Manual
4-22
NOTE:
If you have purchased a duplex sheet-fed
scanner, choose [Merge Two Sides] on
the [Scan Source], then the scanner is
able to scan both sides of your document
and merge them into a single image.
If “Merge Two Sides into One Image” is
selected, its choice will be available including
“Merge Horizontally”, “Merge Vertically”, “Merge
Vertically (Back Side Flip)”. If the reverse side
of your document is upside down, choose
“Merge Vertically (Back Side Flip)” and the back
side will be automatically rotated 180 degrees
and merged.
Note the options vary based on type of
scanner.
Front
Side
Rear
Side
Merge Vertically
Front
Side
Rear
Side
Merge Horizontally
User’s Manual
4-23
Color
Matching
The purpose of Color Matching is getting the
accurate color. This option uses the default
parameters (ICC profile) to adjust the colors
of the image.
Choice: None, Document, Photo
None: Choose “None” to disable this
option.
Document: Choose “Document” if your
original contains pure text or a mixture of
text and graphic since it is an optimal
setting for regular business document.
Photo: Choose “Photo” if your original
contains photo to reproduce your photo in
vivid color image.

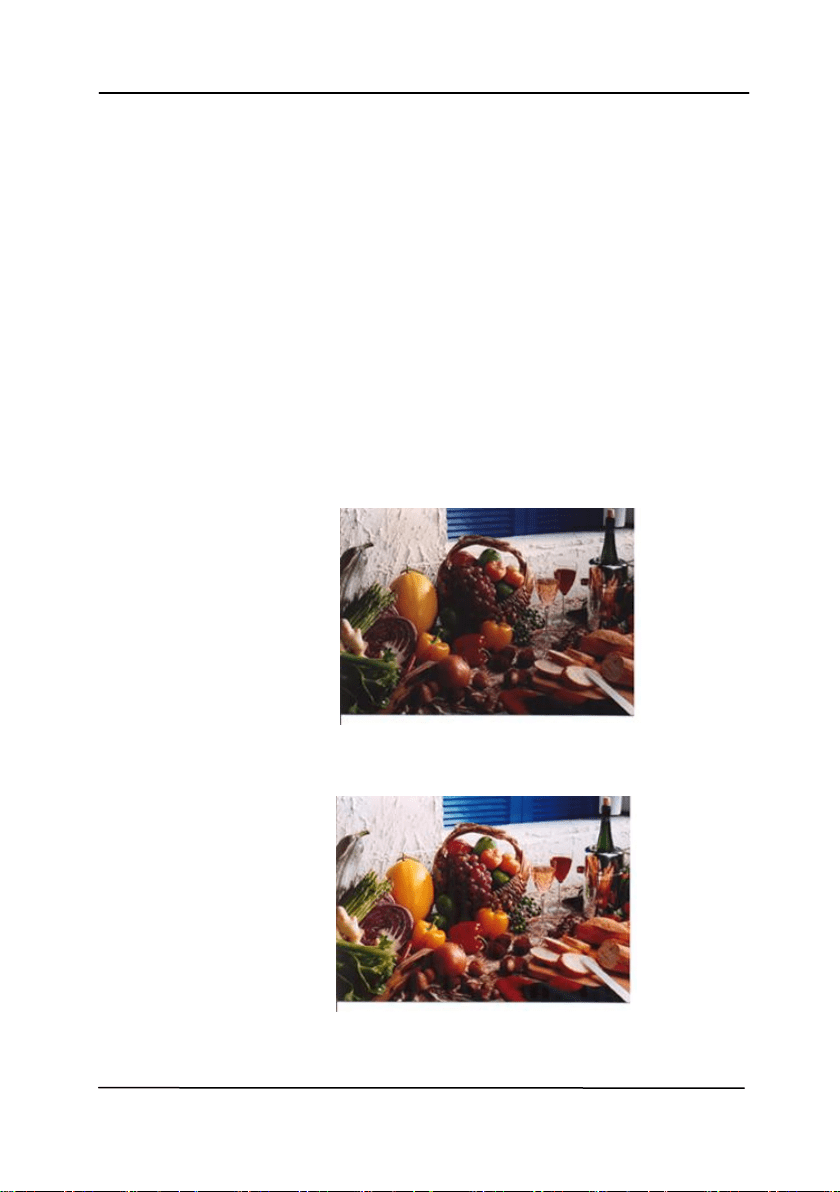

Normal
After Color Matching
User’s Manual
4-24
4.3.3 Scanning color images
The following options are available for scanning color images.
Brightness
Contrast
Resolution
Invert
4.3.4 Scanning grayscale images
The following options are available for scanning gray images.
Brightness
Contrast
Resolution
Invert
4.3.5 Scanning B&W images
The following options are available for scanning B&W images.
Binarization (Dynamic Threshold)
Resolution
Invert
Or
Binarization (Fix Processing)
Threshold
Brightness
Resolution
Invert
User’s Manual
4-25
4.3.6 Editing Profiles
The Scanner Properties dialog box allows you to change and
save your frequently used scan settings into a profile. You can
edit these profiles by renaming or deleting them.
To add a new profile,
1. Customize your settings. (For example, change your
resolution, image type, cropping method, scan size, or
other scan settings.)
2. Click the Image tab and then choose “Profiles” to prompt
the “Edit Your Profile” dialog box.
3. Click “Add” to enter the name of the profile and then
choose “Save”.
4. The new profile will be saved and shown in the “Profiles”
dropdown list box.
User’s Manual
4-26
To load a profile,
1. From the Image tab dialog box, choose your favorable
profile from the “Profiles” dropdown list box.
2. Your favorable profile will be immediately loaded and
displayed on Scanner Properties dialog box.
To delete a profile,
1. From the Image tab dialog box, click “Profiles” to prompt
the Edit Your Profile dialog box.
2. Choose the profile you want to delete from the dropdown
list box.
3. Click “Delete”. A Confirm message “Are you sure you want
to delete this profile?” is prompted.
4. Choose “Yes” to delete or “Cancel” to quit.
User’s Manual
4-27
To rename a profile,
1. From the Image tab dialog box, click “Profiles” to prompt
the Edit Your Profile dialog box.
2. Choose the profile you want to rename from the dropdown
list box and then click the Rename button.
3. Enter new name for the profile.
4. Choose “Save” to save the new profile or “Cancel” to quit.
NOTE:
The preset default profiles include Flatbed, Simplex-
B&W, 200 dpi, Simplex-Gray, 200 dpi, Simplex-Color,
200 dpi, Duplex-B&W, 200 dpi, Duplex-Gray, 200 dpi,
Duplex-Color, 200 dpi. If you have a simplex or a
sheetfed scanner, the duplex or the flatbed option will
not be available.
If any setting for a current profile has been changed, a
[*] sign will be marked before the name of current
profile, for example, [* Duplex, Color, 200 dpi]. If
desire, click the [OK] or [Scan] button and a dialog
box will be prompted to let you save the new profile.
User’s Manual
4-28
4.4 The Compression Tab
The Compression tab allows you to compress your scanned
image and choose the level of compression. Bi-tonal images
are normally compressed using CCITT standard called Group 4
(G4). Color and grayscale images are often compressed using
JPEG technology. Move the JPEG Quality slider to the right or
left to increase or decrease the level of compression. Note the
greater the compression level, the lower image quality. Default
is 50%.
Note that the compression depends on your image editing
application. If your image editing application does not support
the type of compression format, then either a warning
message will appear or the image quality of the compressed file
will not be acceptable.
JPEG (Joint Photographic Editor Group). This group developed
and lent their name to a file compression standard for color and
grayscale images that is widely used by scanners, and software
applications. On Microsoft Windows-based systems, a file with
the extension .jpg has normally been compressed using this
standard.
For scanning color or gray images, the following compressions
are available:
None
JPEG
For scanning B&W images, the following compressions are
available:
None
G4
User’s Manual
4-29
Compression:
To complete your scan at a rated speed, the scanned image is
compressed by default during transmission. However, if you
wish to obtain the highest image quality, you can choose to
uncompress the image data before it is outputted.
To Application:
Choose if you wish to compress the image data and transfer it
from the TWAIN driver to the application. Note Bi-tonal images
are normally compressed using CCITT standard called Group 4
(G4). Color and grayscale images are often compressed using
JPEG technology. Move the [Image Quality] slider to the right
or left to increase or decrease your image quality. Note the
greater the image quality, the lower the compression level.
Default is 50%.
Note that the compression depends on your image editing
application. If your image editing application does not support
the type of compression format, then the image of the
compressed file will look abnormal.
From Scanner: (Note: The availability of this feature
varies due to scanner model.)
Choose if you wish to compress the scanned image and transfer
it from the scanner to the TWAIN driver.
Choice: Uncompressed, *Best Image Quality (Low Compression
Level), Better Image Quality (Normal Compression Level),
Normal Image Quality (High Compression Level). (*: Factory
Default)
Scanned
Scanned
Scanner
Scanner Driver
Image Editing
Application
User’s Manual
4-30
The Compression tab dialog box
User’s Manual
4-31
4.5 The Color Dropout Tab
4.5.1 Color Dropout Selection
The [Color Dropout] tab allows you to select either green, red,
blue, or a color of your choice to remove the details of the
selected color from a scanned image. This feature is used to
sharpen your text when using OCR (Optical Character
Recognition) software. Note this feature applies only to the gray
or black and white image.
Choice: None, Auto, Remove Red, Remove Green, Remove
Blue, Custom
- None: Does not remove any color.
- Auto: Automatically outputs the image with the details of
the primary color removed.
- Remove Red/Remove Green/Remove Blue: Outputs the
image with the details of the specified color removed.
- Custom: Specify the color you wish to remove by entering
its RGB (Red, Green, and Blue) value respectively.
Advanced Options:
- Quality Mode: Range: 0~20. Default: 10
When [Quality Mode] is selected, you can determine the
color to be dropped out using the [Filter Threshold] slider. A
lower value will drop more of the selected color out, while a
higher value will leave more of the selected color in.
- Normal Mode: Use an optimized setting to determine the
color.
User’s Manual
4-32
Original
Auto/Remove Green
(normal mode)
Remove Red (normal mode)
Remove Green (quality
mode: Threshold: 18)
Preview the color dropout result:
To preview the color dropout result, please follow these steps:
1. Click the [Scanner Properties] icon ( ) on the upper
left corner, and choose [Tab] to show available tab
names.
2. Choose [Preview] to show the Preview tab.
3. Click the [Preview] tab to show the Preview page.
4. Load your document to the scanner and click the
[Preview] button to get a preview image.
5. On the [Image] tab, click [Gray] or [Black and White]
image mode and then choose [Custom] on the [Color
Dropout] tab. A [Preview window] button will be
displayed.
6. Click the [Preview window] button to prompt the
[Preview] window with the previewed image.
User’s Manual
4-33
7. Move your cursor over the preview image. Your mouse
cursor now becomes an Eyedropper.
8. Click to select a color which you wish to remove.
9. Click and hold your mouse button to view the result
after removing the specified color. If the result is
satisfactory, click [OK] to close the Preview window.
The Preview Window The Color dropout result
User’s Manual
4-34

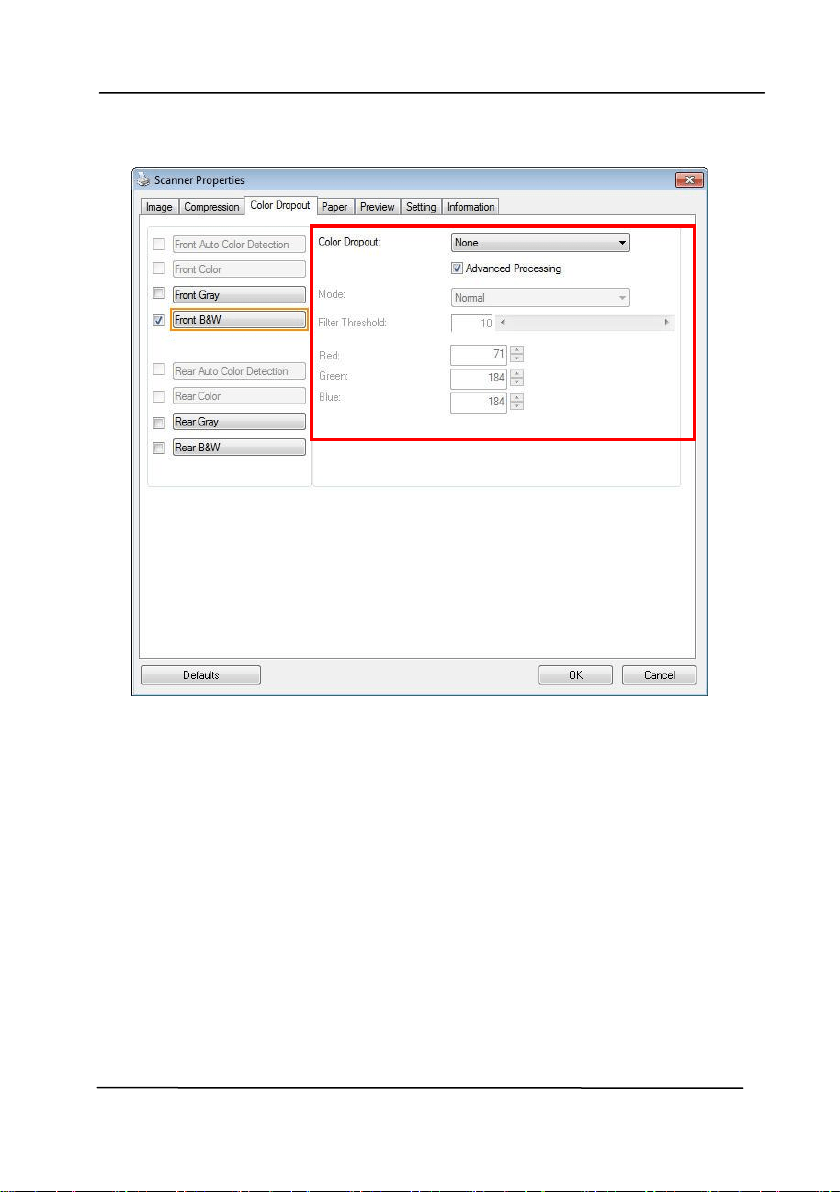

The Color Dropout dialog box
User’s Manual
4-35
To select a color on the Color palette,
1. Click the Color
Dropout tab from
the Scanner
Properties dialog
box.
2. Choose Gray or
B&W from the
Image Selection
box and click
“Custom” from the
Color Dropout
drop-down menu.
The Color palette
appears.
User’s Manual
4-36
3. Move your cursor
over the palette. The
cursor becomes a
cross sign.
4. Click to choose a color. The RGB values are changed
simultaneously.
User’s Manual
4-37
4.6 The Paper Tab
The Paper tab allows you to define values relating to image
output (i.e., Auto Crop or not, Scan Area, OverScan, Multi-Feed
Detection).

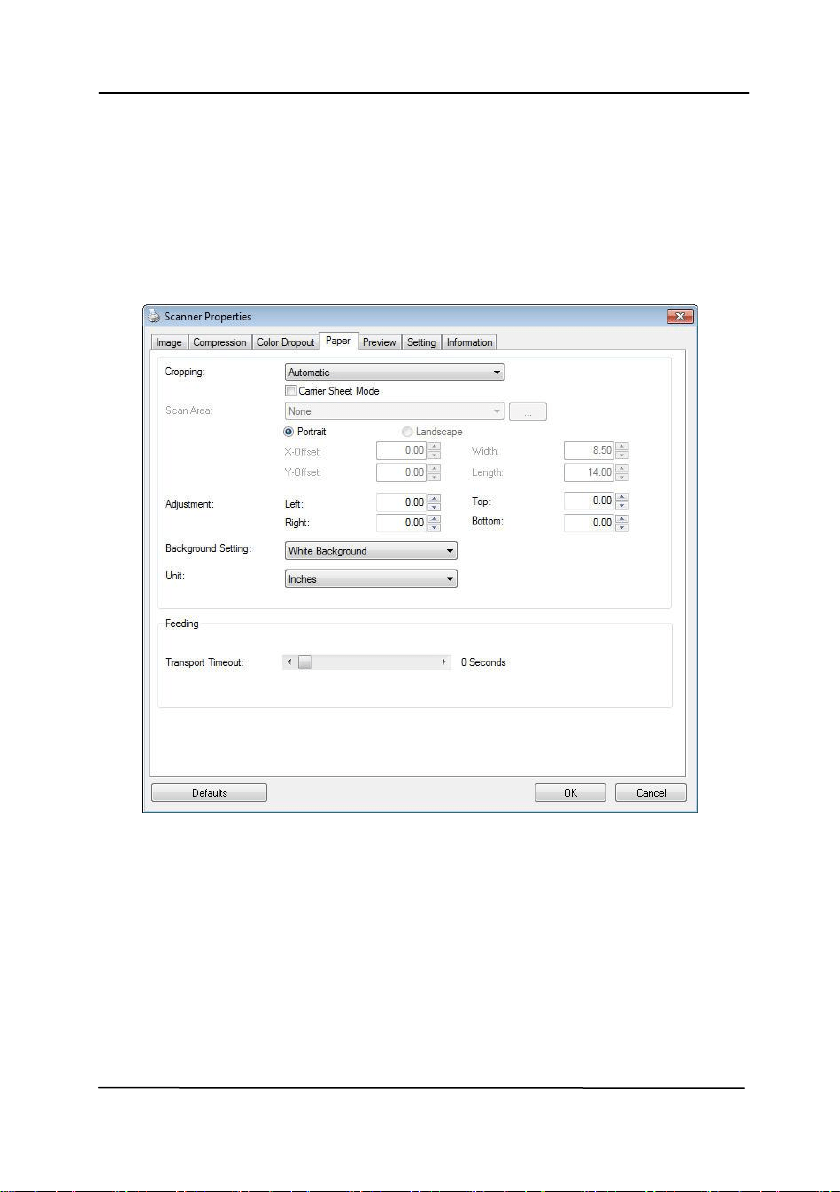

The Paper tab dialog box
User’s Manual
4-38
4.6.1 Cropping
Cropping allows you to capture a portion of the document
being scanned. Choice: Automatic, Automatic (36”),
Fixed to Transport, EOP (End of Page) Detection,
Automatic Multiple, Relative to Documents.
Options
Description
Automatic
Automatic adjusts the cropping window
according to different document sizes and
automatically straighten a skewed
document. Use this option for batches of
mixed-sized documents.
Automatic
(36”)
Automatically adjusts the cropping window
according to different document sizes
smaller than 36” and automatically
straighten a skewed image. Use this option
for batches of mixed-sized document.
Note: The availability of this feature
varies due to scanner model.
Fixed to
Transport
This feature allows you to define the area
or zone to be imaged. Use for batches of
same-sized documents. If you select this
option, you can use the arrow keys to
define the x and y offset values, width and
length to redefine your scanned area. The
Display window will show image placement
as you change the values.
EOP (End of
Page)
Detection
This feature allows you to define the area
or zone to be imaged. Use for batches of
same-width but different length
documents. If you select this option, you
can use the arrow keys to define the x and
y offset values, width and length to
redefine your scanned area. The Display
window will show image placement as you
change the values.
User’s Manual
4-39
Automatic
Multiple
This option allows you to place various
sized documents such as photos, ID Cards,
or business cards on the flatbed (if
available) and lets you create multiple
individually cropped images in one scan.
Note: To correctly create multiple images,
please make sure there is at least 12mm
(0.5”) of space between each document.
Relative to
Document
This option allows you to crop different
areas on your documents and deliver these
images in B&W, Gray, or Color separately.
For example, there are applications which
require you to store the entire document in
B&W and a part of the document in color to
save storage space. This is useful for
documents where a photograph or
signature appears in a consistent area on
the document such as resumes, and so on.
The following options are only available when Fixed to
Transport is selected.
X-Offset — the distance from the left end of the
scanner to the left edge of the scanning area.
Y-Offset — the position from the top end of the
document to the top end of the scanning area.
Width — the width of the scanning area.
Length — the length of the scanning area.
Center: automatically calculates the x-offset for center-fed
feeding based upon document size selected.
— relocate the scan area by click the arrow key on
the cross sign while retain the scan size. View the result
from the Display window.
User’s Manual
4-40
The Adjustment option is available when Automatic is
selected.
Adjustment —adds a positive/negative margin value
Top/Bottom or toward left/right of the image.
Adjustment is used when the automatic document feeder is
used. Adjustment reduces the possibility of corner clipping
on skewed images. To set Adjustment values, use the
UP/Down buttons to select where you want to apply
Adjustment values: Top/Bottom or Left/Right, and then
select the amount of inches/mm/pixels applied. Select a
value within the range of 0.00 to 1.00 / -1.00.
User’s Manual
4-41
Relative to Document: (used for batches of same-sized
documents)
This option allows you to crop different areas on your
documents and deliver these images in B&W, Gray, or Color
separately. For example, there are applications which require
you to store the entire document in B&W and a part of the
document in color to save storage space. This is useful for
documents where a photograph or signature appears in a
consistent area on the document such as resumes, and so on.
The following procedure describes how to reproduce the entire
document in B&W and a portion of document (picture) in color.
1. On the Paper tab, choose “Relative to Document” or “Fixed
to Transport” from the Cropping option.
2. Choose your scan size from the Scan Area option. The
selected scan size will be displayed in a red rectangular
box. This is also the scan size of your entire document.
(For example, ISO B5. If you have not chosen a scan area
and leave the selection as None, then the default area will
be the scanner’s maximum.)
A red
rectangular
box
User’s Manual
4-42

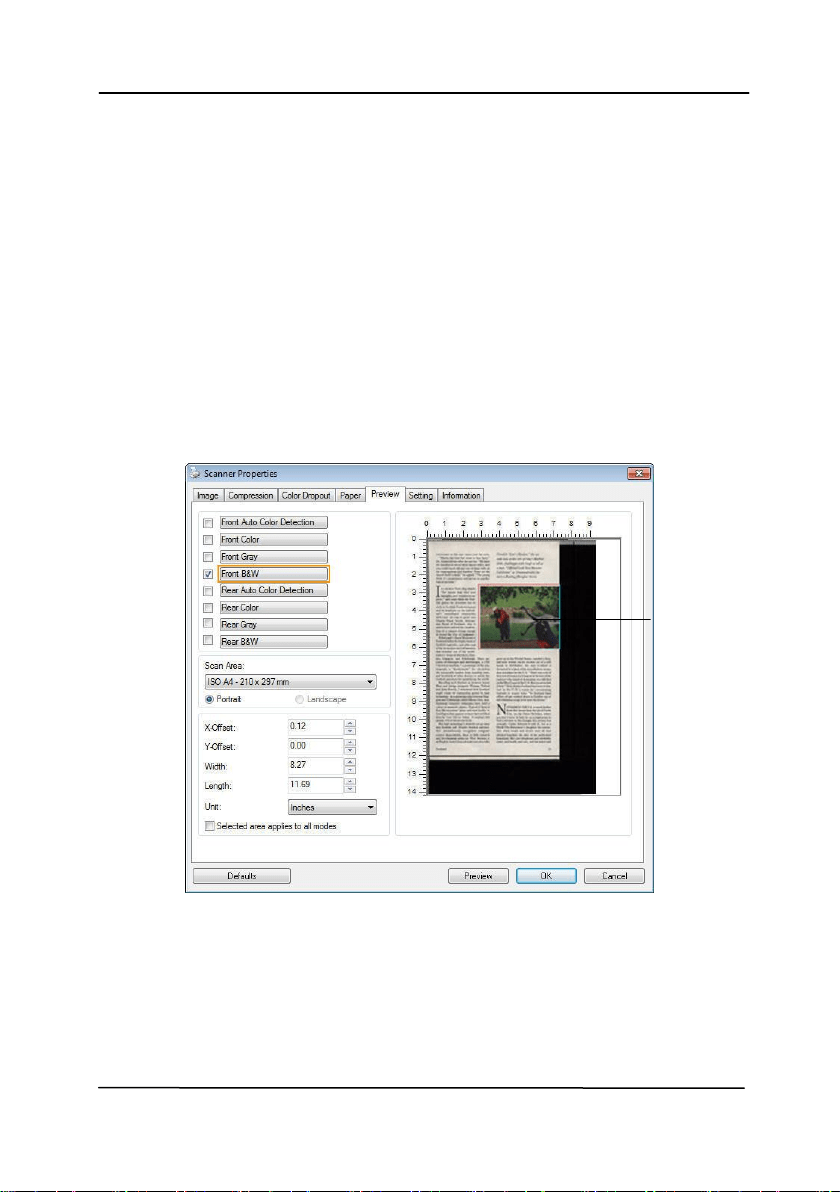

3. Click the Preview tab to display the Preview window. A
black rectangular box appears to indicate the max. scan
size your have just selected.
4. Click the Preview button to view the entire image in low
resolution to correctly crop your relative scan area.
5. Select image type from the Image Selection box. The
selected image will appear in highlighted color. (For
example, Front Color)
6. Place your cursor on the Preview window and click your left
mouse button. A cross sign will appear as illustrated.
Create your relative scan size diagonally by dragging the
left mouse button to your preferable size. The selected
area will appear in a red box as illustrated.
A black
rectangular
box
The Preview
The Preview
Button
The Image
Selection
Box
User’s Manual
4-43
7. Check the B&W image from the Image Selection box to
scan the entire document.
8. Click the Scan button to start scanning the document in
two image types and sizes. (See the result in below.)
The entire document in B&W The relative area in color
The
Relative
Area
A Cross
Sign
User’s Manual
4-44
4.6.2 Other Paper Selection
Carrier Sheet Mode:
Check this option to automatically crop the scan window
according to your document size when scanning non-standard
document (fragile, irregular-size document) with a carrier sheet
(optional). Note: The availability of this option varies due to
scanner model.
Loading Documents Using a Carrier Sheet
A Carrier Sheet is a plastic sheet specifically used for loading
non-standard document onto the scanner. It allows you to scan
document that can not be scanned in the regular way. Also,
documents larger than A4 size, such as A3 and B4, can be
scanned by folding in half, inserting into the Carrier Sheet, and
scanning in duplex mode. You can also scan documents that
can be damaged quite easily such as photographs, or irregular
size documents that are difficult to load directly such as
clippings.
To scan document using a Carrier Sheet,
For documents larger than A4/Letter size, such as A3
a. Fold the sheet to be scanned in half.
b. Fold the sheet tightly and smooth out crease. Otherwise,
the sheet may be skewed during scanning.
1. Open the Carrier Sheet and place the document
inside.
Align the top of the document to the top of the Carrier
Sheet (the printed area).
User’s Manual
4-45
For documents larger than A4/letter size, such as A3
Align the top of the document to the top of the Carrier
Sheet (the printed section) and the folded portion to the
right edge of the Carrier Sheet so that the document fits
into the Carrier Sheet at the upper corner.
For non-standard document
Center your document in the Carrier Sheet.
2. Load the Carrier Sheet with the gray section (printed
section) facing downwards.
3. Adjust the paper guides to the width of the Carrier Sheet.
Adjust the paper guides so that there is no space between
the guides and the Carrier sheet. Space between the
guides and Carrier Sheet may cause the Carrier Sheet to
become unaligned during scanning, and skew the
scanned image.
4. Start the scan.
User’s Manual
4-46
NOTE:
[Carrier Sheet] is available for the models that support
the Carrier Sheet.
Some functions are disabled when [Carrier Sheet] is
checked.
This option may not work properly on some
applications.
Scan Area
Choose your desired paper size with the drop-down list box. Or
you may select a custom paper size by clicking the Scan Area
box and then click Add to include in the choice.
Choices are listed below:
None
US Letter- 8.5”x 11”
US Legal – 8.5” x 14”
ISO A4 – 21 x 29.7 cm
ISO A5 – 14.8 x 21 cm
ISO A6 – 10.5 x 14.8cm
ISO A7 – 7.4 x 10/5 cm
ISO B5 – 17.6 x 25 cm
ISO B6 – 12.5 x 17.6 cm
ISO B7 – 8.8 x 12.5 cm
JIS B5 – 18.2 x 25.7 cm
JIS B6 – 12.8 x 18.2 cm
JIS B7 – 9.1 x 12.8 cm
Scanner Maximum
Long Page (<118”)
User’s Manual
4-47
Long Page (<118”):
When you need to scan documents whose length exceeds
scanner maximum, please choose Long Page. Note if Long
Page is selected, the Multi-Feed Detection will not be
available. (Note: This option and the maximum allowable
document length vary due to type of scanner.)
When Long Page (<118”) is selected, be sure to specify your
document size in the Length and Width field.
Notice when scanning long page document:
1. Pull out the extension in the ADF Paper Tray.
2. Secure enough space around the Output Tray to
prevent the ejected paper from falling off the Output
Tray.
3. To ensure the performance, in color mode, set the
resolution to be 300 dpi or lower; in Black and White
mode, set the resolution to be 600 dpi or lower.
4. Depending on your system environments,
application, or your specified paper size, there may
be insufficient memory to perform scanning.
OverScan
Overscan allows you to add a specific margin at top and bottom
or right and left (Options vary based on the type of scanner) of
the edge of the image. This is used to reduce possible corner
clipping on the skewed images and often applied to a batch of
skewed document to be scanned in the auto document feeder.
Select a value between 0 and +5 mm. Note the overscan
result will not be shown in the Display window and that the
availability of the function varies based on type of scanner.
Pre-Feed
Choice: Enable, Disable. If enable is selected, you can set the
amount of time the scanner starts pre-feeding your paper after
your documents has been loaded into the feeder. The default is
disable. Note: The availability of this option varies due to
scanner model.
User’s Manual
4-48
Transport Timeout
Set the amount of time the scanner will wait and then start
auto scan after the first scan job is completed. If you have
many separate documents need to be scanned at the same
scan settings, this feature is especially useful. The default is 0.
The value ranges from 0 to 30 seconds.
NOTE:
Within the specified timeout period, if you load your
document to the feeder, the scanner starts scanning
automatically.
If your scanner has a flatbed option and you place
your paper on the flatbed, after the timeout period,
you need to click the Scan button on the TWAIN user
interface to start scanning.
User’s Manual
4-49
Background
Setting
This option allows you to set your scan
background. Choice: White Background,
Black Background.
Note: For a sheet-fed scanner with an auto
document feeder, this option is currently
available only in the “Auto crop” mode. For a
scanner with a flatbed platen, this option is
available either in the “Auto crop” or the
“Fixed to Transport” mode.
White Background
Black Background
User’s Manual
4-50
4.7 The Multi-Feed Detection Tab
Multi-Feed Detection
Multi-Feed Detection allows you to detect overlapped document
that go through the auto document feeder. Multi-Feed usually
occurs due to stapled documents, adhesives on documents, or
electro-statically charged document. Note： The availability of
the function varies based on type of scanner.
User’s Manual
4-51
Additional Length Detection
Additional Length Detection allows you to define the length of
document being multi-fed. This value indicates the additional
length exceeding your scan area. The Display window will show
the size of the document as you change the value. A value of 0
indicates no additional length detection. The Additional Length
Detection is best used when scanning same-size documents in
the auto document feeder.
Ultrasonic Detection
Ultrasonic Detection allows you to set overlapped document by
detecting paper thickness between documents. Note： The
availability of the function varies based on type of scanner.
Stop Scanning after Multi-Feed
- If this is not selected, the scanner will continue scanning the
rest document though multi-feed is detected. After the
entire document has been scanned, a multi-feed dialog box
will be prompted to indicate the page number which has
been detected multi-feed and need to be rescanned.
- If this is selected, the following options will be displayed.
Stop: If this is selected, the scanner will stop scanning after a
multi-feed is detected. No further dialog box will be prompted.
Ask: If this is selected, the image of the page which has been
detected multi-feed will be displayed and three options are
provided.
Continue Scan:
If the image of the multi-feed
page is acceptable, select
[Continue Scan] to continue
scanning the rest pages.
User’s Manual
4-52
Continue
Scan(Discard
Image):
If the image of the multi-feed
page is not acceptable, select
[Continue Scan (Discard
Image)] to scan the rest pages
yet the multi-feed page will be
ignored and you need to rescan
the page again.
Stop Scan:
The scanner stop scans. Remove
the remaining pages in the
scanner. Remove staples or any
adhesive tapes on your
document. Or fan your document
and rescan the rest pages.
Multi-Feed Alarm
If a wave file is added, the scanner will make a sound
alarm if multi-feed is detected yet no Warning dialog box
will be displayed.
How to add the sound alarm：
1. Click the Browse button on the right side of the speaker icon.
The Open dialog box appears.
2. Choose your wave file.
3. Click the Open button. The wave file is added.
Units
Defines the primary measurement system. Inches,
Millimeters, and Pixels are available.
User’s Manual
4-53
4.8 The Preview Tab
The Preview tab allows you to preview (a low-resolution scan)
your image before final scan. This preview image lets you
allocate your scan area. You can choose your scan area by the
“Scan Area” drop down list box or placing your cursor on the
Display window and dragging it diagonally on the Display
window. Then, a red rectangle box will appear to indicate the
selected area.
Note: If you choose “Automatic Cropping” on the “Paper Tab”,
then to select a scan area on the Preview tab is not allowed.
The Preview Tab
The Display
Window
User’s Manual
4-54

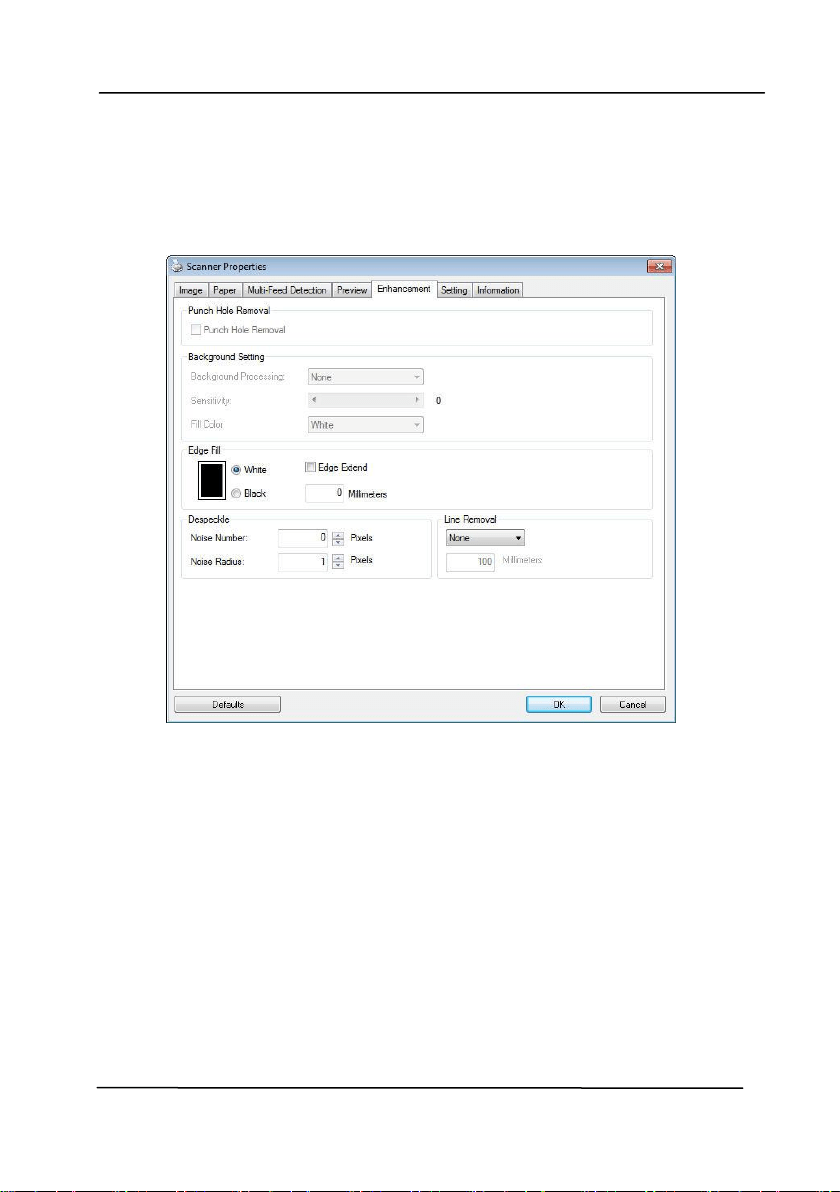

4.9 The Enhancement Tab
The Enhancement tab allows you to set following additional
image processing settings.
The Option tab dialog box
User’s Manual
4-55
Punch
Hole
Removal
You can remove punch holes from the output
scanned image when scanning punched document.
Note the availability of this feature varies
depending on your scanner model.
Punch holes can not be removed when:
Resolution is set lower than 150dpi
The hole is near the edge of the document
The holes are not aligned along the edge of the
document
Punch Hole Removal is available only when
“Auto Crop” is enabled. If either “Fixed to
Transport”, “EOP (End of Page) Detection”,
“Automatic Multiple”, “Relative to Documents” is
selected from the Cropping option on the Paper
tab, the Punch Hole Removal option will be
disabled.
Original
Output image
User’s Manual
4-56
Shadow Removal
When 「Flatbed」on the 「Scan
Source」 option is selected on the
「Image」tab, the 「Shadow
Removal」option will be enabled. Click
to remove the shadow on the book spine
when scanning a book.
Before Shadow Removal
After Shadow Removal
User’s Manual
4-57
Background Processing: The [Background Processing]
option allows you to smooth background color or remove it to
make image clearer. The option is especially useful for
documents with color forms such as invoices.
Choices: None (default), Smooth, Removal
- None - no background processing will be performed
(default)
- Smooth - produces images with a more uniform
background color. This option improves image quality.
- Removal - identifies the background color and then
removes it.
Sensitivity: Choice: 0, 1, 2, 3, 4. Default: 0
- The higher the value, the more background color will be
kept.
Mode: Auto, Moiré
If [Smooth] is selected in the [Background Processing]
option, then the choices for the [Mode] option includes Auto,
and Moiré.
- Auto - uses the factory preprogrammed mode to proceed
background smoothing.
- Moiré – Remove the moiré patterns that appear on the
background of the image when scanning printed material.
If [Removal] is selected in the [Background Processing]
option, then the [Mode] option will be replaced with [Fill
Color]. Choices: White, Auto.
- White - identifies the background color and substitutes it
with white.
- Auto - identifies the background color and substitutes it
with the color of the largest background zone.
User’s Manual
4-58
Background Processing: None
Background Processing:
Smooth
Background Processing:
Removal
Fill Color: White
NOTE:
Background color in small zone will not be processed or
removed.
User’s Manual
4-59
Edge
Fill
Check White or Black if you wish to add white or
black edge on the border of your scanned image.
Enter the value from 0 to 5 mm. Default value is 0.
Original
Edge Fill: 5mm (Black)
If you want to add a white or black frame on the
edges of the scanned image, check "Edge
Extension".
The default value is 0. The maximum value is half of
the short side of the selected scan area.
For example, if you choose an A4 size (8.26
"X11.69"), then the maximum value of the white or
black box is 4.14" (half of "8.26").
User’s Manual
4-60
Despeckle
Occasionally small dots or specks appear in the background of a
scanned image. Remove unwanted speckles provides a cleaner
image for OCR (Optical Character Recognition) processing, and
also helps to reduce compressed file size.
Define the speckles (also known as image noise) you wish to
remove by specifying its number (size) and radius (range). The
measuring unit is pixel. The higher the number, the more
speckles will be removed.
Before Despeckle
(noise number:0, noise radius:1)
After Despeckle
(noise number:22, noise radius:10)
NOTE:
The function is currently available for Black and White
image only.
To scan at rated speed, it is recommended to set the
noise radius up to 10 pixels.
User’s Manual
4-61
Line Removal: When Black and White image mode is
selected on the [Image] tab, the [Line Removal] option will
be enabled. Line Removal erases lines on the image and then
reconstructs characters so the OCR (Optical Character
Recognition) accuracy can be improved.
Choices: None, Form, Horizontal, Vertical
None – the default mode which does not remove any line.
Form – remove any form in the document.
Horizontal – select [Horizontal] and then enter the length of
horizontal line to remove only the horizontal line exceeding
your specified length.
Vertical – select [Vertical] and then enter the length of
vertical line to remove only the vertical line exceeding your
specified length.
None
Remove Form
Remove Horizontal Line
(over 30 mm)
Remove Vertical Line
(over 70 mm)
User’s Manual
4-62

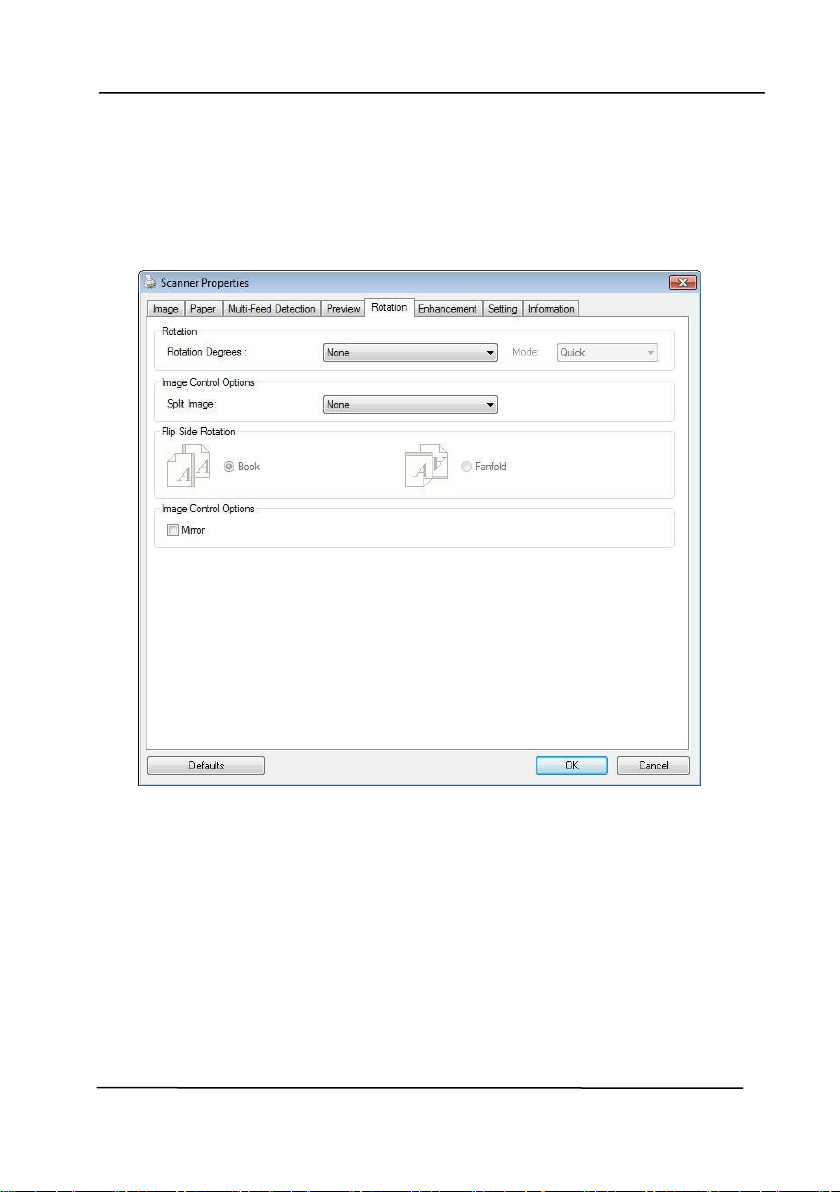

4.10 The Rotation Tab
The Rotation tab allows you to set the following image rotating
options:
User’s Manual
4-63
Rotate
Choose the rotation angle from the drop down
list if you wish to rotate your scanned image.
Choice: None, 90°CW(clockwise),
90°CCW(counter clockwise), 180°, Auto
based on contents. Auto rotate every
even page.
Original
Rotate 90°CW
Rotate 90°CCW
Rotate 180°
User’s Manual
4-64
Auto based on contents: Automatically
rotate images based on the contents of
document. When「Auto based on
contents」 is selected, its modes will be
enabled to let you select more options.
Mode: Quick, Full Text, Complexity
Quick – the default mode to let you rotate
images at the fastest speed.
Full Text – the enhanced mode for
documents with mixed text orientation.
Complexity – the enhanced mode yet at the
slowest speed for document with complex
image or text orientation.
Auto rotate every even page:
Automatically rotate 180° on every even
page. This is especially useful when you scan
the inside pages from a book. As a result, if
you choose “Flatbed (book)” from the “Scan
Source” option, “auto rotate every even page”
will be selected as default.
Note: This option varies based on type of
scanner.
Document with various
text orientations
Document with dark or
complex background
User’s Manual
4-65
Split
By splitting an image, two separate images are
created horizontally or vertically. This is useful
for documents containing two pages per image
when you want to save them as two images
(one page for one image). Choice: None,
Horizontal, Vertical. Default is None.
Horizontal: Divide one image into the upper
half and the lower half.
Vertical: Divide one image into the left half and
the right half.
Split Horizontally
Split Vertical
User’s Manual
4-66
Flip Side
Rotation
Select “fanfold” to rotate the image of the
reverse side to 180 degrees.
This is applied to double-sided document
which are viewed in portrait are sometime
fed into the scanner in landscape or vice
versa.
Choice: Book, Fanfold.
If “Book” is selected, the image of the
reverse side will not be rotated.
The following illustration shows the documents which should
be viewed in portrait are fed into the scanner in landscape
User’s Manual
4-67
Control
Option
Check the Mirror box if you wish to reverse the right
and left side of your image.
Original
The Mirror Effect
User’s Manual
4-68
4.11 The Separation Tab
The Separation tab allows you to enable the detection engine to
detect the blank page, barcode, and patch code and then notify
the software application which supports document separation to
separate your multi-page documents. Choices: Blank Page
Removal, Barcode Detection, Patch Code Detection.
Blank Page
Removal
Choices: None, Blank Page Removal Threshold,
Image Size.
None – Do not remove the blank pages.
Threshold - Move the slider to the left or right
to define your threshold for the blank page.
Image Size – Range: 1~ 10000 KB. Specify
your desired image size to detect the page as a
blank page. For example, if 3 KB is selected,
any page less than 3 KB will be recognized as
blank page.
User’s Manual
4-69
Barcode
Detection
Check [Enable] to detect barcode and notify
the software application for advanced
processing. Please note the whole document
will be checked and no specific detection area
needs to be designated.
When the bar code has been detected successfully，a file
[avbarcode.ini] will be created and stored in the following path:
Windows XP: C:\Documents and Settings\All Users\Application
Data\%PRODUCTNAME%
Vista, Windows 7, Windows 8, Windows 10:
C:\ProgramData\%PRODUCTNAME%
Barcode Types:
The following barcode types can be detected.
Two-dimensional codes
Aztec
DataMatrix
PDF417
QR Code
One-dimensional barcodes:
Add-2
Add-5
Australian Post 4-State
BCD Matrix
Codabar
Code 128
Code 32
Code 39
Code 93
DataLogic 2 of 5
EAN 128
User’s Manual
4-70
EAN-13
EAN-8
GS1 DataBar
Industrial 2 of 5
Intelligent Mail
Interleaved 2 of 5
Inverted 2 of 5
IATA 2 of 5
Matrix 2 of 5
PostNet
Royal Post 4-State
UPC-A
UPC-E
NOTE:
Recommended resolution: 200~600 dpi for regular
barcode, 300~600 dpi for QR code
Skewed barcodes may not be recognized correctly.
Using the same sheet repeatedly may decrease the
recognition accuracy due to accumulated dirt on the
sheets. If the sheet is not recognized correctly or
gets smudged, replace it with a new sheet.
Barcode Zone:
Specify the barcode zone to be detected.
Select 「All」 to checks the whole document and detects
barcodes. Or you may speed up the process by specifying a
detection area since only the specified area is checked.
Choice: All, Top, Bottom, Left, Right, Bottom Right,
Bottom Left, Top Right, Top Left
User’s Manual
4-71
Choice for barcode zone on a page:
All
Top
Bottom
Left
Right
Bottom
Right
Bottom
Left
Top Right
Top Left
Patch code Detection:
Check [Enable] to detect patch codes and notify the software
application for advanced processing.
A patch code is a pattern of parallel, alternating black bars and
spaces (i.e. a barcode) that is printed on a document. Patch
code sheet is most commonly used as a document separator in
a stack of document.
User’s Manual
4-72
You can find various sizes of patch codes (PDF) by choosing
[Start] menu>[All Programs]>[Avision Scanner
Series]>[Patch code] in succession.
Simply print the PDF file to produce the patch code sheet.
Insert the patch code sheets to wherever you want the file to
separate.
NOTE:
Use blank white paper.
Set the scaling to 100%. The sheet is not recognized
correctly when printed in a size smaller than the
original.
Do not use toner saving mode. The sheet is not
recognized correctly when the print is too light.
Do not use thin paper in order to avoid bleed-
through from the back.
When you copy a patch code sheet that you printed
out, make sure to copy by the same size and
brightness as the original copy.
Use the same sheet repeatedly may decrease the
recognition accuracy due to accumulated dirt on the
sheets. If the sheet is not recognized correctly or
gets smudged, replace it with a new sheet.
Patch code sheet
User’s Manual
4-73
4.12 The Setting Tab
The Setting tab allows you to set the following settings:
The Setting tab dialog box
Energy Saving
Control
Check the Enable Energy Saver box
and move the slider to set the amount
of time to start the energy saver after
your last action. The range is from 1 to
60 minutes.
Enable Power
Off
Check the Enable Power Off box and
move the slider to set the amount of
time to automatically turn off the
scanner after your last action. The
range is from 1 to 480 minutes. The
default is 240 minutes (4 hours). Note
the value of “Power Off” has to be
greater than or equal to the value of
“Energy Saving”.
User’s Manual
4-74
Cache
Mode: None, Page Number, Memory
Size.
This option allows you to assign a specified
memory size from the available RAM to
process the image data. By specifying a
smaller memory size, you can free more
memory for other applications you are
running. By specifying a larger memory
size, you can have more memory to process
the image data especially when you have a
large amount of documents needed to be
scanned.
You can also specify your memory size by
the page number. For your information, an
A4 color document scanning at 300 dpi
consumes approximates 24MB.
Image Count
When the selected cache mode is “none”,
the image count option allows you to assign
number of pages you need to scan. For
example, if you wish to scan the first two
pages, simply move the page slider to 2,
and the scan action will be stopped when
the scanning of the first two pages have
been completed.
User’s Manual
4-75
Show Scanning
Progress
Check and the scanning progress bar
will be shown during scanning.
Show Warning
Message
Check to show the warning messages
such as “ADF pad count exceeds 50,000
scans (the number varies based on type
of scanner). Please replace the ADF pad
and reset the pad count.”
Save Settings
after Closing
Check to save your scanner properties
settings after leaving the dialog box.
Next time when you open the Scanner
Properties dialog box, the previously
saved settings will be shown.
User’s Manual
4-76
4.13 The Imprinter Tab
The Imprinter tab allows you to print alphanumeric characters,
date, time, document count and custom message on your
scanned image if digital imprinter is selected or at the back of
your document if external imprinter is selected.
Choice: External Imprinter, Digital Imprinter. If you have
installed an external imprinter, choose external imprinter. If
you do not have an imprinter, choose digital imprinter. Note
External Imprinter provides a vertical and rear-side print
capability while digital printer provides a horizontal and front-
side print capability.
User’s Manual
4-77
Contents
Print All
Check Print All to automatically print the
text at all pages of your documents.
Uncheck Print All to print the text for the
first page of your documents only.
Custom
Enter your custom text to be included in your
print string.
Counter
Show the document count for the scan
session. This value is increased sequentially
by the scanner.
Date/Time
Choose if you wish to include the date and
time in your print string.
Format: YYYYMMDDHHSS For example,
20090402170645-check0001 indicates year,
month, date, hour, seconds, your custom text
and the counter.
Custom
Font
Choose your desired font.
Choice: Normal, Fixed Width
Fixed Width (Mono spaced) fonts have a
fixed character spacing. So each character
occupies the same width.
Advanced
Font
Attributes
Choose your font attributes. Choice:
Normal, Underline, Double, and Bold.
User’s Manual
4-78
String
Orientation
Choose your string orientation.
Choice: Normal, Rotated, Vertical,
Vertical Inversion, 90 degrees CW, 90
degrees CCW
Normal
Rotated
Vertical
Vertical Inversion
90 degrees CW
90 degrees CCW
If you check the digital imprinter to stamp
text on your scanned image, the illustration of
normal and rotated string is shown below:
Normal
Rotated
User’s Manual
4-79
Print
Position
Choose the position you wish to print your
string. Move the slider to the right to increase
the value or to the left to decrease the value.
Range: 0~355mm, default:0 mm
The value indicates the height from the
bottom of your paper to the last letter of your
string. This option is available only if an
external imprinter is installed.
Print Position (for digital imprinter)
Choose the position of your printed string. Choice: Top,
Middle, Bottom, Custom. If Custom is selected, enter the X
and Y offset value to specify the position.
More: Click the [More] button to display more font options.
This option is available for digital imprinter (stamp text on your
scanned image) only. This function is not available on some
models.
Font size: Move the slider to change the font size from 1 to 10.
Density: Move the slider to change the source density from 0
to 255. The selected density will appear at the same time.
Transparency: Move the slider to choose an appropriate
transparency value from 0% (not transparent) to 100%
(completely transparent) so that your text can be partially
transparent and you can see the background image.
The value of
Print Position
000z1abc 2010
User’s Manual
4-80

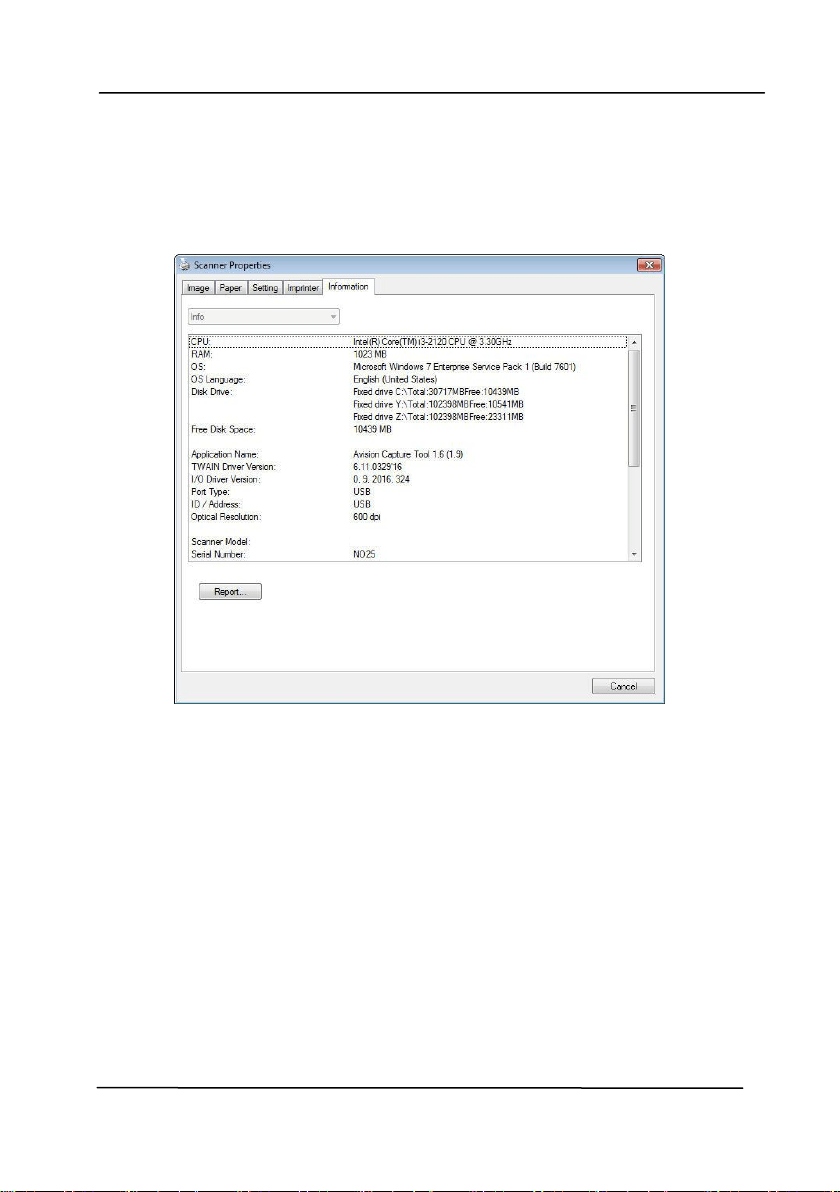

4.14 The Information Tab
The Information tab displays the following system and scanner
information.
The Information tab dialog box
The “Report” button：
If you encounter any error message while using the scanner,
click the Report button. A report.txt file [Windows XP:
C:\Documents and Settings\All Users\Application
Data\%PRODUCTNAME%; Vista, Windows 7, Windows 8,
Windows 10: C:\ProgramData\%PRODUCTNAME% (C: system
drive)] will be generated. Please send this file to the nearest
service center for trouble shooting.
xxx
User’s Manual
4-81

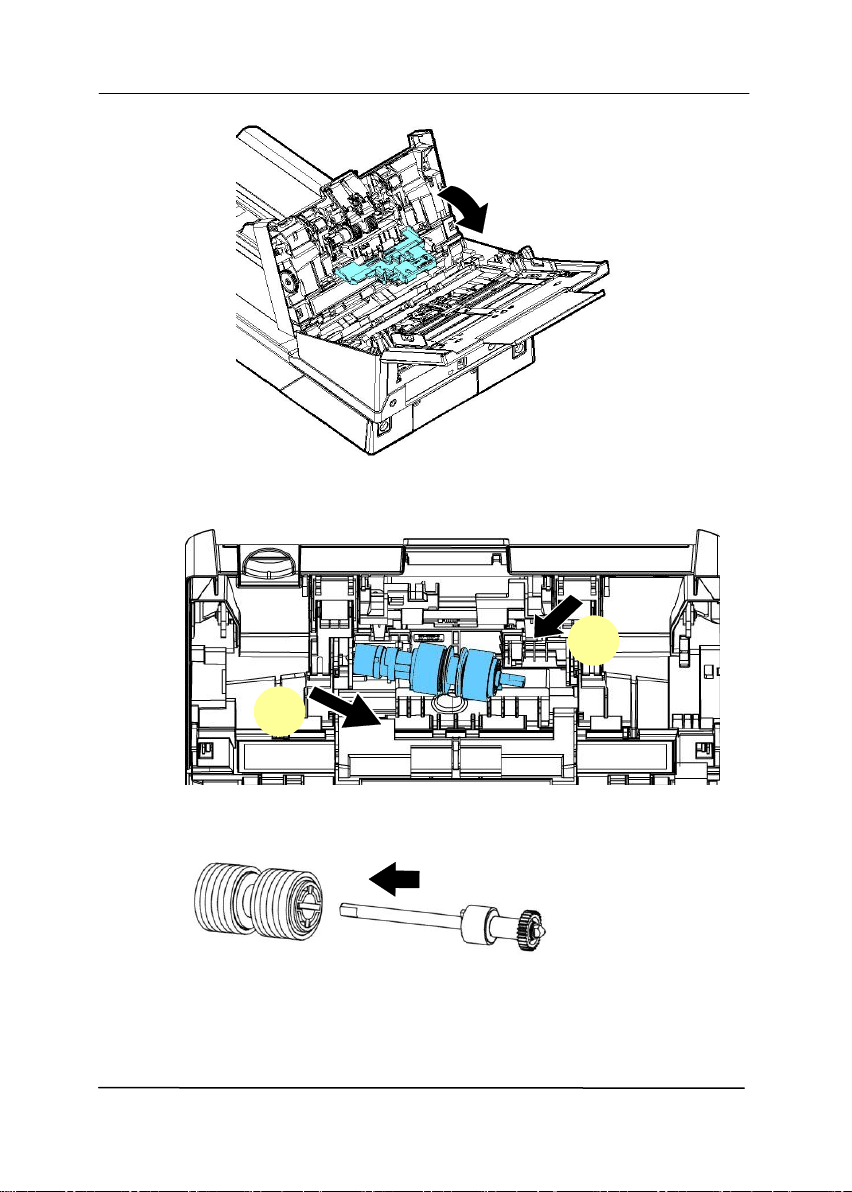

The “Reset Roller Count” button：
After scanning over a recommended number of pages (refer to
subsequent section 8.4 Replacing the ADF Roller) through the
ADF, the ADF roller may be worn out and you may experience
problems with document feeding. In this case, it is highly
recommended to replace the ADF roller with a new one. (Note
the replacement of the ADF roller has to be performed only by
authorized service center. Therefore, please return your
scanner for roller replacement.) After replacing the ADF roller,
click the “Reset Roller Count” button to reset the roller count.
NOTE:
The lifetime and the replacing procedure vary based on
type of scanner.
User’s Manual
5-1
5. ISIS Interface Operation
* Please refer to the preceding chapter, Scanner Installation, to
install ISIS scanner driver. You may start the supplied QuickScan
software application to scan via the ISIS user interface.
The ISIS driver operation method is similar to the TWAIN’s.
Every function on the ISIS interface screen is briefly described as
below:
Mode: Select one of scan modes, including B&W, gray, color
options.
Dither: 5 halftone levels available, can be disabled.
Dots per inch: Select your desired resolution.
Paper Size: Select your desired paper size.
Brightness: Adjust your scan image brightness or darkness.
Contrast: Adjust the range between the darkest and the lightest
shades in the image.
Default: Click to reset all settings.
Area: Select your desired scan area or position.
User’s Manual
6-1
6. Using the Buttons
The following picture shows the 4 buttons and 1 function
screen on the scanner.
6.1 Installing Button Manager V2
Button Manager V2 provides you an easy way to scan your
document and then link the scanned image to your designated
software application. All this can be done by a simple touch of
the button on the scanner. Yet, before you scan, it is
recommended to check the button configurations first to ensure
a proper file format and a destination application.
Select Button
Cancel Button
Scan Button
User’s Manual
6-2
6.2 Checking the Button Configurations before Scanning
1. Button Manager V2 runs from the system tray. After Button
Manager V2 and the scanner driver are properly installed,
Button Manager V2 is started and the Button icon will be
displayed on the system tray at the bottom right corner of
your computer screen.
2. Left-click the Button Manager V2 icon to prompt the
following Button Panel.
The Button Panel
This indicates the scanner model
The Function
Icon
(The number of
function icons
vary based on
type of
scanner.)
User’s Manual
6-3
3. The Button Panel shows the first five scanning buttons.
Right-click the button (function) you wish to check. The
Button Properties window appears.
If you wish to change the setting, use this window to reset
the setting for the file format, destination application, or
other scan settings.
4. Click the OK button to leave the window.
Folder and
file name
for the
scanned
Image Mode
Selection
Box
Name of the Selected Button
Scan To
destination
and settings
Button
Name
OCR
settings
Basic Scan
Parameters
User’s Manual
6-4
6.3 Scanning From One Touch of the Buttons
1. Adjust the paper guide for the width of paper and load the
document with their tops into the automatic document feeder.
2. Check the button name on the LCD screen to ensure if you
are selecting the proper scan settings and destination
application. (For example, if you wish to scan with Button,
“Scan to App”, which opens Microsoft Paint and displays the
scanned image in the window of Microsoft Paint, the LCD
screen should show “Scan to App”).
3. Press the Scan button on the scanner.
4. After the scanning is finished, the Microsoft Paint software
will be launched and the scanned image appears in the main
window of Microsoft Paint as below.
NOTE:
For details information on how to use the Button Manager
V2, please refer to the user’s manual in the supplied CD.
User’s Manual
7-1
7. Starting a Scan from Your
Mobile Device
With a *Wi-Fi module, the scanner can be converted into a
wireless device. When the MB App has been installed on your
mobile device, the scanned images can be received from the
mobile device.
*Wired (Ethernet) and Wireless (Wi-Fi) Networks:
The availability of these features varies according to your
product model.
7.1 Making Preparation
MB Application
Download the MB Application on your mobile device from
an application store such as Google Play.
MB
Application
MB App
User’s Manual
7-2
1. USB
7.2 Connect to a Wi-Fi network in an AP (Access Point)
mode
1. On the scanner panel, press (the Down arrow) to select
[More Settings] and press (OK) to confirm. The
following screen will be displayed.
2. Select [Wi-Fi] and press (OK) to turn on Wi-Fi
connection.
3. Select [Wi-Fi Direct Link] and press (OK) to enter
Wi-Fi AP(Access Point) mode in which the scanner itself act
as an AP. If connection is successful, a Wi-Fi AP icon
will be displayed in the screen.
To turn off the Wi-Fi connection:
Select [Wi-Fi] and press (OK) to turn off the Wi-Fi
connection. The Wi-Fi connection will be turned off and the Wi-
Fi icon will be disappeared.
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Info
Reset
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link On
WPS
Sleep Mode Off
Information
Clean Mode
User’s Manual
7-3

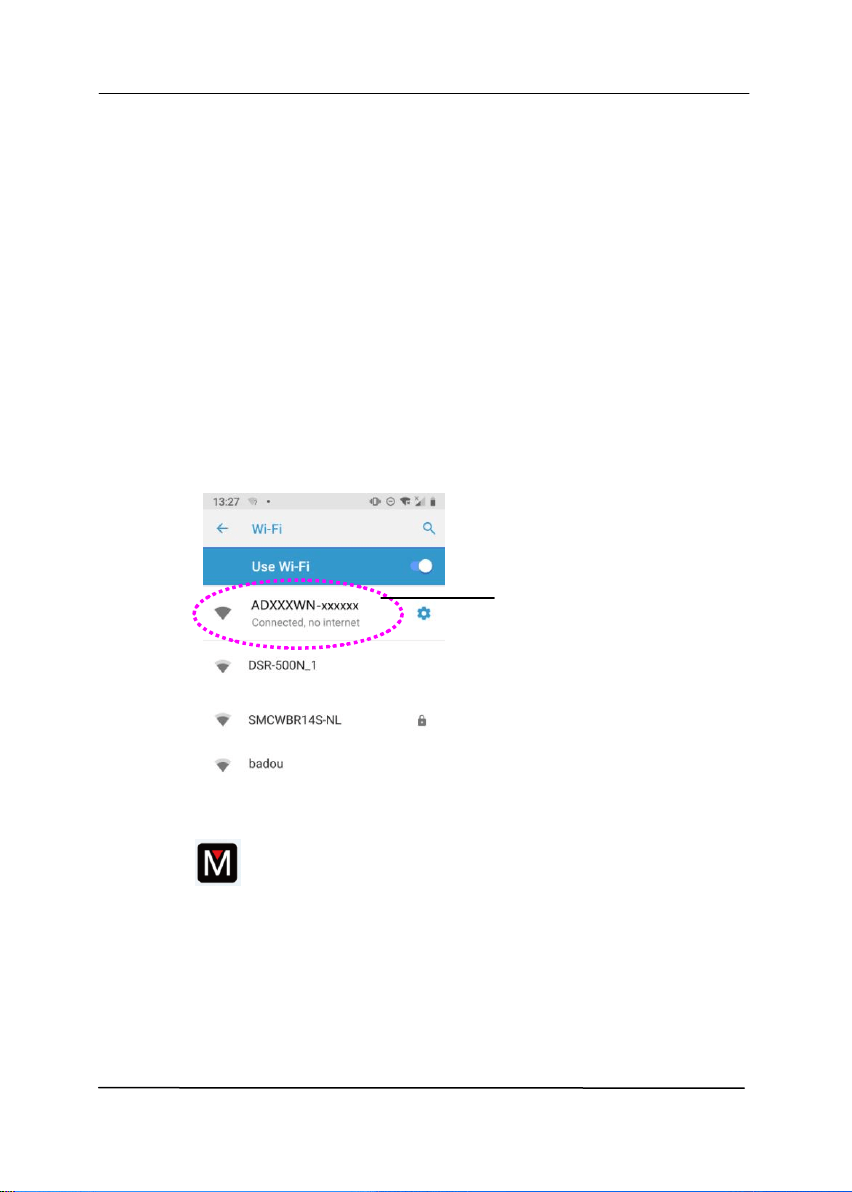

In AP (Access Point) mode, your mobile devices and the scanner
are connected wirelessly without an additional AP (Access Point)
since the scanner itself works as an AP.
AP(Access Point)
User’s Manual
7-4
7.3 Connect the scanner to a Wi-Fi network in a client
mode
In a Client mode, your mobile devices and scanner are
connected wirelessly through an additional AP (Access Point).
This mode is also the default wireless mode.
Connect Your Scanner to an AP (Access Point):
1. Connect the scanner to a wired network via a network cable.
2. On the scanner, press the
[Setting]>[Information]>[Ethernet] on the control panel.
The IP for the wired network will be displayed.
3. Open your browser (i.e. 10 or above).
4. Type ETHERNET IP address on the URL bar (for example,
http://10.1.20.119) to prompt the embedded web page.
Please login first with the default user name and
password – [admin].
- AP (Access Point)
IP Address
10.1.20.119
MAC Address:
000232-
1a2b3c
DHCP:
Enable
User’s Manual
7-5
5. Select [Network]>[Wireless (Client Mode)] and then
click [Next] in succession.
6. Click [Search AP]. A list of available access points
(hotspots) will be displayed. Click the access point you
want to connect and then enter your security mode and
password, and then click [Next]. A summary of the access
point will be displayed as shown in below.
Wireless (Client Mode)
User’s Manual
7-6
7. If all information is correct, click [Export] to connect to
the access point. If connection is successful, a Wi-Fi icon
will be displayed in the screen.
8. To verify if the connection is successful, you may check the
connected AP by selecting
[Setting]>[Information]>[Wi-Fi]. The connected SSID
(network name) and its Mac address will be displayed.
Scanner
Wi-Fi
Ethernet
Counters
Station IP
125.3.2.5
SSID:
XXXXXX
MAC Address:
200abc-xxxxxx
Wi-Fi On
Wi-Fi Direct Link On
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
User’s Manual
7-7
7.4 Connect to a wireless access point using the WPS
button
You may connect the scanner to a WPS compatible wireless
access point by pressing the WPS button on the back of the
scanner.
Before You Begin!
To enable the WPS connection of your access point, please
refer to the user’s guide of your access point.
Perform the following procedure to connect.
1. Confirm your wireless access point/router has the WPS or
AOSS
TM
symbol as shown below.
2. Press the WPS button of your wireless access point. (You may
refer to the user’s guide of your access point/router for
instructions on how to use the WPS button.)
User’s Manual
7-8
3. On the scanner, select [WPS] and press (OK) to enter
WPS mode.
If Wi-Fi appears in the WPS option, this indicates the
WPS mode of the scanner is ready. Please connect to your
specified access point or router within 2 minutes.
4. To verify if the WPS connection is successful, you may
check the connected AP by selecting [Info]>[Wi-Fi]. The
connected SSID (network name) and its Mac address will
be displayed.
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Scanner
Wi-Fi
Ethernet
Counters
Station IP
125.3.2.5
SSID:
XXXXXX
MAC Address:
200abc-xxxxxx
User’s Manual
7-9
7.5 Starting a Scan From Your Mobile Device
Make sure that the MB Application (Scan App) has been
installed on your mobile device. The MB Application can be
purchased for free from an application store such as Google Play.
1. Enable [Wi-Fi] from [Settings] of your wireless computer,
smartphone, or tablet and then choose ADXXXWN–xxxxxx
(xxxxxx indicates the last six digits of the Mac Address at
the back of the scanner) to be your Wi-Fi network (SSID).
Or choose the access point your scanner has been
connected through WPS connection.
2. Starting MB App by taping [Applications] and then the MB
icon on your mobile device. The mobile device begins
searching the available scanner in the wireless network.
In a second, the main screen will be displayed if scanner
has been found successfully.
ADXXXWN–
xxxxxx
User’s Manual
7-10
NOTE:
If the scanner is not found, please check the followings:
The scanner is not ready yet. Tap [More Settings]
and then [Search scanner] to search the scanner
again.
Check if the mobile device and the scanner are in the
same wireless LAN.
3. Check if the default settings meet your requirements. If
not, tap the setting icon and change the scan settings to fit
your specific scanning task.
ITEM
DESCRIPTION
Resolution: Select your desired resolution.
The higher resolution, the greater the image
quality and disk space.
Choice: 150, 200, *300 dpi
Scan Size: Select your paper size or you may
choose Auto to let the scanner detect your
document size automatically.
Choice: *Auto size, A4, LTR (Letter), LGL
(Legal), 4x6, 5x7
This indicates the
scanner model.
User’s Manual
7-11
File Format: Select the file format for your
image.
Choice: *JPEG, PDF, TIFF
Note:
The JPEG file does not support the B&W
image.
The TIFF file format supports only the
B&W image.
Select to scan the front side (simplex) or both
the front side and the rear side (duplex) of
your document.
Choice: *Simplex, Duplex
Note: The duplex mode is available to scan
from the auto document feeder only.
Color Mode: Select your desired image mode.
Choice: *Color, B&W, Gray
* Default settings
4. Place your document to the scanner.
5. Tap the [ Start scan ] button to start a scan.
6. In a few seconds, the scanned images will be
displayed in a thumbnail view. Tap the image to
enlarge the image.
User’s Manual
7-12
The thumbnail
view and
file name
User’s Manual
8-1
8. Maintenance
8.1 Cleaning the Flatbed Glass
If there is vertical streaks appear on the scanned image, it is
possible that the glass may be dirty. Please clean the glass to
clear the streaks.
The procedures
1. Wet a soft lint-free cloth with some isopropyl alcohol. (95%)
2. Open the document cover as shown below. Gently wipe the
surface of the glass of flatbed.
3. Close the document cover. Your scanner is now ready for
use.
User’s Manual
8-2
8.2 Cleaning the ADF
From time to time, the Reverse roller and the Feeding Rollers
may be contaminated with ink, toner particles, or paper dust.
In this case, the paper may not be fed smoothly. Please follow
the following steps to clean the Reverse roller and the Feeding
Rollers to ensure the best of the scanner.
The Cleaning Steps:
1. Soak a clean cloth with some isopropyl alcohol (95%).

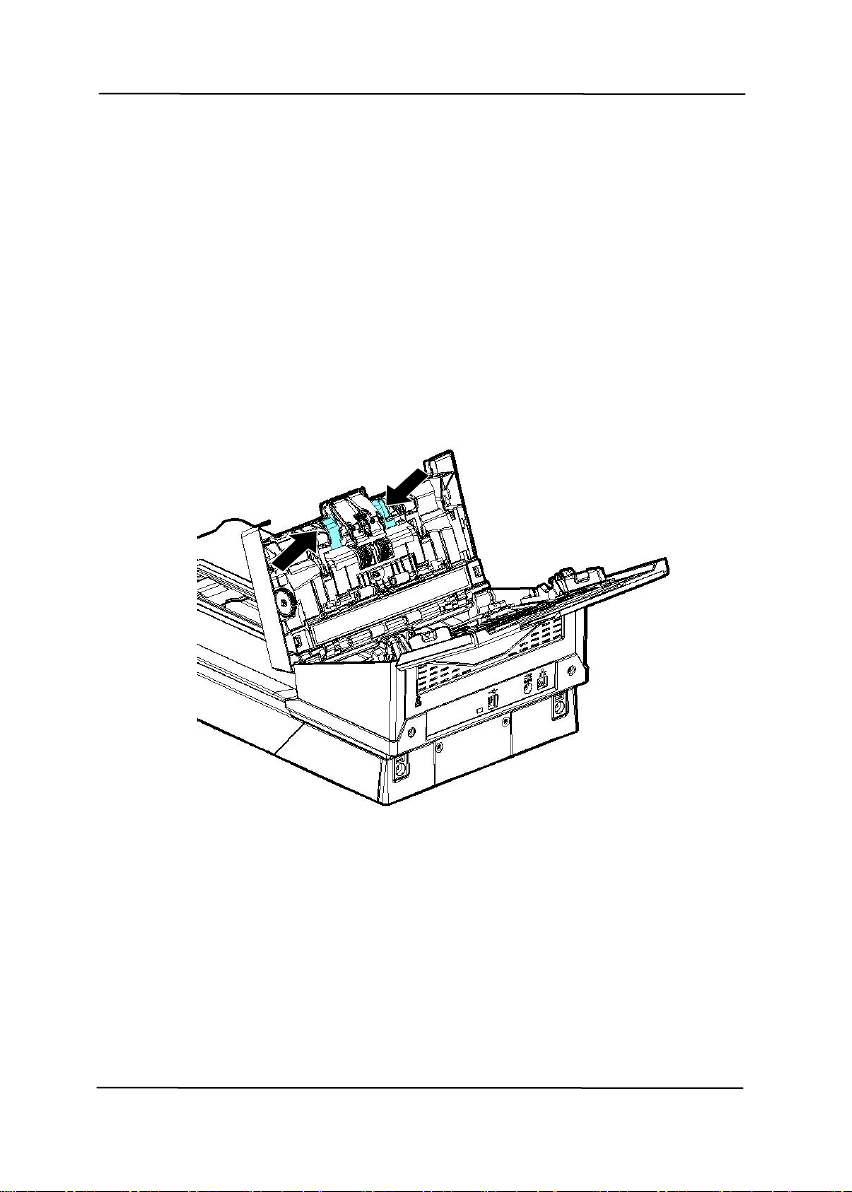

2. Press the ADF release button and open the front door.
User’s Manual
8-3
3. Wipe the feeding rollers until they are cleaned.
4. Press both sides of the cover of the ADF reverse roller and
pull the cover down.
User’s Manual
8-4
5. Press and wipe the rollers one by one. Rotate the roller until
the surfaces are completely cleaned.
User’s Manual
8-5
PC 1
8.3 Using the Clean Mode
When you perform cleaning for the feeding rollers in the lower
part of the scanner, the rollers need to be rotated with a light
force. Using the advanced [clean mode], the rollers can be
automatically rotated forward to help cleaning easier and
effective.
To use the Clean Mode to clean the rollers,
1. On the scanner, press (Down arrow) to select [More
Settings] and then press (OK) to confirm.
2. Use to select [Clean Mode].
3. Open the front cover to the left.
4. Soak a clean cloth with some isopropyl alcohol (95%) and
wipe the feeding rollers until they are cleaned.
Wi-Fi On
Wi-Fi Direct Link Off
WPS
Sleep Mode Off
Information
Clean Mode
Factory Default
User’s Manual
8-6
5. When the cleaning is done, close the front door and then
press the [Scan] button , the feeding roller will be
rotated a little automatically.
6. Repeat Step 4 and 5 for several time until all the surface of
the feeding roller are thoroughly cleaned.
7. Short press [Cancel] to go back to the previous screen.
User’s Manual
8-7
8.4 Cleaning the Glass
If there is vertical streaks appear on the scanned image, it is
possible that the glass may be dirty. Please clean the glass to
clear the streaks.
1. Press the ADF release button. Open the front door.
2. Wet a clean cloth with some isopropyl alcohol. (95%)
3. Wipe the glass as illustrated below by moving the swab from
side to side to rid the dust or dirt.
Warning:
Do not clean the inside of the scanner with water or a
mild detergent.
Do not spray the glass cleaner directly on the glass. If
too much glass cleaner is applied, the cleaner could
leak under the glass and damage the scanner.
Make sure there are no staples or paper clips on the
surface of your document, otherwise the glass may be
damaged.
User’s Manual
8-8
8.5 Cleaning the Ultrasonic Sensors
If the scanner sometimes fails to detect multi-feed via ultrasonic
sensors, it is possible that paper dust or dirt may be
accumulated on the surface of the ultrasonic sensors. Please
follow these steps to clean the sensors.
1. Press the ADF release button. Open the front door.
2. Wet a clean cloth with some isopropyl alcohol. (95%)
3. Gently wipe the dirt and dust off the surface of the ultrasonic
sensors.
Note:
If it is difficult to clean, use a cotton swab.
The availability of ultrasonic sensor varies according
to your scanner model.
Utrasonic Sensors
User’s Manual
8-9
8.6 Calibrating the Scanner
Calibrate only if the scanned image looks fuzzy, the color looks
abnormal (e.g., darker than normal), after more than 8,000
scans, or the scanner has been stored without use for a long
time. The calibration process resets the Contact Image Sensor to
resume its color and sharpness precision.
1. Turn on the scanner.
2. Start your TWAIN-compliant image editing software
application such as Avision Capture Tool by choosing
Start>Programs>Avision XXXX Scanner>Avision Capture
Tool (XXXX indicates your scanner model). The Select
Scanner Model dialog box will be displayed.
3. Select your driver type and scanner model and click OK.
The Avision Capture Tool dialog box will be displayed.
4. Click the “Setup” button to prompt the TWAIN user
interface.
5. Click the “Settings” tab and then click the “Calibration”
button. An “Insert calibration sheet” dialog box appears.
6. Hold the edges of the calibration sheet (included) and insert
it to the feeder of the scanner as shown.
User’s Manual
8-10
Note: Only hold the edges of the calibration sheet with your
fingers and do not touch the white or black area.
7. Click the “OK” button on the “Insert calibration
sheet” dialog box to start calibrating the scanner.
8. When the calibration is completed, the LED light will
turn solidly on, if there is no error message, it means
the calibration is completed successfully.
Warning: If the calibration process failed, the LED light will
be flashing and an error message will be displayed on the
screen. Power off the scanner and then repeat the
calibration step again.
User’s Manual
8-11
Warning:
Do not interrupt the calibration sequence or try to shut off
the device while it is calibrating. If you stop the calibration
before it has completed, a calibration error may occur. As a
result, when you next power up the unit, an error message
may be displayed, and you will have to power off the unit
and repeat the instructions in this section.
Calibrate the scanner only when color of the scanned image
looks abnormal.
Keep the calibration sheet from dust and debris. Any dirt
may make the calibration chart invalid or impact the
calibration result.
Use only the included calibration sheet to calibrate the
scanner.
User’s Manual
8-12

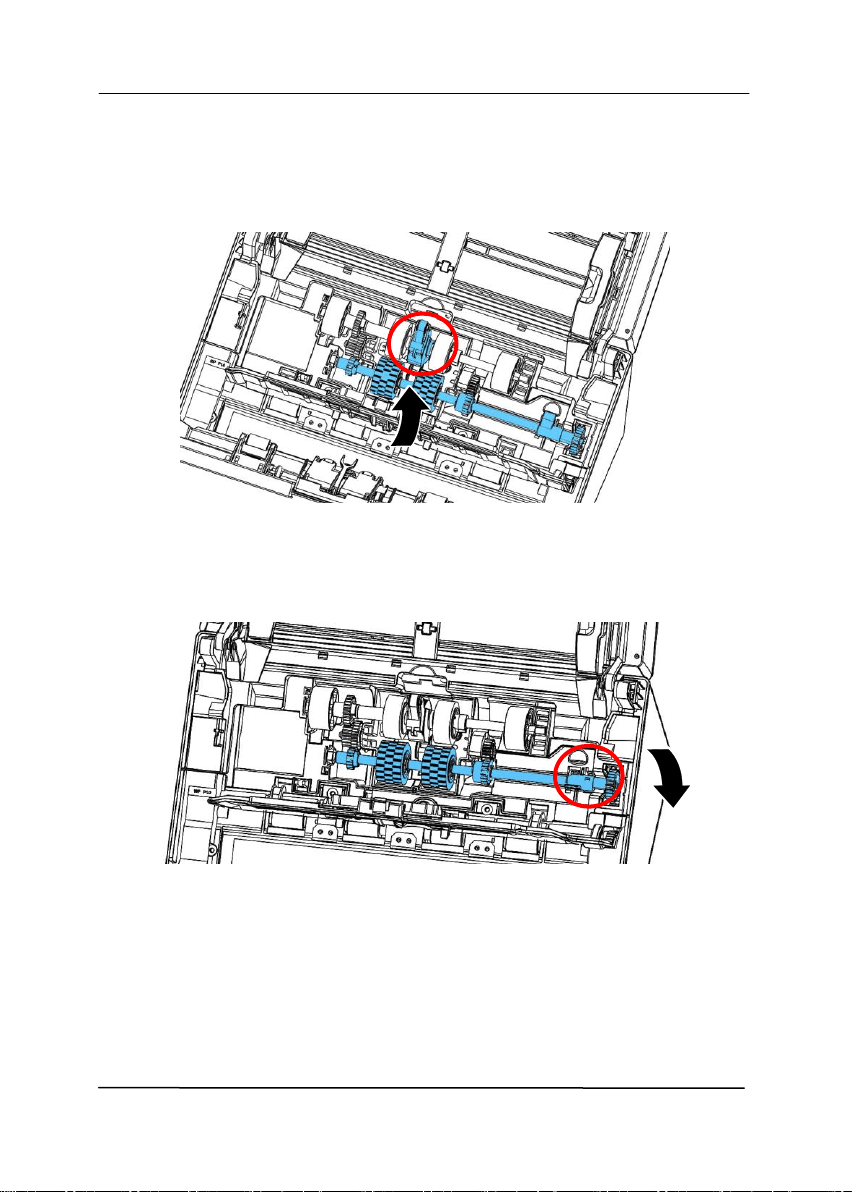

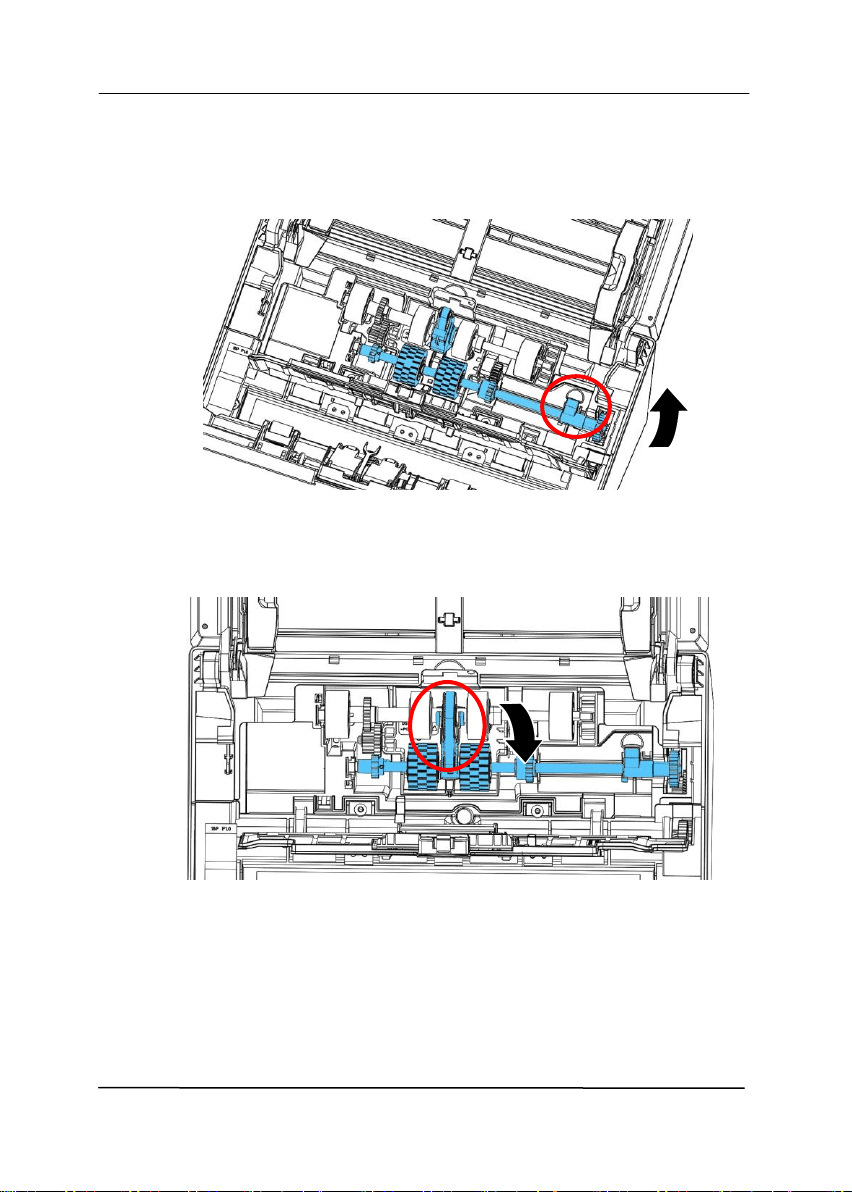

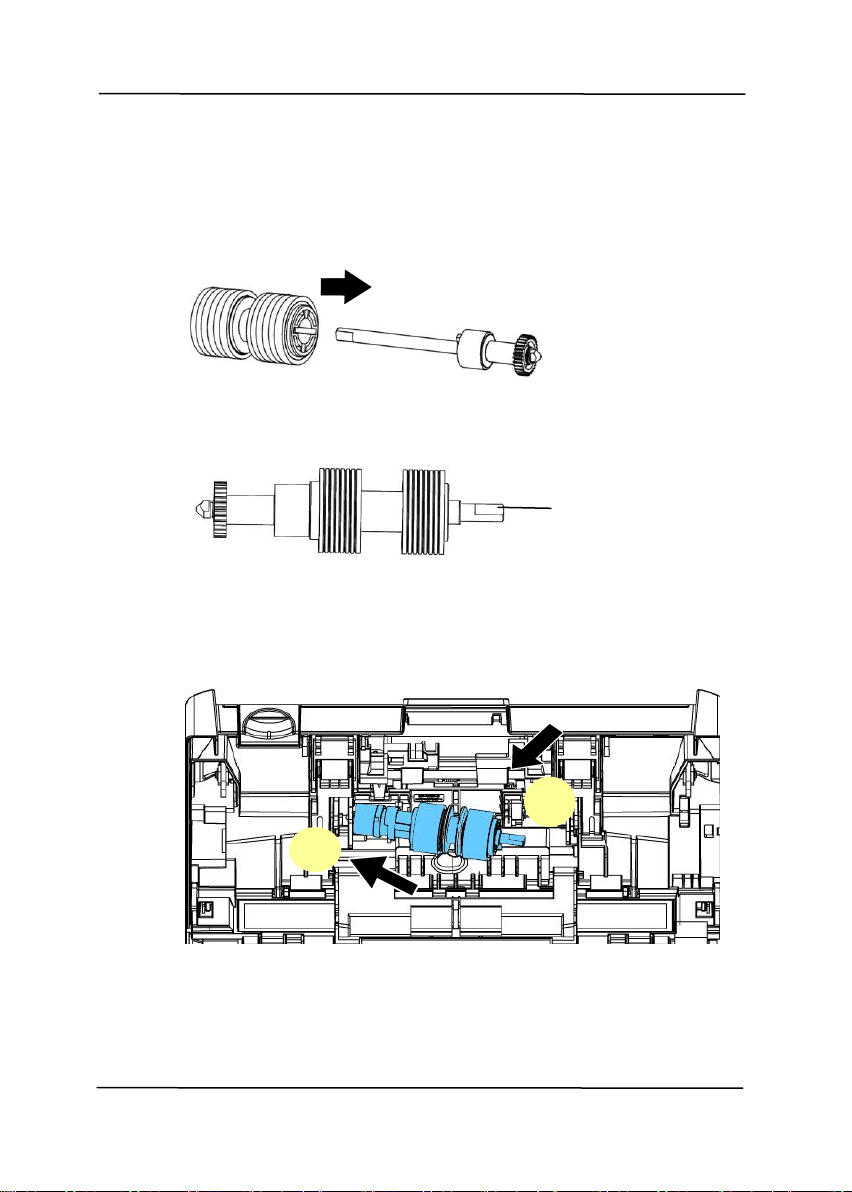

8.7 Replacing the ADF Reverse Roller
After scanning approximately *100,000 pages through the ADF,
the reverse roller will be worn out and you may have problems
with document feeding. It is time to replace the Reverse roller.
For ordering the replacement, please contact your dealer.
Disassembling Procedure
Press the
1. Press the ADF release button.
2. Gently open the ADF front door to the left.

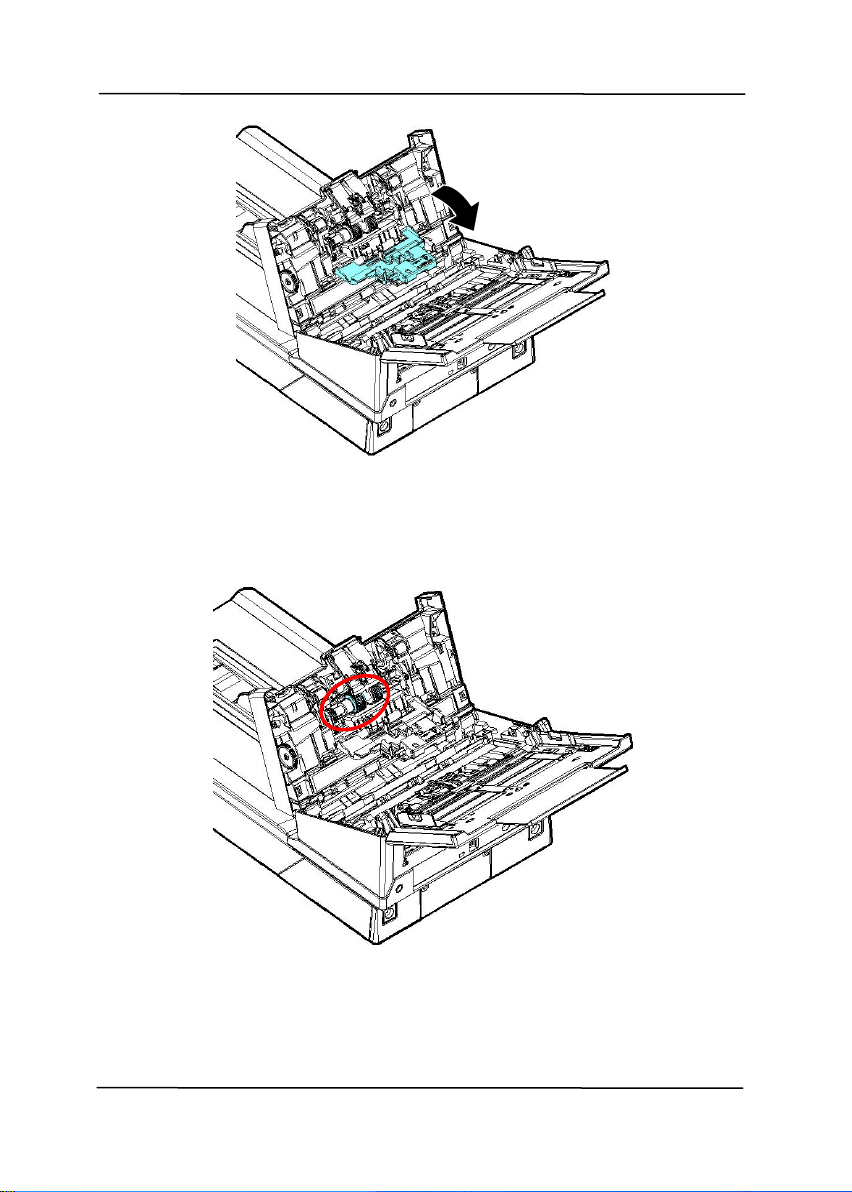

3. Hold the reverse roller cover with your fingers as shown and
place it down.
User’s Manual
8-13
4. Press the right end of the reverse roller externally to detach
it from the slot and then detach the left end from its hole.
5. Remove rollers from the shaft.
User’s Manual
8-14
Reassembling Procedure
1. Insert the new rollers to the shaft.
2. Grab the right end of the reverse roller (flat side facing Up)
and insert it to its original place.
3. Insert the left end of the reverse roller to the hole of its
original place.
4. Insert the right end of the reverse roller to its slot.
4. Close the reverse roller Cover.
Flat side
Up
User’s Manual
8-15
5. Close the ADF cover.
NOTE:
Consumables must be replaced regularly. It is
recommended to purchase new consumables in
advance so that they can be replaced before the end
of their life time.
The replacement cycle is based on the use of A4 (80
g/m2 [20 lb]) wood-free paper or plain paper. The
actual cycle varies according to the type of used paper
and how frequently the scanner is used and cleaned.
Use only the specified consumables.
To purchase consumables, contact the store where
you purchased the scanner or an authorized scanner
service provider.
User’s Manual
8-16
8.8 Replacing the ADF Rollers
After scanning approximately *200,000 pages through the ADF,
the ADF roller may be worn out and you may experience
problems with document feeding. In this case, you may need to
replace a new ADF roller. For ordering the ADF roller, please
consult your nearest dealer and follow the procedure below to
replace it.
Disassembling Procedure
1. Press the ADF release button to open the front door.
2. Pull the center of the roller cover to open it.
User’s Manual
8-17
3. Move the belt UP as indicated.
4. Move the tab of the ADF roller DOWN as indicated.
User’s Manual
8-18
5. Detach the right end of the ADF roller from the scanner and
remove the ADF roller.
Assembling Procedure
1. Insert the left end of the ADF roller first to its slot and place the
ADF roller to its proper position.
User’s Manual
8-19
2. Move the tab of the ADF roller UP.
3. Pull the belt DOWN.
4. Close the ADF roller cover. A snap-in sound could be heard if
correctly installed.
User’s Manual
8-20
NOTE:
Consumables must be replaced regularly. It is
recommended to purchase new consumables in
advance so that they can be replaced before the end
of their life time.
The replacement cycle is based on the use of A4 (80
g/m2 [20 lb]) wood-free paper or plain paper. The
actual cycle varies according to the type of used paper
and how frequently the scanner is used and cleaned.
Use only the specified consumables.
To purchase consumables, contact the store where
you purchased the scanner or an authorized scanner
service provider.
User’s Manual
9-1
9. Troubleshooting
9.1 Clearing a Paper Jam
In the event of a paper jam, follow the procedures below to
remove the paper:
1. Press the ADF release button on the right side. Gently
open the front door.
2. Carefully pull the paper out of the ADF unit.
3. Close the front door. Your scanner is now ready to use.
User’s Manual
9-2
9.2 Error Conditions
If there is error during scanning, the LED light will be flashing in
red color and error drawing will be displayed. Refer to the
following table to clear the error conditions.
ERROR
DRAWING/MEANING
CAUSE
HOW TO RESTORE
Paperjam
1. Original has
become stuck in
the feeder.
2. Original exceeds
max. allowable
length
Open the feeder
cover and pull the
original out of the
feeder.

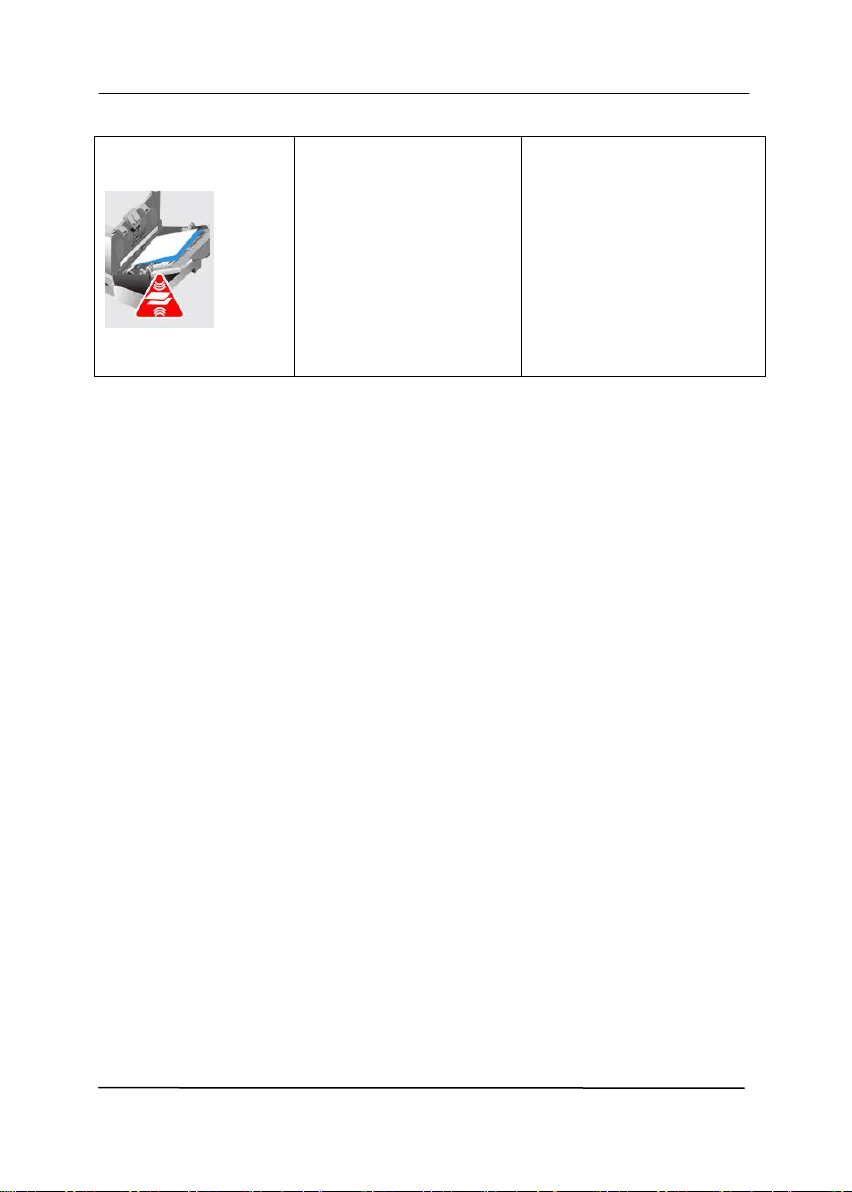

Cover opens
Feeder cover opens.
Close the feeder
cover.
Miss Feed
Failed to pick paper.
1. Fan the
documents.
2. Load the
document with
its edges slightly
touch the paper
guides.
User’s Manual
9-3
Multi-Feed
More than one
pieces of paper fed
in the feeder.
1. Remove the paper.
2. Fan the paper for
several times.
3. Make sure the
edge of paper near
the paper guide and
try again.
User’s Manual

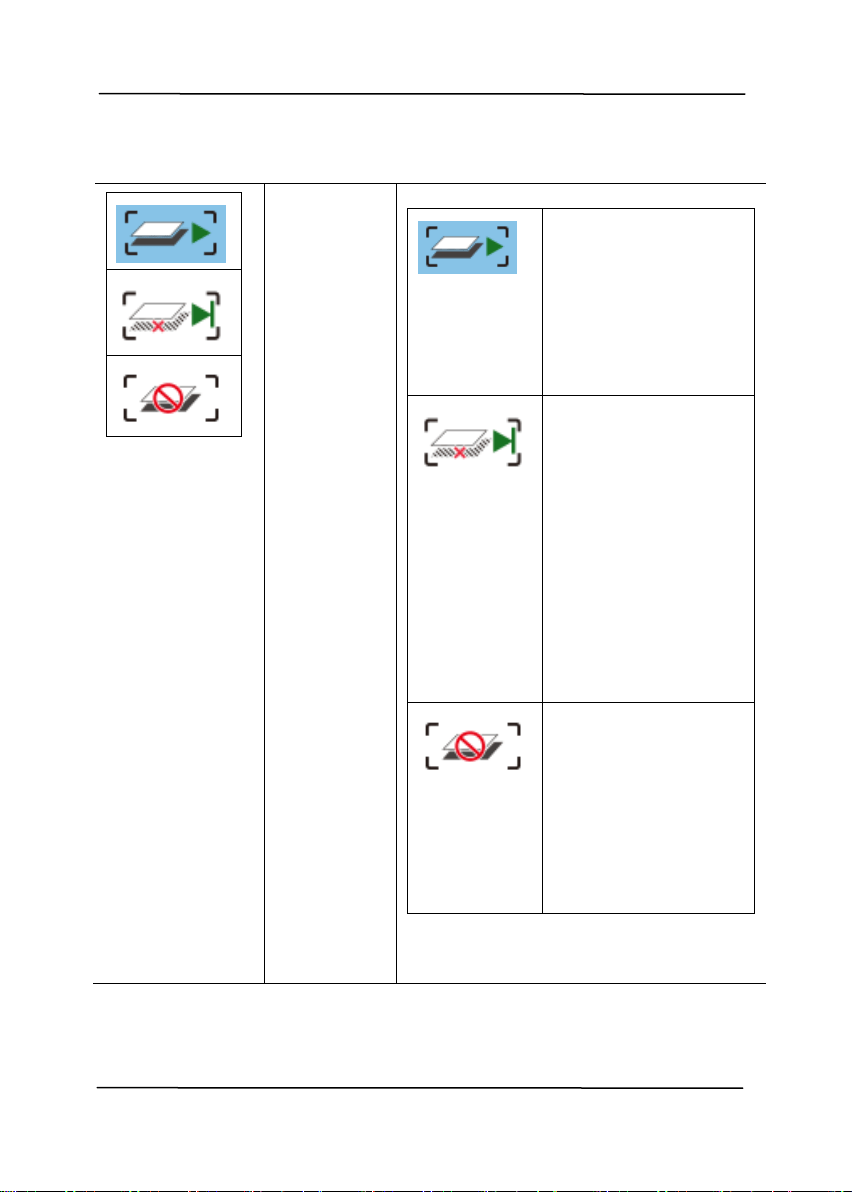

9-4
More than
two sheets
of paper
are fed in
the paper
path.
Continue
Scan
If the image of the
multi-feed page is
acceptable, select
[Continue Scan]
to continue
scanning the rest
pages.
Continue
Scan
(Discard
Image)
If the image of the
multi-feed page is
not acceptable,
select [Continue
Scan (Discard
Image)] to scan
the rest pages yet
the multi-feed
page will be
ignored and you
need to rescan the
page again.
The scanner stop
scans. Remove the
remaining pages
in the scanner.
Fan your
document and
rescan the rest
pages.
Use the Up and Down key (/)
to select your action.
User’s Manual
9-5
9.3 Questions and Answers
Question:
When the scanner is powered on, it
makes noises and won’t stand
ready.
Answer:
There are two possibilities:
1) You might fail to push the scanner
shipping lock to its “unlocked” position.
If this is the case, pull the scanner
status switch to its “unlocked” position
first.
2) The scanner is not placed on an
even, flat desktop surface. This may
cause the scanner to malfunction.
Question:
Paper becomes jammed during
scanning.
Answer:
1) Open the front door.
2) Pull out the jammed paper carefully.
3) Close the front door.
User’s Manual
9-6
Question:
More than one sheet of paper are
fed into the scanner.
Answer:
1) Open the scanner front door.
2) Remove the multi-fed sheets.
3) Close the front door.
4) Flatten the corners and edges.
Loosen the paper before putting it
into the paper guide again.
5) Check the feeding roller condition.
If necessary, follow the cleaning
directions in section 8.2 and
perform the cleaning.
Question:
Paper becomes skewed in the
scanner.
Answer:
1) Use the slide guide to keep the
paper path straight.
2) Check the condition of the feeding
roller. If necessary, follow the
cleaning directions in Section 8.2
and perform the cleaning.
User’s Manual
9-7
Question:
Why does my scanned image
always come out too dark?
Answer:
1) Please adjust the screen settings to
sRGB.
2) Please adjust the brightness
settings on the screen from
application software.
Question:
When I choose optical resolution to
be 600 dpi, the "auto crop" and
"deskew" functions will be
disabled.
Answer:
Since to perform auto crop and deskew
consumes great deal of system
memory, it is suggested if you wish to
perform "auto crop" and "deskew"
functions, please choose your optical
resolution to be smaller than 600 dpi
to prevent a error message.
User’s Manual
9-8
9.4 Technical Service
Before contacting Avision, please prepare the following
information by referring to Section 4.14, The Information Tab:
Scanner serial & revision number (located on the right side of
the scanner);
Hardware configuration (e.g., your host CPU type, RAM size,
free disk space, display card, interface card);
The name and version of your scanning software application;
The version of your scanner driver.
Please call us at:
Headquarter
Avision Inc.
No. 20, Creation Road I, Science-Based Industrial Park,
Hsinchu 300, Taiwan, ROC
TEL: +886 (3) 578-2388
FAX: +886 (3) 577-7017
E-MAIL: servi[email protected]
Web Site: http://www.avision.com.tw
User’s Manual
9-9
US and Canada Area
Avision Labs, Inc.
6815 Mowry Ave., Newark CA 94560, USA
TEL: +1 (510) 739-2369
FAX: +1 (510) 739-6060
E-MAIL: support@avision-labs.com
Web Site: http://www.avision.com
China Area
Shanghai Technical Support Center
7A, No.1010, Kaixuan Road, Shanghai 200052 P.R.C.
TEL :+86-21-62816680
FAX :+86-21-62818856
E-MAIL :[email protected]
Web Site:http://www.avision.com.cn
Europe Area
Avision Europe GmbH
Bischofstr. 101 D-47809 Krefeld Germany
TEL: +49-2151-56981-40
FAX: +49-2151-56981-42
E-MAIL: info@avision-europe.com
Web Site: http://www.avision.de
Espaço Brasil
Avision Brasil Ltda.
Avenida Jabaquara, 2958 - Cj. 75 - Mirandópolis –
CEP: 04046-500 - São Paulo, Brasil
TEL: +55-11-2925-5025
E-MAIL: [email protected]
Web Site: http://www.avision.com.br
User’s Manual
10-1
10. Specifications
All specifications are subject to change without notice. For
the most up-to-date and detailed specifications, please refer to
our web site at http://www.avision.com
Model Number： DL-2011B
Optical Resolution: 600 dpi (ADF)
1200 dpi (Flatbed)
Output Resolution: 72 ~ 1200 dpi (adjustable by 1 dpi
increments)
Scanning Modes: Black & White / Gray / Color
ADF Capacity: Up to 100 pages (80 g/m
2
) (20 lb.)
Max. Document Size: 242 x 356 mm (9.5 x 14 in.)
Min. Document Size: 50 x 50 mm (2 x 2 in.)
Paper Weight: 27 ~ 413 g/m
2
(7 ~ 110 lb.)
ID Card Thickness: < 1.25 mm (compliant with the
ISO7810 ID-1 type)
Interface: USB 3.2 Gen 1x1, USB Flash Drive
Port, RJ-45 Ethernet 10/100/1000
Mb, Wi-Fi
Power Source: 24V, 1.5A
Operating Temperature: 10º C ~ 35º C
Dimensions: (WxDxH):
Max. 754 x 321 x 301.4 mm
(29.69 x 12.64 x 11.87 in)
Min. 545 x 321 x 231.3 mm
(21.46 x 12.64 x 9.11 in)
Weight: 6.9 kg (15.21 lb.)
User’s Manual
10-2
Wi-Fi Specifications:
The model (CF-811AC/CF-WU810N) of Wi-Fi module varies
according to countries/regions.
Model: CF-811AC
Main Chipset
RTL8811CU
Host Interface
USB 2.0
Frequency Range
2.4GHz/5.8GHz Dual-Channel
Wi-Fi Standard
IEEE802.11a
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11ac
Transmit Speed
11b：1/2/5.5/11Mbps
11g：6/9/12/18/24/36/48/54Mbps
11n：200Mbps
11ac：433Mbps
Transmit Power
Max. 17 dBm
Security
WPA-PSK/WPA2-PSK
WPA/WPA2
WEP
Operating System
Windows XP/Vista/7/8/8.1/10 (32/64 bit)
MacOS10.6~MacOS10.15
User’s Manual
10-3
Model: CF-WU810N
Main Chipset
RTL8188EUS
Host interface
USB 2.0
Frequency
Range
2.412~2.484 GHz
Wi-Fi Standard
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Transmit Speed
11b: 1/2/5.5/11 Mbps
11g: 6/9/12/24/36/48/54 Mbps
11n: 150 Mbps
Transmit Power
Max. 18 dBm
Security
WPA-PSK/WPA2-PSK
WPA/WPA2
WEP
Operating
System
Windows XP/Vista/7/8/8.1/10 (32/64 bit)
Max OS 10.6 ~10.11
Linux Kernel 2.6.18~3.10
