WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
LK55416 & LK55516 & LK55616 & LK55716

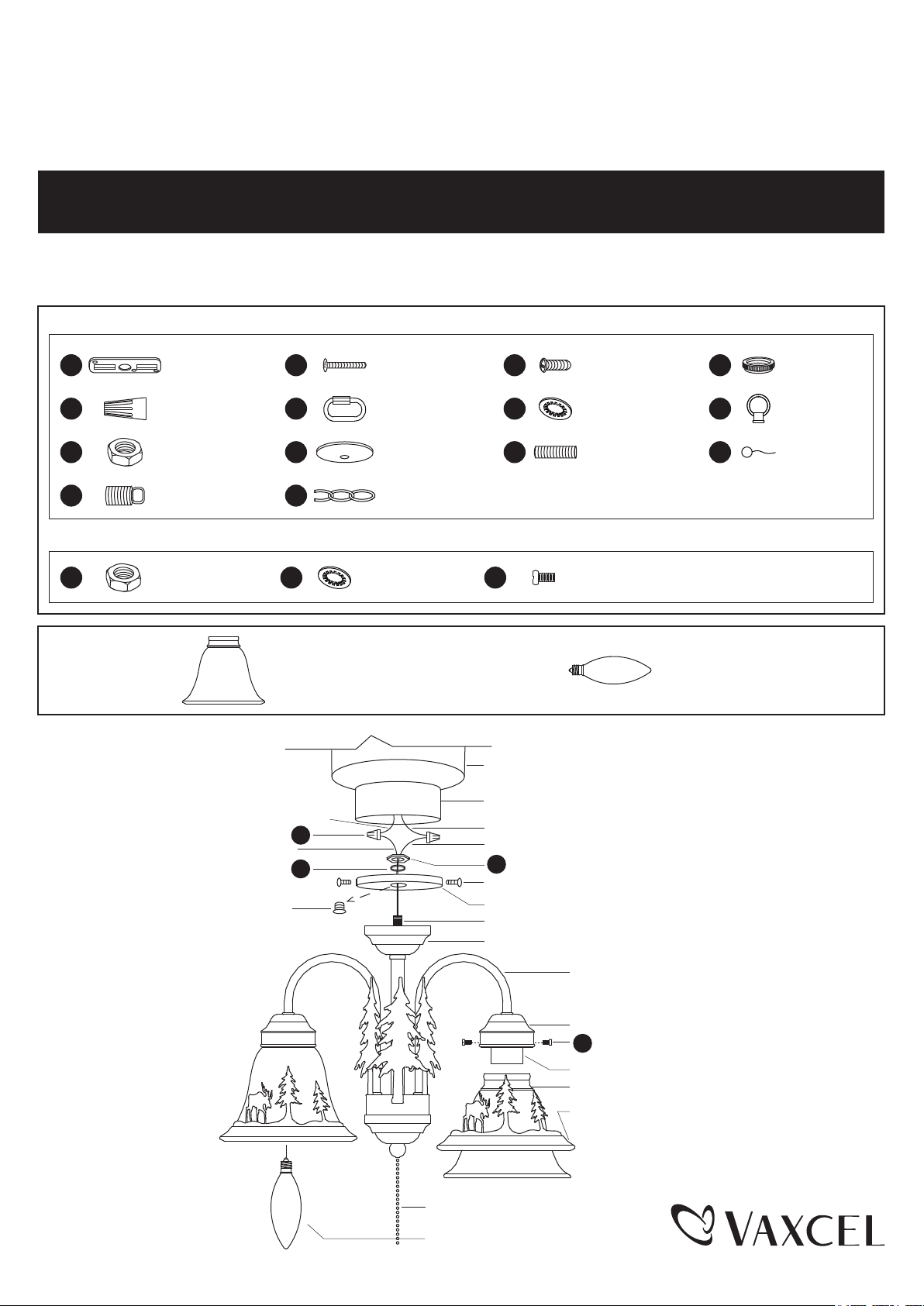

Hardware Package (included): For Chandelier
Hardware Package (included): For Light Kit
Center Plug
Smooth Wire
Black or Blue Wire
Ridged Wire
White Wire
Switch Box
Motor
Thread Pipe (-a)
Switch Box Cover
Switch Box Screw
Fixture
Arm
Glass Holder
Glass Shade
Decoration
Pull Chain
Socket
Candelabra Base 4W LED Bulb
(included)
BB
JJ
CC
OO
Mounting Screw
X2
Green
Ground Screw
X1
Washer
X2
Canopy
X1
Hex Nut
X1
Thread Pipe (-b)
X1
Top Loop
X1
Mounting Strap
X1
AA
EE II
BB
FF
JJ
CC
GG KK
LL
DD
HH
Wire Connector
X3
Loop Lock
X2
Chain
X1
Collar
X1
MM
Loop
X1
NN
Fixture
Ground Wire
X1
Set Screw
X9
Washer
X1
Hex Nut
X1
OO
JJ
CC
190328
Glass Shade (3 PCS) LED (3 PCS)

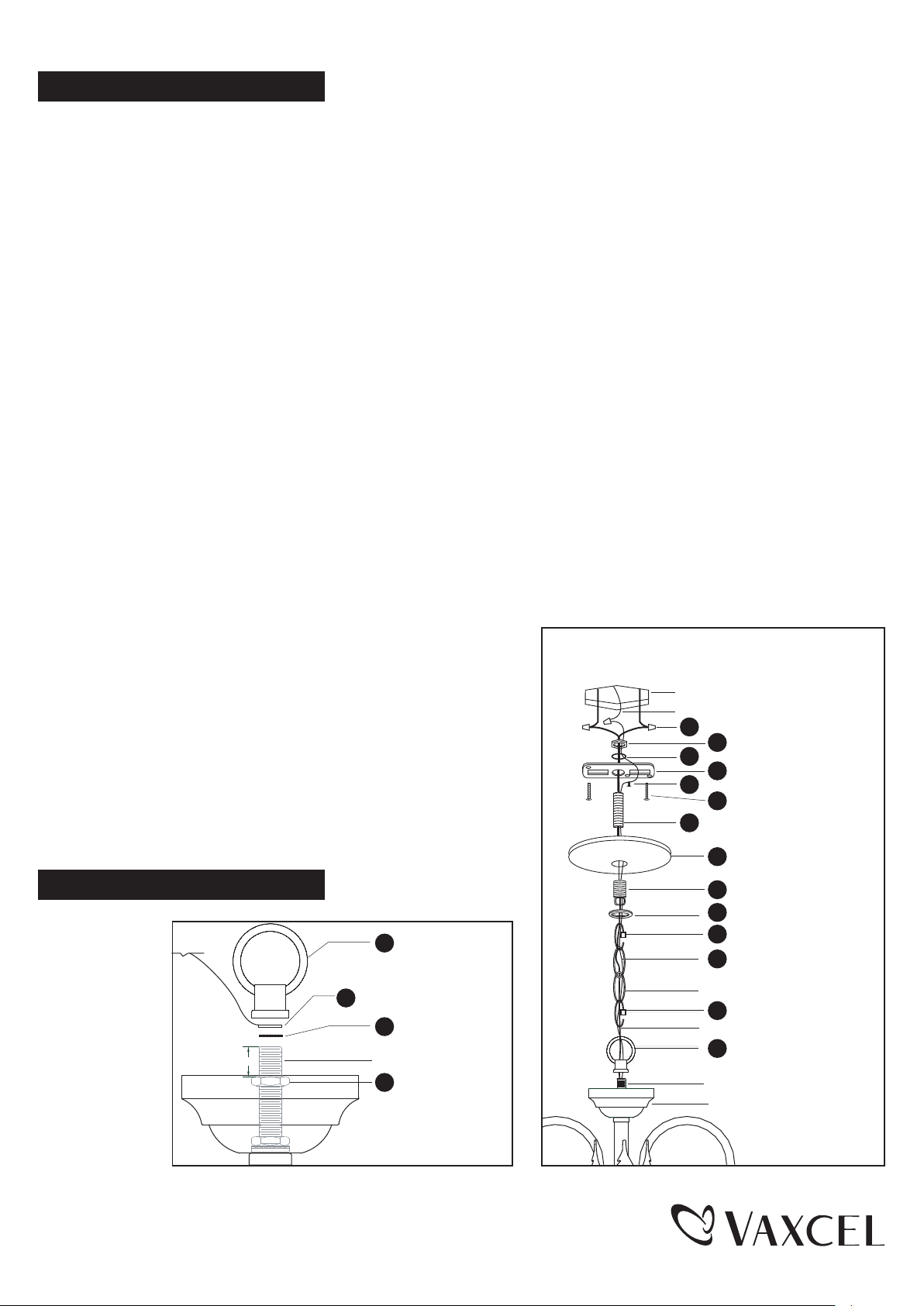

For Mini Chandelier: (See Fig. 1 & Fig. 2)
1. Take out the loop(MM), fixture ground wire(NN) and washer(JJ) from the hardware package for Mini Chandelier.
2. Adjust the hex nut(CC) on thread pipe(-a) to make a length of 1/2" from the top of thread pipe(-a) to the top of
the hex nut(CC). (See Fig.1)
3. Attach a washer(JJ) and the ground pad to the hex nut(CC) on thread pipe(-a), then secure them with the loop(MM).
4. Choose the length of the chain you need, then weave the fixture wire and the fixture ground wire(NN) through the chain.
Then connect one end of the chain with the loop(MM) by using one loop lock(FF).
5. Secure the top loop(DD) to thread pipe(-b) (KK).
6. Thread the fixture wire and fixture ground wire(NN) through the collar(LL), canopy(GG), top loop(DD),
thread pipe(-b) (KK) and mounting strap(AA).
7. Connect the other end of the chain with the top loop(DD) by using the other loop lock(FF).
8. Pull out the outlet wires and the house ground wire from the outlet
box. Make wire connections using the wire connector(BB):
--- The smooth wire (marked) from the fixture to the black wire
from the power source.
--- The ridged wire (unmarked) from the fixture to the white wire
from the power source.
--- Attach the fixture ground wire(NN) to the mounting strap(AA)
with the green ground screw(II). Then connect it to the house
ground wire with a wire connector(BB).
Carefully put the wires back into the outlet box
9. Attach the canopy(GG) to the mounting strap(AA) by inserting the
top loop(DD), then secure it with the collar(LL).
10. Repeat the steps 6~8 for Light Kit.
Thread Pipe (-a)
Fig.1
1/2"
CC
JJ
NN
MM
Fixture Wire
Chain
Outlet Box
House Ground Wire
Fig.2
Mounting Parts for Mini Chandelier
Thread Pipe (-a)
Fixture
BB
JJ
CC
II
KK
EE
GG
DD
LL
AA
FF
FF
MM
NN
Turn on the power at fuse or circuit box.
For Light Kit:
1. Remove the switch box cover from the switch box of the fan by loosing the three switch box screws.
2. Unscrew the center plug from the switch box cover and discard it.
3. Attach thread pipe(-a) of the light kit to the switch box cover, then secure it with a washer(JJ) and hex nut(CC).
4. Pull out the wires from the switch box.
Make wire connections using the wire connectors(BB):
--- The smooth (marked) wire from the fixture to the black (or blue) wire from the switch box.
--- The ridged (unmarked) wire from the fixture to the white wire from the switch box.
Carefully put the wires back into the switch box.
5. Attach the switch box cover back to the switch box using the three switch box screws.
6. Carefully place the decorations onto the glass shades. Then attach the glass shades to the glass holders and secure
them with the set screws(OO).
7. Install bulbs (included). See relamping label at socket area or packaging for maximum allowed wattage.
8. Turn on the power at the main fuse or circuit breaker box. (You can control the light with the pull chain.)
Turn off the power at fuse or circuit box.
Installation Steps
190328

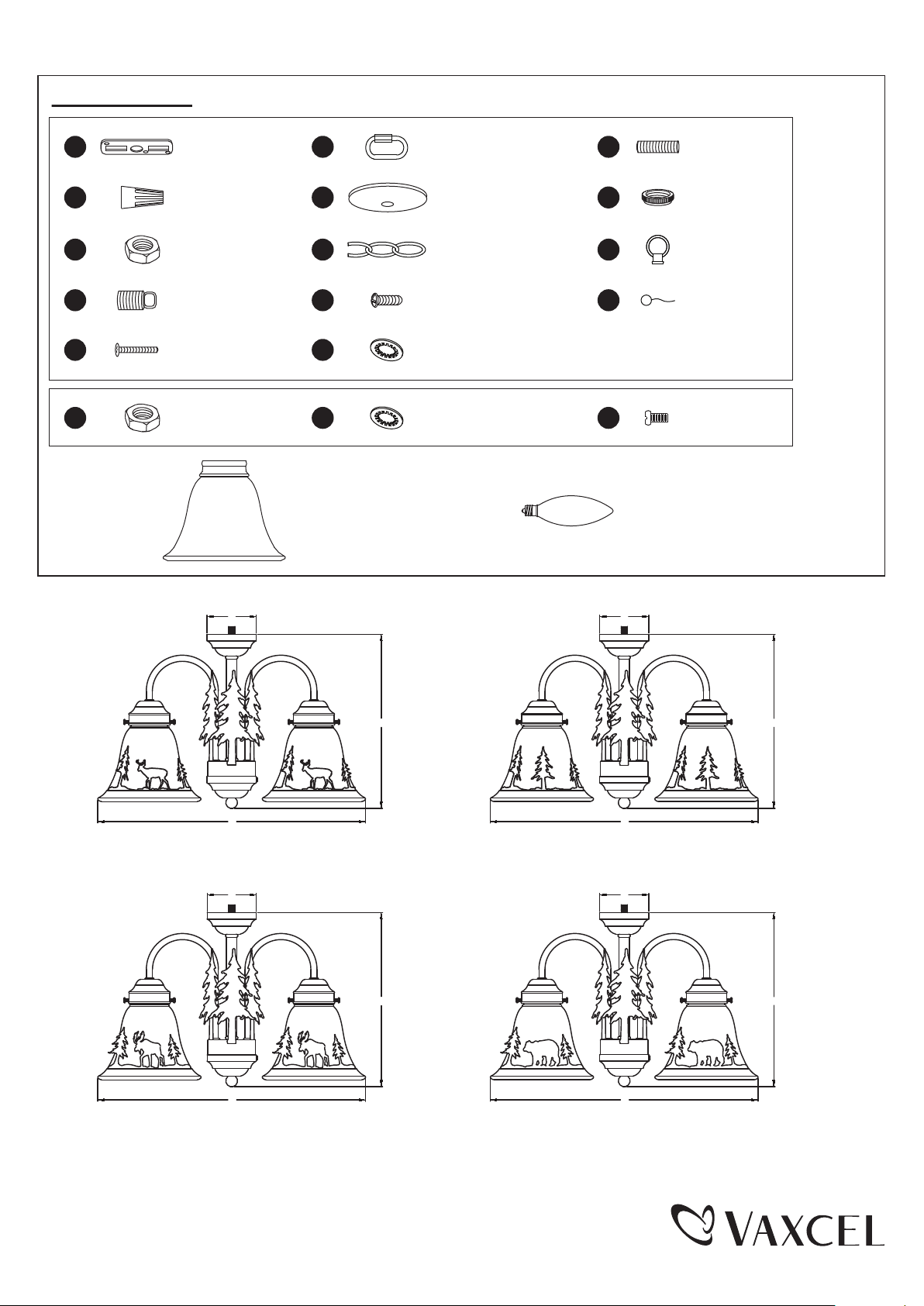

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Assembly Kit
4172MM
(1 SET)
Assembly Kit
4173MM
(1 SET)
Glass Shade
938316
(3 PCS)
LED 8096LD (3 PCS)
A
B
A: 16-1/8"
B: 10-1/2"
LK55716BBZ-C
C
C: 3"
A
B
A: 16-1/8"
B: 10-1/2"
LK55516BBZ-C
C
C: 3"
A
B
A: 16-1/8"
B: 10-1/2"
LK55616BBZ-C
C
C: 3"
A
B
A: 16-1/8"
B: 10-1/2"
LK55416BBZ-C
C
C: 3"
Mounting Screw
X2
Green Ground Screw
X1
Washer
X2
Canopy
X1
Hex Nut
X1
Thread Pipe
X1
Top Loop
X1
Mounting Strap
X1
Wire Connector
X3
Loop Lock
X2
Chain
X1
AA
EE
II
BB
FF
JJ
CC
GG
KK
DD
HH
LL
Collar
X1
MM
Loop
X1
NN
Fixture
Ground Wire
X1
Washer
X1
Hex Nut
X1
JJ
CC
Set Screw
X9
OO
190328
