Westinghouse WWT9084C7WA Top Load Washing Machine

User Manual

For WWT9084C7WA. Additionally, the document applies to other Westinghouse models: WWT8084J7WA, WWT1084C7WA, WWT1184C7WA

PDF File Manual, 44 pages, Read Online | Download pdf file

WWT9084C7WA photo
background
TOP-LOAD
WASHING MACHINE
WWT8084J7WA / WWT9084C7WA /
WWT1084C7WA / WWT1184C7WA
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...

User Manual - Transcript

  • Page 2 - English - : 2 wwwwestinghousecomau wwwwestinghouseconz Adherence to the directions for use in this manual is extremely important for health and safety Failure to strictly adhere to the requirements in this manual may result in personal injury property damage and affect your ability to make a claim under the Westinghouse manufacturers warranty provided with your product Products must be used installed and operated in accordance with this manual You may not be able to claim on the Westinghouse manufacturers warranty in the event that your product fault is due to failure to adhere to this manual IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURERS WARRANTY We recommend the use of original spare parts When contacting Service ensure that you have the following data available The information can be found on the rating plate Model PNC Serial Number Subject to change without notice Warning CautionSafety information General information and tips Environmental information CUSTOMER CARE AND SERVICE
  • Page 3 - English - : CONTENTS SAFETY INFORMATION 4 11 Conditions Of Use 4 12 Child Safety 5 13 General Safety 6 14 Installation 6 15 Use 7 2 PRODUCT DESCRIPTION 8 21 Parts 8 22 Product Features 10 3 CONTROL PANEL 11 31 Control Panel Description 11 32 Program Chart 12 33 Program Options Compatibility 13 34 Options 14 35 Settings 16 4 DAILY USE 17 41 Starting Your Washing Machine 17 42 Load The Washing Machine 17 43 Add The DetergentBleach 17 44 Add Fabric Softener 18 45 Adding Bleach 18 46 Setting a Program 19 47 Starting a Program 19 48 Interruption Of A Program 19 49 Changing A Program 19 410 Changing The Options 19 411 At The End Of The Program 20 5 WASHING HINTS 21 51 Sort Your Washing Into Separate Wash Loads 21 52 Pretreatment Sprays And Stain Removers 22 53 Detergent 22 54 A Guide To Stain Removal 22 6 INTERNATIONAL WASH CODE SYMBOLS 24 7 CARE AND CLEANING 25 71 What To Do After You Have Finished Your Washing 25 72 Cleaning The Lint Filter 25 73 Cleaning The Dispenser 26 74 Cleaning The Drawer Recess 26 75 Cleaning The Water Inlet Filter 26 76 Cleaning Your Washing Machine 27 77 Cleaning Stains In The Washbowl 27 8 TROUBLESHOOTING 28 81 Possible Failures 28 82 Troubleshooting Fault Displays 30 83 Yellowing Or Greying Clothes 32 9 TECHNICAL DATA 33 10 INSTALLATION 34 101 Unpacking 34 102 Positioning 36 103 Water Inlet 36 104 Water Drainage 37 105 Electrical Connection 38 11 ENVIRONMENT CONCERNS 39 111 Packaging Materials 39 112 Old Machine 39 113 Ecological Hints 39 WARRANTY 43
  • Page 4 - English - : 4 wwwwestinghousecomau wwwwestinghouseconz In the interest of your safety and to ensure the correct use before installing and first using the appliance read this user manual carefully including its hints and warnings This appliance is intended to be used in household and similar applications such as farm houses by clients in hotels motels and other residential type environment To avoid unnecessary mistakes and accidents it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features Save these instructions and make sure that they remain with the appliance if it is moved or sold so that everyone using it through its life will be properly informed on appliance use and safety bed and breakfast type environments areas for communal use in blocks of flats or in launderettes staff kitchen areas in shops offices and other working environment WARNING The appliance must not be supplied through an external switching device such as timer or connected to a circuit that is regularly switched on and off by utility 1 SAFETY INFORMATION 11 Conditions Of Use
  • Page 5 - English - : This appliance is not intended for use by young children or infirm persons without supervision Young children should be supervised to ensure that they do not play with the appliance The packaging components eg plastic film polystyrene can be dangerous to children danger of suffocation Keep them out of childrens reach Keep all detergents in a safe place out of childrens reach Make sure that children or pets do not climb into the drum This machine is provided with child safety lock option to prevent children playing with the control panel see page 16 12 Child Safety
  • Page 6 - English - : 6 wwwwestinghousecomau wwwwestinghouseconz It is dangerous to alter the specifica tions or attempt to modify this product in any way Make sure that small pets do not climb into the washbowl To avoid this please check into the washbowl before using the appliance Only use the advised quantities of fabric softener and detergent Damage to the fabric can ensue if you overfill Refer to the manufacturers recommendations of quantities This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Wash small items such as socks laces washable belts etc in a washing bag or pillowcase as it is possible for such items to slip down between the tub and the agitator Do not use your washing machine to wash articles with whale bones material without hems or torn material Always unplug the appliance and turn off the water supply after use clean and maintenance Under no circumstances should you attempt to repair the machine yourself Repairs carried out by inexperienced persons may cause injury or serious malfunctioning Contact your local Service Centre Always insist on genuine spare parts Any objects such as coins safety pins nails screws hairpin toothpick stones or any other hard sharp material can cause extensive damage and must not be placed into the machine When unpacking the appliance check that it is not damaged If in doubt do not use it and contact the Service Centre After having installed the appliance check that it is not standing on the inlet and drain hose The appliance should not be installed in a humid place The machine should be installed indoors without touching the rain If the machine is situated on a carpeted floor please adjust the feet in order to allow air to circulate freely Always be sure that there is no water leakage from hoses and their connections after the installation Any plumbing work required to install this appliance should be carried out by a qualified plumber Any electrical work required to install this appliance should be carried out by a qualified electrician If the supply cord is damaged should the appliance power supply cable need to be replaced this shall be carried out by our Service Centre 13 General Safety 14 Installation
  • Page 7 - English - : This appliance is designed for domestic use It must not be used for purposes other than those for which it was designed Make sure that the drainage is working properly Only wash fabrics which are designed to be machine washed Follow the instructions on each garment label Do not overload the appliance See the relevant section in the user manual Before washing ensure that all pockets are empty and buttons and zips are fastened Avoid washing frayed or torn articles and treat stains such as paint ink rust and grass before washing Garments which have been in contact with volatile petroleum products should not be machine washed If volatile cleaning fluids are used care should be taken to ensure that the fluid is removed from the garment before placing in the machine Never pull the power supply cable to remove the plug from the socket always take hold of the plug itself Never use the Topload Washing Machine if the power supply cable the control panel the working surface or the base are damaged so that the inside of the Topload Washing Machine is accessible Components in the machine are designed to be used with water not hotter than 60 C Water pressures between minimum 50kPa and maximum 800kPa are acceptable Do not touch the power plug while your hand is still wet Do not put your hand foot or anything under the washing machine while the machine is operated May cause electric shock if the machine is not connected to an earthedground system DO NOT touch the wet clothes and metal parts For safety reasons do not use double adaptors extension cords and multiplug adapters 15 Use
  • Page 8 - English - : 8 wwwwestinghousecomau wwwwestinghouseconz Control Panel Lid Cabinet Front Feet Levelling Adjustable Right amp Left Mains Cable Water Inlet Hose Old inlet hose should be discharged if any and use the inlet hose provided with machine Outlet HoseDrain Hose See installation instructions sheet to fit amp position drain hose Rear Feet Levelling Adjustable Right amp Left 2 PRODUCT DESCRIPTION 21 Parts
  • Page 9: DetergentBleachDispenser see page 17 Lint Filter see page 25 Bleach Dispenser option Fabric Softener Dispenser Agitator Lint Filter Frame Filter
  • Page 10 - English - : 10 wwwwestinghousecomau wwwwestinghouseconz 22 Product Features Auto sensing water level Auto sensing is a feature where the washer fills automatically with water to just the right level for your clothes load You do have the option to manually set the water level if you wish We recommend you use the auto sensing water level option to ensure there is just the right amount of water for the wash load in the machine In other words it will usually give you the best wash while also being the most efficient in terms of water usage At times during a wash it may appear your machine is either doing nothing or intermittently it is only gently vibrating jigglingagitating This is because your machine could be In auto sensing test mode and the machine is determining the correct amount of water for your wash At a drain stage of the wash program and the machine is allowing time for water to flow the washbowl from to the out bowl Engaging or disengaging the drive clutch mechanism Wait a short time your washing machine will complete the above tasks and continue with the wash The amount of water for auto is factory set at an optimised level You can adjust the Auto level up or down by a small amount Power Failure Recovery When there is power failure while the machine is washing or rinsing or spinning The machine tries to save the settings at which stage the machine is doing and then when the power returns back the machine will start washing from the stage where it is left off PreMix This feature helps to dissolve and activate the active ingredients of the detergent by blending the detergent with the water except Fast 20 program before dispensing into the tub and onto the clothes Dual Jets System Dual jets help to improve cleaning results by spraying directly on the clothes and give a more thorough rinseout of stains and dirt
  • Page 11 - English - : A G H I B C D E F A B C D E FHG I KJ 3 CONTROL PANEL 31 Control Panel Description Press the touch buttons with your finger in the area with the symbol Do not wear gloves when you operate the control panel Make sure that the control panel is always clean and dry A Program knob G Soak touchpad B Water Level touchpad H Delay End touchpad C Temp touchpad I StartPause touchpad D Rinse touchpad J Display E Spin touchpad K Power touchpad F Child safety lock option press and hold touchpad about 2 seconds A PreMix Phase icon B Soak Phase icon C Wash Phase icon D Rinse Phase icon E Spin Phase icon F Clean Filter Reminder icon G Child safety lock option icon H Program Duration Delay End Time Alarm Code I Delay End icon Display
  • Page 12 - English - : 12 wwwwestinghousecomau wwwwestinghouseconz 32 Program Chart 1 Clothes Load depends on the Water level selected For the best washing result do not exceed the load weight over the suggestion as in the table above 2 Maximum capacity depended on the model of the Washing Machine The energy label specification has been determined by using the following program according to ASNZS 2040 Eco save Normal temp Full water level No soak Eco rinse High spin speed 3 Model WWT8084J7WA WWT9084C7WA WWT1084C7WA WWT1184C7WA 8 kg 9 kg 10 kg 11 kg Program Type of load and soil level Max Load Dry Clothes 1 Delicate Delicate fabrics such as acrylics viscose polyester items For heavily soiled cotton fabric For moderately soiled cotton fabric For normally soiled cotton fabric For normally soiled synthetic and mixed fabric For lightly soiled synthetic and mixed fabric Extra Dirty 120 Dirty 90 Full Load 60 Daily 45 Eco Save 3 For normally soiled white and colourfast cotton Set this program to have a good washing results and decrease the energy consumption Bedding For bedding fabrics labelled Machine Washable Rinse amp Spin For items that you want to rinse and spin eg Clothes items you have hand washed in a wash tub Spin For very wet clothes to remove the water Machine Clean Clean the tub 2 kg 2 kg 2 kg 2 kg 2 kg 2 kg 2 kg 2 kg Maximum Capacity No Load 2 kg 4 kg 2 kg 4 kg 4 kg 4 kg 4 kg 2 kg 4 kg Max 4 kg Max Max Max 4 kg Max Max 2 4 kg Stain This program helps to remove certain types of tough stains that are not easily removed by handwashing 3 kg Max Max Max 4 kg Fast 20 Water Level Auto Full Mid Low
  • Page 13 - English - : 33 Program Options Compatibility Program Option Delay End Spin High Mid Low No Spin Rinse Extra Regular Fast Eco Temp Hot Warm Normal Cold Extra Dirty 120 Dirty 90 Full Load 60 Daily 45 Fast 20 Delicates Eco Save Bedding Stain Machine Clean Soak 45 Mins 30 Mins 15 Mins No Soak Rinse amp Spin Spin Water Level Auto Full Medium Low Remark Default option Available select option For Model WWT8084J7WA Daily 45 Spin Options Mid Default Low No Spin Fast 20 Spin Options Low Default No Spin
  • Page 14 - English - : 14 wwwwestinghousecomau wwwwestinghouseconz Water Level Touchpad Choose the water level by pressing the Water Level touchpad Use only the amount of water you need for the wash load Please refer the to program table on page Flood diagnostic is explained on page 30 You should refer to this if you have water pouring onto the floor The display will show and you will hear rapid short beeps continuously to remind you about this problem Temp Touchpad For each wash program your washing machine automatically selects a suitable fill water temperature If you want to use a different wash water temperature press the Temperature button repeatedly The temperature of warm water will depend on the temperature and pressure of your hot and cold water supplies The recommended temperature for warm is 35C You have four temperatures to choose from Hot Warm Normal and Cold The water temp lights will tell you the temperature for each press of the button Always check your label for the washing temperature symbols which the International Care Labelling Code now uses If you have a cold water connection ONLY and the hot inlet valve is capped off refer installation instructions you must select Cold washes only You can adjust the flow rate of the water supplies to adjust the Warm temperature All rinse water temperatures are cold ColdWarm Hot Pressing the Rinse touchpad to choose the rinse type for your wash load For most washes the machine automatically fills the full tub of water for a rinse Rinse Touchpad There are four rinses to choose from Extra Regular Fast and Eco to remove the detergent from the clothes Extra rinse 2 rinses cycles Regular rinse 1 rinse cycle Fast rinse Spraying water 3 rinses cycles Eco Spraying water 4 rinses cycles When Eco rinse is used rinse water is sprayed into the washbowl in pulses After each pulse the washbowl will spin to remove detergent laden water from the clothes How does Eco Rinse work The machine will go through a series of maximum 4 pulses spray and short spin cycles in this manner depending on program selection followed by a final long spin that removes the water from the clothes to complete the full wash program 34 Options
  • Page 15 - English - : Delay End Touchpad Before you start the program this option makes it possible to define the end of the washing program from minimum of 1 hour to maximum of 20 hours After selecting Delay End time press StartPause touchpad to start the program Machine will then countdown and update time on the display every hour until it reaches the starting point of the wash cycle Press the Delay End touchpad to choose the end time as you wish The display shows the number of hours For example if the program duration of your selected program is 320 hours and you define the Delay End time to 6 hours This means your wash program will finish in 6 hours See diagram 320 hrs240 hrs Program Cycle 6 hrs Pressed StartPause End of Cycle Start the Program Countdown This option must be selected after choosing the wash program and before pressing the StartPause touchpad If you wish to modify or cancel Delay End option after starting the program follow the steps below set the washing machine to PAUSE by pressing StartPause touchpad deselect this option by pressing Delay End touchpad repeatedly till the display shows delay time press the StartPause to start the program Press this touchpad to select the spin speed or no spin if you want your laundry to be spun at a speed different from the one proposed by the washing machine The speed of spin level are High about 800 rpm Mid about 650 rpm Low about 550 rpm No Spin 0 rpm Spin Touchpad This option allows you to soak heavily soiled clothes at the beginning of the wash To do this press the Soak touchpad to select the soak time Soak Touchpad The lid must be closed to allow Soak functions to operate The machine will agitate for short periods At other times the clothes are soaking and the machine will be doing nothing Note Compare this with Regular rinse where much more water is used Regular rinse water enters the machine filling up to the wash water level selected The washer agitates and finally empties the rinse water through the drain hose Extra rinse this is a special option for those people who suffer from allergies this extra rinse will provide 2 rinses to ensure all detergent residue has been removed Select Regular rinse if you are going to use fabric softener Regular rinse ensures the fabric softener is correctly dispensed and thoroughly removed from your clothes during rinsing
  • Page 16 - English - : 16 wwwwestinghousecomau wwwwestinghouseconz This setting permits you to either enable or disable the buzzer at the end of the program As an example you might wish to disable this buzzer when you start a wash when going to bed so that when the wash finishes approximately 1 hour later it will not disturb you through the night Error warning beeps such as critical faults are not disabled EnablingDisabling EndOfWash Buzzer To disable the buzzer sound press Water Level and Temp touchpads at the same time about 3 seconds the icon will show on display along with buzzer sound To return to default configuration press these two touchpads at the same time about 3 seconds the icon will show on display along with buzzer sound Child Safety Lock Option Your appliance is provided with CHILD SAFETY LOCK which permits you to leave the appliance unsupervised with the door closed without having to worry that children might be injured by or cause damage to the appliance Set this option AFTER pressing the StartPause touchpad To activate the function press and hold Lock touchpad about 2 seconds until the display shows the icon To set Child Lock option To deactivate the function press and hold this touchpad again until the icon in the display disappears You must deactivate the function before operating the washing machine All the touchpads are locked If you press any touchpad while Child Lock is activated the icon and will flash on display 3 times along with buzzer sound To start the selected program press the StartPause touchpad If you have started your wash and you wish to stop it for some reason press the StartPause touchpad to enter PAUSE mode StartPause Touchpad To restart the program from the point at which it was interrupted press the StartPause again If the lid is opened during operation the machine will go into PAUSE mode and display show After closing the lid press StartPause touchpad on the control panel to restart the program 35 Settings
  • Page 17 - English - : 4 DAILY USE 41 Starting Your Washing Machine 43 Add The DetergentBleach 42 Load The Washing Machine When loading the clothes into your washing machine there are four things to remember Clothes must be loaded evenly around the agitator For best results load small items first followed by large items Clothes must not be wrapped around the agitator The washing machine must not be overloaded Clothes must be able to move during wash The load should contain only three or four large items for example sheets The rest of the load should be small items A mixed load of large and small items will wash cleaner than a load of all large items Powder Liquid Detergent Bleach Connect the mains plug to the mains socket Pull the dispenser drawer forward out from its position Liquid Detergent Option Measure the correct amount of liquid detergent by following the recommendations on the package Pouring onto the clothes Measure the correct amount of powder or liquid detergent by following the recommendations on the package Pour it into the detergent dispenser drawer Put the dispenser back into its recess Turn the water tap on move around agitator Liquid Powder
  • Page 18 - English - : 18 wwwwestinghousecomau wwwwestinghouseconz 44 Add Fabric Softener 45 Adding Bleach Option Do not use gelatinous or thick liquid detergents NOTE When you use the liquid detergent Residues of softener and water may remain in the cup It is recommended to clean the cup regularly to remove any residue Mix softener with an equal amount of warm water but only mix enough to fill to the line marked inside the cup The softener cup holds 75ml Do not spill fabric softener on the clothes as it may stain them Pour the mixed softener into the cup on the top of the agitator Do not overfill the cup Measure the correct amount of fabric softener by following the recommendations on the package The softener amount used must not exceed the MAX mark in the cup If you use thick softeners it is recommended to dilute with water NOTE Press the StartPause touchpad to commence water fill Pour the bleach solution down the hole in the top of washing tub during fill when there is some water in the washbowl by tilting the washing tub as picture below Turn Program Selector to a Full Load 60 position Bleaching of clothes can help to remove stains heavy soiling and to kill bacteria This is generally a powder type bleach Pour it into the detergent dispenser drawer or mix the required quantity with water and pour down the bleach hole in the top of the washing tub during the fill when there is some water in the This type of bleach should not be mixed with detergent Mix the bleach with water as per the instructions on the container How to soak with bleach proceed as follows Oxygen Type Chlorine Type Allow the machine to agitate for a few minutes then let it stand for the required time by pressing StartPause touchpad to pause the machine When soaking bleach reached the required time turn Program Selector to 5LQVH6SLQ position and press the StartPause touchpad to empty the wash bowl Mix detergent in one litre of water Add the premixed detergent to the wash load tilting the washing tub
  • Page 19 - English - : Press Power touchpad turn the program selector to the required program The relevant light will light up Your washing machine is now in STANDBYMODE and ready to wash your clothes The buzzer will sound Once you selecte a program the program selected will stay at that position for the whole of the cycle The selector dial can be turned either clockwise or anticlockwise The display shows the program duration If you want your laundry to be washed with functions different from the one proposed by the machine press Water Level Soak Rinse and Spin option touchpads If the settings shown on the control panel are what you want to use press the StartPause touchpad to start your wash NOTE To start a program press the StartPause touchpad a default program duration will be displayed on the screen If you want to define the end of the washing program press the Delay End touchpad repeatedly to choose your machine end time Different functions can be combined which is dependent on the program selected When these touchpads are pressed the corresponding pilot lights come on When you select the Rinse Spin program there will be a delay of at least 2 minutes before the washing machine starts to spin This delay is a drain out period to ensure the bowl is empty of water which is necessary before spin commences Even though you may have only put wet clothes into an empty bowl the delay before spin will still occur to be safe and to protect your washing machine NOTE It is possible to change only some options after the program has started Press the StartPause touchpad to enter PAUSE mode Change the options Press StartPause touchpad again The program will continue The time remaining is blink and the StartPause LED will start flashing Press the StartPause again The program will continue If you have started your wash and you wish to stop it for some reason press the StartPause touchpad to enter PAUSE mode Changing a running program is possible only by switching off the appliance Press the Power touchpad to cancel the program and to turn off the appliance Press the Power touchpad again to start the appliance Now you can set a new wash program and change any available options Press StartPause to start the new program 46 Setting a Program 48 Interruption Of A Program 49 Changing A Program 410 Changing The Options 47 Starting a Program
  • Page 20 - English - : 20 wwwwestinghousecomau wwwwestinghouseconz When indicator appears and blinks after the appropriate number of wash cycles are finished this indicator is reminds you to clean the lint filters The appliance stops automatically The display will show and flashing with 3 consecutive long beeps Remove the laundry from the appliance Make sure that the washing tub is empty Keep the lid ajar to prevent the mildew and odours Press Power touchpad to turn off the machine Turn off the water tap NOTE 411 At The End Of The Program Refer to Cleaning The Lint Filter on page 25

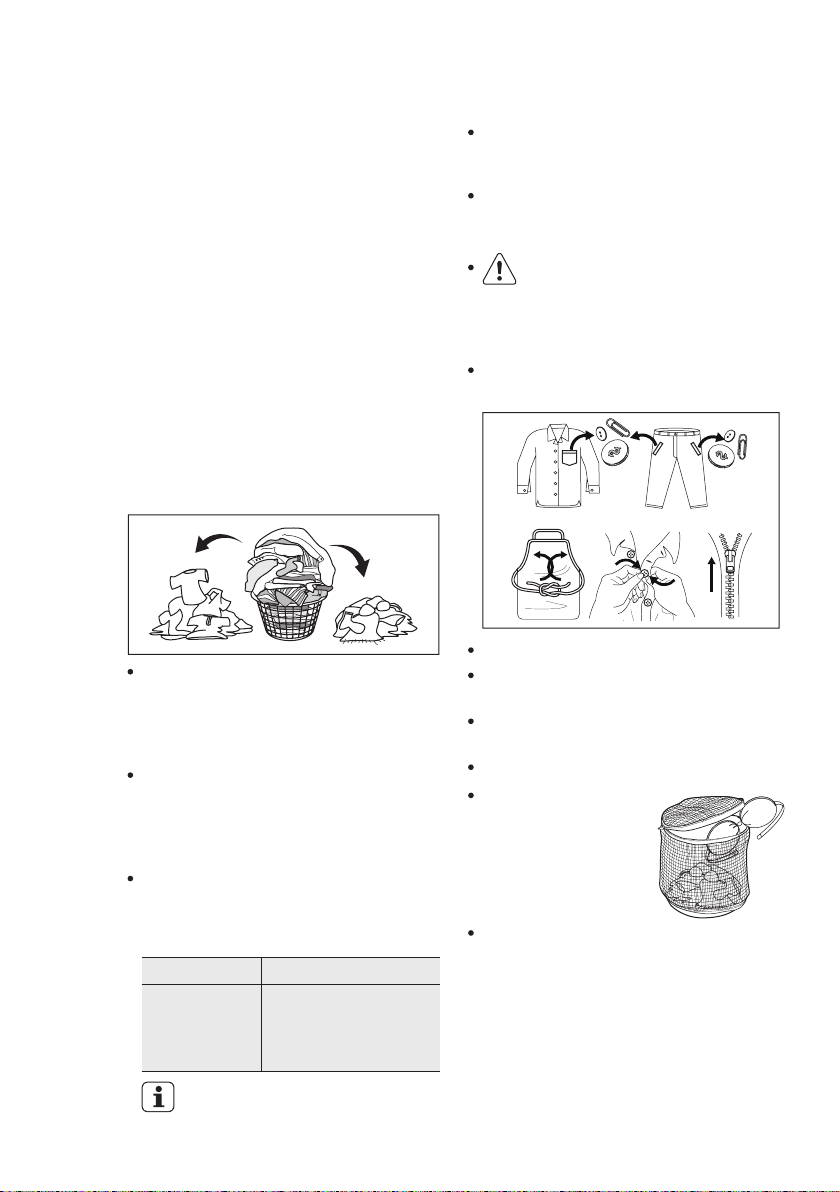

  • Page 21 - English - : Each load of washing should contain clothing which needs the same washing conditions For example you should not wash delicate clothes with very dirty work clothes Colour fast and noncolourfast fabrics should be separated Knowing the type of fabrics you have and how dirty they are will help when you make selections from the wash program options Some fabrics are lint collectors and can pick up lint dirt and colour from other fabrics which are lint producers Some examples are listed below Lint collectors Lint producers Corduroy Synthetics Permanent press fabrics Towels Nappies ChenilleCandlewick Make sure that you wash lint collectors separately from lint producers NOTE IMPORTANT However due to the variables of fabric types soil levels detergent types and available program settings you may find some combinations of these which do not always result in the perfect wash If for example you see residuals of detergent or soils on some items please read the section Residues on washed items paragraph Over time you will learn what is the best setup of programs detergent and load sorting for different load types and soils These Washing Instructions are of a general nature and you should get good wash results by following them Rub particularly soiled areas with a special detergent or detergent paste Treat curtains with special care Never wash whites and coloureds together Whites may lose their whiteness in the wash New coloured items may run in the first wash they should therefore be washed separately the first time Button up pillowcases close zip fasteners hooks and poppers Tie any belts or long tapes Remove persistent stains before washing Make sure that no metal objects are left in the laundry eg hair clips safety pins pins Wash bras pantyhose and other delicates in a mesh laundry bag which you can purchase from your supermarket Remove hooks or tie them up in a bag or net 5 WASHING HINTS 51 Sort Your Washing Into Separate Wash Loads
  • Page 22 - English - : 22 wwwwestinghousecomau wwwwestinghouseconz If you use pretreatment sprays or stain removers apply them to the clothing well away from your washing machine Pretreatment sprays and stain remover can damage plastic components on your washing machine WARNING Dont use the wrong type of detergent You must use a low sudsing detergent designed for front load washing machines or high efficiency top loaders such as Cold Power for Front Loaders and High Efficiency Top Loaders or detergents labelled Matic Dont use soapbased products in your washing machine Dont use too much detergent This can result in excessive suds that can cause low spin speeds poor rinsing and overloading the motor during spin stages of the wash program Dont use too little detergent because you will get a poor wash If you think you need more increase dosages by only small amounts to avoid excessive suds Quantity of detergent to be used Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment Although biodegradable detergents contain substances which in large quantities can upset the delicate balance of nature The choice of detergent will depend on the type of fabric delicates woollens cottons etc the colour washing temperature and degree of soiling The type and quantity of detergent will depend on the type of fabric load size degree of soiling and hardness of the water used Information on the hardness of the water in your area can be obtained from the relevant water supply company or from your local authority Follow the product manufacturers instructions on quantities to use Not enough washing powder causes the wash load to turn grey greasy clothes Too much washing powder causes sudsing reduced washing effect inadequate rinsing Use less detergent if you are washing a small load the laundry is lightly soiled and large amounts of foam form during washing Water hardness is classified in socalled degrees of hardness Blood treat fresh stains with cold water For dried stains soak overnight in water with a special detergent then rub in the soap and water Oil based paint moisten with benzine stain remover lay the garment on a soft cloth and dab the stain treat several times Dried grease stains moisten with turpentine lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth Stubborn stains may not be removed by just water and detergent It is therefore advisable to treat them prior to washing Rust oxalic acid dissolved in hot water or a rust removing product used in cold water Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole 52 Pretreatment Sprays And Stain Removers 53 Detergent 54 A Guide To Stain Removal
  • Page 23 - English - : Mould stains treat with bleach rinse well whites and fast coloureds only Grass soap lightly and treat with bleach whites and fast coloureds only Ballpoint pen and glue moisten with acetone lay the garment on a soft cloth and dab the stain Lipstick moisten with acetone as above then treat stains with methylated spirits Remove any residual marks from white fabrics with bleach Red wine soak in water and detergent rinse and treat with acetic or citric acid then rinse Treat any residual marks with bleach Ink depending on the type of ink moisten the fabric first with acetone then with acetic acid treat any residual marks on white fabrics with bleach and then rinse thoroughly Tar stains first treat with stain remover methylated spirits or benzine then rub with detergent paste do not use acetone on artificial silk
  • Page 24 - English - : 24 wwwwestinghousecomau wwwwestinghouseconz These symbols appear on fabric labels in order to help you choose the best way to treat your laundry Bleach in cold water DO NOT bleach Bleaching Hand wash Max wash temperature 95 C Hot iron max 200 C Dry cleaning in all solvents Dry cleaning in perchloroethylene petrol pure alcohol R 111 amp R 113 Dry cleaning in petrol pure alcohol and R 113 DO NOT dry clean Warm iron max 150 C Lukewarm iron max 110 C DO NOT iron Max wash temperature 60 C Max wash temperature 40 C Max wash temperature 30 C DO NOT wash at all Ironing Dry cleaning Drying Flat Tumble dry DO NOT tumble dry High temperature Low temperature On clothes hanger On the line Energetic wash Delicate wash 6 INTERNATIONAL WASH CODE SYMBOLS
  • Page 25 - English - : 7 CARE AND CLEANING 71 What To Do After You Have Finished Your Washing 72 Cleaning The Lint Filter Your washing machine will give you long and troublefree service if you follow the instructions in this section These instructions show you how to care for your washing machine Press the Power button to turn off the machine Turn off the water taps This will extend the life of the inlet hoses Leave the lid open for a while This allows time for moisture inside the washing machine to evaporate and for any odours to disperse Switch off the electricity at the power point Lint is a collection of threads and fluff which comes off your clothes during washing Your washing machine collects this lint in the lint filter It is important to clean out this lint filter preferably after each wash How to clean the lint filter Remove the softener dispenser cup and filter column from the centre of the agitator Unclip the filter bag from the column Turn the bag inside out and remove the lint Wash the filter bag and dispenser cup in hot water Reassemble the filter to the column and place it back in the centre of the agitator Squeeze tabs together and push out

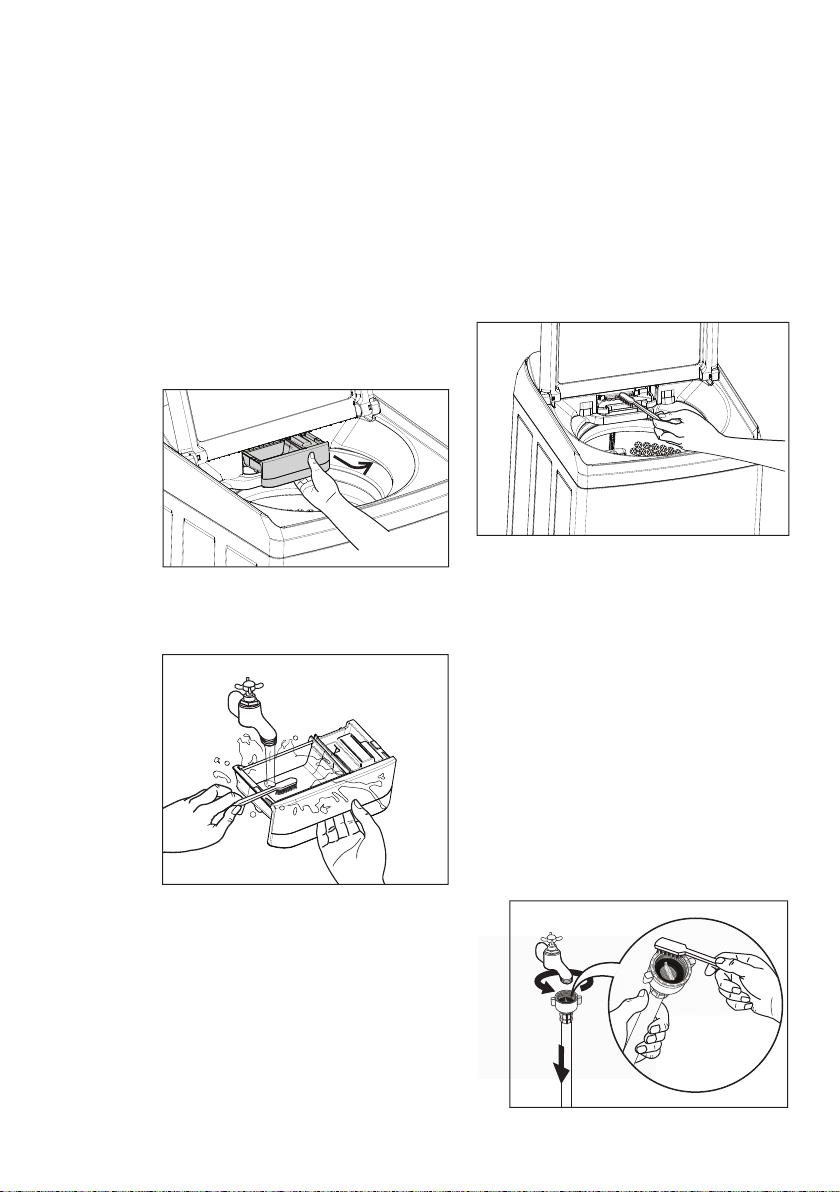

  • Page 26 - English - : 26 wwwwestinghousecomau wwwwestinghouseconz Having removed the drawer use a small brush to clean the recess ensuring that all washing powder residue is removed from the upper and lower part of the recess Replace the drawer and run the rinse program without any clothes in the drum Remove the water inlet hose from the water tap If your water is very hard or contains traces of lime deposit the water inlet filter may become clogged It is therefore a good idea to clean it from time to time To clean the water inlet filters Close the water tap Clean the filter in the inlet hose with a stiff brush Remove the dispenser drawer from its places Pull out the dispenser drawer until it stops then lift up and pull out from the recess To do this proceed as follows Clean the dispenser drawer with water and a brush eg an old toothbrush Dry the drawer The dispenser needs to be cleaned regularly preferably after each wash Inspect the dispenser after each wash to see if there is any residue of detergent 74 Cleaning The Drawer Recess 75 Cleaning The Water Inlet Filter 73 Cleaning The Dispenser
  • Page 27 - English - : 7 Open the water tap Remove the inlet hose behind the appliance Clean the filter in the valve with a stiff brush or a towel Install the inlet hose again Make sure that the couplings are tight to prevent leakages Wipe the surface with warm water Wipe dry with a soft cloth To clean the inside and outside of your washing machine you should Never use solvents alcohol aerosol cleaners spray pack cleaners glass cleaners metal polishes caustic materials scourers or general household cleaners on or near the top panel and lid control panel or other parts of your washing machine Important Dont leave wet clothing especially swimwear in the bowl for too long before you wash it metal objects such as bobby pins dressmaking pins and nails body oils and grease from very dirty or sweaty clothes being deposited around the top of the washbowl excessive foam during wash if incorrect or too much detergent is used salt Stains in the wash bowl can be caused by Check all pockets before loading clothes into your washing machine Important Never use bleach cleaners or steel wool to clean the stainless steel washbowl Important Wipe with a cleaning product which is marked suitable for stainless steel Oily deposits can be removed by wiping surfaces with a mild dishwashing detergent and warm water How To Clean the Stainless Steel Wash Bowl 76 Cleaning Your Washing Machine 77 Cleaning Stains In The Washbowl
  • Page 28 - English - : 28 wwwwestinghousecomau wwwwestinghouseconz DO NOT call for service until you have checked the points listed below If you call for service and there is nothing wrong with your washing machine you will have to pay for the service call You will have to pay even when your washing machine is under warranty Before you call for service check the points in the table below If after all checks the problem persists contact your local Service Centre ProblemPossible CausesDisplay Code What to do Power not switched on No electricity supply through the power point Check the power point with another appliance Water taps not turned on Turn on taps Switch on power point Machine not working Machine has washed load but will not spin Will not fill with water Machine goes out of balance or vibrates excessively when spinning Water on floor Water in wash bowl Out of balance switch off Open lid redistribute load and close lid Lid not fully closed Close lid and press StartPause to resume operation The main supply is unstable Wait until the main supply is stable and the appliance automatically starts operating Out of balance Open lid redistribute load close lid Lid not fully closed Close lid and press StartPause to resume operation Drain hose blocked Check drain hose for blockage Wait a short while the wash will continue Water taps not turned on Turn taps on Inlet hoses blocked Clean tap filterswashers Machine not level Make the machine level Levelling feet not adjusted Adjust feet to touch the floor Clothes not evenly distributed Redistribute clothes evenly Loose inlet hose connections Check connections at taps and rear of machine Loose drain hose connections Check connections at rear of machine 8 TROUBLESHOOTING 81 Possible Failures
  • Page 29 - English - : ProblemPossible CausesDisplay Code What to do Not enough or no detergent Check detergent use and rewash clothes Too many clothes on load Remove some clothes and rewash Incorrect wash program Reselect program and rewash Clothes still dirty after wash program Bra wire or other thin items caught between inner and outer washbowls If the item is visible remove it with pliers Use a wash bag in future Scraping noise on spin Bowl rotation at start of wash Normal noise Brake activation when stopping after spin Normal noise Humming clicking and other noises
  • Page 30 - English - : 30 wwwwestinghousecomau wwwwestinghouseconz When the washing machine detects a problem that requires your attention you will be alerted The machine will warn you of this problem by displaying a fault code in the digital display accompanied by Beeping Error code and the possible fault information are described in the following table Display Code DescriptionPossible fault E10 E10 Difficulties in water fill for washing Tap closed Water flow too low Water inlet valve defective Machine system leaking Drain hose installation wrong Pressure sensor defective Wiring or main board defective Water leakageMachine system leaking Drain hose installation wrong Pressure sensor defective E20 E20 Difficulties in draining for washing Drain system blocked up Drain pump Drain valve defective Pressure sensor defective Wiring or main Board defective Drain pump triac failureDrain pump defective Wiring connector or main board defective E30 E30 Pressure sensor faulty Pressure sensor defective Wiring or main Board defective Pressure sensor calibration problems Water inlet valve defective Pressure sensor defective Drain system blocked up Drain pump Drain valve defective Wiring or main board defective Water Overload Water inlet valve defective Pressure sensor defective Wiring or main board defective 82 Troubleshooting Fault Displays
  • Page 31 - English - : Display Code DescriptionPossible fault E50E50 Motor problems system Motor defective Motor Wiring or Motor Control board defective Overload condition E91E91 UI MB communication error Wiring defective or UI MB board defective EEHH00 Power supply frequency out of limits Wrong or disturbed Power Supply line Main board defective Power supply voltage too high Wrong or disturbed Power Supply line Main board defective Power supply voltage too low Wrong or disturbed Power Supply line Main board defective EECC00 Drive train triac failure actuator TY5 triac load device defective drive train device Wiring or main board defective EEFF00 Foam warningExcessive detergent dosing Drain filter dirty or clogged Drain pipe kinked or clogged Load too unbalanced Load unbalanced
  • Page 32 - English - : 32 wwwwestinghousecomau wwwwestinghouseconz ProblemPossible causes What to do Greyness Yellowing ONLY use low sudsing front load washer detergent in this machine such as Cold Power for Front Loaders and High Efficiency Top Loaders or detergent labelled Matic Incorrect wash times and using insufficient detergent which can cause redeposit ing of detergent on clothes Using incorrect type or too much detergent can cause poor rinsing and poor spin performance A buildup of oils in clothes that come into close contact with the skin eg underwear Tshirts Ageing of clothes Iron deposits in the wash water Use of chlorine bleaches on fabrics with resin finishes Incorrect drying Resort load then rewash using wash program selections suitable for the fabric If the water is very dirty or very sudsy repeat 1 above reducing the amount of detergent you use Resort load then rewash using program selections suitable for the fabric If the water is very dirty or very sudsy repeat 2 above reducing the amount of detergent you use Mixing whites with very dirty clothes eg work clothes Using soap flakes instead of laundry detergent 83 Yellowing Or Greying Clothes
  • Page 33 - English - : 1 Maximum capacity depended on the model of the Washing Machine 9 TECHNICAL DATA Dimensions Height Width Depth 1092 x 670 x 720 mm Power supply Voltage Frequency 220 240 V 50 Hz Total power absorbed 550 W Minimum fuse protection 10 A Water supply pressure Maximum Minimum 08 MPa 008 MPa Maximum dry clothes capacity Extra Dirty 120 Dirty 90 Full Load 60 Daily 45 Fast 20 Delicate Bedding Eco Save Stain Machine Clean Rinse amp Spin Spin Max 1 Max Max 4 kg 2 kg 4 kg 4 kg Max 3 kg No Load Max Max Spin speed Maximum Minimum 800 rpm 550 rpm WWT8084J7WA 8 kg WWT9084C7WA 9 kg WWT1084C7WA 10 kg WWT1184C7WA 11 kg
  • Page 34 - English - : 34 wwwwestinghousecomau wwwwestinghouseconz Remove the plastic bag which covers the machine Remove the polystyrene piece Use gloves Remove the external film If necessary use a cutter Put one of the polystyrene packaging elements on the floor behind the appliance Carefully put down the appliance with the rear side on it Make sure not to damage the hoses Caution Pay attention to the machine lid may hit your body 10 INSTALLATION 101 Unpacking

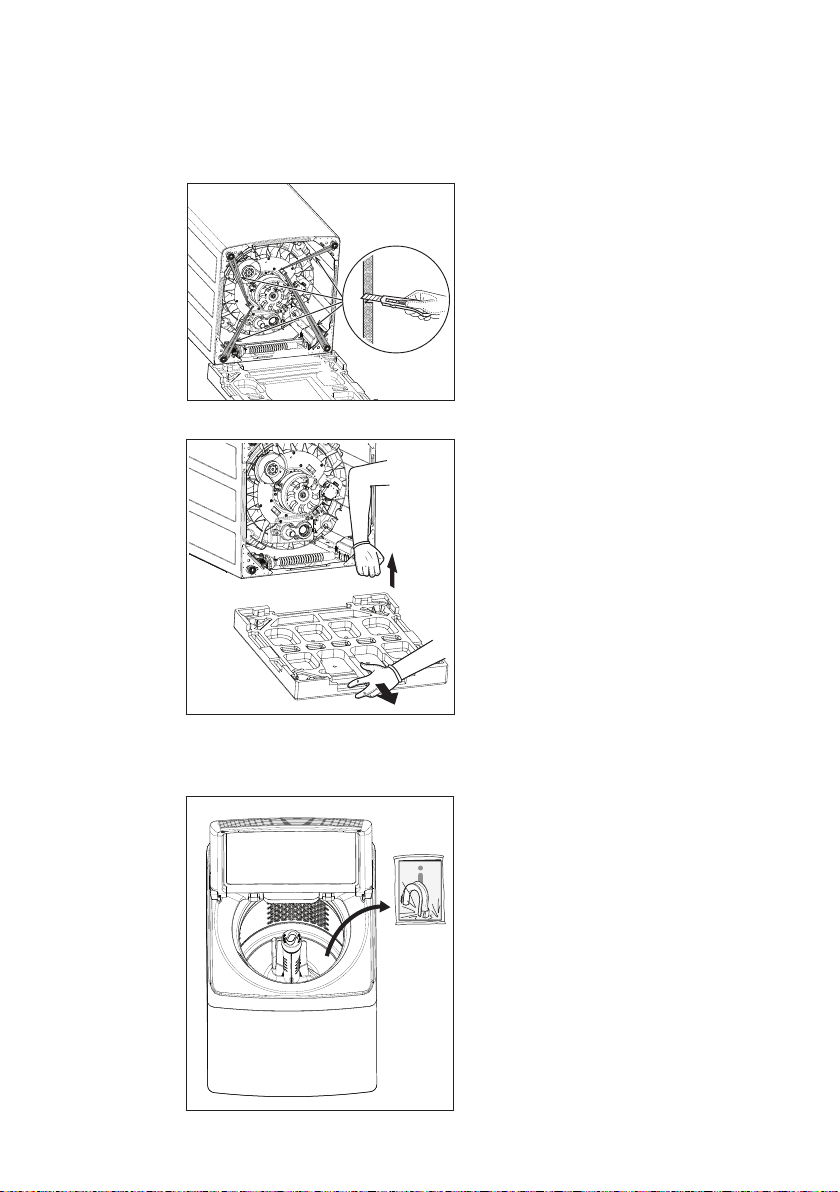

  • Page 35 - English - : Open the lid Remove the polystyrene piece from the top panel and all the items from the washing tub Remove the polystyrene base Cut and remove straps as shown

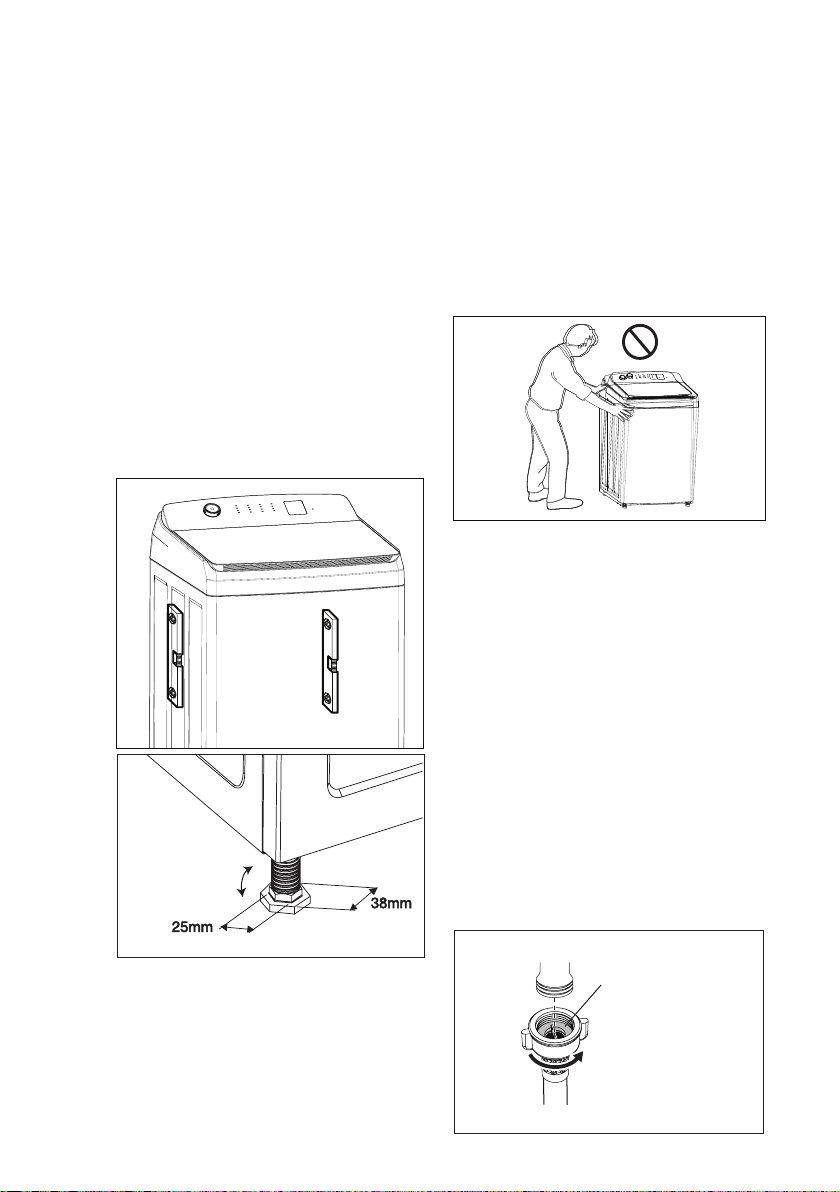

  • Page 36 - English - : 36 wwwwestinghousecomau wwwwestinghouseconz Connect the water inlet hose to a tap with 34 BSP thread When installing this washing machine use the hoses supplied DO NOT USE OLD HOSES The inlet hoses have the sealing washer fitted Install the machine on a flat hard floor Make sure that air circulation around the machine is not impeded by carpets rugs etc Check that the machine does not touch the wall or cupboard units When the washing machine is levelled try to rock it from corner to corner If it does rock adjust the legs again until it is levelled and does not rock Turn the taps on and check that there are no leaks from the connections Turn off the water taps and move the washing machine into its final position Make sure that the inlet and drain hoses do not kink Connect the inlet hose to the water tab Make sure the connections are tight It is important that your washing machine stands firm and level on the floor to ensure correct operation Use a spirit level on the front and side panels of the washing machine to check the levels The spirit level should be used close to the corners of the washing machine for accuracy By hand or using a spanner if necessaryDGMXVWWKHEDFN OHJVILUVWWKHQWKHIURQW GMXVWWKHIRXUOHJVXSRUGRZQDV UHTXLUHG You machine may have adjustable legs with a stepped base If so please use either a 38 mm or 25 mm spanner or adjust them by hand Water Tap Inlet hose Filter and rubber washer inside nut If you do not have spirit level as a guide use the edge of a door frame cupboard or bench to check that the washing machine is level Never place cardboard wood or similar materials under the machine to compensate for any unevenness in the floor 103 Water Inlet 102 Positioning
  • Page 37 - English - : 104 Water Drainage Please refer to the installation instruction sheet for more information It is important that the top of the drain hose is above the joint between the washing machine cabinet and the top panel see picture Top of drain hose must be above the join arrowed between the top panel and the cabinet Adjust this length to suit your trough Trough Fitting hose former Obtain hose former from inside the washbowl and fit it to the drain hose Positioning of drain hose Adjust the free length of hose to suit your installation bend hose Adjust length to suit trough Pull apart to insert hose pull hose 450 approx Hose Guide
  • Page 38 - English - : 38 wwwwestinghousecomau wwwwestinghouseconz The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution Should the appliance power supply cable need to be replaced this shall be carried out by our Service Centre Connect the machine to an earthed socket outlet CAUTION When the appliance is installed the power supply cable must be easily accessible This machine is designed to operate on a 220 240 V singlephase 50 Hz supply An incorrect power supply may void your warranty Check that your domestic electrical installation can take the maximum load required 20 kW also taking into account any other appliances in use 105 Electrical Connection
  • Page 39 - English - : The materials marked with the symbol are recyclable gtPEltpolyethylene gtPSltpolystyrene gtPPltpolypropylene This means that they can be recycled by disposing them properly in appropriate collection containers To save water energy and to help protect the environment we recommend that you follow these tips Use authorized disposal sites for your old appliance Help to keep your country tidy The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product For more detailed information about recycling of this product please contact your local city office your household waste disposal service or the shop where you purchased the product Normally soiled laundry may be washed without pre washing in order to save detergent water and time the environment is protected too The machine works more economically if it is fully loaded With adequate pretreatment stains and limited soiling can be removed the laundry can then be washed at a lower temperature Measure out detergent according to the water hardness the degree of soiling and the quantity of laundry being washed 11 ENVIRONMENT CONCERNS 111 Packaging Materials 112 Old Machine 113 Ecological Hints
  • Page 40: 40 wwwwestinghousecomau wwwwestinghouseconz NOTE
