Pioneer VSX330 5.1 Channel AV Receiver

Operating Instructions - Transcript

• Page 2 - English - : CAUTION TO PREVENT THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK NO USERSERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL D34211B1En WARNING This equipment is not waterproof To prevent a fire or shock hazard do not place any container filled with liquid near this equipment such as a vase or flower pot or expose it to dripping splashing rain or moisture D34213A1En WARNING To prevent a fire hazard do not place any naked flame sources such as a lighted candle on the equipment D34217aA1En VENTILATION CAUTION When installing this unit make sure to leave space around the unit for ventilation to improve heat radiation at least 40 cm at top 20 cm at rear and 20 cm at each side WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating To prevent fire hazard the openings should never be blocked or covered with items such as newspapers tablecloths curtains or by operating the equipment on thick carpet or a bed D34217bA1En Operating Environment Operating environment temperature and humidity 5 C to 35 C 41 F to 95 F less than 85 RH cooling vents not blocked Do not install this unit in a poorly ventilated area or in locations exposed to high humidity or direct sunlight or strong artificial light D34217cA2En
• Page 3 - English - : Information for users on collection and disposal of old equipment and used batteries These symbols on the products packaging andor accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste For proper treatment recovery and recycling of old products and used batteries please take them to applicable collection points in accordance with your national legislation By disposing of these products and batteries correctly you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling For more information about collection and recycling of old products and batteries please contact your local municipality your waste disposal service or the point of sale where you purchased the items These symbols are only valid in the European Union For countries outside the European Union If you wish to discard these items please contact your local authorities or dealer and ask for the correct method of disposal K058aA1En Symbol examples for batteries Symbol for equipment Pb CAUTION The STANDBYON switch on this unit will not completely shut off all power from the AC outlet Since the power cord serves as the main disconnect device for the unit you will need to unplug it from the AC outlet to shut down all power Therefore make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident To avoid fire hazard the power cord should also be unplugged from the AC outlet when left unused for a long period of time for example when on vacation D34222aA1En WARNING Store small parts out of the reach of children and infants If accidentally swallowed contact a doctor immediately D4164A1En This product is for general household purposes Any failure due to use for other than household purposes such as longterm use for business purposes in a restaurant or use in a car or ship and which requires repair will be charged for even during the warranty period K041A1En
• Page 4 - English - : Thank you for buying this Pioneer product Please read through these operating instructions so you will know how to operate your model properly Before you start 5 Checking whats in the box 5 Installing the receiver 5 Flow of settings on the receiver 5 01 Controls and displays Front panel 6 Display 7 Remote control 8 Loading the batteries 9 Operating range of remote control 9 02 Connecting your equipment Placing the speakers 10 Hints on the speaker placement 10 Connecting the speakers 11 Making cable connections 12 HDMI cables 12 About HDMI 12 Analog audio cables 13 Digital audio cables 13 Standard RCA video cables 13 About video outputs connection 13 Connecting a TV and playback components 14 Connecting using HDMI 14 Connecting your component with no HDMI terminal 15 Connecting antennas 16 Using external antennas 16 Connecting a USB device 17 Plugging in the receiver 17 03 Basic playback Playing a source 18 Selecting the audio input signal 18 Playing a USB device 20 Basic playback controls 20 Compressed audio compatibility 20 Listening to the radio 21 Improving FM sound 21 Saving station presets 21 Listening to station presets 21 Naming preset stations 21 An introduction to RDS For Europe 22 Searching for RDS programs 22 Displaying RDS information 22 04 Listening to your system Choosing the listening mode 23 Auto playback 23 Listening in surround sound 23 Using the Advanced surround 23 Using Stream Direct 24 Using the Sound Retriever 24 Better sound using Phase Control 24 Setting the Audio options 24 Changing the TV format setting of Graphical User Interface 26 Changing the frequency step of AM Radio 26 05 Home Menu Using the Home Menu 27 Manual speaker setup 27 Speaker Setting 27 XOver 28 Channel Level 28 Speaker Distance 29 The Input Assign menu 29 The Auto Power Down menu 29 The HDMI Setup menu 30 06 Additional information Troubleshooting 31 General 31 HDMI 32 Important information regarding the HDMI connection 32 USB messages 32 Resetting the main unit 33 Cleaning the unit 33 Specifications 33 Software license notice 34 Contents
• Page 5 - English - : Before you start Checking whats in the box Please check that youve received the following supplied accessories Remote control AAA size IEC R03 dry cell batteries to confirm system operation x2 AM loop antenna FM wire antenna Quick start guide Safety Brochure Installing the receiver When installing this unit make sure to put it on a level and stable surface Dont install it on the following places on a color TV the screen may distort near a cassette deck or close to a device that gives off a magnetic field This may interfere with the sound in direct sunlight in damp or wet areas in extremely hot or cold areas in places where there is vibration or other movement in places that are very dusty in places that have hot fumes or oils such as a kitchen Flow of settings on the receiver The unit is a fullfledged AV receiver equipped with an abundance of functions and terminals It can be used easily after following the procedure below to make the connections and settings The colors of the steps indicate the following Required setting item Setting to be made as necessary Connecting the speakers Where you place the speakers will have a big effect on the sound Placing the speakers page 10 Connecting the speakers page 11 Connecting the components For surround sound youll want to hook up using a digital connection from the Bluray DiscDVD player to the receiver About video outputs connection page 13 Connecting a TV and playback components page 14 Connecting antennas page 16 Plugging in the receiver page 17 Power On Make sure youve set the video input on your TV to this receiver Check the manual that came with the TV if you dont know how to do this Making the initial settings according to the region and environment in which you live Changing the TV format setting of Graphical User Interface page 26 Changing the frequency step of AM Radio page 26 Specify the size and number of speakers youve connected Speaker Setting page 27 The Input Assign menu page 29 When using connections other than the recommended connections The HDMI Setup menu page 30 When the connected TV supports the HDMI Audio Return Channel function Basic playback page 18 Selecting the audio input signal page 18 Playing a USB device page 20 Choosing the listening mode page 23 Adjusting the sound as desired Using the Sound Retriever page 24 Better sound using Phase Control page 24 Setting the Audio options page 24 Manual speaker setup page 27

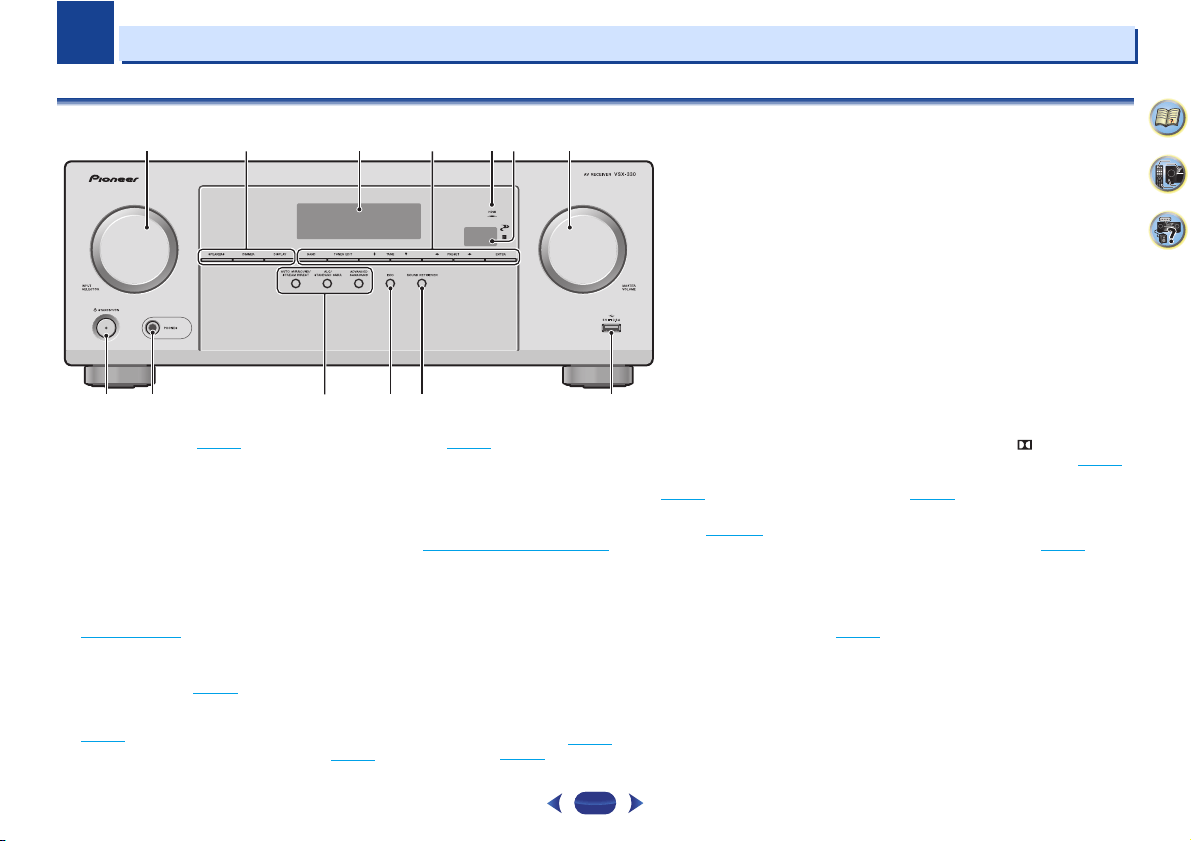

• Page 6 - English - : Chapter Controls and displays Front panel INPUT SELECTOR dial Selects an input source page 18 Receiver control buttons SPEAKERS Use to change the speaker system on or off When the SP OFF is selected no sound is output from the speakers connected to this receiver DIMMER Dims or brightens the display The brightness can be controlled in four steps DISPLAY Switches the display of this unit The listening mode sound volume input name can be checked by selecting an input source Character display See Display on page 7 Tuner control buttons BAND Switches between AM FM ST stereo and FM MONO radio bands page 21 TUNER EDIT Use with TUNE PRESET and ENTER to memorize and name stations for recall page 21 TUNE Used to find radio frequencies page 21 PRESET Use to select preset radio stations page 21 HDMI indicator Blinks when connecting an HDMIequipped component lights when the component is connected page 14 Remote sensor Receives the signals from the remote control see Operating range of remote control on page 9 MASTER VOLUME dial STANDBYON PHONES jack Use to connect headphones When the headphones are connected there is no sound output from the speakers The listening mode when the sound is heard from the headphone can be selected only from PHONES SURR STEREO or STEREO ALC mode Listening mode buttons AUTO SURROUNDSTREAM DIRECT Switches between Auto surround mode page 23 and Stream Direct playback page 24 ALCSTANDARD SURR Press for standard decoding and to switch between the modes of Pro Logic and NEO6 and the Auto level control stereo mode page 23 ADVANCED SURROUND Switches between the various surround modes page 23 ECO Switches between ECO Mode 1ECO Mode 2 When ECO Mode is turned ON the display will go dark page 24 SOUND RETRIEVER Turn sound retriever effect onoff USB terminal Use to connect your USB mass storage device as an audio source page 17 5 726 8 9 1110 12 13

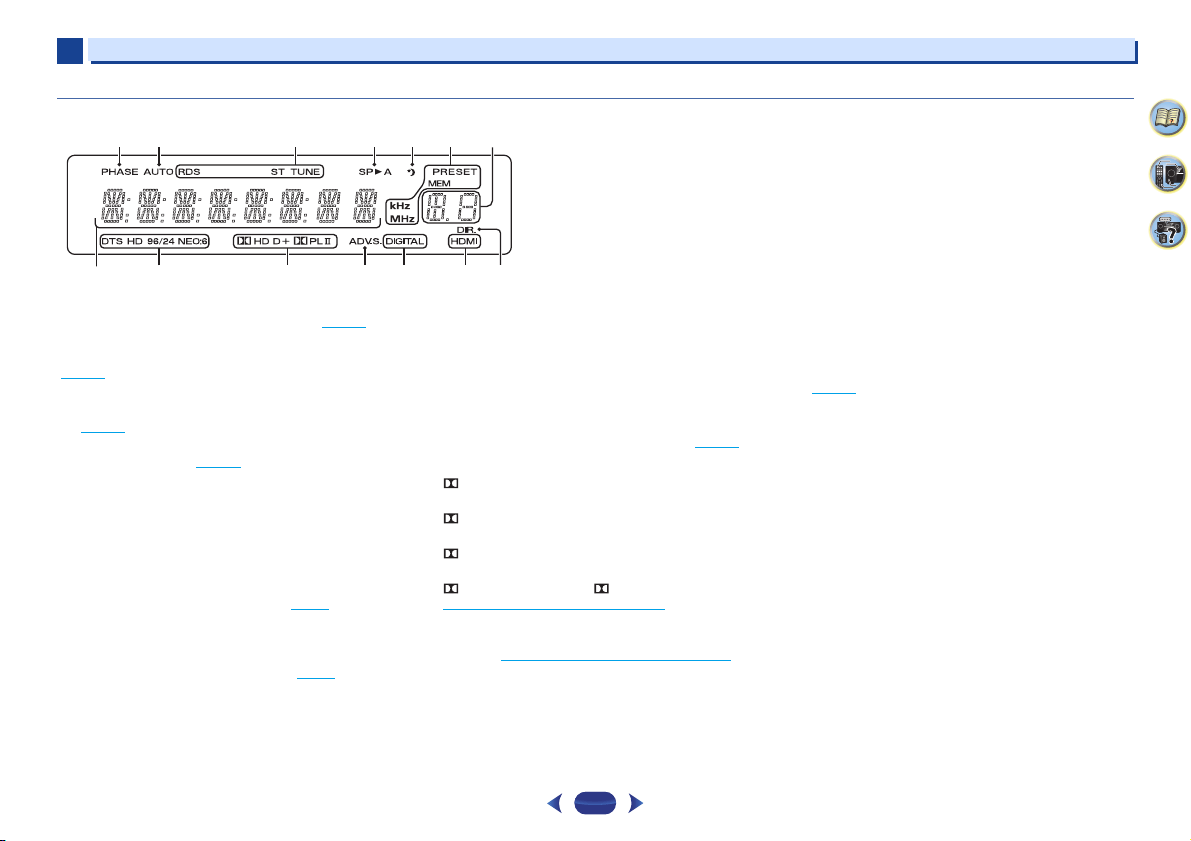

• Page 7 - English - : Controls and displays Display PHASE Lights when the Phase Control is switched on page 24 AUTO Lights when the Auto Surround feature is switched on page 23 Tuner indicators RDS Lights when an RDS broadcast is received page 22 For Europe ST Lights when a stereo FM broadcast is being received in auto stereo mode page 21 TUNE Lights when a normal broadcast channel PRESET Shows when a preset radio station is registered or called MEM Blinks when a radio station is registered kHzMHz Lights when the character display is showing the currently received AMFM broadcast frequency Speaker indicators Shows if the speaker system is on or not page 6 SP A means the speakers are switched on SP means the speakers are switched off Sleep timer indicator Lights when the receiver is in sleep mode page 8 PRESET information or input signal indicator Shows the preset number of the tuner or the input signal type etc Character display Displays various system information DTS indicators DTS Lights when a source with DTS encoded audio signals is detected HD Lights when a source with DTSEXPRESS or DTSHD encoded audio signals is detected 9624 Lights when a source with DTS 9624 encoded audio signals is detected NEO6 When one of the NEO6 modes of the receiver is on this lights to indicate NEO6 processing page 23 Dolby Digital indicators D Lights when a Dolby Digital encoded signal is detected D Lights when a source with Dolby Digital Plus encoded audio signals is detected HD Lights when a source with Dolby TrueHD encoded audio signals is detected PLII Lights to indicate Pro Logic II decoding see Listening in surround sound on page 23 for more on this ADVS Lights when one of the Advanced Surround modes has been selected see Using the Advanced surround on page 23 for more on this SIGNAL SELECT indicators DIGITAL Lights when a digital audio signal is selected Blinks when a digital audio signal is selected and selected audio input is not provided HDMI Lights when an HDMI signal is selected Blinks when an HDMI signal is selected and selected HDMI input is not provided DIR Lights when the DIRECT or PURE DIRECT mode is switched on page 24 14 15 16 17 18 16 21 22 23 24 24 25

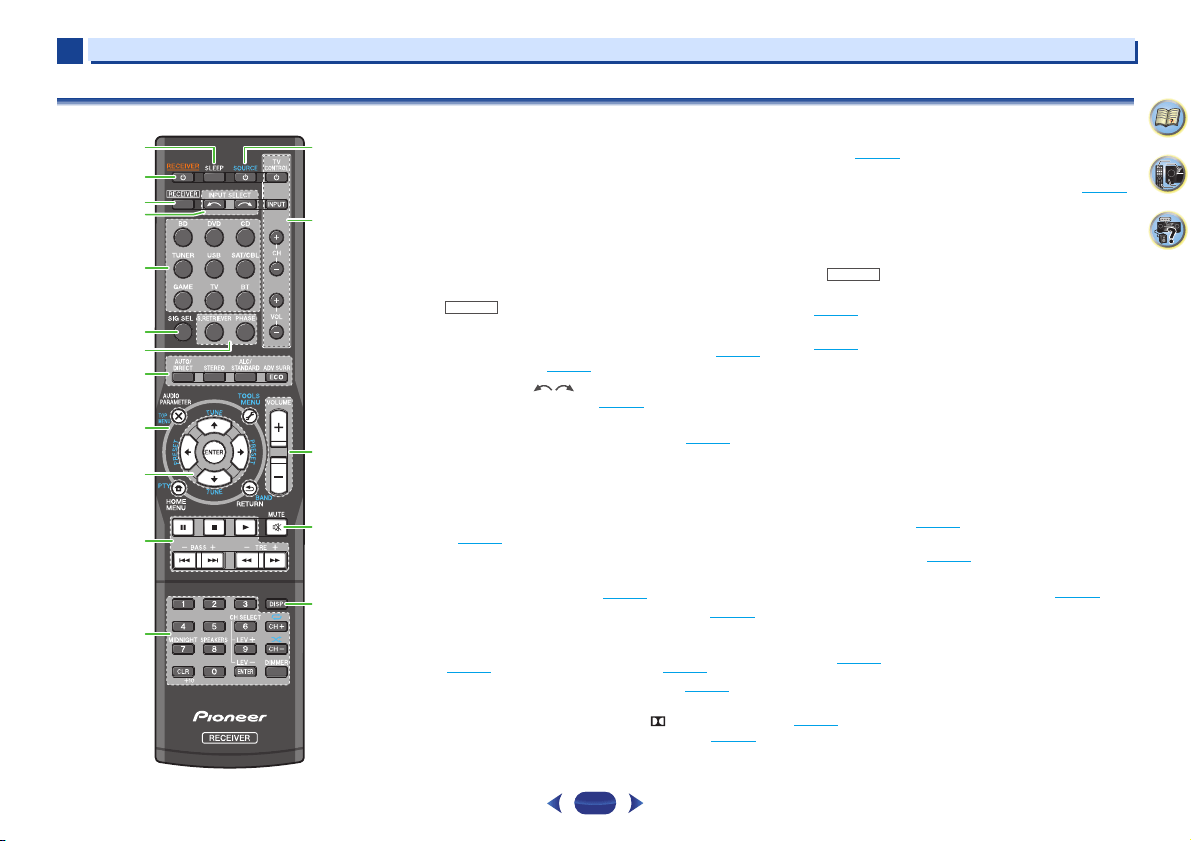

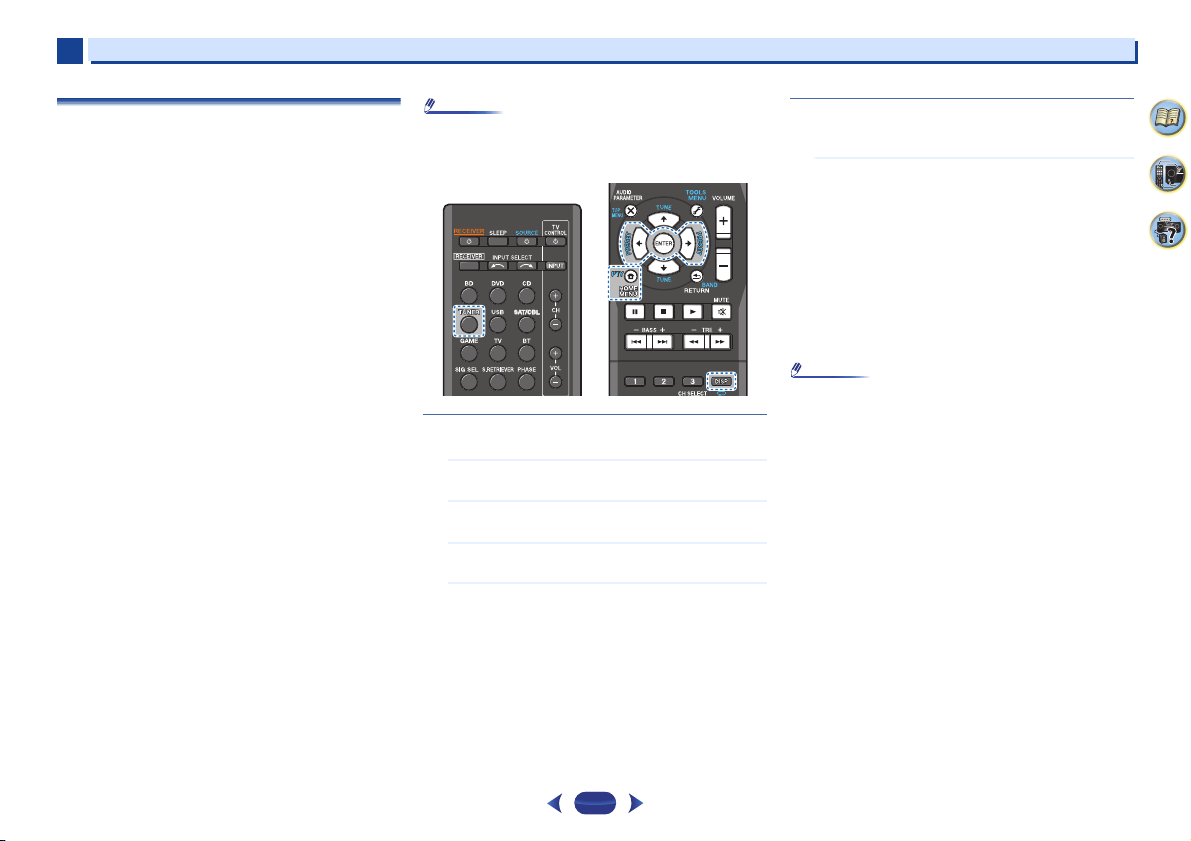

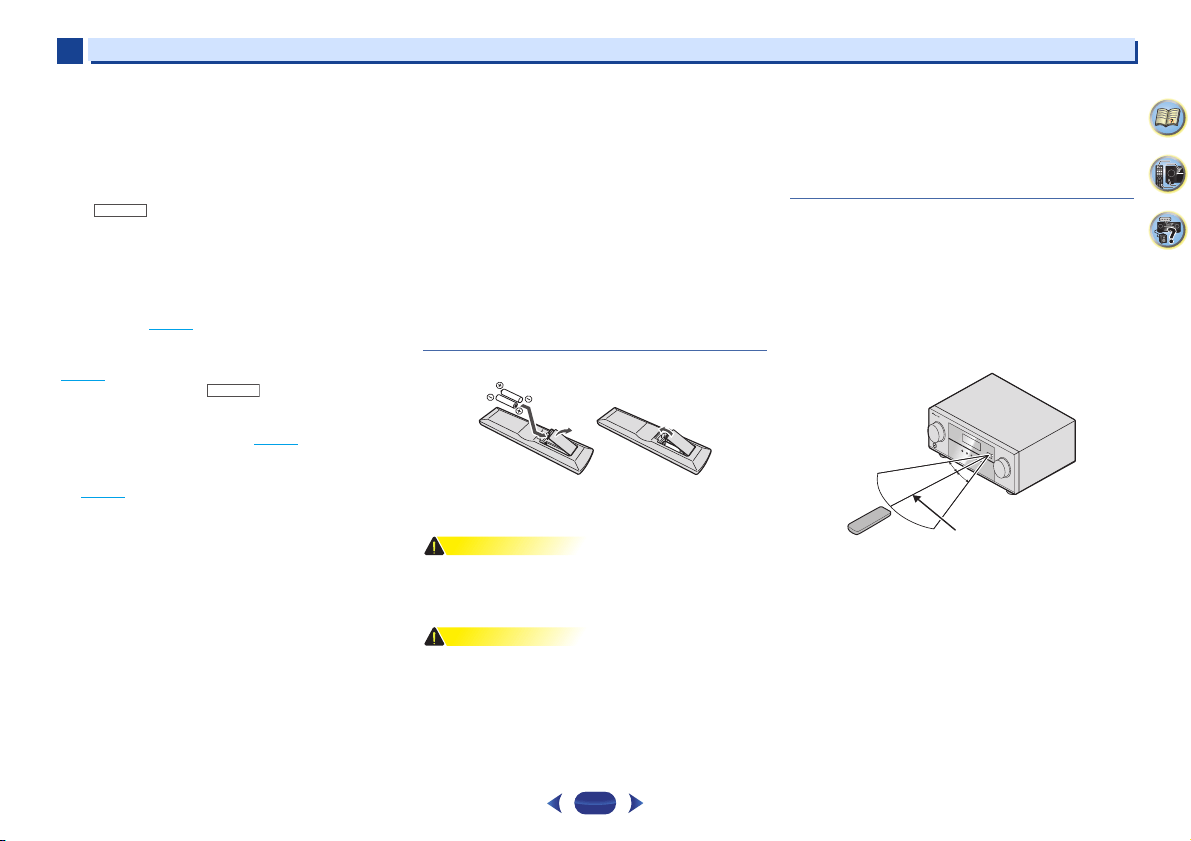

• Page 8 - English - : Controls and displays Remote control As for operating other devices the remote control codes for the Pioneer products are preset The settings cannot be changed SLEEP Press to change the amount of time before the receiver switches into standby 30 min 60 min 90 min Off You can check the remaining sleep time at any time by pressing SLEEP once RECEIVER Switches the receiver between standby and on Switches the remote to control the receiver used to select the white commands above the number buttons MIDNIGHT etc Also use this button to set up surround sound page 27 or Audio parameters page 24 INPUT SELECT Use to select the input source page 18 Input function buttons Use to select the input source to this receiver page 18 This will enable you to control other Pioneer components with the remote control BT It is not used with this receiver SIG SEL Press to select the audio input signal of the component to play back page 18 Sound control buttons SRETRIEVER Press to restore CD quality sound to compressed audio sources page 24 PHASE Press to switch onoff Phase Control page 24 Listening mode and component control buttons AUTODIRECT Switches between Auto surround mode page 23 and Stream Direct playback page 24 STEREO Press to select stereo playback page 23 ALCSTANDARD SURR Press for standard decoding and to switch between the modes of Pro Logic II and NEO6 and the Auto level control stereo mode page 23 ADV SURR Switches between the various surround modes page 23 ECO Switches between ECO Mode 1ECO Mode 2 When ECO Mode is turned ON the display will go dark page 24 Receiver and component control buttons The following button controls can be accessed after you have selected the corresponding input function button BD DVD etc Press first to access AUDIO PARAMETER Use to access the Audio options page 24 HOME MENU Press to access the Home Menu page 27 RETURN Confirm and exit the current menu screen Press BD or DVD first to access TOP MENU Displays the disc top menu of a Bluray DiscDVD HOME MENU Displays the HOME MENU screen RETURN Confirm and exit the current menu screen MENU Displays the TOOLS menu of Bluray Disc player Press TUNER first to access TOOLS Memorizes stations for recall also used to change the name page 21 BAND Switches between AM FM ST stereo and FM MONO radio bands page 21 Press USB first to access PTY Use to search for RDS program types page 22 For Europe TUNE PRESET ENTER Use the arrow buttons when setting up your surround sound system page 27 Also used to control Bluray DiscDVD menusoptions Use TUNE can be used to find radio frequencies and PRESET can be used to select preset radio stations page 21 RECEIVER RECEIVER

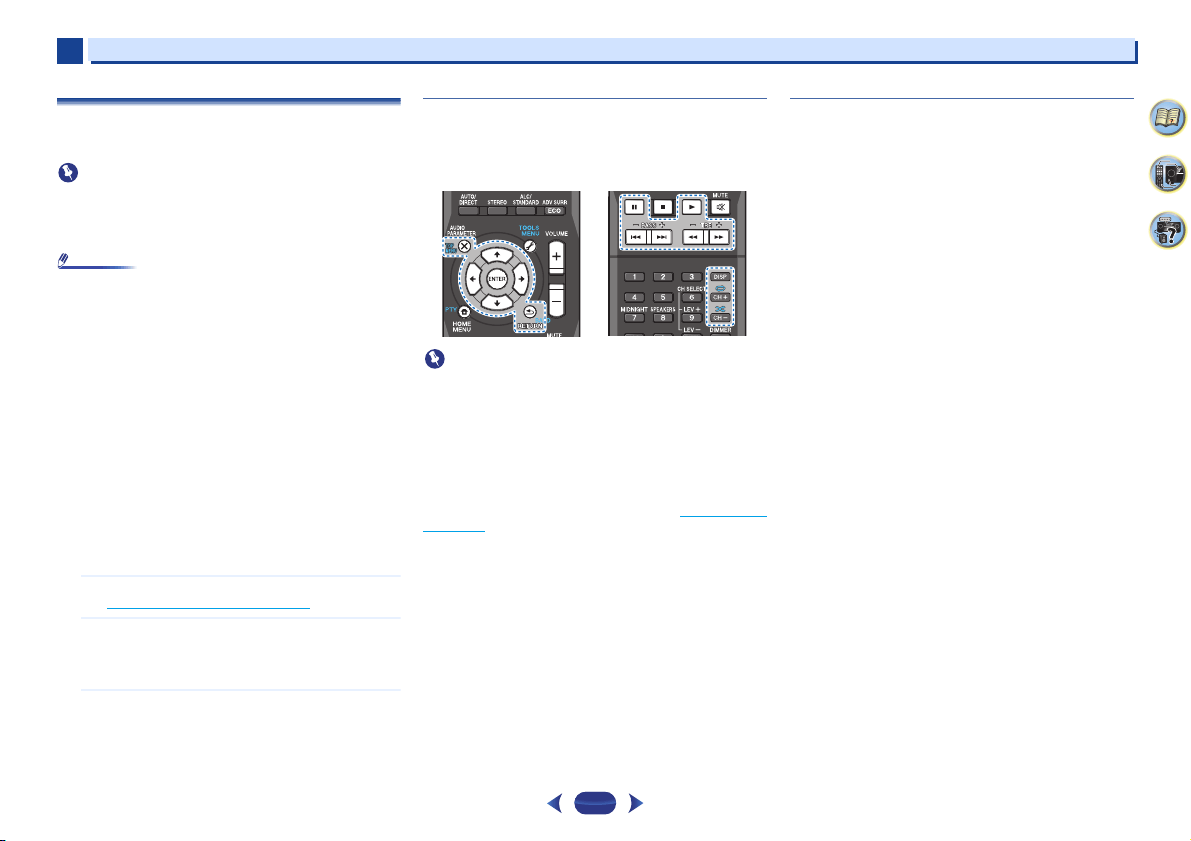

• Page 9 - English - : Controls and displays Component control buttons The main buttons etc are used to control a component after you have selected it using the input function buttons The controls above these buttons can be accessed after you have selected the corresponding input function button BD DVD and CD These buttons also function as described below Press first to access BASS TRE Use to adjust Bass or Treble These controls are disabled when the listening mode is set to DIRECT or PURE DIRECT When the front speaker is set at SMALL in the Speaker Setting and the XOver is set above 150 Hz the subwoofer channel level will be adjusted by pressing BASS page 28 Number buttons and other component controls Use the number buttons to directly select a radio frequency page 21 or the tracks on a CD etc There are other buttons that can be accessed after is pressed For example MIDNIGHT etc CH SELECT Press repeatedly to select a channel then use LEV to adjust the level page 28 LEV Use to adjust the channel level MIDNIGHT Switches to Midnight or Loudness listening page 25 SPEAKERS Use to change the speaker system on or off When the SP OFF is selected no sound is output from the speakers connected to this receiver DIMMER Dims or brightens the display The brightness can be controlled in four steps During ECO mode the brightness switches between 2 levels If the dimmest level is selected DIMMER will be shown on the display Mode other than ECO 3 levels ECO mode 2 levels SOURCE Turns on or off the power of the Pioneer DVDDVR units when BD DVD or CD is selected using the input function buttons TV CONTROL buttons These buttons can control only be used with Pioneer TVs Use to turn onoff the power of the TV INPUT Use to select the TV input signal CH Use to select channels VOL Use to adjust the volume on your TV VOLUME Use to set the listening volume MUTE Mutesunmutes the sound DISP Switches the display of this unit The listening mode sound volume or input name can be checked by selecting an input source Loading the batteries The batteries included with the unit are to check initial operations they may not last over a long period We recommend using alkaline batteries that have a longer life WARNING Do not use or store batteries in direct sunlight or other excessively hot place such as inside a car or near a heater This can cause batteries to leak overheat explode or catch fire It can also reduce the life or performance of batteries CAUTION Incorrect use of batteries may result in such hazards as leakage and bursting Observe the following precautions Never use new and old batteries together Insert the plus and minus sides of the batteries properly according to the marks in the battery case Batteries with the same shape may have different voltages Do not use different batteries together When disposing of used batteries please comply with governmental regulations or environmental public institutions rules that apply in your countryarea When inserting the batteries make sure not to damage the springs on the batterys terminals This can cause batteries to leak or overheat Operating range of remote control The remote control may not work properly if There are obstacles between the remote control and the receivers remote sensor Direct sunlight or fluorescent light is shining onto the remote sensor The receiver is located near a device that is emitting infrared rays The receiver is operated simultaneously with another infrared remote control unit RECEIVER RECEIVER 30 7 m 30
• Page 10 - English - : Chapter Connecting your equipment Placing the speakers By connecting the left and right front speakers LR the center speaker C the left and right surround speakers SLSR and the subwoofer SW a 51 ch surround system can be enjoyed To achieve the best possible surround sound install your speakers as shown below Hints on the speaker placement Where you put your speakers in the room has a big effect on the quality of the sound The following guidelines should help you to get the best sound from your system The subwoofer can be placed on the floor Ideally the other speakers should be at about ear level when youre listening to them Putting the speakers on the floor except the subwoofer or mounting them very high on a wall is not recommended For the best stereo effect place the front speakers 2 m to 3 m apart at equal distance from the TV If youre going to place speakers around your CRT TV use shielded speakers or place the speakers at a sufficient distance from your CRT TV If youre using a center speaker place the front speakers at a wider angle If not place them at a narrower angle Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen Also make sure the center speaker does not cross the line formed by the leading edge of the front left and right speakers It is best to angle the speakers towards the listening position The angle depends on the size of the room Use less of an angle for bigger rooms Surround speakers should be positioned 60 cm to 90 cm higher than your ears and titled slight downward Make sure the speakers dont face each other For DVDAudio the speakers should be more directly behind the listener than for home theater playback Try not to place the surround speakers farther away from the listening position than the front and center speakers Doing so can weaken the surround sound effect CAUTION Make sure that all speakers are securely installed This not only improves sound quality but also reduces the risk of damage or injury resulting from speakers being knocked over or falling in the event of external shocks such as earthquakes SL L SW C R SR 51 channel surround system

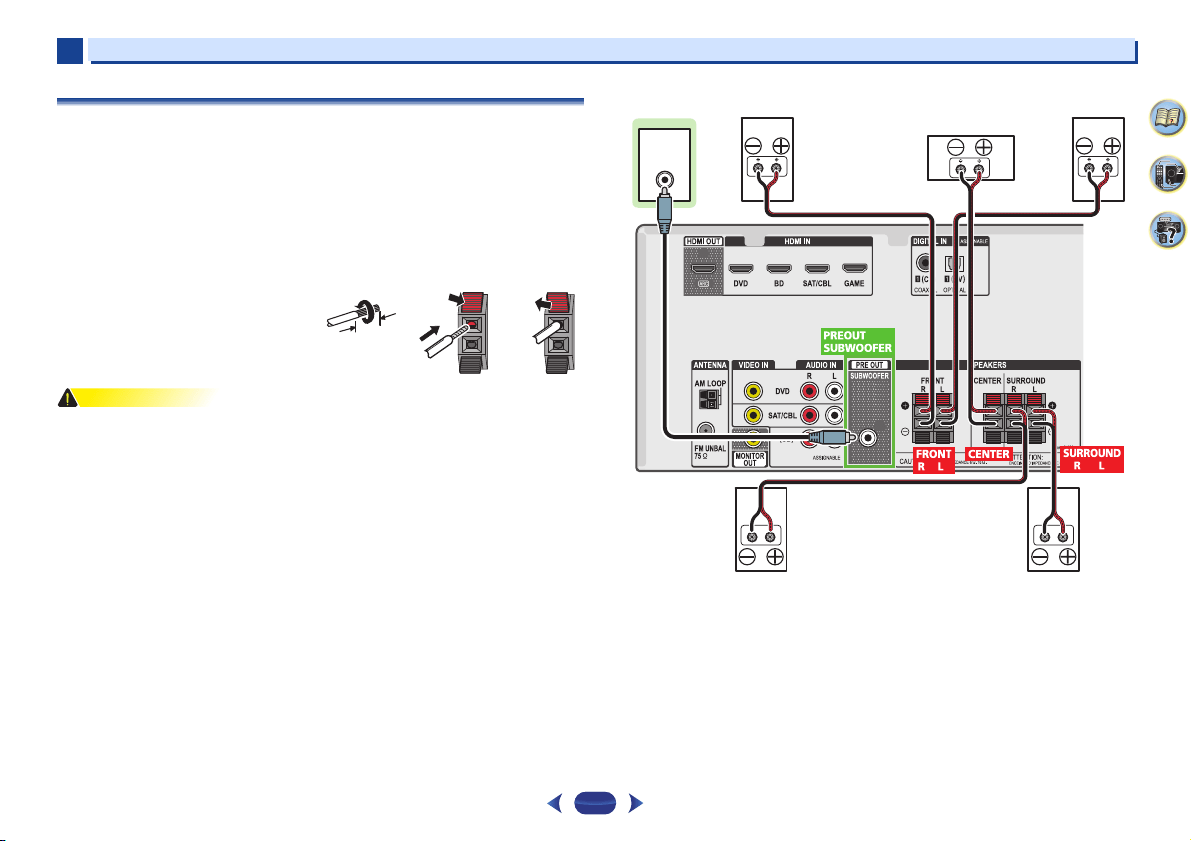

• Page 11 - English - : Connecting your equipment Connecting the speakers The receiver will work with just two stereo speakers the front speakers in the diagram but using at least three speakers is recommended and a complete setup is best for surround sound Make sure you connect the speaker on the right to the right R terminal and the speaker on the left to the left L terminal Also make sure the positive and negative terminals on the receiver match those on the speakers You can use speakers with a nominal impedance between 6 and 16 Be sure to complete all connections before connecting this unit to the AC power source Bare wire connections CAUTION These speaker terminals carry HAZARDOUS LIVE voltage To prevent the risk of electric shock when connecting or disconnecting the speaker cables disconnect the power cord before touching any uninsulated parts Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure Twist exposed wire strands together Push open the tabs and insert exposed wire Release the tabs 12 3 10 mm LINE LEVEL INPUT Center Surround right Front right Front leftSubwoofer Surround left

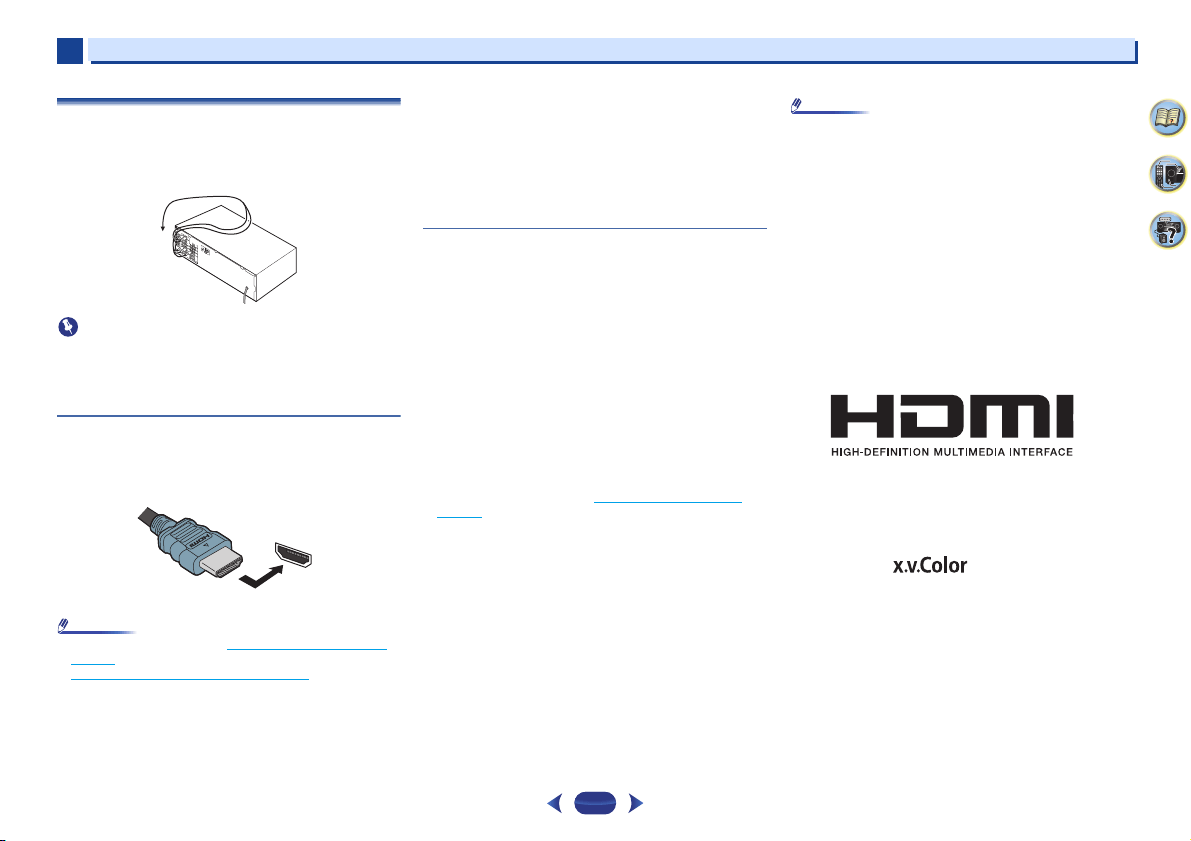

• Page 12 - English - : Connecting your equipment Making cable connections Make sure not to bend the cables over the top of this unit as shown in the illustration If this happens the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers Important Before making or changing connections switch off the power and disconnect the power cord from the AC outlet Before unplugging the power cord switch the power into standby HDMI cables Both video and sound signals can be transmitted simultaneously with one cable If connecting the player and the TV via this receiver for both connections use HDMI cables Be careful to connect the terminal in the proper direction Note Set the HDMI parameter in Setting the Audio options on page 24 to THRU THROUGH and set the input signal in Selecting the audio input signal on page 18 to HDMI if you want to hear HDMI audio output from your TV no sound will be heard from this receiver If the video signal does not appear on your TV try adjusting the resolution settings on your component or display Note that some components such as video game units have resolutions that may not be displayed In this case use a analog composite connection When the video signal from the HDMI is 480i 480p 576i or 576p Multi Ch PCM sound and HD sound cannot be received About HDMI The HDMI connection transfers uncompressed digital video as well as almost every kind of digital audio that the connected component is compatible with including DVD Video DVDAudio SACD Dolby Digital Plus Dolby TrueHD DTSHD Master Audio see below for limitations Video CD Super VCD and CD This receiver incorporates HighDefinition Multimedia Interface HDMI technology This receiver supports the functions described below through HDMI connections Digital transfer of uncompressed video contents protected by HDCP 1080p24 1080p60 etc 3D signal transfer Deep Color signal transfer xvColor signal transfer Audio Return Channel see The HDMI Setup menu on page 30 Input of multichannel linear PCM digital audio signals 192 kHz or less for up to 8 channels Input of the following digital audio formats Dolby Digital Dolby Digital Plus DTS High bitrate audio Dolby TrueHD DTSHD Master Audio DVDAudio CD SACD DSD 2 ch only Video CD Super VCD 4K signal transfer This may not operate properly depending on the connected equipment 4K 24p 4K 25p 4K 30p 4K 50p and 4K 60p signals are supported Note Use a High Speed HDMI Cable If HDMI cable other than a High Speed HDMI Cable is used it may not work properly When an HDMI cable with a builtin equalizer is connected it may not operate properly 3D Deep Color xvColor 4K signal transfer and Audio Return Channel are only possible when connected to a compatible component HDMI format digital audio transmissions require a longer time to be recognized Due to this interruption in the audio may occur when switching between audio formats or beginning playback Turning onoff the device connected to this units HDMI OUT terminal during playback or disconnecting connecting the HDMI cable during playback may cause noise or interrupted audio The terms HDMI and HDMI HighDefinition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries xvColor and are trademarks of Sony Corporation HDMI

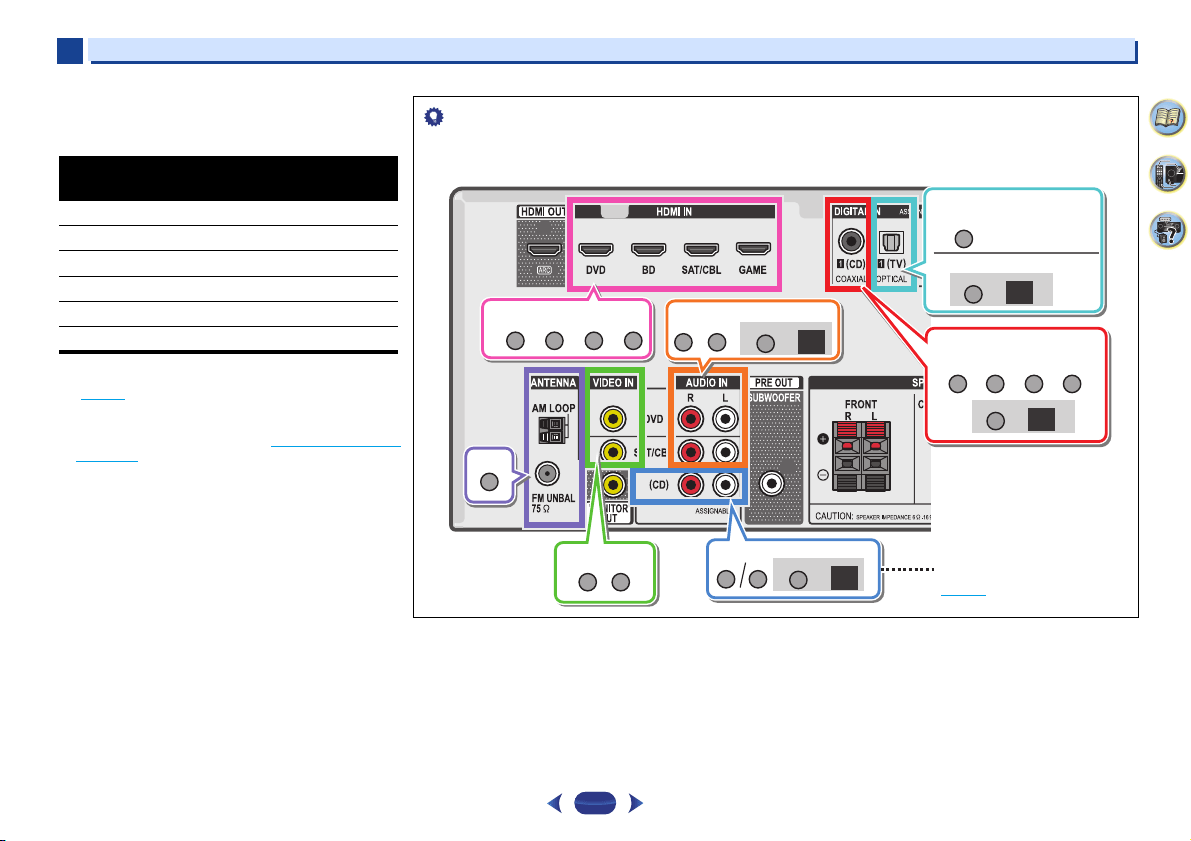

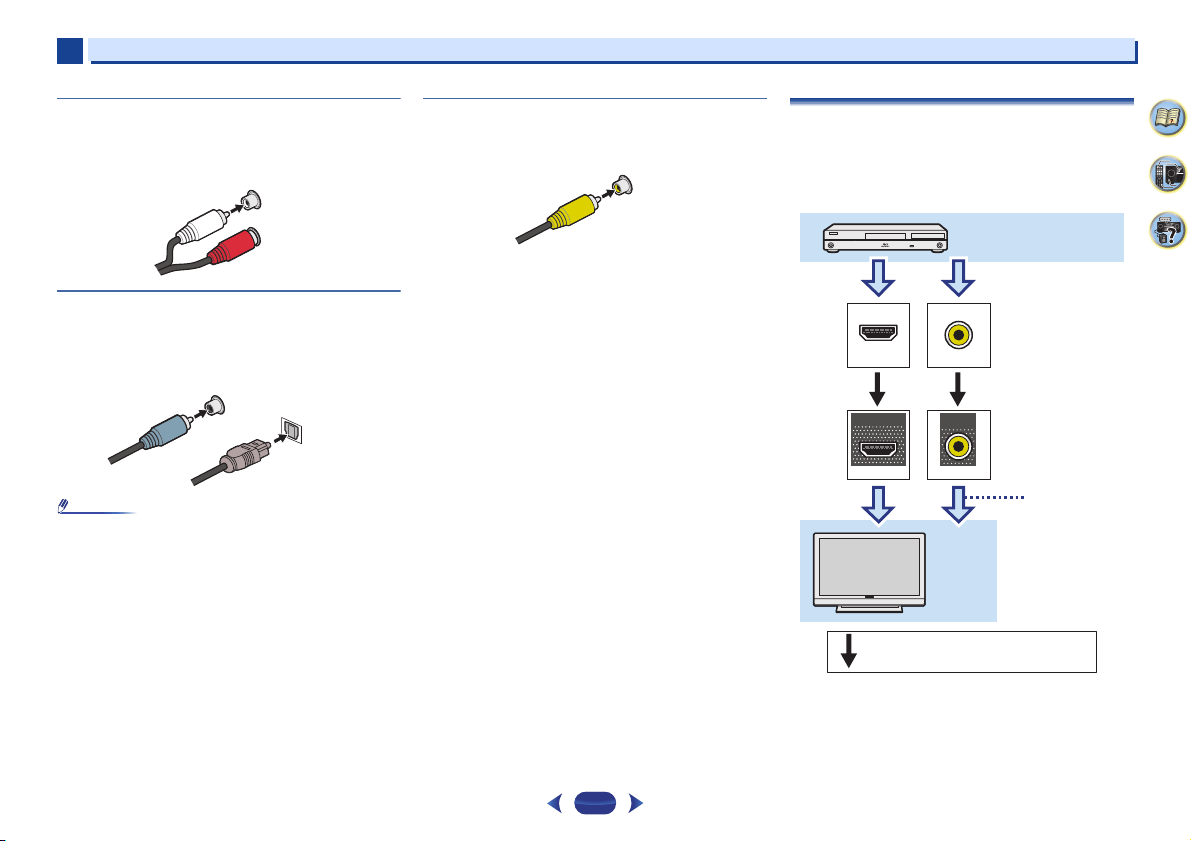

• Page 13 - English - : Connecting your equipment Analog audio cables Use stereo RCA phono cables to connect analog audio components These cables are typically red and white and you should connect the red plugs to R right terminals and white plugs to L left terminals Digital audio cables Commercially available coaxial digital audio cables or optical cables should be used to connect digital components to this receiver Note When connecting optical cables be careful when inserting the plug not to damage the shutter protecting the optical socket When storing optical cable coil loosely The cable may be damaged if bent around sharp corners You can also use a standard RCA video cable for coaxial digital connections Standard RCA video cables These cables are the most common type of video connection and are used to connect to the composite video terminals The yellow plugs distinguish them from cables for audio About video outputs connection This receiver is not loaded with a video converter When you use HDMI cables for connecting to the input device the same cables should be used for connecting to the TV The signals input from the analog composite video inputs of this unit will not be output from the HDMI OUT L R AUDIO White Left Red Right COAXIAL IN OPTICAL IN Coaxial digital audio cable Optical cable VIDEO Yellow VIDEO VIDEO IN IN HDMI MONITOR OUT HDMI OUT Terminal for connection with source device Terminal for connection with TV monitor Playback component TV The OSD will not appear Video signals can be output

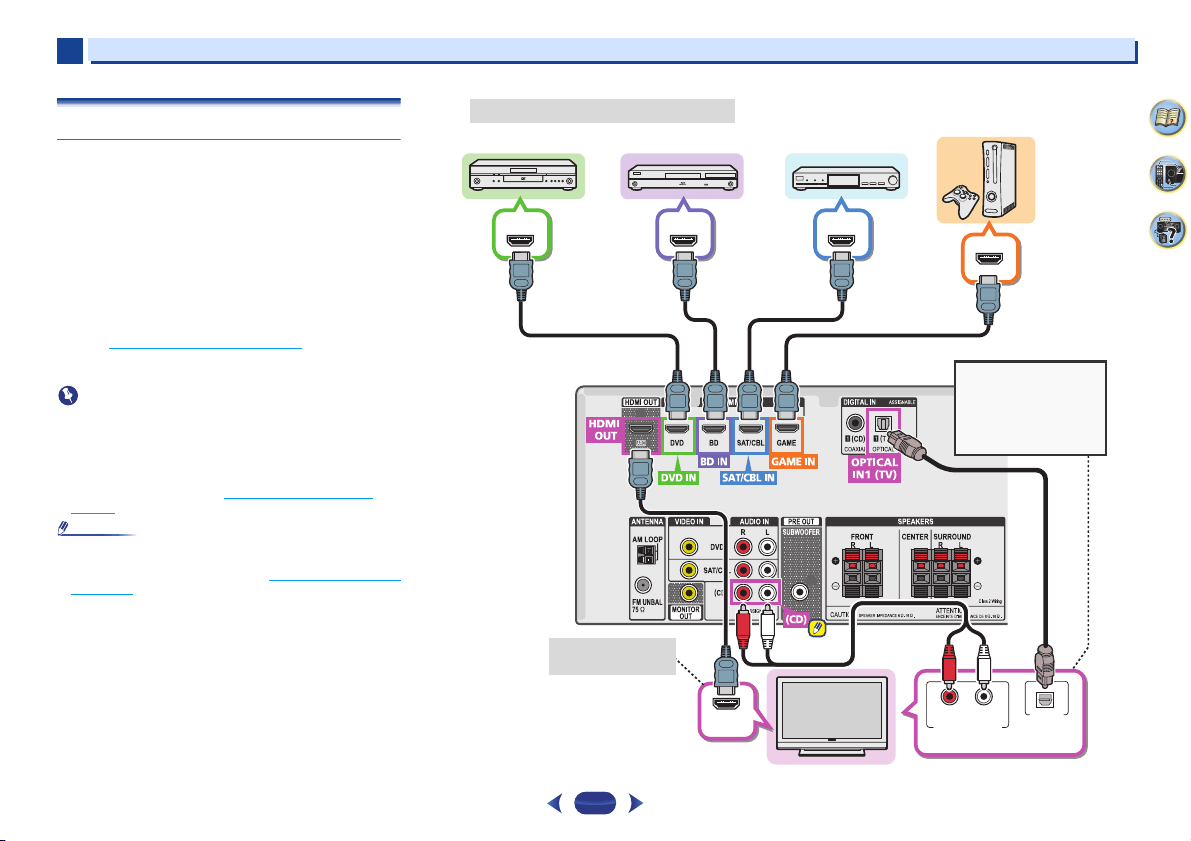

• Page 14 - English - : Connecting your equipment Connecting a TV and playback components Connecting using HDMI If you have an HDMI or DVI with HDCP equipped component Bluray Disc player etc you can connect it to this receiver using a commercially available HDMI cable The following connectionsetting is required to listen to the sound of the TV over this receiver If the TV does not support the HDMI Audio Return Channel function connect the receiver and TV with audio cables as shown If the TV supports the HDMI Audio Return Channel function the sound of the TV is input to the receiver via the HDMI terminal so there is no need to connect an audio cable In this case set ARC at HDMI Setup to ON see The HDMI Setup menu on page 30 Please refer to the TVs operation manual for directions on connections and setup for the TV Important When the ARC function is ON and the receiver is connected to a compatible TV with an HDMI cable and you switch the input of the TV to composite the input of the receiver may automatically switch to TV If this happens switch the receivers input back to the original input or turn OFF the ARC function see The HDMI Setup menu on page 30 Note In order to listen to the audio from the TV that is connected to this receiver using an analog audio cables setup for analog audio input is required see The Input Assign menu on page 29 HDMI IN DIGITAL AUDIO OUT OPTICAL RL ANALOG AUDIO OUT HDMI OUTHDMI OUT HDMI OUT HDMI OUT Select one HDMIDVIcompatible TV Settop box DVD player HDDDVD recorder Bluray Disc player Bluray Disc recorder Game console HDMIDVIcompatible components If the TV does not support the HDMI Audio Return Channel function this connection is required to listen to the TV sound over the receiver OSD can only be output from HDMI

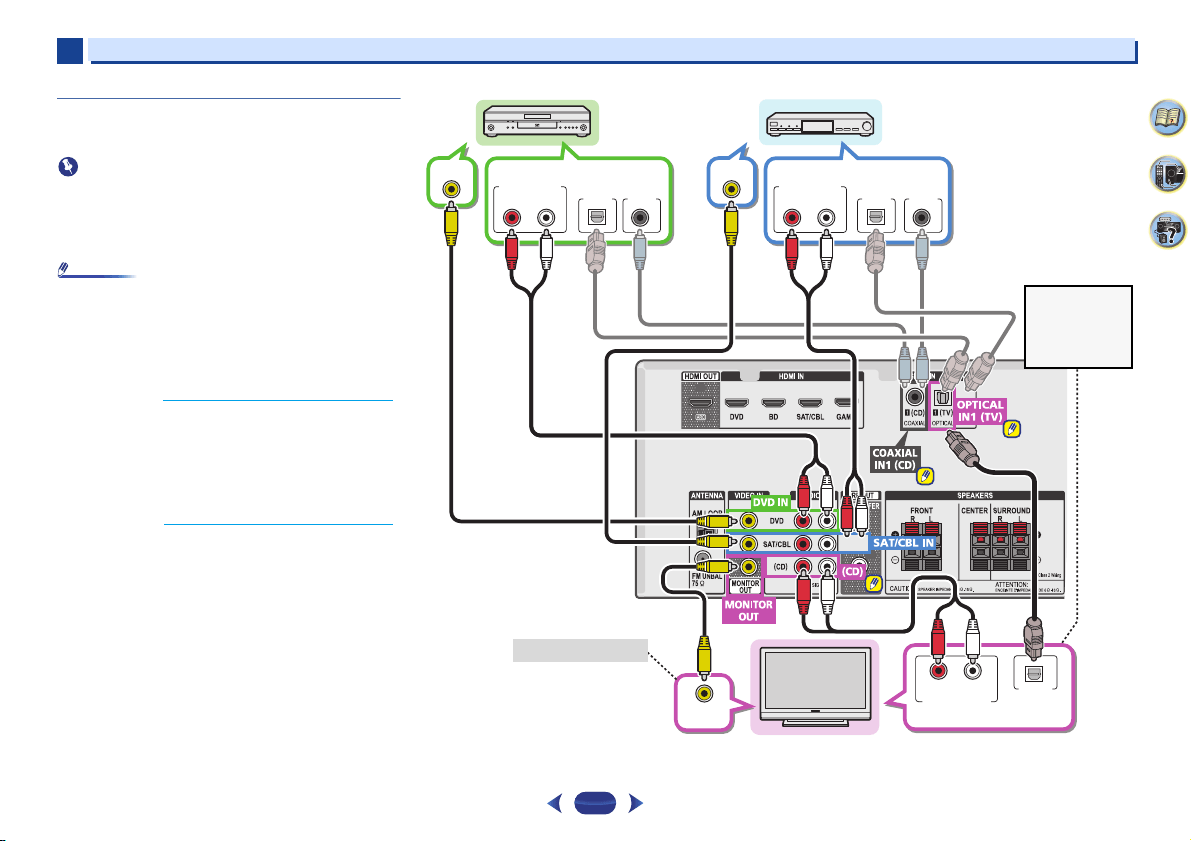

• Page 15 - English - : Connecting your equipment Connecting your component with no HDMI terminal This diagram shows connections of a TV and DVD player or other playback component with no HDMI terminal to the receiver Important When the receiver and TV are connected by composite cable the OSD function allowing display of the receivers settings operations etc on the TVs screen cannot be used In this case watch the receivers front panel display while performing the various operations and making settings Note You can only connect one component to the optical input terminal If connecting other devices please use a different method to connect the audio In order to listen to the audio from the source component that is connected to this receiver using an optical cable first switch to the DVD DVD player or SATCBL settop box then press SIG SEL to choose the audio signal O1 OPTICAL1 see Selecting the audio input signal on page 18 You can only connect one component to the coaxial input terminal If connecting other devices please use a different method to connect the audio In order to listen to the audio from the source component that is connected to this receiver using a coaxial cable first switch to the DVD DVD player or SATCBL settop box then press SIG SEL to choose the audio signal C1 COAXIAL1 see Selecting the audio input signal on page 18 VIDEO OUT DIGITAL AUDIO OUT OPTICAL COAXIAL RL ANALOG AUDIO OUT DIGITAL AUDIO OUT OPTICAL COAXIAL RL ANALOG AUDIO OUT VIDEO OUT VIDEO IN DIGITAL AUDIO OUT OPTICAL RL ANALOG AUDIO OUT Select one TV DVD player Select one This connection is required in order to listen to the sound of the TV over the receiver Select one Settop box OSD cannot be output

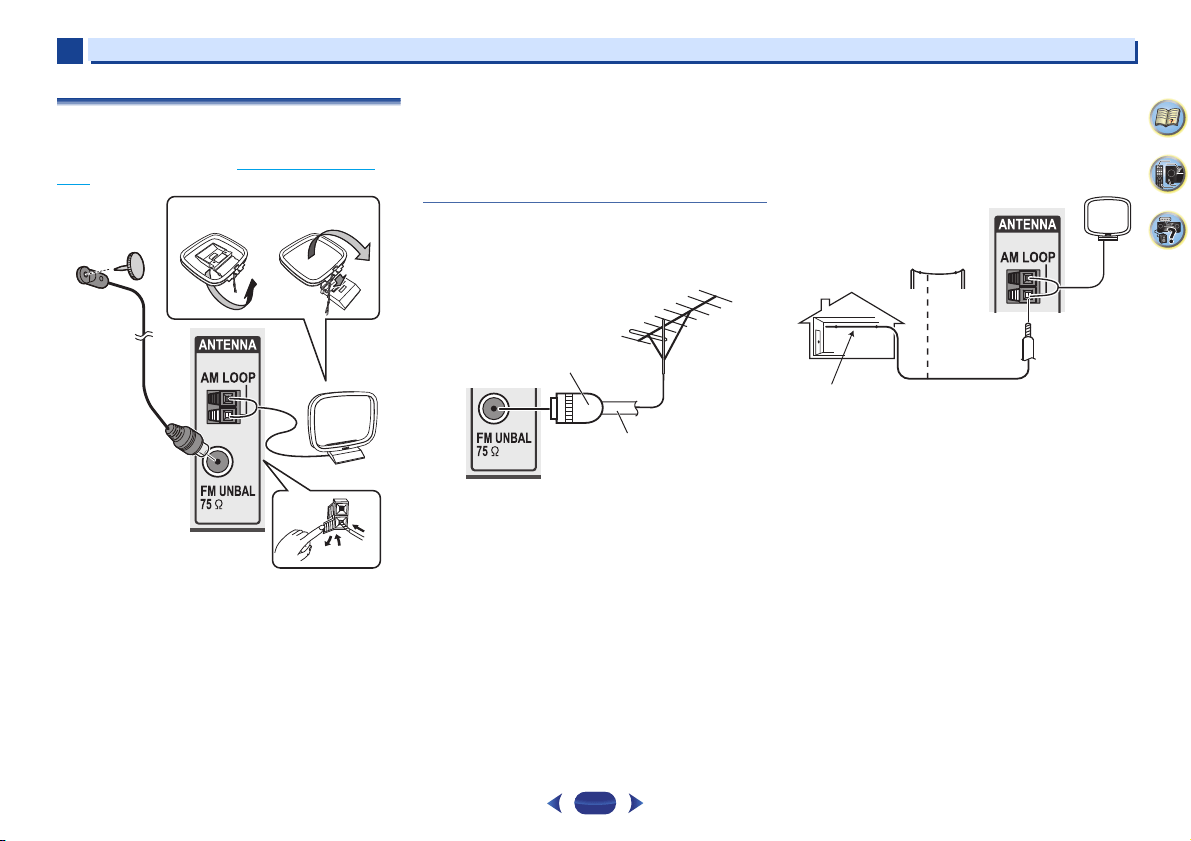

• Page 16 - English - : Connecting your equipment Connecting antennas Connect the AM loop antenna and the FM wire antenna as shown below To improve reception and sound quality connect external antennas see Using external antennas below Push open the tabs then insert one wire fully into each terminal then release the tabs to secure the AM antenna wires Fix the AM loop antenna to the attached stand To fix the stand to the antenna bend in the direction indicated by the arrow fig a then clip the loop onto the stand fig b Place the AM antenna on a flat surface and in a direction giving the best reception Connect the FM wire antenna into the FM antenna socket For best results extend the FM antenna fully and fix to a wall or door frame Dont drape loosely or leave coiled up Using external antennas To improve FM reception Use a PAL connector not supplied to connect an external FM antenna To improve AM reception Connect a 5 m to 6 m length of vinylcoated wire to the AM antenna terminal without disconnecting the supplied AM loop antenna For the best possible reception suspend horizontally outdoors fig a fig b 75 coaxial cable Onetouch PAL connector Outdoor antenna 5 m to 6 m Indoor antenna vinylcoated wire

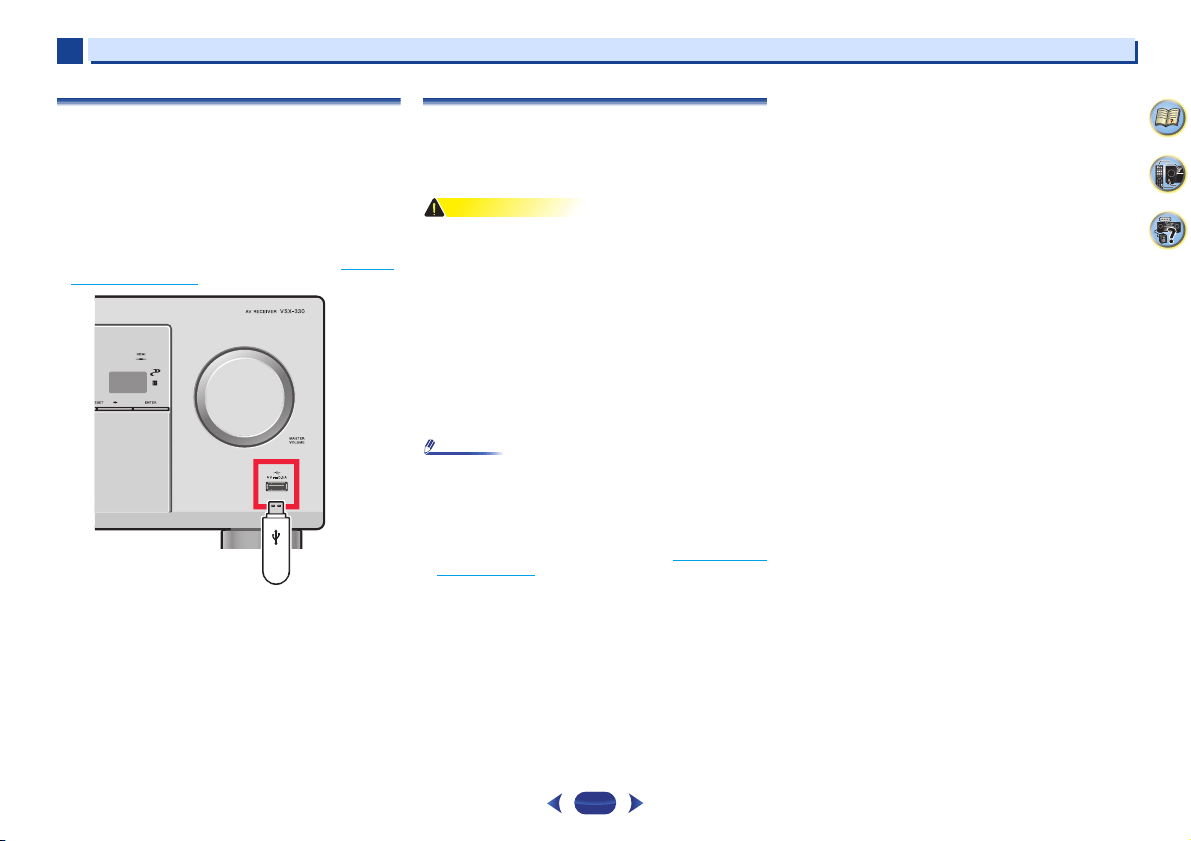

• Page 17 - English - : Connecting your equipment Connecting a USB device It is possible to listen to twochannel audio using the USB interface on the front of this receiver Switch the receiver into standby then connect your USB device to the USB terminal on the front panel of this receiver It is not possible to connect an iPodiPhone or a similar device to this receiver and play back music files This receiver does not support a USB hub For instructions on playing the USB device see Playing a USB device on page 20 Plugging in the receiver Only plug in after you have connected all your components to this receiver including the speakers Plug the AC power cord into a convenient AC power outlet CAUTION Handle the power cord by the plug Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock Do not place the unit a piece of furniture etc on the power cord or pinch the cord Never make a knot in the cord or tie it with other cords The power cords should be routed such that they are not likely to be stepped on A damaged power cord can cause a fire or give you an electrical shock Check the power cord once in a while When you find it damaged ask your nearest PIONEER authorized service center or your dealer for a replacement The receiver should be disconnected by removing the mains plug from the wall socket when not in regular use eg when on vacation Note After this receiver is connected to an AC outlet a 2 second to 10 second HDMI initialization process begins You cannot carry out any operations during this process The HDMI indicator in the front panel display blinks during this process and you can turn on this receiver once it has stopped blinking When you set ARC at HDMI setup to OFF you can skip this process For details see The HDMI Setup menu on page 30 USB mass storage device This receiver

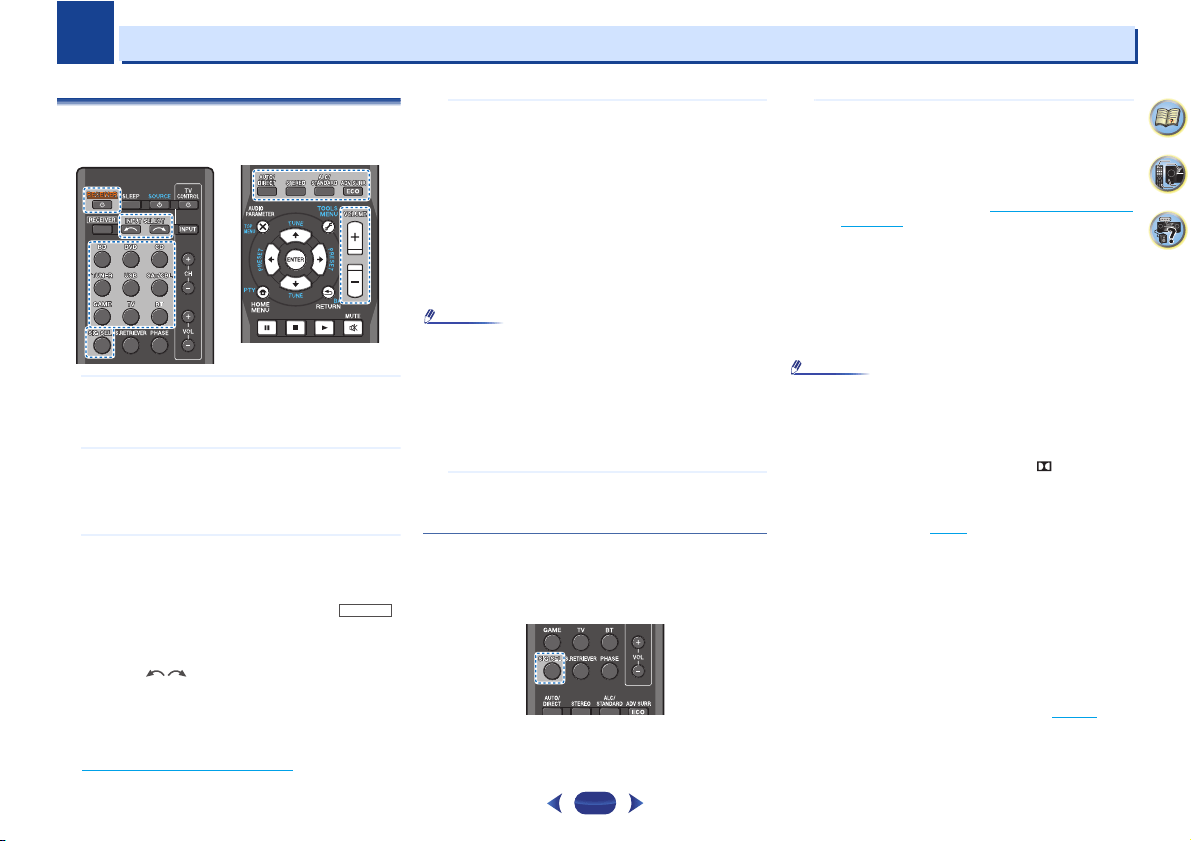

• Page 18 - English - : Chapter Basic playback Playing a source Here are the basic instructions for playing a source such as a DVD disc with your home theater system Switch on your system components and receiver Start by switching on the playback component for example a DVD player your TV and subwoofer if you have one then the receiver press RECEIVER Switch the TV input to the input that connects this receiver For example if you connected this receiver to the VIDEO jacks on your TV make sure that the VIDEO input is now selected Press input function buttons to select the input function you want to play The input of the receiver will switch over and you will be able to operate other components using the remote control To operate the receiver first press on the remote control then press the appropriate button to operate The input source can also be selected by using INPUT SELECT buttons on the remote control or by using the front panel INPUT SELECTOR dial In this case the remote control wont switch operational modes If you selected the proper input source and there is still no sound select the audio input signal for playback see Selecting the audio input signal below Press AUTODIRECT to select AUTO SURROUND and start playback of the source If youre playing a Dolby Digital or DTS surround sound DVD disc with a digital audio connection you should hear surround sound If youre playing a stereo source or if the connection is an analog audio connection you will only hear sound from the front leftright speakers in the default listening mode It is possible to check on the front panel display whether or not surround sound playback is being performed properly If the display does not correspond to the input signal and listening mode check the connections and settings Note You may need to check the digital audio output settings on your DVD player or digital satellite receiver It should be set to output Dolby Digital DTS and 882 kHz96 kHz PCM 2 channel audio and if there is an MPEG audio option set this to convert the MPEG audio to PCM Depending on your DVD player or source discs you may only get digital 2 channel stereo and analog sound In this case the receiver must be set to a multichannel listening mode if you want multichannel surround sound Use VOLUME to adjust the volume level Turn down the volume of your TV so that all sound is coming from the speakers connected to this receiver Selecting the audio input signal The audio input signal can be selected for each input source Once it is set the audio input that was selected will be applied whenever you select the input source using the input function buttons Press SIG SEL to select the audio input signal corresponding to the source component Each press cycles through the following H Selects an HDMI signal H can be selected for BD DVD SATCBL or GAME input For other inputs H cannot be selected When the HDMI option in Setting the Audio options on page 24 is set to THRU the sound will be heard through your TV not from this receiver A Selects the analog inputs C1O1 Selects the digital input The coaxial 1 input is selected for C1 and the optical 1 audio input is selected for O1 When H HDMI or C1O1 digital is selected and the selected audio input is not provided A analog is automatically selected Note BD and GAME inputs are fixed to H HDMI It cannot be changed For the TV input only A analog or C1O1 digital can be selected However if the ARC at HDMI Setup is set to ON the input is fixed to H HDMI and cannot be changed When set to H HDMI or C1O1 digital lights when a Dolby Digital signal is input and DTS lights when a DTS signal is input When the H HDMI is selected the A and DIGITAL indicators are off see page 7 When digital input optical or coaxial is selected this receiver can only play back Dolby Digital PCM 32 kHz to 96 kHz and DTS including DTS 96 kHz24 bit digital signal formats The compatible signals via the HDMI terminals are Dolby Digital DTS SACD DSD 2 ch only PCM 32 kHz to 192 kHz sampling frequencies Dolby TrueHD Dolby Digital Plus DTSEXPRESS DTSHD Master Audio and DVD Audio including 192 kHz With other digital signal formats set to A analog You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal To prevent noise make the proper digital connections page 13 and set the signal input to C1O1 digital RECEIVER
• Page 19 - English - : Basic playback Some DVD players dont output DTS signals For more details refer to the instruction manual supplied with your DVD player a The HDMI terminals can be used for the TV input by turning ON the ARC function in the HDMI setting page 30 b In order to listen to the audio from the TV that is connected to this receiver using a analog audio cables setup for analog audio input is required see The Input Assign menu on page 29 Input function Input Terminals HDMI COAXIAL OPTICAL ANALOG BD DVD TV a b SATCBL CD GAME Tip In order to enjoy the picture andor sound from devices connected to each terminal select the input by doing the following CD TUNER DVD SATCBL DVD SATCBL DVD BD SATCBL GAME DVD SATCBL C1 SIG SEL TV TV O1 SIG SEL A SIG SEL A SIG SEL CD TV Audio Audio Audio Audio VideoAudio HDMI Video Other than TV input TV input CD audio input terminal is assigned to CD under factory settings If you want to change this to TV input please change the settings in the Input Assign menu page 29
• Page 20 - English - : Basic playback Playing a USB device It is possible to listen to twochannel audio using the USB interface on the front of this receiver Important Pioneer cannot guarantee compatibility operation andor bus power with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this receiver Note This includes playback of WMAMP3MPEG4 AAC files except files with copyprotection or restricted playback Compatible USB devices include external magnetic hard drives portable flash memory particularly keydrives and digital audio players MP3 players of format FAT1632 It is not possible to connect this receiver to a computer for USB playback With large amounts of data it may take longer for the receiver to read the contents of a USB device If the file selected cannot be played back this receiver automatically skips to the next file playable When the file currently being played back has no title assigned to it the file name is displayed in the OSD instead when neither the album name nor the artist name is present the row is displayed as a blank space Note that nonroman characters in the playlist are displayed as Make sure the receiver is in standby when disconnecting the USB device Switch on the receiver and your TV See Connecting a USB device on page 17 Switch the TV input so that it connects to the receiver Switch the TV input to the input that connects this receiver to the TV through the corresponding HDMI cable Press USB on the remote control to switch the receiver to the USB input Loading appears in the OSD as this receiver starts recognizing the USB device connected After the recognition a playback screen appears in the OSD and playback starts automatically Basic playback controls This receivers remote control buttons can be used for basic playback of files stored on USB devices Press USB to switch the remote control to the USB operation mode Important If a USB Error message lights in the display try following the points below Switch the receiver off then on again Reconnect the USB device with the receiver switched off Select another input source like BD then switch back to USB Use a dedicated AC adapter supplied with the device for USB power For more information on error messages see USB messages on page 32 If this doesnt remedy the problem it is likely your USB device is incompatible Compressed audio compatibility Note that although most standard bitsampling rate combinations for compressed audio are compatible some irregularly encoded files may not play back The list below shows compatible formats for compressed audio files MP3 MPEG1225 Audio Layer 3 Sampling rates 32 kHz441 kHz48 kHz Bit rates 32 kbps to 320 kbps 128 kbps or higher recommended File extension mp3 WMA Windows Media Audio Sampling rates 32 kHz 441 kHz48 kHz Bit rates 48 kbps to 192 kbps 128 kbps or higher recommended File extension wma WMA9 Pro and WMA lossless encoding No AAC MPEG4 Advanced Audio Coding Sampling rates 32 kHz441 kHz48 kHz Bit rates 16 kbps to 320 kbps 128 kbps or higher recommended File extension m4a Apple lossless encoding No Other compatibility information VBR variable bit rate MP3WMAMPEG4 AAC playback Yes Note that in some cases playback time will not be displayed correctly Copyrighted audio files cannot be played back on this receiver DRMprotected audio files cannot be played back on this receiver About MPEG4 AAC Advanced Audio Coding AAC is at the core of the MPEG4 AAC standard which incorporates MPEG2 AAC forming the basis of the MPEG4 audio compression technology The file format and extension used depend on the application used to encode the AAC file This receiver plays back AAC files encoded by iTunes bearing the extension m4a DRM protected files will not play and files encoded with some versions of iTunes may not play Apple and iTunes are trademarks of Apple Inc registered in the US and other countries About WMA WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation This receiver plays back WMA files encoded using Windows Media Player bearing the extension wma Note that DRMprotected files will not play and files encoded with some versions of Windows Media Player may not play

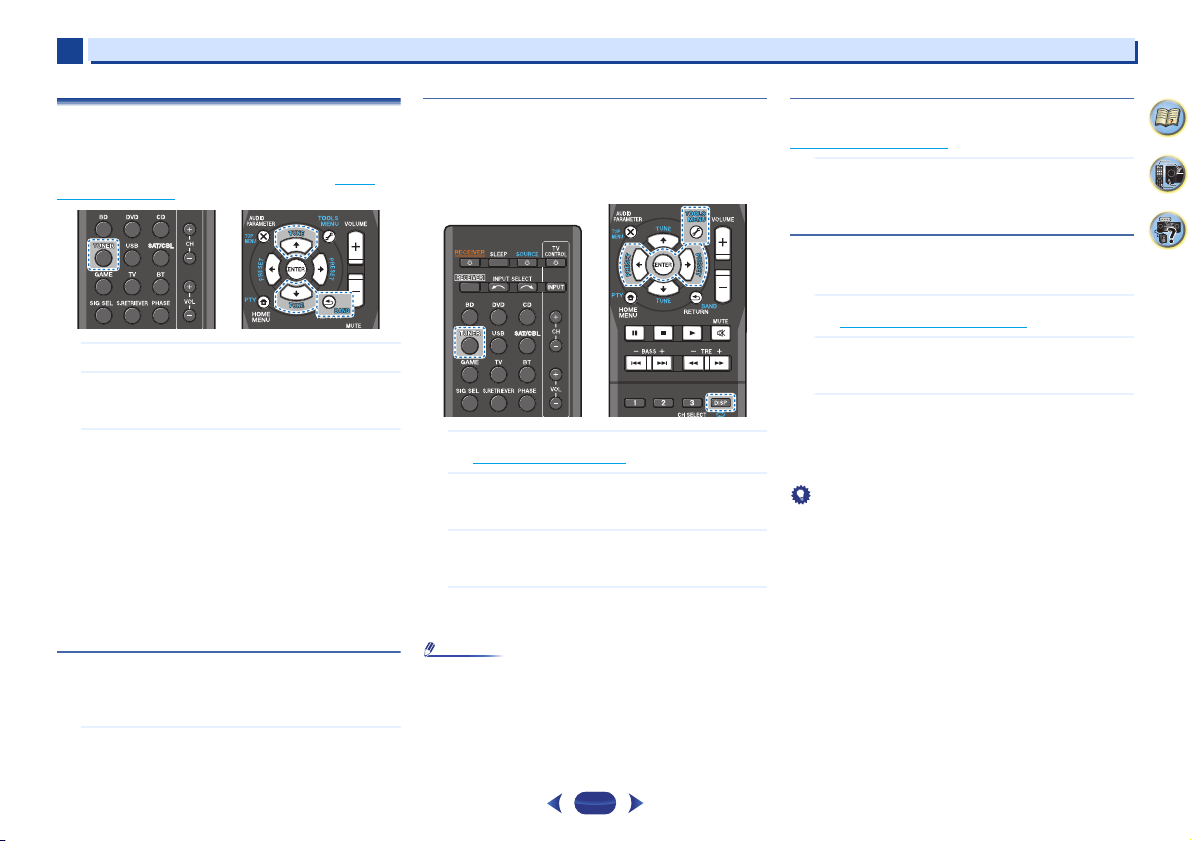

• Page 21 - English - : Basic playback Listening to the radio The following steps show you how to tune in to FM and AM radio broadcasts using the automatic search and manual step tuning functions Once you are tuned to a station you can memorize the frequency for recall latersee Saving station presets below for more on how to do this Press TUNER to select the tuner Use BAND to change the band FM or AM if necessary Each press switches the band between FM stereo or mono and AM Tune to a station There are three ways to do this Automatic tuning To search for stations in the currently selected band press and hold TUNE for about a second The receiver will start searching for the next station stopping when it has found one Repeat to search for other stations Manual tuning To change the frequency one step at a time press TUNE High speed tuning Press and hold TUNE for high speed tuning Improving FM sound If the TUNE or ST indicators dont light when tuning to an FM station because the signal is weak set the receiver to the mono reception mode Press BAND to select FM MONO This should improve the sound quality and allow you to enjoy the broadcast Saving station presets If you often listen to a particular radio station its convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station This saves the effort of manually tuning in each time This unit can memorize up to 30 stations Tune to a station you want to memorize See Listening to the radio above for more on this Press TOOLS The display shows PRESET then a blinking MEM and station preset Press PRESET to select the station preset you want You can also use the number buttons Press ENTER The preset number stop blinking and the receiver stores the station Note If the receiver is left disconnected from the AC power outlet for over a month the station memories will be lost and will have to be reprogrammed Stations are stored in stereo When the station is stored in the FM MONO mode it shows as ST when recalled Listening to station presets You will need to have some presets stored to do this See Saving station presets above if you havent done this already Press PRESET to select the station preset you want You can also use the number buttons on the remote control to recall the station preset Naming preset stations For easier identification you can name all of your preset stations Choose the station preset you want to name See Listening to station presets above for how to do this Press TOOLS twice The cursor at the first character position is blinking on the display Input the name you want Choose a name up to eight characters long Use PRESET to select character position Use TUNE to select characters The name is stored when ENTER is pressed Tip To erase a station name follow steps 1 and 2 and press ENTER while the display is blank Press TOOLS while the display is blank to keep the previous name Once you have named a station preset Press DISP to show the name When you want to return to the frequency display press DISP several times to show the frequency
• Page 22 - English - : Basic playback An introduction to RDS For Europe Radio Data System RDS is a system used by most FM radio stations to provide listeners with various kinds of informationthe name of the station and the kind of show theyre broadcasting for example One feature of RDS is that you can search by type of program For example you can search for a station thats broadcasting a show with the program type JAZZ You can search the following program types Note In addition there are three other program types ALARM ALARMTST and NO TYPE ALARM and ALARMTST are used for emergency announcements NO TYPE appears when a program type cannot be found Searching for RDS programs You can search for a program type listed above Press TUNER then press BAND to select the FM band RDS is only possible in the FM band Press PTY SEARCH shows in the display Press PRESET to select the program type you want to hear Press ENTER to search for the program type The system starts searching through the station presets for a match stopping when it was found one Repeat to search for other stations If NO PTY is displayed it means the tuner couldnt find that program type at the time of the search RDS searches station presets only If no stations have been preset or if the program type could not be found among the station presets NO PTY is displayed FINISH means the search is complete Displaying RDS information Use the DISP button to display the different types of RDS information available Press DISP for RDS information Each press changes the display as follows Listening mode Master volume Radio Text RT Messages sent by the radio station For example a talk radio station may provide a phone number as RT Program Service Name PS The name of the radio station Program Type PTY This indicates the kind of program currently being broadcast Current tuner frequency FREQ Note If any noise is picked up while displaying the RT scroll some characters may be displayed incorrectly If you see NO TEXT in the RT display it means no RT data is sent from the broadcast station The display will automatically switch to the PS data display if no PS data NO NAME is displayed In the PTY display NO PTY may be shown NEWS News AFFAIRS Current Affairs INFO General Information SPORT Sport EDUCATE Educational DRAMA Radio plays etc CULTURE National or regional culture theater etc SCIENCE Science and technology VARIED Usually talkbased material such as quiz shows or interviews POP M Pop music ROCK M Rock music EASY M Easy listening LIGHT M Light classical music CLASSICS Serious classical music OTHER M Music not fitting above categories WEATHER Weather reports FINANCE Stock market reports commerce trading etc CHILDREN Programs for children SOCIAL Social affairs RELIGION Programs concerning religion PHONE IN Public expressing their views by phone TRAVEL Holidaytype travel rather than traffic announcements LEISURE Leisure interests and hobbies JAZZ Jazz COUNTRY Country music NATION M Popular music in a language other than English OLDIES Popular music from the 50s and 60s FOLK M Folk music DOCUMENT Documentary
• Page 23 - English - : Chapter Listening to your system Choosing the listening mode This receiver offers a variety of listening modes to accommodate playback of various audio formats Choose one according to your speaker environment or the source While listening to a source press the listening mode button repeatedly to select a listening mode you want The listening mode is shown on the display on the front panel Important The listening modes and many features described in this section may not be available depending on the current source settings and status of the receiver Auto playback The simplest most direct listening option is the AUTO SURROUND feature With this the receiver automatically detects what kind of source youre playing and selects multichannel or stereo playback as necessary Press AUTODIRECT repeatedly until AUTO SURROUND shows briefly in the display it will then show the decoding or playback format Check the digital format indicators in the display to see how the source is being processed Note Stereo surround matrix formats are decoded accordingly using NEO6 CINEMA see Listening in surround sound below for more on these decoding formats Listening in surround sound Using this receiver you can listen to any source in surround sound However the options available will depend on your speaker setup and the type of source youre listening to If the source is Dolby Digital DTS or Dolby Surround encoded the proper decoding format will automatically be selected and shows in the display When you select STEREO ALC Auto Level Control stereo mode this unit equalizes playback sound levels if each sound level varies with the music source recorded in a portable audio player When you select STEREO you will hear the source through just the front left and right speakers and possibly your subwoofer depending on your speaker settings Dolby Digital and DTS multichannel sources are downmixed to stereo The following modes provide basic surround sound for stereo and multichannel sources Explanatory notes No No connected Yes Connected Two Two speakers are connected Whether connected or no a You can also adjust the CWIDTH DIMEN and PNRM effect see Setting the Audio options on page 24 b You can also adjust the CIMG effect see Setting the Audio options on page 24 c You can choose the STEREO mode by using STEREO button The audio is heard with your surround settings and you can still use the Midnight Loudness Phase Control Sound Retriever and Tone functions Using the Advanced surround The Advanced surround feature creates a variety of surround effects Try different modes with various soundtracks to see which you like AUTO DIRECT AUTO SURROUND STREAM DIRECT Type of surround modes Suitable sources Two channel sources STEREO ALC See above DOLBY PLII MOVIE Movie DOLBY PLII MUSIC a Music DOLBY PLII GAME Video games NEO6 CINEMA b Movie NEO6 MUSIC b Music DOLBY PRO LOGIC Old movies STEREO c See above Multichannel sources STEREO ALC See above Straight Decode No additional effects STEREO c See above ALC STANDARD ALC STANDARD SURR ACTION Designed for action movies with dynamic soundtracks DRAMA Designed for movies with lots of dialog ADVANCED GAME Suitable for video games SPORTS Suitable for sports programs CLASSICAL Gives a large concert halltype sound ROCKPOP Creates a live concert sound for rock andor pop music EXTSTEREO Gives multichannel sound to a stereo source using all of your speakers FSSADVANCE Front Stage Surround ADVANCE Allows you to create natural surround sound effects using just the front speakers and the subwoofer Use to provide a rich surround sound effect directed to the center of where the front left and right speakers sound projection area converges PHONES SURR When listening through headphones you can still get the effect of overall surround ADV SURR ADVANCED SURROUND Front left speaker Front right speaker

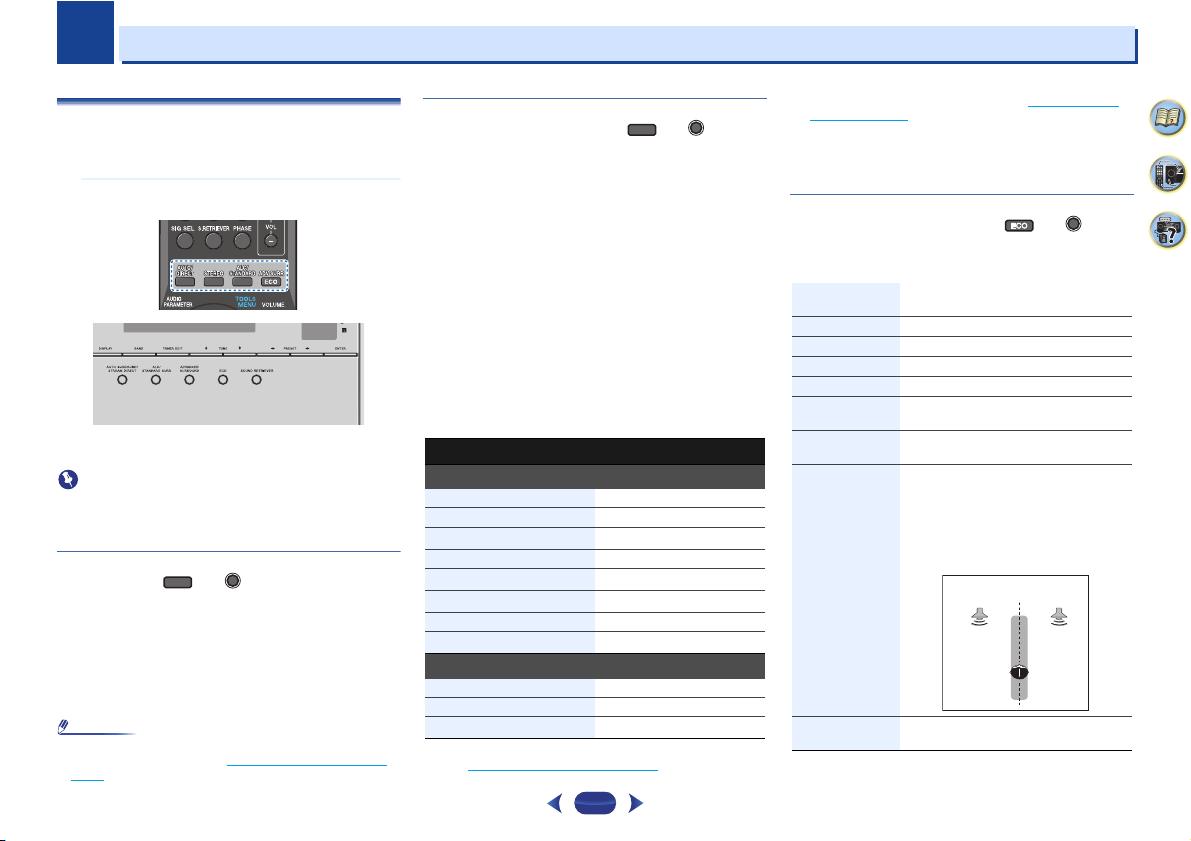

• Page 24 - English - : Listening to your system Note During ECO mode the brightness switches between 2 levels If the dimmest level is selected DIMMER will be shown on the display Mode other than ECO 3 levels ECO mode 2 levels ECO MODE will switch OFF automatically when switched to other listening modes Advanced surround mode and Auto surround mode Using Stream Direct Use the Stream Direct modes when you want to hear the truest possible reproduction of a source All unnecessary signal processing is bypassed Using the Sound Retriever When audio data is removed during the compression process sound quality often suffers from an uneven sound image The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression Press SRETRIEVER to switch the SRTV Sound Retriever ON or OFF Note The Sound Retriever is only applicable to 2channel sources Better sound using Phase Control This receivers Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase preventing unwanted distortion andor coloring of the sound Phase Control technology provides coherent sound reproduction through the use of phase matching for an optimal sound image at your listening position The default setting is on and we recommend leaving Phase Control switched on for all sound sources Press PHASE to switch the PCTL Phase Control ON or OFF Note Phase matching is a very important factor in achieving proper sound reproduction If two waveforms are in phase they crest and trough together resulting in increased amplitude clarity and presence of the sound signal If a crest of a wave meets a trough then the sound will be out of phase and an unreliable sound image will be produced If your subwoofer has a phase control switch set it to the plus sign or 0 However the effect you can actually feel when Phase Control is set to ON on this receiver depends on the type of your subwoofer Set your subwoofer to maximize the effect It is also recommended you try changing the orientation or the place of your subwoofer Set the builtin lowpass filter switch of your subwoofer to OFF If this cannot be done on your subwoofer set the cutoff frequency to a higher value If the speaker distance is not properly set you may not have a maximized Phase Control effect The Phase Control mode cannot be set to ON in the following cases When the PURE DIRECT mode is switched on When the headphones are connected Setting the Audio options There are a number of additional sound settings you can make using the AUDIO PARAMETER menu The defaults if not stated are listed in bold Important Note that if a setting doesnt appear in the AUDIO PARAMETER menu it is unavailable due to the current source settings and status of the receiver Press then press AUDIO PARAMETER button Use to select the setting you want to adjust Depending on the current statusmode of the receiver certain options may not be able to be selected Check the table below for notes on this ECO MODE 1 Cut back on power consumption Suitable for contents that are mainly high level mainly music ECO MODE 2 Cut back on even more power consumption than ECO MODE 1 Suitable for contents with wider dynamic range mainly movies AUTO SURROUND See Auto playback on page 23 DIRECT Sources are heard according to the settings made in the Manual SP Setup speaker setting channel level speaker distance as well as with dual mono settings You will hear sources according to the number of channels in the signal Phase Control Sound Delay Auto Delay LFE Attenuate and Center image functions are available PURE DIRECT Analog and PCM sources are heard without any digital processing AUTO DIRECT AUTO SURROUND STREAM DIRECT RECEIVER

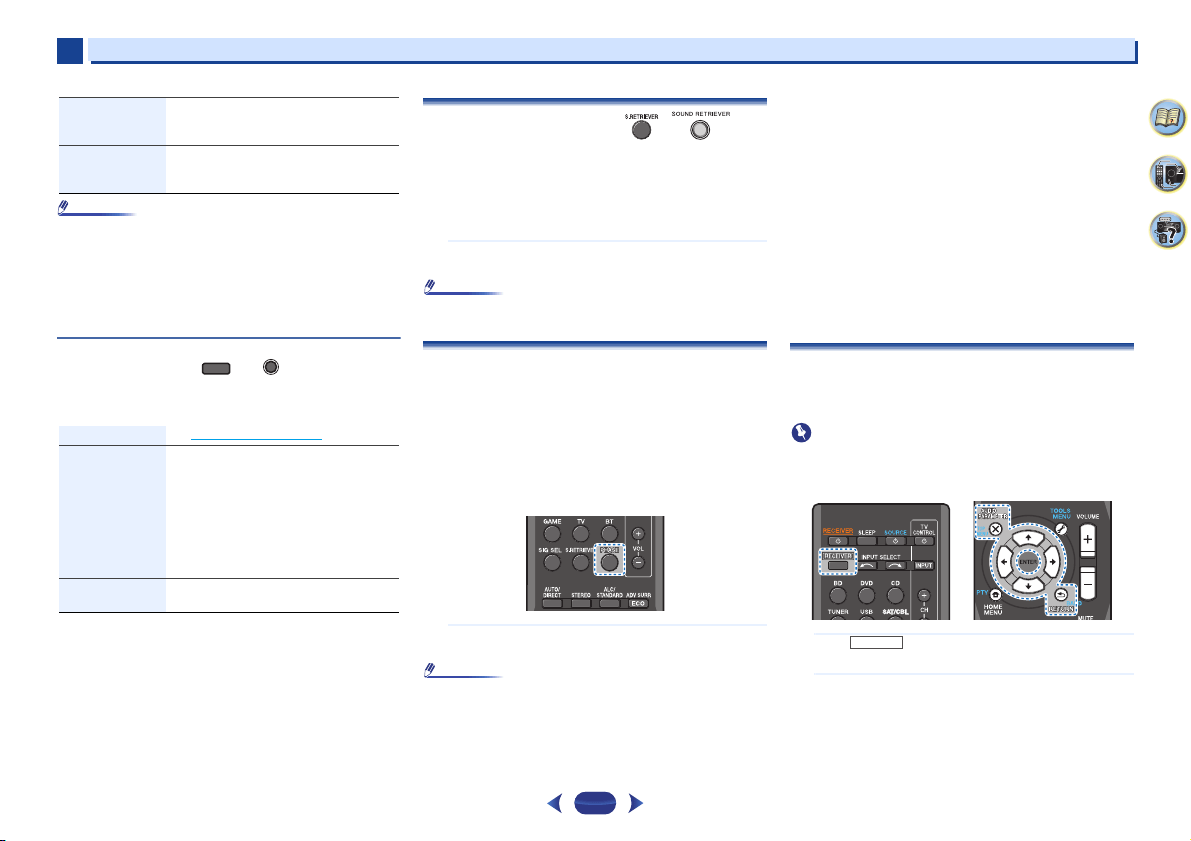

• Page 25 - English - : Listening to your system Use to set it as necessary See the table below for the options available for each setting Press RETURN to confirm and exit the menu a You can change the MIDNIGHTLOUDNESS options at any time by using MIDNIGHT button b You can change the Sound Retriever feature at any time by using SRETRIEVER button c The default setting when the USB input is selected is ON d This setting works only with dual mono encoded Dolby Digital and DTS soundtracks e The initial set AUTO is only available for Dolby TrueHD signals Select MAX or MID for signals other than Dolby TrueHD f You shouldnt have any problems using this with most SACD discs but if the sound distorts it is best to switch the gain setting back to 0 dB g This feature is only available when the connected display supports the automatic audiovideo synchronizing capability lipsync for HDMI If you find the automatically set delay time unsuitable set ADLY to OFF and adjust the delay time manually For more details about the lipsync feature of your display contact the manufacturer directly h Only available with 2channel sources in DOLBY PLII MUSIC mode i Only when listening to 2channel sources in NEO6 CINEMA and NEO6 MUSIC mode SettingWhat it does Options SDELAY Sound Delay Some monitors have a slight delay when showing video so the soundtrack will be slightly out of sync with the picture By adding a bit of delay you can adjust the sound to match the presentation of the video 0 ms to 500 ms 1 step 5 ms Default 0 MIDNIGHTLOUDNESS a The MIDNIGHT allows you to hear effective surround sound of movies at low volumes The LOUDNESS is used to get good bass and treble from music sources at low volumes ML OFF MIDNIGHT LOUDNESS SRTV Sound Retriever b When audio data is removed during the compression process sound quality often suffers from an uneven sound image The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression OFF c ON DUAL MONO d Specifies how dual mono encoded Dolby Digital soundtracks should be played CH1 Channel 1 is heard only CH2 Channel 2 is heard only CH1 CH2 Both channels heard from front speakers FPCM Fixed PCM This is useful if you find there is a slight delay before OFF recognizes the PCM signal on a CD for instance When ON is selected noise may be output during playback of nonPCM sources Please select another input signal if this is a problem OFF ON DRC Dynamic Range Control Adjusts the level of dynamic range for movie soundtracks optimized for Dolby Digital DTS Dolby Digital Plus Dolby TrueHD DTSHD and DTSHD Master Audio you may need to use this feature when listening to surround sound at low volumes AUTO e MAX MID OFF LFE ATT LFE Attenuate Some Dolby Digital and DTS audio sources include ultralow bass tones Set the LFE attenuator as necessary to prevent the ultra low bass tones from distorting the sound from the speakers The LFE is not limited when set to 0 dB which is the recommended value When set to 15 dB the LFE is limited by the respective degree When OFF is selected no sound is output from the LFE channel 0 0 dB 5 5 dB 10 10 dB 15 15 dB 20 20 dB OFF SACD G SACD Gain f Brings out detail in SACDs by maximizing the dynamic range during digital processing 0 0 dB 6 6 dB HDMI HDMI Audio Specifies the routing of the HDMI audio signal out of this receiver AMP or through to a TV THRU When THRU is selected no sound is output from this receiver AMP THRU ADLY Auto Delay g This feature automatically corrects the audio tovideo delay between components connected with an HDMI cable The audio delay time is set depending on the operational status of the display connected with an HDMI cable The video delay time is automatically adjusted according to the audio delay time OFF ON CWIDTH Center Width h Applicable only when using a center speaker Spreads the center channel between the front right and left speakers making it sound wider higher settings or narrower lower settings 0 to 7 Default 3 SettingWhat it does Options DIMEN Dimension h Adjusts the surround sound balance from front to back making the sound more distant minus settings or more forward positive settings 3 to 3 Default 0 PNRM Panorama h Extends the front stereo image to include surround speakers for a wraparound effect OFF ON CIMG Center Image i Applicable only when using a center speaker Adjust the center image to create a wider stereo effect with vocals Adjust the effect from 0 all center channel sent to front right and left speakers to 10 center channel sent to the center speaker only 0 to 10 Default 3 NEO6 MUSIC 10 NEO6 CINEMA SettingWhat it does Options
• Page 26 - English - : Listening to your system Changing the TV format setting of Graphical User Interface If the Graphical User Interface screen is not displayed correctly it may be that the TV system is set incorrectly for your country or region Switch the receiver into standby While holding down TUNE on the front panel press STANDBYON Each press switches between PAL and NTSC Default PAL Changing the frequency step of AM Radio If you find that you cant tune into stations successfully the frequency step may not be suitable for your countryregion Heres how to switch the setting Switch the receiver into standby While holding down TUNE on the front panel press STANDBYON Each press switches between 9K STEP and 10K STEP Default 9K STEP The functions that can be set differ depending on the input signal or speaker settings AUTO SURROUND DIRECT PURE DIRECT STEREO ALC STANDARD ADV SURR Using the headphones Analog signal Other signals Speaker Setting Channel Level Speaker Distance Phase Control BassTreble Sound Delay MIDNIGHT LOUDNESS Sound Retriever DUAL MONO Fixed PCM Dynamic Range Control LFE Attenuate SACD Gain HDMI Audio Auto Delay Center Image NEO6 only

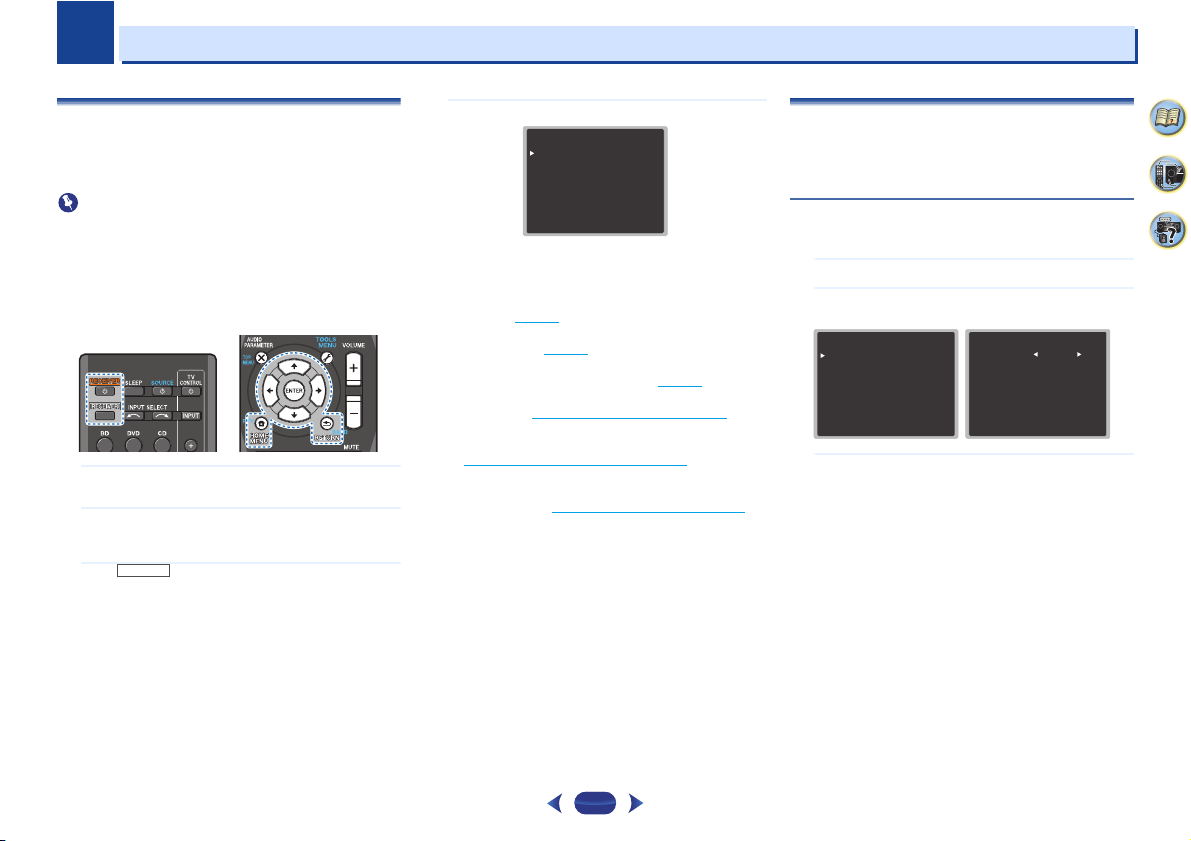

• Page 27 - English - : Chapter Home Menu Using the Home Menu The following section shows you how to make detailed settings to specify how youre using the receiver and also explains how to finetune individual speaker system settings to your liking Important The OSD will not appear if you have connected using the composite output to your TV Use HDMI connections for Home Menu If headphones are connected to the receiver disconnect them You cant use the Home Menu when the USB input is selected Switch on the receiver and your TV Press RECEIVER to switch on Switch the TV input to the input that connects this receiver to the TV through the corresponding HDMI cable Press then press HOME MENU The Home Menu appears on your TV Use and ENTER on the remote control to navigate through the screens and select menu items Press RETURN to exit the current menu Press HOME MENU at any time to exit the Home Menu Select the setting you want to adjust Manual SP Setup Speaker Setting Specify the size and number of speakers youve connected see below XOver Specify which frequencies will be sent to the subwoofer page 28 Channel Level Adjust the overall balance of your speaker system page 28 Speaker Distance Specify the distance of your speakers from the listening position page 29 Input Assign Specify what youve connected to the CD audio input see The Input Assign menu on page 29 Auto Power Down Sets to automatically turn off the power when the receiver has not operated for several hours see The Auto Power Down menu on page 29 HDMI Setup Set the audio return channel function and set the HDMI input signal to Standby Through output or not during standby see The HDMI Setup menu on page 30 Manual speaker setup This receiver allows you to make detailed settings to optimize the surround sound performance You only need to make these settings once unless you change the placement of your current speaker system or add new speakers Speaker Setting Use this setting to specify your speaker configuration size number of speakers Select Manual SP Setup from the Home Menu Select Speaker Setting from the Manual SP Setup menu Choose the set of speakers that you want to set then select a speaker size Use to select the size and number of each of the following speakers Front Select LARGE if your front speakers reproduce bass frequencies effectively or if you didnt connect a subwoofer Select SMALL to send the bass frequencies to the subwoofer Center Select LARGE if your center speaker reproduces bass frequencies effectively or select SMALL to send bass frequencies to the other speakers or subwoofer If you didnt connect a center speaker choose NO the center channel is sent to the other speakers Surr Select LARGE if your surround speakers reproduce bass frequencies effectively Select SMALL to send bass frequencies to the other speakers or subwoofer If you didnt connect surround speakers choose NO the sound of the surround channels is sent to the other speakers RECEIVER Home Menu 1Manual SP Setup 2Input Assign 3Auto Power Down 4HDMI Setup Return 1Manual SP Setup Return aSpeaker Setting bXOver cChannel Level dSpeaker Distance 1aSpeaker Setting Front Center Surr Subwoofer Return NO NO YES SMALL
• Page 28 - English - : Home Menu Subwoofer LFE signals and bass frequencies of channels set to SMALL are output from the subwoofer when YES is selected see notes below Choose the PLUS setting if you want the subwoofer to output bass sound continuously or you want deeper bass the bass frequencies that would normally come out the front and center speakers are also routed to the subwoofer If you did not connect a subwoofer choose NO the bass frequencies are output from other speakers When youre finished press RETURN You return to the Manual SP Setup menu Note If you select SMALL for the front speakers the subwoofer will automatically be fixed to YES Also the center surround cant be set to LARGE if the front speakers are set to SMALL In this case all bass frequencies are sent to the subwoofer If you have a subwoofer and like lots of bass it may seem logical to select LARGE for your front speakers and PLUS for the subwoofer This may not however yield the best bass results Depending on the speaker placement of your room you may actually experience a decrease in the amount of bass due to low frequency cancellations In this case try changing the position or direction of speakers If you cant get good results listen to the bass response with it set to PLUS and YES or the front speakers set to LARGE and SMALL alternatively and let your ears judge which sounds best If youre having problems the easiest option is to route all the bass sounds to the subwoofer by selecting SMALL for the front speakers XOver Default setting 100Hz This setting decides the cutoff between bass sounds playing back from the speakers selected as LARGE or the subwoofer and bass sounds playing back from those selected as SMALL It also decides where the cutoff will be for bass sounds in the LFE channel For more on selecting the speaker sizes see Speaker Setting on page 27 Select Manual SP Setup from the Home Menu Select XOver from the Manual SP Setup menu Choose the frequency cutoff point Frequencies below the cutoff point will be sent to the subwoofer or LARGE speakers When youre finished press RETURN You return to the Manual SP Setup menu Channel Level Using the channel level settings you can adjust the overall balance of your speaker system an important factor when setting up a home theater system CAUTION The test tones used in the Channel Level settings are output at high volume Select Manual SP Setup from the Home Menu Select Channel Level from the Manual SP Setup menu Select a setup option Manual Move the test tone manually from speaker to speaker and adjust individual channel levels Auto Adjust channel levels as the test tone moves from speaker to speaker automatically Confirm your selected setup option The test tones will start after you press ENTER After the volume increases to the reference level test tones will be output Adjust the level of each channel using If you selected Manual use to switch speakers The Auto setup will output test tones in the order shown on screen Adjust the level of each speaker as the test tone is emitted 1Manual SP Setup Return aSpeaker Setting bXOver cChannel Level dSpeaker Distance 1bXOver Return Frequency 100Hz 1Manual SP Setup Return aSpeaker Setting bXOver cChannel Level dSpeaker Distance 1cChannel Level Test Tone Manual ENTERNextReturn 1cChannel Level Test Tone Manual Please Wait 20 Caution Loud test tones will be output Return 1cChannel Level Front L Center Front R Surround R Surround L Subwoofer Return 0dB 0dB 0dB 0dB 0dB 0dB
• Page 29 - English - : Home Menu Note If you are using a Sound Pressure Level SPL meter take the readings from your main listening position and adjust the level of each speaker to 75 dB SPL Cweightingslow reading The subwoofer test tone is output at low volumes You may need to adjust the level after testing with an actual soundtrack When youre finished press RETURN You return to the Manual SP Setup menu Tip You can change the channel levels at any time by press then press CH SELECT and LEV on the remote control You can also press CH SELECT and use to select the channel and then use to adjust the channel levels Speaker Distance For good sound depth from your system you need to specify the distance of your speakers from the listening position The receiver can then add the proper delay needed for effective surround sound For the assignment of the digital signal inputs see Selecting the audio input signal on page 18 Select Manual SP Setup from the Home Menu Select Speaker Distance from the Manual SP Setup menu Adjust the distance of each speaker using You can adjust the distance of each speaker in 003 m increments When youre finished press RETURN You return to the Manual SP Setup menu The Input Assign menu CD audio input terminal is assigned to CD under factory settings but this can be changed to TV input Select Input Assign from the Home Menu Select Analog Input from the Input Assign menu Select the desired input option for the CD audio input terminal When youre finished press RETURN You return to the Input Assign menu The Auto Power Down menu Set to automatically turn off the receiver after a specified time has passed when the power has been on with no operation for several hours Default setting 6H Select Auto Power Down from the Home Menu Specify the amount of time to allow before the power is turned off when there has been no operation You can select 2 4 or 6 hours or OFF if no automatic shutoff is desired When youre finished press RETURN You return to the Home Menu RECEIVER 1Manual SP Setup Return aSpeaker Setting bXOver cChannel Level dSpeaker Distance 1dSpeaker Distance Front L Center Front R Surround R Surround L Subwoofer Return 3 m 3 m 3 m 3 m 3 m 3 m Home Menu 1Manual SP Setup 2Input Assign 3Auto Power Down 4HDMI Setup Return 2Input Assign Return aAnalog Input 2aAnalog Input Return Analog CD Home Menu 1Manual SP Setup 2Input Assign 3Auto Power Down 4HDMI Setup Return 3Auto Power Down Return 6H Auto Power Down
• Page 30 - English - : Home Menu The HDMI Setup menu If your TV supports an audio return channel ARC function connect your TV and this unit with an HDMI cable and the TV audio will be inputted into this unit via the HDMI terminal without the need for an audio cable to be connected It is possible to transfer signals from an HDMI connected player to the TV even when this receivers power is on standby Important Use a High Speed HDMI Cable when using the ARC function The ARC function may not operate properly with other HDMI cables Select HDMI Setup from the Home Menu Choose the ARC setting you want When a TV supporting the HDMI Audio Return Channel function is connected to the receiver the sound of the TV can be input via the HDMI terminal ON The TVs sound is input via the HDMI terminal OFF The TVs sound is input from the audio input terminals other than HDMI inputs Choose the Standby Through setting you want When the receiver is in standby the HDMI input signal selected here will be output to the TV by HDMI LAST The HDMI input signal selected previously will be output BD DVD SATCBL GAME The HDMI input signal selected here will be output OFF Signal will not be output during standby If the Standby Through setting is not set to OFF the power consumption during standby will increase Choose the 4k60p Setting setting you want If the TV to be connected using HDMI supports 4K60p you can switch the 4k60p setting in accordance with TV performance 1 Select an input terminal that you wish to change settings using 2 Use to select 4k60p 3 Use to select the signal to set 444 Select this setting when connecting to a 4K 60p 444 24 bit compatible TV using HDMI More high quality video images can be enjoyed When the HDMI cable does not support 4K60p 444 24 bit 18 Gbps transmission video image may not be output properly In that case select 420 to watch a 4K60p 420 24 bit video image 420 Select this setting when connecting to a 4K 60p 420 24 bit compatible TV using HDMI If certain source devices that do not support 4K60p 444 24 bit are used and the HDMI terminal is set to 444 video output from the source device may turn red no audio may be output by the source device or a 3D signal may not be output by some of the devices In these cases set the HDMI terminal to 420 When youre finished press RETURN You return to the Home Menu Before starting ARC operation When starting ARC operation put the TV and this unit in STANDBY mode after connecting this unit with the TV Next turn ON the power of this unit and then the TV in this order In order to start ARC operation after connecting this unit to a TV with an HDMI cable you will need to switch the input on the TV to the input mode required to connect to this unit Then you can select a TV program Important The ARC function may not operate even if the above conditions are met If this is the case listen to the TV audio after connecting this unit and the TV with an audio cable The CEC Consumer Electronic Control function may activate when the ARC function is turned ON causing power to turn ON and OFF and the input to switch from one to another Since this unit does not guarantee synchronized operation based on the CEC function we recommend that you turn OFF the HDMI CONTROL setting on the connected player This unit may not operate properly if the HDMI CONTROL on the player is ON Refer to the relevant devices instruction manual for details If this does not work turn OFF the ARC function If this is the case listen to the TV audio after connecting this unit and the TV with an audio cable In addition this unit does not guarantee synchronized operation that allows the TV remote control to operate the volume including mute Use this unit to operate the volume including mute Turn OFF the power and remove the power cord from the wall socket when connecting other devices or making connection changes to this unit After all connections are completed insert the power cord into the wall socket If the power cord is connected when the ARC function is ON the HDMI will take 2 to 10 seconds to initialize This unit cannot be operated during the initialization During initialization the HDMI indicator on the display will blink Turn ON the unit after blinking stops Home Menu 1Manual SP Setup 2Input Assign 3Auto Power Down 4HDMI Setup Return 4HDMI Setup Return aARC bStandby Through c4k60p Setting OFF OFF
• Page 31 - English - : Chapter Additional information Troubleshooting Incorrect operations are often mistaken for trouble and malfunctions If you think that there is something wrong with this component check the points below Take a look at the other components and electrical appliances being used because sometimes the problem may lie there If the trouble isnt sorted out even after going through the checks below ask your nearest Pioneer authorized independent service company to carry out repair work If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions General The power does not turn on Disconnect the power plug from the outlet and insert again The receiver suddenly switches off When the Auto Power Down function is working the power will automatically turn off if the receiver has not operated for several hours Check the setting for the Auto Power Down function see The Auto Power Down menu on page 29 Make sure there are no loose strands of speaker wire touching the rear panel This could cause the receiver to shut off automatically After about a minute you wont be able to switch the unit on during this time switch the receiver back on If the message persists call a Pioneer authorized independent service company If there is very little low frequency information in the source material change your speaker settings to Front SMALL Subwoofer YES or Front LARGE Subwoofer PLUS page 27 The HDMI indicator blinks and the power does not turn on The receiver may have a serious problem Do not try switching the receiver on Unplug the receiver from the wall and call a Pioneer authorized independent service company Power automatically turns ONOFF and the input switches from one to another When the ARC function is ON The CEC Consumer Electronic Control function may activate when the ARC function is turned ON causing power to turn ON and OFF and the input to switch from one to another Since this unit does not guarantee synchronized operation based on the CEC function turn OFF the HDMI CONTROL setting on the connected player Refer to the relevant devices instruction manual for details If this does not work turn OFF the ARC function If this is the case listen to the TV audio after connecting this unit and the TV with an audio cable OVERHEAT shows in the display and the power turns off The temperature within the unit has exceeded the allowable value Try moving the unit for better ventilation page 2 Lower the volume level TEMP shows in the display and the volume level drops The temperature within the unit has exceeded the allowable value Try moving the unit for better ventilation page 2 Lower the volume level No sound is output when an input function is selected Use VOLUME to turn up the volume Press MUTE on the remote control to turn muting off Set the SIG SEL to H HDMI C1O1 digital or A analog according to the type of connections made page 18 Make sure the component is connected correctly see Connecting your equipment on page 10 Check the audio output settings of the source component Refer to the instruction manual supplied with the source component No image is output when an input function is selected Make sure the component is connected correctly see Connecting your equipment on page 10 Use the same type of video cables for the source component and TV to connect to this receiver see About video outputs connection on page 13 The video input selected on the TV monitor is incorrect Refer to the instruction manual supplied with the TV No sound from subwoofer Make sure the subwoofer is switched on If the subwoofer has a volume knob make sure its turned up The Dolby Digital or DTS source you are listening to may not have an LFE channel Switch the subwoofer setting in Speaker Setting on page 27 to YES or PLUS Switch the LFE ATT LFE Attenuate on page 25 to LFEATT 0 or LFEATT 5 No sound from surround or center speakers Connect the speakers properly page 11 Refer to Speaker Setting on page 27 to check the speaker settings Refer to Channel Level on page 28 to check the speaker levels No sound from a specific speaker Make sure the speaker cable is connected correctly Ensure that the connection terminal is correct that the speaker wire is firmly inserted and that no speaker wire is touching the rear panel The Phase Control feature doesnt seem to have an audible effect If applicable check that the lowpass filter switch on your subwoofer is off or the lowpass cutoff is set to the highest frequency setting If there is a PHASE setting on your subwoofer set it to 0º or depending on the subwoofer the setting where you think it has the best overall effect on the sound Make sure the speaker distance setting is correct for all speakers see Speaker Distance on page 29 Considerable noise in radio broadcasts Connect the antenna page 16 and adjust the position for best reception Route any loose cables away from the antenna terminals and wires Fully extend the FM wire antenna position for best reception and secure to a wall or connect an outdoor FM antenna Connect an additional internal or external AM antenna page 16 Turn off equipment causing interference or move it away from the receiver or move antennas farther away from equipment causing noise Broadcast stations cannot be selected automatically Connect an outdoor antenna page 16 Noise during playback of a cassette deck Move the cassette deck away from your receiver until the noise disappears No sound is output or a noise is output when software with DTS is played back Make sure the players settings are correct andor the DTS signal out is on Refer to the instruction manual supplied with the DVD player Cant operate the remote control Replace the batteries page 9 Operate within 7 m 30º of the remote sensor page 9 Remove the obstacle or operate from another position Avoid exposing the remote sensor on the front panel to direct light Press the remote controls button and switch to receiver control mode RECEIVER
• Page 32 - English - : Additional information In order to operate TUNER and USB functions first press the TUNER or USB button before operating The display is dark Press DIMMER on the remote control repeatedly to return to the default During ECO mode the brightness switches between 2 levels If the dimmest level is selected DIMMER will be shown on the display Mode other than ECO 3 levels ECO mode 2 levels Display flashes and cannot be operated Depending on the input signal or listening mode there may be functions that cannot be selected HDMI No picture or sound If the problem still persists when connecting your HDMI component directly to your monitor please consult the component or monitor manual or contact the manufacturer for support No picture Video signals that are input from the analog video terminal will not output from the HDMI terminal Signals that are input from the HDMI terminal will not output from the analog video terminal Be consistent with the type of cable between input and output Depending in the output settings of the source component it may be outputting a video format that cant be displayed Change the output settings of the source or connect using the composite video jacks This receiver is HDCPcompatible Check that the components you are connecting are also HDCPcompatible If they are not please connect them using the composite video jacks Depending on the connected source component its possible that it will not work with this receiver even if it is HDCP compatible In this case connect using the composite video jacks between source and receiver If video images do not appear on your TV try adjusting the resolution Deep Color or other setting for your component To output signals in Deep Color use an HDMI cable High Speed HDMI Cable to connect this receiver to a component or TV with the Deep Color feature The OSD screen Home Menu etc isnt displayed The OSD will not appear if you have connected using the composite output to your TV Use HDMI connections when setting up the system No sound or sound suddenly ceases Check that the HDMI setting is set to AMP page 24 If the component is a DVI device use a separate connection for the audio HDMI format digital audio transmissions require a longer time to be recognized Due to this interruption in the audio may occur when switching between audio formats or beginning playback Turning onoff the device connected to this units HDMI OUT terminal during playback or disconnectingconnecting the HDMI cable during playback may cause noise or interrupted audio Important information regarding the HDMI connection There are cases where you may not be able to route HDMI signals through this receiver this depends on the HDMI equipped component you are connectingcheck with the manufacturer for HDMI compatibility information If you arent receiving HDMI signals properly through this receiver from your component please try the following configuration when connecting up Configuration Connect your HDMIequipped component directly to the display using an HDMI cable Then use the most convenient connection digital is recommended for sending audio to the receiver See the operating instructions for more on audio connections Set the display volume to minimum when using this configuration Note Depending on the component audio output may be limited to the number of channels available from the connected display unit for example audio output is reduced to 2 channels for a monitor with stereo audio limitations If you want to switch the input source youll have to switch functions on both the receiver and your display unit Since the sound is muted on the display when using the HDMI connection you must adjust the volume on the display every time you switch input sources USB messages USB Error 1 IU ERR1 There is a problem with the signal path from the USB to the receiver Switch off the receiver and reconnect the USB to the receiver USB Error 3 IU ERR3 When there is no response from the USB Switch off the receiver and reconnect the USB to the receiver USB Error 4 IU ERR4 The power requirements of the USB device are too high for this receiver Switch off the receiver and reconnect the USB to the receiver
• Page 33 - English - : Additional information Resetting the main unit Use this procedure to reset all the receivers settings to the factory default Use the front panel controls to do this Switch the receiver into standby While holding down BAND press and hold STANDBYON for about two seconds When you see RESET appear in the display press AUTO SURROUNDSTREAM DIRECT OK shows in the display Press ALCSTANDARD SURR to confirm OK appears in the display to indicate that the receiver has been reset to the factory default settings Important If the ARC function is ON you may not be able to initialize the unit If this happens turn OFF the ARC function or turn OFF all the connected device before turning OFF STANDBY the power for this unit and initialize after the HDMI indicator goes out If the Standby Through is not set to OFF you may not be able to initialize the unit Cleaning the unit Use a polishing cloth or dry cloth to wipe off dust and dirt When the surface is dirty wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water and wrung out well and then wipe again with a dry cloth Do not use furniture wax or cleansers Never use thinners benzine insecticide sprays or other chemicals on or near this unit since these will corrode the surface Specifications Audio section Rated power output Front Center Surround 105 W per channel 1 kHz 6 1 100 W per channel 1 kHz 6 07 For Oceania model Maximum power output Front Center Surround 120 W per channel 1 kHz 6 10 Total Harmonic Distortion 006 20 Hz to 20 kHz 8 50 Wch Frequency response LINE Pure Direct mode 10 Hz to 70 kHz dB Guaranteed speaker impedance 6 to 16 Input SensitivityImpedance LINE 250 mV47 k SignaltoNoise Ratio IHF short circuited A network LINE 98 dB Video Section Signal level Composite 1 Vpp 75 Tuner Section Frequency Range FM 875 MHz to 108 MHz Antenna Input FM 75 unbalanced Frequency Range AM 531 kHz to 1602 kHz Antenna AM Loop antenna Digital InOut Section HDMI terminal Type A 19pin HDMI output type 5 V 55 mA USB terminal USB20 Full Speed Type A 5 V 05 A Miscellaneous Power Requirements AC 220 V to 240 V 50 Hz60 Hz Power Consumption 165 W In standby 045 W Dimensions 435 mm W x 168 mm H x 3265 mm D Weight without package 73 kg Furnished Parts Remote control 1 Dry cell batteries AAA size IEC R03 2 AM loop antenna 1 FM wire antenna 1 Quick start guide Safety Brochure Note Specifications and the design are subject to possible modifications without notice due to improvements Manufactured under license from Dolby Laboratories Dolby Pro Logic and the doubleD symbol are trademarks of Dolby Laboratories For DTS patents see httppatentsdtscom Manufactured under license from DTS Licensing Limited DTS DTSHD the Symbol amp DTS and the Symbol together are registered trademarks of DTS Inc DTS Inc All Rights Reserved
• Page 34 - English - : Additional information Software license notice The licenses for the open source software used on this product are shown below For accuracy purposes here we have included the original texts in English FreeRTOS V605 Copyright C 2009 Real Time Engineers Ltd The FreeRTOSorg source code is licensed by the modified GNU General Public License GPL text provided below An exception to this license exists that can be applied should you wish to use FreeRTOS in a work that includes commercial or proprietary code without being obliged to provide source code for the proprietary components See the licensing section of httpwwwFreeRTOSorg for full details GNU GENERAL PUBLIC LICENSE Version 2 June 1991 Copyright C 1989 1991 Free Software Foundation Inc 51 Franklin Street Fifth Floor Boston MA 021101301 USA Everyone is permitted to copy and distribute verbatim copies of this license document but changing it is not allowed Preamble The licenses for most software are designed to take away your freedom to share and change it By contrast the GNU General Public License is intended to guarantee your freedom to share and change free software to make sure the software is free for all its users This General Public License applies to most of the Free Software Foundations software and to any other program whose authors commit to using it Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead You can apply it to your programs too When we speak of free software we are referring to freedom not price Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software and charge for this service if you wish that you receive source code or can get it if you want it that you can change the software or use pieces of it in new free programs and that you know you can do these things To protect your rights we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights These restrictions translate to certain responsibilities for you if you distribute copies of the software or if you modify it For example if you distribute copies of such a program whether gratis or for a fee you must give the recipients all the rights that you have You must make sure that they too receive or can get the source code And you must show them these terms so they know their rights We protect your rights with two steps 1 copyright the software and 2 offer you this license which gives you legal permission to copy distribute andor modify the software Also for each authors protection and ours we want to make certain that everyone understands that there is no warranty for this free software If the software is modified by someone else and passed on we want its recipients to know that what they have is not the original so that any problems introduced by others will not reflect on the original authors reputations Finally any free program is threatened constantly by software patents We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses in effect making the program proprietary To prevent this we have made it clear that any patent must be licensed for everyones free use or not licensed at all The precise terms and conditions for copying distribution and modification follow GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING DISTRIBUTION AND MODIFICATION 0 This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License The quotProgramquot below refers to any such program or work and a quotwork based on the Programquot means either the Program or any derivative work under copyright law that is to say a work containing the Program or a portion of it either verbatim or with modifications andor translated into another language Hereinafter translation is included without limitation in the term quotmodificationquot Each licensee is addressed as quotyouquot Activities other than copying distribution and modification are not covered by this License they are outside its scope The act of running the Program is not restricted and the output from the Program is covered only if its contents constitute a work based on the Program independent of having been made by running the Program Whether that is true depends on what the Program does 1 You may copy and distribute verbatim copies of the Programs source code as you receive it in any medium provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty keep intact all the notices that refer to this License and to the absence of any warranty and give any other recipients of the Program a copy of this License along with the Program You may charge a fee for the physical act of transferring a copy and you may at your option offer warranty protection in exchange for a fee 2 You may modify your copy or copies of the Program or any portion of it thus forming a work based on the Program and copy and distribute such modifications or work under the terms of Section 1 above provided that you also meet all of these conditions a You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change b You must cause any work that you distribute or publish that in whole or in part contains or is derived from the Program or any part thereof to be licensed as a whole at no charge to all third parties under the terms of this License c If the modified program normally reads commands interactively when run you must cause it when started running for such interactive use in the most ordinary way to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty or else saying that you provide a warranty and that users may redistribute the program under these conditions and telling the user how to view a copy of this License Exception if the Program itself is interactive but does not normally print such an announcement your work based on the Program is not required to print an announcement These requirements apply to the modified work as a whole If identifiable sections of that work are not derived from the Program and can be reasonably considered independent and separate works in themselves then this License and its terms do not apply to those sections when you distribute them as separate works But when you distribute the same sections as part of a whole which is a work based on the Program the distribution of the whole must be on the terms of this License whose permissions for other licensees extend to the entire whole and thus to each and every part regardless of who wrote it Thus it is not the intent of this section to claim rights or contest your rights to work written entirely by you rather the intent is to exercise the right to control the distribution of derivative or collective works based on the Program In addition mere aggregation of another work not based on the Program with the Program or with a work based on the Program on a volume of a storage or distribution medium does not bring the other work under the scope of this License 3 You may copy and distribute the Program or a work based on it under Section 2 in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following a Accompany it with the complete corresponding machine readable source code which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange or b Accompany it with a written offer valid for at least three years to give any third party for a charge no more than your cost of physically performing source distribution a complete machine readable copy of the corresponding source code to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange or c Accompany it with the information you received as to the offer to distribute corresponding source code This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer in accord with Subsection b above The source code for a work means the preferred form of the work for making modifications to it For an executable work complete source code means all the source code for all modules it contains plus any associated interface definition files plus the scripts used to control compilation and installation of the executable However as a special exception the source code distributed need not include anything that is normally distributed in either source or binary form with the major components compiler kernel and so on of the operating system on which the executable runs unless that component itself accompanies the executable If distribution of executable or object code is made by offering access to copy from a designated place then offering equivalent access to copy the source code from the same place counts as distribution of the source code even though third parties are not compelled to copy the source along with the object code 4 You may not copy modify sublicense or distribute the Program except as expressly provided under this License Any attempt otherwise to copy modify sublicense or distribute the Program is void and will automatically terminate your rights under this License However parties who have received copies or rights from you under this License will not have their licenses terminated so long as such
• Page 35 - English - : Additional information parties remain in full compliance 5 You are not required to accept this License since you have not signed it However nothing else grants you permission to modify or distribute the Program or its derivative works These actions are prohibited by law if you do not accept this License Therefore by modifying or distributing the Program or any work based on the Program you indicate your acceptance of this License to do so and all its terms and conditions for copying distributing or modifying the Program or works based on it 6 Each time you redistribute the Program or any work based on the Program the recipient automatically receives a license from the original licensor to copy distribute or modify the Program subject to these terms and conditions You may not impose any further restrictions on the recipients exercise of the rights granted hereinYou are not responsible for enforcing compliance by third parties to this License 7 If as a consequence of a court judgment or allegation of patent infringement or for any other reason not limited to patent issues conditions are imposed on you whether by court order agreement or otherwise that contradict the conditions of this License they do not excuse you from the conditions of this License If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations then as a consequence you may not distribute the Program at all For example if a patent license would not permit royaltyfree redistribution of the Program by all those who receive copies directly or indirectly through you then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program If any portion of this section is held invalid or unenforceable under any particular circumstance the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system it is up to the authordonor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License 8 If the distribution andor use of the Program is restricted in certain countries either by patents or by copyrighted interfaces the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries so that distribution is permitted only in or among countries not thus excluded In such case this License incorporates the limitation as if written in the body of this License 9 The Free Software Foundation may publish revised andor new versions of the General Public License from time to time Such new versions will be similar in spirit to the present version but may differ in detail to address new problems or concerns Each version is given a distinguishing version number If the Program specifies a version number of this License which applies to it and quotany later versionquot you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation If the Program does not specify a version number of this License you may choose any version ever published by the Free Software Foundation 10 If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different write to the author to ask for permission For software which is copyrighted by the Free Software Foundation write to the Free Software Foundation we sometimes make exceptions for this Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally NO WARRANTY 11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE THERE IS NO WARRANTY FOR THE PROGRAM TO THE EXTENT PERMITTED BY APPLICABLE LAW EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS ANDOR OTHER PARTIES PROVIDE THE PROGRAM quotAS ISquot WITHOUT WARRANTY OF ANY KIND EITHER EXPRESSED OR IMPLIED INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PROVE DEFECTIVE YOU ASSUME THE COST OF ALL NECESSARY SERVICING REPAIR OR CORRECTION 12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER OR ANY OTHER PARTY WHO MAY MODIFY ANDOR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE BE LIABLE TO YOU FOR DAMAGES INCLUDING ANY GENERAL SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Programs If you develop a new program and you want it to be of the greatest possible use to the public the best way to achieve this is to make it free software which everyone can redistribute and change under these terms To do so attach the following notices to the program It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty and each file should have at least the quotcopyrightquot line and a pointer to where the full notice is found ltone line to give the programs name and a brief idea of what it doesgt Copyright C ltyeargt ltname of authorgt This program is free software you can redistribute it andor modify it under the terms of the GNU General Public License as published by the Free Software Foundation either version 2 of the License or at your option any later version This program is distributed in the hope that it will be useful but WITHOUT ANY WARRANTY without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE See the GNU General Public License for more details You should have received a copy of the GNU General Public License along with this program if not write to the Free Software Foundation Inc 51 Franklin Street Fifth Floor Boston MA 021101301 USA Also add information on how to contact you by electronic and paper mail If the program is interactive make it output a short notice like this when it starts in an interactive mode Gnomovision version 69 Copyright C year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY for details type show w This is free software and you are welcome to redistribute it under certain conditions type show c for details The hypothetical commands show w and show c should show the appropriate parts of the General Public License Of course the commands you use may be called something other than show w and show c they could even be mouseclicks or menu itemswhatever suits your program You should also get your employer if you work as a programmer or your school if any to sign a quotcopyright disclaimerquot for the program if necessary Here is a sample alter the names Yoyodyne Inc hereby disclaims all copyright interest in the program Gnomovision which makes passes at compilers written by James Hacker ltsignature of Ty Coongt 1 April 1989 Ty Coon President of Vice This General Public License does not permit incorporating your program into proprietary programs If your program is a subroutine library you may consider it more useful to permit linking proprietary applications with the library If this is what you want to do use the GNU Lesser General Public License instead of this License EOF
• Page 36 - English - : ltSN 29402145Agt httpwwwpioneercouk httpwwwpioneereu Onkyo amp Pioneer Corporation 2015 All rights reserved ltJapangt 2312 Yaesu Chuoku Tokyo 1040028 JAPAN ltUSAgt 18 PARK WAY UPPER SADDLE RIVER NEW JERSEY 07458 USA Tel 12017852600 ltGermanygt HannsMartinSchleyerStraße 35 47877 Willich Germany Tel 4902154 913222 ltUKgt Anteros Building Odyssey Business Park West End Road South Ruislip Middlesex HA4 6QQ United Kingdom Tel 440208 836 3612 ltFrancegt 6 Avenue de Marais F 95816 Argenteuil Cedex FRANCE Tel 330969 368 050 ltHong Konggt Unit 1033 10F Star House No 3 Salisbuly Road Tsim Sha Tsui Kowloon Hong Kong Tel 85224293118 Корпорация О энд Пи 2312 Яэсу Чуоку г Токио 1040028 ЯПОНИЯ Pioneer is a trademark of Pioneer Corporation and is used under license
