2
Contents
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Table of contents
What’s in the box 5
Additional Function (Firmware Update) 6
Update Information of the rmware 6
Operation of added new functions 6
Firmware Update Procedure 7
Part Names 10

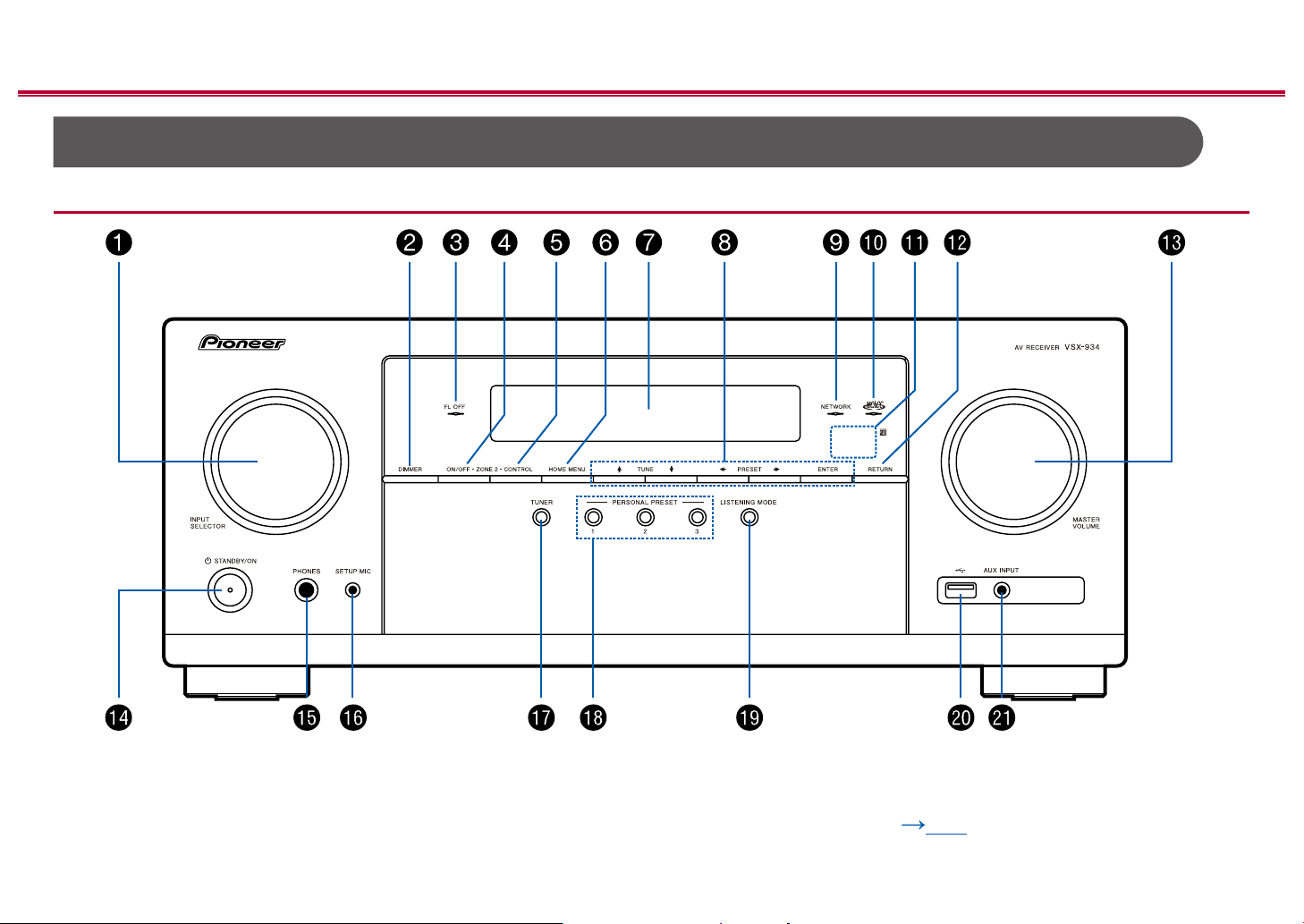

Front Panel 10
Display 12

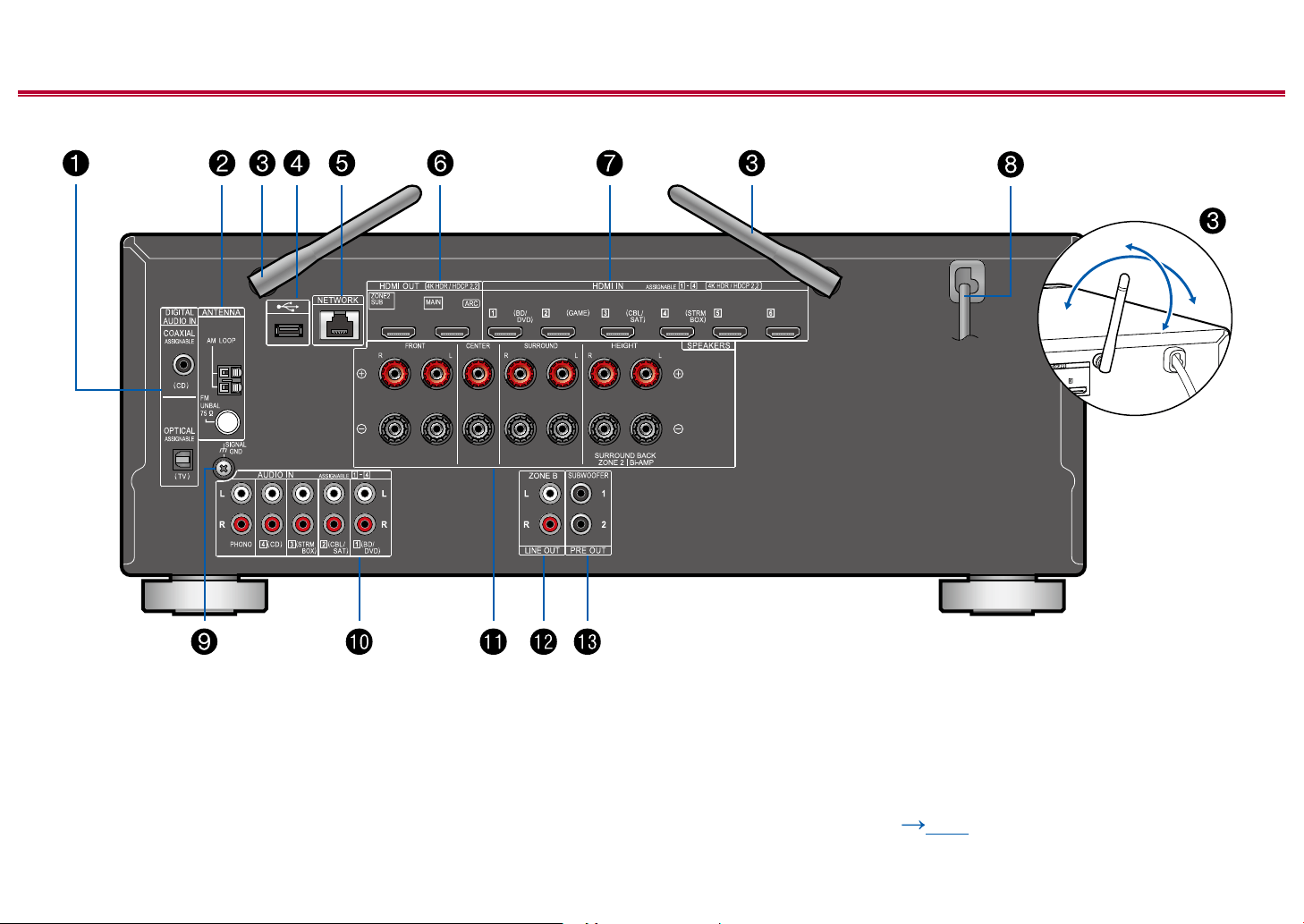

Rear Panel 13
Remote Controller 16
Connections

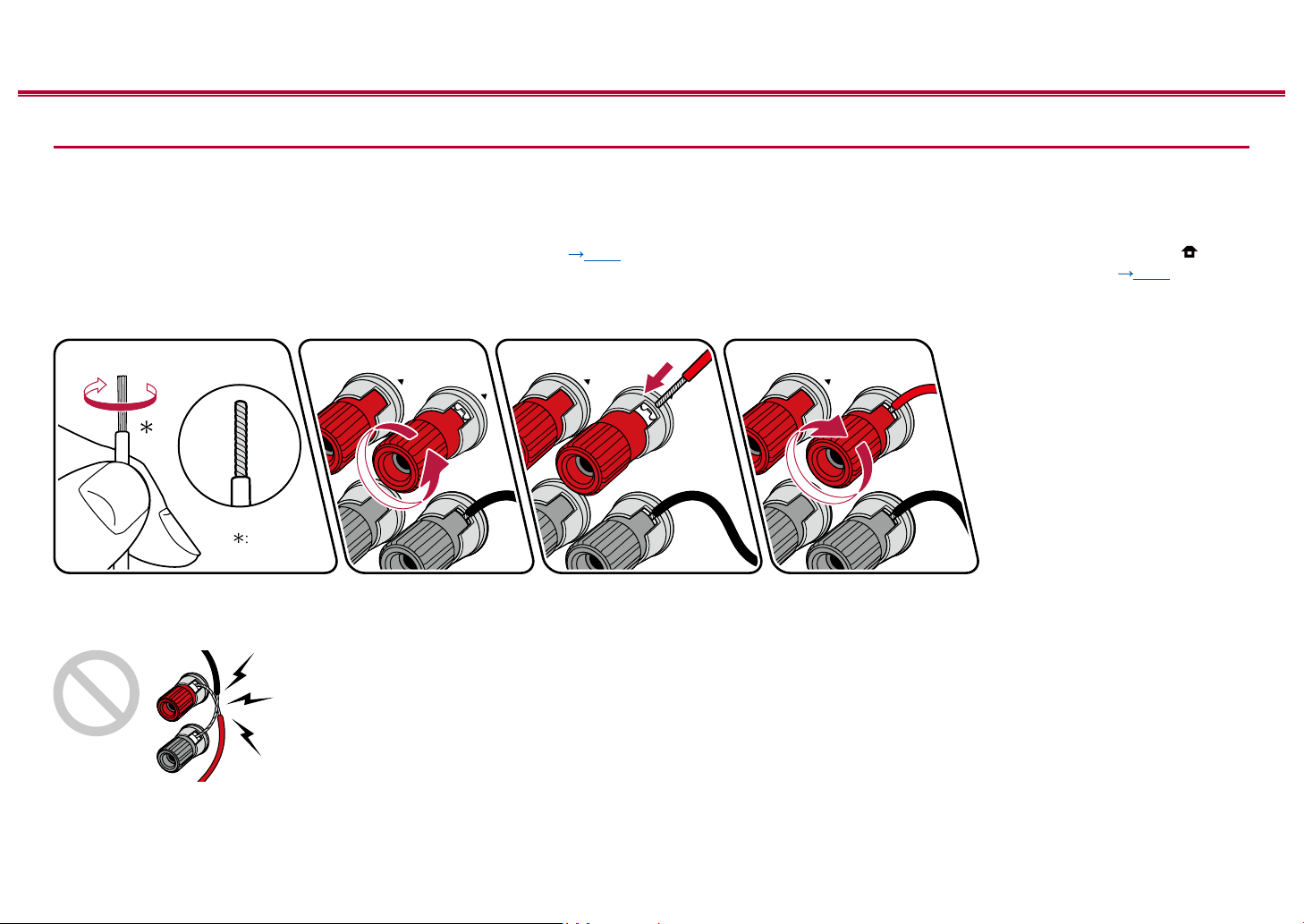

Connecting speakers 19

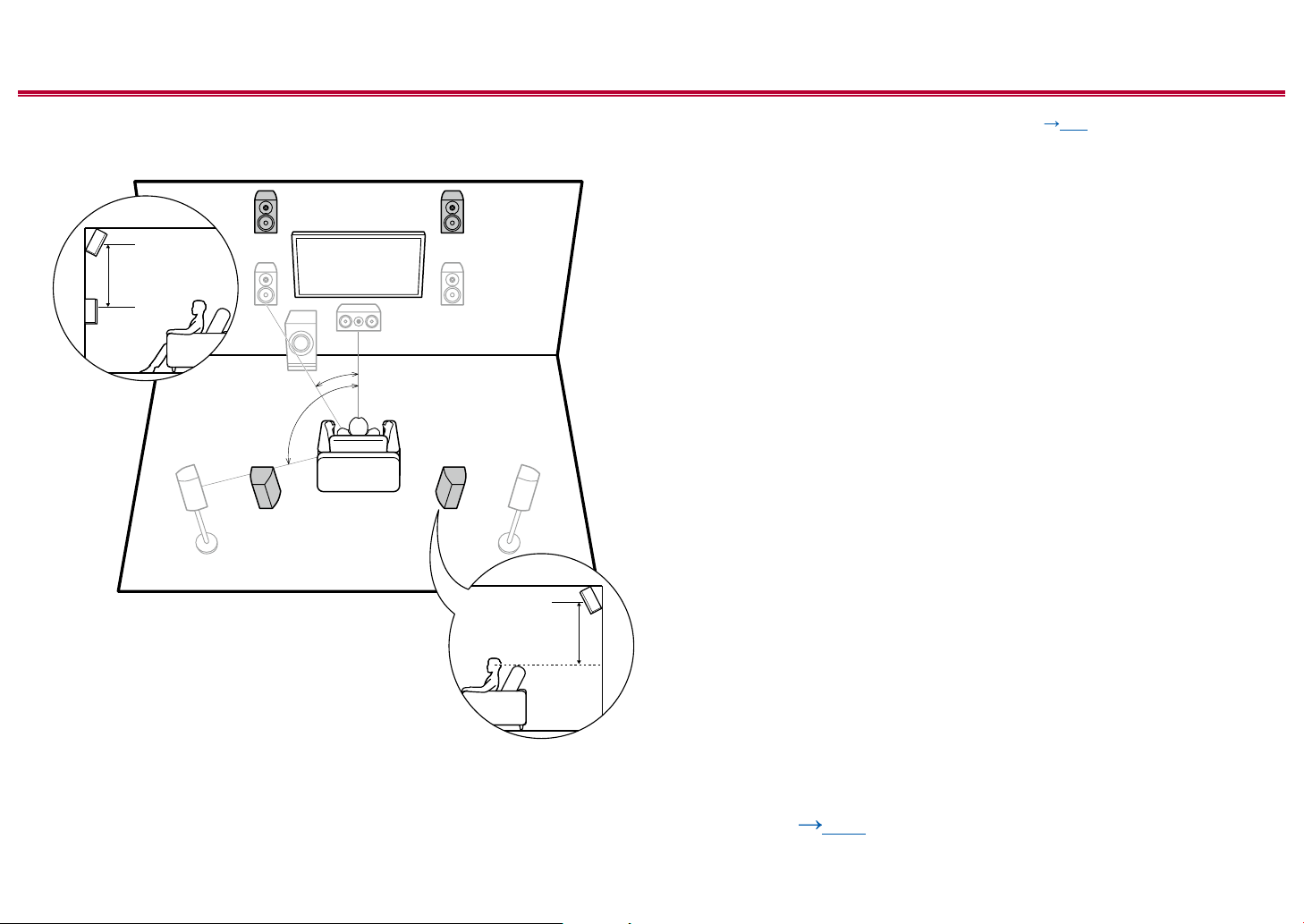

Speaker Installation 20

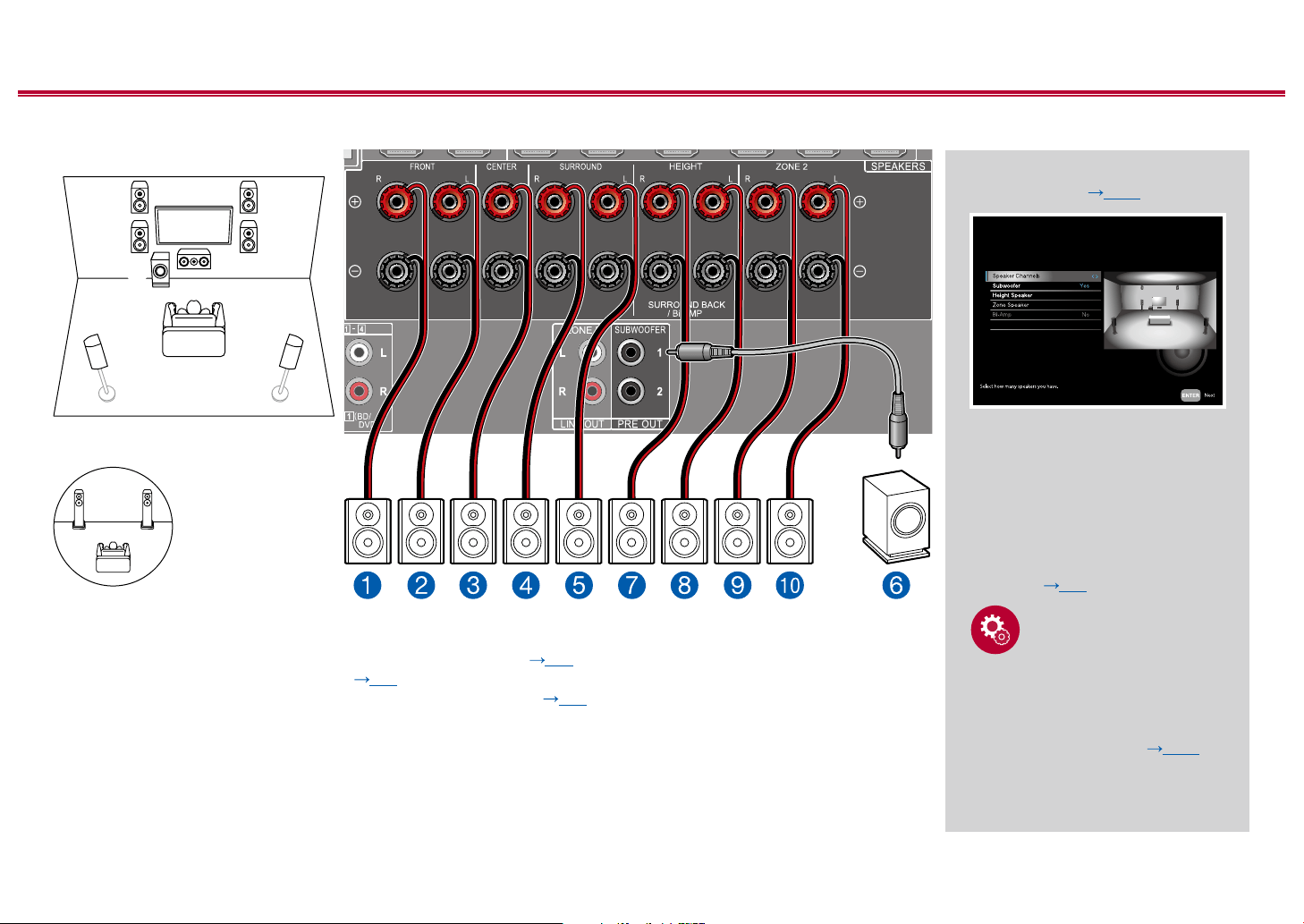

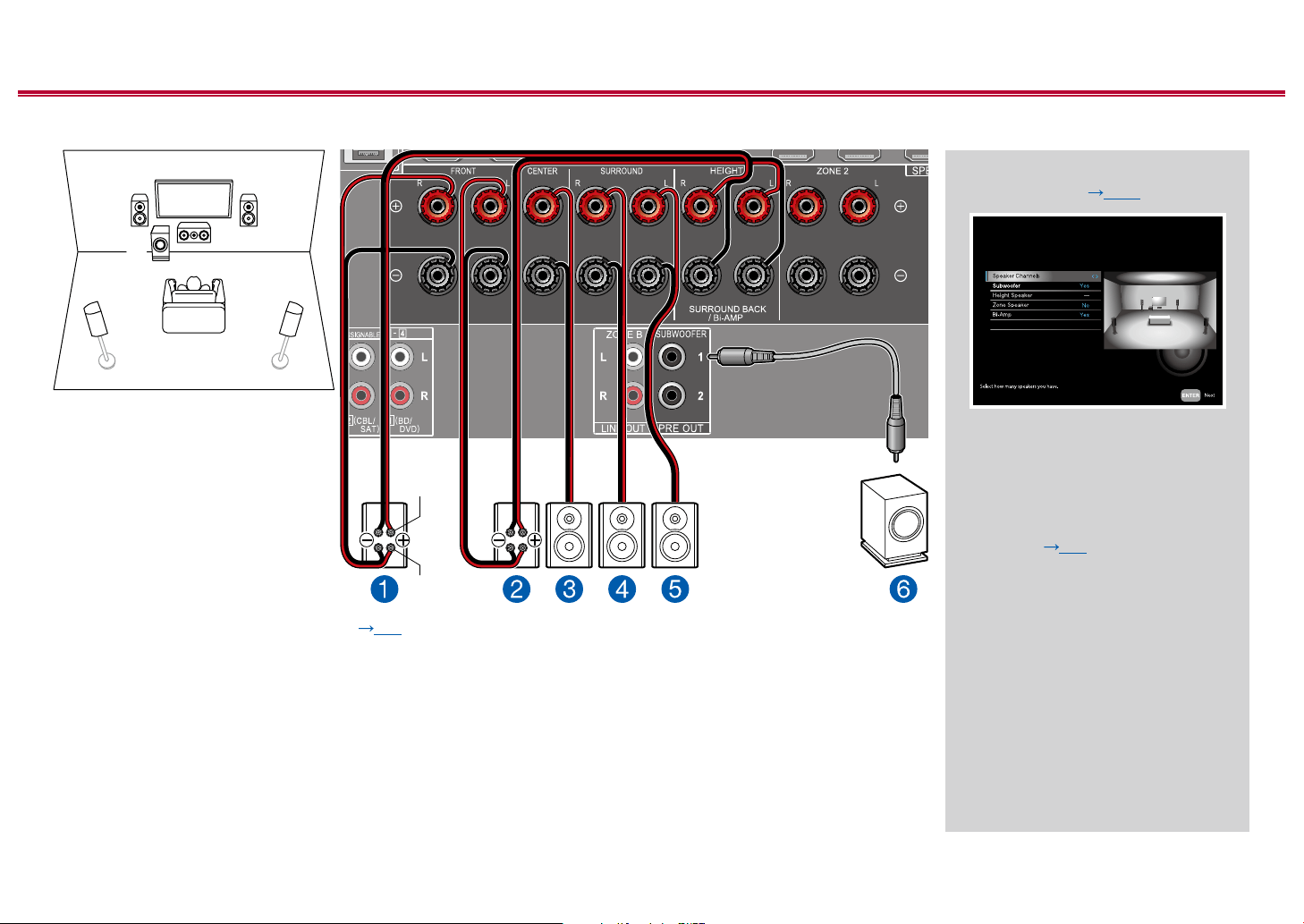

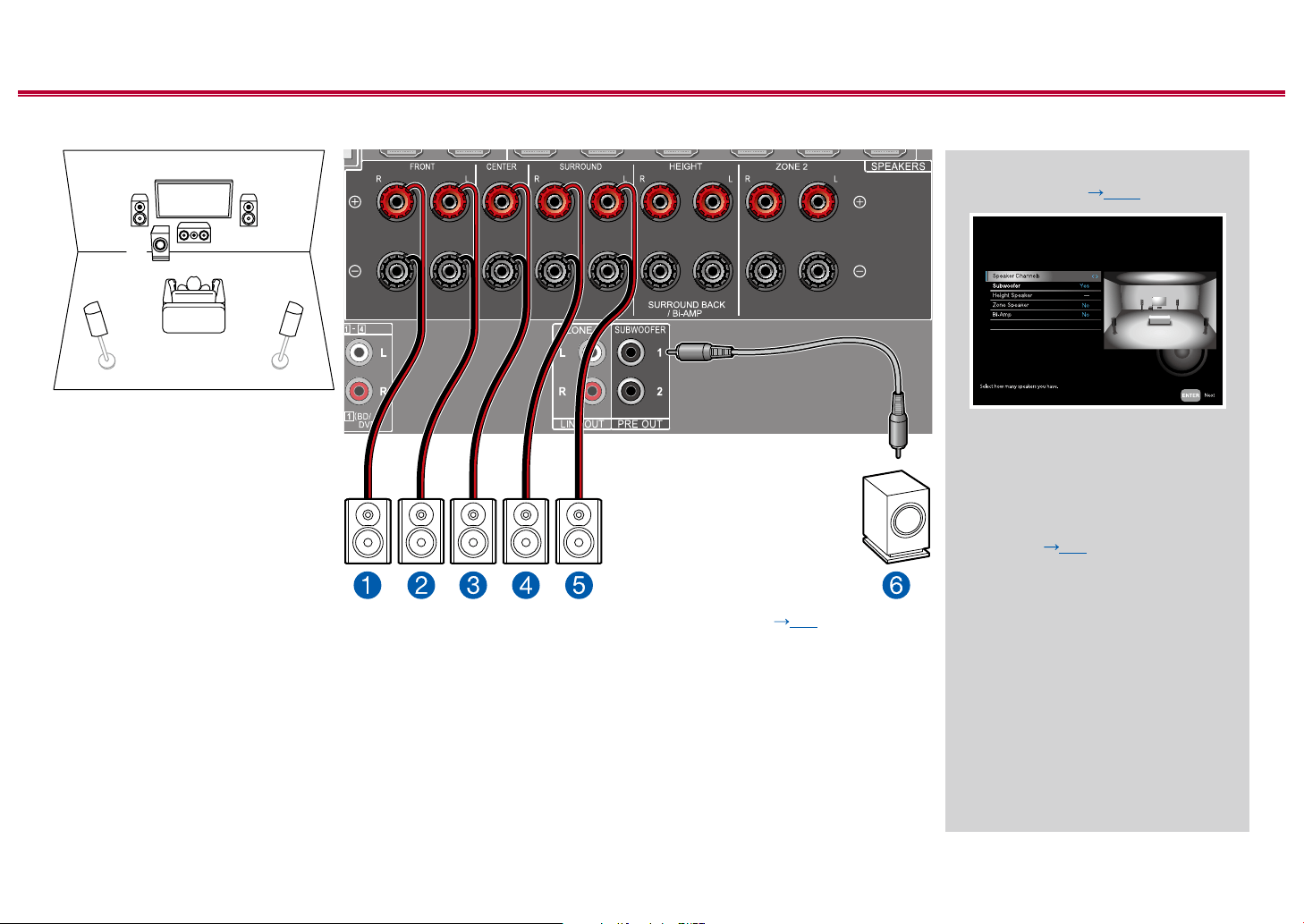

Speaker Connections and "Speaker Setup" Settings 26
Speaker combinations 36
Connecting the TV 38
To ARC TV 39
To Non-ARC TV 40
Connecting Playback Devices 41
Connecting an AV Component with HDMI Jack
Mounted 41
Connecting an Audio Component 42
Connecting an AV Component in a Separate Room
(Multi-zone Connection) 43
Connecting a TV (ZONE 2) 43
Connecting ZONE B 44
Connecting a Pre-main Amplier (ZONE B) 44
Connecting Antennas 45
Network Connection 46
Connecting the Power Cord 47
Playback

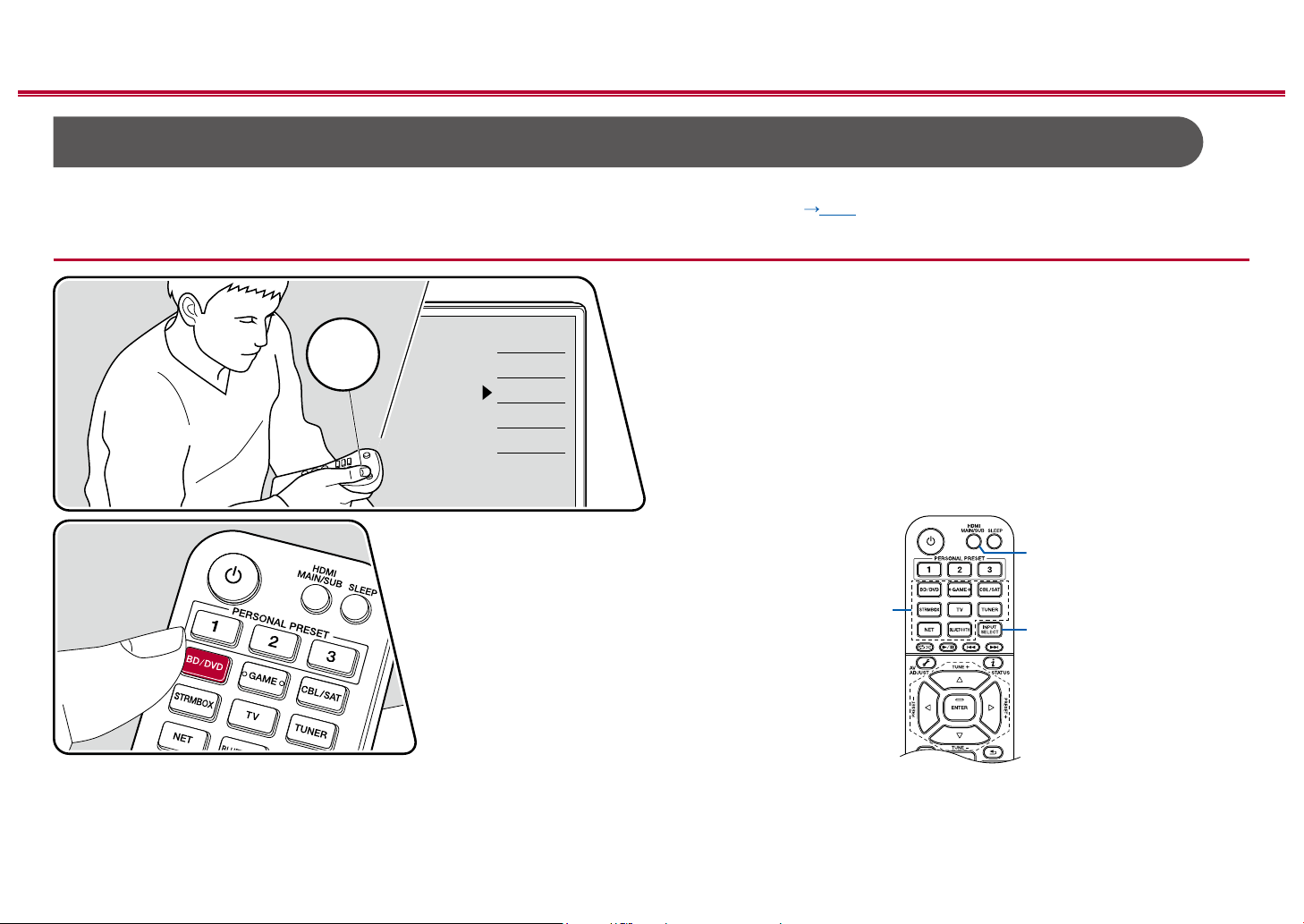

AV Component Playback 49
Basic Operations 49
BLUETOOTH
®
Playback 50
Basic Operations 50

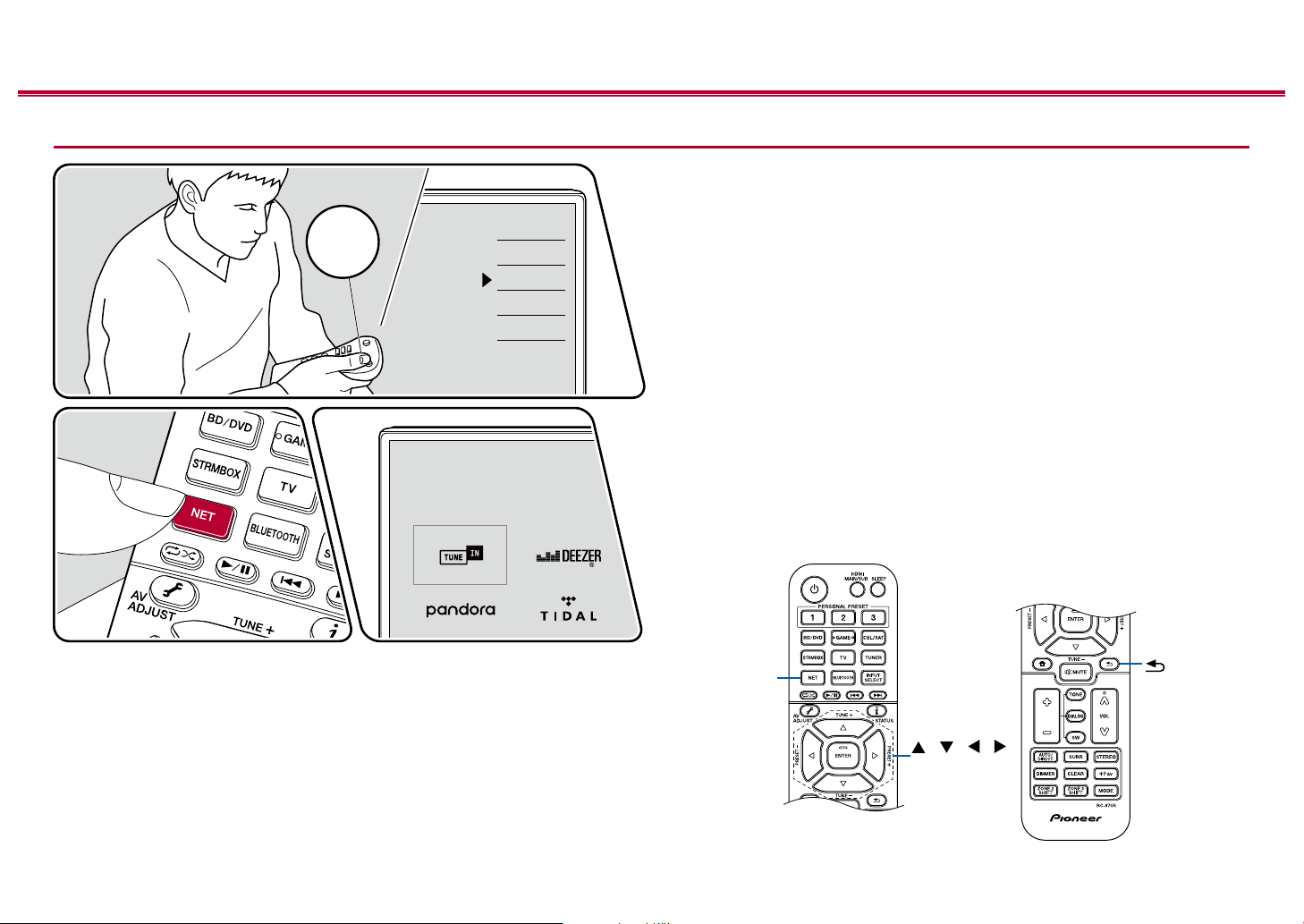

Internet Radio 51
Playing Back 51
Spotify 53
AirPlay
®
54
Basic Operations 54
DTS Play-Fi
®
55
Playing Back 55

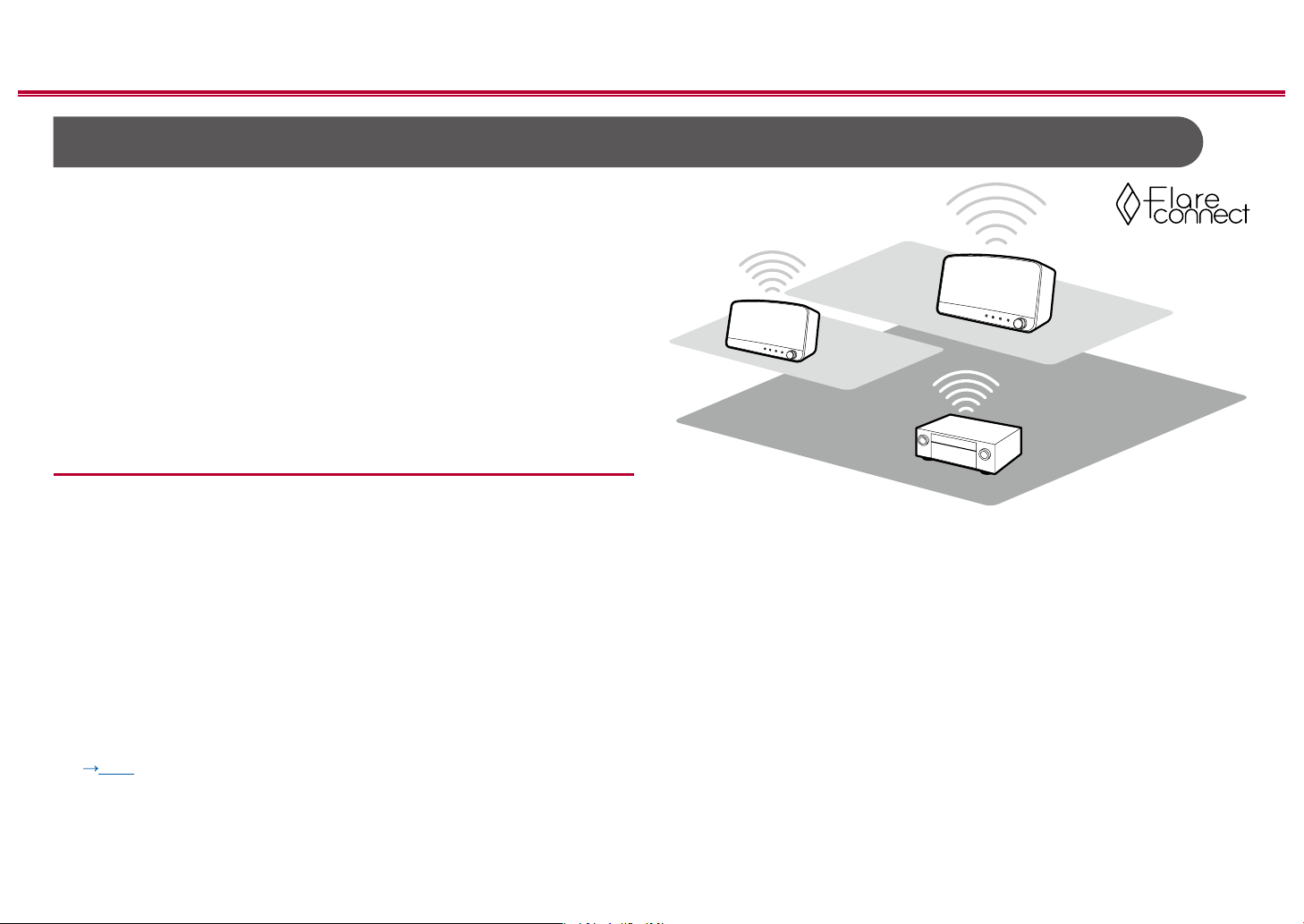

FlareConnect
TM
56
Playing Back 56
USB Storage Device 57
3
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Basic Operations 57
Device and Supported Format 59
Playing back les on a PC and NAS (Music Server) 60
Windows Media
®
Player settings 60
Playing Back 61
Supported Audio Formats 64
Play Queue 65
Initial Setup 65
Adding Play Queue Information 65
Sort and Delete 66
Playing Back 66
Amazon Music 67
Registering this unit with Amazon Music 67
Playing Amazon Music 67
Connecting your Unit to a Sonos System 68
Required Equipment 68
Connecting your Unit to Sonos Connect 68
Setting up your Unit to work with the Sonos Connect 68
Now the fun part - listening to Sonos on your Unit 69
Listening To the AM/FM Radio 70
Tuning into a Radio Station 70

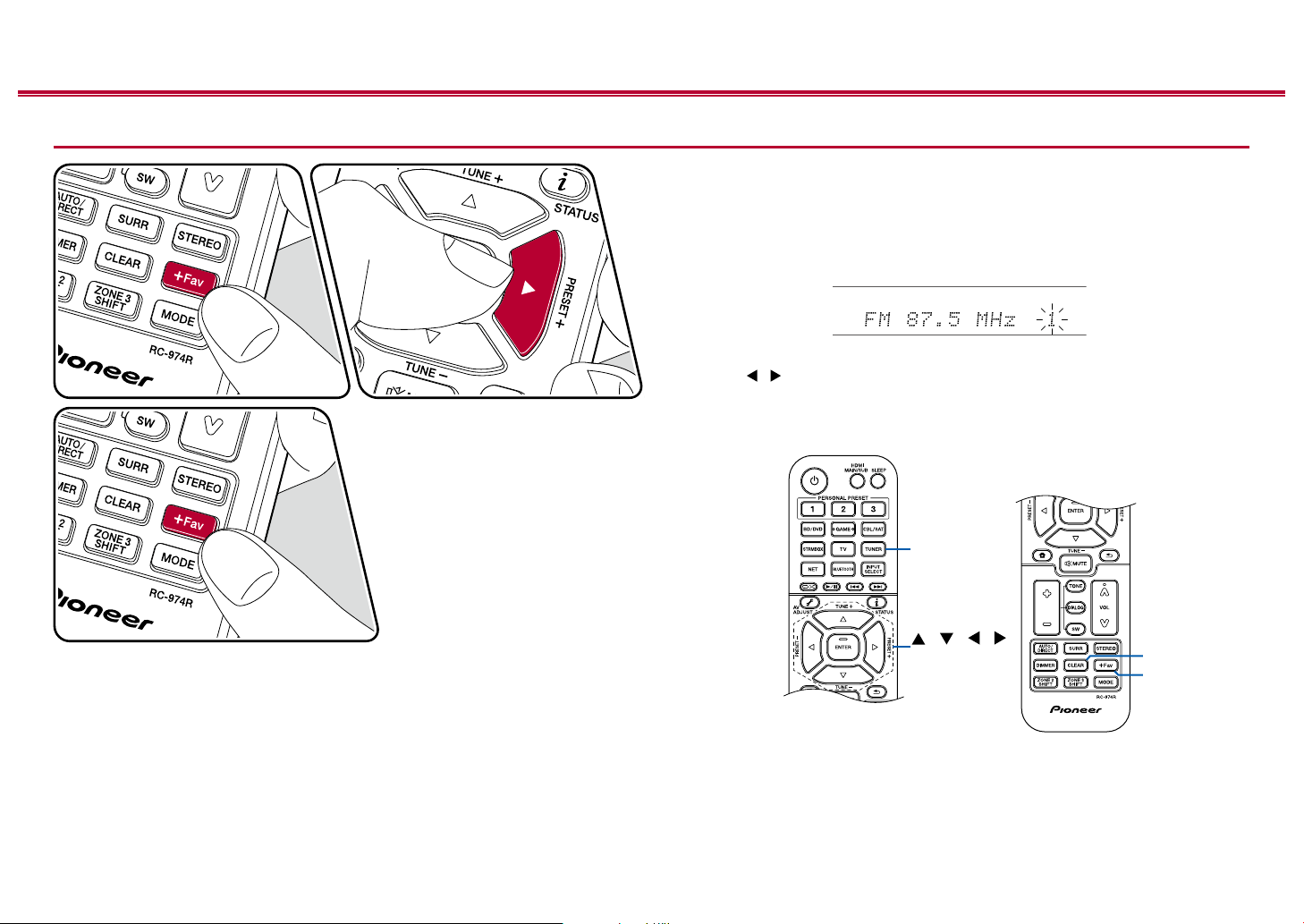

Presetting a Radio Station 72
Using RDS (European, Australian and Asian models) 74
Multi-zone 75
Playing Back 76
ZONE B Playback 77
Playing Back 77
Convenience functions 78

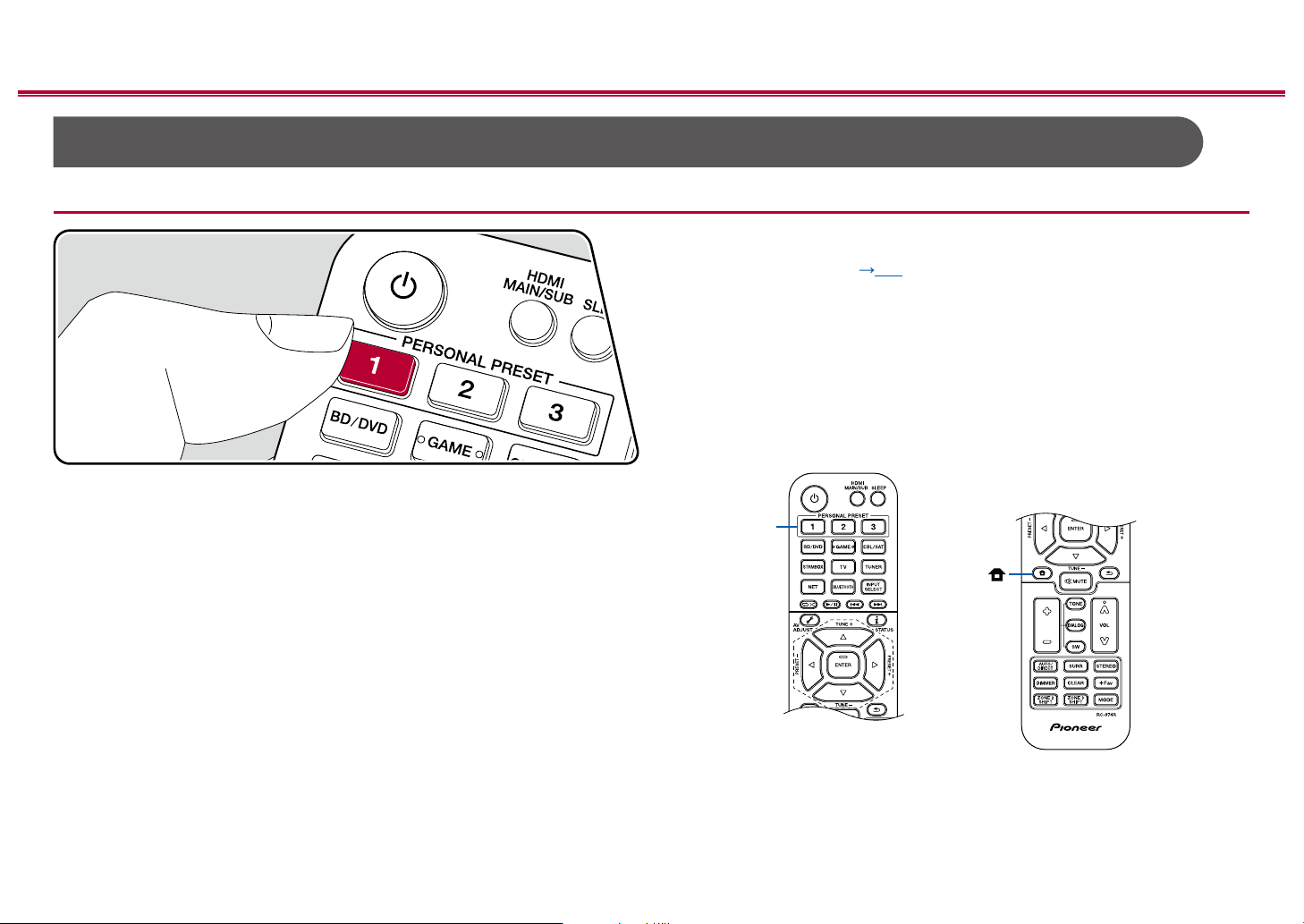

Using PERSONAL PRESET 78

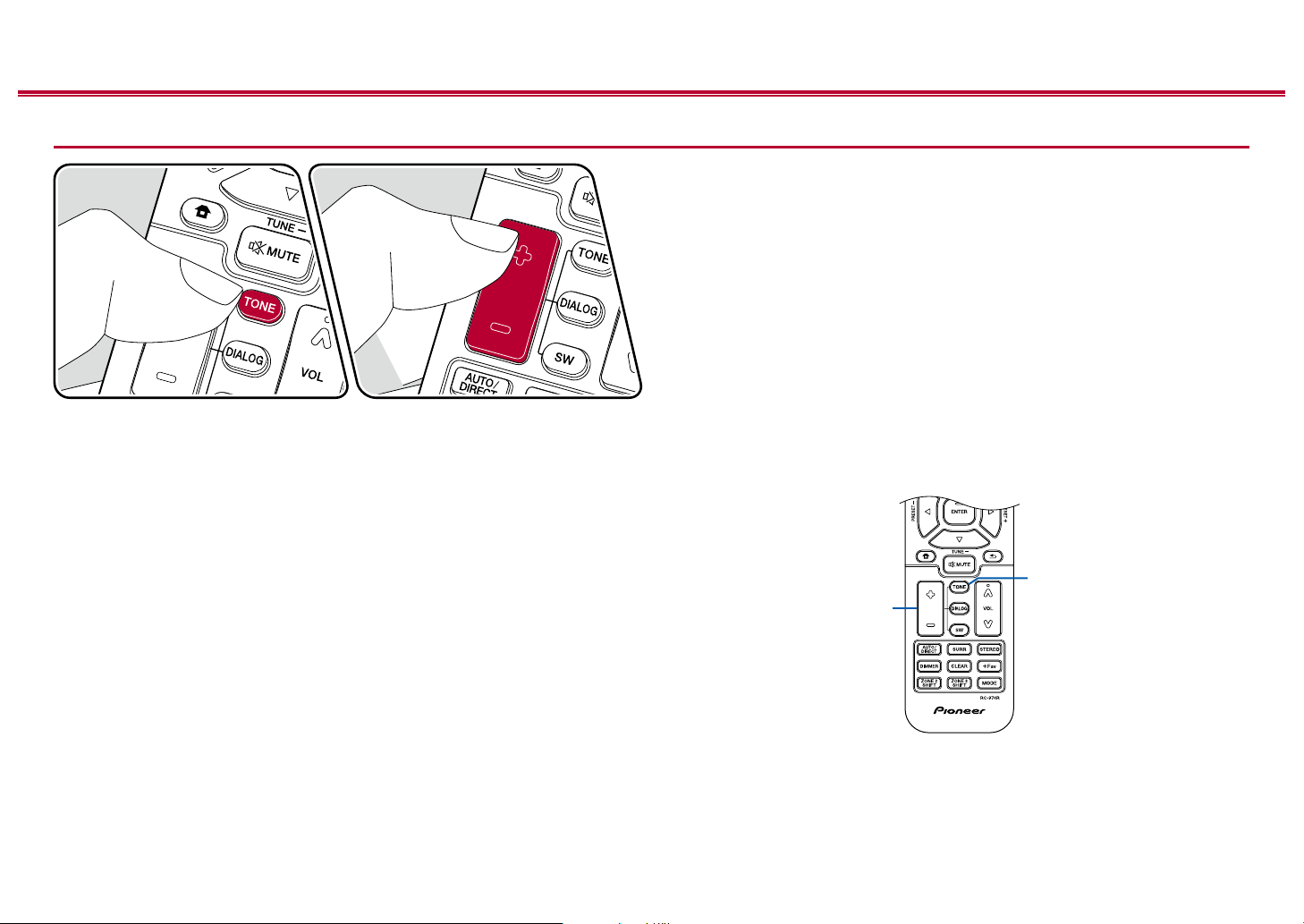

Adjusting the tone 80
Sleep Timer 82
Listening Mode 83
Selecting a Listening mode 83

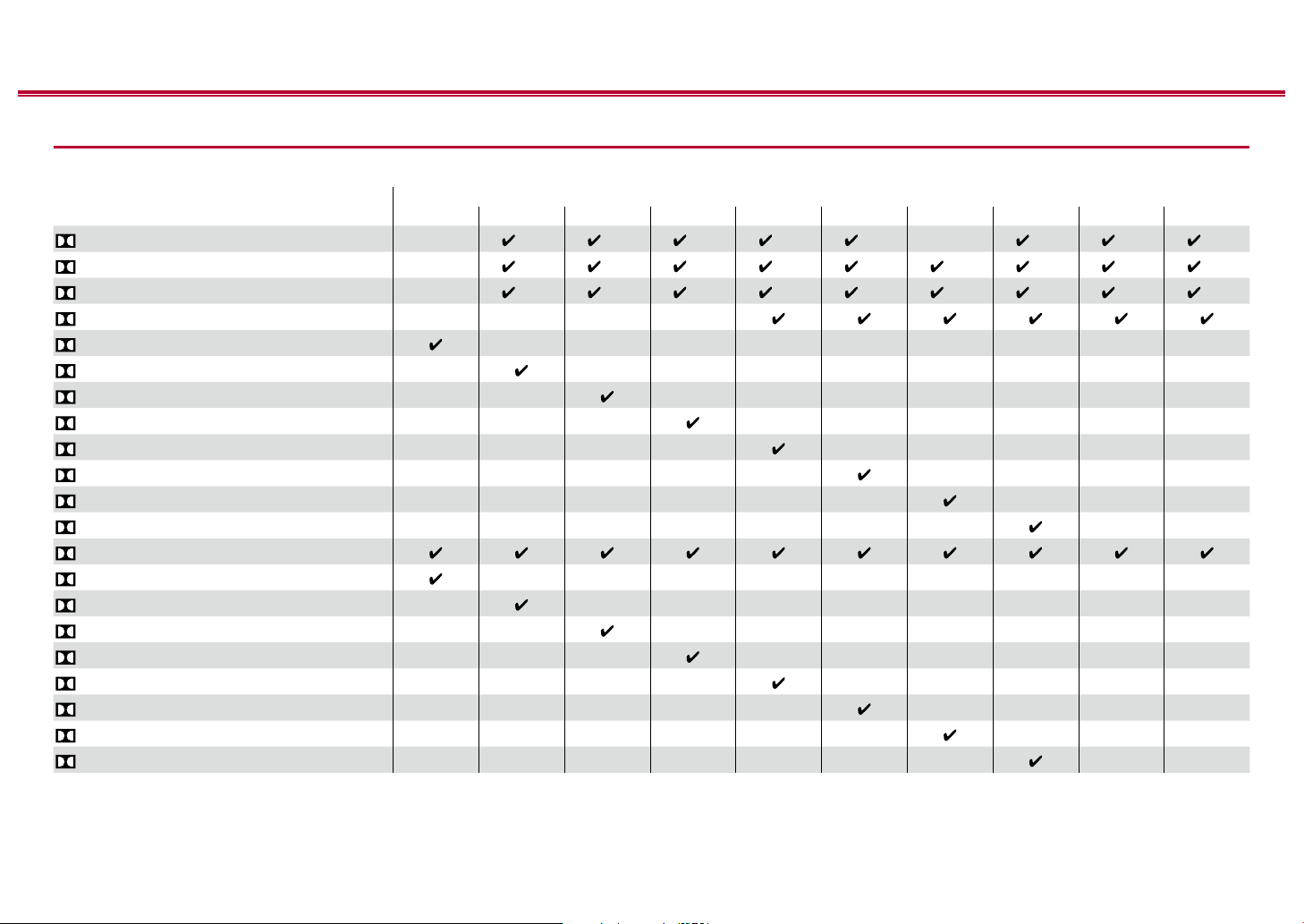

Speaker Layouts and Selectable Listening Modes 86
Listening Mode Eects 89
Input Formats and Selectable Listening Modes 94
Setup
System Setup 100
Menu list 100
Menu operations 102
Input/Output Assign 103
Speaker 106
Audio Adjust 110
Source 111
Hardware 113
4
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Multi Zone 117
Miscellaneous 118
MCACC 120
Menu operations 120

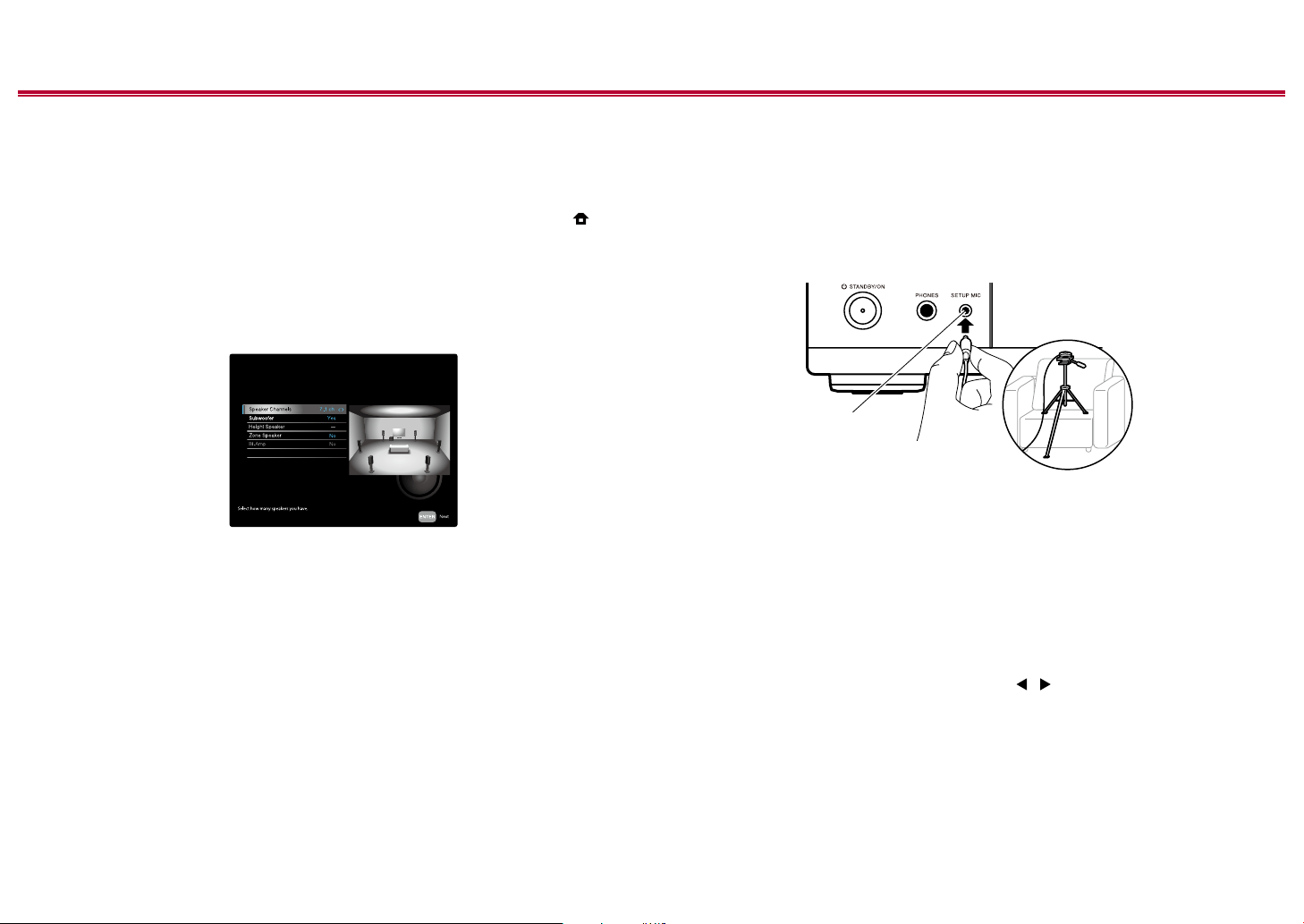

Full Auto MCACC 121
Manual MCACC 122
MCACC Data Check 124
Network/Bluetooth 125
Menu operations 125
Network 126
Bluetooth 127

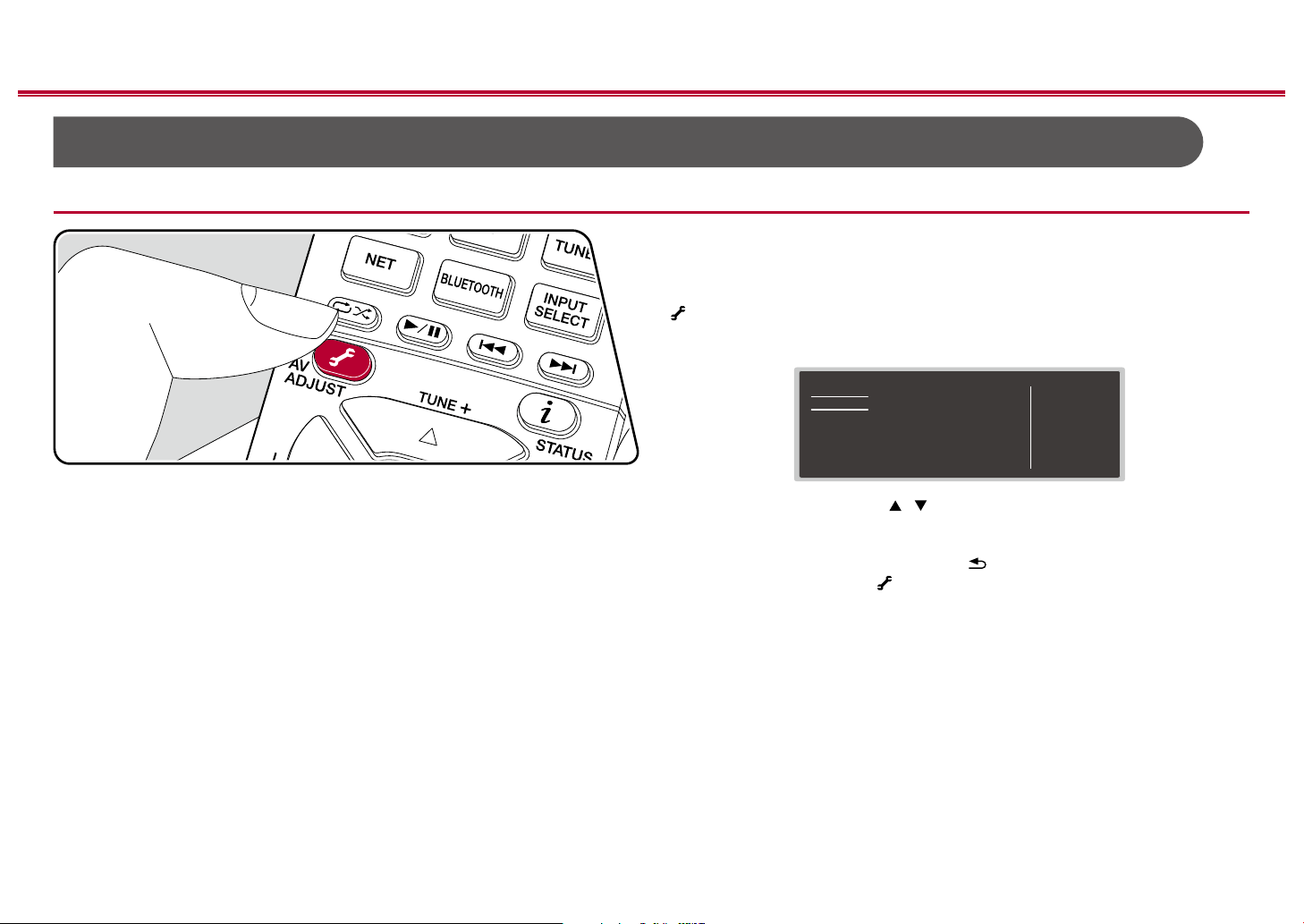

AV Adjust 129
Menu operations 129
Web Setup 131
Menu operations 131
Initial Setup with Auto Start-up Wizard 132
Operations 132
Troubleshooting
When the unit is operating erratically 136
Troubleshooting 138
Appendix
Reducing the Power Consumption in Standby State 147
About HDMI 148
General Specications 150
5
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
What’s in the box
1. Main unit (1)
2. Remote controller (RC-974R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1)
• Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
• Quick Start Guide (1)
* This document is an online instruction manual. It is not included as an
accessory.
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may dier depending on your
area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• The illustrations in this manual use those of North American models unless
otherwise mentioned.
• Specications and appearance are subject to change without prior notice.
1
32
54
6
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Additional Function (Firmware Update)
This unit is equipped with a function to update the rmware via network or USB port when the rmware update is announced after purchase. This enables various
functions to be added and operations to be improved.
Depending on the manufacturing timing of the product, the rmware may be switched to the updated one. In such a case, new functions may be added from the start.
For how to conrm the latest rmware contents and the rmware version of your product, see the following section.
Update Information of the rmware
For the latest rmware contents and the rmware version, visit our company’s website. If the rmware version of your product diers from the latest one, it is
recommended to update the rmware.
To conrm the rmware version of your product, press the button on the remote controller to display the Home screen, and refer to "System Setup" - "Miscellaneous"
- "Firmware Update" - "Version" ( p118).
Operation of added new functions
If functions are added or changed from contents described in the Instruction Manual, see the following reference.
Supplementary Information ≫
❏ Firmware Update Procedure ( p7)
7
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Firmware Update Procedure
The update may take approx. 20 minutes to complete via network or via USB
port. Existing settings are guaranteed in either updating method.
When this unit is connected to the network, notications of rmware updates may
be displayed. To update the rmware, select "Update Now" with the cursors on
the remote controller, and press the ENTER button. The unit automatically enters
standby mode after "Completed!" is displayed, and the update is completed.
Disclaimer: The program and accompanying online documentation are furnished
to you for use at your own risk.
Our company will not be liable and you will have no remedy for damages for
any claim of any kind whatsoever concerning your use of the program or the
accompanying online documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will our company be liable to you or any third party for any special,
indirect, incidental, or consequential damages of any kind, including, but not
limited to, compensation, reimbursement or damages on account of the loss of
present or prospective prots, loss of data, or for any other reason whatsoever.
Updating the Firmware via Network
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn o the controller components (PC etc.) connected to the network.
• Stop any playing Internet radio, USB storage device, or server content.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press to display the Home screen. Next, select "System Setup" -
"Hardware" - "HDMI", press ENTER, select "HDMI CEC" and select "O".
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Press .
The Home screen is displayed on the TV screen.
2. Select "System Setup" - "Miscellaneous" - "Firmware Update" - "Update via
NET" with the cursors in order, then press ENTER.
• If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up.
• If there is no updatable rmware, "Update via NET" cannot be selected.
3. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• When "Completed!" is displayed, the update is complete.
4. Press STANDBY/ON on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
8
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
LAN cable not found. Connect the LAN cable properly.
• -02, -03, -04, -05, -06, -11, -13, -14, -16, -17, -18, -20,
-21:
Internet connection error. Check the following:
– Whether the router is turned on
– Whether this unit and the router are connected via the network
Unplug and plug the power cords of this unit and the router. This may solve
the problem. If you are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the server operation status
with your Internet service provider
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
Updating via USB
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Prepare a 256 MB or larger USB storage device. The format of USB storage
devices supports FAT16 or FAT32 le system format.
– Media inserted into a USB card reader may not be used for this function.
– USB storage devices equipped with the security function are not supported.
– USB hubs and USB devices equipped with the hub function are not
supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press to display the Home screen. Next, select "System Setup" -
"Hardware" - "HDMI", press ENTER, select "HDMI CEC" and select "O".
* Depending on the USB storage device or its content, long time may be required
for loading, the content may not be loaded correctly, or power may not be supplied
correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or storage
failure arising from the use of the USB storage device. Please note this in advance.
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Connect the USB storage device to your PC.
2. Download the rmware le from our company's website to your PC and unzip.
Firmware les are named as below.
PIOAVR_R.zip
Unzip the le on your PC. The number of unzipped les and folders varies
depending on the model.
3. Copy all unzipped les and folders to the root folder of the USB storage
device.
• Make sure to copy the unzipped les.
4. Connect the USB storage device to the USB port of this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• If the USB storage device has been partitioned, each section will be treated
as an independent device.
5. Press .
The Home screen is displayed on the TV screen.
9
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
6. Select "System Setup" - "Miscellaneous" - "Firmware Update" - "Update via
USB" with the cursors in order, then press ENTER.
• If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up.
• If there is no updatable rmware, "Update via USB" cannot be selected.
7. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• During the update, do not turn the power o, or disconnect or reconnect the
USB storage device.
• When "Completed!" is displayed, the update is complete.
8. Disconnect the USB storage device from the unit.
9. Press STANDBY/ON on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
The USB storage device cannot be recognized. Check if the USB storage
device or USB cable is securely inserted to the USB port of the unit.
Connect the USB storage device to an external power source if it has its own
power supply.
• -05, -13, -20, -21:
The rmware le is not present in the root folder of the USB storage device, or
the rmware le is for another model. Retry from the download of the rmware
le.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
11
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Front Panel≫ Rear Panel≫ Remote≫
1. INPUT SELECTOR dial: Switch the input to be played.
2. DIMMER button: You can switch the display o or adjust the brightness of the
display in three steps.
3. FL OFF indicator: This lights when you have pressed DIMMER repeatedly to
turn the display o.
4. ZONE 2-ON/OFF button: Switches the multi-zone function on/o. ( p76)
5. ZONE 2-CONTROL button: Controls the multi-zone function. ( p76)
6. HOME MENU button: Displays the Home. ( p102, 120, 125)
7. Display ( p12)
8. Cursor buttons ( / / / ) and ENTER button: Select the item with the
cursors and press ENTER to conrm. Use them to tune to stations when using
TUNER. ( p70)
9. NETWORK indicator: This lights when "NET" is selected with the input
selector and the unit is connected to the network. Lights up when any of the
following functions is working or enabled in standby state of this unit. When
this indicator is lighting, the power consumption in standby state increases,
however, the increase in power consumption is minimized by entering the
HYBRID STANDBY mode where only the essential circuits operate. It does not
light when ZONE 2 is on, however.
– HDMI CEC ( p113)
– HDMI Standby Through ( p114)
– USB Power Out at Standby ( p115)
– Network Standby ( p115)
– Bluetooth Wakeup ( p116)
10.
MCACC indicator: This lights when you have enabled the speaker calibration
made with MCACC. ( p121, 133)
11.
Remote control sensor: Receives signals from the remote controller.
• The signal range of the remote controller is within about 16´/5 m, at an
angle of 20° on the perpendicular axis and 30° to either side.
12.
RETURN button: Returns the display to the previous state.
13.
MASTER VOLUME
14.
STANDBY/ON button
15.
PHONES jack: Headphones with a standard plug (ø1/4"/6.3 mm) are
connected.
16.
SETUP MIC jack: The supplied speaker setup microphone is connected.
( p121, 133)
17.
TUNER button: Switches the input to be played to "TUNER". Also, pressing
this button repeatedly switches the input between "AM" and "FM".
18.
PERSONAL PRESET 1/2/3 buttons: Registers the current setting conditions
such as input selector, listening mode, etc. or call the registered settings.
( p78)
19.
Listening mode button: Switches the listening mode. ( p83)
20.
USB port: A USB storage device is connected so that music les stored in it
can be played. ( p57) You can also supply power (5 V/500 mA) to USB
devices with a USB cable.
21.
AUX INPUT jack: Connect a mobile music player, etc. using a stereo mini plug
cable (ø1/8″/3.5 mm).
12
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Display
1. This may light when performing operations with the "NET", "USB" input
selector.
2. Lights in the following conditions.
Z2: ZONE 2 is on.
: Connected by BLUETOOTH.
: Connected by Wi-Fi.
NET: Lights when connected to the network with the "NET" input selector. It
will blink if incorrectly connected to the network.
USB: Lights when the "USB" input selector is selected, a USB device is
connected and the USB input is selected. It will blink if the USB device is not
properly connected.
HDMI: HDMI signals are input and the HDMI input is selected.
DIGITAL: Digital signals are input and the digital input is selected.
3. Lights according to the type of input digital audio signal and the listening
mode.
4. Lights in the following conditions.
RDS (European, Australian and Asian models): Receiving RDS broadcasting.
TUNED: Receiving AM/FM radio.
STEREO: Receiving FM stereo.
SLEEP: Sleep timer is set. ( p115)
AUTO STBY: Auto Standby is set. ( p115)
5. Displays the audio output destination.
A: Outputs audio only to ZONE A.
B: Outputs audio only to ZONE B.
AB:
Outputs audio to both ZONE A and ZONE B.
6. Lights when headphones are connected.
7. Blinks when muting is on.
8. Displays various information of the input signals.
9. Lights when adjusting the volume.
10.
Speaker/Channel display: Displays the output channel that corresponds to the
selected listening mode.
267
543
1
89bk
15
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Front Panel≫ Rear Panel≫ Remote≫
1. DIGITAL AUDIO IN OPTICAL/COAXIAL jacks: Input TV or AV component
digital audio signals with a digital optical cable or digital coaxial cable.
2. ANTENNA AM LOOP/FM UNBAL 75 Ω terminal: The supplied antennas are
connected.
3. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH
enabled device. Adjust their angles according to the connection status.
4. USB port: A USB storage device is connected so that music les stored in it
can be played. ( p57) You can also supply power (5 V/500 mA) to USB
devices with a USB cable.
5. NETWORK port: Connect to the network with a LAN cable.
6. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable
connected to a TV.
7. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable
connected to an AV component.
8. Power cord
9. SIGNAL GND terminal: The ground wire of the turntable is connected.
10.
AUDIO IN jacks: Input AV component audio signal with an analog audio cable.
11.
SPEAKERS terminals: Connect speakers with speaker cables. (North
American models support banana plugs. Use a plug 4 mm in diameter. Y plug
connection is not supported.)
12.
ZONE B LINE OUT jacks: Connect to a pre-main amplier with an analog
audio cable, and simultaneously output audio of the same source as that of
the speakers (ZONE A) connected to this unit.
13.
SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a
subwoofer cable. Up to two powered subwoofers can be connected. The same
signal is output from each of the SUBWOOFER PRE OUT jacks.
16
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Front Panel≫ Rear Panel≫ Remote≫
Remote Controller
1. STANDBY/ON button
2. PERSONAL PRESET 1/2/3 buttons: Registers the current setting conditions
such as input selector, listening mode, etc. or call the registered settings.
( p78)
3. Input selector buttons: Switches the input to be played.
4. Play buttons: Used for playback operations for the Music Server ( p60)
or USB device ( p57). If the unit is switched to "CEC MODE" using
"21. MODE button" , an HDMI CEC function-enabled AV component can be
operated. (Depending on the device, operation may not be possible.)

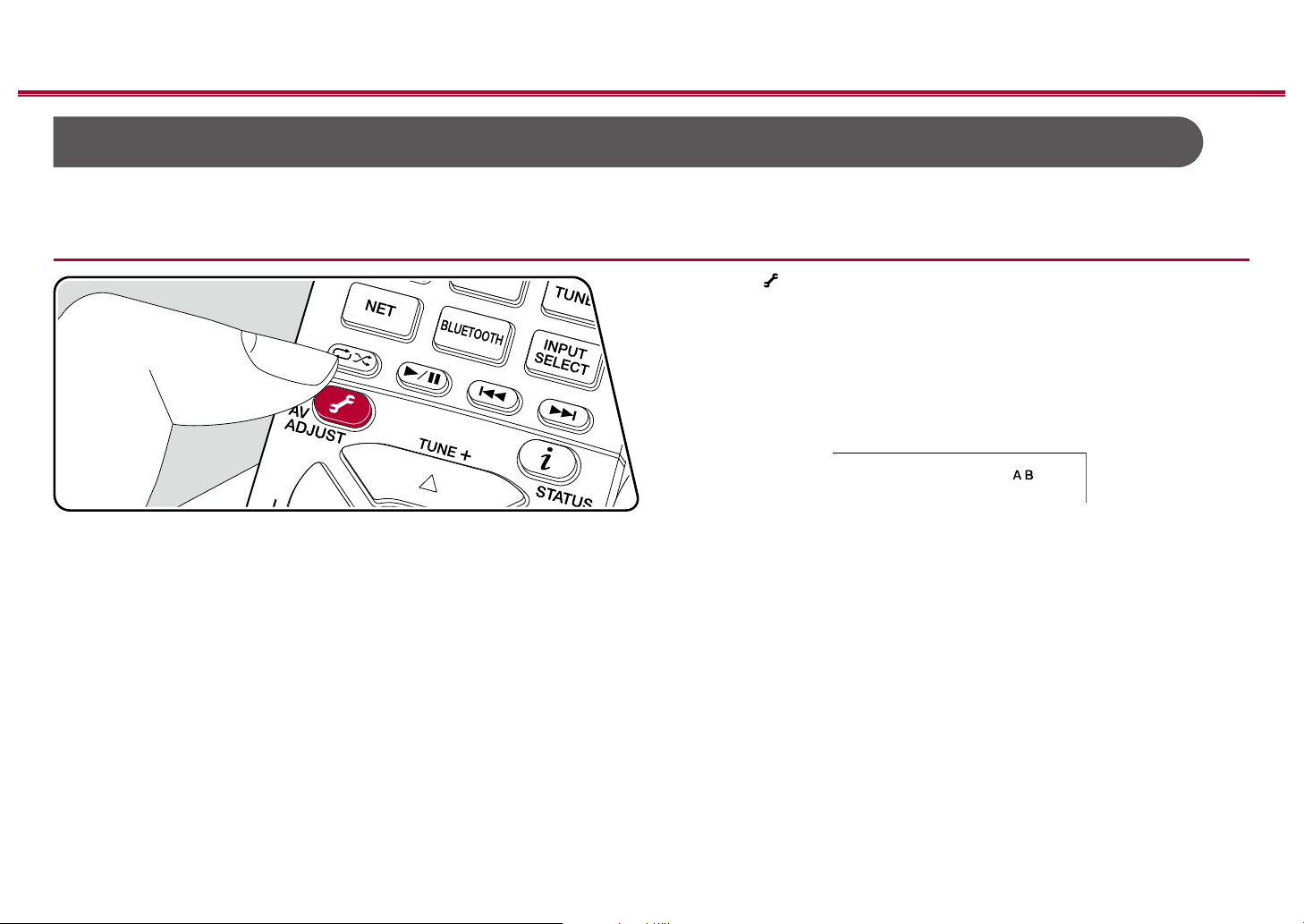

5. (AV ADJUST) button: Settings such as "Tone" and "Level" can be made
quickly during play on the TV screen. ( p129)
6. Cursor buttons and ENTER button: Select the item with the cursors and press
ENTER to conrm your selection. When the folder or le lists are not shown on
one screen on the TV, press / to change the screen.
7. button: Displays the Home. ( p102, 120, 125)
8. TONE/DIALOG/SW buttons: Adjusts the sound quality of the speakers and
volume level of the subwoofer. ( p80)
9. LISTENING MODE buttons: Allows you to select the listening mode. ( p83)
10.
DIMMER button: You can switch the display o or adjust the brightness of the
display in three steps.
11.
ZONE 2 SHIFT button: Controls the multi-zone function. ( p76) (The
ZONE 3 SHIFT button is not used with this unit.)
12.
SLEEP button: Set the sleep timer. Select the time from "30 min", "60 min" and
"90 min". ( p82)
13.
HDMI MAIN/SUB button: Select the HDMI OUT jack to output video signals
from "MAIN", "SUB", and "MAIN+SUB".
14.
INPUT SELECT button: Switches the input to be played.
15.
(STATUS) button: Switches the information on the display and is used to
operate RDS ( p74).
16.
button: Returns the display to the previous state.
17.
button: Temporarily mutes audio. Press again to cancel muting.
18.
Volume buttons
19.
CLEAR button: Deletes all characters you have entered when entering text on
the TV screen.
17
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Front Panel≫ Rear Panel≫ Remote≫
20.
+Fav button: Used to register AM/FM radio stations. ( p72)
21.
MODE button: Switches between automatic tuning and manual tuning for
AM/FM stations ( p70). Also, when an HDMI CEC function-enabled AV
component is connected to this unit, you can switch "4. Play buttons" between
"CEC MODE" and "RCV MODE" (normal mode).
18
Connections
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connections
Connecting speakers 19
Connecting the TV 38
Connecting Playback Devices 41
Connecting an AV Component in a Separate Room
(Multi-zone Connection) 43
Connecting ZONE B 44
Connecting Antennas 45
Network Connection 46
Connecting the Power Cord 47
19
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
- Connecting
Speakers
Connecting speakers
You can select the layout of speakers to be installed from various patterns when using this unit. Use the following ow chart to select the speaker layout that suits your
speakers and usage environment. You can check the connection method and default settings.
Yes No
Use height speakers?
• 5.1.2 Channel System ( p34)
• 5.1.2 Channel System + ZONE SPEAKER ( p35)
• 5.1 Channel System ( p28)
• 5.1 Channel System + ZONE SPEAKER ( p29, 30)
• 5.1 Channel System (Bi-Amping the Speakers)
( p31)
• 7.1 Channel System ( p32)
• 7.1 Channel System + ZONE SPEAKER ( p33)
20
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker Installation
5.1 Channel System
a
b
12
45
3
6
a: 22° to 30°, b: 120°
This is a basic 5.1 Channel System. Front speakers output the front stereo
sound, and a center speaker outputs the sound of the center of the screen, such
as dialogs and vocals. Surround speakers create the back sound eld. Powered
subwoofer reproduces the bass sound, and creates the rich sound eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
❏ Speaker Layouts and Selectable Listening
Modes ( p86)
21
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
7.1 Channel System
a
b
c
12
54
87
3
6
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
This is a 7.1 Channel System that consists of the basic 5.1 Channel System
( p20) and added surround back speakers. Front speakers output the
front stereo sound, and a center speaker outputs the sound of the center of the
screen, such as dialogs and vocals. Surround speakers create the back sound
eld. Powered subwoofer reproduces the bass sound, and creates the rich
sound eld. Surround back speakers improves the sense of envelopment and
connectivity of sound in the back sound eld, and provides a more real sound
eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. The surround back speakers should be
positioned at ear height.
• If surround back speakers are installed, be sure to install surround speakers
as well.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers
❏ Speaker Layouts and Selectable Listening
Modes ( p86)
22
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1.2 Channel System
A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( p20) and added height speakers. Select the height speakers that suit
your speakers and usage environment from the following three types.
❏ Front High Speakers/Rear High Speakers
Installation Example (
p23)
❏ Ceiling Speakers Installation Example
( p24)
❏ Dolby Enabled Speakers (Dolby Speakers)
Installation Example (
p25)
23
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ Front High Speakers/Rear High Speakers
Installation Example
a
b
78
78
a: 22° to 30°, b: 120°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
This is a system with the basic 5.1 channel system ( p20) consisting of
front speakers, a center speaker, surround speakers and a powered subwoofer,
and added front high speakers or rear high speakers combined. Installing the
height speakers will enrich the sound eld feeling in the upper space. Front high
speakers or rear high speakers should be installed at least 3´/0.9 m higher than
the front speakers.
Front high speakers should be installed directly above the front speakers, and the
distance between the rear high speakers should match the distance between the
front speakers. In both cases, the speakers should be set up facing the listening
position at an angle.
7,8 Height Speakers
Choose one of the following:
• Front High Speakers
• Rear High Speakers
❏ Speaker Layouts and Selectable Listening
Modes ( p86)
24
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ Ceiling Speakers Installation Example
a
b
c
7
888
77
a: 30° to 55°, b: 65° to 100°, c: 125° to 150°
This is a system with the basic 5.1 channel system ( p20) consisting of front
speakers, a center speaker, surround speakers and a powered subwoofer, and
added top front speakers or top middle speakers or top rear speakers combined.
Installing the height speakers will enrich the sound eld feeling in the upper
space. Install the top front speakers on the ceiling anterior to the seating position,
top middle speakers on the ceiling directly above the seating position, and top
rear speakers on the ceiling posterior to the seating position. The distance
between each pair should match the distance between the front speakers.
• Dolby Laboratories recommends the setups of these types of height speakers
to obtain the best Dolby Atmos eect.
7,8 Height Speakers
Choose one of the following:
• Top Front Speakers
• Top Middle Speakers
• Top Rear Speakers
❏ Speaker Layouts and Selectable Listening
Modes ( p86)
25
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ Dolby Enabled Speakers (Dolby Speakers)
Installation Example
a
b
78
78
a: 22° to 30°, b: 120°
This is a system with the basic 5.1 channel system ( p20) consisting of front
speakers, a center speaker, surround speakers and a powered subwoofer, and
added Dolby enabled speakers (front) or Dolby enabled speakers (surround)
combined. Dolby enabled speakers are special speakers designed to face the
ceiling, so that the sound is heard from overhead by bouncing the sound o the
ceiling. Installing the height speakers will enrich the sound eld feeling in the
upper space.
Install them either on the front speakers or on the surround speakers.
7,8 Height Speakers
Choose one of the following:
• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)
❏ Speaker Layouts and Selectable Listening
Modes ( p86)
26
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker Connections and "Speaker Setup" Settings
Connections
(Note) Speaker Impedance
Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker
Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section ( p132). When setting "Speaker Impedance" from the System Setup menu, press the
button on the remote controller to display the Home screen, and select "System Setup" - "Speaker" - "Conguration", then set "Speaker Impedance" ( p107) to
"4ohms".
Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound
will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal
when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.
28
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1 Channel System
12
45
3
6
This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation" ( p20).
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1 ch
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: No
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
29
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1 Channel System + ZONE SPEAKER (North American models)
ZONE 2
78
MAIN ROOM
12
45
3
6
MAIN ROOM: This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation"
( p20).
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing 5.1-ch playback in the main room
(where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also,
dierent sources can be played back in both rooms.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1 ch
Zone 2
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p103)
to "Use" on the System Setup
menu.
30
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1 Channel System + ZONE SPEAKER (European, Australian and Asian models)
ZONE 2
78
MAIN ROOM
12
45
3
6
MAIN ROOM: This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation"
( p20).
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing 5.1-ch playback in the main room
(where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also,
dierent sources can be played back in both rooms.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1 ch
Zone 2
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p103)
to "Use" on the System Setup
menu.
31
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1 Channel System (Bi-Amping the Speakers)
12
45
3
6
For high-
frequency
For low-
frequency
You can congure a 5.1 Channel System ( p20) by connecting front speakers that support Bi-Amping connection.
The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1 ch
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: No
• Bi-Amp: Yes
• Speaker Impedance: Set any
value ( p26)
32
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
7.1 Channel System
12
5 4
87
3
6
This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers.
For details of the speaker layout, refer to "Speaker Installation" ( p21).
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
Speaker Impedance 6 ohms or above
• Speaker Channels: 7.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: No
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
33
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
7.1 Channel System + ZONE SPEAKER (For North American models only)
ZONE 2
bk 9
MAIN ROOM
12
5 4
87
3
6
MAIN ROOM: This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back
speakers. For details of the speaker layout, refer to "Speaker Installation" ( p21).
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, dierent
sources can be played back in both rooms.
• While ZONE 2 playback is being performed, surround back speakers installed in the main room cannot play audio.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
Zone 2
Speaker Impedance 6 ohms or above
• Speaker Channels: 7.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Zone Speaker: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p103)
to "Use" on the System Setup
menu.
34
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1.2 Channel System
78
1
3
2
45
6
This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p23)
❏ Ceiling Speakers Installation Example ( p24)
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p25)
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1.2 ch
Front High
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: No
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
35
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
5.1.2 Channel System + ZONE SPEAKER (For North American models only)
ZONE 2
bk 9
78
1
3
2
45
6
MAIN ROOM
MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p23)
❏ Ceiling Speakers Installation Example ( p24)
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p25)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, dierent
sources can be played back in both rooms.
• While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
5.1.2 ch
Zone 2
Front High
Speaker Impedance 6 ohms or above
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p26)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" (
p103)
to "Use" on the System Setup
menu.
36
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker combinations
• Up to two powered subwoofers can be connected in either combination.
(North American models)
Speaker Channels FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT Bi-AMP
ZONE 2
(ZONE SPEAKER)
2.1 ch
(*1) (*1)
3.1 ch
(*1) (*1)
4.1 ch
(*1) (*1)
5.1 ch
(*1) (*1)
6.1 ch
(*2)
7.1 ch
(*2)
2.1.2 ch
(*3)
3.1.2 ch
(*3)
4.1.2 ch
(*3)
5.1.2 ch
(*3)
(*1) You can select either Bi-AMP or ZONE SPEAKER.
(*2) When audio is being output from the ZONE SPEAKER, surround back speakers cannot play audio.
(*3) When audio is being output from the ZONE SPEAKER, height speakers cannot play audio.
37
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
(European, Australian and Asian models)
Speaker Channels FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT Bi-AMP
ZONE 2
(ZONE SPEAKER)
2.1 ch
(*1) (*1)
3.1 ch
(*1) (*1)
4.1 ch
(*1) (*1)
5.1 ch
(*1) (*1)
6.1 ch
7.1 ch
2.1.2 ch
3.1.2 ch
4.1.2 ch
5.1.2 ch
(*1) You can select either Bi-AMP or ZONE SPEAKER.
38
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting the TV
Connect this unit between a TV and AV component. Connecting this unit with the TV can output the video and audio signals of the AV component to the TV, or play the
audio of the TV on this unit. Connection with the TV diers depending on whether the TV supports the ARC (Audio Return Channel) function or not. The ARC function
transmits the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function, refer to the instruction
manual of the TV, etc.
Yes No
Does your TV support the ARC function?
• To ARC TV ( p39) • To Non-ARC TV ( p40)
39
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
To ARC TV
If the TV supports the ARC (Audio Return Channel) function (*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the
TV for connection.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button ( p16) on the
remote controller or "AV Adjust" ( p129). Note that this jack is not ARC-
compatible.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
Setup
• Settings are required to use the ARC function. Select "Yes" for "5. ARC Setup"
in Initial Setup (
p132). If "No, Skip" is selected, settings are required in the
System Setup menu after Initial Setup is completed. Press the
button on
the remote controller to display the Home screen, and select "System Setup" -
"Hardware" - "HDMI" ( p113) to make the following settings.
– Set "HDMI CEC" to "On".
– Set "Audio Return Channel" to "Auto".
• For detailed settings for TV connection, CEC function and audio output, refer
to the instruction manual of the TV.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
a HDMI cable
IN(ARC)
a
TV
40
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function (*), connect
an HDMI cable and digital optical cable.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button ( p16) on the
remote controller or "AV Adjust" ( p129). Note that this jack is not ARC-
compatible.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
a HDMI cable, b Digital optical cable
a
b
TV
41
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting Playback Devices
Connecting an AV Component with HDMI Jack Mounted
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• To play 4K or 1080p video, use a high speed HDMI cable.
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "5. ARC Setup" in Initial Setup
( p132). If "No, Skip" is selected, settings are required in the System
Setup menu after Initial Setup is completed. Settings are made in "System
Setup" - "Hardware" - "HDMI" in Home displayed by pressing on the remote
controller. ( p113)
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned o.
a HDMI cable
a
Streaming media
player
GAMEBD/DVD Cable/Satellite
set-top box
42
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting an Audio Component
This is a connection example of an audio component. Connect a CD player using
a digital coaxial cable or analog audio cable. You can also connect a turntable
that has an MM-type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack. Further, if the turntable uses an MC type
cartridge, install a phono equalizer compatible with the MC type cartridge
between the unit and the turntable, and then connect it to any of the AUDIO IN
jacks other than the PHONO jack.
If the turntable has a ground wire, connect it to the
GND terminal of this unit.
a Analog audio cable, b Digital coaxial cable
b a a
OR
Turntable
CD
43
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting an AV Component in a Separate Room (Multi-zone Connection)
Connecting a TV (ZONE 2)
While a disc is played on a Blu-ray Disc player in the main room (where this unit
is located), you can play the video and audio of the same Blu-ray Disc player or
another AV component on the TV equipped with an HDMI IN jack in a separate
room (ZONE 2). The TV in the separate room can play only the video of devices
connected to the HDMI IN1 to IN3 jacks of this unit.
• The audio from externally connected AV components can be output only when
the signal is 2ch PCM audio. It may also be necessary to convert the audio
output of the AV component to PCM output.
• When video and audio via HDMI input are output to ZONE 2, set "Input/Output
Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p103) to "Use" on the System
Setup menu.
a HDMI cable
a
TV
44
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting ZONE B
Connecting a Pre-main Amplier (ZONE B)
While performing playback through speakers (ZONE A) connected to the unit,
you can enjoy the audio of the same source with the pre-main amplier (ZONE B)
connected to the ZONE B LINE OUT jack at the same time. Use an analog cable
to connect the ZONE B LINE OUT jack of this unit and the LINE IN jack of the
pre-main amplier.
For playback, press the button on the remote controller to display "AV Adjust",
and select the audio output destination. ( p77)
a Analog audio cable
LINE
IN
a
Premain Amp.
45
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting Antennas
Connect the antenna to this unit, and set up the antenna at the best position for
listening while receiving radio signals. Attach the indoor FM antenna to the wall
using push pins or adhesive tape.
a Indoor FM antenna, b AM loop antenna
b
b
a
a
(North American
models)
(European,
Australian and
Asian models)
46
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Network Connection
This unit can be connected to the network using a wired LAN or Wi-Fi (wireless
LAN). You can enjoy network functions such as Internet radio by network
connection. If connection is made by the wired LAN, connect the router and the
NETWORK jack with the LAN cable as shown in the illustration. To connect by
Wi-Fi, select "Wireless" for "4. Network Connection" in Initial Setup ( p134),
select your desired setting method, and then follow the on-screen instructions.
To congure the setting on the System Setup menu after the completion of Initial
Setup, press the button on the remote controller to display the Home screen,
and select "Network/ Bluetooth" - "Network" to make the setting. ( p126) For
the Wi-Fi connection, stand the wireless antenna for use.
a LAN cable
a
48
Playback
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Playback
AV Component Playback 49
BLUETOOTH
®
Playback 50
Internet Radio 51
Spotify 53
AirPlay
®
54
DTS Play-Fi
®
55
FlareConnect
TM
56
USB Storage Device 57
Playing back les on a PC and NAS (Music Server) 60
Play Queue 65
Amazon Music 67
Connecting your Unit to a Sonos System 68
Listening To the AM/FM Radio 70
Multi-zone 75
ZONE B Playback 77
Convenience functions 78
Listening Mode 83
49
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
AV Component Playback
You can play the audio from AV components, such as Blu-ray disc players through this unit.
• When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "AV Adjust" ( p129) to switch between MAIN and SUB.
Basic Operations
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Press the input selector whose name is the same as that of the jack to which
the player is connected.
For example, press BD/DVD to play the player connected to the BD/DVD jack.
Press TV to listen the sound of the TV. To play a device connected to the CD,
USB, PHONO, HDMI5, HDMI6 jack or the AUX INPUT jack on the front panel,
press INPUT SELECT repeatedly to select the input.
• When the CEC link function works, the input switches automatically
when a CEC compliant TV or player is connected to this unit using HDMI
connection.
3. Start play on the AV component.
INPUT SELECT
Input selector
HDMI MAIN/SUB
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
50
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

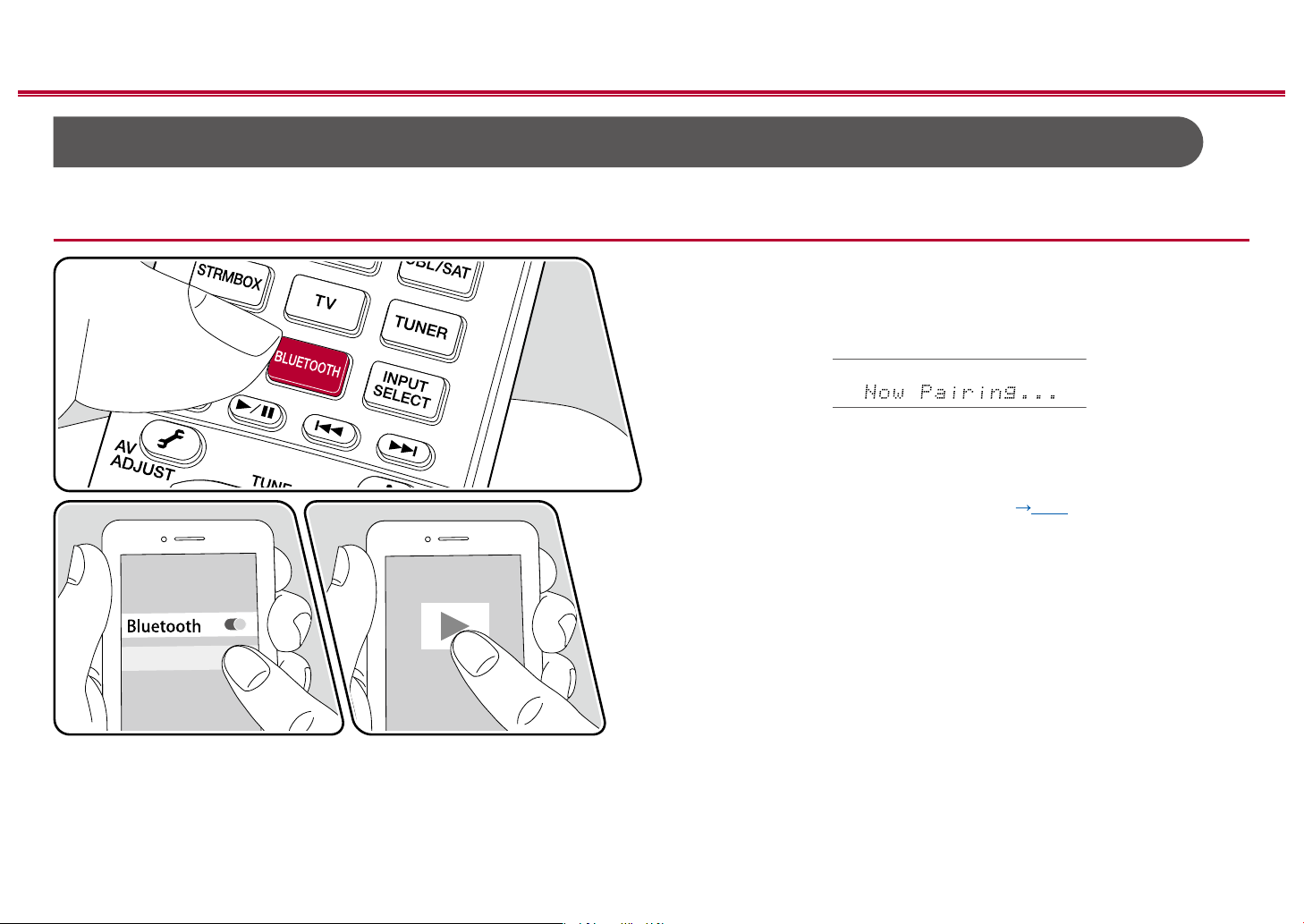

BLUETOOTH
®
Playback
You can wirelessly play the audio on a BLUETOOTH-enabled device, such as a smartphone.
Basic Operations
Perform the following procedure when this unit is on.
Pairing
1. When you press the BLUETOOTH button, "Now Pairing..." is displayed on this
unit's display, and the pairing mode is enabled.
2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH-enabled
device, and then select this unit from among the devices displayed. If a
password is requested, enter "0000".
• This unit is displayed as "Pioneer VSX-934 XXXXXX". This display can be
changed with the Friendly Name function ( p126) or the Pioneer Remote
App (can be used with the iOS or Android™).
• To connect another BLUETOOTH-enabled device, press and hold the
BLUETOOTH button until "Now Pairing..." is displayed, and then perform
step 2. This unit can store the pairing information of up to 8 paired devices.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all BLUETOOTH-enabled devices.
Playing Back
1. Perform the connection procedure on the BLUETOOTH-enabled device.
The input on this unit automatically switches to "BLUETOOTH".
2. Playing the music le.
Turn up the volume of the BLUETOOTH-enabled device to an appropriate
level.
• Due to the characteristics of BLUETOOTH wireless technology, the sound
produced on this unit may slightly be behind the sound played on the
BLUETOOTH-enabled device.
Pioneer VSX-934XXX
51
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Internet Radio
By connecting this unit to an Internet-connected network, you can enjoy Internet radio services, such as TuneIn Radio, etc.
• To play Internet radio services, the network needs to be connected to the Internet.
• Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select your preferred Internet radio service using cursor, and press ENTER to
conrm the selection.
4. Following the on-screen instructions, select a radio station and program using
cursor, and then press ENTER to play.
• To return to the previous screen, press .
NET
/ / /
ENTER
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
Network
TV’s REMOTE
The illustration shows an image.
52
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Internet Radio Service Menu
You can bookmark specic stations, or delete stations that have been
bookmarked. The displayed menu varies according to the service being selected.
The menu icon is displayed while a station is being played. When only this
icon is displayed, pressing ENTER will display the menu on the screen. When
multiple icons are displayed, select the icon with the cursor, and press
ENTER.
Regarding the TuneIn Radio Account
If you create an account on the TuneIn Radio website (tunein.com), and log in it
from this unit, your favorite radio stations or programs you have followed on the
website are automatically added to your "My Presets" on this unit. "My Presets"
is displayed on the next level in the hierarchical structure of TuneIn Radio. To
display a radio station added to "My Presets", you need log into TuneIn Radio
from the unit. To log in, select "Login" - "I have a TuneIn account" in the "TuneIn
Radio" top list on the unit, and then enter your user name and password.
• If you select "Login" on this unit, a registration code is displayed. By using
this code, you can associate the device on the My Page section of the TuneIn
Radio website so that you can log in from "Login" - "Login with a registration
code" without entering the user name and password.
54
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
AirPlay
®
By connecting this unit to the same network as iOS devices, such as iPhone
®
, iPod touch
®
and iPad
®
, you can enjoy music les on iOS devices wirelessly.
• Update the OS version on your iOS device to the latest version.
•
Depending on the iOS version, operation screens or operation procedures on the iOS device may be dierent. For details, refer to the operating instructions for the iOS device.
Basic Operations
1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon on the play screen of the music play application on the
iOS device, and select this unit from the displayed devices.
3. Play the music le on the iOS device.
• If "System Setup" - "Hardware" - "Power Management" - "Network Standby" is
set to "Off " in the Home, manually turn the unit on and then press NET on the
remote controller. In the factory default setting, the Network Standby function
(
p115) is set to On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 10.2 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on this unit. Next, click the AirPlay icon
in
iTunes, select this unit from the displayed devices, and start play of a music le.
iPhone
Pioneer VSX-934 XXXXXX
Wi-Fi
e.g., iOS 10
55
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
DTS Play-Fi
®
https://play-.com/
When connecting this unit to the same network as mobile devices, such as
a smartphone and tablet, you can enjoy music played on the mobile device
wirelessly. Music from a streaming distribution service or music in the music
library on a mobile device can be played. This function also supports a playlist on
iTunes. Also, connecting multiple speakers supporting DTS Play-Fi on the same
network will enable "Group playback" that plays the same music in separate
rooms at home. To enjoy this function, download Pioneer Music Control App
(available on iOS or Android™).
Playing Back
1. Download Pioneer Music Control App using your mobile device.
http://intl.pioneer-audiovisual.com/play/app_p.html
2. Connect the mobile device to the network where this unit is connected.
3. Starting up Pioneer Music Control App will automatically display compatible
devices.
4. Select this device from the compatible devices. Then, a list of applications
such as a music streaming distribution service is displayed. Select the content
to play, and perform operation according to the on-screen instructions.
• If "System Setup" - "Hardware" - "Power Management" - "Network Standby" is
set to "O " in the Home, manually turn the unit on and then press NET on the
remote controller. In the factory default setting, the Network Standby function
( p115) is set to On.
• For detailed operation and FAQ, visit the following URL.
http://intl.pioneer-audiovisual.com/play/info_p.html
• To use a music streaming distribution service, user registration may be
required.
• This unit does not support the following DTS Play-Fi functions.
– Spotify
– Wireless Surround Sound
– Line In Rebroadcast
– Internet Radio
– Critical Listening
– L/R Stereo Speaker Pairing
• Some of the settings in the "Setup menu" cannot be changed on this unit. To
change those settings, cancel the connection of this unit from the application.
• Listening modes cannot be selected during playback.
56
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
FlareConnect
TM
When downloading Pioneer Remote App (available on iOS or Android™) to
mobile devices, such as a smartphone and tablet, you can enjoy the group
playback that plays the same music on multiple audio products supporting the
FlareConnect function. You can play audio from external playback devices
connected to each product, music from an Internet radio or network audio service
such as a music streaming distribution service, and music in the music library on
a mobile device.
Playing Back
1. Connect this unit and other devices supporting FlareConnect to the same
network.
2. Download Pioneer Remote App from App Store or Google Play™ Store.
3. Connect the mobile device to the network where this unit is connected.
4. Starting up Pioneer Remote App will automatically recognize compatible
devices.
5. Select the screen of the compatible device to operate, and tap the Group icon
at the bottom of the screen.
6. Add a check mark for the audio product on which you want to play the same
music.
7. Select the content to play, and operate according to the on-screen instructions.
• If "System Setup" - "Hardware" - "Power Management" - "Network Standby" is
set to "Off " in the Home, manually turn the unit on and then press NET on the
remote controller. In the factory default setting, the Network Standby function
( p115) is set to On. For other devices, check their respective instruction
manuals.
The illustration shows an image.
57
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
USB Storage Device
You can play music les stored on a USB storage device.
Basic Operations
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Plug your USB storage device with the music les into the USB port either on
the front panel or rear panel of this unit.
3. Press INPUT SELECT and select "USB Front" or "USB Rear".
• If the "USB" indicator blinks on the display, check whether the USB storage
device is plugged in properly.
• Do not unplug the USB storage device while "Connecting..." is being
displayed on the display. This may cause data corruption or malfunction.
4. Press ENTER in the next screen. The list of folders and music les on the
USB storage device is displayed. Select the folder with the cursors, and press
ENTER to conrm your selection.
5. Select the music le with the cursors, and then press ENTER to start playback.
/ / /
ENTER
INPUT
SELECT
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
USB Front
The illustration shows an image.
58
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
• To return to the previous screen, press .
• To display an album title, artist name and album art of a le in WAV format,
make the folder structure and le names as shown below when saving music
les. The album art can be displayed by saving a .jpg le to display on the
screen in the folder of bottom level. Note that a large volume of .jpg le may
take time to be displayed, or may not be displayed.
Folder 1
Artist name
Folder 1-1
Album name
file 1-1
file 2-1
file 3-1
Folder 1-2
Album name
file 1-2
file 2-2
file 3-2
.jpg file
.jpg file
• Characters that cannot be displayed on this unit appear with ""
• The USB port of this unit complies with the USB 2.0 standard. The transfer
speed may be insucient for some content you play, and sound interruptions,
etc. may occur.
• Note that operation is not always guaranteed for all USB storage devices.
• This unit can use USB storage devices that comply with the USB mass
storage class standard. Also the format of USB storage devices supports
FAT16 or FAT32 le system format.
❏ Device and Supported Format ( p59)
59
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Device and Supported Format
USB Storage Device Requirements
• This unit can use USB storage devices that comply with the USB mass
storage class standard.
• The format of USB storage devices supports FAT16 or FAT32 le system
format.
• If the USB storage device has been partitioned, each section will be treated as
an independent device.
• Up to 20,000 tracks per folder are supported, and folders can be nested up to
16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do
not connect these devices to the unit.
• USB storage devices with security functions are not supported on this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• Media inserted to the USB card reader may not be available in this function.
Furthermore, depending on the USB storage device, proper reading of the
contents may not be possible.
• In use of a USB storage device, Our company accepts no responsibility
whatsoever for the loss or modication of data stored on a USB storage
device, or malfunction of the USB storage device. We recommend that you
back up the data stored on a USB storage device before using it with this unit.
Supported Audio Formats
This unit supports the following music le formats. Note that sound les that are
protected by copyright cannot be played on this unit.
MP3 (.mp3/.MP3):
• Supported formats: MPEG-1/MPEG-2 Audio Layer 3
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 8 kbps and 320 kbps, and VBR
WMA (.wma/.WMA):
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 5 kbps and 320 kbps, and VBR
• WMA Pro/Voice/WMA Lossless formats are not supported.
WAV (.wav/.WAV):
WAV les contain uncompressed PCM digital audio.
•
Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
AIFF (.ai/.aif/.AIFF/.AIF):
AIFF les contain uncompressed PCM digital audio.
•
Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):
• Supported formats: MPEG-2/MPEG-4 Audio
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Supported bitrates: Between 8 kbps and 320 kbps, and VBR
FLAC (.ac/.FLAC):
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
Apple Lossless (.m4a/.mp4/.M4A/.MP4):
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz
• Quantization bit: 16 bit, 24 bit
DSD (.dsf/.d/.DSF/.DFF):
• Supported formats: DSF/DSDIFF
• Supported sampling rates: 2.8 MHz, 5.6 MHz
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• This unit supports the gapless playback of the USB storage device in the
following conditions.
When continuously playing WAV, FLAC and Apple Lossless les with the same
format, sampling frequency, the number of channels and quantization bit rate.
60
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Playing back les on a PC and NAS (Music Server)
Streaming play of music les stored on PCs or NAS devices connected to the same network as this unit is supported.
• The network servers supported by this unit are PCs that incorporate players equipped with the server functions such as Windows Media
®
Player 11 or 12, or NASes
supporting the home network function. When using Windows Media
®
Player 11 or 12, you need to make the settings beforehand. Note that with PCs, only music les
registered in the library of Windows Media
®
Player can be played.
Windows Media
®
Player settings
On Windows Media
®
Player 11
1. Turn on your PC, and start Windows Media
®
Player 11.
2. In the "Library" menu, select "Media Sharing" to display a dialog box.
3. Select the "Share my media" check box, and then click "OK" to display the
compatible devices.
4. Select this unit, and then click "Allow".
• When it is clicked, the corresponding icon is checked.
5. Click "OK" to close the dialog.
• Depending on the version of Windows Media
®
Player, the names of items to
select may dier from the above description.
On Windows Media
®
Player 12
1. Turn on your PC, and start Windows Media
®
Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog
box.
• If the media streaming is already turned on, select "More streaming
options..." in the "Stream" menu to display the list of playback devices in the
network, and then go to step 4.
3. Click "Turn on media streaming" to display the list of playback devices in the
network.
4. Select this unit in "Media streaming options" and check that it is set to "Allow".
5. Click "OK" to close the dialog.
• Depending on the version of Windows Media
®
Player, the names of items to
select may dier from the above description.
❏ Playing Back ( p61)
61
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Start the server (Windows Media
®
Player 11, Windows Media
®
Player 12, or
NAS device) containing the music les to play.
3. Make sure that the PC or NAS is properly connected to the same network as
this unit.
4. Press NET to display the network service list screen.
• If the "NET" indicator on the display blinks, the unit is not properly
connected to the network. Check the connection.
5. With the cursors, select "Music Server", and then press ENTER.
6. Select the target server with the cursors, and press ENTER to display the
items list screen.
• This unit cannot access pictures and videos stored on servers.
NET
/ / /
ENTER
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
Network
TV’s REMOTE
The illustration shows an image.
62
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
• Depending on the server sharing settings, contents stored on the server
may not be displayed.
7. With the cursors, select the music le to play, and then press ENTER to start
playback.
• If "No Item" is displayed on the screen, check whether the network is
properly connected.
• To return to the previous screen, press .
• For music les on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music les.
Searching music les to select
If the server you use supports search functions, the following search function can
be used.
Perform the following procedure with available servers displayed using Music
Server.
1. With / , select the server containing music les you want to play, and press
ENTER.
2. With / , select the Search folder, and press ENTER. The Search folder
contains the following three folders.
• "Search by Artist": Select this when searching by artist name.
• "Search by Album": Select this when searching by album title.
• "Search by Track": Select this when searching by track title.
3. With / , select the folder, and press ENTER.
4. Input a character string to search for, and press ENTER. Then, the search
result is displayed.
5. With / , select the music les to play, and press ENTER.
Controlling Remote Playback from a PC
You can use this unit to play music les stored on your PC by operating the PC
in your home network. The unit supports remote playback via Windows Media
®
Player 12. To use the remote playback function of this unit with Windows Media
®
Player 12, it must be congured beforehand.
Setting PC
1. Turn on your PC, and start Windows Media
®
Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog
box.
• If the media streaming is already turned on, select "More streaming
options..." in the "Stream" menu to display the list of playback devices in the
network, and then go to step 4.
3. Click "Turn on media streaming" to display the list of playback devices in the
network.
4. Select this unit in "Media streaming options" and check that it is set to "Allow".
5. Click "OK" to close the dialog box.
6. Open the "Stream" menu and conrm that "Allow remote control of my
Player..." is checked.
• Depending on the version of Windows Media
®
Player, the names of items to
select may dier from the above description.
Remote playback
1. Turn on the power of the unit.
2. Turn on your PC, and start Windows Media
®
Player 12.
3. Select and right-click the music le to play with Windows Media
®
Player 12.
• To remotely play a music le on another server, open the target server from
"Other Libraries", and select the music le to play.
4. Select this unit in "Play to" to open the "Play to" window of Windows Media
®
Player 12, and start playback on this unit.
• If your PC is running on Windows
®
8.1, click "Play to", and select this unit.
If your PC is running on Windows
®
10, click "Cast to Device", and select
this unit. Operations during remote playback are possible from the "Play
to" window on the PC. The playback screen is displayed on the HDMI-
connected TV.
5. Adjust the volume using the volume bar on the "Play to" window.
• Sometimes, the volume displayed on the remote playback window may
dier from the volume displayed on the display of this unit.
• When the volume is changed on this unit, the value is not reected in the
"Play to" window.
• This unit cannot play music les remotely in the following conditions.
– It is using a network service.
– It is playing a music le on a USB storage device.
64
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Supported Audio Formats
This unit supports the following music le formats. Remote play of FLAC and
DSD is not supported.
MP3 (.mp3/.MP3):
• Supported formats: MPEG-1/MPEG-2 Audio Layer 3
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 8 kbps and 320 kbps, and VBR
WMA (.wma/.WMA):
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 5 kbps and 320 kbps, and VBR
• WMA Pro/Voice/WMA Lossless formats are not supported.
WAV (.wav/.WAV):
WAV les contain uncompressed PCM digital audio.
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
AIFF (.ai/.aif/.AIFF/.AIF):
AIFF les contain uncompressed PCM digital audio.
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):
• Supported formats: MPEG-2/MPEG-4 Audio
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Supported bitrates: Between 8 kbps and 320 kbps, and VBR
FLAC (.ac/.FLAC):
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit
LPCM (Linear PCM):
• Supported sampling rates: 44.1 kHz, 48 kHz
• Quantization bit: 16 bit
Apple Lossless (.m4a/.mp4/.M4A/.MP4):
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Quantization bit: 16 bit, 24 bit
DSD (.dsf/.d/.DSF/.DFF):
• Supported formats: DSF/DSDIFF
• Supported sampling rates: 2.8 MHz, 5.6 MHz
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• Remote playback does not support the gapless playback.
65
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Play Queue
When downloading Pioneer Remote App (available on iOS or Android™) to
mobile devices, such as a smartphone and tablet, you can save your favorite
playlist (Play Queue information) among music les stored in the USB storage
device connected to this unit and music les stored in PC or NAS connected to
the same network as this unit, and you can play the music on the playlist. The
Play Queue information is eective until the power cord of this unit is removed
from the outlet.
Initial Setup
1. Connect this unit to your home network by the network settings on this unit.
2. Download Pioneer Remote App from App Store or Google Play™ Store.
3. Connect the mobile device to the network where this unit is connected.
4. Start up Pioneer Remote App, and select this unit.
Adding Play Queue Information
1. Select the "INPUT" input on the application screen, and tap the "USB" icon.
Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon.
(Depending on the model, the icon names may be dierent.)
2. Tapping the "+" icon of the track you wan to add will open the pop-up to add
the Play Queue information.
3. Touch the "Play Now ", "Play Next " or "Play Last " icon to add the
track to Play Queue.
66
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
• If there are no tracks on the Play Queue list, only "Play Now " is
displayed.
Sort and Delete
1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue
service screen.
2. Tap the " " icon of the track to sort, and drag the icon to the destination.
3. To delete a track, slide the track to the left until the trash icon changes to " ".
If the device is on iOS, slide the " " icon to the left. Releasing your nger will
delete the track from Play Queue.
Playing Back
Playback starts when you select "Play Now " for Play Queue addition, or select
the track in the Play Queue service screen.
67
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Amazon Music
You can use the music distribution service provided by Amazon by registering
with Amazon Music. Register this unit by downloading the Pioneer Remote
App (available for iOS and Android™) to your mobile device, for example a
smartphone or tablet, and register from the Pioneer Remote App screen.
• To play Amazon Music you need to have an Amazon account and to be a
member of Amazon Prime and Amazon Music Unlimited. For more information,
see the Amazon website.
Amazon Music is now available in several countries. If Amazon Music is not
available in your country, please visit https://music.amazon.com/ for more info.
Registering this unit with Amazon Music
• Use the Pioneer Remote App to register to Amazon Music. Registration is not
possible using this unit.
1. Use the unit’s network settings to connect to your household network.
2. Use the mobile device to download the Pioneer Remote App.
3. Connect the mobile device to the same network as the unit.
4. The unit is automatically displayed when you start the Pioneer Remote App.
Tap the unit when displayed to select it.
5. Tap "NET" or "NETWORK" at the top of the Pioneer Remote App screen, and
after switching to the network screen, tap the "Amazon Music" icon to display
the Amazon Music login screen. (Depending on the model, the icon names
may be dierent.)
• If the login screen is not displayed, but rather a screen prompting
installation of Service Unlocker, then install that rst.
Available services may dier depending on your area.
6. Enter the information required for the Amazon account, such as your email
address and password, to log into Amazon. The Amazon Music menu is
displayed when login is successful and this unit is registered.
To continue to start play, proceed to step 3 in the next section.
Playing Amazon Music
1. Start the Pioneer Remote App. This unit is displayed automatically when the
app is started, so tap the unit when displayed to select it.
2. Tap "NET" or "NETWORK" at the top of the screen, and after switching to the
network screen, tap the "Amazon Music" icon.
3. Select the content that you want to play in the menu screen for Amazon Music
and start play.
• When playing Amazon Music with the remote controller, operate the input
selector on the remote controller to display the Network menu and select
"Amazon Music" from the menu.
68
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting your Unit to a Sonos System
Once your unit is connected to the Sonos Connect you will be able to send any
music or source on your Sonos App to the unit. By going through the Sonos
Connect, you can play your unit through other Sonos devices in the network in
the same group, or you can just play on your unit. Further, the power of your
unit turns on automatically when music starts playing on the Sonos App, and the
linked function to switch input works.
• If "System Setup" - "Hardware" - "Power Management" - "Network Standby" is
set to "O " in the Home, manually turn the unit on and then press NET on the
remote controller. In the factory default setting, the Network Standby function
( p115) is set to On.
Required Equipment
• Sonos Connect
• RCA Audio Cable (Supplied with Sonos Connect)
Connecting your Unit to Sonos Connect
1. Connect the Sonos Connect to the AUDIO IN jack of this unit with the RCA
cable supplied with the Sonos Connect. Any input can be used other than the
PHONO input.
• You can also connect with a digital cable. For details, refer to the instruction
manual of the Sonos.
• You can rename the input that is displayed on the unit to a more logical
name. For example, you can change the name of input that the Sonos
Connect is plugged into from "CD" (or other input) to "SONOS". Press the
button on the remote controller to display the Home screen, and select
"System Setup" - "Source" - "Name Edit" to change the name.
Setting up your Unit to work with the
Sonos Connect
A setup is required to play Sonos on this unit. Make the setting according to the
following procedure.
1. Press the button on the remote controller to display the Home screen,
select "System Setup" - "Hardware" - "Works with SONOS", and press the
ENTER button.
2. Select the following items with the cursors / and set each item.
Input Selector:
Enable the interlocking function with the Sonos Connect. With the cursors
/ , select the input selector to which the Sonos Connect is connected.
Connected Device:
Press the ENTER button to display Sonos devices connected to the same
network as the network of this unit. Select the Sonos Connect connected to
the unit and press the ENTER button.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Connect are also displayed in the device list and selectable. In
that case, when playback on the Sonos side starts, the input is switched,
however, audio is not output. Select the room name of the connected
Sonos Connect.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Connect to be interlocked, return to the previous
screen, turn o the product you want to interlock, and try again.
Output Zone:
With the cursors / , select the ZONE where you want to listen to the music.
"Main": Outputs audio only to the main room (where this unit is located).
"Zone 2": Outputs audio only to the separate room (ZONE 2).
"Main/Zone 2": Outputs audio to both the main room and separate room.
69
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Now the fun part - listening to Sonos on
your Unit
1. Using your Sonos App select the music you want to listen to and send it to the
room (or group) where your unit is located. We recommend naming your unit
/ Sonos Connect combination a friendly name like TV Room or Living Room
where the equipment is located.
• If the input on your unit does not change automatically when play starts, try
stopping play, then starting it again.
• You can set the volume beforehand for playing back the Sonos Connect.
Press the button on the remote controller to display the Home screen, and
select "System Setup" - "Hardware" - "Works with SONOS" - "Preset Volume"
( p117) to make the setting.
70
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Listening To the AM/FM Radio
You can receive AM and FM radio stations on this unit with the built-in tuner.
Tuning into a Radio Station
Perform the following procedure when this unit is on.
Tuning Automatically
1. Press TUNER repeatedly to select either "AM" or "FM".
2. Press MODE repeatedly to display "TunMode: Auto" on the display.
3. When you press the cursors / , automatic tuning starts, and searching
stops when a station is found. When tuned in to a radio station, the "TUNED"
indicator on the display lights up. When tuned in to an FM radio station, the
"STEREO" indicator lights up.
MODE
/ / /
ENTER
TUNER
71
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
When FM broadcasts reception is poor: Perform the procedure for "Tuning
Manually" ( p71). Note that if you tune manually, the reception for FM
broadcasts will be monaural rather than stereo, irrespective of the sensitivity of
the reception.
Tuning Manually
Note that if you tune manually, the reception for FM broadcasts will be monaural
rather than stereo, irrespective of the sensitivity of the reception.
1. Press TUNER repeatedly to select either "AM" or "FM".
2. Press MODE repeatedly to display "TunMode: Manual" on the display.
3. While pressing the cursors / , select the desired radio station.
• Each time you press the cursors / , the frequency changes by 1 step.
If the button is held down, the frequency changes continuously, and if the
button is released, the frequency stops changing.
Frequency step setting
Press on the remote controller, and from Home displayed select "System
Setup" - "Miscellaneous" - "Tuner" - "AM/FM Frequency Step" or "AM Frequency
Step", and then select the frequency step for your area. Note that when this
setting is changed, all radio presets are deleted.
❏ Presetting a Radio Station ( p72)
72
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Presetting a Radio Station
Registration Procedure
You can preset up to 40 of your favorite AM/FM radio stations.
After tuning in to the AM/FM radio station you want to register, perform the
following procedure.
1. Press +Fav so that the preset number on the display blinks.
2. While the preset number is blinking (approx. 8 seconds), repeatedly press the
cursors / to select a number between 1 and 40.
3. Press +Fav again to register the station.
When the station is registered, the preset number stops blinking. Repeat this
steps to register your favorite AM/FM radio stations.
+Fav
CLEAR
/ / /
ENTER
TUNER
73
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Selecting a Preset Radio Station
1. Press TUNER.
2. Press the cursors / to select a preset number.
Deleting a Preset Radio Station
1. Press TUNER.
2. Press the cursors / to select the preset number to delete.
3. After pressing +Fav, press CLEAR while the preset number is blinking,
and delete the preset number. When deleted, the number on the display
disappears.
❏ Using RDS (European, Australian and Asian
models) ( p74)
74
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Using RDS (European, Australian and Asian models)
RDS stands for Radio Data System, and is a method of transmitting data in FM
radio signals. In regions where RDS can be used, when you tune in to a radio
station broadcasting program information, the radio station name is displayed on
the display. When you press on the remote controller in this state, you can use
the following functions.
Display Text Information (Radio Text)
1. While the name of the station is being displayed on the display, press on the
remote controller once.
The Radio Text (RT), which is text information delivered by the station, is
displayed scrolling across the display. "No Text Data" is displayed when no
text information is delivered.
Search for Stations by Program Type
1. While the name of the station is being displayed on the display, press on the
remote controller twice.
• If none of the Program Types are set for the radio station under reception,
"None" is displayed.
2. Press the cursors / on the remote controller to select the Program Type
you want to search for, and then press the ENTER button to start the search.
• The Program Types displayed are as follows: None / News (News reports) /
Aairs (Current aairs) / Info (Information) / Sport / Educate (Education) /
Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop
music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light M
(Light classics) / Classics (Serious classics) / Other M (Other music) /
Weather / Finance / Children (Children's programmes) / Social (Social
aairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country
(Country music) / Nation M (National music) / Oldies (Oldies music) / Folk
M (Folk music) / Document (Documentary)
• The information displayed may not match the content delivered by the
station.
3. When a station is found, the station blinks on the display. Pressing the ENTER
button in this state will receive that station. If you don't press the ENTER
button, the unit starts to search for another station.
• If no stations are found, the message "Not Found" is displayed.
• Unusual characters may be displayed when the unit receives unsupported
characters. This is not a malfunction. Also, if the signal from a station is weak,
information may not be displayed.
75
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Multi-zone
You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). The same source can be played back
in the main room and ZONE 2 simultaneously. Also, dierent sources can be played back in both rooms. For the "NET", "BLUETOOTH", or "USB" input selector, you
can select only the same source for the main room and separate room. If you select "NET" in the main room and then select "BLUETOOTH" in the separate room, the
main room setting switches to "BLUETOOTH". You cannot select dierent stations of AM/FM broadcasts for the main room and separate room.
Pioneer Remote App is useful for the multi-zone playback operation. Download Pioneer Remote App (available on iOS or Android™) to a mobile device, such as a
smartphone and tablet to use it.
❏ Playing Back ( p76)
76
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Playing Back
In the remote controller operation, while pressing and holding the ZONE 2 SHIFT
button on the remote controller, operate with each button.
1. Point the remote controller at the unit, and while pressing and holding the
ZONE 2 SHIFT button on the remote controller, press .
• "Z2" on the display of the main unit lights up.
2.
While pressing and holding the ZONE 2 SHIFT button on the remote controller,
press the input selector of the input source you want to play in the separate room.
On the main unit, after pressing ZONE 2-CONTROL button, within 8 seconds turn
the input selector dial to select the input to be played in the separate room.
3. You can adjust the ZONE speaker volume with the volume button while
pressing and holding the ZONE 2 SHIFT button on the remote controller. To
do this on the main unit, press ZONE 2-CONTROL button, and then within
8 seconds, adjust the volume using the MASTER VOLUME dial.
• If you turn the unit to standby during multi-zone playback, the Z2 indicator is
dimmed, and the playback mode is switched to playback in a separate room
only. Setting ZONE 2 to on while the unit is in standby also switches the
playback mode to playback in a separate room only.
• When audio is being output from the ZONE SPEAKER, surround back
speakers or height speakers cannot play audio. (North American models)
• The audio from externally connected AV components can be output to ZONE 2
only when the audio is analog or 2 ch PCM signal. When the AV component is
connected to this unit with a HDMI cable, digital coaxial cable or digital optical
cable, change the audio output of the AV component to the PCM output.
• When video and audio via HDMI input are output to ZONE 2, set "Input/Output
Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p103) to "Use" on the System
Setup menu.
• DSD audio signals cannot be output to ZONE 2 when selected with the "NET"
or "USB" input selector.
• If ZONE 2 is on, power consumption during standby will increase.
To set the function to o: While pressing and holding ZONE 2 SHIFT button,
press
. Alternatively, press the ZONE 2-ON/OFF button on the main unit.
77
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
ZONE B Playback
While performing playback through speakers (ZONE A) connected to the unit, you can enjoy the audio of the same source with the pre-main amplier (ZONE B)
connected to the ZONE B LINE OUT jack at the same time.
Playing Back
1. Press the button on the remote controller to select "Other" - "Zone B".
• When ZONE 2 is On, "Zone B" cannot be selected.
2. Select an audio output destination.
O: Outputs audio only to ZONE A. "A" on the display of the main unit lights
up.
On(A+B): Outputs audio to both ZONE A and ZONE B. "A" and "B" on the
display of the main unit light up.
On(B): Outputs audio only to ZONE B. "B" on the display of the main unit
lights up.
3. Start play on the AV component.
4. Adjust the volume on the pre-main amplier for ZONE B.
If "On (A+B)" is selected as an audio output destination, you can select only the
"Stereo" listening mode for ZONE A when using the 2.1ch speaker layout. When
using a speaker layout of 3.1ch or more, you can select only the "Ext.Stereo"
listening mode.
78
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Convenience functions
Using PERSONAL PRESET
Registration
You can register settings ( p79) such as the current input selector and
listening mode with the three PERSONAL PRESET buttons, and call a registered
setting in a single operation.
e.g.) Pressing the PERSONAL PRESET button will automatically switch the input
selector to "TUNER" to receive the registered station. Also, the listening mode
and volume level are switched as registered.
Perform the following steps in the state of the setting to register.
1. Press and hold any of the 1 to 3 buttons of PERSONAL PRESET.
2. "Preset Written" appears on the display, and the setting is registered. If
registration has already been made, the registered setting is overwritten.
PERSONAL
PRESET
79
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Settings that can be registered
The following settings can be registered with PERSONAL PRESET.
– Input selector (Network service or AM/FM radio stations can also be
registered.)
– Listening mode
– Volume level (Upper limit "-32 dB")
(When ZONE 2 is on, the volume level of ZONE 2 is also registered.)
– Output destination (Multi Zone)
– Sound Retriever function's "On" and "O"
– TREBLE/BASS/DIALOG, etc.
* When AM/FM radio stations are registered, TUNER's preset numbers "38",
"39" and "40" ( p72) are overwritten.
Using the registered settings
1. Press any of the 1 to 3 buttons of PERSONAL PRESET with which settings
have been registered.
• Pressing PERSONAL PRESET buttons turns the power on even if the main
unit is in standby mode.
Checking the registered settings
1. Press to display the Home screen, select "System Setup" - "Input/Output
Assign" - "PERSONAL PRESET Information" ( p105), and press ENTER.
2. The registered settings are displayed in the list.
• Some of the items such as the Sound Retriever function are not displayed
in the list.
80
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Adjusting the tone
Adjusting TREBLE/BASS
You can adjust the sound quality of the speakers.
1. Press TONE repeatedly to select Treble or Bass and adjust the content.
Treble: Enhances or moderates the high-tone range of the speakers.
Bass: Enhances or moderates the low-tone range of the speakers.
2. Press + or - for adjustment.
Adjusting DIALOG
Emphasizes movie lines and music vocals to listen to them more easily. It is
eective to movie lines in particular. Also, it exerts the eect even if the center
speaker is not used. Select a desired level from "1" (low) to "5" (high).
1. Press DIALOG.
2. Press + or - for adjustment.
• Depending on the input source or listening mode setting, selection is not
possible, or the desired eect may not be achieved.
TONE
DIALOG
SW
+
-
81
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Adjusting SUBWOOFER
Adjust the speaker level of the subwoofer while listening to the sound.
1. Press SW.
2. Press + or - to adjust the level between "-15.0 dB" and "+12.0 dB".
• If you set the unit to the standby mode, the adjustments you made will be
restored to the previous statuses.
82
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Sleep Timer
You can allow the unit to enter standby automatically when the specied time has
elapsed.
Press SLEEP button on the remote controller to select the time from "30 min",
"60 min" and "90 min".
"O": The unit does not automatically enter standby mode.
You can also set this by pressing the button on the remote controller to
display the Home screen and selecting "System Setup" - "Hardware" - "Power
Management" - "Sleep Timer" ( p115).
83
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Listening Mode
You can change the listening mode during play by pressing repeatedly "AUTO/DIRECT", "SURR", or "STEREO".
Selecting a Listening mode
• Each of AUTO/DIRECT, SURR, and STEREO buttons stores the listening
mode that was selected last. If content incompatible of the listening mode
selected last is played, the most standard listening mode for the content is
automatically selected.
• For details of the eects of each listening mode, refer to "Listening Mode
Eects" (
p89).
• For listening modes selectable for each audio format of input signals, refer to
"Input Formats and Selectable Listening Modes" ( p94).
AUTO/DIRECT
SURR
STEREO
84
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
AUTO/DIRECT button
Press repeatedly and the listening modes suited to the input signal are switched
between "Auto Surround", "Direct", and "Pure Direct". After selecting one of them,
"Auto Surround" (or "Direct" or "Pure Direct") is displayed, then the most suitable
listening mode for the audio format is selected automatically (DTS for multi-
channel input signals, Stereo for 2 channel input signals, etc.) and an indicator
such as "DTS" is displayed on the display.
The display changes automatically.
The "Direct" mode shuts down some processing that can aect sound quality,
such as the tone control features, so you can enjoy even better sound quality.
The "Pure Direct" mode shuts down even more processes that aects sound
quality, so you get a more faithful reproduction of the original sound. In this case,
the speaker calibration made with MCACC is invalid.
SURR button
By pressing repeatedly you can select the audio format of the signals being input
and switch between a variety of listening modes. Select the mode that suits your
preference. The selected listening mode is displayed on the display.
STEREO button
You can select the "Stereo" mode to playback only from the front speakers and
subwoofer.
For details on the eects of each of the listening modes see "Listening Mode
Eects". For listening modes selectable for each of the audio formats in the input
signals, refer to "Input Formats and Selectable Listening Modes".
85
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Checking the input format and listening mode
Pressing repeatedly will switch the display of the main unit in the following
order.
• The display content for the BLUETOOH input is dierent.
• Not all the information is necessarily displayed.
Input source and volume
Listening mode
Input format
The display is switched in
a few seconds.
Sampling frequency
Input signal resolution
86
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker Layouts and Selectable Listening Modes
See the following table for selectable listening modes for each speaker layout.
Speaker layout
Listening mode 2.1 ch 3.1 ch 4.1 ch 5.1 ch 6.1 ch 7.1 ch 2.1.2 ch 3.1.2 ch 4.1.2 ch 5.1.2 ch
DD (Dolby Audio - DD)
(*1) (*1) (*1) (*2) (*2) (*2) (*2) (*2)
DD+ (Dolby Audio - DD+)
(*1) (*1) (*1) (*1) (*1) (*1) (*1) (*1) (*1)
DTHD (Dolby Audio - TrueHD)
(*1) (*1) (*1) (*1) (*1) (*1) (*1) (*1) (*1)
Atmos
Atmos 2.0/2.1
Atmos 3.0/3.1
Atmos 4.0/4.1
Atmos 5.0/5.1
Atmos 6.0/6.1
Atmos 7.0/7.1
Atmos 2.0.2/2.1.2
Atmos 3.0.2/3.1.2
Dsur (Dolby Audio - Surr)
Dsur 2.0/2.1 (Dolby Audio - Surr)
Dsur 3.0/3.1 (Dolby Audio - Surr)
Dsur 4.0/4.1 (Dolby Audio - Surr)
Dsur 5.0/5.1 (Dolby Audio - Surr)
Dsur 6.0/6.1 (Dolby Audio - Surr)
Dsur 7.0/7.1 (Dolby Audio - Surr)
Dsur 2.0.2/2.1.2 (Dolby Audio - Surr)
Dsur 3.0.2/3.1.2 (Dolby Audio - Surr)
87
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker layout
Listening mode 2.1 ch 3.1 ch 4.1 ch 5.1 ch 6.1 ch 7.1 ch 2.1.2 ch 3.1.2 ch 4.1.2 ch 5.1.2 ch
DTS
(*3) (*3) (*3)
ES Discrete (DTS-ES Discrete)
ES Matrix (DTS-ES Matrix)
DTS 96/24
(*3) (*3) (*3)
DTS-HD HR (DTS-HD High Resolution)
DTS-HD Master (DTS-HD Master Audio)
DTS Express
DTS:X
DTS Neural:X
DTS Virtual:X
88
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Speaker layout
Listening mode 2.1 ch 3.1 ch 4.1 ch 5.1 ch 6.1 ch 7.1 ch 2.1.2 ch 3.1.2 ch 4.1.2 ch 5.1.2 ch
PCM
(*1) (*1) (*1) (*1) (*1) (*3) (*3) (*3) (*3)
DSD
(*1) (*1) (*1) (*2) (*2) (*2) (*2) (*2)
Stereo
(*4) (*4) (*4) (*4) (*4) (*4) (*4) (*4) (*4)
Mono
(*4) (*4) (*4) (*4) (*4) (*4) (*4) (*4) (*4)
Ext.Mono
Ext.Stereo
Classical
Ent.Show (Entertainment Show)
Drama
Unplugged
Action
AdvancedGame
Rock/Pop
Sports
F.S.Surround (Front Stage Surround)
(*4) (*5) (*4) (*5) (*4) (*5) (*4) (*5)
*1: Reproduced with the sound eld according to the number of channels of input signals.
*2: Not output from surround back speakers or height speakers.
*3: Not output from height speakers.
*4: Output only from front speakers.
*5: Output only from front speakers and center speaker.
89
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Listening Mode Eects
Updating of listening modes
Listening modes such as DTS Virtual:X, Atoms 2.0 and DSur 2.0 are
added when the rmware is updated after purchase or the rmware is switched
in the product production process. For details of rmware update, see "Additional
Function (Firmware Update)" ( p6).
In alphabetical order
Action
Mode suitable for movies with a lot of action scenes.
AdvancedGame
Mode suitable for game content.
Classical
Suitable for classical or operatic music. This mode emphasizes the surround
channels in order to widen the sound image, and simulates the natural
reverberation of a large hall.
Atmos
(Firmware version before supporting Atmos 2.0, etc.)
Selectable at the time of inputting Dolby Atmos audio format when surround back
speakers or height speakers are connected. This mode faithfully reproduces the
stereophonic sound design recorded in the Dolby Atmos audio format.
Unlike existing surround systems, Dolby Atmos does not rely on channels, but
rather enables the accurate placement of sound objects that have independent
motion in a 3D space with even greater clarity. Dolby Atmos is an optional
audio format for Blu-ray Discs and achieves a more stereophonic sound eld by
introducing a sound eld above the listener.
• To enable transfer of this audio format, connect via an HDMI cable and set the
audio output on the player to Bitstream output.
Atmos
(Firmware version supporting Atmos 2.0, etc.)
Since this mode calculates the positional data of audio recorded in Dolby Atmos
audio in real-time and outputs it from appropriate speakers, you can enjoy the
natural and stereophonic sound eld of Dolby Atmos with any speaker layout
including connection of only front speakers. Also, the Dolby Atmos sound design
can be reproduced more faithfully by connecting surround back speakers or
height speakers. You can select this mode when inputting the Dolby Amos audio
format.
Unlike existing surround systems, Dolby Atmos does not rely on channels, but
rather enables the accurate placement of sound objects that have independent
motion in a 3D space with even greater clarity. Dolby Atmos is an optional
audio format for Blu-ray Discs and achieves a more stereophonic sound eld by
introducing a sound eld above the listener.
According to the speaker layout, the following listening modes are displayed.
– Atmos 2.0/2.1: When only front speakers are installed
– Atmos 3.0/3.1: When front speakers and center speaker are installed
– Atmos 4.0/4.1: When front speakers and surround speakers are installed
– Atmos 5.0/5.1: When front speakers, center speaker and surround
speakers are installed
– Atmos 6.0/6.1: When front speakers, surround speakers and surround
back speakers are installed
– Atmos 7.0/7.1: When front speakers, center speaker, surround speakers
and surround back speakers are installed
– Atmos 2.0.2/2.1.2:
When front speakers and height speakers are installed
– Atmos 3.0.2/3.1.2: When front speakers, center speaker and height
speakers are installed
– Atmos: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround
speakers and height speakers installed.
• To enable transfer of this audio format, connect via an HDMI cable and set the
audio output on the player to Bitstream output.
• When "Speaker Virtualizer" ( p110) is set to "O" (Default: On), modes
other than Atmos cannot be selected.
90
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
DD (Dolby Audio - DD)
This mode faithfully reproduces the sound design recorded in the Dolby Digital
audio format.
Dolby Digital is a multi-channel digital format developed by Dolby Laboratories,
Inc. and is widely adopted for use in movie production. It is also a standard audio
format for DVD-Video and Blu-ray Discs. It is possible to record a maximum of
5.1 channels on a DVD-Video or Blu-ray Disc; two front channels, one center
channel, two surround channels, and the LFE channel dedicated to the bass
region (sound elements for the subwoofer).
• To enable transfer of this audio format, connect via a digital cable and set
audio output on the player to Bitstream output.
DD+ (Dolby Audio - DD+)
This mode faithfully reproduces the sound design recorded in the Dolby Digital
Plus audio format.
The Dolby Digital Plus format has been improved based on Dolby Digital,
increasing the number of channels and endeavoring to improve sound quality
by giving more exibility in data bit rates. Dolby Digital Plus is an optional audio
format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of
7.1 channels with additional channels such as the surround back channel.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
DSur (Dolby Audio - Surr)
(Firmware version before supporting DSur 2.0, etc.)
This listening mode expands actual channels to more channels for playback
according to the conguration of the connected speakers by expanding the input
signals from 2 ch or 5.1 ch to 5.1 ch, 7.1 ch or 5.1.2 ch.
• This mode cannot be selected when DTS signal is input.
DSur (Dolby Audio - Surr)
(Firmware version supporting DSur 2.0, etc.)
This listening mode expands 2 ch or 5.1 ch input signals to 5.1 ch, 7.1 ch or 5.1.2
ch. This mode expands actual channels to more channels for playback according
to the conguration of the connected speakers. Also, even if there is no speaker
for expansion, for example when only front speakers are connected, audio of
surround channel or height channel is virtually created for expansion playback.
• This mode cannot be selected when DTS signal is input.
According to the speaker layout, the following listening modes are displayed.
– DSur 2.0/2.1: When only front speakers are installed
– DSur 3.0/3.1: When front speakers and center speaker are installed
– DSur 4.0/4.1: When front speakers and surround speakers are installed
– DSur 5.0/5.1: When front speakers, center speaker and surround
speakers are installed
– DSur 6.0/6.1: When front speakers, surround speakers and surround
back speakers are installed
– DSur 7.0/7.1: When front speakers, center speaker, surround speakers
and surround back speakers are installed
– DSur 2.0.2/2.1.2:
When front speakers and height speakers are installed
– DSur 3.0.2/3.1.2: When front speakers, center speaker and height
speakers are installed
– DSur: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround
speakers and height speakers installed.
• When "Speaker Virtualizer" ( p110) is set to "O" (Default: On), modes
other than DSur cannot be selected.
DTHD (Dolby Audio - TrueHD)
This mode faithfully reproduces the sound design recorded in the Dolby TrueHD
audio format.
The Dolby TrueHD audio format is a "lossless" format expanded based on the
lossless compression technology referred to as MLP, and it faithfully reproduces
the master audio recorded in the studio. Dolby TrueHD is an optional audio
format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of
7.1 channels with additional channels such as the surround back channel. 7.1 ch
is recorded at 96 kHz/24 bit, and 5.1 ch is recorded at 192 kHz/24 bit.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
Drama
Suitable for TV shows produced in a TV studio. This mode enhances the
surround eects to the entire sound to give clarity to voices and create a realistic
acoustic image.
91
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
DSD
This mode is suitable for playing sources recorded in DSD.
• This unit supports the DSD signal input from the HDMI input terminal.
However, depending on the connected player, better sound may be obtained
by setting the output on the player side to the PCM output.
• This listening mode cannot be selected if the output setting on your Blu-ray
Disc/DVD player is not set to DSD.
DTS
This mode faithfully reproduces the sound design recorded in the DTS audio
format.
The DTS audio format is a multi-channel digital format developed by DTS, Inc.
This format is an optional audio format for DVD-Video and a standard format
for Blu-ray Discs.It enables recording of 5.1 channels; two front channels, one
center channel, two surround channels, and the LFE channel dedicated to the
bass region (sound elements for the subwoofer). The content is recorded with a
rich volume of data, with a maximum sampling rate of 48 kHz, at a resolution of
24 bits and a bit rate of 1.5 Mbps.
• To enable transfer of this audio format, connect via a digital cable and set
audio output on the player to Bitstream output.
DTS 96/24
This mode faithfully reproduces the sound design recorded in the DTS 96/24
audio format.
The DTS 96/24 format is an optional audio format for DVD-Video and Blu-ray
Discs. It enables recording of 5.1 channels; two front channels, one center
channel, two surround channels, and the LFE channel dedicated to the bass
region (sound elements for the subwoofer). Detailed reproduction is achieved by
recording the content at a sampling rate of 96 kHz and at a resolution of 24 bits.
• To enable transfer of this audio format, connect via a digital cable and set
audio output on the player to Bitstream output.
DTS Express
This mode faithfully reproduces the sound design recorded in the DTS Express
audio format.
DTS Express is an optional audio format based on 5.1 ch for Blu-ray Discs. It is
possible to record a maximum of 7.1 channels with additional channels such as
the surround back channel. It also supports low bit rates.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
DTS-HD HR (DTS-HD High Resolution)
This mode faithfully reproduces the sound design recorded in the DTS-HD High
Resolution Audio audio format.
DTS-HD High Resolution Audio is an optional audio format based on 5.1 ch for
Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional
channels such as the surround back channel at a sampling rate of 96 kHz and at
a resolution of 24 bits.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
DTS-HD MSTR (DTS-HD Master Audio)
This mode faithfully reproduces the sound design recorded in the DTS-HD
Master Audio audio format.
DTS-HD Master Audio is an optional audio format based on 5.1 ch for Blu-
ray Discs. It is possible to record a maximum of 7.1 channels with additional
channels such as the surround back channel using the lossless audio
reproduction technology. 96 kHz/24 bit is supported for 7.1 ch, and 192 kHz/24 bit
is supported for 5.1 ch.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
DTS Neural:X
This listening mode expands actual channels to more channels for playback to
suit the conguration of the connected speakers by expanding the input signals
from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively.
• This mode cannot be selected when Dolby signal is input.
DTS Virtual:X
(Firmware version supporting DTS Virtual:X)
DTS Virtual:X listening mode uses the proprietary audio processing technology
to create spacious 3D sound including audio from up above without connecting
height speakers.
92
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
This mode can be selected in any speaker layout such as front speakers-only
connection. You can enjoy your favorite movies or TV programs with a more
immersive audio experience.
• This mode cannot be selected when Dolby signal is input or height speakers
are connected.
• This mode cannot be selected when "Speaker Virtualizer" ( p110) is set to
"O" (Default: On).
DTS:X
This mode faithfully reproduces the sound design recorded in the DTS:X audio format.
The DTS:X audio format is a combination of the mixing method based on
traditional channel based formats (5.1 ch and 7.1 ch) and object based dynamic
audio mixing, and it is characterized by the precise positioning of sounds and the
ability to express sound movement.
• To enable transfer of this audio format, connect via an HDMI cable and set
audio output on the player to Bitstream output.
ES Discrete (DTS-ES Discrete)
This mode faithfully reproduces the sound design recorded in the DTS-ES
Discrete audio format.
DTS-ES Discrete is an optional audio format based on 5.1 ch for DVD-Video and
Blu-ray Discs. It is possible to record a maximum of 6.1 channels with a monaural
surround back channel added.
• To enable transfer of this audio format, connect via a digital cable and set
audio output on the player to Bitstream output.
ES Matrix (DTS-ES Matrix)
This mode faithfully reproduces the sound design recorded in the DTS-ES Matrix
audio format.
DTS-ES Matrix is an optional audio format based on 5.1 ch for DVD-Video and
Blu-ray Discs. A monaural surround back channel is inserted to this format by
matrix encoding. During playback, 6.1 channel-playback is achieved by the matrix
decoder on this unit.
• To enable transfer of this audio format, connect via a digital cable and set
audio output on the player to Bitstream output.
Ent.Show (Entertainment Show)
Suitable for rock or pop music. Listening to music in this mode creates a lively
sound eld with a powerful acoustic image, like being at a club or rock concert.
Ext.Mono (Extended Mono)
In this mode, all speakers output the same sound in mono, so the sound you hear
is the same regardless of where you are within the listening room.
Ext.Stereo (Extended Stereo)
This mode is ideal for background music. Stereo sound is played through the
surround speakers as well as the front speakers, creating a stereo image.
F.S.Surround (Front Stage Surround)
In this mode, you can enjoy a virtual playback of multichannel surround sound
even with only two or three speakers. This works by controlling how sounds
reach the listener' s left and right ears.
• This mode cannot be selected when "Speaker Virtualizer" ( p110) is set to
"O" (Default: On).
Mono
In this mode, monaural audio is played from the center speaker at the time of
inputting an analog signal or PCM signal. If there is no center speaker connected,
monaural audio is played from the front speakers.
PCM
Mode suitable for playing sources recorded in multichannel PCM.
Rock/Pop
Mode suitable for rock content.
Sports
Mode suitable for sport content.
Stereo
In this mode, sound is output from the right and left front speakers and subwoofer.
94
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Formats and Selectable Listening Modes
You can select a variety of listening modes
according to the audio format of the signal to be
input.
• The Stereo mode can be selected with any audio
format.
• When analog signals are being input in the Pure
Direct mode, the modes switches to the Analog
Direct mode which passes signals directly to the
amplier without passing through the DSP (Digital
Signal Processor).
• Listening modes available when headphones are
connected are Pure Direct and Stereo only.
Selectable listening modes
Input Format Listening Mode
Analog Stereo
Mono
DSur
DTS Neural:X
DTS Virtual:X
*1 *2
Classical
*3
Unplugged
*3
Ent.Show
*3
Drama
*3
AdvancedGame
*3
Action
*3
Rock/Pop
*3
Sports
*3
Ext.Stereo
*4
Ext.Mono
*4
F.S.Surround
*1
*1
Cannot be selected if "Speaker Virtualizer" is set to "O".
*2
Cannot be selected when height speakers are installed.
*3
Surround speakers or height speakers need to be installed.
*4
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
PCM
Music les (except DSD/
Dolby TrueHD)
Stereo
Mono
DSur
DTS Neural:X
*1
DTS Virtual:X
*2 *3
Classical
*4
Unplugged
*4
Ent.Show
*4
Drama
*4
AdvancedGame
*4
Action
*4
Rock/Pop
*4
Sports
*4
Ext.Stereo
*5
Ext.Mono
*5
F.S.Surround
*2
*1
Cannot be selected when the input format is monaural.
*2
Cannot be selected if "Speaker Virtualizer" is set to "O".
*3
Cannot be selected when height speakers are installed.
*4
Surround speakers or height speakers need to be installed.
*5
A center speaker, surround speakers, or height speakers need to be
installed.
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
95
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Format Listening Mode
Multich PCM Stereo
PCM
*1
DSur
DTS Neural:X
DTS Virtual:X
*2 *3
Classical
*4
Unplugged
*4
Ent.Show
*4
Drama
*4
AdvancedGame
*4
Action
*4
Rock/Pop
*4
Sports
*4
Ext.Stereo
*5
Ext.Mono
*5
F.S.Surround
*2
*1
A center speaker or surround speakers need to be installed.
*2
Cannot be selected if "Speaker Virtualizer" is set to "O".
*3
Cannot be selected when height speakers are installed.
*4
Surround speakers or height speakers need to be installed.
*5
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
DSD Stereo
DSD
*1 *2
DSur
DTS Neural:X
DTS Virtual:X
*3 *4
Classical
*5
Unplugged
*5
Ent.Show
*5
Drama
*5
AdvancedGame
*5
Action
*5
Rock/Pop
*5
Sports
*5
Ext.Stereo
*6
Ext.Mono
*6
F.S.Surround
*3
*1
Cannot be selected when the input format is monaural or 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected if "Speaker Virtualizer" is set to "O".
*4
Cannot be selected when height speakers are installed.
*5
Surround speakers or height speakers need to be installed.
*6
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
Atmos
*1
Stereo
Atmos
Classical
Unplugged
Ent.Show
Drama
AdvancedGame
Action
Rock/Pop
Sports
Ext.Stereo
Ext.Mono
F.S.Surround
*2
*1
With the rmware version before supporting Atmos 2.0, etc., you can
select the DD+ or DTHD listening mode when surround back
speakers or height speakers are not connected.
*2
Cannot be selected if "Speaker Virtualizer" is set to "O".
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
96
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Format Listening Mode
DD Stereo
DD
*1 *2
DSur
Classical
*3
Unplugged
*3
Ent.Show
*3
Drama
*3
AdvancedGame
*3
Action
*3
Rock/Pop
*3
Sports
*3
Ext.Stereo
*4
Ext.Mono
*4
F.S.Surround
*5
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Surround speakers or height speakers need to be installed.
*4
A center speaker, surround speakers, or height speakers need to be
installed.
*5
Cannot be selected if "Speaker Virtualizer" is set to "O".
Input Format Listening Mode
DD+ Stereo
DD+
*1 *2 *3
DSur
Classical
*4
Unplugged
*4
Ent.Show
*4
Drama
*4
AdvancedGame
*4
Action
*4
Rock/Pop
*4
Sports
*4
Ext.Stereo
*5
Ext.Mono
*5
F.S.Surround
*6
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
If the input source is Blu-ray Disc and the speaker layout is 5.1ch or less,
DD+ cannot be selected. Instead, the listening mode for DD can
be selected.
*4
Surround speakers or height speakers need to be installed.
*5
A center speaker, surround speakers, or height speakers need to be
installed.
*6
Cannot be selected if "Speaker Virtualizer" is set to "O".
Input Format Listening Mode
DTHD Stereo
DTHD
*1 *2
DSur
Classical
*3
Unplugged
*3
Ent.Show
*3
Drama
*3
AdvancedGame
*3
Action
*3
Rock/Pop
*3
Sports
*3
Ext.Stereo
*4
Ext.Mono
*4
F.S.Surround
*5
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Surround speakers or height speakers need to be installed.
*4
A center speaker, surround speakers, or height speakers need to be
installed.
*5
Cannot be selected if "Speaker Virtualizer" is set to "O".
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
97
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Format Listening Mode
DTS Stereo
DTS
*1 *2
DTS Neural:X
*3
DTS Virtual:X
*4 *5
Classical
*6
Unplugged
*6
Ent.Show
*6
Drama
*6
AdvancedGame
*6
Action
*6
Rock/Pop
*6
Sports
*6
Ext.Stereo
*7
Ext.Mono
*7
F.S.Surround
*4
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected when the input format is monaural.
*4
Cannot be selected if "Speaker Virtualizer" is set to "O".
*5
Cannot be selected when height speakers are installed.
*6
Surround speakers or height speakers need to be installed.
*7
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
DTS 96/24 Stereo
DTS 96/24
*1 *2
DTS Neural:X
*3
DTS Virtual:X
*4 *5
Classical
*6
Unplugged
*6
Ent.Show
*6
Drama
*6
AdvancedGame
*6
Action
*6
Rock/Pop
*6
Sports
*6
Ext.Stereo
*7
Ext.Mono
*7
F.S.Surround
*4
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected when the input format is monaural.
*4
Cannot be selected if "Speaker Virtualizer" is set to "O".
*5
Cannot be selected when height speakers are installed.
*6
Surround speakers or height speakers need to be installed.
*7
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
DTS Express Stereo
DTS Express
*1 *2
DTS Neural:X
*3
DTS Virtual:X
*4 *5
Classical
*6
Unplugged
*6
Ent.Show
*6
Drama
*6
AdvancedGame
*6
Action
*6
Rock/Pop
*6
Sports
*6
Ext.Stereo
*7
Ext.Mono
*7
F.S.Surround
*4
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected when the input format is monaural.
*4
Cannot be selected if "Speaker Virtualizer" is set to "O".
*5
Cannot be selected when height speakers are installed.
*6
Surround speakers or height speakers need to be installed.
*7
A center speaker, surround speakers, or height speakers need to be
installed.
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
98
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Format Listening Mode
DTS-HD HR Stereo
DTS-HD HR
*1 *2
DTS Neural:X
*3
DTS Virtual:X
*4 *5
Classical
*6
Unplugged
*6
Ent.Show
*6
Drama
*6
AdvancedGame
*6
Action
*6
Rock/Pop
*6
Sports
*6
Ext.Stereo
*7
Ext.Mono
*7
F.S.Surround
*4
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected when the input format is monaural.
*4
Cannot be selected if "Speaker Virtualizer" is set to "O".
*5
Cannot be selected when height speakers are installed.
*6
Surround speakers or height speakers need to be installed.
*7
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
DTS-HD MSTR Stereo
DTS-HD MSTR
*1 *2
DTS Neural:X
*3
DTS Virtual:X
*4 *5
Classical
*6
Unplugged
*6
Ent.Show
*6
Drama
*6
AdvancedGame
*6
Action
*6
Rock/Pop
*6
Sports
*6
Ext.Stereo
*7
Ext.Mono
*7
F.S.Surround
*4
*1
Cannot be selected when the input format is 2 ch.
*2
A center speaker or surround speakers need to be installed.
*3
Cannot be selected when the input format is monaural.
*4
Cannot be selected if "Speaker Virtualizer" is set to "O".
*5
Cannot be selected when height speakers are installed.
*6
Surround speakers or height speakers need to be installed.
*7
A center speaker, surround speakers, or height speakers need to be
installed.
Input Format Listening Mode
DTS-ES Stereo
DTS
*1
ES Matrix
*2
ES Discrete
*2
DTS Neural:X
DTS Virtual:X
*3 *4
Classical
*5
Unplugged
*5
Ent.Show
*5
Drama
*5
AdvancedGame
*5
Action
*5
Rock/Pop
*5
Sports
*5
Ext.Stereo
*6
Ext.Mono
*6
F.S.Surround
*3
*1
This can only be selected when no surround back speaker is connected.
*2
Surround back speakers need to be installed.
*3
Cannot be selected if "Speaker Virtualizer" is set to "O".
*4
Cannot be selected when height speakers are installed.
*5
Surround speakers or height speakers need to be installed.
*6
A center speaker, surround speakers, or height speakers need to be
installed.
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
99
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input Format Listening Mode
DTS:X Stereo
DTS:X
DTS Virtual:X
*1 *2
Classical
*3
Unplugged
*3
Ent.Show
*3
Drama
*3
AdvancedGame
*3
Action
*3
Rock/Pop
*3
Sports
*3
Ext.Stereo
*4
Ext.Mono
*4
F.S.Surround
*1
*1
Cannot be selected if "Speaker Virtualizer" is set to "O".
*2
Cannot be selected when height speakers are installed.
*3
Surround speakers or height speakers need to be installed.
*4
A center speaker, surround speakers, or height speakers need to be
installed.
❏ Speaker Layouts and
Selectable Listening Modes
( p86)
100
Setup
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
System Setup
Menu list
You can congure advanced settings to have a more enjoyable experience with this unit. For operation details, refer to "Menu operations" ( p102).
Input/Output
Assign
TV Out / OSD Make settings for TV output and On-Screen Displays (OSD) that appear on the TV. p103
HDMI Input Change input assignment between the input selectors and HDMI IN jacks.
p104
Digital Audio Input Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks.
p104
Analog Audio Input Change input assignment between the input selectors and AUDIO IN jacks.
p105
Input Skip You can skip inputs to which nothing is connected when selecting them with the INPUT
SELECTOR dial on the main unit or with the input selectors on the remote controller.
p105
PERSONAL PRESET
Information
Conrm the registered contents of PERSONAL PRESET.
p105
Speaker Conguration Change the settings of connection environment of the speakers.
p106
Crossover Change the settings of crossover frequencies.
p107
Distance Set the distance from each speaker to the listening position.
p108
Channel Level Adjust the volume level of each speaker.
p109
Dolby Enabled Speaker Change the settings of Dolby Enabled Speakers.
p110
Speaker Virtualizer The Speaker Virtualizer function can be switched between On and O.
p110
Audio Adjust Dual Mono/Mono Change the settings of multiplex audio playback.
p110
Dolby Change the setting of when Dolby signals are input.
p110
Volume Change the Volume settings.
p111
Source Input Volume Absorber Adjust the volume level when there are dierences in volume level among multiple devices
connected to this unit.
p111
Name Edit Set an easy name for each input.
p112
Audio Select Select the priority for input selection when multiple audio sources are connected to one input
selector.
p112
101
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Hardware HDMI Change the settings for the HDMI functions. p113
Power Management Change the settings for the power-save function.
p115
Works with SONOS
Change the settings to connect with the Sonos Connect. p116
Multi Zone Zone 2 Change the settings for Zone 2.
p117
Remote Play Zone Change the settings for remote play.
p117
Miscellaneous Tuner Change the frequency step for the tuner.
p118
Remote ID Change the remote controller ID.
p118
Firmware Update Change the settings for Firmware Update.
p118
Initial Setup Make the initial setup from the setup menu.
p118
Lock Lock the Setup menu so that the settings cannot be changed.
p119
Factory Reset All the settings are restored to factory defaults.
p119
102
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Menu operations
Use the on-screen displays (OSD) that appear on the TV to make the settings.
Press on the remote controller to display the Home screen, then select System
Setup with the cursors on the remote controller and press ENTER.
Select the item with the cursor / / / buttons of the remote controller and
press ENTER to conrm your selection.
Use the cursors / to change the default values.
• To return to the previous screen, press .
• To exit the settings, press .
103
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Input/Output Assign
TV Out / OSD
Make settings for TV output and On-Screen Displays (OSD) that appear on the
TV.
Setting Item Default Value Setting Details
HDMI Out MAIN Select the HDMI jack to be connected with the TV.
"MAIN": When connecting the TV to the HDMI OUT
MAIN jack
"SUB": When connecting the TV to the HDMI OUT
SUB jack
"MAIN+SUB": When connecting to both the MAIN
and SUB jacks
• If devices with dierent resolutions are
connected to HDMI OUT MAIN jack and SUB
jack, images are output with the lower resolution.
Dolby Vision MAIN To output Dolby Vision video from the player to
a TV that supports Dolby Vision, select either
the HDMI OUT MAIN jack or HDMI OUT SUB
jack to which the Dolby Vision-supported TV is
connected. This setting is only necessary if you
have set "HDMI Out" to "MAIN+SUB" and you have
connected a TV to both the MAIN and SUB jacks.
"MAIN": To output Dolby Vision video to a Dolby
Vision-supported TV connected to the HDMI OUT
MAIN jack.
"SUB": To output Dolby Vision video to a Dolby
Vision-supported TV connected to the HDMI OUT
SUB jack.
• After selecting "MAIN" or "SUB", if the video
on the TV does not appear correctly, set this to
"O".
Setting Item Default Value Setting Details
1080p -> 4K
Upscaling
O When using a TV that supports 4K, video signals
input at 1080p can be automatically upscaled to 4K
for output.
"O": When this function is not to be used
"Auto": When this function is to be used
• Select "O" if your TV does not support 4K.
Super Resolution 2 When you have set "1080p -> 4K Upscaling" to
"Auto", you can select the degree of video signal
correction from "O" and between "1" (weak) and
"3" (strong).
Zone 2 HDMI Not Use Make the setting when you output to the Zone 2 TV
connected to the HDMI OUT ZONE 2/SUB jack.
"Use": Enable this function
"Not Use": Disable this function
• When video and audio via HDMI input are output
to ZONE 2, set to "Use".
OSD Language English Select the on-screen display language from the
following.
(North American models) English, German, French,
Spanish, Italian, Dutch, Swedish
(European, Australian and Asian models) English,
German, French, Spanish, Italian, Dutch, Swedish,
Russian, Chinese
Impose OSD On Set whether or not to display information such as
volume adjustment or switching of input on the TV
screen.
"On": OSD is displayed on the TV.
"O": OSD is not displayed on the TV.
• OSD may not be displayed depending on the
input signal even if "On" is selected. In this case,
change the resolution of the connected device.
Screen Saver 3 minutes Set the time to start the screen saver.
Select a value from "3 minutes", "5 minutes",
"10 minutes" and "O".
104
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
HDMI Input
Change input assignment between the input selectors and HDMI IN jacks.
Setting Item Default Value Setting Details
BD/DVD HDMI 1
(HDCP 2.2)
"HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)":
Assign a desired HDMI IN jack to the BD/DVD input
selector. If you do not assign a jack, select "---". To
select an HDMI IN jack already assigned to another
input selector, change its setting to "---" rst.
GAME HDMI 2
(HDCP 2.2)
"HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)":
Assign a desired HDMI IN jack to the GAME input
selector. If you do not assign a jack, select "---". To
select an HDMI IN jack already assigned to another
input selector, change its setting to "---" rst.
CBL/SAT HDMI 3
(HDCP 2.2)
"HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)":
Assign a desired HDMI IN jack to the CBL/SAT
input selector. If you do not assign a jack, select
"---". To select an HDMI IN jack already assigned
to another input selector, change its setting to "---"
rst.
STRM BOX HDMI 4
(HDCP 2.2)
"HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)":
Assign a desired HDMI IN jack to the STRM BOX
input selector. If you do not assign a jack, select
"---". To select an HDMI IN jack already assigned
to another input selector, change its setting to "---"
rst.
Digital Audio Input
Change input assignment between the input selectors and DIGITAL IN COAXIAL/
OPTICAL jacks. If you do not assign a jack, select "---".
Setting Item Default Value Setting Details
BD/DVD --- "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the BD/DVD input selector.
GAME --- "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the GAME input selector.
CBL/SAT --- "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the CBL/SAT input selector.
STRM BOX --- "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the STRM BOX input selector.
CD COAXIAL "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the CD input selector.
TV OPTICAL "COAXIAL", "OPTICAL" : Assign a desired DIGITAL
IN jack to the TV input selector.
• Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz,
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
105
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Analog Audio Input
Change input assignment between the input selectors and AUDIO IN jacks. If you
do not assign a jack, select "---".
Setting Item Default Value Setting Details
BD/DVD AUDIO 1 "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the BD/DVD input selector.
GAME --- "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the GAME input selector.
CBL/SAT AUDIO 2 "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the CBL/SAT input selector.
STRM BOX AUDIO 3 "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the STRM BOX input selector.
CD AUDIO 4 "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the CD input selector.
TV --- "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO
IN jack to the TV input selector.
Input Skip
You can skip inputs to which nothing is connected when selecting them with the
INPUT SELECTOR dial on the main unit or with the INPUT SELECT button on
the remote controller.
Setting Item Default Value Setting Details
BD/DVD Use Set whether to skip the BD/DVD input selector.
Select "Skip" to skip this input.
GAME Use Set whether to skip the GAME input selector.
Select "Skip" to skip this input.
CBL/SAT Use Set whether to skip the CBL/SAT input selector.
Select "Skip" to skip this input.
STRM BOX Use Set whether to skip the STRM BOX input selector.
Select "Skip" to skip this input.
HDMI 5 Use Set whether to skip the HDMI 5 input selector.
Select "Skip" to skip this input.
HDMI 6 Use Set whether to skip the HDMI 6 input selector.
Select "Skip" to skip this input.
Setting Item Default Value Setting Details
AUX Use Set whether to skip the AUX input selector. Select
"Skip" to skip this input.
CD Use Set whether to skip the CD input selector. Select
"Skip" to skip this input.
TV Use Set whether to skip the TV input selector. Select
"Skip" to skip this input.
PHONO Use Set whether to skip the PHONO input selector.
Select "Skip" to skip this input.
TUNER Use Set whether to skip the TUNER input selector.
Select "Skip" to skip this input.
NET Use Set whether to skip the NET input selector. Select
"Skip" to skip this input.
USB FRONT Use Set whether to skip the USB FRONT input selector.
Select "Skip" to skip this input.
USB REAR Use Set whether to skip the USB REAR input selector.
Select "Skip" to skip this input.
BLUETOOTH Use Set whether to skip the BLUETOOTH input
selector. Select "Skip" to skip this input.
PERSONAL PRESET Information
Conrm the registered contents of 1 to 3 buttons of PERSONAL PRESET.
The registered settings are displayed in the list.
Setting Item Default Value Setting Details
Preset Preset 1 Selects a preset number from among "Preset 1",
"Preset 2" and "Preset 3".
(Main)
Setting Item Default Value Setting Details
Input Selector --- Displays the input selector that has been set.
Network Service --- Displays the Network Service that has been set.
Band --- Displays the band, "AM" or "FM" that has been set.
Station --- Displays the Preset Name of the radio station that
has been set.
106
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Listening Mode --- Displays the listening mode that has been set.
Volume --- Displays the volume level that has been set. (Upper
limit "-32 dB")
Multi Zone --- Displays the output destination (Multi Zone) that
has been set.
• "Band" is displayed only when the input selector is set to "TUNER".
• "Station" is displayed only when the input selector is set to "TUNER" or "NET".
• "Network Service" is displayed only when the input selector is set to "NET".
• Preset Name of "Station" (only when the input selector is set to "TUNER") is displayed
with the name set by "Source" - "Name Edit". If the name is not set, the frequency of the
radio station is displayed instead.
(Zone 2)
Setting Item Default Value Setting Details
Input Selector --- Displays the input selector that has been set.
Network Service --- Displays the Network Service that has been set.
Band --- Displays the band, "AM" or "FM" that has been set.
Station --- Displays the Preset Name of the radio station that
has been set.
• "Band" is displayed only when the input selector is set to "TUNER".
• "Station" is displayed only when the input selector is set to "TUNER" or "NET".
• "Network Service" is displayed only when the input selector is set to "NET".
• Preset Name of "Station" (only when the input selector is set to "TUNER") is displayed
with the name set by "Source" - "Name Edit". If the name is not set, the frequency of the
radio station is displayed instead.
Speaker
Conguration
Change the settings of connection environment of the speakers.
Setting Item Default Value Setting Details
Speaker
Channels
7.1 ch Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1
ch", "7.1 ch", "2.1.2 ch", "3.1.2 ch", "4.1.2 ch" or
"5.1.2 ch" to suit the number of speaker channels
connected.
Subwoofer Yes Set whether a subwoofer is connected or not.
"Yes": When a subwoofer is connected
"No": When a subwoofer is not connected
Height Speaker Top Middle Set the speaker type if height speakers are
connected to the SURROUND BACK or HEIGHT
terminals.
Select "Top Middle", "Top Rear", "Rear High",
"Dolby Speaker (Front)", "Dolby Speaker (Surr)",
"Front High" or "Top Front" according to the type
and layout of the connected speakers.
• If the item cannot be selected even though
connection is correct, check if the setting in
"Speaker Channels" matches the number of
connected channels.
Zone Speaker No Set whether speakers are connected to Zone 2
speaker terminals.
"Zone 2": When speakers are connected to Zone 2
speaker terminals
"No": When speakers are not connected to Zone 2
speaker terminals
107
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Bi-Amp No Set whether the front speakers are bi-amp
connected.
"No": When front speakers are not bi-amp
connected
"Yes": When front speakers are bi-amp connected
• This setting is xed to "No" if "Zone Speaker" is
set to "Zone 2".
• This setting cannot be selected when surround
back speakers or height speakers are installed.
Speaker
Impedance
6 ohms or above Set the impedance (Ω) of the connected speakers.
"4ohms": When any of the connected speakers
have 4 Ω or more to less than 6 Ω impedance
"6 ohms or above": When the connected speakers
all have 6 Ω or more impedance
• For impedance, check the indications on the
back of the speakers or their instruction manual.
Crossover
Change the settings of crossover frequencies.
Setting Item Default Value Setting Details
Front Small Set the low range capabilities for each channel by
setting either small or large.
"Small": For small speakers whose low range
capabilities may be limited
"Large": For full-range speakers with sucient low
range capabilities
• If "Conguration" - "Subwoofer" is set to "No",
"Front" will be xed to "Large" and the low
pitched range of the other channels will be output
from the front speakers. Refer to the instruction
manual of your speakers to make the setting.
Center Small Set the low range capabilities for each channel by
setting either small or large.
"Small": For small speakers whose low range
capabilities may be limited
"Large": For full-range speakers with sucient low
range capabilities
• When "Front" is set to "Small", this is set to
"Small".
• If an item cannot be selected even though
connection is correct, check that the settings in
"Conguration" - "Speaker Channels" matches
the number of connected channels.
Height Small Set the low range capabilities for each channel by
setting either small or large.
"Small": For small speakers whose low range
capabilities may be limited
"Large": For full-range speakers with sucient low
range capabilities
• When "Front" is set to "Small", this is set to
"Small".
• If an item cannot be selected even though
connection is correct, check that the settings in
"Conguration" - "Speaker Channels" matches
the number of connected channels.
108
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Surround Small Set the low range capabilities for each channel by
setting either small or large.
"Small": For small speakers whose low range
capabilities may be limited
"Large": For full-range speakers with sucient low
range capabilities
•
When "Front" is set to "Small", this is set to "Small".
• If an item cannot be selected even though
connection is correct, check that the settings in
"Conguration" - "Speaker Channels" matches
the number of connected channels.
Surround Back Small Set the low range capabilities for each channel by
setting either small or large.
"Small": For small speakers whose low range
capabilities may be limited
"Large": For full-range speakers with sucient low
range capabilities
• When "Surround" is set to "Small", this is set to
"Small".
• If an item cannot be selected even though
connection is correct, check that the settings in
"Conguration" - "Speaker Channels" matches
the number of connected channels.
Crossover 80Hz When there are speakers that have been set to
"Small", set the Hz under which you would like
other speakers to play bass, and also set Hz under
which you would like the LFE (low frequency eect)
to play the bass.
The value from "50Hz" to "200Hz" can be set.
Double Bass On This can be selected only when "Conguration"
- "Subwoofer" is set to "Yes" and "Front" is set to
"Large".
Boost bass output by feeding bass sounds from
the front left and right, and center speakers to the
subwoofer.
"On": Bass output will be boosted
"O": Bass output will not be boosted
• The setting will not automatically be congured
even if you performed Full Auto MCACC.
Distance
Set the distance from each speaker to the listening position.
Setting Item Default Value Setting Details
Front Left 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
Center 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
Front Right 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
Height Left 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
•
The setting cannot be changed if "Conguration" -
"Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Height Right 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
•
The setting cannot be changed if "Conguration" -
"Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Right 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
Surr Back Right 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
•
The setting cannot be changed if "Conguration" -
"Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surr Back Left 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
•
The setting cannot be changed if "Conguration" -
"Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Left 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
Subwoofer 10.0 ft/3.00 m Specify the distance between each speaker and
the listening position.
• Default values vary depending on the regions.
• The unit of distance can be changed by pressing the MODE button on the remote
controller. When using the unit "feet", the setting is available in increments of 0.1 ft from
0.1 ft to 30.0 ft. When using the unit "meter", the setting is available in increments of
0.03 m from 0.03 m to 9.00 m.
109
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Channel Level
Adjust the volume level of each speaker.
Setting Item Default Value Setting Details
Front Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
Center 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
Front Right 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
Height Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
Height Right 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
Surround Right 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
Setting Item Default Value Setting Details
Surr Back Right 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
Surr Back Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
Surround Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
Subwoofer 0.0 dB Select a value between "-15.0 dB" and "+12.0 dB"
(in 0.5 dB increments). A test tone will be output
each time you change the value. Select the desired
level.
110
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Dolby Enabled Speaker
Change the settings of Dolby Enabled Speakers.
Setting Item Default Value Setting Details
Dolby Enabled
Speaker to Ceiling
6.0 ft/1.80 m Set the distance between the Dolby Enabled
Speaker and the ceiling. Select between
"0.1 ft/0.03 m" and "15.0 ft/4.50 m" (0.1 ft/0.03 m
units).
• The unit of distance (ft/m) is displayed using the
unit selected for the "Distance" setting.
Reex Optimizer O You can enhance the reection eect of Dolby
Enabled Speakers from the ceiling.
"O": When this function is not used
"On": When this function is used
• The function is not eective if the listening mode
is Pure Direct.
• This setting can be selected when "Conguration" - "Height Speaker" is set to "Dolby
Speaker".
Speaker Virtualizer
The Speaker Virtualizer function can be switched between On and O
Setting Item Default Value Setting Details
Speaker
Virtualizer
On "On": The listening mode with virtual speaker eect
such as F.S.Surround can be selected.
"O": The listening mode with virtual speaker eect
such as F.S.Surround cannot be selected.
Audio Adjust
Dual Mono/Mono
Change the settings of multiplex audio playback.
Setting Item Default Value Setting Details
Dual Mono Main Set the audio channel or language to be output
when playing multiplex audio or multilingual
broadcasts, etc.
"Main": Main channel only
"Sub": Sub channel only
"Main/Sub": Main and sub channels are output at
the same time.
• For multiplex audio broadcasts, pressing the
button on the remote controller will display "1+1"
on the main unit’s display.
Mono Input
Channel
Left + Right Set the input channel to play 2-ch digital sources
such as Dolby Digital, or 2-ch analog/PCM sources
in the Mono listening mode.
"Left": Left channel only
"Right": Right channel only
"Left + Right": Left and right channels
Dolby
Change the setting of when Dolby signals are input.
Setting Item Default Value Setting Details
Loudness
Management
On When playing Dolby TrueHD, enable the dialog
normalization function which keeps the volume of
dialog at a certain level. Note that when this setting
is O, the DRC function that allows you to enjoy
surround at low volumes is xed to o when playing
Dolby Digital Plus/Dolby TrueHD.
"On": When this function is used
"O": When this function is not used
111
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Volume
Change the Volume settings.
Setting Item Default Value Setting Details
Mute Level -∞ dB Set the volume lowered from the listening volume
when muting is on. Select a value from "-∞ dB",
"-40 dB" and "-20 dB".
Volume Limit O Set the maximum value to prevent the volume
from becoming too loud. Select a value from "O",
"-32 dB" to "+17 dB".
Power On Level Last Set the volume level of when the power is turned
on. Select a value from "Last" (Volume level before
entering standby mode), "-∞ dB", and "-81.5 dB" to
"+18.0 dB".
• You cannot set a higher value than that of
"Volume Limit".
Headphone Level 0.0 dB Adjust the output level of headphones. Select a
value between "-12.0 dB" and "+12.0 dB".
Source
Input Volume Absorber
Adjust the volume level when there are dierences in volume level among
multiple devices connected to this unit. Select the input selector to make the
setting.
Setting Item Default Value Setting Details
Input Volume
Absorber
0.0 dB Select a value between "-12.0 dB" and "+12.0 dB".
Set a negative value if the volume of the target
device is larger than the others and a positive
value if smaller. To check the audio, play back the
connected device.
• This function does not work in Zone 2.
112
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Name Edit
Set an easy name for each input. The set name appears on the main unit’s
display. Select the input selector to make the setting.
Setting Item Default Value Setting Details
Name Edit Input name
1. Select a character or symbol with the cursors,
and press ENTER.
Repeat this operation to input up to 10 characters.
"A/a": Switches between upper and lower cases.
(Pressing MODE on the remote controller also
toggles between upper and lower cases)
"←" "→": Moves the cursor in the arrow direction.
"
":
Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLEAR on the remote controller will
remove all the input characters.
2. After inputting, select "OK" with the cursors, and
press ENTER.
The input name will be saved.
To restore the name to the default value, press
CLEAR on the remote controller on the input
screen. Then while nothing is entered, select "OK",
and press ENTER.
• To name a preset radio station, press TUNER on the remote controller, select AM/FM,
and select the preset number.
• This cannot be set if the "NET" "USB" or "BLUETOOTH" input is selected.
Audio Select
Select the priority for input selection when multiple audio sources are connected
to one input selector, for example, connections to both the "BD/DVD" HDMI IN
jack and the "BD/DVD" AUDIO IN jack. The setting can be separately set to each
input selector. Select the input selector to make the setting. Note that some of
the default values cannot be changed.
Setting Item Default Value Setting Details
Audio Select BD/DVD:
HDMI
GAME:
HDMI
CBL/SAT:
HDMI
STRM BOX:
HDMI
CD:
COAXIAL
TV:
OPTICAL
PHONO:
Analog
"ARC": When giving priority to the input signal from
ARC-compatible TV.
• This item can be selected only when "Hardware"
- "HDMI" - "Audio Return Channel" is set to
"Auto" and also the "TV" input is selected.
"HDMI": When giving priority to the input signal
from HDMI IN jacks
• This item can be selected only when the input to
be set is assigned to the HDMI jack in the "Input/
Output Assign" - "HDMI Input" setting.
"COAXIAL": When giving priority to the input signal
from DIGITAL IN COAXIAL jacks
• This item can be selected only when the input
to be set is assigned to the COAXIAL jack in
the "Input/Output Assign" - "Digital Audio Input"
setting.
"OPTICAL": When giving priority to the input signal
from DIGITAL IN OPTICAL jacks
• This item can be selected only when the input
to be set is assigned to the OPTICAL jack in
the "Input/Output Assign" - "Digital Audio Input"
setting.
"Analog": When giving priority to the input signal
from AUDIO IN jacks
• This item can be selected only when the input
to be set is assigned to the AUDIO IN jack in
the "Input/Output Assign" - "Analog Audio Input"
setting.
113
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Fixed PCM O Select whether to x input signals to PCM (except
multi-channel PCM) when you select "HDMI",
"COAXIAL", or "OPTICAL" in the "Audio Select"
setting. Set this item to "On" if noise is produced or
truncation occurs at the beginning of a track when
playing PCM sources. Select "O" normally.
• Each time the "Audio Select" setting is changed,
the setting is restored to "O".
• The setting cannot be changed when "TUNER", "NET", "USB", or "BLUETOOTH" input is
selected.
Hardware
HDMI
Change the settings of the HDMI function.
Setting Item Default Value Setting Details
HDMI CEC O Setting this to "On" enables the input selection link
and other link functions with HDMI-connected CEC-
compatible device.
"On": When this function is used
"O": When this function is not used
When this setting is changed, turn o and then on
again the power of all connected devices.
• Depending on the TV to use, a link setting may
be required on the TV.
• Setting this to "On" and closing the operation
screen will display the name of the connected
CEC-compatible device and "CEC On" on the
main unit’s display.
• When this function is set to "On", the power
consumption in standby state increases,
however, the increase in power consumption is
minimized by automatically entering the HYBRID
STANDBY mode where only the essential circuits
operate.
• If you operate the MASTER VOLUME dial on the
main unit when this setting is "On" and audio is
output from the TV speakers, audio will be output
also from the speakers connected to this unit. To
output audio from only either of them, change the
setting of this unit or TV, or reduce the volume of
this unit.
• If abnormal behavior is observed when this is set
to "On", set it to "O".
• If a connected device is not CEC-compatible, or
if you are not sure whether it is compatible, set
it to "O".
114
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
HDMI Standby
Through
O When this is set to anything other than "O",
you can play the video and audio of an HDMI-
connected player on the TV even if the unit is in
standby mode. Also, only "Auto" and "Auto(Eco)"
can be selected if "HDMI CEC" is set to "On". If you
select anything else, set "HDMI CEC" to "O".
• When this function is set to a value other than
"O", the power consumption in standby state
increases, however, the increase in power
consumption is minimized by automatically
entering the HYBRID STANDBY mode where
only the essential circuits operate.
"BD/DVD", "GAME", "CBL/SAT", "STRM BOX",
"HDMI 5", "HDMI 6": For example, if you select
"BD/DVD", you can play the device connected to
the "BD/DVD" jack on the TV even if the unit is
in standby mode. Select this setting if you have
decided which player to use with this function.
"Last": You can play on the TV the video and audio
of the input selected immediately before the unit is
switched to standby.
"Auto", "Auto (Eco)": Select either of the settings
if the connected player conforms to the CEC
standard. You can play the video and audio of
the player on the TV using the CEC link function,
irrespective of what input is selected immediately
before the unit is switched to standby.
• To play a non-CEC compliant player on the TV,
turn the unit on and switch the input.
• When using a CEC-compliant TV, you can
reduce the power consumption in standby mode
by selecting "Auto (Eco)".
Setting Item Default Value Setting Details
Audio TV Out O You can enjoy audio through the speakers of the
TV while this unit is on.
"On": When this function is used
"O": When this function is not used
• The setting is xed to "Auto" if "HDMI CEC" is
set to "On". If you change this setting, set "HDMI
CEC" to "O".
• Listening mode cannot be changed while "Audio
TV Out" is set to "On" and audio is being output
from the TV.
• Depending on your TV or input signal of the
connected device, audio may not be output from
the TV even if this is set to "On". In such a case,
audio is output from the speakers of the unit.
• Audio is output from this unit if you operate the
MASTER VOLUME dial on this unit when audio
that is input to this unit is output from your TV
speakers. If you do not want to output audio,
change the setting of this unit or TV, or reduce
the volume of this unit.
Audio Return
Channel
Auto (*) You can enjoy the sound of the HDMI-connected
ARC-compatible TV through the speakers
connected to the unit.
* To use this function, set "HDMI CEC" to "On"
beforehand.
"Auto": When enjoying the TV sound through the
speakers of this unit
"O": When not using the ARC function
Auto Delay On This setting automatically corrects
desynchronization between the video and audio
signals based on the information from the HDMI Lip
Sync-compatible TV.
"On": When enabling the automatic correction
function
"O": When not using the automatic correction
function
115
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Power Management
Change the settings for the power-save function.
Setting Item Default Value Setting Details
Sleep Timer O You can allow the unit to enter standby
automatically when the specied time elapses.
Select a value from "30 minutes", "60 minutes" and
"90 minutes".
"O": The unit does not automatically enter standby
mode.
Auto Standby On/O This setting allows the unit to enter standby mode
automatically after 20 minutes of inactivity without
any video or audio input. (When "USB Power Out
at Standby" or "Network Standby" is enabled, the
unit enters the HYBRID STANDBY mode which
minimizes the increase in power consumption.)
"On": The unit automatically enters standby mode
("AUTO STBY" lights up).
"O": The unit does not automatically enter standby
mode.
• "Auto Standby" is displayed on the main unit’s
display and TV screen 30 seconds before
entering standby mode.
• "Auto Standby" does not work when Zone 2 is
active.
• Default values vary depending on the regions.
Auto Standby in
HDMI Standby
Through
O Enable or disable "Auto Standby" while "HDMI
Standby Through" is on.
"On": The setting is enabled.
"O": The setting is disabled.
• This setting cannot be set to "On" if "Auto
Standby" and "HDMI Standby Through" are set
to "O".
Setting Item Default Value Setting Details
USB Power Out
at Standby
O When this function is set to "On", electricity can be
supplied to the device connected to the USB port
even if this unit is in standby mode .
• When this function is set to "On", the power
consumption in standby state increases,
however, the increase in power consumption is
minimized by automatically entering the HYBRID
STANDBY mode where only the essential circuits
operate.
Network Standby On
When this function is set to "On", the network
function works even in standby state, and you can
turn on the power of the unit via network using an
application such as Pioneer Remote App that can
control this unit.
• When this function is set to "On", the power
consumption in standby state increases,
however, the increase in power consumption is
minimized by automatically entering the HYBRID
STANDBY mode where only the essential circuits
operate. Note that even if this function is set to
"O", when any of the HDMI CEC ( p113),
HDMI Standby Through ( p114), USB Power
Out at Standby ( p115) and Bluetooth
Wakeup ( p116) functions is enabled, this
function will be in “On” state regardless of the
setting.
• When connection to the network is lost, "Network
Standby" may be disabled to reduce power
consumption. In such a case, turn the unit on by
using the power button on the remote controller
or main unit.
116
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Bluetooth Wakeup O
This function wakes up the unit on standby by
connecting a BLUETOOTH-enabled device.
"On": When this function is used
"O": When this function is not used
• When this function is set to "On", the power
consumption in standby state increases,
however, the increase in power consumption
is minimized by automatically entering the
HYBRID STANDBY mode where only the
essential circuits operate.
• This setting is xed to "O" if "Network/
Bluetooth" - "Bluetooth" - "Auto Input Change" is
set to "O".
• Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be selected. It can
be selected when the network function is activated.
Works with SONOS
Change the settings to connect with the Sonos Connect.
Setting Item Default Value Setting Details
Input Selector O Select the input selector to which the Sonos
Connect is connected.
• Selecting "O" disables the interlock function
with Sonos.
Connected Device - Displays the Sonos Connect connected to the
same network as the network of this unit. Press
the ENTER button to select the connected Sonos
Connect.
• Products (e.g. Play:3 unequipped with an output
terminal) other than the Sonos Connect are also
displayed in the device list and selectable. In that
case, when playback on the Sonos side starts,
the input is switched, however, audio is not
output. Select the room name of the connected
Sonos Connect.
• Up to 32 devices can be displayed on the Sonos
product list screen. If you cannot nd the Sonos
Connect to be interlocked, return to the previous
screen, turn o the product you want to interlock,
and try again.
• To use this function, set "Input Selector"
beforehand.
Output Zone Main Select the zone where you want to listen to the
music.
"Main": Outputs audio only to the main room
(where this unit is located).
"Zone 2": Outputs audio only to the separate room
(ZONE 2).
"Main/Zone 2": Outputs audio to both the main
room and separate room.
• To use this function, set "Input Selector"
beforehand.
117
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Preset Volume Main:
Last
Zone 2:
Last
You can set the volume beforehand for playing
back the Sonos Connect. You can set volumes
for the main room (where this unit is located) and
separate room (ZONE 2) respectively. Select a
value from "Last" (Volume level before entering
standby mode), "-∞ dB", and "-81.5 dB" to
"+18.0 dB".
• To use this function, set "Input Selector"
beforehand.
Multi Zone
Zone 2
Change the settings for Zone 2.
Setting Item Default Value Setting Details
Volume Limit O Set the maximum value for Zone 2 to avoid too
high volume. Select "O" or a value between
"-32 dB" and "+17 dB".
Power On Level Last Set the Zone 2 volume level of when this unit is
turned on. Select a value from "Last" (volume
before the unit was turned o), "-∞ dB", and
"-81.5 dB" to "+18.0 dB".
• You cannot set a higher value than that of
"Volume Limit".
Remote Play Zone
Change the settings for remote play.
Setting Item Default Value Setting Details
Remote Play
Zone
Auto When playing with AirPlay or Spotify Connect,
or when using the Music Server function to play
remotely from your PC, you can set whether to play
in the main room (where this unit is located) or in a
separate room (ZONE 2).
"Auto": When the main room input is NET, music
is played in the main room. When the separate
room input is NET and the main room input is other
than NET, then the music is played in the separate
room.
"Main", "Zone 2": Select when limiting the play zone
to a particular room. For example, when playing
only in the separate room, select "Zone 2".
• This function may not work if playback is already
proceeding with the same network function.
118
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Miscellaneous
Tuner
Change the frequency step for the tuner.
Setting Item Default Value Setting Details
AM/FM
Frequency Step
(North American
models)
10 kHz/0.2 MHz Select a frequency step to suit your residential
area.
Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz".
• When this setting is changed, all radio presets
are deleted.
AM Frequency
Step (European,
Australian and
Asian models)
9 kHz Select a frequency step to suit your residential
area.
Select "10 kHz" or "9 kHz".
• When this setting is changed, all radio presets
are deleted.
Remote ID
Change the remote controller ID.
Setting Item Default Value Setting Details
Remote ID 1 Select an ID for the unit's remote controller from
"1", "2", and "3" to prevent interference between
the unit and other Pioneer components that are
installed in the same room. After changing the ID
on the main unit, change the ID on the remote
controller accordingly with the following procedure.
While pressing and holding the MODE button,
press the following buttons for approx. 3 seconds.
• To change the remote controller ID to "1": AUTO/
DIRECT
• To change the remote controller ID to "2": SURR
• To change the remote controller ID to "3":
STEREO
Firmware Update
Change the settings for Firmware Update.
Setting Item Default Value Setting Details
Update Notice Enable Availability of a rmware update is notied via
network.
"Enable": Notify updates
"Disable": Do not notify updates
Version - The current rmware version is displayed.
Update via
NET
- Press ENTER to select when updating the rmware
via network.
• This setting cannot be selected if you do not
have Internet access or there is no updatable
rmware.
Update via
USB
- Press ENTER to select when updating the rmware
via USB.
• This setting cannot be selected if a USB storage
device is not connected or there is no updatable
rmware in the USB storage device.
• Wait for a while if "Firmware Update" cannot be selected. It can be selected when the
network function is activated.
Initial Setup
Make the initial setup from the setup menu.
• Wait for a while if "Initial Setup" cannot be selected. It can be selected when
the network function is activated.
119
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Lock
Lock the Setup menu so that the settings cannot be changed.
Setting Item Default Value Setting Details
Setup Parameter Unlocked Lock the Setup menu so that the settings cannot be
changed.
"Locked": The menu is locked.
"Unlocked": The menu is unlocked.
Factory Reset
All the settings are restored to factory defaults.
Setting Item Default Value Setting Details
Factory Reset - All the settings are restored to factory defaults.
Select "Start", and press the ENTER button.
• If "Factory Reset" is performed, your settings are
restored to the default values. Be sure to note
down your setting contents beforehand.
120
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
MCACC
Menu operations
Setup the speakers automatically or make desired changes to the equalizer. You
can also check the values set currently for each speaker setting.
Use the on-screen displays (OSD) that appear on the TV to make the settings.
Press
on the remote controller to display the Home screen, then select
MCACC with the cursors on the remote controller and press ENTER.
Select the item with the cursor / / / buttons of the remote controller and
press ENTER to conrm your selection.
Use the cursors / to change the default values.
• To return to the previous screen, press .
• To exit the settings, press .
121
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Full Auto MCACC
Place the supplied speaker setup microphone in the listening position, measure
the test tones emitted by the speakers, then the unit automatically sets the
optimum volume level for each speaker, the crossover frequencies, and the
distance from the listening position. This also automatically adjusts the equalizers
for the speakers and enables correction of distortion caused by the acoustic
environment of the room.
• Calibration takes between 3 and 12 minutes to be completed. The speakers
emit the test tone at high volume during measurement, so be careful of your
surroundings. Keep the room as quiet as possible during measurement.
• If you have connected a subwoofer, check the power and volume of the
subwoofer. Set the subwoofer volume to more than halfway.
• If the power of this unit suddenly turns o, the wires in the speaker cables
may have touch the rear panel or other wires and tripped the protection circuit.
Twist the wires again properly and make sure they do not stick out of the
speaker terminals when connecting.
1. Select the connected speaker conguration.
The image on the screen changes as you choose the number of channels in
"Speaker Channels", so refer to it when performing the settings.
2. Place the supplied speaker setup microphone in the listening position, and
connect to the SETUP MIC jack on the main unit.
SETUP MIC
When putting the speaker setup microphone on a tripod, refer to the illustration
when putting it in place.
3. Conrm a test tone is output from the subwoofer and press ENTER.
4. Press ENTER. Then, test tones are output from each speaker, and the
connected speakers and the noise in the surrounding environment are
automatically measured.
5. After the results of the measurements are displayed, select "Next", press
ENTER on the remote controller, and the test tones are emitted again, and the
unit automatically makes settings such as the optimum volume level and the
crossover frequency.
6. When the measurement is completed, the measurement result is displayed.
Press the cursors / on the remote controller to check the settings. Press
ENTER when "Save" is selected to save the settings.
7. Disconnect the speaker setup microphone.
122
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Manual MCACC
EQ Adjust
If you perform Full Auto MCACC then settings are automatic, but you can also
adjust the output volume of the range of each connected speaker to suit your own
preferences. You can adjust the volume of the dierent sound ranges for each
of the speakers. You can set three dierent equalizers in Preset 1 to 3. You can
select up to 4 bands for the Subwoofer and 9 bands for all other speakers.
Setting Item Default Value Setting Details
Front Left 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
Center 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Front Right 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
Setting Item Default Value Setting Details
Height Left 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Height Right 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
123
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Surround Right 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Surr Back Right 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Setting Item Default Value Setting Details
Surr Back Left 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• The setting cannot be changed if "Zone 2" is set
in "Conguration" - "Zone Speaker" and Zone 2
is on.
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Surround Left 0.0 dB After selecting the speaker frequency from between
"63 Hz" and "16 kHz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• "63 Hz" can only be selected when this speaker
is set to "Large" in "System Setup" - "Speaker" -
"Crossover".
• If an item cannot be selected even though
connection is correct, check that the settings in
"System Setup" - "Speaker" - "Conguration"
- "Speaker Channels" matches the number of
connected channels.
Subwoofer 0.0 dB After selecting the speaker frequency from between
"31 Hz" and "250 Hz" with the cursors
/ , adjust
the volume of that frequency between "-12.0 dB"
and "+12.0 dB" with / .
• This cannot be selected if "No" is set in
"System Setup" - "Speaker" - "Conguration" -
"Subwoofer".
• The result may not be as expected depending on the input source and listening mode
setting.
• If you want to make the adjustments while listening to something, press on the remote
controller, and select the Preset you want to adjust in "AV Adjust" - "MCACC" - "Manual
EQ Select" rst.
124
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
MCACC Data Check
You can check the number of speaker channels connected and the content and
values you have set for each of the speaker settings.
Speaker Setting
You can check the number of speaker channels connected and the large and
small settings you have set for the low range reproduction capabilities for each of
the speakers.
Channel Level
You can check the output level settings for each of the speakers.
Speaker Distance
You can check the distance from each speaker to the listening position.
125
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Network/Bluetooth
Menu operations
Make settings related to network connections and BLUETOOTH.
Use the on-screen displays (OSD) that appear on the TV to make the settings.
Press
on the remote controller to display the Home screen, select Network/
Bluetooth with the cursors on the remote controller, then press ENTER.
Select the item with the cursor / / / buttons of the remote controller and
press ENTER to conrm your selection.
Use the cursors / to change the default values.
• To return to the previous screen, press .
• To exit the settings, press .
126
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Network
• When LAN is congured with a DHCP, set "DHCP" to "Enable" to congure the
setting automatically. ("Enable" is set by default.) To assign xed IP addresses
to each components, you must set "DHCP" to "Disable" and assign an address
to this unit in "IP Address" as well as set information related to your LAN, such
as Subnet Mask and Gateway.
Setting Item Default Value Setting Details
Wi-Fi O(Wired) Connect the unit to network via wireless LAN
router.
"On": Wireless LAN connection
"O (Wired)": Wired LAN connection
• When switching between "On" and "O(Wired)",
stop the Network service. Also, when group
playback is in process, cancel the group
playback once, and then switch the setting.
Wi-Fi Setup - You can congure wireless LAN settings by
pressing ENTER when "Start" is displayed.
Wi-Fi Status - The information of the connected access point will
be displayed.
"SSID": SSID of the connected access point.
"Signal": Signal strength of the connected access
point.
"Status": Status of the connected access point.
MAC Address - This is the MAC address of this unit.
This value is specic to the component and cannot
be changed.
DHCP Enable "Enable": Auto conguration by DHCP
"Disable": Manual conguration without DHCP
• If selecting "Disable", you must set "IP Address",
"Subnet Mask", "Gateway", and "DNS Server"
manually.
IP Address 0.0.0.0 Displays/Sets the IP address.
Subnet Mask 0.0.0.0 Displays/Sets the subnet mask.
Gateway 0.0.0.0 Displays/Sets the gateway.
DNS Server 0.0.0.0 Displays/Sets the primary DNS server.
Setting Item Default Value Setting Details
Proxy URL - Displays/Sets the proxy server URL.
Proxy Port 8080 Displays/Sets the proxy server port number when
you enter "Proxy URL".
Friendly Name Pioneer VSX-
934 XXXXXX
Change the device name for this unit which is
shown on other devices connected to the network
to an easily recognized name.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors
and press ENTER.
Repeat it to input 31 or less characters.
"A/a": Switches between upper and lower cases.
(Pressing MODE on the remote controller also
toggles between upper and lower cases.)
"←" "→": Moves the cursor to the arrow
direction.
" ": Removes a character on the left of the
cursor.
" ": Enters a space.
• Pressing CLEAR on the remote controller will
remove all the input characters.
3. After inputting, select "OK" with the cursors and
press ENTER.
The input name will be saved.
127
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
AirPlay Password - You can set a password of up to 31 characters so
that only registered users can use AirPlay
®
.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors
and press ENTER.
Repeat it to input 31 or less characters.
"A/a": Switches between upper and lower cases.
(Pressing MODE on the remote controller also
toggles between upper and lower cases.)
"←" "→": Moves the cursor to the arrow
direction.
"
": Removes a character on the left of the
cursor.
" ": Enters a space.
• To select whether to mask the password with
"" or display it in plain text, press +Fav on
the remote controller.
• Pressing CLEAR on the remote controller will
remove all the input characters.
3. After inputting, select "OK" with the cursors and
press ENTER.
The input password will be saved.
Usage Data No As a means of improving the quality of our products
and services, we may collect information about
your usage over the network. Select "Yes" if you
agree to our collecting this information. Select "No"
if you do not want us to collect this information.
• You can set this after conrming the Privacy
Policy. When you select "Usage Data" and press
ENTER, the Privacy Policy is displayed. (The
same screen is displayed once also when setting
up the network connection.) If you agree to the
collection of the information, this setting also
becomes "Yes". Note that if you agree to the
Privacy Policy but select "No" for this setting, the
information will not be collected.
Network Check - You can check the network connection.
Press ENTER when "Start" is displayed.
• Wait for a while if "Network" cannot be selected. It will appear when the network feature
is started.
Bluetooth
Setting Item Default Value Setting Details
Bluetooth On Select whether or not to use the BLUETOOTH
function.
"On": Enables connection with a BLUETOOTH
wireless technology enabled device by using the
BLUETOOTH function. Select "On" also when
making various BLUETOOTH settings.
"O": When not using the BLUETOOTH function
Auto Input
Change
On The input of the unit will automatically be switched
to "BLUETOOTH" when connection is made from a
BLUETOOTH wireless technology enabled device
to the unit.
"On": The input will automatically become
"BLUETOOTH" when a BLUETOOTH wireless
technology enabled device is connected.
"O": The function is disabled.
• If the input is not switched automatically, set to
"O" and change the input manually.
Auto Reconnect On This function automatically reconnects to the
BLUETOOTH wireless technology enabled device
connected last when you change the input to
"BLUETOOTH".
"On": When this function is to be used
"O": When this function is not to be used
• This may not work with some BLUETOOTH
wireless technology enabled devices.
128
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Setting Item Default Value Setting Details
Pairing
Information
- You can initialize the pairing information saved on
this unit.
Pressing ENTER when "Clear" is displayed
initializes the pairing information stored in this unit.
• This function does not initialize the pairing
information on the BLUETOOTH wireless
technology enabled device. When pairing the
unit again with the device, be sure to clear
the pairing information on the BLUETOOTH
wireless technology enabled device in advance.
For information on how to clear the pairing
information, refer to the BLUETOOTH wireless
technology enabled device's instruction manual.
Device - Displays the name of the BLUETOOTH wireless
technology enabled device connected to the unit.
• The name is not displayed when "Status" is
"Ready" and "Pairing".
Status - Displays the status of the BLUETOOTH wireless
technology enabled device connected to the unit.
"Ready": Not paired
"Pairing": Paired
"Connected": Successfully connected
• Wait for a while if "Bluetooth" cannot be selected. It will appear when the BLUETOOTH
function is started up.
129
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
AV Adjust
Menu operations
You can quickly adjust the settings you frequently use, such as tone adjustments,
etc.
You can make the settings on the TV screen while playing something. Press
on the remote controller to display the AV Adjust menu. Note that there is no
display on the TV screen when the input selector is "AUX", "CD", "TV", "PHONO",
"FM", or "AM", so follow the main unit’s display while doing the operations.
AV Adjust
Tone
Level
MCACC
Other
Bass
Dialog
Treble
BD/DVD
Select the item with the cursor / buttons of the remote controller and press
ENTER to conrm your selection.
Use the cursors to change the settings.
• To return to the previous screen, press .
• To exit the settings, press .
Tone
Bass: Enhance or moderate the bass range of the speaker.
Dialog: Emphasizes movie lines and music vocals to listen to them more easily.
Treble: Enhance or moderate the treble range of the speaker.
• It cannot be set if the listening mode is Direct or Pure Direct.
• Depending on the input source or listening mode setting, selection is not
possible, or the desired eect may not be achieved.
Level
Center: Adjust the speaker level of the center speaker while listening to the
sound.
130
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Subwoofer: Adjust the speaker level of the subwoofer while listening to the
sound.
• If you set the unit to the standby mode, the adjustments you made will be
restored to the previous statuses.
MCACC
MCACC EQ: Enable or disable the equalizer function that corrects for distortion
caused by the acoustic environment of the room.
• It cannot be set if the listening mode is Pure Direct.
Manual EQ Select: From the Home screen, select "Preset 1" to "Preset 3" which
were set in "MCACC" - "Manual MCACC" - "EQ Adjust". The same sound eld
setting is applied all ranges when set to "O".
• It cannot be set if the listening mode is Pure Direct.
Phase Control: Correct phase disturbance in the low range to enhance the bass.
This enables you to achieve powerful bass reproduction that is faithful to the
original sound.
• It cannot be set if the listening mode is Pure Direct.
Theater Filter: Adjust the soundtrack that was processed to enhance its high
pitch range, in order to make it suitable for home theater.
• It cannot be set if the listening mode is Direct or Pure Direct.
Other
Sound Delay: If the video is behind the audio, you can delay the audio to oset
the gap. Dierent settings can be set for each input selector.
• It cannot be set if the listening mode is Pure Direct and the input signal is
analog.
Sound Retriever: Improve the quality of the compressed audio. Playback sound
of lossy compressed les such as MP3 will be improved. The setting can be
separately set to each input selector. The setting is eective in the signals of
48 kHz or less. The setting is not eective in the bitstream signals.
• It cannot be set if the listening mode is Direct or Pure Direct.
HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN",
"SUB", and "MAIN+SUB".
DRC: Make small sounds easily heard. It is useful when you need to reduce the
volume while watching a movie late night. You can enjoy the eect only when
playing Dolby series and DTS series input signals.
• It cannot be set if the listening mode is Direct or Pure Direct.
• The setting cannot be used in the following cases.
– If "Loudness Management" is set to "O" when playing Dolby Digital Plus or
Dolby TrueHD
– When the input signal is DTS:X and "Dialog Control" is other than 0 dB
Center Spread: Adjust the width of the sound eld of the front channel when
playing in the Dolby Audio - DSur listening mode. To spread the width of the
sound eld to the right and left, set to "On". To concentrate the sound in the
center, set to "O".
• Depending on the speaker settings, "O" is applied.
Dialog Control: You can increase the volume of dialog portion of the audio up to
6 dB by 1 dB step so that you can hear the dialog easily in noisy atmosphere.
• This cannot be set for content other than DTS:X.
• Depending on the content, this function may not be selected.
Zone B: Select an audio output method from among "O", "On (A+B)" and
"On (B)".
131
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Web Setup
Menu operations
You can make the settings for the network function of this unit using an Internet
browser on a PC, smartphone, etc.
1. Press on the remote controller to display the Home screen.
2. Select "Network/Bluetooth" - "Network" with the cursors, then take a note of
the IP address displayed in "IP Address".
3. Start the internet browser on your PC or smartphone and enter the IP address
of the unit in the URL eld.
4. Information for the unit (Web Setup screen) is displayed in the internet
browser.
5. After changing the settings, select "Save" to save the settings.
Device Information
You can change the Friendly Name, set an AirPlay Password, etc.
Control4: Register this unit if you are using a Control4 system.
Firmware Update: Select the rmware le you have downloaded to your PC so
you can update this unit.
Network Setting
Status: You can see information for the network such as the MAC address and IP
address of this unit.
Network Connection: You can select a network connection method. If you select
"Wireless", select an access point from "Wi-Fi Setup" to connect.
DHCP: You can change DHCP settings. If you select "O", set "IP Address",
"Subnet Mask", "Gateway" and "DNS Server" manually.
Proxy: Display and set the URL for the proxy server.
132
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Initial Setup with Auto Start-up Wizard
Operations
When you turn the unit on for the rst time after purchase, the Initial Setup screen
is automatically displayed on the TV to allow you to make settings required for
startup using simple operations following on-screen guidance.
1. Switch the input of the TV to the input connected to the unit.
2. Put batteries into the remote controller of this unit.
3. Press on the remote controller to turn the unit on.
4. When the language selection screen is displayed on TV, select the language
with the cursors / and press ENTER.
• Select the item with the cursors of the remote controller, and press ENTER to
conrm your selection. To return to the previous screen, press .
/ / /
ENTER
+Fav
CLEAR
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
133
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
• If you have terminated the Initial Setup halfway, turn this unit to standby mode.
Then turning the power on again can display the Initial Setup again.
The Initial Setup appears on the screen each time the power is turned on
unless the Initial Set up is completed or "Never Show Again" is selected on the
rst screen.
• To perform the Initial Setup again after the setting is completed, press ,
select "System Setup" - "Miscellaneous" - "Initial Setup", and press ENTER.
1. Speaker Setup
Select the connected speaker conguration.
Note that the image on the screen changes each time you select the number of
channels in "Speaker Channels".
Speaker Setup
Speaker Impedance 6 ohms or above
2. Full Auto MCACC
Place the supplied speaker setup microphone at the listening position. The unit
automatically measures the test tones output from each speaker, and sets the
optimum volume level for each speaker, the crossover frequencies, and the
distance from the listening position. This also automatically adjusts the equalizers
for the speakers, and enables correction of sound distortion caused by the
acoustic environment of the room.
• It takes between 3 and 12 minutes for calibration to be completed. Each
speaker outputs the test tone at high volume during measurement, so be
careful of your surroundings. Also, keep the room as quiet as possible during
measurement.
• If you connect a subwoofer, check the power and volume of the subwoofer.
Set the subwoofer volume to more than half.
• If the power of this unit suddenly turns o, the wires in the speaker cables
have touched the rear panel or other wires, and the protection circuit is
working. Twist the wires again securely, and make sure they do not stick out of
the speaker terminals when connecting.
1. Place the supplied speaker setup microphone at the listening position, and
connect it to the SETUP MIC jack on the main unit.
SETUP MIC
When placing the speaker setup microphone on a tripod, refer to the
illustration.
2. Conrm a test tone is output from the subwoofer and press ENTER.
3. Press ENTER. Then, test tones are output from each speaker, and the
connected speakers and the noise in the surrounding environment are
automatically measured.
4. The measurement results in step 3 are displayed. Select "Next", and press
ENTER. The test tones are output again. Then, the unit automatically sets the
optimum volume level, crossover frequency, etc.
5. When the measurement is completed, the measurement results are displayed.
You can check each setting using the cursors
/ . Select "Save" and press
ENTER to save the settings.
6. Disconnect the speaker setup microphone.
3. Multi Zone Sound Check
Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in
addition to the main room.
134
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
4. Network Connection
Make the network connection settings. There are two methods for network
connection.
"Wired": Use a wired LAN to connect to a network.
"Wireless": Wi-Fi connection using an access point such as a wireless LAN
router. There are two methods for Wi-Fi connection.
"Scan Networks": Search for an access point from this unit. Find out the
SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS
device with this unit.
If you select "Scan Networks", there are another two types of connection
methods. Check the following.
"Enter Password":Enter the password (or key) of the access point to connect.
"Push Button": If the access point is equipped with an automatic setting button,
you can connect without entering the password.
• If the SSID of the access point is not displayed, select "Other..." with the
cursor on the SSID list screen, press ENTER, and then follow the on-screen
instructions.
Keyboard Input
To switch between upper and lower cases, select "A/a" on the screen, and press
ENTER on the remote controller.
Press +Fav on the remote controller to select whether to mask the password
with "" or display it in plain text. Pressing CLEAR on the remote controller will
remove all the input characters.
• A conrmation screen asking you whether to agree to the privacy policy is
displayed during network setting. If you agree, select "Accept" and press
ENTER.
5. ARC Setup
To connect with an ARC-compatible TV, select "Yes". The ARC setting on this unit
turns on, and you can listen to the TV's audio through this unit.
• If you select "Yes", the HDMI CEC function is enabled and power consumption
increases during standby.
135
Troubleshooting
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Troubleshooting
Before starting the procedure
Problems may be solved by simply turning the power on/o or disconnecting/
connecting the power cord, which is easier than working on the connection,
setting and operating procedure. Try the simple measures on both the unit and
the connected device. If the problem is that the video or audio is not output or the
HDMI linked operation does not work, disconnecting/connecting the HDMI cable
may solve it. When reconnecting, be careful not to wind the HDMI cable since
if wound the HDMI cable may not t well. After reconnecting, turn o and on the
unit and the connected device.
• The AV receiver contains a microPC for signal processing and control
functions. In very rare situations, severe interference, noise from an external
source, or static electricity may cause it to lockup. In the unlikely event
that this happens, unplug the power cord from the wall outlet, wait at least
5 seconds, and then plug it back in.
• Our company is not responsible for damages (such as CD rental fees) due to
unsuccessful recordings caused by the unit’s malfunction. Before you record
important data, make sure that the material will be recorded correctly.
When the unit is operating erratically 136
Try restarting the unit 136
Resetting the unit
(this resets the unit settings to the default) 137
Troubleshooting 138
Power 138
Audio 138
Listening Modes 140
Video 141
Linked operation 141
Tuner 142
BLUETOOTH function 142
Network function 143
USB storage device 144
Wireless LAN Network 144
ZONE B function 145
Multi-zone function 145
Remote Controller 145
Display 145
Others 145
136
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
When the unit is operating erratically
❏ Try restarting the unit
Restarting this unit may solve the problem. After turning the unit to standby mode, press and hold the STANDBY/ON button of the main unit for at least 5 seconds,
and then restart the unit. (The settings on this unit are kept.) If the problem persists after restarting the unit, unplug and plug the power cords or HDMI cable of this unit
and connected devices.
137
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ Resetting the unit (this resets the unit settings to the default)
If the restart of the unit does not solve the problem, reset the unit, and restore all the settings to the factory default at the time of purchase. This may solve the problem.
If the unit is reset, your settings are restored to the default values. Be sure to note down your setting contents before performing the following operations.
1. While pressing and holding ZONE 2-CONTROL of the input selector on the main unit with the unit turned on, press the STANDBY/ON button.
2. "Clear" is displayed on the display, and the unit returns to the standby state. Do not remove the power cord until "Clear" disappears from the display.
To reset the remote controller, while pressing and holding MODE, press CLEAR at least 3 seconds.
1
2
138
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Troubleshooting
Power
❏ When the power is turned on, "AMP Diag Mode" appears on the display of the main unit.
• The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display
of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an
abnormality with the speaker cable connection. When the diagnosis is complete, the following messages are displayed.
CH SP WIRE
If the unit returns to the normal ON state after "CH SP WIRE" appears on the display, the speaker cable may have been short-
circuited. After setting the power of this unit to standby state, connect the speaker cable again. Twist the wires exposed from the tip of
the speaker cable so that the wires do not stick out of the speaker terminal.
NG:
If the operation has stopped with "NG" displayed on the display, set the power of this unit to standby state immediately and remove the
power plug from the outlet. The unit may be malfunctioning. Consult a dealer.
❏ The unit turns o unexpectedly
• The unit automatically switches to standby when the "System Setup" - "Hardware" - "Power Management" - "Auto Standby" setting in the Home
screen functions.
• The protection circuit function may have operated due to an abnormal rise in temperature of the unit. In such a case, the power turns o
repeatedly even if the power is turned on each time. Secure sucient ventilation space around the unit, wait for a while until the temperature of
the unit decreases. Then, turn the power on again.
WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or
our company's Support.
( p115)
Audio
• Make sure that the speaker setup microphone is no longer connected.
• Conrm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• If the indicator on the display blinks, press on the remote controller to cancel muting.
• While headphones are connected to the PHONES jack, no sound is output from the speakers.
• When "System Setup" - "Source" - "Audio Select" - "Fixed PCM" in the Home Menu is set to "On", no sound is played when signals other than
PCM are input. Change the setting to O.
Check the following if the problem persists after you have conrmed the above.
139
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ No sound from the TV
• Change the input selector on this unit to the position of the terminal to which the TV is connected.
• If the TV does not support the ARC function, along with the connection by an HDMI cable, connect the TV with this unit using a digital optical
cable.
( p40)
❏ No sound from a connected player
• Change the input selector on this unit to the position of the terminal to which the player is connected.
• Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may
be o.
• For some DVD-Video discs, you need to select an audio output format from a menu.
❏ A speaker produces no sound
• Make sure that the polarity (+/-) of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals.
• Make sure that the speaker cables are not shorting out.
• Check "Connect the Speaker Cables" ( p26) to see if the speaker connections have been made correctly. Settings for the speaker connection
environment need to be made in "Speaker Setup" in Initial Setup. Check "Initial Setup with Auto Start-up Wizard" ( p132).
• Depending on the input signal and listening mode, not much sound may be output from speakers. Select another listening mode to see if sound is
output.
• If surround back speakers are installed, be sure to install surround speakers as well.
• A maximum of 5.1 ch playback is possible when Bi-Amping connection is used. Be sure to remove the jumper bar on the speakers when using
Bi-Amping connection.
( p26)
❏ The subwoofer produces no sound
If the setting of the front speakers is "Large", the low range elements will be output from the front speakers instead of from the subwoofer during 2 ch
audio input of TV or music. To output the sound from the subwoofer, make one of the following settings.
1. Change the front speakers settings to "Small".
The low range elements will be output from the subwoofer rather than the front speakers. We do not recommend changing this if your front
speakers have good low range reproduction capabilities.
2. Change "Double Bass" to "On".
The low range elements of the front speakers will be output from both the front speakers and the subwoofer. Due to this, the bass sound may be
emphasized too much. In such a case, do not change the setting, or make the setting with the above option 1.
• For the setting details, refer to "System Setup" - "Speaker" - "Crossover".
• If the input signals do not contain subwoofer audio elements (LFE), the subwoofer may produce no sound.
( p107)
❏ Noise can be heard
• Using cable ties to bundle audio pin cables, power cords, speaker cables, etc. may degrade the audio performance. Do not bundle the cords.
• An audio cable may be picking up interference. Change the position of the cables.
140
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ The beginning of audio received by an HDMI IN cannot be heard
• Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
❏ Sound suddenly reduces
• When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced
automatically to protect the circuits.
❏ Sound suddenly changes
• The volume of ZONE A is restored to default if ZONE 2 is set to on while ZONE B is set to "On (B) ".
Listening Modes
• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with an HDMI cable, digital
coaxial cable or digital optical cable. Also, audio output need to be set to Bitstream output on the connected Blu-ray Disc player, etc.
• Press on the remote controller several times to switch the display of the main unit, and you can check the input format.
Check the following if the problem persists after you have conrmed the above.
❏ Cannot select a desired listening mode
• Depending on the connection status of the speaker, some listening modes may not be selected. Refer to "Speaker Layouts and Selectable
Listening Modes" (
p86) or "Input Formats and Selectable Listening Modes" ( p94) in "Listening Mode".
❏ Cannot listen to the sound in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format
• If the audio in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format cannot be output correctly in the source format, set "BD video
supplementary sound" (or reencode, secondary sound, video additional audio, etc.) to "O" in the setting of a connected Blu-ray Disc player, etc.
After changing the setting, switch the listening mode to that for each source, and conrm.
❏ About DTS signals
• With media that switches suddenly from DTS to PCM, PCM playback may not start immediately. In such a case, stop playback on the player side
for approx. 3 seconds or more. Then, resume playback. The playback will be performed normally.
• DTS playback may not be performed normally on some CD and LD players even if the player and this unit are digitally connected. If some
processing (e.g., output level adjustment, sampling frequency conversion, or frequency characteristic conversion) has been executed for the DTS
signal being output, this unit cannot recognize it as a genuine DTS signal, and noise may occur.
• While playing a DTS-compatible disc, if a pause or skip operation is performed on your player, noise may occur for a short period. This is not a
malfunction.
141
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Video
• Conrm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• When the TV image is blurry or unclear, the power cord or connection cables of the unit may have interfered. In such a case, keep distance
between TV antenna cable and cables of the unit.
• Check the switching of the input screen on the monitor side such as a TV.
Check the following if the problem persists after you have conrmed the above.
❏ No image appears
• Change the input selector on this unit to the position of the terminal to which the player is connected.
❏ No image from a device connected to HDMI IN jack
• To display video from the connected player on the TV while the unit is in standby, you need to enable "System Setup" - "Hardware" - "HDMI" -
"HDMI Standby Through" in the Home screen. For details of the HDMI Standby Through function, refer to "System Setup" - "Hardware" -
"HDMI".
• To output video to a TV connected to the HDMI OUT SUB jack, press the button on the remote controller to display "AV Adjust" and select
"Other" - "HDMI Out", or press the HDMI MAIN/SUB button on the remote controller. Then, select the HDMI OUT jack for output.
• Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not
support the resolution of the video input from the player. Change the setting on the player.
• Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, video signals output from a PC are not guaranteed.
( p114)
❏ Images icker
• The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable,
change the output resolution on the player. Also this may be solved by changing the screen mode on the TV.
❏ Video and audio are out of synch
• Depending on the settings on your TV and connection environment, the video may be behind the audio. Video may be delayed relative to audio
depending on the settings and connections with your television. To adjust, press on the remote controller, and adjust in "Other" - "Sound Delay"
in the "AV Adjust".
( p129)
Linked operation
❏ HDMI linked operation does not work with CEC-compliant devices, such as a TV
• In the Home screen of the unit, set "System Setup" - "Hardware" - "HDMI" - "HDMI CEC" to "On".
• It is also necessary to set HDMI linking on the CEC-compliant device. Check the instruction manual.
• When connecting a Sharp brand player or recorder to the HDMI IN jacks, set "System Setup" - "Hardware" - "HDMI" - "HDMI Standby Through" to
"Auto".
( p113)
142
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Tuner
❏ Poor reception or much noise
• Recheck the antenna connection.
• Move the antenna away from the speaker cord or power cord.
• Move the unit away from your TV or PC.
• Passing cars or airplanes in the vicinity can cause interference.
• If radio waves are blocked by concrete walls, etc., radio reception may be poor.
• Change the reception mode to mono ( p71).
• Operating the remote controller during AM reception may cause noise.
• FM reception may be clearer if you use the antenna jack on the wall used for the TV.
( p45)
BLUETOOTH function
• Unplug and plug the power cord of the unit, or turn o and on the BLUETOOTH-enabled device. Restart of the BLUETOOTH-enabled device may
be eective.
• BLUETOOTH-enabled devices must support the A2DP prole.
• Because a radio wave interference will occur, this unit may not be used near devices such as a microwave oven or cordless phone which use the
radio wave in the 2.4 GHz range.
• A metallic object near the unit can aect on the radio wave, and BLUETOOTH connection may not be possible.
Check the following if the problem persists after you have conrmed the above.
❏ Cannot connect with this unit
• Check if the BLUETOOTH function of the BLUETOOTH-enabled device is enabled. ( p127)
❏ Music playback is unavailable on the unit even after successful BLUETOOTH connection
• When the audio volume of your BLUETOOTH-enabled device is set low, the audio may not be played back. Turn up the volume of the
BLUETOOTH-enabled device.
• Depending on the BLUETOOTH-enabled device, the Send/Receive selector switch may be equipped. Select Send mode.
• Depending on the characteristics or specications of the BLUETOOTH-enabled device, music may not be played back on this unit.
❏ Sound is interrupted
• There may a problem with the BLUETOOTH-enabled device. Check the information on a web page.
❏ The audio quality is poor after connection with a BLUETOOTH-enabled device
• The BLUETOOTH reception is poor. Move the BLUETOOTH-enabled device closer to the unit, or remove any obstacle between the
BLUETOOTH-enabled device and this unit.
143
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Network function
• If you cannot select a network service, start up the network function to select it. It may take approx. one minute to start it up.
• When the NET indicator is blinking, this unit is not properly connected to the home network.
• Unplug and plug the power cords of this unit and the router, or restart the router.
• If the desired router is not displayed in the access point list, it may be set to hide SSID, or the ANY connection may be o. Change the setting and
try again.
Check the following if the problem persists after you have conrmed the above.
❏ Cannot access the Internet radio
• In the case the service provider has terminated the service, the network service or contents may not be used on this unit.
• Check if your modem and router are properly connected, and they are both turned on.
• Check if the LAN side port on the router is properly connected to this unit.
• Check if connecting to Internet from other devices is possible. If it is not possible, turn o all devices connected to the network, wait for a while,
and then turn on the devices again.
• If only the specic radio station is unavailable for listening, check if he registered URL is correct, and if the format distributed from the radio station
is supported by this unit.
• Depending on ISP, setting the proxy server is required.
• Check if the router and modem you are using are supported by your ISP.
❏ Cannot access the network server
• This unit needs to be connected to the same router as the network server.
• This unit supports the Windows Media
®
Player 11 or 12 network servers, or NASes that support the home network function.
• Windows Media
®
Player may require some settings. Refer to "Playing back les on a PC and NAS (Music Server)".
• When using a PC, only the music les registered in the library of Windows Media
®
Player can be played.
( p60)
❏ Sound is interrupted when playing music les on the network server
• Check if the network server meets the requirements for operation.
• When the PC is serving as the network server, quit application software other than the server software (Windows Media
®
Player 12, etc.).
• If the PC is downloading or copying large les, the playback sound may be interrupted.
144
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
USB storage device
❏ USB storage device is not displayed
• Check if the USB storage device or USB cable is securely inserted to the USB port of the unit.
• Disconnect the USB storage device once from the unit, and then reconnect it.
• Performance of the hard disk that receive power from the USB port of the unit is not guaranteed.
• Depending on the type of content, the playback may not be performed normally. Check the types of supported le formats.
• Operations of USB storage devices equipped with security functions are not guaranteed.
( p57)
Wireless LAN Network
• Unplug and plug the power cords of this unit and the wireless LAN router, check the power-on status of the wireless LAN router, or restart the
wireless LAN router.
Check the following if the problem persists after you have conrmed the above.
❏ Cannot access wireless LAN network
• The wireless LAN router setting may be switched to Manual. Restore the setting to Auto.
• Try the manual set-up. The connection may succeed.
• When the wireless LAN router is in stealth mode (mode to hide SSID) or when the ANY connection is o, the SSID is not displayed. Change the
setting and try again.
• Check if the SSID and encryption settings (WEP, etc.) are correct. Match the network settings with the settings of this unit.
• Connection to an SSID that includes multi-byte characters is not supported. Set the SSID of the wireless LAN router using single-byte
alphanumeric characters only, and try again.
❏ Connected to an SSID dierent from the selected SSID
• Some wireless LAN routers allow you to set multiple SSIDs for one unit. If connecting to such a router using the automatic setting button, you may
end up connecting to an SSID dierent from the SSID you want to connect to. If this occurs, use the connection method requiring you to enter a
password
❏ Playback sound is interrupted, or communication is not possible
• You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to
improve visibility, and connect again. Install the unit away from microwave ovens or other access points. It is recommended to install the wireless
LAN router and the unit in the same room.
• If there is a metallic object near the unit, wireless LAN connection may not be possible because the metal aects the radio wave.
• When other wireless LAN devices are used near the unit, other symptoms may occur, such as interrupted playback and impossible
communication. You can avoid those problems by changing the channel of your wireless LAN router. For instructions on changing channels, refer
to the instruction manual supplied with your wireless LAN router.
• There may not be enough bandwidth available in wireless LAN. Use a wired LAN for connection.
145
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
ZONE B function
❏ Cannot output audio to ZONE B
• To output audio to ZONE B, set the audio output destination to "ZONE A+B" or "ZONE B". ( p77)
Multi-zone function
❏ Cannot ZONE-output the audio of externally connected AV components
• To output audio from an externally connected AV component to ZONE 2, connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not
equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or analog audio cable. Also, the audio from externally connected AV
components can be output to ZONE 2 only when the audio is analog or 2ch PCM signal. When the AV component is connected to this unit with an
HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.
• When video and audio via HDMI input are output to ZONE 2, set "Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p103) to "Use" on
the System Setup menu.
❏ Others
• If the audio signal is from the NET or USB input selector, zone output is not possible for DSD audio signals.
Remote Controller
• Make sure that the batteries are inserted with the correct polarity.
• Insert new batteries. Do not mix dierent types of batteries, or old and new batteries.
• Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type uorescent lights. Relocate it if necessary.
• If the main unit is installed in a rack or cabinet with colored-glass doors, or if the doors are closed, the remote controller may not work normally.
Display
❏ The display does not light up
• When the Dimmer function is working, the display may go dim or turn o. Press the DIMMER button, and change the brightness level of the
display.
( p11)
Others
❏ Strange noise can be heard from the unit
• If you have connected another device to the same outlet as this unit, strange noise may occur under the inuence of the device. If the symptom is
remedied by removing the power plug of the other device from the outlet, use dierent outlets for this unit and the device.
146
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ The message "Noise Error" appears during Full Auto MCACC
• This can be caused by a malfunction in your speaker unit. Check the speaker output, etc.
❏ The measurement results of Full Auto MCACC show dierent distances to the speakers from the
actual ones
• Depending on the speakers you are using, some errors may occur in the measurement results. If this is the case, make the settings in "System
Setup" - "Speaker" - "Distance".
( p108)
❏ DRC function does not work
• Make sure the source material is Dolby Digital, Dolby Digital Plus, Dolby TrueHD, or DTS.
147
Appendix
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Reducing the Power Consumption in Standby State
When the following functions are enabled, the power consumption in standby state increases. To reduce the power consumption in standby state, check each setting
and set the functions to "O".
– HDMI CEC ( p113)
– HDMI Standby Through ( p114)
– USB Power Out at Standby ( p115)
– Network Standby ( p115)
– Bluetooth Wakeup ( p116)
148
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
About HDMI
Compatible functions
HDMI (High Denition Multimedia Interface) is a digital interface standard for
connecting TVs, projectors, Blu-ray Disc/DVD players, digital tuners, and other
video components. Several separate video and audio cables have been required
to connect AV components so far. With HDMI, a single cable can transmit control
signals, digital video and digital audio (2-channel PCM, multichannel digital audio,
and multichannel PCM).
HDMI CEC function:
By connecting a device that complies with CEC (Consumer Electronics Control)
of the HDMI standard using an HDMI cable, a variety of linked operations
between devices are possible. This function enables various linking operations
with players, such as switching input selectors interlocking with a player,
adjusting the volume of this unit using the remote controller of a TV, and
automatically switching this unit to standby when the TV is turned o.
The unit is designed to link with products that comply with the CEC standard,
however, linked operation is not always guaranteed with all CEC devices.
For linked functions to work properly, do not connect CEC-compliant devices
exceeding the connectable number to the HDMI jack as shown below.
• Blu-ray Disc/DVD players: up to 3 units
• Blu-ray Disc/DVD recorders: up to 3 units
• Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to
4 units
Operation has been conrmed on the following devices: (As of January 2019)
Toshiba brand televisions; Sharp brand televisions; Toshiba brand players and
recorders; Sharp brand players and recorders (when used with a Sharp brand
television)
ARC (Audio Return Channel):
By connecting an ARC-compliant TV with a single HDMI cable, you can output
the audio and video from this unit to the TV, and also input the audio from the TV
to this unit.
HDMI Standby Through:
Even if this unit is in standby mode, the input signals from AV components can be
transmitted to the TV.
Deep Color:
By connecting devices supporting Deep Color, video signals input from the
devices can be reproduced on the TV with even more colors.
x.v.Color™:
This technology reproduces even more realistic colors by expanding the color
gamut.
3D:
You can transmit 3D video signals from AV components to the TV.
4K:
This unit supports 4K (3840×2160p) and 4K SMPTE (4096×2160p) video signals.
Lip Sync:
This setting automatically corrects desynchronization between the video and
audio signals based on the information from the HDMI Lip Sync-compatible TV
.
Copyright Protection:
The HDMI jack of this unit conforms to the Revision 1.4 and Revision 2.2
standards of the HDCP (High-bandwidth Digital Content Protection), a copy
protection system for digital video signals. Other devices connected to the unit
must also conform to the HDCP standards.
149
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Supported Audio Formats
2 ch linear PCM:
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit
Multi-channel linear PCM:
Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz, 16/20/24 bit
Bitstream:
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS:X, DTS-
HD High Resolution Audio, DTS-HD Master Audio, DTS 96/24, DTS-ES, DTS
Express
DSD:
Supported sampling rates: 2.8 MHz
Your Blu-ray Disc/DVD player must also support the HDMI output of the above
audio formats.
Supported resolutions
HDMI IN1 to IN6:
• Copyright protection technology: HDCP1.4/HDCP2.2
• Color space (Color Depth):
– 720×480i 60 Hz, 720×576i 50 Hz, 720×480p 60 Hz, 720×576p 50 Hz,
1920×1080i 50/60 Hz, 1280×720p 24/25/30/50/60 Hz, 1680×720p
24/25/30/50/60 Hz, 1920×1080p 24/25/30/50/60 Hz, 2560×1080p
24/25/30/50/60 Hz, 4K (3840×2160p) 24/25/30 Hz, 4K SMPTE
(4096×2160p) 24/25/30 Hz : RGB/YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2
(12 bit)
– 4K (3840×2160p) 50/60 Hz, 4K SMPTE (4096×2160p) 50/60 Hz : RGB/
YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit), YCbCr4:2:0 (8/10/12 bit)
150
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
General Specications
Amplier Section
Rated Output Power (FTC) (North American)
With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 80 watts
per channel minimum RMS power, with no more than 0.08% total harmonic
distortion from 250 milliwatts to rated output.
Rated Output Power (IEC) (Others)
7 ch × 135 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD
Maximum Eective Output Power (North American)
165 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD
Maximum Eective Output Power (IEC)
7 ch × 160 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD (European)
Maximum Eective Output Power (JEITA)
7 ch × 160 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD (Asian and
Australian)
Dynamic Power (*)
* IEC60268-Short-term maximum output power
160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
THD+N (Total Harmonic Distortion+Noise)
0.08% (20 Hz - 20,000 Hz, half power)
Input Sensitivity and Impedance
200 mV/47 kΩ (LINE (RCA))
3.5 mV/47 kΩ (PHONO MM)
Rated RCA Output Level and Impedance
1 V/470 Ω (SUBWOOFER PRE OUT)
200 mV/2.3 kΩ (ZONE B LINE OUT)
Phono Maximum Input Signal Voltage
70 mV (MM 1 kHz 0.5%)
Frequency Response
10 Hz - 100 kHz/+1 dB, –3 dB (Direct/Pure Direct)
Tone Control Characteristics
±10 dB, 20 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio
106 dB (IHF-A, LINE IN, SP OUT)
80 dB (IHF-A, PHONO IN, SP OUT)
Speaker Impedance
4 Ω - 16 Ω (Normal)
8 Ω - 16 Ω (Bi-Wiring)
Headphone Rated Output
80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones
8 Ω - 600 Ω
Headphones Frequency Response
10 Hz - 100 kHz
Tuner Section
FM Tuning Frequency Range
87.5 MHz - 107.9 MHz (North American)
87.5 MHz - 108.0 MHz, RDS (Others)
50 dB quieting sensitivity (FM MONO)
1.0 μV, 11.2 dBf (IHF, 75 Ω)
AM Tuning Frequency Range
530 kHz - 1710 kHz (North American)
522/530 kHz - 1611/1710 kHz (Others)
Preset Channel
40
Network Section
Ethernet LAN
10BASE-T/100BASE-TX
Wireless LAN
IEEE 802.11 a/b/g/n standard
(Wi-Fi
®
standard)
5 GHz/2.4 GHz band
151
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
BLUETOOTH Section
Communication system
BLUETOOTH Specication version 4.1+LE
Frequency band
2.4 GHz band
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH proles
A2DP 1.2
AVRCP 1.3
Supported Codecs
SBC
AAC
Transmission range (A2DP)
20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m (*)
* The actual range will vary depending on factors such as obstacles between
devices, magnetic elds around a microwave oven, static electricity,
cordless phone, reception sensitivity, antenna's performance, operating
system, software application, etc.
General
Power Supply
AC 120 V, 60 Hz (North American)
AC 220 - 240 V, 50/60 Hz (Others)
Power Consumption
460 W (North American)
450 W (Others)
0.15 W (Full Standby mode)
1.8 W (Network Standby (wired)) (North American)
1.9 W (Network Standby (wired)) (Others)
2 W (Network Standby (wireless))
1.7 W (Bluetooth Wakeup) (North American)
1.8 W (Bluetooth Wakeup) (Others)
0.15 W (HDMI CEC)
2.1 W (Standby mode (ALL ON)) (North American)
2.3 W (Standby mode (ALL ON)) (Others)
55 W (No-sound)
6 W (HDMI Standby Through) (North American)
6.1 W (HDMI Standby Through) (Others)
Dimensions (W × H × D)
435 mm × 173 mm × 370.5 mm
17-1/8" × 6-13/16" × 14-9/16"
Weight
9.4 kg (20.7 lbs.) (North American)
9.6 kg (21.2 lbs.) (Others)
Maximum radio-frequency power transmitted in the frequency band(s)
(European)
2400 MHz - 2483.5 MHz (20 dBm (e.i.r.p))
5150 MHz - 5350 MHz (22 dBm (e.i.r.p))
5470 MHz - 5725 MHz (22 dBm (e.i.r.p))
HDMI
Input
IN1 (BD/DVD), IN2 (GAME), IN3 (CBL/SAT), IN4 (STRM BOX), IN5, IN6
Output
OUT MAIN (ARC), OUT ZONE 2/SUB
Supported
Deep Color, x.v.Color™, Lip Sync, Audio Return Channel, 3D, 4K 60 Hz,
CEC, Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601),
Content Type, HDR (HDR10, BT.2020, HLG), Dolby Vision
Audio Format
Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS, DTS:X,
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-
ES, DTS Express, DSD, PCM
HDCP version
2.2
Maximum Video Resolution
4K 60 Hz (YCbCr 4:4:4)
152
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Supported input resolutions
HDMI input
4K, 1080p/24, 1080p, 1080i, 720p, 480p/576p
• The output from the HDMI OUT jack to the TV is the same resolution as the
input. When using a TV that supports 4K, 1080p HDMI video signals can also
be output as 4K.
Audio Inputs
Digital
OPTICAL (TV)
COAXIAL (CD)
Analog
BD/DVD, CBL/SAT, STRM BOX, CD, PHONO, AUX (front)
Audio Outputs
Analog
ZONE B LINE OUT
2 SUBWOOFER PRE OUT
Speaker Outputs (North American)
FRONT L/R, CENTER, SURROUND L/R, HEIGHT L/R or SURROUND
BACK L/R, ZONE 2 FRONT L/R (Banana plug ready)
Speaker Outputs (Others)
FRONT L/R, CENTER, SURROUND L/R, HEIGHT L/R or SURROUND
BACK L/R or ZONE 2 FRONT L/R
Phones
PHONES (Front, ø 6.3 mm, 1/4")
Others
Setup Mic: 1 (Front)
USB: 2 (Ver. 2.0, 5 V/0.5 A)
Ethernet: 1
Specications and features are subject to change without notice.
❏ License and Trademark
