Code : F71MCL-01-V1
User Guide Manual
CFDDH268TS
French Door
Refrigerator
Contents
Important Safety Instructions ..........................................3

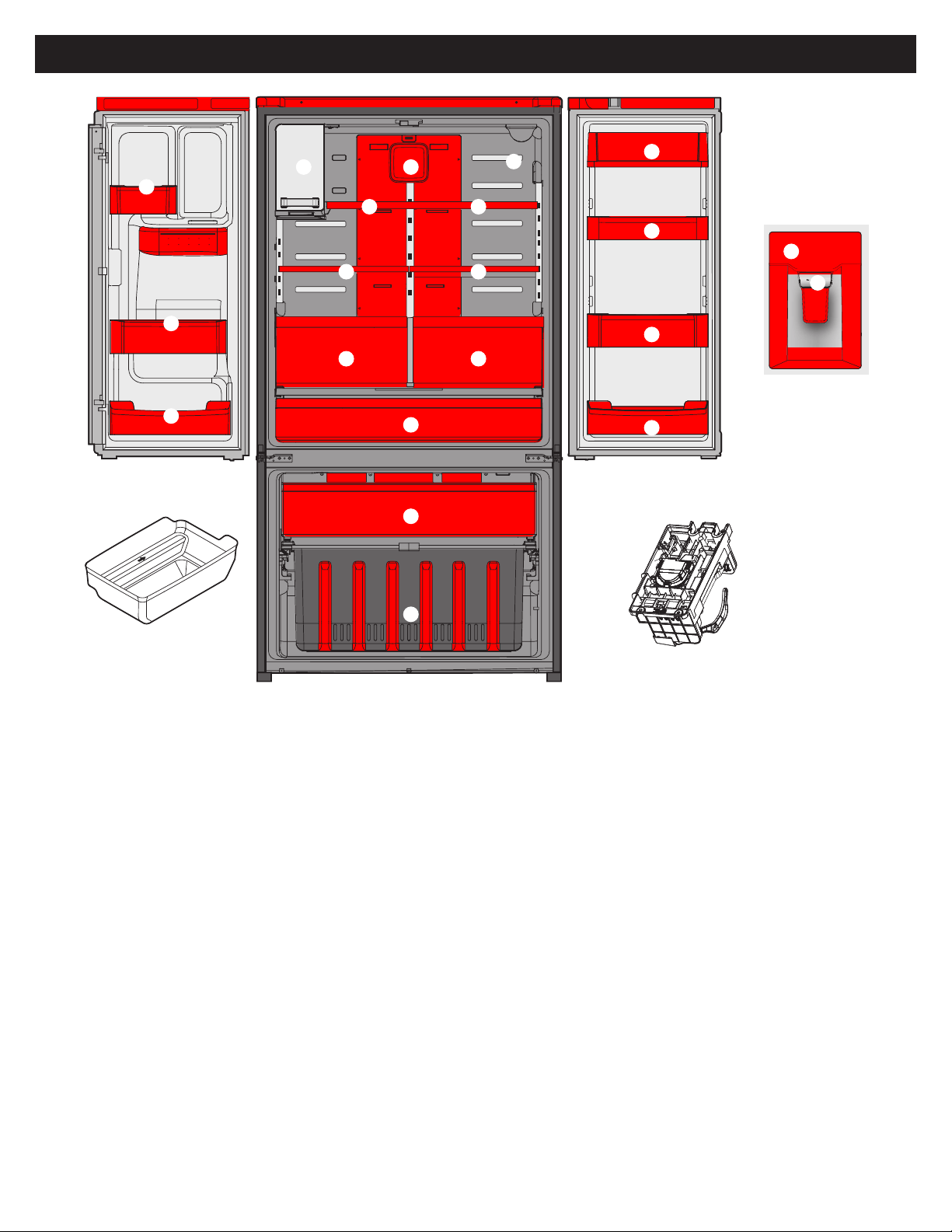

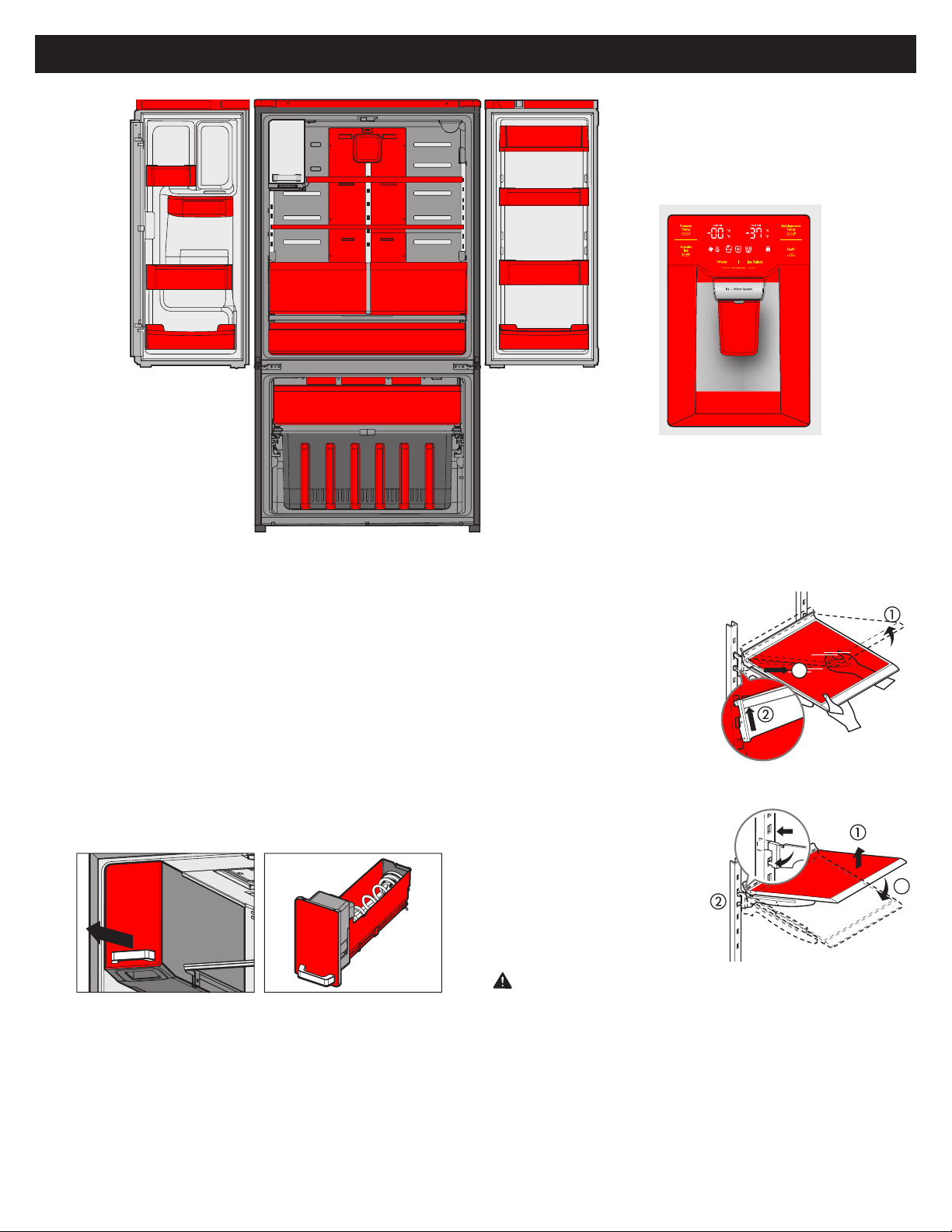

Parts and Features .........................................................7

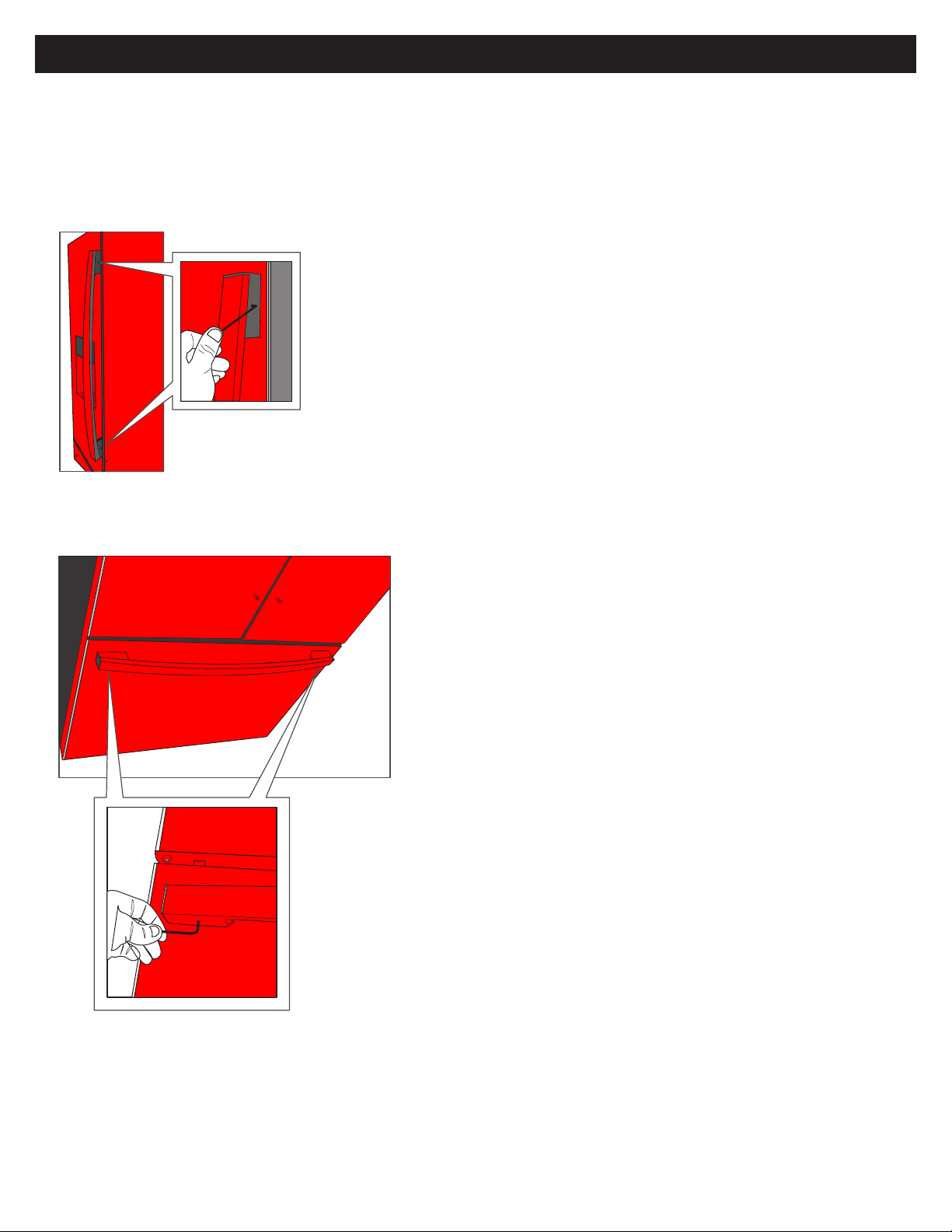

Refrigerator Installation ............................................8~14

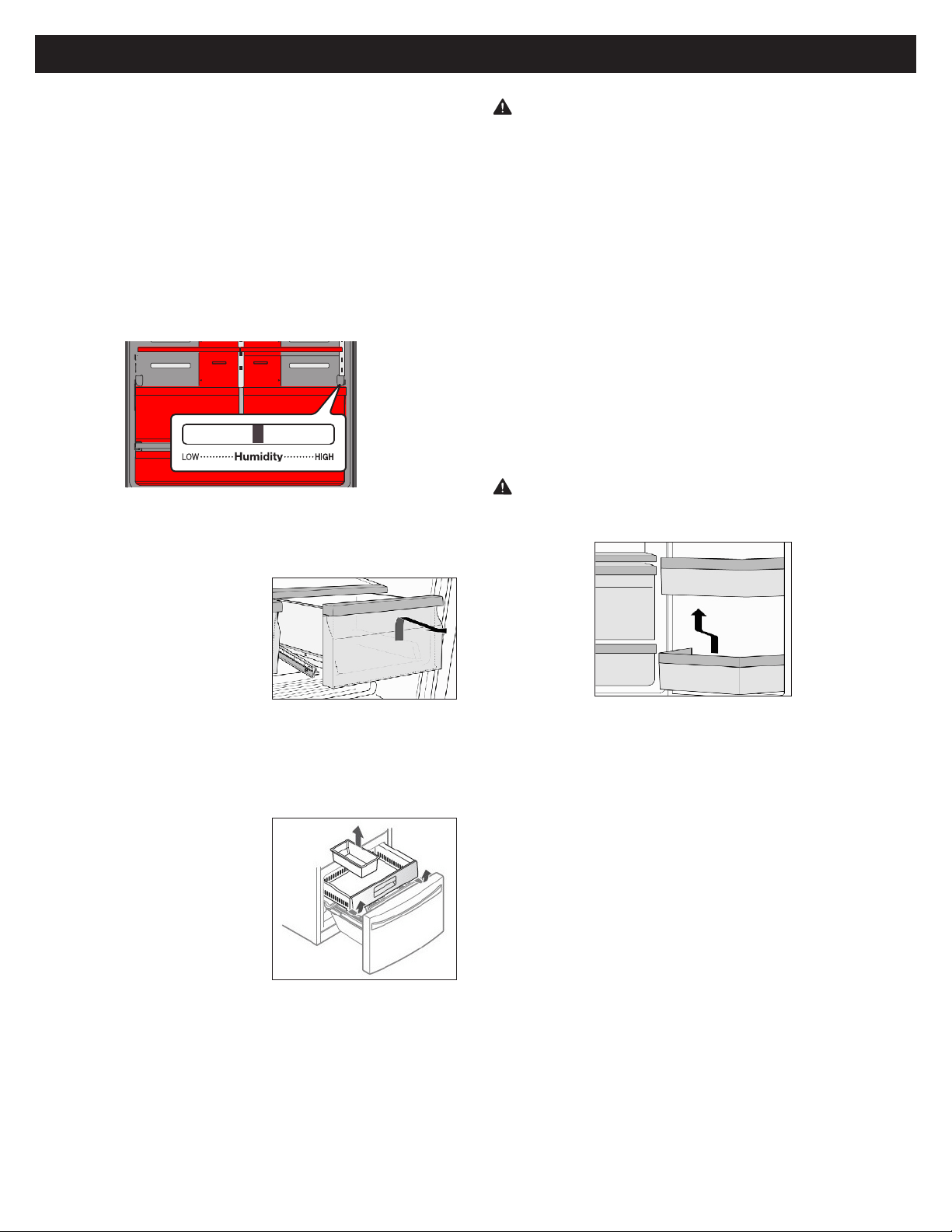

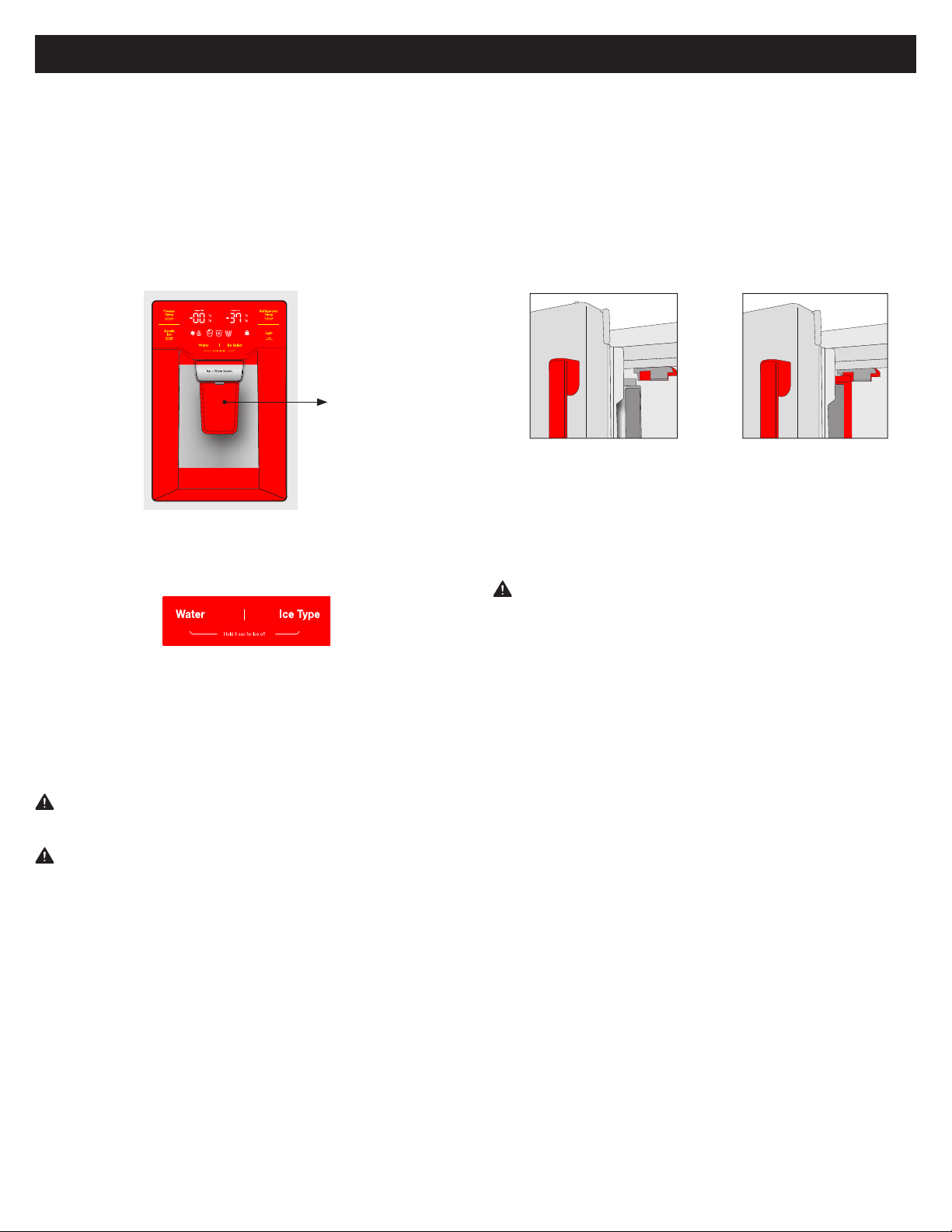

Using your Refrigerator ..........................................15~21

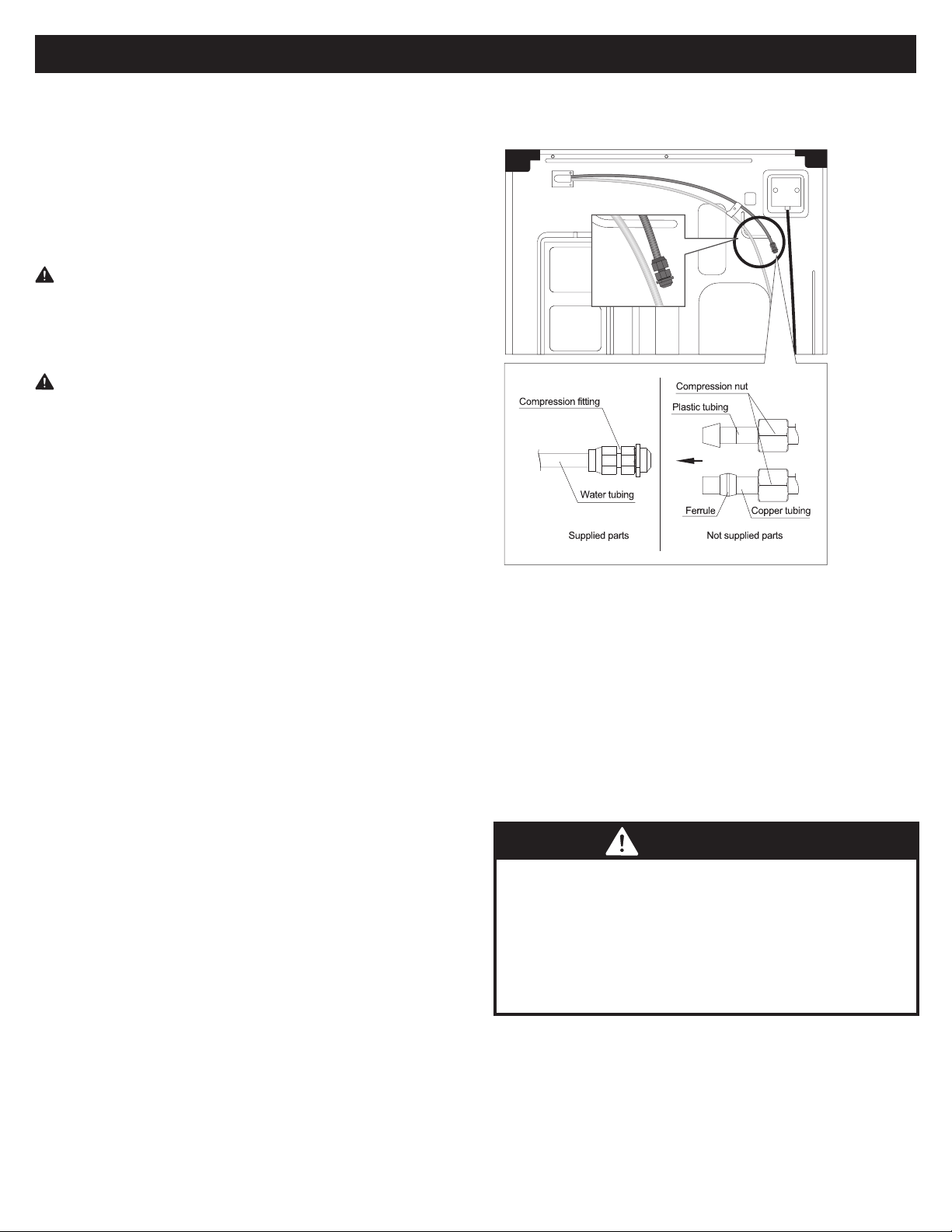

Connecting the Water Line ...........................................22
Water Filter ...................................................................23
Care and Cleaning........................................................24
Troubleshooting Guide ...........................................25~26
3
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt
you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,
WARNING or CAUTION. These words mean:
WARNING
To reduce the risk of fire, electric shock, or personal
injury when using your product, basic safety precautions
should be followed, including the following.
Read all instructions before using this appliance.
• N EVER unplug your refrigerator by pulling on the power
cord. Always grip the plug firmly and pull it straight out from
the outlet.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard. Do not use a cord that
shows cracks or abrasion damage along its length or at
either the plug or connector end.
• D o not modify or extend the power cord length. It could
cause electric shock or fire.
• W hen moving your refrigerator away from the wall, be
careful not to roll over or damage the power cord.
• D O NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• T his appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
• D O NOT allow children to climb, stand, or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
• K eep fingers out of pinch point areas; clearances between
the doors and cabinets are necessarily small. Be careful
closing doors when children are in the area.
• U nplug your refrigerator before cleaning or making any
repairs.
NOTE: It is strongly recommended that any service be
performed by a qualified technician.
• K eep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• D o not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer
• D o not damage the refrigerant circuit
• D o not use electrical appliances inside the food storage
compartments of the appliance unless they are of the type
recommended by the manufacturer
• C onnect to potable water supply only.
DANGER
WARNING
CAUTION
You will be killed or seriously injured if you do not follow instructions.
You can be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage.
SAVE THESE INSTRUCTIONS
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
4
WARNING
• B efore replacing a burned-out or broken light bulb, unplug
the refrigerator or turn off power at the circuit breaker or
fuse box in order to avoid contact with a live wire filament.
(A burned-out light bulb may break when being replaced
exposing the wire filament.)
N OTE : Some models have LED interior lighting and
service should be performed by a qualified technician.
WARNING: Setting either or both controls to the OFF
position does not remove power to the light circuit.
• W hen you are finished, reconnect the refrigerator to the
electrical source and reset the controls (Thermostat,
Refrigerator Control, and or Freezer Control, depending on
the model) to the desired setting.
• T his refrigerator must be properly installed in accordance
with the Attention Installer Instructions.
• A fter your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp
or wet. Skin may adhere to the extremely cold surfaces.
• D o not plug several appliances into the same wall outlet.
- It can be a cause of overheating and/or fire. Use an
exclusive grounding receptacle for the refrigerator.
• N ever hold the power cord or plug with wet hands. - There
is a risk of electric shock
• N ever use a damaged power cord or plug, or loose main
socket. - There is a risk of fire, electric shock or serious
injury.
• B e sure to ground. Check if your wall outlet is grounded
(earthed). - There is a risk of electric shock hazards.
• D o not install the refrigerator on a wet floor or in a place
with excessive humidity and moisture. - Electric insulation
gets weakened, resulting in a risk of electric shock
hazards.
• N ever let the power cord touch or pass over heating
appliances. - Power cord can be damaged, resulting in a
risk of electric shock hazards.
• M ake sure plug is fully inserted into socket to prevent the
risk of electrical shock.
• D o Not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• N ever pour or spray water into the refrigerator (both interior
and exterior). - Electric insulation gets weakened, resulting
in a risk of electric shock hazards.
• D o not place containers with water or liquid on top of
refrigerator. - Water can spill into the refrigerator and can
cause electric shock hazards or damage.
• D o not move or remove compartment shelves/pockets
while foods and containers are on them. - Hard containers
(of glass, metal etc.) can fall to hurt you and can break
glass shelf and interior parts.
• N ever repair, disassemble or alter the refrigerator on your
own. - There is a risk of personal injury or damage to the
refrigerator. It is recommended that any service be carried
out by a qualified person.
• If a gas leak is found near the refrigerator or in the kitchen,
ventilate it immediately without touching the power plug or
refrigerator.
• D o not store medicine, academic research samples which
require strict temperature control in the refrigerator.
• N ever insert fingers or hands into the bottom of the
refrigerator, especially into the bottom back. - You can be
hurt by sharp metal edges or can receive an electric shock.
• W hen you find the power cord damaged or cut, call the
service agent immediately.
• W hen you get rid of your old refrigerator, be sure to remove
the door packings first. - Children can be entrapped and
suffocated in an abandoned refrigerator.
• It is recommended to unplug the refrigerator when it is not
going to be used for a long period of time.
• N ever touch foods and containers especially of metal with
wet hands in the freezer compartment. - You can be hurt
by chilblains or cold burns.
• N ever eat any decayed or deteriorated food at all. - Foods
stored too long in the refrigerator can deteriorate and
become decayed.
• N ever place bottles and containers of glass in the freezer
compartment. - Glass containers and bottles can break
and hurt you.
• W hen moving the refrigerator (horizontally or tilted), more
than 2 persons are required to hold it.(One to hold top back
handles, the other to hold the bottom holder). If other parts
are held instead, it is very dangerous and likely to slip.
SAVE THESE INSTRUCTIONS
5
WARNING
DANGER: RISK OF CHILD ENTRAPMENT
• B e sure to turn up the wheel first before moving the
refrigerator - Be sure to turn up the wheel first before
moving the refrigerator, Otherwise, the parts can collide
and break each other.
• D O NOT touch the automatic ice making mechanism while
the refrigerator is plugged in.
• D O NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:
…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold—below
39°F (4°C).
…Thawed ground meats, poultry or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, dispose of it. The food may
be dangerous to eat.
Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of your old
refrigerator, please follow the instructions below to help prevent accidents (child entrapment and suffocation).
WARNING
: The use of this appliance can expose you to chemicals known to the state of California
to cause cancer, birth defects, or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
SAVE THESE INSTRUCTIONS
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER:
• Ta ke off the doors.
• L eave the shelves in place so that
children may not easily climb inside.
6
CFC/HCFC DISPOSAL

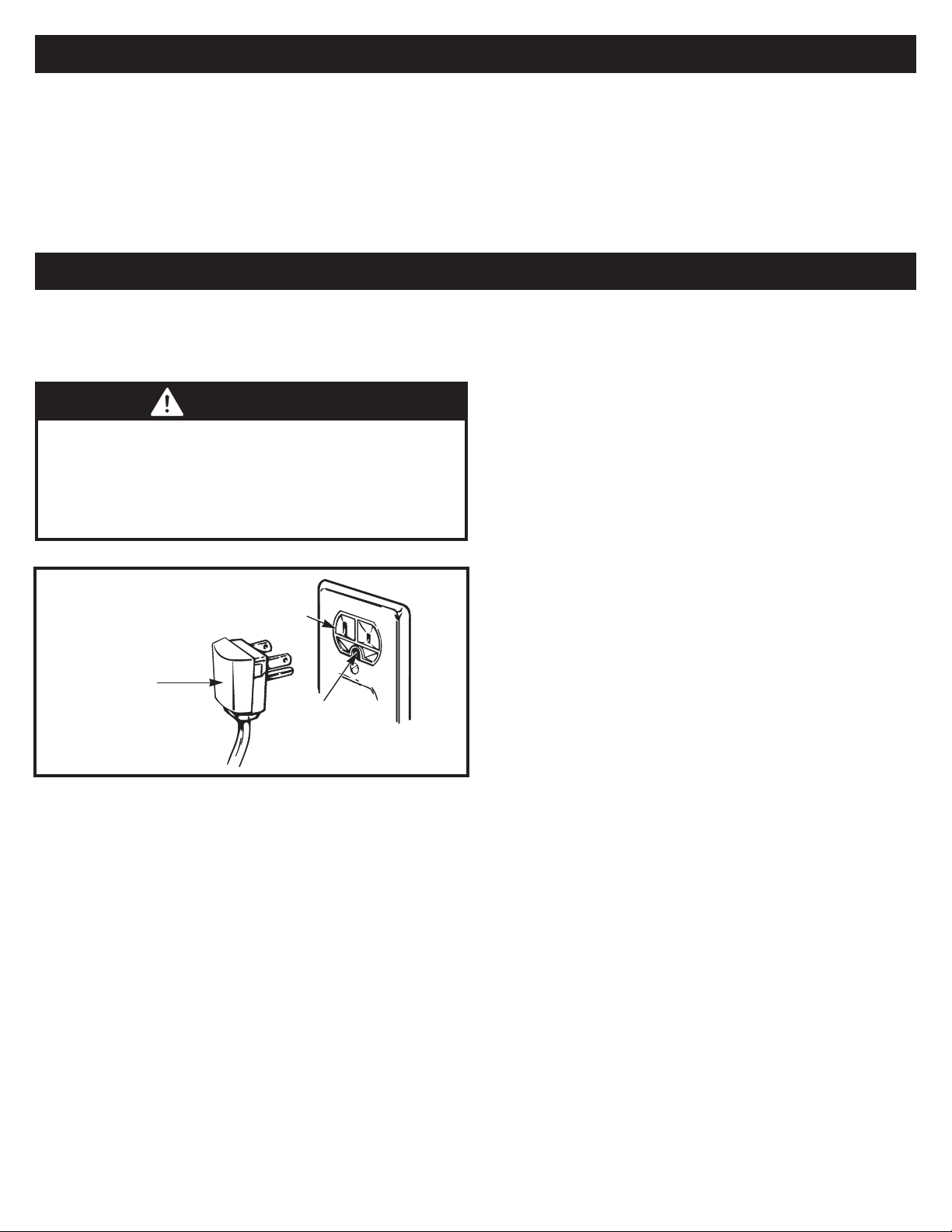

ELECTRICAL & GROUNDING REQUIREMENTS
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released to the atmosphere.
Other refrigerants may also cause harm to the environment if
released to the atmosphere
If you are throwing away your old refrigerator, make sure
the refrigerant is removed for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for 115
Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This
provides the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard from
overheated wires. It is recommended that a separate circuit
serving only this appliance be provided.
Use a receptacle that cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded three-prong wall outlet.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, the use of an extension cord is not
recommended. However, if you still elect to use an extension
cord, it is absolutely necessary that it be a UL- listed (USA),
3-wire grounding type appliance extension cord having a
grounding type plug and outlet, and that the electrical rating of
the cord be 15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance needed
for the back of the refrigerator.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be properly
grounded. Have the wall outlet and the circuit checked by
a qualified electrician to make sure the outlet is properly
grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.
7
PARTS AND FEATURES
This instruction manual refers to several models. Features may vary according to model.
1. Covered Dairy Bin or Covered Storage Bin
for storing butter and cheese.
2. Low prof ile door storage bin
for items of medium to large size.
3. Gallon door storage bin
for items of medium to large size.
4. Low prof ile door storage bin
for items of medium size.
5. Small door storage bin
for small items.
6. Narrow door storage bin
for small items.
7. Icemaker/Ice cube bin
for making and holding ice for through-the-door dispenser.
8. Air f ilter
9. Water f ilter
10. Narrow Top Shelf
11. Adjustable glass shelf
12. Slide Shelf (*)
13. Humidity controlled crisper bin
for storage of fruits and vegetables
14. Temperature Control full width pantry drawer (*)
for storage of meat and fresh vegetables
15. Pull out freezer drawer
16. Lower freezer basket
for general freezer storage
17. Freezer Ice Storage Bin
18. Control and display panel
19. Ice/Water Dispenser
20. Freezer icemaker (*)
Slim IceMaker
❺
❻
❹
17
❼❽
14
15
16
❶
18
19
❷
❸
❹
❾
1011
1112
1313
20
8
REFRIGERATOR INSTALLATION
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all dust that
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers, shelves,
etc., in their proper places. They are packed together to
prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three
hours before putting food in it. Check the flow of cold air
in the freezer compartment to ensure proper cooling. Your
refrigerator is now ready for use.
INSTALLATION
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for 115
Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This
provides the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard from
overheated wires. It is recommended that a separate circuit
serving only this appliance be provided.
WARNING
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
INSTALLATION (continued)
1. To avoid noise and vibration, the unit must be leveled and
installed on a solidly constructed floor. If required, adjust
the leveling legs to compensate for unevenness of the
floor. The front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned easily by
tipping the cabinet slightly. Turn the leveling legs to the left
to raise the unit or to the right to lower it. (See Leveling and
door AlIgnment.)
N OTE: Installing on carpeting, soft tile surfaces, a platform
or weakly supported structure is not recommended.
2. Install this appliance in an area where the temperature is
between 55°F (13°C) and 110°F (43°C). If the temperature
around the appliance is too low or high, cooling ability may
be adversely affected.
3. Select a place where a water supply can be easily
connected for the automatic icemaker.
N OTE: The water pressure must be from 30 to 125 psi
or 207-862 kPa or 2.1-8.8 kgf/cm². If the refrigerator is
installed in an area with low water pressure below 30 psi,
you can install a booster pump to compensate for the low
pressure.
4. For sufficient door opening clearance, allow at least 4
inches between each side of the refrigerator and an
adjacent wall or surface.
5. Too small of a distance from adjacent surfaces may result
in lowered freezing capability and increased electricity
consumption charges. Provide the following unobstructed
clearance for sufficient air flow around the refrigerator:
- At least 2 inches between refrigerator back and wall.
- At least 2 inches between refrigerator top and overhead
surface.
2"
2"
9
HANDLE INSTALLATION
- After installation and/or door leveling, install the handles.
- All the handles are identical.
1. Insert refrigerator door handles into guide.
Fix the handle with screw (supplied).
2. Insert freezer door handle into guide.
Fix the handle with screw (suppled).
REFRIGERATOR INSTALLATION
10
REMOVING AND REPLACING
REFRIGERATOR DOORS
WARNING
Risk of electric shock!
Before removing top hinge cover
• Shut off the water supply to the appliance.
• U nplug the appliance or switch off power from the
breaker or fuse panel.
To remove the left refrigerator door:
1. Remove top hinge cover using a phillips screwdriver by
removing 5 screws.
2. Remove the hinge grounding wire screw and pull the
two grounding wire connections away from the hinge.
Disconnect the three wire harnesses and the water tube.
Push in the small first ring on the connection collar to
remove the tube.
3. Using a large phillips screwdriver, turn top hinge fastener
counterclockwise to remove the top hinge plate.
CA UTION: After the hinge is removed, the door can fall
down forward. Hold the door to prevent it from falling.
4. Lift the door from the middle hinge pin and remove the
door. Place the door, inside facing up, on a non-scratch
surface.
To remove the right refrigerator door:
1. Remove top hinge cover using a phillips screwdriver by
removing 5 screws.
2. Using a large phillips screwdriver, turn top hinge fastener
counterclockwise to remove the top hinge plate.
CA UTION: After the hinge is removed, the door can fall
down forward. Hold the door to prevent it from falling.
3. Lift the door from the middle hinge pin and remove the
door. Place the door, inside facing up, on a non-scratch
surface.
the appliance.
down.
appliance.
2.Mount the base plate.
tighten.
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
REFRIGERATOR INSTALLATION
Push In
12

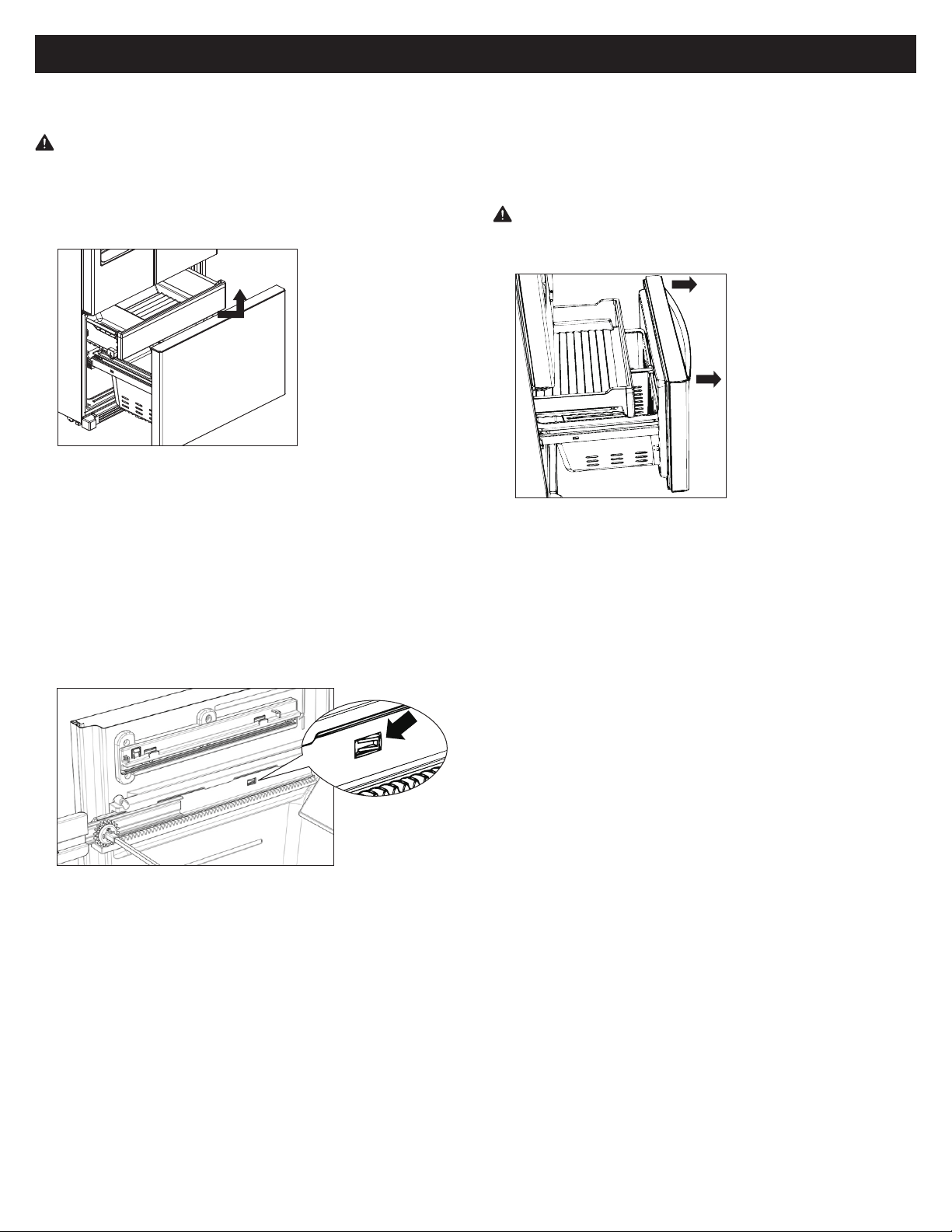

HOW TO REMOVE THE FREEZER DRAWER
WARNING:
Use two or more people to remove and install
the freezer drawer. Failure to do so can result in personal
injury, product or property damage.
1. T ake out the ice bin first, and then take out the upper
freezer drawer by lifting it up.
2. Remove lower freezer basket by pulling up and tilting
toward refrigerator until it can be removed from the freezer
drawer/door assembly.
3. Push the rail support locking tabs to release the main
freezer drawer rails from the cabinet while slightly pulling
the exterior freezer drawer outwards, so that the locking
tab does not return to the locked position. The locking
tabs are located in the freezer compartment to the rear of
the main rail assembly (which is attached to main exterior
freezer drawer) as shown in the illustration below.
4. Pull exterior freezer drawer to fully disengage the rail
assembly from the unit. Use 2 people for this task as the
door is heavy and awkward to handle.
CAUTION:
Do not hold the handle when removing or
replacing the drawer. The handle may come off and it
could cause personal injury.
5. Place the door on a non-scratch surface.
REFRIGERATOR INSTALLATION
Locking Tab
13
HOW TO INSTALL THE FREEZER DRAWER
1. Using 2 people (recommended), align end of the exterior
drawer rails to the lower rail guides located on the
sidewalls of the freezer compartment. Make sure the gear
teeth are engaged to the gear rail the same amount on
both sides.
2. Fully push in and close freezer drawer to engage rails with
rail support locking tab, applying a bit of pressure after the
door is closed to seat the tabs to the rail.
CAUTION:
Make sure the tabs are completely engaged
to the rail or the refrigerator drawer could be pulled out of
the refrigerator by the user. Fully open the freezer door to
check and see if the locking tabs are fully engaged. If they
are not engaged, gently push each freezer rail with a f lat
head screwdriver towards the freezer compartment until
the locking tabs snap to the locked position.
3. Replace the lower freezer drawer basket.
4. Insert the upper freezer drawer above the lower basket,
and replace ice bin into upper drawer.
5. Open and close the freezer drawer several times to make
sure operation is smooth and seal is consistent all the way
around the freezer compartment.
REFRIGERATOR INSTALLATION
This shows that
the tab is not fully
locked
If the tab is not fully engaged,
use a f lat screwdriver to push on
the rail as shown to allow the tab
to snap into position
This shows that the
tab is fully in the
locked position
11

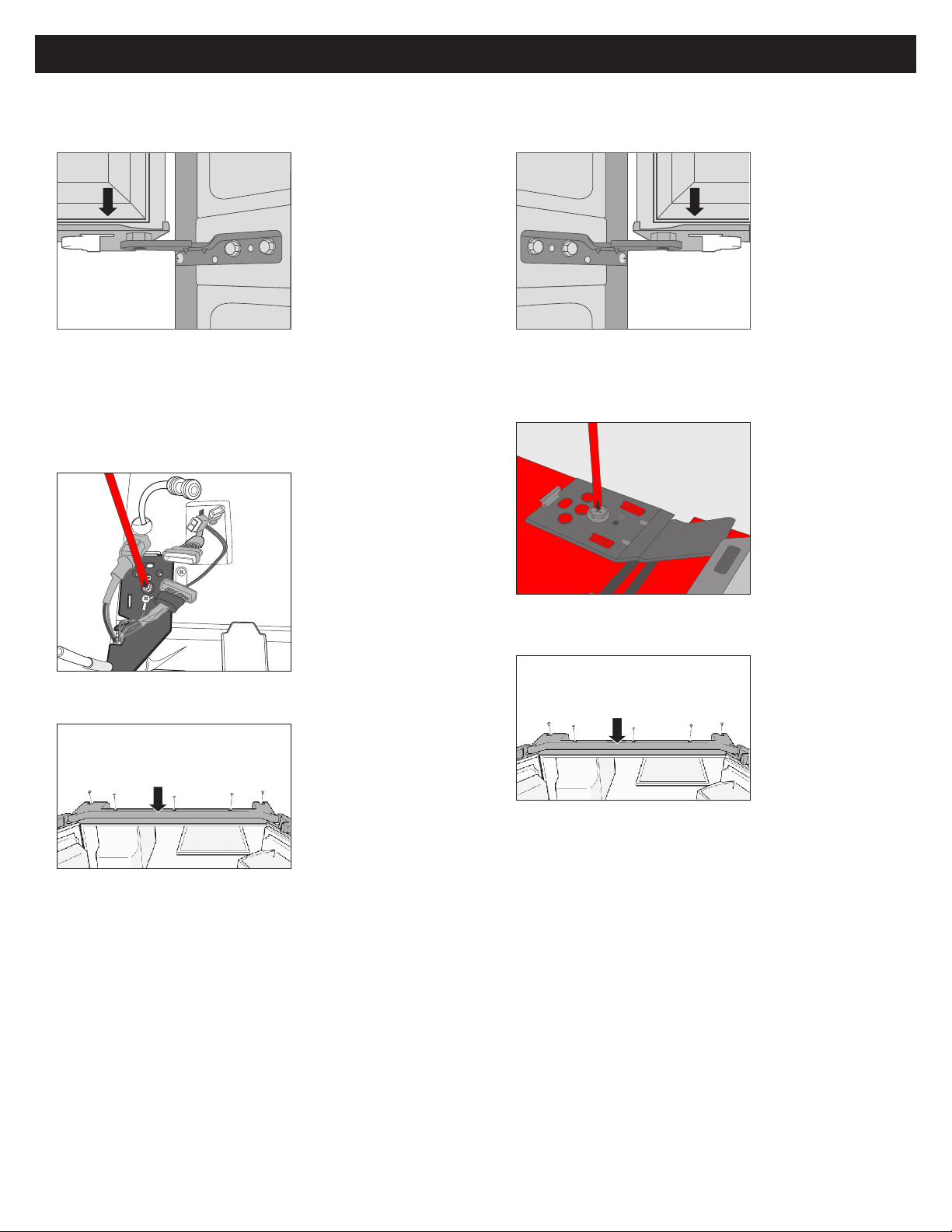

Reinstalling the Left Refrigerator Door
1. Lower the door onto the middle hinge.
2. Fit the top hinge over the mounting holes and align to
proper position before tightening.
Turn top hinge fastener clockwise to secure the hinge.
Securely reconnect the grounding wires, wire harnesses
and water tube. Simply push the water tube back into the
collar to connect.
3. Screw top hinge cover into place with a screwdriver.
Reinstalling the Right Refrigerator Door
1. Lower the door onto the middle hinge.
2. Fit the top hinge over the mounting holes and align to
proper position before tightening.
Turn top hinge fastener clockwise to secure the hinge.
3. Screw top hinge cover into place with a screwdriver.
REFRIGERATOR INSTALLATION
WARNING
guides.
the appliance.
down.
accompanying Allen wrench.
WARNING
guides.
the appliance.
down.
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
14

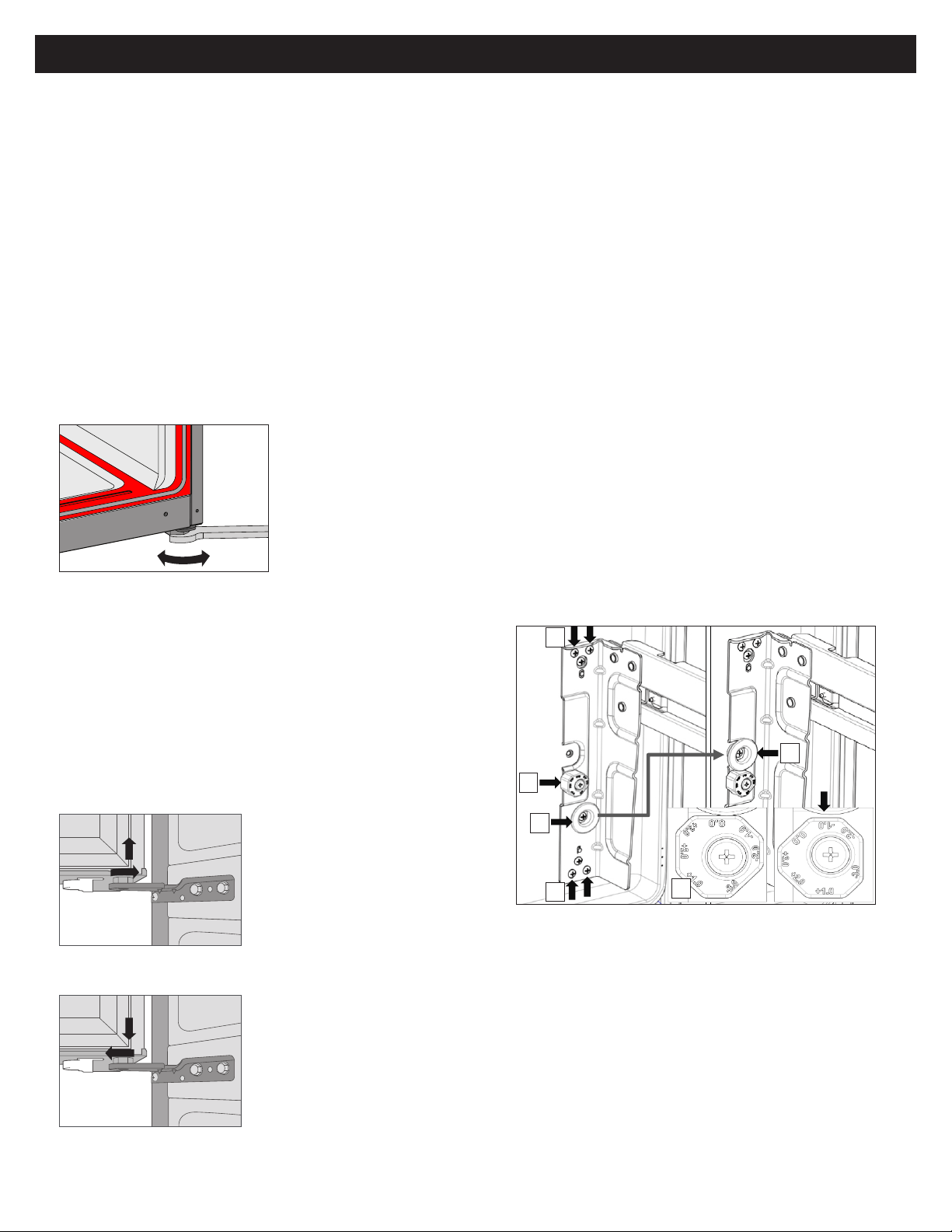

REFRIGERATOR LEVELING &
DOOR ADJUSTMENT
The refrigerator must be level in order to maintain optimal
performance and desirable front appearance.
(If the floor beneath the refrigerator is uneven, the freezer and
refrigerator doors look unbalanced.)
Leveling Refrigerator
1. Pull open the freezer compartment and remove the upper
drawer and lower drawer basket to gain access.
2. Using the wrench provided, turn the leveling leg clockwise
to lower and counterclockwise to raise the front corners of
the refrigerator.
3. Install the lower drawer basket and upper drawer, then
open and close the freezer compartment several times to
make sure operation is smooth and without hindrance.
Adjusting a refrigerator door
If the height of the refrigerator doors is uneven, turn the screw nut
on the middle hinge to adjust the refrigerator door.
1. To raise a refrigerator door turn the screw
counterclockwise.
2. To lower a refrigerator door turn the screw clockwise.
Adjusting the freezer drawer
If the freezer drawer is lower on one side than the other,
perform the steps listed below to raise that side. To access
the adjustment components, first pull the drawer out to full
extension. then remove the pullout drawer and the freezer
basket.
1. Loosen the four screws on the rail bracket on the side
where adjustment is needed.
2. Unscrew and remove Stopper and at washers from the
lower position (left picture). Insert washers and screw
Stopper into the upper position (right picture). The stopper
will serve as a fixed edge against which to turn the Position
Knob to adjust the height of the rail bracket.
3. S lightly pull the Position Knob forward and firmly rotate it to
a different position, then release the knob back into place.
The knob surfaces push against the edge of the stopper
ring to vary the height of the rail bracket. The maximum
adjustment variance is approximately 1/8 inch.
4. Retighten the four rail bracket screws.
5. Reinsert the freezer basket and pullout drawer.
When inserting the basket, make sure that the tabs at the
front of the basket fit into the slots on the freezer drawer
rails.
RaiseLower
REFRIGERATOR INSTALLATION
1
3
2
1
2
3
15
USING YOUR REFRIGERATOR
SETTING THE CONTROLS
Temperature Control
NOTE: When changing control settings, wait 24 hours before
making additional adjustments. The controls are set correctly
when milk or juice is as cold as you would like and when ice
cream is firm. If the temperature in either compartment is too
cold or too warm, change the setting one increment at a time.
Wait 24 hours for the change to stabilize before adjusting
again.
• T he refrigerator temperature control is preset to
37 deg F (3 deg C) and the freezer control is preset to 0
deg F (-18 deg C). These are recommended temperature
settings for normal use conditions.

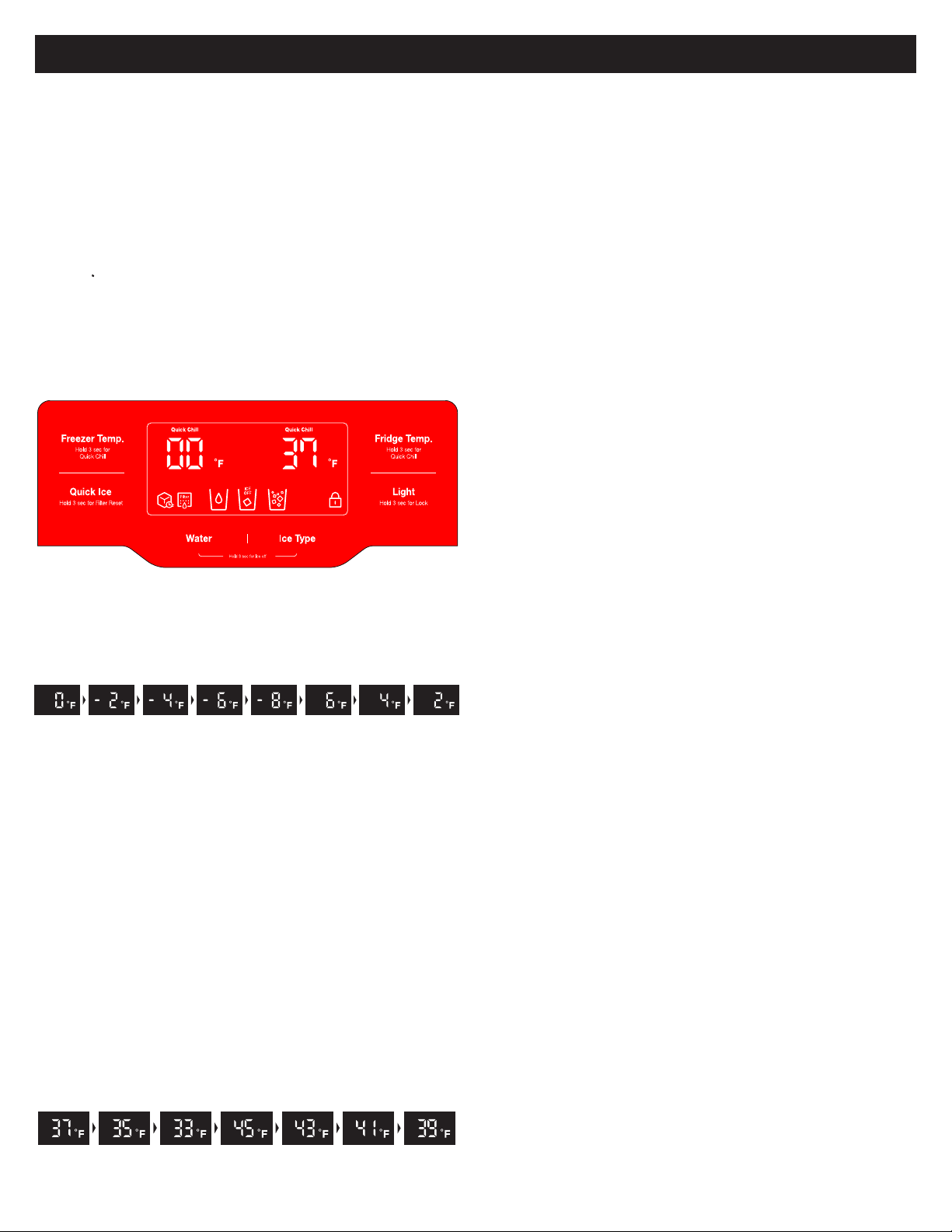

Freezer Compartment
Push the Freezer Temp. button and the temperature setting
changes in the sequence as shown below:
>>> Sequential Temperature Change <<<
Quick Chill Freezer function:
To activate freezer Quick Chill, press and hold the Freezer
Temp. button for 3 seconds. Quick Chill LED will turn on.
Push the button again to cancel.
The Quick Chill function is useful to help quickly chill the
freezer compartment when needed. For example: If a large
quantity of warm food is placed inside the freezer, or if loading
the freezer with new groceries which may not be as cold as
normal freezer temperatures.
Quick Chill will automatically cancel (Quick Chill LED will turn
off) after 50 hours.
Refrigerator Compartment
Push the Fridge Temp. button and the temperature setting
changes in the sequence as shown below:
>>> Sequential Temperature Change <<<
Quick Chill Refrigerator function:
To activate refrigerator Quick Chill, press and hold the
Fridge Temp. button for 3 seconds. Quick Chill LED will turn
on. Push the button again to cancel.
The Quick Chill function is useful to help quickly cool the
refrigerator compartment when needed. For example:
If a large quantity of warm food is placed inside the
refrigerator, or if loading the refrigerator with new groceries
which may not be as cold as normal refrigerator temperatures.
Quick Chill refrigerator function will automatically cancel
(Quick Chill LED will turn off) after 6 hours
16
USING YOUR REFRIGERATOR

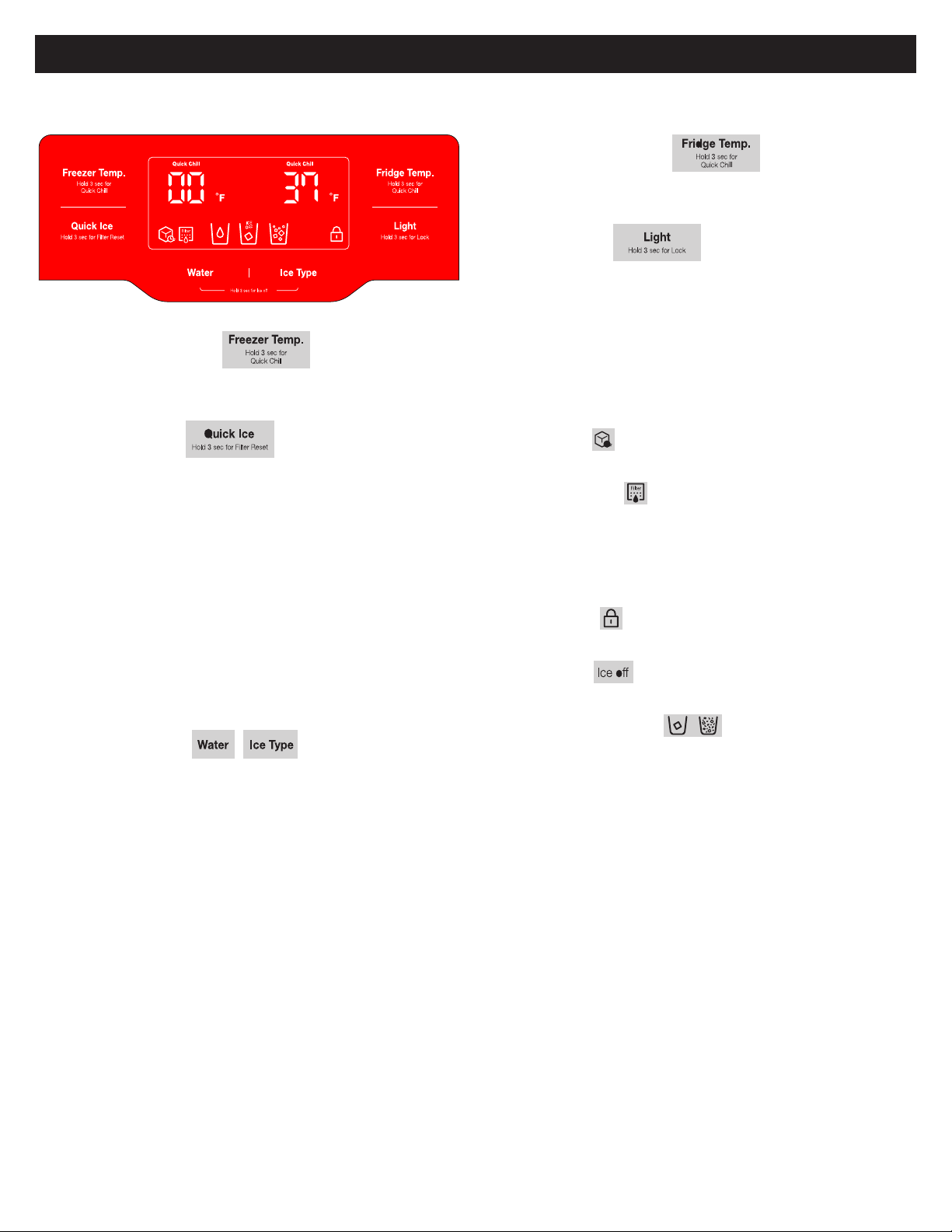

Control Panel
1. Freezer Temp. button
Se lection button for freezer compartment temperature.
2. Quick Ice button
1) Press the Quick ice button once to turn on Quick Ice
Mode.
Press the "Quick Ice" button one time to cancel Quick
Ice feature (LED Off).
This function increases ice-making capabilities for
24 hours.
2) Filter Reset
When the Filter Change icon turns on, you need to
change the water filter. After changing the water filter,
press and hold the Quick Ice button for 3 seconds to turn
the indicator light off.
You need to change the water filter approximately every
6 months.
3. Water / Ice Select
Pr ess either Water or Ice Type button according to your
needs.
Press Ice Type button again according to your ice
preference. (Cube/Crushed)
4. Fridge Temp. button
Se lection button for fridge compartment temperature.
5. Light button
1) Press to turn dispenser light on or off.
2) To lock the control panel: Press and hold light button for
3 seconds. Locked icon will appear.
To unlock, press and hold Light button for 3 seconds.
Locked icon will disappear.
6. Symbols on the display panel
Quick Ice
Illuminates when Quick Ice function is ON.
Replace Filter
W hen the Filter Change icon turns on, you need to change
the water filter. After changing the water filter, press and
hold the Quick Ice button for three seconds to turn the
indicator light off. You need to change the water filter
approximately every six months.
Panel lock
Illuminates when the panel lock is on.
Ice Maker
Illuminates when the Ice maker is off
Cubed/Crushed Ice
Ch anges according to your ice preference (Ice Type
button)
7. Temperature Mode Switch Function (°F
↔
°C)
If you want to convert °F to °C or vice Versa:
1) Press and hold the Lock button for 3 seconds.
The lock icon will illuminate.
2) Press and hold Freezer Temp. and Fridge Temp.
buttons at same time for 5 seconds until temperature
mode changes.
NOTE: If the lock icon is illuminated after performing this
function, press and hold Light button for 3 seconds to turn
control lock OFF.
17
ICEMAKER
Turning on the icemaker
CFDDH268TS models have a dispenser
connected icemaker located on the left side of the refrigerator
compartment.
Whenever the refrigerator is plugged in after being unplugged,
icemaking is automatically set to On. To turn icemaking Off or
On, see the instructions in Shutting icemaking off.
NOTE: As long as icemaking is turned On in the control panel,
if an icemaker stops production because the ice bin becomes
full, production will resume operation once the ice bin is
cleared of ice.
In case the icemaker doesn’t work
• Did you wait for 12 hours after installation of the water supply
line before making ice?
• Is the water line connected and the shut-off valve opened?
• Is the freezer temperature too warm? Try setting the freezer
temperature lower.
In case of power failure
In the event of a lengthy power failure, remove ice cubes in
the storage bin as the ice may melt and flow down to the ice
dispenser and leak out.
Place bin back in the icemaker assembly.
Shutting icemaking off
Important!
If you do not intend to use any ice cubes for longer than
one week (e.g. because you are going on holiday), shut off
icemaking for that period to prevent ice cubes from freezing
together.
1. To turn OFF :
Press and hold Water and Ice Type buttons at same time
for 3 seconds until Ice Off illuminates in the control panel
display.
To turn ON :
Press and hold Water and Ice Type buttons at same time
for 3 seconds until Ice Off ceases to illuminate in the
control panel display.
2. Empty and clean the ice cube bin.
To remove ice bin from dispenser icemaker, grasp front of
ice bin and pull forward.
To remove freezer ice bin, pull freezer drawer all the way
forward and lift ice bin up and out of pullout drawer.
NOTE: There is a fingerhold indentation on the bottom front of
the dispenser ice bin for ease of bin removal.
3. Return the ice cube bin into position.
NOTE: The ice bin should be emptied any time the icemaker
is turned off.
USING YOUR REFRIGERATOR
18
ICEMAKER (continued)
CAUTION:
• T he first ice and water dispensed may include particles or
odor from the water supply line or the water tank.
• T hrow away the first few batches of ice. This is also
necessary if the refrigerator has not been used for a long
time.
• N ever store beverage cans or other items in the ice bin for
the purpose of rapid cooling. Doing so may damage the
icemaker or the containers may burst.
• If discolored ice is dispensed, check the water filter and
water supply. If the problem continues, contact a service
center. Do not use the ice or water until the problem is
corrected.
• K eep children away from the dispenser. Children may play
with or damage the controls.
• T he ice passage may become blocked with frost if only
crushed ice is used. Remove the frost that accumulates
by removing the ice bin and clearing the passage with
a rubber spatula. Dispensing cubed ice can also help
prevent frost buildup.
• N ever use thin crystal glass or crockery to collect ice. Such
containers may chip or break resulting in glass fragments
in the ice.
• D ispense ice into a glass before filling it with water or other
beverages. Splashing may occur if ice is dispensed into a
glass that already contains liquid.
• N ever use a glass that is exceptionally narrow or deep. Ice
may jam in the ice passage and refrigerator performance
may be affected.
• K eep the glass at a proper distance from the ice outlet.
A glass held too close to the outlet may prevent ice from
dispensing.
• To avoid personal injury, keep hands out of the ice door
and passage.
• Never remove the dispenser cover.
• If ice or water dispenses unexpectedly, turn off the water
supply and contact a service center.
WHEN TO SET ICEMAKER TO OFF
• W hen the water supply will be shut off for several hours.
• W hen the ice bin is removed for more than one or two
minutes.
• When the refrigerator will not be used for several days.
NOTE: The ice bin should be emptied any time the
icemaker is turned off.
PREPARING FOR VACATION
Shut off the water supply to the refrigerator.
To turn OFF :
Press and hold Water and Ice Select buttons at same time for
3 seconds until Ice Off illuminates in the control panel display.
To turn ON :
Press and hold Water and Ice Select buttons at same time
for 3 seconds until Ice Off ceases to illuminate in the control
panel display.
NOTE: The ice bin should be emptied any time the icemaker
is turned off.
If the ambient temperature will drop below freezing, have a
qualified technician drain the water supply system to prevent
serious property damage due to flooding caused by ruptured
water lines or connections.
USING YOUR REFRIGERATOR
19

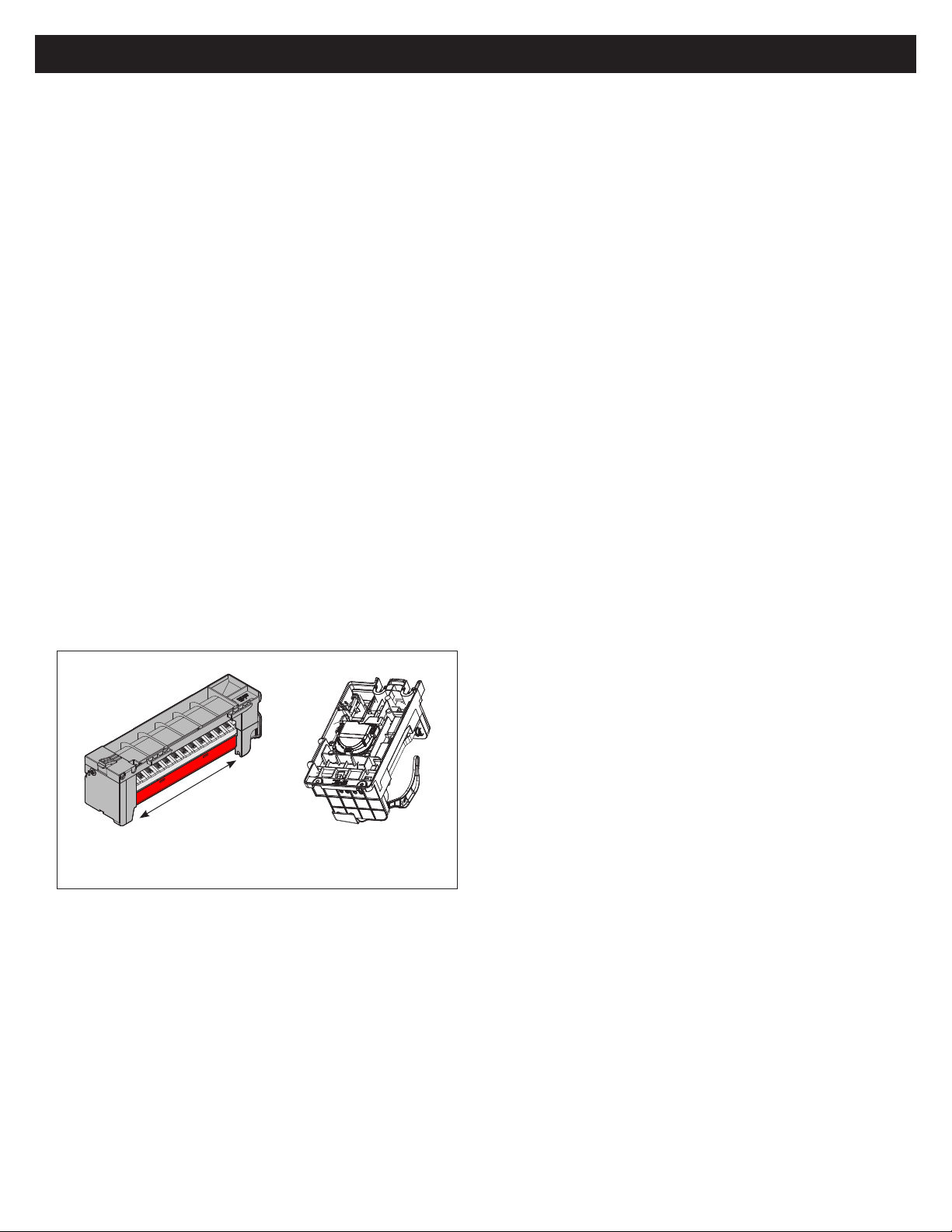

How to use the Automatic Icemaker
The dispenser icemaker will produce 12 cubes per cycle. The
freezer icemaker will produce 7 cubes per cycle.
• T he dispenser icemaker will produce approximately
216 - 288 cubes (20 - 24 cycles a day) in a 24 hour period,
depending on freezer compartment temperature, room
temperature, number of door opening and other user
conditions.
• T he freezer icemaker will produce 50 to 70 ice cubes in a
24 hour period depending on the same conditions listed
above.
• I t is normal for the icemaker to make banging sounds when
the ice cubes are falling into the ice storage bin
• To prevent bad odor smell, regularly clean the ice cube
storage bin.
• If the amount of ice in the storage bin is not sufficient, the
ice may not be dispensed. Wait a day or so to make more
ice.
• I f the ice does not dispense easily, ensure the dispenser
outlet is not blocked.
• T hrow away the first few batches of ice to allow the water
line to clear. Be sure nothing interferes with the level of the
optical sensor space at the dispenser icemaker base or the
shutoff arm of the freezer icemaker.
Optical Sensor Space
Freezer Icemaker
(model WRFS26S... only)
Dispenser Icemaker
Icemaking will stop when the dispenser ice bin fills to the
level of the optical sensor, or when the freezer ice bin fills and
pushes the shutoff arm all the way up.
Clear the bin of of excessive ice. If you remove bin for
clearing, return bin correctly into place. Icemaking will resume
after the ice bin is cleared to below the optical sensor in the
dispenser icemaker, or cleared to allow the shutoff arm to
lower in the freezer icemaker.
It is normal for several ice cubes to be joined together. If ice
is not used frequently, old ice cubes will become shrunken,
cloudy and taste stale. If you won't use ice frequently, shut
icemaking off.
USING YOUR REFRIGERATOR
20
REFRIGERATOR SECTION
WATER OR ICE DISPENSER
To dispense water or ice, press the Water or Ice Type button
on control panel and push on the dispenser lever with the side
of your glass.
NOTE: The dispenser is equipped with a light that turns on
when the dispenser lever is pressed.
When Ice Select button is pressed once, cubed ice will
dispense. Press Ice Select button a second time to dispense
crushed ice.
NOTE: Some ice may drop outside of cup during Ice
dispensing.
Slowly remove glass from dispenser Lever before full to help
prevent ice spillage.
A few uncrushed ice cubes may mix in with Crushed Ice when
you dispense Crushed Ice.
WARNING
: Do not put your f ingers up the ice chute
opening. Doing so can result in severe injury.
CAUTION
: Do not dispense ice into f ine china or crystal
glasses. China or crystal can break.
Foldaway door bar (mullion bar)
- When closing the left refrigerator door, the mullion bar folds
behind the right refrigerator door, forming a seal between
the refrigerator doors.
- When opening the left refrigerator door, the mullion bar
folds back to the left door automatically.
- T he mullion bar may become damaged upon closing if it
has been extended to the right while the door left door is
open.
CAUTION
: Before closing the left refrigerator door, make
sure the mullion bar is folded back to the left door position
or product damage may result.
Opening: Mullion bar folds
back
Closing: Mullion bar folds to
right
USING YOUR REFRIGERATOR
Water & Ice
Dispenser Switch
21
HUMIDITY CONTROLLED CRISPER
The crispers provide fresher tasting fruit and vegetables by
letting you easily control humidity inside the drawer.
You can control the amount of humidity in the moisture
sealed crispers crispers by adjusting the control to any setting
between VEGETABLES and FRUIT.
- Slide the Humidity Control toward “hi” to keep moist air in
crisper for best storage of fresh, leafy vegetables.
- Slide the Humidity Control toward “lo” to release moist air
from crisper for best storage of fruit.
REMOVING THE HUMIDITY CONTROLLED CRISPER
To remove, pull the drawer out
to full extension.
Lift the front of the crisper up,
then pull it straight out.
To install, slightly tilt up the front, insert the drawer into the
frame and push it back into place.
FREEZER SECTION
PULLOUT FREEZER DRAWER
To remove, pull the freezer
drawer out to full extension. Lift
out the ice bin if present. Tilt
the front of the pullout freezer
drawer up and then lift drawer
out.
CAUTION
: Pinch hazard! Keep hands and feet clear of
the bottom of the freezer drawer when opening and closing.
To replace, hold pullout freezer drawer with back angled
down. Insert the back rollers over the front edge of the
runers built into the sides of the freezer cabinet. Slide the
drawer back and into place. Fit ice bin back into pullout
freezer drawer.
WARNING
: When the pullout drawer is removed, there is
enough room in the lower freezer drawer for a child or pet to
crawl inside. To prevent accidental child and pet entrapment
or suffocation risk, DO NOT allow children or pets to touch or
go near the lower freezer drawer.
DOOR BIN
The door bins are removable for easy cleaning and
adjustment.
1. To remove the bin, simply lift the bin up and pull straight
out.
2. To replace the bin, slide it in above the desired support and
push down until it snaps into place.
NOTE: Some bins may vary in appearance and will only fit
in one location.
CAUTION
: Do not overfill or pack items too tightly into
door bins. Doing so may cause damage to the bin or
personal injury if items are removed with excessive force.
USING YOUR REFRIGERATOR
1.
2.
3.
1.
22
CONNECTING THE WATER LINE
BEFORE YOU BEGIN
This water line installation is not covered by the refrigerator
warranty. Follow these instructions carefully to minimize the
risk of expensive water damage.
Water hammer (water banging in the pipes) in house plumbing
can cause damage to refrigerator parts and can lead to water
leakage or flooding. Call a qualified plumber to correct water
hamme
CAUTION
: To prevent burns and product damage, only
connect the refrigerator water line to a cold water supply.
IMPORTANT: If you use your refrigerator before connecting
the water line, make sure the icemaker is turned OFF at the
control panel.
CAUTION
: Do not install the icemaker tubing in areas
where temperatures fall below freezing.
WATER PRESSURE
The water pressure must be from 30 to 125 psi or 207-862
kPa or 2.1-8.8 kgf/cm
2
. If the refrigerator is installed in an
area with low water pressure “below 30 psi”, you can install a
booster pump to compensate for the low pressure.
WATER SUPPLY KIT
* Connecting the water line to the refrigerator.
(Necessary parts are available at local service agents.)
1. Connect water line to the compression fitting.
- If you are using copper tubing (not supplied), slip the
compression nut (not supplied) and ferrule (not supplied)
on copper tubing.
- If you are using plastic tubing (not supplied), insert the
molded ending of the plastic tubing into the compression
fitting.
2. Tighten the compression nut onto the compression fitting.
3. Turn the water on and check for any leakage.
WARNING
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection
before and after the system. Systems certified for cyst
reduction may be used on disinfected water that may
contain filterable cysts. EPA Establishment Number
10350-MN-005
25

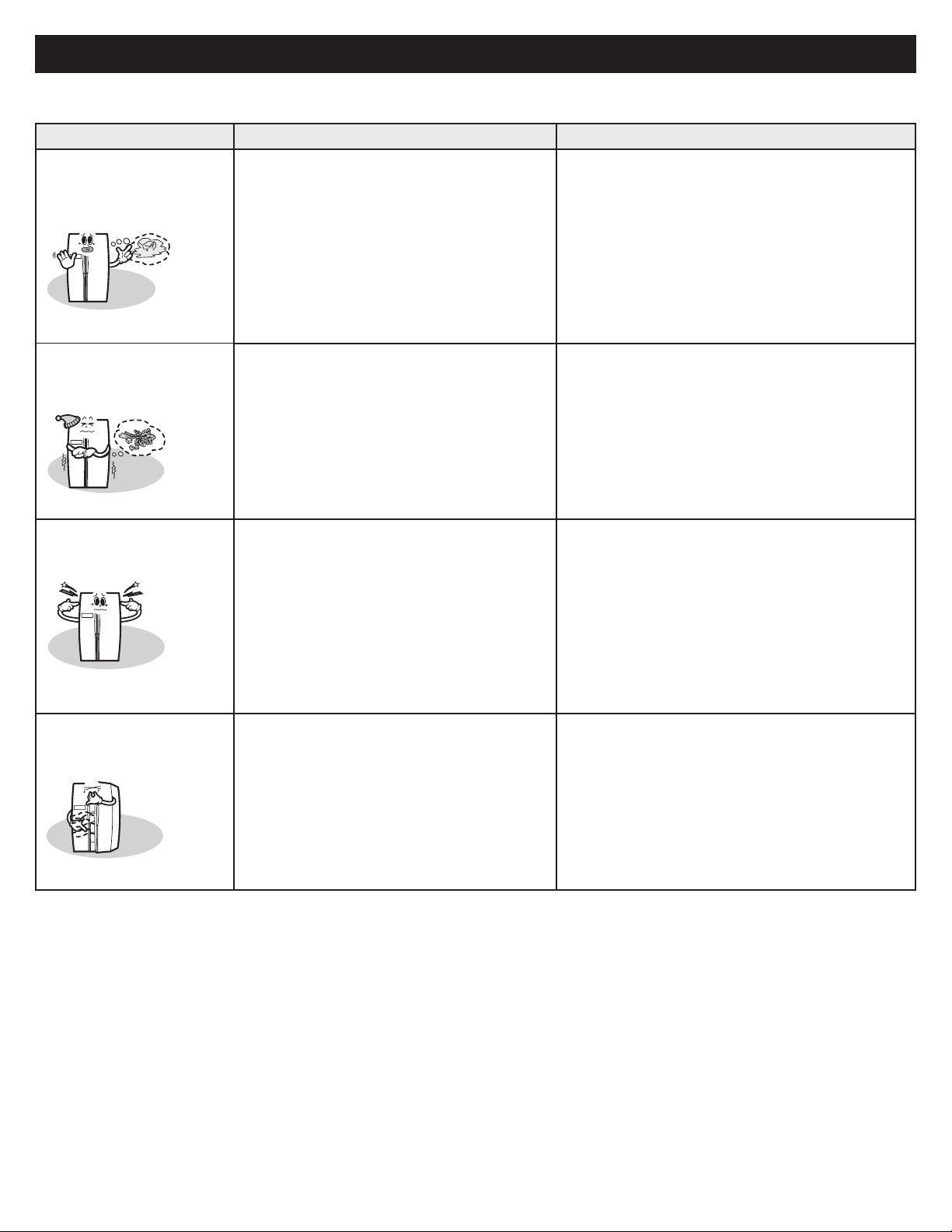

TROUBLESHOOTING GUIDE
Please check the following troubleshooting tips before you call for service!
ProblemCheckup PointAction
It never gets cold inside.
Freezing & refrigerating is
not so good.
➊
Is the refrigerator unplugged?
➋
Is the temperature set to [Low Mode]?
➌
Is the refrigerator under direct sunlight or
is a heat appliance placed near it?
➍
Is the space between the refrigerator back
and the wall too close?
➊
Plug in the refrigerator.
➋
Set the temperature mode to Middle or High.
➌
Move to a place where there is no direct
sunlight, no heat appliances around.
➍
Keep sufficient space (more than 2inches)
between the back of the refrigerator and the
wall.
Foods in the
refrigerator get frozen.
➊
Is temperature set to [High]?
➋
Is the room temperature too low?
➌
Is food with moisture stored close to the
cold air spout?
➊
Set the temperature to [Middle] or [Low].
➋
Food can be frozen if ambient temperature
is below 5°C. Move to a place where the
temperature is over 5°C.
➌
Place food with moisture on the shelves close
to the doors.
Strange sounds from
the refrigerator.
.
➊
Is the floor beneath the refrigerator
uneven?
➋
Is the space between refrigerator back
and the wall too close?
➌
Do any objects or other stuff touch the
refrigerator?
➊
Move the refrigerator to a level and even floor.
➋
Keep sufficient space.
➌
Remove any object which touches the
refrigerator.
Odour or unpleasant
smell from the inside.
➊
Is the food stored uncovered or
unwrapped?
➋
Are the shelves and pockets stained with
food stuff?
➌
Is the food stored too long?
➊
Be sure to cover and wrap the food.
➋
Clean them regularly. Once smell gets soaked
into those parts, it is not easy to remove.
➌
Do not store food for too long. A refrigerator is
neither a perfect nor a permanent food keeper.
23

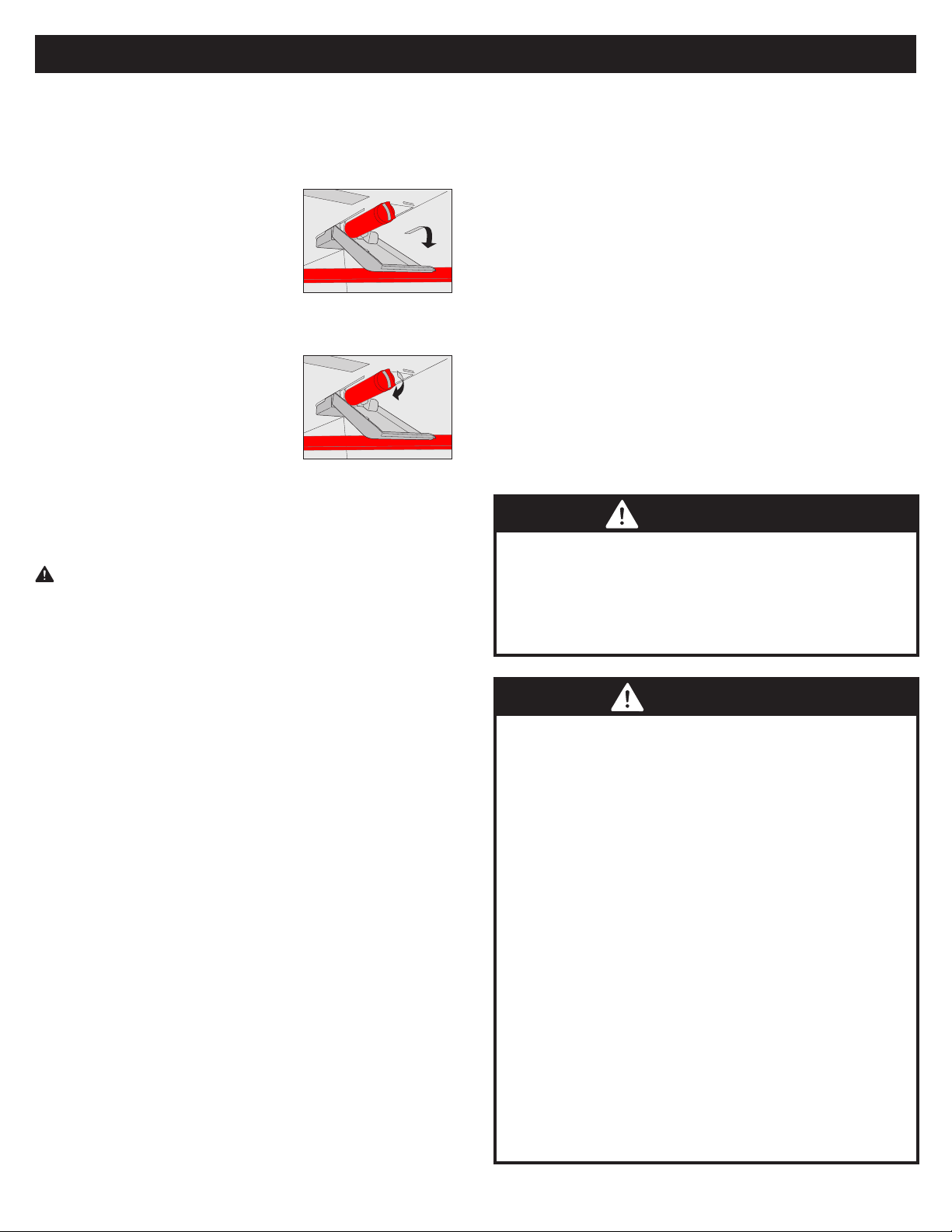

WATER FILTER
Installation
1. Turn of the water supply to the refrigerator. Dispense water
for 3 seconds to prevent water drops from falling while
installing filter.
2. The water filter is located in the top
of the refrigerator compartment.
Pull the water filter cover toward
you and down.
3. Remove the locking cap by turning
1/2 counterclockwise. Save locking cap for possible future
use. Always install locking cap if no filter is in place.
4. I nsert water filter and rotate
clockwise 1/2 turn to secure in
place. Raise the water filter cover
and slide back into place.
5. Dispense water over the course of 5 minutes in cycles of
30 seconds ON and 60 seconds OFF. Do not dispense
water continuously for 5 minutes.
CAUTION
: Wipe with cloth if droplets fall when
exchanging a filter.
Information concerning the water filter
- A fter use, the water system is subject to low pressure.
Proceed with caution when removing the filter. Dispenser
water 1-3 seconds before water filter change to prevent
water drops from falling.
-
Flush the water system if the appliance has not been in use
for a long period of time, or if the ice/water has an unpleasant
taste or smell. To do this, dispense water through the water
dispenser for several minutes.
If the unpleasant taste or smell remains, replace the filter.
-
To protect from frost, remove the filter cartridge if you
expect the temperature to drop below freezing.
- If pressure surges could occur in the water pipe, do not
install the water filter without a suitable surge eliminator.
Contact an installation expert if you are not sure whether
pressure surges could occur in the water pipe.
- A fter installing a new filter : Discard any ice produced in
the first 24 hours after switching on.
- If no ice has been removed for a long period of time, empty
the ice cube bin and discard any ice produced over the
next 24 hours.
WARNING
To reduce the risk associated with ingestion of contaminants:
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before and after
the system. Systems certified for cyst reduction may be used
on disinfected water that may contain filterable cysts. EPA
Establishment Number 10350-MN-005
CAUTION
To reduce the risk associated with property damage
due to water leakage:
• Read and follow the Water Filter instructions before
installation and use of this system.
• In stallation and use MUST comply with all state and
local plumbing codes.
• Do not install if water pressure exceeds 125 psi
(862 kPa). Contact a plumbing professional if you are
uncertain of how to check your water pressure.
• Do not install where water hammer conditions may
occur. If water hammer conditions exist, you must
install a water hammer arrester. Contact a plumbing
professional if you are uncertain of how to check for this
condition.
• Do not install on hot water supply lines.
The maximum operating water temperature of this water
filter system is 100°F (38°C).
• Protect water filter from freezing. Do not operate
refrigerator in ambient conditions below 55°F (12.7°C).
Drain water filter when storing unit in temperatures
below 40°F (4.4°C).
• T he disposable water filter must be replaced every six
months, at the rated capacity, or if a noticeable reduction
in flow rate occurs.
24
CARE AND CLEANING
1. Water Dispenser
• C lean the water collecting tray with a sponge or
absorbent cloth.
2. Ice Storage Bin
• R emoving: Pull out and remove the ice cube bin
• Cleaning: Empty the ice cube bin and clean with
lukewarm water.
Thoroughly dry the bin and screw conveyor to prevent
new ice cubes from sticking.
• R eplacing: Push the ice cube bin all the way back onto
the supports until it locks into position.
If the bin cannot be pushed all the way back, rotate the
ice auger a quarter turn and insert again.
3. Freezer & Refrigerator Bins
• H old both ends and pull up.
4. Refrigerator Shelves
To remove a shelf: Lift up
on front of shelf with one
hand and with other hand
push up on back of shelf to
release attachment hooks
from attachment slots. Pull
the shelf out.
To reinstall a shelf: With
front of shelf angled slightly
up, engage hooks on back
of shelf into attachment
slots, and then lower front
of shelf into place.
CAUTION
: Make sure that shelves are level from one
side to the other. Failure to do so may result in the shelf falling
or spilling food.
3
3
Slim IceMaker

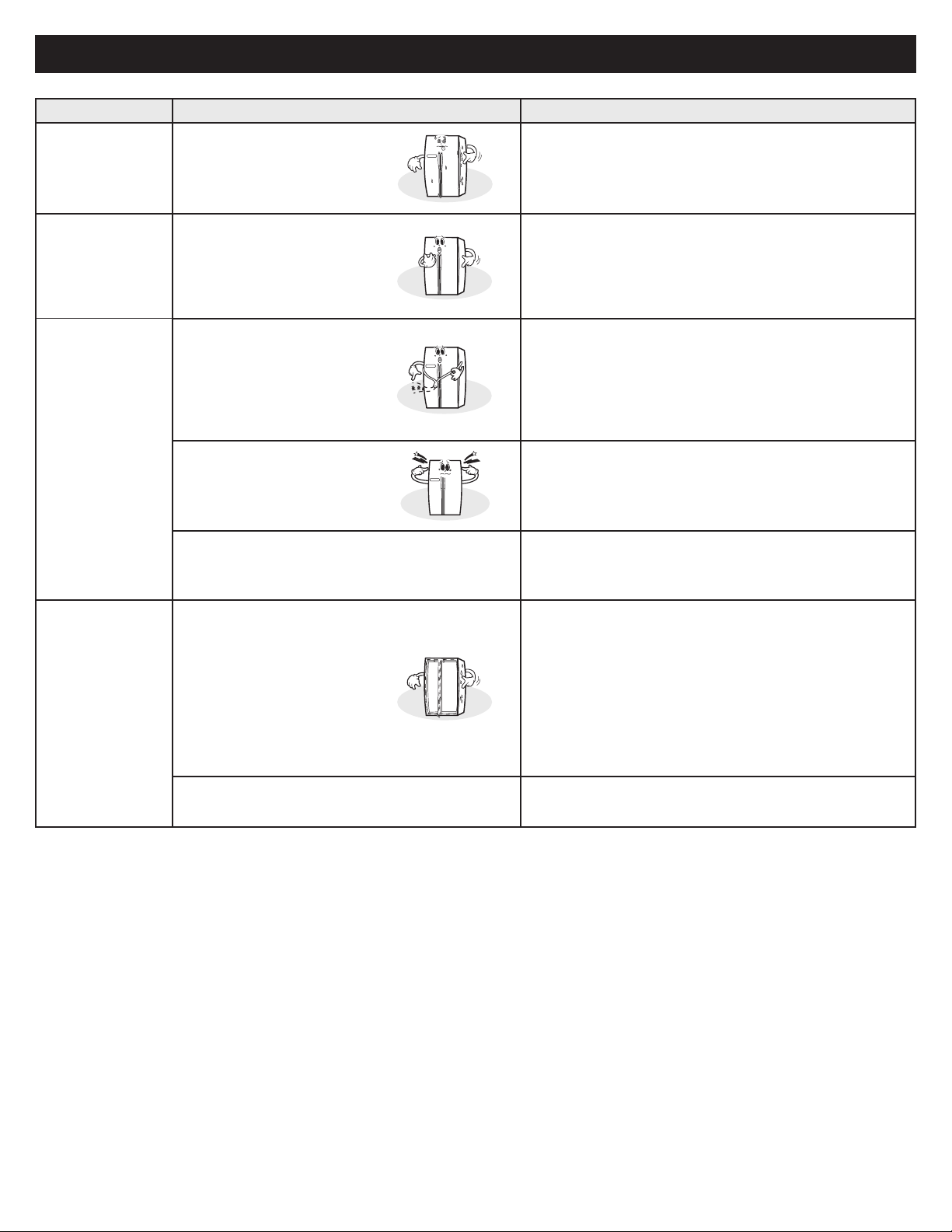

TROUBLESHOOTING GUIDE
CaseExplanation
Heat
Front and side of
refrigerator feels warm or
hot.
• Pipes (refrigerant vessel) are placed beneath the
Heat surface to prevent moisture forming on it.
HeatDoors do not open easily.
• When you close the door and then open again
immediately, the door is not easy to open because
warm air rushes in and creates the pressure
difference. In this case wait for a minute, then it will
open easily.
Heat
It sounds like water
is flowing from the
refrigerator.
• When the compressor starts to run or stop, refrigerant
which makes the inside cold flowing in the pipes can
make such a sound.
• Defrosted water can also make such a sound.
(This refrigerator adopts an automatic defrosting
system.)
Cracking or clicking
sounds.
• Inside parts shrink and/or expand due to temperature
change --- When the inside gets cold or when the
door is open, such sounds can be made.
Humming or buzzing
sounds.
• Compressor or fans for cold air circulation can make
such working sound. (If the refrigerator is not level,
the sound can be louder.)
Frost
&
Dew
Dew or frost on the wall
and/or food container
surface in the freezer and
refrigerator compartment.
Frost and/or dew can be made in the following cases;
• High temperature and/or high humidity around the
refrigerator.
• When doors are open too long.
• Food with much moisture are stored uncovered or
unwrapped.
• You can see the same appearance when cold water
is poured in a glass cup and dew is forming on the
surface of it.
Dew on the cabinet surface.
• If it is highly humid around the refrigerator, moisture
in the air sticks to the surface to form dew.
25
Fairfield, NJ 07004
Crosley Corporation
99 Bruce Crescent
Carleton Place ON K7C3T3,
Canada
Your freezer is protected by this warranty
REFRIGERATOR WARRANTY
26
