Operating and installation instructions PKT11
BORA Pro Tepan stainless steel grill with 2 cooking zones
1041661
Operating and installation instructions: Original Translation
Manufacturer
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Austria
Contact
T +43 (0) 5373 / 62250-0
www.bora.com
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited
unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled
out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been
adapted. Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service
Team. Subject to printing errors and mistakes.
© BORA Vertriebs GmbH & Co KG
All rights reserved.
EN
3
www.bora.com
Table of Contents
1 General information 4
1.1 Target group ........................................................ 4
1.2 Validity of the operating and installation
instructions ......................................................... 4
1.3 Other applicable documents ............................... 4
1.4 Presentation of information ................................. 5
2 Safety 6
2.1 General safety instructions ................................. 6
2.2 Safety instructions – operation ........................... 7
2.3 Safety instructions – installation ......................... 7
2.4 Safety instructions – disassembly
and disposal ........................................................ 8
2.5 Safety instructions – spare parts ........................ 8
2.6 Intended use ....................................................... 9
3 Technical data 10
4 Device description 11
4.1 Structure ........................................................... 11
4.2 Operating principle ............................................11
4.3 Functional principle ........................................... 12
4.3.1 Power control .................................................... 12
4.3.2 Temperature ranges ..........................................12
4.3.3 Cleaning function .............................................. 12
4.3.4 Power setting .................................................... 12
4.3.5 Bridging function ............................................... 12
4.3.6 Timer functions ................................................. 13
4.3.7 Pause function .................................................. 13
4.4 Safety devices ................................................... 13
4.4.1 Residual heat display.........................................13
4.4.2 Safety shut-down .............................................. 13
4.4.3 Overheating protection ......................................13
4.4.4 Childproofing feature .........................................13
5 Installation 14
5.1 Checking the scope of delivery .........................14
5.2 Tool and aids ..................................................... 14
5.3 Assembly instructions .......................................14
5.3.1 Safety clearances .............................................. 14
5.3.2 Work surface and kitchen units .........................14
5.3.3 Cooktop air intake ............................................. 15
5.4 Cut-out dimensions ...........................................15
5.4.1 Flush installation ............................................... 15
5.4.2 Surface mounting .............................................. 16
5.5 Installing the cooktop ........................................16
5.5.1 Installing the control knob behind
the floor unit’s panel .........................................16
5.5.2 Installing the cooktop ........................................17
5.5.3 Sealing the cooktop ..........................................18
5.5.4 Establishing communications ............................ 18
5.5.5 Establishing the power connection....................20
5.6 Configuration menu ..........................................20
5.6.1 Opening the configuration menu ....................... 20
5.6.2 Selecting a menu item ......................................20
5.6.3 Changing the set value ......................................22
5.6.4 Exiting the configuration menu..........................22
5.7 Handover to user ............................................... 22
6 Operation 23
6.1 General operating instructions .......................... 23
6.2 Initial operation ................................................. 23
6.3 Operating the cooktop ......................................23
6.3.1 Switching on the grilling zone ...........................23
6.3.2 Power setting ................................................... 24
6.3.3 Bridging function ............................................... 24
6.3.4 Cleaning function .............................................. 25
6.3.5 Childproofing feature .........................................25
6.3.6 Using the timer function ....................................25
6.3.7 Stop function (pause) ........................................ 26
6.3.8 Switching off the grilling zone ...........................26
6.4 Configuration menu ...........................................26
7 Cleaning and
maintenance 27
7.1 Cleaning agents ................................................. 27
7.2 Looking after the cooktop ................................. 27
7.3 Cleaning the cooktop ........................................27
7.3.1 Cleaning the stainless steel grill surface ........... 27
7.4 Cleaning the control knobs ...............................28
7.4.1 Cleaning the knob ring ......................................28
7.4.2 Cleaning the touch surface and
the knob housing ............................................... 28
8 Troubleshooting 29
9 Decommissioning, disassembly
and disposal 30
9.1 Decommissioning .............................................. 30
9.2 Disassembly ...................................................... 30
9.3 Environmentally-friendly disposal ...................... 30
10 Warranty, technical service,
spare parts 31
10.1 Warranty ............................................................ 31
10.2 Service .............................................................. 31
10.3 Replacement parts ............................................31
EN
4
General information
www.bora.com
1 General information
1.1 Target group
These operating and installation instructions apply for the
following target groups:
Target group Requirements
User The appliance can be used by children
aged 8 and above as well as people with
reduced physical, sensory or mental
capacities or a lack of experience and/or
knowledge if they are supervised or have
been instructed how to safely use the
appliance and understand the resultant
risks. Children must be supervised. All
safety and warning information and the
handling instructions in the installation
instructions must be complied with.
Ambitious DIYers Ambitious DIYers can independently
conduct all joinery and installation work
providing they possess the necessary
skills and expertise. They must never
independently establish electricity and
gas connections.
Installation specialists Installation specialists are authorised
to conduct all joinery and installation
work in line with
existing regulations. The
electricity and gas connections must be
certified by a certified engineer for the
applicable trade prior to commissioning.
Electricians The electrical connection may only be
established by a certified engineer.
He/she also assumes responsibility for
the proper electrical installation and
commissioning.
Gas specialists The gas connection may only be
established by certified engineers.
They also assume responsibility for
proper installation and commissioning of
the gas system.
Tab. 1.1 Target groups
INFO BORA Holding GmbH, BORA Vertriebs GmbH
& Co KG, BORA APAC Pty Ltd and BORA
Lüftungstechnik GmbH - hereinafter referred
to as BORA - do not assume any liability for
damage arising from non-adherence to these
documents and from improper assembly! The
electricity and gas connections must be made
by a qualified specialist. Installation must
comply with the valid standards, regulations
and laws. All safety and warning information
and the operating and installation instructions
must be complied with.
1.2 Validity of the operating and
installation instructions
These instructions apply to several device versions. It is
therefore possible that some of the features described do
not apply to your appliance.
1.3 Other applicable documents
These operating and installation instructions are valid
in conjunction with other documents, which must be
adhered to.
Please be sure to adhere to all documents that form part
of the scope of delivery.
INFO BORA accepts no liability for damage caused
by failure to comply with these documents!
Directives
This device meets the following EU/EC directives:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC Ecodesign Directive
2011/65/EU RoHS Directive
2012/19/EU WEEE Directive
EN
5
General information
www.bora.com
1.4 Presentation of information
To make working with these instructions quick and
easy, consistent formatting, numbering, symbols,
safety instructions, terms and abbreviations are used
throughout.
Handling instructions are market with an arrow.
Always carry out handling instructions in the sequence
shown.
Bullet points are indicated by a square bullet point at
the edge of the line.
Bullet point 1
Bullet point 2
INFO Information points out specific points you must
always comply with.
Safety and warning information
The safety and warning information in these instructions
are highlighted with symbols and signal words.
Safety and warning information is structured as follows:
WARNING SYMBOL AND SIGNAL
WORD!
Type and source of the danger
Consequences of non-compliance
Measures to minimise risk
The following applies:
The warning symbol draws attention to the danger.
The signal word indicates the severity of the risk.
Warning sign Signal word Hazard
Danger Indicates an imminent hazardous
situation which could lead to
death or serious injury
if ignored.
Warning Indicates an imminent hazardous
situation which could lead to
death or serious injury if
ignored.
Caution Indicates a potentially hazardous
situation which could lead to slight
or minor injuries if ignored.
— Caution Indicates a situation which could
result in material damage if
ignored.
Tab. 1.2 Meaning of warning symbols and signal words
EN
6
Safety
www.bora.com
2 Safety
2.1 General safety instructions
INFO The appliance complies with the
stipulated safety requirements. The
user is responsible for appliance
cleaning and maintenance as well as
its safe use. Improper use can lead
to personal injury and damage to
property.
The operating and installation instructions
contain important information about
installation and operation. These enable you
to protect yourself against injuries and
prevent damage to the appliance. Contact
details for further information as well as
application and usage questions can be
found on the back of these operating and
installation instructions.
The term device applies to cooktops,
cooktop extractors and cooktops with
cooktops extractors.
Read the operating and installation
instructions fully before using the appliance
for the first time.
Always store the operating and installation
instructions within easy reach so that they
can be accessed if required.
Pass the operating and installation
instructions to the next owner if you sell
the appliance.
Conduct all work extremely attentively and
conscientiously.
Check the appliance for visible damage
when unpacking it.
Do not connect a damaged appliance.
Only use the appliance once all installation
activities are complete. This is the only way
to ensure safe operation.
Make sure that hot hobs are not touched.
Avoid boiling over.
Switch the device off after use.
Keep pets away from the appliance.
Recirculation mode
INFO When cooking, additional moisture is
released into the ambient air.
INFO In recirculation mode, only a slight
amount of moisture is removed from
the cooking vapour.
When using recirculation mode, ensure a
sufficient supply of fresh air, e.g. by
opening a window.
Ensure a normal and comfortable room
climate (humidity of 45–60%), e.g. by
opening natural ventilation openings or
using domestic ventilation systems.
After every use in recirculation mode,
switch the cooktop extractor to a low level
for about 20 minutes or activate the
automatic after-run function.
Households with children and people with
special needs
The appliance can be used by children aged
8 and above as well as people with reduced
physical, sensory or mental capacities or a
lack of experience and/or knowledge if
they are supervised or have been instructed
how to safely use the appliance and
understand the resultant risks.
Supervise children in the vicinity of the
appliance.
Children must not play with the appliance.
Do not store any items that could be of
interest to children in storage spaces above
or behind the appliance. Children will
otherwise be encourage to climb on the
appliance.
Keep children and other people away from
hot hobs.
Unauthorised modifications
Unauthorised modifications can cause the
appliance to pose risks.
Do not conduct any modifications to the
appliance.
Cleaning and maintenance
The device must be cleaned regularly. Dirt
can lead to damage or the buildup of odours.
Remove any dirt immediately.
Cleaning and maintenance work must not
be carried out by children unless they are
supervised at all times.
Do not use steam cleaners. The steam can
cause a short-circuit on live parts and
cause damage to property (see Cleaning
and maintenance section).
Make sure no water penetrates inside the
device when cleaning. Only use a slightly
damp cloth. Never spray water on the
device. Water ingress can cause damage!
EN
7
Safety
www.bora.com
WARNING!
Leaving items on the cooking
surface is a fire risk!
The cooktop and its touchable parts
are hot when the cooking zone is
switched on and during the cooling
phase. Objects on the cooktop can
get hot and catch re.
Do not place any items on the
cooktop.
WARNING!
Risk of burns from hot items!
The cooktop and its touchable parts
are hot during both operation and the
cooling phase. Items placed on the
cooktop heat up very quickly and can
cause severe burns. This particularly
applies to metal items (e.g. knives,
forks, spoons, lids or cooktop
extractor covers).
Do not place any items on the
cooktop.
Please use suitable tools (pot
holders, oven gloves).
CAUTION!
Escaping hot liquids!
Unattended pans can boil over
allowing hot liquids to escape.
Always keep an eye on pans while
cooking.
Short cooking sessions must be
constantly monitored.
2.3 Safety instructions – installation
The device must only be installed and
assembled by trained specialists who are
familiar with and comply with the standard
national regulations and supplementary
regulations of the local utility companies.
Work on electrical components must be
conducted by trained electrical personnel.
The electrical safety of the appliance is only
guaranteed if it is connected to a protective
conductor system that has been installed in
line with regulations. Ensure that this basic
safety precaution is met.
Where possible, clean the cooktop after
every cooking session.
Only clean the cooktop when it has cooled
down (see Cleaning and maintenance
section).
For cleaning, only use non-abrasive
detergents to avoid scratching or wearing
the surface.
Make sure the base of the cookware and
the cooking zone are clean and dry.
Always lift the cookware (do not pull) to
avoid scratching or wearing the surface.
2.2 Safety instructions – operation
Cooktop
DANGER!
Unsupervised cooktops are a fire
risk!
Oil and fat can heat up and catch re
quickly.
Never leave hot oil or fat
unattended.
Never attempt to extinguish
burning oil or fat with water.
Stifle the fire using a lid, for
example.
DANGER!
Risk of explosion caused by
flammable liquids!
Flammable liquids in the vicinity of
the cooktop can explode and cause
serious injury.
Do not place any flammable liquids
in the vicinity of the cooktop.
WARNING!
Risk of burns from hot cooktop!
The cooktop and its exposed areas
get hot during use. Once the cooking
zone is switched o, it takes a little
while to cool down below 60 °C.
Touching hot surfaces can cause
serious burns.
Never touch the cooktop when it
is hot.
Keep children away from the
cooktop when it is hot or ensure
they are supervised at all times.
EN
8
Safety
www.bora.com
Repair work must only be carried out by
specialists authorised by the manufacturer.
2.4 Safety instructions –
disassembly and disposal
The device must only be disassembled by
trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local
utility companies.
Work on electrical components must only be
conducted by trained electrical personnel.
DANGER!
Risk of electric shock!
Incorrectly disconnecting the
appliance from the mains results in a
risk of electric shock.
Securely disconnect the appliance
from the mains using LS switches,
fuses, automatic circuit breakers
or contactors.
Use an authorised measuring
device to ensure that there is no
power to the appliance.
DANGER!
Risk of asphyxiation!
Packaging components (e.g. lm,
polystyrene) can be life-threatening
for children.
Store all packaging components
out of reach of children.
Dispose of the packaging properly
and immediately.
2.5 Safety instructions – spare parts
WARNING!
Risk of injury and damage to
property!
Incorrect components can lead to
personal injury or damage to the
appliance. Modications, additions or
alterations to the appliance can lead
to safety risks.
Only use original spare parts for
repairs.
Cooktop
DANGER!
Risk of electric shock!
Incorrect connection of the device
to the mains voltage could cause
electric shocks.
Make sure that the device is firmly
connected to the mains voltage.
Make sure the device is connected
to a properly installed earth
conductor system.
Make sure a system is installed
which allows disconnection from
the network with a contact
opening width of at least 3 mm
across all poles (circuit breaker,
fuses, automatic circuit breakers,
contactors).
DANGER!
Risk of electric shock!
If the mains connection cable comes
into contact with hot hobs, it could
get damaged. A damaged mains
connection cable can cause a
(deadly) electric shock.
Make sure that the mains
connection cable cannot come
into contact with hot hobs.
Make sure that the connection
cable is not squashed or damaged.
CAUTION!
Lifting heavy loads can cause back
injuries!
If not correctly handled, removing
and installing the device can causes
injuries to the limbs or torso.
Removing the cooktop from the
packaging is a two-person job.
Placing the cooktop into the
worktop cut-out is a two-person
job.
Use appropriate aids to prevent
damage or injuries to limbs or
torso.
Check the appliance for visible damage
before installing it.
Do not install damaged devices.
A damaged device is a hazard.
EN
9
Safety
www.bora.com
2.6 Intended use
The device cannot be used at altitudes above
2000 m (metres above sea level).
The device is designed exclusively for the
preparation of food in private households.
This appliance is not intended for:
Outdoor use
Installation in vehicles
Heating rooms
Use in non-stationary installation sites
(e.g. on ships)
Use with an external timer or a separate
remote control system (remote operation)
Any use other than that specified in these
operating and installation instructions or any
use that goes beyond that which is described
here is classed as unintended. BORA does not
assume any liability for damages caused by
improper use or incorrect operation.
All misuse is prohibited!
INFO BORA Holding GmbH, BORA Vertriebs
GmbH & Co KG, BORA APAC Pty Ltd
and BORA Lüftungstechnik GmbH do
not assume any liability for damage
arising from non-adherence
to the
safety and warning information.
EN
10
Technical data
www.bora.com
3 Technical data
Parameter Value
Supply voltage 380-415 V 2N
Frequency 50/60 Hz
Power consumption 4.8 kW
Fuse protection 2 x 16 A
Dimensions (width x depth x height) 370 x 540 x 73 mm
Weight (incl. accessories/packaging) 15.8 kg
Cooktop
Power levels (temperature control) 1 - 9, P
(150–230°C, 250° C)
Front cooking zone 295 x 230 mm 2400 W
Back cooking zone 295 x 230 mm 2400 W
Temperature control range 70–250° C
Tab. 3.1 Technical data
Device dimensions control knob
Ø76
Ø58
Ø49
92
22 10-40 20
Fig. 3.1 Device dimensions control knob
Device dimensions
465
540
370
295 37,5
37,5
Fig. 3.2 PKT11 Device dimensions aerial view
311 29,5
73
60,5
246 62
Fig. 3.3 PKT11 Device dimensions front view
503 18,5
31477
Fig. 3.4 PKT11 Device dimensions side view
EN
11
Device description
www.bora.com
4 Device description
Observe all safety and warning information during
operation (see the Safety section).
The Tepan stainless steel grill has the following features:
Two grilling zones
Two control knobs
Temperature display
Power setting
Bridging function
Residual heat display
Timer functions
Childproofing feature
Stop function
Safety shut-down
Cleaning function

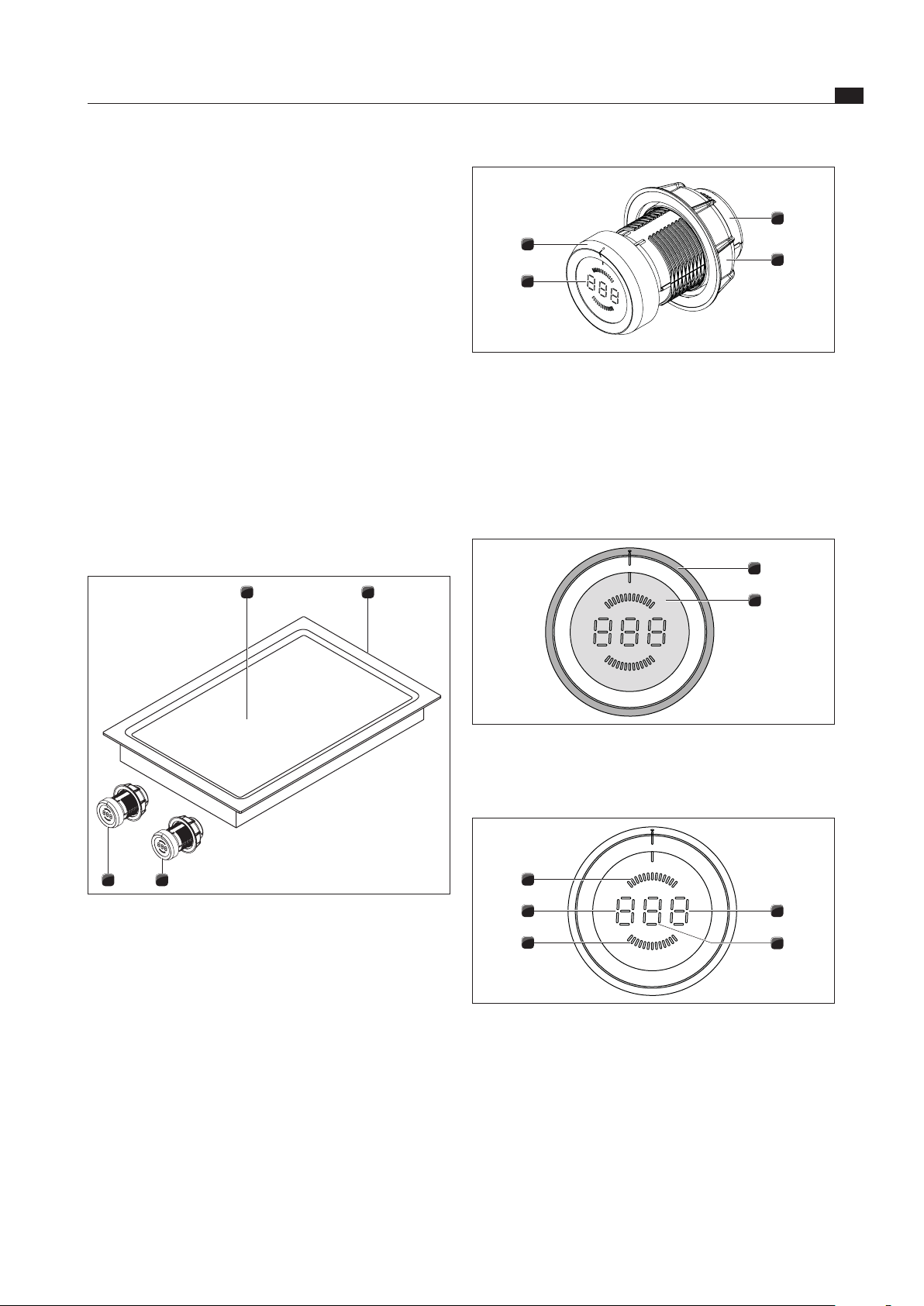

4.1 Structure
1 2
4 3
Fig. 4.1 Tepan stainless steel grill
[1] Two grilling zones
[2] Connections for the control knob and automatic extraction
system (at the back)
[3] Control knob for the rear grilling zone
[4] Control knob for the front grilling zone
4
3
2
1
Fig. 4.2 Control knob structure
[1] Knob casing
[2] Universal nut
[3] Control knob display
[4] Selector ring
4.2 Operating principle
2
1

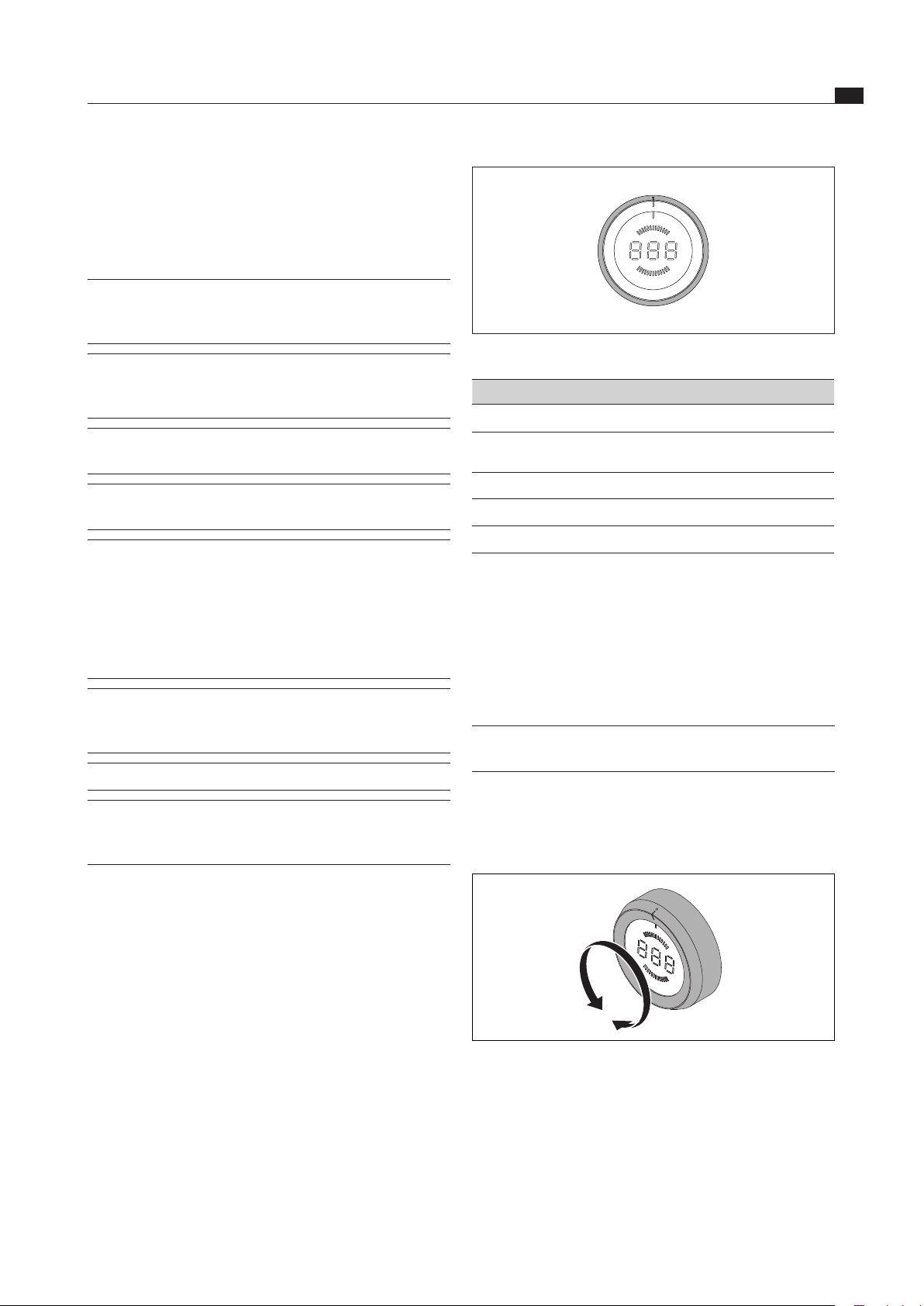

Fig. 4.3 Control knob operating elements
[1] Selector ring
[2] Touch-operated area
5
4
3
2
1
Fig. 4.4 Control knob display elements

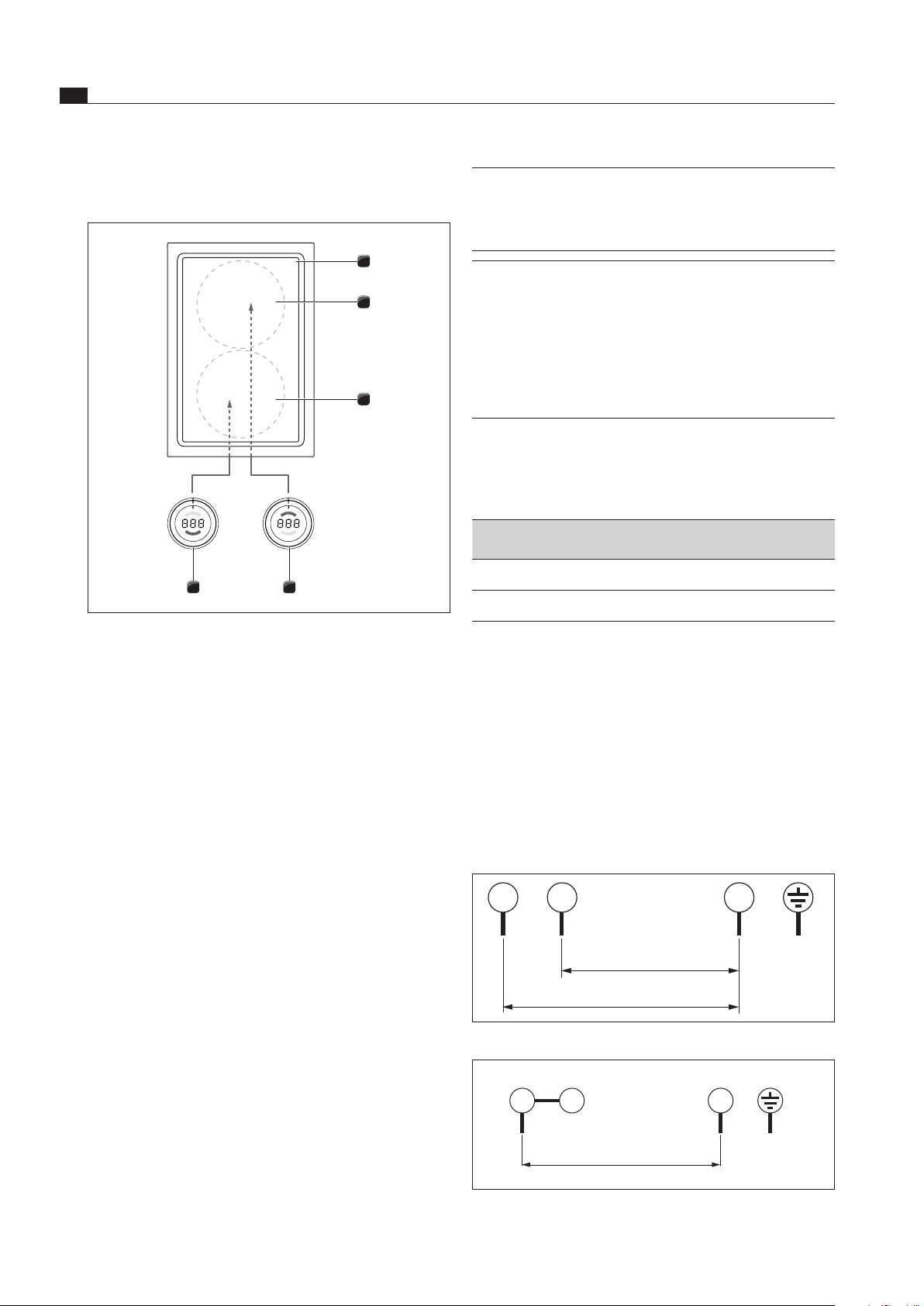

[1] Display functions
[2] Power display
[3] Front grilling zone display
[4] Mode or operating mode display
[5] Rear grilling zone display
EN
12
Device description
www.bora.com
4.3.2 Temperature ranges
The power output of the Tepan stainless steel grill heats
food extremely quickly. To avoid burning food, slight
adjustment is needed in comparison to conventional
cooking systems when selecting the temperature.
Activity Temperature
in °C
Steaming fruit, e.g. apple slices, peach halves,
banana slices
160 – 170
Browning chopped vegetables, fried eggs, veal,
poultry
180 – 190
Browning breaded or battered fish, pancakes,
sausages, pork, lamb
190 – 200
Browning potato fritters, prawns, corn on the
cob and escalopes
200 – 210
Searing beef, fish, meatballs 220 – 230
Tab. 4.2 Temperature recommendations
The specifications provided in the table are standard
values.
Low temperature ranges
Additional power levels are available in the low
temperature range.
4.3.3 Cleaning function
The cleaning function
c
brings the Tepan stainless steel
grill to an optimum temperature for cleaning (70°C).
4.3.4 Power setting
The two grilling zones are equipped with a power-
enhancing power setting.
P
appears on the control knob display.
The power setting can be used to quickly heat up large
quantities of water. If the power setting is activated,
the grilling zones will run at extra high power. After
10 minutes, the grilling zone is automatically switched
back to power level
9
.
If the bridging function is activated, the power setting
cannot be used.
INFO Never use the power setting to heat up oil,
fat and the like. The bottom of the pan can
overheat due to the high power output.
4.3.5 Bridging function
The two grilling zones can be operated as a connected
grilling zone at the same power level.
%
appears on the display.
The bridging function is suitable for heating food in a
roaster.
Unit Display Meaning
Control knob
display
e.g. 190 Temperature display
P
Power setting
%
Bridging function
H
Residual heat display: the grilling
zone is switched off but still hot
(temperature > 50°C)
t
Timer function: short-time timer
(egg timer)
L
Childproofing feature
I I
Pause function
c
Cleaning function and extended
temperature range
C
Configuration menu
0
Appliance switched off
E
...
Error message
(see the Troubleshooting section)
Tab. 4.1 Display meaning
Knob operation
Each grilling zone has its own control knob. The
temperature and functions of the two grilling zones are
controlled by turning the selector ring and touching the
touch-operated area (see the Operation section).
INFO The temperature is shown on the control knob
display by default (target temperature and
actual temperature). The configuration menu
can be used to switch the display to a power
display or mixed display (see the Installation
section).
4.3 Functional principle
There are two heating elements under each grilling
zone. When the grilling zone is switched on, the heating
element generates heat that heats up the grill surface
directly.
4.3.1 Power control
The power is controlled using power levels, which are
indicated in °C on the control knob display by default
(temperature display).
Alternatively, the configuration menu can be used to
switch the control knob display to a power display or
mixed display.
EN
13
Device description
www.bora.com
Power level Switch off after hours:minutes
1
6:00
2
6:00
3
5:00
4
5:00
5
4:00
6
1:30
7
1:30
8
1:30
9
1:30
P
0:10
Tab. 4.3 Safety shut-down for power levels
Heat retention level Switch off after hours:minutes
1 (
,
)
8:00
2 (
:
)
8:00
3 (
*
)
8:00
Tab. 4.4 Safety shut-down for heat retention levels
To put the cooking zone back into operation, switch
the grilling zone back on (see the Operation section).
4.4.3 Overheating protection
The device is fitted with overheating protection.The
overheating protection can be triggered if:
Cookware is heated up empty.
Oil or fat is heated on high power.
A hot cooking zone is switched on again after a power cut.
There is insufficient ventilation below the cooktop (see
Cooktop air intake).
Before the overheating damages the electronics, one of
the following measures is taken:
The power level can no longer be increased.
The power level set is reduced.
The cooktop switches off completely.
After a sufficient cooling period, the cooktop can be used
again in full.
4.4.4 Childproofing feature
The childproong feature prevents the cooktop from
being switched on accidentally.
L
appears on the control knob display.
The childproong feature can only be activated when all
the cooking zones are switched o (see the Operation
section).
4.3.6 Timer functions
There are two different timer functions available for each
grilling zone.
t
appears on the control knob display.
INFO You can set a time range of between
1 and 120
minutes for the timer functions.
Timer function
INFO The timer function is an automatic cut-off
function for automatically switching off a
grilling zone.
Short-time timer (egg timer)
INFO The short-time timer depends on the grilling
zone being switched off and works like a
conventional egg timer.
4.3.7 Pause function
The cooking session can be temporarily interrupted
(max. 10 minutes).
I I
appears on the control knob display.
4.4 Safety devices
4.4.1 Residual heat display
INFO Do not touch the cooking zone or place any
heat-sensitive objects on top of it while
H
is
shown on the control knob display (residual
heat display). Risk of burns and fire!
The grilling zone remains hot after switching it off.
H
appears on the control knob display (residual heat
display). The display goes out after a sufficient cooling
time (temperature < 50°C).
4.4.2 Safety shut-down
Each grilling zone is switched off automatically if it
exceeds the maximum operating duration at a certain
power level or heat retention level.
H
appears on the
control knob display (residual heat display).
EN
14
Installation
www.bora.com
5 Installation
Observe all safety and warning information (see the
Safety section).
Follow the enclosed manufacturer’s information.
INFO The cooktop must not be installed above
cooling devices, dishwashers, stoves, baking
ovens, washing machines or driers.
INFO The contact surface of the worktops and wall
sealing strips must be made of a heat-resistant
material (up to approx. 100 °C).
INFO Worktop cut-outs must be moisture-sealed
using suitable means or, where necessary,
fitted with a thermal insulator.
INFO Control knobs have to be connected only to the
provided connections of the cooktop.
5.1 Checking the scope of delivery
Name Quantity
Control knob 2
Operating and installation instructions 1
Cooktop fixing screws 4
Height adjustment plate set 1
Cooktop 1
Cooktop mounting straps 4
Control knob cable 2
Automatic extraction system cable 1
Tepan scraper 1
Tab. 5.1 Scope of delivery
Check the delivered items for damage and make sure
that everything has been received.
If there are any missing or damaged parts, please
notify BORA After Sales Service immediately.
Do not under any circumstances install parts which are
damaged.
Dispose of transport packaging in the proper manner
(see the Decommissioning and Disposal section).
5.2 Tool and aids
The following tools are required to correctly install the
cooktop:
Pencil
Measuring instrument
Standard or cordless drill with Forstner bit Ø 50 mm
Screwdriver/hexalobular wrench (torx) 20
Silicone sealant for sealing cutting surfaces
5.3 Assembly instructions
5.3.1 Safety clearances
Maintain the following safety clearances:
1
3
2
Fig. 5.1 Minimum clearances
[1] Minimum clearance of 50 mm at the back from the worktop
cut-out to the rear edge of the worktop.
[2] Minimum clearance of 300 mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600 mm between the worktop and
the wall unit.
5.3.2 Work surface and kitchen units
Create the worktop cut-out taking the specified cut-out
dimensions into account.
Make sure that the cutting surfaces of the worktops
are properly sealed.
Observe the instructions provided by the worktop
manufacturer.
Cross bars on the unit in the area of the worktop cut-
out may need to be removed.
A false floor underneath the cooktop with integrated
cooktop extractor is not needed.
If a cable protection shelf (false floor) is planned for
under the devices, this must be installed so as to be
removable for maintenance work.
EN
15
Installation
www.bora.com
5.4.1 Flush installation
x
A ±2
B ±2
544 ±2
≤ R5
≤ R5
≥ 74
≥ 74
516 ±2
≥ 700
Fig. 5.3 Cut-out dimensions ush installation
7 +0,5
14
10 - 40
Fig. 5.4 Groove dimensions for ush installation
Cut-out dimensions when installing cooktops or cooktops
and the cooktop extractor next to each other:
Cooktops/cooktop extractor A in mm B in mm
1/0 374 346
1/1 485 457
2/1 856 828
3/2 1338 1310
4/2 1709 1681
Tab. 5.2 Cut-out dimensions appliance combinations ush
installation
The drawers and/or shelves in the floor unit must be
removable.
A return flow aperture > 500 cm
2
is required in the
kitchen units for recirculation appliances (e.g. by
shortening the plinth boards or using suitable slatted
plinths).
5.3.3 Cooktop air intake
The components in the cooktop which generate heat are
automatically cooled. The warm air is extracted by fans
(cold air flow).
INFO In order to retain the full functionality of
the cooktop in the long term, there must be
sufficient ventilation underneath the cooktop.
INFO The performance of the cooktop is impaired or
the cooktop overheats if the warm air below
the cooktop cannot escape.
INFO If the cooktop overheats, performance
is reduced or the cooktop switches off
completely (see Overheating protection).
INFO For sufficient air intake, an opening cross-
section in the kitchen units of at least 50 cm
2
is recommended.
Ensure there is sufficient ventilation underneath the
cooktop.
INFO If there are plans for a cable protection floor
(false floor) below the device, this must not
impede the ventilation.
5.4 Cut-out dimensions
INFO All dimensions from the front edge of the front
cover.
Worktop overhang
≥ 74x
Fig. 5.2 Worktop overhang
Please note the worktop overhang x when creating
the worktop cut-out. Applies to flush installation and
surface mounting.
EN
16
Installation
www.bora.com
5.5 Installing the cooktop
INFO Clearance of one millimetre should be planned
between the built-in appliances.
INFO A clearance of two millimetres should be
planned around the built-in appliances.
INFO A mounting rail should ideally be installed
between adjacent cooktops (PZMS mounting
rail available as an accessory).
INFO Alternatively, the cooktop can be installed
rotated by 180°.
5.5.1 Installing the control knob behind the
floor unit’s panel
INFO Pre-drill the bore holes to prevent tearing out
the panel.
Fig. 5.7 Installed control knobs and cooktop
≥70
Ø50 ±0,5
370
80-140
Fig. 5.8 Drilling diagram
[1] Cooktop
[2] Worktop
[3] Floor unit’s panel
5.4.2 Surface mounting
x
B ±2
≤ R5
≥ 74
≥ 74
516 ±2
≥ 700
Fig. 5.5 Cut-out dimensions surface mounting
12
10 - 40
Fig. 5.6 Surface mounting cut-out
Cut-out dimensions when installing cooktops or cooktops
and the cooktop extractor next to each other:
Cooktops/cooktop extractor B in mm
1/0 346
1/1 457
2/1 828
3/2 1310
4/2 1681
Tab. 5.3 Cut-out dimensions appliance combinations surface
mounting
EN
17
Installation
www.bora.com
≥70
90 90 909090 196 196 196 196
370 370
370
110
1 1 1 1
110
Ø50 ±0,5
Fig. 5.11 Bore holes for 3 cooktops and 2 extractors
[1] Bore holes for socket (2x external)
[2] Bore holes for control knobs (8x)
[3] Cooktop (3x)
[4] Cooktop extractor (2x)
[5] Worktop
[6] Floor unit’s panel
5.5.2 Installing the cooktop
321
Fig. 5.12 Inserting the cooktop
[1] Worktop cut-out
[2] Tepan stainless steel grill
[3] Connections for the control knob and automatic extraction
system
Insert the Tepan stainless steel grill [2] into the
worktop cut-out [1].
Precisely align the Tepan stainless steel grill [2].
Please note that during normal installation, the
connections for the control knob and the automatic
extraction system [3] are at the back.

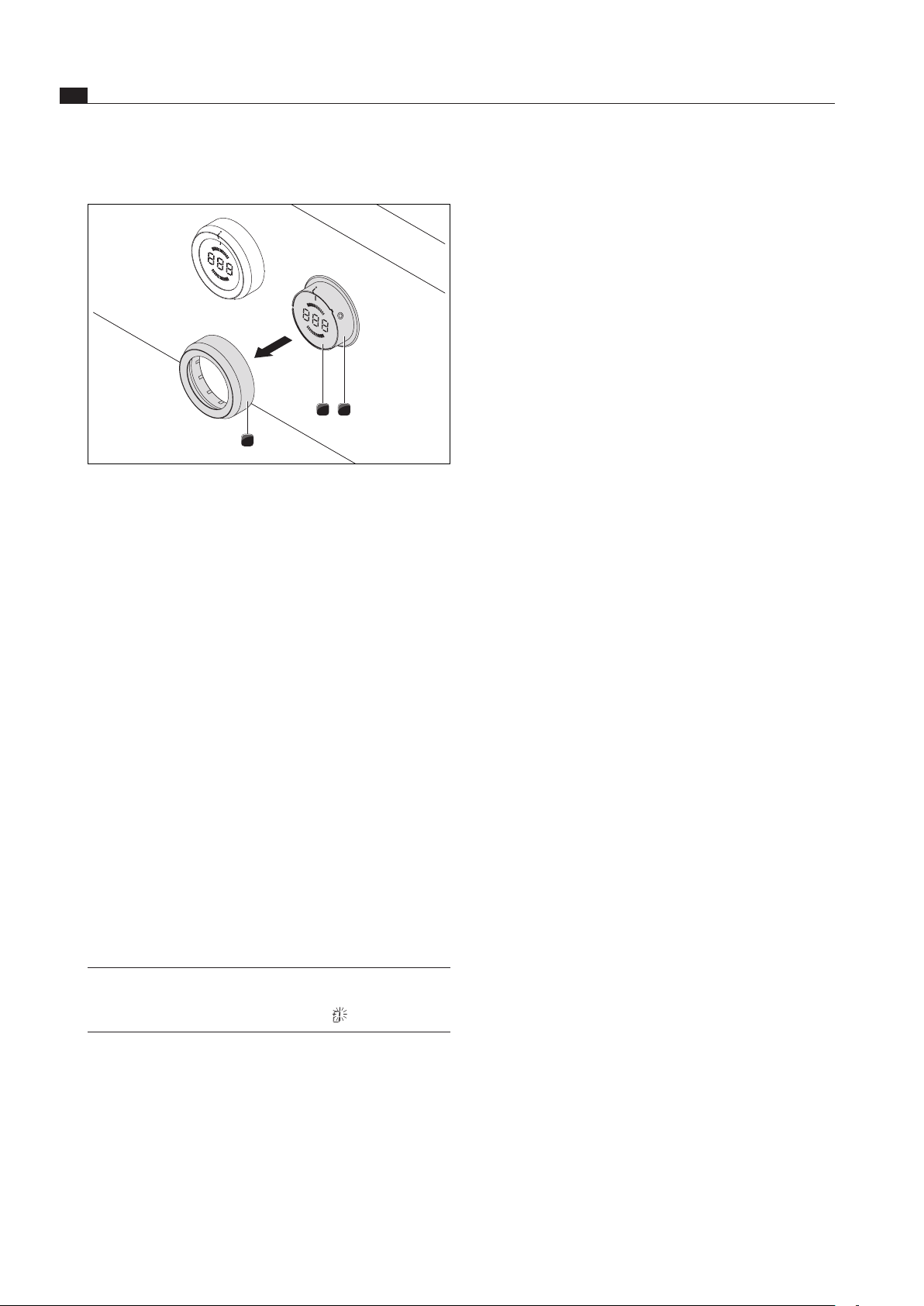

Fig. 5.9 Installing the control knob
Pull off the selector ring.
Unscrew the fixing nut.
Push the control knob through the drilled hole in the
floor unit’s panel from the front.
Screw the fixing nut onto the control knob from the
back and lightly tighten it.
Vertically align the control knob in the 12 o’clock
position based on the markings.
Tighten the fixing nut.
Place the selector ring on the control knob.
Bore hole examples
≥70
90 90 90
Ø50 ±0,5
90 196 196
370 370
110
1 1
Fig. 5.10 Bore holes for 2 cooktops and 1 extractor
[1] Bore holes for socket (2x external)
[2] Bore holes for control knobs (5x)
[3] Cooktop (2x)
[4] Cooktop extractor
[5] Worktop
[6] Floor unit’s panel
EN
18
Installation
www.bora.com
Installation rotated by 180°
Rotate the cooktop by 180°.
Conduct the installation as described.
Change the installation direction in the configuration
menu (see Configuration menu).
INFO If the device is installed rotated by 180°, the
connections for the control knob and the
automatic extraction system are at the front.
INFO The scope of delivery includes sufficiently long
cables.
5.5.3 Sealing the cooktop
Ensure that no silicone sealant gets under the cooktop.
1
Fig. 5.15 Silicone sealant with ush installation
[1] Black, heat-resistant silicone sealant
1
Fig. 5.16 Silicone sealant with surface mounting
[1] Black, heat-resistant silicone sealant
5.5.4 Establishing communications
The device components are connected using the flat-
ribbon cable supplied in the scope of delivery.
Create the connection between the cooktop and the
control knobs.
Create the connection between the cooktop and the
cooktop extractor.
Connecting the cooking zones
INFO
Ex works, the left control knob is intended for
operating the front cooking zone and the right
control knob for operating the rear cooking zone.
1
2
Fig. 5.13 Cooktop and height adjustment plates
[1] Cooktop
[2] Height adjustment plates
If applicable, insert the height adjustment plates [2].
3
2
2
1
4
Fig. 5.14 Mounting brackets
[1] Mounting bracket
[2] Washer
[3] Screw
[4] Screw (60 mm)
Affix the cooktop using the mounting brackets [1].
Use the screws [3] and [4] and the washer [2] to
tighten the mounting brackets with max. 10 Nm.
Check that the cooktop is positioned correctly.
Once all of the installation work is complete, seal the
devices with black, heat-resistant silicone sealant.
EN
19
Installation
www.bora.com
Standard connection for the cooking zones
5 4
3
2
1
Fig. 5.19 Standard connection for the cooking zones
[1] Cooktop
[2] Rear cooking zone (zone 2)
[3] Front cooking zone (zone 1)
[4] Control knob for the rear cooking zone (zone 1)
[5] Control knob for the front cooking zone (zone 2)
Connect the connection on the back of the left control
knob [5] with the ‘zone 2’ connection on the back of
the cooktop [1].
Connect the connection on the back of the right
control knob [4] with the ‘zone 1’ connection on the
back of the cooktop [1].
Connection on the control knob
1
Fig. 5.17 Control knob connection at the back
[1] Control knob connection at the back
Connections on the cooktop
321
ZONE1 INTERF. COM1 ZONE2
Fig. 5.18 Control knob connection at the back of the cooktop
[1] Control knob connection for the front cooking zone (zone 1)
[2] Connection for the automatic extraction system
[3] Control knob connection for the rear cooking zone (zone 2)
EN
20
Installation
www.bora.com
Connecting the cooking zones when the cooktop is
installed rotated by 180°
5 4
3
2
1
Fig. 5.20 Connecting the cooking zones with 180° installation
[1] Cooktop
[2] Rear cooking zone (zone 2)
[3] Front cooking zone (zone 1)
[4] Control knob for the rear cooking zone (zone 2)
[5] Control knob for the front cooking zone (zone 1)
Connect the connection on the back of the left control
knob [5] with the ‘zone 1’ connection on the back of
the cooktop [1].
Connect the connection on the back of the right
control knob [4] with the ‘zone 2’ connection on the
back of the cooktop [1].
Use the configuration menu to correctly set the
assignment of the cooking zones in the control knob
display (see Configuration menu, installation 0° or
180°).
Connecting the automatic extraction system
Connect the cooktop extractor to the connection
provided for the automatic extractor system on the
cooktop.
5.5.5 Establishing the power connection
Observe all safety and warning information (see the
Safety section).
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection may only be established
by certified specialists. The specialist
also assumes responsibility for the proper
installation and commissioning.
INFO This appliance is intended for operation using a
power grid with a maximum system impedance
Zmax of 0.104 ohms at the transition point
(domestic connection). The user must ensure
that the appliance is only operated using a
power grid that meets these specifications.
If necessary, the local utility company can be
consulted to find out the system impedance.
The power supply line to be used (pre-assembled) must
be at least type SiHF
(see the Fuse protection and minimum cross-section
table).
Connection Fuse protection Minimum cross-
section
1-phase connection 1 x 25 A 2.5 mm
2
2-phase connection 2 x 16 A 2.5 mm
2
Tab. 5.4 Fuse protection and minimum cross-section
If the connection cable has been damaged, it must
be replaced. This may only be done by an authorized
member of the After Sales Service team.
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
Secure the main switch/automatic circuit breaker
against being switched back on without permission.
Make sure the power to the appliance is disconnected.
Only connect the cooktop using a permanent
connection to a power supply cable.
1
L1 L2
2
N PE
220 - 240 V~
220 - 240 V~
3
Fig. 5.21 Connection diagram 2-phase
1
L1
2 3
N PE
220 - 240 V~
Fig. 5.22 Connection diagram 1-phase
EN
21
Installation
www.bora.com
Check that installation has been done correctly.
Switch on the main switch/automatic circuit breaker.
Put the cooktop into operation (see the Operation
section).
Check that all the functions are working correctly.
5.6 Configuration menu
Once installation is complete, you can configure certain
basic settings for your cooktop, which you can also
change again at any time.
5.6.1 Opening the configuration menu
Turn the control knob to the 11 o’clock position.
t
appears on the control knob display.
Tap the control knob’s touch-operated area. The
display switches to
000
.
Press the touch-operated area again within 3 seconds,
retaining contact with it for 5 seconds.
C
appears on the control knob’s display, an acoustic
signal sounds and the configuration menu opens.
5.6.2 Selecting a menu item
Select the desired menu item by turning the selector
ring.
The following menu items are available for selection:
Menu items
C
0
Acoustic signal volume
C
1
Select an operating mode (normal operation or demo
mode)
C
2
Installation 0° or 180°
C
3
Type of control knob display
C
9
Availability of the pause function
Tab. 5.5 Menu items in the conguration menu
Tap the touch-operated area to confirm the selected
menu item.
The submenu opens and the display switches to a
three-digit combination (e.g.
C23
).
INFO In the three-digit combination displayed, the
digit on the right indicates the value saved in
the system.
Setting the volume of the acoustic signal
If you have confirmed menu item
C0
, you can set the
volume of the acoustic signal.
Setting Acoustic signal volume
C
0
0
100% (max. volume) Factory default
C
0
1
10% (min. volume)
C
0
2
20%
C
0
3
30%
C
0
4
40%
C
0
5
50%
C
0
6
60%
C
0
7
70%
C
0
8
80%
C
0
9
90%
Tab. 5.6 Acoustic signal volume
Selecting the operating mode
If you have confirmed menu item
C 1
, you can select the
operating mode.
Setting Operating mode
C
1
0
Normal operation Factory default
C
1
1
Demo mode
Tab. 5.7 Operating modes
INFO All control knob functions are available in
demo mode. The cooktop’s heating function
is deactivated. The demo mode is used for
showrooms, for example.
Installation 0° or 180°
Menu item
C2
can be used to set whether the cooktop
has been installed rotated by 180°.
Setting
Display
C
2
0
Installation 0° Factory default
C
2
1
Installation 180°
Tab. 5.8 Installation direction
INFO If the cooktop is installed rotated by 180°, the
setting
C2 1
correctly configures the cooking
zone assignment in the control knob display.
EN
22
Installation
www.bora.com
Type of control knob display
Menu item
C3
can be used to set whether the control
knob display should show the temperature, power level or
both.
Setting
Display
C
3
0
Temperature display in °C Factory default
C
3
1
Power display
C
3
2
Combined display
Tab. 5.9 Control knob display
Control knob display versions:
Temperature
levels
Low
temperature
levels
C30 C31 C32
80°C
8
0
8
0
90°C
9
0
,
9
0
100°C
1
0
0
1
0
0
110°C
1
1
0
:
1
1
0
120°C
1
2
0
1
2
0
130°C
1
3
0
*
1
3
0
140°C
1
4
0
1
4
0
150°C
1
5
0
1
1
160°C
1
6
0
2
2
170°C
1
7
0
3
3
180°C
1
8
0
4
4
190°C
1
9
0
5
5
200°C
2
0
0
6
6
210°C
2
1
0
7
7
220°C
2
2
0
8
8
230°C
2
3
0
9
9
250°C
2
5
0
ßp
ßp
Tab. 5.10 Control knob display versions
Availability of the pause function
If you have confirmed menu item
C9
, you can permanently
deactivate the pause function.
Setting Pause function available/deactivated
C
9
0
Pause function activated Factory default
C
9
1
Pause function deactivated
C
9
2
Pause function with power display activated
Tab. 5.11 Availability of the pause function
5.6.3 Changing the set value
Turn the selector ring clockwise to increase the value.
Turn the selector ring anti-clockwise to reduce the
value.
Tap the touch-operated area to confirm the new value.
The value is saved and an acoustic signal sounds.
The previously selected menu item reappears on the
control knob display.
5.6.4 Exiting the configuration menu
Turn the selector ring until
C
appears on the display.
Now tap the touch-operated area to exit the
configuration menu. The display goes out and an
acoustic signal sounds.
Turn the selector ring to the 12 o’clock position.
0
appears on the display for 10 seconds. The display
then goes out and an acoustic signal sounds.
INFO If no settings are made in a menu or submenu
item for 2 minutes, the device automatically
exits the configuration menu.
5.7 Handover to user
Once installation is complete:
Explain the main functions to the user.
Explain all safety-related aspects of operation and
handling to the user.
Stick the supplied nameplate to the back of these
operating and installation instructions.
Provide the user with the accessories and operating
and installation instructions to be kept in a safe place.
EN
23
Operation
www.bora.com
6 Operation
Observe all safety and warning information during
operation (see the Safety section).
INFO The cooktop must only be operated with the
stainless steel grease filter installed (see the
cooktop extractor operating instructions).
INFO Clean the grilling zone before using
the cooktop for the first time (see the
Cleaning section).
INFO Preheat the grilling zone for 5 minutes prior to
each use.
INFO Noises may be generated when the grill plate is
heating up or cooling down. This is normal.
INFO A cooling fan has been installed in the Tepan
stainless steel grill. This ensures a long service
life for the electronics and enables the surface
of the grill to cool down quickly. Several
measures have been taken to keep the noise
to a minimum but it cannot be completely
eliminated.
INFO The fan has an after-run period at the end of
the grilling session or after cleaning. This after-
run is restricted to a maximum of 20 minutes.
INFO The grill plate can bulge during use.
INFO When grilling or heating up the cooktop using a
high power level, the grill plate can turn slightly
brown.
6.1 General operating instructions
The cooktop is operated using the control knobs.
Each grilling zone has its own control knob. The left knob
controls the front grilling zone, the right knob controls the
rear grilling zone.
There are 9 power levels, one power setting and several
functions available for each grilling zone.
t
P
9
8
7
6
5
4
3
2
1
c
0
Fig. 6.1 Selector ring functions
Selector ring position Function
0
Switch off
c
Cleaning function and further
temperature levels
1 - 9
Power levels
P
Power setting
t
Timer function
Tab. 6.1 Selector ring positions
6.2 Initial operation
Heat the grill plate to 220°C for approx. 25 minutes
before using it for the first time (= power level 8 for
both grilling zones).
INFO Unpleasant odours may be generated during
this process.
6.3 Operating the cooktop
6.3.1 Switching on the grilling zone
Fig. 6.2 Switching on the grilling zone
Turn the selector ring from the 12 o’clock position to a
power level.
EN
24
Operation
www.bora.com
Turn the selector ring approximately 15° clockwise
from the 12 o’clock position until it lightly engages.
c
appears on the control knob display.
Tap the touch-operated area.
The first low temperature level is activated.
Tap the touch-operated area again to increase or
decrease the temperature.
Each time you tap the touch-operated area again, the
next power level up is activated.
On reaching the highest of the low power levels, each
tap reduces the power by 1 level.
Temperature Low power levels
configuration
C30 + C32
Low power levels
configuration
C31
80°C
80
90°C
90 .
100°C
100
110°C
1 10 :
120°C
120
130°C
130 *
140°C
140
Tab. 6.3 Low power level temperatures
6.3.2 Power setting
Switching on the power setting
INFO Both grilling zones are equipped with a power-
enhancing power setting.
Turn the selector ring to the 10 o’clock position.
P
appears on the control knob display and the power
setting is activated.
After 10 minutes, the cooking zone is automatically
switched back to power level
9
.
Switching the power setting off early
Turn the selector ring to the desired power level.
The power level set is active and shown on the control
knob display.
6.3.3 Bridging function
INFO If the bridging function is active, both grilling
zones are simultaneously operated at the same
power level.
INFO If the bridging function is active, the
temperature is only displayed on the right
control knob.
Adjusting the power level
Turn the selector ring to the desired power level
(temperature).
The control knob display indicates the target
temperature for 3 seconds. After this, the actual
temperature flashes while the grilling zone heats up.
Once the target temperature has been reached, the
display stops flashing.
To view the target temperature set while the grilling
zone is heating up, tap the touch-operated area.
Temperature Power levels
configuration
C30
Power levels
configuration
C31 + C32
150°C
150 1
160°C
160 2
170°C
170 3
180°C
180 4
190°C
190 5
200°C
200 6
210°C
2 10 7
220°C
220 8
230°C
230 9
250°C
250 P
Tab. 6.2 Power level temperatures
Setting a low power level
INFO Additional power levels are available in the low
temperature range (80 – 140°C).
INFO The selector ring position for the low power
levels is between the 12 o’clock and 1 o’clock
positions.
15°
Fig. 6.3 Selector ring position for the low power levels
(and the cleaning function)
EN
25
Operation
www.bora.com
6.3.5 Childproofing feature
INFO The childproofing feature can only be activated
or permanently deactivated if both knob brings
are at the 12 o’clock position and no function
is active.
Activating the childproofing feature
Press the touch-operated area on a control knob for
5 seconds.
An acoustic signal sounds and
L
appears on the control
knob display. The display goes blank after 10 seconds
and the childproofing feature is activated.
Permanently deactivating the childproofing
feature
Press the touch-operated area on a control knob for
5 seconds.
An acoustic signal sounds and
0
appears on the control
knob display. The display goes blank after
10 seconds and the childproofing feature is
permanently deactivated..
Deactivating the childproofing feature for a
cooking session
Turn the selector ring from the 12 o’clock position to a
power level.
L
appears on the control knob display.
Press the touch-operated area on a control knob for
5 seconds.
An acoustic signal sounds and the selected power level
appears on the control knob display.
The childproofing feature is now deactivated for this
cooking session and the desired power level can be
set.
The childproofing feature is activated again the next
time the cooktop is switched on.
INFO If the cooktop is switched off at the end of the
cooking session (turn the selector ring to the
12 o’clock position), the childproofing feature
is automatically re-activated.
6.3.6 Using the timer function
INFO You can set a time range of between
1 and 120 minutes for the timer functions.
Setting the time
Turn the selector ring to the 11 o’clock position.
t
appears on the control knob display.
Tap the touch-operated area.
An acoustic signal sounds and
000
appears on the
control knob display.
Turn the selector ring within 3 seconds to set the timer.
Turning the ring clockwise increases the time (starting
from 0 minutes); turning it anti-clockwise reduces the
time (starting from 120 minutes).
Switching on the bridging function
Both control knobs are set to the 12 o’clock position.
Press the touch-operated area of both control knobs at
the same time for at least 1 second.
%
appears on the left control knob and
0
on the right
one.
Turn the selector ring on the right-hand control knob to
the desired power level within 3 seconds.
The power level (for both grilling zones) appears on the
right-hand control knob’s display.
The right-hand control knob can now be used to adjust
the power levels for both grilling zones.
If the right-hand selector ring is not turned to a power
level within 3 seconds of activating the bridging
function, this function is disabled and the cooktop
switched off.
Switching off the bridging function
Turn the right-hand control knob to the 12 o’clock
position.
The bridging function and cooktop are switched off.
6.3.4 Cleaning function
INFO The selector ring position for the cleaning
function is between the 12 o’clock and
1 o’clock positions (see low power levels).
Turn the selector rings on both control knobs
approximately 15° clockwise from the 12 o’clock
position until they engage.
c
appears on the control knob displays.
The crescent-shaped grilling zone indicators flash while
the zones are heating up or cooling down.
Wait until the grilling zone indicators have stopped
flashing.
Once the optimum cleaning temperature of 70°C has
been reached, the grilling zone indicators stop flashing.
Clean the Tepan stainless steel grill as described in the
Cleaning and maintenance section.
INFO The cleaning function must be activated for
both grilling zones to prevent the risk of burns.
INFO Only start cleaning the grilling zones once
the optimum
cleaning temperature has been
reached (see also the Cleaning section).
Switching off cleaning function
Turn both control knobs to the 12 o’clock position.
The cleaning function and the cooktop are
switched off.
EN
26
Operation
www.bora.com
6.3.7 Stop function (pause)
Activating the stop function
Tap the control knob’s touch-operated area.
An acoustic signal sounds and
11
appears on the
control knob’s display.
The cooking session is interrupted.
INFO The cooking session can be paused for a
maximum of 10 minutes. If the stop function
is not disabled again by the end of this period,
the applicable cooking zone will be switched
off.
Deactivating the stop function
Tap the control knob’s touch-operated area.
An acoustic signal sounds and the previously set power
level appears on the control knob display.
The cooking session continues.
6.3.8 Switching off the grilling zone
INFO An
H
on the control knob display indicates that
the grilling zone is still hot.
INFO Switch off the grilling zone after use.
Fig. 6.4 Switching o the grilling zone
Turn the selector ring to the 12 o’clock position.
An acoustic signal sounds and the grilling zone is
deactivated.
The cooktop is switched off when there are no longer
any active grilling zones.
Pay attention to the residual heat display
(see the Device description section).
6.4 Configuration menu
See the Installation section
When set to between 0 and 20 minutes, the time
increases/decreases by a minute at a time. Otherwise,
it increases/decrease by 5 minutes at a time.
If no time is set within the 3 seconds, the timer will be
deactivated and t will appear on the control knob.
Press the touch-operated area within 3 seconds to
confirm the set time.
An acoustic signal sounds and the set value starts to
flash on the control knob display.
Activating the timer function
Turn the selector ring to the power level you desire
within 3 seconds of confirming the set time.
The timer function is activated and the set time counts
down.
The display toggles (every 3 seconds) between the
power level and the remaining time (for more than
2 minutes to the nearest minute, from 2 minutes in
seconds).
Once less than 2 minutes remain, only the remaining
time is displayed.
Once the time runs out, the cooking zone is switched
off, an acoustic signal sounds for 2 minutes and
000
flashes on the control knob display.
The flashing and acoustic signal can be switched off
early by tapping the touch-operated surface or turning
the selector ring to the 12 o’clock position.
Stopping the timer early:
Turn the selector ring to the 12 o’clock position.
0
appears on the control knob display, a signal tone is
emitted and the cooking zone is switched off.
Activating the short-time timer (egg timer)
Turn the selector ring to the 12 o’clock position within
3 seconds of confirming the set time.
The short-time timer is activated and the set time
counts down.
The remaining time appears on the control knob
display (for more than 2 minutes to the nearest minute,
from 2 minutes in seconds).
Once the time runs out, an acoustic signal sounds for
2 minutes and 000 flashes on the control knob display.
The flashing and acoustic signal can be switched off
early by tapping the touch-operated area.
Stopping the short-time timer (egg timer) early:
Tap the touch-operated area on the selector ring.
The short-time timer is prematurely deactivated.
0
appears on the control knob display and an acoustic
signal sounds.
EN
27
Cleaning and maintenance
www.bora.com
7 Cleaning and
maintenance
Observe all safety and warning information
(see the Safety section).
Follow the enclosed manufacturer’s information.
When conducting scheduled cleaning and other
maintenance, make sure that the cooktop and cooktop
extractor are fully switched off so as to prevent injury
(see Operation section).
Regular cleaning and maintenance ensures the
longevity of the product and optimal function.
Adhere to the following cleaning and maintenance
cycles:
Component Cleaning cycle
Control knob Cooktop immediately they become dirty with
conventional detergents
Tab. 7.1 Cleaning cycles
7.1 Cleaning agents
INFO Due to the use of aggressive cleaning agents
and abrasion caused by the pot bases the
surface will become damaged and dark stains
will occur.
To clean the Tepan stainless steel grill, you need a special
Tepan scraper and suitable detergents.
Never use steam cleaners, abrasive sponges, scouring
pads or chemically aggressive cleaning agents
(e.g. oven cleaner spray).
Make sure that the cleaning agent does not contain
any sand, soda, acids, lyes or chloride.
7.2 Looking after the cooktop
Never use the cooktop as a work or storage surface.
Do not push or pull cookware over the cooktop.
Keep the cooktop clean.
Remove any dirt immediately.
7.3 Cleaning the cooktop
7.3.1 Cleaning the stainless steel grill
surface
INFO Only use the scraper on the grill surface, as
otherwise it could damage the surface.
INFO Only clean the stainless steel in the polishing
direction.
INFO Do not put lemon juice on areas near the cooktop
and the worktop as it could damage them.
INFO Do not put stainless steel cleaners on the
stainless steel surfaces or the stainless steel
grill area.
Slight soiling
Make sure that the cooktop is switched off
(see the Operation section).
Wait until the stainless steel grill surface has cooled
down sufficiently.
Remove light soiling with a damp cloth and washing-up
liquid.
To prevent water or limescale marks (yellowish colour),
use a soft cloth to dry off the surface you have cleaned
with water.
Normal soiling
Make sure that the cleaning function is activated for
both grilling areas (see Operation section).
Wait for the grill zone displays to stop flashing
(= optimum cleaning temperature of 70°C)
Only put clean, cold water on the grill surface.
Allow the water around 15 minutes to take effect.
Remove all coarse dirt and food residues from the
cooktop using a Tepan scraper.
Remove the remaining dirt and water residue with a
clean cloth.
Dry the cooktop with a clean cloth.
Heavy soiling
Make sure that the cleaning function is activated for
both grilling areas (see Operation section).
Wait for the grill zone displays to stop flashing
(= optimum cleaning temperature of 70°C)
Dissolve a tablespoon of lemon juice (approx.
10 – 15 ml) in another bowl of warm water
(around 200 ml).
Now put this liquid on the grill surface.
Allow the liquid around 5-8 minutes to take effect.
Use a plastic brush to remove burnt-on grill residues
from the surface.
Remove the remaining dirt and the residues of the
water and lemon juice mixture (citric acid) completely
with a clean cloth.
Only put clean, cold water on the grill surface.
Remove the remaining dirt and water residue with a
clean cloth.
Dry the cooktop with a clean cloth.
Any changes in colour or little scratches are not damage
to the cooktops. They do not affect the functionality of
the cooktop or the stability of the stainless steel grill
surface.
Changes in the colour of the cooktop are the result of
residue which has not been removed and has burnt on.
EN
28
Cleaning and maintenance
www.bora.com
7.4 Cleaning the control knobs
12
3
Fig. 7.1 Pull out the knob ring
[1] Knob casing
[2] Touch surface
[3] knob ring
7.4.1 Cleaning the knob ring
The knob ring can only be cleaned by hand.
Remove the knob ring from the knob housing.
Use a cleaner and degreaser in one.
Rinse the knob ring in hot water.
Clean the knob ring with a soft brush.
Rinse the knob ring well after cleaning.
Dry the knob ring carefully.
Place the dry knob ring back on the knob housing.
Make sure it is positioned correctly (0 position).
If necessary, twist the knob ring to the 12 o’clock
position (= 0 position).
7.4.2 Cleaning the touch surface and the
knob housing
Pull off the knob ring.
Clean the touch surface and the knob housing with a
soft, damp cloth.
Dry the touch surface and the knob housing carefully.
Place the knob ring back on the knob housing.
INFO If the knob ring has not been fitted correctly, a
segment rotating clockwise is displayed in the
central control knob display .
EN
29
Troubleshooting
www.bora.com
8 Troubleshooting
Observe all safety and warning information (see the Safety section).
Operating situation Cause Remedy
The cooktop cannot be
switched on.
Knob ring missing Place the knob ring on the control knob.
The fuse or automatic circuit breaker of the
electrical wiring system in the apartment and/
or house is defective.
Replace the fuse.
Switch the automatic circuit breaker back on
The fuse or the automatic circuit breaker trips
multiple times
Contact BORA Service Team
The power supply is disconnected. Have a specialist electrician inspect the power
supply
Formation of odours and
vapours when operating the
new cooktop
Normal for brand new devices Wait a few hours
If the odours continue to develop, contact the
BORA Service Team
The cooling fan continues
running after switching off
The cooling fan will continue to run until the
cooktop has cooled down and will then switch
off automatically.
Wait until the cooling fan switches off
automatically.
A cooking zone or the
entire cooktop switches off
automatically.
Cooking zone operating for too long Put the cooking zone back into operation
(see the Operation section).
The overheating protection has tripped (see the Device Description section)
The power setting has
automatically shut off too early.
The overheating protection has tripped (see the Device Description section)
the central control knob
display shows a segment turning
clockwise
Knob ring not in the 0 position after fitting Turn the control knob to the 12 o’clock position
(= 0 position),
Control knob display
L
The childproofing feature is activated Switch off the childproofing feature
(see the Operation section).
Control knob display
/
Continuous operation (30 s) of the control
knob or control knob dirty
Release or clean the control knob
Control knob display
E003
Electrical connection between touch surface
and knob ring (min. 3-5 seconds)
Remove the knob ring and wipe residual water
from the touch surface
Control knob display
E019
Error evaluating the touch surface Twist control knob to “0” position
Call BORA Service Team
Tab. 8.1 Resolving a fault
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position).
In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter
the error number displayed and the device type.
EN
30
Decommissioning, disassembly and disposal
www.bora.com
9 Decommissioning,
disassembly and
disposal
Observe all safety and warning information
(see the Safety section).
Follow the enclosed manufacturer’s information.
9.1 Decommissioning
Decommissioning is understood as final shutdown and
disassembly. Following decommissioning, the device can
either be installed into other units, sold on privately or
disposed of.
INFO Electricity and gas connections may only be
disconnected by qualified specialists.
To decommission, switch the device off
(see Operation section)
Disconnect the device from the power supply.
9.2 Disassembly
For removal, the device must be accessible for
disassembly and disconnected from the power supply.
For gas devices, make sure the gas connection is
disconnected.
Undo the mounting brackets.
Remove the silicone joints.
Remove the device from the worktop by lifting it
upwards.
Remove any other accessories.
Dispose of the old device and any contaminated
accessories as described under “ Environmentally-
friendly disposal”.
9.3 Environmentally-friendly disposal
Disposal of transport packaging
INFO The packaging protects the device from
damage in transport. The packaging materials
have been selected from environmental and
disposal perspectives and are therefore
recyclable.
Returning the packaging to the materials cycle saves
resources and reduces waste volumes. Your specialist
supplier will take the packaging back.
Give the packaging to your specialist supplier
or
Dispose of the packaging properly in line with local
regulations.
Disposal of old appliance
Electrical devices marked with this label
may not be disposed of in domestic
waste at the end of their service
life. They must be disposed of at a
collection point for the recycling of old
electrical or electronic devices. You
can find information from your city or
district council.
Many electrical and electronic devices still contain
valuable materials. But they also contain damaging
materials which were necessary for them to function
properly and safely. These can damage human health or
the environment if disposed of improperly or incorrectly
handled.
Never put your old appliance in domestic waste.
Take the old appliance to a regional collection point
for return and recycling electrical and electronic
components and other materials.
EN
31
Warranty, technical service, spare parts
www.bora.com
10 Warranty, technical
service, spare parts
Observe all safety and warning information
(see the Safety section).
10.1 Warranty
The warranty period is 2 years.
10.2 Service
BORA Service:
see back page of operation and installation instructions
+800 7890 0987
If there are faults which you are not able to resolve
yourself, please contact your BORA specialist supplier
or the BORA Service Team.
The BORA Service Team requires the type designation
and the build number of your appliance (FD number). Both
pieces of information can be found on the nameplate on
the back of the instructions and on the appliance base.
10.3 Replacement parts
Only use original spare parts for repairs.
Repairs may only be carried out by the BORA Service
Team.
INFO Replacement parts can be obtained from your
BORA dealer, the BORA online service website
at www.bora.com/service or by calling the
service number provided.
Germany:
BORA Lüftungstechnik GmbH
Rosenheimer Str. 33
83064 Raubling
Germany
T +49 (0) 8035 / 9840-0
F +49 (0) 8035 / 9840-300
www.bora.com
Austria:
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
www.bora.com
Europe:
BORA Holding GmbH
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
www.bora.com
Australia - New Zealand:
BORA APAC Pty Ltd
100 Victoria Road
Drummoyne NSW 2047
Australia
T +61 2 9719 2350
F +61 2 8076 3514
www.bora-australia.com.au
Nameplate:
(please affix)
+800 7890 0987
