Operating and installation instructions PKT3
BORA Pro Tepan stainless steel grill with 2 cooking zones
1.
2.
2.
1044118 - 32
EN
2
www.bora.com
5.6
Installing the control knob in the floor unit front panel
...17
5.6.1 Cooktop bore holes ............................................................17
5.6.2 Example bore holes ............................................................17
5.6.3 Fitting the control knob ......................................................17
5.7 Installing the cooktops ......................................................18
5.7.1 Installing the cooktop .........................................................18
– Inserting the Tepan stainless steel grill PKT3
(ports on the back) ...........................................................18
– Levelling the cooktop (if necessary) ................................. 18
– Securing the Tepan stainless steel grill PKT3 ................... 19
5.7.2 Installation rotated by 180°
(alternative installation variation) .......................................19
5.8 Establishing communication and power connection .....19
5.8.1 Connecting the control knobs ............................................19
– Connecting the control knobs to the cooktop .................. 19
5.8.2 Establishing contact between the
cooktop extractor and cooktops ........................................20
5.8.3 Connecting the power supply .............................................20
– Connecting the cooktop to the power supply...................21
5.9 Basic configuration ...........................................................21
5.10 Initial operation ..................................................................21
5.11 Function test .......................................................................21
5.12 Sealing the appliances .......................................................22
5.13 Handover to user ................................................................22
6 Functions and operation 23
6.1 Knob operation ...................................................................23
– Operating the knob ring ................................................... 23
– Operating the touch surface ............................................23
6.2 Switching the system on and off ......................................23
– Switching on .....................................................................23
– Switching off ....................................................................23
6.3 Operating the cooktops .....................................................24
6.3.1 General operating instructions for cooktops .....................24
6.3.2 Special operating instructions for the
Tepan stainless steel grill PKT3 ..........................................24
6.3.3 Setting cooking zone power levels .....................................24
– Increasing the power level ................................................ 24
– Reducing the power level .................................................24
– Setting the temperature on the
Tepan stainless steel grill PKT3 ........................................ 24
6.3.4 Cooktop power setting .......................................................25
6.3.5 Bridging function .................................................................25
– Activating the bridging function ........................................25
– Deactivating the bridging function .................................... 25
6.4 Function menu ....................................................................26
– Calling up the function menu ........................................... 26
6.4.1 Cleaning function ................................................................26
– Activating the cleaning function .......................................26
– Deactivating the cleaning function ...................................26
1 General information 4
1.1 Liability ..................................................................................4
1.2 Validity of the operating and installation instructions ..... 4
1.3 Product conformity ..............................................................4
1.4 Data protection.....................................................................4
1.5 Presentation of information ................................................ 4
2 Safety 5
2.1 Use as intended....................................................................5
2.2 People with limited abilities ................................................5
2.3 General safety instructions .................................................5
2.4 Safety instructions for installation ..................................... 6
2.5 Safety instructions – operation ..........................................7
2.6 Safety instructions – cleaning and maintenance .............8
2.7 Safety instructions –
repairs, servicing and spare parts
... 9
2.8 Safety instructions – disassembly and disposal ..............9
3 Technical data 10
3.1 BORA Pro Tepan stainless steel grill PKT3 ......................10
3.2 BORA Professional 3.0 control knob dimensions ...........10
4 Appliance description 11
4.1 Control knob .......................................................................11
– How it works .................................................................... 11
– Structure .......................................................................... 11
– Operating elements .......................................................... 11
– Control knob display ........................................................11
– Control knob assignment ................................................. 11
4.2 Cooktop appliance description .........................................12
– Display and symbols .........................................................12
– Layout and size of the cooking zones............................... 12
4.2.1 How the Tepan stainless steel grill PKT3 works .................12
– Power adjustment and temperature ranges ..................... 12
4.3 Safety devices ....................................................................13
– Safety shut-down ..............................................................13
– Residual heat indicator ..................................................... 13
– Overheating protection .....................................................13
– Childproofing feature ........................................................ 13
5 Installation 14
5.1 General installation instructions .....................................14
5.2 Checking the scope of delivery ........................................14
5.3 Tools and aids .....................................................................14
5.4 Assembly instructions .......................................................14
5.4.1 Safety clearances ................................................................ 14
5.4.2 Minimum installation dimensions (standard set-up) ..........15
5.4.3 Worktop and kitchen units..................................................15
5.5 Cut-out dimensions ............................................................15
5.5.1 Flush installation .................................................................16
5.5.2 Surface mounting ...............................................................16
Table of Contents
EN
3
www.bora.com
7 Cleaning and maintenance 27
7.1 Cleaning agents ..................................................................27
– Cleaning products for the Tepan stainless steel grill ........ 27
7.2 Cleaning the cooktops .......................................................27
7.2.1 Cleaning Tepan stainless steel grill surfaces .....................27
7.3 Looking after your cooktops .............................................28
7.4 Cleaning the control knobs ...............................................28
– Cleaning the knob ring ..................................................... 28
– Cleaning the touch surface and the knob housing ........... 28
8 Troubleshooting 29
9 Decommissioning, disassembly and
disposal 30
9.1 Decommissioning ...............................................................30
9.2 Disassembly ........................................................................30
9.3 Environmentally-friendly disposal ....................................30
10 Warranty, technical service,
spare parts, accessories 31
10.1 BORA manufacturer’s warranty ........................................31
10.2 Service .................................................................................31
10.3 Spare parts .........................................................................31
10.4 Accessories .........................................................................31
EN
5
Safety
www.bora.com
2 Safety
People with reduced physical, sensory or
mental capacities
The appliance can be used by people with reduced
physical, sensory or mental capacities or a lack of
experience and/or knowledge if they are supervised
or have been instructed how to use the appliance
safely and understand the resultant risks. Operation
can be restricted using the childproofing feature.
ÿ
DANGER!
Risk of burns from hot cookware and food
Handles projecting over the edge of the worktop
are asking to be grabbed.
XX
Keep children away from hot cooking zones or
ensure they are supervised at all times.
XX
Do not turn pot and pan handles so they stick
out beyond the worktop.
XX
Make sure that hot pots and pans cannot be
pulled down.
XX
If necessary, use suitable stove guards or
covers.
XX
Only use stove guards and covers that are
approved by the appliance manufacturer;
otherwise, there is a risk of accidents.
XX
To choose a suitable stove guard, contact your
specialist supplier or the BORA Service Team.
2.3 General safety instructions
ÿ
DANGER!
Packaging components are a choking hazard
Packaging components (e.g. lm, polystyrene) can
be life-threatening for children.
XX
Store all packaging components out of reach of
children.
XX
Dispose of the packaging properly and
immediately.
The appliance complies with the stipulated safety
requirements. The user is responsible for the safe
use of the appliance, cleaning and maintenance.
Improper use can lead to personal injury and damage
to property.
2.1 Use as intended
The appliance is solely intended for preparing food in
private households.
This appliance is not intended for:
XO
outdoor use
XO
heating rooms
XO
cooling, ventilating or dehumidifying rooms
XO
use in mobile installation sites such as motor
vehicles, ships or aeroplanes
XO
use with an external timer or a separate remote
control system (except for emergency shutdown)
XO
use at altitudes of over 2,000 m (metres above sea
level).
Any other use or any use that goes beyond that which
is described here is classed as unintended.
i
BORA does not assume any liability for
damages caused by improper use or incorrect
operation.
All misuse is prohibited!
2.2 People with limited abilities
Children
The appliance can be used by children aged 8 and
over if they are supervised or have been instructed
how to use the appliance safely and understand
the resultant risks. Children must not play with the
appliance.
XX
Use the childproofing feature in order to prevent
children from switching on the appliance or
changing the settings when they are unattended.
XX
Supervise children in the vicinity of the appliance.
XX
Do not store any items that could be of interest to
children in storage spaces above or behind the
appliance. Otherwise, they will be tempted to
climb onto the appliance.
i
Any work involving cleaning and maintenance
must not be carried out by children unless they
are supervised at all times while doing so.
EN
6
Safety
www.bora.com
CAUTION!
Risk of injury from heavy lifting
If not handled correctly, carrying and installing
appliances can cause injury to the limbs or torso.
XX
If necessary, carry and install the appliance with
another person.
XX
Use appropriate aids to prevent damage or
injury.
CAUTION!
Damage from improper use
The appliance surfaces must not be used as
work or storage surfaces. This can damage the
appliances (particularly in the case of hard and
sharp objects).
XX
Never use the appliances as work or storage
surfaces.
XX
Keep hard or sharp objects away from the
appliance surfaces.
Faults and errors
XX
In the case of faults and errors, follow the
instructions in the “Troubleshooting” chapter.
XX
In the event of any faults or errors that are not
mentioned, switch the appliance off and contact
BORA Service.
Pets
XX
Keep pets away from the appliance.
2.4 Safety instructions for
installation
i
The appliance must only be installed and
assembled by trained specialists who are
familiar with and comply with the standard
national regulations and supplementary
regulations of the local utility companies.
i
During installation maintain the minimum
clearance stated in the “Installation” (“Safety
clearances”) chapter.
i
Work on electrical components must only be
conducted by trained electrical personnel.
The electrical safety of the appliance is only
guaranteed if it is connected to a protective
conductor system that has been installed in line with
regulations. Ensure that this basic safety precaution
is met.
ÿ
DANGER!
Risk of electric shock or injury from damaged
surfaces
The underlying electronics can be exposed or
damaged due to ssures, fractures or cracks in
appliance surfaces (e.g. damaged glass ceramic),
particularly in the operating area. This can cause
an electric shock. Furthermore, a damaged surface
can cause injuries.
XX
Do not touch the damaged surface.
XX
If there are any cracks, fissures or fractures,
switch the appliance off immediately.
XX
Safely disconnect the appliance from the mains
using the LS switch, fuses, automatic circuit
breakers or contactor.
XX
Contact BORA Service.
ÿ
WARNING!
Risk of injury from damaged components
Damaged components that cannot be removed
without tools can cause injuries.
XX
Try not to repair or replace damaged
components yourself.
XX
Contact BORA Service.
ÿ
WARNING!
Risk of injury or damage due to incorrect
components or unauthorised modifications
Incorrect components can lead to personal
injury or damage to the appliance. Modications,
additions or alterations to the appliance can lead to
safety risks.
XX
Only use original components.
XX
Do not make any modifications, additions or
alterations to the appliance.
CAUTION!
Appliance components can cause injury if
dropped
Appliance components (e.g. pan supports,
operating controls, covers, grease lters, etc.) can
cause injury if dropped.
XX
Place any appliance components that have been
removed in a safe place near the appliances.
XX
Ensure that no components removed from the
appliances can fall on the floor.
EN
7
Safety
www.bora.com
The appliance must be suitable for the regional
voltage and frequency.
XX
Check the information on the identification plate
and in the event of deviations, do not connect the
appliance.
XX
Conduct all work extremely attentively and
conscientiously.
XX
Do not connect the appliance to the mains until
the duct system has been installed or the
recirculation filter has been fitted.
XX
Only use the connection cables supplied. Where
necessary these are included in the scope of
delivery.
XX
Do not use the appliance until installation is
complete. This is the only way to ensure safe
operation.
ÿ
DANGER!
Risk of electric shock from damaged appliance
A damaged appliance can cause an electric shock.
XX
Check the appliance for visible damage prior to
installation.
XX
Do not install or connect any damaged
appliances.
XX
Do not operate any damaged appliances.
CAUTION!
Risk of burning from control knobs that are
not positioned optimally.
If the control knobs are not installed in a suitable
place, during operation there is a risk of sustaining
burns from the cooktop surface.
XX
Only install the control knobs in a suitable place,
which is practical and safe.
2.4.1 Safety instructions for cooktop
installation
ÿ
DANGER!
Risk of electric shock from incorrect mains
connection
Connecting the appliance to the mains incorrectly
poses a risk of electric shock.
XX
Make sure that the appliance has a fixed
connection to the mains voltage.
XX
Make sure that the appliance is connected to a
properly installed protective conductor system.
XX
Make sure that technical equipment is provided
to enable all of the appliance’s poles to be
disconnected from the mains with a contact
opening width of at least 3 mm (LS switch and
automatic circuit breakers, fuses, contactor).
ÿ
DANGER!
Risk of electric shock from damaged power
supply cable
If the power supply cable is damaged (e.g. during
installation or by coming into contact with hot
cooking surfaces), this can cause an (lethal)
electric shock.
XX
Make sure that the power supply cable does not
become trapped or damaged.
XX
Make sure that the power supply cable does not
come into contact with hot cooking surfaces.
2.5 Safety instructions – operation
XX
Make sure that the base of the cookware as well
as the appliance surfaces are clean and dry.
XX
Always lift (do not drag) cookware to prevent
scratching and abrasion on the appliance surface.
XX
Do not use the appliance as a storage surface.
XX
Switch off the appliance after use.
EN
8
Safety
www.bora.com
ÿ
WARNING!
Risk of burning from hot appliances
Certain appliances and their exposed parts become
hot during use (e.g. cooktops). They should be
left to cool down completely after switching off.
Touching hot surfaces can cause serious burns.
XX
Do not touch hot appliances.
XX
Pay attention to the residual heat indicator.
ÿ
WARNING!
Risk of burning and fire from hot objects
The appliance and its exposed parts are hot during
operation and the cooling phase. Objects placed on
the appliance heat up very quickly and can cause
severe burns (this particularly applies to metal
objects such as knives, forks, spoons,
lids or cooktop extractor covers).
XX
Do not place any items on the appliance.
XX
Please use suitable accessories (pot holders,
oven gloves).
2.5.1 Safety instructions – cooktop
operation
ÿ
DANGER!
Danger of fire caused by leaving the cooktop
unattended
Oil or fat in the pot can quickly heat up and ignite.
XX
Never leave oil or fat to heat up unattended.
XX
Never extinguish oil and fat fires with water.
XX
Switch off the cooktop.
XX
Extinguish the fire using a pan lid or a fire
blanket, for example.
ÿ
DANGER!
Danger of explosion caused by flammable liquids
Flammable liquids in the vicinity of a cooktop can
explode and cause serious injury.
XX
Do not spray aerosols near the appliance when
it is in use.
XX
Do not place any flammable liquids in the
vicinity of a cooktop.
ÿ
WARNING!
Risk of burns from hot liquids boiling over
Unattended pans can boil over allowing hot liquids
to escape.
XX
Keep an eye on pans when cooking.
XX
Try not to let them boil over.
ÿ
WARNING!
Risk of burns from hot steam
Liquid between the cooking zone and the pan base
can evaporate and cause burns.
XX
Make sure that the cooking zone and the pan
base are always dry.
ÿ
WARNING!
Risk of burns due to power cut
During or after a power cut, a cooktop that was
previously in operation may still be hot even though
there is no indication of residual heat.
XX
Do not touch the cooktop while it is still hot.
XX
Keep children away from the hot cooktop.
CAUTION!
Damage caused by sugary and salty foods
Sugary and salty foods and juices can damage the
hot cooking zone.
XX
Make sure sugary and salty foods or juices do
not get onto the cooking zone while it is hot.
XX
Remove sugary and salty foods and juices from
the hot cooking zone immediately.
2.6 Safety instructions – cleaning
and maintenance
The appliance must be cleaned at regular intervals.
Dirt can lead to damage, restriction of functions, or
bothersome odours. In the worst case scenario, this
can become a hazard.
XX
Remove dirt immediately.
XX
When cleaning, only use non-abrasive detergents
to prevent scratching and abrasion on the surface.
XX
When cleaning, ensure that no water penetrates
the appliance. Use only a slightly damp cloth.
Never spray the device with water. Water
penetration can cause damage!
XX
Do not use a steam cleaner for cleaning. Steam
can cause a short circuit on live parts and thus
lead to property damage.
XX
Please follow all instructions in the “Cleaning and
Maintenance” chapter.
EN
9
Safety
www.bora.com
Special safety instructions for cooktop cleaning
and maintenance
XX
Whenever possible, clean the cooktops after every
use.
XX
Only clean the cooktops when they have cooled
down.
XX
Use the cleaning function to clean the Tepan
stainless steel grill.
2.7 Safety instructions – repairs,
servicing and spare parts
i
The appliance must only be repaired and
serviced by trained specialists who are familiar
with and comply with the standard national
regulations and supplementary regulations of
the local utility companies.
i
Work on electrical components must only be
conducted by trained electrical personnel.
XX
Before any repair work, safely disconnect the
appliance from the mains supply.
ÿ
WARNING!
Risk of injury or damage from improper repairs
Incorrect components can lead to personal
injury or damage to the appliance. Modications,
additions or alterations to the appliance can lead to
safety risks.
XX
Only use original spare parts for repairs.
XX
Do not make any modifications, additions or
alterations to the appliance.
i
A damaged power supply cable must be
replaced by a suitable power supply cable. This
may only be done by an authorised member of
the After Sales Service team.
2.8 Safety instructions –
disassembly and disposal
i
The appliance must only be disassembled by
trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local
utility companies.
i
Work on electrical components must only be
conducted by trained electrical personnel.
XX
Before disassembly, safely disconnect the
appliance from the mains supply.
ÿ
DANGER!
Risk of electric shock from incorrect
disconnection
Incorrectly disconnecting the appliance from the
mains results in a risk of electric shock.
XX
Securely disconnect the appliance from the
mains using LS switches, fuses, automatic
circuit breakers or contactors.
XX
Use an authorised measuring device to ensure
that there is no power to the appliance.
XX
Do not touch exposed contacts on the electronic
unit as they may contain residual charge.
EN
10
Technical data
www.bora.com
3 Technical data
503 18,5
31477
Fig. 3.3 PKT3 appliance dimensions side view
3.2 BORA Professional 3.0 control
knob dimensions
Fig. 3.4 Control knob
Ø49
Ø58
Ø76
90
22 10-40 18
Fig. 3.5 Control knob dimensions
3.1 BORA Pro Tepan stainless steel
grill PKT3
Parameter Value
Supply voltage 380–415V 2N
Frequency 50/60Hz
Power consumption 4.8kW
Fuse protection 2 x 16A
Dimensions (width x depth x height) 370 x 540 x 73mm
Weight (incl. accessories/packaging) 15.8kg
Cooktop
Temperature control 80–250°C (250°C = P)
Front cooking zone 295 x 230mm 2400W
Rear cooking zone 295 x 230mm 2400W
Temperature control range 70–250°C
Tab. 3.1 Technical data for PKT3
PKT3 appliance dimensions
465
540
370
295
37,5
37,5
R3
Fig. 3.1 PKT3 appliance dimensions from above
311 29,5
73
60,5
246 62
7
Fig. 3.2 PKT3 appliance dimensions front view
EN
11
Appliance description
www.bora.com
4 Appliance description
Control knob display
3
1
2
4
Fig. 4.3 Control knob display elements
[1] Timer/egg timer indicator
[2] Rear cooking zone indicator
[3] Multi-function display
[4] Front cooking zone indicator
Control knob assignment
54321
Fig. 4.4 Control knob assignment
[1] Control knob for left cooktop, front cooking zone
[2] Control knob for left cooktop, rear cooking zone
[3] Control knob for cooktop extractor
[4] Control knob for right cooktop, front cooking zone
[5] Control knob for right cooktop, rear cooking zone
XX
Observe all safety and warning information during operation
(see the Safety chapter).
4.1 Control knob
How it works
The cooktop extractor and cooktops are operated with a control
knob. The power levels and functions are controlled by turning
the knob ring and pressing the touch surface.
i
How it works and its functions are described in more
detail in the Operation chapter.
Structure
4
3
5
2
1
Fig. 4.1 Control knob structure
[1] Knob housing
[2] Universal nut
[3] Control knob display
[4] Knob ring
[5] Wave spring
Operating elements
2
1
Fig. 4.2 Control knob operating elements
[1] Knob ring
[2] Touch surface
EN
12
Appliance description
www.bora.com
4.2.1 How the Tepan stainless steel grill PKT3
works
Under each grilling zone there is a heating element. When a
grilling zone is switched on, the heating element generates heat
that directly heats the grill surface.
Power adjustment and temperature ranges
The power is adjusted via temperature ranges that are shown in
the operating panel display in °C (temperature indicator).
Temperature in °C Meaning
C
(= 70 °C)
Cleaning temperature
8
0
–
2
3
0
Power levels (in 10°C increments)
2
4
0
–
2
5
0
Power setting
Tab. 4.2 Tepan stainless steel grill temperatures
The power output of the Tepan stainless steel grill heats food
extremely quickly. A slight adjustment is needed in comparison
to conventional cooking systems when selecting the temperature
in order to avoid burning food.
Activity Temperature in °C
Steaming fruit, e.g. apple slices,
peach halves, banana slices
160 – 170
Browning chopped vegetables, fried eggs,
veal, poultry
180 – 190
Browning breaded or battered fish,
pancakes, sausages, pork, lamb
190 – 200
Browning potato fritters, prawns,
corn on the cob and escalopes
200 – 210
Fast browning beef, fish, meatballs 220 – 230
Browning steaks 240 – 250
Tab. 4.3 Temperature recommendations (the specications
provided in the table are standard values)
4.2 Cooktop appliance description
Display and symbols
i
The power levels and cooking functions of each cooking
zone are shown in the control knob display on the
corresponding control knob.
Control knob display
Indicator Meaning
0
Cooktop is switched off
8
0
–
2
5
0
Temperature display
H
Residual heat indicator
L
Childproofing feature
e.g.
1
+
2
1
+
2
Bridging function active
1
2
3
1
2
3
Cleaning function active
E
...
Error message (see the Troubleshooting chapter)
Tab. 4.1 Control knob display
Layout and size of the cooking zones
1
2
232,5232,5
465
295
Fig. 4.5 Layout of Tepan stainless steel grill PKT3 and cooking
zone dimensions
[1] Front grilling zone
[2] Rear grilling zone
EN
13
Appliance description
www.bora.com
Overheating protection
i
If the cooktop overheats, the power is reduced or the
cooktop is switched off completely.
The appliance is fitted with overheating protection. The
overheating protection can be triggered if:
XO
cookware is heated up empty;
XO
oil or fat is heated on high power;
XO
a hot cooking zone is switched on again after a power cut.
Whilst the overheating protection is active, one of the following
steps is taken:
XO
the activated power setting is switched back to the previous
level;
XO
the power setting
ßp
can no longer be switched on;
XO
the set power level is reduced;
XO
the cooktop switches off completely.
After a sufficient cooling period, the cooktop can be used again.

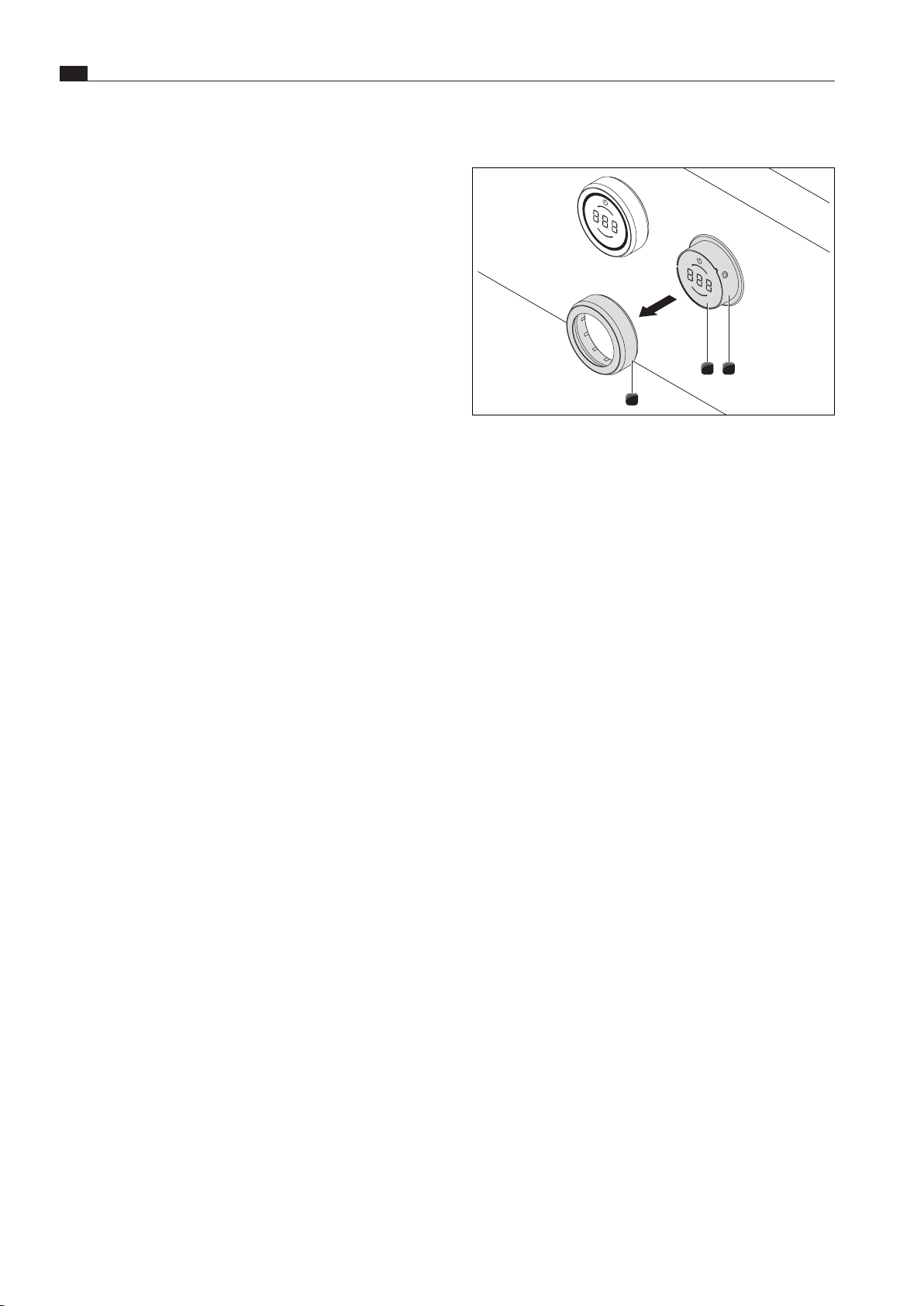

Childproofing feature
i
If a single cooktop is operated without a cooktop
extractor, removal of the knob ring can prevent the
appliance from being switched on accidentally or without
permission.
4.3 Safety devices
Safety shut-down
If an appliance is switched on but is not used for a predefined
time, it is automatically switched off.
Cooktops
Each cooking zone is switched off automatically when the cooking
zone exceeds the maximum operating duration on one power level
or heat retention level.
H
is displayed (Residual heat indicator).
PKT3:
Temperature Safety shut-down after hours:minutes
1
5
0
8:24
1
6
0
6:24
1
7
0
5:12
1
8
0
4:12
1
9
0
3:18
2
0
0
2:12
2
1
0
2:12
2
2
0
1:48
2
3
0
1:18
2
4
0
/
2
5
0
0:10
Tab. 4.4 Safety shut-down on the different power levels
PKT3:
Heat retention temperature Switch off after hours:minutes
80–140°C 8:00
Tab. 4.5 Safety shut-down on the different heat retention levels
XX
Switch the cooking zone back on if you want to put the
cooking zone back into operation (see the Operation chapter).
Residual heat indicator
i
While
H
is displayed (residual heat indicator), do not
touch the cooking zone or place any heat-sensitive
objects on top of it. Risk of burns and fire!
After switching it off, the cooking zone remains hot.
H
is displayed (Residual heat indicator).
After a sufficient cooling period the indicator will go out
(Temperature < 50°C on the Tepan stainless steel grill).
EN
14
Installation
www.bora.com
5 Installation
Name Quantity
Cooktop 1
Control knob 2
Operating and installation instructions 1
Cooktop mounting screws 4
Height adjustment plate set 1
Cooktop mounting straps 4
Control knob cable 2
Automatic extraction system cable 1
Special scope of delivery for Tepan stainless steel grill
Tepan spatula 1
Tab. 5.1 Scope of delivery of the cooktops
5.3 Tools and aids
The following tools are required to correctly install the appliance:
XO
pencil
XO
tape measure or folding metre stick
XO
standard or cordless drill with Ø50mm Forstner bit
XO
black, heat-resistant silicone sealant
XO
slotted screwdriver
XO
size 20 Torx screwdriver
5.4 Assembly instructions
5.4.1 Safety clearances
XX
Maintain the following safety clearances:
1
3
2
Fig. 5.1 Minimum distance
[1] Minimum clearance of 50mm at the back from the worktop
cut-out to the rear edge of the workto
[2] Minimum clearance of 300mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600mm between the worktop and the
wall unit.
XX
Observe all safety and warning information (see the “Safety”
chapter).
XX
Follow the enclosed manufacturer’s information.
5.1 General installation instructions
i
The appliances must not be installed above cooling
devices, dishwashers, stoves, ovens, washing machines
or dryers.
i
The contact surfaces of the worktops and wall sealing
strips must be made of a heat-resistant material (up to
approx. 100°C).
i
Worktop cut-outs must be moisture-sealed using suitable
means and, where necessary, fitted with a thermal
insulator.
i
External devices may only be connected to the cooktop
extractor connections provided.
i
Extremely bright lights aimed directly at the appliances
can cause colour variations in the appliances and are
thus to be avoided.
General installation instructions for cooktops
i
To ensure that the cooktops perform optimally at all
times, there must be sufficient ventilation beneath the
cooktops.
i
The performance of the cooktops is affected or the
cooktops overheat if the warm air beneath the cooktops
cannot escape.
i
If a cooktop overheats, the power is automatically
reduced or the cooktop is switched off completely (see
“Overheating protection”).
i
If cable protection (false floor) is planned beneath the
appliance, this must be fitted so it does not obstruct
ventilation.
XX
Make sure that the area below the cooktop has a sufficient air
supply.
5.2 Checking the scope of delivery
XX
Make sure the delivery is complete and check it for damage.
XX
If there are any missing or damaged parts, please notify the
BORA After Sales Service.
XX
Do not under any circumstances install parts which are
damaged.
XX
Dispose of transport packaging in the proper manner (see the
“Decommissioning, disassembly and disposal” chapter).
EN
15
Installation
www.bora.com
5.4.3 Worktop and kitchen units
XX
Create the worktop cut-out taking into account the specified
cut-out dimensions.
XX
Make sure that the cut surfaces of the worktops are properly
sealed.
XX
Comply with the instructions of the worktop manufacturer.
XO
Cross bars on the kitchen unit in the area of the worktop cut-
out may need to be removed.
XO
No false floor is necessary below the cooktop. If cable
protection (false floor) is planned, the following must be taken
into account:
XO
it must be fitted in such a way that it can be removed for
maintenance work;
XO
to ensure sufficient cooktop ventilation, a minimum
distance of 15mm to the bottom edge of the cooktop is
to be observed.
XO
The drawers and/or shelves in the floor unit must be
removable.
XO
For correct installation, the drawers of the floor unit must be
shortened depending on the installation situation.
5.5 Cut-out dimensions
i
All dimensions are shown from the front edge of the front
cover.
Worktop overhang
≥60
(
≥74
)
14x
Fig. 5.4 Worktop overhang
XX
Please note the worktop overhang x when creating the
worktop cut-out. Applies to flush installation and surface
mounting.
i
In the case of cooktop extractor PKA3/PKA3AB
combined with straight duct piece PKA1FEV, flush
installation is also possible in a worktop with a depth
≥650mm.
5.4.2 Minimum installation dimensions
(standard set-up)
≥810
≥890
≥900
Fig. 5.2 Minimum installation dimensions for standard set-up
of PKA3/PKA3AB
min.
700*
min.
74
176
900
(min.
890)
**
120
252
285
min.
100
170
682
max.
562
max.
430
389
*
110
PKA3
mit
Flachschalldämpfer
USDF,
Flachkanalverbinder
EFV
und
Übergangsstück
Versatz
EFRV110
(Zeile):
PKA3
mit
Rundschalldämpfer
USDR50
und
Rundkanal-
verbinder
ERV
(Insel):
PKAS3
mit
Ecotube
Flachkanal:
PKA3
mit
Flachschalldämpfer
USDF,
Flachkanalverbinder
EFV
und
Übergangsstück
gerade
EFRG
(Insel):
min.
700
min.
74
199
min.
100
120
691
min.
455
58
min.
328
max.
580
592
152
min.
810*
min.
74
176
900
(min.
890)
**
220
min.
100
110
760
max.
545
219* 151*
BORA
Professional
3.0
BORA LÜFTU N G SFIBELXX
min.
810*
min.
74
176
900
(min.
890)
**
120
min.
100
93
min.
742
max.
562
219* 151*
295
33
180
810
Fig. 5.3 Appliance installation dimensions for standard set-up
of PKA3/PKA3AB with round silencer USDR50
EN
16
Installation
www.bora.com
5.5.2 Surface mounting
x
B ±2
≤ R5
≥ 74
(≥ 70)
516 ±2
≥ 700
Fig. 5.7 Cut-out dimensions for surface mounting
12
10 - 40
Fig. 5.8 Overlay dimensions for surface mounting
Cooktops/cooktop extractor B in mm
1/0 346
1/1 457
2/1 828
3/2 1310
4/2 1681
Tab. 5.3 Cut-out dimensions of the appliance combinations in
the case of surface mounting
5.5.1 Flush installation
x
A ±2
B ±2
544 ±2
≤ R5
≤ R5
≥ 74
(≥ 70)
516 ±2
≥ 700
Fig. 5.5 Cut-out dimensions for ush installation
7 +0,5
14
10 - 40
Fig. 5.6 Rebate dimensions for ush installation
Cooktops/cooktop extractor A in mm B in mm
1/0 374 346
1/1 485 457
2/1 856 828
3/2 1338 1310
4/2 1709 1681
Tab. 5.2 Cut-out dimensions of the appliance combinations in
the case of ush installation
EN
17
Installation
www.bora.com
[1] Boreholes for socket (x 2 external)
[2] Bore holes for control knobs (x 5)
[3] Cooktop (x 2)
[4] Cooktop extractor
[5] Worktop
[6] Fixed front panel
≥70 ≥40
90 90 909090 196 196 196 196
370 370
370
110
1 1 1 1
110
Ø50 ±0,5
3
3
1 2 4 4 3 65
Fig. 5.12 Drilling pattern for 3 cooktops, 2 cooktop extractors
and 2 sockets
[1] Boreholes for socket (x 2 external)
[2] Bore holes for control knobs (x 8)
[3] Cooktop (x 3)
[4] Cooktop extractor (x 2)
[5] Worktop
[6] Fixed front panel
5.6.3 Fitting the control knob
4
3
5
2
1
Fig. 5.13 Structure of control knob
[1] Knob housing
[2] Universal nut
[3] Sticker
[4] Knob ring
[5] Wave spring
i
In the case of steel fronts, wave springs must not be used.
The corresponding installation steps are to be omitted.
5.6 Installing the control knob in the
floor unit front panel
Fig. 5.9 Installed control knob
XX
Pre-drill all bore holes to prevent tearing out the fixed front panel.
5.6.1 Cooktop bore holes
≥40≥70
Ø50 ±0,5
370
80-140
1 2 3
Fig. 5.10 Cooktop drilling pattern
[1] Cooktop
[2] Worktop
[3] Fixed front panel
5.6.2 Example bore holes
≥40≥70
90 90 90
Ø50 ±0,5
90 196 196
370 370
110
1 1
3
1 2
4 3 65
Fig. 5.11 Drilling pattern for 2 cooktops, 1 cooktop extractor
and 2 sockets
EN
18
Installation
www.bora.com
5.7.1 Installing the cooktop
Inserting the Tepan stainless steel grill PKT3 (ports
on the back)
321
Fig. 5.16 Inserting the cooktop
[1] Worktop cut-out
[2] Tepan stainless steel grill
[3] Control knob and automatic extractor function ports
XX
Insert the Tepan stainless steel grill [2] into the worktop cut-
out [1].
XX
Precisely align the Tepan stainless steel grill [2].
XX
For a normal installation, please note that the ports for the
control knobs and the automatic extractor function [3] are at
the rear.
Levelling the cooktop (if necessary)
1
2
Fig. 5.17 Cooktop and height adjustment plates
[1] Cooktop
[2] Height adjustment plates
XX
If applicable, insert the height adjustment plates [1].

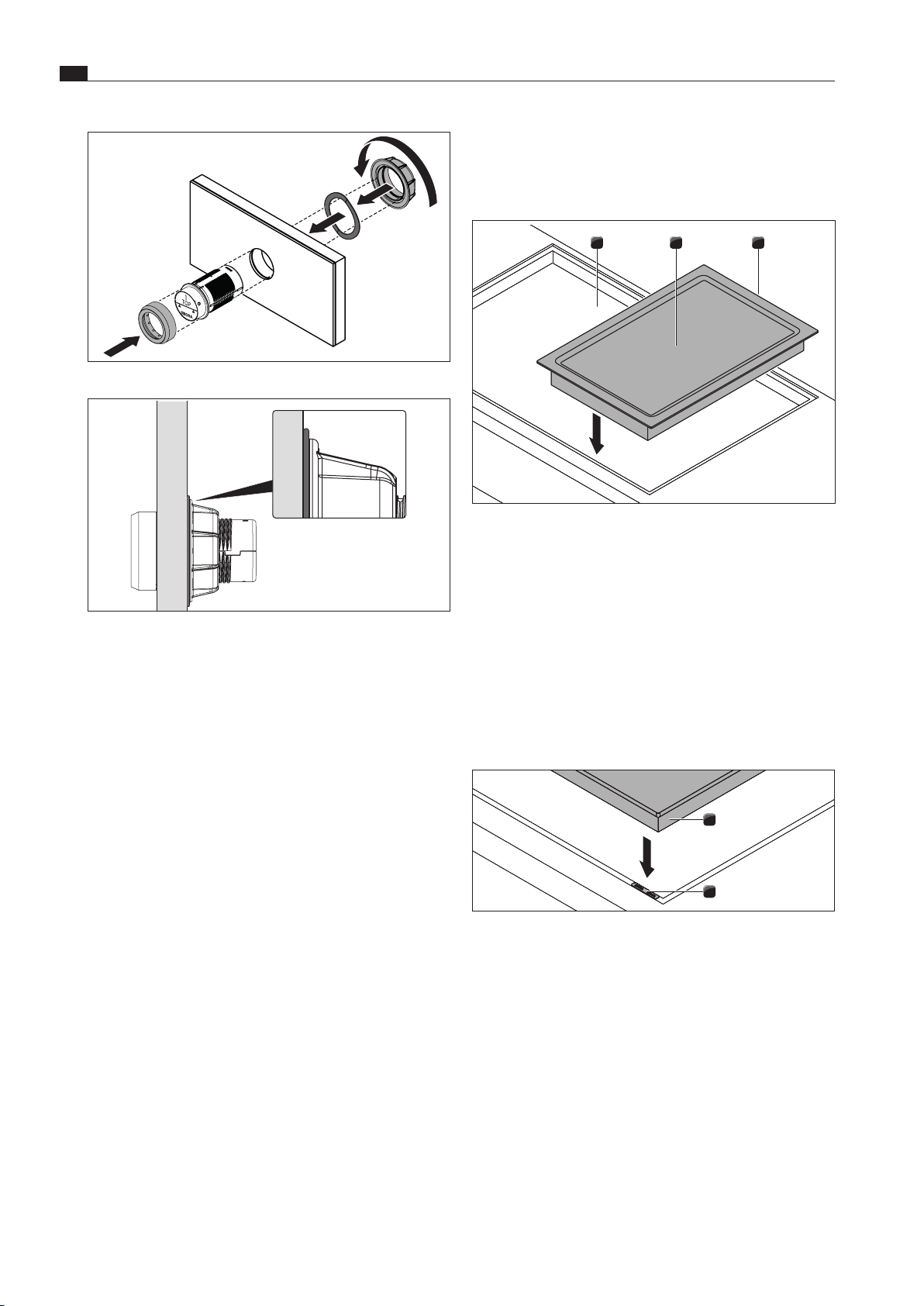

Fig. 5.14 Fitting the control knob
Fig. 5.15 Wave spring when installation is complete
XX
Remove the knob ring [4].
XX
Unscrew the universal nut [2].
XX
Remove the wave spring [5].
XX
Insert the knob housing [1] from the front through the hole in
the panel.
XX
Attach the wave spring [5] to the knob housing [1] from the
rear (not in the case of steel fronts).
XX
Screw the universal nut [2] onto the knob housing [1] from the
rear and tighten a little.
XX
Align the knob housing [1] so it is level.
XX
Tighten the universal nut [2].
XO
The wave spring (if used) must be pressed flat.
XX
Remove the sticker [3].
XX
Place the knob ring [4] on the knob housing [1].
5.7 Installing the cooktops
i
Clearance of one millimetre should be planned between
the built-in appliances.
i
A clearance of two millimetres should be planned around
the built-in appliances.
i
It is recommended to install a mounting rail between
adjacent cooktops (mounting rail PZMS available as an
accessory).
i
The cooktop can also be installed rotated by 180°.
EN
19
Installation
www.bora.com
5.8.1 Connecting the control knobs
i
Control knobs must only be connected to the ports
provided on the appliance.
1
Fig. 5.19 Back of control knob with port
[1] Port on the back of the control knob
XX
Connect the control knobs to the appliances.
Connecting the control knobs to the cooktop
i
In the normal set-up the ports are on the back of the
Tepan stainless steel grill PKT3.
i
According to the default settings, the left control knob
operates the front cooking zone (zone 1) and the right
control knob operates the rear cooking zone (zone 2).
321
ZONE1 INTERF. COM1 ZONE2
Fig. 5.20 Control knob port at the rear of the cooktop
[1] Front cooking zone control knob port (zone 1)
[2] Extractor electronics interface port
[3] Rear cooking zone control knob port (zone 2)
Securing the Tepan stainless steel grill PKT3
3
2
2
1
4
Fig. 5.18 Mounting brackets
[1] Mounting bracket
[2] Washer
[3] Screw
[4] Screw (60mm)
XX
Secure the appliance using the mounting brackets [1].
XX
Tighten the mounting brackets with the screws [3] and [4]
using the washer [2] with max. 2Nm.
XX
Verify that the alignment is correct.
5.7.2 Installation rotated by 180°
(alternative installation variation)
Installation rotated by 180°
XX
Rotate the cooktop 180°.
XX
For the installation, proceed as described above.
XX
Change the installation direction in the configuration menu
(see “Configuration menu”).
i
If installation is rotated by 180°, then on the Tepan
stainless steel grill PKT3 the ports for the control knobs
and the automatic extractor function are at the front.
i
Cables of sufficient length are provided.
5.8 Establishing communication and
power connection
XX
Observe all safety and warning information (see the “Safety”
chapter).
XO
The plug for the power supply must be accessible following
installation.
XO
If the power supply cable has been damaged this must be replaced.
i
The appliance components are linked by the ribbon cable
provided.
EN
20
Installation
www.bora.com
[1] Cooktop
[2] Rear cooking zone (zone 1)
[3] Front cooking zone (zone 2)
[4] Rear cooking zone control knob (zone 1)
[5] Front cooking zone control knob (zone 2)
XX
Connect the port on the back of the left control knob [5] to
the “zone 2” port on the cooktop [1].
XX
Connect the port on the back of the right control knob [4] to
the “zone 1” port on the cooktop [1].
XX
Using the configuration menu, set the correct allocation of the
cooking zones in the control knob display (see configuration
menu – 0° or 180° installation).
5.8.2 Establishing contact between the
cooktop extractor and cooktops
2
ZONE1 INTERF. COM1 ZONE2
1
ZONE1 INTERF. COM1 ZONE2
3
Fig. 5.23 Establishing contact between the cooktop extractor
and cooktops
[1] Cooktop extractor communication cable ports (x 2)
[2] Cooktop communication cable port
[3] Ribbon cable
XX
Using the communication ports provided, connect the
cooktop extractor [1] to the cooktop or cooktops [2].
XX
Only use the cables supplied in the scope of delivery.
i
The full range of functions on the appliances will only
be available if the cooktop extractor and cooktops are
connected correctly.
5.8.3 Connecting the power supply
XX
Observe all national and regional laws and regulations as well as
the supplementary regulations of the local utility companies.
i
The appliances may only be connected to the mains power
supply by certified specialists. The specialist also assumes
responsibility for the proper installation and commissioning.
5 4
3
2
1

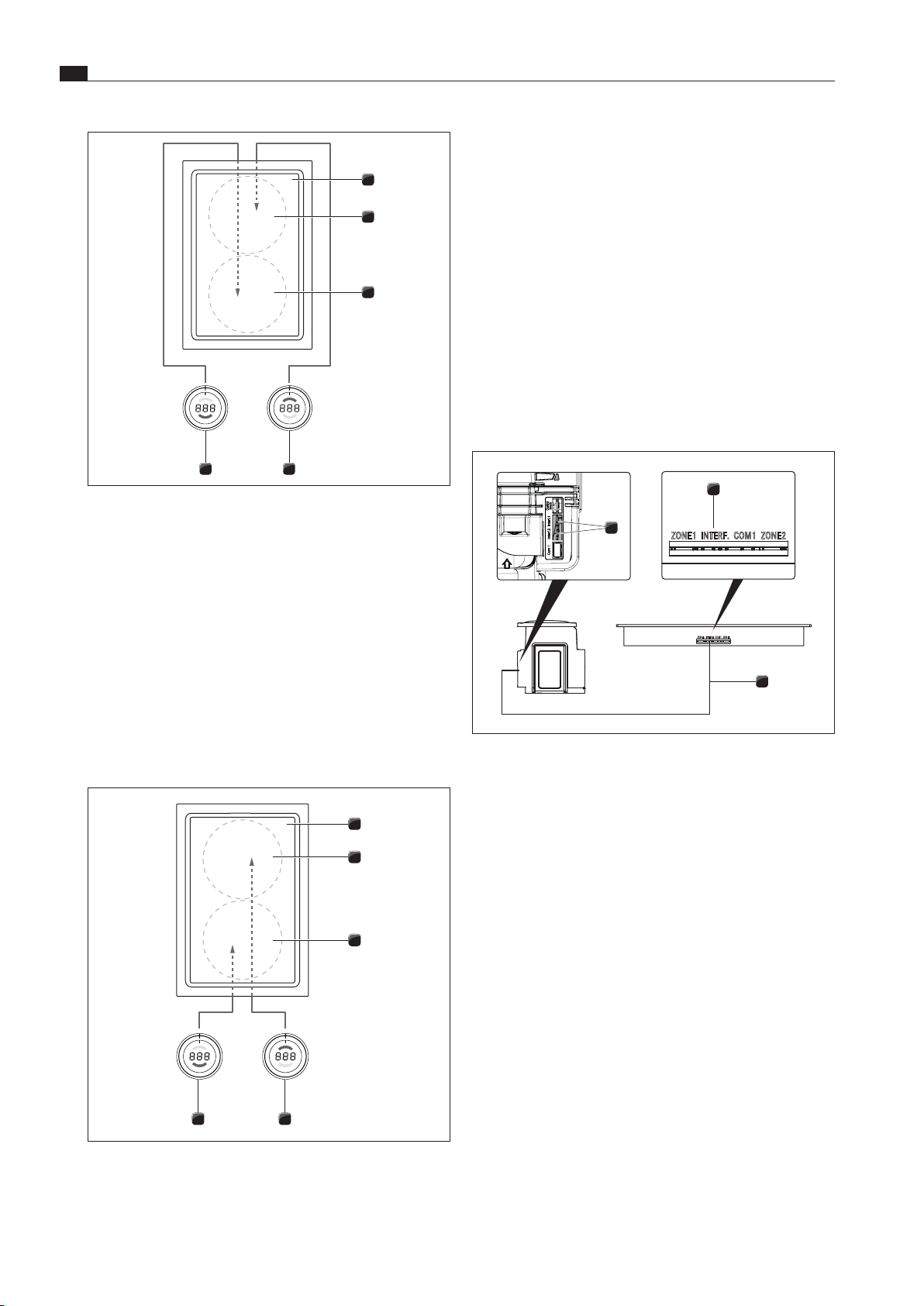

Fig. 5.21 Standard connection of appliances that connect at
the rear (PKT3)
[1] Cooktop
[2] Rear cooking zone (zone 2)
[3] Front cooking zone (zone 1)
[4] Rear cooking zone control knob (zone 2)
[5] Front cooking zone control knob (zone 1)
XX
Connect the port on the back of the left control knob [5] to
the “zone 1” port on the cooktop [1].
XX
Connect the port on the back of the right control knob [4] to
the “zone 2” port on the cooktop [1].
Connecting the cooking zones when the cooktop is
installed rotated by 180°
5 4
3
2
1
Fig. 5.22 Connecting the cooking zones when the cooktop is
installed rotated by 180° and the ports are on the
rear of the appliance (PKT3)
EN
21
Installation
www.bora.com
5.9 Basic configuration
When installation is complete, you must carry out the basic
settings (these settings can be changed at any time later on).
i
You can see precise instructions on the basic
configuration and all necessary information in the
Configuration menu chapter of the operating instructions.
XX
Follow the instructions on the basic configuration (see
Operating instructions – “Configuration menu” chapter).
5.10 Initial operation
i
You will find detailed information on operating the BORA
Professional 3.0 system in the operating instructions (see
“Functions and operation” chapter).
XX
Ensure that all appliances are connected correctly and
connected to the power supply (fused) prior to initial
operation.
XO
Exception: During initial operation, the kitchen fitter may use
a temporary power supply for the control unit in order to carry
out the basic configuration (e.g. using the site power supply
during the building phase).
XO
The settings made are saved and will not be affected when the
system is disconnected from the mains.
XO
The final mains connection to the appliances may only be set
up by certified specialists.
5.11 Function test
XX
Carry out a thorough function test on all appliances.
XX
In the event of error messages, see the “Troubleshooting”
chapter in the operating instructions.
Special information for the Tepan stainless steel grill
PKT3:
i
This appliance is intended to be operated on a supply
network with an impedance Zmax at the transfer point
(mains connection) of 0.116 ohms maximum. The user
is to ensure that the appliance is only operated on a
mains supply network which meets this requirement. If
necessary, ask the local energy supply company about
the system impedance.
Connecting the cooktop to the power supply
The power supply cable to be used (already pre-installed) must
comply with certain, appliance-specific requirements (see table
“Fuse protection and minimum cross-section”).
i
A damaged power supply cable must be replaced by
another suitable power supply cable. This may only be done
by an authorised member of the After Sales Service team.
Power supply cable requirements and connection diagram
Connection Fuse
protection
Minimum
cross-section
Power supply
cable
1-phase
connection
1 x 25A 2.5mm²
Type H05V2V2-F
2-phase
connection
2 x 16A 2.5mm²
Type H05V2V2-F
Tab. 5.4 Fuse protection and minimum cross-section
1
L1
2 3
N PE
220 - 240 V~
Fig. 5.24 1-phase connection diagram
1
L1 L2
2
N PE
220 - 240 V~
220 - 240 V~
3
Fig. 5.25 2-phase connection diagram
Connecting the cooktop to the mains
XX
Switch off the main switch/automatic circuit breaker before
connecting the cooktop.
XX
Secure the main switch/automatic circuit breaker against
being switched back on without permission.
XX
Make sure the power to the appliance is disconnected.
XX
Only connect the cooktop using a permanent connection to a
power supply cable.
XX
Check that installation has been carried out correctly.
XX
Switch on the main switch/automatic circuit breaker.
XX
Put the cooktop into operation (see the Operation chapter).
XX
Check that all the functions are working correctly.
EN
22
Installation
www.bora.com
5.12 Sealing the appliances
1
Fig. 5.26 Silicone sealant for ush installation
[1] Black, heat-resistant silicone sealant
1
Fig. 5.27 Silicone sealant for surface mounting
[1] Black, heat-resistant silicone sealant
XX
Once all of the installation work and initial operation is
complete, seal the appliances all the way round (also between
the cooktop extractor and cooktop) with black, heat-resistant
silicone sealant [1].
XX
Make sure that no silicone sealant gets under the cooktop.
5.13 Handover to user
Once installation is complete:
XX
Explain the main functions to the user.
XX
Explain all safety-related aspects of operation and handling to
the user.
XX
Affix the supplied nameplate to the back of these instructions.
XX
Provide the user with the accessories and all accompanying
documents, which are to be kept in a safe place.
EN
23
Functions and operation
www.bora.com
6 Functions and operation
Use double-tap commands to:
XO
activate the pause function
Use long-press commands to:
XO
unlock the system
XO
exit the function menu
Use extra-long-press commands to:
XO
reset the filter service life
XO
access the configuration menu
6.2 Switching the system on and off
Switching on
Fig. 6.3 Switching on the system
Fig. 6.4 Standard display after switching on
XX
Turn a knob ring of your choice clockwise
XO
The system is activated.
XO
0
is displayed on all control knobs.
i
If
L
is displayed on all control knobs when the appliance
is switched on, the childproofing feature is active. It will
only be possible to operate the appliance when this has
been deactivated (see “Deactivating the childproofing
feature for a cooking session” or “Permanently
deactivating the childproofing feature”).
Switching off
Fig. 6.5 Switching the appliances off
XX
Turn the knob ring anticlockwise to power level 0.
XO
Any active additional functions will be deactivated and the
appliance will be switched off.
XX
Observe all safety and warning information during operation
(see the “Safety” chapter).
6.1 Knob operation
Operating the knob ring
The ring on the control knob can be turned both clockwise and
anticlockwise. It can be turned as far as you wish; there is no
defined 0 position.
Fig. 6.1 Operating the knob ring
Turn it clockwise (to the right) to:
XO
switch on
XO
increase power level/value
XO
navigate the menu
Turn it anticlockwise (to the left) to:
XO
switch off
XO
decrease power level/value
XO
navigate the menu
Operating the touch surface
The touch surface of the control knob reacts to different touch
commands:
Command Contact Time
Tap brief touch <1s
Double tap 2 brief taps one after the other
Long press keep finger in place longer 1 – 8 s
Extra-long press keep finger in place longer 3 – 8 s
Tab. 6.1 Operating the touch surface
>1s >3s
1 2 3
Fig. 6.2 Diagram of the touch commands
[1] Tap command diagram
[2] Long press diagram
[3] Extra-long press diagram
Use tap commands to:
XO
call up the function menu
XO
confirm menu items/times/functions
EN
24
Functions and operation
www.bora.com
i
A fan is built in to the Tepan stainless steel grill for
cooling, guaranteeing a long service life for the electronic
components and rapid cooling of the grill surface.
Different measures have been taken to keep noise to a
minimum, but it cannot be completely avoided.
i
During use, the griddle may show signs of curvature.
i
During grilling or heating on a high power level, the
griddle may adopt a light brown colour.
6.3.3 Setting cooking zone power levels
The power levels are controlled by turning the knob ring to the
desired power level (electronic power adjustment).
Fig. 6.7 Setting cooking zone power levels
XO
The selected power level is shown in the power display on the
control knob that has been touched.
Increasing the power level
XX
Turn the knob ring clockwise
Reducing the power level
XX
Turn the knob ring anticlockwise
Setting the temperature on the Tepan stainless
steel grill PKT3
XX
Turn the knob ring to the desired temperature.
XO
The control knob display shows the target temperature for 3
seconds. Then the warm-up phase begins.
XO
During the warm-up phase, the corresponding cooking zone
display flashes and the current temperature is shown.
XO
As soon as the target temperature is reached, the warm-
up phase comes to an end and the target temperature is
continuously displayed.
i
If all connected appliances are switched off (= power
level 0), the whole system is automatically switched off
after 10 seconds.
The cooktop was switched on
XO
H
is shown in the control knob display for previously active
and still hot cooking zones (residual heat indicator).
XO
If there is no longer any residual heat, the display will switch
off after 10 seconds.
6.3 Operating the cooktops
i
The full range of functions is only available for BORA
Professional 3.0 system cooktops in combination with the
cooktop extractors PKA3/PKA3AB and PKAS3/PKAS3AB.
i
Clean the cooking zones before using the cooktop for the
first time (see the Cleaning chapter).
6.3.1 General operating instructions for cooktops
Cooktops are operated with 2 control knobs.
There are 9 power levels, an optional power setting and various
functions available for each cooking zone.
Each cooking zone has its own control knob. The front cooking
zone is controlled using the left-hand knob and the rear cooking
zone with the right-hand knob.

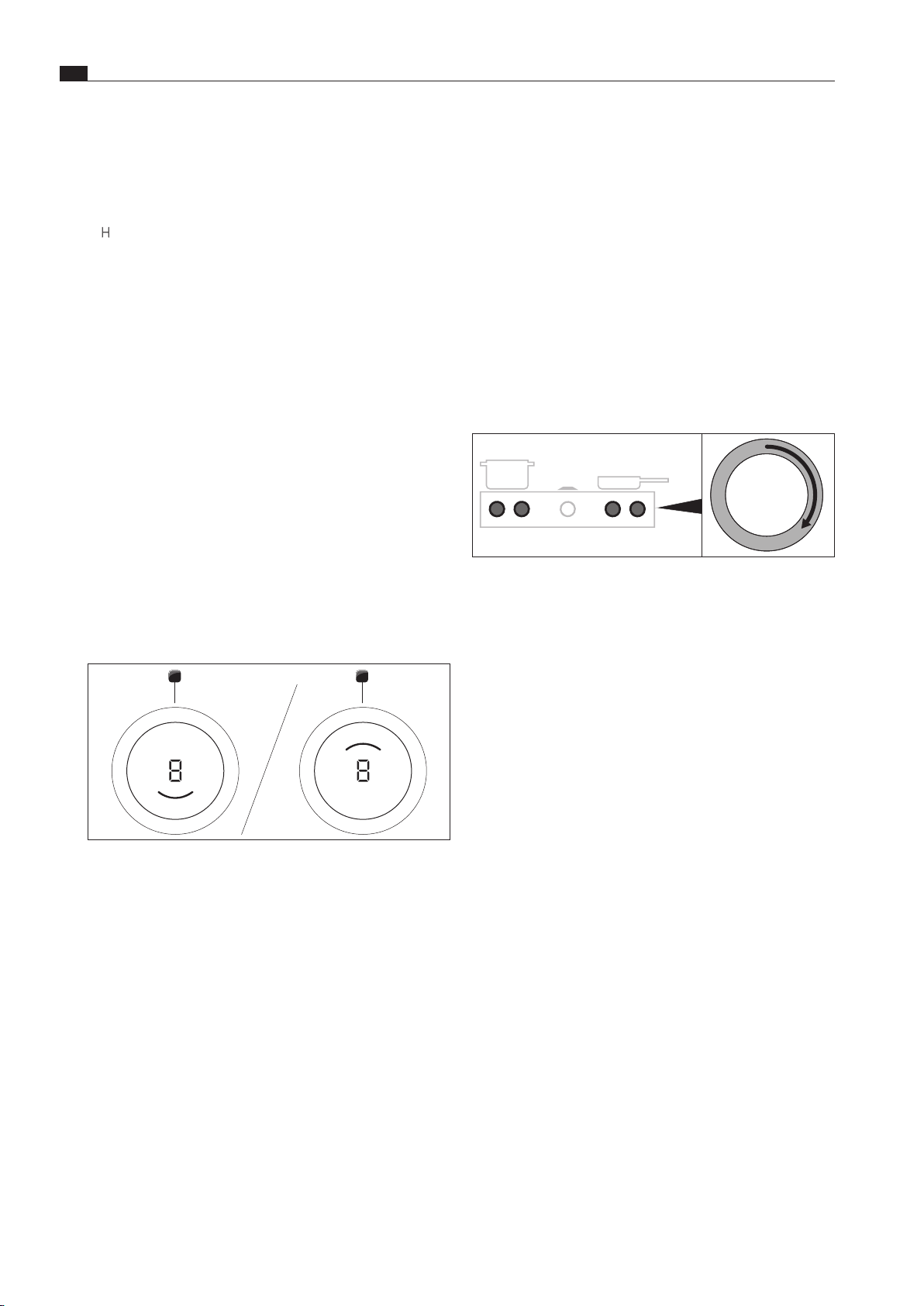

1 2
Fig. 6.6 Cooking zone indicator
[1] active front cooking zone
[2] active rear cooking zone
6.3.2 Special operating instructions for the
Tepan stainless steel grill PKT3
Initial operation
XX
Heat the griddle to 220°C for approx. 25 minutes before
using it for the first time (both grilling zones).
i
Bothersome odours may be emitted during this process.
Operating instructions
i
The grilling zones should be preheated 5 minutes before
use.
i
During heating or cooling the griddle may make some
noise. This is a normal occurrence.
EN
25
Functions and operation
www.bora.com
6.3.4 Cooktop power setting
When the power setting is activated, maximum cooking zone
power is available for a predefined time.
i
Never heat up oil, fat and the like on this power setting.
The bottom of the pan can overheat due to the high
power output.
Activating the power setting for a cooking zone
XX
Turn the knob ring clockwise to temperature
240
/
250
°C
(= power setting).
i
After 10 minutes, the power setting is automatically
switched back to
230
°C.
Deactivating the power setting early
XO
Setting another power level for the cooking zone with the
power setting active
6.3.5 Bridging function
With the bridging function two cooking zones can be combined
to form one large cooking zone. The power for the combined
zones is then adjusted using any control knob. Power
adjustment takes place simultaneously (both cooking zones are
operated on the same power level).
This means, for example, that on the surface induction cooktop
very large pans or roasters can be used.
XO
Both cooking zone indicators are activated in the display on
both control knobs.
i
If the bridging function is activated on cooktop PKFI3, the
power setting cannot be used. Use of the power setting is
possible on the Tepan stainless steel grill PKT3.
i
If both cooking zones are active when the bridging
function is activated, the higher of the two power levels
will be adopted for both cooking zones. Active additional
cooking zone functions will be adopted by the cooking
zone with the higher power level.
Activating the bridging function
1
+
2
Fig. 6.8 Setting cooking zone power levels
XX
Touch both control knobs at the same time
XO
An acoustic signal can be heard and the bridging function is
activated.
XO
The power level and both cooking zone indicators are shown
on both control knobs.
Deactivating the bridging function
XX
Set the power level
0
.
or
XX
touch command on both control knobs at the same time.
XO
An acoustic signal can be heard and the bridging function is
deactivated.
XO
All cooking zones are deactivated.
XO
Each cooking zone then goes back to being operated separately.
EN
26
Functions and operation
www.bora.com
6.4 Function menu
i
Every appliance offers different additional functions.
These can be selected and activated via a function menu.
Only the functions available for each type of appliance
are shown in the corresponding function menu.
Function menu on Tepan stainless steel grill PKT3
The Tepan stainless steel grill has 1 additional function:
Menu item Description
1 C
Cleaning function
Tab. 6.2 Function menu on Tepan stainless steel grill PKT3
Calling up the function menu
Fig. 6.9 Accessing a cooktop function menu
XX
Touch the cooktop control knob
XO
The function menu is opened.
XO
The first menu item is shown in the control knob display.
6.4.1 Cleaning function
The cleaning function adjusts both cooking zones on the Tepan
stainless steel grill to a constant temperature of 70°C, which
is perfect for cleaning. This temperature is then maintained for
10 minutes.
Activating the cleaning function
XX
Open the Tepan stainless steel grill function menu.
XX
Do the following:
1
2
3
Fig. 6.10 Activating the cleaning function
XO
The cleaning function is activated and the Tepan stainless
steel grill is heated to 70°C.
XO
C
is shown on both control knobs and both cooking zone
indicators flash during the warm-up phase.
XO
As soon as the cleaning temperature is reached, the cooking
zone indicators are permanently lit and it is possible to start
cleaning.
i
Do not start cleaning until the optimum cleaning
temperature is reached (also see the Cleaning chapter).
Deactivating the cleaning function
XX
Turn the ring on the control knob on which the cleaning
function was activated anticlockwise.
XO
The cleaning function is deactivated.
XO
The residual heat indicator
H
appears in the control knob
display if necessary.
i
The cleaning function is automatically deactivated after
10 minutes.
i
When the knob ring is turned clockwise, a higher
power level is activated and cleaning must be stopped
immediately (risk of burns).
EN
27
Cleaning and maintenance
www.bora.com
7 Cleaning and maintenance
7.2 Cleaning the cooktops
7.2.1 Cleaning Tepan stainless steel grill
surfaces
i
Use the scraper only on the grill surface as otherwise
other surfaces may be damaged.
i
Clean the stainless steel surface in the polishing direction
only.
i
Do not apply citric acid to surfaces adjacent to the
cooktop and worktop as the acid may damage them.
i
Do not use stainless steel care products on the stainless
steel surfaces or the stainless steel grill surface.
Light soiling
XX
Make sure that the appliance is switched off (see the
Operation chapter).
XX
Wait until the stainless steel grill surface has cooled.
XX
Remove light soiling with a damp cloth and detergent.
XX
To prevent water or limescale stains (yellowish colouring), use
a soft cloth to dry off the surfaces that have been cleaned
with water.
Normal soiling
XX
Ensure that the cleaning function is activated for both grilling
zones (see the Operation chapter).
XX
Wait until the grilling zone indicators are no longer flashing (=
optimum cleaning temperature of 70°C).
XX
Use only clean, cold water on the grill surface.
XX
Leave the water to work for 15 minutes.
XX
Then remove all coarse dirt and food residues using a Tepan
spatula.
XX
Remove the remaining dirt and water with a clean cloth.
XX
Dry the appliance with a clean cloth.
XX
Observe all safety and warning information (see the Safety
chapter).
XX
Follow the enclosed manufacturer’s information.
XX
When conducting scheduled cleaning and maintenance,
ensure that the cooktop and cooktop extractor are fully
switched off and cooled so as to prevent injury (see the
Operation chapter).
XO
Regular cleaning and maintenance ensures long service life of
the product and optimal function.
XX
Adhere to the following cleaning and maintenance cycles:
Component Cleaning cycle
Control knob:
Knob ring/knob
housing
Immediately after every soiling
Cooktops:
Cooktop Clean well immediately after soiling, using
conventional detergents
Tab. 7.1 Cleaning cycles
7.1 Cleaning agents
i
Due to the use of aggressive cleaning agents and
abrasion caused by the pot bases the surface will
become damaged and dark stains will occur.
XX
Never use steam cleaners, abrasive sponges, scouring pads or
chemically aggressive cleaning agents (e.g. oven cleaner spray).
XX
Make sure that the cleaning agent does not contain any sand,
soda, acids, lyes or chloride.
Cleaning products for the Tepan stainless steel grill
To clean the Tepan stainless steel grill you need a special Tepan
spatula and suitable cleaning agents.
EN
28
Cleaning and maintenance
www.bora.com
7.4 Cleaning the control knobs
12
3
Fig. 7.1
[1] Knob housing
[2] Touch surface
[3] Knob ring
Cleaning the knob ring
The knob ring can only be cleaned by hand.
XX
Remove the knob ring from the knob housing.
XX
Use a cleaner and degreaser in one.
XX
Rinse the knob ring with hot water.
XX
Clean the knob ring with a soft brush.
XX
Rinse the knob ring well after cleaning.
XX
Dry the knob ring carefully.
XX
Place the dry knob ring back on the knob housing.
Cleaning the touch surface and the knob housing
XX
Remove the knob ring.
XX
Clean the touch surface and the knob housing with a soft,
damp cloth.
XX
Dry the touch surface and the knob housing carefully.
XX
Place the knob ring on the knob housing.
Heavy soiling
XX
Ensure that the cleaning function is activated for both grilling
zones (see the Operation chapter).
XX
Wait until the grilling zone indicators are no longer flashing (=
optimum cleaning temperature of 70°C).
XX
Dilute a dessert spoon of citric acid (approx.10 –15ml) in a
bowl of warm water (approx.200ml).
XX
Pour the liquid on the grill surface.
XX
Leave the solution to work for approx. 5–8 minutes.
XX
Loosen burned-on food from the grill surface with a plastic
brush.
XX
Remove all remaining dirt and water (citric acid solution) with
a clean cloth.
XX
Use only clean, cold water on the grill surface.
XX
Remove the remaining dirt and water with a clean cloth.
XX
Dry the cooktop with a clean cloth.
Any changes in colour or small scratches do not mean that the
appliance is damaged. They do not affect the functionality of the
Tepan stainless steel grill or the stability of the stainless steel
grill surface.
Changes in colour are the result of residues which have not been
removed and have burnt on.
7.3 Looking after your cooktops
XX
Never use a cooktop as a work or storage surface.
XX
Do not push or pull cookware over the cooktop.
XX
Always lift pots and pans.
XX
Keep the cooktop clean.
XX
Remove any dirt immediately.
XX
Only use suitable cookware on the appliance (see the
Appliance description chapter).
EN
29
Troubleshooting
www.bora.com
8 Troubleshooting
XX
Observe all safety and warning information (see the Safety chapter).
Operating situation Cause Remedy
The cooktop cannot be switched on Knob ring missing Slot the knob ring onto the control knob.
The fuse or automatic circuit breaker of the
electrical wiring system in the apartment and/or
house is defective
Replace the fuse
Switch the automatic circuit breaker back on
The fuse or the automatic circuit breaker trips
several times
Contact the BORA Service Team
The power supply is disconnected Have a specialist electrician inspect the power
supply
Odours and vapours are formed
when operating the new cooktop
This is normal with brand new appliances Wait a few operating hours
If odours continue to form, contact the BORA
Service Team
The cooling fan continues to
run when the cooktop has been
switched off
The cooling fan will continue to run until the
cooktop has cooled down and will then switch off
automatically
Wait until the cooling fan switches off automatically
A cooking zone or the entire
cooktop switches off automatically
A cooking zone has been in operation too long Put the cooking zone back into operation (see the
Operation chapter).
The overheating protection has tripped (see the Appliance description chapter)
The power setting is automatically
shut off prematurely
The overheating protection has tripped (see the Appliance description chapter)
Control knob display
L
The childproofing feature is activated Switch off the childproofing feature (see the
Operation chapter)
Control knob display
v
,
No or unsuitable cookware on the cooking zone Only use suitable cookware
Select the cookware size depending on the cooking
zone (see the Appliance description chapter)
Control knob display
/
Continuous operation (8 s) of the control knob or
control knob dirty
Take your finger off the control knob or clean the
knob
Control knob display
E
0
1
9
Error in the touch surface values Turn the control knob to the “0” position
Call the BORA Service Team
Control knob display
E
0
0
2
,
E
0
2
1
,
E
0
5
7
,
E
0
8
2
,
E
0
8
3
Temperature too high Allow the cooktop to cool
Tab. 8.1 Resolving a fault
XX
Acknowledge the error by tapping the control knob.
XX
In all other cases, contact the BORA Service Team (see Warranty, technical service and spare parts chapter) and enter the error
number displayed and the appliance type.
EN
30
Decommissioning, disassembly and disposal
www.bora.com
9 Decommissioning, disassembly and disposal
9.3 Environmentally-friendly
disposal
Disposal of transport packaging
i
The packaging protects the device from damage in
transport. The packaging materials have been selected
from environmental and disposal perspectives and are
therefore recyclable.
Returning the packaging to the materials cycle saves resources
and reduces waste volumes. Your specialist supplier will take the
packaging back.
XX
Give the packaging to your specialist supplier
or
XX
Dispose of the packaging properly in line with local
regulations.
Disposal of old appliance
Electrical devices marked with this label
may not be disposed of in domestic waste
at the end of their service life. They must
be disposed of at a collection point for
the recycling of old electrical or electronic
devices. You can find information from your
city or district council.
Many electrical and electronic devices still contain valuable
materials. But they also contain damaging materials which
were necessary for them to function properly and safely. These
can damage human health or the environment if disposed of
improperly or incorrectly handled.
XX
Never put your old appliance in domestic waste.
XX
Take the old appliance to a regional collection point for return
and recycling electrical and electronic components and other
materials.
XX
Observe all safety and warning information
(see the Safety section).
XX
Follow the enclosed manufacturer’s information.
9.1 Decommissioning
Decommissioning is understood as final shutdown and
disassembly. Following decommissioning, the device can either
be installed into other units, sold on privately or disposed of.
i
Electricity and gas connections may only be disconnected
by qualified specialists.
XX
To decommission, switch the device off
(see Operation section)
XX
Disconnect the device from the power supply.
9.2 Disassembly
For removal, the device must be accessible for disassembly and
disconnected from the power supply.
XX
Undo the appliance fixture.
XX
Remove the silicone joints.
XX
Remove the device from the worktop by lifting it upwards.
XX
Remove any other accessories.
XX
Dispose of the old device and any contaminated accessories
as described under “ Environmentally-friendly disposal”.
EN
31
Warranty, technical service, spare parts, accessories
www.bora.com
XX
Observe all safety and warning information (see the Safety chapter).
10.1 BORA manufacturer’s warranty
BORA provides its end customers with a 2-year manufacturer’s
warranty for its products. The end customer is entitled to this
warranty in addition to the statutory claims for defects against
the sellers of our products.
The manufacturer’s warranty applies to all BORA products sold
by authorised BORA dealers or BORA-trained salespeople within
the European Union, with the exception of products labelled by
BORA as Universal products or accessories.
The manufacturer’s warranty starts as soon as the BORA
product is handed over to the end customer by an authorised
BORA dealer and is valid for 2 years. By registering on www.
bora.com/registration the end customer has the possibility of
extending the manufacturer’s warranty.
The manufacturer’s warranty requires expert (in accordance with
the valid BORA ventilation handbook and operating instructions
at the time of installation) installation of the BORA products by
an authorised BORA dealer. During use, the end customer is to
adhere to the specifications and instructions in the operating
manual.
In order to file a warranty claim, the end customer is to notify
their dealer or BORA of the fault and must present the receipt.
Alternatively, the end customer can provide proof of purchase by
registering on www.bora.com.
BORA guarantees that all BORA products are free from material
and product defects. The defect must exist prior to delivery of
the product to the end customer. In the event that a warranty
claim is filed, the warranty shall not commence anew.
BORA will correct defects in BORA products at its own discretion
by repairing or replacing the product. All costs for the correction
of defects under the manufacturer’s warranty shall be assumed
by BORA.
Expressly not covered by the BORA manufacturer’s warranty are:
XO
BORA products that were not sold by authorised BORA dealers
or from BORA-trained salespeople.
XO
Damage caused by non-adherence to the operating
instructions (including product care and cleaning) This
represents improper use.
XO
Damage caused by normal use, e.g. traces of usage on the
cooktop
XO
Damage caused by external influences (such as transport
damage, ingress of condensation, damage caused by the
elements such as a lightning strike)
XO
Damage caused by repairs or attempts to repair not made by
BORA or persons authorised by BORA
XO
Damage to the glass ceramic
XO
Voltage fluctuations
XO
Secondary damage or claims for damages beyond the defect
XO
Damage to plastic parts
10 Warranty, technical service, spare parts, accessories
Legal claims, such as particularly statutory claims for defects or
product liability are not limited by the warranty.
If a defect is not covered by the manufacturer’s warranty, the
end customer can employ the services of the BORA technical
service, however, they must cover the costs themselves.
The laws of the Federal Republic of Germany apply to these
warranty conditions.
You can contact us by:
XO
Telephone: +49 800 7890 0987 Monday to Thursday from
08:00-18:00 and Friday from 08:00-17:00
XO
Email: [email protected]
10.2 Service
BORA Service:
see reverse side of operating and assembly instructions
+800 7890 0987
XX
In the case of faults you cannot fix yourself, contact your
BORA specialist supplier or the BORA Service Team.
The BORA Service Team will require the type designation and
serial number of your device (FD number).
Both pieces of information can be found on the nameplate on
the back of the instructions and on the appliance base.
10.3 Spare parts
XX
Only use original spare parts for repairs.
XX
Repairs may only be carried out by the BORA Service Team.
i
Spare parts can be obtained from your BORA dealer, the
BORA online service website at www.bora.com/service
or by calling the service number provided.
10.4 Accessories
XO
BORA Pro knob ring PKR3
XO
BORA Pro knob ring All Black PKR3AB
Special accessory for PKT3:
XO
BORA Pro Tepan spatula PTTS1
+800 7890 0987
Nameplate:
(please affix)
