Garmin 010-02503-21 Edge 1040 Solar User Manual

EDGE

1040

Owner’s Manual

improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to

www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin

, the Garmin logo, ANT+

, Auto Lap

, Auto Pause

, Edge

, Forerunner

, inReach

, VIRB

, and Virtual Partner

are trademarks of Garmin Ltd. or its subsidiaries, registered in

the USA and other countries. Connect IQ

™

, Garmin Connect

™

, Garmin Express

™

, HRM-Dual

™

, HRM-Pro

™

, Rally

™

, Varia

™

, and Vector

™

are trademarks of Garmin Ltd. or its

subsidiaries. These trademarks may not be used without the express permission of Garmin.

Android

™

is a trademark of Google Inc. Apple

and Mac

are trademarks of Apple, Inc., registered in the U.S. and other countries. The BLUETOOTH

word mark and logos are owned

by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. The Cooper Institute

, as well as any related trademarks, are the property of The Cooper Institute.

Advanced heartbeat analytics by Firstbeat. Di2

™

and Shimano STEPS

™

are trademarks of Shimano, Inc. Shimano

is a registered trademark of Shimano, Inc. Training Stress Score

™

(TSS), Intensity Factor

™

(IF), and Normalized Power

™

(NP) are trademarks of Peaksware, LLC. STRAVA and Strava

™

are trademarks of Strava, Inc. Wi‑Fi

is a registered trademark

of Wi-Fi Alliance Corporation. Windows

and Windows NT

are registered trademarks of Microsoft Corporation in the United States and other countries. Other trademarks and trade

names are those of their respective owners.

This product is ANT+

certified. Visit www.thisisant.com/directory for a list of compatible products and apps.

M/N: A04211, AA4211

Table of Contents

Introduction......................................1

Device Overview...................................... 2

Home Screen Overview....................... 3

Viewing Widgets.................................. 4

Viewing Glances.................................. 5

Using the Touchscreen....................... 5

Locking the Touchscreen................ 5

Acquiring Satellite Signals...................... 6

Training............................................6

Going for a Ride....................................... 6

Training Plans..........................................7

Using Garmin Connect Training

Plans.....................................................7

Viewing the Training Calendar............7

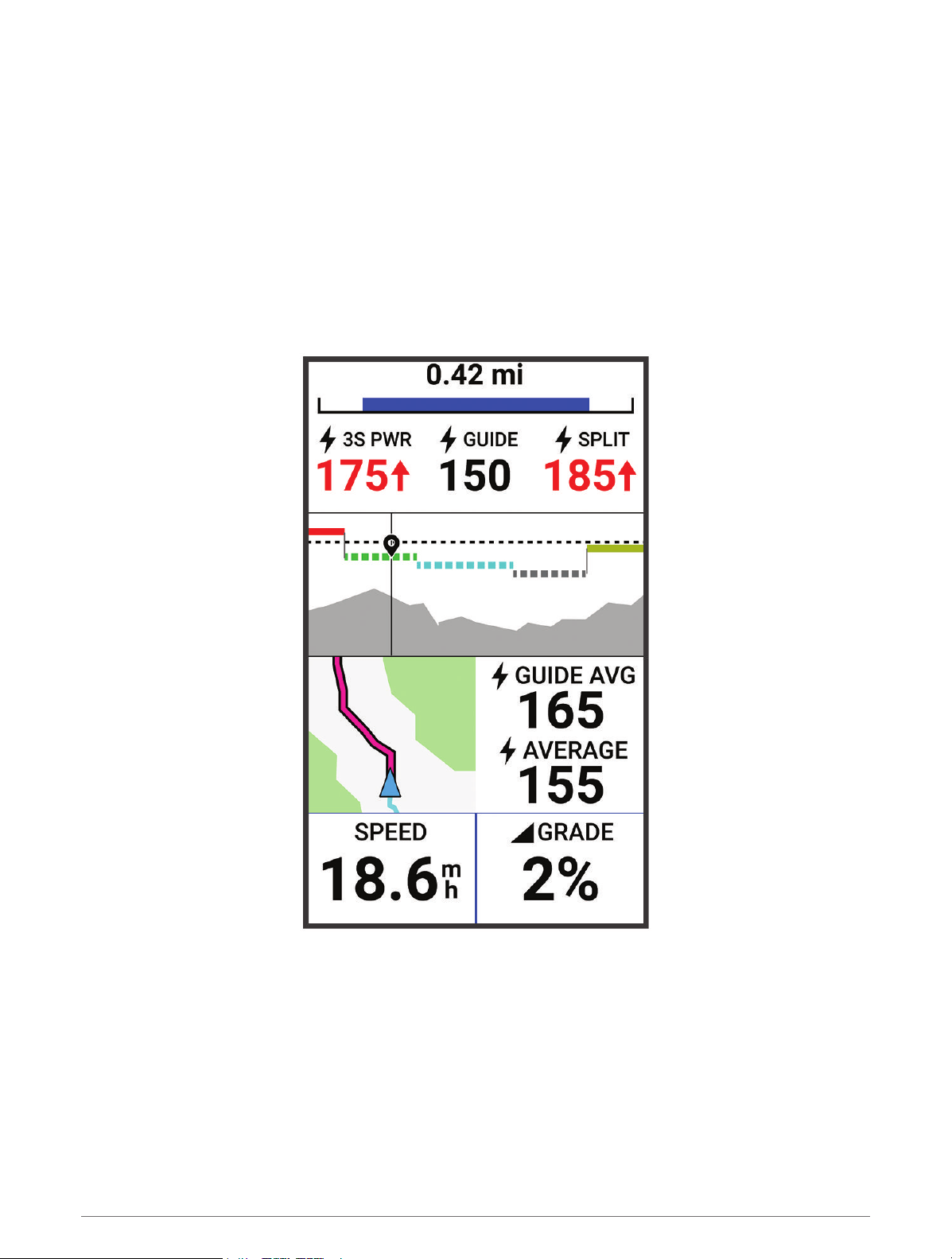

Power Guide............................................ 8

Creating a Power Guide...................... 9

Starting a Power Guide....................... 9

Workouts..................................................9

Creating a Workout..............................9

Repeating Workout Steps................. 10

Editing a Workout.............................. 10

Creating a Custom Workout on Garmin

Connect.............................................. 10

Following a Workout From Garmin

Connect.......................................... 10

Following a Daily Suggested

Workout..............................................10

Starting a Workout............................ 11

Stopping a Workout...........................11

Deleting Workouts............................. 11

Turning Daily Suggested Workout

Prompts On and Off.......................... 11

Segments...............................................11

Strava™ Segments............................. 11

Using the Strava Segment Explore

Widget............................................ 12

Following a Segment From Garmin

Connect.............................................. 12

Enabling Segments........................... 12

Racing a Segment............................. 13

Viewing Segment Details.................. 14

Segment Options............................... 14

Deleting a Segment........................... 14

Training Indoors.................................... 14

Pairing Your ANT+®

Indoor Trainer.................................... 14

Using an ANT+ Indoor Trainer.......... 15

Setting Resistance.........................15

Setting Target Power.....................15

Interval Workouts.................................. 15

Creating an Interval Workout............ 16

Starting an Interval Workout............. 16

Racing a Previous Activity.................... 16

Setting a Training Target...................... 17

My Stats......................................... 17

Performance Measurements............... 17

Training Status Levels.......................18

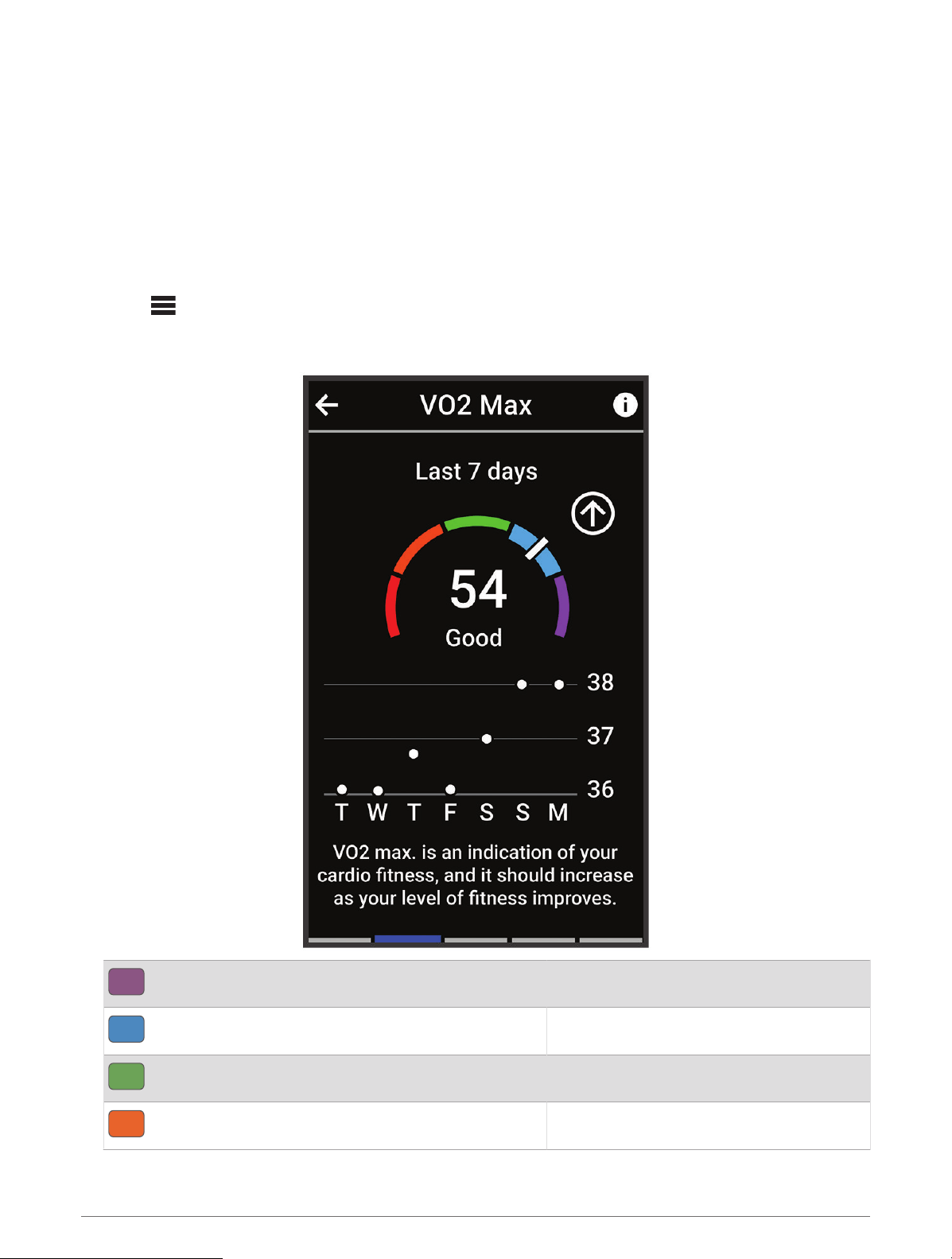

About VO2 Max. Estimates...............18

Getting Your VO2 Max. Estimate.. 19

Tips for Cycling VO2 Max.

Estimates....................................... 20

Heat and Altitude Performance

Acclimation.................................... 20

Training Load..................................... 20

Getting Your Training Load

Estimate......................................... 21

Training Load Focus......................... 22

Viewing Cycling Ability...................... 23

About Training Effect........................ 24

Recovery Time................................... 24

Viewing Your Recovery Time........ 25

Getting Your FTP Estimate............... 26

Conducting an FTP Test............... 27

Automatically Calculating FTP..... 27

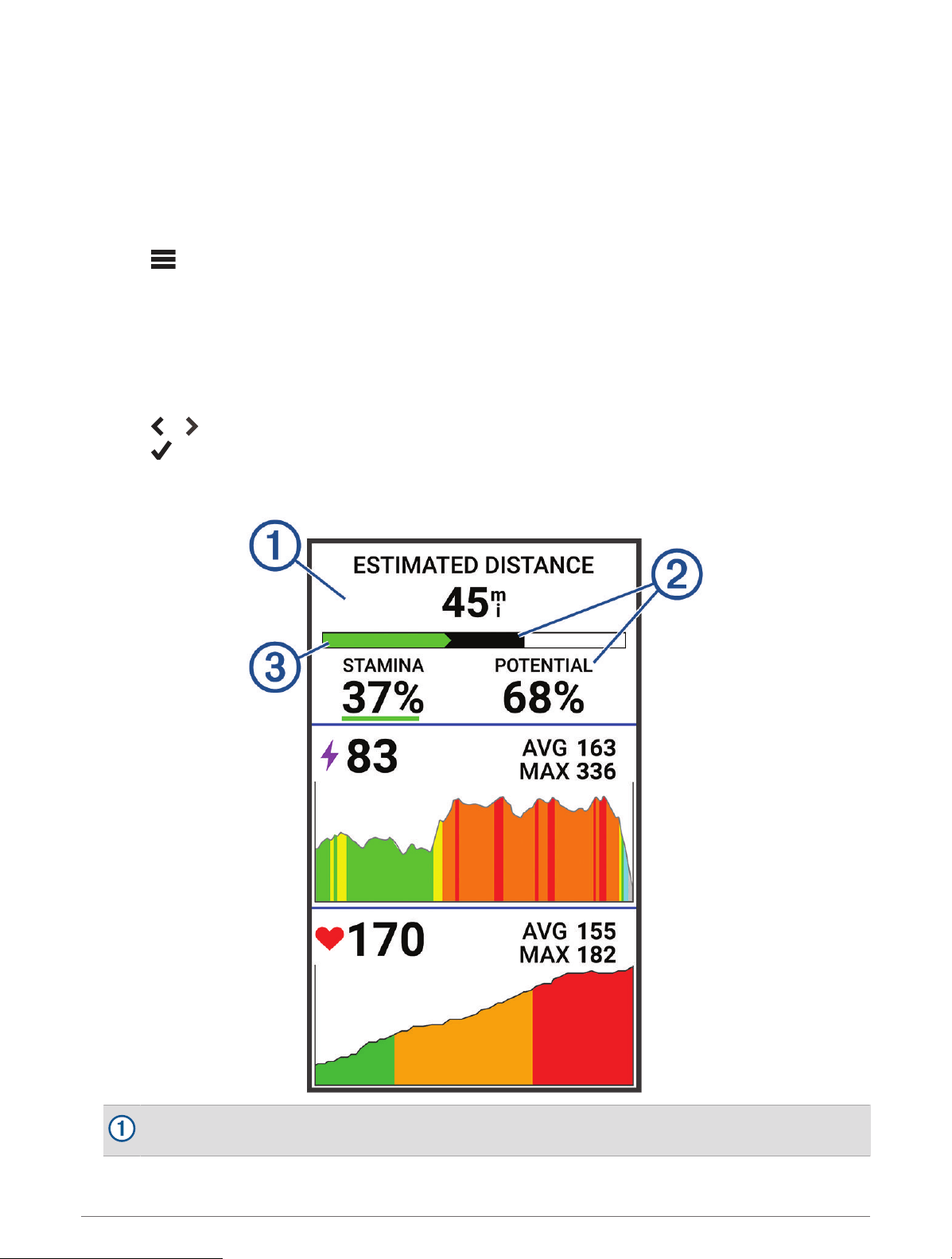

Viewing Your Real-Time Stamina..... 28

Viewing Your Stress Score............... 29

Turning Off Performance

Notifications...................................... 29

Viewing Your Power Curve............... 29

Syncing Activities and Performance

Measurements...............................29

Pausing Your Training Status........... 30

Resuming Your Paused Training

Status............................................. 30

Personal Records.................................. 30

Viewing Your Personal Records....... 30

Reverting a Personal Record............ 30

Deleting a Personal Record.............. 30

Training Zones...................................... 30

Navigation...................................... 31

Table of Contents i

Locations............................................... 31

Marking Your Location...................... 31

Saving Locations from the Map....... 31

Navigating to a Location................... 32

Navigating Back to Start................... 32

Stopping Navigation..........................33

Editing Locations...............................33

Deleting a Location........................... 33

Courses.................................................. 33

Planning and Riding a Course.......... 34

Creating and Riding a Round-Trip

Course................................................ 35

Creating a Course from a Recent

Ride.................................................... 35

Following a Course From Garmin

Connect.............................................. 35

Tips for Riding a Course................... 36

Viewing Course Details..................... 36

Displaying a Course on the Map... 36

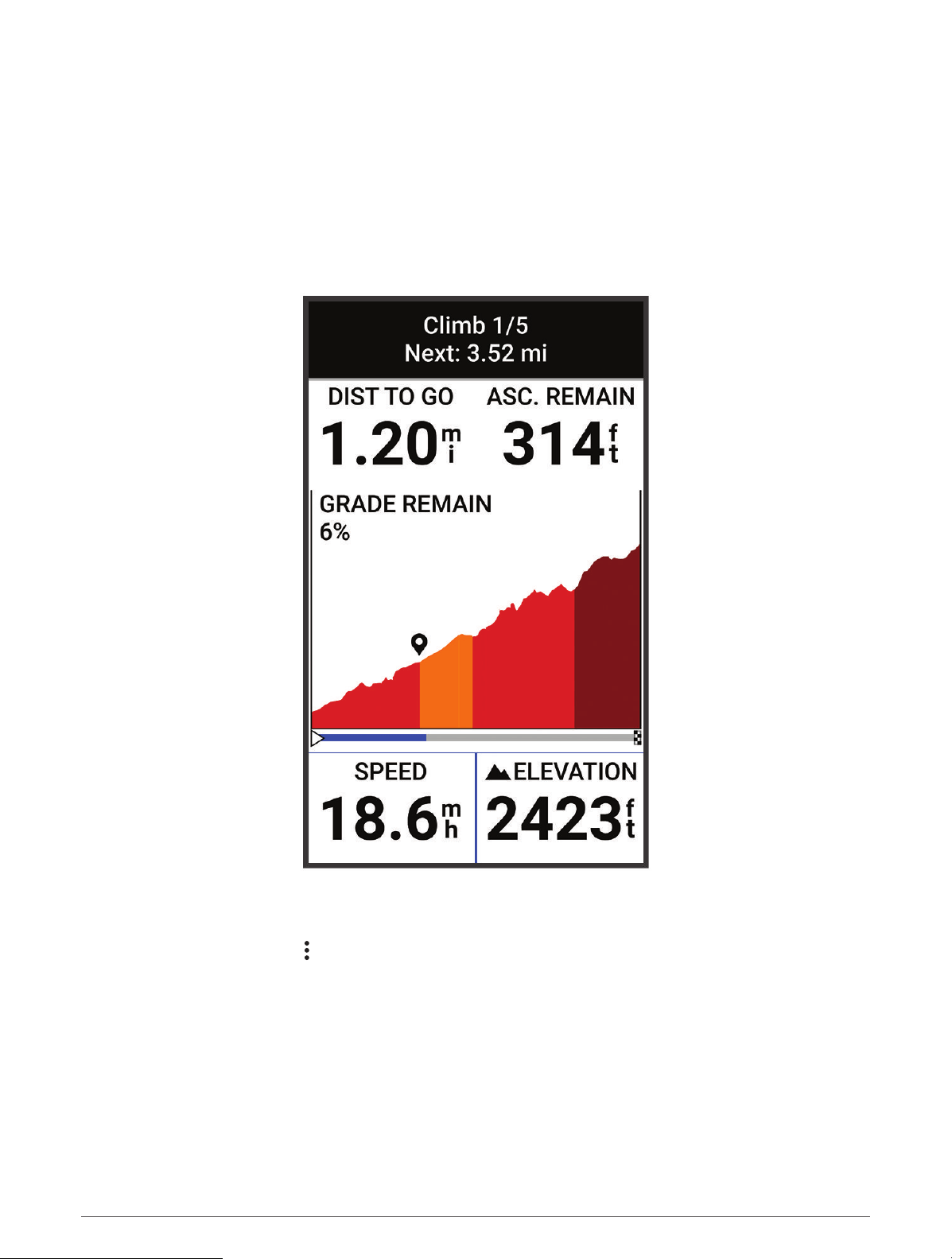

Using ClimbPro.................................. 37

Course Options.................................. 37

Rerouting a Course............................38

Stopping a Course............................. 38

Deleting a Course.............................. 38

Trailforks Routes............................... 38

Map Settings......................................... 38

Map Appearance Settings................ 38

Changing the Map Orientation......... 39

Map Themes...................................... 39

Route Settings....................................... 39

Selecting an Activity for Route

Calculation......................................... 39

Connected Features....................... 39

Pairing Your Phone............................... 40

Bluetooth Connected Features............ 40

Safety and Tracking Features...........41

Incident Detection......................... 41

Assistance..................................... 41

Adding Emergency Contacts........ 42

Viewing Your Emergency

Contacts......................................... 42

Requesting Assistance................. 42

Turning Incident Detection On and

Off................................................... 42

Cancelling an Automated

Message.........................................42

Sending a Status Update After an

Incident.......................................... 42

Turning On LiveTrack.................... 43

Starting a GroupTrack Session..... 44

Setting the Bike Alarm...................45

Playing Audio Prompts on Your

Phone............................................. 45

Wi‑Fi Connected Features.................... 45

Setting Up Wi‑Fi Connectivity........... 45

Wi‑Fi Settings..................................... 46

Wireless Sensors............................46

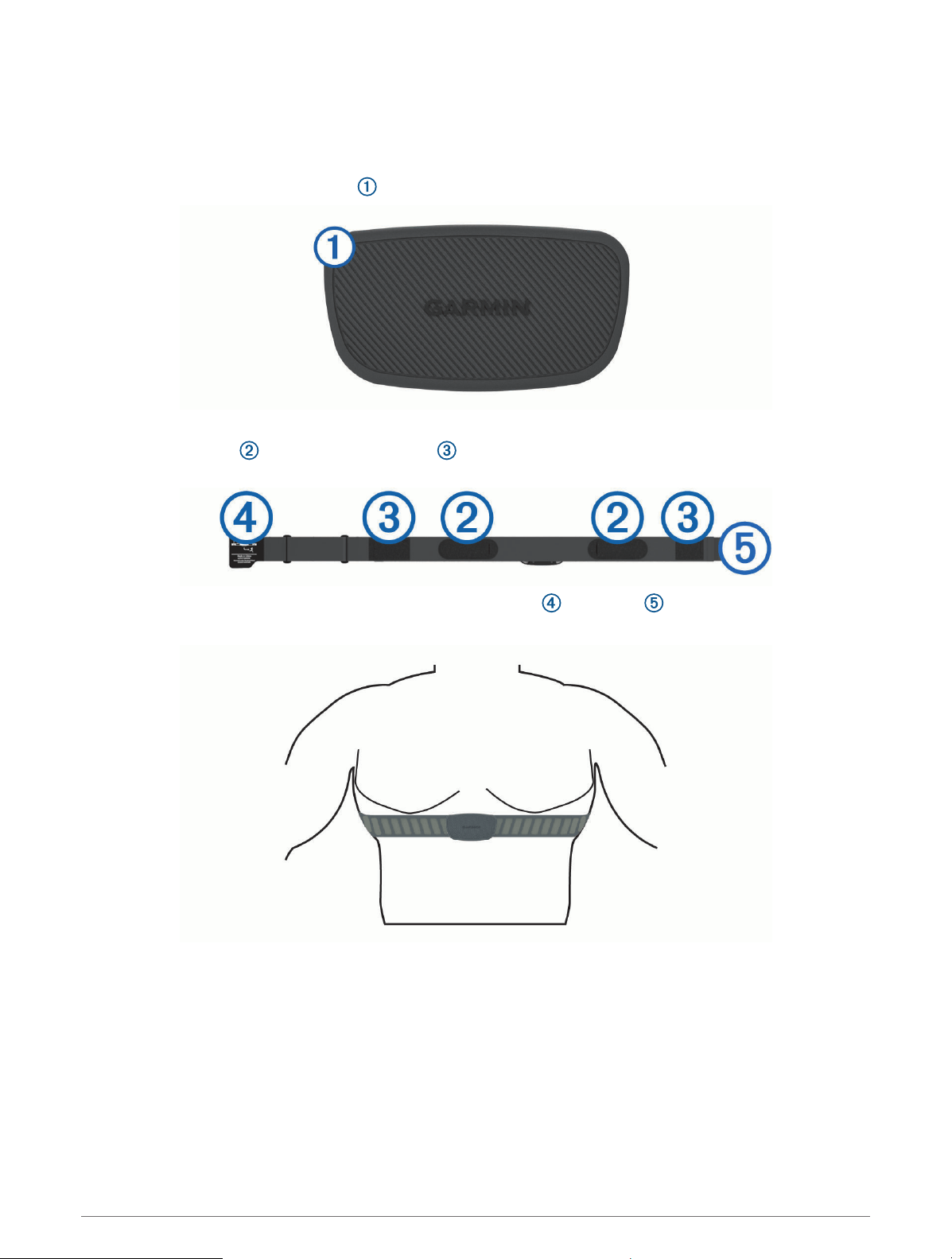

Putting On the Heart Rate Monitor.......47

Setting Your Heart Rate Zones......... 48

About Heart Rate Zones................48

Fitness Goals................................. 48

Tips for Erratic Heart Rate Data....... 48

Installing the Speed Sensor.................. 49

Installing the Cadence Sensor............. 49

About the Speed and Cadence

Sensors.............................................. 50

Data Averaging for Cadence or

Power................................................. 50

Pairing Your Wireless Sensors............. 51

Wireless Sensor Battery Life................ 51

Training with Power Meters................. 51

Setting Your Power Zones................ 51

Calibrating Your Power Meter.......... 51

Pedal-Based Power........................... 52

Cycling Dynamics.............................. 52

Using Cycling Dynamics................53

Updating the Rally Software Using the

Edge Device....................................... 54

Situational Awareness.......................... 54

Using the Varia Camera Controls..... 54

Enabling the Green Threat Level

Tone................................................... 54

Using Electronic Shifters...................... 55

Using an eBike....................................... 55

Viewing eBike Sensor Details........... 55

inReach Remote.................................... 55

Using the inReach Remote............... 55

History........................................... 55

Viewing Your Ride................................. 55

Viewing Your Time in Each Training

Zone................................................... 56

ii Table of Contents

Deleting a Ride...................................56

Viewing Data Totals.............................. 56

Deleting Data Totals............................. 56

Garmin Connect.................................... 56

Sending Your Ride to Garmin

Connect.............................................. 57

Data Recording...................................... 57

Data Management................................ 57

Connecting the Device to Your

Computer........................................... 57

Transferring Files to Your Device..... 58

Deleting Files..................................... 58

Disconnecting the USB Cable........... 58

Customizing Your Device................58

Connect IQ Downloadable Features.... 58

Downloading Connect IQ Features

Using Your Computer........................ 59

Profiles...................................................59

Setting Up Your User Profile............. 59

About Training Settings........................ 59

Updating Your Activity Profile...........60

Adding a Data Screen........................61

Editing a Data Screen........................ 61

Rearranging Data Screens................ 61

Alerts.................................................. 61

Setting Range Alerts...................... 62

Setting Recurring Alerts................ 62

Setting Smart Eat and Drink

Alerts.............................................. 62

Auto Lap............................................. 63

Marking Laps by Position............. 63

Marking Laps by Distance.............63

Marking Laps by Time................... 63

Customizing the Lap Banner........ 64

Using Auto Sleep............................... 64

Using Auto Pause.............................. 64

Using Auto Scroll............................... 64

Starting the Timer Automatically..... 64

Changing the Satellite Setting.......... 65

Phone Settings...................................... 65

System Settings.................................... 65

Display Settings................................. 65

Using the Backlight........................65

Customizing the Glances.................. 66

Customizing the Widget Loop.......... 66

Data Recording Settings................... 66

Changing the Units of Measure........ 66

Turning the Device Tones On and

Off.......................................................66

Changing the Device Language........ 66

Time Zones........................................ 66

Setting Up Extended Display Mode...... 67

Exiting Extended Display Mode........ 67

Device Information......................... 67

Charging the Device.............................. 67

About the Battery.............................. 68

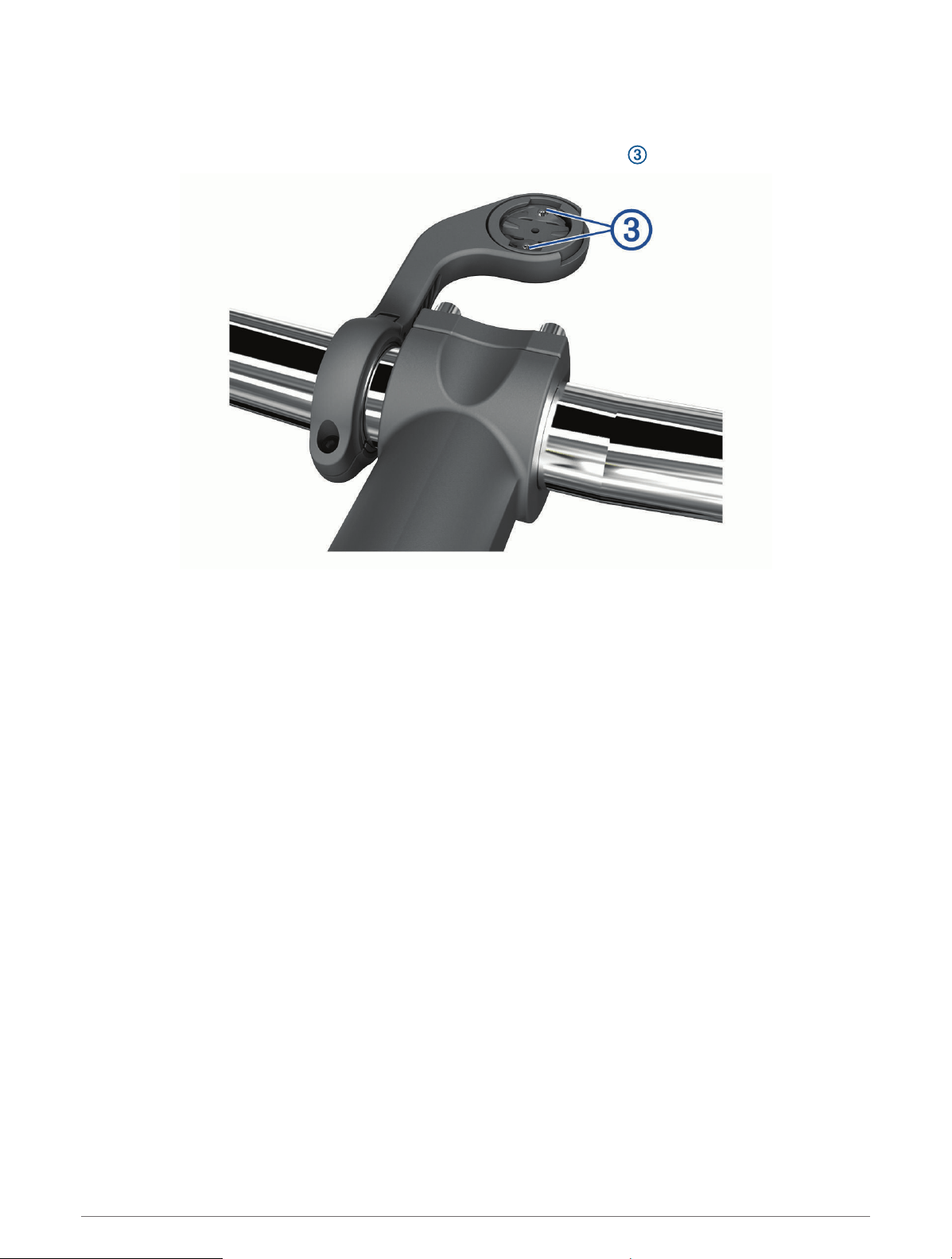

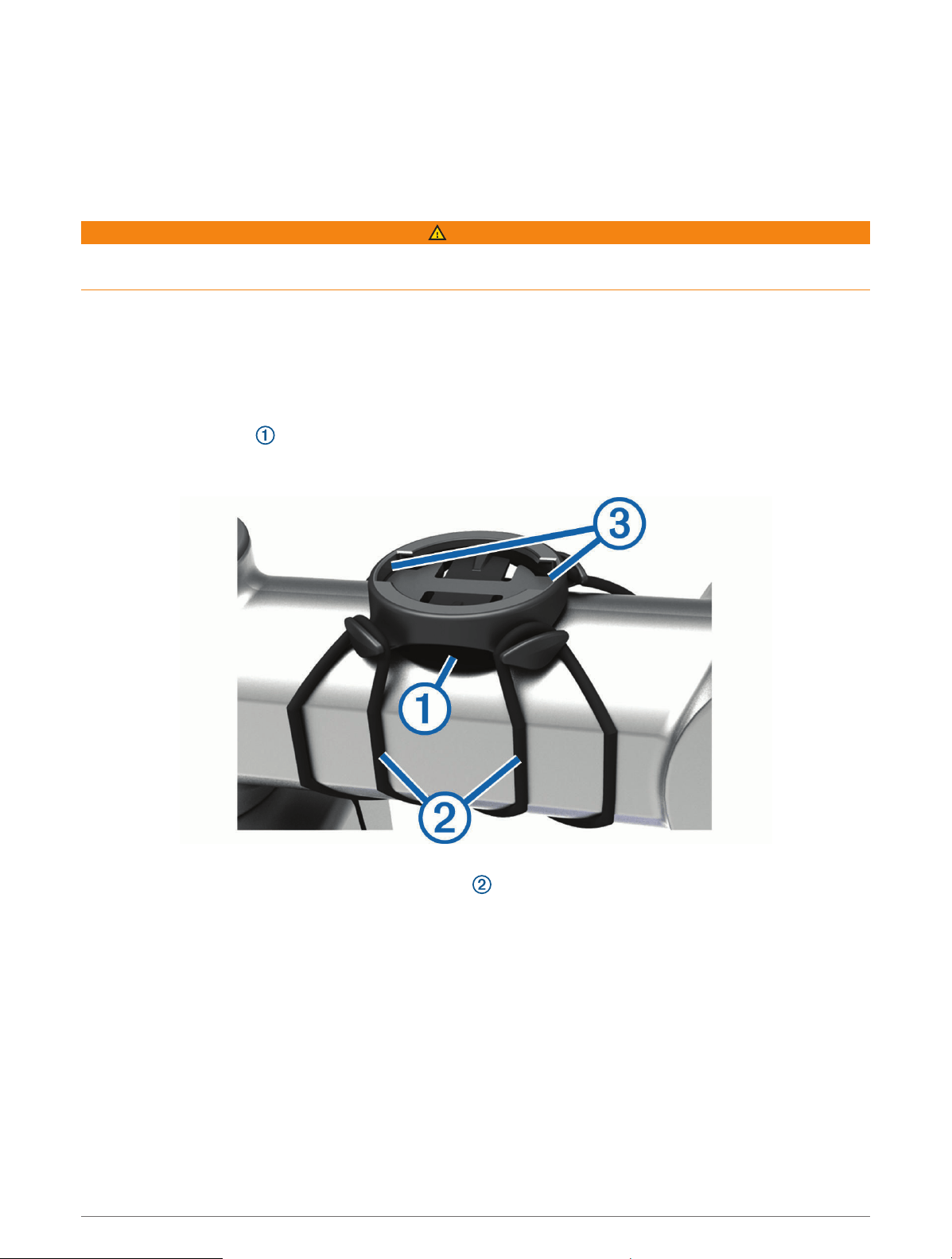

Installing the Standard Mount.............. 68

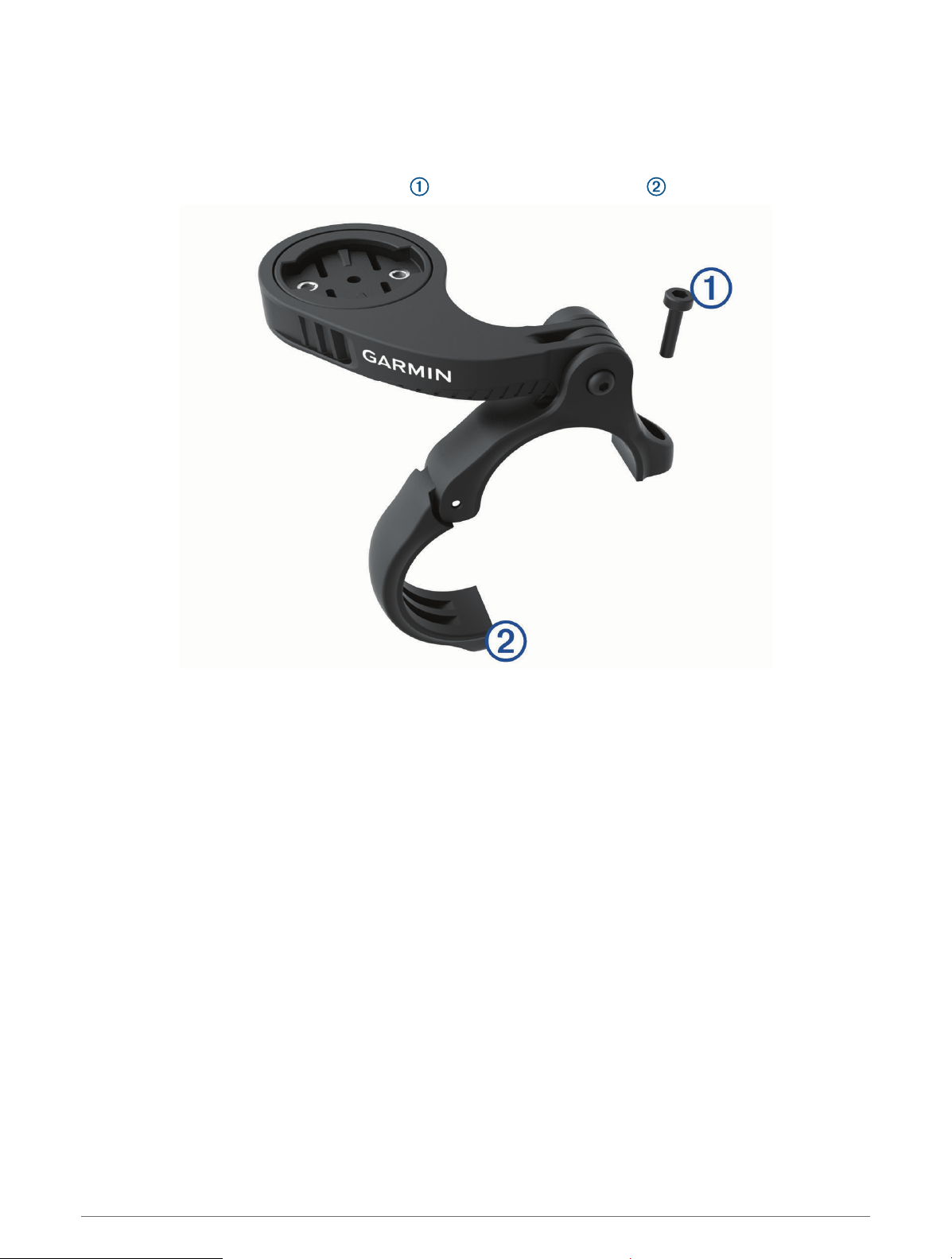

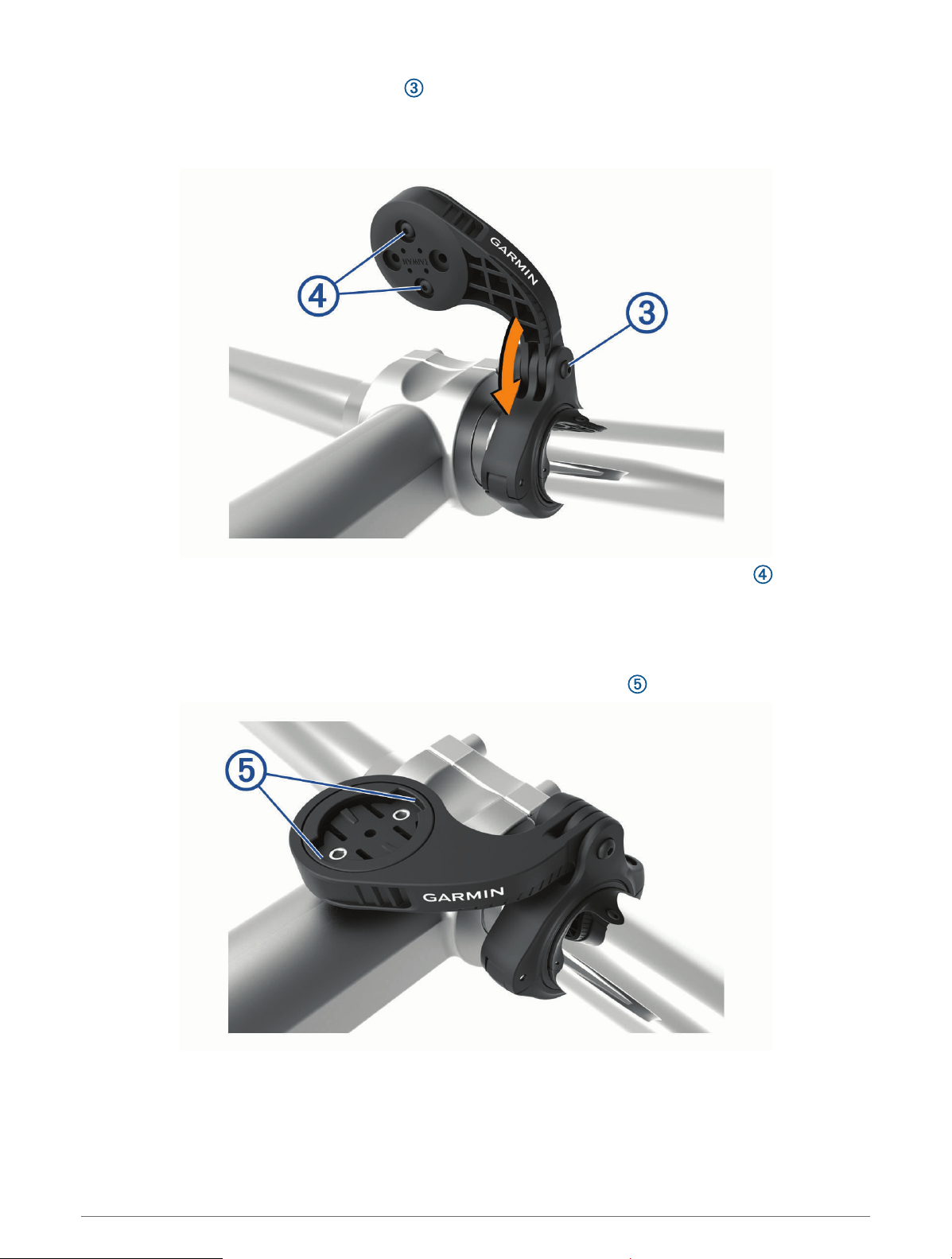

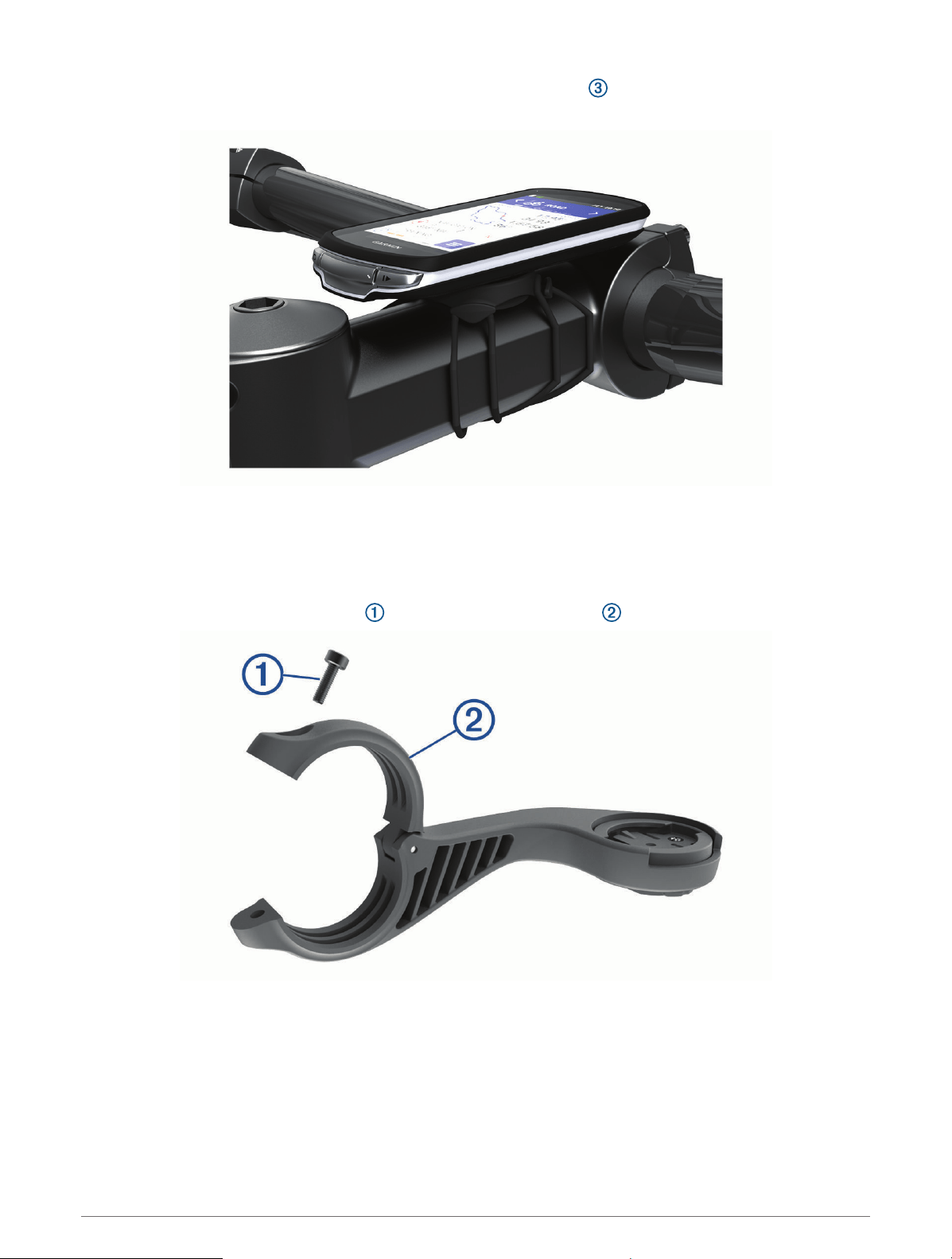

Installing the Out-Front Mount............. 69

Releasing the Edge............................ 70

Installing the Mountain Bike Mount..... 71

Product Updates................................... 73

Updating the Software Using the

Garmin Connect App......................... 73

Updating the Software Using Garmin

Express.............................................. 73

Specifications........................................73

Edge Specifications.......................... 73

HRM-Dual Specifications.................. 74

Speed Sensor 2 and Cadence Sensor 2

Specifications.................................... 74

Viewing Device Information................. 74

Viewing Regulatory and Compliance

Information........................................ 74

Device Care............................................74

Cleaning the Device...........................75

Caring for the Heart Rate Monitor.... 75

User Replaceable Batteries.................. 75

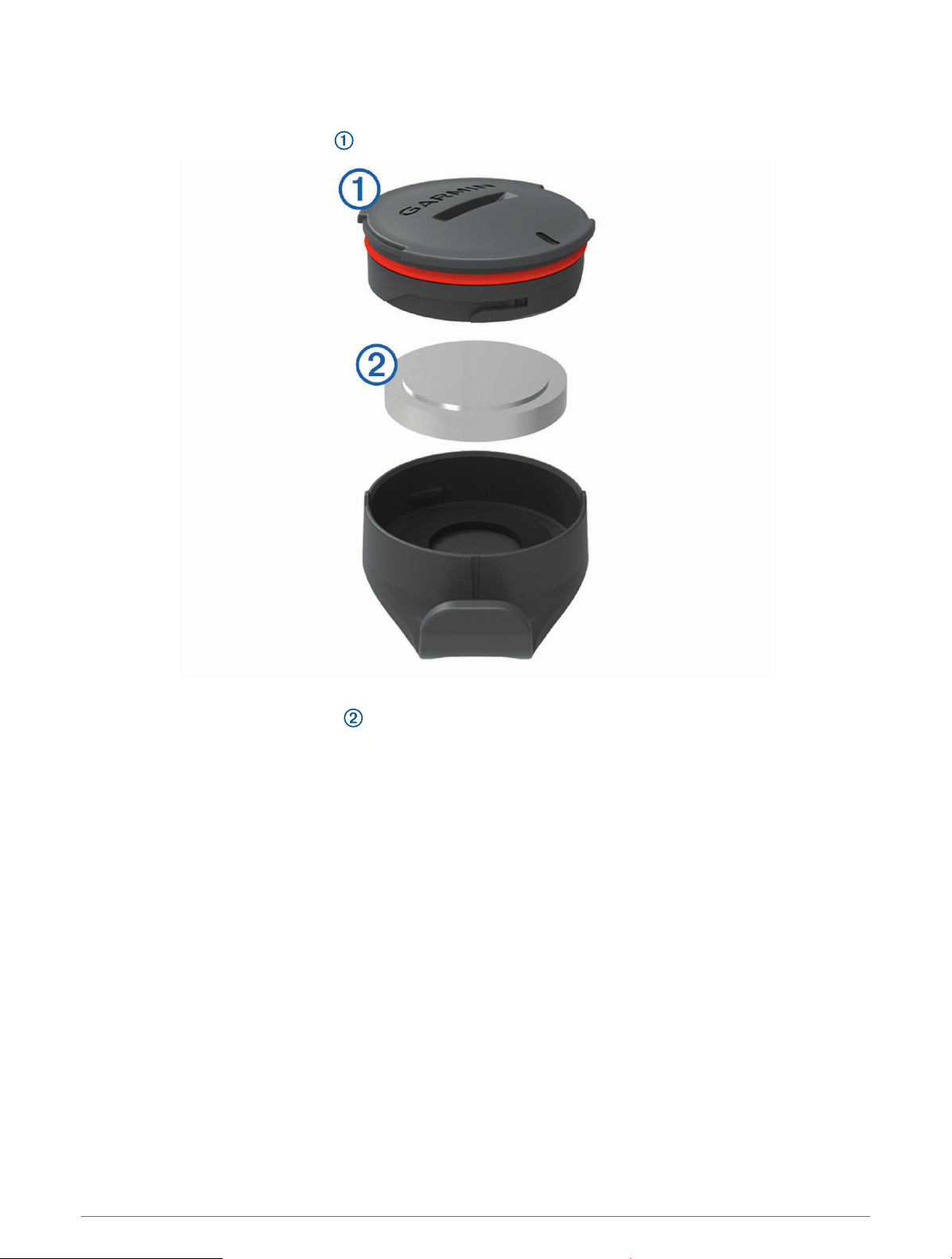

Replacing the Heart Rate Monitor

Battery................................................ 76

Replacing the Speed Sensor

Battery................................................ 77

Replacing the Cadence Sensor

Battery................................................ 78

Troubleshooting............................. 78

Resetting the Device............................. 78

Restoring the Default Settings......... 78

Clearing User Data and Settings...... 79

Maximizing Battery Life........................ 79

Turning On Battery Save Mode.........79

My phone will not connect to the

device..................................................... 79

Table of Contents iii

Tips for Using the Edge 1040 Solar

Device.................................................... 79

Improving GPS Satellite Reception...... 80

My device is in the wrong language.....80

Setting Your Elevation...........................81

Temperature Readings......................... 81

Replacement O-rings............................ 81

Getting More Information..................... 81

Appendix........................................ 82

Data Fields............................................. 82

VO2 Max. Standard Ratings................. 90

FTP Ratings........................................... 90

Heart Rate Zone Calculations.............. 91

Wheel Size and Circumference............ 92

iv Table of Contents

Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other

important information.

Always consult your physician before you begin or modify any exercise program.

Introduction 1

Device Overview

Press to enter sleep mode and wake the device.

Hold to turn the device on and off and lock the touchscreen.

Press to mark a new lap.

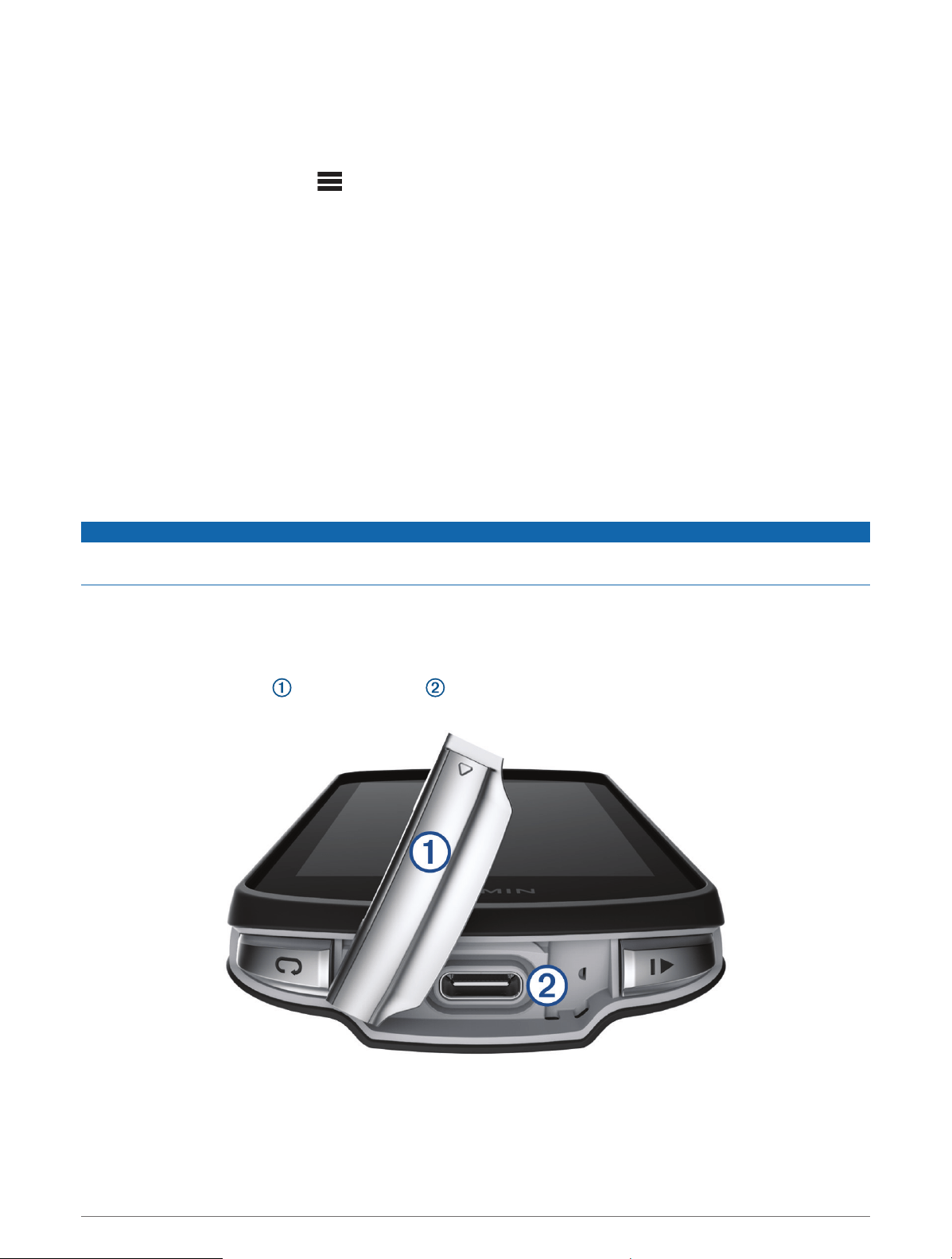

USB port (under weather

cap)

Lift the weather cap to charge the device or connect it to a computer.

Replace the weather cap to prevent damage to the USB port.

Press to start and stop the activity timer.

Select to open the main menu.

Glances

Swipe up or down on the home screen to view the glances.

Select to open the glance or menu.

Swipe left or right to change the biking profile.

Select to open the biking profile.

2 Introduction

Biking profile

Widgets

Swipe down from the top of the screen to view the widgets, then swipe left or

right to view more widgets.

Electrical contacts

Charge using an external power accessory.

NOTE: Go to buy.garmin.com to purchase optional accessories.

Home Screen Overview

The home screen gives you quick access to all the features of the Edge device.

Battery status

GPS signal strength

Bluetooth

status

Sync in progress

Select to go for a ride.

Use the arrows to change the biking profile.

Navigation Select to mark a location, search for locations, and create or navigate a course.

Training Select to access your segments, workouts, and other training options.

History Select to access your previous rides and totals.

Select to access your history, performance metrics, personal records, contacts, and settings.

Select to access connected features and settings.

Select to access your Connect IQ

™

apps, widgets, and data fields.

Introduction 3

Viewing Widgets

Your device is preloaded with several widgets, and more are available when you pair your device with a phone or

other compatible device.

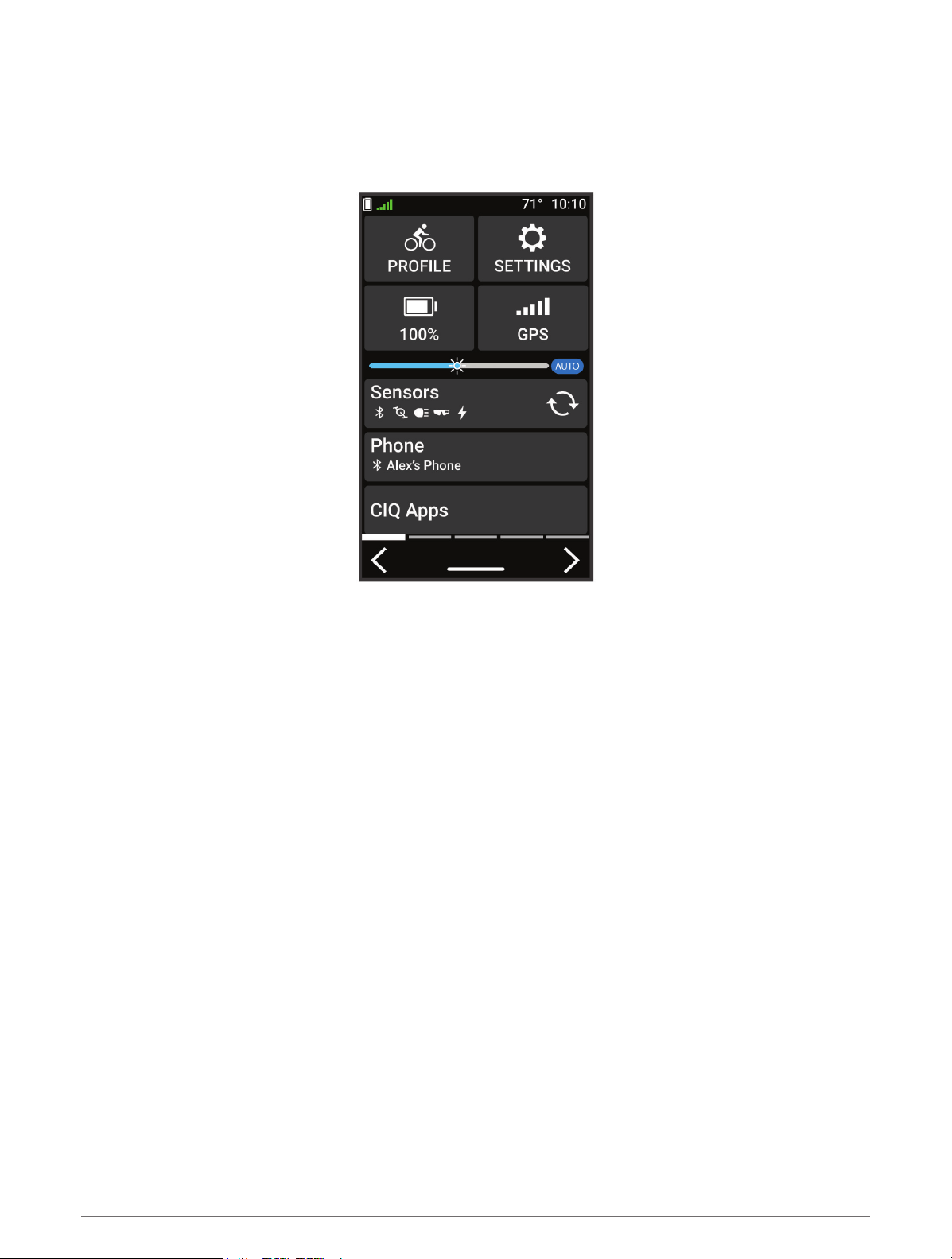

1 From the home screen, swipe down from the top of the screen.

The settings widget appears. A flashing icon means the device is searching for a signal. A solid icon means

the signal was found or the sensor is connected. You can select any icon to change the settings.

2 Swipe left or right to view more widgets.

The next time you swipe down to view the widgets, the last widget you viewed appears.

4 Introduction

Viewing Glances

Glances provide quick access to health data, activity information, built-in sensors, and more.

• From the home screen, swipe up or down.

The device scrolls through the glances.

• Select a glance to view additional information.

• Select to customize the glances (Customizing the Glances, page 66).

Using the Touchscreen

• When the timer is running, tap the screen to view the timer overlay.

The timer overlay allows you to return to the home screen during a ride.

• Select to return to the home screen.

• Swipe or select the arrows to scroll.

• Select to return to the previous page.

• Select to save your changes and close the page.

• Select to close the page and return to the previous page.

• Select to search near a location.

• Select to delete an item.

• Select for more information.

Locking the Touchscreen

You can lock the screen to prevent inadvertent screen touches.

• Hold , and select Lock Screen.

• During an activity, select .

Introduction 5

Acquiring Satellite Signals

The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically

based on the GPS position.

TIP: For more information about GPS, go to www.garmin.com/aboutGPS.

1 Go outdoors to an open area.

The front of the device should be oriented toward the sky.

2 Wait while the device locates satellites.

It may take 30–60 seconds to locate satellite signals.

Training

Going for a Ride

If you are using a wireless sensor or accessory, it can be paired and activated during initial setup (Pairing Your

Wireless Sensors, page 51). If your device was packaged with a wireless sensor, they are already paired and

can be activated during initial setup.

1 Hold to turn on the device.

2 Go outside, and wait while the device locates satellites.

The satellite bars turn green when the device is ready.

3 From the home screen, select or to change the biking profile.

4 Press to start the activity timer.

NOTE: History is recorded only while the activity timer is running.

5 Swipe left or right to view additional data screens.

You can swipe down from the top of the data screens to view the widgets.

6 If necessary, tap the screen to view status overlay data (including battery life) or return to the home screen.

7 Press to stop the activity timer.

TIP: Before you save this ride and share it on your Garmin Connect

™

account, you can change the ride type.

Accurate ride type data is important for creating bike friendly courses.

6 Training

8 Select Save.

9 Select .

Training Plans

You can set up a training plan in your Garmin Connect account and send the training plan workouts to your

device. All scheduled workouts sent to the device appear in the training calendar.

Using Garmin Connect Training Plans

Before you can download and use a training plan, you must have a Garmin Connect account (Garmin Connect,

page 56), and you must pair the Edge device with a compatible phone.

1 From the Garmin Connect app, select or .

2 Select Training > Training Plans.

3 Select and schedule a training plan.

4 Follow the on-screen instructions.

5 Review the training plan in your calendar.

Viewing the Training Calendar

When you select a day in the training calendar, you can view or start the workout. You can also view saved rides.

1 Select Training > Training Plan.

2 Select .

3 Select a day to view a scheduled workout or a saved ride.

Training 7

Power Guide

You can create and use a power strategy to plan your effort on a course. Your Edge device uses your FTP, the

course elevation, and the projected time it will take you to complete the course to create a customized power

guide.

One of the most important steps in planning a successful power guide strategy is choosing your effort level.

Putting a harder effort into the course will increase the power recommendations, while choosing an easier effort

will reduce them (Creating a Power Guide, page 9). The primary goal of a power guide is to help you complete

the course based on what is known about your ability, not to achieve a specific target time. You can adjust the

effort level during your ride.

Power guides are always associated with a course and cannot be used with workouts or segments. You can

view and edit your strategy in Garmin Connect and sync it with compatible Garmin

devices. This feature

requires a power meter, which must be paired with your device (Pairing Your Wireless Sensors, page 51). After

the devices are paired, you can customize the optional data fields (Data Fields, page 82).

8 Training

Creating a Power Guide

Before you can create a power guide, you must pair a power meter with your device (Pairing Your Wireless

Sensors, page 51).

1 Select Training > Power Guide > .

2 Select an option:

• Select Use Saved Course to use a saved course, and select the course.

• Select Course Creator to create a new course, and select > Create Power Guide.

3 Enter a name for the power guide, and select .

4 Select a riding position.

5 Select a gear weight.

6 Select Save.

Starting a Power Guide

Before you can start a power guide, you must create a power guide (Creating a Power Guide, page 9).

1 Select Training > Power Guide.

2 Select a power guide.

3 Select Ride.

4 Press to start the activity timer.

Workouts

You can create custom workouts that include goals for each workout step and for varied distances, times, and

calories. You can create workouts using Garmin Connect, and transfer them to your device. You can also create

and save a workout directly on your device.

You can schedule workouts using Garmin Connect. You can plan workouts in advance and store them on your

device.

Creating a Workout

1 Select Training > Workouts > .

2 Select > Rename, enter a workout name, and select (optional).

3 Select Add New Step.

4 Select the type of workout step.

For example, select Rest to use the step as a rest lap.

During a rest lap, the activity timer continues to run and data is recorded.

5 Select the workout step duration.

For example, select Distance to end the step after a specific distance.

6 If necessary, enter a custom value for the duration.

7 Select the workout step target type.

For example, select Heart Rate Zone to maintain a consistent heart rate during the step.

8 If necessary, select a target zone or enter a custom range.

For example, you can select a heart rate zone. Each time you exceed or drop below the specified heart rate,

the device beeps and displays a message.

NOTE: You can also select a secondary target. For example, you can ride for five minutes in a power zone as

your primary target, with a cadence rate as your secondary target.

9 Select to save the step.

10 Select Add New Step to add additional steps to the workout.

11 Select Add New Step > Repeat >

to repeat a step.

12 Select to save the workout.

Training 9

Repeating Workout Steps

Before you can repeat a workout step, you must create a workout with at least one step.

1 Select Add New Step.

2 Select an option:

• Select Repeat to repeat a step one or more times. For example, you can repeat a 5-mile step ten times.

• Select Repeat Until to repeat a step for a specific duration. For example, you can repeat a 5-mile step for

60 minutes or until your heart rate reaches 160 bpm.

3 Select Back To Step, and select a step to repeat.

4 Select to save the step.

Editing a Workout

1 Select Training > Workouts.

2 Select a workout.

3 Select .

4 Select a step.

5 Change the step attributes, and select .

6 If necessary, select > Delete > to delete the step.

7 Select to save the workout.

Creating a Custom Workout on Garmin Connect

Before you can create a workout on the Garmin Connect app, you must have a Garmin Connect account (Garmin

Connect, page 56).

1 From the Garmin Connect app, select or .

2 Select Training > Workouts > Create a Workout.

3 Select an activity.

4 Create your custom workout.

5 Select Save.

6 Enter a name for your workout, and select Save.

The new workout appears in your list of workouts.

NOTE: You can send this workout to your device (Following a Workout From Garmin Connect, page 10).

Following a Workout From Garmin Connect

Before you can download a workout from Garmin Connect, you must have a Garmin Connect account (Garmin

Connect, page 56).

1 Select an option:

• Open the Garmin Connect app.

• Go to connect.garmin.com.

2 Select Training > Workouts.

3 Find a workout, or create and save a new workout.

4 Select or Send to Device.

5 Follow the on-screen instructions.

Following a Daily Suggested Workout

You must ride with heart rate and power for one week to get workout recommendations.

1 Select Training > Workouts > Daily Suggested Workout.

2 Select Ride.

10 Training

Starting a Workout

1 Select Training > Workouts.

2 Select a workout.

3 Select Ride.

4 Select to start the activity timer.

After you begin a workout, the device displays each step of the workout, the target (if any), and current workout

data. An audible alarm sounds when you are about to finish a workout step. A message appears, counting down

the time or distance until a new step begins.

Stopping a Workout

• At any time, select to end a workout step and begin the next step.

• From the workout screen, swipe up from the bottom of the screen, and select an option:

◦ Select to pause the current workout step.

◦ Select to end a workout step and repeat the previous step.

◦ Select to end a workout step and begin the next step.

• At any time, select to stop the activity timer.

• At any time, swipe down from the top of the screen, and on the controls widget, select Stop Workout > to

end the workout.

Deleting Workouts

1 Select Training > Workouts > > Delete Multiple.

2 Select one or more workouts.

3 Select .

Turning Daily Suggested Workout Prompts On and Off

Daily suggested workouts are recommended based on your previous activities saved to your Garmin Connect

account.

1 Select Training > Workouts > Daily Suggested Workout > .

2 Select Enable.

Segments

Following a segment: You can send segments from your Garmin Connect account to your device. After a

segment is saved to your device, you can follow the segment.

NOTE: When you download a course from your Garmin Connect account, all segments in the course are

downloaded automatically.

Racing a segment: You can race a segment, trying to match or exceed your personal record or other cyclists

who have ridden the segment.

Strava

™

Segments

You can download Strava segments to your Edge 1040 device. Follow Strava segments to compare your

performance with your past rides, friends, and pros who have ridden the same segment.

To sign up for a Strava membership, go to the segments menu in your Garmin Connect account. For more

information, go to www.strava.com.

The information in this manual applies to both Garmin Connect segments and Strava segments.

Training 11

Using the Strava Segment Explore Widget

The Strava Segment Explore widget allows you to view and ride nearby Strava segments.

1 From the Strava Segment Explore widget, select a segment.

2 Select an option:

• Select to star the segment in your Strava account.

• Select Download > Ride to download a segment to your device and ride it.

• Select Ride to ride a downloaded segment.

3 Select or to view your segment times, the best times of your friends, and the time of the segment leader.

Following a Segment From Garmin Connect

Before you can download and follow a segment from Garmin Connect, you must have a Garmin Connect

account (Garmin Connect, page 56).

NOTE: If you are using Strava segments, your starred segments are transferred automatically to your device

when it syncs with the Garmin Connect app.

1 Select an option:

• Open the Garmin Connect app.

• Go to connect.garmin.com.

2 Select a segment.

3 Select or Send to Device.

4 Follow the on-screen instructions.

5 On the Edge device, select Training > Segments.

6 Select the segment.

7 Select Ride.

Enabling Segments

You can choose which segments currently loaded on the device are enabled.

1 Select Training > Segments > > Enable/Disable > Edit Multiple.

2 Select the segments to enable.

12 Training

Racing a Segment

Segments are virtual race courses. You can race a segment, and compare your performance to past activities,

other riders' performance, connections in your Garmin Connect account, or other members of the cycling

community. You can upload your activity data to your Garmin Connect account to view your segment position.

NOTE: If your Garmin Connect account and Strava account are linked, your activity is automatically sent to your

Strava account so you can review the segment position.

1 Select to start the activity timer, and go for a ride.

When your path crosses an enabled segment, you can race the segment.

2 Start racing the segment.

The segment data screen appears automatically.

3 If necessary, use the arrows to change your goal during your race.

You can race against the segment leader, your past performance, or other riders (if applicable). The goal

automatically adjusts based on your current performance.

A message appears when the segment is complete.

Training 13

Viewing Segment Details

1 Select Training > Segments.

2 Select a segment.

3 Select an option:

• Select Map to view the segment on the map.

• Select Elevation to view an elevation plot of the segment.

• Select Leaderboard to view the ride times and average speeds for the segment leader, group leader or

challenger, your personal best time and average speed, and other riders (if applicable).

TIP: You can select a leaderboard entry to change your segment race goal.

• Select Enable to enable segment racing and prompts that alert you to approaching segments.

Segment Options

Select Training > Segments > .

Turn Guidance: Enables or disables turn prompts.

Auto Select Effort: Enables or disables automatic goal adjustment based on your current performance.

Search: Allows you to search for saved segments by name.

Enable/Disable: Enables or disables the segments currently loaded on the device.

Default Leader Priority: Allows you to select the order for goal targets while racing a segment.

Delete: Allows you to delete all or multiple saved segments from the device.

Deleting a Segment

1 Select Training > Segments.

2 Select a segment.

3 Select > .

Training Indoors

The device includes an indoor activity profile where GPS is turned off. When GPS is turned off, speed and

distance are not available unless you have a compatible sensor or indoor trainer that sends speed and distance

data to the device.

Pairing Your ANT+

Indoor Trainer

1 Bring the Edge device within 3 m (10 ft.) of the ANT+ indoor trainer.

2 Select the indoor biking profile.

3 Select the indoor trainer to pair with your Edge device.

4 Follow the on-screen instructions.

When the indoor trainer is paired with your Edge device, the indoor trainer appears as a connected sensor.

You can customize your data fields to display sensor data.

14 Training

Using an ANT+ Indoor Trainer

Before you can use a compatible ANT+ indoor trainer, you must mount your bike on the trainer and pair it with

your device (Pairing Your ANT+

Indoor Trainer, page 14).

You can use your device with an indoor trainer to simulate resistance while following a course, activity, or

workout. While using an indoor trainer, GPS is turned off automatically.

1 Select Training > Smart Trainer.

2 Select an option:

• Select Free Ride to manually adjust the resistance level.

• Select Follow a Course to follow a saved course (Courses, page 33).

• Select Follow an Activity to follow a saved ride (Going for a Ride, page 6).

• Select Follow a Workout to follow a saved workout (Workouts, page 9).

3 Select a course, activity, or workout.

4 Select Ride.

5 Select to start the activity timer.

The trainer increases or decreases resistance based on the elevation information in the course or ride.

Setting Resistance

1 Select Training > Smart Trainer > Set Resistance.

2 Select or to set the resistance force applied by the trainer.

3 Select to start the activity timer.

4 If necessary, select or to adjust the resistance during your activity.

Setting Target Power

1 Select Training > Smart Trainer > Set Target Power.

2 Set the target power value.

3 Select to start the activity timer.

The resistance force applied by the trainer is adjusted to maintain a constant power output based on your

speed.

4 If necessary, select or to adjust the target power during your activity.

Interval Workouts

You can create interval workouts based on distance or time. The device saves your custom interval workout

until you create another interval workout. You can use open intervals when you are riding a known distance.

When you select , the device records an interval and moves to a rest interval.

Training 15

Creating an Interval Workout

1 Select Training > Intervals > Edit > Intervals > Target Type.

2 Select an option.

TIP: You can create an open-ended interval by setting the type to Open.

3 If necessary, enter a high and low value for the interval.

4 Select Duration, enter a time interval value, and select .

5 Select .

6 Select Rest > Target Type.

7 Select an option.

8 If necessary, enter a high and low value for the rest interval.

9 Select Duration, enter time value for the rest interval, and select .

10 Select .

11 Select one or more options:

• To set the number of repetitions, select Repeat.

• To add an open-ended warm up to your workout, select Warm Up > On.

• To add an open-ended cool down to your workout, select Cool Down > On.

Starting an Interval Workout

1 Select Training > Intervals > Do Workout.

2 Select to start the activity timer.

3 When your interval workout has a warm up, select to begin the first interval.

4 Follow the on-screen instructions.

When you complete all of the intervals, a message appears.

Racing a Previous Activity

You can race a previously recorded or downloaded activity.

1 Select Training > Race an Activity.

2 Select an option:

• Select Ride History to select a previously recorded activity from your device.

• Select Saved Courses to select an activity you downloaded from your Garmin Connect account.

3 Select the activity.

4 Select Ride.

5 Select to start the activity timer.

16 Training

Setting a Training Target

The training target feature works with the Virtual Partner

feature so you can train toward a set distance,

distance and time, or distance and speed goal. During your training activity, the device gives you real-time

feedback about how close you are to achieving your training target.

1 Select Training > Set a Target.

2 Select an option:

• Select Distance Only to select a preset distance or enter a custom distance.

• Select Distance and Time to select a distance and time target.

• Select Distance and Speed to select a distance and speed target.

The training target screen appears, indicating your estimated finish time. The estimated finish time is based

on your current performance and the time remaining.

3 Select .

4 Select to start the activity timer.

5 If necessary, scroll to view the Virtual Partner screen.

6 After you complete your activity, select > Save.

My Stats

The Edge 1040 device can track your personal statistics and calculate performance measurements.

Performance measurements require a compatible heart rate monitor or power meter.

Performance Measurements

These performance measurements are estimates that can help you track and understand your training activities

and race performances. The measurements require a few activities using wrist-based heart rate or a compatible

chest heart rate monitor. Cycling performance measurements require a heart rate monitor and a power meter.

These estimates are provided and supported by Firstbeat Analytics

™

. For more information, go to

www.garmin.com/performance-data.

NOTE: The estimates may seem inaccurate at first. The device requires you to complete a few activities to learn

about your performance.

Training status: Training status shows you how your training affects your fitness and performance. Your

training status is based on changes to your training load and VO2 max. over an extended time period.

VO2 max.: VO2 max. is the maximum volume of oxygen (in milliliters) you can consume per minute per kilogram

of body weight at your maximum performance. Your device displays heat and altitude corrected VO2 max.

values when you are acclimating to high heat environments or high altitude.

Training load: Training load is the sum of your excess post-exercise oxygen consumption (EPOC) over the last 7

days. EPOC is an estimate of how much energy it takes for your body to recover after exercise.

Training load focus: Your device analyzes and distributes your training load into different categories based on

the intensity and structure of each activity recorded. Training load focus includes the total load accumulated

per category, and the focus of the training. Your device displays your load distribution over the last 4 weeks.

Recovery time: The recovery time displays how much time remains before you are fully recovered and ready for

the next hard workout.

Functional threshold power (FTP): The device uses your user profile information from the initial setup to

estimate your FTP. For a more accurate rating, you can conduct a guided test.

HRV stress test: The HRV (heart rate variability) stress test requires a Garmin chest heart rate monitor. The

device records your heart rate variability while standing still for 3 minutes. It provides your overall stress

level. The scale is 1 to 100, and a lower score indicates a lower stress level.

Performance condition: Your performance condition is a real-time assessment after 6 to 20 minutes of activity.

It can be added as a data field so you can view your performance condition during the rest of your activity. It

compares your real-time condition to your average fitness level.

My Stats 17

Power curve: The power curve displays your sustained power output over time. You can view your power curve

for the previous month, three months, or twelve months.

Training Status Levels

Training status shows you how your training affects your fitness level and performance. Your training status is

based on changes to your training load and VO2 max. over an extended time period. You can use your training

status to help plan future training and continue improving your fitness level.

Peaking: Peaking means that you are in ideal race condition. Your recently reduced training load is allowing your

body to recover and fully compensate for earlier training. You should plan ahead, since this peak state can

only be maintained for a short time.

Productive: Your current training load is moving your fitness level and performance in the right direction. You

should plan recovery periods into your training to maintain your fitness level.

Maintaining: Your current training load is enough to maintain your fitness level. To see improvement, try adding

more variety to your workouts or increasing your training volume.

Recovery: Your lighter training load is allowing your body to recover, which is essential during extended periods

of hard training. You can return to a higher training load when you feel ready.

Unproductive: Your training load is at a good level, but your fitness is decreasing. Your body may be struggling

to recover, so you should pay attention to your overall health including stress, nutrition, and rest.

Detraining: Detraining occurs when you are training much less than usual for a week or more, and it is affecting

your fitness level. You can try increasing your training load to see improvement.

Overreaching: Your training load is very high and counterproductive. Your body needs a rest. You should give

yourself time to recover by adding lighter training to your schedule.

No Status: The device needs one or two weeks of training history, including activities with VO2 max. results

from running or cycling, to determine your training status.

About VO2 Max. Estimates

VO2 max. is the maximum volume of oxygen (in milliliters) you can consume per minute per kilogram of body

weight at your maximum performance. In simple terms, VO2 max. is an indication of athletic performance and

should increase as your level of fitness improves. VO2 max. estimates are provided and supported by Firstbeat.

You can use your Garmin device paired with a compatible heart rate monitor and power meter to display your

cycling VO2 max. estimate.

18 My Stats

Getting Your VO2 Max. Estimate

Before you can view your VO2 max. estimate, you must put on the heart rate monitor, install the power meter,

and pair them with your device (Pairing Your Wireless Sensors, page 51). If your device was packaged with a

heart rate monitor, the device and sensor are already paired. For the most accurate estimate, complete the user

profile setup (Setting Up Your User Profile, page 59), and set your maximum heart rate (Setting Your Heart Rate

Zones, page 48).

NOTE: The estimate may seem inaccurate at first. The device requires a few rides to learn about your cycling

performance.

1 Ride at a steady, high intensity for at least 20 minutes.

2 After your ride, select Save.

3 Select > My Stats > Training Status.

4 Swipe to view your VO2 max.

Your VO2 max. estimate appears as a number and position on the color gauge.

Purple

Superior

Blue

Excellent

Green

Good

Orange

Fair

My Stats 19

Red

Poor

VO2 max. data and analysis is provided with permission from The Cooper Institute

. For more information,

see the appendix (VO2 Max. Standard Ratings, page 90), and go to www.CooperInstitute.org.

Tips for Cycling VO2 Max. Estimates

The success and accuracy of the VO2 max. calculation improves when your ride is a sustained and moderately

hard effort, and where heart rate and power are not highly variable.

• Before your ride, check that your device, heart rate monitor, and power meter are functioning properly, paired,

and have good battery life.

• During your 20 minute ride, maintain your heart rate at greater than 70% of your maximum heart rate.

• During your 20 minute ride, maintain a fairly constant power output.

• Avoid rolling terrain.

• Avoid riding in groups where there is a lot of drafting.

Heat and Altitude Performance Acclimation

Environmental factors such as high temperature and altitude impact your training and performance. For

example, high altitude training can have a positive impact on your fitness, but you may notice a temporary VO2

max. decline while exposed to high altitudes. Your Edge 1040 device provides acclimation notifications and

corrections to your VO2 max. estimate and training status when the temperature is above 22ºC (72ºF) and when

the altitude is above 800 m (2625 ft.). You can keep track of your heat and altitude acclimation in the training

status glance.

NOTE: The heat acclimation feature is available only for GPS activities and requires weather data from your

connected phone.

Training Load

Training load is a measurement of your training volume over the last seven days. It is the sum of your excess

post-exercise oxygen consumption (EPOC) measurements for the last seven days. The gauge indicates whether

your current load is low, high, or within the optimal range to maintain or improve your fitness level. The optimal

range is determined based on your individual fitness level and training history. The range adjusts as your

training time and intensity increase or decrease.

20 My Stats

Getting Your Training Load Estimate

Before you can view your training load estimate, you must put on the heart rate monitor, install the power meter,

and pair them with your device (Pairing Your Wireless Sensors, page 51). If your device was packaged with a

heart rate monitor, the device and sensor are already paired. For the most accurate estimate, complete the user

profile setup (Setting Up Your User Profile, page 59), and set your maximum heart rate (Setting Your Heart Rate

Zones, page 48).

NOTE: The estimate may seem inaccurate at first. The device requires a few rides to learn about your cycling

performance.

1 Ride at least once during a seven day period.

2 Select > My Stats > Training Status.

3 Swipe to view your training load.

Your training load estimate appears as a number and position on the color gauge.

Red

High

Green

Optimal

Blue

Low

My Stats 21

Training Load Focus

In order to maximize performance and fitness gains, training should be distributed across three categories: low

aerobic, high aerobic, and anaerobic. Training load focus shows you how much of your training is currently in

each category and provides training targets. Training load focus requires at least 7 days of training to determine

if your training load is low, optimal, or high. After 4 weeks of training history, your training load estimate will

have more detailed target information to help you balance your training activities.

Below targets: Your training load is lower than optimal in all intensity categories. Try increasing the duration or

frequency of your workouts.

Low aerobic shortage: Try adding more low aerobic activities to provide recovery and balance for your higher

intensity activities.

High aerobic shortage: Try adding more high aerobic activities to help improve your lactate threshold and VO2

max. over time.

Anaerobic shortage: Try adding a few more intense, anaerobic activities to improve your speed and anaerobic

capacity over time.

Balanced: Your training load is balanced and provides all-around fitness benefits as you continue training.

Low aerobic focus: Your training load is mostly low aerobic activity. This provides a solid foundation and

prepares you for adding more intense workouts.

High aerobic focus: Your training load is mostly high aerobic activity. These activities help to improve lactate

threshold, VO2 max., and endurance.

Anaerobic focus: Your training load is mostly intense activity. This leads to rapid fitness gains, but should be

balanced with low aerobic activities.

Above targets: Your training load is higher than optimal, and you should consider scaling back the duration and

frequency of your workouts.

22 My Stats

Viewing Cycling Ability

Before you can view your cycling ability, you must have a 7-day training history, VO2 max. data recorded in your

user profile (About VO2 Max. Estimates, page 18), and power curve data from a paired power meter (Viewing

Your Power Curve, page 29).

Cycling ability is a measurement of your performance across three categories: aerobic endurance, aerobic

capacity, and anaerobic capacity. Cycling ability includes your current rider type, such as climber. Information

you enter in your user profile, such as body weight, also helps determine your rider type (Setting Up Your User

Profile, page 59).

1 From the home screen, swipe to view the cycling ability glance.

NOTE: You may need to add the glance to your home screen (Viewing Glances, page 5).

2 Select the cycling ability glance to view your current rider type.

3 Select View Analysis to view a detailed analysis of your cycling ability (optional).

My Stats 23

About Training Effect

Training Effect measures the impact of an activity on your aerobic and anaerobic fitness. Training Effect

accumulates during the activity. As the activity progresses, the Training Effect value increases. Training Effect

is determined by your user profile information and training history, and heart rate, duration, and intensity of your

activity. There are seven different Training Effect labels to describe the primary benefit of your activity. Each

label is color coded and corresponds to your training load focus (Training Load Focus, page 22). Each feedback

phrase, for example, "Highly Impacting VO2 Max." has a corresponding description in your Garmin Connect

activity details.

Aerobic Training Effect uses your heart rate to measure how the accumulated intensity of an exercise affects

your aerobic fitness and indicates if the workout had a maintaining or improving effect on your fitness level.

Your excess post-exercise oxygen consumption (EPOC) accumulated during exercise is mapped to a range of

values that account for your fitness level and training habits. Steady workouts at moderate effort or workouts

involving longer intervals (>180 sec) have a positive impact on your aerobic metabolism and result in an

improved aerobic Training Effect.

Anaerobic Training Effect uses heart rate and speed (or power) to determine how a workout affects your ability

to perform at very high intensity. You receive a value based on the anaerobic contribution to EPOC and the type

of activity. Repeated high-intensity intervals of 10 to 120 seconds have a highly beneficial impact on your

anaerobic capability and result in an improved anaerobic Training Effect.

You can add Aerobic Training Effect and Anaerobic Training Effect as data fields to one of your training screens

to monitor your numbers throughout the activity.

Training Effect Aerobic Benefit Anaerobic Benefit

From 0.0 to 0.9 No benefit. No benefit.

From 1.0 to 1.9 Minor benefit. Minor benefit.

From 2.0 to 2.9 Maintains your aerobic fitness. Maintains your anaerobic fitness.

From 3.0 to 3.9 Impacts your aerobic fitness. Impacts your anaerobic fitness.

From 4.0 to 4.9 Highly impacts your aerobic fitness. Highly impacts your anaerobic fitness.

5.0

Overreaching and potentially harmful without

enough recovery time.

Overreaching and potentially harmful without

enough recovery time.

Training Effect technology is provided and supported by Firstbeat Analytics. For more information, go to

www.firstbeat.com.

Recovery Time

You can use your Garmin device with wrist-based heart rate or a compatible chest heart rate monitor to display

how much time remains before you are fully recovered and ready for the next hard workout.

NOTE: The recovery time recommendation uses your VO2 max. estimate and may seem inaccurate at first. The

device requires you to complete a few activities to learn about your performance.

The recovery time appears immediately following an activity. The time counts down until it is optimal for you to

attempt another hard workout. The device updates your recovery time throughout the day based on changes in

sleep, stress, relaxation, and physical activity.

24 My Stats

Viewing Your Recovery Time

Before you can use the recovery time feature, you must have a Garmin device with wrist-based heart rate or a

compatible chest heart rate monitor paired with your device (Pairing Your Wireless Sensors, page 51). If your

device was packaged with a heart rate monitor, the device and sensor are already paired. For the most accurate

estimate, complete the user profile setup (Setting Up Your User Profile, page 59), and set your maximum heart

rate (Setting Your Heart Rate Zones, page 48).

1 Select > My Stats > Recovery > > Enable.

2 Go for a ride.

3 After your ride, select Save.

The recovery time appears. The maximum time is 4 days, and the minimum time is 6 hours.

My Stats 25

Getting Your FTP Estimate

The device uses your user profile information from the initial setup to estimate your functional threshold power

(FTP). For a more accurate FTP value, you can conduct an FTP test using a paired power meter and heart rate

monitor (Conducting an FTP Test, page 27).

Select > My Stats > Power > FTP.

Your FTP estimate appears as a value measured in watts per kilogram, your power output in watts, and a

position on the color gauge.

Purple

Superior

Blue

Excellent

Green

Good

Orange

Fair

Red

Untrained

For more information, see the appendix (FTP Ratings, page 90).

26 My Stats

Conducting an FTP Test

Before you can conduct a test to determine your functional threshold power (FTP), you must have a paired

power meter and heart rate monitor (Pairing Your Wireless Sensors, page 51).

1 Select > My Stats > Power > FTP > > FTP Test > Ride.

2 Select to start the activity timer.

After you begin your ride, the device displays each step of the test, the target, and current power data. A

message appears when the test is complete.

3 Select to stop the activity timer.

4 Select Save.

Your FTP appears as a value measured in watts per kilogram, your power output in watts, and a position on

the color gauge.

Automatically Calculating FTP

Before the device can calculate your functional threshold power (FTP), you must have a paired power meter and

heart rate monitor (Pairing Your Wireless Sensors, page 51).

NOTE: The estimate may seem inaccurate at first. The device requires a few rides to learn about your cycling

performance.

1 Select > My Stats > Power > FTP > > Auto Detect FTP.

2 Ride at a steady, high intensity for at least 20 minutes outdoors.

3 After your ride, select Save.

4 Select > My Stats > Power > FTP.

Your FTP appears as a value measured in watts per kilogram, your power output in watts, and a position on

the color gauge.

My Stats 27

Viewing Your Real-Time Stamina

Your device can provide real-time stamina estimates based on your heart rate data and VO2 max. estimate

(About VO2 Max. Estimates, page 18). How hard you are working during an activity affects how quickly your

stamina drains. Real-time stamina tracking works by combining your physiological metrics with your recent and

long-term activity history, such as training duration, distance covered, and training load accumulation

(Performance Measurements, page 17).

NOTE: For best results, record cycling activities with a power meter consistently for 2 to 3 weeks and with

different intensity levels and duration.

1 Select > Activity Profiles.

2 Select a biking profile.

3 Select Data Screens > Stamina.

4 Select Show Screen to view the data screen during your ride.

5 Select Show Current Effort.

6 Select Show Distance or Show Time as the primary data field.

7 Select Layout and Data Fields.

8 Select or to change the layout.

9 Select

10 Go for a ride (Going for a Ride, page 6).

11 Swipe left or right to view the data screen.

Primary stamina data field. You can view the estimated time or distance remaining until you will reach

exhaustion at your current effort level.

28 My Stats

Potential stamina estimate. Think of potential stamina as the total capacity of your fuel tank. It will

decrease quickly if you are riding at a high effort level. Reducing your effort or resting results in a

slower decline of your potential stamina.

Current stamina estimate. Your current stamina reflects how much you have left in the tank at your

current level of effort. This estimate combines general fatigue with anaerobic cycling activities, such

as sprints, climbs, and attacks.

Red: Stamina is depleting.

Orange: Stamina is steady.

Green: Stamina is recharging.

Viewing Your Stress Score

Before you can view your stress score, you must put on a chest heart rate monitor and pair it with your device

(Pairing Your Wireless Sensors, page 51).

Stress score is the result of a three-minute test performed while standing still, where the Edge device analyzes

heart rate variability to determine your overall stress. Training, sleep, nutrition, and general life stress all impact

how an athlete performs. The stress score range is 1 to 100, where 1 is a very low stress state, and 100 is a very

high stress state. Knowing your stress score can help you decide if your body is ready for a tough workout or

yoga.

TIP: Garmin recommends that you measure your stress score at approximately the same time and under the

same conditions every day.

1 Select > My Stats > Stress Score > Measure.

2 Stand still, and rest for 3 minutes.

Turning Off Performance Notifications

Performance notifications are turned on by default. Some performance notifications are alerts that appear upon

completion of your activity. Some performance notifications appear during an activity or when you achieve a

new performance measurement, such as a new VO2 max. estimate.

1 Select > My Stats > Performance Notifications.

2 Select an option.

Viewing Your Power Curve

Before you can view your power curve, you must pair your power meter with your device (Pairing Your Wireless

Sensors, page 51).

The power curve displays your sustained power output over time. You can view your power curve for the

previous month, three months, or twelve months.

1 Select > My Stats > Power > Power Curve.

2 Select or to select a time period.

Syncing Activities and Performance Measurements

You can sync activities and performance measurements from other Garmin devices to your Edge 1040 device

using your Garmin Connect account. This allows your device to more accurately reflect your training status and

fitness. For example, you can record a run with a Forerunner

device, and view your activity details and overall

training load on your Edge 1040 device.

1 Select > My Stats > Training Status.

2 Select > Physio TrueUp.

When you sync your device with your smartphone, recent activities and performance measurements from your

other Garmin devices appear on your Edge 1040 device.

My Stats 29

Pausing Your Training Status

If you are injured or sick, you can pause your training status. You can continue to record fitness activities, but

your training status, training load focus, recovery feedback, and workout recommendations are temporarily

disabled.

Select an option:

• From your Edge device, select > My Stats > Training Status > > Pause Training Status.

• From your Garmin Connect settings, select Performance Stats > Training Status > > Pause Training

Status.

TIP: You should sync your device with your Garmin Connect account.

Resuming Your Paused Training Status

You can resume your training status when you are ready to start training again. For best results, you need at

least two VO2 max. measurements each week (About VO2 Max. Estimates, page 18).

Select an option:

• From your Edge device, select > My Stats > Training Status > > Resume Training Status.

• From your Garmin Connect settings, select Performance Stats > Training Status > > Resume Training

Status.

TIP: You should sync your device with your Garmin Connect account.

Personal Records

When you complete a ride, the device displays any new personal records you achieved during that ride. Personal

records include your fastest time over a standard distance, longest ride, and most ascent gained during a ride.

When paired with a compatible power meter, the device displays the maximum power reading recorded during a

20-minute period.

Viewing Your Personal Records

Select > My Stats > Personal Records.

Reverting a Personal Record

You can set each personal record back to the one previously recorded.

1 Select > My Stats > Personal Records.

2 Select a record to revert.

3 Select Previous Record > .

NOTE: This does not delete any saved activities.

Deleting a Personal Record

1 Select > My Stats > Personal Records.

2 Select a personal record.

3 Select > .

Training Zones

• Heart rate zones (Setting Your Heart Rate Zones, page 48)

• Power zones (Setting Your Power Zones, page 51)

30 My Stats

Navigation

Navigation features and settings also apply to navigating courses (Courses, page 33) and segments

(Segments, page 11).

• Locations and finding places (Locations, page 31)

• Planning a course (Courses, page 33)

• Route settings (Route Settings, page 39)

• Map settings (Map Settings, page 38)

Locations

You can record and store locations in the device.

Marking Your Location

Before you can mark a location, you must locate satellites.

If you want to remember landmarks or return to a certain spot, you can mark a location.

1 Go for a ride.

2 Select Navigation > > Mark Location > .

Saving Locations from the Map

1 Select Navigation > Browse Map.

2 Browse the map for the location.

3 Select the location.

Location information appears at the top of the map.

4 Select the location information.

5 Select > Save Location > .

Navigation 31

Navigating to a Location

1 Select Navigation.

2 Select an option:

• Select MTB Trail Navigation to navigate to a mountain bike trail network.

• Select Browse Map to navigate to a location on the map.

• Select Search to navigate to a point of interest, city, address, intersection, or known coordinates.

• Select Saved Locations to navigate to a saved location.

TIP: You can select to enter specific search information.

• Select Recent Finds to navigate to one of the last 50 locations you have found.

• Select > Searching near: to narrow your search area.

3 Select a location.

4 Select Ride.

5 Follow the on-screen instructions to your destination.

Navigating Back to Start

At any point during your ride, you can return to the starting point.

1 Go for a ride.

2 At any time, swipe down from the top of the screen, and on the controls widget, select Back to Start.

3 Select Along Same Route or Most Direct Route.

4 Select Ride.

The device navigates you back to the starting point of your ride.

32 Navigation

Stopping Navigation

1 Scroll to the map.

2 Tap the screen.

3 Select Stop Navigation > .

Editing Locations

1 Select Navigation > Saved Locations.

2 Select a location.

3 Select the information bar at the top of the screen.

4 Select .

5 Select an attribute.

For example, select Change Elevation to enter a known altitude for the location.

6 Enter the new information, and select .

Deleting a Location

1 Select Navigation > Saved Locations.

2 Select a location.

3 Select the location information at the top of the screen.

4 Select > Delete Location > .

Courses

You can send a course from your Garmin Connect account to your device. After it is saved to your device, you

can navigate the course on your device. You can also create a custom course on your device.

You can follow a saved course simply because it is a good route. For example, you can save and follow a bike

friendly commute to work. You can also follow a saved course, trying to match or exceed previously set

performance goals.

Navigation 33

Planning and Riding a Course

You can create and ride a custom course. A course is a sequence of waypoints or locations that leads you to

your final destination.

TIP: You can also create a custom course in the Garmin Connect app and send it to your device (Following a

Course From Garmin Connect, page 35).

1 Select Navigation > Courses > > Course Creator.

2 Select to add a location.

3 Select an option:

• To select your current location on the map, select Current Location.

• To select a location on the map, select Use Map, and select a location.

• To select a saved location, select Saved & Recent > Saved Locations, and select a location.

• To select a saved segment, select Saved & Recent > Segments, and select a segment.

• To select a location for which you recently searched, select Saved & Recent > Recent Finds, and select a

location.

• To browse for and select a point of interest, select Points of Interest, and select a nearby point of interest.

• To select a city, select Cities, and select a nearby city.

• To select an address, select Search Tools > Addresses, and enter the address.

• To select an intersection, select Search Tools > Intersections, and enter the street names.

• To use coordinates, select Search Tools > Coordinates, and enter the coordinates.

4 Select Add to Course.

TIP: From the map, you can select another location, and select Add to Course to continue adding locations.

5 Repeat steps 2 through 4 until you have selected all locations for the route.

TIP: You can swipe left and select to remove a location.

6 Select an option:

• To calculate the route, select View Map.

• To calculate the route with the same route back to the start location, select > Out and Back.

• To calculate the route with a different route back to the start location, select > Loop to Start.

A map of the course appears.

7 Select Save > Ride.

34 Navigation

Creating and Riding a Round-Trip Course

The device can create a round-trip course based on a specified distance, starting location, and direction of

navigation.

1 Select Navigation > Courses > > Round-Trip Course.

2 Select Distance, and enter the total distance for the course.

3 Select Start Location.

4 Select an option:

• To select your current location, select Current Location.

• To select a location on the map, select Use Map, and select a location.

• To select a saved location, select Saved Locations, and select a location.

• To select a location for which you recently searched, select Recent Finds, and select a location.

• To browse for and select a point of interest, select Points of Interest, and select a nearby point of interest.

• To select an address, select Search Tools > Addresses, and enter the address.

• To select an intersection, select Search Tools > Intersections, and enter the street names.

• To use coordinates, select Search Tools > Coordinates, and enter the coordinates.

5 Select Start Direction, and select a direction heading.

6 Select Search.

TIP: You can select to search again.

7 Select a course to view it on the map.

TIP: You can select and to view the other courses.

8 Select Save > Ride.

Creating a Course from a Recent Ride

You can create a new course from a ride you saved on this Edge device.

1 Select History > Rides.

2 Select a ride.

3 Select > Save Ride as Course.

4 Enter a name for the course, and select .

Following a Course From Garmin Connect

Before you can download a course from Garmin Connect, you must have a Garmin Connect account (Garmin

Connect, page 56).

1 Select an option:

• Open the Garmin Connect app.

• Go to connect.garmin.com.

2 Create a new course, or select an existing course.

3 Select an option:

• On the Garmin Connect app, select > Send to Device.

• On the Garmin Connect website, select Send to Device.

4 Follow the on-screen instructions.

5 On the Edge device, select Navigation > Courses.

6 Select the course.

7 Select Ride.

Navigation 35

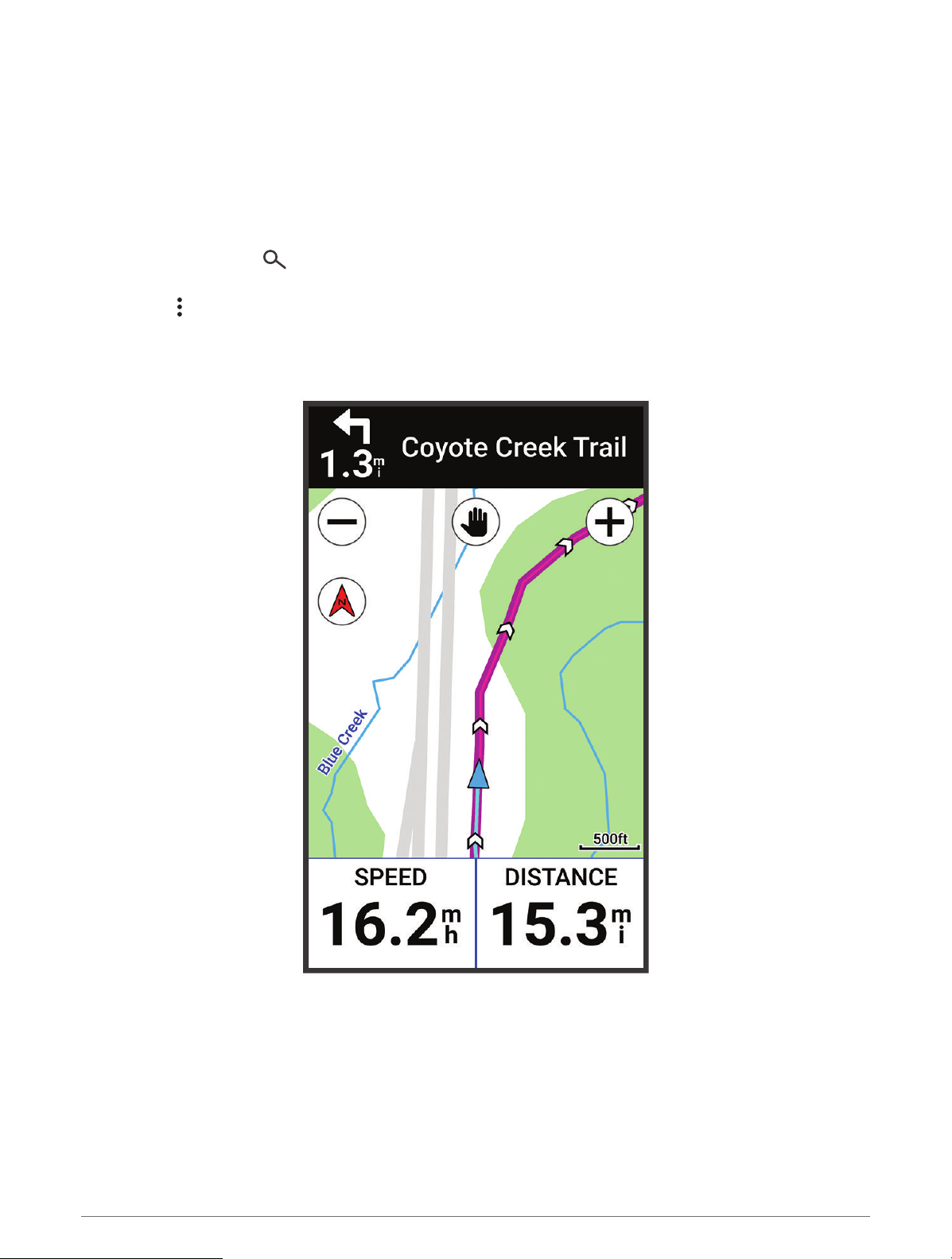

Tips for Riding a Course

• Use turn guidance (Course Options, page 37).

• If you include a warmup, select to begin the course, and warm up as normal.

• Stay away from your course path as you warm up.

When you are ready to begin, head toward your course. When you are on any part of the course path, a

message appears.

NOTE: As soon as you select , your Virtual Partner starts the course and does not wait for you to warm up.

• Scroll to the map to view the course map.

If you stray from the course, a message appears.

Viewing Course Details

1 Select Navigation > Courses.

2 Select a course.

3 Select an option:

• Tap the course to view the course on the map.

• Select Summary to view details about the course.

• Select Climbs to view details and elevation plots for each climb.

• Select Laps to select a lap and view additional information about each lap.

• Select Course Demands to view an analysis of your cycling ability for the course.

• Select Power Guide to view an analysis of your effort for the course.

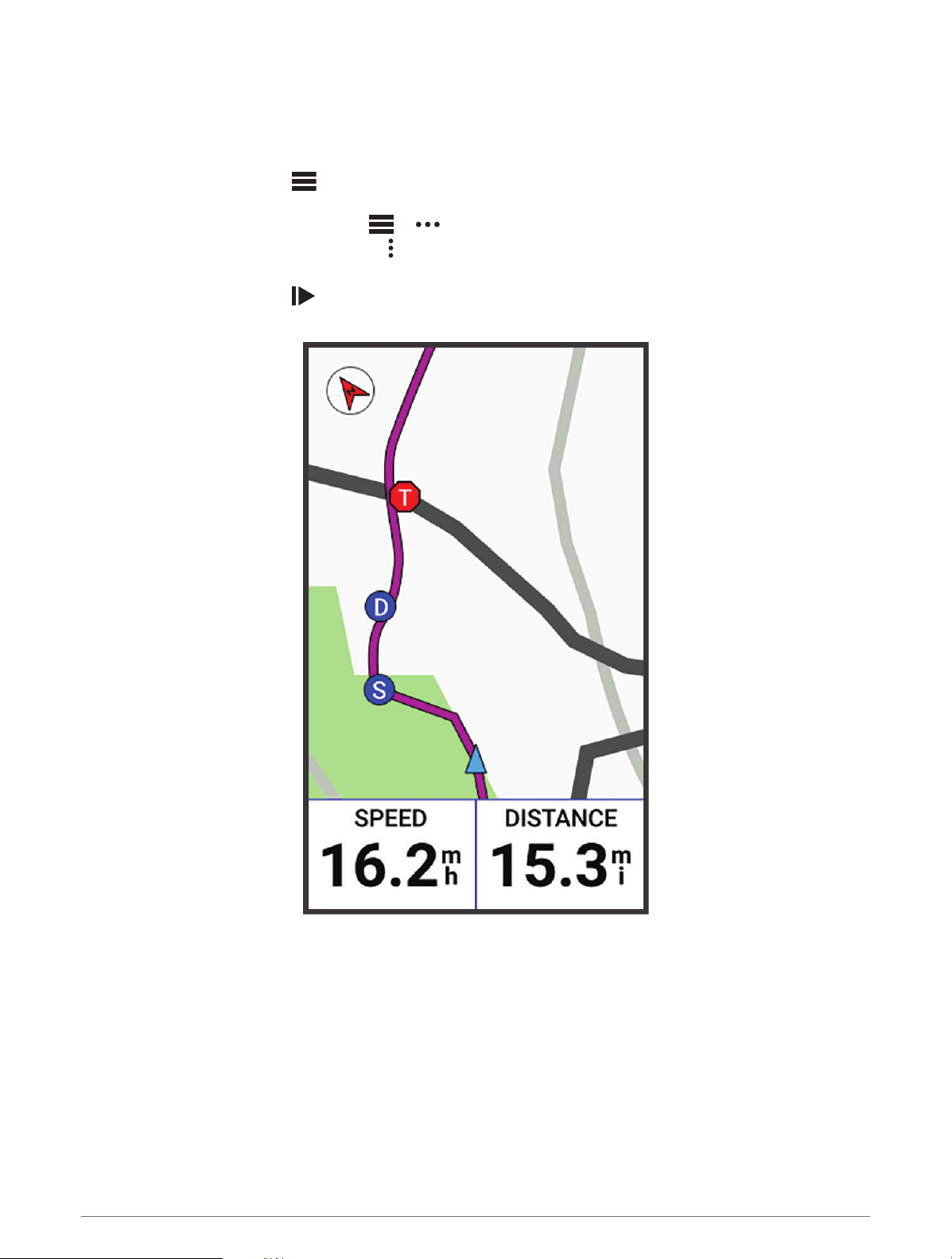

Displaying a Course on the Map

For each course saved to your device, you can customize how it appears on the map. For example, you can set

your commute course to always display on the map in yellow. You can have an alternate course display in

green. This allows you to see the courses while you are riding, but not follow or navigate a particular course.

1 Select Navigation > Courses.

2 Select the course.

3 Select .

4 Select Always Display to make the course appear on the map.

5 Select Color, and select a color.

6 Select Course Points to include course points on the map.

The next time you ride near the course, it appears on the map.

36 Navigation

Using ClimbPro

The ClimbPro feature helps you manage your effort for the upcoming climbs on a course. You can view details

about the climbs, including when they occur, average gradient, and total ascent. The climb categories, based on

length and gradient, are indicated by color.

TIP: After your ride, you can view the climb splits in the ride history.

1 Enable the ClimbPro feature for the activity profile (Updating Your Activity Profile, page 60).

2 Review the climbs and course details for the course (Viewing Course Details, page 36).

3 Start following a saved course (Courses, page 33).

At the start of a climb, the ClimbPro screen appears automatically.

After you save the ride, you can view the climb splits in your ride history.

Course Options

Select Navigation > Courses > .

Turn Guidance: Enables or disables turn prompts.

Off Course Warnings: Alerts you if you stray from the course.

Search: Allows you to search for saved courses by name.

Filter: Allows you to filter by course type, such as Strava courses.

Sort: Allows you to sort saved courses by name, distance, or date.

Delete: Allows you to delete all or multiple saved courses from the device.

Navigation 37

Rerouting a Course

You can choose how the device recalculates the route when you go off course.

When you go off course, select an option:

• To pause navigation until you get back on course, select Pause Navigation.

• To choose from rerouting suggestions, select Re-route.

NOTE: The first rerouting option is the shortest route back to the course and starts automatically after 10

seconds.

Stopping a Course

1 Scroll to the map.

2 Swipe down from the top of the screen, and scroll to the controls widget.

3 Select Stop Course > .

Deleting a Course

1 Select Navigation > Courses.

2 Swipe left on a course.

3 Select .

Trailforks Routes

With the Trailforks app, you can save your favorite trail routes or browse for routes nearby. You can download

Trailforks mountain bike trail routes to your Edge device. Downloaded routes appear in the saved courses list.

To sign up for a Trailforks membership, go to www.trailforks.com.

Map Settings

Select > Activity Profiles, select a profile, and select Navigation > Map.

Orientation: Sets how the map is shown on the page.

Auto Zoom: Automatically selects a zoom level for the map. When Off is selected, you must zoom in or out

manually.

Guide Text: Sets when the turn-by-turn navigation prompts are shown (requires routable maps).

Appearance: Customizes the appearance settings on the map (Map Appearance Settings, page 38).

Map Information: Enables or disables the maps currently loaded on the device.

Map Appearance Settings

Select > Activity Profiles, select a profile, and select Navigation > Map > Appearance.

Map Theme: Adjusts the appearance of the map for your ride type. (Map Themes, page 39)

Popularity Map: Highlights popular roads or trails for your ride type. The darker the road or trail, the more

popular.

Map Detail: Sets the level of detail shown on the map.

History Line Color: Allows you to change the line color of the path you have traveled.

Advanced: Allows you to set zoom levels and text size, and enable shaded relief and contours.

Reset Map Default: Resets the map appearance to the default settings.

38 Navigation

Changing the Map Orientation

1 Select > Activity Profiles.

2 Select a profile.

3 Select Navigation > Map > Orientation.

4 Select an option:

• Select North Up to show north at the top of the page.

• Select Track Up to show your current direction of travel at the top of the page.

Map Themes

You can change the map theme to adjust the appearance of the map for your ride type.

Select > Activity Profiles, select a profile, and select Navigation > Map > Appearance > Map Theme.

Classic: Uses the classic Edge map color scheme, with no additional theme applied.

High Contrast: Sets the map to display data with higher contrast, for better visibility in challenging

environments.

Mountain Biking: Sets the map to optimize trail data in mountain biking mode.

Route Settings

Select > Activity Profiles, select a profile, and select Navigation > Routing.

Popularity Routing: Calculates routes based on the most popular rides from Garmin Connect.

Routing Mode: Sets the transportation method to optimize your route.

Calculation Method: Sets the method used to calculate your route.

Lock on Road: Locks the position icon, which represents your position on the map, onto the nearest road.

Avoidance Setup: Sets the road types to avoid while navigating.

Course Recalculation: Automatically recalculates the route when you deviate from the course.

Route Recalculation: Automatically recalculates the route when you deviate from the route.

Selecting an Activity for Route Calculation

You can set the device to calculate the route based on activity type.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Navigation > Routing > Routing Mode.

4 Select an option to calculate your route.

For example, you can select Road Cycling for on-road navigation or Mountain Biking for off-road navigation.

Connected Features

Connected features are available for your Edge device when you connect the device to a Wi‑Fi

network or to a

compatible phone using Bluetooth technology.

Connected Features 39

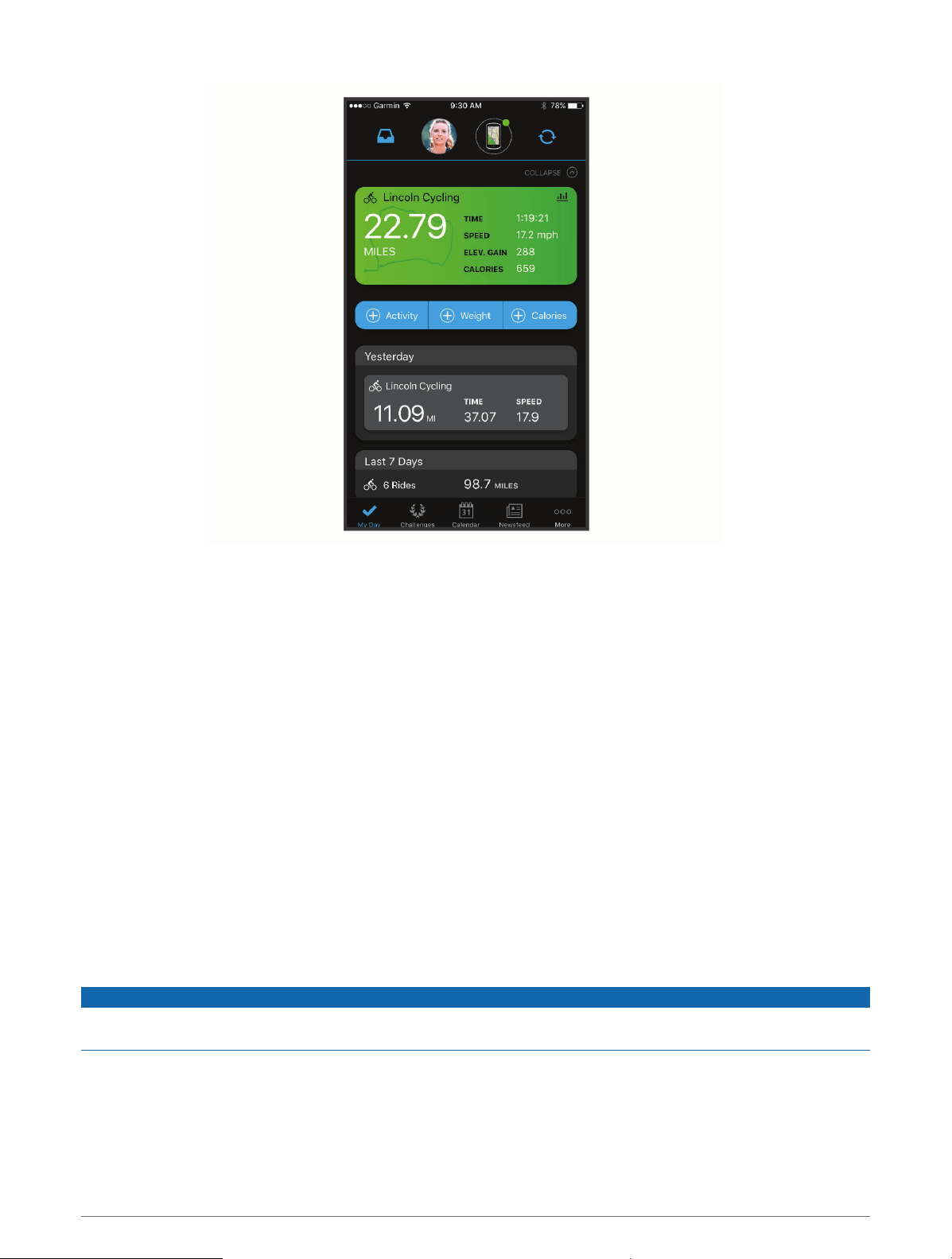

Pairing Your Phone

To use the connected features of the Edge device, it must be paired directly through the Garmin Connect app,

instead of from the Bluetooth settings on your phone.

1 From the app store on your phone, install and open the Garmin Connect app.

2 Hold to turn on the device.

The first time you turn on the device, you will select the device language. The next screen prompts you to pair

with your phone.

TIP: You can swipe down on the home screen to view the settings widget, and select Phone > Pair

Smartphone to manually enter pairing mode.

3 Select an option to add your device to your Garmin Connect account:

• If this is the first device you have paired with the Garmin Connect app, follow the on-screen instructions.

• If you have already paired another device with the Garmin Connect app, from the or menu, select

Garmin Devices > Add Device, and follow the on-screen instructions.

NOTE: Setting up Wi‑Fi and sleep mode usage on your device enables the device to sync with all your data

such as training stats, course downloads, and software updates (Using Auto Sleep, page 64).

After you pair successfully, a message appears, and your device syncs automatically with your phone.

Bluetooth Connected Features

The Edge device has several Bluetooth connected features for your compatible phone using the Garmin

Connect and Connect IQ apps. Go to www.garmin.com/intosports/apps for more information.

Activity uploads to Garmin Connect: Automatically sends your activity to Garmin Connect as soon as you finish

recording the activity.

Audio prompts: Allows the Garmin Connect app to play status announcements on your phone during a ride.

Bike alarm: Allows you to enable an alarm that sounds on the device and sends an alert to your phone when the

device detects motion.

Connect IQ downloadable features: Allows you to download Connect IQ features from the Connect IQ app.

Course, segment, and workout downloads from Garmin Connect: Allows you to search for activities on Garmin

Connect using your phone and send them to your device.

Device to device transfers: Allows you to wirelessly transfer files to another compatible Edge device.

Find my Edge: Locates your lost Edge device that is paired with your phone and currently within range.

Messages: Allows you to reply to an incoming call or text message with a preset text message. This feature is

available with compatible Android

™

phones.

Notifications: Displays phone notifications and messages on your device.

Safety and tracking features: (Safety and Tracking Features, page 41)

Social media interactions: Allows you to post an update to your favorite social media website when you upload

an activity to Garmin Connect.

Weather updates: Sends real-time weather conditions and alerts to your device.

40 Connected Features

Safety and Tracking Features

CAUTION

The safety and tracking features are supplemental features and should not be relied on as a primary method to

obtain emergency assistance. The Garmin Connect app does not contact emergency services on your behalf.

NOTICE

To use these features, the Edge 1040 device must have GPS enabled and be connected to the Garmin Connect

app using Bluetooth technology. You can enter emergency contacts in your Garmin Connect account.

The Edge 1040 device has safety and tracking features that must be set up with the Garmin Connect app.

For more information about safety and tracking features, go to www.garmin.com/safety.

Assistance: Allows you to send a message with your name, LiveTrack link, and GPS location (if available) to

your emergency contacts.

Incident detection: When the Edge 1040 device detects an incident during certain outdoor activities, the device

sends an automated message, LiveTrack link, and GPS location (if available) to your emergency contacts.

LiveTrack: Allows friends and family to follow your races and training activities in real time. You can invite

followers using email or social media, allowing them to view your live data on a web page.

GroupTrack: Allows you to keep track of your connections using LiveTrack directly on screen and in real time.

Incident Detection

CAUTION

Incident detection is a supplemental feature available only for certain outdoor features. Incident detection

should not be relied on as a primary method to obtain emergency assistance. The Garmin Connect app does not

contact emergency services on your behalf.

NOTICE

Before you can enable incident detection on your device, you must set up emergency contact information in the

Garmin Connect app. Your paired phone must be equipped with a data plan and be in an area of network

coverage where data is available. Your emergency contacts must be able to receive text messages (standard

text messaging rates may apply).

When an incident is detected by your Edge device with GPS enabled, the Garmin Connect app can send an

automated text message and email with your name and GPS location, if available, to your emergency contacts.

A message appears on your device and paired phone indicating your contacts will be informed after 30 seconds

have elapsed. If assistance is not needed, you can cancel the automated emergency message.

Assistance

CAUTION

Assistance is a supplemental feature and should not be relied on as a primary method to obtain emergency

assistance. The Garmin Connect app does not contact emergency services on your behalf.

NOTICE

Before you can enable the assistance feature on your device, you must set up emergency contact information in

the Garmin Connect app. Your paired phone must be equipped with a data plan and be in an area of network

coverage where data is available. Your emergency contacts must be able to receive text messages (standard

text messaging rates may apply).

When your Edge device with GPS enabled is connected to the Garmin Connect app, you can send an automated

text message with your name and GPS location to your emergency contacts.

A message appears on your device indicating your contacts will be informed after a countdown has elapsed. If

assistance is not needed, you can cancel the message.

Connected Features 41

Adding Emergency Contacts

Emergency contact phone numbers are used for the safety and tracking features.

1 From the Garmin Connect app, select or .

2 Select Safety & Tracking > Safety Features > Emergency Contacts > Add Emergency Contacts.

3 Follow the on-screen instructions.

Viewing Your Emergency Contacts

Before you can view your emergency contacts on your device, you must set up your rider information and

emergency contacts in the Garmin Connect app.

Select > Safety & Tracking > Emergency Contacts.

Your emergency contacts' names and phone numbers appear.

Requesting Assistance

NOTICE

Before you can request assistance, you must enable GPS on your Edge device and set up emergency contact

information in the Garmin Connect app. Your paired phone must be equipped with a data plan and be in an area

of network coverage where data is available. Your emergency contacts must be able to receive emails or text

messages (standard text messaging rates may apply).

1 Hold for five seconds to activate the assistance feature.

The device beeps and sends the message after the five-second countdown is complete.

TIP: You can select before the countdown is complete to cancel the message.

2 If necessary, select Send to send the message immediately.

Turning Incident Detection On and Off

NOTE: Your paired phone must be equipped with a data plan and be in an area of network coverage where data

is available.

1 Select > Safety & Tracking > Incident Detection.

2 Select the activity profile to enable incident detection.

NOTE: Incident detection is enabled by default for certain outdoor activities. Depending on the terrain and

your riding style, false positives can occur.

Cancelling an Automated Message

When an incident is detected by your device, you can cancel the automated emergency message on your device

or your paired smartphone before it is sent to your emergency contacts.

Select Cancel > before the end of the 30-second countdown.

Sending a Status Update Afer an Incident

Before you can send a status update to your emergency contacts, your device must detect an incident and send

an automated emergency message to your emergency contacts.

You can send a status update to your emergency contacts informing them you are not in need of assistance.

1 Swipe down from the top of the screen, and swipe left or right to view the controls widget.

2 Select Incident Detected > I'm Okay.

A message is sent to all emergency contacts.

42 Connected Features

Turning On LiveTrack

Before you can start your first LiveTrack session, you must set up contacts in the Garmin Connect app.

1 Select > Safety & Tracking > LiveTrack.

2 Select an option:

• Select Auto Start to start a LiveTrack session each time you start this type of activity.

• Select LiveTrack Name to update the name of your LiveTrack session. The current date is the default

name.

• Select Recipients to view recipients.

• Select Course Sharing if you want your recipients to see your course.

3 Select Start LiveTrack.

Recipients can view your live data on a Garmin Connect tracking page.

Connected Features 43

Starting a GroupTrack Session

Before you can start a GroupTrack session, you must have a smartphone with the Garmin Connect app paired to

your device (Pairing Your Phone, page 40).

During a ride, you can see the riders in your GroupTrack session on the map.

1 On the Edge device, select > Safety & Tracking > GroupTrack to enable viewing connections on the map

screen.

2 From the Garmin Connect app, select or .

3 Select Safety & Tracking > LiveTrack > > Settings > GroupTrack > All Connections.

4 Select Start LiveTrack.

5 On the Edge device, select , and go for a ride.

6 Scroll to the map to view your connections.

You can tap an icon on the map to view location and heading information for other riders in the GroupTrack

session.

7 Scroll to the GroupTrack list.

You can select a rider from the list, and that rider appears centered on the map.

44 Connected Features

Tips for GroupTrack Sessions

The GroupTrack feature allows you to keep track of other riders in your group using LiveTrack directly on the

screen. All riders in the group must be your connections in your Garmin Connect account.

• Ride outside using GPS.

• Pair your Edge 1040 device with your phone using Bluetooth technology.

• In the Garmin Connect app, select or , and select Connections to update the list of riders for your

GroupTrack session.

• Make sure all of your connections pair to their phones and start a LiveTrack session in the Garmin Connect

app.

• Make sure all your connections are in range (40 km or 25 mi.).

• During a GroupTrack session, scroll to the map to view your connections.

• Stop riding before you attempt to view location and heading information for other riders in the GroupTrack

session.

Setting the Bike Alarm

You can turn on the bike alarm when you are away from your bike, such as on a stop during a long ride. You can

control the bike alarm from your device or the device settings in the Garmin Connect app.

1 Select > Safety & Tracking > Bike Alarm.

2 Create or update your passcode.

When you disable the bike alarm from your Edge device, you are prompted to enter the passcode.

3 Swipe down from the top of the screen, and on the controls widget, select Set Bike Alarm.

If the device detects motion, it sounds an alarm and sends an alert to your connected phone.

Playing Audio Prompts on Your Phone

Before you can set up audio prompts, you must have a phone with the Garmin Connect app paired to your Edge

device.

You can set the Garmin Connect app to play motivational status announcements on your phone during a ride or

other activity. Audio prompts include the lap number and lap time, navigation, power, pace or speed, and heart

rate data. During an audio prompt, the Garmin Connect app mutes the primary audio of the phone to play the

announcement. You can customize the volume levels on the Garmin Connect app.

1 From the Garmin Connect app, select or .

2 Select Garmin Devices.

3 Select your device.

4 Select Audio Prompts.

Wi‑Fi Connected Features

Activity uploads to your Garmin Connect account: Automatically sends your activity to your Garmin Connect

account as soon as you finish recording the activity.

Software updates: Your device downloads and installs the latest software update automatically when a Wi‑Fi

connection is available.

Workouts and training plans: You can browse for and select workouts and training plans on the Garmin Connect

site. The next time your device has a Wi‑Fi connection, the files are wirelessly sent to your device.

Setting Up Wi‑Fi Connectivity

You must connect your device to the Garmin Connect app on your smartphone or to the Garmin Express

™

application on your computer before you can connect to a Wi‑Fi network.

1 Select an option:

• Download the Garmin Connect app, and pair your smartphone (

Pairing Your Phone, page 40).

• Go to www.garmin.com/express, and download the Garmin Express application.

2 Follow the on-screen instructions to set up Wi‑Fi connectivity.

Connected Features 45

Wi‑Fi Settings

Select > Connected Features > Wi-Fi.

Wi-Fi: Enables Wi‑Fi wireless technology.

NOTE: Other Wi‑Fi settings appear only when Wi‑Fi is enabled.

Auto Upload: Allows you to upload activities automatically over a known wireless network.

Add Network: Connects your device to a wireless network.

Wireless Sensors

Your device can be paired and used with wireless ANT+ or Bluetooth sensors (Pairing Your Wireless Sensors,

page 51). After the devices are paired, you can customize the optional data fields (Adding a Data Screen,

page 61). If your device was packaged with a sensor, they are already paired.

For information about specific Garmin sensor compatibility, purchasing, or to view the owner's manual, go to

buy.garmin.com for that sensor.

Sensor Type Description

eBike

You can use your device with your eBike and view bike data, such as battery and shifting infor

mation, during your rides.

Extended

Display

You can use the Extended Display mode to display data screens from your Edge device on a

compatible Edge device during a ride or triathlon.

Heart Rate

You can use an external heart rate monitor, such as the HRM-Pro

™

or HRM-Dual

™

, and view

heart rate data during your activities.

inReach

Remote

The inReach

remote function allows you to control your inReach device using your Edge

device (Using the inReach Remote, page 55).

Lights You can use Varia

™

smart bike lights to improve situational awareness.

Power

You can use a power meter, such as Rally

™

and Vector

™

, to view your power data on your

device. You can adjust your power zones to match your goals and abilities (Setting Your Power

Zones, page 51), or use range alerts to be notified when you reach a specified power zone

(Setting Range Alerts, page 62).

Radar

You can use a Varia rearview bike radar to improve situational awareness and send alerts

about approaching vehicles. With a Varia radar camera tail light, you can also take photos and

record video during a ride (Using the Varia Camera Controls, page 54).

Shifting

You can use electronic shifters to display shifting information during a ride. The Edge 1040

device displays current adjustment values when the sensor is in adjustment mode.

Shimano Di2

You can use Shimano

Di2

™

electronic shifters to display shifting information during a ride. The

Edge 1040 device displays current adjustment values when the sensor is in adjustment mode.

Smart Trainer

You can use your device with an indoor bike smart trainer to simulate resistance while

following a course, ride, or workout (Using an ANT+ Indoor Trainer, page 15).

Speed/

Cadence

You can attach speed or cadence sensors to your bike and view the data during your ride. If

necessary, you can manually enter your wheel circumference (Wheel Size and Circumference,

page 92).

VIRB The VIRB

remote function allows you to control your VIRB action camera using your device.

46 Wireless Sensors

Putting On the Heart Rate Monitor

NOTE: If you do not have a heart rate monitor, you can skip this task.

You should wear the heart rate monitor directly on your skin, just below your sternum. It should be snug enough

to stay in place during your activity.

1 Snap the heart rate monitor module onto the strap.

The Garmin logos on the module and the strap should be right-side up.

2 Wet the electrodes and the contact patches on the back of the strap to create a strong connection

between your chest and the transmitter.

3 Wrap the strap around your chest, and connect the strap hook to the loop .

NOTE: The care tag should not fold over.

The Garmin logos should be right-side up.

4 Bring the device within 3 m (10 ft.) of the heart rate monitor.

After you put on the heart rate monitor, it is active and sending data.

TIP: If the heart rate data is erratic or does not appear, see the troubleshooting tips (Tips for Erratic Heart Rate

Data, page 48).

Wireless Sensors 47

Setting Your Heart Rate Zones

The device uses your user profile information from the initial setup to determine your heart rate zones. You can

manually adjust the heart rate zones according to your fitness goals (Fitness Goals, page 48). For the most

accurate calorie data during your activity, you should set your maximum heart rate, resting heart rate, and heart

rate zones.

1 Select > My Stats > Training Zones > Heart Rate Zones.

2 Enter your maximum, lactate threshold, and resting heart rate values.

You can use the auto detect feature to automatically detect your heart rate during an activity. The zone

values update automatically, but you can also edit each value manually.

3 Select Based On:.

4 Select an option:

• Select BPM to view and edit the zones in beats per minute.

• Select % Max. to view and edit the zones as a percentage of your maximum heart rate.

• Select % HRR to view and edit the zones as a percentage of your heart rate reserve (maximum heart rate

minus resting heart rate).

• Select %LTHR to view and edit the zones as a percentage of your lactate threshold heart rate.

About Heart Rate Zones

Many athletes use heart rate zones to measure and increase their cardiovascular strength and improve their

level of fitness. A heart rate zone is a set range of heartbeats per minute. The five commonly accepted heart

rate zones are numbered from 1 to 5 according to increasing intensity. Generally, heart rate zones are

calculated based on percentages of your maximum heart rate.

Fitness Goals

Knowing your heart rate zones can help you measure and improve your fitness by understanding and applying

these principles.

• Your heart rate is a good measure of exercise intensity.

• Training in certain heart rate zones can help you improve cardiovascular capacity and strength.

If you know your maximum heart rate, you can use the table (Heart Rate Zone Calculations, page 91) to

determine the best heart rate zone for your fitness objectives.

If you do not know your maximum heart rate, use one of the calculators available on the Internet. Some gyms

and health centers can provide a test that measures maximum heart rate. The default maximum heart rate is

220 minus your age.

Tips for Erratic Heart Rate Data

If the heart rate data is erratic or does not appear, you can try these tips.

• Reapply water to the electrodes and contact patches (if applicable).

• Tighten the strap on your chest.

• Warm up for 5 to 10 minutes.

• Follow the care instructions (Caring for the Heart Rate Monitor, page 75).

• Wear a cotton shirt or thoroughly wet both sides of the strap.

Synthetic fabrics that rub or flap against the heart rate monitor can create static electricity that interferes

with heart rate signals.

• Move away from sources that can interfere with your heart rate monitor.

Sources of interference may include strong electromagnetic fields, some 2.4 GHz wireless sensors, high-

voltage power lines, electric motors, ovens, microwave ovens, 2.4 GHz cordless phones, and wireless LAN

access points.

48 Wireless Sensors

Installing the Speed Sensor

NOTE: If you do not have this sensor, you can skip this task.

TIP: Garmin recommends you secure your bike on a stand while installing the sensor.

1 Place and hold the speed sensor on top of the wheel hub.

2 Pull the strap around the wheel hub, and attach it to the hook on the sensor.

The sensor may be tilted when installed on an asymmetrical hub. This does not affect operation.

3 Rotate the wheel to check for clearance.

The sensor should not contact other parts of your bike.

NOTE: The LED flashes green for five seconds to indicate activity after two revolutions.

Installing the Cadence Sensor

NOTE: If you do not have this sensor, you can skip this task.

TIP: Garmin recommends you secure your bike on a stand while installing the sensor.

1 Select the band size that fits your crank arm securely.

The band you select should be the smallest one that stretches across the crank arm.

2 On the non-drive side, place and hold the flat side of the cadence sensor on the inside of the crank arm.

Wireless Sensors 49

3 Pull the bands around the crank arm, and attach them to the hooks on the sensor.

4 Rotate the crank arm to check for clearance.

The sensor and bands should not contact any part of your bike or shoe.

NOTE: The LED flashes green for five seconds to indicate activity after two revolutions.

5 Take a 15 minute test ride and inspect the sensor and bands to ensure there is no evidence of damage.

About the Speed and Cadence Sensors

Cadence data from the cadence sensor is always recorded. If no speed and cadence sensors are paired with the

device, GPS data is used to calculate the speed and distance.

Cadence is your rate of pedaling or “spinning” measured by the number of revolutions of the crank arm per

minute (rpm).

Data Averaging for Cadence or Power

The non-zero data-averaging setting is available if you are training with an optional cadence sensor or power

meter. The default setting excludes zero values that occur when you are not pedaling.

You can change the value of this setting (Data Recording Settings, page 66).

50 Wireless Sensors

Pairing Your Wireless Sensors

Before you can pair, you must put on the heart rate monitor or install the sensor.

Pairing is the connecting of ANT+ or Bluetooth wireless sensors, for example, connecting a heart rate monitor

with your Garmin device.

1 Bring the device within 3 m (10 ft.) of the sensor.

NOTE: Stay 10 m (33 ft.) away from other riders' sensors while pairing.

2 Select > Sensors > Add Sensor.

3 Select an option:

• Select a sensor type.

• Select Search All to search for all nearby sensors.

A list of available sensors appears.

4 Select one or more sensors to pair with your device.

5 Select Add.

When the sensor is paired with your device, the sensor status is Connected. You can customize a data field

to display sensor data.

Wireless Sensor Battery Life

After you go for a ride, battery life levels for the wireless sensors that were connected during the activity appear.

The list is sorted by battery level.

Training with Power Meters

• Go to www.garmin.com/intosports for a list of ANT+ sensors that are compatible with your Edge device

(such as Rally and Vector).

• For more information, see the owner's manual for your power meter.

• Adjust your power zones to match your goals and abilities (Setting Your Power Zones, page 51).

• Use range alerts to be notified when you reach a specified power zone (Setting Range Alerts, page 62).

• Customize the power data fields (Adding a Data Screen, page 61).

Setting Your Power Zones

The values for the zones are default values and may not match your personal abilities. You can manually adjust

your zones on the device or using Garmin Connect. If you know your functional threshold power (FTP) value, you

can enter it and allow the software to calculate your power zones automatically.

1 Select > My Stats > Training Zones > Power Zones.

2 Enter your FTP value.

3 Select Based On:.

4 Select an option:

• Select watts to view and edit the zones in watts.

• Select % FTP to view and edit the zones as a percentage of your functional threshold power.

Calibrating Your Power Meter

Before you can calibrate your power meter, you must install it, pair it with your device, and begin actively

recording data with it.

For calibration instructions specific to your power meter, see the manufacturer's instructions.

1 Select > Sensors.

2 Select your power meter.

3 Select Calibrate.

4 Keep your power meter active by pedaling until the message appears.

5 Follow the on-screen instructions.

Wireless Sensors 51

Pedal-Based Power

Rally measures pedal-based power.

Rally measures the force you apply a few hundred times every second. Rally also measures your cadence or

rotational pedaling speed. By measuring the force, the direction of force, the rotation of the crank arm, and time,

Rally can determine power (watts). Because Rally independently measures left and right leg power, it reports

your left-right power balance.

NOTE: The single-sensing Rally system does not provide left-right power balance.

Cycling Dynamics

Cycling dynamics metrics measure how you apply power throughout the pedal stroke, and where you apply

power on the pedal, allowing you to understand your particular way of riding. Understanding how and where you

produce power allows you to train more efficiently and evaluate your bike fit.

NOTE: You must have a compatible, dual sensing power meter connected using ANT+ technology to use cycling

dynamics metrics.

For more information, go to www.garmin.com/performance-data.

52 Wireless Sensors

Using Cycling Dynamics

Before you can use cycling dynamics, you must pair the power meter with your device using ANT+ technology

(Pairing Your Wireless Sensors, page 51).

NOTE: Recording cycling dynamics uses additional device memory.

1 Go for a ride.

2 Scroll to the cycling dynamics screen to view your power phase data , total power , and platform center

offset .

3 If necessary, hold a data field to change it (Adding a Data Screen, page 61).

NOTE: The two data fields at the bottom of the screen can be customized.

You can send the ride to the Garmin Connect app to view additional cycling dynamics data (Sending Your Ride to

Garmin Connect, page 57).

Power Phase Data

Power phase is the pedal stroke region (between the start crank angle and the end crank angle) where you

produce positive power.

Plaform Center Offset

Platform center offset is the location on the pedal platform where you apply force.

Wireless Sensors 53

Customizing Cycling Dynamics Features

Before you can customize Rally features, you must pair a Rally power meter with your device.

1 Select > Sensors.

2 Select the Rally power meter.

3 Select Sensor Details > Cycling Dynamics.

4 Select an option.

5 If necessary, select the toggle switches to turn on or off torque efficiency, pedal smoothness, and cycling

dynamics.

Updating the Rally Sofware Using the Edge Device

Before you can update the software, you must pair your Edge device with your Rally system.

1 Send your ride data to your Garmin Connect account (Sending Your Ride to Garmin Connect, page 57).

Garmin Connect automatically looks for software updates and sends them to your Edge device.

2 Bring your Edge device within range (3 m) of the sensor.

3 Rotate the crank arm a few times. The Edge device prompts you to install all pending software updates.

4 Follow the on-screen instructions.

Situational Awareness

WARNING

The Varia device can improve situational awareness. It is not a replacement for cyclist attentiveness and good

judgment. Always maintain awareness of your surroundings, and operate the bicycle in a safe manner. Failure to

do so could result in serious injury or death.

Your Edge device can be used with the Varia smart bike lights and rearview radar (Wireless Sensors, page 46).

See the owner's manual for your Varia device for more information.

Using the Varia Camera Controls

NOTICE

Some jurisdictions may prohibit or regulate the recording of video, audio, or photographs, or may require that all

parties have knowledge of the recording and provide consent. It is your responsibility to know and follow all

laws, regulations, and any other restrictions in jurisdictions where you plan to use this device.

Before you can use the Varia camera controls, you must pair the accessory with your device (Pairing Your

Wireless Sensors, page 51).

1 Swipe down from the top of the screen to open the widgets.

2 From the Varia camera controls widget, select an option:

• Select Radar Camera to view the camera settings.

• Select to take a photo.

• Select to save a clip.

Enabling the Green Threat Level Tone

Before you can enable the green threat level tone, you must pair the device with a compatible Varia rearview

radar device and enable tones.

You can enable a tone that plays when your radar transitions to the green threat level.

1 Select > Sensors.

2 Select your radar device.

3 Select Sensor Details > Alert Settings.

4 Select the Green Threat Level Tone toggle switch.

54 Wireless Sensors

Using Electronic Shifers

Before you can use compatible electronic shifters, such as Shimano Di2 shifters, you must pair them with your

Edge device (Pairing Your Wireless Sensors, page 51). You can customize the optional data fields (Adding a Data

Screen, page 61). The Edge device displays current adjustment values when the sensor is in adjustment mode.

Using an eBike

Before you can use a compatible eBike, such as a Shimano STEPS

™

eBike, you must pair it with your device

(Pairing Your Wireless Sensors, page 51). You can customize the optional eBike data screen and data fields

(Adding a Data Screen, page 61).

Viewing eBike Sensor Details

1 Select > Sensors.

2 Select your eBike.

3 Select an option:

• To view eBike details, such as the odometer or travel distance, select Sensor Details > eBike Details.

• To view eBike error messages, select .

See the eBike owner's manual for more information.

inReach Remote

The inReach remote function allows you to control your inReach device using your Edge device. Go to

buy.garmin.com to purchase a compatible inReach device.

Using the inReach Remote

1 Turn on the inReach device.

2 On your Edge device, select > Sensors > Add Sensor > inReach.

3 Select your inReach device, and select Add.

4 From the home screen, swipe down, and swipe left or right to view the inReach remote widget.

5 Select an option:

• To send a preset message, select > Send Preset, and select a message from the list.

• To send a text message, select > Start Conversation, select the message contacts, and enter the

message text or select a quick text option.

• To view the timer and distance traveled during a tracking session, select > Start Tracking.

• To send an SOS message, select SOS.

NOTE: You should only use the SOS function in a real emergency situation.

History

History includes time, distance, calories, speed, lap data, elevation, and optional ANT+ sensor information.

NOTE: History is not recorded while the activity timer is stopped or paused.

When the device memory is full, a message appears. The device does not automatically delete or overwrite your

history. Upload your history to Garmin Connect periodically to keep track of all your ride data.

Viewing Your Ride

1 Select History > Rides.

2 Select a ride.

3 Select an option.

History 55

Viewing Your Time in Each Training Zone

Before you can view your time in each training zone, you must pair your device with a compatible heart rate

monitor or power meter, complete an activity, and save the activity.

Viewing your time in each heart rate and power zone can help you adjust your training intensity. You can adjust

your power zones (Setting Your Power Zones, page 51) and your heart rate zones (Setting Your Heart Rate Zones,

page 48) to match your goals and abilities. You can customize a data field to display your time in training zones

during your ride (Adding a Data Screen, page 61).

1 Select History > Rides.

2 Select a ride.

3 Select an option:

• If your ride has data from one sensor, select Time in HR Zone or Time in Power Zone.

• If your ride has data from both sensors, select Time in Zone, and select Heart Rate Zones or Power

Zones.

Deleting a Ride

1 Select History > Rides.

2 Swipe a ride to the left and select .

Viewing Data Totals

You can view the accumulated data you have saved to the device, including the number of rides, time, distance,

and calories.

Select History > Totals.

Deleting Data Totals

1 Select History > Totals.

2 Select an option:

• Select to delete all data totals from the history.

• Select an activity profile to delete accumulated data totals for a single profile.

NOTE: This does not delete any saved activities.

3 Select .

Garmin Connect

You can connect with your friends on Garmin Connect. Garmin Connect gives you the tools to track, analyze,

share, and encourage each other. Record the events of your active lifestyle including runs, walks, rides, swims,

hikes, triathlons, and more.

You can create your free Garmin Connect account when you pair your device with your phone using the Garmin

Connect app, or you can go to connect.garmin.com.

Store your activities: After you complete and save an activity with your device, you can upload that activity to

Garmin Connect and keep it as long as you want.

Analyze your data: You can view more detailed information about your activity, including time, distance,

elevation, heart rate, calories burned, cadence, an overhead map view, pace and speed charts, and

customizable reports.

NOTE: Some data requires an optional accessory such as a heart rate monitor.

56 History

Plan your training: You can choose a fitness goal and load one of the day-by-day training plans.

Share your activities: You can connect with friends to follow each other's activities or post links to your

activities on your favorite social networking sites.

Sending Your Ride to Garmin Connect

• Sync your Edge device with the Garmin Connect app on your smartphone.

• Use the USB cable that came with your Edge device to send ride data to your Garmin Connect account on

your computer.

Data Recording

The device uses smart recording. It records key points where you change direction, speed, or heart rate.

When a power meter is paired, the device records points every second. Recording points every second provides

an extremely detailed track, and uses more of the available memory.

For information about data averaging for cadence and power, see Data Averaging for Cadence or Power,

page 50.

Data Management

NOTE: The device is not compatible with Windows

95, 98, Me, Windows NT

, and Mac

OS 10.3 and earlier.

Connecting the Device to Your Computer

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or

connecting to a computer.

1 Pull up the weather cap from the USB port.

2 Plug the small end of the USB cable into the USB port.

3 Plug the large end of the USB cable into a computer USB port.

Your device appears as a removable drive in My Computer on Windows computers and as a mounted

volume on Mac computers.

History 57

Transferring Files to Your Device

1 Connect the device to your computer.

On Windows computers, the device appears as a removable drive or a portable device. On Mac computers,

the device appears as a mounted volume.

NOTE: Some computers with multiple network drives may not display device drives properly. See your

operating system documentation to learn how to map the drive.

2 On your computer, open the file browser.

3 Select a file.

4 Select Edit > Copy.

5 Open the portable device, drive, or volume for the device.

6 Browse to a folder.

7 Select Edit > Paste.

The file appears in the list of files in the device memory.

Deleting Files

NOTICE

If you do not know the purpose of a file, do not delete it. Your device memory contains important system files

that should not be deleted.

1 Open the Garmin drive or volume.

2 If necessary, open a folder or volume.

3 Select a file.

4 Press the Delete key on your keyboard.

NOTE: If you are using an Apple

computer, you must empty the Trash folder to completely remove the files.

Disconnecting the USB Cable

If your device is connected to your computer as a removable drive or volume, you must safely disconnect your

device from your computer to avoid data loss. If your device is connected to your Windows computer as a

portable device, it is not necessary to safely disconnect the device.

1 Complete an action:

• For Windows computers, select the Safely Remove Hardware icon in the system tray, and select your

device.

• For Apple computers, select the device, and select File > Eject.

2 Disconnect the cable from your computer.

Customizing Your Device

Connect IQ Downloadable Features

You can add Connect IQ features to your device from Garmin and other providers using the Connect IQ app.

Data Fields: Allow you to download new data fields that present sensor, activity, and history data in new ways.

You can add Connect IQ data fields to built-in features and pages.

Widgets: Provide information at a glance, including sensor data and notifications.

Apps: Add interactive features to your device, such as new outdoor and fitness activity types.

58 Customizing Your Device

Downloading Connect IQ Features Using Your Computer

1 Connect the device to your computer using a USB cable.

2 Go to apps.garmin.com, and sign in.

3 Select a Connect IQ feature, and download it.

4 Follow the on-screen instructions.

Profiles

The Edge has several ways for you to customize the device, including profiles. Profiles are a collection of

settings that optimize your device based on how you are using it. For example, you can create different settings

and views for training and mountain biking.

When you are using a profile and you change settings such as data fields or units of measurement, the changes

are saved automatically as part of the profile.

Activity Profiles: You can create activity profiles for each type of biking. For example, you can create a separate

activity profile for training, for racing, and for mountain biking. The activity profile includes customized data

pages, activity totals, alerts, training zones (such as heart rate and speed), training settings (such as Auto

Pause

and Auto Lap

), and navigation settings.

User Profile: You can update your gender, age, weight, and height settings. The device uses this information to

calculate accurate ride data.

Setting Up Your User Profile

You can update your gender, age, weight, and height settings. The device uses this information to calculate

accurate ride data.

1 Select > My Stats > User Profile.

2 Select an option.

About Training Settings

The following options and settings allow you to customize your device based on your training needs. These

settings are saved to an activity profile. For example, you can set time alerts for your racing profile and you can

set an Auto Lap position trigger for your mountain biking profile.

Customizing Your Device 59

Updating Your Activity Profile

You can customize ten activity profiles. You can customize your settings and data fields for a particular activity

or trip.

TIP: You can also customize the activity profiles from the device settings in the Garmin Connect app.

1 Select > Activity Profiles.

2 Select an option:

• Select a profile.

• Select Create New to add or copy a profile.

3 If necessary, select to edit the name, color, and default ride type for the profile.

TIP: After a ride that is not typical, you can manually update the ride type. Accurate ride type data is

important for creating bike friendly courses.

4 Select an option:

• Select Data Screens to customize the data screens and data fields (Adding a Data Screen, page 61).

• Select Segments to turn on your enabled segments (Enabling Segments, page 12).

• Select Climbs > ClimbPro to enable the ClimbPro feature (Using ClimbPro, page 37).

• Select Climbs > Climb Detection to customize which types of climbs the device detects.

• Select Alerts and Prompts to customize your training alerts (Alerts, page 61).

• Select Alerts and Prompts > Sharp Bend Warnings to enable navigation warning messages for difficult

turns.

• Select Alerts and Prompts > Workout Target Alerts to enable workout target alerts.

• Select Alerts and Prompts > Lap to set how laps are triggered (Marking Laps by Position, page 63).

• Select Timer > Auto Pause to change when the activity timer automatically pauses (Using Auto Pause,

page 64).

• Select Timer > Timer Start Mode to customize how the device detects the start of a ride and

automatically starts the activity timer (Starting the Timer Automatically, page 64).

• Select Nutrition/Hydration to enable food and drink consumption tracking.

• Select Self Evaluation to enable self evaluation after workouts or all activities.

• Select MTB/CX > Grit/Flow/Jump Recording to enable grit, flow, and jump recording.

• Select Navigation > Map to customize the map settings (Map Settings, page 38).

• Select Navigation > Routing to customize the routing settings (Route Settings, page 39).

• Select Navigation > Navigation Prompts to show navigation messages using a map view or text prompt.

• Select Satellite Systems to turn off GPS (Training Indoors, page 14) or change the satellite setting

(Changing the Satellite Setting, page 65).

• Select Auto Sleep to automatically enter sleep mode after five minutes of inactivity (Using Auto Sleep,

page 64).

All changes are saved to the activity profile.

60 Customizing Your Device

Adding a Data Screen

1 Select > Activity Profiles.

2 Select a profile.

3 Select Data Screens > Add New > Data Screen.

4 Select a category, and select one or more data fields.

5 Select .

6 Select an option.

• Select another category to select more data fields.

• Select .

7 Select or to change the layout.

8 Select .

9 Select an option.

• Tap a data field, then tap another data field to rearrange them.

• Double-tap a data field to change it.

10 Select .

Editing a Data Screen

1 Select > Activity Profiles.

2 Select a profile.

3 Select Data Screens.

4 Select a data screen.

5 Select Layout and Data Fields.

6 Select or to change the layout.

7 Select .

8 Select an option.

• Tap a data field, then tap another data field to rearrange them.

• Double-tap a data field to change it.

9 Select .

Rearranging Data Screens

1 Select > Activity Profiles.

2 Select a profile.

3 Select Data Screens > > Reorder.

4 Hold on a data screen and drag it to a new location.

5 Select .

Alerts

You can use alerts to train toward specific time, distance, calorie, heart rate, cadence, and power goals. Alert

settings are saved with your activity profile.

Customizing Your Device 61

Setting Range Alerts

If you have an optional heart rate monitor, cadence sensor, or power meter, you can set up range alerts. A range

alert notifies you when the device measurement is above or below a specified range of values. For example, you

can set the device to alert you when your cadence is below 40 RPM and over 90 RPM. You can also use a

training zone for the range alert (Training Zones, page 30).

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts.

4 Select Heart Rate Alert, Cadence Alert, or Power Alert.

5 Select the minimum and maximum values, or select zones.

Each time you exceed or drop below the specified range, a message appears. The device also beeps if audible

tones are turned on (Turning the Device Tones On and Off, page 66).

Setting Recurring Alerts

A recurring alert notifies you each time the device records a specified value or interval. For example, you can set

the device to alert you every 30 minutes.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts.

4 Select an alert type.

5 Turn on the alert.

6 Enter a value.

7 Select .

Each time you reach the alert value, a message appears. The device also beeps if audible tones are turned on

(Turning the Device Tones On and Off, page 66).

Setting Smart Eat and Drink Alerts

A smart alert notifies you to eat or drink at strategic intervals based on current ride conditions. Smart alert

estimates for a ride are based on the temperature, elevation gain, speed, duration, and heart rate and power

data (if applicable).

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts.

4 Select Eat Alert or Drink Alert.

5 Turn on the alert.

6 Select Type > Smart.

Each time you reach the estimated smart alert value, a message appears. The device also beeps if audible tones

are turned on (Turning the Device Tones On and Off, page 66).

62 Customizing Your Device

Auto Lap

Marking Laps by Position

You can use the Auto Lap feature to mark the lap at a specific position automatically. This feature is helpful for

comparing your performance over different parts of a ride (for example, a long climb or training sprints). During

courses, you can use the By Position option to trigger laps at all of the lap positions saved in the course.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts > Lap.

Turn on the Auto Lap alert.

5 Select Auto Lap Trigger > By Position.

6 Select Lap At.

7 Select an option:

• Select Lap Press Only to trigger the lap counter each time you select and each time you pass any of

those locations again.

• Select Start and Lap to trigger the lap counter at the GPS location where you select and at any location

during the ride where you select .

• Select Mark and Lap to trigger the lap counter at a specific GPS location marked before the ride and at

any location during the ride where you select .

8 If necessary, customize the lap data fields (Adding a Data Screen, page 61).

Marking Laps by Distance

You can use the Auto Lap feature to mark the lap at a specific distance automatically. This feature is helpful for

comparing your performance over different parts of a ride (for example, every 10 miles or 40 kilometers).

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts > Lap.

Turn on the Auto Lap alert.

5 Select Auto Lap Trigger > By Distance.

6 Select Lap At.

7 Enter a value.

8 Select .

9 If necessary, customize the lap data fields (Adding a Data Screen, page 61).

Marking Laps by Time

You can use the Auto Lap feature to mark the lap at a specific time automatically. This feature is helpful for

comparing your performance over different parts of a ride (for example, every 20 minutes).

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts > Lap.

Turn on the Auto Lap alert.

5 Select Auto Lap Trigger > By Time.

6 Select Lap At.

7 Select or to enter a value.

8 Select .

9 If necessary, customize the lap data fields (

Adding a Data Screen, page 61).

Customizing Your Device 63

Customizing the Lap Banner

You can customize the data fields that appear in the lap banner.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Alerts and Prompts > Lap.

4 Turn on the Auto Lap alert.

5 Select Custom Lap Banner.

6 Select a data field to change it.

Using Auto Sleep

You can use the Auto Sleep feature to automatically enter sleep mode after 5 minutes of inactivity. During sleep

mode, the screen is turned off and the ANT+ sensors, Bluetooth, and GPS are disabled.

Wi‑Fi continues to run while the device is asleep.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Auto Sleep.

Using Auto Pause

You can use the Auto Pause feature to pause the timer automatically when you stop moving or when your speed

drops below a specified value. This feature is helpful if your ride includes stop lights or other places where you

need to slow down or stop.

NOTE: History is not recorded while the activity timer is stopped or paused.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Timer > Auto Pause.

4 Select an option:

• Select When Stopped to pause the timer automatically when you stop moving.

• Select Custom to pause the timer automatically when your speed drops below a specified value.

5 If necessary, customize optional time data fields (Adding a Data Screen, page 61).

Using Auto Scroll

You can use the Auto Scroll feature to automatically cycle through all of the training data screens while the

timer is running.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Data Screens > > Auto Scroll.

4 Select a display speed.

Starting the Timer Automatically

This feature automatically detects when your device has acquired satellites and is moving. It starts the activity

timer or reminds you to start the activity timer so you can record your ride data.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Timer > Timer Start Mode.

4 Select an option:

• Select Manual, and select

to start the activity timer.

• Select Prompted to display a visual reminder when you reach the start notice speed.

• Select Auto to start the activity timer automatically when you reach the start speed.

64 Customizing Your Device

Changing the Satellite Setting

For increased performance in challenging environments and faster GPS position location, you can enable Multi-

GNSS or Multi-GNSS Multi-band. Using GPS and another satellite together reduces battery life more quickly than

using only GPS.

1 Select > Activity Profiles.

2 Select a profile.

3 Select Satellite Systems.

4 Select an option.

Phone Settings

Select > Connected Features > Phone.

Enable: Enables Bluetooth.

NOTE: Other Bluetooth settings appear only when you enable Bluetooth technology.

Friendly Name: Allows you to enter a friendly name that identifies your devices with Bluetooth.

Pair Smartphone: Connects your device with a compatible Bluetooth enabled phone. This setting allows you to

use Bluetooth connected features, including LiveTrack and activity uploads to Garmin Connect.

Sync Now: Allows you to sync your device with your compatible phone.

Smart Notifications: Allows you to enable phone notifications from your compatible phone.

Missed Notifications: Displays missed phone notifications from your compatible phone.

Text Reply Signature: Enables signatures in your text message replies. This feature is available with compatible

Android phones.

System Settings

Select > System.

• Display Settings (Display Settings, page 65)

• Widget Settings (Customizing the Widget Loop, page 66)

• Data Recording Settings (Data Recording Settings, page 66)

• Unit Settings (Changing the Units of Measure, page 66)

• Tone Settings (Turning the Device Tones On and Off, page 66)

• Language Settings (Changing the Device Language, page 66)

Display Settings

Select > System > Display.

Auto Brightness: Automatically adjusts the backlight brightness based on the ambient light.

Brightness: Sets the backlight brightness.

Backlight Timeout: Sets the length of time before the backlight turns off.

Color Mode: Sets the device to display day or night colors. You can select the Auto option to allow the device to

set day or night colors automatically based on the time of day.

Screen Capture: Allows you to save the image of the device screen.

Using the Backlight

You can tap the touchscreen to turn on the backlight.

NOTE: You can adjust the backlight timeout (Display Settings, page 65).

1 From the home screen or a data screen, swipe down from the top of the screen.

2 Select an option:

• To manually adjust the brightness, select

, and use the slider bar.

• To allow the device to automatically adjust the brightness based on the ambient light, select Auto.

Customizing Your Device 65

Customizing the Glances

1 Scroll to the bottom of the home screen.

2 Select .

3 Select an option:

• Select to add a glance to the glance loop.

• Select to drag the glance up or down to change the location of the glance in the glance loop.

• Swipe left on a glance, and select to remove the glance from the glance loop.

Customizing the Widget Loop

You can change the order of widgets in the widget loop, remove widgets, and add new widgets.

1 Select > System > Widgets.

2 Select an option:

• Select to add a widget to the widget loop.

• Select to drag the widget up or down to change the location of the widget in the widget loop.

• Swipe left on a widget, and select to remove the widget from the widget loop.

Data Recording Settings

Select > System > Data Recording.

Recording Interval: Controls how the device records activity data. The Smart option records key points where

you change direction, speed, or heart rate. The 1 Sec option records points every second. It creates a very

detailed record of your activity and increases the size of the stored activity file.

Cadence Averaging: Controls whether the device includes zero values for cadence data that occur when you are

not pedaling (Data Averaging for Cadence or Power, page 50).

Power Averaging: Controls whether the device includes zero values for power data that occur when you are not

pedaling (Data Averaging for Cadence or Power, page 50).

Log HRV: Sets the device to record your heart rate variability during an activity.

Changing the Units of Measure

You can customize units of measure for distance and speed, elevation, temperature, weight, position format,

and time format.

1 Select > System > Units.

2 Select a measurement type.

3 Select a unit of measure for the setting.

Turning the Device Tones On and Off

Select > System > Tones.

Changing the Device Language

Select > System > Language.

Time Zones

Each time you turn on the device and acquire satellites or sync with your phone, the device automatically

detects your time zone and the current time of day.

66 Customizing Your Device

Setting Up Extended Display Mode

You can use your Edge 1040 device as an extended display to view data screens from a compatible Garmin

multisport watch. For example, you can pair a compatible Forerunner device to display its data screens on your

Edge device during a triathlon.

1 From your Edge device, select > Extended Display > Connect New Watch.

2 From your compatible Garmin watch, select Settings > Sensors & Accessories > Add New > Extended

Display.

3 Follow the on-screen instructions on your Edge device and Garmin watch to complete the pairing process.

The data screens from your paired watch appear on the Edge device when the devices are paired.

NOTE: Normal Edge device functions are disabled while using Extended Display mode.

After pairing your compatible Garmin watch with your Edge device, they connect automatically the next time you

use Extended Display mode.

Exiting Extended Display Mode

While the device is in Extended Display mode, tap the screen, and select Exit Extended Display Mode > Yes.

Device Information

Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or

connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB

port on your computer.

NOTE: The device will not charge when outside the approved temperature range (Edge Specifications,

page 73).

1 Pull up the weather cap from the USB port .

2 Plug the small end of the USB cable into the USB port on the device.

3 Plug the large end of the USB cable into an AC adapter or a computer USB port.

Device Information 67

4 Plug the AC adapter into a standard wall outlet.

When you connect the device to a power source, the device turns on.

5 Charge the device completely.

After you charge the device, close the weather cap.

About the Battery

WARNING

This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product

box for product warnings and other important information.

Installing the Standard Mount

For the best GPS reception, position the bike mount so the front of the device is oriented toward the sky. You

can install the bike mount on the stem or the handlebar.

NOTE: If you do not have this mount, you can skip this task.

1 Select a secure location to mount the device where it does not interfere with the safe operation of your bike.

2 Place the rubber disk on the back of the bike mount.

Two rubber disks are included, and you can select the disk that best fits your bike. The rubber tabs align with

the back of the bike mount so it stays in place.

3 Place the bike mount on the bike stem.

4 Attach the bike mount securely using the two bands .

68 Device Information

5 Align the tabs on the back of the device with the bike mount notches .

6 Press down slightly and turn the device clockwise until it locks into place.

Installing the Out-Front Mount

NOTE: If you do not have this mount, you can skip this task.

1 Select a secure location to mount the Edge device where it does not interfere with the safe operation of your

bike.

2 Use the hex key to remove the screw from the handlebar connector .

3 Place the rubber pad around the handlebar:

• If the handlebar diameter is 25.4 mm or 26 mm, use the thicker pad.

• If the handlebar diameter is 31.8 mm, use the thinner pad.

• If the handlebar diameter is 35 mm, do not use a rubber pad.

4 Place the handlebar connector around the rubber pad.

Device Information 69

5 Replace and tighten the screw.

NOTE: Garmin recommends tightening the screw so the mount is secure, with a maximum torque

specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.

6 Align the tabs on the back of the Edge device with the bike mount notches .

7 Press down slightly and turn the Edge device clockwise until it locks into place.

Releasing the Edge

1 Turn the Edge clockwise to unlock the device.

2 Lift the Edge off the mount.

70 Device Information

Installing the Mountain Bike Mount

NOTE: If you do not have this mount, you can skip this task.

1 Select a secure location to mount the Edge device where it does not interfere with the safe operation of your

bike.

2 Use the 3 mm hex key to remove the screw from the handlebar connector .

3 Select an option:

• If the handlebar diameter is 25.4 mm or 26 mm, place the thicker pad around the handlebar.

• If the handlebar diameter is 31.8 mm, place the thinner pad around the handlebar.

• If the handlebar diameter is 35 mm, do not use a rubber pad.

4 Place the handlebar connector around the handlebar, so that the mount arm is above the bike stem.

Device Information 71

5 Use the 3 mm hex key to loosen the screw on the mount arm, position the mount arm, and tighten the

screw.

NOTE: Garmin recommends tightening the screw so the mount arm is secure, with a maximum torque

specification of 20 lbf-in. (2.26 N-m). You should check the tightness of the screw periodically.

6 If necessary, use the 2 mm hex key to remove the two screws on the back side of the mount , remove and

rotate the connector, and replace the screws to change the orientation of the mount.

7 Replace and tighten the screw on the handlebar connector.

NOTE: Garmin recommends tightening the screw so the mount is secure, with a maximum torque

specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.

8 Align the tabs on the back of the Edge device with the bike mount notches .

9 Press down slightly and turn the Edge device clockwise until it locks into place.

72 Device Information

Product Updates

Your device automatically checks for updates when connected to Bluetooth or Wi‑Fi. You can manually check

for updates from the system settings (System Settings, page 65). On your computer, install Garmin Express

(www.garmin.com/express). On your phone, install the Garmin Connect app.

This provides easy access to these services for Garmin devices:

• Software updates

• Map updates

• Data uploads to Garmin Connect

• Product registration

Updating the Sofware Using the Garmin Connect App

Before you can update your device software using the Garmin Connect app, you must have a Garmin Connect

account, and you must pair the device with a compatible smartphone (Pairing Your Phone, page 40).

Sync your device with the Garmin Connect app.

When new software is available, the Garmin Connect app automatically sends the update to your device.

Updating the Sofware Using Garmin Express

Before you can update your device software, you must have a Garmin Connect account, and you must download

the Garmin Express application.

1 Connect the device to your computer using the USB cable.

When new software is available, Garmin Express sends it to your device.

2 Follow the on-screen instructions.

3 Do not disconnect your device from the computer during the update process.

NOTE: If you have already set up your device with Wi‑Fi connectivity, Garmin Connect can automatically

download available software updates to your device when it connects using Wi‑Fi.

Specifications

Edge Specifications

Battery type Rechargeable, built-in lithium-ion battery

Battery life

Edge 1040 : Up to 35 hr.

Edge 1040 Solar: Up to 45 hr. with solar

Operating temperature range From -20º to 60ºC (from -4º to 140ºF)

Charging temperature range From 0º to 45ºC (from 32º to 113ºF)

Wireless frequencies

Edge 1040 : 2.4 GHz @ 12.7 dBm maximum

Edge 1040 Solar: 2.4 GHz @ 12.0 dBm maximum

Water rating IEC 60529 IPX7

With use in 75,000 lux conditions

The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to

www.garmin.com/waterrating.

Device Information 73

HRM-Dual Specifications

Battery type User-replaceable CR2032, 3 V

Battery life Up to 3.5 yr. at 1 hr./day

Operating temperature range From -5° to 50°C (from 23° to 122°F)

Wireless frequency 2.4 GHz @ 2 dBm maximum

Water rating

1 ATM

NOTE: This product does not transmit heart rate data while swimming.

Speed Sensor 2 and Cadence Sensor 2 Specifications

Battery type User-replaceable CR2032, 3 V

Battery life Approximately 12 mo. at 1 hr./day

Speed sensor storage Up to 300 hr. of activity data

Operating temperature range From -20º to 60ºC (from -4º to 140ºF)

Wireless frequency 2.4 GHz @ 4 dBm maximum

Water rating IEC 60529 IPX7

Viewing Device Information

You can view device information, such as the unit ID, software version, and license agreement.

Select > System > About > Copyright Info.

Viewing Regulatory and Compliance Information

The label for this device is provided electronically. The e-label may provide regulatory information, such as

identification numbers provided by the FCC or regional compliance markings, as well as applicable product and

licensing information.

1 Select .

2 Select System > Regulatory Info.

Device Care

NOTICE

Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause

permanent damage.

Never use a hard or sharp object to operate the touchscreen, or damage may result.

Avoid chemical cleaners, solvents, sunscreen, and insect repellents that can damage plastic components and

finishes.

Secure the weather cap tightly to prevent damage to the USB port.

Avoid extreme shock and harsh treatment, because it can degrade the life of the product.

The device withstands pressure equivalent to a depth of 10 m. For more information, go to

www.garmin.com/waterrating.

The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.

74 Device Information

Cleaning the Device

NOTICE

Even small amounts of sweat or moisture can cause corrosion of the electrical contacts when connected to a

charger. Corrosion can prevent charging and data transfer.

1 Wipe the device using a cloth dampened with a mild detergent solution.

2 Wipe it dry.

After cleaning, allow the device to dry completely.

Caring for the Heart Rate Monitor

NOTICE

You must unsnap and remove the module before washing the strap.

A build up of sweat and salt on the strap can decrease the ability of the heart rate monitor to report accurate

data.

• Go to www.garmin.com/HRMcare for detailed washing instructions.

• Rinse the strap after every use.

• Machine wash the strap after every seven uses.

• Do not put the strap in a dryer.

• When drying the strap, hang it up or lay it flat.

• To prolong the life of your heart rate monitor, unsnap the module when not in use.

User Replaceable Batteries

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other

important information.

Device Information 75

Replacing the Heart Rate Monitor Battery

1 Use a small Phillips screwdriver to remove the four screws on the back of the module.

2 Remove the cover and battery.

3 Wait 30 seconds.

4 Insert the new battery with the positive side facing up.

NOTE: Do not damage or lose the O-ring gasket.

5 Replace the back cover and the four screws.

NOTE: Do not overtighten.

After you replace the heart rate monitor battery, you may need to pair it with the device again.

76 Device Information

Replacing the Speed Sensor Battery

The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions.

1 Locate the circular battery cover on the front of the sensor.

2 Twist the cover counter-clockwise until the cover is loose enough to remove.

3 Remove the cover and the battery .

4 Wait 30 seconds.

5 Insert the new battery into the cover, observing polarity.

NOTE: Do not damage or lose the O-ring gasket.

6 Twist the cover clockwise so that the marker on the cover aligns with the marker on the case.

NOTE: The LED flashes red and green for a few seconds after battery replacement. When the LED flashes

green and then stops flashing, the device is active and ready to send data.

Device Information 77

Replacing the Cadence Sensor Battery

The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions.

1 Locate the circular battery cover on the back of the sensor.

2 Twist the cover counter-clockwise until the marker points to unlocked and the cover is loose enough to

remove.

3 Remove the cover and the battery .

4 Wait 30 seconds.

5 Insert the new battery into the cover, observing polarity.

NOTE: Do not damage or lose the O-ring gasket.

6 Twist the cover clockwise until the marker points to locked.

NOTE: The LED flashes red and green for a few seconds after battery replacement. When the LED flashes

green and then stops flashing, the device is active and ready to send data.

Troubleshooting

Resetting the Device

If the device stops responding, you may need to reset it. This does not erase any of your data or settings.

Hold for 10 seconds.

The device resets and turns on.

Restoring the Default Settings

You can restore the default configuration settings and activity profiles. This will not remove your history or

activity data, such as rides, workouts, and courses.

Select

> System > Device Reset > Reset Default Settings > .

78 Troubleshooting

Clearing User Data and Settings

You can clear all user data and restore the device to its initial setup. This removes your history and data, such

as rides, workouts, and courses, and resets the device settings and activity profiles. This will not remove any

files you added to the device from your computer.

Select > System > Device Reset > Delete Data and Reset Settings > .

Maximizing Battery Life

• Turn on Battery Saver (Turning On Battery Save Mode, page 79).

• Decrease the backlight brightness or shorten the backlight timeout (Display Settings, page 65).

• Select the Smart recording interval (Data Recording Settings, page 66).

• Turn on the Auto Sleep feature (Using Auto Sleep, page 64).

• Turn off the Phone wireless feature (Phone Settings, page 65).

• Select the GPS setting (Changing the Satellite Setting, page 65).

• Remove wireless sensors that you no longer use.

Turning On Battery Save Mode

Battery save mode adjusts the settings automatically to extend the battery life for longer rides. During an

activity, the screen turns off. You can enable automatic alerts and tap the screen to wake it up. Battery save

mode records GPS track points and sensor data less frequently. Speed, distance, and track data accuracy are

reduced.

NOTE: History is recorded in battery save mode when the timer is running.

1 Select > Battery Saver > Enable.

2 Select the alerts that wake up the screen during an activity.

After your ride, you should charge your device and disable battery save mode to use all the device features.

My phone will not connect to the device

If your phone will not connect to the device, you can try these tips.

• Turn off your phone and your device, and turn them back on again.

• Enable Bluetooth technology on your phone.

• Update the Garmin Connect app to the latest version.

• Remove your device from the Garmin Connect app and the Bluetooth settings on your phone to retry the

pairing process.

• If you bought a new phone, remove your device from the Garmin Connect app on the phone you intend to

stop using.

• Bring your phone within 10 m (33 ft.) of the device.

• On your phone, open the Garmin Connect app, select or , and select Garmin Devices > Add Device to

enter pairing mode.

• Swipe down on the home screen to view the settings widget, and select Phone > Pair Smartphone to

manually enter pairing mode.

Tips for Using the Edge 1040 Solar Device

Solar charging is designed to optimize and extend the battery life of the device. Solar charging occurs even

when the device is in sleep mode or turned off.

NOTE: This feature is not available on all models.

• When you are not using the device, point the display toward sunlight to extend the battery life.

Troubleshooting 79

• During an activity, scroll to the solar data page.

The solar data page highlights the intensity of the current light conditions and the accumulated ride time

gained from the solar energy, taking into account the current usage and battery consumption of the device.

Improving GPS Satellite Reception

• Frequently sync the device to your Garmin account:

◦ Connect your device to a computer using the USB cable and the Garmin Express application.

◦ Sync your device to the Garmin Connect app using your Bluetooth enabled phone.

◦ Connect your device to your Garmin account using a Wi‑Fi wireless network.

While connected to your Garmin account, the device downloads several days of satellite data, allowing it to

quickly locate satellite signals.

• Take your device outside to an open area away from tall buildings and trees.

• Remain stationary for a few minutes.

My device is in the wrong language

1 Select .

2 Scroll down to the second-to-last item in the list, and select it.

3 Scroll down to the seventh item in the list, and select it.

4 Select your language.

80 Troubleshooting

Setting Your Elevation

If you have accurate elevation data for your present location, you can manually calibrate the altimeter on your

device.

1 Select Navigation > > Set Elevation.

2 Enter the elevation, and select .

Temperature Readings

The device may display temperature readings that are higher than the actual air temperature if the device is

placed in direct sunlight, held in your hand, or is charging with an external battery pack. Also, the device will take

some time to adjust to significant changes in temperature.

Replacement O-rings

Replacement bands (O-rings) are available for the mounts.

NOTE: Use Ethylene Propylene Diene Monomer (EPDM) replacement bands only. Go to http://buy.garmin.com,

or contact your Garmin dealer.

Getting More Information

• Go to support.garmin.com for additional manuals, articles, and software updates.

• Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and

replacement parts.

Troubleshooting 81

Appendix

Data Fields

NOTE: Not all data fields are available for all activity types. Some data fields require ANT+ or Bluetooth

accessories to display data. Some data fields appear in more than one category on the device.

TIP: You can also customize the data fields from the device settings in the Garmin Connect app.

Cadence Fields

Name Description

Avg Cadence Cycling. The average cadence for the current activity.

Cadence

Cycling. The number of revolutions of the crank arm. Your device must be connected to a

cadence accessory for this data to appear.

Lap Cadence Cycling. The average cadence for the current lap.

Cycling Dynamics Fields

Name Description

Avg L. Peak Pwr Phase The average power phase peak angle for the left leg for the current activity.

Avg Left Pwr Phase The average power phase angle for the left leg for the current activity.

Avg PCO The average platform center offset for the current activity.

Avg Right Pwr Phase The average power phase angle for the right leg for the current activity.

Avg R. Peak Pwr Phase The average power phase peak angle for the right leg for the current activity.

Lap L. Peak Pwr Phase The average power phase peak angle for the left leg for the current lap.

Lap Left Pwr Phase The average power phase angle for the left leg for the current lap.

Lap PCO The average platform center offset for the current lap.

Lap R. Peak Pwr Phase The average power phase peak angle for the right leg for the current lap.

Lap Right Pwr Phase The average power phase angle for the right leg for the current lap.

Lap Time Seated The time spent seated while pedaling for the current lap.

Lap Time Standing The time spent standing while pedaling for the current lap.

Left Peak Pwr Phase

The current power phase peak angle for the left leg. Power phase peak is the angle

range over which the rider produces the peak portion of the driving force.

Left Power Phase

The current power phase angle for the left leg. Power phase is the pedal stroke region

where positive power is produced.

Platform Center Offset

The platform center offset. Platform center offset is the location on the pedal

platform where force is applied.

Right Peak Pwr Phase

The current power phase peak angle for the right leg. Power phase peak is the angle

range over which the rider produces the peak portion of the driving force.

Right Power Phase

The current power phase angle for the right leg. Power phase is the pedal stroke

region where positive power is produced.

Time Seated The time spent seated while pedaling for the current activity.

82 Appendix

Name Description

Time Standing The time spent standing while pedaling for the current activity.

Distance Fields

Name Description

Distance The distance traveled for the current track or activity.

Lap Distance The distance traveled for the current lap.

Last Lap Distance The distance traveled for the last completed lap.

Distance Ahead The distance ahead or behind the Virtual Partner.

Odometer

A running tally of distance traveled for all trips. This total does not clear when resetting the

trip data.

eBike

Name Description

Assist Mode The current eBike assistance mode.

eBike Battery The remaining battery power of an eBike.

Shifting Advice

The recommendation to shift up or down based on your current effort. Your eBike must be in

manual shifting mode.

Travel Range

The estimated distance you can travel based on the current eBike settings and remaining

battery power.

Elevation Fields

Name Description

Ascent Remaining

During a workout or course, the remaining ascent when you are using an elevation

target.

Asc. to Next Course Pt. The remaining ascent to the next point on the course.

Elevation The altitude of your current location above or below sea level.

Grade

The calculation of rise (elevation) over run (distance). For example, if for every 3 m

(10 ft.) you climb you travel 60 m (200 ft.), the grade is 5%.

Total Ascent The total elevation distance ascended since the last reset.

Total Descent The total elevation distance descended since the last reset.

VAM The average ascent velocity for the current activity.

30s VAM The 30-second moving average of the average ascent velocity.

Avg VAM The average ascent velocity for the current activity.

Lap VAM The average ascent velocity for the current lap.

Appendix 83

Gears

Name Description

Di2 Battery Level The remaining battery power of a Di2 sensor.

Di2 Shift Mode The current shift mode of a Di2 sensor.

Front Gear The front bike gear from a gear position sensor.

Gear Battery The battery status of a gear position sensor.

Gear Combo The current gear combination from a gear position sensor.

Gears The front and rear bike gears from a gear position sensor.

Gear Ratio The number of teeth on the front and rear bike gears, as detected by a gear position sensor.

Rear Gear The rear bike gear from a gear position sensor.

Graphical

Name Description

Cadence Cycling. A color gauge showing your current cadence range.

Cadence Bars

A bar graph showing your current, average, and maximum cycling cadence values for the

current activity.

Cadence Graph A line graph showing your cycling cadence values for the current activity.

Elevation Graph

A line graph showing your current elevation, total ascent, and total descent for the current

activity.

Heart Rate A color gauge showing your current heart rate zone.

Heart Rate Bars

A bar graph showing your current, average, and maximum heart rate values for the current

activity.

Heart Rate Graph

A line graph showing your current, average, and maximum heart rate values for the current

activity.

Power A color gauge showing your current power zone.

Power Bars

A bar graph showing your current, average, and maximum power output values for the

current activity.

Power Graph

A line graph showing your current, average, and maximum power output values for the

current activity.

Speed A color gauge showing your current speed.

Speed Bars

A bar graph showing your current, average, and maximum speed values for the current

activity.

Speed Graph A line graph showing your speed for the current activity.

84 Appendix

Heart Rate Fields

Name Description

%Heart Rate Reserve

The percentage of heart rate reserve (maximum heart rate minus resting heart

rate).

%Max Heart Rate The percentage of maximum heart rate.

Aerobic Training Effect The impact of the current activity on your aerobic fitness level.

Anaerobic Training Effect The impact of the current activity on your anaerobic fitness level.

Avg %HRR

The average percentage of heart rate reserve (maximum heart rate minus resting

heart rate) for the current activity.

Avg Heart Rate The average heart rate for the current activity.

Avg %Max Heart Rate The average percentage of maximum heart rate for the current activity.

Heart Rate

Your heart rate in beats per minute (bpm). Your device must have wrist-based heart

rate or be connected to a compatible heart rate monitor.

Heart Rate Zone

The current range of your heart rate (1 to 5). The default zones are based on your

user profile and maximum heart rate (220 minus your age).

HR Zone Graph A line graph showing your current heart rate zone (1 to 5).

Lap %HRR

The average percentage of heart rate reserve (maximum heart rate minus resting

heart rate) for the current lap.

Lap Heart Rate The average heart rate for the current lap.

Lap %Max Heart Rate The average percentage of maximum heart rate for the current lap.

Last Lap Heart Rate The average heart rate for the last completed lap.

Load

The training load for the current activity. Training load is the amount of excess

post-exercise oxygen consumption (EPOC), which indicates the strenuousness of

your workout.

Respiration Rate Your respiration rate in breaths per minute (brpm).

Time in Zone The time elapsed in each heart rate or power zone.

Lights

Name Description

Battery Status The remaining battery power of a bike light accessory.

Beam Angle Status The headlight beam mode.

Light Mode The light network configuration mode.

Lights Connected The number of connected lights.

Appendix 85

MTB Performance

Name Description

60s Flow The 60-second moving average of the flow score.

60s Grit The 60-second moving average of the grit score.

Flow

The measurement of how consistently you maintain speed and smoothness through turns in the

current activity.

Grit

The measurement of difficulty for the current activity based on elevation, gradient, and rapid

changes in direction.

Lap Flow The overall flow score for the current lap.

Lap Grit The overall grit score for the current lap.

Navigation Fields

Name Description

Ascent Remaining

During a workout or course, the remaining ascent when you are using an

elevation target.

Asc. to Next Course Pt. The remaining ascent to the next point on the course.

Course Pt. Distance

The remaining distance to

the next point on the

course.

The remaining distance to the next point on the course.

Destination Location The position of your final destination.

Dist. to Point The remaining distance to the next point.

Distance to Destination

The remaining distance to the final destination. You must be navigating for this

data to appear.

Distance to Next

The remaining distance to the next waypoint on the route. You must be navi

gating for this data to appear.

ETA at Destination

The estimated time of day when you will reach the final destination (adjusted to

the local time of the destination). You must be navigating for this data to appear.

ETA at Next

The estimated time of day when you will reach the next waypoint on the route

(adjusted to the local time of the waypoint). You must be navigating for this data

to appear.

Heading The direction you are moving.

Next Waypoint The next point on the route. You must be navigating for this data to appear.

Time to Destination

The estimated time remaining before you reach the destination. You must be

navigating for this data to appear.

Time to Next

The estimated time remaining before you reach the next waypoint in the route.

You must be navigating for this data to appear.

Time to Point The remaining time to the next point.

86 Appendix

Other Fields

Name Description

Battery Level The remaining battery power.

Calories The amount of total calories burned.

GPS Signal Strength The strength of the GPS satellite signal.

Laps The number of laps completed for the current activity.

Performance Condition The performance condition score is a real-time assessment of your ability to perform.

Sunrise The time of sunrise based on your GPS position.

Sunset The time of sunset based on your GPS position.

Temperature The temperature of the air. Your body temperature affects the temperature sensor.

Time of Day

The time of day based on your current location and time settings (format, time zone,

daylight saving time).

Power Fields

Name Description

%FTP The current power output as a percentage of functional threshold power.

3s Balance The 3-second moving average of the left/right power balance.

3s Power The 3-second moving average of power output.

3s Watts/kg The 3-second moving average of power output in watts per kilogram.

10s Balance The 10-second moving average of the left/right power balance.

10s Power The 10-second moving average of power output.

10s Watts/kg The 10-second moving average of power output in watts per kilogram.

30s Balance The 30-second moving average of the left/right power balance.

30s Power The 30-second moving average of power output.

30s Watts/kg The 30-second moving average of power output in watts per kilogram.

Avg Balance The average left/right power balance for the current activity.

Avg Power The average power output for the current activity.

Avg Watts/kg The average power output in watts per kilogram.

Balance The current left/right power balance.

Intensity Factor The Intensity Factor

™

for the current activity.

Kilojoules The accumulated work performed (power output) in kilojoules.

Lap Balance The average left/right power balance for the current lap.

Lap NP The average Normalized Power

™

for the current lap.

Lap Power The average power output for the current lap.

Last Lap NP The average Normalized Power for the last completed lap.

Appendix 87

Name Description

Last Lap Power The average power output for the last completed lap.

Lap Watts/kg The average power output in watts per kilogram for the current lap.

Max. Lap Power The top power output for the current lap.

Max. Power The top power output for the current activity.

Normalized Power The Normalized Power for the current activity.

Pedal Smoothness

The measurement of how evenly a rider is applying force to the pedals throughout each

pedal stroke.

Power Cycling. The current power output in watts.

Power Zone The current range of power output (1 to 7) based on your FTP or custom settings.

Time in Zone The time elapsed in each power zone.

Torque Effectiveness The measurement of how efficiently a rider is pedaling.

TSS The Training Stress Score

™

for the current activity.

Watts/kg The amount of power output in watts per kilogram.

Smart Trainer

Name Description

Trainer Controls During a workout, the resistance force applied by an indoor trainer.

Speed Fields

Name Description

Avg Speed The average speed for the current activity.

Lap Speed The average speed for the current lap.

Last Lap Speed The average speed for the last completed lap.

Max. Speed The top speed for the current activity.

Speed The current rate of travel.

Stamina Fields

Name Description

Stamina The current remaining stamina.

Estimated Distance The current stamina distance remaining at the current effort.

Potential The remaining potential stamina.

Estimated Time The current stamina time remaining at the current effort.

88 Appendix

Timer Fields

Name Description

Avg Lap Time The average lap time for the current activity.

Elapsed Time

The total time recorded. For example, if you start the activity timer and run for 10 minutes, then

stop the timer for 5 minutes, then start the timer and run for 20 minutes, your elapsed time is

35 minutes.

Lap Time The stopwatch time for the current lap.

Last Lap Time The stopwatch time for the last completed lap.

Timer The current time of the countdown timer.

Time Ahead The time ahead or behind the Virtual Partner.

Workouts

Name Description

Calories to Go During a workout, the remaining calories when you are using a calorie target.

Distance to Go

During a workout or course, the remaining distance when you are using a distance

target.

Duration The time remaining for the current workout step.

Heart Rate to Go During a workout, the amount you are above or below the heart rate target.

Primary Target During a workout, the target for the primary workout step.

Reps to Go During a workout, the remaining repetitions.

Secondary Target During a workout, the target for a secondary workout step.

Step Distance During a workout, the distance for the current step.

Step Time The time elapsed for the current workout step.

Time to Go During a workout or course, the remaining time when you are using a time target.

Workout Comparison A graph comparing your current effort to the workout target.

Workout Step During a workout, the current step out of the total number of steps.

Appendix 89

VO2 Max. Standard Ratings

These tables include standardized classifications for VO2 max. estimates by age and gender.

Males Percentile 20–29 30–39 40–49 50–59 60–69 70–79

Superior 95 55.4 54 52.5 48.9 45.7 42.1

Excellent 80 51.1 48.3 46.4 43.4 39.5 36.7

Good 60 45.4 44 42.4 39.2 35.5 32.3

Fair 40 41.7 40.5 38.5 35.6 32.3 29.4

Poor 0–40 <41.7 <40.5 <38.5 <35.6 <32.3 <29.4

Females Percentile 20–29 30–39 40–49 50–59 60–69 70–79

Superior 95 49.6 47.4 45.3 41.1 37.8 36.7

Excellent 80 43.9 42.4 39.7 36.7 33 30.9

Good 60 39.5 37.8 36.3 33 30 28.1

Fair 40 36.1 34.4 33 30.1 27.5 25.9

Poor 0–40 <36.1 <34.4 <33 <30.1 <27.5 <25.9

Data reprinted with permission from The Cooper Institute. For more information, go to www.CooperInstitute.org.

FTP Ratings

These tables include classifications for functional threshold power (FTP) estimates by gender.

Males Watts per Kilogram (W/kg)

Superior 5.05 and greater

Excellent From 3.93 to 5.04

Good From 2.79 to 3.92

Fair From 2.23 to 2.78

Untrained Less than 2.23

Females Watts per Kilogram (W/kg)

Superior 4.30 and greater

Excellent From 3.33 to 4.29

Good From 2.36 to 3.32

Fair From 1.90 to 2.35

Untrained Less than 1.90

FTP ratings are based on research by Hunter Allen and Andrew Coggan, PhD, Training and Racing with a Power

Meter (Boulder, CO: VeloPress, 2010).

90 Appendix

Heart Rate Zone Calculations

Zone

% of Maximum Heart

Rate

Perceived Exertion Benefits

1 50–60% Relaxed, easy pace, rhythmic breathing

Beginning-level aerobic training,

reduces stress

2 60–70%

Comfortable pace, slightly deeper

breathing, conversation possible

Basic cardiovascular training, good

recovery pace

3 70–80%

Moderate pace, more difficult to hold

conversation

Improved aerobic capacity, optimal

cardiovascular training

4 80–90%

Fast pace and a bit uncomfortable,

breathing forceful

Improved anaerobic capacity and

threshold, improved speed

5 90–100%

Sprinting pace, unsustainable for long

period of time, labored breathing

Anaerobic and muscular endurance,

increased power

Appendix 91

Wheel Size and Circumference

Your speed sensor automatically detects your wheel size. If necessary, you can manually enter your wheel

circumference in the speed sensor settings.

The tire size is marked on both sides of the tire. This is not a comprehensive list. You can also measure the

circumference of your wheel or use one of the calculators available on the internet.

Tire Size Wheel Circumference (mm)

20 × 1.75 1515

20 × 1-3/8 1615

22 × 1-3/8 1770

22 × 1-1/2 1785

24 × 1 1753

24 × 3/4 Tubular 1785

24 × 1-1/8 1795

24 × 1.75 1890

24 × 1-1/4 1905

24 × 2.00 1925

24 × 2.125 1965

26 × 7/8 1920

26 × 1-1.0 1913

26 × 1 1952

26 × 1.25 1953

26 × 1-1/8 1970

26 × 1.40 2005

26 × 1.50 2010

26 × 1.75 2023

26 × 1.95 2050

26 × 2.00 2055

26 × 1-3/8 2068

26 × 2.10 2068

26 × 2.125 2070

26 × 2.35 2083

26 × 1-1/2 2100

26 × 3.00 2170

27 × 1 2145

27 × 1-1/8 2155

92 Appendix

Tire Size Wheel Circumference (mm)

27 × 1-1/4 2161

27 × 1-3/8 2169

29 x 2.1 2288

29 x 2.2 2298

29 x 2.3 2326

650 x 20C 1938

650 x 23C 1944

650 × 35A 2090

650 × 38B 2105

650 × 38A 2125

700 × 18C 2070

700 × 19C 2080

700 × 20C 2086

700 × 23C 2096

700 × 25C 2105

700C Tubular 2130

700 × 28C 2136

700 × 30C 2146

700 × 32C 2155

700 × 35C 2168

700 × 38C 2180

700 × 40C 2200

700 × 44C 2235

700 × 45C 2242

700 × 47C 2268

Appendix 93

support.garmin.com

GUID-0083D0A0-EA6E-41F0-8207-3F1498875E61 v1June 2022

Garmin 010-02503-21 Edge 1040 Solar
