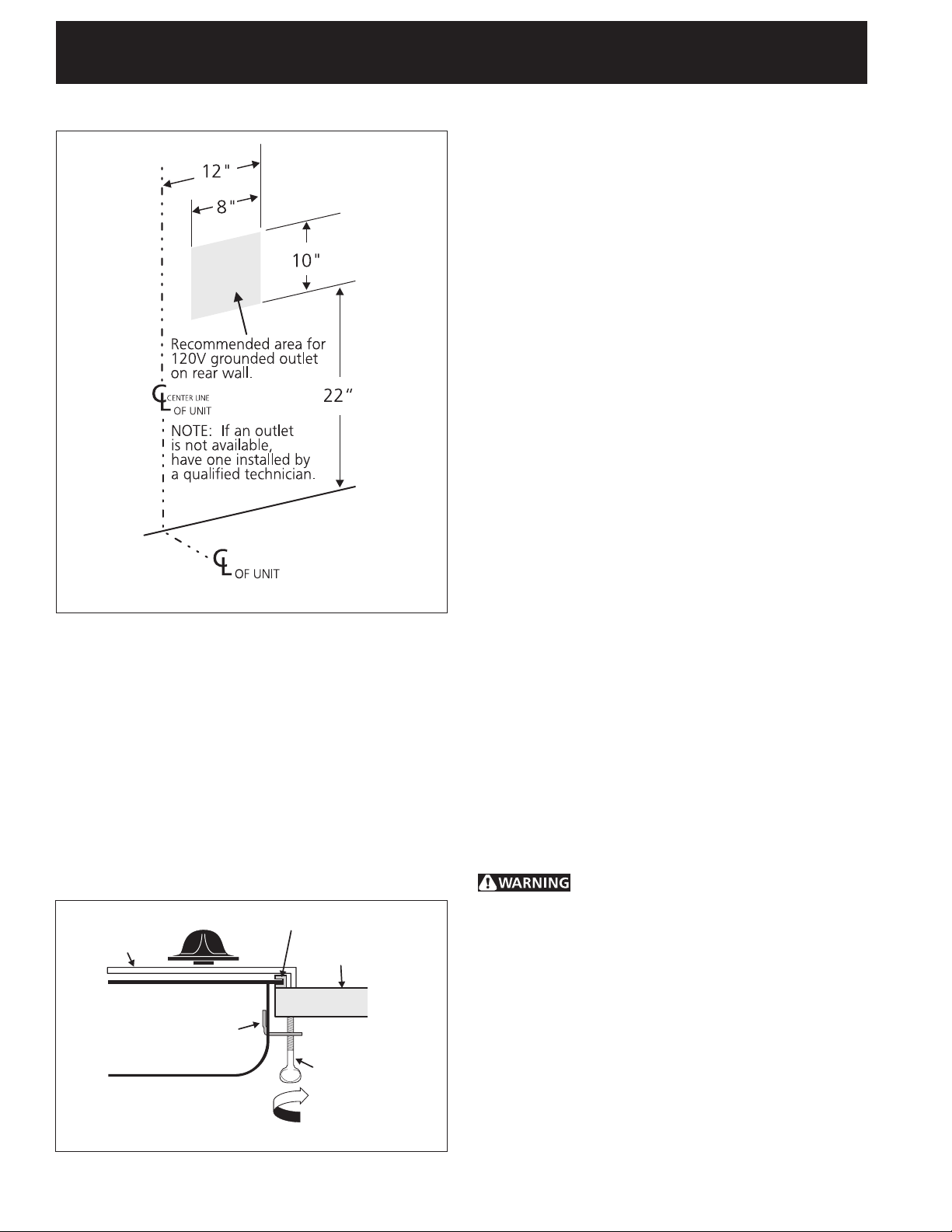

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)

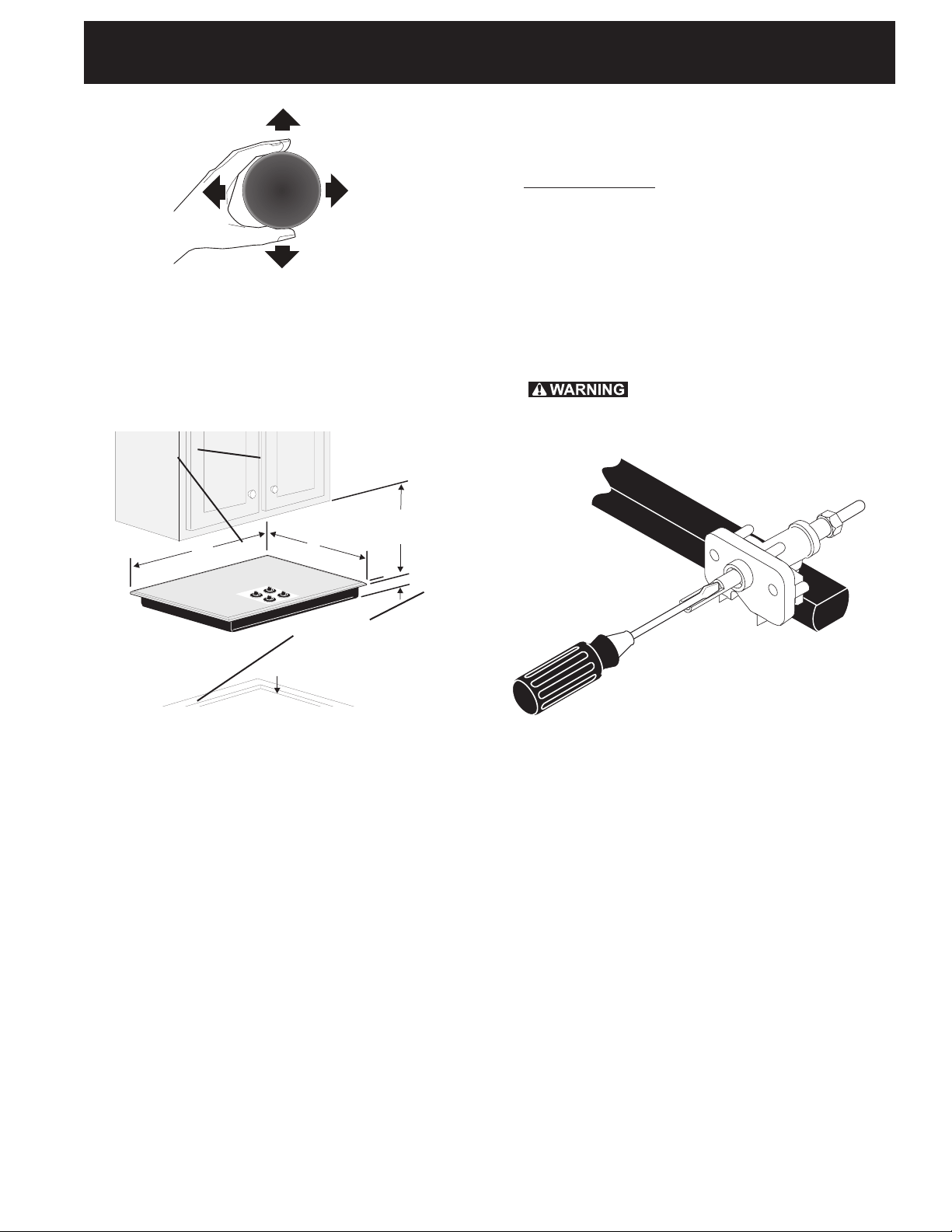

H
A
B
E
30” Min. *
(76.2 cm)
F
D
C
G
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
A01705106 (1609) Rev. A English - pages 1-9
Español - páginas 10-18
Français - pages 19-27

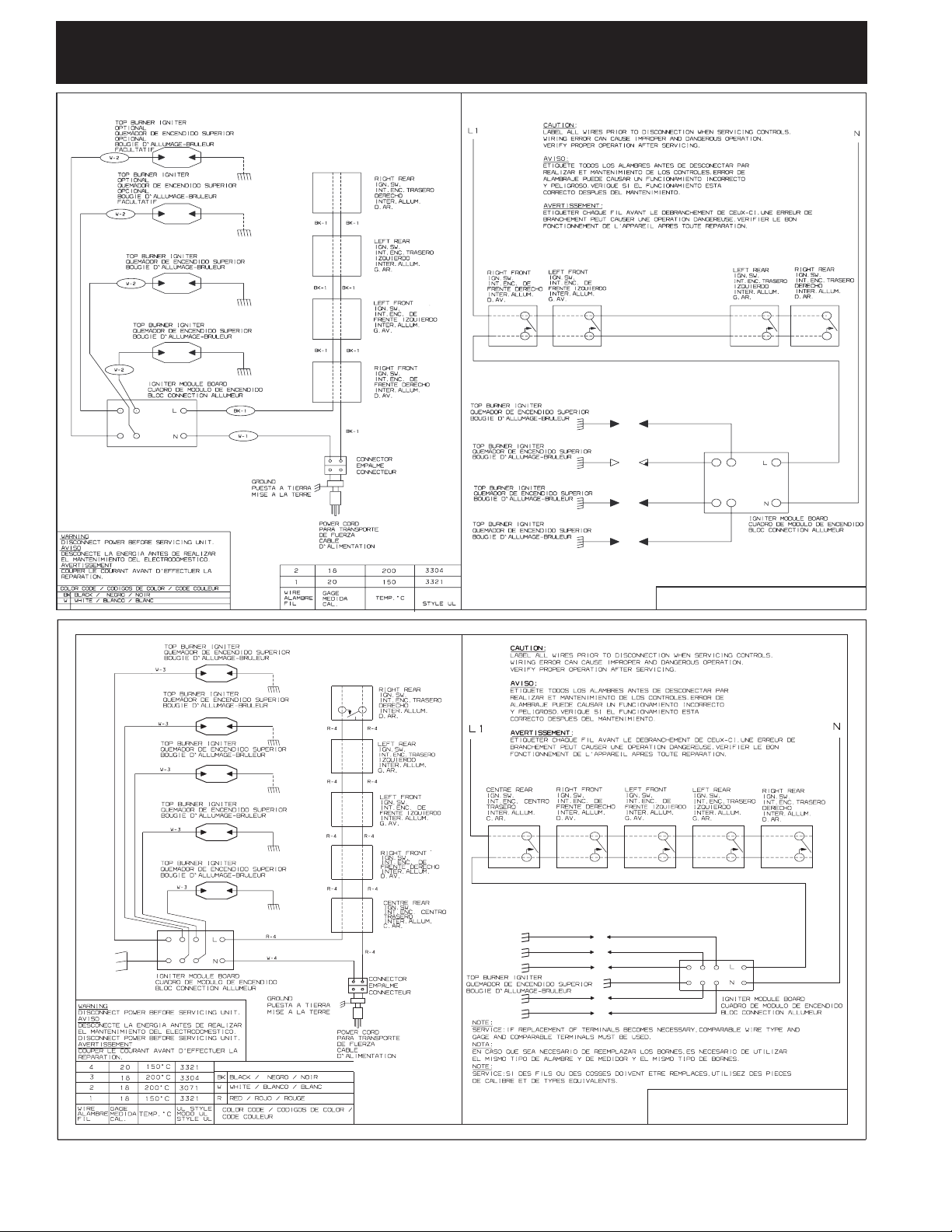

Wiring Diagram 28
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
All dimensions are stated in inches and (cm).

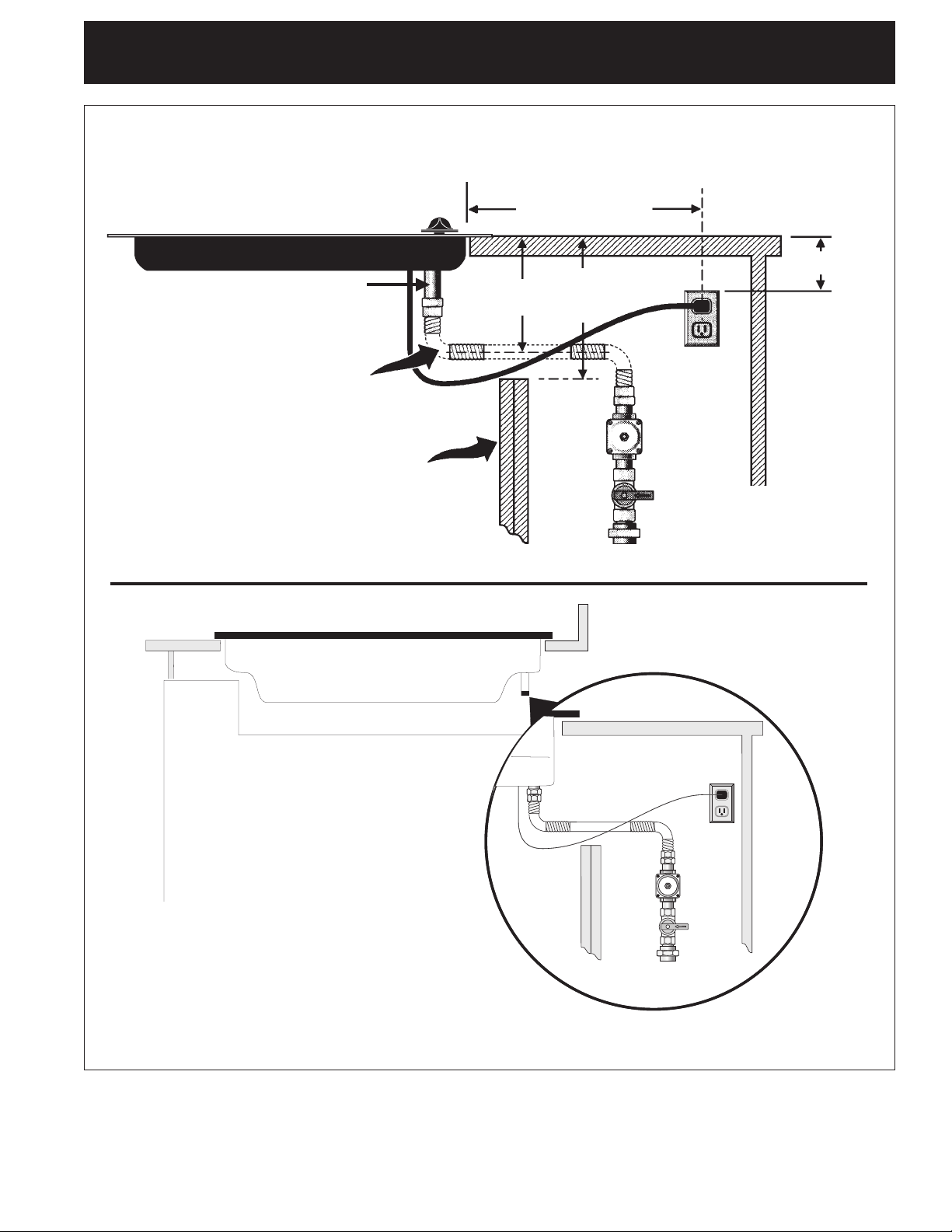

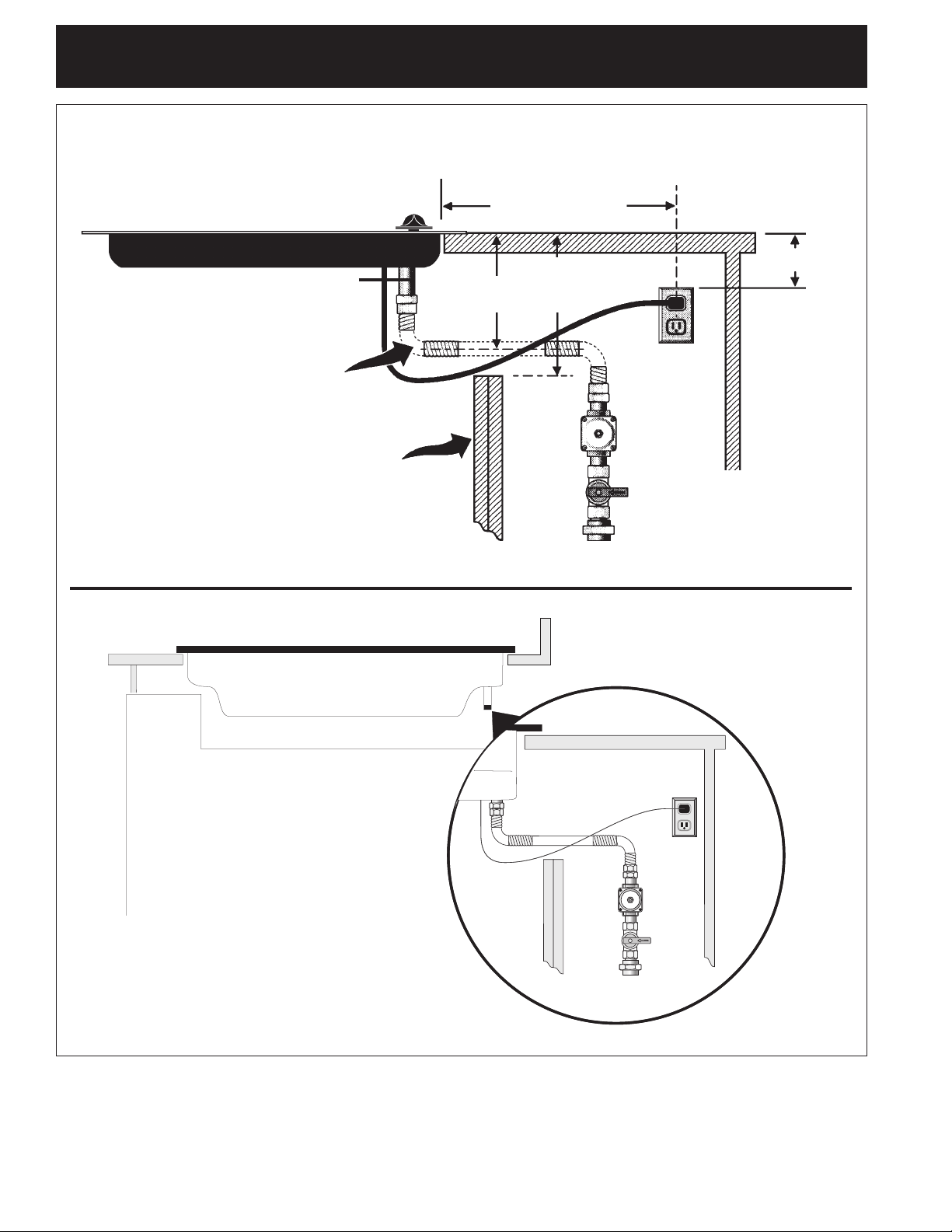

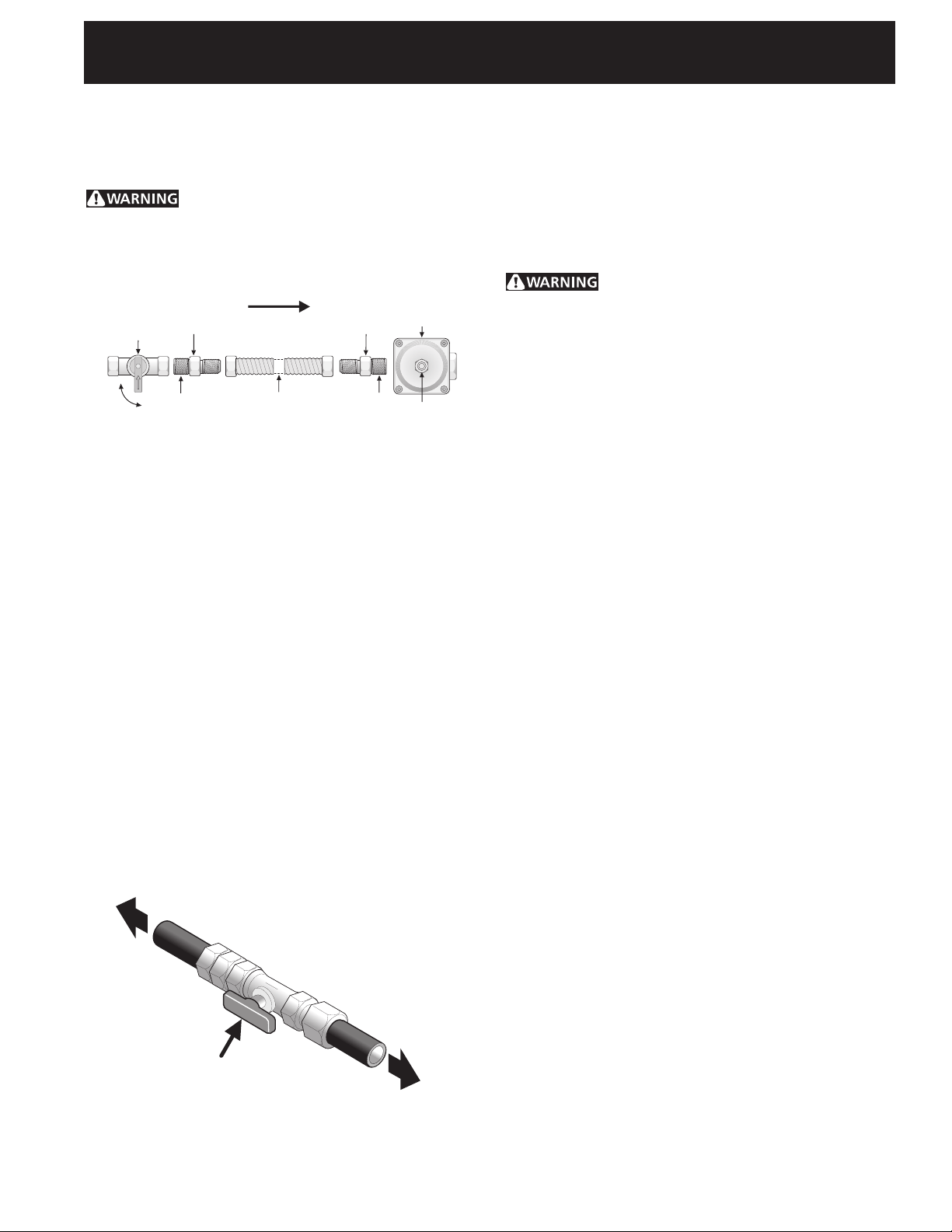

Dimension H includes a 5" (12,7 cm) space underneath the cooktop for connection to gas supply line.
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet

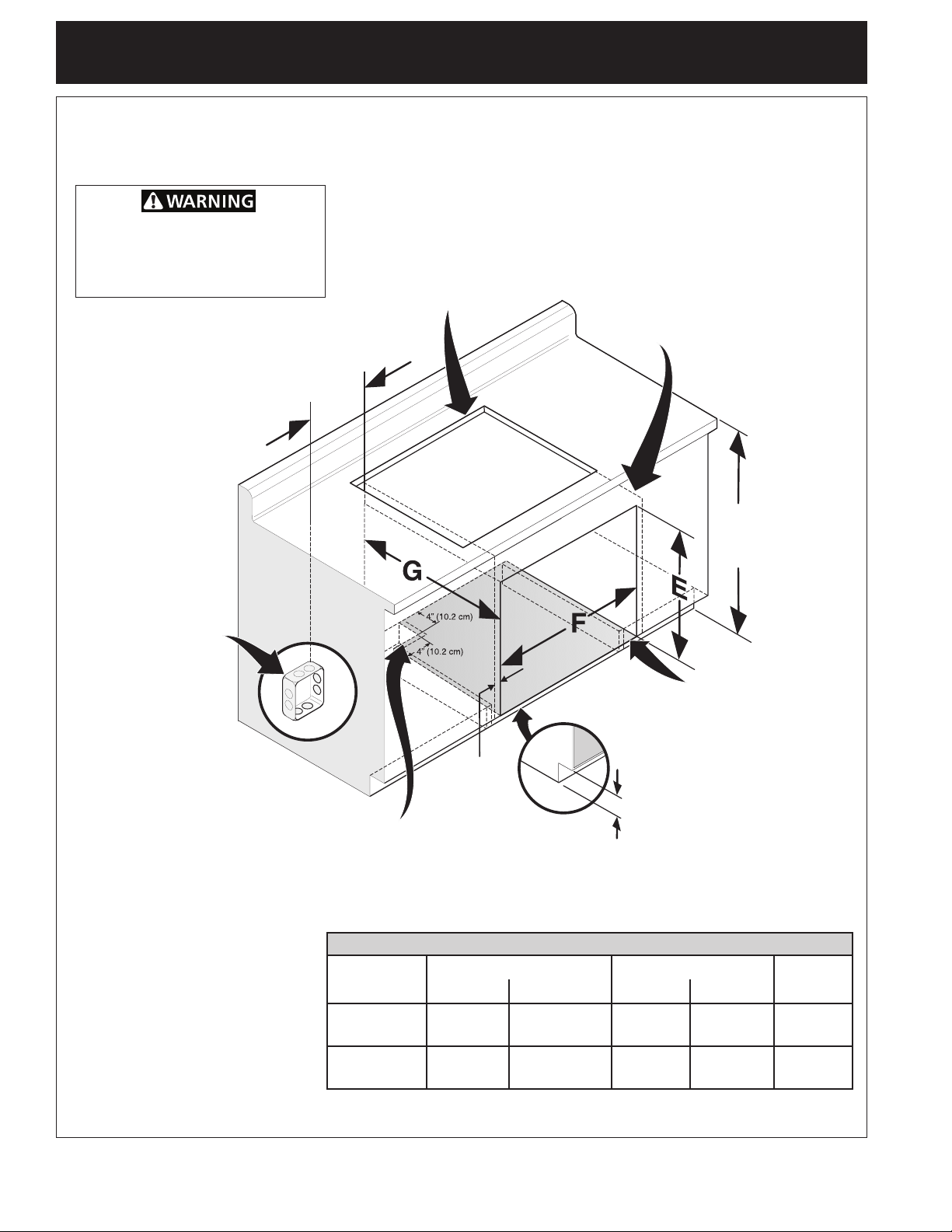

Figure 1
Printed in China
Gas Cooktop

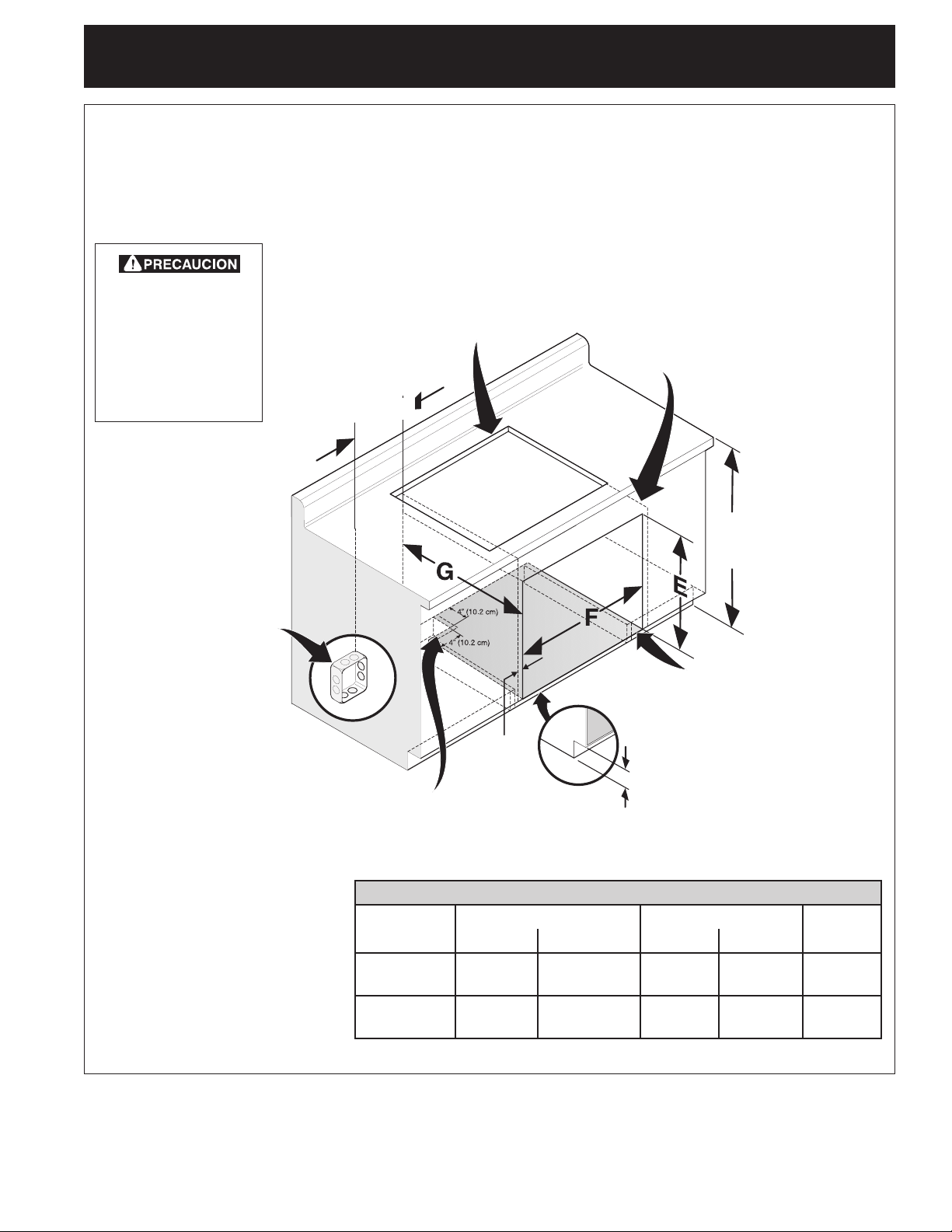

Cutout Dimensions
Gas Cooktop
Dimensions
PRODUCT DIMENSIONS
MODEL A. WIDTH B. DEPTH C. HEIGHT D. BOX WIDTH E. BOX DEPTH
30" Gas Cooktop 30 (76,2) 21 ¾ (55,2) 4 ¼ (10,8)
27 (68,6) 19 (48,3)
36" Gas Cooktop 36 (91,4) 21 ¾ (55,2) 4 ¼ (10,8)
33 ¼ (84,5) 19 (48,3)
CUTOUT DIMENSIONS
F. WIDTH G. DEPTH H. HEIGHT
MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM BELOW COOKTOP
30" Gas Cooktop
27 ¼ (69,2) 28 ½ (72,4) 19
1
/
8
(48,6) 19 ¾ (50,2) 8 (20,3)
36" Gas Cooktop
33
7
/
8
(86,1) 34 ¼ (87) 19
1
/
8
(48,6) 19 ¾ (50,2) 8 (20,3)
