Contents
1
1 General safety instructions _______________________________ 2
2 Installation ___________________________________________ 9
3 Description of the controls ______________________________ 16
4 Operating instructions __________________________________ 26
5. Cleaning and maintenance ______________________________ 47
6 Troubleshooting. What to do if... __________________________ 50
7 Troubleshooting ______________________________________ 55
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
This manual includes options, programs and features that may be present
on the type of dishwasher you have purchased. For the specific
characteristics of your model, please refer to the manual supplied together
with the product.
Installation
2
TRANSLATION OF THE ORIGINAL
INSTRUCTIONS
1 General safety instructions
This manual is an integral part of the appliance; it
must always be kept intact together with the
dishwasher for future reference (even if sold).
Before using the appliance, carefully read all the
instructions contained in this manual.
This appliance is intended for indoor use in a
household environment and similar such as staff
kitchens of shops, offices and other workplaces,
institutions, and for the use by guests at hotels,
hostels, bed and breakfast and other residential
facilities. The appliance is designed and
manufactured to perform the following function:
washing and drying of dishes; any other use shall
be considered improper. The manufacturer
declines all responsibility for uses other than
those described above.
Do not use appliances which have been damaged
during transit! If in doubt, contact your dealer.
The appliance must be installed and connected in
accordance with the instructions provided by the
manufacturer. Installation must be performed by
qualified technicians in accordance with
applicable regulations.
Installation
3
Never leave waste packaging unattended. Do not
allow children to play with packaging materials.
Separate waste packaging materials by type and
consign them to the nearest recycling centre.
The plate with the technical data, serial number and
marking is in a visible position on the inside edge of
the door. It must not be removed.
The appliance must be earthed in compliance with
electrical safety regulations. The manufacturer
declines all responsibility for damage to
persons or property resulting from failure to
earth the appliance or from a defective earth
connection.
During the installation the appliance must be
disconnected from the network.
Do not install the appliance in a place subject to
freezing.
Do not install the appliance near equipment with
high irradiation temperature (e.g. gas burners,
fireplaces, etc.).
If the appliance is installed in a compartment above
or below another equipment (e.g. gas burners,
ovens, etc.), read carefully the instructions provided
by the manufacturer of the equipment. If the
instructions of the equipment do not contain
information, contact the manufacturer of the
equipment to ensure that the appliance can be
installed above or below it.
Installation
4
Building-in the appliance underneath a hob is
absolutely forbidden. Installing a hob on top of free-
standing appliance is absolutely forbidden.
To ensure stability, install the appliance only under
continuous worktop, securely fixed to adjacent
cabinets. If the appliance is installed in a high
cabinet, both the appliance and the cabinet must be
adequately fixed.
If the appliance is not built-in and is therefore
accessible on one side, the door hinge area must
be covered for safety reason (injury hazard). The
covering fixtures are available as an accessory from
specialist dealers or the after-sales.
Check that the voltage and the frequency of the
mains match the ratings on the name plate of the
appliance.
The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet
the regulations in force. Do not use adaptors or
shunt connections in order to avoid the possibility of
overheating or burning.
The plug of the appliance must be accessible after
installation. Never disconnect the plug by pulling on
the power supply lead.
If the appliance is provided with a plugless supply
cord, an omnipolar circuit breaker providing a full
disconnection in overvoltage protection class III
must be installed in an easily accessible position on
the supply line.
Installation
5
The appliance must be connected to the water
supply by means of new hoses.
Briefly test the appliance after installation. Run a
wash cycle with a temperature of between 45 and
70°C with the dishwasher empty and using a
specific dishwasher detergent. (It is not sufficient to
run a soak cycle). If the dishwasher fails to operate
correctly, disconnect it from the electrical power
supply and call the nearest technical service centre.
Never attempt to repair the appliance yourself.
The dishwasher should only be used by adults. Use
by children aged from eight years and persons with
reduced physical, sensor or mental capabilities or
lack of experience and knowledge is only permitted
under the supervision of a person responsible for
their safety.
Do not allow children to play with the appliance.
Keep children away from the dishwasher when the
door is open. Always check that the detergent
distributor is empty after completion of the wash
cycle.
Cleaning and regular maintenance of the appliance
by children is only permitted under the supervision
of a person responsible for their safety.
Some detergents are strongly alkaline. Avoid
contact with the skin and eyes. Detergents can be
extremely dangerous if swallowed. They contain
substances capable of causing permanent damage
to the mouth and throat, and even leading to
Installation
6
suffocation. Observe all the safety instructions on
the packaging of these products.
Do not drink the water residues which may be
present on the dishes or appliance at the end of the
washing program.
Never place solvents such as alcohol or turpentine,
which are potentially explosive, inside the
appliance. Never load dishes soiled with ash, wax
or paint.
Never leave the dishwasher door open; people
might trip over it. Leaning or sitting on the
dishwasher door when open may cause the
appliance to overturn and/or damage it.
Switch off the dishwasher after use to avoid wasting
electricity.
Knives and other kitchen equipment with sharp
edges must be placed in the basket with their tips
downwards, or horizontally in the top basket; take
care not to injure yourself on any sharp edges
protruding from the baskets.
The appliance satisfies all applicable safety
regulations governing electrical equipment. Any
technical checks should be conducted exclusively
by trained and authorised technicians: repairs
performed by unauthorised persons not only
void the warranty but may also put the user’s
safety at risk.
In the event of a fault, disconnect the dishwasher
from the electrical power supply and shut off the
Installation
7
water tap. In the event of damage to the supply
cord, have it replaced by the manufacturer or an
authorised technical service centre.
Some components are live even with the on/off
button in the off position. Before performing any
maintenance work on the appliance, disconnect it
from the electrical power supply.
Do not clean the machine with a water jet machine,
high-pressure or steam cleaners.
Models with “acquastop” device
This device prevents flooding in case of water leak.
When the “acquastop” device is tripped, contact a
qualified technician to identify and repair the fault.
In these models the water intake hose contains a
solenoid valve. Do not cut the hose and do not
allow the solenoid valve to drop into water. In
case of damage to the water intake hose,
disconnect the appliance from the electrical and
water supply.
Warning: The device only works if the
dishwasher is connected to the mains.
Installation
8
Declaration of conformity
The appliance complies with the essential requirements
of the following European directives:
- 200/125/EC
- 211/65/EU
- 2014/35/EU
- IEC/EN 62471, risk group 1, for models with internal
lighting.
- IEC/EN 61770
Disposal
This appliance must be disposed of separately
from other waste (directive 2012/19/EC).
The appliance does not contain substances in quantities
sufficient to be considered hazardous to health and the
environment, in accordance with current European
directives:
To dispose of the appliance:
Cut the power cable,
make the lock unusable.
The
manufacturer declines any liability for damage
or injury caused by failure to comply with the
instructions indicated above or as a result of
tampering with even just one part of the appliance,
and the use of non-original spare parts.
Installation
9
2 Installation
2.1 Technical characteristics
Water supply pressure min. 0.05 - max. 0.9 MPa (min. 0.5 – max. 9
bar)
Water supply temperature
max. 60°C
Capacity
12-13 standard place settings
Class of protection against
moisture
IPX0
Protection against electric shock
class I
Electrical data
see the data plate
Appliance dimensions (mm)
Installation
10
2.2 General information
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation.
This appliance may be placed up against walls or other furniture units.
If the appliance is installed near a heat source, fit a special insulating panel to
prevent overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under
continuous worktops, and screw them to the adjacent units.
To facilitate the installation procedure, the intake and drain hoses can be
positioned in any direction; make sure that the hoses are not kinked, crushed or
pulled too tightly.
Make sure to tighten the locking ring nut once the hoses have been placed in the
direction required.
A hole at least 8 cm in diameter is required to allow the power supply cable and
hoses to pass.
At the end of the installation, perform a short test of the appliance: open the water
tap and check that there are no leaks.
To install the dishwasher against the back wall, the hoses should be passed
through the lower area where there is a dedicated space for them.
The following spare parts will be available for 7 years after the model is no
longer produced: wash pump, drain pump, heating elements; pipes and hoses,
valves, filters and acquastop devices; structural and internal parts of the door
(separately or as an assembly); electronic boards and printed circuits; electronic
displays; pressure switches; thermostats and sensors, software and firmware,
including reset software.
The following spare parts will be available for 10 years after the model is no
longer produced: door hinge and seal; other seals; spray arms; filter unit,
baskets, runners and accessories.
Some spare parts are only available to authorised repairers.
Not all spare parts apply to all models.
The EU EPREL database provides information regarding dishwasher
performance. The database can be consulted directly using the QR code on the
dishwasher's energy label or via the following link. In this case, you have to
enter the name of the model indicated on the data plate on the side of the door.
For detailed information on the energy label: www.theenergylabel.eu.
Level the appliance on the floor using the appropriate Allen key to regulate
the adjustable feet. This operation is essential for ensuring correct
operation of the dishwasher.
Installation
11
Some models are equipped with only one adjustable foot at the rear, which
can be adjusted by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden.
Moreover, dishwashers may not be installed directly touching
appliances which are not conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the dishwasher in a compartment next to one or more
other appliances, it is essential to comply with all the recommendations
provided by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
For free-standing models only
- Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
- If the appliance is accessible from one side, the door hinge area has to
be covered for safety reasons (risk of injury). The covers are available as
an accessory and can be ordered through the Technical Assistance
Service.
- The top surface of the dishwashers can be removed to
allow installation under a worktop. The
appropriate kit should be purchased from authorised dealers or via the
Technical
Assistance Service. This must be carried out by authorised
personnel.
Installation
12
2.3 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system with
new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾” gas
thread, inserting the filter A supplied with the dishwasher
.
Take care to screw the hose firmly into place with your
hands and then complete by tightening about ¼ of a
turn with pliers.
In dishwashers equipped with the AQUASTOP device,
the filters is already fitted inside the threaded ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the
washing time be approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
Installation
13
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100 cm,
and should never be submerged in water. If a horizontal drain extension
hose is used (for a maximum 3 m), the drain hose can be placed at a
maximum height of.
85 cm
from the ground.
Class of protection against moisture: IPX0
Installation
14
2.4 Electrical connection and precautions
Check that the voltage and the frequency of the mains match the ratings
on the name plate of the appliance positioned on the inner edge of the
door.
The plug on the supply cord and the corresponding socket outlet must be
of the same type and meet the regulations in force.
The plug must be accessible after installation.
Never disconnect the plug by pulling on the power supply lead.
After changing the supply cord, make sure that the bracket which secures
the cord is fixed securely in place.
Do not use adaptors or shunt connections in order to avoid the
possibility of overheating or burning.
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.
Some components are live even with the ON/OFF position. Before
performing any maintenance work on the appliance, disconnect it
from the electrical power supply.
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
An omnipolar circuit breaker in overvoltage protection class III must be
installed in an easily accessible position on the power supply line.
The connection to the mains must be carried out by a qualified technician
in accordance to the scheme shown below and the regulations in force.
Installation
15
L = brown
N = blue
= yellow-green
Class of protection against electric shock: I
FOR GREAT BRITAIN ONLY
:
This appliance must be earthed.
Fuse replacement
If the mains lead of this appliance is fitted
with a BS 1363A 13A fused plug, to change
a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 and proceed as
follows:
Remove the fuse cover A and fuse B.
Fit replacement fuse into fuse cover.
Refit both into plug.
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.
Istruzioni per l’utente
16
3 Description of the controls
3.1 Front panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 “CHILD LOCK” ACTIVATION BUTTONS
4 NO RINSE AID LIGHT (some models only)
5
SALT WARNIN LIGHT (on some models only)
6 PROGRAM SELECTION BUTTONS
7 START/PAUSE BUTTON
8 PROGRAM INDICATOR LIGHTS
9 HANDLE TO OPEN THE DOOR
Istruzioni per l’utente
17
1 ON/OFF BUTTON AND WARNING LIGHT
2 Not present
3 Not present
4 SALT WARNIN LIGHT
5 NO RINSE AID LIGHT
6 PROGRAM SELECTION BUTTONS
7 START/PAUSE BUTTON
8 PROGRAM INDICATOR LIGHTS
9 HANDLE TO OPEN THE DOOR
Istruzioni per l’utente
18
The number, type and the sequence of wash programs depend on the model
purchased. Refer to the instruction manual supplied together with the product.
SOAK
CRYSTAL 45°
Pans and dishes while waiting
for another wash cycle
Wine glasses and lightly soiled
fine china.
(*)
ECO
DELICATE 50°
Cycle with lowest water and
energy consumption, for
washing normally soiled dishes,
even with dried-on residues.
Wine glasses and lightly soiled
dishes.
MIX 65°
EXPRESS 27’
Normally soiled mixed loads
such as dishes and pans, even
with dried-on residues
Quick cycle for lightly soiled
dishes, washed immediately
after use.
STERYL 75°
SILENT
Intensive cycle for plates, pots,
pans, feeding bottles. Ideal for
baby dishes or if there are
allergy sufferers in the family in
order to achieve a higher level of
hygiene.
Normally dirty dishes, even with
dried-on residues. Ensures
maximum noise reduction and
is therefore ideal if you wish to
run it during the night.
AUTO SENSOR
FULL
EXPRESS 60’
For normally soiled mixed loads
such as dishes and pans. The
dishwasher determines the
washing parameters
automatically.
Quick cycle for normally soiled
mixed loads such as dishes
and pans, even with dried-on
residues. Dishes are washed
and dried in 60 minutes.
GREEN EXPRESS
INTENSE 70°
Quick cycle with low water and
energy consumption. For
normally soiled mixed loads,
washed immediately after use.
Heavily soiled plates, pots and
pans, even with dried-on
residues
½ LOAD
For washing just a few normally
soiled dishes, washed
immediately after use
The STERILISE program terminate with an extra anti-bacteria rinse that ensures a
further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights
flash to warn that the anti-bacteria effect is not guaranteed.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
Istruzioni per l’utente
19
(*) Standard program according to EN50242 - EN60436. The DRY ASSIST option (if
present) must be enabled. For consumption data, please see the information sheet
provided.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
Annual energy consumption is based on 280 standard wash cycles using cold
water and low-energy cycles. Actual consumption depends on how the appliance
is used.
Water consumption is based on 280 standard wash cycles. Actual consumption
depends on how the appliance is used.
The information refers to the EN 50242 – EN 60436 - STANDARD
program
(indicated in the program table), which is the most effective in terms of combined
energy and water consumption. The program is recommended for normally soiled
dishes and is used to assess ecodesign compliance with EU legislation.
Drying efficiency is based on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
please request the guidelines by contacting us at the
following e-mail address:
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.
Istruzioni per l’utente
20
3.3 Washing programs
The dishwasher is equipped with a control panel and an INFORMATION
DISPLAY from which it is possible to carry out all the power switch-on,
switch-off and programming operations.
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
SWITCHING ON
When the ON/OFF button (1) is pressed, the dishwasher switches on.
The indicator lights will display the dishwasher's "status".
PROGRAMMING
Programming operations are only possible with the door closed.
As long as the door is open, the
PROGRAMS (8)
lights remain off.
PROGRAM SELECTION
Press the PROGRAM SELECTION button (7) several times until the light of
the program required comes on.
Istruzioni per l’utente
21
STARTING THE PROGRAM
To start the dishwasher, press the START/PAUSE button (6) for a few
seconds, until the light of the selected program starts to flash (confirmation
beep).
The light will flash as long as the program is in progress, to indicate that it
is being performed.
END OF PROGRAM
At the end of the program the beeper sounds briefly and
the program
lights
4
and
5
(marked "end") flash.
INTERRUPTION A PROGRAM
To interrupt a program in progress:
press the START/PAUSE button (6); the light of the program in
progress remains on (confirmation beep);
you may now restart the program by pressing button (6) again
until it restarts, or change or annul the program (see "CHANGING
A PROGRAM", or "
A
NNULLING A PROGRAM").
CHANGING A PROGRAM
To change the running program it is necessary:
to interrupt the running program (see “INTERRUPTION A PROGRAM”);
select the new program;
start the program (see “
S
TARTING THE PROGRAM”).
ANNULLING A PROGRAM
To annul the program, keep the START/PAUSE button (6) pressed until
the program is interrupted (light on and confirmation beep).
Press button (6) again and keep it pressed until the
lights
4
and
5
(marked "end") come on.
The water in the tank will be pumped out and the program will end at the
point where it was interrupted.
Istruzioni per l’utente
22
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “STARTING THE PROGRAM”. The program will resume from the
point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.
OPTION SELECTION
Options are selected by pressing the relative button by the
symbol of the option required; the light comes on to confirm
that the option has been activated.
Options are selected by pressing the relative button by the
symbol of the option required; the light comes on to confirm
that the option has been activated.
All the options are deactivated at the end of the wash
cycle.
Option
Description
1 SPECIAL
Creates additional programs.
2 DRY ASSIST
Allows the dishes to be dried perfectly even at low
rinse temperatures, with significant energy savings. It
starts automatically if the selected program is
compatible with it. If it is not required, press the
button to disable it.
3 EXTRA DRY
Modifies some of the parameters to ensure improved
drying.
It does not affect the Eco program (regulatory).
4
½ LOAD
FLEXY
ZONE
Ideal if just a few dishes need to be washed, allowing
energy savings and a shorter wash cycle.
5 DELAY
Allows the wash cycles 1 or 3 to be delayed by up to
9, 12 or 24 hours depending on the models.
6 SELF CLEAN
Dishwasher cleaning cycle. Must be started with the
machine empty, without dishes.
SPECIAL (if present)
Allows you to enable additional programs when selected together with any
wash cycle. After having selected the required wash cycle, press the
button (the light turns on). It turns off automatically when the cycle has
finished.
½ LOAD FLEXI ZONE (if present)
Ideal if just a few dishes need to be washed, allowing energy savings. The
dishes should be placed in both baskets and less detergent should be
placed in the detergent dispenser compared to the amount used for a full
load.
Istruzioni per l’utente
23
EXTRA DRY (if present)
The option modifies the parameters to ensure improved drying.
Suitable for loads that contain dishes that are difficult to dry such as pots,
non-stick pans and plastic containers.
DRY ASSIST (if present)
The door opens automatically, allowing the dishes to be dried perfectly
even at low rinse temperatures, and therefore significant energy savings.
The door opens slowly by a few centimetres at the end of the wash cycle.
The dishwasher remains inactive between the final rinse and the end of
the cycle to allow the load to be properly dried (the display shows the time
remaining to the end of the cycle). The program is interrupted if the door
is opened during this stage. A short beep is emitted and cycle lights 4 and
5 flash to indicate that the cycle has finished. It starts automatically if the
selected program is compatible with the option. It can be disabled before
starting the program.
There must be sufficient space available for the door to open. The
door must not be forced open and closed before the wash cycle has
ended completely.
Note: some models are equipped with the dry assist function by default
on one or more cycles (check the manual supplied with the product).
These models are not fitted with a button to control this function. The door
opens automatically at the end of the wash cycle(s).
DELAY (if present)
Press the DELAY button to set the dishwasher cycle to start during the
required time period (e.g. night). According to the model, this may be
indicated on the display or by specific lights. The option cannot be
selected once the cycle is running. To cancel the setting, press the
button several times until the lights switch off or until the number on the
display is reset. After the door has been closed, the dishwasher will carry
out a pre-wash cycle, after which the set “cycle delay” option will be
activated.
SELF CLEAN (if present)
Dishwasher cleaning cycle. The cycle should be started with the machine
empty, without dishes. It is recommended to run the program every 2-3
months, using special dishwasher detergents. The light flashes during
operation. At the end of the cycle it remains on and cycle lights 4 and 5
flash.
The display (if available) shows “End”.
Istruzioni per l’utente
24
“CHILD LOCK” OPTION
By pressing the indicated buttons (3) at the same time, the controls are
locked, which is confirmed by the flashing ON/OFF (1) warning light. This
option stays active (and the warning light keeps flashing) until the buttons
(3)
are pressed again.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always try to run the dishwasher fully loaded.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type
of load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to
60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
do not pour the detergent directly on the dishes.
Istruzioni per l’utente
25
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
do not pour
detergent directly onto the dishes.
If the door has to be opened while washing is in progress, the program will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in execution of the program.
ENERGY MANAGEMENT
At the end of the program the warning lights of programs no. 4 and 5
flash for 5 minutes; afterwards, the washing machine switches off
automatically in order to reduce standby power consumption.
In order to switch it on again, it is necessary to press the ON/OFF button.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower basket,
it is
advisable
to unload the lower basket first, and then the upper basket.
Istruzioni per l’utente
26
4 Operating instructions
After having installed the dishwasher, remove the basket retainers and
prepare the machine for use as follows:
Regulate the water softening system;
Add regenerating salt;
Add rinse aid and detergent.
4.1 Setting the water hardness
The dishwasher must be switched on and the door closed.
Press and hold the program selection button (7) until the water
hardness adjustment indicator light flashes.
The program indicator lights (8) will indicate the current setting.
Each press of the program selection button (7) modifies the setting
according to the following table.
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
Istruzioni per l’utente
27
WATER HARDNESS TABLE
WATER HARDNESS
SETTINGS
German
degrees
(°dH)
French
degrees
(°dH)
0 – 6 0 – 11
H0
All indicator
lights off
7 – 10 12 – 18 H1
One indicator
light on
11 – 15 19 – 27 H2
Two indicator
lights on
16 – 21 28 – 37 H3
Three
indicator lights
22 – 28 38 – 50 H4
Four indicator
lights on
29 - 50 51 – 90 H5
Five indicator
lights on
Contact your local water board for information on the hardness of your
water supply. Default settings:
H3
-
16
-
21°dH
–
28
-
37°dF
Istruzioni per l’utente
28
4.2 Adding the salt
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1 kg of salt in grains. Some models are
equipped with an optical no-salt indicator. In these models, the cap of the
salt container contains a green float which descends as the salt
concentration in the water drops. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher.
The salt prevents the formation of scale
deposits.
Remove the lower basket.
Unscrew the cap of the salt container by
turning it anticlockwise.
When using the dishwasher for the first time, fill the container with a
litre of water.
Pour salt (approx. 1 kg) into the container using the funnel provided
with the dishwasher.
When finished, remove any salt residues before screwing the cap
back on.
SALT
Istruzioni per l’utente
29
In order for the water softening system to give fault-free service, the appliance
performs a regeneration cycle of the system at regular intervals.
The regeneration process consists of several stages. It starts at the end of the last
rinse cycle, after the amount of water indicated in the mains water hardness setting
has been reached during the wash cycle, and finishes at the beginning of the
following wash cycle.
The regeneration process increases the cycle time and consumption of water and
electricity.
Below is an overview of consumption of regeneration the softening system using the
Eco program with a water hardness setting of H2.
Water
consumption
according to
model
[refer to the
programs
table]
(litres)
Regeneration
frequency
(number of
cycles)
Water
consumption
during
regeneration
(litres)
Energy
consumption
during
regeneration
(Wh)
Duration of the
regeneration
process
(min)
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
7 8
0.2
4
(10x0.4
litres)
0.3 1.2 6 4
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In this case warranty cover will be
forfeited.
Only use regeneration salt specifically for domestic
dishwashers. Do not use table salt, since it contains insoluble
substances that could damage the water softener system.
After having added salt, run a wash cycle to remove any excess salt.
In this way, the excess saline solution will be immediately removed
by the water; the prolonged presence of salt water inside the tank may
lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
Istruzioni per l’utente
30
4.3 Adding the rinse aid
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
The rinse aid helps the dishes dry faster and prevents the formation of
scale deposits and staining; it is automatically added to the water during
the final rinse cycle, from the container situated on the inner side of the
door.
To add rinse aid:
Open the dispenser by pressing and lifting the tab on the cover.
Top up again when the rinse aid indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
Istruzioni per l’utente
31
ADJUSTING THE RINSE AID DISPENSER MODE
The dishwasher must be switched on and the door closed.
Press and hold the program selection button (7),
after approximately 15 seconds the salt light flashes,
press and hold the program selection button (7) until the rinse aid
indicator light flashes.
The program indicator lights (6) will indicate the current setting.
Each press of the program selection button (7) modifies the setting
according to the following table.
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
0 – not
dispensed
b0
All indicator lights off
minimum 2 ml
b1
One indicator light on
3 ml
b2
Two indicator lights on
4ml
b3
Three indicator lights on
5ml
b4
Four indicator lights on
maximum 6 ml
b5
Five indicator lights on
Default settings:
b4
-
5 ml
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
Istruzioni per l’utente
32
4.4 Adding the detergent
Open the detergent dispenser cover by lightly pressing the button P.
Add the detergent or tablet.
Close the cover by sliding it until it stops, indicated by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent or tablet if the dispenser is dry.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
Istruzioni per l’utente
33
When a program with a hot pre-wash is selected (see program table),
extra detergent must be placed in the cavity.
Use only detergents specially formulated for dishwashers.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the lower basket.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Cor
rect loading of the dishes helps ensure optimal washing results.
Istruzioni per l’utente
34
WARNING!
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made of anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after many washes. If in doubt as to the fastness
of the colours, it is advisable to wash just a few items at a time for
approximately one month.
Istruzioni per l’utente
35
4.5 Using the baskets
Capacity, including serving dishes: 12 or 13 place settings depending
on model (see energy label).
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.

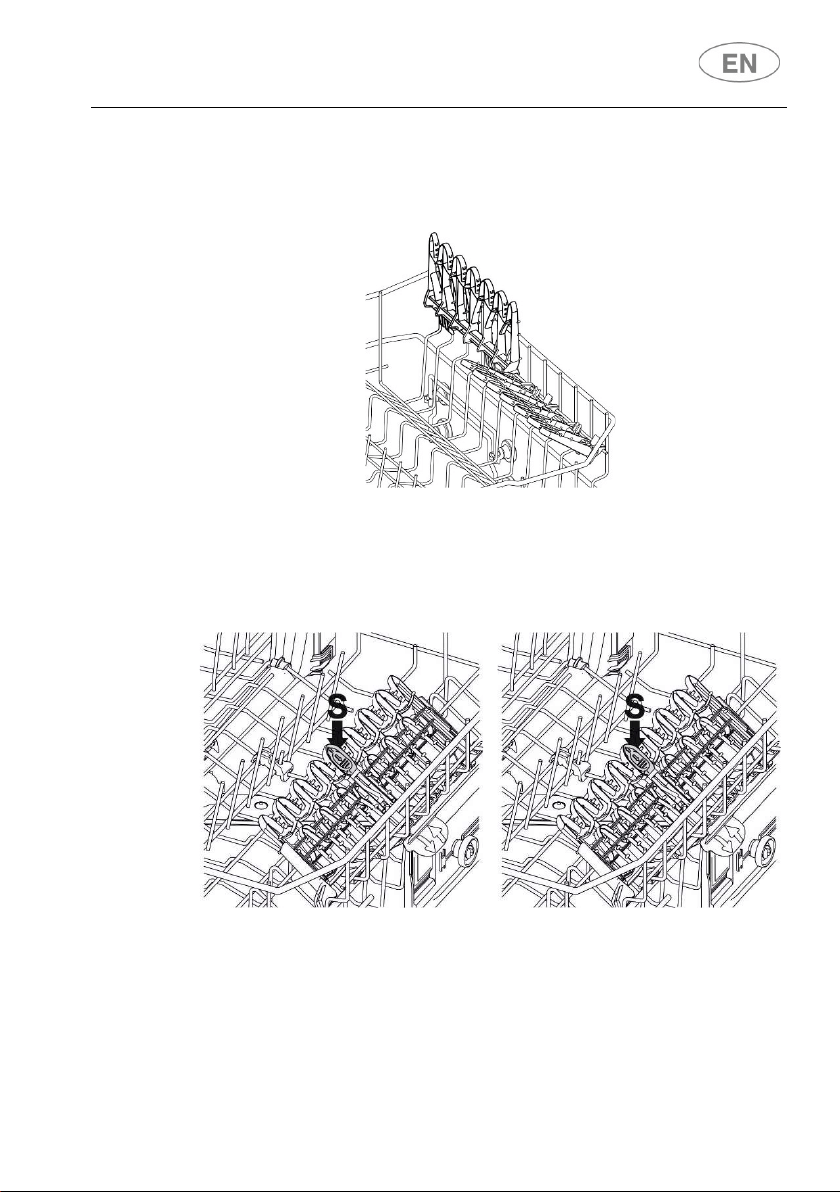

With fixed supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
With tip
-
up supports
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve the
drying of dishes. The inserts are supplied in the accessories bag; to use
them, simply fit them into place as shown. The inserts are supplied in the
accessories bag; to use them, simply fit them into place as shown.
Istruzioni per l’utente
36
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.

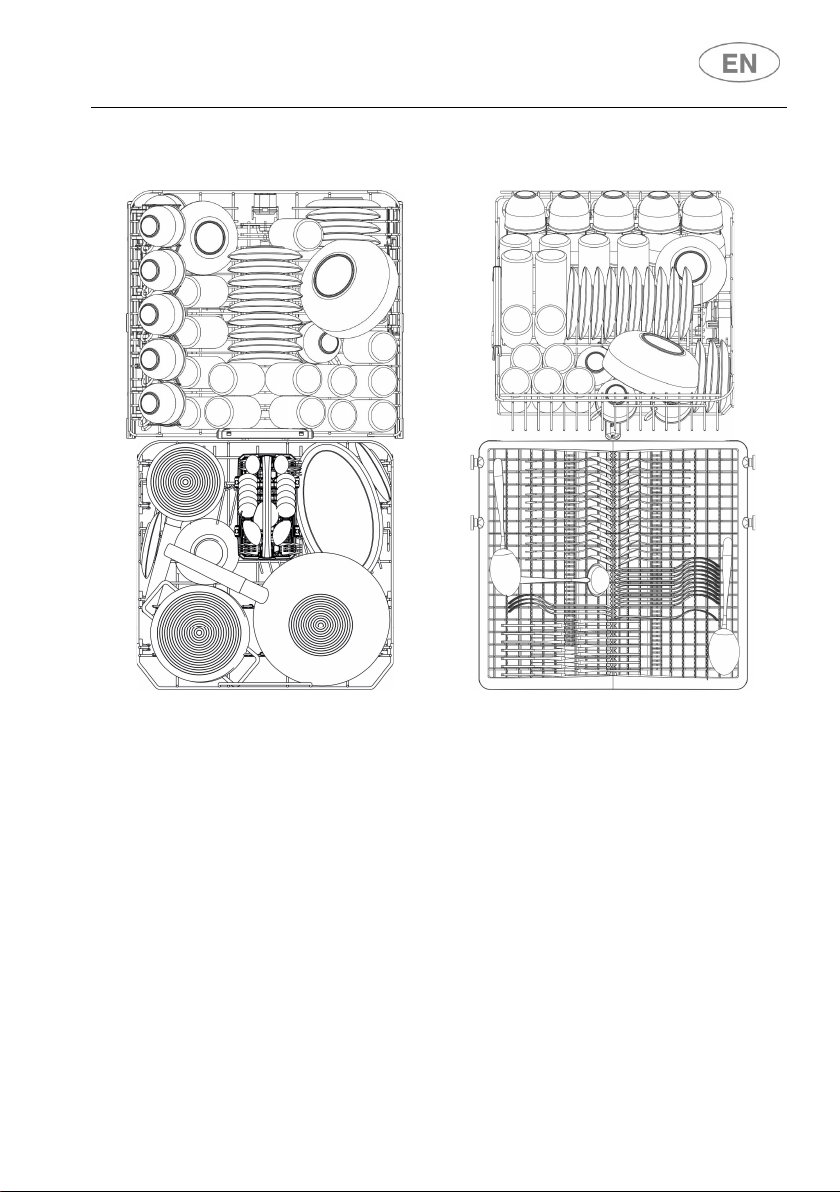

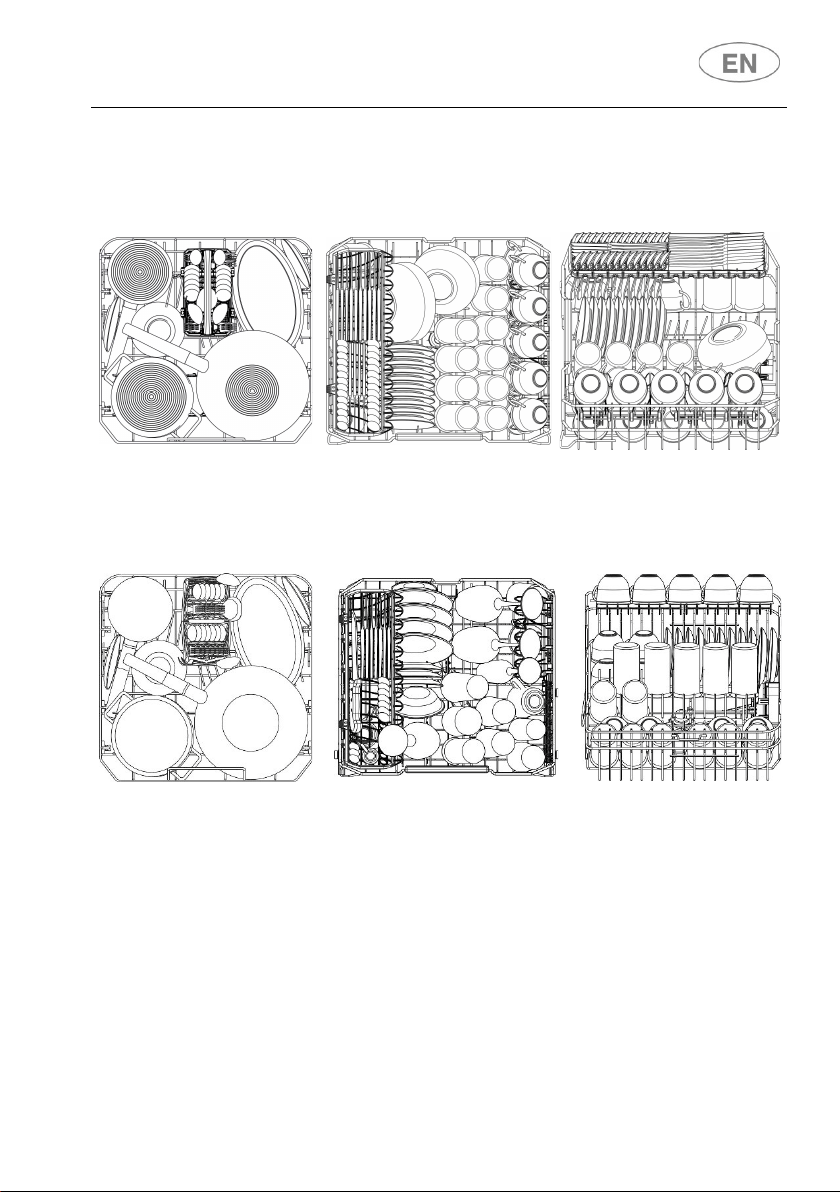

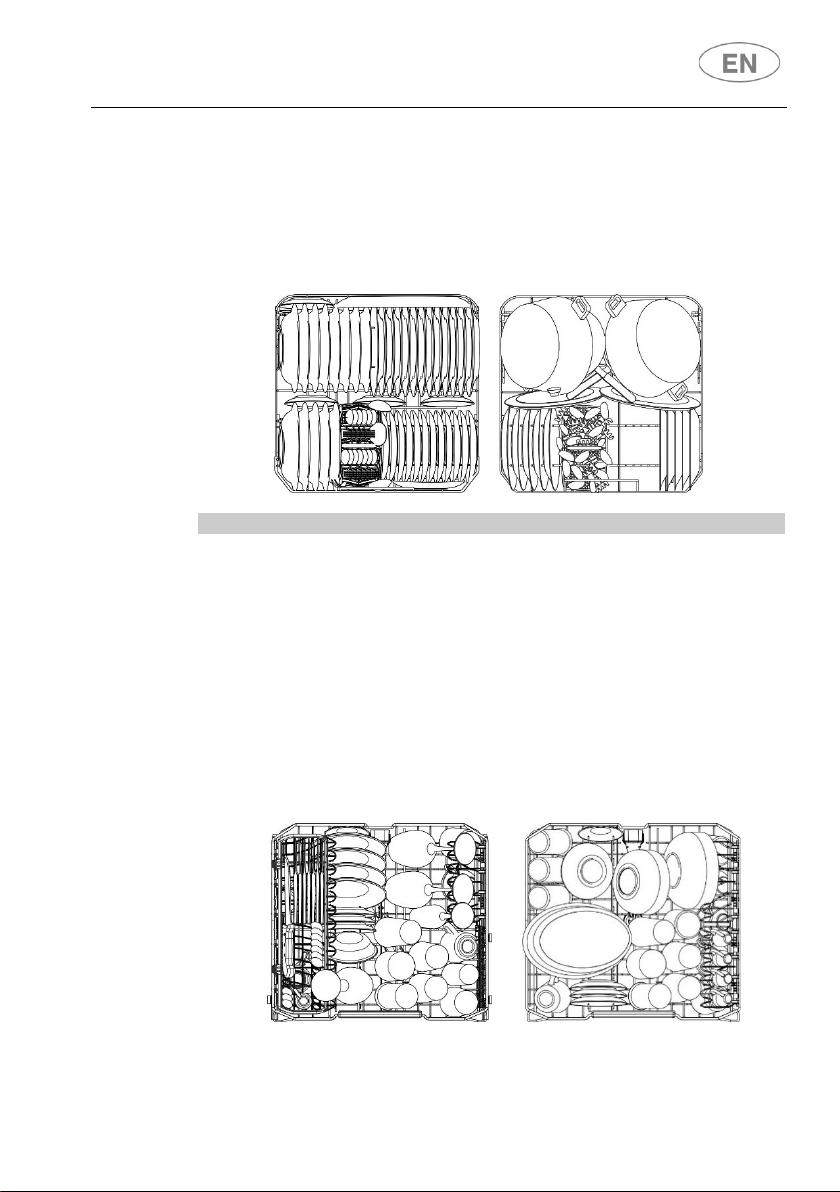

Loading examples:
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.

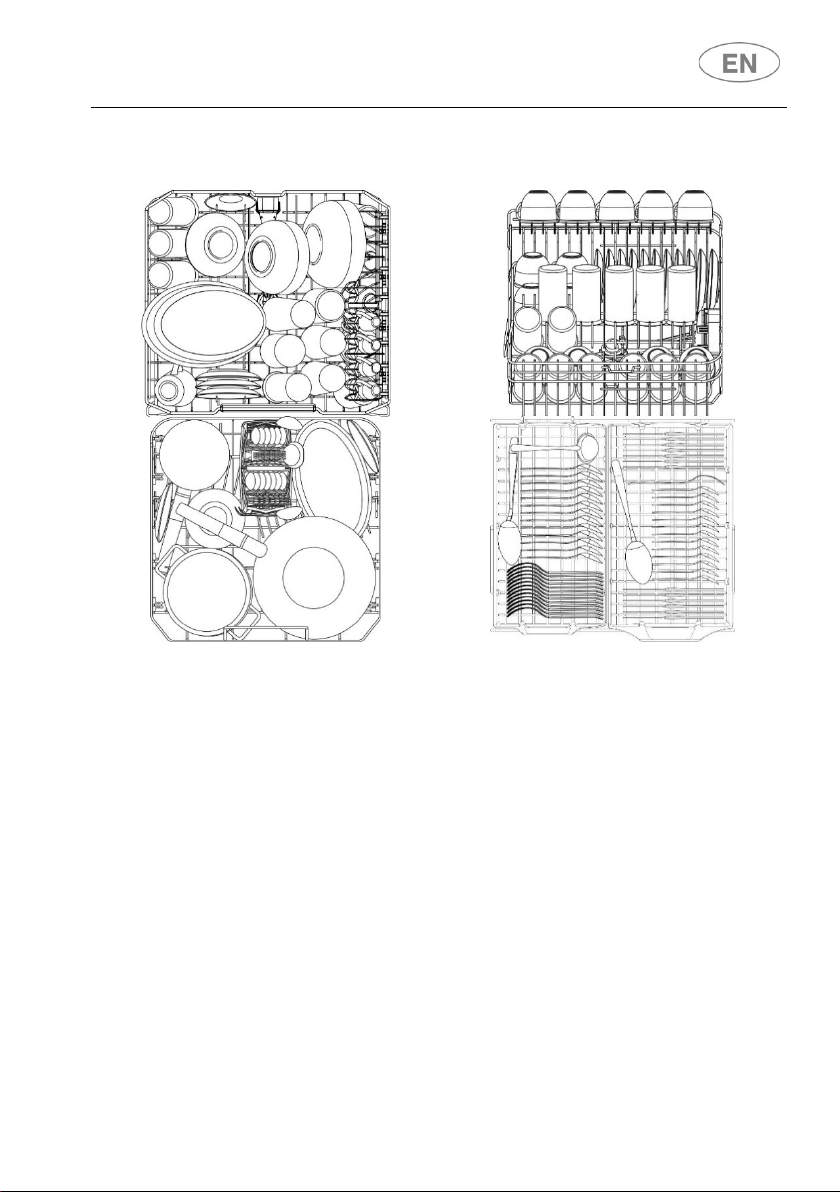

Loading examples:
Istruzioni per l’utente
37

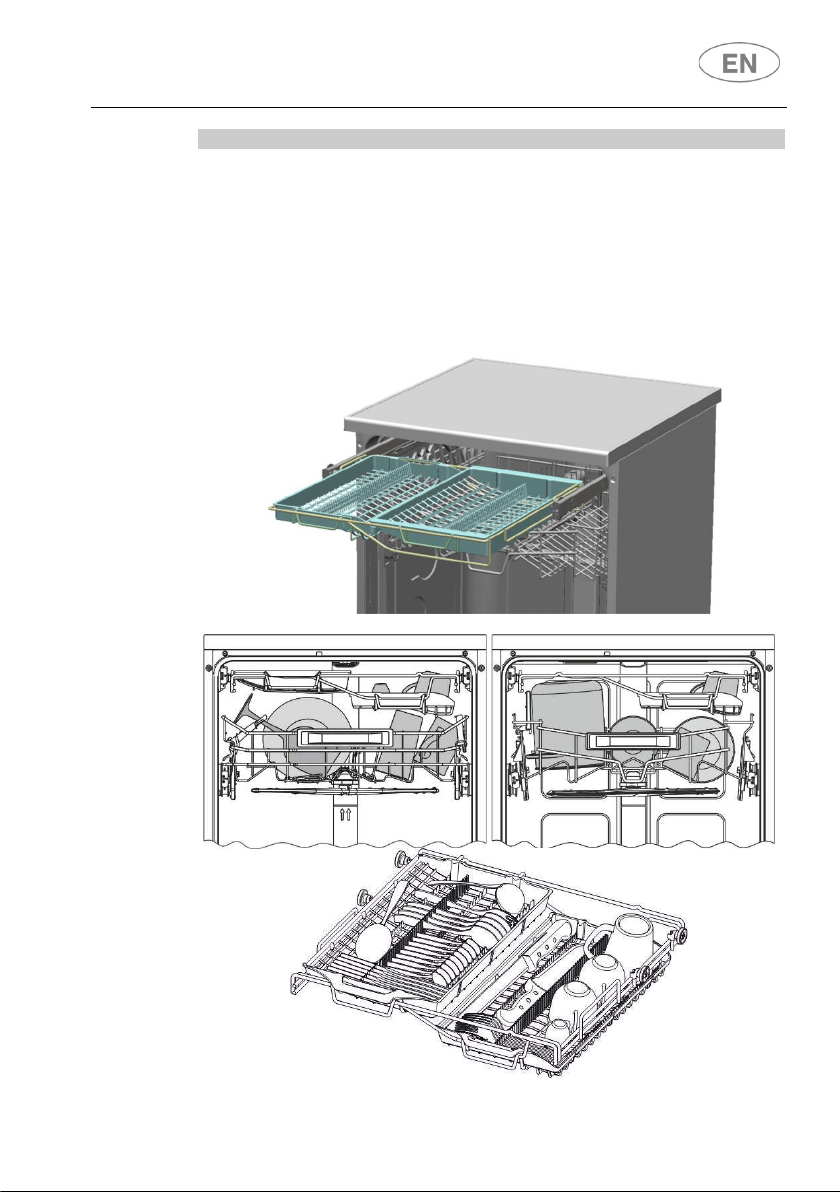

CUTLERY BASKET
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be placed in
any position
to allow optimal use of the space in the bottom basket.
Istruzioni per l’utente
38
TOP CUTLERY BASKET (on some models only)
The basket is designed to take cutlery, placed in the spaces provided, and
long utensils, positioned lengthwise.
The “drawer” extraction system makes the basket easier to load, but it can
also be taken completely off its runners by removing the retainers (as
shown here).
Take great care to replace the retainers to ensure that the basket does
not come off the runners accidentally.
Istruzioni per l’utente
39
FLEXI DUO TOP RACK (on some models only)
This comprises two independent sliding, pull-out tray racks for easier
loading/unloading of cutlery. Various loading systems and configurations
are possible. For example, tea cups can be loaded with the right-hand
rack set in the low position, while the left-hand rack or both can be
removed to allow large dishes to be put in the top basket.
In order to position the right hand basket in a low position, the upper
basket has to be adjusted so that it is in the lowest position (see “adjusting
the upper basket).
Istruzioni per l’utente
40
EXAMPLES OF LOADING FOR INTENSIVE DIRT
12 standard place setting
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
13 standard place setting
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
Istruzioni per l’utente
41
13 standard place setting
TOP CUTLERY BASKET (on some models only)
If the bottom basket inserts are of the fold-down type,
they should be laid flat for
easier loading.
Istruzioni per l’utente
42
13 standard place setting
FLEXIDUO TOP CUTLERY BASKET (on some models only)
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
Istruzioni per l’utente
43
UPPER BASKET EQUIPMENT
(depending on the model)
Cutlery tray
For knives, spoons (tea and dessert) and long objects. The ends are
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers
(B) at the same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
Istruzioni per l’utente
44
Fold-down shelves
For mugs, cups and long objects. The ends are designed to hold long
stemmed glasses
When not used they can be moved to a vertical position (until a click is
heard).
Shelves with expandable wings
For small objects, mugs and cups.
They can be used either closed or open (pull the upper, sliding part). To
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they can be moved to a vertical position (until a click is
heard).
Istruzioni per l’utente
45
Fold-down tines
These can be secured in a vertical position, resting on the bottom of the
basket if unused, or placed in an intermediate position, as required.
The single tine on the right is ideal for supporting long stemmed glasses.
Istruzioni per l’utente
46
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket. The adjustment procedure may be type
A or B, depending on the dishwasher model purchased.
Version A: pull-out with adjustment in two positions.
Pull out both the basket guides.
Remove the stops, first releasing them as shown in the diagram.
Pull out the basket.
Fit the upper or lower pair of wheels into the guide, depending on the
setting required;
Return the stops to their original position.
The left hand and right hand sides of the basket must always be set at
the same height
.
Version B: with adjustment in three positions on both sides.
The sides of the basket must always be set at the same height.
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
Istruzioni per l’utente
47
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the omnipolar circuit breaker.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank gaskets
using a soft cloth and water to remove any deposits.
If the dishwasher is used every day, we recommend cleaning the chamber
and the water circuit monthly using a product that is specific for domestic
dishwashers.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically. After having closed the water supply tap, unscrew
the end of the water intake hose, remove the filter A and clean it delicately
under running water. Reassemble filter A in its seat and carefully screw the
water intake hose back into position. We recommend that you check and
clean it, if necessary, at least once a year.
CLEANING THE SPRAY ARMS
If the dishwasher is used every day, we recommend that you clean it once
a week. The spray arms can be easily removed for periodic cleaning of
the nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
Istruzioni per l’utente
48
- To remove the lower spray arm, simply lift it up, pulling by the
central part.
- To remove the orbital spray arm assembly, take hold of the
longer arm and pull the orbital unit upward. Wash the arms under
a jet of running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely.
Otherwise, check that they have been installed correctly.
-
To remove and clean the planetarium sprayer follow the
instructions provided.
CLEANING THE FILTER UNIT
If the dishwasher is used every day, we recommend that you clean it once
a week.
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
ORBITAL
PLANETARIUM
Istruzioni per l’utente
49
CLEANING THE FILTER UNIT (models with planetarium sprayer)
If the dishwasher is used every day, we recommend that you clean it once
a week.
It is advisable to periodically inspect the centre filter and, if necessary,
to clean it.
remove the planetarium sprayer follow the instructions provided.
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or foul the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
Istruzioni per l’utente
50
6 Troubleshooting. What to do if...
Fault
Possible cause
Solution
The salt light does not turn on
There is still enough salt
Check the fill level
The rinse aid light does not
turn on
There is still enough rinse aid Check the fill level
Water collects at the bottom
of the dishwasher
The water inlet hose is kinked
or crushed
Check the route of the hose
The drain siphon is clogged Make sure that the siphon is
not clogged or partially clogged
The filter unit is clogged Clean the filters as indicated in
the manual
Cutlery not dry Water in the bowls of spoons
or ladles
Cutlery (e.g. serving spoons) in
the cutlery drawer (if present),
on the bottom of the basket or
on the fold down shelves at the
side must be arranged with
their
bowls facing downwards.
Tea or lipstick residues on the
dishes
Wash temperature too low
Check the fill level
Detergent insufficient or
unsuitable
Check the fill level
Cutlery arranged incorrectly in
the cutlery basket
Do not place items of cutlery
on top of one another or allow
them to touch one another
The inside of the dishwasher
is wet
Condensation The appliance is not faulty, it is
normal for there to be
condensation on the inside
walls
Change in colour of the plastic
parts inside the chamber
The colour of plastic parts
inside the dishwasher can fade
with use
This is normal and does not
affect the effectiveness of the
dishwasher
The salt and/or rinse aid light
is on
No salt
Add salt
No rinse aid
Add rinse aid
Detergent residues or dishes
not perfectly clean
Dishes are preventing the
cover of the detergent
dispenser from opening
completely
The dishes should not protrude
from the basket
The detergent dispenser cover
is blocked by the tablet
The tablet should be inserted
transversely, not vertically
Tablets used in a short
program; the detergent does
not have time to dissolve
Use a powder detergent or a
more intensive program
Detergent stored in an open
box in a damp environment. It
has lost its effectiveness, aged
or become lumpy
Replace detergent
Dishes arranged incorrectly Water cannot pass correctly if
the dishes are arranged
incorrectly. Take greater care
when arranging the dishes.
Traces of rust on cutlery Cutlery not oxidation resistant.
Knife blades are particularly
subject to this.
Use only stainless cutlery.
Istruzioni per l’utente
51
Cutlery becomes oxidized
even if washed together with
other items that are subject to
oxidation (pot handles,
damaged knives, etc.)
Avoid washing parts that can
become oxidized
Too much salt in the washing
water
Tighten the cap of the water
softener container properly
The dishwasher does not start The door does not close Check the position of the door
lock catch (D). If necessary,
raise it by adjusting the plastic
screw
(V)
next to the catch
The door does not close Check the condition of the door
lock catch:
- if it has not triggered (N), the
door opens and closes
normally
Istruzioni per l’utente
52
- if it has triggered (S), close
the door with force (without
slamming it) until it rearms;
then open and close the door
again
Door does not close properly Make sure that there are no
obstacles that prevent it from
closing (e.g. objects protruding
from the baskets)
Failure
Contact technical assistance
No power
Check the power supply.
Check the power cable
It is not clear if the spray arms
are working
The spray arms start turning
approximately 5 minutes after
the dishwasher starts. This is
normal during the washing
cycle.
No water is taken in Make sure that the water tap is
open
Istruzioni per l’utente
53
Dishes not dry
No rinse aid
Add rinse aid
A program has been used that
does not involve a final drying
cycle
See program table
Water in dishes or pans When loading the dishwasher,
make sure that you place
dishes and pans at an angle
The dishes were taken out too
soon
Wait at least 20 minutes after
the end of the program
Use of ecological rinse aids Ecological products may be
less effective than traditional
products
Plastic dishes Plastic has a lower heat
storage capacity and is
therefore harder to dry
The combined detergent used
does not produce good drying
results
Use a different combined
detergent. Using traditional
rinse aids improves drying.
Clouding of glassware Glass not dishwasher safe Only use glassware that is
dishwasher safe. Check the
water softener setting (reduce
if necessary). Use a detergent
that contains additives for
protecting glass
Water marks on some items
or on plastic dishes
The formation of drops on the
plastic parts is inevitable;
stains may therefore be visible
after drying
Use a more intense program
Arrange dishes at an angle so
that the water can drain off
easily
Use a traditional rinse aid or
increase the dosage
Increase the water softener
setting
Removable streaks on
glasses, metal items and
cutlery
Too much rinse aid Reduce the amount of rinse
aid
No rinse aid or setting too low Add rinse aid or increase
supply
Detergent not very effective Packets of detergent should
not be kept open for too long.
The detergent loses
effectiveness
Food residues on the dishes Dishes too close together,
baskets too full
There must always be enough
space between the dishes to
allow water jets to pass. Avoid
contact points
The spray arms do not rotate Take care not to prevent the
spray arms from rotating when
loading the dishwasher
Clogged spray arm nozzles Clean the spray arms as
indicated in the manual
Istruzioni per l’utente
54
Dirty filters Clean the filters as indicated in
the manual
Filters inserted incorrectly or
not fastened in place
Check and correct
Wash program unsuitable for
the type of soil
Find the suitable washing
program in the program table
Combined detergent used with
programs that are too short
Use a powder detergent or a
more intensive program
Not enough detergent (if you
are using a powder detergent)
Increase the amount of
detergent used
Upper basket not horizontal The left and right sides of the
upper basket must be at the
same level
White film in the chamber or
on the door
The substances contained in
the detergent has settled out
Use a dishwasher cleaner
Wash the appliance by hand
Change detergent
Incorrect water hardness
setting (too low or too high)
Adjust the water softener
setting
Change detergent
Salt container cap not
tightened (saline solution
mixing with the wash water)
Tighten the salt container cap
properly
Combined detergent or bio/eco
detergent not very effective
Adjust the water softener
system
Use separate products
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
Istruzioni per l’utente
55
7 Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT
DESCRIPTION
E1
Acquastop failure (some models only)
E2
Safety level
E3
Water heating fault
E4
Water temperature detection fault
E5
Water intake fault
E6
Water drainage fault
E7
Turbine flow-meter fault (some models only)
E8
Alternate washing system fault
E9
Water intake system fault
E11
Wash pump fault.
Light off
Light on
Light flashing
If an alarm occurs, the machine stops the current program and indicates the fault.
Alarms E1 and E11 require you to contact the technical assistance service.
Alarm E7 is displayed at the end of the cycle, which is anyway completed, as it
does not affect the operation of the dishwasher.
For all other alarms, proceed as follows: stop the current program, switch off the
dishwasher. Switch on and program the dishwasher again to start the new wash cycle.
If the malfunction persists, contact your authorised Service Centre and
provide it with the fault code.
The contact details of the Technical Assistance Department can be found
on the warranty certificate and the website
The manufacturer reserves the right to make any changes deemed necessary for the
improvement of its products without prior notice.
