User's Manual
7.3 cu. ft. Refrigerator
MODEL:
CTMR73A3W / CTMR73A3B / CTMR73A3S
BEFORE USING YOUR
PRODUCT:
Please
read
this
manual carefully
&
follow
all
safety rules & operating instructions. Keep this manual for future reference.
2
TABLE OF CONTENTS
Refrigerator Safety
4
Important Safe Guides
5
Help Us Help You
6
Parts and Features
7
Important Safety Instructions
8
Installation Instructions
8
Before Using Your Appliance
8
Installation of Your Appliance
8
Electrical Connection
9
Reversing the Door Swing of Your Appliance
9
Operating Your Appliance
10

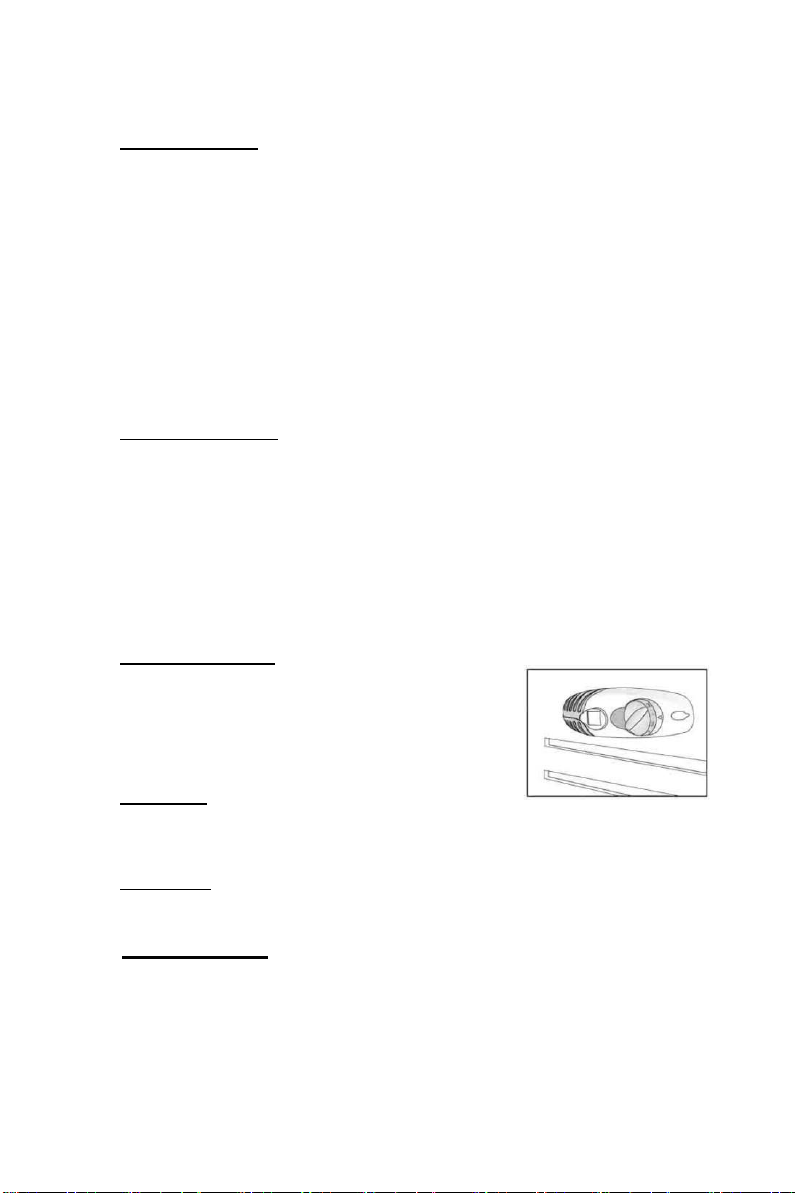

Temperature Control
10
Interior Light
10
Defrosting Your Appliance
10
The Freezer Compartment
11
Care and Maintenance
11
Changing the Light Bulb
11
Power Failure
11
Vacation Time
11
Moving Your Appliance
11
Energy Saving Tips
12
Troubleshooting Guide
12
Service for Your Appliance
13

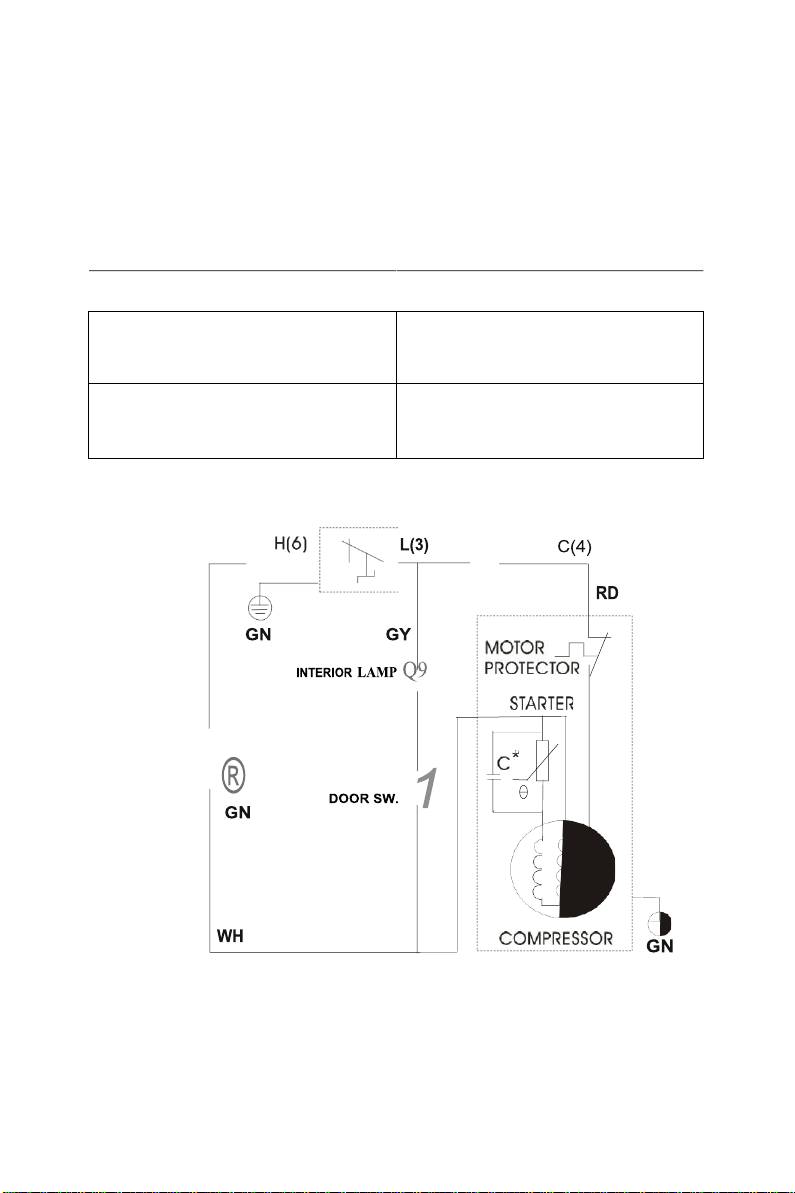

Wiring Diagram
13
Your Criterion® Products Warranty
14
Registration Information and Registration Card
15
3

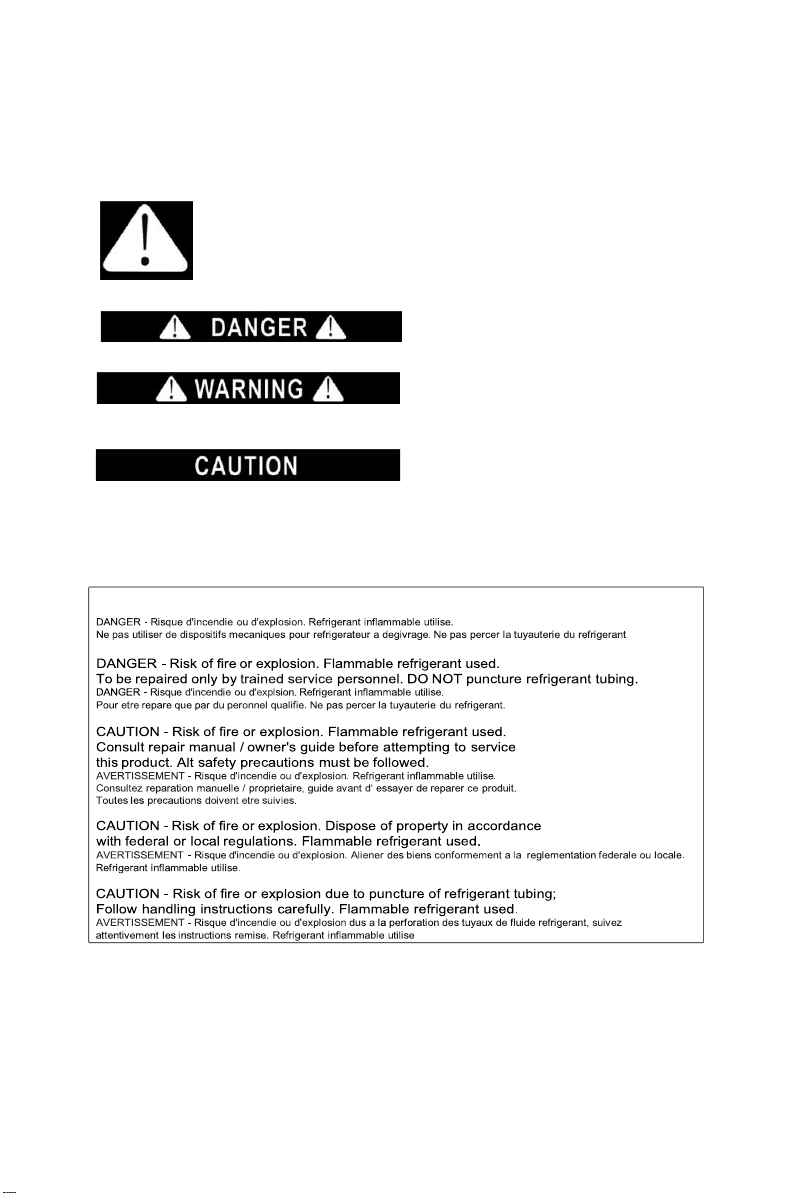

DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words" DANGER", "WARNING" or "CAUTION"
Danger means that failure to heed this safety
statement may result in severe personal
injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.
REFRIGERANT GAS WARNINGS
4
IMPORTANT SAFE GUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
It is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install refrigerator. Failure to do so can result in back or
other injury.
To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
The refrigerator should not be located next to ovens, grills or other sources of high heat.
The refrigerator must be installed with all electrical, water and drain connections in accordance
with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly
grounded in accordance with the National Electrical Code and local codes and ordinances is
required.
Do not kink or pinch the power supply cord of refrigerator.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
All installation must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched or kinked or damaged during installations.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the refrigerator.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
5
CAUTION:
THIS APPLIANCE IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.
HELP US HELP YOU...
Read this guide carefully.
Write down the model and serial numbers.
It is intended to help you operate and maintain
your new appliance properly.
Keep it handy to answer your questions.
If you don't understand something or your
You'll find them on a plate located on the
inside left wall the appliance.
Please write these numbers here:
need more help, please call:
Date of Purchase
Criterion® - Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Model Number
Serial Number
Use these numbers in any correspondence or
service calls concerning your appliance.
If you received a damaged appliance,
immediately contact the dealer (or builder) that
sold you the appliance.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further help.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased. In
most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send to:
Customer Service
Criterion ®
3265 Meridian Pkwy # 114
Weston, FL 33331
6

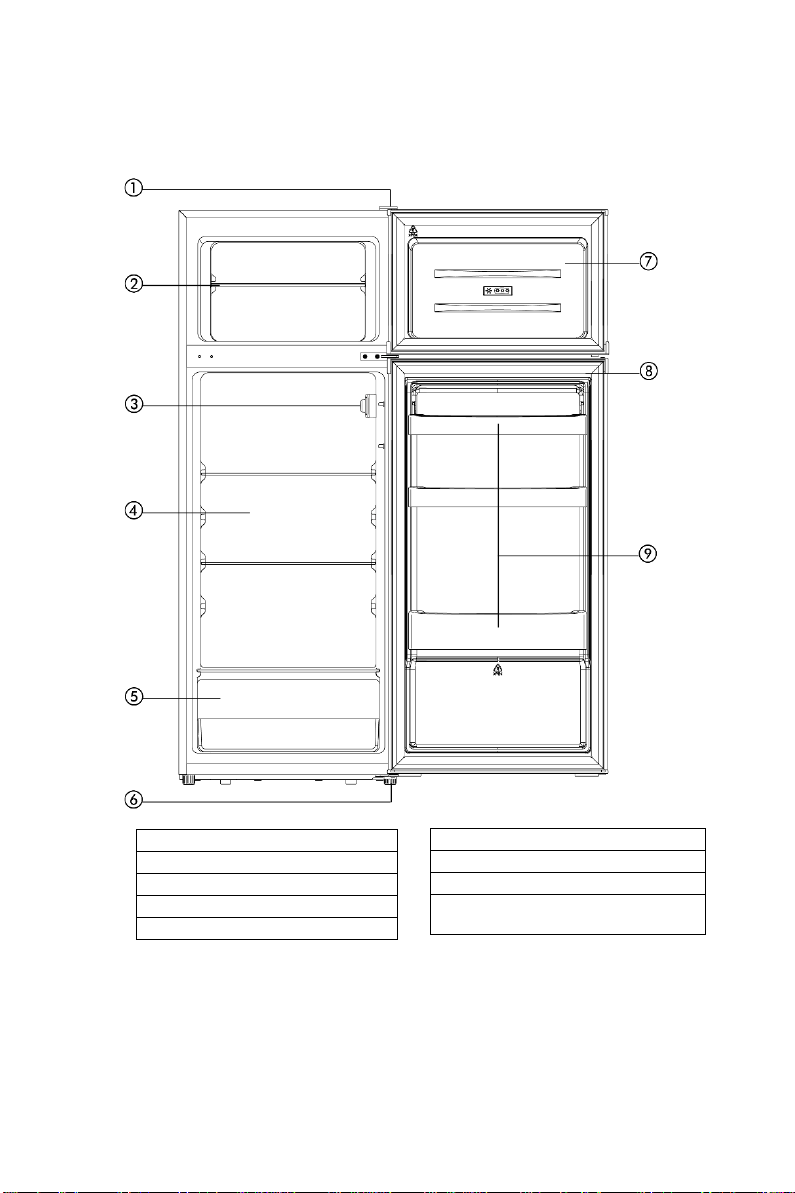

PARTS AND FEATURES
1
Top Hinge
6
2
Freezer Shelf (Total 1)
7
3
Temperature Control
8
4
Refrigerator Shelves (2)
9
5
Crisper with Glass Cover
Leveling Leg
Freezer Door
Refrigerator Door
Refrigerator Door Bins
(3)
7
Important Safety Instructions
#'WARNING#'
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
I
these basic precautions:
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
3 Door Bins
2 Refrigerator shelves
1 Freezer shelf
1 Crisper
1 Glass Crisper Cover
1 Ice Tray
Instruction Manual
Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
In case the interior accessories are not correctly placed, rearrange them as described in
chapter "Parts and Features"
Installation of Your Appliance
Place your appliance on a floor that is strong enough to support the appliance when it is fully
loaded. To level your appliance, adjust the legs at the front of the appliance.
Allow 5 inches of space between the back and sides of the appliance, which allows the proper
air circulation to cool the compressor.
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the appliance not to
perform properly.
Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to
form quickly on the evaporator requiring more frequent defrosting of the appliance.
Read all instructions before using the appliance.
DANGER or WARNING:
Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous... even if they will "just sit in the garage a
few days."
Before you recycle your old refrigerator or freezer:
Take off the doors. Leave
the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
8
! WARNING !
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, please contact customer service.
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC -/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
Surge Protector
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area that is prone to power surges or if your city I country is
prone to power surges/ outages; it is suggested that you use a power surge protector for all electrical
devices/ appliances you use. The surge protector that you select must have a surge block high
enough to protect the appliance it is connected to. If you have any questions regarding the type and
size of surge protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
9
Reversing the Door Swing of Your Appliance
This refrigerator-freezer has the capability of the doors opening from either the left or right side. The
unit is delivered to you with the doors opening from the left side. Should you desire to reverse the
opening direction, please follow the steps below:
A) Door Assembly Removal.
To perform this process quickly and effectively it is advisable to lay the unit in a prone position on a sturdy flat
floor / surface.
1
Remove the top hinge plastic cover and set aside for future use.
2
Remove the plastic cover from the opposite side of the unit by removing the single Phillips head screws and
set aside for future use.
3
Remove the (3) three Phillips head screws that affix the top hinge to the unit.
4
Remove the top hinge, Lift and remove the freezer door from the unit, set aside on a sturdy flat surface to
avoid damage to the door.
5
Remove the (2) two Phillips head screws from the middle hinge and remove from the unit.
6
Remove the (2) two plastic screw covers from the opposite side of the unit and set aside for future use.
7
Lift and remove the refrigerator door from unit, set aside on a sturdy flat surface to avoid damage to the
door.
8
Remove the bottom door stop from the bottom of the door by removing the Phillips head screw and install in
the opposite side.
9
Remove the right leveling leg.
10
Remove the (3) three Phillips head screws that affix the bottom hinge to the unit and set the entire assembly
aside for future use.
11
Remove left leveling leg with washer and install on the opposite side using the hole used for the original
leveling leg.
Your can now proceed with the assembly reversal and installation process.
B) Door Assembly Reversal and Installation.
1
Installer may need to access the threaded screw hole under the protective plastic.
2
Using the same mounting screws, install the bottom hinge on the opposite side of the using the mounting
holes as shown.
3
Reinstall the leveling leg previously removed and install the door to the bottom hinge as shown.
4
Install the middle hinge by first installing to the bottom door and then inserting the (2) Phillips head screws.
Install the decorative plastic screw hole covers previously removed on the opposite side.
5
Install the freezer door to the middle hinge.
6
Using the same mounting screws install the top hinge to the unit
7
Replace the top hinge cover
8
Replace the plastic cover to the opposite side using the same Phillips head screw.
Installation is complete.
Your unit is now ready to be stood upright for a minimum of 2 hours prior to being plugged in.
10
OPERATING YOUR APPLIANCE
Temperature Control
•
Your appliance has only one control for regulating the
temperature in the fresh food and the freezer compartment.
The temperature control is located on the upper right hand
side of the fresh food section.
•
The range of the temperature control is from position"1" the
warmest to "7" the coldest.
• The first time you turn the unit on set the temperature control
to "7" or the max-position.
• After 24 to 48 hours, adjust the temperature control to the selling that best suites your needs.
The setting of "4 - 5" should be correct for home or office appliance use.
• Changes of the ambient temperature affect temperature in the interior of the appliance
(choose correct setting of the thermostat knob).
• To turn the thermostat off, turn the temperature control to "O".
NOTE:
Turning the temperature control to "O" position stops the cooling cycle but does not shut
off the power to the appliance.
If the unit is unplugged, power lost, or turned off; you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the appliance will not
start.
Interior Light
When you open the door the light will be ON automatically. When you close the door the
light will turn OFF automatically.
Defrosting Your Appliance
•
When? For the most efficient operation and minimum energy consumption, defrost the
appliance compartment when the frost on the appliance walls is excessive or¼ inch thick.
There is no need to defrost the refrigerator, because ice depositing on the inner back wall is
defrosted automatically. Ice is depositing on the inner back wall during the compressor
operation; later on, when the compressor is not operating ice is defrosting and water drops
collect and drain through the outlet in the inner back wall into the drain pan situated above the
compressor, from where it evaporates.
CAUTION
Do not use boiling water because it may damage the plastic parts. In addition, never
use a sharp or metallic instrument to remove frost as it may damage the cooling coils
and will void the warranty.
• How?
Reset the thermostat to "O" position and disconnect the power supply.
Remove the frozen food from the appliance and place it in a cooler to protect the food.
Leave the door open for a while so that you can easy scrape off the frost.
Use a plastic scraper but be careful not to damage the inner surfaces of the freezer.
Wipe up the scraped frost and ice before it is completely defrosted.
11
Freezer Compartment
Proper use of the appliance, adequately packed food, correct temperature and taking into
account hygienic precautions will substantially influence the quality of freezing the food or
string of the frozen foods.
Carefully select food you intend to freeze; it should be of adequate quality and suitable for
freezing.
Use correct packaging and wrap it right.
The packaging should be airtight and shouldn't leak since this could cause substantial vitamin
loss and dehydration of foods.
Foils and bags should be soft enough to tightly wrap around the foods.
When preparing foods to be frozen, consider sanitary precautions.
Mark packages with following data: kind and amount of foods and the date of loading.
It is most Important that the food is frozen as quickly as possible.
If the loading amount is too large, the quality of freezing is reduced which affects the quality of
frozen foods.
CARE AND MAINTENANCE
Cleaning Your Appliance
• Turn the temperature control to "O", unplug the appliance, and remove the food, shelves, and
trays.
• Wash the inside with warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
• Wash the shelves and trays with a mild detergent solution. Plastic parts cannot be washed in
a dishwasher.
• The outside of the appliance should be cleaned with mild detergent and warm water.
• The condenser coils should be vacuumed when they are dusty or dirty.
• Clean the drain pan on the refrigerator compressor. Do not remove the drain pan.
• After cleaning, connect the appliance to power supply and reload the packages.
Changing the Light Bulb
• Unplug the AC power cord from the wall.
• Remove the screw that holds the light bulb cover.
• Remove the light bulb cover.
• Unscrew the bulb.
• Replace with a 10 watts bulb that is the same shape and size.
• Replace the light bulb cover.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your food.
Vacation Time
During long absences, remove all the food; unplug your appliance, clean your appliance, and
leave the door slightly open to avoid possible formation of condensation, mold, or odors.
Moving Your Appliance
Remove all the food.
Securely tape down all loose items inside your appliance.
Turn the leveling screws up to the base to avoid damage.
Tape the doors shut.
Be sure the appliance stays in the upright position during transportation.
12
Energy Saving Tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality,
or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
Try not to open the door too often, especially when the weather is wet and hot.
Every so often check if the appliance is sufficiently ventilated.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer
is¼" thick.
PROBLEMS WITH YOUR APPLIANCE?
You can solve many common appliance problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
I Vibrations. I Check to assure that the appliance is level.
The appliance seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The appliance is not level.
The doors were reversed and not properly
installed.
The gasket is dirty.
The shelves, bins, or baskets are out of position.
PROBLEM
POSSIBLE CAUSE
Appliance does not operate.
Not plugged in.
The circuit breaker tripped or blown fuse.
Appliance does not cool.
The appliance temperature control is set at "O"
Compressor turns on and off frequently.
Condenser coil at the back of the unit is dirty.
The room temperature is hotter than normal.
A large amount of food has been added to the
appliance.
The door is open too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The appliance does not have the correct
clearances. (5" to both sides and back of unit)
The light does not work.
The home circuit breaker or fuse has tripped.
The appliance is unplugged.
The bulb has burned out (see the maintenance
section for the replacement procedure).
13
SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Criterion® appliance. With the purchase of this Criterion®
appliance, you can have the confidence that if you ever need additional information or assistance, the
Criterion® Customer Service team will be here for you. Just call us toll-free.
Product Information
I
800-323-5029
CRITERION® CUSTOMER SERVICES
Whatever your questions are about our products,
I
help is available.
Part Orders
800-220-5570
You may order parts and accessories that will be
delivered directly to your home.
You may order these items by personal check,
money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570
A Criterion® authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
Wiring Diagram
THERMOSTAT
BK
PLUG
L
E
N
GY
14
Criterion
®
Warranty
Staple your sales receipt here. Proof of original
purchase date is needed to obtain service under
warranty
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTY
Criterion
®
warrants that the product is free from defects in materials and/or workmanship for a period of twelve
(12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date
of purchase, and
shall not be stalled,
tolled, extended,
or suspended
for
any reason
whatsoever
unless
described
in detail in the
warranty
document.
For one year from the date of purchase
by the original owner, Criterion
®
will,
at its option, repair or replace any part of the product which
proves to be defective in material or workmanship under normal use. Criterion® will provide you with a reasonably similar product that is
either new or factory refurbished. During this period
Criterion
®
will provide all parts and labor necessary to correct such defects free
of charge, so long as the product has been installed and operated in accordance
with the written instructions
in this manual.
In rental or
commercial use, the
warranty period is 90 days.
All Criterion
®
appliances of 4.2 cubic
feet capacity or less must be brought/sent to the
appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTY
For the second through the fifth year from the date of original purchase, Criterion
®
will provide a replacement
compressor free of charge
due to
a
failure.
You
are responsible
for the
service
labor and freight
charges.
In
rental or commercial use, the limited compressor warranty
is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are
the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED
The warranty coverage described herein excludes all defects or damage that are not the direct fault of Criterion
®
, including without limitation, one or
more of the following:
•
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes,
regulations, or laws,
including failure to install the product in strict conformity with local fire and building codes and regulations.
•
Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand,
floods, fires, mud
slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural
failures surrounding the appliance, and acts of God.
• Content losses of food or other content due to spoilage.
• Incidental or consequential damages
• Parts and labor costs for the following will not be
considered as warranty:
•
Evaporator doors, door springs, and/or frames.
•
Inner door panels, door shelves, door rails,
and/or door supports.
•
Vegetable crispers.
•
Light bulbs and/or plastic housing.
•
Plastic cabinet liners.
•
Punctured evaporator that voids the warranty on the
complete sealed system.
• Shipping and handling costs associated with the
replacement of the unit.
• Repairs performed by unauthorized servicers.
• Service calls that are related to external problems, such as
abuse, misuse, inadequate electrical power, accidents, fire,
floods, or any other acts of God.
• Failure of the product if it is used for other than it intended
purpose.
• The warranty does not apply outside the Continental USA.
• Surcharges including but not limited to, any after hour,
weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas.
In no event shall Criterion® have any liability or responsibility whatsoever for damage to surrounding property,
including cabinetry, floors, ceilings, and other structures
and/or
objects
around
the product.
Also excluded from
this warranty are scratches,
nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have
been altered, defaced or removed; service visits for customer
education, or visits where there is nothing
wrong
with the product; correction
of installation
problems
(you are
solely responsible for any structure and setting for the product, including all electrical, plumbing and/or
other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving
etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCT
Criterion® is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product
replacement, once this warranty has expired.
Warranty – Refrigeration - Compressor
15
Registration Information
Thank you for purchasing this fine Criterion® product. Please fill out this form and return it to the
following address within 100 days from the date of purchase and receive these important benefits:
Criterion ®
3265 Meridian Pkwy # 114, Weston, FL 33331 USA
Protect your product:
We will keep the model number and date of purchase of your new Criterion ® product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
Criterion
®
Registration Card
Name Model# Serial#
Address Date Purchased Store I Dealer Name
City State Zip
E-mail Address
Area Code Phone Number
Comments:
THANK YOU!
I CTMR73A3W-2.0-12102021 PRINTED IN CHINA I
