SEARS
operator's
manual
MODEL NO. 143.006716
6.75 HORSEPOWER
11.90 CUBIC INCH (195 cc)
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
ENGIN
• Operating
• Maintenance
• Repair Parts
_ alifornia Proposition 65 WARNING: The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects or other reproductive harm.
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
Printed in U.S.A. 4-1-00 181-1231-11

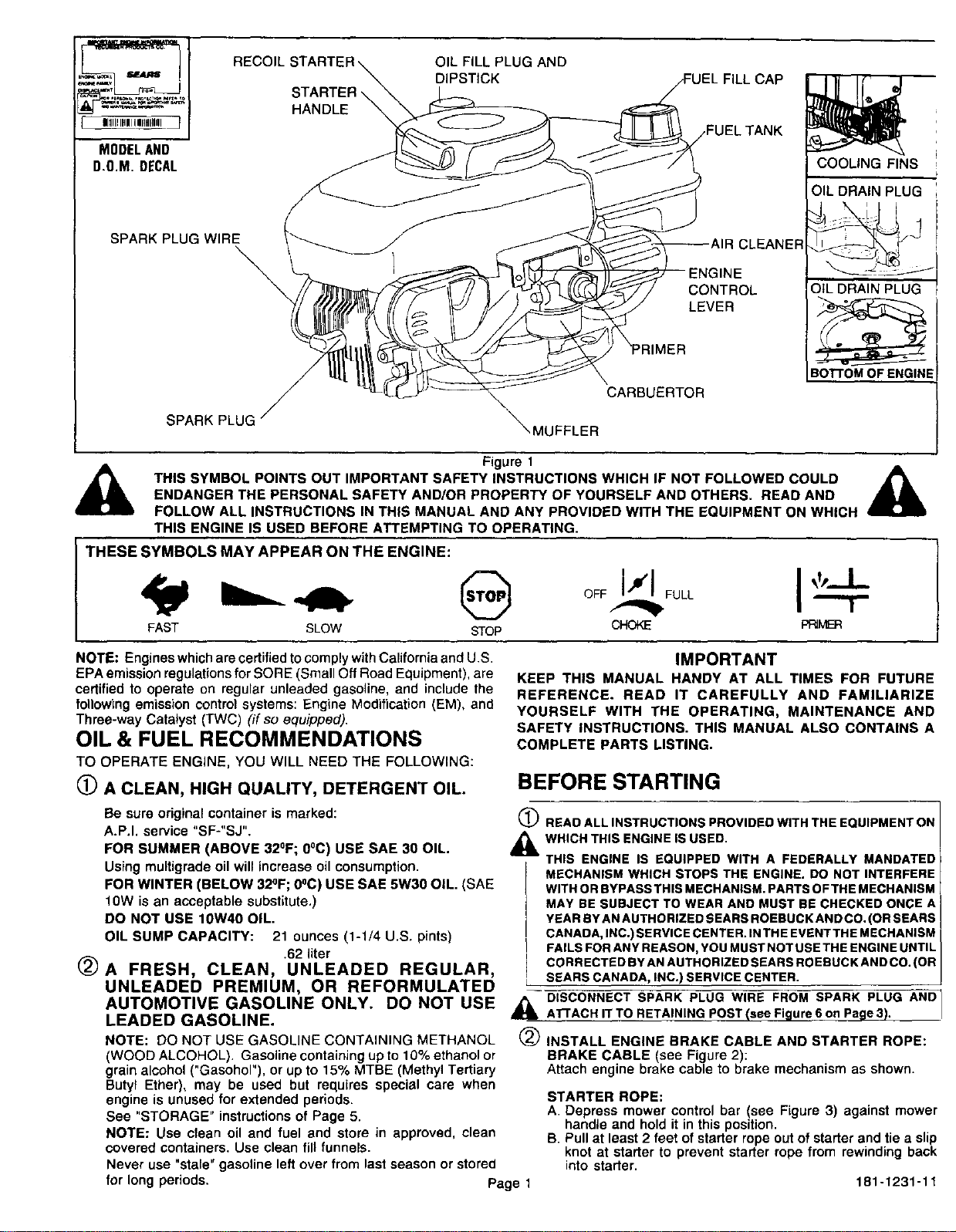

RECOIL
I_UlEIMnllIJI,IIItUl]
MODELAND
D.O.M. DECAL
SPARK PLUG WIRE
\
SPARK PLUG /
STARTER
OIL FILL PLUG AND
DIPSTICK
\MUFFLER
CLEANER
ENGINE
CONTROL
LEVER
CARBUERTOR
COOLING FINS
OIL DRAIN PLUG
OIL DRAIN PLUG
BoI-rOM OF ENGINE
Figure 1
,4L
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED COULD
ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND
FOLLOW ALL INSTRUCTIONS IN THIS MANUAL AND ANY PROVIDED WITH THE EQUIPMENT ON WHICH
THIS ENGINE IS USED BEFORE ATTEMPTING TO OPERATING.
THESE SYMBOLS MAY APPEAR ON THE ENGINE:
FULL
FAST SLOW STOP CHOKE
NOTE: Engines which are certified to comply with California and U.S.
EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and include the
following emission control systems: Engine Modification (EM), and
Three-way Catalyst (TWC) (if so equipped).
OIL & FUEL RECOMMENDATIONS
TO OPERATE ENGINE, YOU WILL NEED THE FOLLOWING:
(_) A CLEAN, HIGH QUALITY, DETERGENT OIL.
IMPORTANT
KEEP THIS MANUAL HANDY AT ALL TIMES FOR FUTURE
REFERENCE. READ IT CAREFULLY AND FAMILIARIZE
YOURSELF WITH THE OPERATING, MAINTENANCE AND
SAFETY INSTRUCTIONS. THIS MANUAL ALSO CONTAINS A
COMPLETE PARTS LISTING.
BEFORE STARTING
Be sure original container is marked:
A.P.I. service "SF-"SJ".
FOR SUMMER (ABOVE 32°F; O°C) USE SAE 30 OIL.
Using muFtigrade oil will increase oil consumption,
FOR WINTER (BELOW 32OF;0oc) USE SAE 5W30 OIL, (SAE
10W is an acceptable substitute.)
DO NOT USE 10W40 OIL.
OIL SUMP CAPACITY: 21 ounces (1-1/4 U,S, pints)
.62 liter
(_)A FRESH, CLEAN, UNLEADED REGULAR,
UNLEADED PREMIUM, OR REFORMULATED
AUTOMOTIVE GASOLINE ONLY. DO NOT USE
LEADED GASOLINE.
NOTE: DO NOT USE GASOLINE CONTAINING METHANOL
(WOOD ALCOHOL). Gasoline containing up to 10% ethanol or
grain alcohol ("Gasohol"), or up to 15% MTBE (Methyl Tertiary
Butyl Ether), may be used but requires special care when
engine is unused for extended periods.
See "STORAGE" instructions of Page 5.
NOTE: Use clean oil and fuel and store in approved, clean
covered containers. Use clean fill funnels.
Never use "stale" gasoline left over from last season or stored
for long periods. Page 1
(_) READ ALL INSTRUCTIONS PROVIDED WITHTHE EQUIPMENT ON
_L WHICH THIS ENGINE ISUSED.
THIS ENGINE IS EQUIPPED WITH A FEDERALLY MANDATED
MECHANISM WHICH STOPS THE ENGINE. DO NOT INTERFERE
WITHOR BYPASSTHIS MECHANISM. PARTSOF THE MECHANISM
MAY BE SUBJECT TO WEAR AND MUST BE CHECKED ONCE A
YEAR BYAN AUTHORIZED SEARS ROEBUCK ANDCO. (ORSEARS
CANADA, INC.)SERVICECENTER. INTHE EVENTTHE MECHANISM
FALLSFORANYREASON, YOUMUSTNOT USETHE ENGINEUNTIL
CORRECTED BY ANAUTHORIZED SEARSROEBUCKAND CO.(OR
SEARS CANADA, INC.) SERVICE CENTER.
,_ DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG AND
ATTACH IT TO RETAINING POST(see Figure 6on Page 3).
2_ INSTALL ENGINE BRAKE CABLE AND STARTER ROPE:
BRAKE CABLE (see Figure 2):
Attach engine brake cable to brake mechanism as shown.
STARTER ROPE:
A Depress mower control bar (see Figure 3) against mower
handle and hold it in this position,
R Pull at least 2 feet of starter rope out of starter end tie a slip
knot at starter to prevent starter rope from rewinding back
into starter,
181-1231-11

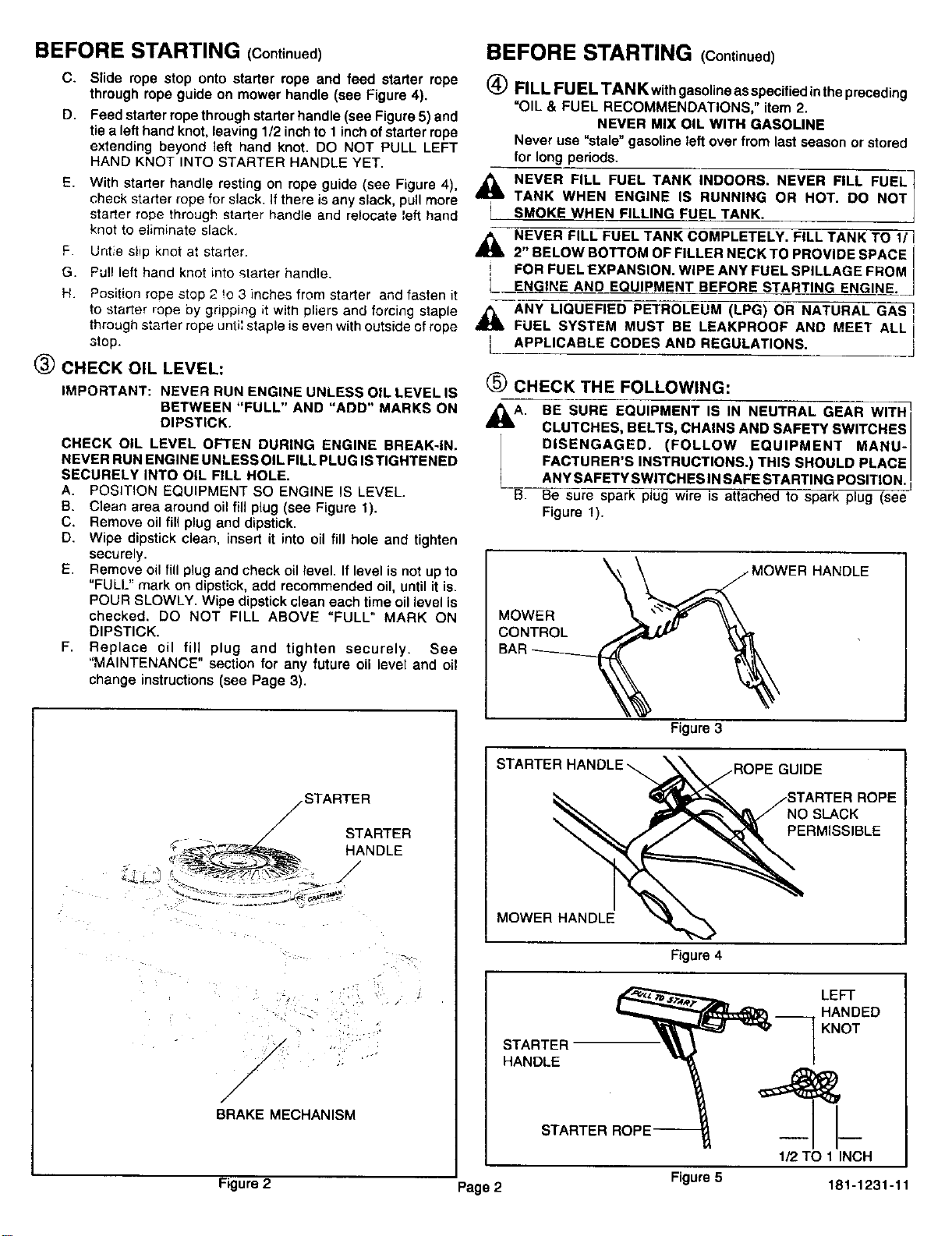

BEFORE STARTING (Continued)
C. Slide rope stop onto starter rope and feed starter rope
through rope guide on mower handle (see Figure 4).
D. Feed starter rope through starter handle (see Figure 5) and
tie a left hand knot, leaving 1/2 inch to 1inch of starter rope
extending beyond left hand knot. DO NOT PULL LEFT
HAND KNOT INTO STARTER HANDLE YET.
E,
With starter handle resting on rope guide (see Figure 4),
check starter rope for slack. If there isany slack, pull more
starter rope through starter handle and relocate _eft hand
knot to eliminate slack.
F Untie slip knot at starter.
G. Pul! left hand knot into starter handle.
H. Position rope stop 2 !o 3 inches from starter and fasten it
to starter rope by gnpping it with Dliers and forcing staple
through starter rope unti', staple is even with outside of rope
3top.
(_) CHECK OIL LEVEL:
IMPORTANT: NEVER RUN ENGINE UNLESS OIL LEVEL IS
BETWEEN "FULL" AND "ADD" MARKS ON
DIPSTICK.
CHECK OIL LEVEL OFTEN DURING ENGINE BREAK-IN.
NEVER RUN ENGINE UNLESS OIL FILL PLUG IS TIGHTENED
SECURELY INTO OIL FILL HOLE.
A. POSITION EQUIPMENT SO ENGINE IS LEVEL.
B. Clean area around oil fill plug (see Figure 1).
C. Remove oil fill plug and dipstick.
D. Wipe dipstick clean, insert it into oil fill hole and tighten
securely.
E. Remove oil fill plug and check oil level. If level is not up to
"FULl_" mark on dipstick, add recommended oil, until it is.
POUR SLOWLY. Wipe dipstick clean each time oil level is
checked. DO NOT FILL ABOVE "FULL" MARK ON
DIPSTICK.
F. Replace oil fill plug and tighten securely. See
"MAINTENANCE" section for any future oil level and oil
change instructions (see Page 3).
BEFORE STARTING (Continued)
®
FILL FUEL TANK with gasoline as specified in the preceding
=OIL & FUEL RECOMMENDATIONS," item 2.
NEVER MIX OIL WITH GASOLINE
Never use "stale" gasoline left over from last season or stored
for long periods.
NEVER FILL FUEL TANK INDOORS. NEVER FILL FUEL
TANK WHEN ENGINE IS RUNNING OR HOT. DO NOT
SMOKE WHEN FILLING FUEL TANK.
,_ NEVER FILL FUEL TANK COMPLETELY. FILL TANK TO 1/
2" BELOW BOTTOM OF FILLER NECKTO PROVIDE SPACE
q FOR FUEL EXPANSION. WIPE ANY FUEL SPILLAGE FROM
i
L ENGINE AND EQUIPMENT BEFORE STARTING ENGINE.
ANY LIQUEFIED PETROLEUM (LPG) OR NATURAL GAS
FUEL SYSTEM MUST BE LEAKPROOF AND MEET ALL
L APPLICABLE CODES AND REGULATIONS.
CHECK THE FOLLOWING:
_A. BE SURE EQUIPMENT IS IN NEUTRAL GEAR WITH]
CLUTCHES, BELTS, CHAINS AND SAFETY SWITCHES I
DISENGAGED. (FOLLOW EQUIPMENT MANU- I
FACTURER'S INSTRUCTIONS.) THIS SHOULD PLACE I
ANY SAFETY SWITCHES IN SAFE STARTING POSITION. Ii
B. Be sure spark plug wire is attached to spark plug (see
Figure !).
HANDLE
MOWER
CONTROL
STARTER
f _ J STARTER
" _--_ HANDLE
S
/
/
,/
BRAKE MECHANISM
Figure 2
Figure 3
STARTER HANDLE _ GUIDE
ROPE
NO SLACK
\ PERMISSIBLE
MOWER HANDLE
Figure 4
STARTER
HANDLE
Page 2
LEFT
HANDED
KNOT
STARTER
Figure 5
1/2 TO 1 INCH
181-1231-11

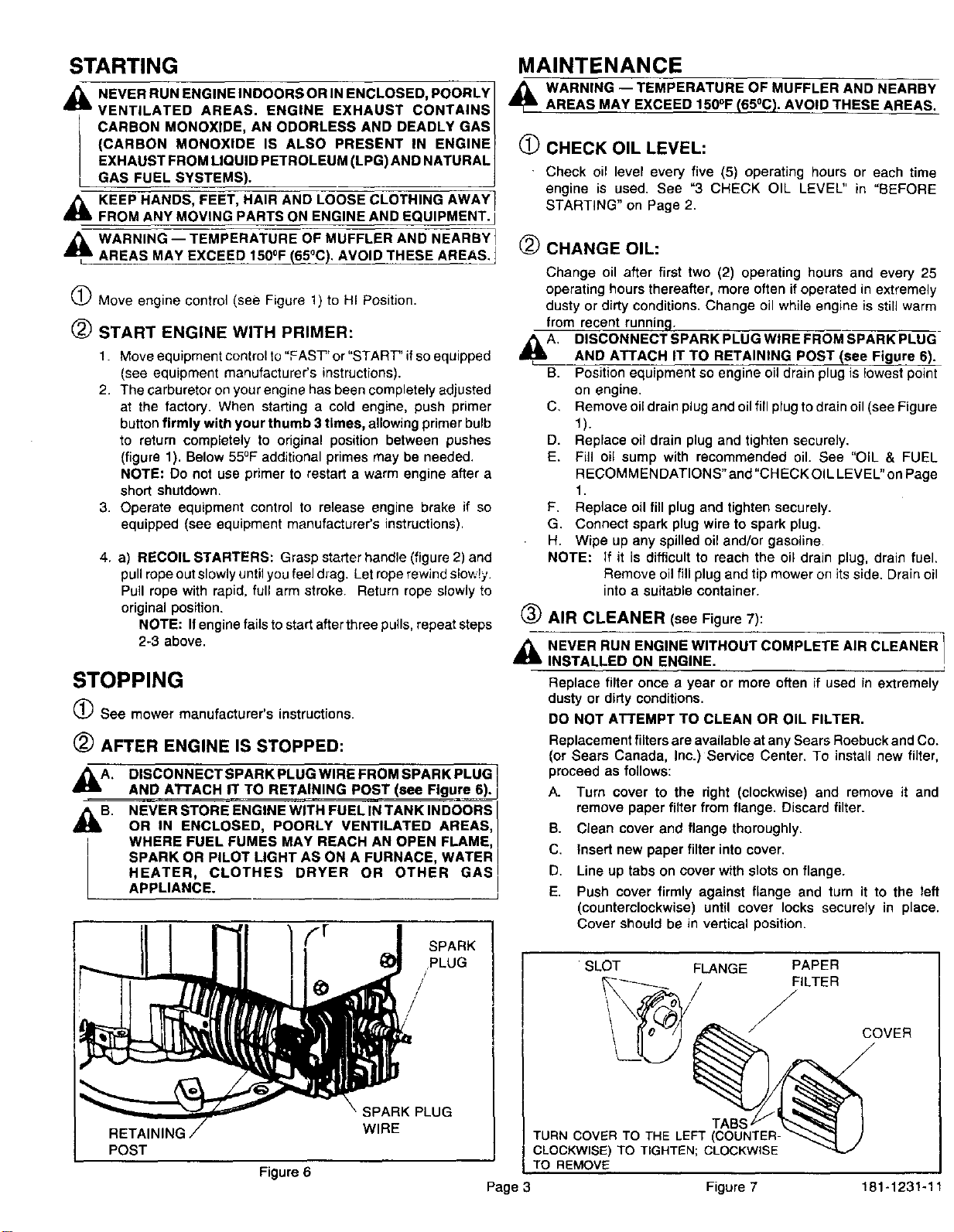

STARTING MAINTENANCE
NEVER RUN ENGINE INDOORS OR IN ENCLOSED, POORLY
VENTILATED AREAS. ENGINE EXHAUST CONTAINS
CARBON MONOXIDE, AN ODORLESS AND DEADLY GAS
(CARBON MONOXIDE IS ALSO PRESENT IN ENGINE
EXHAUST FROM LIQUID PETROLEUM (LPG) AND NATURAL
GAS FUEL SYSTEMS).
_i KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING AWAY
FROM ANY MOVING PARTS ON ENGINE AND EQUIPMENT.
_i WARNING -- TEMPERATURE OF MUFFLER AND NEARBY
AR_EASMAY EXCEED 150°F (65°C). AVOID THESE AREAS, JJ
(_) Move engine control (see Figure 1) to Hi Position.
(_) START ENGINE WITH PRIMER:
1. Move equipment control to"FAST" or "START" ifso equipped
(see equipment manufacturer's instructions).
2. The carburetor on your engine has been completely adjusted
at the factory. When starting a cold engine, push primer
button firmly with your thumb 3 times, allowing primer bulb
to return completely to original position between pushes
(figure 1). Below 55°F additional primes may be needed.
NOTE: Do not use primer to restart a warm engine after a
short shutdown•
3. Operate equipment control to release engine brake if so
equipped (see equipment manufacturer's instructions).
4.
a) RECOIL STARTERS: Grasp starter handle (figure 2) and
pull ropeout slowly until you feel drag. Let rope rewind slow!y.
Pull rope with rapid, full arm stroke. Return rope slowly to
original position.
NOTE: Ifengine fails to start after three pulls, repeat steps
2-3 above.
STOPPING
(_See mower manufacturer's instructions.
(_) AFTER ENGINE IS STOPPED:
,_A. DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG
AND ATTACH IT TO RETAINING POST (see Figure 6).
,_B. NEVER STORE ENGINE WITH FUEL IN TANK INDOORS
OR IN ENCLOSED, POORLY VENTILATED AREAS,
WHERE FUEL FUMES MAY REACH AN OPEN FLAME,
SPARK OR PILOT LIGHT AS ON A FURNACE, WATER
HEATER, CLOTHES DRYER OR OTHER GAS
APPLIANCE.
(,-r
SPARK
PLUG
/
/
/
RETA
POST
Figure 6
SPARK PLUG
WIRE
_i ARNING --TEMPERATURE OF MUFFLER AND NEARBY
AREAS MAY EXCEED 150°F (65°C). AVOID THESE AREAS.
O
CHECK OIL LEVEL:
Check oil level every five (5) operating hours or each time
engine is used. See "3 CHECK OIL LEVEL" in "BEFORE
STARTING" on Page 2.
_) CHANGE OIL:
Change oil after first two (2) operating hours and every 25
operating hours thereafter, more often if operated in extremely
dusty or dirty conditions. Change oil while engine is still warm
from recent running.
_iA. DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG
AND ATTACH IT TO RETAINING POST (see Fi_gure 6).
B. Position equipment so engine oil drain plug is lowest point
on engine.
C. Remove oil drain plug and oil fill plug to drain oil (see Figure
1).
D. Replace oil drain plug and tighten securely.
E. Fill oil sump with recommended oil. See "OIL & FUEL
RECOMMENDATIONS" and"CHECK OIL LEVEL"on Page
1.
F. Replace oil fill plug and tighten securely.
G. Connect spark plug wire to spark plug,
H. Wipe up any spilled oil and/or gasoline.
NOTE: If it is difficult to reach the oil drain plug, drain fuel.
Remove oil fill plug and tip mower on its side. Drain oil
into a suitable container.
(_ AIR CLEANER (see Figure7):
,_ NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER
INSTALLED ON ENGINE
Replace filter once a year or more often if used in extremely
dusty or dirty conditions.
DO NOT ATTEMPT TO CLEAN OR OIL FILTER.
Replacement filters are available at any Sears Roebuck and Co.
(or Sears Canada, Inc.) Service Center. To install new filter,
proceed as follows:
A. Turn cover to the right (clockwise) and remove it and
remove paper filter from flange. Discard filter.
B. Clean cover and flange thoroughly.
C. Insert new paper filter into cover.
D. Line up tabs on cover with slots on flange.
E, Push cover firmly against flange and turn it to the left
(counterclockwise) until cover locks securely in place.
Cover should be in vertical position.
SLOT FLANGE PAPER
/ FILTER
/_/ OVER
TURN COVER TO THE LEFT_cAoB#N_ER-_,,_ )
CLOCKWISE) TO TIGHTEN; CLOCKWISE
TO REMOVE
Page 3 Figure 7 181-1231-11

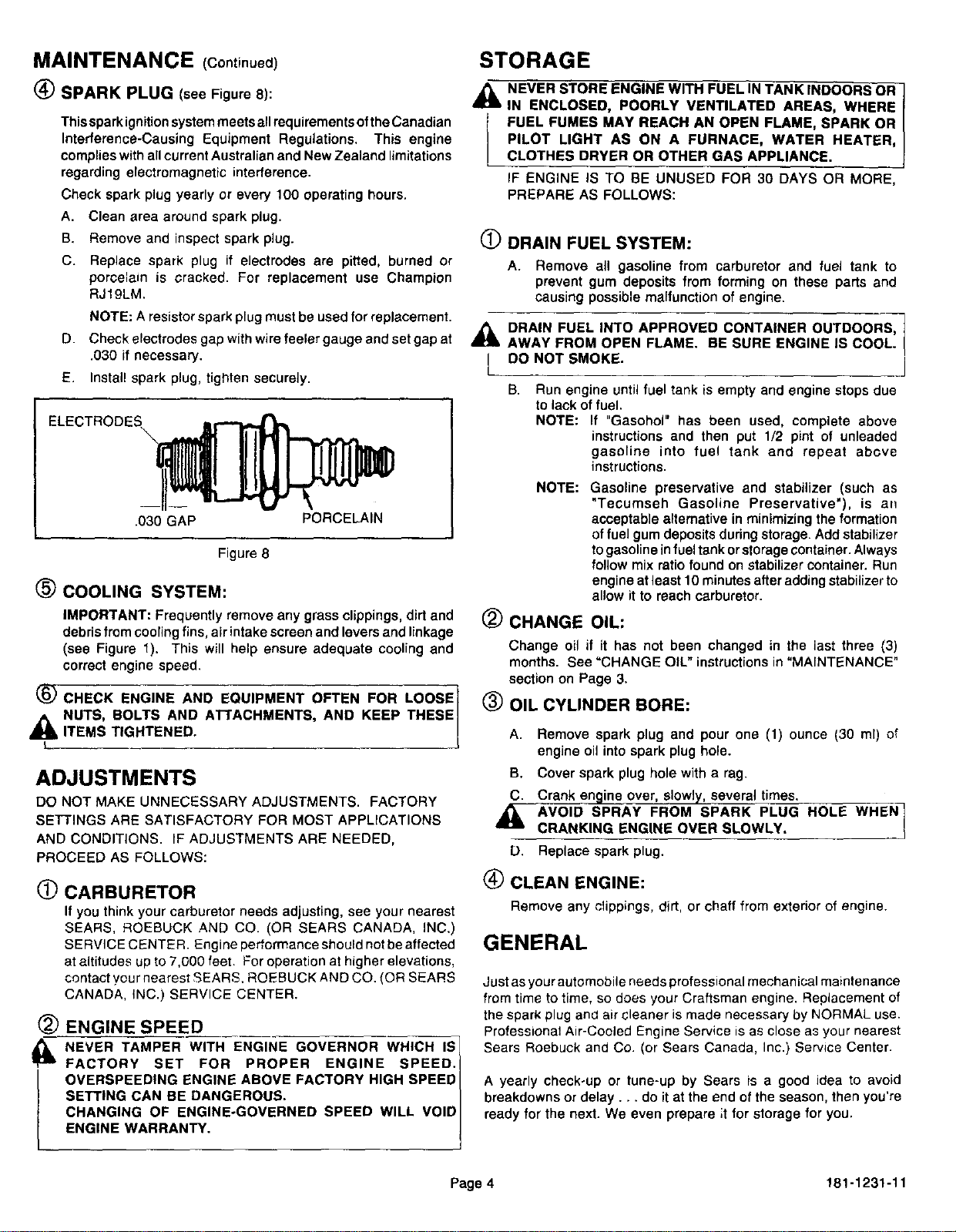

MAINTENANCE (Continued)
(_ SPARK PLUG (see Figure8):
Thisspark ignitionsystem meets all requirements ofthe Canadian
Interference-Causing Equipment Regulations. This engine
complies with all current Australian and New Zealand limitations
regarding electromagnetic interference.
Check spark plug yearly or every 100 operating hours.
A. Clean area around spark plug.
B. Remove and inspect spark plug.
C. Replace spark plug if electrodes are pitted, burned or
porcelain is cracked. For replacement use Champion
RJ!9LM.
NOTE: A resistor spark plug must be used for replacement.
D. Check electrodes gap with wire feeler gauge and set gap at
.030 if necessary.
E. Instal! spark plug, tighten securely.
ELECTRODE_
.030 GAP PORCELAIN
Figure 8
(_ COOLING SYSTEM:
IMPORTANT: Frequently remove any grass clippings, dirt and
debris from cooling fins, air intake screen and levers and linkage
(see Figure t). This will help ensure adequate cooling and
correct engine speed.
6_ CHECK ENGINE AND EQUIPMENT OFTEN FOR LOOSE I
NUTS, BOLTS AND AI"I"ACHMENTS, AND KEEP THESE
_L ITEMS TIGHTENED.
ADJUSTMENTS
DO NOT MAKE UNNECESSARY ADJUSTMENTS. FACTORY
SET'tINGS ARE SATISFACTORY FOR MOST APPLICATIONS
AND CONDITIONS. IF ADJUSTMENTS ARE NEEDED,
PROCEED AS FOLLOWS:
(_ CARBURETOR
If you think your carburetor needs adjusting, see your nearest
SEARS, ROEBUCK AND CO. (OR SEARS CANADA, INC.)
SERVICE CENTER. Engine performance should not be affected
at altitudes up to 7,000 feet. For operation at higher elevations,
contact your nearest SEARS, ROEBUCK AND CO. (OR SEARS
CANADA, iNC.) SERVICE CENTER.
(_ ENGINE SPEED
NEVER TAMPER WITH ENGINE GOVERNOR WHICH IS
FACTORY SET FOR PROPER ENGINE SPEED.
OVERSPEEDING ENGINE ABOVE FACTORY HIGH SPEED
SETTING CAN BE DANGEROUS.
CHANGING OF ENGINE-GOVERNED SPEED WILL VOID
ENGINE WARRANTY.
STORAGE
NEVER STORE ENGINE WITH FUEL IN TANK INDOORS OR
IN ENCLOSED, POORLY VENTILATED AREAS, WHERE
FUEL FUMES MAY REACH AN OPEN FLAME, SPARK OR
PILOT LIGHT AS ON A FURNACE, WATER HEATER,
CLOTHES DRYER OR OTHER GAS APPLIANCE.
IF ENGINE IS TO BE UNUSED FOR 30 DAYS OR MORE,
PREPARE AS FOLLOWS:
Q
L
DRAIN FUEL SYSTEM:
A. Remove all gasoline from carburetor and fuel tank to
prevent gum deposits from forming on these parts and
causing possible malfunction of engine.
7
DRAIN FUEL INTO APPROVED CONTAINER OUTDOORS,
AWAY FROM OPEN FLAME. BE SURE ENGINE IS COOL.
L
DO NOT SMOKE. |
B. Run engine until fuel tank is empty and engine stops due
to lack of fuel.
NOTE: If "Gasohol" has been used, complete above
instructions and then put 1/2 pint of unleaded
gasoline into fuel tank and repeat above
instructions.
NOTE: Gasoline preservative and stabilizer (such as
"Tecumseh Gasoline Preservative"), is an
acceptable alternative in minimizing the formation
of fuel gum deposits during storage. Add stabilizer
togasoline in fuel tank orstorage container. Always
follow mix ratio found on stabilizer container. Run
engine at least 10 minutes after adding stabilizer to
allow it to reach carburetor.
(_) CHANGE OIL:
Change oil if it has not been changed in the last three (3)
months. See =CHANGEOIL" instructions in "MAINTENANCE"
section on Page 3.
OIL CYLINDER BORE:
A. Remove spark plug and pour one (1) ounce (30 ml) of
engine oil into spark plug hole.
B. Cover spark plug hole with a rag.
C. Crank engine over, slowly, several times.
AVOID SPRAY FROM SPARK PLUG HOLE WHEN 7
CRANKING ENGINE OVER SLOWLY.
D, Replace spark plug.
@ CLEAN ENGINE:
Remove any clippings, dirt, or chaff from exterior of engine.
GENERAL
Just as your automobile needs professional mechanical maintenance
from time to time, so does your Craftsman engine. Replacement of
the spark plug and air cleaner is made necessary by NORMAL use.
Professional Air-Cooled Engine Service is as close as your nearest
Sears Roebuck and Co. (or Sears Canada, Inc.) Service Center.
A yearly check-up or tune-up by Sears is a good idea to avoid
breakdowns or delay.., do it at the end of the season, then you're
ready for the next. We even prepare it for storage for you.
Page 4 t81-1231-11

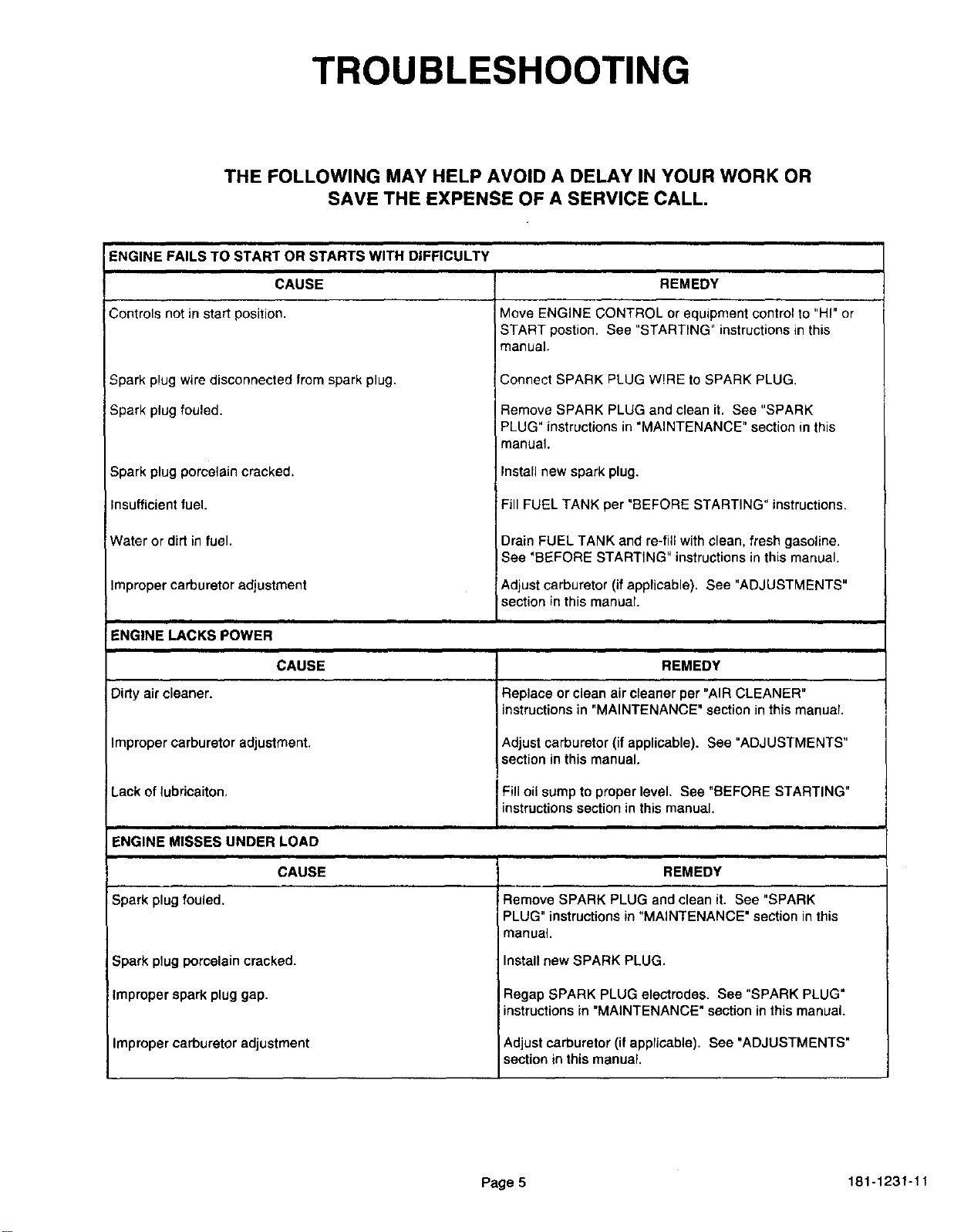

TROUBLESHOOTING
THE FOLLOWING MAY HELP AVOID A DELAY IN YOUR WORK OR
SAVE THE EXPENSE OF A SERVICE CALL,
ENGINE FALLS TO START OR STARTS WITH DIFFICULTY
CAUSE
Controls not in start position.
Spark plug wire disconnected from spark plug.
Spark plug fouled.
Spark plug porcelain cracked.
Insufficient fuel.
Water or dirt in fuel.
Improper carburetor adjustment
REMEDY
Move ENGINE CONTROL or equipment control to "HI" or
START postion. See "STARTING" instructions in this
manual,
Connect SPARK PLUG W!RE to SPARK PLUG.
Remove SPARK PLUG and clean it. See "SPARK
PLUG" instructions in "MAINTENANCE" section in this
manual,
Install new spark plug.
Fill FUEL TANK per "BEFORE STARTING" instructions.
Drain FUEL TANK and re-fill with clean, fresh gasoline.
See "BEFORE STARTING" instructions in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual
ENGINE LACKS POWER
CAUSE
Dirty air cleaner.
Improper carburetor adjustment.
Lack of lubdcaiton,
ENGINE MISSES UNDER LOAD
REMEDY
Replace or clean air cleaner per "AIR CLEANER"
instructions in "MAINTENANCE" section in this manual
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual.
Fill oil sump to proper level, See "BEFORE STARTING"
instructions section in this manual.
CAUSE
Spark plug fouled.
Spark plug porcelain cracked.
Improper spark plug gap.
Improper carburetor adjustment
REMEDY
Remove SPARK PLUG and clean it. See "SPARK
PLUG" instructions in "MAINTENANCE" section in this
manual.
Installnew SPARK PLUG.
Regap SPARK PLUG electrodes. See "SPARK PLUG"
instructions in "MAINTENANCE" section in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual
Page 5 181-1231-11

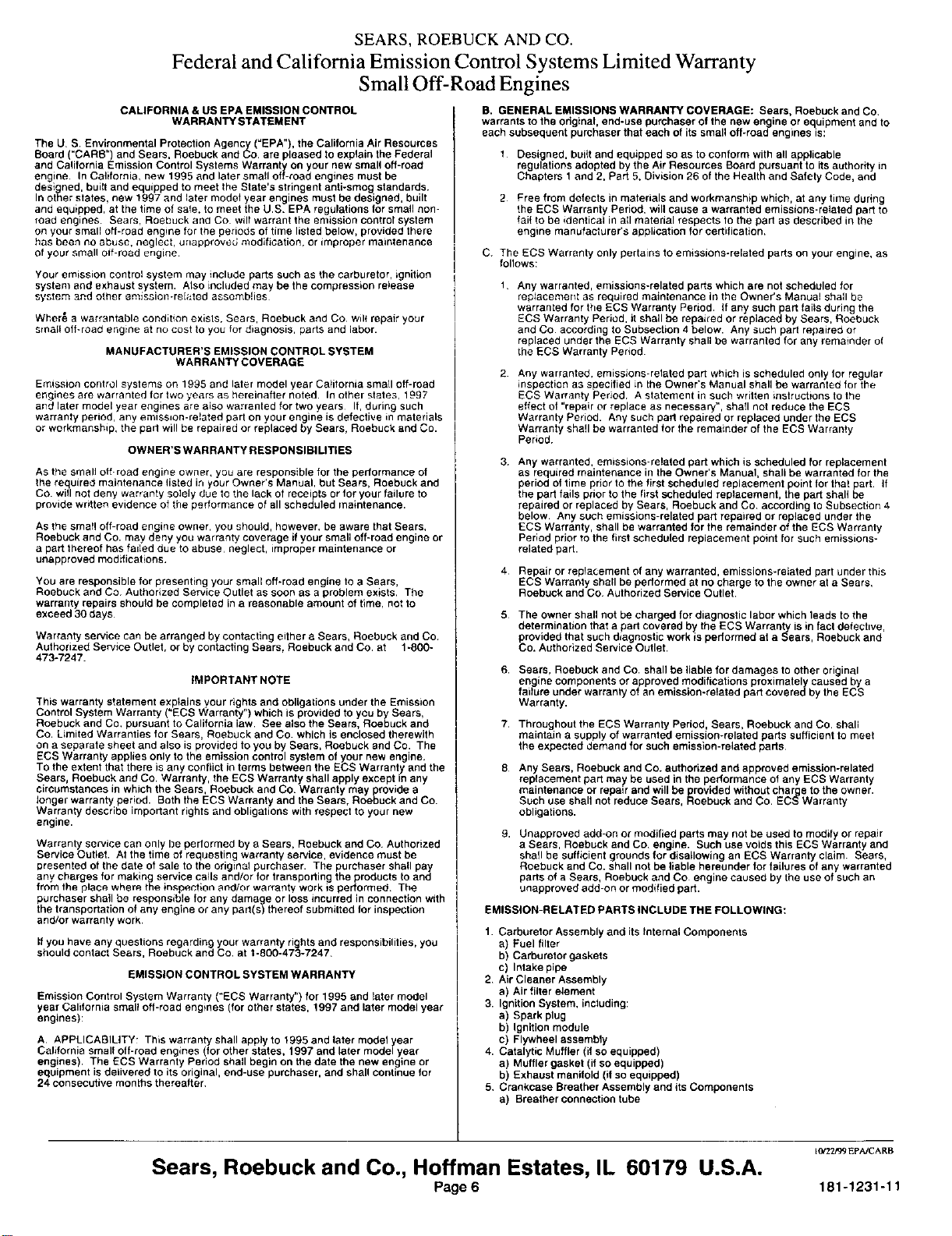

SEARS, ROEBUCK AND CO.
Federal and California Emission Control Systems Limited Warranty
Small Off-Road Engines
CALIFORNIA & US EPA EMISSION CONTROL
WARRANTY STATEMENT
The U. S. Environmental Protection Agency ("EPA"), the California Air Resources
Board ("CARS") and Sears, Roebuck and Co. are pleased to explain the Federal
and California Emission Control Systems Warranty on your new small off-road
engine. In California, new 1995 and later smafl off-road engines must be
designed, built and equipped to meet the State's stringent anti-smog standards
In other states, new 1997 and later model year engines must be designed, built
and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-
road engines Sears, Roebuck and Co wilt warrant the emission control system
on your small off-road engine for the periods of time listed below, provided there
has been no abuse, neglecL urlapproveG moddication, or improper maintenance
of your small off-road eng=ne
Your emission control system may include parts such as the carburetor, ignition
system and exhaust system. Atso included may be the compression release
system and other emi_sien-re[_ted assemb!ies
Wher_ a warrantable condition exists. Sears, Roebuck and Co wilt repair your
small off-road engine at no cost to you for diagnosis, parts and labor.
MANUFACTURER'S EMISSION CONTROL SYSTEM
WARRANTY COVERAGE
Emission Control systems on 1995 and later model year Ca}itornia small off-road
engines are warranted for two years as hereinafter noted. In other states, 1997
and later model year engines are also warranted for two years If, during such
warranty period, any emission-related part on your engine is defective in materials
or workmanship, the pad wil! be repaired or replaced by Sears, Roebuck and Co.
OWNER'S WARRANTY RESPONSIBILITIES
As the small off-road engine owner, you are responsible for the performance of
the required maintenance listed it= your Owner's Manual, but Sears, Roebuck and
CO. will not deny warranty solely due to the lack of receipts or for your failure to
provide written evidence of the performance of 811scheduled maintenance.
AS the smat! off-roed engine owner, you should, however, be aware that Sears,
Roebuck and Co. may deny you warranty coverage if your small off-roed engine or
a part thereof has failed due to abuse, neglect, improper maintenance or
unapproved modifications,
You are responsible for presenting your small off-road engine to a Sears,
Roebuck and Co. Authorized Service Outlet as soon as a problem exists, The
warranty repairs should be completed in a reasonable amount of time, not to
exceed 30 days
Warranty service can be arranged by contacting either a Sears, Roebuck and Co.
Authorized Service Outletr Or by contacting Sears, Roebuck and CO at 1-800-
473-7247.
IMPORTANTNOTE
This warranty statement explains your rights and obligations under the Emission
Control System Warranty ("ECS Warranty") which is provided to you by Sears,
Roebuck and Co, pursuant to California law. See also the Sears, Roebuck and
Co, Limited Warranties for Sears, Roebuck and Co. which is enclosed therewith
on a separate sheet and also is provided to you by Sears, Roebuck and Co. The
ECS Warranty applies only to the emission control system of your new engine.
TO the extent that there is any conflict in terms between the ECS Warranty and the
Sears, Roebuck and Co. Warranty, the ECS Warranty shall apply except in any
circumstances in which the Sears, Roebuck and Co. Warranty may provide a
longer warranty period. Both the ECS Warranty and the Sears, Roebuck and Co.
Warranty describe important rights and obligations with respect to your new
engine.
Warranty service can only be performed by a Sears, Roebuck and CO Authorized
Service Cutlet. At the time of requesting warranty service, evidence must be
presented of the date of sale to the original purchaser. The purchaser shall pay
any charges for making service calls and/or for transporting the products to and
frnm the place where the inspection and/or warranty work is performed The
purchaser shall be responsible for any dama_ge or loss incurred in connection with
the transportation of any engine or any part(s) thereof submitted lor inspection
and/or warranty work
If you have any questions regarding your warranty rights and responsibilities, you
should contact Sears, Roebuck and Co. at 1-800-473-7247.
EMISSION CONTROL SYSTEM WARRANTY
Emission Control System Warranty ("ECS Warranty") for 1995 and later model
year California small off-toed engines (for other states, 1997 and later model year
engines):
A APPLICABILITY: This warranty shall apply to 1995 and later modet year
California small off-toed engines (for other states, 1997 and later model year
engines). The ECS Warranty Period shall begin on the date the new engine or
equipment is delivered to its original, end-use purchaser, and shall continue for
24 consecutive months thereafter
B. GENERAL EMISSIONS WARRANTY COVERAGE: Sears, Roebuck and Co
warrants to the odginal, end-use purchaser of the new engine or equipment and to
each subsequent purchaser that each of its small off-road engines is:
t Designed, built and equipped so as to conform with all applicable
regulations adopted by the Air Resources Board pursuant to its authority in
Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and
2 Free from defects in materials and workmanship which, at any time during
the ECS Warranty Period, will cause a warranted emissions-related part to
fait to be identical in all material respects 1o the part as described in the
engine manufacturer's application for certification.
C. The ECS Warranty only pertains to emissions-related parts on your engine, as
fonows:
t.
2
Any warranted, emissions-related parts which are not scheduled for
replacement as required maintenance in the Owner's Manual shall be
warranted for the ECS Warranty Period. if any such part fails during the
ECS Warranty Period. it shall be repaired or replaced by Sears, Roebuck
and Co according to Subsection 4 below. Any such part repaired or
replaced under the ECS Warranty shall be warranted for any remainder o{
the ECS Warranty Period
Any warranted, emissions-related part which is scheduled only for regular
inspection as specified in the Owner's Manual shall be warranted for the
ECS Warranty Period. A statement in such written instructions to the
effect of "repair or replace as necessary", sha!l net reduce the ECS
Warranty Period. Any such part repaired or replaced under the ECS
Warranty shaft be warranted for the remainder of the ECS Warranty
Period
3,
4
Any warranted, emissions-related part which is scheduled for replacement
as required maintenance in the Owner's Manual, shall be warranted for the
period of time prior to the first scheduled replacement point for thai part. If
the part fails prior to the first scheduled replacement, the part shall be
repaired or replaced by Sears, Roebuck and Co according to Subsection 4
below. Any such emissions-related pa_l repaired or replaced under the
ECS Warranty, shall be warranted for the remainder of the ECS Warranty
Period prior _o the first scheduled replacement point for Such emissions-
related part.
Repair or reptacement of any warranted, emissions-related part under this
ECS Warranty shall be performed at no charge to the owner at a Sears,
Roebuck and Co Authorized Service Outlet.
5 The owner shall not be charged for diagnostic labor which leads to the
determination that a part covered by the ECS Warrant[y is in fact defechve,
provided that such diagnostic work is performed at a Sears, Roebuck and
Co. Authorized Service Cutlet.
6.
7,
8
9,
Sears, Roebuck and Co. shall be liable for damages to other original
engine components or approved modifications proximately caused by a
failure under warranty of an emission-related part covered by the ECS
Warranty.
Throughout the ECS Warranty Period, Sears, Roebuck and Co. shall
maintain a supply of warranted emission-related parts sufficient to meet
the expected demand for such emission-related pads
Any Sears, Roebuck and Co. authorized and approved emission-related
replacement part may be used in the performance of any ECS Warranty
maintenance or repair and will be provided without charrge to the owner.
Such use shall not reduce Sears, Roebuck and Co. ECSWarranty
obligations.
Unapproved add-on or modified parts may not be used to modify or repair
a Sears, Roebuck and Co engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim Sears,
Roebuck and Co. shall not be liable hereunder for failures of any warranted
parts of a Sears, Roebuck and Co engine caused by the use of such an
unapproved edd-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING:
1 Carburetor Assembly and its Internal Components
a) Fuel filter
b) Carburetor gaskets
c) Intake pipe
g Air Cleaner Assembly
a) Air filter element
3. Ignition System, inctuding:
a) Spark plug
b) Ignition module
c) Flywheel assembly
4. Catalytic Muffler (if so equipped)
a) Muffler gasket (if so equipped)
b) Exhaust manifold (if so equipped)
5. Crankcase Breather Assembly and its Components
a) Breather connection tube
[0/22/99 E [%¢_C ARB
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Page 6 181-1231-11

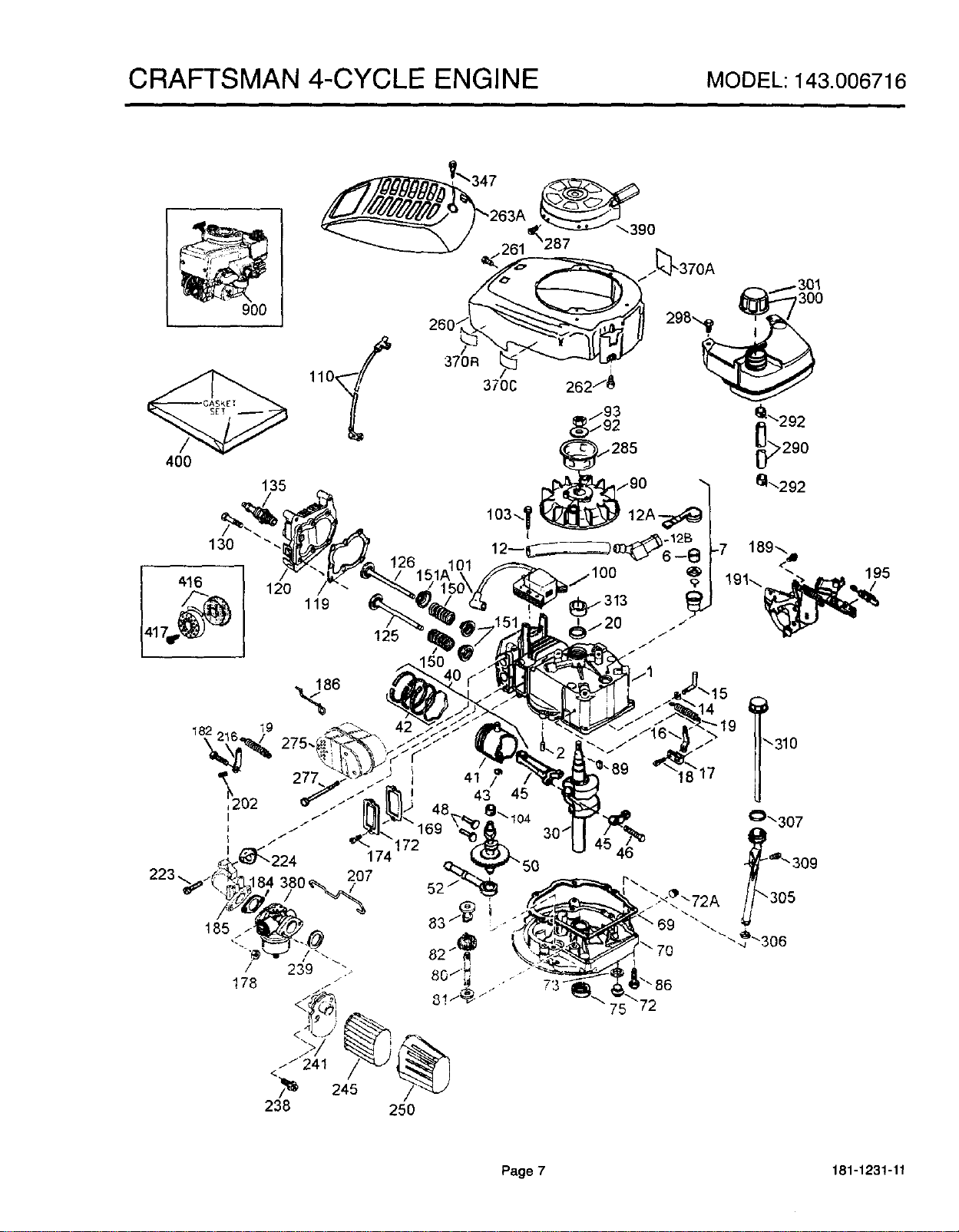

CRAFTS MAN 4-CYCLE ENGIN E MODEL:143.006716
900
400
135
119
126
125
223.
185
/
178
Page 7 181-1231-11

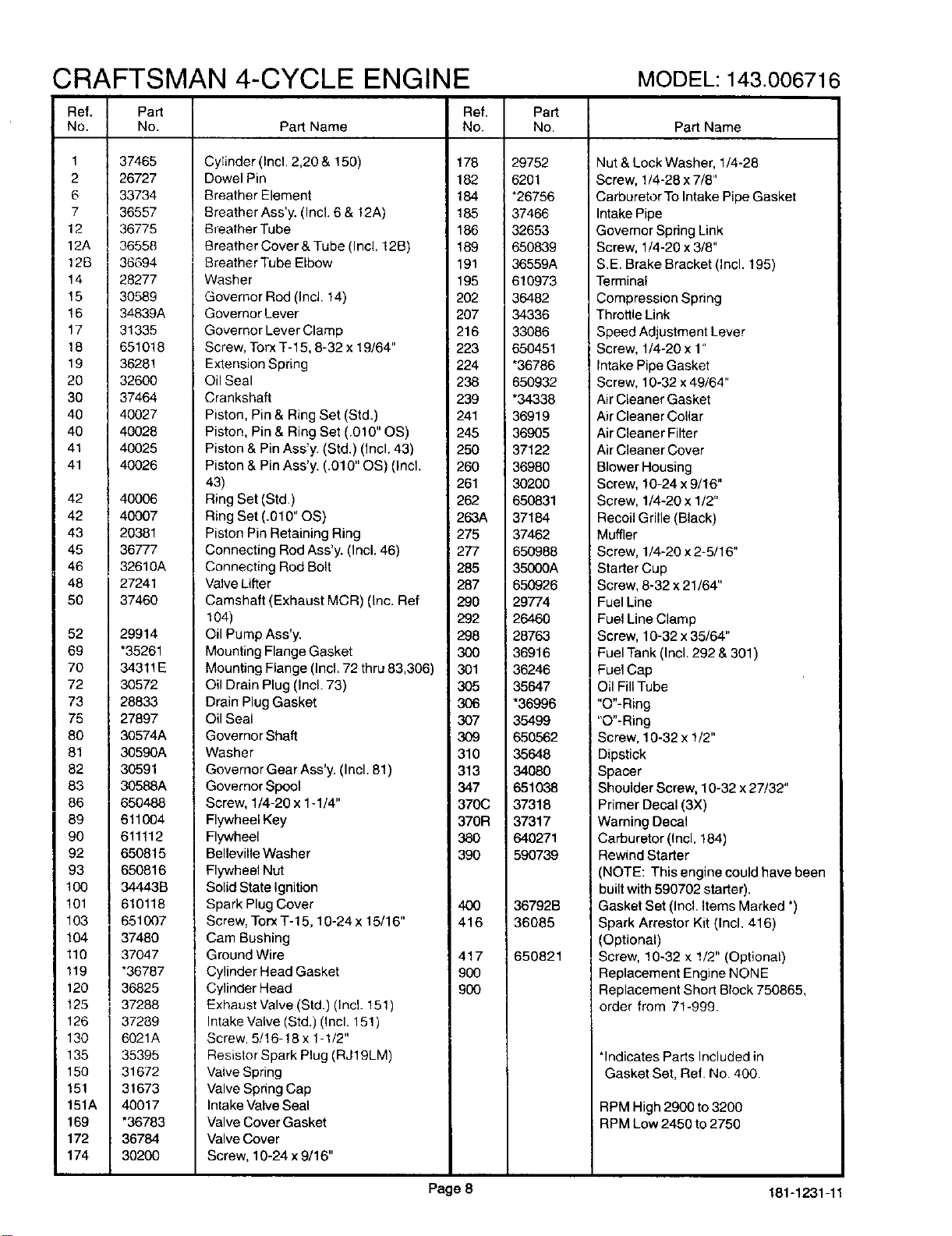

CRAFTSMAN 4-CYCLE ENGINE MODEL: 143.00671q
Ref.
No.
1
2
6
7
12
12A
t2B
14
15
16
17
18
19
20
30
40
40
41
41
42
42
43
45
46
48
5O
52
69
70
72
73
75
8O
81
82
83
86
89
90
92
93
100
101
103
104
110
119
120
125
126
130
135
150
151
151A
169
172
174
Part
No.
37465
26727
33734
36557
36775
36558
36694
28277
30589
34839A
31335
651018
36281
32600
37464
40027
40028
40025
40026
40006
40007
20381
36777
32610A
27241
37460
29914
*35261
34311E
30572
28833
27897
30574A
30590A
30591
30588A
650488
611004
611112
650815
650816
34443B
610118
651007
37480
37047
*36787
36825
37288
37289
6021A
35395
31672
31673
40017
*36783
36784
30200
Ref. Part
Part Name No. No.
Cylinder (Incl. 2,20 & 150) !78 29752
Dowel Pin 182 6201
Breather Element 184 *26756
Breather Ass'y. (Incl. 6 & 12A) 185 37466
B_eather Tube 186 32653
Breather Cover & Tube (Incl. 128) 189 650839
Breather Tube Elbow 191 36559A
Washer 195 610973
Governor Rod (Incl. 14) 202 36482
Governor Lever 207 34336
Governor Lever Clamp 216 33086
Screw, Torx T-15, 8-32 x 19/64" 223 650451
Extension Spring 224 *36786
Oil Seal 238 650932
Crankshaft 239 *34338
Piston, Pin & Ring Set (Std.) 241 36919
Piston, Pin & Ring Set (.010" OS) 245 36905
Piston & Pin Ass'y. (Std.) (Incl. 43) 250 37122
Piston & Pin Ass'y. (.010" OS) (Incl. 260 36980
43) 261 30200
Ring Set (Std.) 262 650831
Ring Set (.010" OS) 263A 37184
Piston Pin Retaining Ring 275 37462
Connecting Rod Ass'y. (Incl. 46) 277 650988
Connecting Rod Bolt i 285 350O0A
Valve Lifter 287 650926
Camshaft (Exhaust MCR) (Inc. Ref 290 29774
104) 292 26460
Oil Pump Ass'y. 298 28763
Mounting Flange Gasket 300 36916
Mounting Flange (Incl. 72 thru 83,306) 301 36246
Oil Drain Plug (Incl. 73) 305 35647
Drain Plug Gasket 306 *36996
Oil Seal 307 35499
Governor Shaft 309 650562
Washer 310 35648
Governor Gear Ass'y. (Incl. 81) 313 34080
Governor Spool 347 651038
Screw, 1/4-20 x 1-1/4" 370C 37318
Flywheel Key 370R 37317
Flywheel 380 640271
Belleville Washer 390 590739
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Screw, Torx T-15, 10-24 x 15/16"
Cam Bushing
Ground Wire
Cylinder Head Gasket
Cylinder Head
Exhaust Valve (Std.) (Incl. ! 51)
Intake Valve (Std.) (Incl. 151)
Screw, 5/16-!8 x 1-1/2"
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
Intake Valve Seal
Valve Cover Gasket
Valve Cover
Screw, 10-24 x 9/16"
400 36792B
416 36085
417
900
90O
650821
Part Name
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
Carburetor To Intake Pipe Gasket
Intake Pipe
Governor Spring Link
Screw, 1/4-20 x 3/8"
S.E. Brake Bracket (Incl. 195)
Terminal
Compression Spring
Throttle Link
Speed Adjustment Lever
Screw, 1/4-20 x 1"
Intake Pipe Gasket
Screw, 10-32 x 49/64"
Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, 10-24 x 9/16"
Screw, 1/4-20 x 1/2"
Recoil Grille (Black)
Muffler
Screw, 1/4-20 x 2-5/16"
Starter Cup
Screw, 8-32 x 21/64"
Fuel Line
Fuel Line Clamp
Screw, 10-32 x 35/64"
Fuel Tank (Incl. 292 & 301)
Fuel Cap
Oil Fill Tube
"O'-Ring
"O"-Ring
Screw, 10-32 x 1/2"
Dipstick
Spacer
Shoulder Screw, 10-32 x 27/32"
Primer Decal (3X)
Warning Decal
Carburetor (Incl. 184)
Rewind Starter
(NOTE: This engine could have been
built with 590702 starter).
Gasket Set (Incl. Items Marked *)
Spark Arrestor Kit (Incl. 416)
(Optional)
Screw, 10-32 x !/2" (Optional)
Replacement Engine NONE
Replacement Short Block 750865,
order from 71-999.
*Indicates Parts Included in
Gasket Set, Ref. No. 400.
RPM High 2900 to 3200
RPM Low 2450 to 2750
Page 8 181-1231-11

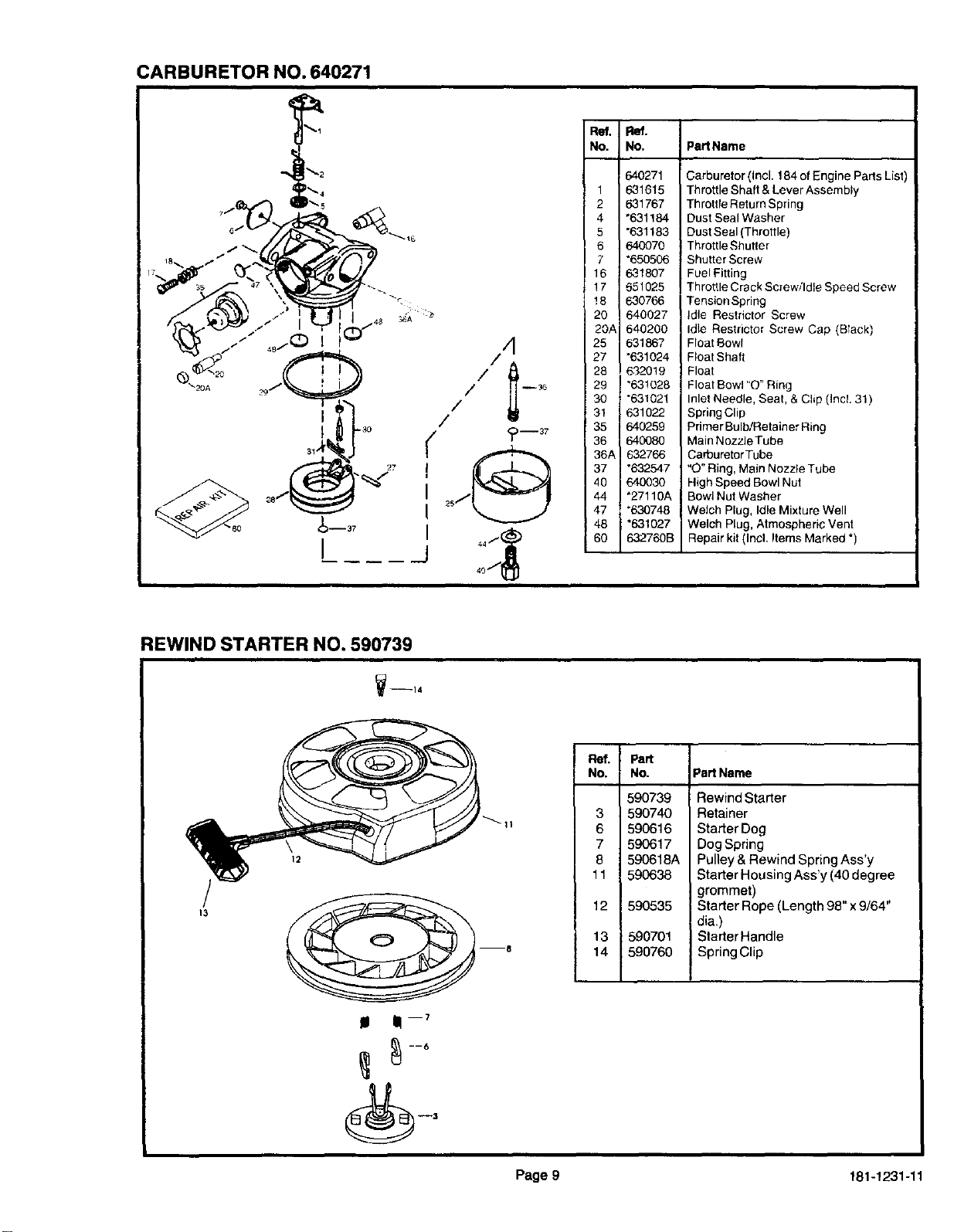

CARBURETOR NO. 640271
I
Ref. Ref.
No. No, _ert Name
64O271
631615
631767
*631184
*631183
64OO70
*650506
631807
651025
630766
64002_
640200
631867
"631024
632019
*631028
*631021
631022
640259
643080
632766
"632547
640O30
"27110A
*630748
*631027
632760B
Carburetor {Incl. 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal (Throttle)
I ThrottleShutter
Shutter Screw
Fuel Fitting
Throttle Crack Screw/Idle Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Restrictor Screw Cap (Black)
Float Bowl
Float Shaft
F oat
Float Bowl "O" Ring
Inlet Needle, Seat, & Clip (IncL 31)
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
Carburetor Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kil (Incl, Items Marked *)
REWIND STARTER NO. 590739
V--14
13
12
R_,
NO.
3
6
7
8
11
12
13
14
Part
No.
590739
590740
590616
590617
590618A
590638
590535
590701
590760
Part Name
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y
Starter Housing Ass'y (40 degree
grommet)
Starter Rope (Length 98" x 9/64"
dia,)
Starter Handle
Spring Clip
Page 9 181-1231-11

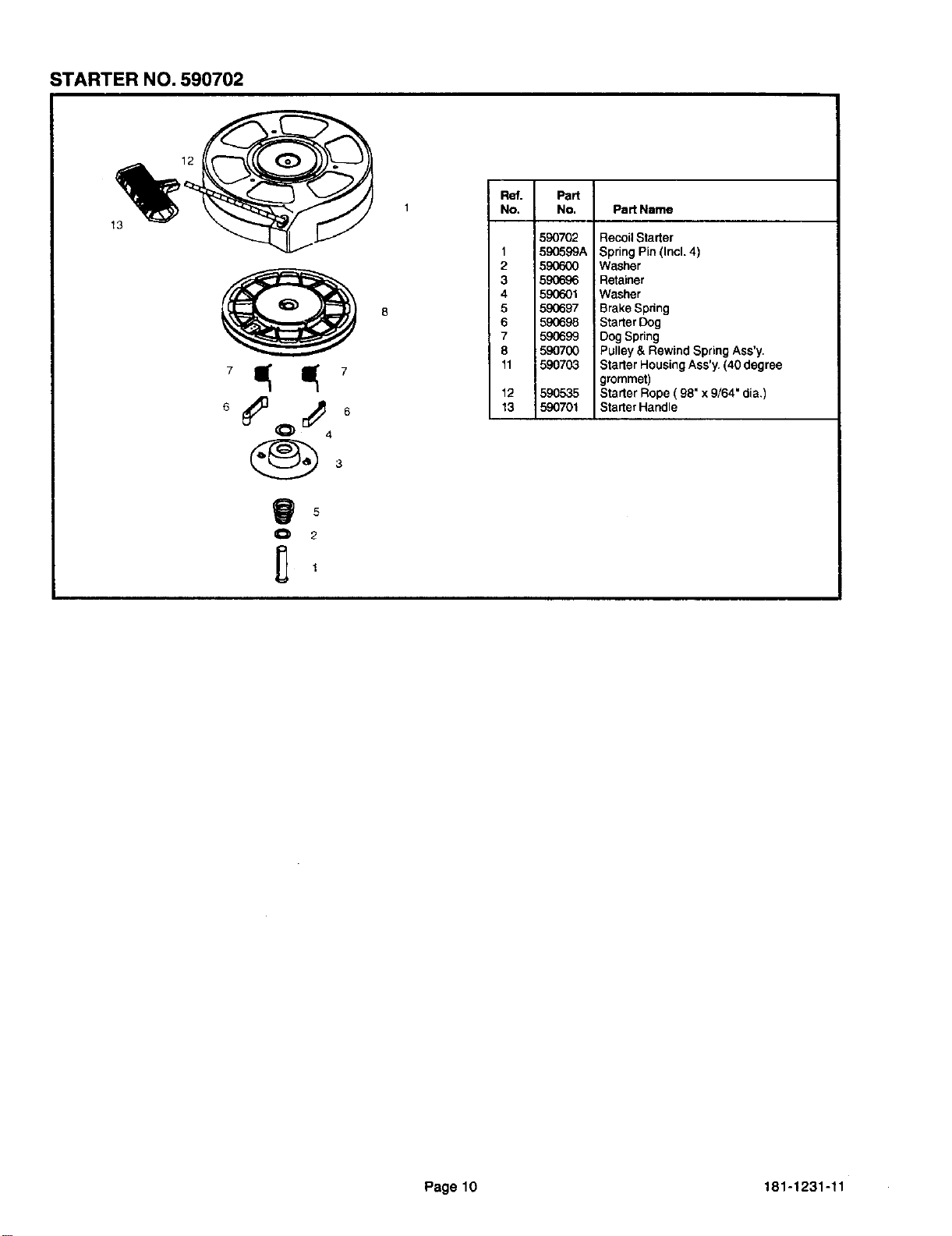

STARTER NO. 590702
13
8
7=;
O 4
B 5
Ref. Part
No. No. Part Name
590702 Recoil Starter
1 5_K)599A Spring Pin (Incl. 4)
2 590600 Washer
3 580696 Retainer
4 590601 Washer
5 580697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Ass'y.
11 590703 Starter Housing Ass'y. (40 degree
grommet)
12 590535 Starter Rope ( 98" x 9/64" dia,)
13 590701 Starter Handle
Page 10 181-1231-11
SEARS
operator's
manual
MODEL NO. 143.006716
6.75 HORSEPOWER
11.90 CUBIC INCH (195 cc)
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
How to ORDER Repair Parts
The Model Number can be found on a decal on the blower
housing (See Figure 1). Always mention the Model Number
when requesting service or repair parts for your Craftsman
Engine.
All parts listed herein may be ordered from any SEARS,
ROEBUCK AND CO. or SEARS CANADA, INC. retail or catalog
store. If the parts you need are not stocked locally, your order
will be electronically transmitted to a Sears Repair Parts
DistributionCenter for expedited handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION AS SHOWN IN THIS LIST.
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER
4. The NAME OF ITEM - ENGINE
"Your Sears merchandise has added value when you consider that Sears has
service units nationwide staffed with Sears trained technicians.., professional
technicians specifically trained on Sears products, having the parts, tools and
equipment to insure that we meet our pledge to you ... we service what we sell."
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
181-1231-11
