Original Instructions
CAUTION,
Read instructions before using the machine.
2
T 01460 68600
3
Ensure harness is straight and level.
Adjusting harness height
Adjust to t.
4
T 01460 68600
START STOP
Carpet Hard Floor
5
2
1
6
T 01460 68600
2
1
7

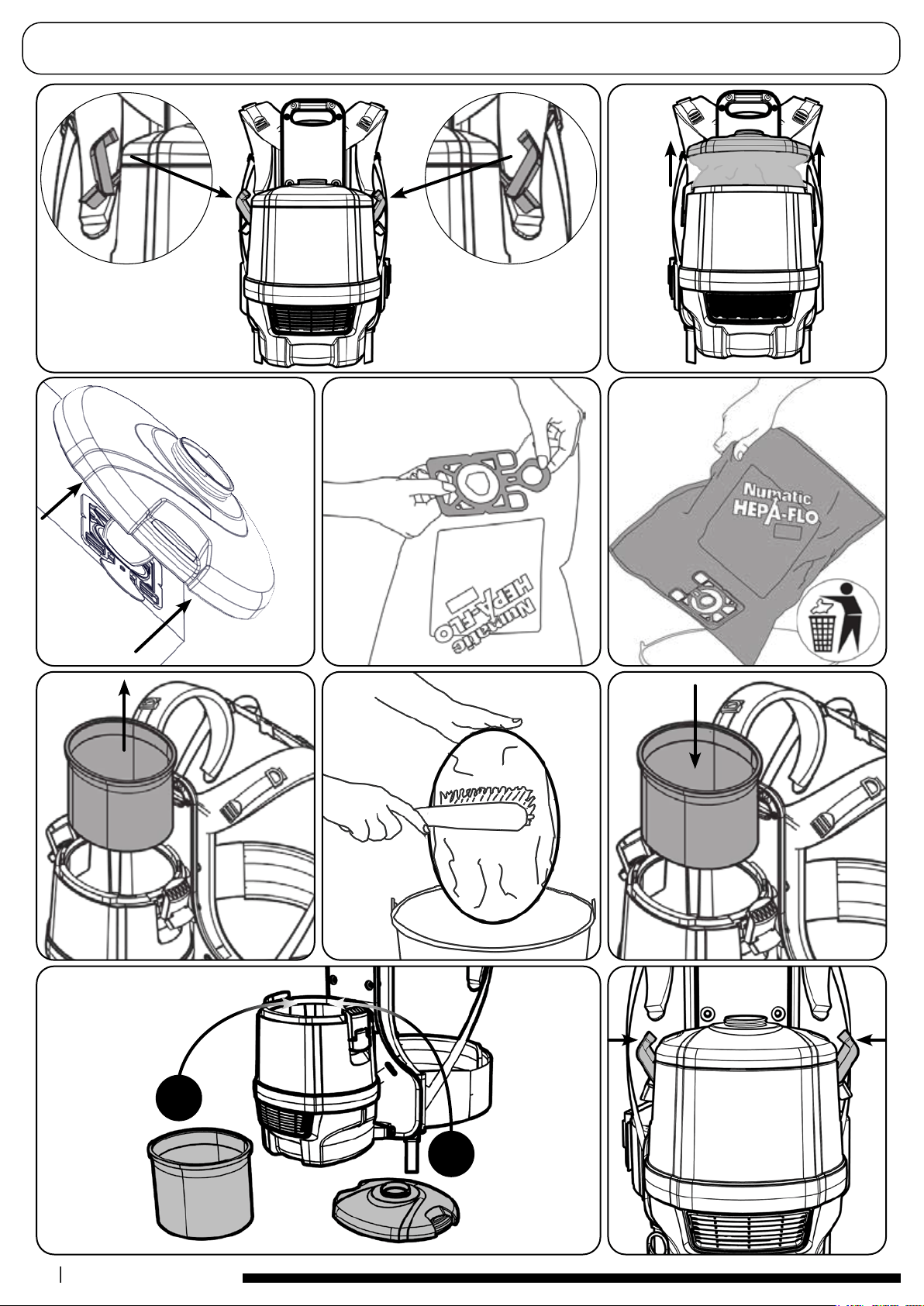

910915 Tritex lter
604011 NVM-1AH Dust bags (Pack of 10)
901647
H13 Cartridge Filter
DRW-31938 (A03)
RSV
110-120V
620 W
31.2 L/sec
570 x 330 x 330 mm
RSV
12 lbs
63.1 dB (A)
0.5 dB
6 qt.
NVM-1AH
8
T 01460 68600
WEEE (Waste, Electrical and Electronic Equipment)
Vacuum Cleaner Accessories and packaging should be sorted for environmentally-friendly recycling.
Only for EU countries.
Do not dispose of Vacuum Cleaner into household waste.
According to the European Directive 2012/19/EU on waste electrical electronic equipment and its
incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separated, collected and sent for
recovery in an environmentally-friendly manner.
PPE (Personal protective equipment) that may be required for certain operations.
NOTE: A risk assessment should be conducted to determine which PPE should be worn.
1 Voltage
2 Rated input power
3 Frequency
4 Weight (ready to work)
5 Company name & address
6 Model
7 Machine yr/wk Serial number
8 CE Mark
9 Protection class 2 symbol
10 WEEE Logo
1
2
4
5
6
7
8
10
9
3
Ear Protection Safety Footwear Head Protection Safety Gloves
Dust / Allergens
Protection
Eye Protection Protective Clothing
Hi-Vis Jacket
Caution
Wet Floor Sign
Rating Label
Daily
Keep the machine clean, including
hoses and tubes.
Ensure the bag and lter are tted.
Regularly examine the power cord.
Check dust bag frequently.
Check lters are clean.
Weekly - as daily and:-
Check for any worn or damaged
parts and replace immediately.
9
ORIGINAL INSTRUCTIONS:- READ MANUAL BEFORE USE.
!
WARNING
CAUTION
DO
DON’T
Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of their machine.
As with all electrical equipment, care and attention must be exercised at all times during use, in addition to
ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could
render this equipment unsafe and the manufacturer can accept no responsibility in this respect.
Maintenance should only be carried out by a qualied person.
This machine is for DRY USE only and must not be stored outside or used in wet conditions.
The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or
maintenance and when replacing parts or converting the machine to another function.
This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge.
Only use the socket outlet on the machine for purposes specied in the instructions (where tted).
This appliance is intended to be cleaned and maintained by an adult.
Children being supervised are not to play with the machine.
This machine is not a toy.
This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a
machine capable of performing these tasks.
Ensure that the ltration system tted to the machine is suitable for the material being collected.
This vacuum cleaner is intended for indoor use in the collection of dry materials.
This machine should be stored indoors only.
NOTE:
The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and oces.
This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.
This vacuum cleaner is tted with a thermal protection device. If the vacuum cleaner stops working, remove the plug from
the wall before investigating where the fault lies.
If the vacuum cleaner has a blockage, switch o, remove the plug from the socket, inspect the oor tool, tubes and hose for
debris. If the oor tool, tubes and hose are clear, replace the dust bag and clean the lter.
The vacuum cleaner should be inspected after use for damage.
The vacuum cleaner should be stored in a dry place.
• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep lters clean.
• Keep diuser lter (where tted) clean.
• Use lter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original lter bag under ne dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Regularly examine the power cord. If damage is found such as cracking or aging the power cord must be
replaced by a qualied person.
• Only replace the power cord with the correct Numatic approved replacement part.
• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Do not use in wet environments or to collect wet materials.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules
or scented beads of any type into the top lter of the machine. Doing so can be dangerous and risk damage to the
machine and may invalidate the machine warranty.
10
T 01460 68600
11
ON
