Hotpoint HS 5160C NE Built-in 59 Cm Zone Induction Hob 4 User Manual

560 mm

R = Max. 10 mm

Min. 35 mm

560 mm

R = 11.5 mm

593 mm

513 mm

Min. 480 mm

Max. 492 mm

50 mm

6mm

kit 4801 211 00112

R = Max. 10 mm

R = 11.5 mm

4 mm

551 mm

510 mm

479 mm

590 mm

Min. 480 mm

Max. 492 mm

28 mm-

No Max.

Min. 35 mm

Min. 400 mm

Min.100 mm

45 mm

90 mm

120 mm

Min. 28 mm

20 mm

min. 45 mm

min. 550 mm

12 mm-

No Max.

min. 20 mm

60 mm

min. 10 mm

60 mm

min. 20 mm

min. 10 mm

Min. 12 mm

A-A

Min. 12 mm

min. 10 mm

min. 20 mm

90°C

Download the complete instruction manual on

http://docs.hotpoint.eu

or call the phone number

shown on the warranty booklet.

Before using the appliance, read these safety

instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide

important safety warnings to be observed at all times.

The manufacturer declines any liability for failure to

observe these safety instructions, for inappropriate

use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not use

the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on the

cooking surfaces.

CAUTION: The cooking process has to be supervised.

A short cooking process has to be supervised

continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to

extinguish a re with water: instead, switch o the

appliance and then cover ame e.g. with a lid or a re

blanket.

Do not use the hob as a work surface or support.

Keep clothes or other ammable materials away from

the appliance, until all the components have cooled

down completely - risk of re.

Metallic objects such as knives, forks, spoons and

lids should not be placed on the hob surface since they

can get hot.

Very young children (0-3 years) should be kept

away from the appliance. Young children (3-8years)

should be kept away from the appliance unless

continuously supervised. Children from 8 years old

and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and

knowledge can use this appliance only if they are

supervised or have been given instructions on safe use

and understand the hazards involved. Children must

not play with the appliance. Cleaning and user

maintenance must not be carried out by children

without supervision.

After use, switch o the hob element by its control

and do not rely on the pan detector.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid

touching heating elements. Children less than 8 years

of age shall be kept away unless continuously

supervised.

The food must not be left in or on the product for

more than one hour before or after cooking.

PERMITTED USE

CAUTION: the appliance is not intended to be

operated by means of an external switching device,

such as a timer, or separate remote controlled system.

This appliance is intended to be used in household

and similar applications such as: sta kitchen areas in

shops, oces and other working environments; farm

houses; by clients in hotels, motels, bed & breakfast

and other residential environments.

No other use is permitted (e.g. heating rooms).

This appliance is not for professional use. Do not

use the appliance outdoors.

WARNING: Induction hob may generate the

acoustic sound when something is left on the control

panel. Switch o the cooktop through the ON/OFF

button.

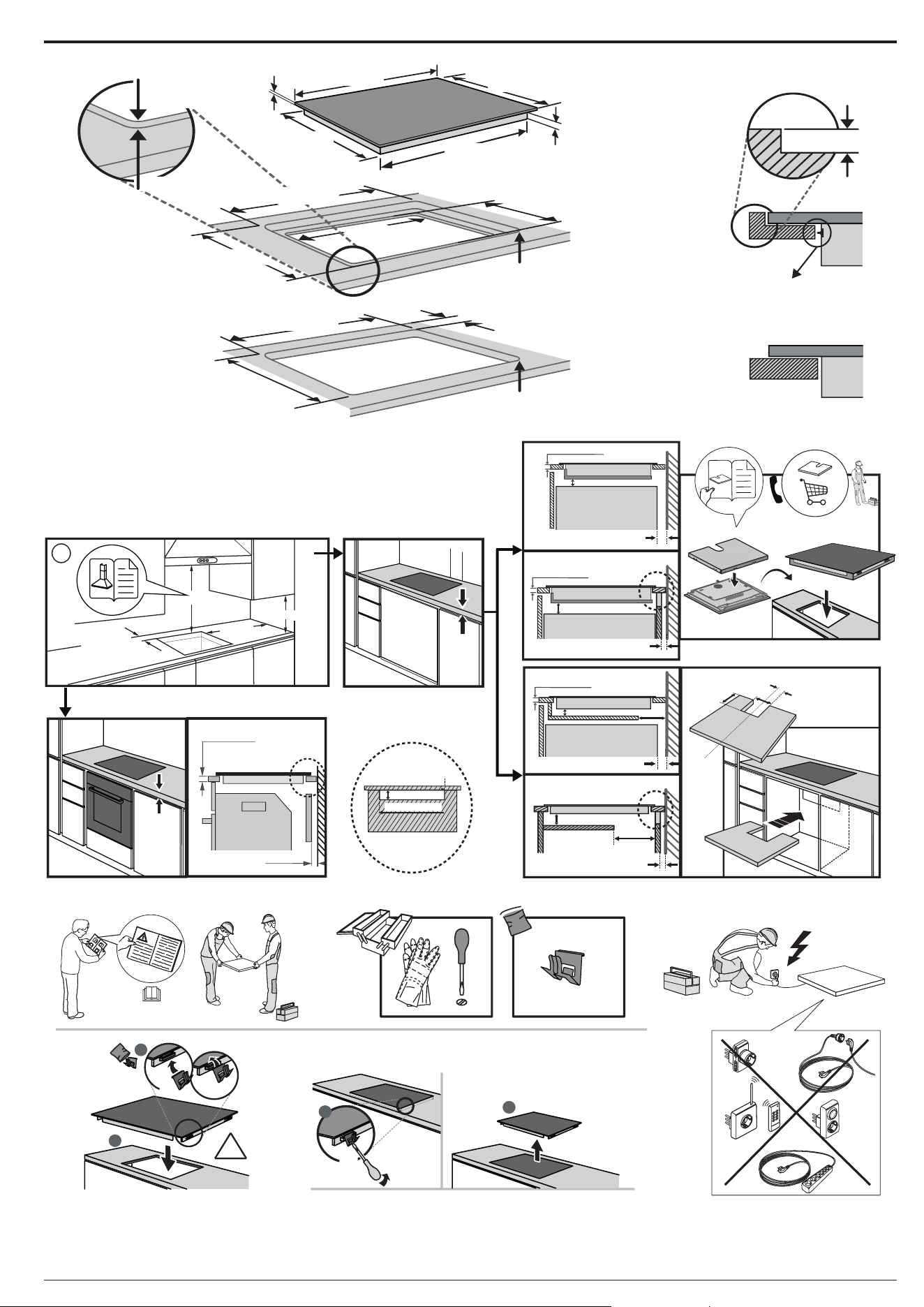

INSTALLATION

The appliance must be handled and installed by

two or more persons - risk of injury. Use protective

gloves to unpack and install - risk of cuts.

Installation, including water supply (if any), electrical

connections and repairs must be carried out by a

qualied technician. Do not repair or replace any part

of the appliance unless specically stated in the user

manual. Keep children away from the installation site.

After unpacking the appliance, make sure that it has

not been damaged during transport. In the event of

problems, contact the dealer or your nearest After-

sales Service. Once installed, packaging waste (plastic,

styrofoam parts etc.) must be stored out of reach of

children - risk of suocation. The appliance must be

disconnected from the power supply before any

installation operation - risk of electric shock. During

installation, make sure the appliance does not damage

the power cable - risk of re or electric shock. Only

activate the appliance when the installation has been

completed.

Carry out all cabinet cutting operations before

tting the appliance and remove all wood chips and

sawdust.

If the appliance is not installed above an oven, a

separator panel (not included) must be installed in the

compartment under the appliance.

ELECTRICAL WARNINGS

It must be possible to disconnect the appliance

from the power supply by unplugging it if plug is

accessible, or by a multi-pole switch installed upstream

of the socket in accordance with the wiring rules and

the appliance must be earthed in conformity with

national electrical safety standards.

Do not use extension leads, multiple sockets or

adapters. The electrical components must not be

accessible to the user after installation. Do not use the

appliance when you are wet or barefoot. Do not

operate this appliance if it has a damaged power cable

or plug, if it is not working properly, or if it has been

damaged or dropped.

Installation using a power cable plug is not allowed

unless the product is already equipped with the one

provided by the Manufacturer.

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

If the supply cord is damaged, it must be replaced

with an identical one by the manufacturer, its service

agent or similarly qualied persons in order to avoid a

hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched o

and disconnected from the power supply before

performing any maintenance operation; never use

steam cleaning equipment - risk of electric shock.

Do not use abrasive or corrosive products, chlorine-

based cleaners or pan scourers.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle

symbol

The various parts of the packaging must therefore be disposed of responsibly

and in full compliance with local authority regulations governing waste

disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations. For further

information on the treatment, recovery and recycling of household electrical

appliances, contact your local authority, the collection service for household

waste or the store where you purchased the appliance. This appliance is

marked in compliance with European Directive 2012/19/EU, Waste Electrical

and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic

Equipment regulations 2013 (as amended).

By ensuring this product is disposed of correctly, you will help prevent negative

consequences for the environment and human health.

The symbol

on the product or on the accompanying documentation

indicates that it should not be treated as domestic waste but must be taken

to an appropriate collection center for the recycling of electrical and electronic

equipment.

ENERGY SAVING TIPS

Make the most of your hot plate’s residual heat by switching it o a few

minutes before you nish cooking.

The base of your pot or pan should cover the hot plate completely; a container

that is smaller than the hot plate will cause energy to be wasted.

Cover your pots and pans with tight-tting lids while cooking and use as

little water as possible. Cooking with the lid o will greatly increase energy

consumption.

Use only at-bottomed pots and pans.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014

and The Ecodesign for Energy-Related Products and Energy Information

(Amendment) (EU Exit) Regulations 2019 in compliance with the European

standard EN 60350-2.

NOTE

People with a pacemaker or similar medical device should use care when

standing near this induction cooktop while it is on. The electromagnetic

eld may aect the pacemaker or similar device. Consult your doctor, or

the manufacturer of the pacemaker or similar medical device for additional

information about its eects with electromagnetic elds of the induction

cooktop.

ELECTRICAL CONNECTION

Electrical connection must be made before connecting the appliance to the electricity supply.

Installation must be carried out by qualied personnel who know the current safety and installation regulations. Specically, installation must be carried out in

compliance with the regulations of the local electricity supply company.

Make sure the voltage specied on the data plate located on the bottom of the appliance is the same as that of the home.

Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only.

blue-blu-azul-azul-μπλε-sinine-zila-mėlyna-niebieski-blau-bleu-blauw-albastru-синьо-плава-modro-

plava-синий-синій-көк-modrý-modrý-kék-blå-sininen-blå-blåt-mavi-gorm- blár

blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mėlyna (pilkas)-

niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-

modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-көк (сұр)-modrý (šedá)-modrý (sivá)-

kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)

yellow/green-giallo/verde-amarillo/verde-amarelo/verdeκίτρινο/πράσινο-kollane/roheline-dzeltens/zaļš-

geltona/žalia-żółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелена-

rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/сары-žlutá/zelená-žltá/zelená-

sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sarı/yeşil-buí/glas- gulur/grænn

black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-

črna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur

brown-marrone-marrón-marrom-καφέ-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-кaфяв-

браон-rjava-smeđ-коричневый-коричневий-қоңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brun-

kahverengi-donn-brúnn

220-240 V

220-240 V 3

230V 2 Phase 2N

380-415 V 2 N ~

220-240 V

380-415 V 3 N ~

AU-UK-IRL

PRODUCT DESCRIPTION

1. Cooktop

2. Control panel

CONTROL PANEL

7 7

5 87 7

6 14

11 12

OFF

4 16

OFF

3sec

1. Symbols/activation of special functions

2. Cooking level selected

3. Cooking zone o button

4. Scroll keypad

5. Fast heating button (Booster)

6. FLEXI DUO button (left)

7. Indicator light – function active

8. On/O button

9. Timer

10. Mymenu button

11. Cooking time indicator

12. OK/Key lock button – 3seconds

13. FLEXI DUO button (right)

14. Timer active indicator

15. Zone selection indicator

16. Timer indicator symbol

THANK YOU FOR BUYING A HOTPOINT PRODUCT

In order to receive a more complete assistance, please

PLEASE SCAN THE QR CODE ON

YOUR APPLIANCE IN ORDER TO

REACH MORE INFORMATION

















Before using the appliance carefully read the Safety

Instruction.

Owner's manual

FIRST TIME USE

POWER MANAGEMENT

At the time of purchase, the hob is set to the maximum possible power. Adjust

the setting concerning the limits of your home's electrical system as described

in the following paragraph.

N.B: Depending on the power selected for the hob, some of the cooking zone

power levels and functions (e.g. boil or fast heating) could be automatically

limited to prevent the selected limit from being exceeded.

To set the power of the hob:

Once you have connected the device to the mains power supply, you can set

the power level within 60seconds.

Press the far right timer ”+” button for at least 5seconds. The display shows ”PL”.

Press the

3 sec

button to conrm.

Use the ”+” and ”−” buttons to select the desired power level.

The power levels available are: 2.5 kW – 4.0 kW – 6.0 kW – 7.2 kW.

Conrm by pressing

3 sec

The power level selected will stay in the memory even if the power supply

is interrupted.

To change the power level, disconnect the appliance from the mains for at

least 60 seconds, plug it back in, and repeat the above steps.

If an error occurs during the setting sequence, the ”EE” symbol will appear, and

you will hear a beep. If this happens, repeat the operation.

If the error persists, contact the After-Sales Service.

ACOUSTIC SIGNAL ON/OFF

To switch the acoustic signal on/o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

• Press the ”P” button of the rst scroll keypad at the top left for 5seconds.

Any alarms set will remain active.

DEMO MODE (reheating deactivated, see the section on ”Troubleshooting”)

To switch the demo mode on and o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

• Within the rst minute, press the fast heating button ”P” of the bottom left

keypad for 5seconds (as shown below);

• ”DE” will show on the display.

ACCESSORIES

POTS AND PANS

Only use pots and pans made from ferromagnetic material suitable for induction

hobs. Check for the

symbol (generally stamped on the bottom) to determine

whether a pot is suitable. A magnet may also be used to check whether the

cookware base is magnetic.

COOKWARE MATERIAL PROPERTIES

Recommended

cookware

Base is made of stainless

steel with sandwich design,

enamelled steel, cast iron.

Ensures optimum e󰀩ciency,

heats up quickly, and distributes

heat evenly.

Suitable

cookware

Base is not fully ferromagnetic

(magnet sticks only in a portion

of the cookware base).

Only the ferromagnetic area

heats up. As a result, may heat

up less quickly and heat may

be distributed less evenly.

Suitable

cookware

Ferromagnetic base contains

areas with aluminium or has

a recessed area in the centre.

The ferromagnetic area

is smaller than the actual

cookware base area. As a

result, less power may be

delivered and cookware may

not heat su󰀩ciently. Cookware

may not be detected.

Not suitable Normal thin steel, glass, clay,

copper, aluminium and other

non-ferromagnetic materials,

cookware with rubber feet

Cookware is not detected and

will not heat up.

NOTE: All cookware must have a at base. Periodically check the base for any

sign of warping, as some cookware may undergo deformation due to high heat.

ADAPTERS FOR POTS/PANS UNSUITABLE FOR INDUCTION

The use of adapter plates aects eciency and therefore increases the time

required to heat water or food. Make sure that the ferromagnetic diameter

of the cookware base aligns with both the diameter of the adapter plate

and the diameter of the cooking zone. If these measurements don't match,

it can signicantly decrease eciency and performance. Not following these

guidelines could lead to heat build up that is not eectively transferred to the

pot or pan, potentially causing blackening of the plate and hob.

EMPTY POTS AND PANS

The hob is equipped with an internal safety system that activates the “Automatic

o” function when too high temperature is detected. The use of empty pots

and pans with a thin base is not recommended. However, when doing so, the

temperature might rise quicker than the time needed for the “Automatic o” to

be triggered promptly, with the risk of damaging the pan or the hob surface. If

this occurs, do not touch the pan nor the hob surface and wait for all components

to cool down. If any error message is displayed, call the Service Centre.

SUITABLE SIZE OF PAN/POT BASE FOR THE DIFFERENT COOKING

ZONES

To ensure that the hob works properly, use pots of a suitable base diameter for

each zone (refer to the table below). Please note that cookware manufacturers

often provide the size of the upper diameter of the cookware, rather than the

base diameter.

To ensure that the hob works with the expected performance, always use a

cooking zone with a size matching the ferromagnetic size of the cookware base.

Place the pan/pot making sure it is well centred on the cooking zone in use. It is

recommended not to use pots larger than the size of the cooking zone.

COOKWARE USAGE BY ZONE

Zone

Suitable cookware

shape

Suitable ferromagnetic

base (cm)

1 or 2 Round or Square 12

3 or 4 Round or Square 12

1+2 or 3+4

(FLEXI DUO)

Oval or Rectangular Short side 16-21

Long side 24 - 38

DAILY USE

SWITCHING THE HOB ON/OFF

To turn the hob on, press the power button for around 1 second. To turn the

hob o, press the same button again, and all cooking zones will be deactivated.

POSITIONING

Do not cover the control panel symbols with the cooking pot.

Please note: In the cooking zones close to the control panel, it is advisable to

keep pots and pans inside the markings (taking both the bottom of the pan

and the upper edge into consideration, as this tends to be larger).

This prevents excessive overheating of the keypad. When grilling or frying,

please use the rear cooking zones wherever possible.

ACTIVATING/DEACTIVATING COOKING ZONES AND ADJUSTING POWER

LEVELS

OFF

To activate the cooking zones:

Move your nger horizontally across the scroll keypad (SLIDER) of the required

cooking zone to activate it and adjust the power. The level will be shown in line

with the area and the indicator light identifying the active cooking zone. The

”P” button can be used to select the fast heating function (Booster).

To deactivate the cooking zones:

Select the ”OFF” button at the beginning of the scroll keypad.

3 sec

CONTROL PANEL LOCK

To lock the settings and prevent it from accidentally switching on, press and

hold the OK/Key lock button for 3seconds. A beep and a warning light above

the symbol indicate that this function has been activated. The control panel

is locked except for the switching o function (

). To unlock the controls,

repeat the activation procedure.

TIMER

There are two timers - one controls the left-hand cooking zones, while the

other controls the right-hand cooking zones.

To activate the timer:

Press the ”+” or ”−” button to set the desired time on the cooking zone in use.

An indicator light will be activated in line with the specic symbol

. Once

the set time has elapsed, a beep will sound, and the cooking zone will switch

o automatically.

The time can be changed at any point, and several timers can be activated

simultaneously.

In case 2 timers on the same side of the hob are activated simultaneously,

”Zone selection indicator” ashes and the relative cooking time selected is

displayed on the central display”.

To deactivate the timer:

Press the ”+” and ”−” buttons together until the timer is deactivated.

TIMER INDICATOR

This LED (when ON) indicates that the timer has been set for the cooking zone.

FUNCTIONS

FLEXI DUO

By selecting the ”FLEXI DUO” button, you can combine two cooking zones and

use them at the same power by covering the entire surface with a large pot or

partially with a round/oval pot.

The function always remains on and, when using only one pot, can be moved

over the entire area. In this case, both scroll keypads (left and right) can be used

indierently.

Ideal for cooking with oval or rectangular pots or with pan supports.

To deactivate the function, press the ”FLEXI DUO” button.

N.B. Special functions cannot be selected when using this feature.

IMPORTANT: Place the pots in the center of the cooking zone so that they

cover at least one of the reference points (as shown below).

MYMENU

The ”Mymenu” button activates the special functions.

Place the pot in position and select the cooking zone.

Press the ”Mymenu” button. The display of the selected area will show ”A”.

The indicator for the rst special feature available for the cooking zone will

light up.

Select the desired special function by pressing the ”Mymenu” button one or

more times.

The function is activated once the

3 sec

button has been pressed to conrm.

To select another special function, press ”OFF” and then the ”Mymenu” button

to choose the required function.

To deactivate the special functions and return to manual mode, press ”OFF”.

The power level when using special functions is pre-set by the hob and cannot

be modied.

MELTING

This function allows you to bring food to the ideal temperature for

melting and maintain the food condition without the risk of burning.

This method is ideal, as it does not damage delicate foods such as

chocolate and prevents them from sticking to the pot.

KEEP WARM

This feature allows you to keep your food at an ideal temperature, usually after

cooking is complete or reducing liquids very slowly.

Ideal for serving foods at the perfect temperature.

SLOW COOKING

This function is ideal for maintaining a simmering temperature, allowing you

to cook food for long periods with no risk of burning.

Ideal for long-cooking recipes (rice, sauces, roasts) with liquid sauces.

OFF

3sec

Owner's manual

COOKING TABLE

POWER LEVEL TYPE OF COOKING

LEVEL USE

(indicating cooking experience and habits)

Maximum

power

P Fast heating/Booster

Ideal for rapidly increasing food temperature to a fast boil (for water) or for rapidly heating

cooking liquids.

14 − 18

Frying − boiling

Ideal for browning, starting to cook, frying deep-frozen products, bringing liquids to the

boil quickly.

Browning − sautéing − boiling −

grilling

Ideal for sautéing, maintaining a lively boil, cooking and grilling.

10 − 14

Browning − cooking − stewing −

sautéing − grilling

Ideal for sautéing, maintaining a gentle boil, cooking and grilling, and preheating

accessories.

Cooking − stewing − sautéing −

grilling − cooking until creamy

Ideal for stewing, maintaining a gentle boil, cooking and grilling (for longer periods).

5 − 9

Cooking − simmering − thickening

− creaming

Ideal for slower-cook recipes (rice, sauces, roast, sh) with liquids (e.g. water, wine, broth,

milk), and for creaming pasta.

Ideal for slow-cook recipes (quantities under 1 litre: rice, sauces, roasts, sh) with liquids

(e.g. water, wine, broth, milk).

1 − 4

Melting − defrosting Ideal for softening butter, gently melting chocolate, thawing small items.

Keeping food warm − creaming

risotto

Ideal for keeping small portions of just-cooked food or serving dishes warm and for

creaming risotto.

Zero power OFF – Hob in standby or o mode (possible end-of-cooking residual heat, indicated by an ”H”).

BOILING

This function allows you to bring water to the boil and keep it boiling,

with lower energy consumption.

About 2 litres of water (preferably at room temperature) should be placed

in the pan.

INDICATORS

RESIDUAL HEAT

If “H“ appears on the display, this means that the cooking zone is hot. The

indicator lights up even if the zone has not been activated but has been heated

due to the adjacent zones' use or because a hot pot has been placed on it.

When the cooking zone has cooled down, the ”H” disappears.

POT INCORRECTLY POSITIONED OR MISSING

This symbol appears if the pot is not suitable for induction cooking, is not

positioned correctly or is not of an appropriate size for the cooking zone

selected. If no pot is detected within 30seconds of making the selection, the

cooking zone switches o.

In all cases, users are advised to monitor the boiling water closely and

check the amount of water remaining regularly.

If the pots are big and the water quantity is higher than 2 litres, we

recommend using a lid to optimize boiling time.

The cooking table oers an example of the cooking type for each power level. The actual delivered power of each power level depends on the cooking zone

dimension.

CLEANING AND MAINTENANCE

WARNING

• Do not use steam cleaning equipment.

• Before cleaning, make sure the cooking zones are switched o and that the residual heat indicator (”H”) is not displayed.

Important:

• Do not use abrasive sponges or scouring pads as they may damage the

glass.

• After each use, clean the hob (when it is cool) to remove any deposits and

stains from food residue.

• A surface that is not kept suitably clean may reduce the sensitivity of

control panel buttons.

• Use a scraper only if residues are stuck to the hob. Follow the scraper

manufacturer's instructions to avoid scratching the glass.

• Sugar or foods with high sugar content can damage the hob and must be

immediately removed.

• Salt, sugar and sand could scratch the glass surface.

• Use a soft cloth, absorbent kitchen paper or a special hob cleaner (follow

the Manufacturer’s instructions).

• Spills of liquid in the cooking zones can cause the pots to move or vibrate.

• After cleaning the hob, dry thoroughly.

Induction hobs may whistle or creak during normal operation

These noises actually come from the cookware and are linked to the pan

bottoms' characteristics (for example, when the bottoms are made from

dierent layers of material or are irregular).

These noises may vary according to the type of cookware used, and the

amount of food, it contains and are not the symptom of something wrong.

SOUNDS PRODUCED DURING OPERATION

TROUBLESHOOTING

• Check that the electricity supply has not been shut o.

• If you cannot turn the hob o after using it, disconnect it from the power

supply.

• If alphanumeric codes appear on the display when the hob is switched on,

consult the following table for instructions.

Please note: The presence of water, liquid spilled from pots or any objects

resting on any of the hob buttons can accidentally activate or deactivate the

control panel lock function.

DISPLAY CODE DESCRIPTION POSSIBLE CAUSES SOLUTION

F0E1

Cookware is detected but it is not

compatible with requested operation.

The cookware is not well positioned on

the cooking zone, or it is not compatible

with one or more cooking zones.

Press On/O button twice to remove the

F0E1 code and restore the functionality

of the cooking zone. Then, try to use the

cookware with a dierent cooking zone, or

use dierent cookware.

F0E7

Wrong power cord connection. The power supply connection is not

exactly as indicated in “ELECTRICAL

CONNECTION“ paragraph.

Adjust the power supply connection

according to “ELECTRICAL CONNECTION“

paragraph.

F0EA

The control panel switches o because

of excessively high temperatures.

The internal temperature of electronic

parts is too high.

Wait for the hob to cool down before using it

again.

F0E9

The cooking zone turns o when the

temperatures are too high.

The internal temperature of electronic

parts is too high.

Wait until the cooking area has cooled o

before using it again.

F0E2, F0E4, F0E6, F0E8,

F0EC, F1E1, F2E1, F6E1,

F6E3, F7E5, F7E6

Disconnect the hob from the power supply.

Wait a few seconds then reconnect the hob to the power supply.

If the problem persists, call the service centre and specify the error code that appears on the display.

d E

[when the hob is off]

The hob does not switch heat up.

The functions do not come on.

DEMO MODE on. Follow the instructions in the “DEMO MODE“

paragraph.

e.g.

The hob does not allow a special function

to be activated.

The power regulator limits the power

levels in accordance with the maximum

value set for the hob.

See paragraph “Power management“.

e.g.

[Power level lower than level

requested]

The hob automatically sets a minimum

power level to ensure that the cooking

zone can be used.

The power regulator limits the power

levels in accordance with the maximum

value set for the hob.

See paragraph “Power management“.

AFTER-SALES SERVICE

To receive complete assistance, please register your product on

www.hotpoint.eu/register.

BEFORE CALLING THE AFTER-SALES SERVICE:

1. See if you can solve the problem by yourself with the help of the

TROUBLESHOOTING suggestions.

2. Switch the appliance o and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH

WITH THE NEAREST AFTER-SALES SERVICE.

To receive assistance, call the number shown on the warranty booklet or follow

the website's instructions on www.hotpoint.eu .

When contacting our Client After sales service, always specify:

• a brief description of the fault;

• the type and exact model of the appliance;

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXX

Made in X

Type: XXXMod.: XXX

XXXX XXX XXXXXXX XXXX XXXXX

XXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

• the serial number (number after the word SN on the rating plate

located under the appliance). The serial number is also indicated in the

documentation;

Mod.

Ind.C.

SN:

Prod.N.

xxxx xxxx xxxx

xxx xxx

PRODUCT

INFORMATION

• your full address;

• your telephone number.

If any repairs are required, please contact an authorized after-sales service

(to guarantee that original spare parts will be used and repairs carried out

correctly).

In the case of ush-mounted installation, call the After-Sales Service to request

assembly of screws kit 4801 211 00112.

In case of installation not over a built-in oven, you can call the After Sales

Service to buy the divider kit C00628720 (cooktop 60 and 65 cm) or C00628721

(cooktop 77 cm).

If you prefer not to buy the divider kit please ensure that a separator is installed

according to the installation instructions.

400020000932

Policies, standard documentation and additional product information can be found by:

• Using QR code in your appliance;

• Visiting our website docs. hotpoint. eu;

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our

After-sales Service, please state the codes provided on your product's identication plate.

















Owner's manual

CONSIGNES DE SÉCURITÉ

IMPORTANT - À LIRE ET À RESPECTER

Télécharger le manuel d'instructions complet sur

http://docs.hotpoint.eu

ou appeler le numéro de

téléphone indiqué sur le livret de garantie.

Avant d’utiliser l’appareil, lire attentivement les

consignes de sécurité. Conservez-les à portée pour

consultation ultérieure.

Le présent manuel et l'appareil en question

contiennent des consignes de sécurité importantes

qui doivent être observées en tout temps. Le Fabricant

décline toute responsabilité si les consignes de

sécurité ne sont pas respectées, en cas de mauvaise

utilisation de l’appareil, ou d'un mauvais réglage des

commandes.

AVERTISSEMENT: Ne pas utiliser la table de cuisson

si la surface est cassée ou ssurée - risque de choc

électrique.

AVERTISSEMENT: Risque d’incendie: Ne rangez

aucun objet sur les surfaces de cuisson.

MISE EN GARDE: La cuisson doit être supervisée.

Une cuisson de courte durée doit être supervisée en

tout temps.

AVERTISSEMENT: Une cuisson sans surveillance sur

une table de cuisson contenant de la graisse ou de

l’huile peut s’avérer dangereuse - risque d’incendie.

Ne tentez JAMAIS d’éteindre un feu avec de l’eau: au

contraire, éteignez l’appareil, puis couvrez la amme,

par exemple avec un couvercle ou une couverture

ignifuge.

N’utilisez pas la table de cuisson comme surface de

travail ou support. Gardez les vêtements et autres

matières inammables loin de l’appareil jusqu’à ce

que toutes les composantes soient complètement

refroidies - un incendie pourrait se déclarer.

Comme ils peuvent devenir chauds, les objets

métalliques comme les couteaux, les fourchettes, les

cuillères, et les couvercles ne doivent pas être placés

sur la surface de la table de cuisson.

Les enfants en bas âge (0-3 ans) doivent être tenus

à l'écart de l'appareil. Les jeunes enfants (3-8 ans)

doivent être tenus à l'écart de l'appareil sauf s'ils se

trouvent sous surveillance constante. Les enfants

âgés de 8 ans et plus, ainsi que les personnes

présentant des capacités physiques, sensorielles ou

mentales réduites, ou ne possédant ni l'expérience ni

les connaissances requises, peuvent utiliser cet

appareil seulement s'ils sont supervisés, ou si une

personne responsable leur a expliqué l'utilisation

sécuritaire et les dangers potentiels de l'appareil. Ne

laissez pas les enfants jouer avec l'appareil. Le

nettoyage et l'entretien ne doivent pas être exécutés

par des enfants sans surveillance.

Après l’utilisation, éteignez la table de cuisson à

l’aide de la commande, ne vous ez pas au détecteur

de casserole.

AVERTISSEMENT: L’appareil, ainsi que ses parties

accessibles, peuvent atteindre température élevée

lors de l’utilisation. Veillez à ne pas toucher les

éléments chauants. Les enfants de moins de 8 ans

doivent être tenus à l’écart de l’appareil, à moins d’être

sous surveillance constante.

Les aliments ne doivent pas être laissés dans ou sur

le produit pendant plus d'une heure avant ou après la

cuisson.

USAGE AUTORISÉ

MISE EN GARDE: Cet appareil n’est pas conçu pour

être utilisé avec un dispositif de mise en marche externe

comme une minuterie ou un système de contrôle à

distance.

Cet appareil est destiné à un usage domestique et peut

aussi être utilisé dans les endroits suivants: cuisines pour le

personnel dans les magasins, bureaux et autres

environnements de travail; dans les fermes; par les clients

dans les hôtels, motels, et autres résidences similaires.

Aucune autre utilisation n’est autorisée (p. ex. pour

chauer des pièces).

Cet appareil n’est pas conçu pour un usage

professionnel. N’utilisez pas l’appareil en extérieur.

AVERTISSEMENT: La table de cuisson à induction

peut générer un son lorsque quelque chose est laissé

sur le panneau de commande. Éteignez-la en agissant

sur le bouton MARCHE/ARRÊT.

INSTALLATION

Deux personnes minimum sont nécessaires pour

déplacer et installer l’appareil - risque de blessure.

Utilisez des gants de protection pour le déballage et

l’installation de l’appareil - vous risquez de vous couper.

L’installation, incluant l’alimentation en eau (selon

le modèle), et les connexions électriques, ainsi que les

réparations, doivent être exécutées par un technicien

qualié. Ne procédez à aucune réparation ni à aucun

remplacement de pièce sur l’appareil autre que ceux

spéciquement indiqués dans le guide d’utilisation.

Gardez les enfants à l’écart du site d’installation. Après

avoir déballé l’appareil, assurez-vous qu’il n’a pas été

endommagé pendant le transport. En cas de

problème, contactez le détaillant ou le service Après-

vente le plus proche. Une fois installé, gardez le

matériel d’emballage (sacs en plastique, parties en

polystyrène, etc.) hors de la portée des enfants - ils

pourraient s’étouer. L’appareil ne doit pas être

branché à l’alimentation électrique lors de l’installation

- vous pourriez vous électrocuter. Au moment de

l’installation, assurez-vous que le câble d’alimentation

n’est pas endommagé par l’appareil - risque d’incendie

ou de choc électrique. Allumez l’appareil uniquement

lorsque l’installation est terminée.

Découpez le contour du meuble avant d’y insérer

l’appareil, et enlevez soigneusement tous les copeaux

et la sciure de bois.

Si l’appareil n’est pas installé au-dessus d’un four,

un panneau séparateur (non compris) doit être installé

dans le compartiment sous l’appareil.

ALIMENTATION ÉLECTRIQUE

Il doit être possible de débrancher l’appareil de

l’alimentation électrique en retirant la che de la prise

de courant si elle est accessible, ou à l’aide d’un

interrupteur multipolaire en amont de la prise de

courant, conformément aux normes de sécurité

électrique nationales.

Utilisez pas de rallonge, de prises multiples ou

d’adaptateurs. Une fois l’installation terminée, l’utilisateur

ne devra plus pouvoir accéder aux composantes

électriques. N’utilisez pas l’appareil si vous êtes mouillé ou

si vous êtes pieds nus. N’utilisez pas l’appareil si le câble

d’alimentation ou la prise de courant est endommagé(e),

si l’appareil ne fonctionne pas correctement, ou s’il a été

endommagé ou est tombé.

Une installation utilisant une prise de câble

électrique n'est pas autorisée sauf si le produit en est

déjà équipé par le Fabricant.

Si le câble d’alimentation est endommagé, il doit

être remplacé avec un câble identique par le fabricant,

un représentant du Service Après-vente, ou par toute

autre personne qualiée - vous pourriez vous

électrocuter.

NETTOYAGE ET ENTRETIEN

AVERTISSEMENT: Assurez-vous que l’appareil est

éteint et débranchez de l’alimentation électrique

avant d’eectuer le nettoyage ou l’entretien; n’utilisez

jamais un appareil de nettoyage à vapeur - risque de

choc électrique.

Utilisez en aucun cas de produits abrasifs ou

corrosifs, de produits chlorés ou de tampons à récurer.

MISE AU REBUT DES MATÉRIAUX D’EMBALLAGE

Les matériaux d’emballage sont entièrement recyclables comme l’indique le

symbole de recyclage

Les diérentes parties de l’emballage doivent donc être jetées de manière

responsable et en totale conformité avec les réglementations des autorités

locales régissant la mise au rebut de déchets.

MISE AU REBUT DES APPAREILS ÉLECTROMÉNAGERS

Cet appareil est fabriqué à partir de matériaux recyclables ou réutilisables.

Mettez-le au rebut en vous conformant aux réglementations locales en

matière d’élimination des déchets. Pour toute information supplémentaire

sur le traitement et le recyclage des appareils électroménagers, contactez le

service local compétent, le service de collecte des déchets ménagers ou le

magasin où vous avez acheté l’appareil. Cet appareil est marqué comme étant

conforme à la Directive européenne 2012/19/EU, aux réglementations relatives

aux Déchets d'équipement électrique et électronique (DEEE) et relatives aux

Déchets d'équipement électrique et électronique de 2013 (tels qu'amendés).

En vous assurant que l’appareil est mis au rebut correctement, vous pouvez

aider à éviter d’éventuelles conséquences négatives sur l’environnement et la

santé humaine.

Le symbole

sur le produit ou sur la documentation qui l’accompagne

indique qu’il ne doit pas être traité comme un déchet domestique, mais doit

être remis à un centre de collecte spécialisé pour le recyclage des appareils

électriques et électroniques.

CONSEILS RELATIFS À L’ÉCONOMIE D’ÉNERGIE

Tirez le meilleur de la chaleur résiduelle de votre plaque de cuisson en

l’éteignant quelques minutes avant de terminer la cuisson.

La base de votre casserole ou de votre poêle couvre totalement la plaque

chaude; un récipient plus petit que la plaque chaude provoquera un gaspillage

d’énergie.

Couvrez vos casseroles et poêles avec des couvercles parfaitement ajustés

et utilisez le moins d’eau que possible. La cuisson à découvert augmentera

considérablement la consommation d’énergie.

Utilisez uniquement des casseroles et poêles à fond plat.

DÉCLARATION DE CONFORMITÉ

Cet appareil respecte les conditions requises d'écoconception de la

Réglementation européenne 66/2014 et des Réglementations en matière

d'écoconception pour les produits liés à l'énergie et les informations

énergétiques (Amendement) (Sortie de l'UE) 2019, conformément à la norme

européenne EN 60350-2.

REMARQUE

Les porteurs d'un pacemaker ou d'un dispositif médical similaire doivent faire

attention lorsqu'ils se trouvent près de cette plaque à induction allumée. Le

champ électromagnétique peut aecter le pacemaker ou ledit dispositif

similaire. Consultez votre médecin, ou le fabricant du pacemaker ou du

dispositif médical similaire pour plus d'informations sur les eets des champs

électromagnétiques de la plaque à induction.

BRANCHEMENT ÉLECTRIQUE

Le branchement électrique doit être réalisé avant de brancher l’appareil au réseau d’alimentation.

L’installation doit être eectuée par un personnel qualié qui connaît les réglementations actuelles relatives à la sécurité et à l’installation. En particulier,

l’installation doit être réalisée conformément aux réglementations de la société locale de distribution d’électricité.

Assurez-vous que la tension spéciée sur la plaque signalétique située au bas de l’appareil correspond à celle de votre logement.

La mise à la terre de l’appareil est obligatoire aux termes de la loi: utilisez uniquement des conducteurs (y compris le l de terre) de section appropriée.
