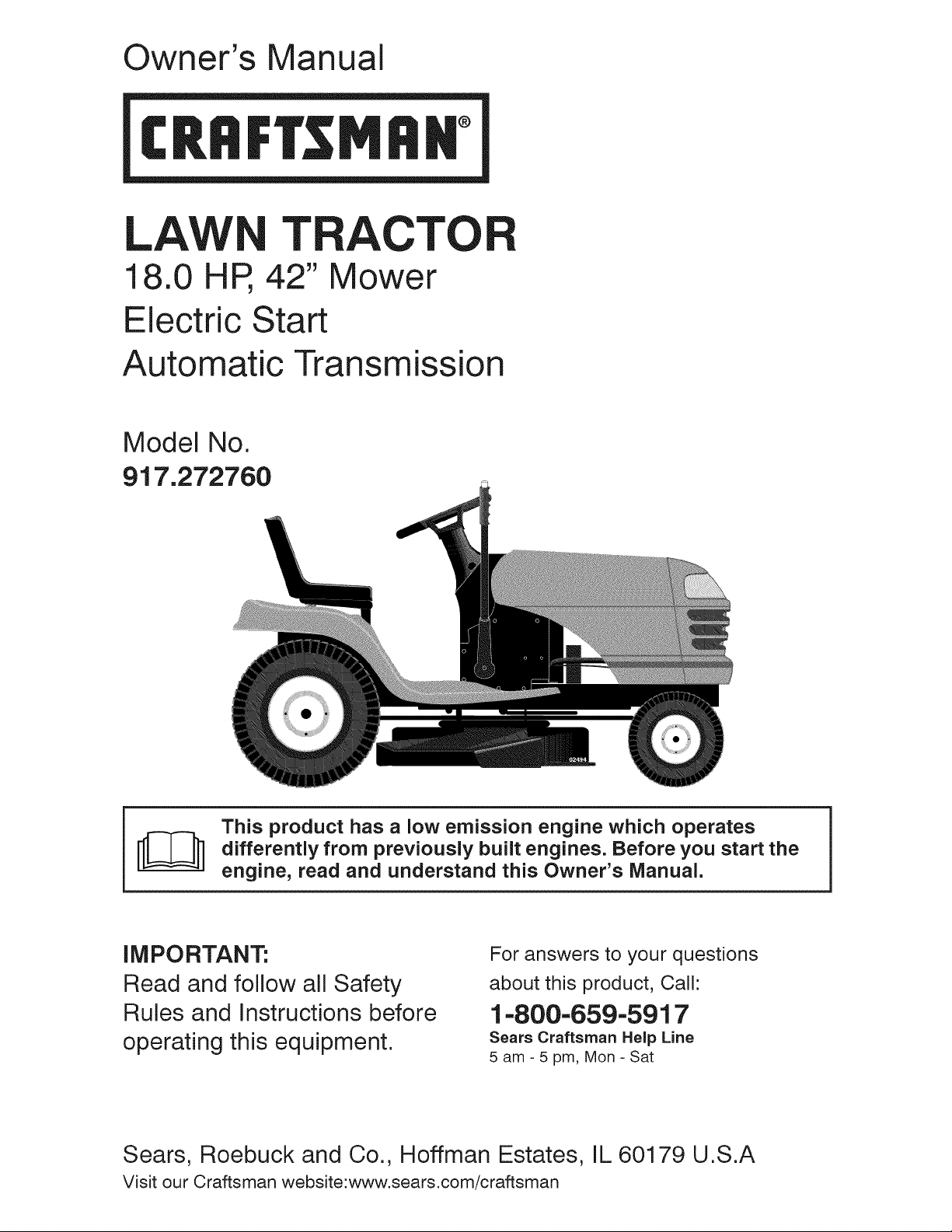

Craftsman 917272760 lawn tractor User Manual

Owner's Manual

CRRI:TSMRN°

LAW TRACTO

18.0 HR 42" Mower

Electric Start

Automatic Transmission

Model No.

917.272760

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

AssemblyPre-Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 22

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears

will also provide free labor for these applicable warranted parts for the two full years.

During the first 30 days of purchase, there will be no charges to service the product

at your home for issues covered by this warranty. (See exclusions below). For your

convenience, IN HOME warranty service will still be available after the first 30 days

of purchase, but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped off at an authorized Sears location. For the nearest authorized Sears

location, please call 1-800-4-MY-HOME®. This warranty applies only while this product

is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fue! determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LI MITE D WAR RANTY O N BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

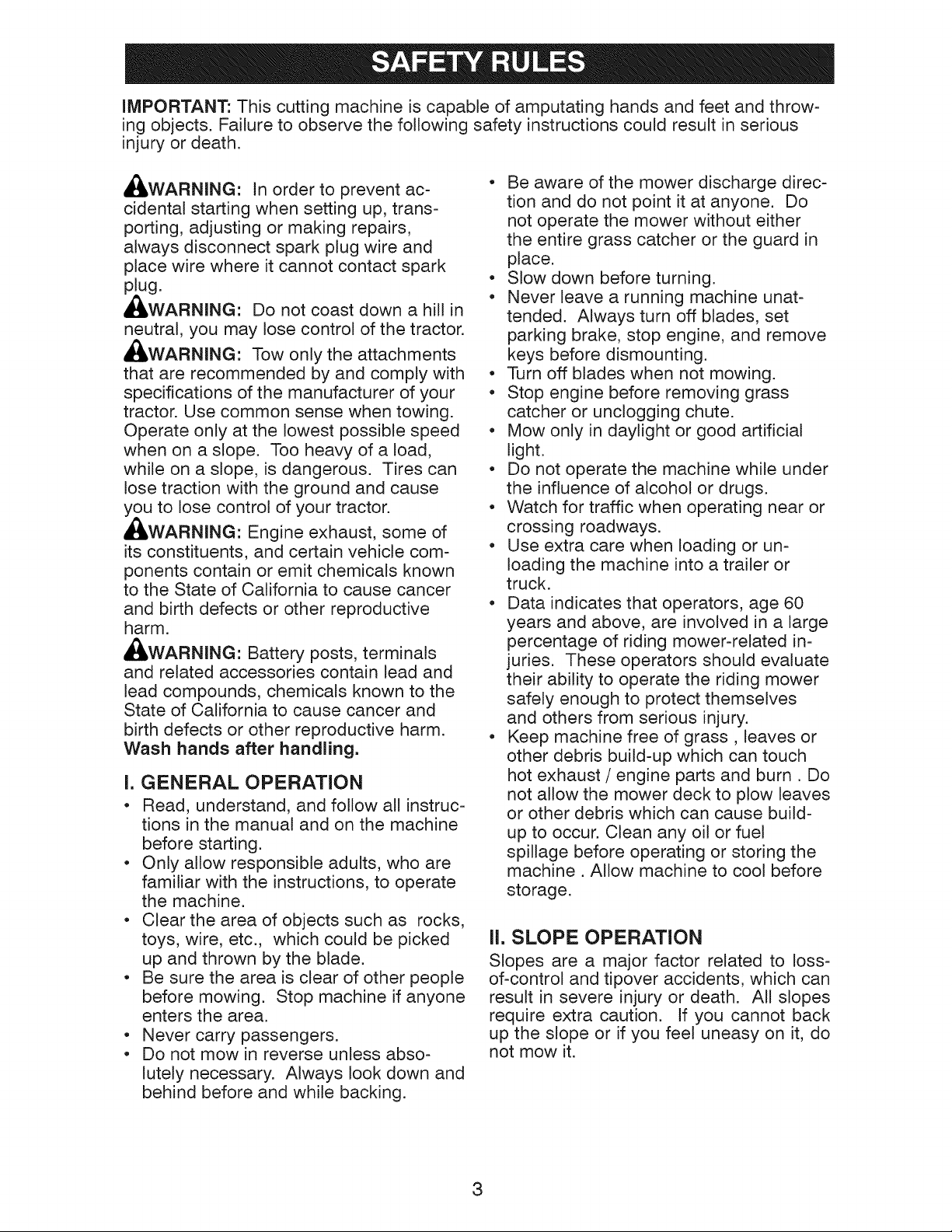

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IbWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

,_lug.

WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

li. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

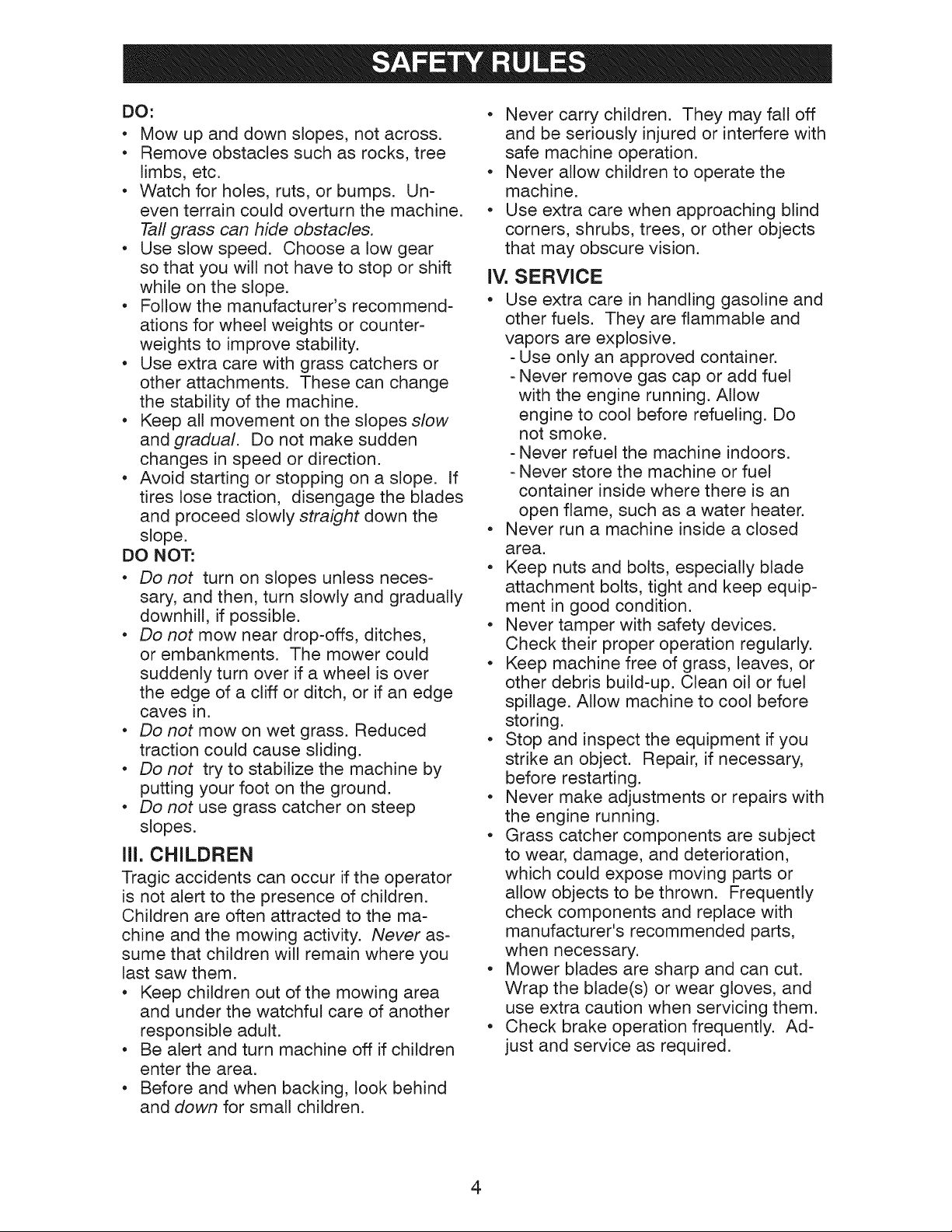

DO:

* Mow up and down slopes, not across.

* Remove obstacles such as rocks, tree

limbs, etc.

* Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

* Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

* Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

* Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

* Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

* Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

* Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

* Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

* Do not mow on wet grass. Reduced

traction could cause sliding.

* Do not try to stabilize the machine by

putting your foot on the ground.

* Do not use grass catcher on steep

slopes.

Iii. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

* Keep children out of the mowing area

and under the watchful care of another

responsible adult.

* Be alert and turn machine off if children

enter the area.

* Before and when backing, look behind

and down for small children.

* Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

* Never allow children to operate the

machine.

* Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

* Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

* Never run a machine inside a closed

area.

* Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

* Never tamper with safety devices.

Check their proper operation regularly.

* Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

* Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

* Never make adjustments or repairs with

the engine running.

* Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

* Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

* Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

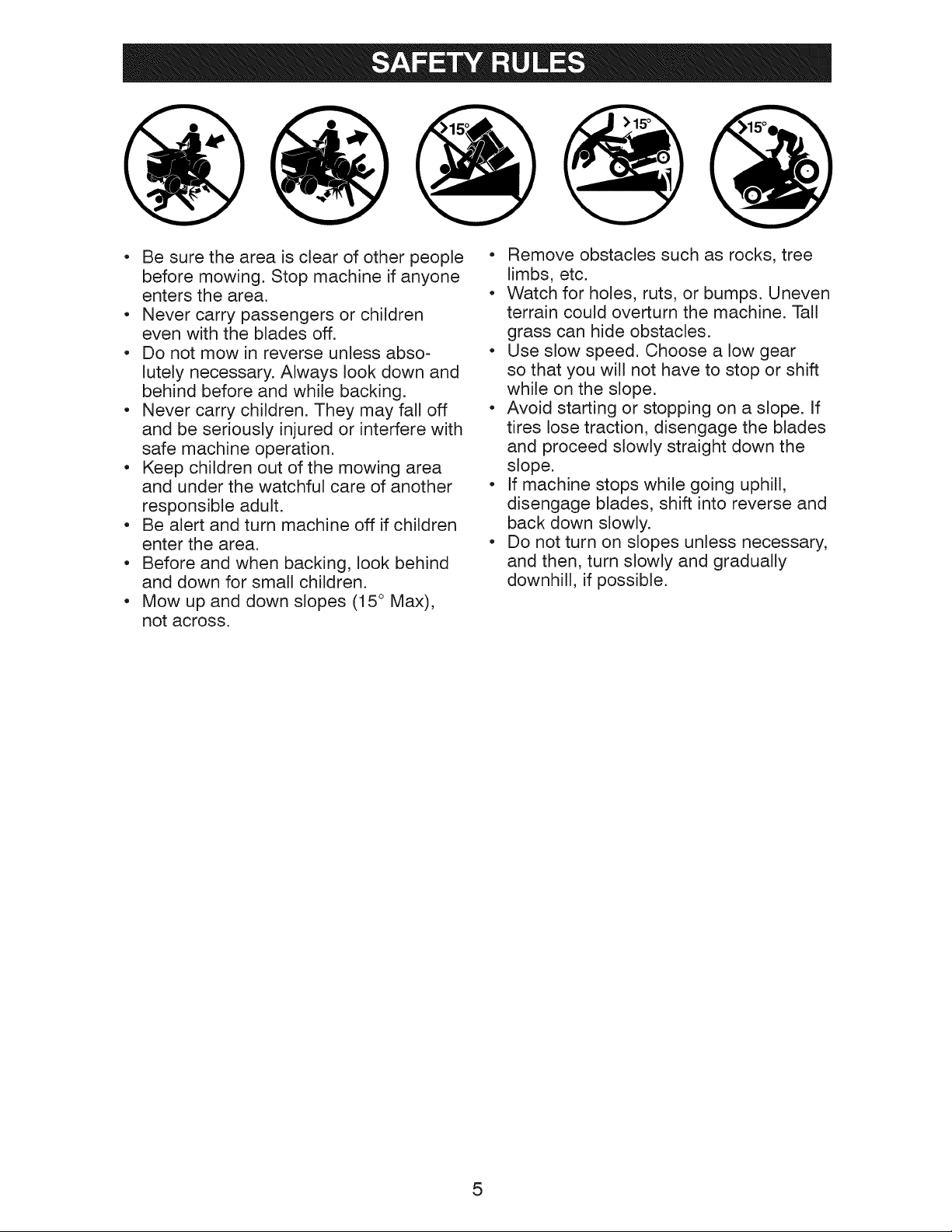

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

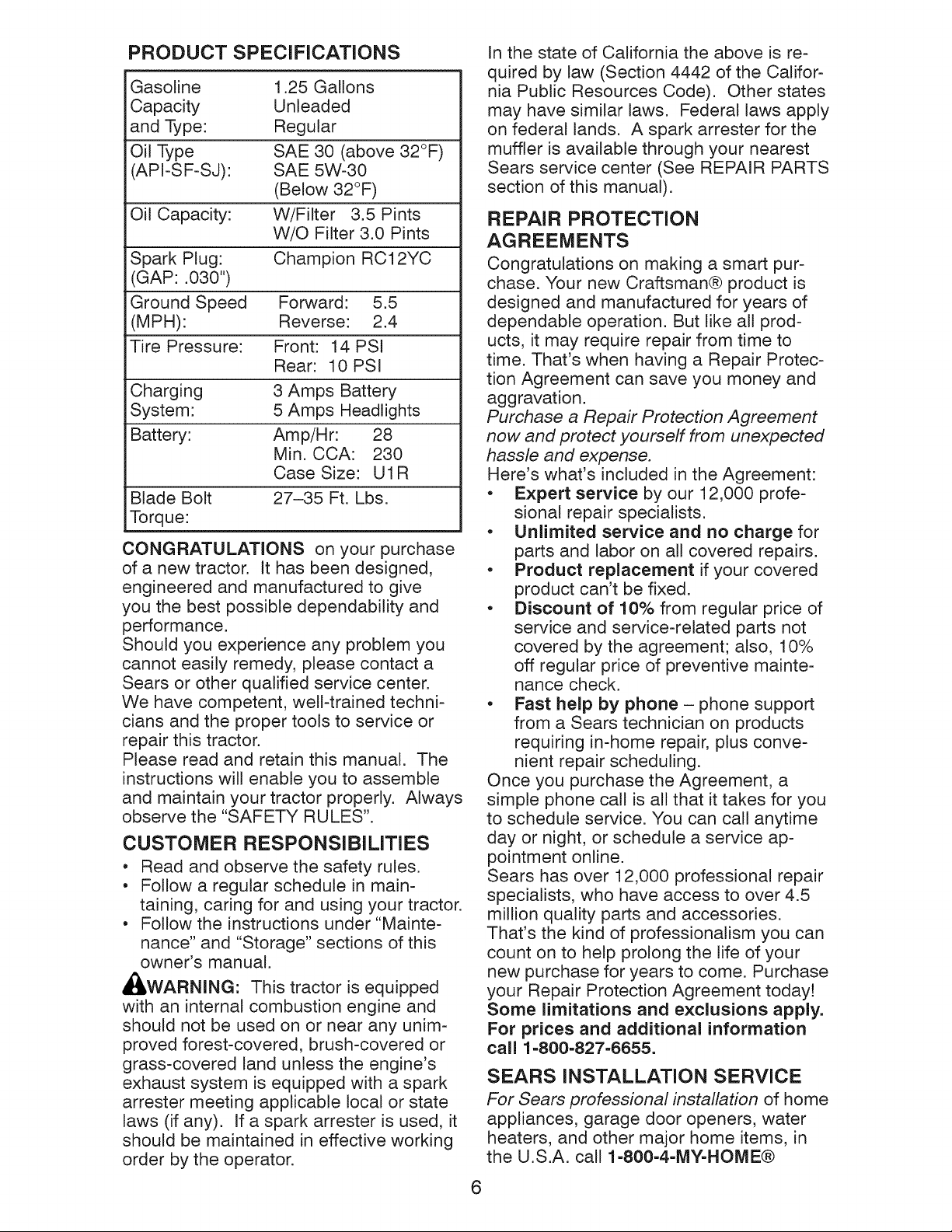

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

(API-SF-SJ): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter 3.5 Pints

W/O Filter 3.0 Pints

Spark Plug: Champion RC12YC

(GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSi

Rear: 10 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES",

CUSTOMER RESPONSIBiLiTIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

(1) Locknut

1/2-20

Steering Wheel

(1) Locknut

1/4-28

Steering

, , Wheel Adapter

i i

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

Steering

Extension

Shaft

(1) Washer

@ 17/32 x 1-3/16 x 12

Gauge

_(1) Knob

For Future Use

Slope Sheet

Keys

Video Cassette

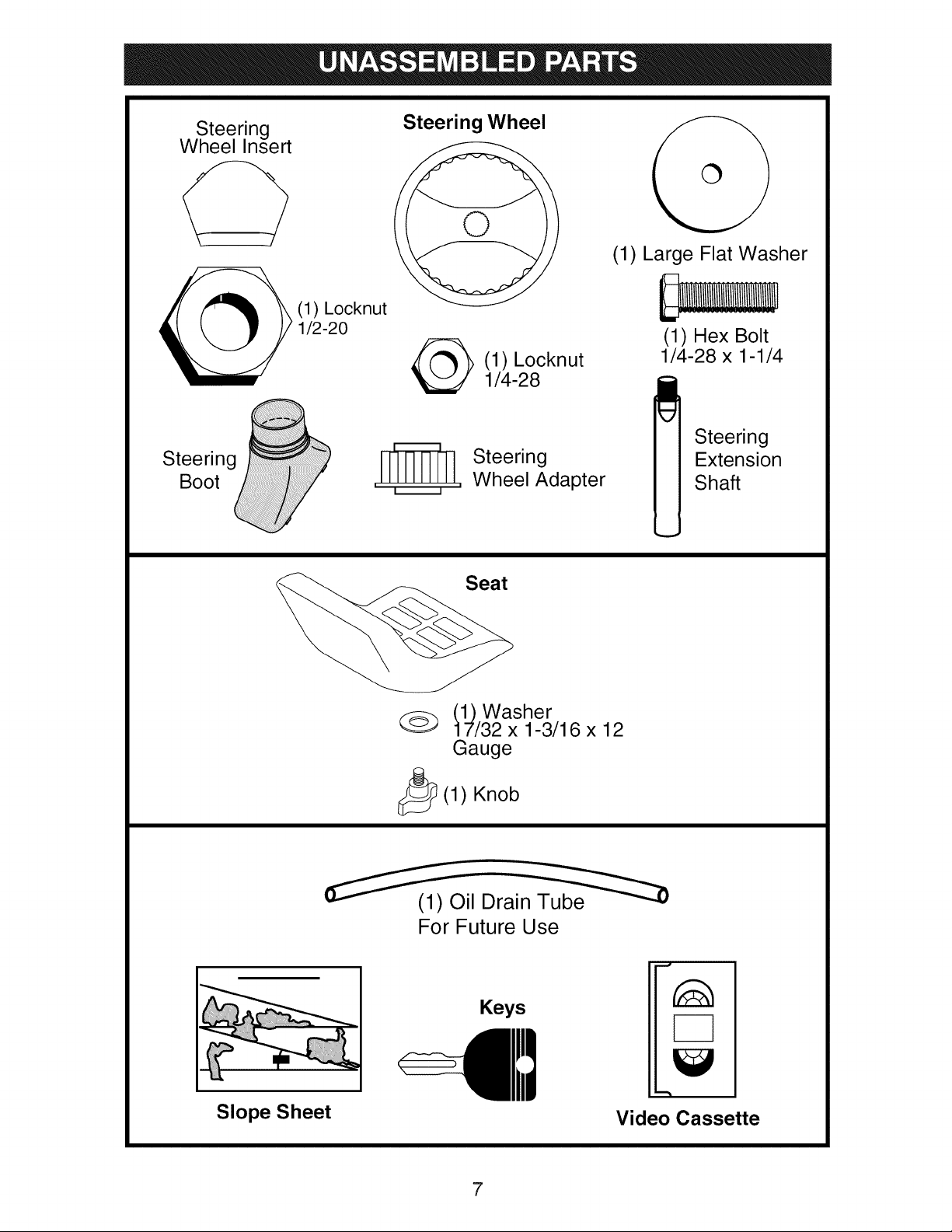

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier, Standard wrench sizes you need

are listed below,

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

Insert

Hex Nut

Steering

Shaft

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

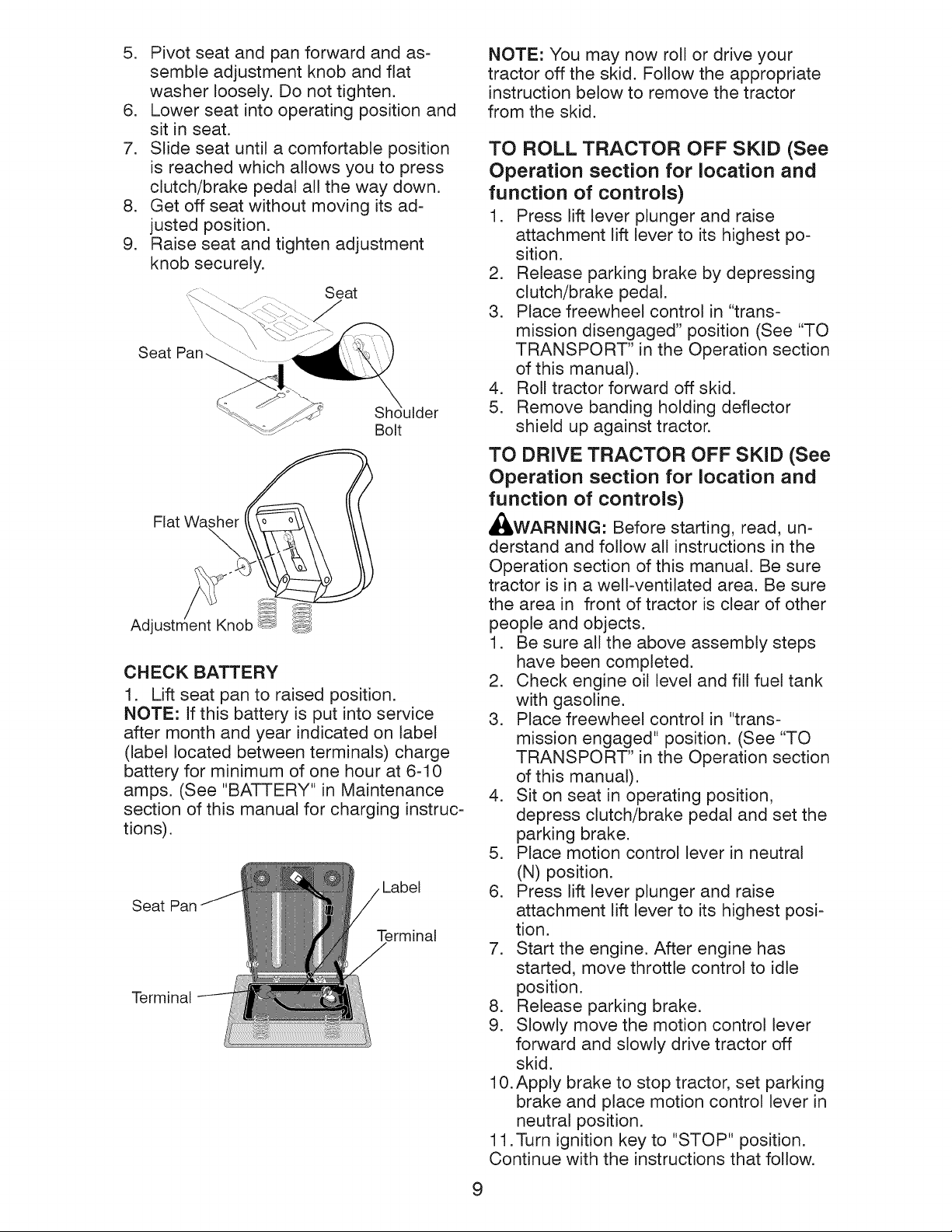

INSTALLSEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer

-.\

Adjl Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat Pan

Label

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition,

2. Release parking brake by depressing

clutch/brake pedal,

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid,

5. Remove banding holding deflector

shield up against tractor,

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10. Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11 .Turn ignition key to "STOP" position.

Continue with the instructions that follow.

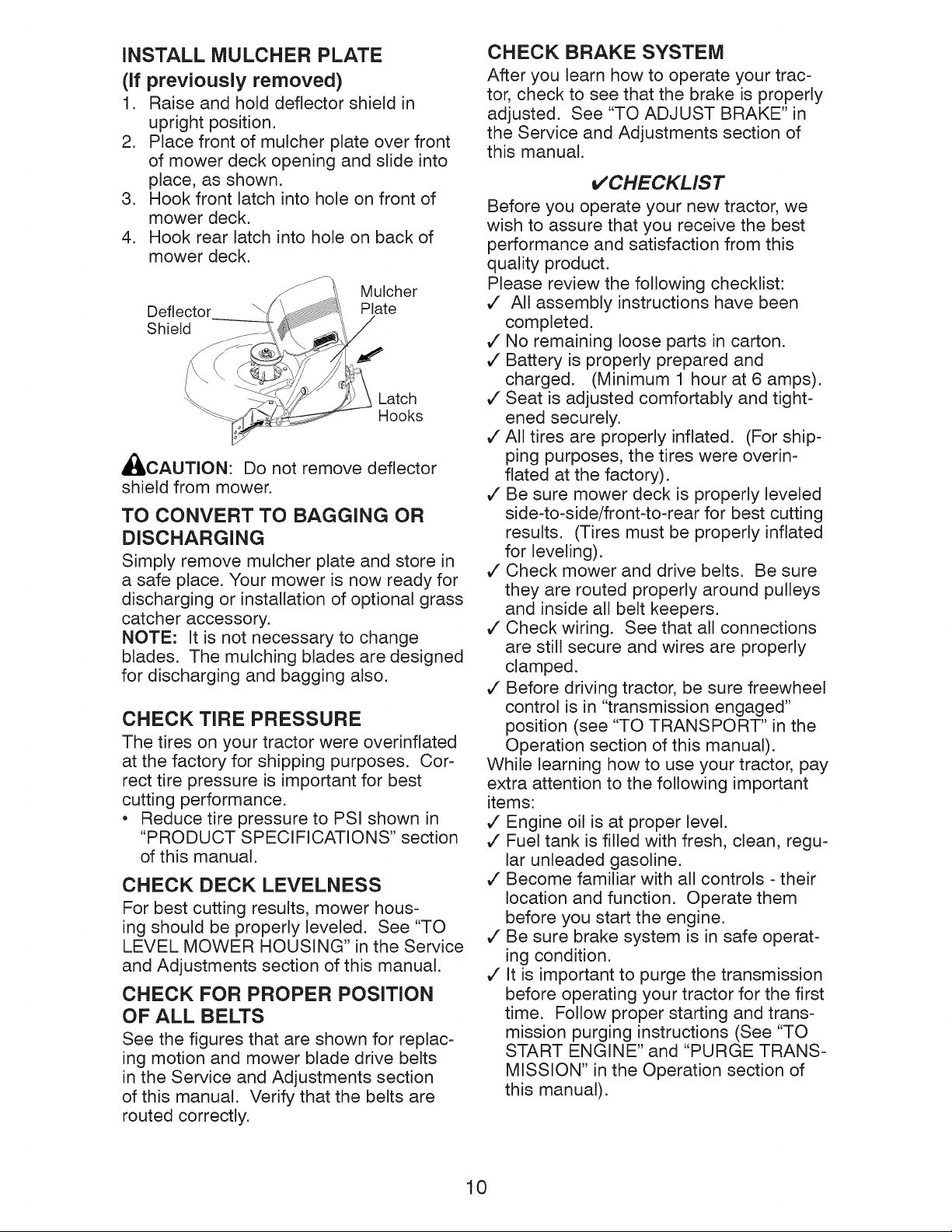

iNSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector \

Shield

Mulcher

Plate

Latch

Hooks

_ILCAUTION: Do not remove deflector

shield from mower.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

v'CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

/ All assembly instructions have been

completed.

/ No remaining loose parts in carton.

/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

/ Seat is adjusted comfortably and tight-

ened securely.

/ All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

/ Check wiring. See that all connections

are still secure and wires are properly

clamped.

/ Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

/ Engine oil is at proper level.

/ Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

/ Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/ Be sure brake system is in safe operat-

ing condition.

/ It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

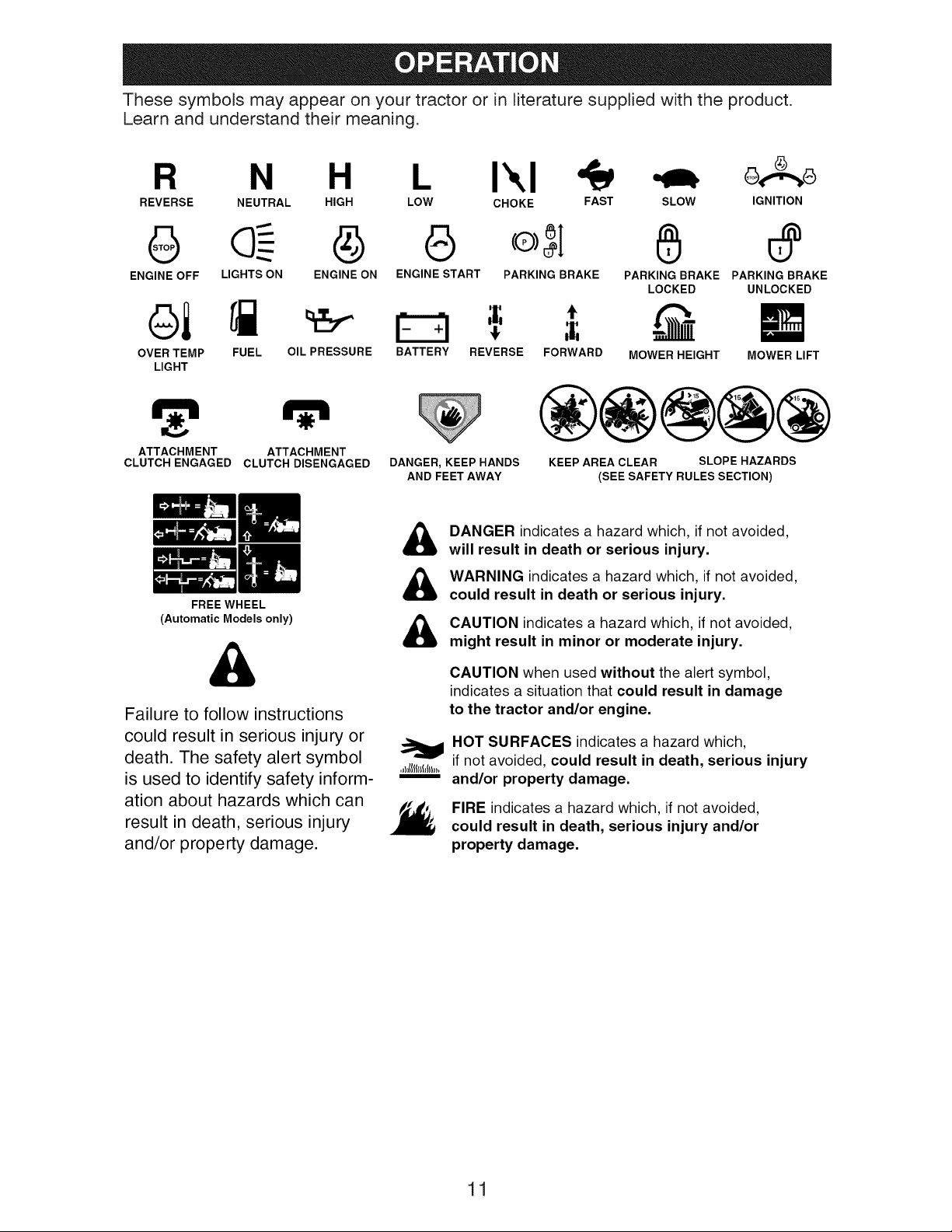

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

G_-----0 o;I @

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE

UNLOCKED

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

FUEL OIL PRESSURE BATTERY REVERSE FORWARD

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

PARKING BRAKE

LOCKED

MOWER HEIGHT MOWER LIFT

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

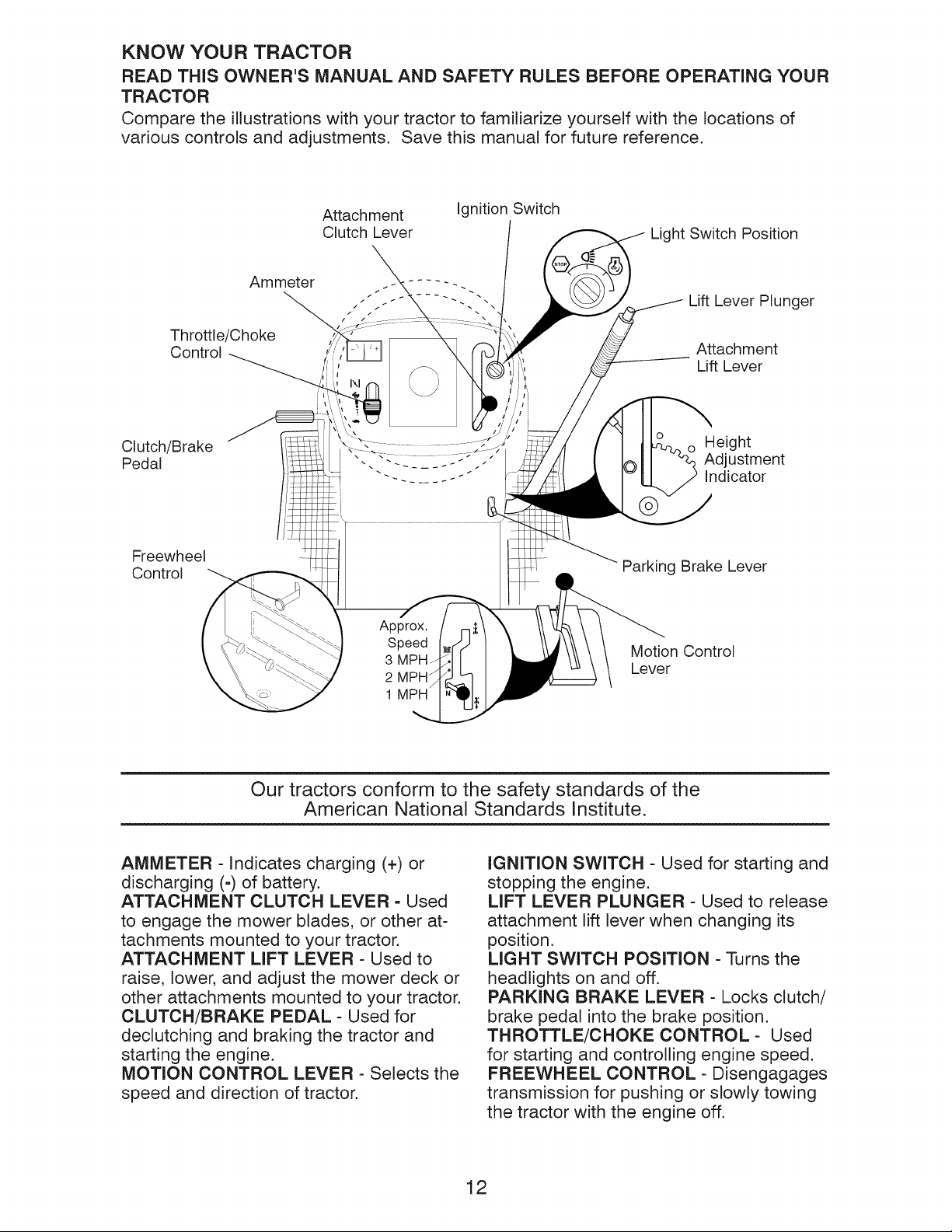

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch Lever

Ammeter

Throttle/Choke

Control

Ignition Switch

Light Switch Position

Lift Lever Plunger

Attachment

Lift Lever

Clutch/Brake

Pedal

o Height

Adjustment

Indicator

Freewheel

Control "-_.

Parking Brake Lever

Approx.

Speed Motion Control

3 Lever

2 MPW

1 MPH

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL- Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

SAFETY GLASSES

The operation of any tractor can result in foreign objects thrown into the 1

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments I

or repairs. We recommend standard safety glasses or a wide vision safety I

mask worn over spectacles. 1

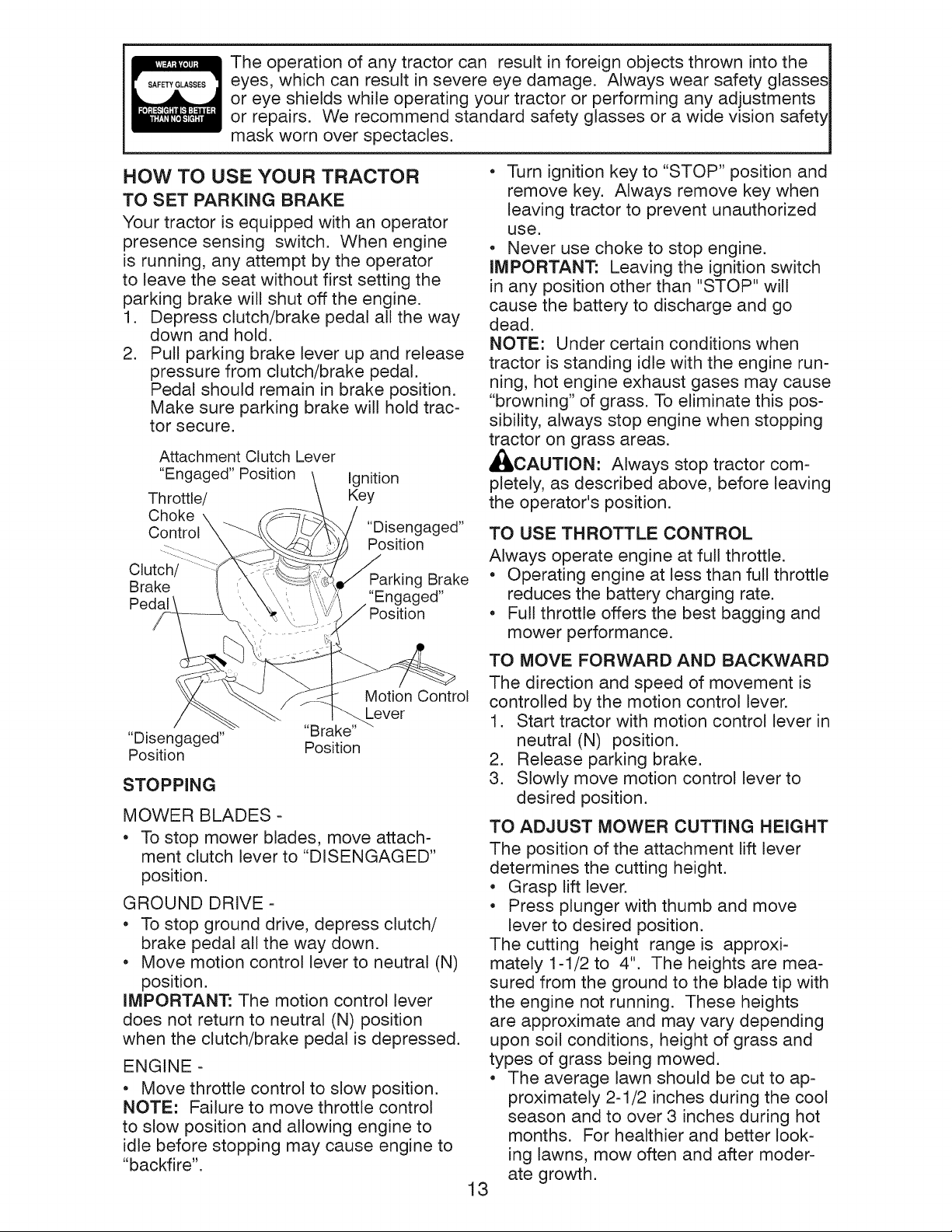

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

"Engaged" Position Ignition

Throttle/ Key

Choke _

Control

"Disengaged"

Position

Clutch/

Brake Parking Brake

ed"

Pedal' Position

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may cause

"browning" of grass. To eliminate this pos-

sibility, always stop engine when stopping

tractor on grass areas.

_IbCAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full throttle

reduces the battery charging rate.

• Ful! throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

Motion Control

Lever

"Disengaged" "Brake"

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE-

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better look-

ing lawns, mow often and after moder-

ate growth.

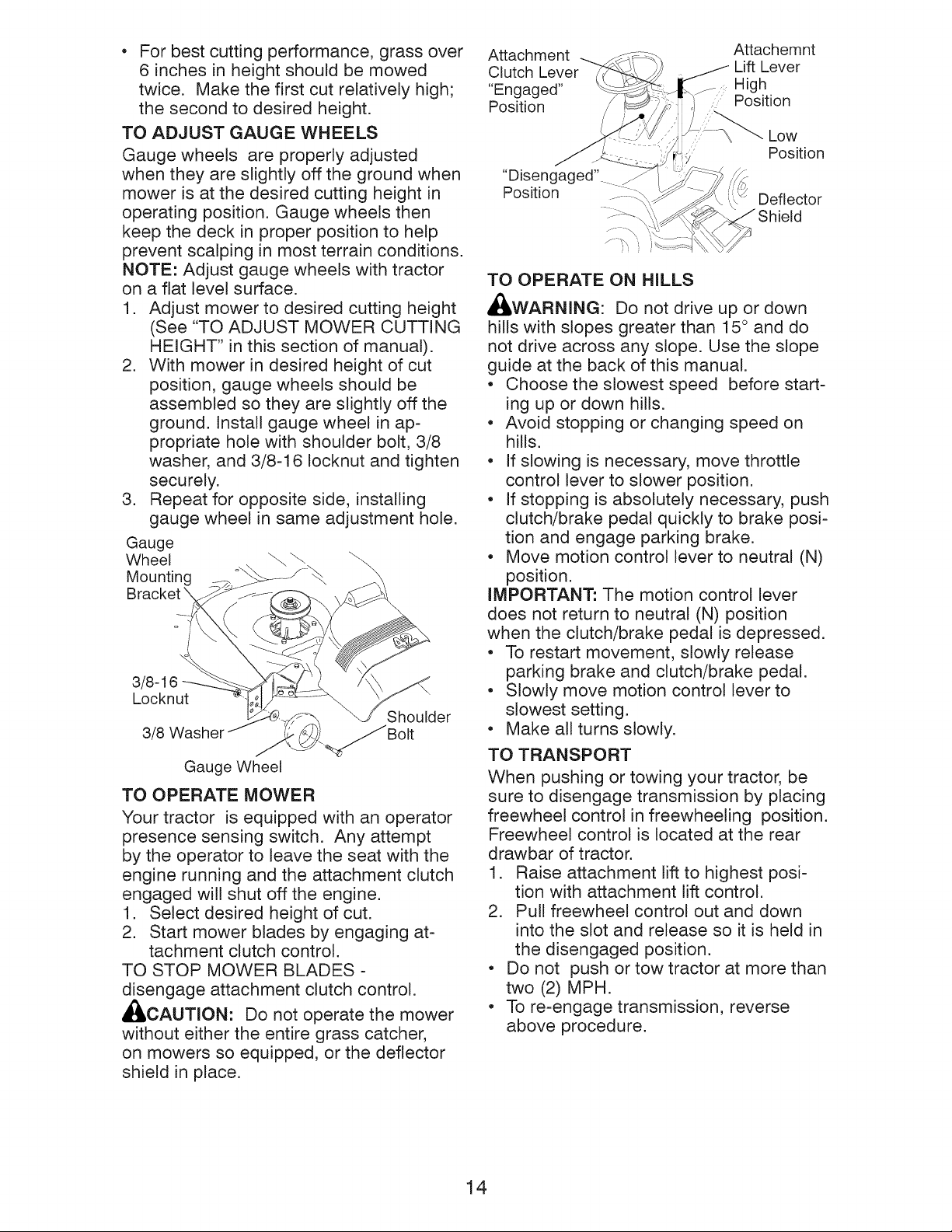

• For best cutting performance,grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mounting

o /

3/8-16

Locknut

3/8 Washer

Shoulder

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_i_,CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachemnt

Attachment __

Clutch Lever Lift Lever

"Engaged" High

Position Position

"Disengaged"_ j

Position ....

Low

Position

Deflector

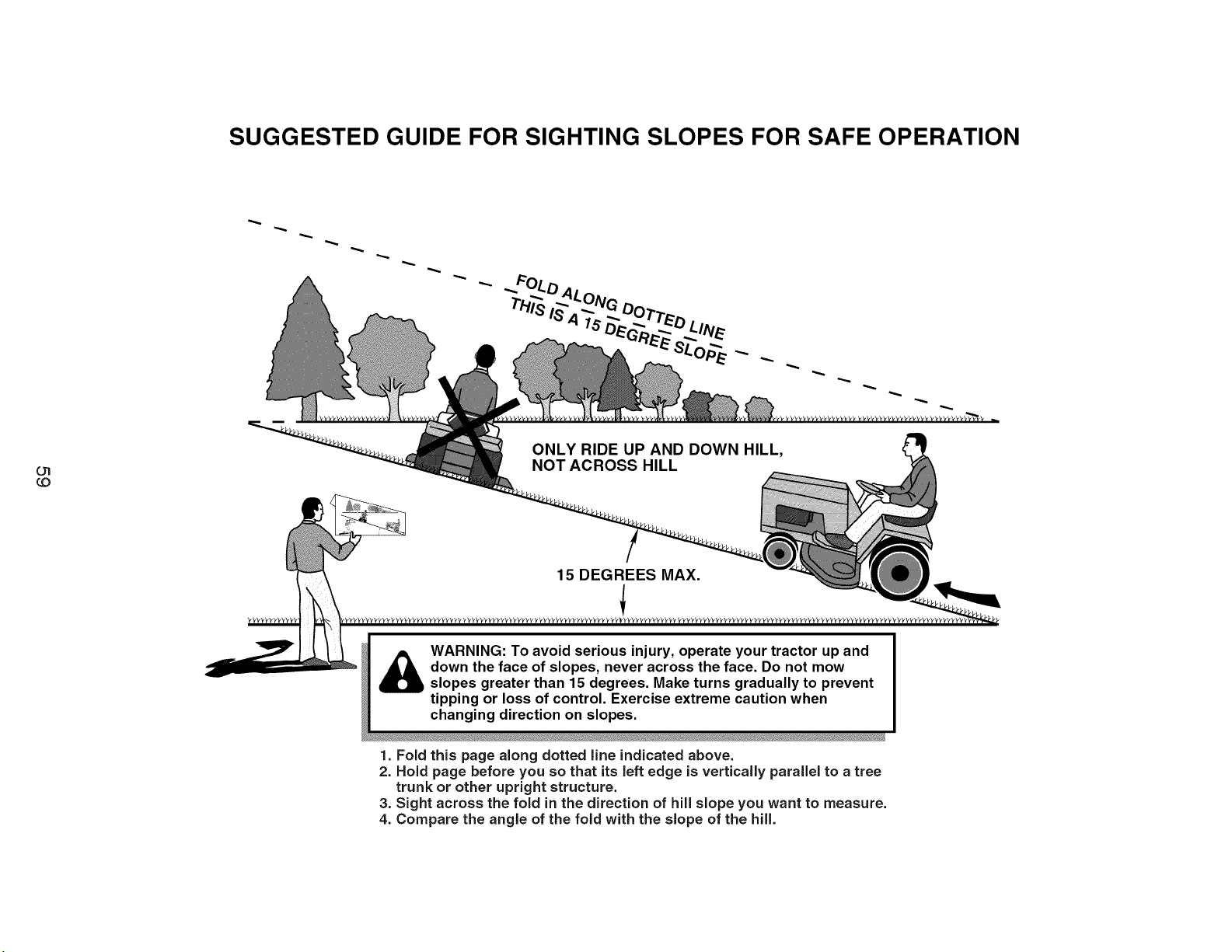

TO OPERATE ON HILLS

_,WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• if slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest posi-

tion with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

To protect hood from damage

NOTE:

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH=

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OiL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_IbCAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

iMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fue! system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely in an area that is

flat for approximately 80 feet in front of

the tractor and set the parking brake.

2. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

3. Slowly move motion control lever to

full forward position and hold for five

(5) seconds, or approximately 40 feet.

Slowly move lever to full reverse posi-

tion and hold for five (5) seconds, or

approximately 20 feet. After the tractor

moves approximately 20 feet in reverse

return the motion control lever to the

neutral (N) position. Repeat this proce-

dure three (3) times.

Your transmission is now purged and now

ready for normal operation.

MOWING TiPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

l .......................................................

(

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across or perpendicular to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

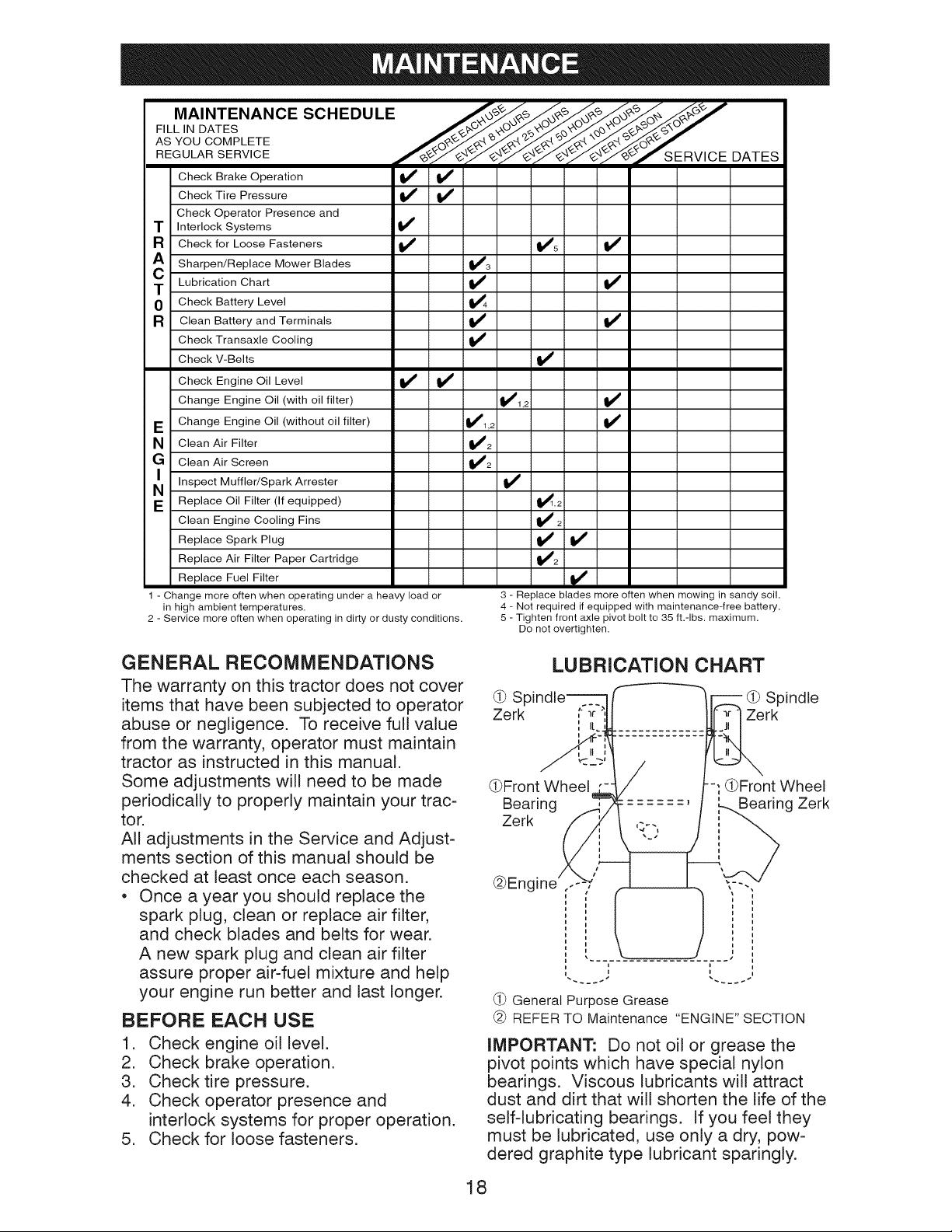

MA,NTENANOESCHEDULE

AS YOU COMPLETE O9`_ 4 9-4 _ 9--.t 9--.t 9--.t 9--.t O'"

REGULAR SERVICE J__r/_ZERVICE DATES

Check Brake Operation

Check Tire Pressure

Check Operator Presence and

T Interlock Systems tf

R Check for Loose Fasteners V' V'5 V p

Sharpen/Replace Mower Blades _1_ 3

T Lubrication Chart I_ I_

0 Check Battery Level _4

R Clean Battery and Terminals t_ If

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level _

Change Engine Oil (with oil filter) _1,2 I_

E Change Engine Oil (without oil filter) _1_1, 2

N Clean Air Filter 1_2

G Clean Air Screen 1_2

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) 1_1,2

Clean Engine Cooling Fins I_ 2

Replace Spark Plug _

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your trac-

tor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(_Front Wheel

Bearing

Zerk

@Engine ,.-

(_ General Purpose Grease

@ REFER TO Maintenance "ENGINE" SECTION

(_Front Wheel

, L_ Bearing Zerk

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

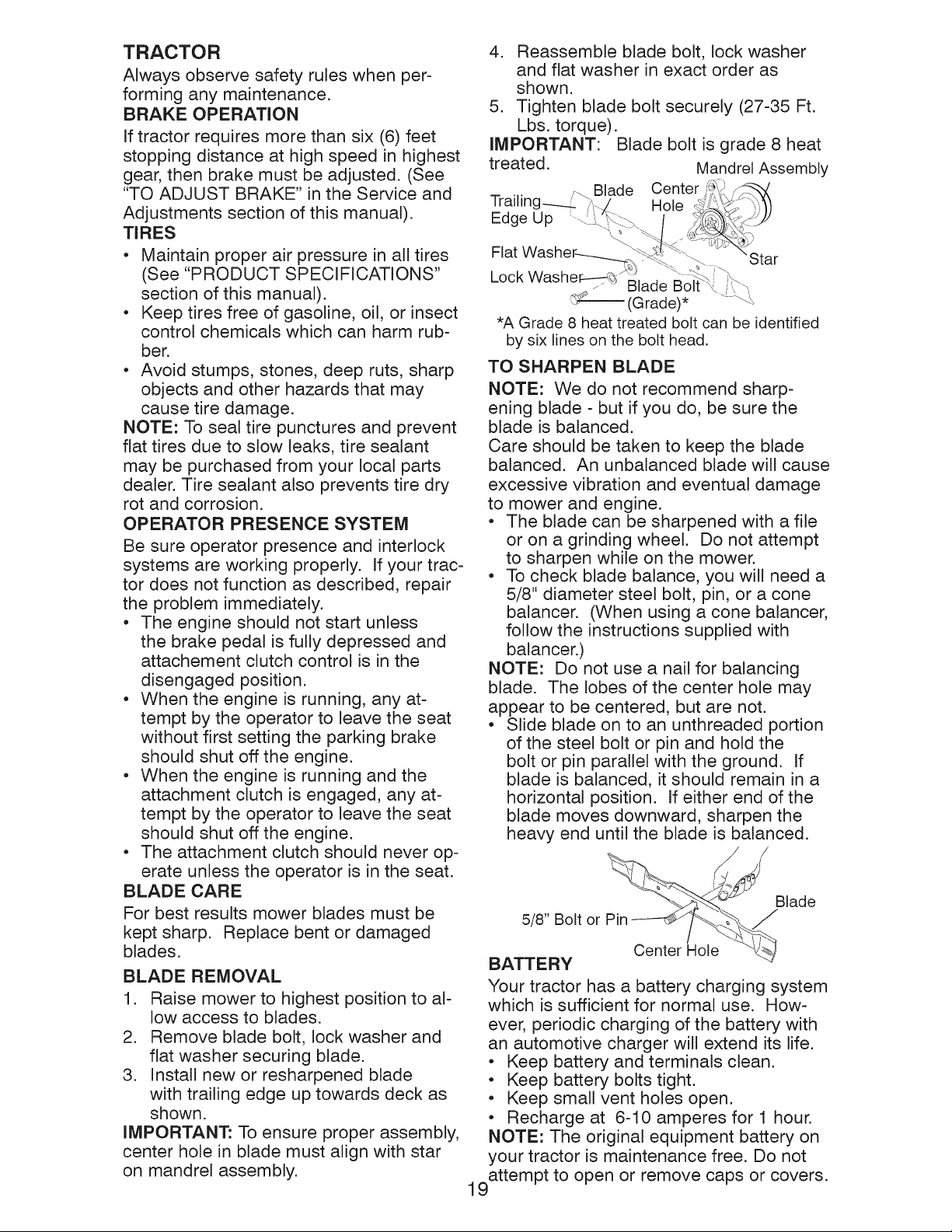

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel Assembly

.,-.. Blade Center

Trailing-----A Hole

Edge Up

Star

Lock Washe_ Blade

(Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Blade

5/8" Bolt or Pin

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

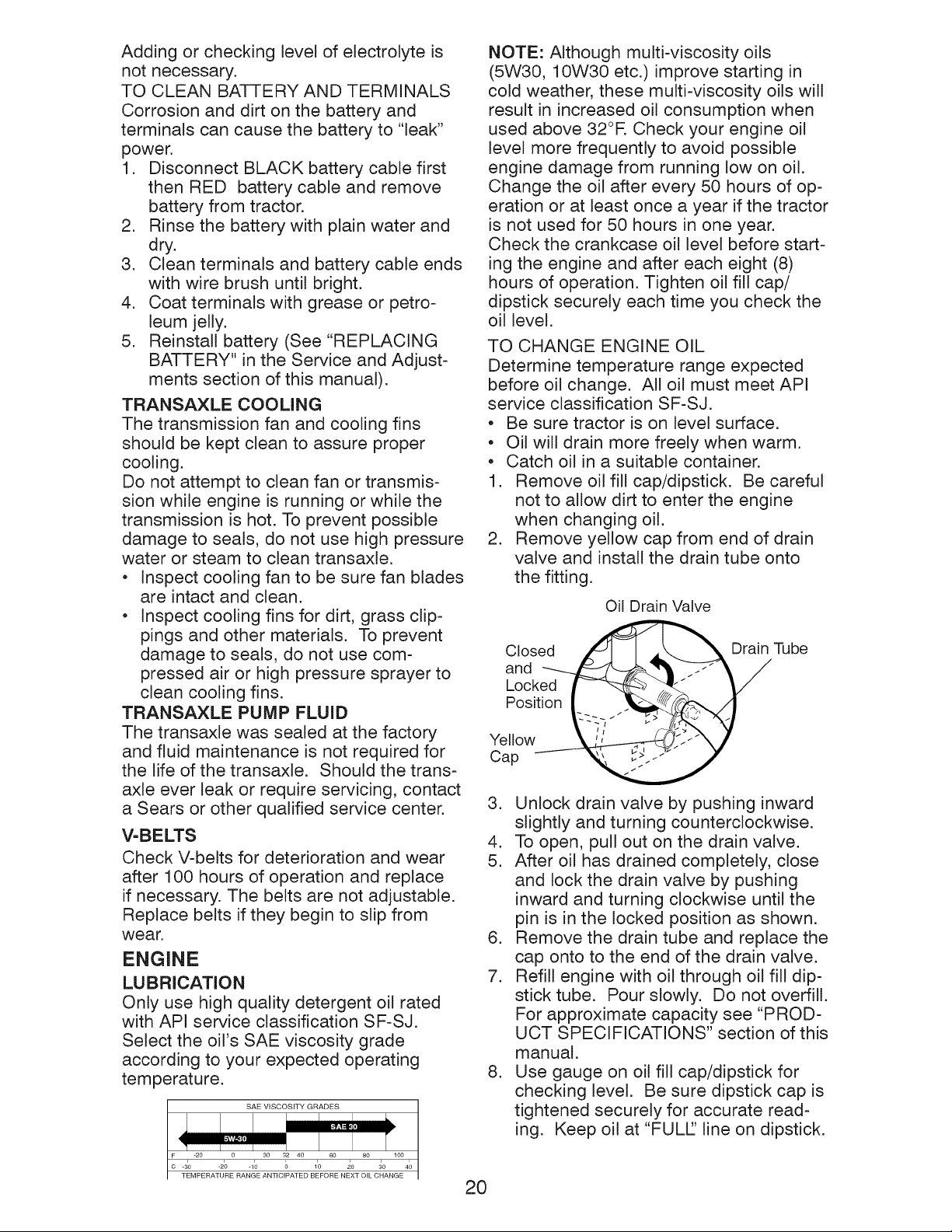

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERYAND TERMINALS

Corrosion and dirt on the batteryand

terminals can cause the batteryto "leak"

power.

1. Disconnect BLACK battery cablefirst

then RED batterycable and remove

batteryfrom tractor.

2. Rinse the battery with plain water and

dry.

3. Cleanterminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leumjelly.

5. Reinstall battery (See "REPLACING

BATTERY"in the Service and Adjust-

mentssection of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

, Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

-30 -20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°R Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed _Drain Tube

Locked I _ _ V

os,t,on

Yellow _;'"X_'

Cap _ _

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto to the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate read-

ing. Keep oil at "FULl" line on dipstick.

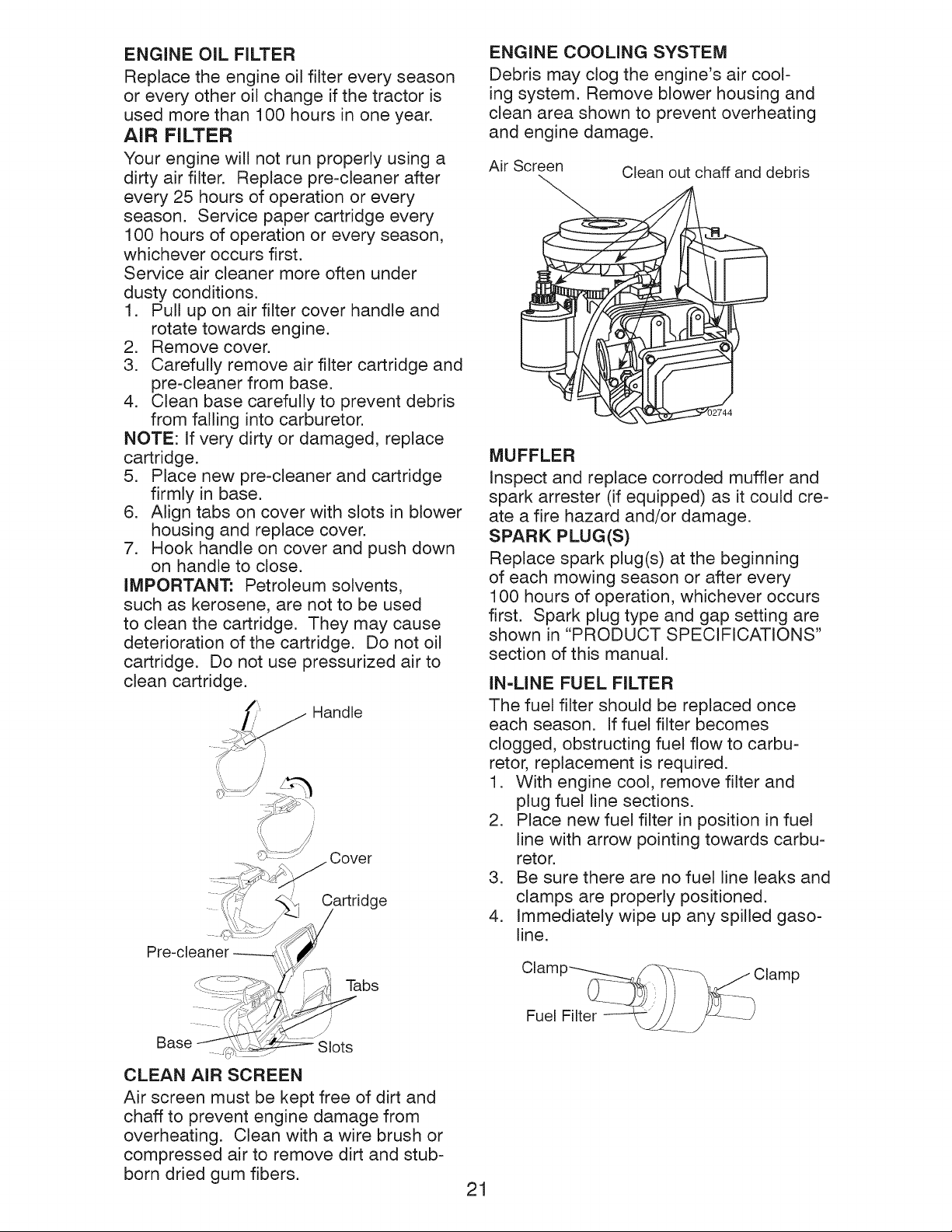

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents,

such as kerosene, are not to be used

to clean the cartridge. They may cause

deterioration of the cartridge. Do not oil

cartridge. Do not use pressurized air to

clean cartridge.

Handle

Pre-cleaner

Tabs

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN=LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fue! line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clam

Clamp

Slots

Fuel Filter

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

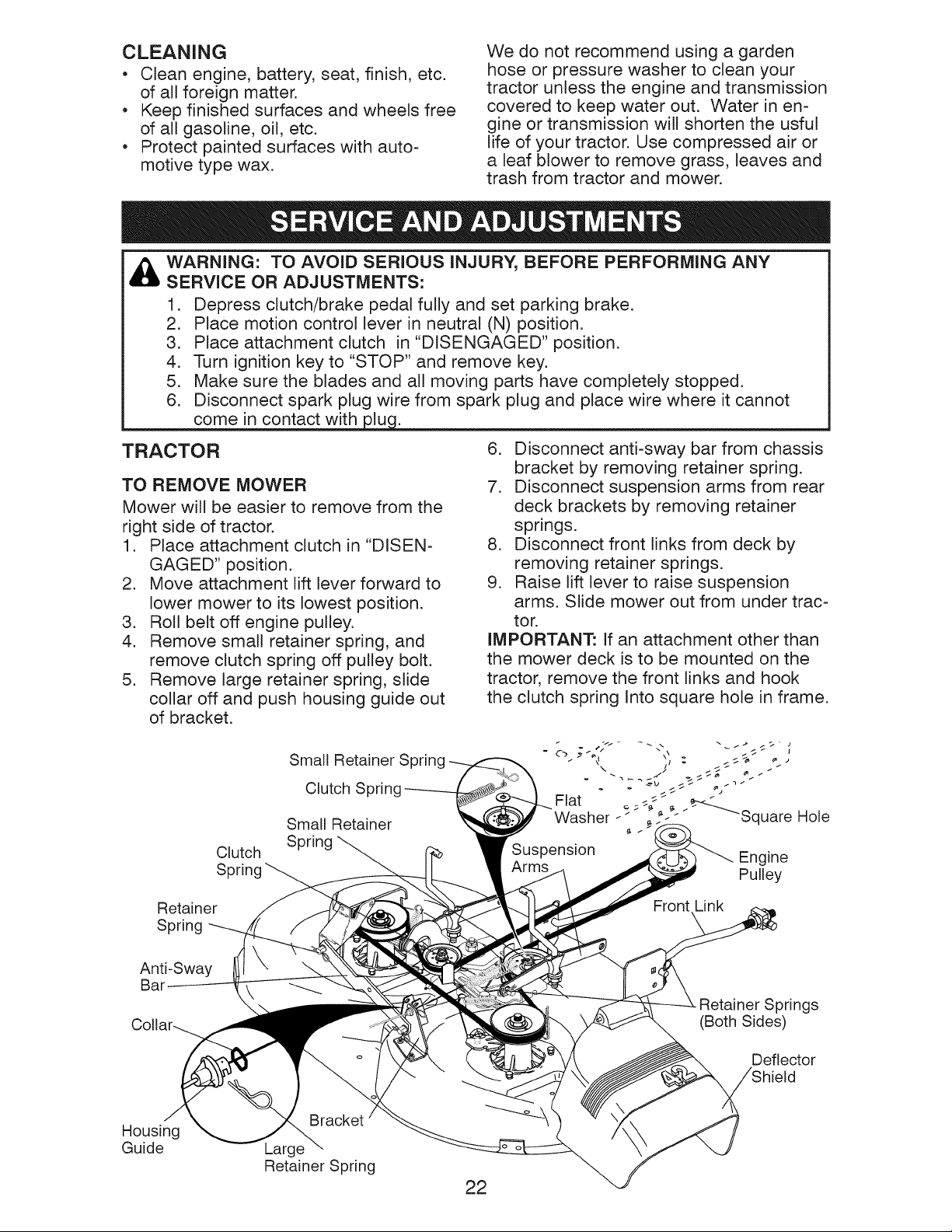

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmission

covered to keep water out. Water in en-

gine or transmission will shorten the usful

life of your tractor. Use compressed air or

a leaf blower to remove grass, leaves and

trash from tractor and mower.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with lu .

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

Clutch

Small Retainer Spring

Clutch S

Small Retainer

Spring

Suspension

Engine

Pulley

Retainer

Spring

Front Link

Anti-Sway

Bar

Housing

Guide

Bracket

Retainer Spring

Springs

(Both Sides)

Deflector

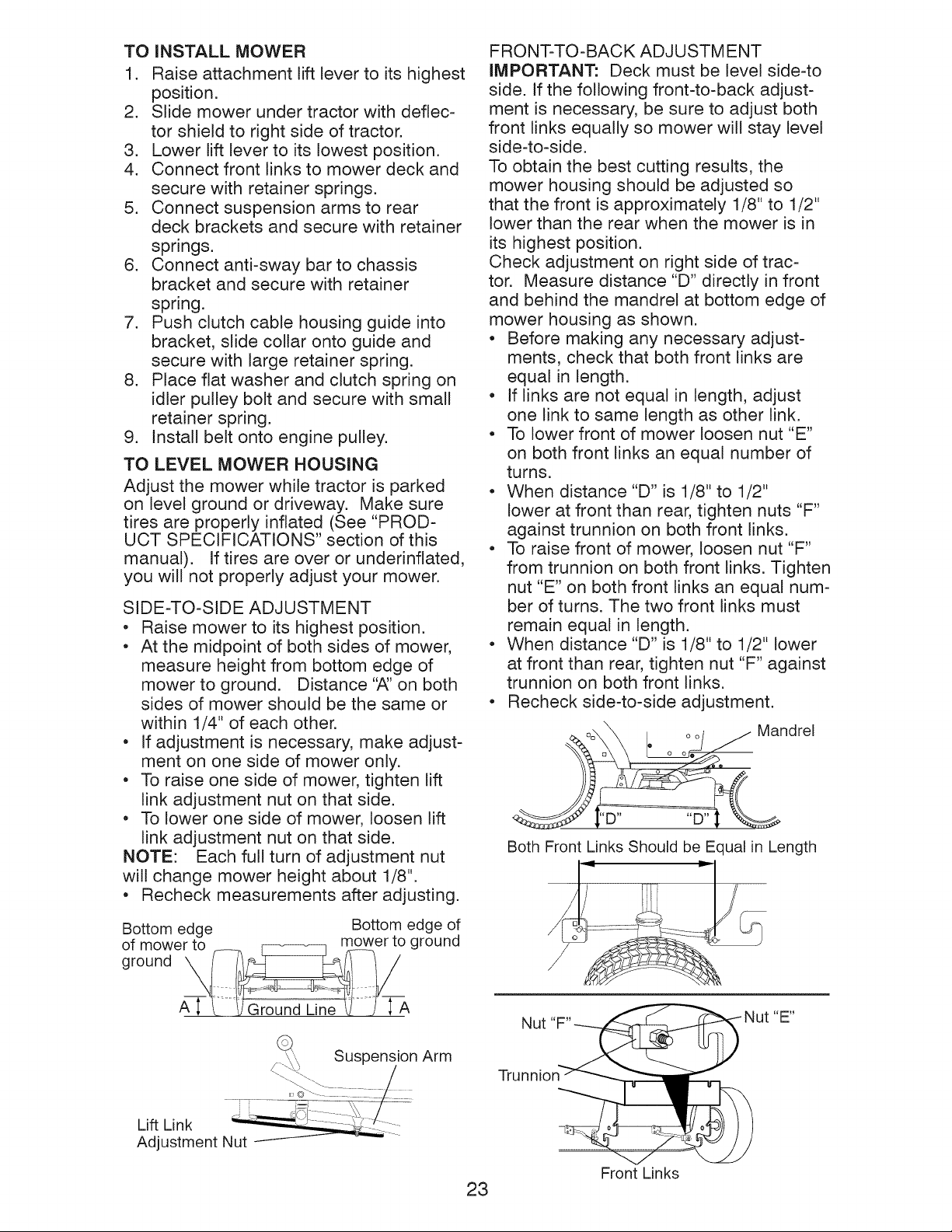

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance '_' on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

of mower to r-_ _ mo_werto ground

°r°"n°......... ......1/

,_ \ _jGround Line \/ J]A

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side4o-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Oo\_ , oo//Mandrel

Both Front Links Should be Equal in Length

Nut "F"

',, Suspension Arm

/'_\\ /

rl © "- ............

Lift Link _ _'_ .........

Adjustment Nut _

Trunnion

Front Links

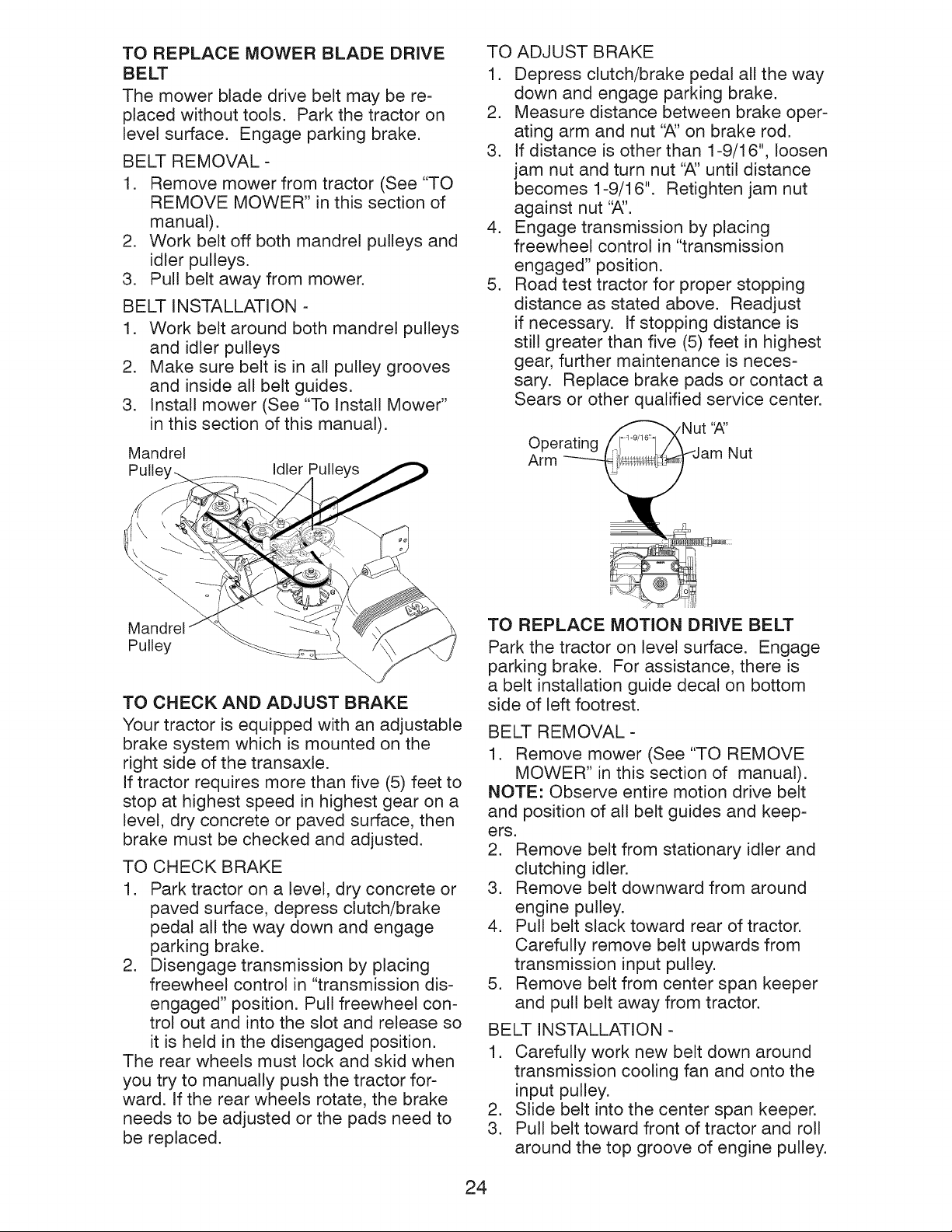

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL-

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel

Pulle Idler

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut '_' on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut '_' until distance

becomes 1-9/16". Retighten jam nut

against nut '_'.

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

tro! out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is

a belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keep-

ers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

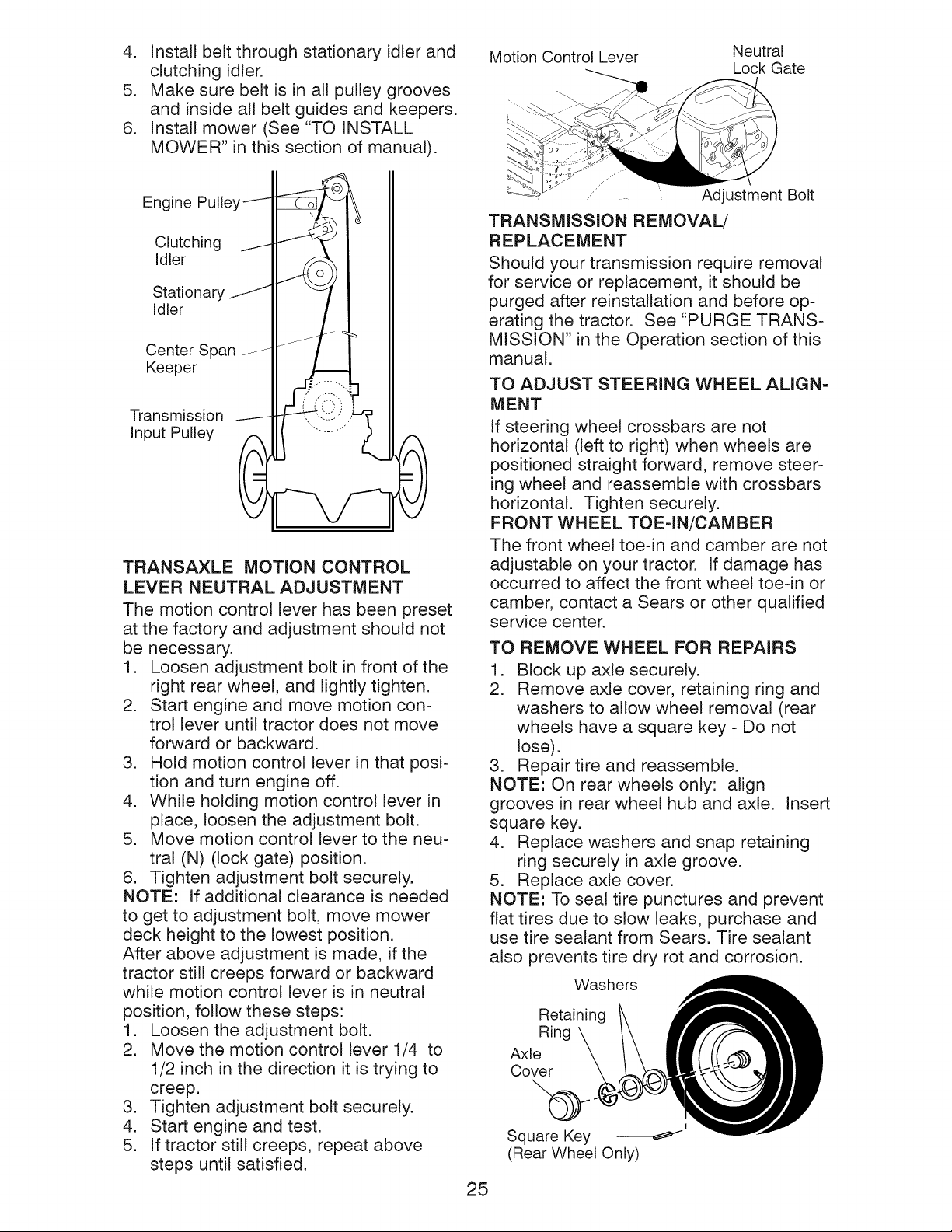

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

EnginePulleyJ __

Clutching _ i___

Idler

Stationary / _/

,dler jj.l,_

Center Span j./ / |

Keeper __

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neu-

tral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control Lever

Neutral

Lock Gate

Adjustment Bolt

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERING WHEEL ALIGN=

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key --_

(Rear Wheel Only)

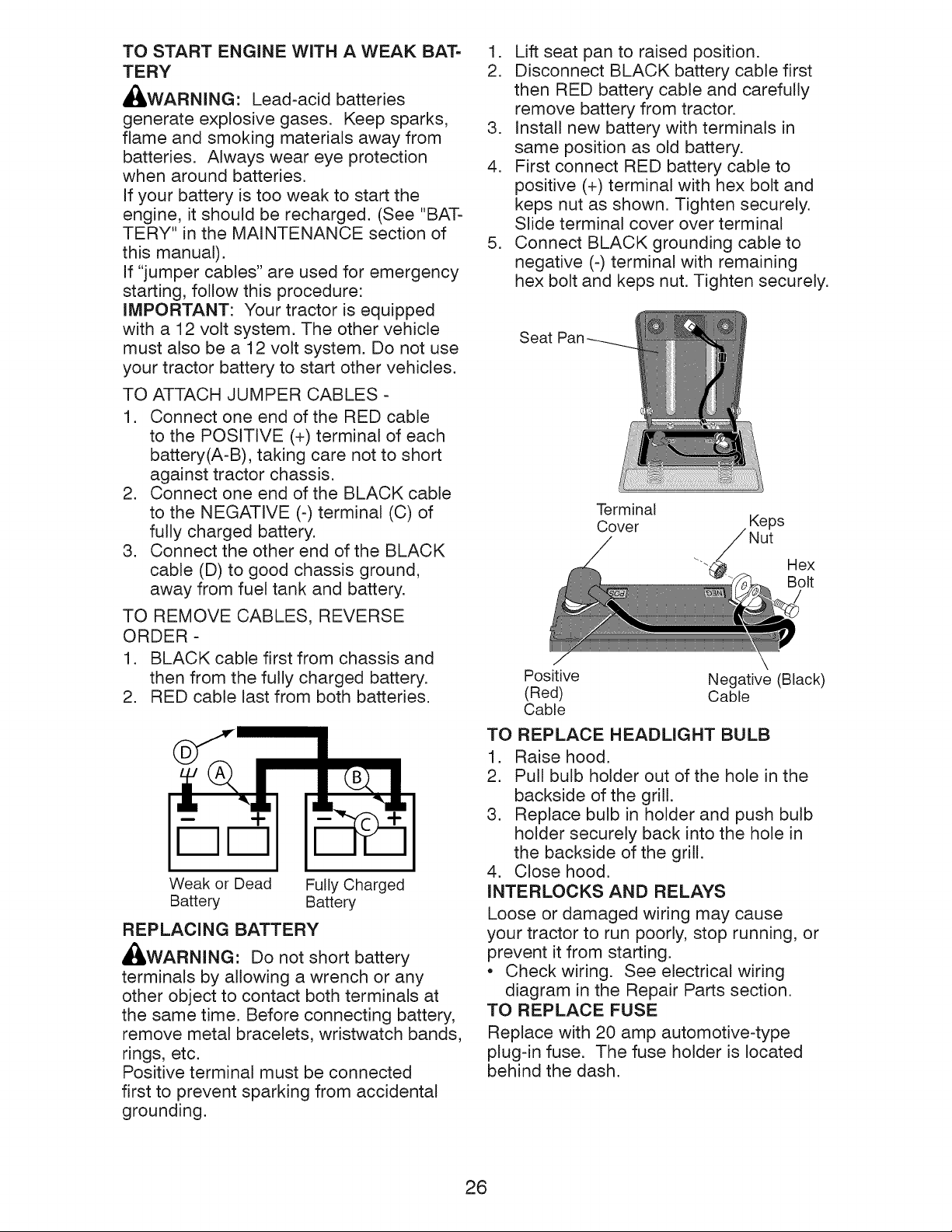

TO START ENGINE WITH A WEAK BAT=

TERY

_,WARNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_k,WARNING" Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Seat

Terminal

Cover

Keps

Nut

"-_. Hex

Bolt

Positive Negative (Black)

(Red) Cable

Cable

REPLACE HEADLIGHT BULB

Raise hood.

Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILLAS=

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

\ .......

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any

non-road engine repair establishment or

individual. Warranty repairs must be per-

formed by an authorized engine manufac-

turer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from stow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes '_' in governor

control lever and hole in governor plate

line-up. If holes '_' are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control

Governor Control Plate

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -(See "TO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

Holes "A" Clamp Screw

Throttle Cable

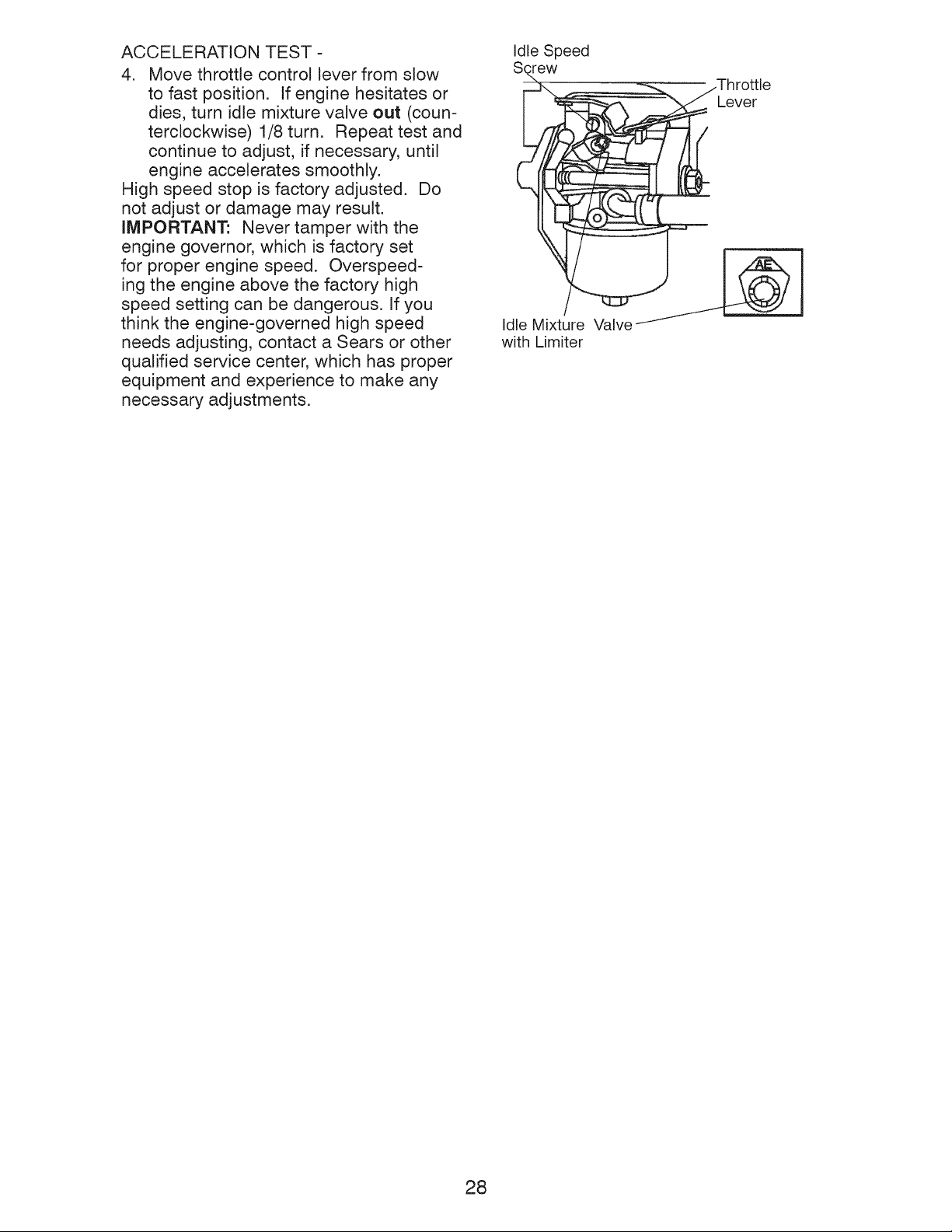

ACCELERATIONTEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

IdLe Speed

S_ew

Lever

with Limiter

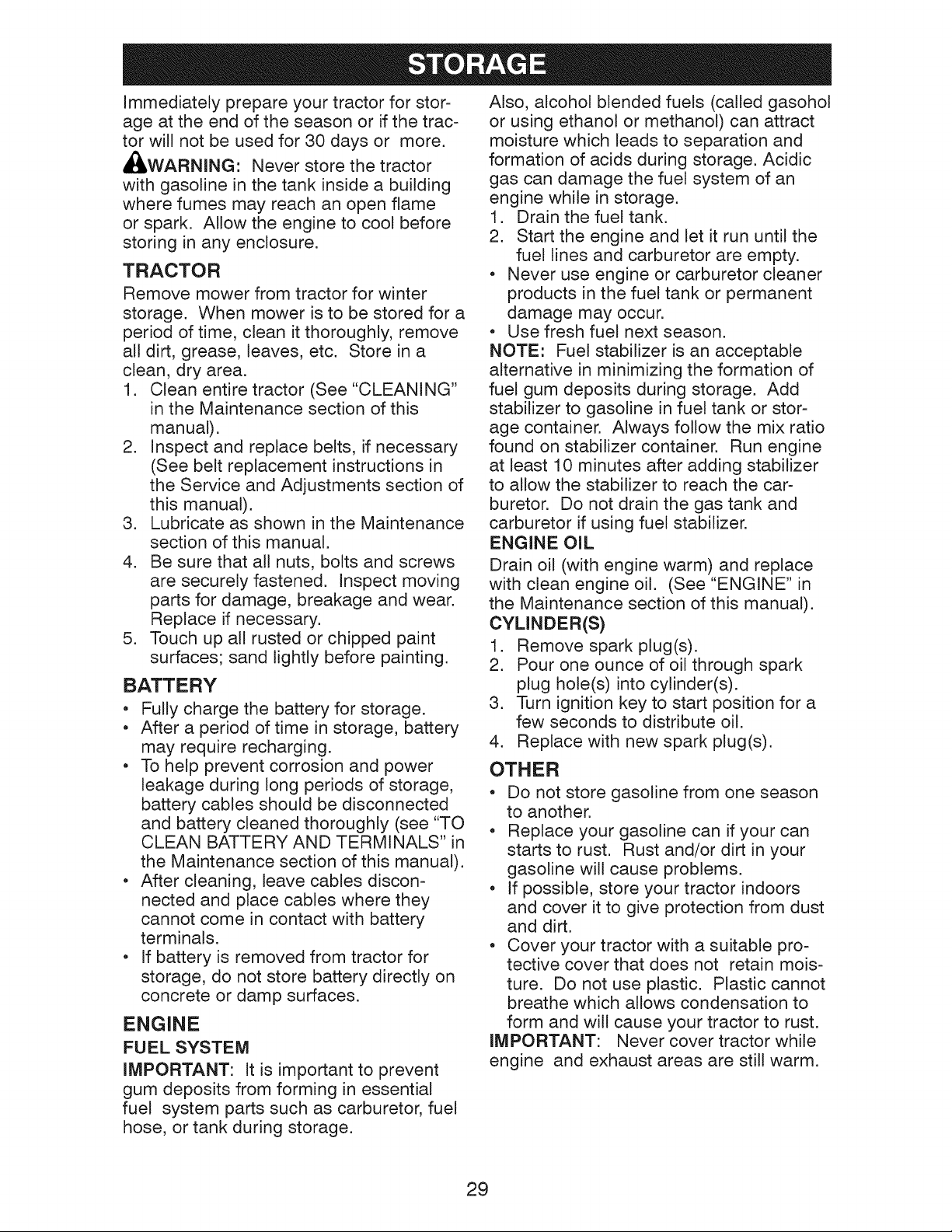

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

,_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fue! tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fue! tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYMNDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See"ToAdjust Carburetor"in

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

Loss of power

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

Service and Adjustments

section.

Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position_

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control_

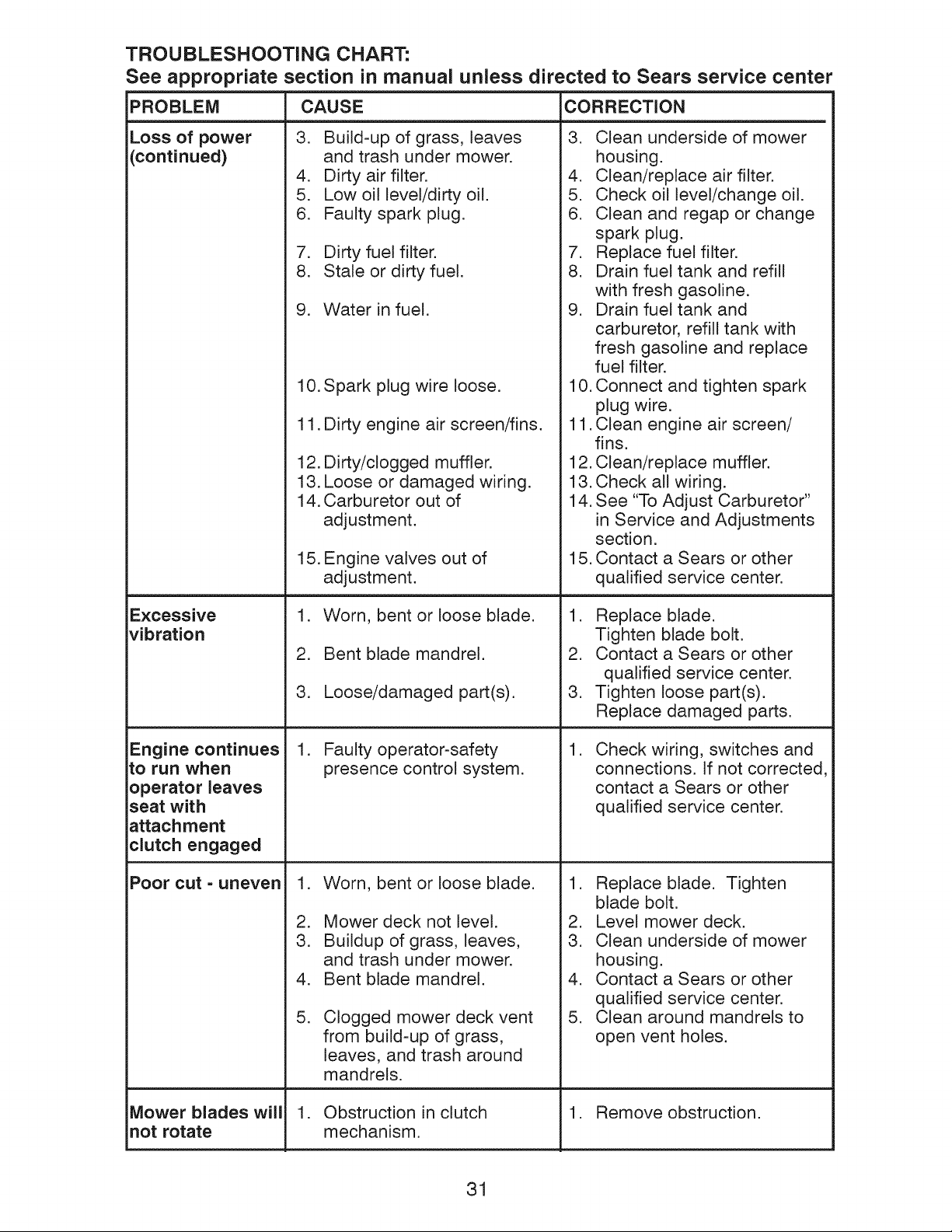

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil leve!/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut = uneven

Mower blades will

not rotate

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

Obstruction in clutch

mechanism.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil leve!/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

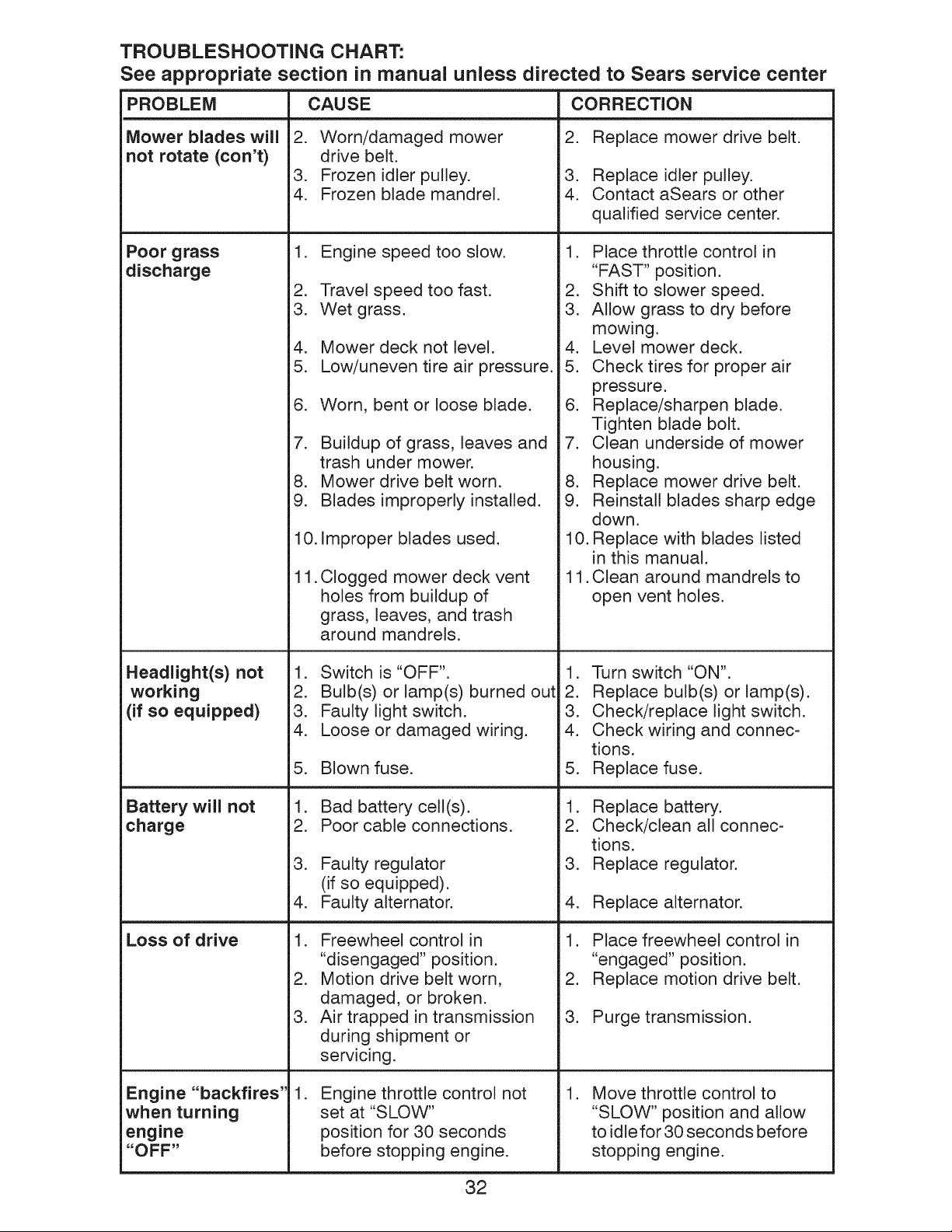

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate (con't)

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine

"OFF"

CAUSE CORRECTION

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level,

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is"OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s),

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact aSears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

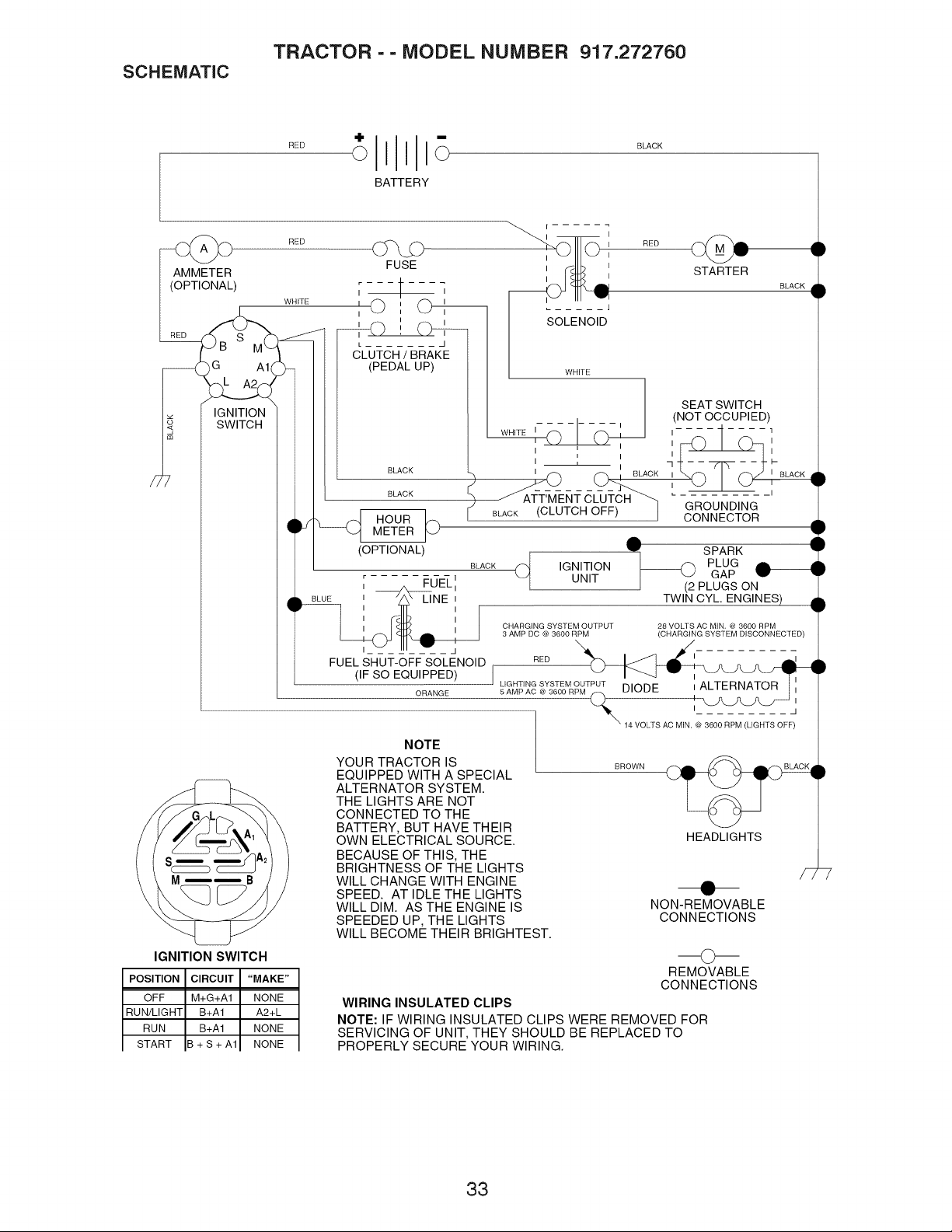

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.272760

BATTERY

AMMETER

(OPTIONAL)

RED

I I

RED _ RED

FUSE __111 _ _lilrII "t "11

SOLENOID

WHITE

IGNITION

SWITCH

l,J

r- l -I I

' © ' O_,'--

I I

i I i

C L-U_'CH-/BR/_.KE

(PEDAL UP)

BLACK

METER

(OPTIONAL)

STARTER

BLACK

WHITE

_._ SEAT SWITCH

(NOT OCCUPIED)

,- ,'

WHITE f% I 1

I i , I

I 't I-

/_A__T.MO_ E ',BLACK i L-(_ C _--_

_f6

BLACK (CLUTCH OFF) I GROUNDING

CONNECTOR

BLACK

W SPARK

IGNITION _ PLUG

UNIT I _ GAP

J (2 PLUGS ON

TWIN CYL. ENGINES) a

CHARGING SYSTEM OUTPUT 28 VOLTS AC MIN, @ 3600 RPM

3 AMP DC @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)

RED I_

I LIGHTING SYSTEM I

14 VOLTS AC MIN, @ 3600 RPM (LIGHTS OFF)

r I

i FUELI

BLUE I LINE I

I I

i _' III w i

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

ORANGE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

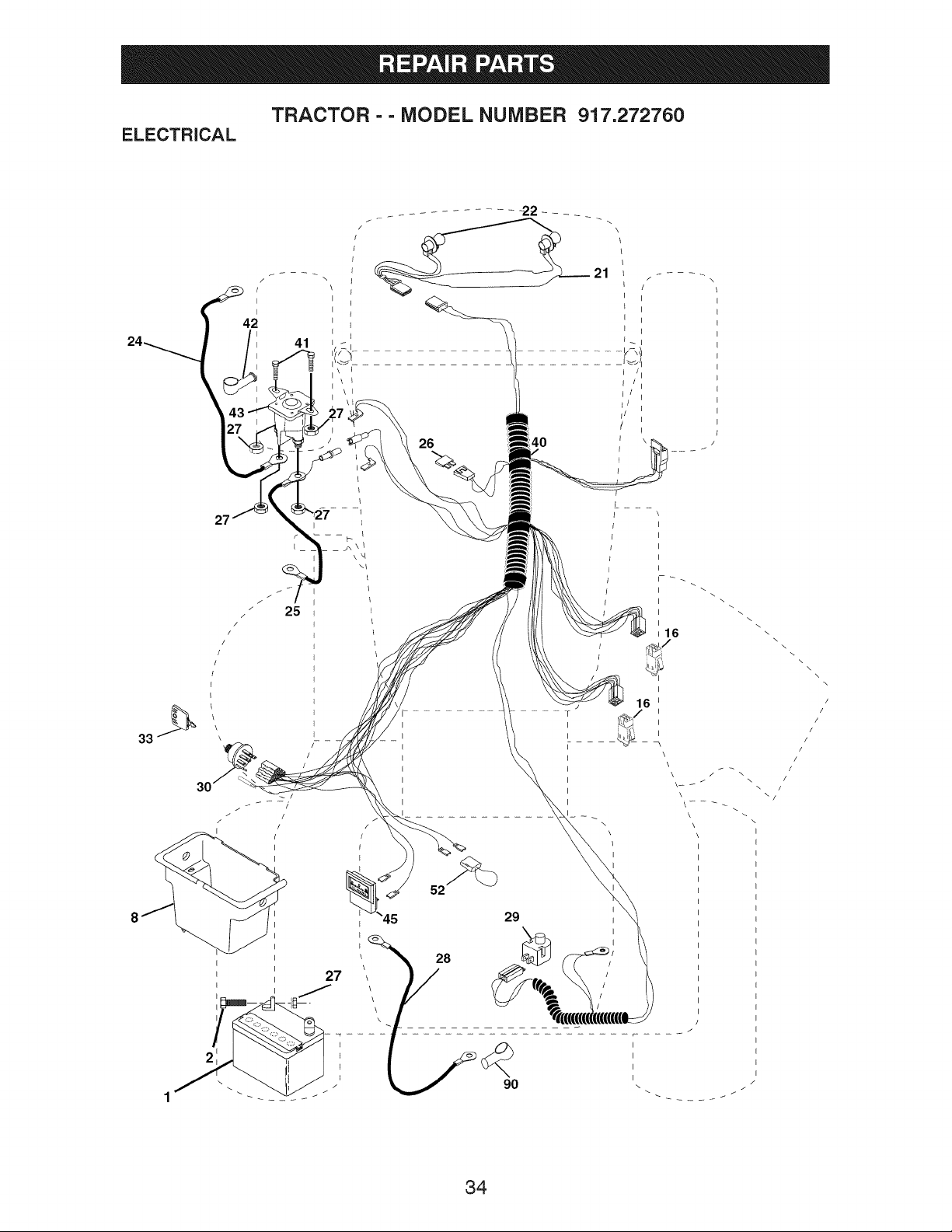

TRACTOR - - MODEL NUMBER 917.272760

ELECTRICAL

16 I

- - zii

/ \

I \

\ /

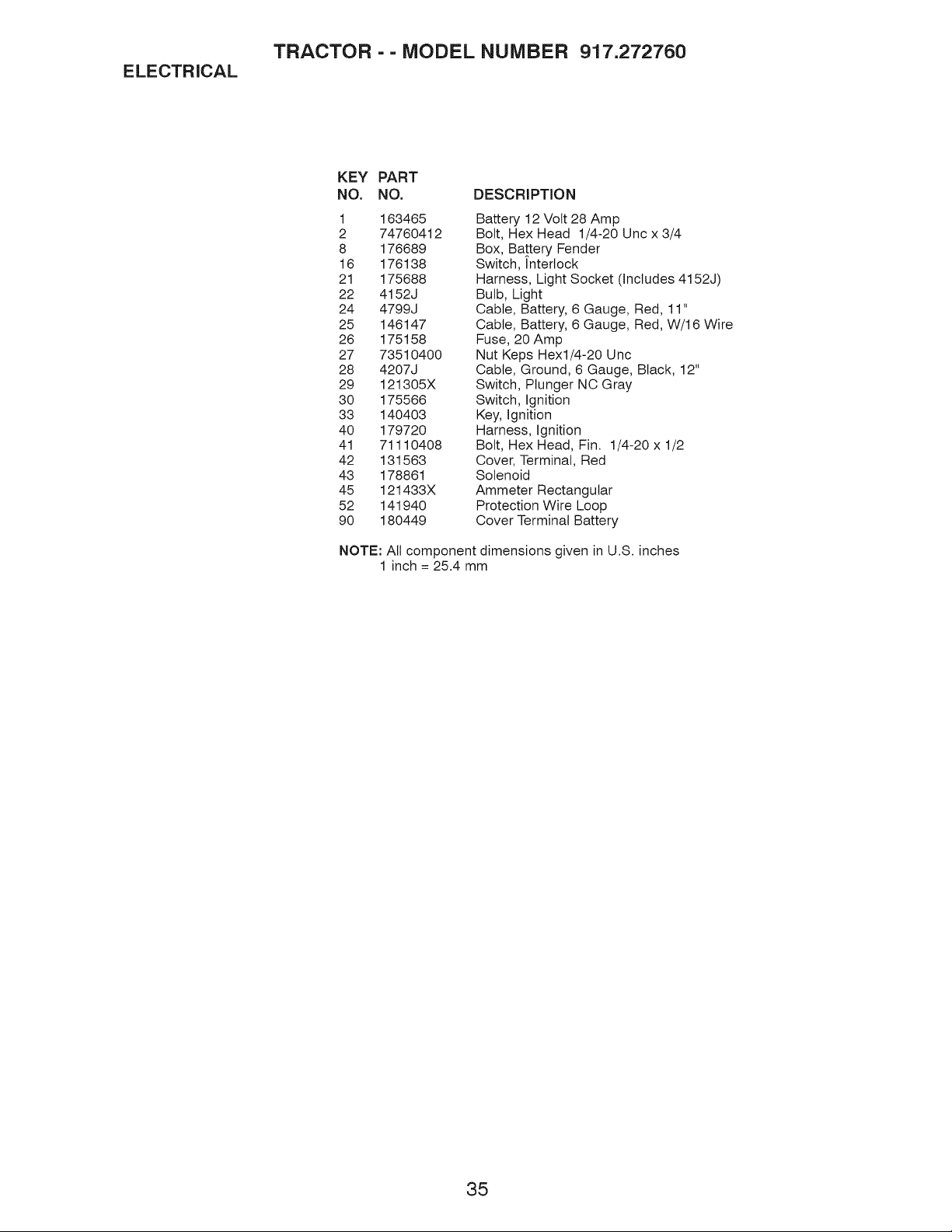

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.272760

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 176689

16 176138

21 175688

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

90 180449

Battery 12 Volt 28 Amp

Bolt, Hex Head 1/4-20 Unc x 3/4

Box, Battery Fender

Switch, interlock

Harness, Light Socket (Includes 4152J)

Bulb, Light

Cable, Battery, 6 Gauge, Red, 11"

Cable, Battery, 6 Gauge, Red, W/16 Wire

Fuse, 20 Amp

Nut Keps Hexl/4-20 Unc

Cable, Ground, 6 Gauge, Black, 12"

Switch, Plunger NC Gray

Switch, Ignition

Key, Ignition

Harness, Ignition

Bolt, Hex Head, Fin. 1/4-20 x 1/2

Cover, Terminal, Red

Solenoid

Ammeter Rectangular

Protection Wire Loop

Cover Terminal Battery

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

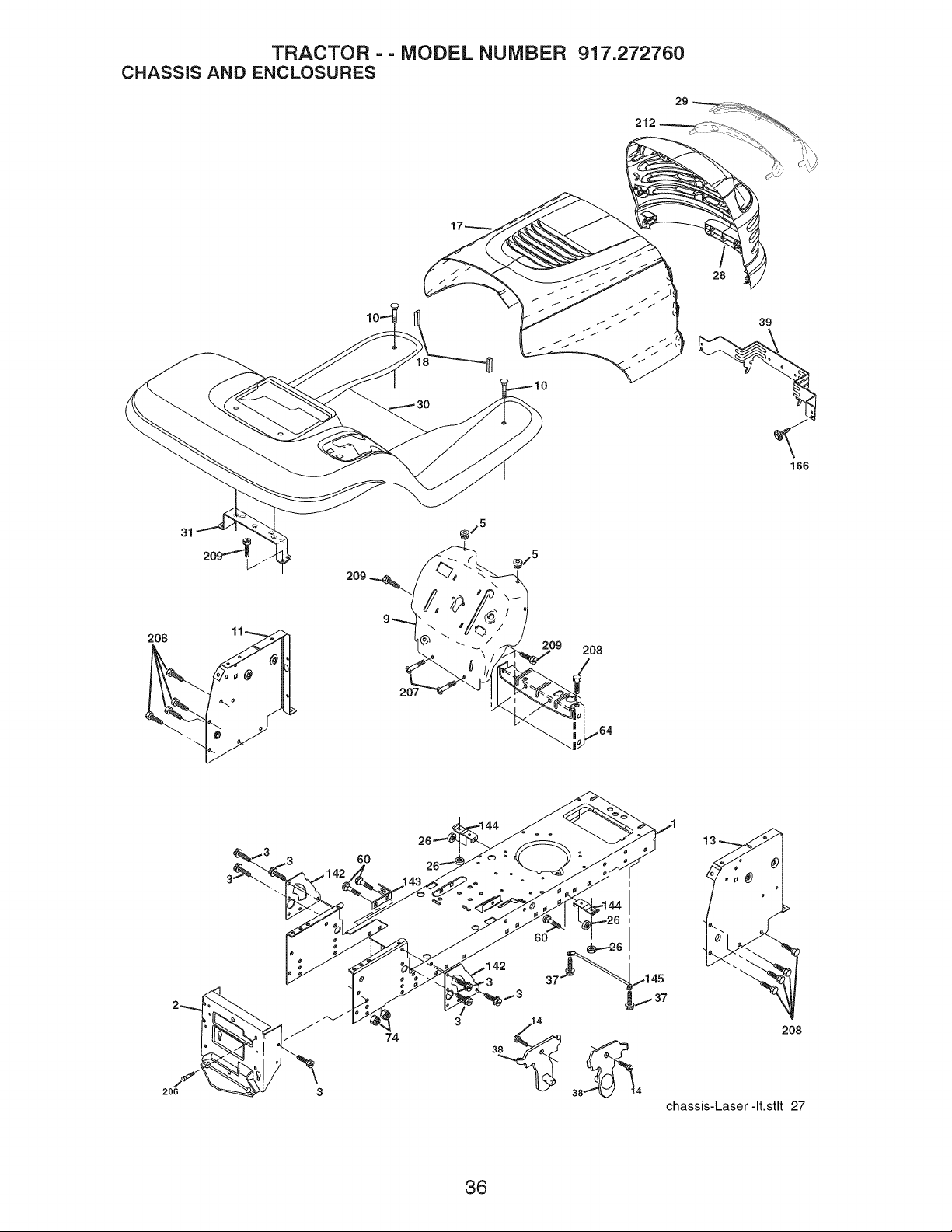

TRACTOR = - MODEL NUMBER 917.272760

CHASSIS AND ENCLOSURES

166

31 @/5

208

2O7

209 208

3 14

2O8

chassis-Laser -It.stlt_27

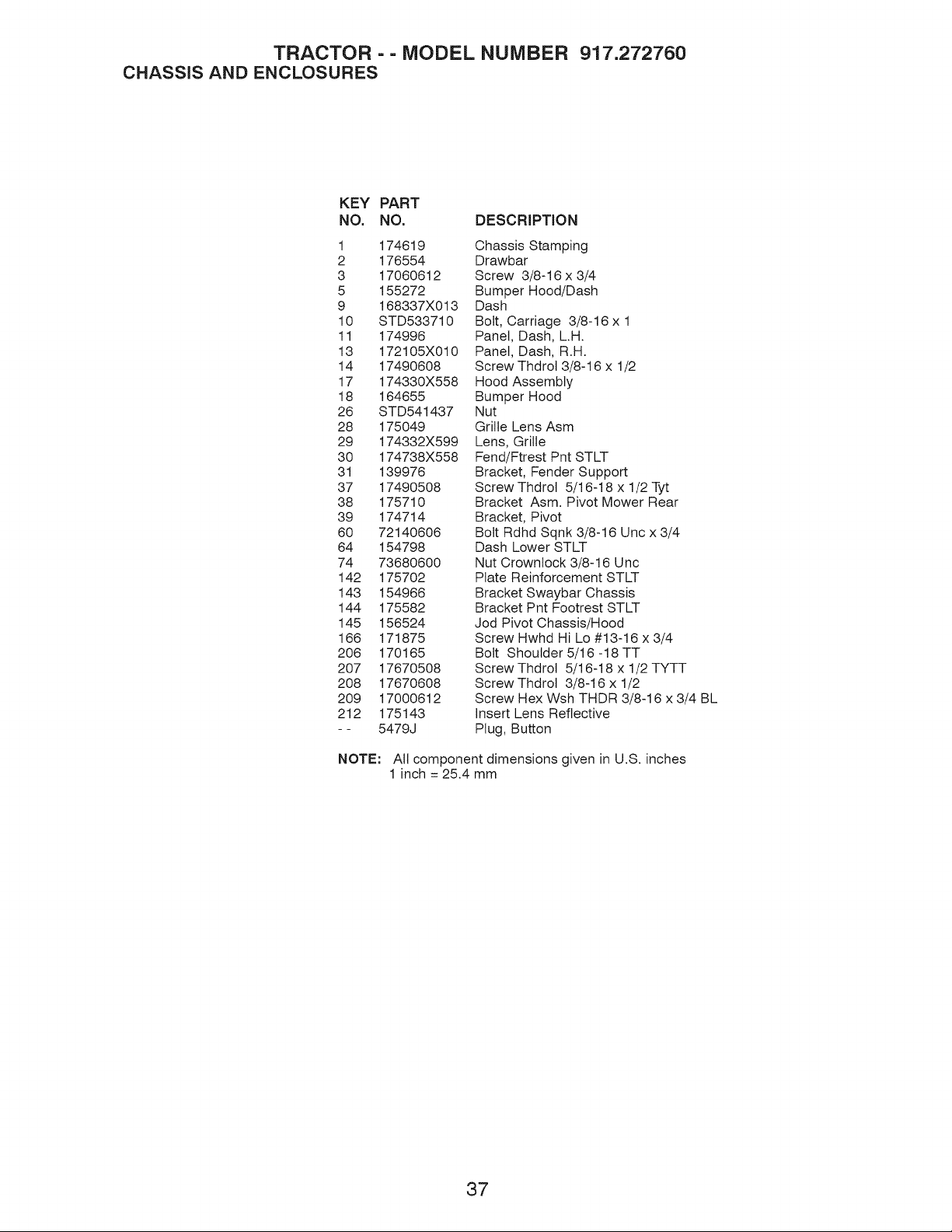

TRACTOR =- MODEL NUMBER 917.272760

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

3 17060612

5 155272

9 168337X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 174330X558

18 164655

26 STD541437

28 175049

29 174332X599

30 174738X558

31 139976

37 17490508

38 175710

39 174714

60 72140606

64 154798

74 73680600

142 175702

143 154966

144 175582

145 156524

166 171875

206 170165

207 17670508

208 17670608

209 17000612

212 175143

-- 5479J

Chassis Stamping

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Nut

Grille Lens Asm

Lens, Grille

Fend/Ftrest Pnt STLT

Bracket, Fender Support

Screw Thdrot 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Bracket, Pivot

Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 Unc

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Jod Pivot Chassis/Hood

Screw Hwhd Hi Lo #13-16 x 3/4

Bolt Shoulder 5/16 -18 TT

Screw Thdrot 5/16-18 x 1/2 TYTT

ScrewThdrol 3/8-16 x 1/2

Screw Hex Wsh THDR 3/8-16 x 3/4 BL

Insert Lens Reflective

Plug, Button

NOTE: Allcomponentdimensions givenin U.S. inches

1 inch = 25.4 mm

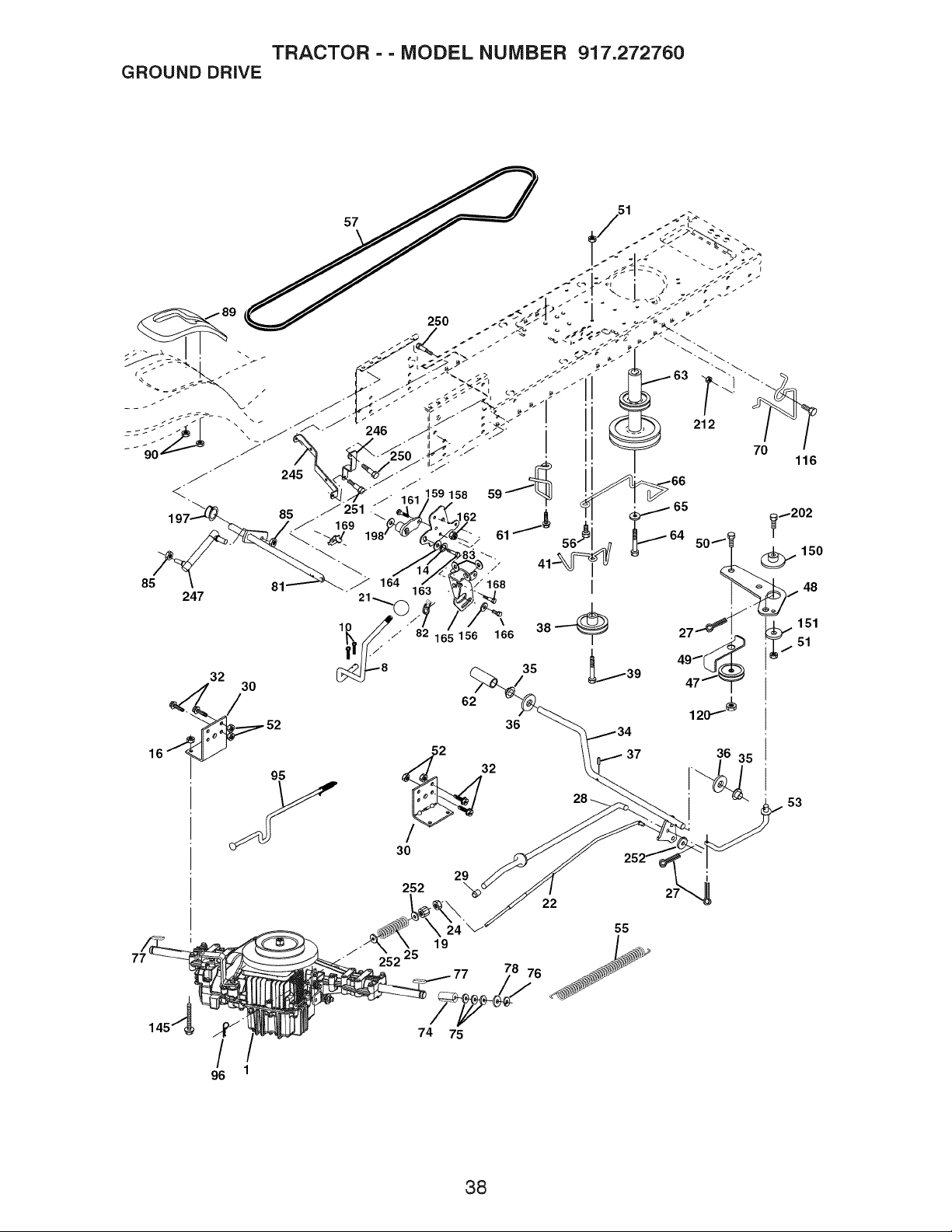

TRACTOR - - MODEL NUMBER 917.272760

GROUND DRIVE

252 \

252

78 76

96 1

74 75

TRACTOR - - MODEL NUMBER 917.272760

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transaxle (See Breakdown) 75 121749X

Peerless LTH2000 76 STD581075

8 165866 Rod Shift Fender Adjust 77 123583X

10 STD561210 Pin Cotter 1/8 x 1 CAD 78 121748X

14 10040400 Washer Lock Hvy Helical 81 178139

16 STD541431 Nut Lock Hex W/Ins. 82 165711

5/16-18 Unc 83 19171216

19 STD541437 Nut Lock Hex W/Wsh 85 150360

3/8-16 Unc 89 164890X428

21 130564 Knob, Deluxe 1/2-13 90 124346X

22 178141 Rod, Brake 95 178134

24 73350600 Nut, Hex Jam 3/8-16 Unc 96 4497H

25 106888X Spring, Brake Rod 116 72140608

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 120 73900600

28 175765 Rod, Parking Brake 145 74490540

29 71673 Cap, Parking Brake 150 175456

30 169592 Bracket, Transaxle 151 19133210

32 74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 156 166002

34 175578 Shaft, Foot Pedal 158 165589

35 120183X Bearing, Nylon 159 165494

36 19211616 Washer 161 72140406

37 1572H Pin, Roll 162 73680400

38 179114 Pulley, Composite 163 74780416

39 74760648 Bolt Fin Hex 3/8-16 x 3 164 19091010

41 175556 Keeper, Belt Idler 165 165623

47 127783 Pulley, Idler, V-Groove 166 166880

48 154407 Bellcrank, Clutch 168 165492

49 123205X Retainer, Belt 169 165580

50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 197 169613

51 STD541437 Nut Crownlock 3/8-16 Unc 198 169593

52 STD541431 Nut, Crowntock 5/16-18 Unc 202 72110614

53 105710X Link, Clutch 212 145212

55 105709X Spring, Return, Clutch 245 178122

56 17060620 Screw3/8-16 x 1-1/4 246 178121

57 178138 V-Belt 247 181462

59 169691 Keeper, Center Span 250 17060612

61 17120614 Screw 3/8-16 x .875 251 17060516

62 8883R Cover, Pedal 252 19131616

63 175410 Pulley, Engine

64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper Belt Engine Hydro

70 134683 Keeper Belt Engine

74 137057 Spacer

DESCRIPTION

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross Tapered

Spring Torsion

Washer 17/32 x 3/4 x 16 Ga.

Nut Lock Center 1/4-28 FNTHD

Console, Shift

Nut Setf-Thd Wsh-hd 1/4 Zinc

Disconnect Asm Rod Bypas LTH

Retainer Spring 1" Zinc/Cad

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig 3/8-16

Bolt Hex FLGHD 5/16-18 x Gr 5

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20x 3/4 Gr 5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Nytiner Snap-In 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

Strap Torque Lh LTH2000

Strap Torque Rh LTH2000

Link Shift Transaxle LTH2000

Screw. 3/8-16 x 3/4

Screw 5/16-18 x 1

Washer 13/32 x 1 x 16 Ga.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

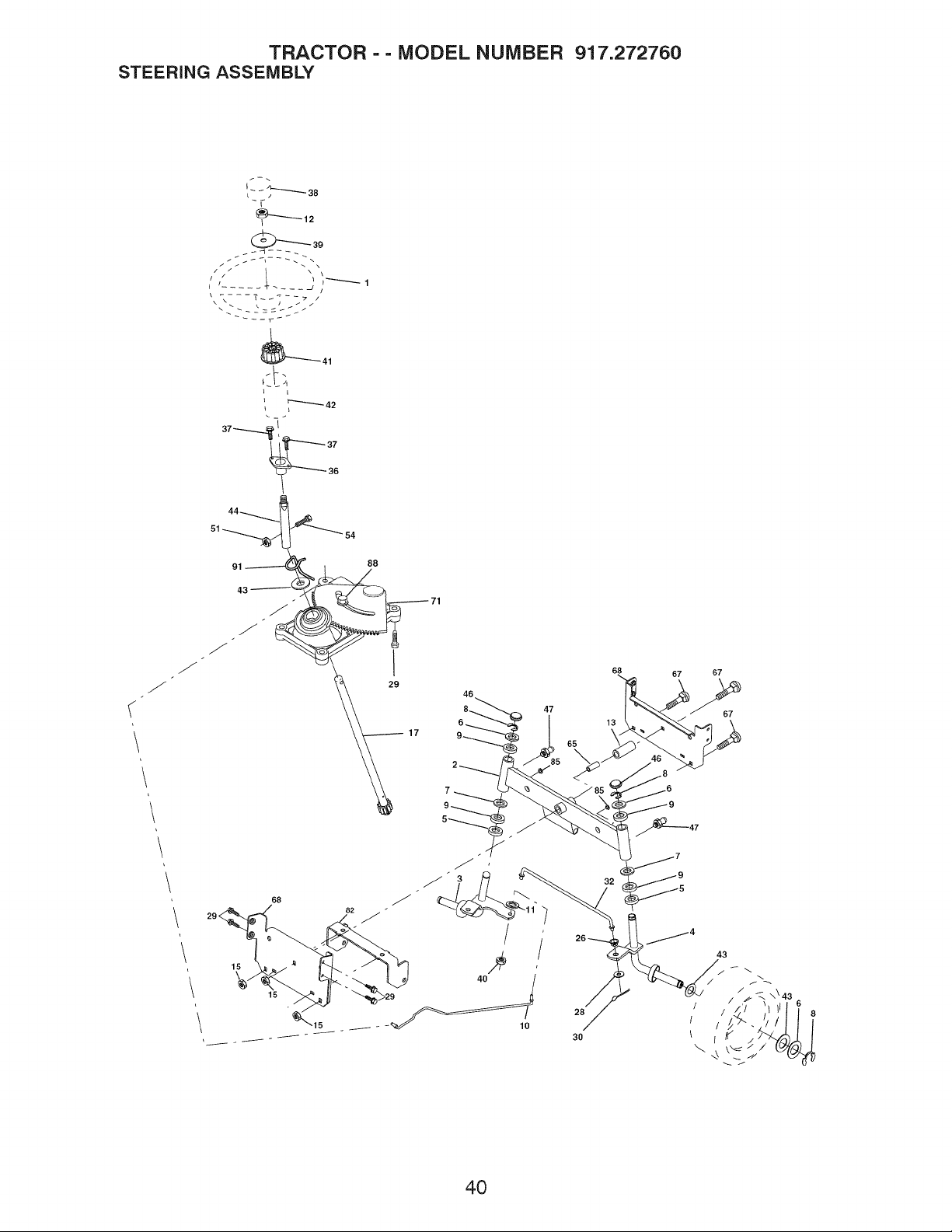

TRACTOR - - MODEL NUMBER 917.272760

STEERING ASSEMBLY

I t

_ ---'-'-"36

91 _

- i

_ i

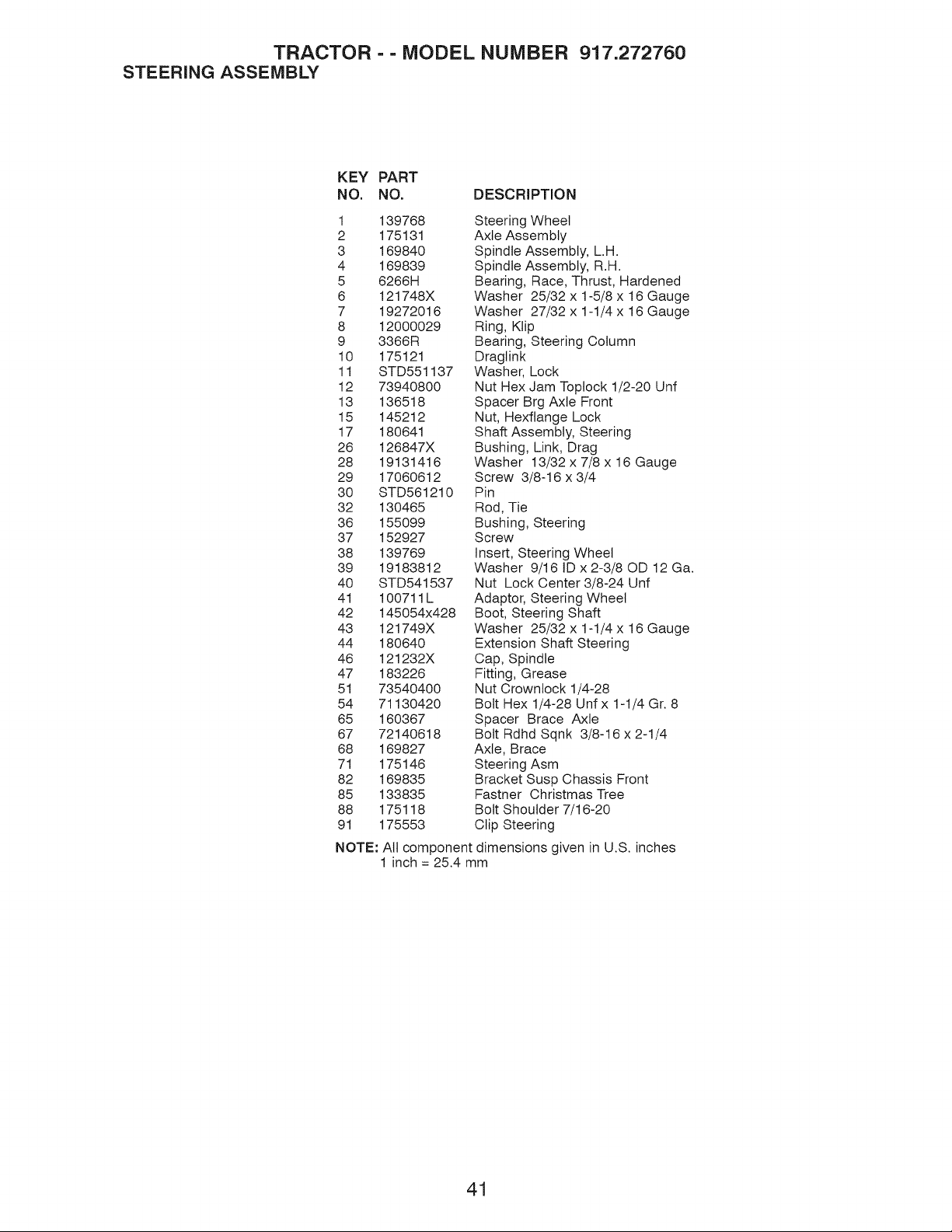

TRACTOR - - MODEL NUMBER 917.272760

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768 Steering Wheel

2 175131 Axle Assembly

3 169840 Spindle Assembly, L.H.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

10 175121 Dragtink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 Unf

13 136518 Spacer Brg Axle Front

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 17060612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 139769 Insert, Steering Wheel

39 19183812 Washer 9/16 ID x 2-3/80D 12 Ga.

40 STD541537 Nut Lock Center 3/8-24 Unf

41 100711L Adaptor, Steering Wheel

42 145054x428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4x 16 Gauge

44 180640 Extension Shaft Steering

46 121232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut Crowntock 1/4-28

54 71130420 Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72140618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

85 133835 Fastner Christmas Tree

88 175118 Bolt Shoulder 7/16-20

91 175553 Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

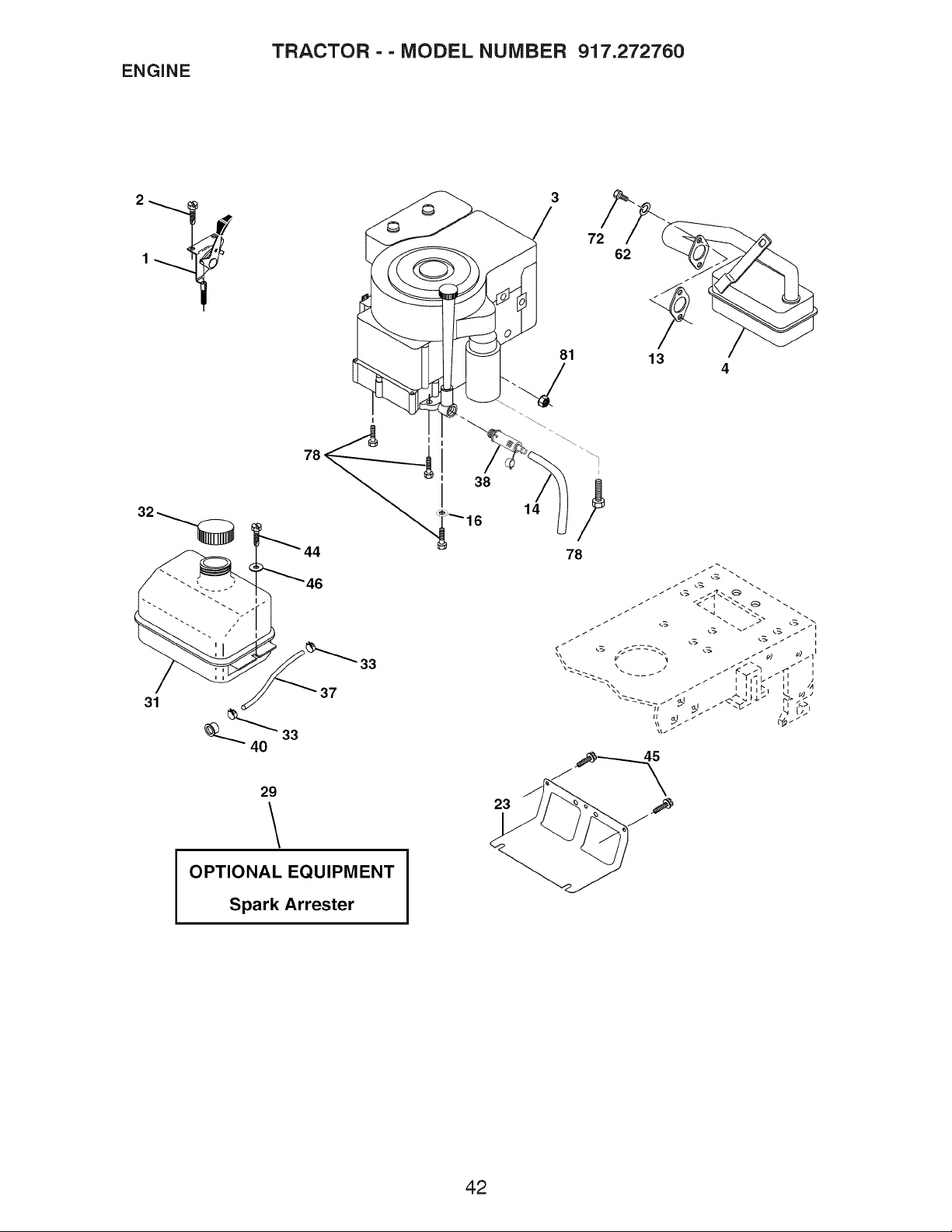

ENGINE

TRACTOR - - MODEL NUMBER 917.272760

OPTIONAL EQUIPMENT

Spark Arrester

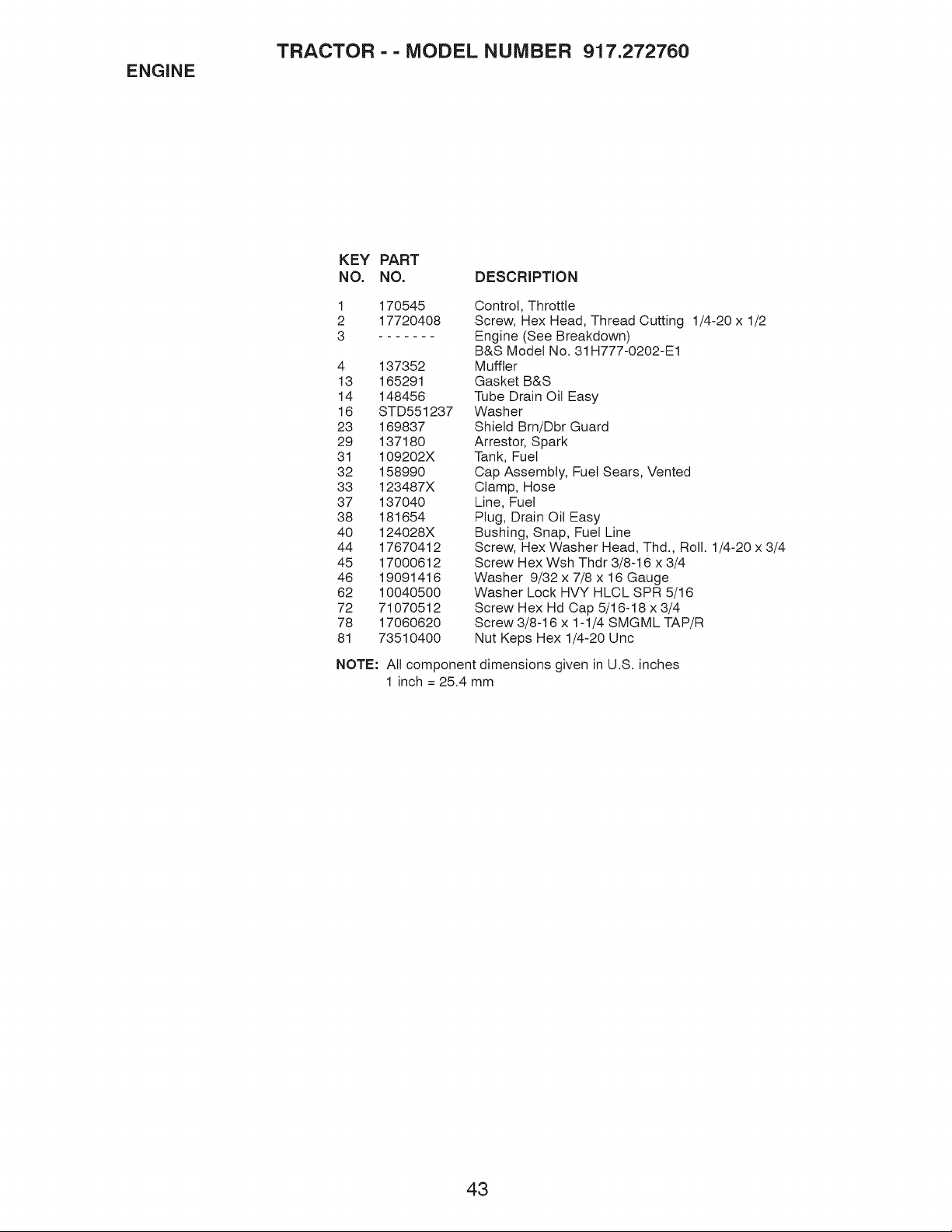

ENGINE

TRACTOR - - MODEL NUMBER 917.272760

KEY PART

NO. NO. DESCRIPTION

170545

17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 109202X

32 158990

33 123487X

37 137040

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

62 10040500

72 71070512

78 17060620

81 73510400

Control, Throttle

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

Engine (See Breakdown)

B&S Model No. 31H777-0202-E1

Muffler

Gasket B&S

Tube Drain Oil Easy

Washer

Shield Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Sears, Vented

Clamp, Hose

Line, Fuel

Plug, Drain Oil Easy

Bushing, Snap, Fuel Line

Screw, Hex Washer Head, Thd., Roll. 1/4-20 x 3/4

Screw Hex Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Gauge

Washer Lock HVY HLCL SPR 5/16

Screw Hex Hd Cap 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4 SMGML TAP/R

Nut Keps Hex 1/4-20 Unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

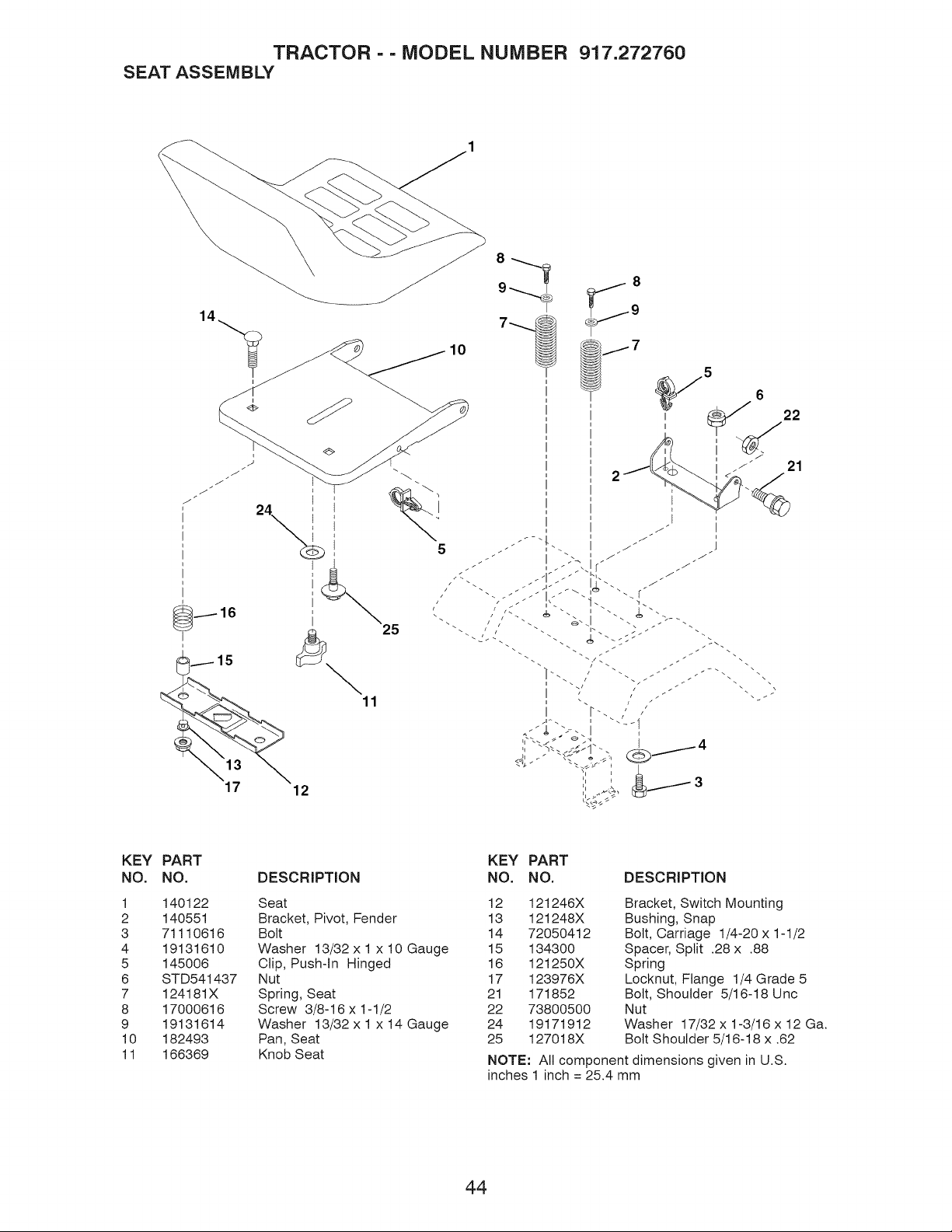

TRACTOR - - MODEL NUMBER 917.272760

SEAT ASSEMBLY

KEY

NO.

PART

NO.

140122

140551

71110616

19131610

145006

STD541437

124181X

17000616

19131614

182493

166369

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Seat 12 121246X

Bracket, Pivot, Fender 13 121248X

Bolt 14 72050412

Washer 13/32 x 1 x 10 Gauge 15 134300

Clip, Push-in Hinged 16 121250X

Nut 17 123976X

Spring, Seat 21 171852

Screw 3/8-16 x 1-1/2 22 73800500

Washer 13/32 x 1 x 14 Gauge 24 19171912

Pan, Seat 25 127018X

Knob Seat

Bracket, Switch Mounting

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

Spacer, Split .28 x .88

Spring

Locknut, Flange 1/4 Grade 5

Bolt, Shoulder 5/16-18 Unc

Nut

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

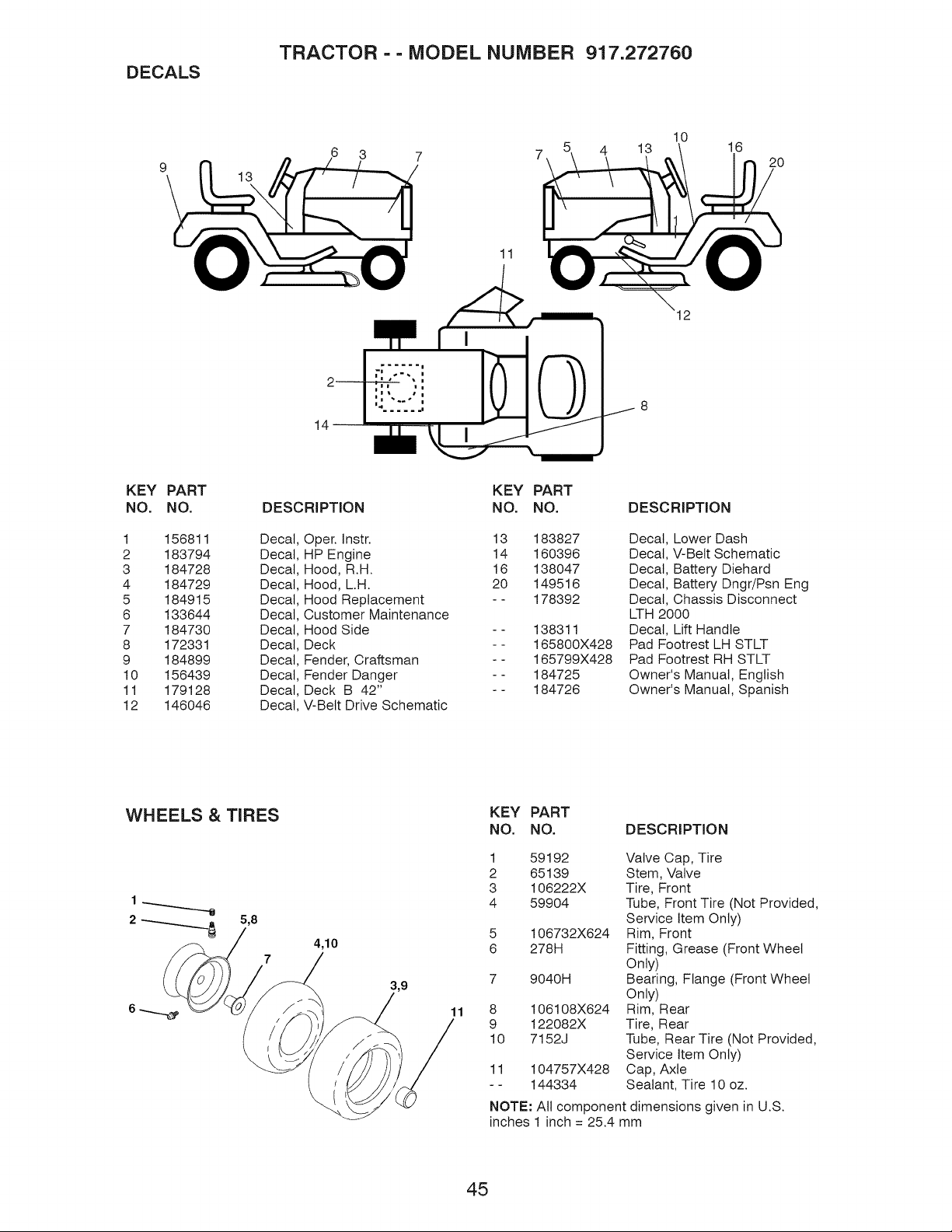

DECALS

TRACTOR - - MODEL NUMBER 917.272760

6 3 7 7 4

14--

KEY PART

NO. NO. DESCRIPTION

1 156811

2 183794 Decal

3 184728 Decal

4 184729 Decal

5 184915 Decal

6 133644 Decal

7 184730 Decal

8 172331 Decal

9 184899 Decal

10 156439 Decal

11 179128 Decal

12 146046 Decal

Decal Oper. Instr.

KEY PART

NO. NO.

13 183827

HP Engine 14 160396

Hood, R.H. 16 138047

Hood, LH. 20 149516

Hood Replacement - - 178392

Customer Maintenance

Hood Side - - 138311

Deck - - 165800X428

Fender, Craftsman - - 165799X428

Fender Danger - - 184725

Deck B 42" -- 184726

V-Belt Drive Schematic

DESCRIPTION

Decal, Lower Dash

Decal, V-Belt Schematic

Decal, Battery Diehard

Decal, Battery Dngr/Psn Eng

Decal, Chassis Disconnect

LTH 2000

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, Front Tire (Not Provided,

Service Item Only)

5 106732X624 Rim, Front

6 278H Fitting, Grease (Front Wheel

Only)

7 9040H Bearing, Flange (Front Wheel

Only)

8 106108X624 Rim, Rear

9 122082X Tire, Rear

10 7152J Tube, Rear Tire (Not Provided,

Service Item Only)

11 104757X428 Cap, Axle

- - 144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

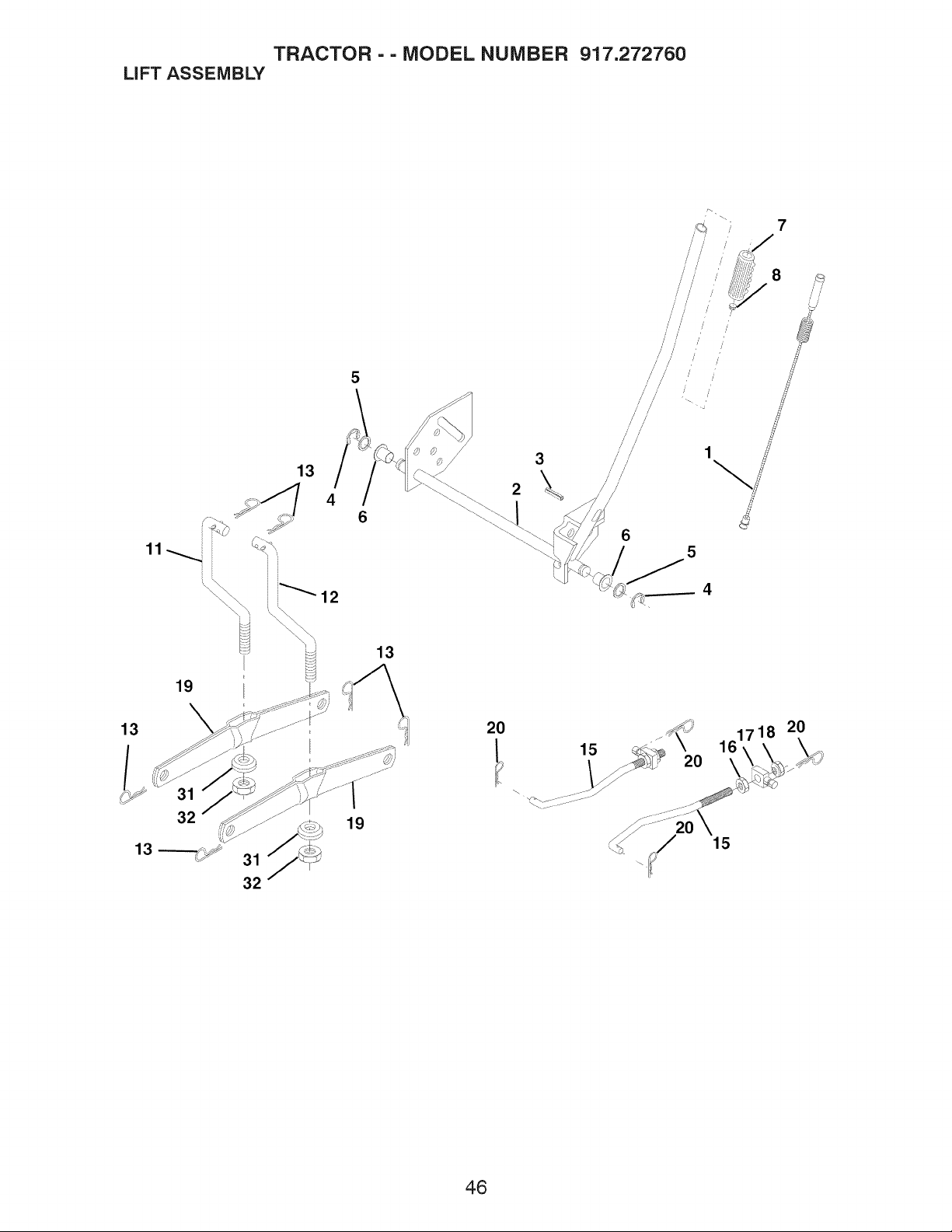

TRACTOR - - MODEL NUMBER 917.272760

LiFT ASSEMBLY

11_ i

161718 20

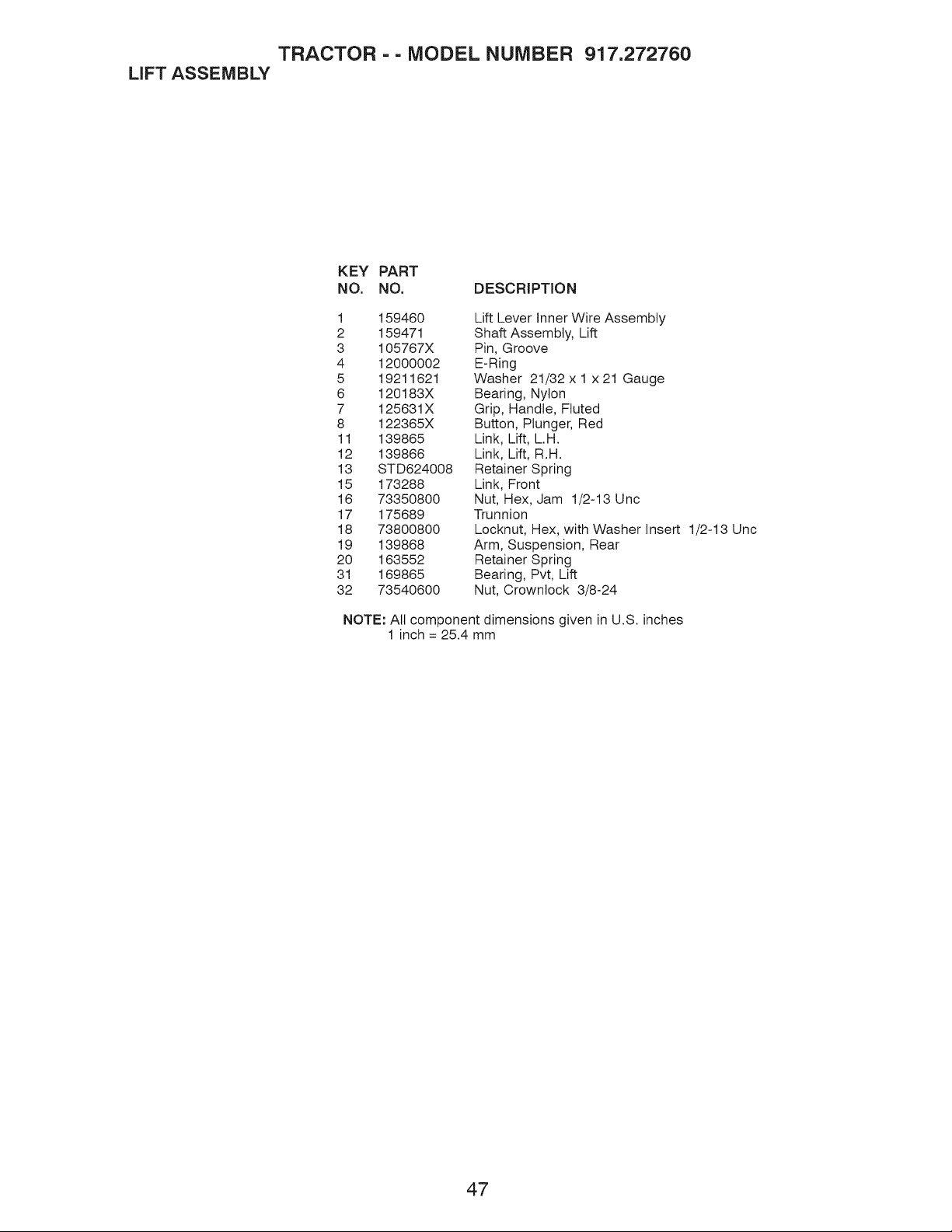

TRACTOR - - MODEL NUMBER 917.272760

LiFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32x 1 x21 Gauge

6 120183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, L.H.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 Unc

17 175689 Trunnion

18 73800800 Locknut, Hex, with Washer Insert 1/2-13 Unc

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crowntock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272760

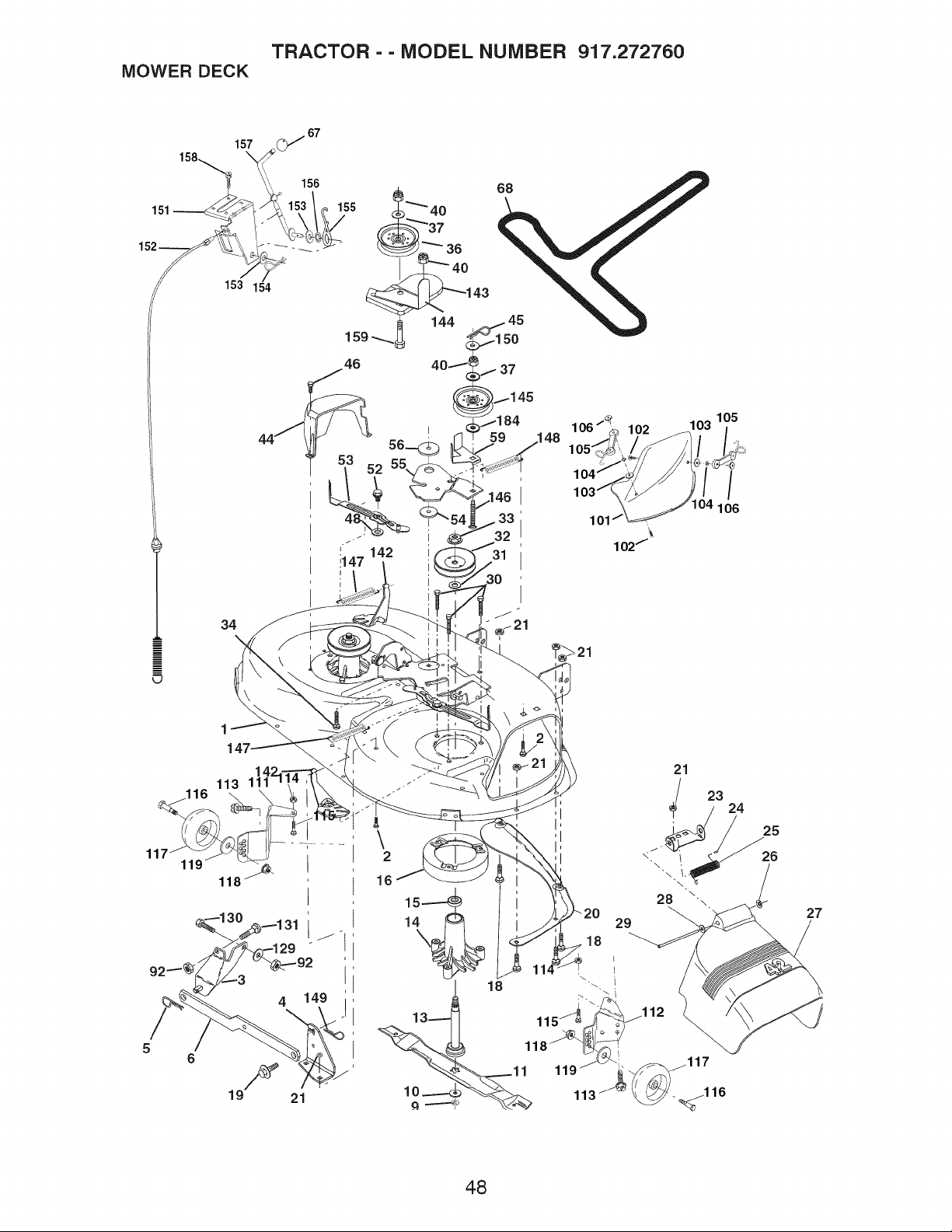

MOWER DECK

157

151

153 154

_._ 105

106 _ 102 103 /

\/ j104 106

101/\_

102/

118

28 \

TRACTOR -- MODEL NUMBER 917.272760

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 67 149846

2 STD533107 Bolt 68 144959

3 138017 Bracket Assembly, Sway Bar, Frt. 92 73800600

4 165460 Bracket Sway Bar 38/42" eck 101 136420

5 STD624008 Retainer Spring 102 71081010

6 178024 Bar Sway Deck 103 19061216

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 104 STD551110

9 STD551137 Washer, Lock 105 160793

10 140296 Washer, Hardened 106 2029J

(The following blades are 111 179292

available) 112 179293

11 134149 Blade, 42" Mulching Std 113 17060510

(For mulching mowers only) 114 STD541431

- - 139775 Blade, 42" Mulching Premium 115 72110505

(For better wear when mulching) 116 4898H

- - 138971 Blade, 42" Hi-Lift 117 165746

(For bagging or discharging) 118 73930600

13 137645 Shaft Assembly, Mandrel, 119 STD551037

Vented 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110485X Bearing, Ball, Mandrel 131 STD533710

16 174493 Stripper, Mower Deck 142 165890

18 72140505 Bolt, Carriage 5/16-18 x 5/8 143 157109

19 132827 Bolt, Shoulder 144 158634

20 159770 Baffle, Vortex 145 165888

21 STD541431 Nut Crowntock 5/16-18 Unc 146 171977

23 177563 Bracket, Deflector 147 131335

24 105304X Cap, Sleeve 148 169022

25 123713X Spring, Torsion, Deflector 149 165898

26 110452X Nut, Push 150 19091216

27 130968X428 Shield, Deflector 151 169670

28 19111016 Washer 11/32x5/8x16Ga. 152 169676

29 131491 Rod, Hinge 153 169674

30 173984 Screw Thdrol 154 169675

31 129963 Washer, Spacer 155 169671

32 153535 Pulley, Mandrel 156 169672

33 178342 Nut, Toptock, Flanged 157 169669

34 STD533717 Bolt 158 17720408

36 131494 Pulley, Idler, Flat 159 72140614

37 STD551037 Washer 13/32x 13/16x 16 Ga 183 19131410

40 STD541437 Nut Crowntock 3/8-16 Unc - - 130794

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened - - 169583

52 139888 Bolt, Shoulder 5/16-18 Unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut Lock Hex w/Ins. 3/8-16

Mutcher Cover

Screw Pan Hd Phillips 10-24 x 5/8

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw Taping 3/8-16 x .625

Nut, Hex, Keps 5/16-18 Unc

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 xl/2

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 13/32 x 7/8 x 10 Ga.

Mandrel Assembly (Includes

Housing, Shaft, and Shaft

Hardware Only - Pulley Not

Included)

Replacement Mower, Complete

(Std. Deck - order separately

mutcher cover and gauge wheel

components key nos. 101-106

and 116-119)

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

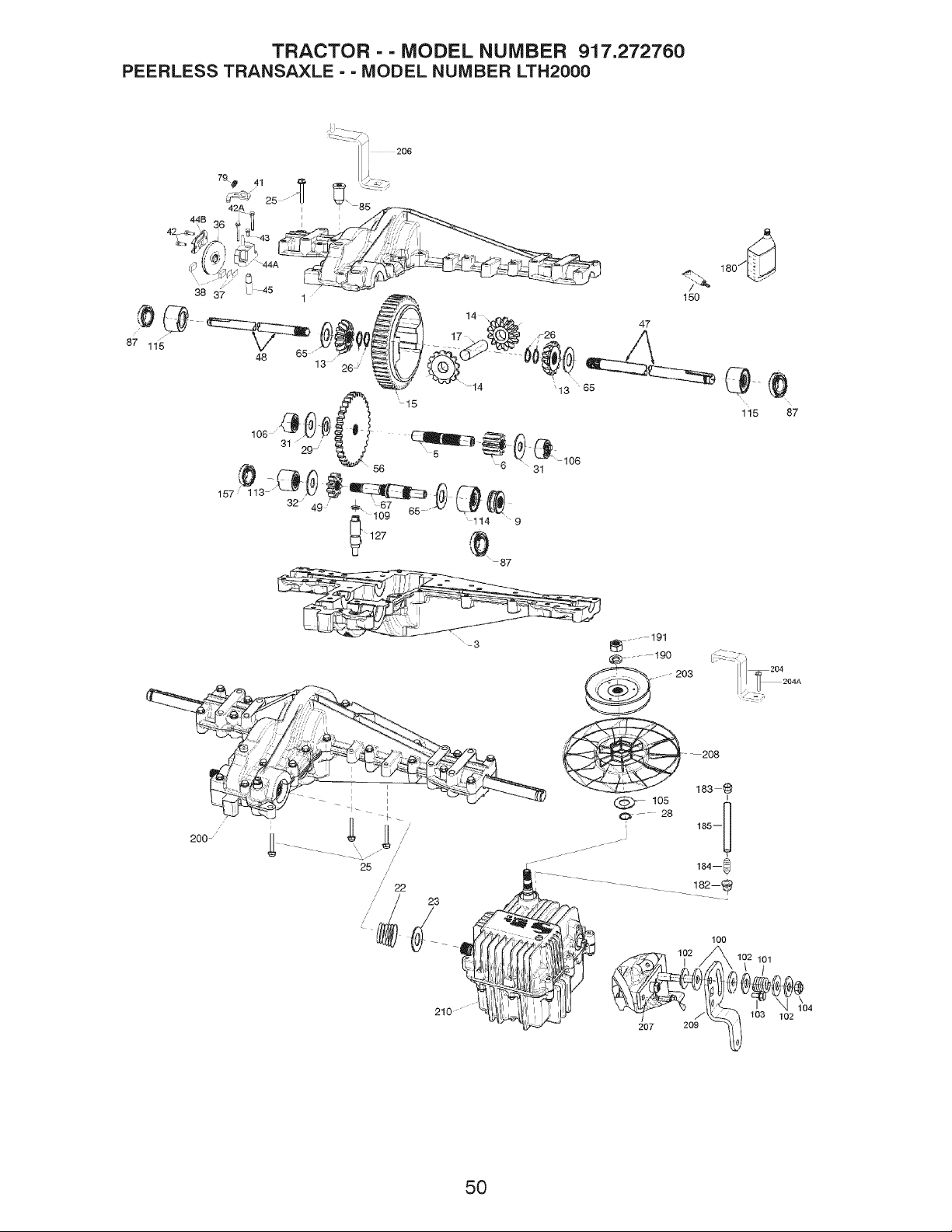

TRACTOR - - MODEL NUMBER 917.272760

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

38 1 150

26_' !__'-14 ,13 65 _-

157/_113-_ 3_2"_49 '__ _ @114_ 9

-87

--2O8

183

185-- !

184-- 0

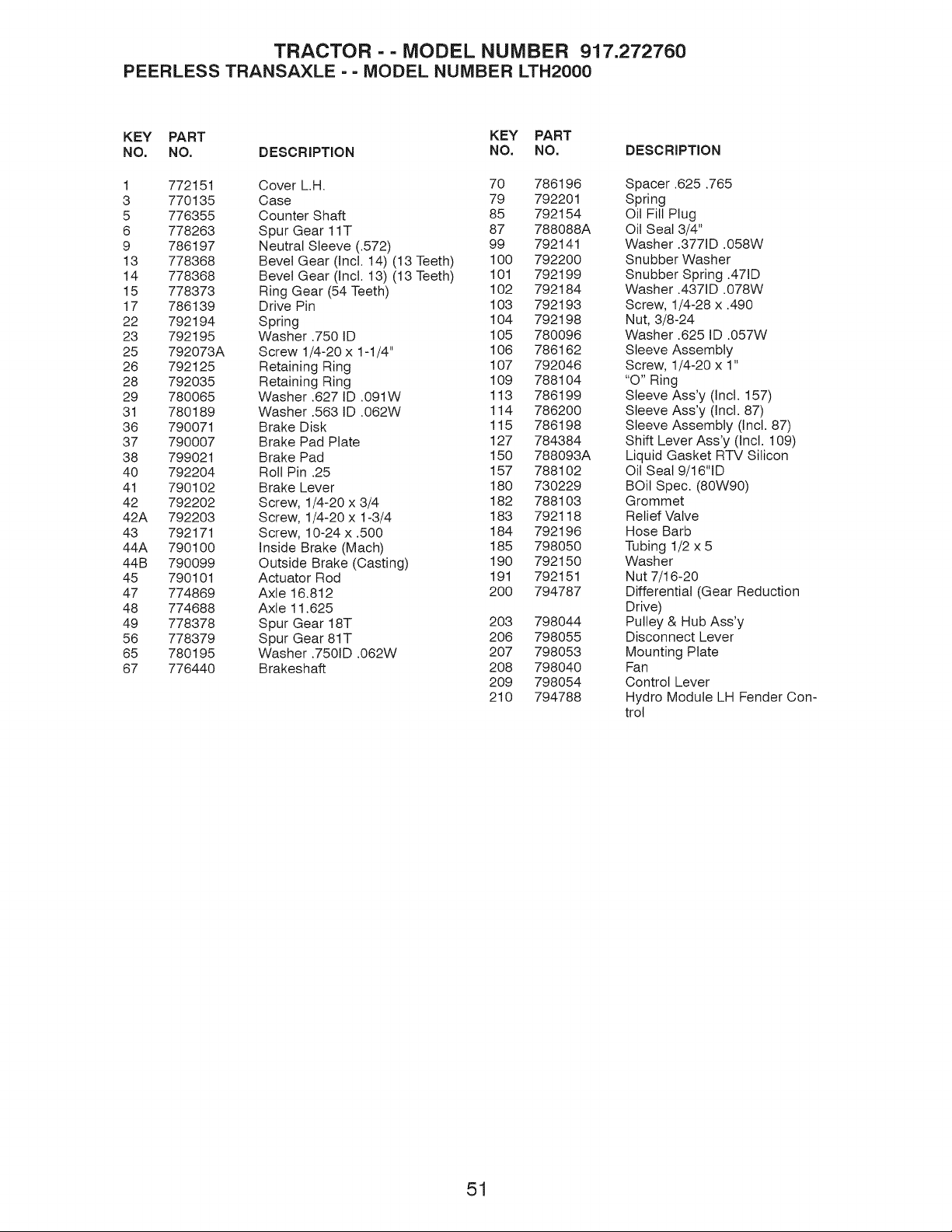

TRACTOR - = MODEL NUMBER 917.272760

PEERLESS TRANSAXLE == MODEL NUMBER LTH2000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772151 Cover L.H. 70 786196

3 770135 Case 79 792201

5 776355 Counter Shaft 85 792154

6 778263 Spur Gear 11T 87 788088A

9 786197 Neutral Sleeve (.572) 99 792141

13 778368 Bevel Gear (Incl. 14) (13 Teeth) 100 792200

14 778368 Bevel Gear (Incl. 13) (13 Teeth) 101 792199

15 778373 Ring Gear (54 Teeth) 102 792184

17 786139 Drive Pin 103 792193

22 792194 Spring 104 792198

23 792195 Washer .750 ID 105 780096

25 792073A Screw 1/4-20 x 1-1/4" 106 786162

26 792125 Retaining Ring 107 792046

28 792035 Retaining Ring 109 788104

29 780065 Washer .627 ID .091W 113 786199

31 780189 Washer .563 ID .062W 114 786200

36 790071 Brake Disk 115 786198

37 790007 Brake Pad Plate 127 784384

38 799021 Brake Pad 150 788093A

40 792204 Roll Pin .25 157 788102

41 790102 Brake Lever 180 730229

42 792202 Screw, 1/4-20 x 3/4 182 788103

42A 792203 Screw, 1/4-20 x 1-3/4 183 792118

43 792171 Screw, 10-24 x .500 184 792196

44A 790100 Inside Brake (Mach) 185 798050

44B 790099 Outside Brake (Casting) 190 792150

45 790101 Actuator Rod 191 792151

47 774869 Axle 16.812 200 794787

48 774688 Axle 11.625

49 778378 Spur Gear 18T 203 798044

56 778379 Spur Gear 81T 206 798055

65 780195 Washer .7501D .062W 207 798053

67 776440 Brakeshaft 208 798040

209 798054

210 794788

Spacer .625.765

Spring

Oil Fill Plug

Oil Seat 3/4"

Washer .3771D .058W

Snubber Washer

Snubber Spring .471D

Washer .4371D .078W

Screw, 1/4-28 x .490

Nut, 3/8-24

Washer .625 ID .057W

Sleeve Assembly

Screw, 1/4-20 x 1"

"O" Ring

Sleeve Ass'y (Incl. 157)

Sleeve Ass'y (Incl. 87)

Sleeve Assembly (Incl. 87)

Shift Lever Ass'y (Incl. 109)

Liquid Gasket RTV Silicon

Oil Seal 9/16"1D

BOil Spec. (80W90)

Grommet

Relief Valve

Hose Barb

Tubing 1/2 x 5

Washer

Nut 7/16-20

Differential (Gear Reduction

Drive)

Pulley & Hub Ass'y

Disconnect Lever

Mounting Plate

Fan

Control Lever

Hydro Module LH Fender Con-

trot

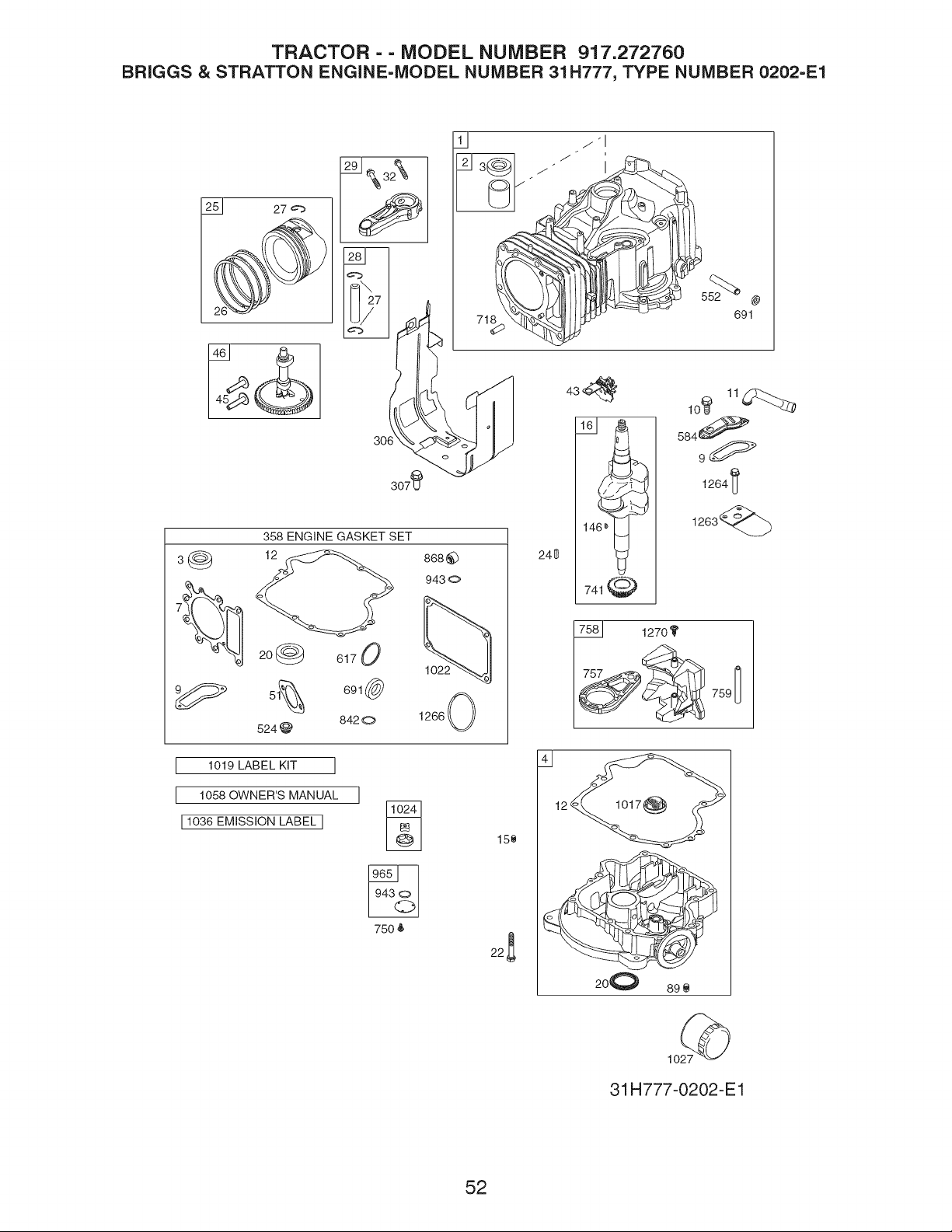

TRACTOR = - MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202=E1

30_

307_

358 ENGINE GASKET SET

888@

943 O

1022

524 _ 842 _ 1288 ____

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL

11036 EMISSION LABEL I

750

15e

5__%

691

584_

1264I_

4'12@,

200 89

1O27

31 H777-O202-E1

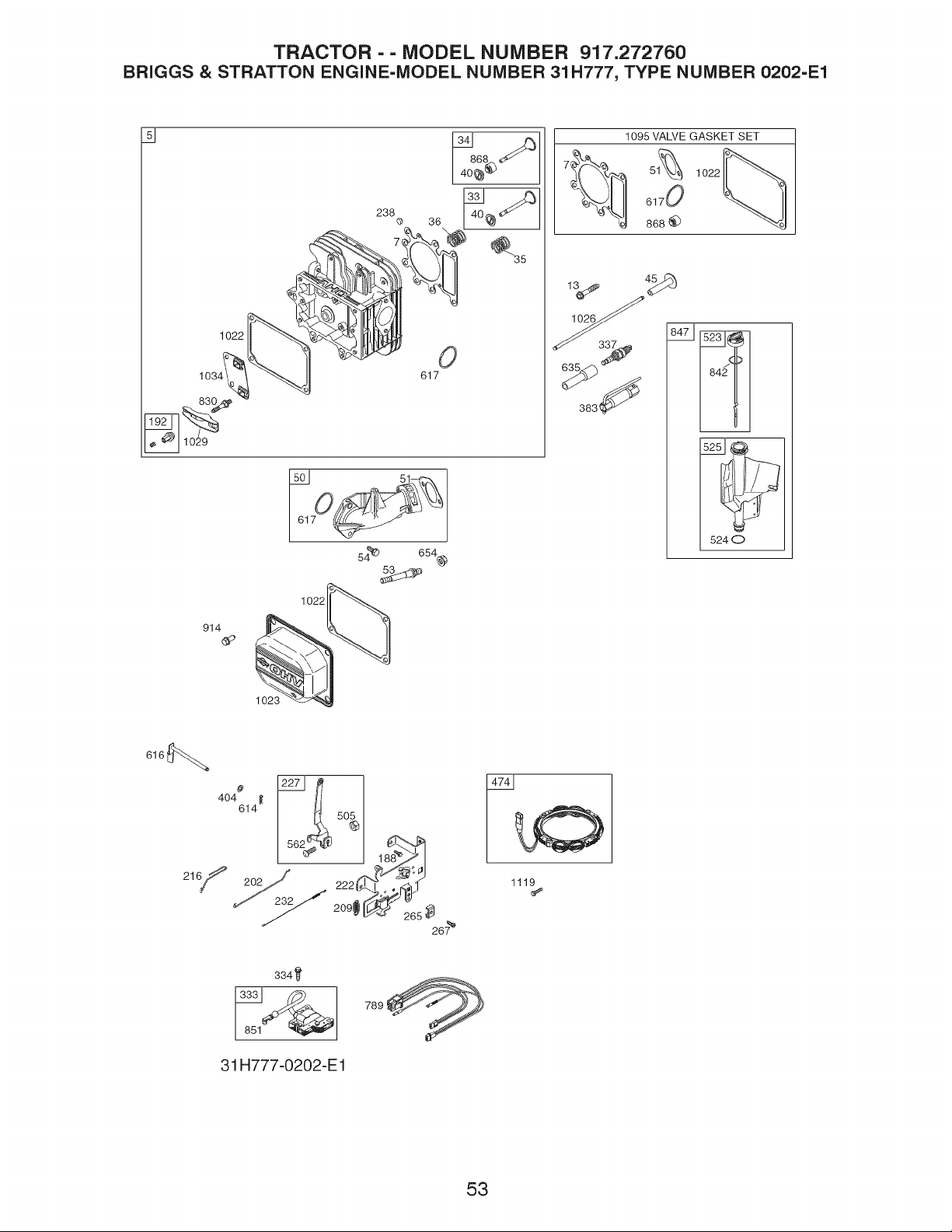

TRACTOR -- MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202-E1

238

1022

617

1022

914

1095 VALVE GASKET SET

7_ 51_ 1022_

6170

868 @

524 O

1023

404614_

216y 202J 222 bL_ ,_/_,_i

J_ 209_r_ _65

26_

1119

334_

31 H777-O202-E1

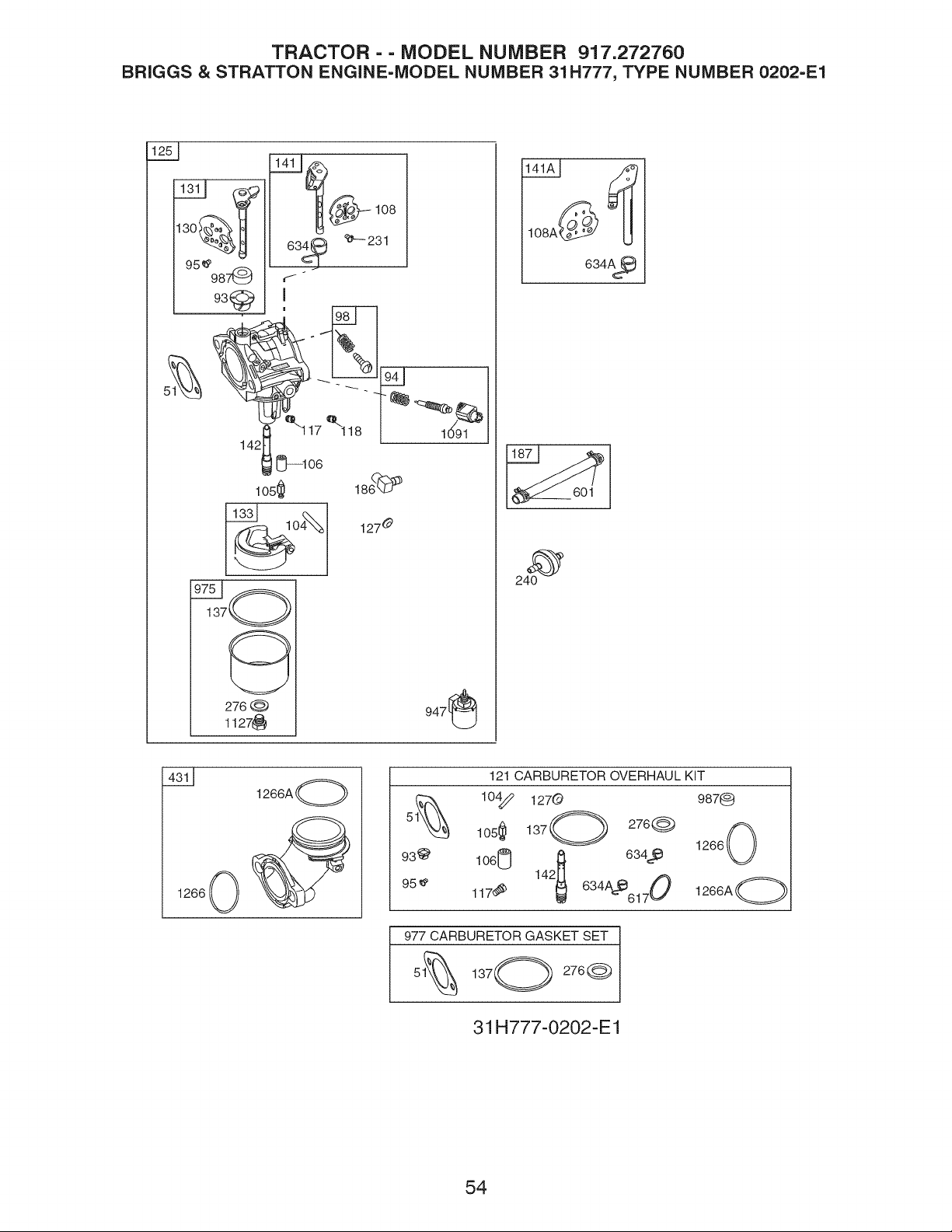

TRACTOR - - MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202=E1

142'

lO5(_

137_

276 @

1127_

127 °

108A_

634A_

4311

1266

1266A O

121 CARBURETOR OVERHAUL KIT

104_ 1270

105(_ 137 0 276@

1060 _ 634_

117_ 142 634A_6170

9870

1266@

1266A O

977 CARBURETOR GASKET SET

1370 276@

31H777-O202-E1

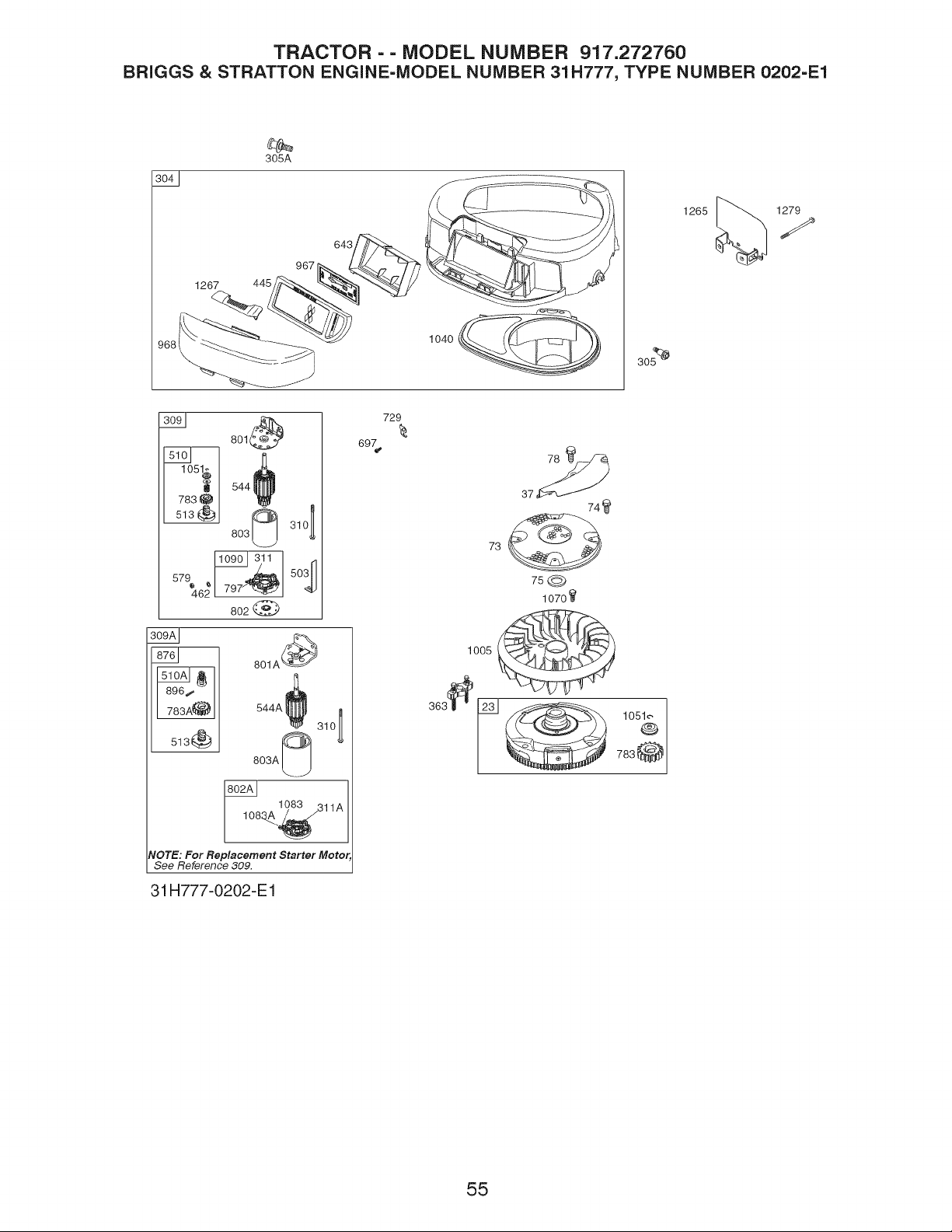

TRACTOR == MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202=E1

305A

1040

1265

1279

309_ 801

803_ 3101

110901311

579_.6_ 7_97"_ _

802

5o3

513_

801A_

544A

310_

803A _

10,83 311A

_!OTE: For Replacement Starter Motor

See Reference 309.

31H777-0202-E1

729

697

74_

73_

78@)

1070_

1005

783@

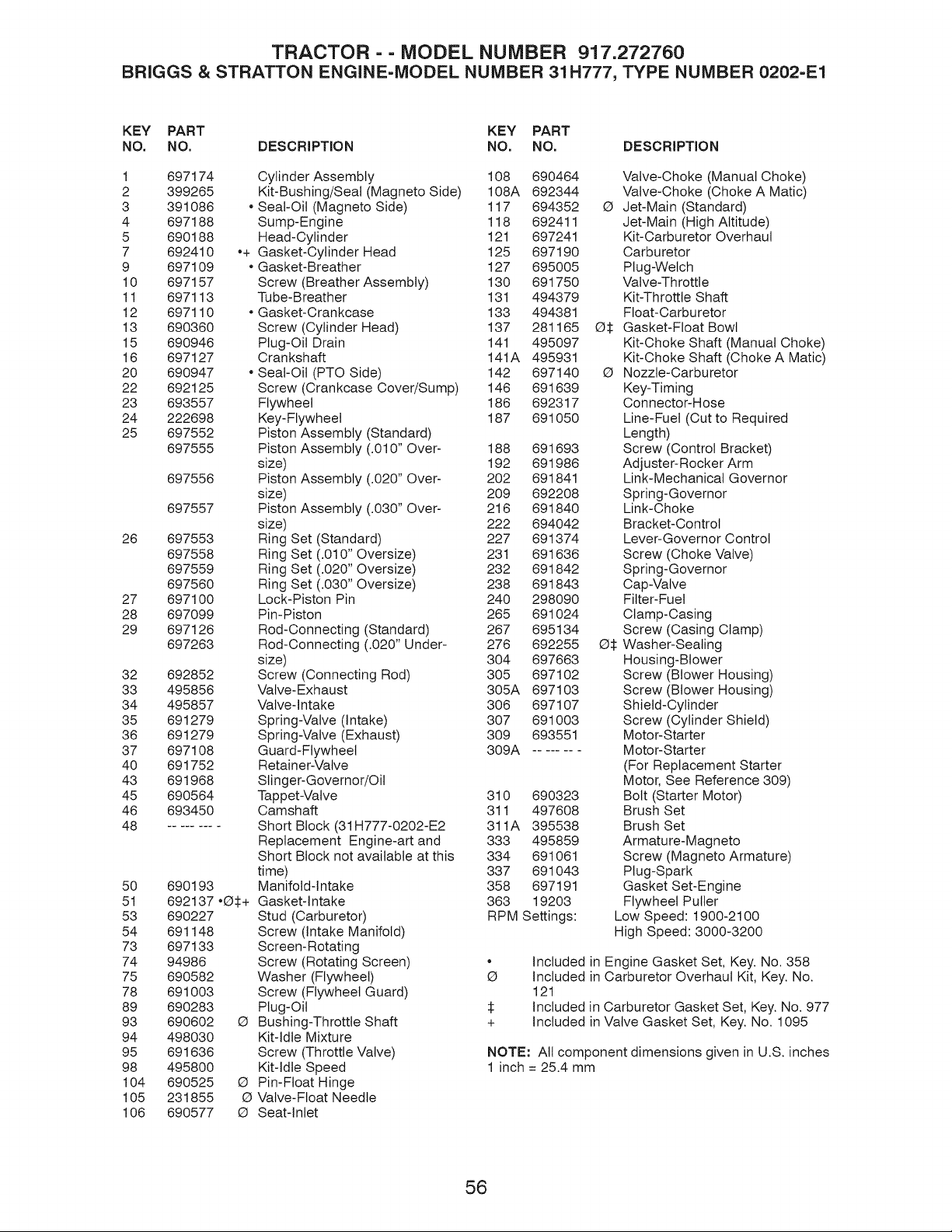

TRACTOR - - MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202=E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108 690464 Valve-Choke (Manual Choke)

2 399265 Kit-Bushing/Seat (Magneto Side) 108A 692344 Valve-Choke (Choke A Matic)

3 391086 * Seat-Oil (Magneto Side) 117 694352 Q Jet-Main (Standard)

4 697188 Sump-Engine 118 692411 Jet-Main (High Altitude)

5 690188 Head-Cylinder 121 697241 Kit-Carburetor Overhaul

7 692410 ,+ Gasket-Cylinder Head 125 697190 Carburetor

9 697109 * Gasket-Breather 127 695005 Plug-Welch

10 697157 Screw (Breather Assembly) 130 691750 Valve-Throttle

11 697113 _abe-Breather 131 494379 Kit-Throttle Shaft

12 697110 * Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 Q$ Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual Choke)

16 697127 Crankshaft 141A 495931 Kit-Choke Shaft (Choke A Matic)

20 690947 * Seat-Oil (PTO Side) 142 697140 Q Nozzle-Carburetor

22 692125 Screw (Crankcase Cover/Sump) 146 691639 Key-Timing

23 693557 Flywheel 186 692317 Connector-H ose

24 222698 Key-Flywheel 187 691050 Line-Fuel (Cut to Required

25 697552 Piston Assembly (Standard) Length)

697555 Piston Assembly (.010" Over- 188 691693 Screw (Control Bracket)

size) 192 691986 Adjuster-Rocker Arm

697556 Piston Assembly (.020" Over- 202 691841 Link-Mechanical Governor

size) 209 692208 Spring-Governor

697557 Piston Assembly (.030" Over- 216 691840 Link-Choke

size) 222 694042 Bracket-Control

26 697553 Ring Set (Standard) 227 691374 Lever-Governor Control

697558 Ring Set (.010" Oversize) 231 691636 Screw (Choke Valve)

697559 Ring Set (.020" Oversize) 232 691842 Spring-Governor

697560 Ring Set (.030" Oversize) 238 691843 Cap-Valve

27 697100 Lock-Piston Pin 240 298090 Filter-Fuel

28 697099 Pin-Piston 265 691024 Clamp-Casing

29 697126 Rod-Connecting (Standard) 267 695134 Screw (Casing Clamp)

697263 Rod-Connecting (.020" Under- 276 692255 D:_ Washer-Sealing

size) 304 697663 Housing-Blower

32 692852 Screw (Connecting Rod) 305 697102 Screw (Blower Housing)

33 495856 Valve-Exhaust 305A 697103 Screw (Blower Housing)

34 495857 Valve-intake 306 697107 Shield-Cylinder

35 691279 Spring-Valve (intake) 307 691003 Screw (Cylinder Shield)

36 691279 Spring-Valve (Exhaust) 309 693551 Motor-Starter

37 697108 Guard-Flywheel 309A ........ Motor-Starter

40 691752 Retainer-Valve (For Replacement Starter

43 691968 Stinger-Governor/Oil Motor, See Reference 309)

45 690564 Tappet-Valve 310 690323 Bolt (Starter Motor)

46 693450 Camshaft 311 497608 Brush Set

48 ......... Short Block (31H777-0202-E2 311A 395538 Brush Set

Replacement Engine-art and 333 495859 Armature-Magneto

Short Block not available at this 334 691061 Screw (Magneto Armature)

time) 337 691043 Plug-Spark

50 690193 Manifold-intake 358 697191 Gasket Set-Engine

51 692137 ,Q$+ Gasket-intake 363 19203 Flywheet Puller

53 690227 Stud (Carburetor) RPM Settings: Low Speed: 1900-2100

54 691148 Screw (intake Manifold) High Speed: 3000-3200

73 697133 Screen-Rotating

74 94986 Screw (Rotating Screen) • Included in Engine Gasket Set, Key. No. 358

75 690582 Washer (Flywheel) Q Included in Carburetor Overhaul Kit, Key. No.

78 691003 Screw (Flywheel Guard) 121

89 690283 Plug-Oil $ Included in Carburetor Gasket Set, Key. No. 977

93 690602 _D Bushing-Throttle Shaft + included in Valve Gasket Set, Key. No. 1095

94 498030 Kit-idle Mixture

95 691636 Screw (Throttle Valve) NOTE: All component dimensions given in U.S. inches

98 495800 Kit-idle Speed 1 inch = 25.4 mm

104 690525 Q Pin-Float Hinge

105 231855 O Valve-Float Needle

106 690577 O Seat-Inlet

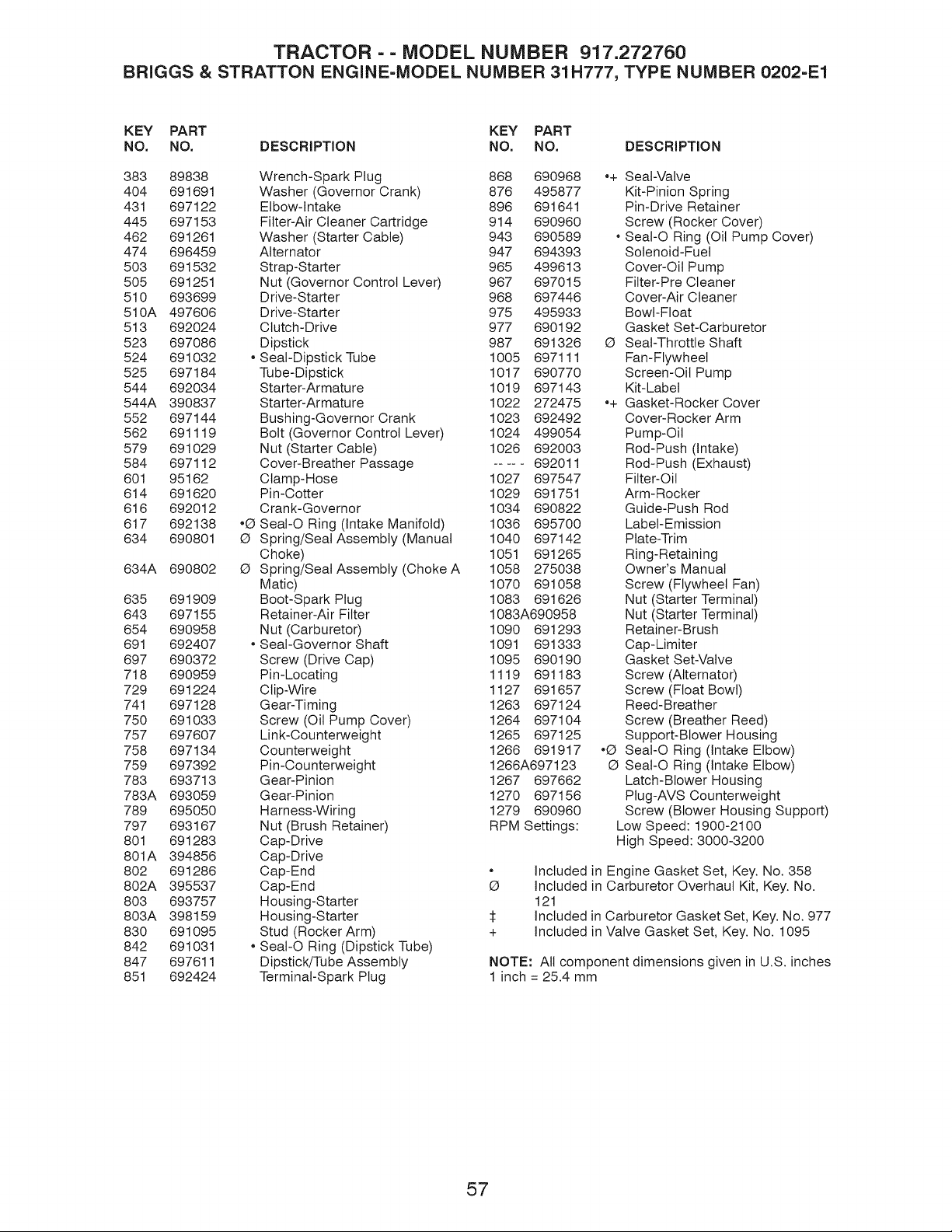

TRACTOR - - MODEL NUMBER 917.272760

BRIGGS & STRATTON ENGINE=MODEL NUMBER 31H777, TYPE NUMBER 0202-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 868 690968 ,+ Seat-Valve

404 691691 Washer (Governor Crank) 876 495877 Kit-Pinion Spring

431 697122 Elbow-Intake 896 691641 Pin-Drive Retainer

445 697153 Filter-Air Cleaner Cartridge 914 690960 Screw (Rocker Cover)

462 691261 Washer (Starter Cable) 943 690589 • Seat-O Ring (Oil Pump Cover)

474 696459 Alternator 947 694393 Solenoid-Fuel

503 691532 Strap-Starter 965 499613 Cover-Oil Pump

505 691251 Nut (Governor Control Lever) 967 697015 Filter-Pre Cleaner

510 693699 Drive-Starter 968 697446 Cover-Air Cleaner

510A 497606 Drive-Starter 975 495933 Bowl-Float

513 692024 Clutch-Drive 977 690192 Gasket Set-Carburetor

523 697086 Dipstick 987 691326 O Seal-Throttle Shaft

524 691032 • Seat-Dipstick Tube 1005 697111 Fan-Flywheel

525 697184 Tube-Dipstick 1017 690770 Screen-Oil Pump

544 692034 Starter-Armature 1019 697143 Kit-Label

544A 390837 Starter-Armature 1022 272475 .+ Gasket-Rocker Cover

552 697144 Bushing-Governor Crank 1023 692492 Cover-Rocker Arm

562 691119 Bolt (Governor Control Lever) 1024 499054 Pump-Oil

579 691029 Nut (Starter Cable) 1026 692003 Rod-Push (Intake)

584 697112 Cover-Breather Passage ..... 692011 Rod-Push (Exhaust)

601 95162 Clamp-Hose 1027 697547 Filter-Oil

614 691620 Pin-Cotter 1029 691751 Arm-Rocker

616 692012 Crank-Governor 1034 690822 Guide-Push Rod

617 692138 .O Seat-O Ring (intake Manifold) 1036 695700 Label-Emission

634 690801 Q Spring/Seal Assembly (Manual 1040 697142 Plate-Trim

Choke) 1051 691265 Ring-Retaining

634A 690802 (_ Spring/Seal Assembly (Choke A 1058 275038 Owner's Manual

Matic) 1070 691058 Screw (Flywheel Fan)

635 691909 Boot-Spark Ptug 1083 691626 Nut (Starter Terminal)

643 697155 Retainer-Air Filter 1083A690958 Nut (Starter Terminal)

654 690958 Nut (Carburetor) 1090 691293 Retainer-Brush

691 692407 • Seat-Governor Shaft 1091 691333 Cap-Limiter

697 690372 Screw (Drive Cap) 1095 690190 Gasket Set-Valve

718 690959 Pin-Locating 1119 691183 Screw (Alternator)

729 691224 Clip-Wire 1127 691657 Screw (Float Bowl)

741 697128 Gear-Timing 1263 697124 Reed-Breather

750 691033 Screw (Oil Pump Cover) 1264 697104 Screw (Breather Reed)

757 697607 Link-Counterweight 1265 697125 Support-Blower Housing

758 697134 Counterweight 1266 691917 .Q Seat-O Ring (Intake Elbow)

759 697392 Pin-Counterweight 1266A697123 O Seal-O Ring (Intake Elbow)

783 693713 Gear-Pinion 1267 697662 Latch-Blower Housing

783A 693059 Gear-Pinion 1270 697156 Ptug-AVS Counterweight

789 695050 Harness-Wiring 1279 690960 Screw (Blower Housing Support)

797 693167 Nut (Brush Retainer) RPM Settings: Low Speed: 1900-2100

801 691283 Cap-Drive High Speed: 3000-3200

801A 394856 Cap-Drive

802 691286 Cap-End • Included in Engine Gasket Set, Key. No. 358

802A 395537 Cap-End Q included in Carburetor Overhaul Kit, Key. No.

803 693757 Housing-Starter 121

803A 398159 Housing-Starter $ Included in Carburetor Gasket Set, Key. No. 977

830 691095 Stud (Rocker Arm) + Included in Valve Gasket Set, Key. No. 1095

842 691031 • SeaI-O Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly NOTE: All component dimensions given in U.S. inches

851 692424 Terminal-Spark Ptug 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

(J1

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_b ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

, EARS

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque deposee de Sears, Roebuck and Co.

184725 Rev. 8 02.18.14 AP Printed in U.S.A.

Craftsman 917272760 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917272760 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
