Installation Instructions
30" Electric, 30" Induction Range
30", 36" All Gas Range
30", 36", 48" Dual Fuel Range
To prevent accidents and damage to the range, you must read all
instructions supplied before installing or using the appliance.
en-US, CAM.-Nr. 10 716 320
IMPORTANT SAFETY INSTRUCTIONS
2
WARNING
Children and adults can tip over the range if has not been secured.
This may lead to fatal injuries.
This range must be secured and connected using the anti-tip
device according to the installation instructions.
If you have moved the range, slide the locking latch onto the anti-
tip device until you feel it lock into place.
Do not use the range if the anti-tip device has not been properly
installed and engaged.
Failure to observe the information contained in the installation
instructions can lead to serious or fatal injuries for children and
adults.
All ranges can tip
Injury to persons
could result
Install anti-tip devices
packed with range
See installation
instructions
WARNING
IMPORTANT SAFETY INSTRUCTIONS
3
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or death.
–Do not use or store gasoline or other combustible liquids or vapors in the vicinity
of this or any other appliance.
–WHAT TO DO IF YOU SMELL GAS
–Do not try to light any appliance.
–Do not touch any electric switches.
–Do not use any phones inside your building.
–Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
–If you are unable to reach your gas provider, call the fire department.
–Installation and service must be performed by a qualified installer, qualified
service agency or your gas provider.
(In Massachusetts, installation must be performed by a licensed installer / gas
fitter.)
–Note to the installer:
Please give these installation instructions to the consumer for the local
electrical/gas inspector.
®
®
Contents
4
IMPORTANT SAFETY INSTRUCTIONS................................................................2
IMPORTANT SAFETY INSTRUCTIONS................................................................6
Notes on installation...........................................................................................13
Model numbers .................................................................................................... 13
Data plate ............................................................................................................. 13
Distance to the range hood................................................................................... 13
Items included with this range............................................................................... 13
Toe-kick and drip tray.......................................................................................13
Installation of the toe-kick................................................................................13
Installation of the drip tray................................................................................14
Assembling the grill..........................................................................................15
Optional accessories............................................................................................. 16
RBGAG All Gas Backguard/RBGDF Dual Fuel Backguard..............................16
RBS Backsplash...............................................................................................19
XKM3000W Remote Vision (USA Only)..........................................................19
Required connections........................................................................................... 21
Electric Range dimensions.................................................................................22
HR 1421; HR 1622................................................................................................ 22
Detailed views of HR 1421.................................................................................... 24
Detailed views of HR 1622.................................................................................... 28
All Gas Range dimensions..................................................................................32
All Gas Range HR 11xx with Standard Burner Configuration (M Pro Power Plus).....
32
All Gas Range HR 11xx with BTU-reducing kits
(M Pro Power - Zero Gap; M Pro - Décor Hood)................................................... 36
Detailed views of HR 1124.................................................................................... 40
Detailed views of HR 1134.................................................................................... 44
Detailed views of HR 1135.................................................................................... 48
Detailed views of HR 1136.................................................................................... 52
Dual Fuel Range dimensions..............................................................................56
Dual Fuel Range HR 19xx with Standard Burner Configuration (M Pro Power Plus).
56
Dual Fuel Range HR 192x/193x with BTU-reducing kits
(M Pro Power - Zero Gap; M Pro - Décor Hood)................................................... 61
Dual Fuel Range HR 195x with BTU-reducing kit (M Pro Power - Zero Gap)....... 65
Detailed views of HR 1924.................................................................................... 67
Detailed views of HR 1934.................................................................................... 71
Detailed views of HR 1935.................................................................................... 75
Detailed views of HR 1936.................................................................................... 79
Contents
5
Detailed views of HR 1954.................................................................................... 83
Detailed views of HR 1955.................................................................................... 87
Detailed views of HR 1956.................................................................................... 91
Anti-tip device......................................................................................................95
Before installation.................................................................................................. 95
Checking the installation space............................................................................ 96
Included accessories............................................................................................. 98
Installation dimensions of locking bolt.................................................................. 99
Installing the range with the anti-tip device........................................................... 99
Disconnecting the range from the anti-tip device............................................... 103
Electrical connection........................................................................................104
Data plate.......................................................................................................105
Plumbing............................................................................................................107
Notes on connecting to the water supply........................................................... 107
Attach the stainless steel hose to the range....................................................... 108
Connecting to the water supply.......................................................................... 108
Gas connection..................................................................................................109
Burner ratings of Standard Burner Configuration..........................................111
Burner ratings for HR 1124................................................................................. 111
Burner ratings for HR 1134................................................................................. 112
Burner ratings for HR 1135................................................................................. 113
Burner ratings for HR 1136................................................................................. 114
Burner ratings for HR 1924................................................................................. 114
Burner ratings for HR 1934................................................................................. 115
Burner ratings for HR 1935................................................................................. 115
Burner ratings for HR 1936................................................................................. 116
Burner ratings for HR 1954................................................................................. 116
Burner ratings for HR 1955................................................................................. 117
Burner ratings for HR 1956................................................................................. 117
Burner ratings of M Pro Power (Zero Gap) ....................................................118
Burner ratings of M Pro (Décor Hood) ............................................................119
Combination Range with BTU-reducing kit....................................................120
Caring for the environment..............................................................................121
IMPORTANT SAFETY INSTRUCTIONS
6
When using the appliance, follow basic safety precautions, including the
following:
Read all instructions before installation and use of the range to prevent
accidents and machine damage.
This range complies with current safety requirements. However,
improper use of the appliance can result in personal injury or
damage to property.
Please read the installation instructions carefully before installing
and connecting the appliance.
Read the operating instructions before using the range for the first
time. To prevent accidents and damage to the appliance, always
observe both the installation instructions and operating
instructions. Both documents contain important information about
installation, safety, use and maintenance.
Miele cannot be held liable for damage occurring as a result of
non-compliance with the instructions.
Keep these installation instructions and operating instructions in a
safe place and pass them on to any future owner.
IMPORTANT SAFETY INSTRUCTIONS
7
Use
This range is intended for domestic use and use in other similar
environments.
This appliance is not intended for outdoor use.
Use the range exclusively under normal domestic conditions:
–Use the oven for baking, roasting, broiling, defrosting, canning
and drying food.
–Use the stovetop to prepare food and keep it warm.
Any other use is not permitted.
Risk of Fire! Do not use this oven to store or dry combustible
materials.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
8
Children
Children must be kept away from the range unless constantly
supervised.
Please supervise any children in the vicinity of the range and do
not let them play with the appliance.
Burn hazard from improper use! Do not allow children to operate
the oven.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Burn hazard!
Keep the spaces above and behind the range clear of any items that
could draw the attention of children. Otherwise, they can be tempted
into climbing onto the appliance.
Danger of injury. Never allow children to hang or lean on any part
of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
9
Technical safety
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
Do not carry or lift the range by the oven door handle or the
control panel!
Check whether the anti-tip device is properly installed and locked
into place (see "Anti-tip device"):
–The anti-tip device must be fastened to the floor or wall with
suitable screws.
–You must be able to feel that the locking latch is engaged in the
bolt of the anti-tip device.
Slide the range's locking latch into place on the anti-tip device.
The locking latch must be noticeably engaged with the bolt of the
anti-tip bracket.
A damaged range can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
Reliable and safe operation of the range can only be guaranteed if
it is connected to the public power supply.
The electrical safety of the range can only be guaranteed when it
is properly grounded. Compliance with this essential safety
requirement is absolutely mandatory. If in any doubt, please have the
building's wiring system inspected by a qualified electrician.
To avoid damaging the range, make sure that the connection data
(voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
10
During installation, maintenance and repair work, e.g. if the oven
lighting is broken (see "Frequently asked questions"), the range must
be completely disconnected from the household electricity supply.
The gas supply must be shut off. Ensure that this is the case by:
–removing the fuse,
–"tripping" the circuit breaker, or
–unplugging the unit. Pull the plug not the cord.
–Shut off the gas supply and, if necessary, disconnect the range
from the gas line. Installation and maintenance of the gas
connection must be performed by qualified installers, service
agencies or gas providers.
Do not use a power strip or extension cord to connect the range
to electricity. These are a fire hazard and do not guarantee the
required level of appliance safety.
Any contact with live connections or tampering with the electrical
or mechanical components of the range will endanger your safety
and may lead to appliance malfunctions.
Do not open the appliance housing under any circumstances.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Any repairs not performed by a Miele authorized service
technician will void the warranty.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
Risk of electric shock! If the ceramic surface of the stovetop is
defective or chipped, cracked or broken in any way, immediately
switch the stovetop off and do not continue to use it. Disconnect the
range from the power supply and contact Miele Technical Service.
IMPORTANT SAFETY INSTRUCTIONS
11
In order for the range to function properly, it requires an adequate
supply of cool air. Ensure that the air flow is not impaired. Also be
sure that the cool air supply is not excessively heated by other heat
sources (e.g. solid fuel stoves).
If the range is installed behind a cabinet door, do not close the
door while the appliance is in operation. Heat and moisture can build
up behind the closed door and cause damage to the range and to
the surrounding cabinets and flooring. Do not close the door until the
appliance has completely cooled down.
Do not install kitchen cabinets above the range, since reaching
over a hot stovetop to access the cabinets can result in burns. If it is
necessary to install cabinets, you can reduce the risk of burns by
installing a range hood that extends at least 4 3/4" (12 cm) past the
bottom of the cabinets.
The water shutoff valve must be accessible after the range has
been installed.
The integrated Waterproof System offers protection against water
damage if the following conditions are met:
–The range is properly installed (connected to electric and water
supply).
–The range is repaired immediately whenever damage is detected.
–The water supply is shut off during extended periods of non-use
(e.g. vacation).
Hard water, water containing minerals and water from reverse
osmosis filtering systems can damage the range. Only use filtered,
softened and demineralized water from the building's plumbing to
supply the range.
IMPORTANT SAFETY INSTRUCTIONS
12
Preparing your appliance for an extended vacation
If you elect to turn off the water to your home for an extended
period of time, please note that this may not be enough to reduce
the risk of a leak. To be completely safe, you must turn off the water
supply to each individual appliance.
Cleaning and care
Do not use a steam cleaner to clean the range.
The steam may reach electrical components and cause a short
circuit.
Only clean parts listed in these Operating and Installation
Instructions.
Scratches on the door glass can cause the glass to break.
Do not use abrasive cleaners, hard sponges, brushes or sharp metal
tools to clean the door glass.
The shelf runners can be removed for cleaning purposes (see
"Cleaning and care"). Ensure they are correctly fitted after cleaning
and never operate the oven without the shelf runners inserted.
There is a seal around the oven interior which seals the inside of
the door. Take care not to rub, damage or move the gasket.
Do not use oven cleaners. Commercial oven cleaners or oven
liners of any kind should not be used in or around any part of the
oven.
Debris should be removed before running the Self Clean program.
If not removed this debris can smoke causing the self-cleaning
program to turn itself off.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Notes on installation
13
Model numbers
A list of the ovens described in these
operating instructions can be found on
the back page.
Data plate
The data plate is behind the toe-kick.
The toe-kick cover is attached to the
base of the range by magnets so it can
be removed and put back again easily.
There you can find the model number,
the serial number and the connection
data (voltage/frequency/maximum rated
load) for your range.
Have this information available when
contacting Miele Technical Service.
Distance to the range hood
The minimum clearance between the
appliance and a range hood above will
be listed by the hood manufacturer.
If there is more than one appliance
installed below the range hood, each
with a different safety clearance, the
largest clearance must be used.
Items included with this range
The range is supplied with:
–Installation Instructions,
–Multiple operating instructions
(depending on model) for:
–Electric Range
–Induction Range
–Convection Oven
–Gas Cooktop
–Gas Convection Oven
–Speed Oven
–Warming Drawer
–an anti-tip device including screws
for fastening the range,
–various accessories.
Toe-kick and drip tray
30" and 36" range
The components are located in the
packaging of the range.
48" range
The components are already installed.

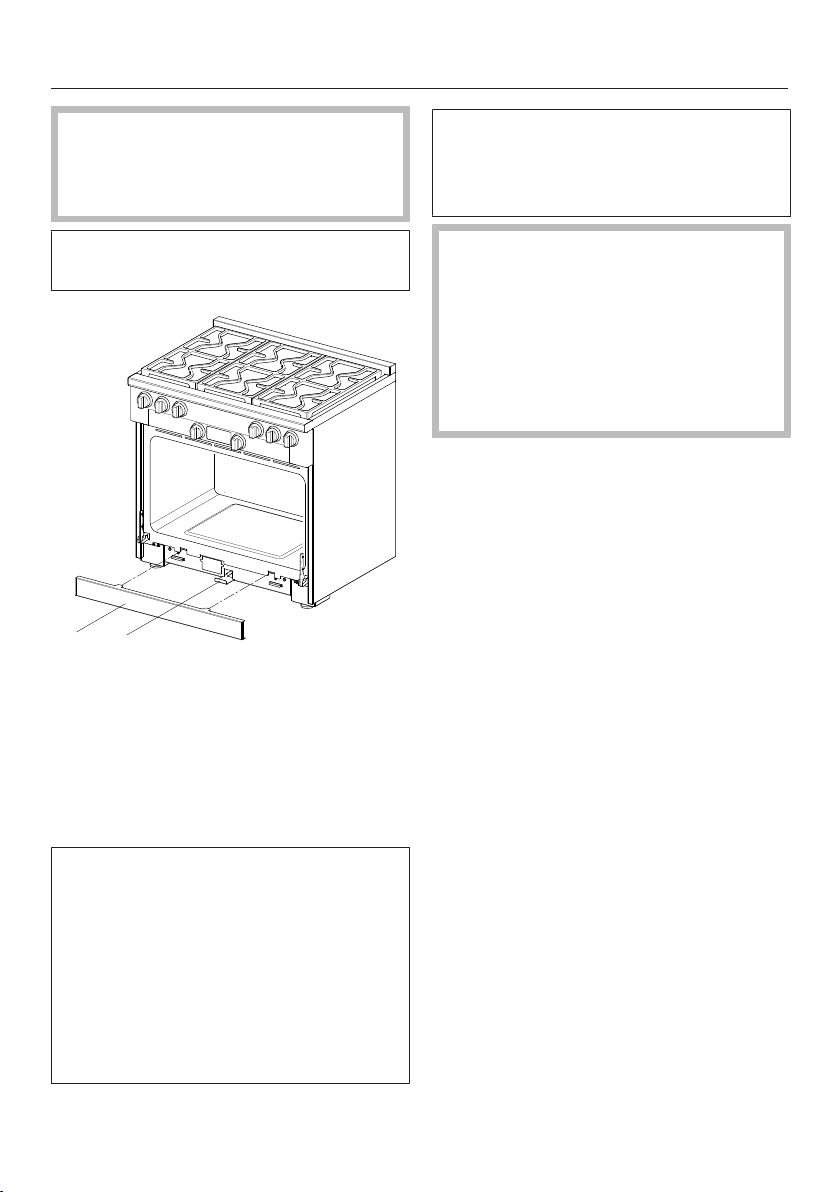

Installation of the toe-kick
The toe-kick has sheet metal lugs and
magnets by means of which it can be
positioned and attached to the base of
the range.
Position the toe-kick in such a way
that the sheet metal lugs are facing
the provided holes in the base.
Push the toe-kick onto the base of
the range until it audibly locks into
place.
Notes on installation
14
Installation of the drip tray
The drip tray covers the gap between
the oven cavity and the door.
Open the oven door.
Lay the drip tray over the gap
between the oven cavity and the
door.
Close the oven door.
Notes on installation
15
Assembling the grill
Burn hazard!
The burners must be turned off and
allowed to cool completely.
Risk of injury!
The cast-iron grill is heavy.
Carry the grill carefully and place it
securely on a soft base so that it lies
flat.
a
Grill
b
Radiant plate
c
Frame
Using a soft sponge, clean radiant
plate with a solution of warm water
and a small amount of liquid dish
soap. Dry the parts thoroughly after
cleaning.
Remove the grill from the gas
cooktop.
Place the radiant plate on top of
the frame .
Place the grill into position.
Cleaning and care
Tip: All parts can be disassembled in
the reverse order. You can also remove
the frame for cleaning.
Notes on installation
16
Optional accessories
All accessories and cleaning products
listed in these instructions are designed
to be used with the Miele range.
These can be ordered from the Miele
website (see end of this booklet for
contact details).
When ordering, please have your model
number available.
RBGAG All Gas Backguard/RBGDF
Dual Fuel Backguard
Depending on the model, you can
exchange the existing island trim of
your appliance for a larger range
backguard. The backguard is available
in the following heights: 12" (305 mm)
and 20" (508 mm).
Installing the RBGDF Dual Fuel
Backguard
The rear of the range must be
accessible.
Install the backguard before installing
the anti-tip device and connecting of
the range.
Loosen the screws of the island trim.
Pull back the island trim slightly until
it can be removed.
The backguard can be installed in
reverse order.
Installing the RBGAG All Gas
Backguard
The rear of the range must be
accessible.
Install the backguard before installing
the anti-tip device and connecting the
range.
Loosen the screws of the island trim.
Pull back the island trim slightly until
it can be removed.
1
22
a
Extender
b
Air ducts
Insert one extender onto each of
the left and right air ducts .
Screw the extenders into place
with 2 screws each.
Notes on installation
17
1 2 3
a
Backguard
b
Rear panel backguard
c
Inside panel
Place the backguard face down on
a soft surface to avoid scratching.
The lower edge should line up with
the edge of the table, so that the
backguard lies flat.
Loosen the screws on the back of
backguard.
Remove the rear panel and the
inner panel .
1
2
a
Backguard
b
Range

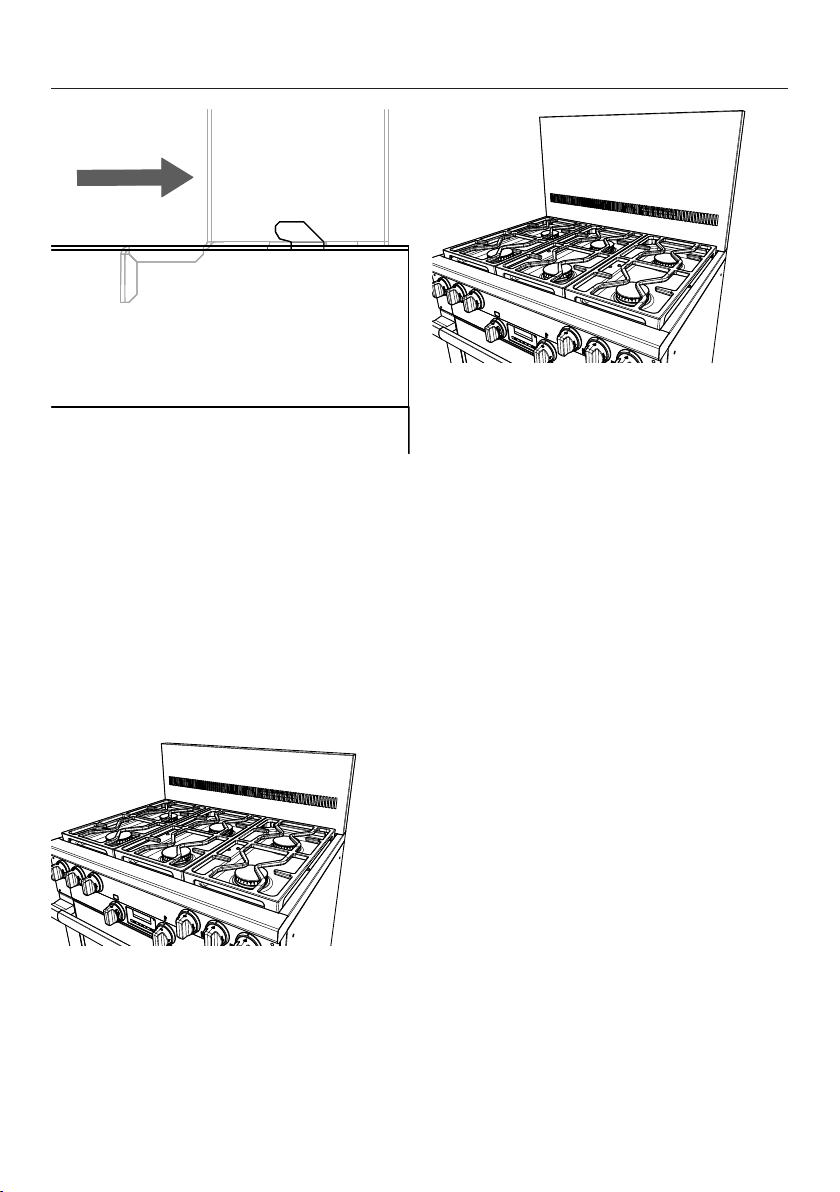

Slide the backguard from above
on the air duct extenders.
Notes on installation
18
Once the backguard is placed on the
range push the backguard
backwards.
Install the inner panel and the rear
panel on the backguard using the
screws provided.
Install the backguard on the range
using the screws provided.
12" Backguard
20" Backguard
Notes on installation
19
RBS Backsplash
The backsplash is intended for
installation to a Miele Range Hood (DAR
model). Observe the installation
instructions of the Miele Range Hood.
XKM3000W Remote Vision (USA
Only)
Depending on the model, the range
maybe compatible with
RemoteVision
TM
.
In order to use the RemoteVision
TM
monitoring service, you will require a
XKM3000W Communication Module.
Refer to the Operating and Installation
Instructions of the Miele XKM3000W
Communication Module.
Notes on installation
20
Do not carry or lift the range by the oven door handle or the control panel!
The range is heavy.
Due to the size and weight of the appliance, installation should be performed by
two people.
The net weight of the range with accessories is as follows:
ModelWidthNet weight incl.
accessories:
HR 1421
HR 1622
HR 112x
HR 192x
2915/16"
(760 mm)
approx. 307 lbs (140 kg)
HR 113x
HR 193x
3515/16"
(913 mm)
approx. 405 lbs (180 kg)
HR 195x4715/16"
(1218 mm)
approx. 573 lbs (260 kg)
Installation location
This appliance is not intended for outdoor use.
Ranges with a connection to the water supply should not be installed in rooms
where there is a risk of freezing temperatures.
The floor of the space where the appliance is to be installed must be flat, level and
made of a strong, rigid material.
Because the range is heavy and requires attachment of the anti-tip device
supplied, the surface must be able to fully bear the load of the appliance. If
necessary, seek the advice of an architect or construction expert.
Ventilation
The air intake and outlet openings must not be covered or blocked in any way.
They should be dusted on a regular basis.
Notes on installation
21
Required connections
ModelElectrical
connection
Gas connectionPlumbing
HR 1421X––
HR 1622X–X
HR 112x
HR 113x
XX–
HR 192x
HR 193x
HR 195x
XXX
X Connection required
– Connection not provided
Electric Range dimensions
22

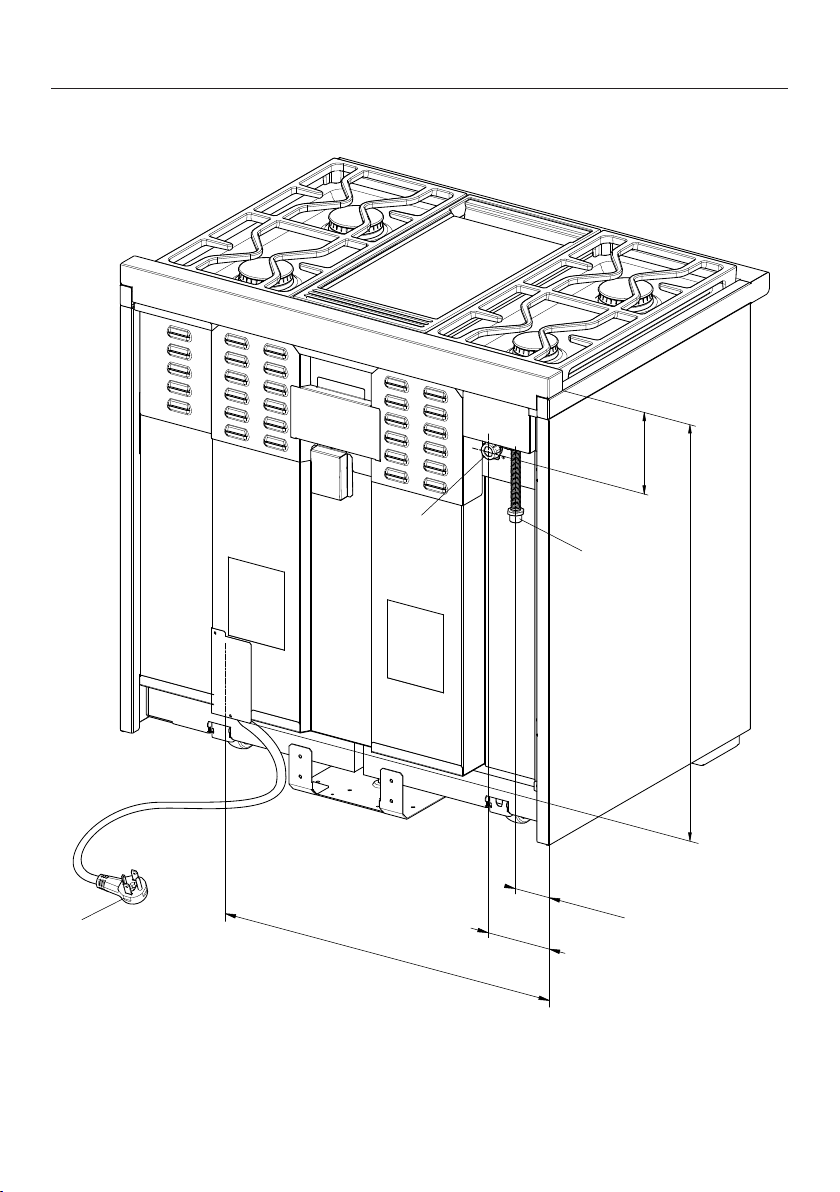

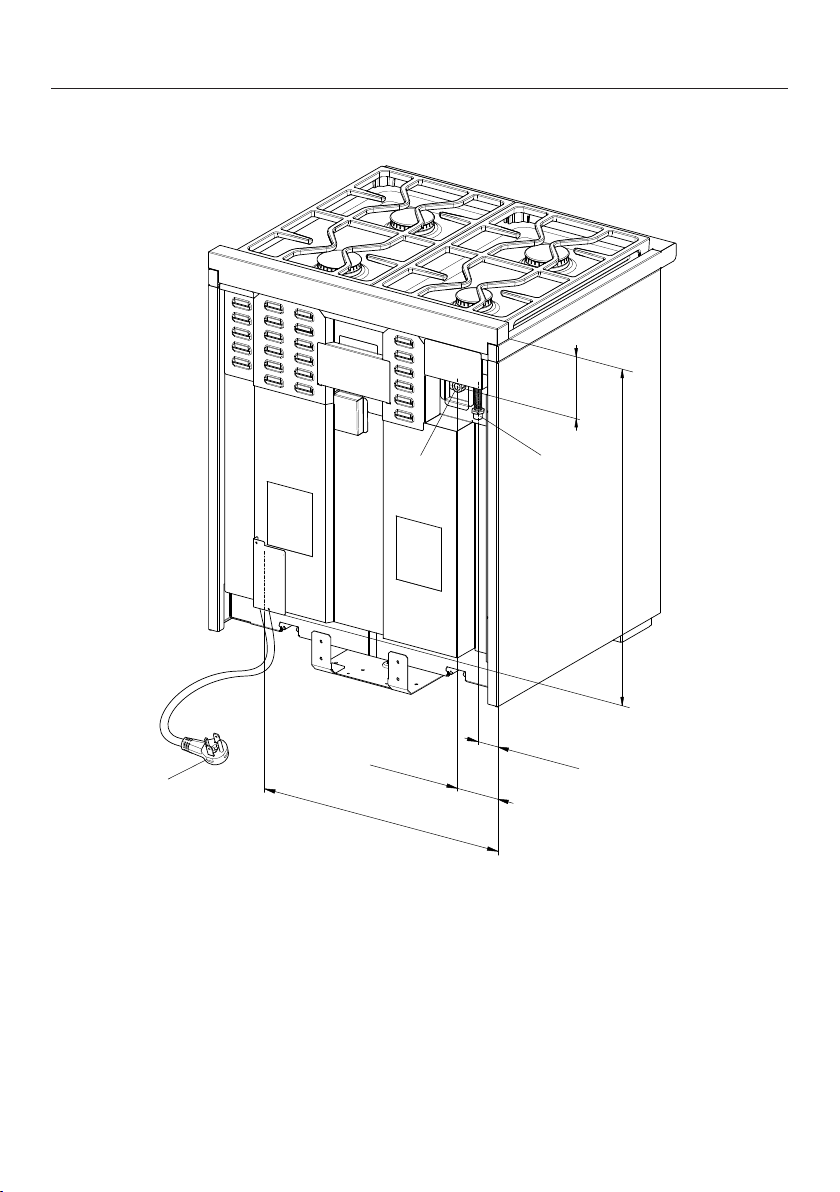

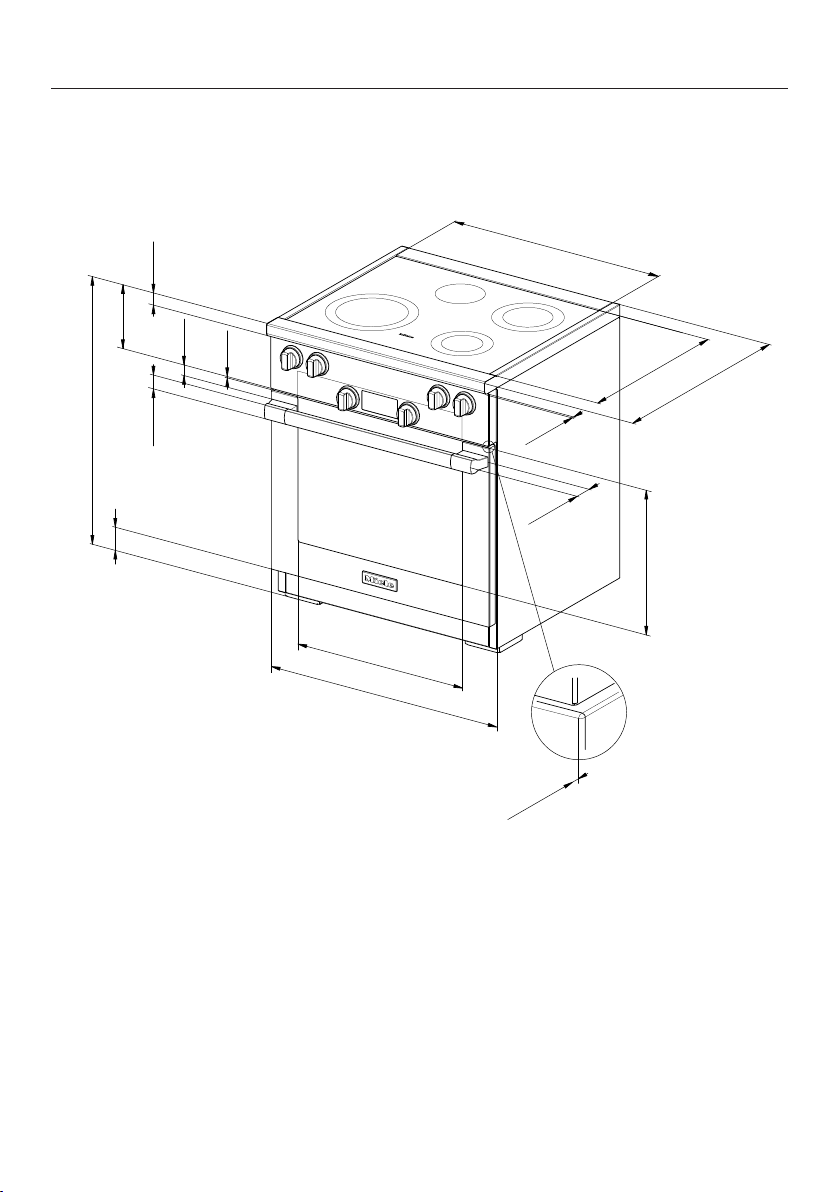

HR 1421; HR 1622
2

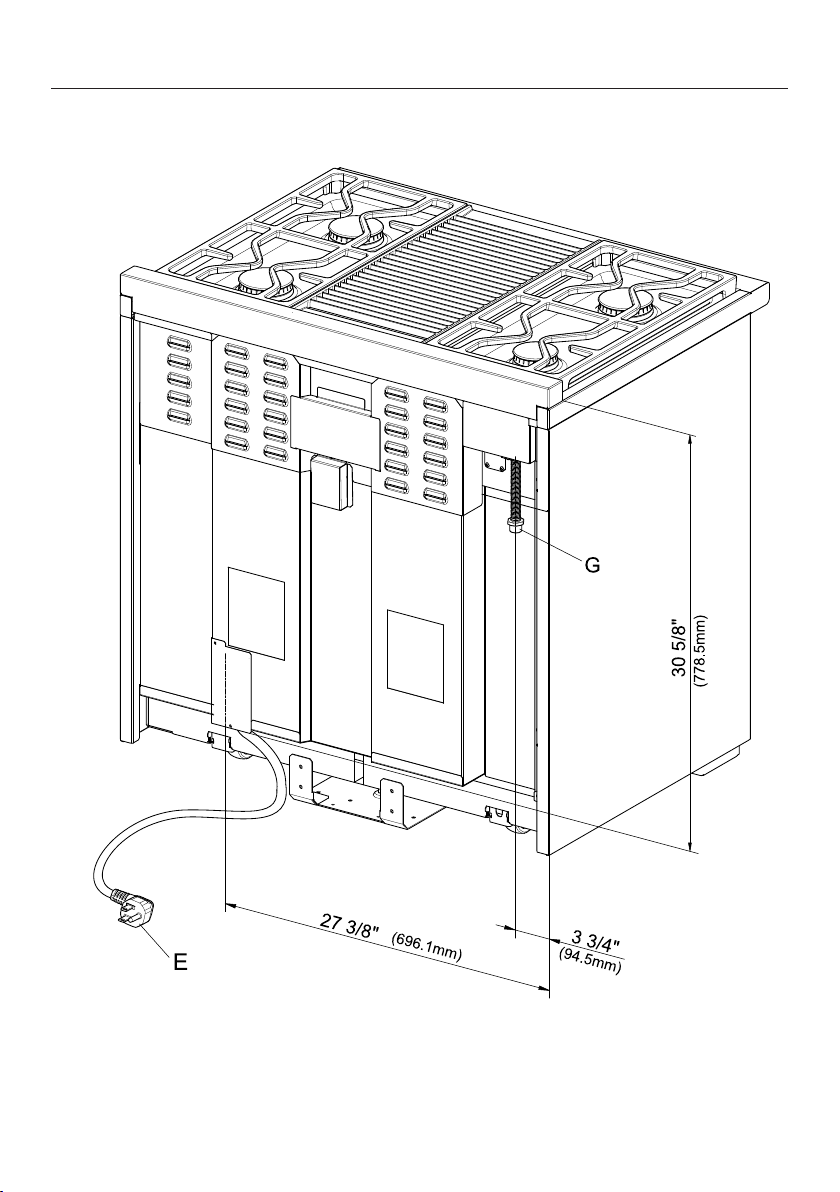

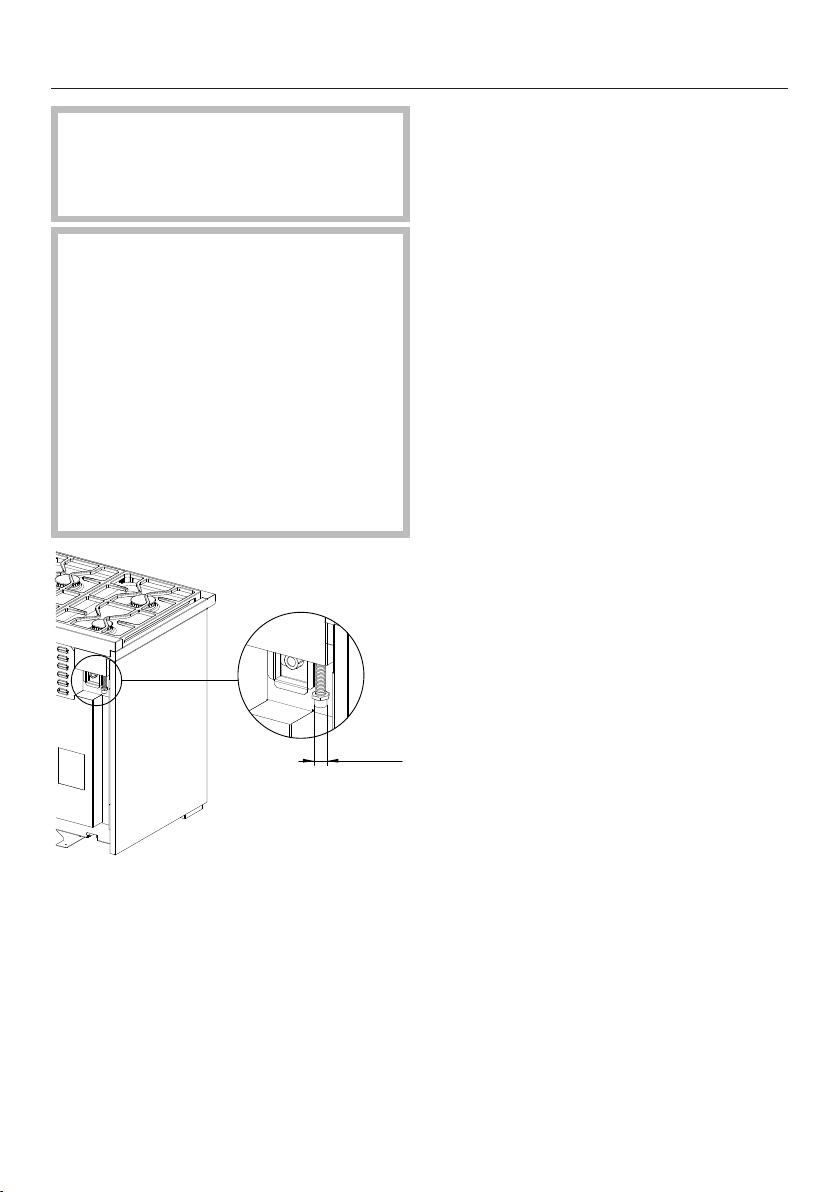

, , The shaded area represents the installation area for the connections:
E = Electrical connection,
W = Water connection (only HR 1622)
Electric Range dimensions
23
HR 1421; HR 1622
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (547mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940 mm)
Distance from the floor to cooktop surface
Min. 30"
(762mm)
Width of cabinet opening
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
or 24" (609mm)Minimum distance to a protected combustible
surface or when a Miele Ventilation Hood is
installed.
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
101/16"
(256mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
2 13/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Electric Range dimensions
24
Detailed views of HR 1421
Side view of HR 1421

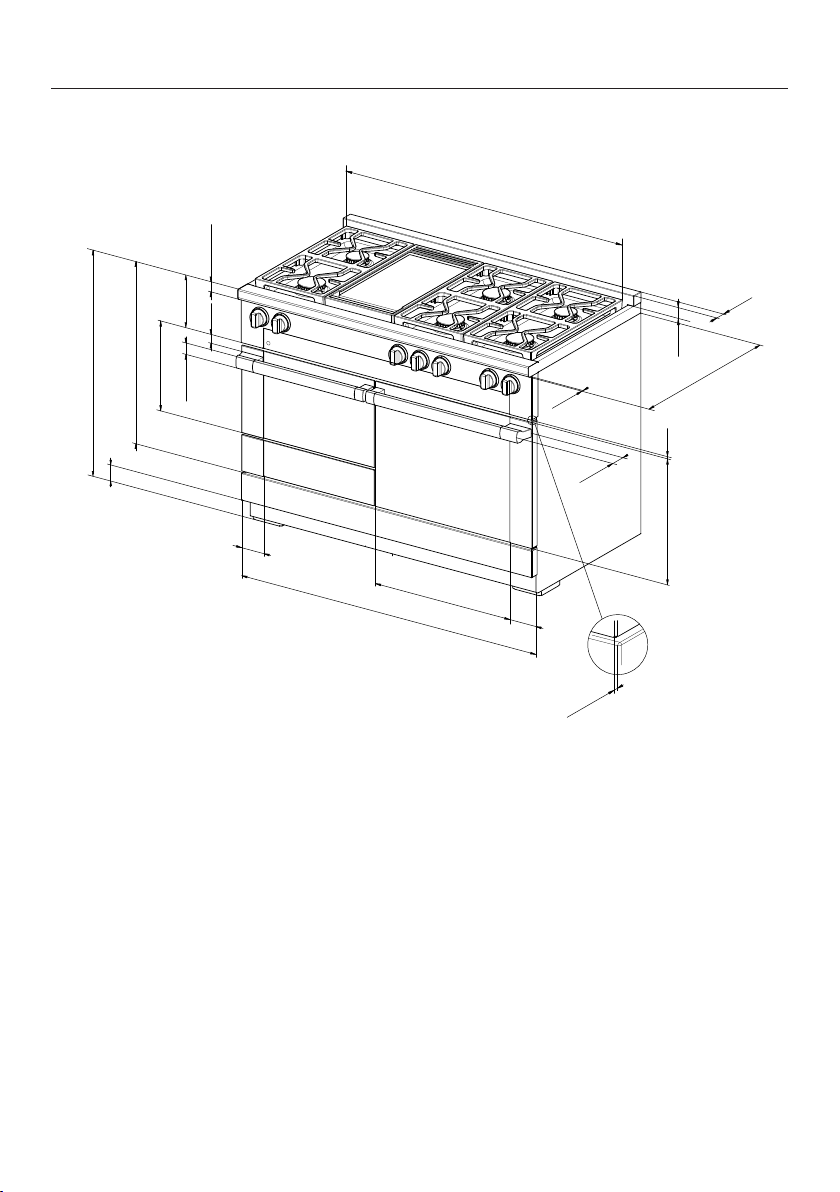

47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment
5" - 61/2" (127 mm - 165.1 mm)
Electric Range dimensions
25
Detailed front side view of HR 1421
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Electric Range dimensions
26
Front side view of HR 1421
(x)
28 1/8"
(7mm)
(34mm)
(43mm)
(712mm)
20 5/16"
(566.65mm)
27 1/4"
(692mm)
(-1/16" / -2mm)
13/16"
(20.85mm)
2 9/16"
(65.2mm)
17 13/16"
(452.2mm)
22 5/8"
(574.6mm)
35 1/2" - 37"
(901.7mm - 939.8mm)
1 9/16"
(40mm)
8 1/8"
(207mm)
1 5/16"
1/4"
1 11/16"
29 15/16"
(760mm)
1/8"
(3mm)
(x) = Depending on the appliance height adjustment
5" - 61/2" (127 mm - 165.1 mm)
Electric Range dimensions
27
Rear view of HR 1421
30 5/8"
(778.5mm)
24 3/8"
(619.9mm)
E
E = Electrical connection
Electric Range dimensions
28
Detailed views of HR 1622
Side view of HR 1622
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment
5" - 6 1/2" (127 mm - 165.1 mm)
Electric Range dimensions
29
Detailed front side view of HR 1622
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Electric Range dimensions
30

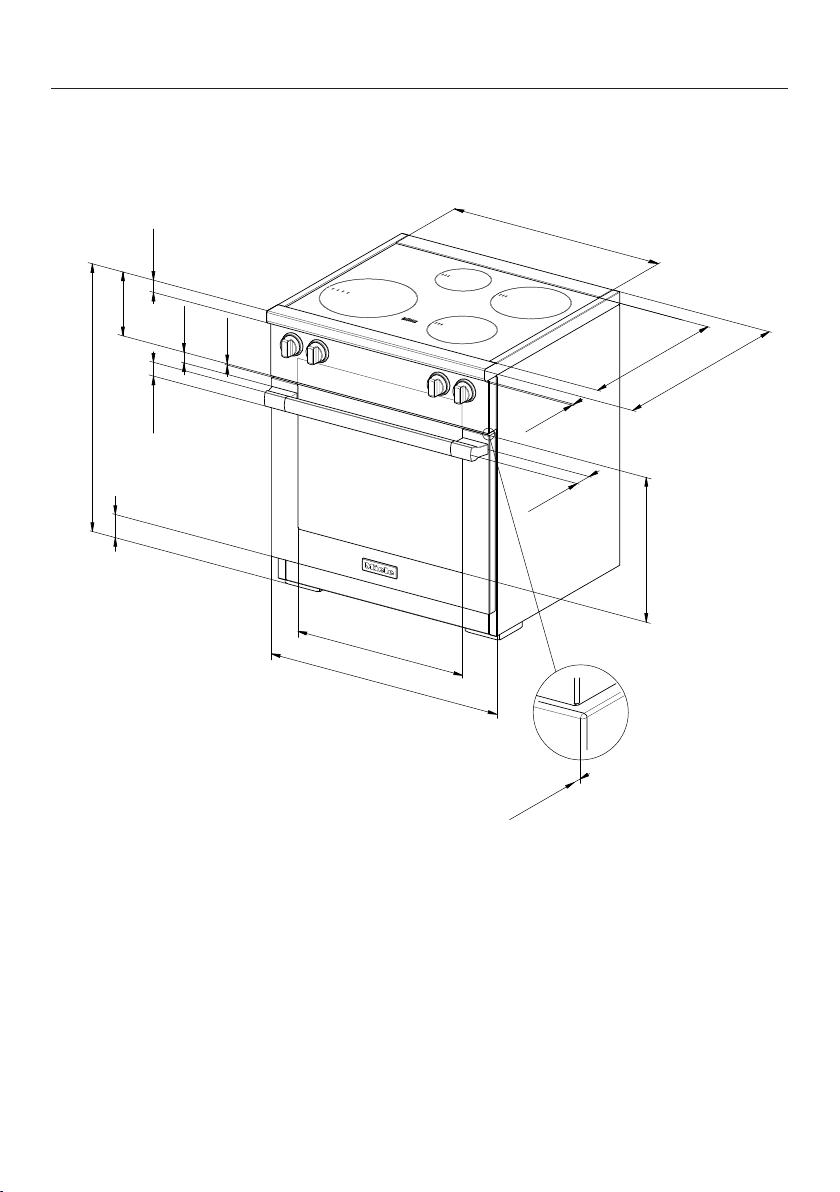

Front side view of HR 1622
(x)
28 1/8"
(7mm)
(34mm)
(43mm)
(712mm)
20 5/16"
(566.65mm)
27 1/4"
(692mm)
(-1/16" / -2mm)
13/16"
(20.85mm)
2 9/16"
(65.2mm)
17 13/16"
(452.2mm)
22 5/8"
(574.6mm)
35 1/2" - 37"
(901.7mm - 939.8mm)
1 9/16"
(40mm)
8 1/8"
(207mm)
1 5/16"
1/4"
1 11/16"
29 15/16"
(760mm)
1/8"
(3mm)
(x) = Depending on the appliance height adjustment
5" - 6 1/2" (127 mm - 165.1 mm)
Electric Range dimensions
31

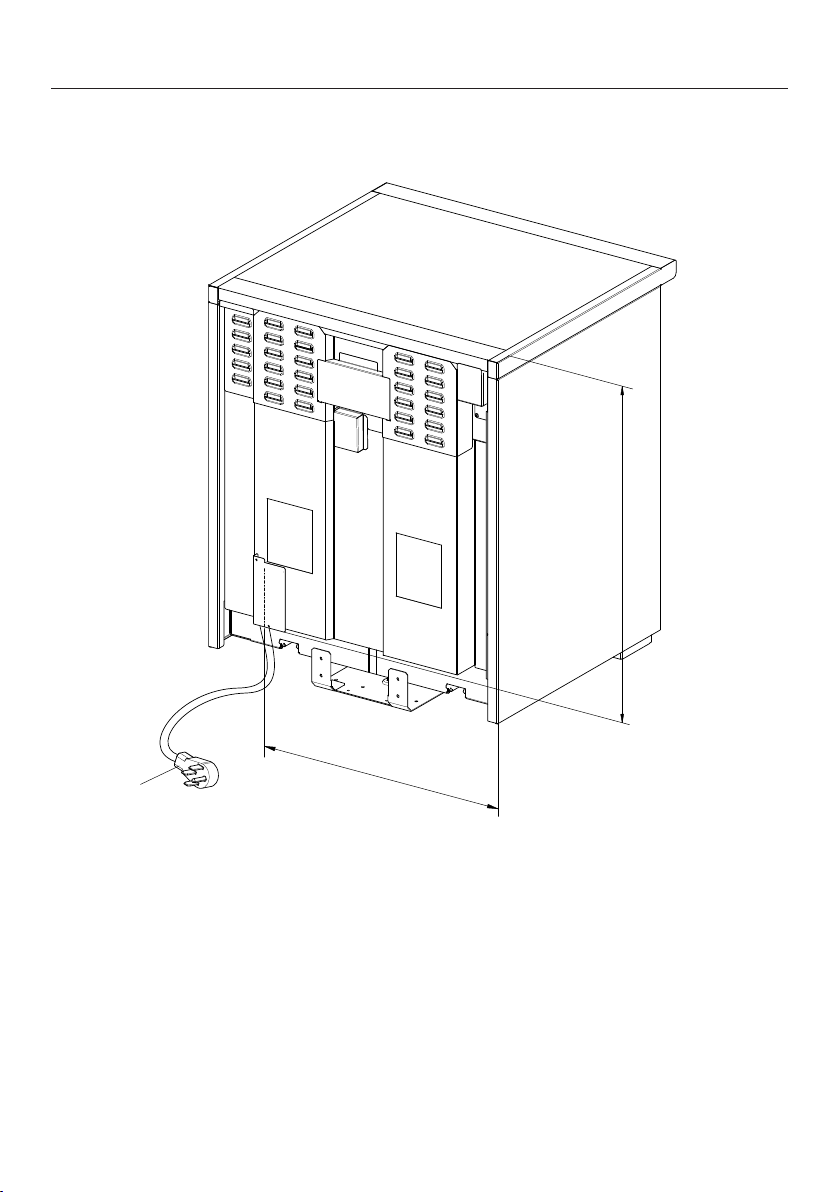

Rear view of HR 1622
30 5/8"
(778.5mm)
24 3/8"
(619.9mm)
E
5 7/8"
(149mm)
W
3 1/4"
(81.8mm)
E = Electrical connection
W = Water connection
All Gas Range dimensions
32

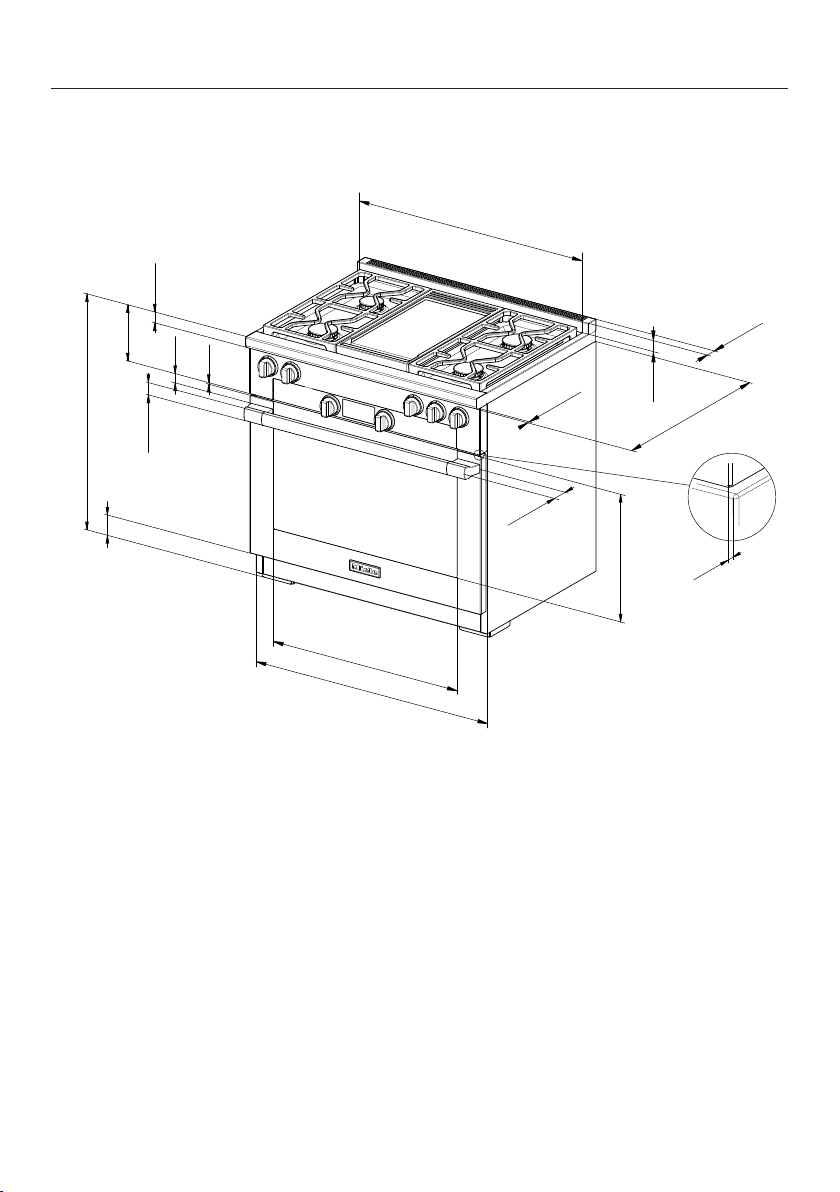

All Gas Range HR 11xx with Standard Burner Configuration
(M Pro Power Plus)
HR 1124, HR 1134, HR 1135, HR 1136
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21.
2
In case of combustible materials, a minimum distance of 6" must be observed on each
side in addition to dimension .
, , The shaded area represents the installation area for the connections:
E = Electrical connection, G = Gas connection
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (457mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
10" (254mm)Minimum distance to combustible surfaces.
All Gas Range dimensions
33
HR 1124
PositionDimensionsDescription
Min. 30"
(762mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
101/16"
(256mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
34
HR 1134
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
36" (914mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
35
HR 1135, HR 1136
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL or DRxB XXL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16"(332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
36
All Gas Range HR 11xx with BTU-reducing kits
(M Pro Power - Zero Gap; M Pro - Décor Hood)
HR 1124, HR 1134, HR 1135, HR 1136
For Miele Range-Hoods and Miele Range-Décor Hoods:
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21. Jets are a standard accessory and are getting
changed during installation, see "Combination Range with BTU-reducing kit".
2
, , The shaded area represents the installation area for the connections:
E = Electrical connection, G = Gas connection
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (457mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
10" (254mm)Minimum distance to combustible surfaces.
All Gas Range dimensions
37
HR 1124
PositionDimensionsDescription
Min. 30"
(762mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
101/16"
(256mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
38
HR 1134
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
36" (914mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16"(332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
39
HR 1135, HR 1136
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL or DRxB XXL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
41/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
All Gas Range dimensions
40

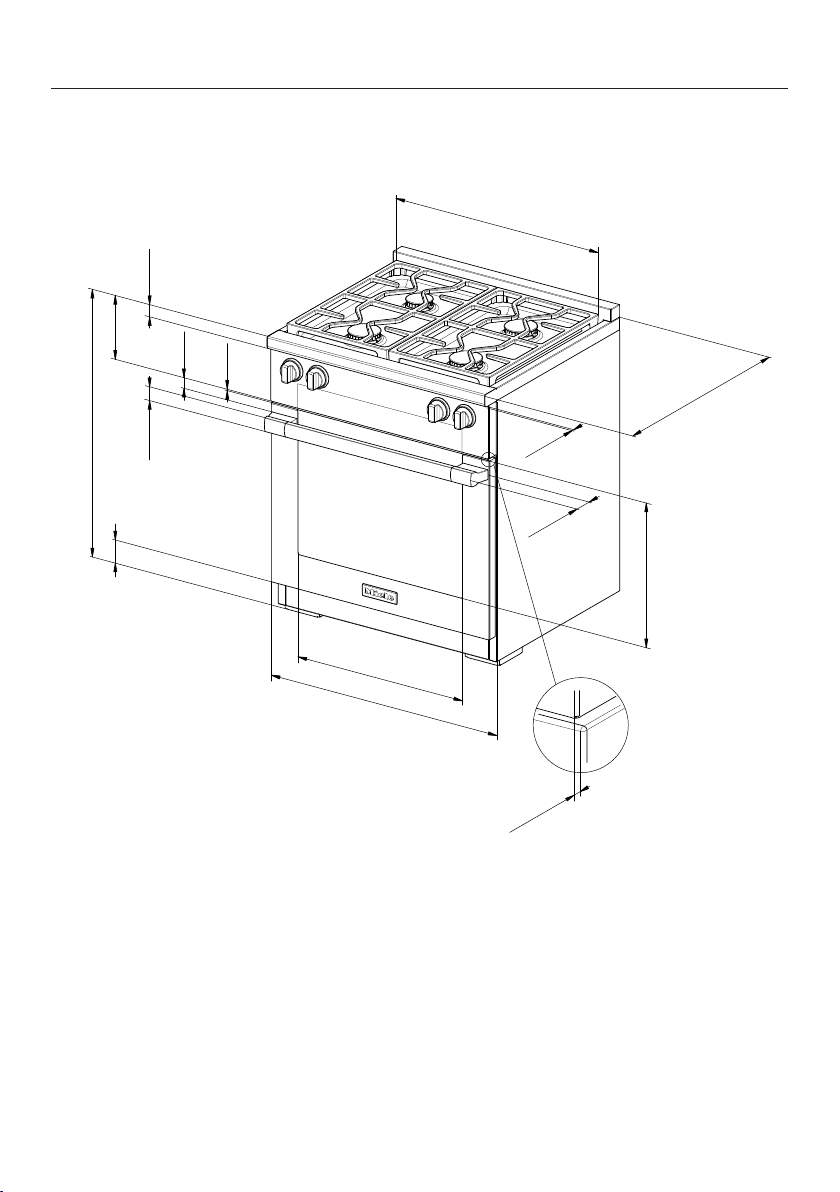

Detailed views of HR 1124
Side view of HR 1124
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
41
Detailed front side view of HR 1124
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
All Gas Range dimensions
42
Front side view of HR 1124
13/16"
1 5/16"
1 11/16"
2 9/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
17 13/16"
22 5/8"
27 1/4"
(-1/16" / -2mm)
(692mm)
(20.85mm)
(65.2mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
(574.6mm)
(452.2mm)
(760mm)
29 15/16"
1/8"
(3mm)
(708mm)
27 7/8"
(x) = Depending on the appliance height adjustment
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
43

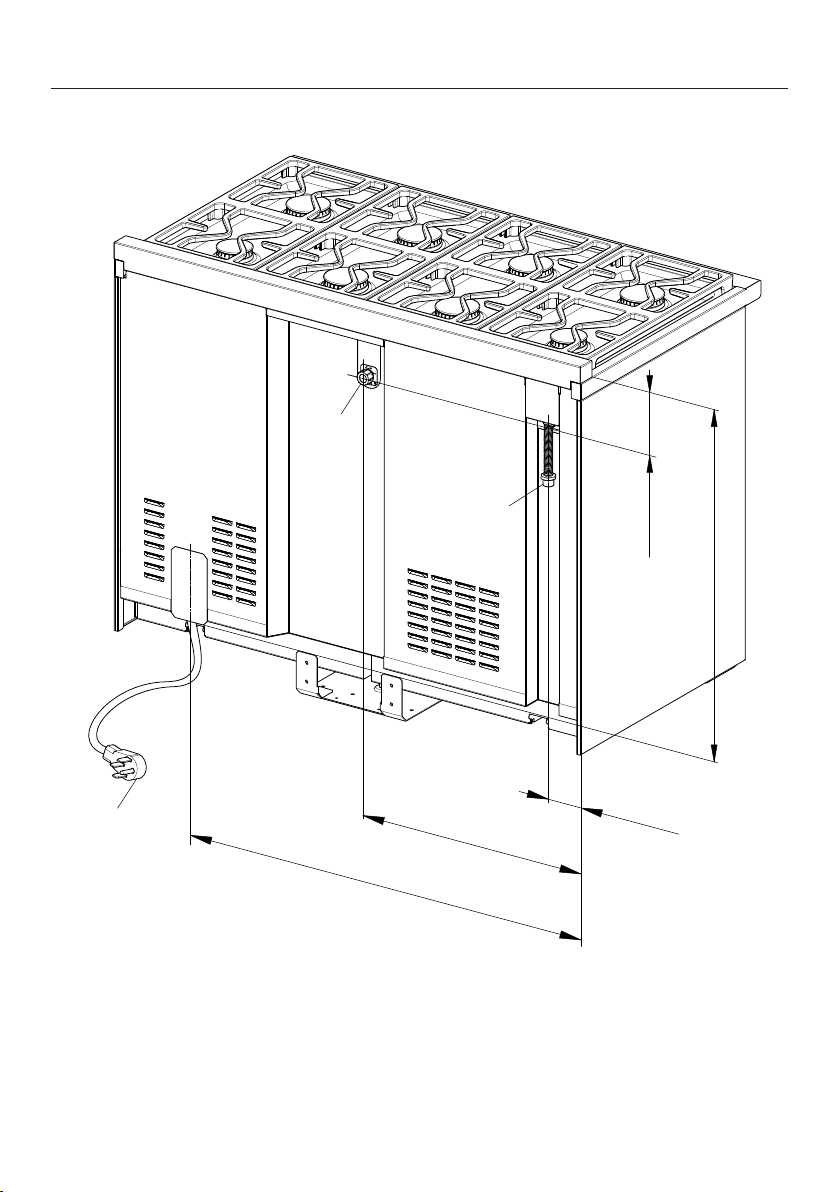

Rear view of HR 1124
2 15/16"
(75.4mm)
30 5/8"
(778.5mm)
24 3/8"
(619.9mm)
G
E
E = Electrical connection
G = Gas connection
All Gas Range dimensions
44

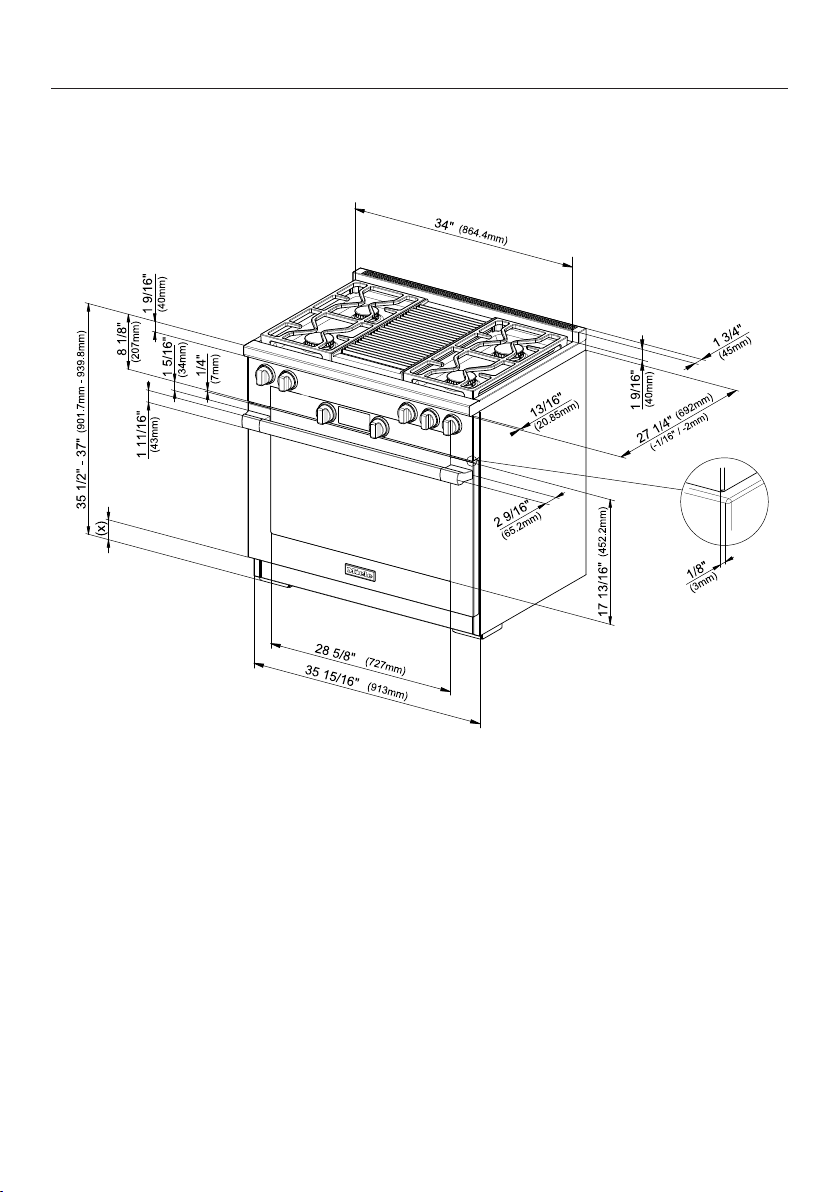

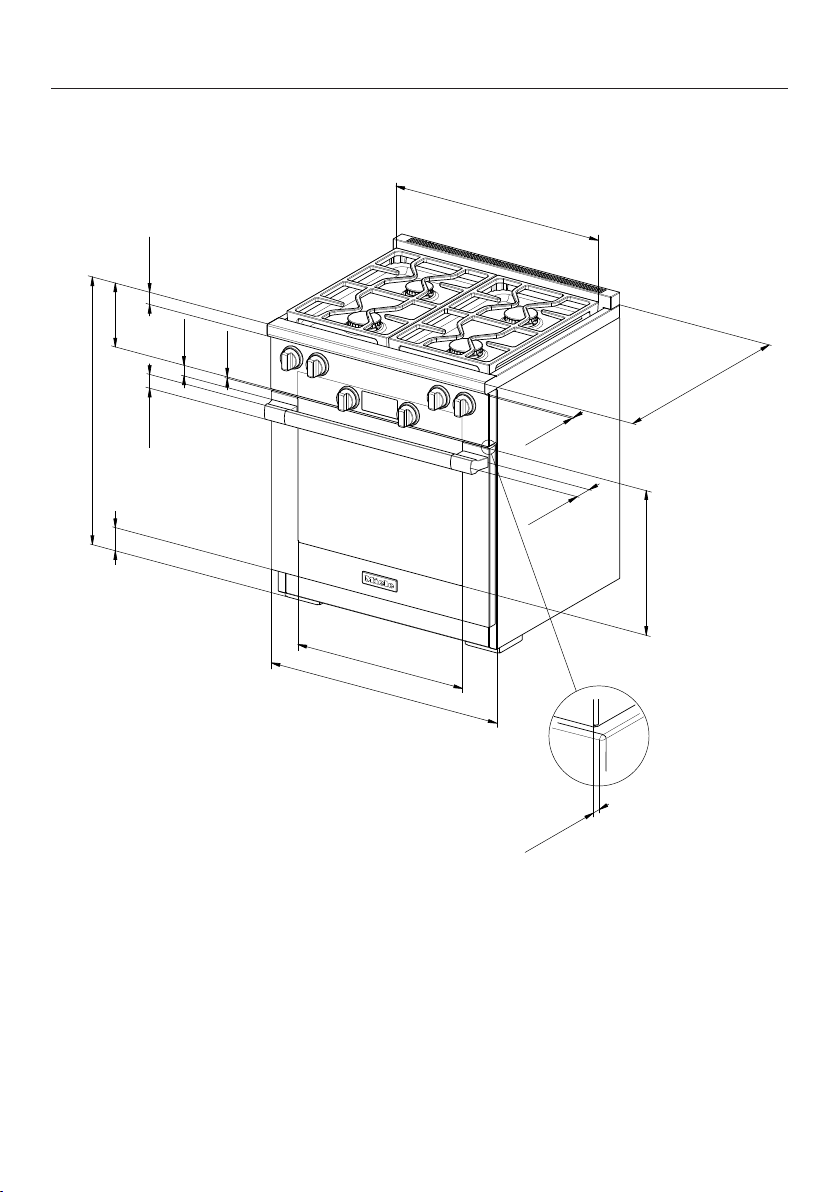

Detailed views of HR 1134
Side view of HR 1134
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
45
Detailed front side view of HR 1134
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
All Gas Range dimensions
46
Front side view of HR 1134
1 5/16"
1 11/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
(65.2mm)
17 13/16"
28 5/8"
(864.4mm)
13/16"
35 15/16"
1 9/16"
1 3/4"
27 1/4"
(-1/16" / -2mm)
(452.2mm)
2 9/16"
(20.85mm)
(40mm)
(692mm)
(45mm)
(913mm)
(727mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
34"
1/8"
(3mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
47

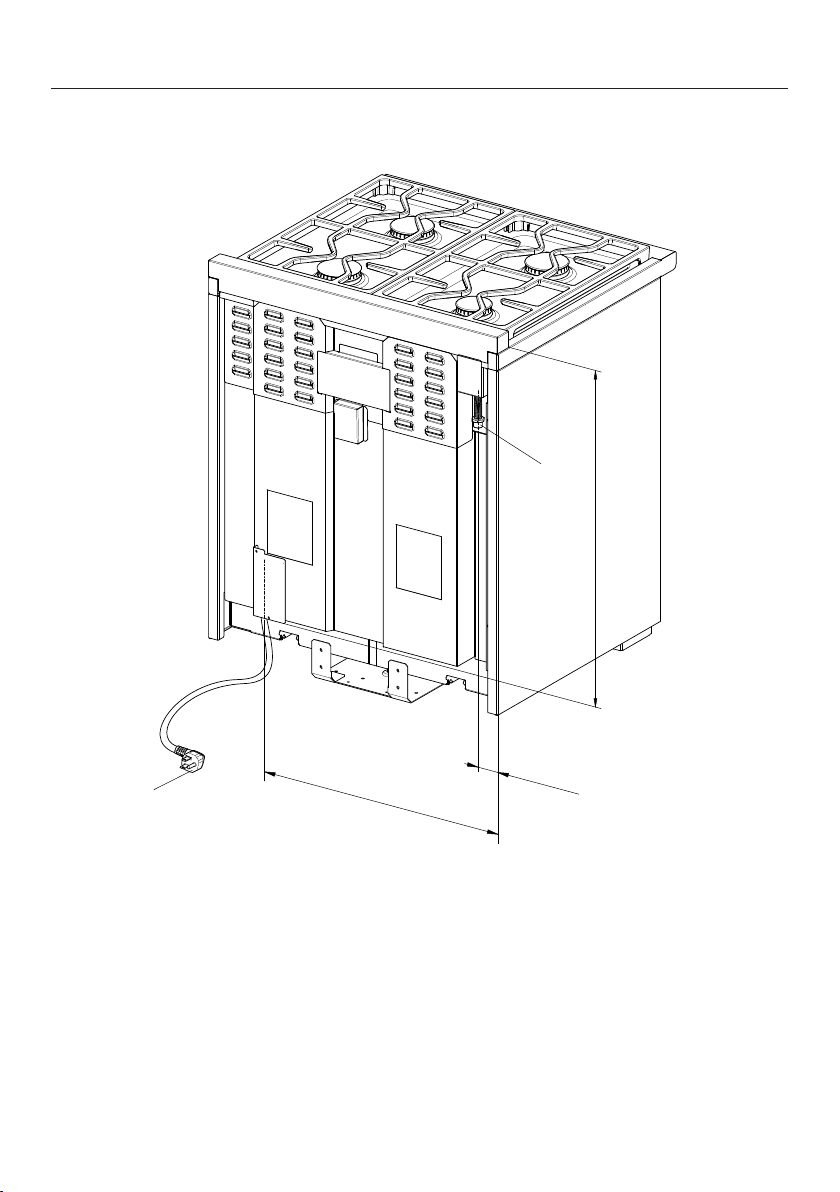

Rear view of HR 1134
3 3/4"
(94.5mm)
27 3/8"
(696.1mm)
30 5/8"
(778.5mm)
G
E
E = Electrical connection
G = Gas connection
All Gas Range dimensions
48
Detailed views of HR 1135
Side view of HR 1135
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
49
Detailed front side view of HR 1135
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
All Gas Range dimensions
50
Front side view of HR 1135
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
51
Rear view of HR 1135
E = Electrical connection
G = Gas connection
All Gas Range dimensions
52
Detailed views of HR 1136
Side view of HR 1136
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height
adjustment:5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
53
Detailed front side view of HR 1136
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
All Gas Range dimensions
54
Front side view of HR 1136
1 5/16"
1 11/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
(65.2mm)
17 13/16"
28 5/8"
(864.4mm)
13/16"
35 15/16"
1 9/16"
1 3/4"
27 1/4"
(-1/16" / -2mm)
(452.2mm)
2 9/16"
(20.85mm)
(40mm)
(692mm)
(45mm)
(913mm)
(727mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
34"
1/8"
(3mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
All Gas Range dimensions
55
Rear view of HR 1136
3 3/4"
(94.5mm)
27 3/8"
(696.1mm)
30 5/8"
(778.5mm)
G
E
E = Electrical connection
G = Gas connection
Dual Fuel Range dimensions
56

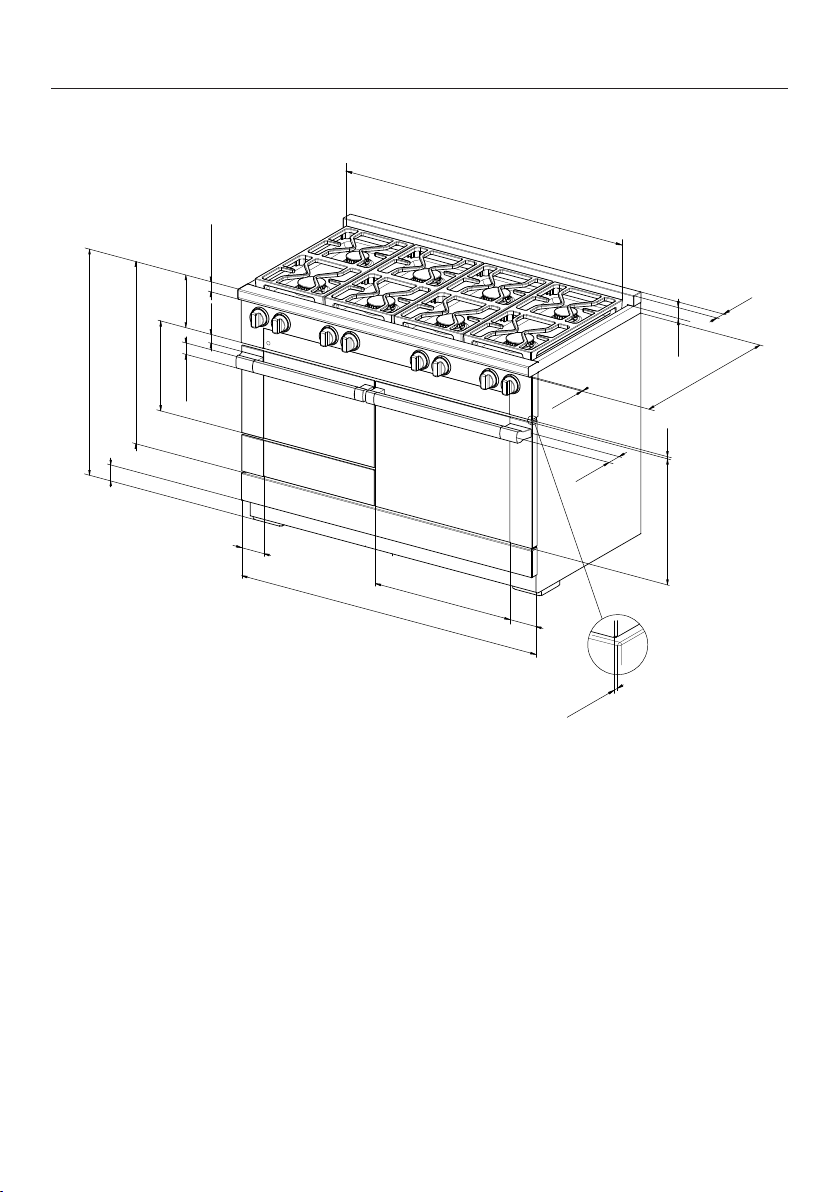

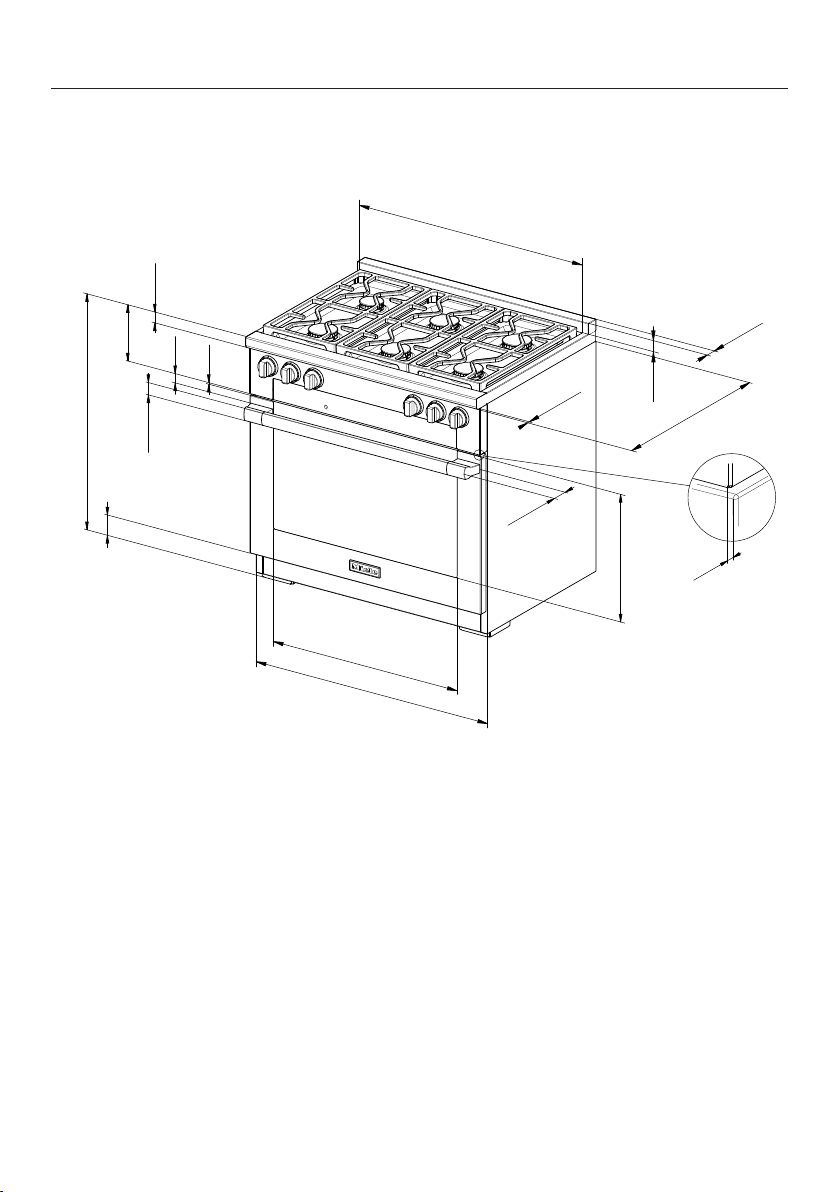

Dual Fuel Range HR 19xx with Standard Burner Configuration
(M Pro Power Plus)
HR 1924, HR 1934, HR 1935, HR 1936, HR 1954, HR 1955, HR1956
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21.
1
In case of combustible materials, a minimum distance of 6" must be observed on each
side in addition to dimension .
, , The shaded area represents the installation area for the connections:
E = Electrical connection, W = Water connection, G = Gas connection
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (457mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
10" (254mm)Minimum distance to combustible surfaces.
Dual Fuel Range dimensions
57
HR 1924
PositionDimensionsDescription
Min. 30"
(762mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
101/16"
(256mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
58
HR 1934
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
36" (914 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
59
HR 1935, HR 1936
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL or DRxB XXL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
131/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
60
HR 1954, HR 1955, HR 1956
PositionDimensionsDescription
Min. 48"
(1219mm)
Width of cabinet opening
6" + + 6"
(150mm + +
150mm)
If combustible materials are present, an additional
minimum distance of 6" (150mm) (each side) is
required. Ensure that local codes are observed.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
36" (914 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
19 1/8" (485mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
3 1/2" (90mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
61
Dual Fuel Range HR 192x/193x with BTU-reducing kits
(M Pro Power - Zero Gap; M Pro - Décor Hood)
HR 1924, HR 1934, HR 1935, HR 1936
For Miele Range Hoods and Miele Range-Décor Hoods:
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21. Jets are a standard accessory and are getting
changed during installation, see "Combination Range with BTU-reducing kit".
1
, , The shaded area represents the installation area for the connections:
E = Electrical connection, W = Water connection, G = Gas connection
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (457mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
10" (254mm)Minimum distance to combustible surfaces.
Dual Fuel Range dimensions
62
HR 1924
PositionDimensionsDescription
Min. 30"
(762mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
101/16"
(256mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
63
HR 1934
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
36" (914 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL blower).
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
13 1/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
64
HR 1935, HR 1936
PositionDimensionsDescription
Min. 36"
(914mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XL or DRxB XXL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
13 1/16" (332.5mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
4 1/2" (115mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
65
Dual Fuel Range HR 195x with BTU-reducing kit
(M Pro Power - Zero Gap)
HR1954, HR1955, HR1956
For Miele Range Hoods:
If a BTU-reducing kit is necessary, an authorized installer is required to modify
the product to meet ANSI Z21. Jets are a standard accessory and are getting
changed during installation, see "Combination Range with BTU-reducing kit".
1
, , The shaded area represents the installation area for the connections:
E = Electrical connection, W = Water connection, G = Gas connection
PositionDimensionsDescription
13" (330mm)Maximum depth of top cabinet
18" (457mm)Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901–940mm)
Distance from the floor to cooktop surface
10" (254mm)Minimum distance to combustible surfaces.
Dual Fuel Range dimensions
66
HR 1954, HR 1955, HR 1956
PositionDimensionsDescription
Min. 48"
(1219mm)
Width of cabinet opening
Please contact Miele Service for more information.
37" (940 mm)Minimum distance between the top of the cooking
area and the bottom of an unprotected
combustible surface.
30" (762 mm)Minimum distance between the top of the cooking
area and the bottom of the Miele Range Hood
(DAR model with DRxB XXL blower).
Please refer to Miele ventilation hood installation manual. Appliance
Dimensions section (Distance between cooktop and hood (S)).
For all other Hoods please consult the manufacturer's specifications
for required distances.
Approx.
19 1/8" (485mm)
Maximum connection width right
and left
Position of
the wall
socket
Approx.
3 1/2" (90mm)
Maximum connection height
Approx.
213/16" (72mm)
Maximum connection depth
From the back side of the cooktop, a 12" (305mm) minimum distance to the combustible
rear wall above the countertop is required.
Dual Fuel Range dimensions
67
Detailed views of HR 1924
Side view of HR 1924
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height
adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
68
Detailed front side view of HR 1924
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
69
Front side view of HR 1924
13/16"
1 5/16"
1 11/16"
2 9/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
17 13/16"
22 5/8"
27 1/4"
(-1/16" / -2mm)
(692mm)
(20.85mm)
(65.2mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
(574.6mm)
(452.2mm)
(760mm)
29 15/16"
1/8"
(3mm)
(708mm)
27 7/8"
(x) = Depending on the appliance height adjustment
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
70
Rear view of HR 1924
5 15/16"
(151.3mm)
5 7/8"
(149mm)
2 15/16"
(75.4mm)
30 5/8"
(778.5mm)
24 3/8"
(619.9mm)
G
W
E
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
71
Detailed views of HR 1934
Side view of HR 1934
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
72
Detailed front side view of HR 1934
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
73
Front side view of HR 1934
1 5/16"
1 11/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
(65.2mm)
17 13/16"
28 5/8"
(864,4mm)
13/16"
35 15/16"
1 9/16"
1 3/4"
27 1/4"
(-1/16" / -2mm)
(452.2mm)
2 9/16"
(20.85mm)
(40mm)
(692mm)
(45mm)
(913mm)
(727mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
34"
1/8"
(3mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
74

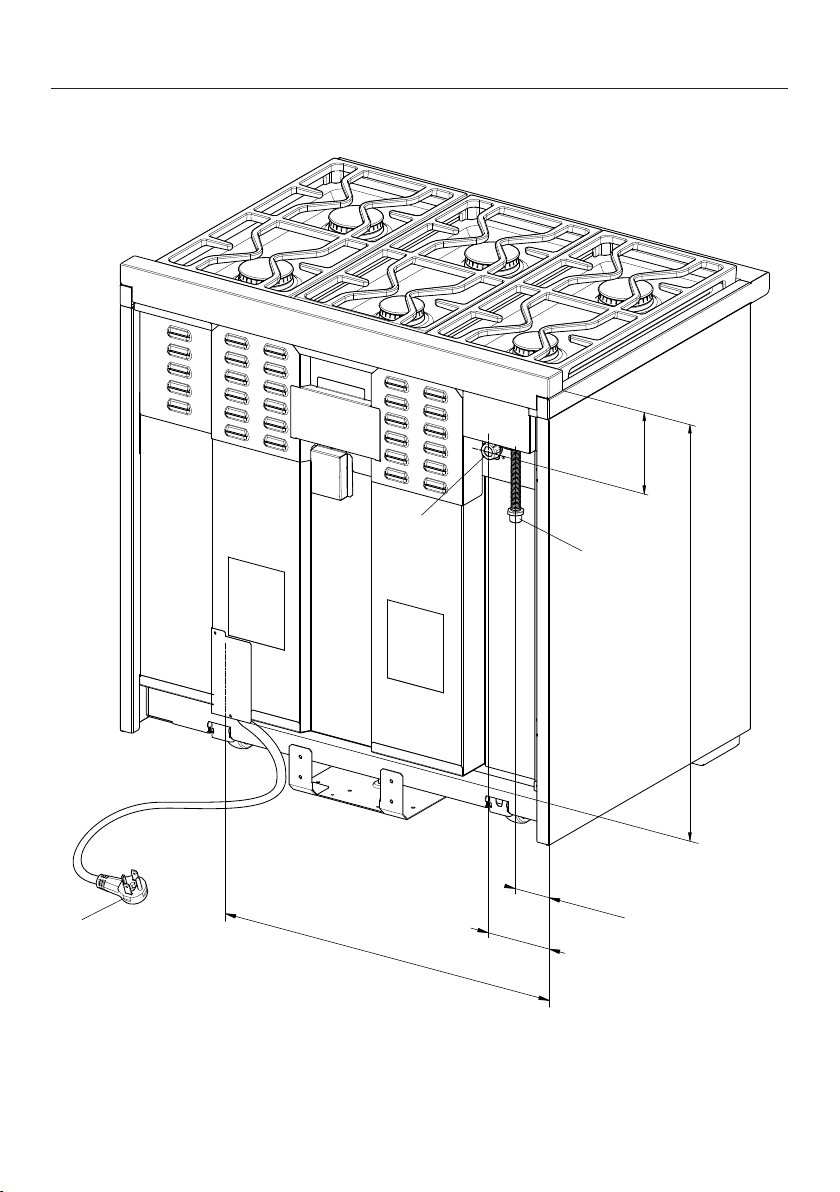

Rear view of HR 1934
E
3 3/4"
(94.5mm)
6 1/4"
(158mm)
27 3/8"
(696.1mm)
6 1/16"
(153.8mm)
30 5/8"
(778.5mm)
W
G
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
75
Detailed views of HR 1935
Side view of HR 1935
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
76
Detailed front side view of HR 1935
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
77
Front side view of HR 1935
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
78
Rear view of HR 1935
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
79
Detailed views of HR 1936
Side view of HR 1936
47 5/8" (1210mm)
5 9/16" (141mm)
(x)
22 1/16" (561mm)
8 1/8" (207mm)
35 1/2 - 37" (901.7 - 939.8mm)
36 9/16" - 38 1/16" (928.7 - 966.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
1 3/4" (45mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
24 15/16" (633mm)
1 9/16" (40mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
80
Detailed front side view of HR 1936
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
81
Front side view of HR 1936
1 5/16"
1 11/16"
1/4"
1 9/16"
8 1/8"
(x)
35 1/2" - 37"
(65.2mm)
17 13/16"
28 5/8"
(864.4mm)
13/16"
35 15/16"
1 9/16"
1 3/4"
27 1/4"
(-1/16" / -2mm)
(452.2mm)
2 9/16"
(20.85mm)
(40mm)
(692mm)
(45mm)
(913mm)
(727mm)
(7mm)
(34mm)
(40mm)
(207mm)
(43mm)
(901.7mm - 939.8mm)
34"
1/8"
(3mm)
(x) = Depending on the appliance height adjustment:
5" - 6 1/2" (127 mm - 165.1 mm)
Dual Fuel Range dimensions
82
Rear view of HR 1936
E
3 3/4"
(94.5mm)
6 1/4"
(158mm)
27 3/8"
(696.1mm)
6 1/16"
(153.8mm)
30 5/8"
(778.5mm)
W
G
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
83
Detailed views of HR 1954
Side view of HR 1954
(x)
8 1/8"
35 1/2 - 37" (901.7 - 939.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
24 15/16" (633mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
(207mm)
15/16" (24.3mm)
44" (1114mm)
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
84
Detailed front side view of HR 1954
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
85
Front side view of HR 1954
2 9/16"
(65.2mm)
3/4"
(19mm)
1 5/16"
1/4"
(x)
(7mm)
(34mm)
13 3/8"
8 1/8"
(207mm)
1 9/16"
(40mm)
22 1/4"
(564.5mm)
3 5/8"
3 5/8"
(92.7mm)
47 15/16"
(1218mm)
(1158.4mm)
45 5/8"
1 9/16"
(40mm)
27 1/4"
(-1/16" / -2mm)
(692mm)
1 3/4"
(45mm)
18 11/16"
(473.9mm)
(92.7mm)
(43mm)
1 11/16"
27 1/2"
(340.5mm)
(698.9mm)
35 1/2 - 37"
(901.7 - 939.8mm)
(3mm)
1/8"
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
86
Rear view of HR 1954
31 11/16"
(805mm)
5 9/16"
(140.8mm)
3 3/4"
(95.7mm)
23 1/4"
(590.7mm)
40 7/16"
(1027.7mm)
W
G
E
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
87
Detailed views of HR 1955
Side view of HR 1955
(x)
8 1/8"
35 1/2 - 37" (901.7 - 939.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
24 15/16" (633mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
(207mm)
15/16" (24.3mm)
44" (1114mm)
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
88
Detailed front side view of HR 1955
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
89

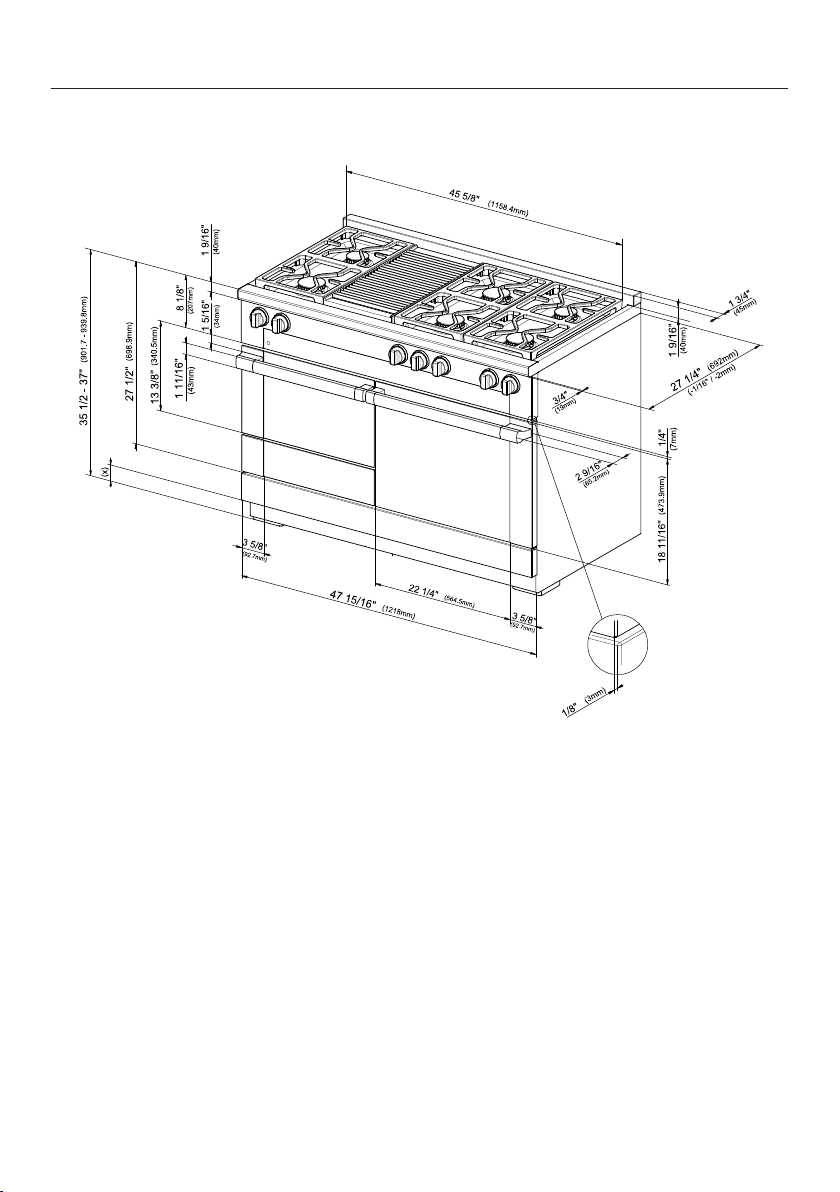

Front side view of HR 1955
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
90
Rear view of HR 1955
E = Electrical connection
W = Water connection
G = Gas connection
Dual Fuel Range dimensions
91
Detailed views of HR 1956
Side view of HR 1956
(x)
8 1/8"
35 1/2 - 37" (901.7 - 939.8mm)
37 1/16" - 38 9/16" (941.7 - 979.8mm)
24 15/16" (633mm)
27 1/4" (692mm)
28 15/16" (734.4mm)
(207mm)
15/16" (24.3mm)
44" (1114mm)
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
92
Detailed front side view of HR 1956
1 9/16" (40mm)
2 3/8" (60mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
10 15/16" (278mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
1 9/16" (40mm)
1/8" (3mm)
Dual Fuel Range dimensions
93
Front side view of HR 1956
2 9/16"
(65.2mm)
3/4"
(19mm)
1 5/16"
1/4"
(x)
(7mm)
(34mm)
13 3/8"
8 1/8"
(207mm)
1 9/16"
(40mm)
22 1/4"
(564.5mm)
3 5/8"
3 5/8"
(92.7mm)
47 15/16"
(1218mm)
(1158.4mm)
45 5/8"
1 9/16"
(40mm)
27 1/4"
(-1/16" / -2mm)
(692mm)
1 3/4"
(45mm)
18 11/16"
(473.9mm)
(92.7mm)
(43mm)
1 11/16"
27 1/2"
(340.5mm)
(698.9mm)
35 1/2 - 37"
(901.7 - 939.8mm)
(3mm)
1/8"
(x) = Depending on the appliance height adjustment:
4" - 5 1/2" (101.6 mm - 139.7 mm)
Dual Fuel Range dimensions
94

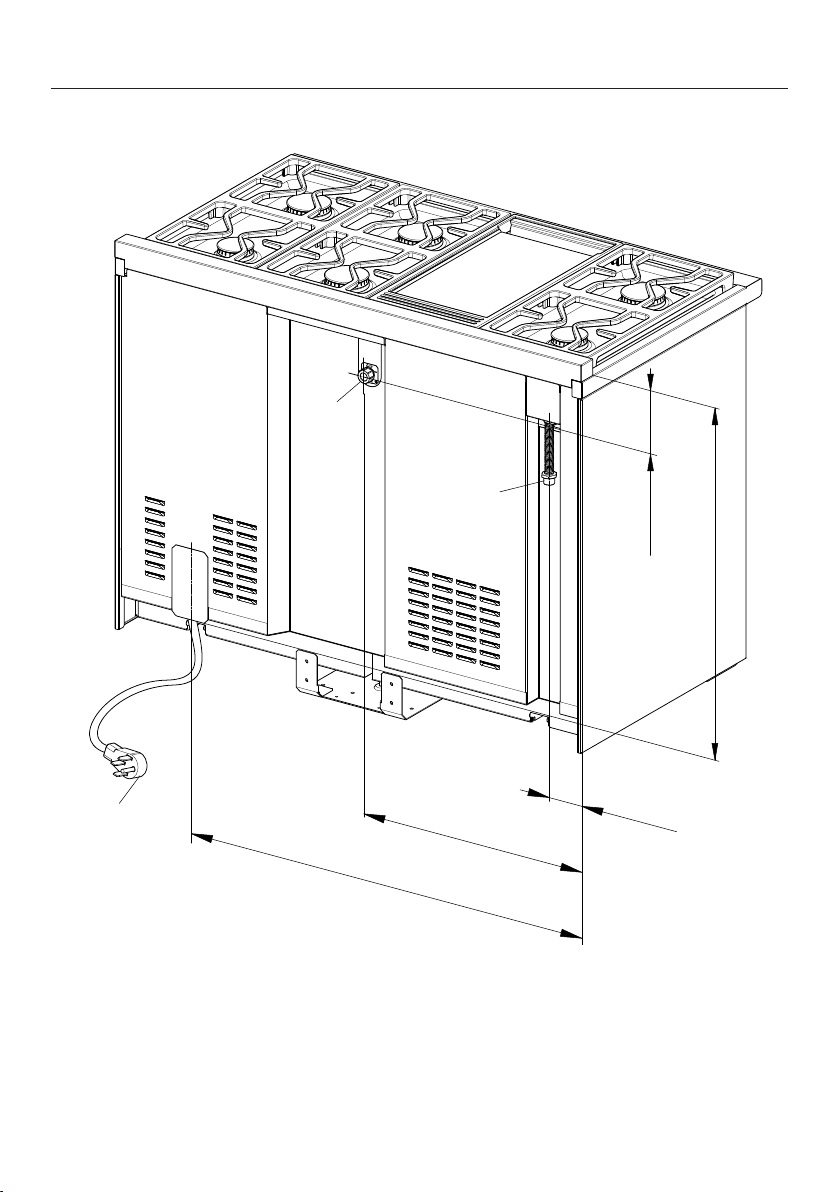

Rear view of HR 1956
E
31 11/16"
(805mm)
5 9/16"
(140.8mm)
3 3/4"
(95.7mm)
23 1/4"
(590.7mm)
40 7/16"
(1027.7mm)
W
G
E = Electrical connection
W = Water connection
G = Gas connection
Anti-tip device
95
Before installation
WARNING
Children and adults can tip over the
range if has not been secured. This
may lead to fatal injuries.
Make sure that the anti-tip device is
properly installed and locked into
place. It should be screwed to the
floor or wall and engage with the
center of the bottom of the range.
You must take care to protect the
installed flooring when moving the
range.
After moving the range, make sure
that the anti-tip device locks back
into place. It should be screwed to
the floor or wall and engage with the
center of the bottom of the range.
Do not use the range if the anti-tip
device has not been properly
installed and engaged.
Due to the size and weight of the
appliance, installation should be
carried out by two people.
Any opening in the wall behind the
appliance and in the floor under the
appliance shall be sealed.
We recommend removing the oven
door before installing the range (see
"Removing the door" in the Operating
Instructions) and all accessories from
the oven interior. This will make it
easier to install the appliance in its
designated space.
Once the range has been installed and
secured against tipping, you can
reattach the oven door (see
"Reinstalling the door" in the
Operating Instructions).
Do not carry or lift the range by the
oven door handle or the control
panel!
Anti-tip device
96

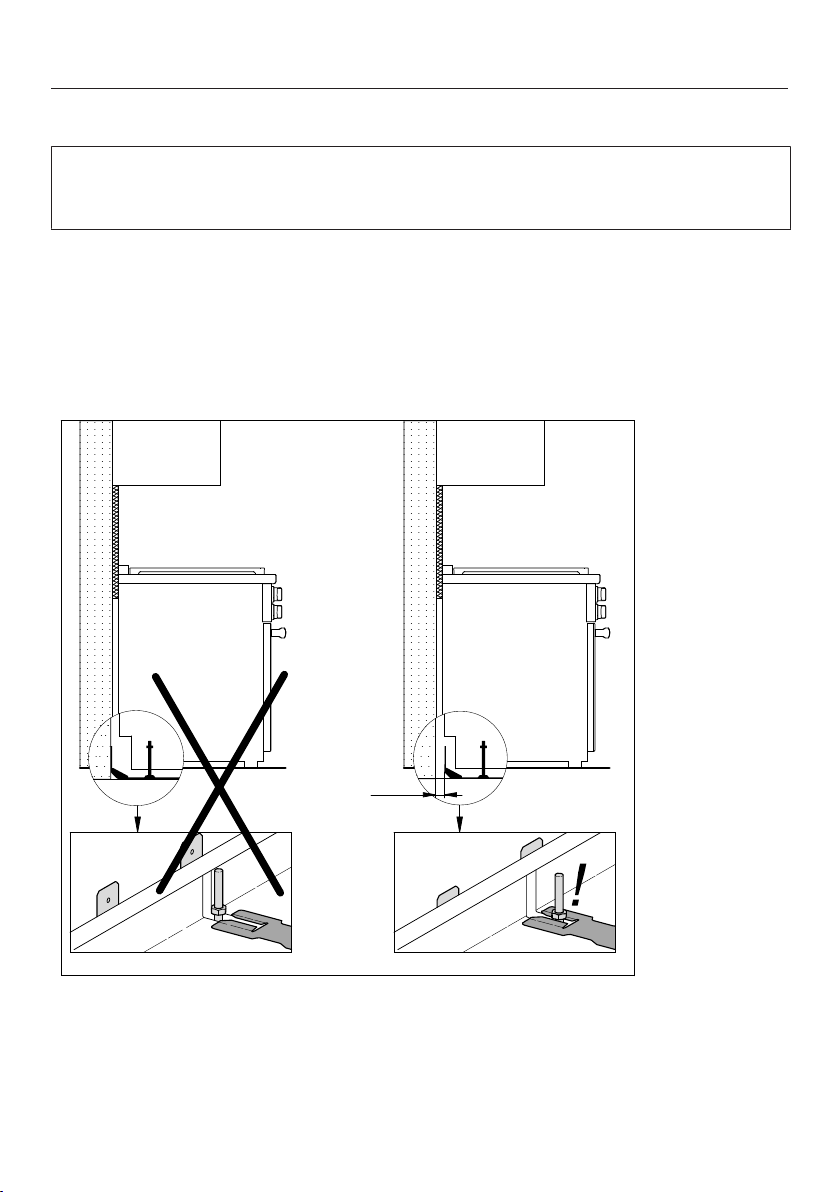

Checking the installation space
Install the anti-tip device on a floor capable of bearing significant weight, such as
a concrete floor, concrete wall or timber framing. The surface must be flat and
level.
If the rear of the range has distance A to the supporting wall due to unevenness
or wall covering (e.g., tile level), you must install the anti-tip device to the
supporting floor. Alternatively, you can also install the anti-tip device with an
adapter between the supporting wall and the anti-tip device. The adapter must
compensate dimension A and be made of suitable material so that a supporting
composite arises between the wall and anti-tip device. Use the corresponding
screws (length and diameter).
A
A = Distance between the rear of the range to the supporting wall
Check the floor surface.
Check the installation dimensions.
Anti-tip device
97
Check the diagrams for the building's supply lines. Make sure that you do not
damage any lines when drilling the holes to attach the anti-tip device.
Check the position of the electric, gas and water connections (see "Electrical
connection," "Gas connection" and "Plumbing"). An overview on the electrical
connections for your range can be found in "Notes on installation".
Anti-tip device
98
Included accessories
–1 anti-tip device
–4 screws
–4 plugs
Anti-tip device
99
Installation dimensions of
locking bolt
X
Anti-tip device, front view
ModelWidthX
HR 1421
HR 1622
HR 112x
HR 192x
2915/16"
(760 mm)
313/16"
(97 mm)
HR 113x
HR 193x
3515/16"
(913 mm)
313/16"
(97 mm)
HR 195x4715/16"
(1218 mm)
31/4"
(82 mm)
Installing the range with the
anti-tip device
Wear safety shoes and gloves.
The anti-tip device should be installed
at the bottom rear of the range at the
midpoint of the width.
Measure the installation space for the
range close to floor level.
Mark the wall at the middle of the
space width.
Position the notch of the anti-tip
bracket on the wall marking.
The anti-tip device must fit tightly on
the floor or the wall.
Anti-tip device
100
1
3
2
Attaching to the floor
1
2
3
Attaching to the wall
a
Anti-tip device
b
Screws
c
Locking nut
Secure the anti-tip device to the
floor surface with suitable bearing
capacity, either to the floor or wall.
using four screws .
Screw the locking nut to the bolt,
see the "Installation dimensions of
locking bolt" table.
Anti-tip device
101
Do not push the range into
position before all supply
connections have been
established.
The toe kick cover is attached to the
base of the range by magnets.
21
a
Toe kick cover
b
Locking clamp
Remove the toe kick cover from
the appliance.
Pull out the locking clamp .
The locking clamp extends through
the toe kick cover of the range
housing. Its length is approximately
equal to the depth of the range.
A slot is located in the non-visible rear
section of the locking latch. This slot
engages with the bolt of the anti-tip
device when you slide the locking
latch into the range.
Complete all necessary connections
for the range. Read the information in
the "Electrical connection", "Gas
connection" and "Plumbing" sections.
The range can be damaged if it is
lifted using the cover, the trim or the
door handle.
Open the oven door and hold the
appliance by the front of the oven
interior.
Lift the range and move it with the
help of the rear wheels.
Slide the range into position, guiding
the middle of the appliance onto the
anti-tip device. Slide the appliance all
the way back to the wall.

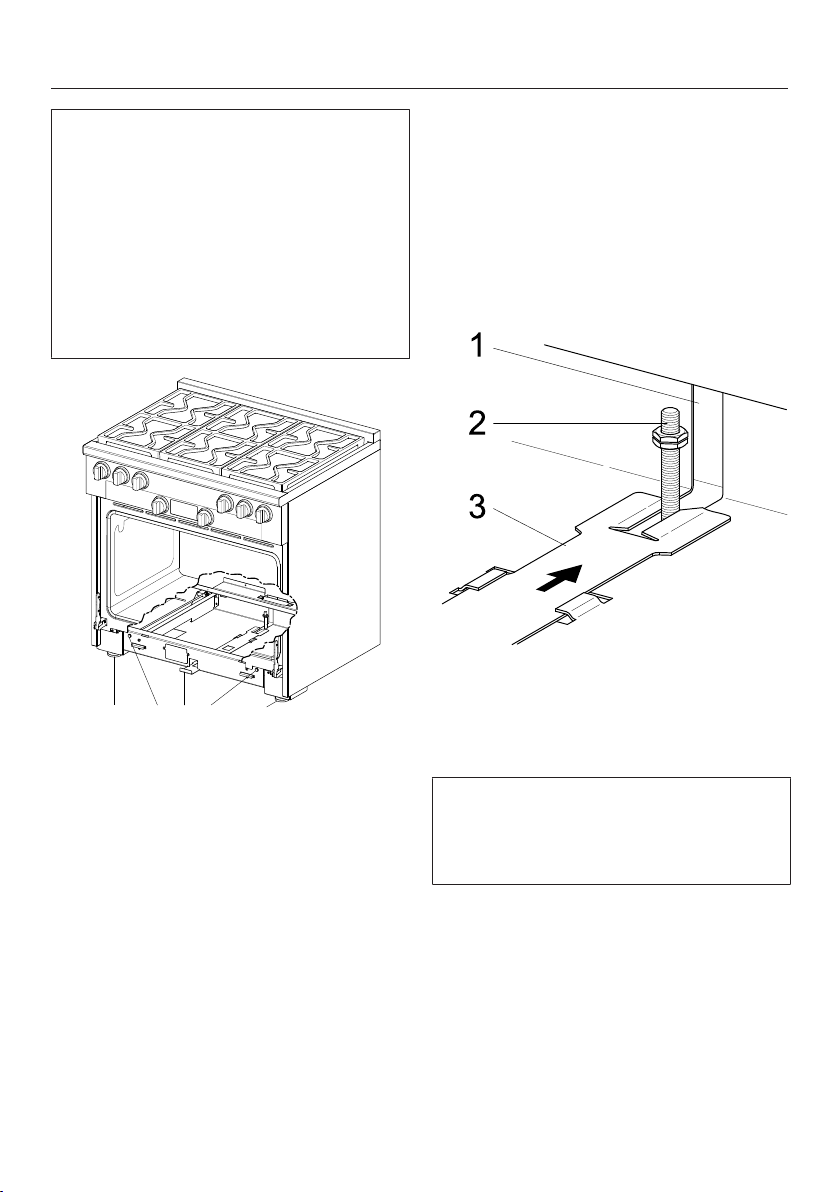

Anti-tip device
102
Use a level to align the range.
–Rear adjustment right and left:
You will need an open-end wrench
(3/8" (10 mm)).
–Front adjustment right and left:
You will need an open-end wrench
(5/8" (16 mm)) for the locknut and
an open-end wrench (1/2" (13
mm)) for the adjustable nut.
1 22 33
a
Locking clamp
b
Rear adjustment
c
Front adjustment
Align the range.
Slide the locking clamp firmly back
into the range.
In the range housing, there is an
opening for the bolt of the anti-tip
device. The opening allows the range to
be slid onto the anti-tip device and
back to the wall.
The locking clamp must noticeably
engage with the bolt so that anti-tip
protection is ensured for the range.
a
Opening in the range housing
b
Bolt of the anti-tip device
c
Locking clamp with slot
The toe kick cover can only be
attached if the locking clamp has
been slid all the way into the
appliance.
Install the toe kick cover on the
range.
Anti-tip device
103
Disconnecting the range from
the anti-tip device
WARNING
Children and adults can tip over the
range if has not been secured. This
may lead to fatal injuries.
If you need to remove the range from
its installation space, e.g. for service,
you first need to disconnect the
appliance from the anti-tip device.
Follow the instructions for installation
in reverse order.
Electrical connection
104
ATTENTION:
During installation, maintenance and
repair work, the range must be
disconnected from the electrical
supply. It is only completely isolated
from the electrical supply if the plug
fuses have been fully unscrewed
(where applicable), the circuit breaker
has been tripped or the power cord
has been unplugged from the wall
outlet.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.Installation, repair, and
maintenance work should only be
performed by a Miele-authorized
service technician. Work by
unqualified persons can cause
considerable danger to users. Miele
cannot be held liable for any damage
arising as a result of such work.
To avoid damaging the range, make
sure that the connection data
(voltage and frequency) on the data
plate correspond to the building's
power supply before connecting the
appliance.
When in doubt, consult a qualified
electrician.
The internal electrical wiring of the
appliance has been performed and
tested according to the valid
regulations. To guarantee
malfunction-free operation, ensure
the proper phase assignment of the
socket. In case of doubt, ask an
electrician.
The plug must be inserted into a
suitable outlet that has been installed
and grounded in compliance with all
applicable local regulations.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installer: Please pass these
instructions on to the customer.
Electrical connection
105
Electrical connection
TypeConnecting lineNEMAElectrical supply
USACanada
HR 1421Approx. 5' 11"
(1.80 m)
14-50 P
plug
120/208 V
or
120/240 V
50 A40 A60 Hz
HR 1622Approx. 5' 11"
(1.80 m)
14-50 P
plug
120/208 V
or
120/240 V
50 A40 A60 Hz
HR 195xApprox. 5' 11"
(1.80 m)
14-50 P
plug
120/208 V
or
120/240 V
50 A40 A60 Hz
HR 192x
HR 193x
Approx. 5' 11"
(1.80 m)
14-30 P
plug
120/208 V
or
120/240 V
30 A30 A60 Hz
HR 112x
HR 113x
Approx. 5' 11"
(1.80 m)
5-15 P
plug
120 V15 A15 A60 Hz
Data plate
The data plate with the connection information for the range is located in the
middle of the base front behind the removable toe kick cover (see "Guide to the
range").
SAVE THESE INSTRUCTIONS FOR THE ELECTRICAL INSPECTOR'S USE.
Electrical connection
106
This appliance must be grounded in
compliance with all applicable local
and national regulations.
Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician
in compliance with local regulations
and the ANSI National Electrical
Code / NFPA 70 in the United States
or the Canadian Electrical Code, Part
I in Canada (CSA standard C22.1).
Plumbing
107
Notes on connecting to the
water supply
The appliance must be connected to
the water supply by a qualified
professional.
Disconnect the appliance from the
power supply before connecting it to
the water line.
Turn off the water supply before
connecting the water lines for the
range.
–All devices used for connecting the
appliance to the water supply must
comply with the current national and
local safety regulations in the country
in which the range is being installed.
–We do not recommend the use of
water produced by Reverse Osmosis
filtration systems. Along with the
possibility of detrimental health
effects, highly purified water can
cause the premature corrosion and
failure of components in your
appliance. Furthermore, many RO
systems, especially under counter
systems, do not deliver sufficient
water pressure to allow the appliance
to operate properly. Connection to
such a water supply could cause
poor performance, premature
appliance failure, leaks and/or
flooding. Miele will not be responsible
for any damages caused by
appliances connected to these
systems. Only use filtered, softened
and demineralized water from the
building's plumbing to supply the
oven.
–Connect the range to a cold water
supply only.
–The range may be connected to a
water supply without a non-return
valve.
–A water shut-off valve must be
provided between the stainless steel
hose and the household water supply
to ensure that the water supply can
be cut off if necessary.
–The water shut-off valve must be
accessible after installation.
–The water pressure must be between
1 and 10 bar (10
5
and 10
6
Pa or 14.5
and 145 psi). If the pressure is higher
than this, install a pressure reducer.
–30" and 36" range: The provided
stainless steel hose has a length of 4'
11" (1.5m).
48" Range: The provided stainless
steel hose has a length of 9'
10" (3m).
Longer intake hoses are available if
necessary. Do not shorten the hoses.
–The total hose length must not
exceed 24.5 ft. (7.5 m).
Ensure that the shut-off valve is
accessible after installation.
Replace the stainless steel hose if it
is damaged, using only an original
Miele hose to do so (available from
Miele). The hose must be suitable for
supplying drinking water.
Plumbing
108
Attach the stainless steel hose
to the range.
Make sure that the stainless steel
hose is not kinked or damaged. The
stainless steel hose must not be
shortened.
Remove the cover from the water
supply connection at the back of the
range.
Take the angled side of the stainless
steel hose and check whether a
gasket is present. If not, insert one.
Screw the stainless steel hose
coupling nut onto the threaded union.
Ensure that the hose is correctly
seated.
Connecting to the water supply
Danger of electric shock!
Disconnect the range from the
electrical supply before connecting it
to the water supply.
Check that the gasket is present.
Replace, if not, insert before
connecting to the water supply.
3/8"
Connect the stainless steel hose to
the water supply.
Old or previously used tubing should
never be connected to the range.
Only use the stainless steel hose
supplied.
Ensure that the hose is correctly
seated.
Slowly open the shut-off valve to the
water supply and check for leaks.
Gas connection
109
Connection to the gas supply
may only be performed by a duly
authorized technician. This
technician is responsible for proper
function at the installation site.
In Massachusetts, the gas
connection may be performed only
by a certified gas installer.
The range must be connected with
its own shut-off valve.
The shut-off valve must be
accessible and visible, after the
opening of a cabinet door, if
necessary.
The connection of the range can be
for natural gas or propane gas
according to the model.
Ask your gas company what kind of
gas is used and compare it with the
specifications on the data plate.
The range is not connected to an
exhaust vent.
During the setup and connection of
the range, observe the applicable
installation conditions, especially
suitable ventilation measures.
The gas connections must be
arranged in such a way that they are
not heated and damaged by the
operation of the range.
In particular, make sure that the gas
hose lines and connection fittings on
the range do not come into contact
with hot exhaust gases.
Flexible connection lines can be
damaged by incorrect routing.
Attach flexible connecting lines in
such a way so that they do not come
into contact with any moving kitchen
parts (e.g., a drawer) and are not
exposed to mechanical stress.
The range and the shut-off valve
must be disconnected from the gas
supply during gas pressure tests.
Disconnect the range and the shut-
off valve from the gas supply before
performing a gas pressure test at a
pressure of more than 1/2psi
(3.5kPA). Close the shut-off valve of
the gas supply before performing a
gas pressure test at a pressure of
less than or equal to 1/2psi
(3.5kPA).
Incorrectly sealed gas lines can lead
to a gas leak and thus to an
explosion.
Seal all gas lines with a suitable
thread sealant.
Seal tightness tests on the range
must be performed according to
manufacturer specifications.
The gas connection must be
established only Miele-authorized
specialists according to the local and
following regulations:
National Fuel Gas Code
ANSIZ21.1 / NFPA No. 54 for the
United States or the current Can /
CGAB149.1 and 2 Installation
Codes of Gas Appliances for
Canada.
Gas connection
110
The installation must conform with
local codes or, in the absence of
local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54.
The gas pressure may not
undershoot or exceed certain values.
Make sure that the maximum gas
pressure upstream of the gas
pressure controller does not amount
to more than 1/2psi (3.5kPA) for
natural and propane gas.
Make sure that the minimum gas
pressure amounts to a 6" (150 mm)
water head in the case of natural gas
and a 11" (279,4mm) water head in
the case of propane gas.
G NPT
1/2"
Burner ratings of Standard Burner Configuration
111
Burner ratings for HR 1124
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
Oven top burnerNatural gas22.0006.45
Propane gas20.1505.90
Oven bottom
burner
Natural gas23.2006.79
Propane gas23.2006.79
Total output of
Cooktop
Natural gas71.00020.80
Propane gas71.00020.80
Maximum total
output of Range
Natural gas94.20027.59
Propane gas94.20027.59
Burner ratings of Standard Burner Configuration
112
Burner ratings for HR 1134
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
Oven top burnerNatural gas22.0006.45
Propane gas20.1505.90
Oven bottom
burner
Natural gas25.5007.47
Propane gas27.0007.90
Total output of
Cooktop
Natural gas110.00032.20
Propane gas110.00032.20
Maximum total
output of Range
Natural gas135.50039.67
Propane gas137.00040.10
Burner ratings of Standard Burner Configuration
113
Burner ratings for HR 1135
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GrillNatural gas19.0005.50
Propane gas15.5004.50
Oven top burnerNatural gas22.0006.45
Propane gas20.1505.90
Oven bottom
burner
Natural gas25.5007.47
Propane gas27.0007.90
Total output of
Cooktop
Natural gas90.00026.30
Propane gas86.50025.30
Maximum total
output of Range
Natural gas115.50033.77
Propane gas113.50033.20
Burner ratings of Standard Burner Configuration
114
Burner ratings for HR 1136
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GriddleNatural gas13.0003.80
Propane gas14.3004.20
Oven top burnerNatural gas22.0006.45
Propane gas20.1505.90
Oven bottom
burner
Natural gas25.5007.47
Propane gas27.0007.90
Total output of
Cooktop
Natural gas84.00024.60
Propane gas85.30025.00
Maximum total
output of Range
Natural gas109.50032.07
Propane gas112.30032.90
Burner ratings for HR 1924
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
Total output of
Cooktop
Natural gas71.00020.80
Propane gas71.00020.80
Burner ratings of Standard Burner Configuration
115
Burner ratings for HR 1934
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
Total output of
Cooktop
Natural gas110.00032.20
Propane gas110.00032.20
Burner ratings for HR 1935
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GrillNatural gas19.0005.50
Propane gas15.5004.50
Total output of
Cooktop
Natural gas90.00026.30
Propane gas86.50025.30
Burner ratings of Standard Burner Configuration
116
Burner ratings for HR 1936
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GriddleNatural gas13.0003.80
Propane gas14.3004.20
Total output of
Cooktop
Natural gas84.00024.60
Propane gas85.30025.00
Burner ratings for HR 1954
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
Total output of
Cooktop
Natural gas142.00041.60
Propane gas142.00041.60
Burner ratings of Standard Burner Configuration
117
Burner ratings for HR 1955
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GrillNatural gas19.0005.50
Propane gas15.5004.50
Total output of
Cooktop
Natural gas122.00035.70
Propane gas118.50034.70
Burner ratings for HR 1956
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas12.5003.70
Propane gas12.5003.70
Power burnerNatural gas19.5005.70
Propane gas19.5005.70
GriddleNatural gas13.0003.80
Propane gas14.3004.20
Total output of
Cooktop
Natural gas116.00034.00
Propane gas117.30034.40
Burner ratings of M Pro Power (Zero Gap)
118
When the BTU-reducing kit (Zero Gap) is used, the burner ratings of the burners
change as follows:
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas10.0002.93
Propane gas10.0002.93
Power burnerNatural gas14.7004.31
Propane gas14.7004.31
GrillNatural gas19.0005.50
Propane gas15.5004.50
GriddleNatural gas13.0003.80
Propane gas14.3004.20
Burner ratings of M Pro (Décor Hood)
119
When the BTU-reducing kit (Décor Hood) is used, the burner ratings of the burners
change as follows:
Gas typeBTU/hrkW
maxmax
Simmer burnerNatural gas10.0002.93
Propane gas10.0002.93
Power burnerNatural gas12.2003.58
Propane gas12.2003.58
GrillNatural gas19.0005.50
Propane gas15.5004.50
GriddleNatural gas13.0003.80
Propane gas14.3004.20
Combination Range with BTU-reducing kit
120
If a BTU-reducing kit is necessary, an authorized installer is required to modify the
product to meet ANSI Z21. Jets are a standard accessory and are getting changed
during installation.
Natural Gas
BTU-reducing kitHR 1124 NG
HR 1924 NG
HR 113x NG
HR 193x NG
HR 195x NG
30"NG Zero Gap/DécorX––
36"NG Zero Gap–X–
36"NG Décor–X–
48"NG Zero Gap––X
Propane gas
BTU-reducing kitHR 1124 LP
HR 1924 LP
HR 113x LP
HR 193x LP
HR 195x LP
30"LP Zero Gap/DécorX––
36"LP Zero Gap–X–
36"LP Décor–X–
48"LP Zero Gap––X
Caring for the environment
121
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 716 320 / 03
en-US, CA
All Electric: HR1421; HR1622; All Gas: HR1124; HR1134;
HR1135; HR1136; Dual Fuel: HR1924; HR1934; HR1935;
HR1936; HR1954; HR1955; HR1956
