• Page 3 - English - : i En 1 To assure the finest performance please read this manual carefully Keep it in a safe place for future reference 2 Install this unit in a well ventilated cool dry clean place away from direct sunlight heat sources vibration dust moisture and cold For proper ventilation allow the following minimum clearances Top 15 cm 6 in Rear 10 cm 4 in Sides 10 cm 4 in 3 Locate this unit away from other electrical appliances motors or transformers to avoid humming sounds 4 Do not expose this unit to sudden temperature changes from cold to hot and do not locate this unit in an environment with high humidity ie a room with a humidifier to prevent condensation inside this unit which may cause an electrical shock fire damage to this unit andor personal injury 5 Avoid installing this unit where foreign object may fall onto this unit andor this unit may be exposed to liquid dripping or splashing On the top of this unit do not place Other components as they may cause damage andor discoloration on the surface of this unit Burning objects ie candles as they may cause fire damage to this unit andor personal injury Containers with liquid in them as they may fall and liquid may cause electrical shock to the user andor damage to this unit 6 Do not cover this unit with a newspaper tablecloth curtain etc in order not to obstruct heat radiation If the temperature inside this unit rises it may cause fire damage to this unit andor personal injury 7 Do not plug in this unit to a wall outlet until all connections are complete 8 Do not operate this unit upsidedown It may overheat possibly causing damage 9 Do not use force on switches knobs andor cords 10 When disconnecting the power cable from the wall outlet grasp the plug do not pull the cable 11 Do not clean this unit with chemical solvents this might damage the finish Use a clean dry cloth 12 Only voltage specified on this unit must be used Using this unit with a higher voltage than specified is dangerous and may cause fire damage to this unit andor personal injury Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified 13 To prevent damage by lightning keep the power cable disconnected from a wall outlet or this unit during a lightning storm 14 Do not attempt to modify or fix this unit Contact qualified Yamaha service personnel when any service is needed The cabinet should never be opened for any reasons 15 When not planning to use this unit for long periods of time ie vacation disconnect the AC power plug from the wall outlet 16 Be sure to read the TROUBLESHOOTING section on common operating errors before concluding that this unit is faulty 17 Before moving this unit press to set the system to off and disconnect the AC power plug from the wall outlet 18 Condensation will form when the surrounding temperature changes suddenly Disconnect the power cable from the outlet then leave this unit alone 19 When using this unit for a long time this unit may become warm Turn the system off then leave this unit alone for cooling 20 Install this unit near the wall outlet and where the AC power plug can be reached easily 21 Be sure to use the AC adaptor supplied with this unit Using an AC adaptor other than the one provided may cause fire or damage to this unit CAUTION READ THIS BEFORE OPERATING YOUR UNIT This unit is not disconnected from the AC power source as long as it is connected to the wall outlet even if this unit itself is turned off by In this state this unit is designed to consume a very small quantity of power WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE There is a chance that placing this unit too close to a CRTbased Braun tube TV set might impair picture color Should this happen move this unit away from the TV set Do not use this unit within 22 cm 9 inches of persons with a heart pacemaker implant or defibrillator implant Radio waves may affect electromedical devices Do not use this unit near medical devices or inside medical facilities We Yamaha Music Europe GmbH hereby declare that this unit is in compliance with the essential requirements and other relevant provisions of Directive 19995EC Yamaha Music Europe GmbH Siemensstr 2234 25462 Rellingen Germany Tel 4941013030
• Page 4 - English - : ii En Information for Users on Collection and Disposal of Old Equipment This symbol on the products packaging andor accompanying documents means that used electrical and electronic products should not be mixed with general household waste For proper treatment recovery and recycling of old products please take them to applicable collection points in accordance with your national legislation and the Directives 200296EC By disposing of these products correctly you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling For more information about collection and recycling of old products please contact your local municipality your waste disposal service or the point of sale where you purchased the items Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union If you wish to discard these items please contact your local authorities or dealer and ask for the correct method of disposal AVEEA71102B Important Notice Guarantee Information for customers in EEA and Switzerland EnglishEnglish For detailed guarantee information about this Yamaha product and PanEEA and Switzerland warranty service please either visit the website address below Printable file is available at our website or contact the Yamaha representative office for your country EEA European Economic Area httpeuropeyamahacomwarranty
• Page 5 - English - : 1 En PREPARATION Features High quality playback of Bluetooth enabled smartphonetablet computer and radio and external devices One touch pairing enabled by NFC technology Firm bass sound and spacious stereo sound from 21 ch powered speaker tweeter 2 woofer 1 SRBass Yamaha Swing Radiator Bass technology and DSP in a compact unit Easy userintuitive interface by buttons with Guide LED and knob dials Convenient operability enabled by using iPhoneAndroid smartphone as a remote control Supports the dedicated application DTA CONTROLLER USB port for supplying power indicates precautions for use of the unit and its feature limitations indicates supplementary explanations for better use Supplied accessories NAMES OF PARTS AND THEIR FUNCTIONS 2 BASIC FUNCTIONS 4 USING USEFUL FUNCTIONS 6 LISTENING TO RADIO STATIONS 8 CHARGING WITH THE USB PORT 9 LISTENING TO EXTERNAL SOURCES 9 LISTENING TO MUSIC FROM YOUR Bluetooth COMPONENT 10 TROUBLESHOOTING 13 SPECIFICATIONS 15 Note y AC adaptor Power cable DC 15 V 256A model number EADP38EB A USB cap Note Keep the USB cap out of reach of children so as to ensure that it is not mistakenly swallowed CONTENTS

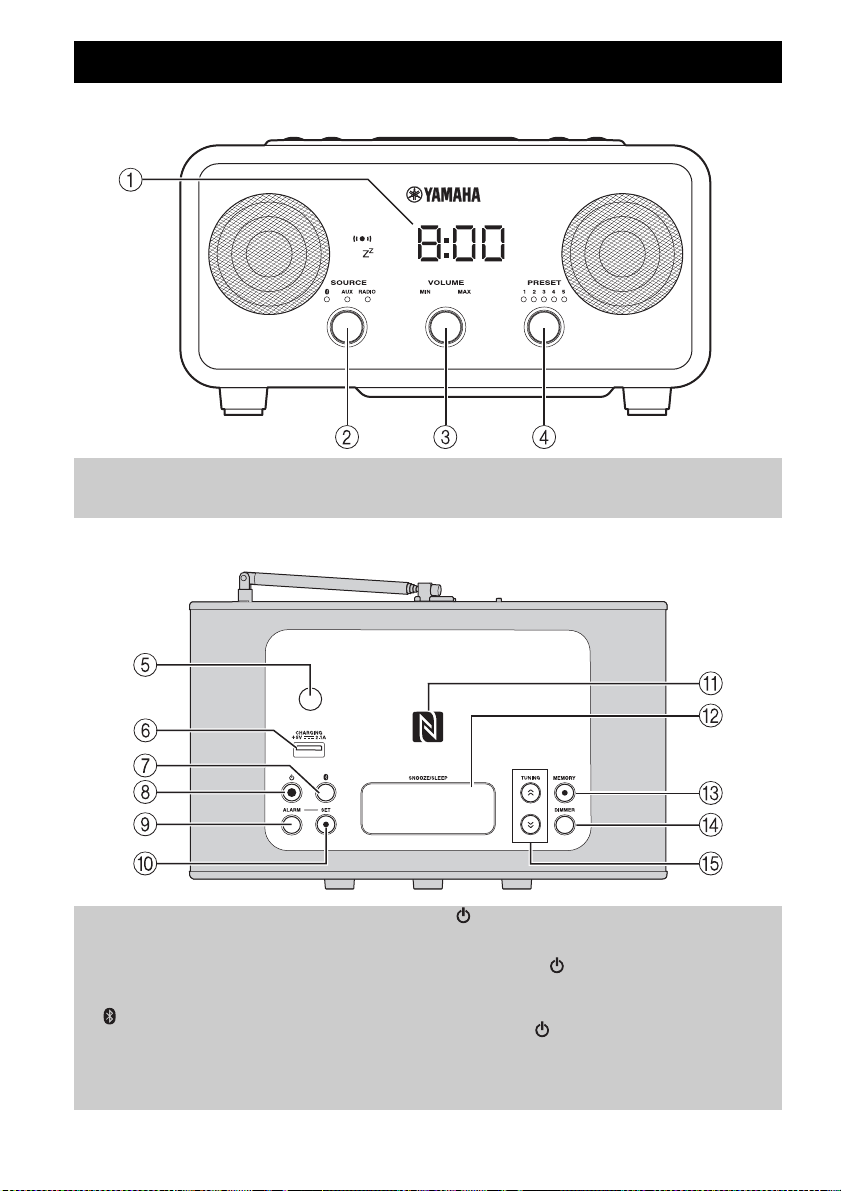

• Page 6 - English - : 2 En Front panel Top panel NAMES OF PARTS AND THEIR FUNCTIONS 1 Front panel display 2 SOURCE Bluetooth AUX RADIO 3 VOLUME Volume control 4 PRESET Stores up to five favorite FM radio stations P 8 5 Illumination sensor Measures surrounding illuminance Do not cover this sensor when DIMMER d is set to A auto 6 CHARGING Supplies 5V21A to a portable device such as a smartphone when it is connected with a USB cable P 9 7 Bluetooth Press this button to terminate Bluetooth connection when it is established P 12 to establish connection with the component that was most recently connected via Bluetooth P 12 8 Press to turn the system onoff Time is displayed even when the system is off y Press and hold for more than 3 seconds to set the system to standby mode All the information on the front panel display is not displayed in standby mode This can reduce power consumption To cancel standby mode press Even in system offstandby mode the alarm function is available

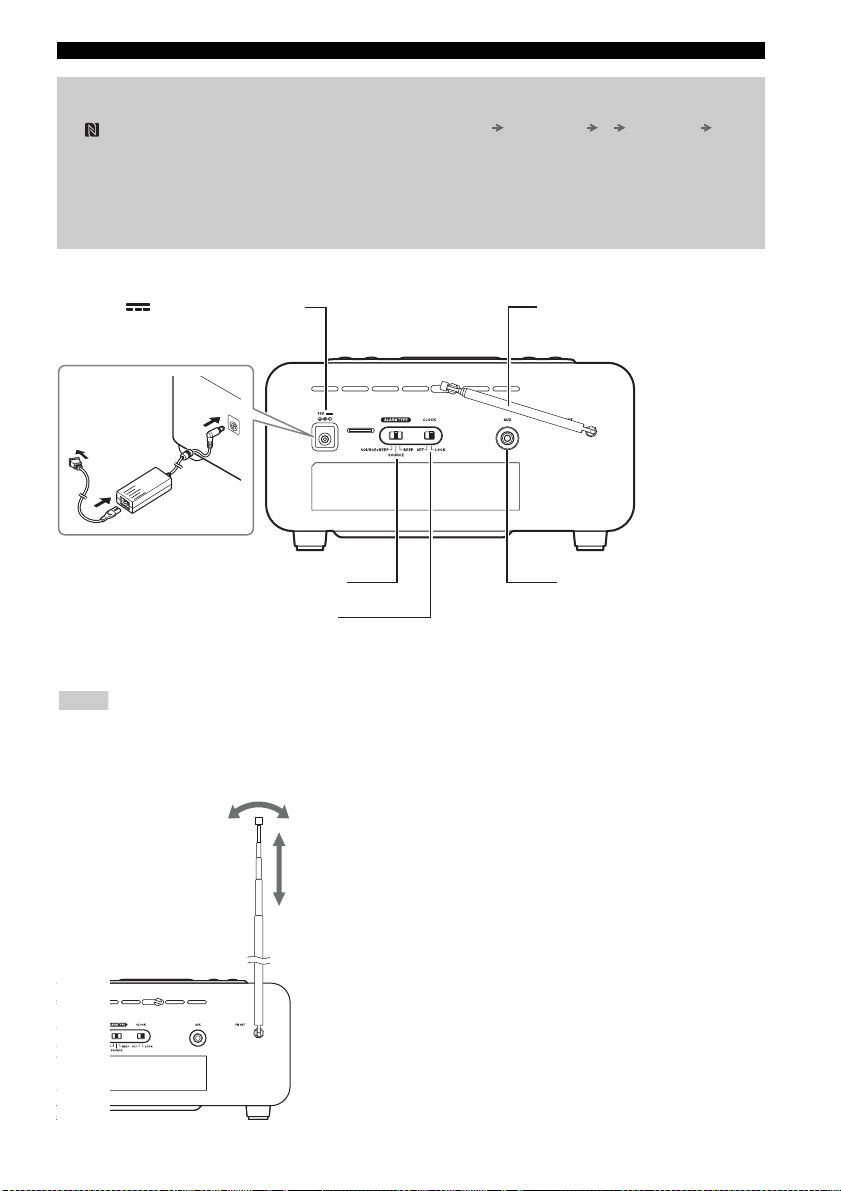

• Page 7 - English - : NAMES OF PARTS AND THEIR FUNCTIONS 3 En Rear panel 9 ALARM Alarm onoff P 5 0 SET Alarm setting P 4 A NFC mark Allows easy pairing with NFC technology P 11 B SNOOZESLEEP P 5 C MEMORY P 8 D DIMMER Sets the brightness of the top and front panel A auto 3 brightest 2 1 darkest back to A y When A auto is set the brightness of the top and front panel is adjusted automatically according to the brightness of the room E TUNING P 8 Extending rod antenna 15V Connect the supplied AC adaptor and power cable AUX Connect an external device P 9 FM Rod Antenna See below ALARM TYPE switch P 4 CLOCK switch P 4 When you listen to FM extend the antenna If FM reception is poor change the height or direction of the antenna or relocate the unit Notes FM Rod Antenna
• Page 8 - English - : 4 En OPERATION This unit can play back radio andor beep sound at the set time Setting the time and sound BASIC FUNCTIONS Adjusting the clock A Set CLOCK to SET B Set the time with TUNING C Set CLOCK to LOCK Time appears in 12hour notation AMPM depending on the model For example 400PM The time settings are lost approximately one week after unplugging the unit Alarm setting A Press SET B Set the alarm time with TUNING An alarm will sound only once at the specified time C Set ALARM TYPE SOURCEBEEP radio played back from 3 minutes before the alarm time and beep sound played back at the alarm time SOURCE this unit plays back the radio station you listened to last time BEEP beep sound only D Set the alarm volume E Press SET Alarm is set and the alarm indicator lights up Rear panel Front panel display flashes Notes Alarm indicator flashes and the front panel display indicates alarm mode Rear panel
• Page 9 - English - : BASIC FUNCTIONS 5 En Switching the alarm onoff At the set time alarm sound plays back During playback operations below are available Using the snooze function Stopping the alarm You can set the time until the system turns off automatically when the sleep function is set to on Press ALARM When the alarm is on the alarm indicator lights up and alarm time is displayed for a while Operations during playing back alarm sound Press SNOOZESLEEP The alarm sound stops and resumes after 5 minutes y If SOURCEBEEP is set as the alarm type you can press SNOOZESLEEP once to stop the beep sound and twice to stop the audio source Five minutes after the audio source is stopped it will start fading in again and the beep sound will resume When the snooze function is activated alarm indicator flashes Press ALARM or y Unless you stop the alarm the alarm stops after 60 minutes automatically When you stop the alarm the alarm time setting etc is saved for convenient use next time Sleep setting Select the sleep time You can set 30 60 90 or 120 minutes When the sleep function is on the sleep indicator lights up y To cancel the sleep function press SNOOZE SLEEP Sleep indicator and front panel display flash Press repeatedly
• Page 10 - English - : 6 En OPERATION If you cannot access the above information search for DTA CONTROLLER on App Store or Google Play iPad iPhone and iPod touch are trademarks of Apple Inc registered in the US and other countries Android and Google Play are trademarks of Google Inc USING USEFUL FUNCTIONS DTA CONTROLLER With the DTA CONTROLLER application installed on your smartphone or tablet computer you can use further convenient features of Yamaha desktop audio systems To download the application or obtain the latest information on it access App Store or Google Play via the QR codes listed below iPhone iPad iPod touch Android httpitunescomappdtacontroller httpsplaygooglecomstoreapps detailsidcomyamahaavdtacontr oller USA httpsitunesapplecomusappdta controllerusid549333293mt8 Notes
• Page 11 - English - : USING USEFUL FUNCTIONS 7 En Once you have set Weekly Alarm by DTA CONTROLLER you can select the Weekly Alarm mode in the alarm mode select display of this unit Alarm setting using DTA CONTROLLER The Weekly Alarm mode cannot be selected when all the days of the Weekly Alarm setting are turned off Turn on any day of the Weekly Alarm setting A Press SET B Select the alarm mode with TUNING C Press SET If you have chosen Weekly Alarm mode this completes the alarm setting The alarm indicator and the Weekly Alarm indicator will light up D Set the alarm time with TUNING E Set ALARM TYPE F Set the alarm volume G Press SET Alarm is set and the alarm indicator lights up y The alarm setting will be saved even if the alarm is turned off If the alarm is turned on again by pressing ALARM the alarm will sound with the previous alarm settings One Day Alarm Weekly Alarm 1d One Day Alarm mode An alarm that sounds only once at the specified time 7d Weekly Alarm mode An alarm whose time can be specified for each day of the week settable only using DTA CONTROLLER Note One Day Alarm Weekly Alarm Alarm indicator flashes and the front panel display indicates alarm mode Rear panel
• Page 12 - English - : 8 En You can store up to five favorite FM radio stations with the preset function LISTENING TO RADIO STATIONS Tuning radio stations A Set SOURCE to RADIO B For automatic tuning press and hold TUNING For manual tuning press TUNING repeatedly If you tune to a station manually during FM reception the sound is monaural Presetting radio stations A Tune into a favorite radio station B Press MEMORY C Select the PRESET number you want to store to y To cancel the preset press TUNING again D Press MEMORY to complete Selecting preset radio stations A Set SOURCE to RADIO B Select the preset radio station with PRESET Note
• Page 13 - English - : 9 En Connecting a portable device such as a smartphone or tablet computer to the USB port on this unit charges the connected device power supply of up to 5V21A is supported Prepare a USB cable that is compatible with the portable device and confirm that the device is supported for charging via USB connection before use In addition read the documentation provided with the portable device Playing back CHARGING WITH THE USB PORT A Connect your portable device to the USB port on this unit using a commercially available USB cable Charging automatically starts B Disconnect the USB cable from the unit when charging completes Check the charging status on the portable device Charging may not be possible depending on the portable device The USB port is for charging use only The USB port does not support audio playback In standby mode power supply stops and charging is not available This unit does not function as memory storage Yamaha will not be held responsible for any damage to the portable device or data loss occurred while using this unit Disconnect the USB cable immediately after charging completes since power continues to be supplied to the connected device LISTENING TO EXTERNAL SOURCES Playing back external sources A Connect your portable audio device to AUX using a commercially available 35 mm 18 in mini plug cable Turn down the volume of this unit and your portable audio device before connection B Set SOURCE to AUX C Start playback on the connected portable audio device USB cable from portable device Top panel Notes Rear panel Note

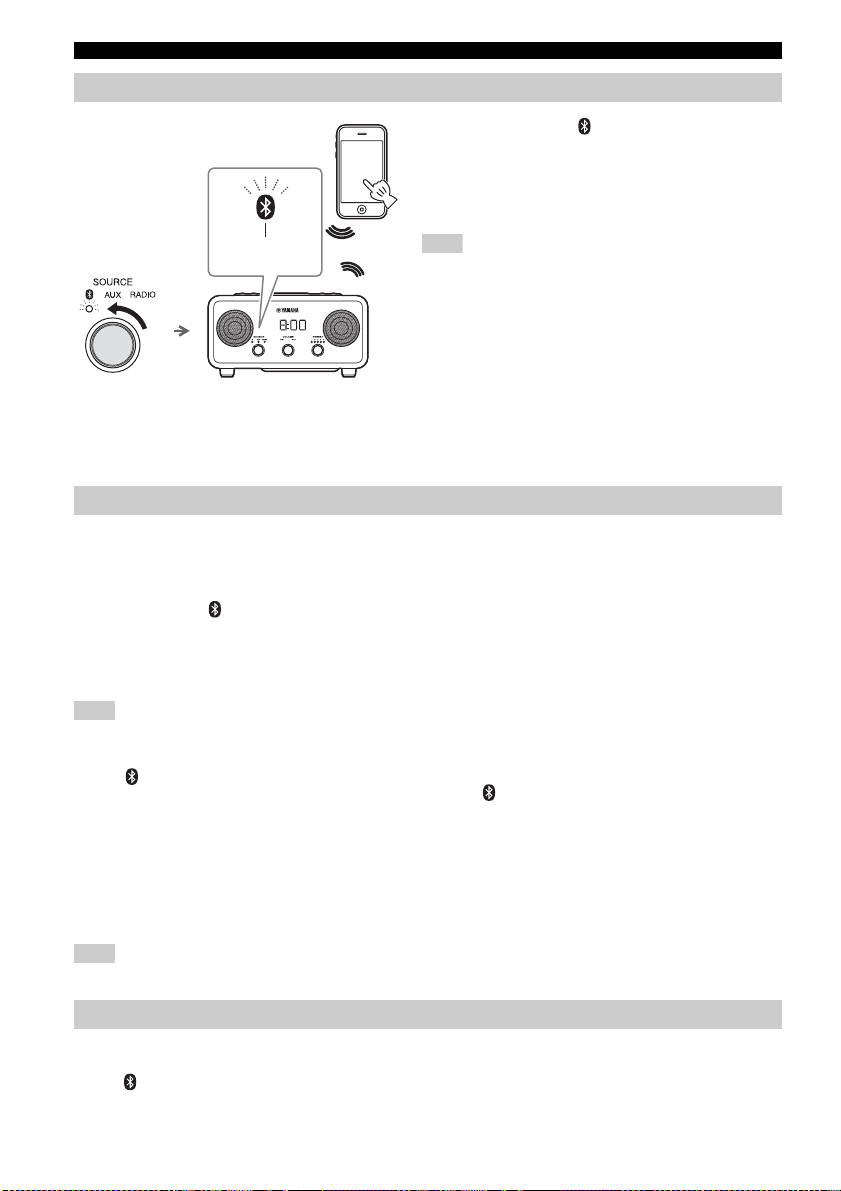

• Page 14 - English - : 10 En This unit provides Blue tooth functionality You can enjoy wireless music playback from your Bluetooth component smartphone digital audio player etc Please also refer to the owners manual of your Bluetooth component Install in a stable place being careful of the following points Do not place on top of steel or other metal plates Do not cover with a cloth etc Install in the same room as the device with which signals are to be exchanged B luetooth profile A2DP compatible portable music player mobile phone etc within a direct lineofsight distance of 10 m 33 ft Make sure there are no obstacles between this unit and the Bluetooth component Pairing is an operation that registers the communicating component subsequently called the other component with this unit You will need to perform the pairing operation the first time you use your Bluetooth component with this unit or if the pairing settings have been deleted Once pairing has been completed subsequent reconnection will be easy even after the Bluetooth connection is disconnected If pairing is not successful refer to the item Bluetooth in TROUBLESHOOTING P 13 y This unit can be paired with up to eight other components When pairing with the ninth component has succeeded pairing data for the component with the oldest connection date will be deleted If this unit is connected via Bluetooth to another component press Bluetooth on this unit to disconnect the Bluetooth connection before you perform the pairing operation If using an iPhoneiPadiPod touch LISTENING TO MUSIC FROM YOUR Bluetooth COMPONENT Installation Within 10 m 33 ft Pairing this unit with your Bluetooth component A Set SOURCE to Bluetooth B On your iPhoneiPadiPod touch turn Settings Bluetooth on The Bluetooth connection list will appear in Devices This procedure or display may differ depending on the type of your iPhone iPadiPod touch C From the Bluetooth connection list of the other component choose this unit TSXB72 Yamaha When pairing has been completed your iPhoneiPadiPod touch will indicate Connected The Bluetooth indicator on the front panel display of this unit will light Bluetooth indicator ABC
• Page 15 - English - : LISTENING TO MUSIC FROM YOUR Bluetooth COMPONENT 11 En If using other than an iPhoneiPadiPod touch A Set SOURCE to Bluetooth B Perform Bluetooth pairing on the other component For details refer to the owners manual of the other component C From the Bluetooth connection list of the other component choose this unit TSXB72 Yamaha When pairing has been completed the Bluetooth indicator on the front panel display of this unit will light for about 1 second y If you are prompted for a passkey enter the numerals 0000 Easy pairing For the smartphone with NFC Near Field Communication function you can easily perform the pairing operation just by touching the NFC mark on this unit with your smartphone you need to turn the system on and turn on the NFC function of the connecting component beforehand A Press to turn the system on B Perform the pairing operation at the connecting component for details please read the owners manual of the connecting component This unit is indicated as TSXB72 Yamaha on the connecting component y If you are prompted for a passkey enter the numerals 0000 If the connection fails move the smartphone slowly on the NFC mark If the smartphone is equipped with a case remove the case NFC mark
• Page 16 - English - : LISTENING TO MUSIC FROM YOUR Bluetooth COMPONENT 12 En Once pairing with a component has been completed connecting with that component via Blu etooth will be easy next time Connecting from this unit Set SOURCE to Bluetooth The Bluetooth indicator will blink on the front panel display this unit will search for the other component that was most recently connected via Bluetooth and will then establish a connection You must first turn on the Bluetooth setting of the other component When the Bluetooth connection has been established the Bluetooth indicator will light Yamaha does not guarantee all connections between this unit and Bluetooth component y Pressing Bluetooth on the top panel of this unit also establishes connection with the component that was most recently connected via Bluetooth however SOURCE is not automatically set to Bluetooth Connecting from the other component A In the Bluetooth settings of the other component turn Bluetooth on B From the Bluetooth connection list of the other component choose this unit TSXB72 Yamaha The Bluetooth connection will be established and the Bluetooth indicator on the front panel display of this unit will light Bluetooth connections cannot be established from the other component when this unit is in standby mode Turn the system on If any of the following operations are performed while a Bluetooth connection is being used the Bluetooth connection will be disconnected Press Bluetooth on the top panel of this unit Turn the system off Turn off the Bluetooth setting of the other component Listening to a Bluetooth component A Set SOURCE to Bluetooth B Connect this unit and your other component via Bluetooth C Play back music from your Bluetooth component Take care that the volume setting of this unit is not too high We recommend that you adjust the volume on the other component y While the system is turned off if you connect a Bluetooth component to the unit and play back music the system will automatically turn on If you disconnect the Bluetooth connection from your other component while the playback source is set to Bluetooth this unit will automatically turn off the system If Bluetooth is selected as the playback source this unit will automatically turn off the system when 60 minutes have elapsed without any Bluetooth connection nor any operation performed Connecting an alreadypaired component via Bluetooth Bluetooth indicator Note Note Note Disconnecting a Bluetooth connection
• Page 17 - English - : 13 En Refer to the table below if the unit does not operate properly If the problem you are experiencing is not listed below or if the instruction below does not help turn off the unit disconnect the power cable and contact the nearest authorized Yamaha dealer or service center TROUBLESHOOTING General Problem Cause Solution The speakers make no sound The volume may be set to the minimum level Adjust the volume level The source may be incorrect Select the correct source Sound suddenly turns off The sleep function P 5 may be set Turn on the system and play the source again Sound is cracked distorted or there is abnormal noise Input source volume is excessive or volume of this unit is excessive Adjust the volume with VOLUME or adjust the sound with the tone control of DTA CONTROLLER The unit does not operate properly The unit may have received a strong electrical shock such as lightning or excessive static electricity or power supply may have dropped Set the system to off and disconnect the power cable Wait about 30 seconds reconnect the power cable and turn on the system The system turns on but immediately shuts off The power cable may be connected improperly Make sure the power cable is plugged into the wall outlet firmly The unit may have received a strong electrical shock such as lightning or excessive static electricity Set the system to off and disconnect the power cable Wait about 30 seconds reconnect the power cable and turn on the system A digital or highfrequency equipment produces noises The unit may be placed too close to the digital or highfrequency equipment Place the unit farther away from the equipment The clock setting has been cleared The unit is left more than one week after you disconnect the power cable from the wall outlet Plug the power cable into the wall outlet firmly and set the clock again P 4 RADIO does not play at the alarm time ALARM TYPE is set to BEEPSet ALARM TYPE to SOURCEBEEP or SOURCE P 4 Clock flashes and the unit cannot be operated CLOCK on the rear panel is set to SET and this unit is in clock setting mode Set CLOCK to LOCK Radio reception Problem Cause Solution Too much noise during stereo broadcast The radio station you selected may be far from your area or the radio wave reception is weak in your area Try manual tuning to improve the signal quality P 8 or change the height or direction of the antenna or relocate the unit P 3
• Page 18 - English - : TROUBLESHOOTING 14 En Resetting the unit If the unit does not function properly resetting the unit may solve the problem To reset the unit press and hold for more than 10 seconds Bluetooth Problem Cause Solution Cannot make this unit paired with the other component The other component does not support A2DP Perform pairing operations with a component which supports A2DP A Bluetooth adaptor etc that you want to pair with this unit has a password other than 0000 Use a Bluetooth adaptor etc whose password is 0000 This unit and the other component are too far apart Move the other component closer to this unit There is a device microwave oven wireless LAN etc that outputs signals in the 24 GHz frequency band nearby Move this unit away from the device that is emitting radiofrequency signals Cannot establish a Bluetooth connection This unit is not registered on the other components Bluetooth connection list Perform pairing operations again P 10 No sound is produced or the sound is interrupted during playback The Bluetooth connection of this unit with the other component is disconnected Perform Bluetooth connection operations again P 12 This unit and the other component are too far apart Move the other component closer to this unit There is a device microwave oven wireless LAN etc that outputs signals in the 24 GHz frequency band nearby Move this unit away from the device that is emitting radiofrequency signals The other components Bluetooth function is off Turn on the Bluetooth function of the other component The other component is not set to send Bluetooth audio signals to this unit Check that the Bluetooth function of the other component is set properly The pairing setting of the other component is not set to this unit Set the pairing setting of the other component to this unit The other components volume is set to the minimum Increase the volume level USB port charging Problem Cause Solution Cannot charge the connected portable USB device An incompatible USB device is connected to the unit Or the USB device is not connected to this unit properly Turn off the system and reconnect the USB device to the unit If it does not resolve the problem the USB device is not chargeable with the unit
• Page 19 - English - : 15 En PLAYER SECTION AUX IN Input connector STEREO LR 35 mm 18 in STEREO mini Jack AMPLIFIER SECTION Maximum output power 4 W 4 W 8 W 6 Ω 1 kHz 10 THD Driver unit 4 cm 1 58 in fullrange driver 2 55 cm 2 18 in woofer SRBass 1 Bluetooth SECTION B luetooth versionVer 21EDR Supported protocolsA2DP AVRCP Supported codecsSBC AAC Wireless outputBluetooth Class 2 Maximum communication distance 10 m 33 ft without obstructions Supported contents protection SCMST method TUNER SECTION Tuning range FM875 to 1080 MHz CHARGING CONNECTOR SECTION Connector typeUSB type A Output rating5 V21 A NFC Near Field Communication SECTION Supported model NFCready Android device Ver 41 42 Some models may not work or be different in the required distance for connection GENERAL Power Supply AC 100 to 240 V 5060 Hz Power consumption 22 W System off consumption 19 W Standby consumption 05 W or less Dimensions W H D210 110 144 mm 8 14 4 38 5 58 in Weight 14 kg 31 lbs Specifications are subject to change without notice Bluetooth Bluetooth is a technology for wireless communication between devices within an area of about 10 meters 33 ft employing the 24 GHz frequency band a band which can be used without a license Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement Handling Bluetooth communications The 24 GHz band used by Bluetooth compatible devices is a radio band shared by many types of equipment While Bluetooth compatible devices use a technology minimizing the influence of other components using the same radio band such influence may reduce the speed or distance of communications and in some cases interrupt communications The speed of signal transfer and the distance at which communication is possible differs according to the distance between the communicating devices the presence of obstacles radio wave conditions and the type of equipment Yamaha does not guarantee all wireless connections between this unit and devices compatible with Bluetooth function For UK customers If the socket outlets in the home are not suitable for the plug supplied with this appliance it should be cut off and an appropriate 3 pin plug fitted For details refer to the instructions described below The plug severed from the mains lead must be destroyed as a plug with bared flexible cord is hazardous if engaged in a live socket outlet Special Instructions for UK Model SPECIFICATIONS IMPORTANT THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE Blue NEUTRAL Brown LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED Make sure that neither core is connected to the earth terminal of the three pin plug Note
