GB
Instruction Manual
GB
Dear Customer,
If you follow the recommendations con-
tained in this Instruction Manual, your
appliance will give you constant high
per for man ce and will remain effi cient
for many years to come.
CONTENTS
RECOMMENDATIONS AND SUGGESTIONS 3
CHARACTERISTICS 4
INSTALLATION 5
USE 7
MAINTENANCE 8
GB

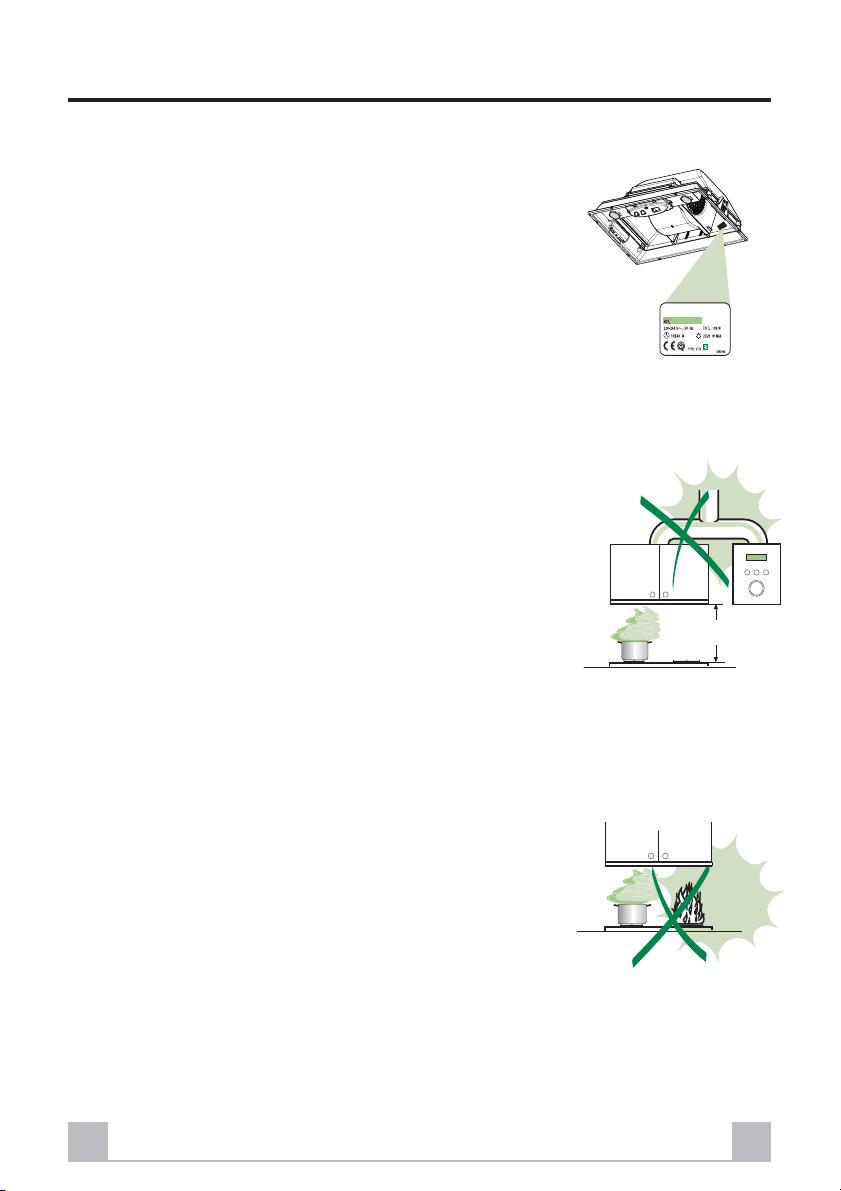

RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the
extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the
rating plate fi xed to the inside of the hood.
• For Class 1
a
appliances, check that the domestic power supply
guarantees adequate earthing.
Connect the extractor to the exhaust fl ue through a pipe of mini-
mum diameter 120 mm. The route of the fl ue must be as short as
possible.
• Do not connect the extractor hood to exhaust ducts carrying com-
bustion fumes (boilers, fi replaces, etc.).
• If the extractor is used in conjunction with non-electrical applian-
ces (e.g. gas burning appliances), a suffi cient degree of aeration
must be guaranteed in the room in order to prevent the backfl ow
of exhaust gas. The kitchen must have an opening communicating
directly with the open air in order to guarantee the entry of clean
air.
USE
• The extractor hood has been designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben
designed.
• Never leave high naked fl ames under the hood when it is in ope-
ration.
• Adjust the fl ame intensity to direct it onto the bottom of the pan
only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: ove-
rheated oil can burst into fl ames.
• The hood should not be used by children or persons not instructed
in its correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.
• Clean and/or replace the Filters after the specifi ed time period.
• Clean the hood using a damp cloth and a neutral liquid deter-
gent.
650mm.min.
GB
284
L
260
ø150

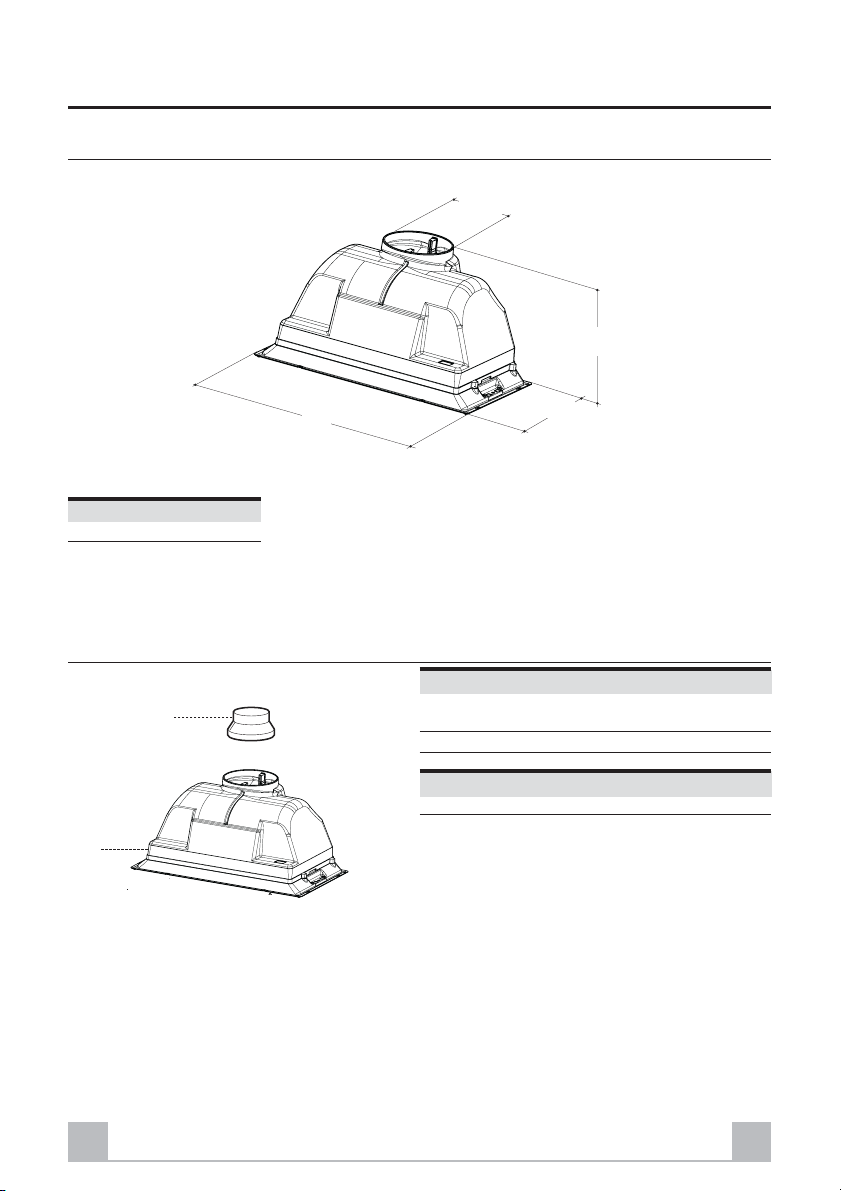

CHARACTERISTICS
Dimensions
Hood Type 52 70
L1 522 702
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light,
Filters
9 1 Reducer Flange ø 150-120 mm
Q.ty Documentation
1 Instruction Manual
9
1
12f
GB
12f
SCREW FITTING
For hoods without snap-on side supports only.
• Fix the hood to the hanging unit using
the screws 12f (3.5x16 self-threading)
provided.
13
259
L1
INSTALLATION
Drilling the Support surface and Fitting the Hood
Make a rectangular opening on the base of
the hanging unit, leaving a minimum of 13
mm from the outer edges.
Hood Type 52 70
L1 497 677
SNAP-ON FITTING
For hoods with snap-on side supports only, set up for a support panel thickness of between 15
mm and 30 mm.
• Insert the hood until the side supports
snap into place.
• Lock in position by tightening the
screws Vf from underneath the
hood.
GB
9
ø 150
9
ø 120
9
125
9
120

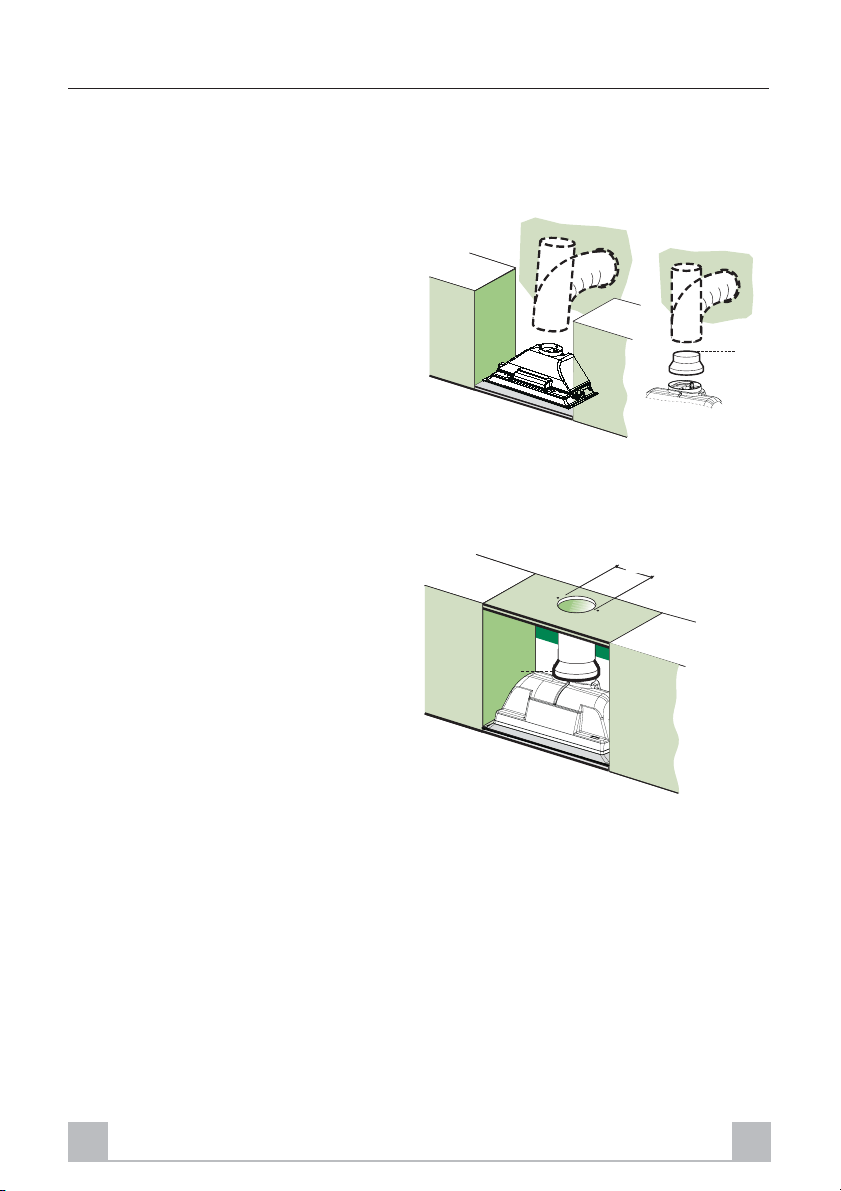

Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney using either a fl exible or rigid
pipe ø 120 or 150 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust con-
nection insert the reducer fl ange 9 on the
hood body outlet.
• Fix the pipe in position using suffi cient
pipe clamps (not supplied).
• Remove any activated charcoal fi lters.
RECIRCULATION VERSION AIR OUTLET
• Cut a hole ø 120 mm in the wall unit over
the hood.
• Insert the reducer fl ange 9 on the hood
body outlet.
• Connect the hood body outlet to the
top part of the wall unit using a rigid or
fl exible pipe ø 120 mm, to be selected by
the installer.
• Fix the pipe in position using suffi cient
pipe clamps (not supplied).
• Ensure that the activated charcoal fi lters
have been inserted.
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm.
• When opening the sliding carriage for the fi rst time after installing the hood, pull it out briskly
until it clicks.
GB
USE
Control Panel
L Light Switches the lighting system on and off
M Motor Switches the extractor motor on and off
V Speed Sets the operating speed of the extractor:
1.Low speed, used for a continuous and silent air change in the presence of
light cooking vapour.
2.Medium speed, suitable for most operating conditions given the optimum
treated air fl ow/noise level ratio.
3.Maximum speed, used for eliminating the highest cooking vapour emission,
including long periods
GB

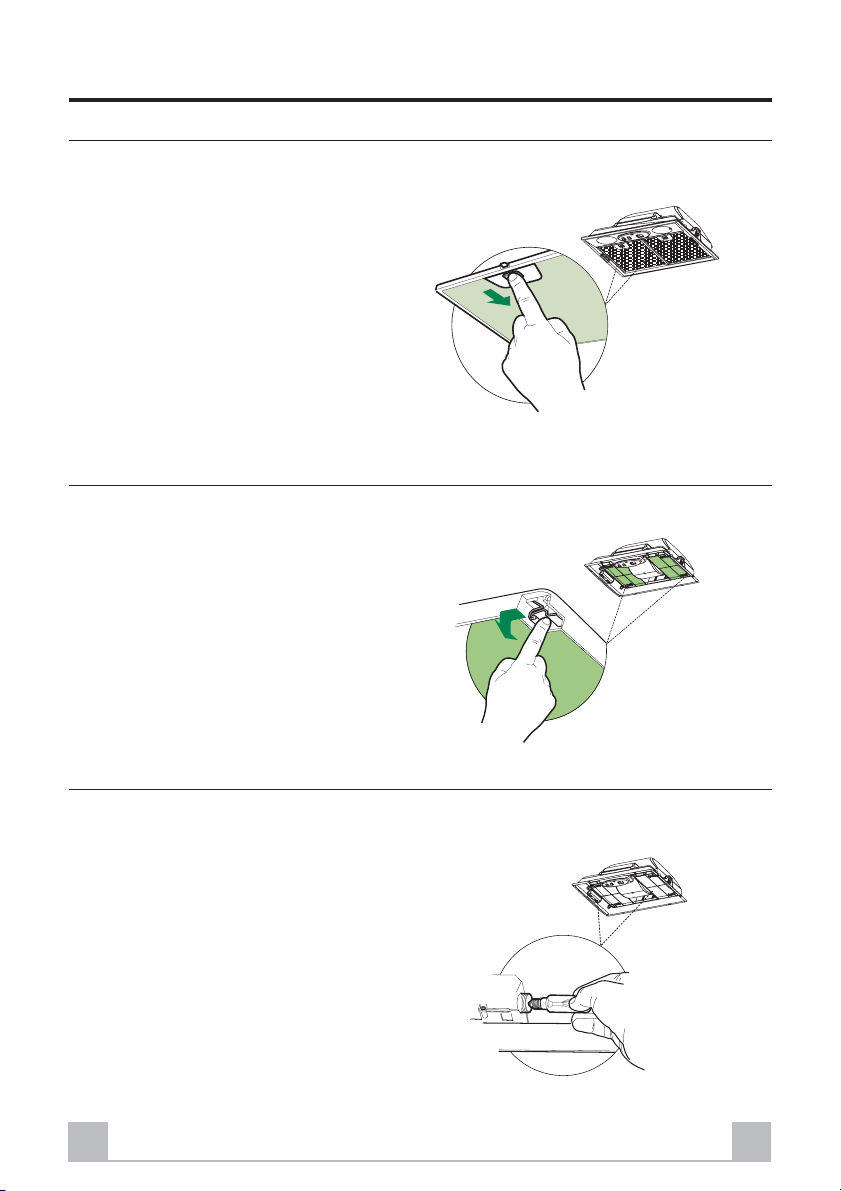

MAINTENANCE
Grease fi lters
CLEANING METAL SELF-SUPPORTING GREASE FILTERS
• The fi lters must be cleaned every two
months of operation, or more frequently
with heavy usage, and can be washed in
a dishwasher.
• Remove the fi lters one at a time, after
disconnecting the relative fastening
elements.
• Wash the fi lters, taking care not to bend
them. Allow them to dry before refi t-
ting.
• When refi tting the fi lters, make sure that
the handle is visible on the outside.
Odour fi lters (Recirculation version)
REPLACING ACTIVATED CHARCOAL FILTERS
• These fi lters are not washable and can-
not be regenerated, and must be repla-
ced approximately every four months of
operation, or more frequently with heavy
usage.
• Remove the grease fi lters.
• Remove the saturated activated carbon
fi lters by releasing the fi xing hooks.
• Fit the new fi lters by hooking them into
their seating
• Replace the grease fi lters.
Lighting
LIGHT REPLACEMENT
40 W incandescent light
• Remove the metal grease fi lters, or open
the fi lter retaining grill
• Unscrews the bulbs and replace them with
new ones having the same characteristi-
cs.
• Replace the metal grease fi lters, or close
the fi lter retaining grill.
Dir. 89/336/CEE
73/23/CEE
93/68/CEE
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
offi ce, your household waste disposal service or the shop where you purchased the product.
436003033_01 - 051212
