Super Capacity 465 withACCUBAKE®System
4.65 Cubic Foot Oven
MODEL GS395LEG
8053427B
®
&ppliances
UseCare
A Note to You ............ 2
Range Safety ............ 3
Parts and Features .... 5
Using Your Range ...... 6
Using the Self-
Cleaning Cycle ........ 24
Caring for Your
Range ...................... 28
Troubleshooting ...... 34
Requesting
Assistance or
Service .................... 36
index ........................ 39
Warranty .................. 40
Call our Consumer Assistance Center
with questions or comments.
www.whirlpool.com

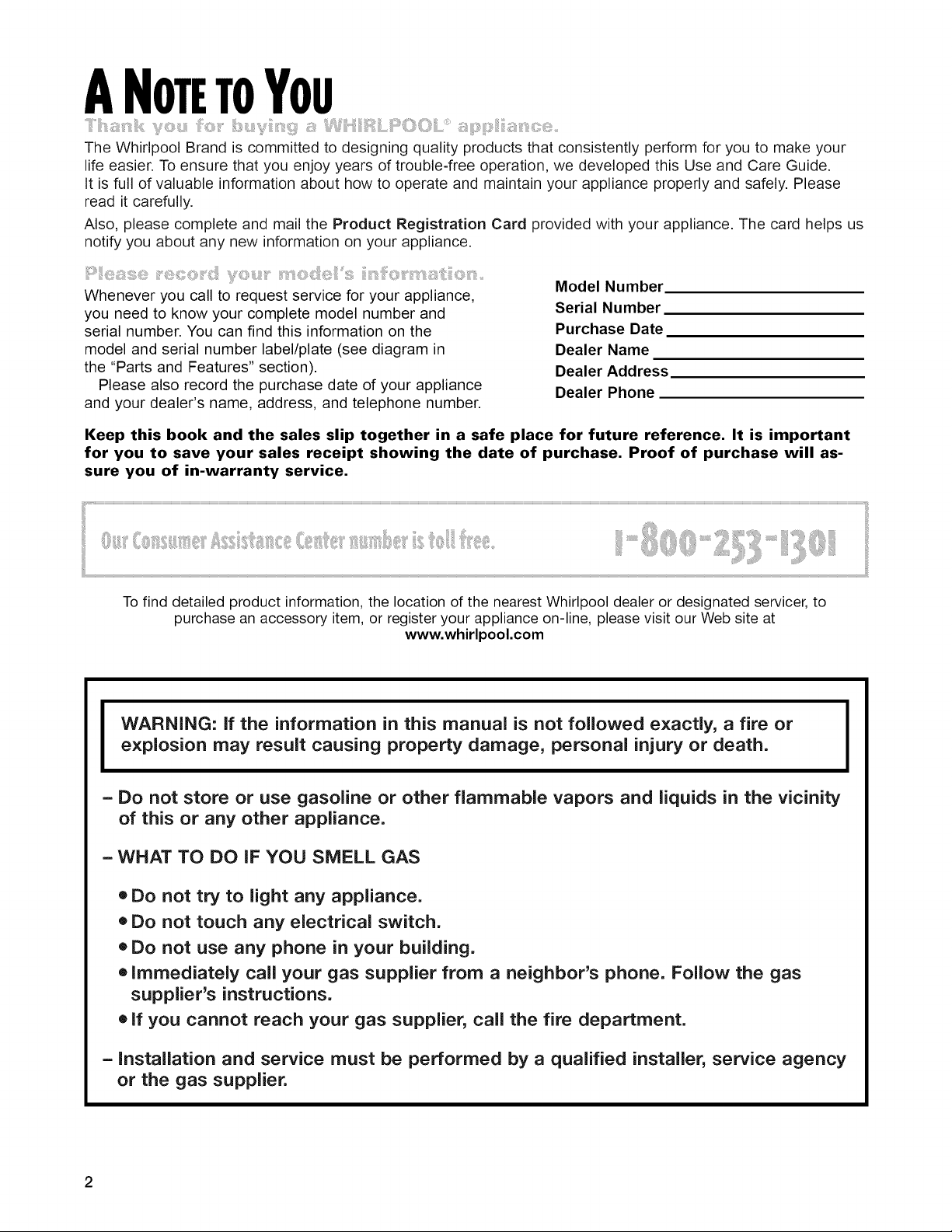

ANOTETOYOU
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the "Parts and Features" section).
Please also record the purchase date of your appliance
and your dealer's name, address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will as-
sure you of in-warranty service.
!i .... i
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency
or the gas supplier.

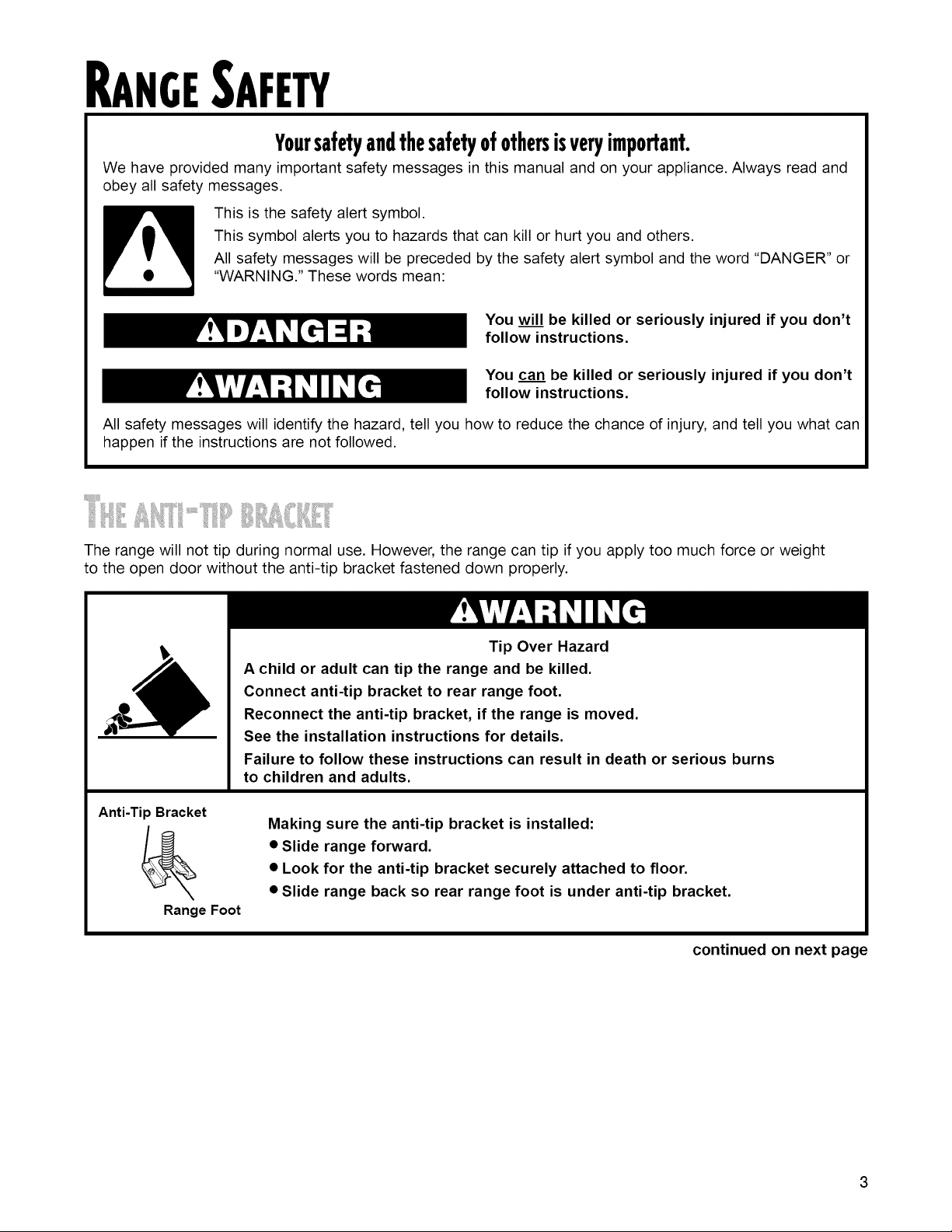

RANGESAFE
Yoursafetyandthesafetyofothersisveryimportant.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
continued on next page
3

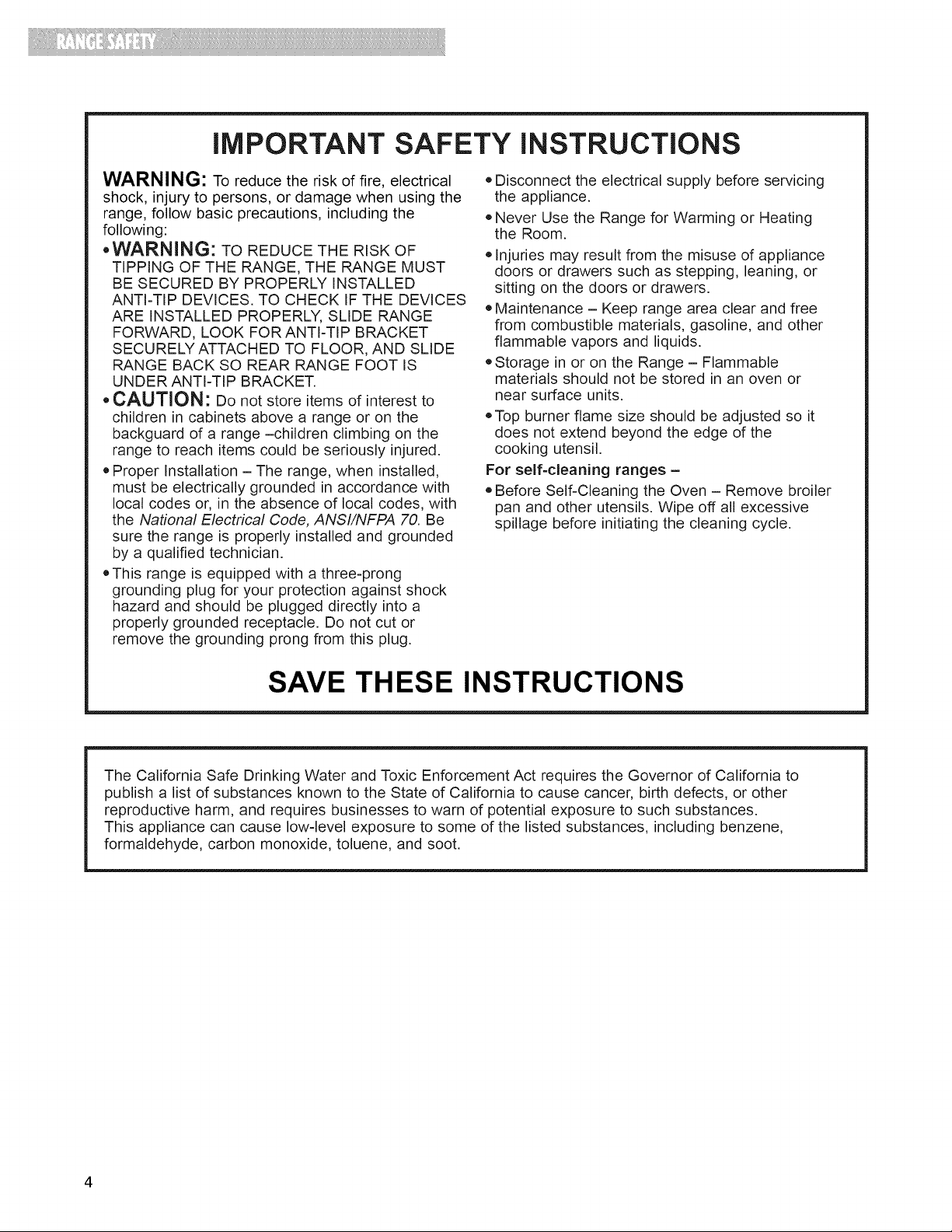

iMPORTANT SAFETY iNSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
• WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
• CAUTION" Do not store items of interest to
children in cabinets above a range or on the
backguard of a range -children climbing on the
range to reach items could be seriously injured.
• Proper Installation - The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANS!/NFPA 70. Be
sure the range is properly installed and grounded
by a qualified technician.
• This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
• Disconnect the electrical supply before servicing
the appliance.
• Never Use the Range for Warming or Heating
the Room.
• Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
• Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
• Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Top burner flame size should be adjusted so it
does not extend beyond the edge of the
cooking utensil.
For self=cleaning ranges =
• Before Self=Cleaning the Oven - Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle,
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances.
This appliance can cause low-level exposure to some of the listed substances, including benzene,
formaldehyde, carbon monoxide, toluene, and soot.

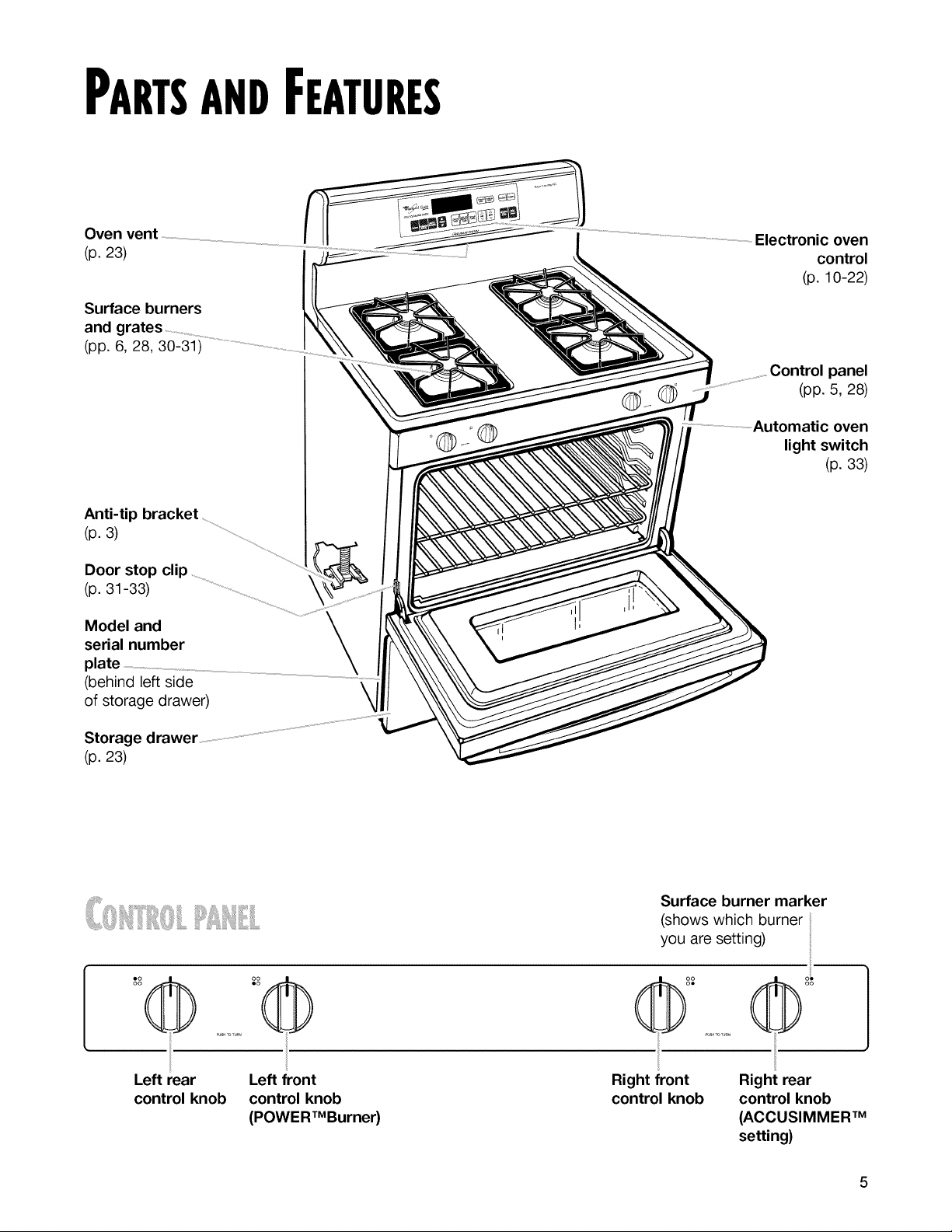

PARTSANDFEATURES
Oven vent
(p. 23)
Surface burners
and c
(pp. 6, 28, 30-31)
Anti-tip
(p. 3)
Door stop clip
(p. 31-33)
Model and
serial number
plate ........................
(behind left side
of storage drawer)
Storage drawer
(p. 23)
Left rear
control knob
Left front
control knob
(POWERTMBurner)
Electronic oven
Surface burner marker
(shows which burner
you are setting)
5
Right front Right rear
control knob control knob
(ACCUSIMMER TM
setting)
control
(p. 10-22)
panel
(pp. 5, 28)
oven
light switch
(p. 33)

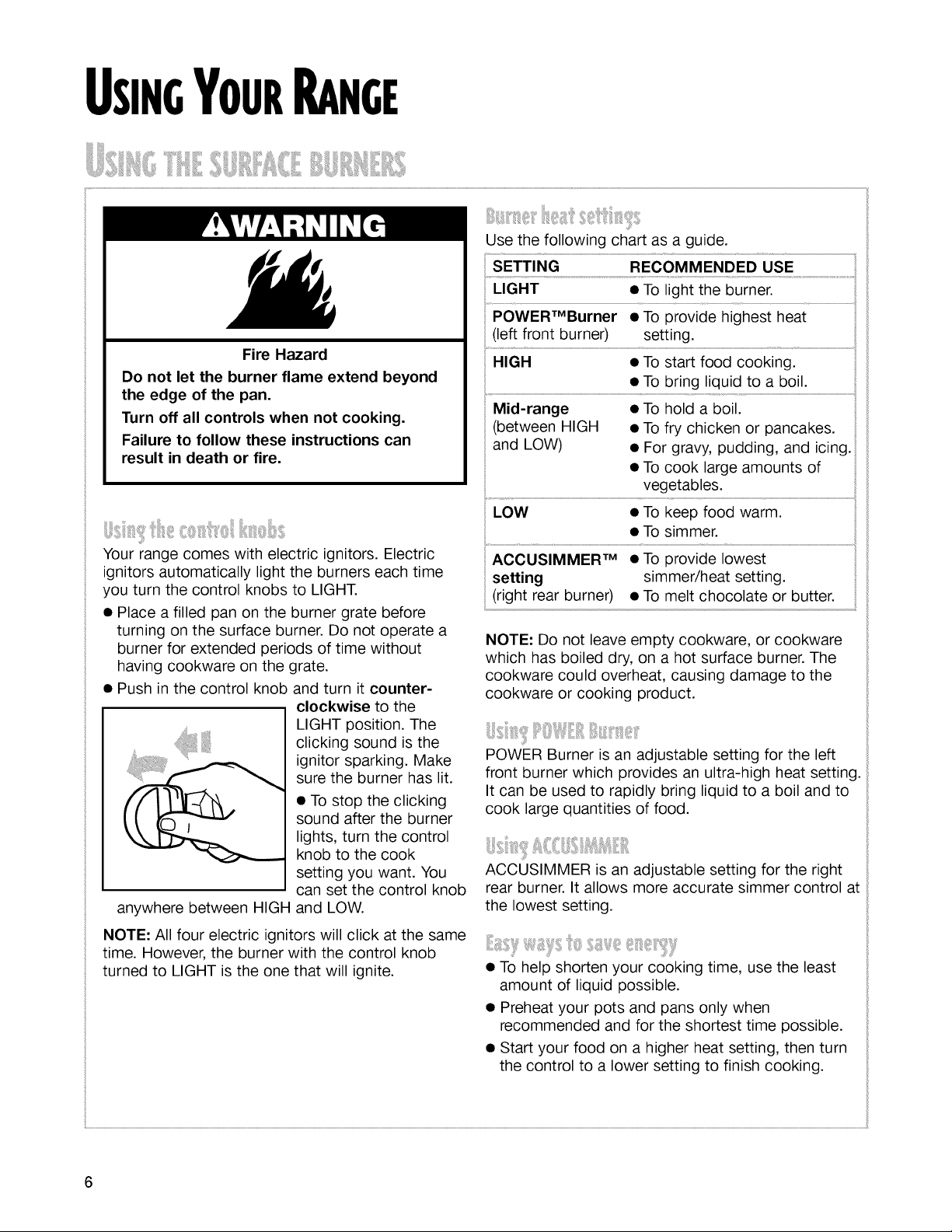

USINGYOURRANGE
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
Your range comes with electric ignitors. Electric
ignitors automatically light the burners each time
you turn the control knobs to LIGHT.
• Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
• Push in the control knob and turn it counter-
clockwise to the
LIGHT position. The
clicking sound is the
ignitor sparking. Make
sure the burner has lit.
• To stop the clicking
sound after the burner
lights, turn the control
knob to the cook
setting you want. You
can set the control knob
and LOW.
anywhere between HIGH
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LIGHT is the one that will ignite.
Use the following chart as a guide.
LIGHT
• To light the burner.
(left front burner) setting.
HiGH siart food cooking......
• To bringliquidto a boil.
(betweenHIGH • To frychickenor pancakes.
and LOW) • Forgravy,pudding,and icing.
• To cook largeamounts of
vegetables.
LOW • To keep food warm.
• To simmer.
ACCUSlMMER TM • To provide lowest
setting simmer/heat setting.
(right rear burner) • To melt chocolate or butter.
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
POWER Burner is an adjustable setting for the left
front burner which provides an ultra-high heat setting.
It can be used to rapidly bring liquid to a boil and to
cook large quantities of food.
ACCUSIMMER is an adjustable setting for the right
rear burner. It allows more accurate simmer control at
the lowest setting.
i
• To help shorten your cooking time, use the least
amount of liquid possible.
• Preheat your pots and pans only when
recommended and for the shortest time possible.
• Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
/iji!!iiii,_,_i_iiii iii,,¸¸¸_!!!iiiiiii!_iiiii_J!ili_,Iii_!!iliiliiii_iii!'_i!iii_ii!ili;il_:_i:_iiii,i_i:_i_,iiii_¸
!_i_::_;ii_:_;_li!_¸_iiii_'il__!i[[iil_J_i_i:ii_iii_i_t_ili,!_i_i!_i:I!_;ii!_ili_,!,_,_,_i_:i!_'_'_i_ii!i_i_iii_!ii_'i_!,

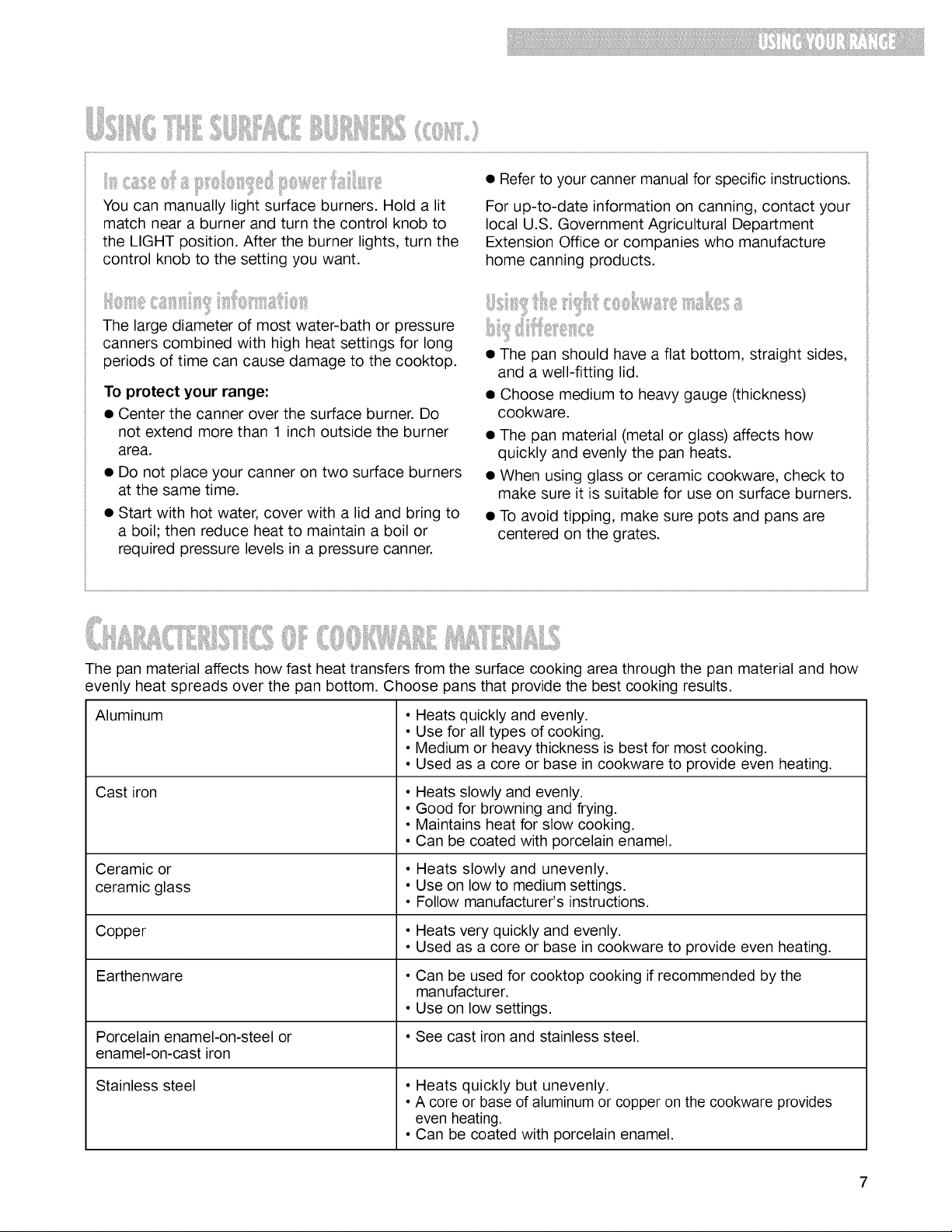

You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LIGHT position. After the burner lights, turn the
control knob to the setting you want.
• Refer to your canner manual for specific instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who manufacture
home canning products.
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
• Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner
area.
• Do not place your canner on two surface burners
at the same time.
• Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
• The pan should have a flat bottom, straight sides,
and a well-fitting lid.
• Choose medium to heavy gauge (thickness)
cookware.
• The pan material (metal or glass) affects how
quickly and evenly the pan heats.
• When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
• To avoid tipping, make sure pots and pans are
centered on the grates.
liii__!_:ii_t_i!ilii'!,_!J_!iiii,iiiii_!_ii!i_i!_i_'i_!ilii!ill
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum
Cast iron
Ceramic or
ceramic glass
Copper
Earthenware
Porcelain enamel-on-steel or
enamel-on-cast iron
Stainless steel
• Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
• Heats slowly and unevenly.
• Use on low to medium settings.
• Follow manufacturer's instructions.
• Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
• Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
• See cast iron and stainless steel.
• Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
7
!iP0siiil¸iiii,l_i_'_iii!_i_,,!!!iiil¸_i",_:_ii,4_ii::!ii_ils_i!_i_i'_i_ixi:iii'i:i,x_,_iii_i_iI_s

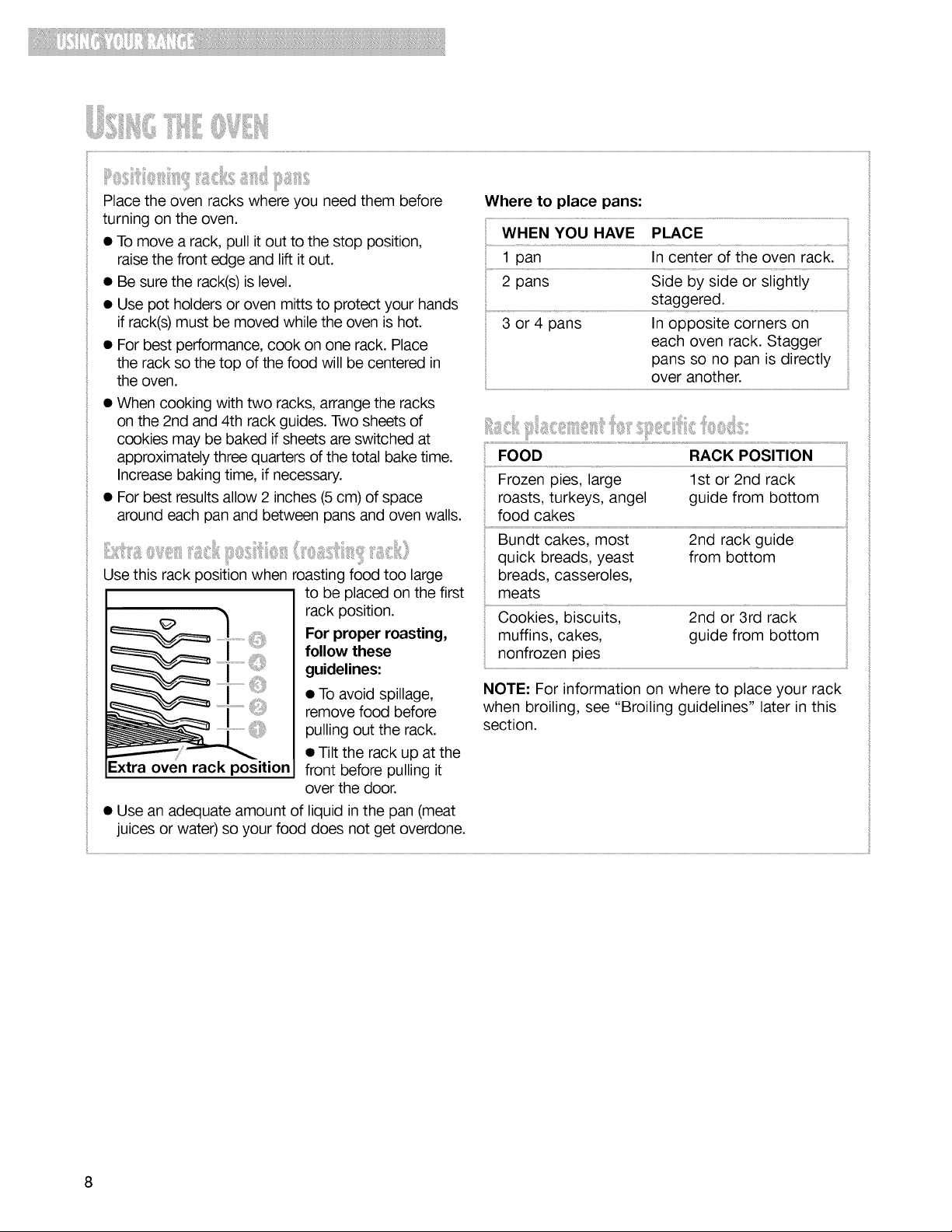

Place the oven racks where you need them before
turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
• When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
• For best results allow 2 inches (5 cm) of space
around each pan and between pans and oven walls.
Use this rack position when roasting food too large
to be placed on the first
.................._ii,i,_,
...............................,@
S¸
oven rack position
rack position.
For proper roasting,
follow these
guidelines:
• To avoid spillage,
remove food before
pulling out the rack.
• Tilt the rack up at the
front before pulling it
over the door.
• Use an adequate amount of liquid in the pan (meat
juices or water) so your food does not get overdone.
Where to place pans:
2 pans Side by side or slightly
staggered.
............. in opposiie corners on ........
each oven rack. Stagger
pans so no pan is directly
!!',!!!!::_!!!!!!!!;!!!!i!i_i!!!!ii!!i!!:,!!!::!:i:i!i!;!!!,!!i!i!!ii¸!!!i!ii!i!i!i!ii!!!!!:!i!i_!!_iii;!!!3i!!_!!!!i:i_/!!!!!!!_!,}!!!/!!!!!_!!!:ii!!!!i_i!!i!!_;!!!!!!i!i}i:!!!!:!!!£!,}!:!i!!!!i{!!iiI............................................................................................................................
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack
roasts, turkeys, angel guide from bottom
food cakes
Bundt cakes, most 2nd rack guide
quick breads, yeast from bottom
breads, casseroles,
meats
Cookies, biscuits, 2nd or 3rd rack
muffins, cakes, guide from bottom
nonfrozen pies
NOTE: For information on where to place your rack
when broiling, see "Broiling guidelines" later in this
section.

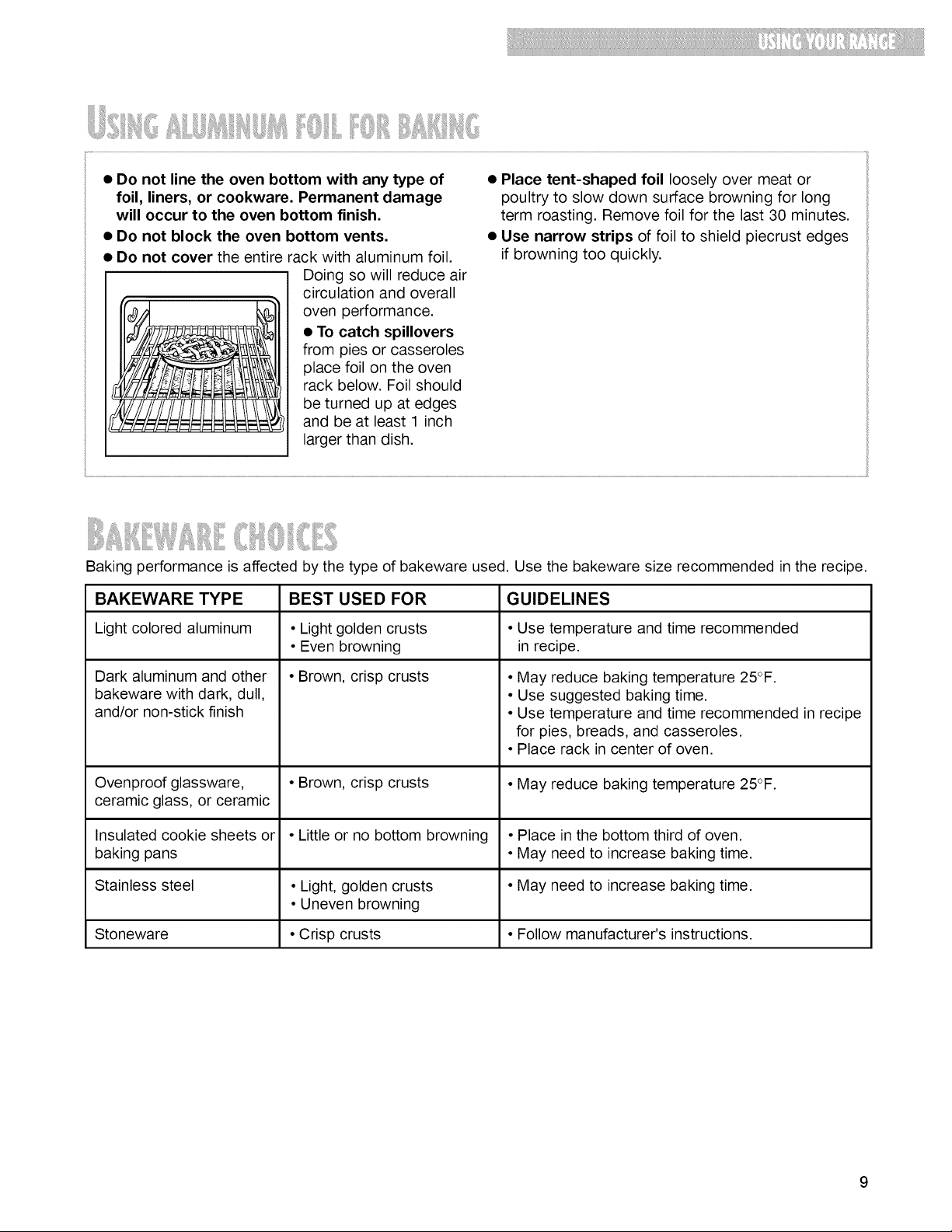

• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage
will occur to the oven bottom finish.
• Do not block the oven bottom vents.
• Do not cover the entire rack with aluminum foil.
I I Doing so will reduce air
circulation and overall
oven performance.
• To catch spillovers
from pies or casseroles
place foil on the oven
rack below. Foil should
be turned up at edges
and be at least 1 inch
larger than dish.
• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term roasting. Remove foil for the last 30 minutes.
• Use narrow strips of foil to shield piecrust edges
if browning too quickly.
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE BEST USED FOR GUIDELINES
Light colored aluminum • Light golden crusts • Use temperature and time recommended
• Even browning in recipe.
• Brown, crisp crusts
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F.
ceramic glass, or ceramic
Insulated cookie sheets or • Little or no bottom browning • Place in the bottom third of oven.
baking pans • May need to increase baking time.
Stainless steel • Light, golden crusts • May need to increase baking time.
• Uneven browning
Stoneware • Crisp crusts • Follow manufacturer's instructions.
9
i iii!!i !!!iliiiii liilili iiiij iiillll ilii''l iiiiiii......

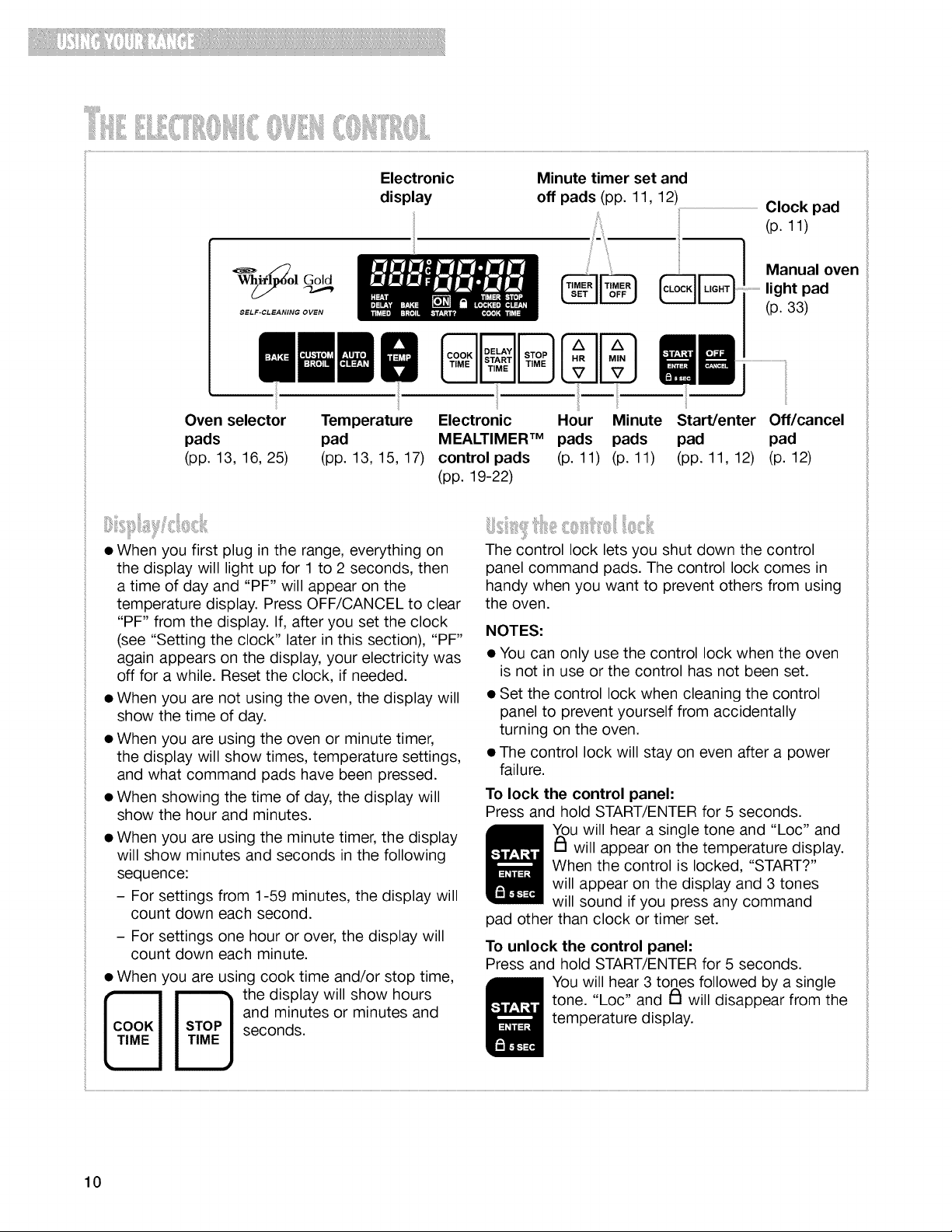

Electronic Minute timer set and
display off pads (pp. 11, 12)
Clock pad
(p. 11)
Oven selector Temperature
pads pad
(pp. 13, 16, 25) (pp. 13, 15, 17)
l - II j
Electronic Hour Minute
MEALTIMER TM pads pads
control pads (p. 11) (p. 11)
(pp. 19-22)
Start/enter
pad
(pp. 11, 12)
Manual oven
.................light pad
(p. 33)
Off/cancel
pad
(p. 12)
• When you first plug in the range, everything on
the display will light up for 1 to 2 seconds, then
a time of day and "PF" will appear on the
temperature display. Press OFF/CANCEL to clear
"PF" from the display. If, after you set the clock
(see "Setting the clock" later in this section), "PF"
again appears on the display, your electricity was
off for a while. Reset the clock, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or minute timer,
the display will show times, temperature settings,
and what command pads have been pressed.
• When showing the time of day, the display will
show the hour and minutes.
• When you are using the minute timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1-59 minutes, the display will
count down each second.
- For settings one hour or over, the display will
count down each minute.
• When you are using cook time and/or stop time,
_ _ thedisplaywillshowhours
and minutes or minutes and
seconds.
The control lock lets you shut down the control
panel command pads. The control lock comes in
handy when you want to prevent others from using
the oven.
NOTES:
• You can only use the control lock when the oven
is not in use or the control has not been set.
• Set the control lock when cleaning the control
panel to prevent yourself from accidentally
turning on the oven.
• The control lock will stay on even after a power
failure.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and "Loc" and
I_ will appear on the temperature display.
When the control is locked, "START?"
will appear on the display and 3 tones
will sound if you press any command
pad other than clock or timer set.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear 3 tones followed by a single
tone. "Loc" and I_1will disappear from the
temperature display.
10
iliilt!!i iii!ii!iilii, ili!i

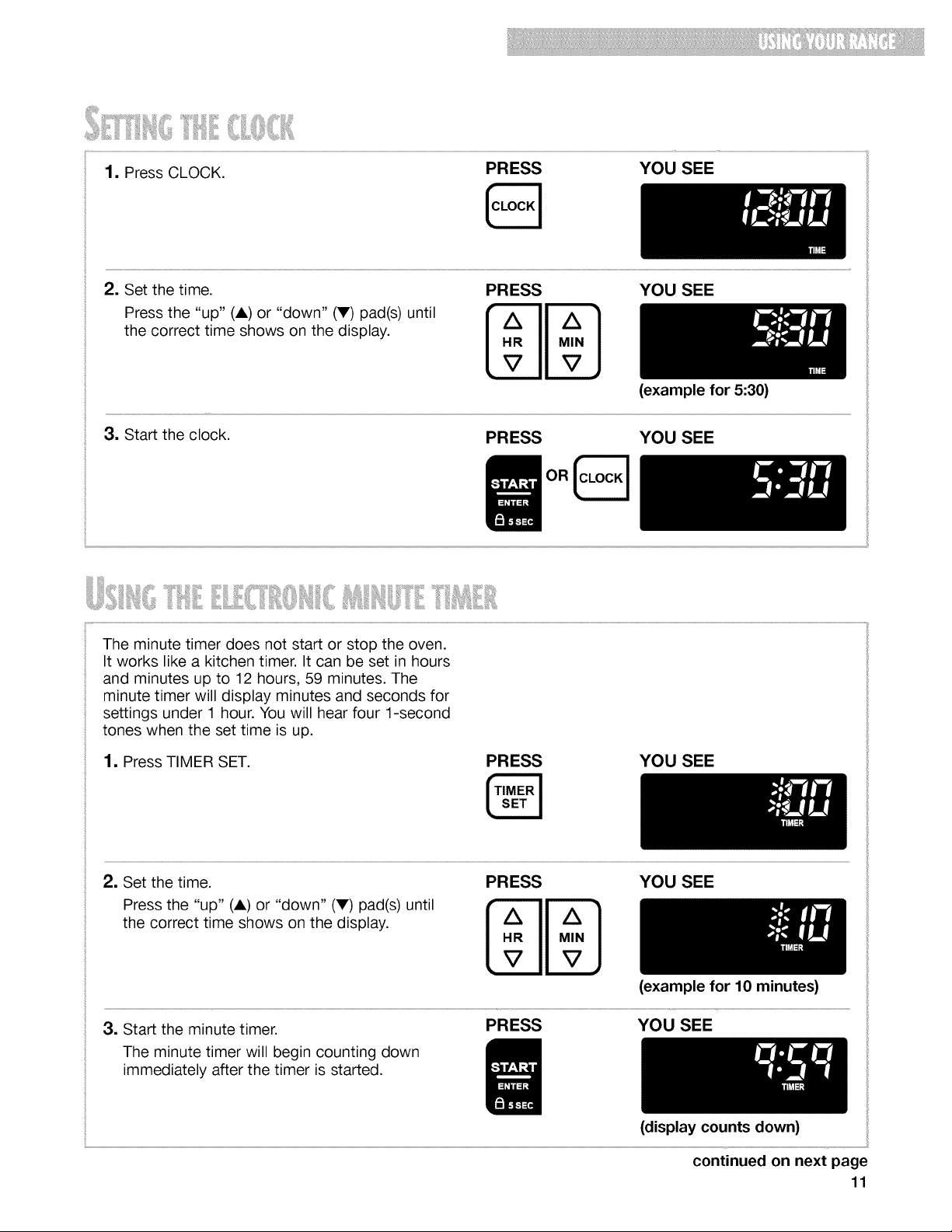

1. Press CLOCK. PRESS YOU SEE
Q
2. Set the time.
Press the "up" (i,) or "down" (V) pad(s) until
the correct time shows on the display.
PRESS
MN
YOU SEE
hil_l=l
3. Start the clock.
(example for 5:30)
PRESS YOU SEE
The minute timer does not start or stop the oven.
It works like a kitchen timer. It can be set in hours
and minutes up to 12 hours, 59 minutes. The
minute timer will display minutes and seconds for
settings under 1 hour. You will hear four 1-second
tones when the set time is up.
1, Press TIMER SET. PRESS YOU SEE
2. Set the time. PRESS YOU SEE
Press the "up" (1) or "down" (V) pad(s) until __
the correct time shows on the display.
(example for 10 minutes)
3. Start the minute timer. PRESS YOU SEE
The minute timer will begin counting down
immediately after the timer is started.
(display counts down)
continued on next page
11
lii_I_Iiii,_;ii_i_!ii!iii!I!!,!!_iil!_iiiiii_i_i_iii_iiii_i!_!_iliili_iii_!i!_i_i!__!_!;,i:_::_;_,m:iii_¸

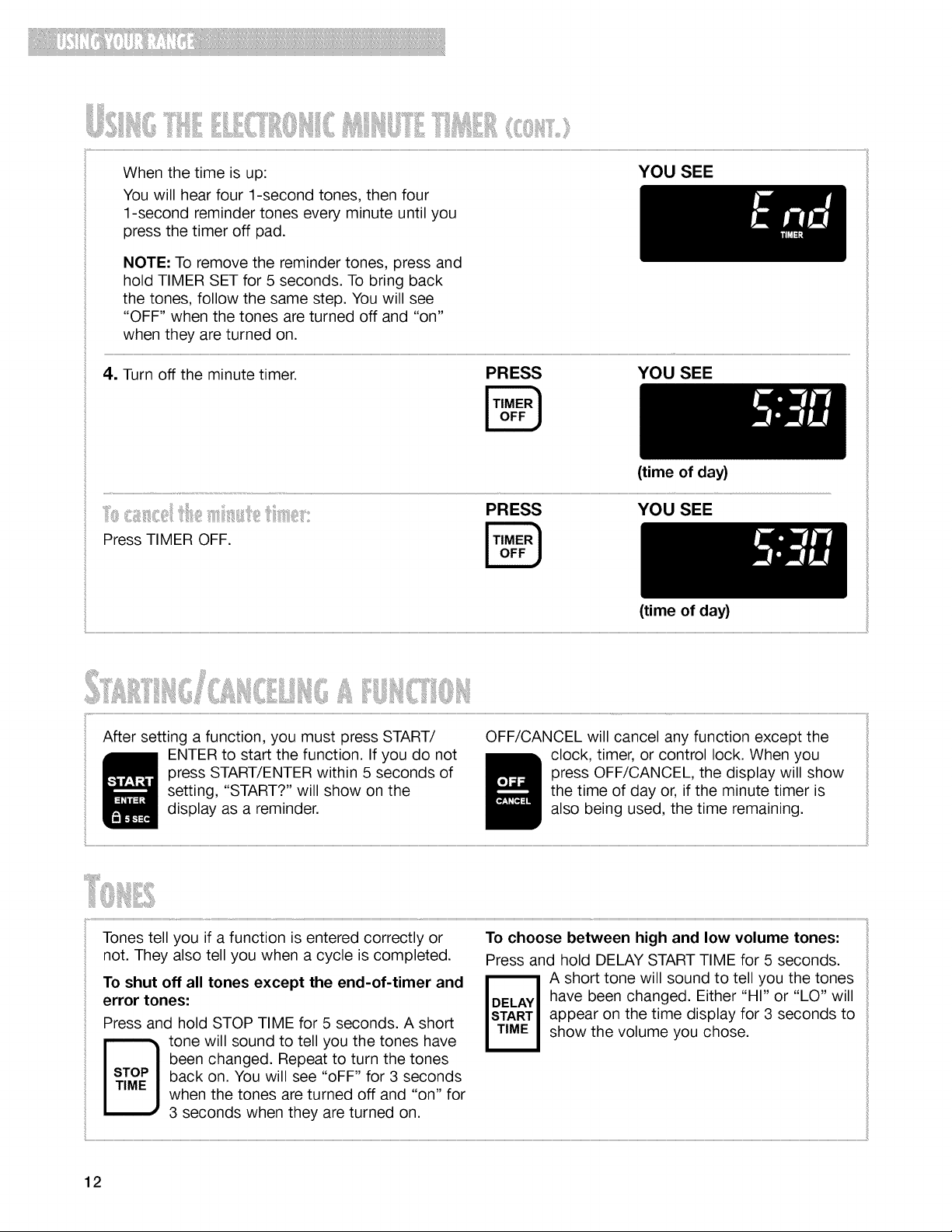

When the time is up:
You will hear four 1-second tones, then four
1-second reminder tones every minute until you
press the timer off pad.
YOU SEE
NOTE: To remove the reminder tones, press and
hold TIMER SET for 5 seconds. To bring back
the tones, follow the same step. You will see
"OFF" when the tones are turned off and "on"
when they are turned on.
4. Turn off the minute timer. PRESS YOU SEE
(time of day)
PRESS YOU SEE
ip========_m_
Press TIMER OFF. _TIMER|
oL_j
(time of day)
After setting a function, you must press START/
ENTER to start the function. If you do not
press START/ENTER within 5 seconds of
setting, "START?" will show on the
display as a reminder.
OFF/CANCEL will cancel any function except the
clock, timer, or control lock. When you
press OFF/CANCEL, the display will show
the time of day or, if the minute timer is
also being used, the time remaining.
Tones tell you if a function is entered correctly or
not. They also tell you when a cycle is completed.
To shut off all tones except the end-of-timer and
error tones:
Press and hold STOP TIME for 5 seconds. A short
tone will sound to tell you the tones have
been changed. Repeat to turn the tones
back on. You will see "oFF" for 3 seconds
when the tones are turned off and "on" for
3 seconds when they are turned on.
To choose between high and low volume tones:
Press and hold DELAY START TIME for 5 seconds.
A short tone will sound to tell you the tones
have been changed. Either "HI" or "LO" will
appear on the time display for 3 seconds to
show the volume you chose.
12
Yourovenis designedwiththeACCUBAKE®
temperaturemanagementsystemto constantly
monitoroventemperature.Theburnerwillcycle,as
needed,to maintainthedesiredtemperature.This
featureisautomaticallyactivatedwhentheovenis
in operation.
1. Placetherackswhereyouneedthem.Formore
information,see
"Positioningracksand
Front pans"in"Usingthe
Oven",earlierinthis
section.
Rear
IMPORTANT: Do not try to light the oven burner
during a power failure. Never place food or
cookware directly on the oven door or the oven
bottom.
2. Choose the bake setting. PRESS YOU SEE
3. Set the temperature (optional).
Do this step if you want to set a temperature
other than 350°R Press A to raise the
temperature or V to lower the temperature in
5°F amounts. Use these pads until the desired
temperature shows on the small display.
PRESS YOU SEE
(example for bake at 375°F)
4. When roasting, put your
food in the oven. You
do not have to preheat
the oven when roasting,
unless your recipe
recommends it.
NOTE: The oven will
cook normally even
though the preheat
conditioning timer is
displayed.
• For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
• Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the meat
or poultry. Make sure the thermometer is not
touching bone, fat, or the bottom of the pan.
continued on next page
13
5. PRESS YOU SEEPress START/ENTER.
A preheat conditioning time counts down the
approximate preheat time after the oven
temperature has been set and START has been
pressed. The oven control automatically sets
preheating times based on the oven
temperature you select:
• For 245°F and less, the preheating time is
4 minutes.
• For 250°F-445°F, the preheating time is
10 minutes.
• For above 450°F, the preheating time is
15 minutes.
As the preheat conditioning ends, the selected
oven temperature replaces "PrE" on the display
and the time of day reappears. You will hear a
1-second tone, indicating the oven is ready to use.
The ACCUBAKE ®system electronically regulates
the preheat time and temperature to maintain a
precise temperature range for the best cooking
results. The preheat and set temperatures may
be different at the end of the countdown. This
is normal.
(example for set temperature
of 350°F)
YOU SEE
NOTES:
• When the oven temperature is greater than 170°F,
no preheating time will be shown on the display.
• You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
• The preheating time will not change if you reset
the temperature before the countdown time ends.
• If you are baking/roasting while the minute
timer is counting down, you can see the set
baking/roasting temperature for 5 seconds by
pressing BAKE.
6. When baking, put your food in the oven after
the preheat conditioning
time ends. During
baking/roasting, the oven
burner will turn on and off to
keep the oven temperature
at the setting.
• To avoid loss of heat, open the oven door as little
as possible.
• Use a timer to keep track of cooking time.
• Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven.
PRESS YOU SEE
(time of day)
14

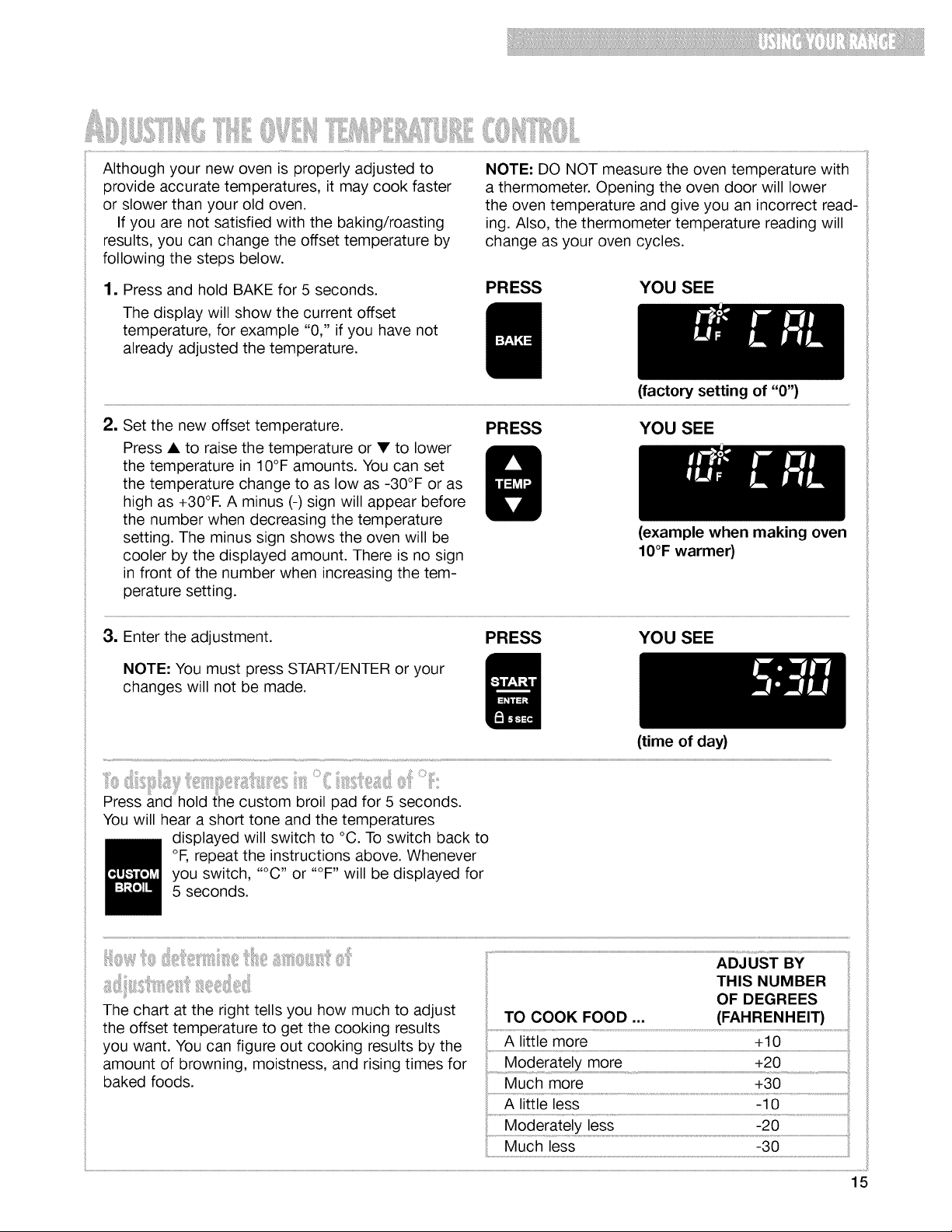

Althoughyournewovenis properlyadjustedto
provideaccuratetemperatures,it maycookfaster
orslowerthanyouroldoven.
Ifyouarenotsatisfiedwiththebaking/roasting
results,youcanchangetheoffsettemperatureby
followingthe stepsbelow.
NOTE:DONOTmeasuretheoventemperaturewith
athermometer.Openingtheovendoorwill lower
theoventemperatureandgiveyouanincorrectread-
ing.Also,thethermometertemperaturereadingwill
changeasyourovencycles.
1. Press and hold BAKE for 5 seconds.
The display will show the current offset
temperature, for example "0," if you have not
already adjusted the temperature.
PRESS YOU SEE
(factory setting of "0")
2. PRESS YOU SEESet the new offset temperature.
Press • to raise the temperature or • to lower
the temperature in 10°F amounts. You can set
the temperature change to as low as -30°F or as
high as +30°1:. A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the tem-
perature setting.
(example when making oven
10°F warmer)
3. Enter the adjustment. PRESS YOU SEE
NOTE: You must press START/ENTER or your
changes will not be made.
(time of day)
Press and hold the custom broil pad for 5 seconds.
You will hear a short tone and the temperatures
displayed will switch to °C. To switch back to
°F, repeat the instructions above. Whenever
you switch, "°C" or "°F" will be displayed for
5 seconds.
The chart at the right tells you how much to adjust
the offset temperature to get the cooking results
you want. You can figure out cooking results by the
amount of browning, moistness, and rising times for
baked foods.
ADJUST BY
THIS NUMBER
OF DEGREES
TO COOK FOOD ... (FAHRENHEIT)
A little more +10
...................Moderate!y more .............................................................................................................................................................................+20
Much more +30
A little less -10
Moderately less -20
Much less -30
15
NOTE:

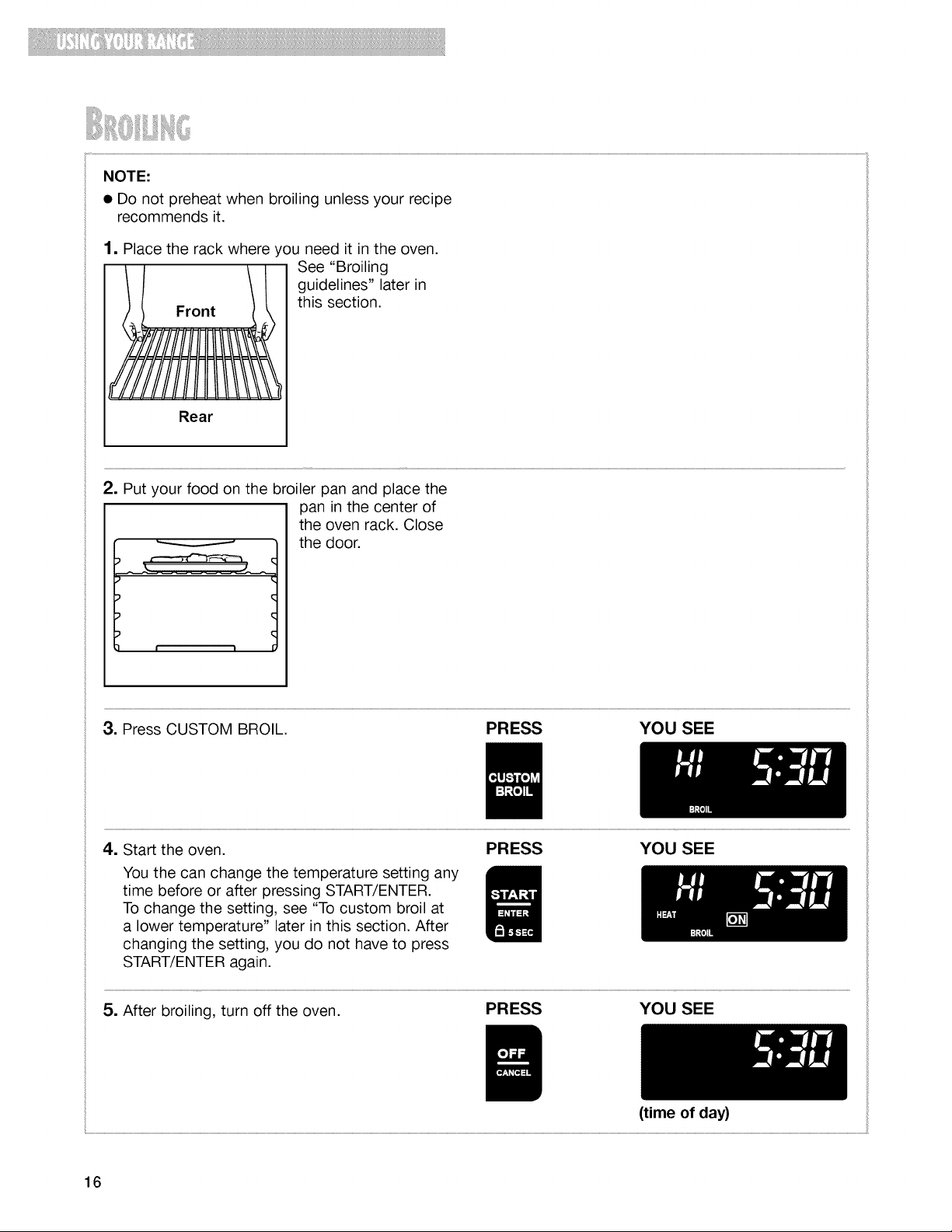

• Do not preheat when broiling unless your recipe
recommends it.
1. Place the rack where you need it in the oven.
See "Broiling
guidelines" later in
this section.
Front
Rear
2, Put your food on the broiler pan and place the
pan in the center of
the oven rack. Close
the door.
3
)
)
,'1 i t
3. Press CUSTOM BROIL. PRESS YOU SEE
4, Start the oven.
You the can change the temperature setting any
time before or after pressing START/ENTER.
To change the setting, see "To custom broil at
a lower temperature" later in this section. After
changing the setting, you do not have to press
START/ENTER again.
PRESS YOU SEE
5. After broiling, turn off the oven. PRESS YOU SEE
(time of day)
16

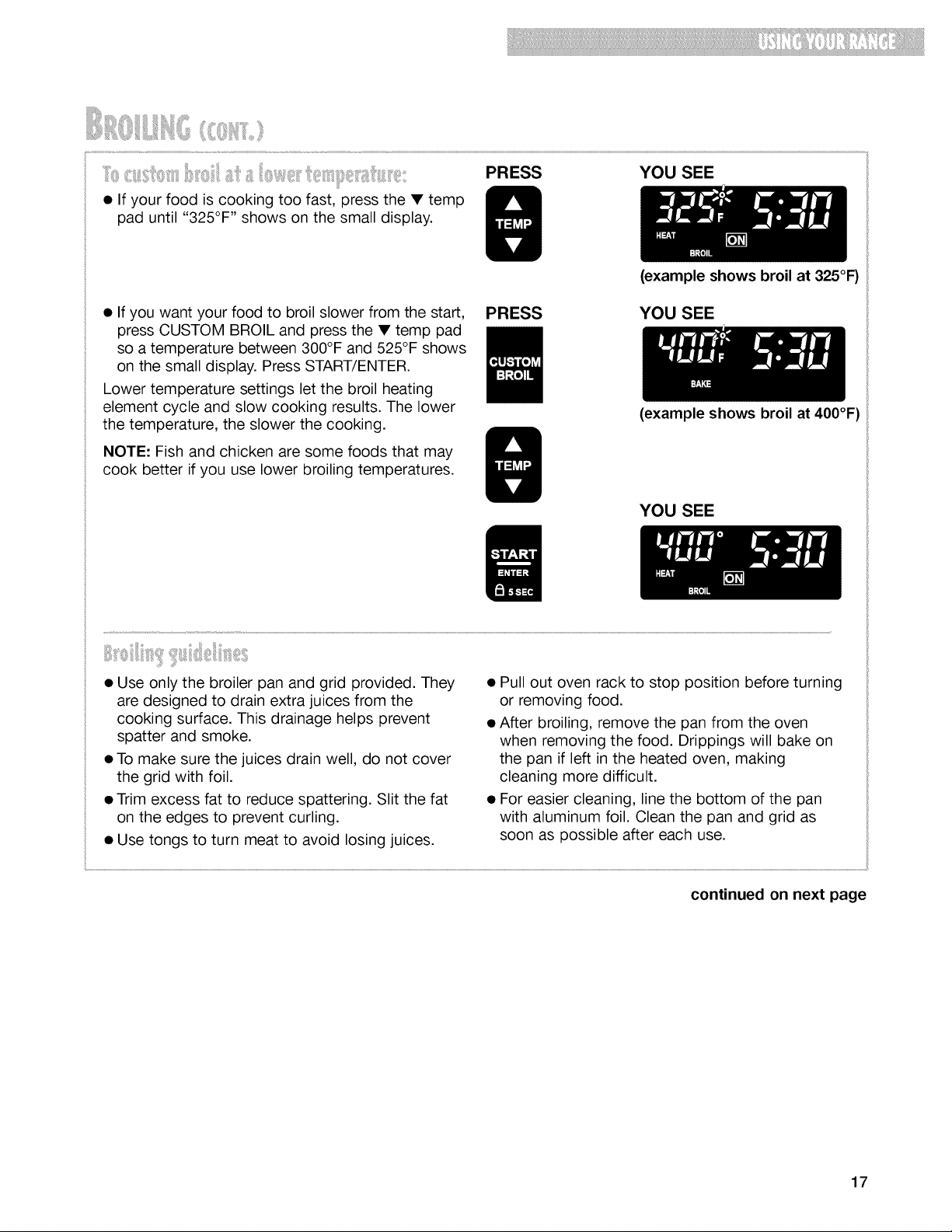

i: PRESS YOU SEE
• If your food is cooking too fast, press the • temp
pad until "325°F '' shows on the small display.
• If you want your food to broil slower from the start,
press CUSTOM BROIL and press the • temp pad
so a temperature between 300°F and 525°F shows
on the small display. Press START/ENTER.
Lower temperature settings let the broil heating
element cycle and slow cooking results. The lower
the temperature, the slower the cooking.
NOTE: Fish and chicken are some foods that may
cook better if you use lower broiling temperatures.
PRESS
(example shows broil at 325°F)
YOU SEE
(example shows broil at 400°F)
YOU SEE
• Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
• Pull out oven rack to stop position before turning
or removing food.
• After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making
cleaning more difficult.
• For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
continued on next page
17
iiiii iii ,i i,f iili ii
i___i!:_iiiiii_,_i¸¸,!!__iii!_i::__!!!iiiiiiiI_:_!_ii;;i¸,____/¸:i_

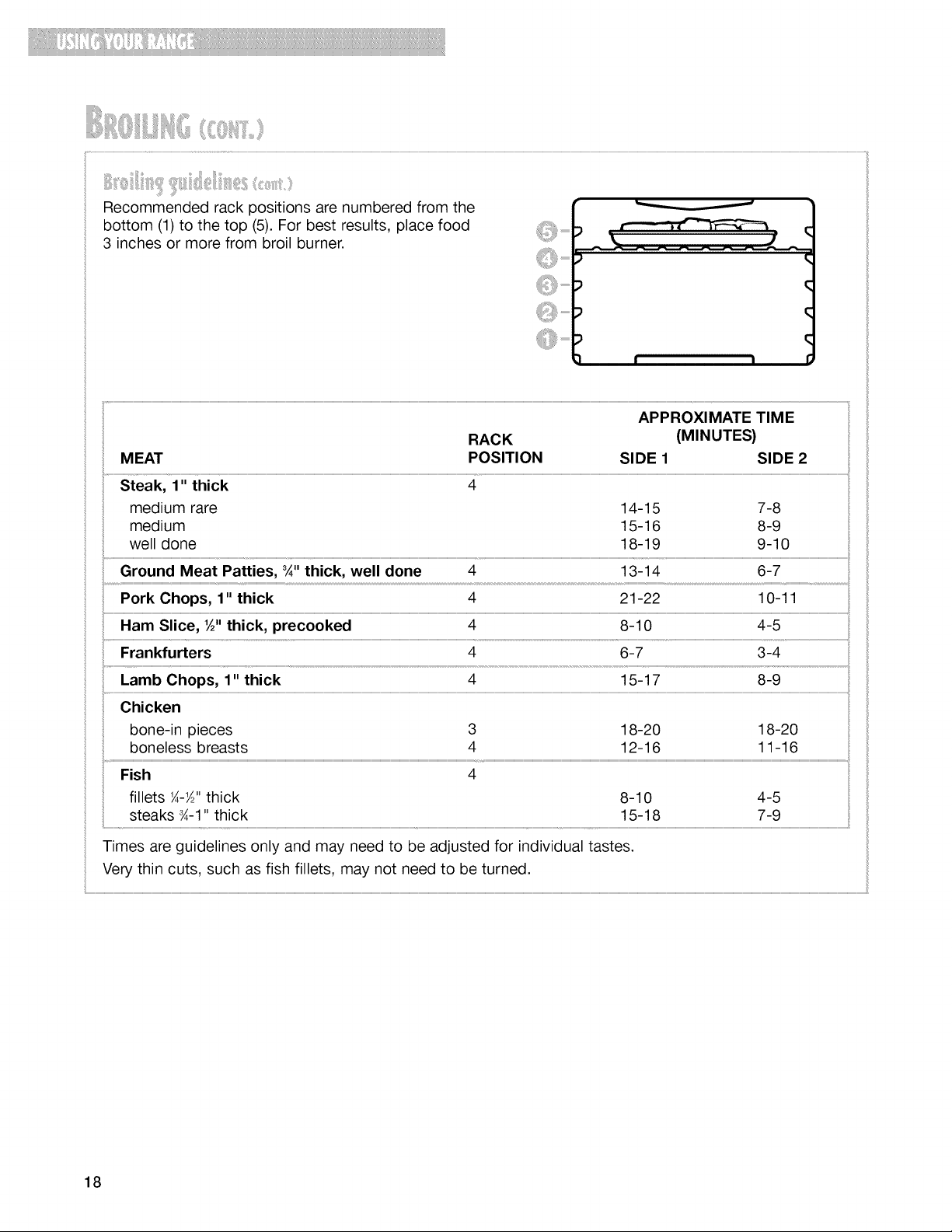

Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food
3 inches or more from broil burner.
I I
<
<
<
APPROXIMATE TIME
RACK (MINUTES)
MEAT POSITION SIDE 1 SIDE 2
Steak, 1" thick 4
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-10
Ground Meat Patties, 3/_,,thick, well done 4
13-14
Ham Slice, ½" thick, precooked 4 8-10 4-5
Frankfurters 4 6-7 3-4
Lamb Chops, 1" thick 4 15-17 8-9
bone-in pieces 3 18-20 18-20
boneless breasts 4 12-16 11-16
Fish 4
fillets ¼-_" thick 8-10 4-5
Times are guidelines only and may need to be adjusted for individual tastes.
Very thin cuts, such as fish fillets, may not need to be turned.
18
liiiiii ,!ii !ii!!!l l!iiii i! i!! iii ii!lil:il ii, ii'¸''' ....iilii !iii ii iiiiizii iiiiii......
The electronic MEALTIMER control will turn the
oven on and off at times you set, even when you
are not around.
Delayed time baking/roasting is ideal for foods
that do not need a preheated oven, like meats and
casseroles. Do not use delayed time cooking for
cakes, cookies, etc. - they will not rise properly.
Before using the electronic MEALTIMER
control, make sure the clock is set to the correct
time of day. (See the "Setting the clock" section.)
Food Poisoning Hazard
Do not let food sit in oven more than one
hour before or after cooking.
Doing so can result in food poisoning
or sickness.
1. Place the oven rack(s) where you need them and
put your food in the
oven. To place your
racks correctly, see
"Positioning racks and
pans" in "Using the
Oven" earlier in this
section.
2. Choose the bake setting.
PRESS YOU SEE
3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°E Press • to raise the
temperature or • to lower the temperature in 5°F
amounts. Use these pads until the temperature
you want shows on the small display.
(example shows bake at 375°F)
4. Press COOK TIME. PRESS YOU SEE
19

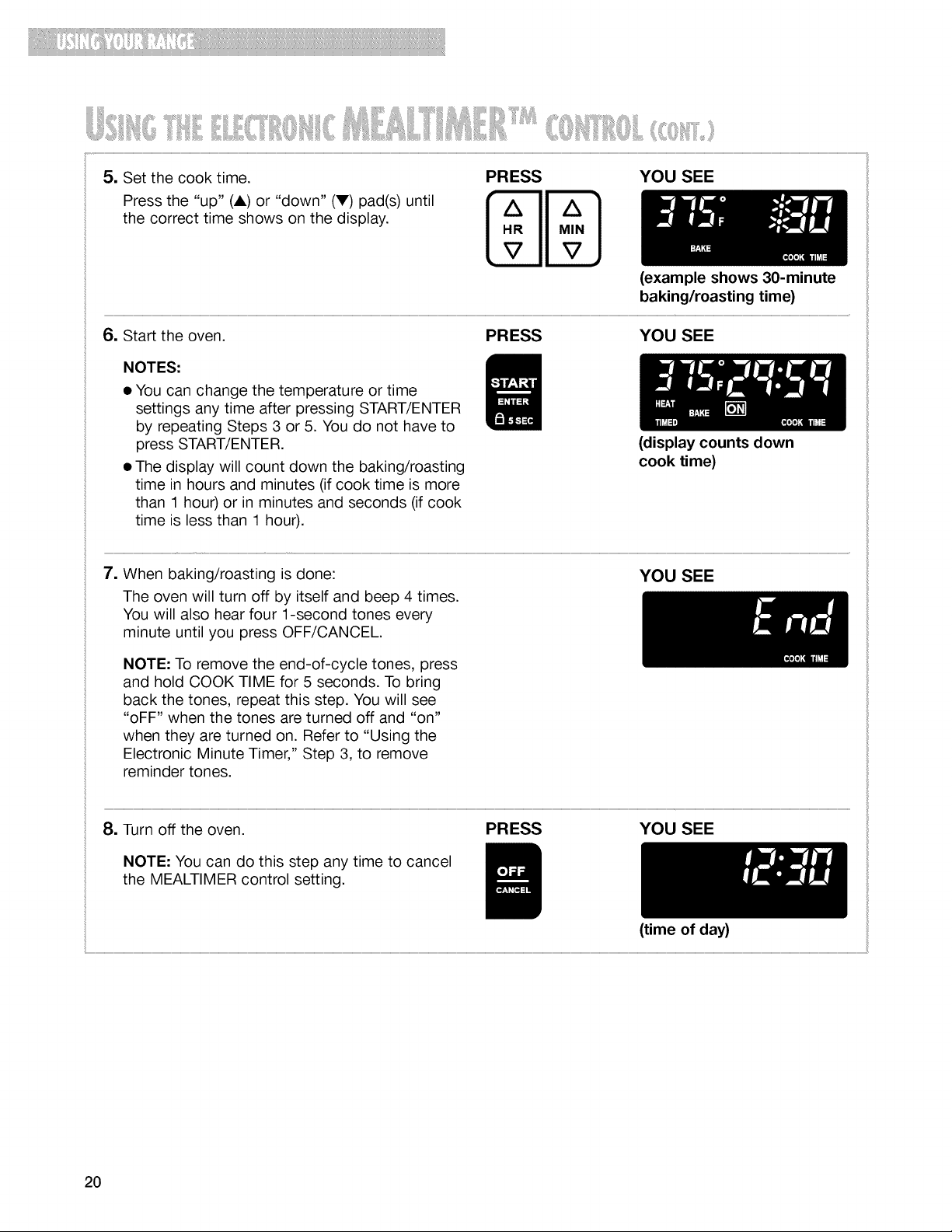

5. Set the cook time.
Press the "up" (A) or "down" (V) pad(s) until
the correct time shows on the display.
PRESS YOU SEE
(example shows 30-minute
baking/roasting time)
6. Start the oven. PRESS YOU SEE
NOTES:
• You can change the temperature or time
settings any time after pressing START/ENTER
by repeating Steps 3 or 5. You do not have to
press START/ENTER,
• The display will count down the baking/roasting
time in hours and minutes (if cook time is more
than 1 hour) or in minutes and seconds (if cook
time is less than 1 hour).
(display counts down
cook time)
7. YOU SEEWhen baking/roasting is done:
The oven will turn off by itself and beep 4 times.
You will also hear four 1-second tones every
minute until you press OFF/CANCEL.
NOTE: To remove the end-of-cycle tones, press
and hold COOK TIME for 5 seconds. To bring
back the tones, repeat this step. You will see
"oFF" when the tones are turned off and "on"
when they are turned on. Refer to "Using the
Electronic Minute Timer," Step 3, to remove
reminder tones.
8. Turn off the oven. PRESS YOU SEE
NOTE: You can do this step any time to cancel
the MEALTIMER control setting.
(time of day)
20
/i,ii_;li,_iiiiT_I_!_!ii!_iIil'_i_iiii_iiii,,i_ili!iii!!i_il_iiii_,lI'_' ...._'f_!_i_iii_!_ii_!;_iii_i_ii_:0__
!_"G__iii:_,_i;!!_ii_ii_i_iliji':_!!ii_ii"ii:__ii_i_i_iiii_i_'_i'_i;ii_iiii__;i_"iiii_i:_i_iii'ii_ili_liiiiiii_::,_ii!_iiiiii_':_

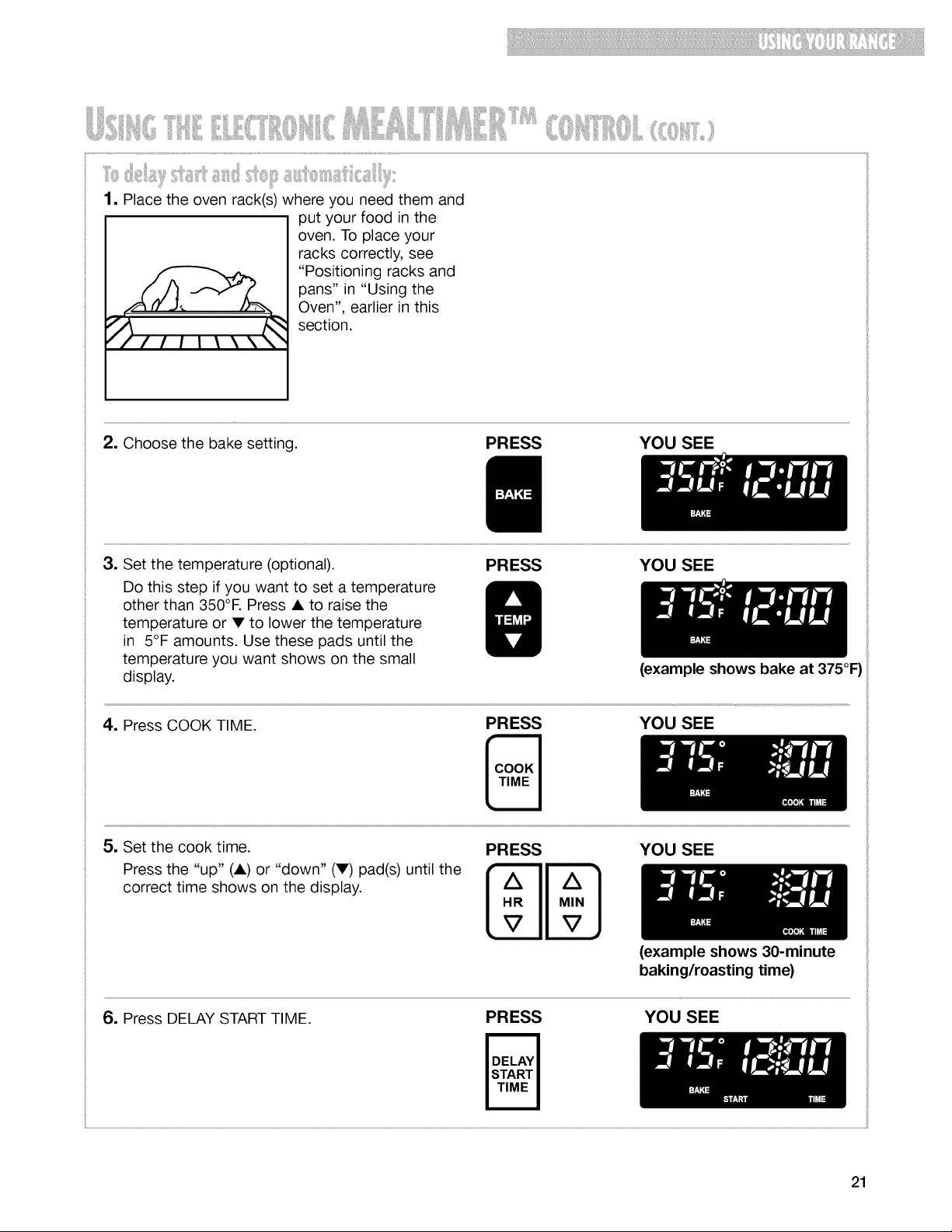

1. Place the oven rack(s) where you need them and
put your food in the
oven. To place your
racks correctly, see
"Positioning racks and
pans" in "Using the
Oven", earlier in this
section.
2, Choose the bake setting.
PRESS YOU SEE
3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°R Press • to raise the
temperature or • to lower the temperature
in 5°F amounts. Use these pads until the
temperature you want shows on the small
display.
(example shows bake at 375°F)
4. Press COOK TIME. PRESS
YOU SEE
5, Set the cook time.
Press the "up" (A) or "down" (•) pad(s) until the
correct time shows on the display.
PRESS YOU SEE
(example shows 30-minute
baking/roasting time)
YOU SEE
6. Press DELAY START TIME. PRESS
21
iI:i!il;iiiiili!_!!!!iiii_!iilii_iii_i!!I_iii_iiiil!iilii_il:li_7jliiii_i7]iil¸_'__'_¸'_'_'_'__il:iil_,_!!ii_i_:_L_i:0_::__,_:_:::i

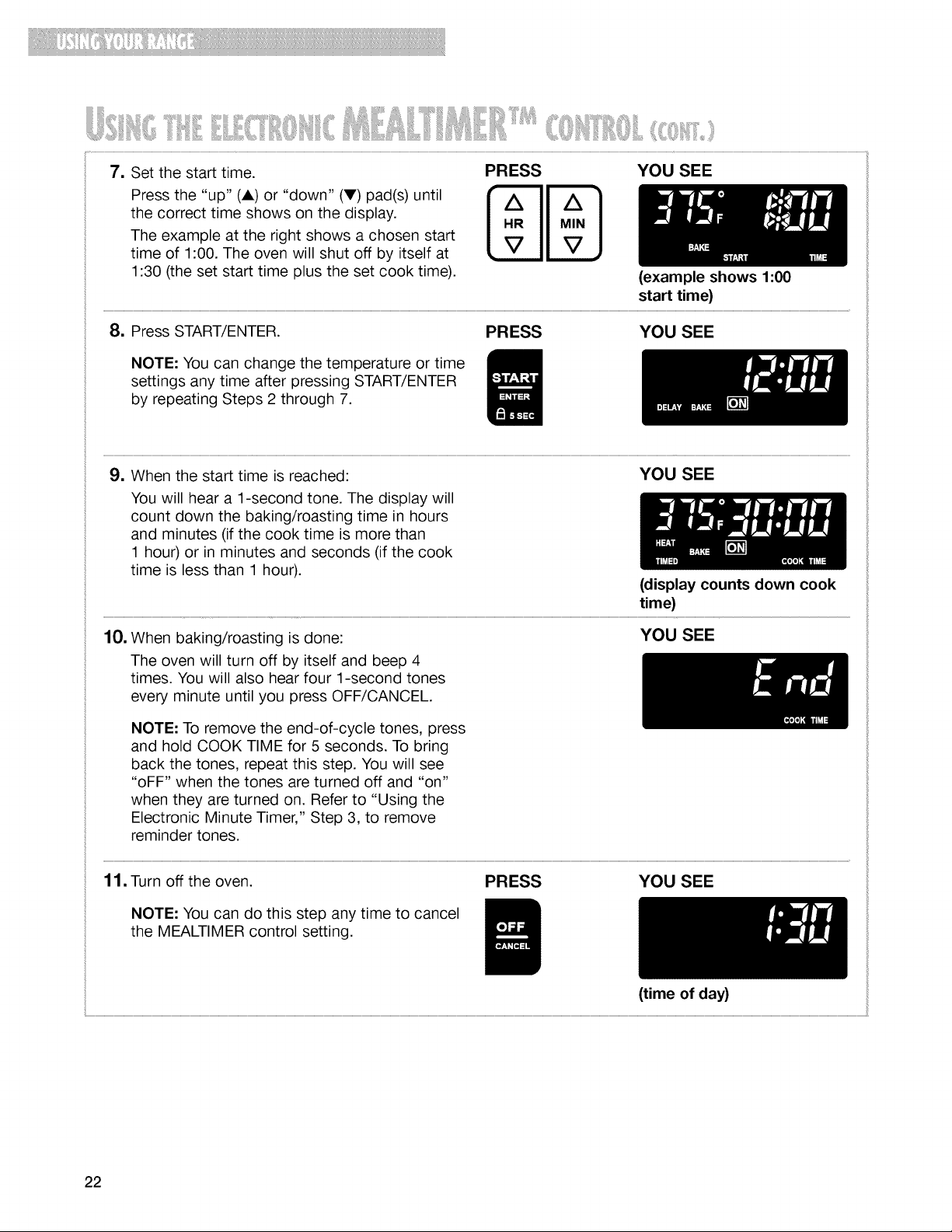

7. Set the start time.
Press the "up" (1) or "down" (V) pad(s) until
the correct time shows on the display.
The example at the right shows a chosen start
time of 1:00. The oven will shut off by itself at
1:30 (the set start time plus the set cook time).
PRESS YOU SEE
(example shows 1:00
start time)
8. Press START/ENTER. PRESS YOU SEE
NOTE: You can change the temperature or time
settings any time after pressing START/ENTER
by repeating Steps 2 through 7.
9. When the start time is reached: YOU SEE
You will hear a 1-second tone. The display will
count down the baking/roasting time in hours
and minutes (if the cook time _smore than
1 hour) or in minutes and seconds (if the cook
time is less than 1 hour).
(display counts down cook
time)
10. When baking/roasting is done: YOU SEE
The oven will turn off by itself and beep 4
times. You will also hear four 1-second tones
every minute until you press OFF/CANCEL
NOTE: To remove the end-of-cycle tones, press
and hold COOK TIME for 5 seconds. To bring
back the tones, repeat this step. You will see
"oFF" when the tones are turned off and "on"
when they are turned on. Refer to "Using the
Electronic Minute Timer," Step 3, to remove
reminder tones.
11. Turn off the oven. PRESS YOU SEE
NOTE: You can do this step any time to cancel
the MEALTIMER control setting.
(time of day)
22

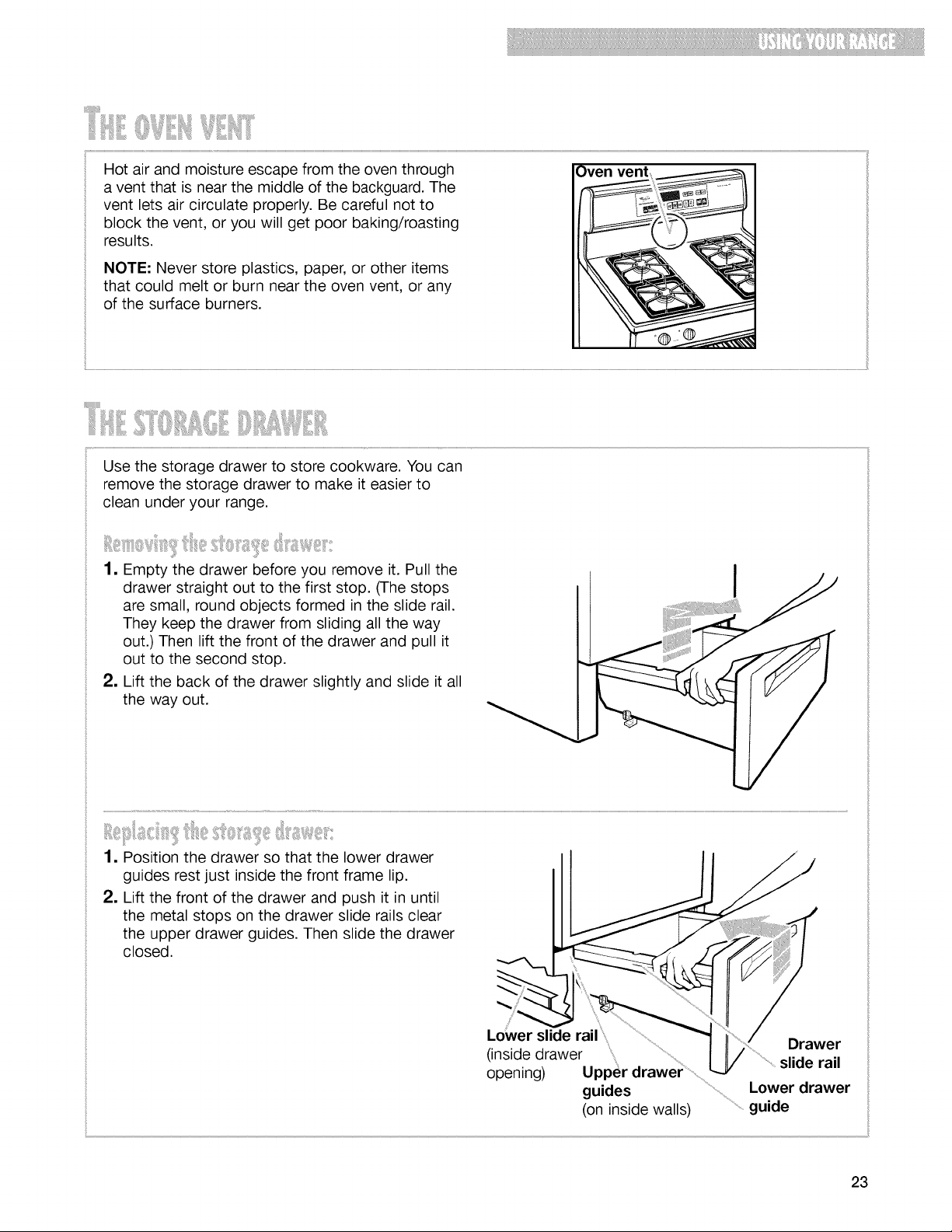

Hotairandmoistureescapefromtheoventhrough
aventthatisnearthe middleofthebackguard.The
ventletsaircirculateproperly.Becarefulnotto
blockthevent,oryouwillgetpoorbaking/roasting
results.
NOTE:Neverstoreplastics,paper,or otheritems
thatcouldmeltor burnneartheovenvent,orany
of thesurfaceburners.
i i!ii:i' iil!ll ii!ii,il;!!ili! iiii i!ii !i!!iii i! iil
Use the storage drawer to store cookware. You can
remove the storage drawer to make it easier to
clean under your range.
1, Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2, Lift the back of the drawer slightly and slide it all
the way out.
I
1, Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2, Lift the front of the drawer and push it in until
the metal stops on the drawer slide rails clear
the upper drawer guides. Then slide the drawer
closed.
Lower slide rail
(inside drawer ...... Drawer
slide rail
opening) Upper drawer ...................
guides ...........................Lower drawer
(on inside walls) ...........................guide
23
USINGTHESELF-CLEANINGCYCLE
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
ii lili! i iilillliii!!iiiiii!''
Before you start the Self-Cleaning cycle, make
sure you:
NOTE: DO NOT clean, move, or bend the gasket.
You may get poor cleaning, baking, and roasting.
• Hand-clean the areas shown. They do not get hot
enough during the Self-Cleaning cycle for soil to
burn away. Use hot water and detergent or a
soapy, steel-wool pad for cleaning.
• Do not let water, cleaner, etc., enter slots on door
and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
• Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
• Wipe up food spills containing sugar as soon as
possible after the oven cools down. When sugar
is heated to a high temperature in the Self-
Cleaning cycle, the high temperature can cause
the sugar to burn and react with the porcelain.
This can cause staining and etching, pitting, or
faint white spots.
• Remove the oven racks from the oven if you want
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See the "Cleaning chart"
in the "Caring for Your Range" section.) If you
clean the racks in the Self-Cleaning cycle, place
them on the 2nd and 4th rack guides. (The guides
are counted from bottom to top.)
• Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the Self-
Cleaning cycle. Move birds to another closed and
well ventilated room.
DO NOT
hand-clean
gasket
Hand-clean
frame
Hand-clean
door around
edge
TIPS:
• Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat, odors,
and smoke.
• Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in more smoke than usual.
• Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
• Remove any combustible items, such as paper
napkins, from the storage drawer. This includes
utensils with plastic handles that can become
overheated and melt.
• Do not leave plastic utensils on the cooktop. They
may melt.
• Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
• The oven light will not work during the Self-
Cleaning cycle.
24
iii! l'Iii ii iiii if
NOTE: Make sure the clock is set to the correct
time of day. (See "Setting the clock" in the "Using
Your Range" section.)

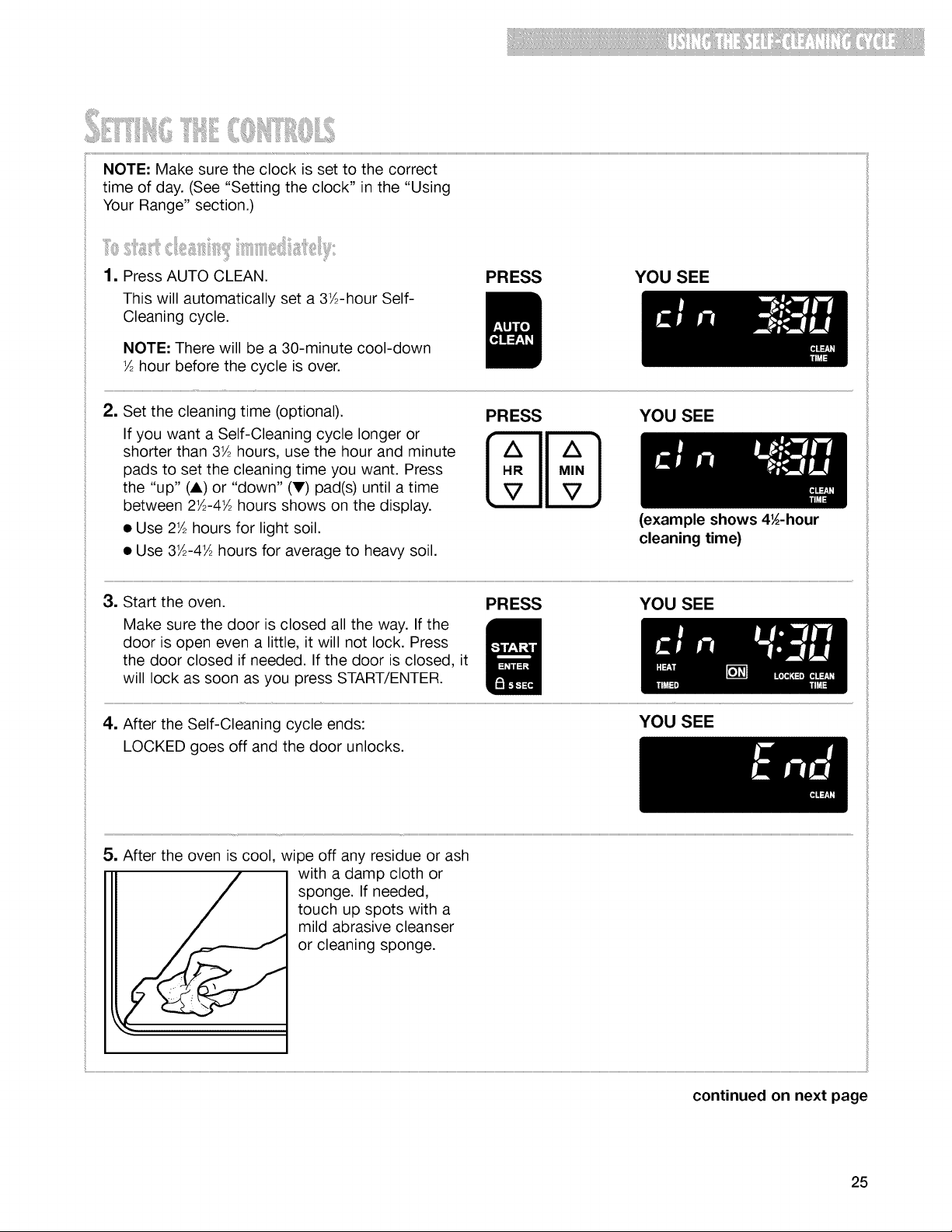

1. Press AUTO CLEAN.
This will automatically set a 31/_-hour Self-
Cleaning cycle.
NOTE: There will be a 30-minute cool-down
1/_hour before the cycle is over.
=
Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or
shorter than 3_ hours, use the hour and minute
pads to set the cleaning time you want. Press
the "up" (A) or "down" (V) pad(s) until a time
between 2½-41/_hours shows on the display.
• Use 2½ hours for light soil.
• Use 3½-41Ahours for average to heavy soil.
PRESS YOU SEE
YOU SEEPRESS
MN
(example shows 4½-hour
cleaning time)
3. Start the oven. PRESS YOU SEE
Make sure the door is closed all the way. If the
door is open even a little, it will not lock. Press
the door closed if needed. If the door is closed, it
will lock as soon as you press START/ENTER.
4. After the Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
=
After the oven is cool, wipe off any residue or ash
with a damp cloth or
sponge. If needed,
touch up spots with a
mild abrasive cleanser
or cleaning sponge.
continued on next page
25
!l" iiii ii @ii@' :;!!iiii i:['iii:' iiiisiii) I i!i' @i@ :sii ii: "ill''iiiiiii@i?:::
1, Press AUTO CLEAN.
This will automatically set a 31/_-hour Self-
Cleaning cycle.
NOTE: There will be a 30-minute cool-down
1/_hour before the cycle is over.
PRESS YOU SEE
2. Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or shorter
than 3_ hours, use the Hour and Minute pads to
set the cleaning time you want. Press the "up" (A)
or "down" (V) pad(s) until a time between 2½-41/_
hours shows on the display.
• Use 2½ hours for light soil.
• Use 3½-4½ hours for average to heavy soil.
PRESS YOU SEE
(example for 4½-hour cycle)
3. Press DELAY START TIME. PRESS YOU SEE
E
4. Set the start time.
Press the "up" (A) or "down" (V) pad(s) until the
correct time shows on the display. The oven will
automatically come up with the stop time by
adding the set cleaning time to the set start
time.
PRESS YOU SEE
(example for 2:30 start time)
5. Press START/ENTER.
PRESS YOU SEE
The door will lock as soon as you press
START/ENTER.
6. After the Self-Cleaning cycle starts: YOU SEE
7, After the Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
NOTE: The stop time will be the start time plus
the cleaning time.
26
l_iii!ii_iii_ii_iiiii_liiiii:0i_ii_il_t_ii:ii _i:_:i:!_iii:ii_::i_¸
8. After the oven cools to room temperature, wipe
off any residue or ash
with a damp cloth or
sponge. If needed,
touch up spots with a
mild abrasive cleanser
or cleaning sponge.
PRESS YOUSEE
If the oven temperature is too high for baking/
roasting when you press OFF/CANCEL, "cln,"
TIMED, ON, "cool," and LOCKED will appear on
the display until the oven cools.

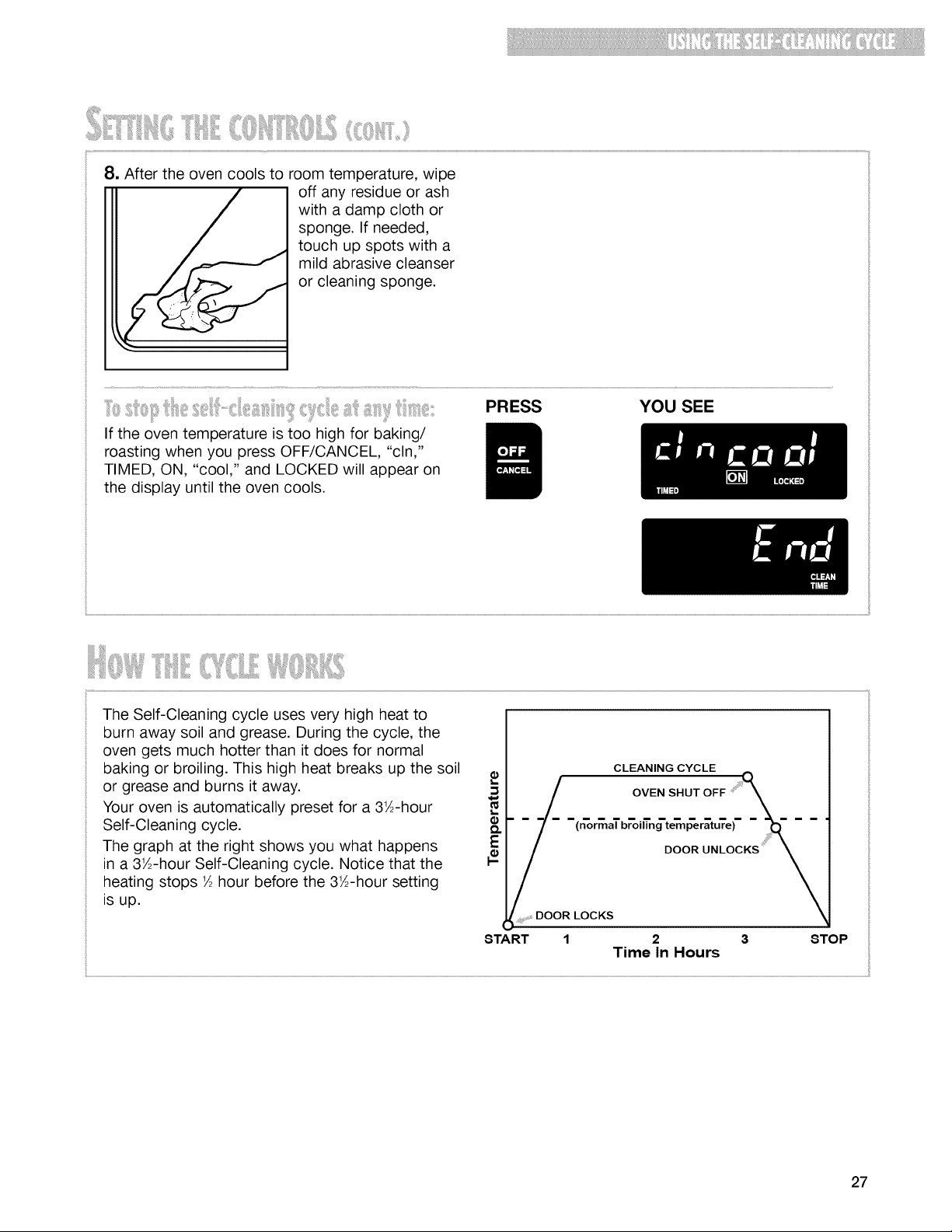

The Self-Cleaning cycle uses very high heat to
burn away soil and grease. During the cycle, the
oven gets much hotter than it does for normal
baking or broiling. This high heat breaks up the soil
or grease and burns it away.
Your oven is automatically preset for a 31/_-hour
Self-Cleaning cycle.
The graph at the right shows you what happens
in a 3½-hour Self-Cleaning cycle. Notice that the
heating stops 1/_hour before the 31/_-hour setting
_sup.
&
E
CLEANING CYCLE
\.
OVEN SHUT OFF
(normal br'oilTng-te_p"er_tu_e)- - X - -
R LOCKS DOOR UNLOCKS _
START 1 2 3 STOP
Time In Hours
27

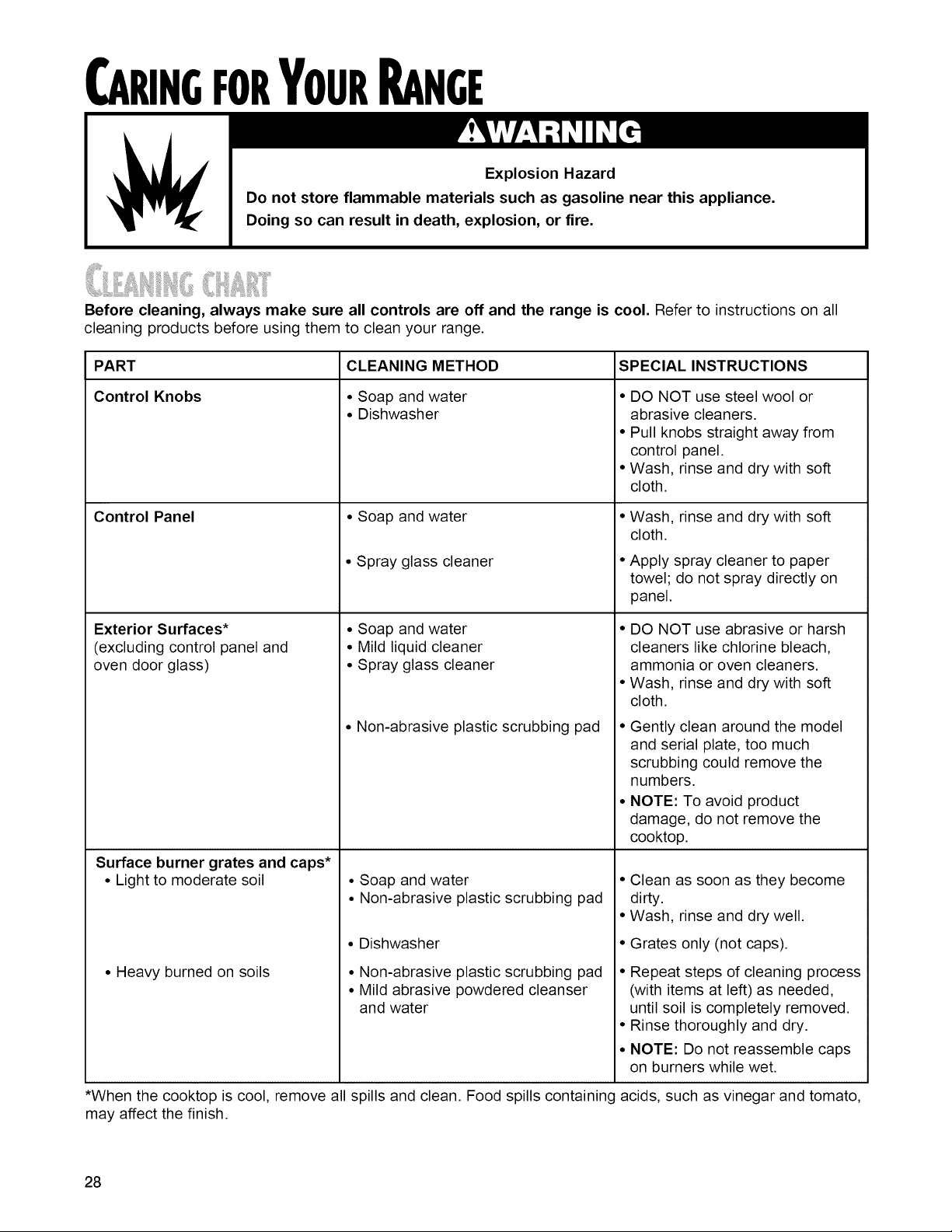

CARIN FORYour
Explosion Hazard
Do not store flammable materials such as gasoline near this appliance.
Doing so can result in death, explosion, or fire.
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
PART
Control Knobs
Control Panel
Exterior Surfaces*
(excluding control panel and
oven door glass)
Surface burner grates and caps*
• Light to moderate soil
• Heavy burned on soils
CLEANING METHOD
• Soap and water
• Dishwasher
• Soap and water
• Spray glass cleaner
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic scrubbing pad
• Soap and water •
• Non-abrasive plastic scrubbing pad
Dishwasher
Non-abrasive plastic scrubbing pad
Mild abrasive powdered cleanser
and water
SPECIAL INSTRUCTIONS
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft
cloth.
• Wash, rinse and dry with soft
cloth.
• Apply spray cleaner to paper
towel; do not spray directly on
panel.
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft
cloth.
• Gently clean around the model
and serial plate, too much
scrubbing could remove the
numbers.
• NOTE: To avoid product
damage, do not remove the
cooktop.
Clean as soon as they become
dirty.
Wash, rinse and dry well.
Grates only (not caps).
Repeat steps of cleaning process
(with items at left) as needed,
until soil is completely removed.
Rinse thoroughly and dry.
NOTE: Do not reassemble caps
on burners while wet.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish.
28

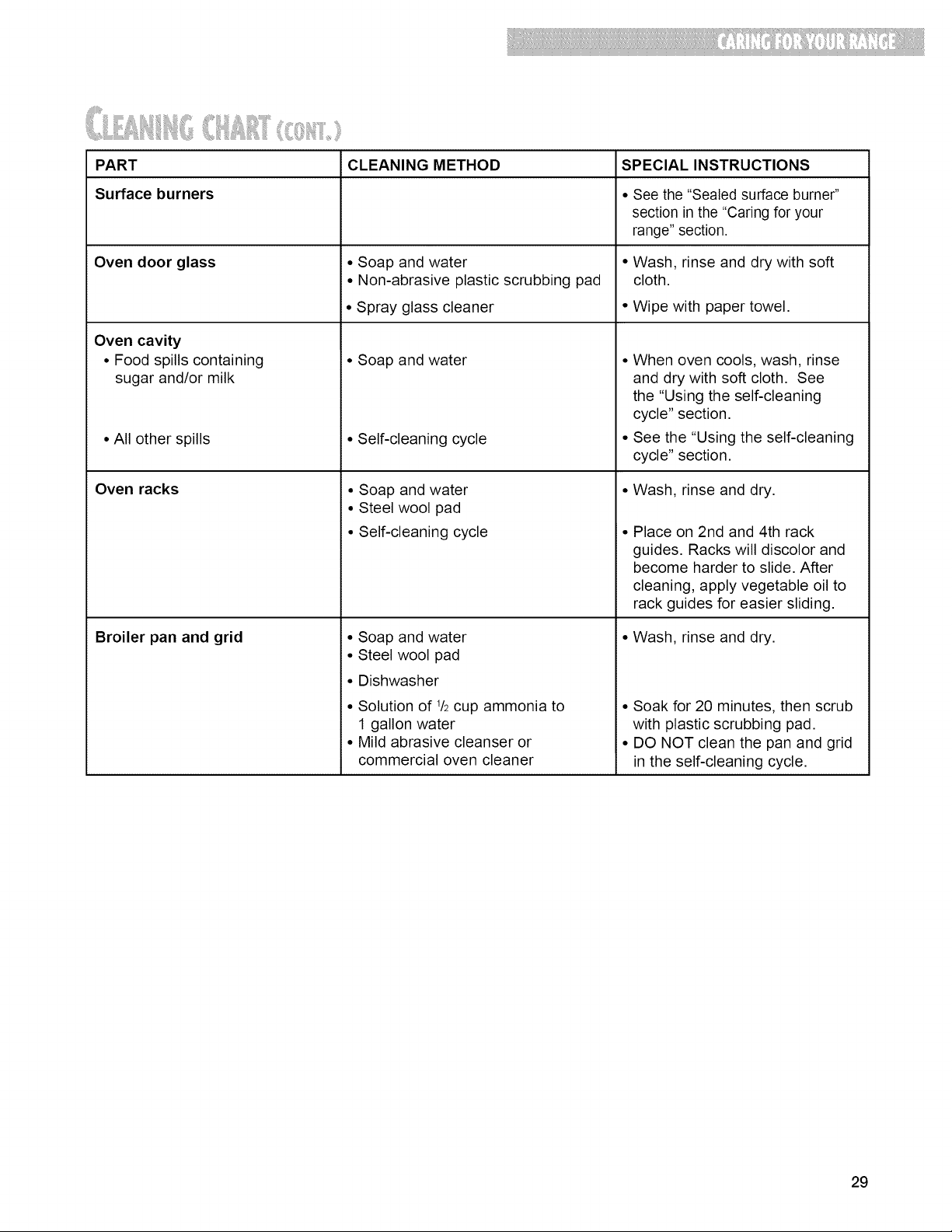

Oven door glass
Oven cavity
• Food spills containing
sugar and/or milk
• All other spills
Oven racks
Broiler pan and grid
CLEANING METHOD
• Soap and water
• Non-abrasive plastic scrubbing pad
• Spray glass cleaner
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of 1/2cup ammonia to
1 gallon water
• Mild abrasive cleanser or
commercial oven cleaner
SPECIAL INSTRUCTIONS
• See the "Sealed surface burner"
section in the "Caring for your
range" section.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth. See
the "Using the self-cleaning
cycle" section.
• See the "Using the self-cleaning
cycle" section.
• Wash, rinse and dry.
Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid
in the self-cleaning cycle.
29
i ii!iiiiii ,i iI!iii i!iiiiiI I ii!ili!i!i ii!!i li illil i!iilli i i ii!il ,!iilii ii! iiiii!l i
iiiiii_ii!_i_ii_iii_!ii:_''iiiiiii'Hii_i!!!:_!!ii_i_t'_ii_¸'ii!iiS_i::_ii_¸{ii:ii_i/iiii'_i_?_l_!iii_

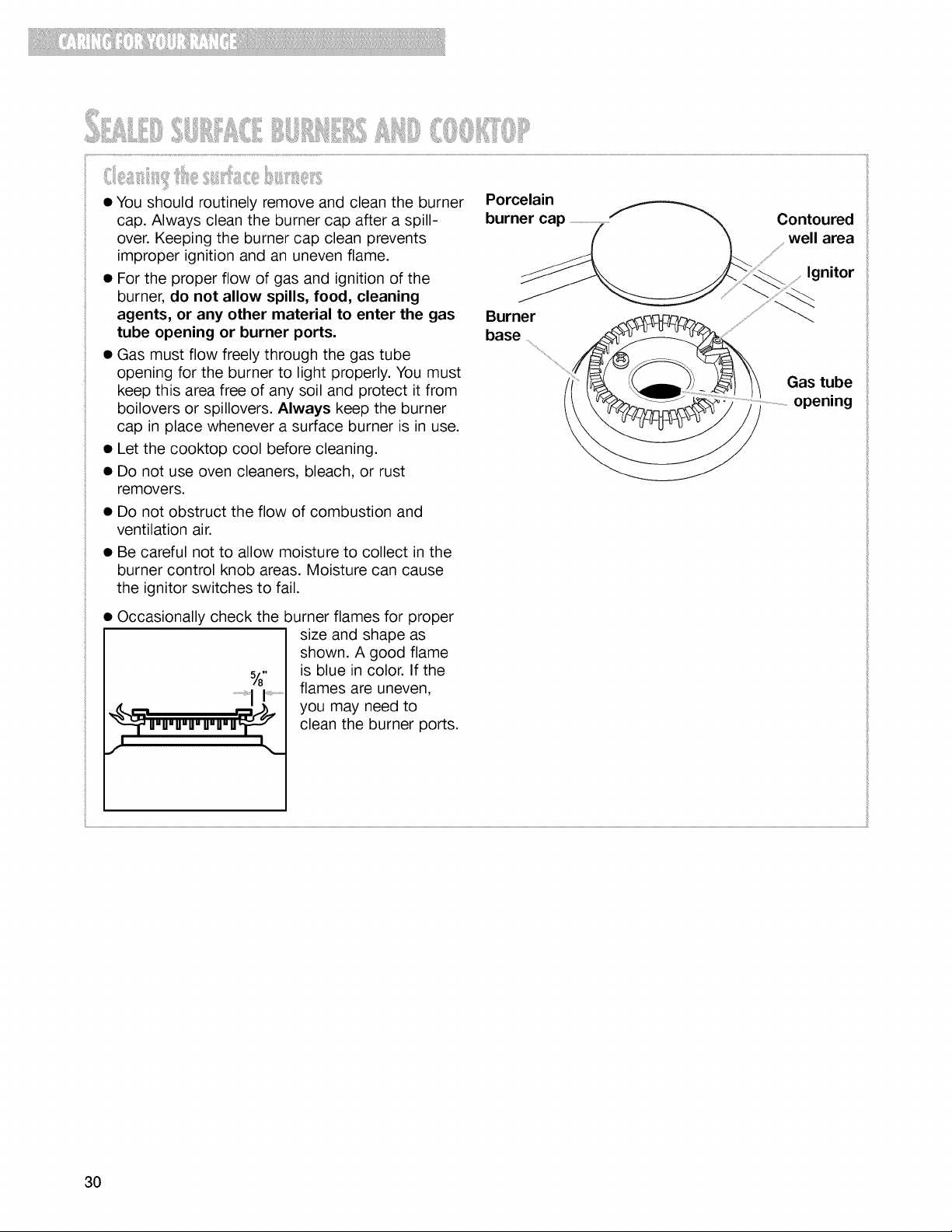

• You should routinely remove and clean the burner
cap. Always clean the burner cap after a spill-
over. Keeping the burner cap clean prevents
improper ignition and an uneven flame.
• For the proper flow of gas and ignition of the
burner, do not allow spills, food, cleaning
agents, or any other material to enter the gas
tube opening or burner ports.
• Gas must flow freely through the gas tube
opening for the burner to light properly. You must
keep this area free of any soil and protect it from
boilovers or spillovers. Always keep the burner
cap in place whenever a surface burner is in use.
• Let the cooktop cool before cleaning.
• Do not use oven cleaners, bleach, or rust
removers.
• Do not obstruct the flow of combustion and
ventilation air.
• Be careful not to allow moisture to collect in the
burner control knob areas. Moisture can cause
the ignitor switches to fail.
• Occasionally check the burner flames for proper
/8 I1
size and shape as
shown. A good flame
is blue in color. If the
flames are uneven,
you may need to
clean the burner ports.
Porcelain
burner ca
Burner
base
Contoured
well area
Ignitor
Gas tube
opening
3O

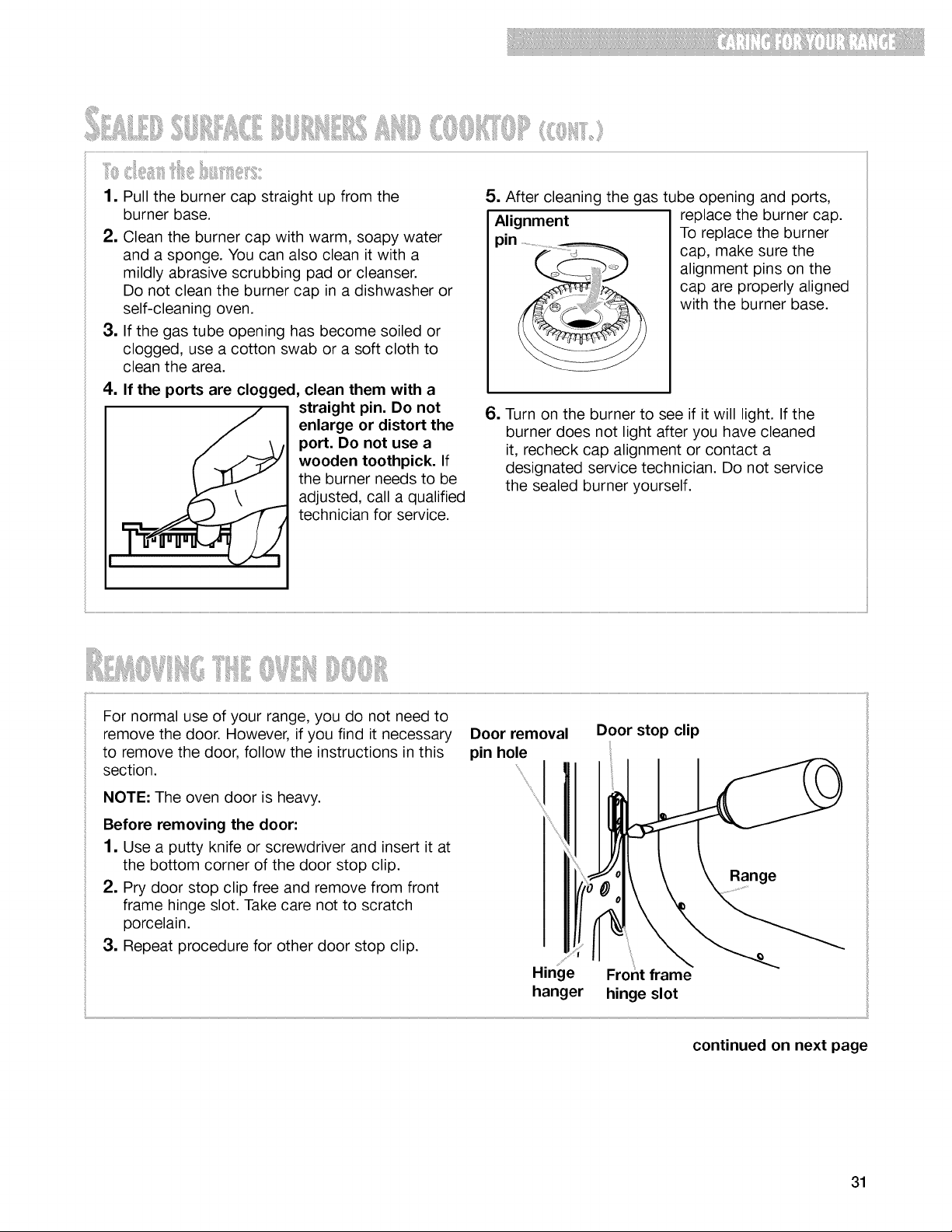

1.
=
=
Pull the burner cap straight up from the
burner base.
Clean the burner cap with warm, soapy water
and a sponge. You can also clean it with a
mildly abrasive scrubbing pad or cleanser.
Do not clean the burner cap in a dishwasher or
self-cleaning oven.
If the gas tube opening has become soiled or
clogged, use a cotton swab or a soft cloth to
clean the area.
If the ports are clogged, clean them with a
straight pin. Do not
enlarge or distort the
port. Do not use a
wooden toothpick. If
the burner needs to be
adjusted, call a qualified
technician for service.
5. After cleaning the gas tube opening and ports,
Alignment replace the burner cap.
pin .............................................._ To replace the burner
cap, make sure the
alignment pins on the
:i cap are properly aligned
with the burner base.
6. Turn on the burner to see if it will light. If the
burner does not light after you have cleaned
it, recheck cap alignment or contact a
designated service technician. Do not service
the sealed burner yourself.
For normal use of your range, you do not need to
remove the door. However, if you find it necessary
to remove the door, follow the instructions in this
section.
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door removal Door stop clip
pin hole
Hinge Front frame
hanger hinge slot
Range
continued on next page
31
lilii !iiiii_i!_tiili]il!ii!_i;_i;!_!!_iitii!i_ii_ll(_i:_i:!!iiil:ii)

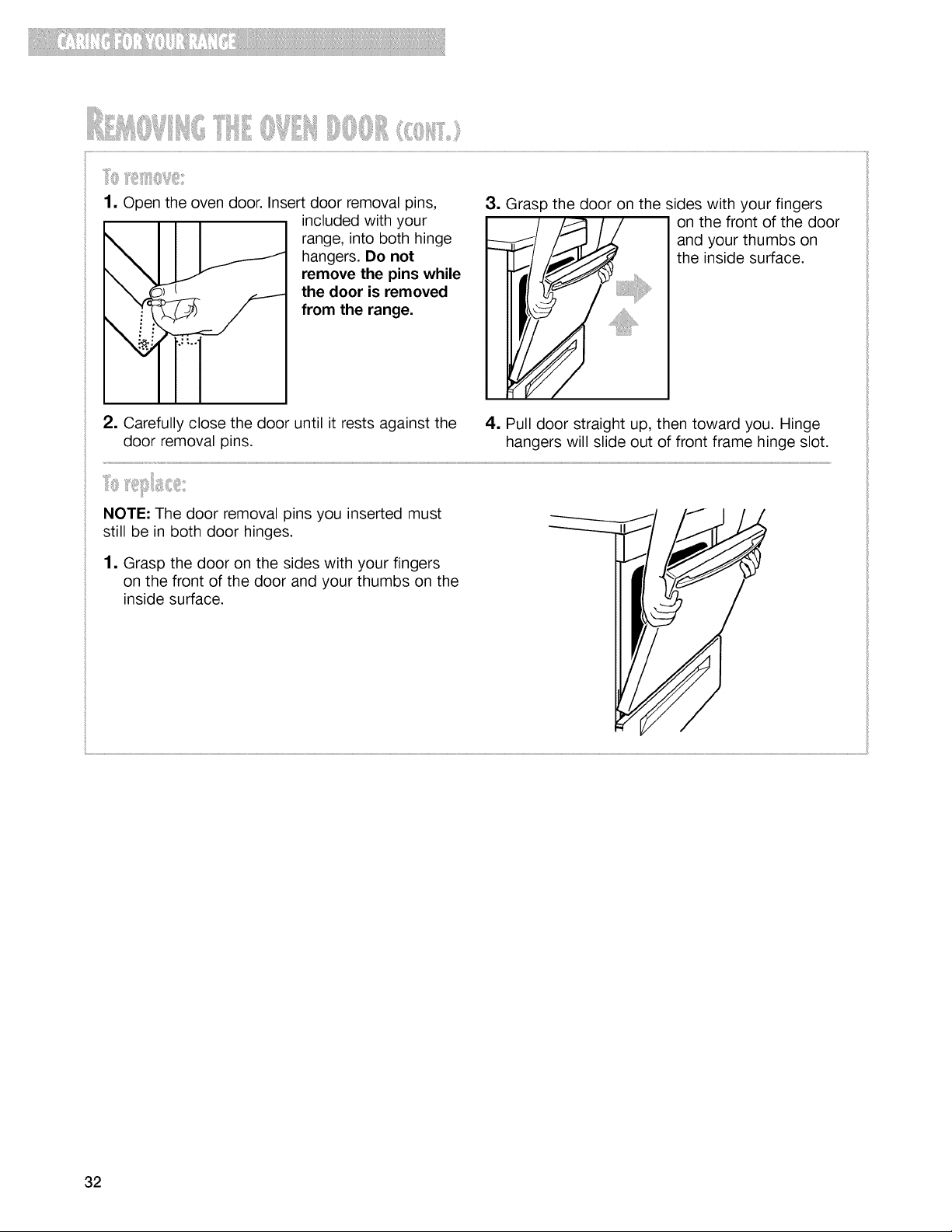

1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not
remove the pins while
the door is removed
from the range.
3. Grasp the door on the sides with your fingers
on the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the 4, Pull door straight up, then toward you. Hinge
door removal pins. hangers will slide out of front frame hinge slot.
NOTE: The door removal pins you inserted must
still be in both door hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
32
!_i_i_ii_i_Ili%i_ii_iiii!i,]!"!,,,!!!_li_ii_'!ii_!!iD!_IH!fill,,iiii:_ii_,¸i!ii,_ili:iii_,:i_,

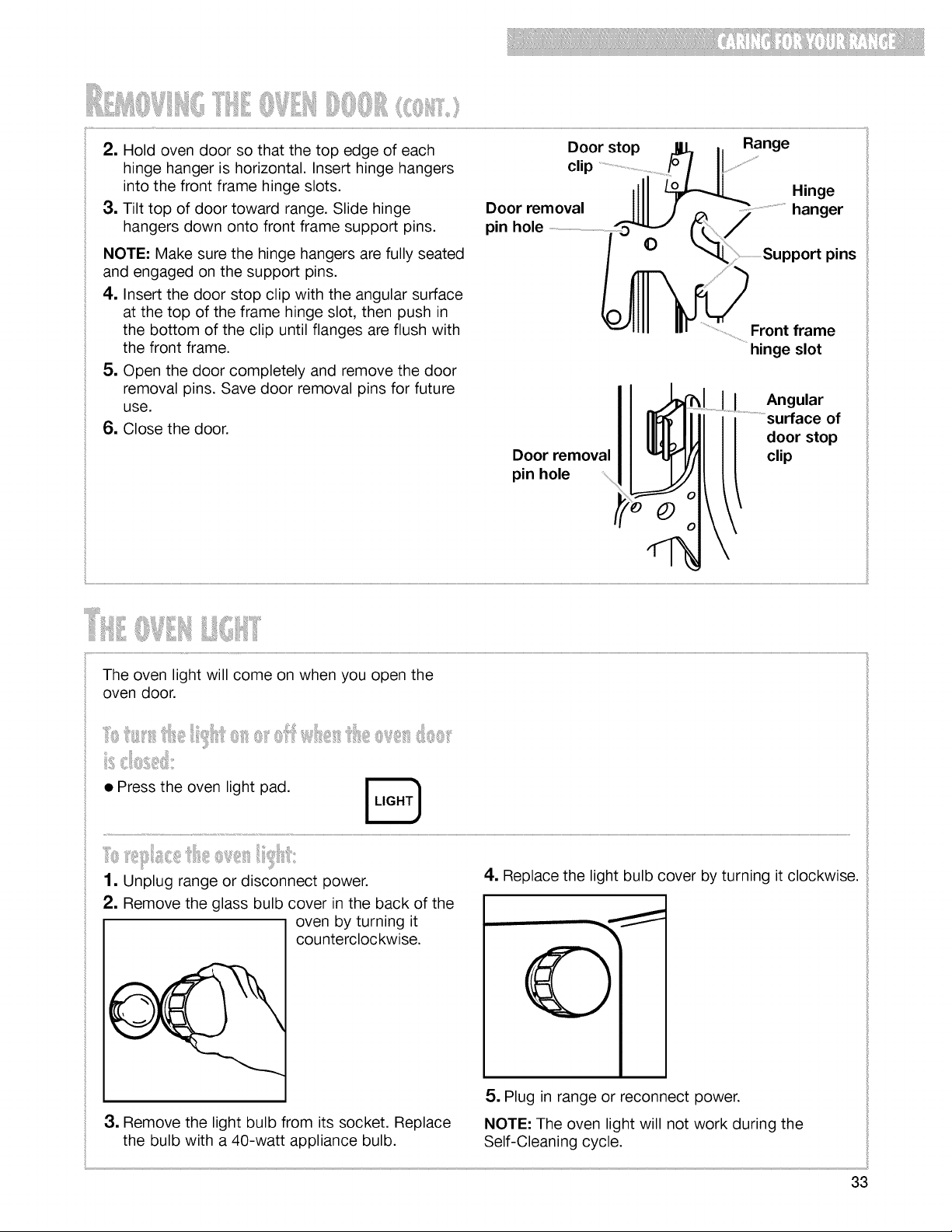

2, Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3, Tilt top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully seated
and engaged on the support pins.
4, Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6. Close the door.
Door stop r_ II Range
clip ................................................................................/v I I!...........................................
lJJJ _ Hinge
Door removal 1111] _".....................................hanger
pin hole
pins
Front frame
hinge slot
Door removal
pin hole ...............
Angular
of
door stop
clip
silililiiiiii_[_i_i_
• Press the oven light pad.
E
1. Unplug range or disconnect power.
2. Remove the glass bulb cover in the back of the
oven by turning it
counterclockwise.
4, Replace the light bulb cover by turning it clockwise.
5. Plug in range or reconnect power.
3. Remove the light bulb from its socket. Replace
the bulb with a 40-watt appliance bulb.
NOTE: The oven light will not work during the
Self-Cleaning cycle.
33
TROUBLESHOOTING
Most cooking problems often are caused by little things you can find and fix without tools of any
kind. Check the lists below and on the next page before calling for assistance or service. If you
still need help, see "Requesting Assistance or Service" on page 36.
PROBLEM CAUSE
Nothing works • The range is not plugged into a properly grounded outlet (120v polarized).
• The range is not properly connected to the gas supply. Contact a
designated service technician to reconnect the range to the gas supply. (See
the Installation Instructions.)
• You have blown a household fuse or tripped a circuit breaker.
34
!i i!i,,,,i!! i i!ii!!ii iiiiiil! !l ,iili!iilli ii ' ii i!i!i iiliii, i i

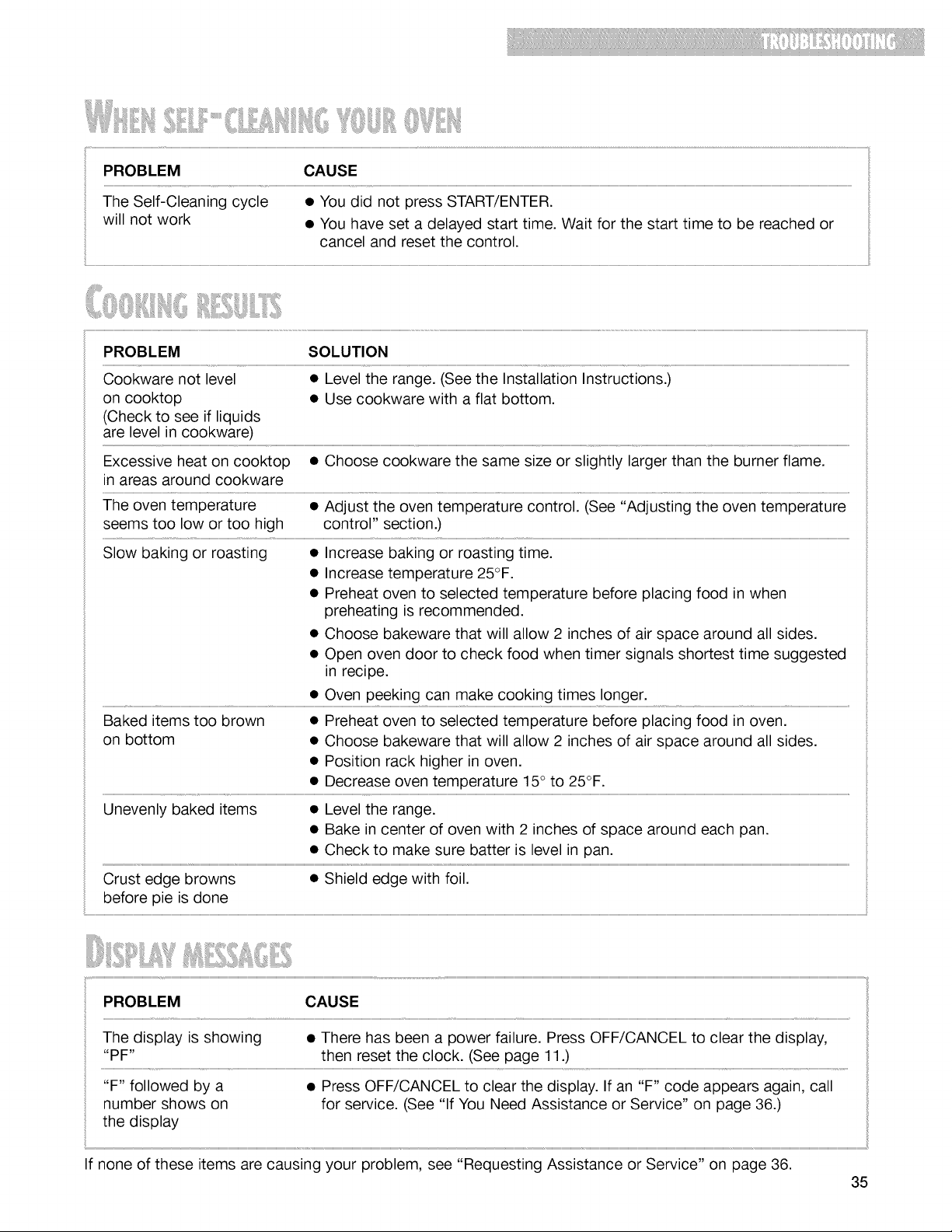

PROBLEM CAUSE
The Self-Cleaning cycle • You did not press START/ENTER.
will not work • You have set a delayed start time. Wait for the start time to be reached or
cancel and reset the control.
PROBLEM SOLUTION
Cookware not level • Level the range. (See the Installation Instructions.)
on cooktop • Use cookware with a flat bottom.
(Check to see if liquids
are level in cookware)
Excessive heat on cooktop • Choose cookware the same size or slightly larger than the burner flame.
in areas around cookware
The oven temperature • Adjust the oven temperature control. (See "Adjusting the oven temperature
seems too low or too high control" section.)
Slow baking or roasting • Increase baking or roasting time.
• Increase temperature 25°F.
• Preheat oven to selected temperature before placing food in when
preheating is recommended.
• Choose bakeware that will allow 2 inches of air space around all sides.
• Open oven door to check food when timer signals shortest time suggested
in recipe.
• Oven peeking can make cooking times longer.
Baked items too brown • Preheat oven to selected temperature before placing food in oven.
on bottom • Choose bakeware that will allow 2 inches of air space around all sides.
• Position rack higher in oven.
• Decrease oven temperature 15° to 25°F.
Unevenly baked items • Level the range.
• Bake in center of oven with 2 inches of space around each pan.
• Check to make sure batter is level in pan.
Crust edge browns • Shield edge with foil.
before pie is done
The display is showing • There has been a power failure. Press OFF/CANCEL to clear the display,
"PF" then reset the clock. (See page 11 .)
"F" followed by a • Press OFF/CANCEL to clear the display. If an "F" code appears again, call
number shows on for service. (See "If You Need Assistance or Service" on page 36.)
the display
If none of these items are causing your problem, see "Requesting Assistance or Service" on page 36.
35
REQUES'gNGASSISTANCEORSERVICE
To avoid unnecessary service calls, please check the "Troubleshooting" section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
Call the Whirlpool Consumer Assistance
Center toll free at 1-800-253-1301.
Our consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see the "A Note to You" section).
This information will help Whirlpool better respond
to your request.
Our consultants provide assistance with:
• Features and specifications on our full line
of appliances
• Installation information
• Accessory and repair parts sales
• Specialized customer assistance (Spanish
speaking, hearing impaired, limited vision, etc.)
• Referrals to local dealers, service companies, and
repair parts distributors
Whirlpool designated service technicians are
trained to fulfill the product warranty and provide
after-warranty service, anywhere in the United States.
To locate the Whirlpool designated service company
in your area, you can also look in your telephone
directory Yellow Pages.
• Use and maintenance procedures
If you need to order replacement parts, we recom-
mend that you only use FSP®factory specified
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL ® appliance.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest designated service center.
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
36
INDEX
TOPIC PAGE TOPIC PAGE
ANTI-TIP BRACKET ...................................................... 3
ASSISTANCE .............................................................. 36
BAKING
ACCU BAKE _ system .......................................... 13,14
Aluminum foil ............................................................ 9
Bakeware .................................................................. 9
Pans ...................................................................... 7, 8
Preheat conditioning .............................................. 14
Racks .................................................................... 8, 9
Setting cycle ............................................................ 13
Tips .......................................................................... 14
BROILING
Grid .......................................................................... 17
Guidelines .......................................................... 17,18
Pan .................................................................... 16, 17
Rack positions ........................................................ 18
Setting cycle ............................................................ 16
CLEANING
Broiler pan and grid ................................................ 29
Control knobs .......................................................... 28
Control panel .......................................................... 28
Exterior surfaces .................................................... 28
Oven cavity ............................................................ 29
Oven door glass ...................................................... 29
Oven racks .............................................................. 29
Self-cleaning cycle .................................................. 24
Surface burners ................................................ 30, 31
Surface burner grates and caps ............................ 28
CONTROL PANEL
Burner heat settings .................................................. 6
Celsius/fahrenheit .................................................... 15
Control knobs ............................................................ 6
Surface burner markers ............................................ 5
COOKWARE
Canning .................................................................... 7
Materials .................................................................... 7
Tips ............................................................................ 7
ELECTRONIC OVEN CONTROL
Canceling ................................................................ 12
Clock ...................................................................... 11
Control lock ............................................................ 10
Display .................................................................... 10
Minute timer ............................................................ 11
Starting .................................................................... 12
Tones ...................................................................... 12
FEATURES .................................................................... 5
MEALTIMER TM CONTROL
Delay start .............................................................. 21
Starting now ............................................................ 19
MODEL AND SERIAL NUMBER .................................. 2
OVEN DOOR .................................................. 31, 32, 33
OVEN LIGHT .............................................................. 33
OVEN TEMPERATURE
Adjusting ................................................................ 15
Setting .............................................................. 13, 16
OVEN VENT ................................................................ 23
PANS ........................................................................ 7, 8
PARTS .......................................................................... 5
RACKS ...................................................................... 8, 9
ROASTI NG
Pans .................................................................... 7, 8
Racks .................................................................... 8, 9
Setting cycle ............................................................ 13
Tips .......................................................................... 14
SAFETY .................................................................... 3, 4
SELF-CLEANING CYCLE
Before you start ...................................................... 24
Delay start .............................................................. 26
How the cycle works .............................................. 27
Setting the controls ................................................ 25
Tips .......................................................................... 27
Starting immediately .............................................. 25
Stopping the cycle .................................................. 27
SERVICE .................................................................... 37
STORAGE DRAWER .................................................. 23
SURFACE BURNERS
ACCUSIMMER TM setting .......................................... 6
Control knobs ............................................................ 6
Control setting guide ................................................ 6
POWERTMBurner ...................................................... 6
Power failure ............................................................ 7
Surface burner markers ............................................ 5
Tips ............................................................................ 6
TROUBLESHOOTING .......................................... 34, 35
WARRANTY ................................................................ 40
WARRANTY
WHIRLPOOL(;ASRANCE
LENGTH OF WARRANTY WHIRLPOOL CORPORATION WILL PAY FOR
FULL ONE-YEAR FSP® replacement parts and repair labor to correct defects in materials
WARRANTY or workmanship. Service must be provided by a Whirlpool designated
FROM DATE OF PURCHASE service company.
WHIRLPOOL CORPORATION WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner-accessible light bulbs.
Repairs when your range is used in other than normal, single-family household use.
Pickup and delivery. Your range is designed to be repaired in the home.
Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirlpool.
Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
Replacement parts or repair labor costs for units operated outside the United States.
B.
C.
D.
E°
F.
6/99
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion
or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Whirlpool dealer.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting,"
additional help can be found by checking the "Requesting Assistance or Service" section, or by calling the
Whirlpool Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.
8053427B 6/90
© 1999 Whirlpool Corporation ® Registered Trademark/TM Trademark of Whirlpool, U.S.A. Printed in U.S.A.
