XT485ENT Treadmill
OWNER’S MANUAL
2
TABLE OF CONTENTS
4 PRODUCT REGISTRATION
5 IMPORTANT SAFETY INSTRUCTIONS
6 IMPORTANT ELECTRICAL INSTRUCTIONS
7 IMPORTANT GROUNDING INSTRUCTIONS
8 IMPORTANT OPERATION INSTRUCTIONS
9 XT485ENT ASSEMBLY INSTRUCTIONS

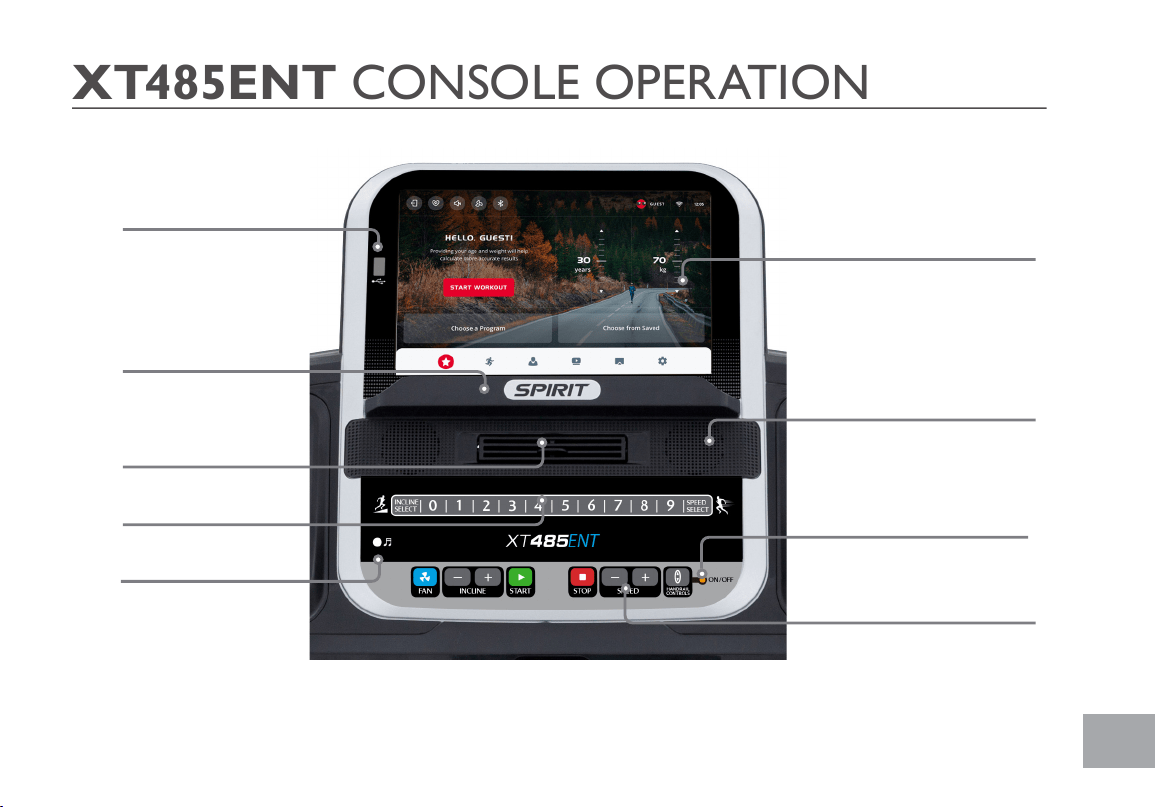

17 CONSOLE OPERATION
32 PROGRAMS
48 USING HEART RATE TRANSMITTER
49 SPIRIT APP
51 GENERAL MAINTENANCE
55 TROUBLESHOOTING
56 MANUFACTURER’S LIMITED WARRANTY
57 EXPLODED VIEW
58 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
3

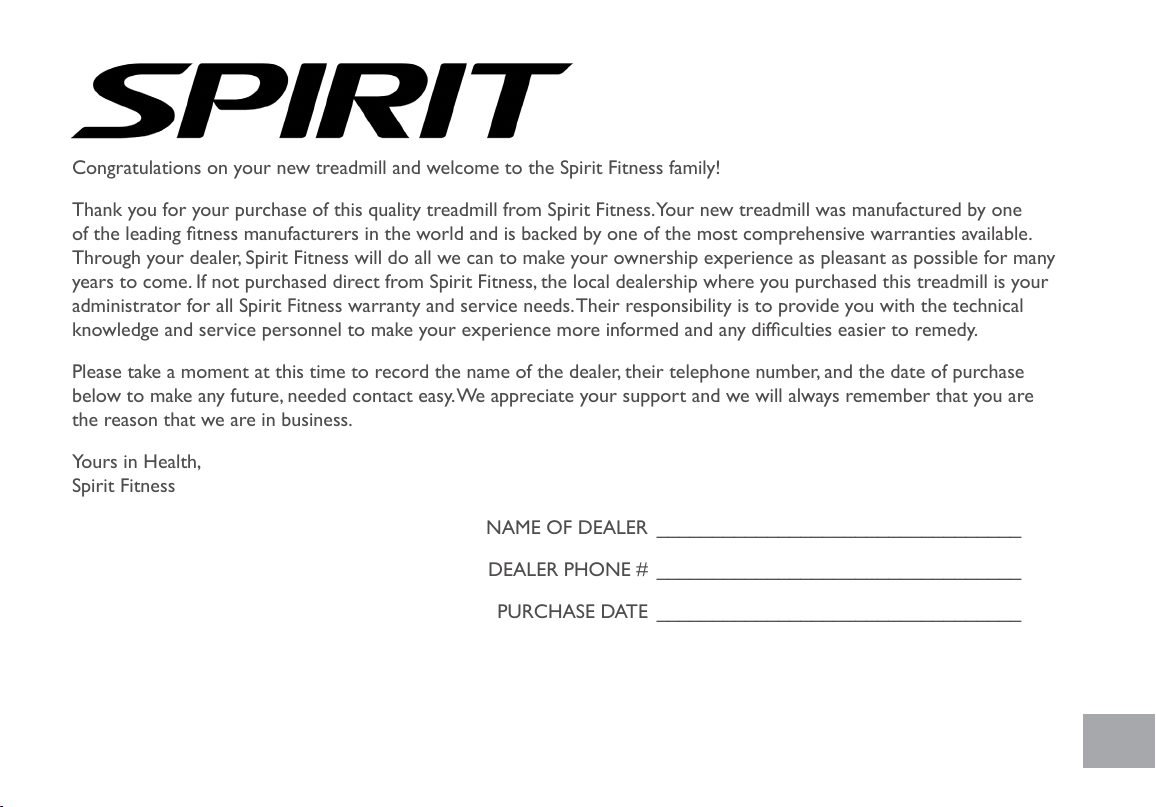

Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness. Your new treadmill was manufactured by one
of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many
years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this treadmill is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase
below to make any future, needed contact easy. We appreciate your support and we will always remember that you are
the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _________________________________
DEALER PHONE # _________________________________
PURCHASE DATE _________________________________
4
Record Your Serial Number
Please record the serial number of this tness product in the space provided below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to https://www.spirittness.com/warranty under the Support tab to register
online.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet
immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric
shock, or injury to persons, install the treadmill on a at
level surface with access to a 110-volt, 15-amp grounded
outlet with only the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR
BETTER, WITH ONLY ONE OUTLET ON THE END:
To reduce the risk of burns, re electric shock, or injury to
persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or
plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the appliance
to a service center for examination and repair.
• Do not carry this appliance by supply cord or use cord
as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and the
like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only.
• The appliance is intended for household use.
• This exercise equipment is not intended for use by
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
WARNING: This product can expose you to
chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov
6
FITNESS EQUIPMENT SAFETY INSTRUCTIONS
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may
result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the
age of 35 or persons with pre-existing health conditions.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Their purpose is to provide you with an approximate measurement in
relation to your target heart rate. Use of a chest transmitter strap (sold separately) is a much more accurate method
of heart rate analysis .Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
The pulse sensors are intended only as exercise aids in determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality
athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and
possibly others) to injury, and reduce the longevity of the equipment.
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING
Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or more, the
performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you
suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa,
or in any other high humidity environment. The temperature specication is 40 degrees C, and humidity is 95%, non-
condensing (no water drops forming on surfaces).
7
Circuit Breakers: Avoid AFCI/GFCI circuit breakers
if possible. These breakers may trip occasionally during
exercise because of the high inrush currents of the
treadmill drive electronics and motor. This is an issue that
affects all treadmill brands. New laws in your area may
require these breakers. If you do have these breakers
and outlets in your home, and are experiencing nuisance
tripping, you should check if there are any other devices
plugged into the same circuit. Some examples of devices
that may also cause tripping are uorescent lights with
electronic ballasts, coffee maker, space heater, hair drier.
Optimally the treadmill should be the only device plugged
into the circuit. Our treadmills have surge suppressors
built in to help avoid nuisance tripping. We have tested
several AFCI/GFCI breakers and outlets with our products.
Brands we have tested are: Eaton (Cutler Hammer Series),
Leviton (Smart lock pro) and Schneider Electric (Canadian
home series). These breakers do not trip in our testing,
when connected to our treadmills, as long as no other
devices are plugged into the same circuit.
GROUNDING INSTRUCTIONS
This product must be grounded. If the your
equipment should malfunction or breakdown, grounding
provides a path of least resistance for electric current,
reducing the risk of electric shock. This product is
equipped with a cord having an equipment-grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER - Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are
in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a
qualied electrician. This product is for use on a nominal
110-volt dedicated circuit, and has a grounding plug that
looks like the plug illustrated below. A temporary adapter
that looks like the adapter illustrated below may be used
to connect this plug to a 2-pole receptacle as shown
below if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet, (shown below) can be installed by a
qualied electrician. The green colored rigid ear-lug, or the
like, extending from the adapter, must be connected to a
permanent ground such as a properly grounded outlet box
cover. Whenever the adapter is used, it must be held in
place by a metal screw.
8
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any operational change
you request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired work level on the
computer console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power supply that
could damage treadmill components. Unplug the treadmill during an electrical storm as a precaution.
• Use caution while participating in other activities while walking on your treadmill; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for
your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt
movement.
To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power.
Note: The magnet has strong enough power to minimize accidental, unexpected stopping. The clip should be
attached securely to make certain it does not come off. Be familiar with its function and limitations. The treadmill
will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console. Use the
Stop / Pause switch in normal operation.
9
XT485ENT PRE ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage
or missing parts. If parts are damaged or missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in
the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
L Allen Wrench
Phillips Head Screwdriver
Combination M5 Allen Wrench
& Phillips Head Screw Driver
PARTS INCLUDED:
1 Main Frame
2 Uprights
2 Console Mast Covers
2 Frame Base Covers
1 Console
1 Deck
1 Beverage Holder
1 Audio Cable
1 Power Cord
1 Lubricant
1 Hardware Kit
10
SPEAKERS
CONSOLE
UPRIGHTS
BELT
HANDLES
END CAPS
MOTOR COVER
SIDE RAILS
CONSOLE FAN
11
XT485ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
128 NUT CLIP
M5
6
1. Gather HARDWARE FOR STEP 1.
2. Take 6 Speed NUT CLIPS (128) and attach them
at the front and each side of the unit as shown left.
3. Guide the right upright through FRAME BASE
COVER RIGHT (62) and CONSOLE MAST
COVER RIGHT (67).
4. Next take the RIGHT UPRIGHT (4) and attach
the MIDDLE COMPUTER CABLE (50) to the
LOWER COMPUTER CABLE (49). Be careful
not to pinch the cable or damage may occur to the
system.
5. Slide the RIGHT UPRIGHT (4) to sit into the
frame base.
6. Repeat from step 3 on the left.
12

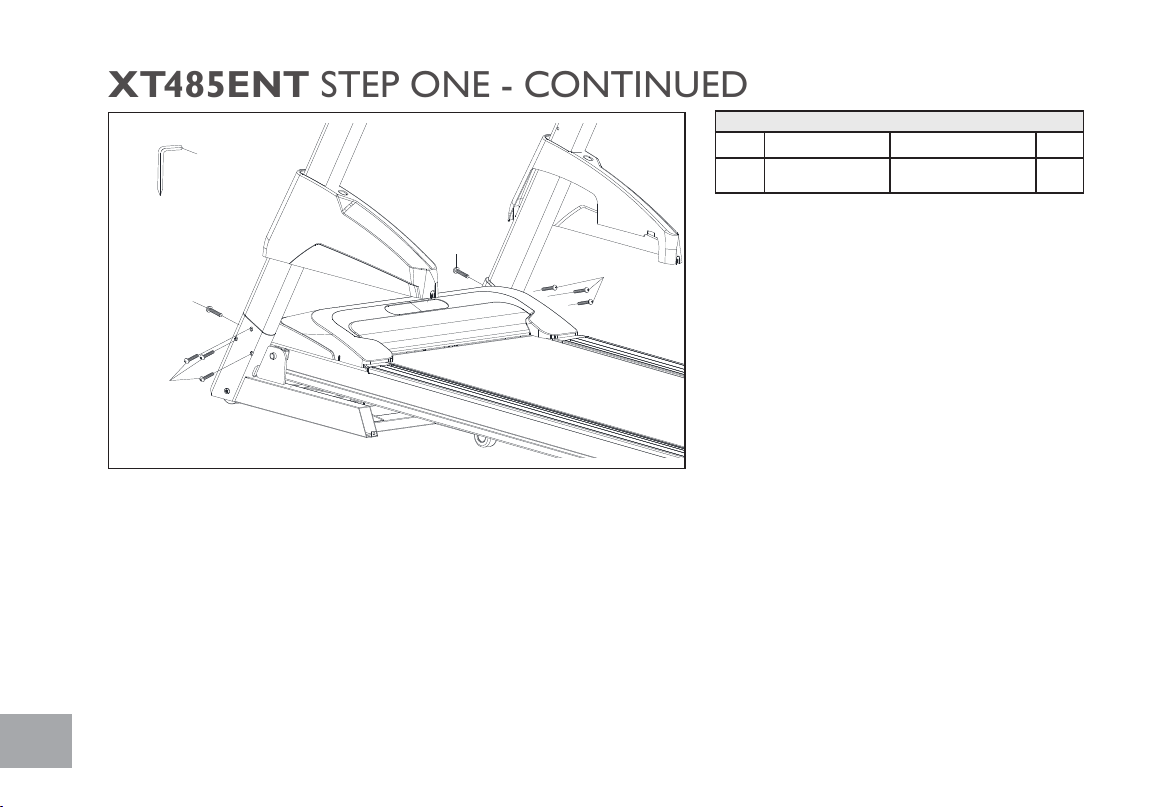

XT485ENT STEP ONE - CONTINUED
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
130 BUTTON HEAD
SOCKET BOLTS
5/16” X 15MM
8
7. Having inserted RIGHT AND LEFT UP-
RIGHTS (4, 5) into the FRAME BASE
(2), use the COMBINATION M5 ALLEN
WRENCH AND PHILLIPS HEAD
SCREW DRIVER (131) to tighten 8 BUT-
TON HEAD SOCKET BOLTS (130)
securing the uprights to the frame base.
Bolts (130)
130
131
130
130
130
13
XT485ENT STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
133 BUTTON HEAD SOCKET
BOLTS
3/8” X 1-1/2”
4
113 SPLIT WASHER
Ø10 × 2.0T
4
1. Gather HARDWARE FOR STEP 2
2. Connect the SPEED ADJUSTMENT
SWITCH W/ CABLE (54) with the
UPPER SPEED CABLE (37).
3. Connect the INCLINE ADJUSTMENT
SWITCH W/ CABLE (55) with the
UPPER INCLINE CABLE (38).
4. Connect the MIDDLE COMPUTER
CABLE (50) to the UPPER COMPUTER
CABLE (48).
5. Be sure not to pinch any of the cables or
damage may occur to the system.
6. Insert the CONSOLE ASSEMBLY (52)
onto the RIGHT AND LEFT UPRIGHTS
(4, 5) and secure with 4 BUTTON HEAD
SOCKET BOLTS (133) and 4 SPLIT
WASHERS (113). Use the ALLEN
WRENCH (132) to tighten.
55
38
48
37
54
50
132
133
113
4
5
133
113
52
14
XT485ENT STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
120 TAPPING SCREWS
5” X 16MM
6
1. Gather HARDWARE FOR STEP 3.
2. Install FRAME BASE COVER RIGHT
AND LEFT (62, 61) onto the FRAME
BASE (2) using 6 TAPPING SCREWS
(120). Tighten with the PHILLIPS HEAD
SCREW DRIVER (148).
120
120
120
61
120
62
2
120
120
148
15

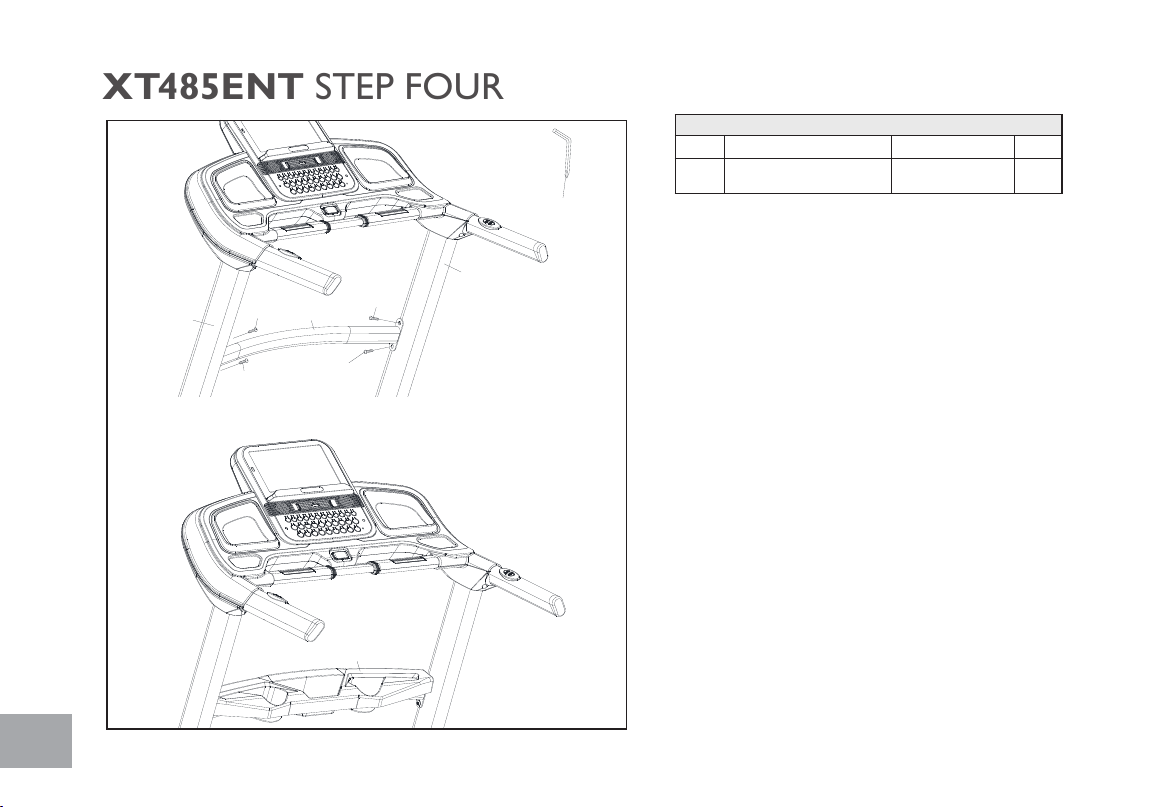

XT485ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
142 SHEET METAL SCREWS
Ø3.5 × 16L
8
1. Gather HARDWARE FOR STEP 4.
2. Slide CONSOLE MAST COVER RIGHT
AND LEFT (67, 66) up the uprights. Secure
them with 8 SHEET METAL SCREWS
(142) using the PHILLIPS HEAD
SCREW DRIVER (148).
67
66
148
142
142
142
142
16
XT485ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
150 BUTTON HEAD BUTTON
BOLTS
5/16” X 3/4”
4
1. Gather HARDWARE FOR STEP 4.
2. Place the HANDRAIL SUPPORT (119)
between the LEFT AND RIGHT UPRIGHTS
(5, 4) and use the COMBINATION ALLEN
WRENCH & PHILLIPS HEAD SCREW
DRIVER (131) to tighten 4 BUTTON
HEAD SOCKET BOLTS (150). Install
the BEVERAGE HOLDER (121) onto the
HANDRAILS SUPPORT (119).
121
4
150
150
150
119
5
150
131
17

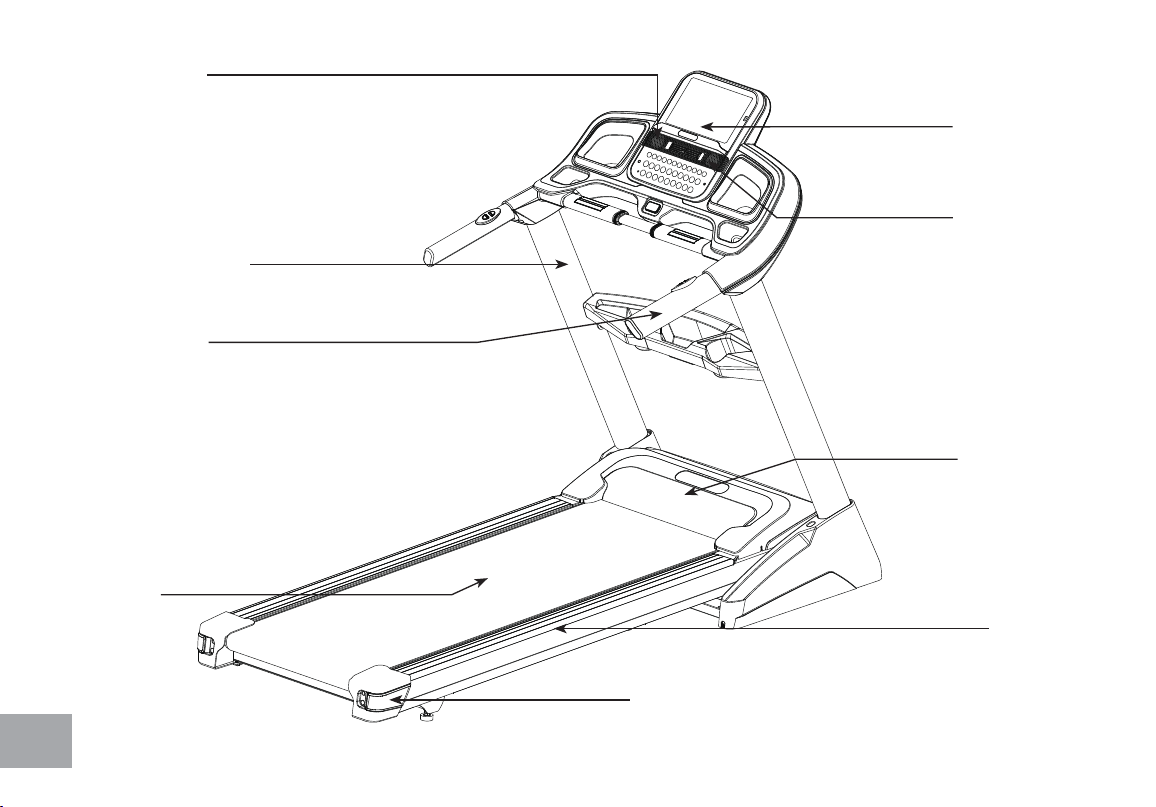

XT485ENT CONSOLE OPERATION
Easy-Touch
Control Keys
Swivel Fan
Direct Access Speed and Incline
Buttons
Handrail Control Buttons
Tablet Rack
USB Port
Integrated Speakers
Touchscreen Display
Audio Jack
18
FEATURES
Handrail Adjustments
The treadmill allows you to make speed and incline changes on the side handrails. You can also
choose to turn these off if you frequently hold on to these rails. This is achieved by pressing
the Handrails On/Off button on the right side of the lower portion of the console. When the
indicator light is lit, the handrail controls are disabled.
Buttons
The physical buttons are as follows:
• Direct Access Incline/Speed keys 0~9
• Speed + or - buttons to control the speed
• Incline + or - buttons to control the incline of the treadmill
• Start button to begin workout
• Stop button to end, or pause the workout
• Fan button to control the fan speed
• Handrail Controls button to enable/disable the incline/speed controls on the handrails
POWER
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power
switch located at the front of the treadmill below the motor hood. Ensure that the Safety Key is
installed, as the treadmill will not power on without it. When the power is turned ON, the screen
will show a brief loading screen and then display the WELCOME Screen which indicates that the
machine is ready to operate.
19
Direct Access Speed and Incline Buttons
You are able to set your speed and incline settings quickly by using the Direct Access Keys on the
console. Just press either Speed or Incline, then select either 2, or 3 digits and the treadmill will
automatically adjust to that value. This saves time because you don’t have to press and hold or hold
a button down until reaching the desired value. The maximum value you may input for speed is 12.0
mph or 18.0 kmph and incline 15.0%
Examples: Press the Select Incline button, then 1, 0 = Incline Level 1.0
Press the Select Incline button, then 3, 5 = Incline Level 3.5
Press the Select Speed button, then 8, 0 = 8.0 mph or kmph
Press the Select Speed button, then 0, 8 = 0.8 mph or kmph
Start Workout operation
• Press any button to wake display up if not already on.
• Press the Start Workout button on the screen to begin. Belt will start at 0.5 mph. To adjust
speed, use the Speed +/- keys on the screen or using the keys at the bottom of the console.
• To slow tread-belt press and hold the Slow - key (console or hand rail) to the desired speed.
• To stop the tread-belt press and release “Stop” button.
Pause/Stop
• Press “Stop” button once, the belt will slow down gradually till fully stop. After 5 minutes the
display will reset and show the workout summary on the screen.
• Press “Resume” button to continue the workout from the pause.
• Press “Finish” button to end workout.
20
Incline
• The incline is changeable any time during the workout.
• Press and hold Incline ▲ or ▼ buttons on the handrail or Incline + or - buttons on the
screen to change the incline to the desired level.
• Incline may also be changed by using the Direct Access Incline buttons on the console below the
touchscreen.
Heart rate feature
Pulse (heart rate) on the screen shows the current value of the heart beats per minute. You must
hold both left and right stainless steel sensors to measure the pulse. The pulse value will be shown
on the screen continuously. You may use the hand pulse sensors while in Heart Rate Control. It will
also pick up wireless heart rate transmitters that are Polar and Bluetooth compatible.
21
CHARGE PORTABLE DEVICES WITH USB PORT
You can charge your personal device during your workout using the tness equipment’s on-console
USB port. To charge your mobile electronics make sure the tness equipment power is on.
Step 1: Connect your USB charging cable (not included) to the USB Power Port and to your device.
Step 2: Check to make sure your device icon indicates it is charging.
NOTE:
• USB charging cable is not included, make sure compatible USB charging cable is being used.
• The USB port on the console is capable of powering USB devices. It provides up to 5Vdc/1.0
amp of power and meets USB 2.0 regulations. You will not be able to save your workout data to
a USB via this port; it is used for charging purposes only.
22
Set Up
TOUCH SCREEN OPERATION
Once the console is powered on, connect to the available WiFi network either by pressing the
Signal icon on the top right corner or from the SETTINGS menu on the bottom right corner.
Without WiFi, saving workout data to the cloud, using apps and casting content will not work. If
WiFi connection is not set up, please set data and time manually. If you change your mind later, you
can always nd WiFi settings in the bottom right corner on the screen.
Choose “Guest” user or create yourself a prole to get more personalized experience. Maximum of
9 proles can be created. Learn more about proles in “Prole”.
23
• Tap on WIFI for internet connection settings.
• Tap on DATE or TIME to change the machine time settings. The time and date settings dene the time
information in the workout summary. Both 12 and 24 hours formats are available.
• Tap on SOFTWARE to check the current software version or to update, if a new one is available. Press
Update to upload and install the latest version. Be sure to be connected to the Internet.
• Tap on DISPLAY to adjust the brightness of the screen.
• Tap on BLUETOOTH to pair with the Bluetooth devices including the Bluetooth type of chest straps,
earphones, or speakers.
SETTINGS
24
To create a new prole, press + button on the starting screen. If you already have a Spirit APP
ACCOUNT, you can scan the QR code appearing on the screen. This action will not only upload
your already existing personal info to the machine, but also link two proles together, so your
workout history will be fully displayed in the Spirit app. One Spirit app account cannot be linked to
multiple proles on one machine.
If you do not have a Spirit account, press the I DON’T button to continue and build one by lling
in the form.
There are 3 tabs in the Prole section: Info, History, and Favorites. Creating a prole lets your
machine remember your physical data, so you don’t need to provide it every time you want to work
out. Your personal data can be found in the INFO tab. To edit, tap on any information eld and make
changes, then press Save. If you haven’t linked your Spirit account to the local machine prole, you
can also do it here by pressing “Spirit Account” eld.
Ten records of the latest activity can be found in HISTORY tab. Workout history only shows
work- outs that were completed by the current user. Tap on the record preview for details. All
the records are available in the Spirit app account, if the prole is linked to the Spirit app account.
FAVORITES tab is where all the programs that were labeled as favorites by the current user can
be seen and deleted.
Different users can choose different unit systems, select their personal favorite programs and save
their own templates.
PROFILE
25
26
In this section there are a variety of third party apps to keep you entertained during your workout.
To use them, connect to the WiFi and choose the app icon. Press to enter full screen mode.
Press to exit full screen mode. Press ⌂ to choose another app.
INTERNET & APPS
27
To display various content from your smartphones or tablets on the machine console, open this
section and follow the instructions provided, depending on whether you use an iOS or an Android
device. Once the mirroring has started, press to enter full screen mode. Press to exit full
screen mode.
SCREEN MIRRORING
28
Homescreen
User data
setting
Quick Start
Wi
Settings
Current
User
Activity
Overview
Fan
on/o
Adjust
volume
Pair HR
device
Log out
Workout
Programs
Proles
Internet
& Apps
Screen
Mirroring
Settings
HOMESCREEN
The Homescreen provides activity overview and suggests shortcuts to the training options.
If in Guest mode, you can provide your physical data here, which will help the machine more
accurately calculate your workout summary. Use scales or arrows to adjust your age and weight.
Start Workout button starts the workout immediately.
29
WORKOUT VIEWS
Once the workout has started, after the short countdown the console will appear in its workout
mode. Warm-up and cool-down phases may be skipped by pressing Skip.
The panel on the left is xed and shows your current WORKOUT STATS. More related stats can
be revealed by pressing on the + icon. SPEED AND INCLINE CONTROLS can be adjusted
by tapping on arrows in the right panel. The icons on the top panel are the tools available during
your workout: volume, fan and WiFi. When the workout is paused, you can also access HR device
pairing settings.
The bottom panel is with 3 views from the left to the right:
• GOAL VIEW displays the parameter that denes your workout nish (for example, for prole
programs it is time counting down; for distance programs it is distance left).
• PROFILE VIEW shows your workout proles and your current position in them.
• TRACK VIEW helps to imagine yourself making laps on a 1/4 mile track and shows your
progress depending on distance covered.
INTERNET and SCREEN MIRRORING work the same way as in non-workout mode. To pause
or nish the workout, press Stop on the bottom right corner.
30
Goal View:
Prole View:
31

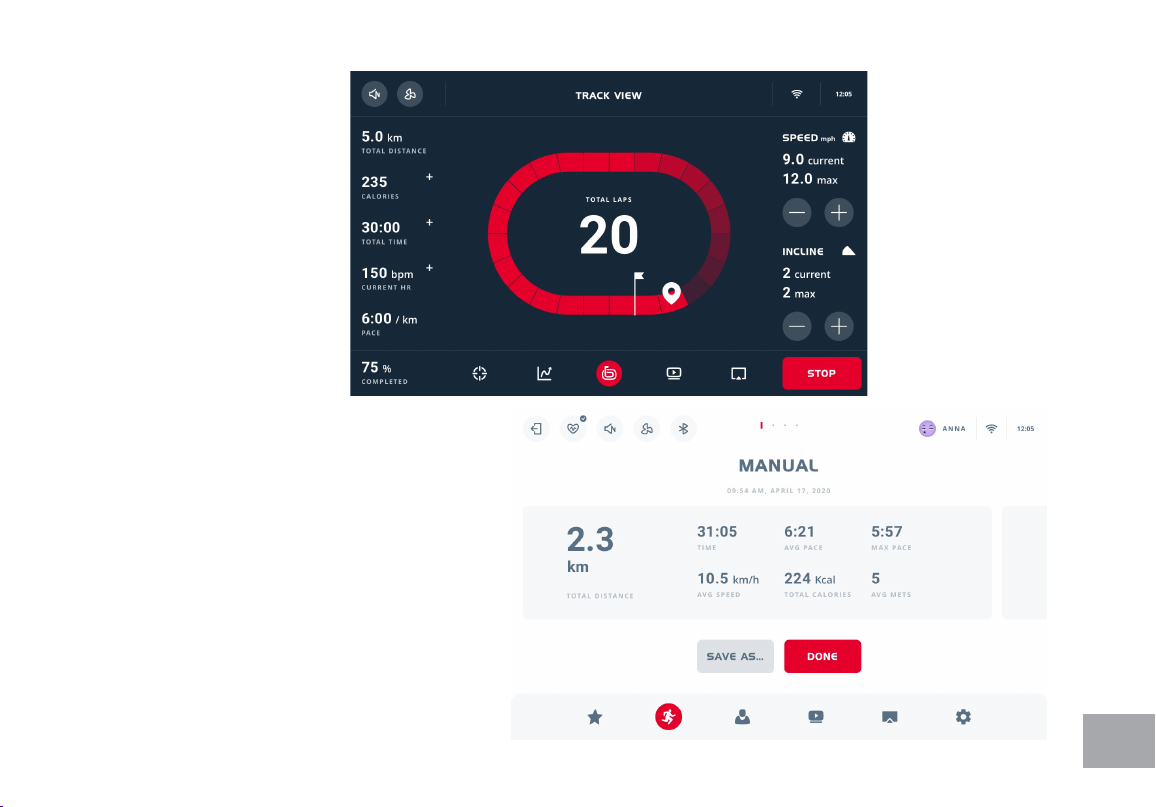

Track View
After the workout is nished, the workout
summary will appear. Slide to the left to
get more details or press Done to go
back to the Home screen. You can also
save the completed program as a template
from here, if you press Save as button. The
workout record will appear in History tab
of the Prole section.
32

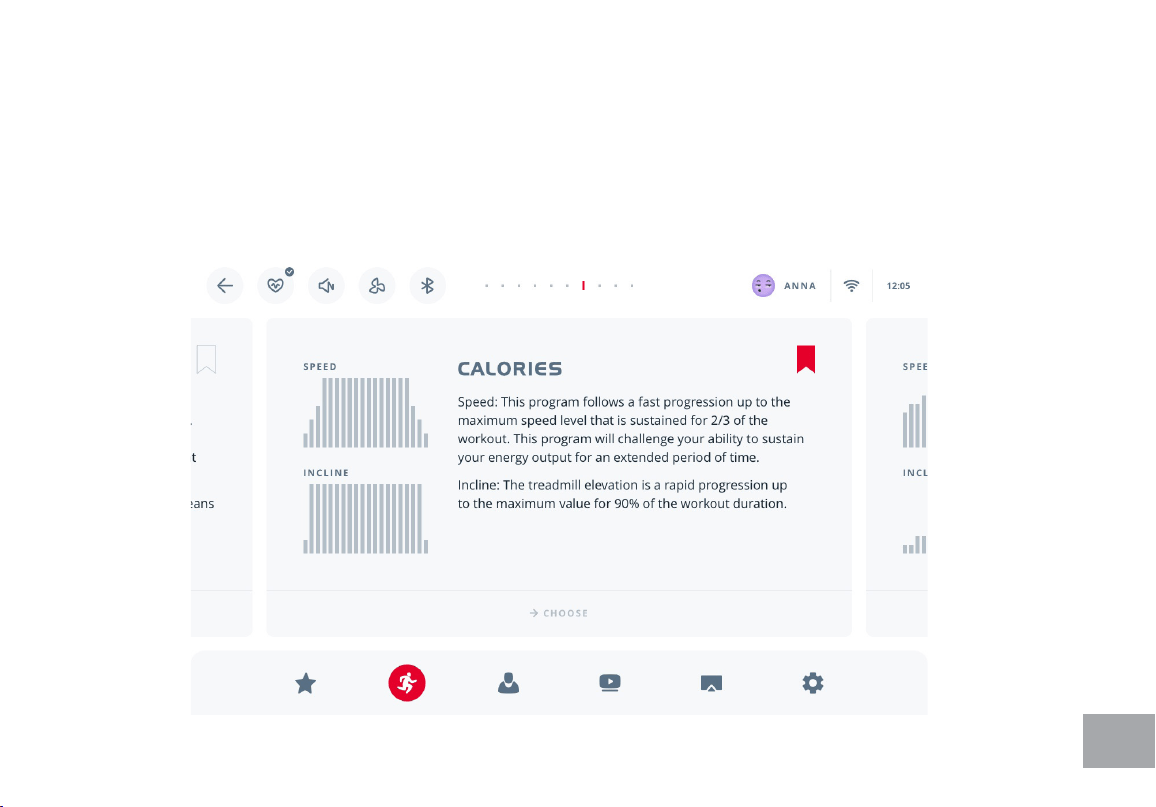

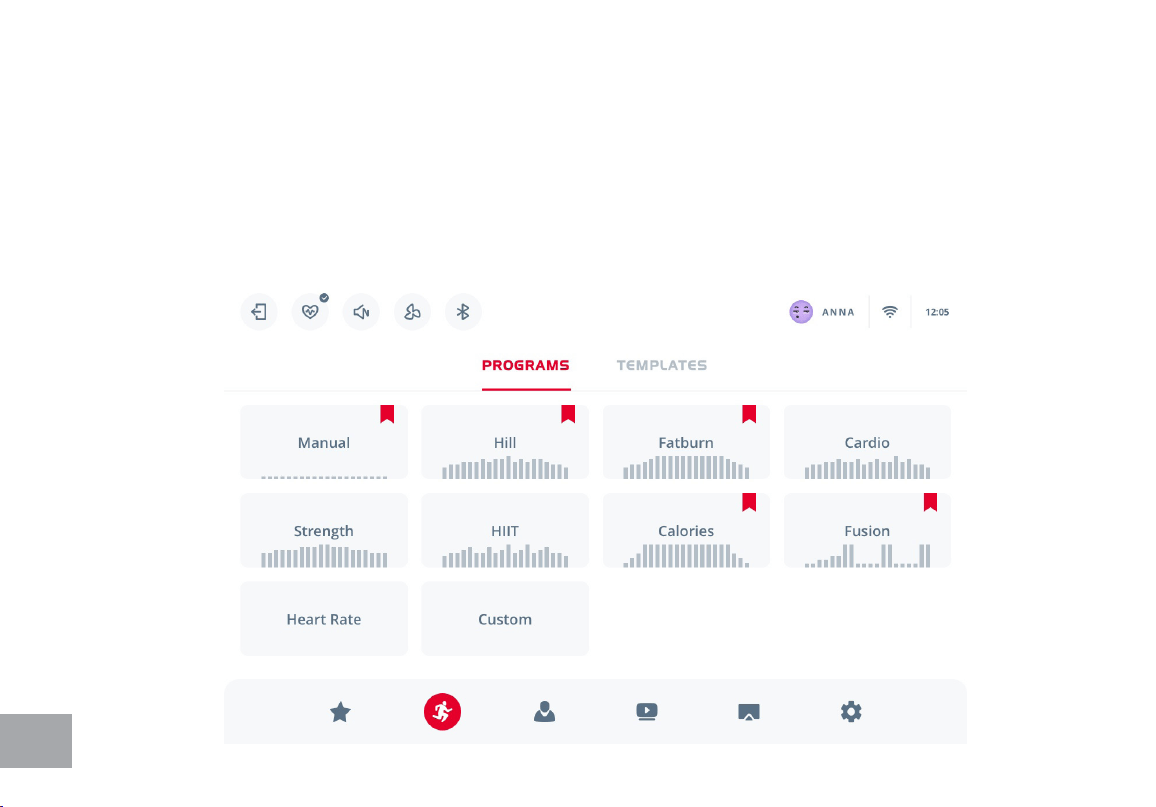

In this section, there are 2 program categories available: Programs (programs with predened speed
and incline changing proles) and Templates (regular programs, saved with your personal adjustments).
Tap on the category names to switch between them.
To get more info on each program, tap on the program preview. In this view you can scroll to the side
to see all the program descriptions of the selected category. Press CHOOSE to select and adjust a
program.
WORKOUT PROGRAMS
33
Any program can be labeled as FAVORITE.
Favorite programs appear on the Homescreen, so you can access them anytime you want.
34
MANUAL program requires a time frame set before starting. Use the scale or arrows to adjust
target time. Speed and incline are adjusted manually while running. Press START to begin workout.
35
HILL, FAT BURN, CARDIO, STRENGTH, HIIT programs have speed and incline changing proles,
which you can nd on the program preview. Time and maximum speed settings are required. Once you
choose your maximum speed, the program intensity will adapt accordingly.
The Speed numbers shown in the chart indicate a percentage of the top speed of the program. For
instance, the rst Speed setting for program HILL shows the number 20. This means that this segment
of the program will have a speed that is 20% of the top speed for the program. If the user sets the top
speed to 10 mph (16kph), then the rst segment will be 2 mph (3.2kph). You will notice that segment
12 shows 100 which means, the speed will be set to 100% of 10 mph or simply 10 mph (16kph).
PROGRAMS
36
HILL program follows a triangle or pyramid type of gradual progression from approximately 10%
of maximum effort (the level that you chose before starting this program) up to a maximum effort
which lasts for 10% of the total workout time, then a gradual regression of resistance back to
approximately 10% of maximum effort Incline: The deck elevation is a more gradual and sustained
progression. Maximum elevation is in the middle of the workout and lasts for 10% of the duration.
37
FAT BURN program follows a quick progression up to the maximum resistance level (default or
user input level) that is sustained for 2/3 of the workout. This program will challenge your ability
to sustain your energy output for an extended period of time. Incline: The deck elevation is a quick
and sustained progression up to the maximum value (default or user input) for 90% of the workout
duration.
38
CARDIO program presents a quick progression up to near maximum resistance level (default or
user input level). It has slight uctuations up and down to allow your heart rate to elevate, and then
recover repeatedly, before beginning a quick cool down. This will build up your heart muscle and
increase blood ow and lung capacity Incline: The elevation in this program is moderate. There are
several elevation spikes at different points of the workout. Segment 15 is maximum elevation for this
program.
39
STRENGTH program has a gradual progression of resistance up to 100% of maximum effort that
is sustained for 25% of workout duration. This will help build strength and muscular endurance in
the lower body and glutes. A brief cool down follows. Incline: There is a quick climb to a moderate,
sustained elevation that lasts the majority of the workout length.
40
HIIT, or High Intensity Interval Training, program takes you through high levels of intensity followed
by recovery periods of low intensity. This program utilizes and develops your “Fast Twitch” muscle
bers which are used when performing tasks that are intense and short in duration. These deplete
your oxygen level and spike your heart rate, followed by periods of recovery and heart rate drop to
replenish oxygen. Your cardiovascular system gets programmed to use oxygen more efciently.
Incline: This program will spike similar to the speed prole, but in different segments (columns); this
means that all of your lower extremity muscles will be equally challenged throughout this program.
The incline alternates between 25 & 65 % of maximum elevation.
41
CALORIES program will challenge your ability to sustain your energy output for an extended period
of time.
Speed: This program follows a quick progression up to the maximum speed level (default or user
input value) that is sustained for 2/3 of the workout.
Incline: The treadmill elevation is a quick and sustained progression up to the maximum value
(default or user input) for 90% of the workout duration.
42
FUSION program takes you through high levels of cardio & strength intensity followed by recovery
periods of low intensity. This program utilizes and develops your “Fast Twitch” muscle bers which
are used when performing tasks that are intense and short in duration. These deplete your oxygen
level and spike your heart rate, followed by periods of recovery and heart rate drop to replenish
oxygen. Your cardiovascular system gets programmed to use oxygen more efciently.
Incline: This program will spike similar to the speed prole, but in different segments (columns); this
means that all of your lower extremity muscles will be equally challenged throughout this program.
The incline alternates between 25 & 65 % of maximum elevation.
43
CUSTOM program allows to create customized speed and incline changing prole by sliding up and
down on the prole columns. Once the prole is dened, choose target time and maximum speed,
so the intensity adapts accordingly. Every program can be saved as a template once adjusted or
once completed. Press Save as to save the program with the current settings. You can manage saved
programs in TEMPLATES. To delete a template, tap on it, then press Delete in the top right corner.
Maximum of 12 template programs can be stored. A Template program is only available to a user
who created it.
44
Heart Rate Programs
Note: You must wear a heart rate transmitter strap for these programs
Both programs operate the same, the only difference is that HR1 is set to 60% and HR2 is set to
80% of the maximum heart rate. They both are programmed the same way. To start an HR program
select the HR1 or HR2 program, then the Next button and follow the directions on the screen.
45
Heart Rate Programs
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With
the proper use of a heart rate monitor, many people nd that their usual choice of exercise intensity
was either too high or too low and exercise is much more enjoyable by maintaining their heart rate
in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your Maximum
Heart Rate. This can be accomplished by using the following formula: 220 minus your age. This will
give you the Maximum Heart Rate (MHR)for someone of your age. To determine the effective
heart rate range for specic goals you simply calculate a percentage of your MHR. Your Heart rate
training zone is 50% to 90% of your maximum heart rate. 60% of your MHR is the recommended
for burning fat while 80% is recommended for strengthening the cardio vascular system. This 60% to
80% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
If you enter your age during programming the console will perform this calculation automatically.
Entering your age is used for the Heart Rate programs. After calculating your MHR you can decide
upon which goal you would like to pursue.
46
The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the
heart and lungs) and weight control. The black columns on the chart above represent the MHR
for a person whose age is listed at the bottom of each column. The training heart rate, for either
cardiovascular tness or weight loss, is represented by two different lines that cut diagonally
through the chart. A denition of the lines’ goal is in the bottom left-hand corner of the chart. If
your goal is cardiovascular tness or if it is weight loss, it can be achieved by training at 80% or 60%,
respectively, of your MHR on a schedule approved by your physician. Consult your physician before
participating in any exercise program.
47
Rate of Perceived Exertion
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level, physical
health, emotional health, temperature, humidity, the time of day, the last time you ate and what you
ate, all contribute to the intensity at which you should workout. If you listen to your body, it will tell
you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish
physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20 depending upon how you
feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
You can get an approximate heart rate level for each rating by simply adding a zero to each rating. For example a
rating of 12 will result in an approximate heart rate of 120 beats per minute. Your RPE will vary depending up the
factors discussed earlier. That is the major benet of this type of training. If your body is strong and rested, you will
feel strong and your pace will feel easier. When your body is in this condition, you are able to train harder and the
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition,
your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day.
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
48
Wearing The Chest Strap (Sold Separately)
1. Attach the transmitter to the elastic strap using the interlocking key.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain
comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing away
from your chest (some people must position the transmitter slightly left of center).
Attach the nal end of the elastic strap by inserting the round end and, using the
locking parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on the reverse side of the belt
and both sides of the transmitter). It’s also recommended that you wear the transmitter strap a few minutes before
your work out. Some users, because of body chemistry, have a more difcult time in achieving a strong, steady signal
at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal. The
length of range may vary somewhat but generally stay close enough to the console to maintain good, strong, reliable
readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you may wear
the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it automatically
deactivates when it does not receive any activity. Although the transmitter is water resistant, moisture can have the
effect of creating false signals, so you should take precautions to completely dry the transmitter after use to prolong
battery life (estimated transmitter battery life is 2500 hours). The replacement battery is Panasonic CR2032.
49
Using the Spirit App
In order to help you achieve your exercise goals, your new exercise machine comes equipped with a
Bluetooth® transceiver that will allow it to interact with selected phones or tablet computers via the
Spirit App.
Just download the free Spirit App from the Apple Store or Google Play, and then follow the
instructions in the App to sync with your exercise machine. Now you can view current workout
data in three different Display screens on your device. You can also easily switch back and forth from
the workout display view to internet/social media/email sites via icons on the display screen. When
your workout is nished, the data is automatically saved to the built-in personal calendar for future
reference.
The Spirit App also allows you to sync your workout data with one of many tness cloud sites.
Syncing the App with your exercise machine:
1. Download the App.
2. Open the App on your device (phone or tablet) and make sure Bluetooth® is enabled on your device
(phone or tablet).
3. In the App click the icon in the top left corner to search for your Spirit equipment (shown right).
4. After the equipment is detected, click Connect. When the App and equipment are synced, the
Bluetooth® icon on the equipment’s console display will light up. You may now start using your new Spirit Fitness
product.
5. When you workout is nished, the data is automatically saved and you will be prompted to sync your data with each
available tness cloud site. Please note you will have to download the applicable compatible tness App, in order for
the icon to be active and available.
*Note: Your device will need to be running on a minimum operating system of iOs 7 or Android 4.4 for the Spirit App to operate
properly.
50
ERRATIC OPERATION
Caution! Do not use this treadmill for Heart Rate programs unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Treadmill is not grounded
2. Microwave ovens, TV’s, small appliances, etc.
3. Fluorescent lights.
4. Some household security systems.
5. Perimeter fence for a pet.
6. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
7. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole
machine 90 degrees may de-tune the interference.
8. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
51
GENERAL MAINTENANCE
Belt/Deck
Your treadmill uses a very high-efcient low-friction deck. Performance is maximized when the deck is kept as clean as
possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the
frame. Also reach as far as practical directly under the belt edge. This should be done once a month to extend belt and
deck life. A mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt. Allow to
dry before using. This occurs during normal break-in or until the belt stabilizes. Sometimes the black dust from the belt
will appear on the oor behind the treadmill, this is normal.
General Cleaning
Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. Please vacuum underneath your treadmill
on a monthly basis to prevent excess build-up of dirt that can get sucked up and get into the inner workings under the
motor cover. Once a year, you should remove the black motor hood and vacuum out dirt that may accumulate.
UNPLUG POWER CORD BEFORE THIS TASK.
Belt Adjustments
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important though for joggers and
runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 6
mm Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails as shown
in the diagram below.
Tighten the rear roller only enough to prevent slippage at the front roller. Turn the tread-belt tension adjusting bolts 1/4
turn each and inspect for proper tension by walking on the belt and making sure it is not slipping or hesitating with each
step. When an adjustment is made to the belt tension, you must be sure to turn the bolts on both sides evenly or the
belt could start tracking to one side instead of running in the middle of the deck.
52
DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing failure. If you tighten the
belt a lot and it still slips, the problem could actually be the drive belt - located under the motor cover - that connects
the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor
belt should be done by a trained service person.
Treadbelt Tracking Adjustment
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to
drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues
to move toward one side, adjustments are necessary.
Setting Tread-Belt Tracking
A 6 mm Allen wrench is provided for this adjustment. Make tracking adjustments on the left side bolt. Set belt speed
at 3 mph ( 5 kmph). Be aware that a small adjustment can make a dramatic difference which may not be apparent right
away. If the belt is too close to the left side, then turn the bolt only a 1/4 turn to the right (clockwise) and wait a few
minutes for the belt to adjust itself.
Continue to make 1/4 turns until the belt stabilizes in the center of the running deck. If the belt is too close to the right
side, turn the bolt counter-clockwise. The belt may require periodic tracking adjustment depending on use and walking/
running characteristics. Some users may affect tracking differently. Expect to make adjustments as required to center the
tread-belt. Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner
responsibility common with all treadmills.
ATTENTION:
DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION
ADJUSTMENTS IS NOT COVERED UNDER THE WARRANTY.
53
Belt/Deck Lubrication Procedure
These First, you want to clean between the belt and deck to remove any debris that may be trapped. Use a clean, non-
fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill and motor cover, shove the garment under
the belt until you can grasp it on both sides. Drag the garment the length of the entire belt 1-2 times. Remove the
garment.
Do not lubricate with anything other than Spirit Fitness approved lubricant. Your treadmill comes with one tube of
“Lube” and extra tubes can be ordered directly from Spirit Fitness or your authorized Spirit Fitness dealer. You may also
use a Lube-n-walk kit that can be purchased through both aforementioned sellers.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible for your treadmill. If the
lubricant dries out, the friction between the belt and deck rises and places undue stress on the drive motor, drive belt
and electronic motor control board, which could result in catastrophic failure of these expensive components. Failure to
lubricate the deck at regular intervals may void the warranty.
The belt & deck come pre-lubricated and subsequent lubrication should be performed every 90 hours of use or if you
notice that the deck is dry. It is recommended that you reach between the belt and deck to verify there is lubrication
present, every other month. If you check and there isn’t any lubrication present, follow the procedure below even
though the “Lube” indicator isn’t lit on the console. Otherwise, lubricate when the console’s lubrication reminder lights
after 90 hours of use. Use the following procedure to apply the silicone lubricant:
1. Turn the power switch off and unplug the power cord from the wall outlet
2. Measure 18” from the edge of the motor cover; kneel down and reach under the belt approximately 4- 6” from one
edge. Squirt a line of lubricant about 1/8” wide x 15” long in an “S” pattern perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly distribute the silicone lube.
6. Note: If the “Lube” message appears on the console, click the “Ignore” key to reset the message:
54
Service Checklist Diagnosis Guide
Problem Solution/ Cause
Display does not light
1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed into 115 VAC wall
outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your Spirit Fitness dealer.
Tread-belt does not stay centered
Treadmill belt hesitates when walked/ run on
The user may be walking while favoring or putting more weight on either the left
or right foot. If this walking pattern is natural, track the belt slightly off-center to
the side opposite from the belt movement. See General Maintenance section on
Tread-belt Tension. Adjust as necessary.
Motor is not responsive after pressing start
1.If the belt moves, but stops after a short time and the display shows “E1”, run
calibration.
2. If you press Start and the belt never moves, then the display shows E1, contact
service.
Treadmill will only achieve approximately 7mph but shows
higher on the display
This indicates motor should be receiving power to operate. Low AC voltage to
treadmill. Do not use an extension cord. If an extension cord is required it should
be as short as possible and heavy duty 16 gauge minimum. Low voltage. Contact
an electrician or your Spirit Fitness dealer. A minimum of 110 volt AC current is
required.
Tread-belt stops quickly/suddenly when tether cord is pulled
High belt/deck friction. See General Maintenance section on cleaning the deck. If
cleaning doesn’t prevent this from reoccurring, check to see if there is signicant
wear of the deck. If so, the deck may need to be ipped if it is on its original side
Treadmill trips on board 15 amp circuit
High belt/deck friction. See General Maintenance. If cleaning doesn’t prevent this
from reoccurring, check the amp draw of the motor. If this is high and there are
signs of signicant wear of the deck, it may need to be ipped if it is on its original
side
Computer shuts off when console is touched (on a cold day)
while walking/running
Treadmill may not be grounded. Static electricity is “crashing” the computer. Refer
to Grounding Instructions.
Circuit breaker trips, but not the treadmill circuit breaker
Check that the treadmill is the only appliance in the circuit. See “Important Electri-
cal Information” in the front of this manual for more details.
55
Treadmill Warranty - Effective March 16, 2021
Spirit Fitness, Inc. (Spirit Fitness) warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by
sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include
providing new or remanufactured parts, at Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the
absence of a dealer or service organization, these warranties will be administered by Spirit Fitness directly to a consumer. The warranty period applies
to the following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household, and the consumer/facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to
validate the manufacturer’s limited warranty.
2. Proper use of the treadmill in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the treadmill and with all local electric codes.
4. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was shipped from
the factory.
5. Damages to the treadmill nish during shipping, installation or following installation.
6. Routine maintenance of this unit as specied in this manual.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply
to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for
treadmill not requiring component replacement, or treadmill not in ordinary household or light commercial use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of parts other than original Spirit
Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modications, abuse, misuse, accident, improper
maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
Warranty
Residential
Motor
Lifetime
Deck
Lifetime
Console Parts
2 Years
Labor
1 Year
Frame
Lifetime
Parts
10 Years
56
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no
warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting or non-dues paying facility with 5 hours use or less per day.
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined
by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product through one of our
authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is shipped to a service center freight charges to and
from the service center will be the customer’s responsibility. For replacement parts shipped while the product is under warranty, the customer
will be responsible for shipping and handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an
additional trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for damages in shipping.
Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT A RETURN
AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Spirit Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Fitness, Inc. This
warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
57
XT625-NT042-01
51
49
45
12
11
12
16
103
14
114
13
107
13
93
15
28
117
128
128
128
128
128
128
120
120
120
61
27
31
118
2
58
104
87
130
86
58
104
87
57
77
106
99
99
106
130
77
57
86
130
130
98
98
88
88
100
100
19
8
9
72
80
80
72
21-3
21-3
21
101
89
36
118
132131
1091231AM0815
117
70
34
20
113
105
113
85
115
70
117
105
134
24
23
92
92
92
92
95
92
95
92
59
60
117
112
117
112
117
112
112
117
79
79
119
150
150
150
150
56
102
29
81
56
84
29
44
127
43
41
99
106
42
115
56
117
117
111
126
126
29
56
71
56
81
115
126
126
134
111
117
102
73
73
102
22
94
109
108
100
18
97
17
111
29
1
56
111
117
35
82
96
117
141
141
134
141
126
29
98
72
3
72
98
106
83
99
117
117
139
10
135
136
120
120
120
62
26
SPIRIT_美國(SPIRIT XT485 ENT)
115
115
115
115
29
126
117
117
117
117
117
117
117
117
117
117
117
117
117
117
117
117
32
33
117
117
117
117
117
5
4
52-31
52-31
6
25
25
39-1
39-1
39-3
39-2
39-4
39-4
39-5
39-5
50
48
37
38
52-1
52-3
52-4
52-8
52-7
52-10
52-11
52-11
52-12
52-13
52-16
52-16
52-18
52-19
52-21
52-21
135
52-32
52-23
135
52-32
52-23
52-25
52-26
52-34
52-34
52-34
52-34
135
52-33
52-33
52-33
52-2
52-5
53
54
55
63
64
66
67
138
140
140
145
110
120
110
120
110
120
110
120
120
120
120
120
120
122
122
122
52-34
52-34
124
125
125
133
113
133
113
142
142
30
148
122
75
117
68
90
168
69
117
90
168
135
135
115
52-27
134
141
52-24
52-35
121
117
151
46
47
152
153
58
XT485ENT Parts List
1 Main Frame 1
2 Frame Base 1
3 Incline Bracket 1
4 Right Upright 1
5 Left Upright 1
6 Console Support 1
8 Inner Slide 1
9 Outer Slide 1
10 Link 1
11 Link Shaft 1
12 Shaft Bushing 2
13 Fastening Bracket 2
14 Clevis Pin 1
15 Fastening Bushing 1
16 Dual Torsion-Spring 1
17 Release Lever 1
18 ChenChin Torsion-Spring 1
19 Cylinder 1
20 Drive Belt 1
21 Front Roller W/Pulley 1
21~3 Magnet 2
22 Rear Roller 1
23 Running Deck 1
24 Running Belt 1
25 PVC Handgrip 2
26 Deck Cross Brace 1
27 Steel Cable Tension Spring 1
28 Wire Clamp 1
29 Wire Tie Mount 8
30 Lubricant 1
31 Steel Cable 1
32 Top Frame Cover 1
33 Bottom Frame Cover 1
34 Drive Motor 1
35 Incline Motor 1
36 Motor Controller 1
37 800m/m_Speed Cable (Upper) 1
38 800m/m_Incline Cable (Upper) 1
39~1 Handpulse Plate 4
39~2 1100m/m_Handpulse Wire(White) 1
39~3 1100m/m_Handpulse Wire(Red) 1
39~4 Handpulse Top Cover 2
39~5 Handpulse Bottom Cover 2
41 Breaker 1
42 Power Socket 1
43 On/Off Switch 1
44 Power Cord 1
45 100m/m_Connecting Wire (Black) 1
46 100m/m_Connecting Wire (White) 1
47 100m/m_Connecting Wire (Black) 1
48 800m/m_Computer Cable (Upper) 1
49 1200m/m_Computer Cable(Lower) 1
50 1250m/m_Computer Cable(Middle) 1
51 1000m/m_Ground Wire 1
52 Console Assembly 1
52~1 Console Top Cover 1
52~2 Console Bottom Cover 1
52~3 Drink Bottle Holder (L) 1
52~4 Drink Bottle Holder (R) 1
52~5 LOGO Chain Cover 1
52~7 Wind Duct 1
59
52~8 Book Rack 1
52~10 Deector Fan Grill 1
52~11 Square Magnet Stop Plate 2
52~12 Console Display Board 1
52~13 Key Board 1
52~16 Fixing block 2
52~18 400m/m_Safety Switch Module W/ Cable 1
52~19 Fan Assembly 1
52~21 Fan Grill Anchor 2
52~22 500m/m_Speaker W/Cable 1
52~23 250m/m_Speaker W/Cable 2
52~24 400m/m_Sound Board(Red) 1
52~25 W/Receiver, HR 1
52~26 USB Audio module 1
52~27 Console Ground Wire 1
52-31 3.5 × 40m/m_ Sheet Metal Screw 8
52-32 Speaker Grill Anchor 6
52-33 2.3 × 6m/m_Sheet Metal Screw 21
52-34 3.5 × 12m/m_Sheet Metal Screw 16
52-35 3 × 8m/m_Sheet Metal Screw 2
53 Motor Top Cover 1
54 300m/m_Speed Adjustment Switch W/Cable 1
55 300m/m_Incline Adjustment Switch W/Cable 1
56 Cushion 6
57 Transportation Wheel(A) 2
58 Transportation Wheel(B) 2
59 Foot Rail Cap (L) 1
60 Foot Rail Cap (R) 1
61 Frame Base Cover (L) 1
62 Frame Base Cover (R) 1
63 Handpulse End Cap Top Cover 2
64 Handpulse End Cap Bottom Cover 2
66 Upright Cover(L) 1
67 Upright Cover(R) 1
68 Rear Adjustment Base (L) 1
69 Rear Adjustment Base (R) 1
70 Motor Cover Anchor(D) 2
71 Ø25 × Ø10 × 3T_Nylon Washer (A) 2
72 Ø50 × Ø13 × 3T_Nylon Washer (B) 4
73 Adjustment Foot Pad 2
75 Quadrate Safety Key 1
77 Wheel Sleeve 2
79 Aluminum Foot Rail 2
80 1/2" × 1-1/4"_Carriage Bolt 2
81 1/2" × 1"_Hex Head Bolt 2
82 3/8" × 4-1/2"_Socket Head Cap Bolt 1
83 3/8" × 3-3/4"_Button Head Socket Bolt 1
84 3/8" × UNC16 × 1-1/2"_Hex Head Bolt 1
85 3/8" × 1-1/4"_Hex Head Bolt 4
86 3/8" × 2"_Flat Head Socket Bolt 2
87 5/16" × 1"_Button Head Socket Bolt 2
88 5/16" × 2-3/4"_Button Head Socket Bolt 2
89 M8 × 60m/m_Hex Head Bolt 1
90 M8 × 80m/m_Socket Head Cap Bolt 2
92 M8 × 35m/m_Flat Head Countersink Bolt 6
93 M3 × 10m/m_Phillips Head Screw 1
94 M5 × 20m/m_Phillips Head Screw 1
95 M8 × 55m/m_Flat Head Countersink Bolt 2
96 5/16" × 42m/m_Button Head Socket Bolt 1
97 M5 × 5T_Nyloc Nut 1
98 1/2" × UNC12 × 8T_Nyloc Nut 4
99 3/8" × 7T_Nyloc Nut 4
60
100 5/16" × 6T_Nyloc Nut 3
101 M8 × 7T_Nyloc Nut 1
102 3/8" × 7T_Luck Nut 3
103 M3 × 2.5T_Luck Nut 1
104 Ø5/16" × Ø35 × 1.5T_Flat Washer 2
105 Ø3/8" × Ø25 × 2.0T_Flat Washer 4
106 Ø3/8" × Ø19 × 1.5T_Flat Washer 4
107 Ø5 × Ø10 × 1.0T_Flat Washer 2
108 Ø5/16" × Ø18 × 1.5T_Flat Washer 1
109 Ø5 × Ø12 × 1.0T_Flat Washer 1
110 Ø6.5 × Ø16 × 1.0T_Flat Washer 4
111 Ø6 × Ø23 × Ø13 × 5.5T × 3T_Nylon Dished Washer 4
112 Ø5.5 × 27 × 60 × 1.5T × 3.5H_Concave Washer 4
113 Ø10 × 2.0T_Spring Washer 8
114 M3_Spring Washer 1
115 M5_Star Washer 8
117 Ø5 × 16L_Tapping Screw 55
118 5 × 32m/m_Tapping Screw 2
119 Handrail Support 1
120 5 × 16m/m_Tapping Screw 15
121 Beverage Holder 1
122 3.5 × 12m/m_Sheet Metal Screw 20
124 3 × 10m/m_Tapping Screw 6
125 4 × 50/mm_Sheet Metal Screw 2
126 3.5 × 16m/m_Tapping Screw 8
127 3 × 10m/m_Sheet Metal Screw 2
128 M5_Speed Nut Clip 6
130 5/16" × UNC18 × 15L_Button Head Socket Bolt 8
131 M5_Combination M5 Allen Wrench & Phillips Head
Screw Driver
1
132 L Allen Wrench 1
133 3/8" × 1-1/2"_Button Head Socket Bolt 4
134 M5 × 10m/m_Phillips Head Screw 4
135 3 × 8m/m_Sheet Metal Screw 19
136 Controller Back Plate 1
138 Chest Strap 1
139 Front Motor Cover 1
140 Handgrip End Cap 2
141 Ø5 × 1.5T_Spring Washer 4
142 3.5 × 16m/m_Sheet Metal Screw 8
145 400m/m_Audio Cable 1
148 Phillips Head Screw Driver 1
150 5/16" × 3/4"_Button Head Socket Bolt 4
151 Filter 1
152 200m/m_Connecting Wire (White) 1
153 200m/m_Connecting Wire (Black) 1
168 Ø8.5 × Ø16 × 1.5T_Flat Washer 2
201215
61
USER NOTES:
62
USER NOTES:
63
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
XT485ENT Owners Manual
© 2021 All Rights Reserved
Revision: 04.16.2021
