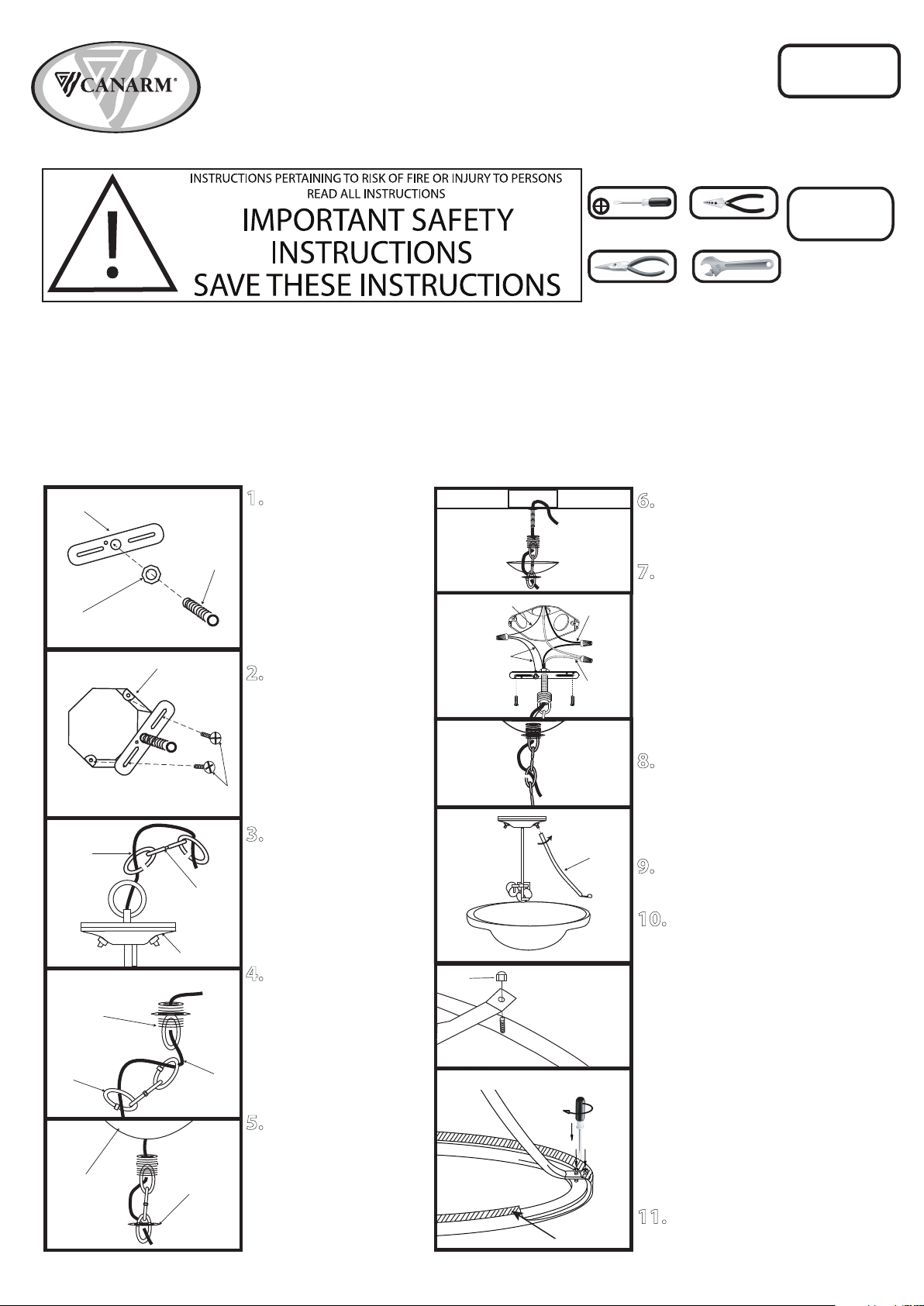

1. Attach nipple to
mounting bracket. Adjust
so nipple will extend
beyond canopy when
installed. Spin hex nut
over nipple and tighten
against mounting bracket,
locking in place.
2. Attach mounting
bracket to electrical box
using electrical box screws
(not Included).
3. Twist loop of chain
open and attach to
fixture. Close loop on
chain and weave power
cord through loops in
chain.
4. Twist the loop at the
other end of the chain
and attach to upper
connector. Close loop on
chain and feed power
cord through upper
connector.
5. Spin nut off of upper
connector and slip power
cord and upper connector
through canopy.
6. Feed power cord through nipple
and tighten upper connector to
nipple.
7. Connect the ground wires (bare
copper or green) from your fixture
to the ground wire (bare copper or
green) or ground screw in the
electrical outlet box. Connect the
black wire (or wire marked “SPT-1”)
from the fixture to the black wire in
the electrical box and connect the
white wire from the fixture to the
white wire in the electrical box.
8. Tuck electrical wires into
electrical box. Slide canopy into
position and tighten in place by
sliding upper connector nut into
position and tighten.
9. Screw the arms into the studs.
position the arms in place.
10. Note: Refer to the style of
assembly that matches the
style of your fixture.
Style#1: Tighten the arm onto
the screw by nut. Repeat for
other arms.
Style#2: Set glass in pan. Slide
the arms under the edge. Insert
screw through the hole at the
end of the arm. Tighten the
screw through the arm and into
the glass to lock the arm in
place. Repeat for other arms.
11. Install proper bulb type and
wattage (not included).
Mounting Bracket
Hex Nut
Nipple
Power
Cord
Chain
Fixture
Electrical
Box
Screws
Chain
Power
Cord
Upper
Connector
Canopy
Nut
C-7
04/14
QUESTIONS OR CONCERNS CONTACT CANARM AT:
TOOLS AND MATERIALS REQUIRED:
SAFETY PRECAUTIONS:
Phillips
Screwdriver
Wire Cutters
Wiring supplies
as required by
electrical code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
NOTE: Product May Not Look Exactly As Shown In Figures.
Pliers Wrench
INSTALLATION:
Nut
Arm
CHANDELIER
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
1-800-265-1833 (English) 1-800-567-2513 (French) 1-800-267-4427 (USA)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
Edge
Style#2
Style#1
White
Black
House supply
Ground wire
Fixture
Ground
wire
