4. Loosen the nut on the upper
connector and slide it down the chain
towards the lower connector. Slide the
canopy down the chain towards the
lower connector. Feed the wire
through nut, canopy, the upper
connector and onto the nipple.
Tighten the upper connector onto the
nipple. Spread the other end of the
chain open and fasten to the upper
connector. Ensure the opening is
closed.
5. Connect the ground wires (bare
copper or green) from your fixture to
the ground wire (bare copper or
green) or ground screw in the
electrical outlet box. Connect the
black wire (or wire marked “SPT-1”)
from the fixture to the black wire in the
electrical box and connect the white
wire from the fixture to the white wire
in the electrical box.
6. Once connections of wires are
completed, carefully tuck wires and
wire nuts into the outlet box making
sure no bare wire (on the black and
white) is visible at the wire nuts. Slide
canopy into position and tighten in
place by nut into position.
7. Attach the stem to the fixture.
Secure the glass in place using the
fibre washer, hex nut, and finial.
8. Install specified bulb type and
wattage (not included).
SAFETY PRECAUTIONS:
CHANDELIER
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
Power
Cord
Chain
Lower
Connector
Canopy
Nipple
Upper
Connector
Nipple
Hex Nut
Outlet Box
Outlet Box Screws
(not included)
Mounting
Bracket
Nut
1. Slightly insert the
decorative stem into the screw
stud and tighten by a star
washer, hex nut and the finial.
2. Attach the mounting
bracket to the outlet box using
electrical box screws (not
included) . Attach the nipple
to the mounting bracket and
adjust until it will clear the
canopy when assembled (Place
the canopy over the nipple and
tighten the upper connector
onto the nipple until snug.
The upper connector should
hold the canopy snug to the
ceiling). Lock the nipple in the
correct position using the hex
nut.
3. To attach chain loop to
light fixture, use a screwdriver
and wrench to open and close
chain loop. Ensure to close the
opening. Weave the power
cord and ground wire through
the links in the chain.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Canopy
Nut
White
Black
House supply
Ground wire
Fixture
Ground
wire

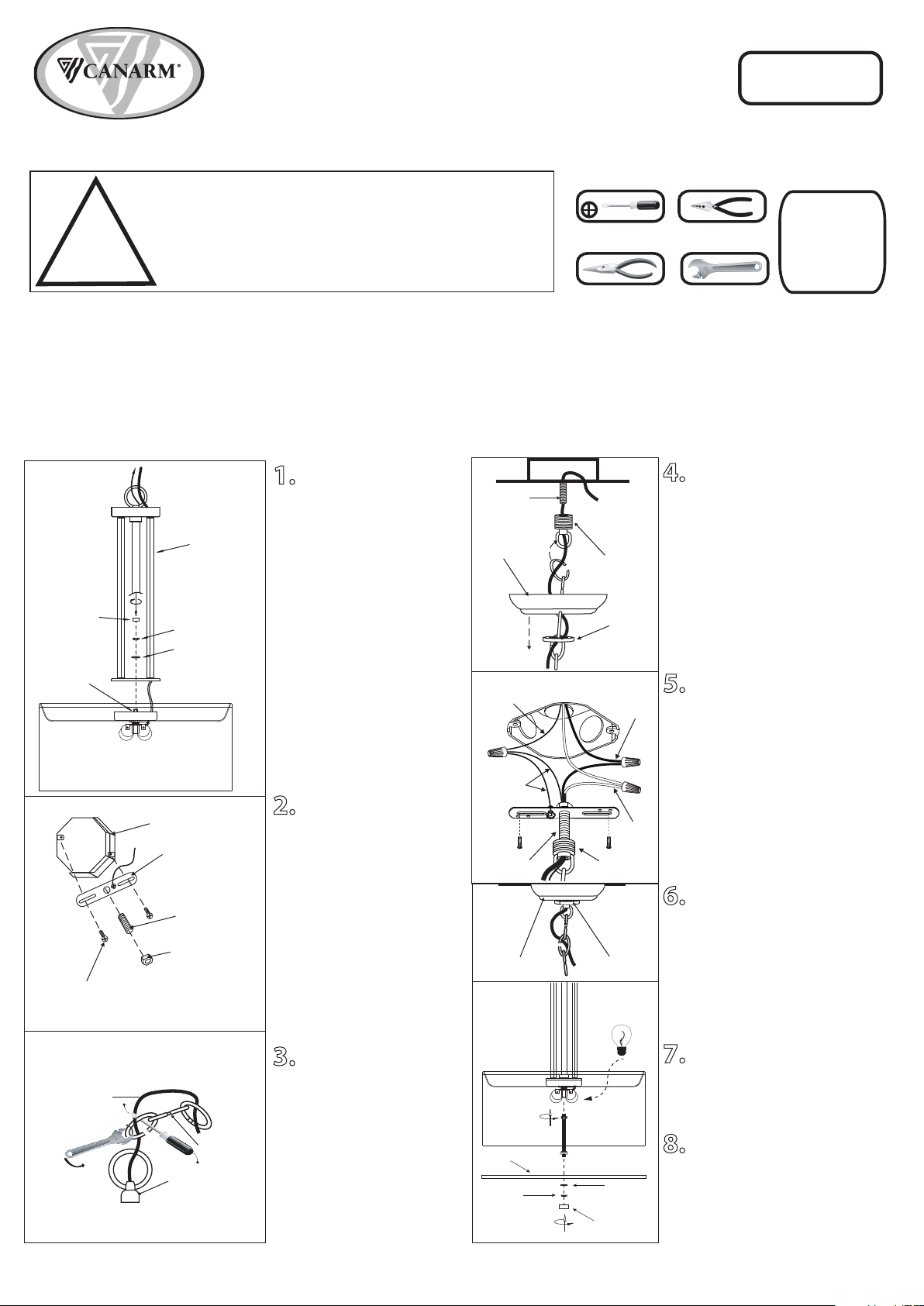

INSTALLATION:
Upper
Connector
Nipple
