INSTALLATION:
SAFETY PRECAUTIONS:
EASY CONNECT®
INSTALLATION INSTRUCTIONS
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE. DO NOT REMOVE
INSULATION FROM FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598

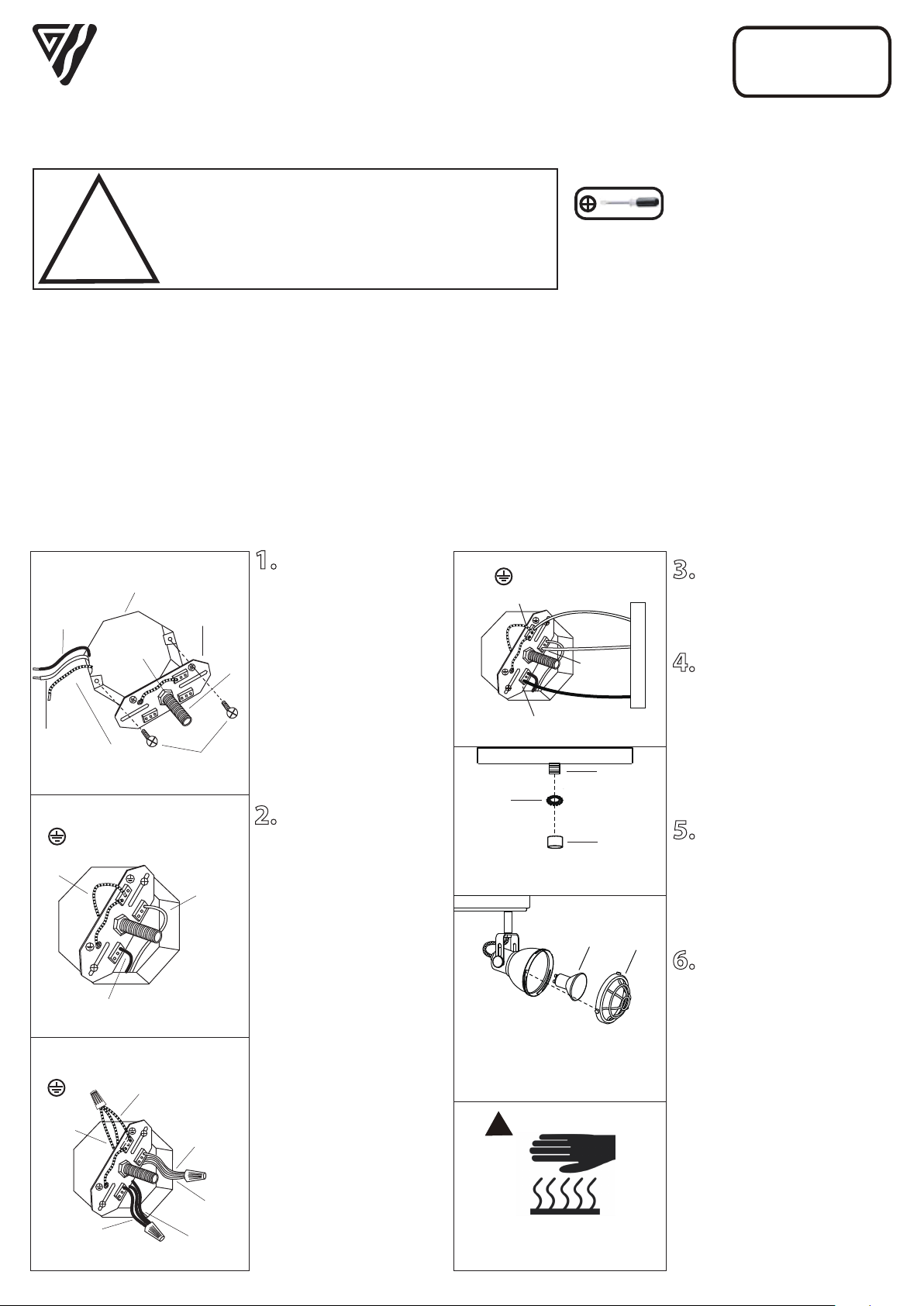

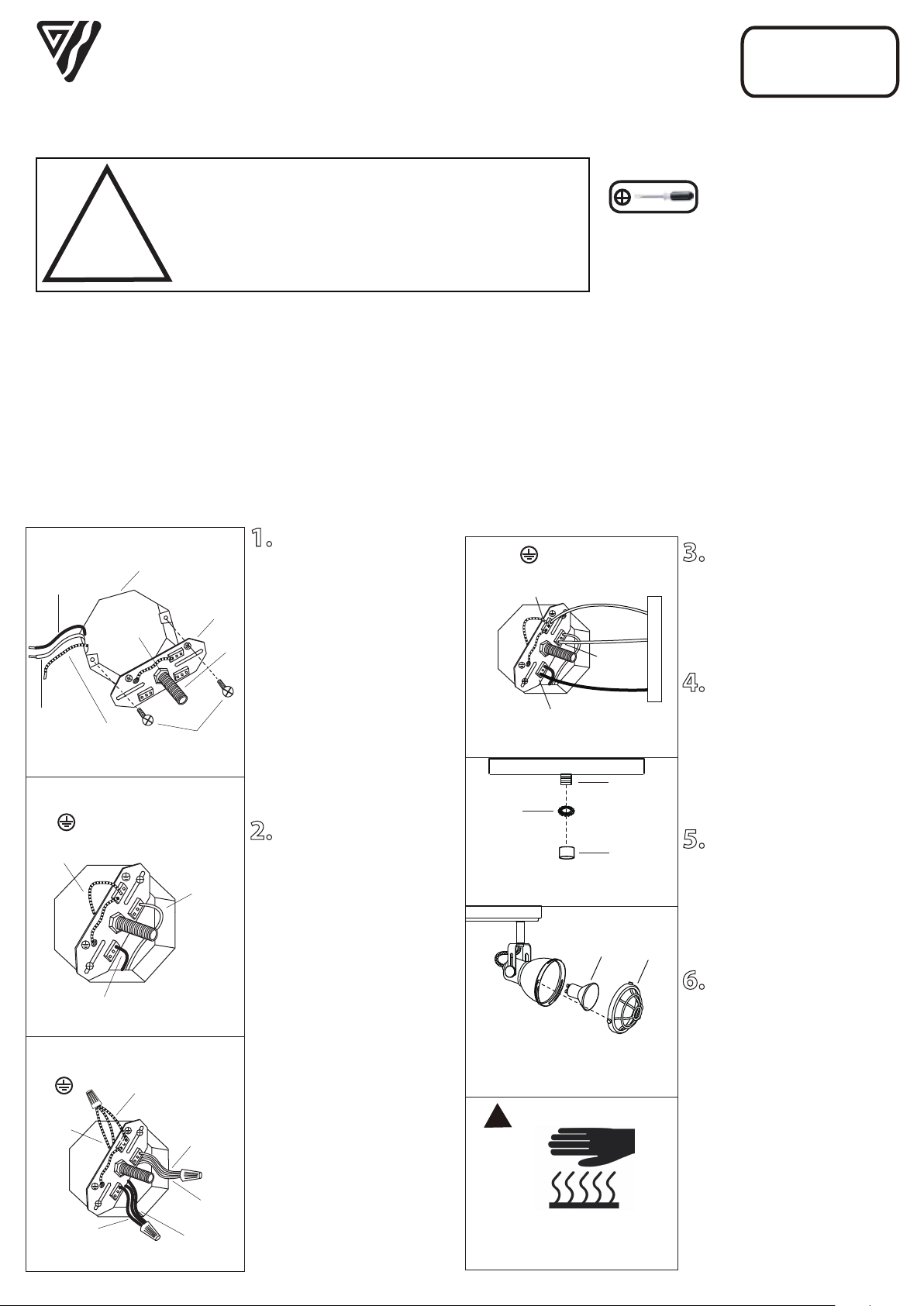

1. Attach nipple to
mounting bracket. Adjust
so it will clear hole in back
of fixture and then lock
nipple in place with hex
nut. Attach mounting
bracket to electrical box
with electrical box screws
(not included).
2. Option 1: Connect
(push) electrical wires from
electric box (house wiring)
into correct inserts.
Option 2: For multiple
green (ground), black (live)
and white (neutral) wires
joined in the electrical box
(house wiring), attach a
single “green”, “black” and
“white” jumper wire before
connecting. Strip 7mm
from a 6 in. jumper wires
(AWG 12-24) supplied. Then
connect (push) wires into
the correct inserts.
Green
(Ground)
Green
(Ground)
Option 1
Option 2
Green (Ground)
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Once connections of
wires are completed, carefully
tuck wires and wire nuts into
the electrical box making sure
no bare wire (on the black and
white) is visible at the wire
nuts.
5. Position hole in fixture
over nipple and secure in
place with star washer and
cap nut.
6. Unscrew the guard from
the fixture. Install proper bulb
type and wattage (not
included). Re- install the guard
to the fixture.
ICW447B02XXX10
ICW447B03XXX10
11/17
Black
(Live)
White
(Neutral)
Green
(Ground)
Easy Connect
mounting
bracket
Electrical
Box
Electrical box
screws
L
N
Hex nut
Nipple
Nipple
(L)
Black (Live)
(N)
White
(Neutral)
L
N
(L)
Black (Live)
(N)
White
(Neutral)
Jumper
Wire
Jumper Wire
Jumper
Wire
L
N
(L)
Black (Live)
(N)
White
(Neutral)
L
N
Fixture
Cap Nut
Star
Washer
WARNING
Warning - HOT :
Do not touch any metal surface.
!
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Bulb
Guard
