INSTALLATION:
ICW447B01XXX10
IT447B02/03/04XXX10
11/17
SAFETY PRECAUTIONS:
EASY CONNECT®

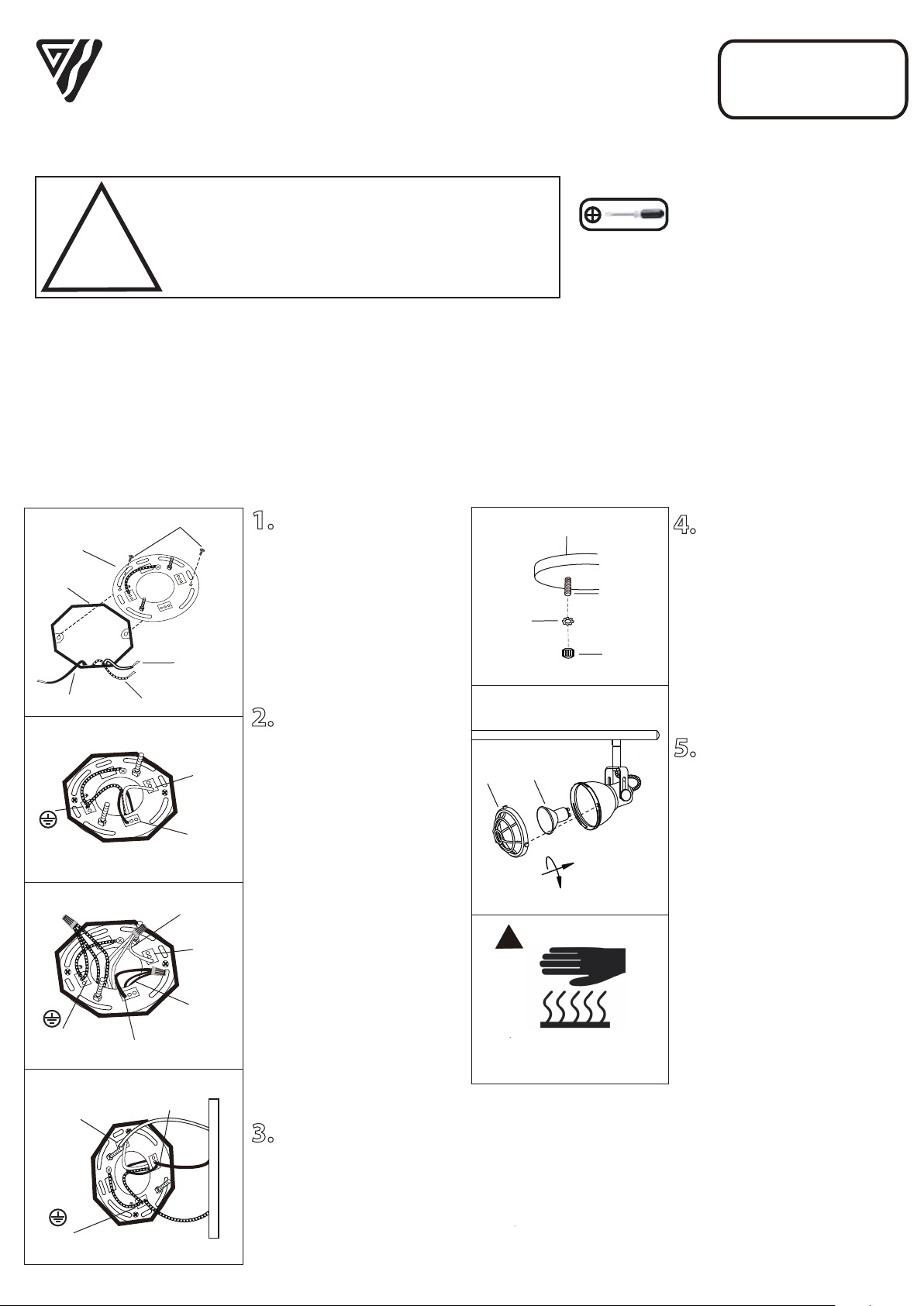

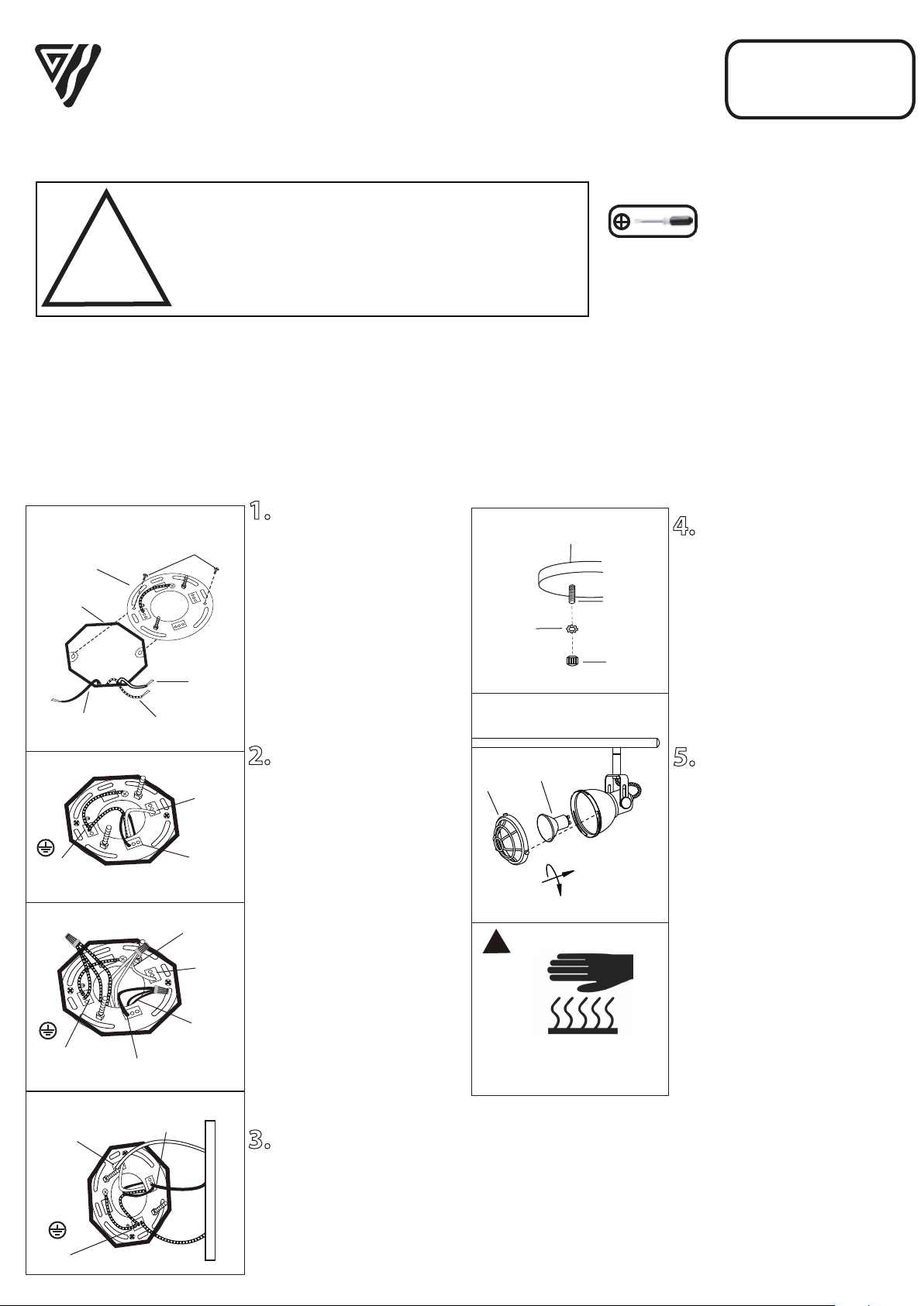

INSTALLATION INSTRUCTIONS
NOTE: Product may not look exactly as shown in figures.
1. Attach easy connect
mounting bracket to electrical
box with electrical box screws
(not included).
2. Option 1: Connect (push)
electrical wires from electric
box (house wiring) into correct
inserts.
Option 2: For multiple green
(ground), black (live) and
white (neutral) wires joined in
the electrical box (house
wiring), attach a single “green”,
“black” and “white” jumper
wire before connecting. Strip
7mm from the 6” jumper wires
(AWG 12-24) supplied. Then
connect (push) wires into the
correct inserts.
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Unscrew the guard from
the fixture. Install proper bulb
type and wattage (not
included). Re- install the guard
to the fixture.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
L
N
L
N
Fixture
Option 1
Option 2
Black (Live)
White
(Neutral)
Green (Ground)
Easy Connect
mounting
bracket
(L)
Black
(Live)
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
Jumper Wire
Jumper Wire
Electrical
box screws
Electrical
Box
L
N
L
N
Star
Washer
Cap
Nut
Fixture
Stud
WARNING
Warning - HOT :
Do not touch any metal surface.
!
Bulb
Guard
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
